Juki DDL-7000A-7 Parts Book PDF — View & Download

Parts index — Juki DDL-7000A-7tap a row to open its page

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-7000A-7 parts on page 4
Ref	Part number	Part name
8	8	SCREW
64	64	BRACKET
10	10	SCREW
11	11	COVER
29	29	SCREW
28	28	HANDLE
5	5	PLUG
6	6	PLUG
27	27	SCREW
12	12	BRACKET
42	42	SPRING
4	4	BRACKET
3	3	SCREW
57	57	NUT
B	B	COVER
65	65	SPRING
66	66	SCREW
59	59	SPRING
55	55	BRACKET
A	A	COVER
58	58	SCREW
1	1	COVER
2	2	GASKET
49	49	CAP
50	50	SCREW
47	47	BRACKET
48	48	SCREW
46	46	BRACKET
67	67	SHAFT
51	51	COVER
52	52	PLATE
53	53	SPRING
54	54	SCREW
20	20	KNOB
30	30	SPRING
31	31	SCREW
43	43	BRACKET
41	41	SPRING
40	40	SHAFT
39	39	SPRING
38	38	SHAFT
32.72	32.72	SHAFT
35.74	35.74	SPRING
33	33	GEAR
34	34	SPRING
36	36	GEAR
37.73	37.73	SPRING
21.70	21.70	SHAFT
22	22	GEAR
23	23	WASHER
24	24	WASHER
26	26	GEAR
25.71	25.71	SHAFT
19	19	COLLAR
13	13	COVER
16	16	BEARING
60	60	SCREW
62	62	SPRING
17.44	17.44	COVER
45	45	SCREW
63	63	WIRE
18	18	SHAFT
15	15	GEAR
7	7	SHAFT
56	56	GEAR
14	14	PIN
9	9	CAP
61	61	SHAFT

Page 5

Juki DDL-7000A-7 parts on page 5
Ref	Part number	Part name	Qty
	402-25175	FACE_PLATE_ASM.
	400-12126	FACE_PLATE_PACKING
	SS-6080320-SP	SCREW_1/8-44 L=2.5
	229-00757	FACE_PLATE_OIL_SHIELD_ASM.
	TA-0850604-RO	RUBBER_PLUG
	TA-1250705-RO	RUBBER_PLUG
	401-12907	GROUND_WIRE_ASM.
	SS-4120925-SP	SCREW_3/16-28 L=9
	TA-2100904-RO	RUBBER_PLUG
	402-25177	WINDOW_PLATE
	400-12129	SIDE_PLATE_PACKING
	CM-3002000-01	ATTENTION_SEAL
	401-02261	SAFETY_LABEL_S
	229-01805	GROUND_MARK
	SS-4120615-SP	SCREW_3/16-28 L=6
	TA-2000502-RO	RUBBER_PLUG
	114-00801	THROAT_PLATE_J
	SL-6052592-TN	BOLT
	TA-21001002-RO	RUBBER_PLUG
	401-11022	MAGNET_CORD_RUBBER
	229-45463	THREAD_TENSION_ASM.
	229-45414	THREAD_TENSION_POST
	229-45604	THREAD_TENSION_GUIDE
	229-45802	THREAD_TENSION_DISK
	229-45505	THREAD_TENSION_SPRING
	229-45703	THREAD_TENSION_NUT
	SS-4120615-SP	SCREW_3/16-28 L=6
	402-25185	THREAD_TAKE-UP_LEVER_COVER
	SS-4120615-SP	SCREW_3/16-28 L=6
	110-91006	ARM_THREAD_GUIDE_(HA)
	229-21001	SCREW
	401-26850	THREAD_TENSION_ASM.
	229-21308	THREAD_TENSION_NUT
	229-21407	ROTATION_STOPPER
	401-12420	THREAD_TENSION_SPRING_M
	229-21803	DISK_STOPPER
	131-38201	THREAD_TENSION_DISK
	229-21209	THREAD_TENSION_POST
	229-21605	THREAD_TAKE-UP_SPRING
	229-45307	THREAD_TENSION_POST_BASE
	SS-8090670-SP	SCREW_9/64-40 L=5.5
	SS-8150710-TP	SCREW_15/64-28 L=7
	229-20904	TENSION_RELEASING
	B1109-552-000	THROAT_PLATE
	SS-2110920-TP	SCREW_11/64-40 L=8.5
	401-87311	ARM_THREAD_GUIDE_B
	229-20607	ARM_THREAD_GUIDE_B
	SS-6110610-TP	SCREW_11/64-40 L=6
	TA-1250406-RO	RUBBER_PLUG_D=12.5_L=4
	SS-4120925-SP	SCREW_3/16-28 L=9
	229-01250	SLIDE_PLATE_ASM.
	229-01201	SLIDE_PLATE
	229-01300	SLIDE_PLATE_SPRING
	SS-6060210-SP	SCREW_3/32-56 L=1.9
	401-87738	ARM_THREAD_GUIDE
	WT-0530002-KS	TOOTHED_WASHER_D=5.3
	NS-6090310-SP	NUT 9/64-40
	400-99083	RULER_STOP_SEAT
	SS-7110720-SP	SCREW_11/64-40 L=7
	401-26305	SCREW_5/16-24 L=35
	SL-6053092-TN	SCREW
	SL-6054592-TN	SCREW
	EA-9500B01-00	CABLE_BAND
	401-26308	CORD_CLAMP
	114-03805	THREAD_GUIDE_C_FITTING_PLATE
	WP-0371016-SD	WASHER_3.7X8X1
	229-01003	BED_SCREW_STUD
	401-32099	BED_STD_R
	SS-4151215-SP	SCREW_15/64-28 L=12
	229-63458	THREAD_TENSION_ASM.
	229-63409	THREAD_TENSION_SPRING
	229-62054	THREAD_TENSION_ASM.
	229-21506	THREAD_TENSION_DISK
	229-62005	THREAD_TENSION_SPRING

Page 6 — 2. BOBBIN WINDER COMPONENTS

Juki DDL-7000A-7 parts on page 6
Ref	Part number	Part name
20	20	Screw
23	23	Washer
17	17	Lever
10	10	Cap
24	24	Bobbin case
2	2	Base
9	9	Shaft
13	13	Spring
16	16	Shaft
4	4	Shaft
3	3	Lever
14	14	Spring
22	22	Spring
11	11	Washer
6	6	Shaft
15	15	Spring
8	8	Washer
18	18	Shaft
5	5	Shaft
21	21	Spring
19	19	Spring
7	7	Shaft
12	12	Washer
33	33	Ring
1	1	Shaft
25	25	Shaft
30	30	Cap
29	29	Spring
28	28	Washer
26	26	Shaft
27	27	Nut
31	31	Screw
34	34	Lever
32	32	Screw
35	35	Washer

Page 7

Juki DDL-7000A-7 parts on page 7
Part number	Part name	Qty
402-18885	BOBBIN_WINDER_UNIT	(1)
401-89600	BTW_BASE	(1)
262-60208	BTW_CAM_PLATE	(1)
262-60307	BTW_BASE_SHAFT	(1)
262-60406	BTW_SHAFT_BASE	(1)
262-60505	BTW_CAM_LEVER	(1)
262-60604	BTW_WHEEL	(1)
262-60802	BTW_BEARING_SPACER	(1)
262-61008	BTW_LEVER_SHAFT	(1)
262-61206	BTW_SPACER	(1)
262-61305	BTW_BEARING	(2)
262-61503	BTW_WHEEL_RUBBER	(1)
262-61602	BOBBIN_SPRING	(1)
262-61701	BTW_SPRING	(1)
400-11144	BTW_TORSION_SPRING	(1)
401-10975	BTW_SHAFT	(1)
400-21933	BTW_LEVER	(1)
RC-0560711-KP	RETAINING_RING	(1)
RE-040000-K0	E-RING_4	(1)
SM-5040655-SN	SCREW	(1)
SM-8040802-TP	SCREW_M4X8	(2)
SM-8050502-TP	SCREW_M5_L=5	(1)
WP-0450826-SC	WASHER_4.5X10X0.8	(1)
401-19475	OIL_GUARD	(1)
401-10731	BOBBIN_THREAD_TENSION_ASSY	1
401-10734	BOBBIN_THREAD_ROD_ASSY	(1)
NS-6120630-SP	NUT_3/16-28	(1)
229-21506	THREAD_TENSION_DISK	(2)
D7133-555-B00	CONNECTING_ROD_SPRING	(1)
229-45703	THREAD_TENSION_NUT	(1)
SM-0050801-SC	SCREW	1
SM-0050801-SC	SCREW	3
401-63521	PACKING	1
400-37008	THREAD_CUTTER	1
401-13241	BTW_SPACER	1

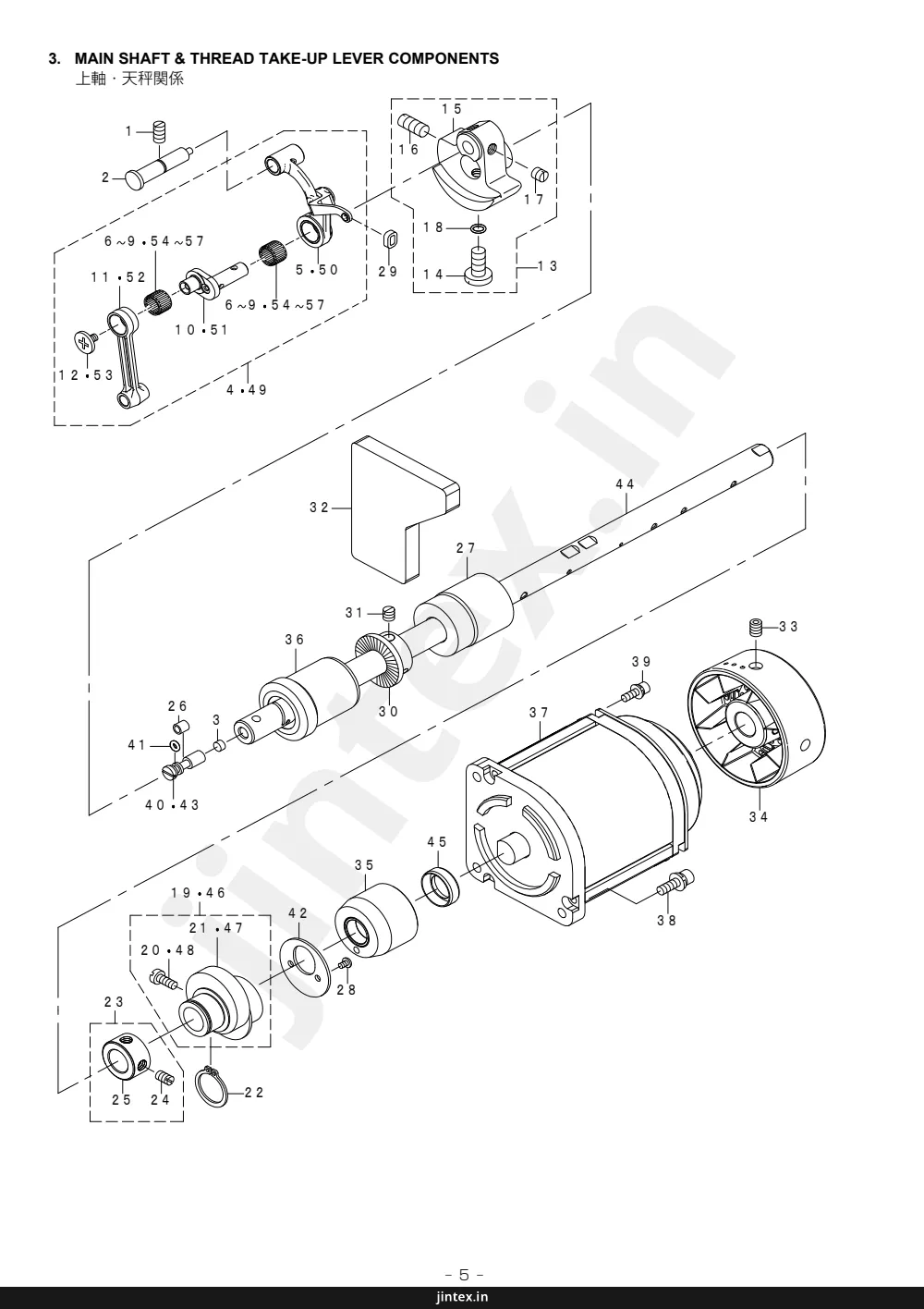

Page 8 — 3. MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS

Juki DDL-7000A-7 parts on page 8
Ref	Part number	Part name	Qty
	1	1
	2	2
	6~9.54~57	6~9.54~57
	11.52	11.52
	10.51	10.51
	12.53	12.53
	4.49	4.49
	5.50	5.50
	29	29
	15	15
	16	16
	18	18
	17	17
	14	14
	13	13
	32	32
	27	27
	31	31
	36	36
	30	30
	39	39
	37	37
	26	26
	3	3
	41	41
	40.43	40.43
	19.46	19.46
	42	42
	21.47	21.47
	20.48	20.48
	35	35
	28	28
	23	23
	25	25
	24	24
	22	22
	34	34
	38	38
	44	44
	45	45

Page 9

Juki DDL-7000A-7 parts on page 9
Ref	Part number	Part name	Qty
	SS-8151150-TP	SCREW_15/64-28_L=10.5
	401-06138	THREAD_TAKE-UP_CRANK_SHAFT_ASM.
	110-02904	ROLLER_FELT
	229-18064	THREAD_TAKE-UP_LEVER_ASM.
	229-18064	THREAD_TAKE-UP_LEVER_ASM.
	229-18403	NEEDLE_BEARING_A
	229-18502	NEEDLE_BEARING_B
	229-18601	NEEDLE_BEARING_C
	229-18700	NEEDLE_BEARING_D
	229-18106	NEEDLE_BAR_CRANK
	229-18004	NEEDLE_BAR_CRANK_ROD
	229-06606	LEFT_SCREW
	229-18304	COUNTER_WEIGHT_ASM.
	SS-7681650-TP	SCREW_9/32-28_L=16
	401-10376	COUNTER_WEIGHT
	SS-8681650-TP	SCREW_9/32-28_L=16
	SS-6661110-SP	SCREW_1/4-40_L=6
	RO-0442401-00	RUBBER_RING
	229-10053	FEED_DRIVE_ECCENTRIC_CAM_ASM.
	SS-6661110-SP	SCREW_1/4-40_L=11
	229-10004	FEED_DRIVE_ECCENTRIC_CAM
	RC-1850001-KP	SNAP_RING_18.5
	401-37502	THRUST_COLLAR_ASM.
	SS-8660610-TP	SCREW_1/4-40_L=6
	401-37503	MAIN_SHAFT_THRUST_COLLAR
	B1215-552-000	OIL_ADJUSTING_COLLAR
	229-03306	BUSHING_INTERMEDIATE
	SS-4090615-SP	SCREW_9/64-40_L=6
	229-19203	OIL_PROTECTING_RUBBER
	225-38805	DRIVING_WHEEL
	SS-8660610-TP	SCREW_1/4-40_L=6
	401-11424	FILTER
	SM-80608A2-TP	SCREW_M6_L=8
	402-27630	HAND_PULLY
	402-25291	MAIN_SHAFT_BUSHING_REAR
	229-03207	MAIN_SHAFT_BUSHING_FRONT
	402-22686	AC_SERVO_MOTOR
	SL-6051692-TN	BOLT
	SL-6041242-TN	BOLT
	B1213-552-000	OIL_ADJUSTING_PIN
	RO-0291801-00	RUBBER_RING
	229-10103	THRUST_COLLAR
	229-03900	ADJUSTING_PIN
	402-22701	MAIN_SHAFT
	401-39216	OIL_SEAL
	229-70552	FEED_ECCENTRIC_CAM_ASM.
	229-70503	FEED_ECCENTRIC_CAM_L
	229-72806	FEED_ECCENTRIC_CAM_SETSCREW
	110-62858	LINK_THREAD_TAKE-UP_LEVER_ASM.
	110-17068	LINK_THREAD_TAKE-UP_LEVER_ASM.
	110-62809	NEEDLE_BAR_CRANK
	B1408-552-000	NEEDLE_BAR_CRANK_ROD
	B1903-552-000	LEFT_SCREW
	B1905-541-A00	NEEDLE_BEARING
	B1905-541-B00	NEEDLE_BEARING
	B1905-541-C00	NEEDLE_BEARING
	B1905-541-D00	NEEDLE_BEARING

Page 10 — 4. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-7000A-7 parts on page 10
Ref	Part number	Part name	Qty
	1	1
	2	2
	3.47	3.47
	5	5
	6	6
	7.41	7.41
	8.48	8.48
	9	9
	10	10
	11.49	11.49
	12	12
	34.50	34.50
	42	42
	35	35
	13	13
	14	14
	36	36
	37	37
	38	38
	1	1
	16	16
	18	18
	17	17
	20	20
	21	21
	19	19
	45	45
	46	46
	44	44
	22	22
	23	23
	24	24
	26	26
	27	27
	25	25
	29	29
	40	40
	31	31
	30	30
	28	28
	43	43
	39	39
	32	32
	33	33

Page 11

Juki DDL-7000A-7 parts on page 11
Part number	Part name	Qty
TA-0850604-RO	RUBBER_PLUG	1
229-06101	NEEDLE_BAR_BUSHING_UPPER	1
229-39508	NEEDLE_BAR
229-06457	NEEDLE_BAR_HOLDER_ASM.
SS-6090670-TP	SCREW_9/64-40_L=6	(1)
229-06408	NEEDLE_ROD_HOLDER	(1)
400-23223	NEEDLE_BAR_THREAD_GUIDE
229-06200	NEEDLE_BAR_BUSHING_LOWER
SS-7080510-TP	SCREW_1/8-44_L=4.5	1
229-70404	NEEDLE_BAR_THREAD_HOOK	1
MDB-100B1400	NEEDLE_DBX1_#14
229-17058	SCREW_11/64-40_L=3.5	1
SS-8110410-TP	SLIDE_BLOCK	(2)
229-17009	THRUST_COLLAR_FRONT	(1)
400-90058	UPPER_LARGE_BEVEL_GEAR_ASM.
400-90002	UPPER_LARGE_BEVEL_GEAR	1
400-90006	SCREW_1/4-40_L=8	(1)
SS-8660810-TP	UPPER_SMALL_BEVEL_GEAR_ASM.
400-90003	UPPER_SMALL_BEVEL_GEAR	(2)
400-90007	SCREW_1/4-40_L=8	1
SS-8660810-TP	LOWER_LARGE_BEVEL_GEAR_ASM.
400-90004	LOWER_LARGE_BEVEL_GEAR	(1)
400-90008	SCREW_1/4-40_L=8	(2)
SS-8660810-TP	LOWER_SMALL_BEVEL_GEAR_ASM.
400-90005	LOWER_SMALL_BEVEL_GEAR	1
400-90009	SCREW_1/4-40_L=8	(1)
SS-8660810-TP	HOOK_DRIVING_SHAFT_M
401-27191	THRUST_COLLAR_ASM.
401-36014	HOOK_DRIVING_SHAFT_THRUST_COLLAR
401-36013	SCREW_11/64-40_L=4.8	(2)
SS-6110420-TP	BOBBIN_CASE_POSITIONING_FINGER
229-16407	SCREW_1/64-40_L=12	1
SS-6111210-SP	HOOK_ASM.
401-53440	HOOK_DRIVING_SHAFT_F
401-27177	NEEDLE_BAR_THREAD_GUIDE_P
229-16555	OIL_WICK	1
110-15906	SET_SCREW	1
229-16506	SCREW_3/16-28_L=9	1
SS-4120915-SP	HOOK_DRIVING_SHAFT_BUSH_REAR
229-16308	NEEDLE_BAR_THREAD_GUIDE_P	1
401-41523	HOOK_CASE_ASM.
402-11519	HOOK_DRIVING_SHAFT	1
401-27192	UPRIGHT_SHAFT_BUSHING_LOWER	1
229-05202	UPRIGHT_SHAFT_BUSHING_UPPER	1
229-05103	UPRIGHT_SHAFT	1
229-05004	NEEDLE_BAR	1
229-70206	NEEDLE_BAR_BUSHING
401-71515	NEEDLE_DPX5_#21
MDP-500B2100	HOOK_ASM.
400-35058

Page 12 — 5. HAND LIFTER COMPONENTS

Juki DDL-7000A-7 parts on page 12
Ref	Part number	Part name
1	1	Lever
2	2	Screw
3	3	Washer
4	4	Pin
7	7	Screw
32	32	Screw
31	31	Nut
30	30	Spring seat
45	45	Ball
10-33	10-33	Spring
36	36	Lever
38	38	Screw
37	37	Screw
5	5	Shaft
35	35	Shaft
6	6	Screw
9-20	9-20	Presser foot
11	11	Screw
12	12	Screw
14	14	Bracket
13	13	Rod
39	39	Lever
40	40	Bracket
43	43	Spring
41	41	Spring
42	42	Lever
8	8	Clip
16	16	Screw
18	18	Bracket
19	19	Screw
28	28	Lever
29	29	Screw
22	22	Clip
23	23	Spring
26	26	Pin
24	24	Spring
46	46	Bracket
17	17	Screw
25	25	Bracket
27	27	Screw
21	21	Screw
15	15	Screw

Page 13

Juki DDL-7000A-7 parts on page 13
Ref	Part number	Part name	Qty
	229-07802	HAND_LIFTER	1
	B1521-555-000	SCREW	1
	RO-0371801-00	RUBBER_RING	1
	229-08552	HAND_LIFTER_CAM_ASM.	1
	400-60989	PRESSER_BAR_BUSHING_LOWER	1
	SS-7091110-TP	SCREW_9/64-40_L=10.5	1
	229-08701	LINK_SHAFT	2
	RE-0500000-KO	E-RING	3
03	B1524-012-0BA	PRESSER_FOOT_ASM.
02	B1505-552-000-A	PRESSER_SPRING
	229-08909	HINGE_SCREW	1
	SD-0720331-SP	HINGE_SCREW_D=7.24_H=3.3	1
	229-09006	KNEE_LIFTER_CONNECTING_ROD	1
	229-08000	KNEE_LIFTER_LINK	1
	SS-4110515-SP	SCREW_11/64-40_L=5	1
	SS-4110515-SP	SCREW_11/64-40_L=5	1
	SS-4150915-SP	SCREW_15/64-28_L=9	1
	229-44508	WIRE_PRESSER_A	2
	SS-4120615-SP	SCREW_3/16-28_L=6	1
02	D1524-555-EBL	PRESSER_FOOT_ASM.
	NS-6620310-SP	NUT_3/16-32	2
	RE-0500000-KO	E-RING	2
	229-20201	RETURN_SPRING	1
	229-20409	THREAD_RELEASE_PIN_SPRING	1
	229-45109	WIRE_CABLE_SUPPORT	1
	229-20300	THREAD_RELEASE_SUPPORTING_PIN	1
	SS-4120615-SP	SCREW_3/16-28_L=6	1
	401-32068	THREAD_RELEASE_WIRE_ASM.	1
	229-20102	TENSION_RELEASE_SHAFT	1
	229-07554	PRESSER_SPRING_REGULATOR_ASM.
	229-07604	PRESSER_SPRING_REGULATOR_NUT
	229-07505	PRESSER_SPRING_REGULATOR
03	229-07406	PRESSER_SPRING
	400-98388	PRESSER_BAR_GUIDE_BRACKET	1
	400-17805	PRESSER_BAR	1
01	229-07307	THREAD_GUIDE
	SS-8660810-TP	SCREW_1/4-40_L=8	1
01	SS-6090910-SP	SCREW_9/64-40_L=9
	229-08354	KNEE_LIFTING_CROSS_ROD_ASM.	1
	229-08156	LIFTING_LINK_ASM.
	RE-0500000-KO	E-RING
	229-08008	LIFTING_PLATE
	229-08305	KNEE_LIFTER_SIDE_ROD
	401-32067	WIRE_PRESSER_BASE	1
	229-07703	PRESSER_GUIDE_BAR	1
	401-27189	WIRE_PRESSER_SUPPORT	1

Page 14 — 6. FEED MECHANISM COMPONENTS

Juki DDL-7000A-7 parts on page 14
Ref	Part number	Part name
11	73	11
12	74	12
24	24	24
25	25	25
26	26	26
13	13	13
14	14	14
27	77	27
28	28	28
29	29	29
30	30	30
65	65	65
66	66	66
1	78	1
2	75	2
3	3	3
18	18	18
19	82	19
20	20	20
17	81	17
4	76	4
23	23	23
6	6	6
8	8	8
9	9	9
7	7	7
16	16	16
10	10	10
83	83	83
5	5	5
85	85	85
21	21	21
62	62	62
64	64	64
63	63	63
68	68	68
86	86	86
34	34	34
33	84	33
36	36	36
35	35	35
37	37	37
39	39	39
38	38	38
32	32	32
51	51	51
52	52	52
56	56	56
31	31	31
53	53	53
55	55	55
57	57	57
58	58	58
59	59	59
54	54	54
49	49	49
50	50	50
60	60	60
61	61	61
15	15	15
67	67	67
69	69	69
40	40	40
41	79	41
30	30	30
42	80	42
43	43	43
44	88	44
72	72	72
45	89	45
46	46	46
90	90	90
47	91	47
48	48	48

Page 15

Juki DDL-7000A-7 parts on page 15
Ref	Part number	Part name	Qty
	229-41108	FEED_ADJUST_ROD
	229-11507	WALKING_FOOT_PIN_C
	SS-6090670-TP	SCREW_9/64-40_L=6
	229-11606	FEED_REGULATOR
	SS-6121860-SP	SCREW_3/16-28_L=18
	SS-7120770-SH	SCREW_3/16-28_L=7
	229-11804	FEED_REGULATOR_SCREW
	229-12109	FEED_REGULATOR_PIN_SPRING
	229-12000	FEED_REGULATOR_PIN
	401-01726	FEED_DIAL
	229-10251	CONNECTING_ROD_ASM.
	229-10202	ROCKER_SHAFT_CONNECTING_ROD
	229-11101	WALKING_FOOT_PIN_C
	SS-6090620-TP	SCREW
	229-15003	CONNECTING_ROD
	RO-0922702-00	RUBBER_RING
	110-10311	LEVER_SPRING
	RE-0500000-KO	FEED_REVERSE_ARM_ASM.
	229-12257	FEED_REVERSE_ARM_SCREW
	229-12505	LEVER_STOPPER_ASM.
	401-15888	FEED_REGULATOR_BUSHING
	110-37405	FEED_REGULATOR_BUSHING
	110-09800	WALKING_FOOT_PIN_A
	229-10905	CONNECTING_LINK_B
	400-89548	FEED_ADJUST_LINK_ASM.
	400-93417	ADJUST_LINK_FULCRUM_SHAFT_A
	229-40951	SCREW_15/64-28_L=11.5
	229-10806	SCREW
	SS-6151220-SP	FEED_BAR_SHAFT
	SS-6090620-TP	SCREW_1/8-44_L=6
	229-40803	FEED_BASER
	RC-0150001-KP	FEED_BASER.
	401-33950	WASHER
	SS-4080620-TP	VERTICAL_FEED_SQUARE_BLOCK_SHAFT
	229-40753	VERTICAL_FEED_SQUARE_BLOCK
	229-40704	WALKING_FOOT_PIN_B
	B1706-555-000	ASSY_FEED_ROCKER_ARM
	229-13503	FEED_ROCKER_ARM
	229-13602	SCREW_3/16-28_L=15.5
	229-11002	FEED_ARM_ASM.
	401-10379	FEED_ARM
	401-10378	SCREW_3/16-28_L=15.5
	SS-6121610-SP	HINGE_SCREW_D=10_H=8
	401-09422	FEED_DRIVING_SHAFT
	401-08863	THRUST_COLLAR_ASM.
	SS-7121610-SP	SCREW_1/4-40_L=6
	SD-1000801-SH	FEED_ROCKER_SHAFT_THRUST_COLLAR
	229-15201	FEED_ROCKER_SHAFT_BUSHING
	401-37504	SCREW_11/64-40_L=7
	SS-8660610-TP	RETAINING_RING_13.8
	401-37505	FEED_ROCKER_ASM.
	229-13008	SCREW_3/16-28_L=14
	SS-7110740-TP	WASHER_4.8X8.4X0.8
	RC-0150001-KP	FEED_ARM
	229-40654	DRIVING_SHAFT_CRANK_ASM.
	SS-7121410-TP	RIVING_SHAFT_CRANK
	WP-0480856-SP	SCREW_11/64-40_L=10.5
	229-40605	FEED_REVER_ARM.
	229-15359	FEED_LEVER
	229-15300	SCREW
	SS-7111120-SP	REGULATOR_SPRING_HOOK_PLATE
	401-02264	SCREW_11/64-40_L=5
	229-12703	FEED_LEVER_SHAFT
	SM-8061010-TP	FEED_LEVER_SHAFT_BUSHING
	402-30589	RUBBER_RING
	SS-4110515-SP	FEED_SPRING_HOOK_PLATE
	401-00812	FEED_ROCKER_SHAFT
	229-12802	NUT_9/32-28
	RO-0781901-00	HORIZONTAL_FEED_ROD_ASM.
	402-30521	HORIZONTAL_FEED_ROD
	401-33779	FEED_REGULATOR_BASE_PIN
	NS-6680410-SP	FEED_REGULATOR_BASE
	229-70750	HORIZONTAL_FEED_ARM
	229-70701	HORIZONTAL_FEED_AR
	229-71204	FEED_REGULATOR_BASE_PIN
	229-71303	FEED_REGULATOR_BASE
	400-31240	FEED_ADJUST_LINK_ASM.
	400-39673	FEED_ADJUST_ROD
	229-70859	HORIZONTAL_FEED_ARM_ASM.
	229-70800	HORIZONTAL_FEED_AR
	229-71709	FEED_REVERSE_SPRING
	229-71550	FEED_LEVER_ARM_ASM.
	400-39674	FEED_DIAL
	114-03003	FEED_J
	402-25300	FEED_REGULATOR_SPRING_7H
	HX-0018900-00	SPIRAL_TUBE
	400-10395	ADJUSTING_LINK_FULCRUM_SHAFT_B
	229-72251	VERTICAL_FEED_ARM_ASM.
	229-72202	VERTICAL_FEED_ARM
	SS-6121210-SP	SCREW_3/16-28_L=12
	400-31249	HINGE_SCREW

Page 16 — 7. THREAD TRIMMER COMPONENTS

Juki DDL-7000A-7 parts on page 16
Ref	Part number	Part name
1	1	BASE
2	2	WASHER
3	3	SPRING
4	4	LEVER
5	5	SCREW
6	6	SPRING
7	7	WASHER
8	8	SHAFT
9	9	SHAFT
10	10	BRACKET
11	11	WASHER
12	12	SCREW
13	13	SPRING
14	14	SPRING
15	15	SHAFT
16	16	SCREW
17	17	NUT
18	18	HOLDER
19	19	SPRING
20	20	SCREW
21	21	SPRING
22	22	SHAFT
23	23	COLLAR
24	24	SLEEVE
25	25	SCREW
26	26	LEVER
27	27	SCREW
28	28	SHAFT
29	29	COLLAR
30	30	SPRING
31	31	WASHER
32	32	WASHER
33	33	SPRING
34	34	MOTOR
35	35	SHAFT
36	36	SHAFT
37	37	BRACKET
38	38	SPRING

Page 17

Juki DDL-7000A-7 parts on page 17
Part number	Part name	Qty
401-27152	THREAD_TRIMMER_CAM	1
401-27153	SPACER	2
SS-8661012-TP	SCREW	2
401-27154	COUNTER_KNIFE	1
SS-1090520-TP	SCREW_9/64-40_L=5	1
401-27155	LOWER_THREAD_FINGER	1
WP-0371016-SD	WASHER_3.7X8X1	1
SS-7090610-SP	SCREW_9/64-40_L=6	1
401-27156	MOVING_KNIFE_HOLDER	1
401-27157	KNIFE_HOLDER_PRESSER_ASSY	1
WP-0450826-SC	WASHER_4.5X10X0.8	2
SS-4111415-SP	SCREW_11/64-40_L=14	2
401-87740	MOVING_KNIFE	1
113-51806	SCREW	2
401-27161	THREAD_TRIMMER_CONNECTING_ROD	1
SD-0600291-TP	HINGE_SCKEW_D=6_H=2.9	2
NS-6110350-SP	NUT_11/64-40	1
401-84556	THREAD_TRIMMER_ARM	1
401-27163	LEVER_STOPPER	1
SS-4121415-SP	SCREW_3/16-28_L=14	1
401-27164	SPRING	1
401-27165	FORKED_SHAFT	1
401-27166	COLLAR	1
401-27167	FORKED_SHAFT_BUSH	1
SS-8110422-TP	SCREW_11/64-40_L=4	1
401-27168	THREAD_TRIMMER_CAM_LEVER_ASSY	1
SS-8660612-TP	SCREW_1/4-40_L=6	1
401-27180	THREAD_TRIMMER_CAMLEVER_SHAFT	1
401-27181	COLLAR	1
401-27182	SPRING	1
401-27183	CUSHION	1
WP-0820816-SD	WASHER_8.2X16X0.8	1
RE-060000-KO	E-RING_6	1
401-32143	THREAD_TRIMMER_SOLENOID_ASM	1
SS-4151215-SP	SCREW_15/64-28_L=12	1
SD-0850751-SP	HINGE_SCREW_D=8.50_H=7.5	1
401-27188	THREAD_RELEASE_LEVER	1
401-27190	RETURN_SPRING	1

Page 18 — 8. AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-7000A-7 parts on page 18
Ref	Part number	Part name	Qty
1	402-30319	LED_BT_SWITCH_ASSY_7A	1
2	229-53509	PLUNGER_ARM_PIN	1
3	SS-4151215-SP	SCREW_15/64-28 L=12	2
4	401-30594	REVERSE_FEED_SOLENOID	1
5	229-54002	PLUNGER_SPRING	1
6	RE-0500000-KP	E-RING_5	1
7	111-01300	REVERSE_FEED_CONNECTING_SHAFT	1
8	RE-0900000-KO	E-RING_9	1
9	229-53657	CONNECTING_ARM_ASM.	1
10	RE-0400000-KP	E-RING_4	1
11	401-32066	CONNECTING_LINK	1
12	RE-1200000-KO	E-RING_12	1
13	WP-1602616-SZ	WASHER_16X24X2.6	1
14	229-53400	RUBBER_PLUNGER	1
15	RE-0400000-KO	E-RING_4	2

Page 19 — 9. EXCLUSIVE PARTS TYPE NB

Juki DDL-7000A-7 parts on page 19
Ref	Part number	Part name	Qty
1	402-25399	THREAD_NIPPER_SET	1
2	SS-1110640-TP	SCREW_11/64-40_L=5.5	1
3	G1164-870-000	SUCTION_O-RING	1
4	134-03605	RUBBER_PLATE	1

Page 20 — 10. OIL LUBRICATION COMPONENTS

Juki DDL-7000A-7 parts on page 20
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29

Page 21

Juki DDL-7000A-7 parts on page 21
Part number	Part name	Qty
229-24708	OIL_SIGHT_WINDOW	1
RO-1952401-00	RUBBER_RING	1
229-24401	MAIN_SHAFT_OIL_TUBE	1
SS-4120615-SP	SCREW_3/16-28_L=6	1
229-25101	OIL_FELT_PRESSER	1
229-24153	OIL_RETURN_TUBE_ASM.	1
229-24302	HOLDER	(1)
CQ-2520000-00	OIL_WICK	0.21
401-27179	OIL_REGULATOR_SPRING	1
401-27193	HOOK_OIL_TUBE	1
WS-0451040-KP	SPRING_WASHER_4.5X8.5X1	1
229-23056	LUBRICATING_OIL_PUMP_ASM.	(1)
229-23312	OIL_PUMP_INSTALLING_BASE	(1)
229-23015	OIL_PUMP	(1)
229-23700	OIL_PUMP_IMPELLER	(1)
SE-4301041-SR	SCREW_D=3_L=10	(1)
229-23205	OIL_PUMP_IMPELLER_COVER	(1)
229-23809	OIL_PUMP_IMPELLER_COVER	(1)
229-23403	PLUNGER	(1)
229-23601	PLUNGER_SPRING	(1)
229-23502	PLUNGER_SCREW	(1)
229-23908	HOOK_DRIVING_SHAFT_OIL_TUBE	(1)
SL-4030851-SF	SCREW_M3_L=8	(3)
SS-4150915-SP	SCREW_15/64-28_L=9	1
SS-6111010-TP	SCREW_11/64-40_L=9.5	1
229-47105	OIL_PUMP_SUPPORT	1
WS-0651310-KP	SPRING_WASHER_6.5X11X1.3	1
229-24609	RUBBER_JOINT	1
401-27178	OIL_REGULATOR_SCREW	1

Page 22 — 11. OIL RESERVOIR COMPONENTS

Juki DDL-7000A-7 parts on page 22
Ref	Part number	Part name
27	27	OIL RESERVOIR COMPONENTS
26	26	OIL RESERVOIR COMPONENTS
1	1	OIL RESERVOIR COMPONENTS
2	2	OIL RESERVOIR COMPONENTS
3	3	OIL RESERVOIR COMPONENTS
4	4	OIL RESERVOIR COMPONENTS
4	4	OIL RESERVOIR COMPONENTS
4	4	OIL RESERVOIR COMPONENTS
5	5	OIL RESERVOIR COMPONENTS
6	6	OIL RESERVOIR COMPONENTS
8	8	OIL RESERVOIR COMPONENTS
10	10	OIL RESERVOIR COMPONENTS
9	9	OIL RESERVOIR COMPONENTS
18	18	OIL RESERVOIR COMPONENTS
16	16	OIL RESERVOIR COMPONENTS
19	19	OIL RESERVOIR COMPONENTS
25	25	OIL RESERVOIR COMPONENTS
20	20	OIL RESERVOIR COMPONENTS
24	24	OIL RESERVOIR COMPONENTS
23	23	OIL RESERVOIR COMPONENTS
22	22	OIL RESERVOIR COMPONENTS
21	21	OIL RESERVOIR COMPONENTS
11	11	OIL RESERVOIR COMPONENTS
12	12	OIL RESERVOIR COMPONENTS
17	17	OIL RESERVOIR COMPONENTS
13	13	OIL RESERVOIR COMPONENTS
14	14	OIL RESERVOIR COMPONENTS
15	15	OIL RESERVOIR COMPONENTS

Page 23

Juki DDL-7000A-7 parts on page 23
Part number	Part name	Qty
401-11876	OIL_RESERVER_ASM.	1
401-05821	OIL_RESERVOIR	(1)
229-31901	OIL_RESERVOIR_GASKET	(1)
B1116-210-D00	FRAME_SUPPORT_RUBBER	(4)
SS-6700710-SH	SCREW_5/16-24_L=7	(1)
RO-0982401-00	RUBBER_RING	(1)
229-32156	KNEE_LIFTER_ROTATION_ARM_ASM.	(1)
229-32107	KNEE_LIFTING_ROTATING_ARM	(1)
NM-6060001-SE	NUT_M6	(2)
SM-8063012-TR	SCREW_M6_L=30	(2)
229-32206	SPRING	(1)
RE-100000-KO	E-RING_10	(1)
229-32453	BRACKET_ASM.	(1)
229-32404	BRACKET	(1)
229-34707	SCREW	(2)
401-01720	SCREW_M6	(1)
401-01541	KNEE_PRESS_CROSS_SHAFT	(1)
NM-6060001-SE	NUT_M6	(1)
229-34251	KNEE_PAD_PLATE_ASM.	1
229-34608	KNEE_PAD_UPRIGHT_SHAFT	(1)
229-34400	KNEE_PAD_PLATE_RUBBER	(1)
229-34202	KNEE_PAD_PLATE	(1)
229-34301	KNEE_PAD_PLATE_SUPPORT	(1)
SM-9061203-SE	SCREW_M6_L=12	(1)
229-34509	KNEE_PAD_PLATE_COVER	(1)
B8228-125-000	OIL_RESERVOIR_MAGNET	1
229-31703	KNEE_LIFTER_PUSH_ROD	1

Page 24 — 12. PSC UNIT

Juki DDL-7000A-7 parts on page 24
Ref	Part number	Part name	Qty
	402-25188	CONTROL BOX 1P
	402-25280	CONTROL BOX 3P
	401-31478	CONNECTING ROD ASSY
	402-15705	ACCESSORIES PARTS ASSY
	402-24061	ACCESSORIES PARTS 3P ASSY
	401-18323	POWER SWITCH ASSY
	SK-3512001-SE	WOOD SCREW D=5.1 L=20
	402-15706	PEDAL SENSOR BASE ASSY
	MAO-11532000	CORD STAPLE

Page 25 — 13. ACCESSORIE PARTS COMPONENTS

Juki DDL-7000A-7 parts on page 25
Ref	Part number	Part name	Qty
	401-30788	ACCESSORIE_BAG_ASSY
	229-32800	ACCESSORIE_BAG
	229-31604	FRAME_SUPPORT_BAR
	229-32909	BOBBIN
	229-58300	NEEDLE_THREAD_GUIDE_PIN
	229-31703	KNEE_LIFTER_PUSH_ROD
	402-25224	SAFETY_INSTRUCTION_MANUAL(1K)
	401-02087	JU KI_MACHINE_OIL_7
	401-37214	RUBBER_HINGE_ASM.
	229-58003	FRAME_BUBBBER_CUSHION
	229-26208	NAIL
	401-37215	HINGE_COMPL.
	229-26505	WASHER
	229-26000	RUBBER_CUSHION
	MDB-100B1402	NEEDLE_DBX1#14-2
	MDP-500B2102	NEEDLE_DPX5#21-2

Page 26 — 14. THREAD STAND COMPONENTS

Juki DDL-7000A-7 parts on page 26
Ref	Part number	Part name
1	1	THREAD STAND COMPONENTS
9	9	糸立装置関係
19	19	SCREW
11	11	COLLAR
5	5	BRACKET
18	18	WASHER
8	8	THREAD STAND ROD
3	3	TUBE
13	13	SCREW
12	12	WASHER
24	24	SPRING
7	7	BASE PLATE
17	17	SCREW
10	10	CLAMP
23	23	SCREW
4	4	BRACKET
6	6	BASE PLATE
22	22	WASHER
21	21	WASHER
20	20	NUT
2	2	SHAFT
15	15	WASHER
16	16	WASHER
14	14	NUT

Page 27

Juki DDL-7000A-7 parts on page 27
Part number	Part name	Qty
400-96354	THREAD_STAND_ASM.	(1)
400-85784	SPOOL_REST_ROD_(LOWER)	(1)
400-85785	SPOOL_REST_ROD_(UPPER)	(1)
400-85786	SPOOL_REST_ARM_(LOWER)	(1)
400-85787	SPOOL_REST_ARM_(UPPER)	(1)
400-85788	SPOOL_REST	(2)
400-85789	SPOOL_REST_CUSHION	(2)
400-85790	SPOOL_PIN	(2)
400-85791	SPOOL_RETAINER	(2)
400-85792	SPOOL_REST_ROD_JOINT	(1)
400-85793	SPOOL_REST_ROD_RUBBER_CAP	(1)
400-85794	THREAD_GUIDE	(2)
400-85795	THREAD_GUIDE_BUSHING	(2)
400-96325	SPOOL_REST_ROD_NUT	(1)
WP-1612616-SF	WASHER_16X30X2.6	(2)
400-85796	SPOOL_REST_ROD_RUBBER_CUSHION	(2)
NM-6050001-SE	SPOOL_REST_ARM_LOWER_SCREW	(1)
NM-6050001-SE	NUT_M5	(2)
400-96327	SPOOL_REST_ARM_UPPER_SCREW	(1)
NM-6050001-SE	NUT_M5	(2)
WS-0510002-KN	SPRING_WASHER_M5	(2)
WP-0531001-SC	WASHER_M5	(2)
SM-4051405-SE	SCREW_M5_L=14	(2)
NM-6050001-SE	NUT_M5	(2)

Page 28 — NUMERICAL INDEX OF PARTS

Juki DDL-7000A-7 parts on page 28
Ref	Part number	Part name	Qty
23	B1109-552-000	SL-4030851-SF	44
39	B1116-210-D00	SL-6041242-TN	4
38	B1213-552-000-A	SL-6051692-TN	40
18	B1215-552-000	SL-6052592-TN	26
61	B1408-552-000	SL-6053092-TN	52
62	B1505-552-000-A	SL-6054592-TN	10
31	B1521-555-000	SM-0050801-SC	2
32	B1706-555-000	SM-0050801-SC	37
23	B1903-552-000	SM-4051405-SE	53
21	B1905-541-A00	SM-8040802-TP	54
22	B1905-541-B00	SM-8050502-TP	55
33	B1905-541-C00	SM-80608A2-TP	56
12	B1905-541-D00	SM-8063012-SE	57
10	B8228-125-000	SM-8063012-TR	26
24	CM-3002000-01	SM-9061203-SE	12
14	CQ-2520000-00	SS-1090520-TP	8
16	D1524-555-EBL	SS-1110640-TP	20
45	D7133-555-B00	SS-2110920-TP	29
12	EA-9500B01-00	SS-4080620-TP	63
10	G1164-870-000	SS-4090615-SP	3
10	HX-0018900-00	SS-4110515-SP	86
12	MAO-11532000	SS-4110515-SP	9
14	MDB-100B1400	SS-4110515-SP	11
2	MDB-100B1402	SS-4120615-SP	15
2	MDP-500B2100	SS-4120615-SP	49
2	MDP-500B2102	SS-4120615-SP	16
10	NM-6050001-SE	SS-4120615-SP	18
10	NM-6050001-SE	SS-4120615-SP	24
18	NM-6060001-SE	SS-4120915-SP	9
8	NM-6060001-SE	SS-4120915-SP	18
14	NS-6090310-SP	SS-4121415-SP	57
10	NS-6110350-SP	SS-4150915-SP	17
14	NS-6120630-SP	SS-4151215-SP	27
2	NS-6620310-SP	SS-4151215-SP	21
14	NS-6680410-SP	SS-4151215-SP	72
2	RC-0150001-KP	SS-6060210-SP	32
12	RC-0150001-KP	SS-6080320-SP	54
12	RC-0560711-KP	SS-6090620-TP	18
12	RC-1850001-KP	SS-6090620-TP	22
8	RE-0400000-KP	SS-6090670-TP	10
12	RE-0400000-KO	SS-6090670-TP	4
10	RE-0400000-KO	SS-6091040-TP	15
8	RE-0500000-KP	SS-6110420-TP	15
2	RE-0500000-KO	SS-6110610-TP	10
10	RE-0500000-KO	SS-6111010-TP	10
8	RE-0500000-KO	SS-6111010-TP	10
12	RE-0500000-KO	SS-6121210-SP	10
12	RE-0600000-KO	SS-6121210-SP	12
12	RE-0900000-KO	SS-6121860-SP	15
12	RE-1000000-KO	SS-6151220-SP	20
6	RE-1200000-KO	SS-6661110-SP	15
4	RO-0291801-00	SS-6700710-SH	6
14	RO-0371801-00	SS-7090610-SP	10
10	RO-0442401-00	SS-7091110-TP	6
2	RO-0781901-00	SS-7110720-SP	12
12	RO-0922702-00	SS-7110740-TP	12
6	RO-0982401-00	SS-7111120-SP	20
12	RO-1952401-00	SS-7121410-TP	18
12	SD-0600291-TP	SS-7121610-SP	14
6	SD-0720331-SP	SS-7681650-TP	10
2	SD-0850751-SP	SS-8090670-SP	14
10	SD-1000801-SH	SS-8090670-SP	12
14	SE-4301041-SR	SS-8104225-TP	18
6	SK-3512001-SE	SS-8150710-TP	21
1	SS-8660610-TP	SS-8151150-SP	6
17	SS-8660610-TP	SS-8660610-TP	6
24	SS-8660610-TP	SS-8660610-TP	6
31	SS-8660610-TP	SS-8660610-TP	6
43	229-03900	SS-8660610-TP	6
46	229-05004	SS-8660610-TP	8
45	229-05103	SS-8660610-TP	8
44	229-05202	SS-8660610-TP	8
2	229-06101	SS-8660610-TP	8
8	229-06200	SS-8660610-TP	8
6	229-06408	SS-8660610-TP	8
4	229-06457	SS-8660610-TP	8
11	229-06606	SS-8660610-TP	6
36	229-07307	SS-8660610-TP	10
33	229-07406	SS-8660610-TP	10
32	229-07505	SS-8660610-TP	10
30	229-07554	SS-8660610-TP	10
31	229-07604	SS-8660610-TP	10
45	229-07703	SS-8660610-TP	10
1	229-07802	SS-8660610-TP	10
42	229-08008	SS-8660610-TP	10
73	229-15605	SS-8660610-TP	2
28	229-21506	SS-8660610-TP	4
39	229-21605	SS-8660610-TP	2
36	229-21803	SS-8660610-TP	2
14	229-23015	SS-8660610-TP	18
12	229-23056	SS-8660610-TP	18
17	229-23205	SS-8660610-TP	18
13	229-23312	SS-8660610-TP	18
19	229-23403	SS-8660610-TP	18
21	229-23502	SS-8660610-TP	18
20	229-23601	SS-8660610-TP	18
15	229-23700	SS-8660610-TP	18
18	229-23809	SS-8660610-TP	18
22	229-23908	SS-8660610-TP	18
6	229-24153	SS-8660610-TP	18
7	229-24302	SS-8660610-TP	18
3	229-24401	SS-8660610-TP	18

Page 29 — NUMERICAL INDEX OF PARTS

Juki DDL-7000A-7 parts on page 29
Ref	Part number	Part name
1	229-24708	262-61305
28	229-24609	262-61306
5	229-25101	262-61503
14	229-26000	262-61701
11	229-26208	401-26850
13	229-26505	401-27152
3	229-31604	400-10395
27	229-31703	400-11144
6	229-31703	400-12126
3	229-31901	400-12129
8	229-32107	400-17805
6	229-32323	400-21933
13	229-32453	400-23223
2	229-32800	400-31240
4	229-32909	400-35058
22	229-34202	400-37008
25	229-34509	400-39673
20	229-34608	400-39674
15	229-34707	400-85787
58	229-40605	400-85788
55	229-40654	400-85789
36	229-40704	400-85790
35	229-40753	400-85791
31	229-40803	400-85792
27	229-40951	400-85793
1	229-41108	400-85794
18	229-44508	400-85795
25	229-45109	400-90002
40	229-45307	400-90006
2	229-45414	400-90004
21	229-45463	400-90005
25	229-45505	400-90008
23	229-45604	400-90006
26	229-45703	400-90009
30	229-45703	400-90058
24	229-45802	400-93417
26	229-47105	400-96325
14	229-53400	400-96326
15	229-53509	400-96327
2	229-53657	400-96354
5	229-54002	400-98388
22	229-58003	400-99083
5	229-58300	401-00812
74	229-62005	401-01541
71	229-63409	401-01720
70	229-63458	401-01726
47	229-70206	401-02087
10	229-70404	401-02261
47	229-70503	401-02264
46	229-70552	401-05821
73	229-70701	401-06138
80	229-70800	401-08863
79	229-70859	401-09422
75	229-71204	401-10376
76	229-71303	401-10378
82	229-71550	401-10379
81	229-71709	401-10390
89	229-72202	401-10731
88	229-72251	401-10734
48	229-72806	401-10975
3	262-60208	401-11022
4	262-60307	401-11432
5	262-60406	401-11876
6	262-60505	401-12420
7	262-60604	401-13241
8	262-60802	401-15888
9	262-61008	401-15888
21	401-18323	402-27630
4	401-19475	262-61305
2	401-26305	262-61503
2	401-26308	262-61701
2	401-26850	401-27152
14	401-27152	400-10395
14	401-27153	400-11144
14	401-27154	400-12126
14	401-27155	400-12129
14	401-27156	400-17805
14	401-27157	400-21933
14	401-27161	400-23223
14	401-27163	400-31240
14	401-27164	400-35058
14	401-27165	400-37008
14	401-27166	400-39673
14	401-27167	400-39674
8	401-27168	400-85787
18	401-27177	400-85788
18	401-27178	400-85789
14	401-27179	400-85790
14	401-27180	400-85791
14	401-27181	400-85792
14	401-27182	400-85793
14	401-27183	400-85794
14	401-27188	400-85795
10	401-27189	400-85796
14	401-27190	400-90002
8	401-27191	400-90004
8	401-27192	400-90005
18	401-27193	400-90006
15	401-30594	400-90008
22	401-30788	400-90009
21	401-31478	400-90058
15	401-32066	400-93417
10	401-32067	400-96325
2	401-32099	400-96326
14	401-32143	400-96327
12	401-33779	400-96354
12	401-33950	400-98388
8	401-36013	400-99083
8	401-36014	401-00812
22	401-37214	401-01541
22	401-37215	401-01720
6	401-37502	401-01726
6	401-37503	401-02087
12	401-37504	401-02261
12	401-37505	401-02264
6	401-39216	401-05821
8	401-41523	401-06138
8	401-53440	401-08863
4	401-63521	401-09422
14	401-71515	401-10376
14	401-84556	401-10378
2	401-87311	401-10379
2	401-87738	401-10390
14	401-87740	401-10731
8	402-11519	401-10734
21	402-15705	401-10975
21	402-15706	401-11022
4	402-18885	401-11432
6	402-22686	401-11876
6	402-22701	401-12420
21	402-24061	401-13241
2	402-25175	401-15888
2	402-25177	401-15888
2	402-25185	401-32067
21	402-25188	401-32099
22	402-25224	401-32143
21	402-25280	401-33779
6	402-25291	401-33950
12	402-25300	401-36013
16	402-25399	401-36014

Juki DDL-7000A-7 — parts catalog

Page 1 — DDL-7000A-7 PARTS LIST

PARTS LIST DDL-7000A-7 PARTS LIST 下記 URL(PARTS Website/PC サイト)より、便利な検索機能のついた Web Parts Book をご利用頂けます。ご利用には会員登録が必要です。(無料) https://juki.aftama.com/JUKI/JA You can use a Web Parts Book with a convenient search function from the URLs (PARTS Website/PC-site) below. To use the PARTS Website, free membership registration is required. https://juki.aftama.com/JUKI/EN No.1742-00 jintex.in

Page 2

HOW TO MAKE USE OF THIS PARTS LIST 1.As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages. 2.Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(Consumable parts)and "◎"(optional parts)on the respectie parts, it is recommended to prepare spares. パーツリストご利用に際して 1. リストページの #01、#02 の印は、ページ下の "注記" の説明を参照下さい。 2. 数量欄の数字は、個数を表し、0.1、2.5 等の数値は、長さ (単位メートル) を表します。 3. 数量欄の ( ) は、組部品を構成している子部品であることを意味します。 4. イラストページの --- 一枠は、組構成であることを意味します。 5. リストページの "☆" (消耗部品)、"◎" (オプション部品) の印がついた部品は、予備を準備しておくことをお奨めします。 jintex.in

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 8 64 8 10 11 29 28 5 6 5 27 12 42 4 3 57 B 65 66 59 55 A 58 1 2 B 49 50 47 48 46 67 51 52 53 54 20 30 31 43 12 1 40 39 41 38 32.72 35.74 33 34 36 37.73 21.70 22 23 24 25.71 26 19 13 16 60 62 17.44 45 45 63 18 15 7 56 14 9 61 -1- jintex.in

Page 5

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 402-25175 FACE_PLATE_ASM. 面板(組) 1 2 400-12126 FACE_PLATE_PACKING 面板パッキン 1 3 SS-6080320-SP SCREW_1/8-44 L=2.5 平ねじ 1/8-44 L=2.5 1 4 229-00757 FACE_PLATE_OIL_SHIELD_ASM. 面部油防板(組) 1 5 TA-0850604-RO RUBBER_PLUG 止め栓 2 6 TA-1250705-RO RUBBER_PLUG 止め栓 1 7 401-12907 GROUND_WIRE_ASM. アースコード(組) 1 8 SS-4120925-SP SCREW_3/16-28 L=9 なべ小ねじ 3/16-28 L=9 8 9 TA-2100904-RO RUBBER_PLUG 止め栓 1 10 402-25177 WINDOW_PLATE 窓板 1 11 400-12129 SIDE_PLATE_PACKING 窓板パッキン 1 12 CM-3002000-01 ATTENTION_SEAL 指けが注意シール(16) 2 13 401-02261 SAFETY_LABEL_S 安全ラベル 1 14 229-01805 GROUND_MARK グランドマーク 1 15 SS-4120615-SP SCREW_3/16-28 L=6 なべねじ 3/16-28 L=6 1 16 TA-2000502-RO RUBBER_PLUG 止め栓 1 17 #01 114-00801 THROAT_PLATE_J 針板 J 1 18 SL-6052592-TN BOLT 座付き六角ボルト 1 19 TA-21001002-RO RUBBER_PLUG 止め栓 1 20 401-11022 MAGNET_CORD_RUBBER マグネットコードゴム 1 21 #05 229-45463 THREAD_TENSION_ASM. 糸調子(組) (1) 22 229-45414 THREAD_TENSION_POST 糸調子棒 (1) 23 229-45604 THREAD_TENSION_GUIDE 糸調子案内 (1) 24 229-45802 THREAD_TENSION_DISK 糸調子皿 (2) 25 #05 229-45505 THREAD_TENSION_SPRING 糸調子ばね (1) 26 229-45703 THREAD_TENSION_NUT 糸調子ナット (1) 27 SS-4120615-SP SCREW_3/16-28 L=6 なべねじ 3/16-28 L=6 1 28 402-25185 THREAD_TAKE-UP_LEVER_COVER 天秤カバー 1 29 SS-4120615-SP SCREW_3/16-28 L=6 なべねじ 3/16-28 L=6 1 30 110-91006 ARM_THREAD_GUIDE_(HA) アーム糸案内 (HA) 1 31 229-21001 SCREW アーム糸案内A止めねじ 1 32 #05 401-26850 THREAD_TENSION_ASM. 糸調子(組) 1 33 229-21308 THREAD_TENSION_NUT 糸調子ナット (1) 34 229-21407 ROTATION_STOPPER 糸調子皿回転止め (1) 35 #05 401-12420 THREAD_TENSION_SPRING_M 糸調子ばね M (1) 36 229-21803 DISK_STOPPER 糸調子皿押え (1) 37 #05 131-38201 THREAD_TENSION_DISK 糸調子皿 (2) 38 229-21209 THREAD_TENSION_POST 糸調子棒 (1) 39 229-21605 THREAD_TAKE-UP_SPRING 取りばね (1) 40 229-45307 THREAD_TENSION_POST_BASE 糸調子棒台 (1) 41 SS-8090670-SP SCREW_9/64-40 L=5.5 止めねじ 9/64-40 L=5.5 1 42 SS-8150710-TP SCREW_15/64-28 L=7 止めねじ 15/64-28 L=7 1 43 229-20904 TENSION_RELEASING 糸緩めピン 1 44 B1109-552-000 THROAT_PLATE 針板 1 45 SS-2110920-TP SCREW_11/64-40 L=8.5 丸皿ねじ 11/64-40 L=8.5 2 46 #04 401-87311 ARM_THREAD_GUIDE_B アーム糸案内 B 1 47 #03 229-20607 ARM_THREAD_GUIDE_B アーム糸案内 B 1 48 SS-6110610-TP SCREW_11/64-40 L=6 平ねじ 11/64-40 L=6 1 49 TA-1250406-RO RUBBER_PLUG_D=12.5_L=4 止め栓 D=12.5 L=4 2 50 SS-4120925-SP SCREW_3/16-28 L=9 なべねじ 3/16-28 L=9 3 51 229-01250 SLIDE_PLATE_ASM. 滑り板(組) 1 52 229-01201 SLIDE_PLATE 滑り板 (1) 53 229-01300 SLIDE_PLATE_SPRING 滑り板ばね (1) 54 SS-6060210-SP SCREW_3/32-56 L=1.9 平ねじ 3/32-56 L=1.9 (2) 55 #01 401-87738 ARM_THREAD_GUIDE アーム糸案内 1 56 WT-0530002-KS TOOTHED_WASHER_D=5.3 歯付き座金 D=5.3 1 57 #01 NS-6090310-SP NUT 9/64-40 六角ナット 9/64-40 1 58 400-99083 RULER_STOP_SEAT 定規止め座 1 59 SS-7110720-SP SCREW_11/64-40 L=7 丸平ねじ 11/64-40 L=7 2 60 401-26305 SCREW_5/16-24 L=35 電装固定ねじ 1 61 SL-6053092-TN SCREW 座付き六角ボルト 1 62 SL-6054592-TN SCREW 座付き六角ボルト 1 63 EA-9500B01-00 CABLE_BAND 結束バンド 1 64 401-26308 CORD_CLAMP コード止金具 1 65 114-03805 THREAD_GUIDE_C_FITTING_PLATE 糸案内C取付板 1 66 #02 WP-0371016-SD WASHER_3.7X8X1 平座金 3. 1 67 229-01003 BED_SCREW_STUD ベッド支柱 3 68 401-32099 BED_STD_R ベッド支柱 1 69 SS-4151215-SP SCREW_15/64-28 L=12 なべねじ 15/64-28 L=12 1 70 #01 229-63458 THREAD_TENSION_ASM. 糸調子(組) 1 71 #01 229-63409 THREAD_TENSION_SPRING 糸調子ばね (1) 72 #01 229-62054 THREAD_TENSION_ASM. 糸調子(組) (1) 73 #01 229-21506 THREAD_TENSION_DISK 糸調子皿 (2) 74 #01 229-62005 THREAD_TENSION_SPRING 糸調子ばね (1) NOTE(注記) #01...TYPE H H仕様 #02...TYPE H(FOR OB) H仕様(OB用) #03...TYPE OB OB仕様 #04...TYPE NB NB仕様 #05...TYPE S S仕様 - 2 - jintex.in

Page 6 — 2. BOBBIN WINDER COMPONENTS

2. BOBBIN WINDER COMPONENTS 糸巻装置関係 20 23 17 10 24 2 9 13 16 4 3 14 22 11 6 15 11 18 5 21 19 7 12 33 1 25 30 29 28 26 27 31 34 32 35 - 3 - jintex.in

Page 7

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 402-18885 BOBBIN_WINDER_UNIT 糸巻装置結合 (1) 2 401-89600 BTW_BASE 糸巻取付台 (1) 3 262-60208 BTW_CAM_PLATE 糸巻調節板 (1) 4 262-60307 BTW_BASE_SHAFT 糸巻調節板軸 (1) 5 262-60406 BTW_SHAFT_BASE 糸巻腕 (1) 6 262-60505 BTW_CAM_LEVER 糸巻カム (1) 7 262-60604 BTW_WHEEL 糸巻車 (1) 8 262-60802 BTW_BEARING_SPACER ベアリングスペーサー (1) 9 262-61008 BTW_LEVER_SHAFT 糸巻レバー軸 (1) 10 262-61206 BTW_SPACER ボビン座 (1) 11 262-61305 BTW_BEARING 糸巻軸ベアリング (2) 12 ☆ 262-61503 BTW_WHEEL_RUBBER 糸巻摩擦車 (1) 13 262-61602 BOBBIN_SPRING ボビン止めばね (1) 14 262-61701 BTW_SPRING 糸巻調節板戻しばね (1) 15 400-11144 BTW_TORSION_SPRING 糸巻ねじりばね (1) 16 401-10975 BTW_SHAFT 糸巻軸 (1) 17 400-21933 BTW_LEVER 糸巻レバー (1) 18 RC-0560711-KP RETAINING_RING C形止め輪 (1) 19 RE-040000-K0 E-RING_4 E形止め輪 4 (1) 20 SM-5040655-SN SCREW バインドねじ (1) 21 SM-8040802-TP SCREW_M4X8 止めねじ M4X0.7 L=8 (2) 22 SM-8050502-TP SCREW_M5_L=5 止めねじ (1) 23 WP-0450826-SC WASHER_4.5X10X0.8 平座金 4.5X10X0.8 (1) 24 401-19475 OIL_GUARD オイルガード (1) 25 401-10731 BOBBIN_THREAD_TENSION_ASSY 糸巻糸調子(組) 1 26 401-10734 BOBBIN_THREAD_ROD_ASSY 糸巻糸調子棒(結合) (1) 27 NS-6120630-SP NUT_3/16-28 六角ナット 3/16-28 (1) 28 229-21506 THREAD_TENSION_DISK 糸調子皿 (2) 29 D7133-555-B00 CONNECTING_ROD_SPRING 下連結棒ばね (1) 30 229-45703 THREAD_TENSION_NUT 第一糸調子ナット (1) 31 SM-0050801-SC SCREW トラスねじ M5 L=8 1 32 SM-0050801-SC SCREW トラスねじ M5 L=8 3 33 401-63521 PACKING 糸巻取付台パッキン 1 34 400-37008 THREAD_CUTTER 糸切り保持板 1 35 401-13241 BTW_SPACER 下糸巻装置スペーサ 1 - 4 - jintex.in

Page 8 — 3. MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS

3. MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS 上軸・天秤関係 1 15 2 16 6~9.54~57 18 17 5.50 29 14 13 11.52 6~9.54~57 10.51 12.53 4.49 32 27 31 36 39 37 26 3 41 30 40.43 19.46 42 21.47 20.48 35 28 23 25 24 22 34 38 - 5 - jintex.in

Page 9

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 SS-8151150-TP SCREW_15/64-28_L=10.5 止めねじ 15/64-28 L=10.5 1 2 401-06138 THREAD_TAKE-UP_CRANK_SHAFT_ASM. 天秤支え軸(組) 1 3 110-02904 ROLLER_FELT 面部量調節フェルト 1 4 #01 229-18064 THREAD_TAKE-UP_LEVER_ASM. 天秤(組) 1 5 #01 229-18064 THREAD_TAKE-UP_LEVER_ASM. リンク天秤 (1) 6 #03 229-18403 NEEDLE_BEARING_A 天秤ニードル軸受A (2) 7 #03 229-18502 NEEDLE_BEARING_B 天秤ニードル軸受B (2) 8 #03 229-18601 NEEDLE_BEARING_C 天秤ニードル軸受C (2) 9 #03 229-18700 NEEDLE_BEARING_D 天秤ニードル軸受D (2) 10 #01 229-18106 NEEDLE_BAR_CRANK 針棒クランク (1) 11 #01 229-18004 NEEDLE_BAR_CRANK_ROD 針棒クランクロッド (1) 12 #01 229-06606 LEFT_SCREW 天秤クランク左ねじ (1) 13 #01 229-18304 COUNTER_WEIGHT_ASM. 釣合錘(組) 1 14 SS-7681650-TP SCREW_9/32-28_L=16 丸平ねじ 9/32-28 L=16 (1) 15 401-10376 COUNTER_WEIGHT 釣合錘 (1) 16 SS-8681650-TP SCREW_9/32-28_L=16 止めねじ 9/32-28 L=16 (1) 17 SS-6661110-SP SCREW_1/4-40_L=6 止めねじ 1/4-40 L=6 (2) 18 RO-0442401-00 RUBBER_RING Oリング (1) 19 #01 229-10053 FEED_DRIVE_ECCENTRIC_CAM_ASM. 送り偏心カム(組) 1 20 #01 SS-6661110-SP SCREW_1/4-40_L=11 平ねじ 1/4-40 L=11 (2) 21 #01 229-10004 FEED_DRIVE_ECCENTRIC_CAM 送り偏心カム (1) 22 RC-1850001-KP SNAP_RING_18.5 C形止め輪 18.5 (1) 23 401-37502 THRUST_COLLAR_ASM. 上軸スラストカラー(組) 1 24 SS-8660610-TP SCREW_1/4-40_L=6 止めねじ 1/4-40 L=6 (2) 25 401-37503 MAIN_SHAFT_THRUST_COLLAR 上軸スラストカラー (1) 26 B1215-552-000 OIL_ADJUSTING_COLLAR クランク油量調節カラー 1 27 229-03306 BUSHING_INTERMEDIATE 上軸中メタル 1 28 SS-4090615-SP SCREW_9/64-40_L=6 なべねじ 9/64-40 L=6 2 29 229-19203 OIL_PROTECTING_RUBBER 天秤油切りゴム 1 30 225-38805 DRIVING_WHEEL 糸巻き駆動車 1 31 SS-8660610-TP SCREW_1/4-40_L=6 止めねじ 1/4-40 L=6 2 32 401-11424 FILTER フィルター 1 33 SM-80608A2-TP SCREW_M6_L=8 六角穴付き止めねじ M6 L=8 2 34 402-27630 HAND_PULLY はずみ車(完成) 1 35 402-25291 MAIN_SHAFT_BUSHING_REAR 上後メタル 1 36 229-03207 MAIN_SHAFT_BUSHING_FRONT 上前メタル 1 37 402-22686 AC_SERVO_MOTOR ACサーボモータ 1 38 SL-6051692-TN BOLT 座金付き六角ボルト 3 39 SL-6041242-TN BOLT 座金付き六角ボルト 3 40 #02 B1213-552-000 OIL_ADJUSTING_PIN クランク油量調節ピン 1 41 #02 RO-0291801-00 RUBBER_RING Oリング 1 42 229-10103 THRUST_COLLAR 送り偏心カムスラスト受 1 43 #01 229-03900 ADJUSTING_PIN クランク油量調節ピン 1 44 402-22701 MAIN_SHAFT 上軸 1 45 401-39216 OIL_SEAL オイルシール 1 46 #02 229-70552 FEED_ECCENTRIC_CAM_ASM. 送り偏心カム(組) (1) 47 #02 229-70503 FEED_ECCENTRIC_CAM_L 送り偏心カム L (1) 48 #02 229-72806 FEED_ECCENTRIC_CAM_SETSCREW 送り偏心カム止めねじ (2) 49 #02 110-62858 LINK_THREAD_TAKE-UP_LEVER_ASM. リンク天秤(組) (1) 50 #02 110-17068 LINK_THREAD_TAKE-UP_LEVER_ASM. リンク天秤 (1) 51 #02 110-62809 NEEDLE_BAR_CRANK 針棒クランク (1) 52 #02 B1408-552-000 NEEDLE_BAR_CRANK_ROD 針棒クランクロッド (1) 53 #02 B1903-552-000 LEFT_SCREW 左ねじ (1) 54 #04 B1905-541-A00 NEEDLE_BEARING 天秤ニードルベアリング (2) 55 #04 B1905-541-B00 NEEDLE_BEARING 天秤ニードルベアリング (2) 56 #04 B1905-541-C00 NEEDLE_BEARING 天秤ニードルベアリング (2) 57 #04 B1905-541-D00 NEEDLE_BEARING 天秤ニードルベアリング (2) NOTE(注記) #01...TYPE S S仕様 #02...TYPE H H仕様 #03...SELECTIVE PARTS(TYPE S) 選択部品(S仕様) #04...SELECTIVE PARTS(TYPE H) 選択部品(H仕様) - 6 - jintex.in

Page 10 — 4. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

4. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 針棒・立軸・下軸関係 1 2 3.47 5 6 7.41 8.48 9 10 11.49 12 34.50 42 35 13 14 36 37 38 1 16 18 17 20 21 19 45 46 44 22 23 24 26 27 25 29 40 31 30 28 43 39 32 33 - 7 - jintex.in

Page 11

REF.NO NOTE PART NO DESCRIPTION 1 TA-0850604-RO RUBBER_PLUG 2 229-06101 NEEDLE_BAR_BUSHING_UPPER 3 #01 229-39508 NEEDLE_BAR 4 229-06457 NEEDLE_BAR_HOLDER_ASM. 5 SS-6090670-TP SCREW_9/64-40_L=6 6 229-06408 NEEDLE_ROD_HOLDER 7 #02 400-23223 NEEDLE_BAR_THREAD_GUIDE 8 #01 229-06200 NEEDLE_BAR_BUSHING_LOWER 9 SS-7080510-TP SCREW_1/8-44_L=4.5 10 229-70404 NEEDLE_BAR_THREAD_HOOK 11 ☆ #01 MDB-100B1400 NEEDLE_DBX1_#14 12 229-17058 SCREW_11/64-40_L=3.5 13 SS-8110410-TP SLIDE_BLOCK 14 229-17009 THRUST_COLLAR_FRONT 15 400-90058 UPPER_LARGE_BEVEL_GEAR_ASM. 16 400-90002 UPPER_LARGE_BEVEL_GEAR 17 400-90006 SCREW_1/4-40_L=8 18 SS-8660810-TP UPPER_SMALL_BEVEL_GEAR_ASM. 19 400-90003 UPPER_SMALL_BEVEL_GEAR 20 400-90007 SCREW_1/4-40_L=8 21 SS-8660810-TP LOWER_LARGE_BEVEL_GEAR_ASM. 22 400-90004 LOWER_LARGE_BEVEL_GEAR 23 400-90008 SCREW_1/4-40_L=8 24 SS-8660810-TP LOWER_SMALL_BEVEL_GEAR_ASM. 25 400-90005 LOWER_SMALL_BEVEL_GEAR 26 400-90009 SCREW_1/4-40_L=8 27 SS-8660810-TP HOOK_DRIVING_SHAFT_M 28 401-27191 THRUST_COLLAR_ASM. 29 401-36014 HOOK_DRIVING_SHAFT_THRUST_COLLAR 30 401-36013 SCREW_11/64-40_L=4.8 31 SS-6110420-TP BOBBIN_CASE_POSITIONING_FINGER 32 229-16407 SCREW_1/64-40_L=12 33 SS-6111210-SP HOOK_ASM. 34 ☆ #01 401-53440 HOOK_DRIVING_SHAFT_F 35 401-27177 NEEDLE_BAR_THREAD_GUIDE_P 36 229-16555 OIL_WICK 37 110-15906 SET_SCREW 38 229-16506 SCREW_3/16-28_L=9 39 SS-4120915-SP HOOK_DRIVING_SHAFT_BUSH_REAR 40 229-16308 NEEDLE_BAR_THREAD_GUIDE_P 41 #01 401-41523 HOOK_CASE_ASM. 42 402-11519 HOOK_DRIVING_SHAFT 43 401-27192 UPRIGHT_SHAFT_BUSHING_LOWER 44 229-05202 UPRIGHT_SHAFT_BUSHING_UPPER 45 229-05103 UPRIGHT_SHAFT 46 229-05004 NEEDLE_BAR 47 #02 229-70206 NEEDLE_BAR_BUSHING 48 #02 401-71515 NEEDLE_DPX5_#21 49 ☆ #02 MDP-500B2100 HOOK_ASM. 50 ☆ #02 400-35058 NOTE(注記) #01...TYPE S #02...TYPE H 品名止め栓針棒上メタル針棒針棒抱き (組) 平ねじ 9/64-40 L=6 針棒抱き針棒案内針棒下メタル丸平ねじ 1/8-44 L=4.5 針棒掛け針 DBX1 #14 止めねじ 11/64-40 L=3.5 スライドブロック下軸スラスト受上釜歯車大(組) 上釜歯車小止めねじ 1/4-40 L=8 下釜歯車大(組) 下釜歯車小止めねじ 1/4-40 L=8 下釜歯車大(組) 下釜歯車小止めねじ 1/4-40 L=8 釜軸中メタル下軸スラスト受(組) 下軸スラスト受平ねじ 11/64-40 L=4.8 中釜押え平ねじ 11/64-40 L=12 釜組給油釜(組) 釜軸前メタル下軸止めねじ油芯止めねじなべねじ 3/16-28 L=9 下軸後メタル針棒案内釜ケース(ばね入り) 釜軸立軸下メタル立軸上メタル立軸針棒針棒下メタル針 DPX5 #21 給油釜(組) S仕様 H仕様 Qty 1 1 1 1 (1) (1) 1 1 1 1 1 (2) (1) 1 1 (1) (2) 1 (1) (2) 1 (1) (2) 1 1 1 (2) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 - 8 - jintex.in

Page 12 — 5. HAND LIFTER COMPONENTS

5. HAND LIFTER COMPONENTS 押え上げ関係 1 2 3 4 7 30 31 32 45 10-33 36 38 37 5 35 6 9-20 11 12 14 13 39 40 43 41 42 41 8 16 18 19 28 29 8 22 23 22 26 24 46 17 25 27 21 21 15 -9- jintex.in

Page 13

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 229-07802 HAND_LIFTER 押え上げレバー 1 2 B1521-555-000 SCREW 押え上げレバー止めねじ 1 3 RO-0371801-00 RUBBER_RING Oリング 1 4 229-08552 HAND_LIFTER_CAM_ASM. 押え上げカム(組) 1 5 400-60989 PRESSER_BAR_BUSHING_LOWER 押棒下メタ 1 6 SS-7091110-TP SCREW_9/64-40_L=10.5 ねじ 9/64-40 L=10.5 1 7 229-08701 LINK_SHAFT 引き上げリンク軸 2 8 RE-0500000-KO E-RING E形止め輪 3 9 #03 B1524-012-0BA PRESSER_FOOT_ASM. 自由押え(針ガード付き)(組) 1 10 #02 B1505-552-000-A PRESSER_SPRING 押え調節ばね 1 11 229-08909 HINGE_SCREW 膝上げ横棒ねじ 1 12 SD-0720331-SP HINGE_SCREW_D=7.24_H=3.3 段ねじ D=7.24 H=3.3 1 13 229-09006 KNEE_LIFTER_CONNECTING_ROD 膝上げ連結棒 1 14 229-08000 KNEE_LIFTER_LINK 膝上げリンク 1 15 SS-4110515-SP SCREW_11/64-40_L=5 なべねじ 11/64-40 L=5 1 16 SS-4110515-SP SCREW_11/64-40_L=5 なべねじ 11/64-40 L=5 1 17 SS-4150915-SP SCREW_15/64-28_L=9 なべねじ 15/64-28 L=9 1 18 229-44508 WIRE_PRESSER_A ワイヤー押え A 2 19 SS-4120615-SP SCREW_3/16-28_L=6 なべねじ 3/16-28 L=6 1 20 #02 D1524-555-EBL PRESSER_FOOT_ASM. 自由押え(組)(針ガード付き) 1 21 NS-6620310-SP NUT_3/16-32 ナット 3/16-32 2 22 RE-0500000-KO E-RING E形止め輪 2 23 229-20201 RETURN_SPRING 糸締め板戻しばね 1 24 229-20409 THREAD_RELEASE_PIN_SPRING 糸締めピンばね 1 25 229-45109 WIRE_CABLE_SUPPORT ワイヤーケーブル当て 1 26 229-20300 THREAD_RELEASE_SUPPORTING_PIN 糸締め補助ピン 1 27 SS-4120615-SP SCREW_3/16-28_L=6 なべねじ 3/16-28 L=6 1 28 401-32068 THREAD_RELEASE_WIRE_ASM. 糸締めワイヤー(組) 1 29 229-20102 TENSION_RELEASE_SHAFT 糸締め板軸 1 30 229-07554 PRESSER_SPRING_REGULATOR_ASM. 送り調節ねじナット(組) (1) 31 229-07604 PRESSER_SPRING_REGULATOR_NUT 押え調節ねじナット (1) 32 229-07505 PRESSER_SPRING_REGULATOR 押え調節ねじ (1) 33 #03 229-07406 PRESSER_SPRING 押え調節ばね 1 34 400-98388 PRESSER_BAR_GUIDE_BRACKET 押え棒抱き 1 35 400-17805 PRESSER_BAR 押え棒 1 36 #01 229-07307 THREAD_GUIDE 押棒糸案内 1 37 SS-8660810-TP SCREW_1/4-40_L=8 止めねじ 1/4-40 L=8 1 38 #01 SS-6090910-SP SCREW_9/64-40_L=9 平ねじ 9/64-40 L=9 2 39 229-08354 KNEE_LIFTING_CROSS_ROD_ASM. 膝上げ機構(組) 1 40 229-08156 LIFTING_LINK_ASM. 引き上げリンク(組) (1) 41 RE-0500000-KO E-RING E形止め輪 (2) 42 229-08008 LIFTING_PLATE 引き上げ板 (1) 43 229-08305 KNEE_LIFTER_SIDE_ROD 膝上げ横棒 (1) 44 401-32067 WIRE_PRESSER_BASE ワイヤー押え台 1 45 229-07703 PRESSER_GUIDE_BAR 押え案内棒 1 46 401-27189 WIRE_PRESSER_SUPPORT 糸締めワイヤー押え土台 1 NOTE(注記) #01...TYPE OB OB仕様 #02...TYPE H H仕様 #03...TYPE OB,NB OB,NB仕様 - 10 - jintex.in

Page 14 — 6. FEED MECHANISM COMPONENTS

6. FEED MECHANISM COMPONENTS 送り関係 11.73 12.74 24 25 26 25 26 13 14 27.77 28 29 30 65 66 1.78 2.75 3 3 18 19.82 A 20 17.81 4.76 3 23 6 8 9 7 16 10.83 5 85 62 64 63 68 86 21 22 70 34 33.84 36 35 39 37 38 32 51 52 56 53 55 58 57 59 54 49 50 60 61 15 A 67 69 40 41.79 43 30 42.80 44.88 72 45.89 46.90 47.91 48 - 11 - jintex.in

Page 15

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 #01 229-41108 FEED_ADJUST_ROD 送り調節ロッド 1 2 #01 229-11507 WALKING_FOOT_PIN_C 送り調節台ピン C 1 3 SS-6090670-TP SCREW_9/64-40_L=6 平ねじ 9/64-40 L=6 2 4 #01 229-11606 FEED_REGULATOR 送り調節台 1 5 SS-6121860-SP SCREW_3/16-28_L=18 平ねじ 3/16-28 L=18 1 6 SS-7120770-SH SCREW_3/16-28_L=7 丸平ねじ 3/16-28 L=7 1 7 229-11804 FEED_REGULATOR_SCREW 送り調節ねじ 1 8 229-12109 FEED_REGULATOR_PIN_SPRING 送り調節ピンばね 1 9 229-12000 FEED_REGULATOR_PIN 送り調節ピン 1 10 #01 401-01726 FEED_DIAL 送りダイヤル 1 11 229-10251 CONNECTING_ROD_ASM. ロッド(組) 1 12 #01 229-10202 ROCKER_SHAFT_CONNECTING_ROD 水平送りロッド 1 13 229-11101 WALKING_FOOT_PIN_C 水平送りピン C (1) 14 SS-6090620-TP SCREW 平ねじ (1) 15 229-15003 CONNECTING_ROD 上下送りロッド 1 16 RO-0922702-00 RUBBER_RING Oリング 1 17 #01 110-10311 LEVER_SPRING 送りレバーばね 1 18 RE-0500000-KO FEED_REVERSE_ARM_ASM. 送りレバー腕(組) 1 19 #01 229-12257 FEED_REVERSE_ARM_SCREW 送りレバー腕止めねじ 1 20 #01 229-12505 LEVER_STOPPER_ASM. レバーストッパ 1 21 401-15888 FEED_REGULATOR_BUSHING 調節リンクばね 1 22 #01 110-37405 FEED_REGULATOR_BUSHING 送り調節台メタ 1 23 110-09800 WALKING_FOOT_PIN_A 水平送りピン A 2 24 229-10905 CONNECTING_LINK_B 連結リンク B 2 25 400-89548 FEED_ADJUST_LINK_ASM. 送り調節リンク(組) 1 26 400-93417 ADJUST_LINK_FULCRUM_SHAFT_A ク支点軸 A 2 27 #01 229-40951 SCREW_15/64-28_L=11.5 平ねじ 15/64-28 L=11.5 2 28 229-10806 SCREW 平ねじ 3 29 SS-6151220-SP FEED_BAR_SHAFT 送り台軸 1 30 SS-6090620-TP SCREW_1/8-44_L=6 なべねじ 1/8-44 L=6 2 31 229-40803 FEED_BASER 送り台(組) 1 32 RC-0150001-KP FEED_BASER. 送り台 1 33 #01 401-33950 WASHER 上下送り角軸 1 34 SS-4080620-TP VERTICAL_FEED_SQUARE_BLOCK_SHAFT 角駒軸座金 (1) 35 229-40753 VERTICAL_FEED_SQUARE_BLOCK 角駒 (1) 36 229-40704 WALKING_FOOT_PIN_B 水平送りピン B 1 37 B1706-555-000 ASSY_FEED_ROCKER_ARM 腕(組) 1 38 229-13503 FEED_ROCKER_ARM 水平送り腕 (1) 39 229-13602 SCREW_3/16-28_L=15.5 平ねじ 3/16-28 L=15.5 (1) 40 229-11002 FEED_ARM_ASM. 腕(組) 1 41 401-10379 FEED_ARM 上下送り腕 1 42 #01 401-10378 SCREW_3/16-28_L=15.5 丸平ねじ 3/16-28 L=15.5 (1) 43 SS-6121610-SP HINGE_SCREW_D=10_H=8 段ねじ D=10 H=8 1 44 #01 401-09422 FEED_DRIVING_SHAFT 送り下軸 1 45 #01 401-08863 THRUST_COLLAR_ASM. 送り軸スラストカラー(組) 1 46 #01 SS-7121610-SP SCREW_1/4-40_L=6 止めねじ 1/4-40 L=6 (2) 47 #01 SD-1000801-SH FEED_ROCKER_SHAFT_THRUST_COLLAR 送り軸スラストカラー (1) 48 229-15201 FEED_ROCKER_SHAFT_BUSHING 送り軸メタル 1 49 401-37504 SCREW_11/64-40_L=7 丸平ねじ 11/64-40 L=7 1 50 SS-8660610-TP RETAINING_RING_13.8 C形止め輪 13.8 1 51 401-37505 FEED_ROCKER_ASM. 送り台(組) 1 52 229-13008 SCREW_3/16-28_L=14 平ねじ 3/16-28 L=14 (1) 53 SS-7110740-TP WASHER_4.8X8.4X0.8 平座金 4.8X8.4X0.8 (1) 54 RC-0150001-KP FEED_ARM 送り台腕 1 55 229-40654 DRIVING_SHAFT_CRANK_ASM. 上下送り二又(組) 1 56 SS-7121410-TP RIVING_SHAFT_CRANK 上下送り二又 (1) 57 WP-0480856-SP SCREW_11/64-40_L=10.5 丸平ねじ 11/64-40 L=10.5 (1) 58 229-40605 FEED_REVER_ARM. 送りレバー(組) 1 59 229-15359 FEED_LEVER 送りレバー (1) 60 229-15300 SCREW 止めねじ M6 L=10 (2) 61 SS-7111120-SP REGULATOR_SPRING_HOOK_PLATE 掛け板 1 62 401-02264 SCREW_11/64-40_L=5 なべねじ 11/64-40 L=5 2 63 229-12703 FEED_LEVER_SHAFT 送りレバー軸 1 64 SM-8061010-TP FEED_LEVER_SHAFT_BUSHING 送りレバー軸メタル 1 65 #01 402-30589 RUBBER_RING Oリング 1 66 #01 SS-4110515-SP FEED_SPRING_HOOK_PLATE 掛け板 1 67 401-00812 FEED_ROCKER_SHAFT 水平送り軸 1 68 229-12802 NUT_9/32-28 六角ナット 9/32-28 1 69 RO-0781901-00 HORIZONTAL_FEED_ROD_ASM. 水平送りロッド(組) 1 70 402-30521 HORIZONTAL_FEED_ROD 水平送りロッド (1) 71 401-33779 FEED_REGULATOR_BASE_PIN 送り調節台ピン 1 72 NS-6680410-SP FEED_REGULATOR_BASE 送り調節台 1 73 #02 229-70750 HORIZONTAL_FEED_ARM 水平送り腕 (組) 1 74 #02 229-70701 HORIZONTAL_FEED_AR 水平送り腕 1 75 #02 229-71204 FEED_REGULATOR_BASE_PIN 送り調節台ばね 7H 1 76 #02 229-71303 FEED_REGULATOR_BASE 送り調節台 0.1 77 #02 400-31240 FEED_ADJUST_LINK_ASM. 送り調節リンク(組) 1 78 #02 400-39673 FEED_ADJUST_ROD 送り調節ロッド (1) 79 #02 229-70859 HORIZONTAL_FEED_ARM_ASM. 水平送り腕(組) (1) 80 #02 229-70800 HORIZONTAL_FEED_AR 水平送り腕 (1) 81 #02 229-71709 FEED_REVERSE_SPRING 送りレバーばね 1 82 #02 229-71550 FEED_LEVER_ARM_ASM. 送りレバー腕(組) 1 83 #02 400-39674 FEED_DIAL 送りダイヤル 1 84 #02 114-03003 FEED_J 送り J 1 85 #02 402-25300 FEED_REGULATOR_SPRING_7H 送り調節台ばね 7H 1 86 #02 HX-0018900-00 SPIRAL_TUBE スパイラルチューブ 1 87 #02 400-10395 ADJUSTING_LINK_FULCRUM_SHAFT_B 調節リンク支点軸 B 1 88 #02 229-72251 VERTICAL_FEED_ARM_ASM. 上下送り腕(組) (1) 89 #02 229-72202 VERTICAL_FEED_ARM 上下送り腕 (1) 90 #02 SS-6121210-SP SCREW_3/16-28_L=12 平ねじ 3/16-28 L=12 (1) 91 #02 400-31249 HINGE_SCREW 上下送り段ねじ 1 NOTE(注記) #02-TYPE H H仕様 - 12 - jintex.in

Page 16 — 7. THREAD TRIMMER COMPONENTS

7. THREAD TRIMMER COMPONENTS 糸切り関係 1 4 2 4 A 2 5 1 3 1 8 1 9 2 1 1 0 1 1 1 2 1 1 1 2 1 6 1 5 1 6 4 7 5 8 2 6 3 3 3 2 3 1 3 4 3 5 2 2 2 3 A 2 8 2 7 3 2 1 3 8 3 6 3 7 3 0 2 9 - 13 - jintex.in

Page 17

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 401-27152 THREAD_TRIMMER_CAM 糸切りカム 1 2 401-27153 SPACER スペーサ 2 3 SS-8661012-TP SCREW 止めねじ 2 4 ☆ 401-27154 COUNTER_KNIFE 固定メス 1 5 SS-1090520-TP SCREW_9/64-40_L=5 皿小ねじ 9/64-40 L=5 1 6 401-27155 LOWER_THREAD_FINGER 糸さばき板 1 7 WP-0371016-SD WASHER_3.7X8X1 平座金 3.7X8X1 1 8 SS-7090610-SP SCREW_9/64-40_L=6 丸平ねじ 9/64-40 L=6 1 9 401-27156 MOVING_KNIFE_HOLDER 動メス土台 1 10 401-27157 KNIFE_HOLDER_PRESSER_ASSY 動メス土台押え 1 11 WP-0450826-SC WASHER_4.5X10X0.8 平座金 4.5X10X0.8 2 12 SS-4111415-SP SCREW_11/64-40_L=14 なべねじ 11/64-40 L=14 2 13 ☆ 401-87740 MOVING_KNIFE さばきメス 1 14 113-51806 SCREW 動メス止めねじ 2 15 401-27161 THREAD_TRIMMER_CONNECTING_ROD 糸切り連結ロッド 1 16 SD-0600291-TP HINGE_SCKEW_D=6_H=2.9 段ねじ D=6 H=2.9 2 17 NS-6110350-SP NUT_11/64-40 六角ナット 11/64-40 1 18 401-84556 THREAD_TRIMMER_ARM 糸切り腕 1 19 ☆ 401-27163 LEVER_STOPPER 糸切り腕ストッパー 1 20 SS-4121415-SP SCREW_3/16-28_L=14 なべねじ 3/16-28 L=14 1 21 401-27164 SPRING ばね 1 22 401-27165 FORKED_SHAFT 糸切り二又軸 1 23 401-27166 COLLAR カラー 1 24 401-27167 FORKED_SHAFT_BUSH 糸切り二又軸メタル 1 25 SS-8110422-TP SCREW_11/64-40_L=4 止めねじ 11/64-40 L=4 1 26 401-27168 THREAD_TRIMMER_CAM_LEVER_ASSY 糸切りカム腕(組) 1 27 SS-8660612-TP SCREW_1/4-40_L=6 止めねじ 1/4-40 L=6 1 28 401-27180 THREAD_TRIMMER_CAMLEVER_SHAFT 糸切りカム腕軸 1 29 401-27181 COLLAR 糸切りカム腕ガイドカラー 1 30 401-27182 SPRING 糸切りカムばね 1 31 401-27183 CUSHION 糸切りカム腕ゴム 1 32 WP-0820816-SD WASHER_8.2X16X0.8 平座金 8.2X16X0.8 1 33 RE-060000-KO E-RING_6 E形止め輪 6 1 34 401-32143 THREAD_TRIMMER_SOLENOID_ASM 糸切りソレノイド(組) 1 35 SS-4151215-SP SCREW_15/64-28_L=12 なべねじ 15/64-28 L=12 1 36 SD-0850751-SP HINGE_SCREW_D=8.50_H=7.5 段ねじ D=8.5 H=7.5 1 37 401-27188 THREAD_RELEASE_LEVER 糸緩め腕 1 38 401-27190 RETURN_SPRING 糸緩め戻しばね 1 - 14 - jintex.in

Page 18 — 8. AUTOMATIC REVERSE FEED COMPONENTS

8. AUTOMATIC REVERSE FEED COMPONENTS 自動逆送り関係 REF.NO NOTE PART NO DESCRIPTION Qty 1 402-30319 LED_BT_SWITCH_ASSY_7A 1 2 229-53509 PLUNGER_ARM_PIN 1 3 SS-4151215-SP SCREW_15/64-28 L=12 2 4 401-30594 REVERSE_FEED_SOLENOID 1 5 229-54002 PLUNGER_SPRING 1 6 RE-0500000-KP E-RING_5 1 7 111-01300 REVERSE_FEED_CONNECTING_SHAFT 1 8 RE-0900000-KO E-RING_9 1 9 229-53657 CONNECTING_ARM_ASM. 1 10 RE-0400000-KP E-RING_4 1 11 401-32066 CONNECTING_LINK 1 12 RE-1200000-KO E-RING_12 1 13 WP-1602616-SZ WASHER_16X24X2.6 1 14 229-53400 RUBBER_PLUNGER 1 15 RE-0400000-KO E-RING_4 2 - 15 - jintex.in

Page 19 — 9. EXCLUSIVE PARTS TYPE NB

9. EXCLUSIVE PARTS TYPE NB NB 仕様専用部品 REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 402-25399 THREAD_NIPPER_SET 糸掴みセット 1 2 SS-1110640-TP SCREW_11/64-40_L=5.5 皿ねじ 11/64-40 L=5.5 1 3 G1164-870-000 SUCTION_O-RING サクションOリング 1 4 134-03605 RUBBER_PLATE ラバープレート 1 - 16 - jintex.in

Page 20 — 10. OIL LUBRICATION COMPONENTS

10. OIL LUBRICATION COMPONENTS 給油関係 1 2 3 4 7 6 5 8 9 10 29 26 13 28 27 24 22 23 14 15 18 17 16 12 19 20 21 - 17 - jintex.in

Page 21

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 229-24708 OIL_SIGHT_WINDOW 油窓 1 2 RO-1952401-00 RUBBER_RING Oリング 1 3 229-24401 MAIN_SHAFT_OIL_TUBE 上軸油パイプ 1 4 SS-4120615-SP SCREW_3/16-28_L=6 なべねじ 3/16-28 L=6 1 5 229-25101 OIL_FELT_PRESSER 還元フェルト押え 1 6 229-24153 OIL_RETURN_TUBE_ASM. 還流パイプ(組) 1 7 229-24302 HOLDER 還流パイプ押え (1) 8 CQ-2520000-00 OIL_WICK 油芯 0.21 9 401-27179 OIL_REGULATOR_SPRING 釜前メタル油量調節ばね 1 10 401-27193 HQOK_OIL_TUBE 釜給油パイプ 1 11 WS-0451040-KP SPRING_WASHER_4.5X8.5X1 ばね座金 4.5X8.5X1 1 12 229-23056 LUBRICATING_OIL_PUMP_ASM. 給油ポンプ体(組) (1) 13 229-23312 OIL_PUMP_INSTALLING_BASE ポンプ体取付板 (1) 14 229-23015 OIL_PUMP ポンプ体 (1) 15 229-23700 OIL_PUMP_IMPELLER インペラー (1) 16 SE-4301041-SR SCREW_D=3_L=10 タップタイトねじ D=3 L=10 (1) 17 229-23205 OIL_PUMP_IMPELLER_COVER ポンプ体受板 (1) 18 229-23809 OIL_PUMP_IMPELLER_COVER ポンプ体受板 (1) 19 229-23403 PLUNGER プランジャー (1) 20 229-23601 PLUNGER_SPRING プランジャーばね (1) 21 229-23502 PLUNGER_SCREW プランジャーねじ (1) 22 229-23908 HQOK_DRIVING_SHAFT_OIL_TUBE 下軸給油パイプ (1) 23 SL-4030851-SF SCREW_M3_L=8 座金付きなべねじ M3 L=8 (3) 24 SS-4150915-SP SCREW_15/64-28_L=9 平ねじ 15/64-28 L=9 1 25 SS-6111010-TP SCREW_11/64-40_L=9.5 平ねじ 11/64-40 L=9.5 1 26 229-47105 OIL_PUMP_SUPPORT ポンプ体支柱 1 27 WS-0651310-KP SPRING_WASHER_6.5X11X1.3 ばね座金 6.5X11X1.3 1 28 229-24609 RUBBER_JOINT ゴム継手 1 29 401-27178 OIL_REGULATOR_SCREW 釜前メタル油量調節ねじ 1 - 18 - jintex.in

Page 22 — 11. OIL RESERVOIR COMPONENTS

11. OIL RESERVOIR COMPONENTS 油溜関係 27 26 1 2 3 4 4 8 10 9 18 16 19 25 20 24 23 22 21 4 5 6 11 12 17 13 14 15 - 19 - jintex.in

Page 23

REF.NO NOTE PART NO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 401-11876 401-05821 229-31901 B1116-210-D00 SS-6700710-SH RO-0982401-00 229-32156 229-32107 NM-6060001-SE SM-8063012-TR 229-32206 RE-100000-KO 229-32453 229-32404 229-34707 401-01720 401-01541 NM-6060001-SE 229-34251 229-34608 229-34400 229-34202 229-34301 SM-9061203-SE 229-34509 B8228-125-000 229-31703 DESCRIPTION OIL_RESERVER_ASM. OIL_RESERVOIR OIL_RESERVOIR_GASKET FRAME_SUPPORT_RUBBER SCREW_5/16-24_L=7 RUBBER_RING KNEE_LIFTER_ROTATION_ARM_ASM. KNEE_LIFTING_ROTATING_ARM NUT_M6 SCREW_M6_L=30 SPRING E-RING_10 BRACKET_ASM. BRACKET SCREW SCREW_M6 KNEE_PRESS_CROSS_SHAFT NUT_M6 KNEE_PAD_PLATE_ASM. KNEE_PAD_UPRIGHT_SHAFT KNEE_PAD_PLATE_RUBBER KNEE_PAD_PLATE KNEE_PAD_PLATE_SUPPORT SCREW_M6_L=12 KNEE_PAD_PLATE_COVER OIL_RESERVOIR_MAGNET KNEE_LIFTER_PUSH_ROD 品名油溜(組) 油溜油溜パッキン頭部支えゴム平ねじ 5/16-24 L=7 Oリング膝上げ回転腕(組) 膝上げ回転腕六角ナット M6 1種止めねじ膝上げ回転ばね E形止め輪 10 膝当て立軸取付腕(組) 膝当て立軸取付腕膝当て立軸取付腕締めねじ膝当て立軸取付腕止めねじ膝当て横軸六角ナット M6 1種膝当て板(組) 膝当て立軸膝当て板ゴム膝当て板膝当て板支え六角ボルト M6 L=12 膝当て板カバー磁石膝上げ押し棒 Qty 1 (1) (1) (4) (1) (1) (1) (1) (2) (2) (1) (1) (1) (1) (2) (1) (1) (1) 1 (1) (1) (1) (1) (1) (1) 1 1 - 20 - jintex.in

Page 24 — 12. PSC UNIT

12. PSC UNIT P SC ユニット 1.2 8 9 4.5 6 7 REF NO NOTE PART NO DESCRIPTION 品名 Qty 1 #01 402-25188 CONTROL BOX 1P 電装ボックス単相 1 2 #02 402-25280 CONTROL BOX 3P 電装ボックス三相 1 3 401-31478 CONNECTING ROD ASSY 連結棒(組) 1 4 #01 402-15705 ACCESSORIES PARTS ASSY 電装関係付属品(組) 1 5 #02 402-24061 ACCESSORIES PARTS 3P ASSY 電装関係付属品三相用(組) 1 6 #02 401-18323 POWER SWITCH ASSY 電源スイッチ(組) 三相JA向け 1 7 #02 SK-3512001-SE WOOD SCREW D=5.1 L=20 丸木ねじ D=5.1 L=20 2 8 402-15706 PEDAL SENSOR BASE ASSY ペダルセンサ(組) 1 9 #02 MAO-11532000 CORD STAPLE コードステツプル 4 NOTE(注記) #01...OTHER THAN FOR AD A D向け以外 #02...FOR AD A D向け - 21 - jintex.in

Page 25 — 13. ACCESSORIE PARTS COMPONENTS

13. ACCESSORIE PARTS COMPONENTS 付属品関係 REF.NO NOTE PART NO DESCRIPTION Qty 1 401-30788 ACCESSORIE_BAG_ASSY 付属品バッグ (組) (1) 2 229-32800 ACCESSORIE_BAG 付属品バッグ (1) 3 229-31604 FRAME_SUPPORT_BAR 頭部支え棒 (1) 4 ☆ 229-32909 BOBBIN ボビン (1) 5 229-58300 NEEDLE_THREAD_GUIDE_PIN 糸案内棒 (1) 6 229-31703 KNEE_LIFTER_PUSH_ROD 膝上げ押し棒 (1) 7 402-25224 SAFETY_INSTRUCTION_MANUAL(1K) 安全注意書 (DDL-7000A) 1K 1 8 ☆ 401-02087 JU KI_MACHINE_OIL_7 JU KI マシンオイル 7 1 9 401-37214 RUBBER_HINGE_ASM. ラバーヒンジ (組) 1 10 229-58003 FRAME_BUBBBER_CUSHION 頭部支えゴム (2) 11 229-26208 NAIL ゴムヒンジ打ち釘 (8) 12 401-37215 HINGE_COMPL. ヒンジ (結合) (2) 13 229-26505 WASHER 頭部クッション座 (2) 14 229-26000 RUBBER_CUSHION ゴムヒンジ座 (2) 15 ☆ #01 MDB-100B1402 NEEDLE_DBX1#14-2 針 DBX1#14-2 1 16 ☆ #02 MDP-500B2102 NEEDLE_DPX5#21-2 針 DPX5#21-2 1 NOTE(注記) #01...TYPE S S仕様 #02...TYPE H H仕様 - 22 - jintex.in

Page 26 — 14. THREAD STAND COMPONENTS

14. THREAD STAND COMPONENTS 糸立装置関係 1 9 8 7 6 19 11 5 18 3 12 24 7 17 13 10 23 4 18 22 21 20 22 21 20 2 15 16 16 15 14 - 23 - jintex.in

Page 27

REF.NO NOTE PART NO DESCRIPTION 品名 Qty 1 400-96354 THREAD_STAND_ASM. 糸立装置(組) (1) 2 400-85784 SPOOL_REST_ROD_(LOWER) 糸立棒(下) (1) 3 400-85785 SPOOL_REST_ROD_(UPPER) 糸立棒(上) (1) 4 400-85786 SPOOL_REST_ARM_(LOWER) 糸立腕(下) (1) 5 400-85787 SPOOL_REST_ARM_(UPPER) 糸立腕(上) (1) 6 400-85788 SPOOL_REST 糸巻受皿 (2) 7 400-85789 SPOOL_REST_CUSHION 糸巻受皿クッション (2) 8 400-85790 SPOOL_PIN 糸巻受棒 (2) 9 400-85791 SPOOL_RETAINER 糸巻振れ止め (2) 10 400-85792 SPOOL_REST_ROD_JOINT 糸立棒継手 (1) 11 400-85793 SPOOL_REST_ROD_RUBBER_CAP 糸立棒保護キャップ (1) 12 400-85794 THREAD_GUIDE 糸道 (2) 13 400-85795 THREAD_GUIDE_BUSHING 糸道ブッシュ (2) 14 400-96325 SPOOL_REST_ROD_NUT 糸立棒止めナット (1) 15 WP-1612616-SF WASHER_16X30X2.6 平座金 (2) 16 400-85796 SPOOL_REST_ROD_RUBBER_CUSHION 糸立棒防振ゴム (2) 17 NM-6050001-SE SPOOL_REST_ARM_LOWER_SCREW 糸立腕(下)止めねじ (1) 18 NM-6050001-SE NUT_M5 六角ナット M5 (2) 19 400-96327 SPOOL_REST_ARM_UPPER_SCREW 糸立腕(上)止めねじ (1) 20 NM-6050001-SE NUT_M5 六角ナット M5 (2) 21 WS-0510002-KN SPRING_WASHER_M5 ばね座金 M5 (2) 22 WP-0531001-SC WASHER_M5 平座みがき丸 M5 (2) 23 SM-4051405-SE SCREW_M5_L=14 なべ小ねじ M5 L=14 (2) 24 NM-6050001-SE NUT_M5 六角ナット (2) - 24 - jintex.in

Page 28 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 索引 PART NO PAGE REF NO PART NO PAGE REF NO PART NO PAGE REF NO B1109-552-000 2 44 SL-4030851-SF 18 23 SS-8660610-TP 12 50 229-08156 10 40 B1116-210-D00 20 4 SL-6041242-TN 6 39 SS-8660610-TP 14 27 229-08305 10 43 B1213-552-000-A 6 40 SL-6051692-TN 6 38 SS-8660610-TP 8 18 229-08354 10 39 B1215-552-000 6 26 SL-6052592-TN 2 18 SS-8660610-TP 8 21 229-08552 10 4 B1408-552-000 6 52 SL-6053092-TN 2 61 SS-8660610-TP 8 24 229-08701 10 7 B1505-552-000-A 10 10 SL-6054592-TN 2 62 SS-8660610-TP 8 27 229-08900 10 14 B1521-555-000 10 2 SM-0050801-SC 4 31 SS-8660610-TP 10 37 229-08909 10 11 B1706-555-000 12 37 SM-0050801-SC 4 32 SS-8661012-TP 14 3 229-09006 10 13 B1903-552-000 6 53 SM-4051405-SE 24 23 SS-8681650-TP 6 16 229-10004 6 21 B1905-541-A00 6 54 SM-8040802-TP 4 21 TA-0850604-RO 2 5 229-10103 6 42 B1905-541-B00 6 55 SM-8050502-TP 4 22 TA-0850604-RO 8 1 229-10202 12 12 B1905-541-C00 6 56 SM-80608A2-TP 6 33 TA-1250406-RO 2 49 229-10251 12 11 B1905-541-D00 6 57 SM-8063012-SE 20 12 TA-2000502-RO 2 16 229-10806 12 28 B8228-125-000 20 26 SM-8063012-TR 20 10 TA-2000502-RO 6 16 229-10905 12 24 SM-9061203-SE 20 24 TA-2100904-RO 2 9 229-11002 12 40 CM-3002000-01 2 12 SS-1090520-TP 14 5 TA-2101002-RO 2 19 229-1101 12 13 CQ-2520000-00 18 8 SS-1110640-TP 16 2 229-11507 12 2 D1524-555-EBL 10 20 SS-2110920-TP 16 45 WP-0371016-SD 2 66 229-11606 12 4 D7133-555-B00 4 29 SS-4080620-TP 12 34 WP-0371016-SD 14 7 229-11804 12 7 EA-9500B01-00 2 63 SS-4090615-SP 10 15 WP-0450826-SC 4 23 229-12109 12 8 SS-4110515-SP 10 16 WP-0450826-SC 14 11 229-12505 12 19 G1164-870-000 16 3 SS-4110515-SP 12 66 WP-0531001-SC 24 22 229-12509 12 20 SS-4110515-SP 14 12 WP-0820816-SD 14 32 229-12703 12 63 HX-0018900-00 12 86 SS-4120615-SP 2 15 WP-1602616-SZ 15 13 229-12802 12 68 SS-4120615-SP 2 27 WP-1612616-SE 24 15 229-13503 12 38 MAO-11532000 21 9 SS-4120615-SP 2 29 WS-0451040-KP 18 11 229-13602 12 39 MDB-100B1400 8 11 SS-4120615-SP 10 19 WS-0510002-KN 24 21 229-15003 12 15 MDB-100B1402 22 15 SS-4120615-SP 10 27 WS-0651310-KP 18 27 229-15201 12 48 MDP-500B2100 8 49 SS-4120915-SP 18 4 WT-0530002-KS 2 56 229-15300 12 60 MDP-500B2102 22 16 SS-4120915-SP 8 39 110-02904 6 3 229-15359 12 59 NM-6050001-SE 24 18 SS-4121415-SP 14 20 110-09800 12 23 229-16407 8 32 NM-6050001-SE 24 24 SS-4150915-SP 10 17 110-10311 12 17 229-16506 8 38 NM-6060001-SE 20 9 SS-4151215-SP 14 8 110-17068 6 50 229-16555 8 36 NM-6060001-SE 20 18 SS-4151215-SP 2 69 110-37405 12 22 229-17009 8 14 NS-6090310-SP 2 57 SS-4151215-SP 14 35 110-62809 6 51 229-17058 8 12 NS-6110350-SP 14 17 SS-6060210-SP 2 54 110-62858 6 49 229-18064 6 5 NS-6120630-SP 4 27 SS-6080320-SP 12 3 110-91006 2 30 229-18072 6 4 NS-6620310-SP 10 21 SS-6090620-TP 12 14 111-01300 15 7 229-18106 6 10 NS-6680410-SP 12 72 SS-6090620-TP 12 30 113-51806 14 14 229-18304 6 12 SS-6090670-TP 8 5 114-00801 2 17 229-18403 6 6 RC-0150001-KP 12 32 SS-6090670-TP 12 3 114-03003 12 84 229-18502 6 7 RC-0150001-KP 12 54 SS-6091040-TP 10 38 114-03805 2 65 229-18601 6 8 RC-0560711-KP 4 18 SS-6110420-TP 8 31 134-03605 16 4 229-18700 6 9 RC-1850001-KP 6 22 SS-6110610-TP 2 48 225-38805 6 30 229-19203 6 29 RE-0400000-KP 15 10 SS-6111010-TP 18 25 229-00757 2 4 229-20102 10 29 RE-0400000-KO 4 19 SS-6111010-TP 8 33 229-01003 2 67 229-20201 10 23 RE-0400000-KO 15 15 SS-6121210-SP 12 90 229-01201 2 52 229-20300 10 26 RE-0500000-KP 15 6 SS-6121210-SP 12 43 229-01250 2 51 229-20409 10 24 RE-0500000-KO 10 8 SS-6121860-SP 12 5 229-01300 2 53 229-20607 2 47 RE-0500000-KO 10 22 SS-6151220-SP 12 29 229-01805 2 14 229-20904 2 43 RE-0500000-KO 10 41 SS-6661110-SP 6 20 229-03207 6 36 229-21001 2 31 RE-0600000-KO 12 18 SS-6700710-SH 20 5 229-03306 6 27 229-21209 2 38 RE-0900000-KO 15 8 SS-7090610-SP 14 8 229-03900 6 43 229-21308 2 33 RE-1000000-KO 20 12 SS-7091110-TP 10 6 229-05004 8 46 229-21407 2 34 RE-1200000-KO 15 12 SS-7110720-SP 2 59 229-05103 8 45 229-15605 2 73 RO-0291801-00 6 41 SS-7110740-TP 12 53 229-05202 8 44 229-21506 4 28 RO-0371801-00 10 3 SS-7111120-SP 12 61 229-06101 8 2 229-23015 18 14 RO-0442401-00 6 18 SS-7121410-TP 12 56 229-06200 8 8 229-23056 18 12 RO-0781901-00 12 69 SS-7121610-SP 12 46 229-06408 8 6 229-23205 18 17 RO-0922702-00 12 16 SS-7681650-TP 6 14 229-06457 8 4 229-23312 18 13 RO-0982401-00 20 6 SS-8090670-SP 2 41 229-06606 6 11 229-23403 18 19 RO-1952401-00 18 2 SS-8090670-SP 10 13 229-07307 10 36 229-23502 18 21 SD-0600291-TP 14 16 SS-8104225-TP 14 25 229-07406 10 33 229-23601 18 20 SD-0720331-SP 10 12 SS-8150710-TP 2 42 229-07505 10 32 229-23700 18 15 SD-0850751-SP 14 36 SS-8151150-SP 6 1 229-07554 10 30 229-23809 18 18 SD-1000801-SH 12 47 SS-8660610-TP 6 17 229-07604 10 31 229-23908 18 22 SE-4301041-SR 18 16 SS-8660610-TP 6 24 229-07703 10 45 229-24153 18 6 SK-3512001-SE 21 7 SS-8660610-TP 6 31 229-07802 10 1 229-24302 18 7 - 25 - 229-08008 10 42 229-24401 18 3 jintex.in

Page 29 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 索引 PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF PART NO PAGE REF 品番頁 NO 品番頁 NO 品番頁 NO 品番頁 NO 229-24708 18 1 262-61305 4 10 401-18753 21 6 402-27630 6 34 229-24609 18 28 262-61306 4 11 401-19475 4 24 402-30319 15 1 229-25101 18 5 262-61503 4 12 401-26305 2 2 402-30521 12 70 229-26000 22 14 262-61701 4 13 401-26308 2 64 402-30589 12 65 229-26208 22 11 401-26850 2 32 229-26505 22 13 401-27152 14 1 229-31604 22 3 400-10395 12 87 401-27153 14 2 229-31703 20 27 400-11144 4 15 401-27154 14 4 229-31703 22 6 400-12126 2 2 401-27155 14 6 229-31901 20 3 400-12129 2 11 401-27156 14 9 229-32107 20 8 400-17805 10 35 401-27157 14 10 229-32323 20 6 400-21933 4 17 401-27161 14 15 229-32453 20 13 400-23223 8 7 401-27163 14 19 229-32800 22 2 400-31240 12 77 401-27164 14 21 229-32909 22 4 400-35058 8 50 401-27165 14 22 229-34202 20 22 400-37008 4 34 401-27166 14 23 229-34509 20 25 400-39673 12 78 401-27167 14 24 229-34608 20 20 400-39674 12 83 401-27168 8 35 229-34707 20 15 400-85787 24 5 401-27178 18 29 229-40605 12 58 400-85788 24 6 401-27179 18 9 229-40654 12 55 400-85789 24 7 401-27180 14 28 229-40704 12 36 400-85790 24 8 401-27181 14 29 229-40753 12 35 400-85791 24 9 401-27182 14 30 229-40803 12 31 400-85792 24 10 401-27183 14 31 229-40951 12 27 400-85793 24 11 401-27192 8 43 229-41108 12 1 400-85794 24 12 401-27193 15 10 229-44508 10 18 400-85795 24 13 401-30594 15 4 229-45109 10 25 400-90002 8 16 401-30788 22 1 229-45307 2 40 400-90006 8 17 401-32096 10 11 229-45414 2 21 400-90004 8 19 401-32143 14 34 229-45463 2 21 400-90005 8 22 401-32068 10 28 229-45505 2 25 400-90008 8 23 401-32099 2 68 229-45604 2 23 400-90006 8 17 401-32143 14 34 229-45703 2 26 400-90009 8 26 401-33779 12 71 229-45703 4 30 400-90058 8 15 401-33950 12 33 229-45802 2 24 400-93417 12 26 401-36013 8 30 229-47105 18 26 400-96325 24 14 401-36014 8 29 229-53400 15 14 400-96326 24 17 401-37214 22 9 229-53509 15 2 400-96327 24 19 401-37502 6 23 229-53657 15 9 400-96354 24 1 401-37503 6 25 229-54002 15 5 400-98388 10 34 401-37504 12 49 229-58003 22 10 400-99083 2 58 401-37505 12 51 229-58300 22 5 401-00812 12 67 401-39216 6 45 229-62005 2 74 401-01541 20 17 401-41523 8 41 229-63409 2 71 401-01720 20 16 401-53440 8 34 229-63458 2 70 401-01726 12 10 401-63521 4 33 229-70206 8 47 401-02087 22 8 401-71515 14 48 229-70404 8 10 401-02261 2 13 401-84556 14 18 229-70503 6 47 401-02264 12 62 401-87311 2 46 229-70552 6 46 401-05821 20 2 401-87738 2 55 229-70701 12 73 401-06138 6 2 401-87740 14 13 229-70800 12 80 401-08863 12 42 402-11519 8 42 229-70859 12 79 401-09422 12 44 402-15705 21 4 229-71204 12 75 401-10376 6 15 402-15706 21 8 229-71303 12 76 401-10378 12 42 402-18885 4 1 229-71550 12 82 401-10379 12 41 402-22686 6 37 229-71709 12 81 401-10390 6 13 402-22701 6 44 229-72202 12 89 401-10731 4 25 402-24061 21 5 229-72251 12 88 401-10734 4 26 402-25175 2 1 229-72806 6 48 401-10975 4 16 402-25177 2 10 262-60208 4 3 401-11022 2 20 402-25185 2 28 262-60307 4 4 401-11432 6 32 402-25188 21 1 262-60406 4 5 401-11876 20 1 402-25224 22 7 262-60505 4 6 401-12420 2 35 402-25280 21 2 262-60604 4 7 401-13241 4 35 402-25291 6 35 262-60802 4 8 401-15888 12 21 402-25300 12 85 262-61008 4 9 401-15888 12 21 402-25399 16 1 - 26 - jintex.in

Page 30

MEMO - 27 - jintex.in

Page 32

JUKI JUKI CORPORATION SEWING MACHINERY BUSINESS UNIT 2-11-1, TSURUMAKI, TAMA-SHI, TOKYO, 206-8551, JAPAN PHONE:(81)42-357-2371 FAX:(81)42-357-2274 Copyright© 2019 JUKI CORPORATION 本書の内容を無断で転載、複写することを禁止します。 All rights reserved throughout the world. JUKI株式会社〒 206-8551 東京都多摩市鶴牧 2-11-1 TEL.042-357-2371(ダイヤルイン) FAX.042-357-2274 お買い求め、ご相談は To order or for further information, please contact: ※このパーツリストは商品改良のため予告なく変更する事があります。 ※ The description covered in this parts list is subject to change for improvement of the commodity without notice. ※ このパーツリストは2019年7月現在の商品仕様で編集したものです。 *This parts list is edited in accordance with the product specifications as of July 2019. jintex.in Printed in Japan

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Page 5

Page 6 — 2. BOBBIN WINDER COMPONENTS

Page 7

Page 8 — 3. MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS

Page 9

Page 10 — 4. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

Page 11

Page 12 — 5. HAND LIFTER COMPONENTS

Page 13

Page 14 — 6. FEED MECHANISM COMPONENTS

Page 15

Page 16 — 7. THREAD TRIMMER COMPONENTS

Page 17

Page 18 — 8. AUTOMATIC REVERSE FEED COMPONENTS

Page 19 — 9. EXCLUSIVE PARTS TYPE NB

Page 20 — 10. OIL LUBRICATION COMPONENTS

Page 21

Page 22 — 11. OIL RESERVOIR COMPONENTS

Page 23

Page 24 — 12. PSC UNIT

Page 25 — 13. ACCESSORIE PARTS COMPONENTS

Page 26 — 14. THREAD STAND COMPONENTS

Page 27

Page 28 — NUMERICAL INDEX OF PARTS

Page 29 — NUMERICAL INDEX OF PARTS

Part Books

Search

Ref	Part number	Part name
11	73	11
12	74	12
24	24	24
25	25	25
26	26	26
13	13	13
14	14	14
27	77	27
28	28	28
29	29	29
30	30	30
65	65	65
66	66	66
1	78	1
2	75	2
3	3	3
18	18	18
19	82	19
20	20	20
17	81	17
4	76	4
23	23	23
6	6	6
8	8	8
9	9	9
7	7	7
16	16	16
10	10	10
83	83	83
5	5	5
85	85	85
21	21	21
62	62	62
64	64	64
63	63	63
68	68	68
86	86	86
34	34	34
33	84	33
36	36	36
35	35	35
37	37	37
39	39	39
38	38	38
32	32	32
51	51	51
52	52	52
56	56	56
31	31	31
53	53	53
55	55	55
57	57	57
58	58	58
59	59	59
54	54	54
49	49	49
50	50	50
60	60	60
61	61	61
15	15	15
67	67	67
69	69	69
40	40	40
41	79	41
30	30	30
42	80	42
43	43	43
44	88	44
72	72	72
45	89	45
46	46	46
90	90	90
47	91	47
48	48	48

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29

Ref	Part number	Part name
11	73	11
12	74	12
24	24	24
25	25	25
26	26	26
13	13	13
14	14	14
27	77	27
28	28	28
29	29	29
30	30	30
65	65	65
66	66	66
1	78	1
2	75	2
3	3	3
18	18	18
19	82	19
20	20	20
17	81	17
4	76	4
23	23	23
6	6	6
8	8	8
9	9	9
7	7	7
16	16	16
10	10	10
83	83	83
5	5	5
85	85	85
21	21	21
62	62	62
64	64	64
63	63	63
68	68	68
86	86	86
34	34	34
33	84	33
36	36	36
35	35	35
37	37	37
39	39	39
38	38	38
32	32	32
51	51	51
52	52	52
56	56	56
31	31	31
53	53	53
55	55	55
57	57	57
58	58	58
59	59	59
54	54	54
49	49	49
50	50	50
60	60	60
61	61	61
15	15	15
67	67	67
69	69	69
40	40	40
41	79	41
30	30	30
42	80	42
43	43	43
44	88	44
72	72	72
45	89	45
46	46	46
90	90	90
47	91	47
48	48	48

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29

Ref	Part number	Part name
11	73	11
12	74	12
24	24	24
25	25	25
26	26	26
13	13	13
14	14	14
27	77	27
28	28	28
29	29	29
30	30	30
65	65	65
66	66	66
1	78	1
2	75	2
3	3	3
18	18	18
19	82	19
20	20	20
17	81	17
4	76	4
23	23	23
6	6	6
8	8	8
9	9	9
7	7	7
16	16	16
10	10	10
83	83	83
5	5	5
85	85	85
21	21	21
62	62	62
64	64	64
63	63	63
68	68	68
86	86	86
34	34	34
33	84	33
36	36	36
35	35	35
37	37	37
39	39	39
38	38	38
32	32	32
51	51	51
52	52	52
56	56	56
31	31	31
53	53	53
55	55	55
57	57	57
58	58	58
59	59	59
54	54	54
49	49	49
50	50	50
60	60	60
61	61	61
15	15	15
67	67	67
69	69	69
40	40	40
41	79	41
30	30	30
42	80	42
43	43	43
44	88	44
72	72	72
45	89	45
46	46	46
90	90	90
47	91	47
48	48	48

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
