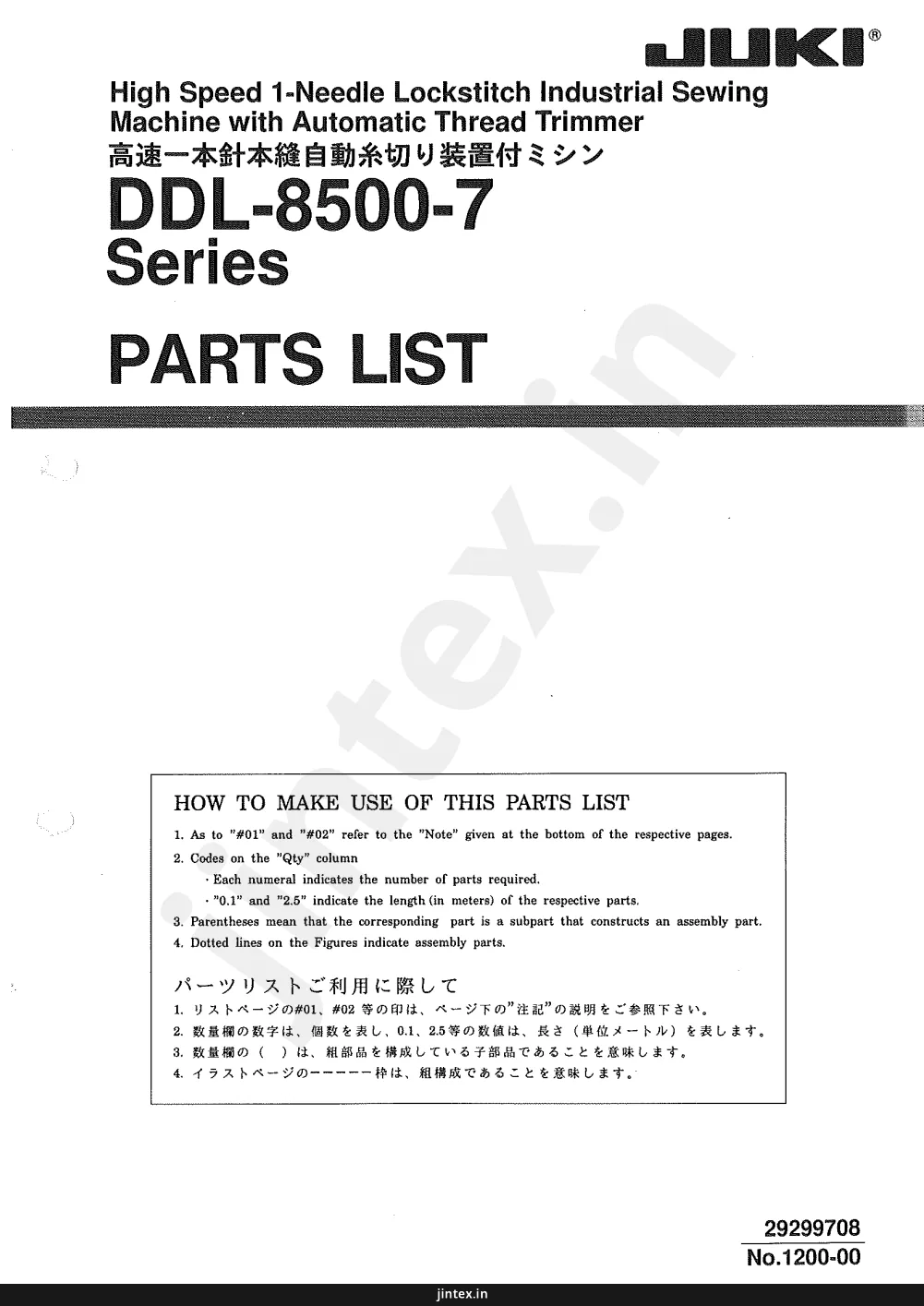

Page 1 — PARTS LIST
JUKI
High Speed 1-Needle Lockstitch Industrial Sewing
Machine with Automatic Thread Trimmer
高速一本針本縫自動糸切り装置付ミシン
DDL-8500-7
Series
PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST
1. As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages.
2. Codes on the "Qty" column
• Each numeral indicates the number of parts required.
• "0.1" and "2.5" indicate the length (in meters) of the respective parts.
3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part.
4. Dotted lines on the Figures indicate assembly parts.
パーツリストご利用に際して
1. リストページの#01、#02等の印は、ページ下の”注記”の説明をご参照下さい。
2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。
3. 数量欄の( )は、組部品を構成している子部品であることを意味します。
4. イラストページのーーーーー枠は、組構成であることを意味します。
29299708
No.1200-00
jintex.in
Page 2
jintex.in
Page 3 — CONTENTS
CONTENTS
目 次
1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . null
Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
頭部・外装関係
- 1 -
jintex.in
Page 5
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 229-02159 FASE PLATE ASM. メンイタ(クミ) 1
2 229-02209 FASE PLATE GASKET メンイタパツキン 1
3 SS-6080410-SP SCREW 1/8-44 L=4 ヒラネジ 1/8-44 L=4 1
4 229-00757 ARM OIL SHIFLD ASM. メンウデユシールド(クミ) 1
5 TA-0850604-RO RUBBER PLUG トメセン 2
6 TA-1250705-RO RUBBER PLUG トメセン 1
7 229-58300 THREAD GUIDE ROD イトアンナイボウ 1
8 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 8
9 #05 229-54705 CORD HOLDER コードトメカケ 1
10 229-00401 SIDE PLATE マドイタ 1
11 110-00619 GASKET マドイタパツキン 1
12 #01 CM-3002000-01 ATTENTION SEAL ユビケガチュウイシール(16) 1
13 #06 CM-3002001-A1 SAFETY LABEL, .3 (SMALL). アンゼンラベル.3(ショウ) 1
14 100-04109 GROUND MARK グランドマーク 1
15 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1
16 TA-2000502-RO RUBBER PLUG トメセン 1
17 #02 SS-6121840-SP SCREW 3/16-28 L=18 ヒラネジ 3/16-28 L=18 1
18 #02 229-52501 REVERSE FEED LEVER STOPPER サカオクリレバーストツパ 1
19 TA-2101002-RO RUBBER PLUG トメセン 1
20 #02 229-35308 MAGNET CORD RUBBER マグネットコードゴム 1
21 229-45455 THREAD TENSION ASM. ダイイイトチヨウシ(クミ) 1
22 229-45406 FIRST TENSION POST ダイイイトチヨウシボウ 1
23 229-45604 THREAD TENSION GUIDE ダイイイトチヨウシアンナイ (1)
24 229-45802 BOBBIN WINDER TENSION DISC ダイイイトチヨウシザラ (2)
25 229-45505 THREAD TENSION SPRING ダイイイトチヨウシバネ (1)
26 229-45703 THREAD TENSION NUT ダイイイトチヨウシナツト (1)
27 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1
28 229-00609 THREAD TAKE-UP LEVER COVER テンビンカバ 1
29 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1
30 229-20508 ARM THREAD GUIDE A アームイトアンナイA 1
31 110-01500 SCREW アームイトアンナイAトメネジ 1
32 229-45356 THREAD TENSION ASM. イトチヨウシ(クミ) (1)
33 229-21308 TENSION NUT イトチヨウシナツト (1)
34 229-21407 ROTATING STOPPER イトチヨウシザラカイテントメ (1)
35 229-21704 TENSION SPRING A イトチヨウシバネ(A) (1)
36 229-21803 THREAD TENSION DISK PRESSER イトチヨウシザラオサエ (1)
37 229-21506 THREAD TENSION DISK イトチヨウシザラ (2)
38 229-21209 TENSION POST イトチヨウシボウ (1)
39 229-21605 TAKE-UP SPRING イトトリバネ (1)
40 229-45307 TENSION POST SOCKET イトチヨウシボウダイ (1)
41 SS-8090670-SP SCREW 9/64-40 L=5.5 トメネジ 9/64-40 L=5.5 (1)
42 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1
43 B3118-552-E00 TENSION RELEASING ピン 1
44 B1109-012-IOB THROAT PLATE (I) ハリイタI 1
45 SS-2110920-TP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 1
46 SS-2110915-SP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 1
47 229-20607 ARM THREAD GUIDE B アームイトアンナイB 1
48 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 1
49 TA-1250406-RO RUBBER PLUG D=12.5 L=4 トメセン D=12.5 L=4 2
50 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 3
51 229-01250 BED SLIDE ASM. スベリイタ(クミ) 1
52 229-01201 SLIDE PLATE スベリイタ (1)
53 229-01300 BED SLIDE SPRING スベリイタバネ (1)
54 SS-6030190-SP SCREW 3/32-56 L=1.9 ヒラネジ 3/32-56 L=1.9 (2)
55 229-01003 BED SCREW STUD ベツドシメジク 4
56 WT-0530002-KS TOOTHED WASHER D=5.3 ハジキザガネ D=5.3 1
57 229-35407 RUBBER PLATE ベツドユボゴム 1
58 #01 180-77503 THREAD TAKE-UP LEVER COVER テンビンカバ 1
59 #03 229-35209 RUBBER BUSHING マグネットコードゴム 1
60 #04 B1109-552-000 THROAT PLATE ハリイタ 1
61 229-02605 RULER STOPPER ジヨウギトメザ 1
62 SS-6110540-SP SCREW 11/64-40 L=5 マルサラネジ 11/64-40 L=5 2
63 M6008-350-AAC RESISTANCE PACK AC ASM. テイコウパツクACクミ 1
64 SS-4121215-SP SCREW 3/16-28 L=12 ナベネジ 3/16-28 L=12 1
65 WS-0510002-KP SPRING WASHER 5.1X9.2X1.3 ハジキザガネ 5.1X9.2X1.3 1
66 WP-0501016-SD WASHER 5X10.5X1 ヒラザガネ 5X10.5X1 1
67 #04 M6008-350-AAA RESISTANCE PACK AA ASM. テイコウパツクAAクミ 1
68 #01 M6008-350-AAF RESISTANCE PACK AF ASM. テイコウパツクAFクミ 1
69 #07 M6008-350-AAL RESISTANCE PACK AL ASM. テイコウパツクALクミ 1
NOTE (注記)
#01....FOR JE JE用
#02....FOR DDL-8500-7-0B, -WB DDL-8500-7-0B, -WB用
#03....FOR DDL-8500-7-00 DDL-8500-7-00用
#04....FOR JA JA用
#05....EXCEPT DDL-8500-7-00 DDL-8500-7-00を除く
#06....EXCEPT JE JEを除く
#07....FOR JH JH用
- 2 -
jintex.in
Page 6 — 2. MAIN SHAFT COMPONENTS
2. MAIN SHAFT COMPONENTS
上軸関係
- 3 -
jintex.in
Page 7
REF. NO NOTE PART NO. DESCRIPTION Qty.
1 SS-8151150-SP SCREW 15/64-28 L=10.5 1
2 229-19559 THREAD TAKE-UP CRANK SHAFT ASM 1
3 229-03702 ROLLER FELT 1
4 110-39070 THREAD TAKE-UP LEVER ASM. 1
5 110-39062 THREAD TAKE-UP LEVER ASM. (1)
6 #01 B1905-541-B00 NEEDLE BEARING (1)
7 110-05204 NEEDLE BAR CRANK (1)
8 B1408-552-000 NEEDLE BAR CRANK ROD (1)
9 B1903-552-000 LEFT SCREW (1)
10 229-03157 COUNTER WEIGHT ASM. 1
11 SS-8681650-TP SCREW 9/32-28 L=16 (1)
12 SS-8660610-TP SCREW 1/4-40 L=6 (2)
13 RO-0442401-00 RUBBER RING (1)
14 SS-7681650-TP SCREW 9/32-28 L=16 (1)
15 229-03108 COUNTER WEIGHT (1)
16 229-10053 FEED DRIVE ECCENTRIC CAM ASM. 1
17 SS-6661110-SP SCREW 1/4-40 L=11 (2)
18 229-10004 FEED DRIVE ECCENTRIC CAM (1)
19 SS-6090650-SP SCREW 9/64-40 L=6 2
20 229-03405 MAIN SHAFT BUSHING, REAR 1
21 229-03504 OIL SEAL 1
22 RC-1850001-KP SNAP RING 18.5 1
23 229-04155 THRUST COLLAR ASM. 1
24 SS-8660610-TP SCREW 1/4-40 L=6 (2)
25 229-03207 MAIN SHAFT FRONT BUSHING 1
26 229-04007 OIL ADJUSTING COLLAR 1
27 229-03306 BUSHING, INTERMEDIATE 1
28 EA-9500B01-00 CABLE BAND 1
29 229-19203 RUBBER 1
30 229-37064 HAND WHEEL COMPL. 1
31 SS-6111210-SP SCREW 11/64-40 L=12 (2)
32 WP-0450801-SD WASHER 4.5X10X0.8 (2)
33 SS-8151550-SP SCREW 15/64-28 L=15 (2)
34 229-37056 HAND WHEEL ASM. (1)
35 M4007-110-0AA MAGNET FITTING BASE A ASM. (1)
36 M4007-110-0AB MAGNET FITTING BASE B ASM. (1)
37 110-32562 DYNAMO STATOR 1
38 229-03009 MAIN SHAFT 1
39 SL-4051001-MZ SCREW M5 L=9.6 2
40 229-03900 OIL AMOUNT ADJUSTING PIN 1
41 RO-0291801-00 RUBBER RING 1
42 229-10103 THRUST COLLAR 1
NOTE (注記) #01....SELECTIVE PART(A~D) 選択部品(A~D)
- 4 -
jintex.in
Page 8 — 3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
針棒・立軸・下軸関係
1
2
3
44
4
5
6
7
8
9
10
11
28
15
14
13
17
16
20
19
18
21
22
12
45
25
23
26
27
29
31
35
30
46
36
32
37
33
40
39
43
38
42
24
34
41
- 5 -
jintex.in
Page 9
REF. NO NOTE PART NO. DESCRIPTION Qty.
1 229-01409 CAP 1
2 229-06101 NEEDLE BAR BUSHING, UPPER 1
3 229-39508 NEEDLE BAR 1
4 229-06457 NEEDLE ROD HOLDER ASM. 1
5 SS-6090670-TP SCREW 9/64-40 L=6 (1)
6 229-06507 SLIDE BLOCK 1
7 110-18801 NEEDLE BAR THREAD GUIDE 1
8 229-06200 NEEDLE BAR BUSHING, LOWER 1
9 SS-7080510-TP SCREW 1/8-44 L=4.5 1
10 229-06309 NEEDLE BAR THREAD GUIDE 1
11 MDB-100B1400 NEEDLE DBX1 #14 1
12 B1306-155-OCO GEAR & PINION ASM. (1)
13 B1306-155-OBO GEAR & PINION ASM., UPPER (1)
14 B1306-012-OAO GEAR ASM. (1)
15 SS-8660810-TP SCREW 1/4-40 L=8 (2)
16 B1306-155-OAO PINION ASM. (1)
17 SS-8660810-TP SCREW 1/4-40 L=8 (2)
18 B1307-155-OBO GEAR & PINION ASM., LOWER (1)
19 B1307-155-OAO GEAR ASM., LARGE (1)
20 SS-8660810-TP SCREW 1/4-40 L=8 (2)
21 B1308-155-OAO PINION ASM. (1)
22 SS-8660810-TP SCREW 1/4-40 L=8 (2)
23 229-05004 UPRIGHT SHAFT 1
24 → 111-41355 HOOK ASM. 1
25 229-05103 UPRIGHT SHAFT BUSHING, LOWER 1
26 229-05202 UPRIGHT SHAFT BUSHING, LOWER 1
27 229-16308 BUSHING, REAR 1
28 #02 MC-2005009-00 NEEDLE 134 90 1
29 229-17157 THRUST COLLAR ASM. 1
30 SS-8110420-TP SCREW 11/64-40 L=4.8 (2)
31 229-16001 LOWER SHAFT 1
32 229-42502 BOBBIN CASE HOLDER 1
33 SS-4110915-SP SCREW 11/64-40 L=9 1
34 #01 110-38650 HOOK ASM. 1
35 229-16100 LOWER SHAFT FRONT METAL 1
36 229-17058 THRUST COLLAR ASM. 1
37 SS-8110410-TP SCREW 11/64-40 L= 3.5 (2)
38 229-16555 OIL SEAL SCREW ASM. 1
39 229-16605 OIL WICK (1)
40 229-16506 OIL SEAL SCREW (1)
41 229-32909 BOBBIN 1
42 110-38759 BOBBIN CASE ASM. 1
43 229-42601 OIL SHIELD 1
44 #03 111-41207 NEEDLE BAR 1
45 SS-4120915-SP SCREW 3/16-28 L=9 1
46 SS-4120915-SP SCREW 3/16-28 L=9 1
NOTE (注記)
#01....FOR JH JH用
#02....FOR JE JE用
#03....FOR JE, JO JE, JO用
- 6 -
jintex.in
Page 10 — 4. HAND LIFTER COMPONENTS
4. HAND LIFTER COMPONENTS 押さえ上げ関係 - 7 - jintex.in
Page 11
REF. NO NOTE PART NO. DESCRIPTION Qty
1 229-07802 HAND LIFTER 1
2 B1521-555-000 SCREW 1
3 R0-0371801-00 RUBBER RING 1
4 229-08552 HAND LIFTER CAM ASM. 1
5 229-08156 HAND LIFTER LINK 1
6 RE-0500000-KO E-RING 1
7 110-06509 LINK SHAFT 2
8 RE-0500000-KO E-RING 3
9 229-08008 LIFTING LEVER 1
10 RE-0500000-KO E-RING 1
11 229-08909 HINGE SCREW 1
12 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 1
13 229-09006 CONNECTING ROD VERTICAL 1
14 229-08800 LIFTING LEVER LINK 1
15 229-08305 LIFTING LEVER CONNECTING ROD 1
16 SS-7110720-SP SCREW 11/64-40 L=7 1
17 #01 SS-4150915-SP SCREW 15/64-28 L=9 1
18 229-44508 WIRE HOLDER A 2
19 SS-4120615-SP SCREW 3/16-28 L=6 1
20 229-44607 WIRE HOLDER BRACKET ,UPPER 1
21 NS-6620310-SP NUT 3/16-32 2
22 RE-0500000-KO E-RING 2
23 229-20201 TENSION RELEASE RETURN SPRING 1
24 110-18405 TENSION RELEASE PIN SPRING 1
25 229-45109 WIRE CABLE HOLDER 1
26 110-18306 TENSION RELEASE SUPPORTING PIN 1
27 SS-4120615-SP SCREW 3/16-28 L=6 1
28 229-44854 THREAD RELEASE WIRE ASM. 1
29 110-18108 TENSION RELEASE SHAFT 1
30 229-07505 PRESSER ADJUSTING SCREW 1
31 229-07604 PRESSER ADJUSTING SCREW NUT 1
32 229-07703 PRESSER GUIDE BAR 1
33 229-07406 PRESSER ADJUSTING SPRING 1
34 229-07208 PRESSER BAR GUIDE BRACKET 1
35 229-07000 PRESSER BAR 1
36 229-07307 PRESSER BAR THREAD GUIDE 1
37 SS-8660810-TP SCREW 1/4-40 L=8 1
38 SS-6090910-SP SCREW 9/64-40 L=9 2
39 229-07109 PRESSER BAR BUSHING, LOWER 1
40 SS-7091110-SP SCREW 9/64-40 L=10.5 1
41 B1524-012-0BA PRESSER FOOT ASM. 1
42 229-44706 WIRE HOLDER BRACKET ,LOWER 1
43 SS-7110410-SP SCREW 11/64-40 L=4 1
NOTE (注記) #01...FOR DDL-8500-7-00 DDL-8500-7-00用
-8-
jintex.in
Page 12 — 5. FEED MECHANISM COMPONENTS
5. FEED MECHANISM COMPONENTS 送り関係
- 9 -
jintex.in
Page 13
REF. NO. NOTE PART NO. DESCRIPTION Qty
1 229-41108 FEED ADJUST ROD 1
2 229-11507 FEED REGULATOR PIN 1
3 SS-6090670-TP SCREW 9/64-40 L=6 2
4 229-11606 FEED REGULATOR 1
5 229-11705 FEED REGULATOR BUSHING 1
6 SS-7120770-SH SCREW 3/16-28 L=7 1
7 229-11804 FEED REGULATOR SCREW 1
8 229-12109 SPRING 1
9 229-12000 PIN 1
10 229-40506 FEED DIAL 1
11 SS-6121880-SP SCREW 3/16-28 L=18 1
12 229-10202 ROCKER SHAFT CONNECTING ROD 1
13 229-11101 WALKING FOOT PIN C 1
14 SS-6090620-SP SCREW 9/64-40 L=6 1
15 229-15003 CONNECTING ROD 1
16 RO-0922702-00 RUBBER RING 1
17 229-12406 FEED REVERSE SPRING 1
18 RE-050000-KO E-RING 1
19 229-12257 FEED REVERSE ARM ASM. 1
20 110-10410 FEED REVERSE ARM SCREW 1
21 RE-050000-KO E-RING 1
22 110-37405 ADJUSTING LINK SPRING B 1
23 #02 229-11408 FEED REGULATOR CONNCCTING ROD 1
24 229-10905 WALKING FOOT PIN A 1
25 110-08703 WALKING FOOT LINK 2
26 110-08604 CONNECTING LINK A 2
27 #01 229-40951 FEED ADJUST LINK ASM. 1
28 229-10806 ADJUSTING LINK FULCRUM SHAFT A 2
29 SS-8150710-SP SCREW 15/64-28 L=7 2
30 SS-6090620-SP SCREW 9/64-40 L=6 2
31 229-40803 FEED BAR SHAFT 1
32 RC-0150001-KP RETAINING RING 13.8 1
33 B1613-012-100 FEED DOG I 1
34 SS-4080620-TP SCREW 1/8-44 L=6 2
35 229-40753 FEED BAR ASM. 1
36 229-41306 ADJUSTING LINK SPRING GUIDE 1
37 SS-4110515-SP SCREW 11/64-40 L=5 2
38 229-13701 FEED SPRING HOOK 1
39 229-12901 FEED ROCKER SHAFT 1
40 229-11002 WALKING FOOT PIN B 1
41 SS-6090620-SP SCREW 9/64-40 L=6 1
42 NS-6680410-SP NUT 9/32-28 1
43 229-10350 FEED ROCKER SHAFT CRANK ASM. 1
44 SS-6121610-SP SCREW 3/16-28 L=15.5 (1)
45 229-15151 FEED ARM COMPL. 1
46 SS-7121610-SP SCREW 3/16-28 L=15.5 (1)
47 SD-1000801-SH HINGE SCREW D=10 H=8 1
48 229-15201 FEED DRIVING SHAFT 1
49 229-04155 THRUST COLLAR ASM. 1
50 SS-8660610-TP SCREW 1/4-40 L=6 (2)
51 229-13008 FEED ROCKER SHAFT BUSHING 2
52 #03 229-13800 HORIZONTAL FEED ROD B 1
53 SS-7110740-TP SCREW 11/64-40 L=7 1
54 RC-0150001-KP RETAINING RING 13.8 1
55 229-40654 FEED BAR CRANK ASM. 1
56 SS-7121410-TP SCREW 3/16-28 L=14 (1)
57 229-42056 DRIVING SHAFT CRANK ASM. 1
58 SS-7111120-SP SCREW 11/64-40 L=10.5 (1)
59 #04 B1636-581-C00 NEEDLE BEARING 1
60 #02 229-10459 WALKING FOOT ADJUSTING LINK 1
61 229-04155 THRUST COLLAR ASM. 1
62 SS-8660610-TP SCREW 1/4-40 L=6 (2)
63 RO-0781901-00 RUBBER RING 1
64 229-12604 FEED REVERSE SHAFT 1
65 229-12802 FEED LEVER METAL 1
66 SM-8061010-TP SCREW 1
67 SM-8061050-TP SCREW 1
68 229-12703 REVERSE FEED CONTROL LEVER 1
69 WP-0480856-SP WASHER 4.8X8.4X0.8 1
NOTE (注記)
#01....FOR DDL-8500-7-0B, -WB
#02....FOR DDL-8500-7-00
#03....FOR JE, JA
#04....SELECTIVE PART(FOR JE, JA)
- 10 -
jintex.in
Page 14 — 6. THREAD TRIMMER COMPONENTS
6. THREAD TRIMMER COMPONENTS
糸切り装置関係
- 11 -
jintex.in
Page 15
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 110-40359 KNIFE UNIT 1
2 SD-0460703-TP HINGE SCREW D=4.6 H=7 (1)
3 110-40508 FORKED BASE FOR KNIFE (1)
4 110-40409 MOVING KNIFE HINGE SCREW (1)
5 110-40052 MOVING KNIFE ASM. (1)
6 110-40300 KNIFE MOUNTING BASE (1)
7 110-40201 THREAD GUIDE FOR KNIFE (1)
8 SS-2060210-SP SCREW 3/32-56 L=2.3 (1)
9 SS-4080620-TP SCREW 1/8-44 L=6 (2)
10 D2406-555-DOH COUNTER KNIFE (1)
11 HK-0346101-40 HOUSING 14P 1
12 SS-410715-SP SCREW 11/64-40 L=7 1
13 229-50257 PICKER ARM ASM. (1)
14 229-50208 PICKER ARM (1)
15 229-50356 THREAD TAKE-UP PICKER ASM. (1)
16 SS-6090510-SP SCREW 9/64-40 L=5 (2)
17 SD-0641451-SP HINGE SCREW D=6.35 H=14.5 1
18 SD-0630275-SP HINGE SCREW D=6.35 H=2.7 1
19 110-42850 THREAD TRIMMER CAM ASM. 1
20 SS-6660610-TP SCREW 1/4-40 L=6 (2)
21 229-50950 CAM COLLAR ASM. 1
22 SS-8110520-TP SCREW 11/64-40 L=4.5 (1)
23 229-49762 THREAD TRIMMER DRIVING UNIT (1)
24 229-49754 BASE PLATE ASM. (1)
25 229-50703 DRIVING ARM STOPPE (1)
26 229-50000 PICKER LINK PIN (1)
27 RE-060000-KO E-RING 6 (1)
28 SS-410715-SP SCREW 11/64-40 L=7 (2)
29 229-49408 CLUTCH SPRING (1)
30 110-41852 CLUTCH PLATE ASM. (1)
31 229-50109 PICKER LINK (1)
32 WP-0621016-SH WASHER (2)
33 NS-6150430-SP NUT 15/64-28 (2)
34 RE-060000-KO E-RING 6 (1)
35 110-40607 MOVING KNIFE LINK (1)
36 RE-050000-KO E-RING 5 (1)
37 229-48400 MOVING KNIFE LINK PIN (1)
38 229-49309 KNIFE RETURN SPRING B (1)
39 RE-040000-KO E-RING 4 (2)
40 229-49101 ROLLER FULCRUM SHAFT (1)
41 229-49200 ROLLER FULCRUM SPRING (1)
42 SS-7090610-SP SCREW 9/64-40 L=6 (1)
43 229-49002 ROLLER ARM BRACKET (1)
44 229-48657 ROLLER ARM ASM. (1)
45 110-40854 KNIFE DRIVING ARM ASM. (1)
46 HK-0346400-OB PIN CONTACT 2
47 SS-4150915-SP SCREW 15/64-28 L=9 2
48 SD-0640631-TP HINGE SCREW D=6.35 H=6.3 1
49 229-51164 SOLENOID UNIT (1)
50 229-49903 CLUTCH LINK (1)
51 RE-050000-KO E-RING 5 (1)
52 110-43205 SOLENOID RUBBER A (1)
53 110-43908 THREAD TRIMMER SOLENOID (1)
54 229-51404 SOLENOID BASE (1)
55 WP-045000-SD WASHER 4.5X8X0.5 (2)
56 NM-604000-SN NUT M4 (2)
57 110-43304 SOLENOID RUBBER (1)
58 NS-6660410-SH NUT (1)
59 NS-6660430-SP NUT 1/4-40 (1)
60 229-51008 SOLENOID PIN (1)
61 SS-6110710-TP SCREW 11/64-40 L=6.5 (1)
62 SD-0600361-SP HINGE SCREW D=6 H=3.6 1
63 SS-4151215-SP SCREW 15/64-28 L=12 2
64 229-24807 TUBE HOLDER ,LOWER 1
65 110-44054 GROUND WIRE ASM. 1
- 12 -
jintex.in
Page 16 — 7. AUTOMATIC REVERSE FEED COMPONENTS
7. AUTOMATIC REVERSE FEED COMPONENTS
自動逆送り関係
REF. NO
NOTE
PART NO.
DESCRIPTION
Qty
1
229-54150
REVERSE FEED SWITCH ASM.
ギヤクオクリスイツチ(クミ)
1
2
229-54606
REVERSE FEED SWITCH COVER
ギヤクオクリスイツチカバ
(1)
3
SM-4040655-SP
SCREW M4 L=6
ナベコネジ M4 L=6
(1)
4
229-54101
REVERSE FEED SWITCH BASE
ギヤクオクリスイツチダイ
(1)
5
229-54200
REVERSE FEED SWITCH SHAFT
ギヤクオクリスイツチジク
(1)
6
229-54309
REVERSE FEED SWITCH SPRING
ギヤクオクリスイツチバネ
(1)
7
SM-4041655-SP
SCREW M4 L=16
ナベコネジ M4 L=16
(1)
8
SM-4031501-SC
SCREW M3 L=15
ナベコネジ M3 L=15
(2)
9
HW-6000700-00
2-CORE CABTYRE CORD
2シン キャブタイヤコード
(1.31)
10
HK-0346400-0B
PIN CONTACT
ピンコンタクト
(2)
11
HA-0019000-00
MICROSWITCH
マイクロスイツチ
(1)
12
229-54408
SWITCH HOLDING PLATE
ギヤクオクリスイツチドメイタ
(1)
13
229-54507
REVERSE FEED SWITCH LEVER
ギヤクオクリスイツチレバー
(1)
14
RE-0500000-KP
E-RING 5
Eガタトメワ 5
2
15
229-53806
REVERSE FEED CONNECTING SHAFT
ジドウオクリレンケツボウ
1
16
RE-0900000-KO
E-RING 9
Eガタトメワ 9
1
17
229-53657
CONNECTING ARM ASM.
ジドウオクリウデ(クミ)
1
18
RE-0400000-KP
E-RING 4
Eガタトメワ 4
1
19
229-53905
REVERSE FEED CONNECTING LINK
ジドウオクリレンケツリンク
1
20
RE-1200000-KO
E-RING 12
Eガタトメワ 12
1
21
WP-1602616-SZ
WASHER 16X24X2.6
ヒラザガネ 16X24X2.6
1
22
D2468-555-B00
RUBBER PLUNGER
プランジヤゴム
1
23
RE-0400000-KO
E-RING 4
Eガタトメワ 4
2
24
229-53509
PLUNGER ARM PIN
プランジヤウデピン
1
25
111-02753
REVERSE FEED MAGNET ASM.
ギヤクオクリマグネットクミ
1
26
SS-4151215-SP
SCREW 15/64-28 L=12
ナベネジ 15/64-28 L=12
2
27
SS-4120915-SP
SCREW 3/16-28 L=9
ナベネジ 3/16-28 L=9
1
28
229-54002
PLUNGER SPRING
プランジヤバネ
1
29
HK-0346400-0B
PIN CONTACT
ピンコンタクト
2
30
*01
SS-4120615-SP
SCREW 3/16-28 L=6
ナベネジ 3/16-28 L=6
1
NOTE (注記)
*01....FOR DDL-8500-7-0B
DDL-8500-7-0B用
- 13 -
jintex.in
Page 17 — 8. WIPER COMPONENTS
8. WIPER COMPONENTS
ワイパー関係
REF. NO
NOTE
PART NO.
DESCRIPTION
Qty
1
229-55553
WIPER ASM.
ワイパー(クミ)
1
2
229-55504
WIPER COVER
ワイパーカバー
(1)
3
SL-4030621-SS
SCREW M3
ザ・ツキナベネジ M3
(1)
4
SD-0650321-TP
HINGE SCREW D=6.5 H=3.2
ダンネジ D=6.5 H=3.2
(1)
5
NS-6090310-SP
NUT 9/64-40
ロッカクナット 9/64-40
(1)
6
111-10608
WIPER LINK A
ワイパーリンクA
(1)
7
229-56403
WIPER LINK B
ワイパーリンクB
(1)
8
RE-0250000-K0
E-RING 2.5
Eガタトメワ 2.5
(1)
9
229-56908
WIPER LINK B ,HINGE SCREW
ワイパーリンクBダンネジ
(1)
10
229-56205
WIPER HINGE SCREW COLLAR
ワイパーダンネジカラー
(1)
11
229-56304
WIPER SPRING
ワイパーバネ
(1)
12
NS-6110310-SP
NUT 11/64-40
ロッカクナット 11/64-40
(1)
13
229-55900
WIPER RUBBER A
ワイパーゴムA
(1)
14
229-56007
WIPER RUBBER B
ワイパーゴムB
(1)
15
111-10301
WIPER SOLENOID
ワイパーソレノイド
(1)
16
229-57104
WIPER SOLENOID SHAFT
ワイパーソレノイドジク
(1)
17
HA-0005900-00
POWER SWITCH
デンゲンスイッチ
(1)
18
HW-2003900-00
ELECTRIC WIRE
ビニールデンセン 17-0.16 シロ
(0.04)
19
HW-5000700-00
2-CORE CABTYRE CORD
2シンキャブタイヤコード
(1.33)
20
111-10152
WIPER BASE ASM.
ワイパーダイクミ
(1)
21
229-57203
WIPER LINK COLLAR
ワイパーリンクカラー
(1)
22
SL-4030641-SE
SCREW
ザ・ナベネジ
(3)
23
HK-0346400-OB
PIN CONTACT
ピンコンタクト
(2)
24
229-57005
WIPER
ワイパー
(1)
25
SS-6090540-SP
SCREW 9/64-40 L= 5.0
ヒラネジ 9/64-40 L=5
(1)
26
229-56809
WIPER COLLAR
ワイパーカラー
(1)
27
RE-0500000-K0
E-RING 5
Eガタトメワ 5
(1)
28
111-11051
WIPER DRIVING SHAFT ASM.
ワイパージククミ
(1)
29
SS-4120915-SP
SCREW 3/16-28 L=9
ナベネジ 3/16-28 L=9
1
- 14 -
jintex.in
Page 18 — 9. OIL LUBRICATION COMPONENTS
9. OIL LUBRICATION COMPONENTS
給油関係
- 15 -
jintex.in
Page 19
REF. NO NOTE PART NO. DESCRIPTION Qty
1 229-47006 OIL SIGHT WINDOW 1
2 RO-1952401-00 RUBBER RING 1
3 229-24401 MAIN SHAFT OIL TUBE 1
4 SS-4120615-SP SCREW 3/16-28 L=6 1
5 229-25101 OIL FELT PRESSER 1
6 229-24153 OIL RETURN TUBE ASM. 1
7 229-24302 HOLDER (1)
8 CQ-2520000-00 OIL WICK 0.21
9 229-25002 OIL ADJUSTING SCREW 1
10 229-24906 SPRING 1
11 229-24500 OIL TUBE 1
12 229-23056 LUBRICATING OIL PUMP ASM. 1
13 229-23304 OIL PUMP INSTALLING BASE (1)
14 229-23007 OIL PUMP (1)
15 229-23700 OIL PUMP IMPELLER (1)
16 SE-4301041-SR SCREW D=3 L=10 (3)
17 229-23205 LUBRICATING OIL PUMP COVER (1)
18 229-23809 OIL PUMP IMPELLER COVER (1)
19 229-23403 PLUNGER (1)
20 229-23601 PLUNGER SPRING (1)
21 229-23502 PLUNGER SCREW (1)
22 229-23908 HOOK DRIVING SHAFT OIL TUBE (1)
23 SL-4030851-SF SCREW M3 L=8 (3)
24 #02 SS-4150915-SP SCREW 15/64-28 L=9 1
25 SS-6111010-TP SCREW 11/64-40 L=9.5 1
26 #01 229-47105 OIL PUMP SUPPORT 1
27 #01 SS-4151215-SP SCREW 15/64-28 L=12 1
28 229-24609 RUBBER JOINT 1
29 #01 WS-0451040-KP SPRING WASHER 4.5X8.5X1 1
30 #02 229-24005 OIL PUMP SUPPORT 1
31 #01 WS-0651310-KP SPRING WASHER 6.5X11X1.3 1
NOTE (注記) #01...FOR DDL-8500-7-OB, -WB DDL-8500-7-OB, -WB用
#02...FOR DDL-8500-7-00 DDL-8500-7-00用
- 16 -
jintex.in
Page 20 — 10. OIL RESERVOIR COMPONENTS
10. OIL RESERVOIR COMPONENTS 油溜関係
23
1
2
3
4
5
6
7
15
8
10
13
14
13
12
9
12
11
18
22
17
21
25
26
27
20
28
16
29
19
28
24
31
30
- 17 -
jintex.in
Page 21
REF. NO NOTE PART NO. DESCRIPTION Qty
1 110-47057 OIL RESERVOIR ASM. 1
2 110-23017 OIL RESERVOIR (1)
3 110-24700 GASKET (1)
4 110-47107 RUBBER CUSHION (4)
5 SS-6700710-SH SCREW 5/16-24 L=7 (1)
6 RO-1082401-00 RUBBER RING (1)
7 110-24015 CONNECTING ROT, VERTICAL (1)
8 110-24106 SPRING (1)
9 RE-1000000-KO E-RING 10 (1)
10 110-24510 BRACKET (1)
11 SM-9062053-SR SCREW M6 L=20 (2)
12 NM-6060001-SE NUT M6 (2)
13 SM-8063012-TR SCREW M6 L=30 (2)
14 SM-9061853-SR SCREW M6 L=17.5 (1)
15 110-24205 KNEE PRESS ROD (1)
16 229-34251 KNEE PRESS PLATE ASM. 1
17 229-34509 KNEE PRESS PLATE COVER (1)
18 229-34608 KNEE PRESS PLATE ROD (1)
19 229-34400 KNEE PRESS PLATE RUBBER (1)
20 229-34202 KNEE PRESS PLATE (1)
21 229-34301 KNEE PRESS PLATE HOLDER (1)
22 SM-9061203-SE SCREW M6 L=12 (1)
23 229-31703 KNEE PRESS LIFTER ROD 1
24 #01 111-41454 OIL RESERVOIR ASM. 1
25 #01 GAK-300010B0 KNEE PRESS LIFTER ROD ASM. (1)
26 #01 GAK-30004000 KNEE PRESS LIFTER ROD RUBBER (1)
27 #01 RE-0400000-KO E-RING 4 (1)
28 #01 WP-0621016-SD WASHER 6.2X13X1 (2)
29 #01 GAK-30005000 SPRING (1)
30 #01 111-41413 OIL RESERVOIR (1)
31 #01 111-41900 GASKET (1)
NOTE (注記) #01...FOR JE & JO JE, JO用
- 18 -
jintex.in
Page 22 — 11. BELT COVER & BOBBIN COMPONENTS
11. BELT COVER & BOBBIN COMPONENTS
ベルトカバー・糸巻関係
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 229-33451 BELT COVER ASM. (1)
2 229-33402 BELT COVER A (1)
3 229-33501 BELT COVER A CAP (1)
4 229-33659 BELT COVER B ASM. (1)
5 229-33600 BELT COVER B (1)
6 229-33758 BELT COVER B CAP ASM. (1)
7 229-33907 BELT COVER SUPPORT ,A (1)
8 229-34004 BELT COVER A SCREW (2)
9 SS-4121415-SP SCREW 3/16-28 L=14 (1)
10 WP-0501016-SD WASHER 5X10.5X1 (1)
11 SK-3412000-SC WOOD SCREW D=4.1 L=20 (2)
12 WP-0450826-SC WASHER 4.5X10X0.8 (2)
13 229-27354 BOBBIN WINDER COMPL. 1
14 229-28501 THREAD TENSION BRACKET (1)
15 SS-4110515-SP SCREW 11/64-40 L=5 (1)
16 229-28907 THREAD TENSION DISK (2)
17 229-29004 THREAD TENSION SPRING (1)
18 229-28808 THREAD TENSION NUT (1)
19 SS-7110350-SP SCREW 11/64-40 L=3.5 (1)
20 229-28402 RUBBER BRAKE PRESSER PLATE (1)
21 229-28303 RUBBER BRAKE (1)
22 229-28105 POSITIONING FINGER (1)
23 SD-0490261-SP HINGE SCREW D=4.9 H=2.6 (1)
24 SS-7081310-SP SCREW 1/8-44 L=12.5 (1)
25 SS-8110510-SP SCREW 11/64-40 L=5 (1)
26 229-28709 THREAD TENSION BRACKET (1)
27 229-27305 BOBBIN BASE (1)
28 229-27404 BOBBIN PULLEY (1)
29 229-27602 BOBBIN WINDER POST (1)
30 SK-3412000-SC WOOD SCREW D=4.1 L=20 2
31 WP-0450826-SC WASHER 4.5X10X0.8 2
- 19 -
jintex.in
Page 23 — 12. THREAD STAND COMPONENTS
12. THREAD STAND COMPONENTS
糸立装置関係
REF. NO NOTE PART NO. DESCRIPTION Qty.
1 229-30358 THREAD STAND ASM. イトタテソウチ(クミ) 1
2 229-31109 SPOOL RETAINER イトマキフレドメ (2)
3 229-31000 SPOOL PIN イトマキウケボウ (2)
4 229-30903 SPOOL REST CUSHION イトマキウケザラクッション (2)
5 229-30804 SPOOL REST イトマキウケザラ (2)
6 SM-6061610-SC SCREW M6 L=16 セラコネジ M6 L=15 (2)
7 229-30705 THREAD GUIDE ARM JOINT イトタテボウシメカナグ (2)
8 229-31406 SPOOL REST ROD RUBBER CAP イトタテボウゴゴム (1)
9 229-30507 SPOOL REST ARM イトタテウデ (2)
10 229-30408 SPOOL REST ROD, UPPER イトタテボウ(ウエ) (1)
11 229-31307 SPOOL REST ROD JOINT イトタテボウツギテ (1)
12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2)
13 NM-6050001-SE NUT M5 ロツカクナツト M5 (2)
14 229-30309 SPOOL REST ROD, LOWER イトタテボウ(シタ) (1)
15 229-31208 THREAD GUIDE イトミチ (2)
16 WS-0510002-KN SPRING WASHER バネザガネ 5.1X9.2X1.3 (2)
17 NM-6050001-SE NUT M5 ロツカクナツト M5 (2)
18 NM-6160511-SE NUT M16X1.5 ロツカクナツト M16X1.5 1シュ (1)
19 WP-1702600-SO WASHER 17X30X2.6 ヒラザガネ 17X30X2.6 (2)
- 20 -
jintex.in
Page 24 — 13. EXCLUSIVE PARTS FOR DDL-8500H-7
13. EXCLUSIVE PARTS FOR DDL-8500H-7 DDL-8500H-7 専用部品 1 2 7 8 3 4 5 6 59 19 10 14 11 15 12 16 17 18 13 20 35 28 29 33 31 30 34 36 57 44 45 46 51 48 47 49 52 53 54 55 38 61 37 32 56 9 58 24 27 26 39 40 41 42 43 25 23 22 21 50 60 - 21 - jintex.in
Page 25
REF. NO. NOTE PART NO. DESCRIPTION Qty
1 110-96062 THREAD CUTTING DRIVING UNIT 1
2 110-95551 KNIFE UNIT 1
3 110-92502 MOVING KNIFE J ASM. (1)
4 110-95502 KNIFE MOUNT BASE (1)
5 114-09604 FIX KNIFE (1)
6 110-95403 KNIFE THREAD GUIDE (1)
7 110-95601 KNIFE BRANCH (1)
8 SD-0500131-TP HINGE SCREW D=5 H=1.25 (1)
9 110-94901 SOLENOID BASE 1
10 110-73954 THREAD TENSION ASM. 1
11 110-93606 THREAD TENSION SPRING (1)
12 110-73657 THREAD TENSION ASM. 1
13 B3114-232-000 THREAD TENSION SPRING (1)
14 114-00801 THROAT PLATE J 1
15 110-91006 ARM THREAD GUIDE (HA) 1
16 SS-6080320-SP SCREW 1/8-44 L=2.5 1
17 #02 110-95254 LEVER STOPPER ASM. 1
18 #02 SS-6110710-SP SCREW 3/16-28 L=6.5 1
19 110-91659 LINK THREAD TAKE-UP LEVER ASM. 1
20 110-91600 NEEDLE BAR CRANK H (1)
21 MDB-100B2100 NEEDLE DBX1 #21 1
22 B1418-415-H00 NEEDLE BAR THREAD GUIDE 1
23 B1403-553-000 NEEDLE BAR BUSHING, LOWER 1
24 B1419-553-000 NEEDLE BAR THREAD GUIDE 1
25 110-91303 NEEDLE BAR 1
26 110-92251 LUBRICATING BOBBIN ASM. 1
27 110-93804 POSITIONING FINGER H 1
28 B1505-552-000-A PRESSER SPRING 1
29 D1524-555-EBL PRESSER FOOT ASM. 1
30 #02 112-30901 WIRE PRESSER PLATE, B 1
31 #02 SS-7110740-TP SCREW 11/64-40 L=7 1
32 M6009-350-AAA RESISTANCE PACK AA ASM. 1
33 229-11903 FEED DIAL 1
34 110-91204 ADJUST LINK SPRING 1
35 110-91907 FEED SPRING HOOK 1
36 114-03003 FEED J 1
37 #02 110-96658 SOLENOID MOUNTING BASE ASM. 1
38 #02 112-31503 OIL PUMP SUPPORT 1
39 #02 112-28103 REVERSE FEED BASE COLLAR 1
40 #02 113-14408 PLUNGER ARM PIN 1
41 #02 NS-6110420-SP NUT 11/64-40 2
42 #02 112-28301 TUBE HOLDER, LOWER 1
43 110-94109 OIL TUBE 1
44 #02 SD-0700711-TP HINGE SCREW D=7 H=7.1 1
45 #02 111-01607 SOLENOID CONNECTING LINK 1
46 #02 WP-0722316-SH WASHER 1
47 #02 111-01508 REVERSE FEED LINK 1
48 #02 NS-6110420-SP NUT 11/64-40 1
49 #02 SD-0700451-TP HINGE SCREW D=7 H=4.5 1
50 #01 MC-2005013-00 NEEDLE 134 NM130 1
51 110-80900 FEED DRIVE ECCENTRIC CAM 1
52 114-03805 THREAD GUIDE C FITTING PLATE 1
53 WP-0371016-SD WASHER 3.7X8X1 1
54 NS-6090310-SP NUT 9/64-40 1
55 113-05513 ARM THREAD GUIDE, C 1
56 110-94604 CLUTCH LINK 1
57 #02 110-09800 FEED REGULATOR BUSHING 1
58 110-96500 THREAD TRIMMER SOLENOID 1
59 SD-0550701-TP STEP-SCREW D=5.5 H=7 1
60 #02 110-08901 ADJUSTING LINK FULCRUM SHAFT B 1
61 B1213-552-000-A OIL ADJUSTING PIN 1
NOTE (注記)
#01 ...FOR JE JE用
#02 ...FOR DDL-8500H-7-OB, -WB DDL-8500H-7-OB, -WB用
- 22 -
jintex.in
Page 26 — EXCLUSIVE PARTS FOR DDL-8500A-7
14. EXCLUSIVE PARTS FOR DDL-8500A-7
DDL-8500A-7専用部品
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 110-73756 THREAD TENSION ASM. イトチョウシ クミ 1
2 D3128-555-D00 TAKE-UP SPRING イトトリバネ (1)
3 D3129-555-D00 THREAD TENSION SPRING イトチョウシバネ (1)
4 M6018-350-AAA RESISTANCE PACK AA ASM. テイコウパツクAAクミ 1
5 D1524-555-DBA PRESSER FOOT ASM. オサエ クミ 1
6 B9117-552-A00 BOBBIN ボビン 1
7 B1837-012-OAO BOBBIN CASE ASM. ボビンケース クミ 1
8 B1505-227-T00-A PRESSER SPRING T オサエ チョーセバネ 1
9 #01 MC-2005006-50 NEEDLE 134 NM65 ハリ シュメツ 134 NM65 1
10 MDA-100B0900 NEEDLE DAX1 #9 ハリ DAX1 #9 1
11 110-92558 HAND LIFTER CAM ASM. オサエアゲ カム(クミ) 1
NOTE (注記) #01...FOR JE JE用
- 23 -
jintex.in
Page 27 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS 索引 PART NO. PAGE REF 品番 頁 NO B1109-012-IOB 2 44 B1109-552-000 2 60 B1213-552-000-A 22 61 B1305-012-0A0 6 14 B1306-155-0A0 6 16 B1306-155-0B0 6 13 B1306-155-0C0 6 12 B1307-155-0A0 6 19 B1307-155-0B0 6 18 B1308-155-0A0 6 21 B1403-553-000 22 23 B1408-552-000 4 8 B1418-415-H00 22 22 B1419-553-000 22 24 B1505-227-T00-A 23 8 B1505-552-000-A 22 28 B1521-555-000 8 2 B1524-012-0BA 8 41 B1613-012-100 10 33 B1636-581-C00 10 59 B1837-012-0A0 23 7 B1903-552-000 4 9 B1905-541-B00 4 6 B3114-232-000 22 13 B3118-552-E00 2 43 B9117-552-A00 23 6 CM-3002000-01 2 12 CM-300201-A1 2 13 CQ-2520000-00 16 8 D1524-555-DBA 23 5 D1524-555-EBL 22 29 D2406-555-D0H 12 10 D2468-555-B00 13 22 D3128-555-D00 23 2 D3129-555-D00 23 3 EA-9500B01-00 4 28 GAK-300010B0 18 25 GAK-30004000 18 26 GAK-30005000 18 29 HA-0005900-00 14 17 HA-0019000-00 13 11 HK-0346101-40 12 11 HK-0346400-0B 12 46 HK-0346400-0B 13 10 HK-0346400-0B 13 29 HK-0346400-0B 14 23 HW-2003900-00 14 18 HW-5000700-00 13 9 HW-5000700-00 14 19 MC-2005006-50 23 9 MC-2005009-00 6 28 MC-2005013-00 22 50 MDA-100B0900 23 10 MDB-100B1400 6 11 MDB-100B2100 22 21 M4007-110-0AA 4 35 M4007-110-0AB 4 36 M6008-350-AAA 2 67 M6008-350-AAC 2 63 M6008-350-AAF 2 68 M6008-350-AAL 2 69 M6009-350-AAA 22 32 M6018-350-AAA 23 4 NM-6040000-SN 12 56 NM-6050001-SE 20 13 NM-6050001-SE 20 17 NM-6060001-SE 18 12 NM-6160511-SE 20 18 NS-6090310-SP 14 5 PART NO. PAGE REF 品番 頁 NO NS-6090310-SP 22 54 NS-6110310-SP 14 12 NS-6110420-SP 22 41 NS-6110420-SP 22 48 NS-6150430-SP 12 33 NS-6620310-SP 8 21 NS-6660410-SH 12 58 NS-6660430-SP 12 59 NS-6680410-SP 10 42 RC-0150001-KP 10 32 RC-0150001-KP 10 54 RC-1850001-KP 4 22 RE-0250000-K0 14 8 RE-0400000-KP 13 18 RE-0400000-KP 13 27 RE-0400000-K0 13 39 RE-0400000-K0 18 27 RE-0500000-KP 13 14 RE-0500000-K0 8 6 RE-0500000-K0 8 8 RE-0500000-K0 8 10 RE-0500000-K0 8 22 RE-0500000-K0 10 18 RE-0500000-K0 10 21 RE-0500000-K0 12 36 RE-0500000-K0 12 51 RE-0500000-K0 12 27 RE-0500000-K0 12 34 RE-0900000-K0 13 16 RE-1000000-K0 18 9 RE-1200000-K0 13 20 RO-0291801-00 4 41 RO-0371801-00 8 3 RO-0442401-00 4 13 RO-0781901-00 10 63 RO-0922702-00 10 16 RO-1082401-00 18 6 RO-1952401-00 16 2 SD-0460703-TP 12 2 SD-0490261-SP 19 23 SD-0500131-TP 22 8 SD-0550701-TP 22 59 SD-0600361-SP 12 62 SD-0630275-SP 12 18 SD-0640631-TP 12 48 SD-0641451-SP 12 17 SD-0650321-TP 14 4 SD-0700451-TP 22 49 SD-0700711-TP 22 44 SD-0720331-SP 8 12 SD-1000801-SH 10 47 SE-4301041-SR 16 16 SK-3412000-SC 19 11 SK-3412000-SC 19 30 SL-4030621-SF 14 3 SL-4030641-SF 14 22 SL-4030851-SF 16 23 SL-4051001-MZ 4 39 SL-4051405-SE 13 3 SM-4031501-SC 13 3 SM-4040655-SP 13 3 SM-4041405-SE 20 12 SM-6061610-SC 20 6 SM-8061010-TP 10 66 SM-8061050-TP 10 67 SM-8063012-TR 18 13 SM-9061203-SE 18 22 SM-9061853-SR 18 14 SM-9062053-SR 18 11 SS-1120710-SP 22 18 SS-2060210-SP 12 8 SS-2110915-SP 2 46 SS-2110920-TP 2 45 PART NO. PAGE REF 品番 頁 NO SS-4080620-TP 10 34 SS-4080620-TP 12 9 SS-4110515-SP 19 15 SS-4110515-SP 19 16 SS-4110715-SP 12 28 SS-4110715-SP 12 29 SS-4110915-SP 6 15 SS-4120615-SP 2 27 SS-4120615-SP 2 29 SS-4120615-SP 8 19 SS-4120615-SP 8 27 SS-4120615-SP 13 30 SS-4120615-SP 16 4 SS-4120915-SP 2 50 SS-4120915-SP 6 45 SS-4120915-SP 6 46 SS-4120915-SP 13 27 SS-4120915-SP 14 29 SS-4120915-SP 2 64 SS-4121215-SP 19 9 SS-4121415-SP 19 17 SS-4150915-SP 12 47 SS-4150915-SP 16 24 SS-4150915-SP 12 63 SS-4151215-SP 13 26 SS-4151215-SP 16 27 SS-6060210-SP 2 54 SS-6080320-SP 22 16 SS-6080410-SP 2 3 SS-6090510-SP 12 16 SS-6090540-SP 14 25 SS-6090620-SP 10 14 SS-6090620-SP 10 30 SS-6090620-SP 10 41 SS-6090650-SP 4 19 SS-6090670-TP 6 5 SS-6090670-TP 10 3 SS-6090910-SP 8 38 SS-6110420-TP 6 30 SS-6110610-TP 2 48 SS-6110710-TP 12 61 SS-6110710-TP 16 25 SS-6111210-SP 4 31 SS-6121610-SP 10 44 SS-6121840-SP 2 17 SS-6121860-SP 10 11 SS-6660610-TP 12 20 SS-6661110-SP 4 17 SS-6700710-SH 18 5 SS-7080510-TP 6 9 SS-7081310-SP 19 24 SS-7090610-SP 12 42 SS-7091110-SP 8 40 SS-7110350-SP 19 19 SS-7110410-SP 8 43 SS-7110540-SP 2 62 SS-7110720-SP 8 16 SS-7110740-TP 10 53 SS-7110740-TP 22 31 SS-7111120-SP 10 58 SS-7120770-SH 10 6 SS-7121410-TP 10 56 SS-7121610-SP 10 46 SS-7681650-TP 4 14 SS-8090670-SP 2 41 SS-8110410-TP 19 25 SS-8110510-SP 19 25 SS-8110520-TP 12 22 SS-8150710-SP 10 29 SS-8150710-SP 4 1 SS-8151150-SP 4 33 SS-8151550-SP 4 12 SS-8660610-TP 4 24 PART NO. PAGE REF 品番 頁 NO SS-8660610-TP 10 50 SS-8660610-TP 10 62 SS-8660810-TP 6 15 SS-8660810-TP 6 17 SS-8660810-TP 6 20 SS-8660810-TP 6 22 SS-8660810-TP 8 37 SS-8681650-TP 4 11 TA-0850604-R0 2 5 TA-1250705-R0 2 49 TA-1250705-R0 2 6 TA-2000502-R0 2 16 TA-2101002-R0 2 19 WP-0371016-SD 22 53 WP-0450000-SD 12 55 WP-0450801-SD 4 32 WP-0450826-SC 19 12 WP-0450826-SC 19 31 WP-0480856-SP 10 69 WP-0501016-SD 2 66 WP-0501016-SD 19 10 WP-0621016-SH 18 28 WP-0621016-SH 12 32 WP-0722316-SH 22 46 WP-1602616-SZ 13 21 WP-1702600-S0 20 19 WS-0451040-KP 16 29 WS-0510002-KN 20 16 WS-0510002-KP 2 65 WS-0651310-KP 16 31 WT-0530002-KS 2 56 100-04109 2 14 110-00619 2 11 110-01500 2 31 110-05204 4 7 110-06509 8 7 110-08604 10 26 110-08703 10 25 110-08901 22 60 110-09800 22 57 110-10410 10 20 110-18108 8 29 110-18306 8 26 110-18405 8 24 110-18801 6 7 110-23017 18 2 110-24015 18 7 110-24016 18 8 110-24205 18 15 110-24510 18 10 110-24700 18 3 110-32562 4 37 110-37405 10 22 110-38650 6 34 110-38759 6 42 110-39062 4 5 110-39070 4 4 110-40052 12 5 110-40201 12 7 110-40300 12 6 110-40359 12 1 110-40409 12 4 110-40508 12 3 110-40607 12 35 110-40854 12 45 110-41852 12 30 110-42850 12 19 110-43205 12 52 110-43304 12 57 110-43908 12 53 110-44054 12 65 110-47057 18 1 110-47107 18 4 - 24 - jintex.in
Page 28 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS 索引 PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO 110-73657 22 12 229-05202 6 26 229-23403 16 19 229-45109 8 25 110-73756 23 1 229-06101 6 2 229-23502 16 21 229-45307 2 40 110-73954 22 10 229-06200 6 8 229-23601 16 20 229-45356 2 32 110-80900 22 51 229-06309 6 10 229-23700 16 15 229-45406 2 22 110-91006 22 15 229-06457 6 4 229-23809 16 18 229-45455 2 21 110-91204 22 34 229-06507 6 6 229-23908 16 22 229-45505 2 25 110-91303 22 25 229-07000 8 35 229-24005 16 30 229-45604 2 23 110-91600 22 20 229-07109 8 39 229-24153 16 6 229-45703 2 26 110-91659 22 19 229-07208 8 34 229-24302 16 7 229-45802 2 24 110-91907 22 35 229-07307 8 36 229-24401 16 3 229-47006 16 1 110-92251 22 26 229-07406 8 33 229-24500 16 28 229-47105 16 26 110-92558 23 11 229-07505 8 30 229-24609 16 64 229-48400 12 37 110-93606 22 11 229-07604 8 31 229-24807 12 64 229-48657 12 44 110-93804 22 27 229-07703 8 32 229-24906 16 10 229-49002 12 43 110-94109 22 43 229-07802 8 1 229-25002 16 9 229-49101 12 40 110-94604 22 56 229-08008 8 9 229-25101 16 5 229-49200 12 41 110-94901 22 9 229-08156 8 5 229-27305 19 27 229-49309 12 38 110-95254 22 17 229-08305 8 15 229-27354 19 13 229-49408 12 29 110-95403 22 6 229-08552 8 4 229-27404 19 28 229-49754 12 24 110-95502 22 4 229-08800 8 14 229-27602 19 29 229-49762 12 23 110-95551 22 7 229-08909 8 11 229-28105 19 22 229-49903 12 50 110-95601 22 2 229-09006 8 13 229-28303 19 21 229-50000 12 26 110-96062 22 1 229-10004 4 18 229-28402 19 20 229-50109 12 31 110-96500 22 58 229-10053 4 16 229-28501 19 14 229-50208 12 14 110-96658 22 37 229-10103 4 42 229-28709 19 26 229-50257 12 13 111-01508 22 47 229-10202 10 12 229-28808 19 18 229-50356 12 15 111-01607 22 45 229-10350 10 43 229-28907 19 16 229-50703 12 25 111-02753 13 25 229-10459 10 60 229-29004 19 17 229-50950 12 21 111-10152 14 20 229-10806 10 28 229-30309 20 14 229-51008 12 60 111-10301 15 6 229-10905 10 24 229-30358 20 1 229-51164 12 49 111-10608 14 6 229-11002 10 40 229-30408 20 10 229-51404 12 54 111-11051 14 28 229-11101 10 13 229-30507 20 9 229-52501 2 18 111-41207 6 44 229-11408 10 23 229-30705 20 7 229-53509 13 24 111-41355 6 24 229-11507 10 2 229-30804 20 5 229-53657 13 17 111-41413 18 30 229-11606 10 4 229-30903 20 4 229-53806 13 15 111-41454 18 24 229-11705 10 5 229-31000 20 3 229-53905 13 19 111-41900 18 31 229-11804 10 7 229-31109 20 2 229-54002 13 28 112-28103 22 39 229-11903 22 33 229-31208 20 15 229-54101 13 4 112-28301 22 42 229-12000 10 9 229-31307 20 11 229-54150 13 1 112-30901 22 30 229-12109 10 8 229-31406 20 8 229-54200 13 5 112-31503 22 38 229-12257 10 19 229-31703 18 23 229-54309 13 6 113-05513 22 55 229-12406 10 17 229-32909 6 41 229-54408 13 12 113-14408 22 40 229-12604 10 64 229-33402 19 2 229-54507 13 13 114-00801 22 14 229-12703 10 68 229-33451 19 1 229-54606 13 2 114-03003 22 36 229-12802 10 65 229-33501 19 3 229-54705 2 9 114-03805 22 52 229-12901 10 39 229-33600 19 5 229-55504 14 2 114-09257 22 3 229-13008 10 51 229-33659 19 4 229-55553 14 1 114-09604 22 5 229-13701 10 38 229-33758 19 6 229-55900 14 13 180-77503 2 58 229-13800 10 52 229-33907 19 7 229-56007 14 14 229-15003 10 15 229-34004 19 8 229-56205 14 10 229-00401 2 10 229-15151 10 45 229-34202 18 20 229-56304 14 11 229-00609 2 28 229-15201 10 48 229-34251 18 16 229-56403 14 7 229-00757 2 24 229-16001 6 31 229-34301 18 21 229-56809 14 26 229-01003 2 55 229-16100 6 35 229-34400 18 19 229-56908 14 9 229-01201 2 52 229-16308 6 27 229-34509 18 17 229-57005 14 24 229-01250 2 51 229-16506 6 40 229-34608 18 18 229-57104 14 16 229-01300 2 53 229-16555 6 38 229-35209 2 59 229-57203 14 21 229-01409 6 1 229-16605 6 39 229-35308 2 20 229-58300 2 7 229-02159 2 1 229-17058 6 36 229-35407 2 57 229-02209 2 2 229-17157 6 29 229-37056 4 34 229-02605 2 61 229-19203 4 29 229-37064 4 30 229-03009 4 38 229-19559 4 2 229-39508 6 3 229-03108 4 15 229-20201 8 23 229-40506 10 10 229-03157 4 10 229-20508 2 30 229-40654 10 55 229-03207 4 25 229-20607 2 47 229-40753 10 35 229-03306 4 27 229-21209 2 38 229-40803 10 31 229-03405 4 20 229-21308 2 33 229-40951 10 27 229-03504 4 21 229-21407 2 34 229-41108 10 1 229-03702 4 3 229-21506 2 37 229-41306 10 36 229-03900 4 40 229-21605 2 39 229-42056 10 57 229-04007 4 26 229-21704 2 35 229-42502 6 32 229-04155 4 23 229-21803 2 36 229-42601 6 43 229-04155 10 49 229-23007 16 14 229-44508 8 18 229-04155 10 61 229-23056 16 12 229-44607 8 20 229-05004 6 23 229-23205 16 17 229-44706 8 42 229-05103 6 25 229-23304 16 13 229-44854 8 28 - 25 - jintex.in
Page 29
MEMO
- 26 -
jintex.in
Page 30
MEMO
- 27 -
jintex.in
Page 31
jinttex.in
jintex.in
Page 32
JUKI
JUKI 株式会社
〒182 東京都調布市国領町8-2-1
TEL. 03-3480-1111(代表)
国内営業本部
TEL. 03-3480-1113(ダイヤルイン)
JUKI CORPORATION
INTERNATIONAL SALES DIVISION
8-2-1, KOKURYO-CHO,
CHOFU-SHI, TOKYO 182, JAPAN
PHONE : 03(3430)4001~5
FAX : 03(3430)4909-4914-4984
TELEX : J22967
お買い求め、ご相談は
To order or for further
information,
please contact :
※このパーツリストは商品改良のため予告なく変更する事があります。
*The description covered in this parts list is subject to change for improvement of the commodity without notice.
※このパーツリストは、1997年3月 現在の商品仕様で編集したものです。
*This parts list is edited in accordance with the product specifications as of March 1997.
97.05 Printed in Japan (F)
jintex.in
