Page 1 — PARTS LIST

JUKI High Speed 1-Needle Lockstitch Industrial Sewing Machine with Automatic Thread Trimmer 高速一本針本縫自動糸切り装置付ミシン DDL-8500-7 Series PARTS LIST HOW TO MAKE USE OF THIS PARTS LIST 1. As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages. 2. Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4. Dotted lines on the Figures indicate assembly parts. パーツリストご利用に際して 1. リストページの#01、#02等の印は、ページ下の”注記”の説明をご参照下さい。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページのーーーーー枠は、組構成であることを意味します。 29299708 No.1200-00 jintex.in

Page 2

jintex.in

Page 3 — CONTENTS

CONTENTS 目 次 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . null

Page 4 — 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 頭部・外装関係 - 1 - jintex.in

Page 5

Juki DDL-8500-7 parts on page 5
RefPart numberPart nameQty
1229-02159FASE PLATE ASM.
2229-02209FASE PLATE GASKET
3SS-6080410-SPSCREW 1/8-44 L=4
4229-00757ARM OIL SHIFLD ASM.
5TA-0850604-RORUBBER PLUG
6TA-1250705-RORUBBER PLUG
7229-58300THREAD GUIDE ROD
8SS-4120915-SPSCREW 3/16-28 L=9
9229-54705CORD HOLDER
10229-00401SIDE PLATE
11110-00619GASKET
12CM-3002000-01ATTENTION SEAL
13CM-3002001-A1SAFETY LABEL, .3 (SMALL).
14100-04109GROUND MARK
15SS-4120615-SPSCREW 3/16-28 L=6
16TA-2000502-RORUBBER PLUG
17SS-6121840-SPSCREW 3/16-28 L=18
18229-52501REVERSE FEED LEVER STOPPER
19TA-2101002-RORUBBER PLUG
20229-35308MAGNET CORD RUBBER
21229-45455THREAD TENSION ASM.
22229-45406FIRST TENSION POST
23229-45604THREAD TENSION GUIDE
24229-45802BOBBIN WINDER TENSION DISC
25229-45505THREAD TENSION SPRING
26229-45703THREAD TENSION NUT
27SS-4120615-SPSCREW 3/16-28 L=6
28229-00609THREAD TAKE-UP LEVER COVER
29SS-4120615-SPSCREW 3/16-28 L=6
30229-20508ARM THREAD GUIDE A
31110-01500SCREW
32229-45356THREAD TENSION ASM.
33229-21308TENSION NUT
34229-21407ROTATING STOPPER
35229-21704TENSION SPRING A
36229-21803THREAD TENSION DISK PRESSER
37229-21506THREAD TENSION DISK
38229-21209TENSION POST
39229-21605TAKE-UP SPRING
40229-45307TENSION POST SOCKET
41SS-8090670-SPSCREW 9/64-40 L=5.5
42SS-8150710-SPSCREW 15/64-28 L=7
43B3118-552-E00TENSION RELEASING
44B1109-012-IOBTHROAT PLATE (I)
45SS-2110920-TPSCREW 11/64-40 L=8.5
46SS-2110915-SPSCREW 11/64-40 L=8.5
47229-20607ARM THREAD GUIDE B
48SS-6110610-TPSCREW 11/64-40 L=6
49TA-1250406-RORUBBER PLUG D=12.5 L=4
50SS-4120915-SPSCREW 3/16-28 L=9
51229-01250BED SLIDE ASM.
52229-01201SLIDE PLATE
53229-01300BED SLIDE SPRING
54SS-6030190-SPSCREW 3/32-56 L=1.9
55229-01003BED SCREW STUD
56WT-0530002-KSTOOTHED WASHER D=5.3
57229-35407RUBBER PLATE
58180-77503THREAD TAKE-UP LEVER COVER
59229-35209RUBBER BUSHING
60B1109-552-000THROAT PLATE
61229-02605RULER STOPPER
62SS-6110540-SPSCREW 11/64-40 L=5
63M6008-350-AACRESISTANCE PACK AC ASM.
64SS-4121215-SPSCREW 3/16-28 L=12
65WS-0510002-KPSPRING WASHER 5.1X9.2X1.3
66WP-0501016-SDWASHER 5X10.5X1
67M6008-350-AAARESISTANCE PACK AA ASM.
68M6008-350-AAFRESISTANCE PACK AF ASM.
69M6008-350-AALRESISTANCE PACK AL ASM.

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 229-02159 FASE PLATE ASM. メンイタ(クミ) 1 2 229-02209 FASE PLATE GASKET メンイタパツキン 1 3 SS-6080410-SP SCREW 1/8-44 L=4 ヒラネジ 1/8-44 L=4 1 4 229-00757 ARM OIL SHIFLD ASM. メンウデユシールド(クミ) 1 5 TA-0850604-RO RUBBER PLUG トメセン 2 6 TA-1250705-RO RUBBER PLUG トメセン 1 7 229-58300 THREAD GUIDE ROD イトアンナイボウ 1 8 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 8 9 #05 229-54705 CORD HOLDER コードトメカケ 1 10 229-00401 SIDE PLATE マドイタ 1 11 110-00619 GASKET マドイタパツキン 1 12 #01 CM-3002000-01 ATTENTION SEAL ユビケガチュウイシール(16) 1 13 #06 CM-3002001-A1 SAFETY LABEL, .3 (SMALL). アンゼンラベル.3(ショウ) 1 14 100-04109 GROUND MARK グランドマーク 1 15 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 16 TA-2000502-RO RUBBER PLUG トメセン 1 17 #02 SS-6121840-SP SCREW 3/16-28 L=18 ヒラネジ 3/16-28 L=18 1 18 #02 229-52501 REVERSE FEED LEVER STOPPER サカオクリレバーストツパ 1 19 TA-2101002-RO RUBBER PLUG トメセン 1 20 #02 229-35308 MAGNET CORD RUBBER マグネットコードゴム 1 21 229-45455 THREAD TENSION ASM. ダイイイトチヨウシ(クミ) 1 22 229-45406 FIRST TENSION POST ダイイイトチヨウシボウ 1 23 229-45604 THREAD TENSION GUIDE ダイイイトチヨウシアンナイ (1) 24 229-45802 BOBBIN WINDER TENSION DISC ダイイイトチヨウシザラ (2) 25 229-45505 THREAD TENSION SPRING ダイイイトチヨウシバネ (1) 26 229-45703 THREAD TENSION NUT ダイイイトチヨウシナツト (1) 27 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 28 229-00609 THREAD TAKE-UP LEVER COVER テンビンカバ 1 29 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 30 229-20508 ARM THREAD GUIDE A アームイトアンナイA 1 31 110-01500 SCREW アームイトアンナイAトメネジ 1 32 229-45356 THREAD TENSION ASM. イトチヨウシ(クミ) (1) 33 229-21308 TENSION NUT イトチヨウシナツト (1) 34 229-21407 ROTATING STOPPER イトチヨウシザラカイテントメ (1) 35 229-21704 TENSION SPRING A イトチヨウシバネ(A) (1) 36 229-21803 THREAD TENSION DISK PRESSER イトチヨウシザラオサエ (1) 37 229-21506 THREAD TENSION DISK イトチヨウシザラ (2) 38 229-21209 TENSION POST イトチヨウシボウ (1) 39 229-21605 TAKE-UP SPRING イトトリバネ (1) 40 229-45307 TENSION POST SOCKET イトチヨウシボウダイ (1) 41 SS-8090670-SP SCREW 9/64-40 L=5.5 トメネジ 9/64-40 L=5.5 (1) 42 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 1 43 B3118-552-E00 TENSION RELEASING ピン 1 44 B1109-012-IOB THROAT PLATE (I) ハリイタI 1 45 SS-2110920-TP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 1 46 SS-2110915-SP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 1 47 229-20607 ARM THREAD GUIDE B アームイトアンナイB 1 48 SS-6110610-TP SCREW 11/64-40 L=6 ヒラネジ 11/64-40 L=6 1 49 TA-1250406-RO RUBBER PLUG D=12.5 L=4 トメセン D=12.5 L=4 2 50 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 3 51 229-01250 BED SLIDE ASM. スベリイタ(クミ) 1 52 229-01201 SLIDE PLATE スベリイタ (1) 53 229-01300 BED SLIDE SPRING スベリイタバネ (1) 54 SS-6030190-SP SCREW 3/32-56 L=1.9 ヒラネジ 3/32-56 L=1.9 (2) 55 229-01003 BED SCREW STUD ベツドシメジク 4 56 WT-0530002-KS TOOTHED WASHER D=5.3 ハジキザガネ D=5.3 1 57 229-35407 RUBBER PLATE ベツドユボゴム 1 58 #01 180-77503 THREAD TAKE-UP LEVER COVER テンビンカバ 1 59 #03 229-35209 RUBBER BUSHING マグネットコードゴム 1 60 #04 B1109-552-000 THROAT PLATE ハリイタ 1 61 229-02605 RULER STOPPER ジヨウギトメザ 1 62 SS-6110540-SP SCREW 11/64-40 L=5 マルサラネジ 11/64-40 L=5 2 63 M6008-350-AAC RESISTANCE PACK AC ASM. テイコウパツクACクミ 1 64 SS-4121215-SP SCREW 3/16-28 L=12 ナベネジ 3/16-28 L=12 1 65 WS-0510002-KP SPRING WASHER 5.1X9.2X1.3 ハジキザガネ 5.1X9.2X1.3 1 66 WP-0501016-SD WASHER 5X10.5X1 ヒラザガネ 5X10.5X1 1 67 #04 M6008-350-AAA RESISTANCE PACK AA ASM. テイコウパツクAAクミ 1 68 #01 M6008-350-AAF RESISTANCE PACK AF ASM. テイコウパツクAFクミ 1 69 #07 M6008-350-AAL RESISTANCE PACK AL ASM. テイコウパツクALクミ 1 NOTE (注記) #01....FOR JE JE用 #02....FOR DDL-8500-7-0B, -WB DDL-8500-7-0B, -WB用 #03....FOR DDL-8500-7-00 DDL-8500-7-00用 #04....FOR JA JA用 #05....EXCEPT DDL-8500-7-00 DDL-8500-7-00を除く #06....EXCEPT JE JEを除く #07....FOR JH JH用 - 2 - jintex.in

Page 6 — 2. MAIN SHAFT COMPONENTS

2. MAIN SHAFT COMPONENTS 上軸関係 - 3 - jintex.in

Page 7

Juki DDL-8500-7 parts on page 7
RefPart numberPart nameQty
1SS-8151150-SPSCREW 15/64-28 L=10.51
2229-19559THREAD TAKE-UP CRANK SHAFT ASM1
3229-03702ROLLER FELT1
4110-39070THREAD TAKE-UP LEVER ASM.1
5110-39062THREAD TAKE-UP LEVER ASM.(1)
6B1905-541-B00NEEDLE BEARING(1)
7110-05204NEEDLE BAR CRANK(1)
8B1408-552-000NEEDLE BAR CRANK ROD(1)
9B1903-552-000LEFT SCREW(1)
10229-03157COUNTER WEIGHT ASM.1
11SS-8681650-TPSCREW 9/32-28 L=16(1)
12SS-8660610-TPSCREW 1/4-40 L=6(2)
13RO-0442401-00RUBBER RING(1)
14SS-7681650-TPSCREW 9/32-28 L=16(1)
15229-03108COUNTER WEIGHT(1)
16229-10053FEED DRIVE ECCENTRIC CAM ASM.1
17SS-6661110-SPSCREW 1/4-40 L=11(2)
18229-10004FEED DRIVE ECCENTRIC CAM(1)
19SS-6090650-SPSCREW 9/64-40 L=62
20229-03405MAIN SHAFT BUSHING, REAR1
21229-03504OIL SEAL1
22RC-1850001-KPSNAP RING 18.51
23229-04155THRUST COLLAR ASM.1
24SS-8660610-TPSCREW 1/4-40 L=6(2)
25229-03207MAIN SHAFT FRONT BUSHING1
26229-04007OIL ADJUSTING COLLAR1
27229-03306BUSHING, INTERMEDIATE1
28EA-9500B01-00CABLE BAND1
29229-19203RUBBER1
30229-37064HAND WHEEL COMPL.1
31SS-6111210-SPSCREW 11/64-40 L=12(2)
32WP-0450801-SDWASHER 4.5X10X0.8(2)
33SS-8151550-SPSCREW 15/64-28 L=15(2)
34229-37056HAND WHEEL ASM.(1)
35M4007-110-0AAMAGNET FITTING BASE A ASM.(1)
36M4007-110-0ABMAGNET FITTING BASE B ASM.(1)
37110-32562DYNAMO STATOR1
38229-03009MAIN SHAFT1
39SL-4051001-MZSCREW M5 L=9.62
40229-03900OIL AMOUNT ADJUSTING PIN1
41RO-0291801-00RUBBER RING1
42229-10103THRUST COLLAR1

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 SS-8151150-SP SCREW 15/64-28 L=10.5 1 2 229-19559 THREAD TAKE-UP CRANK SHAFT ASM 1 3 229-03702 ROLLER FELT 1 4 110-39070 THREAD TAKE-UP LEVER ASM. 1 5 110-39062 THREAD TAKE-UP LEVER ASM. (1) 6 #01 B1905-541-B00 NEEDLE BEARING (1) 7 110-05204 NEEDLE BAR CRANK (1) 8 B1408-552-000 NEEDLE BAR CRANK ROD (1) 9 B1903-552-000 LEFT SCREW (1) 10 229-03157 COUNTER WEIGHT ASM. 1 11 SS-8681650-TP SCREW 9/32-28 L=16 (1) 12 SS-8660610-TP SCREW 1/4-40 L=6 (2) 13 RO-0442401-00 RUBBER RING (1) 14 SS-7681650-TP SCREW 9/32-28 L=16 (1) 15 229-03108 COUNTER WEIGHT (1) 16 229-10053 FEED DRIVE ECCENTRIC CAM ASM. 1 17 SS-6661110-SP SCREW 1/4-40 L=11 (2) 18 229-10004 FEED DRIVE ECCENTRIC CAM (1) 19 SS-6090650-SP SCREW 9/64-40 L=6 2 20 229-03405 MAIN SHAFT BUSHING, REAR 1 21 229-03504 OIL SEAL 1 22 RC-1850001-KP SNAP RING 18.5 1 23 229-04155 THRUST COLLAR ASM. 1 24 SS-8660610-TP SCREW 1/4-40 L=6 (2) 25 229-03207 MAIN SHAFT FRONT BUSHING 1 26 229-04007 OIL ADJUSTING COLLAR 1 27 229-03306 BUSHING, INTERMEDIATE 1 28 EA-9500B01-00 CABLE BAND 1 29 229-19203 RUBBER 1 30 229-37064 HAND WHEEL COMPL. 1 31 SS-6111210-SP SCREW 11/64-40 L=12 (2) 32 WP-0450801-SD WASHER 4.5X10X0.8 (2) 33 SS-8151550-SP SCREW 15/64-28 L=15 (2) 34 229-37056 HAND WHEEL ASM. (1) 35 M4007-110-0AA MAGNET FITTING BASE A ASM. (1) 36 M4007-110-0AB MAGNET FITTING BASE B ASM. (1) 37 110-32562 DYNAMO STATOR 1 38 229-03009 MAIN SHAFT 1 39 SL-4051001-MZ SCREW M5 L=9.6 2 40 229-03900 OIL AMOUNT ADJUSTING PIN 1 41 RO-0291801-00 RUBBER RING 1 42 229-10103 THRUST COLLAR 1 NOTE (注記) #01....SELECTIVE PART(A~D) 選択部品(A~D) - 4 - jintex.in

Page 8 — 3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS

3. NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 針棒・立軸・下軸関係 1 2 3 44 4 5 6 7 8 9 10 11 28 15 14 13 17 16 20 19 18 21 22 12 45 25 23 26 27 29 31 35 30 46 36 32 37 33 40 39 43 38 42 24 34 41 - 5 - jintex.in

Page 9

Juki DDL-8500-7 parts on page 9
RefPart numberPart nameQty
1229-01409CAP1
2229-06101NEEDLE BAR BUSHING, UPPER1
3229-39508NEEDLE BAR1
4229-06457NEEDLE ROD HOLDER ASM.1
5SS-6090670-TPSCREW 9/64-40 L=6(1)
6229-06507SLIDE BLOCK1
7110-18801NEEDLE BAR THREAD GUIDE1
8229-06200NEEDLE BAR BUSHING, LOWER1
9SS-7080510-TPSCREW 1/8-44 L=4.51
10229-06309NEEDLE BAR THREAD GUIDE1
11MDB-100B1400NEEDLE DBX1 #141
12B1306-155-OCOGEAR & PINION ASM.(1)
13B1306-155-OBOGEAR & PINION ASM., UPPER(1)
14B1306-012-OAOGEAR ASM.(1)
15SS-8660810-TPSCREW 1/4-40 L=8(2)
16B1306-155-OAOPINION ASM.(1)
17SS-8660810-TPSCREW 1/4-40 L=8(2)
18B1307-155-OBOGEAR & PINION ASM., LOWER(1)
19B1307-155-OAOGEAR ASM., LARGE(1)
20SS-8660810-TPSCREW 1/4-40 L=8(2)
21B1308-155-OAOPINION ASM.(1)
22SS-8660810-TPSCREW 1/4-40 L=8(2)
23229-05004UPRIGHT SHAFT1
24111-41355HOOK ASM.1
25229-05103UPRIGHT SHAFT BUSHING, LOWER1
26229-05202UPRIGHT SHAFT BUSHING, LOWER1
27229-16308BUSHING, REAR1
28MC-2005009-00NEEDLE 134 901
29229-17157THRUST COLLAR ASM.1
30SS-8110420-TPSCREW 11/64-40 L=4.8(2)
31229-16001LOWER SHAFT1
32229-42502BOBBIN CASE HOLDER1
33SS-4110915-SPSCREW 11/64-40 L=91
34110-38650HOOK ASM.1
35229-16100LOWER SHAFT FRONT METAL1
36229-17058THRUST COLLAR ASM.1
37SS-8110410-TPSCREW 11/64-40 L= 3.5(2)
38229-16555OIL SEAL SCREW ASM.1
39229-16605OIL WICK(1)
40229-16506OIL SEAL SCREW(1)
41229-32909BOBBIN1
42110-38759BOBBIN CASE ASM.1
43229-42601OIL SHIELD1
44111-41207NEEDLE BAR1
45SS-4120915-SPSCREW 3/16-28 L=91
46SS-4120915-SPSCREW 3/16-28 L=91

REF. NO NOTE PART NO. DESCRIPTION Qty. 1 229-01409 CAP 1 2 229-06101 NEEDLE BAR BUSHING, UPPER 1 3 229-39508 NEEDLE BAR 1 4 229-06457 NEEDLE ROD HOLDER ASM. 1 5 SS-6090670-TP SCREW 9/64-40 L=6 (1) 6 229-06507 SLIDE BLOCK 1 7 110-18801 NEEDLE BAR THREAD GUIDE 1 8 229-06200 NEEDLE BAR BUSHING, LOWER 1 9 SS-7080510-TP SCREW 1/8-44 L=4.5 1 10 229-06309 NEEDLE BAR THREAD GUIDE 1 11 MDB-100B1400 NEEDLE DBX1 #14 1 12 B1306-155-OCO GEAR & PINION ASM. (1) 13 B1306-155-OBO GEAR & PINION ASM., UPPER (1) 14 B1306-012-OAO GEAR ASM. (1) 15 SS-8660810-TP SCREW 1/4-40 L=8 (2) 16 B1306-155-OAO PINION ASM. (1) 17 SS-8660810-TP SCREW 1/4-40 L=8 (2) 18 B1307-155-OBO GEAR & PINION ASM., LOWER (1) 19 B1307-155-OAO GEAR ASM., LARGE (1) 20 SS-8660810-TP SCREW 1/4-40 L=8 (2) 21 B1308-155-OAO PINION ASM. (1) 22 SS-8660810-TP SCREW 1/4-40 L=8 (2) 23 229-05004 UPRIGHT SHAFT 1 24 → 111-41355 HOOK ASM. 1 25 229-05103 UPRIGHT SHAFT BUSHING, LOWER 1 26 229-05202 UPRIGHT SHAFT BUSHING, LOWER 1 27 229-16308 BUSHING, REAR 1 28 #02 MC-2005009-00 NEEDLE 134 90 1 29 229-17157 THRUST COLLAR ASM. 1 30 SS-8110420-TP SCREW 11/64-40 L=4.8 (2) 31 229-16001 LOWER SHAFT 1 32 229-42502 BOBBIN CASE HOLDER 1 33 SS-4110915-SP SCREW 11/64-40 L=9 1 34 #01 110-38650 HOOK ASM. 1 35 229-16100 LOWER SHAFT FRONT METAL 1 36 229-17058 THRUST COLLAR ASM. 1 37 SS-8110410-TP SCREW 11/64-40 L= 3.5 (2) 38 229-16555 OIL SEAL SCREW ASM. 1 39 229-16605 OIL WICK (1) 40 229-16506 OIL SEAL SCREW (1) 41 229-32909 BOBBIN 1 42 110-38759 BOBBIN CASE ASM. 1 43 229-42601 OIL SHIELD 1 44 #03 111-41207 NEEDLE BAR 1 45 SS-4120915-SP SCREW 3/16-28 L=9 1 46 SS-4120915-SP SCREW 3/16-28 L=9 1 NOTE (注記) #01....FOR JH JH用 #02....FOR JE JE用 #03....FOR JE, JO JE, JO用 - 6 - jintex.in

Page 10 — 4. HAND LIFTER COMPONENTS

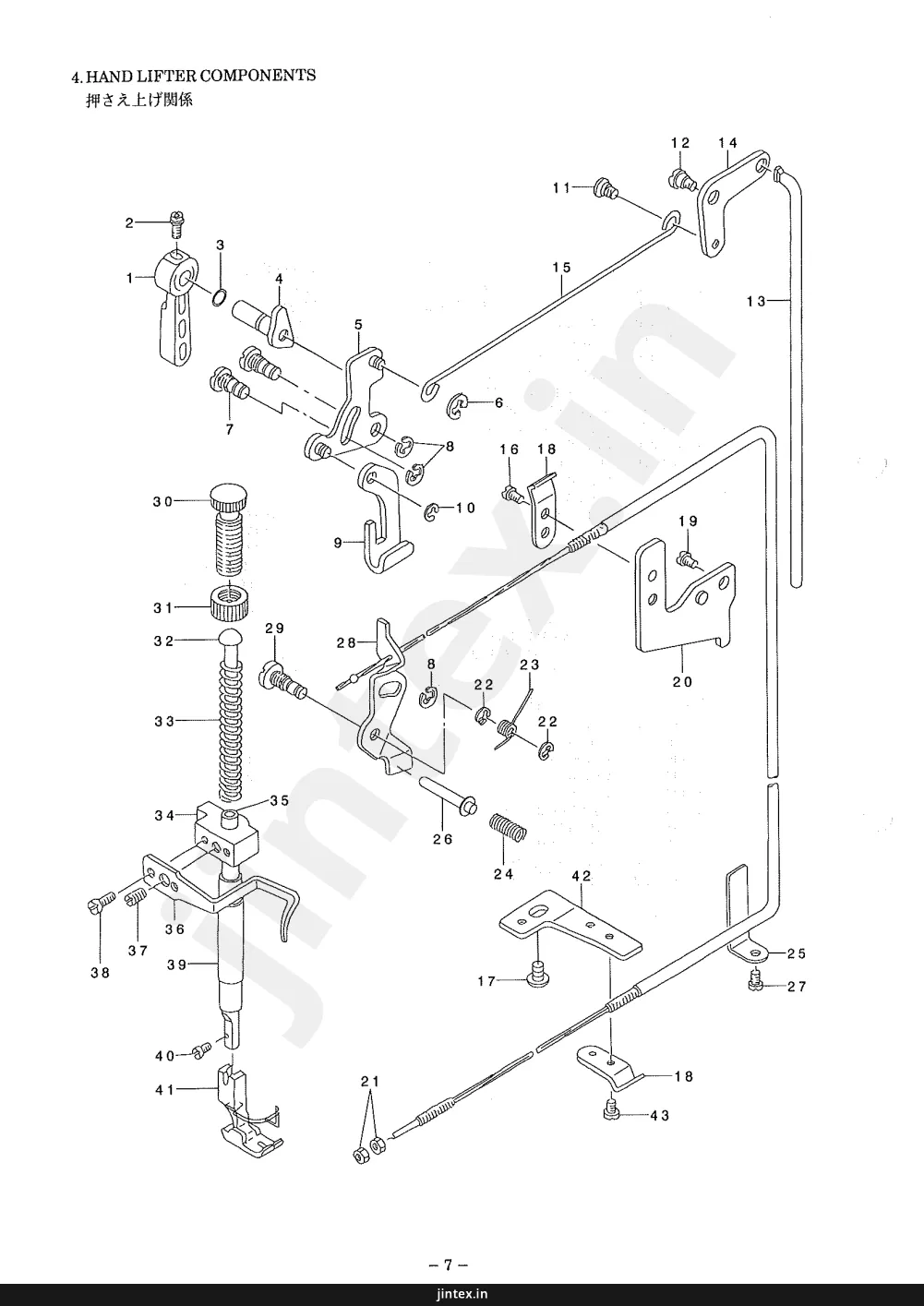

4. HAND LIFTER COMPONENTS 押さえ上げ関係 - 7 - jintex.in

Page 11

Juki DDL-8500-7 parts on page 11
RefPart numberPart nameQty
1229-07802HAND LIFTER1
2B1521-555-000SCREW1
3R0-0371801-00RUBBER RING1
4229-08552HAND LIFTER CAM ASM.1
5229-08156HAND LIFTER LINK1
6RE-0500000-KOE-RING1
7110-06509LINK SHAFT2
8RE-0500000-KOE-RING3
9229-08008LIFTING LEVER1
10RE-0500000-KOE-RING1
11229-08909HINGE SCREW1
12SD-0720331-SPHINGE SCREW D= 7.24 H= 3.31
13229-09006CONNECTING ROD VERTICAL1
14229-08800LIFTING LEVER LINK1
15229-08305LIFTING LEVER CONNECTING ROD1
16SS-7110720-SPSCREW 11/64-40 L=71
17SS-4150915-SPSCREW 15/64-28 L=91
18229-44508WIRE HOLDER A2
19SS-4120615-SPSCREW 3/16-28 L=61
20229-44607WIRE HOLDER BRACKET ,UPPER1
21NS-6620310-SPNUT 3/16-322
22RE-0500000-KOE-RING2
23229-20201TENSION RELEASE RETURN SPRING1
24110-18405TENSION RELEASE PIN SPRING1
25229-45109WIRE CABLE HOLDER1
26110-18306TENSION RELEASE SUPPORTING PIN1
27SS-4120615-SPSCREW 3/16-28 L=61
28229-44854THREAD RELEASE WIRE ASM.1
29110-18108TENSION RELEASE SHAFT1
30229-07505PRESSER ADJUSTING SCREW1
31229-07604PRESSER ADJUSTING SCREW NUT1
32229-07703PRESSER GUIDE BAR1
33229-07406PRESSER ADJUSTING SPRING1
34229-07208PRESSER BAR GUIDE BRACKET1
35229-07000PRESSER BAR1
36229-07307PRESSER BAR THREAD GUIDE1
37SS-8660810-TPSCREW 1/4-40 L=81
38SS-6090910-SPSCREW 9/64-40 L=92
39229-07109PRESSER BAR BUSHING, LOWER1
40SS-7091110-SPSCREW 9/64-40 L=10.51
41B1524-012-0BAPRESSER FOOT ASM.1
42229-44706WIRE HOLDER BRACKET ,LOWER1
43SS-7110410-SPSCREW 11/64-40 L=41

REF. NO NOTE PART NO. DESCRIPTION Qty 1 229-07802 HAND LIFTER 1 2 B1521-555-000 SCREW 1 3 R0-0371801-00 RUBBER RING 1 4 229-08552 HAND LIFTER CAM ASM. 1 5 229-08156 HAND LIFTER LINK 1 6 RE-0500000-KO E-RING 1 7 110-06509 LINK SHAFT 2 8 RE-0500000-KO E-RING 3 9 229-08008 LIFTING LEVER 1 10 RE-0500000-KO E-RING 1 11 229-08909 HINGE SCREW 1 12 SD-0720331-SP HINGE SCREW D= 7.24 H= 3.3 1 13 229-09006 CONNECTING ROD VERTICAL 1 14 229-08800 LIFTING LEVER LINK 1 15 229-08305 LIFTING LEVER CONNECTING ROD 1 16 SS-7110720-SP SCREW 11/64-40 L=7 1 17 #01 SS-4150915-SP SCREW 15/64-28 L=9 1 18 229-44508 WIRE HOLDER A 2 19 SS-4120615-SP SCREW 3/16-28 L=6 1 20 229-44607 WIRE HOLDER BRACKET ,UPPER 1 21 NS-6620310-SP NUT 3/16-32 2 22 RE-0500000-KO E-RING 2 23 229-20201 TENSION RELEASE RETURN SPRING 1 24 110-18405 TENSION RELEASE PIN SPRING 1 25 229-45109 WIRE CABLE HOLDER 1 26 110-18306 TENSION RELEASE SUPPORTING PIN 1 27 SS-4120615-SP SCREW 3/16-28 L=6 1 28 229-44854 THREAD RELEASE WIRE ASM. 1 29 110-18108 TENSION RELEASE SHAFT 1 30 229-07505 PRESSER ADJUSTING SCREW 1 31 229-07604 PRESSER ADJUSTING SCREW NUT 1 32 229-07703 PRESSER GUIDE BAR 1 33 229-07406 PRESSER ADJUSTING SPRING 1 34 229-07208 PRESSER BAR GUIDE BRACKET 1 35 229-07000 PRESSER BAR 1 36 229-07307 PRESSER BAR THREAD GUIDE 1 37 SS-8660810-TP SCREW 1/4-40 L=8 1 38 SS-6090910-SP SCREW 9/64-40 L=9 2 39 229-07109 PRESSER BAR BUSHING, LOWER 1 40 SS-7091110-SP SCREW 9/64-40 L=10.5 1 41 B1524-012-0BA PRESSER FOOT ASM. 1 42 229-44706 WIRE HOLDER BRACKET ,LOWER 1 43 SS-7110410-SP SCREW 11/64-40 L=4 1 NOTE (注記) #01...FOR DDL-8500-7-00 DDL-8500-7-00用 -8- jintex.in

Page 12 — 5. FEED MECHANISM COMPONENTS

5. FEED MECHANISM COMPONENTS 送り関係 - 9 - jintex.in

Page 13

Juki DDL-8500-7 parts on page 13
RefPart numberPart nameQty
1229-41108FEED ADJUST ROD
2229-11507FEED REGULATOR PIN
3SS-6090670-TPSCREW 9/64-40 L=62
4229-11606FEED REGULATOR
5229-11705FEED REGULATOR BUSHING
6SS-7120770-SHSCREW 3/16-28 L=7
7229-11804FEED REGULATOR SCREW
8229-12109SPRING
9229-12000PIN
10229-40506FEED DIAL
11SS-6121880-SPSCREW 3/16-28 L=18
12229-10202ROCKER SHAFT CONNECTING ROD
13229-11101WALKING FOOT PIN C
14SS-6090620-SPSCREW 9/64-40 L=6
15229-15003CONNECTING ROD
16RO-0922702-00RUBBER RING
17229-12406FEED REVERSE SPRING
18RE-050000-KOE-RING
19229-12257FEED REVERSE ARM ASM.
20110-10410FEED REVERSE ARM SCREW
21RE-050000-KOE-RING
22110-37405ADJUSTING LINK SPRING B
23229-11408FEED REGULATOR CONNCCTING ROD
24229-10905WALKING FOOT PIN A
25110-08703WALKING FOOT LINK2
26110-08604CONNECTING LINK A2
27229-40951FEED ADJUST LINK ASM.
28229-10806ADJUSTING LINK FULCRUM SHAFT A2
29SS-8150710-SPSCREW 15/64-28 L=72
30SS-6090620-SPSCREW 9/64-40 L=62
31229-40803FEED BAR SHAFT
32RC-0150001-KPRETAINING RING 13.8
33B1613-012-100FEED DOG I
34SS-4080620-TPSCREW 1/8-44 L=62
35229-40753FEED BAR ASM.
36229-41306ADJUSTING LINK SPRING GUIDE
37SS-4110515-SPSCREW 11/64-40 L=52
38229-13701FEED SPRING HOOK
39229-12901FEED ROCKER SHAFT
40229-11002WALKING FOOT PIN B
41SS-6090620-SPSCREW 9/64-40 L=6
42NS-6680410-SPNUT 9/32-28
43229-10350FEED ROCKER SHAFT CRANK ASM.
44SS-6121610-SPSCREW 3/16-28 L=15.5(1)
45229-15151FEED ARM COMPL.
46SS-7121610-SPSCREW 3/16-28 L=15.5(1)
47SD-1000801-SHHINGE SCREW D=10 H=8
48229-15201FEED DRIVING SHAFT
49229-04155THRUST COLLAR ASM.
50SS-8660610-TPSCREW 1/4-40 L=6(2)
51229-13008FEED ROCKER SHAFT BUSHING2
52229-13800HORIZONTAL FEED ROD B
53SS-7110740-TPSCREW 11/64-40 L=7
54RC-0150001-KPRETAINING RING 13.8
55229-40654FEED BAR CRANK ASM.
56SS-7121410-TPSCREW 3/16-28 L=14(1)
57229-42056DRIVING SHAFT CRANK ASM.
58SS-7111120-SPSCREW 11/64-40 L=10.5(1)
59B1636-581-C00NEEDLE BEARING
60229-10459WALKING FOOT ADJUSTING LINK
61229-04155THRUST COLLAR ASM.
62SS-8660610-TPSCREW 1/4-40 L=6(2)
63RO-0781901-00RUBBER RING
64229-12604FEED REVERSE SHAFT
65229-12802FEED LEVER METAL
66SM-8061010-TPSCREW
67SM-8061050-TPSCREW
68229-12703REVERSE FEED CONTROL LEVER
69WP-0480856-SPWASHER 4.8X8.4X0.8

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 229-41108 FEED ADJUST ROD 1 2 229-11507 FEED REGULATOR PIN 1 3 SS-6090670-TP SCREW 9/64-40 L=6 2 4 229-11606 FEED REGULATOR 1 5 229-11705 FEED REGULATOR BUSHING 1 6 SS-7120770-SH SCREW 3/16-28 L=7 1 7 229-11804 FEED REGULATOR SCREW 1 8 229-12109 SPRING 1 9 229-12000 PIN 1 10 229-40506 FEED DIAL 1 11 SS-6121880-SP SCREW 3/16-28 L=18 1 12 229-10202 ROCKER SHAFT CONNECTING ROD 1 13 229-11101 WALKING FOOT PIN C 1 14 SS-6090620-SP SCREW 9/64-40 L=6 1 15 229-15003 CONNECTING ROD 1 16 RO-0922702-00 RUBBER RING 1 17 229-12406 FEED REVERSE SPRING 1 18 RE-050000-KO E-RING 1 19 229-12257 FEED REVERSE ARM ASM. 1 20 110-10410 FEED REVERSE ARM SCREW 1 21 RE-050000-KO E-RING 1 22 110-37405 ADJUSTING LINK SPRING B 1 23 #02 229-11408 FEED REGULATOR CONNCCTING ROD 1 24 229-10905 WALKING FOOT PIN A 1 25 110-08703 WALKING FOOT LINK 2 26 110-08604 CONNECTING LINK A 2 27 #01 229-40951 FEED ADJUST LINK ASM. 1 28 229-10806 ADJUSTING LINK FULCRUM SHAFT A 2 29 SS-8150710-SP SCREW 15/64-28 L=7 2 30 SS-6090620-SP SCREW 9/64-40 L=6 2 31 229-40803 FEED BAR SHAFT 1 32 RC-0150001-KP RETAINING RING 13.8 1 33 B1613-012-100 FEED DOG I 1 34 SS-4080620-TP SCREW 1/8-44 L=6 2 35 229-40753 FEED BAR ASM. 1 36 229-41306 ADJUSTING LINK SPRING GUIDE 1 37 SS-4110515-SP SCREW 11/64-40 L=5 2 38 229-13701 FEED SPRING HOOK 1 39 229-12901 FEED ROCKER SHAFT 1 40 229-11002 WALKING FOOT PIN B 1 41 SS-6090620-SP SCREW 9/64-40 L=6 1 42 NS-6680410-SP NUT 9/32-28 1 43 229-10350 FEED ROCKER SHAFT CRANK ASM. 1 44 SS-6121610-SP SCREW 3/16-28 L=15.5 (1) 45 229-15151 FEED ARM COMPL. 1 46 SS-7121610-SP SCREW 3/16-28 L=15.5 (1) 47 SD-1000801-SH HINGE SCREW D=10 H=8 1 48 229-15201 FEED DRIVING SHAFT 1 49 229-04155 THRUST COLLAR ASM. 1 50 SS-8660610-TP SCREW 1/4-40 L=6 (2) 51 229-13008 FEED ROCKER SHAFT BUSHING 2 52 #03 229-13800 HORIZONTAL FEED ROD B 1 53 SS-7110740-TP SCREW 11/64-40 L=7 1 54 RC-0150001-KP RETAINING RING 13.8 1 55 229-40654 FEED BAR CRANK ASM. 1 56 SS-7121410-TP SCREW 3/16-28 L=14 (1) 57 229-42056 DRIVING SHAFT CRANK ASM. 1 58 SS-7111120-SP SCREW 11/64-40 L=10.5 (1) 59 #04 B1636-581-C00 NEEDLE BEARING 1 60 #02 229-10459 WALKING FOOT ADJUSTING LINK 1 61 229-04155 THRUST COLLAR ASM. 1 62 SS-8660610-TP SCREW 1/4-40 L=6 (2) 63 RO-0781901-00 RUBBER RING 1 64 229-12604 FEED REVERSE SHAFT 1 65 229-12802 FEED LEVER METAL 1 66 SM-8061010-TP SCREW 1 67 SM-8061050-TP SCREW 1 68 229-12703 REVERSE FEED CONTROL LEVER 1 69 WP-0480856-SP WASHER 4.8X8.4X0.8 1 NOTE (注記) #01....FOR DDL-8500-7-0B, -WB #02....FOR DDL-8500-7-00 #03....FOR JE, JA #04....SELECTIVE PART(FOR JE, JA) - 10 - jintex.in

Page 14 — 6. THREAD TRIMMER COMPONENTS

6. THREAD TRIMMER COMPONENTS 糸切り装置関係 - 11 - jintex.in

Page 15

Juki DDL-8500-7 parts on page 15
RefPart numberPart nameQty
1110-40359KNIFE UNIT
2SD-0460703-TPHINGE SCREW D=4.6 H=7
3110-40508FORKED BASE FOR KNIFE
4110-40409MOVING KNIFE HINGE SCREW
5110-40052MOVING KNIFE ASM.
6110-40300KNIFE MOUNTING BASE
7110-40201THREAD GUIDE FOR KNIFE
8SS-2060210-SPSCREW 3/32-56 L=2.3
9SS-4080620-TPSCREW 1/8-44 L=6
10D2406-555-DOHCOUNTER KNIFE
11HK-0346101-40HOUSING 14P
12SS-410715-SPSCREW 11/64-40 L=7
13229-50257PICKER ARM ASM.
14229-50208PICKER ARM
15229-50356THREAD TAKE-UP PICKER ASM.
16SS-6090510-SPSCREW 9/64-40 L=5
17SD-0641451-SPHINGE SCREW D=6.35 H=14.5
18SD-0630275-SPHINGE SCREW D=6.35 H=2.7
19110-42850THREAD TRIMMER CAM ASM.
20SS-6660610-TPSCREW 1/4-40 L=6
21229-50950CAM COLLAR ASM.
22SS-8110520-TPSCREW 11/64-40 L=4.5
23229-49762THREAD TRIMMER DRIVING UNIT
24229-49754BASE PLATE ASM.
25229-50703DRIVING ARM STOPPE
26229-50000PICKER LINK PIN
27RE-060000-KOE-RING 6
28SS-410715-SPSCREW 11/64-40 L=7
29229-49408CLUTCH SPRING
30110-41852CLUTCH PLATE ASM.
31229-50109PICKER LINK
32WP-0621016-SHWASHER
33NS-6150430-SPNUT 15/64-28
34RE-060000-KOE-RING 6
35110-40607MOVING KNIFE LINK
36RE-050000-KOE-RING 5
37229-48400MOVING KNIFE LINK PIN
38229-49309KNIFE RETURN SPRING B
39RE-040000-KOE-RING 4
40229-49101ROLLER FULCRUM SHAFT
41229-49200ROLLER FULCRUM SPRING
42SS-7090610-SPSCREW 9/64-40 L=6
43229-49002ROLLER ARM BRACKET
44229-48657ROLLER ARM ASM.
45110-40854KNIFE DRIVING ARM ASM.
46HK-0346400-OBPIN CONTACT
47SS-4150915-SPSCREW 15/64-28 L=9
48SD-0640631-TPHINGE SCREW D=6.35 H=6.3
49229-51164SOLENOID UNIT
50229-49903CLUTCH LINK
51RE-050000-KOE-RING 5
52110-43205SOLENOID RUBBER A
53110-43908THREAD TRIMMER SOLENOID
54229-51404SOLENOID BASE
55WP-045000-SDWASHER 4.5X8X0.5
56NM-604000-SNNUT M4
57110-43304SOLENOID RUBBER
58NS-6660410-SHNUT
59NS-6660430-SPNUT 1/4-40
60229-51008SOLENOID PIN
61SS-6110710-TPSCREW 11/64-40 L=6.5
62SD-0600361-SPHINGE SCREW D=6 H=3.6
63SS-4151215-SPSCREW 15/64-28 L=12
64229-24807TUBE HOLDER ,LOWER
65110-44054GROUND WIRE ASM.

REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 110-40359 KNIFE UNIT 1 2 SD-0460703-TP HINGE SCREW D=4.6 H=7 (1) 3 110-40508 FORKED BASE FOR KNIFE (1) 4 110-40409 MOVING KNIFE HINGE SCREW (1) 5 110-40052 MOVING KNIFE ASM. (1) 6 110-40300 KNIFE MOUNTING BASE (1) 7 110-40201 THREAD GUIDE FOR KNIFE (1) 8 SS-2060210-SP SCREW 3/32-56 L=2.3 (1) 9 SS-4080620-TP SCREW 1/8-44 L=6 (2) 10 D2406-555-DOH COUNTER KNIFE (1) 11 HK-0346101-40 HOUSING 14P 1 12 SS-410715-SP SCREW 11/64-40 L=7 1 13 229-50257 PICKER ARM ASM. (1) 14 229-50208 PICKER ARM (1) 15 229-50356 THREAD TAKE-UP PICKER ASM. (1) 16 SS-6090510-SP SCREW 9/64-40 L=5 (2) 17 SD-0641451-SP HINGE SCREW D=6.35 H=14.5 1 18 SD-0630275-SP HINGE SCREW D=6.35 H=2.7 1 19 110-42850 THREAD TRIMMER CAM ASM. 1 20 SS-6660610-TP SCREW 1/4-40 L=6 (2) 21 229-50950 CAM COLLAR ASM. 1 22 SS-8110520-TP SCREW 11/64-40 L=4.5 (1) 23 229-49762 THREAD TRIMMER DRIVING UNIT (1) 24 229-49754 BASE PLATE ASM. (1) 25 229-50703 DRIVING ARM STOPPE (1) 26 229-50000 PICKER LINK PIN (1) 27 RE-060000-KO E-RING 6 (1) 28 SS-410715-SP SCREW 11/64-40 L=7 (2) 29 229-49408 CLUTCH SPRING (1) 30 110-41852 CLUTCH PLATE ASM. (1) 31 229-50109 PICKER LINK (1) 32 WP-0621016-SH WASHER (2) 33 NS-6150430-SP NUT 15/64-28 (2) 34 RE-060000-KO E-RING 6 (1) 35 110-40607 MOVING KNIFE LINK (1) 36 RE-050000-KO E-RING 5 (1) 37 229-48400 MOVING KNIFE LINK PIN (1) 38 229-49309 KNIFE RETURN SPRING B (1) 39 RE-040000-KO E-RING 4 (2) 40 229-49101 ROLLER FULCRUM SHAFT (1) 41 229-49200 ROLLER FULCRUM SPRING (1) 42 SS-7090610-SP SCREW 9/64-40 L=6 (1) 43 229-49002 ROLLER ARM BRACKET (1) 44 229-48657 ROLLER ARM ASM. (1) 45 110-40854 KNIFE DRIVING ARM ASM. (1) 46 HK-0346400-OB PIN CONTACT 2 47 SS-4150915-SP SCREW 15/64-28 L=9 2 48 SD-0640631-TP HINGE SCREW D=6.35 H=6.3 1 49 229-51164 SOLENOID UNIT (1) 50 229-49903 CLUTCH LINK (1) 51 RE-050000-KO E-RING 5 (1) 52 110-43205 SOLENOID RUBBER A (1) 53 110-43908 THREAD TRIMMER SOLENOID (1) 54 229-51404 SOLENOID BASE (1) 55 WP-045000-SD WASHER 4.5X8X0.5 (2) 56 NM-604000-SN NUT M4 (2) 57 110-43304 SOLENOID RUBBER (1) 58 NS-6660410-SH NUT (1) 59 NS-6660430-SP NUT 1/4-40 (1) 60 229-51008 SOLENOID PIN (1) 61 SS-6110710-TP SCREW 11/64-40 L=6.5 (1) 62 SD-0600361-SP HINGE SCREW D=6 H=3.6 1 63 SS-4151215-SP SCREW 15/64-28 L=12 2 64 229-24807 TUBE HOLDER ,LOWER 1 65 110-44054 GROUND WIRE ASM. 1 - 12 - jintex.in

Page 16 — 7. AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-8500-7 parts on page 16
RefPart numberPart nameQty
1229-54150REVERSE FEED SWITCH ASM.1
2229-54606REVERSE FEED SWITCH COVER(1)
3SM-4040655-SPSCREW M4 L=6(1)
4229-54101REVERSE FEED SWITCH BASE(1)
5229-54200REVERSE FEED SWITCH SHAFT(1)
6229-54309REVERSE FEED SWITCH SPRING(1)
7SM-4041655-SPSCREW M4 L=16(1)
8SM-4031501-SCSCREW M3 L=15(2)
9HW-6000700-002-CORE CABTYRE CORD(1.31)
10HK-0346400-0BPIN CONTACT(2)
11HA-0019000-00MICROSWITCH(1)
12229-54408SWITCH HOLDING PLATE(1)
13229-54507REVERSE FEED SWITCH LEVER(1)
14RE-0500000-KPE-RING 52
15229-53806REVERSE FEED CONNECTING SHAFT1
16RE-0900000-KOE-RING 91
17229-53657CONNECTING ARM ASM.1
18RE-0400000-KPE-RING 41
19229-53905REVERSE FEED CONNECTING LINK1
20RE-1200000-KOE-RING 121
21WP-1602616-SZWASHER 16X24X2.61
22D2468-555-B00RUBBER PLUNGER1
23RE-0400000-KOE-RING 42
24229-53509PLUNGER ARM PIN1
25111-02753REVERSE FEED MAGNET ASM.1
26SS-4151215-SPSCREW 15/64-28 L=122
27SS-4120915-SPSCREW 3/16-28 L=91
28229-54002PLUNGER SPRING1
29HK-0346400-0BPIN CONTACT2
30SS-4120615-SPSCREW 3/16-28 L=61

7. AUTOMATIC REVERSE FEED COMPONENTS 自動逆送り関係 REF. NO NOTE PART NO. DESCRIPTION Qty 1 229-54150 REVERSE FEED SWITCH ASM. ギヤクオクリスイツチ(クミ) 1 2 229-54606 REVERSE FEED SWITCH COVER ギヤクオクリスイツチカバ (1) 3 SM-4040655-SP SCREW M4 L=6 ナベコネジ M4 L=6 (1) 4 229-54101 REVERSE FEED SWITCH BASE ギヤクオクリスイツチダイ (1) 5 229-54200 REVERSE FEED SWITCH SHAFT ギヤクオクリスイツチジク (1) 6 229-54309 REVERSE FEED SWITCH SPRING ギヤクオクリスイツチバネ (1) 7 SM-4041655-SP SCREW M4 L=16 ナベコネジ M4 L=16 (1) 8 SM-4031501-SC SCREW M3 L=15 ナベコネジ M3 L=15 (2) 9 HW-6000700-00 2-CORE CABTYRE CORD 2シン キャブタイヤコード (1.31) 10 HK-0346400-0B PIN CONTACT ピンコンタクト (2) 11 HA-0019000-00 MICROSWITCH マイクロスイツチ (1) 12 229-54408 SWITCH HOLDING PLATE ギヤクオクリスイツチドメイタ (1) 13 229-54507 REVERSE FEED SWITCH LEVER ギヤクオクリスイツチレバー (1) 14 RE-0500000-KP E-RING 5 Eガタトメワ 5 2 15 229-53806 REVERSE FEED CONNECTING SHAFT ジドウオクリレンケツボウ 1 16 RE-0900000-KO E-RING 9 Eガタトメワ 9 1 17 229-53657 CONNECTING ARM ASM. ジドウオクリウデ(クミ) 1 18 RE-0400000-KP E-RING 4 Eガタトメワ 4 1 19 229-53905 REVERSE FEED CONNECTING LINK ジドウオクリレンケツリンク 1 20 RE-1200000-KO E-RING 12 Eガタトメワ 12 1 21 WP-1602616-SZ WASHER 16X24X2.6 ヒラザガネ 16X24X2.6 1 22 D2468-555-B00 RUBBER PLUNGER プランジヤゴム 1 23 RE-0400000-KO E-RING 4 Eガタトメワ 4 2 24 229-53509 PLUNGER ARM PIN プランジヤウデピン 1 25 111-02753 REVERSE FEED MAGNET ASM. ギヤクオクリマグネットクミ 1 26 SS-4151215-SP SCREW 15/64-28 L=12 ナベネジ 15/64-28 L=12 2 27 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 1 28 229-54002 PLUNGER SPRING プランジヤバネ 1 29 HK-0346400-0B PIN CONTACT ピンコンタクト 2 30 *01 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 NOTE (注記) *01....FOR DDL-8500-7-0B DDL-8500-7-0B用 - 13 - jintex.in

Page 17 — 8. WIPER COMPONENTS

Juki DDL-8500-7 parts on page 17
RefPart numberPart nameQty
1229-55553WIPER ASM.1
2229-55504WIPER COVER(1)
3SL-4030621-SSSCREW M3(1)
4SD-0650321-TPHINGE SCREW D=6.5 H=3.2(1)
5NS-6090310-SPNUT 9/64-40(1)
6111-10608WIPER LINK A(1)
7229-56403WIPER LINK B(1)
8RE-0250000-K0E-RING 2.5(1)
9229-56908WIPER LINK B ,HINGE SCREW(1)
10229-56205WIPER HINGE SCREW COLLAR(1)
11229-56304WIPER SPRING(1)
12NS-6110310-SPNUT 11/64-40(1)
13229-55900WIPER RUBBER A(1)
14229-56007WIPER RUBBER B(1)
15111-10301WIPER SOLENOID(1)
16229-57104WIPER SOLENOID SHAFT(1)
17HA-0005900-00POWER SWITCH(1)
18HW-2003900-00ELECTRIC WIRE(0.04)
19HW-5000700-002-CORE CABTYRE CORD(1.33)
20111-10152WIPER BASE ASM.(1)
21229-57203WIPER LINK COLLAR(1)
22SL-4030641-SESCREW(3)
23HK-0346400-OBPIN CONTACT(2)
24229-57005WIPER(1)
25SS-6090540-SPSCREW 9/64-40 L= 5.0(1)
26229-56809WIPER COLLAR(1)
27RE-0500000-K0E-RING 5(1)
28111-11051WIPER DRIVING SHAFT ASM.(1)
29SS-4120915-SPSCREW 3/16-28 L=91

8. WIPER COMPONENTS ワイパー関係 REF. NO NOTE PART NO. DESCRIPTION Qty 1 229-55553 WIPER ASM. ワイパー(クミ) 1 2 229-55504 WIPER COVER ワイパーカバー (1) 3 SL-4030621-SS SCREW M3 ザ・ツキナベネジ M3 (1) 4 SD-0650321-TP HINGE SCREW D=6.5 H=3.2 ダンネジ D=6.5 H=3.2 (1) 5 NS-6090310-SP NUT 9/64-40 ロッカクナット 9/64-40 (1) 6 111-10608 WIPER LINK A ワイパーリンクA (1) 7 229-56403 WIPER LINK B ワイパーリンクB (1) 8 RE-0250000-K0 E-RING 2.5 Eガタトメワ 2.5 (1) 9 229-56908 WIPER LINK B ,HINGE SCREW ワイパーリンクBダンネジ (1) 10 229-56205 WIPER HINGE SCREW COLLAR ワイパーダンネジカラー (1) 11 229-56304 WIPER SPRING ワイパーバネ (1) 12 NS-6110310-SP NUT 11/64-40 ロッカクナット 11/64-40 (1) 13 229-55900 WIPER RUBBER A ワイパーゴムA (1) 14 229-56007 WIPER RUBBER B ワイパーゴムB (1) 15 111-10301 WIPER SOLENOID ワイパーソレノイド (1) 16 229-57104 WIPER SOLENOID SHAFT ワイパーソレノイドジク (1) 17 HA-0005900-00 POWER SWITCH デンゲンスイッチ (1) 18 HW-2003900-00 ELECTRIC WIRE ビニールデンセン 17-0.16 シロ (0.04) 19 HW-5000700-00 2-CORE CABTYRE CORD 2シンキャブタイヤコード (1.33) 20 111-10152 WIPER BASE ASM. ワイパーダイクミ (1) 21 229-57203 WIPER LINK COLLAR ワイパーリンクカラー (1) 22 SL-4030641-SE SCREW ザ・ナベネジ (3) 23 HK-0346400-OB PIN CONTACT ピンコンタクト (2) 24 229-57005 WIPER ワイパー (1) 25 SS-6090540-SP SCREW 9/64-40 L= 5.0 ヒラネジ 9/64-40 L=5 (1) 26 229-56809 WIPER COLLAR ワイパーカラー (1) 27 RE-0500000-K0 E-RING 5 Eガタトメワ 5 (1) 28 111-11051 WIPER DRIVING SHAFT ASM. ワイパージククミ (1) 29 SS-4120915-SP SCREW 3/16-28 L=9 ナベネジ 3/16-28 L=9 1 - 14 - jintex.in

Page 18 — 9. OIL LUBRICATION COMPONENTS

9. OIL LUBRICATION COMPONENTS 給油関係 - 15 - jintex.in

Page 19

Juki DDL-8500-7 parts on page 19
RefPart numberPart nameQty
1229-47006OIL SIGHT WINDOW1
2RO-1952401-00RUBBER RING1
3229-24401MAIN SHAFT OIL TUBE1
4SS-4120615-SPSCREW 3/16-28 L=61
5229-25101OIL FELT PRESSER1
6229-24153OIL RETURN TUBE ASM.1
7229-24302HOLDER(1)
8CQ-2520000-00OIL WICK0.21
9229-25002OIL ADJUSTING SCREW1
10229-24906SPRING1
11229-24500OIL TUBE1
12229-23056LUBRICATING OIL PUMP ASM.1
13229-23304OIL PUMP INSTALLING BASE(1)
14229-23007OIL PUMP(1)
15229-23700OIL PUMP IMPELLER(1)
16SE-4301041-SRSCREW D=3 L=10(3)
17229-23205LUBRICATING OIL PUMP COVER(1)
18229-23809OIL PUMP IMPELLER COVER(1)
19229-23403PLUNGER(1)
20229-23601PLUNGER SPRING(1)
21229-23502PLUNGER SCREW(1)
22229-23908HOOK DRIVING SHAFT OIL TUBE(1)
23SL-4030851-SFSCREW M3 L=8(3)
24SS-4150915-SPSCREW 15/64-28 L=91
25SS-6111010-TPSCREW 11/64-40 L=9.51
26229-47105OIL PUMP SUPPORT1
27SS-4151215-SPSCREW 15/64-28 L=121
28229-24609RUBBER JOINT1
29WS-0451040-KPSPRING WASHER 4.5X8.5X11
30229-24005OIL PUMP SUPPORT1
31WS-0651310-KPSPRING WASHER 6.5X11X1.31

REF. NO NOTE PART NO. DESCRIPTION Qty 1 229-47006 OIL SIGHT WINDOW 1 2 RO-1952401-00 RUBBER RING 1 3 229-24401 MAIN SHAFT OIL TUBE 1 4 SS-4120615-SP SCREW 3/16-28 L=6 1 5 229-25101 OIL FELT PRESSER 1 6 229-24153 OIL RETURN TUBE ASM. 1 7 229-24302 HOLDER (1) 8 CQ-2520000-00 OIL WICK 0.21 9 229-25002 OIL ADJUSTING SCREW 1 10 229-24906 SPRING 1 11 229-24500 OIL TUBE 1 12 229-23056 LUBRICATING OIL PUMP ASM. 1 13 229-23304 OIL PUMP INSTALLING BASE (1) 14 229-23007 OIL PUMP (1) 15 229-23700 OIL PUMP IMPELLER (1) 16 SE-4301041-SR SCREW D=3 L=10 (3) 17 229-23205 LUBRICATING OIL PUMP COVER (1) 18 229-23809 OIL PUMP IMPELLER COVER (1) 19 229-23403 PLUNGER (1) 20 229-23601 PLUNGER SPRING (1) 21 229-23502 PLUNGER SCREW (1) 22 229-23908 HOOK DRIVING SHAFT OIL TUBE (1) 23 SL-4030851-SF SCREW M3 L=8 (3) 24 #02 SS-4150915-SP SCREW 15/64-28 L=9 1 25 SS-6111010-TP SCREW 11/64-40 L=9.5 1 26 #01 229-47105 OIL PUMP SUPPORT 1 27 #01 SS-4151215-SP SCREW 15/64-28 L=12 1 28 229-24609 RUBBER JOINT 1 29 #01 WS-0451040-KP SPRING WASHER 4.5X8.5X1 1 30 #02 229-24005 OIL PUMP SUPPORT 1 31 #01 WS-0651310-KP SPRING WASHER 6.5X11X1.3 1 NOTE (注記) #01...FOR DDL-8500-7-OB, -WB DDL-8500-7-OB, -WB用 #02...FOR DDL-8500-7-00 DDL-8500-7-00用 - 16 - jintex.in

Page 20 — 10. OIL RESERVOIR COMPONENTS

10. OIL RESERVOIR COMPONENTS 油溜関係 23 1 2 3 4 5 6 7 15 8 10 13 14 13 12 9 12 11 18 22 17 21 25 26 27 20 28 16 29 19 28 24 31 30 - 17 - jintex.in

Page 21

Juki DDL-8500-7 parts on page 21
RefPart numberPart nameQty
1110-47057OIL RESERVOIR ASM.
2110-23017OIL RESERVOIR
3110-24700GASKET
4110-47107RUBBER CUSHION
5SS-6700710-SHSCREW 5/16-24 L=7
6RO-1082401-00RUBBER RING
7110-24015CONNECTING ROT, VERTICAL
8110-24106SPRING
9RE-1000000-KOE-RING 10
10110-24510BRACKET
11SM-9062053-SRSCREW M6 L=20
12NM-6060001-SENUT M6
13SM-8063012-TRSCREW M6 L=30
14SM-9061853-SRSCREW M6 L=17.5
15110-24205KNEE PRESS ROD
16229-34251KNEE PRESS PLATE ASM.
17229-34509KNEE PRESS PLATE COVER
18229-34608KNEE PRESS PLATE ROD
19229-34400KNEE PRESS PLATE RUBBER
20229-34202KNEE PRESS PLATE
21229-34301KNEE PRESS PLATE HOLDER
22SM-9061203-SESCREW M6 L=12
23229-31703KNEE PRESS LIFTER ROD
24111-41454OIL RESERVOIR ASM.
25GAK-300010B0KNEE PRESS LIFTER ROD ASM.
26GAK-30004000KNEE PRESS LIFTER ROD RUBBER
27RE-0400000-KOE-RING 4
28WP-0621016-SDWASHER 6.2X13X1
29GAK-30005000SPRING
30111-41413OIL RESERVOIR
31111-41900GASKET

REF. NO NOTE PART NO. DESCRIPTION Qty 1 110-47057 OIL RESERVOIR ASM. 1 2 110-23017 OIL RESERVOIR (1) 3 110-24700 GASKET (1) 4 110-47107 RUBBER CUSHION (4) 5 SS-6700710-SH SCREW 5/16-24 L=7 (1) 6 RO-1082401-00 RUBBER RING (1) 7 110-24015 CONNECTING ROT, VERTICAL (1) 8 110-24106 SPRING (1) 9 RE-1000000-KO E-RING 10 (1) 10 110-24510 BRACKET (1) 11 SM-9062053-SR SCREW M6 L=20 (2) 12 NM-6060001-SE NUT M6 (2) 13 SM-8063012-TR SCREW M6 L=30 (2) 14 SM-9061853-SR SCREW M6 L=17.5 (1) 15 110-24205 KNEE PRESS ROD (1) 16 229-34251 KNEE PRESS PLATE ASM. 1 17 229-34509 KNEE PRESS PLATE COVER (1) 18 229-34608 KNEE PRESS PLATE ROD (1) 19 229-34400 KNEE PRESS PLATE RUBBER (1) 20 229-34202 KNEE PRESS PLATE (1) 21 229-34301 KNEE PRESS PLATE HOLDER (1) 22 SM-9061203-SE SCREW M6 L=12 (1) 23 229-31703 KNEE PRESS LIFTER ROD 1 24 #01 111-41454 OIL RESERVOIR ASM. 1 25 #01 GAK-300010B0 KNEE PRESS LIFTER ROD ASM. (1) 26 #01 GAK-30004000 KNEE PRESS LIFTER ROD RUBBER (1) 27 #01 RE-0400000-KO E-RING 4 (1) 28 #01 WP-0621016-SD WASHER 6.2X13X1 (2) 29 #01 GAK-30005000 SPRING (1) 30 #01 111-41413 OIL RESERVOIR (1) 31 #01 111-41900 GASKET (1) NOTE (注記) #01...FOR JE & JO JE, JO用 - 18 - jintex.in

Page 22 — 11. BELT COVER & BOBBIN COMPONENTS

Juki DDL-8500-7 parts on page 22
RefPart numberPart nameQty
1229-33451BELT COVER ASM.(1)
2229-33402BELT COVER A(1)
3229-33501BELT COVER A CAP(1)
4229-33659BELT COVER B ASM.(1)
5229-33600BELT COVER B(1)
6229-33758BELT COVER B CAP ASM.(1)
7229-33907BELT COVER SUPPORT ,A(1)
8229-34004BELT COVER A SCREW(2)
9SS-4121415-SPSCREW 3/16-28 L=14(1)
10WP-0501016-SDWASHER 5X10.5X1(1)
11SK-3412000-SCWOOD SCREW D=4.1 L=20(2)
12WP-0450826-SCWASHER 4.5X10X0.8(2)
13229-27354BOBBIN WINDER COMPL.1
14229-28501THREAD TENSION BRACKET(1)
15SS-4110515-SPSCREW 11/64-40 L=5(1)
16229-28907THREAD TENSION DISK(2)
17229-29004THREAD TENSION SPRING(1)
18229-28808THREAD TENSION NUT(1)
19SS-7110350-SPSCREW 11/64-40 L=3.5(1)
20229-28402RUBBER BRAKE PRESSER PLATE(1)
21229-28303RUBBER BRAKE(1)
22229-28105POSITIONING FINGER(1)
23SD-0490261-SPHINGE SCREW D=4.9 H=2.6(1)
24SS-7081310-SPSCREW 1/8-44 L=12.5(1)
25SS-8110510-SPSCREW 11/64-40 L=5(1)
26229-28709THREAD TENSION BRACKET(1)
27229-27305BOBBIN BASE(1)
28229-27404BOBBIN PULLEY(1)
29229-27602BOBBIN WINDER POST(1)
30SK-3412000-SCWOOD SCREW D=4.1 L=202
31WP-0450826-SCWASHER 4.5X10X0.82

11. BELT COVER & BOBBIN COMPONENTS ベルトカバー・糸巻関係 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 229-33451 BELT COVER ASM. (1) 2 229-33402 BELT COVER A (1) 3 229-33501 BELT COVER A CAP (1) 4 229-33659 BELT COVER B ASM. (1) 5 229-33600 BELT COVER B (1) 6 229-33758 BELT COVER B CAP ASM. (1) 7 229-33907 BELT COVER SUPPORT ,A (1) 8 229-34004 BELT COVER A SCREW (2) 9 SS-4121415-SP SCREW 3/16-28 L=14 (1) 10 WP-0501016-SD WASHER 5X10.5X1 (1) 11 SK-3412000-SC WOOD SCREW D=4.1 L=20 (2) 12 WP-0450826-SC WASHER 4.5X10X0.8 (2) 13 229-27354 BOBBIN WINDER COMPL. 1 14 229-28501 THREAD TENSION BRACKET (1) 15 SS-4110515-SP SCREW 11/64-40 L=5 (1) 16 229-28907 THREAD TENSION DISK (2) 17 229-29004 THREAD TENSION SPRING (1) 18 229-28808 THREAD TENSION NUT (1) 19 SS-7110350-SP SCREW 11/64-40 L=3.5 (1) 20 229-28402 RUBBER BRAKE PRESSER PLATE (1) 21 229-28303 RUBBER BRAKE (1) 22 229-28105 POSITIONING FINGER (1) 23 SD-0490261-SP HINGE SCREW D=4.9 H=2.6 (1) 24 SS-7081310-SP SCREW 1/8-44 L=12.5 (1) 25 SS-8110510-SP SCREW 11/64-40 L=5 (1) 26 229-28709 THREAD TENSION BRACKET (1) 27 229-27305 BOBBIN BASE (1) 28 229-27404 BOBBIN PULLEY (1) 29 229-27602 BOBBIN WINDER POST (1) 30 SK-3412000-SC WOOD SCREW D=4.1 L=20 2 31 WP-0450826-SC WASHER 4.5X10X0.8 2 - 19 - jintex.in

Page 23 — 12. THREAD STAND COMPONENTS

Juki DDL-8500-7 parts on page 23
RefPart numberPart nameQty
1229-30358THREAD STAND ASM.1
2229-31109SPOOL RETAINER(2)
3229-31000SPOOL PIN(2)
4229-30903SPOOL REST CUSHION(2)
5229-30804SPOOL REST(2)
6SM-6061610-SCSCREW M6 L=16(2)
7229-30705THREAD GUIDE ARM JOINT(2)
8229-31406SPOOL REST ROD RUBBER CAP(1)
9229-30507SPOOL REST ARM(2)
10229-30408SPOOL REST ROD, UPPER(1)
11229-31307SPOOL REST ROD JOINT(1)
12SM-4051405-SESCREW M5 L=14(2)
13NM-6050001-SENUT M5(2)
14229-30309SPOOL REST ROD, LOWER(1)
15229-31208THREAD GUIDE(2)
16WS-0510002-KNSPRING WASHER(2)
17NM-6050001-SENUT M5(2)
18NM-6160511-SENUT M16X1.5(1)
19WP-1702600-SOWASHER 17X30X2.6(2)

12. THREAD STAND COMPONENTS 糸立装置関係 REF. NO NOTE PART NO. DESCRIPTION Qty. 1 229-30358 THREAD STAND ASM. イトタテソウチ(クミ) 1 2 229-31109 SPOOL RETAINER イトマキフレドメ (2) 3 229-31000 SPOOL PIN イトマキウケボウ (2) 4 229-30903 SPOOL REST CUSHION イトマキウケザラクッション (2) 5 229-30804 SPOOL REST イトマキウケザラ (2) 6 SM-6061610-SC SCREW M6 L=16 セラコネジ M6 L=15 (2) 7 229-30705 THREAD GUIDE ARM JOINT イトタテボウシメカナグ (2) 8 229-31406 SPOOL REST ROD RUBBER CAP イトタテボウゴゴム (1) 9 229-30507 SPOOL REST ARM イトタテウデ (2) 10 229-30408 SPOOL REST ROD, UPPER イトタテボウ(ウエ) (1) 11 229-31307 SPOOL REST ROD JOINT イトタテボウツギテ (1) 12 SM-4051405-SE SCREW M5 L=14 ナベコネジ M5 L=14 (2) 13 NM-6050001-SE NUT M5 ロツカクナツト M5 (2) 14 229-30309 SPOOL REST ROD, LOWER イトタテボウ(シタ) (1) 15 229-31208 THREAD GUIDE イトミチ (2) 16 WS-0510002-KN SPRING WASHER バネザガネ 5.1X9.2X1.3 (2) 17 NM-6050001-SE NUT M5 ロツカクナツト M5 (2) 18 NM-6160511-SE NUT M16X1.5 ロツカクナツト M16X1.5 1シュ (1) 19 WP-1702600-SO WASHER 17X30X2.6 ヒラザガネ 17X30X2.6 (2) - 20 - jintex.in

Page 24 — 13. EXCLUSIVE PARTS FOR DDL-8500H-7

13. EXCLUSIVE PARTS FOR DDL-8500H-7 DDL-8500H-7 専用部品 1 2 7 8 3 4 5 6 59 19 10 14 11 15 12 16 17 18 13 20 35 28 29 33 31 30 34 36 57 44 45 46 51 48 47 49 52 53 54 55 38 61 37 32 56 9 58 24 27 26 39 40 41 42 43 25 23 22 21 50 60 - 21 - jintex.in

Page 25

Juki DDL-8500-7 parts on page 25
RefPart numberPart nameQty
1110-96062THREAD CUTTING DRIVING UNIT
2110-95551KNIFE UNIT
3110-92502MOVING KNIFE J ASM.
4110-95502KNIFE MOUNT BASE
5114-09604FIX KNIFE
6110-95403KNIFE THREAD GUIDE
7110-95601KNIFE BRANCH
8SD-0500131-TPHINGE SCREW D=5 H=1.25
9110-94901SOLENOID BASE
10110-73954THREAD TENSION ASM.
11110-93606THREAD TENSION SPRING
12110-73657THREAD TENSION ASM.
13B3114-232-000THREAD TENSION SPRING
14114-00801THROAT PLATE J
15110-91006ARM THREAD GUIDE (HA)
16SS-6080320-SPSCREW 1/8-44 L=2.5
17110-95254LEVER STOPPER ASM.
18SS-6110710-SPSCREW 3/16-28 L=6.5
19110-91659LINK THREAD TAKE-UP LEVER ASM.
20110-91600NEEDLE BAR CRANK H
21MDB-100B2100NEEDLE DBX1 #21
22B1418-415-H00NEEDLE BAR THREAD GUIDE
23B1403-553-000NEEDLE BAR BUSHING, LOWER
24B1419-553-000NEEDLE BAR THREAD GUIDE
25110-91303NEEDLE BAR
26110-92251LUBRICATING BOBBIN ASM.
27110-93804POSITIONING FINGER H
28B1505-552-000-APRESSER SPRING
29D1524-555-EBLPRESSER FOOT ASM.
30112-30901WIRE PRESSER PLATE, B
31SS-7110740-TPSCREW 11/64-40 L=7
32M6009-350-AAARESISTANCE PACK AA ASM.
33229-11903FEED DIAL
34110-91204ADJUST LINK SPRING
35110-91907FEED SPRING HOOK
36114-03003FEED J
37110-96658SOLENOID MOUNTING BASE ASM.
38112-31503OIL PUMP SUPPORT
39112-28103REVERSE FEED BASE COLLAR
40113-14408PLUNGER ARM PIN
41NS-6110420-SPNUT 11/64-40
42112-28301TUBE HOLDER, LOWER
43110-94109OIL TUBE
44SD-0700711-TPHINGE SCREW D=7 H=7.1
45111-01607SOLENOID CONNECTING LINK
46WP-0722316-SHWASHER
47111-01508REVERSE FEED LINK
48NS-6110420-SPNUT 11/64-40
49SD-0700451-TPHINGE SCREW D=7 H=4.5
50MC-2005013-00NEEDLE 134 NM130
51110-80900FEED DRIVE ECCENTRIC CAM
52114-03805THREAD GUIDE C FITTING PLATE
53WP-0371016-SDWASHER 3.7X8X1
54NS-6090310-SPNUT 9/64-40
55113-05513ARM THREAD GUIDE, C
56110-94604CLUTCH LINK
57110-09800FEED REGULATOR BUSHING
58110-96500THREAD TRIMMER SOLENOID
59SD-0550701-TPSTEP-SCREW D=5.5 H=7
60110-08901ADJUSTING LINK FULCRUM SHAFT B
61B1213-552-000-AOIL ADJUSTING PIN

REF. NO. NOTE PART NO. DESCRIPTION Qty 1 110-96062 THREAD CUTTING DRIVING UNIT 1 2 110-95551 KNIFE UNIT 1 3 110-92502 MOVING KNIFE J ASM. (1) 4 110-95502 KNIFE MOUNT BASE (1) 5 114-09604 FIX KNIFE (1) 6 110-95403 KNIFE THREAD GUIDE (1) 7 110-95601 KNIFE BRANCH (1) 8 SD-0500131-TP HINGE SCREW D=5 H=1.25 (1) 9 110-94901 SOLENOID BASE 1 10 110-73954 THREAD TENSION ASM. 1 11 110-93606 THREAD TENSION SPRING (1) 12 110-73657 THREAD TENSION ASM. 1 13 B3114-232-000 THREAD TENSION SPRING (1) 14 114-00801 THROAT PLATE J 1 15 110-91006 ARM THREAD GUIDE (HA) 1 16 SS-6080320-SP SCREW 1/8-44 L=2.5 1 17 #02 110-95254 LEVER STOPPER ASM. 1 18 #02 SS-6110710-SP SCREW 3/16-28 L=6.5 1 19 110-91659 LINK THREAD TAKE-UP LEVER ASM. 1 20 110-91600 NEEDLE BAR CRANK H (1) 21 MDB-100B2100 NEEDLE DBX1 #21 1 22 B1418-415-H00 NEEDLE BAR THREAD GUIDE 1 23 B1403-553-000 NEEDLE BAR BUSHING, LOWER 1 24 B1419-553-000 NEEDLE BAR THREAD GUIDE 1 25 110-91303 NEEDLE BAR 1 26 110-92251 LUBRICATING BOBBIN ASM. 1 27 110-93804 POSITIONING FINGER H 1 28 B1505-552-000-A PRESSER SPRING 1 29 D1524-555-EBL PRESSER FOOT ASM. 1 30 #02 112-30901 WIRE PRESSER PLATE, B 1 31 #02 SS-7110740-TP SCREW 11/64-40 L=7 1 32 M6009-350-AAA RESISTANCE PACK AA ASM. 1 33 229-11903 FEED DIAL 1 34 110-91204 ADJUST LINK SPRING 1 35 110-91907 FEED SPRING HOOK 1 36 114-03003 FEED J 1 37 #02 110-96658 SOLENOID MOUNTING BASE ASM. 1 38 #02 112-31503 OIL PUMP SUPPORT 1 39 #02 112-28103 REVERSE FEED BASE COLLAR 1 40 #02 113-14408 PLUNGER ARM PIN 1 41 #02 NS-6110420-SP NUT 11/64-40 2 42 #02 112-28301 TUBE HOLDER, LOWER 1 43 110-94109 OIL TUBE 1 44 #02 SD-0700711-TP HINGE SCREW D=7 H=7.1 1 45 #02 111-01607 SOLENOID CONNECTING LINK 1 46 #02 WP-0722316-SH WASHER 1 47 #02 111-01508 REVERSE FEED LINK 1 48 #02 NS-6110420-SP NUT 11/64-40 1 49 #02 SD-0700451-TP HINGE SCREW D=7 H=4.5 1 50 #01 MC-2005013-00 NEEDLE 134 NM130 1 51 110-80900 FEED DRIVE ECCENTRIC CAM 1 52 114-03805 THREAD GUIDE C FITTING PLATE 1 53 WP-0371016-SD WASHER 3.7X8X1 1 54 NS-6090310-SP NUT 9/64-40 1 55 113-05513 ARM THREAD GUIDE, C 1 56 110-94604 CLUTCH LINK 1 57 #02 110-09800 FEED REGULATOR BUSHING 1 58 110-96500 THREAD TRIMMER SOLENOID 1 59 SD-0550701-TP STEP-SCREW D=5.5 H=7 1 60 #02 110-08901 ADJUSTING LINK FULCRUM SHAFT B 1 61 B1213-552-000-A OIL ADJUSTING PIN 1 NOTE (注記) #01 ...FOR JE JE用 #02 ...FOR DDL-8500H-7-OB, -WB DDL-8500H-7-OB, -WB用 - 22 - jintex.in

Page 26 — EXCLUSIVE PARTS FOR DDL-8500A-7

Juki DDL-8500-7 parts on page 26
RefPart numberPart nameQty
1110-73756THREAD TENSION ASM.1
2D3128-555-D00TAKE-UP SPRING(1)
3D3129-555-D00THREAD TENSION SPRING(1)
4M6018-350-AAARESISTANCE PACK AA ASM.1
5D1524-555-DBAPRESSER FOOT ASM.1
6B9117-552-A00BOBBIN1
7B1837-012-OAOBOBBIN CASE ASM.1
8B1505-227-T00-APRESSER SPRING T1
9MC-2005006-50NEEDLE 134 NM651
10MDA-100B0900NEEDLE DAX1 #91
11110-92558HAND LIFTER CAM ASM.1

14. EXCLUSIVE PARTS FOR DDL-8500A-7 DDL-8500A-7専用部品 REF. NO. NOTE PART NO. DESCRIPTION Qty. 1 110-73756 THREAD TENSION ASM. イトチョウシ クミ 1 2 D3128-555-D00 TAKE-UP SPRING イトトリバネ (1) 3 D3129-555-D00 THREAD TENSION SPRING イトチョウシバネ (1) 4 M6018-350-AAA RESISTANCE PACK AA ASM. テイコウパツクAAクミ 1 5 D1524-555-DBA PRESSER FOOT ASM. オサエ クミ 1 6 B9117-552-A00 BOBBIN ボビン 1 7 B1837-012-OAO BOBBIN CASE ASM. ボビンケース クミ 1 8 B1505-227-T00-A PRESSER SPRING T オサエ チョーセバネ 1 9 #01 MC-2005006-50 NEEDLE 134 NM65 ハリ シュメツ 134 NM65 1 10 MDA-100B0900 NEEDLE DAX1 #9 ハリ DAX1 #9 1 11 110-92558 HAND LIFTER CAM ASM. オサエアゲ カム(クミ) 1 NOTE (注記) #01...FOR JE JE用 - 23 - jintex.in

Page 27 — NUMERICAL INDEX OF PARTS

Juki DDL-8500-7 parts on page 27
RefPart numberPart nameQty
44B1109-012-IOB
60B1109-552-000
61B1213-552-000-A
14B1305-012-0A0
16B1306-155-0A0
13B1306-155-0B0
12B1306-155-0C0
19B1307-155-0A0
18B1307-155-0B0
21B1308-155-0A0
23B1403-553-000
8B1408-552-000
22B1418-415-H00
24B1419-553-000
8B1505-227-T00-A
28B1505-552-000-A
2B1521-555-000
41B1524-012-0BA
33B1613-012-100
59B1636-581-C00
7B1837-012-0A0
9B1903-552-000
6B1905-541-B00
13B3114-232-000
43B3118-552-E00
6B9117-552-A00
12CM-3002000-01
13CM-300201-A1
8CQ-2520000-00
5D1524-555-DBA
29D1524-555-EBL
10D2406-555-D0H
22D2468-555-B00
2D3128-555-D00
3D3129-555-D00
28EA-9500B01-00
25GAK-300010B0
26GAK-30004000
29GAK-30005000
17HA-0005900-00
11HA-0019000-00
11HK-0346101-40
46HK-0346400-0B
10HK-0346400-0B
29HK-0346400-0B
23HK-0346400-0B
18HW-2003900-00
9HW-5000700-00
19HW-5000700-00
9MC-2005006-50
28MC-2005009-00
50MC-2005013-00
10MDA-100B0900
11MDB-100B1400
21MDB-100B2100
35M4007-110-0AA
36M4007-110-0AB
67M6008-350-AAA
63M6008-350-AAC
68M6008-350-AAF
69M6008-350-AAL
32M6009-350-AAA
4M6018-350-AAA
56NM-6040000-SN
13NM-6050001-SE
17NM-6050001-SE
12NM-6060001-SE
18NM-6160511-SE
5NS-6090310-SP
54NS-6090310-SP
12NS-6110310-SP
41NS-6110420-SP
48NS-6110420-SP
33NS-6150430-SP
21NS-6620310-SP
58NS-6660410-SH
59NS-6660430-SP
42NS-6680410-SP
32RC-0150001-KP
54RC-0150001-KP
22RC-1850001-KP
8RE-0250000-K0
18RE-0400000-KP
27RE-0400000-KP
39RE-0400000-K0
27RE-0400000-K0
14RE-0500000-KP
6RE-0500000-K0
8RE-0500000-K0
10RE-0500000-K0
22RE-0500000-K0
18RE-0500000-K0
21RE-0500000-K0
36RE-0500000-K0
51RE-0500000-K0
27RE-0500000-K0
34RE-0500000-K0
16RE-0900000-K0
9RE-1000000-K0
20RE-1200000-K0
41RO-0291801-00
3RO-0371801-00
13RO-0442401-00
63RO-0781901-00
16RO-0922702-00
6RO-1082401-00
2RO-1952401-00
2SD-0460703-TP
23SD-0490261-SP
8SD-0500131-TP
59SD-0550701-TP
62SD-0600361-SP
18SD-0630275-SP
48SD-0640631-TP
17SD-0641451-SP
4SD-0650321-TP
49SD-0700451-TP
44SD-0700711-TP
12SD-0720331-SP
47SD-1000801-SH
16SE-4301041-SR
11SK-3412000-SC
30SK-3412000-SC
3SL-4030621-SF
22SL-4030641-SF
23SL-4030851-SF
39SL-4051001-MZ
3SL-4051405-SE
3SM-4031501-SC
3SM-4040655-SP
12SM-4041405-SE
6SM-6061610-SC
66SM-8061010-TP
67SM-8061050-TP
13SM-8063012-TR
22SM-9061203-SE
14SM-9061853-SR
11SM-9062053-SR
18SS-1120710-SP
8SS-2060210-SP
46SS-2110915-SP
45SS-2110920-TP
34SS-4080620-TP
9SS-4080620-TP
15SS-4110515-SP
16SS-4110515-SP
28SS-4110715-SP
29SS-4110715-SP
15SS-4110915-SP
27SS-4120615-SP
29SS-4120615-SP
19SS-4120615-SP
27SS-4120615-SP
30SS-4120615-SP
4SS-4120615-SP
50SS-4120915-SP
45SS-4120915-SP
46SS-4120915-SP
27SS-4120915-SP
29SS-4120915-SP
64SS-4120915-SP
9SS-4121215-SP
17SS-4121415-SP
47SS-4150915-SP
24SS-4150915-SP
63SS-4150915-SP
26SS-4151215-SP
27SS-4151215-SP
54SS-6060210-SP
16SS-6080320-SP
3SS-6080410-SP
16SS-6090510-SP
25SS-6090540-SP
14SS-6090620-SP
30SS-6090620-SP
41SS-6090620-SP
19SS-6090650-SP
5SS-6090670-TP
3SS-6090670-TP
38SS-6090910-SP
30SS-6110420-TP
48SS-6110610-TP
61SS-6110710-TP
25SS-6110710-TP
31SS-6111210-SP
44SS-6121610-SP
17SS-6121840-SP
11SS-6121860-SP
20SS-6660610-TP
17SS-6661110-SP
5SS-6700710-SH
9SS-7080510-TP
24SS-7081310-SP
42SS-7090610-SP
40SS-7091110-SP
19SS-7110350-SP
43SS-7110410-SP
62SS-7110540-SP
16SS-7110720-SP
53SS-7110740-TP
31SS-7110740-TP
58SS-7111120-SP
6SS-7120770-SH
56SS-7121410-TP
46SS-7121610-SP
14SS-7681650-TP
41SS-8090670-SP
25SS-8110410-TP
25SS-8110510-SP
22SS-8110520-TP
29SS-8150710-SP
1SS-8150710-SP
33SS-8151150-SP
12SS-8151550-SP
24SS-8660610-TP
50SS-8660610-TP
62SS-8660610-TP
15SS-8660810-TP
17SS-8660810-TP
20SS-8660810-TP
22SS-8660810-TP
37SS-8660810-TP
11SS-8681650-TP
5TA-0850604-R0
49TA-1250705-R0
6TA-1250705-R0
16TA-2000502-R0
19TA-2101002-R0
53WP-0371016-SD
55WP-0450000-SD
32WP-0450801-SD
12WP-0450826-SC
31WP-0450826-SC
69WP-0480856-SP
66WP-0501016-SD
10WP-0501016-SD
28WP-0621016-SH
32WP-0621016-SH
46WP-0722316-SH
21WP-1602616-SZ
19WP-1702600-S0
29WS-0451040-KP
16WS-0510002-KN
65WS-0510002-KP
31WS-0651310-KP
56WT-0530002-KS
14100-04109
11110-00619
31110-01500
7110-05204
7110-06509
26110-08604
25110-08703
60110-08901
57110-09800
20110-10410
29110-18108
26110-18306
24110-18405
7110-18801
2110-23017
7110-24015
8110-24016
15110-24205
10110-24510
3110-24700
37110-32562
22110-37405
34110-38650
42110-38759
5110-39062
4110-39070
5110-40052
7110-40201
6110-40300
1110-40359
4110-40409
3110-40508
35110-40607
45110-40854
30110-41852
19110-42850
52110-43205
57110-43304
53110-43908
65110-44054
1110-47057
4110-47107

NUMERICAL INDEX OF PARTS 索引 PART NO. PAGE REF 品番 頁 NO B1109-012-IOB 2 44 B1109-552-000 2 60 B1213-552-000-A 22 61 B1305-012-0A0 6 14 B1306-155-0A0 6 16 B1306-155-0B0 6 13 B1306-155-0C0 6 12 B1307-155-0A0 6 19 B1307-155-0B0 6 18 B1308-155-0A0 6 21 B1403-553-000 22 23 B1408-552-000 4 8 B1418-415-H00 22 22 B1419-553-000 22 24 B1505-227-T00-A 23 8 B1505-552-000-A 22 28 B1521-555-000 8 2 B1524-012-0BA 8 41 B1613-012-100 10 33 B1636-581-C00 10 59 B1837-012-0A0 23 7 B1903-552-000 4 9 B1905-541-B00 4 6 B3114-232-000 22 13 B3118-552-E00 2 43 B9117-552-A00 23 6 CM-3002000-01 2 12 CM-300201-A1 2 13 CQ-2520000-00 16 8 D1524-555-DBA 23 5 D1524-555-EBL 22 29 D2406-555-D0H 12 10 D2468-555-B00 13 22 D3128-555-D00 23 2 D3129-555-D00 23 3 EA-9500B01-00 4 28 GAK-300010B0 18 25 GAK-30004000 18 26 GAK-30005000 18 29 HA-0005900-00 14 17 HA-0019000-00 13 11 HK-0346101-40 12 11 HK-0346400-0B 12 46 HK-0346400-0B 13 10 HK-0346400-0B 13 29 HK-0346400-0B 14 23 HW-2003900-00 14 18 HW-5000700-00 13 9 HW-5000700-00 14 19 MC-2005006-50 23 9 MC-2005009-00 6 28 MC-2005013-00 22 50 MDA-100B0900 23 10 MDB-100B1400 6 11 MDB-100B2100 22 21 M4007-110-0AA 4 35 M4007-110-0AB 4 36 M6008-350-AAA 2 67 M6008-350-AAC 2 63 M6008-350-AAF 2 68 M6008-350-AAL 2 69 M6009-350-AAA 22 32 M6018-350-AAA 23 4 NM-6040000-SN 12 56 NM-6050001-SE 20 13 NM-6050001-SE 20 17 NM-6060001-SE 18 12 NM-6160511-SE 20 18 NS-6090310-SP 14 5 PART NO. PAGE REF 品番 頁 NO NS-6090310-SP 22 54 NS-6110310-SP 14 12 NS-6110420-SP 22 41 NS-6110420-SP 22 48 NS-6150430-SP 12 33 NS-6620310-SP 8 21 NS-6660410-SH 12 58 NS-6660430-SP 12 59 NS-6680410-SP 10 42 RC-0150001-KP 10 32 RC-0150001-KP 10 54 RC-1850001-KP 4 22 RE-0250000-K0 14 8 RE-0400000-KP 13 18 RE-0400000-KP 13 27 RE-0400000-K0 13 39 RE-0400000-K0 18 27 RE-0500000-KP 13 14 RE-0500000-K0 8 6 RE-0500000-K0 8 8 RE-0500000-K0 8 10 RE-0500000-K0 8 22 RE-0500000-K0 10 18 RE-0500000-K0 10 21 RE-0500000-K0 12 36 RE-0500000-K0 12 51 RE-0500000-K0 12 27 RE-0500000-K0 12 34 RE-0900000-K0 13 16 RE-1000000-K0 18 9 RE-1200000-K0 13 20 RO-0291801-00 4 41 RO-0371801-00 8 3 RO-0442401-00 4 13 RO-0781901-00 10 63 RO-0922702-00 10 16 RO-1082401-00 18 6 RO-1952401-00 16 2 SD-0460703-TP 12 2 SD-0490261-SP 19 23 SD-0500131-TP 22 8 SD-0550701-TP 22 59 SD-0600361-SP 12 62 SD-0630275-SP 12 18 SD-0640631-TP 12 48 SD-0641451-SP 12 17 SD-0650321-TP 14 4 SD-0700451-TP 22 49 SD-0700711-TP 22 44 SD-0720331-SP 8 12 SD-1000801-SH 10 47 SE-4301041-SR 16 16 SK-3412000-SC 19 11 SK-3412000-SC 19 30 SL-4030621-SF 14 3 SL-4030641-SF 14 22 SL-4030851-SF 16 23 SL-4051001-MZ 4 39 SL-4051405-SE 13 3 SM-4031501-SC 13 3 SM-4040655-SP 13 3 SM-4041405-SE 20 12 SM-6061610-SC 20 6 SM-8061010-TP 10 66 SM-8061050-TP 10 67 SM-8063012-TR 18 13 SM-9061203-SE 18 22 SM-9061853-SR 18 14 SM-9062053-SR 18 11 SS-1120710-SP 22 18 SS-2060210-SP 12 8 SS-2110915-SP 2 46 SS-2110920-TP 2 45 PART NO. PAGE REF 品番 頁 NO SS-4080620-TP 10 34 SS-4080620-TP 12 9 SS-4110515-SP 19 15 SS-4110515-SP 19 16 SS-4110715-SP 12 28 SS-4110715-SP 12 29 SS-4110915-SP 6 15 SS-4120615-SP 2 27 SS-4120615-SP 2 29 SS-4120615-SP 8 19 SS-4120615-SP 8 27 SS-4120615-SP 13 30 SS-4120615-SP 16 4 SS-4120915-SP 2 50 SS-4120915-SP 6 45 SS-4120915-SP 6 46 SS-4120915-SP 13 27 SS-4120915-SP 14 29 SS-4120915-SP 2 64 SS-4121215-SP 19 9 SS-4121415-SP 19 17 SS-4150915-SP 12 47 SS-4150915-SP 16 24 SS-4150915-SP 12 63 SS-4151215-SP 13 26 SS-4151215-SP 16 27 SS-6060210-SP 2 54 SS-6080320-SP 22 16 SS-6080410-SP 2 3 SS-6090510-SP 12 16 SS-6090540-SP 14 25 SS-6090620-SP 10 14 SS-6090620-SP 10 30 SS-6090620-SP 10 41 SS-6090650-SP 4 19 SS-6090670-TP 6 5 SS-6090670-TP 10 3 SS-6090910-SP 8 38 SS-6110420-TP 6 30 SS-6110610-TP 2 48 SS-6110710-TP 12 61 SS-6110710-TP 16 25 SS-6111210-SP 4 31 SS-6121610-SP 10 44 SS-6121840-SP 2 17 SS-6121860-SP 10 11 SS-6660610-TP 12 20 SS-6661110-SP 4 17 SS-6700710-SH 18 5 SS-7080510-TP 6 9 SS-7081310-SP 19 24 SS-7090610-SP 12 42 SS-7091110-SP 8 40 SS-7110350-SP 19 19 SS-7110410-SP 8 43 SS-7110540-SP 2 62 SS-7110720-SP 8 16 SS-7110740-TP 10 53 SS-7110740-TP 22 31 SS-7111120-SP 10 58 SS-7120770-SH 10 6 SS-7121410-TP 10 56 SS-7121610-SP 10 46 SS-7681650-TP 4 14 SS-8090670-SP 2 41 SS-8110410-TP 19 25 SS-8110510-SP 19 25 SS-8110520-TP 12 22 SS-8150710-SP 10 29 SS-8150710-SP 4 1 SS-8151150-SP 4 33 SS-8151550-SP 4 12 SS-8660610-TP 4 24 PART NO. PAGE REF 品番 頁 NO SS-8660610-TP 10 50 SS-8660610-TP 10 62 SS-8660810-TP 6 15 SS-8660810-TP 6 17 SS-8660810-TP 6 20 SS-8660810-TP 6 22 SS-8660810-TP 8 37 SS-8681650-TP 4 11 TA-0850604-R0 2 5 TA-1250705-R0 2 49 TA-1250705-R0 2 6 TA-2000502-R0 2 16 TA-2101002-R0 2 19 WP-0371016-SD 22 53 WP-0450000-SD 12 55 WP-0450801-SD 4 32 WP-0450826-SC 19 12 WP-0450826-SC 19 31 WP-0480856-SP 10 69 WP-0501016-SD 2 66 WP-0501016-SD 19 10 WP-0621016-SH 18 28 WP-0621016-SH 12 32 WP-0722316-SH 22 46 WP-1602616-SZ 13 21 WP-1702600-S0 20 19 WS-0451040-KP 16 29 WS-0510002-KN 20 16 WS-0510002-KP 2 65 WS-0651310-KP 16 31 WT-0530002-KS 2 56 100-04109 2 14 110-00619 2 11 110-01500 2 31 110-05204 4 7 110-06509 8 7 110-08604 10 26 110-08703 10 25 110-08901 22 60 110-09800 22 57 110-10410 10 20 110-18108 8 29 110-18306 8 26 110-18405 8 24 110-18801 6 7 110-23017 18 2 110-24015 18 7 110-24016 18 8 110-24205 18 15 110-24510 18 10 110-24700 18 3 110-32562 4 37 110-37405 10 22 110-38650 6 34 110-38759 6 42 110-39062 4 5 110-39070 4 4 110-40052 12 5 110-40201 12 7 110-40300 12 6 110-40359 12 1 110-40409 12 4 110-40508 12 3 110-40607 12 35 110-40854 12 45 110-41852 12 30 110-42850 12 19 110-43205 12 52 110-43304 12 57 110-43908 12 53 110-44054 12 65 110-47057 18 1 110-47107 18 4 - 24 - jintex.in

Page 28 — NUMERICAL INDEX OF PARTS

Juki DDL-8500-7 parts on page 28
RefPart numberPart nameQty
12110-73657
1110-73756
10110-73954
51110-80900
15110-91006
34110-91204
25110-91303
20110-91600
19110-91659
35110-91907
26110-92251
11110-92558
11110-93606
27110-93804
43110-94109
56110-94604
9110-94901
17110-95254
6110-95403
4110-95502
7110-95551
2110-95601
1110-96062
58110-96500
37110-96658
47111-01508
45111-01607
25111-02753
20111-10152
6111-10301
6111-10608
28111-11051
44111-41207
24111-41355
30111-41413
24111-41454
31111-41900
39112-28103
42112-28301
30112-30901
38112-31503
55113-05513
40113-14408
14114-00801
36114-03003
52114-03805
3114-09257
5114-09604
58180-77503
10229-00401
28229-00609
24229-00757
55229-01003
52229-01201
51229-01250
53229-01300
1229-01409
1229-02159
2229-02209
61229-02605
38229-03009
15229-03108
10229-03157
25229-03207
27229-03306
20229-03405
21229-03504
3229-03702
40229-03900
26229-04007
23229-04155
49229-04155
61229-04155
23229-05004
25229-05103
26229-05202
2229-06101
8229-06200
10229-06309
4229-06457
6229-06507
35229-07000
39229-07109
34229-07208
36229-07307
33229-07406
30229-07505
31229-07604
32229-07703
1229-07802
9229-08008
5229-08156
15229-08305
4229-08552
14229-08800
11229-08909
13229-09006
18229-10004
16229-10053
42229-10103
12229-10202
43229-10350
60229-10459
28229-10806
24229-10905
40229-11002
13229-11101
23229-11408
2229-11507
4229-11606
5229-11705
7229-11804
33229-11903
9229-12000
8229-12109
19229-12257
17229-12406
64229-12604
68229-12703
65229-12802
39229-12901
51229-13008
38229-13701
52229-13800
15229-15003
45229-15151
48229-15201
31229-16001
35229-16100
27229-16308
40229-16506
38229-16555
39229-16605
36229-17058
29229-17157
29229-19203
2229-19559
23229-20201
30229-20508
47229-20607
38229-21209
33229-21308
34229-21407
37229-21506
39229-21605
35229-21704
36229-21803
14229-23007
12229-23056
17229-23205
13229-23304
19229-23403
21229-23502
20229-23601
15229-23700
18229-23809
22229-23908
30229-24005
6229-24153
7229-24302
3229-24401
28229-24500
64229-24609
64229-24807
10229-24906
9229-25002
5229-25101
27229-27305
13229-27354
28229-27404
29229-27602
22229-28105
21229-28303
20229-28402
14229-28501
26229-28709
18229-28808
16229-28907
17229-29004
14229-30309
1229-30358
10229-30408
9229-30507
7229-30705
5229-30804
4229-30903
3229-31000
2229-31109
15229-31208
11229-31307
8229-31406
23229-31703
41229-32909
2229-33402
1229-33451
3229-33501
5229-33600
4229-33659
6229-33758
7229-33907
8229-34004
20229-34202
16229-34251
21229-34301
19229-34400
17229-34509
18229-34608
59229-35209
20229-35308
57229-35407
34229-37056
30229-37064
3229-39508
10229-40506
55229-40654
35229-40753
31229-40803
27229-40951
1229-41108
36229-41306
57229-42056
32229-42502
43229-42601
18229-44508
20229-44607
42229-44706
28229-44854
25229-45109
40229-45307
32229-45356
22229-45406
21229-45455
25229-45505
23229-45604
26229-45703
24229-45802
1229-47006
26229-47105
37229-48400
44229-48657
43229-49002
40229-49101
41229-49200
38229-49309
29229-49408
24229-49754
23229-49762
50229-49903
26229-50000
31229-50109
14229-50208
13229-50257
15229-50356
25229-50703
21229-50950
60229-51008
49229-51164
54229-51404
18229-52501
24229-53509
17229-53657
15229-53806
19229-53905
28229-54002
4229-54101
1229-54150
5229-54200
6229-54309
12229-54408
13229-54507
2229-54606
9229-54705
2229-55504
1229-55553
13229-55900
14229-56007
10229-56205
11229-56304
7229-56403
26229-56809
9229-56908
24229-57005
16229-57104
21229-57203
7229-58300

NUMERICAL INDEX OF PARTS 索引 PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO PART NO 品番 PAGE 頁 REF NO 110-73657 22 12 229-05202 6 26 229-23403 16 19 229-45109 8 25 110-73756 23 1 229-06101 6 2 229-23502 16 21 229-45307 2 40 110-73954 22 10 229-06200 6 8 229-23601 16 20 229-45356 2 32 110-80900 22 51 229-06309 6 10 229-23700 16 15 229-45406 2 22 110-91006 22 15 229-06457 6 4 229-23809 16 18 229-45455 2 21 110-91204 22 34 229-06507 6 6 229-23908 16 22 229-45505 2 25 110-91303 22 25 229-07000 8 35 229-24005 16 30 229-45604 2 23 110-91600 22 20 229-07109 8 39 229-24153 16 6 229-45703 2 26 110-91659 22 19 229-07208 8 34 229-24302 16 7 229-45802 2 24 110-91907 22 35 229-07307 8 36 229-24401 16 3 229-47006 16 1 110-92251 22 26 229-07406 8 33 229-24500 16 28 229-47105 16 26 110-92558 23 11 229-07505 8 30 229-24609 16 64 229-48400 12 37 110-93606 22 11 229-07604 8 31 229-24807 12 64 229-48657 12 44 110-93804 22 27 229-07703 8 32 229-24906 16 10 229-49002 12 43 110-94109 22 43 229-07802 8 1 229-25002 16 9 229-49101 12 40 110-94604 22 56 229-08008 8 9 229-25101 16 5 229-49200 12 41 110-94901 22 9 229-08156 8 5 229-27305 19 27 229-49309 12 38 110-95254 22 17 229-08305 8 15 229-27354 19 13 229-49408 12 29 110-95403 22 6 229-08552 8 4 229-27404 19 28 229-49754 12 24 110-95502 22 4 229-08800 8 14 229-27602 19 29 229-49762 12 23 110-95551 22 7 229-08909 8 11 229-28105 19 22 229-49903 12 50 110-95601 22 2 229-09006 8 13 229-28303 19 21 229-50000 12 26 110-96062 22 1 229-10004 4 18 229-28402 19 20 229-50109 12 31 110-96500 22 58 229-10053 4 16 229-28501 19 14 229-50208 12 14 110-96658 22 37 229-10103 4 42 229-28709 19 26 229-50257 12 13 111-01508 22 47 229-10202 10 12 229-28808 19 18 229-50356 12 15 111-01607 22 45 229-10350 10 43 229-28907 19 16 229-50703 12 25 111-02753 13 25 229-10459 10 60 229-29004 19 17 229-50950 12 21 111-10152 14 20 229-10806 10 28 229-30309 20 14 229-51008 12 60 111-10301 15 6 229-10905 10 24 229-30358 20 1 229-51164 12 49 111-10608 14 6 229-11002 10 40 229-30408 20 10 229-51404 12 54 111-11051 14 28 229-11101 10 13 229-30507 20 9 229-52501 2 18 111-41207 6 44 229-11408 10 23 229-30705 20 7 229-53509 13 24 111-41355 6 24 229-11507 10 2 229-30804 20 5 229-53657 13 17 111-41413 18 30 229-11606 10 4 229-30903 20 4 229-53806 13 15 111-41454 18 24 229-11705 10 5 229-31000 20 3 229-53905 13 19 111-41900 18 31 229-11804 10 7 229-31109 20 2 229-54002 13 28 112-28103 22 39 229-11903 22 33 229-31208 20 15 229-54101 13 4 112-28301 22 42 229-12000 10 9 229-31307 20 11 229-54150 13 1 112-30901 22 30 229-12109 10 8 229-31406 20 8 229-54200 13 5 112-31503 22 38 229-12257 10 19 229-31703 18 23 229-54309 13 6 113-05513 22 55 229-12406 10 17 229-32909 6 41 229-54408 13 12 113-14408 22 40 229-12604 10 64 229-33402 19 2 229-54507 13 13 114-00801 22 14 229-12703 10 68 229-33451 19 1 229-54606 13 2 114-03003 22 36 229-12802 10 65 229-33501 19 3 229-54705 2 9 114-03805 22 52 229-12901 10 39 229-33600 19 5 229-55504 14 2 114-09257 22 3 229-13008 10 51 229-33659 19 4 229-55553 14 1 114-09604 22 5 229-13701 10 38 229-33758 19 6 229-55900 14 13 180-77503 2 58 229-13800 10 52 229-33907 19 7 229-56007 14 14 229-15003 10 15 229-34004 19 8 229-56205 14 10 229-00401 2 10 229-15151 10 45 229-34202 18 20 229-56304 14 11 229-00609 2 28 229-15201 10 48 229-34251 18 16 229-56403 14 7 229-00757 2 24 229-16001 6 31 229-34301 18 21 229-56809 14 26 229-01003 2 55 229-16100 6 35 229-34400 18 19 229-56908 14 9 229-01201 2 52 229-16308 6 27 229-34509 18 17 229-57005 14 24 229-01250 2 51 229-16506 6 40 229-34608 18 18 229-57104 14 16 229-01300 2 53 229-16555 6 38 229-35209 2 59 229-57203 14 21 229-01409 6 1 229-16605 6 39 229-35308 2 20 229-58300 2 7 229-02159 2 1 229-17058 6 36 229-35407 2 57 229-02209 2 2 229-17157 6 29 229-37056 4 34 229-02605 2 61 229-19203 4 29 229-37064 4 30 229-03009 4 38 229-19559 4 2 229-39508 6 3 229-03108 4 15 229-20201 8 23 229-40506 10 10 229-03157 4 10 229-20508 2 30 229-40654 10 55 229-03207 4 25 229-20607 2 47 229-40753 10 35 229-03306 4 27 229-21209 2 38 229-40803 10 31 229-03405 4 20 229-21308 2 33 229-40951 10 27 229-03504 4 21 229-21407 2 34 229-41108 10 1 229-03702 4 3 229-21506 2 37 229-41306 10 36 229-03900 4 40 229-21605 2 39 229-42056 10 57 229-04007 4 26 229-21704 2 35 229-42502 6 32 229-04155 4 23 229-21803 2 36 229-42601 6 43 229-04155 10 49 229-23007 16 14 229-44508 8 18 229-04155 10 61 229-23056 16 12 229-44607 8 20 229-05004 6 23 229-23205 16 17 229-44706 8 42 229-05103 6 25 229-23304 16 13 229-44854 8 28 - 25 - jintex.in

Page 29

MEMO - 26 - jintex.in

Page 30

MEMO - 27 - jintex.in
