Page 1 — PARTS LIST
MODEL : DDL-8700-7 List No : 1307-09 PARTS LIST Published:05/07/2018 jintex.in

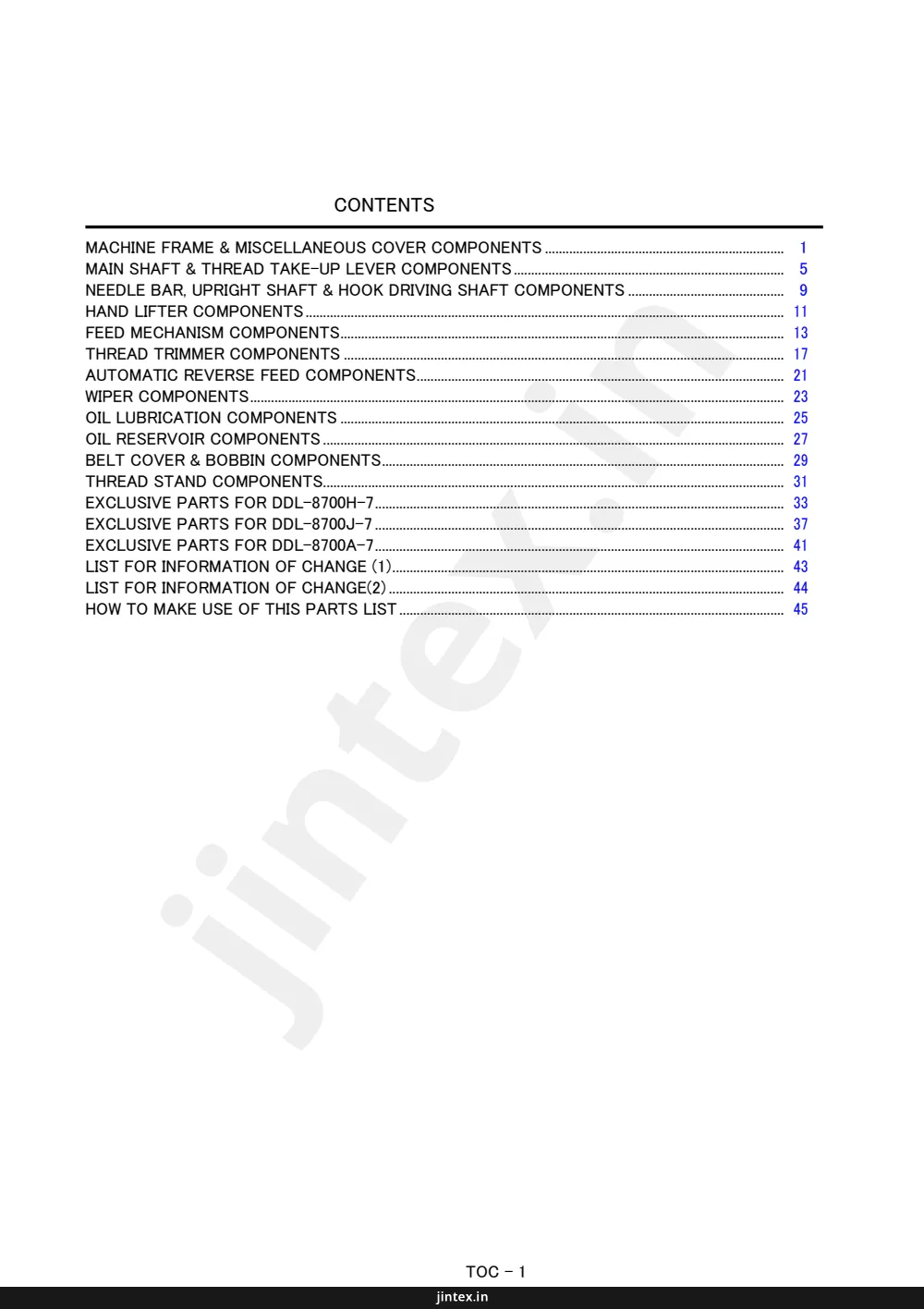

Parts index — Juki DDL-8700-7 (52 pages)tap a row to open its page
Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40102097 | FACE PLATE ASM. | 1 | |
| 40012126 | FACE PLATE PACKING | 1 | |
| SS6080410SP | SCREW 1/8-44 L=4 | 1 | |
| 22900757 | ARM OIL SHIFLD ASM. | 1 | |
| TA0850604R0 | RUBBER PLUG | 2 | |
| TA1250705R0 | RUBBER PLUG | 1 | |
| 22958300 | THREAD GUIDE ROD | 1 | |
| SS4120925SP | SCREW 3/16-28 L=9 | 8 | |
| 22954705 | CORD HOLDER | 1 | |
| 22900401 | SIDE PLATE | 1 | |
| 40012129 | SIDE PLATE PACKING | 1 | |
| CM300200001 | ATTENTION SEAL | 1 | |
| CM301200001 | SAFETY LABEL_S | 1 | |
| 22901805 | GROUND MARK | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| TA2000002R0 | RUBBER PLUG | 1 | |
| SS6121840SP | SCREW 3/16-28 L=18 | 1 | |
| 22952501 | REVERSE FEED LEVER STOPPER | 1 | |
| TA2101002R0 | RUBBER PLUG | 1 | |
| 40111022 | MAGNET CORD RUBBER | 1 | |
| 22945463 | THREAD TENSION ASM. | 1 | |
| 22945414 | THREAD TENSION POST | 1 | |
| 22945604 | THREAD TENSION GUIDE | 1 | |
| 22945802 | BOBBIN WINDER TENSION DISC | 2 | |
| 22945505 | THREAD TENSION SPRING | 1 | |
| 22945703 | THREAD TENSION NUT | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22900609 | THREAD TAKE-UP LEVER COVER | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22920508 | ARM THREAD GUIDE A | 1 | |
| 22921001 | SCREW | 1 | |
| 22945356 | THREAD TENSION ASM. | 1 | |
| 22921308 | TENSION NUT | 1 | |
| 22921407 | ROTATING STOPPER | 1 | |
| 22921704 | TENSION SPRING A | 1 | |
| 22921803 | THREAD TENSION DISK PRESSER | 1 | |
| 22921506 | THREAD TENSION DISK | 2 | |
| 22921209 | TENSION POST | 1 | |
| 22921605 | TAKE-UP SPRING | 1 | |
| 22945307 | TENSION POST SOCKET | 1 | |
| SS8090670SP | SCREW 9/64-40 L=5.5 | 1 | |
| SS8150710TP | SCREW 15/64-28 L=7 | 1 | |
| B3118552E00 | TENSION RELEASING | 1 | |
| B1109012I0B | THROAT PLATE (I) | 1 | |
| SS2110920TP | SCREW 11/64-40 L=8.5 | 1 | |
| SS2110915SP | SCREW 11/64-40 L=8.5 | 1 | |
| 22920607 | ARM THREAD GUIDE B | 1 |
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SS6110610TP | SCREW 11/64-40 L=6 | 1 |
| 49 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 50 | SS4120925SP | SCREW 3/16-28 L=9 | 3 |
| 51 | 22901250 | SLIDE PLATE ASM. | 1 |
| 52 | 22901201 | SLIDE PLATE | 1 |
| 53 | 22901300 | BED SLIDE SPRING | 1 |
| 54 | SS6060210SP | SCREW 3/32-56 L=1.9 | 2 |
| 55 | 22901003 | BED SCREW STUD | 4 |
| 56 | WT0530002KS | TOOTHED WASHER D=5.3 | 1 |
| 57 | 22935407 | RUBBER PLATE | 1 |
| 58 | 11415205 | THREAD TAKE-UP LEVER COVER(JE) | 1 |
| 59 | 11030202 | RUBBER BUSHING | 1 |
| 60 | B1109552000 | THROAT PLATE | 1 |
| 61 | 40099083 | RULER STOP SEAT | 1 |
| 62 | SS7110720SP | SCREW 11/64-40 L=7 | 1 |
| 63 | 40116677 | GOST_SAFTY LABEL_S | 1 |
| 64 | 11028008 | THROAT PLATE | 1 |
Page 8 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SS8151150TP | SCREW 15/64-28 L=10.5 | 1 | |
| 22919559 | THREAD TAKE-UP CRANK SHAFT ASM. | 1 | |
| 11002904 | ROLLER FELT | 1 | |
| 22918072 | THREAD TAKE-UP LEVER COMPL. | 1 | |
| 22918064 | THREAD TAKE-UP LEVER ASM. | 1 | |
| 22918403 | NEEDLE BEARING A | ||
| 22918502 | NEEDLE BEARING B | ||
| 22918601 | NEEDLE BEARING C | ||
| 22918700 | NEEDLE BEARING D | ||
| 22918106 | NEEDLE BAR CRANK | 1 | |
| 22906606 | NEEDLE BAR CRANK ROD | 1 | |
| 22918304 | LEFT SCREW | 1 | |
| 40106606 | COUNTER_WEIGHT_ASM. | 1 | |
| SS7681650TP | SCREW 9/32-28 L=16 | 1 | |
| 22903108 | COUNTER WEIGHT | 1 | |
| SS8681650TP | SCREW 9/32-28 L=16 | 1 | |
| SS8660610TP | SCREW 1/4-40 L=6 | 2 | |
| RO044240100 | RUBBER RING | 1 | |
| SS4090615SP | SCREW 9/64-40 L=6 | 2 | |
| 11002409 | MAIN SHAFT BUSHING REAR | 1 | |
| 40105231 | OIL SEAL | 1 | |
| RC1850001KP | SNAP RING 18.5 | 1 | |
| 22904155 | THRUST COLLAR ASM. | 1 | |
| SS8660610TP | SCREW 1/4-40 L=6 | 2 | |
| 22903207 | MAIN SHAFT FRONT BUSHING | 1 | |
| B1215552000 | OIL ADJUSTING COLLAR | 1 | |
| 22903306 | BUSHING INTERMEDIATE | 1 | |
| EA9500B0100 | CABLE BAND | 1 | |
| 22919203 | RUBBER | 1 | |
| 22937064 | HAND WHEEL COMPL. | 1 | |
| 40017623 | HAND WHEEL ASM. | ||
| WP0450801SD | WASHER 4.5X10X0.8 | 1 | |
| SS8151550SP | SCREW 15/64-28 L=15 | 2 | |
| 22937056 | HAND WHEEL ASM. | 2 | |
| 22937155 | MAGNET FITTING BASE A ASM. | 1 | |
| 22937254 | MAGNET FITTING BASE B ASM. | 1 | |
| SS6111210SP | SCREW 11/64-40 L=12 | 2 | |
| 40017625 | MAGNET FITTING BASE B ASM. | ||
| 40017624 | MAGNET FITTING BASE A ASM. | ||
| 22903900 | OIL AMOUNT ADJUSTING PIN | 1 | |
| RO029180100 | RUBBER RING | 1 | |
| 22910103 | THRUST COLLAR | 1 | |
| 22937865 | DYNAMO STATOR | 1 | |
| 22903009 | MAIN SHAFT | 1 | |
| SL4051001MZ | SCREW M5 L=9.6 | 2 | |
| 22910053 | FEED DRIVE ECCENTRIC CAM ASM. | 1 | |
| SS6661110SP | SCREW 1/4-40 L=11 | 2 |
Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 22910004 | FEED DRIVE ECCENTRIC CAM | 1 |
Page 12 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TA0850604R0 | RUBBER PLUG | 1 |
| 2 | 22906101 | NEEDLE BAR BUSHING UPPER | 1 |
| 3 | 22939508 | NEEDLE BAR | 1 |
| 4 | 22906457 | NEEDLE ROD HOLDER ASM. | 1 |
| 5 | SS6090670TP | SCREW 9/64-40 L=6 | 1 |
| 6 | 40090002 | SLIDE BLOCK | 1 |
| 7 | 40012444 | NEEDLE BAR THREAD GUIDE | 1 |
| 8 | 22906200 | NEEDLE BAR BUSHING LOWER | 1 |
| 9 | SS7080510TP | SCREW 1/8-44 L=4.5 | 1 |
| 10 | 22906309 | NEEDLE BAR THREAD GUIDE | 1 |
| 11 | MDB100B1400 | NEEDLE DBX1 #14 | 1 |
| 12 | 22939607 | NEEDLE BAR B | 1 |
| 13 | SS4120925SP | SCREW 3/16-28 L=9 | 1 |
| 14 | 40090002 | UPPER LARGE BEVEL GEAR ASM. | 1 |
| 15 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 16 | 40090003 | UPPER SMALL BEVEL GEAR ASM. | 1 |
| 17 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 18 | 40012444 | NEEDLE BAR THREAD GUIDE | 1 |
| 19 | 40090004 | LOWER LARGE BEVEL GEAR ASM. | 1 |
| 20 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 21 | 40090005 | LOWER SMALL BEVEL GEAR ASM. | 1 |
| 22 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 23 | 22905004 | UPRIGHT SHAFT | 1 |
| 24 | 11141355 | HOOK ASM. | 1 |
| 25 | 22905103 | UPRIGHT SHAFT BUSHING LOWER | 1 |
| 26 | 22905202 | UPRIGHT SHAFT BUSHING LOWER | 1 |
| 27 | 22916308 | BUSHING REAR | 1 |
| 28 | MC200500900 | NEEDLE 134 90 | 1 |
| 29 | 22917157 | THRUST COLLAR ASM. | 1 |
| 30 | SS6110420TP | SCREW 11/64-40 L=4.8 | 2 |
| 31 | 22916001 | LOWER SHAFT | 1 |
| 32 | 22942502 | BOBBIN CASE HOLDER | 1 |
| 33 | SS4110915TP | SCREW 11/64-40 L=9 | 1 |
| 34 | 11038650 | HOOK ASM. | 1 |
| 35 | 22916100 | LOWER SHAFT FRONT METAL | 1 |
| 36 | 40101694 | THRUST_COLLAR_ASM_FRONT | 1 |
| 37 | SS8110410TP | SCREW 11/64-40 L=3.5 | 2 |
| 38 | 22916555 | OIL SEAL SCREW ASM. | 1 |
| 39 | 11015906 | OIL WICK | 1 |
| 40 | 22916506 | OIL SEAL SCREW | 1 |
| 41 | 22932909 | BOBBIN | 1 |
| 42 | 11038759 | BOBBIN CASE ASM. | 1 |
| 43 | 22942601 | OIL SHIELD | 1 |
Page 13 — HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | WHEEL | ||
| 2 | SCREW | ||
| 3 | BRACKET | ||
| 4 | SHAFT | ||
| 5 | CYLINDER | ||
| 6 | SPRING SEAT | ||
| 7 | SPRING PIN | ||
| 8 | CIR-CLIP | ||
| 9 | BASE | ||
| 10 | BRACKET | ||
| 11 | SCREW | ||
| 12 | SCREW | ||
| 13 | ROD | ||
| 14 | BRACKET | ||
| 15 | SCREW | ||
| 16 | WASHER | ||
| 17 | SCREW | ||
| 18 | BRACKET | ||
| 19 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | NUT | ||
| 22 | SPRING | ||
| 23 | SPRING | ||
| 24 | SPRING | ||
| 25 | BRACKET | ||
| 26 | PIN | ||
| 27 | SCREW | ||
| 28 | LEVER | ||
| 29 | PIN | ||
| 30 | ASSEMBLY | ||
| 31 | NUT | ||
| 32 | SCREW | ||
| 33 | SPRING | ||
| 34 | BLOCK | ||
| 35 | PIN | ||
| 36 | BRACKET | ||
| 37 | WASHER | ||
| 38 | SCREW | ||
| 39 | BRACKET | ||
| 40 | LEVER | ||
| 41 | CIR-CLIP | ||
| 42 | HOOK | ||
| 43 | CIR-CLIP | ||
| 44 | WASHER | ||
| 45 | SPRING SEAT |
Page 14 — HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22907802 | HAND LIFTER | 1 | |
| B1521555000 | SCREW | 1 | |
| RO037180100 | RUBBER RING | 1 | |
| 22908552 | HAND LIFTER CAM ASM. | 1 | |
| 40060989 | PRESSER BAR BUSHING LOWER | 1 | |
| SS7091110TP | SCREW 9/64-40 L=10.5 | 1 | |
| 22908701 | LINK SHAFT | 2 | |
| RE0500000K0 | E-RING | 3 | |
| B15240120BA | PRESSER FOOT ASM. | 1 | |
| 22944706 | WIRE HOLDER BRACKET LOWER | 1 | |
| 22908909 | HINGE SCREW | 1 | |
| SD0720331SP | HINGE SCREW D=7.24 H=3.3 | 1 | |
| 22909006 | KNEE LIFTER CONNECTING ROD | 1 | |
| 22908800 | LIFTING LEVER LINK | 1 | |
| SS4110515SP | SCREW 11/64-40 L=5 | 1 | |
| SS4110515SP | SCREW 11/64-40 L=5 | 1 | |
| SS4150915SP | SCREW 15/64-28 L=9 | ||
| 22944508 | WIRE HOLDER A | 2 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22944607 | WIRE HOLDER BRACKET UPPER | 1 | |
| NS6620310SP | NUT 3/16-32 | 2 | |
| RE0500000K0 | E-RING | 2 | |
| 22920201 | TENSION RELEASE RETURN SPRING | 1 | |
| 22920409 | THREAD RELEASE PIN SPRING | 1 | |
| 22945109 | WIRE CABLE HOLDER | 1 | |
| 22920300 | TENSION RELEASE SUPPORTING PIN | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22944854 | THREAD RELEASE WIRE ASM. | 1 | |
| 22920102 | TENSION RELEASE SHAFT | 1 | |
| 22907554 | PRESSER SPRING REG NUT ASM. | 1 | |
| 22907604 | PRESSER ADJUSTING SCREW NUT | ||
| 22907505 | PRESSER SPRING REGULATOR | ||
| 22907406 | PRESSER ADJUSTING SPRING | 1 | |
| 22907208 | PRESSER BAR GUIDE BRACKET | 1 | |
| 40017805 | PRESSER BAR | 1 | |
| 22907307 | PRESSER BAR THREAD GUIDE | 1 | |
| SS8660810TP | SCREW 1/4-40 L=8 | 1 | |
| SS6090910SP | SCREW 9/64-40 L=9 | 2 | |
| 22908354 | KNEE LIFTING CROSS ROD ASM. | 1 | |
| 22908156 | HAND LIFTER LINK | ||
| RE0500000K0 | E-RING | ||
| 22908008 | LIFTING LEVER | ||
| RE0500000K0 | E-RING | ||
| 22908305 | KNEE LIFTING CROSS ROD | ||
| 22907703 | PRESSER GUIDE BAR | 1 |
Page 15 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5.68 | 5.68 | 5.68 | |
| 12.52 | 12.52 | 12.52 | |
| 33.70 | 33.70 | 33.70 |
Page 16 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22941108 | FEED ADJUST ROD | ||
| 22911507 | FEED REGULATOR PIN | ||
| SS6090670TP | SCREW 9/64-40 L=6 | ||
| 22911606 | FEED REGULATOR | ||
| 22911705 | FEED REGULATOR BUSHING | ||
| SS7120770SH | SCREW 3/16-28 L=7 | ||
| 22911804 | FEED REGULATOR SCREW | ||
| 22912109 | SPRING | ||
| 22912000 | FEED ADJUST PIN | ||
| 22940506 | FEED DIAL | ||
| SS6121860SP | SCREW 3/16-28 L=18 | ||
| 22910202 | ROCKER SHAFT CONNECTING ROD | ||
| 22911101 | WALKING FOOT PIN C | ||
| SS6090620TP | SCREW | ||
| 22915003 | CONNECTING ROD | ||
| RO092270200 | RUBBER RING | ||
| 11010311 | FEED REVERSE SPRING | ||
| RE0500000K0 | E-RING | ||
| 22912257 | FEED REVERSE ARM ASM. | ||
| 22912505 | SCREW | ||
| RE0500000K0 | E-RING | ||
| 11037405 | SPRING | ||
| 22911408 | FEED REGULATOR CONNCTING ROD | ||
| 22910905 | WALKING FOOT PIN A | 2 | |
| 40089548 | CONNECTING LINK B | 2 | |
| 40093417 | CONNECTING LINK A | 2 | |
| 22940951 | FEED ADJUST LINK ASM. | ||
| 22910806 | ADJUSTING LINK FULCRUM SHAFT A | 2 | |
| SS8150710TP | SCREW 15/64-28 L=7 | 2 | |
| SS6090620TP | SCREW | 2 | |
| 40101462 | FEED BASE SHAFT | ||
| RC0150001KP | RETAINING RING 13.8 | ||
| B1613012I00 | FEED DOG I | ||
| SS4080620TP | SCREW 1/8-44 L=6 | 2 | |
| 22940753 | FEED BAR ASM. | ||
| 22941306 | ADJUSTING LINK SPRING GUIDE | ||
| SS4110515SP | SCREW 11/64-40 L=5 | 2 | |
| 22913701 | FEED SPRING HOOK | ||
| 22912901 | FEED ROCKER SHAFT | ||
| 22911002 | WALKING FOOT PIN B | ||
| SS6090620TP | SCREW | ||
| NS6680410SP | NUT 9/32-28 | ||
| 40110379 | ASSY_FEED_ROCKER_ARM | ||
| SS6121610SP | SCREW 3/16-28 L=15.5 | ||
| 40109422 | FEED_ARM_ASM | ||
| SS7121610SP | SCREW 3/16-28 L=15.5 | ||
| SD1000801SH | HINGE SCREW D=10 H=8 |
Page 17 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 4 | 4 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12.52 | 12.52 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 16 | 16 | ||
| 17 | 17 | ||
| 18 | 18 | ||
| 19 | 19 | ||
| 20 | 20 | ||
| 21 | 21 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 24 | 24 | ||
| 25 | 25 | ||
| 26 | 26 | ||
| 27 | 27 | ||
| 28 | 28 | ||
| 29 | 29 | ||
| 30 | 30 | ||
| 31 | 31 | ||
| 32 | 32 | ||
| 33.70 | 33.70 | ||
| 34 | 34 | ||
| 35 | 35 | ||
| 36 | 36 | ||
| 37 | 37 | ||
| 38 | 38 | ||
| 39 | 39 | ||
| 40 | 40 | ||
| 41 | 41 | ||
| 42 | 42 | ||
| 43 | 43 | ||
| 44 | 44 | ||
| 45 | 45 | ||
| 46 | 46 | ||
| 47 | 47 | ||
| 48 | 48 | ||
| 49 | 49 | ||
| 50 | 50 | ||
| 51 | 51 | ||
| 53 | 53 | ||
| 54 | 54 | ||
| 55 | 55 | ||
| 56 | 56 | ||
| 57 | 57 | ||
| 58 | 58 | ||
| 59 | 59 | ||
| 60 | 60 | ||
| 61 | 61 | ||
| 62 | 62 | ||
| 63 | 63 | ||
| 64 | 64 | ||
| 65 | 65 | ||
| 66 | 66 | ||
| 67 | 67 | ||
| 69 | 69 |
Page 18 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 22915201 | FEED DRIVING SHAFT | 1 |
| 49 | 22904155 | THRUST COLLAR ASM. | 1 |
| 50 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 51 | 22913008 | FEED ROCKER SHAFT BUSHING | 2 |
| 52 | 22913800 | HORIZONTAL FEED ROD B | 1 |
| 53 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 54 | RC0150001KP | RETAINING RING 13.8 | 1 |
| 55 | 22940654 | FEED BAR CRANK ASM. | 1 |
| 56 | SS7121410TP | SCREW 3/16-28 L=14 | 1 |
| 57 | WP0480856SP | WASHER 4.8X8.4X0.8 | 1 |
| 58 | 22915359 | DRIVING SHAFT CRANK ASM. | 1 |
| 59 | SS7111120SP | SCREW 11/64-40 L=10.5 | 1 |
| 60 | 22910459 | WALKING FOOT ADJUSTING LINK | 1 |
| 61 | 22904155 | THRUST COLLAR ASM. | 1 |
| 62 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 63 | RO078190100 | RUBBER RING | 1 |
| 64 | 40100812 | FEED LEVER SHAFT | 1 |
| 65 | 22912802 | FEED LEVER METAL | 1 |
| 66 | 40102264 | FEED_REVER_ASM. | 1 |
| 67 | SM8061010TP | SCREW | 2 |
| 68 | 11009800 | FEED REGULATOR BUSHING | 1 |
| 69 | 22914105 | BEARING C | 1 |
| 70 | B1613012A00 | FEED DOG A | 1 |
Page 20 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11040359 | KNIFE UNIT | 1 | |
| SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 | |
| 11040508 | FORKED BASE FOR KNIFE | 1 | |
| 11040409 | MOVING KNIFE HINGE SCREW | 1 | |
| 11040052 | MOVING KNIFE ASM. | 1 | |
| 11040300 | KNIFE MOUNTING BASE | 1 | |
| 11313103 | THREAD GUIDE FOR KNIFE | 1 | |
| SS2060210SP | SCREW 3/32-56 L=2.3 | 1 | |
| SS4080620TP | SCREW 1/8-44 L=6 | 2 | |
| D2406555D0H | COUNTER KNIFE | 1 | |
| HK034610140 | HOUSING 14P | 1 | |
| SS4110715SP | SCREW 11/64-40 L=7 | 1 | |
| 22950257 | PICKER ARM ASM. | 1 | |
| 22950208 | PICKER ARM | 1 | |
| 22950356 | THREAD TAKE-UP PICKER ASM. | 1 | |
| SS6090510TP | SCREW 9/64-40 L=5.0 | 2 | |
| SD0641451SP | HINGE SCREW D=6.35 H=14.5 | 1 | |
| SD0630275SP | HINGE SCREW D=6.35 H=2.7 | 1 | |
| 22950851 | THREAD TRIMMER CAM ASM. | 1 | |
| SS6660610TP | SCREW 1/4-40 L=6 | 2 | |
| 22950950 | CAM COLLAR ASM. | 1 | |
| SS8110520TP | SCREW 11/64-40 L=4.5 | 1 | |
| 22949762 | THREAD TRIMMER DRIVING UNIT | 1 | |
| 22949754 | BASE PLATE ASM. | 1 | |
| 22950703 | DRIVING ARM STOPPE | 1 | |
| 22950000 | PICKER LINK PIN | 1 | |
| RE0600000K0 | E-RING 6 | 1 | |
| SS4110715SP | SCREW 11/64-40 L=7 | 2 | |
| 22949408 | CLUTCH SPRING | 1 | |
| 40087245 | CLUTCH PLATE ASM. | 1 | |
| 22950109 | PICKER LINK | 1 | |
| WP0621016SH | WASHER | 2 | |
| NS6150430SP | NUT 15/64-28 | 2 | |
| RE0600000K0 | E-RING 6 | 1 | |
| 22948301 | MOVING KNIFE LINK | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 22948400 | MOVING KNIFE LINK PIN | 1 | |
| 22949309 | KNIFE RETURN SPRING B | 1 | |
| RE0400000K0 | E-RING 4 | 2 | |
| 22949101 | ROLLER FULCRUM SHAFT | 1 | |
| 22949200 | ROLLER FULCRUM SPRING | 1 | |
| SS7090610SP | SCREW 9/64-40 L=6 | 1 | |
| 22949002 | ROLLER ARM BRACKET | 1 | |
| 11040953 | ROLLER ARM ASM. | 1 | |
| 11040854 | KNIFE DRIVING ARM ASM. | 1 | |
| SD0600361SP | HINGE SCREW D=6 H=3.6 | 1 | |
| SS4150915SP | SCREW 15/64-28 L=9 | 2 |
Page 22 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 22951164 | SOLENOID UNIT | 1 |
| 49 | 40106930 | THREAD TRIMMER SOLENOID ASM. | 1 |
| 50 | 22951404 | SOLENOID BASE | 1 |
| 51 | WS0410002KR | SPRING WASHER M4 | 2 |
| 52 | NM6040001SE | NUT M4 | 2 |
| 53 | 40106931 | THREAD TRIMMER SOLENOID | 1 |
| 54 | SS6110710TP | SCREW 11/64-40 L=6.5 | 1 |
| 55 | 22949903 | CLUTCH LINK | 1 |
| 56 | RE0500000K0 | E-RING | 1 |
| 57 | 22951008 | SOLENOID PIN | 1 |
| 58 | 22924807 | TUBE HOLDER LOWER | 1 |
| 59 | 22951552 | GROUND WIRE ASM. | 1 |
| 60 | SD0640631TP | HINGE SCREW D=6.35 H=6.3 | 1 |
| 61 | SS4151215SP | SCREW 15/64-28 L=12 | 2 |
Page 24 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22954150 | REVERSE FEED SWITCH ASM. | 1 | |
| 22954606 | REVERSE FEED SWITCH COVER | 1 | |
| SM4040655SP | SCREW M4 L=6 | 1 | |
| 22954101 | REVERSE FEED SWITCH BASE | 1 | |
| 22954200 | REVERSE FEED SWITCH SHAFT | 1 | |
| 22954309 | REVERSE FEED SWITCH SPRING | 1 | |
| SM4041655SP | SCREW M4 L=16 | 1 | |
| SM4031501SC | SCREW M3 L=15 | 2 | |
| HW500070000 | 2-CORE CABTYRE CORD | 1.31 | |
| HK03464000B | PIN CONTACT | 2 | |
| HA001900000 | MICROSWITCH | 1 | |
| 22954408 | SWITCH HOLDING PLATE | 1 | |
| 22954507 | REVERSE FEED SWITCH LEVER | 1 | |
| RE0500000KP | E-RING 5 | 2 | |
| 22953806 | REVERSE FEED CONNECTING SHAFT | 1 | |
| RE0900000K0 | E-RING 9 | 1 | |
| 22953657 | CONNECTING ARM ASM. | 1 | |
| RE0400000KP | E-RING 4 | 1 | |
| 22953905 | REVERSE FEED CONNECTING LINK | 1 | |
| RE1200000K0 | E-RING 12 | 1 | |
| WP1602616SZ | WASHER 16X24X2.6 | 1 | |
| D2468555B00 | RUBBER PLUNGER | 1 | |
| RE0400000KP | E-RING 4 | 2 | |
| 22953509 | PLUNGER ARM PIN | 1 | |
| 40085585 | REVERSE FEED SOLENOID ASM. | 1 | |
| SS4151215SP | SCREW 15/64-28 L=12 | 2 | |
| SS4120915SP | SCREW 3/16-28 L=9 | 1 | |
| 22954002 | PLUNGER SPRING | 1 | |
| HK03464000B | PIN CONTACT | 2 | |
| SS4120615SP | SCREW 3/16-28 L=6 |
Page 25 — WIPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Housing | |
| 2 | 2 | Cover | |
| 3 | 3 | Spring | |
| 4 | 4 | Screw | |
| 5 | 5 | Washer | |
| 6 | 6 | Nut | |
| 7 | 7 | Lever | |
| 8 | 8 | Screw | |
| 9 | 9 | Screw | |
| 10 | 10 | Bushing | |
| 11 | 11 | Spring | |
| 12 | 12 | Nut | |
| 13 | 13 | Shaft | |
| 14 | 14 | Clip | |
| 15 | 15 | Motor | |
| 16 | 16 | Screw | |
| 17 | 17 | Switch | |
| 18 | 18 | Clip | |
| 19 | 19 | Shaft | |
| 20 | 20 | Arm | |
| 21 | 21 | Screw | |
| 22 | 22 | Screw | |
| 23 | 23 | Bushing | |
| 24 | 24 | Wire | |
| 25 | 25 | Nut | |
| 26 | 26 | Screw |
Page 26 — WIPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22955553 | WIPER ASM. | 1 | |
| 22955504 | WIPER COVER | 1 | |
| SL4030631SC | SCREW M3X6 | 1 | |
| SD0650321TP | HINGE SCREW D=6.5 H=3.2 | 1 | |
| NS6090310SP | NUT 9/64-40 | 1 | |
| 22956106 | WIPER LINK A | 1 | |
| 22956403 | WIPER LINK B | 1 | |
| RE0250000K0 | E-RING 2.5 | 1 | |
| 22956908 | WIPER LINK B HINGE SCREW | 1 | |
| 22956205 | WIPER HINGE SCREW COLLAR | 1 | |
| 22956304 | WIPER SPRING | 1 | |
| NS6110310SP | NUT 11/64-40 | 1 | |
| 22955900 | WIPER RUBBER A | 1 | |
| 22956007 | WIPER RUBBER B | 1 | |
| 40106936 | WIPER SOLENOID ASM. | 1 | |
| 22957104 | WIPER SOLENOID SHAFT | 1 | |
| HA00600000A | SWITCH | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 40041419 | WIPER LINK C ASM. | 1 | |
| 11110152 | WIPER BASE ASM. | 1 | |
| 22957203 | WIPER LINK COLLAR | 1 | |
| SL4030641SE | SCREW | 3 | |
| 22956809 | WIPER COLLAR | 1 | |
| 22957005 | WIPER | 1 | |
| SS6090540SP | SCREW 9/64-40 L=5.0 | 1 | |
| SS4120915SP | SCREW 3/16-28 L=9 | 2 |
Page 27 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | CAP | ||
| 2 | O-RING | ||
| 3 | TUBE | ||
| 4 | SCREW | ||
| 5 | BRACKET | ||
| 6 | BRACKET | ||
| 7 | SCREW | ||
| 8 | FILTER | ||
| 9 | PLUG | ||
| 10 | SPRING | ||
| 11 | TUBE | ||
| 12 | OIL PUMP | ||
| 13 | BRACKET | ||
| 14 | SCREW | ||
| 15 | BODY | ||
| 16 | SCREW | ||
| 17 | GASKET | ||
| 18 | COVER | ||
| 19 | SHAFT | ||
| 20 | SPRING | ||
| 21 | SPRING | ||
| 22 | SCREW | ||
| 23 | SPRING | ||
| 24 | SPRING | ||
| 25 | SPRING | ||
| 26 | TUBE | ||
| 27 | SCREW | ||
| 28 | TUBE | ||
| 29 | SCREW | ||
| 30 | TUBE |
Page 28 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22924708 | OIL SIGHT WINDOW | 1 | |
| RO195240100 | RUBBER RING | 1 | |
| 22924401 | MAIN SHAFT OIL TUBE | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22925101 | OIL FELT PRESSER | 1 | |
| 22924153 | OIL RETURN TUBE ASM. | 1 | |
| 22924302 | HOLDER | ||
| CQ252000000 | OIL WICK | 0.3 | |
| 22925002 | OIL ADJUSTING SCREW | 1 | |
| 22924906 | SPRING | 1 | |
| 22924500 | OIL TUBE | 1 | |
| 22923056 | LUBRICATING OIL PUMP ASM. | 1 | |
| 22923312 | OIL PUMP INSTALLING BASE | ||
| 22923015 | OIL PUMP | ||
| 22923700 | OIL PUMP IMPELLER | ||
| SE4301041SR | SCREW D=3 L=10 | ||
| 22923205 | LUBRICATING OIL PUMP COVER | ||
| 22923809 | OIL PUMP IMPELLER COVER | ||
| 22923403 | PLUNGER | ||
| 22923601 | PLUNGER SPRING | ||
| 22923502 | PLUNGER SCREW | ||
| 22923908 | HOOK DRIVING SHAFT OIL TUBE | ||
| SL403085TSF | SCREW M3 L=8 | ||
| SS4150915SP | SCREW 15/64-28 L=9 | 1 | |
| SS6111010TP | SCREW 11/64-40 L=9.5 | 1 | |
| 22947105 | OIL PUMP SUPPORT | ||
| WS0651310KP | SPRING WASHER 6.5X11X1.3 | ||
| 22924609 | RUBBER JOINT | 1 | |
| WS0451040KP | SPRING WASHER 4.5X8.5X1 | ||
| 22924005 | OIL PUMP SUPPORT |
Page 29 — OIL RESERVOIR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | OIL RESERVOIR | |
| 2 | 2 | GASKET | |
| 3 | 3 | BOLT | |
| 4 | 4 | WASHER | |
| 5 | 5 | WASHER | |
| 6 | 6 | BOLT | |
| 7 | 7 | BRACKET | |
| 8 | 8 | SPRING PIN | |
| 9 | 9 | NUT | |
| 10 | 10 | SPRING | |
| 11 | 11 | SHAFT | |
| 12 | 12 | WASHER | |
| 13 | 13 | BRACKET | |
| 14 | 14 | BRACKET | |
| 15 | 15 | BOLT | |
| 16 | 16 | BOLT | |
| 17 | 17 | PIN | |
| 18 | 18 | WASHER | |
| 19 | 19 | COVER | |
| 20 | 20 | PIPE | |
| 21 | 21 | CLAMP | |
| 22 | 22 | SCREW | |
| 23 | 23 | WASHER | |
| 24 | 24 | BOLT | |
| 25 | 25 | CLAMP | |
| 26 | 26 | PLUG | |
| 27 | 27 | PLUG |
Page 30 — OIL RESERVOIR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22931851 | OIL RESERVOIR ASM. | 1 |
| 2 | 22931802 | OIL RESERVOIR | 1 |
| 3 | 22931901 | OIL RESERVOIR GASKET | 1 |
| 4 | 22932008 | RUBBER CUSHION | 4 |
| 5 | SS6700710SH | SCREW 5/16-24 L=7 | 1 |
| 6 | RO098240100 | RUBBER RING | 1 |
| 7 | 22932156 | KNEE LIFTER ROTATION ARM ASM. | 1 |
| 8 | 22932107 | KNEE LIFTING ROTATING ARM | 1 |
| 9 | NM6060001SE | NUT M6 | 2 |
| 10 | SM8063012TR | SCREW M6 L=30 | 2 |
| 11 | 22932206 | SPRING | 1 |
| 12 | RE1000000K0 | E-RING 10 | 1 |
| 13 | 22932453 | BRACKET ASM. | 1 |
| 14 | 22932404 | VERTICAL SHAFT FITTING ARM | 1 |
| 15 | 22934707 | SCREW | 2 |
| 16 | 40101720 | SCREW_M6 | 1 |
| 17 | 22932305 | KNEE PRESS CROSS SHAFT | 1 |
| 18 | NM6060001SE | NUT M6 | 1 |
| 19 | 22934251 | KNEE PAD PLATE ASM. | 1 |
| 20 | 22934608 | KNEE PAD UPRIGHT SHAFT | 1 |
| 21 | 22934400 | KNEE PAD PLATE RUBBER | 1 |
| 22 | 22934202 | KNEE PAD PLATE | 1 |
| 23 | 22934301 | KNEE PAD PLATE SUPPORT | 1 |
| 24 | SM9061203SE | SCREW M6 L=12 | 1 |
| 25 | 22934509 | KNEE PAD PLATE COVER | 1 |
| 26 | B8228125000 | OIL RESERVOIR MAGNET | 1 |
| 27 | 22931703 | KNEE LIFTER PUSH ROD | 1 |
Page 32 — BELT COVER & BOBBIN COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22933451 | BELT COVER ASM. | 1 | |
| 22933402 | BELT COVER A | 1 | |
| 22933501 | BELT COVER A CAP | 1 | |
| 22933659 | BELT COVER B COMPL. | 1 | |
| 22933600 | BELT COVER B | 1 | |
| 22933758 | BELT COVER B CAP ASM. | 1 | |
| 22933907 | BELT COVER SUPPORT | 1 | |
| 22934004 | BELT COVER A SCREW | 2 | |
| SS4121415SP | SCREW 3/16-28 L=14 | 1 | |
| WP0501016SD | WASHER 5X10.5X1 | 1 | |
| SK3412000SC | WOOD SCREW D=4.1 L=20 | 2 | |
| WP0450826SC | WASHER 4.5X10X0.8 | 2 | |
| 22927354 | BOBBIN WINDER CONPL. | 1 | |
| 22928501 | THREAD TENSION BRACKET | 1 | |
| SS4110515SP | SCREW 11/64-40 L=5 | 1 | |
| 22928907 | THREAD TENSION DISK | 2 | |
| 22929004 | THREAD TENSION SPRING | 1 | |
| 22928808 | THREAD TENSION NUT | 1 | |
| SS7110350SP | SCREW 11/64-40 L=3.5 | 1 | |
| 22928402 | RUBBER BRAKE PRESSER PLATE | 1 | |
| 22928303 | RUBBER BRAKE | 1 | |
| 22928105 | POSITIONING FINGER | 1 | |
| SD0490261SP | HINGE SCREW D=4.9 H=2.6 | 1 | |
| SS7081310SP | SCREW 1/8-44 L=12.5 | 1 | |
| SS8110510SP | SCREW 11/64-40 L=5 | 1 | |
| 22928709 | THREAD TENSION BRACKET | 1 | |
| 22927305 | BOBBIN BASE | 1 | |
| 22927404 | BOBBIN PULLEY | 1 | |
| 22927602 | BOBBIN WINDER POST | 1 | |
| SK3412000SC | WOOD SCREW D=4.1 L=20 | 2 | |
| WP0450826SC | WASHER 4.5X10X0.8 | 2 |
Page 34 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40096354 | THREAD STAND ASM. | 1 | |
| 40085784 | SPOOL REST ROD LOWER | 1 | |
| 40085785 | SPOOL REST ROD UPPER | 1 | |
| 40085786 | SPOOL REST ARM LOWER | 1 | |
| 40085787 | SPOOL REST ARM UPPER | 1 | |
| 40085788 | SPOOL REST | 2 | |
| 40085789 | SPOOL REST CUSHION | 2 | |
| 40085790 | SPOOL PIN | 2 | |
| 40085791 | SPOOL RETAINER | 2 | |
| 40085792 | SPOOL REST ROD JOINT | 1 | |
| 40085793 | SPOOL REST ROD RUBBER CAP | 1 | |
| 40085794 | THREAD GUIDE | 2 | |
| 40085795 | THREAD GUIDE BUSHING | 2 | |
| 40096325 | SPOOL REST ROD NUT | 1 | |
| WP1612616SE | WASHER 16X30X2.6 | 2 | |
| 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 | |
| 40096326 | SPOOL REST ARM LOWER SCREW | 1 | |
| NM6050001SE | NUT M5 | 2 | |
| 40096327 | SPOOL REST ARM UPPER SCREW | 1 | |
| NM6050001SE | NUT M5 | 2 | |
| WS0510002KN | SPRING WASHER M5 | 2 | |
| WP0531001SC | WASHER M5 | 2 | |
| SM4051405SE | SCREW M5 L=14 | 2 | |
| NM6050001SE | NUT M5 | 2 |
Page 36 — EXCLUSIVE PARTS FOR DDL-8700H-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11094901 | SOLENOID BASE | 1 | |
| 11095551 | KNIFE UNIT | 1 | |
| 11409257 | MOVING KNIFE J ASM. | 1 | |
| 11095502 | KNIFE MOUNT BASE | 1 | |
| 40089755 | FIX KNIFE | 1 | |
| 11095403 | KNIFE THREAD GUIDE | 1 | |
| 11095601 | KNIFE BRANCH | 1 | |
| SD0500131TP | HINGE SCREW D=5 H=1.25 | 1 | |
| D2404555B00 | COUNTER KNIFE SPACER | 1 | |
| SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 | |
| SS2060210SP | SCREW 3/32-56 L=2.3 | 1 | |
| SS4080620TP | SCREW 1/8-44 L=6 | 2 | |
| 40010395 | ADJUSTING LINK FULCRUM SHAFT B | ||
| 11400801 | THROAT PLATE J | 1 | |
| B1213552000A | OIL ADJUSTING PIN | 1 | |
| SS6080320SP | SCREW 1/8-44 L=2.5 | 1 | |
| 11095254 | LEVER STOPPER ASM. | ||
| SS1120710SP | SCREW 3/16-28 L=6.5 | ||
| 11091659 | LINK THREAD TAKE-UP LEVER ASM. | 1 | |
| 11091600 | NEEDLE BAR CRANK H | 1 | |
| MDB100B2100 | NEEDLE DBX1 #21 | 1 | |
| B1418415H00 | NEEDLE BAR THREAD GUIDE | 1 | |
| 22970313 | NEEDLE BAR BUSHING LOWER | 1 | |
| 40023223 | NEEDLE BAR THREAD GUIDE | 1 | |
| 22970206 | NEEDLE BAR | 1 | |
| 11092251 | LUBRICATING HOOK ASM. | 1 | |
| 11093804 | POSITIONING FINGER H | 1 | |
| B1505552000A | PRESSER SPRING | 1 | |
| D1524555EBL | PRESSER FOOT ASM. | 1 | |
| 22962807 | WIRE PRESSER PLATE (LOWER) B | ||
| SS7110740TP | SCREW 11/64-40 L=7 | ||
| 22963458 | THREAD TENSION ASM. | 1 | |
| 22963409 | THREAD TENSION SPRING | 1 | |
| 40080725 | ADJUSTING LINK SPRING | 1 | |
| 22970602 | FEED SPRING HOOK | 1 | |
| 11403003 | FEED J | 1 | |
| 11096658 | SOLENOID MOUNTING BASE ASM. | ||
| 11231503 | OIL PUMP SUPPORT | ||
| 22962609 | REVERSE FEED BASE COLLAR | ||
| 22962906 | PLUNGER ARM PIN | ||
| NS6110420SP | NUT 11/64-40 | ||
| 22962708 | TUBE HOLDER LOWER | ||
| 11094109 | OIL TUBE | 1 | |
| SD0700711TP | HINGE SCREW D=7 H=7.1 | ||
| 22962500 | SOLENOID CONNECTING LINK H | ||
| WP0722316SH | WASHER | ||
| 11101508 | REVERSE FEED LINK |
Page 38 — EXCLUSIVE PARTS FOR DDL-8700H-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| NS6110420SP | NUT 11/64-40 | ||
| SD0700451TP | HINGE SCREW D=7 H=4.5 | ||
| MC200501300 | NEEDLE 134 NM130 | ||
| 22962351 | FEED DRIVE ECCENTRIC CAM ASM. | ||
| 11403805 | THREAD GUIDE C FITTING PLATE | ||
| WP0371016SD | WASHER 3.7X8X1 | ||
| NS6090310SP | NUT 9/64-40 | ||
| 22972608 | ARM THREAD GUIDE C | ||
| 11094604 | CLUTCH LINK | ||
| 11096500 | THREAD TRIMMER SOLENOID | ||
| 22962054 | THREAD TENSION ASM. | ||
| 22962005 | THREAD TENSION SPRING | ||
| 40101726 | FEED_DIAL |
Page 40 — EXCLUSIVE PARTS FOR DDL-8700J-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40031249 | HINGE SCREW | 1 | |
| 11095551 | KNIFE UNIT | 1 | |
| 11409257 | MOVING KNIFE J ASM. | 1 | |
| 11095502 | KNIFE MOUNT BASE | 1 | |
| 40089755 | FIX KNIFE | 1 | |
| 23645401 | THREAD GUIDE FOR KNIFE H | 1 | |
| 11095601 | KNIFE BRANCH | 1 | |
| SD0500131TP | HINGE SCREW D=5 H=1.25 | 1 | |
| D2404555B00 | COUNTER KNIFE SPACER | 1 | |
| SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 | |
| SS2060210SP | SCREW 3/32-56 L=2.3 | 1 | |
| SS4080620TP | SCREW 1/8-44 L=6 | 2 | |
| 40010395 | ADJUSTING LINK FULCRUM SHAFT B | 1 | |
| 11062007 | THROAT PLATE A | 1 | |
| B1213552000A | OIL ADJUSTING PIN | 1 | |
| SS6080320SP | SCREW 1/8-44 L=2.5 | 1 | |
| 11095254 | LEVER STOPPER ASM. | 1 | |
| SS1120710SP | SCREW 3/16-28 L=6.5 | 1 | |
| 11062858 | LINK THREAD TAKE-UP LEVER ASM. | 1 | |
| 11062809 | NEEDLE BAR CRANK | 1 | |
| MDP500B2100 | NEEDLE DPX5 #21 | 1 | |
| 22970404 | NEEDLE BAR THREAD HOOK | 1 | |
| 22970313 | NEEDLE BAR BUSHING LOWER | 1 | |
| 40012444 | NEEDLE BAR THREAD GUIDE | 1 | |
| 22970206 | NEEDLE BAR | 1 | |
| 40035058 | HOOK ASM. | 1 | |
| 22942502 | INNER HOOK PRESSER | 1 | |
| B1505552000A | PRESSER SPRING | 1 | |
| 40064839 | PRESSER FOOT ASM. | 1 | |
| 22962807 | WIRE PRESSER PLATE (LOWER) B | 1 | |
| SS7110740TP | SCREW 11/64-40 L=7 | 1 | |
| 11094901 | SOLENOID BASE | 1 | |
| 40039674 | FEED DIAL | 1 | |
| WP0371016SD | WASHER 3.7X8X1 | 1 | |
| 22970602 | FEED SPRING HOOK | 1 | |
| 11062601 | FEED DOG | 1 | |
| 11096658 | SOLENOID MOUNTING BASE ASM. | 1 | |
| 11231503 | OIL PUMP SUPPORT | 1 | |
| 22962609 | REVERSE FEED BASE COLLAR | 1 | |
| 22962906 | PLUNGER ARM PIN | 1 | |
| NS6110420SP | NUT 11/64-40 | 2 | |
| 22962708 | TUBE HOLDER LOWER | 1 | |
| 11094109 | OIL TUBE | 1 | |
| SD0700711TP | HINGE SCREW D=7 H=7.1 | 1 | |
| 22962500 | SOLENOID CONNECTING LINK H | 1 | |
| WP0722316SH | WASHER | 1 | |
| 11101508 | REVERSE FEED LINK | 1 |
Page 42 — EXCLUSIVE PARTS FOR DDL-8700J-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | NS6110420SP | NUT 11/64-40 | 1 |
| 49 | SD0700451TP | HINGE SCREW D=7 H=4.5 | 1 |
| 50 | 11403805 | THREAD GUIDE C FITTING PLATE | 1 |
| 51 | 22970552 | FEED ECCENTRIC CAM ASM. | 1 |
| 22970503 | FEED ECCENTRIC CAM L | ||
| 22972806 | FEED ECCENTRIC CAM SETSCREW | ||
| 54 | NS6090310SP | NUT 9/64-40 | 1 |
| 55 | 22972608 | ARM THREAD GUIDE C | 1 |
| 56 | 11094604 | CLUTCH LINK | 1 |
| 57 | 11096500 | THREAD TRIMMER SOLENOID | 1 |
| 58 | 22970859 | HORIZONTAL FEED ARM ASM. | 1 |
| SS6121610SP | SCREW 3/16-28 L=15.5 | ||
| 60 | 22963458 | THREAD TENSION ASM. | 1 |
| 22963409 | THREAD TENSION SPRING | ||
| 62 | 22962054 | THREAD TENSION ASM. | 1 |
| 22962005 | THREAD TENSION SPRING | ||
| 64 | 22970701 | HORIZONTAL FEED ROD | 1 |
| 65 | 22971204 | FEED REGULATOR BASE PIN | 1 |
| 66 | 22971303 | FEED REGULATOR BASE | 1 |
| 67 | 11302619 | SPRING | 1 |
| 68 | 22971550 | FEED LEVER ARM ASM. | 1 |
| SS7121410TP | SCREW 3/16-28 L=14 | ||
| 70 | 22971709 | FEED REVERSE SPRING | 1 |
| 71 | 22972251 | VERTICAL FEED ARM ASM. | 1 |
| SS6121610SP | SCREW 3/16-28 L=15.5 | ||
| 73 | 40031240 | FEED ADJUST LINK ASM. | 1 |
| 74 | 40031244 | FEED ADJUST ROD | 1 |
Page 43 — EXCLUSIVE PARTS FOR DDL-8700A-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | 1 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 4 | 4 | 4 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 7 | 7 | 7 | |
| 8 | 8 | 8 | |
| 9 | 9 | 9 | |
| 10 | 10 | 10 |
Page 44 — EXCLUSIVE PARTS FOR DDL-8700A-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40011503 | THREAD TENSION ASM. | 1 | |
| 40054784 | THREAD TAKE-UP SPRING | ||
| 40054785 | THREAD TENSION SPRING | ||
| 11092558 | HAND LIFTER CAM ASM. | 1 | |
| D1524555DBA | PRESSER FOOT ASM. | 1 | |
| 22964001 | BOBBIN (A) | 1 | |
| B18370120A0 | BOBBIN CASE ASM. | 1 | |
| B1505227T00A | PRESSER SPRING T | 1 | |
| MC200500650 | NEEDLE 134 NM65 | ||
| MDA100B0900 | NEEDLE DAX1 #9 | 1 |
Page 45 — LIST FOR INFORMATION OF CHANGE (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-02159 | 229-02159 | |
| 8 | SS-4120915-SP | SS-4120915-SP | |
| 20 | 400-93432 | 400-93432 | |
| 50 | SS-4120915-SP | SS-4120915-SP | |
| 61 | 229-02605 | 229-02605 | |
| 62 | SS-7110540-SP | SS-7110540-SP | |
| 63 | WP-0501016-SD | WP-0501016-SD | |
| 64 | SS-4121215-SP | SS-4121215-SP | |
| 66 | M6008-350-AAF | M6008-350-AAF | |
| 67 | M6008-350-AAF | M6008-350-AAF | |
| 68 | M6008-350-AAF | M6008-350-AAF | |
| 4 | 110-39070 | 110-39070 | |
| 5 | 110-39062 | 110-39062 | |
| 6 | B1905-541-B00 | B1905-541-B00 | |
| 4 | 229-18072 | 229-18072 | |
| 5 | 229-18064 | 229-18064 | |
| 6 | 229-18403 | 229-18403 | |
| 7 | 229-18501 | 229-18501 | |
| 8 | 229-18601 | 229-18601 | |
| 9 | 229-18700 | 229-18700 | |
| 7 | 110-05204 | 110-05204 | |
| 8 | B1408-552-000 | B1408-552-000 | |
| 9 | B1903-552-000 | B1903-552-000 | |
| 10 | 229-03157 | 229-03157 | |
| 21 | 110-02508 | 110-02508 | |
| 1 | 229-01409 | 229-01409 | |
| 12 | B1307-155-0C0 | B1307-155-0C0 | |
| 13 | B1306-155-0B0 | B1306-155-0B0 | |
| 14 | B1305-012-0A0 | B1305-012-0A0 | |
| 16 | B1306-155-0A0 | B1306-155-0A0 | |
| 10 | 229-18106 | 229-18106 | |
| 11 | 229-06606 | 229-06606 | |
| 12 | 229-18304 | 229-18304 | |
| 13 | 401-06606 | 401-06606 | |
| 21 | 401-05231 | 401-05231 | |
| 1 | TA-0850604-R0 | TA-0850604-R0 | |
| 14 | 400-90002 | 400-90002 | |
| 16 | 400-90003 | 400-90003 | |
| 18 | B1307-155-0B0 | B1307-155-0B0 | |
| 19 | B1307-155-0A0 | B1307-155-0A0 | |
| 21 | B1308-155-0A0 | B1308-155-0A0 | |
| 36 | 229-17058 | 229-17058 | |
| 13 | SS-4120915-SP | SS-4120915-SP | |
| 31 | 229-40803 | 229-40803 | |
| 43 | 229-10350 | 229-10350 | |
| 45 | 229-15151 | 229-15151 | |
| 19 | 400-90004 | 400-90004 | |
| 36 | 401-01694 | 401-01694 | |
| 13 | SS-4120925-SP | SS-4120925-SP | |
| 31 | 401-01462 | 401-01462 | |
| 43 | 401-10379 | 401-10379 | |
| 45 | 401-09422 | 401-09422 |
Page 46
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 64 | 229-12604 | 229-12604 | |
| 66 | 229-12752 | 229-12752 | |
| 67 | SM-8061050-TP | SM-8061050-TP | |
| 49 | 400-85586 | 400-85586 | |
| 50 | HK-0346400-0B | HK-0346400-0B | |
| 53 | 400-85587 | 400-85587 | |
| 15 | 400-90290 | 400-90290 | |
| 6 | RO-1082401-00 | RO-1082401-00 | |
| 16 | SM-9062563-TR | SM-9062563-TR | |
| 1 | 229-30358 | 229-30358 | |
| 1 | 110-93366 | 110-93366 | |
| 32 | M60009-350-AAA | M60009-350-AAA | |
| 33 | 229-11903 | 229-11903 | |
| 1 | 110-93366 | 110-93366 | |
| 6 | 110-95403 | 110-95403 | |
| 32 | 229-90758 | 229-90758 | |
| 33 | 400-31248 | 400-31248 | |
| 55 | 113-05513 | 113-05513 | |
| 4 | M6018-350-AAA | M6018-350-AAA | |
| 64 | 401-00812 | 401-00812 | |
| 66 | 401-02264 | 401-02264 | |
| 48 | 229-51164 | 229-51164 | |
| 49 | 401-06930 | 401-06930 | |
| 53 | 401-06931 | 401-06931 | |
| 15 | 401-06936 | 401-06936 | |
| 6 | RO-0982401-00 | RO-0982401-00 | |
| 16 | 401-01720 | 401-01720 | |
| 1 | 400-96354 | 400-96354 | |
| 60 | 401-01726 | 401-01726 | |
| 6 | 236-45401 | 236-45401 | |
| 33 | 400-39674 | 400-39674 | |
| 55 | 229-72608 | 229-72608 |
Page 48 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11002409 | 6 | ||
| 11002904 | 6 | ||
| 5-68 | 11009800 | 16 | |
| 17 | 11010311 | 14 | |
| 39 | 11015906 | 10 | |
| 60-64 | 11028008 | 4 | |
| 59 | 11030202 | 4 | |
| 22 | 11037405 | 14 | |
| 24-34 | 11038650 | 10 | |
| 42 | 11038759 | 10 | |
| 5 | 11040052 | 18 | |
| 6 | 11040300 | 18 | |
| 1 | 11040359 | 18 | |
| 4 | 11040409 | 18 | |
| 3 | 11040508 | 18 | |
| 45 | 11040854 | 18 | |
| 44 | 11040953 | 18 | |
| 14 | 11062007 | 38 | |
| 36 | 11062601 | 38 | |
| 20 | 11062809 | 38 | |
| 19 | 11062858 | 38 | |
| 20 | 11091600 | 34 | |
| 19 | 11091659 | 34 | |
| 26 | 11092251 | 34 | |
| 4 | 11092558 | 42 | |
| 27 | 11093804 | 34 | |
| 43 | 11094109 | 34 | |
| 43 | 11094109 | 38 | |
| 56 | 11094604 | 36 | |
| 56 | 11094604 | 40 | |
| 1 | 11094901 | 34 | |
| 32 | 11094901 | 38 | |
| 17 | 11095254 | 34 | |
| 17 | 11095254 | 38 | |
| 6 | 11095403 | 34 | |
| 4 | 11095502 | 34 | |
| 4 | 11095502 | 38 | |
| 2 | 11095551 | 34 | |
| 2 | 11095551 | 38 | |
| 7 | 11095601 | 34 | |
| 7 | 11095601 | 38 | |
| 57 | 11096500 | 36 | |
| 57 | 11096500 | 40 | |
| 37 | 11096658 | 34 | |
| 37 | 11096658 | 38 | |
| 47 | 11101508 | 34 | |
| 47 | 11101508 | 38 | |
| 20 | 1110152 | 24 | |
| 24-34 | 11141355 | 10 | |
| 38 | 11231503 | 34 | |
| 38 | 11231503 | 38 | |
| 67 | 11302619 | 40 | |
| 7 | 11313103 | 18 | |
| 14 | 11400801 | 34 | |
| 36 | 11403003 | 34 | |
| 52 | 11403805 | 36 | |
| 50 | 11403805 | 40 | |
| 3 | 11409257 | 34 | |
| 3 | 11409257 | 38 | |
| 28-58 | 11415205 | 4 | |
| 10 | 22900401 | 2 | |
| 28-58 | 22900609 | 2 | |
| 4 | 22900757 | 2 | |
| 55 | 22901003 | 4 | |
| 52 | 22901201 | 4 | |
| 51 | 22901250 | 4 | |
| 53 | 22901300 | 4 | |
| 14 | 22901805 | 2 | |
| 44 | 22903009 | 6 | |
| 15 | 22903108 | 6 | |
| 25 | 22903207 | 6 | |
| 27 | 22903306 | 6 | |
| 40 | 22903900 | 6 | |
| 23 | 22904155 | 6 | |
| 61 | 22904155 | 16 | |
| 23 | 22905004 | 10 | |
| 25 | 22905103 | 10 | |
| 26 | 22905202 | 10 | |
| 2 | 22906101 | 10 | |
| 8 | 22906200 | 10 | |
| 10 | 22906309 | 10 | |
| 4 | 22906457 | 10 | |
| 11 | 22906606 | 6 | |
| 34 | 22907208 | 12 | |
| 36 | 22907307 | 12 | |
| 33 | 22907406 | 12 | |
| 32 | 22907505 | 12 | |
| 30 | 22907554 | 12 | |
| 31 | 22907604 | 12 | |
| 45 | 22907703 | 12 | |
| 1 | 22907802 | 12 | |
| 42 | 22908008 | 12 | |
| 40 | 22908156 | 12 | |
| 44 | 22908305 | 12 | |
| 39 | 22908354 | 12 | |
| 4 | 22908552 | 12 | |
| 7 | 22908701 | 12 | |
| 14 | 22908800 | 12 | |
| 11 | 22908909 | 12 | |
| 13 | 22909006 | 12 | |
| 48 | 22910004 | 8 | |
| 46 | 22910053 | 6 | |
| 42 | 22910103 | 6 | |
| 12-52 | 22910202 | 14 | |
| 60 | 22910459 | 16 | |
| 28 | 22910806 | 14 | |
| 24 | 22910905 | 14 | |
| 40 | 22911002 | 14 | |
| 13 | 22911101 | 14 | |
| 23 | 22911408 | 14 | |
| 2 | 22911507 | 14 | |
| 4 | 22911606 | 14 | |
| 5-68 | 22911705 | 14 | |
| 7 | 22911804 | 14 | |
| 9 | 22912000 | 14 | |
| 8 | 22912109 | 14 | |
| 19 | 22912257 | 14 | |
| 20 | 22912505 | 14 | |
| 65 | 22912802 | 16 | |
| 39 | 22912901 | 14 | |
| 51 | 22913008 | 16 | |
| 38 | 22913701 | 14 | |
| 12-52 | 22913800 | 16 | |
| 69 | 22914105 | 16 | |
| 15 | 22915003 | 14 | |
| 48 | 22915201 | 16 | |
| 58 | 22915359 | 16 | |
| 31 | 22916001 | 10 | |
| 35 | 22916100 | 10 | |
| 27 | 22916308 | 10 | |
| 40 | 22916506 | 10 | |
| 38 | 22916555 | 10 | |
| 29 | 22917157 | 10 | |
| 5 | 22918064 | 6 | |
| 4 | 22918072 | 6 |
Page 49 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | 22918106 | 6 | |
| 12 | 22918304 | 6 | |
| 6~9 | 22918403 | 6 | |
| 6~9 | 22918502 | 6 | |
| 6~9 | 22918601 | 6 | |
| 6~9 | 22918700 | 6 | |
| 29 | 22919203 | 6 | |
| 2 | 22919559 | 6 | |
| 29 | 22920102 | 12 | |
| 23 | 22920201 | 12 | |
| 26 | 22920300 | 12 | |
| 24 | 22920409 | 12 | |
| 30 | 22920508 | 2 | |
| 47 | 22920607 | 2 | |
| 31 | 22921001 | 2 | |
| 38 | 22921209 | 2 | |
| 33 | 22921308 | 2 | |
| 34 | 22921407 | 2 | |
| 37 | 22921506 | 2 | |
| 39 | 22921605 | 2 | |
| 35 | 22921704 | 2 | |
| 36 | 22921803 | 2 | |
| 14 | 22923015 | 26 | |
| 12 | 22923056 | 26 | |
| 17 | 22923205 | 26 | |
| 13 | 22923312 | 26 | |
| 19 | 22923403 | 26 | |
| 21 | 22923502 | 26 | |
| 20 | 22923601 | 26 | |
| 15 | 22923700 | 26 | |
| 18 | 22923809 | 26 | |
| 22 | 22923908 | 26 | |
| 30 | 22924005 | 26 | |
| 6 | 22924153 | 26 | |
| 7 | 22924302 | 26 | |
| 31 | 22924401 | 26 | |
| 11 | 22924500 | 26 | |
| 28 | 22924609 | 26 | |
| 1 | 22924708 | 26 | |
| 58 | 22924807 | 20 | |
| 10 | 22924906 | 26 | |
| 9 | 22925002 | 26 | |
| 5 | 22925101 | 26 | |
| 27 | 22927305 | 30 | |
| 13 | 22927354 | 30 | |
| 28 | 22927404 | 30 | |
| 29 | 22927602 | 30 | |
| 22 | 22928105 | 30 | |
| 21 | 22928303 | 30 | |
| 20 | 22928402 | 30 | |
| 14 | 22928501 | 30 | |
| 26 | 22928709 | 30 | |
| 18 | 22928808 | 30 | |
| 16 | 22928907 | 30 | |
| 17 | 22929004 | 30 | |
| 27 | 22931703 | 28 | |
| 2 | 22931802 | 28 | |
| 1 | 22931851 | 28 | |
| 3 | 22931901 | 28 | |
| 4 | 22932008 | 28 | |
| 8 | 22932107 | 28 | |
| 7 | 22932156 | 28 | |
| 11 | 22932206 | 28 | |
| 17 | 22932305 | 28 | |
| 14 | 22932404 | 28 | |
| 13 | 22932453 | 28 | |
| 41 | 22932909 | 10 | |
| 2 | 22933402 | 30 | |
| 1 | 22933451 | 30 | |
| 3 | 22933501 | 30 | |
| 5 | 22933600 | 30 | |
| 4 | 22933659 | 30 | |
| 6 | 22933758 | 30 | |
| 7 | 22933907 | 30 | |
| 8 | 22934004 | 30 | |
| 22 | 22934202 | 28 | |
| 19 | 22934251 | 28 | |
| 23 | 22934301 | 28 | |
| 21 | 22934400 | 28 | |
| 25 | 22934509 | 28 | |
| 20 | 22934608 | 28 | |
| 15 | 22934707 | 28 | |
| 57 | 22935407 | 4 | |
| 34 | 22937056 | 6 | |
| 30-31 | 22937064 | 6 | |
| 35-39 | 22937155 | 6 | |
| 36-38 | 22937254 | 6 | |
| 43 | 22937965 | 6 | |
| 3-12 | 22939508 | 10 | |
| 3-12 | 22939607 | 10 | |
| 10 | 22940506 | 14 | |
| 55 | 22940654 | 16 | |
| 35 | 22940753 | 14 | |
| 27 | 22940951 | 14 | |
| 1 | 22941108 | 14 | |
| 36 | 22941306 | 14 | |
| 32 | 22942502 | 10 | |
| 43 | 22942601 | 10 | |
| 18 | 22944508 | 12 | |
| 20 | 22944607 | 12 | |
| 10 | 22944706 | 12 | |
| 28 | 22944854 | 12 | |
| 25 | 22945000 | 12 | |
| 40 | 22945109 | 2 | |
| 32 | 22945307 | 2 | |
| 22 | 22945356 | 2 | |
| 21 | 22945414 | 2 | |
| 25 | 22945463 | 2 | |
| 23 | 22945505 | 2 | |
| 26 | 22945604 | 2 | |
| 28 | 22945703 | 2 | |
| 24 | 22945802 | 2 | |
| 26 | 22947105 | 26 | |
| 35 | 22948301 | 18 | |
| 37 | 22948400 | 18 | |
| 43 | 22949002 | 18 | |
| 40 | 22949101 | 18 | |
| 41 | 22949200 | 18 | |
| 38 | 22949309 | 18 | |
| 29 | 22949408 | 18 | |
| 24 | 22949754 | 18 | |
| 23 | 22949762 | 18 | |
| 55 | 22949903 | 20 | |
| 26 | 22950000 | 18 | |
| 31 | 22950109 | 18 | |
| 14 | 22950208 | 18 | |
| 13 | 22950257 | 18 | |
| 15 | 22950356 | 18 | |
| 25 | 22950703 | 18 | |
| 19 | 22950851 | 18 | |
| 21 | 22950950 | 18 | |
| 57 | 22951008 | 20 | |
| 48 | 22951164 | 20 | |
| 50 | 22951404 | 20 | |
| 59 | 22951552 | 20 |
Page 50 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18 | 22952501 | 2 | |
| 24 | 22953509 | 22 | |
| 17 | 22953657 | 22 | |
| 15 | 22953806 | 22 | |
| 19 | 22953905 | 22 | |
| 28 | 22954002 | 22 | |
| 4 | 22954101 | 22 | |
| 1 | 22954150 | 22 | |
| 5 | 22954200 | 22 | |
| 6 | 22954309 | 22 | |
| 12 | 22954408 | 22 | |
| 13 | 22954507 | 22 | |
| 2 | 22954606 | 22 | |
| 1 | 22954705 | 2 | |
| 2 | 22955504 | 24 | |
| 1 | 22955553 | 24 | |
| 13 | 22955900 | 24 | |
| 14 | 22956007 | 24 | |
| 6 | 22956106 | 24 | |
| 10 | 22956205 | 24 | |
| 11 | 22956304 | 24 | |
| 7 | 22956403 | 24 | |
| 23 | 22956809 | 24 | |
| 9 | 22956908 | 24 | |
| 10 | 22957005 | 24 | |
| 16 | 22957104 | 24 | |
| 21 | 22957203 | 24 | |
| 7 | 22958300 | 2 | |
| 59 | 22962005 | 36 | |
| 63 | 22962005 | 40 | |
| 58 | 22962054 | 36 | |
| 62 | 22962054 | 40 | |
| 51 | 22962351 | 36 | |
| 45 | 22962500 | 34 | |
| 45 | 22962500 | 38 | |
| 39 | 22962609 | 34 | |
| 39 | 22962609 | 38 | |
| 42 | 22962708 | 34 | |
| 42 | 22962708 | 38 | |
| 30 | 22962807 | 34 | |
| 30 | 22962807 | 38 | |
| 40 | 22962906 | 34 | |
| 40 | 22962906 | 38 | |
| 33 | 22963409 | 34 | |
| 61 | 22963409 | 40 | |
| 32 | 22963458 | 34 | |
| 60 | 22963458 | 40 | |
| 6 | 22964001 | 42 | |
| 25 | 22970206 | 34 | |
| 25 | 22970206 | 38 | |
| 23 | 22970313 | 34 | |
| 23 | 22970313 | 38 | |
| 22 | 22970404 | 38 | |
| 52 | 22970503 | 40 | |
| 51 | 22970552 | 40 | |
| 35 | 22970602 | 34 | |
| 35 | 22970602 | 38 | |
| 64 | 22970701 | 40 | |
| 58 | 22970859 | 40 | |
| 65 | 22971204 | 40 | |
| 66 | 22971303 | 40 | |
| 68 | 22971550 | 40 | |
| 70 | 22971709 | 40 | |
| 71 | 22972251 | 40 | |
| 55 | 22972608 | 36 | |
| 55 | 22972608 | 40 | |
| 53 | 22972806 | 40 | |
| 6 | 23645401 | 38 | |
| 13 | 40010395 | 34 | |
| 13 | 40010395 | 38 | |
| 1 | 40011503 | 42 | |
| 2 | 40012126 | 2 | |
| 11 | 40012129 | 2 | |
| 7-18 | 40012444 | 10 | |
| 24 | 40012444 | 38 | |
| 30-31 | 40017623 | 6 | |
| 35-39 | 40017624 | 6 | |
| 36-38 | 40017625 | 6 | |
| 35 | 40017805 | 12 | |
| 24 | 40023223 | 34 | |
| 73 | 40031240 | 40 | |
| 74 | 40031244 | 40 | |
| 1 | 40031249 | 38 | |
| 26 | 40035058 | 38 | |
| 33 | 40039674 | 38 | |
| 19 | 40041419 | 24 | |
| 2 | 40054784 | 42 | |
| 3 | 40054785 | 42 | |
| 5 | 40060989 | 12 | |
| 29 | 40064839 | 38 | |
| 34 | 40080725 | 34 | |
| 25 | 40085585 | 22 | |
| 2 | 40085784 | 32 | |
| 3 | 40085785 | 32 | |
| 4 | 40085786 | 32 | |
| 5 | 40085787 | 32 | |
| 6 | 40085788 | 32 | |
| 7 | 40085789 | 32 | |
| 8 | 40085790 | 32 | |
| 9 | 40085791 | 32 | |
| 10 | 40085792 | 32 | |
| 11 | 40085793 | 32 | |
| 12 | 40085794 | 32 | |
| 13 | 40085795 | 32 | |
| 16 | 40085796 | 32 | |
| 30 | 40087245 | 18 | |
| 25 | 40089548 | 14 | |
| 5 | 40089755 | 34 | |
| 5 | 40089755 | 38 | |
| 14 | 40090002 | 10 | |
| 16 | 40090003 | 10 | |
| 19 | 40090004 | 10 | |
| 21 | 40090005 | 10 | |
| 6 | 40090058 | 10 | |
| 26 | 40093417 | 14 | |
| 14 | 40096325 | 32 | |
| 17 | 40096326 | 32 | |
| 19 | 40096327 | 32 | |
| 1 | 40096354 | 32 | |
| 61 | 40099083 | 4 | |
| 64 | 40100812 | 16 | |
| 31 | 40101462 | 14 | |
| 36 | 40101694 | 10 | |
| 16 | 40101720 | 28 | |
| 60 | 40101726 | 36 | |
| 1 | 40102097 | 2 | |
| 66 | 40102264 | 16 | |
| 21 | 40105231 | 6 | |
| 13 | 40106606 | 6 | |
| 49 | 40106930 | 20 | |
| 53 | 40106931 | 20 | |
| 15 | 40106936 | 24 | |
| 45 | 40109422 | 14 | |
| 43 | 40110379 | 14 | |
| 20 | 40111022 | 2 |
Page 51 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 63 | 40116677 | NS6110310SP | |
| 44 | B110901210B | NS6110420SP | |
| 60-64 | B1109552000 | NS6110420SP | |
| 15 | B1213552000A | NS6110420SP | |
| 15 | B1213552000A | NS6110420SP | |
| 26 | B1215552000 | NS6150430SP | |
| 22 | B1418415H00 | NS6620310SP | |
| B1505227T00A | NS6680410SP | ||
| 28 | B1505552000A | RC0150001KP | |
| 28 | B1505552000A | RC0150001KP | |
| 2 | B1521555000 | RC1850001KP | |
| 12 | B15240120BA | RE0250000K0 | |
| 16 | B1613012A00 | RE0400000K0 | |
| 14 | B1613012100 | RE0400000K0 | |
| 42 | B18370120A0 | RE0400000KP | |
| 2 | B311852E00 | RE0500000K0 | |
| 28 | B8228125000 | RE0500000K0 | |
| 2 | CM300200001 | RE0500000K0 | |
| 2 | CM301200001 | RE0500000K0 | |
| 26 | CQ252000000 | RE0500000KP | |
| 42 | D1524555DBA | RE0600000K0 | |
| 34 | D1524555EBL | RE0900000K0 | |
| 34 | D2404555B00 | RE0900000K0 | |
| 38 | D2404555B00 | RE1000000K0 | |
| 18 | D2406555D0H | RE1200000K0 | |
| 22 | D2468555B00 | RO029180100 | |
| 6 | EA9500B0100 | RO037180100 | |
| 22 | HA001900000 | RO044240100 | |
| 24 | HA06000000A | RO078190100 | |
| 18 | HK034610140 | RO0982270200 | |
| 22 | HK03464000B | RO098240100 | |
| 22 | HW500070000 | RO195240100 | |
| 42 | MC200500650 | SD0460703TP | |
| 10 | MC200500900 | SD0460703TP | |
| 36 | MC200501300 | SD0460703TP | |
| 42 | MDA100B0900 | SD0490261SP | |
| 10 | MDB100B1400 | SD0500131TP | |
| 34 | MDB100B2100 | SD0500131TP | |
| 38 | MDP500B2100 | SD0600361SP | |
| 20 | NM6040001SE | SD0630275SP | |
| 32 | NM6050001SE | SD0640631TP | |
| 28 | NM6060001SE | SD0641451SP | |
| 24 | NS6090310SP | SD0650321TP | |
| 36 | NS6090310SP | SD0700451TP | |
| 40 | NS6090310SP | SD0700451TP | |
| 24 | SD0700711TP | NS6110310SP | |
| 34 | SD0700711TP | NS6110420SP | |
| 12 | SD0720331SP | NS6110420SP | |
| 14 | SD1000801SH | NS6110420SP | |
| 26 | SE4301041SR | NS6110420SP | |
| 30 | SK3412000SC | NS6150430SP | |
| 24 | SL4030631SC | NS6620310SP | |
| 26 | SL4030641SE | NS6680410SP | |
| 24 | SL4030851SF | RC0150001KP | |
| 6 | SL4051001MZ | RC0150001KP | |
| 22 | SM4031501SC | RC1850001KP | |
| 22 | SM4040655SP | RE0250000K0 | |
| 22 | SM4041655SP | RE0400000K0 | |
| 32 | SM4051405SE | RE0400000K0 | |
| 16 | SM8061010TP | RE0400000KP | |
| 28 | SM8063012TR | RE0500000K0 | |
| 28 | SM9061203SE | RE0500000K0 | |
| 34 | SS1120710SP | RE0500000K0 | |
| 38 | SS1120710SP | RE0500000K0 | |
| 18 | SS2060210SP | RE0500000KP | |
| 34 | SS2060210SP | RE0600000K0 | |
| 38 | SS2060210SP | RE0900000K0 | |
| 2 | SS2110915SP | RE0900000K0 | |
| 2 | SS2110920TP | RE1000000K0 | |
| 14 | SS4080620TP | RE1200000K0 | |
| 18 | SS4080620TP | RO029180100 | |
| 34 | SS4080620TP | RO037180100 | |
| 38 | SS4080620TP | RO044240100 | |
| 6 | SS4090615SP | RO078190100 | |
| 12 | SS4110515SP | RO0982270200 | |
| 14 | SS4110515SP | RO098240100 | |
| 30 | SS4110515SP | RO195240100 | |
| 18 | SS4110715SP | SD0460703TP | |
| 10 | SS4110915TP | SD0460703TP | |
| 2 | SS4120615SP | SD0460703TP | |
| 12 | SS4120615SP | SD0490261SP | |
| 22 | SS4120615SP | SD0500131TP | |
| 26 | SS4120915SP | SD0500131TP | |
| 22 | SS4120915SP | SD0600361SP | |
| 2 | SS4120925SP | SD0630275SP | |
| 4 | SS4120925SP | SD0640631TP | |
| 10 | SS4120925SP | SD0641451SP | |
| 30 | SS4121415SP | SD0650321TP | |
| 12 | SS4150915SP | SD0700451TP |
Page 52 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 47 | SS4150915SP | SS4150915SP | |
| 24 | SS4150915SP | SS4150915SP | |
| 61 | SS4151215SP | SS4151215SP | |
| 26 | SS4151215SP | SS4151215SP | |
| 54 | SS6060210SP | SS6060210SP | |
| 16 | SS6080320SP | SS6080320SP | |
| 16 | SS6080320SP | SS6080320SP | |
| 3 | SS6080410SP | SS6080410SP | |
| 16 | SS6090510TP | SS6090510TP | |
| 25 | SS6090540SP | SS6090540SP | |
| 41 | SS6090620TP | SS6090620TP | |
| 5 | SS6090670TP | SS6090670TP | |
| 3 | SS6090670TP | SS6090670TP | |
| 38 | SS6090910SP | SS6090910SP | |
| 30 | SS6110420TP | SS6110420TP | |
| 48 | SS6110610TP | SS6110610TP | |
| 54 | SS6110710TP | SS6110710TP | |
| 25 | SS6111010TP | SS6111010TP | |
| 37 | SS6111210SP | SS6111210SP | |
| 44 | SS6121610SP | SS6121610SP | |
| 72 | SS6121610SP | SS6121610SP | |
| 17 | SS6121840SP | SS6121840SP | |
| 11 | SS6121860SP | SS6121860SP | |
| 20 | SS6660610TP | SS6660610TP | |
| 47 | SS6661110SP | SS6661110SP | |
| 5 | SS6700710SH | SS6700710SH | |
| 9 | SS7080510TP | SS7080510TP | |
| 24 | SS7081310SP | SS7081310SP | |
| 42 | SS7090610SP | SS7090610SP | |
| 6 | SS7091110TP | SS7091110TP | |
| 19 | SS7110350SP | SS7110350SP | |
| 62 | SS7110720SP | SS7110720SP | |
| 53 | SS7110740TP | SS7110740TP | |
| 31 | SS7110740TP | SS7110740TP | |
| 31 | SS7110740TP | SS7110740TP | |
| 59 | SS711120SP | SS711120SP | |
| 6 | SS7120770SH | SS7120770SH | |
| 56 | SS7121410TP | SS7121410TP | |
| 69 | SS7121410TP | SS7121410TP | |
| 46 | SS7121610SP | SS7121610SP | |
| 14 | SS7681650TP | SS7681650TP | |
| 41 | SS8090670SP | SS8090670SP | |
| 37 | SS8110410TP | SS8110410TP | |
| 25 | SS8110510SP | SS8110510SP | |
| 22 | SS8110520TP | SS8110520TP | |
| 42 | SS8150710TP | SS8150710TP | |
| 29 | SS8150710TP | SS8150710TP | |
| 1 | SS8151150TP | SS8151150TP | |
| 33 | SS8151550SP | SS8151550SP | |
| 24 | SS8660610TP | SS8660610TP | |
| 62 | SS8660610TP | SS8660610TP | |
| 22 | SS8660810TP | SS8660810TP | |
| 37 | SS8660810TP | SS8660810TP | |
| 16 | SS8681650TP | SS8681650TP | |
| 5 | TA0850604R0 | TA0850604R0 | |
| 1 | TA0850604R0 | TA0850604R0 | |
| 49 | TA1250406R0 | TA1250406R0 | |
| 6 | TA1250705R0 | TA1250705R0 | |
| 16 | TA2000502R0 | TA2000502R0 | |
| 19 | TA2101002R0 | TA2101002R0 | |
| 53 | WP0371016SD | WP0371016SD | |
| 34 | WP0371016SD | WP0371016SD | |
| 32 | WP0450801SD | WP0450801SD | |
| 31 | WP0450826SC | WP0450826SC | |
| 57 | WP0480856SP | WP0480856SP | |
| 10 | WP0501016SD | WP0501016SD | |
| 22 | WP0531001SC | WP0531001SC | |
| 32 | WP0621016SH | WP0621016SH | |
| 46 | WP0722316SH | WP0722316SH | |
| 46 | WP0722316SH | WP0722316SH | |
| 21 | WP1602616SZ | WP1602616SZ | |
| 15 | WP1612616SE | WP1612616SE | |
| 51 | WS0410002KR | WS0410002KR | |
| 29 | WS0451040KP | WS0451040KP | |
| 21 | WS0510002KN | WS0510002KN | |
| 27 | WS0651310KP | WS0651310KP | |
| 56 | WT0530002KS | WT0530002KS |
Juki DDL-8700-7 (52 pages) — parts catalog
- Page 1 (cover): This page is the cover for the parts list of the DDL-8700-7 model, published on May 7, 2018.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page illustrates the machine frame and miscellaneous cover components of an industrial sewing machine, with various parts labeled with reference numbers.
- Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, and quantities.
- Page 5 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components, with various parts labeled with reference numbers.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including screws, rubber plugs, slide plates, bed slide springs, screw studs, toothed washers, rubber plates, thread take-up lever covers, rubber bushings, throat plates, ruler stop seats, and GOST safety labels.
- Page 7 (diagram): This page illustrates the components of the main shaft and thread take-up lever, showing various parts with their corresponding reference numbers.
- Page 8 (parts_list): This page lists the components for the main shaft and thread take-up lever, including screws, bearings, shafts, and other related parts, with their respective part numbers, names, remarks, and quantities.
- Page 9 (diagram): This page illustrates the components of the main shaft and thread take-up lever, showing an exploded view of various parts with their corresponding reference numbers.
- Page 10 (parts_list): This page lists components for the main shaft and thread take-up lever, specifically detailing the feed drive eccentric cam.
- Page 11 (diagram): This page illustrates the components of the needle bar, upright shaft, and hook driving shaft, with various parts labeled with reference numbers.
- Page 12 (parts_list): This page lists components for the needle bar, upright shaft, and hook driving shaft, including part numbers, names, quantities, and remarks for items like screws, gears, and assemblies.
- Page 13 (diagram): This page displays a diagram of hand lifter components, illustrating various parts with reference numbers for identification.
- Page 14 (parts_list): This page lists components for the Hand Lifter, including part numbers, names, and quantities. It contains 45 items.
- Page 15 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts and their corresponding references.
- Page 16 (parts_list): This page lists components for the FEED MECHANISM, including part numbers, names, remarks, and quantities for models like DDL-8700-7.
- Page 17 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts indicated for identification.
- Page 18 (parts_list): This page lists components for the feed mechanism, including shafts, collars, screws, bushings, and levers, with part numbers, names, and quantities.
- Page 19 (diagram): This page contains a diagram illustrating the components of a thread trimmer, with reference numbers pointing to specific parts.
- Page 20 (parts_list): This page lists the components for the thread trimmer, including part numbers, names, and quantities. It details items such as knife units, screws, bases, springs, and arms.
- Page 21 (diagram): This page contains a diagram illustrating the components of a thread trimmer, with reference numbers pointing to various parts.
- Page 22 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities, with reference numbers from 48 to 61.
- Page 23 (diagram): This page contains a diagram illustrating the automatic reverse feed components of a sewing machine, with numbered references pointing to specific parts.
- Page 24 (parts_list): This page lists components for AUTOMATIC REVERSE FEED, including part numbers, names, and quantities. It details items like switches, screws, cords, and solenoids.
- Page 25 (diagram): This page displays a diagram of wiper components, with numbered parts indicated for identification.
- Page 26 (parts_list): This page lists wiper components with their part numbers, names, and quantities, including screws, nuts, links, and rubber parts.
- Page 27 (diagram): This page displays a diagram of oil lubrication components for an industrial sewing machine, with numbered parts indicated for reference.
- Page 28 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities. It includes items like oil sight windows, rubber rings, main shafts, screws, oil felts, and various pump components.
- Page 29 (diagram): This page displays a diagram of oil reservoir components, with numbered parts and their corresponding references.
- Page 30 (parts_list): This page lists components for the Oil Reservoir, including part numbers, names, and quantities. It details items like the oil reservoir assembly, gaskets, cushions, screws, nuts, springs, and various bracket and knee pad components.
- Page 31 (diagram): This page contains a diagram of belt cover and bobbin components, with numbered references for various parts.
- Page 32 (parts_list): This page lists belt cover and bobbin components, including part numbers, names, and quantities for various screws, washers, and assembled parts.
- Page 33 (diagram): Diagram of thread stand components with numbered parts.
- Page 34 (parts_list): This page lists components for the THREAD STAND ASM., including spool rest rods, arms, pins, guides, and various fasteners, with part numbers, names, and quantities.
- Page 35 (diagram): This page contains a diagram illustrating parts for the DDL-8700H-7 sewing machine, with reference numbers indicating component locations.
- Page 36 (parts_list): This page lists exclusive parts for the DDL-8700H-7 sewing machine, including part numbers, names, and quantities.
- Page 37 (diagram): This page contains a diagram illustrating parts for the DDL-8700H-7 sewing machine, with reference numbers indicating component locations.
- Page 38 (parts_list): This page lists exclusive parts for the DDL-8700H-7 sewing machine, including nuts, screws, needles, cams, guides, washers, and tension assemblies, with part numbers, names, and quantities.
- Page 39 (diagram): This page contains a diagram illustrating exclusive parts for the DDL-8700J-7 sewing machine, with various components numbered for reference.
- Page 40 (parts_list): This page lists exclusive parts for the DDL-8700J-7 sewing machine, including screws, knives, needles, and various assembly components with their part numbers and quantities.
- Page 41 (diagram): This page contains a diagram illustrating exclusive parts for the DDL-8700J-7 sewing machine, with various components numbered for reference.
- Page 42 (parts_list): This page lists exclusive parts for the DDL-8700J-7 sewing machine, including nuts, screws, thread guides, cams, and various assemblies, with part numbers, names, and quantities.
- Page 43 (diagram): This page displays a diagram of exclusive parts for the DDL-8700A-7 sewing machine, with numbered components.
- Page 44 (parts_list): This page lists exclusive parts for the DDL-8700A-7 sewing machine, including part numbers, names, and quantities.
- Page 45 (parts_list): This page contains a list of parts for a sewing machine, including part numbers, descriptions, and revision information. It also includes notes about obsolete and added parts.
- Page 46 (parts_list): This page contains a list of parts for industrial sewing machines, including revision number, page reference, reference number, and part number.
- Page 47 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including explanations for asterisks, #01 codes, quantity notations, and dotted lines.
- Page 48 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers from diagrams.
- Page 49 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers across multiple columns.
- Page 50 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers from diagrams.
- Page 51 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers from diagrams.
- Page 52 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, their corresponding page numbers, and reference numbers.
Page 2 — CONTENTS
CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 8 9 10 11 8 29 27 7 5 28 58 6 5 15 56 14 16 17 18 19 20 12 63 13 42 30 31 21 41 40 39 23 22 24 46 45 62 43 38 25 26 49 47 61 37 36 35 48 34 33 44 50 51 32 52 55 57 53 54 60 64 jintex.in
Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40102097 FACE PLATE ASM. 1 2 40012126 FACE PLATE PACKING 1 3 SS6080410SP SCREW 1/8-44 L=4 1 4 22900757 ARM OIL SHIFLD ASM. 1 5 TA0850604R0 RUBBER PLUG 2 6 TA1250705R0 RUBBER PLUG 1 7 22958300 THREAD GUIDE ROD 1 8 SS4120925SP SCREW 3/16-28 L=9 EXCEPT DDL-8700-7-00 8 9 22954705 CORD HOLDER 1 10 22900401 SIDE PLATE 1 11 40012129 SIDE PLATE PACKING 1 12 CM300200001 ATTENTION SEAL 1 13 CM301200001 SAFETY LABEL_S 1 14 22901805 GROUND MARK 1 15 SS4120615SP SCREW 3/16-28 L=6 1 16 TA2000002R0 RUBBER PLUG 1 17 SS6121840SP SCREW 3/16-28 L=18 FOR DDL-8700-7-0B,-WB 1 18 22952501 REVERSE FEED LEVER STOPPER FOR DDL-8700-7-0B,-WB 1 19 TA2101002R0 RUBBER PLUG 1 20 40111022 MAGNET CORD RUBBER FOR DDL-8700-7-0B,-WB 1 21 22945463 THREAD TENSION ASM. 1 22 22945414 THREAD TENSION POST * 1 23 22945604 THREAD TENSION GUIDE * 1 24 22945802 BOBBIN WINDER TENSION DISC * 2 25 22945505 THREAD TENSION SPRING * 1 26 22945703 THREAD TENSION NUT * 1 27 SS4120615SP SCREW 3/16-28 L=6 1 28 22900609 THREAD TAKE-UP LEVER COVER 1 29 SS4120615SP SCREW 3/16-28 L=6 1 30 22920508 ARM THREAD GUIDE A 1 31 22921001 SCREW 1 32 22945356 THREAD TENSION ASM. 1 33 22921308 TENSION NUT * 1 34 22921407 ROTATING STOPPER * 1 35 22921704 TENSION SPRING A * 1 36 22921803 THREAD TENSION DISK PRESSER * 1 37 22921506 THREAD TENSION DISK * 2 38 22921209 TENSION POST * 1 39 22921605 TAKE-UP SPRING * 1 40 22945307 TENSION POST SOCKET * 1 41 SS8090670SP SCREW 9/64-40 L=5.5 * 1 42 SS8150710TP SCREW 15/64-28 L=7 1 43 B3118552E00 TENSION RELEASING 1 44 B1109012I0B THROAT PLATE (I) FOR JE 1 45 SS2110920TP SCREW 11/64-40 L=8.5 1 46 SS2110915SP SCREW 11/64-40 L=8.5 1 47 22920607 ARM THREAD GUIDE B 1 jintex.in
Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 jintax.in
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SS6110610TP SCREW 11/64-40 L=6 1 49 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 50 SS4120925SP SCREW 3/16-28 L=9 3 51 22901250 SLIDE PLATE ASM. 1 52 22901201 SLIDE PLATE * 1 53 22901300 BED SLIDE SPRING * 1 54 SS6060210SP SCREW 3/32-56 L=1.9 * 2 55 22901003 BED SCREW STUD 4 56 WT0530002KS TOOTHED WASHER D=5.3 1 57 22935407 RUBBER PLATE 1 58 11415205 THREAD TAKE-UP LEVER COVER(JE) FOR JE 1 59 11030202 RUBBER BUSHING FOR DDL-8700-7-00 1 60 B1109552000 THROAT PLATE EXCEPT USE IN JAPAN,JE 1 61 40099083 RULER STOP SEAT 1 62 SS7110720SP SCREW 11/64-40 L=7 1 63 40116677 GOST_SAFTY LABEL_S FOR JE 1 64 11028008 THROAT PLATE 1 jintex.in
Page 7 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS 29 1 4 2 21 20 6~9 5 11 46 6~9 42 12 10 47 48 19 23 27 30 31 13 25 24 22 37 16 15 32 36 38 17 45 18 33 14 34 35 39 28 43 44 26 41 3 40 jintex.in
Page 8 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SS8151150TP SCREW 15/64-28 L=10.5 1 2 22919559 THREAD TAKE-UP CRANK SHAFT ASM. 1 3 11002904 ROLLER FELT 1 4 22918072 THREAD TAKE-UP LEVER COMPL. 1 5 22918064 THREAD TAKE-UP LEVER ASM. * 1 6 22918403 NEEDLE BEARING A SELECTIVE PARTS(A~D) * 2 7 22918502 NEEDLE BEARING B SELECTIVE PARTS(A~D) * 2 8 22918601 NEEDLE BEARING C SELECTIVE PARTS(A~D) * 2 9 22918700 NEEDLE BEARING D SELECTIVE PARTS(A~D) * 2 10 22918106 NEEDLE BAR CRANK * 1 11 22906606 NEEDLE BAR CRANK ROD * 1 12 22918304 LEFT SCREW * 1 13 40106606 COUNTER_WEIGHT_ASM. 1 14 SS7681650TP SCREW 9/32-28 L=16 * 1 15 22903108 COUNTER WEIGHT * 1 16 SS8681650TP SCREW 9/32-28 L=16 * 1 17 SS8660610TP SCREW 1/4-40 L=6 * 2 18 RO044240100 RUBBER RING * 1 19 SS4090615SP SCREW 9/64-40 L=6 * 2 20 11002409 MAIN SHAFT BUSHING REAR 1 21 40105231 OIL SEAL 1 22 RC1850001KP SNAP RING 18.5 1 23 22904155 THRUST COLLAR ASM. 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 22903207 MAIN SHAFT FRONT BUSHING 1 26 B1215552000 OIL ADJUSTING COLLAR 1 27 22903306 BUSHING INTERMEDIATE 1 28 EA9500B0100 CABLE BAND 1 29 22919203 RUBBER 1 30 22937064 HAND WHEEL COMPL. 1 31 40017623 HAND WHEEL ASM. FOR SH 1 32 WP0450801SD WASHER 4.5X10X0.8 1 33 SS8151550SP SCREW 15/64-28 L=15 * 2 34 22937056 HAND WHEEL ASM. * 2 35 22937155 MAGNET FITTING BASE A ASM. * 1 36 22937254 MAGNET FITTING BASE B ASM. * 1 37 SS6111210SP SCREW 11/64-40 L=12 * 2 38 40017625 MAGNET FITTING BASE B ASM. FOR SH * 1 39 40017624 MAGNET FITTING BASE A ASM. FOR SH * 1 40 22903900 OIL AMOUNT ADJUSTING PIN 1 41 RO029180100 RUBBER RING 1 42 22910103 THRUST COLLAR 1 43 22937865 DYNAMO STATOR 1 44 22903009 MAIN SHAFT 1 45 SL4051001MZ SCREW M5 L=9.6 2 46 22910053 FEED DRIVE ECCENTRIC CAM ASM. 1 47 SS6661110SP SCREW 1/4-40 L=11 * 2 jintex.in
Page 9 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS 1 2 6~9 12 11 10 13 16 15 18 14 28 41 40 17 25 3 26 29 4 5 27 23 24 45 46 47 48 43 44 22 36 38 35 39 34 42 20 19 30 31 32 37 33 jintex.in
Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 22910004 FEED DRIVE ECCENTRIC CAM * 1 jintex.in
Page 11 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 1 2 3 12 4 5 6 7 18 8 9 10 11 28 15 14 17 16 20 19 21 22 23 26 25 27 29 31 35 30 13 36 38 39 37 40 43 41 24 34 42 jintex.in
Page 12 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 TA0850604R0 RUBBER PLUG 1 2 22906101 NEEDLE BAR BUSHING UPPER 1 3 22939508 NEEDLE BAR 1 4 22906457 NEEDLE ROD HOLDER ASM. 1 5 SS6090670TP SCREW 9/64-40 L=6 * 1 6 40090002 SLIDE BLOCK 1 7 40012444 NEEDLE BAR THREAD GUIDE 1 8 22906200 NEEDLE BAR BUSHING LOWER 1 9 SS7080510TP SCREW 1/8-44 L=4.5 1 10 22906309 NEEDLE BAR THREAD GUIDE 1 11 MDB100B1400 NEEDLE DBX1 #14 1 12 22939607 NEEDLE BAR B FOR JE 1 13 SS4120925SP SCREW 3/16-28 L=9 1 14 40090002 UPPER LARGE BEVEL GEAR ASM. 1 15 SS8660810TP SCREW 1/4-40 L=8 * 2 16 40090003 UPPER SMALL BEVEL GEAR ASM. 1 17 SS8660810TP SCREW 1/4-40 L=8 * 2 18 40012444 NEEDLE BAR THREAD GUIDE FOR SH 1 19 40090004 LOWER LARGE BEVEL GEAR ASM. 1 20 SS8660810TP SCREW 1/4-40 L=8 * 2 21 40090005 LOWER SMALL BEVEL GEAR ASM. 1 22 SS8660810TP SCREW 1/4-40 L=8 * 2 23 22905004 UPRIGHT SHAFT 1 24 11141355 HOOK ASM. FOR JE 1 25 22905103 UPRIGHT SHAFT BUSHING LOWER 1 26 22905202 UPRIGHT SHAFT BUSHING LOWER 1 27 22916308 BUSHING REAR 1 28 MC200500900 NEEDLE 134 90 FOR JE 1 29 22917157 THRUST COLLAR ASM. 1 30 SS6110420TP SCREW 11/64-40 L=4.8 * 2 31 22916001 LOWER SHAFT 1 32 22942502 BOBBIN CASE HOLDER 1 33 SS4110915TP SCREW 11/64-40 L=9 1 34 11038650 HOOK ASM. EXCEPT JE 1 35 22916100 LOWER SHAFT FRONT METAL 1 36 40101694 THRUST_COLLAR_ASM_FRONT 1 37 SS8110410TP SCREW 11/64-40 L=3.5 * 2 38 22916555 OIL SEAL SCREW ASM. 1 39 11015906 OIL WICK * 1 40 22916506 OIL SEAL SCREW * 1 41 22932909 BOBBIN 1 42 11038759 BOBBIN CASE ASM. 1 43 22942601 OIL SHIELD 1 - 10 -
Page 13 — HAND LIFTER COMPONENTS
HAND LIFTER COMPONENTS jintex.in
Page 14 — HAND LIFTER COMPONENTS
HAND LIFTER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22907802 HAND LIFTER 1 2 B1521555000 SCREW 1 3 RO037180100 RUBBER RING 1 4 22908552 HAND LIFTER CAM ASM. 1 5 40060989 PRESSER BAR BUSHING LOWER 1 6 SS7091110TP SCREW 9/64-40 L=10.5 1 7 22908701 LINK SHAFT 2 8 RE0500000K0 E-RING 3 9 B15240120BA PRESSER FOOT ASM. 1 10 22944706 WIRE HOLDER BRACKET LOWER 1 11 22908909 HINGE SCREW 1 12 SD0720331SP HINGE SCREW D=7.24 H=3.3 1 13 22909006 KNEE LIFTER CONNECTING ROD 1 14 22908800 LIFTING LEVER LINK 1 15 SS4110515SP SCREW 11/64-40 L=5 1 16 SS4110515SP SCREW 11/64-40 L=5 1 17 SS4150915SP SCREW 15/64-28 L=9 FOR DDL-8700-7-00 1 18 22944508 WIRE HOLDER A 2 19 SS4120615SP SCREW 3/16-28 L=6 1 20 22944607 WIRE HOLDER BRACKET UPPER 1 21 NS6620310SP NUT 3/16-32 2 22 RE0500000K0 E-RING 2 23 22920201 TENSION RELEASE RETURN SPRING 1 24 22920409 THREAD RELEASE PIN SPRING 1 25 22945109 WIRE CABLE HOLDER 1 26 22920300 TENSION RELEASE SUPPORTING PIN 1 27 SS4120615SP SCREW 3/16-28 L=6 1 28 22944854 THREAD RELEASE WIRE ASM. 1 29 22920102 TENSION RELEASE SHAFT 1 30 22907554 PRESSER SPRING REG NUT ASM. 1 31 22907604 PRESSER ADJUSTING SCREW NUT * 1 32 22907505 PRESSER SPRING REGULATOR * 1 33 22907406 PRESSER ADJUSTING SPRING 1 34 22907208 PRESSER BAR GUIDE BRACKET 1 35 40017805 PRESSER BAR 1 36 22907307 PRESSER BAR THREAD GUIDE 1 37 SS8660810TP SCREW 1/4-40 L=8 1 38 SS6090910SP SCREW 9/64-40 L=9 2 39 22908354 KNEE LIFTING CROSS ROD ASM. 1 40 22908156 HAND LIFTER LINK * 1 41 RE0500000K0 E-RING * 1 42 22908008 LIFTING LEVER * 1 43 RE0500000K0 E-RING * 1 44 22908305 KNEE LIFTING CROSS ROD * 1 45 22907703 PRESSER GUIDE BAR 1 - 12 -
Page 15 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS 1 2 3 4 5.68 6 7 8 9 10 11 12.52 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33.70 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 67 69 jintex.in
Page 16 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22941108 FEED ADJUST ROD FOR DDL-8700-7-0B,-WB 1 2 22911507 FEED REGULATOR PIN 1 3 SS6090670TP SCREW 9/64-40 L=6 2 4 22911606 FEED REGULATOR 1 5 22911705 FEED REGULATOR BUSHING FOR DDL-8700-7-00 1 6 SS7120770SH SCREW 3/16-28 L=7 1 7 22911804 FEED REGULATOR SCREW 1 8 22912109 SPRING 1 9 22912000 FEED ADJUST PIN 1 10 22940506 FEED DIAL 1 11 SS6121860SP SCREW 3/16-28 L=18 1 12 22910202 ROCKER SHAFT CONNECTING ROD 1 13 22911101 WALKING FOOT PIN C 1 14 SS6090620TP SCREW 1 15 22915003 CONNECTING ROD 1 16 RO092270200 RUBBER RING 1 17 11010311 FEED REVERSE SPRING 1 18 RE0500000K0 E-RING 1 19 22912257 FEED REVERSE ARM ASM. 1 20 22912505 SCREW 1 21 RE0500000K0 E-RING 1 22 11037405 SPRING 1 23 22911408 FEED REGULATOR CONNCTING ROD FOR DDL-8700-7-00 1 24 22910905 WALKING FOOT PIN A 2 25 40089548 CONNECTING LINK B 2 26 40093417 CONNECTING LINK A 2 27 22940951 FEED ADJUST LINK ASM. FOR DDL-8700-7-0B,-WB 1 28 22910806 ADJUSTING LINK FULCRUM SHAFT A 2 29 SS8150710TP SCREW 15/64-28 L=7 2 30 SS6090620TP SCREW 2 31 40101462 FEED BASE SHAFT 1 32 RC0150001KP RETAINING RING 13.8 1 33 B1613012I00 FEED DOG I EXCEPT USE IN JAPAN 1 34 SS4080620TP SCREW 1/8-44 L=6 2 35 22940753 FEED BAR ASM. 1 36 22941306 ADJUSTING LINK SPRING GUIDE 1 37 SS4110515SP SCREW 11/64-40 L=5 2 38 22913701 FEED SPRING HOOK 1 39 22912901 FEED ROCKER SHAFT 1 40 22911002 WALKING FOOT PIN B 1 41 SS6090620TP SCREW 1 42 NS6680410SP NUT 9/32-28 1 43 40110379 ASSY_FEED_ROCKER_ARM 1 44 SS6121610SP SCREW 3/16-28 L=15.5 * 1 45 40109422 FEED_ARM_ASM 1 46 SS7121610SP SCREW 3/16-28 L=15.5 * 1 47 SD1000801SH HINGE SCREW D=10 H=8 1 - 14 -
Page 17 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS 5.68 12.52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33.70 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 67 69 jintex.in
Page 18 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 22915201 FEED DRIVING SHAFT 1 49 22904155 THRUST COLLAR ASM. 1 50 SS8660610TP SCREW 1/4-40 L=6 * 2 51 22913008 FEED ROCKER SHAFT BUSHING 2 52 22913800 HORIZONTAL FEED ROD B FOR JE,JA 1 53 SS7110740TP SCREW 11/64-40 L=7 1 54 RC0150001KP RETAINING RING 13.8 1 55 22940654 FEED BAR CRANK ASM. 1 56 SS7121410TP SCREW 3/16-28 L=14 * 1 57 WP0480856SP WASHER 4.8X8.4X0.8 * 1 58 22915359 DRIVING SHAFT CRANK ASM. 1 59 SS7111120SP SCREW 11/64-40 L=10.5 * 1 60 22910459 WALKING FOOT ADJUSTING LINK FOR DDL-8700-7-00 1 61 22904155 THRUST COLLAR ASM. 1 62 SS8660610TP SCREW 1/4-40 L=6 * 2 63 RO078190100 RUBBER RING 1 64 40100812 FEED LEVER SHAFT 1 65 22912802 FEED LEVER METAL 1 66 40102264 FEED_REVER_ASM. 1 67 SM8061010TP SCREW * 2 68 11009800 FEED REGULATOR BUSHING FOR DDL-8700-7-0B,-WB 1 69 22914105 BEARING C SELECTIVE PARTS(FOR JE,JA) 1 70 B1613012A00 FEED DOG A FOR USE IN JAPAN 1 - 16 -
Page 19 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS 23 1 24 2 3 21 25 9 19 22 10 28 47 4 8 26 5 7 29 20 6 31 30 32 33 34 12 35 36 13 37 14 39 39 60 42 38 40 41 15 43 16 32 33 45 44 27 17 18 48 49 50 52 59 51 53 56 55 11 57 61 46 54 58 61 - 17 -
Page 20 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 11040359 KNIFE UNIT 1 2 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 3 11040508 FORKED BASE FOR KNIFE * 1 4 11040409 MOVING KNIFE HINGE SCREW * 1 5 11040052 MOVING KNIFE ASM. * 1 6 11040300 KNIFE MOUNTING BASE * 1 7 11313103 THREAD GUIDE FOR KNIFE * 1 8 SS2060210SP SCREW 3/32-56 L=2.3 * 1 9 SS4080620TP SCREW 1/8-44 L=6 * 2 10 D2406555D0H COUNTER KNIFE * 1 11 HK034610140 HOUSING 14P 1 12 SS4110715SP SCREW 11/64-40 L=7 1 13 22950257 PICKER ARM ASM. 1 14 22950208 PICKER ARM * 1 15 22950356 THREAD TAKE-UP PICKER ASM. * 1 16 SS6090510TP SCREW 9/64-40 L=5.0 * 2 17 SD0641451SP HINGE SCREW D=6.35 H=14.5 1 18 SD0630275SP HINGE SCREW D=6.35 H=2.7 1 19 22950851 THREAD TRIMMER CAM ASM. 1 20 SS6660610TP SCREW 1/4-40 L=6 * 2 21 22950950 CAM COLLAR ASM. 1 22 SS8110520TP SCREW 11/64-40 L=4.5 * 1 23 22949762 THREAD TRIMMER DRIVING UNIT 1 24 22949754 BASE PLATE ASM. * 1 25 22950703 DRIVING ARM STOPPE * 1 26 22950000 PICKER LINK PIN * 1 27 RE0600000K0 E-RING 6 * 1 28 SS4110715SP SCREW 11/64-40 L=7 * 2 29 22949408 CLUTCH SPRING * 1 30 40087245 CLUTCH PLATE ASM. * 1 31 22950109 PICKER LINK * 1 32 WP0621016SH WASHER * 2 33 NS6150430SP NUT 15/64-28 * 2 34 RE0600000K0 E-RING 6 * 1 35 22948301 MOVING KNIFE LINK * 1 36 RE0500000K0 E-RING * 1 37 22948400 MOVING KNIFE LINK PIN * 1 38 22949309 KNIFE RETURN SPRING B * 1 39 RE0400000K0 E-RING 4 * 2 40 22949101 ROLLER FULCRUM SHAFT * 1 41 22949200 ROLLER FULCRUM SPRING * 1 42 SS7090610SP SCREW 9/64-40 L=6 * 1 43 22949002 ROLLER ARM BRACKET * 1 44 11040953 ROLLER ARM ASM. * 1 45 11040854 KNIFE DRIVING ARM ASM. * 1 46 SD0600361SP HINGE SCREW D=6 H=3.6 1 47 SS4150915SP SCREW 15/64-28 L=9 2 - 18 -
Page 21 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS 23 1 24 2 3 21 25 9 19 22 10 28 47 4 8 26 5 7 29 20 6 31 30 32 33 34 12 35 36 13 37 14 39 39 60 42 38 40 41 15 43 16 32 33 45 44 27 17 18 48 49 50 52 59 51 53 56 55 11 57 61 46 54 58 61 - 19 -
Page 22 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 22951164 SOLENOID UNIT 1 49 40106930 THREAD TRIMMER SOLENOID ASM. * 1 50 22951404 SOLENOID BASE * 1 51 WS0410002KR SPRING WASHER M4 * 2 52 NM6040001SE NUT M4 * 2 53 40106931 THREAD TRIMMER SOLENOID * 1 54 SS6110710TP SCREW 11/64-40 L=6.5 * 1 55 22949903 CLUTCH LINK * 1 56 RE0500000K0 E-RING * 1 57 22951008 SOLENOID PIN * 1 58 22924807 TUBE HOLDER LOWER 1 59 22951552 GROUND WIRE ASM. 1 60 SD0640631TP HINGE SCREW D=6.35 H=6.3 1 61 SS4151215SP SCREW 15/64-28 L=12 2 - 20 -
Page 23 — AUTOMATIC REVERSE FEED COMPONENTS
AUTOMATIC REVERSE FEED COMPONENTS 1 2 3 7 6 14 4 5 14 15 17 16 18 19 8 28 29 9 20 21 22 12 11 10 25 27･30 13 23 24 26 - 21 -
Page 24 — AUTOMATIC REVERSE FEED COMPONENTS
AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22954150 REVERSE FEED SWITCH ASM. 1 2 22954606 REVERSE FEED SWITCH COVER * 1 3 SM4040655SP SCREW M4 L=6 * 1 4 22954101 REVERSE FEED SWITCH BASE * 1 5 22954200 REVERSE FEED SWITCH SHAFT * 1 6 22954309 REVERSE FEED SWITCH SPRING * 1 7 SM4041655SP SCREW M4 L=16 * 1 8 SM4031501SC SCREW M3 L=15 * 2 9 HW500070000 2-CORE CABTYRE CORD * 1.31 10 HK03464000B PIN CONTACT * 2 11 HA001900000 MICROSWITCH * 1 12 22954408 SWITCH HOLDING PLATE * 1 13 22954507 REVERSE FEED SWITCH LEVER * 1 14 RE0500000KP E-RING 5 2 15 22953806 REVERSE FEED CONNECTING SHAFT 1 16 RE0900000K0 E-RING 9 1 17 22953657 CONNECTING ARM ASM. 1 18 RE0400000KP E-RING 4 1 19 22953905 REVERSE FEED CONNECTING LINK 1 20 RE1200000K0 E-RING 12 1 21 WP1602616SZ WASHER 16X24X2.6 1 22 D2468555B00 RUBBER PLUNGER 1 23 RE0400000KP E-RING 4 2 24 22953509 PLUNGER ARM PIN 1 25 40085585 REVERSE FEED SOLENOID ASM. 1 26 SS4151215SP SCREW 15/64-28 L=12 2 27 SS4120915SP SCREW 3/16-28 L=9 1 28 22954002 PLUNGER SPRING 1 29 HK03464000B PIN CONTACT 2 30 SS4120615SP SCREW 3/16-28 L=6 FOR DDL-8700-7-0B 1 - 22 -
Page 25 — WIPER COMPONENTS
WIPER COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 jintex.in
Page 26 — WIPER COMPONENTS
WIPER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22955553 WIPER ASM. 1 2 22955504 WIPER COVER * 1 3 SL4030631SC SCREW M3X6 * 1 4 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 5 NS6090310SP NUT 9/64-40 * 1 6 22956106 WIPER LINK A * 1 7 22956403 WIPER LINK B * 1 8 RE0250000K0 E-RING 2.5 * 1 9 22956908 WIPER LINK B HINGE SCREW * 1 10 22956205 WIPER HINGE SCREW COLLAR * 1 11 22956304 WIPER SPRING * 1 12 NS6110310SP NUT 11/64-40 * 1 13 22955900 WIPER RUBBER A * 1 14 22956007 WIPER RUBBER B * 1 15 40106936 WIPER SOLENOID ASM. * 1 16 22957104 WIPER SOLENOID SHAFT * 1 17 HA00600000A SWITCH * 1 18 RE0500000K0 E-RING * 1 19 40041419 WIPER LINK C ASM. * 1 20 11110152 WIPER BASE ASM. * 1 21 22957203 WIPER LINK COLLAR * 1 22 SL4030641SE SCREW * 3 23 22956809 WIPER COLLAR * 1 24 22957005 WIPER * 1 25 SS6090540SP SCREW 9/64-40 L=5.0 * 1 26 SS4120915SP SCREW 3/16-28 L=9 2 - 24 -
Page 27 — OIL LUBRICATION COMPONENTS
OIL LUBRICATION COMPONENTS jintex.in
Page 28 — OIL LUBRICATION COMPONENTS
OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22924708 OIL SIGHT WINDOW 1 2 RO195240100 RUBBER RING 1 3 22924401 MAIN SHAFT OIL TUBE 1 4 SS4120615SP SCREW 3/16-28 L=6 1 5 22925101 OIL FELT PRESSER 1 6 22924153 OIL RETURN TUBE ASM. 1 7 22924302 HOLDER * 1 8 CQ252000000 OIL WICK 0.3 9 22925002 OIL ADJUSTING SCREW 1 10 22924906 SPRING 1 11 22924500 OIL TUBE 1 12 22923056 LUBRICATING OIL PUMP ASM. 1 13 22923312 OIL PUMP INSTALLING BASE * 1 14 22923015 OIL PUMP * 1 15 22923700 OIL PUMP IMPELLER * 1 16 SE4301041SR SCREW D=3 L=10 * 3 17 22923205 LUBRICATING OIL PUMP COVER * 1 18 22923809 OIL PUMP IMPELLER COVER * 1 19 22923403 PLUNGER * 1 20 22923601 PLUNGER SPRING * 1 21 22923502 PLUNGER SCREW * 1 22 22923908 Hook DRIVING SHAFT OIL TUBE * 1 23 SL403085TSF SCREW M3 L=8 * 3 24 SS4150915SP SCREW 15/64-28 L=9 1 25 SS6111010TP SCREW 11/64-40 L=9.5 1 26 22947105 OIL PUMP SUPPORT FOR DDL-8700-7-0B,-WB 1 27 WS0651310KP SPRING WASHER 6.5X11X1.3 FOR DDL-8700-7-0B,-WB 1 28 22924609 RUBBER JOINT 1 29 WS0451040KP SPRING WASHER 4.5X8.5X1 FOR DDL-8700-7-0B,-WB 1 30 22924005 OIL PUMP SUPPORT FOR DDL-8700-7-00 1
Page 29 — OIL RESERVOIR COMPONENTS
OIL RESERVOIR COMPONENTS JUKI HIGH LOW jintex.in
Page 30 — OIL RESERVOIR COMPONENTS
OIL RESERVOIR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22931851 OIL RESERVOIR ASM. 1 2 22931802 OIL RESERVOIR * 1 3 22931901 OIL RESERVOIR GASKET * 1 4 22932008 RUBBER CUSHION * 4 5 SS6700710SH SCREW 5/16-24 L=7 * 1 6 RO098240100 RUBBER RING * 1 7 22932156 KNEE LIFTER ROTATION ARM ASM. * 1 8 22932107 KNEE LIFTING ROTATING ARM * 1 9 NM6060001SE NUT M6 * 2 10 SM8063012TR SCREW M6 L=30 * 2 11 22932206 SPRING * 1 12 RE1000000K0 E-RING 10 * 1 13 22932453 BRACKET ASM. * 1 14 22932404 VERTICAL SHAFT FITTING ARM * 1 15 22934707 SCREW * 2 16 40101720 SCREW_M6 * 1 17 22932305 KNEE PRESS CROSS SHAFT * 1 18 NM6060001SE NUT M6 * 1 19 22934251 KNEE PAD PLATE ASM. 1 20 22934608 KNEE PAD UPRIGHT SHAFT * 1 21 22934400 KNEE PAD PLATE RUBBER * 1 22 22934202 KNEE PAD PLATE * 1 23 22934301 KNEE PAD PLATE SUPPORT * 1 24 SM9061203SE SCREW M6 L=12 * 1 25 22934509 KNEE PAD PLATE COVER * 1 26 B8228125000 OIL RESERVOIR MAGNET 1 27 22931703 KNEE LIFTER PUSH ROD 1 - 28 -
Page 31 — BELT COVER & BOBBIN COMPONENTS
BELT COVER & BOBBIN COMPONENTS 1 8 13 3 2 9 10 18 17 11 16 12 26 8 14 4 6 15 29 24 25 22 5 28 23 7 30 31 19 20 21 27 - 29 -
Page 32 — BELT COVER & BOBBIN COMPONENTS
BELT COVER & BOBBIN COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22933451 BELT COVER ASM. 1 2 22933402 BELT COVER A * 1 3 22933501 BELT COVER A CAP * 1 4 22933659 BELT COVER B COMPL. * 1 5 22933600 BELT COVER B * 1 6 22933758 BELT COVER B CAP ASM. * 1 7 22933907 BELT COVER SUPPORT * 1 8 22934004 BELT COVER A SCREW * 2 9 SS4121415SP SCREW 3/16-28 L=14 * 1 10 WP0501016SD WASHER 5X10.5X1 * 1 11 SK3412000SC WOOD SCREW D=4.1 L=20 * 2 12 WP0450826SC WASHER 4.5X10X0.8 * 2 13 22927354 BOBBIN WINDER CONPL. 1 14 22928501 THREAD TENSION BRACKET * 1 15 SS4110515SP SCREW 11/64-40 L=5 * 1 16 22928907 THREAD TENSION DISK * 2 17 22929004 THREAD TENSION SPRING * 1 18 22928808 THREAD TENSION NUT * 1 19 SS7110350SP SCREW 11/64-40 L=3.5 * 1 20 22928402 RUBBER BRAKE PRESSER PLATE * 1 21 22928303 RUBBER BRAKE * 1 22 22928105 POSITIONING FINGER * 1 23 SD0490261SP HINGE SCREW D=4.9 H=2.6 * 1 24 SS7081310SP SCREW 1/8-44 L=12.5 * 1 25 SS8110510SP SCREW 11/64-40 L=5 * 1 26 22928709 THREAD TENSION BRACKET * 1 27 22927305 BOBBIN BASE * 1 28 22927404 BOBBIN PULLEY * 1 29 22927602 BOBBIN WINDER POST * 1 30 SK3412000SC WOOD SCREW D=4.1 L=20 2 31 WP0450826SC WASHER 4.5X10X0.8 2 - 30 -
Page 33 — THREAD STAND COMPONENTS
THREAD STAND COMPONENTS 1 19 11 9 5 9 18 8 13 8 3 12 7 10 17 7 23 4 6 18 6 22 2 22 21 21 20 20 15 16 16 15 14 - 31 -
Page 34 — THREAD STAND COMPONENTS
THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40096354 THREAD STAND ASM. 1 2 40085784 SPOOL REST ROD LOWER * 1 3 40085785 SPOOL REST ROD UPPER * 1 4 40085786 SPOOL REST ARM LOWER * 1 5 40085787 SPOOL REST ARM UPPER * 1 6 40085788 SPOOL REST * 2 7 40085789 SPOOL REST CUSHION * 2 8 40085790 SPOOL PIN * 2 9 40085791 SPOOL RETAINER * 2 10 40085792 SPOOL REST ROD JOINT * 1 11 40085793 SPOOL REST ROD RUBBER CAP * 1 12 40085794 THREAD GUIDE * 2 13 40085795 THREAD GUIDE BUSHING * 2 14 40096325 SPOOL REST ROD NUT * 1 15 WP1612616SE WASHER 16X30X2.6 * 2 16 40085796 SPOOL REST ROD RUBBER CUSHION * 2 17 40096326 SPOOL REST ARM LOWER SCREW * 1 18 NM6050001SE NUT M5 * 2 19 40096327 SPOOL REST ARM UPPER SCREW * 1 20 NM6050001SE NUT M5 * 2 21 WS0510002KN SPRING WASHER M5 * 2 22 WP0531001SC WASHER M5 * 2 23 SM4051405SE SCREW M5 L=14 * 2 24 NM6050001SE NUT M5 * 2 - 32 -
Page 35 — EXCLUSIVE PARTS FOR DDL-8700H-7
EXCLUSIVE PARTS FOR DDL-8700H-7 2 19 10 7 8 12 32 3 58 5 11 6 9 20 33 4 59 56 14 35 28 15 16 36 25 17 18 24 60 23 1 29 27 57 22 21 31 26 50 30 39 38 34 13 37 51 44 43 45 46 48 52 53 47 54 41 42 55 49 40 - 33 -
Page 36 — EXCLUSIVE PARTS FOR DDL-8700H-7
EXCLUSIVE PARTS FOR DDL-8700H-7 No. Parts No. Parts name Remarks Level Cons Qty 1 11094901 SOLENOID BASE 1 2 11095551 KNIFE UNIT 1 3 11409257 MOVING KNIFE J ASM. * 1 4 11095502 KNIFE MOUNT BASE * 1 5 40089755 FIX KNIFE * 1 6 11095403 KNIFE THREAD GUIDE * 1 7 11095601 KNIFE BRANCH * 1 8 SD0500131TP HINGE SCREW D=5 H=1.25 * 1 9 D2404555B00 COUNTER KNIFE SPACER * 1 10 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 11 SS2060210SP SCREW 3/32-56 L=2.3 * 1 12 SS4080620TP SCREW 1/8-44 L=6 * 2 13 40010395 ADJUSTING LINK FULCRUM SHAFT B FOR DDL-8700H-7-0B,-WB 1 14 11400801 THROAT PLATE J 1 15 B1213552000A OIL ADJUSTING PIN 1 16 SS6080320SP SCREW 1/8-44 L=2.5 1 17 11095254 LEVER STOPPER ASM. FOR DDL-8700H-7-0B,-WB 1 18 SS1120710SP SCREW 3/16-28 L=6.5 FOR DDL-8700H-7-0B,-WB 1 19 11091659 LINK THREAD TAKE-UP LEVER ASM. 1 20 11091600 NEEDLE BAR CRANK H * 1 21 MDB100B2100 NEEDLE DBX1 #21 1 22 B1418415H00 NEEDLE BAR THREAD GUIDE 1 23 22970313 NEEDLE BAR BUSHING LOWER 1 24 40023223 NEEDLE BAR THREAD GUIDE 1 25 22970206 NEEDLE BAR 1 26 11092251 LUBRICATING HOOK ASM. 1 27 11093804 POSITIONING FINGER H 1 28 B1505552000A PRESSER SPRING 1 29 D1524555EBL PRESSER FOOT ASM. 1 30 22962807 WIRE PRESSER PLATE (LOWER) B FOR DDL-8700H-7-0B,-WB 1 31 SS7110740TP SCREW 11/64-40 L=7 FOR DDL-8700H-7-0B,-WB 1 32 22963458 THREAD TENSION ASM. 1 33 22963409 THREAD TENSION SPRING * 1 34 40080725 ADJUSTING LINK SPRING 1 35 22970602 FEED SPRING HOOK 1 36 11403003 FEED J 1 37 11096658 SOLENOID MOUNTING BASE ASM. FOR DDL-8700H-7-0B,-WB 1 38 11231503 OIL PUMP SUPPORT FOR DDL-8700H-7-0B,-WB 1 39 22962609 REVERSE FEED BASE COLLAR FOR DDL-8700H-7-0B,-WB 1 40 22962906 PLUNGER ARM PIN FOR DDL-8700H-7-0B,-WB 1 41 NS6110420SP NUT 11/64-40 FOR DDL-8700H-7-0B,-WB 2 42 22962708 TUBE HOLDER LOWER FOR DDL-8700H-7-0B,-WB 1 43 11094109 OIL TUBE 1 44 SD0700711TP HINGE SCREW D=7 H=7.1 FOR DDL-8700H-7-0B,-WB 1 45 22962500 SOLENOID CONNECTING LINK H FOR DDL-8700H-7-0B,-WB 1 46 WP0722316SH WASHER FOR DDL-8700H-7-0B,-WB 1 47 11101508 REVERSE FEED LINK FOR DDL-8700H-7-0B,-WB 1 - 34 -
Page 37 — EXCLUSIVE PARTS FOR DDL-8700H-7
EXCLUSIVE PARTS FOR DDL-8700H-7 2 19 10 7 8 12 32 3 58 5 11 6 9 20 33 4 59 56 14 35 28 15 16 36 25 17 18 24 60 23 1 29 27 57 22 21 31 26 50 30 39 38 34 13 37 51 44 43 45 46 48 52 53 47 54 41 42 55 49 40 - 35 -
Page 38 — EXCLUSIVE PARTS FOR DDL-8700H-7
EXCLUSIVE PARTS FOR DDL-8700H-7 No. Parts No. Parts name Remarks Level Cons Qty 48 NS6110420SP NUT 11/64-40 FOR DDL-8700H-7-0B,-WB 1 49 SD0700451TP HINGE SCREW D=7 H=4.5 FOR DDL-8700H-7-0B,-WB 1 50 MC200501300 NEEDLE 134 NM130 FOR JE 1 51 22962351 FEED DRIVE ECCENTRIC CAM ASM. 1 52 11403805 THREAD GUIDE C FITTING PLATE 1 53 WP0371016SD WASHER 3.7X8X1 1 54 NS6090310SP NUT 9/64-40 1 55 22972608 ARM THREAD GUIDE C 1 56 11094604 CLUTCH LINK 1 57 11096500 THREAD TRIMMER SOLENOID 1 58 22962054 THREAD TENSION ASM. 1 59 22962005 THREAD TENSION SPRING * 1 60 40101726 FEED_DIAL 1 - 36 -
Page 39 — EXCLUSIVE PARTS FOR DDL-8700J-7
EXCLUSIVE PARTS FOR DDL-8700J-7 2 14 13 29 31 10 30 15 7 8 12 3 5 16 11 17 18 33 6 35 4 9 25 19 28 38 26 23 36 20 27 50 22 34 54 21 55 37 39 41 40 44 24 42 45 43 46 48 73 66 47 65 74 49 56 1 32 51 53 52 57 64 67 70 68 60 62 71 58 69 61 59 63 72 - 37 -
Page 40 — EXCLUSIVE PARTS FOR DDL-8700J-7
EXCLUSIVE PARTS FOR DDL-8700J-7 No. Parts No. Parts name Remarks Level Cons Qty 1 40031249 HINGE SCREW 1 2 11095551 KNIFE UNIT 1 3 11409257 MOVING KNIFE J ASM. * 1 4 11095502 KNIFE MOUNT BASE * 1 5 40089755 FIX KNIFE * 1 6 23645401 THREAD GUIDE FOR KNIFE H * 1 7 11095601 KNIFE BRANCH * 1 8 SD0500131TP HINGE SCREW D=5 H=1.25 * 1 9 D2404555B00 COUNTER KNIFE SPACER * 1 10 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 11 SS2060210SP SCREW 3/32-56 L=2.3 * 1 12 SS4080620TP SCREW 1/8-44 L=6 * 2 13 40010395 ADJUSTING LINK FULCRUM SHAFT B 1 14 11062007 THROAT PLATE A 1 15 B1213552000A OIL ADJUSTING PIN 1 16 SS6080320SP SCREW 1/8-44 L=2.5 1 17 11095254 LEVER STOPPER ASM. 1 18 SS1120710SP SCREW 3/16-28 L=6.5 1 19 11062858 LINK THREAD TAKE-UP LEVER ASM. 1 20 11062809 NEEDLE BAR CRANK * 1 21 MDP500B2100 NEEDLE DPX5 #21 1 22 22970404 NEEDLE BAR THREAD HOOK 1 23 22970313 NEEDLE BAR BUSHING LOWER 1 24 40012444 NEEDLE BAR THREAD GUIDE 1 25 22970206 NEEDLE BAR 1 26 40035058 HOOK ASM. 1 27 22942502 INNER HOOK PRESSER 1 28 B1505552000A PRESSER SPRING 1 29 40064839 PRESSER FOOT ASM. 1 30 22962807 WIRE PRESSER PLATE (LOWER) B 1 31 SS7110740TP SCREW 11/64-40 L=7 1 32 11094901 SOLENOID BASE 1 33 40039674 FEED DIAL 1 34 WP0371016SD WASHER 3.7X8X1 1 35 22970602 FEED SPRING HOOK 1 36 11062601 FEED DOG 1 37 11096658 SOLENOID MOUNTING BASE ASM. 1 38 11231503 OIL PUMP SUPPORT 1 39 22962609 REVERSE FEED BASE COLLAR 1 40 22962906 PLUNGER ARM PIN 1 41 NS6110420SP NUT 11/64-40 2 42 22962708 TUBE HOLDER LOWER 1 43 11094109 OIL TUBE 1 44 SD0700711TP HINGE SCREW D=7 H=7.1 1 45 22962500 SOLENOID CONNECTING LINK H 1 46 WP0722316SH WASHER 1 47 11101508 REVERSE FEED LINK 1 - 38 -
Page 41 — EXCLUSIVE PARTS FOR DDL-8700J-7
EXCLUSIVE PARTS FOR DDL-8700J-7 2 14 13 29 31 10 30 15 7 8 12 3 5 16 11 17 18 33 6 35 4 9 25 19 28 38 26 23 36 20 27 50 22 34 54 21 55 37 39 41 40 44 24 42 45 43 46 48 73 66 47 65 74 49 56 1 32 51 53 52 57 64 67 70 68 60 62 71 58 69 61 59 63 72 - 39 -
Page 42 — EXCLUSIVE PARTS FOR DDL-8700J-7
EXCLUSIVE PARTS FOR DDL-8700J-7 No. Parts No. Parts name Remarks Level Cons Qty 48 NS6110420SP NUT 11/64-40 1 49 SD0700451TP HINGE SCREW D=7 H=4.5 1 50 11403805 THREAD GUIDE C FITTING PLATE 1 51 22970552 FEED ECCENTRIC CAM ASM. 1 52 22970503 FEED ECCENTRIC CAM L * 1 53 22972806 FEED ECCENTRIC CAM SETSCREW * 2 54 NS6090310SP NUT 9/64-40 1 55 22972608 ARM THREAD GUIDE C 1 56 11094604 CLUTCH LINK 1 57 11096500 THREAD TRIMMER SOLENOID 1 58 22970859 HORIZONTAL FEED ARM ASM. 1 59 SS6121610SP SCREW 3/16-28 L=15.5 * 1 60 22963458 THREAD TENSION ASM. 1 61 22963409 THREAD TENSION SPRING * 1 62 22962054 THREAD TENSION ASM. 1 63 22962005 THREAD TENSION SPRING * 1 64 22970701 HORIZONTAL FEED ROD 1 65 22971204 FEED REGULATOR BASE PIN 1 66 22971303 FEED REGULATOR BASE 1 67 11302619 SPRING 1 68 22971550 FEED LEVER ARM ASM. 1 69 SS7121410TP SCREW 3/16-28 L=14 * 1 70 22971709 FEED REVERSE SPRING 1 71 22972251 VERTICAL FEED ARM ASM. 1 72 SS6121610SP SCREW 3/16-28 L=15.5 * 1 73 40031240 FEED ADJUST LINK ASM. 1 74 40031244 FEED ADJUST ROD 1 - 40 -
Page 43 — EXCLUSIVE PARTS FOR DDL-8700A-7
EXCLUSIVE PARTS FOR DDL-8700A-7 1 2 3 4 5 6 7 8 9 10 jintex.in jintex.in
Page 44 — EXCLUSIVE PARTS FOR DDL-8700A-7
EXCLUSIVE PARTS FOR DDL-8700A-7 No. Parts No. Parts name Remarks Level Cons Qty 1 40011503 THREAD TENSION ASM. 1 2 40054784 THREAD TAKE-UP SPRING * 1 3 40054785 THREAD TENSION SPRING * 1 4 11092558 HAND LIFTER CAM ASM. 1 5 D1524555DBA PRESSER FOOT ASM. 1 6 22964001 BOBBIN (A) 1 7 B18370120A0 BOBBIN CASE ASM. 1 8 B1505227T00A PRESSER SPRING T 1 9 MC200500650 NEEDLE 134 NM65 FOR JE 1 10 MDA100B0900 NEEDLE DAX1 #9 1
Page 45 — LIST FOR INFORMATION OF CHANGE (1)
LIST FOR INFORMATION OF CHANGE (1) As to the place changed, refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other. In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates place your orders. 変更箇所は、該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 29347002 No.1307-09 Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. No. 頁 No. Parts No. 品 番 Rev. Page Ref. No. 頁 No. Parts No. 品 番 * D 08 2 1 229-02159 A 09 2 1 401-02097 D 08 2 8 SS-4120915-SP A 09 2 8 SS-4120925-SP D 08 2 20 400-93432 A 09 2 20 401-11022 D 08 2 50 SS-4120915-SP A 09 2 50 SS-4120925-SP D 08 2 61 229-02605 A 09 2 61 400-99083 D 08 2 62 SS-7110540-SP A 09 2 62 SS-7110720-SP D 08 2 63 WP-0501016-SD A 09 2 63 401-16677 D 08 2 64 SS-4121215-SP D 08 2 66 M6008-350-AAF D 08 2 67 M6008-350-AAF D 08 2 68 M6008-350-AAF D 08 4 4 110-39070 A 09 4 4 229-18072 D 08 4 5 110-39062 A 09 4 5 229-18064 D 08 4 6 B1905-541-B00 A 09 4 6 229-18403 A 09 4 7 229-18501 A 09 4 8 229-18601 A 09 4 9 229-18700 D 08 4 7 110-05204 A 09 4 10 229-18106 D 08 4 8 B1408-552-000 A 09 4 11 229-06606 D 08 4 9 B1903-552-000 A 09 4 12 229-18304 D 08 4 10 229-03157 A 09 4 13 401-06606 D 08 4 21 110-02508 A 09 4 21 401-05231 D 08 6 1 229-01409 A 09 6 1 TA-0850604-R0 D 08 6 12 B1307-155-0C0 D 08 6 13 B1306-155-0B0 D 08 6 14 B1305-012-0A0 A 09 6 14 400-90002 D 08 6 16 B1306-155-0A0 A 09 6 16 400-90003 D 08 6 18 B1307-155-0B0 D 08 6 19 B1307-155-0A0 A 09 6 19 400-90004 D 08 6 21 B1308-155-0A0 A 09 6 21 400-90005 D 08 6 36 229-17058 A 09 6 36 401-01694 D 08 6 13 SS-4120915-SP A 09 6 13 SS-4120925-SP D 08 10 31 229-40803 A 09 10 31 401-01462 D 08 10 43 229-10350 A 09 10 43 401-10379 D 08 10 45 229-15151 A 09 10 45 401-09422 Jintex.in
Page 46
LIST FOR INFORMATION OF CHANGE(2) Rev. Page Ref. No. No. 品 番 Parts No. Rev. Page Ref. No. No. 品 番 Parts No. D 08 10 64 229-12604 A 09 10 64 401-00812 D 08 10 66 229-12752 A 09 10 66 401-02264 D 08 10 67 SM-8061050-TP A 09 12 48 229-51164 D 08 12 49 400-85586 A 09 12 49 401-06930 D 08 12 50 HK-0346400-0B A 09 12 53 401-06931 D 08 12 53 400-85587 A 09 14 15 401-06936 D 08 14 15 400-90290 A 09 18 6 RO-0982401-00 D 08 18 6 RO-1082401-00 A 09 18 16 401-01720 D 08 18 16 SM-9062563-TR A 09 20 1 400-96354 D 08 20 1 229-30358 D 08 22 1 110-93366 D 08 22 32 M60009-350-AAA A 09 22 60 401-01726 D 08 22 33 229-11903 D 08 24 1 110-93366 A 09 24 6 236-45401 D 08 24 6 110-95403 A 09 24 33 400-39674 D 08 24 32 229-90758 A 09 24 55 229-72608 E 08 24 33 400-31248 D 08 24 55 113-05513 D 08 25 4 M6018-350-AAA
Page 47
HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)**mark...means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2)"#01"...refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column Each numeral indicates the number of parts required. "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 1."注記"欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、“変更情報リスト”を参照してください。 2) "#01"...ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4.イラストページのー－－－枠は、組構成であることを意味します。 jintex.in
Page 48 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 11002409 6 11011508 34 47 22907802 12 1 11002904 6 11101508 38 47 22908008 12 42 11009800 16 5-68 1110152 24 20 22908156 12 40 11010311 14 17 11141355 10 24-34 22908305 12 44 11015906 10 39 11231503 34 38 22908354 12 39 11028008 4 60-64 11231503 38 38 22908552 12 4 11030202 4 59 11302619 40 67 22908701 12 7 11037405 14 22 11313103 18 7 22908800 12 14 11038650 10 24-34 11400801 34 14 22908909 12 11 11038759 10 42 11403003 34 36 22909006 12 13 11040052 18 5 11403805 36 52 22910004 8 48 11040300 18 6 11403805 40 50 22910053 6 46 11040359 18 1 11409257 34 3 22910103 6 42 11040409 18 4 11409257 38 3 22910202 14 12-52 11040508 18 3 11415205 4 28-58 22910459 16 60 11040854 18 45 22900401 2 10 22910806 14 28 11040953 18 44 22900609 2 28-58 22910905 14 24 11062007 38 14 22900757 2 4 22911002 14 40 11062601 38 36 22901003 4 55 22911101 14 13 11062809 38 20 22901201 4 52 22911408 14 23 11062858 38 19 22901250 4 51 22911507 14 2 11091600 34 20 22901300 4 53 22911606 14 4 11091659 34 19 22901805 2 14 22911705 14 5-68 11092251 34 26 22903009 6 44 22911804 14 7 11092558 42 4 22903108 6 15 22912000 14 9 11093804 34 27 22903207 6 25 22912109 14 8 11094109 34 43 22903306 6 27 22912257 14 19 11094109 38 43 22903900 6 40 22912505 14 20 11094604 36 56 22904155 6 23 22912802 16 65 11094604 40 56 22904155 16 61 22912901 14 39 11094901 34 1 22905004 10 23 22913008 16 51 11094901 38 32 22905103 10 25 22913701 14 38 11095254 34 17 22905202 10 26 22913800 16 12-52 11095254 38 17 22906101 10 2 22914105 16 69 11095403 34 6 22906200 10 8 22915003 14 15 11095502 34 4 22906309 10 10 22915201 16 48 11095502 38 4 22906457 10 4 22915359 16 58 11095551 34 2 22906606 6 11 22916001 10 31 11095551 38 2 22907208 12 34 22916100 10 35 11095601 34 7 22907307 12 36 22916308 10 27 11095601 38 7 22907406 12 33 22916506 10 40 11096500 36 57 22907505 12 32 22916555 10 38 11096500 40 57 22907554 12 30 22917157 10 29 11096658 34 37 22907604 12 31 22918064 6 5 11096658 38 37 22907703 12 45 22918072 6 4 INDEX - 1 jintex.in
Page 49 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22918106 6 10 22927404 30 28 22940506 14 10 22918304 6 12 22927602 30 29 22940654 16 55 22918403 6 6~9 22928105 30 22 22940753 14 35 22918502 6 6~9 22928303 30 21 22940951 14 27 22918601 6 6~9 22928402 30 20 22941108 14 1 22918700 6 6~9 22928501 30 14 22941306 14 36 22919203 6 29 22928709 30 26 22942502 10 32 22919559 6 2 22928808 30 18 22942601 10 43 22920102 12 29 22928907 30 16 22944508 12 18 22920201 12 23 22929004 30 17 22944607 12 20 22920300 12 26 22931703 28 27 22944706 12 10 22920409 12 24 22931802 28 2 22944854 12 28 22920508 2 30 22931851 28 1 22945000 12 25 22920607 2 47 22931901 28 3 22945109 2 40 22921001 2 31 22932008 28 4 22945307 2 32 22921209 2 38 22932107 28 8 22945356 2 22 22921308 2 33 22932156 28 7 22945414 2 21 22921407 2 34 22932206 28 11 22945463 2 25 22921506 2 37 22932305 28 17 22945505 2 23 22921605 2 39 22932404 28 14 22945604 2 26 22921704 2 35 22932453 28 13 22945703 2 28 22921803 2 36 22932909 10 41 22945802 2 24 22923015 26 14 22933402 30 2 22947105 26 26 22923056 26 12 22933451 30 1 22948301 18 35 22923205 26 17 22933501 30 3 22948400 18 37 22923312 26 13 22933600 30 5 22949002 18 43 22923403 26 19 22933659 30 4 22949101 18 40 22923502 26 21 22933758 30 6 22949200 18 41 22923601 26 20 22933907 30 7 22949309 18 38 22923700 26 15 22934004 30 8 22949408 18 29 22923809 26 18 22934202 28 22 22949754 18 24 22923908 26 22 22934251 28 19 22949762 18 23 22924005 26 30 22934301 28 23 22949903 20 55 22924153 26 6 22934400 28 21 22950000 18 26 22924302 26 7 22934608 28 20 22950109 18 31 22924401 26 31 22934707 28 15 22950208 18 14 22924500 26 11 22934707 28 15 22950257 18 13 22924609 26 28 22935407 4 57 22950356 18 15 22924708 26 1 22937056 6 34 22950703 18 25 22924807 20 58 22937064 6 30-31 22950851 18 19 22924906 26 10 22937155 6 35-39 22950950 18 21 22925002 26 9 22937254 6 36-38 22951008 20 57 22925101 26 5 22937965 6 43 22951164 20 48 22927305 30 27 22939508 10 3-12 22951404 20 50 22927354 30 13 22939607 10 3-12 22951552 20 59 INDEX - 2 jintex.in
Page 50 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22952501 2 18 22963458 34 32 40090725 34 34 22953509 22 24 22963458 40 60 40085585 22 25 22953657 22 17 22964001 42 6 40085784 32 2 22953806 22 15 22970206 34 25 40085785 32 3 22953905 22 19 22970206 38 25 40085786 32 4 22954002 22 28 22970313 34 23 40085787 32 5 22954101 22 4 22970313 38 23 40085788 32 6 22954150 22 1 22970404 38 22 40085789 32 7 22954200 22 5 22970503 40 52 40085790 32 8 22954309 22 6 22970552 40 51 40085791 32 9 22954408 22 12 22970602 34 35 40085792 32 10 22954507 22 13 22970602 38 35 40085793 32 11 22954606 22 2 22970701 40 64 40085794 32 12 22954705 2 1 22970859 40 58 40085795 32 13 22955504 24 2 22971204 40 65 40085796 32 16 22955553 24 1 22971303 40 66 40087245 18 30 22955900 24 13 22971550 40 68 40089548 14 25 22956007 24 14 22971709 40 70 40089755 34 5 22956106 24 6 22972251 40 71 40089755 38 5 22956205 24 10 22972608 36 55 40090002 10 14 22956304 24 11 22972608 40 55 40090003 10 16 22956403 24 7 22972806 40 53 40090004 10 19 22956809 24 23 23645401 38 6 40090005 10 21 22956908 24 9 40010395 34 13 40090058 10 6 22957005 24 10 40010395 38 13 40093417 14 26 22957104 24 16 40011503 42 1 40096325 32 14 22957203 24 21 40012126 2 2 40096326 32 17 22958300 2 7 40012129 2 11 40096327 32 19 22962005 36 59 40012444 10 7-18 40096354 32 1 22962005 40 63 40012444 38 24 40099083 4 61 22962054 36 58 40017623 6 30-31 40100812 16 64 22962054 40 62 40017624 6 35-39 40101462 14 31 22962351 36 51 40017625 6 36-38 40101694 10 36 22962500 34 45 40017805 12 35 40101720 28 16 22962500 38 45 40023223 34 24 40101726 36 60 22962609 34 39 40031240 40 73 40102097 2 1 22962609 38 39 40031244 40 74 40102264 16 66 22962708 34 42 40031249 38 1 40105231 6 21 22962708 38 42 40035058 38 26 40106606 6 13 22962807 34 30 40039674 38 33 40106930 20 49 22962807 38 30 40041419 24 19 40106931 20 53 22962906 34 40 40054784 42 2 40106936 24 15 22962906 38 40 40054785 42 3 40109422 14 45 22963409 34 33 40060989 12 5 40110379 14 43 22963409 40 61 40064839 38 29 40111022 2 20 INDEX - 3 jintex.in
Page 51 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40116677 4 63 NS6110310SP 24 12 SD0700711TP 34 44 B110901210B 2 44 NS6110420SP 34 48 SD0700711TP 38 44 B1109552000 4 60-64 NS6110420SP 36 48 SD0720331SP 12 12 B1213552000A 34 15 NS6110420SP 38 48 SD1000801SH 14 47 B1213552000A 38 15 NS6110420SP 40 48 SE4301041SR 26 16 B1215552000 6 26 NS6150430SP 18 33 SK3412000SC 30 30 B1418415H00 34 22 NS6620310SP 12 21 SL4030631SC 24 3 B1505227T00A 42 NS6680410SP 14 42 SL4030641SE 26 22 B1505552000A 34 28 RC0150001KP 14 54 SL4030851SF 24 23 B1505552000A 38 28 RC0150001KP 16 54 SL4051001MZ 6 45 B1521555000 12 2 RC1850001KP 6 22 SM4031501SC 22 8 B15240120BA 12 9 RE0250000K0 24 8 SM4040655SP 22 3 B1613012A00 16 33-70 RE0400000K0 18 39 SM4041655SP 22 7 B1613012100 14 33-70 RE0400000K0 22 23 SM4051405SE 32 23 B18370120A0 42 7 RE0400000KP 22 18 SM8061010TP 16 67 B311852E00 2 43 RE0500000K0 12 43 SM8063012TR 28 10 B8228125000 28 26 RE0500000K0 14 21 SM9061203SE 28 24 CM300200001 2 12 RE0500000K0 18 56 SS1120710SP 34 18 CM301200001 2 13 RE0500000K0 20 56 SS1120710SP 38 18 CQ252000000 26 8 RE0500000KP 22 14 SS2060210SP 18 8 D1524555DBA 42 5 RE0600000K0 18 34 SS2060210SP 34 11 D1524555EBL 34 29 RE0900000K0 18 34 SS2060210SP 38 11 D2404555B00 34 9 RE0900000K0 22 16 SS2110915SP 2 46 D2404555B00 38 9 RE1000000K0 28 12 SS2110920TP 2 45 D2406555D0H 18 10 RE1200000K0 22 20 SS4080620TP 14 34 D2468555B00 22 22 RO029180100 6 41 SS4080620TP 18 9 EA9500B0100 6 11 RO037180100 12 3 SS4080620TP 34 12 HA001900000 22 11 RO044240100 6 18 SS4080620TP 38 12 HA06000000A 24 17 RO078190100 16 63 SS4090615SP 6 19 HK034610140 18 11 RO0982270200 14 16 SS4110515SP 12 16 HK03464000B 22 29 RO098240100 28 6 SS4110515SP 14 37 Hw500070000 22 9 RO195240100 26 2 SS4110515SP 30 15 MC200500650 42 9 SD0460703TP 18 2 SS4110715SP 18 28 MC200500900 10 11-28 SD0460703TP 34 10 SS4110915TP 10 33 MC200501300 36 50 SD0460703TP 38 10 SS4120615SP 2 29 MDA100B0900 42 SD0490261SP 30 23 SS4120615SP 12 27 MDB100B1400 10 11-28 SD0500131TP 34 8 SS4120615SP 22 27-30 MDB100B2100 34 SD0500131TP 38 8 SS4120915SP 26 4 MDP500B2100 38 28 SD0600361SP 18 46 SS4120915SP 22 27-30 NM6040001SE 20 32 SD0630275SP 18 18 SS4120925SP 24 26 NM6050001SE 32 24 SD0640631TP 20 60 SS4120925SP 2 50 NM6060001SE 28 11 SD0641451SP 18 17 SS4120925SP 4 50 NS6090310SP 24 5 SD0650321TP 24 4 SS4120925SP 10 13 NS6090310SP 36 54 SD0700451TP 36 49 SS4121415SP 30 9 NS6090310SP 40 54 SD0700451TP 40 49 SS4150915SP 12 17 INDEX - 4 jintex.in
Page 52 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SS4150915SP 18 47 SS8150710TP 2 42 SS4150915SP 26 24 SS8150710TP 14 29 SS4151215SP 20 61 SS8151150TP 6 1 SS4151215SP 22 26 SS8151550SP 6 33 SS6060210SP 4 54 SS8660610TP 6 24 SS6080320SP 34 16 SS8660610TP 16 62 SS6080320SP 38 16 SS8660810TP 10 22 SS6080410SP 2 3 SS8660810TP 12 37 SS6090510TP 18 16 SS8681650TP 6 16 SS6090540SP 24 25 TA0850604R0 2 5 SS6090620TP 14 41 TA0850604R0 10 1 SS6090670TP 10 5 TA1250406R0 4 49 SS6090670TP 14 3 TA1250705R0 2 6 SS6090910SP 12 38 TA2000502R0 2 16 SS6110420TP 10 30 TA2101002R0 2 19 SS6110610TP 4 48 WP0371016SD 36 53 SS6110710TP 20 54 WP0371016SD 38 34 SS6111010TP 26 25 WP0450801SD 6 32 SS6111210SP 6 37 WP0450826SC 30 31 SS6121610SP 14 44 WP0480856SP 16 57 SS6121610SP 40 72 WP0501016SD 30 10 SS6121840SP 2 17 WP0531001SC 32 22 SS6121860SP 14 11 WP0621016SH 18 32 SS6660610TP 18 20 WP0722316SH 34 46 SS6661110SP 6 47 WP0722316SH 38 46 SS6700710SH 28 5 WP1602616SZ 22 21 SS7080510TP 10 9 WP1612616SE 32 15 SS7081310SP 30 24 WS0410002KR 20 51 SS7090610SP 18 42 WS0451040KP 26 29 SS7091110TP 12 6 WS0510002KN 32 21 SS7110350SP 30 19 WS0651310KP 26 27 SS7110720SP 4 62 WT0530002KS 4 56 SS7110740TP 16 53 SS7110740TP 34 31 SS7110740TP 38 31 SS711120SP 16 59 SS7120770SH 14 6 SS7121410TP 16 56 SS7121410TP 40 69 SS7121610SP 14 46 SS7681650TP 6 14 SS8090670SP 2 41 SS8110410TP 10 37 SS8110510SP 30 25 SS8110520TP 18 22 INDEX - 5 jintex.in
