Page 1 — PARTS LIST
MODEL : DDL-8700A-7 List No : 1582-00 PARTS LIST Published:09/10/2017 jintex.in
Juki DDL-8700A-7 — parts catalog
- Page 1 (cover): This is the cover page for the parts list of the DDL-8700A-7 model, published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various machine components and their corresponding page numbers.
- Page 3 (diagram): This page displays an exploded view diagram of the machine frame and miscellaneous cover components for an industrial sewing machine.
- Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, and quantities.
- Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, showing various parts with their corresponding reference numbers.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including screws, rubber plugs, slide plates, and a ruler stop seat, with their part numbers, names, and quantities.
- Page 7 (diagram): This page illustrates the components of the bobbin winder assembly for a sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 8 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
- Page 9 (diagram): This page illustrates the main shaft and thread take-up lever components of an industrial sewing machine.
- Page 10 (parts_list): This page lists the components for the main shaft and thread take-up lever, including part numbers, names, and quantities.
- Page 11 (diagram): This page illustrates the components of the needle bar, upright shaft, and hook driving shaft, showing an exploded view of various parts with reference numbers.
- Page 12 (parts_list): This page lists parts for the needle bar, upright shaft, and hook driving shaft components, including part numbers, names, and quantities.
- Page 13 (diagram): This page illustrates the components of a hand lifter assembly for an industrial sewing machine, showing an exploded view with numbered parts.
- Page 14 (parts_list): This page lists the components for a hand lifter, including part numbers, names, and quantities.
- Page 15 (diagram): This page displays an exploded diagram of the feed mechanism components for an industrial sewing machine, with various parts numbered for identification.
- Page 16 (parts_list): This page lists the components of the feed mechanism, including part numbers, names, and quantities.
- Page 17 (diagram): This page displays a detailed diagram of the feed mechanism components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 18 (parts_list): This page lists the components for the feed mechanism, including part numbers, names, and quantities.
- Page 19 (diagram): This page illustrates the components of a thread trimmer, showing an exploded view of various parts and their reference numbers.
- Page 20 (parts_list): This page lists thread trimmer components with their part numbers, names, and quantities.
- Page 21 (diagram): This page illustrates the components of a thread trimmer assembly with a detailed exploded view.
- Page 22 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities for various parts like hinge screws, solenoid assemblies, spring washers, nuts, and other related components.
- Page 23 (diagram): This page displays a diagram of automatic reverse feed components with various parts labeled with reference numbers.
- Page 24 (parts_list): This page lists the components for the automatic reverse feed mechanism, including various switches, shafts, springs, and E-rings.
- Page 25 (diagram): This page displays a diagram of wiper components with various parts labeled with reference numbers.
- Page 26 (parts_list): This page lists wiper components with their part numbers, names, and quantities.
- Page 27 (diagram): This page illustrates the oil lubrication components of an industrial sewing machine, showing various parts such as the oil cap, oil tank, oil pump, and related tubes and screws.
- Page 28 (parts_list): This page lists the oil lubrication components with their part numbers, names, and quantities.
- Page 29 (diagram): This page illustrates the components of an oil reservoir, including the reservoir body, various screws, nuts, washers, and associated parts for oil level indication and drainage.
- Page 31 (diagram): This page displays a diagram of the PSC UNIT with various components labeled with reference numbers.
Page 2 — CONTENTS
CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in
Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40102097 | FACE PLATE ASM | 1 | |
| 40012126 | FACE PLATE PACKING | 1 | |
| SS6080410SP | SCREW 1/8-44 L=4 | 1 | |
| 22900757 | FACE PLATE OIL SHIELD ASM. | 1 | |
| TA0850604R0 | RUBBER PLUG | 2 | |
| TA1250705R0 | RUBBER PLUG | 1 | |
| 22958300 | NEEDLE THREAD GUIDE PIN | 1 | |
| SS4120915SP | SCREW 3/16-28 L=9 | 8 | |
| 40110987 | LEVER,COVER | 1 | |
| 22900401 | WINDOW PLATE | 1 | |
| 40012129 | SIDE PLATE PACKING | 1 | |
| CM300200001 | ATTENTION SEAL | 1 | |
| CM301200001 | SAFETY LABEL,S | 1 | |
| 22901805 | GROUND MARK | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| TA2000002R0 | RUBBER PLUG | 1 | |
| SS6121840SP | SCREW 3/16-28 L=18 | 1 | |
| 22952501 | BACK LEVER STOPPER | 1 | |
| TA2101002R0 | RUBBER PLUG | 1 | |
| 40093432 | MAGNET CORD RUBBER | 1 | |
| 22945463 | THREAD TENSION ASM.,NO.1 | 1 | |
| 22945414 | THREAD TENSION POST | ||
| 22945604 | THREAD TENSION GUIDE | ||
| 22945802 | THREAD TENSION DISK | ||
| 22945505 | THREAD TENSION SPRING | ||
| 22945703 | THREAD TENSION NUT | ||
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22900609 | THREAD TAKE-UP LEVER COVER | 1 | |
| SS4120615SP | SCREW 3/16-28 L=6 | 1 | |
| 22920508 | ARM THREAD GUIDE A | 1 | |
| 22921001 | SCREW | 1 | |
| 22945356 | THREAD TENSION ASM. | 1 | |
| 22921308 | THREAD TENSION NUT | ||
| 22921407 | ROTATION STOPPER | ||
| 22921704 | THREAD TENSION SPRING, A | ||
| 22921803 | DISK STOPPER | ||
| 22921506 | THREAD TENSION DISK | ||
| 22921209 | THREAD TENSION POST | ||
| 22921605 | THREAD TAKE-UP SPRING | ||
| 22945307 | THREAD TENSION POST BASE | ||
| SS8090670SP | SCREW 9/64-40 L= 5.5 | ||
| SS8150710TP | SCREW 15/64-28 L=7 | 1 | |
| 22920904 | TENSION RELEASING | 1 | |
| B1109552000 | THROAT PLATE | 1 | |
| SS2110920TP | SCREW 11/64-40 L=8.5 | 1 | |
| SS2110915SP | SCREW 11/64-40 L=8.5 | 1 | |
| 22920607 | ARM THREAD GUIDE B | 1 |
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40102097 FACE PLATE ASM 1 2 40012126 FACE PLATE PACKING 1 3 SS6080410SP SCREW 1/8-44 L=4 1 4 22900757 FACE PLATE OIL SHIELD ASM. 1 5 TA0850604R0 RUBBER PLUG 2 6 TA1250705R0 RUBBER PLUG 1 7 22958300 NEEDLE THREAD GUIDE PIN 1 8 SS4120915SP SCREW 3/16-28 L=9 8 9 40110987 LEVER,COVER 1 10 22900401 WINDOW PLATE 1 11 40012129 SIDE PLATE PACKING 1 12 CM300200001 ATTENTION SEAL 1 13 CM301200001 SAFETY LABEL,S 1 14 22901805 GROUND MARK 1 15 SS4120615SP SCREW 3/16-28 L=6 1 16 TA2000002R0 RUBBER PLUG 1 17 SS6121840SP SCREW 3/16-28 L=18 1 18 22952501 BACK LEVER STOPPER 1 19 TA2101002R0 RUBBER PLUG 1 20 40093432 MAGNET CORD RUBBER 1 21 22945463 THREAD TENSION ASM.,NO.1 1 22 22945414 THREAD TENSION POST * 1 23 22945604 THREAD TENSION GUIDE * 1 24 22945802 THREAD TENSION DISK * 2 25 22945505 THREAD TENSION SPRING * 1 26 22945703 THREAD TENSION NUT * 1 27 SS4120615SP SCREW 3/16-28 L=6 1 28 22900609 THREAD TAKE-UP LEVER COVER 1 29 SS4120615SP SCREW 3/16-28 L=6 1 30 22920508 ARM THREAD GUIDE A 1 31 22921001 SCREW 1 32 22945356 THREAD TENSION ASM. 1 33 22921308 THREAD TENSION NUT * 1 34 22921407 ROTATION STOPPER * 1 35 22921704 THREAD TENSION SPRING, A * 1 36 22921803 DISK STOPPER * 1 37 22921506 THREAD TENSION DISK * 2 38 22921209 THREAD TENSION POST * 1 39 22921605 THREAD TAKE-UP SPRING * 1 40 22945307 THREAD TENSION POST BASE * 1 41 SS8090670SP SCREW 9/64-40 L= 5.5 * 1 42 SS8150710TP SCREW 15/64-28 L=7 1 43 22920904 TENSION RELEASING 1 44 B1109552000 THROAT PLATE 1 45 SS2110920TP SCREW 11/64-40 L=8.5 1 46 SS2110915SP SCREW 11/64-40 L=8.5 1 47 22920607 ARM THREAD GUIDE B 1 jintex.in
Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS jintex.in
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SS6110610TP | SCREW 11/64-40 L=6 | 1 |
| 49 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 50 | SS4120915SP | SCREW 3/16-28 L=9 | 3 |
| 51 | 22901250 | SLIDE PLATE ASM. | 1 |
| 52 | 22901201 | SLIDE PLATE | 1 |
| 53 | 22901300 | SLIDE PLATE SPRING | 1 |
| 54 | SS6060210SP | SCREW 3/32-56 L= 1.9 | 2 |
| 55 | 22901003 | BED SCREW STUD | 4 |
| 56 | WT0530002KS | TOOTHED WASHER D=5.3 | 1 |
| 57 | 22935407 | BED OIL SHIELD RUBBER | 1 |
| 58 | 40099083 | RULER STOP SEAT | 1 |
| 59 | SS7110720SP | SCREW 11/64-40 L=7 | 2 |
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SS6110610TP SCREW 11/64-40 L=6 1 49 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 50 SS4120915SP SCREW 3/16-28 L=9 3 51 22901250 SLIDE PLATE ASM. 1 52 22901201 SLIDE PLATE * 1 53 22901300 SLIDE PLATE SPRING * 1 54 SS6060210SP SCREW 3/32-56 L= 1.9 * 2 55 22901003 BED SCREW STUD 4 56 WT0530002KS TOOTHED WASHER D=5.3 1 57 22935407 BED OIL SHIELD RUBBER 1 58 40099083 RULER STOP SEAT 1 59 SS7110720SP SCREW 11/64-40 L=7 2 jintex.in
Page 7 — BOBBIN WINDER COMPONENTS
BOBBIN WINDER COMPONENTS 20 23 17 10 2 9 13 1 4 16 3 14 22 11 6 8 15 11 5 18 19 21 7 21 12 33 25 29 28 24 26 27 31 30 32 jintex.in
Page 8 — BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40110976 | BOBBIN_WINDER_UNIT | 1 |
| 2 | 26260109 | BTW_BASE | 1 |
| 3 | 26260208 | BTW_CAM_PLATE | 1 |
| 4 | 26260307 | BTW_BASE_SHAFT | 1 |
| 5 | 26260406 | BTW_SHAFT_BASE | 1 |
| 6 | 26260505 | BTW_CAM_LEVER | 1 |
| 7 | 26260604 | BTW_WHEEL | 1 |
| 8 | 26260802 | BTW_BEARING_SPACER | 1 |
| 9 | 26261008 | BTW_LEVER_SHAFT | 1 |
| 10 | 26261206 | BTW_SPACER | 1 |
| 11 | 26261305 | BTW_BEARING | 2 |
| 12 | 26261503 | BTW_WHEEL_RUBBER | 1 |
| 13 | 26261602 | BOBBIN_SPRING | 1 |
| 14 | 26261701 | BTW_SPRING | 1 |
| 15 | 40011144 | BTW_TORSION_SPRING | 1 |
| 16 | 40110975 | BTW_SHAFT | 1 |
| 17 | 40021933 | BTW_LEVER | 1 |
| 18 | RC0560711KP | RETAINING RING | 1 |
| 19 | RE040000K0 | E-RING 4 | 1 |
| 20 | SM5040655SN | SCREW | 1 |
| 21 | SM8040802TP | SCREW M4X8 | 2 |
| 22 | SM8050502TP | SCREW M5 L=5 | 1 |
| 23 | WP0450826SC | WASHER 4.5X10X0.8 | 1 |
| 24 | 40110731 | BOBBIN_THREAD_TENSION_ASSY | 1 |
| 25 | 22945703 | THREAD TENSION NUT | 1 |
| 26 | 40110734 | BOBBIN_THREAD_ROD_ASSY | 1 |
| 27 | NS6120630SP | NUT 3/16-28 | 1 |
| 28 | 22921506 | THREAD TENSION DISK | 2 |
| 29 | D7133555B00 | CONNECTING ROD SPRING | 1 |
| 30 | 40037008 | THREAD_CUTTER | 1 |
| 31 | SM0050801SC | SCREW | 1 |
| 32 | SM0050801SC | SCREW | 3 |
| 33 | 22538706 | PACKING | 1 |
BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40110976 BOBBIN_WINDER_UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * 1 13 26261602 BOBBIN_SPRING * 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40110975 BTW_SHAFT * 1 17 40021933 BTW_LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE040000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40110731 BOBBIN_THREAD_TENSION_ASSY * 1 25 22945703 THREAD TENSION NUT * 1 26 40110734 BOBBIN_THREAD_ROD_ASSY * 1 27 NS6120630SP NUT 3/16-28 * 1 28 22921506 THREAD TENSION DISK * 2 29 D7133555B00 CONNECTING ROD SPRING * 1 30 40037008 THREAD_CUTTER 1 31 SM0050801SC SCREW 1 32 SM0050801SC SCREW 3 33 22538706 PACKING 1 jintex.in
Page 9 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS jintex.in
Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS8151150TP | SCREW 15/64-28 L=10.5 | 1 |
| 2 | 22919559 | THREAD TAKE-UP CRANK SHAFT ASM. | 1 |
| 3 | 11002904 | ROLLER FELT | 1 |
| 4 | 11039070 | THREAD TAKE-UP LEVER ASM. | 1 |
| 5 | 11039062 | THREAD TAKE-UP LEVER ASM. | 1 |
| 6 | B1905541B00 | NEEDLE BEARING | 2 |
| 7 | 11005204 | NEEDLE BAR CRANK | 1 |
| 8 | B1408552000 | NEEDLE BAR CRANK ROD | 1 |
| 9 | B1903552000 | LEFT SCREW | 1 |
| 10 | 40111423 | OIL SHIELD PLATE | 1 |
| 11 | SS8681650TP | SCREW 9/32-28 L=16 | 1 |
| 12 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 13 | RO044240100 | RUBBER RING | 1 |
| 14 | SS7681650TP | SCREW 9/32-28 L=16 | 1 |
| 15 | 40110376 | COUNTER_WEIGHT | 1 |
| 16 | 22910053 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 17 | SS6661110SP | SCREW 1/4-40 L=11 | 2 |
| 18 | 22910004 | FEED DRIVE ECCENTRIC CAM | 1 |
| 19 | SS4090615SP | SCREW 9/64-40 L=6 | 2 |
| 20 | 40110978 | MAIN_SHAFT_BUSHING | 1 |
| 21 | 22888002 | OIL SEAL | 1 |
| 22 | RC1850001KP | SNAP RING 18.5 | 1 |
| 23 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 24 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 25 | 22903207 | MAIN SHAFT BUSHING, FRONT | 1 |
| 26 | B1215552000 | OIL ADJUSTING COLLAR | 1 |
| 27 | 22903306 | BUSHING,INTERMEDIATE | 1 |
| 28 | EA9500B0100 | CABLE BAND | 1 |
| 29 | 22919203 | OIL PROTECTING RUBBER | 1 |
| 30 | 22538805 | DRIVING WHEEL | 1 |
| 31 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 32 | 40111424 | FILTER | 1 |
| 33 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 34 | 40111872 | HAND_PULLEY | 1 |
| 35 | 40111001 | CORD_STOPPER | 1 |
| 36 | 40111025 | COUPLING_ASM. | 1 |
| 37 | 40111203 | SERVO MOTOR | 1 |
| 38 | SL6052592TN | BOLT | 3 |
| 39 | SL6051492TN | BOLT | 3 |
| 40 | 40110979 | MAIN_MOTOR_BASE_76 | 1 |
| 41 | RO029180100 | RUBBER RING | 1 |
| 42 | 22910103 | THRUST COLLAR | 1 |
| 43 | 22903900 | ADJUSTING PIN | 1 |
| 44 | 40110977 | MAIN_SHAFT | 1 |
MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SS8151150TP SCREW 15/64-28 L=10.5 1 2 22919559 THREAD TAKE-UP CRANK SHAFT ASM. 1 3 11002904 ROLLER FELT 1 4 11039070 THREAD TAKE-UP LEVER ASM. 1 5 11039062 THREAD TAKE-UP LEVER ASM. * 1 6 B1905541B00 NEEDLE BEARING * 2 7 11005204 NEEDLE BAR CRANK * 1 8 B1408552000 NEEDLE BAR CRANK ROD * 1 9 B1903552000 LEFT SCREW * 1 10 40111423 OIL SHIELD PLATE 1 11 SS8681650TP SCREW 9/32-28 L=16 1 12 SS8660610TP SCREW 1/4-40 L=6 2 13 RO044240100 RUBBER RING 1 14 SS7681650TP SCREW 9/32-28 L=16 1 15 40110376 COUNTER_WEIGHT 1 16 22910053 FEED DRIVE ECCENTRIC CAM ASM. 1 17 SS6661110SP SCREW 1/4-40 L=11 * 2 18 22910004 FEED DRIVE ECCENTRIC CAM * 1 19 SS4090615SP SCREW 9/64-40 L=6 2 20 40110978 MAIN_SHAFT_BUSHING 1 21 22888002 OIL SEAL 1 22 RC1850001KP SNAP RING 18.5 1 23 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 22903207 MAIN SHAFT BUSHING, FRONT 1 26 B1215552000 OIL ADJUSTING COLLAR 1 27 22903306 BUSHING,INTERMEDIATE 1 28 EA9500B0100 CABLE BAND 1 29 22919203 OIL PROTECTING RUBBER 1 30 22538805 DRIVING WHEEL 1 31 SS8660610TP SCREW 1/4-40 L=6 2 32 40111424 FILTER 1 33 SM80608A2TP SCREW M6 L=8 2 34 40111872 HAND_PULLEY 1 35 40111001 CORD_STOPPER 1 36 40111025 COUPLING_ASM. 1 37 40111203 SERVO MOTOR 1 38 SL6052592TN BOLT 3 39 SL6051492TN BOLT 3 40 40110979 MAIN_MOTOR_BASE_76 1 41 RO029180100 RUBBER RING 1 42 22910103 THRUST COLLAR 1 43 22903900 ADJUSTING PIN 1 44 40110977 MAIN_SHAFT 1 jintex.in
Page 11 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS 1 2 3 4 5 6 7 40 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 jintex.in

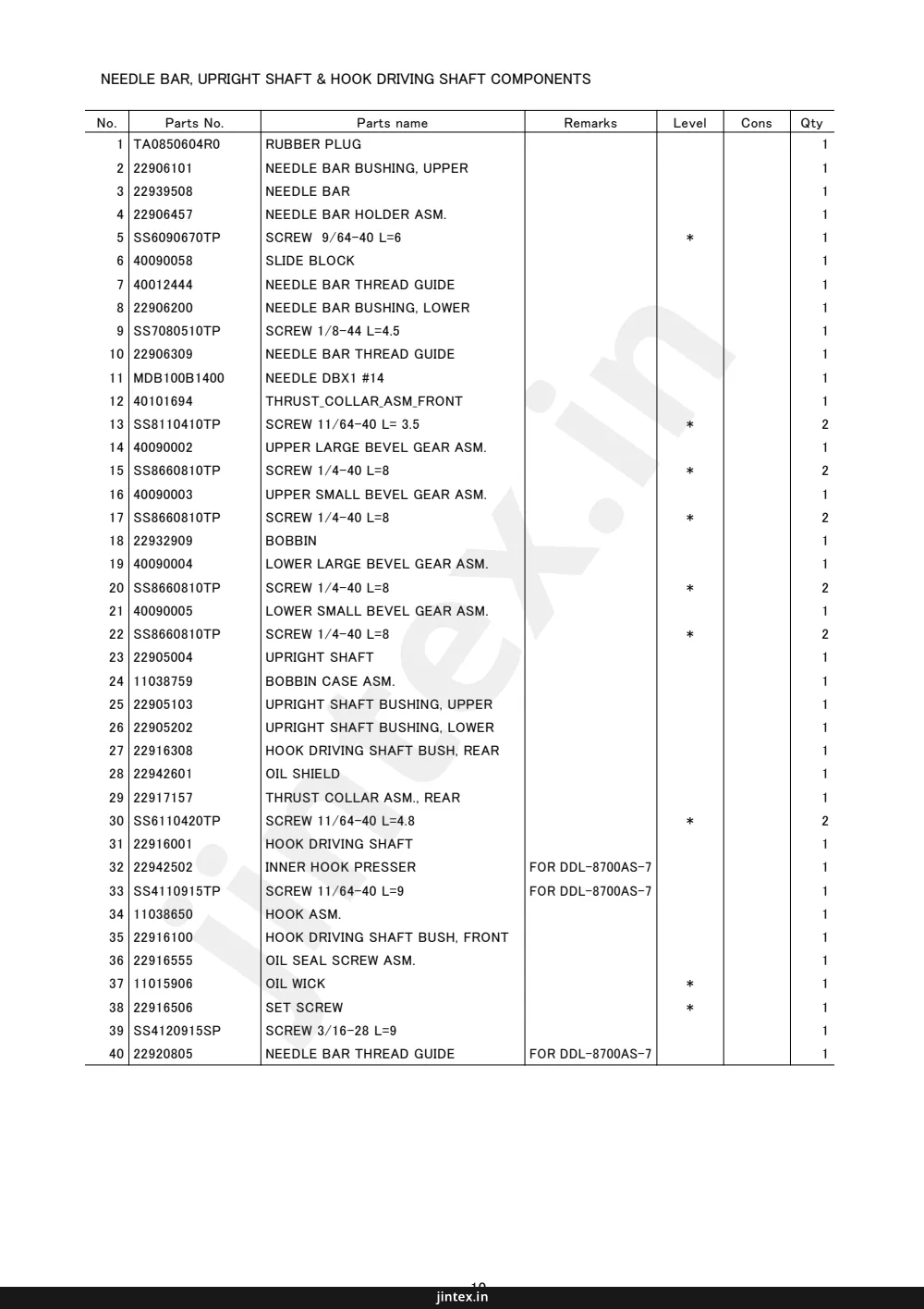

Page 12 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| TA0850604R0 | RUBBER PLUG | 1 | |
| 22906101 | NEEDLE BAR BUSHING, UPPER | 1 | |
| 22939508 | NEEDLE BAR | 1 | |
| 22906457 | NEEDLE BAR HOLDER ASM. | 1 | |
| SS6090670TP | SCREW 9/64-40 L=6 | ||
| 40090058 | SLIDE BLOCK | 1 | |
| 40012444 | NEEDLE BAR THREAD GUIDE | 1 | |
| 22906200 | NEEDLE BAR BUSHING, LOWER | 1 | |
| SS7080510TP | SCREW 1/8-44 L=4.5 | 1 | |
| 22906309 | NEEDLE BAR THREAD GUIDE | 1 | |
| MDB100B1400 | NEEDLE DBX1 #14 | 1 | |
| 40101694 | THRUST_COLLAR_ASM.FRONT | 1 | |
| SS8110410TP | SCREW 11/64-40 L= 3.5 | ||
| 40090002 | UPPER LARGE BEVEL GEAR ASM. | 1 | |
| SS8660810TP | SCREW 1/4-40 L=8 | ||
| 40090003 | UPPER SMALL BEVEL GEAR ASM. | 1 | |
| SS8660810TP | SCREW 1/4-40 L=8 | ||
| 22932909 | BOBBIN | 1 | |
| 40090004 | LOWER LARGE BEVEL GEAR ASM. | 1 | |
| SS8660810TP | SCREW 1/4-40 L=8 | ||
| 40090005 | LOWER SMALL BEVEL GEAR ASM. | 1 | |
| SS8660810TP | SCREW 1/4-40 L=8 | ||
| 22905004 | UPRIGHT SHAFT | 1 | |
| 11038759 | BOBBIN CASE ASM. | 1 | |
| 22905103 | UPRIGHT SHAFT BUSHING, UPPER | 1 | |
| 22905202 | UPRIGHT SHAFT BUSHING, LOWER | 1 | |
| 22916308 | HOOK DRIVING SHAFT BUSH, REAR | 1 | |
| 22942601 | OIL SHIELD | 1 | |
| 22917157 | THRUST COLLAR ASM., REAR | 1 | |
| SS6110420TP | SCREW 11/64-40 L=4.8 | ||
| 22916001 | HOOK DRIVING SHAFT | 1 | |
| 22942502 | INNER HOOK PRESSER | 1 | |
| SS4110915TP | SCREW 11/64-40 L=9 | 1 | |
| 11038650 | HOOK ASM. | 1 | |
| 22916100 | HOOK DRIVING SHAFT BUSH, FRONT | 1 | |
| 22916555 | OIL SEAL SCREW ASM. | 1 | |
| 11015906 | OIL WICK | ||
| 22916506 | SET SCREW | ||
| SS4120915SP | SCREW 3/16-28 L=9 | 1 | |
| 22920805 | NEEDLE BAR THREAD GUIDE | 1 |
NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 TA0850604R0 RUBBER PLUG 1 2 22906101 NEEDLE BAR BUSHING, UPPER 1 3 22939508 NEEDLE BAR 1 4 22906457 NEEDLE BAR HOLDER ASM. 1 5 SS6090670TP SCREW 9/64-40 L=6 * 1 6 40090058 SLIDE BLOCK 1 7 40012444 NEEDLE BAR THREAD GUIDE 1 8 22906200 NEEDLE BAR BUSHING, LOWER 1 9 SS7080510TP SCREW 1/8-44 L=4.5 1 10 22906309 NEEDLE BAR THREAD GUIDE 1 11 MDB100B1400 NEEDLE DBX1 #14 1 12 40101694 THRUST_COLLAR_ASM.FRONT 1 13 SS8110410TP SCREW 11/64-40 L= 3.5 * 2 14 40090002 UPPER LARGE BEVEL GEAR ASM. 1 15 SS8660810TP SCREW 1/4-40 L=8 * 2 16 40090003 UPPER SMALL BEVEL GEAR ASM. 1 17 SS8660810TP SCREW 1/4-40 L=8 * 2 18 22932909 BOBBIN 1 19 40090004 LOWER LARGE BEVEL GEAR ASM. 1 20 SS8660810TP SCREW 1/4-40 L=8 * 2 21 40090005 LOWER SMALL BEVEL GEAR ASM. 1 22 SS8660810TP SCREW 1/4-40 L=8 * 2 23 22905004 UPRIGHT SHAFT 1 24 11038759 BOBBIN CASE ASM. 1 25 22905103 UPRIGHT SHAFT BUSHING, UPPER 1 26 22905202 UPRIGHT SHAFT BUSHING, LOWER 1 27 22916308 HOOK DRIVING SHAFT BUSH, REAR 1 28 22942601 OIL SHIELD 1 29 22917157 THRUST COLLAR ASM., REAR 1 30 SS6110420TP SCREW 11/64-40 L=4.8 * 2 31 22916001 HOOK DRIVING SHAFT 1 32 22942502 INNER HOOK PRESSER FOR DDL-8700AS-7 1 33 SS4110915TP SCREW 11/64-40 L=9 FOR DDL-8700AS-7 1 34 11038650 HOOK ASM. 1 35 22916100 HOOK DRIVING SHAFT BUSH, FRONT 1 36 22916555 OIL SEAL SCREW ASM. 1 37 11015906 OIL WICK * 1 38 22916506 SET SCREW * 1 39 SS4120915SP SCREW 3/16-28 L=9 1 40 22920805 NEEDLE BAR THREAD GUIDE FOR DDL-8700AS-7 1 jintex.in
Page 13 — HAND LIFTER COMPONENTS
HAND LIFTER COMPONENTS jintex.in
Page 14 — HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22907802 | HAND LIFTER | 1 |
| 2 | B1521555000 | SCREW | 1 |
| 3 | RO037180100 | RUBBER RING | 1 |
| 4 | 22908552 | HAND LIFTER CAM ASM. | 1 |
| 5 | 40060989 | PRESSER BAR BUSHING LOWER | 1 |
| 6 | SS7091110TP | SCREW 9/64-40 L=10.5 | 1 |
| 7 | 22908701 | LINK SHAFT | 2 |
| 8 | RE0500000K0 | E-RING | 3 |
| 9 | B15240120BA | PRESSER FOOT ASM. | 1 |
| 10 | 22944706 | WIRE PRESSER BASE, LOWER | 1 |
| 11 | 22908909 | HINGE SCREW | 1 |
| 12 | SD0720331SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 13 | 22909006 | KNEE LIFTER CONNECTING ROD | 1 |
| 14 | 22908800 | KNEE LIFTER LINK | 1 |
| 15 | SS4110515SP | SCREW 11/64-40 L=5 | 1 |
| 16 | SS4110515SP | SCREW 11/64-40 L=5 | 1 |
| 17 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
| 18 | 22944508 | WIRE PRESSER A | 1 |
| 19 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 20 | 22944607 | WIRE PRESSER BASE, UPPER | 2 |
| 21 | NS6620310SP | NUT 3/16-32 | 2 |
| 22 | RE0500000K0 | E-RING | 2 |
| 23 | 22920201 | RETURN SPRING | 1 |
| 24 | 22920409 | THREAD RELEASE PIN SPRING | 1 |
| 25 | 22945109 | WIRE CABLE SUPPORT | 1 |
| 26 | 22920300 | THREAD RELEASE SUPPORTING PIN | 1 |
| 27 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 28 | 22944854 | THREAD RELEASE WIRE ASM. | 1 |
| 29 | 22920102 | TENSION RELEASE SHAFT | 1 |
| 30 | 22907554 | PRESSER SPRING REGULATOR ASM. | 1 |
| 31 | 22907604 | PRESSER SPRING REGULATOR NUT | 1 |
| 32 | 22907505 | PRESSER SPRING REGULATOR | 1 |
| 33 | 22907406 | PRESSER SPRING | 1 |
| 34 | 22907208 | PRESSER BAR GUIDE BRACKET | 1 |
| 35 | 40017805 | PRESSER BAR | 1 |
| 36 | 22907307 | THREAD GUIDE | 1 |
| 37 | SS8660810TP | SCREW 1/4-40 L=8 | 1 |
| 38 | SS6090910SP | SCREW 9/64-40 L=9 | 2 |
| 39 | 22908354 | KNEE LIFTING CROSS ROD ASM. | 1 |
| 40 | 22908156 | LIFTING LINK ASM. | 1 |
| 41 | RE0500000K0 | E-RING | 1 |
| 42 | 22908008 | LIFTING PLATE | 1 |
| 43 | RE0500000K0 | E-RING | 1 |
| 44 | 22908305 | KNEE LIFTER SIDE ROD | 1 |
| 45 | 22907703 | PRESSER GUIDE BAR | 1 |
HAND LIFTER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22907802 HAND LIFTER 1 2 B1521555000 SCREW 1 3 RO037180100 RUBBER RING 1 4 22908552 HAND LIFTER CAM ASM. 1 5 40060989 PRESSER BAR BUSHING LOWER 1 6 SS7091110TP SCREW 9/64-40 L=10.5 1 7 22908701 LINK SHAFT 2 8 RE0500000K0 E-RING 3 9 B15240120BA PRESSER FOOT ASM. 1 10 22944706 WIRE PRESSER BASE, LOWER 1 11 22908909 HINGE SCREW 1 12 SD0720331SP HINGE SCREW D= 7.24 H= 3.3 1 13 22909006 KNEE LIFTER CONNECTING ROD 1 14 22908800 KNEE LIFTER LINK 1 15 SS4110515SP SCREW 11/64-40 L=5 1 16 SS4110515SP SCREW 11/64-40 L=5 1 17 SS4150915SP SCREW 15/64-28 L=9 2 18 22944508 WIRE PRESSER A 1 19 SS4120615SP SCREW 3/16-28 L=6 1 20 22944607 WIRE PRESSER BASE, UPPER 2 21 NS6620310SP NUT 3/16-32 2 22 RE0500000K0 E-RING 2 23 22920201 RETURN SPRING 1 24 22920409 THREAD RELEASE PIN SPRING 1 25 22945109 WIRE CABLE SUPPORT 1 26 22920300 THREAD RELEASE SUPPORTING PIN 1 27 SS4120615SP SCREW 3/16-28 L=6 1 28 22944854 THREAD RELEASE WIRE ASM. 1 29 22920102 TENSION RELEASE SHAFT 1 30 22907554 PRESSER SPRING REGULATOR ASM. 1 31 22907604 PRESSER SPRING REGULATOR NUT * 1 32 22907505 PRESSER SPRING REGULATOR * 1 33 22907406 PRESSER SPRING 1 34 22907208 PRESSER BAR GUIDE BRACKET 1 35 40017805 PRESSER BAR 1 36 22907307 THREAD GUIDE FOR DDL-8700AS-7 1 37 SS8660810TP SCREW 1/4-40 L=8 1 38 SS6090910SP SCREW 9/64-40 L=9 2 39 22908354 KNEE LIFTING CROSS ROD ASM. 1 40 22908156 LIFTING LINK ASM. * 1 41 RE0500000K0 E-RING * 1 42 22908008 LIFTING PLATE * 1 43 RE0500000K0 E-RING * 1 44 22908305 KNEE LIFTER SIDE ROD * 1 45 22907703 PRESSER GUIDE BAR 1 jintex.in
Page 15 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS jintex.in
Page 16 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22941108 | FEED ADJUST ROD | 1 | |
| 22911507 | WALKING FOOT PIN C | 1 | |
| SS6090670TP | SCREW 9/64-40 L=6 | 2 | |
| 22911606 | FEED REGULATOR | 1 | |
| SS6121860SP | SCREW 3/16-28 L=18 | 1 | |
| SS7120770SH | SCREW 3/16-28 L=7 | 1 | |
| 22911804 | FEED REGULATOR SCREW | 1 | |
| 22912109 | FEED REGULATOR PIN SPRING | 1 | |
| 22912000 | FEED REGULATOR PIN | 1 | |
| 22940506 | FEED DIAL | 1 | |
| 22910251 | CONNECTING ROD ASM. | 1 | |
| 22910202 | ROCKER SHAFT CONNECTING ROD | 1 | |
| 22911101 | WALKING FOOT PIN C | 1 | |
| SS6090620TP | SCREW | 1 | |
| 22915003 | CONNECTING ROD | 1 | |
| R0092270200 | RUBBER RING | 1 | |
| 11010311 | LEVER SPRING¥n | 1 | |
| RE050000K0 | E-RING | 1 | |
| 22912257 | FEED REVERSE ARM ASM. | 1 | |
| 22912505 | FEED REVERSE ARM SCREW | 1 | |
| RE050000K0 | E-RING | 1 | |
| 11037405 | SPRING | 1 | |
| 11009800 | FEED REGULATOR BUSHING | 2 | |
| 22910905 | WALKING FOOT PIN A | 2 | |
| 40089548 | CONNECTING LINK B | 2 | |
| 40093417 | CONNECTING LINK A | 2 | |
| 22940951 | FEED ADJUST LINK ASM. | 1 | |
| 22910806 | ADJUST LINK FULCRUM SHAFT A | 2 | |
| SS8150710TP | SCREW 15/64-28 L=7 | 2 | |
| SS6090620TP | SCREW | 2 | |
| 40101462 | FEED BASE SHAFT | 1 | |
| RC0150001KP | RETAINING RING 13.8 | 1 | |
| B1613012100 | FEED DOG I | 1 | |
| SS4080620TP | SCREW 1/8-44 L=6 | 2 | |
| 22940753 | FEED BAR ASM. | 1 | |
| 22941306 | REGULATOR LINK SPRING HOOK | 1 | |
| SS4110515SP | SCREW 11/64-40 L=5 | 2 | |
| 22913701 | FEED SPRING HOOK | 1 | |
| 22912901 | FEED ROCKER SHAFT | 1 | |
| 22911002 | WALKING FOOT PIN B | 1 | |
| SS6090620TP | SCREW | 1 | |
| NS6680410SP | NUT 9/32-28 | 1 | |
| 22910350 | FEED ROCKER SHAFT CRANK ASM. | 1 | |
| SS6121610SP | SCREW 3/16-28 L=15.5 | 1 | |
| 22915151 | FEED ARM COMPL. | 1 | |
| SS6121210SP | SCREW 3/16-28 L=12 | 1 | |
| SD1000801SH | HINGE SCREW D=10 H=8 | 1 |
FEED MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22941108 FEED ADJUST ROD FOR DDL-8700AS-7 1 2 22911507 WALKING FOOT PIN C 1 3 SS6090670TP SCREW 9/64-40 L=6 2 4 22911606 FEED REGULATOR FOR DDL-8700AS-7 1 5 SS6121860SP SCREW 3/16-28 L=18 1 6 SS7120770SH SCREW 3/16-28 L=7 1 7 22911804 FEED REGULATOR SCREW 1 8 22912109 FEED REGULATOR PIN SPRING 1 9 22912000 FEED REGULATOR PIN 1 10 22940506 FEED DIAL 1 11 22910251 CONNECTING ROD ASM. 1 12 22910202 ROCKER SHAFT CONNECTING ROD * 1 13 22911101 WALKING FOOT PIN C * 1 14 SS6090620TP SCREW * 1 15 22915003 CONNECTING ROD 1 16 R0092270200 RUBBER RING 1 17 11010311 LEVER SPRING¥n 1 18 RE050000K0 E-RING 1 19 22912257 FEED REVERSE ARM ASM. 1 20 22912505 FEED REVERSE ARM SCREW 1 21 RE050000K0 E-RING 1 22 11037405 SPRING FOR DDL-8700AS-7 1 23 11009800 FEED REGULATOR BUSHING 2 24 22910905 WALKING FOOT PIN A 2 25 40089548 CONNECTING LINK B 2 26 40093417 CONNECTING LINK A 2 27 22940951 FEED ADJUST LINK ASM. 1 28 22910806 ADJUST LINK FULCRUM SHAFT A 2 29 SS8150710TP SCREW 15/64-28 L=7 2 30 SS6090620TP SCREW 2 31 40101462 FEED BASE SHAFT 1 32 RC0150001KP RETAINING RING 13.8 1 33 B1613012100 FEED DOG I 1 34 SS4080620TP SCREW 1/8-44 L=6 2 35 22940753 FEED BAR ASM. 1 36 22941306 REGULATOR LINK SPRING HOOK 1 37 SS4110515SP SCREW 11/64-40 L=5 2 38 22913701 FEED SPRING HOOK 1 39 22912901 FEED ROCKER SHAFT 1 40 22911002 WALKING FOOT PIN B 1 41 SS6090620TP SCREW 1 42 NS6680410SP NUT 9/32-28 1 43 22910350 FEED ROCKER SHAFT CRANK ASM. 1 44 SS6121610SP SCREW 3/16-28 L=15.5 * 1 45 22915151 FEED ARM COMPL. 1 46 SS6121210SP SCREW 3/16-28 L=12 * 1 47 SD1000801SH HINGE SCREW D=10 H=8 1 jintex.in
Page 17 — FEED MECHANISM COMPONENTS
FEED MECHANISM COMPONENTS 23 6 3 4 1 18 2 7 8 9 10 19 16 5 17 24 25 26 21 20 15 24 27 28 22 28 29 30 34 36 37 38 31 33 35 32 39 47 51 50 49 48 53 57 56 55 54 62 63 51 58 59 64 66 11 12 52 13 14 40 41 44 43 45 42 46 61 60 65 jintex.in
Page 18 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 22915201 | FEED DRIVING SHAFT | |
| 49 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | |
| 50 | SS8660610TP | SCREW 1/4-40 L=6 | |
| 51 | 22913008 | FEED ROCKER SHAFT BUSHING | |
| 52 | 40111897 | BEARING | |
| 53 | SS7110740TP | SCREW 11/64-40 L=7 | |
| 54 | RC0150001KP | RETAINING RING 13.8 | |
| 55 | 22940654 | FEED ROCKER ASM. | |
| 56 | SS7121410TP | SCREW 3/16-28 L=14 | |
| 57 | WP0480856SP | WASHER 4.8X8.4X0.8 | |
| 58 | 22915359 | DRIVING SHAFT CRANK ASM. | |
| 59 | SS711120SP | SCREW 11/64-40 L=10.5 | |
| 60 | 40102264 | FEED_REVER_ASM. | |
| 61 | SM8061010TP | SCREW | |
| 62 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | |
| 63 | SS8660610TP | SCREW 1/4-40 L=6 | |
| 64 | 40100812 | FEED LEVER SHAFT | |
| 65 | 22912802 | FEED LEVER SHAFT BUSHING | |
| 66 | RO078190100 | RUBBER RING |
FEED MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 22915201 FEED DRIVING SHAFT 1 49 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 50 SS8660610TP SCREW 1/4-40 L=6 * 2 51 22913008 FEED ROCKER SHAFT BUSHING 2 52 40111897 BEARING 1 53 SS7110740TP SCREW 11/64-40 L=7 1 54 RC0150001KP RETAINING RING 13.8 1 55 22940654 FEED ROCKER ASM. 1 56 SS7121410TP SCREW 3/16-28 L=14 * 1 57 WP0480856SP WASHER 4.8X8.4X0.8 * 1 58 22915359 DRIVING SHAFT CRANK ASM. 1 59 SS711120SP SCREW 11/64-40 L=10.5 * 1 60 40102264 FEED_REVER_ASM. 1 61 SM8061010TP SCREW * 2 62 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 63 SS8660610TP SCREW 1/4-40 L=6 * 2 64 40100812 FEED LEVER SHAFT 1 65 22912802 FEED LEVER SHAFT BUSHING 1 66 RO078190100 RUBBER RING 1 jintex.in
Page 19 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS
Page 20 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22947956 | KNIFE UNIT | 1 | |
| SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 | |
| 22948202 | FORKED BASE FOR KNIFE | 1 | |
| 11040409 | MOVING KNIFE HINGE SCREW | 1 | |
| 11040052 | MOVING KNIFE ASM. | 1 | |
| 22947907 | KNIFE INSTALLING BASE¥n | 1 | |
| 22947808 | THREAD GUIDE FOR KNIFE | 1 | |
| SS2060210SP | SCREW 3/32-56 L=2.3 | 1 | |
| SS4080620TP | SCREW 1/8-44 L=6 | 2 | |
| D2406555D0H | COUNTER KNIFE | 1 | |
| HK034610140 | HOUSING 14P | 1 | |
| SS4110715SP | SCREW 11/64-40 L=7 | 1 | |
| 22950257 | PICKER ARM ASM. | 1 | |
| 22950208 | PICKER ARM | 1 | |
| 22950356 | HOOK THREAD PRESSER ASM. | 1 | |
| SS6090510TP | SCREW 9/64-40 L=5.0 | 2 | |
| SD0641451SP | HINGE SCREW D= 6.35 H=14.5 | 1 | |
| SD0630275SP | HINGE SCREW D= 6.35 H= 2.7 | 1 | |
| 22950851 | THREAD TRIMMER CAM ASM.¥n | 1 | |
| SS6660610TP | SCREW 1/4-40 L=6 | 2 | |
| 22950950 | CAM COLLAR ASM. | 1 | |
| SS8110520TP | SCREW 11/64-40 L=4.5 | 1 | |
| 22949762 | THREAD TRIMMER DRIVING UNIT | 1 | |
| 22949754 | BASE PLATE ASM. | 1 | |
| 22950703 | DRIVING ARM STOPPER | 1 | |
| 22950000 | PICKER LINK PIN | 1 | |
| RE0600000K0 | E-RING 6 | 1 | |
| SS4110715SP | SCREW 11/64-40 L=7 | 2 | |
| 22949408 | CLUTCH SPRING | 1 | |
| 40087245 | CLUTCH PLATE ASM. | 1 | |
| 22950109 | PICKER LINK | 1 | |
| WP0621016SH | WASHER | 2 | |
| NS6150430SP | NUT 15/64-28 | 2 | |
| RE0600000K0 | E-RING 6 | 1 | |
| 22948301 | MOVING KNIFE LINK | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 22948400 | MOVING KNIFE LINK PIN | 1 | |
| 22949309 | KNIFE RETURN SPRING B | 1 | |
| RE0400000K0 | E-RING 4 | 2 | |
| 22949101 | ROLLER FULCRUM SHAFT | 1 | |
| 22949200 | ROLLER RETURN SPRING | 1 | |
| SS7090610SP | SCREW 9/64-40 L=6 | 1 | |
| 22949002 | ROLLER ARM SEAT | 1 | |
| 11040953 | ROLLER ARM ASM. | 1 | |
| 11040854 | KNIFE DRIVING ARM ASM. | 1 | |
| SD0600361SP | HINGE SCREW D=6 H=3.6 | 1 | |
| SS4150915SP | SCREW 15/64-28 L=9 | 2 |
THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22947956 KNIFE UNIT 1 2 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 3 22948202 FORKED BASE FOR KNIFE * 1 4 11040409 MOVING KNIFE HINGE SCREW * 1 5 11040052 MOVING KNIFE ASM. * 1 6 22947907 KNIFE INSTALLING BASE¥n * 1 7 22947808 THREAD GUIDE FOR KNIFE * 1 8 SS2060210SP SCREW 3/32-56 L=2.3 * 1 9 SS4080620TP SCREW 1/8-44 L=6 * 2 10 D2406555D0H COUNTER KNIFE 1 11 HK034610140 HOUSING 14P 1 12 SS4110715SP SCREW 11/64-40 L=7 1 13 22950257 PICKER ARM ASM. 1 14 22950208 PICKER ARM 1 15 22950356 HOOK THREAD PRESSER ASM. * 1 16 SS6090510TP SCREW 9/64-40 L=5.0 * 2 17 SD0641451SP HINGE SCREW D= 6.35 H=14.5 1 18 SD0630275SP HINGE SCREW D= 6.35 H= 2.7 1 19 22950851 THREAD TRIMMER CAM ASM.¥n 1 20 SS6660610TP SCREW 1/4-40 L=6 * 2 21 22950950 CAM COLLAR ASM. 1 22 SS8110520TP SCREW 11/64-40 L=4.5 * 1 23 22949762 THREAD TRIMMER DRIVING UNIT 1 24 22949754 BASE PLATE ASM. * 1 25 22950703 DRIVING ARM STOPPER * 1 26 22950000 PICKER LINK PIN * 1 27 RE0600000K0 E-RING 6 * 1 28 SS4110715SP SCREW 11/64-40 L=7 * 2 29 22949408 CLUTCH SPRING * 1 30 40087245 CLUTCH PLATE ASM. * 1 31 22950109 PICKER LINK * 1 32 WP0621016SH WASHER * 2 33 NS6150430SP NUT 15/64-28 * 2 34 RE0600000K0 E-RING 6 * 1 35 22948301 MOVING KNIFE LINK * 1 36 RE0500000K0 E-RING * 1 37 22948400 MOVING KNIFE LINK PIN * 1 38 22949309 KNIFE RETURN SPRING B * 1 39 RE0400000K0 E-RING 4 * 2 40 22949101 ROLLER FULCRUM SHAFT * 1 41 22949200 ROLLER RETURN SPRING * 1 42 SS7090610SP SCREW 9/64-40 L=6 * 1 43 22949002 ROLLER ARM SEAT * 1 44 11040953 ROLLER ARM ASM. * 1 45 11040854 KNIFE DRIVING ARM ASM. * 1 46 SD0600361SP HINGE SCREW D=6 H=3.6 1 47 SS4150915SP SCREW 15/64-28 L=9 2 Jintex.in
Page 21 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS
Page 22 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SD0640631TP | HINGE SCREW D=6.35 H=6.3 | 1 |
| 49 | 40111031 | THREAD TRIMMER SOLENOID ASM. | 1 |
| 50 | 22951404 | SOLENOID BASE | 1 |
| 51 | WS0410002KR | SPRING WASHER, M4 | 2 |
| 52 | NM6040001SE | NUT M4 | 2 |
| 53 | 40110995 | THREAD TRIMMER SOLENOID | 1 |
| 54 | SS6110710TP | SCREW 11/64-40 L= 6.5 | 1 |
| 55 | 22949903 | CLUTCH LINK | 1 |
| 56 | RE0500000K0 | E-RING | 1 |
| 57 | SS4151215SP | SCREW 15/64-28 L=12 | 2 |
| 58 | 22924807 | PIPE HOLDER, LOWER | 1 |
| 59 | 22951552 | GROUND WIRE ASM. | 1 |
| 60 | 22951008 | SOLENOID PIN | 1 |
THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SD0640631TP HINGE SCREW D=6.35 H=6.3 1 49 40111031 THREAD TRIMMER SOLENOID ASM. 1 50 22951404 SOLENOID BASE * 1 51 WS0410002KR SPRING WASHER, M4 * 2 52 NM6040001SE NUT M4 * 2 53 40110995 THREAD TRIMMER SOLENOID * 1 54 SS6110710TP SCREW 11/64-40 L= 6.5 1 55 22949903 CLUTCH LINK 1 56 RE0500000K0 E-RING 1 57 SS4151215SP SCREW 15/64-28 L=12 2 58 22924807 PIPE HOLDER, LOWER FOR DDL-8700AS-7 1 59 22951552 GROUND WIRE ASM. 1 60 22951008 SOLENOID PIN 1 jintex.in
Page 23 — AUTOMATIC REVERSE FEED COMPONENTS
AUTOMATIC REVERSE FEED COMPONENTS 14 15 14 16 17 18 6 8 5 19 9 13 7 4 3 12 20 21 22 23 10 11 jintex.in
Page 24 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40110992 | REVERSE FEED SWITCH ASM. | |
| 2 | 23631708 | REVERSE FEED SWITCH COVER | |
| 3 | 23631807 | REVERSE FEED SWITCH SHAFT | |
| 4 | 23631906 | REVERSE FEED SWITCH SUPPORT | |
| 5 | 23632003 | REVERSE FEED SWITCH BASE | |
| 6 | 23632102 | REVERSE FEED SWITCH BASE GUIDE | |
| 7 | 40111741 | REVERSE_FEED_CORD_ASM. | |
| 8 | EA9500B0100 | CABLE BAND | |
| 9 | SS7110740TP | SCREW 11/64-40 L=7 | |
| 10 | 22953509 | PLUNGER ARM PIN | |
| 11 | SS4151215SP | SCREW 15/64-28 L=12 | |
| 12 | 40110996 | REVERSE_FEED_SOLENOID | |
| 13 | 22954002 | PLUNGER SPRING | |
| 14 | RE050000KP | E-RING 5 | |
| 15 | 22953806 | REVERSE FEED CONNECTING SHAFT | |
| 16 | RE090000K0 | E-RING 9 | |
| 17 | 22953657 | CONNECTING ARM ASM. | |
| 18 | RE040000KP | E-RING 4 | |
| 19 | 22953905 | REVERSE FEED CONNECTING LINK | |
| 20 | RE120000K0 | E-RING 12 | |
| 21 | WP1602616SZ | WASHER 16X24X2.6 | |
| 22 | 22953400 | RUBBER PLUNGER | |
| 23 | RE040000K0 | E-RING 4 |
AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40110992 REVERSE FEED SWITCH ASM. 1 2 23631708 REVERSE FEED SWITCH COVER * 1 3 23631807 REVERSE FEED SWITCH SHAFT * 1 4 23631906 REVERSE FEED SWITCH SUPPORT * 1 5 23632003 REVERSE FEED SWITCH BASE * 1 6 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 7 40111741 REVERSE_FEED_CORD_ASM. * 1 8 EA9500B0100 CABLE BAND * 1 9 SS7110740TP SCREW 11/64-40 L=7 1 10 22953509 PLUNGER ARM PIN 1 11 SS4151215SP SCREW 15/64-28 L=12 2 12 40110996 REVERSE_FEED_SOLENOID 1 13 22954002 PLUNGER SPRING 1 14 RE050000KP E-RING 5 2 15 22953806 REVERSE FEED CONNECTING SHAFT 1 16 RE090000K0 E-RING 9 1 17 22953657 CONNECTING ARM ASM. 1 18 RE040000KP E-RING 4 1 19 22953905 REVERSE FEED CONNECTING LINK 1 20 RE120000K0 E-RING 12 1 21 WP1602616SZ WASHER 16X24X2.6 1 22 22953400 RUBBER PLUNGER 1 23 RE040000K0 E-RING 4 2 jintex.in
Page 25 — WIPER COMPONENTS
WIPER COMPONENTS jintex.in
Page 26 — WIPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40110998 | WIPER ASM. | 1 | |
| 22955504 | WIPER COVER | 1 | |
| SL4030631SC | SCREW M3X6 | 1 | |
| SD0650321TP | HINGE SCREW D=6.5 H=3.2 | 1 | |
| NS6090310SP | NUT 9/64-40 | 1 | |
| 22956106 | WIPER LINK A | 1 | |
| 22956403 | WIPER LINK B | 1 | |
| RE0250000K0 | E-RING 2.5 | 1 | |
| 22956908 | WIPER LINK B, HINGE SCREW | 1 | |
| 22956205 | WIPER HINGE SCREW COLLAR | 1 | |
| 22956304 | WIPER SPRING | 1 | |
| NS6110310SP | NUT 11/64-40 | 1 | |
| 22955900 | WIPER RUBBER A | 1 | |
| 22956007 | WIPER RUBBER B | 1 | |
| 40110999 | WIPER SOLENOID | 1 | |
| 22957104 | WIPER SOLENOID SHAFT | 1 | |
| HA00600000A | SWITCH | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 40041419 | WIPER LINK C ASM. | 1 | |
| 11110152 | WIPER BASE ASM. | 1 | |
| 22957203 | WIPER LINK COLLAR | 1 | |
| SL4030641SE | SCREW | 3 | |
| 22956809 | WIPER COLLAR | 1 | |
| 22957005 | WIPER | 1 | |
| SS6090540SP | SCREW 9/64-40 L= 5.0 | 1 | |
| WP0482086SD | WASHER 4.8X11.5X2 | 1 | |
| SS4120915SP | SCREW 3/16-28 L=9 | 2 |
WIPER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40110998 WIPER ASM. 1 2 22955504 WIPER COVER * 1 3 SL4030631SC SCREW M3X6 * 1 4 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 5 NS6090310SP NUT 9/64-40 * 1 6 22956106 WIPER LINK A * 1 7 22956403 WIPER LINK B * 1 8 RE0250000K0 E-RING 2.5 * 1 9 22956908 WIPER LINK B, HINGE SCREW * 1 10 22956205 WIPER HINGE SCREW COLLAR * 1 11 22956304 WIPER SPRING * 1 12 NS6110310SP NUT 11/64-40 * 1 13 22955900 WIPER RUBBER A * 1 14 22956007 WIPER RUBBER B * 1 15 40110999 WIPER SOLENOID * 1 16 22957104 WIPER SOLENOID SHAFT * 1 17 HA00600000A SWITCH * 1 18 RE0500000K0 E-RING * 1 19 40041419 WIPER LINK C ASM. * 1 20 11110152 WIPER BASE ASM. * 1 21 22957203 WIPER LINK COLLAR * 1 22 SL4030641SE SCREW * 3 23 22956809 WIPER COLLAR * 1 24 22957005 WIPER * 1 25 SS6090540SP SCREW 9/64-40 L= 5.0 * 1 26 WP0482086SD WASHER 4.8X11.5X2 * 1 27 SS4120915SP SCREW 3/16-28 L=9 * 2 jintex.in
Page 27
OIL LUBRICATION COMPONENTS 1 2 3 26 4 6 13 11 22 25 5 27 24 14 23 28 20 8 10 21 19 9 15 18 12 17 16 jintex.in
Page 28 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22924708 | OIL SIGHT WINDOW | |
| 2 | RO195240100 | RUBBER RING | |
| 3 | 22924401 | MAIN SHAFT OIL TUBE | |
| 4 | SS4120615SP | SCREW 3/16-28 L=6 | |
| 5 | 22925101 | OIL FELT PRESSER | |
| 6 | 22924153 | OIL RETURN TUBE ASM. | |
| 7 | 22924302 | HOLDER | |
| 8 | CQ252000000 | OIL WICK | |
| 9 | 22925002 | OIL ADJUSTING SCREW | |
| 10 | 22924906 | SPRING | |
| 11 | 22924500 | OIL TUBE | |
| 12 | 22923056 | LUBRICATING OIL PUMP ASM. | |
| 13 | 22923312 | OIL PUMP INSTALLING BASE | |
| 14 | 22923015 | OIL PUMP | |
| 15 | 22923700 | OIL PUMP IMPELLER | |
| 16 | SE4301041SR | SCREW D=3 L=10 | |
| 17 | 22923205 | LUBRICATING OIL PUMP COVER | |
| 18 | 22923809 | OIL PUMP IMPELLER COVER | |
| 19 | 22923403 | PLUNGER | |
| 20 | 22923601 | PLUNGER SPRING | |
| 21 | 22923502 | PLUNGER SCREW | |
| 22 | 22923908 | HOOK DRIVING SHAFT OIL TUBE | |
| 23 | SL4030851SF | SCREW M3 L=8 | |
| 24 | SS4150915SP | SCREW 15/64-28 L=9 | |
| 25 | SS6111010TP | SCREW 11/64-40 L=9.5 | |
| 26 | 22947105 | OIL PUMP SUPPORT | |
| 27 | WS0651310KP | SPRING WASHER 6.5X11X1.3 | |
| 28 | 22924609 | RUBBER JOINT |
OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22924708 OIL SIGHT WINDOW 1 2 RO195240100 RUBBER RING 1 3 22924401 MAIN SHAFT OIL TUBE 1 4 SS4120615SP SCREW 3/16-28 L=6 1 5 22925101 OIL FELT PRESSER 1 6 22924153 OIL RETURN TUBE ASM. 1 7 22924302 HOLDER * 1 8 CQ252000000 OIL WICK 0.3 9 22925002 OIL ADJUSTING SCREW 1 10 22924906 SPRING 1 11 22924500 OIL TUBE 1 12 22923056 LUBRICATING OIL PUMP ASM. * 1 13 22923312 OIL PUMP INSTALLING BASE * 1 14 22923015 OIL PUMP * 1 15 22923700 OIL PUMP IMPELLER * 1 16 SE4301041SR SCREW D=3 L=10 * 1 17 22923205 LUBRICATING OIL PUMP COVER * 1 18 22923809 OIL PUMP IMPELLER COVER * 1 19 22923403 PLUNGER * 1 20 22923601 PLUNGER SPRING * 1 21 22923502 PLUNGER SCREW * 1 22 22923908 HOOK DRIVING SHAFT OIL TUBE * 1 23 SL4030851SF SCREW M3 L=8 * 3 24 SS4150915SP SCREW 15/64-28 L=9 1 25 SS6111010TP SCREW 11/64-40 L=9.5 1 26 22947105 OIL PUMP SUPPORT FOR DDL-8700AS-7 1 27 WS0651310KP SPRING WASHER 6.5X11X1.3 FOR DDL-8700AS-7 1 28 22924609 RUBBER JOINT 1 jintex.in
Page 29 — OIL RESERVOIR COMPONENTS
OIL RESERVOIR COMPONENTS 27 28 5 6 19 1 2 3 JUKI HIGH LOW 13 14 11 12 17 8 10 7 9 10 9 15 18 16 20 26 24 25 23 22 21 jintex.in
Page 31 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27 | 27 | 27 | |
| 26 | 26 | 26 | |
| 29 | 29 | 29 | |
| 31 | 31 | 31 | |
| 9 | 9 | 9 | |
| 8 | 8 | 8 | |
| 7 | 7 | 7 | |
| 18 | 18 | 18 | |
| 36 | 36 | 36 | |
| 34 | 34 | 34 | |
| 37 | 37 | 37 | |
| 23 | 23 | 23 | |
| 21 | 21 | 21 | |
| 20 | 20 | 20 | |
| 19 | 19 | 19 | |
| 42 | 42 | 42 | |
| 35 | 35 | 35 | |
| 34 | 34 | 34 | |
| 33 | 33 | 33 | |
| 34 | 34 | 34 | |
| 22 | 22 | 22 | |
| 16 | 16 | 16 | |
| 24 | 24 | 24 | |
| 13 | 13 | 13 | |
| 10 | 10 | 10 | |
| 15 | 15 | 15 | |
| 17 | 17 | 17 | |
| 5 | 5 | 5 | |
| 6 | 6 | 6 | |
| 40 | 40 | 40 | |
| 1 | 1 | 1 | |
| 4 | 4 | 4 | |
| 2 | 2 | 2 | |
| 3 | 3 | 3 | |
| 38 | 38 | 38 | |
| 39 | 39 | 39 | |
| 32 | 32 | 32 | |
| 30 | 30 | 30 | |
| 28 | 28 | 28 | |
| 25 | 25 | 25 | |
| 43 | 43 | 43 | |
| 52 | 52 | 52 | |
| 48 | 48 | 48 | |
| 49 | 49 | 49 | |
| 50.51 | 50.51 | 50.51 | |
| 47 | 47 | 47 | |
| 41 | 41 | 41 | |
| 45 | 45 | 45 | |
| 46 | 46 | 46 | |
| 44 | 44 | 44 |
PSC UNIT 27 26 29 31 9 8 7 18 36 34 37 23 21 20 19 42 35 34 33 34 22 16 24 13 10 15 17 5 6 40 1 4 2 3 38 39 32 30 28 25 43 52 48 49 50.51 47 41 45 46 44 30 JININEX.IN
