Juki DDL-8700A-7 Parts Book (PDF)
Text index — Juki DDL-8700A-7
Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40102097 | FACE_PLATE_ASM | 1 |
| 2 | 40012126 | FACE PLATE PACKING | 1 |
| 3 | SS6080410SP | SCREW 1/8-44 L=4 | 1 |
| 4 | 22900757 | FACE PLATE OIL SHIELD ASM. | 1 |
| 5 | TA0850604R0 | RUBBER PLUG | 2 |
| 6 | TA1250705R0 | RUBBER PLUG | 1 |
| 7 | 22958300 | NEEDLE THREAD GUIDE PIN | 1 |
| 8 | SS4120915SP | SCREW 3/16-28 L=9 | 8 |
| 9 | 40110987 | LEVER_COVER | 1 |
| 10 | 22900401 | WINDOW PLATE | 1 |
| 11 | 40012129 | SIDE PLATE PACKING | 1 |
| 12 | CM300200001 | ATTENTION SEAL | 1 |
| 13 | CM301200001 | SAFETY LABEL_S | 1 |
| 14 | 22901805 | GROUND MARK | 1 |
| 15 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 16 | TA2000502R0 | RUBBER PLUG | 1 |
| 17 | SS6121840SP | SCREW 3/16-28 L=18 | 1 |
| 18 | 22952501 | BACK LEVER STOPPER | 1 |
| 19 | TA2101002R0 | RUBBER PLUG | 1 |
| 20 | 40093432 | MAGNET CORD RUBBER | 1 |
| 21 | 22945463 | THREAD TENSION ASM. ,NO.1 | 1 |
| 22 | 22945414 | THREAD TENSION POST | 1 |
| 23 | 22945604 | THREAD TENSION GUIDE | 1 |
| 24 | 22945802 | THREAD TENSION DISK | 2 |
| 25 | 22945505 | THREAD TENSION SPRING | 1 |
| 26 | 22945703 | THREAD TENSION NUT | 1 |
| 27 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 28 | 22900609 | THREAD TAKE-UP LEVER COVER | 1 |
| 29 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 30 | 22920508 | ARM THREAD GUIDE A | 1 |
| 31 | 22921001 | SCREW | 1 |
| 32 | 22945356 | THREAD TENSION ASM. | 1 |
| 33 | 22921308 | THREAD TENSION NUT | 1 |
| 34 | 22921407 | ROTATION STOPPER | 1 |
| 35 | 22921704 | THREAD TENSION SPRING, A | 1 |
| 36 | 22921803 | DISK STOPPER | 1 |
| 37 | 22921506 | THREAD TENSION DISK | 2 |
| 38 | 22921209 | THREAD TENSION POST | 1 |
| 39 | 22921605 | THREAD TAKE-UP SPRING | 1 |
| 40 | 22945307 | THREAD TENSION POST BASE | 1 |
| 41 | SS8090670SP | SCREW 9/64-40 L= 5.5 | 1 |
| 42 | SS8150710TP | SCREW 15/64-28 L=7 | 1 |
| 43 | 22920904 | TENSION RELEASING | 1 |
| 44 | B1109552000 | THROAT PLATE | 1 |
| 45 | SS2110920TP | SCREW 11/64-40 L=8.5 | 1 |
| 46 | SS2110915SP | SCREW 11/64-40 L=8.5 | 1 |
| 47 | 22920607 | ARM THREAD GUIDE B | 1 |
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SS6110610TP | SCREW 11/64-40 L=6 | 1 |
| 49 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 2 |
| 50 | SS4120915SP | SCREW 3/16-28 L=9 | 3 |
| 51 | 22901250 | SLIDE PLATE ASM. | 1 |
| 52 | 22901201 | SLIDE PLATE | 1 |
| 53 | 22901300 | SLIDE PLATE SPRING | 1 |
| 54 | SS6060210SP | SCREW 3/32-56 L= 1.9 | 2 |
| 55 | 22901003 | BED SCREW STUD | 4 |
| 56 | WT0530002KS | TOOTHED WASHER D=5.3 | 1 |
| 57 | 22935407 | BED OIL SHIELD RUBBER | 1 |
| 58 | 40099083 | RULER STOP SEAT | 1 |
| 59 | SS7110720SP | SCREW 11/64-40 L=7 | 2 |
Page 8 — BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40110976 | BOBBIN_WINDER_UNIT | 1 |
| 2 | 26260109 | BTW_BASE | 1 |
| 3 | 26260208 | BTW_CAM_PLATE | 1 |
| 4 | 26260307 | BTW_BASE_SHAFT | 1 |
| 5 | 26260406 | BTW_SHAFT_BASE | 1 |
| 6 | 26260505 | BTW_CAM_LEVER | 1 |
| 7 | 26260604 | BTW_WHEEL | 1 |
| 8 | 26260802 | BTW_BEARING_SPACER | 1 |
| 9 | 26261008 | BTW_LEVER_SHAFT | 1 |
| 10 | 26261206 | BTW_SPACER | 1 |
| 11 | 26261305 | BTW_BEARING | 2 |
| 12 | 26261503 | BTW_WHEEL_RUBBER | 1 |
| 13 | 26261602 | BOBBIN_SPRING | 1 |
| 14 | 26261701 | BTW_SPRING | 1 |
| 15 | 40011144 | BTW_TORSION_SPRING | 1 |
| 16 | 40110975 | BTW_SHAFT | 1 |
| 17 | 40021933 | BTW_LEVER | 1 |
| 18 | RC0560711KP | RETAINING RING | 1 |
| 19 | RE0400000K0 | E-RING 4 | 1 |
| 20 | SM5040655SN | SCREW | 1 |
| 21 | SM8040802TP | SCREW M4X8 | 2 |
| 22 | SM8050502TP | SCREW M5 L=5 | 1 |
| 23 | WP0450826SC | WASHER 4.5X10X0.8 | 1 |
| 24 | 40110731 | BOBBIN_THREAD_TENSION_ASSY | 1 |
| 25 | 22945703 | THREAD TENSION NUT | 1 |
| 26 | 40110734 | BOBBIN_THREAD_ROD_ASSY | 1 |
| 27 | NS6120630SP | NUT 3/16-28 | 1 |
| 28 | 22921506 | THREAD TENSION DISK | 2 |
| 29 | D7133555B00 | CONNECTING ROD SPRING | 1 |
| 30 | 40037008 | THREAD_CUTTER | 1 |
| 31 | SM0050801SC | SCREW | 1 |
| 32 | SM0050801SC | SCREW | 3 |
| 33 | 22538706 | PACKING | 1 |
Page 10 — MAIN SHAFT & THREAD TAKE-UP LEVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SS8151150TP | SCREW 15/64-28 L=10.5 | 1 |
| 2 | 22919559 | THREAD TAKE-UP CRANK SHAFT ASM. | 1 |
| 3 | 11002904 | ROLLER FELT | 1 |
| 4 | 11039070 | THREAD TAKE-UP LEVER ASM. | 1 |
| 5 | 11039062 | THREAD TAKE-UP LEVER ASM. | 1 |
| 6 | B1905541B00 | NEEDLE BEARING | 2 |
| 7 | 11005204 | NEEDLE BAR CRANK | 1 |
| 8 | B1408552000 | NEEDLE BAR CRANK ROD | 1 |
| 9 | B1903552000 | LEFT SCREW | 1 |
| 10 | 40111423 | OIL_SHIELD_PLATE | 1 |
| 11 | SS8681650TP | SCREW 9/32-28 L=16 | 1 |
| 12 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 13 | RO044240100 | RUBBER RING | 1 |
| 14 | SS7681650TP | SCREW 9/32-28 L=16 | 1 |
| 15 | 40110376 | COUNTER_WEIGHT | 1 |
| 16 | 22910053 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 17 | SS6661110SP | SCREW 1/4-40 L=11 | 2 |
| 18 | 22910004 | FEED DRIVE ECCENTRIC CAM | 1 |
| 19 | SS4090615SP | SCREW 9/64-40 L=6 | 2 |
| 20 | 40110978 | MAIN_SHAFT_BUSHING | 1 |
| 21 | 22888002 | OIL SEAL | 1 |
| 22 | RC1850001KP | SNAP RING 18.5 | 1 |
| 23 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 24 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 25 | 22903207 | MAIN SHAFT BUSHING, FRONT | 1 |
| 26 | B1215552000 | OIL ADJUSTING COLLAR | 1 |
| 27 | 22903306 | BUSHING,INTERMEDIATE | 1 |
| 28 | EA9500B0100 | CABLE BAND | 1 |
| 29 | 22919203 | OIL PROTECTING RUBBER | 1 |
| 30 | 22538805 | DRIVING WHEEL | 1 |
| 31 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 32 | 40111424 | FILTER | 1 |
| 33 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 34 | 40111872 | HAND_PULLEY | 1 |
| 35 | 40111001 | CORD_STOPPER | 1 |
| 36 | 40111025 | COUPLING_ASM. | 1 |
| 37 | 40111203 | SERVO MOTOR | 1 |
| 38 | SL6052592TN | BOLT | 3 |
| 39 | SL6051492TN | BOLT | 3 |
| 40 | 40110979 | MAIN_MOTOR_BASE_76 | 1 |
| 41 | RO029180100 | RUBBER RING | 1 |
| 42 | 22910103 | THRUST COLLAR | 1 |
| 43 | 22903900 | ADJUSTING PIN | 1 |
| 44 | 40110977 | MAIN_SHAFT | 1 |
Page 12 — NEEDLE BAR, UPRIGHT SHAFT & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TA0850604R0 | RUBBER PLUG | 1 |
| 2 | 22906101 | NEEDLE BAR BUSHING, UPPER | 1 |
| 3 | 22939508 | NEEDLE BAR | 1 |
| 4 | 22906457 | NEEDLE BAR HOLDER ASM. | 1 |
| 5 | SS6090670TP | SCREW 9/64-40 L=6 | 1 |
| 6 | 40090058 | SLIDE BLOCK | 1 |
| 7 | 40012444 | NEEDLE BAR THREAD GUIDE | 1 |
| 8 | 22906200 | NEEDLE BAR BUSHING, LOWER | 1 |
| 9 | SS7080510TP | SCREW 1/8-44 L=4.5 | 1 |
| 10 | 22906309 | NEEDLE BAR THREAD GUIDE | 1 |
| 11 | MDB100B1400 | NEEDLE DBX1 #14 | 1 |
| 12 | 40101694 | THRUST_COLLAR_ASM_FRONT | 1 |
| 13 | SS8110410TP | SCREW 11/64-40 L= 3.5 | 2 |
| 14 | 40090002 | UPPER LARGE BEVEL GEAR ASM. | 1 |
| 15 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 16 | 40090003 | UPPER SMALL BEVEL GEAR ASM. | 1 |
| 17 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 18 | 22932909 | BOBBIN | 1 |
| 19 | 40090004 | LOWER LARGE BEVEL GEAR ASM. | 1 |
| 20 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 21 | 40090005 | LOWER SMALL BEVEL GEAR ASM. | 1 |
| 22 | SS8660810TP | SCREW 1/4-40 L=8 | 2 |
| 23 | 22905004 | UPRIGHT SHAFT | 1 |
| 24 | 11038759 | BOBBIN CASE ASM. | 1 |
| 25 | 22905103 | UPRIGHT SHAFT BUSHING, UPPER | 1 |
| 26 | 22905202 | UPRIGHT SHAFT BUSHING, LOWER | 1 |
| 27 | 22916308 | HOOK DRIVING SHAFT BUSH, REAR | 1 |
| 28 | 22942601 | OIL SHIELD | 1 |
| 29 | 22917157 | THRUST COLLAR ASM., REAR | 1 |
| 30 | SS6110420TP | SCREW 11/64-40 L=4.8 | 2 |
| 31 | 22916001 | HOOK DRIVING SHAFT | 1 |
| 32 | 22942502 | INNER HOOK PRESSER | 1 |
| 33 | SS4110915TP | SCREW 11/64-40 L=9 | 1 |
| 34 | 11038650 | HOOK ASM. | 1 |
| 35 | 22916100 | HOOK DRIVING SHAFT BUSH, FRONT | 1 |
| 36 | 22916555 | OIL SEAL SCREW ASM. | 1 |
| 37 | 11015906 | OIL WICK | 1 |
| 38 | 22916506 | SET SCREW | 1 |
| 39 | SS4120915SP | SCREW 3/16-28 L=9 | 1 |
| 40 | 22920805 | NEEDLE BAR THREAD GUIDE | 1 |
Page 14 — HAND LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22907802 | HAND LIFTER | 1 |
| 2 | B1521555000 | SCREW | 1 |
| 3 | RO037180100 | RUBBER RING | 1 |
| 4 | 22908552 | HAND LIFTER CAM ASM. | 1 |
| 5 | 40060989 | PRESSER BAR BUSHING LOWER | 1 |
| 6 | SS7091110TP | SCREW 9/64-40 L=10.5 | 1 |
| 7 | 22908701 | LINK SHAFT | 2 |
| 8 | RE0500000K0 | E-RING | 3 |
| 9 | B15240120BA | PRESSER FOOT ASM. | 1 |
| 10 | 22944706 | WIRE PRESSER BASE, LOWER | 1 |
| 11 | 22908909 | HINGE SCREW | 1 |
| 12 | SD0720331SP | HINGE SCREW D= 7.24 H= 3.3 | 1 |
| 13 | 22909006 | KNEE LIFTER CONNECTING ROD | 1 |
| 14 | 22908800 | KNEE LIFTER LINK | 1 |
| 15 | SS4110515SP | SCREW 11/64-40 L=5 | 1 |
| 16 | SS4110515SP | SCREW 11/64-40 L=5 | 1 |
| 17 | SS4150915SP | SCREW 15/64-28 L=9 | 1 |
| 18 | 22944508 | WIRE PRESSER A | 2 |
| 19 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 20 | 22944607 | WIRE PRESSER BASE, UPPER | 1 |
| 21 | NS6620310SP | NUT 3/16-32 | 2 |
| 22 | RE0500000K0 | E-RING | 2 |
| 23 | 22920201 | RETURN SPRING | 1 |
| 24 | 22920409 | THREAD RELEASE PIN SPRING | 1 |
| 25 | 22945109 | WIRE CABLE SUPPORT | 1 |
| 26 | 22920300 | THREAD RELEASE SUPPORTING PIN | 1 |
| 27 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 28 | 22944854 | THREAD RELEASE WIRE ASM. | 1 |
| 29 | 22920102 | TENSION RELEASE SHAFT | 1 |
| 30 | 22907554 | PRESSER SPRING REGULATOR ASM.¥n | 1 |
| 31 | 22907604 | PRESSER SPRING REGULATOR NUT | 1 |
| 32 | 22907505 | PRESSER SPRING REGULATOR | 1 |
| 33 | 22907406 | PRESSER SPRING | 1 |
| 34 | 22907208 | PRESSER BAR GUIDE BRACKET | 1 |
| 35 | 40017805 | PRESSER BAR | 1 |
| 36 | 22907307 | THREAD GUIDE | 1 |
| 37 | SS8660810TP | SCREW 1/4-40 L=8 | 1 |
| 38 | SS6090910SP | SCREW 9/64-40 L=9 | 2 |
| 39 | 22908354 | KNEE LIFTING CROSS ROD ASM. | 1 |
| 40 | 22908156 | LIFTING LINK ASM. | 1 |
| 41 | RE0500000K0 | E-RING | 1 |
| 42 | 22908008 | LIFTING PLATE | 1 |
| 43 | RE0500000K0 | E-RING | 1 |
| 44 | 22908305 | KNEE LIFTER SIDE ROD | 1 |
| 45 | 22907703 | PRESSER GUIDE BAR | 1 |
Page 16 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22941108 | FEED ADJUST ROD | 1 |
| 2 | 22911507 | WALKING FOOT PIN C | 1 |
| 3 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 4 | 22911606 | FEED REGULATOR | 1 |
| 5 | SS6121860SP | SCREW 3/16-28 L=18 | 1 |
| 6 | SS7120770SH | SCREW 3/16-28 L=7 | 1 |
| 7 | 22911804 | FEED REGULATOR SCREW | 1 |
| 8 | 22912109 | FEED REGULATOR PIN SPRING | 1 |
| 9 | 22912000 | FEED REGULATOR PIN | 1 |
| 10 | 22940506 | FEED DIAL | 1 |
| 11 | 22910251 | CONNECTING ROD ASM. | 1 |
| 12 | 22910202 | ROCKER SHAFT CONNECTING ROD | 1 |
| 13 | 22911101 | WALKING FOOT PIN C | 1 |
| 14 | SS6090620TP | SCREW | 1 |
| 15 | 22915003 | CONNECTING ROD | 1 |
| 16 | R0092270200 | RUBBER RING | 1 |
| 17 | 11010311 | LEVER SPRING¥n | 1 |
| 18 | RE0500000K0 | E-RING | 1 |
| 19 | 22912257 | FEED REVERSE ARM ASM. | 1 |
| 20 | 22912505 | FEED REVERSE ARM SCREW | 1 |
| 21 | RE0500000K0 | E-RING | 1 |
| 22 | 11037405 | SPRING | 1 |
| 23 | 11009800 | FEED REGULATOR BUSHING | 1 |
| 24 | 22910905 | WALKING FOOT PIN A | 2 |
| 25 | 40089548 | CONNECTING LINK B | 2 |
| 26 | 40093417 | CONNECTING LINK A | 2 |
| 27 | 22940951 | FEED ADJUST LINK ASM. | 1 |
| 28 | 22910806 | ADJUST LINK FULCRUM SHAFT A | 2 |
| 29 | SS8150710TP | SCREW 15/64-28 L=7 | 2 |
| 30 | SS6090620TP | SCREW | 2 |
| 31 | 40101462 | FEED BASE SHAFT | 1 |
| 32 | RC0150001KP | RETAINING RING 13.8 | 1 |
| 33 | B1613012I00 | FEED DOG I | 1 |
| 34 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 35 | 22940753 | FEED BAR ASM. | 1 |
| 36 | 22941306 | REGULATOR LINK SPRING HOOK | 1 |
| 37 | SS4110515SP | SCREW 11/64-40 L=5 | 2 |
| 38 | 22913701 | FEED SPRING HOOK | 1 |
| 39 | 22912901 | FEED ROCKER SHAFT | 1 |
| 40 | 22911002 | WALKING FOOT PIN B | 1 |
| 41 | SS6090620TP | SCREW | 1 |
| 42 | NS6680410SP | NUT 9/32-28 | 1 |
| 43 | 22910350 | FEED ROCKER SHAFT CRANK ASM. | 1 |
| 44 | SS6121610SP | SCREW 3/16-28 L=15.5 | 1 |
| 45 | 22915151 | FEED ARM COMPL. | 1 |
| 46 | SS6121210SP | SCREW 3/16-28 L=12 | 1 |
| 47 | SD1000801SH | HINGE SCREW D=10 H=8 | 1 |
Page 18 — FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 22915201 | FEED DRIVING SHAFT | 1 |
| 49 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 50 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 51 | 22913008 | FEED ROCKER SHAFT BUSHING | 2 |
| 52 | 40111897 | BEARING | 1 |
| 53 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 54 | RC0150001KP | RETAINING RING 13.8 | 1 |
| 55 | 22940654 | FEED ROCKER ASM. | 1 |
| 56 | SS7121410TP | SCREW 3/16-28 L=14 | 1 |
| 57 | WP0480856SP | WASHER 4.8X8.4X0.8 | 1 |
| 58 | 22915359 | DRIVING SHAFT CRANK ASM. | 1 |
| 59 | SS7111120SP | SCREW 11/64-40 L=10.5 | 1 |
| 60 | 40102264 | FEED_REVER_ASM. | 1 |
| 61 | SM8061010TP | SCREW | 2 |
| 62 | 22904155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 63 | SS8660610TP | SCREW 1/4-40 L=6 | 2 |
| 64 | 40100812 | FEED LEVER SHAFT | 1 |
| 65 | 22912802 | FEED LEVER SHAFT BUSHING | 1 |
| 66 | RO078190100 | RUBBER RING | 1 |
Page 20 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22947956 | KNIFE UNIT | 1 |
| 2 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 3 | 22948202 | FORKED BASE FOR KNIFE | 1 |
| 4 | 11040409 | MOVING KNIFE HINGE SCREW | 1 |
| 5 | 11040052 | MOVING KNIFE ASM. | 1 |
| 6 | 22947907 | KNIFE INSTALLING BASE¥n | 1 |
| 7 | 22947808 | THREAD GUIDE FOR KNIFE | 1 |
| 8 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 9 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 10 | D2406555D0H | COUNTER KNIFE | 1 |
| 11 | HK034610140 | HOUSING 14P | 1 |
| 12 | SS4110715SP | SCREW 11/64-40 L=7 | 1 |
| 13 | 22950257 | PICKER ARM ASM. | 1 |
| 14 | 22950208 | PICKER ARM | 1 |
| 15 | 22950356 | HOOK THREAD PRESSER ASM. | 1 |
| 16 | SS6090510TP | SCREW 9/64-40 L= 5.0 | 2 |
| 17 | SD0641451SP | HINGE SCREW D= 6.35 H=14.5 | 1 |
| 18 | SD0630275SP | HINGE SCREW D= 6.35 H= 2.7 | 1 |
| 19 | 22950851 | THREAD TRIMMER CAM ASM.¥n | 1 |
| 20 | SS6660610TP | SCREW 1/4-40 L=6 | 2 |
| 21 | 22950950 | CAM COLLAR ASM. | 1 |
| 22 | SS8110520TP | SCREW 11/64-40 L= 4.5 | 1 |
| 23 | 22949762 | THREAD TRIMMER DRIVING UNIT | 1 |
| 24 | 22949754 | BASE PLATE ASM. | 1 |
| 25 | 22950703 | DRIVING ARM STOPPER | 1 |
| 26 | 22950000 | PICKER LINK PIN | 1 |
| 27 | RE0600000K0 | E-RING 6 | 1 |
| 28 | SS4110715SP | SCREW 11/64-40 L=7 | 2 |
| 29 | 22949408 | CLUTCH SPRING | 1 |
| 30 | 40087245 | CLUTCH PLATE ASM. | 1 |
| 31 | 22950109 | PICKER LINK | 1 |
| 32 | WP0621016SH | WASHER | 2 |
| 33 | NS6150430SP | NUT 15/64-28 | 2 |
| 34 | RE0600000K0 | E-RING 6 | 1 |
| 35 | 22948301 | MOVING KNIFE LINK | 1 |
| 36 | RE0500000K0 | E-RING | 1 |
| 37 | 22948400 | MOVING KNIFE LINK PIN | 1 |
| 38 | 22949309 | KNIFE RETURN SPRING B | 1 |
| 39 | RE0400000K0 | E-RING 4 | 2 |
| 40 | 22949101 | ROLLER FULCRUM SHAFT | 1 |
| 41 | 22949200 | ROLLER RETURN SPRING | 1 |
| 42 | SS7090610SP | SCREW 9/64-40 L=6 | 1 |
| 43 | 22949002 | ROLLER ARM SEAT | 1 |
| 44 | 11040953 | ROLLER ARM ASM. | 1 |
| 45 | 11040854 | KNIFE DRIVING ARM ASM. | 1 |
| 46 | SD0600361SP | HINGE SCREW D=6 H=3.6 | 1 |
| 47 | SS4150915SP | SCREW 15/64-28 L=9 | 2 |
Page 22 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SD0640631TP | HINGE SCREW D=6.35 H=6.3 | 1 |
| 49 | 40111031 | THREAD TRIMMER SOLENOID ASM. | 1 |
| 50 | 22951404 | SOLENOID BASE | 1 |
| 51 | WS0410002KR | SPRING WASHER, M4 | 2 |
| 52 | NM6040001SE | NUT M4 | 2 |
| 53 | 40110995 | THREAD TRIMMER SOLENOID | 1 |
| 54 | SS6110710TP | SCREW 11/64-40 L= 6.5 | 1 |
| 55 | 22949903 | CLUTCH LINK | 1 |
| 56 | RE0500000K0 | E-RING | 1 |
| 57 | SS4151215SP | SCREW 15/64-28 L=12 | 2 |
| 58 | 22924807 | PIPE HOLDER, LOWER | 1 |
| 59 | 22951552 | GROUND WIRE ASM. | 1 |
| 60 | 22951008 | SOLENOID PIN | 1 |
Page 24 — AUTOMATIC REVERSE FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40110992 | REVERSE FEED SWITCH ASM. | 1 |
| 2 | 23631708 | REVERSE FEED SWITCH COVER | 1 |
| 3 | 23631807 | REVERSE FEED SWITCH SHAFT | 1 |
| 4 | 23631906 | REVERSE FEED SWITCH SUPPORT | 1 |
| 5 | 23632003 | REVERSE FEED SWITCH BASE | 1 |
| 6 | 23632102 | REVERSE FEED SWITCH BASE GUIDE | 1 |
| 7 | 40111741 | REVERSE_FEED_CORD_ASM. | 1 |
| 8 | EA9500B0100 | CABLE BAND | 1 |
| 9 | SS7110740TP | SCREW 11/64-40 L=7 | 1 |
| 10 | 22953509 | PLUNGER ARM PIN | 1 |
| 11 | SS4151215SP | SCREW 15/64-28 L=12 | 2 |
| 12 | 40110996 | REVERSE_FEED_SOLENOID | 1 |
| 13 | 22954002 | PLUNGER SPRING | 1 |
| 14 | RE0500000KP | E-RING 5 | 2 |
| 15 | 22953806 | REVERSE FEED CONNECTING SHAFT | 1 |
| 16 | RE0900000K0 | E-RING 9 | 1 |
| 17 | 22953657 | CONNECTING ARM ASM. | 1 |
| 18 | RE0400000KP | E-RING 4 | 1 |
| 19 | 22953905 | REVERSE FEED CONNECTING LINK | 1 |
| 20 | RE1200000K0 | E-RING 12 | 1 |
| 21 | WP1602616SZ | WASHER 16X24X2.6 | 1 |
| 22 | 22953400 | RUBBER PLUNGER | 1 |
| 23 | RE0400000K0 | E-RING 4 | 2 |
Page 26 — WIPER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40110998 | WIPER ASM. | 1 |
| 2 | 22955504 | WIPER COVER | 1 |
| 3 | SL4030631SC | SCREW M3X6 | 1 |
| 4 | SD0650321TP | HINGE SCREW D=6.5 H=3.2 | 1 |
| 5 | NS6090310SP | NUT 9/64-40 | 1 |
| 6 | 22956106 | WIPER LINK A | 1 |
| 7 | 22956403 | WIPER LINK B | 1 |
| 8 | RE0250000K0 | E-RING 2.5 | 1 |
| 9 | 22956908 | WIPER LINK B, HINGE SCREW | 1 |
| 10 | 22956205 | WIPER HINGE SCREW COLLAR | 1 |
| 11 | 22956304 | WIPER SPRING | 1 |
| 12 | NS6110310SP | NUT 11/64-40 | 1 |
| 13 | 22955900 | WIPER RUBBER A | 1 |
| 14 | 22956007 | WIPER RUBBER B | 1 |
| 15 | 40110999 | WIPER SOLENOID | 1 |
| 16 | 22957104 | WIPER SOLENOID SHAFT | 1 |
| 17 | HA00600000A | SWITCH | 1 |
| 18 | RE0500000K0 | E-RING | 1 |
| 19 | 40041419 | WIPER LINK C ASM. | 1 |
| 20 | 11110152 | WIPER BASE ASM. | 1 |
| 21 | 22957203 | WIPER LINK COLLAR | 1 |
| 22 | SL4030641SE | SCREW | 3 |
| 23 | 22956809 | WIPER COLLAR | 1 |
| 24 | 22957005 | WIPER | 1 |
| 25 | SS6090540SP | SCREW 9/64-40 L= 5.0 | 1 |
| 26 | WP0482086SD | WASHER 4.8X11.5X2 | 1 |
| 27 | SS4120915SP | SCREW 3/16-28 L=9 | 2 |
Page 28 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22924708 | OIL SIGHT WINDOW | 1 |
| 2 | RO195240100 | RUBBER RING | 1 |
| 3 | 22924401 | MAIN SHAFT OIL TUBE | 1 |
| 4 | SS4120615SP | SCREW 3/16-28 L=6 | 1 |
| 5 | 22925101 | OIL FELT PRESSER | 1 |
| 6 | 22924153 | OIL RETURN TUBE ASM. | 1 |
| 7 | 22924302 | HOLDER | 1 |
| 8 | CQ252000000 | OIL WICK | 0.3 |
| 9 | 22925002 | OIL ADJUSTING SCREW | 1 |
| 10 | 22924906 | SPRING | 1 |
| 11 | 22924500 | OIL TUBE | 1 |
| 12 | 22923056 | LUBRICATING OIL PUMP ASM. | 1 |
| 13 | 22923312 | OIL PUMP INSTALLING BASE | 1 |
| 14 | 22923015 | OIL PUMP | 1 |
| 15 | 22923700 | OIL PUMP IMPELLER | 1 |
| 16 | SE4301041SR | SCREW D=3 L=10 | 1 |
| 17 | 22923205 | LUBRICATING OIL PUMP COVER | 1 |
| 18 | 22923809 | OIL PUMP IMPELLER COVER | 1 |
| 19 | 22923403 | PLUNGER | 1 |
| 20 | 22923601 | PLUNGER SPRING | 1 |
| 21 | 22923502 | PLUNGER SCREW | 1 |
| 22 | 22923908 | HOOK DRIVING SHAFT OIL TUBE | 1 |
| 23 | SL4030851SF | SCREW M3 L=8 | 3 |
| 24 | SS4150915SP | SCREW 15/64-28 L=9 | 1 |
| 25 | SS6111010TP | SCREW 11/64-40 L= 9.5 | 1 |
| 26 | 22947105 | OIL PUMP SUPPORT | 1 |
| 27 | WS0651310KP | SPRING WASHER 6.5X11X1.3 | 1 |
| 28 | 22924609 | RUBBER JOINT | 1 |
Page 30 — OIL RESERVOIR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40111876 | OIL_RESERVER_ASM | 1 |
| 2 | 40105821 | OIL RESERVOIR | 1 |
| 3 | 22931901 | OIL RESERVOIR GASKET | 1 |
| 4 | 22932008 | RUBBER CUSHION | 2 |
| 5 | SS6700710SH | SCREW 5/16-24 L=7 | 1 |
| 6 | RO098240100 | RUBBER RING | 1 |
| 7 | 22932156 | KNEE LIFTER ROTATION ARM ASM. | 1 |
| 8 | 22932107 | KNEE LIFTING ROTATING ARM | 1 |
| 9 | NM6060001SE | NUT M6 | 2 |
| 10 | SM8063012TR | SCREW M6 L=30 | 2 |
| 11 | 22932206 | SPRING | 1 |
| 12 | RE1000000K0 | E-RING 10 | 1 |
| 13 | 22932453 | BRACKET ASM. | 1 |
| 14 | 22932404 | BRACKET | 1 |
| 15 | 22934707 | SCREW | 2 |
| 16 | 40101720 | SCREW_M6 | 1 |
| 17 | 40101541 | KNEE_PRESS_CROSS_SHAFT | 1 |
| 18 | NM6060001SE | NUT M6 | 1 |
| 19 | B1116210D00 | FRAME SUPPORT RUBBER | 2 |
| 20 | 22934251 | KNEE PAD PLATE ASM. | 1 |
| 21 | 22934400 | KNEE PAD PLATE RUBBER | 1 |
| 22 | 22934202 | KNEE PAD PLATE | 1 |
| 23 | 22934301 | KNEE PAD PLATE SUPPORT | 1 |
| 24 | SM9061203SE | SCREW M6 L=12 | 1 |
| 25 | 22934509 | KNEE PAD PLATE COVER | 1 |
| 26 | 22934608 | KNEE PAD UPRIGHT SHAFT | 1 |
| 27 | 22931703 | KNEE LIFTER PUSH ROD | 1 |
| 28 | B8228125000 | OIL RESERVOIR MAGNET | 1 |

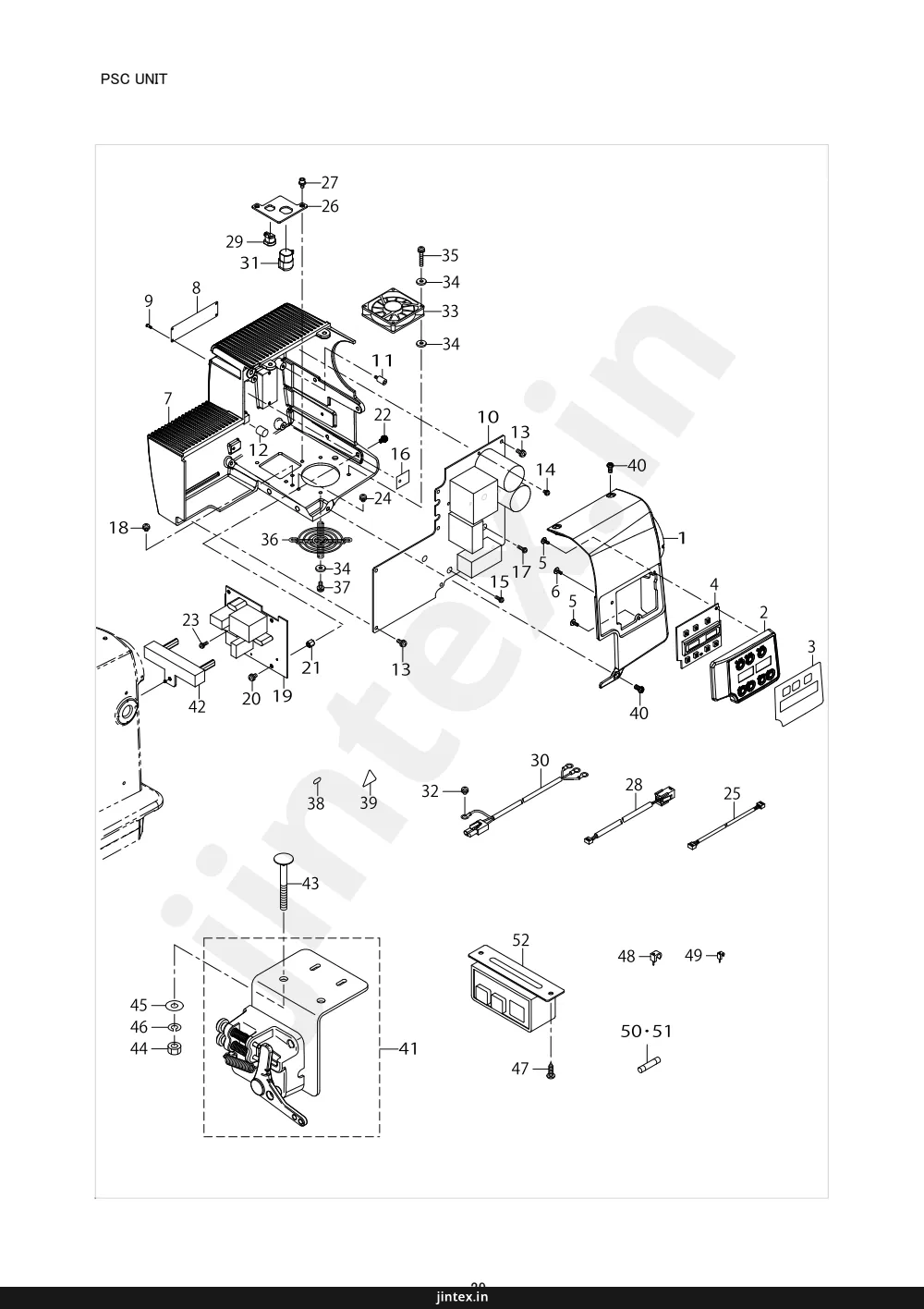

Page 32 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40110643 | FRONT_COVER | 1 |
| 2 | 40110645 | PANEL_COVER | 1 |
| 3 | 40108918 | PANEL SHEET | 1 |
| 4 | 40108174 | PANEL PCB ASSY | 1 |
| 5 | SV4030802SN | TAPPING SCREW WITH FLANGE M3X8 | 2 |
| 6 | SV4030601SN | SCREW M3 L=6 | 1 |
| 7 | 40110644 | REAR_COVER | 1 |
| 8 | 40111196 | VENT_PLATE | 1 |
| 9 | 40111205 | RIVET | 4 |
| 10 | 40108771 | MAIN PCB ASSY | 1 |
| 11 | HX006060000 | SPACER | 4 |
| 12 | 40088316 | RUBBER_CUSHION | 1 |
| 13 | SL4041081SC | SCREW M4 L=10 | 7 |
| 14 | SL4030681SC | SCREW M3 L=6 | 4 |
| 15 | SL4031081SC | SCREW M3 X 10 | 4 |
| 16 | HX001970000 | INSULATE PLATE | 1 |
| 17 | SL4031281SC | SCREW M3 L=12 | 2 |
| 18 | SL4040681SC | SCREW M4 L=6 | 1 |
| 19 | 40108761 | FLT-S PCB ASSY | 1 |
| 20 | SL4040681SC | SCREW M4 L=6 | 4 |
| 21 | 40088311 | STUD | 4 |
| 22 | 40111217 | SCREW | 4 |
| 23 | SL4031081SC | SCREW M3 X 10 | 1 |
| 24 | SL4040681SC | SCREW M4 L=6 | 1 |
| 25 | 40110792 | RELAY CORD ASSY | 1 |
| 26 | 40110989 | HOUSING_PLATE | 1 |
| 27 | SL6040692TN | SCREW M4 L=6 | 2 |
| 28 | 40110796 | PEDAL CORD ASSY | 1 |
| 29 | HX006820000 | CORD BUSHING | 1 |
| 30 | 40111652 | AC INPUT CORD ASSY | 1 |
| 31 | HX006830000 | CORD BUSHING | 1 |
| 32 | SL4040681SC | SCREW M4 L=6 | 1 |
| 33 | 40111214 | FAN MOTOR ASSY | 1 |
| 34 | B1144771000 | FRAME SIDE COVER GASKET (C) | 6 |
| 35 | SL4042581SC | SCREW | 2 |
| 36 | HM002150010 | FAN MOTOR | 1 |
| 37 | SL4040881SC | SCREW M4 L=8 | 2 |
| 38 | CM200100001 | PE MARK LABEL | 1 |
| 39 | CM300100003 | VOLTAGE WARNING LABEL(25) | 1 |
| 40 | SS4120915SP | SCREW 3/16-28 L=9 | 3 |
| 41 | 40111212 | PEDAL SENSOR BASE ASSY | 1 |
| 42 | 40110797 | RESISTANCE_ASSY | 1 |
| 43 | 40093426 | MOTOR FITTING BOLT L=75 | 2 |
| 44 | NM6080002SC | NUT M8 | 2 |
| 45 | WP0851846SC | WASHER 8.5X22.0X1.8 | 2 |
| 46 | WS0820002KR | SPRING WASHER, M8 | 2 |
| 47 | 40093427 | WOOD_SCREW D=5.1 L=18 | 2 |
Page 34 — PSC UNIT
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40111758 | STAPLE | 3 |
| 49 | 40111759 | STAPLE | 2 |
| 50 | KF000000080 | SLO-BLO FUSE | 1 |
| 51 | KF000000030 | SLO-BLO FUSE | 1 |
| 52 | 40111651 | POWER SWITCH ASM. | 1 |
Page 36 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40096354 | THREAD STAND ASM. | 1 |
| 2 | 40085784 | SPOOL REST ROD LOWER | 1 |
| 3 | 40085785 | SPOOL REST ROD UPPER | 1 |
| 4 | 40085786 | SPOOL REST ARM LOWER | 1 |
| 5 | 40085787 | SPOOL REST ARM UPPER | 1 |
| 6 | 40085788 | SPOOL REST | 2 |
| 7 | 40085789 | SPOOL REST CUSHION | 2 |
| 8 | 40085790 | SPOOL PIN | 2 |
| 9 | 40085791 | SPOOL RETAINER | 2 |
| 10 | 40085792 | SPOOL REST ROD JOINT | 1 |
| 11 | 40085793 | SPOOL REST ROD RUBBER CAP | 1 |
| 12 | 40085794 | THREAD GUIDE | 2 |
| 13 | 40085795 | THREAD GUIDE BUSHING | 2 |
| 14 | 40096325 | SPOOL REST ROD NUT | 1 |
| 15 | WP1612616SE | WASHER 16X30X2.6 | 2 |
| 16 | 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 |
| 17 | 40096326 | SPOOL REST ARM LOWER SCREW | 1 |
| 18 | NM6050001SE | NUT M5 | 2 |
| 19 | 40096327 | SPOOL REST ARM UPPER SCREW | 1 |
| 20 | NM6050001SE | NUT M5 | 2 |
| 21 | WS0510002KN | SPRING WASHER M5 | 2 |
| 22 | WP0531001SC | WASHER M5 | 2 |
| 23 | SM4051405SE | SCREW M5 L=14 | 2 |
| 24 | NM6050001SE | NUT M5 | 2 |
Page 38 — EXCLUSIVE PARTS FOR DDL-8700AH-7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 11095551 | KNIFE UNIT | 1 |
| 2 | SS4080620TP | SCREW 1/8-44 L=6 | 2 |
| 3 | 11409257 | MOVING KNIFE J ASM. | 1 |
| 4 | 11095502 | KNIFE MOUNT BASE | 1 |
| 5 | 40089755 | FIX KNIFE | 1 |
| 6 | 23645401 | THREAD GUIDE FOR KNIFE H | 1 |
| 7 | 11095601 | KNIFE BRANCH | 1 |
| 8 | SD0500131TP | HINGE SCREW D=5 H=1.25 | 1 |
| 9 | D2404555B00 | COUNTER KNIFE SPACER | 1 |
| 10 | SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 |
| 11 | SS2060210SP | SCREW 3/32-56 L=2.3 | 1 |
| 12 | 11400801 | THROAT PLATE J | 1 |
| 13 | B1213552000A | OIL ADJUSTING PIN | 1 |
| 14 | 22962054 | THREAD TENSION ASM. | 1 |
| 15 | 22962005 | THREAD TENSION SPRING | 1 |
| 16 | 22963458 | THREAD TENSION ASM.¥n | 1 |
| 17 | 22963409 | THREAD TENSION SPRING | 1 |
| 18 | 40103560 | LINK THREAD TAKE-UP LEVER ASM. | 1 |
| 19 | 22962351 | FEED DRIVE ECCENTRIC CAM ASM. | 1 |
| 20 | SD0700451TP | HINGE SCREW D=7 H=4.5 | 1 |
| 21 | MDB100B2100 | NEEDLE DBX1 #21 | 1 |
| 22 | B1418415H00 | NEEDLE BAR THREAD GUIDE | 1 |
| 23 | 22970313 | NEEDLE BAR BUSHING, LOWER | 1 |
| 24 | 40023223 | NEEDLE BAR THREAD GUIDE | 1 |
| 25 | 22970206 | NEEDLE BAR | 1 |
| 26 | NS6110420SP | NUT 11/64-40 | 1 |
| 27 | 11093804 | POSITIONING FINGER H | 1 |
| 28 | B1505552000A | PRESSER SPRING | 1 |
| 29 | D1524555EBL | PRESSER FOOT ASM. | 1 |
| 30 | 22962807 | WIRE PRESSER PLATE(LOWER),B | 1 |
| 31 | WP0722316SH | WASHER | 1 |
| 32 | 11101508 | REVERSE FEED LINK | 1 |
| 33 | 40101726 | FEED_DIAL | 1 |
| 34 | 40080725 | ADJUSTING LINK SPRING | 1 |
| 35 | 22970602 | FEED SPRING HOOK | 1 |
| 36 | 11403003 | FEED J | 1 |
| 37 | 40111032 | SOLENOID MOUNTING BASE ASM. | 1 |
| 38 | 11231503 | OIL PUMP SUPPORT | 1 |
| 39 | 22962609 | REVERSE FEED BASE COLLAR¥n | 1 |
| 40 | 22962906 | PLUNGER ARM PIN | 1 |
| 41 | NS6110420SP | NUT 11/64-40 | 2 |
| 42 | 22962708 | REVERSE FEED CORD PRESSER¥n | 1 |
| 43 | 22962500 | CONNECTING LINK¥n | 1 |
| 44 | SD0700711TP | HINGE SCREW D=7 H=7.1 | 1 |
| 45 | 22971204 | FEED REGULATOR BASE PIN | 1 |
| 46 | 11091006 | ARM THREAD GUIDE (HA) | 1 |
| 47 | 40111000 | LEVER_STOPPER_H | 1 |
Page 40 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3 | 11002904 | ||
| 8 | 22906200 | ||
| 31 | 22916001 | ||
| 7 | 11005204 | ||
| 10 | 22906309 | ||
| 35 | 22916100 | ||
| 23 | 11009800 | ||
| 4 | 22906457 | ||
| 27 | 22916308 | ||
| 17 | 11010311 | ||
| 34 | 22907208 | ||
| 38 | 22916506 | ||
| 37 | 11015906 | ||
| 36 | 22907307 | ||
| 36 | 22916555 | ||
| 22 | 11037405 | ||
| 33 | 22907406 | ||
| 29 | 22917157 | ||
| 34 | 11038650 | ||
| 32 | 22907505 | ||
| 29 | 22919203 | ||
| 24 | 11038759 | ||
| 30 | 22907554 | ||
| 2 | 22919559 | ||
| 5 | 11039062 | ||
| 31 | 22907604 | ||
| 29 | 22920102 | ||
| 4 | 11039070 | ||
| 45 | 22907703 | ||
| 23 | 22920201 | ||
| 5 | 11040052 | ||
| 1 | 22907802 | ||
| 26 | 22920300 | ||
| 4 | 11040409 | ||
| 42 | 22908008 | ||
| 24 | 22920409 | ||
| 45 | 11040854 | ||
| 40 | 22908156 | ||
| 30 | 22920508 | ||
| 44 | 11040953 | ||
| 44 | 22908305 | ||
| 47 | 22920607 | ||
| 46 | 11091006 | ||
| 39 | 22908354 | ||
| 7･40 | 22920805 | ||
| 27 | 11093804 | ||
| 4 | 22908552 | ||
| 43 | 22920904 | ||
| 4 | 11095502 | ||
| 7 | 22908701 | ||
| 31 | 22921001 | ||
| 1 | 11095551 | ||
| 14 | 22908800 | ||
| 38 | 22921209 | ||
| 7 | 11095601 | ||
| 11 | 22908909 | ||
| 33 | 22921308 | ||
| 32 | 11101508 | ||
| 13 | 22909006 | ||
| 34 | 22921407 | ||
| 20 | 11110152 | ||
| 18 | 22910004 | ||
| 37 | 22921506 | ||
| 38 | 11231503 | ||
| 16 | 22910053 | ||
| 28 | 22921506 | ||
| 12 | 11400801 | ||
| 42 | 22910103 | ||
| 39 | 22921605 | ||
| 36 | 11403003 | ||
| 12 | 22910202 | ||
| 35 | 22921704 | ||
| 3 | 11409257 | ||
| 11 | 22910251 | ||
| 36 | 22921803 | ||
| 33 | 22538706 | ||
| 43 | 22910350 | ||
| 14 | 22923015 | ||
| 30 | 22538805 | ||
| 28 | 22910806 | ||
| 12 | 22923056 | ||
| 21 | 22888002 | ||
| 24 | 22910905 | ||
| 17 | 22923205 | ||
| 10 | 22900401 | ||
| 40 | 22911002 | ||
| 13 | 22923312 | ||
| 28 | 22900609 | ||
| 13 | 22911101 | ||
| 19 | 22923403 | ||
| 4 | 22900757 | ||
| 2 | 22911507 | ||
| 21 | 22923502 | ||
| 55 | 22901003 | ||
| 4 | 22911606 | ||
| 20 | 22923601 | ||
| 52 | 22901201 | ||
| 7 | 22911804 | ||
| 15 | 22923700 | ||
| 51 | 22901250 | ||
| 9 | 22912000 | ||
| 18 | 22923809 | ||
| 53 | 22901300 | ||
| 8 | 22912109 | ||
| 22 | 22923908 | ||
| 14 | 22901805 | ||
| 19 | 22912257 | ||
| 6 | 22924153 | ||
| 25 | 22903207 | ||
| 20 | 22912505 | ||
| 7 | 22924302 | ||
| 27 | 22903306 | ||
| 65 | 22912802 | ||
| 3 | 22924401 | ||
| 43 | 22903900 | ||
| 39 | 22912901 | ||
| 11 | 22924500 | ||
| 23 | 22904155 | ||
| 51 | 22913008 | ||
| 28 | 22924609 | ||
| 62 | 22904155 | ||
| 38 | 22913701 | ||
| 1 | 22924708 | ||
| 23 | 22905004 | ||
| 15 | 22915003 | ||
| 58 | 22924807 | ||
| 25 | 22905103 | ||
| 45 | 22915151 | ||
| 10 | 22924906 | ||
| 26 | 22905202 | ||
| 48 | 22915201 | ||
| 9 | 22925002 | ||
| 2 | 22906101 | ||
| 58 | 22915359 | ||
| 5 | 22925101 |
Page 41 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27 | 22931703 | ||
| 3 | 22931901 | ||
| 4 | 22932008 | ||
| 8 | 22932107 | ||
| 7 | 22932156 | ||
| 11 | 22932206 | ||
| 14 | 22932404 | ||
| 13 | 22932453 | ||
| 18 | 22932909 | ||
| 22 | 22934202 | ||
| 20 | 22934251 | ||
| 23 | 22934301 | ||
| 21 | 22934400 | ||
| 25 | 22934509 | ||
| 26 | 22934608 | ||
| 15 | 22934707 | ||
| 57 | 22935407 | ||
| 3 | 22939508 | ||
| 10 | 22940506 | ||
| 35 | 22940654 | ||
| 35 | 22940753 | ||
| 27 | 22940951 | ||
| 1 | 22941108 | ||
| 36 | 22941306 | ||
| 10 | 22942502 | ||
| 10 | 22942601 | ||
| 12 | 22944508 | ||
| 12 | 22944607 | ||
| 12 | 22944706 | ||
| 12 | 22944854 | ||
| 12 | 22945109 | ||
| 2 | 22945307 | ||
| 2 | 22945356 | ||
| 2 | 22945414 | ||
| 2 | 22945463 | ||
| 2 | 22945505 | ||
| 2 | 22945604 | ||
| 2 | 22945703 | ||
| 6 | 22945703 | ||
| 2 | 22945802 | ||
| 26 | 22947105 | ||
| 18 | 22947808 | ||
| 18 | 22947907 | ||
| 18 | 22947956 | ||
| 18 | 22948202 | ||
| 39 | 22962609 | ||
| 42 | 22962708 | ||
| 30 | 22962807 | ||
| 40 | 22962906 | ||
| 17 | 22963409 | ||
| 16 | 22963458 | ||
| 25 | 22970206 | ||
| 23 | 22970313 | ||
| 35 | 22970602 | ||
| 45 | 22971204 | ||
| 2 | 23631708 | ||
| 3 | 23631807 | ||
| 4 | 23631906 | ||
| 5 | 23632003 | ||
| 6 | 23632102 | ||
| 6 | 23645401 | ||
| 2 | 26260109 | ||
| 3 | 26260208 | ||
| 4 | 26260307 | ||
| 5 | 26260406 | ||
| 6 | 26260505 | ||
| 7 | 26260604 | ||
| 8 | 26260802 | ||
| 9 | 26261008 | ||
| 10 | 26261206 | ||
| 11 | 26261305 | ||
| 12 | 26261503 | ||
| 13 | 26261602 | ||
| 14 | 26261701 | ||
| 15 | 40011144 | ||
| 2 | 40012126 | ||
| 11 | 40012129 | ||
| 7-40 | 40012444 | ||
| 35 | 40017805 | ||
| 17 | 40021933 | ||
| 24 | 40023223 | ||
| 30 | 40037008 | ||
| 19 | 40041419 | ||
| 5 | 40060989 | ||
| 34 | 40080725 | ||
| 2 | 40085784 | ||
| 3 | 40085785 | ||
| 4 | 40085786 | ||
| 5 | 40085787 | ||
| 6 | 40085788 |
Page 42 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 7 | 40085789 | ||
| 8 | 40085790 | ||
| 9 | 40085791 | ||
| 10 | 40085792 | ||
| 11 | 40085793 | ||
| 12 | 40085794 | ||
| 13 | 40085795 | ||
| 14 | 40085796 | ||
| 30 | 40087245 | ||
| 21 | 40088311 | ||
| 12 | 40088316 | ||
| 14 | 40089548 | ||
| 36 | 40089755 | ||
| 10 | 40090002 | ||
| 10 | 40090003 | ||
| 10 | 40090004 | ||
| 10 | 40090005 | ||
| 10 | 40090058 | ||
| 14 | 40093417 | ||
| 30 | 40093426 | ||
| 30 | 40093427 | ||
| 2 | 40093432 | ||
| 34 | 40096325 | ||
| 34 | 40096326 | ||
| 34 | 40096327 | ||
| 34 | 40096354 | ||
| 4 | 40099083 | ||
| 16 | 40100812 | ||
| 14 | 40101462 | ||
| 28 | 40101541 | ||
| 10 | 40101694 | ||
| 28 | 40101720 | ||
| 36 | 40101726 | ||
| 2 | 40102097 | ||
| 16 | 40102264 | ||
| 36 | 40103560 | ||
| 28 | 40105821 | ||
| 30 | 40108174 | ||
| 30 | 40108761 | B1109552000 | |
| 30 | 40108771 | B1116210D00 | |
| 30 | 40108918 | B1144771000 | |
| 8 | 40110376 | B1213552000A | |
| 30 | 40110643 | B1215552000 | |
| 30 | 40110644 | B1408552000 | |
| 30 | 40110645 | B1418415H00 | |
| 6 | 40110731 | B1505552000A | |
| 6 | 40110734 | B152155000 | |
| 30 | 40110792 | B15240120BA | |
| 30 | 40110796 | B1613012100 | |
| 30 | 40110797 | B1903552000 | |
| 6 | 40110975 | B1905541B00 | |
| 6 | 40110976 | B8228125000 | |
| 8 | 40110977 | CM200100001 | |
| 8 | 40110978 | CM300100003 | |
| 8 | 40110979 | CM300200001 | |
| 2 | 40110987 | CM301200001 | |
| 20 | 40110995 | CQ252000000 | |
| 22 | 40110992 | D1524555EBL | |
| 20 | 40110995 | D2404555B00 | |
| 22 | 40110996 | D2406555D0H | |
| 24 | 40110998 | D7133555B00 | |
| 24 | 40110999 | EA9500B0100 | |
| 36 | 40111000 | EA9500B0100 | |
| 8 | 40111001 | HA00600000A | |
| 8 | 40111025 | HK034610140 | |
| 20 | 40111031 | HMO02150010 | |
| 36 | 40111032 | HX001970000 | |
| 30 | 40111196 | HX006060000 | |
| 8 | 40111203 | HX006820000 | |
| 30 | 40111205 | HX006830000 | |
| 30 | 40111212 | KF000000030 | |
| 30 | 40111214 | KF000000080 | |
| 30 | 40111217 | MDB100B1400 | |
| 8 | 40111423 | MDB100B2100 | |
| 8 | 40111424 | NM6040001SE | |
| 32 | 40111651 | NM6050001SE | |
| 30 | 40111652 | NM6060001SE | |
| 22 | 40111741 | NM6080002SC | |
| 32 | 40111758 | NS6090310SP | |
| 32 | 40111759 | NS6110420SP | |
| 8 | 40111872 | NS6110420SP | |
| 28 | 40111876 | NS6120630SP | |
| 16 | 40111897 | NS6150430SP | |
| 2 | B1109552000 | NS6620310SP | |
| 28 | B1116210D00 | NS6680410SP | |
| 30 | B1144771000 | RC0150001KP | |
| 36 | B1213552000A | RC0150001KP | |
| 8 | B1215552000 | RC0560711KP | |
| 8 | B1408552000 | RC1850001KP | |
| 36 | B1418415H00 | RE0250000K0 |
Page 43 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19 | RE0400000K0 | SL6051492TN | 6 |
| 39 | RE0400000K0 | SL6052592TN | 18 |
| 23 | RE0400000K0 | SM0050801SC | 22 |
| 18 | RE0400000KP | SM4051405SE | 22 |
| 43 | RE0500000K0 | SM5040655SN | 12 |
| 21 | RE0500000K0 | SM8040802TP | 14 |
| 56 | RE0500000K0 | SM8050502TP | 18 |
| 56 | RE0500000K0 | SM80608A2TP | 20 |
| 18 | RE0500000K0 | SM8061010TP | 24 |
| 14 | RE0500000KP | SM8063012TR | 22 |
| 34 | RE0600000K0 | SM9061203SE | 18 |
| 16 | RE0900000K0 | SS2060210SP | 22 |
| 12 | RE1000000K0 | SS2060210SP | 28 |
| 20 | RE1200000K0 | SS2110915SP | 22 |
| 41 | RO029180100 | SS2110920TP | 8 |
| 3 | RO037180100 | SS4080620TP | 12 |
| 13 | RO044240100 | SS4080620TP | 8 |
| 66 | RO078190100 | SS4080620TP | 16 |
| 16 | RO092270200 | SS4090615SP | 14 |
| 6 | RO098240100 | SS4110515SP | 28 |
| 2 | RO195240100 | SS4110515SP | 26 |
| 2 | SD0460703TP | SS4110715SP | 18 |
| 10 | SD0460703TP | SS4110915TP | 36 |
| 8 | SD0500131TP | SS4120615SP | 36 |
| 46 | SD0600361SP | SS4120615SP | 18 |
| 18 | SD0630275SP | SS4120615SP | 18 |
| 48 | SD0640631TP | SS4120915SP | 20 |
| 17 | SD0641451SP | SS4120915SP | 18 |
| 4 | SD0650321TP | SS4120915SP | 24 |
| 20 | SD0700451TP | SS4120915SP | 36 |
| 44 | SD0700711TP | SS4120915SP | 36 |
| 12 | SD0720331SP | SS4150915SP | 12 |
| 47 | SD1000801SH | SS4150915SP | 14 |
| 16 | SE4301041SR | SS4150915SP | 26 |
| 3 | SL4030631SC | SS4151215SP | 24 |
| 22 | SL4030641SE | SS4151215SP | 24 |
| 14 | SL4030681SC | SS6060210SP | 30 |
| 23 | SL4030851SF | SS6080410SP | 26 |
| 23 | SL4031081SC | SS6090510TP | 30 |
| 17 | SL4031281SC | SS6090540SP | 30 |
| 32 | SL4040681SC | SS6090620TP | 30 |
| 37 | SL4040881SC | SS6090670TP | 30 |
| 13 | SL4041081SC | SS6090670TP | 30 |
| 35 | SL4042581SC | SS6090910SP | 30 |
| 27 | SL6040692TN | SS6110420TP | 30 |
| 39 | SL6051492TN | SS6110610TP | 8 |
| 38 | SL6052592TN | SS6110710TP | 8 |
| 32 | SM0050801SC | SS6111010TP | 6 |
| 23 | SM4051405SE | SS6121210SP | 34 |
| 20 | SM5040655SN | SS6121610SP | 6 |
| 21 | SM8040802TP | SS6121840SP | 6 |
| 22 | SM8050502TP | SS6121860SP | 6 |
| 33 | SM80608A2TP | SS6660610TP | 8 |
| 61 | SM8061010TP | SS6661110SP | 16 |
| 10 | SM8063012TR | SS6700710SH | 28 |
| 24 | SM9061203SE | SS7080510TP | 28 |
| 8 | SS2060210SP | SS7090610SP | 18 |
| 11 | SS2060210SP | SS7091110TP | 36 |
| 46 | SS2110915SP | SS7110720SP | 2 |
| 45 | SS2110920TP | SS7110740TP | 2 |
| 34 | SS4080620TP | SS7110740TP | 14 |
| 9 | SS4080620TP | SS7111120SP | 18 |
| 2 | SS4080620TP | SS7120770SH | 36 |
| 19 | SS4090615SP | SS7121410TP | 8 |
| 16 | SS4110515SP | SS7681650TP | 12 |
| 37 | SS4110515SP | SS8090670SP | 14 |
| 28 | SS4110715SP | SS8110410TP | 18 |
| 33 | SS4110915TP | SS8110520TP | 10 |
| 29 | SS4120615SP | SS8150710TP | 2 |
| 27 | SS4120615SP | SS8150710TP | 12 |
| 4 | SS4120615SP | SS8151150TP | 26 |
| 50 | SS4120915SP | SS8660610TP | 2 |
| 50 | SS4120915SP | SS8660610TP | 4 |
| 39 | SS4120915SP | SS8660810TP | 10 |
| 27 | SS4120915SP | SS8660810TP | 24 |
| 40 | SS4120915SP | SS8681650TP | 30 |
| 17 | SS4150915SP | SV4030601SN | 12 |
| 47 | SS4150915SP | SV4030802SN | 18 |
| 57 | SS4151215SP | TA0850604R0 | 20 |
| 11 | SS4151215SP | TA0850604R0 | 22 |
| 54 | SS6060210SP | TA1250406R0 | 4 |
| 3 | SS6080410SP | TA1250705R0 | 2 |
| 16 | SS6090510TP | TA2000502R0 | 18 |
| 25 | SS6090540SP | TA2101002R0 | 24 |
| 41 | SS6090620TP | WP0450826SC | 14 |
| 5 | SS6090670TP | WP0480856SP | 10 |
| 3 | SS6090670TP | WP0482086SD | 14 |
| 38 | SS6090910SP | WP0531001SC | 12 |
| 30 | SS6110420TP | WP0621016SH | 10 |
| 54 | SS6110610TP | WP0722316SH | 4 |
Page 44 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| WP0851846SC | |||
| WP1602616SZ | |||
| WP1612616SE | |||
| WS0410002KR | |||
| WS0510002KN | |||
| WS0651310KP | |||
| WS0820002KR | |||
| WT0530002KS |
Juki DDL-8700A-7 — parts catalog
- Page 1 (cover): This is the cover page for the parts list of the DDL-8700A-7 model, published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various machine components and their corresponding page numbers.
- Page 3 (diagram): This page displays an exploded view diagram of the machine frame and miscellaneous cover components for an industrial sewing machine.
- Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, and quantities.
- Page 5 (diagram): This page displays a diagram of machine frame and miscellaneous cover components, showing various parts with their corresponding reference numbers.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including screws, rubber plugs, slide plates, and a ruler stop seat, with their part numbers, names, and quantities.
- Page 7 (diagram): This page illustrates the components of the bobbin winder assembly for a sewing machine, showing an exploded view of various parts and their reference numbers.
- Page 8 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
- Page 9 (diagram): This page illustrates the main shaft and thread take-up lever components of an industrial sewing machine.
- Page 10 (parts_list): This page lists the components for the main shaft and thread take-up lever, including part numbers, names, and quantities.
- Page 11 (diagram): This page illustrates the components of the needle bar, upright shaft, and hook driving shaft, showing an exploded view of various parts with reference numbers.
- Page 12 (parts_list): This page lists parts for the needle bar, upright shaft, and hook driving shaft components, including part numbers, names, and quantities.
- Page 13 (diagram): This page illustrates the components of a hand lifter assembly for an industrial sewing machine, showing an exploded view with numbered parts.
- Page 14 (parts_list): This page lists the components for a hand lifter, including part numbers, names, and quantities.
- Page 15 (diagram): This page displays an exploded diagram of the feed mechanism components for an industrial sewing machine, with various parts numbered for identification.
- Page 16 (parts_list): This page lists the components of the feed mechanism, including part numbers, names, and quantities.
- Page 17 (diagram): This page displays a detailed diagram of the feed mechanism components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 18 (parts_list): This page lists the components for the feed mechanism, including part numbers, names, and quantities.
- Page 19 (diagram): This page illustrates the components of a thread trimmer, showing an exploded view of various parts and their reference numbers.
- Page 20 (parts_list): This page lists thread trimmer components with their part numbers, names, and quantities.
- Page 21 (diagram): This page illustrates the components of a thread trimmer assembly with a detailed exploded view.
- Page 22 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities for various parts like hinge screws, solenoid assemblies, spring washers, nuts, and other related components.
- Page 23 (diagram): This page displays a diagram of automatic reverse feed components with various parts labeled with reference numbers.
- Page 24 (parts_list): This page lists the components for the automatic reverse feed mechanism, including various switches, shafts, springs, and E-rings.
- Page 25 (diagram): This page displays a diagram of wiper components with various parts labeled with reference numbers.
- Page 26 (parts_list): This page lists wiper components with their part numbers, names, and quantities.
- Page 27 (diagram): This page illustrates the oil lubrication components of an industrial sewing machine, showing various parts such as the oil cap, oil tank, oil pump, and related tubes and screws.
- Page 28 (parts_list): This page lists the oil lubrication components with their part numbers, names, and quantities.
- Page 29 (diagram): This page illustrates the components of an oil reservoir, including the reservoir body, various screws, nuts, washers, and associated parts for oil level indication and drainage.
- Page 30 (parts_list): This page lists components for the oil reservoir, including part numbers, names, and quantities. It details items like oil reservoirs, gaskets, screws, nuts, and various brackets and plates.
- Page 31 (diagram): This page displays a diagram of the PSC UNIT with various components labeled with reference numbers.
- Page 32 (parts_list): This page lists parts for the PSC UNIT, including part numbers, names, and quantities. It contains 47 items, such as covers, screws, PCBs, and motors.
- Page 33 (diagram): This page displays a diagram of the PSC UNIT with various components labeled with reference numbers.
- Page 34 (parts_list): This page lists parts for the PSC UNIT, including staples, fuses, and a power switch assembly, with their respective part numbers and quantities.
- Page 35 (diagram): This page contains a diagram illustrating the components of a thread stand, with various parts numbered for reference.
- Page 36 (parts_list): This page lists components for the THREAD STAND ASM., including spool rest rods, arms, pins, guides, and various fasteners, with part numbers, names, and quantities.
- Page 37 (diagram): This page contains a diagram illustrating parts for the DDL-8700AH-7 sewing machine, with reference numbers indicating component locations.
- Page 38 (parts_list): This page lists parts for the DDL-8700AH-7, including part numbers, names, and quantities for items such as knife units, screws, thread guides, and various assembly components.
- Page 39 (text): This page provides instructions on how to use the parts list, including explanations for reference numbers, quantity codes, and symbols used in diagrams. It also includes Japanese explanations for list page references, quantity numbers, and illustration page symbols.
- Page 40 (index): Numerical index of parts with part numbers, page references, and reference numbers.
- Page 41 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 42 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 43 (index): This page contains a numerical index of parts, listing part numbers, their corresponding page numbers, and reference numbers.
- Page 44 (index): This page contains a numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
