Juki DDL-9000A — parts catalog

Page 1 — PARTS LIST

MODEL : DDL-9000A List No : 1457-02 PARTS LIST Published:05/07/2018 jintex.in

Page 2 — CONTENTS

CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 1 31 81 8 9 5 4 10 11 38 39 67 10 43 20 11 19 A 33 26 29 89 48 63 61 62 69 66 68 64 46 92 70 65 23 86 87 88 37 83 90 91 82 24 84 94 47 93 27 28 42 25 41 85 86 21 22 45 34 71 14 15 16 17 6 75 73 18 72 12 13 3 76 7 A 79 74 2 58 49 77 80 32 44 57 78 30 54 51 53 56 55 60 52 50 59 40 jintex.in

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000A parts on page 4
RefPart numberPart nameQty
140037158SIDE PLATE
240041161FACE PLATE
340052819FACE PLATE PACKING
423600505THREAD TAKE-UP LEVER COVER
5SM4051055SPSCREW
623600703BED STUD A
7SL6061292TNSCREW
840061562EARTH CORD ASM.
9SM4050855SPSCREW
10SM4051055SPSCREW
1140022407CORD HOLDER
1222901250SLIDE PLATE ASM.
1322902753SLIDE PLATE ASM.
1422901201SLIDE PLATE
1522902704SLIDE PLATE
1622901300SLIDE PLATE SPRING
1722901300SLIDE PLATE SPRING
18SS6060210SPSCREW 3/32-56 L= 1.9
19TA1250406R0RUBBER PLUG D=12.5 L=4
20TA0850604R0RUBBER PLUG
2122944508WIRE PRESSER A
22SM4040655SPSCREW M4 L=6
23CM300200001ATTENTION SEAL
24TA1470702R0RUBBER PLUG
25CM300200003ATTENTION LABEL
26SL6052592TNBOLT
27SM2040955TPSCREW M4 L=8.5
28SM2040955TPSCREW M4 L=8.5
29CM301300001SAFETY LABEL
3022902506FACE PLATE
31SM4051055SPSCREW
32SM4050855SPSCREW
3340041473PULLEY_COVER
3440027581BED STUD B
35SL6061292TNSCREW
36SM4040655SPSCREW M4 L=6
3740035589RULER PLATE
38TA0850604R0RUBBER PLUG
39TA1250406R0RUBBER PLUG D=12.5 L=4
40TA1250406R0RUBBER PLUG D=12.5 L=4
41TA1470704R0RUBBER PLUG
42TA1270502R0RUBBER PLUG
43TA1250406R0RUBBER PLUG D=12.5 L=4
44B3118552F00TENSION RELEASING PIN
4540052933ARM THREAD GUIDE C
46SM80608A2TPL=8SCREW M6 L=8
4723640006SHEET

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037158 SIDE PLATE 1 2 40041161 FACE PLATE 1 3 40052819 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 SM4051055SP SCREW 1 6 23600703 BED STUD A 1 7 SL6061292TN SCREW 2 8 40061562 EARTH CORD ASM. 1 9 SM4050855SP SCREW 2 10 SM4051055SP SCREW 2 11 40022407 CORD HOLDER 1 12 22901250 SLIDE PLATE ASM. FOR JE,KO 1 13 22902753 SLIDE PLATE ASM. FOR ST,SH 1 14 22901201 SLIDE PLATE * 1 15 22902704 SLIDE PLATE * 1 16 22901300 SLIDE PLATE SPRING * 1 17 22901300 SLIDE PLATE SPRING * 1 18 SS6060210SP SCREW 3/32-56 L= 1.9 * 2 19 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 20 TA0850604R0 RUBBER PLUG 1 21 22944508 WIRE PRESSER A 1 22 SM4040655SP SCREW M4 L=6 1 23 CM300200001 ATTENTION SEAL 1 24 TA1470702R0 RUBBER PLUG 1 25 CM300200003 ATTENTION LABEL 1 26 SL6052592TN BOLT 3 27 SM2040955TP SCREW M4 L=8.5 ☆ 1 28 SM2040955TP SCREW M4 L=8.5 ☆ 1 29 CM301300001 SAFETY LABEL 1 30 22902506 FACE PLATE 1 31 SM4051055SP SCREW 6 32 SM4050855SP SCREW 2 33 40041473 PULLEY_COVER 1 34 40027581 BED STUD B 1 35 SL6061292TN SCREW 2 36 SM4040655SP SCREW M4 L=6 1 37 40035589 RULER PLATE 1 38 TA0850604R0 RUBBER PLUG 2 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1470704R0 RUBBER PLUG 1 42 TA1270502R0 RUBBER PLUG 2 43 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 44 B3118552F00 TENSION RELEASING PIN 1 45 40052933 ARM THREAD GUIDE C 1 46 SM80608A2TP L=8SCREW M6 L=8 1 47 23640006 SHEET 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 31 1 81 8 9 5 4 10 11 33 38 39 67 26 10 43 20 11 19 29 89 A 48 63 61 62 69 66 68 64 46 92 70 87 65 23 36 88 37 83 90 91 82 24 84 94 47 93 27 28 21 42 41 85 86 22 45 34 71 14 15 6 75 73 16 17 72 18 35 76 12 13 3 A 7 79 74 2 58 49 77 80 32 44 57 78 30 54 51 53 56 55 60 52 50 59 40 jintex.in

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000A parts on page 6
RefPart numberPart nameQty
CM600100101WEEE MARK LABEL S1
40024843THREAD TENSION DISK ASM.1
23626005THREAD TENSION NUT1
B3115552000TENSION POST1
B3120125000ROTATING STOPPER1
B3126012000THREAD TENSION DISK2
B3128012000TAKE-UP SPRING1
B3129012A00TENSION SPRING1
B313222000THREAD TENSION DISK PRESSER1
40024845TENSION POST SOCKET ASM.1
SS8090670SPSCREW 9/64-40 L= 5.51
SS6110610TPSCREW 11/64-40 L=61
22920607ARM THREAD GUIDE B1
22945463THREAD TENSION ASM.,NO.11
22945414THREAD TENSION POST1
22945604THREAD TENSION GUIDE1
22945505THREAD TENSION SPRING1
22945703THREAD TENSION NUT1
22945802THREAD TENSION DISK2
SM80608A2TPL=8SCREW M6 L=81
SM5040655SNSCREW1
23626104ARM THREAD GUIDE A1
SM80608A2TPL=8SCREW M6 L=81
40037002SAFETY SWITCH ASM.1
40037018SAFETY SWITCH BASE1
23638109SAFETY SWITCH ARM1
23638208SAFETY SWITCH SPRING1
23638307SAFETY SWITCH ARM SHAFT1
23638406SAFETY SWITCH NUT1
23638554SAFETY SWITCH CORD ASM.1
EA9500B0100CABLE BAND1
SM4021201SCSCREW M2 L=122
SM4050655SPSCREW M5 L=61
22901805GROUND MARK1
23629900AIR-DISCHARGING1
RO080150200RUBBER RING1
23631305AIR-DISCHARGING CAP1
B1109012I0BTHROAT PLATE (I)1
11028008THROAT PLATE1
SL6051492TNBOLT1
40022407CORD HOLDER1
CM600600101CHINA ENVIRONMENT LABEL1
40065552THROAT PLATE SCREW1
40069097RULER PLATE I1
40069110ATTACHMENT FIXATION SCREW1
40037488SHEET1
B1109552000THROAT PLATE1

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 CM600100101 WEEE MARK LABEL S FOR JE 1 49 40024843 THREAD TENSION DISK ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 B3115552000 TENSION POST * 1 52 B3120125000 ROTATING STOPPER * 1 53 B3126012000 THREAD TENSION DISK * 2 54 B3128012000 TAKE-UP SPRING * ☆ 1 55 B3129012A00 TENSION SPRING * 1 56 B313222000 THREAD TENSION DISK PRESSER * 1 57 40024845 TENSION POST SOCKET ASM. * 1 58 SS8090670SP SCREW 9/64-40 L= 5.5 1 59 SS6110610TP SCREW 11/64-40 L=6 1 60 22920607 ARM THREAD GUIDE B 1 61 22945463 THREAD TENSION ASM.,NO.1 1 62 22945414 THREAD TENSION POST * 1 63 22945604 THREAD TENSION GUIDE * 1 64 22945505 THREAD TENSION SPRING * 1 65 22945703 THREAD TENSION NUT * 1 66 22945802 THREAD TENSION DISK * 2 67 SM80608A2TP L=8SCREW M6 L=8 1 68 SM5040655SN SCREW 1 69 23626104 ARM THREAD GUIDE A 1 70 SM80608A2TP L=8SCREW M6 L=8 1 71 40037002 SAFETY SWITCH ASM. 1 72 40037018 SAFETY SWITCH BASE * 1 73 23638109 SAFETY SWITCH ARM * 1 74 23638208 SAFETY SWITCH SPRING * 1 75 23638307 SAFETY SWITCH ARM SHAFT * 1 76 23638406 SAFETY SWITCH NUT * 1 77 23638554 SAFETY SWITCH CORD ASM. * 1 78 EA9500B0100 CABLE BAND * 1 79 SM4021201SC SCREW M2 L=12 * 2 80 SM4050655SP SCREW M5 L=6 1 81 22901805 GROUND MARK 1 82 23629900 AIR-DISCHARGING 1 83 RO080150200 RUBBER RING 1 84 23631305 AIR-DISCHARGING CAP 1 85 B1109012I0B THROAT PLATE (I) FOR ST,JE 1 86 11028008 THROAT PLATE FOR KO 1 87 SL6051492TN BOLT 1 88 40022407 CORD HOLDER 1 89 CM600600101 CHINA ENVIRONMENT LABEL FOR SH 1 90 40065552 THROAT PLATE SCREW OPTIONAL PARTS 1 91 40069097 RULER PLATE I OPTIONAL PARTS 1 92 40069110 ATTACHMENT FIXATION SCREW OPTIONAL PARTS 1 93 40037488 SHEET FOR SH 1 94 B1109552000 THROAT PLATE FOR SH 1 jintex.in

Page 7 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS 20 23 17 10 2 9 13 1 4 16 3 14 22 11 6 8 15 11 5 18 19 21 7 21 12 24 25 29 28 27 26 31 30 33 32 jintex.in

Page 8 — BOBBIN WINDER COMPONENTS

Juki DDL-9000A parts on page 8
RefPart numberPart nameQty
140023021BOBBIN WINDER UNIT1
226260109BTW_BASE1
326260208BTW_CAM_PLATE1
426260307BTW_BASE_SHAFT1
526260406BTW_SHAFT_BASE1
626260505BTW_CAM_LEVER1
726260604BTW_WHEEL1
826260802BTW_BEARING_SPACER1
926261008BTW_LEVER_SHAFT1
1026261206BTW_SPACER1
1126261305BTW_BEARING2
1226261503BTW_WHEEL_RUBBER1
1326261602BOBBIN_SPRING1
1426261701BTW_SPRING1
1540011144BTW_TORSION_SPRING1
1640014837BTW_SHAFT1
1740023022BTW_LEVER1
18RC0560711KPRETAINING RING1
19RE0400000K0E-RING 41
20SM5040655SNSCREW1
21SM8040802TPSCREW M4X82
22SM8050502TPSCREW M5 L=51
23WP0450826SCWASHER 4.5X10X0.81
2440040202BOBBIN THREAD TENSION ASM.1
2511072204TENSION NUT1
2640040203BOBBIN THREAD TENSION ROD ASM.1
27B3126012000THREAD TENSION DISK2
28B3129012A00TENSION SPRING1
29B3120125000ROTATING STOPPER1
3040037008THREAD_CUTTER1
31SM0051001SCSCREW1
32SM0051001SCSCREW3
33SM4051055SPSCREW1

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40023021 BOBBIN WINDER UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * ☆ 1 13 26261602 BOBBIN_SPRING * 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40014837 BTW_SHAFT * 1 17 40023022 BTW_LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE0400000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40040202 BOBBIN THREAD TENSION ASM. * 1 25 11072204 TENSION NUT * 1 26 40040203 BOBBIN THREAD TENSION ROD ASM. * 1 27 B3126012000 THREAD TENSION DISK * 2 28 B3129012A00 TENSION SPRING * 1 29 B3120125000 ROTATING STOPPER * 1 30 40037008 THREAD_CUTTER * ☆ 1 31 SM0051001SC SCREW 1 32 SM0051001SC SCREW 3 33 SM4051055SP SCREW 1 jintex.in

Page 9 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 46 41~45 39 40 40 41~45 38 37 25 50 15 16 30 31 48 29 32 49 26 33 14 27 28 23 13 36 12 47 20 34 35 7 22 21 11 9 19 10 18 24 2 6 3 8 5 6 4 1 jintex.in

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 45 46 47 48 49 50 jintex.in

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000A parts on page 12
RefPart numberPart nameQty
4840050265AC_SERVO_MOTOR1
49SL6052592TNBOLT4
50EA9500B0100CABLE BAND2

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40050265 AC_SERVO_MOTOR 1 49 SL6052592TN BOLT 4 50 EA9500B0100 CABLE BAND 2 jintex.in

Page 13 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS jintex.in

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000A parts on page 14
RefPart numberPart nameQty
123609001BUSHING1
240040264PRESSER BAR GUIDE BRACKET ASM.1
340039078PRESSER BAR GUIDE BRACKET1
4SM6051400SPSCREW1
523609357LIFTING LEVER CONNECT ROD ASM.1
623609456LIFTING LINK COMPL.1
723609605PLATE1
822908008LIFTING PLATE1
9SM6040602TPSCREW M4 L=61
10RE0500000K0E-RING1
11RE0500000K0E-RING1
1223609308LIFTING LEVER CONNECT ROD1
1323609803CONNECTING ROD1
1423609704LIFTING LEVER LINK1
1522907406PRESSER SPRING1
1623610207PRESSER BAR1
1723610306PRESSER GUIDE BAR1
1840037359PRESSER SPRING REGURATOR ASM.1
1940037141PRESSER SPRING REGULATOR1
2040037144PRESSER SPRING REGULATOR NUT1
2140050583LINK SHAFT2
2222907802HAND LIFTER1
23B152155000SCREW1
2422908552HAND LIFTER CAM ASM.1
25RO037180100RUBBER RING1
26B15240120BAPRESSER FOOT ASM.1
27SS7091110TPSCREW 9/64-40 L=10.51
28RE0500000K0E-RING3
2922908909HINGE SCREW1
30SD0720336SPSHOULDER SCREW1
31NM6060003SENUT FOR BRACKET1
3240036706ADJUSTING SCREW1
33WP0621016SDWASHER 6.2X13X11
3422944508WIRE PRESSER A2
35SM4050655SPSCREW M5 L=61
36SM4040655SPSCREW M4 L=61
37SL6051492TNBOLT1
3840039708WIRE HOLDER1
3940050582TENSION RELEASE SHAFT1
4022920300THREAD RELEASE SUPPORTING PIN1
4122920409THREAD RELEASE PIN SPRING1
4223626351THREAD TENSION RELEASE WIRE1
4323626807TENSION RELEASE RETURN SPRING1
44NS6620310SPNUT 3/16-322
45RE0500000K0E-RING2
4640056622MINUTE LIFTING DEVICE ASM.1
4723611106HAND LIFTER1

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23609001 BUSHING 1 2 40040264 PRESSER BAR GUIDE BRACKET ASM. 1 3 40039078 PRESSER BAR GUIDE BRACKET * 1 4 SM6051400SP SCREW * 1 5 23609357 LIFTING LEVER CONNECT ROD ASM. 1 6 23609456 LIFTING LINK COMPL. * 1 7 23609605 PLATE * 1 8 22908008 LIFTING PLATE * 1 9 SM6040602TP SCREW M4 L=6 * 1 10 RE0500000K0 E-RING * 1 11 RE0500000K0 E-RING * 1 12 23609308 LIFTING LEVER CONNECT ROD 1 13 23609803 CONNECTING ROD 1 14 23609704 LIFTING LEVER LINK 1 15 22907406 PRESSER SPRING 1 16 23610207 PRESSER BAR 1 17 23610306 PRESSER GUIDE BAR 1 18 40037359 PRESSER SPRING REGURATOR ASM. 1 19 40037141 PRESSER SPRING REGULATOR * 1 20 40037144 PRESSER SPRING REGULATOR NUT * 1 21 40050583 LINK SHAFT 2 22 22907802 HAND LIFTER 1 23 B152155000 SCREW 1 24 22908552 HAND LIFTER CAM ASM. 1 25 RO037180100 RUBBER RING 1 26 B15240120BA PRESSER FOOT ASM. 1 27 SS7091110TP SCREW 9/64-40 L=10.5 ☆ 1 28 RE0500000K0 E-RING 3 29 22908909 HINGE SCREW 1 30 SD0720336SP SHOULDER SCREW 1 31 NM6060003SE NUT FOR BRACKET 1 32 40036706 ADJUSTING SCREW 1 33 WP0621016SD WASHER 6.2X13X1 1 34 22944508 WIRE PRESSER A 2 35 SM4050655SP SCREW M5 L=6 1 36 SM4040655SP SCREW M4 L=6 1 37 SL6051492TN BOLT 1 38 40039708 WIRE HOLDER 1 39 40050582 TENSION RELEASE SHAFT 1 40 22920300 THREAD RELEASE SUPPORTING PIN 1 41 22920409 THREAD RELEASE PIN SPRING 1 42 23626351 THREAD TENSION RELEASE WIRE 1 43 23626807 TENSION RELEASE RETURN SPRING 1 44 NS6620310SP NUT 3/16-32 2 45 RE0500000K0 E-RING 2 46 40056622 MINUTE LIFTING DEVICE ASM. OPTIONAL PARTS * 1 47 23611106 HAND LIFTER 1 jintex.in

Page 15 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS jintex.in

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000A parts on page 16
RefPart numberPart nameQty
4823610504STOPPER BASE1
4923610652STOPPER SCREW ASM.1
50D5119206K0KSPACER2
5123610702STOPPER SCREW NUT1
52SL6053592TNBOLT1

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23610504 STOPPER BASE * 1 49 23610652 STOPPER SCREW ASM. * 1 50 D5119206K0K SPACER * 2 51 23610702 STOPPER SCREW NUT * 1 52 SL6053592TN BOLT * 1 jintex.in

Page 17 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS jintex.in

Page 18 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000A parts on page 18
RefPart numberPart nameQty
40037188ADJUSTING LINK ASM.1
40026272ADJUSTING LINK1
40033393ADJUSTING LINK PIN2
SM80404A2TPSCREW M4 L=44
23612104ADJUSTING LINK CONNECTING LINK1
40012032ADJUSTING LINK FULCRUM SHAFT2
SM80608A2TPL=8SCREW M6 L=82
40040370ADJUSTING LINK FULCRUM SHAFT B1
RE050000K0E-RING1
RE050000K0E-RING1
23612807METAL,A1
40056502FEED CHANGING SHAFT ARM A ASM.1
40053465FEED CHANGING SHAFT ARM A1
SS8661012TPSCREW3
40037191FEED CHANGING SHAFT ARM B ASM.1
40026274FEED CHANGING SHAFT ARM B1
SM6051602TPSCREW M5X0.8 L=161
SM9040650TPSCREW M4 L=62
40060869FEED CHANGING SHAFT METAL B1
40037017FEED CHANGING SHAFT1
40041470REVERSE,FEED,LEVER1
23613706FEED LEVER SHAFT1
23613953FEED LEVER ARM ASM.1
23613904FEED LEVER ARM1
SS6121860SPSCREW 3/16-28 L=181
40027582FEED ADJUSTING SPRING1
23614308FEED LEVER SPRING1
40026275FEED ADJUSTING ROD1
23630007TUBE0.1
23613508ADJUSTING BASE SHAFT METAL1
40028112FEED_ADJUSTING_PIN1
CS111101CSHTHRUST COLLAR ASM.D=11.11 W=101
SS8660610TPSCREW 1/4-40 L=62
40036344FEED REGULATOR ASSY1
40036343FEED REGULATOR1
40040499FEED REGUKATOR PIN1
RE050000K0E-RING1
23612609FEED CHANGING SHAFT OIL SEAL1
40055585THRUST COLLAR ASM.1
23612716THRUST COLLAR1
SS8660612TPSCREW 1/4-40 L=62
SM80608A2TPL=8SCREW M6 L=82
40053450FEED CHANGING SHAFT ARM C ASM.1
40050221FEED CHANGING SHAFT ARM C1
40056721FEED CHANGING SHAFT ARM C PIN1
SS8660612TPSCREW 1/4-40 L=61
40050219FEED CHANGING SHAFT SPRING1

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037188 ADJUSTING LINK ASM. 1 2 40026272 ADJUSTING LINK * 1 3 40033393 ADJUSTING LINK PIN * 2 4 SM80404A2TP SCREW M4 L=4 * 4 5 23612104 ADJUSTING LINK CONNECTING LINK 1 6 40012032 ADJUSTING LINK FULCRUM SHAFT 2 7 SM80608A2TP L=8SCREW M6 L=8 2 8 40040370 ADJUSTING LINK FULCRUM SHAFT B 1 9 RE050000K0 E-RING 1 10 RE050000K0 E-RING 1 11 23612807 METAL,A 1 12 40056502 FEED CHANGING SHAFT ARM A ASM. 1 13 40053465 FEED CHANGING SHAFT ARM A * 1 14 SS8661012TP SCREW * 3 15 40037191 FEED CHANGING SHAFT ARM B ASM. 1 16 40026274 FEED CHANGING SHAFT ARM B * 1 17 SM6051602TP SCREW M5X0.8 L=16 * 1 18 SM9040650TP SCREW M4 L=6 * 2 19 40060869 FEED CHANGING SHAFT METAL B 1 20 40037017 FEED CHANGING SHAFT 1 21 40041470 REVERSE,FEED,LEVER 1 22 23613706 FEED LEVER SHAFT 1 23 23613953 FEED LEVER ARM ASM. 1 24 23613904 FEED LEVER ARM * 1 25 SS6121860SP SCREW 3/16-28 L=18 * 1 26 40027582 FEED ADJUSTING SPRING 1 27 23614308 FEED LEVER SPRING 1 28 40026275 FEED ADJUSTING ROD 1 29 23630007 TUBE 0.1 30 23613508 ADJUSTING BASE SHAFT METAL 1 31 40028112 FEED_ADJUSTING_PIN 1 32 CS111101CSH THRUST COLLAR ASM.D=11.11 W=10 1 33 SS8660610TP SCREW 1/4-40 L=6 * 2 34 40036344 FEED REGULATOR ASSY 1 35 40036343 FEED REGULATOR * 1 36 40040499 FEED REGUKATOR PIN * 1 37 RE050000K0 E-RING 1 38 23612609 FEED CHANGING SHAFT OIL SEAL 1 39 40055585 THRUST COLLAR ASM. 1 40 23612716 THRUST COLLAR * 1 41 SS8660612TP SCREW 1/4-40 L=6 * 2 42 SM80608A2TP L=8SCREW M6 L=8 2 43 40053450 FEED CHANGING SHAFT ARM C ASM. 1 44 40050221 FEED CHANGING SHAFT ARM C * 1 45 40056721 FEED CHANGING SHAFT ARM C PIN * 1 46 SS8660612TP SCREW 1/4-40 L=6 * 1 47 40050219 FEED CHANGING SHAFT SPRING 1 jintex.in

Page 19 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS jintex.in

Page 20 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000A parts on page 20
RefPart numberPart nameQty
4840050220FEED CHANGING SHAFT SPRING HOOK
49SM4040655SPSCREW M4 L=6
5022952501BACK LEVER STOPPER
51SM6051850TPSCREW M5 L=18
5240062651FEED ADJUSTING SHAFT ASM
5340055569FEED_ADJUSTING_SHAFT
5423533904FEED ADJUSTING SCREW
5540053172FEED ADJUSTING BASE
56SM1051052TNSCREW M5 L=10
5722912109FEED REGULATOR PIN SPRING
5822912000FEED REGULATOR PIN
5923534506FEED DIAL SPRING
60WP1751616SDWASHER 17.5X24X1.6
6140036433FEED_DIAL
62SS6121860SPSCREW 3/16-28 L=18
63RE0400000K0E-RING 4
6423613805FEED LEVER SHAFT METAL
6540061560FEED_CHANGING_BALANCER_ARM_ASM
6640061545FEED_CHANGING_BALANCER_ARM
67SM6061802TPSCREW M6 L=18
6840053340ADJUSTING LINK PIN
69WT1780011KPTOOTHED WASHER 18

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40050220 FEED CHANGING SHAFT SPRING HOOK 1 49 SM4040655SP SCREW M4 L=6 1 50 22952501 BACK LEVER STOPPER 1 51 SM6051850TP SCREW M5 L=18 1 52 40062651 FEED ADJUSTING SHAFT ASM 1 53 40055569 FEED_ADJUSTING_SHAFT * 1 54 23533904 FEED ADJUSTING SCREW * 1 55 40053172 FEED ADJUSTING BASE 1 56 SM1051052TN SCREW M5 L=10 2 57 22912109 FEED REGULATOR PIN SPRING 1 58 22912000 FEED REGULATOR PIN 1 59 23534506 FEED DIAL SPRING 1 60 WP1751616SD WASHER 17.5X24X1.6 1 61 40036433 FEED_DIAL 1 62 SS6121860SP SCREW 3/16-28 L=18 1 63 RE0400000K0 E-RING 4 1 64 23613805 FEED LEVER SHAFT METAL 1 65 40061560 FEED_CHANGING_BALANCER_ARM_ASM 1 66 40061545 FEED_CHANGING_BALANCER_ARM * 1 67 SM6061802TP SCREW M6 L=18 * 1 68 40053340 ADJUSTING LINK PIN 1 69 WT1780011KP TOOTHED WASHER 18 1 jintex.in

Page 21 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS jintiex.in

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000A parts on page 22
RefPart numberPart nameQty
40037192FEED ROCKER CAM ASM.1
23616006FEED ROCKER CAM1
SS8150822TPSCREW 15/64-28 L=82
40037365FEED ROCKER ROD ASM.1
40026277FEED ROCKER ROD1
22911101WALKING FOOT PIN C1
SS6090620TPSCREW1
40061246FEED ROCKER ARM ALL ASM.1
40026504FEED ROCKER ARM ASM.1
40042079FEED ROCKER ARM1
SS6121610SPSCREW 3/16-28 L=15.51
SS6090620TPSCREW1
22911002WALKING FOOT PIN B1
40060868FEED SHAFT FRONT METAL1
40037005ASSY.FEED_ROCKER_BASE_ARM1
40026281FEED ROCKER BASE ARM1
SM6051400SPSCREW1
WP0531000SDWASHER M51
SM4050855SPSCREW1
23616204FEED ROCKER CAM PLATE1
SS6090670TPSCREW 9/64-40 L=62
22904155MAIN SHAFT THRUST COLLAR ASM.1
22904106MAIN SHAFT THRUST COLLAR2
SS8660610TPSCREW 1/4-40 L=62
B1613012100FEED DOG I
23614506FEED DOG A
SS4080620TPSCREW 1/8-44 L=62
B412352200ANEEDLE BEARING
B412352200BNEEDLE ROLLLAR
B412352200CNEEDLE ROLLLAR
40026278CONNECTING LINK A2
40060448CONNECTING LINK B2
23616600FEED ROCKER SHAFT1
23620354BEARING SUPPORT ASM.1
SS6110650TPSCREW 11/64-40 L=5.52
40026282FEED ROCKER BASE SHAFT1
40000391VERTICAL FEED CAM ASM. 51
40000392VERTICAL FEED CAM 51
SS8151150TPSCREW 15/64-28 L=10.52
40053720FEED DRIVING BASE ARM ASM.1
40026287FEED DRIVING BASE ARM1
SM4040655SPSCREW M4 L=61
40026288FEED DRIVING BASE SHAFT1
40030790FEED DRIVING SHAFT1
23618606BEARING SUPPORT1
SS8661012TPSCREW2
23618101FEED DRIVING CAM THRUST BUSH2

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037192 FEED ROCKER CAM ASM. 1 2 23616006 FEED ROCKER CAM * 1 3 SS8150822TP SCREW 15/64-28 L=8 * 2 4 40037365 FEED ROCKER ROD ASM. 1 5 40026277 FEED ROCKER ROD * 1 6 22911101 WALKING FOOT PIN C * 1 7 SS6090620TP SCREW * 1 8 40061246 FEED ROCKER ARM ALL ASM. 1 9 40026504 FEED ROCKER ARM ASM. * 1 10 40042079 FEED ROCKER ARM * 1 11 SS6121610SP SCREW 3/16-28 L=15.5 * 1 12 SS6090620TP SCREW * 1 13 22911002 WALKING FOOT PIN B 1 14 40060868 FEED SHAFT FRONT METAL 1 15 40037005 ASSY.FEED_ROCKER_BASE_ARM 1 16 40026281 FEED ROCKER BASE ARM * 1 17 SM6051400SP SCREW * 1 18 WP0531000SD WASHER M5 * 1 19 SM4050855SP SCREW 1 20 23616204 FEED ROCKER CAM PLATE 1 21 SS6090670TP SCREW 9/64-40 L=6 2 22 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 23 22904106 MAIN SHAFT THRUST COLLAR * 2 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 B1613012100 FEED DOG I FOR ST,JE,SH 1 26 23614506 FEED DOG A FOR KO 1 27 SS4080620TP SCREW 1/8-44 L=6 2 28 B412352200A NEEDLE BEARING SELECTIVE PARTS 1 29 B412352200B NEEDLE ROLLLAR SELECTIVE PARTS 1 30 B412352200C NEEDLE ROLLLAR SELECTIVE PARTS 1 31 40026278 CONNECTING LINK A 2 32 40060448 CONNECTING LINK B 2 33 23616600 FEED ROCKER SHAFT 1 34 23620354 BEARING SUPPORT ASM. 1 35 SS6110650TP SCREW 11/64-40 L=5.5 * 2 36 40026282 FEED ROCKER BASE SHAFT 1 37 40000391 VERTICAL FEED CAM ASM. 5 1 38 40000392 VERTICAL FEED CAM 5 * 1 39 SS8151150TP SCREW 15/64-28 L=10.5 * 2 40 40053720 FEED DRIVING BASE ARM ASM. 1 41 40026287 FEED DRIVING BASE ARM * 1 42 SM4040655SP SCREW M4 L=6 * 1 43 40026288 FEED DRIVING BASE SHAFT 1 44 40030790 FEED DRIVING SHAFT 1 45 23618606 BEARING SUPPORT 1 46 SS8661012TP SCREW 2 47 23618101 FEED DRIVING CAM THRUST BUSH 2 jintex.in

Page 23 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS jintex.in

Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000A parts on page 24
RefPart numberPart nameQty
48SB32000060ABEARING1
49SB32000060BBEARING1
50SB32000060CBEARING1
51SB117000400BEARING1
5223618309FEED DRIVING CAM PLATE1
53SS6090670TPSCREW 9/64-40 L=62
5423620503GEAR,LARGE1
55SS8661012TPSCREW2
5623620008HOOK SHAFT1
5723620156HOOK SHAFT METAL COMPL.1
5823620206OIL SEAL2
5922916555OIL SEAL SCREW ASM.1
6022916506SET SCREW1
6111015906OIL WICK1
6223620701GEAR,SMALL(A)1
6323620800GEAR,SMALL(B)1
6423620909GEAR,SMALL(C)1
6523621006GEAR,SMALL(D)1
66SS8661012TPSCREW2
67D1837555BAAABOBBIN CASE ASM.1
6811141355HOOK ASM.1
6911038650HOOK ASM.1
7023621303HOOK ASM. K1
71B9117012000BOBBIN1
72B9117552A00BOBBIN1
7322890008HOOK DRIVING SHAFT OIL SEAL1
7423620404HOOK SHAFT REAR METAL1
7540068998INNER HOOK HOLDER1
76SM4051055SPSCREW1
7740060865FEED SHAFT REAR METAL1
7823618705OIL SEAL1
7923618804OIL SEAL1
80SB120001000BEARING1
8140031608SPROCKET ASM.1
82SM8060812TPSCREW M6 L=82
832288002OIL SEAL1
8440030786FEED BASE COMPL.1

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB32000060A BEARING SELECTIVE PARTS 1 49 SB32000060B BEARING SELECTIVE PARTS 1 50 SB32000060C BEARING SELECTIVE PARTS 1 51 SB117000400 BEARING 1 52 23618309 FEED DRIVING CAM PLATE 1 53 SS6090670TP SCREW 9/64-40 L=6 2 54 23620503 GEAR,LARGE 1 55 SS8661012TP SCREW 2 56 23620008 HOOK SHAFT 1 57 23620156 HOOK SHAFT METAL COMPL. 1 58 23620206 OIL SEAL 2 59 22916555 OIL SEAL SCREW ASM. 1 60 22916506 SET SCREW * 1 61 11015906 OIL WICK * 1 62 23620701 GEAR,SMALL(A) SELECTIVE PARTS 1 63 23620800 GEAR,SMALL(B) SELECTIVE PARTS 1 64 23620909 GEAR,SMALL(C) SELECTIVE PARTS 1 65 23621006 GEAR,SMALL(D) SELECTIVE PARTS 1 66 SS8661012TP SCREW 2 67 D1837555BAAA BOBBIN CASE ASM. ☆ 1 68 11141355 HOOK ASM. FOR JE ☆ 1 69 11038650 HOOK ASM. FOR ST,KO,SH ☆ 1 70 23621303 HOOK ASM. K OPTIONAL PARTS ☆ 1 71 B9117012000 BOBBIN OPTIONAL PARTS ☆ 1 72 B9117552A00 BOBBIN ☆ 1 73 22890008 HOOK DRIVING SHAFT OIL SEAL 1 74 23620404 HOOK SHAFT REAR METAL 1 75 40068998 INNER HOOK HOLDER 1 76 SM4051055SP SCREW 1 77 40060865 FEED SHAFT REAR METAL 1 78 23618705 OIL SEAL 1 79 23618804 OIL SEAL 1 80 SB120001000 BEARING 1 81 40031608 SPROCKET ASM. 1 82 SM8060812TP SCREW M6 L=8 2 83 2288002 OIL SEAL 1 84 40030786 FEED BASE COMPL. 1 jintex.in

Page 25 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS

Page 26 — THREAD TRIMMER COMPONENTS

Juki DDL-9000A parts on page 26
RefPart numberPart nameQty
40050585KNIFE UNIT1
22947907KNIFE MOUNTING BASE1
11040052MOVING KNIFE ASM.1
11040409MOVING KNIFE HINGE SCREW1
22948202FORKED BASE FOR KNIFE1
40044189THREAD_GUIDE_FOR_KNIFE1
D2406555D0HCOUNTER KNIFE1
SD0460703TPHINGE SCREW D=4.6 H=71
SS2060210SPSCREW 3/32-56 L=2.32
SS4080620TPSCREW 1/8-44 L=61
40036995KNIFE DRIVING UNIT1
40071740KNIFE DRIVING ARM ASM.1
40030338MOVING KNIFE LINK PIN1
40030335CLUTCH PLATE ASM.1
40030333BASE PLATE ASM.1
40041393PICKER LINK ASM.1
40030343PICKER LINK1
22919203OIL PROTECTING RUBBER1
22949002ROLLER ARM SEAT1
22949101ROLLER FULCRUM SHAFT1
22949200ROLLER RETURN SPRING1
40071950KNIFE RETURN SPRING1
40040407CLUTCH SPRING1
22950000PICKER LINK PIN1
NS6150310SPNUT 15/64-281
NS6150810SPNUT 15/64-282
RE0400000K0E-RING 42
RE0600000K0E-RING 62
SM4040655SPSCREW M4 L=61
SS7090610SPSCREW 9/64-40 L=61
WP0621016SHWASHER1
22950703DRIVING ARM STOPPER1
40030339ROLLER ARM ASM.1
40036998ASSY_PICKER_ARM1
40061215PICKER ARM1
40036997ASSY_PICKER1
SS6090510TPSCREW 9/64-40 L=5.02
40040545ASSY_THREAD_TRIM_SOLENOID1
40056706THREAD TRIMMER SOLENOID1
40040508SOLENOID_BASE1
11043304SOLENOID RUBBER1
HK03464000BPIN CONTACT2
NM6040000SNNUT M42
NS6660410SHNUT1
NS6660430SPNUT 1/4-401
WP0430800SCWASHER M42
23624554DRIVING BLOCK ASM.1

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40050585 KNIFE UNIT * 1 2 22947907 KNIFE MOUNTING BASE * 1 3 11040052 MOVING KNIFE ASM. * ☆ 1 4 11040409 MOVING KNIFE HINGE SCREW * 1 5 22948202 FORKED BASE FOR KNIFE * 1 6 40044189 THREAD_GUIDE_FOR_KNIFE * ☆ 1 7 D2406555D0H COUNTER KNIFE * ☆ 1 8 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 9 SS2060210SP SCREW 3/32-56 L=2.3 * ☆ 2 10 SS4080620TP SCREW 1/8-44 L=6 * 1 11 40036995 KNIFE DRIVING UNIT * 1 12 40071740 KNIFE DRIVING ARM ASM. * 1 13 40030338 MOVING KNIFE LINK PIN * 1 14 40030335 CLUTCH PLATE ASM. * 1 15 40030333 BASE PLATE ASM. * 1 16 40041393 PICKER LINK ASM. * 1 17 40030343 PICKER LINK * 1 18 22919203 OIL PROTECTING RUBBER * 1 19 22949002 ROLLER ARM SEAT * 1 20 22949101 ROLLER FULCRUM SHAFT * 1 21 22949200 ROLLER RETURN SPRING * 1 22 40071950 KNIFE RETURN SPRING * 1 23 40040407 CLUTCH SPRING * 1 24 22950000 PICKER LINK PIN * 1 25 NS6150310SP NUT 15/64-28 * 1 26 NS6150810SP NUT 15/64-28 * 2 27 RE0400000K0 E-RING 4 * 2 28 RE0600000K0 E-RING 6 * 2 29 SM4040655SP SCREW M4 L=6 * 1 30 SS7090610SP SCREW 9/64-40 L=6 * 1 31 WP0621016SH WASHER * 1 32 22950703 DRIVING ARM STOPPER * 1 33 40030339 ROLLER ARM ASM. * 1 34 40036998 ASSY_PICKER_ARM * 1 35 40061215 PICKER ARM * 1 36 40036997 ASSY_PICKER * ☆ 1 37 SS6090510TP SCREW 9/64-40 L=5.0 * 2 38 40040545 ASSY_THREAD_TRIM_SOLENOID * 1 39 40056706 THREAD TRIMMER SOLENOID * 1 40 40040508 SOLENOID_BASE * 1 41 11043304 SOLENOID RUBBER * 1 42 HK03464000B PIN CONTACT * 2 43 NM6040000SN NUT M4 * 2 44 NS6660410SH NUT * 1 45 NS6660430SP NUT 1/4-40 * 1 46 WP0430800SC WASHER M4 * 2 47 23624554 DRIVING BLOCK ASM. * 1 jintex.in

Page 27 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS 1 8 -10 5 4 63 3 2 58 61 62 34 55 35 36 37 57 11 15 32 24 59 29 17 18 31 25 16 13 56 53 50 54 52 51 40 43 46 38 45 44 41 60 42 49 47 39 48 23 14 28 22 A 26 12 27 27 28 20 21 30 33 19 A jintex.in

Page 28 — THREAD TRIMMER COMPONENTS

Juki DDL-9000A parts on page 28
RefPart numberPart nameQty
4823624505DRIVING BLOCK1
49SS6110710TPSCREW 11/64-40 L= 9.51
5011042850THREAD TRIMMER CAM ASM.1
51SS6660610TPSCREW 1/4-40 L=62
5211042801THREAD TRIMMER CAM ASM.1
5322950950CAM COLLAR ASM.1
54SS8110520TPSCREW 11/64-40 L= 4.51
55SD0600329TPSHOULDER SCREW D=6 H=3.21
56SD0630275SPHINGE SCREW D= 6.35 H= 2.71
57SD0641456TPSHOULDER SCREW D=6.35 H=14.51
58SM4041055SPSCREW1
59SL6061292TNSCREW3
60SL6061292TNSCREW2
6140030342MOVING KNIFE LINK1
6240029398PICKER SPRING1
6323623903PIN1

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23624505 DRIVING BLOCK 1 49 SS6110710TP SCREW 11/64-40 L= 9.5 * 1 50 11042850 THREAD TRIMMER CAM ASM. 1 51 SS6660610TP SCREW 1/4-40 L=6 * 2 52 11042801 THREAD TRIMMER CAM ASM. * 1 53 22950950 CAM COLLAR ASM. 1 54 SS8110520TP SCREW 11/64-40 L= 4.5 * 1 55 SD0600329TP SHOULDER SCREW D=6 H=3.2 1 56 SD0630275SP HINGE SCREW D= 6.35 H= 2.7 1 57 SD0641456TP SHOULDER SCREW D=6.35 H=14.5 1 58 SM4041055SP SCREW 1 59 SL6061292TN SCREW 3 60 SL6061292TN SCREW 2 61 40030342 MOVING KNIFE LINK 1 62 40029398 PICKER SPRING 1 63 23623903 PIN 1 jintex.in

Page 29

OIL LUBICATION COMPONENTS

Page 30 — OIL LUBRICATION COMPONENTS

Juki DDL-9000A parts on page 30
RefPart numberPart nameQty
40037180GEAR.BOX.COVER.ASM.1
40026286GEAR BOX COVER
40034246OIL SIGHT WINDOW
RO195240100RUBBER RING
13171004DRAIN SCREW
13170105RUBBER RING
23629256OIL WICK SUPPORT ASM.1
23629207OIL WICK SUPPORT
23629702OIL WICK0.25
23629306PIPE STOPPER A3
23629405PIPE STOPPER B4
40037166GEAR BOX PACKING1
40000344LUBRICATING INLET CAP1
SQ2050453MZCONNECTING SCREW2
40042048FLOATER ASM1
RO068190100RUBBER RING1
23630007TUBE0.57
23630007TUBE0.08
23630007TUBE0.11
CQ200000001OIL WICK0.75
23630106TUBE B0.21
23630106TUBE B0.175
40075404FACE FELT ASM.1
22925101OIL FELT PRESSER1
RO098400100RUBBER RING1
RO172180100RUBBER RING1
SL6061292TNSCREW3
SL6051492TNBOLT9
SM5040655SNSCREW1
40013595OIL EXIT CAP1
40037129OIL TANK1
40042642FLOATER CASE ASM.1
40037147FLOATER CASE
23630403OIL FILTER
23630502OIL FILTER STOPPER
23628902PLUNGER SPRING1
40038328PLUNGER SCREW1
40037502OIL ADJUSTING SCREW1
RO037180100RUBBER RING1
23628803PLUNGER1
40037148FLOATER CASE GUIDE1
SL6040892TNBOLT1
SL6051492TNBOLT1
RO048190100RUBBER RING1
SL6040892TNBOLT1
40024644MAGNET WASHER1
23604705MAGNET BASE PM1

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037180 GEAR.BOX.COVER.ASM. 1 2 40026286 GEAR BOX COVER * 1 3 40034246 OIL SIGHT WINDOW * 1 4 RO195240100 RUBBER RING * 1 5 13171004 DRAIN SCREW * 1 6 13170105 RUBBER RING * 1 7 23629256 OIL WICK SUPPORT ASM. 1 8 23629207 OIL WICK SUPPORT * 1 9 23629702 OIL WICK 0.25 10 23629306 PIPE STOPPER A 3 11 23629405 PIPE STOPPER B 4 12 40037166 GEAR BOX PACKING 1 13 40000344 LUBRICATING INLET CAP 1 14 SQ2050453MZ CONNECTING SCREW 2 15 40042048 FLOATER ASM 1 16 RO068190100 RUBBER RING 1 17 23630007 TUBE 0.57 18 23630007 TUBE 0.08 19 23630007 TUBE 0.11 20 CQ200000001 OIL WICK 0.75 21 23630106 TUBE B 0.21 22 23630106 TUBE B 0.175 23 40075404 FACE FELT ASM. 1 24 22925101 OIL FELT PRESSER 1 25 RO098400100 RUBBER RING 1 26 RO172180100 RUBBER RING 1 27 SL6061292TN SCREW 3 28 SL6051492TN BOLT 9 29 SM5040655SN SCREW 1 30 40013595 OIL EXIT CAP 1 31 40037129 OIL TANK 1 32 40042642 FLOATER CASE ASM. 1 33 40037147 FLOATER CASE * 1 34 23630403 OIL FILTER * 1 35 23630502 OIL FILTER STOPPER * 1 36 23628902 PLUNGER SPRING 1 37 40038328 PLUNGER SCREW 1 38 40037502 OIL ADJUSTING SCREW 1 39 RO037180100 RUBBER RING 1 40 23628803 PLUNGER 1 41 40037148 FLOATER CASE GUIDE 1 42 SL6040892TN BOLT 1 43 SL6051492TN BOLT 1 44 RO048190100 RUBBER RING 1 45 SL6040892TN BOLT 1 46 40024644 MAGNET WASHER 1 47 23604705 MAGNET BASE PM 1 jintex.in

Page 32 — OIL LUBLICATION COMPONENTS

Juki DDL-9000A parts on page 32
RefPart numberPart nameQty
4840037145FLOATER SIGHT WINDOW1

OIL LUBLICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40037145 FLOATER SIGHT WINDOW 1

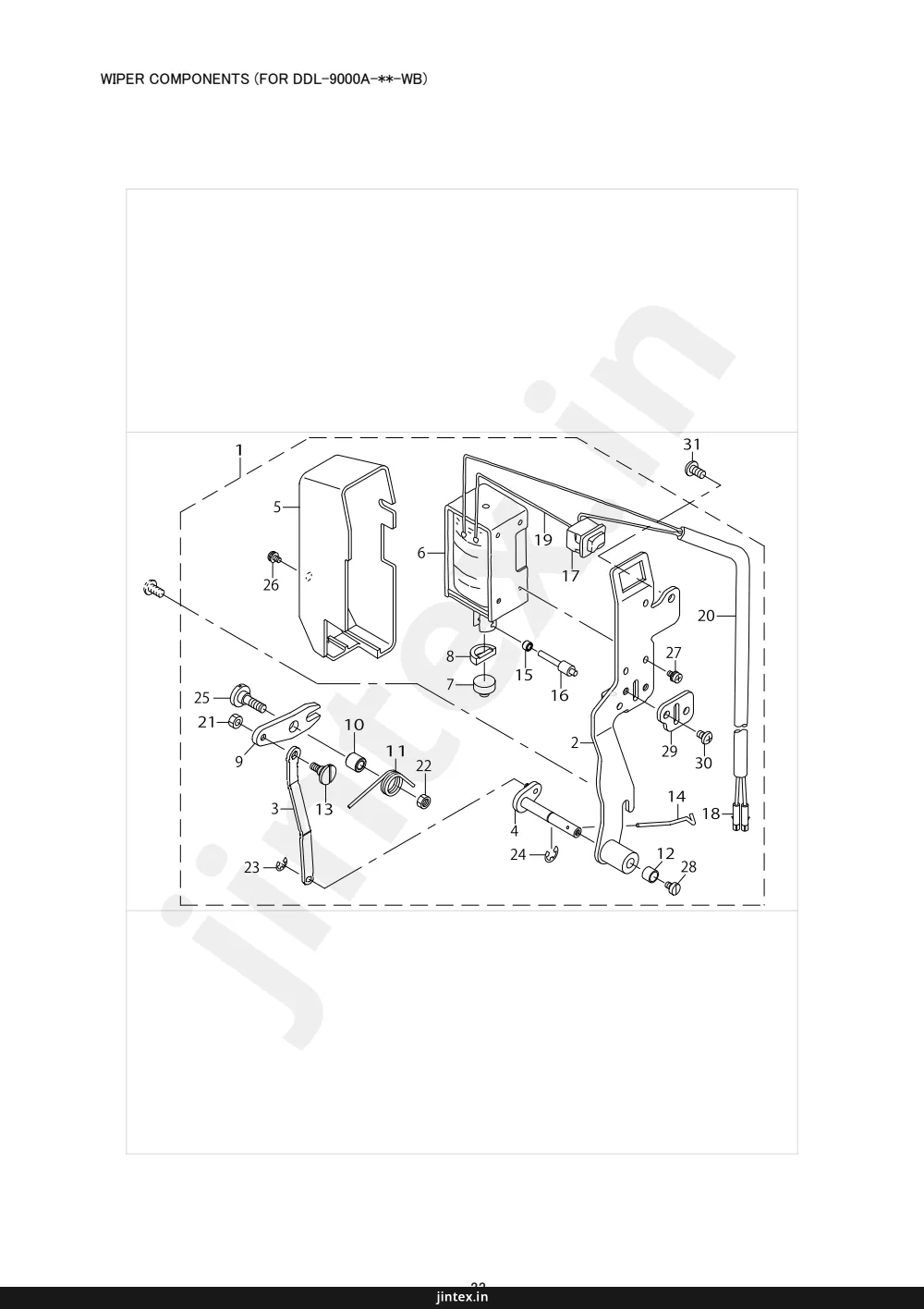

Page 35 — WIPER COMPONENTS (FOR DDL-9000A-**-WB)

Juki DDL-9000A parts on page 35
RefPart numberPart nameQty
11COVER
22BRACKET
33BRACKET
44SHAFT
55COVER
66COVER
77WASHER
88SPRING
99BRACKET
1010SPRING
1111SPRING
1212WASHER
1313SCREW
1414SPRING
1515SPRING
1616SPRING
1717SWITCH
1818TERMINAL
1919BRACKET
2020BRACKET
2121WASHER
2222NUT
2323CIRCLIP
2424CIRCLIP
2525SCREW
2626SCREW
2727SCREW
2828SCREW
2929BRACKET
3030SCREW
3131SCREW

WIPER COMPONENTS (FOR DDL-9000A-**-WB) 1 5 26 25 21 9 3 13 10 11 22 23 6 8 7 15 16 2 4 24 12 28 14 18 20 27 29 30 31 jintex.in

Page 46 — EXCLUSIVE PART FOR DDL-9000A-*A

Juki DDL-9000A parts on page 46
RefPart numberPart nameQty
11001906THROAT PLATE K
B110901210BTHROAT PLATE (I)
B1613012100FEED DOG I
D1613155W00FEED DOG W
D1524555DBBPRESSER FOOT ASM.
MDB100B0900NEEDLE DBX1 #9
MC200500650NEEDLE 134 NM65
40050584FEED DIAL 4
40037439THREAD TAKE UP COMP.A
40037479THREAD TENSION DISK ASM.A
23626005THREAD TENSION NUT
B3132552000THREAD TENSION DISK PRESSER
B3126012000THREAD TENSION DISK
40024845TENSION POST SOCKET ASM
B3115552000TENSION POST
B3120125000ROTATING STOPPER
D3129555D00THREAD TENSION SPRING
D3128555D00TAKE-UP SPRING
SS8090670SPSCREW 9/64-40 L= 5.5
11162104SPRING
B15240120BAPRESSER FOOT ASM.
MDB100B1100NEEDLE DBX1 #11
11038759BOBBIN CASE ASM.

EXCLUSIVE PART FOR DDL-9000A-*A No. Parts No. Parts name Remarks Level Cons Qty 1 11001906 THROAT PLATE K FOR KO 1 2 B110901210B THROAT PLATE (I) FOR ST,JE,SH 1 3 B1613012100 FEED DOG I FOR ST,JE,SH 1 4 D1613155W00 FEED DOG W FOR KO 1 5 D1524555DBB PRESSER FOOT ASM. FOR ST,JE,KO 1 6 MDB100B0900 NEEDLE DBX1 #9 FOR ST,KO 1 7 MC200500650 NEEDLE 134 NM65 FOR JE 1 8 40050584 FEED DIAL 4 1 9 40037439 THREAD TAKE UP COMP.A 1 10 40037479 THREAD TENSION DISK ASM.A 1 11 23626005 THREAD TENSION NUT 1 12 B3132552000 THREAD TENSION DISK PRESSER * 1 13 B3126012000 THREAD TENSION DISK * 2 14 40024845 TENSION POST SOCKET ASM * 1 15 B3115552000 TENSION POST * 1 16 B3120125000 ROTATING STOPPER * 1 17 D3129555D00 THREAD TENSION SPRING * 1 18 D3128555D00 TAKE-UP SPRING * 1 19 SS8090670SP SCREW 9/64-40 L= 5.5 * 1 20 11162104 SPRING * 1 21 B15240120BA PRESSER FOOT ASM. FOR SH 1 22 MDB100B1100 NEEDLE DBX1 #11 FOR SH 1 23 11038759 BOBBIN CASE ASM. 1 jintex.in

Page 47

Juki DDL-9000A parts on page 47
RefPart numberPart nameQty
1Needle Plate
2Needle Bar Bushing
3Needle Bar
4.5Needle
6Spring
7Presser Foot
8Feed Dog
9Feed Rock Shaft
10Bobbin Case Holder
11Connecting Rod
12Thread Take-up Lever
13Presser Bar Lifter Lever
14Presser Bar Lifter Lever Bracket
15Presser Bar Lifter Lever Screw
16Presser Bar Lifter Lever Screw
17Presser Bar Lifter Lever Screw
18Screw
19Screw
20Screw
21Screw
22Bobbin Winder Tension Unit
23Bobbin Winder Spindle
24Bobbin Winder Pulley
25Bobbin Winder Spindle
26Spring
27Washer
28Spring
29Washer
30Bobbin Winder Spindle Holder
31Spring
32Screw
33Bobbin Winder Tension Unit
34Screw
35Motor Pulley
36Motor Pulley
37Screw
38Oil Wick
39Oil Wick Holder
40Spring
41Oil Wick
42Screw
43Motor Pulley
44Motor Pulley
45Screw
46Thread Guide
47Feed Dog
48Needle Plate
49Presser Foot
50Bobbin Case Holder
51Screwdriver

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B JUKI 1 48 38 41 A H 39 40 35 36 37 11 8 47 30 28 25 27 29 31 26 24 23 32 22 10 50 7 49 46 33 34 6 3 2 4.5 12 18 16 19 15 14 13 21 17 9 43 44 45 jintex.in

Page 48

Juki DDL-9000A parts on page 48
RefPart numberPart nameQty
11400801THROAT PLATE J
23645609NEEDLE BAR METAL,LOWER H
40061767NEEDLE BAR H
MDB100B2100NEEDLE DBX1 #21
MC200501300NEEDLE 134 NM130
B1505552000APRESSER SPRING
D1524555EBLPRESSER FOOT ASM.
11403003FEED J
40068999INNER HOOK HOLDER
11092251LUBRICATING HOOK ASM.
40055604THREAD TAKE UP COMP.H
40050587KNIFE UNIT H
11095502KNIFE MOUNT BASE
40044190THREAD_GUIDE_FOR_KNIFE-H
11409257MOVING KNIFE J ASM.
40009894FORKED BASE FOR KNIFE
40050589FIX KNIFE H
SD0460703TPHINGE SCREW D=4.6 H=7
SD0500131TPHINGE SCREW D=5 H=1.25
SS2060210SPSCREW 3/32-56 L=2.3
SS4080620TPSCREW 1/8-44 L=6
11038759BOBBIN CASE ASM.
40037313THREAD TENSION DISK ASM H
23626005THREAD TENSION NUT
B3115552000TENSION POST
B3120125000ROTATING STOPPER
B3126012000THREAD TENSION DISK
B3128012000TAKE-UP SPRING
B3132552000THREAD TENSION DISK PRESSER
40024845TENSION POST SOCKET ASM
B311423000THREAD TENSION SPRING
SS8090670SPSCREW 9/64-40 L=5.5
11073954THREAD TENSION ASM.
40024124NEEDLE BAR THREAD GUIDE
23619059VERTICAL FEED CAM H ASM.
23619000VERTICAL FEED CAM H
SS8151150TPSCREW 15/64-28 L=10.5
40055058ASSY COUNTER WEIGHT H2
40053411COUNTER WEIGHT H
40004171COUNTER,WEIGHT,SCREW
SM8081652TPSCREW M8 L=16
SM80606A2TPL=6SCREW M6 L=6
40069369VERTICAL FEED CAM ASM. 2.0
40069370VERTICAL FEED CAM 2.0
SS8151150TPSCREW 15/64-28 L=10.5
40063697ARM THREAD GUIDE A H
11062601FEED DOG

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B No. Parts No. Parts name Remarks Level Cons Qty 1 11400801 THROAT PLATE J FOR ST,JE,KO 1 2 23645609 NEEDLE BAR METAL,LOWER H 1 3 40061767 NEEDLE BAR H 1 4 MDB100B2100 NEEDLE DBX1 #21 FOR ST,SH,KO 1 5 MC200501300 NEEDLE 134 NM130 FOR JE 1 6 B1505552000A PRESSER SPRING 1 7 D1524555EBL PRESSER FOOT ASM. FOR ST,JE,KO 1 8 11403003 FEED J FOR ST,JE,KO 1 9 40068999 INNER HOOK HOLDER 1 10 11092251 LUBRICATING HOOK ASM. 1 11 40055604 THREAD TAKE UP COMP.H 1 12 40050587 KNIFE UNIT H 1 13 11095502 KNIFE MOUNT BASE * 1 14 40044190 THREAD_GUIDE_FOR_KNIFE-H * 1 15 11409257 MOVING KNIFE J ASM. * 1 16 40009894 FORKED BASE FOR KNIFE * 1 17 40050589 FIX KNIFE H * 1 18 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 19 SD0500131TP HINGE SCREW D=5 H=1.25 * 1 20 SS2060210SP SCREW 3/32-56 L=2.3 * 1 21 SS4080620TP SCREW 1/8-44 L=6 * 2 22 11038759 BOBBIN CASE ASM. 1 23 40037313 THREAD TENSION DISK ASM H 1 24 23626005 THREAD TENSION NUT 1 25 B3115552000 TENSION POST 1 26 B3120125000 ROTATING STOPPER 2 27 B3126012000 THREAD TENSION DISK * 1 28 B3128012000 TAKE-UP SPRING * 1 29 B3132552000 THREAD TENSION DISK PRESSER * 1 30 40024845 TENSION POST SOCKET ASM 1 31 B311423000 THREAD TENSION SPRING * 1 32 SS8090670SP SCREW 9/64-40 L=5.5 1 33 11073954 THREAD TENSION ASM. 1 34 40024124 NEEDLE BAR THREAD GUIDE 1 35 23619059 VERTICAL FEED CAM H ASM. 1 36 23619000 VERTICAL FEED CAM H 1 37 SS8151150TP SCREW 15/64-28 L=10.5 * 1 38 40055058 ASSY COUNTER WEIGHT H 2 39 40053411 COUNTER WEIGHT H * 1 40 40004171 COUNTER,WEIGHT,SCREW * 1 41 SM8081652TP SCREW M8 L=16 * 1 42 SM80606A2TP L=6SCREW M6 L=6 * 2 43 40069369 VERTICAL FEED CAM ASM. 2.0 OPTIONAL PARTS 1 44 40069370 VERTICAL FEED CAM 2.0 1 45 SS8151150TP SCREW 15/64-28 L=10.5 * 2 46 40063697 ARM THREAD GUIDE A H 1 47 11062601 FEED DOG FOR SH 1 jintex.in

Page 49

Juki DDL-9000A parts on page 49
RefPart numberPart nameQty
1NEEDLE PLATE
2NEEDLE BAR BUSH
3NEEDLE BAR
4.5NEEDLE
6SPRING
7PRESSER FOOT
8FEED DOG
9FEED ROCK SHAFT ARM
10HOOK DRIVING MECHANISM
11UPPER FEED MECHANISM
12UPPER FEED MECHANISM
13LOWER FEED MECHANISM
14FEED DOG HOLDER
15FEED DOG HOLDER
16FEED DOG HOLDER
17FEED DOG HOLDER
18SCREW
19SCREW
20SCREW
21SCREW
23THREAD TENSION
24THREAD TENSION
25THREAD TENSION
26SPRING
27WASHER
28SPRING
29SPRING
30THREAD TENSION
31SPRING
32SCREW
33SPRING
34SPRING
35UPPER SHAFT BUSH
36UPPER SHAFT BUSH
37SCREW
38UPPER SHAFT BUSH
39UPPER SHAFT BUSH
40SPRING
41SPRING
42SCREW
43UPPER SHAFT BUSH
44UPPER SHAFT BUSH
45SCREW
46THREAD TENSION
47FEED DOG
48NEEDLE PLATE
49PRESSER FOOT
50HOOK DRIVING MECHANISM
51SCREW DRIVER

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B JUKI 1 48 38 41 A H 40 35 36 37 11 8 39 32 30 28 25 27 29 31 26 24 23 47 46 43 44 45 12 18 16 19 15 14 13 21 17 20 9 7 49 10 50 6 3 2 4.5 jintex.in

Page 50 — EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B

Juki DDL-9000A parts on page 50
RefPart numberPart nameQty
11062007THROAT PLATE, A
40064839PRESSER FOOT ASM
B9117012000BOBBIN
J1063000000WRENCH

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B No. Parts No. Parts name Remarks Level Cons Qty 48 11062007 THROAT PLATE, A FOR SH 1 49 40064839 PRESSER FOOT ASM FOR SH 1 50 B9117012000 BOBBIN 1 51 J1063000000 WRENCH OPTIONAL PARTS 1

Page 51 — TABLE & STAND COMPONENTS

Juki DDL-9000A parts on page 51
RefPart numberPart nameQty
1TABLE TOP
2TABLE TOP
3BRACKET
4BRACKET
5BRACKET
6BRACKET
7BRACKET
8STAND
9STAND
10STAND
11COVER
12COVER
13COVER
14COVER
15COVER
16DRAWER
17DRAWER
18DRAWER
19DRAWER
20BRACKET
21BRACKET
22BRACKET
23FOOT REST
24FOOT REST

TABLE & STAND COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 jintex.in

Page 52 — TABLE & STAND COMPONENTS

Juki DDL-9000A parts on page 52
RefPart numberPart nameQty
23642259TABLE ASM.1
23642200TABLE
11075900RUBBER SPACER2
11075801RUBBER SPACER2
B8210012000CUSHION SET NAIL4
B8210012000CUSHION SET NAIL4
D822655E00FRAME RUBBER CUSHION A2
11157567T LEG JUNCTION
11159365T-STAND JUNCTION
11159357T-STAND ASM.
11155769SMALL CASTINGS BOX B ASM.
11156007CASE
11155801CASE MAGNET
11155751CASE ASM. B4
SK3382001SCWOOD SCREW D=3.8 L=20
11155157DRAWER ASM.
11155108DRAWER2
11155207DRAWER SUPPORT6
SK3311600SEWOOD SCREW D=3.1 L=16
11073103RUBBER CUSHION
D8204555D00DRAWER STOPPER
SK3513200SCWOOD SCREW D=5.1 L=324
GPK700010A03-JOINT PEDAL, 70
GPK710010A02-PEDAL ASM., 71

TABLE & STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23642259 TABLE ASM. 1 2 23642200 TABLE 1 3 11075900 RUBBER SPACER 2 4 11075801 RUBBER SPACER 2 5 B8210012000 CUSHION SET NAIL 4 6 B8210012000 CUSHION SET NAIL 4 7 D822655E00 FRAME RUBBER CUSHION A 2 8 11157567 T LEG JUNCTION FOR JT-D950 1 9 11159365 T-STAND JUNCTION FOR JT-D952 1 10 11159357 T-STAND ASM. FOR JT-D95J,-D95K 1 11 11155769 SMALL CASTINGS BOX B ASM. 1 12 11156007 CASE 1 13 11155801 CASE MAGNET 1 14 11155751 CASE ASM. B 4 15 SK3382001SC WOOD SCREW D=3.8 L=20 1 16 11155157 DRAWER ASM. 1 17 11155108 DRAWER 2 18 11155207 DRAWER SUPPORT 6 19 SK3311600SE WOOD SCREW D=3.1 L=16 1 20 11073103 RUBBER CUSHION EXCEPT AK TYPE 1 21 D8204555D00 DRAWER STOPPER 1 22 SK3513200SC WOOD SCREW D=5.1 L=32 4 23 GPK700010A0 3-JOINT PEDAL, 70 FOR JT-D95J,-D95K 1 24 GPK710010A0 2-PEDAL ASM., 71 FOR JT-D95J,-D95K 1

Page 53 — SPECIAL ORDER PART

Juki DDL-9000A parts on page 53
RefPart numberPart nameQty
11WIRE HARNESS
22WIRE HARNESS
33FILTER
44GASKET
55BLOWER
66SCREW
77CLIP
88BLOWER HOUSING

SPECIAL ORDER PART 1 2 3 4 5 6 7 8 jintex.in

Page 54 — SPECIAL ORDER PART

Juki DDL-9000A parts on page 54
RefPart numberPart nameQty
40065571ELECTRIC FAN HOOK COOLING DEVICE1
40044065FAN RELAY CABLE1
40064805FAN FILTER1
40064806FAN COOLING COVER1
40065564FAN MOTOR ASSY1
SK3415001SESCREW D=4.1 L=502
MAO11532000CORD STAPLE3
40065572HOOK COOLING DEVICE INSTRUCTIO1

SPECIAL ORDER PART No. Parts No. Parts name Remarks Level Cons Qty 1 40065571 ELECTRIC FAN HOOK COOLING DEVICE * 1 2 40044065 FAN RELAY CABLE * 1 3 40064805 FAN FILTER * 1 4 40064806 FAN COOLING COVER * 1 5 40065564 FAN MOTOR ASSY * 1 6 SK3415001SE SCREW D=4.1 L=50 * 2 7 MAO11532000 CORD STAPLE * 3 8 40065572 HOOK COOLING DEVICE INSTRUCTIO * 1 jintex.in

Page 55 — LIST FOR INFORMATION OF CHANGE (1)

Juki DDL-9000A parts on page 55
RefPart numberPart nameQty
9SL-6051492-TNSL-6051492-TN
9SM-4050855-SPSM-4050855-SP
89CM-6006001-01CM-6006001-01
90400-65552400-65552
91400-69097400-69097
92400-69110400-69110
93400-37488400-37488
94B1109-552-000B1109-552-000
18SM-9040600-SPSM-9040600-SP
18SM-9040650-TPSM-9040650-TP
20400-61204400-61204
20400-37017400-37017
32CS-111101E-SHCS-111101E-SH
32CS-111101C-SHCS-111101C-SH
33SS-8660330-SPSS-8660330-SP
33SS-8660610-TPSS-8660610-TP
65400-61190400-61190
52400-62651400-62651
65400-61560400-61560
66400-61545400-61545
67SM-6061802-TPSM-6061802-TP
17SM-4051455-SPSM-4051455-SP
69WT-1780011-KPWT-1780011-KP
18WP-0480856-SPWP-0480856-SP
17SM-6051400-SPSM-6051400-SP
61229-16605229-16605
18WP-0531000-SDWP-0531000-SD
75400-32052400-32052
61110-15906110-15906
12400-36996400-36996
75400-68998400-68998
22400-40404400-40404
12400-71740400-71740
58SM-4041255-SPSM-4041255-SP
22400-71950400-71950
23236-30304236-30304
58SM-4041055-SPSM-4041055-SP
23400-75404400-75404
10400-64072400-64072
1236-33167236-33167
11SL-6051092-TNSL-6051092-TN
2236-33159236-33159
1400-77866400-77866
16229-57104229-57104
2400-77853400-77853
16400-77852400-77852
29400-77851400-77851
30SS-4110615-SPSS-4110615-SP
28229-33303229-33303
28400-70090400-70090
29293-27806293-27806
29400-64984400-64984
24110-38759110-38759
30CM-6001002-01CM-6001002-01
21B1524-012-0BAB1524-012-0BA

LIST FOR INFORMATION OF CHANGE (1) As to the place changed, refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added part)are not interchangeable with each other. In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. No. 頁 No. Parts No. 品 番 Rev. Page Ref. No. 頁 No. Parts No. 品 番 D 01 2 9 SL-6051492-TN A 02 2 9 SM-4050855-SP A 02 2 89 CM-6006001-01 A 02 2 90 400-65552 A 02 2 91 400-69097 A 02 2 92 400-69110 A 02 2 93 400-37488 A 02 2 94 B1109-552-000 D 01 10 18 SM-9040600-SP A 02 10 18 SM-9040650-TP D 01 10 20 400-61204 A 02 10 20 400-37017 D 01 10 32 CS-111101E-SH A 02 10 32 CS-111101C-SH D 01 10 33 SS-8660330-SP A 02 10 33 SS-8660610-TP A 02 10 52 400-62651 D 01 10 65 400-61190 A 02 10 65 400-61560 A 02 10 66 400-61545 A 02 10 67 SM-6061802-TP D 01 12 17 SM-4051455-SP A 02 10 69 WT-1780011-KP D 01 12 18 WP-0480856-SP A 02 12 17 SM-6051400-SP D 01 12 61 229-16605 A 02 12 18 WP-0531000-SD D 01 12 75 400-32052 A 02 12 61 110-15906 D 01 14 12 400-36996 A 02 12 75 400-68998 D 01 14 22 400-40404 A 02 14 12 400-71740 D 01 14 58 SM-4041255-SP A 02 14 22 400-71950 D 01 16 23 236-30304 A 02 14 58 SM-4041055-SP A 02 16 23 400-75404 A 02 18 10 400-64072 A 02 18 11 SL-6051092-TN D 01 19 1 236-33167 A 02 19 1 400-77866 D 01 19 2 236-33159 A 02 19 2 400-77853 D 01 19 16 229-57104 A 02 19 16 400-77852 A 02 19 29 400-77851 A 02 19 30 SS-4110615-SP D 01 23 28 229-33303 A 02 22 28 400-70090 D 01 23 29 293-27806 A 02 22 29 400-64984 A 02 22 30 CM-6001002-01 D 01 24 24 110-38759 A 02 24 21 B1524-012-0BA

Page 56 — LIST FOR INFORMATION OF CHANGE (2)

Juki DDL-9000A parts on page 56
RefPart numberPart nameQty
9400-37405
22MDB-100B1100
23110-38759
9400-68999
43400-69369
44400-69370
45SS-8151150-TP
46400-63697
47110-62601
48110-62007
49400-64839
50B9117-012-000
51J1063-000-000
ALL PARTS - 全 部

LIST FOR INFORMATION OF CHANGE (2) Rev. Page Ref. Parts No. No. 頁 No. 品 番 D 01 26 9 400-37405 Rev. Page Ref. Parts No. No. 頁 No. 品 番 * A A A A A A A A A A A A 02 02 02 02 02 02 02 02 02 02 02 02 24 24 26 26 26 26 26 26 26 26 26 29 22 23 9 43 44 45 46 47 48 49 50 51 - MDB-100B1100 110-38759 400-68999 400-69369 400-69370 SS-8151150-TP 400-63697 110-62601 110-62007 400-64839 B9117-012-000 J1063-000-000 ALL PARTS - 全 部

Page 57

HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)"*"mark.........means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2)"#01".........refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(consumable parts) and "◎"(optional parts)on the respective parts, it is recommended to prepare spares. 1."注記"欄の記号説明 1) "*"印............前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、"変更情報リスト"を参照してください。 2) "#01".........ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4.イラストページのーーー一枠は、組構成であることを意味します。 5.リストページの"☆"(消耗部品)、"◎"(オプション部品)の印がついた部品は、 予備を準備しておくことをお奨めします。 jintex.in

Page 58 — NUMERICAL INDEX OF PARTS

Juki DDL-9000A parts on page 58
RefPart numberPart nameQty
1-211001906
6111015906
85-8611028008
68-7011038650
2311038759
2211038759
311040052
1711040052
411040409
2011040409
5211042801
5011042850
4111043304
4811062007
4711062601
2511072204
2011073103
3311073954
411075801
311075900
2711079506
1011092251
1311095502
611110301
68-7011141355
1711155108
1611155157
1811155207
1411155751
1111155769
1311155801
1211156007
811157567
1011159357
911159365
2011162104
111400801
811403003
1511409257
613170105
513171004
27-2822886907
27-2822887004
8322888002
522889851
7322890008
7-8-2622890206
7-8-2622890305
7-8-2622890404
4022891204
2222895908
2122896005
1022896252
14-1522901201
12-1322901250
16-1722901300
8122901805
3022902506
14-1522902704
12-1322902753
2322904106
2222904155
4722906309
3022906408
2922906457
1522907406
2222907802
822908008
2422908552
2922908909
1322911002
622911101
5822912000
5722912109
6022916506
5922916555
1822919203
4022920000
4122920309
6022920607
2422925101
1122926000
1322926208
1422926356
1522926505
1422930309
122930358
1022930408
922930507
722930705
522930804
422930903
322931000
222931109
1522931208
1122931307
1022931406
322931604
1522932404
1422932453
222932800
2722933006
522933105
622933204
2422934202
2322934251
2522934301
2622934400
2722934509
2822934608
2122944508
3422944508
6222945414
6122945463
6422945505
6322945604
6522945703
6622945802
222947907
1922947907
522948202
1922949002
2022949101
2122949200
2422950000
3222950703
5322950950
5022952501
522955504
722955900
822956007
922956106
1022956205
1122956304
1222956809

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 11001906 44 1-2 22890008 22 73 22930804 36 5 11015906 22 61 22890206 42 7-8-26 22930903 36 4 11028008 4 85-86 22890305 42 7-8-26 22931000 36 3 11038650 22 68-70 22890404 42 7-8-26 22931109 36 2 11038759 44 23 22891204 8 40 22931208 36 15 11038759 46 22 22895908 42 22 22931307 36 11 11040052 24 3 22896005 42 21 22931406 36 10 11040052 42 17 22896252 42 10 22931604 40 3 11040409 24 4 22901201 2 14-15 22932404 38 15 11040409 42 20 22901250 2 12-13 22932453 38 14 11042801 26 52 22901300 2 16-17 22932800 40 2 11042850 26 50 22901805 4 81 22933006 40 27 11043304 24 41 22902506 2 30 22933105 40 5 11062007 48 48 22902704 2 14-15 22933204 40 6 11062601 46 47 22902753 2 12-13 22934202 38 24 11072204 6 25 22904106 20 23 22934251 38 23 11073103 50 20 22904155 20 22 22934301 38 25 11073954 46 33 22906309 8 47 22934400 38 26 11075801 50 4 22906408 8 30 22934509 38 27 11075900 50 3 22906457 8 29 22934608 38 28 11079506 42 27 22907406 12 15 22944508 2 21 11092251 46 10 22907802 12 22 22944508 12 34 11095502 46 13 22908008 12 8 22945414 4 62 11110301 34 6 22908552 12 24 22945463 4 61 11141355 22 68-70 22908909 12 29 22945505 4 64 11155108 50 17 22911002 20 13 22945604 4 63 11155157 50 16 22911101 20 6 22945703 4 65 11155207 50 18 22912000 18 58 22945802 4 66 11155751 50 14 22912109 18 57 22947907 24 2 11155769 50 11 22916506 22 60 22947907 42 19 11155801 50 13 22916555 22 59 22948202 24 5 11156007 50 12 22919203 24 18 22949002 24 19 11157567 50 8 22920000 12 40 22949101 24 20 11159357 50 10 22920309 12 41 22949200 24 21 11159365 50 9 22920607 4 60 22950000 24 24 11162104 44 20 22925101 28 24 22950703 24 32 11400801 46 1 22926000 40 11 22950950 26 53 11403003 46 8 22926208 40 13 22952501 18 50 11409257 46 15 22926356 40 14 22955504 34 5 13170105 28 6 22926505 40 15 22955900 34 7 13171004 28 5 22930309 36 14 22956007 34 8 22886907 8 27-28 22930358 36 1 22956106 34 9 22887004 8 27-28 22930408 36 10 22956205 34 10 22888002 22 83 22930507 36 9 22956304 34 11 22889851 42 5 22930705 36 7 22956809 34 12 INDEX - 1 jintex.in

Page 59 — NUMERICAL INDEX OF PARTS

Juki DDL-9000A parts on page 59
RefPart numberPart nameQty
132295690823616204
142295700523616600
152295720323618101
122295800323618309
102295805223618606
72295830023618705
142296290623618804
542353390423619000
592353450623619059
122354030523620008
42360050523620156
62360070323620206
842360130523620354
12360401023620404
472360470523620503
102360520723620701
72360525623620800
242360730223620909
252360800323621006
262360810223621303
12360900123623903
22360930823624505
52360935723624554
62360945623626005
72360960523626005
142360970423626005
132360980323626104
162361020723626203
172361030623626351
482361050423626807
492361065223628803
512361070223628902
472361110623629207
52361210423629306
382361260923629306
402361271623629405
162361280723629702
112361350823629900
162361370623630007
182361380523630007
162361390423630106
162361395323630403
162361430823630502
202361450623631104
202361600623631708
202361620423631757
332361660023631807
472361810123631906
522361830923632003
452361860623632102
782361870523632250
792361880423632359
362361900023632607
352361905923632656
562362000823633209
572362015623633357
582362020623638109
342362035423638208
742362040423638307
542362050323638406
62~652362070123638554
62~652362080023639008
62~652362090923639107
652362100623639156
68~702362130323639206
632362390323639305
482362450523639404
472362455423639503
502362600523639602
112362600523639701
242362600523640006
692362610423642200
332362620323642259
422362635123645609
432362680726260109
402362880326260208
362362890226260307
82362920726260406
72362930626260505
132362930626260604
112362940526260802
92362970226261008
822362990026261206
292363000726261305
192363000726261503
222363010626261602
342363040326261701
352363050240000344
32363110440000391

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22956908 34 13 23616204 20 20 23631708 32 30 22957005 34 14 23616600 20 33 23631757 32 15 22957203 34 15 23618101 20 47 23631807 32 31 22958003 40 12 23618309 22 52 23631906 32 32 22958052 40 10 23618606 20 45 23632003 32 23 22958300 40 7 23618705 22 78 23632102 32 26 22962906 32 14 23618804 22 79 23632250 32 27 23533904 18 54 23619000 46 36 23632359 32 17 23534506 18 59 23619059 46 35 23632607 32 33 23540305 42 12 23620008 22 56 23632656 32 25 23600505 2 4 23620156 22 57 23633209 34 3 23600703 2 6 23620206 22 58 23633357 34 4 23601305 4 84 23620354 20 34 23638109 4 73 23604010 8 1 23620404 22 74 23638208 4 74 23604705 28 47 23620503 22 54 23638307 4 75 23605207 8 10 23620701 22 62~65 23638406 4 76 23605256 8 7 23620800 22 62~65 23638554 4 77 23607302 8 24 23620909 22 62~65 23639008 38 2 23608003 8 25 23621006 22 65 23639107 38 4 23608102 8 26 23621303 22 68~70 23639156 38 3 23609001 12 1 23623903 26 63 23639206 38 7 23609308 12 2 23624505 26 48 23639305 38 8 23609357 12 5 23624554 24 47 23639404 38 9 23609456 12 6 23626005 4 50 23639503 38 10 23609605 12 7 23626005 44 11 23639602 38 11 23609704 12 14 23626005 46 24 23639701 40 8 23609803 12 13 23626104 4 69 23640006 2 47~93 23610207 12 16 23626203 8 33 23642200 50 2 23610306 12 17 23626351 12 42 23642259 50 1 23610504 14 48 23626807 12 43 23645609 46 2 23610652 14 49 23628803 28 40 26260109 6 2 23610702 14 51 23628902 28 36 26260208 6 3 23611106 12 47 23629207 28 8 26260307 6 4 23612104 16 5 23629306 28 10 26260406 6 5 23612609 16 38 23629306 42 13 26260604 6 7 23612716 16 40 23629405 28 11 26260802 6 8 23612807 16 11 23629702 28 9 26261008 6 9 23613508 16 30 23629900 4 82 26261206 6 10 23613706 16 22 23630007 16 29 26261305 6 11 23613805 18 64 23630007 28 19 26261503 6 12 23613904 16 24 23630106 28 22 26261602 6 13 23613953 16 23 23630403 28 34 26261701 6 14 23614308 16 27 23630502 28 35 40000344 28 13 23614506 20 26 23631104 32 3 40000391 20 37 23616006 20 2 INDEX - 2 jintex.in

Page 60 — NUMERICAL INDEX OF PARTS

Juki DDL-9000A parts on page 60
RefPart numberPart nameQty
384000039220
4400041718
404000417146
254000632342
164000989446
15400104348
15400111446
14001203216
304001359528
16400148376
18400204548
19400204558
88400224072
88400224074
1400230216
17400230226
344002412446
464002464428
49400248434
57400248454
144002484544
304002484546
3400257298
24002627216
164002627416
284002627516
54002627720
314002627820
164002628120
364002628220
24002628628
414002628720
434002628820
124002629032
44002715632
34400275812
264002758216
314002811216
624002939826
154003033324
144003033524
134003033824
334003033924
614003034226
174003034324
844003078622
444003079020
814003160822
34003339316
34003424628
37400355892
38400358558
354003634316
344003634416
14003634742
614003643318
324003670612
114003699524
364003699724
344003699824
71400370024
2400370038
154003700520
16400370068
15400370078
30400370086
204003701716
72400370184
314003712928
194003714112
204003714412
484003714530
34003714642
334003714728
414003714828
1400371582
124003716628
14003718028
14003718816
154003719116
14003719220
234003731346
184003735912
44003736520
37400373708
94003743944
104003747944
14003748440
47-93400374884
384003750228
374003832828
34003907812
384003970812
22400399468
24400402026
26400402036
24004026412
84004037016
234004040724
364004049916
404004050824
14004051832
24004051932
384004054524
2400411612
164004139324
214004147016
33400414732
154004204828
104004207920
324004264228
24004406552
64004418924
144004419046
9400448578
474005021916
484005022018
444005022116
484005026510
114005058142
394005058212
214005058312
84005058444
14005058524
144005058642
124005058746
184005058842
174005058946
12400514738
13400514748
3400528192
45400529332
554005317218
684005334018
394005341146

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40000392 20 38 40030786 22 84 40038328 28 37 40004171 8 4 40030790 20 44 40039078 12 3 40004171 46 40 40031608 22 81 40039708 12 38 40006323 42 25 40033393 16 3 40039946 8 22 40009894 46 16 40034246 28 3 40040202 6 24 40010434 8 15 40035589 2 37 40040203 6 26 40011144 6 15 40035855 8 38 40040264 12 2 40012032 16 1 40036343 16 35 40040370 16 8 40013595 28 30 40036344 16 34 40040407 24 23 40014837 6 16 40036347 42 1 40040499 16 36 40020454 8 18 40036433 18 61 40040508 24 40 40020455 8 19 40036706 12 32 40040518 32 1 40022407 2 88 40036995 24 11 40040519 32 2 40022407 4 88 40036997 24 36 40040545 24 38 40023021 6 1 40036998 24 34 40041161 2 2 40023022 6 17 40037002 4 71 40041393 24 16 40024124 46 34 40037003 8 2 40041470 16 21 40024644 28 46 40037005 20 15 40041473 2 33 40024843 4 49 40037006 8 16 40042048 28 15 40024845 4 57 40037007 8 15 40042079 20 10 40024845 44 14 40037008 6 30 40042642 28 32 40024845 46 30 40037017 16 20 40044065 52 2 40025729 8 3 40037018 4 72 40044189 24 6 40026272 16 2 40037129 28 31 40044190 46 14 40026274 16 16 40037141 12 19 40044857 8 9 40026275 16 28 40037144 12 20 40050219 16 47 40026277 20 5 40037145 30 48 40050220 18 48 40026278 20 31 40037146 42 3 40050221 16 44 40026281 20 16 40037147 28 33 40050265 10 48 40026282 20 36 40037148 28 41 40050581 42 11 40026286 28 2 40037158 2 1 40050582 12 39 40026287 20 41 40037166 28 12 40050583 12 21 40026288 20 43 40037180 28 1 40050584 44 8 40026290 32 12 40037188 16 1 40050585 24 1 40027156 32 4 40037191 16 15 40050586 42 14 40027581 2 34 40037192 20 1 40050587 46 12 40027582 16 26 40037313 46 23 40050588 42 18 40028112 16 31 40037359 12 18 40050589 46 17 40029398 26 62 40037365 20 4 40051473 8 12 40030333 24 15 40037370 8 37 40051474 8 13 40030335 24 14 40037439 44 9 40052819 2 3 40030338 24 13 40037479 44 10 40052933 2 45 40030339 24 33 40037484 40 1 40053172 18 55 40030342 26 61 40037488 4 47-93 40053340 18 68 40030343 24 17 40037502 28 38 40053411 46 39 INDEX - 3 jintex.in
