Parts index — Juki DDL-9000Atap a row to open its page

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000A parts on page 4

Ref	Part number	Part name	Qty
1	40037158	SIDE PLATE
2	40041161	FACE PLATE
3	40052819	FACE PLATE PACKING
4	23600505	THREAD TAKE-UP LEVER COVER
5	SM4051055SP	SCREW
6	23600703	BED STUD A
7	SL6061292TN	SCREW
8	40061562	EARTH CORD ASM.
9	SM4050855SP	SCREW
10	SM4051055SP	SCREW
11	40022407	CORD HOLDER
12	22901250	SLIDE PLATE ASM.
13	22902753	SLIDE PLATE ASM.
14	22901201	SLIDE PLATE
15	22902704	SLIDE PLATE
16	22901300	SLIDE PLATE SPRING
17	22901300	SLIDE PLATE SPRING
18	SS6060210SP	SCREW 3/32-56 L= 1.9
19	TA1250406R0	RUBBER PLUG D=12.5 L=4
20	TA0850604R0	RUBBER PLUG
21	22944508	WIRE PRESSER A
22	SM4040655SP	SCREW M4 L=6
23	CM300200001	ATTENTION SEAL
24	TA1470702R0	RUBBER PLUG
25	CM300200003	ATTENTION LABEL
26	SL6052592TN	BOLT
27	SM2040955TP	SCREW M4 L=8.5
28	SM2040955TP	SCREW M4 L=8.5
29	CM301300001	SAFETY LABEL
30	22902506	FACE PLATE
31	SM4051055SP	SCREW
32	SM4050855SP	SCREW
33	40041473	PULLEY_COVER
34	40027581	BED STUD B
35	SL6061292TN	SCREW
36	SM4040655SP	SCREW M4 L=6
37	40035589	RULER PLATE
38	TA0850604R0	RUBBER PLUG
39	TA1250406R0	RUBBER PLUG D=12.5 L=4
40	TA1250406R0	RUBBER PLUG D=12.5 L=4
41	TA1470704R0	RUBBER PLUG
42	TA1270502R0	RUBBER PLUG
43	TA1250406R0	RUBBER PLUG D=12.5 L=4
44	B3118552F00	TENSION RELEASING PIN
45	40052933	ARM THREAD GUIDE C
46	SM80608A2TP	L=8SCREW M6 L=8
47	23640006	SHEET

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000A parts on page 6

Ref	Part number	Part name	Qty
	CM600100101	WEEE MARK LABEL S	1
	40024843	THREAD TENSION DISK ASM.	1
	23626005	THREAD TENSION NUT	1
	B3115552000	TENSION POST	1
	B3120125000	ROTATING STOPPER	1
	B3126012000	THREAD TENSION DISK	2
	B3128012000	TAKE-UP SPRING	1
	B3129012A00	TENSION SPRING	1
	B313222000	THREAD TENSION DISK PRESSER	1
	40024845	TENSION POST SOCKET ASM.	1
	SS8090670SP	SCREW 9/64-40 L= 5.5	1
	SS6110610TP	SCREW 11/64-40 L=6	1
	22920607	ARM THREAD GUIDE B	1
	22945463	THREAD TENSION ASM.,NO.1	1
	22945414	THREAD TENSION POST	1
	22945604	THREAD TENSION GUIDE	1
	22945505	THREAD TENSION SPRING	1
	22945703	THREAD TENSION NUT	1
	22945802	THREAD TENSION DISK	2
	SM80608A2TP	L=8SCREW M6 L=8	1
	SM5040655SN	SCREW	1
	23626104	ARM THREAD GUIDE A	1
	SM80608A2TP	L=8SCREW M6 L=8	1
	40037002	SAFETY SWITCH ASM.	1
	40037018	SAFETY SWITCH BASE	1
	23638109	SAFETY SWITCH ARM	1
	23638208	SAFETY SWITCH SPRING	1
	23638307	SAFETY SWITCH ARM SHAFT	1
	23638406	SAFETY SWITCH NUT	1
	23638554	SAFETY SWITCH CORD ASM.	1
	EA9500B0100	CABLE BAND	1
	SM4021201SC	SCREW M2 L=12	2
	SM4050655SP	SCREW M5 L=6	1
	22901805	GROUND MARK	1
	23629900	AIR-DISCHARGING	1
	RO080150200	RUBBER RING	1
	23631305	AIR-DISCHARGING CAP	1
	B1109012I0B	THROAT PLATE (I)	1
	11028008	THROAT PLATE	1
	SL6051492TN	BOLT	1
	40022407	CORD HOLDER	1
	CM600600101	CHINA ENVIRONMENT LABEL	1
	40065552	THROAT PLATE SCREW	1
	40069097	RULER PLATE I	1
	40069110	ATTACHMENT FIXATION SCREW	1
	40037488	SHEET	1
	B1109552000	THROAT PLATE	1

Page 8 — BOBBIN WINDER COMPONENTS

Juki DDL-9000A parts on page 8

Ref	Part number	Part name	Qty
1	40023021	BOBBIN WINDER UNIT	1
2	26260109	BTW_BASE	1
3	26260208	BTW_CAM_PLATE	1
4	26260307	BTW_BASE_SHAFT	1
5	26260406	BTW_SHAFT_BASE	1
6	26260505	BTW_CAM_LEVER	1
7	26260604	BTW_WHEEL	1
8	26260802	BTW_BEARING_SPACER	1
9	26261008	BTW_LEVER_SHAFT	1
10	26261206	BTW_SPACER	1
11	26261305	BTW_BEARING	2
12	26261503	BTW_WHEEL_RUBBER	1
13	26261602	BOBBIN_SPRING	1
14	26261701	BTW_SPRING	1
15	40011144	BTW_TORSION_SPRING	1
16	40014837	BTW_SHAFT	1
17	40023022	BTW_LEVER	1
18	RC0560711KP	RETAINING RING	1
19	RE0400000K0	E-RING 4	1
20	SM5040655SN	SCREW	1
21	SM8040802TP	SCREW M4X8	2
22	SM8050502TP	SCREW M5 L=5	1
23	WP0450826SC	WASHER 4.5X10X0.8	1
24	40040202	BOBBIN THREAD TENSION ASM.	1
25	11072204	TENSION NUT	1
26	40040203	BOBBIN THREAD TENSION ROD ASM.	1
27	B3126012000	THREAD TENSION DISK	2
28	B3129012A00	TENSION SPRING	1
29	B3120125000	ROTATING STOPPER	1
30	40037008	THREAD_CUTTER	1
31	SM0051001SC	SCREW	1
32	SM0051001SC	SCREW	3
33	SM4051055SP	SCREW	1

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000A parts on page 10

Ref	Part number	Part name	Qty
	23604010	MAIN SHAFT	1
	40037003	ASSY_COUNTER_WEIGHT	1
	40025729	COUNTER WEIGHT	1
	40004171	COUNTER_WEIGHT_SCREW	1
	SM8081652TP	SCREW M8 L=16	1
	SM80606A2TP	L=6SCREW M6 L=6	1
	23605256	BEARING SUPPORT COMPL.	1
	SB120001300	BEARING	1
	40044857	FRONT BEARING SUPPORT ASM.	1
	23605207	MAIN SHAFT BEARING SUPPORT	1
	SM80608A2TP	L=8SCREW M6 L=8	2
	40051473	COUPLING ASM.	1
	40051474	COUPLING	1
	SM80608A2TP	L=8SCREW M6 L=8	4
	40037007	HAND WHEEL ASM.	1
	40037006	HAND WHEEL	1
	SM80608A2TP	L=8SCREW M6 L=8	2
	40020454	BTW DRIVING WHEEL ASM.	1
	40020455	BTW DRIVING WHEEL	1
	SM8051610SP	SCREW M5 L=16	2
	SB120000800	BEARING	1
	40039946	SPROCKET ASM.	1
	SM80608A2TP	L=8SCREW M6 L=8	2
	23607302	TIMING BELT	1
	23608003	NEEDLE BAR METAL,UPPER	1
	23608102	NEEDLE BAR METAL,LOWER	1
	22886907	NEEDLE BAR (A)
	22887004	NEEDLE BAR (B)
	22906457	NEEDLE BAR HOLDER ASM.	1
	22906408	NEEDLE ROD HOLDER	1
	SS6090670TP	SCREW 9/64-40 L=6	1
	B1414555000	SLIDE BLOCK	1
	23626203	NEEDLE BAR THREAD GUIDE	1
	MDB100B1100	NEEDLE DBX1 #11
	MC200500750	NEEDLE 134 NM75
	SS7080510TP	SCREW 1/8-44 L=4.5
	40037370	THREAD TAKE UP COMP.	1
	40035855	THREAD TAKE UP CRANK SHAFT	1
	SM80608A2TP	L=8SCREW M6 L=8	2
	22891204	BEARING SUPPORT	2
	SB307000200	BEARING
	SB30700020A	BEARING
	SB30700020B	BEARING
	SB30700020C	BEARING
	SB30700020D	BEARING
	40010434	THRUST_COLLAR_ASM.	1
	22906309	NEEDLE BAR THREAD GUIDE	1

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000A parts on page 12

Ref	Part number	Part name	Qty
48	40050265	AC_SERVO_MOTOR	1
49	SL6052592TN	BOLT	4
50	EA9500B0100	CABLE BAND	2

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000A parts on page 14

Ref	Part number	Part name	Qty
1	23609001	BUSHING	1
2	40040264	PRESSER BAR GUIDE BRACKET ASM.	1
3	40039078	PRESSER BAR GUIDE BRACKET	1
4	SM6051400SP	SCREW	1
5	23609357	LIFTING LEVER CONNECT ROD ASM.	1
6	23609456	LIFTING LINK COMPL.	1
7	23609605	PLATE	1
8	22908008	LIFTING PLATE	1
9	SM6040602TP	SCREW M4 L=6	1
10	RE0500000K0	E-RING	1
11	RE0500000K0	E-RING	1
12	23609308	LIFTING LEVER CONNECT ROD	1
13	23609803	CONNECTING ROD	1
14	23609704	LIFTING LEVER LINK	1
15	22907406	PRESSER SPRING	1
16	23610207	PRESSER BAR	1
17	23610306	PRESSER GUIDE BAR	1
18	40037359	PRESSER SPRING REGURATOR ASM.	1
19	40037141	PRESSER SPRING REGULATOR	1
20	40037144	PRESSER SPRING REGULATOR NUT	1
21	40050583	LINK SHAFT	2
22	22907802	HAND LIFTER	1
23	B152155000	SCREW	1
24	22908552	HAND LIFTER CAM ASM.	1
25	RO037180100	RUBBER RING	1
26	B15240120BA	PRESSER FOOT ASM.	1
27	SS7091110TP	SCREW 9/64-40 L=10.5	1
28	RE0500000K0	E-RING	3
29	22908909	HINGE SCREW	1
30	SD0720336SP	SHOULDER SCREW	1
31	NM6060003SE	NUT FOR BRACKET	1
32	40036706	ADJUSTING SCREW	1
33	WP0621016SD	WASHER 6.2X13X1	1
34	22944508	WIRE PRESSER A	2
35	SM4050655SP	SCREW M5 L=6	1
36	SM4040655SP	SCREW M4 L=6	1
37	SL6051492TN	BOLT	1
38	40039708	WIRE HOLDER	1
39	40050582	TENSION RELEASE SHAFT	1
40	22920300	THREAD RELEASE SUPPORTING PIN	1
41	22920409	THREAD RELEASE PIN SPRING	1
42	23626351	THREAD TENSION RELEASE WIRE	1
43	23626807	TENSION RELEASE RETURN SPRING	1
44	NS6620310SP	NUT 3/16-32	2
45	RE0500000K0	E-RING	2
46	40056622	MINUTE LIFTING DEVICE ASM.	1
47	23611106	HAND LIFTER	1

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000A parts on page 16

Ref	Part number	Part name	Qty
48	23610504	STOPPER BASE	1
49	23610652	STOPPER SCREW ASM.	1
50	D5119206K0K	SPACER	2
51	23610702	STOPPER SCREW NUT	1
52	SL6053592TN	BOLT	1

Page 18 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000A parts on page 18

Ref	Part number	Part name	Qty
	40037188	ADJUSTING LINK ASM.	1
	40026272	ADJUSTING LINK	1
	40033393	ADJUSTING LINK PIN	2
	SM80404A2TP	SCREW M4 L=4	4
	23612104	ADJUSTING LINK CONNECTING LINK	1
	40012032	ADJUSTING LINK FULCRUM SHAFT	2
	SM80608A2TP	L=8SCREW M6 L=8	2
	40040370	ADJUSTING LINK FULCRUM SHAFT B	1
	RE050000K0	E-RING	1
	RE050000K0	E-RING	1
	23612807	METAL,A	1
	40056502	FEED CHANGING SHAFT ARM A ASM.	1
	40053465	FEED CHANGING SHAFT ARM A	1
	SS8661012TP	SCREW	3
	40037191	FEED CHANGING SHAFT ARM B ASM.	1
	40026274	FEED CHANGING SHAFT ARM B	1
	SM6051602TP	SCREW M5X0.8 L=16	1
	SM9040650TP	SCREW M4 L=6	2
	40060869	FEED CHANGING SHAFT METAL B	1
	40037017	FEED CHANGING SHAFT	1
	40041470	REVERSE,FEED,LEVER	1
	23613706	FEED LEVER SHAFT	1
	23613953	FEED LEVER ARM ASM.	1
	23613904	FEED LEVER ARM	1
	SS6121860SP	SCREW 3/16-28 L=18	1
	40027582	FEED ADJUSTING SPRING	1
	23614308	FEED LEVER SPRING	1
	40026275	FEED ADJUSTING ROD	1
	23630007	TUBE	0.1
	23613508	ADJUSTING BASE SHAFT METAL	1
	40028112	FEED_ADJUSTING_PIN	1
	CS111101CSH	THRUST COLLAR ASM.D=11.11 W=10	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	40036344	FEED REGULATOR ASSY	1
	40036343	FEED REGULATOR	1
	40040499	FEED REGUKATOR PIN	1
	RE050000K0	E-RING	1
	23612609	FEED CHANGING SHAFT OIL SEAL	1
	40055585	THRUST COLLAR ASM.	1
	23612716	THRUST COLLAR	1
	SS8660612TP	SCREW 1/4-40 L=6	2
	SM80608A2TP	L=8SCREW M6 L=8	2
	40053450	FEED CHANGING SHAFT ARM C ASM.	1
	40050221	FEED CHANGING SHAFT ARM C	1
	40056721	FEED CHANGING SHAFT ARM C PIN	1
	SS8660612TP	SCREW 1/4-40 L=6	1
	40050219	FEED CHANGING SHAFT SPRING	1

Page 20 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000A parts on page 20

Ref	Part number	Part name	Qty
48	40050220	FEED CHANGING SHAFT SPRING HOOK
49	SM4040655SP	SCREW M4 L=6
50	22952501	BACK LEVER STOPPER
51	SM6051850TP	SCREW M5 L=18
52	40062651	FEED ADJUSTING SHAFT ASM
53	40055569	FEED_ADJUSTING_SHAFT
54	23533904	FEED ADJUSTING SCREW
55	40053172	FEED ADJUSTING BASE
56	SM1051052TN	SCREW M5 L=10
57	22912109	FEED REGULATOR PIN SPRING
58	22912000	FEED REGULATOR PIN
59	23534506	FEED DIAL SPRING
60	WP1751616SD	WASHER 17.5X24X1.6
61	40036433	FEED_DIAL
62	SS6121860SP	SCREW 3/16-28 L=18
63	RE0400000K0	E-RING 4
64	23613805	FEED LEVER SHAFT METAL
65	40061560	FEED_CHANGING_BALANCER_ARM_ASM
66	40061545	FEED_CHANGING_BALANCER_ARM
67	SM6061802TP	SCREW M6 L=18
68	40053340	ADJUSTING LINK PIN
69	WT1780011KP	TOOTHED WASHER 18

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000A parts on page 22

Ref	Part number	Part name	Qty
	40037192	FEED ROCKER CAM ASM.	1
	23616006	FEED ROCKER CAM	1
	SS8150822TP	SCREW 15/64-28 L=8	2
	40037365	FEED ROCKER ROD ASM.	1
	40026277	FEED ROCKER ROD	1
	22911101	WALKING FOOT PIN C	1
	SS6090620TP	SCREW	1
	40061246	FEED ROCKER ARM ALL ASM.	1
	40026504	FEED ROCKER ARM ASM.	1
	40042079	FEED ROCKER ARM	1
	SS6121610SP	SCREW 3/16-28 L=15.5	1
	SS6090620TP	SCREW	1
	22911002	WALKING FOOT PIN B	1
	40060868	FEED SHAFT FRONT METAL	1
	40037005	ASSY.FEED_ROCKER_BASE_ARM	1
	40026281	FEED ROCKER BASE ARM	1
	SM6051400SP	SCREW	1
	WP0531000SD	WASHER M5	1
	SM4050855SP	SCREW	1
	23616204	FEED ROCKER CAM PLATE	1
	SS6090670TP	SCREW 9/64-40 L=6	2
	22904155	MAIN SHAFT THRUST COLLAR ASM.	1
	22904106	MAIN SHAFT THRUST COLLAR	2
	SS8660610TP	SCREW 1/4-40 L=6	2
	B1613012100	FEED DOG I
	23614506	FEED DOG A
	SS4080620TP	SCREW 1/8-44 L=6	2
	B412352200A	NEEDLE BEARING
	B412352200B	NEEDLE ROLLLAR
	B412352200C	NEEDLE ROLLLAR
	40026278	CONNECTING LINK A	2
	40060448	CONNECTING LINK B	2
	23616600	FEED ROCKER SHAFT	1
	23620354	BEARING SUPPORT ASM.	1
	SS6110650TP	SCREW 11/64-40 L=5.5	2
	40026282	FEED ROCKER BASE SHAFT	1
	40000391	VERTICAL FEED CAM ASM. 5	1
	40000392	VERTICAL FEED CAM 5	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	40053720	FEED DRIVING BASE ARM ASM.	1
	40026287	FEED DRIVING BASE ARM	1
	SM4040655SP	SCREW M4 L=6	1
	40026288	FEED DRIVING BASE SHAFT	1
	40030790	FEED DRIVING SHAFT	1
	23618606	BEARING SUPPORT	1
	SS8661012TP	SCREW	2
	23618101	FEED DRIVING CAM THRUST BUSH	2

Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000A parts on page 24

Ref	Part number	Part name	Qty
48	SB32000060A	BEARING	1
49	SB32000060B	BEARING	1
50	SB32000060C	BEARING	1
51	SB117000400	BEARING	1
52	23618309	FEED DRIVING CAM PLATE	1
53	SS6090670TP	SCREW 9/64-40 L=6	2
54	23620503	GEAR,LARGE	1
55	SS8661012TP	SCREW	2
56	23620008	HOOK SHAFT	1
57	23620156	HOOK SHAFT METAL COMPL.	1
58	23620206	OIL SEAL	2
59	22916555	OIL SEAL SCREW ASM.	1
60	22916506	SET SCREW	1
61	11015906	OIL WICK	1
62	23620701	GEAR,SMALL(A)	1
63	23620800	GEAR,SMALL(B)	1
64	23620909	GEAR,SMALL(C)	1
65	23621006	GEAR,SMALL(D)	1
66	SS8661012TP	SCREW	2
67	D1837555BAAA	BOBBIN CASE ASM.	1
68	11141355	HOOK ASM.	1
69	11038650	HOOK ASM.	1
70	23621303	HOOK ASM. K	1
71	B9117012000	BOBBIN	1
72	B9117552A00	BOBBIN	1
73	22890008	HOOK DRIVING SHAFT OIL SEAL	1
74	23620404	HOOK SHAFT REAR METAL	1
75	40068998	INNER HOOK HOLDER	1
76	SM4051055SP	SCREW	1
77	40060865	FEED SHAFT REAR METAL	1
78	23618705	OIL SEAL	1
79	23618804	OIL SEAL	1
80	SB120001000	BEARING	1
81	40031608	SPROCKET ASM.	1
82	SM8060812TP	SCREW M6 L=8	2
83	2288002	OIL SEAL	1
84	40030786	FEED BASE COMPL.	1

Page 26 — THREAD TRIMMER COMPONENTS

Juki DDL-9000A parts on page 26

Ref	Part number	Part name	Qty
	40050585	KNIFE UNIT	1
	22947907	KNIFE MOUNTING BASE	1
	11040052	MOVING KNIFE ASM.	1
	11040409	MOVING KNIFE HINGE SCREW	1
	22948202	FORKED BASE FOR KNIFE	1
	40044189	THREAD_GUIDE_FOR_KNIFE	1
	D2406555D0H	COUNTER KNIFE	1
	SD0460703TP	HINGE SCREW D=4.6 H=7	1
	SS2060210SP	SCREW 3/32-56 L=2.3	2
	SS4080620TP	SCREW 1/8-44 L=6	1
	40036995	KNIFE DRIVING UNIT	1
	40071740	KNIFE DRIVING ARM ASM.	1
	40030338	MOVING KNIFE LINK PIN	1
	40030335	CLUTCH PLATE ASM.	1
	40030333	BASE PLATE ASM.	1
	40041393	PICKER LINK ASM.	1
	40030343	PICKER LINK	1
	22919203	OIL PROTECTING RUBBER	1
	22949002	ROLLER ARM SEAT	1
	22949101	ROLLER FULCRUM SHAFT	1
	22949200	ROLLER RETURN SPRING	1
	40071950	KNIFE RETURN SPRING	1
	40040407	CLUTCH SPRING	1
	22950000	PICKER LINK PIN	1
	NS6150310SP	NUT 15/64-28	1
	NS6150810SP	NUT 15/64-28	2
	RE0400000K0	E-RING 4	2
	RE0600000K0	E-RING 6	2
	SM4040655SP	SCREW M4 L=6	1
	SS7090610SP	SCREW 9/64-40 L=6	1
	WP0621016SH	WASHER	1
	22950703	DRIVING ARM STOPPER	1
	40030339	ROLLER ARM ASM.	1
	40036998	ASSY_PICKER_ARM	1
	40061215	PICKER ARM	1
	40036997	ASSY_PICKER	1
	SS6090510TP	SCREW 9/64-40 L=5.0	2
	40040545	ASSY_THREAD_TRIM_SOLENOID	1
	40056706	THREAD TRIMMER SOLENOID	1
	40040508	SOLENOID_BASE	1
	11043304	SOLENOID RUBBER	1
	HK03464000B	PIN CONTACT	2
	NM6040000SN	NUT M4	2
	NS6660410SH	NUT	1
	NS6660430SP	NUT 1/4-40	1
	WP0430800SC	WASHER M4	2
	23624554	DRIVING BLOCK ASM.	1

Page 28 — THREAD TRIMMER COMPONENTS

Juki DDL-9000A parts on page 28

Ref	Part number	Part name	Qty
48	23624505	DRIVING BLOCK	1
49	SS6110710TP	SCREW 11/64-40 L= 9.5	1
50	11042850	THREAD TRIMMER CAM ASM.	1
51	SS6660610TP	SCREW 1/4-40 L=6	2
52	11042801	THREAD TRIMMER CAM ASM.	1
53	22950950	CAM COLLAR ASM.	1
54	SS8110520TP	SCREW 11/64-40 L= 4.5	1
55	SD0600329TP	SHOULDER SCREW D=6 H=3.2	1
56	SD0630275SP	HINGE SCREW D= 6.35 H= 2.7	1
57	SD0641456TP	SHOULDER SCREW D=6.35 H=14.5	1
58	SM4041055SP	SCREW	1
59	SL6061292TN	SCREW	3
60	SL6061292TN	SCREW	2
61	40030342	MOVING KNIFE LINK	1
62	40029398	PICKER SPRING	1
63	23623903	PIN	1

Page 30 — OIL LUBRICATION COMPONENTS

Juki DDL-9000A parts on page 30

Ref	Part number	Part name	Qty
	40037180	GEAR.BOX.COVER.ASM.	1
	40026286	GEAR BOX COVER
	40034246	OIL SIGHT WINDOW
	RO195240100	RUBBER RING
	13171004	DRAIN SCREW
	13170105	RUBBER RING
	23629256	OIL WICK SUPPORT ASM.	1
	23629207	OIL WICK SUPPORT
	23629702	OIL WICK	0.25
	23629306	PIPE STOPPER A	3
	23629405	PIPE STOPPER B	4
	40037166	GEAR BOX PACKING	1
	40000344	LUBRICATING INLET CAP	1
	SQ2050453MZ	CONNECTING SCREW	2
	40042048	FLOATER ASM	1
	RO068190100	RUBBER RING	1
	23630007	TUBE	0.57
	23630007	TUBE	0.08
	23630007	TUBE	0.11
	CQ200000001	OIL WICK	0.75
	23630106	TUBE B	0.21
	23630106	TUBE B	0.175
	40075404	FACE FELT ASM.	1
	22925101	OIL FELT PRESSER	1
	RO098400100	RUBBER RING	1
	RO172180100	RUBBER RING	1
	SL6061292TN	SCREW	3
	SL6051492TN	BOLT	9
	SM5040655SN	SCREW	1
	40013595	OIL EXIT CAP	1
	40037129	OIL TANK	1
	40042642	FLOATER CASE ASM.	1
	40037147	FLOATER CASE
	23630403	OIL FILTER
	23630502	OIL FILTER STOPPER
	23628902	PLUNGER SPRING	1
	40038328	PLUNGER SCREW	1
	40037502	OIL ADJUSTING SCREW	1
	RO037180100	RUBBER RING	1
	23628803	PLUNGER	1
	40037148	FLOATER CASE GUIDE	1
	SL6040892TN	BOLT	1
	SL6051492TN	BOLT	1
	RO048190100	RUBBER RING	1
	SL6040892TN	BOLT	1
	40024644	MAGNET WASHER	1
	23604705	MAGNET BASE PM	1

Page 31 — OIL LUBLICATION COMPONENTS

Juki DDL-9000A parts on page 31

Ref	Part number	Part name	Qty
1	1	OIL PAN
2	2	GASKET
3	3	DRAIN PLUG
4	4	WASHER
5	5	PLUG
6	6	WASHER
7	7	BRACKET
8	8	BRACKET
9	9	BRACKET
10	10	CLAMP
11	11	CLAMP
12	12	COVER
13	13	WASHER
14	14	SCREW
15	15	TUBE
16	16	WASHER
17	17	TUBE
18	18	SCREW
19	19	TUBE
20	20	TUBE
21	21	TUBE
22	22	TUBE
23	23	BRACKET
24	24	CLIP
25	25	WASHER
26	26	WASHER
27	27	PLUG
28	28	PLUG
29	29	SCREW
30	30	NUT
31	31	FILTER
32	32	TUBE
33	33	TUBE
34	34	WASHER
35	35	WASHER
36	36	SPRING
37	37	SPRING
38	38	SCREW
39	39	WASHER
40	40	PLUG
41	41	TUBE
42	42	PLUG
43	43	PLUG
44	44	WASHER
45	45	PLUG
46	46	BRACKET
47	47	CLIP
48	48	TUBE

Page 32 — OIL LUBLICATION COMPONENTS

Juki DDL-9000A parts on page 32

Ref	Part number	Part name	Qty
48	40037145	FLOATER SIGHT WINDOW	1

Page 34 — AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-9000A parts on page 34

Ref	Part number	Part name	Qty
1	40040518	REVERSE FEED SOLENOID ASM.	1
	40040519	REVERSE FEED SOLENOID
	23631104	REVERSE FEED SOLENOID PLUNGER
	40027156	REVERSE FEED SOLENOID BASE
	D2468555B00	RUBBER PLUNGER
	HK03464000B	PIN CONTACT
	RE1200000K0	E-RING 12
	SM4050855SP	SCREW
	WP1703001SC	WASHER 17X30X3
	40064072	CONDENSE STOPPER
	SL6051092TN	BOLT
12	40026290	REVERSE FEED ARM	1
13	SD1001506TP	SHOULDER SCREW D=10 H=15	1
14	22962906	PLUNGER ARM PIN	1
15	23631757	REVERSE FEED SWITCH ASM.	1
	23632102	REVERSE FEED SWITCH BASE GUIDE
	23632359	REVERSE FEED CORD ASM.
	EA9500B0100	CABLE BAND
	SS7110740TP	SCREW 11/64-40 L=7
	23631708	REVERSE FEED SWITCH COVER
	23631807	REVERSE FEED SWITCH SHAFT
	23631906	REVERSE FEED SWITCH SUPPORT
	23632003	REVERSE FEED SWITCH BASE
24	SM4051055SP	SCREW	1
	23632656	OPTION SWITCH ASM.
	23632102	REVERSE FEED SWITCH BASE GUIDE
	23632250	REVERSE FEED CORD ASM.
	EA9500B0100	CABLE BAND
	SS7110740TP	SCREW 11/64-40 L=7
	23631708	REVERSE FEED SWITCH COVER
	23631807	REVERSE FEED SWITCH SHAFT
	23631906	REVERSE FEED SWITCH SUPPORT
	23632607	OPTION SWITCH BASE
34	NS6110350SP	NUT 11/64-40	2
35	SL6061292TN	SCREW	2

Page 35 — WIPER COMPONENTS (FOR DDL-9000A-**-WB)

Juki DDL-9000A parts on page 35

Ref	Part number	Part name	Qty
1	1	COVER
2	2	BRACKET
3	3	BRACKET
4	4	SHAFT
5	5	COVER
6	6	COVER
7	7	WASHER
8	8	SPRING
9	9	BRACKET
10	10	SPRING
11	11	SPRING
12	12	WASHER
13	13	SCREW
14	14	SPRING
15	15	SPRING
16	16	SPRING
17	17	SWITCH
18	18	TERMINAL
19	19	BRACKET
20	20	BRACKET
21	21	WASHER
22	22	NUT
23	23	CIRCLIP
24	24	CIRCLIP
25	25	SCREW
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	BRACKET
30	30	SCREW
31	31	SCREW

Page 36 — WIPER COMPONENTS (FOR DDL-9000A-**-WB)

Juki DDL-9000A parts on page 36

Ref	Part number	Part name	Qty
	40077866	WIPER ASM.	1
	40077853	WIPER BASE ASM.	1
	23633209	WIPER LINK B	1
	23633357	WIPER SHAFT ASM.	1
	22955504	WIPER COVER	1
	11110301	WIPER SOLENOID	1
	22955900	WIPER RUBBER A	1
	22956007	WIPER RUBBER B	1
	22956106	WIPER LINK A	1
	22956205	WIPER HINGE SCREW COLLAR	1
	22956304	WIPER SPRING	1
	22956809	WIPER COLLAR	1
	22956908	WIPER LINK B HINGE SCREW	1
	22957005	WIPER	1
	22957203	WIPER LINK COLLAR	1
	40077852	WIPER SOLENOID SHAFT	1
	HA000590000	POWER SWITCH	1
	HK03464000B	PIN CONTACT	2
	HW200390000	ELECTRIC WIRE	0.04
	HW500070000	2-CORE CABTYRE CORD	1.3
	NS6090310SP	NUT 9/64-40	1
	NS6110310SP	NUT 11/64-40	1
	RE0250000K0	E-RING 2.5	1
	RE0500000K0	E-RING	1
	SD0650321TP	HINGE SCREW D=6.5 H=3.2	1
	SL4030631SC	SCREW M3X6	1
	SL4030641SE	SCREW	3
	SS6090540SP	SCREW 9/64-40 L= 5.0	1
	40077851	WIPER SOLENOID SHAFT GUIDE	1
	SS4110615SP	SCREW 11/64-40 L=6	2
	SM4051055SP	SCREW	1

Page 38 — THREAD STAND COMPONENTS

Juki DDL-9000A parts on page 38

Ref	Part number	Part name	Qty
1	22930358	THREAD STAND ASM.	1
2	22931109	SPOOL RETAINER	2
3	22931000	SPOOL PIN	2
4	22930903	SPOOL REST CUSHION	2
5	22930804	SPOOL REST	2
6	SM6061610SC	SCREW M6 L=16	2
7	22930705	THREAD GUIDE ARM JOINT	2
8	22931406	SPOOL REST ROD RUBBER CAP	1
9	22930507	SPOOL REST ARM	2
10	22930408	SPOOL REST ROD, UPPER	1
11	22931307	SPOOL REST ROD JOINT	1
12	SM4051405SE	SCREW M5 L=14	2
13	NM6050001SE	NUT M5	2
14	22930309	SPOOL REST ROD, LOWER	1
15	22931208	THREAD GUIDE	2
16	WS0510002KN	SPRING WASHER	2
17	NM6050001SE	NUT M5	2
18	NM6160511SE	NUT M16X1.5	1
19	WP1612616SE	WASHER 16X30X2.6	2
20	WS1643202KR	SPRING WASHER	1

Page 40 — UNDER COVER COMPONENTS

Juki DDL-9000A parts on page 40

Ref	Part number	Part name	Qty
1	40062321	UNDER COVER ASM.	1
2	23639008	UNDER COVER	1
3	23639156	BRACKET ASM.	1
4	23639107	BRACKET	1
5	NM6060001SE	NUT M6	2
6	SM8063012TR	SCREW M6 L=30	2
7	23639206	CONNECTING ROT	1
8	23639305	KNEE PRESS ROD	1
9	23639404	SHAFT	1
10	23639503	SPRING	1
11	23639602	CONNECTING ROD	1
12	B1116210D00	FRAME SUPPORT RUBBER	4
13	WP0650876SD	WASHER 6.5X13X0.8	2
14	22932453	BRACKET ASM.	1
15	22932404	BRACKET	1
16	SM9062053SR	SCREW M6 L=20	2
17	NS6150310SP	NUT 15/64-28	2
18	RE1000000K0	E-RING 10	2
19	RE1000000K0	E-RING 10	1
20	SD0720331SP	HINGE SCREW D= 7.24 H= 3.3	2
21	SM9061853SR	SCREW M6 L=17.5	1
22	SM9061853SR	SCREW M6 L=17.5	1
23	22934251	KNEE PAD PLATE ASM.	1
24	22934202	KNEE PAD PLATE	1
25	22934301	KNEE PAD PLATE SUPPORT	1
26	22934400	KNEE PAD PLATE RUBBER	1
27	22934509	KNEE PAD PLATE COVER	1
28	22934608	KNEE PAD UPRIGHT SHAFT	1
29	SM9061203SE	SCREW M6 L=12	1

Page 41

Juki DDL-9000A parts on page 41

Ref	Part number	Part name	Qty
	1	Allen wrench
	2	Allen wrench
	3	Screwdriver
	4	Allen wrench
	5	Screwdriver
	6	Screwdriver
	7	Screwdriver
	8	Screwdriver
	9	Screwdriver
	10	Presser foot holder
	11	Presser foot holder
	12	Presser foot
	13	Needle
	14	Presser foot
	15	Presser foot
	16	Bobbin case
	17	Bobbin winder
	18	Oil can
	19	Oil bottle
	20	Oil bottle
	21	Needle
	26	Needle
	27	Screwdriver
	28	JUKI logo
	29	Accessory box
	30	Accessory box

Page 42

Juki DDL-9000A parts on page 42

Ref	Part number	Part name	Qty
	40037484	ACCESSORIE BAG ASM.	1
	22932800	ACCESSORIE BAG	1
	22931604	FRAME SUPPORT BAR	1
	40055591	HEXAGONAL WRENCH KYE	1
	22933105	SCREW DRIVER,MIDDLE	1
	22933204	SCREW DRIVER,SMALL	1
	22958300	NEEDLE THREAD GUIDE PIN	1
	23639701	KNEE LIFTER PRESSER ROD	1
	HX000430000	CLIP	1
	22958052	RUBBER HINGE ASM.	1
	22926000	RUBBER CUSHION	2
	22958003	FRAME BUBBER CUSHION	2
	22926208	NAIL	8
	22926356	HINGE COMPL.	2
	22926505	WASHER	2
	B9117012000	BOBBIN	1
	B9117552A00	BOBBIN	1
	B91210120A0	OILER ASM.	1
	MDFRX1600C0	DEFRIX OIL NO.1(600CC)	1
	MML007600CA	JUKI MACHINE OIL 7	1
	MDB100B1100	NEEDLE DBX1 #11	1
	MDB100B0900	NEEDLE DBX1 #9	1
	MDB100B2100	NEEDLE DBX1 #21	1
	MC200500750	NEEDLE 134 NM75	1
	MC200501300	NEEDLE 134 NM130	1
	MC200500650	NEEDLE 134 NM65	1
	22933006	SCREW DRIVER,LARGE	1
	40070090	HEAD COVER	1
	40064984	DDL-9000A SETUP DOCUMENT	1
	CM600100201	WEEE INFORMATION SHEET	1

Page 44

Juki DDL-9000A parts on page 44

Ref	Part number	Part name	Qty
	40036347	NEEDLE BAR LOWER METAL B	1
	SM4050501SC	SCREW M5X0.8 L=5	1
	40037146	FLOATER SIGHT WINDOW D
	SL6040892TN	BOLT
	22889851	HOOK DRIVING SHAFT BEARING ASM
	SS6110420TP	SCREW 11/64-40 L=4.8
	22890404	RP HOOK C
	22890206	RP HOOK
	B9117552A00	BOBBIN
	22896252	BOBBIN CASE ASM.
	40050581	JOINT_CABLE_ASM
	23540305	FLOATER CASE CAP
	23629306	PIPE STOPPER A
	40050586	KNIFE UNIT D
	SS2060210SP	SCREW 3/32-56 L=2.3
	SS4080620TP	SCREW 1/8-44 L=6
	11040052	MOVING KNIFE ASM.
	40050588	THREAD GUIDE FOR KNIFE D
	22947907	KNIFE MOUNTING BASE
	11040409	MOVING KNIFE HINGE SCREW
	22896005	FORKED BASE FOR KNIFE
	22895908	COUNTER KNIFE
	SD0460703TP	HINGE SCREW D=4.6 H=7
	RO036080200	RUBBER RING
	40006323	JUKI GREASE A TUBE
	22890305	RP HOOK S
	11079506	FRONT SCREW

Page 45 — EXCLUSIVE PART FOR DDL-9000A-*A

Juki DDL-9000A parts on page 45

Ref	Part number	Part name	Qty
1.2	1.2	NEEDLE PLATE
3.4	3.4	FEED DOG
5.21	5.21	PRESSER FOOT
6.7.22	6.7.22	NEEDLE
9	9	UPPER SHAFT ARM
10	10	UPPER SHAFT
11	11	BOBBIN CASE
12	12	BOBBIN
13	13	BOBBIN WINDER
14	14	UPPER SHAFT GEAR
15	15	UPPER SHAFT BUSHING
16	16	BOBBIN CASE HOLDER
17	17	BOBBIN CASE SPRING
18	18	UPPER SHAFT BUSHING
19	19	UPPER SHAFT BUSHING
20	20	SPRING
23	23	THREAD GUIDE
8	8	HANDWHEEL

Page 46 — EXCLUSIVE PART FOR DDL-9000A-*A

Juki DDL-9000A parts on page 46

Ref	Part number	Part name	Qty
	11001906	THROAT PLATE K
	B110901210B	THROAT PLATE (I)
	B1613012100	FEED DOG I
	D1613155W00	FEED DOG W
	D1524555DBB	PRESSER FOOT ASM.
	MDB100B0900	NEEDLE DBX1 #9
	MC200500650	NEEDLE 134 NM65
	40050584	FEED DIAL 4
	40037439	THREAD TAKE UP COMP.A
	40037479	THREAD TENSION DISK ASM.A
	23626005	THREAD TENSION NUT
	B3132552000	THREAD TENSION DISK PRESSER
	B3126012000	THREAD TENSION DISK
	40024845	TENSION POST SOCKET ASM
	B3115552000	TENSION POST
	B3120125000	ROTATING STOPPER
	D3129555D00	THREAD TENSION SPRING
	D3128555D00	TAKE-UP SPRING
	SS8090670SP	SCREW 9/64-40 L= 5.5
	11162104	SPRING
	B15240120BA	PRESSER FOOT ASM.
	MDB100B1100	NEEDLE DBX1 #11
	11038759	BOBBIN CASE ASM.

Page 47

Juki DDL-9000A parts on page 47

Ref	Part number	Part name	Qty
	1	Needle Plate
	2	Needle Bar Bushing
	3	Needle Bar
	4.5	Needle
	6	Spring
	7	Presser Foot
	8	Feed Dog
	9	Feed Rock Shaft
	10	Bobbin Case Holder
	11	Connecting Rod
	12	Thread Take-up Lever
	13	Presser Bar Lifter Lever
	14	Presser Bar Lifter Lever Bracket
	15	Presser Bar Lifter Lever Screw
	16	Presser Bar Lifter Lever Screw
	17	Presser Bar Lifter Lever Screw
	18	Screw
	19	Screw
	20	Screw
	21	Screw
	22	Bobbin Winder Tension Unit
	23	Bobbin Winder Spindle
	24	Bobbin Winder Pulley
	25	Bobbin Winder Spindle
	26	Spring
	27	Washer
	28	Spring
	29	Washer
	30	Bobbin Winder Spindle Holder
	31	Spring
	32	Screw
	33	Bobbin Winder Tension Unit
	34	Screw
	35	Motor Pulley
	36	Motor Pulley
	37	Screw
	38	Oil Wick
	39	Oil Wick Holder
	40	Spring
	41	Oil Wick
	42	Screw
	43	Motor Pulley
	44	Motor Pulley
	45	Screw
	46	Thread Guide
	47	Feed Dog
	48	Needle Plate
	49	Presser Foot
	50	Bobbin Case Holder
	51	Screwdriver

Page 48

Juki DDL-9000A parts on page 48

Ref	Part number	Part name	Qty
	11400801	THROAT PLATE J
	23645609	NEEDLE BAR METAL,LOWER H
	40061767	NEEDLE BAR H
	MDB100B2100	NEEDLE DBX1 #21
	MC200501300	NEEDLE 134 NM130
	B1505552000A	PRESSER SPRING
	D1524555EBL	PRESSER FOOT ASM.
	11403003	FEED J
	40068999	INNER HOOK HOLDER
	11092251	LUBRICATING HOOK ASM.
	40055604	THREAD TAKE UP COMP.H
	40050587	KNIFE UNIT H
	11095502	KNIFE MOUNT BASE
	40044190	THREAD_GUIDE_FOR_KNIFE-H
	11409257	MOVING KNIFE J ASM.
	40009894	FORKED BASE FOR KNIFE
	40050589	FIX KNIFE H
	SD0460703TP	HINGE SCREW D=4.6 H=7
	SD0500131TP	HINGE SCREW D=5 H=1.25
	SS2060210SP	SCREW 3/32-56 L=2.3
	SS4080620TP	SCREW 1/8-44 L=6
	11038759	BOBBIN CASE ASM.
	40037313	THREAD TENSION DISK ASM H
	23626005	THREAD TENSION NUT
	B3115552000	TENSION POST
	B3120125000	ROTATING STOPPER
	B3126012000	THREAD TENSION DISK
	B3128012000	TAKE-UP SPRING
	B3132552000	THREAD TENSION DISK PRESSER
	40024845	TENSION POST SOCKET ASM
	B311423000	THREAD TENSION SPRING
	SS8090670SP	SCREW 9/64-40 L=5.5
	11073954	THREAD TENSION ASM.
	40024124	NEEDLE BAR THREAD GUIDE
	23619059	VERTICAL FEED CAM H ASM.
	23619000	VERTICAL FEED CAM H
	SS8151150TP	SCREW 15/64-28 L=10.5
	40055058	ASSY COUNTER WEIGHT H	2
	40053411	COUNTER WEIGHT H
	40004171	COUNTER,WEIGHT,SCREW
	SM8081652TP	SCREW M8 L=16
	SM80606A2TP	L=6SCREW M6 L=6
	40069369	VERTICAL FEED CAM ASM. 2.0
	40069370	VERTICAL FEED CAM 2.0
	SS8151150TP	SCREW 15/64-28 L=10.5
	40063697	ARM THREAD GUIDE A H
	11062601	FEED DOG

Page 49

Juki DDL-9000A parts on page 49

Ref	Part number	Part name	Qty
	1	NEEDLE PLATE
	2	NEEDLE BAR BUSH
	3	NEEDLE BAR
	4.5	NEEDLE
	6	SPRING
	7	PRESSER FOOT
	8	FEED DOG
	9	FEED ROCK SHAFT ARM
	10	HOOK DRIVING MECHANISM
	11	UPPER FEED MECHANISM
	12	UPPER FEED MECHANISM
	13	LOWER FEED MECHANISM
	14	FEED DOG HOLDER
	15	FEED DOG HOLDER
	16	FEED DOG HOLDER
	17	FEED DOG HOLDER
	18	SCREW
	19	SCREW
	20	SCREW
	21	SCREW
	23	THREAD TENSION
	24	THREAD TENSION
	25	THREAD TENSION
	26	SPRING
	27	WASHER
	28	SPRING
	29	SPRING
	30	THREAD TENSION
	31	SPRING
	32	SCREW
	33	SPRING
	34	SPRING
	35	UPPER SHAFT BUSH
	36	UPPER SHAFT BUSH
	37	SCREW
	38	UPPER SHAFT BUSH
	39	UPPER SHAFT BUSH
	40	SPRING
	41	SPRING
	42	SCREW
	43	UPPER SHAFT BUSH
	44	UPPER SHAFT BUSH
	45	SCREW
	46	THREAD TENSION
	47	FEED DOG
	48	NEEDLE PLATE
	49	PRESSER FOOT
	50	HOOK DRIVING MECHANISM
	51	SCREW DRIVER

Page 50 — EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B

Juki DDL-9000A parts on page 50

Ref	Part number	Part name	Qty
	11062007	THROAT PLATE, A
	40064839	PRESSER FOOT ASM
	B9117012000	BOBBIN
	J1063000000	WRENCH

Page 51 — TABLE & STAND COMPONENTS

Juki DDL-9000A parts on page 51

Ref	Part number	Part name	Qty
	1	TABLE TOP
	2	TABLE TOP
	3	BRACKET
	4	BRACKET
	5	BRACKET
	6	BRACKET
	7	BRACKET
	8	STAND
	9	STAND
	10	STAND
	11	COVER
	12	COVER
	13	COVER
	14	COVER
	15	COVER
	16	DRAWER
	17	DRAWER
	18	DRAWER
	19	DRAWER
	20	BRACKET
	21	BRACKET
	22	BRACKET
	23	FOOT REST
	24	FOOT REST

Page 52 — TABLE & STAND COMPONENTS

Juki DDL-9000A parts on page 52

Ref	Part number	Part name	Qty
	23642259	TABLE ASM.	1
	23642200	TABLE
	11075900	RUBBER SPACER	2
	11075801	RUBBER SPACER	2
	B8210012000	CUSHION SET NAIL	4
	B8210012000	CUSHION SET NAIL	4
	D822655E00	FRAME RUBBER CUSHION A	2
	11157567	T LEG JUNCTION
	11159365	T-STAND JUNCTION
	11159357	T-STAND ASM.
	11155769	SMALL CASTINGS BOX B ASM.
	11156007	CASE
	11155801	CASE MAGNET
	11155751	CASE ASM. B	4
	SK3382001SC	WOOD SCREW D=3.8 L=20
	11155157	DRAWER ASM.
	11155108	DRAWER	2
	11155207	DRAWER SUPPORT	6
	SK3311600SE	WOOD SCREW D=3.1 L=16
	11073103	RUBBER CUSHION
	D8204555D00	DRAWER STOPPER
	SK3513200SC	WOOD SCREW D=5.1 L=32	4
	GPK700010A0	3-JOINT PEDAL, 70
	GPK710010A0	2-PEDAL ASM., 71

Page 53 — SPECIAL ORDER PART

Juki DDL-9000A parts on page 53

Ref	Part number	Part name	Qty
1	1	WIRE HARNESS
2	2	WIRE HARNESS
3	3	FILTER
4	4	GASKET
5	5	BLOWER
6	6	SCREW
7	7	CLIP
8	8	BLOWER HOUSING

Page 54 — SPECIAL ORDER PART

Juki DDL-9000A parts on page 54

Ref	Part number	Part name	Qty
	40065571	ELECTRIC FAN HOOK COOLING DEVICE	1
	40044065	FAN RELAY CABLE	1
	40064805	FAN FILTER	1
	40064806	FAN COOLING COVER	1
	40065564	FAN MOTOR ASSY	1
	SK3415001SE	SCREW D=4.1 L=50	2
	MAO11532000	CORD STAPLE	3
	40065572	HOOK COOLING DEVICE INSTRUCTIO	1

Page 55 — LIST FOR INFORMATION OF CHANGE (1)

Juki DDL-9000A parts on page 55

Ref	Part number	Part name	Qty
9	SL-6051492-TN	SL-6051492-TN
9	SM-4050855-SP	SM-4050855-SP
89	CM-6006001-01	CM-6006001-01
90	400-65552	400-65552
91	400-69097	400-69097
92	400-69110	400-69110
93	400-37488	400-37488
94	B1109-552-000	B1109-552-000
18	SM-9040600-SP	SM-9040600-SP
18	SM-9040650-TP	SM-9040650-TP
20	400-61204	400-61204
20	400-37017	400-37017
32	CS-111101E-SH	CS-111101E-SH
32	CS-111101C-SH	CS-111101C-SH
33	SS-8660330-SP	SS-8660330-SP
33	SS-8660610-TP	SS-8660610-TP
65	400-61190	400-61190
52	400-62651	400-62651
65	400-61560	400-61560
66	400-61545	400-61545
67	SM-6061802-TP	SM-6061802-TP
17	SM-4051455-SP	SM-4051455-SP
69	WT-1780011-KP	WT-1780011-KP
18	WP-0480856-SP	WP-0480856-SP
17	SM-6051400-SP	SM-6051400-SP
61	229-16605	229-16605
18	WP-0531000-SD	WP-0531000-SD
75	400-32052	400-32052
61	110-15906	110-15906
12	400-36996	400-36996
75	400-68998	400-68998
22	400-40404	400-40404
12	400-71740	400-71740
58	SM-4041255-SP	SM-4041255-SP
22	400-71950	400-71950
23	236-30304	236-30304
58	SM-4041055-SP	SM-4041055-SP
23	400-75404	400-75404
10	400-64072	400-64072
1	236-33167	236-33167
11	SL-6051092-TN	SL-6051092-TN
2	236-33159	236-33159
1	400-77866	400-77866
16	229-57104	229-57104
2	400-77853	400-77853
16	400-77852	400-77852
29	400-77851	400-77851
30	SS-4110615-SP	SS-4110615-SP
28	229-33303	229-33303
28	400-70090	400-70090
29	293-27806	293-27806
29	400-64984	400-64984
24	110-38759	110-38759
30	CM-6001002-01	CM-6001002-01
21	B1524-012-0BA	B1524-012-0BA

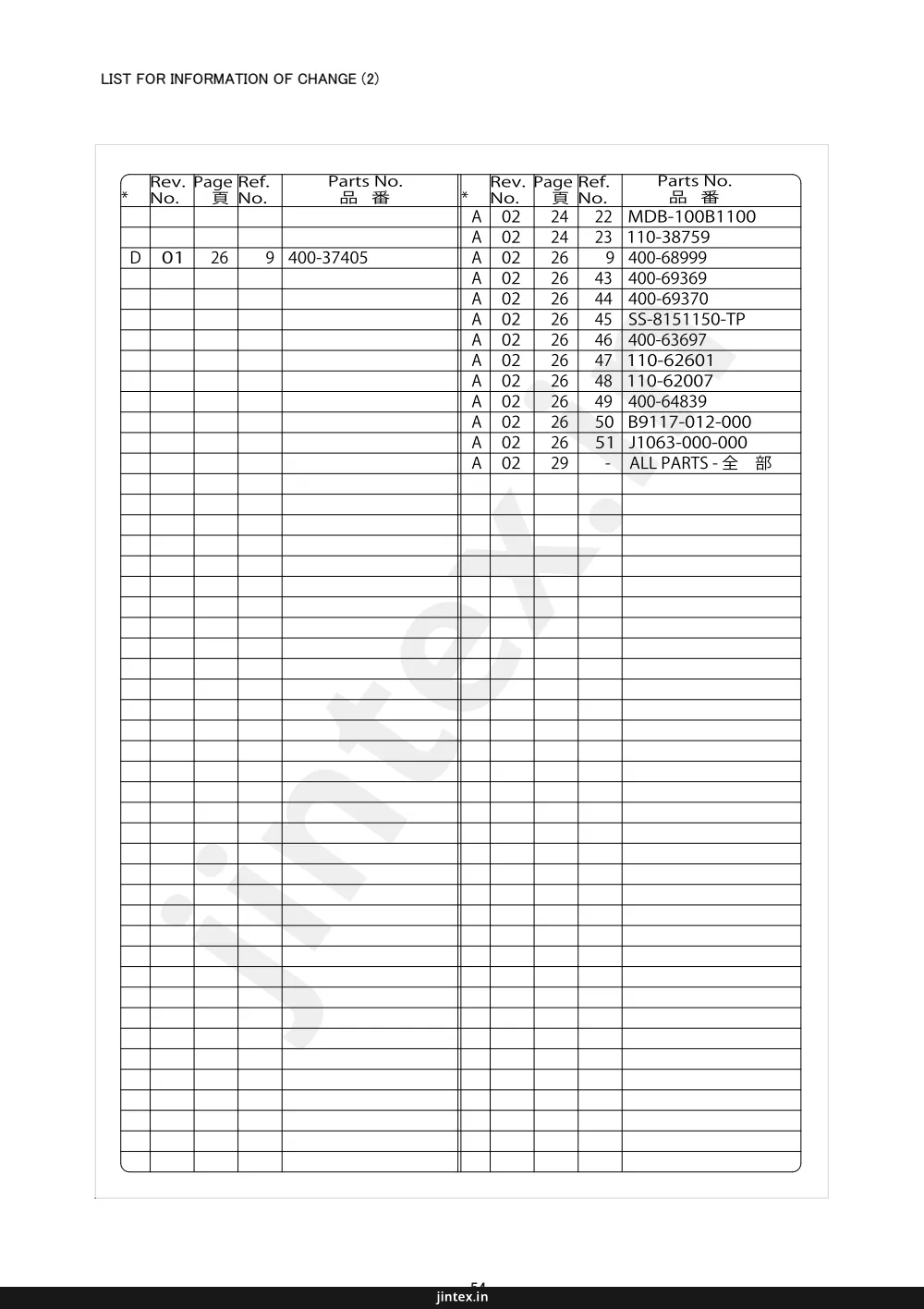

Page 56 — LIST FOR INFORMATION OF CHANGE (2)

Juki DDL-9000A parts on page 56

Ref	Part number	Part name	Qty
9	400-37405
22	MDB-100B1100
23	110-38759
9	400-68999
43	400-69369
44	400-69370
45	SS-8151150-TP
46	400-63697
47	110-62601
48	110-62007
49	400-64839
50	B9117-012-000
51	J1063-000-000
	ALL PARTS - 全 部

Page 58 — NUMERICAL INDEX OF PARTS

Juki DDL-9000A parts on page 58

Ref	Part number	Part name	Qty
1-2	11001906
61	11015906
85-86	11028008
68-70	11038650
23	11038759
22	11038759
3	11040052
17	11040052
4	11040409
20	11040409
52	11042801
50	11042850
41	11043304
48	11062007
47	11062601
25	11072204
20	11073103
33	11073954
4	11075801
3	11075900
27	11079506
10	11092251
13	11095502
6	11110301
68-70	11141355
17	11155108
16	11155157
18	11155207
14	11155751
11	11155769
13	11155801
12	11156007
8	11157567
10	11159357
9	11159365
20	11162104
1	11400801
8	11403003
15	11409257
6	13170105
5	13171004
27-28	22886907
27-28	22887004
83	22888002
5	22889851
73	22890008
7-8-26	22890206
7-8-26	22890305
7-8-26	22890404
40	22891204
22	22895908
21	22896005
10	22896252
14-15	22901201
12-13	22901250
16-17	22901300
81	22901805
30	22902506
14-15	22902704
12-13	22902753
23	22904106
22	22904155
47	22906309
30	22906408
29	22906457
15	22907406
22	22907802
8	22908008
24	22908552
29	22908909
13	22911002
6	22911101
58	22912000
57	22912109
60	22916506
59	22916555
18	22919203
40	22920000
41	22920309
60	22920607
24	22925101
11	22926000
13	22926208
14	22926356
15	22926505
14	22930309
1	22930358
10	22930408
9	22930507
7	22930705
5	22930804
4	22930903
3	22931000
2	22931109
15	22931208
11	22931307
10	22931406
3	22931604
15	22932404
14	22932453
2	22932800
27	22933006
5	22933105
6	22933204
24	22934202
23	22934251
25	22934301
26	22934400
27	22934509
28	22934608
21	22944508
34	22944508
62	22945414
61	22945463
64	22945505
63	22945604
65	22945703
66	22945802
2	22947907
19	22947907
5	22948202
19	22949002
20	22949101
21	22949200
24	22950000
32	22950703
53	22950950
50	22952501
5	22955504
7	22955900
8	22956007
9	22956106
10	22956205
11	22956304
12	22956809

Page 59 — NUMERICAL INDEX OF PARTS

Juki DDL-9000A parts on page 59

Ref	Part number	Part name	Qty
13	22956908	23616204
14	22957005	23616600
15	22957203	23618101
12	22958003	23618309
10	22958052	23618606
7	22958300	23618705
14	22962906	23618804
54	23533904	23619000
59	23534506	23619059
12	23540305	23620008
4	23600505	23620156
6	23600703	23620206
84	23601305	23620354
1	23604010	23620404
47	23604705	23620503
10	23605207	23620701
7	23605256	23620800
24	23607302	23620909
25	23608003	23621006
26	23608102	23621303
1	23609001	23623903
2	23609308	23624505
5	23609357	23624554
6	23609456	23626005
7	23609605	23626005
14	23609704	23626005
13	23609803	23626104
16	23610207	23626203
17	23610306	23626351
48	23610504	23626807
49	23610652	23628803
51	23610702	23628902
47	23611106	23629207
5	23612104	23629306
38	23612609	23629306
40	23612716	23629405
16	23612807	23629702
11	23613508	23629900
16	23613706	23630007
18	23613805	23630007
16	23613904	23630106
16	23613953	23630403
16	23614308	23630502
20	23614506	23631104
20	23616006	23631708
20	23616204	23631757
33	23616600	23631807
47	23618101	23631906
52	23618309	23632003
45	23618606	23632102
78	23618705	23632250
79	23618804	23632359
36	23619000	23632607
35	23619059	23632656
56	23620008	23633209
57	23620156	23633357
58	23620206	23638109
34	23620354	23638208
74	23620404	23638307
54	23620503	23638406
62~65	23620701	23638554
62~65	23620800	23639008
62~65	23620909	23639107
65	23621006	23639156
68~70	23621303	23639206
63	23623903	23639305
48	23624505	23639404
47	23624554	23639503
50	23626005	23639602
11	23626005	23639701
24	23626005	23640006
69	23626104	23642200
33	23626203	23642259
42	23626351	23645609
43	23626807	26260109
40	23628803	26260208
36	23628902	26260307
8	23629207	26260406
7	23629306	26260505
13	23629306	26260604
11	23629405	26260802
9	23629702	26261008
82	23629900	26261206
29	23630007	26261305
19	23630007	26261503
22	23630106	26261602
34	23630403	26261701
35	23630502	40000344
3	23631104	40000391

Page 60 — NUMERICAL INDEX OF PARTS

Juki DDL-9000A parts on page 60

Ref	Part number	Part name	Qty
38	40000392		20
4	40004171		8
40	40004171		46
25	40006323		42
16	40009894		46
15	40010434		8
15	40011144		6
1	40012032		16
30	40013595		28
16	40014837		6
18	40020454		8
19	40020455		8
88	40022407		2
88	40022407		4
1	40023021		6
17	40023022		6
34	40024124		46
46	40024644		28
49	40024843		4
57	40024845		4
14	40024845		44
30	40024845		46
3	40025729		8
2	40026272		16
16	40026274		16
28	40026275		16
5	40026277		20
31	40026278		20
16	40026281		20
36	40026282		20
2	40026286		28
41	40026287		20
43	40026288		20
12	40026290		32
4	40027156		32
34	40027581		2
26	40027582		16
31	40028112		16
62	40029398		26
15	40030333		24
14	40030335		24
13	40030338		24
33	40030339		24
61	40030342		26
17	40030343		24
84	40030786		22
44	40030790		20
81	40031608		22
3	40033393		16
3	40034246		28
37	40035589		2
38	40035855		8
35	40036343		16
34	40036344		16
1	40036347		42
61	40036433		18
32	40036706		12
11	40036995		24
36	40036997		24
34	40036998		24
71	40037002		4
2	40037003		8
15	40037005		20
16	40037006		8
15	40037007		8
30	40037008		6
20	40037017		16
72	40037018		4
31	40037129		28
19	40037141		12
20	40037144		12
48	40037145		30
3	40037146		42
33	40037147		28
41	40037148		28
1	40037158		2
12	40037166		28
1	40037180		28
1	40037188		16
15	40037191		16
1	40037192		20
23	40037313		46
18	40037359		12
4	40037365		20
37	40037370		8
9	40037439		44
10	40037479		44
1	40037484		40
47-93	40037488		4
38	40037502		28
37	40038328		28
3	40039078		12
38	40039708		12
22	40039946		8
24	40040202		6
26	40040203		6
2	40040264		12
8	40040370		16
23	40040407		24
36	40040499		16
40	40040508		24
1	40040518		32
2	40040519		32
38	40040545		24
2	40041161		2
16	40041393		24
21	40041470		16
33	40041473		2
15	40042048		28
10	40042079		20
32	40042642		28
2	40044065		52
6	40044189		24
14	40044190		46
9	40044857		8
47	40050219		16
48	40050220		18
44	40050221		16
48	40050265		10
11	40050581		42
39	40050582		12
21	40050583		12
8	40050584		44
1	40050585		24
14	40050586		42
12	40050587		46
18	40050588		42
17	40050589		46
12	40051473		8
13	40051474		8
3	40052819		2
45	40052933		2
55	40053172		18
68	40053340		18
39	40053411		46

Page 63 — NUMERICAL INDEX OF PARTS

Juki DDL-9000A parts on page 63

Ref	Part number	Part name	Qty
10	SS4080620TP	24
31	WP0621016SH	24
16	SS4080620TP	42
13	WP0650876SD	38
21	SS4080620TP	46
19	WP1612616SE	36
30	SS4110615SP	34
9	WP1703001SC	32
18	SS6060210SP	2
60	WP1751616SD	18
37	SS6090510TP	24
16	WS0510002KN	36
28	SS6090540SP	34
20	WS1643202KR	36
12	SS6090620TP	20
69	WT1780011KP	18
31	SS6090670TP	8
53	SS6090670TP	20
53	SS6090670TP	22
6	SS6110420TP	42
59	SS6110610TP	4
35	SS6110650TP	20
49	SS6110710TP	26
11	SS6121610SP	20
62	SS6121860SP	16
62	SS6121860SP	18
51	SS6660610TP	26
36	SS7080510TP	8
30	SS7090610SP	24
27	SS7091110TP	12
29	SS7110740TP	32
58	SS8090670SP	4
19	SS8090670SP	44
32	SS8090670SP	46
54	SS8110520TP	26
3	SS8150822TP	20
39	SS8151150TP	20
45	SS8151150TP	46
33	SS8660610TP	16
24	SS8660610TP	20
46	SS8660612TP	16
14	SS8661012TP	16
66	SS8661012TP	20
66	SS8661012TP	22
38	TA0850604R0	2
43	TA1250406R0	2
42	TA1270502R0	2
24	TA1470702R0	2
41	TA1470704R0	2
46	WP0430800SC	24
23	WP0450826SC	6
18	WP0531000SD	20
33	WP0621016SD	12

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki DDL-9000A — parts catalog

• Page 1 (cover): This page is the cover for a parts list for the DDL-9000A model, with list number 1457-02, published on May 7, 2018.
• Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
• Page 3 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components for an industrial sewing machine.
• Page 4 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
• Page 5 (diagram): This page illustrates the machine frame and miscellaneous cover components of an industrial sewing machine, with various parts labeled with reference numbers.
• Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, and quantities.
• Page 7 (diagram): This page illustrates the components of a bobbin winder for an industrial sewing machine, showing an exploded view of the assembly with numbered parts.
• Page 8 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
• Page 9 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view of various parts and their reference numbers.
• Page 10 (parts_list): This page lists components for the main shaft and needle bar, including various shafts, weights, screws, bearings, supports, wheels, sprockets, belts, needle bars, and guides, with part numbers, names, and quantities.
• Page 11 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view with reference numbers for each part.
• Page 12 (parts_list): This page lists parts for the main shaft and needle bar components, including an AC servo motor, bolt, and cable band.
• Page 13 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for a sewing machine.
• Page 14 (parts_list): This page lists the components for the hand lifter and tension release mechanism, including bushings, presser bar guide brackets, screws, lifting levers, connecting rods, plates, E-rings, springs, shafts, and other related parts.
• Page 15 (diagram): This page illustrates the hand lifter and tension release components of an industrial sewing machine, showing an exploded view with numbered parts.
• Page 16 (parts_list): This page lists the components for the hand lifter and tension release, including part numbers, names, and quantities.
• Page 17 (diagram): This page illustrates the components of the feed adjust mechanism for an industrial sewing machine.
• Page 18 (parts_list): This page lists the components of the feed adjust mechanism, including part numbers, names, and quantities.
• Page 19 (diagram): This page displays an exploded diagram of the feed adjust mechanism components for an industrial sewing machine.
• Page 20 (parts_list): This page lists components for the feed adjust mechanism, including part numbers, names, and quantities.
• Page 21 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft, showing an exploded view of various parts and their reference numbers.
• Page 22 (parts_list): This page lists parts for the horizontal feed, vertical feed, and hook driving shaft components, including part numbers, names, and quantities.
• Page 23 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft for an industrial sewing machine.
• Page 24 (parts_list): This page lists parts for horizontal feed, vertical feed, and hook driving shaft components, including bearings, screws, gears, oil seals, and hook assemblies.
• Page 25 (diagram): This page illustrates the components of a thread trimmer, showing an exploded view of various parts and their reference numbers.
• Page 26 (parts_list): This page lists thread trimmer components with their part numbers, names, and quantities.
• Page 27 (diagram): This page displays an exploded view diagram of thread trimmer components, with various parts labeled with reference numbers.
• Page 28 (parts_list): This page lists thread trimmer components with their part numbers, names, and quantities.
• Page 29 (diagram): This page illustrates the oil lubrication components of a machine, showing various parts such as the oil pan, oil filter, and associated hoses and fittings.
• Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities.
• Page 31 (diagram): This page displays a diagram of oil lubrication components, with numbered parts and their corresponding references.
• Page 32 (parts_list): This page lists oil lubrication components, including part number 40037145 for a Floater Sight Window, with a quantity of 1.
• Page 33 (diagram): This page contains a diagram illustrating AUTOMATIC REVERSE FEED COMPONENTS, with numbered references for various parts.
• Page 34 (parts_list): This page lists components for automatic reverse feed, including part numbers, names, quantities, and remarks for items like solenoids, plungers, screws, and switches.
• Page 35 (diagram): This page displays a diagram of wiper components for the DDL-9000A-**-WB sewing machine, with numbered parts indicated.
• Page 36 (parts_list): This page lists wiper components for the DDL-9000A-**-WB model, including part numbers, names, and quantities.
• Page 37 (diagram): This page contains a diagram illustrating the components of a thread stand, with numbered references pointing to specific parts.
• Page 38 (parts_list): This page lists thread stand components, including part numbers, names, and quantities, with reference numbers from 1 to 20.
• Page 39 (diagram): This page contains a diagram of under cover components for a sewing machine, with various parts numbered for reference.
• Page 40 (parts_list): This page lists under cover components for a sewing machine, including part numbers, names, quantities, and remarks.
• Page 41 (diagram): This page displays a diagram of accessory part components for an industrial sewing machine, with numbered illustrations of various tools and accessories.
• Page 42 (parts_list): This page lists accessory parts and components for sewing machines, including bags, tools, hardware, oil, and needles, with part numbers, names, and quantities.
• Page 43 (diagram): This page contains a diagram illustrating parts for the DDL-9000A-D* and DDL-9000A-M* sewing machines, with numbered references corresponding to parts listed elsewhere.
• Page 44 (parts_list): This page lists parts for DDL-9000A-D* and DDL-9000A-M* sewing machines, including part numbers, names, and quantities.
• Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000A sewing machine, with various components labeled with reference numbers.
• Page 46 (parts_list): This page lists exclusive parts for the DDL-9000A-*A sewing machine, including part numbers, descriptions, remarks, and quantities.
• Page 47 (diagram): This page displays a diagram of exclusive parts for the DDL-9000A-SH-WB,0B sewing machine, with various components numbered for identification.
• Page 48 (parts_list): This page lists parts for the DDL-9000A-SH-WB,0B model, including part numbers, names, remarks, and quantities.
• Page 49 (diagram): This page displays a diagram of exclusive parts for the JUKI DDL-9000A-SH-WB,0B sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 50 (parts_list): This page lists exclusive parts for the DDL-9000A-SH-WB,0B sewing machine, including throat plate, presser foot assembly, bobbin, and wrench.
• Page 51 (diagram): This page displays a diagram of table and stand components for an industrial sewing machine, with numbered parts indicated.
• Page 52 (parts_list): This page lists table and stand components with their part numbers, names, remarks, and quantities.
• Page 53 (diagram): This page displays a diagram of special order parts for an industrial sewing machine, including a blower, screws, and clips, with reference numbers for each component.
• Page 54 (parts_list): This page lists special order parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
• Page 55 (parts_list): This page lists added and obsoleted parts with their corresponding revision numbers, page numbers, reference numbers, and part numbers.
• Page 56 (parts_list): This page contains a list of parts with their revision number, page number, reference number, and part number. It includes parts like MDB-100B1100, 110-38759, and 400-68999.
• Page 57 (text): This page provides instructions on how to use the parts list, explaining codes and symbols used in the catalog, including explanations for marks, codes, parentheses, dotted lines, and specific symbols like "☆" and "◎".
• Page 58 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers from diagrams.
• Page 59 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page numbers, and reference numbers across multiple columns.
• Page 60 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 61 (text): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 62 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers. It also includes the page number '5' and the website 'jintex.in'.
• Page 63 (index): This page contains a numerical index of parts, listing part numbers, their corresponding page numbers in the catalog, and reference numbers.

Page 1 — PARTS LIST

MODEL : DDL-9000A List No : 1457-02 PARTS LIST Published:05/07/2018 jintex.in

Page 2 — CONTENTS

CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 1 31 81 8 9 5 4 10 11 38 39 67 10 43 20 11 19 A 33 26 29 89 48 63 61 62 69 66 68 64 46 92 70 65 23 86 87 88 37 83 90 91 82 24 84 94 47 93 27 28 42 25 41 85 86 21 22 45 34 71 14 15 16 17 6 75 73 18 72 12 13 3 76 7 A 79 74 2 58 49 77 80 32 44 57 78 30 54 51 53 56 55 60 52 50 59 40 jintex.in

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037158 SIDE PLATE 1 2 40041161 FACE PLATE 1 3 40052819 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 SM4051055SP SCREW 1 6 23600703 BED STUD A 1 7 SL6061292TN SCREW 2 8 40061562 EARTH CORD ASM. 1 9 SM4050855SP SCREW 2 10 SM4051055SP SCREW 2 11 40022407 CORD HOLDER 1 12 22901250 SLIDE PLATE ASM. FOR JE,KO 1 13 22902753 SLIDE PLATE ASM. FOR ST,SH 1 14 22901201 SLIDE PLATE * 1 15 22902704 SLIDE PLATE * 1 16 22901300 SLIDE PLATE SPRING * 1 17 22901300 SLIDE PLATE SPRING * 1 18 SS6060210SP SCREW 3/32-56 L= 1.9 * 2 19 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 20 TA0850604R0 RUBBER PLUG 1 21 22944508 WIRE PRESSER A 1 22 SM4040655SP SCREW M4 L=6 1 23 CM300200001 ATTENTION SEAL 1 24 TA1470702R0 RUBBER PLUG 1 25 CM300200003 ATTENTION LABEL 1 26 SL6052592TN BOLT 3 27 SM2040955TP SCREW M4 L=8.5 ☆ 1 28 SM2040955TP SCREW M4 L=8.5 ☆ 1 29 CM301300001 SAFETY LABEL 1 30 22902506 FACE PLATE 1 31 SM4051055SP SCREW 6 32 SM4050855SP SCREW 2 33 40041473 PULLEY_COVER 1 34 40027581 BED STUD B 1 35 SL6061292TN SCREW 2 36 SM4040655SP SCREW M4 L=6 1 37 40035589 RULER PLATE 1 38 TA0850604R0 RUBBER PLUG 2 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1470704R0 RUBBER PLUG 1 42 TA1270502R0 RUBBER PLUG 2 43 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 44 B3118552F00 TENSION RELEASING PIN 1 45 40052933 ARM THREAD GUIDE C 1 46 SM80608A2TP L=8SCREW M6 L=8 1 47 23640006 SHEET 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 31 1 81 8 9 5 4 10 11 33 38 39 67 26 10 43 20 11 19 29 89 A 48 63 61 62 69 66 68 64 46 92 70 87 65 23 36 88 37 83 90 91 82 24 84 94 47 93 27 28 21 42 41 85 86 22 45 34 71 14 15 6 75 73 16 17 72 18 35 76 12 13 3 A 7 79 74 2 58 49 77 80 32 44 57 78 30 54 51 53 56 55 60 52 50 59 40 jintex.in

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 CM600100101 WEEE MARK LABEL S FOR JE 1 49 40024843 THREAD TENSION DISK ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 B3115552000 TENSION POST * 1 52 B3120125000 ROTATING STOPPER * 1 53 B3126012000 THREAD TENSION DISK * 2 54 B3128012000 TAKE-UP SPRING * ☆ 1 55 B3129012A00 TENSION SPRING * 1 56 B313222000 THREAD TENSION DISK PRESSER * 1 57 40024845 TENSION POST SOCKET ASM. * 1 58 SS8090670SP SCREW 9/64-40 L= 5.5 1 59 SS6110610TP SCREW 11/64-40 L=6 1 60 22920607 ARM THREAD GUIDE B 1 61 22945463 THREAD TENSION ASM.,NO.1 1 62 22945414 THREAD TENSION POST * 1 63 22945604 THREAD TENSION GUIDE * 1 64 22945505 THREAD TENSION SPRING * 1 65 22945703 THREAD TENSION NUT * 1 66 22945802 THREAD TENSION DISK * 2 67 SM80608A2TP L=8SCREW M6 L=8 1 68 SM5040655SN SCREW 1 69 23626104 ARM THREAD GUIDE A 1 70 SM80608A2TP L=8SCREW M6 L=8 1 71 40037002 SAFETY SWITCH ASM. 1 72 40037018 SAFETY SWITCH BASE * 1 73 23638109 SAFETY SWITCH ARM * 1 74 23638208 SAFETY SWITCH SPRING * 1 75 23638307 SAFETY SWITCH ARM SHAFT * 1 76 23638406 SAFETY SWITCH NUT * 1 77 23638554 SAFETY SWITCH CORD ASM. * 1 78 EA9500B0100 CABLE BAND * 1 79 SM4021201SC SCREW M2 L=12 * 2 80 SM4050655SP SCREW M5 L=6 1 81 22901805 GROUND MARK 1 82 23629900 AIR-DISCHARGING 1 83 RO080150200 RUBBER RING 1 84 23631305 AIR-DISCHARGING CAP 1 85 B1109012I0B THROAT PLATE (I) FOR ST,JE 1 86 11028008 THROAT PLATE FOR KO 1 87 SL6051492TN BOLT 1 88 40022407 CORD HOLDER 1 89 CM600600101 CHINA ENVIRONMENT LABEL FOR SH 1 90 40065552 THROAT PLATE SCREW OPTIONAL PARTS 1 91 40069097 RULER PLATE I OPTIONAL PARTS 1 92 40069110 ATTACHMENT FIXATION SCREW OPTIONAL PARTS 1 93 40037488 SHEET FOR SH 1 94 B1109552000 THROAT PLATE FOR SH 1 jintex.in

Page 7 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS 20 23 17 10 2 9 13 1 4 16 3 14 22 11 6 8 15 11 5 18 19 21 7 21 12 24 25 29 28 27 26 31 30 33 32 jintex.in

Page 8 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40023021 BOBBIN WINDER UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * ☆ 1 13 26261602 BOBBIN_SPRING * 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40014837 BTW_SHAFT * 1 17 40023022 BTW_LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE0400000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40040202 BOBBIN THREAD TENSION ASM. * 1 25 11072204 TENSION NUT * 1 26 40040203 BOBBIN THREAD TENSION ROD ASM. * 1 27 B3126012000 THREAD TENSION DISK * 2 28 B3129012A00 TENSION SPRING * 1 29 B3120125000 ROTATING STOPPER * 1 30 40037008 THREAD_CUTTER * ☆ 1 31 SM0051001SC SCREW 1 32 SM0051001SC SCREW 3 33 SM4051055SP SCREW 1 jintex.in

Page 9 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 46 41~45 39 40 40 41~45 38 37 25 50 15 16 30 31 48 29 32 49 26 33 14 27 28 23 13 36 12 47 20 34 35 7 22 21 11 9 19 10 18 24 2 6 3 8 5 6 4 1 jintex.in

Page 10 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23604010 MAIN SHAFT 1 2 40037003 ASSY_COUNTER_WEIGHT 1 3 40025729 COUNTER WEIGHT * 1 4 40004171 COUNTER_WEIGHT_SCREW * 1 5 SM8081652TP SCREW M8 L=16 * 1 6 SM80606A2TP L=6SCREW M6 L=6 * 1 7 23605256 BEARING SUPPORT COMPL. 1 8 SB120001300 BEARING * 1 9 40044857 FRONT BEARING SUPPORT ASM. * 1 10 23605207 MAIN SHAFT BEARING SUPPORT * 1 11 SM80608A2TP L=8SCREW M6 L=8 * 2 12 40051473 COUPLING ASM. 1 13 40051474 COUPLING * 1 14 SM80608A2TP L=8SCREW M6 L=8 * 4 15 40037007 HAND WHEEL ASM. 1 16 40037006 HAND WHEEL * 1 17 SM80608A2TP L=8SCREW M6 L=8 * 2 18 40020454 BTW DRIVING WHEEL ASM. 1 19 40020455 BTW DRIVING WHEEL * 1 20 SM8051610SP SCREW M5 L=16 * 2 21 SB120000800 BEARING 1 22 40039946 SPROCKET ASM. 1 23 SM80608A2TP L=8SCREW M6 L=8 2 24 23607302 TIMING BELT 1 25 23608003 NEEDLE BAR METAL,UPPER 1 26 23608102 NEEDLE BAR METAL,LOWER 1 27 22886907 NEEDLE BAR (A) FOR KO,ST,SH(FOR DBX1) 1 28 22887004 NEEDLE BAR (B) FOR JE(FOR DPX5) 1 29 22906457 NEEDLE BAR HOLDER ASM. 1 30 22906408 NEEDLE ROD HOLDER * 1 31 SS6090670TP SCREW 9/64-40 L=6 * 1 32 B1414555000 SLIDE BLOCK 1 33 23626203 NEEDLE BAR THREAD GUIDE 1 34 MDB100B1100 NEEDLE DBX1 #11 FOR KO,ST,SH(FOR DBX1) ☆ 1 35 MC200500750 NEEDLE 134 NM75 FOR JE(FOR DPX5) ☆ 1 36 SS7080510TP SCREW 1/8-44 L=4.5 ☆ 1 37 40037370 THREAD TAKE UP COMP. 1 38 40035855 THREAD TAKE UP CRANK SHAFT 1 39 SM80608A2TP L=8SCREW M6 L=8 2 40 22891204 BEARING SUPPORT 2 41 SB307000200 BEARING SELECTIVE PARTS 2 42 SB30700020A BEARING SELECTIVE PARTS 2 43 SB30700020B BEARING SELECTIVE PARTS 2 44 SB30700020C BEARING SELECTIVE PARTS 2 45 SB30700020D BEARING FOR JE(FOR DPX5) 2 46 40010434 THRUST_COLLAR_ASM. 1 47 22906309 NEEDLE BAR THREAD GUIDE 1 -8-

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 45 46 47 48 49 50 jintex.in

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40050265 AC_SERVO_MOTOR 1 49 SL6052592TN BOLT 4 50 EA9500B0100 CABLE BAND 2 jintex.in

Page 13 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS jintex.in

Page 14 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23609001 BUSHING 1 2 40040264 PRESSER BAR GUIDE BRACKET ASM. 1 3 40039078 PRESSER BAR GUIDE BRACKET * 1 4 SM6051400SP SCREW * 1 5 23609357 LIFTING LEVER CONNECT ROD ASM. 1 6 23609456 LIFTING LINK COMPL. * 1 7 23609605 PLATE * 1 8 22908008 LIFTING PLATE * 1 9 SM6040602TP SCREW M4 L=6 * 1 10 RE0500000K0 E-RING * 1 11 RE0500000K0 E-RING * 1 12 23609308 LIFTING LEVER CONNECT ROD 1 13 23609803 CONNECTING ROD 1 14 23609704 LIFTING LEVER LINK 1 15 22907406 PRESSER SPRING 1 16 23610207 PRESSER BAR 1 17 23610306 PRESSER GUIDE BAR 1 18 40037359 PRESSER SPRING REGURATOR ASM. 1 19 40037141 PRESSER SPRING REGULATOR * 1 20 40037144 PRESSER SPRING REGULATOR NUT * 1 21 40050583 LINK SHAFT 2 22 22907802 HAND LIFTER 1 23 B152155000 SCREW 1 24 22908552 HAND LIFTER CAM ASM. 1 25 RO037180100 RUBBER RING 1 26 B15240120BA PRESSER FOOT ASM. 1 27 SS7091110TP SCREW 9/64-40 L=10.5 ☆ 1 28 RE0500000K0 E-RING 3 29 22908909 HINGE SCREW 1 30 SD0720336SP SHOULDER SCREW 1 31 NM6060003SE NUT FOR BRACKET 1 32 40036706 ADJUSTING SCREW 1 33 WP0621016SD WASHER 6.2X13X1 1 34 22944508 WIRE PRESSER A 2 35 SM4050655SP SCREW M5 L=6 1 36 SM4040655SP SCREW M4 L=6 1 37 SL6051492TN BOLT 1 38 40039708 WIRE HOLDER 1 39 40050582 TENSION RELEASE SHAFT 1 40 22920300 THREAD RELEASE SUPPORTING PIN 1 41 22920409 THREAD RELEASE PIN SPRING 1 42 23626351 THREAD TENSION RELEASE WIRE 1 43 23626807 TENSION RELEASE RETURN SPRING 1 44 NS6620310SP NUT 3/16-32 2 45 RE0500000K0 E-RING 2 46 40056622 MINUTE LIFTING DEVICE ASM. OPTIONAL PARTS * 1 47 23611106 HAND LIFTER 1 jintex.in

Page 15 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS jintex.in

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23610504 STOPPER BASE * 1 49 23610652 STOPPER SCREW ASM. * 1 50 D5119206K0K SPACER * 2 51 23610702 STOPPER SCREW NUT * 1 52 SL6053592TN BOLT * 1 jintex.in

Page 17 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS jintex.in

Page 18 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037188 ADJUSTING LINK ASM. 1 2 40026272 ADJUSTING LINK * 1 3 40033393 ADJUSTING LINK PIN * 2 4 SM80404A2TP SCREW M4 L=4 * 4 5 23612104 ADJUSTING LINK CONNECTING LINK 1 6 40012032 ADJUSTING LINK FULCRUM SHAFT 2 7 SM80608A2TP L=8SCREW M6 L=8 2 8 40040370 ADJUSTING LINK FULCRUM SHAFT B 1 9 RE050000K0 E-RING 1 10 RE050000K0 E-RING 1 11 23612807 METAL,A 1 12 40056502 FEED CHANGING SHAFT ARM A ASM. 1 13 40053465 FEED CHANGING SHAFT ARM A * 1 14 SS8661012TP SCREW * 3 15 40037191 FEED CHANGING SHAFT ARM B ASM. 1 16 40026274 FEED CHANGING SHAFT ARM B * 1 17 SM6051602TP SCREW M5X0.8 L=16 * 1 18 SM9040650TP SCREW M4 L=6 * 2 19 40060869 FEED CHANGING SHAFT METAL B 1 20 40037017 FEED CHANGING SHAFT 1 21 40041470 REVERSE,FEED,LEVER 1 22 23613706 FEED LEVER SHAFT 1 23 23613953 FEED LEVER ARM ASM. 1 24 23613904 FEED LEVER ARM * 1 25 SS6121860SP SCREW 3/16-28 L=18 * 1 26 40027582 FEED ADJUSTING SPRING 1 27 23614308 FEED LEVER SPRING 1 28 40026275 FEED ADJUSTING ROD 1 29 23630007 TUBE 0.1 30 23613508 ADJUSTING BASE SHAFT METAL 1 31 40028112 FEED_ADJUSTING_PIN 1 32 CS111101CSH THRUST COLLAR ASM.D=11.11 W=10 1 33 SS8660610TP SCREW 1/4-40 L=6 * 2 34 40036344 FEED REGULATOR ASSY 1 35 40036343 FEED REGULATOR * 1 36 40040499 FEED REGUKATOR PIN * 1 37 RE050000K0 E-RING 1 38 23612609 FEED CHANGING SHAFT OIL SEAL 1 39 40055585 THRUST COLLAR ASM. 1 40 23612716 THRUST COLLAR * 1 41 SS8660612TP SCREW 1/4-40 L=6 * 2 42 SM80608A2TP L=8SCREW M6 L=8 2 43 40053450 FEED CHANGING SHAFT ARM C ASM. 1 44 40050221 FEED CHANGING SHAFT ARM C * 1 45 40056721 FEED CHANGING SHAFT ARM C PIN * 1 46 SS8660612TP SCREW 1/4-40 L=6 * 1 47 40050219 FEED CHANGING SHAFT SPRING 1 jintex.in

Page 19 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS jintex.in

Page 20 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40050220 FEED CHANGING SHAFT SPRING HOOK 1 49 SM4040655SP SCREW M4 L=6 1 50 22952501 BACK LEVER STOPPER 1 51 SM6051850TP SCREW M5 L=18 1 52 40062651 FEED ADJUSTING SHAFT ASM 1 53 40055569 FEED_ADJUSTING_SHAFT * 1 54 23533904 FEED ADJUSTING SCREW * 1 55 40053172 FEED ADJUSTING BASE 1 56 SM1051052TN SCREW M5 L=10 2 57 22912109 FEED REGULATOR PIN SPRING 1 58 22912000 FEED REGULATOR PIN 1 59 23534506 FEED DIAL SPRING 1 60 WP1751616SD WASHER 17.5X24X1.6 1 61 40036433 FEED_DIAL 1 62 SS6121860SP SCREW 3/16-28 L=18 1 63 RE0400000K0 E-RING 4 1 64 23613805 FEED LEVER SHAFT METAL 1 65 40061560 FEED_CHANGING_BALANCER_ARM_ASM 1 66 40061545 FEED_CHANGING_BALANCER_ARM * 1 67 SM6061802TP SCREW M6 L=18 * 1 68 40053340 ADJUSTING LINK PIN 1 69 WT1780011KP TOOTHED WASHER 18 1 jintex.in

Page 21 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS jintiex.in

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037192 FEED ROCKER CAM ASM. 1 2 23616006 FEED ROCKER CAM * 1 3 SS8150822TP SCREW 15/64-28 L=8 * 2 4 40037365 FEED ROCKER ROD ASM. 1 5 40026277 FEED ROCKER ROD * 1 6 22911101 WALKING FOOT PIN C * 1 7 SS6090620TP SCREW * 1 8 40061246 FEED ROCKER ARM ALL ASM. 1 9 40026504 FEED ROCKER ARM ASM. * 1 10 40042079 FEED ROCKER ARM * 1 11 SS6121610SP SCREW 3/16-28 L=15.5 * 1 12 SS6090620TP SCREW * 1 13 22911002 WALKING FOOT PIN B 1 14 40060868 FEED SHAFT FRONT METAL 1 15 40037005 ASSY.FEED_ROCKER_BASE_ARM 1 16 40026281 FEED ROCKER BASE ARM * 1 17 SM6051400SP SCREW * 1 18 WP0531000SD WASHER M5 * 1 19 SM4050855SP SCREW 1 20 23616204 FEED ROCKER CAM PLATE 1 21 SS6090670TP SCREW 9/64-40 L=6 2 22 22904155 MAIN SHAFT THRUST COLLAR ASM. 1 23 22904106 MAIN SHAFT THRUST COLLAR * 2 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 B1613012100 FEED DOG I FOR ST,JE,SH 1 26 23614506 FEED DOG A FOR KO 1 27 SS4080620TP SCREW 1/8-44 L=6 2 28 B412352200A NEEDLE BEARING SELECTIVE PARTS 1 29 B412352200B NEEDLE ROLLLAR SELECTIVE PARTS 1 30 B412352200C NEEDLE ROLLLAR SELECTIVE PARTS 1 31 40026278 CONNECTING LINK A 2 32 40060448 CONNECTING LINK B 2 33 23616600 FEED ROCKER SHAFT 1 34 23620354 BEARING SUPPORT ASM. 1 35 SS6110650TP SCREW 11/64-40 L=5.5 * 2 36 40026282 FEED ROCKER BASE SHAFT 1 37 40000391 VERTICAL FEED CAM ASM. 5 1 38 40000392 VERTICAL FEED CAM 5 * 1 39 SS8151150TP SCREW 15/64-28 L=10.5 * 2 40 40053720 FEED DRIVING BASE ARM ASM. 1 41 40026287 FEED DRIVING BASE ARM * 1 42 SM4040655SP SCREW M4 L=6 * 1 43 40026288 FEED DRIVING BASE SHAFT 1 44 40030790 FEED DRIVING SHAFT 1 45 23618606 BEARING SUPPORT 1 46 SS8661012TP SCREW 2 47 23618101 FEED DRIVING CAM THRUST BUSH 2 jintex.in

Page 23 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS jintex.in

Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB32000060A BEARING SELECTIVE PARTS 1 49 SB32000060B BEARING SELECTIVE PARTS 1 50 SB32000060C BEARING SELECTIVE PARTS 1 51 SB117000400 BEARING 1 52 23618309 FEED DRIVING CAM PLATE 1 53 SS6090670TP SCREW 9/64-40 L=6 2 54 23620503 GEAR,LARGE 1 55 SS8661012TP SCREW 2 56 23620008 HOOK SHAFT 1 57 23620156 HOOK SHAFT METAL COMPL. 1 58 23620206 OIL SEAL 2 59 22916555 OIL SEAL SCREW ASM. 1 60 22916506 SET SCREW * 1 61 11015906 OIL WICK * 1 62 23620701 GEAR,SMALL(A) SELECTIVE PARTS 1 63 23620800 GEAR,SMALL(B) SELECTIVE PARTS 1 64 23620909 GEAR,SMALL(C) SELECTIVE PARTS 1 65 23621006 GEAR,SMALL(D) SELECTIVE PARTS 1 66 SS8661012TP SCREW 2 67 D1837555BAAA BOBBIN CASE ASM. ☆ 1 68 11141355 HOOK ASM. FOR JE ☆ 1 69 11038650 HOOK ASM. FOR ST,KO,SH ☆ 1 70 23621303 HOOK ASM. K OPTIONAL PARTS ☆ 1 71 B9117012000 BOBBIN OPTIONAL PARTS ☆ 1 72 B9117552A00 BOBBIN ☆ 1 73 22890008 HOOK DRIVING SHAFT OIL SEAL 1 74 23620404 HOOK SHAFT REAR METAL 1 75 40068998 INNER HOOK HOLDER 1 76 SM4051055SP SCREW 1 77 40060865 FEED SHAFT REAR METAL 1 78 23618705 OIL SEAL 1 79 23618804 OIL SEAL 1 80 SB120001000 BEARING 1 81 40031608 SPROCKET ASM. 1 82 SM8060812TP SCREW M6 L=8 2 83 2288002 OIL SEAL 1 84 40030786 FEED BASE COMPL. 1 jintex.in

Page 25 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS

Page 26 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40050585 KNIFE UNIT * 1 2 22947907 KNIFE MOUNTING BASE * 1 3 11040052 MOVING KNIFE ASM. * ☆ 1 4 11040409 MOVING KNIFE HINGE SCREW * 1 5 22948202 FORKED BASE FOR KNIFE * 1 6 40044189 THREAD_GUIDE_FOR_KNIFE * ☆ 1 7 D2406555D0H COUNTER KNIFE * ☆ 1 8 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 9 SS2060210SP SCREW 3/32-56 L=2.3 * ☆ 2 10 SS4080620TP SCREW 1/8-44 L=6 * 1 11 40036995 KNIFE DRIVING UNIT * 1 12 40071740 KNIFE DRIVING ARM ASM. * 1 13 40030338 MOVING KNIFE LINK PIN * 1 14 40030335 CLUTCH PLATE ASM. * 1 15 40030333 BASE PLATE ASM. * 1 16 40041393 PICKER LINK ASM. * 1 17 40030343 PICKER LINK * 1 18 22919203 OIL PROTECTING RUBBER * 1 19 22949002 ROLLER ARM SEAT * 1 20 22949101 ROLLER FULCRUM SHAFT * 1 21 22949200 ROLLER RETURN SPRING * 1 22 40071950 KNIFE RETURN SPRING * 1 23 40040407 CLUTCH SPRING * 1 24 22950000 PICKER LINK PIN * 1 25 NS6150310SP NUT 15/64-28 * 1 26 NS6150810SP NUT 15/64-28 * 2 27 RE0400000K0 E-RING 4 * 2 28 RE0600000K0 E-RING 6 * 2 29 SM4040655SP SCREW M4 L=6 * 1 30 SS7090610SP SCREW 9/64-40 L=6 * 1 31 WP0621016SH WASHER * 1 32 22950703 DRIVING ARM STOPPER * 1 33 40030339 ROLLER ARM ASM. * 1 34 40036998 ASSY_PICKER_ARM * 1 35 40061215 PICKER ARM * 1 36 40036997 ASSY_PICKER * ☆ 1 37 SS6090510TP SCREW 9/64-40 L=5.0 * 2 38 40040545 ASSY_THREAD_TRIM_SOLENOID * 1 39 40056706 THREAD TRIMMER SOLENOID * 1 40 40040508 SOLENOID_BASE * 1 41 11043304 SOLENOID RUBBER * 1 42 HK03464000B PIN CONTACT * 2 43 NM6040000SN NUT M4 * 2 44 NS6660410SH NUT * 1 45 NS6660430SP NUT 1/4-40 * 1 46 WP0430800SC WASHER M4 * 2 47 23624554 DRIVING BLOCK ASM. * 1 jintex.in

Page 27 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS 1 8 -10 5 4 63 3 2 58 61 62 34 55 35 36 37 57 11 15 32 24 59 29 17 18 31 25 16 13 56 53 50 54 52 51 40 43 46 38 45 44 41 60 42 49 47 39 48 23 14 28 22 A 26 12 27 27 28 20 21 30 33 19 A jintex.in

Page 28 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23624505 DRIVING BLOCK 1 49 SS6110710TP SCREW 11/64-40 L= 9.5 * 1 50 11042850 THREAD TRIMMER CAM ASM. 1 51 SS6660610TP SCREW 1/4-40 L=6 * 2 52 11042801 THREAD TRIMMER CAM ASM. * 1 53 22950950 CAM COLLAR ASM. 1 54 SS8110520TP SCREW 11/64-40 L= 4.5 * 1 55 SD0600329TP SHOULDER SCREW D=6 H=3.2 1 56 SD0630275SP HINGE SCREW D= 6.35 H= 2.7 1 57 SD0641456TP SHOULDER SCREW D=6.35 H=14.5 1 58 SM4041055SP SCREW 1 59 SL6061292TN SCREW 3 60 SL6061292TN SCREW 2 61 40030342 MOVING KNIFE LINK 1 62 40029398 PICKER SPRING 1 63 23623903 PIN 1 jintex.in

Page 29

OIL LUBICATION COMPONENTS

Page 30 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037180 GEAR.BOX.COVER.ASM. 1 2 40026286 GEAR BOX COVER * 1 3 40034246 OIL SIGHT WINDOW * 1 4 RO195240100 RUBBER RING * 1 5 13171004 DRAIN SCREW * 1 6 13170105 RUBBER RING * 1 7 23629256 OIL WICK SUPPORT ASM. 1 8 23629207 OIL WICK SUPPORT * 1 9 23629702 OIL WICK 0.25 10 23629306 PIPE STOPPER A 3 11 23629405 PIPE STOPPER B 4 12 40037166 GEAR BOX PACKING 1 13 40000344 LUBRICATING INLET CAP 1 14 SQ2050453MZ CONNECTING SCREW 2 15 40042048 FLOATER ASM 1 16 RO068190100 RUBBER RING 1 17 23630007 TUBE 0.57 18 23630007 TUBE 0.08 19 23630007 TUBE 0.11 20 CQ200000001 OIL WICK 0.75 21 23630106 TUBE B 0.21 22 23630106 TUBE B 0.175 23 40075404 FACE FELT ASM. 1 24 22925101 OIL FELT PRESSER 1 25 RO098400100 RUBBER RING 1 26 RO172180100 RUBBER RING 1 27 SL6061292TN SCREW 3 28 SL6051492TN BOLT 9 29 SM5040655SN SCREW 1 30 40013595 OIL EXIT CAP 1 31 40037129 OIL TANK 1 32 40042642 FLOATER CASE ASM. 1 33 40037147 FLOATER CASE * 1 34 23630403 OIL FILTER * 1 35 23630502 OIL FILTER STOPPER * 1 36 23628902 PLUNGER SPRING 1 37 40038328 PLUNGER SCREW 1 38 40037502 OIL ADJUSTING SCREW 1 39 RO037180100 RUBBER RING 1 40 23628803 PLUNGER 1 41 40037148 FLOATER CASE GUIDE 1 42 SL6040892TN BOLT 1 43 SL6051492TN BOLT 1 44 RO048190100 RUBBER RING 1 45 SL6040892TN BOLT 1 46 40024644 MAGNET WASHER 1 47 23604705 MAGNET BASE PM 1 jintex.in

Page 31 — OIL LUBLICATION COMPONENTS

OIL LUBLICATION COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 jintex.in

Page 32 — OIL LUBLICATION COMPONENTS

OIL LUBLICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40037145 FLOATER SIGHT WINDOW 1

Page 33 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS 13 12 7 1 9 34 5 4 8 10 14 3 11 2 35 6 35 15 24 16 18 23 19 20 25 17 22 21 26 28 33 29 30 32 27 31 - 31 -

Page 34 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40040518 REVERSE FEED SOLENOID ASM. 1 2 40040519 REVERSE FEED SOLENOID * 1 3 23631104 REVERSE FEED SOLENOID PLUNGER * 1 4 40027156 REVERSE FEED SOLENOID BASE * 1 5 D2468555B00 RUBBER PLUNGER * 1 6 HK03464000B PIN CONTACT * 2 7 RE1200000K0 E-RING 12 * 1 8 SM4050855SP SCREW * 3 9 WP1703001SC WASHER 17X30X3 * 1 10 40064072 CONDENSE STOPPER * 1 11 SL6051092TN BOLT * 1 12 40026290 REVERSE FEED ARM 1 13 SD1001506TP SHOULDER SCREW D=10 H=15 1 14 22962906 PLUNGER ARM PIN 1 15 23631757 REVERSE FEED SWITCH ASM. 1 16 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 17 23632359 REVERSE FEED CORD ASM. * 1 18 EA9500B0100 CABLE BAND * 1 19 SS7110740TP SCREW 11/64-40 L=7 * 1 20 23631708 REVERSE FEED SWITCH COVER * 1 21 23631807 REVERSE FEED SWITCH SHAFT * 1 22 23631906 REVERSE FEED SWITCH SUPPORT * 1 23 23632003 REVERSE FEED SWITCH BASE * 1 24 SM4051055SP SCREW 1 25 23632656 OPTION SWITCH ASM. OPTIONAL PARTS 1 26 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 27 23632250 REVERSE FEED CORD ASM. * 1 28 EA9500B0100 CABLE BAND * 1 29 SS7110740TP SCREW 11/64-40 L=7 * 1 30 23631708 REVERSE FEED SWITCH COVER * 1 31 23631807 REVERSE FEED SWITCH SHAFT * 1 32 23631906 REVERSE FEED SWITCH SUPPORT * 1 33 23632607 OPTION SWITCH BASE * 1 34 NS6110350SP NUT 11/64-40 2 35 SL6061292TN SCREW 2 - 32 -

Page 35 — WIPER COMPONENTS (FOR DDL-9000A-**-WB)

WIPER COMPONENTS (FOR DDL-9000A-**-WB) 1 5 26 25 21 9 3 13 10 11 22 23 6 8 7 15 16 2 4 24 12 28 14 18 20 27 29 30 31 jintex.in

Page 36 — WIPER COMPONENTS (FOR DDL-9000A-**-WB)

WIPER COMPONENTS (FOR DDL-9000A-**-WB) No. Parts No. Parts name Remarks Level Cons Qty 1 40077866 WIPER ASM. 1 2 40077853 WIPER BASE ASM. * 1 3 23633209 WIPER LINK B * 1 4 23633357 WIPER SHAFT ASM. * 1 5 22955504 WIPER COVER * 1 6 11110301 WIPER SOLENOID * 1 7 22955900 WIPER RUBBER A * 1 8 22956007 WIPER RUBBER B * 1 9 22956106 WIPER LINK A * 1 10 22956205 WIPER HINGE SCREW COLLAR * 1 11 22956304 WIPER SPRING * 1 12 22956809 WIPER COLLAR * 1 13 22956908 WIPER LINK B HINGE SCREW * 1 14 22957005 WIPER * ☆ 1 15 22957203 WIPER LINK COLLAR * 1 16 40077852 WIPER SOLENOID SHAFT * 1 17 HA000590000 POWER SWITCH * 1 18 HK03464000B PIN CONTACT * 2 19 HW200390000 ELECTRIC WIRE * 0.04 20 HW500070000 2-CORE CABTYRE CORD * 1.3 21 NS6090310SP NUT 9/64-40 * 1 22 NS6110310SP NUT 11/64-40 * 1 23 RE0250000K0 E-RING 2.5 * 1 24 RE0500000K0 E-RING * 1 25 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 26 SL4030631SC SCREW M3X6 * 1 27 SL4030641SE SCREW * 3 28 SS6090540SP SCREW 9/64-40 L= 5.0 * 1 29 40077851 WIPER SOLENOID SHAFT GUIDE * 1 30 SS4110615SP SCREW 11/64-40 L=6 * 2 31 SM4051055SP SCREW 1 - 34 -

Page 37 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 1 6 7 8 9 2 15 10 3 13 15 11 12 4 14 6 7 5 9 19 16 19 17 20 16 17 18 - 35 -

Page 38 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22930358 THREAD STAND ASM. 1 2 22931109 SPOOL RETAINER * 2 3 22931000 SPOOL PIN * 2 4 22930903 SPOOL REST CUSHION * 2 5 22930804 SPOOL REST * 2 6 SM6061610SC SCREW M6 L=16 * 2 7 22930705 THREAD GUIDE ARM JOINT * 2 8 22931406 SPOOL REST ROD RUBBER CAP * 1 9 22930507 SPOOL REST ARM * 2 10 22930408 SPOOL REST ROD, UPPER * 1 11 22931307 SPOOL REST ROD JOINT * 1 12 SM4051405SE SCREW M5 L=14 * 2 13 NM6050001SE NUT M5 * 2 14 22930309 SPOOL REST ROD, LOWER * 1 15 22931208 THREAD GUIDE * 2 16 WS0510002KN SPRING WASHER * 2 17 NM6050001SE NUT M5 * 2 18 NM6160511SE NUT M16X1.5 * 1 19 WP1612616SE WASHER 16X30X2.6 * 2 20 WS1643202KR SPRING WASHER * 1 - 36 -

Page 39 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS 1 2 17 7 12 14 15 22 9 16 11 19 A 13 17 13 20 18 20 16 4 10 28 29 3 5 27 5 6 6 8 25 23 18 24 21 26 A - 37 -

Page 40 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40062321 UNDER COVER ASM. 1 2 23639008 UNDER COVER * 1 3 23639156 BRACKET ASM. * 1 4 23639107 BRACKET * 1 5 NM6060001SE NUT M6 * 2 6 SM8063012TR SCREW M6 L=30 * 2 7 23639206 CONNECTING ROT * 1 8 23639305 KNEE PRESS ROD * 1 9 23639404 SHAFT * 1 10 23639503 SPRING * 1 11 23639602 CONNECTING ROD * 1 12 B1116210D00 FRAME SUPPORT RUBBER * 4 13 WP0650876SD WASHER 6.5X13X0.8 * 2 14 22932453 BRACKET ASM. * 1 15 22932404 BRACKET * 1 16 SM9062053SR SCREW M6 L=20 * 2 17 NS6150310SP NUT 15/64-28 * 2 18 RE1000000K0 E-RING 10 * 2 19 RE1000000K0 E-RING 10 * 1 20 SD0720331SP HINGE SCREW D= 7.24 H= 3.3 * 2 21 SM9061853SR SCREW M6 L=17.5 * 1 22 SM9061853SR SCREW M6 L=17.5 * 1 23 22934251 KNEE PAD PLATE ASM. 1 24 22934202 KNEE PAD PLATE * 1 25 22934301 KNEE PAD PLATE SUPPORT * 1 26 22934400 KNEE PAD PLATE RUBBER * 1 27 22934509 KNEE PAD PLATE COVER * 1 28 22934608 KNEE PAD UPRIGHT SHAFT * 1 29 SM9061203SE SCREW M6 L=12 * 1 - 38 -

Page 41

ACCESSORIE PART COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 26 27 28 JUKI 29 30

Page 42

ACCESSORIE PART COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037484 ACCESSORIE BAG ASM. 1 2 22932800 ACCESSORIE BAG * 1 3 22931604 FRAME SUPPORT BAR * 1 4 40055591 HEXAGONAL WRENCH KYE * 1 5 22933105 SCREW DRIVER,MIDDLE * 1 6 22933204 SCREW DRIVER,SMALL * 1 7 22958300 NEEDLE THREAD GUIDE PIN * 1 8 23639701 KNEE LIFTER PRESSER ROD * 1 9 HX000430000 CLIP * 1 10 22958052 RUBBER HINGE ASM. 1 11 22926000 RUBBER CUSHION * 2 12 22958003 FRAME BUBBER CUSHION * 2 13 22926208 NAIL * 8 14 22926356 HINGE COMPL. * 2 15 22926505 WASHER * 2 VARIOUS NOS.FOR 16 B9117012000 BOBBIN 1 DESTINATIONS VARIOUS NOS.FOR 17 B9117552A00 BOBBIN 1 DESTINATIONS 18 B91210120A0 OILER ASM. 1 VARIOUS NOS.FOR 19 MDFRX1600C0 DEFRIX OIL NO.1(600CC) ☆ 1 DESTINATIONS VARIOUS NOS.FOR 20 MML007600CA JUKI MACHINE OIL 7 ☆ 1 DESTINATIONS VARIOUS NOS.FOR 21 MDB100B1100 NEEDLE DBX1 #11 1 DESTINATIONS VARIOUS NOS.FOR 22 MDB100B0900 NEEDLE DBX1 #9 1 DESTINATIONS VARIOUS NOS.FOR 23 MDB100B2100 NEEDLE DBX1 #21 1 DESTINATIONS VARIOUS NOS.FOR 24 MC200500750 NEEDLE 134 NM75 1 DESTINATIONS VARIOUS NOS.FOR 25 MC200501300 NEEDLE 134 NM130 1 DESTINATIONS VARIOUS NOS.FOR 26 MC200500650 NEEDLE 134 NM65 1 DESTINATIONS 27 22933006 SCREW DRIVER,LARGE 1 28 40070090 HEAD COVER 1 29 40064984 DDL-9000A SETUP DOCUMENT 1 VARIOUS NOS.FOR 30 CM600100201 WEEE INFORMATION SHEET 1 DESTINATIONS - 40 -

Page 43

EXCLUSIVE PART FOR DDL-9000A-D*,DDL-9000A-M* 4 14 16 3 23 12 22 13 21 15 20 18 17 19 5 11 6 24 27 2 1 25 7･8･26 9 10 - 41 -

Page 44

EXCLUSIVE PART FOR DDL-9000A-D*,DDL-9000A-M* No. Parts No. Parts name Remarks Level Cons Qty 1 40036347 NEEDLE BAR LOWER METAL B 1 2 SM4050501SC SCREW M5X0.8 L=5 1 3 40037146 FLOATER SIGHT WINDOW D FOR DDL-9000A-D* 1 4 SL6040892TN BOLT FOR DDL-9000A-D* 1 5 22889851 HOOK DRIVING SHAFT BEARING ASM FOR DDL-9000A-D* 1 6 SS6110420TP SCREW 11/64-40 L=4.8 FOR DDL-9000A-D* * 2 7 22890404 RP HOOK C FOR DDL-9000A-D*JE ☆ 1 8 22890206 RP HOOK FOR DDL-9000A-D*KO,SH ☆ 1 9 B9117552A00 BOBBIN ☆ 1 10 22896252 BOBBIN CASE ASM. FOR DDL-9000A-D* ☆ 1 11 40050581 JOINT_CABLE_ASM FOR DDL-9000A-D* 1 12 23540305 FLOATER CASE CAP FOR DDL-9000A-M* 1 13 23629306 PIPE STOPPER A FOR DDL-9000A-M* 1 14 40050586 KNIFE UNIT D FOR DDL-9000A-D* 1 15 SS2060210SP SCREW 3/32-56 L=2.3 * 1 16 SS4080620TP SCREW 1/8-44 L=6 * 2 17 11040052 MOVING KNIFE ASM. * 1 18 40050588 THREAD GUIDE FOR KNIFE D * ☆ 1 19 22947907 KNIFE MOUNTING BASE * 1 20 11040409 MOVING KNIFE HINGE SCREW * 1 21 22896005 FORKED BASE FOR KNIFE * 1 22 22895908 COUNTER KNIFE * ☆ 1 23 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 24 RO036080200 RUBBER RING OPTIONAL PARTS 1 25 40006323 JUKI GREASE A TUBE OPTIONAL PARTS 1 26 22890305 RP HOOK S FOR DDL-9000A-D*ST 1 27 11079506 FRONT SCREW OPTIONAL PARTS 1 - 42 -

Page 45 — EXCLUSIVE PART FOR DDL-9000A-*A

EXCLUSIVE PART FOR DDL-9000A-*A 1.2 3.4 5.21 6.7.22 9 10 14 18 15 13 12 17 16 11 23 20 8 jintex.in

Page 46 — EXCLUSIVE PART FOR DDL-9000A-*A

EXCLUSIVE PART FOR DDL-9000A-*A No. Parts No. Parts name Remarks Level Cons Qty 1 11001906 THROAT PLATE K FOR KO 1 2 B110901210B THROAT PLATE (I) FOR ST,JE,SH 1 3 B1613012100 FEED DOG I FOR ST,JE,SH 1 4 D1613155W00 FEED DOG W FOR KO 1 5 D1524555DBB PRESSER FOOT ASM. FOR ST,JE,KO 1 6 MDB100B0900 NEEDLE DBX1 #9 FOR ST,KO 1 7 MC200500650 NEEDLE 134 NM65 FOR JE 1 8 40050584 FEED DIAL 4 1 9 40037439 THREAD TAKE UP COMP.A 1 10 40037479 THREAD TENSION DISK ASM.A 1 11 23626005 THREAD TENSION NUT 1 12 B3132552000 THREAD TENSION DISK PRESSER * 1 13 B3126012000 THREAD TENSION DISK * 2 14 40024845 TENSION POST SOCKET ASM * 1 15 B3115552000 TENSION POST * 1 16 B3120125000 ROTATING STOPPER * 1 17 D3129555D00 THREAD TENSION SPRING * 1 18 D3128555D00 TAKE-UP SPRING * 1 19 SS8090670SP SCREW 9/64-40 L= 5.5 * 1 20 11162104 SPRING * 1 21 B15240120BA PRESSER FOOT ASM. FOR SH 1 22 MDB100B1100 NEEDLE DBX1 #11 FOR SH 1 23 11038759 BOBBIN CASE ASM. 1 jintex.in

Page 47

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B JUKI 1 48 38 41 A H 39 40 35 36 37 11 8 47 30 28 25 27 29 31 26 24 23 32 22 10 50 7 49 46 33 34 6 3 2 4.5 12 18 16 19 15 14 13 21 17 9 43 44 45 jintex.in

Page 48

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B No. Parts No. Parts name Remarks Level Cons Qty 1 11400801 THROAT PLATE J FOR ST,JE,KO 1 2 23645609 NEEDLE BAR METAL,LOWER H 1 3 40061767 NEEDLE BAR H 1 4 MDB100B2100 NEEDLE DBX1 #21 FOR ST,SH,KO 1 5 MC200501300 NEEDLE 134 NM130 FOR JE 1 6 B1505552000A PRESSER SPRING 1 7 D1524555EBL PRESSER FOOT ASM. FOR ST,JE,KO 1 8 11403003 FEED J FOR ST,JE,KO 1 9 40068999 INNER HOOK HOLDER 1 10 11092251 LUBRICATING HOOK ASM. 1 11 40055604 THREAD TAKE UP COMP.H 1 12 40050587 KNIFE UNIT H 1 13 11095502 KNIFE MOUNT BASE * 1 14 40044190 THREAD_GUIDE_FOR_KNIFE-H * 1 15 11409257 MOVING KNIFE J ASM. * 1 16 40009894 FORKED BASE FOR KNIFE * 1 17 40050589 FIX KNIFE H * 1 18 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 19 SD0500131TP HINGE SCREW D=5 H=1.25 * 1 20 SS2060210SP SCREW 3/32-56 L=2.3 * 1 21 SS4080620TP SCREW 1/8-44 L=6 * 2 22 11038759 BOBBIN CASE ASM. 1 23 40037313 THREAD TENSION DISK ASM H 1 24 23626005 THREAD TENSION NUT 1 25 B3115552000 TENSION POST 1 26 B3120125000 ROTATING STOPPER 2 27 B3126012000 THREAD TENSION DISK * 1 28 B3128012000 TAKE-UP SPRING * 1 29 B3132552000 THREAD TENSION DISK PRESSER * 1 30 40024845 TENSION POST SOCKET ASM 1 31 B311423000 THREAD TENSION SPRING * 1 32 SS8090670SP SCREW 9/64-40 L=5.5 1 33 11073954 THREAD TENSION ASM. 1 34 40024124 NEEDLE BAR THREAD GUIDE 1 35 23619059 VERTICAL FEED CAM H ASM. 1 36 23619000 VERTICAL FEED CAM H 1 37 SS8151150TP SCREW 15/64-28 L=10.5 * 1 38 40055058 ASSY COUNTER WEIGHT H 2 39 40053411 COUNTER WEIGHT H * 1 40 40004171 COUNTER,WEIGHT,SCREW * 1 41 SM8081652TP SCREW M8 L=16 * 1 42 SM80606A2TP L=6SCREW M6 L=6 * 2 43 40069369 VERTICAL FEED CAM ASM. 2.0 OPTIONAL PARTS 1 44 40069370 VERTICAL FEED CAM 2.0 1 45 SS8151150TP SCREW 15/64-28 L=10.5 * 2 46 40063697 ARM THREAD GUIDE A H 1 47 11062601 FEED DOG FOR SH 1 jintex.in

Page 49

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B JUKI 1 48 38 41 A H 40 35 36 37 11 8 39 32 30 28 25 27 29 31 26 24 23 47 46 43 44 45 12 18 16 19 15 14 13 21 17 20 9 7 49 10 50 6 3 2 4.5 jintex.in

Page 50 — EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B

EXCLUSIVE PART FOR DDL-9000A-SH-WB,0B No. Parts No. Parts name Remarks Level Cons Qty 48 11062007 THROAT PLATE, A FOR SH 1 49 40064839 PRESSER FOOT ASM FOR SH 1 50 B9117012000 BOBBIN 1 51 J1063000000 WRENCH OPTIONAL PARTS 1

Page 51 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 jintex.in

Page 52 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23642259 TABLE ASM. 1 2 23642200 TABLE 1 3 11075900 RUBBER SPACER 2 4 11075801 RUBBER SPACER 2 5 B8210012000 CUSHION SET NAIL 4 6 B8210012000 CUSHION SET NAIL 4 7 D822655E00 FRAME RUBBER CUSHION A 2 8 11157567 T LEG JUNCTION FOR JT-D950 1 9 11159365 T-STAND JUNCTION FOR JT-D952 1 10 11159357 T-STAND ASM. FOR JT-D95J,-D95K 1 11 11155769 SMALL CASTINGS BOX B ASM. 1 12 11156007 CASE 1 13 11155801 CASE MAGNET 1 14 11155751 CASE ASM. B 4 15 SK3382001SC WOOD SCREW D=3.8 L=20 1 16 11155157 DRAWER ASM. 1 17 11155108 DRAWER 2 18 11155207 DRAWER SUPPORT 6 19 SK3311600SE WOOD SCREW D=3.1 L=16 1 20 11073103 RUBBER CUSHION EXCEPT AK TYPE 1 21 D8204555D00 DRAWER STOPPER 1 22 SK3513200SC WOOD SCREW D=5.1 L=32 4 23 GPK700010A0 3-JOINT PEDAL, 70 FOR JT-D95J,-D95K 1 24 GPK710010A0 2-PEDAL ASM., 71 FOR JT-D95J,-D95K 1

Page 53 — SPECIAL ORDER PART

SPECIAL ORDER PART 1 2 3 4 5 6 7 8 jintex.in

Page 54 — SPECIAL ORDER PART

SPECIAL ORDER PART No. Parts No. Parts name Remarks Level Cons Qty 1 40065571 ELECTRIC FAN HOOK COOLING DEVICE * 1 2 40044065 FAN RELAY CABLE * 1 3 40064805 FAN FILTER * 1 4 40064806 FAN COOLING COVER * 1 5 40065564 FAN MOTOR ASSY * 1 6 SK3415001SE SCREW D=4.1 L=50 * 2 7 MAO11532000 CORD STAPLE * 3 8 40065572 HOOK COOLING DEVICE INSTRUCTIO * 1 jintex.in

Page 55 — LIST FOR INFORMATION OF CHANGE (1)

LIST FOR INFORMATION OF CHANGE (1) As to the place changed, refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added part)are not interchangeable with each other. In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は、該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は、削除された品番でも、ご注文できます。 *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. No. 頁 No. Parts No. 品 番 Rev. Page Ref. No. 頁 No. Parts No. 品 番 D 01 2 9 SL-6051492-TN A 02 2 9 SM-4050855-SP A 02 2 89 CM-6006001-01 A 02 2 90 400-65552 A 02 2 91 400-69097 A 02 2 92 400-69110 A 02 2 93 400-37488 A 02 2 94 B1109-552-000 D 01 10 18 SM-9040600-SP A 02 10 18 SM-9040650-TP D 01 10 20 400-61204 A 02 10 20 400-37017 D 01 10 32 CS-111101E-SH A 02 10 32 CS-111101C-SH D 01 10 33 SS-8660330-SP A 02 10 33 SS-8660610-TP A 02 10 52 400-62651 D 01 10 65 400-61190 A 02 10 65 400-61560 A 02 10 66 400-61545 A 02 10 67 SM-6061802-TP D 01 12 17 SM-4051455-SP A 02 10 69 WT-1780011-KP D 01 12 18 WP-0480856-SP A 02 12 17 SM-6051400-SP D 01 12 61 229-16605 A 02 12 18 WP-0531000-SD D 01 12 75 400-32052 A 02 12 61 110-15906 D 01 14 12 400-36996 A 02 12 75 400-68998 D 01 14 22 400-40404 A 02 14 12 400-71740 D 01 14 58 SM-4041255-SP A 02 14 22 400-71950 D 01 16 23 236-30304 A 02 14 58 SM-4041055-SP A 02 16 23 400-75404 A 02 18 10 400-64072 A 02 18 11 SL-6051092-TN D 01 19 1 236-33167 A 02 19 1 400-77866 D 01 19 2 236-33159 A 02 19 2 400-77853 D 01 19 16 229-57104 A 02 19 16 400-77852 A 02 19 29 400-77851 A 02 19 30 SS-4110615-SP D 01 23 28 229-33303 A 02 22 28 400-70090 D 01 23 29 293-27806 A 02 22 29 400-64984 A 02 22 30 CM-6001002-01 D 01 24 24 110-38759 A 02 24 21 B1524-012-0BA

Page 56 — LIST FOR INFORMATION OF CHANGE (2)

LIST FOR INFORMATION OF CHANGE (2) Rev. Page Ref. Parts No. No. 頁 No. 品 番 D 01 26 9 400-37405 Rev. Page Ref. Parts No. No. 頁 No. 品 番 * A A A A A A A A A A A A 02 02 02 02 02 02 02 02 02 02 02 02 24 24 26 26 26 26 26 26 26 26 26 29 22 23 9 43 44 45 46 47 48 49 50 51 - MDB-100B1100 110-38759 400-68999 400-69369 400-69370 SS-8151150-TP 400-63697 110-62601 110-62007 400-64839 B9117-012-000 J1063-000-000 ALL PARTS - 全 部

Page 57

HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)"*"mark.........means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2)"#01".........refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(consumable parts) and "◎"(optional parts)on the respective parts, it is recommended to prepare spares. 1."注記"欄の記号説明 1) "*"印............前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、"変更情報リスト"を参照してください。 2) "#01".........ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4.イラストページのーーー一枠は、組構成であることを意味します。 5.リストページの"☆"(消耗部品)、"◎"(オプション部品)の印がついた部品は、 予備を準備しておくことをお奨めします。 jintex.in

Page 58 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 11001906 44 1-2 22890008 22 73 22930804 36 5 11015906 22 61 22890206 42 7-8-26 22930903 36 4 11028008 4 85-86 22890305 42 7-8-26 22931000 36 3 11038650 22 68-70 22890404 42 7-8-26 22931109 36 2 11038759 44 23 22891204 8 40 22931208 36 15 11038759 46 22 22895908 42 22 22931307 36 11 11040052 24 3 22896005 42 21 22931406 36 10 11040052 42 17 22896252 42 10 22931604 40 3 11040409 24 4 22901201 2 14-15 22932404 38 15 11040409 42 20 22901250 2 12-13 22932453 38 14 11042801 26 52 22901300 2 16-17 22932800 40 2 11042850 26 50 22901805 4 81 22933006 40 27 11043304 24 41 22902506 2 30 22933105 40 5 11062007 48 48 22902704 2 14-15 22933204 40 6 11062601 46 47 22902753 2 12-13 22934202 38 24 11072204 6 25 22904106 20 23 22934251 38 23 11073103 50 20 22904155 20 22 22934301 38 25 11073954 46 33 22906309 8 47 22934400 38 26 11075801 50 4 22906408 8 30 22934509 38 27 11075900 50 3 22906457 8 29 22934608 38 28 11079506 42 27 22907406 12 15 22944508 2 21 11092251 46 10 22907802 12 22 22944508 12 34 11095502 46 13 22908008 12 8 22945414 4 62 11110301 34 6 22908552 12 24 22945463 4 61 11141355 22 68-70 22908909 12 29 22945505 4 64 11155108 50 17 22911002 20 13 22945604 4 63 11155157 50 16 22911101 20 6 22945703 4 65 11155207 50 18 22912000 18 58 22945802 4 66 11155751 50 14 22912109 18 57 22947907 24 2 11155769 50 11 22916506 22 60 22947907 42 19 11155801 50 13 22916555 22 59 22948202 24 5 11156007 50 12 22919203 24 18 22949002 24 19 11157567 50 8 22920000 12 40 22949101 24 20 11159357 50 10 22920309 12 41 22949200 24 21 11159365 50 9 22920607 4 60 22950000 24 24 11162104 44 20 22925101 28 24 22950703 24 32 11400801 46 1 22926000 40 11 22950950 26 53 11403003 46 8 22926208 40 13 22952501 18 50 11409257 46 15 22926356 40 14 22955504 34 5 13170105 28 6 22926505 40 15 22955900 34 7 13171004 28 5 22930309 36 14 22956007 34 8 22886907 8 27-28 22930358 36 1 22956106 34 9 22887004 8 27-28 22930408 36 10 22956205 34 10 22888002 22 83 22930507 36 9 22956304 34 11 22889851 42 5 22930705 36 7 22956809 34 12 INDEX - 1 jintex.in

Page 59 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22956908 34 13 23616204 20 20 23631708 32 30 22957005 34 14 23616600 20 33 23631757 32 15 22957203 34 15 23618101 20 47 23631807 32 31 22958003 40 12 23618309 22 52 23631906 32 32 22958052 40 10 23618606 20 45 23632003 32 23 22958300 40 7 23618705 22 78 23632102 32 26 22962906 32 14 23618804 22 79 23632250 32 27 23533904 18 54 23619000 46 36 23632359 32 17 23534506 18 59 23619059 46 35 23632607 32 33 23540305 42 12 23620008 22 56 23632656 32 25 23600505 2 4 23620156 22 57 23633209 34 3 23600703 2 6 23620206 22 58 23633357 34 4 23601305 4 84 23620354 20 34 23638109 4 73 23604010 8 1 23620404 22 74 23638208 4 74 23604705 28 47 23620503 22 54 23638307 4 75 23605207 8 10 23620701 22 62~65 23638406 4 76 23605256 8 7 23620800 22 62~65 23638554 4 77 23607302 8 24 23620909 22 62~65 23639008 38 2 23608003 8 25 23621006 22 65 23639107 38 4 23608102 8 26 23621303 22 68~70 23639156 38 3 23609001 12 1 23623903 26 63 23639206 38 7 23609308 12 2 23624505 26 48 23639305 38 8 23609357 12 5 23624554 24 47 23639404 38 9 23609456 12 6 23626005 4 50 23639503 38 10 23609605 12 7 23626005 44 11 23639602 38 11 23609704 12 14 23626005 46 24 23639701 40 8 23609803 12 13 23626104 4 69 23640006 2 47~93 23610207 12 16 23626203 8 33 23642200 50 2 23610306 12 17 23626351 12 42 23642259 50 1 23610504 14 48 23626807 12 43 23645609 46 2 23610652 14 49 23628803 28 40 26260109 6 2 23610702 14 51 23628902 28 36 26260208 6 3 23611106 12 47 23629207 28 8 26260307 6 4 23612104 16 5 23629306 28 10 26260406 6 5 23612609 16 38 23629306 42 13 26260604 6 7 23612716 16 40 23629405 28 11 26260802 6 8 23612807 16 11 23629702 28 9 26261008 6 9 23613508 16 30 23629900 4 82 26261206 6 10 23613706 16 22 23630007 16 29 26261305 6 11 23613805 18 64 23630007 28 19 26261503 6 12 23613904 16 24 23630106 28 22 26261602 6 13 23613953 16 23 23630403 28 34 26261701 6 14 23614308 16 27 23630502 28 35 40000344 28 13 23614506 20 26 23631104 32 3 40000391 20 37 23616006 20 2 INDEX - 2 jintex.in

Page 60 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40000392 20 38 40030786 22 84 40038328 28 37 40004171 8 4 40030790 20 44 40039078 12 3 40004171 46 40 40031608 22 81 40039708 12 38 40006323 42 25 40033393 16 3 40039946 8 22 40009894 46 16 40034246 28 3 40040202 6 24 40010434 8 15 40035589 2 37 40040203 6 26 40011144 6 15 40035855 8 38 40040264 12 2 40012032 16 1 40036343 16 35 40040370 16 8 40013595 28 30 40036344 16 34 40040407 24 23 40014837 6 16 40036347 42 1 40040499 16 36 40020454 8 18 40036433 18 61 40040508 24 40 40020455 8 19 40036706 12 32 40040518 32 1 40022407 2 88 40036995 24 11 40040519 32 2 40022407 4 88 40036997 24 36 40040545 24 38 40023021 6 1 40036998 24 34 40041161 2 2 40023022 6 17 40037002 4 71 40041393 24 16 40024124 46 34 40037003 8 2 40041470 16 21 40024644 28 46 40037005 20 15 40041473 2 33 40024843 4 49 40037006 8 16 40042048 28 15 40024845 4 57 40037007 8 15 40042079 20 10 40024845 44 14 40037008 6 30 40042642 28 32 40024845 46 30 40037017 16 20 40044065 52 2 40025729 8 3 40037018 4 72 40044189 24 6 40026272 16 2 40037129 28 31 40044190 46 14 40026274 16 16 40037141 12 19 40044857 8 9 40026275 16 28 40037144 12 20 40050219 16 47 40026277 20 5 40037145 30 48 40050220 18 48 40026278 20 31 40037146 42 3 40050221 16 44 40026281 20 16 40037147 28 33 40050265 10 48 40026282 20 36 40037148 28 41 40050581 42 11 40026286 28 2 40037158 2 1 40050582 12 39 40026287 20 41 40037166 28 12 40050583 12 21 40026288 20 43 40037180 28 1 40050584 44 8 40026290 32 12 40037188 16 1 40050585 24 1 40027156 32 4 40037191 16 15 40050586 42 14 40027581 2 34 40037192 20 1 40050587 46 12 40027582 16 26 40037313 46 23 40050588 42 18 40028112 16 31 40037359 12 18 40050589 46 17 40029398 26 62 40037365 20 4 40051473 8 12 40030333 24 15 40037370 8 37 40051474 8 13 40030335 24 14 40037439 44 9 40052819 2 3 40030338 24 13 40037479 44 10 40052933 2 45 40030339 24 33 40037484 40 1 40053172 18 55 40030342 26 61 40037488 4 47-93 40053340 18 68 40030343 24 17 40037502 28 38 40053411 46 39 INDEX - 3 jintex.in

Page 61 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. 40053450 16 43 40077851 34 29 40053465 16 43 40077852 34 16 40053720 20 40 40077853 34 2 40055058 46 38 40077866 34 1 40055569 18 53 B110901210B 4 85-86 40055585 16 39 B110901210B 44 1-2 40055591 40 4 B1109552000 4 94 40055604 46 11 B1116210D00 38 12 40056502 16 12 B1414555000 8 32 40056622 12 46 B1505552000A 46 6 40056706 24 39 B1521555000 12 23 40056721 16 45 B15240120BA 12 26 40058504 20 32 B15240120BA 44 5-21 40060448 20 32 B1613012100 20 25 40060865 22 77 B1613012100 44 3-4 40060868 20 14 B3114232000 46 31 40060869 16 19 B3115552000 4 51 40061215 24 35 B3115552000 44 15 40061246 20 35 B3115552000 46 25 40061545 18 65 B3118552F00 2 44 40061560 18 8 B3120125000 4 52 40061562 2 3 B3120125000 6 29 40061767 46 3 B3120125000 44 16 40062321 38 1 B3120125000 46 26 40062651 18 52 B3126012000 4 53 40063697 46 10 B3126012000 6 27 40064072 32 46 B3126012000 44 13 40064805 52 3 B3126012000 46 27 40064806 52 4 B3128012000 4 54 40064839 48 49 B3128012000 46 28 40064984 40 29 B3129012A00 4 55 40065552 4 90 B3129012A00 6 28 40065564 52 5 B3132552000 4 56 40065571 52 1 B3132552000 44 12 40065572 52 46 B31352200A 20 28-30 40068998 22 75 B412352200A 20 28-30 40068999 46 9 B412352200B 20 28-30 40069097 4 91 B412352200C 20 28-30 40069110 4 92 B8210012000 50 6 40069369 46 43 B9117012000 22 71 40069370 46 44 B9117012000 40 16 40070090 40 28 B9117012000 48 50 40071740 24 12 B9117552A00 22 72 40071950 24 22 B9117552A00 40 17 40075404 28 23 B9117552A00 42 9 PART NO PAGE REF NO. B91210120A0 40 18 CM300200001 2 23 CM300200003 2 25 CM301300001 2 29 CM600100101 4 48 CM600100201 40 30 CM600600101 4 89 CQ200000001 28 20 CS111101CSH 16 32 D1524555DBB 44 5-21 D1524555EBL 46 7 D1613155W00 44 3-4 D1837555BAAA 22 67 D2406555D0H 24 7 D2468555B00 32 5 D3128555D00 44 18 D3129555D00 44 17 D5119206K0K 14 50 D8204555D00 50 21 D8226555E00 50 7 EA9500B0100 4 78 EA9500B0100 10 50 EA9500B0100 32 28 GPK700010A0 50 23 GPK700010A0 50 24 HA000590000 34 17 HK03464000B 24 42 HK03464000B 32 6 HK03464000B 34 18 HW200390000 34 19 HW500070000 34 20 HX000430000 40 9 J1063000000 48 51 MA011532000 52 7 MC200500650 40 21-26 MC200500750 8 34-35 MC200500750 40 21-26 MC200501300 40 21-26 MC200501300 46 4-5 MDB100B0900 40 21-26 MDB100B0900 44 6-7-22 MDB100B1100 8 34-35 MDB100B1100 40 21-26 MDB100B1100 44 6-7-22 INDEX - 4 jintex.in

Page 62 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. MDB100B2100 40 21~26 SB30700020C 8 41~45 SM4050501SC 42 2 MDB100B2100 46 2 SB30700020D 8 41~45 SM4050655SP 4 80 MDFRX1600C0 40 19~20 SB32000060A 22 48~50 SM4050655SP 12 35 MML007600CA 40 19~20 SB32000060B 22 48~50 SM4050855SP 2 32 NM6040000SN 24 43 SB32000060C 22 48~50 SM4050855SP 20 19 NM6060001SE 36 17 SD0460703TP 24 8 SM4050855SP 32 8 NM6060001SE 38 5 SD0460703TP 42 23 SM4051055SP 2 31 NM6060003SE 12 31 SD0460703TP 46 18 SM4051055SP 6 33 NM6160511SE 36 18 SD0500131TP 46 19 SM4051055SP 22 76 NS6090310SP 34 21 SD0600329TP 26 55 SM4051055SP 32 24 NS6110310SP 32 34 SD0630275SP 26 56 SM4051055SP 34 31 NS6110350SP 34 22 SD0641456TP 26 57 SM4051055SP 36 12 NS6150310SP 24 44 SD0650321TP 34 25 SM4050655SN 4 68 NS6150310SP 38 17 SD0720331SP 38 20 SM4050655SN 6 20 NS6150810SP 24 26 SD0720336SP 12 30 SM4050655SN 28 29 NS6620310SP 12 44 SD1001506TP 32 13 SM6040602TP 12 9 NS6660410SH 24 44 SK3311600SE 50 19 SM6051400SP 12 4 NS6660430SP 24 45 SK3382001SC 50 15 SM6051400SP 20 17 RC0560711KP 6 18 SK3415001SE 52 6 SM6051802TP 16 17 RE0250000K0 34 23 SK3513200SC 50 22 SM6061610SC 36 51 RE0400000K0 6 63 SL4030641SC 34 26 SM6061610SC 36 6 RE0400000K0 18 27 SL4030641SE 34 27 SM6061802TP 18 67 RE0400000K0 24 27 SL6040892TN 28 45 SM80404A2TP 16 4 RE0500000K0 12 45 SL6040892TN 42 4 SM8040802TP 6 21 RE0500000K0 16 37 SL6051092TN 32 11 SM8050502TP 6 22 RE0500000K0 34 24 SL6051492TN 4 87 SM8051610SP 8 20 RE0600000K0 24 28 SL6051492TN 12 37 SM80606A2TP 8 6 RE1000000K0 38 11 SL6051492TN 28 43 SM80606A2TP 46 42 RE1200000K0 32 7 SL6052592TN 2 26 SM80608A2TP 2 70 RO036080200 42 24 SL6052592TN 10 49 SM80608A2TP 4 70 RO037180100 12 25 SL6052592TN 14 52 SM80608A2TP 8 39 RO037180100 28 39 SL6061292TN 2 35 SM80608A2TP 16 42 RO048190100 28 44 SL6061292TN 26 60 SM8063012TR 38 6 RO068190100 28 25 SL6061292TN 28 27 SM8081652TP 8 5 RO080150200 4 63 SL6061292TN 32 35 SM9040650TP 16 18 RO098240100 28 25 SM0051001SC 6 32 SM9061203SE 38 29 RO172180100 28 26 SM1051052TN 18 56 SM9061853SR 38 22 RO195240100 28 4 SM2040955TP 2 28 SM9062053SR 38 16 SB117000400 22 51 SM4021201SC 4 79 SM9061833SR 28 14 SB120000800 8 21 SM4040655SP 2 36 SQ2050453MZ 28 14 SB120001000 22 60 SM4040655SP 12 36 SS2060210SP 24 9 SB120001300 8 51 SM4040655SP 18 49 SS2060210SP 42 15 SB307000200 8 41~45 SM4040655SP 20 42 SS2060210SP 46 20 SB30700020A 8 41~45 SM4040655SP 24 29 SS4080620TP 20 27 SB30700020B 8 41~45 SM4041055SP 26 58 INDEX - 5 jintex.in

Page 63 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SS4080620TP 24 10 WP0621016SH 24 31 SS4080620TP 42 16 WP0650876SD 38 13 SS4080620TP 46 21 WP1612616SE 36 19 SS4110615SP 34 30 WP1703001SC 32 9 SS6060210SP 2 18 WP1751616SD 18 60 SS6090510TP 24 37 WS0510002KN 36 16 SS6090540SP 34 28 WS1643202KR 36 20 SS6090620TP 20 12 WT1780011KP 18 69 SS6090670TP 8 31 SS6090670TP 20 53 SS6090670TP 22 53 SS6110420TP 42 6 SS6110610TP 4 59 SS6110650TP 20 35 SS6110710TP 26 49 SS6121610SP 20 11 SS6121860SP 16 62 SS6121860SP 18 62 SS6660610TP 26 51 SS7080510TP 8 36 SS7090610SP 24 30 SS7091110TP 12 27 SS7110740TP 32 29 SS8090670SP 4 58 SS8090670SP 44 19 SS8090670SP 46 32 SS8110520TP 26 54 SS8150822TP 20 3 SS8151150TP 20 39 SS8151150TP 46 45 SS8660610TP 16 33 SS8660610TP 20 24 SS8660612TP 16 46 SS8661012TP 16 14 SS8661012TP 20 66 SS8661012TP 22 66 TA0850604R0 2 38 TA1250406R0 2 43 TA1270502R0 2 42 TA1470702R0 2 24 TA1470704R0 2 41 WP0430800SC 24 46 WP0450826SC 6 23 WP0531000SD 20 18 WP0621016SD 12 33 INDEX - 6 Powered by TCPDF (www.tcpdf.org)
