Page 1 — PARTS LIST
MODEL : DDL-9000B List No : 1532-04 PARTS LIST Published:09/10/2017 jintex.in
Juki DDL-9000B — parts catalog
- Page 1 (cover): This is the cover page for the parts list of the DDL-9000B model, published on October 9, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components, with various parts labeled with reference numbers.
- Page 4 (parts_list): This page lists parts for the machine frame and miscellaneous cover components, including part numbers, names, and quantities.
- Page 5 (diagram): This page illustrates the machine frame and miscellaneous cover components with a detailed exploded view.
- Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, level, cons, and quantity.
- Page 7 (diagram): This page displays an exploded view diagram of the machine frame and miscellaneous cover components, with various parts labeled with reference numbers.
- Page 8 (parts_list): This page lists machine frame and miscellaneous cover components, including a washer with part number WP0501016SD.
- Page 9 (diagram): This page illustrates the components of a bobbin winder for an industrial sewing machine, showing an exploded view of the assembly.
- Page 10 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
- Page 11 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view with numbered parts.
- Page 13 (diagram): This page displays a diagram of the main shaft and needle bar components for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 14 (parts_list): This page lists components for the main shaft and needle bar, including screws, bolts, cable bands, and rubber plugs, with their respective part numbers and quantities.
- Page 15 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for an industrial sewing machine.
- Page 16 (parts_list): This page lists the parts for the hand lifter and tension release components, including part numbers, names, and quantities.
- Page 17 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for a sewing machine.
- Page 18 (parts_list): This page lists the components for the hand lifter and tension release, including part numbers, names, and quantities.
- Page 19 (diagram): This page displays an exploded view diagram of the feed adjust mechanism components for an industrial sewing machine.
- Page 20 (parts_list): This page lists components for the feed adjust mechanism, including part numbers, names, and quantities.
- Page 21 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft, showing an exploded view with reference numbers for each part.
- Page 23 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft.
- Page 24 (parts_list): This page lists horizontal feed, vertical feed, and hook driving shaft components, including bearings, screws, gears, oil seals, and other related parts.
- Page 25 (diagram): This page illustrates the components of a thread trimmer, showing an exploded view of various parts and their reference numbers.
- Page 26 (parts_list): This page lists the components for a thread trimmer, including knives, screws, nuts, springs, washers, and other related parts.
- Page 27 (diagram): This page illustrates the components of a thread trimmer, showing various parts and their reference numbers.
- Page 28 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities for various screws, stoppers, rods, springs, washers, and nuts.
- Page 29 (diagram): This page illustrates the oil lubrication components of an industrial sewing machine.
- Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities.
- Page 40 (parts_list): This page lists components for under cover parts, including part numbers, descriptions, remarks, and quantities.
- Page 41 (diagram): This page displays a diagram of accessory part components for a sewing machine, with numbered illustrations of various tools and accessories.
- Page 42 (parts_list): This page lists accessory part components, including part numbers, names, remarks, and quantities.
- Page 43 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B DS sewing machine, with numbered components and their corresponding part numbers and descriptions.
- Page 44 (parts_list): This page lists exclusive parts for the DDL-9000B DS sewing machine, including part numbers, names, remarks, and quantities.
- Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B MS,MA sewing machine, with numbered components.
Page 2 — CONTENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS | ||
| 7 | BOBBIN WINDER COMPONENTS | ||
| 9 | MAIN SHAFT & NEEDLE BAR COMPONENTS | ||
| 13 | HAND LIFTER & TENSION RELEASE COMPONENTS | ||
| 17 | FEED ADJUST MECHANISM COMPONENTS | ||
| 19 | HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS | ||
| 23 | THREAD TRIMMER COMPONENTS | ||
| 27 | OIL LUBRICATION COMPONENTS | ||
| 31 | AUTOMATIC REVERSE FEED COMPONENTS | ||
| 33 | WIPER COMPONENTS (FOR DDL-9000B-**-WB) | ||
| 35 | THREAD STAND COMPONENTS | ||
| 37 | UNDER COVER COMPONENTS | ||
| 39 | ACCESSORIE PART COMPONENTS | ||
| 41 | EXCLUSIVE PARTS DDL-9000B DS | ||
| 43 | EXCLUSIVE PARTS DDL-9000B MS,MA | ||
| 45 | EXCLUSIVE PARTS DDL-9000B SH | ||
| 49 | TABLE & STAND COMPONENTS | ||
| 51 | SPECIAL ORDER PART | ||
| 53 | LIST FOR INFORMATION OF CHANGE (1) | ||
| 54 | LIST FOR INFORMATION OF CHANGE (2) | ||
| 55 | HOW TO MAKE USE OF THIS PARTS LIST |
CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 11 32 32 1 5 4 43 A 46 92 -27 -28 -85-86 14-15 16-17 18 12-13 2 19 30 40 3 A 60 59 31 -39 -67 -70 -36 -37 -24 -6 -93 -7 23 69 68 21 22 45 34 44 -58 -57 54 51 41 25 38 91 -94 -35 49 53 81 42 89 90 56 55 52 50 8 9 33 88 87 63 62 66 64 65 83 82 84 10 71 75 73 79 77 78 26 95 29 61 -47-48 72 76 80 jintex.in
Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40037158 | SIDE PLATE | 1 | |
| 40041161 | FACE PLATE | 1 | |
| 40052819 | FACE PLATE PACKING | 1 | |
| 23600505 | THREAD TAKE-UP LEVER COVER | 1 | |
| SM4051055SP | SCREW | 1 | |
| 40086713 | BED,STUD,A | 1 | |
| SM6061002TP | SCREW M6 L=10 | 2 | |
| 22951552 | GROUND WIRE ASM. | 1 | |
| SM4050855SP | SCREW | 1 | |
| EA9500B0100 | CABLE BAND | ||
| 40094561 | SEWING MACHINE LABEL (EU) | ||
| 22901250 | SLIDE PLATE ASM. | ||
| 22902753 | SLIDE PLATE ASM. | ||
| 22901201 | SLIDE PLATE | ||
| 22902704 | SLIDE PLATE | ||
| 22901300 | SLIDE PLATE SPRING | ||
| 22901300 | SLIDE PLATE SPRING | ||
| SS6060210SP | SCREW 3/32-56 L=1.9 | ||
| SM4050855SP | SCREW | ||
| 40069110 | ATTACHMENT FIXATION SCREW | ||
| 22944508 | WIRE PRESSER A | ||
| SM4040855SP | SCREW | ||
| CM300200001 | ATTENTION SEAL | ||
| 40069097 | RULER PLATE I | ||
| CM300200003 | ATTENTION LABEL | ||
| SM6052502TP | SCREW M5X25 | ||
| SM2040955TP | SCREW M4 L=8.5 | ||
| SM2040750TP | SCREW M4 L=7.4 | ||
| CM301300001 | SAFETY LABEL | ||
| 22902506 | FACE PLATE | ||
| SM4051055SP | SCREW | ||
| SM4051255SP | SCREW M5 L=12 | ||
| 40086732 | PULLEY_COVER | ||
| 40086714 | BED,STUD,B | ||
| SM6061202TP | SCREW M6 L=12 | ||
| SM4040655SP | SCREW M4 L=6 | ||
| 40035589 | RULER PLATE | ||
| 40091461 | FEED LEVER SPRING HOOK | ||
| TA1250406R0 | RUBBER PLUG D=12.5 L=4 | ||
| TA1250406R0 | RUBBER PLUG D=12.5 L=4 | ||
| TA1470704R0 | RUBBER PLUG | ||
| NM6040001SP | NUT M4X0.7 | ||
| TA1250406R0 | RUBBER PLUG D=12.5 L=4 | ||
| 40114043 | FEED ADJUSTING SPRING,PLATE | ||
| 40052933 | ARM THREAD GUIDE C | ||
| SM80608A2TP | SCREW M6 L=8 | ||
| 23640006 | SHEET |
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037158 SIDE PLATE 1 2 40041161 FACE PLATE 1 3 40052819 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 SM4051055SP SCREW 1 6 40086713 BED,STUD,A 1 7 SM6061002TP SCREW M6 L=10 2 8 22951552 GROUND WIRE ASM. 1 9 SM4050855SP SCREW 1 10 EA9500B0100 CABLE BAND FOR BB 1 11 40094561 SEWING MACHINE LABEL (EU) FOR BB,EE 1 12 22901250 SLIDE PLATE ASM. FOR AA,GG 1 13 22902753 SLIDE PLATE 1 14 22901201 SLIDE PLATE * 1 15 22902704 SLIDE PLATE * 1 16 22901300 SLIDE PLATE SPRING * 1 17 22901300 SLIDE PLATE SPRING * 1 18 SS6060210SP SCREW 3/32-56 L=1.9 * 2 19 SM4050855SP SCREW 2 20 40069110 ATTACHMENT FIXATION SCREW OPTIONAL PARTS 1 21 22944508 WIRE PRESSER A 1 22 SM4040855SP SCREW 1 23 CM300200001 ATTENTION SEAL 1 24 40069097 RULER PLATE I OPTIONAL PARTS 1 25 CM300200003 ATTENTION LABEL 1 26 SM6052502TP SCREW M5X25 3 27 SM2040955TP SCREW M4 L=8.5 1 28 SM2040750TP SCREW M4 L=7.4 1 29 CM301300001 SAFETY LABEL 1 30 22902506 FACE PLATE 4 31 SM4051055SP SCREW 2 32 SM4051255SP SCREW M5 L=12 1 33 40086732 PULLEY_COVER 1 34 40086714 BED,STUD,B 1 35 SM6061202TP SCREW M6 L=12 2 36 SM4040655SP SCREW M4 L=6 1 37 40035589 RULER PLATE 1 38 40091461 FEED LEVER SPRING HOOK 1 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1470704R0 RUBBER PLUG 1 42 NM6040001SP NUT M4X0.7 1 43 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 44 40114043 FEED ADJUSTING SPRING,PLATE 1 45 40052933 ARM THREAD GUIDE C 1 46 SM80608A2TP SCREW M6 L=8 1 47 23640006 SHEET 1 jintex.in
Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 11 32 32 1 5 4 43 A 46 92 -27 -28 -85-86 14-15 16-17 18 12-13 19 30 40 31 -39 -67 -70 -36 -37 -24 -6 3 A -93 -7 2 60 59 23 69 68 21 22 45 34 44 -58 57 54 41 38 91 -94 -35 49 51 53 81 8 9 33 88 87 63 62 66 64 65 83 82 84 25 42 10 89 90 75 73 72 76 79 74 77 78 56 55 52 50 jintex.in 26 95 29 -47-48 71 80
Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40037488 | SHEET | 1 | |
| 40086639 | THREAD_TENSION_DISK_ASM. | 1 | |
| 50 | 23626005 | THREAD TENSION NUT | 1 |
| 51 | 22921209 | THREAD TENSION POST | 1 |
| 52 | 22921407 | ROTATION STOPPER | 1 |
| 53 | 22921506 | THREAD TENSION DISK | 2 |
| 54 | 22921605 | THREAD TAKE-UP SPRING | 1 |
| 55 | 22921704 | THREAD TENSION SPRING A | 1 |
| 56 | 22921803 | DISK STOPPER | 1 |
| 57 | 40086640 | TENSION_POST_SOCKET_ASM. | 1 |
| SS8090670SP | SCREW 9/64-40 L=5.5 | 1 | |
| SS6110610TP | SCREW 11/64-40 L=6 | 1 | |
| 22920607 | ARM THREAD GUIDE B | 1 | |
| 22963458 | THREAD TENSION ASM. | 1 | |
| 62 | 22945414 | THREAD TENSION POST | 1 |
| 63 | 22945604 | THREAD TENSION GUIDE | 1 |
| 64 | 22963409 | THREAD TENSION SPRING | 1 |
| 65 | 22945703 | THREAD TENSION NUT | 1 |
| 66 | 22945802 | THREAD TENSION DISK | 2 |
| SM80608A2TP | L=8SCREW M6 L=8 | 1 | |
| SM5040655SN | SCREW | 1 | |
| 23626104 | ARM THREAD GUIDE A | 1 | |
| SM80608A2TP | L=8SCREW M6 L=8 | 1 | |
| 40086659 | SAFETY_SWITCH_ASM. | 1 | |
| 72 | 40086660 | SAFETY_SWITCH_BASE | 1 |
| 73 | 23638109 | SAFETY SWITCH ARM | 1 |
| 74 | 23638208 | SAFETY SWITCH SPRING | 1 |
| 75 | 23638307 | SAFETY SWITCH ARM SHAFT | 1 |
| 76 | 23638406 | SAFETY SWITCH NUT | 1 |
| 77 | 40098386 | SAFETY_SWITCH_CORD_ASM. | 1 |
| 78 | EA9500B0100 | CABLE BAND | 1 |
| 79 | SM4021201SC | SCREW M2 L=12 | 2 |
| SM4050655SP | SCREW M5 L=6 | 1 | |
| 22901805 | GROUND MARK | 1 | |
| 23629900 | AIR-DISCHARGING | 1 | |
| RO080150200 | RUBBER RING | 1 | |
| 23601305 | AIR-DISCHARGING CAP | 1 | |
| B1109012I0B | THROAT PLATE (I) | 1 | |
| 11028008 | THROAT PLATE | 1 | |
| CM600100101 | WEEE MARK LABEL S | 1 | |
| CM600600101 | CHINA ENVIRONMENT LABEL | 1 | |
| SM4051055SP | SCREW | 2 | |
| WP0550800SP | WASHER 5.5X10X0.8 | 2 | |
| 40091397 | CABLE COVER | 1 | |
| B1109552000 | THROAT PLATE | 1 | |
| WP0621016SD | WASHER 6.2X13X1 | 2 | |
| WP0621016SD | WASHER 6.2X13X1 | 2 |
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40037488 SHEET FOR GG 1 49 40086639 THREAD_TENSION_DISK_ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 22921209 THREAD TENSION POST * 1 52 22921407 ROTATION STOPPER * 1 53 22921506 THREAD TENSION DISK * 2 54 22921605 THREAD TAKE-UP SPRING * 1 55 22921704 THREAD TENSION SPRING A * 1 56 22921803 DISK STOPPER * 1 57 40086640 TENSION_POST_SOCKET_ASM. * 1 58 SS8090670SP SCREW 9/64-40 L=5.5 1 59 SS6110610TP SCREW 11/64-40 L=6 1 60 22920607 ARM THREAD GUIDE B 1 61 22963458 THREAD TENSION ASM. 1 62 22945414 THREAD TENSION POST * 1 63 22945604 THREAD TENSION GUIDE * 1 64 22963409 THREAD TENSION SPRING * 1 65 22945703 THREAD TENSION NUT * 1 66 22945802 THREAD TENSION DISK * 2 67 SM80608A2TP L=8SCREW M6 L=8 1 68 SM5040655SN SCREW 1 69 23626104 ARM THREAD GUIDE A 1 70 SM80608A2TP L=8SCREW M6 L=8 1 71 40086659 SAFETY_SWITCH_ASM. 1 72 40086660 SAFETY_SWITCH_BASE * 1 73 23638109 SAFETY SWITCH ARM * 1 74 23638208 SAFETY SWITCH SPRING * 1 75 23638307 SAFETY SWITCH ARM SHAFT * 1 76 23638406 SAFETY SWITCH NUT * 1 77 40098386 SAFETY_SWITCH_CORD_ASM. * 1 78 EA9500B0100 CABLE BAND * 1 79 SM4021201SC SCREW M2 L=12 * 2 80 SM4050655SP SCREW M5 L=6 1 81 22901805 GROUND MARK 1 82 23629900 AIR-DISCHARGING 1 83 RO080150200 RUBBER RING 1 84 23601305 AIR-DISCHARGING CAP 1 85 B1109012I0B THROAT PLATE (I) FOR AA,BB 1 86 11028008 THROAT PLATE FOR EE 1 87 CM600100101 WEEE MARK LABEL S FOR BB 1 88 CM600600101 CHINA ENVIRONMENT LABEL FOR GG 1 89 SM4051055SP SCREW 2 90 WP0550800SP WASHER 5.5X10X0.8 2 91 40091397 CABLE COVER 1 92 B1109552000 THROAT PLATE FOR GG 1 93 WP0621016SD WASHER 6.2X13X1 2 94 WP0621016SD WASHER 6.2X13X1 2 jintex.in
Page 7 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 11 32 32 31 81 8 9 33 26 95 5 4 39 67 43 88 29 A 63 69 62 61 68 66 46 70 64 65 36 20 37 83 82 84 92 24 25 42 47 48 27 21 41 28 85 86 22 38 91 10 14 15 45 34 71 16 17 6 89 90 75 73 18 72 94 44 12 13 76 3 93 35 79 A 7 74 58 49 77 80 2 19 57 54 78 30 51 53 56 40 60 55 52 59 50 jintex.in
Page 8 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 95 | WP0501016SD | WASHER 5X10.5X1 | 3 |
MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 95 WP0501016SD WASHER 5X10.5X1 3 jintex.in
Page 9 — BOBBIN WINDER COMPONENTS
BOBBIN WINDER COMPONENTS 20 23 17 -10 2 9 13 1 4 -16 3 -14 22 -11 6 8 15 -11 5 18 -19 21 -7 21 -12 -25 -27 -29 24 -28 -26 31 30 33 32 jintex.in
Page 10 — BOBBIN WINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40023021 | BOBBIN WINDER UNIT | 1 |
| 2 | 26260109 | BTW_BASE | 1 |
| 3 | 26260208 | BTW_CAM_PLATE | 1 |
| 4 | 26260307 | BTW_BASE_SHAFT | 1 |
| 5 | 26260406 | BTW_SHAFT_BASE | 1 |
| 6 | 26260505 | BTW_CAM_LEVER | 1 |
| 7 | 26260604 | BTW_WHEEL | 1 |
| 8 | 26260802 | BTW_BEARING_SPACER | 1 |
| 9 | 26261008 | BTW_LEVER_SHAFT | 1 |
| 10 | 26261206 | BTW_SPACER | 1 |
| 11 | 26261305 | BTW_BEARING | 2 |
| 12 | 26261503 | BTW_WHEEL_RUBBER | 1 |
| 13 | 26261602 | BOBBIN_SPRING | 1 |
| 14 | 26261701 | BTW_SPRING | 1 |
| 15 | 40011144 | BTW_TORSION_SPRING | 1 |
| 16 | 40014837 | BTW_SHAFT | 1 |
| 17 | 40023022 | BTW LEVER | 1 |
| 18 | RC0560711KP | RETAINING RING | 1 |
| 19 | RE040000K0 | E-RING 4 | 1 |
| 20 | SM5040655SN | SCREW | 1 |
| 21 | SM8040802TP | SCREW M4X8 | 2 |
| 22 | SM8050502TP | SCREW M5 L=5 | 1 |
| 23 | WP0450826SC | WASHER 4.5X10X0.8 | 1 |
| 24 | 40088958 | BOBBIN THREAD TENSION ASM. | 1 |
| 25 | 22921308 | THREAD TENSION NUT | 1 |
| 26 | 40088959 | BOBBIN THREAD TENSION ROD ASM. | 1 |
| 27 | 22921407 | ROTATION STOPPER | 1 |
| 28 | 22921506 | THREAD TENSION DISK | 2 |
| 29 | 22921704 | THREAD TENSION SPRING A | 1 |
| 30 | 40037008 | THREAD_CUTTER | 1 |
| 31 | SM0050801SC | SCREW | 1 |
| 32 | SM0050801SC | SCREW | 3 |
| 33 | SM4051055SP | SCREW | 1 |
BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40023021 BOBBIN WINDER UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * ☆ 1 13 26261602 BOBBIN_SPRING * ☆ 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40014837 BTW_SHAFT * 1 17 40023022 BTW LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE040000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40088958 BOBBIN THREAD TENSION ASM. 1 25 22921308 THREAD TENSION NUT * 1 26 40088959 BOBBIN THREAD TENSION ROD ASM. * 1 27 22921407 ROTATION STOPPER * 1 28 22921506 THREAD TENSION DISK * 2 29 22921704 THREAD TENSION SPRING A * 1 30 40037008 THREAD_CUTTER * ☆ 1 31 SM0050801SC SCREW 1 32 SM0050801SC SCREW 3 33 SM4051055SP SCREW 1 jintex.in

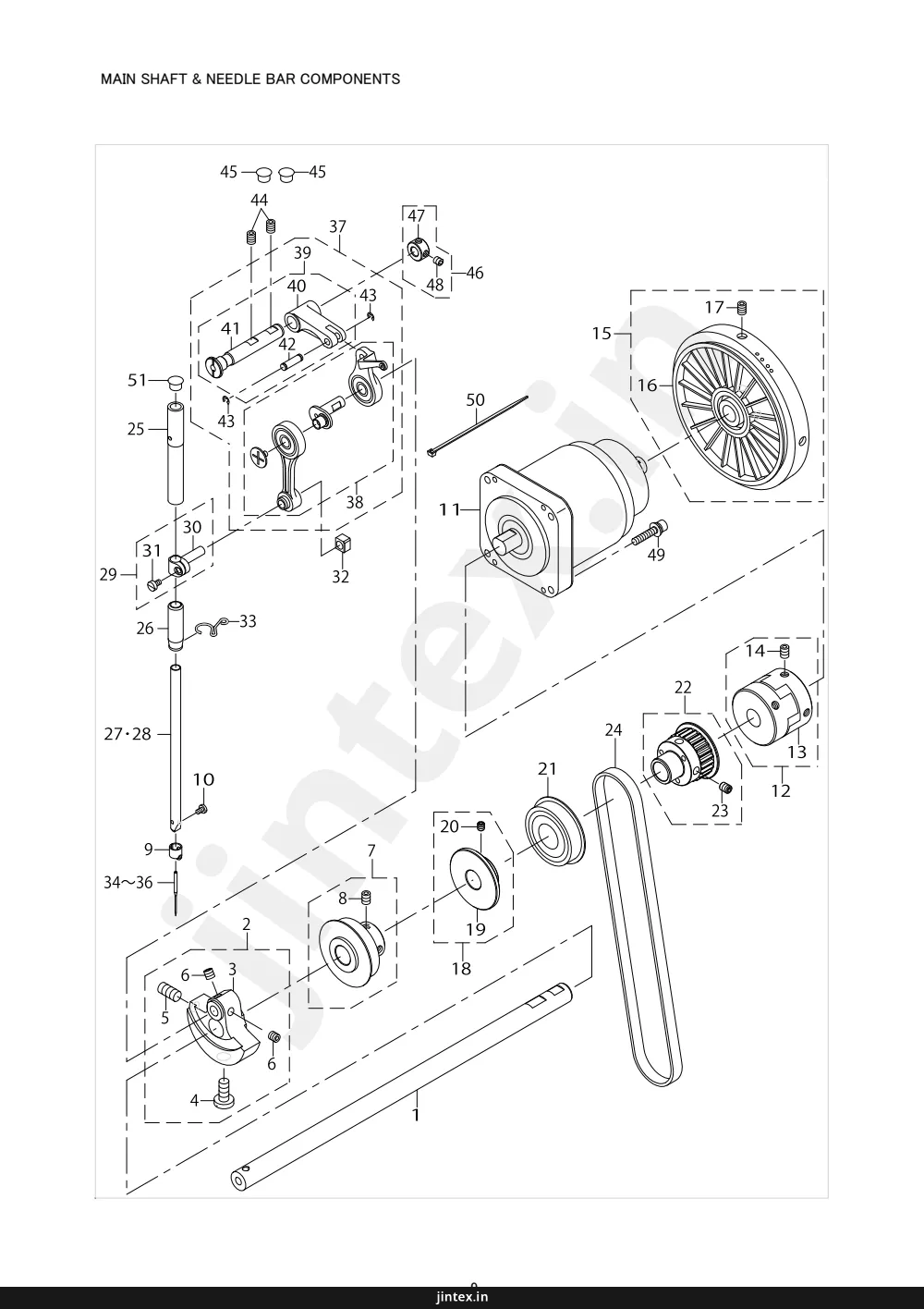

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS
MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 39 40 41 42 43 51 25 30 31 29 26 27 28 10 9 34~36 45 37 43 38 32 47 48 46 50 11 15 16 49 14 24 21 20 19 18 22 23 13 12 7 8 2 3 5 6 4 1 jintex.in
Page 13 — MAIN SHAFT & NEEDLE BAR COMPONENTS
MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 37 39 40 41 42 43 51 25 43 30 31 29 26 33 27-28 10 9 34~36 2 3 5 6 4 45 47 48 46 38 32 7 8 1 50 11 18 20 19 15 16 49 24 21 22 13 12 23 jintex.in
Page 14 — MAIN SHAFT & NEEDLE BAR COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM8050412TP | SCREW M5 L=4 | 2 |
| 49 | SL6052592TN | BOLT | 4 |
| 50 | EA9500B0100 | CABLE BAND | 2 |
| 51 | TA0850604R0 | RUBBER PLUG | 1 |
MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050412TP SCREW M5 L=4 * 2 49 SL6052592TN BOLT 4 50 EA9500B0100 CABLE BAND 2 51 TA0850604R0 RUBBER PLUG 1 jintex.in
Page 15 — HAND LIFTER & TENSION RELEASE COMPONENTS
HAND LIFTER & TENSION RELEASE COMPONENTS
Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40136700 | PRESSER BAR BUSHING | 1 | |
| 40086606 | PRESSER BAR GUIDE BRACKET ASM. | 1 | |
| 40086607 | PRESSER BAR GUIDE BRACKET | 1 | |
| SM6051400SP | SCREW | 1 | |
| 23609357 | LIFTING LEVER CONNECT ROD ASM. | 1 | |
| 23609456 | LIFTING LINK COMPL. | 1 | |
| 23609605 | PLATE | 1 | |
| 22908008 | LIFTING PLATE | 1 | |
| SM6040602TP | SCREW M4 L=6 | 1 | |
| RE0500000K0 | E-RING | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 23609308 | LIFTING LEVER CONNECT ROD | 1 | |
| 40086760 | CONNECTING ROD | 1 | |
| 23609704 | LIFTING LEVER LINK | 1 | |
| 22907406 | PRESSER SPRING | 1 | |
| 23610207 | PRESSER BAR | 1 | |
| 23610306 | PRESSER GUIDE BAR | 1 | |
| 40037359 | PRESSER SPRING REGURATOR ASM. | 1 | |
| 40037141 | PRESSER SPRING REGULATOR | 1 | |
| 40037144 | PRESSER SPRING REGULATOR NUT | 1 | |
| 40050583 | LINK SHAFT | 2 | |
| 22907802 | HAND LIFTER | 1 | |
| B152155000 | SCREW | 1 | |
| 22908552 | HAND LIFTER CAM ASM. | 1 | |
| RO037180100 | RUBBER RING | 1 | |
| B15240120BA | PRESSER FOOT ASM. | 1 | |
| SS7091110TP | SCREW 9/64-40 L=10.5 | 1 | |
| RE0500000K0 | E-RING | 3 | |
| 22908909 | HINGE SCREW | 1 | |
| 40082078 | SHOULDER SCREW D=7.24 H=3.3 | 1 | |
| NM6060003SE | NUT FOR BRACKET | 1 | |
| 40036706 | ADJUSTING SCREW | 1 | |
| WP0621016SD | WASHER 6.2X13X1 | 1 | |
| 22944508 | WIRE PRESSER A | 2 | |
| SM4040855SP | SCREW | 1 | |
| SM4040855SP | SCREW | 1 | |
| SM6051402TP | SCREW M5X0.8 L=14 | 1 | |
| 40086643 | WIRE HOLDER | 1 | |
| 40050582 | TENSION RELEASE SHAFT | 1 | |
| 22920300 | THREAD RELEASE SUPPORTING PIN | 1 | |
| 22920409 | THREAD RELEASE PIN SPRING | 1 | |
| 23626351 | THREAD TENSION RELEASE WIRE | 1 | |
| 23626807 | TENSION RELEASE RETURN SPRING | 1 | |
| NS6620310SP | NUT 3/16-32 | 2 | |
| RE0500000K0 | E-RING | 2 | |
| 40056622 | MINUTE LIFTING DEVICE ASM. | 1 | |
| 23611106 | HAND LIFTER | 1 |
HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40136700 PRESSER BAR BUSHING 1 2 40086606 PRESSER BAR GUIDE BRACKET ASM. 1 3 40086607 PRESSER BAR GUIDE BRACKET * 1 4 SM6051400SP SCREW * 1 5 23609357 LIFTING LEVER CONNECT ROD ASM. 1 6 23609456 LIFTING LINK COMPL. * 1 7 23609605 PLATE * 1 8 22908008 LIFTING PLATE * 1 9 SM6040602TP SCREW M4 L=6 * 1 10 RE0500000K0 E-RING * 1 11 RE0500000K0 E-RING 1 12 23609308 LIFTING LEVER CONNECT ROD 1 13 40086760 CONNECTING ROD 1 14 23609704 LIFTING LEVER LINK 1 15 22907406 PRESSER SPRING 1 16 23610207 PRESSER BAR 1 17 23610306 PRESSER GUIDE BAR 1 18 40037359 PRESSER SPRING REGURATOR ASM. 1 19 40037141 PRESSER SPRING REGULATOR * 1 20 40037144 PRESSER SPRING REGULATOR NUT * 1 21 40050583 LINK SHAFT 2 22 22907802 HAND LIFTER 1 23 B152155000 SCREW 1 24 22908552 HAND LIFTER CAM ASM. 1 25 RO037180100 RUBBER RING 1 26 B15240120BA PRESSER FOOT ASM. 1 27 SS7091110TP SCREW 9/64-40 L=10.5 1 28 RE0500000K0 E-RING 3 29 22908909 HINGE SCREW 1 30 40082078 SHOULDER SCREW D=7.24 H=3.3 1 31 NM6060003SE NUT FOR BRACKET 1 32 40036706 ADJUSTING SCREW 1 33 WP0621016SD WASHER 6.2X13X1 1 34 22944508 WIRE PRESSER A 2 35 SM4040855SP SCREW 1 36 SM4040855SP SCREW 1 37 SM6051402TP SCREW M5X0.8 L=14 1 38 40086643 WIRE HOLDER 1 39 40050582 TENSION RELEASE SHAFT 1 40 22920300 THREAD RELEASE SUPPORTING PIN 1 41 22920409 THREAD RELEASE PIN SPRING 1 42 23626351 THREAD TENSION RELEASE WIRE 1 43 23626807 TENSION RELEASE RETURN SPRING 1 44 NS6620310SP NUT 3/16-32 2 45 RE0500000K0 E-RING 2 46 40056622 MINUTE LIFTING DEVICE ASM. OPTIONAL PARTS 1 47 23611106 HAND LIFTER * 1 jintex.in
Page 17 — HAND LIFTER & TENSION RELEASE COMPONENTS
HAND LIFTER & TENSION RELEASE COMPONENTS
Page 18 — HAND LIFTER & TENSION RELEASE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 23610504 | STOPPER BASE | 1 |
| 49 | 23610652 | STOPPER SCREW ASM. | 1 |
| 50 | D5119206K0K | SPACER | 2 |
| 51 | 23610702 | STOPPER SCREW NUT | 1 |
| 52 | SL6053592TN | BOLT | 1 |
| 53 | RO044240100 | RUBBER RING | 1 |
| 54 | B3118552F00 | TENSION RELEASING PIN | 1 |
| 55 | WP0501016SD | WASHER 5X10.5X1 | 1 |
HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23610504 STOPPER BASE * 1 49 23610652 STOPPER SCREW ASM. * 1 50 D5119206K0K SPACER * 2 51 23610702 STOPPER SCREW NUT * 1 52 SL6053592TN BOLT * 1 53 RO044240100 RUBBER RING 1 54 B3118552F00 TENSION RELEASING PIN 1 55 WP0501016SD WASHER 5X10.5X1 1 jintex.in
Page 19 — FEED ADJUST MECHANISM COMPONENTS
FEED ADJUST MECHANISM COMPONENTS jintex.in
Page 20 — FEED ADJUST MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40086735 | ADJUSTING_LINK_ASM. | 1 | |
| 40086695 | FEED_ADJUSTING_LINK | 1 | |
| 40086696 | FEED_ADJUSTING_LINK_PIN | 2 | |
| SM80506A2TP | SCREW M5 L=6 | 2 | |
| 40086608 | ADJUSTING_LINK_FULCRUM_SHAFT | 1 | |
| SM80606A2TP | SCREW M6 L=6 | 1 | |
| 40086615 | FEED_CHANGING_SHAFT_METAL_A | 1 | |
| 40086704 | FEED_CHANGING_SHAFT_ARM_ASM. | 1 | |
| 40086705 | FEED_CHANGING_SHAFT_ARM | 1 | |
| SM6051602TP | SCREW M5X0.8 L=16 | 1 | |
| 22910509 | FEED_ADJUSTING LINK PIN | 1 | |
| 40086706 | FEED_CHANGING_SPRING_PIN | 1 | |
| 40086616 | FEED_CHANGING_SHAFT_METAL_B | 1 | |
| 40086614 | FEED_CHANGING_SHAFT | 1 | |
| 40086738 | REVERSE_FEED_LEVER | 1 | |
| 23613706 | FEED_LEVER_SHAFT | 1 | |
| 40086674 | FEED_LEVER_ARM_ASM. | 1 | |
| 40086675 | FEED_LEVER_ARM | 1 | |
| SM6051602TP | SCREW M5X0.8 L=16 | 1 | |
| 40086737 | FEED_ADJUSTING SPRING | 1 | |
| 40086739 | FEED_LEVER SPRING | 1 | |
| 40086609 | FEED_ADJUSTING_ROD | 1 | |
| 23630007 | TUBE | 0.1 | |
| RE0500000K0 | E-RING | 1 | |
| 23612609 | FEED CHANGING SHAFT OIL SEAL | 1 | |
| SM80608A2TP | SCREW M6 L=8 | 2 | |
| 22952501 | BACK LEVER STOPPER | 1 | |
| SM6051850TP | SCREW M5 L=18 | 1 | |
| 40141842 | FEED REGULATOR SCREW | 1 | |
| 40123098 | FEED_REGULATOR_PIN_SPRING | 1 | |
| 40161440 | FEED_REGULATOR_PIN | 1 | |
| 40141840 | REGULATOR_STOPPER_SPRING | 1 | |
| 40141838 | FEED REGULATOR WASHER | 1 | |
| 40141841 | REGULATOR PIN DIAL | 1 | |
| SS6121860SP | SCREW 3/16-28 L=18 | 1 | |
| 40086617 | FEED_LEVER_SHAFT_METAL | 1 | |
| 40086736 | RUBBER PLUG | 1 | |
| SM80606A2TP | SCREW M6 L=6 | 1 | |
| 23613409 | FEED ADJUSTING PIN | 1 | |
| 40095847 | FEED REGULATOR ASM. | 1 | |
| SM80606A2TP | SCREW M6 L=6 | 1 | |
| 40122891 | FEED_REGULATOR | 1 | |
| RO092270200 | RUBBER RING | 1 | |
| 40161441 | REGULATOR_PIN_STOPPER | 1 | |
| 40086613 | FEED_REGULATOR_STOPPER_PIN | 2 | |
| 40006716 | THREAD_TRIMMER_SHAFT | 1 | |
| SM80606A2TP | SCREW M6 L=6 | 1 |
FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086735 ADJUSTING_LINK_ASM. 1 2 40086695 FEED_ADJUSTING_LINK * 1 3 40086696 FEED_ADJUSTING_LINK_PIN * 2 4 SM80506A2TP SCREW M5 L=6 * 2 5 40086608 ADJUSTING_LINK_FULCRUM_SHAFT 1 6 SM80606A2TP SCREW M6 L=6 1 7 40086615 FEED_CHANGING_SHAFT_METAL_A 1 8 40086704 FEED_CHANGING_SHAFT_ARM_ASM. 1 9 40086705 FEED_CHANGING_SHAFT_ARM * 1 10 SM6051602TP SCREW M5X0.8 L=16 * 1 11 22910509 FEED_ADJUSTING LINK PIN * 1 12 40086706 FEED_CHANGING_SPRING_PIN * 1 13 40086616 FEED_CHANGING_SHAFT_METAL_B 1 14 40086614 FEED_CHANGING_SHAFT 1 15 40086738 REVERSE_FEED_LEVER 1 16 23613706 FEED_LEVER_SHAFT 1 17 40086674 FEED_LEVER_ARM_ASM. 1 18 40086675 FEED_LEVER_ARM * 1 19 SM6051602TP SCREW M5X0.8 L=16 * 1 20 40086737 FEED_ADJUSTING SPRING 1 21 40086739 FEED_LEVER SPRING 1 22 40086609 FEED_ADJUSTING_ROD 1 23 23630007 TUBE 0.1 24 RE0500000K0 E-RING 1 25 23612609 FEED CHANGING SHAFT OIL SEAL 1 26 SM80608A2TP SCREW M6 L=8 2 27 22952501 BACK LEVER STOPPER 1 28 SM6051850TP SCREW M5 L=18 1 29 40141842 FEED REGULATOR SCREW 1 30 40123098 FEED_REGULATOR_PIN_SPRING 1 31 40161440 FEED_REGULATOR_PIN 1 32 40141840 REGULATOR_STOPPER_SPRING 1 33 40141838 FEED REGULATOR WASHER 1 34 40141841 REGULATOR PIN DIAL 1 35 SS6121860SP SCREW 3/16-28 L=18 1 36 40086617 FEED_LEVER_SHAFT_METAL 1 37 40086736 RUBBER PLUG 1 38 SM80606A2TP SCREW M6 L=6 1 39 23613409 FEED ADJUSTING PIN 1 40 40095847 FEED REGULATOR ASM. 1 41 SM80606A2TP SCREW M6 L=6 * 1 42 40122891 FEED_REGULATOR * 1 43 RO092270200 RUBBER RING 1 44 40161441 REGULATOR_PIN_STOPPER 1 45 40086613 FEED_REGULATOR_STOPPER_PIN 2 46 40006716 THREAD_TRIMMER_SHAFT 1 47 SM80606A2TP SCREW M6 L=6 1 jintex.in
Page 21 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS 70 77 33 71 27 26 11 12 13 25 22 24 10 14 22 23 24 75 8 76 23 56 36 19 18 85 84 16 17 15 66 61 34 60 35 62~65 59 74 44 57 73 58 58 72 78 67 51 68-69 37 46 83 38 43 82 45 32 31 4 39 41 21 7 6 42 5 81 40 31 32 47 48~50 80 79 52 20 53 2 55 28~30 3 1 54 jintex.in
Page 23 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SB32000060A | BEARING | 1 |
| 49 | SB32000060B | BEARING | 1 |
| 50 | SB32000060C | BEARING | 1 |
| 51 | SB117001200 | BEARING | 1 |
| 52 | 23618309 | FEED DRIVING CAM PLATE | 1 |
| 53 | SS6090670TP | SCREW 9/64-40 L=6 | 2 |
| 54 | 23620503 | GEAR (LARGE) | 1 |
| 55 | SS8661012TP | SCREW | 2 |
| 56 | 23620008 | HOOK SHAFT | 1 |
| 57 | 23620156 | HOOK SHAFT METAL COMPL. | 1 |
| 58 | 40145927 | OIL SEAL | 2 |
| 59 | 22916555 | OIL SEAL SCREW ASM. | 1 |
| 60 | 22916506 | SET SCREW | 1 |
| 61 | 11015906 | OIL WICK | 1 |
| 62 | 23620701 | GEAR (SMALL)(A) | 1 |
| 63 | 23620800 | GEAR (SMALL)(B) | 1 |
| 64 | 23620909 | GEAR (SMALL)(C) | 1 |
| 65 | 23621006 | GEAR (SMALL)(D) | 1 |
| 66 | SS8661012TP | SCREW | 2 |
| 67 | 11038759 | BOBBIN CASE ASM. | 1 |
| 68 | 11141355 | HOOK ASM. | 1 |
| 69 | 11038650 | HOOK ASM. | 1 |
| 70 | 40086740 | OIL SEAL | 1 |
| 71 | 40030786 | FEED BASE COMPL. | 1 |
| 72 | 22964001 | BOBBIN A | 1 |
| 73 | 40086744 | HOOK DRIVING SHAFT OIL SEAL | 1 |
| 74 | 23620404 | HOOK SHAFT REAR METAL | 1 |
| 75 | 40089607 | INNER_HOOK_HOLDER | 1 |
| 76 | SM4051055SP | SCREW | 1 |
| 77 | 40086618 | FEED_SHAFT_REAR_METAL | 1 |
| 78 | 40086741 | OIL SEAL | 1 |
| 79 | 40086742 | OIL SEAL | 1 |
| 80 | SB120001800 | BEARING | 1 |
| 81 | 40141443 | UNDER SPROCKET ASM. | 1 |
| 82 | SM80608A2TP | SCREW M6 L=8 | 2 |
| 83 | RC1200001KP | C-SHAPED SNAP RING | 1 |
| 84 | 11079506 | FRONT SCREW | 1 |
| 85 | RO036080200 | RUBBER RING | 1 |
HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB32000060A BEARING SELECTIVE PARTS 1 49 SB32000060B BEARING SELECTIVE PARTS 1 50 SB32000060C BEARING SELECTIVE PARTS 1 51 SB117001200 BEARING 1 52 23618309 FEED DRIVING CAM PLATE 1 53 SS6090670TP SCREW 9/64-40 L=6 2 54 23620503 GEAR (LARGE) 1 55 SS8661012TP SCREW 2 56 23620008 HOOK SHAFT 1 57 23620156 HOOK SHAFT METAL COMPL. 1 58 40145927 OIL SEAL 2 59 22916555 OIL SEAL SCREW ASM. 1 60 22916506 SET SCREW * 1 61 11015906 OIL WICK * 1 62 23620701 GEAR (SMALL)(A) SELECTIVE PARTS 1 63 23620800 GEAR (SMALL)(B) SELECTIVE PARTS 1 64 23620909 GEAR (SMALL)(C) SELECTIVE PARTS 1 65 23621006 GEAR (SMALL)(D) 1 66 SS8661012TP SCREW 2 67 11038759 BOBBIN CASE ASM. ✩ 1 68 11141355 HOOK ASM. FOR BB ✩ 1 69 11038650 HOOK ASM. FOR AA,EE,GG ✩ 1 70 40086740 OIL SEAL 1 71 40030786 FEED BASE COMPL. 1 72 22964001 BOBBIN A ✩ 1 73 40086744 HOOK DRIVING SHAFT OIL SEAL 1 74 23620404 HOOK SHAFT REAR METAL 1 75 40089607 INNER_HOOK_HOLDER 1 76 SM4051055SP SCREW 1 77 40086618 FEED_SHAFT_REAR_METAL 1 78 40086741 OIL SEAL 1 79 40086742 OIL SEAL 1 80 SB120001800 BEARING 1 81 40141443 UNDER SPROCKET ASM. 1 82 SM80608A2TP SCREW M6 L=8 * 2 83 RC1200001KP C-SHAPED SNAP RING 1 84 11079506 FRONT SCREW OPTIONAL PARTS 1 85 RO036080200 RUBBER RING OPTIONAL PARTS 1 jintex.in
Page 25 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS jintex.in
Page 26 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40050585 | KNIFE UNIT | 1 | |
| 11040052 | MOVING KNIFE ASM. | 1 | |
| 40044189 | THREAD_GUIDE_FOR_KNIFE | 1 | |
| 22947907 | KNIFE MOUNTING BASE | 1 | |
| 11040409 | MOVING KNIFE HINGE SCREW | 1 | |
| 22948202 | FORKED BASE FOR KNIFE | 1 | |
| D2406555D0H | COUNTER KNIFE | 1 | |
| SD0460703TP | HINGE SCREW D=4.6 H=7 | 1 | |
| SS2060210SP | SCREW 3/32-56 L=2.3 | 2 | |
| SS4080620TP | SCREW 1/8-44 L=6 | 1 | |
| SM4041055SP | SCREW | 1 | |
| 40036998 | ASSY_PICKER_ARM | 1 | |
| 40061215 | PICKER ARM | 1 | |
| 40036997 | ASSY_PICKER | 1 | |
| SS6090670TP | SCREW 9/64-40 L=6 | 2 | |
| 40029398 | PICKER SPRING | 1 | |
| SD0641456TP | SHOULDER SCREW D=6.35 H=14.5 | 1 | |
| 40086746 | ASSY_THREAD_TRIM_SOLENOID | 1 | |
| 40089263 | THREAD TRIMMER SOLENOID | 1 | |
| 11043304 | SOLENOID RUBBER | 1 | |
| NS6660410SH | NUT | 1 | |
| NS6660430SP | NUT 1/4-40 | 1 | |
| HK03464000B | PIN CONTACT | 2 | |
| NM6040000SN | NUT M4 | 2 | |
| WP0430800SC | WASHER M4 | 2 | |
| 40089672 | SPRING | 1 | |
| 40086727 | SOLEOID INSTALLING BASE | 1 | |
| SM6061002TP | SCREW M6 L=10 | 2 | |
| 40086711 | SORENOID_PIN | 1 | |
| SS6110710TP | SCREW 11/64-40 L=6.5 | 1 | |
| RE0500000K0 | E-RING | 1 | |
| 10618304 | WASHER | 2 | |
| 40086634 | CLUTCH_PLATE | 1 | |
| 40086635 | CLUTCH_SHAFT | 1 | |
| SM8060812TP | SCREW M6 L=8 | 1 | |
| 40086622 | THREAD_TRIMMER_SHAFT | 1 | |
| 31256803 | SPRING | 1 | |
| WP0841600SD | WASHER M8 | 1 | |
| RE0700000K0 | E-RING 7 | 1 | |
| B111680400 | RUBBER WASHER | 1 | |
| 40095843 | ASSY CAM FOLLOWER | 1 | |
| 40086624 | CAM_FOLLOWER_ASM. | 1 | |
| SM80606A2TP | SCREW M6 L=6 | 2 | |
| 40086748 | ROLLER SHAFT | 1 | |
| 40015671 | CAM ROLLER | 1 | |
| NM6040001SP | NUT M4X0.7 | 2 | |
| 40086623 | STOPPER_SCREW | 1 |
THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40050585 KNIFE UNIT 1 2 11040052 MOVING KNIFE ASM. * ☆ 1 3 40044189 THREAD_GUIDE_FOR_KNIFE * ☆ 1 4 22947907 KNIFE MOUNTING BASE * 1 5 11040409 MOVING KNIFE HINGE SCREW * 1 6 22948202 FORKED BASE FOR KNIFE * 1 7 D2406555D0H COUNTER KNIFE * ☆ 1 8 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 9 SS2060210SP SCREW 3/32-56 L=2.3 * 2 10 SS4080620TP SCREW 1/8-44 L=6 * 1 11 SM4041055SP SCREW 1 12 40036998 ASSY_PICKER_ARM * 1 13 40061215 PICKER ARM 1 14 40036997 ASSY_PICKER * ☆ 1 15 SS6090670TP SCREW 9/64-40 L=6 * 2 16 40029398 PICKER SPRING 1 17 SD0641456TP SHOULDER SCREW D=6.35 H=14.5 1 18 40086746 ASSY_THREAD_TRIM_SOLENOID 1 19 40089263 THREAD TRIMMER SOLENOID * 1 20 11043304 SOLENOID RUBBER * 1 21 NS6660410SH NUT * 1 22 NS6660430SP NUT 1/4-40 * 1 23 HK03464000B PIN CONTACT * 2 24 NM6040000SN NUT M4 * 2 25 WP0430800SC WASHER M4 * 2 26 40089672 SPRING * 1 27 40086727 SOLEOID INSTALLING BASE * 1 28 SM6061002TP SCREW M6 L=10 2 29 40086711 SORENOID_PIN 1 30 SS6110710TP SCREW 11/64-40 L=6.5 1 31 RE0500000K0 E-RING 1 32 10618304 WASHER 2 33 40086634 CLUTCH_PLATE 1 34 40086635 CLUTCH_SHAFT 1 35 SM8060812TP SCREW M6 L=8 1 36 40086622 THREAD_TRIMMER_SHAFT 1 37 31256803 SPRING 1 38 WP0841600SD WASHER M8 1 39 RE0700000K0 E-RING 7 1 40 B111680400 RUBBER WASHER 1 41 40095843 ASSY CAM FOLLOWER 1 42 40086624 CAM_FOLLOWER_ASM. * 1 43 SM80606A2TP SCREW M6 L=6 * 2 44 40086748 ROLLER SHAFT 1 45 40015671 CAM ROLLER 1 46 NM6040001SP NUT M4X0.7 2 47 40086623 STOPPER_SCREW 1 jintex.in
Page 27 — THREAD TRIMMER COMPONENTS
THREAD TRIMMER COMPONENTS 77 55 58 57 77 56 79 67 68 62 78 63 66 65 64 70 69 41 79 42 78 46 36 43 45 53 54 44 47 39 38 48 37 49 49 51 83 82 52 50 74 31 32 72 76 75 73 33 35 34 18 19 27 26 20 21 22 23 25 24 32 29 81 30 28 Jintex.in
Page 28 — THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40086636 | CAM_FOLLOWER_STOPPER | |
| 49 | SM6061010TP | SCREW M6 L=10 | |
| 50 | 40095870 | THREAD TRIMMER STOPPER ASM. | |
| 51 | B1116210D00 | STOPPER RUBBER | |
| 52 | SM6040800SP | SCREW | |
| 53 | 40086747 | THREAD TRIMMER CAM | |
| 54 | SM80608A2TP | SCREW M6 L=8 | |
| 55 | 40086708 | CONNECTING_ROD_ASM. | |
| 56 | 40136701 | ROD_END | |
| 57 | NM6050001SC | NUT M5 | |
| 58 | 40086709 | CONNECTING_BAR | |
| 59 | 26226209 | SPRING | |
| 60 | 40086621 | SPRING_RACK | |
| 61 | SM4050655SP | SCREW M5 L=6 | |
| 62 | 40086631 | THREAD_TRIMMER_LINK_A | |
| 63 | 40086632 | THREAD_TRIMMER_LINK_B | |
| 64 | 40086633 | SHOULDER_SCREW | |
| 65 | SS7110740TP | SCREW 11/64-40 L=7 | |
| 66 | WP0450801SP | WASHER | |
| 67 | SM8061050TP | SCREW | |
| 68 | SM8061010TP | SCREW | |
| 69 | SD0640321SP | HINGE SCREW D=6.35 H=3.2 | |
| 70 | 40086628 | MOVING_KNIFE_LINK | |
| 71 | SD0640631TP | HINGE SCREW D=6.35 H=6.3 | |
| 72 | 40086637 | PICKER_LINK_ASM. | |
| 73 | SD0630275SP | HINGE SCREW D=6.35 H=2.7 | |
| 74 | 22950000 | PICKER LINK PIN | |
| 75 | NS6150310SP | NUT 15/64-28 | |
| 76 | WP0621016SH | WASHER | |
| 77 | SD0500701TP | SHOULDER SCREW | |
| 78 | NS6110310SP | NUT 11/64-40 | |
| 79 | 40086712 | CONNECTING ROD FELT | |
| 80 | 40090099 | WASHER | |
| 81 | WP0621016SD | WASHER 6.2X13X1 | |
| 82 | 40095218 | THREAD TRIMMER STOPPER SPRING | |
| 83 | 40095873 | THREAD TRIMMER STOPPER BUSH |
THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40086636 CAM_FOLLOWER_STOPPER 1 49 SM6061010TP SCREW M6 L=10 2 50 40095870 THREAD TRIMMER STOPPER ASM. 1 51 B1116210D00 STOPPER RUBBER 1 52 SM6040800SP SCREW 2 53 40086747 THREAD TRIMMER CAM 1 54 SM80608A2TP SCREW M6 L=8 2 55 40086708 CONNECTING_ROD_ASM. 1 56 40136701 ROD_END * 2 57 NM6050001SC NUT M5 * 2 58 40086709 CONNECTING_BAR * 1 59 26226209 SPRING 1 60 40086621 SPRING_RACK 1 61 SM4050655SP SCREW M5 L=6 1 62 40086631 THREAD_TRIMMER_LINK_A 1 63 40086632 THREAD_TRIMMER_LINK_B 1 64 40086633 SHOULDER_SCREW 1 65 SS7110740TP SCREW 11/64-40 L=7 1 66 WP0450801SP WASHER 1 67 SM8061050TP SCREW 1 68 SM8061010TP SCREW 1 69 SD0640321SP HINGE SCREW D=6.35 H=3.2 1 70 40086628 MOVING_KNIFE_LINK 1 71 SD0640631TP HINGE SCREW D=6.35 H=6.3 1 72 40086637 PICKER_LINK_ASM. 1 73 SD0630275SP HINGE SCREW D=6.35 H=2.7 1 74 22950000 PICKER LINK PIN 1 75 NS6150310SP NUT 15/64-28 1 76 WP0621016SH WASHER 1 77 SD0500701TP SHOULDER SCREW 2 78 NS6110310SP NUT 11/64-40 2 79 40086712 CONNECTING ROD FELT 2 80 40090099 WASHER 1 81 WP0621016SD WASHER 6.2X13X1 2 82 40095218 THREAD TRIMMER STOPPER SPRING 1 83 40095873 THREAD TRIMMER STOPPER BUSH 1 jintex.in
Page 29 — OIL LUBRICATION COMPONENTS
OIL LUBRICATION COMPONENTS
Page 30 — OIL LUBRICATION COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40082059 | GEAR BOX COVER ASM. | |
| 2 | 40135639 | GEAR_BOX_COVER | |
| 3 | 40034246 | OIL_SIGHT_WINDOW | |
| 4 | RO195240100 | RUBBER RING | |
| 5 | 13171004 | DRAIN SCREW | |
| 6 | 13170105 | RUBBER RING | |
| 7 | 23629256 | OIL WICK SUPPORT ASM. | |
| 8 | 23629207 | OIL WICK | |
| 9 | CQ250000001 | OIL WICK | |
| 10 | 23629306 | PIPE STOPPER A | |
| 11 | 23629405 | PIPE STOPPER B | |
| 12 | 40037166 | GEAR BOX PACKING | |
| 13 | 40135640 | MAGNET_HOLDER | |
| 14 | SQ2050453MZ | CONNECTING SCREW | |
| 15 | 40086648 | FLOATER ASM. | |
| 16 | RO068190100 | RUBBER RING | |
| 17 | 23630007 | TUBE | |
| 18 | 23630007 | TUBE | |
| 19 | 23630007 | TUBE | |
| 20 | CQ200000001 | OIL WICK | |
| 21 | 23630106 | TUBE B | |
| 22 | 23630106 | TUBE B | |
| 23 | 40075404 | FACE FELT ASM | |
| 24 | 22925101 | OIL FELT PRESSER | |
| 25 | RO098240100 | RUBBER RING | |
| 26 | RO172180100 | RUBBER RING | |
| 27 | SL6061292TN | SCREW | |
| 28 | SM6051402TP | SCREW M5X0.8 L=14 | |
| 29 | SM5040655SN | SCREW | |
| 30 | 40013595 | OIL_EXIT_CAP | |
| 31 | 40098329 | OIL_TANK | |
| 32 | 40086646 | FLOATER_CASE_ASM. | |
| 33 | 40086647 | FLOATER_CASE | |
| 34 | 23630403 | OIL FILTER | |
| 35 | 23630502 | OIL FILTER STOPPER | |
| 36 | 23628902 | PLUNGER SPRING | |
| 37 | 40038328 | PLUNGER SCREW | |
| 38 | 40037502 | OIL ADJUSTING SCREW | |
| 39 | RO037180100 | RUBBER RING | |
| 40 | 23628803 | PLUNGER | |
| 41 | 40086693 | FROATER_CASE_GUIDE | |
| 42 | SL6040892TN | BOLT | |
| 43 | SL6051492TN | BOLT | |
| 44 | B8228125000 | OIL RESERVOIR MAGNET | |
| 45 | 40149785 | ASSY_FLOATER_SIGHT_WINDOW_B | |
| 46 | 40000344 | LUBRICATING INLET CAP | |
| 47 | RO048190100 | RUBBER RING |
OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40082059 GEAR BOX COVER ASM. 1 2 40135639 GEAR_BOX_COVER * 1 3 40034246 OIL_SIGHT_WINDOW * 1 4 RO195240100 RUBBER RING * 1 5 13171004 DRAIN SCREW * 1 6 13170105 RUBBER RING * 1 7 23629256 OIL WICK SUPPORT ASM. 1 8 23629207 OIL WICK * 1 9 CQ250000001 OIL WICK 0.25 10 23629306 PIPE STOPPER A 3 11 23629405 PIPE STOPPER B 4 12 40037166 GEAR BOX PACKING 1 13 40135640 MAGNET_HOLDER 1 14 SQ2050453MZ CONNECTING SCREW 2 15 40086648 FLOATER ASM. 1 16 RO068190100 RUBBER RING 1 17 23630007 TUBE 0.57 18 23630007 TUBE 0.08 19 23630007 TUBE 0.11 20 CQ200000001 OIL WICK 0.75 21 23630106 TUBE B 0.165 22 23630106 TUBE B 0.2 23 40075404 FACE FELT ASM 1 24 22925101 OIL FELT PRESSER 1 25 RO098240100 RUBBER RING 1 26 RO172180100 RUBBER RING 1 27 SL6061292TN SCREW 3 28 SM6051402TP SCREW M5X0.8 L=14 9 29 SM5040655SN SCREW 1 30 40013595 OIL_EXIT_CAP 1 31 40098329 OIL_TANK 1 32 40086646 FLOATER_CASE_ASM. 1 33 40086647 FLOATER_CASE * 1 34 23630403 OIL FILTER * 1 35 23630502 OIL FILTER STOPPER * 1 36 23628902 PLUNGER SPRING 1 37 40038328 PLUNGER SCREW 1 38 40037502 OIL ADJUSTING SCREW 1 39 RO037180100 RUBBER RING 1 40 23628803 PLUNGER 1 41 40086693 FROATER_CASE_GUIDE 1 42 SL6040892TN BOLT 1 43 SL6051492TN BOLT 1 44 B8228125000 OIL RESERVOIR MAGNET 2 45 40149785 ASSY_FLOATER_SIGHT_WINDOW_B 1 46 40000344 LUBRICATING INLET CAP * 1 47 RO048190100 RUBBER RING * 1 jintex.in
Page 40 — UNDER COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40089665 | UNDER COVER AH ASM. | ||
| 40062321 | UNDER COVER A ASM. | ||
| 40089671 | UNDER COVER BH ASM. | ||
| 40062323 | UNDER COVER B ASM. | ||
| 23639008 | UNDER COVER | ||
| 22932008 | RUBBER CUSHION | ||
| B1116210D00 | FRAME SUPPORT RUBBER | ||
| B1116210D00 | FRAME SUPPORT RUBBER | ||
| 23639156 | BRACKET ASM. | ||
| 23639107 | BRACKET | ||
| NM60600001SE | NUT M6 | ||
| SM8063012TR | SCREW M6 L=30 | ||
| 23639206 | CONNECTING ROT | ||
| 23639305 | KNEE PRESS ROD | ||
| 23639404 | SHAFT | ||
| 23639503 | SPRING | ||
| 23639602 | CONNECTING ROD | ||
| WP0650876SD | WASHER 6.5X13X0.8 | ||
| 22932453 | BRACKET ASM. | ||
| 22932404 | BRACKET | ||
| SM9062053SR | SCREW M6 L=20 | ||
| NS6150310SP | NUT 15/64-28 | ||
| RE100000K0 | E-RING 10 | ||
| RE100000K0 | E-RING 10 | ||
| SD0720331SP | HINGE SCREW D=7.24 H=3.3 | ||
| SM9061853SR | SCREW M6 L=17.5 | ||
| SM9061853SR | SCREW M6 L=17.5 | ||
| 22934251 | KNEE PAD PLATE ASM. | ||
| 22934202 | KNEE PAD PLATE | ||
| 22934301 | KNEE PAD PLATE SUPPORT | ||
| 22934400 | KNEE PAD PLATE RUBBER | ||
| 22934509 | KNEE PAD PLATE COVER | ||
| 22934608 | KNEE PAD UPRIGHT SHAFT | ||
| SM9061203SE | SCREW M6 L=12 |
UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089665 UNDER COVER AH ASM. FOR DDL-9000B-SH 1 2 40062321 UNDER COVER A ASM. EXCEPT DDL-9000B-SH 1 3 40089671 UNDER COVER BH ASM. FOR DDL-9000B-SH 1 4 40062323 UNDER COVER B ASM. EXCEPT DDL-9000B-SH 1 5 23639008 UNDER COVER 1 6 22932008 RUBBER CUSHION FOR DDL-9000B-SH 2 7 B1116210D00 FRAME SUPPORT RUBBER EXCEPT DDL-9000B-SH 2 8 B1116210D00 FRAME SUPPORT RUBBER 2 9 23639156 BRACKET ASM. 1 10 23639107 BRACKET 1 11 NM60600001SE NUT M6 2 12 SM8063012TR SCREW M6 L=30 2 13 23639206 CONNECTING ROT 1 14 23639305 KNEE PRESS ROD 1 15 23639404 SHAFT 1 16 23639503 SPRING 1 17 23639602 CONNECTING ROD 1 18 WP0650876SD WASHER 6.5X13X0.8 2 19 22932453 BRACKET ASM. 1 20 22932404 BRACKET 1 21 SM9062053SR SCREW M6 L=20 2 22 NS6150310SP NUT 15/64-28 2 23 RE100000K0 E-RING 10 1 24 RE100000K0 E-RING 10 1 25 SD0720331SP HINGE SCREW D=7.24 H=3.3 2 26 SM9061853SR SCREW M6 L=17.5 1 27 SM9061853SR SCREW M6 L=17.5 1 28 22934251 KNEE PAD PLATE ASM. 1 29 22934202 KNEE PAD PLATE 1 30 22934301 KNEE PAD PLATE SUPPORT 1 31 22934400 KNEE PAD PLATE RUBBER 1 32 22934509 KNEE PAD PLATE COVER 1 33 22934608 KNEE PAD UPRIGHT SHAFT 1 34 SM9061203SE SCREW M6 L=12 1
Page 41 — ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 5 | SCREW DRIVER | |
| 6 | 6 | SCREW DRIVER | |
| 7 | 7 | SCREW DRIVER | |
| 8 | 8 | SCREW DRIVER | |
| 9 | 9 | SCREW DRIVER | |
| 10 | 10 | ALLEN WRENCH | |
| 11 | 11 | SCREW DRIVER | |
| 12 | 12 | NEEDLE | |
| 13 | 13 | NEEDLE | |
| 14 | 14 | NEEDLE PLATE | |
| 15 | 15 | BOBBIN CASE | |
| 16 | 16 | PRESSER FOOT | |
| 17 | 17 | PRESSER FOOT | |
| 18 | 18 | SCREW | |
| 19 | 19 | PRESSER FOOT | |
| 20 | 20 | OIL CAN | |
| 21 | 21 | NEEDLE | |
| 22 | 22 | NEEDLE | |
| 23 | 23 | NEEDLE | |
| 24 | 24 | NEEDLE | |
| 25 | 25 | NEEDLE | |
| 26 | 26 | NEEDLE | |
| 27 | 27 | NEEDLE | |
| 28 | 28 | COVER | |
| 29 | 29 | MANUAL | |
| 30 | 30 | MANUAL | |
| 31 | 31 | BOBBIN | |
| 32 | 32 | BOBBIN | |
| 33 | 33 | OIL BOTTLE |
ACCESSORIE PART COMPONENTS 1~4 5 9 10 8 7 6 11 12-13 14 16 19 21~27 17 18 15 31 28 JUKI 29 30 20 33 32 jintex.in
Page 42 — ACCESSORIE PART COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40089663 | ACCESSORIE BAG ASM. | ||
| 40091140 | ACCESSORIE BAG AK ASM. | ||
| 40099737 | ACCESSORIE BAG ASM. 2 | ||
| 40099737 | ACCESSORIE BAG AK ASM. 2 | ||
| 22932800 | ACCESSORIE BAG | ||
| 22933204 | SCREW DRIVER (SMALL) | ||
| 22502504 | THREAD GUIDE BAR | ||
| 23639701 | KNEE LIFTER PRESSER ROD | ||
| EA9500B0100 | CABLE BAND | ||
| 40055591 | HEXAGONAL WRENCH KYE | ||
| 22933105 | SCREW DRIVER (MIDDLE) | ||
| 22931604 | FRAME SUPPORT BAR | ||
| 40024081 | HEAD SUPPORT ROD | ||
| 22958052 | RUBBER HINGE ASM. | ||
| 22926505 | WASHER | ||
| 22926000 | RUBBER CUSHION | ||
| 22958003 | FRAME BUBBER CUSHION | ||
| 22926208 | NAIL | ||
| 22926356 | HINGE COMPL. | ||
| B91210120A0 | OILER ASM. | ||
| MDB100B1100 | NEEDLE DBX1 #11 | ||
| MDB100B0900 | NEEDLE DBX1 #9 | ||
| MDB100B2100 | NEEDLE DBX1 #21 | ||
| MDB100B1400 | NEEDLE DBX1 #14 | ||
| MC200501300 | NEEDLE 134 NM130 | ||
| MC200500650 | NEEDLE 134 NM65 | ||
| MC200500750 | NEEDLE 134 NM75 | ||
| 40135803 | HEAD COVER | ||
| 40089323 | DDL-9000B SETUP DOCUMENT | ||
| CM600100201 | WEEE INFORMATION SHEET | ||
| B9117012000 | BOBBIN | ||
| 22964001 | BOBBIN A | ||
| 40102087 | JUKI MACHINE OIL 7 |
ACCESSORIE PART COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089663 ACCESSORIE BAG ASM. EXCEPT TYPE AK 1 2 40091140 ACCESSORIE BAG AK ASM. TYPE AK 1 3 40099737 ACCESSORIE BAG ASM. 2 FOR CHINA (EXCEPT TYPE AK) 1 4 40099737 ACCESSORIE BAG AK ASM. 2 FOR CHINA (TYPE AK) 1 5 22932800 ACCESSORIE BAG * 1 6 22933204 SCREW DRIVER (SMALL) EXCEPT CHINA * 1 7 22502504 THREAD GUIDE BAR * 1 8 23639701 KNEE LIFTER PRESSER ROD * 1 9 EA9500B0100 CABLE BAND * 1 10 40055591 HEXAGONAL WRENCH KYE * 1 11 22933105 SCREW DRIVER (MIDDLE) EXCEPT CHINA * 1 12 22931604 FRAME SUPPORT BAR EXCEPT TYPE AK * 1 13 40024081 HEAD SUPPORT ROD TYPE AK * 1 14 22958052 RUBBER HINGE ASM. * 1 15 22926505 WASHER * 2 16 22926000 RUBBER CUSHION * 2 17 22958003 FRAME BUBBER CUSHION * 2 18 22926208 NAIL * 8 19 22926356 HINGE COMPL. * 2 20 B91210120A0 OILER ASM. 1 21 MDB100B1100 NEEDLE DBX1 #11 VARIOUS NOS.FOR DESTINATIONS 1 22 MDB100B0900 NEEDLE DBX1 #9 VARIOUS NOS.FOR DESTINATIONS 1 23 MDB100B2100 NEEDLE DBX1 #21 VARIOUS NOS.FOR DESTINATIONS 1 24 MDB100B1400 NEEDLE DBX1 #14 VARIOUS NOS.FOR DESTINATIONS 1 25 MC200501300 NEEDLE 134 NM130 VARIOUS NOS.FOR DESTINATIONS 1 26 MC200500650 NEEDLE 134 NM65 VARIOUS NOS.FOR DESTINATIONS 1 27 MC200500750 NEEDLE 134 NM75 VARIOUS NOS.FOR DESTINATIONS 1 28 40135803 HEAD COVER 1 29 40089323 DDL-9000B SETUP DOCUMENT EXCEPT CHINA 1 30 CM600100201 WEEE INFORMATION SHEET VARIOUS NOS.FOR DESTINATIONS 1 31 B9117012000 BOBBIN VARIOUS NOS.FOR DESTINATIONS 1 32 22964001 BOBBIN A VARIOUS NOS.FOR DESTINATIONS 1 33 40102087 JUKI MACHINE OIL 7 EXCEPT CHINA 1
Page 43 — EXCLUSIVE PARTS DDL-9000B DS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | CYLINDER | ||
| 2 | SCREW | ||
| 3 | DRY | ||
| 4-5 | TUBE | ||
| 6 | CASE | ||
| 7 | BOBBIN CASE | ||
| 8~10 | BOBBIN WINDER PARTS | ||
| 11 | BOBBIN WINDER PULLEY | ||
| 12 | BOBBIN WINDER SPINDLE | ||
| 13 | BRACKET | ||
| 14 | BRACKET | ||
| 15 | SCREW | ||
| 16 | SCREW | ||
| 17 | SPRING | ||
| 18 | LEVER | ||
| 19 | BRACKET | ||
| 20 | SCREW | ||
| 21 | BRACKET | ||
| 22 | SCREW | ||
| 23 | GREASE TUBE | ||
| 24 | WIRE HARNESS |
EXCLUSIVE PARTS DDL-9000B DS 1 2 4-5 3 DRY 13 16 14 15 18 22 21 20 17 19 24 23 6 7 8~10 11 12 jintex.in
Page 44 — EXCLUSIVE PARTS DDL-9000B DS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40086605 | NEEDLE_BAR_LOWER_METAL_MD | 1 | |
| SM4050501SC | SCREW M5X0.8 L=5 | 1 | |
| 40037146 | FLOATER SIGHT WINDOW D | 1 | |
| 40086604 | NEEDLE_BAR_D (B) | ||
| 40086602 | NEEDLE_BAR_D (A) | ||
| 40089274 | HOOK_SHAFT_FRONT_BEARING_COMPL. | ||
| SS6110420TP | SCREW 11/64-40 L=4.8 | ||
| 22890404 | RP HOOK C | ||
| 22890206 | RP HOOK | ||
| 22890305 | RP HOOK S | ||
| 22964001 | BOBBIN | ||
| 22896252 | BOBBIN CASE ASM. | ||
| 40050586 | KNIFE UNIT D | ||
| 22895908 | COUNTER KNIFE | ||
| SS2060210SP | SCREW 3/32-56 L=2.3 | ||
| SS4080620TP | SCREW 1/8-44 L=6 | ||
| 11040052 | MOVING KNIFE ASM. | ||
| 40050588 | THREAD GUIDE FOR KNIFE D | ||
| 22947907 | KNIFE MOUNTING BASE | ||
| 11040409 | MOVING KNIFE HINGE SCREW | ||
| 22896005 | FORKED BASE FOR KNIFE | ||
| SD0460703TP | HINGE SCREW D=4.6 H=7 | ||
| 40006323 | JUki GREASE A TUBE | ||
| 40050581 | JOINT_CABLE_ASM. |
EXCLUSIVE PARTS DDL-9000B DS No. Parts No. Parts name Remarks Level Cons Qty 1 40086605 NEEDLE_BAR_LOWER_METAL_MD 1 2 SM4050501SC SCREW M5X0.8 L=5 1 3 40037146 FLOATER SIGHT WINDOW D 1 4 40086604 NEEDLE_BAR_D (B) FOR DDL-9000B-DS BB 1 5 40086602 NEEDLE_BAR_D (A) FOR DDL-9000B-DS AA,EE,GG 1 6 40089274 HOOK_SHAFT_FRONT_BEARING_COMPL. 1 7 SS6110420TP SCREW 11/64-40 L=4.8 * 2 8 22890404 RP HOOK C FOR DDL-9000B-DS BB ☆ 1 9 22890206 RP HOOK FOR DDL-9000B-DS EE,GG ☆ 1 10 22890305 RP HOOK S FOR DDL-9000B-DS AA ☆ 1 11 22964001 BOBBIN ☆ 1 12 22896252 BOBBIN CASE ASM. ☆ 1 13 40050586 KNIFE UNIT D 1 14 22895908 COUNTER KNIFE * ☆ 1 15 SS2060210SP SCREW 3/32-56 L=2.3 * 1 16 SS4080620TP SCREW 1/8-44 L=6 * 2 17 11040052 MOVING KNIFE ASM. * ☆ 1 18 40050588 THREAD GUIDE FOR KNIFE D * ☆ 1 19 22947907 KNIFE MOUNTING BASE * 1 20 11040409 MOVING KNIFE HINGE SCREW * 1 21 22896005 FORKED BASE FOR KNIFE * 1 22 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 23 40006323 JUki GREASE A TUBE FOR OPTIONAL PARTS 1 24 40050581 JOINT_CABLE_ASM. 1
Page 45 — EXCLUSIVE PARTS DDL-9000B MS,MA
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Needle Plate | ||
| 2 | Spring | ||
| 3 | Pin | ||
| 4 | Feed Dog | ||
| 5 | Presser Foot | ||
| 8 | Handwheel | ||
| 9 | Link | ||
| 10 | Washer | ||
| 11 | Bobbin Case Holder | ||
| 12 | Spring | ||
| 13 | Washer | ||
| 14 | Bobbin Case | ||
| 15 | Shaft | ||
| 16 | Washer | ||
| 17 | Spring | ||
| 18 | Spring | ||
| 19 | Bobbin Case Holder | ||
| 20 | Thread Guide Post | ||
| 21 | Screw | ||
| 22 | Thread Guide Rod | ||
| 23 | Thread Guide Rod | ||
| 24 | Bobbin Case | ||
| 25 | Grease Tube | ||
| 26 | Screw | ||
| 27 | Button | ||
| 29 | Shaft |
EXCLUSIVE PARTS DDL-9000B MS,MA 1 2 3.6.7 4 5 24-28 9 10 11 12 13 14 15 16 17 18 19 20 21 22-23 25 26 27 29 8 jintex.in
