Parts index — Juki DDL-9000Btap a row to open its page

Page 2 — CONTENTS

Juki DDL-9000B parts on page 2

Ref	Part number	Part name	Qty
	1	MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS
	7	BOBBIN WINDER COMPONENTS
	9	MAIN SHAFT & NEEDLE BAR COMPONENTS
	13	HAND LIFTER & TENSION RELEASE COMPONENTS
	17	FEED ADJUST MECHANISM COMPONENTS
	19	HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS
	23	THREAD TRIMMER COMPONENTS
	27	OIL LUBRICATION COMPONENTS
	31	AUTOMATIC REVERSE FEED COMPONENTS
	33	WIPER COMPONENTS (FOR DDL-9000B-**-WB)
	35	THREAD STAND COMPONENTS
	37	UNDER COVER COMPONENTS
	39	ACCESSORIE PART COMPONENTS
	41	EXCLUSIVE PARTS DDL-9000B DS
	43	EXCLUSIVE PARTS DDL-9000B MS,MA
	45	EXCLUSIVE PARTS DDL-9000B SH
	49	TABLE & STAND COMPONENTS
	51	SPECIAL ORDER PART
	53	LIST FOR INFORMATION OF CHANGE (1)
	54	LIST FOR INFORMATION OF CHANGE (2)
	55	HOW TO MAKE USE OF THIS PARTS LIST

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000B parts on page 4

Ref	Part number	Part name	Qty
	40037158	SIDE PLATE	1
	40041161	FACE PLATE	1
	40052819	FACE PLATE PACKING	1
	23600505	THREAD TAKE-UP LEVER COVER	1
	SM4051055SP	SCREW	1
	40086713	BED,STUD,A	1
	SM6061002TP	SCREW M6 L=10	2
	22951552	GROUND WIRE ASM.	1
	SM4050855SP	SCREW	1
	EA9500B0100	CABLE BAND
	40094561	SEWING MACHINE LABEL (EU)
	22901250	SLIDE PLATE ASM.
	22902753	SLIDE PLATE ASM.
	22901201	SLIDE PLATE
	22902704	SLIDE PLATE
	22901300	SLIDE PLATE SPRING
	22901300	SLIDE PLATE SPRING
	SS6060210SP	SCREW 3/32-56 L=1.9
	SM4050855SP	SCREW
	40069110	ATTACHMENT FIXATION SCREW
	22944508	WIRE PRESSER A
	SM4040855SP	SCREW
	CM300200001	ATTENTION SEAL
	40069097	RULER PLATE I
	CM300200003	ATTENTION LABEL
	SM6052502TP	SCREW M5X25
	SM2040955TP	SCREW M4 L=8.5
	SM2040750TP	SCREW M4 L=7.4
	CM301300001	SAFETY LABEL
	22902506	FACE PLATE
	SM4051055SP	SCREW
	SM4051255SP	SCREW M5 L=12
	40086732	PULLEY_COVER
	40086714	BED,STUD,B
	SM6061202TP	SCREW M6 L=12
	SM4040655SP	SCREW M4 L=6
	40035589	RULER PLATE
	40091461	FEED LEVER SPRING HOOK
	TA1250406R0	RUBBER PLUG D=12.5 L=4
	TA1250406R0	RUBBER PLUG D=12.5 L=4
	TA1470704R0	RUBBER PLUG
	NM6040001SP	NUT M4X0.7
	TA1250406R0	RUBBER PLUG D=12.5 L=4
	40114043	FEED ADJUSTING SPRING,PLATE
	40052933	ARM THREAD GUIDE C
	SM80608A2TP	SCREW M6 L=8
	23640006	SHEET

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000B parts on page 6

Ref	Part number	Part name	Qty
	40037488	SHEET	1
	40086639	THREAD_TENSION_DISK_ASM.	1
50	23626005	THREAD TENSION NUT	1
51	22921209	THREAD TENSION POST	1
52	22921407	ROTATION STOPPER	1
53	22921506	THREAD TENSION DISK	2
54	22921605	THREAD TAKE-UP SPRING	1
55	22921704	THREAD TENSION SPRING A	1
56	22921803	DISK STOPPER	1
57	40086640	TENSION_POST_SOCKET_ASM.	1
	SS8090670SP	SCREW 9/64-40 L=5.5	1
	SS6110610TP	SCREW 11/64-40 L=6	1
	22920607	ARM THREAD GUIDE B	1
	22963458	THREAD TENSION ASM.	1
62	22945414	THREAD TENSION POST	1
63	22945604	THREAD TENSION GUIDE	1
64	22963409	THREAD TENSION SPRING	1
65	22945703	THREAD TENSION NUT	1
66	22945802	THREAD TENSION DISK	2
	SM80608A2TP	L=8SCREW M6 L=8	1
	SM5040655SN	SCREW	1
	23626104	ARM THREAD GUIDE A	1
	SM80608A2TP	L=8SCREW M6 L=8	1
	40086659	SAFETY_SWITCH_ASM.	1
72	40086660	SAFETY_SWITCH_BASE	1
73	23638109	SAFETY SWITCH ARM	1
74	23638208	SAFETY SWITCH SPRING	1
75	23638307	SAFETY SWITCH ARM SHAFT	1
76	23638406	SAFETY SWITCH NUT	1
77	40098386	SAFETY_SWITCH_CORD_ASM.	1
78	EA9500B0100	CABLE BAND	1
79	SM4021201SC	SCREW M2 L=12	2
	SM4050655SP	SCREW M5 L=6	1
	22901805	GROUND MARK	1
	23629900	AIR-DISCHARGING	1
	RO080150200	RUBBER RING	1
	23601305	AIR-DISCHARGING CAP	1
	B1109012I0B	THROAT PLATE (I)	1
	11028008	THROAT PLATE	1
	CM600100101	WEEE MARK LABEL S	1
	CM600600101	CHINA ENVIRONMENT LABEL	1
	SM4051055SP	SCREW	2
	WP0550800SP	WASHER 5.5X10X0.8	2
	40091397	CABLE COVER	1
	B1109552000	THROAT PLATE	1
	WP0621016SD	WASHER 6.2X13X1	2
	WP0621016SD	WASHER 6.2X13X1	2

Page 8 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki DDL-9000B parts on page 8

Ref	Part number	Part name	Qty
95	WP0501016SD	WASHER 5X10.5X1	3

Page 10 — BOBBIN WINDER COMPONENTS

Juki DDL-9000B parts on page 10

Ref	Part number	Part name	Qty
1	40023021	BOBBIN WINDER UNIT	1
2	26260109	BTW_BASE	1
3	26260208	BTW_CAM_PLATE	1
4	26260307	BTW_BASE_SHAFT	1
5	26260406	BTW_SHAFT_BASE	1
6	26260505	BTW_CAM_LEVER	1
7	26260604	BTW_WHEEL	1
8	26260802	BTW_BEARING_SPACER	1
9	26261008	BTW_LEVER_SHAFT	1
10	26261206	BTW_SPACER	1
11	26261305	BTW_BEARING	2
12	26261503	BTW_WHEEL_RUBBER	1
13	26261602	BOBBIN_SPRING	1
14	26261701	BTW_SPRING	1
15	40011144	BTW_TORSION_SPRING	1
16	40014837	BTW_SHAFT	1
17	40023022	BTW LEVER	1
18	RC0560711KP	RETAINING RING	1
19	RE040000K0	E-RING 4	1
20	SM5040655SN	SCREW	1
21	SM8040802TP	SCREW M4X8	2
22	SM8050502TP	SCREW M5 L=5	1
23	WP0450826SC	WASHER 4.5X10X0.8	1
24	40088958	BOBBIN THREAD TENSION ASM.	1
25	22921308	THREAD TENSION NUT	1
26	40088959	BOBBIN THREAD TENSION ROD ASM.	1
27	22921407	ROTATION STOPPER	1
28	22921506	THREAD TENSION DISK	2
29	22921704	THREAD TENSION SPRING A	1
30	40037008	THREAD_CUTTER	1
31	SM0050801SC	SCREW	1
32	SM0050801SC	SCREW	3
33	SM4051055SP	SCREW	1

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000B parts on page 12

Ref	Part number	Part name	Qty
	40086597	MAIN_SHAFT	1
	40135904	ASSY_COUNTER WEIGHT	1
	40135916	COUNTER WEIGHT	1
	40004171	COUNTER_WEIGHT_SCREW	1
	SM8081652TP	SCREW M8 L=16	1
	SM80606A2TP	6SCREW M6 L=6	2
	40150011	FRONT_BEARING	1
	SM80608A2TP	SCREW M6 L=8	2
	22906309	NEEDLE BAR THREAD GUIDE	1
	SS7080510TP	SCREW 1/8-44 L=4.5	1
	40089196	AC SERVO MOTOR	1
	40051473	COUPLING ASM.	1
	40051474	COUPLING	1
	SM8081652TP	SCREW M6 L=8	4
	40037007	HAND WHEEL ASM.	1
	40037006	HAND WHEEL	1
	SM80608A2TP	SCREW M6 L=8	2
	40136292	BTW_DRIVING_WHEEL_ASM	1
	40136293	BTW_DRIVING_WHEEL	1
	SM80506A2TP	SCREW M5 L=6	2
	SB120002700	BEARING	1
	40141440	UPPER SPROCKET ASM.	1
	SM80608A2TP	SCREW M6 L=8	2
	40086731	TIMING_BELT_550	1
	23608003	NEEDLE BAR METAL UPPER	1
	40107707	NEEDLE_BAR_METAL_LOWER	1
	22886907	NEEDLE BAR (A)	1
	22887004	NEEDLE BAR (B)	1
	22906457	NEEDLE BAR HOLDER ASM.	1
	22906408	NEEDLE ROD HOLDER	1
	SS6090670TP	SCREW 9/64-40 L=6	1
	40090058	SLIDE BLOCK	1
	23626203	NEEDLE BAR THREAD GUIDE	1
	MDB100B1100	NEEDLE DBX1 #11	1
	MC200500750	NEEDLE 134 NM75	1
	MDB100B1400	NEEDLE DBX1 #14	1
	40135900	THREAD TAKE UP COMPL.	1
	40135905	THREAD_TAKE_UP_ASM._C	1
	40141165	TAKE_UP_CRANK_ASM	1
	40135906	TAKE_UP_CRANK	1
	40143184	TAKE_UP_CRANK_SHAFT	1
	40135907	THREAD_TAKE_UP_PIN	1
	RE0300000K0	E-RING 3	2
	SM80608A2TP	SCREW M6 L=8	2
	TA0850604R0	RUBBER PLUG	2
	40032269	THRUST COLLAR	1
	CS1000881TP	THRUST COLLAR	1

Page 14 — MAIN SHAFT & NEEDLE BAR COMPONENTS

Juki DDL-9000B parts on page 14

Ref	Part number	Part name	Qty
48	SM8050412TP	SCREW M5 L=4	2
49	SL6052592TN	BOLT	4
50	EA9500B0100	CABLE BAND	2
51	TA0850604R0	RUBBER PLUG	1

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000B parts on page 16

Ref	Part number	Part name	Qty
	40136700	PRESSER BAR BUSHING	1
	40086606	PRESSER BAR GUIDE BRACKET ASM.	1
	40086607	PRESSER BAR GUIDE BRACKET	1
	SM6051400SP	SCREW	1
	23609357	LIFTING LEVER CONNECT ROD ASM.	1
	23609456	LIFTING LINK COMPL.	1
	23609605	PLATE	1
	22908008	LIFTING PLATE	1
	SM6040602TP	SCREW M4 L=6	1
	RE0500000K0	E-RING	1
	RE0500000K0	E-RING	1
	23609308	LIFTING LEVER CONNECT ROD	1
	40086760	CONNECTING ROD	1
	23609704	LIFTING LEVER LINK	1
	22907406	PRESSER SPRING	1
	23610207	PRESSER BAR	1
	23610306	PRESSER GUIDE BAR	1
	40037359	PRESSER SPRING REGURATOR ASM.	1
	40037141	PRESSER SPRING REGULATOR	1
	40037144	PRESSER SPRING REGULATOR NUT	1
	40050583	LINK SHAFT	2
	22907802	HAND LIFTER	1
	B152155000	SCREW	1
	22908552	HAND LIFTER CAM ASM.	1
	RO037180100	RUBBER RING	1
	B15240120BA	PRESSER FOOT ASM.	1
	SS7091110TP	SCREW 9/64-40 L=10.5	1
	RE0500000K0	E-RING	3
	22908909	HINGE SCREW	1
	40082078	SHOULDER SCREW D=7.24 H=3.3	1
	NM6060003SE	NUT FOR BRACKET	1
	40036706	ADJUSTING SCREW	1
	WP0621016SD	WASHER 6.2X13X1	1
	22944508	WIRE PRESSER A	2
	SM4040855SP	SCREW	1
	SM4040855SP	SCREW	1
	SM6051402TP	SCREW M5X0.8 L=14	1
	40086643	WIRE HOLDER	1
	40050582	TENSION RELEASE SHAFT	1
	22920300	THREAD RELEASE SUPPORTING PIN	1
	22920409	THREAD RELEASE PIN SPRING	1
	23626351	THREAD TENSION RELEASE WIRE	1
	23626807	TENSION RELEASE RETURN SPRING	1
	NS6620310SP	NUT 3/16-32	2
	RE0500000K0	E-RING	2
	40056622	MINUTE LIFTING DEVICE ASM.	1
	23611106	HAND LIFTER	1

Page 18 — HAND LIFTER & TENSION RELEASE COMPONENTS

Juki DDL-9000B parts on page 18

Ref	Part number	Part name	Qty
48	23610504	STOPPER BASE	1
49	23610652	STOPPER SCREW ASM.	1
50	D5119206K0K	SPACER	2
51	23610702	STOPPER SCREW NUT	1
52	SL6053592TN	BOLT	1
53	RO044240100	RUBBER RING	1
54	B3118552F00	TENSION RELEASING PIN	1
55	WP0501016SD	WASHER 5X10.5X1	1

Page 20 — FEED ADJUST MECHANISM COMPONENTS

Juki DDL-9000B parts on page 20

Ref	Part number	Part name	Qty
	40086735	ADJUSTING_LINK_ASM.	1
	40086695	FEED_ADJUSTING_LINK	1
	40086696	FEED_ADJUSTING_LINK_PIN	2
	SM80506A2TP	SCREW M5 L=6	2
	40086608	ADJUSTING_LINK_FULCRUM_SHAFT	1
	SM80606A2TP	SCREW M6 L=6	1
	40086615	FEED_CHANGING_SHAFT_METAL_A	1
	40086704	FEED_CHANGING_SHAFT_ARM_ASM.	1
	40086705	FEED_CHANGING_SHAFT_ARM	1
	SM6051602TP	SCREW M5X0.8 L=16	1
	22910509	FEED_ADJUSTING LINK PIN	1
	40086706	FEED_CHANGING_SPRING_PIN	1
	40086616	FEED_CHANGING_SHAFT_METAL_B	1
	40086614	FEED_CHANGING_SHAFT	1
	40086738	REVERSE_FEED_LEVER	1
	23613706	FEED_LEVER_SHAFT	1
	40086674	FEED_LEVER_ARM_ASM.	1
	40086675	FEED_LEVER_ARM	1
	SM6051602TP	SCREW M5X0.8 L=16	1
	40086737	FEED_ADJUSTING SPRING	1
	40086739	FEED_LEVER SPRING	1
	40086609	FEED_ADJUSTING_ROD	1
	23630007	TUBE	0.1
	RE0500000K0	E-RING	1
	23612609	FEED CHANGING SHAFT OIL SEAL	1
	SM80608A2TP	SCREW M6 L=8	2
	22952501	BACK LEVER STOPPER	1
	SM6051850TP	SCREW M5 L=18	1
	40141842	FEED REGULATOR SCREW	1
	40123098	FEED_REGULATOR_PIN_SPRING	1
	40161440	FEED_REGULATOR_PIN	1
	40141840	REGULATOR_STOPPER_SPRING	1
	40141838	FEED REGULATOR WASHER	1
	40141841	REGULATOR PIN DIAL	1
	SS6121860SP	SCREW 3/16-28 L=18	1
	40086617	FEED_LEVER_SHAFT_METAL	1
	40086736	RUBBER PLUG	1
	SM80606A2TP	SCREW M6 L=6	1
	23613409	FEED ADJUSTING PIN	1
	40095847	FEED REGULATOR ASM.	1
	SM80606A2TP	SCREW M6 L=6	1
	40122891	FEED_REGULATOR	1
	RO092270200	RUBBER RING	1
	40161441	REGULATOR_PIN_STOPPER	1
	40086613	FEED_REGULATOR_STOPPER_PIN	2
	40006716	THREAD_TRIMMER_SHAFT	1
	SM80606A2TP	SCREW M6 L=6	1

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000B parts on page 22

Ref	Part number	Part name	Qty
	40037192	FEED ROCKER CAM ASM.	1
	23616006	FEED ROCKER CAM	1
	SS8150822TP	SCREW 15/64-28 L=8	2
	40037365	FEED ROCKER ROD ASM.	1
	40026277	FEED ROCKER ROD	1
	22911101	WALKING FOOT PIN C	1
	SS6090620TP	SCREW	1
	40061246	FEED ROCKER ARM ALL ASM.	1
	40058504	FEED ROCKER ARM ASM.	1
	40042079	FEED ROCKER ARM	1
	SS6121610SP	SCREW 3/16-28 L=15.5	1
	SS6090620TP	SCREW	1
	22911002	WALKING FOOT PIN B	1
	23616709	FEED ROCKER SHAFT METAL	1
	40037005	ASSY_FEED_ROCKER_BASE_ARM	1
	40026281	FEED ROCKER BASE ARM	1
	SM6051400SP	SCREW	1
	WP0480856SP	WASHER 4.8X8.4X0.8	1
	SM4050855SP	SCREW	1
	23616204	FEED ROCKER CAM PLATE	1
	SS6090670TP	SCREW 9/64-40 L=6	2
	22904155	MAIN SHAFT THRUST COLLAR ASM.	2
	22904106	MAIN SHAFT THRUST COLLAR	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	B1613012I00	FEED DOG I
	23614506	FEED DOG A
	SS4080620TP	SCREW 1/8-44 L=6	2
	B412352200A	NEEDLE BEARING
	B412352200B	NEEDLE ROLLAR
	B412352200C	NEEDLE ROLLAR
	40026278	CONNECTING LINK A	2
	23616402	CONNECTING LINK B	2
	23616600	FEED ROCKER SHAFT	1
	40086743	BEARING SUPPORT ASM.	1
	SS6110710TP	SCREW 11/64-40 L=6.5	2
	40026282	FEED ROCKER BASE SHAFT	1
	40000391	VERTICAL FEED CAM ASM. 5	1
	40000392	VERTICAL FEED CAM 5	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	40053720	FEED DRIVING BASE ARM ASM.	1
	40026287	FEED DRIVING BASE ARM	1
	SM4040655SP	SCREW M4 L=6	1
	40026288	FEED DRIVING BASE SHAFT	1
	40086757	FEED DRIVING SHAFT	1
	40086690	FEED_DRIVING_BEARING_SUPPORT	1
	SS8661012TP	SCREW	2
	23618101	FEED DRIVING CAM THRUST BUSH	2

Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Juki DDL-9000B parts on page 24

Ref	Part number	Part name	Qty
48	SB32000060A	BEARING	1
49	SB32000060B	BEARING	1
50	SB32000060C	BEARING	1
51	SB117001200	BEARING	1
52	23618309	FEED DRIVING CAM PLATE	1
53	SS6090670TP	SCREW 9/64-40 L=6	2
54	23620503	GEAR (LARGE)	1
55	SS8661012TP	SCREW	2
56	23620008	HOOK SHAFT	1
57	23620156	HOOK SHAFT METAL COMPL.	1
58	40145927	OIL SEAL	2
59	22916555	OIL SEAL SCREW ASM.	1
60	22916506	SET SCREW	1
61	11015906	OIL WICK	1
62	23620701	GEAR (SMALL)(A)	1
63	23620800	GEAR (SMALL)(B)	1
64	23620909	GEAR (SMALL)(C)	1
65	23621006	GEAR (SMALL)(D)	1
66	SS8661012TP	SCREW	2
67	11038759	BOBBIN CASE ASM.	1
68	11141355	HOOK ASM.	1
69	11038650	HOOK ASM.	1
70	40086740	OIL SEAL	1
71	40030786	FEED BASE COMPL.	1
72	22964001	BOBBIN A	1
73	40086744	HOOK DRIVING SHAFT OIL SEAL	1
74	23620404	HOOK SHAFT REAR METAL	1
75	40089607	INNER_HOOK_HOLDER	1
76	SM4051055SP	SCREW	1
77	40086618	FEED_SHAFT_REAR_METAL	1
78	40086741	OIL SEAL	1
79	40086742	OIL SEAL	1
80	SB120001800	BEARING	1
81	40141443	UNDER SPROCKET ASM.	1
82	SM80608A2TP	SCREW M6 L=8	2
83	RC1200001KP	C-SHAPED SNAP RING	1
84	11079506	FRONT SCREW	1
85	RO036080200	RUBBER RING	1

Page 26 — THREAD TRIMMER COMPONENTS

Juki DDL-9000B parts on page 26

Ref	Part number	Part name	Qty
	40050585	KNIFE UNIT	1
	11040052	MOVING KNIFE ASM.	1
	40044189	THREAD_GUIDE_FOR_KNIFE	1
	22947907	KNIFE MOUNTING BASE	1
	11040409	MOVING KNIFE HINGE SCREW	1
	22948202	FORKED BASE FOR KNIFE	1
	D2406555D0H	COUNTER KNIFE	1
	SD0460703TP	HINGE SCREW D=4.6 H=7	1
	SS2060210SP	SCREW 3/32-56 L=2.3	2
	SS4080620TP	SCREW 1/8-44 L=6	1
	SM4041055SP	SCREW	1
	40036998	ASSY_PICKER_ARM	1
	40061215	PICKER ARM	1
	40036997	ASSY_PICKER	1
	SS6090670TP	SCREW 9/64-40 L=6	2
	40029398	PICKER SPRING	1
	SD0641456TP	SHOULDER SCREW D=6.35 H=14.5	1
	40086746	ASSY_THREAD_TRIM_SOLENOID	1
	40089263	THREAD TRIMMER SOLENOID	1
	11043304	SOLENOID RUBBER	1
	NS6660410SH	NUT	1
	NS6660430SP	NUT 1/4-40	1
	HK03464000B	PIN CONTACT	2
	NM6040000SN	NUT M4	2
	WP0430800SC	WASHER M4	2
	40089672	SPRING	1
	40086727	SOLEOID INSTALLING BASE	1
	SM6061002TP	SCREW M6 L=10	2
	40086711	SORENOID_PIN	1
	SS6110710TP	SCREW 11/64-40 L=6.5	1
	RE0500000K0	E-RING	1
	10618304	WASHER	2
	40086634	CLUTCH_PLATE	1
	40086635	CLUTCH_SHAFT	1
	SM8060812TP	SCREW M6 L=8	1
	40086622	THREAD_TRIMMER_SHAFT	1
	31256803	SPRING	1
	WP0841600SD	WASHER M8	1
	RE0700000K0	E-RING 7	1
	B111680400	RUBBER WASHER	1
	40095843	ASSY CAM FOLLOWER	1
	40086624	CAM_FOLLOWER_ASM.	1
	SM80606A2TP	SCREW M6 L=6	2
	40086748	ROLLER SHAFT	1
	40015671	CAM ROLLER	1
	NM6040001SP	NUT M4X0.7	2
	40086623	STOPPER_SCREW	1

Page 28 — THREAD TRIMMER COMPONENTS

Juki DDL-9000B parts on page 28

Ref	Part number	Part name	Qty
48	40086636	CAM_FOLLOWER_STOPPER
49	SM6061010TP	SCREW M6 L=10
50	40095870	THREAD TRIMMER STOPPER ASM.
51	B1116210D00	STOPPER RUBBER
52	SM6040800SP	SCREW
53	40086747	THREAD TRIMMER CAM
54	SM80608A2TP	SCREW M6 L=8
55	40086708	CONNECTING_ROD_ASM.
56	40136701	ROD_END
57	NM6050001SC	NUT M5
58	40086709	CONNECTING_BAR
59	26226209	SPRING
60	40086621	SPRING_RACK
61	SM4050655SP	SCREW M5 L=6
62	40086631	THREAD_TRIMMER_LINK_A
63	40086632	THREAD_TRIMMER_LINK_B
64	40086633	SHOULDER_SCREW
65	SS7110740TP	SCREW 11/64-40 L=7
66	WP0450801SP	WASHER
67	SM8061050TP	SCREW
68	SM8061010TP	SCREW
69	SD0640321SP	HINGE SCREW D=6.35 H=3.2
70	40086628	MOVING_KNIFE_LINK
71	SD0640631TP	HINGE SCREW D=6.35 H=6.3
72	40086637	PICKER_LINK_ASM.
73	SD0630275SP	HINGE SCREW D=6.35 H=2.7
74	22950000	PICKER LINK PIN
75	NS6150310SP	NUT 15/64-28
76	WP0621016SH	WASHER
77	SD0500701TP	SHOULDER SCREW
78	NS6110310SP	NUT 11/64-40
79	40086712	CONNECTING ROD FELT
80	40090099	WASHER
81	WP0621016SD	WASHER 6.2X13X1
82	40095218	THREAD TRIMMER STOPPER SPRING
83	40095873	THREAD TRIMMER STOPPER BUSH

Page 30 — OIL LUBRICATION COMPONENTS

Juki DDL-9000B parts on page 30

Ref	Part number	Part name	Qty
1	40082059	GEAR BOX COVER ASM.
2	40135639	GEAR_BOX_COVER
3	40034246	OIL_SIGHT_WINDOW
4	RO195240100	RUBBER RING
5	13171004	DRAIN SCREW
6	13170105	RUBBER RING
7	23629256	OIL WICK SUPPORT ASM.
8	23629207	OIL WICK
9	CQ250000001	OIL WICK
10	23629306	PIPE STOPPER A
11	23629405	PIPE STOPPER B
12	40037166	GEAR BOX PACKING
13	40135640	MAGNET_HOLDER
14	SQ2050453MZ	CONNECTING SCREW
15	40086648	FLOATER ASM.
16	RO068190100	RUBBER RING
17	23630007	TUBE
18	23630007	TUBE
19	23630007	TUBE
20	CQ200000001	OIL WICK
21	23630106	TUBE B
22	23630106	TUBE B
23	40075404	FACE FELT ASM
24	22925101	OIL FELT PRESSER
25	RO098240100	RUBBER RING
26	RO172180100	RUBBER RING
27	SL6061292TN	SCREW
28	SM6051402TP	SCREW M5X0.8 L=14
29	SM5040655SN	SCREW
30	40013595	OIL_EXIT_CAP
31	40098329	OIL_TANK
32	40086646	FLOATER_CASE_ASM.
33	40086647	FLOATER_CASE
34	23630403	OIL FILTER
35	23630502	OIL FILTER STOPPER
36	23628902	PLUNGER SPRING
37	40038328	PLUNGER SCREW
38	40037502	OIL ADJUSTING SCREW
39	RO037180100	RUBBER RING
40	23628803	PLUNGER
41	40086693	FROATER_CASE_GUIDE
42	SL6040892TN	BOLT
43	SL6051492TN	BOLT
44	B8228125000	OIL RESERVOIR MAGNET
45	40149785	ASSY_FLOATER_SIGHT_WINDOW_B
46	40000344	LUBRICATING INLET CAP
47	RO048190100	RUBBER RING

Page 31

Juki DDL-9000B parts on page 31

Ref	Part number	Part name	Qty
	1	OIL PAN
	2	GASKET
	3	OIL FILTER BASE
	4	O-RING
	5	OIL FILTER
	6	WASHER
	7	BRACKET
	8	BRACKET
	9	BRACKET
	10	CLAMP
	11	CLAMP
	12	COVER
	13	BRACKET
	14	SCREW
	15	TUBE
	16	WASHER
	17	TUBE
	18	SCREW
	19	SCREW
	20	SPRING
	21	TUBE
	22	TUBE
	23	BRACKET
	24	CLIP
	25	O-RING
	26	O-RING
	27	PLUG
	28	PLUG
	29	BRACKET
	30	NUT
	31	BRACKET
	32	TUBE
	33	TUBE
	34	WASHER
	35	WASHER
	36	SPRING
	37	SPRING
	38	SCREW
	39	WASHER
	40	PLUG
	41	TUBE
	42	PLUG
	43	PLUG
	44	PLUG
	45	BRACKET
	46	BRACKET
	47	O-RING
	48	BRACKET
	49	SCREW
	50	PLUG

Page 32 — OIL LUBRICATION COMPONENTS

Juki DDL-9000B parts on page 32

Ref	Part number	Part name	Qty
48	40086697	FLOATER_SIGHT_WINDOW_B	1
49	SM4040601SC	SCREW M4X0.7 L=6	1
50	WP0501016SD	WASHER 5X10.5X1	9

Page 34 — AUTOMATIC REVERSE FEED COMPONENTS

Juki DDL-9000B parts on page 34

Ref	Part number	Part name	Qty
1	40086750	REVERSE FEED SOLENOID ASM.	1
2	HK03464000B	PIN CONTACT	2
3	40086753	REVERSE FEED SOLENOID PLUNGER	1
4	RE1200000K0	E-RING 12	1
5	D2468555B00	RUBBER PLUNGER	1
6	WP1602616SZ	WASHER 16X24X2.6	1
7	WP0550800SP	WASHER 5.5X10X0.8	3
8	SM4051055SP	SCREW	3
9	WP0551016SH	WASHER 5.5X13X1	1
10	NM6050001SP	NUT M5	2
11	WS0610002KN	SPRING WASHER 6.1X12.2X1.5	1
12	40095844	REVERSE FEED ARM ASM.	1
13	40086698	REVERSE_FEED_ARM	1
14	SM6051602TP	SCREW M5X0.8 L=16	1
15	23631757	REVERSE FEED SWITCH ASM.	1
16	23632102	REVERSE FEED SWITCH BASE GUIDE	1
17	23632359	REVERSE FEED CORD ASM.	1
18	EA9500B0100	CABLE BAND	1
19	SS7110740TP	SCREW 11/64-40 L=7	1
20	23631708	REVERSE FEED SWITCH COVER	1
21	23631807	REVERSE FEED SWITCH SHAFT	1
22	23631906	REVERSE FEED SWITCH SUPPORT	1
23	23632003	REVERSE FEED SWITCH BASE	1
24	SM4051055SP	SCREW	1
25	23632656	OPTION SWITCH ASM.	1
26	23632102	REVERSE FEED SWITCH BASE GUIDE	1
27	23632250	REVERSE FEED CORD ASM.	1
28	EA9500B0100	CABLE BAND	1
29	SS7110740TP	SCREW 11/64-40 L=7	1
30	23631708	REVERSE FEED SWITCH COVER	1
31	23631807	REVERSE FEED SWITCH SHAFT	1
32	23631906	REVERSE FEED SWITCH SUPPORT	1
33	23632607	OPTION SWITCH BASE	1
34	40086655	REVERSE_FEED_CONNECTION_LINK	1
35	40086699	REVERSE_FEED_LINK_PIN	1
36	SM8480652TP	SCREW	1
37	40086759	BACK_SOLENOID_PLUNGER_PIN	1

Page 36 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

Juki DDL-9000B parts on page 36

Ref	Part number	Part name	Qty
	40086676	WIPER ASM.	1
	40077853	WIPER BASE ASM.	1
	40086723	WIPER LINK B	1
	40086724	WIPER SHAFT ASM.	1
	40095175	WIPER_SOLENOID_ASM.	1
	40089264	WIPER SOLENOID	1
	HK03464000B	PIN CONTACT	2
	HW500070000	2-CORE CABTYRE CORD	1.3
	22956106	WIPER LINK A	1
	22956205	WIPER HINGE SCREW COLLAR	1
	22956304	WIPER SPRING	1
	22956809	WIPER COLLAR	1
	22956908	WIPER LINK B HINGE SCREW	1
	22957005	WIPER	1
	22957203	WIPER LINK COLLAR	1
	40077852	WIPER SOLENOID SHAFT	1
	40086678	WIPER_SW_RUBBER	1
	22955900	WIPER RUBBER A	1
	40086717	FELT_B	1
	22956007	WIPER RUBBER B	1
	NS6090310SP	NUT 9/64-40	1
	NS6110310SP	NUT 11/64-40	1
	RC0370411KP	RETAINING RING	1
	RE0500000K0	E-RING	1
	SD0650321TP	HINGE SCREW D=6.5 H=3.2	1
	SL4030631SC	SCREW M3X6	1
	SL4030641SE	SCREW	3
	SS6090540SP	SCREW 9/64-40 L=5.0	1
	40077851	WIPER SOLENOID SHAFT GUIDE	1
	SS4110615SP	SCREW 11/64-40 L=6	2
	40086680	WIPER_STOPPER_RUBBER_HOLDER	1
	40086679	WIPER_STOPPER_RUBBER	1
	WP0661016SP	WASHER	1
	WP0651001SC	WASHER	1
	40086716	FELT_A	1
	22955504	WIPER COVER	1
	SM4051055SP	SCREW	1

Page 38 — THREAD STAND COMPONENTS

Juki DDL-9000B parts on page 38

Ref	Part number	Part name	Qty
	40108402	THRED_STAND_B	1
	40085786	SPOOL REST ARM (LOWER)	1
	40085787	SPOOL REST ARM (UPPER)	1
	40085788	SPOOL REST	2
	40085789	SPOOL REST CUSHION	2
	40085790	SPOOL PIN	2
	40085791	SPOOL RETAINER	2
	40085794	THREAD GUIDE	2
	40085795	THREAD GUIDE BUSHING	2
	40096326	SPOOL REST ARM LOWER SCREW	1
	NM6050001SE	NUT M5	2
	40096327	SPOOL REST ARM UPPER SCREW	1
	NM6050001SE	NUT M5	2
	WS0510002KN	SPRING WASHER M5	2
	WP0531001SC	WASHER M5	2
	40108401	THREAD_STAND_A	1
	40085784	SPOOL REST ROD LOWER	1
	40085785	SPOOL REST ROD UPPER	1
	40085792	SPOOL REST ROD JOINT	1
	40085793	SPOOL REST ROD RUBBER CAP	1
	40096325	SPOOL REST ROD NUT	1
	WP1612616SE	WASHER 16X30X2.6	2
	40085796	SPOOL REST ROD RUBBER CUSHION	2
	SM4051405SE	SCREW M5 L=14	2
	NM6050001SE	NUT M5	2

Page 40 — UNDER COVER COMPONENTS

Juki DDL-9000B parts on page 40

Ref	Part number	Part name	Qty
	40089665	UNDER COVER AH ASM.
	40062321	UNDER COVER A ASM.
	40089671	UNDER COVER BH ASM.
	40062323	UNDER COVER B ASM.
	23639008	UNDER COVER
	22932008	RUBBER CUSHION
	B1116210D00	FRAME SUPPORT RUBBER
	B1116210D00	FRAME SUPPORT RUBBER
	23639156	BRACKET ASM.
	23639107	BRACKET
	NM60600001SE	NUT M6
	SM8063012TR	SCREW M6 L=30
	23639206	CONNECTING ROT
	23639305	KNEE PRESS ROD
	23639404	SHAFT
	23639503	SPRING
	23639602	CONNECTING ROD
	WP0650876SD	WASHER 6.5X13X0.8
	22932453	BRACKET ASM.
	22932404	BRACKET
	SM9062053SR	SCREW M6 L=20
	NS6150310SP	NUT 15/64-28
	RE100000K0	E-RING 10
	RE100000K0	E-RING 10
	SD0720331SP	HINGE SCREW D=7.24 H=3.3
	SM9061853SR	SCREW M6 L=17.5
	SM9061853SR	SCREW M6 L=17.5
	22934251	KNEE PAD PLATE ASM.
	22934202	KNEE PAD PLATE
	22934301	KNEE PAD PLATE SUPPORT
	22934400	KNEE PAD PLATE RUBBER
	22934509	KNEE PAD PLATE COVER
	22934608	KNEE PAD UPRIGHT SHAFT
	SM9061203SE	SCREW M6 L=12

Page 41 — ACCESSORIE PART COMPONENTS

Juki DDL-9000B parts on page 41

Ref	Part number	Part name	Qty
5	5	SCREW DRIVER
6	6	SCREW DRIVER
7	7	SCREW DRIVER
8	8	SCREW DRIVER
9	9	SCREW DRIVER
10	10	ALLEN WRENCH
11	11	SCREW DRIVER
12	12	NEEDLE
13	13	NEEDLE
14	14	NEEDLE PLATE
15	15	BOBBIN CASE
16	16	PRESSER FOOT
17	17	PRESSER FOOT
18	18	SCREW
19	19	PRESSER FOOT
20	20	OIL CAN
21	21	NEEDLE
22	22	NEEDLE
23	23	NEEDLE
24	24	NEEDLE
25	25	NEEDLE
26	26	NEEDLE
27	27	NEEDLE
28	28	COVER
29	29	MANUAL
30	30	MANUAL
31	31	BOBBIN
32	32	BOBBIN
33	33	OIL BOTTLE

Page 42 — ACCESSORIE PART COMPONENTS

Juki DDL-9000B parts on page 42

Ref	Part number	Part name	Qty
	40089663	ACCESSORIE BAG ASM.
	40091140	ACCESSORIE BAG AK ASM.
	40099737	ACCESSORIE BAG ASM. 2
	40099737	ACCESSORIE BAG AK ASM. 2
	22932800	ACCESSORIE BAG
	22933204	SCREW DRIVER (SMALL)
	22502504	THREAD GUIDE BAR
	23639701	KNEE LIFTER PRESSER ROD
	EA9500B0100	CABLE BAND
	40055591	HEXAGONAL WRENCH KYE
	22933105	SCREW DRIVER (MIDDLE)
	22931604	FRAME SUPPORT BAR
	40024081	HEAD SUPPORT ROD
	22958052	RUBBER HINGE ASM.
	22926505	WASHER
	22926000	RUBBER CUSHION
	22958003	FRAME BUBBER CUSHION
	22926208	NAIL
	22926356	HINGE COMPL.
	B91210120A0	OILER ASM.
	MDB100B1100	NEEDLE DBX1 #11
	MDB100B0900	NEEDLE DBX1 #9
	MDB100B2100	NEEDLE DBX1 #21
	MDB100B1400	NEEDLE DBX1 #14
	MC200501300	NEEDLE 134 NM130
	MC200500650	NEEDLE 134 NM65
	MC200500750	NEEDLE 134 NM75
	40135803	HEAD COVER
	40089323	DDL-9000B SETUP DOCUMENT
	CM600100201	WEEE INFORMATION SHEET
	B9117012000	BOBBIN
	22964001	BOBBIN A
	40102087	JUKI MACHINE OIL 7

Page 43 — EXCLUSIVE PARTS DDL-9000B DS

Juki DDL-9000B parts on page 43

Ref	Part number	Part name	Qty
	1	CYLINDER
	2	SCREW
	3	DRY
	4-5	TUBE
	6	CASE
	7	BOBBIN CASE
	8~10	BOBBIN WINDER PARTS
	11	BOBBIN WINDER PULLEY
	12	BOBBIN WINDER SPINDLE
	13	BRACKET
	14	BRACKET
	15	SCREW
	16	SCREW
	17	SPRING
	18	LEVER
	19	BRACKET
	20	SCREW
	21	BRACKET
	22	SCREW
	23	GREASE TUBE
	24	WIRE HARNESS

Page 44 — EXCLUSIVE PARTS DDL-9000B DS

Juki DDL-9000B parts on page 44

Ref	Part number	Part name	Qty
	40086605	NEEDLE_BAR_LOWER_METAL_MD	1
	SM4050501SC	SCREW M5X0.8 L=5	1
	40037146	FLOATER SIGHT WINDOW D	1
	40086604	NEEDLE_BAR_D (B)
	40086602	NEEDLE_BAR_D (A)
	40089274	HOOK_SHAFT_FRONT_BEARING_COMPL.
	SS6110420TP	SCREW 11/64-40 L=4.8
	22890404	RP HOOK C
	22890206	RP HOOK
	22890305	RP HOOK S
	22964001	BOBBIN
	22896252	BOBBIN CASE ASM.
	40050586	KNIFE UNIT D
	22895908	COUNTER KNIFE
	SS2060210SP	SCREW 3/32-56 L=2.3
	SS4080620TP	SCREW 1/8-44 L=6
	11040052	MOVING KNIFE ASM.
	40050588	THREAD GUIDE FOR KNIFE D
	22947907	KNIFE MOUNTING BASE
	11040409	MOVING KNIFE HINGE SCREW
	22896005	FORKED BASE FOR KNIFE
	SD0460703TP	HINGE SCREW D=4.6 H=7
	40006323	JUki GREASE A TUBE
	40050581	JOINT_CABLE_ASM.

Page 45 — EXCLUSIVE PARTS DDL-9000B MS,MA

Juki DDL-9000B parts on page 45

Ref	Part number	Part name	Qty
	1	Needle Plate
	2	Spring
	3	Pin
	4	Feed Dog
	5	Presser Foot
	8	Handwheel
	9	Link
	10	Washer
	11	Bobbin Case Holder
	12	Spring
	13	Washer
	14	Bobbin Case
	15	Shaft
	16	Washer
	17	Spring
	18	Spring
	19	Bobbin Case Holder
	20	Thread Guide Post
	21	Screw
	22	Thread Guide Rod
	23	Thread Guide Rod
	24	Bobbin Case
	25	Grease Tube
	26	Screw
	27	Button
	29	Shaft

Page 46 — EXCLUSIVE PARTS DDL-9000B MS,MA

Juki DDL-9000B parts on page 46

Ref	Part number	Part name	Qty
	11001906	THROAT PLATE K
	11162104	SPRING
	MDB100B1100	NEEDLE DBX1 #11
	D1613155W00	FEED DOG W
	D1524555DBB	PRESSER FOOT ASM.
	MDB100B0900	NEEDLE DBX1 #9
	MC200500650	NEEDLE 134 NM65
	40141843	REGULATOR PIN DIAL 4
	40037439	THREAD TAKE UP COMP. A
	40037479	THREAD TENSION DISK ASM. A
	23626005	THREAD TENSION NUT
	B3132552000	THREAD TENSION DISK PRESSER
	B3126012000	THREAD TENSION DISK
	40024845	TENSION POST SOCKET ASM.
	B3115552000	TENSION POST
	B3120125000	ROTATING STOPPER
	D3129555D00	THREAD TENSION SPRING
	D3128555D00	TAKE-UP SPRING
	SS8090670SP	SCREW 9/64-40 L=5.5
	40086605	NEEDLE_BAR_LOWER_METAL_MD
	SM4050501SC	SCREW M5X0.8 L=5
	40086604	NEEDLE_BAR_D_(B)
	40086602	NEEDLE_BAR_D_(A)
	40000264	BOBBIN CASE ASM.
	40006323	JUKI GREASE A TUBE
	23629306	PIPE STOPPER A
	40042086	CAP
	11038759	BOBBIN CASE ASM.
	23630007	TUBE

Page 48 — EXCLUSIVE PARTS DDL-9000B SH

Juki DDL-9000B parts on page 48

Ref	Part number	Part name	Qty
	40089605	THROAT_PLATE_J	1
	40107708	NEEDLE_BAR_METAL_LOWER_H	1
	40061767	NEEDLE BAR H	1
	MDB100B2100	NEEDLE DBX1 #21	1
	B9117012000	BOBBIN	1
	B1505552000A	PRESSER SPRING	1
	D1524555EBL	PRESSER FOOT ASM.	1
	40064839	PRESSER FOOT ASM.	1
	40089610	INNER_HOOK_HOLDER_H	1
	11092251	LUBRICATING BOBBIN ASM.	1
	40055604	THREAD TAKE UP COMP. H	1
	40050587	KNIFE UNIT H	1
	11095502	KNIFE MOUNT BASE	1
	40044190	THREAD_GUIDE_FOR_KNIFE H	1
	11409257	MOVING KNIFE J ASM.	1
	40009894	FORKED BASE FOR KNIFE	1
	40050589	FIX KNIFE H	1
	SD0460703TP	HINGE SCREW D=4.6 H=7	1
	SD0500131TP	HINGE SCREW D=5 H=1.25	1
	SS2060210SP	SCREW 3/32-56 L=2.3	1
	SS4080620TP	SCREW 1/8-44 L=6	2
	40000264	BOBBIN CASE ASM.	1
	40037313	THREAD TENSION DISK ASM. H	1
	23626005	THREAD TENSION NUT	1
	B3115552000	TENSION POST	1
	B3120125000	ROTATING STOPPER	1
	B3126012000	THREAD TENSION DISK	2
	B3128012000	TAKE-UP SPRING	1
	B3132552000	THREAD TENSION DISK PRESSER	1
	40024845	TENSION POST SOCKET ASM.	1
	B3114232000	THREAD TENSION SPRING	1
	SS8090670SP	SCREW 9/64-40 L=5.5	1
	J1063000000	WRENCH	1
	40024124	NEEDLE BAR THREAD GUIDE	1
	23619059	VERTICAL FEED CAM H ASM.	1
	23619000	VERTICAL FEED CAM H	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	40055058	ASSY COUNTER WEIGHT H	1
	40053411	COUNTER WEIGHT H	1
	40004171	COUNTER_WEIGHT_SCREW	1
	SM8081652TP	SCREW M8 L=16	1
	SM80606A2TP	SCREW M6 L=6	2
	40069369	VERTICAL FEED CAM ASM. 2.0	1
	40069370	VERTICAL FEED CAM 2.0	1
	SS8151150TP	SCREW 15/64-28 L=10.5	2
	40063697	ARM THREAD GUIDE A H	1
	11062601	FEED DOG	1

Page 50 — EXCLUSIVE PARTS DDL-9000B SH

Juki DDL-9000B parts on page 50

Ref	Part number	Part name	Qty
	11062007	THROAT PLATE A
	11403003	FEED J

Page 52 — TABLE & STAND COMPONENTS

Juki DDL-9000B parts on page 52

Ref	Part number	Part name	Qty
	23642259	TABLE ASM.	1
	23642200	TABLE
	11075900	RUBBER SPACER
	11075801	RUBBER SPACER
	B8210012000	CUSHION SET NAIL
	B8210012000	CUSHION SET NAIL
	D8226555E00	FRAME RUBBER CUSHION A
	11157567	T LEG JUNCTION
	GPK700010A0	3-JOINT PEDAL 70
	11157559	T-STAND ASM.
	11155769	SMALL CASTINGS BOX B ASM.
	11156007	CASE
	11155801	CASE MAGNET
	11155751	CASE ASM. B
	SK3382001SC	WOOD SCREW D=3.8 L=20
	11155157	DRAWER ASM.
	11155108	DRAWER
	11155207	DRAWER SUPPORT
	SK3311600SE	WOOD SCREW D=3.1 L=16
	GPK710010A0	2-PEDAL ASM. 71
	D8204555D00	DRAWER STOPPER
	SK3513200SC	WOOD SCREW D=5.1 L=32
	11159456	CASTER ASM.
	SM9086523SE	HEXAGONAL BOLT
	11159407	CASTER
	11159506	STRUT AUXILIARY PLATE
	WS0861410KR	SPRING WASHER 8.6X15X1.4
	WP0871602SE	WASHER 8.7X18X1.6

Page 53 — SPECIAL ORDER PART

Juki DDL-9000B parts on page 53

Ref	Part number	Part name	Qty
1	1	WIRE HARNESS
2	2	WIRE HARNESS
3	3	FILTER
4	4	GASKET
5	5	BLOWER
6	6	SCREW
7	7	CLIP
8	8	BLOWER HOUSING

Page 54 — SPECIAL ORDER PART

Juki DDL-9000B parts on page 54

Ref	Part number	Part name	Qty
1	40065571	ELECTRIC FAN HOOK COOLING DEVICE	1
2	40044065	FAN_RELAY_CABLE	1
3	40064805	FAN FILTER	1
4	40064806	FAN COOLING COVER	1
5	40065564	FAN MOTOR ASSY	1
6	SK3415001SE	SCREW D=4.1 L=50	2
7	MAO11532000	CORD STAPLE	3
8	40065572	HOOK COOLING DEVICE INSTRUCTION MANUAL	1

Page 55

Juki DDL-9000B parts on page 55

Ref	Part number	Part name	Qty
2	2400-37003
3	401-35904
3	400-25729
7	401-50011
7	400-86733
8	SB-1200027-00
9	400-44857
10	236-05207
18	401-36292
18	400-20454
19	401-36293
19	400-20455
20	SM-80506A2-TP
20	SM-8051610-SP
22	401-41440
22	400-86729
26	401-07707
26	401-07708
37	401-35900
37	400-37370
38	401-35905
38	400-90527
39	401-41165
41	SB-3070002-00
40	401-35906
42	SB-3070002-0A
41	401-43184
43	SB-3070002-0B
42	401-35907
44	SB-3070002-0C
43	RE-0300000-K0
45	SB-3070002-0D
51	400-90529
52	400-90528
53	228-91204
55	RE-0600000-K0
1	236-09001
1	401-36700
31	401-41839
31	401-61440
44	401-41837
44	401-61441
35	SS-6110650-TP
35	SS-6110710-TP
58	236-20206
58	401-45927
67	D1837-555-BAA-A
67	110-38759
81	400-86730
81	401-41443
15	SS-6090510-TP
15	SS-6090670-TP

Page 56 — LIST FOR INFORMATION OF CHANGE (2)

Juki DDL-9000B parts on page 56

Ref	Part number	Part name	Qty
56	400-86710	品 番
56	401-36701	品 番
2	400-82060	品 番
2	401-35639	品 番
28	SL-6051492-TN	品 番
28	SM-6051402-TP	品 番
45	401-49785	品 番
46	400-82061	品 番
13	401-35640	品 番
50	WP-0501016-SD	品 番
28	D1837-555-BAA-A	品 番
28	110-38759	品 番

Page 57

Juki DDL-9000B parts on page 57

Ref	Part number	Part name	Qty
	GG	China
	BB	Europe
	EE	Japan
	AA	excludes China,Europe and Japan
	GG	中国
	BB	ヨーロッパ
	EE	日本
	AA	中国、ヨーロッパ、日本を除く

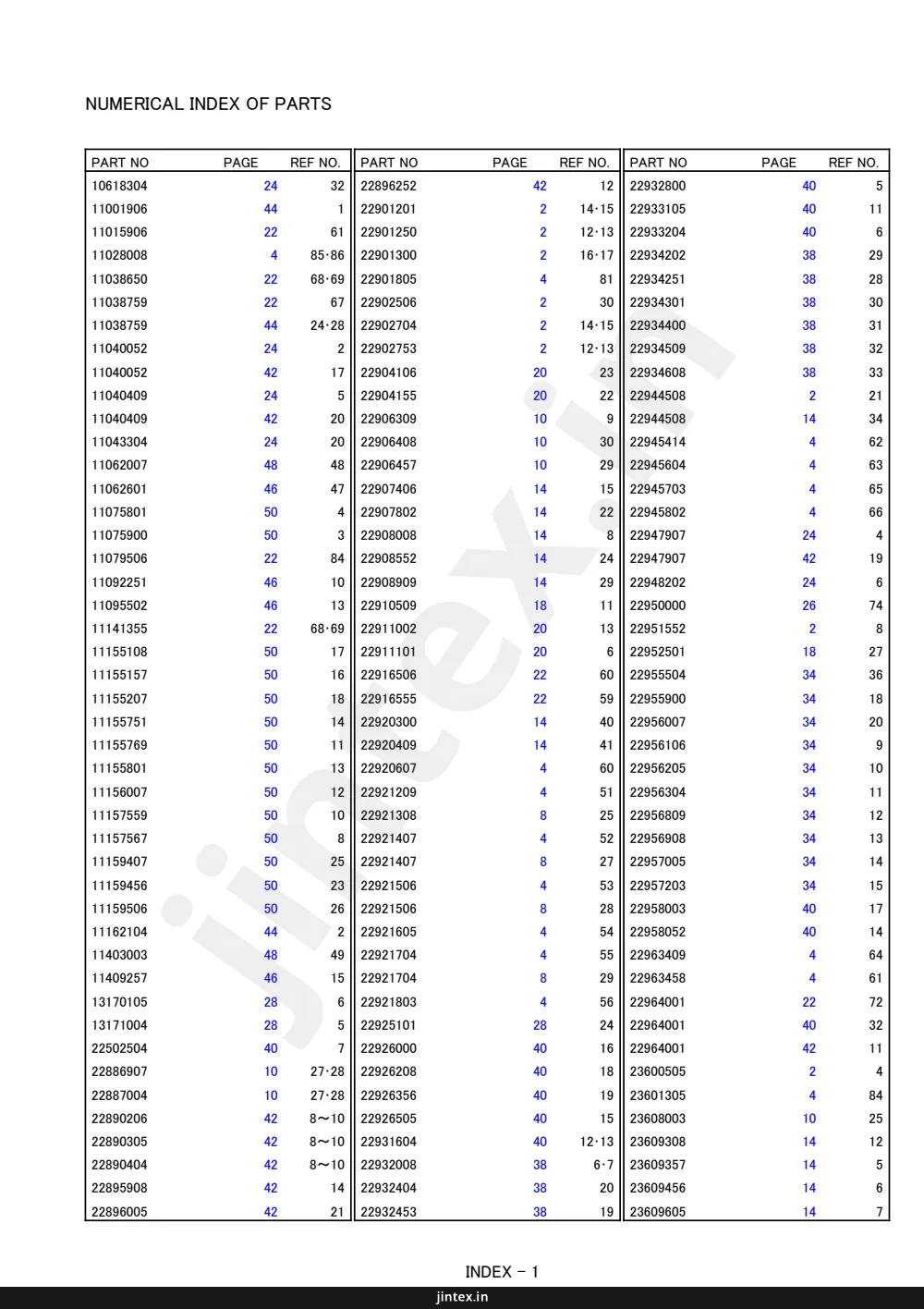

Page 58 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B parts on page 58

Ref	Part number	Part name	Qty
32	10618304	24
12	22896252	42
5	22932800	40
1	11001906	44
14･15	22901201	2
11	22933105	40
61	11015906	22
12･13	22901250	2
6	22933204	40
85･86	11028008	4
16･17	22901300	2
29	22934202	38
68･69	11038650	22
81	22901805	4
28	22934251	38
67	11038759	22
30	22902506	2
30	22934301	38
24･28	11038759	44
14･15	22902704	2
31	22934400	38
2	11040052	24
12･13	22902753	2
32	22934509	38
17	11040052	42
23	22904106	20
33	22934608	38
5	11040409	24
22	22904155	20
21	22944508	2
20	11040409	42
9	22906309	10
34	22944508	14
20	11043304	24
30	22906408	10
62	22945414	4
48	11062007	48
29	22906457	10
63	22945604	4
47	11062601	46
15	22907406	14
65	22945703	4
4	11075801	50
22	22907802	14
66	22945802	4
3	11075900	50
8	22908008	14
4	22947907	24
84	11079506	22
24	22908552	14
19	22947907	42
10	11092251	46
29	22908909	14
6	22948202	24
13	11095502	46
11	22910509	18
74	22950000	26
68･69	11141355	22
13	22911002	20
8	22951552	2
17	11155108	50
6	22911101	20
27	22952501	18
16	11155157	50
60	22916506	22
36	22955504	34
18	11155207	50
59	22916555	22
18	22955900	34
14	11155751	50
40	22920300	14
20	22956007	34
11	11155769	50
41	22920409	14
9	22956106	34
13	11155801	50
60	22920607	4
10	22956205	34
12	11156007	50
51	22921209	4
11	22956304	34
10	11157559	50
25	22921308	8
12	22956809	34
8	11157567	50
52	22921407	4
13	22956908	34
25	11159407	50
27	22921407	8
14	22957005	34
23	11159456	50
53	22921506	4
15	22957203	34
26	11159506	50
28	22921506	8
17	22958003	40
2	11162104	44
54	22921605	4
14	22958052	40
49	11403003	48
55	22921704	4
64	22963409	4
15	11409257	46
29	22921704	8
61	22963458	4
6	13170105	28
56	22921803	4
72	22964001	22
5	13171004	28
24	22925101	28
32	22964001	40
7	22502504	40
16	22926000	40
11	22964001	42
27･28	22886907	10
18	22926208	40
4	23600505	2
27･28	22887004	10
19	22926356	40
84	23601305	4
8～10	22890206	42
15	22926505	40
25	23608003	10
8～10	22890305	42
12･13	22931604	40
12	23609308	14
8～10	22890404	42
6･7	22932008	38
5	23609357	14
14	22895908	42
20	22932404	38
6	23609456	14
21	22896005	42
19	22932453	38
7	23609605	14

Page 59 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B parts on page 59

Ref	Part number	Part name	Qty
14	23609704	14
29	23630007	44
24･28	40000264	44
16	23610207	14
22	23630106	28
22	40000264	46
17	23610306	14
34	23630403	28
46	40000344	28
48	23610504	16
35	23630502	28
37	40000391	20
49	23610652	16
30	23631708	32
38	40000392	20
51	23610702	16
15	23631757	32
4	40004171	10
47	23611106	14
31	23631807	32
40	40004171	46
25	23612609	18
32	23631906	32
23	40006323	42
39	23613409	18
23	23632003	32
25	40006323	44
16	23613706	18
26	23632102	32
46	40006716	18
26	23614506	20
27	23632250	32
16	40009894	46
2	23616006	20
17	23632359	32
15	40011144	8
20	23616204	20
33	23632607	32
30	40013595	28
32	23616402	20
25	23632656	32
16	40014837	8
33	23616600	20
73	23638109	4
45	40015671	24
14	23616709	20
74	23638208	4
1	40023021	8
47	23618101	20
75	23638307	4
17	40023022	8
52	23618309	22
76	23638406	4
12･13	40024081	40
36	23619000	46
5	23639008	38
34	40024124	46
35	23619059	46
10	23639107	38
14	40024845	44
56	23620008	22
9	23639156	38
30	40024845	46
57	23620156	22
13	23639206	38
5	40026277	20
74	23620404	22
14	23639305	38
31	40026278	20
54	23620503	22
15	23639404	38
16	40026281	20
62～65	23620701	22
16	23639503	38
36	40026282	20
62～65	23620800	22
17	23639602	38
41	40026287	20
62～65	23620909	22
8	23639701	40
43	40026288	20
62～65	23621006	22
47･48	23640006	2
16	40029398	24
50	23626005	4
2	23642200	50
71	40030786	22
11	23626005	44
1	23642259	50
46	40032269	10
24	23626005	46
59	26226209	26
3	40034246	28
69	23626104	4
2	26260109	8
37	40035589	2
33	23626203	10
3	26260208	8
32	40036706	14
42	23626351	14
4	26260307	8
14	40036997	24
43	23626807	14
5	26260406	8
12	40036998	24
40	23628803	28
6	26260505	8
15	40037005	20
36	23628902	28
7	26260604	8
16	40037006	10
8	23629207	28
8	26260802	8
15	40037007	10
7	23629256	28
9	26261008	8
30	40037008	8
10	23629306	28
10	26261206	8
19	40037141	14
26	23629306	44
11	26261305	8
20	40037144	14
11	23629405	28
12	26261503	8
3	40037146	42
82	23629900	4
13	26261602	8
1	40037158	2
23	23630007	18
14	26261701	8
12	40037166	28
19	23630007	28
37	31256803	24
1	40037192	20

Page 60 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B parts on page 60

Ref	Part number	Part name	Qty
23	40037313	46
24	40069097	2
62	40086631	26
18	40037359	14
20	40069110	2
63	40086632	26
4	40037365	20
43	40069369	46
64	40086633	26
9	40037439	44
44	40069370	46
33	40086634	24
10	40037479	44
23	40075404	28
34	40086635	24
47･48	40037488	4
29	40077851	34
48	40086636	26
38	40037502	28
16	40077852	34
72	40086637	26
37	40038328	28
2	40077853	34
49	40086639	4
2	40041161	2
1	40082059	28
57	40086640	4
10	40042079	20
30	40082078	14
38	40086643	14
27	40042086	44
17	40085784	36
32	40086646	28
2	40044065	52
18	40085785	36
33	40086647	28
3	40044189	24
2	40085786	36
15	40086648	28
14	40044190	46
3	40085787	36
34	40086655	32
24	40050581	42
4	40085788	36
71	40086659	4
39	40050582	14
5	40085789	36
72	40086660	4
21	40050583	14
6	40085790	36
17	40086674	18
1	40050585	24
7	40085791	36
18	40086675	18
13	40050586	42
19	40085792	36
1	40086676	34
12	40050587	46
20	40085793	36
17	40086678	34
18	40050588	42
8	40085794	36
32	40086679	34
17	40050589	46
9	40085795	36
31	40086680	34
12	40051473	10
23	40085796	36
45	40086690	20
13	40051474	10
1	40086597	10
41	40086693	28
3	40052819	2
4･5	40086602	42
2	40086695	18
45	40052933	2
22･23	40086602	44
3	40086696	18
39	40053411	46
4･5	40086604	42
48	40086697	30
40	40053720	20
22･23	40086604	44
13	40086698	32
38	40055058	46
1	40086605	42
35	40086699	32
10	40055591	40
20	40086605	44
8	40086704	18
11	40055604	46
2	40086606	14
9	40086705	18
46	40056622	14
3	40086607	14
12	40086706	18
9	40058504	20
5	40086608	18
55	40086708	26
13	40061215	24
22	40086609	18
58	40086709	26
8	40061246	20
45	40086613	18
29	40086711	24
3	40061767	46
14	40086614	18
79	40086712	26
1･2	40062321	38
7	40086615	18
6	40086713	2
3･4	40062323	38
13	40086616	18
34	40086714	2
46	40063697	46
36	40086617	18
35	40086716	34
3	40064805	52
77	40086618	22
19	40086717	34
4	40064806	52
60	40086621	26
3	40086723	34
8	40064839	46
36	40086622	24
4	40086724	34
5	40065564	52
47	40086623	24
27	40086727	24
1	40065571	52
42	40086624	24
24	40086731	10
8	40065572	52
70	40086628	26
33	40086732	2

Page 61 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B parts on page 61

Ref	Part number	Part name	Qty
1	40086735	18
21	40096325	36
8	B1116210D00	38
37	40086736	18
10	40096326	36
40	B1116804000	24
20	40086737	18
12	40096327	36
6	B1505552000A	46
15	40086738	18
31	40098329	28
23	B1521555000	14
21	40086739	18
77	40098386	4
26	B1524012BA	14
70	40086740	22
1～4	40099736	40
25	B1613012I00	20
78	40086741	22
1～4	40099737	40
31	B3114232000	46
79	40086742	22
33	40102087	40
15	B3115552000	44
34	40086743	20
26	40107707	10
25	B3115552000	46
73	40086744	22
2	40107708	46
54	B3118552F00	16
18	40086746	24
16	40108401	36
16	B3120125000	44
53	40086747	26
1	40108402	36
26	B3120125000	46
44	40086748	24
44	40114043	2
13	B3126012000	44
1	40086750	32
42	40122891	18
27	B3126012000	46
3	40086753	32
30	40123098	18
28	B3128012000	46
44	40086757	20
2	40135639	28
12	B3132552000	44
37	40086759	32
13	40135640	28
29	B3132552000	46
13	40086760	14
28	40135803	40
28～30	B412352200A	20
24	40088958	8
37	40135900	10
28～30	B412352200B	20
26	40088959	8
2	40135904	10
28～30	B412352200C	20
11	40089196	10
38	40135905	10
6	B8210012000	50
19	40089263	24
40	40135906	10
44	B8228125000	28
6	40089264	34
42	40135907	10
31	B9117012000	40
6	40089274	42
18	40136292	10
5	B9117012000	46
29	40089323	40
19	40136293	10
20	B91210120A0	40
1	40089605	46
1	40136700	14
23	CM300200001	2
75	40089607	22
56	40136701	26
25	CM300200003	2
9	40089610	46
39	40141165	10
29	CM301300001	2
1～4	40089663	40
22	40141440	10
87	CM600100101	4
1･2	40089665	38
81	40141443	22
30	CM600100201	40
3･4	40089671	38
33	40141838	18
88	CM600600101	4
26	40089672	24
32	40141840	18
20	CQ200000001	28
32	40090058	10
34	40141841	18
9	CQ250000001	28
80	40090099	26
29	40141842	18
47	CS1000881TP	10
1～4	40091140	40
8	40141843	44
5	D1524555DBB	44
91	40091397	4
41	40143184	10
7	D1524555EBL	46
38	40091461	2
58	40145927	22
4	D1613155W00	44
11	40094561	2
45	40149785	28
7	D2406555D0H	24
5	40095175	34
7	40150011	10
5	D2468555B00	32
82	40095218	26
31	40161440	18
18	D3128555D00	44
41	40095843	24
44	40161441	18
17	D3129555D00	44
12	40095844	32
85･86	B1109012I0B	4
50	D5119206K0K	16
40	40095847	18
92	B1109552000	4
21	D8204555D00	50
50	40095870	26
51	B1116210D00	26
7	D8226555E00	50
83	40095873	26
78	EA9500B0100	2

Page 62 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B parts on page 62

Ref	Part number	Part name	Qty
78	EA9500B0100	EA9500B0100
50	EA9500B0100	EA9500B0100
28	EA9500B0100	EA9500B0100
9	EA9500B0100	EA9500B0100
9	GPK700010A0	GPK700010A0
20	GPK710010A0	GPK710010A0
23	HK03464000B	HK03464000B
2	HK03464000B	HK03464000B
7	HK03464000B	HK03464000B
8	HW500070000	HW500070000
33	J1063000000	J1063000000
7	MAO11532000	MAO11532000
21~27	MC20050250	MC20050250
3-6-7	MC20050500	MC20050500
34~36	MC20050750	MC20050750
21~27	MC20050750	MC20050750
21~27	MC200501300	MC200501300
21~27	MDB100B0900	MDB100B0900
3-6-7	MDB100B0900	MDB100B0900
34~36	MDB100B1100	MDB100B1100
21~27	MDB100B1100	MDB100B1100
3-6-7	MDB100B1100	MDB100B1100
34~36	MDB100B1400	MDB100B1400
21~27	MDB100B1400	MDB100B1400
21~27	MDB100B2100	MDB100B2100
4	MDB100B2100	MDB100B2100
24	NM6040000SN	NM6040000SN
42	NM6040001SP	NM6040001SP
46	NM6040001SP	NM6040001SP
57	NM6050001SC	NM6050001SC
25	NM6050001SE	NM6050001SE
10	NM6050001SP	NM6050001SP
11	NM6060001SE	NM6060001SE
31	NM6060003SE	NM6060003SE
21	NS6110310SP	NS6110310SP
78	NS6110310SP	NS6110310SP
22	NS6110310SP	NS6110310SP
75	NS6150310SP	NS6150310SP
22	NS6150310SP	NS6150310SP
44	NS6620310SP	NS6620310SP
21	NS6660410SH	NS6660410SH
22	NS6660430SP	NS6660430SP
23	RC0370411KP	RC0370411KP
18	RC0560711KP	RC0560711KP
83	RC1200001KP	RC1200001KP
43	RE040000K0	RE040000K0
19	RE040000K0	RE040000K0
45	RE050000K0	RE050000K0
24	RE050000K0	RE050000K0
31	RE050000K0	RE050000K0
24	RE050000K0	RE050000K0
39	RE070000K0	RE070000K0
24	RE100000K0	RE100000K0
4	RE120000K0	RE120000K0
85	RO036080200	RO036080200
25	RO037180100	RO037180100
39	RO037180100	RO037180100
53	RO044240100	RO044240100
47	RO048190100	RO048190100
16	RO068190100	RO068190100
83	RO080150200	RO080150200
43	RO092270200	RO092270200
25	RO098240100	RO098240100
26	RO172180100	RO172180100
4	RO195240100	RO195240100
51	SB17001200	SB17001200
80	SB120001800	SB120001800
21	SB12002700	SB12002700
48~50	SB32000060A	SB32000060A
48~50	SB32000060B	SB32000060B
48~50	SB32000060C	SB32000060C
8	SD0460703TP	SD0460703TP
22	SD0460703TP	SD0460703TP
18	SD0460703TP	SD0460703TP
19	SD0500131TP	SD0500131TP
77	SD0500701TP	SD0500701TP
73	SD0500701TP	SD0500701TP
69	SD0630275SP	SD0630275SP
71	SD0640321SP	SD0640321SP
17	SD0640631TP	SD0640631TP
25	SD0650321TP	SD0650321TP
25	SD0720331SP	SD0720331SP
19	SK3311600SE	SK3311600SE
15	SK3382001SC	SK3382001SC
6	SK3415001SE	SK3415001SE
22	SK3513200SC	SK3513200SC
26	SL4030631SC	SL4030631SC
27	SL4030641SE	SL4030641SE
42	SL6040892TN	SL6040892TN
43	SL6051492TN	SL6051492TN
49	SL6052592TN	SL6052592TN
52	SL6053592TN	SL6053592TN
27	SL6061292TN	SL6061292TN
32	SM0050801SC	SM0050801SC
28	SM2040750TP	SM2040750TP
27	SM2040955TP	SM2040955TP
79	SM4021201SC	SM4021201SC
49	SM4040601SC	SM4040601SC
36	SM4040655SP	SM4040655SP
42	SM4040655SP	SM4040655SP
22	SM4040855SP	SM4040855SP
36	SM4040855SP	SM4040855SP
11	SM4041055SP	SM4041055SP
2	SM4050501SC	SM4050501SC
21	SM4050501SC	SM4050501SC
80	SM4050655SP	SM4050655SP
61	SM4050655SP	SM4050655SP
19	SM4050855SP	SM4050855SP
19	SM4050855SP	SM4050855SP
89	SM4051055SP	SM4051055SP
89	SM4051055SP	SM4051055SP
33	SM4051055SP	SM4051055SP
76	SM4051055SP	SM4051055SP
24	SM4051055SP	SM4051055SP
37	SM4051055SP	SM4051055SP
32	SM4051255SP	SM4051255SP
24	SM4051405SE	SM4051405SE
68	SM5040655SN	SM5040655SN
20	SM5040655SN	SM5040655SN
29	SM5040655SN	SM5040655SN
9	SM6040602TP	SM6040602TP
52	SM6040800SP	SM6040800SP
4	SM6051400SP	SM6051400SP
17	SM6051400SP	SM6051400SP
37	SM6051402TP	SM6051402TP
19	SM6051602TP	SM6051602TP
14	SM6051602TP	SM6051602TP
28	SM6051850TP	SM6051850TP
26	SM6052502TP	SM6052502TP
7	SM6061002TP	SM6061002TP
28	SM6061002TP	SM6061002TP
49	SM6061010TP	SM6061010TP
35	SM6061202TP	SM6061202TP
21	SM8040802TP	SM8040802TP

Page 63 — NUMERICAL INDEX OF PARTS

Juki DDL-9000B parts on page 63

Ref	Part number	Part name	Qty
48	SM8050412TP	SM8050412TP
22	SM8050502TP	SM8050502TP
20	SM80506A2TP	SM80506A2TP
4	SM80506A2TP	SM80506A2TP
6	SM80606A2TP	SM80606A2TP
47	SM80606A2TP	SM80606A2TP
42	SM80606A2TP	SM80606A2TP
42	SM80606A2TP	SM80606A2TP
35	SM8060812TP	SM8060812TP
70	SM80608A2TP	SM80608A2TP
70	SM80608A2TP	SM80608A2TP
44	SM80608A2TP	SM80608A2TP
26	SM80608A2TP	SM80608A2TP
82	SM80608A2TP	SM80608A2TP
54	SM80608A2TP	SM80608A2TP
68	SM8061010TP	SM8061010TP
67	SM8061050TP	SM8061050TP
12	SM8063012TR	SM8063012TR
5	SM8081652TP	SM8081652TP
41	SM8081652TP	SM8081652TP
36	SM8480652TP	SM8480652TP
34	SM9061203SE	SM9061203SE
27	SM9061853SR	SM9061853SR
21	SM9062053SR	SM9062053SR
24	SM9086523SE	SM9086523SE
14	SQ2050453MZ	SQ2050453MZ
15	SS2060210SP	SS2060210SP
15	SS2060210SP	SS2060210SP
20	SS2060210SP	SS2060210SP
27	SS4080620TP	SS4080620TP
10	SS4080620TP	SS4080620TP
16	SS4080620TP	SS4080620TP
21	SS4080620TP	SS4080620TP
30	SS4110615SP	SS4110615SP
18	SS6090540SP	SS6090540SP
28	SS6090540SP	SS6090540SP
12	SS6090620TP	SS6090620TP
31	SS6090670TP	SS6090670TP
53	SS6090670TP	SS6090670TP
53	SS6090670TP	SS6090670TP
15	SS6090670TP	SS6090670TP
7	SS6110420TP	SS6110420TP
59	SS6110610TP	SS6110610TP
35	SS6110710TP	SS6110710TP
30	SS6110710TP	SS6110710TP
11	SS6121610SP	SS6121610SP
35	SS6121860SP	SS6121860SP
10	SS7080510TP	SS7080510TP
27	SS7091110TP	SS7091110TP
65	SS7110740TP	SS7110740TP
29	SS7110740TP	SS7110740TP
58	SS8090670SP	SS8090670SP
19	SS8090670SP	SS8090670SP
32	SS8090670SP	SS8090670SP
3	SS8150822TP	SS8150822TP
39	SS8151150TP	SS8151150TP
45	SS8151150TP	SS8151150TP
24	SS8660610TP	SS8660610TP
66	SS8661012TP	SS8661012TP
66	SS8661012TP	SS8661012TP
51	TA0850604R0	TA0850604R0
51	TA0850604R0	TA0850604R0
43	TA1250406R0	TA1250406R0
41	TA1470704R0	TA1470704R0
25	WP0430800SC	WP0430800SC
66	WP0450801SP	WP0450801SP
23	WP0450826SC	WP0450826SC
18	WP0480856SP	WP0480856SP
95	WP0501016SD	WP0501016SD
55	WP0501016SD	WP0501016SD
50	WP0501016SD	WP0501016SD
15	WP0531001SC	WP0531001SC
90	WP0550800SP	WP0550800SP
7	WP0550800SP	WP0550800SP
9	WP0551016SH	WP0551016SH
94	WP0621016SD	WP0621016SD
33	WP0621016SD	WP0621016SD
81	WP0621016SD	WP0621016SD
76	WP0621016SH	WP0621016SH
18	WP0650876SD	WP0650876SD
34	WP0651001SC	WP0651001SC
33	WP0661016SP	WP0661016SP
38	WP0841600SD	WP0841600SD
28	WP0871602SE	WP0871602SE
6	WP1602616SZ	WP1602616SZ
22	WP1612616SE	WP1612616SE
14	WS0510002KN	WS0510002KN
11	WS0610002KN	WS0610002KN
27	WS0861410KR	WS0861410KR

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki DDL-9000B — parts catalog

• Page 1 (cover): This is the cover page for the parts list of the DDL-9000B model, published on October 9, 2017.
• Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
• Page 3 (diagram): This page displays a diagram of the machine frame and miscellaneous cover components, with various parts labeled with reference numbers.
• Page 4 (parts_list): This page lists parts for the machine frame and miscellaneous cover components, including part numbers, names, and quantities.
• Page 5 (diagram): This page illustrates the machine frame and miscellaneous cover components with a detailed exploded view.
• Page 6 (parts_list): This page lists machine frame and miscellaneous cover components, including part numbers, names, remarks, level, cons, and quantity.
• Page 7 (diagram): This page displays an exploded view diagram of the machine frame and miscellaneous cover components, with various parts labeled with reference numbers.
• Page 8 (parts_list): This page lists machine frame and miscellaneous cover components, including a washer with part number WP0501016SD.
• Page 9 (diagram): This page illustrates the components of a bobbin winder for an industrial sewing machine, showing an exploded view of the assembly.
• Page 10 (parts_list): This page lists the components for a bobbin winder, including part numbers, names, and quantities.
• Page 11 (diagram): This page illustrates the main shaft and needle bar components of an industrial sewing machine, showing an exploded view with numbered parts.
• Page 12 (parts_list): This page lists components for the main shaft and needle bar, including various screws, bearings, needles, and assemblies, with part numbers, names, and quantities.
• Page 13 (diagram): This page displays a diagram of the main shaft and needle bar components for an industrial sewing machine, with various parts labeled with reference numbers.
• Page 14 (parts_list): This page lists components for the main shaft and needle bar, including screws, bolts, cable bands, and rubber plugs, with their respective part numbers and quantities.
• Page 15 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for an industrial sewing machine.
• Page 16 (parts_list): This page lists the parts for the hand lifter and tension release components, including part numbers, names, and quantities.
• Page 17 (diagram): This page illustrates the components of the hand lifter and tension release mechanism for a sewing machine.
• Page 18 (parts_list): This page lists the components for the hand lifter and tension release, including part numbers, names, and quantities.
• Page 19 (diagram): This page displays an exploded view diagram of the feed adjust mechanism components for an industrial sewing machine.
• Page 20 (parts_list): This page lists components for the feed adjust mechanism, including part numbers, names, and quantities.
• Page 21 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft, showing an exploded view with reference numbers for each part.
• Page 22 (parts_list): This page lists components for the horizontal feed, vertical feed, and hook driving shaft, including parts like feed rocker cams, screws, pins, and shafts, with their respective part numbers and quantities.
• Page 23 (diagram): This page illustrates the components of the horizontal feed, vertical feed, and hook driving shaft.
• Page 24 (parts_list): This page lists horizontal feed, vertical feed, and hook driving shaft components, including bearings, screws, gears, oil seals, and other related parts.
• Page 25 (diagram): This page illustrates the components of a thread trimmer, showing an exploded view of various parts and their reference numbers.
• Page 26 (parts_list): This page lists the components for a thread trimmer, including knives, screws, nuts, springs, washers, and other related parts.
• Page 27 (diagram): This page illustrates the components of a thread trimmer, showing various parts and their reference numbers.
• Page 28 (parts_list): This page lists thread trimmer components, including part numbers, names, and quantities for various screws, stoppers, rods, springs, washers, and nuts.
• Page 29 (diagram): This page illustrates the oil lubrication components of an industrial sewing machine.
• Page 30 (parts_list): This page lists oil lubrication components with their part numbers, names, and quantities.
• Page 31 (diagram): This page displays a diagram of oil lubrication components, illustrating various parts with reference numbers for identification.
• Page 32 (parts_list): This page lists oil lubrication components, including a floater sight window, screws, and washers, with their respective part numbers and quantities.
• Page 33 (diagram): This page contains a diagram illustrating the automatic reverse feed components of a sewing machine, with numbered parts indicated.
• Page 34 (parts_list): This page lists automatic reverse feed components, including part numbers, names, quantities, and remarks for various parts like solenoids, plungers, screws, and switches.
• Page 35 (diagram): This page contains a diagram illustrating the wiper components for the DDL-9000B-**-WB model sewing machine, with numbered callouts corresponding to parts listed elsewhere.
• Page 36 (parts_list): This page lists wiper components for the DDL-9000B-**-WB model, including part numbers, names, and quantities.
• Page 37 (diagram): This page contains a diagram of thread stand components with numbered references.
• Page 38 (parts_list): This page lists components for the THREAD STAND, including part numbers, names, and quantities.
• Page 39 (diagram): This page contains a diagram illustrating the under cover components of a sewing machine, with various parts numbered for reference.
• Page 40 (parts_list): This page lists components for under cover parts, including part numbers, descriptions, remarks, and quantities.
• Page 41 (diagram): This page displays a diagram of accessory part components for a sewing machine, with numbered illustrations of various tools and accessories.
• Page 42 (parts_list): This page lists accessory part components, including part numbers, names, remarks, and quantities.
• Page 43 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B DS sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 44 (parts_list): This page lists exclusive parts for the DDL-9000B DS sewing machine, including part numbers, names, remarks, and quantities.
• Page 45 (diagram): This page displays a diagram of exclusive parts for the DDL-9000B MS,MA sewing machine, with numbered components.
• Page 46 (parts_list): This page lists exclusive parts for the JUKI DDL-9000B-MS and DDL-9000B-MA sewing machines, including part numbers, names, and quantities.
• Page 47 (diagram): This page contains a diagram of exclusive parts for the DDL-9000B SH sewing machine, with numbered references corresponding to parts listed elsewhere.
• Page 48 (parts_list): This page lists parts for the DDL-9000B SH sewing machine, including part numbers, names, quantities, and remarks.
• Page 49 (diagram): This page contains a diagram of exclusive parts for the DDL-9000B SH sewing machine, with numbered references to specific components.
• Page 50 (parts_list): This page lists parts for the DDL-9000B SH, including throat plate A and feed J, with their respective part numbers and quantities.
• Page 51 (diagram): This page contains a diagram illustrating table and stand components, with reference numbers pointing to various parts.
• Page 52 (parts_list): This page lists components for tables and stands, including part numbers, names, remarks, and quantities.
• Page 53 (diagram): This page displays a diagram of special order parts for an industrial sewing machine, including a blower, screws, and clips, with reference numbers for each component.
• Page 54 (parts_list): This page lists special order parts for an electric fan cooling device, including parts like the electric fan hook cooling device, fan relay cable, fan filter, fan cooling cover, fan motor assembly, screws, cord staples, and an instruction manual, along with their respective part numbers and quantities.
• Page 55 (text): This page lists changes to parts, indicating added (A) or obsoleted (D) parts with their corresponding revision numbers, page numbers, and part numbers.
• Page 56 (text): This page lists changes to parts, including part numbers and revision information, for sewing machine models.
• Page 57 (text): This page provides instructions on how to use the parts list, including explanations of codes, quantity notations, and symbols used for parts.
• Page 58 (index): This page is a numerical index of parts, listing part numbers, the page they can be found on, and their reference number in diagrams.
• Page 59 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
• Page 60 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
• Page 61 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
• Page 62 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 63 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers from diagrams.

Page 1 — PARTS LIST

MODEL : DDL-9000B List No : 1532-04 PARTS LIST Published:09/10/2017 jintex.in

Page 2 — CONTENTS

CONTENTS MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS .................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

Page 3 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 11 32 32 1 5 4 43 A 46 92 -27 -28 -85-86 14-15 16-17 18 12-13 2 19 30 40 3 A 60 59 31 -39 -67 -70 -36 -37 -24 -6 -93 -7 23 69 68 21 22 45 34 44 -58 -57 54 51 41 25 38 91 -94 -35 49 53 81 42 89 90 56 55 52 50 8 9 33 88 87 63 62 66 64 65 83 82 84 10 71 75 73 79 77 78 26 95 29 61 -47-48 72 76 80 jintex.in

Page 4 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037158 SIDE PLATE 1 2 40041161 FACE PLATE 1 3 40052819 FACE PLATE PACKING 1 4 23600505 THREAD TAKE-UP LEVER COVER 1 5 SM4051055SP SCREW 1 6 40086713 BED,STUD,A 1 7 SM6061002TP SCREW M6 L=10 2 8 22951552 GROUND WIRE ASM. 1 9 SM4050855SP SCREW 1 10 EA9500B0100 CABLE BAND FOR BB 1 11 40094561 SEWING MACHINE LABEL (EU) FOR BB,EE 1 12 22901250 SLIDE PLATE ASM. FOR AA,GG 1 13 22902753 SLIDE PLATE 1 14 22901201 SLIDE PLATE * 1 15 22902704 SLIDE PLATE * 1 16 22901300 SLIDE PLATE SPRING * 1 17 22901300 SLIDE PLATE SPRING * 1 18 SS6060210SP SCREW 3/32-56 L=1.9 * 2 19 SM4050855SP SCREW 2 20 40069110 ATTACHMENT FIXATION SCREW OPTIONAL PARTS 1 21 22944508 WIRE PRESSER A 1 22 SM4040855SP SCREW 1 23 CM300200001 ATTENTION SEAL 1 24 40069097 RULER PLATE I OPTIONAL PARTS 1 25 CM300200003 ATTENTION LABEL 1 26 SM6052502TP SCREW M5X25 3 27 SM2040955TP SCREW M4 L=8.5 1 28 SM2040750TP SCREW M4 L=7.4 1 29 CM301300001 SAFETY LABEL 1 30 22902506 FACE PLATE 4 31 SM4051055SP SCREW 2 32 SM4051255SP SCREW M5 L=12 1 33 40086732 PULLEY_COVER 1 34 40086714 BED,STUD,B 1 35 SM6061202TP SCREW M6 L=12 2 36 SM4040655SP SCREW M4 L=6 1 37 40035589 RULER PLATE 1 38 40091461 FEED LEVER SPRING HOOK 1 39 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 40 TA1250406R0 RUBBER PLUG D=12.5 L=4 2 41 TA1470704R0 RUBBER PLUG 1 42 NM6040001SP NUT M4X0.7 1 43 TA1250406R0 RUBBER PLUG D=12.5 L=4 1 44 40114043 FEED ADJUSTING SPRING,PLATE 1 45 40052933 ARM THREAD GUIDE C 1 46 SM80608A2TP SCREW M6 L=8 1 47 23640006 SHEET 1 jintex.in

Page 5 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 11 32 32 1 5 4 43 A 46 92 -27 -28 -85-86 14-15 16-17 18 12-13 19 30 40 31 -39 -67 -70 -36 -37 -24 -6 3 A -93 -7 2 60 59 23 69 68 21 22 45 34 44 -58 57 54 41 38 91 -94 -35 49 51 53 81 8 9 33 88 87 63 62 66 64 65 83 82 84 25 42 10 89 90 75 73 72 76 79 74 77 78 56 55 52 50 jintex.in 26 95 29 -47-48 71 80

Page 6 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40037488 SHEET FOR GG 1 49 40086639 THREAD_TENSION_DISK_ASM. 1 50 23626005 THREAD TENSION NUT * 1 51 22921209 THREAD TENSION POST * 1 52 22921407 ROTATION STOPPER * 1 53 22921506 THREAD TENSION DISK * 2 54 22921605 THREAD TAKE-UP SPRING * 1 55 22921704 THREAD TENSION SPRING A * 1 56 22921803 DISK STOPPER * 1 57 40086640 TENSION_POST_SOCKET_ASM. * 1 58 SS8090670SP SCREW 9/64-40 L=5.5 1 59 SS6110610TP SCREW 11/64-40 L=6 1 60 22920607 ARM THREAD GUIDE B 1 61 22963458 THREAD TENSION ASM. 1 62 22945414 THREAD TENSION POST * 1 63 22945604 THREAD TENSION GUIDE * 1 64 22963409 THREAD TENSION SPRING * 1 65 22945703 THREAD TENSION NUT * 1 66 22945802 THREAD TENSION DISK * 2 67 SM80608A2TP L=8SCREW M6 L=8 1 68 SM5040655SN SCREW 1 69 23626104 ARM THREAD GUIDE A 1 70 SM80608A2TP L=8SCREW M6 L=8 1 71 40086659 SAFETY_SWITCH_ASM. 1 72 40086660 SAFETY_SWITCH_BASE * 1 73 23638109 SAFETY SWITCH ARM * 1 74 23638208 SAFETY SWITCH SPRING * 1 75 23638307 SAFETY SWITCH ARM SHAFT * 1 76 23638406 SAFETY SWITCH NUT * 1 77 40098386 SAFETY_SWITCH_CORD_ASM. * 1 78 EA9500B0100 CABLE BAND * 1 79 SM4021201SC SCREW M2 L=12 * 2 80 SM4050655SP SCREW M5 L=6 1 81 22901805 GROUND MARK 1 82 23629900 AIR-DISCHARGING 1 83 RO080150200 RUBBER RING 1 84 23601305 AIR-DISCHARGING CAP 1 85 B1109012I0B THROAT PLATE (I) FOR AA,BB 1 86 11028008 THROAT PLATE FOR EE 1 87 CM600100101 WEEE MARK LABEL S FOR BB 1 88 CM600600101 CHINA ENVIRONMENT LABEL FOR GG 1 89 SM4051055SP SCREW 2 90 WP0550800SP WASHER 5.5X10X0.8 2 91 40091397 CABLE COVER 1 92 B1109552000 THROAT PLATE FOR GG 1 93 WP0621016SD WASHER 6.2X13X1 2 94 WP0621016SD WASHER 6.2X13X1 2 jintex.in

Page 7 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS 11 32 32 31 81 8 9 33 26 95 5 4 39 67 43 88 29 A 63 69 62 61 68 66 46 70 64 65 36 20 37 83 82 84 92 24 25 42 47 48 27 21 41 28 85 86 22 38 91 10 14 15 45 34 71 16 17 6 89 90 75 73 18 72 94 44 12 13 76 3 93 35 79 A 7 74 58 49 77 80 2 19 57 54 78 30 51 53 56 40 60 55 52 59 50 jintex.in

Page 8 — MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 95 WP0501016SD WASHER 5X10.5X1 3 jintex.in

Page 9 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS 20 23 17 -10 2 9 13 1 4 -16 3 -14 22 -11 6 8 15 -11 5 18 -19 21 -7 21 -12 -25 -27 -29 24 -28 -26 31 30 33 32 jintex.in

Page 10 — BOBBIN WINDER COMPONENTS

BOBBIN WINDER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40023021 BOBBIN WINDER UNIT 1 2 26260109 BTW_BASE * 1 3 26260208 BTW_CAM_PLATE * 1 4 26260307 BTW_BASE_SHAFT * 1 5 26260406 BTW_SHAFT_BASE * 1 6 26260505 BTW_CAM_LEVER * 1 7 26260604 BTW_WHEEL * 1 8 26260802 BTW_BEARING_SPACER * 1 9 26261008 BTW_LEVER_SHAFT * 1 10 26261206 BTW_SPACER * 1 11 26261305 BTW_BEARING * 2 12 26261503 BTW_WHEEL_RUBBER * ☆ 1 13 26261602 BOBBIN_SPRING * ☆ 1 14 26261701 BTW_SPRING * 1 15 40011144 BTW_TORSION_SPRING * 1 16 40014837 BTW_SHAFT * 1 17 40023022 BTW LEVER * 1 18 RC0560711KP RETAINING RING * 1 19 RE040000K0 E-RING 4 * 1 20 SM5040655SN SCREW * 1 21 SM8040802TP SCREW M4X8 * 2 22 SM8050502TP SCREW M5 L=5 * 1 23 WP0450826SC WASHER 4.5X10X0.8 * 1 24 40088958 BOBBIN THREAD TENSION ASM. 1 25 22921308 THREAD TENSION NUT * 1 26 40088959 BOBBIN THREAD TENSION ROD ASM. * 1 27 22921407 ROTATION STOPPER * 1 28 22921506 THREAD TENSION DISK * 2 29 22921704 THREAD TENSION SPRING A * 1 30 40037008 THREAD_CUTTER * ☆ 1 31 SM0050801SC SCREW 1 32 SM0050801SC SCREW 3 33 SM4051055SP SCREW 1 jintex.in

Page 11 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 39 40 41 42 43 51 25 30 31 29 26 27 28 10 9 34~36 45 37 43 38 32 47 48 46 50 11 15 16 49 14 24 21 20 19 18 22 23 13 12 7 8 2 3 5 6 4 1 jintex.in

Page 12 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086597 MAIN_SHAFT 1 2 40135904 ASSY_COUNTER WEIGHT 1 3 40135916 COUNTER WEIGHT * 1 4 40004171 COUNTER_WEIGHT_SCREW * 1 5 SM8081652TP SCREW M8 L=16 * 1 6 SM80606A2TP 6SCREW M6 L=6 * 2 7 40150011 FRONT_BEARING 1 8 SM80608A2TP SCREW M6 L=8 * 2 9 22906309 NEEDLE BAR THREAD GUIDE 1 10 SS7080510TP SCREW 1/8-44 L=4.5 ☆ 1 11 40089196 AC SERVO MOTOR 1 12 40051473 COUPLING ASM. 1 13 40051474 COUPLING * 1 14 SM8081652TP SCREW M6 L=8 * 4 15 40037007 HAND WHEEL ASM. 1 16 40037006 HAND WHEEL * 1 17 SM80608A2TP SCREW M6 L=8 * 2 18 40136292 BTW_DRIVING_WHEEL_ASM 1 19 40136293 BTW_DRIVING_WHEEL * 1 20 SM80506A2TP SCREW M5 L=6 * 2 21 SB120002700 BEARING 1 22 40141440 UPPER SPROCKET ASM. 1 23 SM80608A2TP SCREW M6 L=8 * 2 24 40086731 TIMING_BELT_550 1 25 23608003 NEEDLE BAR METAL UPPER 1 26 40107707 NEEDLE_BAR_METAL_LOWER 1 27 22886907 NEEDLE BAR (A) FOR EE,AA,GG 1 28 22887004 NEEDLE BAR (B) FOR BB 1 29 22906457 NEEDLE BAR HOLDER ASM. 1 30 22906408 NEEDLE ROD HOLDER * 1 31 SS6090670TP SCREW 9/64-40 L=6 * 1 32 40090058 SLIDE BLOCK 1 33 23626203 NEEDLE BAR THREAD GUIDE 1 34 MDB100B1100 NEEDLE DBX1 #11 FOR EE,AA ☆ 1 35 MC200500750 NEEDLE 134 NM75 FOR BB ☆ 1 36 MDB100B1400 NEEDLE DBX1 #14 FOR GG ☆ 1 37 40135900 THREAD TAKE UP COMPL. 1 38 40135905 THREAD_TAKE_UP_ASM._C * 1 39 40141165 TAKE_UP_CRANK_ASM * 1 40 40135906 TAKE_UP_CRANK * 1 41 40143184 TAKE_UP_CRANK_SHAFT * 1 42 40135907 THREAD_TAKE_UP_PIN * 1 43 RE0300000K0 E-RING 3 * 2 44 SM80608A2TP SCREW M6 L=8 2 45 TA0850604R0 RUBBER PLUG 2 46 40032269 THRUST COLLAR 1 47 CS1000881TP THRUST COLLAR * 1 - 10 -

Page 13 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS 45 44 37 39 40 41 42 43 51 25 43 30 31 29 26 33 27-28 10 9 34~36 2 3 5 6 4 45 47 48 46 38 32 7 8 1 50 11 18 20 19 15 16 49 24 21 22 13 12 23 jintex.in

Page 14 — MAIN SHAFT & NEEDLE BAR COMPONENTS

MAIN SHAFT & NEEDLE BAR COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050412TP SCREW M5 L=4 * 2 49 SL6052592TN BOLT 4 50 EA9500B0100 CABLE BAND 2 51 TA0850604R0 RUBBER PLUG 1 jintex.in

Page 15 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS

Page 16 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40136700 PRESSER BAR BUSHING 1 2 40086606 PRESSER BAR GUIDE BRACKET ASM. 1 3 40086607 PRESSER BAR GUIDE BRACKET * 1 4 SM6051400SP SCREW * 1 5 23609357 LIFTING LEVER CONNECT ROD ASM. 1 6 23609456 LIFTING LINK COMPL. * 1 7 23609605 PLATE * 1 8 22908008 LIFTING PLATE * 1 9 SM6040602TP SCREW M4 L=6 * 1 10 RE0500000K0 E-RING * 1 11 RE0500000K0 E-RING 1 12 23609308 LIFTING LEVER CONNECT ROD 1 13 40086760 CONNECTING ROD 1 14 23609704 LIFTING LEVER LINK 1 15 22907406 PRESSER SPRING 1 16 23610207 PRESSER BAR 1 17 23610306 PRESSER GUIDE BAR 1 18 40037359 PRESSER SPRING REGURATOR ASM. 1 19 40037141 PRESSER SPRING REGULATOR * 1 20 40037144 PRESSER SPRING REGULATOR NUT * 1 21 40050583 LINK SHAFT 2 22 22907802 HAND LIFTER 1 23 B152155000 SCREW 1 24 22908552 HAND LIFTER CAM ASM. 1 25 RO037180100 RUBBER RING 1 26 B15240120BA PRESSER FOOT ASM. 1 27 SS7091110TP SCREW 9/64-40 L=10.5 1 28 RE0500000K0 E-RING 3 29 22908909 HINGE SCREW 1 30 40082078 SHOULDER SCREW D=7.24 H=3.3 1 31 NM6060003SE NUT FOR BRACKET 1 32 40036706 ADJUSTING SCREW 1 33 WP0621016SD WASHER 6.2X13X1 1 34 22944508 WIRE PRESSER A 2 35 SM4040855SP SCREW 1 36 SM4040855SP SCREW 1 37 SM6051402TP SCREW M5X0.8 L=14 1 38 40086643 WIRE HOLDER 1 39 40050582 TENSION RELEASE SHAFT 1 40 22920300 THREAD RELEASE SUPPORTING PIN 1 41 22920409 THREAD RELEASE PIN SPRING 1 42 23626351 THREAD TENSION RELEASE WIRE 1 43 23626807 TENSION RELEASE RETURN SPRING 1 44 NS6620310SP NUT 3/16-32 2 45 RE0500000K0 E-RING 2 46 40056622 MINUTE LIFTING DEVICE ASM. OPTIONAL PARTS 1 47 23611106 HAND LIFTER * 1 jintex.in

Page 17 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS

Page 18 — HAND LIFTER & TENSION RELEASE COMPONENTS

HAND LIFTER & TENSION RELEASE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 23610504 STOPPER BASE * 1 49 23610652 STOPPER SCREW ASM. * 1 50 D5119206K0K SPACER * 2 51 23610702 STOPPER SCREW NUT * 1 52 SL6053592TN BOLT * 1 53 RO044240100 RUBBER RING 1 54 B3118552F00 TENSION RELEASING PIN 1 55 WP0501016SD WASHER 5X10.5X1 1 jintex.in

Page 19 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS jintex.in

Page 20 — FEED ADJUST MECHANISM COMPONENTS

FEED ADJUST MECHANISM COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086735 ADJUSTING_LINK_ASM. 1 2 40086695 FEED_ADJUSTING_LINK * 1 3 40086696 FEED_ADJUSTING_LINK_PIN * 2 4 SM80506A2TP SCREW M5 L=6 * 2 5 40086608 ADJUSTING_LINK_FULCRUM_SHAFT 1 6 SM80606A2TP SCREW M6 L=6 1 7 40086615 FEED_CHANGING_SHAFT_METAL_A 1 8 40086704 FEED_CHANGING_SHAFT_ARM_ASM. 1 9 40086705 FEED_CHANGING_SHAFT_ARM * 1 10 SM6051602TP SCREW M5X0.8 L=16 * 1 11 22910509 FEED_ADJUSTING LINK PIN * 1 12 40086706 FEED_CHANGING_SPRING_PIN * 1 13 40086616 FEED_CHANGING_SHAFT_METAL_B 1 14 40086614 FEED_CHANGING_SHAFT 1 15 40086738 REVERSE_FEED_LEVER 1 16 23613706 FEED_LEVER_SHAFT 1 17 40086674 FEED_LEVER_ARM_ASM. 1 18 40086675 FEED_LEVER_ARM * 1 19 SM6051602TP SCREW M5X0.8 L=16 * 1 20 40086737 FEED_ADJUSTING SPRING 1 21 40086739 FEED_LEVER SPRING 1 22 40086609 FEED_ADJUSTING_ROD 1 23 23630007 TUBE 0.1 24 RE0500000K0 E-RING 1 25 23612609 FEED CHANGING SHAFT OIL SEAL 1 26 SM80608A2TP SCREW M6 L=8 2 27 22952501 BACK LEVER STOPPER 1 28 SM6051850TP SCREW M5 L=18 1 29 40141842 FEED REGULATOR SCREW 1 30 40123098 FEED_REGULATOR_PIN_SPRING 1 31 40161440 FEED_REGULATOR_PIN 1 32 40141840 REGULATOR_STOPPER_SPRING 1 33 40141838 FEED REGULATOR WASHER 1 34 40141841 REGULATOR PIN DIAL 1 35 SS6121860SP SCREW 3/16-28 L=18 1 36 40086617 FEED_LEVER_SHAFT_METAL 1 37 40086736 RUBBER PLUG 1 38 SM80606A2TP SCREW M6 L=6 1 39 23613409 FEED ADJUSTING PIN 1 40 40095847 FEED REGULATOR ASM. 1 41 SM80606A2TP SCREW M6 L=6 * 1 42 40122891 FEED_REGULATOR * 1 43 RO092270200 RUBBER RING 1 44 40161441 REGULATOR_PIN_STOPPER 1 45 40086613 FEED_REGULATOR_STOPPER_PIN 2 46 40006716 THREAD_TRIMMER_SHAFT 1 47 SM80606A2TP SCREW M6 L=6 1 jintex.in

Page 21 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS 70 77 33 71 27 26 11 12 13 25 22 24 10 14 22 23 24 75 8 76 23 56 36 19 18 85 84 16 17 15 66 61 34 60 35 62~65 59 74 44 57 73 58 58 72 78 67 51 68-69 37 46 83 38 43 82 45 32 31 4 39 41 21 7 6 42 5 81 40 31 32 47 48~50 80 79 52 20 53 2 55 28~30 3 1 54 jintex.in

Page 22 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40037192 FEED ROCKER CAM ASM. 1 2 23616006 FEED ROCKER CAM * 1 3 SS8150822TP SCREW 15/64-28 L=8 * 2 4 40037365 FEED ROCKER ROD ASM. 1 5 40026277 FEED ROCKER ROD * 1 6 22911101 WALKING FOOT PIN C * 1 7 SS6090620TP SCREW * 1 8 40061246 FEED ROCKER ARM ALL ASM. 1 9 40058504 FEED ROCKER ARM ASM. * 1 10 40042079 FEED ROCKER ARM * 1 11 SS6121610SP SCREW 3/16-28 L=15.5 * 1 12 SS6090620TP SCREW * 1 13 22911002 WALKING FOOT PIN B * 1 14 23616709 FEED ROCKER SHAFT METAL 1 15 40037005 ASSY_FEED_ROCKER_BASE_ARM 1 16 40026281 FEED ROCKER BASE ARM * 1 17 SM6051400SP SCREW * 1 18 WP0480856SP WASHER 4.8X8.4X0.8 * 1 19 SM4050855SP SCREW 1 20 23616204 FEED ROCKER CAM PLATE 1 21 SS6090670TP SCREW 9/64-40 L=6 2 22 22904155 MAIN SHAFT THRUST COLLAR ASM. 2 23 22904106 MAIN SHAFT THRUST COLLAR * 1 24 SS8660610TP SCREW 1/4-40 L=6 * 2 25 B1613012I00 FEED DOG I FOR AA,BB,GG 1 26 23614506 FEED DOG A FOR EE 1 27 SS4080620TP SCREW 1/8-44 L=6 2 28 B412352200A NEEDLE BEARING SELECTIVE PARTS 1 29 B412352200B NEEDLE ROLLAR SELECTIVE PARTS 1 30 B412352200C NEEDLE ROLLAR SELECTIVE PARTS 1 31 40026278 CONNECTING LINK A 2 32 23616402 CONNECTING LINK B 2 33 23616600 FEED ROCKER SHAFT 1 34 40086743 BEARING SUPPORT ASM. 1 35 SS6110710TP SCREW 11/64-40 L=6.5 * 2 36 40026282 FEED ROCKER BASE SHAFT 1 37 40000391 VERTICAL FEED CAM ASM. 5 1 38 40000392 VERTICAL FEED CAM 5 * 1 39 SS8151150TP SCREW 15/64-28 L=10.5 * 2 40 40053720 FEED DRIVING BASE ARM ASM. 1 41 40026287 FEED DRIVING BASE ARM * 1 42 SM4040655SP SCREW M4 L=6 * 1 43 40026288 FEED DRIVING BASE SHAFT 1 44 40086757 FEED DRIVING SHAFT 1 45 40086690 FEED_DRIVING_BEARING_SUPPORT 1 46 SS8661012TP SCREW 2 47 23618101 FEED DRIVING CAM THRUST BUSH 2 - 20 -

Page 23 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

Page 24 — HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS

HORIZONTAL FEED, VERTICAL FEED & HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SB32000060A BEARING SELECTIVE PARTS 1 49 SB32000060B BEARING SELECTIVE PARTS 1 50 SB32000060C BEARING SELECTIVE PARTS 1 51 SB117001200 BEARING 1 52 23618309 FEED DRIVING CAM PLATE 1 53 SS6090670TP SCREW 9/64-40 L=6 2 54 23620503 GEAR (LARGE) 1 55 SS8661012TP SCREW 2 56 23620008 HOOK SHAFT 1 57 23620156 HOOK SHAFT METAL COMPL. 1 58 40145927 OIL SEAL 2 59 22916555 OIL SEAL SCREW ASM. 1 60 22916506 SET SCREW * 1 61 11015906 OIL WICK * 1 62 23620701 GEAR (SMALL)(A) SELECTIVE PARTS 1 63 23620800 GEAR (SMALL)(B) SELECTIVE PARTS 1 64 23620909 GEAR (SMALL)(C) SELECTIVE PARTS 1 65 23621006 GEAR (SMALL)(D) 1 66 SS8661012TP SCREW 2 67 11038759 BOBBIN CASE ASM. ✩ 1 68 11141355 HOOK ASM. FOR BB ✩ 1 69 11038650 HOOK ASM. FOR AA,EE,GG ✩ 1 70 40086740 OIL SEAL 1 71 40030786 FEED BASE COMPL. 1 72 22964001 BOBBIN A ✩ 1 73 40086744 HOOK DRIVING SHAFT OIL SEAL 1 74 23620404 HOOK SHAFT REAR METAL 1 75 40089607 INNER_HOOK_HOLDER 1 76 SM4051055SP SCREW 1 77 40086618 FEED_SHAFT_REAR_METAL 1 78 40086741 OIL SEAL 1 79 40086742 OIL SEAL 1 80 SB120001800 BEARING 1 81 40141443 UNDER SPROCKET ASM. 1 82 SM80608A2TP SCREW M6 L=8 * 2 83 RC1200001KP C-SHAPED SNAP RING 1 84 11079506 FRONT SCREW OPTIONAL PARTS 1 85 RO036080200 RUBBER RING OPTIONAL PARTS 1 jintex.in

Page 25 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS jintex.in

Page 26 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40050585 KNIFE UNIT 1 2 11040052 MOVING KNIFE ASM. * ☆ 1 3 40044189 THREAD_GUIDE_FOR_KNIFE * ☆ 1 4 22947907 KNIFE MOUNTING BASE * 1 5 11040409 MOVING KNIFE HINGE SCREW * 1 6 22948202 FORKED BASE FOR KNIFE * 1 7 D2406555D0H COUNTER KNIFE * ☆ 1 8 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 9 SS2060210SP SCREW 3/32-56 L=2.3 * 2 10 SS4080620TP SCREW 1/8-44 L=6 * 1 11 SM4041055SP SCREW 1 12 40036998 ASSY_PICKER_ARM * 1 13 40061215 PICKER ARM 1 14 40036997 ASSY_PICKER * ☆ 1 15 SS6090670TP SCREW 9/64-40 L=6 * 2 16 40029398 PICKER SPRING 1 17 SD0641456TP SHOULDER SCREW D=6.35 H=14.5 1 18 40086746 ASSY_THREAD_TRIM_SOLENOID 1 19 40089263 THREAD TRIMMER SOLENOID * 1 20 11043304 SOLENOID RUBBER * 1 21 NS6660410SH NUT * 1 22 NS6660430SP NUT 1/4-40 * 1 23 HK03464000B PIN CONTACT * 2 24 NM6040000SN NUT M4 * 2 25 WP0430800SC WASHER M4 * 2 26 40089672 SPRING * 1 27 40086727 SOLEOID INSTALLING BASE * 1 28 SM6061002TP SCREW M6 L=10 2 29 40086711 SORENOID_PIN 1 30 SS6110710TP SCREW 11/64-40 L=6.5 1 31 RE0500000K0 E-RING 1 32 10618304 WASHER 2 33 40086634 CLUTCH_PLATE 1 34 40086635 CLUTCH_SHAFT 1 35 SM8060812TP SCREW M6 L=8 1 36 40086622 THREAD_TRIMMER_SHAFT 1 37 31256803 SPRING 1 38 WP0841600SD WASHER M8 1 39 RE0700000K0 E-RING 7 1 40 B111680400 RUBBER WASHER 1 41 40095843 ASSY CAM FOLLOWER 1 42 40086624 CAM_FOLLOWER_ASM. * 1 43 SM80606A2TP SCREW M6 L=6 * 2 44 40086748 ROLLER SHAFT 1 45 40015671 CAM ROLLER 1 46 NM6040001SP NUT M4X0.7 2 47 40086623 STOPPER_SCREW 1 jintex.in

Page 27 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS 77 55 58 57 77 56 79 67 68 62 78 63 66 65 64 70 69 41 79 42 78 46 36 43 45 53 54 44 47 39 38 48 37 49 49 51 83 82 52 50 74 31 32 72 76 75 73 33 35 34 18 19 27 26 20 21 22 23 25 24 32 29 81 30 28 Jintex.in

Page 28 — THREAD TRIMMER COMPONENTS

THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40086636 CAM_FOLLOWER_STOPPER 1 49 SM6061010TP SCREW M6 L=10 2 50 40095870 THREAD TRIMMER STOPPER ASM. 1 51 B1116210D00 STOPPER RUBBER 1 52 SM6040800SP SCREW 2 53 40086747 THREAD TRIMMER CAM 1 54 SM80608A2TP SCREW M6 L=8 2 55 40086708 CONNECTING_ROD_ASM. 1 56 40136701 ROD_END * 2 57 NM6050001SC NUT M5 * 2 58 40086709 CONNECTING_BAR * 1 59 26226209 SPRING 1 60 40086621 SPRING_RACK 1 61 SM4050655SP SCREW M5 L=6 1 62 40086631 THREAD_TRIMMER_LINK_A 1 63 40086632 THREAD_TRIMMER_LINK_B 1 64 40086633 SHOULDER_SCREW 1 65 SS7110740TP SCREW 11/64-40 L=7 1 66 WP0450801SP WASHER 1 67 SM8061050TP SCREW 1 68 SM8061010TP SCREW 1 69 SD0640321SP HINGE SCREW D=6.35 H=3.2 1 70 40086628 MOVING_KNIFE_LINK 1 71 SD0640631TP HINGE SCREW D=6.35 H=6.3 1 72 40086637 PICKER_LINK_ASM. 1 73 SD0630275SP HINGE SCREW D=6.35 H=2.7 1 74 22950000 PICKER LINK PIN 1 75 NS6150310SP NUT 15/64-28 1 76 WP0621016SH WASHER 1 77 SD0500701TP SHOULDER SCREW 2 78 NS6110310SP NUT 11/64-40 2 79 40086712 CONNECTING ROD FELT 2 80 40090099 WASHER 1 81 WP0621016SD WASHER 6.2X13X1 2 82 40095218 THREAD TRIMMER STOPPER SPRING 1 83 40095873 THREAD TRIMMER STOPPER BUSH 1 jintex.in

Page 29 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS

Page 30 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40082059 GEAR BOX COVER ASM. 1 2 40135639 GEAR_BOX_COVER * 1 3 40034246 OIL_SIGHT_WINDOW * 1 4 RO195240100 RUBBER RING * 1 5 13171004 DRAIN SCREW * 1 6 13170105 RUBBER RING * 1 7 23629256 OIL WICK SUPPORT ASM. 1 8 23629207 OIL WICK * 1 9 CQ250000001 OIL WICK 0.25 10 23629306 PIPE STOPPER A 3 11 23629405 PIPE STOPPER B 4 12 40037166 GEAR BOX PACKING 1 13 40135640 MAGNET_HOLDER 1 14 SQ2050453MZ CONNECTING SCREW 2 15 40086648 FLOATER ASM. 1 16 RO068190100 RUBBER RING 1 17 23630007 TUBE 0.57 18 23630007 TUBE 0.08 19 23630007 TUBE 0.11 20 CQ200000001 OIL WICK 0.75 21 23630106 TUBE B 0.165 22 23630106 TUBE B 0.2 23 40075404 FACE FELT ASM 1 24 22925101 OIL FELT PRESSER 1 25 RO098240100 RUBBER RING 1 26 RO172180100 RUBBER RING 1 27 SL6061292TN SCREW 3 28 SM6051402TP SCREW M5X0.8 L=14 9 29 SM5040655SN SCREW 1 30 40013595 OIL_EXIT_CAP 1 31 40098329 OIL_TANK 1 32 40086646 FLOATER_CASE_ASM. 1 33 40086647 FLOATER_CASE * 1 34 23630403 OIL FILTER * 1 35 23630502 OIL FILTER STOPPER * 1 36 23628902 PLUNGER SPRING 1 37 40038328 PLUNGER SCREW 1 38 40037502 OIL ADJUSTING SCREW 1 39 RO037180100 RUBBER RING 1 40 23628803 PLUNGER 1 41 40086693 FROATER_CASE_GUIDE 1 42 SL6040892TN BOLT 1 43 SL6051492TN BOLT 1 44 B8228125000 OIL RESERVOIR MAGNET 2 45 40149785 ASSY_FLOATER_SIGHT_WINDOW_B 1 46 40000344 LUBRICATING INLET CAP * 1 47 RO048190100 RUBBER RING * 1 jintex.in

Page 31

OIL LUBRICATION COMPONENTS jintex.in

Page 32 — OIL LUBRICATION COMPONENTS

OIL LUBRICATION COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40086697 FLOATER_SIGHT_WINDOW_B * 1 49 SM4040601SC SCREW M4X0.7 L=6 1 50 WP0501016SD WASHER 5X10.5X1 9 - 30 -

Page 33 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS 35 34 13 12 4 6 5 37 14 36 8 7 9 8 11 7 10 8 3 7 1 2 15 24 16 18 23 19 20 25 17 22 21 26 28 33 29 30 32 27 31 - 31 -

Page 34 — AUTOMATIC REVERSE FEED COMPONENTS

AUTOMATIC REVERSE FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40086750 REVERSE FEED SOLENOID ASM. 1 2 HK03464000B PIN CONTACT * 2 3 40086753 REVERSE FEED SOLENOID PLUNGER * 1 4 RE1200000K0 E-RING 12 * 1 5 D2468555B00 RUBBER PLUNGER * 1 6 WP1602616SZ WASHER 16X24X2.6 * 1 7 WP0550800SP WASHER 5.5X10X0.8 3 8 SM4051055SP SCREW 3 9 WP0551016SH WASHER 5.5X13X1 1 10 NM6050001SP NUT M5 2 11 WS0610002KN SPRING WASHER 6.1X12.2X1.5 1 12 40095844 REVERSE FEED ARM ASM. 1 13 40086698 REVERSE_FEED_ARM * 1 14 SM6051602TP SCREW M5X0.8 L=16 * 1 15 23631757 REVERSE FEED SWITCH ASM. 1 16 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 17 23632359 REVERSE FEED CORD ASM. * 1 18 EA9500B0100 CABLE BAND * 1 19 SS7110740TP SCREW 11/64-40 L=7 * 1 20 23631708 REVERSE FEED SWITCH COVER * 1 21 23631807 REVERSE FEED SWITCH SHAFT * 1 22 23631906 REVERSE FEED SWITCH SUPPORT * 1 23 23632003 REVERSE FEED SWITCH BASE * 1 24 SM4051055SP SCREW 1 25 23632656 OPTION SWITCH ASM. OPTIONAL PARTS 1 26 23632102 REVERSE FEED SWITCH BASE GUIDE * 1 27 23632250 REVERSE FEED CORD ASM. * 1 28 EA9500B0100 CABLE BAND * 1 29 SS7110740TP SCREW 11/64-40 L=7 * 1 30 23631708 REVERSE FEED SWITCH COVER * 1 31 23631807 REVERSE FEED SWITCH SHAFT * 1 32 23631906 REVERSE FEED SWITCH SUPPORT * 1 33 23632607 OPTION SWITCH BASE * 1 34 40086655 REVERSE_FEED_CONNECTION_LINK 1 35 40086699 REVERSE_FEED_LINK_PIN 1 36 SM8480652TP SCREW 1 37 40086759 BACK_SOLENOID_PLUNGER_PIN 1 - 32 -

Page 35 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

WIPER COMPONENTS (FOR DDL-9000B-**-WB) 1 5 37 36 6 26 17 32 27 25 20 31 15 8 21 10 18 16 11 9 22 2 29 30 3 13 14 7 4 23 33 24 34 35 12 28 19 - 33 -

Page 36 — WIPER COMPONENTS (FOR DDL-9000B-**-WB)

WIPER COMPONENTS (FOR DDL-9000B-**-WB) No. Parts No. Parts name Remarks Level Cons Qty 1 40086676 WIPER ASM. 1 2 40077853 WIPER BASE ASM. * 1 3 40086723 WIPER LINK B * 1 4 40086724 WIPER SHAFT ASM. * 1 5 40095175 WIPER_SOLENOID_ASM. * 1 6 40089264 WIPER SOLENOID * 1 7 HK03464000B PIN CONTACT * 2 8 HW500070000 2-CORE CABTYRE CORD * 1.3 9 22956106 WIPER LINK A * 1 10 22956205 WIPER HINGE SCREW COLLAR * 1 11 22956304 WIPER SPRING * 1 12 22956809 WIPER COLLAR * 1 13 22956908 WIPER LINK B HINGE SCREW * 1 14 22957005 WIPER * 1 15 22957203 WIPER LINK COLLAR * 1 16 40077852 WIPER SOLENOID SHAFT * 1 17 40086678 WIPER_SW_RUBBER * 1 18 22955900 WIPER RUBBER A * 1 19 40086717 FELT_B * 1 20 22956007 WIPER RUBBER B * 1 21 NS6090310SP NUT 9/64-40 * 1 22 NS6110310SP NUT 11/64-40 * 1 23 RC0370411KP RETAINING RING * 1 24 RE0500000K0 E-RING * 1 25 SD0650321TP HINGE SCREW D=6.5 H=3.2 * 1 26 SL4030631SC SCREW M3X6 * 1 27 SL4030641SE SCREW * 3 28 SS6090540SP SCREW 9/64-40 L=5.0 * 1 29 40077851 WIPER SOLENOID SHAFT GUIDE * 1 30 SS4110615SP SCREW 11/64-40 L=6 * 2 31 40086680 WIPER_STOPPER_RUBBER_HOLDER * 1 32 40086679 WIPER_STOPPER_RUBBER * 1 33 WP0661016SP WASHER * 1 34 WP0651001SC WASHER * 1 35 40086716 FELT_A * 1 36 22955504 WIPER COVER * 1 37 SM4051055SP SCREW 1 - 34 -

Page 37 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 12 20 7 7 3 11 6 6 9 18 8 5 25 19 10 5 24 4 2 11 4 17 15 15 14 14 13 13 22 23 1 23 16 22 21 - 35 -

Page 38 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40108402 THRED_STAND_B 1 2 40085786 SPOOL REST ARM (LOWER) * 1 3 40085787 SPOOL REST ARM (UPPER) * 1 4 40085788 SPOOL REST * 2 5 40085789 SPOOL REST CUSHION * 2 6 40085790 SPOOL PIN * 2 7 40085791 SPOOL RETAINER * 2 8 40085794 THREAD GUIDE * 2 9 40085795 THREAD GUIDE BUSHING * 2 10 40096326 SPOOL REST ARM LOWER SCREW * 1 11 NM6050001SE NUT M5 * 2 12 40096327 SPOOL REST ARM UPPER SCREW * 1 13 NM6050001SE NUT M5 * 2 14 WS0510002KN SPRING WASHER M5 * 2 15 WP0531001SC WASHER M5 * 2 16 40108401 THREAD_STAND_A 1 17 40085784 SPOOL REST ROD LOWER * 1 18 40085785 SPOOL REST ROD UPPER * 1 19 40085792 SPOOL REST ROD JOINT * 1 20 40085793 SPOOL REST ROD RUBBER CAP * 1 21 40096325 SPOOL REST ROD NUT * 1 22 WP1612616SE WASHER 16X30X2.6 * 2 23 40085796 SPOOL REST ROD RUBBER CUSHION * 2 24 SM4051405SE SCREW M5 L=14 * 2 25 NM6050001SE NUT M5 * 2 - 36 -

Page 39 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS 1･2 6･7 3･4 8 5 22 13 8 6･7 27 15 17 24 25 19 18 20 22 18 23 25 21 A 10 16 21 9 11 11 33 34 12 12 14 32 23 28 26 30 29 A 31 - 37 -

Page 40 — UNDER COVER COMPONENTS

UNDER COVER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089665 UNDER COVER AH ASM. FOR DDL-9000B-SH 1 2 40062321 UNDER COVER A ASM. EXCEPT DDL-9000B-SH 1 3 40089671 UNDER COVER BH ASM. FOR DDL-9000B-SH 1 4 40062323 UNDER COVER B ASM. EXCEPT DDL-9000B-SH 1 5 23639008 UNDER COVER 1 6 22932008 RUBBER CUSHION FOR DDL-9000B-SH 2 7 B1116210D00 FRAME SUPPORT RUBBER EXCEPT DDL-9000B-SH 2 8 B1116210D00 FRAME SUPPORT RUBBER 2 9 23639156 BRACKET ASM. 1 10 23639107 BRACKET 1 11 NM60600001SE NUT M6 2 12 SM8063012TR SCREW M6 L=30 2 13 23639206 CONNECTING ROT 1 14 23639305 KNEE PRESS ROD 1 15 23639404 SHAFT 1 16 23639503 SPRING 1 17 23639602 CONNECTING ROD 1 18 WP0650876SD WASHER 6.5X13X0.8 2 19 22932453 BRACKET ASM. 1 20 22932404 BRACKET 1 21 SM9062053SR SCREW M6 L=20 2 22 NS6150310SP NUT 15/64-28 2 23 RE100000K0 E-RING 10 1 24 RE100000K0 E-RING 10 1 25 SD0720331SP HINGE SCREW D=7.24 H=3.3 2 26 SM9061853SR SCREW M6 L=17.5 1 27 SM9061853SR SCREW M6 L=17.5 1 28 22934251 KNEE PAD PLATE ASM. 1 29 22934202 KNEE PAD PLATE 1 30 22934301 KNEE PAD PLATE SUPPORT 1 31 22934400 KNEE PAD PLATE RUBBER 1 32 22934509 KNEE PAD PLATE COVER 1 33 22934608 KNEE PAD UPRIGHT SHAFT 1 34 SM9061203SE SCREW M6 L=12 1

Page 41 — ACCESSORIE PART COMPONENTS

ACCESSORIE PART COMPONENTS 1~4 5 9 10 8 7 6 11 12-13 14 16 19 21~27 17 18 15 31 28 JUKI 29 30 20 33 32 jintex.in

Page 42 — ACCESSORIE PART COMPONENTS

ACCESSORIE PART COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40089663 ACCESSORIE BAG ASM. EXCEPT TYPE AK 1 2 40091140 ACCESSORIE BAG AK ASM. TYPE AK 1 3 40099737 ACCESSORIE BAG ASM. 2 FOR CHINA (EXCEPT TYPE AK) 1 4 40099737 ACCESSORIE BAG AK ASM. 2 FOR CHINA (TYPE AK) 1 5 22932800 ACCESSORIE BAG * 1 6 22933204 SCREW DRIVER (SMALL) EXCEPT CHINA * 1 7 22502504 THREAD GUIDE BAR * 1 8 23639701 KNEE LIFTER PRESSER ROD * 1 9 EA9500B0100 CABLE BAND * 1 10 40055591 HEXAGONAL WRENCH KYE * 1 11 22933105 SCREW DRIVER (MIDDLE) EXCEPT CHINA * 1 12 22931604 FRAME SUPPORT BAR EXCEPT TYPE AK * 1 13 40024081 HEAD SUPPORT ROD TYPE AK * 1 14 22958052 RUBBER HINGE ASM. * 1 15 22926505 WASHER * 2 16 22926000 RUBBER CUSHION * 2 17 22958003 FRAME BUBBER CUSHION * 2 18 22926208 NAIL * 8 19 22926356 HINGE COMPL. * 2 20 B91210120A0 OILER ASM. 1 21 MDB100B1100 NEEDLE DBX1 #11 VARIOUS NOS.FOR DESTINATIONS 1 22 MDB100B0900 NEEDLE DBX1 #9 VARIOUS NOS.FOR DESTINATIONS 1 23 MDB100B2100 NEEDLE DBX1 #21 VARIOUS NOS.FOR DESTINATIONS 1 24 MDB100B1400 NEEDLE DBX1 #14 VARIOUS NOS.FOR DESTINATIONS 1 25 MC200501300 NEEDLE 134 NM130 VARIOUS NOS.FOR DESTINATIONS 1 26 MC200500650 NEEDLE 134 NM65 VARIOUS NOS.FOR DESTINATIONS 1 27 MC200500750 NEEDLE 134 NM75 VARIOUS NOS.FOR DESTINATIONS 1 28 40135803 HEAD COVER 1 29 40089323 DDL-9000B SETUP DOCUMENT EXCEPT CHINA 1 30 CM600100201 WEEE INFORMATION SHEET VARIOUS NOS.FOR DESTINATIONS 1 31 B9117012000 BOBBIN VARIOUS NOS.FOR DESTINATIONS 1 32 22964001 BOBBIN A VARIOUS NOS.FOR DESTINATIONS 1 33 40102087 JUKI MACHINE OIL 7 EXCEPT CHINA 1

Page 43 — EXCLUSIVE PARTS DDL-9000B DS

EXCLUSIVE PARTS DDL-9000B DS 1 2 4-5 3 DRY 13 16 14 15 18 22 21 20 17 19 24 23 6 7 8~10 11 12 jintex.in

Page 44 — EXCLUSIVE PARTS DDL-9000B DS

EXCLUSIVE PARTS DDL-9000B DS No. Parts No. Parts name Remarks Level Cons Qty 1 40086605 NEEDLE_BAR_LOWER_METAL_MD 1 2 SM4050501SC SCREW M5X0.8 L=5 1 3 40037146 FLOATER SIGHT WINDOW D 1 4 40086604 NEEDLE_BAR_D (B) FOR DDL-9000B-DS BB 1 5 40086602 NEEDLE_BAR_D (A) FOR DDL-9000B-DS AA,EE,GG 1 6 40089274 HOOK_SHAFT_FRONT_BEARING_COMPL. 1 7 SS6110420TP SCREW 11/64-40 L=4.8 * 2 8 22890404 RP HOOK C FOR DDL-9000B-DS BB ☆ 1 9 22890206 RP HOOK FOR DDL-9000B-DS EE,GG ☆ 1 10 22890305 RP HOOK S FOR DDL-9000B-DS AA ☆ 1 11 22964001 BOBBIN ☆ 1 12 22896252 BOBBIN CASE ASM. ☆ 1 13 40050586 KNIFE UNIT D 1 14 22895908 COUNTER KNIFE * ☆ 1 15 SS2060210SP SCREW 3/32-56 L=2.3 * 1 16 SS4080620TP SCREW 1/8-44 L=6 * 2 17 11040052 MOVING KNIFE ASM. * ☆ 1 18 40050588 THREAD GUIDE FOR KNIFE D * ☆ 1 19 22947907 KNIFE MOUNTING BASE * 1 20 11040409 MOVING KNIFE HINGE SCREW * 1 21 22896005 FORKED BASE FOR KNIFE * 1 22 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 23 40006323 JUki GREASE A TUBE FOR OPTIONAL PARTS 1 24 40050581 JOINT_CABLE_ASM. 1

Page 45 — EXCLUSIVE PARTS DDL-9000B MS,MA

EXCLUSIVE PARTS DDL-9000B MS,MA 1 2 3.6.7 4 5 24-28 9 10 11 12 13 14 15 16 17 18 19 20 21 22-23 25 26 27 29 8 jintex.in

Page 46 — EXCLUSIVE PARTS DDL-9000B MS,MA

EXCLUSIVE PARTS DDL-9000B MS,MA No. Parts No. Parts name Remarks Level Cons Qty 1 11001906 THROAT PLATE K FOR DDL-9000B-MA EE 1 2 11162104 SPRING FOR DDL-9000B-MA 1 3 MDB100B1100 NEEDLE DBX1 #11 FOR DDL-9000B-MA GG ☆ 1 4 D1613155W00 FEED DOG W FOR DDL-9000B-MA EE 1 5 D1524555DBB PRESSER FOOT ASM. FOR DDL-9000B-MA AA,BB,EE 1 6 MDB100B0900 NEEDLE DBX1 #9 FOR DDL-9000B-MA AA,EE ☆ 1 7 MC200500650 NEEDLE 134 NM65 FOR DDL-9000B-MA BB ☆ 1 8 40141843 REGULATOR PIN DIAL 4 FOR DDL-9000B-MA 1 9 40037439 THREAD TAKE UP COMP. A FOR DDL-9000B-MA 1 10 40037479 THREAD TENSION DISK ASM. A FOR DDL-9000B-MA 1 11 23626005 THREAD TENSION NUT * 1 12 B3132552000 THREAD TENSION DISK PRESSER * 1 13 B3126012000 THREAD TENSION DISK * 2 14 40024845 TENSION POST SOCKET ASM. * 1 15 B3115552000 TENSION POST * 1 16 B3120125000 ROTATING STOPPER * 1 17 D3129555D00 THREAD TENSION SPRING * 1 18 D3128555D00 TAKE-UP SPRING * ☆ 1 19 SS8090670SP SCREW 9/64-40 L=5.5 * 1 20 40086605 NEEDLE_BAR_LOWER_METAL_MD 1 21 SM4050501SC SCREW M5X0.8 L=5 1 22 40086604 NEEDLE_BAR_D_(B) FOR DDL-9000B-MS MA,BB 1 23 40086602 NEEDLE_BAR_D_(A) FOR DDL-9000B-MS MA,AA,EE,GG 1 24 40000264 BOBBIN CASE ASM. FOR DDL-9000B-MA 1 25 40006323 JUKI GREASE A TUBE OPTIONAL PARTS 1 26 23629306 PIPE STOPPER A 1 27 40042086 CAP 1 28 11038759 BOBBIN CASE ASM. FOR DDL-9000B-MS 1 29 23630007 TUBE 0.07 - 44 -

Page 47 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH 22 10 1 48 49 6 23 5 46 47 32 9 7 8 34 30 28 25 38 27 42 35 29 41 42 36 31 26 A 37 24 39 40 11 12 18 A 16 21 19 17 15 20 3 14 13 43 2 4 45 33 44 - 45 -

Page 48 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH No. Parts No. Parts name Remarks Level Cons Qty 1 40089605 THROAT_PLATE_J FOR AA,BB,EE 1 2 40107708 NEEDLE_BAR_METAL_LOWER_H 1 3 40061767 NEEDLE BAR H 1 4 MDB100B2100 NEEDLE DBX1 #21 FOR AA,GG,EE ☆ 1 5 B9117012000 BOBBIN 1 6 B1505552000A PRESSER SPRING 1 7 D1524555EBL PRESSER FOOT ASM. FOR AA,BB,EE 1 8 40064839 PRESSER FOOT ASM. 1 9 40089610 INNER_HOOK_HOLDER_H 1 10 11092251 LUBRICATING BOBBIN ASM. ☆ 1 11 40055604 THREAD TAKE UP COMP. H 1 12 40050587 KNIFE UNIT H 1 13 11095502 KNIFE MOUNT BASE * 1 14 40044190 THREAD_GUIDE_FOR_KNIFE H * ☆ 1 15 11409257 MOVING KNIFE J ASM. * ☆ 1 16 40009894 FORKED BASE FOR KNIFE * 1 17 40050589 FIX KNIFE H * ☆ 1 18 SD0460703TP HINGE SCREW D=4.6 H=7 * 1 19 SD0500131TP HINGE SCREW D=5 H=1.25 * 1 20 SS2060210SP SCREW 3/32-56 L=2.3 * 1 21 SS4080620TP SCREW 1/8-44 L=6 2 22 40000264 BOBBIN CASE ASM. ☆ 1 23 40037313 THREAD TENSION DISK ASM. H 1 24 23626005 THREAD TENSION NUT * 1 25 B3115552000 TENSION POST * 1 26 B3120125000 ROTATING STOPPER * 1 27 B3126012000 THREAD TENSION DISK * 2 28 B3128012000 TAKE-UP SPRING * ☆ 1 29 B3132552000 THREAD TENSION DISK PRESSER * 1 30 40024845 TENSION POST SOCKET ASM. * 1 31 B3114232000 THREAD TENSION SPRING * 1 32 SS8090670SP SCREW 9/64-40 L=5.5 * 1 33 J1063000000 WRENCH OPTIONAL PARTS 1 34 40024124 NEEDLE BAR THREAD GUIDE 1 35 23619059 VERTICAL FEED CAM H ASM. 1 36 23619000 VERTICAL FEED CAM H * 1 37 SS8151150TP SCREW 15/64-28 L=10.5 * 2 38 40055058 ASSY COUNTER WEIGHT H 1 39 40053411 COUNTER WEIGHT H * 1 40 40004171 COUNTER_WEIGHT_SCREW * 1 41 SM8081652TP SCREW M8 L=16 * 1 42 SM80606A2TP SCREW M6 L=6 * 2 43 40069369 VERTICAL FEED CAM ASM. 2.0 OPTIONAL PARTS 1 44 40069370 VERTICAL FEED CAM 2.0 * 1 45 SS8151150TP SCREW 15/64-28 L=10.5 * 2 46 40063697 ARM THREAD GUIDE A H 1 47 11062601 FEED DOG FOR GG 1 - 46 -

Page 49 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH 22 10 1 48 49 6 23 5 46 47 32 9 7 8 34 30 28 25 38 27 42 35 41 42 29 36 31 26 A 37 24 39 40 11 12 18 A 16 21 19 17 15 20 3 14 13 43 2 4 45 33 44 - 47 -

Page 50 — EXCLUSIVE PARTS DDL-9000B SH

EXCLUSIVE PARTS DDL-9000B SH No. Parts No. Parts name Remarks Level Cons Qty 48 11062007 THROAT PLATE A FOR GG 1 49 11403003 FEED J FOR AA,BB,EE 1 - 48 -

Page 51 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS 15 13 14 15 11 12 5 3 7 6 1 4 2 10 18 21 19 17 16 22 9 8 23 20 28 27 26 25 24 - 49 -

Page 52 — TABLE & STAND COMPONENTS

TABLE & STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 23642259 TABLE ASM. 1 2 23642200 TABLE 1 3 11075900 RUBBER SPACER 2 4 11075801 RUBBER SPACER 2 5 B8210012000 CUSHION SET NAIL 4 6 B8210012000 CUSHION SET NAIL 4 7 D8226555E00 FRAME RUBBER CUSHION A 2 8 11157567 T LEG JUNCTION FOR JT-D950 1 9 GPK700010A0 3-JOINT PEDAL 70 FOR JT-D95A,-D95B 1 10 11157559 T-STAND ASM. FOR JT-D95A,-D95B 1 11 11155769 SMALL CASTINGS BOX B ASM. 1 12 11156007 CASE 1 13 11155801 CASE MAGNET 1 14 11155751 CASE ASM. B 4 15 SK3382001SC WOOD SCREW D=3.8 L=20 1 16 11155157 DRAWER ASM. 1 17 11155108 DRAWER 2 18 11155207 DRAWER SUPPORT 6 19 SK3311600SE WOOD SCREW D=3.1 L=16 1 20 GPK710010A0 2-PEDAL ASM. 71 FOR JT-D95A,-D95B 1 21 D8204555D00 DRAWER STOPPER 4 22 SK3513200SC WOOD SCREW D=5.1 L=32 1 23 11159456 CASTER ASM. OPTIONAL PARTS 1 24 SM9086523SE HEXAGONAL BOLT 2 25 11159407 CASTER 4 26 11159506 STRUT AUXILIARY PLATE 2 27 WS0861410KR SPRING WASHER 8.6X15X1.4 2 28 WP0871602SE WASHER 8.7X18X1.6 2 jintex.in

Page 53 — SPECIAL ORDER PART

SPECIAL ORDER PART 1 2 3 4 5 6 7 8 jintex.in

Page 54 — SPECIAL ORDER PART

SPECIAL ORDER PART No. Parts No. Parts name Remarks Level Cons Qty 1 40065571 ELECTRIC FAN HOOK COOLING DEVICE 1 2 40044065 FAN_RELAY_CABLE * 1 3 40064805 FAN FILTER * 1 4 40064806 FAN COOLING COVER * 1 5 40065564 FAN MOTOR ASSY * 1 6 SK3415001SE SCREW D=4.1 L=50 * 2 7 MAO11532000 CORD STAPLE * 3 8 40065572 HOOK COOLING DEVICE INSTRUCTION MANUAL * 1 - 52 -

Page 55

LIST FOR INFORMATION OF CHANGE (1) As to the place changed,refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は,該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は,削除された品番でも,ご注文できます。 *** No.1532-04･･･Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. * No. 頁 No. 品 番 * No. 頁 No. 品 番 D 03 6 2 400-37003 A 04 6 3 401-35904 D 03 6 3 400-25729 A 04 6 7 401-50011 D 03 6 7 400-86733 A 04 6 8 SB-1200027-00 D 03 6 8 SB-1200027-00 A 04 6 9 400-44857 D 03 6 9 400-44857 A 04 6 10 236-05207 D 03 6 10 236-05207 A 04 6 18 401-36292 D 03 6 18 400-20454 A 04 6 19 401-36293 D 03 6 19 400-20455 A 04 6 20 SM-80506A2-TP D 03 6 20 SM-8051610-SP A 04 6 22 401-41440 D 03 6 22 400-86729 A 04 6 26 401-07707 D 03 6 26 401-07708 A 04 6 37 401-35900 D 03 6 37 400-37370 A 04 6 38 401-35905 D 03 6 38 400-90527 A 04 6 39 401-41165 D 03 6 41 SB-3070002-00 A 04 6 40 401-35906 D 03 6 42 SB-3070002-0A A 04 6 41 401-43184 D 03 6 43 SB-3070002-0B A 04 6 42 401-35907 D 03 6 44 SB-3070002-0C A 04 6 43 RE-0300000-K0 D 03 6 45 SB-3070002-0D D 03 6 51 400-90529 D 03 6 52 400-90528 D 03 6 53 228-91204 D 03 6 55 RE-0600000-K0 D 03 8 1 236-09001 A 04 8 1 401-36700 D 03 10 31 401-41839 A 04 10 31 401-61440 D 03 10 44 401-41837 A 04 10 44 401-61441 D 03 12 35 SS-6110650-TP A 04 12 35 SS-6110710-TP D 03 12 58 236-20206 A 04 12 58 401-45927 D 03 12 67 D1837-555-BAA-A A 04 12 67 110-38759 D 03 12 81 400-86730 A 04 12 81 401-41443 D 03 14 15 SS-6090510-TP A 04 14 15 SS-6090670-TP - 53 -

Page 56 — LIST FOR INFORMATION OF CHANGE (2)

LIST FOR INFORMATION OF CHANGE (2) Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. * No. 頁 No. 品 番 * No. 頁 No. 品 番 D 03 14 56 400-86710 A 04 14 56 401-36701 D 03 16 2 400-82060 A 04 16 2 401-35639 D 03 16 28 SL-6051492-TN A 04 16 28 SM-6051402-TP A 04 16 45 401-49785 D 03 16 46 400-82061 A 04 16 13 401-35640 A 04 16 50 WP-0501016-SD D 03 24 28 D1837-555-BAA-A A 04 24 28 110-38759 - 54 -

Page 57

HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)"*"mark...means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2)"#01"...refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(consumable parts) and "◎"(optional parts)on the respective parts, it is recommended to prepare spares. Sign Place of destination GG China BB Europe EE Japan AA excludes China,Europe and Japan 1."注記"欄の記号説明 1) "*"印...前回 のパーツブックに比較して今回変更された部品を意味します。 変更内容は、"変更情報リスト"を参照してください。 2) "#01"...ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の（ ）は、組部品を構成している子部品であることを意味します。 4.イラストページのー－－－枠は、組構成であることを意味します。 5.リストページの"☆"(消耗部品)、"◎"(オプション部品)の印がついた部品は、 予備を準備しておくことをお奨めします。 記号 仕向地 GG 中国 BB ヨーロッパ EE 日本 AA 中国、ヨーロッパ、日本を除く jintex.in

Page 58 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10618304 24 32 22896252 42 12 22932800 40 5 11001906 44 1 22901201 2 14･15 22933105 40 11 11015906 22 61 22901250 2 12･13 22933204 40 6 11028008 4 85･86 22901300 2 16･17 22934202 38 29 11038650 22 68･69 22901805 4 81 22934251 38 28 11038759 22 67 22902506 2 30 22934301 38 30 11038759 44 24･28 22902704 2 14･15 22934400 38 31 11040052 24 2 22902753 2 12･13 22934509 38 32 11040052 42 17 22904106 20 23 22934608 38 33 11040409 24 5 22904155 20 22 22944508 2 21 11040409 42 20 22906309 10 9 22944508 14 34 11043304 24 20 22906408 10 30 22945414 4 62 11062007 48 48 22906457 10 29 22945604 4 63 11062601 46 47 22907406 14 15 22945703 4 65 11075801 50 4 22907802 14 22 22945802 4 66 11075900 50 3 22908008 14 8 22947907 24 4 11079506 22 84 22908552 14 24 22947907 42 19 11092251 46 10 22908909 14 29 22948202 24 6 11095502 46 13 22910509 18 11 22950000 26 74 11141355 22 68･69 22911002 20 13 22951552 2 8 11155108 50 17 22911101 20 6 22952501 18 27 11155157 50 16 22916506 22 60 22955504 34 36 11155207 50 18 22916555 22 59 22955900 34 18 11155751 50 14 22920300 14 40 22956007 34 20 11155769 50 11 22920409 14 41 22956106 34 9 11155801 50 13 22920607 4 60 22956205 34 10 11156007 50 12 22921209 4 51 22956304 34 11 11157559 50 10 22921308 8 25 22956809 34 12 11157567 50 8 22921407 4 52 22956908 34 13 11159407 50 25 22921407 8 27 22957005 34 14 11159456 50 23 22921506 4 53 22957203 34 15 11159506 50 26 22921506 8 28 22958003 40 17 11162104 44 2 22921605 4 54 22963409 4 64 11403003 48 49 22921704 4 55 22963458 4 61 11409257 46 15 22921704 8 29 22964001 22 72 13170105 28 6 22921803 4 56 22964001 40 32 13171004 28 5 22925101 28 24 22964001 42 11 22502504 40 7 22926000 40 16 23600505 2 4 22886907 10 27･28 22926208 40 18 23601305 4 84 22887004 10 27･28 22926356 40 19 23608003 10 25 22890206 42 8～10 22926505 40 15 23609308 14 12 22890305 42 8～10 22931604 40 12･13 23609357 14 5 22890404 42 8～10 22932008 38 6･7 23609456 14 6 22895908 42 14 22932404 38 20 23609605 14 7 22896005 42 21 22932453 38 19 INDEX - 1

Page 59 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 23609704 14 14 23630007 44 29 40000264 44 24･28 23610207 14 16 23630106 28 22 40000264 46 22 23610306 14 17 23630403 28 34 40000344 28 46 23610504 16 48 23630502 28 35 40000391 20 37 23610652 16 49 23631708 32 30 40000392 20 38 23610702 16 51 23631757 32 15 40004171 10 4 23611106 14 47 23631807 32 31 40004171 46 40 23612609 18 25 23631906 32 32 40006323 42 23 23613409 18 39 23632003 32 23 40006323 44 25 23613706 18 16 23632102 32 26 40006716 18 46 23614506 20 26 23632250 32 27 40009894 46 16 23616006 20 2 23632359 32 17 40011144 8 15 23616204 20 20 23632607 32 33 40013595 28 30 23616402 20 32 23632656 32 25 40014837 8 16 23616600 20 33 23638109 4 73 40015671 24 45 23616709 20 14 23638208 4 74 40023021 8 1 23618101 20 47 23638307 4 75 40023022 8 17 23618309 22 52 23638406 4 76 40024081 40 12･13 23619000 46 36 23639008 38 5 40024124 46 34 23619059 46 35 23639107 38 10 40024845 44 14 23620008 22 56 23639156 38 9 40024845 46 30 23620156 22 57 23639206 38 13 40026277 20 5 23620404 22 74 23639305 38 14 40026278 20 31 23620503 22 54 23639404 38 15 40026281 20 16 23620701 22 62～65 23639503 38 16 40026282 20 36 23620800 22 62～65 23639602 38 17 40026287 20 41 23620909 22 62～65 23639701 40 8 40026288 20 43 23621006 22 62～65 23640006 2 47･48 40029398 24 16 23626005 4 50 23642200 50 2 40030786 22 71 23626005 44 11 23642259 50 1 40032269 10 46 23626005 46 24 26226209 26 59 40034246 28 3 23626104 4 69 26260109 8 2 40035589 2 37 23626203 10 33 26260208 8 3 40036706 14 32 23626351 14 42 26260307 8 4 40036997 24 14 23626807 14 43 26260406 8 5 40036998 24 12 23628803 28 40 26260505 8 6 40037005 20 15 23628902 28 36 26260604 8 7 40037006 10 16 23629207 28 8 26260802 8 8 40037007 10 15 23629256 28 7 26261008 8 9 40037008 8 30 23629306 28 10 26261206 8 10 40037141 14 19 23629306 44 26 26261305 8 11 40037144 14 20 23629405 28 11 26261503 8 12 40037146 42 3 23629900 4 82 26261602 8 13 40037158 2 1 23630007 18 23 26261701 8 14 40037166 28 12 23630007 28 19 31256803 24 37 40037192 20 1 INDEX - 2

Page 60 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40037313 46 23 40069097 2 24 40086631 26 62 40037359 14 18 40069110 2 20 40086632 26 63 40037365 20 4 40069369 46 43 40086633 26 64 40037439 44 9 40069370 46 44 40086634 24 33 40037479 44 10 40075404 28 23 40086635 24 34 40037488 4 47･48 40077851 34 29 40086636 26 48 40037502 28 38 40077852 34 16 40086637 26 72 40038328 28 37 40077853 34 2 40086639 4 49 40041161 2 2 40082059 28 1 40086640 4 57 40042079 20 10 40082078 14 30 40086643 14 38 40042086 44 27 40085784 36 17 40086646 28 32 40044065 52 2 40085785 36 18 40086647 28 33 40044189 24 3 40085786 36 2 40086648 28 15 40044190 46 14 40085787 36 3 40086655 32 34 40050581 42 24 40085788 36 4 40086659 4 71 40050582 14 39 40085789 36 5 40086660 4 72 40050583 14 21 40085790 36 6 40086674 18 17 40050585 24 1 40085791 36 7 40086675 18 18 40050586 42 13 40085792 36 19 40086676 34 1 40050587 46 12 40085793 36 20 40086678 34 17 40050588 42 18 40085794 36 8 40086679 34 32 40050589 46 17 40085795 36 9 40086680 34 31 40051473 10 12 40085796 36 23 40086690 20 45 40051474 10 13 40086597 10 1 40086693 28 41 40052819 2 3 40086602 42 4･5 40086695 18 2 40052933 2 45 40086602 44 22･23 40086696 18 3 40053411 46 39 40086604 42 4･5 40086697 30 48 40053720 20 40 40086604 44 22･23 40086698 32 13 40055058 46 38 40086605 42 1 40086699 32 35 40055591 40 10 40086605 44 20 40086704 18 8 40055604 46 11 40086606 14 2 40086705 18 9 40056622 14 46 40086607 14 3 40086706 18 12 40058504 20 9 40086608 18 5 40086708 26 55 40061215 24 13 40086609 18 22 40086709 26 58 40061246 20 8 40086613 18 45 40086711 24 29 40061767 46 3 40086614 18 14 40086712 26 79 40062321 38 1･2 40086615 18 7 40086713 2 6 40062323 38 3･4 40086616 18 13 40086714 2 34 40063697 46 46 40086617 18 36 40086716 34 35 40064805 52 3 40086618 22 77 40086717 34 19 40064806 52 4 40086621 26 60 40086723 34 3 40064839 46 8 40086622 24 36 40086724 34 4 40065564 52 5 40086623 24 47 40086727 24 27 40065571 52 1 40086624 24 42 40086731 10 24 40065572 52 8 40086628 26 70 40086732 2 33 INDEX - 3

Page 61 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40086735 18 1 40096325 36 21 B1116210D00 38 8 40086736 18 37 40096326 36 10 B1116804000 24 40 40086737 18 20 40096327 36 12 B1505552000A 46 6 40086738 18 15 40098329 28 31 B1521555000 14 23 40086739 18 21 40098386 4 77 B1524012BA 14 26 40086740 22 70 40099736 40 1～4 B1613012I00 20 25 40086741 22 78 40099737 40 1～4 B3114232000 46 31 40086742 22 79 40102087 40 33 B3115552000 44 15 40086743 20 34 40107707 10 26 B3115552000 46 25 40086744 22 73 40107708 46 2 B3118552F00 16 54 40086746 24 18 40108401 36 16 B3120125000 44 16 40086747 26 53 40108402 36 1 B3120125000 46 26 40086748 24 44 40114043 2 44 B3126012000 44 13 40086750 32 1 40122891 18 42 B3126012000 46 27 40086753 32 3 40123098 18 30 B3128012000 46 28 40086757 20 44 40135639 28 2 B3132552000 44 12 40086759 32 37 40135640 28 13 B3132552000 46 29 40086760 14 13 40135803 40 28 B412352200A 20 28～30 40088958 8 24 40135900 10 37 B412352200B 20 28～30 40088959 8 26 40135904 10 2 B412352200C 20 28～30 40089196 10 11 40135905 10 38 B8210012000 50 6 40089263 24 19 40135906 10 40 B8228125000 28 44 40089264 34 6 40135907 10 42 B9117012000 40 31 40089274 42 6 40136292 10 18 B9117012000 46 5 40089323 40 29 40136293 10 19 B91210120A0 40 20 40089605 46 1 40136700 14 1 CM300200001 2 23 40089607 22 75 40136701 26 56 CM300200003 2 25 40089610 46 9 40141165 10 39 CM301300001 2 29 40089663 40 1～4 40141440 10 22 CM600100101 4 87 40089665 38 1･2 40141443 22 81 CM600100201 40 30 40089671 38 3･4 40141838 18 33 CM600600101 4 88 40089672 24 26 40141840 18 32 CQ200000001 28 20 40090058 10 32 40141841 18 34 CQ250000001 28 9 40090099 26 80 40141842 18 29 CS1000881TP 10 47 40091140 40 1～4 40141843 44 8 D1524555DBB 44 5 40091397 4 91 40143184 10 41 D1524555EBL 46 7 40091461 2 38 40145927 22 58 D1613155W00 44 4 40094561 2 11 40149785 28 45 D2406555D0H 24 7 40095175 34 5 40150011 10 7 D2468555B00 32 5 40095218 26 82 40161440 18 31 D3128555D00 44 18 40095843 24 41 40161441 18 44 D3129555D00 44 17 40095844 32 12 B1109012I0B 4 85･86 D5119206K0K 16 50 40095847 18 40 B1109552000 4 92 D8204555D00 50 21 40095870 26 50 B1116210D00 26 51 D8226555E00 50 7 40095873 26 83 INDEX - 4

Page 62 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. EA9500B0100 4 78 RE040000K0 10 43 SL6052592TN 12 49 EA9500B0100 12 50 RE040000K0 8 19 SL6053592TN 16 52 EA9500B0100 32 28 RE050000K0 14 45 SL6061292TN 28 27 EA9500B0100 40 9 RE050000K0 18 24 SM0050801SC 8 32 GPK700010A0 50 9 RE050000K0 24 31 SM2040750TP 2 28 GPK710010A0 50 20 RE050000K0 34 24 SM2040955TP 2 27 HK03464000B 24 23 RE070000K0 24 39 SM4021201SC 4 79 HK03464000B 32 2 RE100000K0 38 24 SM4040601SC 30 49 HK03464000B 34 7 RE120000K0 32 4 SM4040655SP 2 36 HW500070000 34 8 RO036080200 22 85 SM4040655SP 20 42 J1063000000 46 33 RO037180100 14 25 SM4040855SP 2 22 MAO11532000 52 7 RO037180100 28 39 SM4040855SP 14 36 MC20050250 40 21~27 RO044240100 16 53 SM4041055SP 24 11 MC20050500 44 3-6-7 RO048190100 28 47 SM4050501SC 42 2 MC20050750 10 34~36 RO068190100 28 16 SM4050501SC 44 21 MC20050750 40 21~27 RO080150200 4 83 SM4050655SP 4 80 MC200501300 40 21~27 RO092270200 18 43 SM4050655SP 26 61 MDB100B0900 40 21~27 RO098240100 28 25 SM4050855SP 2 19 MDB100B0900 44 3-6-7 RO172180100 28 26 SM4050855SP 20 19 MDB100B1100 10 34~36 RO195240100 28 4 SM4051055SP 2 89 MDB100B1100 40 21~27 SB17001200 22 51 SM4051055SP 4 89 MDB100B1100 44 3-6-7 SB120001800 22 80 SM4051055SP 8 33 MDB100B1400 10 34~36 SB12002700 10 21 SM4051055SP 22 76 MDB100B1400 40 21~27 SB32000060A 22 48~50 SM4051055SP 32 24 MDB100B2100 40 21~27 SB32000060B 22 48~50 SM4051055SP 34 37 MDB100B2100 46 4 SB32000060C 22 48~50 SM4051255SP 2 32 NM6040000SN 24 24 SD0460703TP 24 8 SM4051405SE 36 24 NM6040001SP 2 42 SD0460703TP 42 22 SM5040655SN 4 68 NM6040001SP 24 46 SD0500131TP 46 19 SM5040655SN 8 20 NM6050001SC 26 57 SD0500701TP 26 77 SM5040655SN 28 29 NM6050001SE 36 25 SD0500701TP 26 77 SM6040602TP 14 9 NM6050001SP 32 10 SD0630275SP 26 73 SM6040800SP 26 52 NM6060001SE 38 11 SD0640321SP 26 69 SM6051400SP 14 4 NM6060003SE 14 31 SD0640631TP 26 71 SM6051400SP 20 17 NS6110310SP 34 21 SD0650321TP 34 25 SM6051402TP 14 37 NS6110310SP 26 78 SD0720331SP 38 25 SM6051402TP 28 28 NS6110310SP 34 22 SD0720331SP 34 25 SM6051602TP 18 19 NS6150310SP 26 75 SK3311600SE 50 19 SM6051602TP 32 14 NS6150310SP 38 22 SK3382001SC 50 15 SM6051850TP 18 28 NS6620310SP 14 44 SK3415001SE 52 6 SM6052502TP 2 26 NS6660410SH 24 21 SK3513200SC 50 22 SM6061002TP 2 7 NS6660430SP 24 22 SL4030631SC 34 26 SM6061002TP 24 28 RC0370411KP 34 23 SL4030641SE 34 27 SM6061010TP 26 49 RC0560711KP 8 18 SL6040892TN 28 42 SM6061202TP 2 35 RC1200001KP 22 83 SL6051492TN 28 43 SM8040802TP 8 21 INDEX - 5 jintex.in

Page 63 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SM8050412TP 12 48 SS6121610SP 20 11 SM8050502TP 8 22 SS6121860SP 18 35 SM80506A2TP 10 20 SS7080510TP 10 10 SM80506A2TP 18 4 SS7091110TP 14 27 SM80606A2TP 10 6 SS7110740TP 26 65 SM80606A2TP 18 47 SS7110740TP 32 29 SM80606A2TP 24 42 SS8090670SP 4 58 SM80606A2TP 46 42 SS8090670SP 44 19 SM8060812TP 24 35 SS8090670SP 46 32 SM80608A2TP 2 70 SS8150822TP 20 3 SM80608A2TP 4 70 SS8151150TP 20 39 SM80608A2TP 10 44 SS8151150TP 46 45 SM80608A2TP 18 26 SS8660610TP 20 24 SM80608A2TP 22 82 SS8661012TP 20 66 SM80608A2TP 26 54 SS8661012TP 22 66 SM8061010TP 26 68 TA0850604R0 10 51 SM8061050TP 26 67 TA0850604R0 12 51 SM8063012TR 38 12 TA1250406R0 2 43 SM8081652TP 10 5 TA1470704R0 2 41 SM8081652TP 46 41 WP0430800SC 24 25 SM8480652TP 32 36 WP0450801SP 26 66 SM9061203SE 38 34 WP0450826SC 8 23 SM9061853SR 38 27 WP0480856SP 20 18 SM9062053SR 38 21 WP0501016SD 6 95 SM9086523SE 50 24 WP0501016SD 16 55 SQ2050453MZ 28 14 WP0501016SD 30 50 SS2060210SP 24 15 WP0531001SC 36 15 SS2060210SP 42 15 WP0550800SP 4 90 SS2060210SP 46 20 WP0550800SP 32 7 SS4080620TP 20 27 WP0551016SH 32 9 SS4080620TP 24 10 WP0621016SD 4 94 SS4080620TP 42 16 WP0621016SD 14 33 SS4080620TP 46 21 WP0621016SD 26 81 SS4110615SP 34 30 WP0621016SH 26 76 SS6090540SP 2 18 WP0650876SD 38 18 SS6090540SP 34 28 WP0651001SC 34 34 SS6090620TP 20 12 WP0661016SP 34 33 SS6090670TP 10 31 WP0841600SD 24 38 SS6090670TP 20 53 WP0871602SE 50 28 SS6090670TP 22 53 WP1602616SZ 32 6 SS6090670TP 24 15 WP1612616SE 36 22 SS6110420TP 42 7 WS0510002KN 36 14 SS6110610TP 4 59 WS0610002KN 32 11 SS6110710TP 20 35 WS0861410KR 50 27 SS6110710TP 24 30 INDEX - 6 jintex.in
