Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40143770 | UPPER COVER | 1 |
| 2 | SM4051055SP | SCREW | 6 |
| 3 | 40141709 | LEFT_COVER | 1 |
| 4 | SM4051055SP | SCREW | 2 |
| 5 | 40165706 | LEFT COVER B | 1 |
| 6 | SM4051055SP | SCREW | 4 |
| 7 | 40004157 | THREAD_TAKE_UP_LEVER_COVER | 1 |
| 8 | SM4051055SP | SCREW | 1 |
| 9 | 40004156 | FRONT_COVER | 1 |
| 10 | SM4051055SP | SCREW | 3 |
| 11 | 40004159 | MOTOR_COVER | 1 |
| 12 | SM4051655SP | SCREW M5 L=16 | 4 |
| 13 | 26230409 | LUBRICATING OIL WICK STOPPER | 2 |
| 14 | SM6050802TP | SCREW M5X0.8 L=8 | 1 |
| 15 | 40004161 | REAR_COVER | 1 |
| 16 | SM4051055SP | SCREW | 4 |
| 17 | 40142148 | HOOK_OIL_SHIELD_COVER_COMPL. | 1 |
| 18 | 40142887 | HOOK_OIL_SHIELD_COVER | 1 |
| 19 | SM0040801SC | SCREW | 1 |
| 20 | 40145328 | SENSOR SLIT PLATE C | 1 |
| 21 | NM6040001SC | NUT M4X0.7 TYPE1 | 1 |
| 22 | NM6030001SD | NUT M3X0.5 | 1 |
| 23 | SM6031402TP | SCREW | 1 |
| 24 | 13703806 | HOOK OIL SHIELD HINGE | 1 |
| 25 | 13703905 | HINGE PIN | 1 |
| 26 | 40141710 | HINGE_SPRING | 1 |
| 27 | 40141711 | HINGE_SPRING_WASHER | 1 |
| 28 | SM4040655SP | SCREW M4 L=6 | 1 |
| 29 | SM6050652TP | HEXAGON SOCKET HEAD SCREW M5X6 | 2 |
| 30 | SM6040602TP | SCREW M4 L=6 | 2 |
| 31 | TA1550902R0 | PLUG | 1 |
| 32 | TA1050504R0 | RUBBER PLUG | 1 |
| 33 | 40141795 | PBL_METAL_CAP | 1 |
| 34 | TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 3 |
| 35 | TA1550902R0 | PLUG | 3 |
| 36 | SM6061002TP | SCREW M6 L=10 | 4 |
| 37 | SM6067052TP | HEXAGON BOLT | 1 |
| 38 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 39 | 32002354 | SWITCH ASM. | 1 |
| 40 | SL6040892TN | SCREW | 2 |
| 41 | 22528764 | PRE-TENSION CONTROLLER ASM. | 1 |
| 42 | 22502504 | THREAD GUIDE BAR | 1 |
| 43 | 40141714 | BED_BASE | 1 |
| 44 | 40004160 | BED_REAR_COVER | 1 |
| 45 | 40141706 | ASSY_LED_DEVICE | 1 |
| 46 | TA0500301R0 | PLUG 5X5.8 L=3 | 1 |
| 47 | 13922208 | TAKE-UP THREAD GUIDE B | 1 |

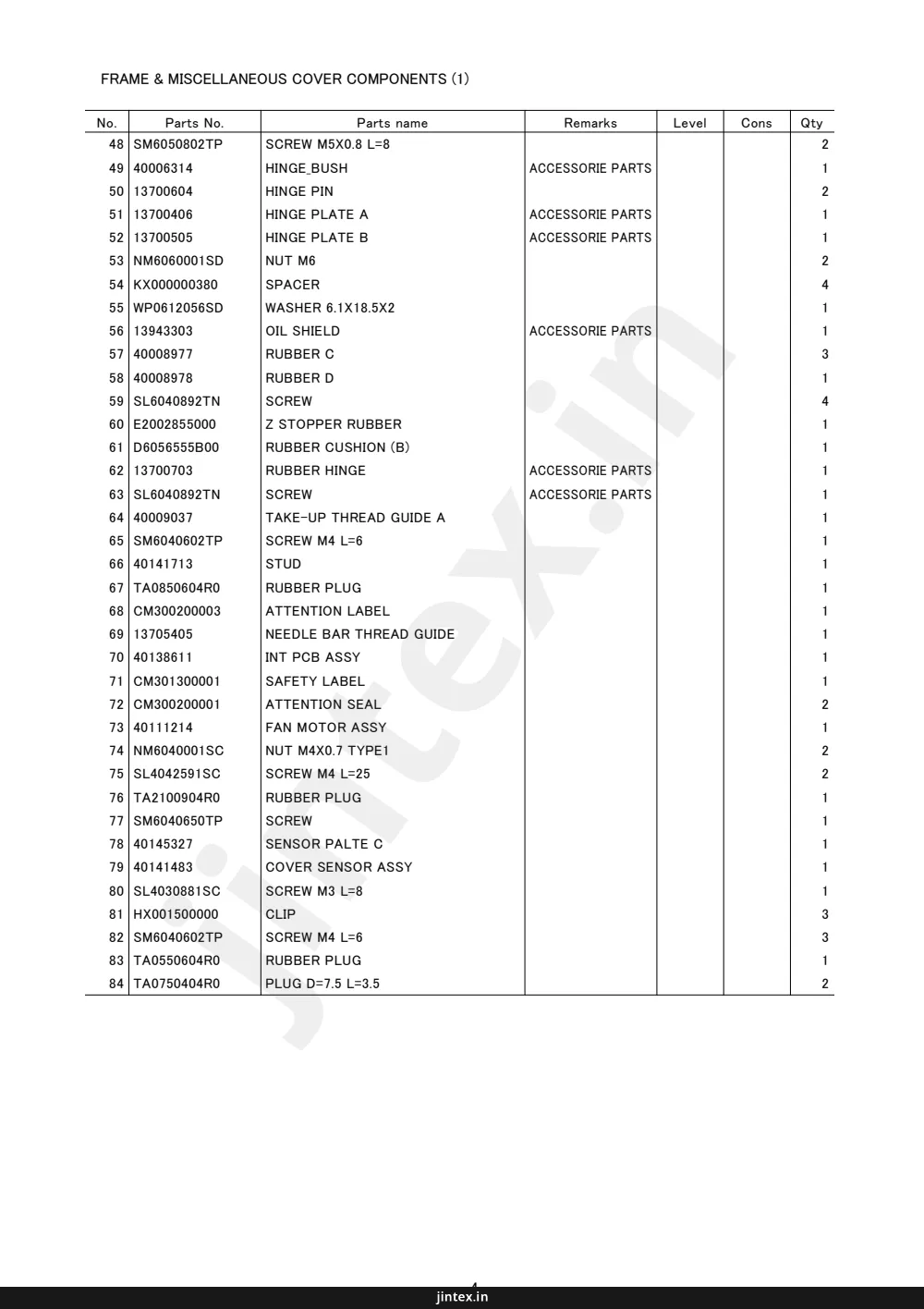

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM6050802TP | SCREW M5X0.8 L=8 | 2 |
| 49 | 40006314 | HINGE_BUSH | 1 |
| 50 | 13700604 | HINGE PIN | 2 |
| 51 | 13700406 | HINGE PLATE A | 1 |
| 52 | 13700505 | HINGE PLATE B | 1 |
| 53 | NM6060001SD | NUT M6 | 2 |
| 54 | KX000000380 | SPACER | 4 |
| 55 | WP0612056SD | WASHER 6.1X18.5X2 | 1 |
| 56 | 13943303 | OIL SHIELD | 1 |
| 57 | 40008977 | RUBBER C | 3 |
| 58 | 40008978 | RUBBER D | 1 |
| 59 | SL6040892TN | SCREW | 4 |
| 60 | E2002855000 | Z STOPPER RUBBER | 1 |
| 61 | D6056555B00 | RUBBER CUSHION (B) | 1 |
| 62 | 13700703 | RUBBER HINGE | 1 |
| 63 | SL6040892TN | SCREW | 1 |
| 64 | 40009037 | TAKE-UP THREAD GUIDE A | 1 |
| 65 | SM6040602TP | SCREW M4 L=6 | 1 |
| 66 | 40141713 | STUD | 1 |
| 67 | TA0850604R0 | RUBBER PLUG | 1 |
| 68 | CM300200003 | ATTENTION LABEL | 1 |
| 69 | 13705405 | NEEDLE BAR THREAD GUIDE | 1 |
| 70 | 40138611 | INT PCB ASSY | 1 |
| 71 | CM301300001 | SAFETY LABEL | 1 |
| 72 | CM300200001 | ATTENTION SEAL | 2 |
| 73 | 40111214 | FAN MOTOR ASSY | 1 |
| 74 | NM6040001SC | NUT M4X0.7 TYPE1 | 2 |
| 75 | SL4042591SC | SCREW M4 L=25 | 2 |
| 76 | TA2100904R0 | RUBBER PLUG | 1 |
| 77 | SM6040650TP | SCREW | 1 |
| 78 | 40145327 | SENSOR PALTE C | 1 |
| 79 | 40141483 | COVER SENSOR ASSY | 1 |
| 80 | SL4030881SC | SCREW M3 L=8 | 1 |
| 81 | HX001500000 | CLIP | 3 |
| 82 | SM6040602TP | SCREW M4 L=6 | 3 |
| 83 | TA0550604R0 | RUBBER PLUG | 1 |
| 84 | TA0750404R0 | PLUG D=7.5 L=3.5 | 2 |
Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40006261 | ASSY_AT_SOLENOID | 1 |
| 2 | 40006263 | AT_SHAFT | 1 |
| 3 | 40006264 | AT_SHAFT_HOLDER | 1 |
| 4 | RC1700001KP | RETAINING RING | 1 |
| 5 | 40010514 | DISK_STOPPER | 1 |
| 6 | 40010511 | DISK_STOPPER_HOLDER_CAP | 1 |
| 7 | 14115554 | HEAD GROUND CABLE A ASM. | 1 |
| 8 | 40010522 | SHAFT_NUT | 2 |
| 9 | SM0860400SN | SCREW | 3 |
| 10 | SM6040860TP | SCREW M4 L=8 | 1 |
| 11 | SM6050802TP | SCREW M5X0.8 L=8 | 3 |
| 12 | SM8030412TP | SCREW | 2 |
| 13 | SM8030412TP | SCREW | 1 |
| 14 | SM80606A2TP | SCREW M6 L=6 | 1 |
| 15 | SM9040800SP | SCREW | 1 |
| 16 | WS0410002KP | SPRING WASHER | 1 |
| 17 | 40141478 | INT CORE B ASSY | 1 |
| 18 | 10006104 | TAKE-UP SPRING | 1 |
| 19 | 40010510 | THREAD_TENSION_POST_BASE | 1 |
| 20 | 40010512 | THREAD_TENSION_SHAFT_COLLAR | 2 |
| 21 | 32055402 | THRUST COLLAR | 1 |
| 22 | 40004252 | UTT_SUSPENSION_SCREW_9 | 1 |
| 23 | 40006265 | ASSY_THREAD_TENSION_POST | 1 |
| 24 | B2702210000 | GUIDE PLATE | 1 |
| 25 | B2703210000 | BUSHING | 1 |
| 26 | 40003499 | THREAD BREAK DETECTOR A | 1 |
| 27 | 40011143 | ASSY_BTW | 1 |
| 28 | 26260109 | BTW_BASE | 1 |
| 29 | 26260208 | BTW_CAM_PLATE | 1 |
| 30 | 26260307 | BTW_BASE_SHAFT | 1 |
| 31 | 26260406 | BTW_SHAFT_BASE | 1 |
| 32 | 26260505 | BTW_CAM_LEVER | 1 |
| 33 | 26260604 | BTW_WHEEL | 1 |
| 34 | 40011144 | BTW_TORSION_SPRING | 1 |
| 35 | 26260802 | BTW_BEARING_SPACER | 1 |
| 36 | 40011145 | BTW_SHAFT | 1 |
| 37 | 40011146 | BTW_LEVER_SHAFT | 1 |
| 38 | 40021933 | BTW_LEVER | 1 |
| 39 | 26261206 | BTW_SPACER | 1 |
| 40 | 26261305 | BTW_BEARING | 2 |
| 41 | 26261503 | BTW_WHEEL_RUBBER | 1 |
| 42 | 26261602 | BOBBIN_SPRING | 1 |
| 43 | 26261701 | BTW_SPRING | 1 |
| 44 | RC0560711KP | RETAINING RING | 1 |
| 45 | RE0400000K0 | E-RING 4 | 1 |
| 46 | WP0450826SC | WASHER 4.5X10X0.8 | 1 |
| 47 | SM5040655SN | SCREW | 1 |
Page 10 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM8050502TP | SCREW M5 L=5 | 1 |
| 49 | SM8040802TP | SCREW M4X8 | 2 |
| 50 | SM6040602TP | SCREW M4 L=6 | 2 |
| 51 | 40141479 | INT CORD C ASSY | 1 |
| 52 | 40037008 | THREAD_CUTTER | 1 |
| 53 | SM0050801SC | SCREW | 4 |
| 54 | D3162555B00 | THREAD GUIDE | 1 |
| 55 | SS7110840SP | SCREW 11/64-40 L=7.8 | 1 |
| 56 | EA9500B0100 | CABLE BAND | 10 |
| 57 | HX00151000A | CABLE BAND | 2 |
| 58 | 26230409 | LUBRICATING OIL WICK STOPPER | 3 |
| 59 | 22529481 | BOBBIN THREAD TENSION ASM. | 1 |
| 60 | 22529473 | BOBBIN THREAD TENSION ROD ASM. | 1 |
| 61 | NS6110310SP | NUT 11/64-40 | 1 |
| 62 | 11072402 | THREAD TENSION NUT | 1 |
| 63 | 11093606 | THREAD TENSION SPRING | 1 |
| 64 | B3214047000 | BOBBIN WINDER TENSION DISC | 2 |
| 65 | 40141477 | INT CORD A ASSY | 1 |
Page 12 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40011517 | NEEDLE_BAR_CRANK_FELT | 1 |
| 2 | 40142152 | IDLER_ASSY | 1 |
| 3 | RC3781518KP | RETAINING RING | 2 |
| 4 | RC0100001KP | SNAP RING M10 | 1 |
| 5 | 40143150 | IDLER FIXED PLATE | 1 |
| 6 | 40141721 | IDLER_PULLEY | 1 |
| 7 | SB110000700 | BALL BEARING | 1 |
| 8 | NM6100001SD | NUT M10 | 1 |
| 9 | 40141720 | IDLER_SHAFT | 1 |
| 10 | 40006307 | SQUARE_BLOCK_GUIDE | 1 |
| 11 | SM6062502TP | SCREW M6 L=25 | 3 |
| 12 | WP0621046SP | WASHER | 1 |
| 13 | SM9061403CP | SCREW M6 L=14 | 1 |
| 14 | 40004185 | HINGE_SCREW | 1 |
| 15 | 40051473 | COUPLING ASM. | 1 |
| 16 | 40051474 | COUPLING | 1 |
| 17 | SM80608A2TP | SCREW M6 L=8 | 4 |
| 18 | CQ252000000 | OIL WICK | 0.014 |
| 19 | 40004171 | COUNTER_WEIGHT_SCREW | 1 |
| 20 | 40141716 | COUNTER_WEIGHT | 1 |
| 21 | SM8081652TP | SCREW M8 L=16 | 1 |
| 22 | 40138137 | IPM550W MOTOR | 1 |
| 23 | SM6052002TR | SCREW M5 L=20 | 4 |
| 24 | 40010534 | BTW_DRIVING_WHEEL | 1 |
| 25 | 40150011 | FRONT_BEARING | 1 |
| 26 | 40010535 | DRIVING_WHEEL_SCREW | 2 |
| 27 | 40141717 | MAIN_SHAFT | 1 |
| 28 | 40141719 | TIMING_BELT | 1 |
| 29 | 40032269 | THRUST COLLAR | 1 |
| 30 | SM80506A2TP | SCREW M5 L=6 | 2 |
| 31 | CS1000881TP | THRUST COLLAR | 1 |
| 32 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 33 | 40141718 | SPROCKET_A | 1 |
| 34 | SB1200008C0 | BEARING | 1 |
| 35 | 40008423 | WASHER | 1 |
| 36 | 40165704 | NEEDLE CRANK SHAFT | 1 |
| 37 | 40165701 | SQUARE BLOCK GUIDE B | 1 |
| 38 | 40165703 | SQUARE BLOCK B | 1 |
| 39 | 40004206 | SQUARE_BLOCK | 1 |
| 40 | SM6041202TP | SCREW M4X0.7 L=12 | 2 |
| 41 | 40141725 | THREAD_TAKE_UP_COMP | 1 |
| 42 | 40141726 | THREAD_TAKE_UP_ASM_C | 1 |
| 43 | 22918304 | SCREW | 1 |
| 44 | 40142880 | NEEDLE_BAR_CRANK_ROD_ASM. | 1 |
| 45 | 40141727 | THREAD_TAKE_UP_ASM_B | 1 |
| 46 | 40141730 | NEEDLE_BAR_CRANK | 1 |
| 47 | 40142878 | TAKE_UP_CRANK_ASM. | 1 |
Page 14 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM80608A2TP | SCREW M6 L=8 | 2 |
Page 16 — HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB112001600 | BEARING | 2 |
| 2 | SB110000600 | BALL BEARING | 2 |
| 3 | SB115000200 | BEARING | 1 |
| 4 | SB115001500 | BEARING | 1 |
| 5 | 40004188 | BEARING_SUPPORT | 1 |
| 6 | 23536204 | BUSH | 2 |
| 7 | RC2791218KP | RETAINING RING | 2 |
| 8 | 40004186 | HOOK_DRIVING_SHAFT | 1 |
| 9 | 40004187 | HOOK_DRIVING_SHAFT_METAL | 1 |
| 10 | SM8050502TP | SCREW M5 L=5 | 2 |
| 11 | 13710306 | INTERMEDIATE SPROCKET SHAFT | 1 |
| 12 | 13710504 | INTERMEDIATE SPROCKET WASHER | 1 |
| 13 | 13729066 | HOOK COMPL. | 1 |
| 14 | 40141739 | LOWER_SHAFT_KNOB_B | 1 |
| 15 | SM80606A2TP | SCREW M6 L=6 | 10 |
| 16 | 40011355 | OIL_FILTER | 2 |
| 17 | 14504401 | BEARING SUPPORT | 1 |
| 18 | 40004180 | SPROCKET_B | 1 |
| 19 | 40141740 | SPROCKET_C | 1 |
| 20 | 13710405 | INTERMEDIATE SPROCKET RING | 1 |
| 21 | 40006317 | WASHER | 1 |
| 22 | 40142753 | ADJUSTING_PIN_B | 1 |
| 23 | 40142754 | ADJUSTING_SPRING_B | 1 |
| 24 | 40142752 | ADJUSTING_SCREW_B | 1 |
| 25 | 40006320 | FELT | 1 |
| 26 | 23630007 | TUBE | 1 |
| 27 | CQ202000000 | OIL WICK | 1 |
| 28 | B1811771000 | BOBBIN | 1 |
| 29 | 13729769 | BOBBIN CASE ASM. | 1 |
| 30 | 13729652 | HOOK SLEEVE CONNEC. | 1 |
| 31 | 13729603 | HOOK SLEEVE | 1 |
| 32 | CQ252000000 | OIL WICK | 0.04 |
| 33 | HX002550000 | TUBE | 0.017 |
Page 18 — PRESSER & FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40139181 | FEED MOTOR ASSY | 1 |
| 2 | HD00057000A | PHOTO SENSOR | 1 |
| 3 | 22891204 | BEARING SUPPORT | 2 |
| 4 | 40075297 | THROAT_PLATE_BASE_COVER | 2 |
| 5 | 40004194 | MOTOR_BRACKET | 1 |
| 6 | 40108754 | PULLEY_B | 1 |
| 7 | 40004197 | PULLEY_C | 1 |
| 8 | 40004198 | SUPPORT_SHAFT | 1 |
| 9 | 40004200 | TIMING_BELT_HOLDER | 1 |
| 10 | 40004201 | FEED_SHAFT | 1 |
| 11 | 40022121 | FEED_GUIDE_SHAFT | 1 |
| 12 | 40141744 | SENSOR_SLIT_PLATE | 1 |
| 13 | 40141741 | FEED_BASE | 1 |
| 14 | SB710000600 | BEARING | 2 |
| 15 | 40010434 | THRUST_COLLAR_ASM. | 1 |
| 16 | 40010435 | THRUST_COLLAR | 1 |
| 17 | SM8050412TP | SCREW M5 L=4 | 2 |
| 18 | 40004205 | WORK_CLAMP_CARRIER | 1 |
| 19 | SL4031091SC | SCREW M3 L=10 | 1 |
| 20 | SM6040602TP | SCREW M4 L=6 | 4 |
| 21 | SM6040802TP | SCREW M4X0.7 L=8 | 2 |
| 22 | SM6041002TP | SCREW M4 L=10 | 6 |
| 23 | SM6061002TP | SCREW M6 L=10 | 3 |
| 24 | SM6061802TP | SCREW M6 L=18 | 1 |
| 25 | SM8050502TP | SCREW M5 L=5 | 3 |
| 26 | SM80606A2TP | SCREW M6 L=6 | 2 |
| 27 | 40141742 | TIMING_BELT | 1 |
| 28 | SM5040550TP | SCREW M4 L=5 | 4 |
| 29 | 40142161 | LIFTING_LINK_ASSY | 1 |
| 30 | 40141788 | LINK_ROD_S | 1 |
| 31 | 40141801 | LIFTING_LINK_PIN | 1 |
| 32 | SD0800326TP | SHOULDER SCREW | 1 |
| 33 | 40142755 | LIFTING_LINK | 1 |
| 34 | 40139182 | CLAMP MOTOR ASSY | 1 |
| 35 | SD0800326TP | SHOULDER SCREW | 1 |
| 36 | 40004289 | PBL GEAR L | 1 |
| 37 | 40004267 | ASSY_PBL_MOTOR_BASE | 1 |
| 38 | SM6041202TP | SCREW M4X0.7 L=12 | 4 |
| 39 | SM8060552TP | SCREW M6 L=5 | 5 |
| 40 | SM8050502TP | SCREW M5 L=5 | 1 |
| 41 | SM6040502TP | SCREW M4X0.7 L=5 | 1 |
| 42 | RE0500000K0 | E-RING | 1 |
| 43 | 13127402 | PIN (SHORT) C | 1 |
| 44 | 40141757 | SQUARE_BLOCK | 1 |
| 45 | 40141755 | SLIDE_ROLLER | 1 |
| 46 | 40141754 | COLLAR | 1 |
| 47 | SB408000100 | BEARING | 1 |
Page 20 — PRESSER & FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40004285 | PBL_FINGER_GUARD | 1 |
| 49 | 40141794 | PBL_GUIDE | 1 |
| 50 | 40004280 | PBL_LIFTING_PLATE | 1 |
| 51 | 40004279 | PBL_METAL | 1 |
| 52 | 40141747 | POSITION_BRACKET | 1 |
| 53 | 40141745 | PRESSER_BAR | 1 |
| 54 | 40141753 | PBL_ROLLER_BASE | 1 |
| 55 | 40141756 | PBL_ROLLER_SHAFT | 1 |
| 56 | SB307000200 | BEARING | 2 |
| 57 | 40141746 | METAL_U | 1 |
| 58 | 40004287 | PBL_WORK_CLAMP_ARM | 1 |
| 59 | 40004288 | PBL_WORK_CLAMP_ARM_SHAFT | 1 |
| 60 | 40141743 | SENSOR_PLATE | 1 |
| 61 | SM6040802TP | SCREW M4X0.7 L=8 | 1 |
| 62 | SM6041602TP | SCREW M4X0.7 L=16 | 1 |
| 63 | SM6050800SP | SCREW M5 L=8 | 2 |
| 64 | SM6051002TP | SCREW M5X0.8 L=10 | 4 |
| 65 | SM6051002TP | SCREW M5X0.8 L=10 | 4 |
| 66 | SM8050602TP | SCREW M5 L=6 | 2 |
| 67 | 40020310 | UTT_CLOSE_CAM_B | 1 |
| 68 | 40141748 | LIFTING_LINK_SHAFT | 1 |
| 69 | SM8060612TP | SCREW M6 L=6 | 1 |
| 70 | D1511771KA0A | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 71 | B1511771000B | PRESSER FOOT | 1 |
| 72 | B1509761000 | WORK CLAMP CHECK SPRING | 2 |
| 73 | B151077100B | WORKCLAMPCHECKSPRINGSETPIN(B) | 2 |
| 74 | B1512761000 | WORK CLAMP CHECK HOLDER SPRING | 1 |
| 75 | SS6060210SP | SCREW 3/32-56 L=1.9 | 2 |
| 76 | B1552781000A | PRESSER | 1 |
| 77 | SD0790203SP | HINGE SCREW D=7.94 H=2 | 1 |
| 78 | 40004291 | PBL GEAR S | 1 |
| 79 | 40004275 | PBL_GEAR_SHAFT | 1 |
Page 22 — PRESSER & FEED COMPONENTS (FOR LBH-1795AS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40067165 | LIFTING PLATE PARTS 120MM | 1 |
| 2 | 40008646 | ASSY_WORK_CLAMP_CHECK_HOLDER_120 | 1 |
| 3 | B151077100B | WORK CLAMP CHECK SPRING SET PIN(B) | 2 |
| 4 | B1509761000 | WORK CLAMP CHECK SPRING | 2 |
| 5 | 40008647 | WORK_CLAMP_CHECK_HOLDER_120 | 1 |
| 6 | 40008638 | WORK_CLAMP_CHECK_HOLDER_SPRING B | 1 |
| 7 | 40006339 | WORK_CLAMP_CARRIER_120 | 1 |
| 8 | SS6060210SP | SCREW 3/32-56 L=1.9 | 6 |
| 9 | SD0790203SP | HINGE SCREW D=7.94 H=2 | 3 |
| 10 | 40028682 | UTT_CLOSE_CAM_120B | 1 |
| 11 | 40112711 | LIFTING_PLATE_120 | 1 |
| 12 | SM6050800SP | SCREW M5 L=8 | 2 |
| 13 | 40006335 | WORK_CLAMP_ARM_120 | 1 |
| 14 | SM6040802TP | SCREW M4X0.7 L=8 | 2 |
| 15 | 40008658 | WORK_CLAMP_120 | 1 |
Page 24 — NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40088990 | SUPPORT_SHAFT | 1 |
| 2 | 40004378 | ZIGZAG ROD ASM. | 1 |
| 3 | 40004379 | ZIGZAG ROD | 1 |
| 4 | 23530405 | SHAFT HOLDER LINK BUSH | 2 |
| 5 | 40008671 | P=JUNCTION SHAFT SELECTIVE PARTS | 2 |
| 6 | 40141758 | ZIGZAG_DRIVE_UNIT_BASE | 1 |
| 7 | 40141759 | MOTOR_LEVER | 1 |
| 8 | 40139180 | NEEDLE SWING MOTOR ASSY | 1 |
| 9 | 40141760 | ZIGZAG_LEVER_REAR | 1 |
| 10 | SM6041202TP | SCREW M4X0.7 L=12 | 4 |
| 11 | SM8050502TP | SCREW M5 L=5 | 6 |
| 12 | SM6061802TP | SCREW M6 L=18 | 1 |
| 13 | 40004218 | FRAME SUPPORT PLATE ASM. | 1 |
| 14 | 13706403 | NEEDLE BAR THREAD GUIDE | 1 |
| 15 | SM7030550TP | SCREW M3 L=4.5 | 1 |
| 16 | MDP5J0B1100 | NEEDLE DPX5 #11J | 1 |
| 17 | CS1501181TP | THRUST COLLAR D=15 W=11 | 1 |
| 18 | SM8050502TP | SCREW M5 L=5 | 2 |
| 19 | SM80606A2TP | SCREW M6 L=6 | 4 |
| 20 | SM6061202TP | SCREW M6 L=12 | 3 |
| 21 | 40004224 | ZIGZAG LEVER SHAFT ASM. | 1 |
| 22 | NM6050001SP | NUT M5 | 1 |
| 23 | 40004373 | ZIGZAG LEVER SHAFT | 1 |
| 24 | 40004374 | ZIGZAG_STUD | 1 |
| 25 | 40004216 | BUSHING | 1 |
| 26 | 40004217 | BUSHING REAR | 1 |
| 27 | 40004209 | NEEDLE_BAR_ROD | 1 |
| 28 | B1414232000 | SQUARE BLOCK | 1 |
| 29 | 40004222 | NEEDLE_BAR_FRAME_ASSY | 1 |
| 30 | 40004212 | NEEDLE_BAR_FRAME | 1 |
| 31 | 40004213 | NEEDLE BAR METAL | 2 |
| 32 | SM6040750TP | SCREW M4 L=7 | 1 |
| 33 | 40004215 | NEEDLE BAR | 1 |
| 34 | 40004214 | NEEDLE_BAR_CONNECTION | 1 |
| 35 | SM6040502TP | SCREW M4X0.7 L=5 | 1 |
Page 26 — NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | RE0300000K0 | E-RING 3 | 1 |
| 2 | RE0300000K0 | E-RING 3 | 1 |
| 3 | EA9500B0100 | CABLE BAND | 1 |
| 4 | 40004293 | UTT BASE PLATE | 1 |
| 5 | NM6050001SP | NUT M5 | 4 |
| 6 | WP0430801SC | WASHER 4.3X9X0.8 | 1 |
| 7 | SL4031091SC | SCREW M3 L=10 | 1 |
| 8 | SD0600266TP | SHOULDER SCREW D=6 H=2.6 | 1 |
| 9 | SM6040600SP | SCREW M4 L=6 | 2 |
| 10 | SM6040602TP | SCREW M4 L=6 | 2 |
| 11 | SM6040860TP | SCREW M4 L=8 | 1 |
| 12 | SM6040802TP | SCREW M4X0.7 L=8 | 4 |
| 13 | SM6041200SP | SCREW M4 L=12 | 2 |
| 14 | SM6050652TP | HEXAGON SOCKET HEAD SCREW M5X6 | 2 |
| 15 | SM6050800SP | SCREW M5 L=8 | 2 |
| 16 | SM6050802TP | SCREW M5X0.8 L=8 | 2 |
| 17 | 40004400 | ASSY UTT RELEASE ARM B | 1 |
| 18 | SM6040602TP | SCREW M4 L=6 | 1 |
| 19 | SM8050412TP | SCREW M5 L=4 | 2 |
| 20 | SM8050502TP | SCREW M5 L=5 | 4 |
| 21 | SD0600326TP | SHOULDER SCREW D=6 H=3.2 | 4 |
| 22 | SD0800406TP | SHOULDER SCREW D=8 H=4 | 1 |
| 23 | SD0801506TP | SHOULDER SCREW D=8 H=15 | 3 |
| 24 | 11272507 | SPRING | 1 |
| 25 | CS0800881TP | THRUST COLLAR | 1 |
| 26 | 40004235 | UTT ARM A | 1 |
| 27 | 40004238 | UTT_ARM_B | 1 |
| 28 | 40101641 | ASSY_UTT_CAM_ARM | 2 |
| 29 | 40004254 | UTT CAM ROLLER | 1 |
| 30 | 40101638 | UTT_CAM_ROLLER_SHAFT | 1 |
| 31 | 40101642 | UTT_CAM_ARM | 1 |
| 32 | NM6040000SN | NUT M4 | 1 |
| 33 | 40004264 | UTT RELEASE LEVER BASE | 1 |
| 34 | 40004265 | UTT RELEASE LEVER SHAFT | 1 |
| 35 | 40141774 | SENSOR_PLATE_UTT | 1 |
| 36 | 40004296 | UTT_SUPPORT_ARM_SPRING | 1 |
| 37 | 40004234 | UTT SUPPORT SHAFT | 1 |
| 38 | 40004248 | UTT SUSPENSION SCREW 4 | 2 |
| 39 | 40004252 | UTT SUSPENSION SCREW 9 | 1 |
| 40 | 40004247 | UTT SUSPENSION SHOULDER SCREW | 1 |
| 41 | 40004244 | UTT THREAD PULLING LINK A | 1 |
| 42 | 40004245 | UTT THREAD PULLING LINK B | 1 |
| 43 | 40004236 | UTT X-CAM | 1 |
| 44 | 40004297 | UTT Y-DRIVE ROLLER | 1 |
| 45 | 40004298 | UTT Y-DRIVE SHAFT | 1 |
| 46 | 40140040 | UTT TRIM MOTOR ASSY | 1 |
| 47 | HD00057000A | PHOTO SENSOR | 1 |
Page 28 — NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40028634 | ASSY_UTT_RELEASE_LEVER_B | 1 |
| 49 | 40142166 | ASSY_UTT_DRIVE_CAM | 1 |
| 50 | 40004240 | ASSY UTT THREAD PULLING ARM | 1 |
| 51 | 40015702 | UTT_RATCH_PLATE_B | 1 |
| 52 | 40004232 | ASSY_UTT_SUPPORT_ARM | 1 |
| 53 | WP0431005SP | PLAIN WASHER 4.3X12X1 | 1 |
| 54 | 40015674 | UTT_RATCH_STOPPER | 1 |
| 55 | SM6040602TP | SCREW M4 L=6 | 2 |
| 56 | WP0550800SP | WASHER 5.5X10X0.8 | 2 |
| 57 | NM6050001SP | NUT M5 | 1 |
| 58 | SM6040602TP | SCREW M4 L=6 | 1 |
| 59 | SM6040600SP | SCREW M4 L=6 | 1 |
| 60 | SM6050802TP | SCREW M5X0.8 L=8 | 1 |
| 61 | 40028636 | UTT_GUIDE_SHAFT_B | 1 |
| 62 | 40004249 | UTT SUSPENSION PLATE | 1 |
| 63 | 40004243 | UTT THREAD PULLING LEVER | 1 |
| 64 | 40004246 | UTT THREAD PULLING SHAFT | 1 |
| 65 | 40004250 | UTT TRIMMER CLOSE SPRING | 1 |
| 66 | 40004297 | UTT Y-DRIVE ROLLER | 1 |
| 67 | 40004298 | UTT Y-DRIVE SHAFT | 1 |
| 68 | SM6051202TP | SCREW M5X0.8 L=12 | 3 |
| 69 | MAZ16013000 | BUTTON SUPPORT LEVER SPRING | 1 |
| 70 | 40004255 | ASSY UTT TRIMMER | 1 |
| 71 | 40004294 | UTT RELEASE ARM A | 1 |
Page 30 — BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | HX00150000A | CABLE CLAMP | 1 |
| 2 | 40142170 | ASSY_BTT_DRIVE_CAM | 1 |
| 3 | 40004336 | ASSY_BTT_DRIVE_LEVER | 1 |
| 4 | 40004329 | BTT_DRIVE_LINK | 1 |
| 5 | 40141778 | BTT_DRIVE_UNIT_BASE | 1 |
| 6 | 40101649 | BTT_RELEASE_LEVER | 1 |
| 7 | 40004343 | BTT_RELEASE_LINK_F | 1 |
| 8 | 40004344 | BTT_RELEASE_LINK_R | 1 |
| 9 | 13737408 | LINK ROD | 1 |
| 10 | NM6040001SD | NUT M4 | 1 |
| 11 | NM6050001SP | NUT M5 | 2 |
| 12 | 40140041 | DT TRIM MOTOR ASSY | 1 |
| 13 | SL4031091SC | SCREW M3 L=10 | 1 |
| 14 | SM6040602TP | SCREW M4 L=6 | 2 |
| 15 | SM6040802TP | SCREW M4X0.7 L=8 | 4 |
| 16 | SM8050412TP | SCREW M5 L=4 | 2 |
| 17 | SM9040700SP | HEXAGONAL BOLT | 1 |
| 18 | 40141779 | SENSOR_PLATE_BTT | 1 |
| 19 | HD00057000A | PHOTO SENSOR | 1 |
| 20 | SD0801006TP | SHOULDER SCREW D=8 H=10 | 2 |
| 21 | 40004299 | STOPPER_PIN | 1 |
| 22 | 40004254 | UTT_CAM_ROLLER | 2 |
| 23 | 40101638 | UTT_CAM_ROLLER_SHAFT | 2 |
| 24 | SD0800296TP | SHOULDER SCREW D=8 H=2.9 | 1 |
| 25 | SM6040600SP | SCREW M4 L=6 | 2 |
| 26 | WP0430801SC | WASHER 4.3X9X0.8 | 2 |
| 27 | 40021998 | THROAT_PLATE_BASE_UNIT | 1 |
| 28 | 40022323 | BT_CLAMP_B | 1 |
| 29 | 40004309 | BT_CLAMP_LEVER | 1 |
| 30 | 40022322 | BT_PULLER_B | 1 |
| 31 | 40004321 | ASSY_BT_RELEASE_ARM | 1 |
| 32 | 40004308 | BT_TRIMMER_LINK | 1 |
| 33 | 40029613 | CLAMP_SPRING | 1 |
| 34 | B1623180000 | WASHER | 1 |
| 35 | B3013141H0A | WASHER | 1 |
| 36 | 40004311 | BT_TRIMMER | 1 |
| 37 | WP0431005SP | PLAIN WASHER 4.3X12X1 | 3 |
| 38 | WP0451016SP | WASHER 4.5X20X1 | 1 |
| 39 | 40004306 | BTT_LEVER | 1 |
| 40 | SM6040450TP | SCREW M4 L=4 | 3 |
| 41 | SM6040450TP | SCREW M4 L=4 | 5 |
| 42 | SD0250101SP | HINGE SCREW | 1 |
| 43 | SD0500166TP | SHOULDER SCREW D=5 H=1.6 | 1 |
| 44 | SD0500167TP | SHOULDER SCREW D=5 H=1.6 | 1 |
| 45 | 40004327 | SUSPENSION_SCREW | 2 |
| 46 | 40004301 | ASSY_THROAT_PLATE_BASE | 1 |
| 47 | 40004324 | OIL_SHIELD | 1 |
Page 32 — BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM1030400SP | SCREW M3 L=4 | 2 |
| 49 | 40027553 | THROAT_PLATE(1790S5) | 1 |
| 50 | 40011205 | STUD | 1 |
| 51 | WP0430800SC | WASHER M4 | 1 |
| 52 | 40004345 | PICKER_BASE | 1 |
| 53 | 40004347 | PICKER_BASE_FITTNG_PLATE | 1 |
| 54 | 13727102 | STOPPER A | 1 |
| 55 | 13729306 | BOBBIN CASE POSITIONING PLATE | 1 |
| 56 | SM7030550TP | SCREW M3 L=4.5 | 1 |
| 57 | SM6040602TP | SCREW M4 L=6 | 1 |
| 58 | SM4041050TP | SCREW M4 L=10 | 2 |
| 59 | SM6040600SP | SCREW M4 L=6 | 1 |
| 60 | SM6041200SP | SCREW M4 L=12 | 1 |
| 61 | SM6040450TP | SCREW M4 L=4 | 4 |
| 62 | SD0800296TP | SHOULDER SCREW D=8 H=2.9 | 4 |
| 63 | 40011327 | PICKER_SPRING | 1 |
| 64 | 40004346 | PICKER | 1 |
| 65 | 40004348 | PICKER_ACTUATING_LEVER | 1 |
| 66 | NM6040001SD | NUT M4 | 1 |
| 67 | SD0801006TP | SHOULDER SCREW D=8 H=10 | 1 |
| 68 | 40004327 | SUSPENSION_SCREW | 2 |
| 69 | 40004299 | STOPPER_PIN | 1 |
| 70 | 40141802 | OIL_TANK | 1 |
| 71 | 40004349 | PICKER_ACTUATING_L_LINK | 1 |
| 72 | SL6040892TN | SCREW | 4 |
| 73 | 40004328 | PICKER_BASE_STOPPER | 1 |
| 74 | SL6041292TN | SCREW | 1 |
| 75 | SM6050802TP | SCREW M5X0.8 L=8 | 3 |
Page 34 — CLOTH CUTTING KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SM6051202TP | SCREW M5X0.8 L=12 | 4 |
| 2 | 40139183 | CLOTH CUT MOTOR ASSY | 1 |
| 3 | SL6041492TN | SCREW | 4 |
| 4 | 40141781 | MOTOR_BASE_A | 1 |
| 5 | 40141780 | MOTOR_BASE_B | 1 |
| 6 | SL6061492TN | BOLT | 2 |
| 7 | SB1120003C0 | BEARING | 1 |
| 8 | 40141782 | KNIFE_DRIVING_BLOCK | 1 |
| 9 | SM8050612TP | SCREW M5X6 | 3 |
| 10 | SM6051202TP | SCREW M5X0.8 L=12 | 1 |
| 11 | 40142163 | KNIFE_DRIVING_ASSY | 1 |
| 12 | 40142164 | KNIFE_DRIVING_LINK_ASSY | 1 |
| 13 | 40141783 | KNIFE_DRIVING_LINK_COMBINATION | 1 |
| 14 | 40008671 | P=JUNCTION SHAFT SELECTIVE | 2 |
| 15 | SB1040008C0 | BEARING | 2 |
| 16 | 40010489 | AT_PIVOT_SCREW_WASHER | 1 |
| 17 | 40141786 | SUPPORT_SHAFT | 1 |
| 18 | 40042089 | THRUST WASHER | 2 |
| 19 | 40141785 | KNIFE_BAR_BRACKET | 1 |
| 20 | SM8050612TP | SCREW M5X6 | 1 |
| 21 | SM6051402TP | SCREW M5X0.8 L=14 | 1 |
| 22 | B2702047L00A | KNIFE 1/2 | 1 |
| 23 | WP0430801SC | WASHER M4 | 1 |
| 24 | SM9040700SP | HEXAGONAL BOLT | 1 |
| 25 | 40141787 | SUPPORT_GUIDE | 1 |
| 26 | SM6041002TP | SCREW M4 L=10 | 2 |
| 27 | 40004398 | KNIFE_BAR_BUSH | 1 |
| 28 | 40040276 | KNIFE_BAR_LOWER_BUSHING | 1 |
| 29 | 40004394 | KNIFE BAR | 1 |
| 30 | 40004396 | KNIFE BAR BASE | 1 |
| 31 | SM6061202TP | SCREW M6 L=12 | 1 |
| 32 | 40004393 | KNIFE FITTING BASE | 1 |
Page 36 — TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40142966 | TABLE | 1 |
| 2 | ST9053511SR | TAPPING SCREW M5X35 | 4 |
| 3 | 11155108 | DRAWER | 1 |
| 4 | 11155207 | DRAWER SUPPORT | 2 |
| 5 | SK3311600SC | WOOD SCREW D=3.1 L=16 | 6 |
| 6 | D8204555D00 | DRAWER STOPPER | 1 |
| 7 | 11157567 | T LEG JUNCTION | 1 |
| 8 | 40094262 | PEDAL SENSOR BASE ASSY | 1 |
| 9 | 40094259 | PEDAL SENSOR ASM. | 1 |
| 10 | 40094260 | SENSOR COIL HOLD ASSY | 1 |
| 11 | 40093423 | SENSOR_BRACKET | 1 |
| 12 | SL4041091SC | SCREW M4 L=10 | 3 |
| 13 | KX000000210 | SADDLE TYPE TIE MOUNT | 1 |
| 14 | KX000000230 | RELEASIBLE CABLE TIE | 1 |
| 15 | SM4051001SC | SCREW M5 L=10 | 1 |
| 16 | WS0820002KR | SPRING WASHER M8 | 2 |
| 17 | NM6080002SC | NUT M8 | 2 |
| 18 | MTSHJ100003 | BOLT | 2 |
| 19 | WP0851846SC | WASHER 8.5X22.0X1.8 | 2 |
| 20 | SL4051291SC | SCREW M5X0.8 L=12 | 2 |
| 21 | 40042134 | CONNECING_ROD_ASSY | 1 |
Page 38 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40141333 | LBH OPERATION PANEL ASSY | 1 |
| 2 | 40141334 | LBH OPERATION PANEL ASSY CE | 1 |
| 3 | SK3382001SE | SCREW D=3.8 L=20 | 4 |
Page 40 — CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40141500 | MC602 CTL BOX A ASM. | 1 |
| 2 | 40141501 | MC602 CTL BOX B ASM. | 1 |
| 3 | 40141502 | MC602 CTL BOX C ASM. | 1 |
| 4 | WP0430800SC | WASHER M4 | 1 |
| 5 | 40143989 | FRAME_B | 1 |
| 6 | 40143988 | FRAME_A | 1 |
| 7 | 40115874 | FAN PLATE | 1 |
| 8 | SL4040881SC | SCREW M4 L=8 | 2 |
| 9 | 40115876 | PLATE B | 1 |
| 10 | SL4040881SC | SCREW M4 L=8 | 2 |
| 11 | SL4040881SC | SCREW M4 L=8 | 2 |
| 12 | 40115879 | FAN COVER | 1 |
| 13 | 40138920 | MAIN PCB ASSY | 1 |
| 14 | SL4040881SC | SCREW M4 L=8 | 8 |
| 15 | 40105465 | FLT-T PCB ASSY | 1 |
| 16 | 40105475 | FLT-CE PCB ASSY | 1 |
| 17 | 40111214 | FAN MOTOR ASSY | 1 |
| 18 | SL4042091SC | SCREW M4X0.7 L=20 | 2 |
| 19 | KX000000260 | SADDLE TYPE TIE MOUNT | 1 |
| 20 | SL4040881SC | SCREW M4 L=8 | 1 |
| 21 | HX00292000A | CONNECTING PARTS | 1 |
| 22 | HX00339000M | SPACER | 6 |
| 23 | 40142267 | SDC PCB ASSY | 1 |
| 24 | SL4041081SC | SCREW M4 L=10 | 4 |
| 25 | SL4040881SC | SCREW M4 L=8 | 2 |
| 26 | 40115877 | MAIN PLATE | 1 |
| 27 | 40143990 | STUD | 2 |
| 28 | 40115878 | PLATE C | 1 |
| 29 | SL4040881SC | SCREW M4 L=8 | 1 |
| 30 | SL4040881SC | SCREW M4 L=8 | 6 |
| 31 | HX00222000D | WIRE SADDLE | 1 |
| 32 | KX000000320 | BUSH | 1 |
| 33 | SL4041281SC | SCREW M4X0.7 L=12 | 4 |
| 34 | M8002430000 | STOPPER | 4 |
| 35 | 40114398 | MAIN COOL SHEET | 2 |
| 36 | 40114136 | COVER | 1 |
| 37 | SL4040881SC | SCREW M4 L=8 | 3 |
| 38 | SL4030881SC | SCREW M3 L=8 | 1 |
| 39 | CM300100001 | LABEL | 1 |
| 40 | CM300400602 | VOLTAGE CAUTION LABEL L=25 | 1 |
| 41 | CM300100402 | VOLTAGE DANGER LABEL 3(SMALL) | 1 |
| 42 | CM600100101 | WEEE MARK LABEL S | 1 |
| 43 | 40116677 | GOST SAFTY LABEL S | 1 |
| 44 | EA9500B0100 | CABLE BAND | 1 |
Page 42 — CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 45 | E8760452S00 | TUBE | 0.055 |
| 46 | 40113427 | POWER SWITCH | 1 |
| 47 | SL4041091SC | SCREW M4 L=10 | 2 |
| 48 | HX00150000D | CABLE CLIP | 2 |
| 49 | M300451100A | VOLTAGE INDICATION CARD A | 1 |
| 50 | MTSHJ100003 | BOLT | 4 |
| 51 | 40126054 | CORE SET UP MANUAL | 1 |
| 52 | SK3512001SE | WOOD SCREW D=5.1 L=20 | 2 |
| 53 | WP0852086SC | WASHER M8 | 4 |
| 54 | WS0820002KR | SPRING WASHER M8 | 4 |
| 55 | NM6080002SC | NUT M8 | 4 |
| 56 | HF0013050P0 | FUSE 5A | 1 |
| 57 | HF003000200 | FUSE 2A (220/240V) | 1 |
| 58 | EA9500B0200 | CABLE BAND 150 | 2 |
| 59 | WP0651646SC | WASHER | 8 |
| 60 | WT0640001KN | TOOTH WASHER | 1 |
| 61 | 40165702 | RUBBER_CUSHION | 4 |
| 62 | 40142969 | RUBBER CUSHION BRKT | 2 |
| 63 | NM6060001SC | NUT M6X1 TYPE1 | 4 |
Page 44 — WIRING DIAGRAM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40138611 | INT PCB ASSY | 1 |
| 2 | 40005400 | PAUSE SWITCH JOINT CORD | 1 |
| 3 | 32002354 | SWITCH ASM. | 1 |
| 4 | 40003499 | THREAD BREAK DETECTOR A | 1 |
| 5 | 40141480 | UT TRIM SENSOR CORD ASSY | 1 |
| 6 | HD00057000A | PHOTO SENSOR | 1 |
| 7 | 40141481 | DT TRIM SENSOR CORD ASSY | 1 |
| 8 | HD00057000A | PHOTO SENSOR | 1 |
| 9 | 40141482 | FEED SENSOR CORD ASSY | 1 |
| 10 | HD00057000A | PHOTO SENSOR | 1 |
| 11 | 40141484 | COVER SENSOR RELAY CORD ASSY | 1 |
| 12 | 40141483 | COVER SENSOR ASSY | 1 |
| 13 | 40139180 | NEEDLE SWING MOTOR ASSY | 1 |
| 14 | 40139181 | FEED MOTOR ASSY | 1 |
| 15 | 40139182 | CLAMP MOTOR ASSY | 1 |
| 16 | 40140040 | UT TRIM MOTOR ASSY | 1 |
| 17 | 40140041 | DT TRIM MOTOR ASSY | 1 |
| 18 | 40139183 | CLOTH CUT MOTOR ASSY | 1 |
| 19 | 40006261 | ASSY_AT_SOLENOID | 1 |
| 20 | 40111214 | FAN MOTOR ASSY | 1 |
| 21 | 40141479 | INT CORD C ASSY | 1 |
| 22 | 40141478 | INT CORE B ASSY | 1 |
| 23 | 40141477 | INT CORD A ASSY | 1 |
| 24 | 40023371 | SINGLE PHASE POWER CORD ASSY | 1 |
| 25 | M90175800A0 | POWER CABLE ASM. | 1 |
| 26 | 40005390 | JE POWER CABLE ASM. | 1 |
| 27 | 40141487 | AC POWER CORD A ASM. | 1 |
| 28 | 40141488 | AC POWER CORD B ASM. | 1 |
| 29 | 40141489 | AC POWER CORD C ASM. | 1 |
| 30 | 40113427 | POWER SWITCH | 1 |
| 31 | 40141333 | LBH OPERATION PANEL ASSY | 1 |
| 32 | 40141706 | ASSY_LED_DEVICE | 1 |
| 33 | 40094262 | PEDAL SENSOR BASE ASSY | 1 |
| 34 | 40003491 | ASSY_4_POSITION_PEDAL | 1 |
| 35 | 40141500 | MC602 CTL BOX A ASM. | 1 |
| 36 | 40141501 | MC602 CTL BOX B ASM. | 1 |
| 37 | 40141502 | MC602 CTL BOX C ASM. | 1 |
| 38 | 40138920 | MAIN PCB ASSY | 1 |
| 39 | 40142267 | SDC PCB ASSY | 1 |
| 40 | 40105465 | FLT-T PCB ASSY | 1 |
| 41 | 40105475 | FLT-CE PCB ASSY | 1 |
| 42 | 14115554 | HEAD GROUND CABLE A ASM. | 1 |
| 43 | 40138137 | IPM550W MOTOR | 1 |
| 44 | 40141334 | LBH OPERATION PANEL ASSY CE | 1 |
Page 46 — ACCESSORIE PARTS COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22932800 | ACCESSORIE BAG | 1 |
| 2 | 22933204 | SCREW DRIVER SMALL | 1 |
| 3 | 22933105 | SCREW DRIVER MIDDLE | 1 |
| 4 | 40009148 | BOBBIN | 1 |
| 5 | MDP5J0B1102 | NEEDLE DPX5 #11J-2 | 1 |
| 6 | SL6040892TN | BOLT | 1 |
| 7 | CM600100201 | WEEE INFORMATION SHEET | 1 |
| 8 | 14101208 | HEAD SUPPORT BAR | 1 |
| 9 | SM6067052TP | HEXAGON BOLT | 4 |
| 10 | 22502504 | THREAD GUIDE BAR | 1 |
| 11 | D6056555B00 | RUBBER CUSHION (B) | 4 |
| 12 | 40006323 | JUKI GREASE A TUBE | 1 |
| 13 | 40165710 | AUXILIARY_TABLE_SET | 1 |
| 14 | 40145523 | INSTALLING_PLATE_SET | 1 |
| 15 | 13785803 | INSTALLING PLATE | 2 |
| 16 | SS7110570SP | SCREW 11/64-40 L=4.8 | 4 |
| 17 | SM6061002TP | SCREW M6 L=10 | 2 |
| 18 | 40165711 | PAINTED_AUXILIARY_TABLE | 1 |
| 19 | B91210120A0 | OILER ASM. | 1 |
| 20 | MDFRX1200C0 | NEW DEFRIX OIL NO.1(200ML) | 1 |
| 21 | B2702047M00A | KNIFE 5/8 | 1 |
| 22 | 22933006 | SCREW DRIVER LARGE | 1 |
| 23 | B9107761000 | THREAD PASSING INSTRUMENT | 1 |
| 24 | 40142172 | ASSY_SAFETY_PLATE_B | 1 |
| 25 | 40141799 | SAFETY_PLATE_BASE | 1 |
| 26 | 40141798 | SAFETY_PLATE | 1 |
| 27 | SL4040891SC | SCREW M4 L=8 | 2 |
| 28 | SM6040602TP | SCREW M4 L=6 | 1 |
| 29 | WP0612056SD | WASHER 6.1X18.5X2 | 4 |
| 30 | NM6060001SD | NUT M6 | 8 |
| 31 | 26234005 | VINYL COVER | 1 |
| 32 | 13943402 | TIMING GAUGE | 1 |
| 33 | B2702047K00A | KNIFE 3/8 | 1 |
| 34 | 29180403 | EC PRODUCTION DECLARATION | 1 |
Page 48 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40096354 | THREAD STAND ASM. | 1 |
| 2 | 40085784 | SPOOL REST ROD LOWER | 1 |
| 3 | 40085785 | SPOOL REST ROD UPPER | 1 |
| 4 | 40085786 | SPOOL REST ARM LOWER | 1 |
| 5 | 40085787 | SPOOL REST ARM UPPER | 1 |
| 6 | 40085788 | SPOOL REST | 2 |
| 7 | 40085789 | SPOOL REST CUSHION | 2 |
| 8 | 40085790 | SPOOL PIN | 2 |
| 9 | 40085791 | SPOOL RETAINER | 2 |
| 10 | 40085792 | SPOOL REST ROD JOINT | 1 |
| 11 | 40085793 | SPOOL REST ROD RUBBER CAP | 1 |
| 12 | 40085794 | THREAD GUIDE | 2 |
| 13 | 40085795 | THREAD GUIDE BUSHING | 2 |
| 14 | 40096325 | SPOOL REST ROD NUT | 1 |
| 15 | WP1612616SE | WASHER 16X30X2.6 | 2 |
| 16 | 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 |
| 17 | 40096326 | SPOOL REST ARM LOWER SCREW | 1 |
| 18 | NM6050001SE | NUT M5 | 2 |
| 19 | 40096327 | SPOOL REST ARM UPPER SCREW | 1 |
| 20 | NM6050001SE | NUT M5 | 2 |
| 21 | WS0510002KN | SPRING WASHER M5 | 2 |
| 22 | WP0531001SC | WASHER M5 | 2 |
| 23 | SM4051405SE | SCREW M5 L=14 | 2 |
| 24 | NM6050001SE | NUT M5 | 2 |
Page 50 — SPECIAL SPECIFICATIONS COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | G50011980A0A | BOBBIN WINDER ASM. | 1 |
| 2 | 40005405 | WINDER CORD ASSY | 1 |
| 3 | B32217710A0 | BOBBIN WINDER TENSION BRACKET ASM. | 1 |
| 4 | B3221771000 | BOBBIN WINDER TENSION BRACKET | 1 |
| 5 | B3219232000 | BOBBIN WINDER TENSION POST | 1 |
| 6 | B3214047000 | BOBBIN WINDER TENSION DISC | 2 |
| 7 | B3218232000 | BOBBIN WINDER TENSION SPRING | 1 |
| 8 | B3216047000 | BOBBIN WINDER TENSION NUT | 1 |
| 9 | NS6110310SP | NUT 11/64-40 | 1 |
| 10 | SK3452000SC | WOOD SCREW D=4.5 L=20 | 4 |
| 11 | 40003493 | PK PEDAL JOINT CORD ASSY | 1 |
| 12 | GPK510010B0 | PEDAL SWITCH ASM. | 1 |
| 13 | 40097040 | HOOK COOLING UNIT B | 1 |
| 14 | 40023432 | FILTER REGULATOR ASM. | 1 |
| 15 | PF0551060A0 | FILTER REGULATOR | 1 |
| 16 | PF902005000 | REGULATOR BRACKET | 1 |
| 17 | PJ025100003 | PLUG | 1 |
| 18 | PV015122000 | FINGER VALVE | 1 |
| 19 | 40094012 | PIPE BRACKET ASM. | 1 |
| 20 | BT0400251EB | URETHANE HOSE BLACK | 1.5 |
| 21 | SK3412001SE | WOOD SCREW D=4.1 L=20 | 2 |
| 22 | MAO11532000 | CORD STAPLE | 2 |
| 23 | EA9500B0100 | CABLE BAND | 2 |
| 24 | 40003491 | ASSY_4_POSITION_PEDAL | 1 |
| 25 | 13731906 | SPRING | 1 |
| 26 | B2583210D00 | SPRING | 1 |
| 27 | NM6060001CP | NUT M6 | 1 |
| 28 | 40004360 | PEDAL_FRAME | 1 |
| 29 | 40004361 | PEDAL_FRAME_A | 1 |
| 30 | 40004362 | PEDAL_FRAME_B | 1 |
| 31 | 40004363 | PEDAL_FRAME_GUIDE | 1 |
| 32 | HD00057000A | PHOTO SENSOR | 2 |
| 33 | SL4031091SC | SCREW M3 L=10 | 1 |
| 34 | SL6031042TN | SCREW | 1 |
| 35 | SM5040655SN | SCREW | 3 |
| 36 | SM6050652TP | HEXAGON SOCKET HEAD SCREW M5X6 | 4 |
| 37 | 40004364 | SENSOR_DETECTING_PLATE | 3 |
| 38 | SD1000646TP | SHOULDER SCREW D=10 H=6.4 | 1 |
| 39 | 40004299 | STOPPER_PIN | 1 |
| 40 | 40004327 | SUSPENSION_SCREW | 2 |
| 41 | SK3482001SE | WOOD SCREW D=4.8 L=20 | 2 |
Page 52 — SPECIAL SPECIFICATIONS COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40006345 | RP_HOOK_ASM. | 1 |
| 2 | 40006349 | RP_BOBBIN_CASE | 1 |
| 3 | 13729603 | HOOK SLEEVE | 1 |
| 4 | SS8660612TP | SCREW 1/4-40 L=6 | 4 |
| 5 | 40006340 | WORK_CLAMP_HOLDER_SPACE | 1 |
| 6 | SM6040450TP | SCREW M4 L=4 | 3 |
| 7 | 40028682 | UTT_CLOSE_CAM_120B | 1 |
| 8 | 40112711 | LIFTING_PLATE_120 | 1 |
| 9 | SM6050800SP | SCREW M5 L=8 | 2 |
| 10 | 40006335 | WORK_CLAMP_ARM_120 | 1 |
| 11 | 40006339 | WORK_CLAMP_CARRIER_120 | 1 |
| 12 | 14523252 | PRESSER FOOT 70 ASM. | 1 |
| 13 | B1509761000 | PRESSER FITTING PLATE SPRING | 2 |
| 14 | B1512761000 | PRESSER FOOT HOLDER SPRING | 1 |
| 15 | 14523203 | PRESSER FOOT 70 | 1 |
| 16 | B151077100B | PRESSER FOOT PIN B | 2 |
| 17 | 14523708 | URETHANE PRESSER 70 | 1 |
| 18 | 14524102 | PRESSER 70 (FLAT) | 1 |
| 19 | 14523401 | PRESSER 70 | 1 |
| 20 | SS6060210SP | SCREW 3/32-56 L=1.9 | 6 |
| 21 | SD0790203SP | HINGE SCREW D=7.94 H=2 | 3 |
| 22 | 40011319 | THROAT_PLATE_BASE_SPACER | 2 |
| 23 | 40004326 | BTT_SPACER | 1 |
| 24 | WP0551016SH | WASHER 5.5X13X1 | 2 |
| 25 | 40015733 | THROAT_PLATE(S10) | 1 |
| 26 | 40015802 | OIL_SHIELD_10 | 1 |
| 27 | 40020010 | WORK_CLAMP_HOLDER(3-10)_ASSY | 1 |
| 28 | 40020011 | WORK_CLAMP_HOLDER(3-10) | 1 |
| 29 | 40008638 | WORK_CLAMP_CHECK_HOLDER_SPRING_B | 1 |
| 30 | B151077100B | WORK CLAMP CHECK SPRING SET PIN(B) | 2 |
| 31 | B1509761000 | WORK CLAMP CHECK SPRING | 2 |
| 32 | 40017810 | WORK_CLAMP(3S-10) | 1 |
| 33 | 40020014 | WORK_CLAMP_CARRIER(10X41)_CL | 1 |
| 34 | 40020012 | WORK_CLAMP_CARRIER(10X41) | 1 |
| 35 | CM300200001 | ATTENTION SEAL | 1 |
| 36 | 40020013 | WORK_CLAMP_ARM(10X41) | 1 |
| 37 | 40027554 | THROAT_PLATE(1790K5) | 1 |
| 38 | D1511772KA0 | WORK CLAMP CHECK HOLDER ASM. | 1 |
| 39 | B1511772000A | WORK CLAMP CHECK HOLDER | 1 |
| 40 | B1509761000 | WORK CLAMP CHECK SPRING | 2 |
| 41 | B151077100B | WORK CLAMP CHECK SPRING SET PIN(B) | 2 |
| 42 | B1512761000 | WORK CLAMP CHECK HOLDER SPRING | 1 |
| 43 | SS6060210SP | SCREW 3/32-56 L=1.9 | 2 |
| 44 | D1508772K00 | WORK CLAMP CHECK (2K) | 1 |
| 45 | 13782065 | HOOK COMPL. K | 1 |
| 46 | 13782107 | HOOK TIMING GAUGE K | 1 |
Page 53 — EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-F00 | ||
| 2 | B2702-047-K00-A | ||
| 3 | B2702-047-I00 | ||
| 4 | B2702-047-L00-A | ||
| 5 | B2702-047-V00 | ||
| 6 | B2702-047-M00-A | ||
| 7 | B2702-047-A00 | ||
| 8 | B2702-047-N00 | ||
| 9 | B2702-047-P00 | ||
| 10 | B2702-047-Q00-A | ||
| 11 | B2702-047-S00-A | ||
| 12 | B1552-781-000-A | ||
| 13 | B1552-782-000 | ||
| 14 | B1552-783-000 | ||
| 15 | D1508-771-K00-A | ||
| 16 | D1508-772-K00 | ||
| 17 | D1508-773-K00 | ||
| 18 | D1511-771-KA0-A | ||
| 19 | D1511-772-KA0 | ||
| 20 | D1511-773-KA0 | ||
| 21 | B2745-771-F00 | ||
| 22 | B2745-771-K00 | ||
| 23 | B2745-771-L00 | ||
| 24 | B2745-771-H00 | ||
| 25 | B2745-771-M00 | ||
| 26 | B2745-771-N00 | ||
| 27 | B2745-771-P00 | ||
| 28 | B2745-771-Q00 | ||
| 29 | B2745-771-R00 | ||
| 30 | B2745-771-S00 | ||
| 31 | B2746-771-000 | Knife Guard | |
| 32 | 137-82800 | Throat Plate |
Page 54 — EXCHANGING PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702047F00 | KNIFE 1/4 | 1 |
| 2 | B2702047K00A | KNIFE 3/8 | 1 |
| 3 | B2702047I00 | KNIFE (7/16) | 1 |
| 4 | B2702047L00A | KNIFE 1/2 | 1 |
| 5 | B2702047V00 | KNIFE 9/16 | 1 |
| 6 | B2702047M00A | KNIFE 5/8 | 1 |
| 7 | B2702047A00 | KNIFE 11/16 | 1 |
| 8 | B2702047N00 | KNIFE 3/4 | 1 |
| 9 | B2702047P00 | KNIFE 7/8 | 1 |
| 10 | B2702047Q00A | KNIFE 1 | 1 |
| 11 | B2702047S00A | KNIFE 1-1/4 | 1 |
| 12 | B1552781000A | PRESSER | 1 |
| 13 | B1552782000 | WORK CLAMP CHECK, 2 | 1 |
| 14 | B1552783000 | WORK CLAMP CHECK, 3 | 1 |
| 15 | D1508771K00A | LATCH WORK CLAMP CHECK | 1 |
| 16 | D1508772K00 | WORK CLAMP CHECK (2K) | 1 |
| 17 | D1508773K00 | WORK CLAMP CHECK (3K) | 1 |
| 18 | D1511771KA0A | WORK CLAMP CHECK HOLDER | 1 |
| 19 | D1511772KA0 | WORK CLAMP CHECK HOLDER | 1 |
| 20 | D1511773KA0 | WORK CLAMP CHECK HOLDER | 1 |
| 21 | B2745771F00 | KNIFE 1/4"(FLUOROCARBON) | 1 |
| 22 | B2745771K00 | KNIFE 3/8"(FLUOROCARBON) | 1 |
| 23 | B2745771L00 | KNIFE 1/2 | 1 |
| 24 | B2745771H00 | KNIFE 9/16"(FLUOROCARBON) | 1 |
| 25 | B2745771M00 | KNIFE 5/8 | 1 |
| 26 | B2745771N00 | KNIFE 3/4 | 1 |
| 27 | B2745771P00 | KNIFE 7/8"(FLUOROCARBON) | 1 |
| 28 | B2745771Q00 | KNIFE 1 | 1 |
| 29 | B2745771R00 | KNIFE 1-1/8"(FLUOROCARBON) | 1 |
| 30 | B2745771S00 | KNIFE 1-1/4 | 1 |
| 31 | B2746771000 | KNIFE GUARD | 1 |
| 32 | 13782800 | THROAT PLATE(FLUOROCARBON) | 1 |
Page 55
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 401-42906 | ||
| 74 | HM-0003800-A0 | ||
| 75 | SL-4042091-SC | ||
| 76 | SL-4041291-SC | ||
| 14 | SB-1200027-00 | ||
| 18 | SM-80606A2-TP | ||
| 25 | 236-05207 | ||
| 34 | SB-1200008-00 | ||
| 36 | 400-83369 | ||
| 37 | 400-22363 | ||
| 38 | 400-08426 | ||
| 36 | 400-04289 | ||
| 7 | SB-1120003-00 | ||
| 15 | SB-1040008-00 | ||
| 61 | 401-47891 | ||
| 13 | 401-42171 | ||
| 18 | 400-08889 | ||
| 5 | 401-65706 | ||
| 75 | SL-4042591-SC | ||
| 74 | NM-6040001-SC | ||
| 25 | 401-50011 | ||
| 34 | SB-1200008-C0 | ||
| 36 | 401-65704 | ||
| 37 | 401-65701 | ||
| 38 | 401-65703 | ||
| 36 | 401-65700 | ||
| 7 | SB-1120003-C0 | ||
| 15 | SB-1040008-C0 | ||
| 61 | 401-65702 | ||
| 63 | NM-6060001-SC | ||
| 13 | 401-65710 | ||
| 18 | 401-65711 |
Page 57 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18 | 10006104 | ||
| 10 | 22502504 | ||
| 8 | 40004186 | ||
| 62 | 11072402 | ||
| 41 | 22528764 | ||
| 9 | 40004187 | ||
| 63 | 11093606 | ||
| 60 | 22529473 | ||
| 5 | 40004188 | ||
| 3 | 11155108 | ||
| 59 | 22529481 | ||
| 5 | 40004194 | ||
| 4 | 11155207 | ||
| 3 | 22891204 | ||
| 7 | 40004197 | ||
| 7 | 11157567 | ||
| 43 | 22918304 | ||
| 8 | 40004198 | ||
| 24 | 11272507 | ||
| 1 | 22932800 | ||
| 9 | 40004200 | ||
| 43 | 13127402 | ||
| 22 | 22933006 | ||
| 10 | 40004201 | ||
| 51 | 13700406 | ||
| 3 | 22933105 | ||
| 18 | 40004205 | ||
| 52 | 13700505 | ||
| 2 | 22933204 | ||
| 39 | 40004206 | ||
| 50 | 13700604 | ||
| 4 | 23530405 | ||
| 27 | 40004209 | ||
| 62 | 13700703 | ||
| 6 | 23536204 | ||
| 30 | 40004212 | ||
| 24 | 13703806 | ||
| 26 | 23630007 | ||
| 31 | 40004213 | ||
| 25 | 13703905 | ||
| 13 | 26230409 | ||
| 34 | 40004214 | ||
| 69 | 13705405 | ||
| 58 | 26230409 | ||
| 33 | 40004215 | ||
| 14 | 13706403 | ||
| 31 | 26234005 | ||
| 25 | 40004216 | ||
| 11 | 13710306 | ||
| 28 | 26260109 | ||
| 26 | 40004217 | ||
| 20 | 13710405 | ||
| 29 | 26260208 | ||
| 13 | 40004218 | ||
| 12 | 13710504 | ||
| 30 | 26260307 | ||
| 29 | 40004222 | ||
| 54 | 13727102 | ||
| 31 | 26260406 | ||
| 21 | 40004224 | ||
| 13 | 13729066 | ||
| 32 | 26260505 | ||
| 52 | 40004232 | ||
| 55 | 13729306 | ||
| 33 | 26260604 | ||
| 37 | 40004234 | ||
| 31 | 13729603 | ||
| 35 | 26260802 | ||
| 26 | 40004235 | ||
| 3 | 13729603 | ||
| 39 | 26261206 | ||
| 43 | 40004236 | ||
| 30 | 13729652 | ||
| 40 | 26261305 | ||
| 27 | 40004238 | ||
| 29 | 13729769 | ||
| 41 | 26261503 | ||
| 50 | 40004240 | ||
| 25 | 13731906 | ||
| 42 | 26261602 | ||
| 63 | 40004243 | ||
| 9 | 13737408 | ||
| 43 | 26261701 | ||
| 41 | 40004244 | ||
| 45 | 13782065 | ||
| 34 | 29180403 | ||
| 42 | 40004245 | ||
| 46 | 13782107 | ||
| 39 | 32002354 | ||
| 64 | 40004246 | ||
| 32 | 13782800 | ||
| 3 | 32002354 | ||
| 40 | 40004247 | ||
| 15 | 13785803 | ||
| 21 | 32055402 | ||
| 38 | 40004248 | ||
| 47 | 13922208 | ||
| 34 | 40003491 | ||
| 62 | 40004249 | ||
| 56 | 13943303 | ||
| 24 | 40003491 | ||
| 65 | 40004250 | ||
| 32 | 13943402 | ||
| 11 | 40003493 | ||
| 22 | 40004252 | ||
| 8 | 14101208 | ||
| 26 | 40003499 | ||
| 39 | 40004252 | ||
| 7 | 14115554 | ||
| 4 | 40003499 | ||
| 29 | 40004254 | ||
| 42 | 14115554 | ||
| 9 | 40004156 | ||
| 22 | 40004254 | ||
| 17 | 14504401 | ||
| 7 | 40004157 | ||
| 70 | 40004255 | ||
| 15 | 14523203 | ||
| 11 | 40004159 | ||
| 33 | 40004264 | ||
| 12 | 14523252 | ||
| 44 | 40004160 | ||
| 34 | 40004265 | ||
| 17～19 | 14523401 | ||
| 15 | 40004161 | ||
| 37 | 40004267 | ||
| 17～19 | 14523708 | ||
| 19 | 40004171 | ||
| 79 | 40004275 | ||
| 17～19 | 14524102 | ||
| 18 | 40004180 | ||
| 51 | 40004279 | ||
| 42 | 22502504 | ||
| 14 | 40004185 | ||
| 50 | 40004280 |
Page 58 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40004285 | ||
| 32 | 40004393 | ||
| 24 | 40010534 | ||
| 58 | 40004287 | ||
| 29 | 40004394 | ||
| 26 | 40010535 | ||
| 59 | 40004288 | ||
| 30 | 40004396 | ||
| 27 | 40011143 | ||
| 36 | 40004289 | ||
| 27 | 40004398 | ||
| 34 | 40011144 | ||
| 78 | 40004291 | ||
| 17 | 40004400 | ||
| 36 | 40011145 | ||
| 4 | 40004293 | ||
| 24～26 | 40005390 | ||
| 37 | 40011146 | ||
| 71 | 40004294 | ||
| 2 | 40005400 | ||
| 50 | 40011205 | ||
| 36 | 40004296 | ||
| 2 | 40005405 | ||
| 22 | 40011319 | ||
| 66 | 40004297 | ||
| 1 | 40006261 | ||
| 63 | 40011327 | ||
| 66 | 40004297 | ||
| 19 | 40006261 | ||
| 16 | 40011355 | ||
| 67 | 40004298 | ||
| 2 | 40006263 | ||
| 1 | 40011517 | ||
| 67 | 40004298 | ||
| 3 | 40006264 | ||
| 54 | 40015674 | ||
| 69 | 40004299 | ||
| 23 | 40006265 | ||
| 51 | 40015702 | ||
| 69 | 40004299 | ||
| 10 | 40006307 | ||
| 25 | 40015733 | ||
| 39 | 40004299 | ||
| 49 | 40006314 | ||
| 26 | 40015802 | ||
| 46 | 40004301 | ||
| 21 | 40006317 | ||
| 32 | 40017810 | ||
| 39 | 40004306 | ||
| 25 | 40006320 | ||
| 27 | 40020010 | ||
| 32 | 40004308 | ||
| 12 | 40006323 | ||
| 28 | 40020011 | ||
| 29 | 40004309 | ||
| 13 | 40006335 | ||
| 34 | 40020012 | ||
| 36 | 40004311 | ||
| 10 | 40006335 | ||
| 36 | 40020013 | ||
| 31 | 40004321 | ||
| 7 | 40006339 | ||
| 33 | 40020014 | ||
| 47 | 40004324 | ||
| 11 | 40006339 | ||
| 67 | 40020310 | ||
| 23 | 40004326 | ||
| 5 | 40006340 | ||
| 38 | 40021933 | ||
| 68 | 40004327 | ||
| 1 | 40006345 | ||
| 27 | 40021998 | ||
| 68 | 40004327 | ||
| 2 | 40006349 | ||
| 11 | 40022121 | ||
| 40 | 40004327 | ||
| 35 | 40008423 | ||
| 30 | 40022322 | ||
| 73 | 40004328 | ||
| 6 | 40008638 | ||
| 28 | 40022323 | ||
| 4 | 40004329 | ||
| 29 | 40008638 | ||
| 24～26 | 40023371 | ||
| 3 | 40004336 | ||
| 2 | 40008646 | ||
| 14 | 40023432 | ||
| 7 | 40004343 | ||
| 5 | 40008647 | ||
| 49 | 40027553 | ||
| 8 | 40004344 | ||
| 15 | 40008658 | ||
| 37 | 40027554 | ||
| 52 | 40004345 | ||
| 5 | 40008671 | ||
| 48 | 40028634 | ||
| 64 | 40004346 | ||
| 14 | 40008671 | ||
| 61 | 40028636 | ||
| 53 | 40004347 | ||
| 57 | 40008977 | ||
| 10 | 40028682 | ||
| 65 | 40004348 | ||
| 58 | 40008978 | ||
| 7 | 40028682 | ||
| 71 | 40004349 | ||
| 64 | 40009037 | ||
| 33 | 40029613 | ||
| 28 | 40004360 | ||
| 4 | 40009148 | ||
| 29 | 40032269 | ||
| 29 | 40004361 | ||
| 15 | 40010434 | ||
| 52 | 40037008 | ||
| 30 | 40004362 | ||
| 16 | 40010435 | ||
| 28 | 40040276 | ||
| 31 | 40004363 | ||
| 16 | 40010489 | ||
| 18 | 40042089 | ||
| 37 | 40004364 | ||
| 19 | 40010510 | ||
| 21 | 40042134 | ||
| 23 | 40004373 | ||
| 6 | 40010511 | ||
| 15 | 40051473 | ||
| 24 | 40004374 | ||
| 20 | 40010512 | ||
| 16 | 40051474 | ||
| 2 | 40004378 | ||
| 5 | 40010514 | ||
| 1 | 40067165 | ||
| 3 | 40004379 | ||
| 8 | 40010522 | ||
| 4 | 40075297 |
Page 59 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 40085784 | ||
| 9 | 40115876 | ||
| 1～3 | 40141501 | ||
| 3 | 40085785 | ||
| 26 | 40115877 | ||
| 35～37 | 40141501 | ||
| 4 | 40085786 | ||
| 28 | 40115878 | ||
| 1～3 | 40141502 | ||
| 5 | 40085787 | ||
| 12 | 40115879 | ||
| 35～37 | 40141502 | ||
| 6 | 40085788 | ||
| 43 | 40116677 | ||
| 45 | 40141706 | ||
| 7 | 40085789 | ||
| 51 | 40126054 | ||
| 32 | 40141706 | ||
| 8 | 40085790 | ||
| 22 | 40138137 | ||
| 3 | 40141709 | ||
| 9 | 40085791 | ||
| 43 | 40138137 | ||
| 26 | 40141710 | ||
| 10 | 40085792 | ||
| 70 | 40138611 | ||
| 27 | 40141711 | ||
| 11 | 40085793 | ||
| 1 | 40138611 | ||
| 66 | 40141713 | ||
| 12 | 40085794 | ||
| 13 | 40138920 | ||
| 43 | 40141714 | ||
| 13 | 40085795 | ||
| 38 | 40138920 | ||
| 20 | 40141716 | ||
| 16 | 40085796 | ||
| 8 | 40139180 | ||
| 27 | 40141717 | ||
| 1 | 40088990 | ||
| 13 | 40139180 | ||
| 33 | 40141718 | ||
| 11 | 40093423 | ||
| 1 | 40139181 | ||
| 28 | 40141719 | ||
| 19 | 40094012 | ||
| 14 | 40139181 | ||
| 9 | 40141720 | ||
| 9 | 40094259 | ||
| 34 | 40139182 | ||
| 6 | 40141721 | ||
| 10 | 40094260 | ||
| 15 | 40139182 | ||
| 41 | 40141725 | ||
| 8 | 40094262 | ||
| 2 | 40139183 | ||
| 42 | 40141726 | ||
| 33 | 40094262 | ||
| 18 | 40139183 | ||
| 45 | 40141727 | ||
| 14 | 40096325 | ||
| 46 | 40140040 | ||
| 46 | 40141730 | ||
| 17 | 40096326 | ||
| 16 | 40140040 | ||
| 14 | 40141739 | ||
| 19 | 40096327 | ||
| 12 | 40140041 | ||
| 19 | 40141740 | ||
| 1 | 40096354 | ||
| 17 | 40140041 | ||
| 13 | 40141741 | ||
| 13 | 40097040 | ||
| 1･2 | 40141333 | ||
| 27 | 40141742 | ||
| 30 | 40101638 | ||
| 31･44 | 40141333 | ||
| 60 | 40141743 | ||
| 23 | 40101638 | ||
| 1･2 | 40141334 | ||
| 12 | 40141744 | ||
| 28 | 40101641 | ||
| 31･44 | 40141334 | ||
| 53 | 40141745 | ||
| 31 | 40101642 | ||
| 65 | 40141477 | ||
| 57 | 40141746 | ||
| 6 | 40101649 | ||
| 23 | 40141477 | ||
| 52 | 40141747 | ||
| 15･16 | 40105465 | ||
| 17 | 40141478 | ||
| 68 | 40141748 | ||
| 40･41 | 40105465 | ||
| 22 | 40141478 | ||
| 54 | 40141753 | ||
| 15･16 | 40105475 | ||
| 51 | 40141479 | ||
| 46 | 40141754 | ||
| 40･41 | 40105475 | ||
| 21 | 40141479 | ||
| 45 | 40141755 | ||
| 6 | 40108754 | ||
| 5 | 40141480 | ||
| 55 | 40141756 | ||
| 73 | 40111214 | ||
| 7 | 40141481 | ||
| 44 | 40141757 | ||
| 17 | 40111214 | ||
| 9 | 40141482 | ||
| 6 | 40141758 | ||
| 20 | 40111214 | ||
| 79 | 40141483 | ||
| 7 | 40141759 | ||
| 11 | 40112711 | ||
| 12 | 40141483 | ||
| 9 | 40141760 | ||
| 8 | 40112711 | ||
| 11 | 40141484 | ||
| 35 | 40141774 | ||
| 46 | 40113427 | ||
| 27～29 | 40141487 | ||
| 5 | 40141778 | ||
| 30 | 40113427 | ||
| 27～29 | 40141488 | ||
| 18 | 40141779 | ||
| 36 | 40114136 | ||
| 27～29 | 40141489 | ||
| 5 | 40141780 | ||
| 35 | 40114398 | ||
| 1～3 | 40141500 | ||
| 4 | 40141781 | ||
| 7 | 40115874 | ||
| 35～37 | 40141500 | ||
| 8 | 40141782 |
Page 60 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13 | 40141783 | ||
| 18 | 40165711 | ||
| 31 | B2746771000 | ||
| 19 | 40141785 | ||
| 28 | B1414232000 | ||
| 35 | B3013141H0A | ||
| 17 | 40141786 | ||
| 72 | B1509761000 | ||
| 64 | B3214047000 | ||
| 25 | 40141787 | ||
| 4 | B1509761000 | ||
| 6 | B3214047000 | ||
| 30 | 40141788 | ||
| 40 | B1509761000 | ||
| 8 | B3216047000 | ||
| 49 | 40141794 | ||
| 73 | B151077100B | ||
| 7 | B3218232000 | ||
| 33 | 40141795 | ||
| 3 | B151077100B | ||
| 5 | B3219232000 | ||
| 26 | 40141798 | ||
| 41 | B151077100B | ||
| 4 | B3221771000 | ||
| 25 | 40141799 | ||
| 71 | B1511771000B | ||
| 3 | B32217710A0 | ||
| 31 | 40141801 | ||
| 39 | B1511772000A | ||
| 23 | B9107761000 | ||
| 70 | 40141802 | ||
| 74 | B1512761000 | ||
| 19 | B91210120A0 | ||
| 17 | 40142148 | ||
| 42 | B1512761000 | ||
| 20 | BT0400251EB | ||
| 2 | 40142152 | ||
| 76 | B1552781000A | ||
| 39 | CM300100001 | ||
| 29 | 40142161 | ||
| 12 | B1552781000A | ||
| 41 | CM300100402 | ||
| 11 | 40142163 | ||
| 13 | B1552782000 | ||
| 72 | CM300200001 | ||
| 12 | 40142164 | ||
| 14 | B1552783000 | ||
| 35 | CM300200001 | ||
| 49 | 40142166 | ||
| 34 | B1623180000 | ||
| 68 | CM300200003 | ||
| 2 | 40142170 | ||
| 28 | B1811771000 | ||
| 40 | CM300400602 | ||
| 24 | 40142172 | ||
| 26 | B2583210D00 | ||
| 71 | CM301300001 | ||
| 23 | 40142267 | ||
| 7 | B2702047A00 | ||
| 42 | CM600100101 | ||
| 39 | 40142267 | ||
| 1 | B2702047F00 | ||
| 7 | CM600100201 | ||
| 24 | 40142752 | ||
| 3 | B2702047I00 | ||
| 27 | CQ202000000 | ||
| 22 | 40142753 | ||
| 21･33 | B2702047K00A | ||
| 18 | CQ252000000 | ||
| 23 | 40142754 | ||
| 2 | B2702047K00A | ||
| 32 | CQ252000000 | ||
| 33 | 40142755 | ||
| 22 | B2702047L00A | ||
| 25 | CS0800881TP | ||
| 47 | 40142878 | ||
| 4 | B2702047L00A | ||
| 31 | CS1000881TP | ||
| 44 | 40142880 | ||
| 21･33 | B2702047M00A | ||
| 17 | CS1501181TP | ||
| 18 | 40142887 | ||
| 6 | B2702047M00A | ||
| 15 | D1508771K00A | ||
| 1 | 40142966 | ||
| 8 | B2702047N00 | ||
| 44 | D1508772K00 | ||
| 62 | 40142969 | ||
| 9 | B2702047P00 | ||
| 16 | D1508772K00 | ||
| 5 | 40143150 | ||
| 10 | B2702047Q00A | ||
| 17 | D1508773K00 | ||
| 1 | 40143770 | ||
| 11 | B2702047S00A | ||
| 70 | D1511771KA0A | ||
| 5･6 | 40143988 | ||
| 5 | B2702047V00 | ||
| 18 | D1511771KA0A | ||
| 5･6 | 40143989 | ||
| 24 | B2702210000 | ||
| 38 | D1511772KA0 | ||
| 27 | 40143990 | ||
| 25 | B2703210000 | ||
| 19 | D1511772KA0 | ||
| 78 | 40145327 | ||
| 21 | B2745771F00 | ||
| 20 | D1511773KA0 | ||
| 20 | 40145328 | ||
| 24 | B2745771H00 | ||
| 54 | D3162555B00 | ||
| 14 | 40145523 | ||
| 22 | B2745771K00 | ||
| 61 | D6056555B00 | ||
| 25 | 40150011 | ||
| 23 | B2745771L00 | ||
| 11 | D6056555B00 | ||
| 37 | 40165701 | ||
| 25 | B2745771M00 | ||
| 6 | D8204555D00 | ||
| 61 | 40165702 | ||
| 26 | B2745771N00 | ||
| 60 | E2002855000 | ||
| 38 | 40165703 | ||
| 27 | B2745771P00 | ||
| 45 | E8760452S00 | ||
| 36 | 40165704 | ||
| 28 | B2745771Q00 | ||
| 56 | EA9500B0100 | ||
| 5 | 40165706 | ||
| 29 | B2745771R00 | ||
| 3 | EA9500B0100 | ||
| 13 | 40165710 | ||
| 30 | B2745771S00 | ||
| 44 | EA9500B0100 |
Page 61 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23 | EA9500B0100 | EA9500B0100 | 48 |
| 58 | EA9500B0200 | EA9500B0200 | 40 |
| 1 | G50011980A0A | G50011980A0A | 48 |
| 12 | GPK510010B0 | GPK510010B0 | 48 |
| 2 | HD00057000A | HD00057000A | 16 |
| 47 | HD00057000A | HD00057000A | 24 |
| 19 | HD00057000A | HD00057000A | 42 |
| 32 | HD00057000A | HD00057000A | 48 |
| 56 | HF0013050P0 | HF0013050P0 | 40 |
| 56 | HF003000200 | HF003000200 | 40 |
| 81 | HX001500000 | HX001500000 | 4 |
| 1 | HX00150000A | HX00150000A | 28 |
| 48 | HX00150000D | HX00150000D | 40 |
| 57 | HX00151000A | HX00151000A | 8 |
| 31 | HX00220000D | HX00220000D | 38 |
| 33 | HX002550000 | HX002550000 | 14 |
| 21 | HX00292000A | HX00292000A | 38 |
| 22 | HX00339000M | HX00339000M | 38 |
| 13 | KX000000210 | KX000000210 | 34 |
| 14 | KX000000230 | KX000000230 | 34 |
| 19 | KX000000260 | KX000000260 | 38 |
| 32 | KX000000320 | KX000000320 | 38 |
| 54 | KX000000380 | KX000000380 | 4 |
| 49 | M300451100A | M300451100A | 40 |
| 34 | M8002430000 | M8002430000 | 38 |
| 24~26 | M90175800A0 | M90175800A0 | 42 |
| 22 | MAO11532000 | MAO11532000 | 48 |
| 69 | MAZ16013000 | MAZ16013000 | 26 |
| 20 | MDFRX1200C0 | MDFRX1200C0 | 44 |
| 16 | MDP5J0B1100 | MDP5J0B1100 | 22 |
| 5 | MDP5J0B1102 | MDP5J0B1102 | 44 |
| 18 | MTSHJ100003 | MTSHJ100003 | 34 |
| 53 | MTSHJ100003 | MTSHJ100003 | 40 |
| 6 | NM6030001SD | NM6030001SD | 2 |
| 32 | NM6040000SN | NM6040000SN | 24 |
| 74 | NM6040001SC | NM6040001SC | 2 |
| 74 | NM6040001SD | NM6040001SD | 4 |
| 66 | NM6040001SD | NM6040001SD | 28 |
| 66 | NM6050001SE | NM6050001SE | 46 |
| 24 | NM6050001SP | NM6050001SP | 22 |
| 57 | NM6050001SP | NM6050001SP | 24 |
| 40 | NM6050001SP | NM6050001SP | 26 |
| 11 | NM6050001SP | NM6050001SP | 28 |
| 27 | NM6060001CP | NM6060001CP | 48 |
| 63 | NM6060001SC | NM6060001SC | 40 |
| 53 | NM6060001SD | NM6060001SD | 4 |
| 30 | NM6060001SD | NM6060001SD | 44 |
| 17 | NM6080002SC | NM6080002SC | 34 |
| 55 | NM6080002SC | NM6080002SC | 40 |
| 8 | NM6100001SD | NM6100001SD | 10 |
| 61 | NS6110310SP | NS6110310SP | 8 |
| 9 | NS6110310SP | NS6110310SP | 48 |
| 15 | PF0551060A0 | PF0551060A0 | 48 |
| 16 | PF902005000 | PF902005000 | 48 |
| 17 | PJ025100003 | PJ025100003 | 48 |
| 18 | PV015122000 | PV015122000 | 48 |
| 4 | RC0100001KP | RC0100001KP | 10 |
| 44 | RC0560711KP | RC0560711KP | 6 |
| 4 | RC1700001KP | RC1700001KP | 6 |
| 7 | RC2791218KP | RC2791218KP | 14 |
| 3 | RC3781518KP | RC3781518KP | 10 |
| 2 | RE0300000K0 | RE0300000K0 | 24 |
| 45 | RE0400000K0 | RE0400000K0 | 6 |
| 42 | RE0500000K0 | RE0500000K0 | 16 |
| 15 | SB1040008C0 | SB1040008C0 | 32 |
| 2 | SB110000600 | SB110000600 | 14 |
| 7 | SB110000700 | SB110000700 | 10 |
| 7 | SB1120003C0 | SB1120003C0 | 32 |
| 1 | SB112001600 | SB112001600 | 14 |
| 3 | SB115000200 | SB115000200 | 14 |
| 4 | SB115001500 | SB115001500 | 14 |
| 34 | SB1200008C0 | SB1200008C0 | 10 |
| 56 | SB307000200 | SB307000200 | 18 |
| 47 | SB408000100 | SB408000100 | 16 |
| 14 | SB710000600 | SB710000600 | 16 |
| 42 | SD0250101SP | SD0250101SP | 28 |
| 43 | SD0500166TP | SD0500166TP | 28 |
| 44 | SD0500167TP | SD0500167TP | 28 |
| 8 | SD0600266TP | SD0600266TP | 24 |
| 21 | SD0600326TP | SD0600326TP | 24 |
| 77 | SD0790203SP | SD0790203SP | 18 |
| 9 | SD0790203SP | SD0790203SP | 20 |
| 21 | SD0790203SP | SD0790203SP | 50 |
| 62 | SD0800296TP | SD0800296TP | 28 |
| 62 | SD0800296TP | SD0800296TP | 30 |
| 35 | SD0800326TP | SD0800326TP | 16 |
| 22 | SD0800406TP | SD0800406TP | 24 |
| 67 | SD0801006TP | SD0801006TP | 28 |
| 67 | SD0801006TP | SD0801006TP | 30 |
| 23 | SD0801506TP | SD0801506TP | 24 |
| 38 | SD1000646TP | SD1000646TP | 48 |
| 5 | SK3311600SC | SK3311600SC | 34 |
| 3 | SK3382001SE | SK3382001SE | 36 |
| 21 | SK3412001SE | SK3412001SE | 48 |
| 10 | SK3452000SC | SK3452000SC | 48 |
| 41 | SK3482001SE | SK3482001SE | 48 |
| 48 | SK3512001SE | SK3512001SE | 40 |
| 80 | SL4030881SC | SL4030881SC | 4 |
| 38 | SL4030881SC | SL4030881SC | 38 |
| 19 | SL4031091SC | SL4031091SC | 16 |
| 7 | SL4031091SC | SL4031091SC | 24 |
| 13 | SL4031091SC | SL4031091SC | 28 |
| 33 | SL4031091SC | SL4031091SC | 48 |
| 37 | SL4040881SC | SL4040881SC | 38 |
| 27 | SL4040891SC | SL4040891SC | 44 |
| 24 | SL4041081SC | SL4041081SC | 38 |
| 12 | SL4041091SC | SL4041091SC | 34 |
| 47 | SL4041091SC | SL4041091SC | 40 |
| 33 | SL4041281SC | SL4041281SC | 38 |
| 18 | SL4042091SC | SL4042091SC | 38 |
| 75 | SL4042591SC | SL4042591SC | 4 |
| 20 | SL4051291SC | SL4051291SC | 34 |
| 34 | SL6031042TN | SL6031042TN | 48 |
| 63 | SL6040892TN | SL6040892TN | 2 |
| 63 | SL6040892TN | SL6040892TN | 4 |
| 72 | SL6040892TN | SL6040892TN | 30 |
| 6 | SL6040892TN | SL6040892TN | 44 |
| 74 | SL6041292TN | SL6041292TN | 30 |
| 3 | SL6041492TN | SL6041492TN | 32 |
| 6 | SL6061492TN | SL6061492TN | 32 |
| 19 | SM0040801SC | SM0040801SC | 2 |
| 53 | SM0050801SC | SM0050801SC | 8 |
| 9 | SM0860400SN | SM0860400SN | 6 |
| 48 | SM1030400SP | SM1030400SP | 30 |
| 28 | SM4040655SP | SM4040655SP | 2 |
| 58 | SM4041050TP | SM4041050TP | 30 |
| 15 | SM4051001SC | SM4051001SC | 34 |
| 16 | SM4051055SP | SM4051055SP | 2 |
| 23 | SM4051405SE | SM4051405SE | 46 |
| 12 | SM4051655SP | SM4051655SP | 2 |
| 28 | SM5040550TP | SM5040550TP | 16 |
| 47 | SM5040655SN | SM5040655SN | 6 |
| 35 | SM5040655SN | SM5040655SN | 48 |
Page 62 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23 | SM6031402TP | SM6031402TP | |
| 61 | SM6040450TP | SM6040450TP | |
| 61 | SM6040450TP | SM6040450TP | |
| 6 | SM6040450TP | SM6040450TP | |
| 41 | SM6040502TP | SM6040502TP | |
| 35 | SM6040502TP | SM6040502TP | |
| 59 | SM6040600SP | SM6040600SP | |
| 59 | SM6040600SP | SM6040600SP | |
| 59 | SM6040600SP | SM6040600SP | |
| 59 | SM6040600SP | SM6040600SP | |
| 82 | SM6040602TP | SM6040602TP | |
| 82 | SM6040602TP | SM6040602TP | |
| 50 | SM6040602TP | SM6040602TP | |
| 20 | SM6040602TP | SM6040602TP | |
| 58 | SM6040602TP | SM6040602TP | |
| 58 | SM6040602TP | SM6040602TP | |
| 57 | SM6040602TP | SM6040602TP | |
| 57 | SM6040602TP | SM6040602TP | |
| 77 | SM6040650TP | SM6040650TP | |
| 32 | SM6040750TP | SM6040750TP | |
| 61 | SM6040802TP | SM6040802TP | |
| 61 | SM6040802TP | SM6040802TP | |
| 14 | SM6040802TP | SM6040802TP | |
| 12 | SM6040802TP | SM6040802TP | |
| 15 | SM6040802TP | SM6040802TP | |
| 10 | SM6040802TP | SM6040802TP | |
| 11 | SM6041002TP | SM6041002TP | |
| 13 | SM6041002TP | SM6041002TP | |
| 60 | SM6041002TP | SM6041002TP | |
| 24 | SM6041200SP | SM6041200SP | |
| 30 | SM6041200SP | SM6041200SP | |
| 40 | SM6041200SP | SM6041200SP | |
| 10 | SM6041202TP | SM6041202TP | |
| 16 | SM6041202TP | SM6041202TP | |
| 22 | SM6041202TP | SM6041202TP | |
| 18 | SM6041602TP | SM6041602TP | |
| 2 | SM6050652TP | SM6050652TP | |
| 24 | SM6050652TP | SM6050652TP | |
| 48 | SM6050652TP | SM6050652TP | |
| 18 | SM6050800SP | SM6050800SP | |
| 20 | SM6050800SP | SM6050800SP | |
| 24 | SM6050800SP | SM6050800SP | |
| 50 | SM6050800SP | SM6050800SP | |
| 2 | SM6050802TP | SM6050802TP | |
| 4 | SM6050802TP | SM6050802TP | |
| 6 | SM6050802TP | SM6050802TP | |
| 24 | SM6050802TP | SM6050802TP | |
| 26 | SM6050802TP | SM6050802TP | |
| 30 | SM6050802TP | SM6050802TP | |
| 18 | SM6051002TP | SM6051002TP | |
| 26 | SM6051202TP | SM6051202TP | |
| 32 | SM6051202TP | SM6051202TP | |
| 32 | SM6051402TP | SM6051402TP | |
| 10 | SM6052002TR | SM6052002TR | |
| 2 | SM6061002TP | SM6061002TP | |
| 16 | SM6061002TP | SM6061002TP | |
| 44 | SM6061002TP | SM6061002TP | |
| 22 | SM6061202TP | SM6061202TP | |
| 32 | SM6061202TP | SM6061202TP | |
| 16 | SM6061802TP | SM6061802TP | |
| 22 | SM6061802TP | SM6061802TP | |
| 10 | SM6062502TP | SM6062502TP | |
| 2 | SM6067052TP | SM6067052TP | |
| 44 | SM6067052TP | SM6067052TP | |
| 22 | SM7030550TP | SM7030550TP | |
| 30 | SM7030550TP | SM7030550TP | |
| 6 | SM8030412TP | SM8030412TP | |
| 8 | SM8040802TP | SM8040802TP | |
| 16 | SM8050412TP | SM8050412TP | |
| 24 | SM8050412TP | SM8050412TP | |
| 28 | SM8050412TP | SM8050412TP | |
| 8 | SM8050502TP | SM8050502TP | |
| 14 | SM8050502TP | SM8050502TP | |
| 16 | SM8050502TP | SM8050502TP | |
| 22 | SM8050502TP | SM8050502TP | |
| 24 | SM8050502TP | SM8050502TP | |
| 18 | SM8050602TP | SM8050602TP | |
| 32 | SM8050612TP | SM8050612TP | |
| 10 | SM80506A2TP | SM80506A2TP | |
| 16 | SM80606A2TP | SM80606A2TP | |
| 2 | SM80606A2TP | SM80606A2TP | |
| 6 | SM80606A2TP | SM80606A2TP | |
| 10 | SM80606A2TP | SM80606A2TP | |
| 14 | SM80606A2TP | SM80606A2TP | |
| 16 | SM80606A2TP | SM80606A2TP | |
| 22 | SM80606A2TP | SM80606A2TP | |
| 10 | SM80608A2TP | SM80608A2TP | |
| 12 | SM80608A2TP | SM80608A2TP | |
| 10 | SM8081652TP | SM8081652TP | |
| 28 | SM9040700SP | SM9040700SP | |
| 32 | SM9040700SP | SM9040700SP | |
| 6 | SM9040800SP | SM9040800SP | |
| 10 | SM9061403CP | SM9061403CP | |
| 18 | SS6060210SP | SS6060210SP | |
| 20 | SS6060210SP | SS6060210SP | |
| 50 | SS6060210SP | SS6060210SP | |
| 44 | SS7110570SP | SS7110570SP | |
| 8 | SS7110840SP | SS7110840SP | |
| 50 | SS8660612TP | SS8660612TP | |
| 34 | ST9053511SR | ST9053511SR | |
| 2 | TA0500301R0 | TA0500301R0 | |
| 4 | TA0550604R0 | TA0550604R0 | |
| 4 | TA0750404R0 | TA0750404R0 | |
| 4 | TA0850604R0 | TA0850604R0 | |
| 2 | TA1050504R0 | TA1050504R0 | |
| 2 | TA1250408R0 | TA1250408R0 | |
| 2 | TA1550902R0 | TA1550902R0 | |
| 4 | TA2100904R0 | TA2100904R0 | |
| 30 | WP0430800SC | WP0430800SC | |
| 38 | WP0430800SC | WP0430800SC | |
| 24 | WP0430801SC | WP0430801SC | |
| 28 | WP0430801SC | WP0430801SC | |
| 32 | WP0430801SC | WP0430801SC | |
| 26 | WP0431005SP | WP0431005SP | |
| 28 | WP0431005SP | WP0431005SP | |
| 6 | WP0450826SC | WP0450826SC | |
| 28 | WP0451016SP | WP0451016SP | |
| 46 | WP0531001SC | WP0531001SC | |
| 26 | WP0550800SP | WP0550800SP | |
| 50 | WP0551016SH | WP0551016SH | |
| 4 | WP0612056SD | WP0612056SD | |
| 44 | WP0612056SD | WP0612056SD | |
| 10 | WP0621046SP | WP0621046SP | |
| 40 | WP0651646SC | WP0651646SC | |
| 34 | WP0851846SC | WP0851846SC | |
| 40 | WP0852086SC | WP0852086SC | |
| 46 | WP1612616SE | WP1612616SE | |
| 6 | WS0410002KP | WS0410002KP | |
| 46 | WS0510002KN | WS0510002KN | |
| 34 | WS0820002KR | WS0820002KR | |
| 40 | WS0820002KR | WS0820002KR | |
| 40 | WT0640001KN | WT0640001KN |
Juki LBH-1790A — parts catalog
- Page 1 (cover): This page is the cover for a parts list for models LBH-1790A and LBH-1795A, published on December 20, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing an exploded view with numbered parts.
- Page 4 (parts_list): This page lists frame and miscellaneous cover components, including part numbers, names, and quantities for various screws, covers, nuts, hinges, plugs, and other parts.
- Page 5 (diagram): This page displays an exploded diagram of the frame and miscellaneous cover components for an industrial sewing machine.
- Page 6 (parts_list): This page lists frame and miscellaneous cover components, including screws, hinges, washers, and various rubber parts, with their part numbers, names, and quantities.
- Page 7 (diagram): This page displays a diagram of frame and miscellaneous cover components, showing various parts with their corresponding reference numbers.
- Page 8 (parts_list): This page lists parts for the frame and miscellaneous cover components, including screws, shafts, rings, and various BTW components.
- Page 9 (diagram): This page displays a diagram of frame and miscellaneous cover components, with various parts numbered for identification.
- Page 10 (parts_list): This page lists frame and miscellaneous cover components, including screws, thread cutters, cable bands, and bobbin thread tension assemblies.
- Page 11 (diagram): This page displays an exploded view diagram of the main shaft components, with various parts labeled with reference numbers.
- Page 12 (parts_list): This page lists the main shaft components, including part numbers, names, and quantities for various items such as needles, idlers, bearings, screws, and shafts.
- Page 13 (diagram): This page displays an exploded view diagram of main shaft components for an industrial sewing machine.
- Page 14 (parts_list): This page lists components for the main shaft, including a screw with part number SM80608A2TP.
- Page 15 (diagram): This page illustrates the components of the hook driving shaft, showing an exploded view of various parts including bearings, shafts, gears, and other related components with reference numbers.
- Page 16 (parts_list): This page lists the components for the hook driving shaft, including bearings, bushes, retaining rings, shafts, screws, oil filters, sprockets, washers, adjusting pins, springs, felts, tubes, oil wicks, bobbins, and hook sleeves.
- Page 17 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
- Page 18 (parts_list): This page lists presser and feed components with their part numbers, names, and quantities.
- Page 19 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
- Page 20 (parts_list): This page lists presser and feed components, including part numbers, names, and quantities.
- Page 21 (diagram): This page illustrates the presser and feed components for the LBH-1795AS model, showing an exploded view of various parts with reference numbers.
- Page 22 (parts_list): This page lists presser and feed components for the LBH-1795AS model, including part numbers, names, and quantities.
- Page 23 (diagram): This page illustrates the components of the needle bar rocking mechanism.
- Page 24 (parts_list): This page lists the parts for the needle bar rocking components, including part numbers, names, remarks, level, cons, and quantity.
- Page 25 (diagram): This page displays an exploded view diagram of the needle thread trimmer components, with various parts labeled with reference numbers.
- Page 26 (parts_list): This page lists the components for the needle thread trimmer, including various screws, nuts, arms, and other parts with their respective part numbers and quantities.
- Page 27 (diagram): This page illustrates the components of a needle thread trimmer, showing an exploded view of various parts with reference numbers.
- Page 28 (parts_list): This page lists components for a needle thread trimmer, including part numbers, names, and quantities.
- Page 29 (diagram): This page displays a detailed diagram of bobbin thread trimmer components, showing various parts and their reference numbers.
- Page 30 (parts_list): This page lists the components for a bobbin thread trimmer, including part numbers, names, and quantities.
- Page 31 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
- Page 32 (parts_list): This page lists components for the Bobbin Thread Trimmer, including part numbers, descriptions, and quantities.
- Page 33 (diagram): This page displays a diagram of cloth cutting knife components, illustrating various parts with reference numbers.
- Page 34 (parts_list): This page lists components for cloth cutting knives, including part numbers, descriptions, remarks, and quantities.
- Page 35 (diagram): This page displays a diagram of table components and accessories for a control box, with numbered parts for identification.
- Page 36 (parts_list): This page lists table components with part numbers, names, remarks, and quantities.
- Page 37 (diagram): This page displays a diagram of operation box components, including a control box with reference numbers 1, 2, and 3 pointing to specific parts.
- Page 38 (parts_list): This page lists operation box components and accessories for a control box, including part numbers, names, remarks, and quantities.
- Page 39 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
- Page 40 (parts_list): This page lists control box components with part numbers, descriptions, remarks, and quantities.
- Page 41 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
- Page 42 (parts_list): This page lists components for the control box, including tubes, power switches, screws, cable clips, fuses, and nuts, with their respective part numbers and remarks.
- Page 43 (diagram): This page displays a wiring diagram for the sewing machine, illustrating connections between various components like main boards, sensors, motors, and external interfaces.
- Page 44 (parts_list): This page contains a parts list for the wiring diagram, including part numbers, names, and quantities.
- Page 45 (diagram): This page displays a diagram of accessory parts components for an industrial sewing machine, with numbered illustrations of various tools, fasteners, and accessories.
- Page 46 (parts_list): This page lists accessory parts and components for a sewing machine, including various screws, bolts, tools, and maintenance items, with part numbers, names, and quantities.
- Page 47 (diagram): Diagram of thread stand components with numbered parts.
- Page 48 (parts_list): This page lists components for the THREAD STAND ASM., including part numbers, names, and quantities. It also includes related hardware like screws, nuts, and washers.
- Page 49 (diagram): This page contains diagrams and reference numbers for electric bobbin winder components, 2-pedal for standing machine components, and the starting pedal for 2-pedal.
- Page 50 (parts_list): This page lists special specification components for an industrial sewing machine, including part numbers, names, and quantities.
- Page 51 (diagram): This page contains diagrams of special specification components for industrial sewing machines, including large size type (70mm), swing width 10mm type, non-lubricating hook type, and for hosiery (type K).
- Page 52 (parts_list): This page lists special specification components for sewing machines, including part numbers, names, quantities, and remarks for items like hooks, screws, and presser feet.
- Page 53 (parts_list): This page lists various cloth cutting knives, presser feet, knife guards, and throat plates with their corresponding part numbers and sizes in both inches and millimeters.
- Page 54 (parts_list): This page lists various knives, work clamps, and related parts with their part numbers and quantities, including specialized fluorocarbon versions.
- Page 55 (text): This page lists changes to parts, indicating added (A) or obsoleted (D) parts with their corresponding part numbers and revision information.
- Page 56 (text): This page provides explanations for codes and symbols used in the parts list, including explanations for marks like '*', '#01', parentheses, dotted lines, and symbols like '☆' and '◎'. It also explains how to interpret quantity numbers and list page notations.
- Page 57 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 58 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 59 (index): Numerical index of parts with part numbers, page references, and reference numbers.
- Page 60 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 61 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
- Page 62 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
