Juki LBH-1790A — Part Book

Juki LBH-1790A — parts catalog

Page 1 (cover): This page is the cover for a parts list for models LBH-1790A and LBH-1795A, published on December 20, 2017.
Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
Page 3 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing an exploded view with numbered parts.
Page 4 (parts_list): This page lists frame and miscellaneous cover components, including part numbers, names, and quantities for various screws, covers, nuts, hinges, plugs, and other parts.
Page 5 (diagram): This page displays an exploded diagram of the frame and miscellaneous cover components for an industrial sewing machine.
Page 6 (parts_list): This page lists frame and miscellaneous cover components, including screws, hinges, washers, and various rubber parts, with their part numbers, names, and quantities.
Page 7 (diagram): This page displays a diagram of frame and miscellaneous cover components, showing various parts with their corresponding reference numbers.
Page 8 (parts_list): This page lists parts for the frame and miscellaneous cover components, including screws, shafts, rings, and various BTW components.
Page 9 (diagram): This page displays a diagram of frame and miscellaneous cover components, with various parts numbered for identification.
Page 10 (parts_list): This page lists frame and miscellaneous cover components, including screws, thread cutters, cable bands, and bobbin thread tension assemblies.
Page 11 (diagram): This page displays an exploded view diagram of the main shaft components, with various parts labeled with reference numbers.
Page 12 (parts_list): This page lists the main shaft components, including part numbers, names, and quantities for various items such as needles, idlers, bearings, screws, and shafts.
Page 13 (diagram): This page displays an exploded view diagram of main shaft components for an industrial sewing machine.
Page 14 (parts_list): This page lists components for the main shaft, including a screw with part number SM80608A2TP.
Page 15 (diagram): This page illustrates the components of the hook driving shaft, showing an exploded view of various parts including bearings, shafts, gears, and other related components with reference numbers.
Page 16 (parts_list): This page lists the components for the hook driving shaft, including bearings, bushes, retaining rings, shafts, screws, oil filters, sprockets, washers, adjusting pins, springs, felts, tubes, oil wicks, bobbins, and hook sleeves.
Page 17 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
Page 18 (parts_list): This page lists presser and feed components with their part numbers, names, and quantities.
Page 19 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
Page 20 (parts_list): This page lists presser and feed components, including part numbers, names, and quantities.
Page 21 (diagram): This page illustrates the presser and feed components for the LBH-1795AS model, showing an exploded view of various parts with reference numbers.
Page 22 (parts_list): This page lists presser and feed components for the LBH-1795AS model, including part numbers, names, and quantities.
Page 23 (diagram): This page illustrates the components of the needle bar rocking mechanism.
Page 24 (parts_list): This page lists the parts for the needle bar rocking components, including part numbers, names, remarks, level, cons, and quantity.
Page 25 (diagram): This page displays an exploded view diagram of the needle thread trimmer components, with various parts labeled with reference numbers.
Page 26 (parts_list): This page lists the components for the needle thread trimmer, including various screws, nuts, arms, and other parts with their respective part numbers and quantities.
Page 27 (diagram): This page illustrates the components of a needle thread trimmer, showing an exploded view of various parts with reference numbers.
Page 28 (parts_list): This page lists components for a needle thread trimmer, including part numbers, names, and quantities.
Page 29 (diagram): This page displays a detailed diagram of bobbin thread trimmer components, showing various parts and their reference numbers.
Page 30 (parts_list): This page lists the components for a bobbin thread trimmer, including part numbers, names, and quantities.
Page 31 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
Page 32 (parts_list): This page lists components for the Bobbin Thread Trimmer, including part numbers, descriptions, and quantities.
Page 33 (diagram): This page displays a diagram of cloth cutting knife components, illustrating various parts with reference numbers.
Page 34 (parts_list): This page lists components for cloth cutting knives, including part numbers, descriptions, remarks, and quantities.
Page 35 (diagram): This page displays a diagram of table components and accessories for a control box, with numbered parts for identification.
Page 36 (parts_list): This page lists table components with part numbers, names, remarks, and quantities.
Page 37 (diagram): This page displays a diagram of operation box components, including a control box with reference numbers 1, 2, and 3 pointing to specific parts.
Page 38 (parts_list): This page lists operation box components and accessories for a control box, including part numbers, names, remarks, and quantities.
Page 39 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
Page 40 (parts_list): This page lists control box components with part numbers, descriptions, remarks, and quantities.
Page 41 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
Page 42 (parts_list): This page lists components for the control box, including tubes, power switches, screws, cable clips, fuses, and nuts, with their respective part numbers and remarks.
Page 44 (parts_list): This page contains a parts list for the wiring diagram, including part numbers, names, and quantities.
Page 45 (diagram): This page displays a diagram of accessory parts components for an industrial sewing machine, with numbered illustrations of various tools, fasteners, and accessories.
Page 61 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
Page 62 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.

Page 1 — PARTS LIST

MODEL : LBH-1790A/LBH-1795A List No : 1649-06 PARTS LIST Published:12/20/2017 jintex.in

Page 2 — CONTENTS

CONTENTS FRAME & MISCELLANEOUS COVER COMPONENTS (1).................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................

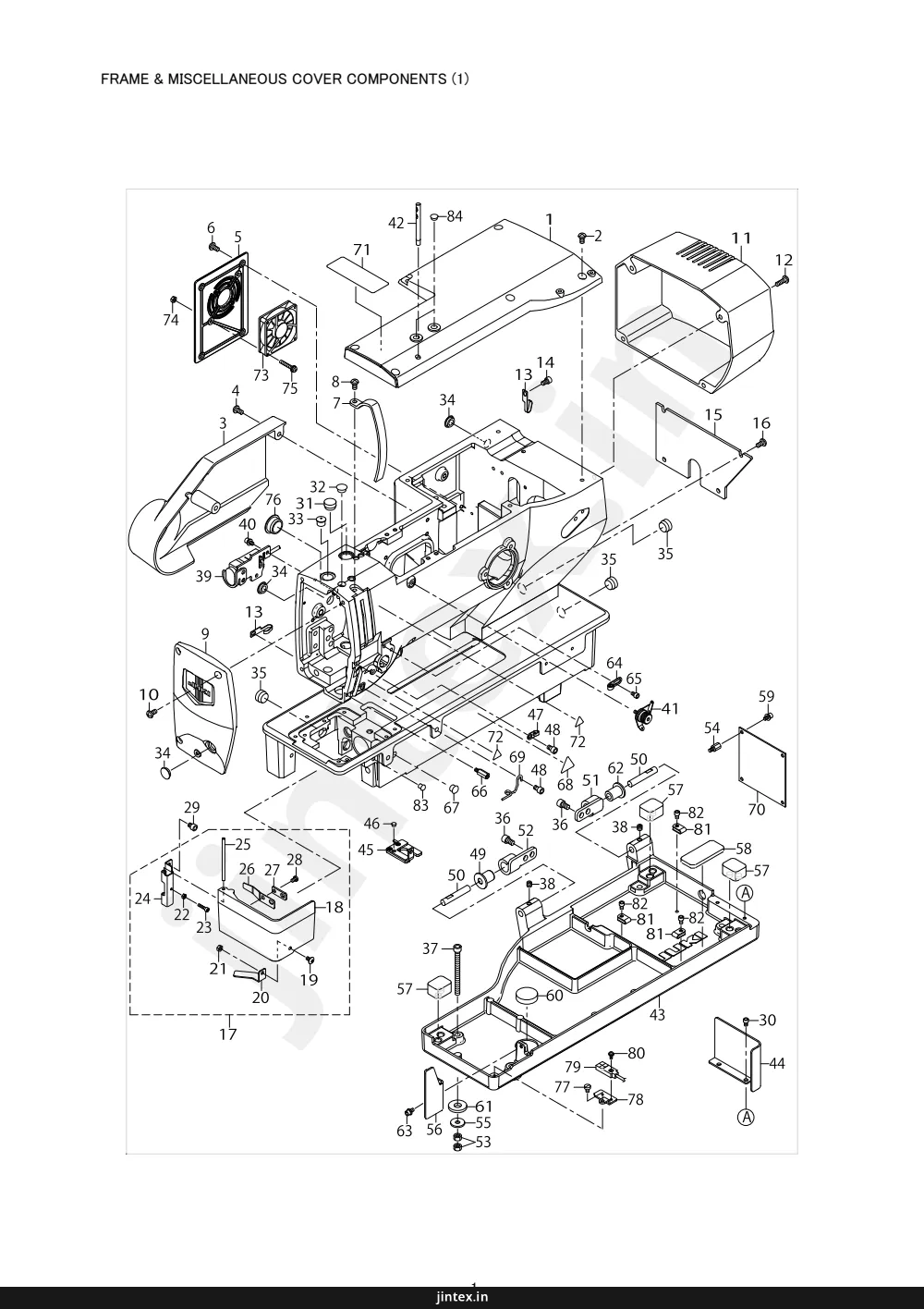

Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Juki LBH-1790A parts on page 4
Part number	Part name	Qty
40143770	UPPER COVER	1
SM4051055SP	SCREW	6
40141709	LEFT COVER	1
SM4051055SP	SCREW	2
40165706	LEFT COVER B	1
SM4051055SP	SCREW	4
40004157	THREAD_TAKE_UP_LEVER_COVER	1
SM4051055SP	SCREW	1
40004156	FRONT_COVER	3
SM4051055SP	SCREW	1
40004159	MOTOR_COVER	1
SM4051655SP	SCREW M5 L=16	4
26230409	LUBRICATING OIL WICK STOPPER	2
SM6050802TP	SCREW M5X0.8 L=8	1
40004161	REAR_COVER	1
SM4051055SP	SCREW	4
40142148	HOOK_OIL_SHIELD_COVER_COMPL.	1
40142887	HOOK_OIL_SHIELD_COVER
SM0040801SC	SCREW
40145328	SENSOR SLIT PLATE C
NM6040001SC	NUT M4X0.7 TYPE1
NM6030001SD	NUT M3X0.5
SM6031402TP	SCREW
13703906	HOOK OIL SHIELD HINGE
13703905	HINGE PIN
40141710	HINGE_SPRING
40141711	HINGE_SPRING_WASHER
SM4040655SP	SCREW M4 L=6
SM6050652TP	HEXAGON SOCKET HEAD SCREW M5X6	2
SM6040602TP	SCREW M4 L=6	2
TA1050302R0	PLUG	1
TA1050504R0	RUBBER PLUG	1
40141795	PBL_METAL_CAP	1
TA1250406R0	RUBBER PLUG D=12.5 L=4	3
TA1550902R0	PLUG	3
SM6061002TP	SCREW M6 L=10	4
SM6061002TP	HEXAGON BOLT
SM60606A2TP	SCREW M6 L=6	2
32002354	SWITCH ASM.	1
SL6040892TN	SCREW	2
22528764	PRE-TENSION CONTROLLER ASM.	1
22502504	THREAD GUIDE BAR
40141714	BED BASE	1
40004160	BED REAR_COVER	1
40141708	ASSY_LED_DEVICE	1
TA0500301R0	PLUG 5X5.8 L=3	1
13922208	TAKE-UP THREAD GUIDE B	1

FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 40143770 UPPER COVER 1 2 SM4051055SP SCREW 6 3 40141709 LEFT COVER 1 4 SM4051055SP SCREW 2 5 40165706 LEFT COVER B 1 6 SM4051055SP SCREW 4 7 40004157 THREAD_TAKE_UP_LEVER_COVER 1 8 SM4051055SP SCREW 1 9 40004156 FRONT_COVER 3 10 SM4051055SP SCREW 1 11 40004159 MOTOR_COVER 1 12 SM4051655SP SCREW M5 L=16 4 13 26230409 LUBRICATING OIL WICK STOPPER 2 14 SM6050802TP SCREW M5X0.8 L=8 1 15 40004161 REAR_COVER 1 16 SM4051055SP SCREW 4 17 40142148 HOOK_OIL_SHIELD_COVER_COMPL. 1 18 40142887 HOOK_OIL_SHIELD_COVER * 1 19 SM0040801SC SCREW * 1 20 40145328 SENSOR SLIT PLATE C * 1 21 NM6040001SC NUT M4X0.7 TYPE1 * 1 22 NM6030001SD NUT M3X0.5 * 1 23 SM6031402TP SCREW * 1 24 13703906 HOOK OIL SHIELD HINGE * 1 25 13703905 HINGE PIN * 1 26 40141710 HINGE_SPRING * ☆ 1 27 40141711 HINGE_SPRING_WASHER * 1 28 SM4040655SP SCREW M4 L=6 * 1 29 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 2 30 SM6040602TP SCREW M4 L=6 2 31 TA1050302R0 PLUG 1 32 TA1050504R0 RUBBER PLUG 1 33 40141795 PBL_METAL_CAP 1 34 TA1250406R0 RUBBER PLUG D=12.5 L=4 3 35 TA1550902R0 PLUG 3 36 SM6061002TP SCREW M6 L=10 4 37 SM6061002TP HEXAGON BOLT ACCESSORIE PARTS 1 38 SM60606A2TP SCREW M6 L=6 2 39 32002354 SWITCH ASM. 1 40 SL6040892TN SCREW 2 41 22528764 PRE-TENSION CONTROLLER ASM. 1 42 22502504 THREAD GUIDE BAR ACCESSORIE PARTS 1 43 40141714 BED BASE 1 44 40004160 BED REAR_COVER 1 45 40141708 ASSY_LED_DEVICE 1 46 TA0500301R0 PLUG 5X5.8 L=3 ☆ 1 47 13922208 TAKE-UP THREAD GUIDE B 1 jintex.in

Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1) jintex.in

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Juki LBH-1790A parts on page 6
Ref	Part number	Part name	Qty
48	SM6050802TP	SCREW M5X0.8 L=8	2
49	40006314	HINGE BUSH	1
50	1370004	HINGE PIN	2
51	1370006	HINGE PLATE A	1
52	13700505	HINGE PLATE B	1
53	NM6060001SD	NUT M6	2
54	KX000000380	SPACER	4
55	WP0612056SD	WASHER 6.1X18.5X2	1
56	13943303	OIL SHIELD	1
57	40008977	RUBBER C	3
58	40008978	RUBBER D	1
59	SL6040892TN	SCREW	4
60	E2002855000	Z STOPPER RUBBER	1
61	D6056555B00	RUBBER CUSHION (B)	1
62	13700703	RUBBER HINGE	1
63	SL6040892TN	SCREW	1
64	40009037	TAKE-UP THREAD GUIDE A	1
65	SM6040602TP	SCREW M4 L=6	1
66	40141713	STUD	1
67	TA0850604R0	RUBBER PLUG	1
68	CM300200003	ATTENTION LABEL	1
69	13705405	NEEDLE BAR THREAD GUIDE	1
70	40138611	INT PCB ASSY	1
71	CM301300001	SAFETY LABEL	1
72	CM300200001	ATTENTION SEAL	2
73	40111214	FAN MOTOR ASSY	1
74	NM6040001SC	NUT M4X0.7 TYPE1	2
75	SL4042591SC	SCREW M4 L=25	2
76	TA2100904R0	RUBBER PLUG	1
77	SM6040650TP	SCREW	1
78	40145327	SENSOR PALTE C	1
79	40141483	COVER SENSOR ASSY	1
80	SL4030881SC	SCREW M3 L=8	1
81	HX001500000	CLIP	3
82	SM6040602TP	SCREW M4 L=6	3
83	TA0550604R0	RUBBER PLUG	1
84	TA0750404R0	PLUG D=7.5 L=3.5	2

FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 48 SM6050802TP SCREW M5X0.8 L=8 ACCESSORIE PARTS 2 49 40006314 HINGE BUSH 1 50 1370004 HINGE PIN ACCESSORIE PARTS 2 51 1370006 HINGE PLATE A ACCESSORIE PARTS 1 52 13700505 HINGE PLATE B 1 53 NM6060001SD NUT M6 2 54 KX000000380 SPACER 4 55 WP0612056SD WASHER 6.1X18.5X2 1 56 13943303 OIL SHIELD ACCESSORIE PARTS 1 57 40008977 RUBBER C 3 58 40008978 RUBBER D 1 59 SL6040892TN SCREW 4 60 E2002855000 Z STOPPER RUBBER 1 61 D6056555B00 RUBBER CUSHION (B) 1 62 13700703 RUBBER HINGE ACCESSORIE PARTS 1 63 SL6040892TN SCREW ACCESSORIE PARTS 1 64 40009037 TAKE-UP THREAD GUIDE A 1 65 SM6040602TP SCREW M4 L=6 1 66 40141713 STUD 1 67 TA0850604R0 RUBBER PLUG 1 68 CM300200003 ATTENTION LABEL 1 69 13705405 NEEDLE BAR THREAD GUIDE 1 70 40138611 INT PCB ASSY 1 71 CM301300001 SAFETY LABEL 1 72 CM300200001 ATTENTION SEAL 2 73 40111214 FAN MOTOR ASSY 1 74 NM6040001SC NUT M4X0.7 TYPE1 2 75 SL4042591SC SCREW M4 L=25 2 76 TA2100904R0 RUBBER PLUG 1 77 SM6040650TP SCREW 1 78 40145327 SENSOR PALTE C 1 79 40141483 COVER SENSOR ASSY 1 80 SL4030881SC SCREW M3 L=8 1 81 HX001500000 CLIP 3 82 SM6040602TP SCREW M4 L=6 3 83 TA0550604R0 RUBBER PLUG 1 84 TA0750404R0 PLUG D=7.5 L=3.5 2 jintex.in

Page 7 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

FRAME & MISCELLANEOUS COVER COMPONENTS (2) 11 1 21 12 12 3 16 15 2 8 20 7 17 51 65 62 63 64 60 61 59 55 54 A 52 53 53 50 58 A 22 56 57 27 49 34 29 30 B 41 33 35 45 42 44 37 32 48 26 40 36 B 25 10 38 24 18 4 31 43 46 47 19 23 9 28 13 14 20 8 6 39 5 9 jintex.in

Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Juki LBH-1790A parts on page 8
Part number	Part name	Qty
40006261	ASSY_AT_SOLENOID	1
40006263	AT_SHAFT	1
40006264	AT_SHAFT_HOLDER	1
RC1700001KP	RETAINING RING	1
40010514	DISK_STOPPER	1
40010511	DISK_STOPPER_HOLDER_CAP	1
14115554	HEAD GROUND CABLE A ASM.	1
40010522	SHAFT_NUT	2
SM0860400SN	SCREW	3
SM6040860TP	SCREW M4 L=8	1
SM6050802TP	SCREW M5X0.8 L=8	3
SM8030412TP	SCREW	2
SM8030412TP	SCREW	1
SM80606A2TP	SCREW M6 L=6	1
SM9040800SP	SCREW	1
WS0410002KP	SPRING WASHER	1
40141478	INT CORE B ASSY	1
10006104	TAKE-UP SPRING
40010510	THREAD_TENSION_POST_BASE	1
40010512	THREAD_TENSION_SHAFT_COLLAR	2
32055402	THRUST COLLAR	1
40004252	UTT_SUSPENSION_SCREW_9	1
40006265	ASSY_THREAD_TENSION_POST	1
B270221000	GUIDE PLATE	1
B270321000	BUSHING	1
40003499	THREAD BREAK DETECTOR A	1
40011143	ASSY_BTW	1
26260109	BTW_BASE
26260208	BTW_CAM_PLATE
26260307	BTW_BASE_SHAFT
26260406	BTW_SHAFT_BASE
26260505	BTW_CAM_LEVER
26260604	BTW_WHEEL
40011144	BTW_TORSION_SPRING
26260802	BTW_BEARING_SPACER
40011145	BTW_SHAFT
40011146	BTW_LEVER_SHAFT
40021933	BTW_LEVER
26261206	BTW_SPACER
26261305	BTW_BEARING
26261503	BTW_WHEEL_RUBBER
26261602	BOBBIN_SPRING
26261701	BTW_SPRING
RC0560711KP	RETAINING RING
RE0400000K0	E-RING 4
WP0450826SC	WASHER 4.5X10X0.8
SM5040655SN	SCREW

FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40006261 ASSY_AT_SOLENOID 1 2 40006263 AT_SHAFT 1 3 40006264 AT_SHAFT_HOLDER 1 4 RC1700001KP RETAINING RING 1 5 40010514 DISK_STOPPER 1 6 40010511 DISK_STOPPER_HOLDER_CAP 1 7 14115554 HEAD GROUND CABLE A ASM. 1 8 40010522 SHAFT_NUT 2 9 SM0860400SN SCREW 3 10 SM6040860TP SCREW M4 L=8 1 11 SM6050802TP SCREW M5X0.8 L=8 3 12 SM8030412TP SCREW 2 13 SM8030412TP SCREW 1 14 SM80606A2TP SCREW M6 L=6 1 15 SM9040800SP SCREW 1 16 WS0410002KP SPRING WASHER 1 17 40141478 INT CORE B ASSY 1 18 10006104 TAKE-UP SPRING ☆ 1 19 40010510 THREAD_TENSION_POST_BASE 1 20 40010512 THREAD_TENSION_SHAFT_COLLAR 2 21 32055402 THRUST COLLAR 1 22 40004252 UTT_SUSPENSION_SCREW_9 1 23 40006265 ASSY_THREAD_TENSION_POST 1 24 B270221000 GUIDE PLATE 1 25 B270321000 BUSHING 1 26 40003499 THREAD BREAK DETECTOR A 1 27 40011143 ASSY_BTW 1 28 26260109 BTW_BASE * 1 29 26260208 BTW_CAM_PLATE * 1 30 26260307 BTW_BASE_SHAFT * 1 31 26260406 BTW_SHAFT_BASE * 1 32 26260505 BTW_CAM_LEVER * 1 33 26260604 BTW_WHEEL * 1 34 40011144 BTW_TORSION_SPRING * 1 35 26260802 BTW_BEARING_SPACER * 1 36 40011145 BTW_SHAFT * 1 37 40011146 BTW_LEVER_SHAFT * 1 38 40021933 BTW_LEVER * 1 39 26261206 BTW_SPACER * 1 40 26261305 BTW_BEARING * 2 41 26261503 BTW_WHEEL_RUBBER * ☆ 1 42 26261602 BOBBIN_SPRING * ☆ 1 43 26261701 BTW_SPRING * 1 44 RC0560711KP RETAINING RING * 1 45 RE0400000K0 E-RING 4 * 1 46 WP0450826SC WASHER 4.5X10X0.8 * 1 47 SM5040655SN SCREW * 1 jintex.in

Page 9 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

FRAME & MISCELLANEOUS COVER COMPONENTS (2) 11 21 12 12 7 17 1 3 16 15 2 8 20 A A 22 51 65 62 63 64 60 61 59 55 54 52 53 53 50 58 56 57 27 49 B 34 29 30 35 42 37 32 41 33 45 44 40 48 26 B 36 25 10 38 24 18 4 31 43 46 47 19 23 9 28 13 14 20 8 6 39 5 9 jintex.in

Page 10 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Juki LBH-1790A parts on page 10
Ref	Part number	Part name	Qty
48	SM8050502TP	SCREW M5 L=5	1
49	SM8040802TP	SCREW M4X8	2
50	SM6040602TP	SCREW M4 L=6	2
51	40141479	INT CORD C ASSY	1
52	40037008	THREAD_CUTTER	1
53	SM0050801SC	SCREW	4
54	D316255B00	THREAD GUIDE	1
55	SS7110840SP	SCREW 11/64-40 L=7.8	1
56	EA9500B0100	CABLE BAND	10
57	HX00151000A	CABLE BAND	2
58	26230409	LUBRICATING OIL WICK STOPPER	3
59	22529481	BOBBIN THREAD TENSION ASM.	1
60	22529473	BOBBIN THREAD TENSION ROD ASM.	1
61	NS6110310SP	NUT 11/64-40	1
62	11072402	THREAD TENSION NUT	1
63	11093606	THREAD TENSION SPRING	1
64	B3214047000	BOBBIN WINDER TENSION DISC	2
65	40141477	INT CORD A ASSY	1

FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050502TP SCREW M5 L=5 * 1 49 SM8040802TP SCREW M4X8 * 2 50 SM6040602TP SCREW M4 L=6 2 51 40141479 INT CORD C ASSY 1 52 40037008 THREAD_CUTTER 1 53 SM0050801SC SCREW 4 54 D316255B00 THREAD GUIDE 1 55 SS7110840SP SCREW 11/64-40 L=7.8 1 56 EA9500B0100 CABLE BAND 10 57 HX00151000A CABLE BAND 2 58 26230409 LUBRICATING OIL WICK STOPPER 3 59 22529481 BOBBIN THREAD TENSION ASM. 1 60 22529473 BOBBIN THREAD TENSION ROD ASM. * 1 61 NS6110310SP NUT 11/64-40 * 1 62 11072402 THREAD TENSION NUT * 1 63 11093606 THREAD TENSION SPRING * 1 64 B3214047000 BOBBIN WINDER TENSION DISC * 2 65 40141477 INT CORD A ASSY 1 jintex.in

Page 11 — MAIN SHAFT COMPONENTS

MAIN SHAFT COMPONENTS 11 10 29 30 31 48 40 39 47 35 38 37 1 36 33 46 41 34 44 45 18 26 43 32 42 24 26 27 23 19 22 25 20 17 21 18 28 16 14 15 2 12 13 6 8 7 3 5 3 9 4 jintex.in

Page 12 — MAIN SHAFT COMPONENTS

Juki LBH-1790A parts on page 12
Part number	Part name	Qty
40011517	NEEDLE_BAR_CRANK_FELT	1
40142152	IDLER_ASSY	1
RC3781518KP	RETAINING RING
RC0100001KP	SNAP RING M10
40143150	IDLER FIXED PLATE
40141721	IDLER_PULLEY
SB110000700	BALL BEARING
NM6100001SD	NUT M10
40141720	IDLER_SHAFT
40006307	SQUARE_BLOCK_GUIDE	3
SM6062502TP	SCREW M6 L=25	1
WP0621046SP	WASHER	1
SM9061403CP	SCREW M6 L=14	1
40004185	HINGE_SCREW	1
40051473	COUPLING_ASM.	1
40051474	COUPLING
SM80608A2TP	SCREW M6 L=8
CQ252000000	OIL WICK	0.014
40004171	COUNTER_WEIGHT_SCREW	1
40141716	COUNTER_WEIGHT	1
SM8081652TP	SCREW M8 L=16	1
40138137	IPM550W MOTOR	1
SM6052002TR	SCREW M5 L=20	4
40010534	BTW_DRIVING_WHEEL	1
40150011	FRONT BEARING	1
40010535	DRIVING_WHEEL_SCREW	2
40141717	MAIN_SHAFT	1
40141719	TIMING_BELT	1
40032269	THRUST COLLAR	1
SM80506A2TP	SCREW M5 L=6
CS1000881TP	THRUST COLLAR
SM80606A2TP	SCREW M6 L=6	2
40141718	SPROCKET_A	1
SB1200008C0	BEARING	1
40008423	WASHER	1
40165704	NEEDLE CRANK SHAFT	1
40165701	SQUARE BLOCK GUIDE B	1
40165703	SQUARE BLOCK B	1
40004206	SQUARE_BLOCK	1
SM6041202TP	SCREW M4X0.7 L=12	2
40141725	THREAD_TAKE_UP_COMP	1
40141726	THREAD_TAKE_UP_ASM_C
22918304	SCREW
40142880	NEEDLE_BAR_CRANK_ROD_ASM.
40141727	THREAD_TAKE_UP_ASM_B
40141730	NEEDLE_BAR_CRANK
40142878	TAKE_UP_CRANK_ASM.

MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40011517 NEEDLE_BAR_CRANK_FELT 1 2 40142152 IDLER_ASSY 1 3 RC3781518KP RETAINING RING * 2 4 RC0100001KP SNAP RING M10 * 1 5 40143150 IDLER FIXED PLATE * 1 6 40141721 IDLER_PULLEY * 1 7 SB110000700 BALL BEARING * 1 8 NM6100001SD NUT M10 * 1 9 40141720 IDLER_SHAFT * 1 10 40006307 SQUARE_BLOCK_GUIDE 3 11 SM6062502TP SCREW M6 L=25 1 12 WP0621046SP WASHER 1 13 SM9061403CP SCREW M6 L=14 1 14 40004185 HINGE_SCREW 1 15 40051473 COUPLING_ASM. 1 16 40051474 COUPLING * 1 17 SM80608A2TP SCREW M6 L=8 * 4 18 CQ252000000 OIL WICK 0.014 19 40004171 COUNTER_WEIGHT_SCREW 1 20 40141716 COUNTER_WEIGHT 1 21 SM8081652TP SCREW M8 L=16 1 22 40138137 IPM550W MOTOR 1 23 SM6052002TR SCREW M5 L=20 4 24 40010534 BTW_DRIVING_WHEEL 1 25 40150011 FRONT BEARING 1 26 40010535 DRIVING_WHEEL_SCREW 2 27 40141717 MAIN_SHAFT 1 28 40141719 TIMING_BELT 1 29 40032269 THRUST COLLAR 1 30 SM80506A2TP SCREW M5 L=6 * 2 31 CS1000881TP THRUST COLLAR * 1 32 SM80606A2TP SCREW M6 L=6 2 33 40141718 SPROCKET_A 1 34 SB1200008C0 BEARING 1 35 40008423 WASHER 1 36 40165704 NEEDLE CRANK SHAFT 1 37 40165701 SQUARE BLOCK GUIDE B 1 38 40165703 SQUARE BLOCK B 1 39 40004206 SQUARE_BLOCK 1 40 SM6041202TP SCREW M4X0.7 L=12 2 41 40141725 THREAD_TAKE_UP_COMP 1 42 40141726 THREAD_TAKE_UP_ASM_C * 1 43 22918304 SCREW * 1 44 40142880 NEEDLE_BAR_CRANK_ROD_ASM. * 1 45 40141727 THREAD_TAKE_UP_ASM_B * 1 46 40141730 NEEDLE_BAR_CRANK * 1 47 40142878 TAKE_UP_CRANK_ASM. * 1 jintex.in

Page 13 — MAIN SHAFT COMPONENTS

MAIN SHAFT COMPONENTS JINTEX.in

Page 14 — MAIN SHAFT COMPONENTS

Juki LBH-1790A parts on page 14
Ref	Part number	Part name	Qty
48	SM80608A2TP	SCREW M6 L=8	2

MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM80608A2TP SCREW M6 L=8 2 jintex.in

Page 15 — HOOK DRIVING SHAFT COMPONENTS

HOOK DRIVING SHAFT COMPONENTS 11 18 15 7 2 20 2 7 12 8 10 21 1 5 10 9 16 15 30 25 16 33 32 14 28 26 31 17 29 13 3 15 22 15 23 24 4 6 15 15 19 15 6 15 jintex.in

Page 16 — HOOK DRIVING SHAFT COMPONENTS

Juki LBH-1790A parts on page 16
Ref	Part number	Part name	Qty
1	SB112001600	BEARING	2
2	SB110000600	BALL BEARING	2
3	SB11500200	BEARING	1
4	SB115001500	BEARING	1
5	40004188	BEARING_SUPPORT	1
6	23536204	BUSH	2
7	RC2791218KP	RETAINING RING	2
8	40004186	HOOK_DRIVING_SHAFT	1
9	40004187	HOOK_DRIVING_SHAFT_METAL	2
10	SM8050502TP	SCREW M5 L=5	1
11	13710306	INTERMEDIATE SPROCKET SHAFT	1
12	13710504	INTERMEDIATE SPROCKET WASHER	1
13	13729066	HOOK COMPL.	1
14	40141739	LOWER_SHAFT_KNOB_B	1
15	SM80606A2TP	SCREW M6 L=6	10
16	40011355	OIL_FILTER	2
17	14504401	BEARING SUPPORT	1
18	40004180	SPROCKET_B	1
19	40141740	SPROCKET_C	1
20	13710405	INTERMEDIATE SPROCKET RING	1
21	40006317	WASHER	1
22	40142753	ADJUSTING_PIN_B	1
23	40142754	ADJUSTING_SPRING_B	1
24	40142752	ADJUSTING_SCREW_B	1
25	40006320	FELT	1
26	23630007	TUBE	1
27	CQ202000000	OIL WICK	1
28	B1811771000	BOBBIN	1
29	13729769	BOBBIN CASE ASM.	1
30	13729652	HOOK SLEEVE CONNEC.	1
31	13729603	HOOK SLEEVE	1
32	CQ252000000	OIL WICK	0.04
33	HX002550000	TUBE	0.017

HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SB112001600 BEARING 2 2 SB110000600 BALL BEARING 2 3 SB11500200 BEARING 1 4 SB115001500 BEARING 1 5 40004188 BEARING_SUPPORT 1 6 23536204 BUSH 2 7 RC2791218KP RETAINING RING 2 8 40004186 HOOK_DRIVING_SHAFT 1 9 40004187 HOOK_DRIVING_SHAFT_METAL 2 10 SM8050502TP SCREW M5 L=5 1 11 13710306 INTERMEDIATE SPROCKET SHAFT 1 12 13710504 INTERMEDIATE SPROCKET WASHER 1 13 13729066 HOOK COMPL. ☆ 1 14 40141739 LOWER_SHAFT_KNOB_B 1 15 SM80606A2TP SCREW M6 L=6 10 16 40011355 OIL_FILTER 2 17 14504401 BEARING SUPPORT 1 18 40004180 SPROCKET_B 1 19 40141740 SPROCKET_C 1 20 13710405 INTERMEDIATE SPROCKET RING 1 21 40006317 WASHER 1 22 40142753 ADJUSTING_PIN_B 1 23 40142754 ADJUSTING_SPRING_B 1 24 40142752 ADJUSTING_SCREW_B 1 25 40006320 FELT 1 26 23630007 TUBE 1 27 CQ202000000 OIL WICK 1 28 B1811771000 BOBBIN ☆ 1 29 13729769 BOBBIN CASE ASM. ☆ 1 30 13729652 HOOK SLEEVE CONNEC. 1 31 13729603 HOOK SLEEVE * 1 32 CQ252000000 OIL WICK * 0.04 33 HX002550000 TUBE * 0.017 jintex.in

Page 17

PRESSER & FEED COMPONENTS jintex.in

Page 18 — PRESSER & FEED COMPONENTS

Juki LBH-1790A parts on page 18
Part number	Part name	Qty
40139181	FEED MOTOR ASSY	1
HD00057000A	PHOTO SENSOR	1
22891204	BEARING SUPPORT	2
40075297	THROAT_PLATE_BASE_COVER	2
40004194	MOTOR_BRACKET	1
40108754	PULLEY_B	1
40004197	PULLEY_C	1
40004198	SUPPORT_SHAFT	1
40004200	TIMING_BELT_HOLDER	1
40004201	FEED_SHAFT	1
40022121	FEED_GUIDE_SHAFT	1
40141744	SENSOR_SLIT_PLATE	1
40141741	FEED_BASE	1
SB710000600	BEARING	2
40010434	THRUST_COLLAR_ASM.	1
40010435	THRUST_COLLAR	1
SM8050412TP	SCREW M5 L=4	2
40004205	WORK_CLAMP_CARRIER	1
SL4031091SC	SCREW M3 L=10	1
SM6040602TP	SCREW M4 L=6	4
SM6040802TP	SCREW M4X0.7 L=8	2
SM6041002TP	SCREW M4 L=10	6
SM6061002TP	SCREW M6 L=10	3
SM6061802TP	SCREW M6 L=18	1
SM8050502TP	SCREW M5 L=5	3
SM80606A2TP	SCREW M6 L=6	2
40141742	TIMING_BELT	1
SM5040550TP	SCREW M4 L=5	4
40142161	LIFTING_LINK_ASSY	1
40141788	LINK_ROD_S	1
40141801	LIFTING_LINK_PIN	1
SD0800326TP	SHOULDER SCREW	1
40142755	LIFTING_LINK	1
40139182	CLAMP MOTOR ASSY	1
SD0800326TP	SHOULDER SCREW	1
40004289	PBL GEAR L	1
40004267	ASSY_PBL_MOTOR_BASE	1
SM6041202TP	SCREW M4X0.7 L=12	4
SM8060552TP	SCREW M6 L=5	5
SM8050502TP	SCREW M5 L=5	1
SM6040502TP	SCREW M4X0.7 L=5	1
RE050000K0	E-RING	1
13127402	PIN (SHORT) C	1
40141757	SQUARE_BLOCK	1
40141755	SLIDE_ROLLER	1
40141754	COLLAR	1
SB408000100	BEARING	1

PRESSER & FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40139181 FEED MOTOR ASSY 1 2 HD00057000A PHOTO SENSOR 1 3 22891204 BEARING SUPPORT 2 4 40075297 THROAT_PLATE_BASE_COVER 2 5 40004194 MOTOR_BRACKET 1 6 40108754 PULLEY_B 1 7 40004197 PULLEY_C 1 8 40004198 SUPPORT_SHAFT 1 9 40004200 TIMING_BELT_HOLDER 1 10 40004201 FEED_SHAFT 1 11 40022121 FEED_GUIDE_SHAFT 1 12 40141744 SENSOR_SLIT_PLATE 1 13 40141741 FEED_BASE 1 14 SB710000600 BEARING 2 15 40010434 THRUST_COLLAR_ASM. 1 16 40010435 THRUST_COLLAR * 1 17 SM8050412TP SCREW M5 L=4 * 2 18 40004205 WORK_CLAMP_CARRIER 1 19 SL4031091SC SCREW M3 L=10 1 20 SM6040602TP SCREW M4 L=6 4 21 SM6040802TP SCREW M4X0.7 L=8 2 22 SM6041002TP SCREW M4 L=10 6 23 SM6061002TP SCREW M6 L=10 3 24 SM6061802TP SCREW M6 L=18 1 25 SM8050502TP SCREW M5 L=5 3 26 SM80606A2TP SCREW M6 L=6 2 27 40141742 TIMING_BELT 1 28 SM5040550TP SCREW M4 L=5 4 29 40142161 LIFTING_LINK_ASSY 1 30 40141788 LINK_ROD_S * 1 31 40141801 LIFTING_LINK_PIN * 1 32 SD0800326TP SHOULDER SCREW * 1 33 40142755 LIFTING_LINK * 1 34 40139182 CLAMP MOTOR ASSY 1 35 SD0800326TP SHOULDER SCREW 1 36 40004289 PBL GEAR L 1 37 40004267 ASSY_PBL_MOTOR_BASE 1 38 SM6041202TP SCREW M4X0.7 L=12 4 39 SM8060552TP SCREW M6 L=5 5 40 SM8050502TP SCREW M5 L=5 1 41 SM6040502TP SCREW M4X0.7 L=5 1 42 RE050000K0 E-RING 1 43 13127402 PIN (SHORT) C 1 44 40141757 SQUARE_BLOCK 1 45 40141755 SLIDE_ROLLER 1 46 40141754 COLLAR 1 47 SB408000100 BEARING 1 jintex.in

Page 19

PRESSER & FEED COMPONENTS jintex.in

Page 20 — PRESSER & FEED COMPONENTS

Juki LBH-1790A parts on page 20
Ref	Part number	Part name
48	40004285	PBL_FINGER_GUARD
49	40141794	PBL_GUIDE
50	40004280	PBL_LIFTING_PLATE
51	40004279	PBL_METAL
52	40141747	POSITION_BRACKET
53	40141745	PRESSER_BAR
54	40141753	PBL_ROLLER_BASE
55	40141756	PBL_ROLLER_SHAFT
56	SB30700200	BEARING
57	40141746	METAL_U
58	40004287	PBL_WORK_CLAMP_ARM
59	40004288	PBL_WORK_CLAMP_ARM_SHAFT
60	40141743	SENSOR_PLATE
61	SM6040802TP	SCREW M4X0.7 L=8
62	SM6041602TP	SCREW M4X0.7 L=16
63	SM6050800SP	SCREW M5 L=8
64	SM6051002TP	SCREW M5X0.8 L=10
65	SM6051002TP	SCREW M5X0.8 L=10
66	SM8050602TP	SCREW M5 L=6
67	40020310	UTT_CLOSE_CAM_B
68	40141748	LIFTING_LINK_SHAFT
69	SM8060612TP	SCREW M6 L=6
70	B1511771K0A	WORK CLAMP CHECK HOLDER ASM.
71	B1511771000B	PRESSER FOOT
72	B1509761000	WORK CLAMP CHECK SPRING
73	B151077100B	WORKCLAMPCHECKSPRINGSETPIN(B)
74	B1512761000	WORK CLAMP CHECK HOLDER SPRING
75	SS6060210SP	SCREW 3/32-56 L=1.9
76	B1552781000A	PRESSER
77	SD0790203SP	HINGE SCREW D=7.94 H=2
78	40004291	PBL_GEAR_S
79	40004275	PBL_GEAR_SHAFT

PRESSER & FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40004285 PBL_FINGER_GUARD 1 49 40141794 PBL_GUIDE 1 50 40004280 PBL_LIFTING_PLATE 1 51 40004279 PBL_METAL 1 52 40141747 POSITION_BRACKET 1 53 40141745 PRESSER_BAR 1 54 40141753 PBL_ROLLER_BASE 1 55 40141756 PBL_ROLLER_SHAFT 1 56 SB30700200 BEARING 2 57 40141746 METAL_U 1 58 40004287 PBL_WORK_CLAMP_ARM 1 59 40004288 PBL_WORK_CLAMP_ARM_SHAFT 1 60 40141743 SENSOR_PLATE 1 61 SM6040802TP SCREW M4X0.7 L=8 1 62 SM6041602TP SCREW M4X0.7 L=16 1 63 SM6050800SP SCREW M5 L=8 2 64 SM6051002TP SCREW M5X0.8 L=10 4 65 SM6051002TP SCREW M5X0.8 L=10 4 66 SM8050602TP SCREW M5 L=6 2 67 40020310 UTT_CLOSE_CAM_B 1 68 40141748 LIFTING_LINK_SHAFT 1 69 SM8060612TP SCREW M6 L=6 1 70 B1511771K0A WORK CLAMP CHECK HOLDER ASM. 1 71 B1511771000B PRESSER FOOT 1 72 B1509761000 WORK CLAMP CHECK SPRING * 2 73 B151077100B WORKCLAMPCHECKSPRINGSETPIN(B) * 2 74 B1512761000 WORK CLAMP CHECK HOLDER SPRING * 1 75 SS6060210SP SCREW 3/32-56 L=1.9 2 76 B1552781000A PRESSER 1 77 SD0790203SP HINGE SCREW D=7.94 H=2 1 78 40004291 PBL_GEAR_S 1 79 40004275 PBL_GEAR_SHAFT 1 jintex.in

Page 21 — PRESSER & FEED COMPONENTS (FOR LBH-1795AS)

PRESSER & FEED COMPONENTS (FOR LBH-1795AS) 1 12 11 10 12 13 5 6 9 2 4 3 8 15 7 14 jintex.in

Page 22 — PRESSER & FEED COMPONENTS (FOR LBH-1795AS)

Juki LBH-1790A parts on page 22
Part number	Part name	Qty
40067165	LIFTING PLATE PARTS 120MM	1
40008646	ASSY,WORK_CLAMP,CHECK_HOLDER_120	1
B151077100B	WORK_CLAMP,CHECK,SPRING,SETPIN(B)	2
B1509761000	WORK_CLAMP CHECK SPRING	2
40008647	WORK_CLAMP,CHECK_HOLDER_120	1
40008638	WORK_CLAMP_CHECK_HOLDER_SPRING B	1
40006339	WORK_CLAMP_CARRIER_120	1
SS6060210SP	SCREW 3/32-56 L=1.9	6
SD0790203SP	HINGE SCREW D=7.94 H=2	3
40028682	UTT_CLOSE_CAM_120B	1
40112711	LIFTING_PLATE_120	1
SM6050800SP	SCREW M5 L=8	2
40006335	WORK_CLAMP_ARM_120	1
SM6040802TP	SCREW M4X0.7 L=8	2
40008658	WORK_CLAMP_120	1

PRESSER & FEED COMPONENTS (FOR LBH-1795AS) No. Parts No. Parts name Remarks Level Cons Qty 1 40067165 LIFTING PLATE PARTS 120MM 1 2 40008646 ASSY,WORK_CLAMP,CHECK_HOLDER_120 * 1 3 B151077100B WORK_CLAMP,CHECK,SPRING,SETPIN(B) * 2 4 B1509761000 WORK_CLAMP CHECK SPRING * 2 5 40008647 WORK_CLAMP,CHECK_HOLDER_120 * 1 6 40008638 WORK_CLAMP_CHECK_HOLDER_SPRING B * 1 7 40006339 WORK_CLAMP_CARRIER_120 * 1 8 SS6060210SP SCREW 3/32-56 L=1.9 * 6 9 SD0790203SP HINGE SCREW D=7.94 H=2 * 3 10 40028682 UTT_CLOSE_CAM_120B * 1 11 40112711 LIFTING_PLATE_120 * 1 12 SM6050800SP SCREW M5 L=8 * 2 13 40006335 WORK_CLAMP_ARM_120 * 1 14 SM6040802TP SCREW M4X0.7 L=8 * 2 15 40008658 WORK_CLAMP_120 * ☆ 1 jintex.in

Page 23 — NEEDLE BAR ROCKING COMPONENTS

NEEDLE BAR ROCKING COMPONENTS jintex.in

Page 24 — NEEDLE BAR ROCKING COMPONENTS

Juki LBH-1790A parts on page 24
Part number	Part name	Qty
40088990	SUPPORT_SHAFT	1
40004378	ZIGZAG ROD ASM.	1
40004379	ZIGZAG ROD
23530405	SHAFT HOLDER LINK BUSH
40008671	P=JUNCTION SHAFT SELECTIVE PARTS
40141758	ZIGZAG_DRIVE_UNIT_BASE	1
40141759	MOTOR_LEVER	1
40139180	NEEDLE SWING MOTOR ASSY	1
40141760	ZIGZAG_LEVER_REAR	1
SM6041202TP	SCREW M4X0.7 L=12	4
SM8050502TP	SCREW M5 L=5	6
SM6061802TP	SCREW M6 L=18	1
40004218	FRAME SUPPORT PLATE ASM.	1
13706403	NEEDLE BAR THREAD GUIDE	1
SM7030550TP	SCREW M3 L=4.5	1
MDP5J0B1100	NEEDLE DPX5 #11J	1
CS1501181TP	THRUST COLLAR D=15 W=11	1
SM8050502TP	SCREW M5 L=5	2
SM80606A2TP	SCREW M6 L=6	4
SM6061202TP	SCREW M6 L=12	3
40004224	ZIGZAG LEVER SHAFT ASM.	1
NM6050001SP	NUT M5
40004373	ZIGZAG LEVER SHAFT
40004374	ZIGZAG_STUD
40004216	BUSHING	1
40004217	BUSHING REAR	1
40004209	NEEDLE_BAR_ROD	1
B1414232000	SQUARE BLOCK	1
40004222	NEEDLE_BAR_FRAME_ASSY	1
40004212	NEEDLE_BAR_FRAME
40004213	NEEDLE BAR METAL
SM6040750TP	SCREW M4 L=7	1
40004215	NEEDLE BAR	1
40004214	NEEDLE_BAR_CONNECTION	1
SM6040502TP	SCREW M4X0.7 L=5	1

NEEDLE BAR ROCKING COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40088990 SUPPORT_SHAFT 1 2 40004378 ZIGZAG ROD ASM. 1 3 40004379 ZIGZAG ROD * 1 4 23530405 SHAFT HOLDER LINK BUSH * 2 5 40008671 P=JUNCTION SHAFT SELECTIVE PARTS SELECTIVE PARTS 2 6 40141758 ZIGZAG_DRIVE_UNIT_BASE 1 7 40141759 MOTOR_LEVER 1 8 40139180 NEEDLE SWING MOTOR ASSY 1 9 40141760 ZIGZAG_LEVER_REAR 1 10 SM6041202TP SCREW M4X0.7 L=12 4 11 SM8050502TP SCREW M5 L=5 6 12 SM6061802TP SCREW M6 L=18 1 13 40004218 FRAME SUPPORT PLATE ASM. 1 14 13706403 NEEDLE BAR THREAD GUIDE ☆ 1 15 SM7030550TP SCREW M3 L=4.5 ☆ 1 16 MDP5J0B1100 NEEDLE DPX5 #11J ☆ 1 17 CS1501181TP THRUST COLLAR D=15 W=11 1 18 SM8050502TP SCREW M5 L=5 2 19 SM80606A2TP SCREW M6 L=6 4 20 SM6061202TP SCREW M6 L=12 3 21 40004224 ZIGZAG LEVER SHAFT ASM. 1 22 NM6050001SP NUT M5 * 1 23 40004373 ZIGZAG LEVER SHAFT * 1 24 40004374 ZIGZAG_STUD * 1 25 40004216 BUSHING 1 26 40004217 BUSHING REAR 1 27 40004209 NEEDLE_BAR_ROD 1 28 B1414232000 SQUARE BLOCK 1 29 40004222 NEEDLE_BAR_FRAME_ASSY 1 30 40004212 NEEDLE_BAR_FRAME * 1 31 40004213 NEEDLE BAR METAL * 2 32 SM6040750TP SCREW M4 L=7 1 33 40004215 NEEDLE BAR 1 34 40004214 NEEDLE_BAR_CONNECTION 1 35 SM6040502TP SCREW M4X0.7 L=5 1 jintex.in

Page 25 — NEEDLE THREAD TRIMMER COMPONENTS

NEEDLE THREAD TRIMMER COMPONENTS

Page 26 — NEEDLE THREAD TRIMMER COMPONENTS

Juki LBH-1790A parts on page 26
Part number	Part name	Qty
RE0300000K0	E-RING 3	1
RE0300000K0	E-RING 3	1
EA9500B0100	CABLE BAND	1
40004293	UTT BASE PLATE	1
NM6050001SP	NUT M5	4
WP0430801SC	WASHER 4.3X9X0.8	1
SL4031091SC	SCREW M3 L=10	1
SD0600266TP	SHOULDER SCREW D=6 H=2.6	1
SM6040600SP	SCREW M4 L=6	2
SM6040602TP	SCREW M4 L=6	2
SM6040860TP	SCREW M4 L=8	1
SM6040802TP	SCREW M4X0.7 L=8	4
SM6041200SP	SCREW M4 L=12	2
SM6050652TP	HEXAGON SOCKET HEAD SCREW M5X6	2
SM6050800SP	SCREW M5 L=8	2
SM6050802TP	SCREW M5X0.8 L=8	2
40004400	ASSY UTT RELEASE ARM B	1
SM6040602TP	SCREW M4 L=6	1
SM8050412TP	SCREW M5 L=4	2
SM8050502TP	SCREW M5 L=5	4
SD0600326TP	SHOULDER SCREW D=6 H=3.2	4
SD0800406TP	SHOULDER SCREW D=8 H=4	1
SD080061TP	SHOULDER SCREW D=8 H=15	3
11272507	SPRING	1
CS0800881TP	THRUST COLLAR	1
40004235	UTT ARM A	1
40004238	UTT_ARM_B	1
40101641	ASSY_UTT_CAM_ARM	2
40004254	UTT CAM ROLLER	1
40101638	UTT_CAM_ROLLER_SHAFT	1
40101642	UTT_CAM_ARM	1
NM6040000SN	NUT M4	1
40004264	UTT RELEASE LEVER BASE	1
40004265	UTT RELEASE LEVER SHAFT	1
40141774	SENSOR_PLATE_UTT	1
40004296	UTT_SUPPORT_ARM_SPRING	1
40004294	UTT_SUPPORT_SHAFT	1
40004248	UTT_SUSPENSION SCREW 4	2
40004252	UTT_SUSPENSION SCREW 9	1
40004247	UTT SUSPENSION SHOULDER SCREW	1
40004244	UTT THREAD PULLING LINK A	1
40004245	UTT THREAD PULLING LINK B	1
40004236	UTT X-CAM	1
40004297	UTT Y-DRIVE ROLLER	1
40004298	UTT Y-DRIVE SHAFT	1
40140040	UTT TRIM MOTOR ASSY	1
HD00057000A	PHOTO SENSOR	1

NEEDLE THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 RE0300000K0 E-RING 3 1 2 RE0300000K0 E-RING 3 1 3 EA9500B0100 CABLE BAND 1 4 40004293 UTT BASE PLATE 1 5 NM6050001SP NUT M5 4 6 WP0430801SC WASHER 4.3X9X0.8 1 7 SL4031091SC SCREW M3 L=10 1 8 SD0600266TP SHOULDER SCREW D=6 H=2.6 1 9 SM6040600SP SCREW M4 L=6 2 10 SM6040602TP SCREW M4 L=6 2 11 SM6040860TP SCREW M4 L=8 1 12 SM6040802TP SCREW M4X0.7 L=8 4 13 SM6041200SP SCREW M4 L=12 2 14 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 2 15 SM6050800SP SCREW M5 L=8 2 16 SM6050802TP SCREW M5X0.8 L=8 2 17 40004400 ASSY UTT RELEASE ARM B 1 18 SM6040602TP SCREW M4 L=6 1 19 SM8050412TP SCREW M5 L=4 2 20 SM8050502TP SCREW M5 L=5 4 21 SD0600326TP SHOULDER SCREW D=6 H=3.2 4 22 SD0800406TP SHOULDER SCREW D=8 H=4 1 23 SD080061TP SHOULDER SCREW D=8 H=15 3 24 11272507 SPRING 1 25 CS0800881TP THRUST COLLAR 1 26 40004235 UTT ARM A 1 27 40004238 UTT_ARM_B 1 28 40101641 ASSY_UTT_CAM_ARM 2 29 40004254 UTT CAM ROLLER * 1 30 40101638 UTT_CAM_ROLLER_SHAFT * 1 31 40101642 UTT_CAM_ARM * 1 32 NM6040000SN NUT M4 * 1 33 40004264 UTT RELEASE LEVER BASE 1 34 40004265 UTT RELEASE LEVER SHAFT 1 35 40141774 SENSOR_PLATE_UTT 1 36 40004296 UTT_SUPPORT_ARM_SPRING 1 37 40004294 UTT_SUPPORT_SHAFT 1 38 40004248 UTT_SUSPENSION SCREW 4 2 39 40004252 UTT_SUSPENSION SCREW 9 1 40 40004247 UTT SUSPENSION SHOULDER SCREW 1 41 40004244 UTT THREAD PULLING LINK A 1 42 40004245 UTT THREAD PULLING LINK B 1 43 40004236 UTT X-CAM 1 44 40004297 UTT Y-DRIVE ROLLER 1 45 40004298 UTT Y-DRIVE SHAFT 1 46 40140040 UTT TRIM MOTOR ASSY 1 47 HD00057000A PHOTO SENSOR 1 jintex.in

Page 27 — NEEDLE THREAD TRIMMER COMPONENTS

NEEDLE THREAD TRIMMER COMPONENTS

Page 28 — NEEDLE THREAD TRIMMER COMPONENTS

Juki LBH-1790A parts on page 28
Ref	Part number	Part name
48	40028634	ASSY_UTT_RELEASE_LEVER_B
49	40142166	ASSY_UTT_DRIVE_CAM
50	40004240	ASSY_UTT_THREAD PULLING ARM
51	40015702	UTT_RATCH_PLATE_B
52	40004232	ASSY_UTT_SUPPORT_ARM
53	WP0431005SP	PLAIN WASHER 4.3X12X1
54	40015674	UTT_RATCH_STOPPER
55	SM6040602TP	SCREW M4 L=6
56	WP0550800SP	WASHER 5.5X10X0.8
57	NM6050001SP	NUT M5
58	SM6040602TP	SCREW M4 L=6
59	SM6040600SP	SCREW M4 L=6
60	SM6050802TP	SCREW M5X0.8 L=8
61	40028636	UTT_GUIDE_SHAFT_B
62	40004249	UTT SUSPENSION PLATE
63	40004243	UTT THREAD PULLING LEVER
64	40004246	UTT THREAD PULLING SHAFT
65	40004250	UTT TRIMMER CLOSE SPRING
66	40004297	UTT Y-DRIVE ROLLER
67	40004298	UTT Y-DRIVE SHAFT
68	SM6051202TP	SCREW M5X0.8 L=12
69	MAZ16013000	BUTTON SUPPORT LEVER SPRING
70	40004255	ASSY UTT TRIMMER
71	40004294	UTT RELEASE ARM A

NEEDLE THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40028634 ASSY_UTT_RELEASE_LEVER_B 1 49 40142166 ASSY_UTT_DRIVE_CAM 1 50 40004240 ASSY_UTT_THREAD PULLING ARM 1 51 40015702 UTT_RATCH_PLATE_B 1 52 40004232 ASSY_UTT_SUPPORT_ARM 1 53 WP0431005SP PLAIN WASHER 4.3X12X1 1 54 40015674 UTT_RATCH_STOPPER 1 55 SM6040602TP SCREW M4 L=6 2 56 WP0550800SP WASHER 5.5X10X0.8 2 57 NM6050001SP NUT M5 1 58 SM6040602TP SCREW M4 L=6 1 59 SM6040600SP SCREW M4 L=6 1 60 SM6050802TP SCREW M5X0.8 L=8 1 61 40028636 UTT_GUIDE_SHAFT_B 1 62 40004249 UTT SUSPENSION PLATE 1 63 40004243 UTT THREAD PULLING LEVER 1 64 40004246 UTT THREAD PULLING SHAFT 1 65 40004250 UTT TRIMMER CLOSE SPRING 1 66 40004297 UTT Y-DRIVE ROLLER 1 67 40004298 UTT Y-DRIVE SHAFT 1 68 SM6051202TP SCREW M5X0.8 L=12 3 69 MAZ16013000 BUTTON SUPPORT LEVER SPRING 1 70 40004255 ASSY UTT TRIMMER ☆ 1 71 40004294 UTT RELEASE ARM A 1 jintex.in

Page 29 — BOBBIN THREAD TRIMMER COMPONENTS

BOBBIN THREAD TRIMMER COMPONENTS 71 69 68 62 68 65 62 63 53 57 73 66 52 60 17 56 67 64 21 4 55 58 54 9 23 59 22 20 62 6 10 7 24 8 25 18 26 14 11 19 13 75 11 12 15 2 16 23 22 20 3 70 72 51 50 1 74 48 49 47 27 61 46 42 31 36 37 41 37 40 39 35 38 32 40 43 44 30 29 34 45 41 45 33 28 37 40 41 jintex.in

Page 30 — BOBBIN THREAD TRIMMER COMPONENTS

Juki LBH-1790A parts on page 30
Part number	Part name	Qty
HX00150000A	CABLE CLAMP	1
40142170	ASSY,BTT,DRIVE,CAM	1
40004336	ASSY,BTT,DRIVE,LEVER	1
40004329	BTT,DRIVE,LINK	1
40141778	BTT,DRIVE,UNIT,BASE	1
40101649	BTT,RELEASE,LEVER	1
40004343	BTT,RELEASE,LINK,F	1
40004344	BTT,RELEASE,LINK,R	1
13737408	LINK,ROD	1
NM6040001SD	NUT M4	2
NM6050001SP	NUT M5	1
40140041	DT TRIM MOTOR ASSY	1
SL4031091SC	SCREW M3 L=10	1
SM6040602TP	SCREW M4 L=6	2
SM6040802TP	SCREW M4X0.7 L=8	4
SM8050412TP	SCREW M5 L=4	2
SM9040700SP	HEXAGONAL BOLT	1
40141779	SENSOR,PLATE,BTT	1
HD00057000A	PHOTO SENSOR	1
SD0801006TP	SHOULDER SCREW D=8 H=10	2
40004299	STOPPER,PIN	1
40004254	UTT,CAM,ROLLER	2
40101638	UTT,CAM,ROLLER,SHAFT	1
SD0800296TP	SHOULDER SCREW D=8 H=2.9	2
SM6040600SP	SCREW M4 L=6	2
WP0430801SC	WASHER 4.3X9X0.8	2
40021998	THROAT_PLATE_BASE_UNIT	1
40022323	BT_CLAMP_B
40004309	BT_CLAMP_LEVER
40022322	BT_PULLER_B
40004321	ASSY,BT,RELEASE,ARM
40004308	BT_TRIMMER,LINK
40029613	CLAMP,SPRING
B1623180000	WASHER
B3013141H0A	WASHER
40004311	BT_TRIMMER
WP0431005SP	PLAIN WASHER 4.3X12X1
WP0451016SP	WASHER 4.5X20X1
40004306	BTT_LEVER
SM6040450TP	SCREW M4 L=4
SM6040450TP	SCREW M4 L=4
SD0250101SP	HINGE SCREW
SD0500166TP	SHOULDER SCREW D=5 H=1.6
SD0500167TP	SHOULDER SCREW D=5 H=1.6
40004327	SUSPENSION_SCREW
40004301	ASSY_THROAT_PLATE_BASE
40004324	OIL_SHIELD

BOBBIN THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 HX00150000A CABLE CLAMP 1 2 40142170 ASSY,BTT,DRIVE,CAM 1 3 40004336 ASSY,BTT,DRIVE,LEVER 1 4 40004329 BTT,DRIVE,LINK 1 5 40141778 BTT,DRIVE,UNIT,BASE 1 6 40101649 BTT,RELEASE,LEVER 1 7 40004343 BTT,RELEASE,LINK,F 1 8 40004344 BTT,RELEASE,LINK,R 1 9 13737408 LINK,ROD 1 10 NM6040001SD NUT M4 2 11 NM6050001SP NUT M5 1 12 40140041 DT TRIM MOTOR ASSY 1 13 SL4031091SC SCREW M3 L=10 1 14 SM6040602TP SCREW M4 L=6 2 15 SM6040802TP SCREW M4X0.7 L=8 4 16 SM8050412TP SCREW M5 L=4 2 17 SM9040700SP HEXAGONAL BOLT 1 18 40141779 SENSOR,PLATE,BTT 1 19 HD00057000A PHOTO SENSOR 1 20 SD0801006TP SHOULDER SCREW D=8 H=10 2 21 40004299 STOPPER,PIN 1 22 40004254 UTT,CAM,ROLLER 2 23 40101638 UTT,CAM,ROLLER,SHAFT 1 24 SD0800296TP SHOULDER SCREW D=8 H=2.9 2 25 SM6040600SP SCREW M4 L=6 2 26 WP0430801SC WASHER 4.3X9X0.8 2 27 40021998 THROAT_PLATE_BASE_UNIT 1 28 40022323 BT_CLAMP_B * ☆ 1 29 40004309 BT_CLAMP_LEVER * 1 30 40022322 BT_PULLER_B * ☆ 1 31 40004321 ASSY,BT,RELEASE,ARM * 1 32 40004308 BT_TRIMMER,LINK * 1 33 40029613 CLAMP,SPRING * 1 34 B1623180000 WASHER * 1 35 B3013141H0A WASHER * 1 36 40004311 BT_TRIMMER * ☆ 1 37 WP0431005SP PLAIN WASHER 4.3X12X1 * 3 38 WP0451016SP WASHER 4.5X20X1 * 1 39 40004306 BTT_LEVER * 1 40 SM6040450TP SCREW M4 L=4 * 3 41 SM6040450TP SCREW M4 L=4 * 5 42 SD0250101SP HINGE SCREW * 1 43 SD0500166TP SHOULDER SCREW D=5 H=1.6 * 1 44 SD0500167TP SHOULDER SCREW D=5 H=1.6 * 1 45 40004327 SUSPENSION_SCREW * 2 46 40004301 ASSY_THROAT_PLATE_BASE * 1 47 40004324 OIL_SHIELD * 1 jintex.in

Page 31 — BOBBIN THREAD TRIMMER COMPONENTS

Juki LBH-1790A parts on page 31
Ref	Part number	Part name
71	71	BRACKET
68	68	SCREW
62	62	WASHER
69	69	SPRING PIN
65	65	LEVER
2	2	COVER
16	16	SCREW
63	63	SPRING
53	53	BRACKET
57	57	SCREW
73	73	BRACKET
66	66	SHAFT
52	52	HOLDER
56	56	SCREW
67	67	SPRING
64	64	LEVER
17	17	BRACKET
20	20	SCREW
22	22	WASHER
3	3	BRACKET
21	21	BRACKET
4	4	BRACKET
9	9	BRACKET
23	23	SCREW
59	59	SCREW
6	6	LEVER
10	10	BRACKET
24	24	WASHER
7	7	BRACKET
8	8	BRACKET
25	25	SCREW
18	18	BRACKET
19	19	SCREW
13	13	SCREW
75	75	BRACKET
11	11	NUT
14	14	SCREW
12	12	BRACKET
15	15	SCREW
51	51	BRACKET
70	70	BRACKET
72	72	SCREW
60	60	SCREW
48	48	SCREW
49	49	PLATE
47	47	PLATE
27	27	PLATE
61	61	SCREW
46	46	PLATE
42	42	SCREW
31	31	BRACKET
37	37	WASHER
40	40	NUT
36	36	LEVER
41	41	SCREW
39	39	BRACKET
35	35	BRACKET
32	32	LEVER
43	43	SCREW
44	44	WASHER
30	30	BRACKET
29	29	BRACKET
34	34	WASHER
45	45	SPRING
33	33	SPRING
28	28	LEVER
38	38	SCREW
1	1	BRACKET
74	74	SCREW
5	5	PLATE
55	55	BRACKET
54	54	LEVER
58	58	SCREW
50	50	SHAFT
70	70	BRACKET

BOBBIN THREAD TRIMMER COMPONENTS 71 68 62 68 65 62 69 2 16 63 53 57 73 66 52 56 67 64 17 20 22 3 21 4 9 23 20 22 59 6 10 24 7 8 25 18 19 13 75 11 14 12 15 51 70 72 60 48 49 47 27 61 46 42 31 37 40 36 37 41 39 35 32 43 44 30 29 34 45 33 28 41 37 40 41 62 1

Page 32 — BOBBIN THREAD TRIMMER COMPONENTS

Juki LBH-1790A parts on page 32
Part number	Part name	Qty
SM1030400SP	SCREW M3 L=4	2
40027553	THROAT_PLATE(1790S5)
40011205	STUD
WP0430800SC	WASHER M4
40004345	PICKER,BASE
40004347	PICKER,BASE,FITTNG,PLATE
13727102	STOPPER A
13729306	BOBBIN CASE POSITIONING PLATE
SM7030550TP	SCREW M3 L=4.5
SM6040602TP	SCREW M4 L=6
SM4041050TP	SCREW M4 L=10
SM6040600SP	SCREW M4 L=6
SM6041200SP	SCREW M4 L=12
SM6040450TP	SCREW M4 L=4
SD0800296TP	SHOULDER SCREW D=8 H=2.9
40011327	PICKER,SPRING
40004346	PICKER
40004348	PICKER ACTUATING LEVER
NM6040001SD	NUT M4
SD0801006TP	SHOULDER SCREW D=8 H=10
40004327	SUSPENSION_SCREW
40004299	STOPPER,PIN
40141802	OIL TANK
40004349	PICKER,ACTUATING_L_LINK
SL6040892TN	SCREW
40004328	PICKER,BASE,STOPPER
SL6041292TN	SCREW
SM6050802TP	SCREW M5X0.8 L=8

BOBBIN THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM1030400SP SCREW M3 L=4 2 49 40027553 THROAT_PLATE(1790S5) 1 50 40011205 STUD 1 51 WP0430800SC WASHER M4 1 52 40004345 PICKER,BASE 1 53 40004347 PICKER,BASE,FITTNG,PLATE 1 54 13727102 STOPPER A 1 55 13729306 BOBBIN CASE POSITIONING PLATE 1 56 SM7030550TP SCREW M3 L=4.5 1 57 SM6040602TP SCREW M4 L=6 2 58 SM4041050TP SCREW M4 L=10 1 59 SM6040600SP SCREW M4 L=6 1 60 SM6041200SP SCREW M4 L=12 4 61 SM6040450TP SCREW M4 L=4 4 62 SD0800296TP SHOULDER SCREW D=8 H=2.9 1 63 40011327 PICKER,SPRING 1 64 40004346 PICKER 1 65 40004348 PICKER ACTUATING LEVER 1 66 NM6040001SD NUT M4 1 67 SD0801006TP SHOULDER SCREW D=8 H=10 1 68 40004327 SUSPENSION_SCREW 2 69 40004299 STOPPER,PIN 1 70 40141802 OIL TANK 1 71 40004349 PICKER,ACTUATING_L_LINK 1 72 SL6040892TN SCREW 4 73 40004328 PICKER,BASE,STOPPER 1 74 SL6041292TN SCREW 1 75 SM6050802TP SCREW M5X0.8 L=8 3

Page 33 — CLOTH CUTTING KNIFE COMPONENTS

Juki LBH-1790A parts on page 33
Ref	Part number	Part name
1	1	SCREW
2	2	MOTOR
3	3	SCREW
4	4	BRACKET
5	5	HOUSING
6	6	SCREW
7	7	BEARING
8	8	HOLDER
9	9	SPRING
10	10	SCREW
11	11	SHAFT
12	12	COLLAR
13	13	LEVER
14	14	SCREW
15	15	WASHER
16	16	WASHER
17	17	PIN
18	18	WASHER
19	19	BLOCK
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	WASHER
24	24	SCREW
25	25	HOLDER
26	26	SCREW
27	27	SLEEVE
28	28	CYLINDER
29	29	ROD
30	30	BRACKET
31	31	SCREW

CLOTH CUTTING KNIFE COMPONENTS 1 1 2 3 4 5 6 7 8 9 9 10 11 12 13 14 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 jintex.in

Page 34

Juki LBH-1790A parts on page 34
Part number	Part name	Qty
SM6051202TP	SCREW M5X0.8 L=12	4
40139183	CLOTH CUT MOTOR ASSY	1
SL6041492TN	SCREW	4
40141781	MOTOR_BASE_A	1
40141780	MOTOR_BASE_B	1
SL6061492TN	BOLT	2
SB1120003C0	BEARING	1
40141782	KNIFE_DRIVING_BLOCK	1
SM8050612TP	SCREW M5X6	3
SM6051202TP	SCREW M5X0.8 L=12	1
40142163	KNIFE_DRIVING_ASSY	1
40142164	KNIFE_DRIVING_LINK_ASSY
40141783	KNIFE_DRIVING_LINK_COMBINATION	1
40008671	P=JUNCTION SHAFT SELECTIVE
SB1040008C0	BEARING	2
40010489	AT_PIVOT_SCREW_WASHER	1
40141786	SUPPORT_SHAFT	1
40042089	THRUST WASHER	2
40141785	KNIFE_BAR_BRACKET	1
SM8050612TP	SCREW M5X6	1
SM6051402TP	SCREW M5X0.8 L=14	1
B2702047L00A	KNIFE 1/2	1
WP043080TSC	WASHER M4	1
SM9040700SP	HEXAGONAL BOLT	1
40141787	SUPPORT_GUIDE	2
SM6041002TP	SCREW M4 L=10	1
40004398	KNIFE_BAR_BUSH	1
40040276	KNIFE_BAR_LOWER_BUSHING	1
40004394	KNIFE BAR	1
40004396	KNIFE BAR BASE	1
SM6061202TP	SCREW M6 L=12	1
40004393	KNIFE FITTING BASE	1

CLOTH CUTTING KNIFE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SM6051202TP SCREW M5X0.8 L=12 4 2 40139183 CLOTH CUT MOTOR ASSY 1 3 SL6041492TN SCREW 4 4 40141781 MOTOR_BASE_A 1 5 40141780 MOTOR_BASE_B 1 6 SL6061492TN BOLT 2 7 SB1120003C0 BEARING 1 8 40141782 KNIFE_DRIVING_BLOCK 1 9 SM8050612TP SCREW M5X6 3 10 SM6051202TP SCREW M5X0.8 L=12 1 11 40142163 KNIFE_DRIVING_ASSY 1 12 40142164 KNIFE_DRIVING_LINK_ASSY * 1 13 40141783 KNIFE_DRIVING_LINK_COMBINATION * 1 14 40008671 P=JUNCTION SHAFT SELECTIVE SELECTIVE PARTS * 2 15 SB1040008C0 BEARING * 2 16 40010489 AT_PIVOT_SCREW_WASHER * 1 17 40141786 SUPPORT_SHAFT * 1 18 40042089 THRUST WASHER * 2 19 40141785 KNIFE_BAR_BRACKET * 1 20 SM8050612TP SCREW M5X6 * 1 21 SM6051402TP SCREW M5X0.8 L=14 * 1 22 B2702047L00A KNIFE 1/2 ☆ 1 23 WP043080TSC WASHER M4 ☆ 1 24 SM9040700SP HEXAGONAL BOLT 1 25 40141787 SUPPORT_GUIDE 2 26 SM6041002TP SCREW M4 L=10 1 27 40004398 KNIFE_BAR_BUSH 1 28 40040276 KNIFE_BAR_LOWER_BUSHING 1 29 40004394 KNIFE BAR 1 30 40004396 KNIFE BAR BASE 1 31 SM6061202TP SCREW M6 L=12 1 32 40004393 KNIFE FITTING BASE 1

Page 35 — TABLE COMPONENTS

Juki LBH-1790A parts on page 35
Ref	Part number	Part name	Qty
	1	TABLE TOP
	2	LEG
	3	CONTROL BOX
	4	BRACKET
	5	SCREW
	6	BRACKET
	7	FRAME
	8	BRACKET
	9	BRACKET
	10	MOTOR
	11	BRACKET
	12	BRACKET
	13	BRACKET
	14	BRACKET
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	BRACKET

TABLE COMPONENTS ACCESSORIES OF A CONTROL BOX 制御ボックスの付属品 1 2 3 4 4 5 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 jintex.in

Page 36 — TABLE COMPONENTS

Juki LBH-1790A parts on page 36
Part number	Part name	Qty
40142966	TABLE	1
ST9053511SR	TAPPING SCREW M5X35	4
11155108	DRAWER	1
11155207	DRAWER SUPPORT	2
SK3311600SC	WOOD SCREW D=3.1 L=16	6
D8204555D00	DRAWER STOPPER	1
11157567	T LEG JUNCTION	1
40094262	PEDAL SENSOR BASE ASSY	1
40094259	PEDAL SENSOR ASM.	1
40094260	SENSOR COIL HOLD ASSY	1
40093423	SENSOR BRACKET	1
SL4041091SC	SCREW M4 L=10	3
KX000000210	SADDLE TYPE TIE MOUNT	1
KX000000230	RELEASIBLE CABLE TIE	1
SM4051001SC	SCREW M5 L=10	1
WS0820002KR	SPRING WASHER M8	2
NM6080002SC	NUT M8	2
MTSHJ100003	BOLT	2
WP0851846SC	WASHER 8.5X22.0X1.8	2
SL4051291SC	SCREW M5X0.8 L=12	2
40042134	CONNECING ROD ASSY	1

TABLE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40142966 TABLE 1 2 ST9053511SR TAPPING SCREW M5X35 4 3 11155108 DRAWER 1 4 11155207 DRAWER SUPPORT 2 5 SK3311600SC WOOD SCREW D=3.1 L=16 6 6 D8204555D00 DRAWER STOPPER 1 7 11157567 T LEG JUNCTION 1 8 40094262 PEDAL SENSOR BASE ASSY 1 9 40094259 PEDAL SENSOR ASM. 1 10 40094260 SENSOR COIL HOLD ASSY 1 11 40093423 SENSOR BRACKET 1 12 SL4041091SC SCREW M4 L=10 3 13 KX000000210 SADDLE TYPE TIE MOUNT 1 14 KX000000230 RELEASIBLE CABLE TIE 1 15 SM4051001SC SCREW M5 L=10 1 16 WS0820002KR SPRING WASHER M8 2 17 NM6080002SC NUT M8 2 18 MTSHJ100003 BOLT 2 19 WP0851846SC WASHER 8.5X22.0X1.8 2 20 SL4051291SC SCREW M5X0.8 L=12 2 21 40042134 CONNECING ROD ASSY 1 jintex.in 24

Page 37 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)

Juki LBH-1790A parts on page 37
Ref	Part number	Part name
1	1	OPERATION BOX COMPONENTS
2	2	ACCESSORIES OF A CONTROL BOX
3	3	SCREW

OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX) 1 2 3

Page 38 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)

Juki LBH-1790A parts on page 38
Part number	Part name	Qty
40141333	LBH OPERATION PANEL ASSY
40141334	LBH OPERATION PANEL ASSY CE
SK3382001SE	SCREW D=3.8 L=20	4

OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX) No. Parts No. Parts name Remarks Level Cons Qty 1 40141333 LBH OPERATION PANEL ASSY FOR 1-PHASE 220~240V, 3-PHA- SE 200~240V, 380~400V (FOR CHINA) 1 2 40141334 LBH OPERATION PANEL ASSY CE FOR 1-PHASE CE 220~240V 1 3 SK3382001SE SCREW D=3.8 L=20 4 jintex.in

Page 39 — CONTROL BOX COMPONENTS

Juki LBH-1790A parts on page 39
Ref	Part number	Part name
50	50	SCREW
46	46	CONTROL BOX
52	52	SCREW
60	60	SCREW
61	61	SWITCH
59	59	WASHER
63	63	NUT
53	53	WASHER
54	54	WASHER
55	55	NUT
62	62	BRACKET
11	11	COVER
12	12	SCREW
5	5	BRACKET
6	6	BRACKET
22	22	SCREW
15	15	BRACKET
16	16	BRACKET
30	30	SCREW
9	9	BRACKET
10	10	BRACKET
44	44	COVER
38	38	SCREW
37	37	SCREW
23	23	COVER
24	24	SCREW
27	27	SHAFT
25	25	SCREW
26	26	SHAFT
13	13	COVER
14	14	SCREW
17	17	BOX
18	18	SCREW
35	35	LABEL
36	36	BRACKET
28	28	BRACKET
29	29	SCREW
20	20	SCREW
19	19	BRACKET
21	21	SHAFT
31	31	BRACKET
32	32	CLIP
4	4	SCREW
41	41	COVER
39	39	SCREW
40	40	COVER
42	42	SCREW
43	43	SCREW
34	34	SCREW
33	33	SCREW
49	49	LABEL
56	56	SWITCH
57	57	SWITCH
47	47	SCREW
48	48	BRACKET
58	58	SHAFT
51	51	COVER

CONTROL BOX COMPONENTS ACCESSORIES OF SEWING MACHINE MAIN UNIT ミシン本体付属品 1~3 46 52 50 60 61 59 63 62 53 54 55 11-12 5-6 38 30 9 10 44 22 15-16 37 23 24 27 25 13 17 18 35 26 14 36 28 29 21 19 20 41 24 25 31 14 14 33 39 40 42 43 34 49 56-57 47 48 58 51 jintex.in

Page 40 — CONTROL BOX COMPONENTS

Juki LBH-1790A parts on page 40
Ref	Part number	Part name	Qty
	40141500	MC602 CTL BOX A ASM.
	40141501	MC602 CTL BOX B ASM.
	40141502	MC602 CTL BOX C ASM.
	WP0430800SC	WASHER M4
	40143989	FRAME B
	40143988	FRAME A
	40115874	FAN PLATE
	SL4040881SC	SCREW M4 L=8
	40115876	PLATE B
	SL4040881SC	SCREW M4 L=8
	SL4040881SC	SCREW M4 L=8
	40115879	FAN COVER
	40138920	MAIN PCB ASSY
	SL4040881SC	SCREW M4 L=8
	40105465	FLT-T PCB ASSY
	40105475	FLT-CE PCB ASSY
	40111214	FAN MOTOR ASSY
	SL4042091SC	SCREW M4X0.7 L=20
	KX000000260	SADDLE TYPE TIE MOUNT
	SL4040881SC	SCREW M4 L=8
	HX00292000A	CONNECTING PARTS
	HX0039000M	SPACER
	40142267	SDC PCB ASSY
	SL4040881SC	SCREW M4 L=10
	SL4040881SC	SCREW M4 L=8
	40115877	MAIN PLATE
	40143990	STUD
	40115878	PLATE C
	SL4040881SC	SCREW M4 L=8
	SL4040881SC	SCREW M4 L=8
	HX00222000D	WIRE SADDLE
	KX000000320	BUSH
	SL4041281SC	SCREW M4X0.7 L=12
	M8002430000	STOPPER
	40114398	MAIN COOL SHEET
	40114136	COVER
	SL4040881SC	SCREW M4 L=8
	SL4030881SC	SCREW M3 L=8
	CM300100001	LABEL
	CM300400602	VOLTAGE CAUTION LABEL L=25
	CM300100402	VOLTAGE DANGER LABEL 3(SMALL)
	CM600100101	WEEE MARK LABEL S
	40116677	GOST SAFTY LABEL S
	EA9500B0100	CABLE BAND

CONTROL BOX COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40141500 MC602 CTL BOX A ASM. FOR 1-PHASE 220~240V 1 2 40141501 MC602 CTL BOX B ASM. FOR 3-PHASE 200~240V 1 3 40141502 MC602 CTL BOX C ASM. FOR 1-PHASE CE 220~240V 1 4 WP0430800SC WASHER M4 FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 1 5 40143989 FRAME B FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 1 6 40143988 FRAME A FOR 1-PHASE 220~240V 1 7 40115874 FAN PLATE 1 8 SL4040881SC SCREW M4 L=8 2 9 40115876 PLATE B 2 10 SL4040881SC SCREW M4 L=8 1 11 SL4040881SC SCREW M4 L=8 2 12 40115879 FAN COVER 1 13 40138920 MAIN PCB ASSY 1 14 SL4040881SC SCREW M4 L=8 8 15 40105465 FLT-T PCB ASSY FOR 3-PHASE 200~240V 1 16 40105475 FLT-CE PCB ASSY FOR 1-PHASE CE 220~240V 1 17 40111214 FAN MOTOR ASSY 1 18 SL4042091SC SCREW M4X0.7 L=20 2 19 KX000000260 SADDLE TYPE TIE MOUNT 1 20 SL4040881SC SCREW M4 L=8 1 21 HX00292000A CONNECTING PARTS 1 22 HX0039000M SPACER FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 6 23 40142267 SDC PCB ASSY 1 24 SL4040881SC SCREW M4 L=10 4 25 SL4040881SC SCREW M4 L=8 2 26 40115877 MAIN PLATE 1 27 40143990 STUD 2 28 40115878 PLATE C 1 29 SL4040881SC SCREW M4 L=8 1 30 SL4040881SC SCREW M4 L=8 FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 6 31 HX00222000D WIRE SADDLE 1 32 KX000000320 BUSH 1 33 SL4041281SC SCREW M4X0.7 L=12 6 34 M8002430000 STOPPER 4 35 40114398 MAIN COOL SHEET 2 36 40114136 COVER 1 37 SL4040881SC SCREW M4 L=8 3 38 SL4030881SC SCREW M3 L=8 1 39 CM300100001 LABEL FOR 1-PHASE 220~240V, 1-PHASE CE 220~240V, 1-PHASE 220~240V (FOR CHINA) 1 40 CM300400602 VOLTAGE CAUTION LABEL L=25 1 41 CM300100402 VOLTAGE DANGER LABEL 3(SMALL) FOR 3-PHASE 200~240V 1 42 CM600100101 WEEE MARK LABEL S FOR 1-PHASE CE 220~240V 1 43 40116677 GOST SAFTY LABEL S FOR 1-PHASE CE 220~240V 1 44 EA9500B0100 CABLE BAND 1 jintex.in

Page 41 — CONTROL BOX COMPONENTS

Juki LBH-1790A parts on page 41
Ref	Part number	Part name	Qty
	46	CONTROL BOX COMPONENTS
	52	SCREW
	1~3	ACCESSORIES OF SEWING MACHINE MAIN UNIT
	11	PLATE
	12	PLATE
	5-6	COVER
	28	BRACKET
	29	SCREW
	37	SCREW
	23	COVER
	20	BRACKET
	19	SCREW
	4	SCREW
	21	SHAFT
	27	SHAFT
	24	SCREW
	25	BRACKET
	31	SWITCH
	26	SHAFT
	32	HOLDER
	49	LABEL
	56	TERMINAL
	57	TERMINAL
	47	SCREW
	48	WASHER
	41	COVER
	40	COVER
	39	BRACKET
	42	SCREW
	43	SCREW
	51	COVER
	34	SCREW
	33	SCREW
	36	BRACKET
	14	SCREW
	13	COVER
	25	BRACKET
	27	SHAFT
	35	LABEL
	30	SCREW
	9	BRACKET
	10	BRACKET
	22	SCREW
	15	COVER
	16	COVER
	5-6	COVER
	38	SCREW
	7	BASE
	8	BRACKET
	45	CYLINDER
	17	COVER
	18	SCREW
	50	SCREW
	60	SCREW
	61	SWITCH
	59	WASHER
	63	NUT
	53	WASHER
	54	WASHER
	55	NUT
	62	BRACKET
	44	COVER

CONTROL BOX COMPONENTS ACCESSORIES OF SEWING MACHINE MAIN UNIT ミシン本体付属品 46 52 1~3 11-12 5-6 28 29 37 23 20 19 4 27 24 25 31 21 26 32 49 56-57 47 48 40 39 41 42 43 50 60 61 59 63 62 53 54 55 22 15-16 9 10 30 35 13 14 17 18 36 33 58 51 34 jintex.in

Page 42 — CONTROL BOX COMPONENTS

Juki LBH-1790A parts on page 42
Part number	Part name	Qty
E8760452S00	TUBE
40113427	POWER SWITCH	1
SL4041091SC	SCREW M4 L=10	2
HX00150000D	CABLE CLIP	2
M300451100A	VOLTAGE INDICATION CARD A	1
MTSHJ100003	BOLT	4
40126054	CORE SET UP MANUAL	1
SK3512001SE	WOOD SCREW D=5.1 L=20	2
WP0852086SC	WASHER M8	4
WS0820002KR	SPRING WASHER M8	4
NM6080002SC	NUT M8	4
HF0013050P0	FUSE 5A	1
HF003000200	FUSE 2A (220/240V)	1
EA9500B0200	CABLE BAND 150	2
WP0651646SC	WASHER	8
WT0640001KN	TOOTH WASHER	1
40165702	RUBBER CUSHION	4
40142969	RUBBER CUSHION BRKT	2
NM6060001SC	NUT M6X1 TYPE1	4

CONTROL BOX COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 45 E8760452S00 TUBE FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V * 0.055 46 40113427 POWER SWITCH 1 47 SL4041091SC SCREW M4 L=10 2 48 HX00150000D CABLE CLIP 2 49 M300451100A VOLTAGE INDICATION CARD A 1 50 MTSHJ100003 BOLT 4 51 40126054 CORE SET UP MANUAL 1 52 SK3512001SE WOOD SCREW D=5.1 L=20 2 53 WP0852086SC WASHER M8 4 54 WS0820002KR SPRING WASHER M8 4 55 NM6080002SC NUT M8 4 56 HF0013050P0 FUSE 5A 1 57 HF003000200 FUSE 2A (220/240V) 1 58 EA9500B0200 CABLE BAND 150 2 59 WP0651646SC WASHER 8 60 WT0640001KN TOOTH WASHER 1 61 40165702 RUBBER CUSHION 4 62 40142969 RUBBER CUSHION BRKT 2 63 NM6060001SC NUT M6X1 TYPE1 4 jintex.in

Page 44

Juki LBH-1790A parts on page 44
Part number	Part name	Qty
40138611	INT PCB ASSY	1
40005400	PAUSE SWITCH JOINT CORD
32002354	SWITCH ASM.
40003499	THREAD BREAK DETECTOR A
40141480	UT TRIM SENSOR CORD ASSY
HD00057000A	PHOTO SENSOR
40141481	DT TRIM SENSOR CORD ASSY
HD00057000A	PHOTO SENSOR
40141482	FEED SENSOR CORD ASSY
HD00057000A	PHOTO SENSOR
40141484	COVER SENSOR RELAY CORD ASSY
40141483	COVER SENSOR ASSY
40139180	NEEDLE SWING MOTOR ASSY
40139181	FEED MOTOR ASSY
40139182	CLAMP MOTOR ASSY
40140040	UT TRIM MOTOR ASSY
40140041	DT TRIM MOTOR ASSY
40139183	CLOTH CUT MOTOR ASSY
40006261	ASSY,AT,SOLENOID
40111214	FAN MOTOR ASSY
40141479	INT CORD C ASSY
40141478	INT CORE B ASSY
40141477	INT CORD A ASSY
40023371	SINGLE PHASE POWER CORD ASSY
M90175800A0	POWER CABLE ASM.
40005390	JE POWER CABLE ASM.
40141487	AC POWER CORD A ASM.
40141488	AC POWER CORD B ASM.
40141489	AC POWER CORD C ASM.
40113427	POWER SWITCH
40141333	LBH OPERATION PANEL ASSY
40141706	ASSY,LED DEVICE
40094262	PEDAL SENSOR BASE ASSY
40003491	ASSY,4 POSITION PEDAL
40141500	MC602 CTL BOX A ASM.
40141501	MC602 CTL BOX B ASM.
40141502	MC602 CTL BOX C ASM.
40138920	MAIN PCB ASSY
40142267	SDC PCB ASSY
40105465	FLT-T PCB ASSY
40105475	FLT-CE PCB ASSY
14115554	HEAD GROUND CABLE A ASM.
40138137	IPM550W MOTOR
40141334	LBH OPERATION PANEL ASSY CE

WIRING DIAGRAM No. Parts No. Parts name Remarks Level Cons Qty 1 40138611 INT PCB ASSY 1 2 40005400 PAUSE SWITCH JOINT CORD 1 3 32002354 SWITCH ASM. 1 4 40003499 THREAD BREAK DETECTOR A 1 5 40141480 UT TRIM SENSOR CORD ASSY 1 6 HD00057000A PHOTO SENSOR 1 7 40141481 DT TRIM SENSOR CORD ASSY 1 8 HD00057000A PHOTO SENSOR 1 9 40141482 FEED SENSOR CORD ASSY 1 10 HD00057000A PHOTO SENSOR 1 11 40141484 COVER SENSOR RELAY CORD ASSY 1 12 40141483 COVER SENSOR ASSY 1 13 40139180 NEEDLE SWING MOTOR ASSY 1 14 40139181 FEED MOTOR ASSY 1 15 40139182 CLAMP MOTOR ASSY 1 16 40140040 UT TRIM MOTOR ASSY 1 17 40140041 DT TRIM MOTOR ASSY 1 18 40139183 CLOTH CUT MOTOR ASSY 1 19 40006261 ASSY,AT,SOLENOID 1 20 40111214 FAN MOTOR ASSY 1 21 40141479 INT CORD C ASSY 1 22 40141478 INT CORE B ASSY 1 23 40141477 INT CORD A ASSY 1 24 40023371 SINGLE PHASE POWER CORD ASSY FOR 1-PHASE 220V~240V 1 25 M90175800A0 POWER CABLE ASM. FOR 3-PHASE 200V~240V 1 26 40005390 JE POWER CABLE ASM. FOR CE 220V~240V 1 27 40141487 AC POWER CORD A ASM. FOR 1-PHASE 220V~240V 1 28 40141488 AC POWER CORD B ASM. FOR 3-PHASE 200V~240V 1 29 40141489 AC POWER CORD C ASM. FOR CE 220V~240V 1 30 40113427 POWER SWITCH 1 31 40141333 LBH OPERATION PANEL ASSY FOR 1-PHASE 220~240V, 3-PHA- SE 200~240V, 1-PHASE 220~240V (FOR CHINA) 1 32 40141706 ASSY,LED DEVICE 1 33 40094262 PEDAL SENSOR BASE ASSY 1 34 40003491 ASSY,4 POSITION PEDAL 1 35 40141500 MC602 CTL BOX A ASM. 1 36 40141501 MC602 CTL BOX B ASM. 1 37 40141502 MC602 CTL BOX C ASM. 1 38 40138920 MAIN PCB ASSY 1 39 40142267 SDC PCB ASSY 1 40 40105465 FLT-T PCB ASSY FOR 3-PHASE 200V~240V 1 41 40105475 FLT-CE PCB ASSY FOR CE 220V~240V 1 42 14115554 HEAD GROUND CABLE A ASM. 1 43 40138137 IPM550W MOTOR 1 44 40141334 LBH OPERATION PANEL ASSY CE FOR 1-PHASE CE 220~240V 1 jintex.in

Page 45

Juki LBH-1790A parts on page 45
Ref	Part number	Part name	Qty
	1	ACCESSORIE PARTS COMPONENTS
	4
	23
	5
	12
	32
	21-33
	19
	20
	6
	9
	11
	29
	30
	22
	3
	2
	31
	7
	13
	18
	14
	15
	16
	17
	24
	27
	26
	25
	28

ACCESSORIE PARTS COMPONENTS 21-33 1 4 23 5 12 32 19 20 6 9 11 29 30 22 3 2 31 7 13 18 14 15 16 17 24 27 26 25 28 jintex.in

Page 61 — NUMERICAL INDEX OF PARTS

Juki LBH-1790A parts on page 61
Ref	Part number	Part name	Qty
23	EA9500B0100	EA9500B0100	48
58	EA9500B0200	EA9500B0200	40
1	G50011980A0A	G50011980A0A	48
12	GPK510010B0	GPK510010B0	48
2	HD00057000A	HD00057000A	16
47	HD00057000A	HD00057000A	24
19	HD00057000A	HD00057000A	42
32	HD00057000A	HD00057000A	48
56	HF0013050P0	HF0013050P0	40
56	HF003000200	HF003000200	40
81	HX001500000	HX001500000	4
1	HX00150000A	HX00150000A	28
48	HX00150000D	HX00150000D	40
57	HX00151000A	HX00151000A	8
31	HX00220000D	HX00220000D	38
33	HX002550000	HX002550000	14
21	HX00292000A	HX00292000A	38
22	HX00339000M	HX00339000M	38
13	KX000000210	KX000000210	34
14	KX000000230	KX000000230	34
19	KX000000260	KX000000260	38
32	KX000000320	KX000000320	38
54	KX000000380	KX000000380	4
49	M300451100A	M300451100A	40
34	M8002430000	M8002430000	38
24~26	M90175800A0	M90175800A0	42
22	MAO11532000	MAO11532000	48
69	MAZ16013000	MAZ16013000	26
20	MDFRX1200C0	MDFRX1200C0	44
16	MDP5J0B1100	MDP5J0B1100	22
5	MDP5J0B1102	MDP5J0B1102	44
18	MTSHJ100003	MTSHJ100003	34
53	MTSHJ100003	MTSHJ100003	40
6	NM6030001SD	NM6030001SD	2
32	NM6040000SN	NM6040000SN	24
74	NM6040001SC	NM6040001SC	2
74	NM6040001SD	NM6040001SD	4
66	NM6040001SD	NM6040001SD	28
66	NM6050001SE	NM6050001SE	46
24	NM6050001SP	NM6050001SP	22
57	NM6050001SP	NM6050001SP	24
40	NM6050001SP	NM6050001SP	26
11	NM6050001SP	NM6050001SP	28
27	NM6060001CP	NM6060001CP	48
63	NM6060001SC	NM6060001SC	40
53	NM6060001SD	NM6060001SD	4
30	NM6060001SD	NM6060001SD	44
17	NM6080002SC	NM6080002SC	34
55	NM6080002SC	NM6080002SC	40
8	NM6100001SD	NM6100001SD	10
61	NS6110310SP	NS6110310SP	8
9	NS6110310SP	NS6110310SP	48
15	PF0551060A0	PF0551060A0	48
16	PF902005000	PF902005000	48
17	PJ025100003	PJ025100003	48
18	PV015122000	PV015122000	48
4	RC0100001KP	RC0100001KP	10
44	RC0560711KP	RC0560711KP	6
4	RC1700001KP	RC1700001KP	6
7	RC2791218KP	RC2791218KP	14
3	RC3781518KP	RC3781518KP	10
2	RE0300000K0	RE0300000K0	24
45	RE0400000K0	RE0400000K0	6
42	RE0500000K0	RE0500000K0	16
15	SB1040008C0	SB1040008C0	32
2	SB110000600	SB110000600	14
7	SB110000700	SB110000700	10
7	SB1120003C0	SB1120003C0	32
1	SB112001600	SB112001600	14
3	SB115000200	SB115000200	14
4	SB115001500	SB115001500	14
34	SB1200008C0	SB1200008C0	10
56	SB307000200	SB307000200	18
47	SB408000100	SB408000100	16
14	SB710000600	SB710000600	16
42	SD0250101SP	SD0250101SP	28
43	SD0500166TP	SD0500166TP	28
44	SD0500167TP	SD0500167TP	28
8	SD0600266TP	SD0600266TP	24
21	SD0600326TP	SD0600326TP	24
77	SD0790203SP	SD0790203SP	18
9	SD0790203SP	SD0790203SP	20
21	SD0790203SP	SD0790203SP	50
62	SD0800296TP	SD0800296TP	28
62	SD0800296TP	SD0800296TP	30
35	SD0800326TP	SD0800326TP	16
22	SD0800406TP	SD0800406TP	24
67	SD0801006TP	SD0801006TP	28
67	SD0801006TP	SD0801006TP	30
23	SD0801506TP	SD0801506TP	24
38	SD1000646TP	SD1000646TP	48
5	SK3311600SC	SK3311600SC	34
3	SK3382001SE	SK3382001SE	36
21	SK3412001SE	SK3412001SE	48
10	SK3452000SC	SK3452000SC	48
41	SK3482001SE	SK3482001SE	48
48	SK3512001SE	SK3512001SE	40
80	SL4030881SC	SL4030881SC	4
38	SL4030881SC	SL4030881SC	38
19	SL4031091SC	SL4031091SC	16
7	SL4031091SC	SL4031091SC	24
13	SL4031091SC	SL4031091SC	28
33	SL4031091SC	SL4031091SC	48
37	SL4040881SC	SL4040881SC	38
27	SL4040891SC	SL4040891SC	44
24	SL4041081SC	SL4041081SC	38
12	SL4041091SC	SL4041091SC	34
47	SL4041091SC	SL4041091SC	40
33	SL4041281SC	SL4041281SC	38
18	SL4042091SC	SL4042091SC	38
75	SL4042591SC	SL4042591SC	4
20	SL4051291SC	SL4051291SC	34
34	SL6031042TN	SL6031042TN	48
63	SL6040892TN	SL6040892TN	2
63	SL6040892TN	SL6040892TN	4
72	SL6040892TN	SL6040892TN	30
6	SL6040892TN	SL6040892TN	44
74	SL6041292TN	SL6041292TN	30
3	SL6041492TN	SL6041492TN	32
6	SL6061492TN	SL6061492TN	32
19	SM0040801SC	SM0040801SC	2
53	SM0050801SC	SM0050801SC	8
9	SM0860400SN	SM0860400SN	6
48	SM1030400SP	SM1030400SP	30
28	SM4040655SP	SM4040655SP	2
58	SM4041050TP	SM4041050TP	30
15	SM4051001SC	SM4051001SC	34
16	SM4051055SP	SM4051055SP	2
23	SM4051405SE	SM4051405SE	46
12	SM4051655SP	SM4051655SP	2
28	SM5040550TP	SM5040550TP	16
47	SM5040655SN	SM5040655SN	6
35	SM5040655SN	SM5040655SN	48

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. EA9500B0100 48 23 EA9500B0200 40 58 G50011980A0A 48 1 GPK510010B0 48 12 HD00057000A 16 2 HD00057000A 24 47 HD00057000A 42 19 HD00057000A 48 32 HF0013050P0 40 56 HF003000200 40 56 HX001500000 4 81 HX00150000A 28 1 HX00150000D 40 48 HX00151000A 8 57 HX00220000D 38 31 HX002550000 14 33 HX00292000A 38 21 HX00339000M 38 22 KX000000210 34 13 KX000000230 34 14 KX000000260 38 19 KX000000320 38 32 KX000000380 4 54 M300451100A 40 49 M8002430000 38 34 M90175800A0 42 24~26 MAO11532000 48 22 MAZ16013000 26 69 MDFRX1200C0 44 20 MDP5J0B1100 22 16 MDP5J0B1102 44 5 MTSHJ100003 34 18 MTSHJ100003 40 53 NM6030001SD 2 6 NM6040000SN 24 32 NM6040001SC 2 74 NM6040001SD 4 74 NM6040001SD 28 66 NM6050001SE 46 66 NM6050001SP 22 24 NM6050001SP 24 57 NM6050001SP 26 40 NM6050001SP 28 11 PART NO PAGE REF NO. NM6060001CP 48 27 NM6060001SC 40 63 NM6060001SD 4 53 NM6060001SD 44 30 NM6080002SC 34 17 NM6080002SC 40 55 NM6100001SD 10 8 NS6110310SP 8 61 NS6110310SP 48 9 PF0551060A0 48 15 PF902005000 48 16 PJ025100003 48 17 PV015122000 48 18 RC0100001KP 10 4 RC0560711KP 6 44 RC1700001KP 6 4 RC2791218KP 14 7 RC3781518KP 10 3 RE0300000K0 24 2 RE0400000K0 6 45 RE0500000K0 16 42 SB1040008C0 32 15 SB110000600 14 2 SB110000700 10 7 SB1120003C0 32 7 SB112001600 14 1 SB115000200 14 3 SB115001500 14 4 SB1200008C0 10 34 SB307000200 18 56 SB408000100 16 47 SB710000600 16 14 SD0250101SP 28 42 SD0500166TP 28 43 SD0500167TP 28 44 SD0600266TP 24 8 SD0600326TP 24 21 SD0790203SP 18 77 SD0790203SP 20 9 SD0790203SP 50 21 SD0800296TP 28 62 SD0800296TP 30 62 SD0800326TP 16 35 SD0800406TP 24 22 SD0801006TP 28 67 PART NO PAGE REF NO. SD0801006TP 30 67 SD0801506TP 24 23 SD1000646TP 48 38 SK3311600SC 34 5 SK3382001SE 36 3 SK3412001SE 48 21 SK3452000SC 48 10 SK3482001SE 48 41 SK3512001SE 40 48 SL4030881SC 4 80 SL4030881SC 38 38 SL4031091SC 16 19 SL4031091SC 24 7 SL4031091SC 28 13 SL4031091SC 48 33 SL4040881SC 38 37 SL4040891SC 44 27 SL4041081SC 38 24 SL4041091SC 34 12 SL4041091SC 40 47 SL4041281SC 38 33 SL4042091SC 38 18 SL4042591SC 4 75 SL4051291SC 34 20 SL6031042TN 48 34 SL6040892TN 2 63 SL6040892TN 4 63 SL6040892TN 30 72 SL6040892TN 44 6 SL6041292TN 30 74 SL6041492TN 32 3 SL6061492TN 32 6 SM0040801SC 2 19 SM0050801SC 8 53 SM0860400SN 6 9 SM1030400SP 30 48 SM4040655SP 2 28 SM4041050TP 30 58 SM4051001SC 34 15 SM4051055SP 2 16 SM4051405SE 46 23 SM4051655SP 2 12 SM5040550TP 16 28 SM5040655SN 6 47 SM5040655SN 48 35 INDEX - 5 jintex.in

Page 62

Juki LBH-1790A parts on page 62
Ref	Part number	Part name
23	SM6031402TP	SM6031402TP
61	SM6040450TP	SM6040450TP
61	SM6040450TP	SM6040450TP
6	SM6040450TP	SM6040450TP
41	SM6040502TP	SM6040502TP
35	SM6040502TP	SM6040502TP
59	SM6040600SP	SM6040600SP
59	SM6040600SP	SM6040600SP
59	SM6040600SP	SM6040600SP
59	SM6040600SP	SM6040600SP
82	SM6040602TP	SM6040602TP
82	SM6040602TP	SM6040602TP
50	SM6040602TP	SM6040602TP
20	SM6040602TP	SM6040602TP
58	SM6040602TP	SM6040602TP
58	SM6040602TP	SM6040602TP
57	SM6040602TP	SM6040602TP
57	SM6040602TP	SM6040602TP
77	SM6040650TP	SM6040650TP
32	SM6040750TP	SM6040750TP
61	SM6040802TP	SM6040802TP
61	SM6040802TP	SM6040802TP
14	SM6040802TP	SM6040802TP
12	SM6040802TP	SM6040802TP
15	SM6040802TP	SM6040802TP
10	SM6040802TP	SM6040802TP
11	SM6041002TP	SM6041002TP
13	SM6041002TP	SM6041002TP
60	SM6041002TP	SM6041002TP
24	SM6041200SP	SM6041200SP
30	SM6041200SP	SM6041200SP
40	SM6041200SP	SM6041200SP
10	SM6041202TP	SM6041202TP
16	SM6041202TP	SM6041202TP
22	SM6041202TP	SM6041202TP
18	SM6041602TP	SM6041602TP
2	SM6050652TP	SM6050652TP
24	SM6050652TP	SM6050652TP
48	SM6050652TP	SM6050652TP
18	SM6050800SP	SM6050800SP
20	SM6050800SP	SM6050800SP
24	SM6050800SP	SM6050800SP
50	SM6050800SP	SM6050800SP
2	SM6050802TP	SM6050802TP
4	SM6050802TP	SM6050802TP
6	SM6050802TP	SM6050802TP
24	SM6050802TP	SM6050802TP
26	SM6050802TP	SM6050802TP
30	SM6050802TP	SM6050802TP
18	SM6051002TP	SM6051002TP
26	SM6051202TP	SM6051202TP
32	SM6051202TP	SM6051202TP
32	SM6051402TP	SM6051402TP
10	SM6052002TR	SM6052002TR
2	SM6061002TP	SM6061002TP
16	SM6061002TP	SM6061002TP
44	SM6061002TP	SM6061002TP
22	SM6061202TP	SM6061202TP
32	SM6061202TP	SM6061202TP
16	SM6061802TP	SM6061802TP
22	SM6061802TP	SM6061802TP
10	SM6062502TP	SM6062502TP
2	SM6067052TP	SM6067052TP
44	SM6067052TP	SM6067052TP
22	SM7030550TP	SM7030550TP
30	SM7030550TP	SM7030550TP
6	SM8030412TP	SM8030412TP
8	SM8040802TP	SM8040802TP
16	SM8050412TP	SM8050412TP
24	SM8050412TP	SM8050412TP
28	SM8050412TP	SM8050412TP
8	SM8050502TP	SM8050502TP
14	SM8050502TP	SM8050502TP
16	SM8050502TP	SM8050502TP
22	SM8050502TP	SM8050502TP
24	SM8050502TP	SM8050502TP
18	SM8050602TP	SM8050602TP
32	SM8050612TP	SM8050612TP
10	SM80506A2TP	SM80506A2TP
16	SM80606A2TP	SM80606A2TP
2	SM80606A2TP	SM80606A2TP
6	SM80606A2TP	SM80606A2TP
10	SM80606A2TP	SM80606A2TP
14	SM80606A2TP	SM80606A2TP
16	SM80606A2TP	SM80606A2TP
22	SM80606A2TP	SM80606A2TP
10	SM80608A2TP	SM80608A2TP
12	SM80608A2TP	SM80608A2TP
10	SM8081652TP	SM8081652TP
28	SM9040700SP	SM9040700SP
32	SM9040700SP	SM9040700SP
6	SM9040800SP	SM9040800SP
10	SM9061403CP	SM9061403CP
18	SS6060210SP	SS6060210SP
20	SS6060210SP	SS6060210SP
50	SS6060210SP	SS6060210SP
44	SS7110570SP	SS7110570SP
8	SS7110840SP	SS7110840SP
50	SS8660612TP	SS8660612TP
34	ST9053511SR	ST9053511SR
2	TA0500301R0	TA0500301R0
4	TA0550604R0	TA0550604R0
4	TA0750404R0	TA0750404R0
4	TA0850604R0	TA0850604R0
2	TA1050504R0	TA1050504R0
2	TA1250408R0	TA1250408R0
2	TA1550902R0	TA1550902R0
4	TA2100904R0	TA2100904R0
30	WP0430800SC	WP0430800SC
38	WP0430800SC	WP0430800SC
24	WP0430801SC	WP0430801SC
28	WP0430801SC	WP0430801SC
32	WP0430801SC	WP0430801SC
26	WP0431005SP	WP0431005SP
28	WP0431005SP	WP0431005SP
6	WP0450826SC	WP0450826SC
28	WP0451016SP	WP0451016SP
46	WP0531001SC	WP0531001SC
26	WP0550800SP	WP0550800SP
50	WP0551016SH	WP0551016SH
4	WP0612056SD	WP0612056SD
44	WP0612056SD	WP0612056SD
10	WP0621046SP	WP0621046SP
40	WP0651646SC	WP0651646SC
34	WP0851846SC	WP0851846SC
40	WP0852086SC	WP0852086SC
46	WP1612616SE	WP1612616SE
6	WS0410002KP	WS0410002KP
46	WS0510002KN	WS0510002KN
34	WS0820002KR	WS0820002KR
40	WS0820002KR	WS0820002KR
40	WT0640001KN	WT0640001KN

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SM6031402TP 2 23 SM6050802TP 6 11 SM9040700SP 28 17 SM6040450TP 28 61 SM6050802TP 24 60 SM9040700SP 32 24 SM6040450TP 30 61 SM6050802TP 26 60 SM9040800SP 6 15 SM6040450TP 50 6 SM6050802TP 30 75 SM9061403CP 10 13 SM6040502TP 16 41 SM6051002TP 18 65 SS6060210SP 18 75 SM6040502TP 22 35 SM6051202TP 26 68 SS6060210SP 20 8 SM6040600SP 24 59 SM6051202TP 32 10 SS6060210SP 50 43 SM6040600SP 26 59 SM6051402TP 32 21 SS7110570SP 44 16 SM6040600SP 28 59 SM6052002TR 10 23 SS7110840SP 8 55 SM6040600SP 30 59 SM6061002TP 2 36 SS8660612TP 50 4 SM6040602TP 2 82 SM6061002TP 16 23 ST9053511SR 34 2 SM6040602TP 4 82 SM6061002TP 44 17 TA0500301R0 2 46 SM6040602TP 8 50 SM6061202TP 22 20 TA0550604R0 4 83 SM6040602TP 16 20 SM6061202TP 32 31 TA0750404R0 4 84 SM6040602TP 24 58 SM6061802TP 16 24 TA0850604R0 4 67 SM6040602TP 26 58 SM6061802TP 22 12 TA1050504R0 2 32 SM6040602TP 28 57 SM6062502TP 10 11 TA1250408R0 2 34 SM6040602TP 30 57 SM6067052TP 2 37 TA1550902R0 2 35 SM6040650TP 4 77 SM6067052TP 44 9 TA2100904R0 4 76 SM6040750TP 22 32 SM7030550TP 22 15 WP0430800SC 30 51 SM6040802TP 16 61 SM7030550TP 30 56 WP0430800SC 38 4 SM6040802TP 18 61 SM8030412TP 6 13 WP0430801SC 24 6 SM6040802TP 20 14 SM8040802TP 8 49 WP0430801SC 28 26 SM6040802TP 24 12 SM8050412TP 16 17 WP0430801SC 32 23 SM6040802TP 28 15 SM8050412TP 24 19 WP0431005SP 26 53 SM6040802TP 30 10 SM8050412TP 28 16 WP0431005SP 28 37 SM6041002TP 16 11 SM8050502TP 8 48 WP0450826SC 6 46 SM6041002TP 24 13 SM8050502TP 14 10 WP0451016SP 28 38 SM6041002TP 32 60 SM8050502TP 16 40 WP0531001SC 46 22 SM6041200SP 24 22 SM8050502TP 18 66 WP0550800SP 26 56 SM6041200SP 30 26 SM8050502TP 24 20 WP0551016SH 50 24 SM6041200SP 40 13 SM8050602TP 18 66 WP0612056SD 4 55 SM6041202TP 10 61 SM8050612TP 32 20 WP0612056SD 44 29 SM6041202TP 16 61 SM80506A2TP 10 30 WP0621046SP 10 12 SM6041202TP 22 14 SM80606A2TP 16 39 WP0651646SC 40 59 SM6041602TP 18 12 SM80606A2TP 18 69 WP0851846SC 34 19 SM6050652TP 2 29 SM80606A2TP 2 38 WP0852086SC 40 53 SM6050652TP 24 14 SM80606A2TP 6 14 WP1612616SE 46 15 SM6050652TP 48 36 SM80606A2TP 10 32 WS0410002KP 6 16 SM6050800SP 18 63 SM80606A2TP 14 15 WS0510002KN 46 21 SM6050800SP 20 12 SM80606A2TP 16 26 WS0820002KR 34 16 SM6050800SP 24 15 SM80606A2TP 22 19 WS0820002KR 40 54 SM6050800SP 30 9 SM80608A2TP 10 48 WT0640001KN 40 60 SM6050802TP 2 48 SM80608A2TP 12 48 SM6050802TP 4 48 SM8081652TP 10 21 INDEX - 6 jintex.in

Part Books

Search
