MODEL : LBH-1790A/LBH-1795A List No : 1649-06 PARTS LIST Published:12/20/2017 jintex.in
Parts index — Juki LBH-1790Atap a row to open its page
Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40143770 | UPPER COVER | 1 | |
| SM4051055SP | SCREW | 6 | |
| 40141709 | LEFT COVER | 1 | |
| SM4051055SP | SCREW | 2 | |
| 40165706 | LEFT COVER B | 1 | |
| SM4051055SP | SCREW | 4 | |
| 40004157 | THREAD_TAKE_UP_LEVER_COVER | 1 | |
| SM4051055SP | SCREW | 1 | |
| 40004156 | FRONT_COVER | 3 | |
| SM4051055SP | SCREW | 1 | |
| 40004159 | MOTOR_COVER | 1 | |
| SM4051655SP | SCREW M5 L=16 | 4 | |
| 26230409 | LUBRICATING OIL WICK STOPPER | 2 | |
| SM6050802TP | SCREW M5X0.8 L=8 | 1 | |
| 40004161 | REAR_COVER | 1 | |
| SM4051055SP | SCREW | 4 | |
| 40142148 | HOOK_OIL_SHIELD_COVER_COMPL. | 1 | |
| 40142887 | HOOK_OIL_SHIELD_COVER | ||
| SM0040801SC | SCREW | ||
| 40145328 | SENSOR SLIT PLATE C | ||
| NM6040001SC | NUT M4X0.7 TYPE1 | ||
| NM6030001SD | NUT M3X0.5 | ||
| SM6031402TP | SCREW | ||
| 13703906 | HOOK OIL SHIELD HINGE | ||
| 13703905 | HINGE PIN | ||
| 40141710 | HINGE_SPRING | ||
| 40141711 | HINGE_SPRING_WASHER | ||
| SM4040655SP | SCREW M4 L=6 | ||
| SM6050652TP | HEXAGON SOCKET HEAD SCREW M5X6 | 2 | |
| SM6040602TP | SCREW M4 L=6 | 2 | |
| TA1050302R0 | PLUG | 1 | |
| TA1050504R0 | RUBBER PLUG | 1 | |
| 40141795 | PBL_METAL_CAP | 1 | |
| TA1250406R0 | RUBBER PLUG D=12.5 L=4 | 3 | |
| TA1550902R0 | PLUG | 3 | |
| SM6061002TP | SCREW M6 L=10 | 4 | |
| SM6061002TP | HEXAGON BOLT | ||
| SM60606A2TP | SCREW M6 L=6 | 2 | |
| 32002354 | SWITCH ASM. | 1 | |
| SL6040892TN | SCREW | 2 | |
| 22528764 | PRE-TENSION CONTROLLER ASM. | 1 | |
| 22502504 | THREAD GUIDE BAR | ||
| 40141714 | BED BASE | 1 | |
| 40004160 | BED REAR_COVER | 1 | |
| 40141708 | ASSY_LED_DEVICE | 1 | |
| TA0500301R0 | PLUG 5X5.8 L=3 | 1 | |
| 13922208 | TAKE-UP THREAD GUIDE B | 1 |
Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM6050802TP | SCREW M5X0.8 L=8 | 2 |
| 49 | 40006314 | HINGE BUSH | 1 |
| 50 | 1370004 | HINGE PIN | 2 |
| 51 | 1370006 | HINGE PLATE A | 1 |
| 52 | 13700505 | HINGE PLATE B | 1 |
| 53 | NM6060001SD | NUT M6 | 2 |
| 54 | KX000000380 | SPACER | 4 |
| 55 | WP0612056SD | WASHER 6.1X18.5X2 | 1 |
| 56 | 13943303 | OIL SHIELD | 1 |
| 57 | 40008977 | RUBBER C | 3 |
| 58 | 40008978 | RUBBER D | 1 |
| 59 | SL6040892TN | SCREW | 4 |
| 60 | E2002855000 | Z STOPPER RUBBER | 1 |
| 61 | D6056555B00 | RUBBER CUSHION (B) | 1 |
| 62 | 13700703 | RUBBER HINGE | 1 |
| 63 | SL6040892TN | SCREW | 1 |
| 64 | 40009037 | TAKE-UP THREAD GUIDE A | 1 |
| 65 | SM6040602TP | SCREW M4 L=6 | 1 |
| 66 | 40141713 | STUD | 1 |
| 67 | TA0850604R0 | RUBBER PLUG | 1 |
| 68 | CM300200003 | ATTENTION LABEL | 1 |
| 69 | 13705405 | NEEDLE BAR THREAD GUIDE | 1 |
| 70 | 40138611 | INT PCB ASSY | 1 |
| 71 | CM301300001 | SAFETY LABEL | 1 |
| 72 | CM300200001 | ATTENTION SEAL | 2 |
| 73 | 40111214 | FAN MOTOR ASSY | 1 |
| 74 | NM6040001SC | NUT M4X0.7 TYPE1 | 2 |
| 75 | SL4042591SC | SCREW M4 L=25 | 2 |
| 76 | TA2100904R0 | RUBBER PLUG | 1 |
| 77 | SM6040650TP | SCREW | 1 |
| 78 | 40145327 | SENSOR PALTE C | 1 |
| 79 | 40141483 | COVER SENSOR ASSY | 1 |
| 80 | SL4030881SC | SCREW M3 L=8 | 1 |
| 81 | HX001500000 | CLIP | 3 |
| 82 | SM6040602TP | SCREW M4 L=6 | 3 |
| 83 | TA0550604R0 | RUBBER PLUG | 1 |
| 84 | TA0750404R0 | PLUG D=7.5 L=3.5 | 2 |
Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40006261 | ASSY_AT_SOLENOID | 1 | |
| 40006263 | AT_SHAFT | 1 | |
| 40006264 | AT_SHAFT_HOLDER | 1 | |
| RC1700001KP | RETAINING RING | 1 | |
| 40010514 | DISK_STOPPER | 1 | |
| 40010511 | DISK_STOPPER_HOLDER_CAP | 1 | |
| 14115554 | HEAD GROUND CABLE A ASM. | 1 | |
| 40010522 | SHAFT_NUT | 2 | |
| SM0860400SN | SCREW | 3 | |
| SM6040860TP | SCREW M4 L=8 | 1 | |
| SM6050802TP | SCREW M5X0.8 L=8 | 3 | |
| SM8030412TP | SCREW | 2 | |
| SM8030412TP | SCREW | 1 | |
| SM80606A2TP | SCREW M6 L=6 | 1 | |
| SM9040800SP | SCREW | 1 | |
| WS0410002KP | SPRING WASHER | 1 | |
| 40141478 | INT CORE B ASSY | 1 | |
| 10006104 | TAKE-UP SPRING | ||
| 40010510 | THREAD_TENSION_POST_BASE | 1 | |
| 40010512 | THREAD_TENSION_SHAFT_COLLAR | 2 | |
| 32055402 | THRUST COLLAR | 1 | |
| 40004252 | UTT_SUSPENSION_SCREW_9 | 1 | |
| 40006265 | ASSY_THREAD_TENSION_POST | 1 | |
| B270221000 | GUIDE PLATE | 1 | |
| B270321000 | BUSHING | 1 | |
| 40003499 | THREAD BREAK DETECTOR A | 1 | |
| 40011143 | ASSY_BTW | 1 | |
| 26260109 | BTW_BASE | ||
| 26260208 | BTW_CAM_PLATE | ||
| 26260307 | BTW_BASE_SHAFT | ||
| 26260406 | BTW_SHAFT_BASE | ||
| 26260505 | BTW_CAM_LEVER | ||
| 26260604 | BTW_WHEEL | ||
| 40011144 | BTW_TORSION_SPRING | ||
| 26260802 | BTW_BEARING_SPACER | ||
| 40011145 | BTW_SHAFT | ||
| 40011146 | BTW_LEVER_SHAFT | ||
| 40021933 | BTW_LEVER | ||
| 26261206 | BTW_SPACER | ||
| 26261305 | BTW_BEARING | ||
| 26261503 | BTW_WHEEL_RUBBER | ||
| 26261602 | BOBBIN_SPRING | ||
| 26261701 | BTW_SPRING | ||
| RC0560711KP | RETAINING RING | ||
| RE0400000K0 | E-RING 4 | ||
| WP0450826SC | WASHER 4.5X10X0.8 | ||
| SM5040655SN | SCREW |
Page 10 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM8050502TP | SCREW M5 L=5 | 1 |
| 49 | SM8040802TP | SCREW M4X8 | 2 |
| 50 | SM6040602TP | SCREW M4 L=6 | 2 |
| 51 | 40141479 | INT CORD C ASSY | 1 |
| 52 | 40037008 | THREAD_CUTTER | 1 |
| 53 | SM0050801SC | SCREW | 4 |
| 54 | D316255B00 | THREAD GUIDE | 1 |
| 55 | SS7110840SP | SCREW 11/64-40 L=7.8 | 1 |
| 56 | EA9500B0100 | CABLE BAND | 10 |
| 57 | HX00151000A | CABLE BAND | 2 |
| 58 | 26230409 | LUBRICATING OIL WICK STOPPER | 3 |
| 59 | 22529481 | BOBBIN THREAD TENSION ASM. | 1 |
| 60 | 22529473 | BOBBIN THREAD TENSION ROD ASM. | 1 |
| 61 | NS6110310SP | NUT 11/64-40 | 1 |
| 62 | 11072402 | THREAD TENSION NUT | 1 |
| 63 | 11093606 | THREAD TENSION SPRING | 1 |
| 64 | B3214047000 | BOBBIN WINDER TENSION DISC | 2 |
| 65 | 40141477 | INT CORD A ASSY | 1 |
Page 12 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40011517 | NEEDLE_BAR_CRANK_FELT | 1 | |
| 40142152 | IDLER_ASSY | 1 | |
| RC3781518KP | RETAINING RING | ||
| RC0100001KP | SNAP RING M10 | ||
| 40143150 | IDLER FIXED PLATE | ||
| 40141721 | IDLER_PULLEY | ||
| SB110000700 | BALL BEARING | ||
| NM6100001SD | NUT M10 | ||
| 40141720 | IDLER_SHAFT | ||
| 40006307 | SQUARE_BLOCK_GUIDE | 3 | |
| SM6062502TP | SCREW M6 L=25 | 1 | |
| WP0621046SP | WASHER | 1 | |
| SM9061403CP | SCREW M6 L=14 | 1 | |
| 40004185 | HINGE_SCREW | 1 | |
| 40051473 | COUPLING_ASM. | 1 | |
| 40051474 | COUPLING | ||
| SM80608A2TP | SCREW M6 L=8 | ||
| CQ252000000 | OIL WICK | 0.014 | |
| 40004171 | COUNTER_WEIGHT_SCREW | 1 | |
| 40141716 | COUNTER_WEIGHT | 1 | |
| SM8081652TP | SCREW M8 L=16 | 1 | |
| 40138137 | IPM550W MOTOR | 1 | |
| SM6052002TR | SCREW M5 L=20 | 4 | |
| 40010534 | BTW_DRIVING_WHEEL | 1 | |
| 40150011 | FRONT BEARING | 1 | |
| 40010535 | DRIVING_WHEEL_SCREW | 2 | |
| 40141717 | MAIN_SHAFT | 1 | |
| 40141719 | TIMING_BELT | 1 | |
| 40032269 | THRUST COLLAR | 1 | |
| SM80506A2TP | SCREW M5 L=6 | ||
| CS1000881TP | THRUST COLLAR | ||
| SM80606A2TP | SCREW M6 L=6 | 2 | |
| 40141718 | SPROCKET_A | 1 | |
| SB1200008C0 | BEARING | 1 | |
| 40008423 | WASHER | 1 | |
| 40165704 | NEEDLE CRANK SHAFT | 1 | |
| 40165701 | SQUARE BLOCK GUIDE B | 1 | |
| 40165703 | SQUARE BLOCK B | 1 | |
| 40004206 | SQUARE_BLOCK | 1 | |
| SM6041202TP | SCREW M4X0.7 L=12 | 2 | |
| 40141725 | THREAD_TAKE_UP_COMP | 1 | |
| 40141726 | THREAD_TAKE_UP_ASM_C | ||
| 22918304 | SCREW | ||
| 40142880 | NEEDLE_BAR_CRANK_ROD_ASM. | ||
| 40141727 | THREAD_TAKE_UP_ASM_B | ||
| 40141730 | NEEDLE_BAR_CRANK | ||
| 40142878 | TAKE_UP_CRANK_ASM. |
Page 14 — MAIN SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | SM80608A2TP | SCREW M6 L=8 | 2 |
Page 16 — HOOK DRIVING SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | SB112001600 | BEARING | 2 |
| 2 | SB110000600 | BALL BEARING | 2 |
| 3 | SB11500200 | BEARING | 1 |
| 4 | SB115001500 | BEARING | 1 |
| 5 | 40004188 | BEARING_SUPPORT | 1 |
| 6 | 23536204 | BUSH | 2 |
| 7 | RC2791218KP | RETAINING RING | 2 |
| 8 | 40004186 | HOOK_DRIVING_SHAFT | 1 |
| 9 | 40004187 | HOOK_DRIVING_SHAFT_METAL | 2 |
| 10 | SM8050502TP | SCREW M5 L=5 | 1 |
| 11 | 13710306 | INTERMEDIATE SPROCKET SHAFT | 1 |
| 12 | 13710504 | INTERMEDIATE SPROCKET WASHER | 1 |
| 13 | 13729066 | HOOK COMPL. | 1 |
| 14 | 40141739 | LOWER_SHAFT_KNOB_B | 1 |
| 15 | SM80606A2TP | SCREW M6 L=6 | 10 |
| 16 | 40011355 | OIL_FILTER | 2 |
| 17 | 14504401 | BEARING SUPPORT | 1 |
| 18 | 40004180 | SPROCKET_B | 1 |
| 19 | 40141740 | SPROCKET_C | 1 |
| 20 | 13710405 | INTERMEDIATE SPROCKET RING | 1 |
| 21 | 40006317 | WASHER | 1 |
| 22 | 40142753 | ADJUSTING_PIN_B | 1 |
| 23 | 40142754 | ADJUSTING_SPRING_B | 1 |
| 24 | 40142752 | ADJUSTING_SCREW_B | 1 |
| 25 | 40006320 | FELT | 1 |
| 26 | 23630007 | TUBE | 1 |
| 27 | CQ202000000 | OIL WICK | 1 |
| 28 | B1811771000 | BOBBIN | 1 |
| 29 | 13729769 | BOBBIN CASE ASM. | 1 |
| 30 | 13729652 | HOOK SLEEVE CONNEC. | 1 |
| 31 | 13729603 | HOOK SLEEVE | 1 |
| 32 | CQ252000000 | OIL WICK | 0.04 |
| 33 | HX002550000 | TUBE | 0.017 |
Page 18 — PRESSER & FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40139181 | FEED MOTOR ASSY | 1 | |
| HD00057000A | PHOTO SENSOR | 1 | |
| 22891204 | BEARING SUPPORT | 2 | |
| 40075297 | THROAT_PLATE_BASE_COVER | 2 | |
| 40004194 | MOTOR_BRACKET | 1 | |
| 40108754 | PULLEY_B | 1 | |
| 40004197 | PULLEY_C | 1 | |
| 40004198 | SUPPORT_SHAFT | 1 | |
| 40004200 | TIMING_BELT_HOLDER | 1 | |
| 40004201 | FEED_SHAFT | 1 | |
| 40022121 | FEED_GUIDE_SHAFT | 1 | |
| 40141744 | SENSOR_SLIT_PLATE | 1 | |
| 40141741 | FEED_BASE | 1 | |
| SB710000600 | BEARING | 2 | |
| 40010434 | THRUST_COLLAR_ASM. | 1 | |
| 40010435 | THRUST_COLLAR | 1 | |
| SM8050412TP | SCREW M5 L=4 | 2 | |
| 40004205 | WORK_CLAMP_CARRIER | 1 | |
| SL4031091SC | SCREW M3 L=10 | 1 | |
| SM6040602TP | SCREW M4 L=6 | 4 | |
| SM6040802TP | SCREW M4X0.7 L=8 | 2 | |
| SM6041002TP | SCREW M4 L=10 | 6 | |
| SM6061002TP | SCREW M6 L=10 | 3 | |
| SM6061802TP | SCREW M6 L=18 | 1 | |
| SM8050502TP | SCREW M5 L=5 | 3 | |
| SM80606A2TP | SCREW M6 L=6 | 2 | |
| 40141742 | TIMING_BELT | 1 | |
| SM5040550TP | SCREW M4 L=5 | 4 | |
| 40142161 | LIFTING_LINK_ASSY | 1 | |
| 40141788 | LINK_ROD_S | 1 | |
| 40141801 | LIFTING_LINK_PIN | 1 | |
| SD0800326TP | SHOULDER SCREW | 1 | |
| 40142755 | LIFTING_LINK | 1 | |
| 40139182 | CLAMP MOTOR ASSY | 1 | |
| SD0800326TP | SHOULDER SCREW | 1 | |
| 40004289 | PBL GEAR L | 1 | |
| 40004267 | ASSY_PBL_MOTOR_BASE | 1 | |
| SM6041202TP | SCREW M4X0.7 L=12 | 4 | |
| SM8060552TP | SCREW M6 L=5 | 5 | |
| SM8050502TP | SCREW M5 L=5 | 1 | |
| SM6040502TP | SCREW M4X0.7 L=5 | 1 | |
| RE050000K0 | E-RING | 1 | |
| 13127402 | PIN (SHORT) C | 1 | |
| 40141757 | SQUARE_BLOCK | 1 | |
| 40141755 | SLIDE_ROLLER | 1 | |
| 40141754 | COLLAR | 1 | |
| SB408000100 | BEARING | 1 |
Page 20 — PRESSER & FEED COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40004285 | PBL_FINGER_GUARD | |
| 49 | 40141794 | PBL_GUIDE | |
| 50 | 40004280 | PBL_LIFTING_PLATE | |
| 51 | 40004279 | PBL_METAL | |
| 52 | 40141747 | POSITION_BRACKET | |
| 53 | 40141745 | PRESSER_BAR | |
| 54 | 40141753 | PBL_ROLLER_BASE | |
| 55 | 40141756 | PBL_ROLLER_SHAFT | |
| 56 | SB30700200 | BEARING | |
| 57 | 40141746 | METAL_U | |
| 58 | 40004287 | PBL_WORK_CLAMP_ARM | |
| 59 | 40004288 | PBL_WORK_CLAMP_ARM_SHAFT | |
| 60 | 40141743 | SENSOR_PLATE | |
| 61 | SM6040802TP | SCREW M4X0.7 L=8 | |
| 62 | SM6041602TP | SCREW M4X0.7 L=16 | |
| 63 | SM6050800SP | SCREW M5 L=8 | |
| 64 | SM6051002TP | SCREW M5X0.8 L=10 | |
| 65 | SM6051002TP | SCREW M5X0.8 L=10 | |
| 66 | SM8050602TP | SCREW M5 L=6 | |
| 67 | 40020310 | UTT_CLOSE_CAM_B | |
| 68 | 40141748 | LIFTING_LINK_SHAFT | |
| 69 | SM8060612TP | SCREW M6 L=6 | |
| 70 | B1511771K0A | WORK CLAMP CHECK HOLDER ASM. | |
| 71 | B1511771000B | PRESSER FOOT | |
| 72 | B1509761000 | WORK CLAMP CHECK SPRING | |
| 73 | B151077100B | WORKCLAMPCHECKSPRINGSETPIN(B) | |
| 74 | B1512761000 | WORK CLAMP CHECK HOLDER SPRING | |
| 75 | SS6060210SP | SCREW 3/32-56 L=1.9 | |
| 76 | B1552781000A | PRESSER | |
| 77 | SD0790203SP | HINGE SCREW D=7.94 H=2 | |
| 78 | 40004291 | PBL_GEAR_S | |
| 79 | 40004275 | PBL_GEAR_SHAFT |
Page 22 — PRESSER & FEED COMPONENTS (FOR LBH-1795AS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40067165 | LIFTING PLATE PARTS 120MM | 1 | |
| 40008646 | ASSY,WORK_CLAMP,CHECK_HOLDER_120 | 1 | |
| B151077100B | WORK_CLAMP,CHECK,SPRING,SETPIN(B) | 2 | |
| B1509761000 | WORK_CLAMP CHECK SPRING | 2 | |
| 40008647 | WORK_CLAMP,CHECK_HOLDER_120 | 1 | |
| 40008638 | WORK_CLAMP_CHECK_HOLDER_SPRING B | 1 | |
| 40006339 | WORK_CLAMP_CARRIER_120 | 1 | |
| SS6060210SP | SCREW 3/32-56 L=1.9 | 6 | |
| SD0790203SP | HINGE SCREW D=7.94 H=2 | 3 | |
| 40028682 | UTT_CLOSE_CAM_120B | 1 | |
| 40112711 | LIFTING_PLATE_120 | 1 | |
| SM6050800SP | SCREW M5 L=8 | 2 | |
| 40006335 | WORK_CLAMP_ARM_120 | 1 | |
| SM6040802TP | SCREW M4X0.7 L=8 | 2 | |
| 40008658 | WORK_CLAMP_120 | 1 |
Page 24 — NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40088990 | SUPPORT_SHAFT | 1 | |
| 40004378 | ZIGZAG ROD ASM. | 1 | |
| 40004379 | ZIGZAG ROD | ||
| 23530405 | SHAFT HOLDER LINK BUSH | ||
| 40008671 | P=JUNCTION SHAFT SELECTIVE PARTS | ||
| 40141758 | ZIGZAG_DRIVE_UNIT_BASE | 1 | |
| 40141759 | MOTOR_LEVER | 1 | |
| 40139180 | NEEDLE SWING MOTOR ASSY | 1 | |
| 40141760 | ZIGZAG_LEVER_REAR | 1 | |
| SM6041202TP | SCREW M4X0.7 L=12 | 4 | |
| SM8050502TP | SCREW M5 L=5 | 6 | |
| SM6061802TP | SCREW M6 L=18 | 1 | |
| 40004218 | FRAME SUPPORT PLATE ASM. | 1 | |
| 13706403 | NEEDLE BAR THREAD GUIDE | 1 | |
| SM7030550TP | SCREW M3 L=4.5 | 1 | |
| MDP5J0B1100 | NEEDLE DPX5 #11J | 1 | |
| CS1501181TP | THRUST COLLAR D=15 W=11 | 1 | |
| SM8050502TP | SCREW M5 L=5 | 2 | |
| SM80606A2TP | SCREW M6 L=6 | 4 | |
| SM6061202TP | SCREW M6 L=12 | 3 | |
| 40004224 | ZIGZAG LEVER SHAFT ASM. | 1 | |
| NM6050001SP | NUT M5 | ||
| 40004373 | ZIGZAG LEVER SHAFT | ||
| 40004374 | ZIGZAG_STUD | ||
| 40004216 | BUSHING | 1 | |
| 40004217 | BUSHING REAR | 1 | |
| 40004209 | NEEDLE_BAR_ROD | 1 | |
| B1414232000 | SQUARE BLOCK | 1 | |
| 40004222 | NEEDLE_BAR_FRAME_ASSY | 1 | |
| 40004212 | NEEDLE_BAR_FRAME | ||
| 40004213 | NEEDLE BAR METAL | ||
| SM6040750TP | SCREW M4 L=7 | 1 | |
| 40004215 | NEEDLE BAR | 1 | |
| 40004214 | NEEDLE_BAR_CONNECTION | 1 | |
| SM6040502TP | SCREW M4X0.7 L=5 | 1 |
Page 26 — NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| RE0300000K0 | E-RING 3 | 1 | |
| RE0300000K0 | E-RING 3 | 1 | |
| EA9500B0100 | CABLE BAND | 1 | |
| 40004293 | UTT BASE PLATE | 1 | |
| NM6050001SP | NUT M5 | 4 | |
| WP0430801SC | WASHER 4.3X9X0.8 | 1 | |
| SL4031091SC | SCREW M3 L=10 | 1 | |
| SD0600266TP | SHOULDER SCREW D=6 H=2.6 | 1 | |
| SM6040600SP | SCREW M4 L=6 | 2 | |
| SM6040602TP | SCREW M4 L=6 | 2 | |
| SM6040860TP | SCREW M4 L=8 | 1 | |
| SM6040802TP | SCREW M4X0.7 L=8 | 4 | |
| SM6041200SP | SCREW M4 L=12 | 2 | |
| SM6050652TP | HEXAGON SOCKET HEAD SCREW M5X6 | 2 | |
| SM6050800SP | SCREW M5 L=8 | 2 | |
| SM6050802TP | SCREW M5X0.8 L=8 | 2 | |
| 40004400 | ASSY UTT RELEASE ARM B | 1 | |
| SM6040602TP | SCREW M4 L=6 | 1 | |
| SM8050412TP | SCREW M5 L=4 | 2 | |
| SM8050502TP | SCREW M5 L=5 | 4 | |
| SD0600326TP | SHOULDER SCREW D=6 H=3.2 | 4 | |
| SD0800406TP | SHOULDER SCREW D=8 H=4 | 1 | |
| SD080061TP | SHOULDER SCREW D=8 H=15 | 3 | |
| 11272507 | SPRING | 1 | |
| CS0800881TP | THRUST COLLAR | 1 | |
| 40004235 | UTT ARM A | 1 | |
| 40004238 | UTT_ARM_B | 1 | |
| 40101641 | ASSY_UTT_CAM_ARM | 2 | |
| 40004254 | UTT CAM ROLLER | 1 | |
| 40101638 | UTT_CAM_ROLLER_SHAFT | 1 | |
| 40101642 | UTT_CAM_ARM | 1 | |
| NM6040000SN | NUT M4 | 1 | |
| 40004264 | UTT RELEASE LEVER BASE | 1 | |
| 40004265 | UTT RELEASE LEVER SHAFT | 1 | |
| 40141774 | SENSOR_PLATE_UTT | 1 | |
| 40004296 | UTT_SUPPORT_ARM_SPRING | 1 | |
| 40004294 | UTT_SUPPORT_SHAFT | 1 | |
| 40004248 | UTT_SUSPENSION SCREW 4 | 2 | |
| 40004252 | UTT_SUSPENSION SCREW 9 | 1 | |
| 40004247 | UTT SUSPENSION SHOULDER SCREW | 1 | |
| 40004244 | UTT THREAD PULLING LINK A | 1 | |
| 40004245 | UTT THREAD PULLING LINK B | 1 | |
| 40004236 | UTT X-CAM | 1 | |
| 40004297 | UTT Y-DRIVE ROLLER | 1 | |
| 40004298 | UTT Y-DRIVE SHAFT | 1 | |
| 40140040 | UTT TRIM MOTOR ASSY | 1 | |
| HD00057000A | PHOTO SENSOR | 1 |
Page 28 — NEEDLE THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40028634 | ASSY_UTT_RELEASE_LEVER_B | |
| 49 | 40142166 | ASSY_UTT_DRIVE_CAM | |
| 50 | 40004240 | ASSY_UTT_THREAD PULLING ARM | |
| 51 | 40015702 | UTT_RATCH_PLATE_B | |
| 52 | 40004232 | ASSY_UTT_SUPPORT_ARM | |
| 53 | WP0431005SP | PLAIN WASHER 4.3X12X1 | |
| 54 | 40015674 | UTT_RATCH_STOPPER | |
| 55 | SM6040602TP | SCREW M4 L=6 | |
| 56 | WP0550800SP | WASHER 5.5X10X0.8 | |
| 57 | NM6050001SP | NUT M5 | |
| 58 | SM6040602TP | SCREW M4 L=6 | |
| 59 | SM6040600SP | SCREW M4 L=6 | |
| 60 | SM6050802TP | SCREW M5X0.8 L=8 | |
| 61 | 40028636 | UTT_GUIDE_SHAFT_B | |
| 62 | 40004249 | UTT SUSPENSION PLATE | |
| 63 | 40004243 | UTT THREAD PULLING LEVER | |
| 64 | 40004246 | UTT THREAD PULLING SHAFT | |
| 65 | 40004250 | UTT TRIMMER CLOSE SPRING | |
| 66 | 40004297 | UTT Y-DRIVE ROLLER | |
| 67 | 40004298 | UTT Y-DRIVE SHAFT | |
| 68 | SM6051202TP | SCREW M5X0.8 L=12 | |
| 69 | MAZ16013000 | BUTTON SUPPORT LEVER SPRING | |
| 70 | 40004255 | ASSY UTT TRIMMER | |
| 71 | 40004294 | UTT RELEASE ARM A |
Page 30 — BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| HX00150000A | CABLE CLAMP | 1 | |
| 40142170 | ASSY,BTT,DRIVE,CAM | 1 | |
| 40004336 | ASSY,BTT,DRIVE,LEVER | 1 | |
| 40004329 | BTT,DRIVE,LINK | 1 | |
| 40141778 | BTT,DRIVE,UNIT,BASE | 1 | |
| 40101649 | BTT,RELEASE,LEVER | 1 | |
| 40004343 | BTT,RELEASE,LINK,F | 1 | |
| 40004344 | BTT,RELEASE,LINK,R | 1 | |
| 13737408 | LINK,ROD | 1 | |
| NM6040001SD | NUT M4 | 2 | |
| NM6050001SP | NUT M5 | 1 | |
| 40140041 | DT TRIM MOTOR ASSY | 1 | |
| SL4031091SC | SCREW M3 L=10 | 1 | |
| SM6040602TP | SCREW M4 L=6 | 2 | |
| SM6040802TP | SCREW M4X0.7 L=8 | 4 | |
| SM8050412TP | SCREW M5 L=4 | 2 | |
| SM9040700SP | HEXAGONAL BOLT | 1 | |
| 40141779 | SENSOR,PLATE,BTT | 1 | |
| HD00057000A | PHOTO SENSOR | 1 | |
| SD0801006TP | SHOULDER SCREW D=8 H=10 | 2 | |
| 40004299 | STOPPER,PIN | 1 | |
| 40004254 | UTT,CAM,ROLLER | 2 | |
| 40101638 | UTT,CAM,ROLLER,SHAFT | 1 | |
| SD0800296TP | SHOULDER SCREW D=8 H=2.9 | 2 | |
| SM6040600SP | SCREW M4 L=6 | 2 | |
| WP0430801SC | WASHER 4.3X9X0.8 | 2 | |
| 40021998 | THROAT_PLATE_BASE_UNIT | 1 | |
| 40022323 | BT_CLAMP_B | ||
| 40004309 | BT_CLAMP_LEVER | ||
| 40022322 | BT_PULLER_B | ||
| 40004321 | ASSY,BT,RELEASE,ARM | ||
| 40004308 | BT_TRIMMER,LINK | ||
| 40029613 | CLAMP,SPRING | ||
| B1623180000 | WASHER | ||
| B3013141H0A | WASHER | ||
| 40004311 | BT_TRIMMER | ||
| WP0431005SP | PLAIN WASHER 4.3X12X1 | ||
| WP0451016SP | WASHER 4.5X20X1 | ||
| 40004306 | BTT_LEVER | ||
| SM6040450TP | SCREW M4 L=4 | ||
| SM6040450TP | SCREW M4 L=4 | ||
| SD0250101SP | HINGE SCREW | ||
| SD0500166TP | SHOULDER SCREW D=5 H=1.6 | ||
| SD0500167TP | SHOULDER SCREW D=5 H=1.6 | ||
| 40004327 | SUSPENSION_SCREW | ||
| 40004301 | ASSY_THROAT_PLATE_BASE | ||
| 40004324 | OIL_SHIELD |
Page 31 — BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 71 | 71 | BRACKET | |
| 68 | 68 | SCREW | |
| 62 | 62 | WASHER | |
| 69 | 69 | SPRING PIN | |
| 65 | 65 | LEVER | |
| 2 | 2 | COVER | |
| 16 | 16 | SCREW | |
| 63 | 63 | SPRING | |
| 53 | 53 | BRACKET | |
| 57 | 57 | SCREW | |
| 73 | 73 | BRACKET | |
| 66 | 66 | SHAFT | |
| 52 | 52 | HOLDER | |
| 56 | 56 | SCREW | |
| 67 | 67 | SPRING | |
| 64 | 64 | LEVER | |
| 17 | 17 | BRACKET | |
| 20 | 20 | SCREW | |
| 22 | 22 | WASHER | |
| 3 | 3 | BRACKET | |
| 21 | 21 | BRACKET | |
| 4 | 4 | BRACKET | |
| 9 | 9 | BRACKET | |
| 23 | 23 | SCREW | |
| 59 | 59 | SCREW | |
| 6 | 6 | LEVER | |
| 10 | 10 | BRACKET | |
| 24 | 24 | WASHER | |
| 7 | 7 | BRACKET | |
| 8 | 8 | BRACKET | |
| 25 | 25 | SCREW | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SCREW | |
| 13 | 13 | SCREW | |
| 75 | 75 | BRACKET | |
| 11 | 11 | NUT | |
| 14 | 14 | SCREW | |
| 12 | 12 | BRACKET | |
| 15 | 15 | SCREW | |
| 51 | 51 | BRACKET | |
| 70 | 70 | BRACKET | |
| 72 | 72 | SCREW | |
| 60 | 60 | SCREW | |
| 48 | 48 | SCREW | |
| 49 | 49 | PLATE | |
| 47 | 47 | PLATE | |
| 27 | 27 | PLATE | |
| 61 | 61 | SCREW | |
| 46 | 46 | PLATE | |
| 42 | 42 | SCREW | |
| 31 | 31 | BRACKET | |
| 37 | 37 | WASHER | |
| 40 | 40 | NUT | |
| 36 | 36 | LEVER | |
| 41 | 41 | SCREW | |
| 39 | 39 | BRACKET | |
| 35 | 35 | BRACKET | |
| 32 | 32 | LEVER | |
| 43 | 43 | SCREW | |
| 44 | 44 | WASHER | |
| 30 | 30 | BRACKET | |
| 29 | 29 | BRACKET | |
| 34 | 34 | WASHER | |
| 45 | 45 | SPRING | |
| 33 | 33 | SPRING | |
| 28 | 28 | LEVER | |
| 38 | 38 | SCREW | |
| 1 | 1 | BRACKET | |
| 74 | 74 | SCREW | |
| 5 | 5 | PLATE | |
| 55 | 55 | BRACKET | |
| 54 | 54 | LEVER | |
| 58 | 58 | SCREW | |
| 50 | 50 | SHAFT | |
| 70 | 70 | BRACKET |
Page 32 — BOBBIN THREAD TRIMMER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM1030400SP | SCREW M3 L=4 | 2 | |
| 40027553 | THROAT_PLATE(1790S5) | ||
| 40011205 | STUD | ||
| WP0430800SC | WASHER M4 | ||
| 40004345 | PICKER,BASE | ||
| 40004347 | PICKER,BASE,FITTNG,PLATE | ||
| 13727102 | STOPPER A | ||
| 13729306 | BOBBIN CASE POSITIONING PLATE | ||
| SM7030550TP | SCREW M3 L=4.5 | ||
| SM6040602TP | SCREW M4 L=6 | ||
| SM4041050TP | SCREW M4 L=10 | ||
| SM6040600SP | SCREW M4 L=6 | ||
| SM6041200SP | SCREW M4 L=12 | ||
| SM6040450TP | SCREW M4 L=4 | ||
| SD0800296TP | SHOULDER SCREW D=8 H=2.9 | ||
| 40011327 | PICKER,SPRING | ||
| 40004346 | PICKER | ||
| 40004348 | PICKER ACTUATING LEVER | ||
| NM6040001SD | NUT M4 | ||
| SD0801006TP | SHOULDER SCREW D=8 H=10 | ||
| 40004327 | SUSPENSION_SCREW | ||
| 40004299 | STOPPER,PIN | ||
| 40141802 | OIL TANK | ||
| 40004349 | PICKER,ACTUATING_L_LINK | ||
| SL6040892TN | SCREW | ||
| 40004328 | PICKER,BASE,STOPPER | ||
| SL6041292TN | SCREW | ||
| SM6050802TP | SCREW M5X0.8 L=8 |
Page 33 — CLOTH CUTTING KNIFE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SCREW | |
| 2 | 2 | MOTOR | |
| 3 | 3 | SCREW | |
| 4 | 4 | BRACKET | |
| 5 | 5 | HOUSING | |
| 6 | 6 | SCREW | |
| 7 | 7 | BEARING | |
| 8 | 8 | HOLDER | |
| 9 | 9 | SPRING | |
| 10 | 10 | SCREW | |
| 11 | 11 | SHAFT | |
| 12 | 12 | COLLAR | |
| 13 | 13 | LEVER | |
| 14 | 14 | SCREW | |
| 15 | 15 | WASHER | |
| 16 | 16 | WASHER | |
| 17 | 17 | PIN | |
| 18 | 18 | WASHER | |
| 19 | 19 | BLOCK | |
| 20 | 20 | SCREW | |
| 21 | 21 | SCREW | |
| 22 | 22 | SCREW | |
| 23 | 23 | WASHER | |
| 24 | 24 | SCREW | |
| 25 | 25 | HOLDER | |
| 26 | 26 | SCREW | |
| 27 | 27 | SLEEVE | |
| 28 | 28 | CYLINDER | |
| 29 | 29 | ROD | |
| 30 | 30 | BRACKET | |
| 31 | 31 | SCREW |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SM6051202TP | SCREW M5X0.8 L=12 | 4 | |
| 40139183 | CLOTH CUT MOTOR ASSY | 1 | |
| SL6041492TN | SCREW | 4 | |
| 40141781 | MOTOR_BASE_A | 1 | |
| 40141780 | MOTOR_BASE_B | 1 | |
| SL6061492TN | BOLT | 2 | |
| SB1120003C0 | BEARING | 1 | |
| 40141782 | KNIFE_DRIVING_BLOCK | 1 | |
| SM8050612TP | SCREW M5X6 | 3 | |
| SM6051202TP | SCREW M5X0.8 L=12 | 1 | |
| 40142163 | KNIFE_DRIVING_ASSY | 1 | |
| 40142164 | KNIFE_DRIVING_LINK_ASSY | ||
| 40141783 | KNIFE_DRIVING_LINK_COMBINATION | 1 | |
| 40008671 | P=JUNCTION SHAFT SELECTIVE | ||
| SB1040008C0 | BEARING | 2 | |
| 40010489 | AT_PIVOT_SCREW_WASHER | 1 | |
| 40141786 | SUPPORT_SHAFT | 1 | |
| 40042089 | THRUST WASHER | 2 | |
| 40141785 | KNIFE_BAR_BRACKET | 1 | |
| SM8050612TP | SCREW M5X6 | 1 | |
| SM6051402TP | SCREW M5X0.8 L=14 | 1 | |
| B2702047L00A | KNIFE 1/2 | 1 | |
| WP043080TSC | WASHER M4 | 1 | |
| SM9040700SP | HEXAGONAL BOLT | 1 | |
| 40141787 | SUPPORT_GUIDE | 2 | |
| SM6041002TP | SCREW M4 L=10 | 1 | |
| 40004398 | KNIFE_BAR_BUSH | 1 | |
| 40040276 | KNIFE_BAR_LOWER_BUSHING | 1 | |
| 40004394 | KNIFE BAR | 1 | |
| 40004396 | KNIFE BAR BASE | 1 | |
| SM6061202TP | SCREW M6 L=12 | 1 | |
| 40004393 | KNIFE FITTING BASE | 1 |
Page 35 — TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | TABLE TOP | ||
| 2 | LEG | ||
| 3 | CONTROL BOX | ||
| 4 | BRACKET | ||
| 5 | SCREW | ||
| 6 | BRACKET | ||
| 7 | FRAME | ||
| 8 | BRACKET | ||
| 9 | BRACKET | ||
| 10 | MOTOR | ||
| 11 | BRACKET | ||
| 12 | BRACKET | ||
| 13 | BRACKET | ||
| 14 | BRACKET | ||
| 15 | BRACKET | ||
| 16 | BRACKET | ||
| 17 | BRACKET | ||
| 18 | BRACKET | ||
| 19 | BRACKET | ||
| 20 | BRACKET | ||
| 21 | BRACKET |
Page 36 — TABLE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40142966 | TABLE | 1 | |
| ST9053511SR | TAPPING SCREW M5X35 | 4 | |
| 11155108 | DRAWER | 1 | |
| 11155207 | DRAWER SUPPORT | 2 | |
| SK3311600SC | WOOD SCREW D=3.1 L=16 | 6 | |
| D8204555D00 | DRAWER STOPPER | 1 | |
| 11157567 | T LEG JUNCTION | 1 | |
| 40094262 | PEDAL SENSOR BASE ASSY | 1 | |
| 40094259 | PEDAL SENSOR ASM. | 1 | |
| 40094260 | SENSOR COIL HOLD ASSY | 1 | |
| 40093423 | SENSOR BRACKET | 1 | |
| SL4041091SC | SCREW M4 L=10 | 3 | |
| KX000000210 | SADDLE TYPE TIE MOUNT | 1 | |
| KX000000230 | RELEASIBLE CABLE TIE | 1 | |
| SM4051001SC | SCREW M5 L=10 | 1 | |
| WS0820002KR | SPRING WASHER M8 | 2 | |
| NM6080002SC | NUT M8 | 2 | |
| MTSHJ100003 | BOLT | 2 | |
| WP0851846SC | WASHER 8.5X22.0X1.8 | 2 | |
| SL4051291SC | SCREW M5X0.8 L=12 | 2 | |
| 40042134 | CONNECING ROD ASSY | 1 |
Page 37 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | OPERATION BOX COMPONENTS | |
| 2 | 2 | ACCESSORIES OF A CONTROL BOX | |
| 3 | 3 | SCREW |
Page 38 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40141333 | LBH OPERATION PANEL ASSY | ||
| 40141334 | LBH OPERATION PANEL ASSY CE | ||
| SK3382001SE | SCREW D=3.8 L=20 | 4 |
Page 39 — CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 50 | 50 | SCREW | |
| 46 | 46 | CONTROL BOX | |
| 52 | 52 | SCREW | |
| 60 | 60 | SCREW | |
| 61 | 61 | SWITCH | |
| 59 | 59 | WASHER | |
| 63 | 63 | NUT | |
| 53 | 53 | WASHER | |
| 54 | 54 | WASHER | |
| 55 | 55 | NUT | |
| 62 | 62 | BRACKET | |
| 11 | 11 | COVER | |
| 12 | 12 | SCREW | |
| 5 | 5 | BRACKET | |
| 6 | 6 | BRACKET | |
| 22 | 22 | SCREW | |
| 15 | 15 | BRACKET | |
| 16 | 16 | BRACKET | |
| 30 | 30 | SCREW | |
| 9 | 9 | BRACKET | |
| 10 | 10 | BRACKET | |
| 44 | 44 | COVER | |
| 38 | 38 | SCREW | |
| 37 | 37 | SCREW | |
| 23 | 23 | COVER | |
| 24 | 24 | SCREW | |
| 27 | 27 | SHAFT | |
| 25 | 25 | SCREW | |
| 26 | 26 | SHAFT | |
| 13 | 13 | COVER | |
| 14 | 14 | SCREW | |
| 17 | 17 | BOX | |
| 18 | 18 | SCREW | |
| 35 | 35 | LABEL | |
| 36 | 36 | BRACKET | |
| 28 | 28 | BRACKET | |
| 29 | 29 | SCREW | |
| 20 | 20 | SCREW | |
| 19 | 19 | BRACKET | |
| 21 | 21 | SHAFT | |
| 31 | 31 | BRACKET | |
| 32 | 32 | CLIP | |
| 4 | 4 | SCREW | |
| 41 | 41 | COVER | |
| 39 | 39 | SCREW | |
| 40 | 40 | COVER | |
| 42 | 42 | SCREW | |
| 43 | 43 | SCREW | |
| 34 | 34 | SCREW | |
| 33 | 33 | SCREW | |
| 49 | 49 | LABEL | |
| 56 | 56 | SWITCH | |
| 57 | 57 | SWITCH | |
| 47 | 47 | SCREW | |
| 48 | 48 | BRACKET | |
| 58 | 58 | SHAFT | |
| 51 | 51 | COVER |
Page 40 — CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40141500 | MC602 CTL BOX A ASM. | ||
| 40141501 | MC602 CTL BOX B ASM. | ||
| 40141502 | MC602 CTL BOX C ASM. | ||
| WP0430800SC | WASHER M4 | ||
| 40143989 | FRAME B | ||
| 40143988 | FRAME A | ||
| 40115874 | FAN PLATE | ||
| SL4040881SC | SCREW M4 L=8 | ||
| 40115876 | PLATE B | ||
| SL4040881SC | SCREW M4 L=8 | ||
| SL4040881SC | SCREW M4 L=8 | ||
| 40115879 | FAN COVER | ||
| 40138920 | MAIN PCB ASSY | ||
| SL4040881SC | SCREW M4 L=8 | ||
| 40105465 | FLT-T PCB ASSY | ||
| 40105475 | FLT-CE PCB ASSY | ||
| 40111214 | FAN MOTOR ASSY | ||
| SL4042091SC | SCREW M4X0.7 L=20 | ||
| KX000000260 | SADDLE TYPE TIE MOUNT | ||
| SL4040881SC | SCREW M4 L=8 | ||
| HX00292000A | CONNECTING PARTS | ||
| HX0039000M | SPACER | ||
| 40142267 | SDC PCB ASSY | ||
| SL4040881SC | SCREW M4 L=10 | ||
| SL4040881SC | SCREW M4 L=8 | ||
| 40115877 | MAIN PLATE | ||
| 40143990 | STUD | ||
| 40115878 | PLATE C | ||
| SL4040881SC | SCREW M4 L=8 | ||
| SL4040881SC | SCREW M4 L=8 | ||
| HX00222000D | WIRE SADDLE | ||
| KX000000320 | BUSH | ||
| SL4041281SC | SCREW M4X0.7 L=12 | ||
| M8002430000 | STOPPER | ||
| 40114398 | MAIN COOL SHEET | ||
| 40114136 | COVER | ||
| SL4040881SC | SCREW M4 L=8 | ||
| SL4030881SC | SCREW M3 L=8 | ||
| CM300100001 | LABEL | ||
| CM300400602 | VOLTAGE CAUTION LABEL L=25 | ||
| CM300100402 | VOLTAGE DANGER LABEL 3(SMALL) | ||
| CM600100101 | WEEE MARK LABEL S | ||
| 40116677 | GOST SAFTY LABEL S | ||
| EA9500B0100 | CABLE BAND |
Page 41 — CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|

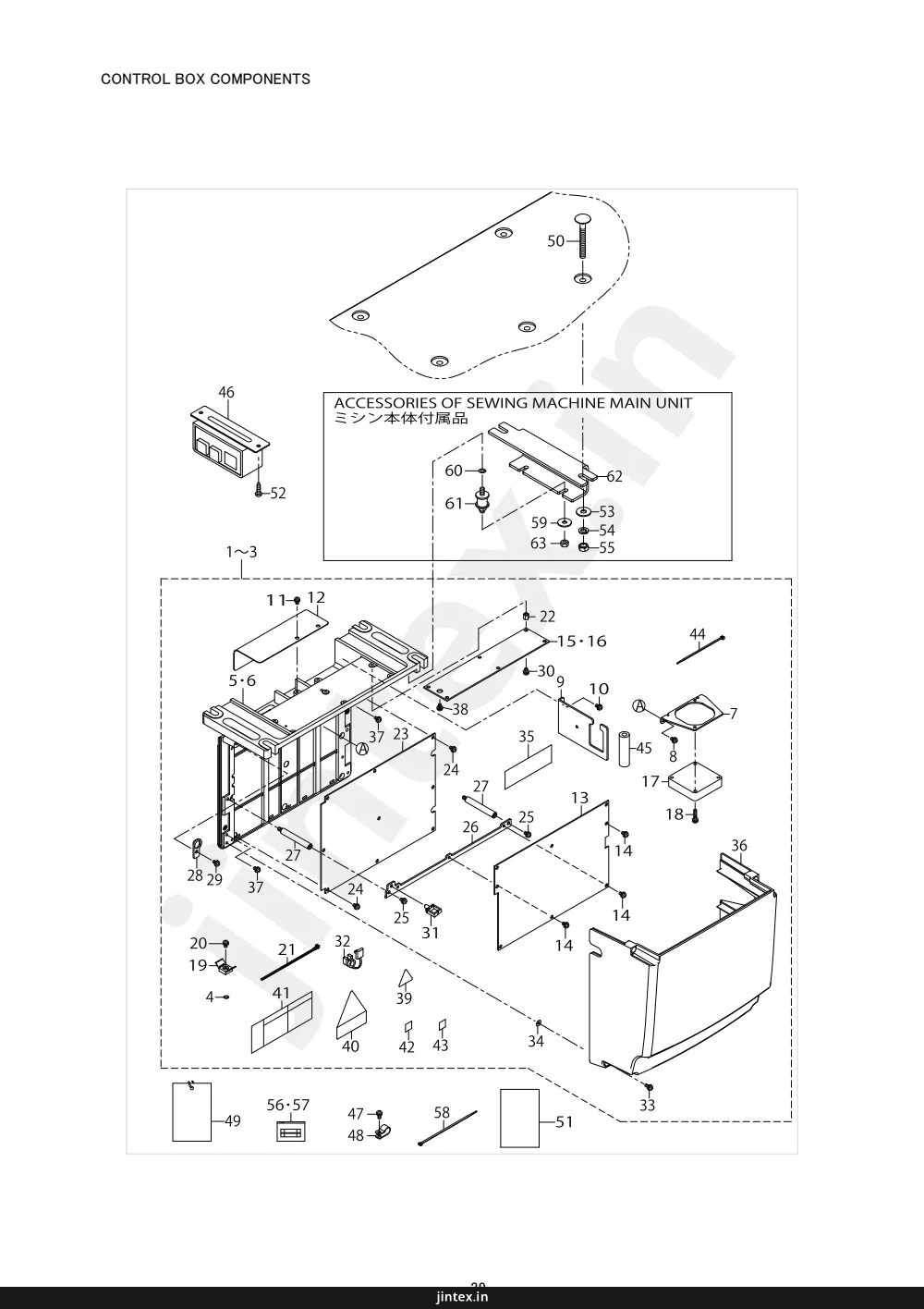

| 46 | CONTROL BOX COMPONENTS | ||
| 52 | SCREW | ||
| 1~3 | ACCESSORIES OF SEWING MACHINE MAIN UNIT | ||
| 11 | PLATE | ||
| 12 | PLATE | ||
| 5-6 | COVER | ||
| 28 | BRACKET | ||
| 29 | SCREW | ||
| 37 | SCREW | ||
| 23 | COVER | ||
| 20 | BRACKET | ||
| 19 | SCREW | ||
| 4 | SCREW | ||
| 21 | SHAFT | ||
| 27 | SHAFT | ||
| 24 | SCREW | ||
| 25 | BRACKET | ||
| 31 | SWITCH | ||
| 26 | SHAFT | ||
| 32 | HOLDER | ||
| 49 | LABEL | ||
| 56 | TERMINAL | ||
| 57 | TERMINAL | ||
| 47 | SCREW | ||
| 48 | WASHER | ||
| 41 | COVER | ||
| 40 | COVER | ||
| 39 | BRACKET | ||
| 42 | SCREW | ||
| 43 | SCREW | ||
| 51 | COVER | ||
| 34 | SCREW | ||
| 33 | SCREW | ||
| 36 | BRACKET | ||
| 14 | SCREW | ||
| 13 | COVER | ||
| 25 | BRACKET | ||
| 27 | SHAFT | ||
| 35 | LABEL | ||
| 30 | SCREW | ||
| 9 | BRACKET | ||
| 10 | BRACKET | ||
| 22 | SCREW | ||
| 15 | COVER | ||
| 16 | COVER | ||
| 5-6 | COVER | ||
| 38 | SCREW | ||
| 7 | BASE | ||
| 8 | BRACKET | ||
| 45 | CYLINDER | ||
| 17 | COVER | ||
| 18 | SCREW | ||
| 50 | SCREW | ||
| 60 | SCREW | ||
| 61 | SWITCH | ||
| 59 | WASHER | ||
| 63 | NUT | ||
| 53 | WASHER | ||
| 54 | WASHER | ||
| 55 | NUT | ||
| 62 | BRACKET | ||
| 44 | COVER |
Page 42 — CONTROL BOX COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E8760452S00 | TUBE | ||
| 40113427 | POWER SWITCH | 1 | |
| SL4041091SC | SCREW M4 L=10 | 2 | |
| HX00150000D | CABLE CLIP | 2 | |
| M300451100A | VOLTAGE INDICATION CARD A | 1 | |
| MTSHJ100003 | BOLT | 4 | |
| 40126054 | CORE SET UP MANUAL | 1 | |
| SK3512001SE | WOOD SCREW D=5.1 L=20 | 2 | |
| WP0852086SC | WASHER M8 | 4 | |
| WS0820002KR | SPRING WASHER M8 | 4 | |
| NM6080002SC | NUT M8 | 4 | |
| HF0013050P0 | FUSE 5A | 1 | |
| HF003000200 | FUSE 2A (220/240V) | 1 | |
| EA9500B0200 | CABLE BAND 150 | 2 | |
| WP0651646SC | WASHER | 8 | |
| WT0640001KN | TOOTH WASHER | 1 | |
| 40165702 | RUBBER CUSHION | 4 | |
| 40142969 | RUBBER CUSHION BRKT | 2 | |
| NM6060001SC | NUT M6X1 TYPE1 | 4 |
Page 43
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 頭部内蔵基板 | ||
| 2 | INT 基板組 | ||
| 3 | 一次停止 | ||
| 4 | 糸切れ検知 | ||
| 5 | 上糸切原点センサ | ||
| 6 | 針振りエンコーダ (モータ内蔵) | ||
| 7 | 下糸切原点センサ | ||
| 8 | 送りモータエンコーダ (モータ内蔵) | ||
| 9 | 送り原点センサ | ||
| 10 | 布切メスモータエンコーダ (モータ内蔵) | ||
| 11 | カバー開閉検知センサ | ||
| 12 | 押えモータエンコーダ (モータ内蔵) | ||
| 13 | 針振りモータ | ||
| 14 | 送りモータ | ||
| 15 | 押えモータ | ||
| 16 | 上糸切モータ | ||
| 17 | 下糸切モータ | ||
| 18 | 布切メスモータ | ||
| 19 | 上糸アクチュエータ テンション | ||
| 20 | 頭部FAN | ||
| 21 | LED照明組 | ||
| 22 | LED LIGHT | ||
| 23 | 操作パネル | ||
| 24~26 | 電源SW | ||
| 27~29 | 電源SW | ||
| 31~44 | 操作パネル | ||
| 33 | ペダルSW | ||
| 34 | DPペダルSW | ||
| 35~37 | 電装BOX | ||
| 38 | MAIN 基板組 | ||
| 39 | SDC 基板組 | ||
| 40~41 | 予備入力 | ||
| 42 | 頭部アースコード | ||
| 43 | IPM550W主軸モータ |
Page 44
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40138611 | INT PCB ASSY | 1 | |
| 40005400 | PAUSE SWITCH JOINT CORD | ||
| 32002354 | SWITCH ASM. | ||
| 40003499 | THREAD BREAK DETECTOR A | ||
| 40141480 | UT TRIM SENSOR CORD ASSY | ||
| HD00057000A | PHOTO SENSOR | ||
| 40141481 | DT TRIM SENSOR CORD ASSY | ||
| HD00057000A | PHOTO SENSOR | ||
| 40141482 | FEED SENSOR CORD ASSY | ||
| HD00057000A | PHOTO SENSOR | ||
| 40141484 | COVER SENSOR RELAY CORD ASSY | ||
| 40141483 | COVER SENSOR ASSY | ||
| 40139180 | NEEDLE SWING MOTOR ASSY | ||
| 40139181 | FEED MOTOR ASSY | ||
| 40139182 | CLAMP MOTOR ASSY | ||
| 40140040 | UT TRIM MOTOR ASSY | ||
| 40140041 | DT TRIM MOTOR ASSY | ||
| 40139183 | CLOTH CUT MOTOR ASSY | ||
| 40006261 | ASSY,AT,SOLENOID | ||
| 40111214 | FAN MOTOR ASSY | ||
| 40141479 | INT CORD C ASSY | ||
| 40141478 | INT CORE B ASSY | ||
| 40141477 | INT CORD A ASSY | ||
| 40023371 | SINGLE PHASE POWER CORD ASSY | ||
| M90175800A0 | POWER CABLE ASM. | ||
| 40005390 | JE POWER CABLE ASM. | ||
| 40141487 | AC POWER CORD A ASM. | ||
| 40141488 | AC POWER CORD B ASM. | ||
| 40141489 | AC POWER CORD C ASM. | ||
| 40113427 | POWER SWITCH | ||
| 40141333 | LBH OPERATION PANEL ASSY | ||
| 40141706 | ASSY,LED DEVICE | ||
| 40094262 | PEDAL SENSOR BASE ASSY | ||
| 40003491 | ASSY,4 POSITION PEDAL | ||
| 40141500 | MC602 CTL BOX A ASM. | ||
| 40141501 | MC602 CTL BOX B ASM. | ||
| 40141502 | MC602 CTL BOX C ASM. | ||
| 40138920 | MAIN PCB ASSY | ||
| 40142267 | SDC PCB ASSY | ||
| 40105465 | FLT-T PCB ASSY | ||
| 40105475 | FLT-CE PCB ASSY | ||
| 14115554 | HEAD GROUND CABLE A ASM. | ||
| 40138137 | IPM550W MOTOR | ||
| 40141334 | LBH OPERATION PANEL ASSY CE |
Page 45
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | ACCESSORIE PARTS COMPONENTS | ||
| 4 | |||
| 23 | |||
| 5 | |||
| 12 | |||
| 32 | |||
| 21-33 | |||
| 19 | |||
| 20 | |||
| 6 | |||
| 9 | |||
| 11 | |||
| 29 | |||
| 30 | |||
| 22 | |||
| 3 | |||
| 2 | |||
| 31 | |||
| 7 | |||
| 13 | |||
| 18 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 24 | |||
| 27 | |||
| 26 | |||
| 25 | |||
| 28 |
Page 46
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22932800 | ACCESSORIE BAG | 1 | |
| 22933204 | SCREW DRIVER SMALL | 1 | |
| 22933105 | SCREW DRIVER MIDDLE | 1 | |
| 40009148 | BOBBIN | 1 | |
| MDP5J0B1102 | NEEDLE DPX5 #11J-2 | 1 | |
| SL6040892TN | BOLT | 1 | |
| CM600100201 | WEEE INFORMATION SHEET | 1 | |
| 14101208 | HEAD SUPPORT BAR | 1 | |
| SM6067052TP | HEXAGON BOLT | 4 | |
| 22502504 | THREAD GUIDE BAR | 1 | |
| D6056555B00 | RUBBER CUSHION (B) | 4 | |
| 40006323 | JUKI GREASE A TUBE | 1 | |
| 40165710 | AUXILIARY_TABLE_SET | 1 | |
| 40145523 | INSTALLING_PLATE_SET | 1 | |
| 13785803 | INSTALLING PLATE | 2 | |
| SS7110570SP | SCREW 11/64-40 L=4.8 | 4 | |
| SM6061002TP | SCREW M6 L=10 | 2 | |
| 40165711 | PAINTED_AUXILIARY_TABLE | 1 | |
| B91210120A0 | OILER ASM. | 1 | |
| MDFRX1200C0 | NEW DEFRIX OIL NO.1(200ML) | 1 | |
| B2702047M00A | KNIFE 5/8 | 1 | |
| 22933006 | SCREW DRIVER LARGE | 1 | |
| B9107761000 | THREAD PASSING INSTRUMENT | 1 | |
| 40142172 | ASSY_SAFETY_PLATE_B | 1 | |
| 40141799 | SAFETY_PLATE_BASE | 1 | |
| 40141798 | SAFETY_PLATE | 1 | |
| SL4040891SC | SCREW M4 L=8 | 2 | |
| SM6040602TP | SCREW M4 L=6 | 1 | |
| WP0612056SD | WASHER 6.1X18.5X2 | 4 | |
| NM6060001SD | NUT M6 | 8 | |
| 26234005 | VINYL COVER | 1 | |
| 13943402 | TIMING GAUGE | 1 | |
| B2702047K00A | KNIFE 3/8 | 1 | |
| 29180403 | EC PRODUCTION DECLARATION | 1 |
Page 48 — THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 40096354 | THREAD STAND ASM. | 1 |
| 2 | 40085784 | SPOOL REST ROD LOWER | 1 |
| 3 | 40085785 | SPOOL REST ROD UPPER | 1 |
| 4 | 40085786 | SPOOL REST ARM LOWER | 1 |
| 5 | 40085787 | SPOOL REST ARM UPPER | 1 |
| 6 | 40085788 | SPOOL REST | 2 |
| 7 | 40085789 | SPOOL REST CUSHION | 2 |
| 8 | 40085790 | SPOOL PIN | 2 |
| 9 | 40085791 | SPOOL RETAINER | 2 |
| 10 | 40085792 | SPOOL REST ROD JOINT | 1 |
| 11 | 40085793 | SPOOL REST ROD RUBBER CAP | 1 |
| 12 | 40085794 | THREAD GUIDE | 2 |
| 13 | 40085795 | THREAD GUIDE BUSHING | 2 |
| 14 | 40096325 | SPOOL REST ROD NUT | 1 |
| 15 | WP1612616SE | WASHER 16X30X2.6 | 2 |
| 16 | 40085796 | SPOOL REST ROD RUBBER CUSHION | 2 |
| 17 | 40096327 | SPOOL REST ARM LOWER SCREW | 1 |
| 18 | NM6050001SE | NUT M5 | 2 |
| 19 | 40096327 | SPOOL REST ARM UPPER SCREW | 1 |
| 20 | NM6050001SE | NUT M5 | 2 |
| 21 | WS0510002KN | SPRING WASHER M5 | 2 |
| 22 | WP0531001SC | WASHER M5 | 2 |
| 23 | SM4051405SE | SCREW M5 L=14 | 2 |
| 24 | NM6050001SE | NUT M5 | 2 |
Page 50 — SPECIAL SPECIFICATIONS COMPONENTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G50011980A0A | BOBBIN WINDER ASM. | 1 | |
| 40005405 | WINDER CORD ASSY | 1 | |
| B32217710A0 | BOBBIN WINDER TENSION BRACKET ASM. | 1 | |
| B3221771000 | BOBBIN WINDER TENSION BRACKET | ||
| B3219232000 | BOBBIN WINDER TENSION POST | ||
| B3214047000 | BOBBIN WINDER TENSION DISC | ||
| B3218232000 | BOBBIN WINDER TENSION SPRING | ||
| B3216047000 | BOBBIN WINDER TENSION NUT | ||
| NS6110310SP | NUT 11/64-44 | ||
| SK3452005SC | WOOD SCREW D=4.5 L=20 | 4 | |
| 40003493 | PK PEDAL JOINT CORD ASSY | 1 | |
| GPK510010B0 | PEDAL SWITCH ASM. | ||
| 40097040 | HOOK COOLING UNIT B | ||
| 40023432 | FILTER REGULATOR ASM. | ||
| PF0551060A0 | FILTER REGULATOR | ||
| PF902005000 | REGULATOR BRACKET | ||
| PJ025100003 | PLUG | ||
| PV015122000 | FINGER VALVE | ||
| 40094012 | PIPE BRACKET ASM. | ||
| BT0400251EB | URETHANE HOSE BLACK | 1.5 | |
| SK3412001SE | WOOD SCREW D=4.1 L=20 | ||
| MAO11532000 | CORD STAPLE | ||
| EA950B0100 | CABLE BAND | ||
| 40003491 | ASSY_4_POSITION_PEDAL | 1 | |
| 13731906 | SPRING | ||
| B2583210D00 | SPRING | ||
| NM6060001CP | NUT M6 | ||
| 40004360 | PEDAL FRAME | ||
| 40004361 | PEDAL_FRAME_A | ||
| 40004362 | PEDAL_FRAME_B | ||
| 40004363 | PEDAL_FRAME_GUIDE | ||
| HD00057000A | PHOTO SENSOR | ||
| SL4031091SC | SCREW M3 L=10 | ||
| SL6031042TN | SCREW | ||
| SM5040655SN | SCREW | ||
| SM6050652TP | HEXAGON SOCKET HEAD SCREW M5X6 | ||
| 40004364 | SENSOR DETECTING PLATE | ||
| SD1000646TP | SHOULDER SCREW D=10 H=6.4 | ||
| 40004299 | STOPPER PIN | ||
| 40004327 | SUSPENSION SCREW | ||
| SK3482001SE | WOOD SCREW D=4.8 L=20 | 2 |
Page 52 — SPECIAL SPECIFICATIONS COMPONENTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40006345 | RP_HOOK_ASM. | 1 | |
| 40006349 | RP_BOBBIN_CASE | 1 | |
| 13729603 | HOOK SLEEVE | 1 | |
| SS8660612TP | SCREW 1/4-40 L=6 | 4 | |
| 40006340 | WORK_CLAMP_HOLDER_SPACE | 1 | |
| SM6040450TP | SCREW M4 L=4 | 3 | |
| 40028682 | UTT_CLOSE_CAM_120B | 1 | |
| 40112711 | LIFTING_PLATE_120 | 1 | |
| SM6050800SP | SCREW M5 L=8 | 2 | |
| 40006335 | WORK_CLAMP_ARM_120 | 1 | |
| 40006339 | WORK_CLAMP_CARRIER_120 | 1 | |
| 14523252 | PRESSER FOOT 70 ASM. | 1 | |
| B1509761000 | PRESSER FITTING PLATE SPRING | 2 | |
| B1512761000 | PRESSER FOOT HOLDER SPRING | 1 | |
| 14523203 | PRESSER FOOT 70 | 1 | |
| B151077100B | PRESSER FOOT PIN B | 2 | |
| 14523708 | URETHANE PRESSER 70 | 1 | |
| 14524102 | PRESSER 70 (FLAT) | 1 | |
| 14523401 | PRESSER 70 | 1 | |
| SS6060210SP | SCREW 3/32-56 L=1.9 | 6 | |
| SD0790203SP | HINGE SCREW D=7.94 H=2 | 3 | |
| 40011319 | THROAT_PLATE_BASE_SPACER | 2 | |
| 40004326 | BTT_SPACER | 1 | |
| WP0551016SH | WASHER 5.5X13X1 | 2 | |
| 40015733 | THROAT_PLATE(S10) | 1 | |
| 40015802 | OIL_SHIELD_10 | 1 | |
| 40020010 | WORK_CLAMP_HOLDER(3-10)_ASSY | 1 | |
| 40020011 | WORK_CLAMP_HOLDER(3-10) | 1 | |
| 40008638 | WORK_CLAMP_CHECK_HOLDER_SPRING_B | 1 | |
| B151077100B | WORK CLAMP CHECK SPRING SET PIN (B) | 2 | |
| B1509761000 | WORK CLAMP CHECK SPRING | 2 | |
| 40017810 | WORK_CLAMP(3S-10) | 1 | |
| 40020014 | WORK_CLAMP_CARRIER(10X41)_CL | 1 | |
| 40020012 | WORK_CLAMP_CARRIER(10X41) | 1 | |
| CM300200001 | ATTENTION SEAL | 1 | |
| 40020013 | WORK_CLAMP_ARM(10X41) | 1 | |
| 40027554 | THROAT_PLATE(1790K5) | 1 | |
| D1511772KA0 | WORK CLAMP CHECK HOLDER ASM. | 1 | |
| B1511772000A | WORK CLAMP CHECK HOLDER | 1 | |
| B1509761000 | WORK CLAMP CHECK SPRING | 2 | |
| B151077100B | WORK CLAMP CHECK SPRING SET PIN (B) | 2 | |
| B1512761000 | WORK CLAMP CHECK HOLDER SPRING | 1 | |
| SS6060210SP | SCREW 3/32-56 L=1.9 | 2 | |
| D1508772K00 | WORK CLAMP CHECK (2K) | 1 | |
| 13782065 | HOOK COMPL. K | 1 | |
| 13782107 | HOOK TIMING GAUGE K | 1 |
Page 53
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702-047-F00 | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 2 | B2702-047-K00-A | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 3 | B2702-047-I00 | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 4 | B2702-047-L00-A | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 5 | B2702-047-V00 | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 12 | B1552-781-000-A | Presser Foot | |
| 15 | D1508-771-K00-A | Presser Foot | |
| 18 | D1511-771-KA0-A | Presser Foot | |
| 6 | B2702-047-M00-A | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 7 | B2702-047-A00 | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 8 | B2702-047-N00 | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 9 | B2702-047-P00 | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 10 | B2702-047-Q00-A | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 13 | B1552-782-000 | Presser Foot | |
| 16 | D1508-772-K00 | Presser Foot | |
| 19 | D1511-772-KA0 | Presser Foot | |
| 11 | B2702-047-S00-A | Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Ｋｎｉｆｅ | |
| 14 | B1552-783-000 | Presser Foot | |
| 17 | D1508-773-K00 | Presser Foot | |
| 20 | D1511-773-KA0 | Presser Foot | |
| 21 | B2745-771-F00 | Flat Knife | |
| 22 | B2745-771-K00 | Flat Knife | |
| 23 | B2745-771-L00 | Flat Knife | |
| 24 | B2745-771-H00 | Flat Knife | |
| 25 | B2745-771-M00 | Flat Knife | |
| 26 | B2745-771-N00 | Flat Knife | |
| 31 | B2746-771-000 | Knife Guard | |
| 32 | 137-82800 | Throat Plate | |
| 27 | B2745-771-P00 | Flat Knife | |
| 28 | B2745-771-Q00 | Flat Knife | |
| 29 | B2745-771-R00 | Flat Knife | |
| 30 | B2745-771-S00 | Flat Knife |
Page 54
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B2702047F00 | KNIFE 1/4 | 1 |
| 2 | B2702047K00A | KNIFE 3/8 | 1 |
| 3 | B2702047I00 | KNIFE (7/16) | 1 |
| 4 | B2702047L00A | KNIFE 1/2 | 1 |
| 5 | B2702047V00 | KNIFE 9/16 | 1 |
| 6 | B2702047M00A | KNIFE 5/8 | 1 |
| 7 | B2702047A00 | KNIFE 11/16 | 1 |
| 8 | B2702047N00 | KNIFE 3/4 | 1 |
| 9 | B2702047P00 | KNIFE 7/8 | 1 |
| 10 | B2702047Q00A | KNIFE 1 | 1 |
| 11 | B2702047S00A | KNIFE 1-1/4 | 1 |
| 12 | B1552781000A | PRESSER | 1 |
| 13 | B1552782000 | WORK CLAMP CHECK, 2 | 1 |
| 14 | B1552783000 | WORK CLAMP CHECK, 3 | 1 |
| 15 | D1508771K00A | LATCH WORK CLAMP CHECK | 1 |
| 16 | D1508772K00 | WORK CLAMP CHECK (2K) | 1 |
| 17 | D1508773K00 | WORK CLAMP CHECK (3K) | 1 |
| 18 | D1511771KA0A | WORK CLAMP CHECK HOLDER | 1 |
| 19 | D1511772KA0 | WORK CLAMP CHECK HOLDER | 1 |
| 20 | D1511773KA0 | WORK CLAMP CHECK HOLDER | 1 |
| 21 | B2745771F00 | KNIFE 1/4"(FLUOROCARBON) | 1 |
| 22 | B2745771K00 | KNIFE 3/8"(FLUOROCARBON) | 1 |
| 23 | B2745771L00 | KNIFE 1/2 | 1 |
| 24 | B2745771H00 | KNIFE 9/16"(FLUOROCARBON) | 1 |
| 25 | B2745771M00 | KNIFE 5/8 | 1 |
| 26 | B2745771N00 | KNIFE 3/4 | 1 |
| 27 | B2745771P00 | KNIFE 7/8"(FLUOROCARBON) | 1 |
| 28 | B2745771Q00 | KNIFE 1 | 1 |
| 29 | B2745771R00 | KNIFE 1-1/8"(FLUOROCARBON) | 1 |
| 30 | B2745771S00 | KNIFE 1-1/4 | 1 |
| 31 | B2746771000 | KNIFE GUARD | 1 |
| 32 | 13782800 | THROAT PLATE(FLUOROCARBON) | 1 |
Page 55
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | 401-42906 | ||
| 74 | HM-0003800-A0 | ||
| 75 | SL-4042091-SC | ||
| 76 | SL-4041291-SC | ||
| 14 | SB-1200027-00 | ||
| 18 | SM-80606A2-TP | ||
| 25 | 236-05207 | ||
| 34 | SB-1200008-00 | ||
| 36 | 400-83369 | ||
| 37 | 400-22363 | ||
| 38 | 400-08426 | ||
| 36 | 400-04289 | ||
| 7 | SB-1120003-00 | ||
| 15 | SB-1040008-00 | ||
| 61 | 401-47891 | ||
| 13 | 401-42171 | ||
| 18 | 400-08889 | ||
| 5 | 401-65706 | ||
| 75 | SL-4042591-SC | ||
| 74 | NM-6040001-SC | ||
| 25 | 401-50011 | ||
| 34 | SB-1200008-C0 | ||
| 36 | 401-65704 | ||
| 37 | 401-65701 | ||
| 38 | 401-65703 | ||
| 36 | 401-65700 | ||
| 7 | SB-1120003-C0 | ||
| 15 | SB-1040008-C0 | ||
| 61 | 401-65702 | ||
| 63 | NM-6060001-SC | ||
| 13 | 401-65710 | ||
| 18 | 401-65711 |
Page 57 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18 | 10006104 | 6 | |
| 10 | 22502504 | 44 | |
| 8 | 40004186 | 14 | |
| 62 | 11072402 | 8 | |
| 41 | 22528764 | 2 | |
| 9 | 40004187 | 14 | |
| 63 | 11093606 | 8 | |
| 60 | 22529473 | 8 | |
| 5 | 40004188 | 14 | |
| 3 | 11155108 | 34 | |
| 59 | 22529481 | 8 | |
| 5 | 40004194 | 16 | |
| 4 | 11155207 | 34 | |
| 3 | 22891204 | 16 | |
| 7 | 40004197 | 16 | |
| 7 | 11157567 | 34 | |
| 43 | 22918304 | 10 | |
| 8 | 40004198 | 16 | |
| 24 | 11272507 | 24 | |
| 1 | 22932800 | 44 | |
| 9 | 40004200 | 16 | |
| 43 | 13127402 | 16 | |
| 22 | 22933006 | 44 | |
| 10 | 40004201 | 16 | |
| 51 | 13700406 | 4 | |
| 3 | 22933105 | 44 | |
| 18 | 40004205 | 16 | |
| 52 | 13700505 | 4 | |
| 2 | 22933204 | 44 | |
| 39 | 40004206 | 10 | |
| 50 | 13700604 | 4 | |
| 4 | 23530405 | 22 | |
| 27 | 40004209 | 22 | |
| 62 | 13700703 | 4 | |
| 6 | 23536204 | 14 | |
| 30 | 40004212 | 22 | |
| 24 | 13703806 | 2 | |
| 26 | 23630007 | 14 | |
| 31 | 40004213 | 22 | |
| 25 | 13703905 | 2 | |
| 13 | 26230409 | 2 | |
| 34 | 40004214 | 22 | |
| 69 | 13705405 | 4 | |
| 58 | 26230409 | 8 | |
| 33 | 40004215 | 22 | |
| 14 | 13706403 | 22 | |
| 31 | 26234005 | 44 | |
| 25 | 40004216 | 22 | |
| 11 | 13710306 | 14 | |
| 28 | 26260109 | 6 | |
| 26 | 40004217 | 22 | |
| 20 | 13710405 | 14 | |
| 29 | 26260208 | 6 | |
| 13 | 40004218 | 22 | |
| 12 | 13710504 | 14 | |
| 30 | 26260307 | 6 | |
| 29 | 40004222 | 22 | |
| 54 | 13727102 | 30 | |
| 31 | 26260406 | 6 | |
| 21 | 40004224 | 22 | |
| 13 | 13729066 | 14 | |
| 32 | 26260505 | 6 | |
| 52 | 40004232 | 26 | |
| 55 | 13729306 | 30 | |
| 33 | 26260604 | 6 | |
| 37 | 40004234 | 24 | |
| 31 | 13729603 | 14 | |
| 35 | 26260802 | 6 | |
| 26 | 40004235 | 24 | |
| 3 | 13729603 | 50 | |
| 39 | 26261206 | 6 | |
| 43 | 40004236 | 24 | |
| 30 | 13729652 | 14 | |
| 40 | 26261305 | 6 | |
| 27 | 40004238 | 24 | |
| 29 | 13729769 | 14 | |
| 41 | 26261503 | 6 | |
| 50 | 40004240 | 26 | |
| 25 | 13731906 | 48 | |
| 42 | 26261602 | 6 | |
| 63 | 40004243 | 26 | |
| 9 | 13737408 | 28 | |
| 43 | 26261701 | 6 | |
| 41 | 40004244 | 24 | |
| 45 | 13782065 | 50 | |
| 34 | 29180403 | 44 | |
| 42 | 40004245 | 24 | |
| 46 | 13782107 | 50 | |
| 39 | 32002354 | 2 | |
| 64 | 40004246 | 26 | |
| 32 | 13782800 | 52 | |
| 3 | 32002354 | 42 | |
| 40 | 40004247 | 24 | |
| 15 | 13785803 | 44 | |
| 21 | 32055402 | 6 | |
| 38 | 40004248 | 24 | |
| 47 | 13922208 | 2 | |
| 34 | 40003491 | 42 | |
| 62 | 40004249 | 26 | |
| 56 | 13943303 | 4 | |
| 24 | 40003491 | 48 | |
| 65 | 40004250 | 26 | |
| 32 | 13943402 | 44 | |
| 11 | 40003493 | 48 | |
| 22 | 40004252 | 6 | |
| 8 | 14101208 | 44 | |
| 26 | 40003499 | 6 | |
| 39 | 40004252 | 24 | |
| 7 | 14115554 | 6 | |
| 4 | 40003499 | 42 | |
| 29 | 40004254 | 24 | |
| 42 | 14115554 | 42 | |
| 9 | 40004156 | 2 | |
| 22 | 40004254 | 28 | |
| 17 | 14504401 | 14 | |
| 7 | 40004157 | 2 | |
| 70 | 40004255 | 26 | |
| 15 | 14523203 | 50 | |
| 11 | 40004159 | 2 | |
| 33 | 40004264 | 24 | |
| 12 | 14523252 | 50 | |
| 44 | 40004160 | 2 | |
| 34 | 40004265 | 24 | |
| 17～19 | 14523401 | 50 | |
| 15 | 40004161 | 2 | |
| 37 | 40004267 | 16 | |
| 17～19 | 14523708 | 50 | |
| 19 | 40004171 | 10 | |
| 79 | 40004275 | 18 | |
| 17～19 | 14524102 | 50 | |
| 18 | 40004180 | 14 | |
| 51 | 40004279 | 18 | |
| 42 | 22502504 | 2 | |
| 14 | 40004185 | 10 | |
| 50 | 40004280 | 18 |
Page 58 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 48 | 40004285 | 18 | |
| 32 | 40004393 | 32 | |
| 24 | 40010534 | 10 | |
| 58 | 40004287 | 18 | |
| 29 | 40004394 | 32 | |
| 26 | 40010535 | 10 | |
| 59 | 40004288 | 18 | |
| 30 | 40004396 | 32 | |
| 27 | 40011143 | 6 | |
| 36 | 40004289 | 16 | |
| 27 | 40004398 | 32 | |
| 34 | 40011144 | 6 | |
| 78 | 40004291 | 18 | |
| 17 | 40004400 | 24 | |
| 36 | 40011145 | 6 | |
| 4 | 40004293 | 24 | |
| 24～26 | 40005390 | 42 | |
| 37 | 40011146 | 6 | |
| 71 | 40004294 | 26 | |
| 2 | 40005400 | 42 | |
| 50 | 40011205 | 30 | |
| 36 | 40004296 | 24 | |
| 2 | 40005405 | 48 | |
| 22 | 40011319 | 50 | |
| 66 | 40004297 | 24 | |
| 1 | 40006261 | 6 | |
| 63 | 40011327 | 30 | |
| 66 | 40004297 | 26 | |
| 19 | 40006261 | 42 | |
| 16 | 40011355 | 14 | |
| 67 | 40004298 | 24 | |
| 2 | 40006263 | 6 | |
| 1 | 40011517 | 10 | |
| 67 | 40004298 | 26 | |
| 3 | 40006264 | 6 | |
| 54 | 40015674 | 26 | |
| 69 | 40004299 | 28 | |
| 23 | 40006265 | 6 | |
| 51 | 40015702 | 26 | |
| 69 | 40004299 | 30 | |
| 10 | 40006307 | 10 | |
| 25 | 40015733 | 50 | |
| 39 | 40004299 | 48 | |
| 49 | 40006314 | 4 | |
| 26 | 40015802 | 50 | |
| 46 | 40004301 | 28 | |
| 21 | 40006317 | 14 | |
| 32 | 40017810 | 50 | |
| 39 | 40004306 | 28 | |
| 25 | 40006320 | 14 | |
| 27 | 40020010 | 50 | |
| 32 | 40004308 | 28 | |
| 12 | 40006323 | 44 | |
| 28 | 40020011 | 50 | |
| 29 | 40004309 | 28 | |
| 13 | 40006335 | 20 | |
| 34 | 40020012 | 50 | |
| 36 | 40004311 | 28 | |
| 10 | 40006335 | 50 | |
| 36 | 40020013 | 50 | |
| 31 | 40004321 | 28 | |
| 7 | 40006339 | 20 | |
| 33 | 40020014 | 50 | |
| 47 | 40004324 | 28 | |
| 11 | 40006339 | 50 | |
| 67 | 40020310 | 18 | |
| 23 | 40004326 | 50 | |
| 5 | 40006340 | 50 | |
| 38 | 40021933 | 6 | |
| 68 | 40004327 | 28 | |
| 1 | 40006345 | 50 | |
| 27 | 40021998 | 28 | |
| 68 | 40004327 | 30 | |
| 2 | 40006349 | 50 | |
| 11 | 40022121 | 16 | |
| 40 | 40004327 | 48 | |
| 35 | 40008423 | 10 | |
| 30 | 40022322 | 28 | |
| 73 | 40004328 | 30 | |
| 6 | 40008638 | 20 | |
| 28 | 40022323 | 28 | |
| 4 | 40004329 | 28 | |
| 29 | 40008638 | 50 | |
| 24～26 | 40023371 | 42 | |
| 3 | 40004336 | 28 | |
| 2 | 40008646 | 20 | |
| 14 | 40023432 | 48 | |
| 7 | 40004343 | 28 | |
| 5 | 40008647 | 20 | |
| 49 | 40027553 | 30 | |
| 8 | 40004344 | 28 | |
| 15 | 40008658 | 20 | |
| 37 | 40027554 | 50 | |
| 52 | 40004345 | 30 | |
| 5 | 40008671 | 22 | |
| 48 | 40028634 | 26 | |
| 64 | 40004346 | 30 | |
| 14 | 40008671 | 32 | |
| 61 | 40028636 | 26 | |
| 53 | 40004347 | 30 | |
| 57 | 40008977 | 4 | |
| 10 | 40028682 | 20 | |
| 65 | 40004348 | 30 | |
| 58 | 40008978 | 4 | |
| 7 | 40028682 | 50 | |
| 71 | 40004349 | 30 | |
| 64 | 40009037 | 4 | |
| 33 | 40029613 | 28 | |
| 28 | 40004360 | 48 | |
| 4 | 40009148 | 44 | |
| 29 | 40032269 | 10 | |
| 29 | 40004361 | 48 | |
| 15 | 40010434 | 16 | |
| 52 | 40037008 | 8 | |
| 30 | 40004362 | 48 | |
| 16 | 40010435 | 16 | |
| 28 | 40040276 | 32 | |
| 31 | 40004363 | 48 | |
| 16 | 40010489 | 32 | |
| 18 | 40042089 | 32 | |
| 37 | 40004364 | 48 | |
| 19 | 40010510 | 6 | |
| 21 | 40042134 | 34 | |
| 23 | 40004373 | 22 | |
| 6 | 40010511 | 6 | |
| 15 | 40051473 | 10 | |
| 24 | 40004374 | 22 | |
| 20 | 40010512 | 6 | |
| 16 | 40051474 | 10 | |
| 2 | 40004378 | 22 | |
| 5 | 40010514 | 6 | |
| 1 | 40067165 | 20 | |
| 3 | 40004379 | 22 | |
| 8 | 40010522 | 6 | |
| 4 | 40075297 | 16 |
Page 59 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2 | 40085784 | 46 | |
| 9 | 40115876 | 38 | |
| 1～3 | 40141501 | 38 | |
| 3 | 40085785 | 46 | |
| 26 | 40115877 | 38 | |
| 35～37 | 40141501 | 42 | |
| 4 | 40085786 | 46 | |
| 28 | 40115878 | 38 | |
| 1～3 | 40141502 | 38 | |
| 5 | 40085787 | 46 | |
| 12 | 40115879 | 38 | |
| 35～37 | 40141502 | 42 | |
| 6 | 40085788 | 46 | |
| 43 | 40116677 | 38 | |
| 45 | 40141706 | 2 | |
| 7 | 40085789 | 46 | |
| 51 | 40126054 | 40 | |
| 32 | 40141706 | 42 | |
| 8 | 40085790 | 46 | |
| 22 | 40138137 | 10 | |
| 3 | 40141709 | 2 | |
| 9 | 40085791 | 46 | |
| 43 | 40138137 | 42 | |
| 26 | 40141710 | 2 | |
| 10 | 40085792 | 46 | |
| 70 | 40138611 | 4 | |
| 27 | 40141711 | 2 | |
| 11 | 40085793 | 46 | |
| 1 | 40138611 | 42 | |
| 66 | 40141713 | 4 | |
| 12 | 40085794 | 46 | |
| 13 | 40138920 | 38 | |
| 43 | 40141714 | 2 | |
| 13 | 40085795 | 46 | |
| 38 | 40138920 | 42 | |
| 20 | 40141716 | 10 | |
| 16 | 40085796 | 46 | |
| 8 | 40139180 | 22 | |
| 27 | 40141717 | 10 | |
| 1 | 40088990 | 22 | |
| 13 | 40139180 | 42 | |
| 33 | 40141718 | 10 | |
| 11 | 40093423 | 34 | |
| 1 | 40139181 | 16 | |
| 28 | 40141719 | 10 | |
| 19 | 40094012 | 48 | |
| 14 | 40139181 | 42 | |
| 9 | 40141720 | 10 | |
| 9 | 40094259 | 34 | |
| 34 | 40139182 | 16 | |
| 6 | 40141721 | 10 | |
| 10 | 40094260 | 34 | |
| 15 | 40139182 | 42 | |
| 41 | 40141725 | 10 | |
| 8 | 40094262 | 34 | |
| 2 | 40139183 | 32 | |
| 42 | 40141726 | 10 | |
| 33 | 40094262 | 42 | |
| 18 | 40139183 | 42 | |
| 45 | 40141727 | 10 | |
| 14 | 40096325 | 46 | |
| 46 | 40140040 | 24 | |
| 46 | 40141730 | 10 | |
| 17 | 40096326 | 46 | |
| 16 | 40140040 | 42 | |
| 14 | 40141739 | 14 | |
| 19 | 40096327 | 46 | |
| 12 | 40140041 | 28 | |
| 19 | 40141740 | 14 | |
| 1 | 40096354 | 46 | |
| 17 | 40140041 | 42 | |
| 13 | 40141741 | 16 | |
| 13 | 40097040 | 48 | |
| 1･2 | 40141333 | 36 | |
| 27 | 40141742 | 16 | |
| 30 | 40101638 | 24 | |
| 31･44 | 40141333 | 42 | |
| 60 | 40141743 | 18 | |
| 23 | 40101638 | 28 | |
| 1･2 | 40141334 | 36 | |
| 12 | 40141744 | 16 | |
| 28 | 40101641 | 24 | |
| 31･44 | 40141334 | 42 | |
| 53 | 40141745 | 18 | |
| 31 | 40101642 | 24 | |
| 65 | 40141477 | 8 | |
| 57 | 40141746 | 18 | |
| 6 | 40101649 | 28 | |
| 23 | 40141477 | 42 | |
| 52 | 40141747 | 18 | |
| 15･16 | 40105465 | 38 | |
| 17 | 40141478 | 6 | |
| 68 | 40141748 | 18 | |
| 40･41 | 40105465 | 42 | |
| 22 | 40141478 | 42 | |
| 54 | 40141753 | 18 | |
| 15･16 | 40105475 | 38 | |
| 51 | 40141479 | 8 | |
| 46 | 40141754 | 16 | |
| 40･41 | 40105475 | 42 | |
| 21 | 40141479 | 42 | |
| 45 | 40141755 | 16 | |
| 6 | 40108754 | 16 | |
| 5 | 40141480 | 42 | |
| 55 | 40141756 | 18 | |
| 73 | 40111214 | 4 | |
| 7 | 40141481 | 42 | |
| 44 | 40141757 | 16 | |
| 17 | 40111214 | 38 | |
| 9 | 40141482 | 42 | |
| 6 | 40141758 | 22 | |
| 20 | 40111214 | 42 | |
| 79 | 40141483 | 4 | |
| 7 | 40141759 | 22 | |
| 11 | 40112711 | 20 | |
| 12 | 40141483 | 42 | |
| 9 | 40141760 | 22 | |
| 8 | 40112711 | 50 | |
| 11 | 40141484 | 42 | |
| 35 | 40141774 | 24 | |
| 46 | 40113427 | 40 | |
| 27～29 | 40141487 | 42 | |
| 5 | 40141778 | 28 | |
| 30 | 40113427 | 42 | |
| 27～29 | 40141488 | 42 | |
| 18 | 40141779 | 28 | |
| 36 | 40114136 | 38 | |
| 27～29 | 40141489 | 42 | |
| 5 | 40141780 | 32 | |
| 35 | 40114398 | 38 | |
| 1～3 | 40141500 | 38 | |
| 4 | 40141781 | 32 | |
| 7 | 40115874 | 38 | |
| 35～37 | 40141500 | 42 | |
| 8 | 40141782 | 32 |
Page 60 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13 | 40141783 | 32 | |
| 18 | 40165711 | 44 | |
| 31 | B2746771000 | 52 | |
| 19 | 40141785 | 32 | |
| 28 | B1414232000 | 22 | |
| 35 | B3013141H0A | 28 | |
| 17 | 40141786 | 32 | |
| 72 | B1509761000 | 18 | |
| 64 | B3214047000 | 8 | |
| 25 | 40141787 | 32 | |
| 4 | B1509761000 | 20 | |
| 6 | B3214047000 | 48 | |
| 30 | 40141788 | 16 | |
| 40 | B1509761000 | 50 | |
| 8 | B3216047000 | 48 | |
| 49 | 40141794 | 18 | |
| 73 | B151077100B | 18 | |
| 7 | B3218232000 | 48 | |
| 33 | 40141795 | 2 | |
| 3 | B151077100B | 20 | |
| 5 | B3219232000 | 48 | |
| 26 | 40141798 | 44 | |
| 41 | B151077100B | 50 | |
| 4 | B3221771000 | 48 | |
| 25 | 40141799 | 44 | |
| 71 | B1511771000B | 18 | |
| 3 | B32217710A0 | 48 | |
| 31 | 40141801 | 16 | |
| 39 | B1511772000A | 50 | |
| 23 | B9107761000 | 44 | |
| 70 | 40141802 | 30 | |
| 74 | B1512761000 | 18 | |
| 19 | B91210120A0 | 44 | |
| 17 | 40142148 | 2 | |
| 42 | B1512761000 | 50 | |
| 20 | BT0400251EB | 48 | |
| 2 | 40142152 | 10 | |
| 76 | B1552781000A | 18 | |
| 39 | CM300100001 | 38 | |
| 29 | 40142161 | 16 | |
| 12 | B1552781000A | 52 | |
| 41 | CM300100402 | 38 | |
| 11 | 40142163 | 32 | |
| 13 | B1552782000 | 52 | |
| 72 | CM300200001 | 4 | |
| 12 | 40142164 | 32 | |
| 14 | B1552783000 | 52 | |
| 35 | CM300200001 | 50 | |
| 49 | 40142166 | 26 | |
| 34 | B1623180000 | 28 | |
| 68 | CM300200003 | 4 | |
| 2 | 40142170 | 28 | |
| 28 | B1811771000 | 14 | |
| 40 | CM300400602 | 38 | |
| 24 | 40142172 | 44 | |
| 26 | B2583210D00 | 48 | |
| 71 | CM301300001 | 4 | |
| 23 | 40142267 | 38 | |
| 7 | B2702047A00 | 52 | |
| 42 | CM600100101 | 38 | |
| 39 | 40142267 | 42 | |
| 1 | B2702047F00 | 52 | |
| 7 | CM600100201 | 44 | |
| 24 | 40142752 | 14 | |
| 3 | B2702047I00 | 52 | |
| 27 | CQ202000000 | 14 | |
| 22 | 40142753 | 14 | |
| 21･33 | B2702047K00A | 44 | |
| 18 | CQ252000000 | 10 | |
| 23 | 40142754 | 14 | |
| 2 | B2702047K00A | 52 | |
| 32 | CQ252000000 | 14 | |
| 33 | 40142755 | 16 | |
| 22 | B2702047L00A | 32 | |
| 25 | CS0800881TP | 24 | |
| 47 | 40142878 | 10 | |
| 4 | B2702047L00A | 52 | |
| 31 | CS1000881TP | 10 | |
| 44 | 40142880 | 10 | |
| 21･33 | B2702047M00A | 44 | |
| 17 | CS1501181TP | 22 | |
| 18 | 40142887 | 2 | |
| 6 | B2702047M00A | 52 | |
| 15 | D1508771K00A | 52 | |
| 1 | 40142966 | 34 | |
| 8 | B2702047N00 | 52 | |
| 44 | D1508772K00 | 50 | |
| 62 | 40142969 | 40 | |
| 9 | B2702047P00 | 52 | |
| 16 | D1508772K00 | 52 | |
| 5 | 40143150 | 10 | |
| 10 | B2702047Q00A | 52 | |
| 17 | D1508773K00 | 52 | |
| 1 | 40143770 | 2 | |
| 11 | B2702047S00A | 52 | |
| 70 | D1511771KA0A | 18 | |
| 5･6 | 40143988 | 38 | |
| 5 | B2702047V00 | 52 | |
| 18 | D1511771KA0A | 52 | |
| 5･6 | 40143989 | 38 | |
| 24 | B2702210000 | 6 | |
| 38 | D1511772KA0 | 50 | |
| 27 | 40143990 | 38 | |
| 25 | B2703210000 | 6 | |
| 19 | D1511772KA0 | 52 | |
| 78 | 40145327 | 4 | |
| 21 | B2745771F00 | 52 | |
| 20 | D1511773KA0 | 52 | |
| 20 | 40145328 | 2 | |
| 24 | B2745771H00 | 52 | |
| 54 | D3162555B00 | 8 | |
| 14 | 40145523 | 44 | |
| 22 | B2745771K00 | 52 | |
| 61 | D6056555B00 | 4 | |
| 25 | 40150011 | 10 | |
| 23 | B2745771L00 | 52 | |
| 11 | D6056555B00 | 44 | |
| 37 | 40165701 | 10 | |
| 25 | B2745771M00 | 52 | |
| 6 | D8204555D00 | 34 | |
| 61 | 40165702 | 40 | |
| 26 | B2745771N00 | 52 | |
| 60 | E2002855000 | 4 | |
| 38 | 40165703 | 10 | |
| 27 | B2745771P00 | 52 | |
| 45 | E8760452S00 | 40 | |
| 36 | 40165704 | 10 | |
| 28 | B2745771Q00 | 52 | |
| 56 | EA9500B0100 | 8 | |
| 5 | 40165706 | 2 | |
| 29 | B2745771R00 | 52 | |
| 3 | EA9500B0100 | 24 | |
| 13 | 40165710 | 44 | |
| 30 | B2745771S00 | 52 | |
| 44 | EA9500B0100 | 38 |
Page 61 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23 | EA9500B0100 | EA9500B0100 | 48 |
| 58 | EA9500B0200 | EA9500B0200 | 40 |
| 1 | G50011980A0A | G50011980A0A | 48 |
| 12 | GPK510010B0 | GPK510010B0 | 48 |
| 2 | HD00057000A | HD00057000A | 16 |
| 47 | HD00057000A | HD00057000A | 24 |
| 19 | HD00057000A | HD00057000A | 42 |
| 32 | HD00057000A | HD00057000A | 48 |
| 56 | HF0013050P0 | HF0013050P0 | 40 |
| 56 | HF003000200 | HF003000200 | 40 |
| 81 | HX001500000 | HX001500000 | 4 |
| 1 | HX00150000A | HX00150000A | 28 |
| 48 | HX00150000D | HX00150000D | 40 |
| 57 | HX00151000A | HX00151000A | 8 |
| 31 | HX00220000D | HX00220000D | 38 |
| 33 | HX002550000 | HX002550000 | 14 |
| 21 | HX00292000A | HX00292000A | 38 |
| 22 | HX00339000M | HX00339000M | 38 |
| 13 | KX000000210 | KX000000210 | 34 |
| 14 | KX000000230 | KX000000230 | 34 |
| 19 | KX000000260 | KX000000260 | 38 |
| 32 | KX000000320 | KX000000320 | 38 |
| 54 | KX000000380 | KX000000380 | 4 |
| 49 | M300451100A | M300451100A | 40 |
| 34 | M8002430000 | M8002430000 | 38 |
| 24~26 | M90175800A0 | M90175800A0 | 42 |
| 22 | MAO11532000 | MAO11532000 | 48 |
| 69 | MAZ16013000 | MAZ16013000 | 26 |
| 20 | MDFRX1200C0 | MDFRX1200C0 | 44 |
| 16 | MDP5J0B1100 | MDP5J0B1100 | 22 |
| 5 | MDP5J0B1102 | MDP5J0B1102 | 44 |
| 18 | MTSHJ100003 | MTSHJ100003 | 34 |
| 53 | MTSHJ100003 | MTSHJ100003 | 40 |
| 6 | NM6030001SD | NM6030001SD | 2 |
| 32 | NM6040000SN | NM6040000SN | 24 |
| 74 | NM6040001SC | NM6040001SC | 2 |
| 74 | NM6040001SD | NM6040001SD | 4 |
| 66 | NM6040001SD | NM6040001SD | 28 |
| 66 | NM6050001SE | NM6050001SE | 46 |
| 24 | NM6050001SP | NM6050001SP | 22 |
| 57 | NM6050001SP | NM6050001SP | 24 |
| 40 | NM6050001SP | NM6050001SP | 26 |
| 11 | NM6050001SP | NM6050001SP | 28 |
| 27 | NM6060001CP | NM6060001CP | 48 |
| 63 | NM6060001SC | NM6060001SC | 40 |
| 53 | NM6060001SD | NM6060001SD | 4 |
| 30 | NM6060001SD | NM6060001SD | 44 |
| 17 | NM6080002SC | NM6080002SC | 34 |
| 55 | NM6080002SC | NM6080002SC | 40 |
| 8 | NM6100001SD | NM6100001SD | 10 |
| 61 | NS6110310SP | NS6110310SP | 8 |
| 9 | NS6110310SP | NS6110310SP | 48 |
| 15 | PF0551060A0 | PF0551060A0 | 48 |
| 16 | PF902005000 | PF902005000 | 48 |
| 17 | PJ025100003 | PJ025100003 | 48 |
| 18 | PV015122000 | PV015122000 | 48 |
| 4 | RC0100001KP | RC0100001KP | 10 |
| 44 | RC0560711KP | RC0560711KP | 6 |
| 4 | RC1700001KP | RC1700001KP | 6 |
| 7 | RC2791218KP | RC2791218KP | 14 |
| 3 | RC3781518KP | RC3781518KP | 10 |
| 2 | RE0300000K0 | RE0300000K0 | 24 |
| 45 | RE0400000K0 | RE0400000K0 | 6 |
| 42 | RE0500000K0 | RE0500000K0 | 16 |
| 15 | SB1040008C0 | SB1040008C0 | 32 |
| 2 | SB110000600 | SB110000600 | 14 |
| 7 | SB110000700 | SB110000700 | 10 |
| 7 | SB1120003C0 | SB1120003C0 | 32 |
| 1 | SB112001600 | SB112001600 | 14 |
| 3 | SB115000200 | SB115000200 | 14 |
| 4 | SB115001500 | SB115001500 | 14 |
| 34 | SB1200008C0 | SB1200008C0 | 10 |
| 56 | SB307000200 | SB307000200 | 18 |
| 47 | SB408000100 | SB408000100 | 16 |
| 14 | SB710000600 | SB710000600 | 16 |
| 42 | SD0250101SP | SD0250101SP | 28 |
| 43 | SD0500166TP | SD0500166TP | 28 |
| 44 | SD0500167TP | SD0500167TP | 28 |
| 8 | SD0600266TP | SD0600266TP | 24 |
| 21 | SD0600326TP | SD0600326TP | 24 |
| 77 | SD0790203SP | SD0790203SP | 18 |
| 9 | SD0790203SP | SD0790203SP | 20 |
| 21 | SD0790203SP | SD0790203SP | 50 |
| 62 | SD0800296TP | SD0800296TP | 28 |
| 62 | SD0800296TP | SD0800296TP | 30 |
| 35 | SD0800326TP | SD0800326TP | 16 |
| 22 | SD0800406TP | SD0800406TP | 24 |
| 67 | SD0801006TP | SD0801006TP | 28 |
| 67 | SD0801006TP | SD0801006TP | 30 |
| 23 | SD0801506TP | SD0801506TP | 24 |
| 38 | SD1000646TP | SD1000646TP | 48 |
| 5 | SK3311600SC | SK3311600SC | 34 |
| 3 | SK3382001SE | SK3382001SE | 36 |
| 21 | SK3412001SE | SK3412001SE | 48 |
| 10 | SK3452000SC | SK3452000SC | 48 |
| 41 | SK3482001SE | SK3482001SE | 48 |
| 48 | SK3512001SE | SK3512001SE | 40 |
| 80 | SL4030881SC | SL4030881SC | 4 |
| 38 | SL4030881SC | SL4030881SC | 38 |
| 19 | SL4031091SC | SL4031091SC | 16 |
| 7 | SL4031091SC | SL4031091SC | 24 |
| 13 | SL4031091SC | SL4031091SC | 28 |
| 33 | SL4031091SC | SL4031091SC | 48 |
| 37 | SL4040881SC | SL4040881SC | 38 |
| 27 | SL4040891SC | SL4040891SC | 44 |
| 24 | SL4041081SC | SL4041081SC | 38 |
| 12 | SL4041091SC | SL4041091SC | 34 |
| 47 | SL4041091SC | SL4041091SC | 40 |
| 33 | SL4041281SC | SL4041281SC | 38 |
| 18 | SL4042091SC | SL4042091SC | 38 |
| 75 | SL4042591SC | SL4042591SC | 4 |
| 20 | SL4051291SC | SL4051291SC | 34 |
| 34 | SL6031042TN | SL6031042TN | 48 |
| 63 | SL6040892TN | SL6040892TN | 2 |
| 63 | SL6040892TN | SL6040892TN | 4 |
| 72 | SL6040892TN | SL6040892TN | 30 |
| 6 | SL6040892TN | SL6040892TN | 44 |
| 74 | SL6041292TN | SL6041292TN | 30 |
| 3 | SL6041492TN | SL6041492TN | 32 |
| 6 | SL6061492TN | SL6061492TN | 32 |
| 19 | SM0040801SC | SM0040801SC | 2 |
| 53 | SM0050801SC | SM0050801SC | 8 |
| 9 | SM0860400SN | SM0860400SN | 6 |
| 48 | SM1030400SP | SM1030400SP | 30 |
| 28 | SM4040655SP | SM4040655SP | 2 |
| 58 | SM4041050TP | SM4041050TP | 30 |
| 15 | SM4051001SC | SM4051001SC | 34 |
| 16 | SM4051055SP | SM4051055SP | 2 |
| 23 | SM4051405SE | SM4051405SE | 46 |
| 12 | SM4051655SP | SM4051655SP | 2 |
| 28 | SM5040550TP | SM5040550TP | 16 |
| 47 | SM5040655SN | SM5040655SN | 6 |
| 35 | SM5040655SN | SM5040655SN | 48 |
Page 62
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23 | SM6031402TP | SM6031402TP | |
| 61 | SM6040450TP | SM6040450TP | |
| 61 | SM6040450TP | SM6040450TP | |
| 6 | SM6040450TP | SM6040450TP | |
| 41 | SM6040502TP | SM6040502TP | |
| 35 | SM6040502TP | SM6040502TP | |
| 59 | SM6040600SP | SM6040600SP | |
| 59 | SM6040600SP | SM6040600SP | |
| 59 | SM6040600SP | SM6040600SP | |
| 59 | SM6040600SP | SM6040600SP | |
| 82 | SM6040602TP | SM6040602TP | |
| 82 | SM6040602TP | SM6040602TP | |
| 50 | SM6040602TP | SM6040602TP | |
| 20 | SM6040602TP | SM6040602TP | |
| 58 | SM6040602TP | SM6040602TP | |
| 58 | SM6040602TP | SM6040602TP | |
| 57 | SM6040602TP | SM6040602TP | |
| 57 | SM6040602TP | SM6040602TP | |
| 77 | SM6040650TP | SM6040650TP | |
| 32 | SM6040750TP | SM6040750TP | |
| 61 | SM6040802TP | SM6040802TP | |
| 61 | SM6040802TP | SM6040802TP | |
| 14 | SM6040802TP | SM6040802TP | |
| 12 | SM6040802TP | SM6040802TP | |
| 15 | SM6040802TP | SM6040802TP | |
| 10 | SM6040802TP | SM6040802TP | |
| 11 | SM6041002TP | SM6041002TP | |
| 13 | SM6041002TP | SM6041002TP | |
| 60 | SM6041002TP | SM6041002TP | |
| 24 | SM6041200SP | SM6041200SP | |
| 30 | SM6041200SP | SM6041200SP | |
| 40 | SM6041200SP | SM6041200SP | |
| 10 | SM6041202TP | SM6041202TP | |
| 16 | SM6041202TP | SM6041202TP | |
| 22 | SM6041202TP | SM6041202TP | |
| 18 | SM6041602TP | SM6041602TP | |
| 2 | SM6050652TP | SM6050652TP | |
| 24 | SM6050652TP | SM6050652TP | |
| 48 | SM6050652TP | SM6050652TP | |
| 18 | SM6050800SP | SM6050800SP | |
| 20 | SM6050800SP | SM6050800SP | |
| 24 | SM6050800SP | SM6050800SP | |
| 50 | SM6050800SP | SM6050800SP | |
| 2 | SM6050802TP | SM6050802TP | |
| 4 | SM6050802TP | SM6050802TP | |
| 6 | SM6050802TP | SM6050802TP | |
| 24 | SM6050802TP | SM6050802TP | |
| 26 | SM6050802TP | SM6050802TP | |
| 30 | SM6050802TP | SM6050802TP | |
| 18 | SM6051002TP | SM6051002TP | |
| 26 | SM6051202TP | SM6051202TP | |
| 32 | SM6051202TP | SM6051202TP | |
| 32 | SM6051402TP | SM6051402TP | |
| 10 | SM6052002TR | SM6052002TR | |
| 2 | SM6061002TP | SM6061002TP | |
| 16 | SM6061002TP | SM6061002TP | |
| 44 | SM6061002TP | SM6061002TP | |
| 22 | SM6061202TP | SM6061202TP | |
| 32 | SM6061202TP | SM6061202TP | |
| 16 | SM6061802TP | SM6061802TP | |
| 22 | SM6061802TP | SM6061802TP | |
| 10 | SM6062502TP | SM6062502TP | |
| 2 | SM6067052TP | SM6067052TP | |
| 44 | SM6067052TP | SM6067052TP | |
| 22 | SM7030550TP | SM7030550TP | |
| 30 | SM7030550TP | SM7030550TP | |
| 6 | SM8030412TP | SM8030412TP | |
| 8 | SM8040802TP | SM8040802TP | |
| 16 | SM8050412TP | SM8050412TP | |
| 24 | SM8050412TP | SM8050412TP | |
| 28 | SM8050412TP | SM8050412TP | |
| 8 | SM8050502TP | SM8050502TP | |
| 14 | SM8050502TP | SM8050502TP | |
| 16 | SM8050502TP | SM8050502TP | |
| 22 | SM8050502TP | SM8050502TP | |
| 24 | SM8050502TP | SM8050502TP | |
| 18 | SM8050602TP | SM8050602TP | |
| 32 | SM8050612TP | SM8050612TP | |
| 10 | SM80506A2TP | SM80506A2TP | |
| 16 | SM80606A2TP | SM80606A2TP | |
| 2 | SM80606A2TP | SM80606A2TP | |
| 6 | SM80606A2TP | SM80606A2TP | |
| 10 | SM80606A2TP | SM80606A2TP | |
| 14 | SM80606A2TP | SM80606A2TP | |
| 16 | SM80606A2TP | SM80606A2TP | |
| 22 | SM80606A2TP | SM80606A2TP | |
| 10 | SM80608A2TP | SM80608A2TP | |
| 12 | SM80608A2TP | SM80608A2TP | |
| 10 | SM8081652TP | SM8081652TP | |
| 28 | SM9040700SP | SM9040700SP | |
| 32 | SM9040700SP | SM9040700SP | |
| 6 | SM9040800SP | SM9040800SP | |
| 10 | SM9061403CP | SM9061403CP | |
| 18 | SS6060210SP | SS6060210SP | |
| 20 | SS6060210SP | SS6060210SP | |
| 50 | SS6060210SP | SS6060210SP | |
| 44 | SS7110570SP | SS7110570SP | |
| 8 | SS7110840SP | SS7110840SP | |
| 50 | SS8660612TP | SS8660612TP | |
| 34 | ST9053511SR | ST9053511SR | |
| 2 | TA0500301R0 | TA0500301R0 | |
| 4 | TA0550604R0 | TA0550604R0 | |
| 4 | TA0750404R0 | TA0750404R0 | |
| 4 | TA0850604R0 | TA0850604R0 | |
| 2 | TA1050504R0 | TA1050504R0 | |
| 2 | TA1250408R0 | TA1250408R0 | |
| 2 | TA1550902R0 | TA1550902R0 | |
| 4 | TA2100904R0 | TA2100904R0 | |
| 30 | WP0430800SC | WP0430800SC | |
| 38 | WP0430800SC | WP0430800SC | |
| 24 | WP0430801SC | WP0430801SC | |
| 28 | WP0430801SC | WP0430801SC | |
| 32 | WP0430801SC | WP0430801SC | |
| 26 | WP0431005SP | WP0431005SP | |
| 28 | WP0431005SP | WP0431005SP | |
| 6 | WP0450826SC | WP0450826SC | |
| 28 | WP0451016SP | WP0451016SP | |
| 46 | WP0531001SC | WP0531001SC | |
| 26 | WP0550800SP | WP0550800SP | |
| 50 | WP0551016SH | WP0551016SH | |
| 4 | WP0612056SD | WP0612056SD | |
| 44 | WP0612056SD | WP0612056SD | |
| 10 | WP0621046SP | WP0621046SP | |
| 40 | WP0651646SC | WP0651646SC | |
| 34 | WP0851846SC | WP0851846SC | |
| 40 | WP0852086SC | WP0852086SC | |
| 46 | WP1612616SE | WP1612616SE | |
| 6 | WS0410002KP | WS0410002KP | |
| 46 | WS0510002KN | WS0510002KN | |
| 34 | WS0820002KR | WS0820002KR | |
| 40 | WS0820002KR | WS0820002KR | |
| 40 | WT0640001KN | WT0640001KN |
Juki LBH-1790A — parts catalog
- Page 1 (cover): This page is the cover for a parts list for models LBH-1790A and LBH-1795A, published on December 20, 2017.
- Page 2 (toc): This page is a table of contents for a parts catalog, listing various components and their corresponding page numbers.
- Page 3 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing an exploded view with numbered parts.
- Page 4 (parts_list): This page lists frame and miscellaneous cover components, including part numbers, names, and quantities for various screws, covers, nuts, hinges, plugs, and other parts.
- Page 5 (diagram): This page displays an exploded diagram of the frame and miscellaneous cover components for an industrial sewing machine.
- Page 6 (parts_list): This page lists frame and miscellaneous cover components, including screws, hinges, washers, and various rubber parts, with their part numbers, names, and quantities.
- Page 7 (diagram): This page displays a diagram of frame and miscellaneous cover components, showing various parts with their corresponding reference numbers.
- Page 8 (parts_list): This page lists parts for the frame and miscellaneous cover components, including screws, shafts, rings, and various BTW components.
- Page 9 (diagram): This page displays a diagram of frame and miscellaneous cover components, with various parts numbered for identification.
- Page 10 (parts_list): This page lists frame and miscellaneous cover components, including screws, thread cutters, cable bands, and bobbin thread tension assemblies.
- Page 11 (diagram): This page displays an exploded view diagram of the main shaft components, with various parts labeled with reference numbers.
- Page 12 (parts_list): This page lists the main shaft components, including part numbers, names, and quantities for various items such as needles, idlers, bearings, screws, and shafts.
- Page 13 (diagram): This page displays an exploded view diagram of main shaft components for an industrial sewing machine.
- Page 14 (parts_list): This page lists components for the main shaft, including a screw with part number SM80608A2TP.
- Page 15 (diagram): This page illustrates the components of the hook driving shaft, showing an exploded view of various parts including bearings, shafts, gears, and other related components with reference numbers.
- Page 16 (parts_list): This page lists the components for the hook driving shaft, including bearings, bushes, retaining rings, shafts, screws, oil filters, sprockets, washers, adjusting pins, springs, felts, tubes, oil wicks, bobbins, and hook sleeves.
- Page 17 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
- Page 18 (parts_list): This page lists presser and feed components with their part numbers, names, and quantities.
- Page 19 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
- Page 20 (parts_list): This page lists presser and feed components, including part numbers, names, and quantities.
- Page 21 (diagram): This page illustrates the presser and feed components for the LBH-1795AS model, showing an exploded view of various parts with reference numbers.
- Page 22 (parts_list): This page lists presser and feed components for the LBH-1795AS model, including part numbers, names, and quantities.
- Page 23 (diagram): This page illustrates the components of the needle bar rocking mechanism.
- Page 24 (parts_list): This page lists the parts for the needle bar rocking components, including part numbers, names, remarks, level, cons, and quantity.
- Page 25 (diagram): This page displays an exploded view diagram of the needle thread trimmer components, with various parts labeled with reference numbers.
- Page 26 (parts_list): This page lists the components for the needle thread trimmer, including various screws, nuts, arms, and other parts with their respective part numbers and quantities.
- Page 27 (diagram): This page illustrates the components of a needle thread trimmer, showing an exploded view of various parts with reference numbers.
- Page 28 (parts_list): This page lists components for a needle thread trimmer, including part numbers, names, and quantities.
- Page 29 (diagram): This page displays a detailed diagram of bobbin thread trimmer components, showing various parts and their reference numbers.
- Page 30 (parts_list): This page lists the components for a bobbin thread trimmer, including part numbers, names, and quantities.
- Page 31 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
- Page 32 (parts_list): This page lists components for the Bobbin Thread Trimmer, including part numbers, descriptions, and quantities.
- Page 33 (diagram): This page displays a diagram of cloth cutting knife components, illustrating various parts with reference numbers.
- Page 34 (parts_list): This page lists components for cloth cutting knives, including part numbers, descriptions, remarks, and quantities.
- Page 35 (diagram): This page displays a diagram of table components and accessories for a control box, with numbered parts for identification.
- Page 36 (parts_list): This page lists table components with part numbers, names, remarks, and quantities.
- Page 37 (diagram): This page displays a diagram of operation box components, including a control box with reference numbers 1, 2, and 3 pointing to specific parts.
- Page 38 (parts_list): This page lists operation box components and accessories for a control box, including part numbers, names, remarks, and quantities.
- Page 39 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
- Page 40 (parts_list): This page lists control box components with part numbers, descriptions, remarks, and quantities.
- Page 41 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
- Page 42 (parts_list): This page lists components for the control box, including tubes, power switches, screws, cable clips, fuses, and nuts, with their respective part numbers and remarks.
- Page 43 (diagram): This page displays a wiring diagram for the sewing machine, illustrating connections between various components like main boards, sensors, motors, and external interfaces.
- Page 44 (parts_list): This page contains a parts list for the wiring diagram, including part numbers, names, and quantities.
- Page 45 (diagram): This page displays a diagram of accessory parts components for an industrial sewing machine, with numbered illustrations of various tools, fasteners, and accessories.
- Page 46 (parts_list): This page lists accessory parts and components for a sewing machine, including various screws, bolts, tools, and maintenance items, with part numbers, names, and quantities.
- Page 47 (diagram): Diagram of thread stand components with numbered parts.
- Page 48 (parts_list): This page lists components for the THREAD STAND ASM., including part numbers, names, and quantities. It also includes related hardware like screws, nuts, and washers.
- Page 49 (diagram): This page contains diagrams and reference numbers for electric bobbin winder components, 2-pedal for standing machine components, and the starting pedal for 2-pedal.
- Page 50 (parts_list): This page lists special specification components for an industrial sewing machine, including part numbers, names, and quantities.
- Page 51 (diagram): This page contains diagrams of special specification components for industrial sewing machines, including large size type (70mm), swing width 10mm type, non-lubricating hook type, and for hosiery (type K).
- Page 52 (parts_list): This page lists special specification components for sewing machines, including part numbers, names, quantities, and remarks for items like hooks, screws, and presser feet.
- Page 53 (parts_list): This page lists various cloth cutting knives, presser feet, knife guards, and throat plates with their corresponding part numbers and sizes in both inches and millimeters.
- Page 54 (parts_list): This page lists various knives, work clamps, and related parts with their part numbers and quantities, including specialized fluorocarbon versions.
- Page 55 (text): This page lists changes to parts, indicating added (A) or obsoleted (D) parts with their corresponding part numbers and revision information.
- Page 56 (text): This page provides explanations for codes and symbols used in the parts list, including explanations for marks like '*', '#01', parentheses, dotted lines, and symbols like '☆' and '◎'. It also explains how to interpret quantity numbers and list page notations.
- Page 57 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 58 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 59 (index): Numerical index of parts with part numbers, page references, and reference numbers.
- Page 60 (index): Numerical index of parts, listing part numbers, corresponding page numbers, and reference numbers.
- Page 61 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
- Page 62 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
Page 2 — CONTENTS
CONTENTS FRAME & MISCELLANEOUS COVER COMPONENTS (1).................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
FRAME & MISCELLANEOUS COVER COMPONENTS (1)
Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 40143770 UPPER COVER 1 2 SM4051055SP SCREW 6 3 40141709 LEFT COVER 1 4 SM4051055SP SCREW 2 5 40165706 LEFT COVER B 1 6 SM4051055SP SCREW 4 7 40004157 THREAD_TAKE_UP_LEVER_COVER 1 8 SM4051055SP SCREW 1 9 40004156 FRONT_COVER 3 10 SM4051055SP SCREW 1 11 40004159 MOTOR_COVER 1 12 SM4051655SP SCREW M5 L=16 4 13 26230409 LUBRICATING OIL WICK STOPPER 2 14 SM6050802TP SCREW M5X0.8 L=8 1 15 40004161 REAR_COVER 1 16 SM4051055SP SCREW 4 17 40142148 HOOK_OIL_SHIELD_COVER_COMPL. 1 18 40142887 HOOK_OIL_SHIELD_COVER * 1 19 SM0040801SC SCREW * 1 20 40145328 SENSOR SLIT PLATE C * 1 21 NM6040001SC NUT M4X0.7 TYPE1 * 1 22 NM6030001SD NUT M3X0.5 * 1 23 SM6031402TP SCREW * 1 24 13703906 HOOK OIL SHIELD HINGE * 1 25 13703905 HINGE PIN * 1 26 40141710 HINGE_SPRING * ☆ 1 27 40141711 HINGE_SPRING_WASHER * 1 28 SM4040655SP SCREW M4 L=6 * 1 29 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 2 30 SM6040602TP SCREW M4 L=6 2 31 TA1050302R0 PLUG 1 32 TA1050504R0 RUBBER PLUG 1 33 40141795 PBL_METAL_CAP 1 34 TA1250406R0 RUBBER PLUG D=12.5 L=4 3 35 TA1550902R0 PLUG 3 36 SM6061002TP SCREW M6 L=10 4 37 SM6061002TP HEXAGON BOLT ACCESSORIE PARTS 1 38 SM60606A2TP SCREW M6 L=6 2 39 32002354 SWITCH ASM. 1 40 SL6040892TN SCREW 2 41 22528764 PRE-TENSION CONTROLLER ASM. 1 42 22502504 THREAD GUIDE BAR ACCESSORIE PARTS 1 43 40141714 BED BASE 1 44 40004160 BED REAR_COVER 1 45 40141708 ASSY_LED_DEVICE 1 46 TA0500301R0 PLUG 5X5.8 L=3 ☆ 1 47 13922208 TAKE-UP THREAD GUIDE B 1 jintex.in
Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
FRAME & MISCELLANEOUS COVER COMPONENTS (1) jintex.in
Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)
FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 48 SM6050802TP SCREW M5X0.8 L=8 ACCESSORIE PARTS 2 49 40006314 HINGE BUSH 1 50 1370004 HINGE PIN ACCESSORIE PARTS 2 51 1370006 HINGE PLATE A ACCESSORIE PARTS 1 52 13700505 HINGE PLATE B 1 53 NM6060001SD NUT M6 2 54 KX000000380 SPACER 4 55 WP0612056SD WASHER 6.1X18.5X2 1 56 13943303 OIL SHIELD ACCESSORIE PARTS 1 57 40008977 RUBBER C 3 58 40008978 RUBBER D 1 59 SL6040892TN SCREW 4 60 E2002855000 Z STOPPER RUBBER 1 61 D6056555B00 RUBBER CUSHION (B) 1 62 13700703 RUBBER HINGE ACCESSORIE PARTS 1 63 SL6040892TN SCREW ACCESSORIE PARTS 1 64 40009037 TAKE-UP THREAD GUIDE A 1 65 SM6040602TP SCREW M4 L=6 1 66 40141713 STUD 1 67 TA0850604R0 RUBBER PLUG 1 68 CM300200003 ATTENTION LABEL 1 69 13705405 NEEDLE BAR THREAD GUIDE 1 70 40138611 INT PCB ASSY 1 71 CM301300001 SAFETY LABEL 1 72 CM300200001 ATTENTION SEAL 2 73 40111214 FAN MOTOR ASSY 1 74 NM6040001SC NUT M4X0.7 TYPE1 2 75 SL4042591SC SCREW M4 L=25 2 76 TA2100904R0 RUBBER PLUG 1 77 SM6040650TP SCREW 1 78 40145327 SENSOR PALTE C 1 79 40141483 COVER SENSOR ASSY 1 80 SL4030881SC SCREW M3 L=8 1 81 HX001500000 CLIP 3 82 SM6040602TP SCREW M4 L=6 3 83 TA0550604R0 RUBBER PLUG 1 84 TA0750404R0 PLUG D=7.5 L=3.5 2 jintex.in
Page 7 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
FRAME & MISCELLANEOUS COVER COMPONENTS (2) 11 1 21 12 12 3 16 15 2 8 20 7 17 51 65 62 63 64 60 61 59 55 54 A 52 53 53 50 58 A 22 56 57 27 49 34 29 30 B 41 33 35 45 42 44 37 32 48 26 40 36 B 25 10 38 24 18 4 31 43 46 47 19 23 9 28 13 14 20 8 6 39 5 9 jintex.in
Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40006261 ASSY_AT_SOLENOID 1 2 40006263 AT_SHAFT 1 3 40006264 AT_SHAFT_HOLDER 1 4 RC1700001KP RETAINING RING 1 5 40010514 DISK_STOPPER 1 6 40010511 DISK_STOPPER_HOLDER_CAP 1 7 14115554 HEAD GROUND CABLE A ASM. 1 8 40010522 SHAFT_NUT 2 9 SM0860400SN SCREW 3 10 SM6040860TP SCREW M4 L=8 1 11 SM6050802TP SCREW M5X0.8 L=8 3 12 SM8030412TP SCREW 2 13 SM8030412TP SCREW 1 14 SM80606A2TP SCREW M6 L=6 1 15 SM9040800SP SCREW 1 16 WS0410002KP SPRING WASHER 1 17 40141478 INT CORE B ASSY 1 18 10006104 TAKE-UP SPRING ☆ 1 19 40010510 THREAD_TENSION_POST_BASE 1 20 40010512 THREAD_TENSION_SHAFT_COLLAR 2 21 32055402 THRUST COLLAR 1 22 40004252 UTT_SUSPENSION_SCREW_9 1 23 40006265 ASSY_THREAD_TENSION_POST 1 24 B270221000 GUIDE PLATE 1 25 B270321000 BUSHING 1 26 40003499 THREAD BREAK DETECTOR A 1 27 40011143 ASSY_BTW 1 28 26260109 BTW_BASE * 1 29 26260208 BTW_CAM_PLATE * 1 30 26260307 BTW_BASE_SHAFT * 1 31 26260406 BTW_SHAFT_BASE * 1 32 26260505 BTW_CAM_LEVER * 1 33 26260604 BTW_WHEEL * 1 34 40011144 BTW_TORSION_SPRING * 1 35 26260802 BTW_BEARING_SPACER * 1 36 40011145 BTW_SHAFT * 1 37 40011146 BTW_LEVER_SHAFT * 1 38 40021933 BTW_LEVER * 1 39 26261206 BTW_SPACER * 1 40 26261305 BTW_BEARING * 2 41 26261503 BTW_WHEEL_RUBBER * ☆ 1 42 26261602 BOBBIN_SPRING * ☆ 1 43 26261701 BTW_SPRING * 1 44 RC0560711KP RETAINING RING * 1 45 RE0400000K0 E-RING 4 * 1 46 WP0450826SC WASHER 4.5X10X0.8 * 1 47 SM5040655SN SCREW * 1 jintex.in
Page 9 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
FRAME & MISCELLANEOUS COVER COMPONENTS (2) 11 21 12 12 7 17 1 3 16 15 2 8 20 A A 22 51 65 62 63 64 60 61 59 55 54 52 53 53 50 58 56 57 27 49 B 34 29 30 35 42 37 32 41 33 45 44 40 48 26 B 36 25 10 38 24 18 4 31 43 46 47 19 23 9 28 13 14 20 8 6 39 5 9 jintex.in
Page 10 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)
FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050502TP SCREW M5 L=5 * 1 49 SM8040802TP SCREW M4X8 * 2 50 SM6040602TP SCREW M4 L=6 2 51 40141479 INT CORD C ASSY 1 52 40037008 THREAD_CUTTER 1 53 SM0050801SC SCREW 4 54 D316255B00 THREAD GUIDE 1 55 SS7110840SP SCREW 11/64-40 L=7.8 1 56 EA9500B0100 CABLE BAND 10 57 HX00151000A CABLE BAND 2 58 26230409 LUBRICATING OIL WICK STOPPER 3 59 22529481 BOBBIN THREAD TENSION ASM. 1 60 22529473 BOBBIN THREAD TENSION ROD ASM. * 1 61 NS6110310SP NUT 11/64-40 * 1 62 11072402 THREAD TENSION NUT * 1 63 11093606 THREAD TENSION SPRING * 1 64 B3214047000 BOBBIN WINDER TENSION DISC * 2 65 40141477 INT CORD A ASSY 1 jintex.in
Page 11 — MAIN SHAFT COMPONENTS
MAIN SHAFT COMPONENTS 11 10 29 30 31 48 40 39 47 35 38 37 1 36 33 46 41 34 44 45 18 26 43 32 42 24 26 27 23 19 22 25 20 17 21 18 28 16 14 15 2 12 13 6 8 7 3 5 3 9 4 jintex.in
Page 12 — MAIN SHAFT COMPONENTS
MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40011517 NEEDLE_BAR_CRANK_FELT 1 2 40142152 IDLER_ASSY 1 3 RC3781518KP RETAINING RING * 2 4 RC0100001KP SNAP RING M10 * 1 5 40143150 IDLER FIXED PLATE * 1 6 40141721 IDLER_PULLEY * 1 7 SB110000700 BALL BEARING * 1 8 NM6100001SD NUT M10 * 1 9 40141720 IDLER_SHAFT * 1 10 40006307 SQUARE_BLOCK_GUIDE 3 11 SM6062502TP SCREW M6 L=25 1 12 WP0621046SP WASHER 1 13 SM9061403CP SCREW M6 L=14 1 14 40004185 HINGE_SCREW 1 15 40051473 COUPLING_ASM. 1 16 40051474 COUPLING * 1 17 SM80608A2TP SCREW M6 L=8 * 4 18 CQ252000000 OIL WICK 0.014 19 40004171 COUNTER_WEIGHT_SCREW 1 20 40141716 COUNTER_WEIGHT 1 21 SM8081652TP SCREW M8 L=16 1 22 40138137 IPM550W MOTOR 1 23 SM6052002TR SCREW M5 L=20 4 24 40010534 BTW_DRIVING_WHEEL 1 25 40150011 FRONT BEARING 1 26 40010535 DRIVING_WHEEL_SCREW 2 27 40141717 MAIN_SHAFT 1 28 40141719 TIMING_BELT 1 29 40032269 THRUST COLLAR 1 30 SM80506A2TP SCREW M5 L=6 * 2 31 CS1000881TP THRUST COLLAR * 1 32 SM80606A2TP SCREW M6 L=6 2 33 40141718 SPROCKET_A 1 34 SB1200008C0 BEARING 1 35 40008423 WASHER 1 36 40165704 NEEDLE CRANK SHAFT 1 37 40165701 SQUARE BLOCK GUIDE B 1 38 40165703 SQUARE BLOCK B 1 39 40004206 SQUARE_BLOCK 1 40 SM6041202TP SCREW M4X0.7 L=12 2 41 40141725 THREAD_TAKE_UP_COMP 1 42 40141726 THREAD_TAKE_UP_ASM_C * 1 43 22918304 SCREW * 1 44 40142880 NEEDLE_BAR_CRANK_ROD_ASM. * 1 45 40141727 THREAD_TAKE_UP_ASM_B * 1 46 40141730 NEEDLE_BAR_CRANK * 1 47 40142878 TAKE_UP_CRANK_ASM. * 1 jintex.in
Page 13 — MAIN SHAFT COMPONENTS
MAIN SHAFT COMPONENTS JINTEX.in
Page 14 — MAIN SHAFT COMPONENTS
MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM80608A2TP SCREW M6 L=8 2 jintex.in
Page 15 — HOOK DRIVING SHAFT COMPONENTS
HOOK DRIVING SHAFT COMPONENTS 11 18 15 7 2 20 2 7 12 8 10 21 1 5 10 9 16 15 30 25 16 33 32 14 28 26 31 17 29 13 3 15 22 15 23 24 4 6 15 15 19 15 6 15 jintex.in
Page 16 — HOOK DRIVING SHAFT COMPONENTS
HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SB112001600 BEARING 2 2 SB110000600 BALL BEARING 2 3 SB11500200 BEARING 1 4 SB115001500 BEARING 1 5 40004188 BEARING_SUPPORT 1 6 23536204 BUSH 2 7 RC2791218KP RETAINING RING 2 8 40004186 HOOK_DRIVING_SHAFT 1 9 40004187 HOOK_DRIVING_SHAFT_METAL 2 10 SM8050502TP SCREW M5 L=5 1 11 13710306 INTERMEDIATE SPROCKET SHAFT 1 12 13710504 INTERMEDIATE SPROCKET WASHER 1 13 13729066 HOOK COMPL. ☆ 1 14 40141739 LOWER_SHAFT_KNOB_B 1 15 SM80606A2TP SCREW M6 L=6 10 16 40011355 OIL_FILTER 2 17 14504401 BEARING SUPPORT 1 18 40004180 SPROCKET_B 1 19 40141740 SPROCKET_C 1 20 13710405 INTERMEDIATE SPROCKET RING 1 21 40006317 WASHER 1 22 40142753 ADJUSTING_PIN_B 1 23 40142754 ADJUSTING_SPRING_B 1 24 40142752 ADJUSTING_SCREW_B 1 25 40006320 FELT 1 26 23630007 TUBE 1 27 CQ202000000 OIL WICK 1 28 B1811771000 BOBBIN ☆ 1 29 13729769 BOBBIN CASE ASM. ☆ 1 30 13729652 HOOK SLEEVE CONNEC. 1 31 13729603 HOOK SLEEVE * 1 32 CQ252000000 OIL WICK * 0.04 33 HX002550000 TUBE * 0.017 jintex.in
Page 17
PRESSER & FEED COMPONENTS jintex.in
Page 18 — PRESSER & FEED COMPONENTS
PRESSER & FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40139181 FEED MOTOR ASSY 1 2 HD00057000A PHOTO SENSOR 1 3 22891204 BEARING SUPPORT 2 4 40075297 THROAT_PLATE_BASE_COVER 2 5 40004194 MOTOR_BRACKET 1 6 40108754 PULLEY_B 1 7 40004197 PULLEY_C 1 8 40004198 SUPPORT_SHAFT 1 9 40004200 TIMING_BELT_HOLDER 1 10 40004201 FEED_SHAFT 1 11 40022121 FEED_GUIDE_SHAFT 1 12 40141744 SENSOR_SLIT_PLATE 1 13 40141741 FEED_BASE 1 14 SB710000600 BEARING 2 15 40010434 THRUST_COLLAR_ASM. 1 16 40010435 THRUST_COLLAR * 1 17 SM8050412TP SCREW M5 L=4 * 2 18 40004205 WORK_CLAMP_CARRIER 1 19 SL4031091SC SCREW M3 L=10 1 20 SM6040602TP SCREW M4 L=6 4 21 SM6040802TP SCREW M4X0.7 L=8 2 22 SM6041002TP SCREW M4 L=10 6 23 SM6061002TP SCREW M6 L=10 3 24 SM6061802TP SCREW M6 L=18 1 25 SM8050502TP SCREW M5 L=5 3 26 SM80606A2TP SCREW M6 L=6 2 27 40141742 TIMING_BELT 1 28 SM5040550TP SCREW M4 L=5 4 29 40142161 LIFTING_LINK_ASSY 1 30 40141788 LINK_ROD_S * 1 31 40141801 LIFTING_LINK_PIN * 1 32 SD0800326TP SHOULDER SCREW * 1 33 40142755 LIFTING_LINK * 1 34 40139182 CLAMP MOTOR ASSY 1 35 SD0800326TP SHOULDER SCREW 1 36 40004289 PBL GEAR L 1 37 40004267 ASSY_PBL_MOTOR_BASE 1 38 SM6041202TP SCREW M4X0.7 L=12 4 39 SM8060552TP SCREW M6 L=5 5 40 SM8050502TP SCREW M5 L=5 1 41 SM6040502TP SCREW M4X0.7 L=5 1 42 RE050000K0 E-RING 1 43 13127402 PIN (SHORT) C 1 44 40141757 SQUARE_BLOCK 1 45 40141755 SLIDE_ROLLER 1 46 40141754 COLLAR 1 47 SB408000100 BEARING 1 jintex.in
Page 19
PRESSER & FEED COMPONENTS jintex.in
Page 20 — PRESSER & FEED COMPONENTS
PRESSER & FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40004285 PBL_FINGER_GUARD 1 49 40141794 PBL_GUIDE 1 50 40004280 PBL_LIFTING_PLATE 1 51 40004279 PBL_METAL 1 52 40141747 POSITION_BRACKET 1 53 40141745 PRESSER_BAR 1 54 40141753 PBL_ROLLER_BASE 1 55 40141756 PBL_ROLLER_SHAFT 1 56 SB30700200 BEARING 2 57 40141746 METAL_U 1 58 40004287 PBL_WORK_CLAMP_ARM 1 59 40004288 PBL_WORK_CLAMP_ARM_SHAFT 1 60 40141743 SENSOR_PLATE 1 61 SM6040802TP SCREW M4X0.7 L=8 1 62 SM6041602TP SCREW M4X0.7 L=16 1 63 SM6050800SP SCREW M5 L=8 2 64 SM6051002TP SCREW M5X0.8 L=10 4 65 SM6051002TP SCREW M5X0.8 L=10 4 66 SM8050602TP SCREW M5 L=6 2 67 40020310 UTT_CLOSE_CAM_B 1 68 40141748 LIFTING_LINK_SHAFT 1 69 SM8060612TP SCREW M6 L=6 1 70 B1511771K0A WORK CLAMP CHECK HOLDER ASM. 1 71 B1511771000B PRESSER FOOT 1 72 B1509761000 WORK CLAMP CHECK SPRING * 2 73 B151077100B WORKCLAMPCHECKSPRINGSETPIN(B) * 2 74 B1512761000 WORK CLAMP CHECK HOLDER SPRING * 1 75 SS6060210SP SCREW 3/32-56 L=1.9 2 76 B1552781000A PRESSER 1 77 SD0790203SP HINGE SCREW D=7.94 H=2 1 78 40004291 PBL_GEAR_S 1 79 40004275 PBL_GEAR_SHAFT 1 jintex.in
Page 21 — PRESSER & FEED COMPONENTS (FOR LBH-1795AS)
PRESSER & FEED COMPONENTS (FOR LBH-1795AS) 1 12 11 10 12 13 5 6 9 2 4 3 8 15 7 14 jintex.in
Page 22 — PRESSER & FEED COMPONENTS (FOR LBH-1795AS)
PRESSER & FEED COMPONENTS (FOR LBH-1795AS) No. Parts No. Parts name Remarks Level Cons Qty 1 40067165 LIFTING PLATE PARTS 120MM 1 2 40008646 ASSY,WORK_CLAMP,CHECK_HOLDER_120 * 1 3 B151077100B WORK_CLAMP,CHECK,SPRING,SETPIN(B) * 2 4 B1509761000 WORK_CLAMP CHECK SPRING * 2 5 40008647 WORK_CLAMP,CHECK_HOLDER_120 * 1 6 40008638 WORK_CLAMP_CHECK_HOLDER_SPRING B * 1 7 40006339 WORK_CLAMP_CARRIER_120 * 1 8 SS6060210SP SCREW 3/32-56 L=1.9 * 6 9 SD0790203SP HINGE SCREW D=7.94 H=2 * 3 10 40028682 UTT_CLOSE_CAM_120B * 1 11 40112711 LIFTING_PLATE_120 * 1 12 SM6050800SP SCREW M5 L=8 * 2 13 40006335 WORK_CLAMP_ARM_120 * 1 14 SM6040802TP SCREW M4X0.7 L=8 * 2 15 40008658 WORK_CLAMP_120 * ☆ 1 jintex.in
Page 23 — NEEDLE BAR ROCKING COMPONENTS
NEEDLE BAR ROCKING COMPONENTS jintex.in
Page 24 — NEEDLE BAR ROCKING COMPONENTS
NEEDLE BAR ROCKING COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40088990 SUPPORT_SHAFT 1 2 40004378 ZIGZAG ROD ASM. 1 3 40004379 ZIGZAG ROD * 1 4 23530405 SHAFT HOLDER LINK BUSH * 2 5 40008671 P=JUNCTION SHAFT SELECTIVE PARTS SELECTIVE PARTS 2 6 40141758 ZIGZAG_DRIVE_UNIT_BASE 1 7 40141759 MOTOR_LEVER 1 8 40139180 NEEDLE SWING MOTOR ASSY 1 9 40141760 ZIGZAG_LEVER_REAR 1 10 SM6041202TP SCREW M4X0.7 L=12 4 11 SM8050502TP SCREW M5 L=5 6 12 SM6061802TP SCREW M6 L=18 1 13 40004218 FRAME SUPPORT PLATE ASM. 1 14 13706403 NEEDLE BAR THREAD GUIDE ☆ 1 15 SM7030550TP SCREW M3 L=4.5 ☆ 1 16 MDP5J0B1100 NEEDLE DPX5 #11J ☆ 1 17 CS1501181TP THRUST COLLAR D=15 W=11 1 18 SM8050502TP SCREW M5 L=5 2 19 SM80606A2TP SCREW M6 L=6 4 20 SM6061202TP SCREW M6 L=12 3 21 40004224 ZIGZAG LEVER SHAFT ASM. 1 22 NM6050001SP NUT M5 * 1 23 40004373 ZIGZAG LEVER SHAFT * 1 24 40004374 ZIGZAG_STUD * 1 25 40004216 BUSHING 1 26 40004217 BUSHING REAR 1 27 40004209 NEEDLE_BAR_ROD 1 28 B1414232000 SQUARE BLOCK 1 29 40004222 NEEDLE_BAR_FRAME_ASSY 1 30 40004212 NEEDLE_BAR_FRAME * 1 31 40004213 NEEDLE BAR METAL * 2 32 SM6040750TP SCREW M4 L=7 1 33 40004215 NEEDLE BAR 1 34 40004214 NEEDLE_BAR_CONNECTION 1 35 SM6040502TP SCREW M4X0.7 L=5 1 jintex.in
Page 25 — NEEDLE THREAD TRIMMER COMPONENTS
NEEDLE THREAD TRIMMER COMPONENTS
Page 26 — NEEDLE THREAD TRIMMER COMPONENTS
NEEDLE THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 RE0300000K0 E-RING 3 1 2 RE0300000K0 E-RING 3 1 3 EA9500B0100 CABLE BAND 1 4 40004293 UTT BASE PLATE 1 5 NM6050001SP NUT M5 4 6 WP0430801SC WASHER 4.3X9X0.8 1 7 SL4031091SC SCREW M3 L=10 1 8 SD0600266TP SHOULDER SCREW D=6 H=2.6 1 9 SM6040600SP SCREW M4 L=6 2 10 SM6040602TP SCREW M4 L=6 2 11 SM6040860TP SCREW M4 L=8 1 12 SM6040802TP SCREW M4X0.7 L=8 4 13 SM6041200SP SCREW M4 L=12 2 14 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 2 15 SM6050800SP SCREW M5 L=8 2 16 SM6050802TP SCREW M5X0.8 L=8 2 17 40004400 ASSY UTT RELEASE ARM B 1 18 SM6040602TP SCREW M4 L=6 1 19 SM8050412TP SCREW M5 L=4 2 20 SM8050502TP SCREW M5 L=5 4 21 SD0600326TP SHOULDER SCREW D=6 H=3.2 4 22 SD0800406TP SHOULDER SCREW D=8 H=4 1 23 SD080061TP SHOULDER SCREW D=8 H=15 3 24 11272507 SPRING 1 25 CS0800881TP THRUST COLLAR 1 26 40004235 UTT ARM A 1 27 40004238 UTT_ARM_B 1 28 40101641 ASSY_UTT_CAM_ARM 2 29 40004254 UTT CAM ROLLER * 1 30 40101638 UTT_CAM_ROLLER_SHAFT * 1 31 40101642 UTT_CAM_ARM * 1 32 NM6040000SN NUT M4 * 1 33 40004264 UTT RELEASE LEVER BASE 1 34 40004265 UTT RELEASE LEVER SHAFT 1 35 40141774 SENSOR_PLATE_UTT 1 36 40004296 UTT_SUPPORT_ARM_SPRING 1 37 40004294 UTT_SUPPORT_SHAFT 1 38 40004248 UTT_SUSPENSION SCREW 4 2 39 40004252 UTT_SUSPENSION SCREW 9 1 40 40004247 UTT SUSPENSION SHOULDER SCREW 1 41 40004244 UTT THREAD PULLING LINK A 1 42 40004245 UTT THREAD PULLING LINK B 1 43 40004236 UTT X-CAM 1 44 40004297 UTT Y-DRIVE ROLLER 1 45 40004298 UTT Y-DRIVE SHAFT 1 46 40140040 UTT TRIM MOTOR ASSY 1 47 HD00057000A PHOTO SENSOR 1 jintex.in
Page 27 — NEEDLE THREAD TRIMMER COMPONENTS
NEEDLE THREAD TRIMMER COMPONENTS
Page 28 — NEEDLE THREAD TRIMMER COMPONENTS
NEEDLE THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40028634 ASSY_UTT_RELEASE_LEVER_B 1 49 40142166 ASSY_UTT_DRIVE_CAM 1 50 40004240 ASSY_UTT_THREAD PULLING ARM 1 51 40015702 UTT_RATCH_PLATE_B 1 52 40004232 ASSY_UTT_SUPPORT_ARM 1 53 WP0431005SP PLAIN WASHER 4.3X12X1 1 54 40015674 UTT_RATCH_STOPPER 1 55 SM6040602TP SCREW M4 L=6 2 56 WP0550800SP WASHER 5.5X10X0.8 2 57 NM6050001SP NUT M5 1 58 SM6040602TP SCREW M4 L=6 1 59 SM6040600SP SCREW M4 L=6 1 60 SM6050802TP SCREW M5X0.8 L=8 1 61 40028636 UTT_GUIDE_SHAFT_B 1 62 40004249 UTT SUSPENSION PLATE 1 63 40004243 UTT THREAD PULLING LEVER 1 64 40004246 UTT THREAD PULLING SHAFT 1 65 40004250 UTT TRIMMER CLOSE SPRING 1 66 40004297 UTT Y-DRIVE ROLLER 1 67 40004298 UTT Y-DRIVE SHAFT 1 68 SM6051202TP SCREW M5X0.8 L=12 3 69 MAZ16013000 BUTTON SUPPORT LEVER SPRING 1 70 40004255 ASSY UTT TRIMMER ☆ 1 71 40004294 UTT RELEASE ARM A 1 jintex.in
Page 29 — BOBBIN THREAD TRIMMER COMPONENTS
BOBBIN THREAD TRIMMER COMPONENTS 71 69 68 62 68 65 62 63 53 57 73 66 52 60 17 56 67 64 21 4 55 58 54 9 23 59 22 20 62 6 10 7 24 8 25 18 26 14 11 19 13 75 11 12 15 2 16 23 22 20 3 70 72 51 50 1 74 48 49 47 27 61 46 42 31 36 37 41 37 40 39 35 38 32 40 43 44 30 29 34 45 41 45 33 28 37 40 41 jintex.in
Page 30 — BOBBIN THREAD TRIMMER COMPONENTS
BOBBIN THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 HX00150000A CABLE CLAMP 1 2 40142170 ASSY,BTT,DRIVE,CAM 1 3 40004336 ASSY,BTT,DRIVE,LEVER 1 4 40004329 BTT,DRIVE,LINK 1 5 40141778 BTT,DRIVE,UNIT,BASE 1 6 40101649 BTT,RELEASE,LEVER 1 7 40004343 BTT,RELEASE,LINK,F 1 8 40004344 BTT,RELEASE,LINK,R 1 9 13737408 LINK,ROD 1 10 NM6040001SD NUT M4 2 11 NM6050001SP NUT M5 1 12 40140041 DT TRIM MOTOR ASSY 1 13 SL4031091SC SCREW M3 L=10 1 14 SM6040602TP SCREW M4 L=6 2 15 SM6040802TP SCREW M4X0.7 L=8 4 16 SM8050412TP SCREW M5 L=4 2 17 SM9040700SP HEXAGONAL BOLT 1 18 40141779 SENSOR,PLATE,BTT 1 19 HD00057000A PHOTO SENSOR 1 20 SD0801006TP SHOULDER SCREW D=8 H=10 2 21 40004299 STOPPER,PIN 1 22 40004254 UTT,CAM,ROLLER 2 23 40101638 UTT,CAM,ROLLER,SHAFT 1 24 SD0800296TP SHOULDER SCREW D=8 H=2.9 2 25 SM6040600SP SCREW M4 L=6 2 26 WP0430801SC WASHER 4.3X9X0.8 2 27 40021998 THROAT_PLATE_BASE_UNIT 1 28 40022323 BT_CLAMP_B * ☆ 1 29 40004309 BT_CLAMP_LEVER * 1 30 40022322 BT_PULLER_B * ☆ 1 31 40004321 ASSY,BT,RELEASE,ARM * 1 32 40004308 BT_TRIMMER,LINK * 1 33 40029613 CLAMP,SPRING * 1 34 B1623180000 WASHER * 1 35 B3013141H0A WASHER * 1 36 40004311 BT_TRIMMER * ☆ 1 37 WP0431005SP PLAIN WASHER 4.3X12X1 * 3 38 WP0451016SP WASHER 4.5X20X1 * 1 39 40004306 BTT_LEVER * 1 40 SM6040450TP SCREW M4 L=4 * 3 41 SM6040450TP SCREW M4 L=4 * 5 42 SD0250101SP HINGE SCREW * 1 43 SD0500166TP SHOULDER SCREW D=5 H=1.6 * 1 44 SD0500167TP SHOULDER SCREW D=5 H=1.6 * 1 45 40004327 SUSPENSION_SCREW * 2 46 40004301 ASSY_THROAT_PLATE_BASE * 1 47 40004324 OIL_SHIELD * 1 jintex.in
Page 31 — BOBBIN THREAD TRIMMER COMPONENTS
BOBBIN THREAD TRIMMER COMPONENTS 71 68 62 68 65 62 69 2 16 63 53 57 73 66 52 56 67 64 17 20 22 3 21 4 9 23 20 22 59 6 10 24 7 8 25 18 19 13 75 11 14 12 15 51 70 72 60 48 49 47 27 61 46 42 31 37 40 36 37 41 39 35 32 43 44 30 29 34 45 33 28 41 37 40 41 62 1
Page 32 — BOBBIN THREAD TRIMMER COMPONENTS
BOBBIN THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM1030400SP SCREW M3 L=4 2 49 40027553 THROAT_PLATE(1790S5) 1 50 40011205 STUD 1 51 WP0430800SC WASHER M4 1 52 40004345 PICKER,BASE 1 53 40004347 PICKER,BASE,FITTNG,PLATE 1 54 13727102 STOPPER A 1 55 13729306 BOBBIN CASE POSITIONING PLATE 1 56 SM7030550TP SCREW M3 L=4.5 1 57 SM6040602TP SCREW M4 L=6 2 58 SM4041050TP SCREW M4 L=10 1 59 SM6040600SP SCREW M4 L=6 1 60 SM6041200SP SCREW M4 L=12 4 61 SM6040450TP SCREW M4 L=4 4 62 SD0800296TP SHOULDER SCREW D=8 H=2.9 1 63 40011327 PICKER,SPRING 1 64 40004346 PICKER 1 65 40004348 PICKER ACTUATING LEVER 1 66 NM6040001SD NUT M4 1 67 SD0801006TP SHOULDER SCREW D=8 H=10 1 68 40004327 SUSPENSION_SCREW 2 69 40004299 STOPPER,PIN 1 70 40141802 OIL TANK 1 71 40004349 PICKER,ACTUATING_L_LINK 1 72 SL6040892TN SCREW 4 73 40004328 PICKER,BASE,STOPPER 1 74 SL6041292TN SCREW 1 75 SM6050802TP SCREW M5X0.8 L=8 3
Page 33 — CLOTH CUTTING KNIFE COMPONENTS
CLOTH CUTTING KNIFE COMPONENTS 1 1 2 3 4 5 6 7 8 9 9 10 11 12 13 14 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 jintex.in
Page 34
CLOTH CUTTING KNIFE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SM6051202TP SCREW M5X0.8 L=12 4 2 40139183 CLOTH CUT MOTOR ASSY 1 3 SL6041492TN SCREW 4 4 40141781 MOTOR_BASE_A 1 5 40141780 MOTOR_BASE_B 1 6 SL6061492TN BOLT 2 7 SB1120003C0 BEARING 1 8 40141782 KNIFE_DRIVING_BLOCK 1 9 SM8050612TP SCREW M5X6 3 10 SM6051202TP SCREW M5X0.8 L=12 1 11 40142163 KNIFE_DRIVING_ASSY 1 12 40142164 KNIFE_DRIVING_LINK_ASSY * 1 13 40141783 KNIFE_DRIVING_LINK_COMBINATION * 1 14 40008671 P=JUNCTION SHAFT SELECTIVE SELECTIVE PARTS * 2 15 SB1040008C0 BEARING * 2 16 40010489 AT_PIVOT_SCREW_WASHER * 1 17 40141786 SUPPORT_SHAFT * 1 18 40042089 THRUST WASHER * 2 19 40141785 KNIFE_BAR_BRACKET * 1 20 SM8050612TP SCREW M5X6 * 1 21 SM6051402TP SCREW M5X0.8 L=14 * 1 22 B2702047L00A KNIFE 1/2 ☆ 1 23 WP043080TSC WASHER M4 ☆ 1 24 SM9040700SP HEXAGONAL BOLT 1 25 40141787 SUPPORT_GUIDE 2 26 SM6041002TP SCREW M4 L=10 1 27 40004398 KNIFE_BAR_BUSH 1 28 40040276 KNIFE_BAR_LOWER_BUSHING 1 29 40004394 KNIFE BAR 1 30 40004396 KNIFE BAR BASE 1 31 SM6061202TP SCREW M6 L=12 1 32 40004393 KNIFE FITTING BASE 1
Page 35 — TABLE COMPONENTS
TABLE COMPONENTS ACCESSORIES OF A CONTROL BOX 制御ボックスの付属品 1 2 3 4 4 5 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 jintex.in
Page 36 — TABLE COMPONENTS
TABLE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40142966 TABLE 1 2 ST9053511SR TAPPING SCREW M5X35 4 3 11155108 DRAWER 1 4 11155207 DRAWER SUPPORT 2 5 SK3311600SC WOOD SCREW D=3.1 L=16 6 6 D8204555D00 DRAWER STOPPER 1 7 11157567 T LEG JUNCTION 1 8 40094262 PEDAL SENSOR BASE ASSY 1 9 40094259 PEDAL SENSOR ASM. 1 10 40094260 SENSOR COIL HOLD ASSY 1 11 40093423 SENSOR BRACKET 1 12 SL4041091SC SCREW M4 L=10 3 13 KX000000210 SADDLE TYPE TIE MOUNT 1 14 KX000000230 RELEASIBLE CABLE TIE 1 15 SM4051001SC SCREW M5 L=10 1 16 WS0820002KR SPRING WASHER M8 2 17 NM6080002SC NUT M8 2 18 MTSHJ100003 BOLT 2 19 WP0851846SC WASHER 8.5X22.0X1.8 2 20 SL4051291SC SCREW M5X0.8 L=12 2 21 40042134 CONNECING ROD ASSY 1 jintex.in 24
Page 37 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)
OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX) 1 2 3
Page 38 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)
OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX) No. Parts No. Parts name Remarks Level Cons Qty 1 40141333 LBH OPERATION PANEL ASSY FOR 1-PHASE 220~240V, 3-PHA- SE 200~240V, 380~400V (FOR CHINA) 1 2 40141334 LBH OPERATION PANEL ASSY CE FOR 1-PHASE CE 220~240V 1 3 SK3382001SE SCREW D=3.8 L=20 4 jintex.in
Page 39 — CONTROL BOX COMPONENTS
CONTROL BOX COMPONENTS ACCESSORIES OF SEWING MACHINE MAIN UNIT ミシン本体付属品 1~3 46 52 50 60 61 59 63 62 53 54 55 11-12 5-6 38 30 9 10 44 22 15-16 37 23 24 27 25 13 17 18 35 26 14 36 28 29 21 19 20 41 24 25 31 14 14 33 39 40 42 43 34 49 56-57 47 48 58 51 jintex.in
Page 40 — CONTROL BOX COMPONENTS
CONTROL BOX COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40141500 MC602 CTL BOX A ASM. FOR 1-PHASE 220~240V 1 2 40141501 MC602 CTL BOX B ASM. FOR 3-PHASE 200~240V 1 3 40141502 MC602 CTL BOX C ASM. FOR 1-PHASE CE 220~240V 1 4 WP0430800SC WASHER M4 FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 1 5 40143989 FRAME B FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 1 6 40143988 FRAME A FOR 1-PHASE 220~240V 1 7 40115874 FAN PLATE 1 8 SL4040881SC SCREW M4 L=8 2 9 40115876 PLATE B 2 10 SL4040881SC SCREW M4 L=8 1 11 SL4040881SC SCREW M4 L=8 2 12 40115879 FAN COVER 1 13 40138920 MAIN PCB ASSY 1 14 SL4040881SC SCREW M4 L=8 8 15 40105465 FLT-T PCB ASSY FOR 3-PHASE 200~240V 1 16 40105475 FLT-CE PCB ASSY FOR 1-PHASE CE 220~240V 1 17 40111214 FAN MOTOR ASSY 1 18 SL4042091SC SCREW M4X0.7 L=20 2 19 KX000000260 SADDLE TYPE TIE MOUNT 1 20 SL4040881SC SCREW M4 L=8 1 21 HX00292000A CONNECTING PARTS 1 22 HX0039000M SPACER FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 6 23 40142267 SDC PCB ASSY 1 24 SL4040881SC SCREW M4 L=10 4 25 SL4040881SC SCREW M4 L=8 2 26 40115877 MAIN PLATE 1 27 40143990 STUD 2 28 40115878 PLATE C 1 29 SL4040881SC SCREW M4 L=8 1 30 SL4040881SC SCREW M4 L=8 FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V 6 31 HX00222000D WIRE SADDLE 1 32 KX000000320 BUSH 1 33 SL4041281SC SCREW M4X0.7 L=12 6 34 M8002430000 STOPPER 4 35 40114398 MAIN COOL SHEET 2 36 40114136 COVER 1 37 SL4040881SC SCREW M4 L=8 3 38 SL4030881SC SCREW M3 L=8 1 39 CM300100001 LABEL FOR 1-PHASE 220~240V, 1-PHASE CE 220~240V, 1-PHASE 220~240V (FOR CHINA) 1 40 CM300400602 VOLTAGE CAUTION LABEL L=25 1 41 CM300100402 VOLTAGE DANGER LABEL 3(SMALL) FOR 3-PHASE 200~240V 1 42 CM600100101 WEEE MARK LABEL S FOR 1-PHASE CE 220~240V 1 43 40116677 GOST SAFTY LABEL S FOR 1-PHASE CE 220~240V 1 44 EA9500B0100 CABLE BAND 1 jintex.in
Page 41 — CONTROL BOX COMPONENTS
CONTROL BOX COMPONENTS ACCESSORIES OF SEWING MACHINE MAIN UNIT ミシン本体付属品 46 52 1~3 11-12 5-6 28 29 37 23 20 19 4 27 24 25 31 21 26 32 49 56-57 47 48 40 39 41 42 43 50 60 61 59 63 62 53 54 55 22 15-16 9 10 30 35 13 14 17 18 36 33 58 51 34 jintex.in
Page 42 — CONTROL BOX COMPONENTS
CONTROL BOX COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 45 E8760452S00 TUBE FOR 3-PHASE 200~240V, 1-PHASE CE 220~240V * 0.055 46 40113427 POWER SWITCH 1 47 SL4041091SC SCREW M4 L=10 2 48 HX00150000D CABLE CLIP 2 49 M300451100A VOLTAGE INDICATION CARD A 1 50 MTSHJ100003 BOLT 4 51 40126054 CORE SET UP MANUAL 1 52 SK3512001SE WOOD SCREW D=5.1 L=20 2 53 WP0852086SC WASHER M8 4 54 WS0820002KR SPRING WASHER M8 4 55 NM6080002SC NUT M8 4 56 HF0013050P0 FUSE 5A 1 57 HF003000200 FUSE 2A (220/240V) 1 58 EA9500B0200 CABLE BAND 150 2 59 WP0651646SC WASHER 8 60 WT0640001KN TOOTH WASHER 1 61 40165702 RUBBER CUSHION 4 62 40142969 RUBBER CUSHION BRKT 2 63 NM6060001SC NUT M6X1 TYPE1 4 jintex.in
Page 43
WIRING DIAGRAM - 41 - 頭部内蔵基板 1 糸切れ検知 4 一次停止 3 針振りエンコーダ (モータ内蔵) 送りモータエンコーダ (モータ内蔵) 押えモータエンコーダ (モータ内蔵) 上糸切原点センサ 下糸切原点センサ 8 布切メスモータエンコーダ (モータ内蔵) 送り原点センサ 10 カバー開閉検知センサ 12 2P 2P 2P 10P 3P 3P 3P CN76 CN75 CN93 CN90 CN78 CN77 CN80 CN81 INT 基板組 2 2P 4P 4P 13~14~15~16~17~18~19~20 32 LED LIGHT LED照明組 針振りモータ 送りモータ 押えモータ 上糸切モータ 下糸切モータ 布切メスモータ 上糸アクチュエータ テンション 頭部FAN 21~22~23 操作パネル 31~44 33 34 ペダルSW DPペダルSW 予備入力 CN34 CN39 CN41 CN43 CN33 CN26 CN16 CN11 CN13 CN15 CN17 CN12 CN91 CN92 CN96 24~26 電源SW 27~29 26P 6P 4P 2P 2P 14P 20P 30P 39 40~41 SDC 基板組 CN46 CN45 CN47 CN42 CN48 CN35 CN44 CN50 CN37 CN38 CN31 40P 6P 9P 6P 2P 2P 10P 4P 2P 40P 4P 2P MAIN 基板組 電装BOX 38 35~37 JTAG (DSP) JTAG(PLD) FM-ONE(PC) シリアルポート オプション出力 オプションマーキング(5V) オプション糸巻き(24V) オプション I/O 頭部アースコード 42 IPM550W主軸モータ 43 200~240V AC 主 FLT基板 一般 三相 CE 向け: FLT_T使用 向け: FLT_CE使用 向け: FLT_T使用 輸出: FLT不要 基板は電源仕様により選択 jintex.in
Page 44
WIRING DIAGRAM No. Parts No. Parts name Remarks Level Cons Qty 1 40138611 INT PCB ASSY 1 2 40005400 PAUSE SWITCH JOINT CORD 1 3 32002354 SWITCH ASM. 1 4 40003499 THREAD BREAK DETECTOR A 1 5 40141480 UT TRIM SENSOR CORD ASSY 1 6 HD00057000A PHOTO SENSOR 1 7 40141481 DT TRIM SENSOR CORD ASSY 1 8 HD00057000A PHOTO SENSOR 1 9 40141482 FEED SENSOR CORD ASSY 1 10 HD00057000A PHOTO SENSOR 1 11 40141484 COVER SENSOR RELAY CORD ASSY 1 12 40141483 COVER SENSOR ASSY 1 13 40139180 NEEDLE SWING MOTOR ASSY 1 14 40139181 FEED MOTOR ASSY 1 15 40139182 CLAMP MOTOR ASSY 1 16 40140040 UT TRIM MOTOR ASSY 1 17 40140041 DT TRIM MOTOR ASSY 1 18 40139183 CLOTH CUT MOTOR ASSY 1 19 40006261 ASSY,AT,SOLENOID 1 20 40111214 FAN MOTOR ASSY 1 21 40141479 INT CORD C ASSY 1 22 40141478 INT CORE B ASSY 1 23 40141477 INT CORD A ASSY 1 24 40023371 SINGLE PHASE POWER CORD ASSY FOR 1-PHASE 220V~240V 1 25 M90175800A0 POWER CABLE ASM. FOR 3-PHASE 200V~240V 1 26 40005390 JE POWER CABLE ASM. FOR CE 220V~240V 1 27 40141487 AC POWER CORD A ASM. FOR 1-PHASE 220V~240V 1 28 40141488 AC POWER CORD B ASM. FOR 3-PHASE 200V~240V 1 29 40141489 AC POWER CORD C ASM. FOR CE 220V~240V 1 30 40113427 POWER SWITCH 1 31 40141333 LBH OPERATION PANEL ASSY FOR 1-PHASE 220~240V, 3-PHA- SE 200~240V, 1-PHASE 220~240V (FOR CHINA) 1 32 40141706 ASSY,LED DEVICE 1 33 40094262 PEDAL SENSOR BASE ASSY 1 34 40003491 ASSY,4 POSITION PEDAL 1 35 40141500 MC602 CTL BOX A ASM. 1 36 40141501 MC602 CTL BOX B ASM. 1 37 40141502 MC602 CTL BOX C ASM. 1 38 40138920 MAIN PCB ASSY 1 39 40142267 SDC PCB ASSY 1 40 40105465 FLT-T PCB ASSY FOR 3-PHASE 200V~240V 1 41 40105475 FLT-CE PCB ASSY FOR CE 220V~240V 1 42 14115554 HEAD GROUND CABLE A ASM. 1 43 40138137 IPM550W MOTOR 1 44 40141334 LBH OPERATION PANEL ASSY CE FOR 1-PHASE CE 220~240V 1 jintex.in
Page 45
ACCESSORIE PARTS COMPONENTS 21-33 1 4 23 5 12 32 19 20 6 9 11 29 30 22 3 2 31 7 13 18 14 15 16 17 24 27 26 25 28 jintex.in
Page 46
ACCESSORIE PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22932800 ACCESSORIE BAG 1 2 22933204 SCREW DRIVER SMALL 1 3 22933105 SCREW DRIVER MIDDLE 1 4 40009148 BOBBIN ☆ 1 5 MDP5J0B1102 NEEDLE DPX5 #11J-2 ☆ 1 6 SL6040892TN BOLT 1 7 CM600100201 WEEE INFORMATION SHEET 1 8 14101208 HEAD SUPPORT BAR 1 9 SM6067052TP HEXAGON BOLT 4 10 22502504 THREAD GUIDE BAR 1 11 D6056555B00 RUBBER CUSHION (B) 4 12 40006323 JUKI GREASE A TUBE ☆ 1 13 40165710 AUXILIARY_TABLE_SET 1 14 40145523 INSTALLING_PLATE_SET * 1 15 13785803 INSTALLING PLATE * 2 16 SS7110570SP SCREW 11/64-40 L=4.8 * 4 17 SM6061002TP SCREW M6 L=10 * 2 18 40165711 PAINTED_AUXILIARY_TABLE * 1 19 B91210120A0 OILER ASM. 1 20 MDFRX1200C0 NEW DEFRIX OIL NO.1(200ML) ☆ 1 21 B2702047M00A KNIFE 5/8 ☆ 1 22 22933006 SCREW DRIVER LARGE 1 23 B9107761000 THREAD PASSING INSTRUMENT ☆ 1 24 40142172 ASSY_SAFETY_PLATE_B 1 25 40141799 SAFETY_PLATE_BASE * 1 26 40141798 SAFETY_PLATE * 1 27 SL4040891SC SCREW M4 L=8 * 2 28 SM6040602TP SCREW M4 L=6 * 1 29 WP0612056SD WASHER 6.1X18.5X2 4 30 NM6060001SD NUT M6 8 31 26234005 VINYL COVER 1 32 13943402 TIMING GAUGE 1 33 B2702047K00A KNIFE 3/8 ☆ 1 34 29180403 EC PRODUCTION DECLARATION 1 - 44 -
Page 47 — THREAD STAND COMPONENTS
THREAD STAND COMPONENTS 1 19 11 9 5 9 18 8 13 8 3 12 24 10 7 17 23 7 4 6 18 6 22 2 21 22 21 20 20 15 16 16 15 14 - 45 -
Page 48 — THREAD STAND COMPONENTS
THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40096354 THREAD STAND ASM. 1 2 40085784 SPOOL REST ROD LOWER * 1 3 40085785 SPOOL REST ROD UPPER * 1 4 40085786 SPOOL REST ARM LOWER * 1 5 40085787 SPOOL REST ARM UPPER * 1 6 40085788 SPOOL REST * 2 7 40085789 SPOOL REST CUSHION * ☆ 2 8 40085790 SPOOL PIN * 2 9 40085791 SPOOL RETAINER * 2 10 40085792 SPOOL REST ROD JOINT * 1 11 40085793 SPOOL REST ROD RUBBER CAP * 1 12 40085794 THREAD GUIDE * 2 13 40085795 THREAD GUIDE BUSHING * 2 14 40096325 SPOOL REST ROD NUT * 1 15 WP1612616SE WASHER 16X30X2.6 * 2 16 40085796 SPOOL REST ROD RUBBER CUSHION * 2 17 40096327 SPOOL REST ARM LOWER SCREW * 1 18 NM6050001SE NUT M5 * 2 19 40096327 SPOOL REST ARM UPPER SCREW * 1 20 NM6050001SE NUT M5 * 2 21 WS0510002KN SPRING WASHER M5 * 2 22 WP0531001SC WASHER M5 * 2 23 SM4051405SE SCREW M5 L=14 * 2 24 NM6050001SE NUT M5 * 2 - 46 -
Page 49 — SPECIAL SPECIFICATIONS COMPONENTS (1)
SPECIAL SPECIFICATIONS COMPONENTS (1) ELECTRIC BOBBIN WINDER COMPONENTS 電動糸巻き関係 94 1 5 6 10 7 8 3 2 2-PEDAL FOR STANDING MACHINE COMPONENTS 立ちミシン２ペダル関係 12 11 13 14 16 20 22 18 21 19 23 15 17 THE STARTING PEDAL FOR 2-PEDAL 2ペダル用起動ペダル組 35 37 38 35 37 36 40 29 35 28 37 25 40 30 39 36 26 27 32 34 32 31 24 33 36 41 - 47 -
Page 50 — SPECIAL SPECIFICATIONS COMPONENTS (1)
SPECIAL SPECIFICATIONS COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 G50011980A0A BOBBIN WINDER ASM. 1 2 40005405 WINDER CORD ASSY 1 3 B32217710A0 BOBBIN WINDER TENSION BRACKET ASM. 1 4 B3221771000 BOBBIN WINDER TENSION BRACKET * 1 5 B3219232000 BOBBIN WINDER TENSION POST * 1 6 B3214047000 BOBBIN WINDER TENSION DISC * 2 7 B3218232000 BOBBIN WINDER TENSION SPRING * 1 8 B3216047000 BOBBIN WINDER TENSION NUT * 1 9 NS6110310SP NUT 11/64-44 * 1 10 SK3452005SC WOOD SCREW D=4.5 L=20 4 11 40003493 PK PEDAL JOINT CORD ASSY 1 12 GPK510010B0 PEDAL SWITCH ASM. * 1 13 40097040 HOOK COOLING UNIT B * 1 14 40023432 FILTER REGULATOR ASM. * 1 15 PF0551060A0 FILTER REGULATOR * 1 16 PF902005000 REGULATOR BRACKET * 1 17 PJ025100003 PLUG * 1 18 PV015122000 FINGER VALVE * 1 19 40094012 PIPE BRACKET ASM. * 1 20 BT0400251EB URETHANE HOSE BLACK * 1.5 21 SK3412001SE WOOD SCREW D=4.1 L=20 * 2 22 MAO11532000 CORD STAPLE * 2 23 EA950B0100 CABLE BAND * 2 24 40003491 ASSY_4_POSITION_PEDAL 1 25 13731906 SPRING * 1 26 B2583210D00 SPRING * 1 27 NM6060001CP NUT M6 * 1 28 40004360 PEDAL FRAME * 1 29 40004361 PEDAL_FRAME_A * 1 30 40004362 PEDAL_FRAME_B * 1 31 40004363 PEDAL_FRAME_GUIDE * 1 32 HD00057000A PHOTO SENSOR * 2 33 SL4031091SC SCREW M3 L=10 * 1 34 SL6031042TN SCREW * 1 35 SM5040655SN SCREW * 3 36 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 * 4 37 40004364 SENSOR DETECTING PLATE * 3 38 SD1000646TP SHOULDER SCREW D=10 H=6.4 * 1 39 40004299 STOPPER PIN * 2 40 40004327 SUSPENSION SCREW * 2 41 SK3482001SE WOOD SCREW D=4.8 L=20 2 jintex.in
Page 51 — SPECIAL SPECIFICATIONS COMPONENTS (2)
SPECIAL SPECIFICATIONS COMPONENTS (2) LARGE SIZE TYPE(FOR 70MM) 大サイズ仕様（70ＭＭ用） 9 7 12 A 8 15 14 9 6 20 21 A 13 6 10 16 5 17～19 6 11 SWING WIDTH 10MM TYPE 振り幅10ＭＭ仕様 33 35 34 23 22 22 36 27 24 28 NON-LUBRICATING HOOK TYPE 無給油釜仕様 29 25 1 3 31 20 2 21 2 30 26 4 32 FOR HOSIERY (TYPE K) メリヤス用（Ｋタイプ） 39 38 45 42 37 46 43 40 41 44 - 49 -
Page 52 — SPECIAL SPECIFICATIONS COMPONENTS (2)
SPECIAL SPECIFICATIONS COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40006345 RP_HOOK_ASM. ☆ 1 2 40006349 RP_BOBBIN_CASE ☆ 1 3 13729603 HOOK SLEEVE 1 4 SS8660612TP SCREW 1/4-40 L=6 4 5 40006340 WORK_CLAMP_HOLDER_SPACE FOR PRESSER 70MM 1 6 SM6040450TP SCREW M4 L=4 FOR PRESSER 70MM 3 7 40028682 UTT_CLOSE_CAM_120B 1 8 40112711 LIFTING_PLATE_120 1 9 SM6050800SP SCREW M5 L=8 2 10 40006335 WORK_CLAMP_ARM_120 1 11 40006339 WORK_CLAMP_CARRIER_120 1 12 14523252 PRESSER FOOT 70 ASM. FOR PRESSER 70MM 1 13 B1509761000 PRESSER FITTING PLATE SPRING * 2 14 B1512761000 PRESSER FOOT HOLDER SPRING * 1 15 14523203 PRESSER FOOT 70 * 1 16 B151077100B PRESSER FOOT PIN B * 2 17 14523708 URETHANE PRESSER 70 FOR PRESSER 70MM 1 18 14524102 PRESSER 70 (FLAT) FOR PRESSER 70MM 1 19 14523401 PRESSER 70 FOR PRESSER 70MM 1 20 SS6060210SP SCREW 3/32-56 L=1.9 6 21 SD0790203SP HINGE SCREW D=7.94 H=2 FOR PRESSER 70MM 3 22 40011319 THROAT_PLATE_BASE_SPACER 2 23 40004326 BTT_SPACER 1 24 WP0551016SH WASHER 5.5X13X1 2 25 40015733 THROAT_PLATE(S10) FOR SWING WIDTH 10MM 1 26 40015802 OIL_SHIELD_10 FOR SWING WIDTH 10MM 1 27 40020010 WORK_CLAMP_HOLDER(3-10)_ASSY FOR SWING WIDTH 10MM 1 28 40020011 WORK_CLAMP_HOLDER(3-10) * 1 29 40008638 WORK_CLAMP_CHECK_HOLDER_SPRING_B * 1 30 B151077100B WORK CLAMP CHECK SPRING SET PIN (B) * 2 31 B1509761000 WORK CLAMP CHECK SPRING * 2 32 40017810 WORK_CLAMP(3S-10) FOR SWING WIDTH 10MM 1 33 40020014 WORK_CLAMP_CARRIER(10X41)_CL FOR SWING WIDTH 10MM 1 34 40020012 WORK_CLAMP_CARRIER(10X41) * 1 35 CM300200001 ATTENTION SEAL * 1 36 40020013 WORK_CLAMP_ARM(10X41) FOR SWING WIDTH 10MM 1 37 40027554 THROAT_PLATE(1790K5) 1 38 D1511772KA0 WORK CLAMP CHECK HOLDER ASM. 1 39 B1511772000A WORK CLAMP CHECK HOLDER * 1 40 B1509761000 WORK CLAMP CHECK SPRING * 2 41 B151077100B WORK CLAMP CHECK SPRING SET PIN (B) * 2 42 B1512761000 WORK CLAMP CHECK HOLDER SPRING * 1 43 SS6060210SP SCREW 3/32-56 L=1.9 2 44 D1508772K00 WORK CLAMP CHECK (2K) 1 45 13782065 HOOK COMPL. K 1 46 13782107 HOOK TIMING GAUGE K 1 - 50 -
Page 53
EXCHANGING PARTS Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Presser Foot Presser Foot Ｋｎｉｆｅ (Length of Cloth Cutting Knife) (Presser Size) 布切りメス 押 え （布切りメス長さ） 押え足（押えサイズ） Ｓｔａｎｄａｒｄ Ｓｔａｎｄａｒｄ Ｆｏｒ Ｈｏｓｉｅｒｙ Ｓｔａｎｄａｒｄ 標 準 標 準 メリヤス用 標 準 inch mm NO NO NO NO 1/4 6.4 1 B2702-047-F00 3/8 9.5 2 B2702-047-K00-A 7/16 11.1 3 B2702-047-I00 1/2 12.7 4 B2702-047-L00-A 9/16 14.3 5 B2702-047-V00 12 B1552-781-000-A 15 D1508-771-K00-A 18 D1511-771-KA0-A 5/8 15.9 6 B2702-047-M00-A 11/16 17.5 7 B2702-047-A00 3/4 19.1 8 B2702-047-N00 7/8 22.2 9 B2702-047-P00 １ 25.4 10 B2702-047-Q00-A 13 B1552-782-000 16 D1508-772-K00 19 D1511-772-KA0 1-1/4 31.8 11 B2702-047-S00-A 14 B1552-783-000 17 D1508-773-K00 20 D1511-773-KA0 Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Knife Guard Throat Plate Ｋｎｉｆｅ 布切りメス メス受板 針 板 Flat Knife 平メス inch mm NO NO NO 1/4 6.4 21 B2745-771-F00 3/8 9.5 22 B2745-771-K00 1/2 12.7 23 B2745-771-L00 9/16 14.3 24 B2745-771-H00 5/8 15.9 25 B2745-771-M00 3/4 19.1 26 B2745-771-N00 31 B2746-771-000 32 137-82800 7/8 22.2 27 B2745-771-P00 １ 25.4 28 B2745-771-Q00 1-1/8 28.6 29 B2745-771-R00 1-1/4 31.8 30 B2745-771-S00 - 51 -
Page 54
EXCHANGING PARTS No. Parts No. Parts name Remarks Level Cons Qty 1 B2702047F00 KNIFE 1/4 1 2 B2702047K00A KNIFE 3/8 1 3 B2702047I00 KNIFE (7/16) 1 4 B2702047L00A KNIFE 1/2 1 5 B2702047V00 KNIFE 9/16 1 6 B2702047M00A KNIFE 5/8 1 7 B2702047A00 KNIFE 11/16 1 8 B2702047N00 KNIFE 3/4 1 9 B2702047P00 KNIFE 7/8 1 10 B2702047Q00A KNIFE 1 1 11 B2702047S00A KNIFE 1-1/4 1 12 B1552781000A PRESSER 1 13 B1552782000 WORK CLAMP CHECK, 2 1 14 B1552783000 WORK CLAMP CHECK, 3 1 15 D1508771K00A LATCH WORK CLAMP CHECK 1 16 D1508772K00 WORK CLAMP CHECK (2K) 1 17 D1508773K00 WORK CLAMP CHECK (3K) 1 18 D1511771KA0A WORK CLAMP CHECK HOLDER 1 19 D1511772KA0 WORK CLAMP CHECK HOLDER 1 20 D1511773KA0 WORK CLAMP CHECK HOLDER 1 21 B2745771F00 KNIFE 1/4"(FLUOROCARBON) 1 22 B2745771K00 KNIFE 3/8"(FLUOROCARBON) 1 23 B2745771L00 KNIFE 1/2 1 24 B2745771H00 KNIFE 9/16"(FLUOROCARBON) 1 25 B2745771M00 KNIFE 5/8 1 26 B2745771N00 KNIFE 3/4 1 27 B2745771P00 KNIFE 7/8"(FLUOROCARBON) 1 28 B2745771Q00 KNIFE 1 1 29 B2745771R00 KNIFE 1-1/8"(FLUOROCARBON) 1 30 B2745771S00 KNIFE 1-1/4 1 31 B2746771000 KNIFE GUARD 1 32 13782800 THROAT PLATE(FLUOROCARBON) 1 - 52 -
Page 55
LIST FOR INFORMATION OF CHANGE As to the place changed,refer to the corresponding Rev.No. When previous parts(Obsoleted part)and new parts(Added parts)are not interchangeable with each other: In this case,even obsoleted parts(D.)can be ordered with the obsoleted part number,so select the parts with changed dates and place your orders. 変更箇所は,該当Rev.No.版をご参照ください。 部品の互換性がない変更の場合は,削除された品番でも,ご注文できます。 40142146 No.1649-06･･･Rev.No. *A:Added parts追加部品/D:Obsoleted parts削除部品/E:Erratum訂正 Rev. Page Ref. Parts No. Rev. Page Ref. Parts No. * No. 頁 No. 品 番 * No. 頁 No. 品 番 D 05 2 5 401-42906 A 06 2 5 401-65706 D 05 2 74 HM-0003800-A0 D 05 2 75 SL-4042091-SC A 06 2 75 SL-4042591-SC D 05 2 76 SL-4041291-SC A 06 2 74 NM-6040001-SC D 05 6 14 SB-1200027-00 D 05 6 18 SM-80606A2-TP D 05 6 25 236-05207 A 06 6 25 401-50011 D 05 6 34 SB-1200008-00 A 06 6 34 SB-1200008-C0 D 05 6 36 400-83369 A 06 6 36 401-65704 D 05 6 37 400-22363 A 06 6 37 401-65701 D 05 6 38 400-08426 A 06 6 38 401-65703 D 05 10 36 400-04289 A 06 10 36 401-65700 D 05 20 7 SB-1120003-00 A 06 20 7 SB-1120003-C0 D 05 20 15 SB-1040008-00 A 06 20 15 SB-1040008-C0 D 05 24 61 401-47891 A 06 24 61 401-65702 A 06 24 63 NM-6060001-SC D 05 28 13 401-42171 A 06 28 13 401-65710 D 05 28 18 400-08889 A 06 28 18 401-65711 - 53 -
Page 56
HOW TO MAKE USE OF THIS PARTS LIST 1.Explanation of codes 1)**mark...means this part is changed from the previous parts book. As to the details of the change, refer to the "List for information of change". 2)"#01"...refer to "Note" explanation at bottom of page. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(consumable parts) and "◎"(optional parts)on the respective pages, it is recommended to prepare spares. 1."注記"欄の記号説明 1) "*"印...前回のパーツブックに比較して今回変更された部品を意味します。 変更内容は、“変更情報リスト”を参照してください。 2) "#01"...ページ下の"注記"の説明を参照してください。 2.数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。 3.数量欄の( )は、組部品を構成している子部品であることを意味します。 4.イラストページのーーーーー枠は、組構成であることを意味します。 5.リストページの"☆"(消耗部品)、"◎"(オプション部品)の印がついた部品は、 予備を準備しておくことをお奨めします。 jintex.in
Page 57 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10006104 6 18 22502504 44 10 40004186 14 8 11072402 8 62 22528764 2 41 40004187 14 9 11093606 8 63 22529473 8 60 40004188 14 5 11155108 34 3 22529481 8 59 40004194 16 5 11155207 34 4 22891204 16 3 40004197 16 7 11157567 34 7 22918304 10 43 40004198 16 8 11272507 24 24 22932800 44 1 40004200 16 9 13127402 16 43 22933006 44 22 40004201 16 10 13700406 4 51 22933105 44 3 40004205 16 18 13700505 4 52 22933204 44 2 40004206 10 39 13700604 4 50 23530405 22 4 40004209 22 27 13700703 4 62 23536204 14 6 40004212 22 30 13703806 2 24 23630007 14 26 40004213 22 31 13703905 2 25 26230409 2 13 40004214 22 34 13705405 4 69 26230409 8 58 40004215 22 33 13706403 22 14 26234005 44 31 40004216 22 25 13710306 14 11 26260109 6 28 40004217 22 26 13710405 14 20 26260208 6 29 40004218 22 13 13710504 14 12 26260307 6 30 40004222 22 29 13727102 30 54 26260406 6 31 40004224 22 21 13729066 14 13 26260505 6 32 40004232 26 52 13729306 30 55 26260604 6 33 40004234 24 37 13729603 14 31 26260802 6 35 40004235 24 26 13729603 50 3 26261206 6 39 40004236 24 43 13729652 14 30 26261305 6 40 40004238 24 27 13729769 14 29 26261503 6 41 40004240 26 50 13731906 48 25 26261602 6 42 40004243 26 63 13737408 28 9 26261701 6 43 40004244 24 41 13782065 50 45 29180403 44 34 40004245 24 42 13782107 50 46 32002354 2 39 40004246 26 64 13782800 52 32 32002354 42 3 40004247 24 40 13785803 44 15 32055402 6 21 40004248 24 38 13922208 2 47 40003491 42 34 40004249 26 62 13943303 4 56 40003491 48 24 40004250 26 65 13943402 44 32 40003493 48 11 40004252 6 22 14101208 44 8 40003499 6 26 40004252 24 39 14115554 6 7 40003499 42 4 40004254 24 29 14115554 42 42 40004156 2 9 40004254 28 22 14504401 14 17 40004157 2 7 40004255 26 70 14523203 50 15 40004159 2 11 40004264 24 33 14523252 50 12 40004160 2 44 40004265 24 34 14523401 50 17～19 40004161 2 15 40004267 16 37 14523708 50 17～19 40004171 10 19 40004275 18 79 14524102 50 17～19 40004180 14 18 40004279 18 51 22502504 2 42 40004185 10 14 40004280 18 50 INDEX - 1
Page 58 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40004285 18 48 40004393 32 32 40010534 10 24 40004287 18 58 40004394 32 29 40010535 10 26 40004288 18 59 40004396 32 30 40011143 6 27 40004289 16 36 40004398 32 27 40011144 6 34 40004291 18 78 40004400 24 17 40011145 6 36 40004293 24 4 40005390 42 24～26 40011146 6 37 40004294 26 71 40005400 42 2 40011205 30 50 40004296 24 36 40005405 48 2 40011319 50 22 40004297 24 66 40006261 6 1 40011327 30 63 40004297 26 66 40006261 42 19 40011355 14 16 40004298 24 67 40006263 6 2 40011517 10 1 40004298 26 67 40006264 6 3 40015674 26 54 40004299 28 69 40006265 6 23 40015702 26 51 40004299 30 69 40006307 10 10 40015733 50 25 40004299 48 39 40006314 4 49 40015802 50 26 40004301 28 46 40006317 14 21 40017810 50 32 40004306 28 39 40006320 14 25 40020010 50 27 40004308 28 32 40006323 44 12 40020011 50 28 40004309 28 29 40006335 20 13 40020012 50 34 40004311 28 36 40006335 50 10 40020013 50 36 40004321 28 31 40006339 20 7 40020014 50 33 40004324 28 47 40006339 50 11 40020310 18 67 40004326 50 23 40006340 50 5 40021933 6 38 40004327 28 68 40006345 50 1 40021998 28 27 40004327 30 68 40006349 50 2 40022121 16 11 40004327 48 40 40008423 10 35 40022322 28 30 40004328 30 73 40008638 20 6 40022323 28 28 40004329 28 4 40008638 50 29 40023371 42 24～26 40004336 28 3 40008646 20 2 40023432 48 14 40004343 28 7 40008647 20 5 40027553 30 49 40004344 28 8 40008658 20 15 40027554 50 37 40004345 30 52 40008671 22 5 40028634 26 48 40004346 30 64 40008671 32 14 40028636 26 61 40004347 30 53 40008977 4 57 40028682 20 10 40004348 30 65 40008978 4 58 40028682 50 7 40004349 30 71 40009037 4 64 40029613 28 33 40004360 48 28 40009148 44 4 40032269 10 29 40004361 48 29 40010434 16 15 40037008 8 52 40004362 48 30 40010435 16 16 40040276 32 28 40004363 48 31 40010489 32 16 40042089 32 18 40004364 48 37 40010510 6 19 40042134 34 21 40004373 22 23 40010511 6 6 40051473 10 15 40004374 22 24 40010512 6 20 40051474 10 16 40004378 22 2 40010514 6 5 40067165 20 1 40004379 22 3 40010522 6 8 40075297 16 4 INDEX - 2
Page 59 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40085784 46 2 40115876 38 9 40141501 38 1～3 40085785 46 3 40115877 38 26 40141501 42 35～37 40085786 46 4 40115878 38 28 40141502 38 1～3 40085787 46 5 40115879 38 12 40141502 42 35～37 40085788 46 6 40116677 38 43 40141706 2 45 40085789 46 7 40126054 40 51 40141706 42 32 40085790 46 8 40138137 10 22 40141709 2 3 40085791 46 9 40138137 42 43 40141710 2 26 40085792 46 10 40138611 4 70 40141711 2 27 40085793 46 11 40138611 42 1 40141713 4 66 40085794 46 12 40138920 38 13 40141714 2 43 40085795 46 13 40138920 42 38 40141716 10 20 40085796 46 16 40139180 22 8 40141717 10 27 40088990 22 1 40139180 42 13 40141718 10 33 40093423 34 11 40139181 16 1 40141719 10 28 40094012 48 19 40139181 42 14 40141720 10 9 40094259 34 9 40139182 16 34 40141721 10 6 40094260 34 10 40139182 42 15 40141725 10 41 40094262 34 8 40139183 32 2 40141726 10 42 40094262 42 33 40139183 42 18 40141727 10 45 40096325 46 14 40140040 24 46 40141730 10 46 40096326 46 17 40140040 42 16 40141739 14 14 40096327 46 19 40140041 28 12 40141740 14 19 40096354 46 1 40140041 42 17 40141741 16 13 40097040 48 13 40141333 36 1･2 40141742 16 27 40101638 24 30 40141333 42 31･44 40141743 18 60 40101638 28 23 40141334 36 1･2 40141744 16 12 40101641 24 28 40141334 42 31･44 40141745 18 53 40101642 24 31 40141477 8 65 40141746 18 57 40101649 28 6 40141477 42 23 40141747 18 52 40105465 38 15･16 40141478 6 17 40141748 18 68 40105465 42 40･41 40141478 42 22 40141753 18 54 40105475 38 15･16 40141479 8 51 40141754 16 46 40105475 42 40･41 40141479 42 21 40141755 16 45 40108754 16 6 40141480 42 5 40141756 18 55 40111214 4 73 40141481 42 7 40141757 16 44 40111214 38 17 40141482 42 9 40141758 22 6 40111214 42 20 40141483 4 79 40141759 22 7 40112711 20 11 40141483 42 12 40141760 22 9 40112711 50 8 40141484 42 11 40141774 24 35 40113427 40 46 40141487 42 27～29 40141778 28 5 40113427 42 30 40141488 42 27～29 40141779 28 18 40114136 38 36 40141489 42 27～29 40141780 32 5 40114398 38 35 40141500 38 1～3 40141781 32 4 40115874 38 7 40141500 42 35～37 40141782 32 8 INDEX - 3
Page 60 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40141783 32 13 40165711 44 18 B2746771000 52 31 40141785 32 19 B1414232000 22 28 B3013141H0A 28 35 40141786 32 17 B1509761000 18 72 B3214047000 8 64 40141787 32 25 B1509761000 20 4 B3214047000 48 6 40141788 16 30 B1509761000 50 40 B3216047000 48 8 40141794 18 49 B151077100B 18 73 B3218232000 48 7 40141795 2 33 B151077100B 20 3 B3219232000 48 5 40141798 44 26 B151077100B 50 41 B3221771000 48 4 40141799 44 25 B1511771000B 18 71 B32217710A0 48 3 40141801 16 31 B1511772000A 50 39 B9107761000 44 23 40141802 30 70 B1512761000 18 74 B91210120A0 44 19 40142148 2 17 B1512761000 50 42 BT0400251EB 48 20 40142152 10 2 B1552781000A 18 76 CM300100001 38 39 40142161 16 29 B1552781000A 52 12 CM300100402 38 41 40142163 32 11 B1552782000 52 13 CM300200001 4 72 40142164 32 12 B1552783000 52 14 CM300200001 50 35 40142166 26 49 B1623180000 28 34 CM300200003 4 68 40142170 28 2 B1811771000 14 28 CM300400602 38 40 40142172 44 24 B2583210D00 48 26 CM301300001 4 71 40142267 38 23 B2702047A00 52 7 CM600100101 38 42 40142267 42 39 B2702047F00 52 1 CM600100201 44 7 40142752 14 24 B2702047I00 52 3 CQ202000000 14 27 40142753 14 22 B2702047K00A 44 21･33 CQ252000000 10 18 40142754 14 23 B2702047K00A 52 2 CQ252000000 14 32 40142755 16 33 B2702047L00A 32 22 CS0800881TP 24 25 40142878 10 47 B2702047L00A 52 4 CS1000881TP 10 31 40142880 10 44 B2702047M00A 44 21･33 CS1501181TP 22 17 40142887 2 18 B2702047M00A 52 6 D1508771K00A 52 15 40142966 34 1 B2702047N00 52 8 D1508772K00 50 44 40142969 40 62 B2702047P00 52 9 D1508772K00 52 16 40143150 10 5 B2702047Q00A 52 10 D1508773K00 52 17 40143770 2 1 B2702047S00A 52 11 D1511771KA0A 18 70 40143988 38 5･6 B2702047V00 52 5 D1511771KA0A 52 18 40143989 38 5･6 B2702210000 6 24 D1511772KA0 50 38 40143990 38 27 B2703210000 6 25 D1511772KA0 52 19 40145327 4 78 B2745771F00 52 21 D1511773KA0 52 20 40145328 2 20 B2745771H00 52 24 D3162555B00 8 54 40145523 44 14 B2745771K00 52 22 D6056555B00 4 61 40150011 10 25 B2745771L00 52 23 D6056555B00 44 11 40165701 10 37 B2745771M00 52 25 D8204555D00 34 6 40165702 40 61 B2745771N00 52 26 E2002855000 4 60 40165703 10 38 B2745771P00 52 27 E8760452S00 40 45 40165704 10 36 B2745771Q00 52 28 EA9500B0100 8 56 40165706 2 5 B2745771R00 52 29 EA9500B0100 24 3 40165710 44 13 B2745771S00 52 30 EA9500B0100 38 44 INDEX - 4
Page 61 — NUMERICAL INDEX OF PARTS
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. EA9500B0100 48 23 EA9500B0200 40 58 G50011980A0A 48 1 GPK510010B0 48 12 HD00057000A 16 2 HD00057000A 24 47 HD00057000A 42 19 HD00057000A 48 32 HF0013050P0 40 56 HF003000200 40 56 HX001500000 4 81 HX00150000A 28 1 HX00150000D 40 48 HX00151000A 8 57 HX00220000D 38 31 HX002550000 14 33 HX00292000A 38 21 HX00339000M 38 22 KX000000210 34 13 KX000000230 34 14 KX000000260 38 19 KX000000320 38 32 KX000000380 4 54 M300451100A 40 49 M8002430000 38 34 M90175800A0 42 24~26 MAO11532000 48 22 MAZ16013000 26 69 MDFRX1200C0 44 20 MDP5J0B1100 22 16 MDP5J0B1102 44 5 MTSHJ100003 34 18 MTSHJ100003 40 53 NM6030001SD 2 6 NM6040000SN 24 32 NM6040001SC 2 74 NM6040001SD 4 74 NM6040001SD 28 66 NM6050001SE 46 66 NM6050001SP 22 24 NM6050001SP 24 57 NM6050001SP 26 40 NM6050001SP 28 11 PART NO PAGE REF NO. NM6060001CP 48 27 NM6060001SC 40 63 NM6060001SD 4 53 NM6060001SD 44 30 NM6080002SC 34 17 NM6080002SC 40 55 NM6100001SD 10 8 NS6110310SP 8 61 NS6110310SP 48 9 PF0551060A0 48 15 PF902005000 48 16 PJ025100003 48 17 PV015122000 48 18 RC0100001KP 10 4 RC0560711KP 6 44 RC1700001KP 6 4 RC2791218KP 14 7 RC3781518KP 10 3 RE0300000K0 24 2 RE0400000K0 6 45 RE0500000K0 16 42 SB1040008C0 32 15 SB110000600 14 2 SB110000700 10 7 SB1120003C0 32 7 SB112001600 14 1 SB115000200 14 3 SB115001500 14 4 SB1200008C0 10 34 SB307000200 18 56 SB408000100 16 47 SB710000600 16 14 SD0250101SP 28 42 SD0500166TP 28 43 SD0500167TP 28 44 SD0600266TP 24 8 SD0600326TP 24 21 SD0790203SP 18 77 SD0790203SP 20 9 SD0790203SP 50 21 SD0800296TP 28 62 SD0800296TP 30 62 SD0800326TP 16 35 SD0800406TP 24 22 SD0801006TP 28 67 PART NO PAGE REF NO. SD0801006TP 30 67 SD0801506TP 24 23 SD1000646TP 48 38 SK3311600SC 34 5 SK3382001SE 36 3 SK3412001SE 48 21 SK3452000SC 48 10 SK3482001SE 48 41 SK3512001SE 40 48 SL4030881SC 4 80 SL4030881SC 38 38 SL4031091SC 16 19 SL4031091SC 24 7 SL4031091SC 28 13 SL4031091SC 48 33 SL4040881SC 38 37 SL4040891SC 44 27 SL4041081SC 38 24 SL4041091SC 34 12 SL4041091SC 40 47 SL4041281SC 38 33 SL4042091SC 38 18 SL4042591SC 4 75 SL4051291SC 34 20 SL6031042TN 48 34 SL6040892TN 2 63 SL6040892TN 4 63 SL6040892TN 30 72 SL6040892TN 44 6 SL6041292TN 30 74 SL6041492TN 32 3 SL6061492TN 32 6 SM0040801SC 2 19 SM0050801SC 8 53 SM0860400SN 6 9 SM1030400SP 30 48 SM4040655SP 2 28 SM4041050TP 30 58 SM4051001SC 34 15 SM4051055SP 2 16 SM4051405SE 46 23 SM4051655SP 2 12 SM5040550TP 16 28 SM5040655SN 6 47 SM5040655SN 48 35 INDEX - 5 jintex.in
Page 62
NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SM6031402TP 2 23 SM6050802TP 6 11 SM9040700SP 28 17 SM6040450TP 28 61 SM6050802TP 24 60 SM9040700SP 32 24 SM6040450TP 30 61 SM6050802TP 26 60 SM9040800SP 6 15 SM6040450TP 50 6 SM6050802TP 30 75 SM9061403CP 10 13 SM6040502TP 16 41 SM6051002TP 18 65 SS6060210SP 18 75 SM6040502TP 22 35 SM6051202TP 26 68 SS6060210SP 20 8 SM6040600SP 24 59 SM6051202TP 32 10 SS6060210SP 50 43 SM6040600SP 26 59 SM6051402TP 32 21 SS7110570SP 44 16 SM6040600SP 28 59 SM6052002TR 10 23 SS7110840SP 8 55 SM6040600SP 30 59 SM6061002TP 2 36 SS8660612TP 50 4 SM6040602TP 2 82 SM6061002TP 16 23 ST9053511SR 34 2 SM6040602TP 4 82 SM6061002TP 44 17 TA0500301R0 2 46 SM6040602TP 8 50 SM6061202TP 22 20 TA0550604R0 4 83 SM6040602TP 16 20 SM6061202TP 32 31 TA0750404R0 4 84 SM6040602TP 24 58 SM6061802TP 16 24 TA0850604R0 4 67 SM6040602TP 26 58 SM6061802TP 22 12 TA1050504R0 2 32 SM6040602TP 28 57 SM6062502TP 10 11 TA1250408R0 2 34 SM6040602TP 30 57 SM6067052TP 2 37 TA1550902R0 2 35 SM6040650TP 4 77 SM6067052TP 44 9 TA2100904R0 4 76 SM6040750TP 22 32 SM7030550TP 22 15 WP0430800SC 30 51 SM6040802TP 16 61 SM7030550TP 30 56 WP0430800SC 38 4 SM6040802TP 18 61 SM8030412TP 6 13 WP0430801SC 24 6 SM6040802TP 20 14 SM8040802TP 8 49 WP0430801SC 28 26 SM6040802TP 24 12 SM8050412TP 16 17 WP0430801SC 32 23 SM6040802TP 28 15 SM8050412TP 24 19 WP0431005SP 26 53 SM6040802TP 30 10 SM8050412TP 28 16 WP0431005SP 28 37 SM6041002TP 16 11 SM8050502TP 8 48 WP0450826SC 6 46 SM6041002TP 24 13 SM8050502TP 14 10 WP0451016SP 28 38 SM6041002TP 32 60 SM8050502TP 16 40 WP0531001SC 46 22 SM6041200SP 24 22 SM8050502TP 18 66 WP0550800SP 26 56 SM6041200SP 30 26 SM8050502TP 24 20 WP0551016SH 50 24 SM6041200SP 40 13 SM8050602TP 18 66 WP0612056SD 4 55 SM6041202TP 10 61 SM8050612TP 32 20 WP0612056SD 44 29 SM6041202TP 16 61 SM80506A2TP 10 30 WP0621046SP 10 12 SM6041202TP 22 14 SM80606A2TP 16 39 WP0651646SC 40 59 SM6041602TP 18 12 SM80606A2TP 18 69 WP0851846SC 34 19 SM6050652TP 2 29 SM80606A2TP 2 38 WP0852086SC 40 53 SM6050652TP 24 14 SM80606A2TP 6 14 WP1612616SE 46 15 SM6050652TP 48 36 SM80606A2TP 10 32 WS0410002KP 6 16 SM6050800SP 18 63 SM80606A2TP 14 15 WS0510002KN 46 21 SM6050800SP 20 12 SM80606A2TP 16 26 WS0820002KR 34 16 SM6050800SP 24 15 SM80606A2TP 22 19 WS0820002KR 40 54 SM6050800SP 30 9 SM80608A2TP 10 48 WT0640001KN 40 60 SM6050802TP 2 48 SM80608A2TP 12 48 SM6050802TP 4 48 SM8081652TP 10 21 INDEX - 6 jintex.in
