Parts index — Juki LBH-1790ANtap a row to open its page

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Juki LBH-1790AN parts on page 4

Ref	Part number	Part name	Qty
	40189612	UPPER_COVER	1
	SM4051055SP	SCREW	6
	40189633	LEFT_COVER	1
	SM4051055SP	SCREW	2
	40189613	LEFT_COVER_B	1
	SM4051055SP	SCREW	4
	40189616	THREAD_TAKE_UP_LEVER_COVER	1
	SM4051055SP	SCREW	1
	40189617	FRONT_COVER	1
	SM4051055SP	SCREW	3
	40189615	MOTOR_COVER	1
	SM4051655SP	SCREW M5 L=16	4
	26230409	LUBRICATING OIL WICK STOPPER	2
	SM6050802TP	SCREW M5X0.8 L=8	1
	40189614	REAR_COVER	1
	SM4051055SP	SCREW	4
	40189635	HOOK_OIL_SHIELD_COVER_COMPL	1
	40189636	HOOK_OIL_SHIELD_COVER	1
	SM0040801SC	SCREW
	40145328	SENSOR SLIT PLATE C
	NM6040001SC	NUT M4X0.7 TYPE1
	NM6030001SD	NUT M3X0.5
	SM6031402TP	SCREW
	13703906	HOOK OIL SHIELD HINGE
	13703905	HINGE PIN
	40141710	HINGE_SPRING
	40141711	HINGE_SPRING_WASHER
	SM4040655SP	SCREW M4 L=6
	SM6050652TP	HEXAGON SOCKET HEAD SCREW M5X6	2
	SM6040602TP	SCREW M4 L=6	2
	TA1550902R0	PLUG	1
	TA1050504R0	RUBBER PLUG	1
	40141795	PBL_METAL_CAP	1
	TA1250406R0	RUBBER PLUG D=12.5 L=4	3
	TA1550902R0	PLUG	3
	SM6061002TP	SCREW M6 L=10
	SM6061052TP	HEXAGON BOLT	1
	SM80606A2TP	SCREW M6 L=6	2
	40189631	SWITCH ASM.	1
	SL6040892TN	SCREW	2
	22528764	PRE-TENSION CONTROLLER ASM.	1
	22502504	THREAD GUIDE BAR
	40189634	BED BASE N	1
	40189618	BED_REAR_COVER	1
	40141706	ASSY_LED_DEVICE	1
	TA0500301R0	PLUG 5X5.8 L=3	1
	13922208	TAKE-UP THREAD GUIDE B	1

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Juki LBH-1790AN parts on page 6

Ref	Part number	Part name	Qty
	SM6050802TP	SCREW M5X0.8 L=8	2
	40006314	HINGE BUSH
	13700604	HINGE PIN	2
	13700406	HINGE PLATE A
	13700505	HINGE PLATE B
	NM6060001SD	NUT M6	2
	KX000000380	SPACER	4
	WP0612056SD	WASHER 6.1X18.5X2
	13943303	OIL SHIELD
	40008977	RUBBER C	3
	40008978	RUBBER D
	SL6040892TN	SCREW	4
	E2002855000	Z STOPPER RUBBER
	D6056555B00	RUBBER CUSHION (B)
	13700703	RUBBER HINGE
	SL6040892TN	SCREW
	40009037	TAKE-UP THREAD GUIDE A
	SM6040602TP	SCREW M4 L=6
	40141713	STUD
	TA0850604R0	RUBBER PLUG
	CM300200003	ATTENTION LABEL
	13705405	NEEDLE BAR THREAD GUIDE
	40138611	INT PCB ASSY
	CM301300001	SAFETY LABEL
	CM300200001	ATTENTION SEAL	2
	40111214	FAN MOTOR ASSY
	NM6040001SC	NUT M4X0.7 TYPE1	2
	SL4042591SC	SCREW M4 L=25	2
	TA2100904R0	RUBBER PLUG
	SM6040650TP	SCREW
	40145327	SENSOR PALTE C
	40141483	COVER SENSOR ASSY
	SL4030881SC	SCREW M3 L=8
	HX001500000	CLIP	3
	SM6040602TP	SCREW M4 L=6	3
	TA0550604R0	RUBBER PLUG
	TA0750404R0	PLUG D=7.5 L=3.5
	40172374	FACE COVER PLATE
	40172375	EMBLEM_JUKI_SMART_SOLUTIONS	2

Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Juki LBH-1790AN parts on page 8

Ref	Part number	Part name	Qty
	40006261	ASSY_AT_SOLENOID	1
	40006263	AT_SHAFT	1
	40006264	AT_SHAFT_HOLDER	1
	RC1700001KP	RETAINING RING	1
	40010514	DISK_STOPPER	1
	40010511	DISK_STOPPER_HOLDER_CAP	1
	1411554	HEAD GROUND CABLE A ASM.	1
	40010522	SHAFT_NUT	2
	SM0860400SN	SCREW	3
	SM6040860TP	SCREW M4 L=8	1
	SM6050802TP	SCREW M5X0.8 L=8	3
	SM8030412TP	SCREW	2
	SM8030412TP	SCREW	1
	SM80606A2TP	SCREW M6 L=6	1
	SM9040800SP	SCREW	1
	WS0410002KP	SPRING WASHER	1
	40141478	INT_CORE B ASSY	1
	10006104	TAKE-UP SPRING
	40010510	THREAD_TENSION_POST_BASE	1
	40010512	THREAD_TENSION_SHAFT_COLLAR	2
	32055402	THRUST COLLAR	1
	40004252	UTT_SUSPENSION_SCREW_9	1
	40006265	ASSY_THREAD_TENSION_POST	1
	B2702210000	GUIDE_PLATE	1
	B2703210000	BUSHING	1
	40003499	THREAD BREAK DETECTOR A	1
	40189628	ASSY_BTW	1
	40189600	BTW_BASE
	26260208	BTW_CAM_PLATE
	26260307	BTW_BASE_SHAFT
	26260406	BTW_SHAFT_BASE
	26260505	BTW_CAM_LEVER
	26260604	BTW_WHEEL
	40011144	BTW_TORSION_SPRING
	26260802	BTW_BEARING_SPACER
	40011145	BTW_SHAFT
	40011146	BTW_LEVER_SHAFT
	40021933	BTW_LEVER
	26261206	BTW_SPACER
	26261305	BTW_BEARING
	26261503	BTW_WHEEL_RUBBER
	26261602	BOBBIN_SPRING
	26261701	BTW_SPRING
	RC0560711KP	RETAINING RING
	RE0400000K0	E-RING 4
	WP0450826SC	WASHER 4.5X10X0.8
	SM5040655SN	SCREW

Page 10

Juki LBH-1790AN parts on page 10

Ref	Part number	Part name	Qty
48	SM8050502TP	SCREW M5 L=5

Page 12 — MAIN SHAFT COMPONENTS

Juki LBH-1790AN parts on page 12

Ref	Part number	Part name	Qty
	40011517	NEEDLE_BAR_CRANK_FELT	1
	40142152	IDLER_ASSY	1
	RC3781518KP	RETAINING RING
	RC0100001KP	SNAP RING M10
	40143150	IDLER FIXED PLATE
	40141721	IDLER_PULLEY
	SB110000700	BALL BEARING
	NM6100001SD	NUT M10
	40141720	IDLER_SHAFT
	40006307	SQUARE_BLOCK_GUIDE	3
	SM6062502TP	SCREW M6 L=25	1
	WP0621046SP	WASHER	1
	SM9061403CP	SCREW M6 L=14	1
	40004185	HINGE_SCREW	1
	40051473	COUPLING ASM.	1
	40051474	COUPLING
	SM80608A2TP	SCREW M6 L=8
	CQ252000000	OIL WICK	0.014
	40004171	COUNTER_WEIGHT_SCREW	1
	40141716	COUNTER_WEIGHT	1
	SM8081652TP	SCREW M8 L=16	1
	40138137	IPM550W MOTOR	1
	SM6052002TR	SCREW M5 L=20	4
	40105010	BTW_DRIVING_WHEEL	1
	40150011	FRONT BEARING	1
	40010535	DRIVING_WHEEL_SCREW	2
	40141717	MAIN_SHAFT	1
	40141719	TIMING_BELT	1
	40032269	THRUST COLLAR	1
	SM80506A2TP	SCREW M5 L=6
	CS1000881TP	THRUST COLLAR
	SM80606A2TP	SCREW M6 L=6	2
	40141718	SPROCKET_A	1
	SB1200008C0	BEARING	1
	40008423	WASHER	1
	40165704	NEEDLE CRANK SHAFT	1
	40165701	SQUARE BLOCK GUIDE B	1
	40165703	SQUARE BLOCK B	1
	40004206	SQUARE_BLOCK	1
	SM6041202TP	SCREW M4X0.7 L=12	2
	40141725	THREAD_TAKE_UP_COMP	1
	40141726	THREAD_TAKE_UP_ASM_C
	22918304	SCREW
	40142880	NEEDLE_BAR_CRANK_ROD_ASM.
	40141727	THREAD_TAKE_UP_ASM_B
	40141730	NEEDLE_BAR_CRANK
	40142878	TAKE_UP_CRANK_ASM.

Page 14 — MAIN SHAFT COMPONENTS

Juki LBH-1790AN parts on page 14

Ref	Part number	Part name	Qty
48	SM80608A2TP	SCREW M6 L=8	2

Page 16 — HOOK DRIVING SHAFT COMPONENTS

Juki LBH-1790AN parts on page 16

Ref	Part number	Part name	Qty
1	SB112001600	BEARING	2
2	SB110000600	BALL BEARING	2
3	SB11500200	BEARING	1
4	SB115001500	BEARING	1
5	40004188	BEARING_SUPPORT	1
6	23536204	BUSH	2
7	RC2791218KP	RETAINING RING	2
8	40004186	HOOK_DRIVING_SHAFT	1
9	40004187	HOOK_DRIVING_SHAFT_METAL	2
10	SM8050502TP	SCREW M5 L=5	1
11	13710306	INTERMEDIATE SPROCKET SHAFT	1
12	13710504	INTERMEDIATE SPROCKET WASHER	1
13	13729066	HOOK COMPL.	1
14	40141739	LOWER_SHAFT_KNOB_B	1
15	SM80606A2TP	SCREW M6 L=6	10
16	40011355	OIL_FILTER	2
17	14504401	BEARING SUPPORT	1
18	40004180	SPROCKET_B	1
19	40141740	SPROCKET_C	1
20	13710405	INTERMEDIATE SPROCKET RING	1
21	40006317	WASHER	1
22	40142753	ADJUSTING_PIN_B	1
23	40142754	ADJUSTING_SPRING_B	1
24	40142752	ADJUSTING_SCREW_B	1
25	40006320	FELT	1
26	23630007	TUBE	1
27	CQ202000000	OIL WICK	1
28	B1811771000	BOBBIN	1
29	13729769	BOBBIN CASE ASM.	1
30	13729652	HOOK SLEEVE CONNEC.	1
31	13729653	HOOK SLEEVE	1
32	CQ252000000	OIL WICK	0.04
33	HX002550000	TUBE	0.017

Page 18 — PRESSER & FEED COMPONENTS

Juki LBH-1790AN parts on page 18

Ref	Part number	Part name	Qty
	40139181	FEED MOTOR ASSY	1
	HD00057000A	PHOTO SENSOR	1
	22891204	BEARING SUPPORT	2
	40075297	THROAT_PLATE_BASE_COVER	2
	40004194	MOTOR_BRACKET	1
	40108754	PULLEY_B	1
	40004197	PULLEY_C	1
	40004198	SUPPORT_SHAFT	1
	40004200	TIMING_BELT_HOLDER	1
	40004201	FEED_SHAFT	1
	40022121	FEED_GUIDE_SHAFT	1
	40141744	SENSOR_SLIT_PLATE	1
	40141741	FEED_BASE	1
	SB710000600	BEARING	2
	40010434	THRUST_COLLAR_ASM.	1
	40010435	THRUST_COLLAR	1
	SM8050412TP	SCREW M5 L=4	2
	40004205	WORK_CLAMP_CARRIER	1
	SL4031091SC	SCREW M3 L=10	1
	SM6040602TP	SCREW M4 L=6	4
	SM6040802TP	SCREW M4X0.7 L=8	2
	SM6041002TP	SCREW M4 L=10	6
	SM6061002TP	SCREW M6 L=10	3
	SM6061802TP	SCREW M6 L=18	1
	SM8050502TP	SCREW M5 L=5	3
	SM80606A2TP	SCREW M6 L=6	2
	40141742	TIMING_BELT	1
	SM5040550TP	SCREW M4 L=5	4
	40142161	LIFTING_LINK_ASSY	1
	40141788	LINK_ROD_S	1
	40141801	LIFTING_LINK_PIN	1
	SD0800326TP	SHOULDER SCREW	1
	40142755	LIFTING_LINK	1
	40139182	CLAMP MOTOR ASSY	1
	SD0800326TP	SHOULDER SCREW	1
	40004289	ASSY PBL GEAR L	1
	40004267	ASSY_PBL_MOTOR_BASE	1
	SM6041202TP	SCREW M4X0.7 L=12	4
	SM8060552TP	SCREW M6 L=5	5
	SM8050502TP	SCREW M5 L=5	1
	SM6040502TP	SCREW M4X0.7 L=5	1
	RE050000K0	E-RING	1
	13127402	PIN (SHORT) C	1
	40141757	SQUARE_BLOCK	1
	40141755	SLIDE_ROLLER	1
	40141754	COLLAR	1
	SB408000100	BEARING	1

Page 20 — PRESSER & FEED COMPONENTS

Juki LBH-1790AN parts on page 20

Ref	Part number	Part name	Qty
48	40004285	PBL_FINGER_GUARD
49	40141794	PBL_GUIDE
50	40004280	PBL_LIFTING_PLATE
51	40004279	PBL_METAL
52	40141747	POSITION_BRACKET
53	40141745	PRESSER_BAR
54	40141753	PBL_ROLLER_BASE
55	40141756	PBL_ROLLER_SHAFT
56	SB30700200	BEARING
57	40141746	METAL_U
58	40004287	PBL_WORK_CLAMP_ARM
59	40004288	PBL_WORK_CLAMP_ARM_SHAFT
60	40141743	SENSOR_PLATE
61	SM6040802TP	SCREW M4X0.7 L=8
62	SM6041602TP	SCREW M4X0.7 L=16
63	SM6050800SP	SCREW M5 L=8
64	SM6051002TP	SCREW M5X0.8 L=10
65	SM6051002TP	SCREW M5X0.8 L=10
66	SM8050602TP	SCREW M5 L=6
67	40020310	UTT_CLOSE_CAM_B
68	40141748	LIFTING_LINK_SHAFT
69	SM8060612TP	SCREW M6 L=6
70	B1511771K0A	WORK CLAMP CHECK HOLDER ASM.
71	B1511771000B	PRESSER FOOT
72	B1509761000	WORK CLAMP CHECK SPRING
73	B151077100B	WORKCLAMPCHECKSPRINGSETPIN(B)
74	B1512761000	WORK CLAMP CHECK HOLDER SPRING
75	SS6060210SP	SCREW 3/32-56 L=1.9
76	B1552781000A	PRESSER
77	SD0790203SP	HINGE SCREW D=7.94 H=2
78	40004291	PBL_GEAR_S
79	40004275	PBL_GEAR_SHAFT

Page 22 — PRESSER & FEED COMPONENTS (FOR LBH-1795ANS)

Juki LBH-1790AN parts on page 22

Ref	Part number	Part name	Qty
1	40067165	LIFTING PLATE PARTS 120MM
2	40008646	ASS'Y,WORK_CLAMP,CHECK_HOLDER_120
3	B151077100B	WORK_CLAMP,CHECK,SPRING,SET,PIN(B)
4	B1509761000	WORK_CLAMP CHECK SPRING
5	40008647	WORK_CLAMP,CHECK_HOLDER_120
6	40008638	WORK_CLAMP,CHECK_HOLDER_SPRING B
7	40006339	WORK_CLAMP,CARRIER_120
8	SS6060210SP	SCREW 3/32-56 L=1.9
9	SD0790203SP	HINGE SCREW D=7.94 H=2
10	40028682	UTT_CLOSE_CAM_120B
11	40112711	LIFTING_PLATE_120
12	SM6050800SP	SCREW M5 L=8
13	40006335	WORK_CLAMP_ARM_120
14	SM6040802TP	SCREW M4X0.7 L=8
15	40008658	WORK_CLAMP_120

Page 24 — NEEDLE BAR ROCKING COMPONENTS

Juki LBH-1790AN parts on page 24

Ref	Part number	Part name	Qty
	40088990	SUPPORT_SHAFT	1
	40004378	ZIGZAG ROD ASM.	1
	40004379	ZIGZAG ROD
	23530405	SHAFT HOLDER LINK BUSH
	40008671	P=JUNCTION SHAFT SELECTIVE PARTS
	40141758	ZIGZAG_DRIVE_UNIT_BASE	1
	40141759	MOTOR_LEVER	1
	40139180	NEEDLE SWING MOTOR ASSY	1
	40141760	ZIGZAG_LEVER_REAR	1
	SM6041202TP	SCREW M4X0.7 L=12	4
	SM8050502TP	SCREW M5 L=5	6
	SM6061802TP	SCREW M6 L=18	1
	40004218	FRAME SUPPORT PLATE ASM.	1
	13706403	NEEDLE BAR THREAD GUIDE	1
	SM7030550TP	SCREW M3 L=4.5	1
	MDP5J0B1100	NEEDLE DPX5 #11J	1
	CS1501181TP	THRUST COLLAR D=15 W=11	1
	SM8050502TP	SCREW M5 L=5	2
	SM80606A2TP	SCREW M6 L=6	4
	SM6061202TP	SCREW M6 L=12	3
	40004224	ZIGZAG LEVER SHAFT ASM.	1
	NM6050001SP	NUT M5
	40004373	ZIGZAG LEVER SHAFT
	40004374	ZIGZAG_STUD
	40004216	BUSHING	1
	40004217	BUSHING REAR	1
	40004209	NEEDLE_BAR_ROD	1
	B1414232000	SQUARE BLOCK	1
	40004222	NEEDLE_BAR_FRAME_ASSY	1
	40004212	NEEDLE_BAR_FRAME
	40004213	NEEDLE BAR METAL
	SM6040750TP	SCREW M4 L=7	1
	40004215	NEEDLE BAR	1
	40004214	NEEDLE_BAR_CONNECTION	1
	SM6040502TP	SCREW M4X0.7 L=5	1

Page 26 — NEEDLE THREAD TRIMMER COMPONENTS

Juki LBH-1790AN parts on page 26

Ref	Part number	Part name	Qty
	RE0300000K0	E-RING 3	1
	RE0300000K0	E-RING 3	1
	EA9500B0100	CABLE BAND	1
	40004293	UTT BASE PLATE	1
	NM6050001SP	NUT M5	4
	WP0430801SC	WASHER 4.3X9X0.8	1
	SL4031091SC	SCREW M3 L=10	1
	SD0600266TP	SHOULDER SCREW D=6 H=2.6	1
	SM6040600SP	SCREW M4 L=6	2
	SM6040602TP	SCREW M4 L=6	2
	SM6040860TP	SCREW M4 L=8	1
	SM6040802TP	SCREW M4X0.7 L=8	4
	SM6041200SP	SCREW M4 L=12	2
	SM6050652TP	HEXAGON SOCKET HEAD SCREW M5X6	2
	SM6050800SP	SCREW M5 L=8	2
	SM6050802TP	SCREW M5X0.8 L=8	2
	40004400	ASSY UTT RELEASE ARM B	1
	SM6040602TP	SCREW M4 L=6	1
	SM8050412TP	SCREW M5 L=4	2
	SM8050502TP	SCREW M5 L=5	4
	SD0600326TP	SHOULDER SCREW D=6 H=3.2	4
	SD0800406TP	SHOULDER SCREW D=8 H=4	1
	SD080061TP	SHOULDER SCREW D=8 H=15	3
	11272507	SPRING	1
	CS0800881TP	THRUST COLLAR	1
	40004235	UTT ARM A	1
	40004238	UTT_ARM_B	1
	40101641	ASSY_UTT_CAM_ARM	2
	40004254	UTT CAM ROLLER	1
	40101638	UTT_CAM_ROLLER_SHAFT	1
	40101642	UTT_CAM_ARM	1
	NM6040000SN	NUT M4	1
	40004264	UTT RELEASE LEVER BASE	1
	40004265	UTT RELEASE LEVER SHAFT	1
	40141774	SENSOR_PLATE_UTT	1
	40004296	UTT_SUPPORT_ARM_SPRING	1
	40004294	UTT_SUPPORT_SHAFT	1
	40004248	UTT_SUSPENSION SCREW 4	2
	40004252	UTT_SUSPENSION SCREW 9	1
	40004247	UTT SUSPENSION SHOULDER SCREW	1
	40004244	UTT THREAD PULLING LINK A	1
	40004245	UTT THREAD PULLING LINK B	1
	40004236	UTT X-CAM	1
	40004297	UTT Y-DRIVE ROLLER	1
	40004298	UTT Y-DRIVE SHAFT	1
	40140040	UTT TRIM MOTOR ASSY	1
	HD00057000A	PHOTO SENSOR	1

Page 28 — NEEDLE THREAD TRIMMER COMPONENTS

Juki LBH-1790AN parts on page 28

Ref	Part number	Part name	Qty
48	40028634	ASSY_UTT_RELEASE_LEVER_B
49	40142166	ASSY_UTT_DRIVE_CAM
50	40004240	ASSY_UTT_THREAD PULLING ARM
51	40015702	UTT_RATCH_PLATE_B
52	40004232	ASSY_UTT_SUPPORT_ARM
53	WP0431005SP	PLAIN WASHER 4.3X12X1
54	40015674	UTT_RATCH_STOPPER
55	SM6040602TP	SCREW M4 L=6
56	WP0550800SP	WASHER 5.5X10X0.8
57	NM6050001SP	NUT M5
58	SM6040602TP	SCREW M4 L=6
59	SM6040600SP	SCREW M4 L=6
60	SM6050802TP	SCREW M5X0.8 L=8
61	40028636	UTT_GUIDE_SHAFT_B
62	40004249	UTT SUSPENSION PLATE
63	40004243	UTT THREAD PULLING LEVER
64	40004246	UTT THREAD PULLING SHAFT
65	40004250	UTT TRIMMER CLOSE SPRING
66	40004297	UTT Y-DRIVE ROLLER
67	40004298	UTT Y-DRIVE SHAFT
68	SM6051202TP	SCREW M5X0.8 L=12
69	MAZ16013000	BUTTON SUPPORT LEVER SPRING
70	40004255	ASSY UTT TRIMMER
71	40004294	UTT RELEASE ARM A

Page 30 — BOBBIN THREAD TRIMMER COMPONENTS

Juki LBH-1790AN parts on page 30

Ref	Part number	Part name	Qty
	HX00150000A	CABLE CLAMP	1
	40142170	ASSY,BTT,DRIVE,CAM	1
	40004336	ASSY,BTT,DRIVE,LEVER	1
	40004329	BTT,DRIVE,LINK	1
	40141778	BTT,DRIVE,UNIT,BASE	1
	40101649	BTT,RELEASE,LEVER	1
	40004343	BTT,RELEASE,LINK,F	1
	40004344	BTT,RELEASE,LINK,R	1
	13737408	LINK ROD	1
	NM6040001SD	NUT M4	1
	NM6050001SP	NUT M5	2
	40140041	DT TRIM MOTOR ASSY	1
	SL4031091SC	SCREW M3 L=10	1
	SM6040602TP	SCREW M4 L=6	2
	SM6040802TP	SCREW M4X0.7 L=8	4
	SM8050412TP	SCREW M5 L=4	2
	SM9040700SP	HEXAGONAL BOLT	1
	40141779	SENSOR,PLATE,BTT	1
	HD00057000A	PHOTO SENSOR	1
	SD0801006TP	SHOULDER SCREW D=8 H=10	2
	40004299	STOPPER,PIN	1
	40004254	UTT,CAM,ROLLER	2
	40101638	UTT,CAM,ROLLER,SHAFT	1
	SD0800296TP	SHOULDER SCREW D=8 H=2.9	2
	SM6040600SP	SCREW M4 L=6	2
	WP0430801SC	WASHER 4.3X9X0.8	2
	40021998	THROAT_PLATE_BASE_UNIT	1
	40022323	BT_CLAMP_B
	40004309	BT_CLAMP_LEVER
	40022322	BT_PULLER_B
	40004321	ASSY,BT,RELEASE,ARM
	40004308	BT_TRIMMER_LINK
	40029613	CLAMP_SPRING
	B1623180000	WASHER
	B3013141H0A	WASHER
	40004311	BT_TRIMMER
	WP0431005SP	PLAIN WASHER 4.3X12X1
	WP0451016SP	WASHER 4.5X20X1
	40004306	BTT_LEVER
	SM6040450TP	SCREW M4 L=4
	SM6040450TP	SCREW M4 L=4
	SD0250101SP	HINGE SCREW
	SD0500166TP	SHOULDER SCREW D=5 H=1.6
	SD0500167TP	SHOULDER SCREW D=5 H=1.6
	40004327	SUSPENSION_SCREW
	40004301	ASSY_THROAT_PLATE_BASE
	40004324	OIL_SHIELD

Page 31 — BOBBIN THREAD TRIMMER COMPONENTS

Juki LBH-1790AN parts on page 31

Ref	Part number	Part name	Qty
1	1	CLIP
2	2	BRACKET
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	LINK
7	7	LINK
8	8	LINK
9	9	BRACKET
10	10	SCREW
11	11	NUT
12	12	BRACKET
13	13	SCREW
14	14	SCREW
15	15	SCREW
16	16	SCREW
17	17	SCREW
18	18	BRACKET
19	19	SCREW
20	20	SCREW
21	21	SCREW
22	22	WASHER
23	23	WASHER
24	24	WASHER
25	25	WASHER
26	26	WASHER
27	27	PLATE
28	28	LEVER
29	29	BRACKET
30	30	LEVER
31	31	LEVER
32	32	LEVER
33	33	SPRING
34	34	WASHER
35	35	WASHER
36	36	LEVER
37	37	WASHER
38	38	WASHER
39	39	BRACKET
40	40	WASHER
41	41	WASHER
42	42	WASHER
43	43	WASHER
44	44	SCREW
45	45	PIN
46	46	PLATE
47	47	PLATE
48	48	SCREW
49	49	WASHER
50	50	BRACKET
51	51	SCREW
52	52	BRACKET
53	53	SCREW
54	54	LEVER
55	55	BRACKET
56	56	SCREW
57	57	SCREW
58	58	SCREW
59	59	SCREW
60	60	SCREW
61	61	SCREW
62	62	WASHER
63	63	SPRING
64	64	PIN
65	65	ROD
66	66	SCREW
67	67	SCREW
68	68	SCREW
69	69	SCREW
70	70	BRACKET
71	71	BRACKET
72	72	SCREW
73	73	BRACKET
74	74	SCREW
75	75	SCREW

Page 32

Juki LBH-1790AN parts on page 32

Ref	Part number	Part name	Qty
	SM1030400SP	SCREW M3 L=4	2
	40027553	THROAT_PLATE(1790S5)
	40011205	STUD
	WP0430800SC	WASHER M4
	40004345	PICKER,BASE
	40004347	PICKER,BASE,FITTNG,PLATE
	13727102	STOPPER A
	13729306	BOBBIN CASE POSITIONING PLATE
	SM7030550TP	SCREW M3 L=4.5
	SM6040602TP	SCREW M4 L=6
	SM4041050TP	SCREW M4 L=10
	SM6040600SP	SCREW M4 L=6
	SM6041200SP	SCREW M4 L=12
	SM6040450TP	SCREW M4 L=4
	SD0800296TP	SHOULDER SCREW D=8 H=2.9
	40011327	PICKER,SPRING
	40004346	PICKER
	40004348	PICKER ACTUATING LEVER
	NM6040001SD	NUT M4
	SD0801006TP	SHOULDER SCREW D=8 H=10
	40004327	SUSPENSION_SCREW
	40004299	STOPPER,PIN
	40141802	OIL TANK
	40004349	PICKER,ACTUATING_L_LINK
	SL6040892TN	SCREW
	40004328	PICKER,BASE,STOPPER
	SL6041292TN	SCREW
	SM6050802TP	SCREW M5X0.8 L=8

Page 33 — CLOTH CUTTING KNIFE COMPONENTS

Juki LBH-1790AN parts on page 33

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	MOTOR
3	3	SCREW
4	4	BRACKET
5	5	HOUSING
6	6	SCREW
7	7	BEARING
8	8	BLOCK
9	9	SPRING
10	10	SCREW
11	11	SHAFT
12	12	COLLAR
13	13	LINK
14	14	SCREW
15	15	WASHER
16	16	WASHER
17	17	PIN
18	18	WASHER
19	19	BODY
20	20	SCREW
21	21	SCREW
22	22	SCREW
23	23	WASHER
24	24	SCREW
25	25	HOLDER
26	26	SCREW
27	27	SLEEVE
28	28	CYLINDER
29	29	ROD
30	30	BASE
31	31	SPRING
32	32	BRACKET

Page 34

Juki LBH-1790AN parts on page 34

Ref	Part number	Part name	Qty
	SM6051202TP	SCREW M5X0.8 L=12	4
	40139183	CLOTH CUT MOTOR ASSY	1
	SL6041492TN	SCREW	4
	40141781	MOTOR,BASE,A	1
	40141780	MOTOR,BASE,B	1
	SL6061492TN	BOLT	2
	SB1120003C0	BEARING	1
	40141782	KNIFE,DRIVING,BLOCK	1
	SM8050612TP	SCREW M5X6	3
	SM6051202TP	SCREW M5X0.8 L=12	1
	40142163	KNIFE,DRIVING,ASSY	1
	40142164	KNIFE,DRIVING,LINK,ASSY
	40141783	KNIFE,DRIVING,LINK,COMBINATION
	40008671	P=JUNCTION SHAFT SELECTIVE
	SB1040008C0	BEARING
	40010489	AT,PIVOT,SCREW,WASHER
	40141786	SUPPORT,SHAFT
	40042089	THRUST WASHER
	40141785	KNIFE,BAR,BRACKET
	SM8050612TP	SCREW M5X6
	SM6051402TP	SCREW M5X0.8 L=14
	B2702047L00A	KNIFE 1/2
	WP043080TSC	WASHER M4
	SM9040700SP	HEXAGONAL BOLT
	40141787	SUPPORT,GUIDE
	SM6041002TP	SCREW M4 L=10
	40004398	KNIFE,BAR,BUSH
	40040276	KNIFE,BAR,LOWER,BUSHING
	40004394	KNIFE,BAR
	40004396	KNIFE,BAR,BASE
	SM6061202TP	SCREW M6 L=12
	40004393	KNIFE FITTING BASE

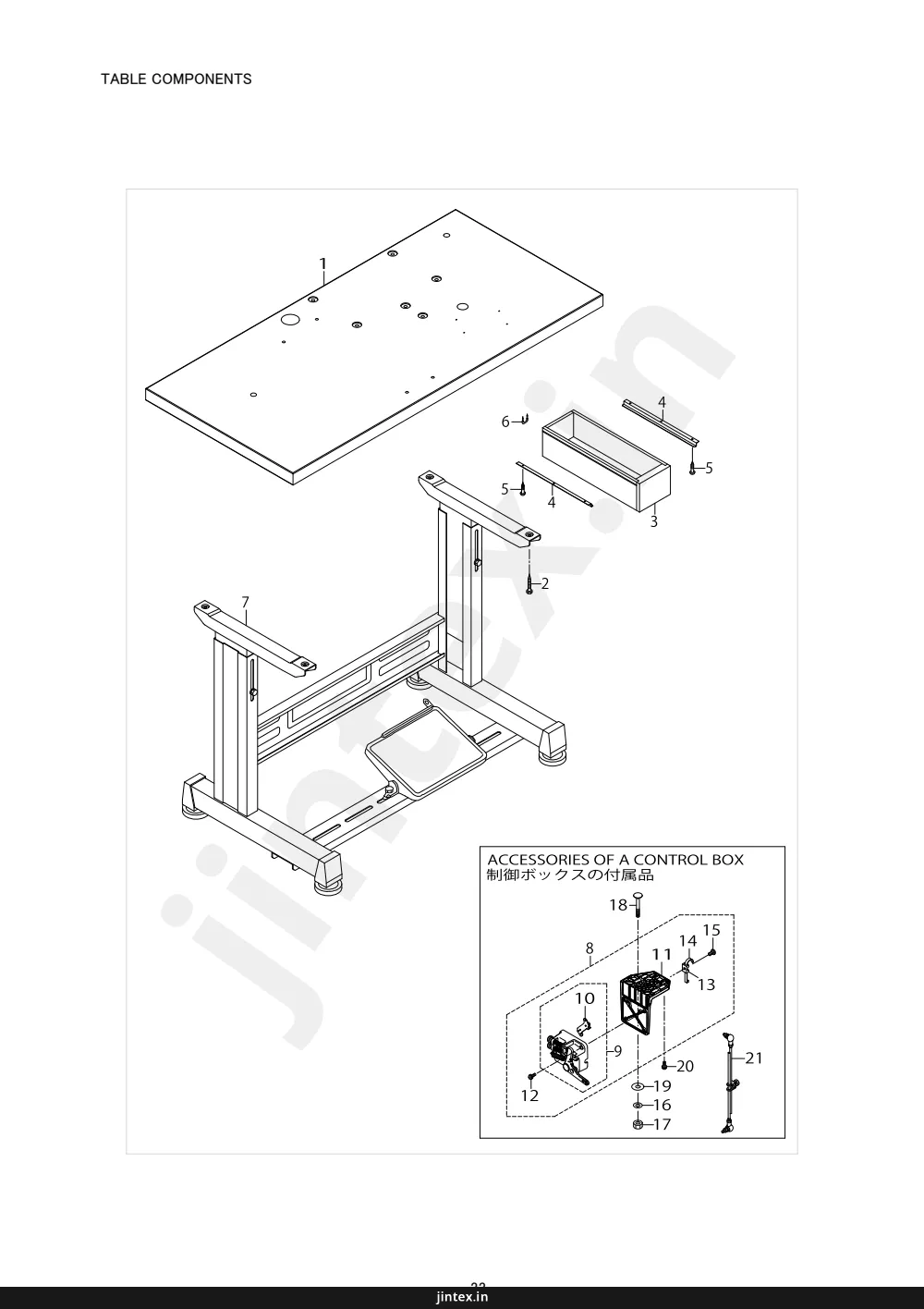

Page 35 — TABLE COMPONENTS

Juki LBH-1790AN parts on page 35

Ref	Part number	Part name	Qty
	1	TABLE COMPONENTS
	2	SCREW
	3	CONTROL BOX
	4	BRACKET
	5	WASHER
	6	BRACKET
	7	TABLE LEG
	8	ACCESSORIES OF A CONTROL BOX
	9	CONTROL BOX ACCESSORIES
	10	SWITCH
	11	BRACKET
	12	SCREW
	13	BRACKET
	14	BRACKET
	15	SCREW
	16	WASHER
	17	NUT
	18	SCREW
	19	WASHER
	20	BRACKET
	21	BRACKET

Page 36 — TABLE COMPONENTS

Juki LBH-1790AN parts on page 36

Ref	Part number	Part name	Qty
	40142966	TABLE	1
	ST9053511SR	TAPPING SCREW M5X35	4
	11155108	DRAWER	1
	11155207	DRAWER SUPPORT	2
	SK3311600SC	WOOD SCREW D=3.1 L=16	6
	D8204555D00	DRAWER STOPPER	1
	11157567	T LEG JUNCTION	1
	40094262	PEDAL SENSOR BASE ASSY	1
	40094259	PEDAL SENSOR ASM.	1
	40094260	SENSOR COIL HOLD ASSY	1
	40099913	SENSOR BRACKET	1
	SL4041601SC	SCREW M4 L=16	3
	KX000000210	SADDLE TYPE TIE MOUNT	1
	KX000000230	RELEASABLE CABLE TIE	1
	SM4051001SC	SCREW M5 L=10	1
	WS0820002KR	SPRING WASHER M8	2
	NM6080002SC	NUT M8	2
	MTSHJ100003	BOLT	2
	WP0851846SC	WASHER 8.5X22.0X1.8	2
	SL4051291SC	SCREW M5X0.8 L=12	2
	40042134	CONNECING ROD ASSY	1

Page 37 — EXCLUSIVE PARTS FOR LBH-1790ANB

Juki LBH-1790AN parts on page 37

Ref	Part number	Part name	Qty
4	4	Screw
3	3	Lever
6	6	Lever
5	5	Lever
7	7	Screw
8	8	Wrench
2	2	Presser Foot
1	1	Needle Plate

Page 38 — EXCLUSIVE PARTS FOR LBH-1790ANB

Juki LBH-1790AN parts on page 38

Ref	Part number	Part name	Qty
	40160113	WORK CLAMP	1
	40160114	WORK CLAMP CARRIER	1
	40153019	THROAT_PLATE_2B	1
	40153923	SCREW_ADD	1
	40011319	THROAT_PLATE_BASE_SPACER	2
	40004326	BTT_SPACER	1
	WP0551016SH	WASHER 5.5X13X1	2
	40152575	TIMING_GAUGE_T	1

Page 39 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)

Juki LBH-1790AN parts on page 39

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4

Page 40 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)

Juki LBH-1790AN parts on page 40

Ref	Part number	Part name	Qty
	40189780	LBH OPERATION BOX ASSY
	40191872	LBH OPERATION BOX ASSY CE
	SK3382001SE	SCREW D=3.8 L=20	4
	CM600100101	WEEE MARK LABEL S

Page 41 — CONTROL BOX COMPONENTS

Juki LBH-1790AN parts on page 41

Ref	Part number	Part name	Qty
46	46	CONTROL BOX COMPONENTS
47	47	ACCESSORIES OF SEWING MACHINE MAIN UNIT
52	52	ミシン本体付属品
1~3	1~3	1~3
11-12	11-12	11-12
5-6	5-6	5-6
37	37	37
23	23	23
24	24	24
27	27	27
28 29	28 29	28 29
20	20	20
19	19	19
4	4	4
41	41	41
32	32	32
21	21	21
22	22	22
15-16	15-16	15-16
30	30	30
9	9	9
10	10	10
25	25	25
26	26	26
24	24	24
25	25	25
31	31	31
39	39	39
40	40	40
42 43	42 43	42 43
49	49	49
56-57	56-57	56-57
48	48	48
58	58	58
51	51	51
50	50	50
59	59	59
60	60	60
61	61	61
62	62	62
53	53	53
54	54	54
55	55	55
63	63	63
35	35	35
13	13	13
14	14	14
17	17	17
18	18	18
36	36	36
33	33	33
34	34	34
44	44	44
7	7	7
8	8	8
45	45	45

Page 42

Juki LBH-1790AN parts on page 42

Ref	Part number	Part name	Qty
	40189854	MC602N CTL BOX A ASM.
	40189855	MC602N CTL BOX B ASM.
	40189856	MC602N CTL BOX C ASM.
	WP0430800SC	WASHER M4
	40143989	FRAME B
	40143988	FRAME A
	40115874	FAN PLATE
	SL4040881SC	SCREW M4 L=8
	40115876	PLATE B
	SL4040881SC	SCREW M4 L=8
	SL4040881SC	SCREW M4 L=8
	40115879	FAN COVER
	40193750	MAIN PCB ASSY
	SL4040881SC	SCREW M4 L=8
	40105465	FLT-T PCB ASSY
	40105475	FLT-CE PCB ASSY
	40111214	FAN MOTOR ASSY
	SL4042091SC	SCREW M4X0.7 L=20
	KX000000260	SADDLE TYPE TIE MOUNT
	SL4040881SC	SCREW M4 L=8
	HX00292000A	CONNECTING PARTS
	HX00339000M	SPACER
	40142267	SDC PCB ASSY
	SL4040881SC	SCREW M4 L=10
	SL4040881SC	SCREW M4 L=8
	40115877	MAIN PLATE
	40143990	STUD
	40115878	PLATE C
	SL4040881SC	SCREW M4 L=8
	SL4040881SC	SCREW M4 L=8
	HX00222000D	WIRE SADDLE
	KX000000320	BUSH
	SL4041281SC	SCREW M4X0.7 L=12
	M8002430000	STOPPER
	40114398	MAIN COOL SHEET
	40189853	COVER
	SL4040881SC	SCREW M4 L=8
	SL4030881SC	SCREW M3 L=8
	CM300100001	LABEL
	CM300400602	VOLTAGE CAUTION LABEL L=25
	CM300100402	VOLTAGE DANGER LABEL 3(SMALL)
	CM600100101	WEEE MARK LABEL S
	40150131	EAC MARK LABEL S
	EA9500B0100	CABLE BAND

Page 43

Juki LBH-1790AN parts on page 43

Ref	Part number	Part name	Qty
	46	CONTROL BOX COMPONENTS
	47	ACCESSORIES OF SEWING MACHINE MAIN UNIT
	52	ミシン本体付属品
	50
	60
	61
	62
	59
	53
	54
	63
	55
	1~3
	11
	12
	5
	6
	22
	15
	16
	44
	30
	9
	10
	38
	7
	37
	23
	24
	27
	28
	29
	35
	25
	13
	26
	14
	17
	18
	45
	8
	36
	21
	32
	24
	25
	31
	14
	14
	19
	20
	4
	41
	39
	40
	42
	43
	34
	33
	49
	56
	57
	48
	58
	51

Page 44 — CONTROL BOX COMPONENTS

Juki LBH-1790AN parts on page 44

Ref	Part number	Part name	Qty
	E8760452S00	TUBE
	40113427	POWER SWITCH
	HA004250000	SWITCH
	HN002460000	CORES
	M300451100A	VOLTAGE INDICATION CARD A
	MTSHJ100003	BOLT
	40144294	CORE SET UP MANUAL
	SK3512001SE	WOOD SCREW D=5.1 L=20
	WP0852086SC	WASHER
	WS0820002KR	SPRING WASHER M8
	NM6080002SC	NUT M8
	HF0013050P0	FUSE 5A
	HF003000200	FUSE 2A (220/240V)
	EA9500B0200	CABLE BAND 150
	WP0651646SC	WASHER
	WT0640001KN	TOOTH WASHER
	40165702	RUBBER CUSHION
	40142969	RUBBER CUSHION BRKT
	NM6060001SC	NUT M6X1 TYPE1

Page 45 — WIRING DIAGRAM

Juki LBH-1790AN parts on page 45

Ref	Part number	Part name	Qty
1	CN76	2P
1	CN75	2P
1	CN77	2P
1	CN93	10P
1	CN90	10P
1	CN82	3P
1	CN83	3P
1	CN88	10P
1	CN84	3P
1	CN78	3P
1	CN79	2P
1	CN80	4P
1	CN81	4P
1	CN86	4P
1	CN89	4P
1	CN95	4P
1	CN96	30P
1	CN92	20P
1	CN91	14P
38	CN34	26P
38	CN46	10P
38	CN45	6P
38	CN47	9P
38	CN42	6P
38	CN35	2P
38	CN44	2P
38	CN50	10P
33	CN39	3P
33	CN41	6P
33	CN43	4P
21	CN33	2P
21	CN40	14P
23	CN32	20P
23	CN49	30P
39	CN37	40P
39	CN38	4P
39	CN31	2P
39	CN11	40P
39	CN13	4P
39	CN15	10P
39	CN17	4P
39	CN12	9P
40-41	CN16	8P
	4	糸切れ検知
	3	一次停止
	2	針振りエンコーダ (モータ内蔵)
	1	頭部内蔵基板
	2	INT基板組
	13-14-15-16-17-18-19-20	N_MT
	13-14-15-16-17-18-19-20	F_MT
	13-14-15-16-17-18-19-20	P_MT
	13-14-15-16-17-18-19-20	U_MT
	13-14-15-16-17-18-19-20	D_MT
	13-14-15-16-17-18-19-20	M_MT
	21-22-23	AT
	21-22-23	頭部FAN
	32	LED照明組
	31-44	操作パネル
	33	ペダルSW
	34	OPペダルSW
	38	MAIN基板組
	35~37	電装BOX
	42	頭部アースコード
	43	IPM550W主軸モータ
	40-41	FLT基板 一般 三相 CE 向け:FLT_T使用 向け:FLT_CE使用 (FLT基板組)
	39	SDC基板組
	5	上糸切原点センサ
	6	上糸切モータ
	7	下糸切原点センサ
	8	下糸切モータ
	9	送り原点センサ
	10	送り原点センサ
	11	カバー開閉検知センサ
	12	カバー開閉検知センサ
	24~26	電源SW
	27~29	電源SW
	JTAG (DSP)	JTAG (DSP)
	JTAG(PLD)	JTAG(PLD)
	FM-ONE(PC)	FM-ONE(PC)
	シリアルポート	シリアルポート
	オプション出力	オプション出力
	オプションマーキング(5V)	オプションマーキング(5V)
	オプション糸巻き(24V)	オプション糸巻き(24V)
	オプション I/O	オプション I/O

Page 46

Juki LBH-1790AN parts on page 46

Ref	Part number	Part name	Qty
	40138611	INT PCB ASSY	1
	40005400	PAUSE SWITCH JOINT CORD	1
	320023454	SWITCH ASM.	1
	40003499	THREAD BREAK DETECTOR A	1
	40141480	UT TRIM SENSOR CORD ASSY	1
	HD00057000A	PHOTO SENSOR	1
	40141481	DT TRIM SENSOR CORD ASSY	1
	HD00057000A	PHOTO SENSOR	1
	40141482	FEED SENSOR CORD ASSY	1
	HD00057000A	PHOTO SENSOR	1
	40141484	COVER SENSOR RELAY CORD ASSY	1
	40141483	COVER SENSOR ASSY	1
	40139180	NEEDLE SWING MOTOR ASSY	1
	40139181	FEED MOTOR ASSY	1
	40139182	CLAMP MOTOR ASSY	1
	40140040	UT TRIM MOTOR ASSY	1
	40140041	DT TRIM MOTOR ASSY	1
	40139183	CLOTH CUT MOTOR ASSY	1
	40006261	ASSY,AT,SOLENOID	1
	40111214	FAN MOTOR ASSY	1
	40141479	INT CORD C ASSY	1
	40141478	INT CORE B ASSY	1
	40141477	INT CORD A ASSY	1
	40023371	SINGLE PHASE POWER CORD ASSY
	M90175800A0	POWER CABLE ASM.
	40005390	JE POWER CABLE ASM.
	40141487	AC POWER CORD A ASM.
	40141488	AC POWER CORD B ASM.
	40141489	AC POWER CORD C ASM.
	40113427	POWER SWITCH	1
	40189780	LHB OPERATION BOX ASSY
	40141706	ASSY,LED DEVICE	1
	40094262	PEDAL SENSOR BASE ASSY	1
	40003491	ASSY,4 POSITION PEDAL	1
	40189854	MC602N CTL BOX A ASM.
	40189855	MC602N CTL BOX B ASM.
	40189856	MC602N CTL BOX C ASM.
	40193750	MAIN PCB ASSY	1
	40142267	SDC PCB ASSY	1
	40105465	FLT-T PCB ASSY
	40105475	FLT-CE PCB ASSY
	14115554	HEAD GROUND CABLE A ASM.	1
	40138137	IPM550W MOTOR	1
	40191872	LBH OPERATION BOX ASSY CE

Page 48

Juki LBH-1790AN parts on page 48

Ref	Part number	Part name	Qty
	22932800	ACCESSORIE BAG	1
	22933204	SCREW DRIVER SMALL	1
	22933105	SCREW DRIVER MIDDLE	1
	40009148	BOBBIN	1
	MDP5J0B1102	NEEDLE DPX5 #11J-2	1
	SL6040892TN	BOLT	1
	CM600100201	WEEE INFORMATION SHEET	1
	14101208	HEAD SUPPORT BAR	1
	SM6067052TP	HEXAGON BOLT	4
	22502504	THREAD GUIDE BAR	1
	D6056555B00	RUBBER CUSHION (B)	4
	40006323	JUKI GREASE A TUBE	1
	40189619	AUXILIARY_TABLE_ASM	1
	40145523	INSTALLING_PLATE_SET	1
	13785803	INSTALLING PLATE	2
	SS7110570SP	SCREW 11/64-40 L=4.8	4
	SM6061002TP	SCREW M6 L=10	2
	40189620	AUXILIARY_TABLE_PAINTED	1
	B91210120A0	OILER ASM.	1
	MDFRX1200C0	NEW DEFRIX OIL NO.1(200ML)	1
	B2702047M00A	KNIFE 5/8	1
	22933006	SCREW DRIVER LARGE	1
	B9107761000	THREAD PASSING INSTRUMENT	1
	40142172	ASSY_SAFETY_PLATE_B	1
	40141799	SAFETY_PLATE_BASE	1
	40141798	SAFETY_PLATE	1
	SL4040891SC	SCREW M4 L=8	2
	SM6040602TP	SCREW M4 L=6	1
	WP0612056SD	WASHER 6.1X18.5X2	4
	NM6060001SD	NUT M6	8
	26234005	VINYL COVER	1
	13943402	TIMING GAUGE	1
	B2702047K00A	KNIFE 3/8	1
	29180403	EC PRODUCTION DECLARATION	1

Page 50 — THREAD STAND COMPONENTS

Juki LBH-1790AN parts on page 50

Ref	Part number	Part name	Qty
	40096354	THREAD STAND ASM.	1
	40085784	SPOOL REST ROD LOWER	1
	40085785	SPOOL REST ROD UPPER	1
	40085786	SPOOL REST ARM LOWER	1
	40085787	SPOOL REST ARM UPPER	1
	40085788	SPOOL REST	2
	40085789	SPOOL REST CUSHION	2
	40085790	SPOOL PIN	2
	40085791	SPOOL RETAINER	2
	40085792	SPOOL REST ROD JOINT	1
	40085793	SPOOL REST ROD RUBBER CAP	1
	40085794	THREAD GUIDE	2
	40085795	THREAD GUIDE BUSHING	2
	40096325	SPOOL REST ROD NUT	1
	WP1612616SE	WASHER 16X30X2.6	2
	40085796	SPOOL REST ROD RUBBER CUSHION	2
	40096327	SPOOL REST ARM LOWER SCREW	1
	NM6050001SE	NUT M5	2
	40096327	SPOOL REST ARM UPPER SCREW	1
	NM6050001SE	NUT M5	2
	WS0510002KN	SPRING WASHER M5	2
	WP0531001SC	WASHER M5	2
	SM4051405SE	SCREW M5 L=14	2
	NM6050001SE	NUT M5	2

Page 52 — SPECIAL SPECIFICATIONS COMPONENTS (1)

Juki LBH-1790AN parts on page 52

Ref	Part number	Part name	Qty
1	G50011980A0A	BOBBIN WINDER ASM.	1
2	40005405	WINDER CORD ASSY	1
3	B32217710A0	BOBBIN WINDER TENSION BRACKET ASM.	1
	B3221771000	BOBBIN WINDER TENSION BRACKET
	B3219232000	BOBBIN WINDER TENSION POST
	B3214047000	BOBBIN WINDER TENSION DISC
	B3218232000	BOBBIN WINDER TENSION SPRING
	B3216047000	BOBBIN WINDER TENSION NUT
	NS6110310SP	NUT 11/64-40
10	SK3452000SC	WOOD SCREW D=4.5 L=20	4
11	40003493	PK PEDAL JOINT CORD ASSY	1
12	GPK510010B0	PEDAL SWITCH ASM.	1
13	40097040	HOOK COOLING UNIT B	1
	40023432	FILTER REGULATOR ASM.
	PF0551060A0	FILTER REGULATOR
	PF902005000	REGULATOR BRACKET
	PJ025100003	PLUG
	PV015122000	FINGER VALVE
	40094012	PIPE BRACKET ASM.
	BT0400251EB	URETHANE HOSE BLACK
	SK3412001SE	WOOD SCREW D=4.1 L=20
	MAO11532000	CORD STAPLE
	EA9500B0100	CABLE BAND
24	40003491	ASSY_4_POSITION_PEDAL	1
	13731906	SPRING
	B2583210D00	SPRING
	NM6060001CP	NUT M6
	40004360	PEDAL_FRAME
	40004361	PEDAL_FRAME_A
	40004362	PEDAL_FRAME_B
	40004363	PEDAL_FRAME_GUIDE
	HD00057000A	PHOTO SENSOR
	SL4031091SC	SCREW M3 L=10
	SL6031042TN	SCREW
	SM5040655SN	SCREW
	SM6050652TP	HEXAGON SOCKET HEAD SCREW M5X6
	40004364	SENSOR_DETECTING_PLATE
	SD1000646TP	SHOULDER SCREW D=10 H=6.4
	40004299	STOPPER_PIN
	40004327	SUSPENSION_SCREW
41	SK3482001SE	WOOD SCREW D=4.8 L=20	2

Page 54 — SPECIAL SPECIFICATIONS COMPONENTS (2)

Juki LBH-1790AN parts on page 54

Ref	Part number	Part name	Qty
	40006345	RP_HOOK_ASM.	1
	40006349	RP_BOBBIN_CASE	1
	13729603	HOOK SLEEVE	1
	SS8660612TP	SCREW 1/4-40 L=6	4
	40006340	WORK_CLAMP_HOLDER_SPACE	1
	SM6040450TP	SCREW M4 L=4	3
	40028682	UTT_CLOSE_CAM_120B	1
	40112711	LIFTING_PLATE_120	1
	SM6050800SP	SCREW M5 L=8	2
	40006335	WORK_CLAMP_ARM_120	1
	40006339	WORK_CLAMP_CARRIER_120	1
	14523252	PRESSER FOOT 70 ASM.	1
	B1509761000	PRESSER FITTING PLATE SPRING	2
	B1512761000	PRESSER FOOT HOLDER SPRING	1
	14523203	PRESSER FOOT 70	1
	B151077100B	PRESSER FOOT PIN B	2
	14523708	URETHANE PRESSER 70	1
	14524102	PRESSER 70 (FLAT)	1
	14523401	PRESSER 70	1
	SS6060210SP	SCREW 3/32-56 L=1.9	6
	SD0790203SP	HINGE SCREW D=7.94 H=2	3
	40011319	THROAT_PLATE_BASE_SPACER	2
	40004326	BTT_SPACER	1
	WP0551016SH	WASHER 5.5X13X1	2
	40015733	THROAT_PLATE(S10)	1
	40015802	OIL_SHIELD_10	1
	40020010	WORK_CLAMP_HOLDER(3-10)_ASSY	1
	40020011	WORK_CLAMP_HOLDER(3-10)	1
	40008638	WORK_CLAMP_CHECK_HOLDER_SPRING_B	1
	B151077100B	WORK CLAMP CHECK SPRING SET PIN (B)	2
	B1509761000	WORK CLAMP CHECK SPRING	2
	40017810	WORK_CLAMP(3S-10)	1
	40020014	WORK_CLAMP_CARRIER(10X41)_CL	1
	40020012	WORK_CLAMP_CARRIER(10X41)	1
	CM300200001	ATTENTION SEAL	1
	40020013	WORK_CLAMP_ARM(10X41)	1
	40027554	THROAT_PLATE(1790K5)	1
	D1511772KA0	WORK CLAMP CHECK HOLDER ASM.	1
	B1511772000A	WORK CLAMP CHECK HOLDER	1
	B1509761000	WORK CLAMP CHECK SPRING	2
	B151077100B	WORK CLAMP CHECK SPRING SET PIN (B)	2
	B1512761000	WORK CLAMP CHECK HOLDER SPRING	1
	SS6060210SP	SCREW 3/32-56 L=1.9	2
	D1508772K00	WORK CLAMP CHECK (2K)	1
	13782065	HOOK COMPL. K	1
	13782107	HOOK TIMING GAUGE K	1

Page 55

Juki LBH-1790AN parts on page 55

Ref	Part number	Part name	Qty
1	B2702-047-F00	CLOTH CUTTING KNIFE
2	B2702-047-K00-A	CLOTH CUTTING KNIFE
3	B2702-047-I00	CLOTH CUTTING KNIFE
4	B2702-047-L00-A	CLOTH CUTTING KNIFE
12	B1552-781-000-A	PRESSER FOOT (LENGTH OF CLOTH CUTTING KNIFE)
15	D1508-771-K00-A	PRESSER FOOT (PRESSER SIZE)
18	D1511-771-KA0-A	PRESSER FOOT (PRESSER SIZE)
5	B2702-047-V00	CLOTH CUTTING KNIFE
6	B2702-047-M00-A	CLOTH CUTTING KNIFE
7	B2702-047-A00	CLOTH CUTTING KNIFE
8	B2702-047-N00	CLOTH CUTTING KNIFE
9	B2702-047-P00	CLOTH CUTTING KNIFE
13	B1552-782-000	PRESSER FOOT (LENGTH OF CLOTH CUTTING KNIFE)
16	D1508-772-K00	PRESSER FOOT (PRESSER SIZE)
19	D1511-772-KA0	PRESSER FOOT (PRESSER SIZE)
10	B2702-047-Q00-A	CLOTH CUTTING KNIFE
11	B2702-047-S00-A	CLOTH CUTTING KNIFE
14	B1552-783-000	PRESSER FOOT (LENGTH OF CLOTH CUTTING KNIFE)
17	D1508-773-K00	PRESSER FOOT (PRESSER SIZE)
20	D1511-773-KA0	PRESSER FOOT (PRESSER SIZE)
21	B2745-771-F00	FLAT KNIFE
22	B2745-771-K00	FLAT KNIFE
23	B2745-771-L00	FLAT KNIFE
24	B2745-771-H00	FLAT KNIFE
25	B2745-771-M00	FLAT KNIFE
31	B2746-771-000	KNIFE GUARD
32	137-82800	THROAT PLATE
26	B2745-771-N00	FLAT KNIFE
27	B2745-771-P00	FLAT KNIFE
28	B2745-771-Q00	FLAT KNIFE
29	B2745-771-R00	FLAT KNIFE
30	B2745-771-S00	FLAT KNIFE

Page 56

Juki LBH-1790AN parts on page 56

Ref	Part number	Part name	Qty
	B2702047F00	KNIFE 1/4	1
	B2702047K00A	KNIFE 3/8	1
	B2702047100	KNIFE (7/16)	1
	B2702047L00A	KNIFE 1/2	1
	B2702047V00	KNIFE 9/16	1
	B2702047M00A	KNIFE 5/8	1
	B2702047A00	KNIFE 11/16	1
	B2702047N00	KNIFE 3/4	1
	B2702047P00	KNIFE 7/8	1
	B2702047Q00A	KNIFE 1	1
	B2702047S00A	KNIFE 1-1/4	1
	B1552781000A	PRESSER	1
	B1552782000	WORK CLAMP CHECK, 2	1
	B1552783000	WORK CLAMP CHECK, 3	1
	D1508771K00A	LATCH WORK CLAMP CHECK	1
	D1508772K00	WORK CLAMP CHECK (2K)	1
	D1508773K00	WORK CLAMP CHECK (3K)	1
	D1511771KA0A	WORK CLAMP CHECK HOLDER ASM.	1
	D1511772KA0	WORK CLAMP CHECK HOLDER	1
	D1511773KA0	WORK CLAMP CHECK HOLDER	1
	B2745771F00	KNIFE 1/4"(FLUOROCARBON)	1
	B2745771K00	KNIFE 3/8"(FLUOROCARBON)	1
	B2745771L00	KNIFE 1/2	1
	B2745771H00	KNIFE 9/16"(FLUOROCARBON)	1
	B2745771M00	KNIFE 5/8	1
	B2745771N00	KNIFE 3/4	1
	B2745771P00	KNIFE 7/8"(FLUOROCARBON)	1
	B2745771Q00	KNIFE 1	1
	B2745771R00	KNIFE 1-1/8"(FLUOROCARBON)	1
	B2745771S00	KNIFE 1-1/4	1
	B2746771000	KNIFE GUARD	1
	13782800	THROAT PLATE(FLUOROCARBON)	1

Page 58 — NUMERICAL INDEX OF PARTS

Juki LBH-1790AN parts on page 58

Ref	Part number	Part name	Qty
18	10006104		6
62	11072402		8
63	11093606		8
3	11155108		34
4	11155207		34
7	11157567		34
24	11272507		24
43	13127402		16
51	13700406		4
52	13700505		4
50	13700604		4
62	13700703		4
24	13703806		2
25	13703905		2
69	13705405		4
14	13706403		22
11	13710306		14
20	13710405		14
12	13710504		14
54	13727102		30
13	13729066		14
55	13729306		30
31	13729603		14
3	13729603		52
30	13729652		14
29	13729769		14
25	13731906		50
9	13737408		28
45	13782065		52
46	13782107		52
32	13782800		54
15	13785803		46
47	13922208		2
56	13943303		4
32	13943402		46
8	14101208		46
7	14115554		6
42	14115554		44
17	14504401		14
15	14523203		52
12	14523252		52
17~19	14523401		52
17~19	14523708		52
17~19	14524102		52
42	22502504		2
10	22502504		46
41	22528764		2
60	22529473		8
59	22529481		8
3	22891204		16
43	22918304		10
1	22932800		46
22	22933006		46
3	22933105		46
2	22933204		46
4	23530405		22
6	23536204		14
26	23630007		14
13	26230409		2
58	26230409		8
31	26234005		46
29	26260208		6
30	26260307		6
31	26260406		6
32	26260505		6
33	26260604		6
35	26260802		6
39	26261206		6
40	26261305		6
41	26261503		6
42	26261602		6
43	26261701		6
34	29180403		46
3	32002354		44
21	32055402		6
34	40003491		44
24	40003491		50
11	40003493		50
26	40003499		6
4	40003499		44
19	40004171		10
18	40004180		14
14	40004185		10
8	40004186		14
9	40004187		14
5	40004188		14
5	40004194		16
7	40004197		16
8	40004198		16
9	40004200		16
10	40004201		16
18	40004205		16
39	40004206		10
27	40004209		22
30	40004212		22
31	40004213		22
34	40004214		22
33	40004215		22
25	40004216		22
26	40004217		22
13	40004218		22
29	40004222		22
21	40004224		22
52	40004232		26
37	40004234		24
26	40004235		24
43	40004236		24
27	40004238		24
50	40004240		26
63	40004243		26
41	40004244		24
42	40004245		24
64	40004246		26
40	40004247		24
38	40004248		24
62	40004249		26
65	40004250		26
22	40004252		6
39	40004252		24
29	40004254		24
22	40004254		28
70	40004255		26
33	40004264		24
34	40004265		24
37	40004267		16
79	40004275		18
51	40004279		18
50	40004280		18
48	40004285		18
58	40004287		18
59	40004288		18
36	40004289		16
78	40004291		18
4	40004293		24
71	40004294		26

Page 59 — NUMERICAL INDEX OF PARTS

Juki LBH-1790AN parts on page 59

Ref	Part number	Part name	Qty
36	40004296		24
66	40004297		24
66	40004297		26
67	40004298		24
67	40004298		26
69	40004299		28
69	40004299		30
39	40004299		30
46	40004301		28
39	40004306		28
32	40004308		28
29	40004309		28
36	40004311		28
31	40004321		28
47	40004324		28
6	40004326		36
23	40004326		52
68	40004327		28
68	40004327		30
40	40004327		50
73	40004328		30
4	40004329		28
3	40004336		28
7	40004343		28
8	40004344		28
52	40004345		30
64	40004346		30
53	40004347		30
65	40004348		30
71	40004349		30
28	40004360		50
29	40004361		50
30	40004362		50
31	40004363		50
37	40004364		50
23	40004373		22
24	40004374		22
2	40004378		22
3	40004379		22
24	40004393		32
25	40004394		32
30	40004396		32
27	40004398		32
17	40004400		24
24~26	40005390		44
2	40005400		44
2	40005405		50
1	40006261		6
19	40006261		44
2	40006263		6
3	40006264		6
23	40006265		6
10	40006307		10
49	40006314		4
21	40006317		14
25	40006320		14
12	40006323		46
13	40006335		20
10	40006335		52
7	40006339		20
11	40006339		52
5	40006340		52
1	40006345		52
2	40006349		52
35	40008423		10
6	40008638		20
29	40008638		52
2	40008646		20
5	40008647		20
15	40008658		20
5	40008671		22
14	40008671		32
57	40008977		4
58	40008978		4
64	40009037		4
4	40009148		46
15	40010434		16
16	40010435		16
16	40010435		16
19	40010510		6
6	40010511		6
20	40010512		6
5	40010514		6
8	40010522		6
24	40010534		10
26	40010535		10
34	40011144		6
36	40011145		6
37	40011146		6
50	40011205		30
5	40011319		36
22	40011319		52
63	40011327		30
16	40011355		14
1	40011517		10
54	40015674		26
51	40015702		26
25	40015733		52
26	40015802		52
32	40017810		52
27	40020010		52
28	40020011		52
34	40020012		52
36	40020013		52
33	40020014		52
67	40020310		18
38	40021933		6
27	40021998		28
11	40022121		16
30	40022322		28
28	40022323		28
24~26	40023371		44
14	40023432		50
49	40027553		30
37	40027554		52
48	40028634		26
61	40028636		26
10	40028682		20
7	40028682		52
33	40029613		28
29	40032269		10
52	40037008		8
28	40040276		32
18	40040289		32
21	40042134		34
15	40051473		10
16	40051474		10
1	40067165		20
4	40075297		16
2	40085784		48
3	40085785		48
4	40085786		48
5	40085787		48
6	40085788		48
7	40085789		48

Page 60 — NUMERICAL INDEX OF PARTS

Juki LBH-1790AN parts on page 60

Ref	Part number	Part name	Qty
8	40085790	40138611
9	40085791	40139180
10	40085792	40139180
11	40085793	40139181
12	40085794	40139181
13	40085795	40139182
16	40085796	40139182
17	40088990	40139183
19	40094012	40139183
9	40094259	40140040
10	40094260	40140040
8	40094262	40140041
33	40094262	40140041
17	40096325	40141477
17	40096326	40141477
19	40096327	40141478
1	40096354	40141478
13	40097040	40141479
11	40099913	40141479
30	40101638	40141480
23	40101638	40141481
28	40101641	40141482
31	40101642	40141483
6	40101649	40141483
15-16	40105465	40141484
40-41	40105465	40141487
15-16	40105475	40141488
40-41	40105475	40141489
6	40108754	40141706
4	40111214	40141706
40	40111214	40141710
44	40111214	40141711
20	40112711	40141713
52	40112711	40141716
42	40113427	40141717
44	40113427	40141718
40	40114398	40141719
40	40115874	40141720
40	40115876	40141721
40	40115877	40141725
40	40115878	40141726
40	40115879	40141727
10	40138137	40141730
44	40138137	40141739
4	40138611	40141740
1	40141741	40138611
13	40141742	40139180
1	40141743	40139180
14	40141744	40139181
34	40141745	40139181
15	40141746	40139182
52	40141747	40139182
68	40141748	40139183
54	40141753	40139183
46	40141754	40140040
16	40141755	40140040
55	40141756	40140041
44	40141757	40140041
6	40141758	40141477
7	40141759	40141477
9	40141760	40141478
35	40141774	40141478
5	40141778	40141479
18	40141779	40141479
5	40141780	40141480
4	40141781	40141481
8	40141782	40141482
13	40141783	40141483
19	40141785	40141483
17	40141786	40141484
25	40141787	40141487
30	40141788	40141488
49	40141794	40141489
33	40141795	40141706
26	40141798	40141706
25	40141799	40141710
31	40141801	40141711
70	40141802	40141713
2	40142152	40141716
29	40142161	40141717
11	40142163	40141718
12	40142164	40141719
49	40142166	40141720
2	40142170	40141721
24	40142172	40141725
23	40142267	40141726
39	40142267	40141727
24	40142752	40141730
22	40142753	40141739
23	40142754	40141740

Page 61

Juki LBH-1790AN parts on page 61

Ref	Part number	Part name	Qty
33	40142755	40142755
47	40142878	40142878
44	40142880	40142880
1	40142966	40142966
62	40142969	40142969
5	40143150	40143150
5-6	40143988	40143988
5-6	40143989	40143989
5-6	40143990	40143990
27	40144294	40144294
51	40145327	40145327
78	40145328	40145328
20	40145523	40145523
14	40150011	40150011
25	40150131	40150131
43	40152575	40152575
8	40153019	40153019
3	40153923	40153923
4	40160113	40160113
1	40160114	40160114
37	40165701	40165701
61	40165702	40165702
38	40165703	40165703
36	40165704	40165704
85	40172374	40172374
86	40172375	40172375
28	40189600	40189600
1	40189612	40189612
5	40189613	40189613
15	40189614	40189614
11	40189615	40189615
7	40189616	40189616
9	40189617	40189617
44	40189618	40189618
13	40189619	40189619
18	40189620	40189620
27	40189628	40189628
39	40189631	40189631
3	40189633	40189633
43	40189634	40189634
17	40189635	40189635
18	40189636	40189636
1-2	40189780	40189780
31-44	40189780	40189780
36	40189853	40189853
1~3	40189854	40189854
35~37	40189854	40189854
1~3	40189855	40189855
35~37	40189855	40189855
1~3	40189856	40189856
35~37	40189856	40189856
1-2	40191872	40191872
31-44	40191872	40191872
13	40193750	40193750
38	40193750	40193750
28	B1414232000	B1414232000
72	B1509761000	B1509761000
4	B1509761000	B1509761000
40	B1509761000	B1509761000
73	B151077100B	B151077100B
3	B151077100B	B151077100B
41	B151077100B	B151077100B
71	B1511771000B	B1511771000B
39	B1511772000A	B1511772000A
74	B1512761000	B1512761000
42	B1512761000	B1512761000
76	B1552781000A	B1552781000A
12	B1552781000A	B1552781000A
13	B1552782000	B1552782000
14	B1552783000	B1552783000
34	B1623180000	B1623180000
28	B1811771000	B1811771000
26	B2583210D00	B2583210D00
7	B2702047A00	B2702047A00
1	B2702047F00	B2702047F00
3	B2702047100	B2702047100
21-33	B2702047K00A	B2702047K00A
2	B2702047K00A	B2702047K00A
22	B2702047L00A	B2702047L00A
4	B2702047L00A	B2702047L00A
21-33	B2702047M00A	B2702047M00A
6	B2702047M00A	B2702047M00A
8	B2702047N00	B2702047N00
9	B2702047P00	B2702047P00
10	B2702047Q00A	B2702047Q00A
11	B2702047S00A	B2702047S00A
5	B2702047V00	B2702047V00
24	B2702210000	B2702210000
25	B2703210000	B2703210000
21	B2745771F00	B2745771F00
24	B2745771H00	B2745771H00
22	B2745771K00	B2745771K00
23	B2745771L00	B2745771L00
25	B2745771M00	B2745771M00
26	B2745771N00	B2745771N00
27	B2745771P00	B2745771P00
28	B2745771Q00	B2745771Q00
29	B2745771R00	B2745771R00
30	B2745771S00	B2745771S00
31	B2746771000	B2746771000
35	B3013141H0A	B3013141H0A
64	B3214047000	B3214047000
6	B3214047000	B3214047000
8	B3216047000	B3216047000
7	B3218232000	B3218232000
5	B3219232000	B3219232000
4	B3221771000	B3221771000
3	B32217710A0	B32217710A0
23	B9107761000	B9107761000
19	B91210120A0	B91210120A0
20	BT0400251FB	BT0400251FB
39	CM300100001	CM300100001
41	CM300100402	CM300100402
72	CM300200001	CM300200001
35	CM300200001	CM300200001
68	CM300200003	CM300200003
40	CM300400602	CM300400602
71	CM301300001	CM301300001
4	CM600100101	CM600100101
42	CM600100101	CM600100101
7	CM600100201	CM600100201
27	CQ202000000	CQ202000000
18	CQ252000000	CQ252000000
32	CQ252000000	CQ252000000
25	CS0800881TP	CS0800881TP
31	CS1000881TP	CS1000881TP
17	CS1501181TP	CS1501181TP
15	D1508771K00A	D1508771K00A
44	D1508772K00	D1508772K00
16	D1508772K00	D1508772K00
17	D1508773K00	D1508773K00
70	D1511771KA0A	D1511771KA0A
18	D1511771KA0A	D1511771KA0A
38	D1511772KA0	D1511772KA0
19	D1511772KA0	D1511772KA0

Page 62

Juki LBH-1790AN parts on page 62

Ref	Part number	Part name	Qty
20	D1511773KA0	NM6030001SD	54
54	D3162555B00	NM6040000SN	8
61	D6056555B00	NM6040001SC	4
11	D6056555B00	NM6040001SC	46
6	D8204555D00	NM6040001SD	34
45	E2002855000	NM6040001SD	4
45	E8760452S00	NM6050001SE	42
56	EA9500B0100	NM6050001SP	8
3	EA9500B0100	NM6050001SP	24
44	EA9500B0100	NM6050001SP	40
23	EA9500B0200	NM6050001SP	50
58	EA9500B0200	NM6060001CP	42
1	G50011980A0A	NM6060001SC	50
12	GPK510010B0	NM6060001SD	50
47	HA004250000	NM6060001SD	42
2	HD00057000A	NM6080002SC	16
47	HD00057000A	NM6080002SC	24
19	HD00057000A	NM6100001SD	28
10	HD00057000A	NS6110310SP	44
32	HD00057000A	NS6110310SP	50
56-57	HF0013050P0	PF0551060A0	42
56-57	HF003000200	PF90205000	42
48	HN002460000	PJ025100003	42
81	HX001500000	PV015122000	4
1	HX00150000A	RC0100001KP	28
57	HX00151000A	RC0560711KP	8
31	HX00222000D	RC2791218KP	40
33	HX002550000	RC3781518KP	14
21	HX00292000A	RE0300000K0	40
22	HX00339000M	RE0400000K0	40
13	KX000000210	RE0500000K0	34
14	KX000000220	SB1040008C0	34
19	KX000000260	SB110000600	40
32	KX000000320	SB115000200	40
49	M300451100A	SB115001500	42
	M8002430000	SB1200008C0	40
24~26	M90175800A0	SB307000200	44
22	MAO11532000	SB408000100	50
69	MAZ16013000	SB710000600	26
20	MDFRX1200C0	SD0250101SP	46
16	MDP5J0B1100	SD0500166TP	22
5	MDP5J0B1102	SB710000600	46
18	MTSHJ100003	SD0250101SP	34
50	MTSHJ100003	SD0500166TP	42
44	SD0500167TP	NM6030001SD	28
8	SD0600266TP	NM6040000SN	24
21	SD0600326TP	NM6040001SC	24
77	SD0790203SP	NM6040001SC	18
9	SD0790203SP	NM6040001SD	20
21	SD0790203SP	NM6040001SD	52
62	SD0800296TP	NM6050001SE	28
62	SD0800296TP	NM6050001SP	30
35	SD0800326TP	NM6050001SP	16
22	SD0800406TP	NM6050001SP	24
67	SD0801006TP	NM6050001SP	28
67	SD0801006TP	NM6060001CP	30
23	SD0801506TP	NM6060001SC	24
38	SD1000646TP	NM6060001SD	50
5	SK3311600SC	NM6060001SD	34
3	SK3382001SE	NM6080002SC	38
21	SK3412001SE	NM6080002SC	50
10	SK3452000SC	NM6100001SD	50
41	SK3482001SE	NS6110310SP	50
52	SK3512001SE	NS6110310SP	42
80	SL4030881SC	PF0551060A0	4
38	SL4030881SC	PF90205000	40
19	SL4031091SC	PJ025100003	16
7	SL4031091SC	PV015122000	24
13	SL4031091SC	RC0100001KP	28
33	SL4031091SC	RC0560711KP	50
37	SL4040881SC	RC2791218KP	40
27	SL4040891SC	RC3781518KP	46
24	SL4041081SC	RE0300000K0	40
33	SL4041281SC	RE0400000K0	40
12	SL4041601SC	RE0500000K0	34
18	SL4042091SC	SB1040008C0	40
75	SL4042591SC	SB110000600	4
20	SL4051291SC	SB115000200	34
34	SL6031042TN	SB115001500	50
63	SL6040892TN	SB1200008C0	2
63	SL6040892TN	SB307000200	4
72	SL6040892TN	SB408000100	30
6	SL6040892TN	SB710000600	46
74	SL6041492TN	SD0250101SP	30
3	SL6041492TN	SD0500166TP	32
6	SL6061492TN	SB710000600	32
19	SM0040801SC	SD0250101SP	2
53	SM0050801SC	SD0500166TP	8
9	SM0860400SN	SD0500166TP	6

Page 63 — NUMERICAL INDEX OF PARTS

Juki LBH-1790AN parts on page 63

Ref	Part number	Part name	Qty
48	SM1030400SP	SM1030400SP	30
28	SM4040655SP	SM4040655SP	2
58	SM4041050TP	SM4041050TP	30
15	SM4051001SC	SM4051001SC	34
16	SM4051055SP	SM4051055SP	2
23	SM4051055SE	SM4051055SE	48
12	SM4051655SP	SM4051655SP	2
28	SM4050550TP	SM4050550TP	16
47	SM4050655SN	SM4050655SN	6
35	SM4050655SN	SM4050655SN	50
23	SM6031402TP	SM6031402TP	2
61	SM6040450TP	SM6040450TP	28
61	SM6040450TP	SM6040450TP	30
6	SM6040450TP	SM6040450TP	52
41	SM6040502TP	SM6040502TP	16
35	SM6040502TP	SM6040502TP	22
59	SM6040600SP	SM6040600SP	24
59	SM6040600SP	SM6040600SP	26
59	SM6040600SP	SM6040600SP	28
59	SM6040600SP	SM6040600SP	30
82	SM6040602TP	SM6040602TP	2
50	SM6040602TP	SM6040602TP	4
50	SM6040602TP	SM6040602TP	8
20	SM6040602TP	SM6040602TP	16
58	SM6040602TP	SM6040602TP	24
58	SM6040602TP	SM6040602TP	26
57	SM6040602TP	SM6040602TP	28
57	SM6040602TP	SM6040602TP	30
28	SM6040602TP	SM6040602TP	46
77	SM6040650TP	SM6040650TP	4
32	SM6040750TP	SM6040750TP	22
61	SM6040802TP	SM6040802TP	16
61	SM6040802TP	SM6040802TP	18
14	SM6040802TP	SM6040802TP	20
12	SM6040802TP	SM6040802TP	24
15	SM6040860TP	SM6040860TP	6
10	SM6040860TP	SM6040860TP	24
22	SM6041002TP	SM6041002TP	16
26	SM6041002TP	SM6041002TP	32
13	SM6041200SP	SM6041200SP	24
60	SM6041200SP	SM6041200SP	30
40	SM6041202TP	SM6041202TP	10
38	SM6041202TP	SM6041202TP	16
10	SM6041202TP	SM6041202TP	22
62	SM6041602TP	SM6041602TP	18
29	SM6050652TP	SM6050652TP	2
14	SM6050652TP	SM6050652TP	24
36	SM6050652TP	SM6050652TP	50
63	SM6050800SP	SM6050800SP	18
12	SM6050800SP	SM6050800SP	20
15	SM6050800SP	SM6050800SP	24
9	SM6050800SP	SM6050800SP	52
48	SM6050802TP	SM6050802TP	2
48	SM6050802TP	SM6050802TP	4
11	SM6050802TP	SM6050802TP	6
60	SM6050802TP	SM6050802TP	24
60	SM6050802TP	SM6050802TP	26
75	SM6050802TP	SM6050802TP	30
65	SM6051002TP	SM6051002TP	18
68	SM6051202TP	SM6051202TP	26
10	SM6051202TP	SM6051202TP	32
21	SM6051402TP	SM6051402TP	32
23	SM6052002TR	SM6052002TR	10
36	SM6061002TP	SM6061002TP	2
23	SM6061002TP	SM6061002TP	16
17	SM6061002TP	SM6061002TP	46
20	SM6061202TP	SM6061202TP	22
31	SM6061202TP	SM6061202TP	32
24	SM6061802TP	SM6061802TP	16
12	SM6061802TP	SM6061802TP	22
11	SM6062502TP	SM6062502TP	10
37	SM6067052TP	SM6067052TP	2
9	SM6067052TP	SM6067052TP	46
15	SM7030550TP	SM7030550TP	22
56	SM7030550TP	SM7030550TP	30
13	SM8030412TP	SM8030412TP	6
49	SM8040802TP	SM8040802TP	8
17	SM8050412TP	SM8050412TP	16
19	SM8050412TP	SM8050412TP	24
16	SM8050412TP	SM8050412TP	28
48	SM8050502TP	SM8050502TP	8
10	SM8050502TP	SM8050502TP	14
40	SM8050502TP	SM8050502TP	16
18	SM8050502TP	SM8050502TP	22
20	SM8050502TP	SM8050502TP	24
66	SM8050602TP	SM8050602TP	18
20	SM8050612TP	SM8050612TP	32
30	SM80506A2TP	SM80506A2TP	10
39	SM80506552TP	SM80506552TP	16
69	SM8060612TP	SM8060612TP	18
38	SM80606A2TP	SM80606A2TP	2
14	SM80606A2TP	SM80606A2TP	6
32	SM80606A2TP	SM80606A2TP	10
15	SM80606A2TP	SM80606A2TP	14
26	SM80606A2TP	SM80606A2TP	16
19	SM80606A2TP	SM80606A2TP	22
48	SM80608A2TP	SM80608A2TP	10
48	SM80608A2TP	SM80608A2TP	12
21	SM8081652TP	SM8081652TP	10
17	SM9040700SP	SM9040700SP	28
24	SM9040700SP	SM9040700SP	32
15	SM9040800SP	SM9040800SP	6
13	SM9061403CP	SM9061403CP	10
75	SS6060210SP	SS6060210SP	18
8	SS6060210SP	SS6060210SP	20
43	SS6060210SP	SS6060210SP	52
16	SS7110570SP	SS7110570SP	46
55	SS7110840SP	SS7110840SP	8
4	SS8660612TP	SS8660612TP	52
2	ST9053511SR	ST9053511SR	34
46	TA0500301R0	TA0500301R0	2
83	TA0550604R0	TA0550604R0	4
84	TA0750404R0	TA0750404R0	4
67	TA0850604R0	TA0850604R0	4
32	TA1050504R0	TA1050504R0	2
34	TA1250406R0	TA1250406R0	2
35	TA1550902R0	TA1550902R0	2
76	TA2100904R0	TA2100904R0	4
51	WP0430800SC	WP0430800SC	30
4	WP0430800SC	WP0430800SC	40
6	WP0430801SC	WP0430801SC	24
26	WP0430801SC	WP0430801SC	28
23	WP0430801SC	WP0430801SC	32
53	WP0431005SP	WP0431005SP	26
46	WP0450826SC	WP0450826SC	6
38	WP0451016SP	WP0451016SP	28
22	WP0531001SC	WP0531001SC	48
56	WP0550800SP	WP0550800SP	26
7	WP0551016SH	WP0551016SH	36
24	WP0551016SH	WP0551016SH	52
55	WP0612056SD	WP0612056SD	4
29	WP0612056SD	WP0612056SD	46
12	WP0621046SP	WP0621046SP	10

Page 64 — NUMERICAL INDEX OF PARTS

Juki LBH-1790AN parts on page 64

Ref	Part number	Part name	Qty
59	WP0651646SC	WP0651646SC
19	WP0851846SC	WP0851846SC
53	WP0852086SC	WP0852086SC
15	WP1612616SE	WP1612616SE
16	WS0410002KP	WS0410002KP
21	WS0510002KN	WS0510002KN
16	WS0820002KR	WS0820002KR
54	WS0820002KR	WS0820002KR
60	WT0640001KN	WT0640001KN

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki LBH-1790AN — parts catalog

• Page 1 (cover): This page is the cover for a parts list for models LBH-1790AN and LBH-1795AN, published on December 21, 2017.
• Page 2 (toc): This page is a table of contents listing various components and their corresponding page numbers in the parts catalog.
• Page 3 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
• Page 4 (parts_list): This page lists frame and miscellaneous cover components, including screws, covers, nuts, hinges, plugs, and other parts, with their respective part numbers, names, and quantities.
• Page 5 (diagram): This page illustrates the frame and miscellaneous cover components of the machine, showing an exploded view with numbered parts.
• Page 6 (parts_list): This page lists frame and miscellaneous cover components, including screws, hinges, spacers, washers, and various rubber parts, with their part numbers, names, remarks, and quantities.
• Page 7 (diagram): This page displays a diagram of frame and miscellaneous cover components, including various parts with their corresponding reference numbers.
• Page 8 (parts_list): This page lists parts for the frame and miscellaneous cover components, including part numbers, names, and quantities.
• Page 9 (diagram): This page illustrates the frame and miscellaneous cover components of an industrial sewing machine, showing an exploded view with numbered parts.
• Page 10 (parts_list): This page lists frame and miscellaneous cover components, including screws, thread cutters, cable bands, and bobbin thread tension assemblies.
• Page 11 (diagram): This page displays an exploded view diagram of the main shaft components for an industrial sewing machine, with various parts labeled with reference numbers.
• Page 12 (parts_list): This page lists the main shaft components, including part numbers, names, and quantities for various items such as needles, idlers, bearings, screws, and shafts.
• Page 13 (diagram): This page displays an exploded view diagram of the main shaft components, showing various parts with their corresponding reference numbers.
• Page 14 (parts_list): This page lists components for the main shaft, including a screw with part number SM80608A2TP.
• Page 15 (diagram): This page illustrates the components of a hook driving shaft, showing an exploded view of various parts with reference numbers.
• Page 16 (parts_list): This page lists the components for the hook driving shaft, including bearings, bushes, retaining rings, shafts, screws, oil filters, sprockets, washers, adjusting pins, springs, felts, tubes, oil wicks, bobbins, and hook sleeves.
• Page 17 (diagram): This page illustrates the presser and feed components of a machine, showing an exploded view with various parts labeled with reference numbers.
• Page 18 (parts_list): This page lists presser and feed components, including part numbers, names, and quantities for various parts like motors, sensors, bearings, pulleys, and screws.
• Page 19 (diagram): This page illustrates the presser and feed components of an industrial sewing machine, showing an exploded view with various parts labeled with reference numbers.
• Page 20 (parts_list): This page lists presser and feed components, including part numbers, names, and quantities.
• Page 21 (diagram): This page illustrates the presser and feed components for the LBH-1795ANS model, showing an exploded view of various parts with reference numbers.
• Page 22 (parts_list): This page lists presser and feed components for the LBH-1795ANS model, including part numbers, names, and quantities.
• Page 23 (diagram): This page illustrates the components of the needle bar rocking mechanism, showing various parts such as the needle bar, connecting links, and associated hardware.
• Page 24 (parts_list): This page lists the parts for the needle bar rocking components, including part numbers, names, remarks, level, cons, and quantity.
• Page 25 (diagram): This page illustrates the components of a needle thread trimmer, showing an exploded view of various parts with reference numbers.
• Page 26 (parts_list): This page lists the components for the needle thread trimmer, including various screws, nuts, arms, and other related parts.
• Page 27 (diagram): This page illustrates the components of a needle thread trimmer, showing an exploded view of various parts and their reference numbers.
• Page 28 (parts_list): This page lists components for a needle thread trimmer, including part numbers, names, and quantities.
• Page 29 (diagram): This page displays an exploded view diagram of the bobbin thread trimmer components.
• Page 30 (parts_list): This page lists the components for a bobbin thread trimmer, including part numbers, names, and quantities.
• Page 31 (diagram): This page displays a diagram of bobbin thread trimmer components, with numbered parts and their corresponding references.
• Page 32 (parts_list): This page lists components for the Bobbin Thread Trimmer, including part numbers, descriptions, and quantities.
• Page 33 (diagram): This page displays a diagram of cloth cutting knife components, with numbered parts indicated for identification.
• Page 34 (parts_list): This page lists components for cloth cutting knives, including part numbers, descriptions, remarks, and quantities.
• Page 35 (diagram): This page displays a diagram of table components and accessories for a control box, with numbered parts indicated.
• Page 36 (parts_list): This page lists table components with part numbers, names, remarks, and quantities.
• Page 37 (diagram): This page displays diagrams for exclusive parts for the LBH-1790ANB sewing machine, including bobbin thread trimmer components, accessory parts components, and presser & feed components.
• Page 38 (parts_list): This page lists exclusive parts for the LBH-1790ANB, including part numbers, names, and quantities.
• Page 39 (diagram): This page displays a diagram of operation box components, including a control box with reference numbers 1, 2, 3, and 4.
• Page 40 (parts_list): This page lists components for an operation box, including part numbers, names, remarks, and quantities.
• Page 41 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
• Page 42 (parts_list): This page lists components for a control box, including various screws, plates, fans, and labels with their corresponding part numbers, descriptions, and quantities.
• Page 43 (diagram): This page displays a diagram of control box components for a sewing machine, with numbered parts and their corresponding references.
• Page 44 (parts_list): This page lists components for the control box, including tubes, switches, cores, fuses, nuts, and washers, with their respective part numbers, descriptions, and quantities.
• Page 45 (diagram): This page displays a wiring diagram for the sewing machine, illustrating connections between various components like main boards, motors, sensors, and power supplies.
• Page 46 (parts_list): This page contains a parts list for the wiring diagram, detailing part numbers, names, and quantities for various components.
• Page 47 (diagram): This page contains a diagram illustrating various accessories, parts, and components, with reference numbers ranging from 1 to 34.
• Page 48 (parts_list): This page lists accessory parts and components for a sewing machine, including tools, hardware, and maintenance items, with part numbers, names, and quantities.
• Page 49 (diagram): This page contains a diagram illustrating the components of a thread stand, with numbered references pointing to specific parts.
• Page 50 (parts_list): This page lists components for the THREAD STAND ASM., including part numbers, names, and quantities.
• Page 51 (diagram): This page contains diagrams and reference numbers for electric bobbin winder components, 2-pedal for standing machine components, and the starting pedal for 2-pedal.
• Page 52 (parts_list): This page lists special specification components for a sewing machine, including part numbers, names, quantities, and remarks for items like bobbin winders, cords, tension parts, screws, and pedal components.
• Page 53 (diagram): This page contains diagrams of various sewing machine components, including large size type (70mm), swing width 10mm type, non-lubricating hook type, and for hosiery (type K).
• Page 54 (parts_list): This page lists special specification components for sewing machines, including part numbers, names, quantities, and remarks for items like hooks, screws, and presser feet.
• Page 55 (parts_list): This page lists parts for cloth cutting knives, presser feet, knife guards, and throat plates, with part numbers and dimensions in inches and millimeters.
• Page 56 (parts_list): This page lists exchanging parts for an industrial sewing machine, including knives, pressers, and work clamp checks, with their respective part numbers and quantities.
• Page 57 (text): This page provides instructions on how to use the parts list, including explanations for reference numbers, quantity codes, and symbols.
• Page 58 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, corresponding page numbers, and reference numbers.
• Page 59 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 60 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers from diagrams.
• Page 61 (text): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers from diagrams.
• Page 62 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 63 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers.
• Page 64 (index): This page contains a numerical index of parts with their corresponding page numbers and reference numbers.

Page 1 — PARTS LIST

MODEL : LBH-1790AN,LBH-1795AN List No : 1706-00 PARTS LIST Published:12/21/2017 jintex.in

Page 2 — CONTENTS

CONTENTS FRAME & MISCELLANEOUS COVER COMPONENTS (1).................................................................................... 1 FRAME & MISCELLANEOUS COVER COMPONENTS (2).................................................................................... 5 MAIN SHAFT COMPONENTS ................................................................................................................................. 9 HOOK DRIVING SHAFT COMPONENTS .............................................................................................................. 13 PRESSER & FEED COMPONENTS ....................................................................................................................... 15 PRESSER & FEED COMPONENTS (FOR LBH-1795ANS)................................................................................. 19 NEEDLE BAR ROCKING COMPONENTS ............................................................................................................ 21 NEEDLE THREAD TRIMMER COMPONENTS.................................................................................................... 23 BOBBIN THREAD TRIMMER COMPONENTS.................................................................................................... 27 CLOTH CUTTING KNIFE COMPONENTS ............................................................................................................ 31 TABLE COMPONENTS .......................................................................................................................................... 33 EXCLUSIVE PARTS FOR LBH-1790ANB............................................................................................................ 35 OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)................................................... 37 CONTROL BOX COMPONENTS ............................................................................................................................ 39 WIRING DIAGRAM ................................................................................................................................................ 43 ACCESSORIES PARTS COMPONENTS .............................................................................................................. 45 THREAD STAND COMPONENTS.......................................................................................................................... 47 SPECIAL SPECIFICATIONS COMPONENTS (1)................................................................................................. 49 SPECIAL SPECIFICATIONS COMPONENTS (2)................................................................................................. 51 EXCHANGING PARTS .......................................................................................................................................... 53 HOW TO MAKE USE OF THIS PARTS LIST....................................................................................................... 55 TOC - 1 jintex.in

Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1) jintex.in

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 40189612 UPPER_COVER 1 2 SM4051055SP SCREW 6 3 40189633 LEFT_COVER 1 4 SM4051055SP SCREW 2 5 40189613 LEFT_COVER_B 1 6 SM4051055SP SCREW 4 7 40189616 THREAD_TAKE_UP_LEVER_COVER 1 8 SM4051055SP SCREW 1 9 40189617 FRONT_COVER 1 10 SM4051055SP SCREW 3 11 40189615 MOTOR_COVER 1 12 SM4051655SP SCREW M5 L=16 4 13 26230409 LUBRICATING OIL WICK STOPPER 2 14 SM6050802TP SCREW M5X0.8 L=8 1 15 40189614 REAR_COVER 1 16 SM4051055SP SCREW 4 17 40189635 HOOK_OIL_SHIELD_COVER_COMPL 1 18 40189636 HOOK_OIL_SHIELD_COVER 1 19 SM0040801SC SCREW * 1 20 40145328 SENSOR SLIT PLATE C * 1 21 NM6040001SC NUT M4X0.7 TYPE1 * 1 22 NM6030001SD NUT M3X0.5 * 1 23 SM6031402TP SCREW * 1 24 13703906 HOOK OIL SHIELD HINGE * 1 25 13703905 HINGE PIN * 1 26 40141710 HINGE_SPRING * ☆ 1 27 40141711 HINGE_SPRING_WASHER * 1 28 SM4040655SP SCREW M4 L=6 * 1 29 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 2 30 SM6040602TP SCREW M4 L=6 2 31 TA1550902R0 PLUG 1 32 TA1050504R0 RUBBER PLUG 1 33 40141795 PBL_METAL_CAP 1 34 TA1250406R0 RUBBER PLUG D=12.5 L=4 3 35 TA1550902R0 PLUG 3 36 SM6061002TP SCREW M6 L=10 ACCESSORIE PARTS 4 37 SM6061052TP HEXAGON BOLT 1 38 SM80606A2TP SCREW M6 L=6 2 39 40189631 SWITCH ASM. 1 40 SL6040892TN SCREW 2 41 22528764 PRE-TENSION CONTROLLER ASM. 1 42 22502504 THREAD GUIDE BAR ACCESSORIE PARTS 1 43 40189634 BED BASE N 1 44 40189618 BED_REAR_COVER 1 45 40141706 ASSY_LED_DEVICE ☆ 1 46 TA0500301R0 PLUG 5X5.8 L=3 1 47 13922208 TAKE-UP THREAD GUIDE B 1 jintex.in

Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1) jintex.in

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 48 SM6050802TP SCREW M5X0.8 L=8 2 49 40006314 HINGE BUSH ACCESSORIE PARTS 1 50 13700604 HINGE PIN 2 51 13700406 HINGE PLATE A ACCESSORIE PARTS 1 52 13700505 HINGE PLATE B ACCESSORIE PARTS 1 53 NM6060001SD NUT M6 2 54 KX000000380 SPACER 4 55 WP0612056SD WASHER 6.1X18.5X2 1 56 13943303 OIL SHIELD ACCESSORIE PARTS 1 57 40008977 RUBBER C 3 58 40008978 RUBBER D 1 59 SL6040892TN SCREW 4 60 E2002855000 Z STOPPER RUBBER 1 61 D6056555B00 RUBBER CUSHION (B) 1 62 13700703 RUBBER HINGE ACCESSORIE PARTS 1 63 SL6040892TN SCREW ACCESSORIE PARTS 1 64 40009037 TAKE-UP THREAD GUIDE A 1 65 SM6040602TP SCREW M4 L=6 1 66 40141713 STUD 1 67 TA0850604R0 RUBBER PLUG 1 68 CM300200003 ATTENTION LABEL 1 69 13705405 NEEDLE BAR THREAD GUIDE 1 70 40138611 INT PCB ASSY 1 71 CM301300001 SAFETY LABEL 1 72 CM300200001 ATTENTION SEAL 2 73 40111214 FAN MOTOR ASSY 1 74 NM6040001SC NUT M4X0.7 TYPE1 2 75 SL4042591SC SCREW M4 L=25 2 76 TA2100904R0 RUBBER PLUG 1 77 SM6040650TP SCREW 1 78 40145327 SENSOR PALTE C 1 79 40141483 COVER SENSOR ASSY 1 80 SL4030881SC SCREW M3 L=8 1 81 HX001500000 CLIP 3 82 SM6040602TP SCREW M4 L=6 3 83 TA0550604R0 RUBBER PLUG 1 84 TA0750404R0 PLUG D=7.5 L=3.5 1 85 40172374 FACE COVER PLATE 1 86 40172375 EMBLEM_JUKI_SMART_SOLUTIONS 2 jintex.in

Page 7 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40006261 ASSY_AT_SOLENOID 1 2 40006263 AT_SHAFT 1 3 40006264 AT_SHAFT_HOLDER 1 4 RC1700001KP RETAINING RING 1 5 40010514 DISK_STOPPER 1 6 40010511 DISK_STOPPER_HOLDER_CAP 1 7 1411554 HEAD GROUND CABLE A ASM. 1 8 40010522 SHAFT_NUT 2 9 SM0860400SN SCREW 3 10 SM6040860TP SCREW M4 L=8 1 11 SM6050802TP SCREW M5X0.8 L=8 3 12 SM8030412TP SCREW 2 13 SM8030412TP SCREW 1 14 SM80606A2TP SCREW M6 L=6 1 15 SM9040800SP SCREW 1 16 WS0410002KP SPRING WASHER 1 17 40141478 INT_CORE B ASSY 1 18 10006104 TAKE-UP SPRING ✩ 1 19 40010510 THREAD_TENSION_POST_BASE 1 20 40010512 THREAD_TENSION_SHAFT_COLLAR 2 21 32055402 THRUST COLLAR 1 22 40004252 UTT_SUSPENSION_SCREW_9 1 23 40006265 ASSY_THREAD_TENSION_POST 1 24 B2702210000 GUIDE_PLATE 1 25 B2703210000 BUSHING 1 26 40003499 THREAD BREAK DETECTOR A 1 27 40189628 ASSY_BTW 1 28 40189600 BTW_BASE * 1 29 26260208 BTW_CAM_PLATE * 1 30 26260307 BTW_BASE_SHAFT * 1 31 26260406 BTW_SHAFT_BASE * 1 32 26260505 BTW_CAM_LEVER * 1 33 26260604 BTW_WHEEL * 1 34 40011144 BTW_TORSION_SPRING * 1 35 26260802 BTW_BEARING_SPACER * 1 36 40011145 BTW_SHAFT * 1 37 40011146 BTW_LEVER_SHAFT * 1 38 40021933 BTW_LEVER * 1 39 26261206 BTW_SPACER * 1 40 26261305 BTW_BEARING * 2 41 26261503 BTW_WHEEL_RUBBER * ✩ 1 42 26261602 BOBBIN_SPRING * ✩ 1 43 26261701 BTW_SPRING * 1 44 RC0560711KP RETAINING RING * 1 45 RE0400000K0 E-RING 4 * 1 46 WP0450826SC WASHER 4.5X10X0.8 * 1 47 SM5040655SN SCREW * 1 jintex.in

Page 9 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Page 10

FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 48 SM8050502TP SCREW M5 L=5 * 1 49 SM8040802TP SCREW M4X8 * 2 50 SM6040602TP SCREW M4 L=6 2 51 40141479 INT CORD C ASSY 1 52 40037008 THREAD_CUTTER ☆ 1 53 SM0050801SC SCREW 4 54 D316255B00 THREAD GUIDE 1 55 SS7110840SP SCREW 11/64-40 L=7.8 1 56 EA9500B0100 CABLE BAND 10 57 HX00151000A CABLE BAND 2 58 26230409 LUBRICATING OIL WICK STOPPER 3 59 22529481 BOBBIN THREAD TENSION ASM. 1 60 22529473 BOBBIN THREAD TENSION ROD ASM. * 1 61 NS6110310SP NUT 11/64-40 * 1 62 11072402 THREAD TENSION NUT * 1 63 11093606 THREAD TENSION SPRING * 1 64 B3214047000 BOBBIN WINDER TENSION DISC * 2 65 40141477 INT CORD A ASSY 1 jintex.in

Page 11 — MAIN SHAFT COMPONENTS

MAIN SHAFT COMPONENTS 11 10 29 30 31 48 40 39 35 47 38 37 36 33 46 41 34 44 45 18 26 43 32 42 24 26 27 23 19 22 25 20 17 21 18 28 16 14 15 12 13 6 8 2 7 3 5 3 9 4 jintex.in

Page 12 — MAIN SHAFT COMPONENTS

MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40011517 NEEDLE_BAR_CRANK_FELT 1 2 40142152 IDLER_ASSY 1 3 RC3781518KP RETAINING RING * 2 4 RC0100001KP SNAP RING M10 * 1 5 40143150 IDLER FIXED PLATE * 1 6 40141721 IDLER_PULLEY * 1 7 SB110000700 BALL BEARING * 1 8 NM6100001SD NUT M10 * 1 9 40141720 IDLER_SHAFT * 1 10 40006307 SQUARE_BLOCK_GUIDE 3 11 SM6062502TP SCREW M6 L=25 1 12 WP0621046SP WASHER 1 13 SM9061403CP SCREW M6 L=14 1 14 40004185 HINGE_SCREW 1 15 40051473 COUPLING ASM. 1 16 40051474 COUPLING * 1 17 SM80608A2TP SCREW M6 L=8 * 4 18 CQ252000000 OIL WICK 0.014 19 40004171 COUNTER_WEIGHT_SCREW 1 20 40141716 COUNTER_WEIGHT 1 21 SM8081652TP SCREW M8 L=16 1 22 40138137 IPM550W MOTOR 1 23 SM6052002TR SCREW M5 L=20 4 24 40105010 BTW_DRIVING_WHEEL 1 25 40150011 FRONT BEARING 1 26 40010535 DRIVING_WHEEL_SCREW 2 27 40141717 MAIN_SHAFT 1 28 40141719 TIMING_BELT 1 29 40032269 THRUST COLLAR 1 30 SM80506A2TP SCREW M5 L=6 * 2 31 CS1000881TP THRUST COLLAR * 1 32 SM80606A2TP SCREW M6 L=6 2 33 40141718 SPROCKET_A 1 34 SB1200008C0 BEARING 1 35 40008423 WASHER 1 36 40165704 NEEDLE CRANK SHAFT 1 37 40165701 SQUARE BLOCK GUIDE B 1 38 40165703 SQUARE BLOCK B 1 39 40004206 SQUARE_BLOCK 1 40 SM6041202TP SCREW M4X0.7 L=12 2 41 40141725 THREAD_TAKE_UP_COMP 1 42 40141726 THREAD_TAKE_UP_ASM_C * 1 43 22918304 SCREW * 1 44 40142880 NEEDLE_BAR_CRANK_ROD_ASM. * 1 45 40141727 THREAD_TAKE_UP_ASM_B * 1 46 40141730 NEEDLE_BAR_CRANK * 1 47 40142878 TAKE_UP_CRANK_ASM. * 1 jintex.in

Page 13 — MAIN SHAFT COMPONENTS

MAIN SHAFT COMPONENTS 11 10 29 30 31 48 40 39 35 47 38 37 36 33 46 41 34 44 45 18 26 43 32 42 24 26 27 23 19 22 25 20 17 21 28 18 16 14 15 12 13 6 8 2 3 7 3 9 4 5 jintex.in

Page 14 — MAIN SHAFT COMPONENTS

MAIN SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM80608A2TP SCREW M6 L=8 2 jintex.in

Page 15 — HOOK DRIVING SHAFT COMPONENTS

HOOK DRIVING SHAFT COMPONENTS

Page 16 — HOOK DRIVING SHAFT COMPONENTS

HOOK DRIVING SHAFT COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SB112001600 BEARING 2 2 SB110000600 BALL BEARING 2 3 SB11500200 BEARING 1 4 SB115001500 BEARING 1 5 40004188 BEARING_SUPPORT 1 6 23536204 BUSH 2 7 RC2791218KP RETAINING RING 2 8 40004186 HOOK_DRIVING_SHAFT 1 9 40004187 HOOK_DRIVING_SHAFT_METAL 2 10 SM8050502TP SCREW M5 L=5 1 11 13710306 INTERMEDIATE SPROCKET SHAFT 1 12 13710504 INTERMEDIATE SPROCKET WASHER 1 13 13729066 HOOK COMPL. ☆ 1 14 40141739 LOWER_SHAFT_KNOB_B 1 15 SM80606A2TP SCREW M6 L=6 10 16 40011355 OIL_FILTER 2 17 14504401 BEARING SUPPORT 1 18 40004180 SPROCKET_B 1 19 40141740 SPROCKET_C 1 20 13710405 INTERMEDIATE SPROCKET RING 1 21 40006317 WASHER 1 22 40142753 ADJUSTING_PIN_B 1 23 40142754 ADJUSTING_SPRING_B 1 24 40142752 ADJUSTING_SCREW_B 1 25 40006320 FELT 1 26 23630007 TUBE 1 27 CQ202000000 OIL WICK 1 28 B1811771000 BOBBIN ☆ 1 29 13729769 BOBBIN CASE ASM. ☆ 1 30 13729652 HOOK SLEEVE CONNEC. 1 31 13729653 HOOK SLEEVE * 1 32 CQ252000000 OIL WICK * 0.04 33 HX002550000 TUBE * 0.017 jintex.in

Page 17 — PRESSER & FEED COMPONENTS

PRESSER & FEED COMPONENTS jintex.in

Page 18 — PRESSER & FEED COMPONENTS

PRESSER & FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40139181 FEED MOTOR ASSY 1 2 HD00057000A PHOTO SENSOR 1 3 22891204 BEARING SUPPORT 2 4 40075297 THROAT_PLATE_BASE_COVER 2 5 40004194 MOTOR_BRACKET 1 6 40108754 PULLEY_B 1 7 40004197 PULLEY_C 1 8 40004198 SUPPORT_SHAFT 1 9 40004200 TIMING_BELT_HOLDER 1 10 40004201 FEED_SHAFT 1 11 40022121 FEED_GUIDE_SHAFT 1 12 40141744 SENSOR_SLIT_PLATE 1 13 40141741 FEED_BASE 1 14 SB710000600 BEARING 2 15 40010434 THRUST_COLLAR_ASM. 1 16 40010435 THRUST_COLLAR * 1 17 SM8050412TP SCREW M5 L=4 * 2 18 40004205 WORK_CLAMP_CARRIER 1 19 SL4031091SC SCREW M3 L=10 1 20 SM6040602TP SCREW M4 L=6 4 21 SM6040802TP SCREW M4X0.7 L=8 2 22 SM6041002TP SCREW M4 L=10 6 23 SM6061002TP SCREW M6 L=10 3 24 SM6061802TP SCREW M6 L=18 1 25 SM8050502TP SCREW M5 L=5 3 26 SM80606A2TP SCREW M6 L=6 2 27 40141742 TIMING_BELT 1 28 SM5040550TP SCREW M4 L=5 4 29 40142161 LIFTING_LINK_ASSY 1 30 40141788 LINK_ROD_S * 1 31 40141801 LIFTING_LINK_PIN * 1 32 SD0800326TP SHOULDER SCREW * 1 33 40142755 LIFTING_LINK * 1 34 40139182 CLAMP MOTOR ASSY 1 35 SD0800326TP SHOULDER SCREW 1 36 40004289 ASSY PBL GEAR L 1 37 40004267 ASSY_PBL_MOTOR_BASE 1 38 SM6041202TP SCREW M4X0.7 L=12 4 39 SM8060552TP SCREW M6 L=5 5 40 SM8050502TP SCREW M5 L=5 1 41 SM6040502TP SCREW M4X0.7 L=5 1 42 RE050000K0 E-RING 1 43 13127402 PIN (SHORT) C 1 44 40141757 SQUARE_BLOCK 1 45 40141755 SLIDE_ROLLER 1 46 40141754 COLLAR 1 47 SB408000100 BEARING 1 jintex.in

Page 19 — PRESSER & FEED COMPONENTS

PRESSER & FEED COMPONENTS 38 35 39 34 37 65 39 78 36 79 57 64 68 33 30 53 49 32 29 61 62 51 31 42 54 46 45 44 52 59 58 69 66 55 43 48 74 77 71 70 72 73 75 76 63 50 67 22 20 14 23 25 14 13 24 25 47 6 18 28 28 10 28 26 4 11 9 22 27 4 21 19 26 22 12 2 8 41 40 60 15 3 20 56 17 7 3 16 jintex.in

Page 20 — PRESSER & FEED COMPONENTS

PRESSER & FEED COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40004285 PBL_FINGER_GUARD 1 49 40141794 PBL_GUIDE 1 50 40004280 PBL_LIFTING_PLATE 1 51 40004279 PBL_METAL 1 52 40141747 POSITION_BRACKET 1 53 40141745 PRESSER_BAR 1 54 40141753 PBL_ROLLER_BASE 1 55 40141756 PBL_ROLLER_SHAFT 1 56 SB30700200 BEARING 2 57 40141746 METAL_U 1 58 40004287 PBL_WORK_CLAMP_ARM 1 59 40004288 PBL_WORK_CLAMP_ARM_SHAFT 1 60 40141743 SENSOR_PLATE 1 61 SM6040802TP SCREW M4X0.7 L=8 1 62 SM6041602TP SCREW M4X0.7 L=16 1 63 SM6050800SP SCREW M5 L=8 2 64 SM6051002TP SCREW M5X0.8 L=10 4 65 SM6051002TP SCREW M5X0.8 L=10 4 66 SM8050602TP SCREW M5 L=6 2 67 40020310 UTT_CLOSE_CAM_B 1 68 40141748 LIFTING_LINK_SHAFT 1 69 SM8060612TP SCREW M6 L=6 1 70 B1511771K0A WORK CLAMP CHECK HOLDER ASM. 1 71 B1511771000B PRESSER FOOT 1 72 B1509761000 WORK CLAMP CHECK SPRING * 2 73 B151077100B WORKCLAMPCHECKSPRINGSETPIN(B) * 2 74 B1512761000 WORK CLAMP CHECK HOLDER SPRING * 1 75 SS6060210SP SCREW 3/32-56 L=1.9 2 76 B1552781000A PRESSER 1 77 SD0790203SP HINGE SCREW D=7.94 H=2 1 78 40004291 PBL_GEAR_S 1 79 40004275 PBL_GEAR_SHAFT 1 jintex.in

Page 21 — PRESSER & FEED COMPONENTS (FOR LBH-1795ANS)

PRESSER & FEED COMPONENTS (FOR LBH-1795ANS) 1 12 11 10 13 2 6 4 3 15 7 5 8 9 14 jintex.in

Page 22 — PRESSER & FEED COMPONENTS (FOR LBH-1795ANS)

PRESSER & FEED COMPONENTS (FOR LBH-1795ANS) No. Parts No. Parts name Remarks Level Cons Qty 1 40067165 LIFTING PLATE PARTS 120MM 1 2 40008646 ASS'Y,WORK_CLAMP,CHECK_HOLDER_120 * 1 3 B151077100B WORK_CLAMP,CHECK,SPRING,SET,PIN(B) * 2 4 B1509761000 WORK_CLAMP CHECK SPRING * 2 5 40008647 WORK_CLAMP,CHECK_HOLDER_120 * 1 6 40008638 WORK_CLAMP,CHECK_HOLDER_SPRING B * 1 7 40006339 WORK_CLAMP,CARRIER_120 * 1 8 SS6060210SP SCREW 3/32-56 L=1.9 * 6 9 SD0790203SP HINGE SCREW D=7.94 H=2 * 3 10 40028682 UTT_CLOSE_CAM_120B * 1 11 40112711 LIFTING_PLATE_120 * 1 12 SM6050800SP SCREW M5 L=8 * 2 13 40006335 WORK_CLAMP_ARM_120 * 1 14 SM6040802TP SCREW M4X0.7 L=8 * 2 15 40008658 WORK_CLAMP_120 * 1 jintex.in

Page 23 — NEEDLE BAR ROCKING COMPONENTS

NEEDLE BAR ROCKING COMPONENTS 20 6 11 7 11 11 11 12 9 29 31 19 1 31 19 30 13 33 15 14 16 32 28 34 27 35 10 8 26 19 17 18 18 19 25 22 23 24 21 jintex.in

Page 24 — NEEDLE BAR ROCKING COMPONENTS

NEEDLE BAR ROCKING COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40088990 SUPPORT_SHAFT 1 2 40004378 ZIGZAG ROD ASM. 1 3 40004379 ZIGZAG ROD * 1 4 23530405 SHAFT HOLDER LINK BUSH * 2 5 40008671 P=JUNCTION SHAFT SELECTIVE PARTS SELECTIVE PARTS 2 6 40141758 ZIGZAG_DRIVE_UNIT_BASE 1 7 40141759 MOTOR_LEVER 1 8 40139180 NEEDLE SWING MOTOR ASSY 1 9 40141760 ZIGZAG_LEVER_REAR 1 10 SM6041202TP SCREW M4X0.7 L=12 4 11 SM8050502TP SCREW M5 L=5 6 12 SM6061802TP SCREW M6 L=18 1 13 40004218 FRAME SUPPORT PLATE ASM. 1 14 13706403 NEEDLE BAR THREAD GUIDE ☆ 1 15 SM7030550TP SCREW M3 L=4.5 ☆ 1 16 MDP5J0B1100 NEEDLE DPX5 #11J ☆ 1 17 CS1501181TP THRUST COLLAR D=15 W=11 1 18 SM8050502TP SCREW M5 L=5 2 19 SM80606A2TP SCREW M6 L=6 4 20 SM6061202TP SCREW M6 L=12 3 21 40004224 ZIGZAG LEVER SHAFT ASM. 1 22 NM6050001SP NUT M5 * 1 23 40004373 ZIGZAG LEVER SHAFT * 1 24 40004374 ZIGZAG_STUD * 1 25 40004216 BUSHING 1 26 40004217 BUSHING REAR 1 27 40004209 NEEDLE_BAR_ROD 1 28 B1414232000 SQUARE BLOCK 1 29 40004222 NEEDLE_BAR_FRAME_ASSY 1 30 40004212 NEEDLE_BAR_FRAME * 1 31 40004213 NEEDLE BAR METAL * 2 32 SM6040750TP SCREW M4 L=7 1 33 40004215 NEEDLE BAR 1 34 40004214 NEEDLE_BAR_CONNECTION 1 35 SM6040502TP SCREW M4X0.7 L=5 1 jintex.in

Page 25 — NEEDLE THREAD TRIMMER COMPONENTS

NEEDLE THREAD TRIMMER COMPONENTS

Page 26 — NEEDLE THREAD TRIMMER COMPONENTS

NEEDLE THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 RE0300000K0 E-RING 3 1 2 RE0300000K0 E-RING 3 1 3 EA9500B0100 CABLE BAND 1 4 40004293 UTT BASE PLATE 1 5 NM6050001SP NUT M5 4 6 WP0430801SC WASHER 4.3X9X0.8 1 7 SL4031091SC SCREW M3 L=10 1 8 SD0600266TP SHOULDER SCREW D=6 H=2.6 1 9 SM6040600SP SCREW M4 L=6 2 10 SM6040602TP SCREW M4 L=6 2 11 SM6040860TP SCREW M4 L=8 1 12 SM6040802TP SCREW M4X0.7 L=8 4 13 SM6041200SP SCREW M4 L=12 2 14 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 2 15 SM6050800SP SCREW M5 L=8 2 16 SM6050802TP SCREW M5X0.8 L=8 2 17 40004400 ASSY UTT RELEASE ARM B 1 18 SM6040602TP SCREW M4 L=6 1 19 SM8050412TP SCREW M5 L=4 2 20 SM8050502TP SCREW M5 L=5 4 21 SD0600326TP SHOULDER SCREW D=6 H=3.2 4 22 SD0800406TP SHOULDER SCREW D=8 H=4 1 23 SD080061TP SHOULDER SCREW D=8 H=15 3 24 11272507 SPRING 1 25 CS0800881TP THRUST COLLAR 1 26 40004235 UTT ARM A 1 27 40004238 UTT_ARM_B 1 28 40101641 ASSY_UTT_CAM_ARM 2 29 40004254 UTT CAM ROLLER * 1 30 40101638 UTT_CAM_ROLLER_SHAFT * 1 31 40101642 UTT_CAM_ARM * 1 32 NM6040000SN NUT M4 * 1 33 40004264 UTT RELEASE LEVER BASE 1 34 40004265 UTT RELEASE LEVER SHAFT 1 35 40141774 SENSOR_PLATE_UTT 1 36 40004296 UTT_SUPPORT_ARM_SPRING 1 37 40004294 UTT_SUPPORT_SHAFT 1 38 40004248 UTT_SUSPENSION SCREW 4 2 39 40004252 UTT_SUSPENSION SCREW 9 1 40 40004247 UTT SUSPENSION SHOULDER SCREW 1 41 40004244 UTT THREAD PULLING LINK A 1 42 40004245 UTT THREAD PULLING LINK B 1 43 40004236 UTT X-CAM 1 44 40004297 UTT Y-DRIVE ROLLER 1 45 40004298 UTT Y-DRIVE SHAFT 1 46 40140040 UTT TRIM MOTOR ASSY 1 47 HD00057000A PHOTO SENSOR 1 jintex.in

Page 27 — NEEDLE THREAD TRIMMER COMPONENTS

NEEDLE THREAD TRIMMER COMPONENTS

Page 28 — NEEDLE THREAD TRIMMER COMPONENTS

NEEDLE THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 40028634 ASSY_UTT_RELEASE_LEVER_B 1 49 40142166 ASSY_UTT_DRIVE_CAM 1 50 40004240 ASSY_UTT_THREAD PULLING ARM 1 51 40015702 UTT_RATCH_PLATE_B 1 52 40004232 ASSY_UTT_SUPPORT_ARM 1 53 WP0431005SP PLAIN WASHER 4.3X12X1 1 54 40015674 UTT_RATCH_STOPPER 1 55 SM6040602TP SCREW M4 L=6 2 56 WP0550800SP WASHER 5.5X10X0.8 2 57 NM6050001SP NUT M5 1 58 SM6040602TP SCREW M4 L=6 1 59 SM6040600SP SCREW M4 L=6 1 60 SM6050802TP SCREW M5X0.8 L=8 1 61 40028636 UTT_GUIDE_SHAFT_B 1 62 40004249 UTT SUSPENSION PLATE 1 63 40004243 UTT THREAD PULLING LEVER 1 64 40004246 UTT THREAD PULLING SHAFT 1 65 40004250 UTT TRIMMER CLOSE SPRING 1 66 40004297 UTT Y-DRIVE ROLLER 1 67 40004298 UTT Y-DRIVE SHAFT 1 68 SM6051202TP SCREW M5X0.8 L=12 3 69 MAZ16013000 BUTTON SUPPORT LEVER SPRING 1 70 40004255 ASSY UTT TRIMMER 1 71 40004294 UTT RELEASE ARM A 1 jintex.in

Page 29 — BOBBIN THREAD TRIMMER COMPONENTS

BOBBIN THREAD TRIMMER COMPONENTS jintex.in

Page 30 — BOBBIN THREAD TRIMMER COMPONENTS

BOBBIN THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 HX00150000A CABLE CLAMP 1 2 40142170 ASSY,BTT,DRIVE,CAM 1 3 40004336 ASSY,BTT,DRIVE,LEVER 1 4 40004329 BTT,DRIVE,LINK 1 5 40141778 BTT,DRIVE,UNIT,BASE 1 6 40101649 BTT,RELEASE,LEVER 1 7 40004343 BTT,RELEASE,LINK,F 1 8 40004344 BTT,RELEASE,LINK,R 1 9 13737408 LINK ROD 1 10 NM6040001SD NUT M4 1 11 NM6050001SP NUT M5 2 12 40140041 DT TRIM MOTOR ASSY 1 13 SL4031091SC SCREW M3 L=10 1 14 SM6040602TP SCREW M4 L=6 2 15 SM6040802TP SCREW M4X0.7 L=8 4 16 SM8050412TP SCREW M5 L=4 2 17 SM9040700SP HEXAGONAL BOLT 1 18 40141779 SENSOR,PLATE,BTT 1 19 HD00057000A PHOTO SENSOR 1 20 SD0801006TP SHOULDER SCREW D=8 H=10 2 21 40004299 STOPPER,PIN 1 22 40004254 UTT,CAM,ROLLER 2 23 40101638 UTT,CAM,ROLLER,SHAFT 1 24 SD0800296TP SHOULDER SCREW D=8 H=2.9 2 25 SM6040600SP SCREW M4 L=6 2 26 WP0430801SC WASHER 4.3X9X0.8 2 27 40021998 THROAT_PLATE_BASE_UNIT 1 28 40022323 BT_CLAMP_B * ☆ 1 29 40004309 BT_CLAMP_LEVER * 1 30 40022322 BT_PULLER_B * ☆ 1 31 40004321 ASSY,BT,RELEASE,ARM * 1 32 40004308 BT_TRIMMER_LINK * 1 33 40029613 CLAMP_SPRING * 1 34 B1623180000 WASHER * 1 35 B3013141H0A WASHER * 1 36 40004311 BT_TRIMMER * ☆ 1 37 WP0431005SP PLAIN WASHER 4.3X12X1 * 3 38 WP0451016SP WASHER 4.5X20X1 * 1 39 40004306 BTT_LEVER * 1 40 SM6040450TP SCREW M4 L=4 * 3 41 SM6040450TP SCREW M4 L=4 * 5 42 SD0250101SP HINGE SCREW * 1 43 SD0500166TP SHOULDER SCREW D=5 H=1.6 * 1 44 SD0500167TP SHOULDER SCREW D=5 H=1.6 * 1 45 40004327 SUSPENSION_SCREW * 2 46 40004301 ASSY_THROAT_PLATE_BASE * 1 47 40004324 OIL_SHIELD * 1 jintex.in

Page 31 — BOBBIN THREAD TRIMMER COMPONENTS

BOBBIN THREAD TRIMMER COMPONENTS 2 16 3 22 23 20 17 21 4 9 22 23 20 6 10 24 7 8 25 18 19 13 75 14 11 12 15 5 50 51 A 70 71 68 62 69 65 62 63 53 57 72 60 52 56 66 67 64 48 49 47 27 61 62 46 42 31 37 40 36 37 41 39 38 35 40 32 43 44 30 29 34 45 41 33 28 41 40 20 jintex.in

Page 32

BOBBIN THREAD TRIMMER COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 48 SM1030400SP SCREW M3 L=4 2 49 40027553 THROAT_PLATE(1790S5) 1 50 40011205 STUD 1 51 WP0430800SC WASHER M4 1 52 40004345 PICKER,BASE 1 53 40004347 PICKER,BASE,FITTNG,PLATE 1 54 13727102 STOPPER A 1 55 13729306 BOBBIN CASE POSITIONING PLATE 1 56 SM7030550TP SCREW M3 L=4.5 1 57 SM6040602TP SCREW M4 L=6 2 58 SM4041050TP SCREW M4 L=10 1 59 SM6040600SP SCREW M4 L=6 1 60 SM6041200SP SCREW M4 L=12 4 61 SM6040450TP SCREW M4 L=4 4 62 SD0800296TP SHOULDER SCREW D=8 H=2.9 1 63 40011327 PICKER,SPRING 1 64 40004346 PICKER 1 65 40004348 PICKER ACTUATING LEVER 1 66 NM6040001SD NUT M4 1 67 SD0801006TP SHOULDER SCREW D=8 H=10 1 68 40004327 SUSPENSION_SCREW 2 69 40004299 STOPPER,PIN 1 70 40141802 OIL TANK 1 71 40004349 PICKER,ACTUATING_L_LINK 1 72 SL6040892TN SCREW 4 73 40004328 PICKER,BASE,STOPPER 1 74 SL6041292TN SCREW 1 75 SM6050802TP SCREW M5X0.8 L=8 3

Page 33 — CLOTH CUTTING KNIFE COMPONENTS

CLOTH CUTTING KNIFE COMPONENTS 1 1 2 3 4 5 6 7 8 9 9 10 11 12 13 14 14 15 16 17 18 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 jintex.in

Page 34

CLOTH CUTTING KNIFE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 SM6051202TP SCREW M5X0.8 L=12 4 2 40139183 CLOTH CUT MOTOR ASSY 1 3 SL6041492TN SCREW 4 4 40141781 MOTOR,BASE,A 1 5 40141780 MOTOR,BASE,B 1 6 SL6061492TN BOLT 2 7 SB1120003C0 BEARING 1 8 40141782 KNIFE,DRIVING,BLOCK 1 9 SM8050612TP SCREW M5X6 3 10 SM6051202TP SCREW M5X0.8 L=12 1 11 40142163 KNIFE,DRIVING,ASSY 1 12 40142164 KNIFE,DRIVING,LINK,ASSY * 1 13 40141783 KNIFE,DRIVING,LINK,COMBINATION * 1 14 40008671 P=JUNCTION SHAFT SELECTIVE * 2 15 SB1040008C0 BEARING * 2 16 40010489 AT,PIVOT,SCREW,WASHER * 1 17 40141786 SUPPORT,SHAFT * 1 18 40042089 THRUST WASHER * 2 19 40141785 KNIFE,BAR,BRACKET * 1 20 SM8050612TP SCREW M5X6 * 1 21 SM6051402TP SCREW M5X0.8 L=14 * 1 22 B2702047L00A KNIFE 1/2 ☆ 1 23 WP043080TSC WASHER M4 1 24 SM9040700SP HEXAGONAL BOLT ☆ 1 25 40141787 SUPPORT,GUIDE 2 26 SM6041002TP SCREW M4 L=10 1 27 40004398 KNIFE,BAR,BUSH 1 28 40040276 KNIFE,BAR,LOWER,BUSHING 1 29 40004394 KNIFE,BAR 1 30 40004396 KNIFE,BAR,BASE 1 31 SM6061202TP SCREW M6 L=12 1 32 40004393 KNIFE FITTING BASE 1 SELECTIVE PARTS jintex.in

Page 35 — TABLE COMPONENTS

TABLE COMPONENTS ACCESSORIES OF A CONTROL BOX 制御ボックスの付属品 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 jintex.in

Page 36 — TABLE COMPONENTS

TABLE COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40142966 TABLE 1 2 ST9053511SR TAPPING SCREW M5X35 4 3 11155108 DRAWER 1 4 11155207 DRAWER SUPPORT 2 5 SK3311600SC WOOD SCREW D=3.1 L=16 6 6 D8204555D00 DRAWER STOPPER 1 7 11157567 T LEG JUNCTION 1 8 40094262 PEDAL SENSOR BASE ASSY 1 9 40094259 PEDAL SENSOR ASM. 1 10 40094260 SENSOR COIL HOLD ASSY 1 11 40099913 SENSOR BRACKET 1 12 SL4041601SC SCREW M4 L=16 3 13 KX000000210 SADDLE TYPE TIE MOUNT 1 14 KX000000230 RELEASABLE CABLE TIE 1 15 SM4051001SC SCREW M5 L=10 1 16 WS0820002KR SPRING WASHER M8 2 17 NM6080002SC NUT M8 2 18 MTSHJ100003 BOLT 2 19 WP0851846SC WASHER 8.5X22.0X1.8 2 20 SL4051291SC SCREW M5X0.8 L=12 2 21 40042134 CONNECING ROD ASSY 1 jintex.in 24

Page 37 — EXCLUSIVE PARTS FOR LBH-1790ANB

EXCLUSIVE PARTS FOR LBH-1790ANB BOBBIN THREAD TRIMMER COMPONENTS 下糸切り関係 ACCESSORIE PARTS COMPONENTS 付属品関係 PRESSER & FEED COMPONENTS 押え・送り関係 jintex.in

Page 38 — EXCLUSIVE PARTS FOR LBH-1790ANB

EXCLUSIVE PARTS FOR LBH-1790ANB No. Parts No. Parts name Remarks Level Cons Qty 1 40160113 WORK CLAMP 1 2 40160114 WORK CLAMP CARRIER 1 3 40153019 THROAT_PLATE_2B 1 4 40153923 SCREW_ADD 1 5 40011319 THROAT_PLATE_BASE_SPACER 2 6 40004326 BTT_SPACER 1 7 WP0551016SH WASHER 5.5X13X1 2 8 40152575 TIMING_GAUGE_T 1 jintex.in

Page 39 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)

OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX) 1 2 3 4 jintex.in jintex.in

Page 40 — OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX)

OPERATION BOX COMPONENTS (ACCESSORIES OF A CONTROL BOX) No. Parts No. Parts name Remarks Level Cons Qty 1 40189780 LBH OPERATION BOX ASSY FOR 1-PHASE 220~240V, 3-PHA- SE 200~240V, 1-PHASE 220V (FOR CHINA) 1 2 40191872 LBH OPERATION BOX ASSY CE FOR 1-PHASE CE 220~240V 1 3 SK3382001SE SCREW D=3.8 L=20 4 4 CM600100101 WEEE MARK LABEL S FOR 1-PHASE CE 220~240V 1

Page 41 — CONTROL BOX COMPONENTS

CONTROL BOX COMPONENTS ACCESSORIES OF SEWING MACHINE MAIN UNIT ミシン本体付属品 46 52 47 1~3 11-12 5-6 37 23 24 27 28 29 20 19 4 41 32 21 37 22 15-16 30 9 10 25 26 24 25 31 39 40 42 43 49 56-57 48 58 50 59 60 61 62 53 54 55 63 35 13 14 17 18 36 33 34 51 jintex.in

Page 42

CONTROL BOX COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40189854 MC602N CTL BOX A ASM. FOR 1-PHASE 220~240V 1 2 40189855 MC602N CTL BOX B ASM. FOR 3-PHASE 200~240V 1 3 40189856 MC602N CTL BOX C ASM. FOR1-PHASE CE 220~240V 1 4 WP0430800SC WASHER M4 FOR 3-PHASE 220~240V, 1 1-PHASE CE 220~240V 5 40143989 FRAME B FOR 3-PHASE 220~240V, 1 1-PHASE CE 220~240V 6 40143988 FRAME A FOR 1-PHASE 220~240V 1 7 40115874 FAN PLATE * 1 8 SL4040881SC SCREW M4 L=8 * 2 9 40115876 PLATE B * 1 10 SL4040881SC SCREW M4 L=8 * 2 11 SL4040881SC SCREW M4 L=8 * 2 12 40115879 FAN COVER * 1 13 40193750 MAIN PCB ASSY * 1 14 SL4040881SC SCREW M4 L=8 * 8 15 40105465 FLT-T PCB ASSY FOR 3-PHASE 200~240V 1 16 40105475 FLT-CE PCB ASSY FOR1-PHASE CE 220~240V * 1 17 40111214 FAN MOTOR ASSY * 1 18 SL4042091SC SCREW M4X0.7 L=20 * 2 19 KX000000260 SADDLE TYPE TIE MOUNT * 1 20 SL4040881SC SCREW M4 L=8 * 1 21 HX00292000A CONNECTING PARTS * 1 22 HX00339000M SPACER FOR 3-PHASE 200~240V 6 1-PHASE CE 220~240V 23 40142267 SDC PCB ASSY * 1 24 SL4040881SC SCREW M4 L=10 * 4 25 SL4040881SC SCREW M4 L=8 * 2 26 40115877 MAIN PLATE * 1 27 40143990 STUD * 2 28 40115878 PLATE C * 1 29 SL4040881SC SCREW M4 L=8 * 6 30 SL4040881SC SCREW M4 L=8 * 1 31 HX00222000D WIRE SADDLE * 1 32 KX000000320 BUSH * 1 33 SL4041281SC SCREW M4X0.7 L=12 * 4 34 M8002430000 STOPPER * 4 35 40114398 MAIN COOL SHEET * 2 36 40189853 COVER * 1 37 SL4040881SC SCREW M4 L=8 * 3 38 SL4030881SC SCREW M3 L=8 FOR 3-PHASE 200~240V, 1 1-PHASE CE 220~240V, 1-PHASE 220~240V (FOR CHINA) 39 CM300100001 LABEL * 1 40 CM300400602 VOLTAGE CAUTION LABEL L=25 FOR 3-PHASE 200~240V 1 41 CM300100402 VOLTAGE DANGER LABEL 3(SMALL) FOR 3-PHASE 200~240V 1 42 CM600100101 WEEE MARK LABEL S FOR1-PHASE CE 220~240V 1 43 40150131 EAC MARK LABEL S FOR1-PHASE CE 220~240V 1 44 EA9500B0100 CABLE BAND * 1 jintex.in

Page 43

CONTROL BOX COMPONENTS ACCESSORIES OF SEWING MACHINE MAIN UNIT ミシン本体付属品 46 50 47 52 1~3 11-12 5-6 37 23 24 27 28 29 20 19 4 41 39 40 42 43 49 56-57 48 58 51 30 9 10 38 22 15-16 35 25 27 26 25 31 13 14 18 17 8 7 45 36 33 34 14 14 jintex.in

Page 44 — CONTROL BOX COMPONENTS

CONTROL BOX COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 45 E8760452S00 TUBE FOR 3-PHASE 200~240V, 1-PHASE 220~240V * 0.055 46 40113427 POWER SWITCH FOR 1-PHASE 220~240V 1 47 HA004250000 SWITCH FOR 3-PHASE 200~240V 1 48 HN002460000 CORES FOR1-PHASECE220~240V 6 49 M300451100A VOLTAGE INDICATION CARD A 1 50 MTSHJ100003 BOLT 4 51 40144294 CORE SET UP MANUAL FOR1-PHASECE220~240V 1 52 SK3512001SE WOOD SCREW D=5.1 L=20 EXCEPT CE 2 53 WP0852086SC WASHER 4 54 WS0820002KR SPRING WASHER M8 4 55 NM6080002SC NUT M8 4 56 HF0013050P0 FUSE 5A 1 57 HF003000200 FUSE 2A (220/240V) 1 58 EA9500B0200 CABLE BAND 150 2 59 WP0651646SC WASHER 8 60 WT0640001KN TOOTH WASHER 1 61 40165702 RUBBER CUSHION 4 62 40142969 RUBBER CUSHION BRKT 2 63 NM6060001SC NUT M6X1 TYPE1 4 jintex.in

Page 45 — WIRING DIAGRAM

WIRING DIAGRAM - 43 - 糸切れ検知 一次停止 針振りエンコーダ (モータ内蔵) 送りモータエンコーダ (モータ内蔵) 押えモータエンコーダ (モータ内蔵) 上糸切原点センサ 下糸切原点センサ 布切メスモータエンコーダ (モータ内蔵) 送り原点センサ カバー開閉検知センサ 200~240V AC 電源SW CN76 CN75 CN77 CN93 CN90 CN82 CN83 CN88 CN84 CN78 2P 2P 10P 3P 3P 3P 3P INT基板組 1 2P 2P 4P 4P CN80 CN81 CN86 CN89 CN95 CN96 CN92 CN91 CN79 24~26 27~29 13-14-15-16-17-18-19-20 N_MT F_MT P_MT U_MT D_MT M_MT AT 21-22-23 32 31-44 LED照明組 操作パネル 針振りモータ 送りモータ 押えモータ 上糸切モータ 下糸切モータ 布切メスモータ 上糸アクチュエータ 頭部FAN 33 34 ペダルSW OPペダルSW 予備入力 35~37 38 MAIN基板組 CN34 CN46 CN45 CN47 CN42 CN35 CN44 CN50 CN39 CN41 CN43 CN33 CN40 CN32 CN49 CN37 CN38 CN31 26P 10P 6P 9P 6P 2P 2P 10P 40P 4P 4P 4P 2P 2P 30P 40P 4P 2P FLT基板 一般 三相 CE 向け:FLT_T使用 向け:FLT_CE使用 (FLT基板組) 40-41 CN11 CN13 CN15 CN17 CN12 FM-ONE(PC) SDC基板組 FM-ONE(PC) 39 42 IPM550W主軸モータ 43 電装BOX シリアルポート オプション出力 オプションマーキング(5V) オプション糸巻き(24V) オプション I/O 頭部アースコード

Page 46

WIRING DIAGRAM No. Parts No. Parts name Remarks Level Cons Qty 1 40138611 INT PCB ASSY 1 2 40005400 PAUSE SWITCH JOINT CORD 1 3 320023454 SWITCH ASM. 1 4 40003499 THREAD BREAK DETECTOR A 1 5 40141480 UT TRIM SENSOR CORD ASSY 1 6 HD00057000A PHOTO SENSOR 1 7 40141481 DT TRIM SENSOR CORD ASSY 1 8 HD00057000A PHOTO SENSOR 1 9 40141482 FEED SENSOR CORD ASSY 1 10 HD00057000A PHOTO SENSOR 1 11 40141484 COVER SENSOR RELAY CORD ASSY 1 12 40141483 COVER SENSOR ASSY 1 13 40139180 NEEDLE SWING MOTOR ASSY 1 14 40139181 FEED MOTOR ASSY 1 15 40139182 CLAMP MOTOR ASSY 1 16 40140040 UT TRIM MOTOR ASSY 1 17 40140041 DT TRIM MOTOR ASSY 1 18 40139183 CLOTH CUT MOTOR ASSY 1 19 40006261 ASSY,AT,SOLENOID 1 20 40111214 FAN MOTOR ASSY 1 21 40141479 INT CORD C ASSY 1 22 40141478 INT CORE B ASSY 1 23 40141477 INT CORD A ASSY 1 24 40023371 SINGLE PHASE POWER CORD ASSY FOR 1-PHASE 220V~240V 1 25 M90175800A0 POWER CABLE ASM. FOR 3-PHASE 200V~240V 1 26 40005390 JE POWER CABLE ASM. FOR CE 220V~240V 1 27 40141487 AC POWER CORD A ASM. FOR 1-PHASE 220V~240V 1 28 40141488 AC POWER CORD B ASM. FOR 3-PHASE 200V~240V 1 29 40141489 AC POWER CORD C ASM. FOR CE 220V~240V 1 30 40113427 POWER SWITCH 1 31 40189780 LHB OPERATION BOX ASSY FOR 1-PHASE 220~240V, 3-PHA- SE 200~240V, 1-PHASE 220~240V (FOR CHINA) 1 32 40141706 ASSY,LED DEVICE 1 33 40094262 PEDAL SENSOR BASE ASSY 1 34 40003491 ASSY,4 POSITION PEDAL 1 35 40189854 MC602N CTL BOX A ASM. FOR 1-PHASE 220V~240V 1 36 40189855 MC602N CTL BOX B ASM. FOR 3-PHASE 200V~240V 1 37 40189856 MC602N CTL BOX C ASM. FOR CE 220V~240V 1 38 40193750 MAIN PCB ASSY 1 39 40142267 SDC PCB ASSY 1 40 40105465 FLT-T PCB ASSY FOR 3-PHASE 200V~240V 1 41 40105475 FLT-CE PCB ASSY FOR CE 220V~240V 1 42 14115554 HEAD GROUND CABLE A ASM. 1 43 40138137 IPM550W MOTOR 1 44 40191872 LBH OPERATION BOX ASSY CE FOR 1-PHASE CE 220~240V 1 jintex.in 44

Page 47 — ACCESSORIE PARTS COMPONENTS

ACCESSORIE PARTS COMPONENTS 22 4 1 3 5 2 23 10 31 12 21･33 32 34 7 13 19 20 14 18 15 6 8 16 17 24 9 27 26 25 11 29 28 30 - 45 -

Page 48

ACCESSORIE PARTS COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 22932800 ACCESSORIE BAG 1 2 22933204 SCREW DRIVER SMALL 1 3 22933105 SCREW DRIVER MIDDLE 1 4 40009148 BOBBIN ☆ 1 5 MDP5J0B1102 NEEDLE DPX5 #11J-2 ☆ 1 6 SL6040892TN BOLT 1 7 CM600100201 WEEE INFORMATION SHEET 1 8 14101208 HEAD SUPPORT BAR 1 9 SM6067052TP HEXAGON BOLT 4 10 22502504 THREAD GUIDE BAR 1 11 D6056555B00 RUBBER CUSHION (B) 4 12 40006323 JUKI GREASE A TUBE ☆ 1 13 40189619 AUXILIARY_TABLE_ASM 1 14 40145523 INSTALLING_PLATE_SET * 1 15 13785803 INSTALLING PLATE * 2 16 SS7110570SP SCREW 11/64-40 L=4.8 * 4 17 SM6061002TP SCREW M6 L=10 * 2 18 40189620 AUXILIARY_TABLE_PAINTED * 1 19 B91210120A0 OILER ASM. 1 20 MDFRX1200C0 NEW DEFRIX OIL NO.1(200ML) ☆ 1 21 B2702047M00A KNIFE 5/8 ☆ 1 22 22933006 SCREW DRIVER LARGE 1 23 B9107761000 THREAD PASSING INSTRUMENT ☆ 1 24 40142172 ASSY_SAFETY_PLATE_B 1 25 40141799 SAFETY_PLATE_BASE * 1 26 40141798 SAFETY_PLATE * 1 27 SL4040891SC SCREW M4 L=8 * 2 28 SM6040602TP SCREW M4 L=6 * 1 29 WP0612056SD WASHER 6.1X18.5X2 4 30 NM6060001SD NUT M6 8 31 26234005 VINYL COVER 1 32 13943402 TIMING GAUGE 1 33 B2702047K00A KNIFE 3/8 ☆ 1 34 29180403 EC PRODUCTION DECLARATION 1 - 46 -

Page 49 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS 1 19 11 9 5 9 18 8 13 8 3 12 24 10 7 17 23 7 4 6 18 6 22 2 21 22 21 20 20 15 16 16 15 14 - 47 -

Page 50 — THREAD STAND COMPONENTS

THREAD STAND COMPONENTS No. Parts No. Parts name Remarks Level Cons Qty 1 40096354 THREAD STAND ASM. 1 2 40085784 SPOOL REST ROD LOWER * 1 3 40085785 SPOOL REST ROD UPPER * 1 4 40085786 SPOOL REST ARM LOWER * 1 5 40085787 SPOOL REST ARM UPPER * 1 6 40085788 SPOOL REST * 2 7 40085789 SPOOL REST CUSHION * ☆ 2 8 40085790 SPOOL PIN * 2 9 40085791 SPOOL RETAINER * 2 10 40085792 SPOOL REST ROD JOINT * 1 11 40085793 SPOOL REST ROD RUBBER CAP * 1 12 40085794 THREAD GUIDE * 2 13 40085795 THREAD GUIDE BUSHING * 2 14 40096325 SPOOL REST ROD NUT * 1 15 WP1612616SE WASHER 16X30X2.6 * 2 16 40085796 SPOOL REST ROD RUBBER CUSHION * 2 17 40096327 SPOOL REST ARM LOWER SCREW * 1 18 NM6050001SE NUT M5 * 2 19 40096327 SPOOL REST ARM UPPER SCREW * 1 20 NM6050001SE NUT M5 * 2 21 WS0510002KN SPRING WASHER M5 * 2 22 WP0531001SC WASHER M5 * 2 23 SM4051405SE SCREW M5 L=14 * 2 24 NM6050001SE NUT M5 * 2 - 48 -

Page 51 — SPECIAL SPECIFICATIONS COMPONENTS (1)

SPECIAL SPECIFICATIONS COMPONENTS (1) ELECTRIC BOBBIN WINDER COMPONENTS 電動糸巻き関係 94 1 5 6 10 7 8 3 2 2-PEDAL FOR STANDING MACHINE COMPONENTS 立ちミシン２ペダル関係 12 11 13 14 16 20 22 18 21 19 23 15 17 THE STARTING PEDAL FOR 2-PEDAL 2ペダル用起動ペダル組 35 37 38 35 37 36 40 29 35 28 37 25 40 30 39 36 26 27 32 34 32 31 24 33 36 41 - 49 -

Page 52 — SPECIAL SPECIFICATIONS COMPONENTS (1)

SPECIAL SPECIFICATIONS COMPONENTS (1) No. Parts No. Parts name Remarks Level Cons Qty 1 G50011980A0A BOBBIN WINDER ASM. 1 2 40005405 WINDER CORD ASSY 1 3 B32217710A0 BOBBIN WINDER TENSION BRACKET ASM. 1 4 B3221771000 BOBBIN WINDER TENSION BRACKET * 1 5 B3219232000 BOBBIN WINDER TENSION POST * 1 6 B3214047000 BOBBIN WINDER TENSION DISC * 2 7 B3218232000 BOBBIN WINDER TENSION SPRING * 1 8 B3216047000 BOBBIN WINDER TENSION NUT * 1 9 NS6110310SP NUT 11/64-40 * 1 10 SK3452000SC WOOD SCREW D=4.5 L=20 4 11 40003493 PK PEDAL JOINT CORD ASSY 1 12 GPK510010B0 PEDAL SWITCH ASM. 1 13 40097040 HOOK COOLING UNIT B 1 14 40023432 FILTER REGULATOR ASM. * 1 15 PF0551060A0 FILTER REGULATOR * 1 16 PF902005000 REGULATOR BRACKET * 1 17 PJ025100003 PLUG * 1 18 PV015122000 FINGER VALVE * 1 19 40094012 PIPE BRACKET ASM. * 1 20 BT0400251EB URETHANE HOSE BLACK * 1.5 21 SK3412001SE WOOD SCREW D=4.1 L=20 * 2 22 MAO11532000 CORD STAPLE * 2 23 EA9500B0100 CABLE BAND * 2 24 40003491 ASSY_4_POSITION_PEDAL 1 25 13731906 SPRING * 1 26 B2583210D00 SPRING * 1 27 NM6060001CP NUT M6 * 1 28 40004360 PEDAL_FRAME * 1 29 40004361 PEDAL_FRAME_A * 1 30 40004362 PEDAL_FRAME_B * 1 31 40004363 PEDAL_FRAME_GUIDE * 1 32 HD00057000A PHOTO SENSOR * 2 33 SL4031091SC SCREW M3 L=10 * 1 34 SL6031042TN SCREW * 1 35 SM5040655SN SCREW * 3 36 SM6050652TP HEXAGON SOCKET HEAD SCREW M5X6 * 4 37 40004364 SENSOR_DETECTING_PLATE * 3 38 SD1000646TP SHOULDER SCREW D=10 H=6.4 * 1 39 40004299 STOPPER_PIN * 1 40 40004327 SUSPENSION_SCREW * 2 41 SK3482001SE WOOD SCREW D=4.8 L=20 2 - 50 -

Page 53 — SPECIAL SPECIFICATIONS COMPONENTS (2)

SPECIAL SPECIFICATIONS COMPONENTS (2) LARGE SIZE TYPE(FOR 70MM) 大サイズ仕様（70ＭＭ用） 9 7 12 A 8 15 14 9 6 20 21 A 13 6 10 16 5 17～19 6 11 SWING WIDTH 10MM TYPE 振り幅10ＭＭ仕様 33 35 34 23 22 22 36 27 24 28 NON-LUBRICATING HOOK TYPE 無給油釜仕様 29 25 1 3 31 20 2 21 2 30 26 4 32 FOR HOSIERY (TYPE K) メリヤス用（Ｋタイプ） 39 38 45 42 37 46 43 40 41 44 - 51 -

Page 54 — SPECIAL SPECIFICATIONS COMPONENTS (2)

SPECIAL SPECIFICATIONS COMPONENTS (2) No. Parts No. Parts name Remarks Level Cons Qty 1 40006345 RP_HOOK_ASM. ☆ 1 2 40006349 RP_BOBBIN_CASE ☆ 1 3 13729603 HOOK SLEEVE 1 4 SS8660612TP SCREW 1/4-40 L=6 4 5 40006340 WORK_CLAMP_HOLDER_SPACE FOR PRESSER 70MM 1 6 SM6040450TP SCREW M4 L=4 FOR PRESSER 70MM 3 7 40028682 UTT_CLOSE_CAM_120B 1 8 40112711 LIFTING_PLATE_120 1 9 SM6050800SP SCREW M5 L=8 2 10 40006335 WORK_CLAMP_ARM_120 1 11 40006339 WORK_CLAMP_CARRIER_120 1 12 14523252 PRESSER FOOT 70 ASM. FOR PRESSER 70MM 1 13 B1509761000 PRESSER FITTING PLATE SPRING * 2 14 B1512761000 PRESSER FOOT HOLDER SPRING * 1 15 14523203 PRESSER FOOT 70 * 1 16 B151077100B PRESSER FOOT PIN B * 2 17 14523708 URETHANE PRESSER 70 FOR PRESSER 70MM 1 18 14524102 PRESSER 70 (FLAT) FOR PRESSER 70MM 1 19 14523401 PRESSER 70 FOR PRESSER 70MM 1 20 SS6060210SP SCREW 3/32-56 L=1.9 6 21 SD0790203SP HINGE SCREW D=7.94 H=2 FOR PRESSER 70MM 3 22 40011319 THROAT_PLATE_BASE_SPACER 2 23 40004326 BTT_SPACER 1 24 WP0551016SH WASHER 5.5X13X1 2 25 40015733 THROAT_PLATE(S10) FOR SWING WIDTH 10MM 1 26 40015802 OIL_SHIELD_10 FOR SWING WIDTH 10MM 1 27 40020010 WORK_CLAMP_HOLDER(3-10)_ASSY FOR SWING WIDTH 10MM 1 28 40020011 WORK_CLAMP_HOLDER(3-10) * 1 29 40008638 WORK_CLAMP_CHECK_HOLDER_SPRING_B * 1 30 B151077100B WORK CLAMP CHECK SPRING SET PIN (B) * 2 31 B1509761000 WORK CLAMP CHECK SPRING * 2 32 40017810 WORK_CLAMP(3S-10) FOR SWING WIDTH 10MM 1 33 40020014 WORK_CLAMP_CARRIER(10X41)_CL FOR SWING WIDTH 10MM 1 34 40020012 WORK_CLAMP_CARRIER(10X41) * 1 35 CM300200001 ATTENTION SEAL * 1 36 40020013 WORK_CLAMP_ARM(10X41) FOR SWING WIDTH 10MM 1 37 40027554 THROAT_PLATE(1790K5) 1 38 D1511772KA0 WORK CLAMP CHECK HOLDER ASM. 1 39 B1511772000A WORK CLAMP CHECK HOLDER * 1 40 B1509761000 WORK CLAMP CHECK SPRING * 2 41 B151077100B WORK CLAMP CHECK SPRING SET PIN (B) * 2 42 B1512761000 WORK CLAMP CHECK HOLDER SPRING * 1 43 SS6060210SP SCREW 3/32-56 L=1.9 2 44 D1508772K00 WORK CLAMP CHECK (2K) 1 45 13782065 HOOK COMPL. K 1 46 13782107 HOOK TIMING GAUGE K 1 - 52 -

Page 55

EXCHANGING PARTS Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Presser Foot Presser Foot Ｋｎｉｆｅ (Length of Cloth Cutting Knife) (Presser Size) 布切りメス 押 え （布切りメス長さ） 押え足（押えサイズ） Ｓｔａｎｄａｒｄ Ｓｔａｎｄａｒｄ Ｆｏｒ Ｈｏｓｉｅｒｙ Ｓｔａｎｄａｒｄ 標 準 標 準 メリヤス用 標 準 inch mm No Part No No Part No No Part No No Part No 1/4 6.4 1 B2702-047-F00 3/8 9.5 2 B2702-047-K00-A 7/16 11.1 3 B2702-047-I00 1/2 12.7 4 B2702-047-L00-A 12 B1552-781-000-A 15 D1508-771-K00-A 18 D1511-771-KA0-A 9/16 14.3 5 B2702-047-V00 5/8 15.9 6 B2702-047-M00-A 11/16 17.5 7 B2702-047-A00 3/4 19.1 8 B2702-047-N00 7/8 22.2 9 B2702-047-P00 13 B1552-782-000 16 D1508-772-K00 19 D1511-772-KA0 １ 25.4 10 B2702-047-Q00-A 1-1/4 31.8 11 B2702-047-S00-A 14 B1552-783-000 17 D1508-773-K00 20 D1511-773-KA0 Ｃｌｏｔｈ Ｃｕｔｔｉｎｇ Knife Guard Throat Plate Ｋｎｉｆｅ 布切りメス メス受板 針 板 Flat Knife 平メス inch mm No Part No No Part No No Part No 1/4 6.4 21 B2745-771-F00 3/8 9.5 22 B2745-771-K00 1/2 12.7 23 B2745-771-L00 9/16 14.3 24 B2745-771-H00 5/8 15.9 25 B2745-771-M00 31 B2746-771-000 32 137-82800 3/4 19.1 26 B2745-771-N00 7/8 22.2 27 B2745-771-P00 １ 25.4 28 B2745-771-Q00 1-1/8 28.6 29 B2745-771-R00 1-1/4 31.8 30 B2745-771-S00 - 53 -

Page 56

EXCHANGING PARTS No. Parts No. Parts name Remarks Level Cons Qty 1 B2702047F00 KNIFE 1/4 1 2 B2702047K00A KNIFE 3/8 1 3 B2702047100 KNIFE (7/16) 1 4 B2702047L00A KNIFE 1/2 1 5 B2702047V00 KNIFE 9/16 1 6 B2702047M00A KNIFE 5/8 1 7 B2702047A00 KNIFE 11/16 1 8 B2702047N00 KNIFE 3/4 1 9 B2702047P00 KNIFE 7/8 1 10 B2702047Q00A KNIFE 1 1 11 B2702047S00A KNIFE 1-1/4 1 12 B1552781000A PRESSER 1 13 B1552782000 WORK CLAMP CHECK, 2 1 14 B1552783000 WORK CLAMP CHECK, 3 1 15 D1508771K00A LATCH WORK CLAMP CHECK 1 16 D1508772K00 WORK CLAMP CHECK (2K) 1 17 D1508773K00 WORK CLAMP CHECK (3K) 1 18 D1511771KA0A WORK CLAMP CHECK HOLDER ASM. 1 19 D1511772KA0 WORK CLAMP CHECK HOLDER 1 20 D1511773KA0 WORK CLAMP CHECK HOLDER 1 21 B2745771F00 KNIFE 1/4"(FLUOROCARBON) 1 22 B2745771K00 KNIFE 3/8"(FLUOROCARBON) 1 23 B2745771L00 KNIFE 1/2 1 24 B2745771H00 KNIFE 9/16"(FLUOROCARBON) 1 25 B2745771M00 KNIFE 5/8 1 26 B2745771N00 KNIFE 3/4 1 27 B2745771P00 KNIFE 7/8"(FLUOROCARBON) 1 28 B2745771Q00 KNIFE 1 1 29 B2745771R00 KNIFE 1-1/8"(FLUOROCARBON) 1 30 B2745771S00 KNIFE 1-1/4 1 31 B2746771000 KNIFE GUARD 1 32 13782800 THROAT PLATE(FLUOROCARBON) 1 jintex.in

Page 57 — HOW TO MAKE USE OF THIS PARTS LIST

HOW TO MAKE USE OF THIS PARTS LIST 1.As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages. 2.Codes on the "Qty" column • Each numeral indicates the number of parts required. • "0.1" and "2.5" indicate the length (in meters) of the respective parts. 3.Parentheses mean that the corresponding part is a subpart that constructs an assembly part. 4.Dotted lines on the Figures indicate assembly parts. 5.As to the parts with marks of "☆"(Consumable parts)and "◎"(optional parts)on the respectie parts, it is recommended to prepare spares. 1. リストページの#01、#02の印は、ページ下の“注記”の説明を参照下さい。 2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メート ル)を表します。 3. 数量欄の( )は、組部品を構成している子部品であることを意味します。 4. イラストページのーーー枠は、組構成であることを意味します。 5. リストページの“☆”(消耗部品)、“◎”(オプション部品)の印が付いた部品は、 予備を準備しておくことをお奨めします。

Page 58 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10006104 6 18 22502504 46 10 40004201 16 10 11072402 8 62 22528764 2 41 40004205 16 18 11093606 8 63 22529473 8 60 40004206 10 39 11155108 34 3 22529481 8 59 40004209 22 27 11155207 34 4 22891204 16 3 40004212 22 30 11157567 34 7 22918304 10 43 40004213 22 31 11272507 24 24 22932800 46 1 40004214 22 34 13127402 16 43 22933006 46 22 40004215 22 33 13700406 4 51 22933105 46 3 40004216 22 25 13700505 4 52 22933204 46 2 40004217 22 26 13700604 4 50 23530405 22 4 40004218 22 13 13700703 4 62 23536204 14 6 40004222 22 29 13703806 2 24 23630007 14 26 40004224 22 21 13703905 2 25 26230409 2 13 40004232 26 52 13705405 4 69 26230409 8 58 40004234 24 37 13706403 22 14 26234005 46 31 40004235 24 26 13710306 14 11 26260208 6 29 40004236 24 43 13710405 14 20 26260307 6 30 40004238 24 27 13710504 14 12 26260406 6 31 40004240 26 50 13727102 30 54 26260505 6 32 40004243 26 63 13729066 14 13 26260604 6 33 40004244 24 41 13729306 30 55 26260802 6 35 40004245 24 42 13729603 14 31 26261206 6 39 40004246 26 64 13729603 52 3 26261305 6 40 40004247 24 40 13729652 14 30 26261503 6 41 40004248 24 38 13729769 14 29 26261602 6 42 40004249 26 62 13731906 50 25 26261701 6 43 40004250 26 65 13737408 28 9 29180403 46 34 40004252 6 22 13782065 52 45 32002354 44 3 40004252 24 39 13782107 52 46 32055402 6 21 40004254 24 29 13782800 54 32 40003491 44 34 40004254 28 22 13785803 46 15 40003491 50 24 40004255 26 70 13922208 2 47 40003493 50 11 40004264 24 33 13943303 4 56 40003499 6 26 40004265 24 34 13943402 46 32 40003499 44 4 40004267 16 37 14101208 46 8 40004171 10 19 40004275 18 79 14115554 6 7 40004180 14 18 40004279 18 51 14115554 44 42 40004185 10 14 40004280 18 50 14504401 14 17 40004186 14 8 40004285 18 48 14523203 52 15 40004187 14 9 40004287 18 58 14523252 52 12 40004188 14 5 40004288 18 59 14523401 52 17~19 40004194 16 5 40004289 16 36 14523708 52 17~19 40004197 16 7 40004291 18 78 14524102 52 17~19 40004198 16 8 40004293 24 4 22502504 2 42 40004200 16 9 40004294 26 71 INDEX - 1 jintex.in

Page 59 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40004296 24 36 40005400 44 2 40011319 36 5 40004297 24 66 40005405 50 2 40011319 52 22 40004297 26 66 40006261 6 1 40011327 30 63 40004298 24 67 40006261 44 19 40011355 14 16 40004298 26 67 40006263 6 2 40011517 10 1 40004299 28 69 40006264 6 3 40015674 26 54 40004299 30 69 40006265 6 23 40015702 26 51 40004299 30 39 40006307 10 10 40015733 52 25 40004301 28 46 40006314 4 49 40015802 52 26 40004306 28 39 40006317 14 21 40017810 52 32 40004308 28 32 40006320 14 25 40020010 52 27 40004309 28 29 40006323 46 12 40020011 52 28 40004311 28 36 40006335 20 13 40020012 52 34 40004321 28 31 40006335 52 10 40020013 52 36 40004324 28 47 40006339 20 7 40020014 52 33 40004326 36 6 40006339 52 11 40020310 18 67 40004326 52 23 40006340 52 5 40021933 6 38 40004327 28 68 40006345 52 1 40021998 28 27 40004327 30 68 40006349 52 2 40022121 16 11 40004327 50 40 40008423 10 35 40022322 28 30 40004328 30 73 40008638 20 6 40022323 28 28 40004329 28 4 40008638 52 29 40023371 44 24~26 40004336 28 3 40008646 20 2 40023432 50 14 40004343 28 7 40008647 20 5 40027553 30 49 40004344 28 8 40008658 20 15 40027554 52 37 40004345 30 52 40008671 22 5 40028634 26 48 40004346 30 64 40008671 32 14 40028636 26 61 40004347 30 53 40008977 4 57 40028682 20 10 40004348 30 65 40008978 4 58 40028682 52 7 40004349 30 71 40009037 4 64 40029613 28 33 40004360 50 28 40009148 46 4 40032269 10 29 40004361 50 29 40010434 16 15 40037008 8 52 40004362 50 30 40010435 16 16 40040276 32 28 40004363 50 31 40010435 16 16 40040289 32 18 40004364 50 37 40010510 6 19 40042134 34 21 40004373 22 23 40010511 6 6 40051473 10 15 40004374 22 24 40010512 6 20 40051474 10 16 40004378 22 2 40010514 6 5 40067165 20 1 40004379 22 3 40010522 6 8 40075297 16 4 40004393 32 24 40010534 10 24 40085784 48 2 40004394 32 25 40010535 10 26 40085785 48 3 40004396 32 30 40011144 6 34 40085786 48 4 40004398 32 27 40011145 6 36 40085787 48 5 40004400 24 17 40011146 6 37 40085788 48 6 40005390 44 24~26 40011205 30 50 40085789 48 7 INDEX - 2 jintex.in

Page 60 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40085790 48 8 40138611 44 1 40141741 16 13 40085791 48 9 40139180 22 8 40141742 16 27 40085792 48 10 40139180 44 13 40141743 18 60 40085793 48 11 40139181 16 1 40141744 16 12 40085794 48 12 40139181 44 14 40141745 18 53 40085795 48 13 40139182 16 34 40141746 18 57 40085796 48 16 40139182 44 15 40141747 18 52 40088990 22 17 40139183 32 2 40141748 18 68 40094012 50 19 40139183 44 18 40141753 18 54 40094259 34 9 40140040 24 46 40141754 16 46 40094260 34 10 40140040 44 16 40141755 16 45 40094262 34 8 40140041 28 12 40141756 18 55 40094262 44 33 40140041 44 17 40141757 16 44 40096325 48 17 40141477 8 65 40141758 22 6 40096326 48 17 40141477 44 23 40141759 22 7 40096327 48 19 40141478 6 17 40141760 22 9 40096354 48 1 40141478 44 22 40141774 24 35 40097040 50 13 40141479 8 51 40141778 28 5 40099913 34 11 40141479 44 21 40141779 28 18 40101638 24 30 40141480 44 5 40141780 32 5 40101638 28 23 40141481 44 7 40141781 32 4 40101641 24 28 40141482 44 9 40141782 32 8 40101642 24 31 40141483 4 79 40141783 32 13 40101649 28 6 40141483 44 12 40141785 32 19 40105465 40 15-16 40141484 44 11 40141786 32 17 40105465 44 40-41 40141487 44 27~29 40141787 32 25 40105475 40 15-16 40141488 44 27~29 40141788 16 30 40105475 44 40-41 40141489 44 27~29 40141794 18 49 40108754 16 6 40141706 2 45 40141795 2 33 40111214 4 73 40141706 44 32 40141798 46 26 40111214 40 17 40141710 2 26 40141799 46 25 40111214 44 20 40141711 2 27 40141801 16 31 40112711 20 11 40141713 4 66 40141802 30 70 40112711 52 8 40141716 10 20 40142152 10 2 40113427 42 46 40141717 10 27 40142161 16 29 40113427 44 30 40141718 10 33 40142163 32 11 40114398 40 35 40141719 10 28 40142164 32 12 40115874 40 7 40141720 10 9 40142166 26 49 40115876 40 9 40141721 10 6 40142170 28 2 40115877 40 26 40141725 10 41 40142172 46 24 40115878 40 28 40141726 10 42 40142267 40 23 40115879 40 12 40141727 10 45 40142267 44 39 40138137 10 22 40141730 10 46 40142752 14 24 40138137 44 43 40141739 14 14 40142753 14 22 40138611 4 70 40141740 14 19 40142754 14 23 INDEX - 3 Jinte.in

Page 61

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. 40142755 16 33 40142878 10 47 40142880 10 44 40142966 34 1 40142969 42 62 40143150 10 5 40143988 40 5-6 40143989 40 5-6 40143990 40 5-6 40144294 40 27 40145327 4 51 40145328 2 78 40145523 46 20 40150011 10 14 40150131 40 25 40152575 36 43 40153019 36 8 40153923 36 3 40160113 36 4 40160114 36 1 40165701 10 37 40165702 42 61 40165703 10 38 40165704 10 36 40172374 4 85 40172375 4 86 40189600 6 28 40189612 2 1 40189613 2 5 40189614 2 15 40189615 2 11 40189616 2 7 40189617 2 9 40189618 2 44 40189619 46 13 40189620 46 18 40189628 6 27 40189631 2 39 40189633 2 3 40189634 2 43 40189635 2 17 40189636 2 18 40189780 38 1-2 40189780 44 31-44 40189853 40 36 PART NO PAGE REF NO. 40189854 40 1~3 40189854 44 35~37 40189855 40 1~3 40189855 44 35~37 40189856 40 1~3 40189856 44 35~37 40191872 38 1-2 40191872 44 31-44 40193750 40 13 40193750 44 38 B1414232000 22 28 B1509761000 18 72 B1509761000 20 4 B1509761000 52 40 B151077100B 18 73 B151077100B 20 3 B151077100B 52 41 B1511771000B 18 71 B1511772000A 52 39 B1512761000 18 74 B1512761000 52 42 B1552781000A 18 76 B1552781000A 54 12 B1552782000 54 13 B1552783000 54 14 B1623180000 28 34 B1811771000 14 28 B2583210D00 50 26 B2702047A00 54 7 B2702047F00 54 1 B2702047100 54 3 B2702047K00A 46 21-33 B2702047K00A 54 2 B2702047L00A 32 22 B2702047L00A 54 4 B2702047M00A 46 21-33 B2702047M00A 54 6 B2702047N00 54 8 B2702047P00 54 9 B2702047Q00A 54 10 B2702047S00A 54 11 B2702047V00 54 5 B2702210000 6 24 B2703210000 6 25 B2745771F00 54 21 PART NO PAGE REF NO. B2745771H00 54 24 B2745771K00 54 22 B2745771L00 54 23 B2745771M00 54 25 B2745771N00 54 26 B2745771P00 54 27 B2745771Q00 54 28 B2745771R00 54 29 B2745771S00 54 30 B2746771000 54 31 B3013141H0A 28 35 B3214047000 8 64 B3214047000 50 6 B3216047000 50 8 B3218232000 50 7 B3219232000 50 5 B3221771000 50 4 B32217710A0 50 3 B9107761000 46 23 B91210120A0 46 19 BT0400251FB 50 20 CM300100001 40 39 CM300100402 40 41 CM300200001 4 72 CM300200001 52 35 CM300200003 4 68 CM300400602 40 40 CM301300001 4 71 CM600100101 38 4 CM600100101 40 42 CM600100201 46 7 CQ202000000 14 27 CQ252000000 10 18 CQ252000000 14 32 CS0800881TP 24 25 CS1000881TP 10 31 CS1501181TP 22 17 D1508771K00A 54 15 D1508772K00 52 44 D1508772K00 54 16 D1508773K00 54 17 D1511771KA0A 18 70 D1511771KA0A 54 18 D1511772KA0 52 38 D1511772KA0 54 19 INDEX - 4 jintex.in

Page 62

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. D1511773KA0 54 20 NM6030001SD 2 22 SD0500167TP 28 44 D3162555B00 8 54 NM6040000SN 24 32 SD0600266TP 24 8 D6056555B00 4 61 NM6040001SC 2 74 SD0600326TP 24 21 D6056555B00 46 11 NM6040001SC 4 74 SD0790203SP 18 77 D8204555D00 34 6 NM6040001SD 28 66 SD0790203SP 20 9 E2002855000 4 45 NM6040001SD 30 66 SD0790203SP 52 21 E8760452S00 42 45 NM6050001SE 48 24 SD0800296TP 28 62 EA9500B0100 8 56 NM6050001SP 22 22 SD0800296TP 30 62 EA9500B0100 24 3 NM6050001SP 24 57 SD0800326TP 16 35 EA9500B0100 40 44 NM6050001SP 26 57 SD0800406TP 24 22 EA9500B0200 50 23 NM6050001SP 28 11 SD0801006TP 28 67 EA9500B0200 42 58 NM6060001CP 50 27 SD0801006TP 30 67 G50011980A0A 50 1 NM6060001SC 42 63 SD0801506TP 24 23 GPK510010B0 50 12 NM6060001SD 4 53 SD1000646TP 50 38 HA004250000 42 47 NM6060001SD 46 30 SK3311600SC 34 5 HD00057000A 16 2 NM6080002SC 34 17 SK3382001SE 38 3 HD00057000A 24 47 NM6080002SC 42 55 SK3412001SE 50 21 HD00057000A 28 19 NM6100001SD 10 8 SK3452000SC 50 10 HD00057000A 44 10 NS6110310SP 8 61 SK3482001SE 50 41 HD00057000A 50 32 NS6110310SP 50 9 SK3512001SE 42 52 HF0013050P0 42 56-57 PF0551060A0 50 15 SL4030881SC 4 80 HF003000200 42 56-57 PF90205000 50 16 SL4030881SC 40 38 HN002460000 42 48 PJ025100003 50 17 SL4031091SC 16 19 HX001500000 4 81 PV015122000 50 18 SL4031091SC 24 7 HX00150000A 28 1 RC0100001KP 10 4 SL4031091SC 28 13 HX00151000A 8 57 RC0560711KP 6 44 SL4031091SC 50 33 HX00222000D 40 31 RC2791218KP 14 7 SL4040881SC 40 37 HX002550000 14 33 RC3781518KP 10 3 SL4040891SC 46 27 HX00292000A 40 21 RE0300000K0 24 2 SL4041081SC 40 24 HX00339000M 40 22 RE0400000K0 6 45 SL4041281SC 40 33 KX000000210 34 13 RE0500000K0 16 42 SL4041601SC 34 12 KX000000220 34 14 SB1040008C0 32 15 SL4042091SC 40 18 KX000000260 40 19 SB110000600 14 2 SL4042591SC 4 75 KX000000320 40 32 SB115000200 14 3 SL4051291SC 34 20 M300451100A 42 49 SB115001500 14 4 SL6031042TN 50 34 M8002430000 40 SB1200008C0 10 34 SL6040892TN 2 63 M90175800A0 44 24~26 SB307000200 18 56 SL6040892TN 4 63 MAO11532000 50 22 SB408000100 16 47 SL6040892TN 30 72 MAZ16013000 26 69 SB710000600 16 14 SL6040892TN 46 6 MDP5J0B100C0 46 20 SD0250101SP 28 42 SL6041492TN 30 74 MDP5J0B1100 22 16 SD0500166TP 28 43 SL6041492TN 32 3 MDP5J0B1102 46 5 SB710000600 16 14 SL6061492TN 32 6 MTSHJ100003 34 18 SD0250101SP 28 42 SM0040801SC 2 19 MTSHJ100003 42 50 SD0500166TP 28 43 SM0050801SC 8 53 INDEX - 5 SM0860400SN 6 9 jintex.in

Page 63 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. SM1030400SP 30 48 SM6041602TP 18 62 SM8060612TP 18 69 SM4040655SP 2 28 SM6050652TP 2 29 SM80606A2TP 2 38 SM4041050TP 30 58 SM6050652TP 24 14 SM80606A2TP 6 14 SM4051001SC 34 15 SM6050652TP 50 36 SM80606A2TP 10 32 SM4051055SP 2 16 SM6050800SP 18 63 SM80606A2TP 14 15 SM4051055SE 48 23 SM6050800SP 20 12 SM80606A2TP 16 26 SM4051655SP 2 12 SM6050800SP 24 15 SM80606A2TP 22 19 SM4050550TP 16 28 SM6050800SP 52 9 SM80608A2TP 10 48 SM4050655SN 6 47 SM6050802TP 2 48 SM80608A2TP 12 48 SM4050655SN 50 35 SM6050802TP 4 48 SM8081652TP 10 21 SM6031402TP 2 23 SM6050802TP 6 11 SM9040700SP 28 17 SM6040450TP 28 61 SM6050802TP 24 60 SM9040700SP 32 24 SM6040450TP 30 61 SM6050802TP 26 60 SM9040800SP 6 15 SM6040450TP 52 6 SM6050802TP 30 75 SM9061403CP 10 13 SM6040502TP 16 41 SM6051002TP 18 65 SS6060210SP 18 75 SM6040502TP 22 35 SM6051202TP 26 68 SS6060210SP 20 8 SM6040600SP 24 59 SM6051202TP 32 10 SS6060210SP 52 43 SM6040600SP 26 59 SM6051402TP 32 21 SS7110570SP 46 16 SM6040600SP 28 59 SM6052002TR 10 23 SS7110840SP 8 55 SM6040600SP 30 59 SM6061002TP 2 36 SS8660612TP 52 4 SM6040602TP 2 82 SM6061002TP 16 23 ST9053511SR 34 2 SM6040602TP 4 50 SM6061002TP 46 17 TA0500301R0 2 46 SM6040602TP 8 50 SM6061202TP 22 20 TA0550604R0 4 83 SM6040602TP 16 20 SM6061202TP 32 31 TA0750404R0 4 84 SM6040602TP 24 58 SM6061802TP 16 24 TA0850604R0 4 67 SM6040602TP 26 58 SM6061802TP 22 12 TA1050504R0 2 32 SM6040602TP 28 57 SM6062502TP 10 11 TA1250406R0 2 34 SM6040602TP 30 57 SM6067052TP 2 37 TA1550902R0 2 35 SM6040602TP 46 28 SM6067052TP 46 9 TA2100904R0 4 76 SM6040650TP 4 77 SM7030550TP 22 15 WP0430800SC 30 51 SM6040750TP 22 32 SM7030550TP 30 56 WP0430800SC 40 4 SM6040802TP 16 61 SM8030412TP 6 13 WP0430801SC 24 6 SM6040802TP 18 61 SM8040802TP 8 49 WP0430801SC 28 26 SM6040802TP 20 14 SM8050412TP 16 17 WP0430801SC 32 23 SM6040802TP 24 12 SM8050412TP 24 19 WP0431005SP 26 53 SM6040860TP 6 15 SM8050412TP 28 16 WP0450826SC 6 46 SM6040860TP 24 10 SM8050502TP 8 48 WP0451016SP 28 38 SM6041002TP 16 22 SM8050502TP 14 10 WP0531001SC 48 22 SM6041002TP 32 26 SM8050502TP 16 40 WP0550800SP 26 56 SM6041200SP 24 13 SM8050502TP 22 18 WP0551016SH 36 7 SM6041200SP 30 60 SM8050502TP 24 20 WP0551016SH 52 24 SM6041202TP 10 40 SM8050602TP 18 66 WP0612056SD 4 55 SM6041202TP 16 38 SM8050612TP 32 20 WP0612056SD 46 29 SM6041202TP 22 10 SM80506A2TP 10 30 WP0621046SP 10 12 INDEX - 6 jintex.in

Page 64 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. WP0651646SC 42 59 WP0851846SC 34 19 WP0852086SC 42 53 WP1612616SE 48 15 WS0410002KP 6 16 WS0510002KN 48 21 WS0820002KR 34 16 WS0820002KR 42 54 WT0640001KN 42 60 INDEX - 7 jintex.in
