Juki LH-3128 Parts Book (PDF)

Double Needle Lockstitch · also listed as LH3128, 3128Download PDF

Text index — Juki LH-3128

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LH-3128 parts on page 4
Ref	Part number	Part name	Qty
1	SS4110815SP	SCREW 11/64-40 L=8	5
2	10602902	SLIDE PLATE	1
3	10101004	GASKET	1
4	SS4110815SP	SCREW 11/64-40 L=8	3
5	SS6111140SP	SCREW 11/64-40 L=11	3
6	D2112555B00	CORD HOLDER, LARGE	2
7	SS4120615SP	SCREW 3/16-28 L=6	1
8	22951552	GROUND WIRE ASM.	1
9	SS4120615SP	SCREW 3/16-28 L=6	1
10	WT0530002KS	TOOTHED WASHER D=5.3	1
11	22619100	CAP	1
12	TA0750404R0	PLUG D=7.5 L=3.5	2
13	TA1250406R0	RUBBER PLUG D=12.5 L=4	3
14	22620900	CAP	1
15	TA0750704R0	RUBBER PLUG	2
16	SS4150915SP	SCREW 15/64-28 L=9	2
17	22602007	THREAD TAKE-UP LEVER OIL GUARD	1
18	23204803	LUBRICATING GUIDE	1
19	SS3090610SP	SCREW 9/64-40 L=6	1
20	22602254	FACE PLATE ASM.	1
21	SS4121015SP	SCREW 3/16-28 L=10	4
22	TA1250406R0	RUBBER PLUG D=12.5 L=4	2
23	22920706	TWO EYELET	2
24	SS8120740SP	SCREW 3/16-28 L=7	2
25	22603013	THREAD GUIDE (UPPER)	1
26	SS2090710TP	SCREW 9/64-40 L=7.2	1
27	22603112	THREAD GUIDE	1
28	SS2090710TP	SCREW 9/64-40 L=7.2	1
29	22603203	THREAD GUIDE(LOWER)	1
30	SS2090710TP	SCREW 9/64-40 L=7.2	1
31	B1104051000	THROAT PLATE PIN	1
32	22602304	PLATE	1
33	SS9110460CP	SCREW 11/64-40 L=4	2
34	22901805	GROUND MARK	1
35	SS2090710TP	SCREW 9/64-40 L=7.2	2
36	SS6090630SP	SCREW 9/64-40 L=6	1
37	SS2110920TP	SCREW 11/64-40 L=8.5	1
38	22601058	BED SLIDE LEFT, ASM., A	1
39	22650857	BED SLIDE LEFT, ASM., A	1
40	22625503	THROAT PLATE 1/4	1
41	22660609	THROAT PLATE 1/4	1
42	22600555	BED SLIDE RIGHT, ASM., A	1
43	22650352	BED SLIDE RIGHT, ASM., A	1
44	22650055	BED SLIDE ASM.	1
45	22650055	BED SLIDE ASM.	1
46	22602601	BED SCREW STUD	4

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LH-3128 parts on page 6
Ref	Part number	Part name	Qty
47	TA1250406R0	RUBBER PLUG D=12.5 L=4	1
48	D2112555B00	CORD HOLDER, LARGE	3
49	22651459	THREAD GUIDE ASM., E	1
50	22603609	THREAD GUIDE	1
51	22603708	FELT	1
52	SS4111015SP	SCREW 11/64-40 L=10	1
53	22818009	BALANCE COVER(FOR JE)	1
54	22651202	AUXILIARY COVER	1
55	SS5090610SP	SCREW 9/64-40 L=6	1
56	22657803	RUBBER PLUG	1
57	M6043350AAA	RESISTANCE PACK ASM.,AA	1
58	CM3002001A1	SAFETY LABEL.,3 (SMALL).	1
59	CM300200101	SAFETY LABEL, 1(SMALL).	1
60	22811558	THREAD GUIDE F ASM.	1
61	22608509	SLIDE PLATE FOR FOLDER	1
62	40021415	INSTRUCTION MANUAL(SUPPLEMENT)	1

Page 8 — MAIN SHAFT, THREAD TAKE-UP & NEEDLE BAR COMPONENTS

Juki LH-3128 parts on page 8
Ref	Part number	Part name	Qty
1	22605356	THREAD TAKE-UP LEVER PIN ASM.	1
2	22605307	THREAD TAKE-UP LEVER PIN	1
3	CQ202000000	OIL WICK	0.4
4	CQ252000000	OIL WICK	0.04
5	23203706	THREAD TAKE-UP LEVER A	1
6	23203805	THREAD TAKE-UP LEVER B	1
7	22605406	TAKE-UP LEVER THRUST PIN	1
8	CQ252000000	OIL WICK	0.03
9	SS8151150TP	SCREW 15/64-28 L=10.5	2
10	23204308	NEEDLE BAR CRANK ROD	1
11	22680656	NEEDLE BAR CRANK PIN ASM.	1
12	CQ505000000	OIL WICK	0.1
13	SS8680540SP	SCREW 9/32-28 L= 4.5	1
14	B1202512000	MAIN SHAFT BUSHING, FRONT	1
15	10604809	SCREW	2
16	SS6661110SP	SCREW 1/4-40 L=11	4
17	22604508	HAND WHEEL	1
18	SS8151550SP	SCREW 15/64-28 L=15	2
19	22651566	HAND WHEEL ASM.	1
20	22651558	HAND WHEEL	1
21	22651509	HAND WHEEL	1
22	M4002110000	GENERATOR ROTOR	1
23	M40071100AA	MAGNET FITTING BASE A ASM.	1
24	M40071100AB	MAGNET FITTING BASE B ASM.	1
25	SS8151550SP	SCREW 15/64-28 L=15	2
26	SS6111210SP	SCREW 11/64-40 L=12	2
27	WP0450801SD	WASHER 4.5X10X0.8	2
28	22937965	DYNAMO STATOR	1
29	22622401	SYNCRO FRNGE	1
30	22603906	UPPER SHAFT INNER METAL	1
31	22622351	SENSOR SUPPORT SHAFT ASM.	1
32	22604656	THRUST COLLAR ASM.	1
33	22604607	THRUST COLLAR	1
34	SB120000100	BEARING D=20X47	1
35	RO437200200	RUBBER RING	1
36	SS8660530TP	SCREW 1/4-40 L= 4.5	2
37	22604409	COUNTERWEIGHT	1
38	SS8681650TP	SCREW 9/32-28 L=16	1
39	SS7681750TP	SCREW 9/32-28 L=16.5	1
40	SS8680810TP	SCREW 9/32-28 L=8.0	1
41	22604003	MAIN SHAFT	1
42	22604904	UPPER SPROCKET	1
43	22604300	TIMING BELT	1
44	22623201	SPROCKET WHEEL	1
45	22651608	SPROCKET WHEEL	1
46	SS7120760SP	SCREW 3/16-28 L= 7.0	2
47	23204258	NEEDLE BAR ROCKING BASE ASM.	1

Page 10 — MAIN SHAFT, THREAD TAKE-UP & NEEDLE BAR COMPONENTS

Juki LH-3128 parts on page 10
Ref	Part number	Part name	Qty
48	10148054	NEEDLE CLAMP ASM. 1/4	1
49	SS8080660TP	SCREW 1/8-44 L=5.5	2
50	22606800	OIL GUARD RUBBER	1
51	B1438512B00	WASHER 17.1X28X1.5	1
52	22607303	BUSHING	1
53	22607402	BUSHING	1
54	22607006	REAR ARM	1
55	SS6152440SP	SCREW 15/64-28 L=23.5	1
56	SD0870601SP	HINGE SCREW D= 8.73 H= 6.0	2
57	NS6150430SP	NUT 15/64-28	2
58	22607105	DRIVING ROD	1
59	22607204	DRIVING ARM	1
60	SS6121610TP	SCREW 3/16-28 L=15.5	1
61	10104800	NEEDLE BAR CONNECTION	1
62	SS7090910SP	SCREW 9/64-40 L= 8.5	1
63	23204506	ROCKING ROD SQUARE BLOCK A	1
64	23204605	ROCKING ROD SQUARE BLOCK B	1
65	23204704	ROCKING ROD SQUARE BLOCK C	1
66	MDP500B1400	NEEDLE DPX5 #14	2
67	22606008	NEEDLE BAR	1
68	22651905	NEEDLE BAR	1

Page 12 — TENSION POST COMPONENTS

Juki LH-3128 parts on page 12
Ref	Part number	Part name	Qty
1	22618060	THREAD TENSION ASM., S	1
2	22618458	THREAD TENSION ASM., A	1
3	22618557	THREAD TENSION ASM.	1
4	22618656	THREAD TENSION ASM., F	1
5	22618300	TENSION RELEASE PIN, B	1
6	22618102	TENSION RELEASE LEVER	1
7	SD0470281SP	HINGE SCREW D=4.7 H=2.8	2
8	NS6110310SP	NUT 11/64-40	2
9	22618052	TENSION BASE PLATE ASM.	1
10	10124204	THREAD TENSION POST, A	1
11	10741106	FIRST THREAD TENSION PLATE	4
12	11045101	THREAD TENSION SPRING	2
13	11093606	THREAD TENSION SPRING	2
14	11072402	THREAD TENSION NUT	2
15	10124303	THREAD TENSION POST, B	1
16	B3126012000	THREAD TENSION DISK	4
17	22617906	THREAD TENSION DISK PRESSER	2
18	B3129012A00	TENSION SPRING	2
19	D3129555D00	THREAD TENSION SPRING	2
20	B3114232000	THREAD TENSION SPRING	2
21	B3112704000	TENSION SPRING BUSHING	2
22	11956802	THREAD TENSION KNOB, BLUE	2
23	22617807	NUT	1
24	22617708	TAKE-UP SPRING GUIDE	1
25	B3141527000	PRESSER COLLAR	1
26	22618904	SET SCREW	1
27	22618904	SET SCREW	1
28	SS7090510SP	SCREW 9/64-40 L= 4.6	1
29	B3138527000	ADJUSTING PLATE B	1
30	22617609	THREAD TENSION POST	1
31	22618805	THREAD TAKE-UP SPRING B	1
32	B31375270A0	TAKE-UP SPRING GUIDE ASM.	2
33	B3139527000	COLLAR	1
34	B3142527000	TAKE-UP SPRING GUIDE PLATE	1
35	B3143527000	TAKE-UP SPRING GUIDE STUD	1
36	10697506	THREAD TENSION BRACKET, A	1
37	SS4110615SP	SCREW 11/64-40 L=6	1
38	WP0501016SD	WASHER 5X10.5X1	1
39	B3121352000	TENSION SPRING	2
40	22618706	THREAD TAKE-UP SPRING A	1
41	10697605	THREAD TAKE-UP SPRING STUD	1
42	22618201	TENSION RELEASE PIN, A	1
43	SS4120615SP	SCREW 3/16-28 L=6	2

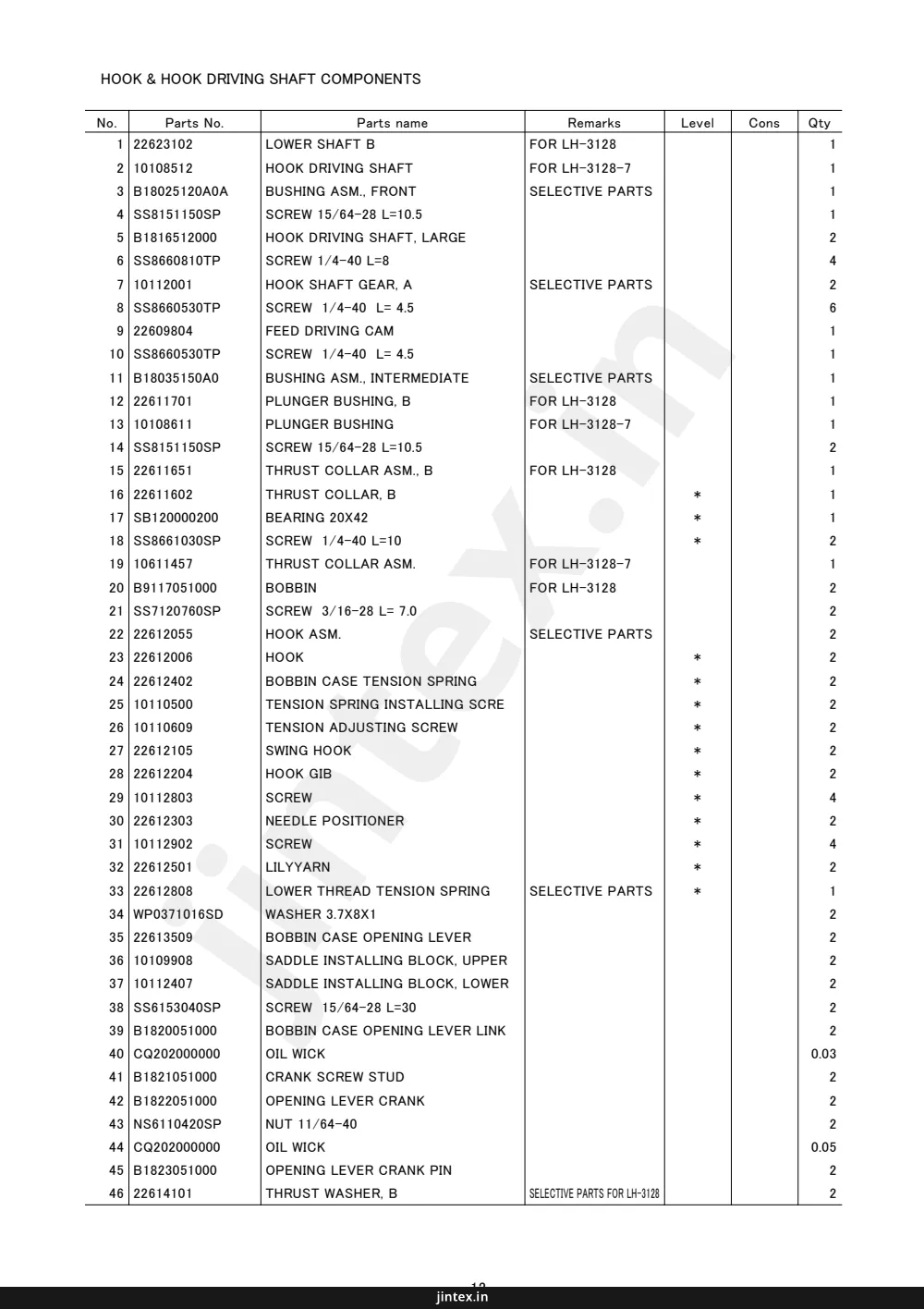

Page 14 — HOOK & HOOK DRIVING SHAFT COMPONENTS

Juki LH-3128 parts on page 14
Ref	Part number	Part name	Qty
1	22623102	LOWER SHAFT B	1
2	10108512	HOOK DRIVING SHAFT	1
3	B18025120A0A	BUSHING ASM., FRONT	1
4	SS8151150SP	SCREW 15/64-28 L=10.5	1
5	B1816512000	HOOK DRIVING SHAFT, LARGE	2
6	SS8660810TP	SCREW 1/4-40 L=8	4
7	10112001	HOOK SHAFT GEAR, A	2
8	SS8660530TP	SCREW 1/4-40 L= 4.5	6
9	22609804	FEED DRIVING CAM	1
10	SS8660530TP	SCREW 1/4-40 L= 4.5	1
11	B18035150A0	BUSHING ASM., INTERMEDIATE	1
12	22611701	PLUNGER BUSHING, B	1
13	10108611	PLUNGER BUSHING	1
14	SS8151150SP	SCREW 15/64-28 L=10.5	2
15	22611651	THRUST COLLAR ASM., B	1
16	22611602	THRUST COLLAR, B	1
17	SB120000200	BEARING 20X42	1
18	SS8661030SP	SCREW 1/4-40 L=10	2
19	10611457	THRUST COLLAR ASM.	1
20	B9117051000	BOBBIN	2
21	SS7120760SP	SCREW 3/16-28 L= 7.0	2
22	22612055	HOOK ASM.	2
23	22612006	HOOK	2
24	22612402	BOBBIN CASE TENSION SPRING	2
25	10110500	TENSION SPRING INSTALLING SCRE	2
26	10110609	TENSION ADJUSTING SCREW	2
27	22612105	SWING HOOK	2
28	22612204	HOOK GIB	2
29	10112803	SCREW	4
30	22612303	NEEDLE POSITIONER	2
31	10112902	SCREW	4
32	22612501	LILYYARN	2
33	22612808	LOWER THREAD TENSION SPRING	1
34	WP0371016SD	WASHER 3.7X8X1	2
35	22613509	BOBBIN CASE OPENING LEVER	2
36	10109908	SADDLE INSTALLING BLOCK, UPPER	2
37	10112407	SADDLE INSTALLING BLOCK, LOWER	2
38	SS6153040SP	SCREW 15/64-28 L=30	2
39	B1820051000	BOBBIN CASE OPENING LEVER LINK	2
40	CQ202000000	OIL WICK	0.03
41	B1821051000	CRANK SCREW STUD	2
42	B1822051000	OPENING LEVER CRANK	2
43	NS6110420SP	NUT 11/64-40	2
44	CQ202000000	OIL WICK	0.05
45	B1823051000	OPENING LEVER CRANK PIN	2
46	22614101	THRUST WASHER, B	2

Page 16 — HOOK & HOOK DRIVING SHAFT COMPONENTS

Juki LH-3128 parts on page 16
Ref	Part number	Part name	Qty
47	10111201	THRUST WASHER, F	2
48	22653802	SHEET	2
49	22613905	HOOK SHAFT UPPER METAL	2
50	22613103	HOOK SHAFT SADDLE, LEFT	1
51	22653604	HOOK SHAFT SADDLE, LEFT	1
52	22613004	HOOK SHAFT SADDLE, RIGHT	1
53	22653505	HOOK SHAFT SADDLE, RIGHT	1
54	SS7111810SP	SCREW 11/64-40 L=18	2
55	22615454	RUBBER BUSHING ASM.	2
56	22615108	GASKET	2
57	22615009	HOOK SHAFT SADDLE COVER	2
58	SS4110815SP	SCREW 11/64-40 L=8	8
59	22615306	FELT HOLDER	2
60	22615207	FELT	2
61	22615702	OIL ADJUSTING BALL	2
62	D3171415B0H	PRESSER SPRING	2
63	22615801	OIL ADJUSTING SCREW	2
64	22615959	OIL WICK HOLDER ASM. LEFT	1
65	22616254	OIL WICK HOLDER ASM. RIGHT	1
66	SS4110515SP	SCREW 11/64-40 L=5	2
67	TA0500601M0	PLUG D=5X5.4 L=6	1
68	WP0850002SP	WASHER 8.5X18X1.6	2
69	SM6082502TP	SCREW M8 L=25	2
70	22611909	OIL PUMP SHAFT	1
71	SS8660530TP	SCREW 1/4-40 L= 4.5	3
72	22613608	GEAR GUIDE	2
73	SS7110710SP	SCREW 11/64-40 L=7	4
74	CS1471012SH	THRUST COLLAR D=14.72 W=10	1
75	SS8660530TP	SCREW 1/4-40 L= 4.5	2
76	22613400	HOOK DRIVING SHAFT BUSHING	2
77	22612758	HOOK ASM.	2
78	22653158	RATCHET HOOK ASM.	2
79	22653059	CAP HOOK ASM.	2
80	10210805	HARD ALUMITE BOBBIN	2
81	10111508	SPRING	2
82	SS6090810SP	SCREW 9/64-40 L= 7.5	2
83	22612659	BOBBIN CASE ASM.	1
84	22612600	BOBBIN CASE	2
85	22688501	TENSION ADJUSTING SPRING	2
86	22612907	TENSION ADJUSTING SCREW	2
87	10110500	TENSION SPRING INSTALLING SCRE	2
88	22615462	RUBBER BUSHING ASM.	2

Page 18 — FEED MECHANISM COMPONENTS

Juki LH-3128 parts on page 18
Ref	Part number	Part name	Qty
1	SS6090670TP	SCREW 9/64-40 L=6	2
2	22610109	ROD PIN	1
3	RE0500000K0	E-RING	1
4	22610208	FEED REGULATOR CONNECTING ROD	1
5	SD0800422CP	HINGE SCREW D= 8 H= 4.2	1
6	22610000	FEED REGULATOR	1
7	SS7121410TP	SCREW 3/16-28 L=14	1
8	22610307	FEED REGULATOR SPRING	1
9	22610604	REVERSE FEED SHAFT	1
10	22652101	REVERSE FEED SHAFT	1
11	CS102121ASH	THRUST COLLAR ASM. D=10.2 W=12	1
12	SS8660610TP	SCREW 1/4-40 L=6	2
13	10108009	OIL SEAL	1
14	RE0900000K0	E-RING 9	1
15	SS7120910SP	SCREW 3/16-28 L=9	2
16	22610505	REVERSE FEED CONTROL LEVER	1
17	RO092270200	RUBBER RING	1
18	22911804	FEED REGULATOR SCREW	1
19	22912109	FEED REGULATOR PIN SPRING	1
20	22912000	FEED REGULATOR PIN	1
21	22911903	FEED DIAL	1
22	22940506	FEED DIAL	1
23	SS6121860SP	SCREW 3/16-28 L=18	1
24	22610406	SPRING BRACKET	1
25	SS4110815SP	SCREW 11/64-40 L=8	2
26	22609200	FEED ROCK SHAFT CONNECTING ROD	1
27	22609002	FEED DRIVE ECCENTRIC CAM, B	1
28	22652002	FEED DRIVE ECCENTRIC CAM	1
29	SS6661110SP	SCREW 1/4-40 L=11	2
30	SS7110710SP	SCREW 11/64-40 L=7	2
31	22609101	CAM COVER	1
32	B1636581B00	NEEDLE BEARING B	1
33	B1610512000	FEED DRIVING SLIDE BLOCK	1
34	SS6580752TP	SCREW 1/8-40 L=7	2
35	22630602	FEED DOG 1/4	1
36	10238202	FEED DOG 1/4	1
37	22609754	FEED BAR ASM.	1
38	22609705	FEED BAR	1
39	10107902	FEED BAR FORK	1
40	SS9151440CP	SCREW 15/64-28 L=14	1
41	WP0621016SD	WASHER 6.2X13X1	1
42	RE0500711KP	SNAP RING 5	1
43	B1604012000A	FEED BAR SHAFT	1
44	SM8050502TP	SCREW M5 L=5	1
45	22609408	FEED ROCK SHAFT	1
46	NS6080210SP	NUT 1/8-44	1

Page 20 — FEED MECHANISM COMPONENTS

Juki LH-3128 parts on page 20
Ref	Part number	Part name	Qty
47	SS6081810SP	SCREW 1/8-44 L=18.0	1
48	B1603512000	FEED ROCKER	1
49	SS7111310TP	SCREW 11/64-40 L=12.8	2
50	10106102	BUSHING	2
51	SS8151150SP	SCREW 15/64-28 L=10.5	1
52	22904155	MAIN SHAFT THRUST COLLAR ASM.	2
53	BT0500300EA	OIL TUBE	0.09
54	CQ252000000	OIL WICK	0.26
55	SS7110910SP	SCREW 11/64-40 L=8.5	4
56	10315505	PLATE	2
57	22609606	FEED DRIVING ROCKER BLOCK, S	2
58	22609309	FEED ROCKER SHAFT CRANK	1
59	NS6680320SP	NUT 9/32-28	1
60	SS6121610TP	SCREW 3/16-28 L=15.5	1
61	SD0900701TP	HINGE SCREW D= 9 H= 7	1
62	10315208	FEED ROCK CONNECTING ROD	1
63	10315455	FEED DRIVING ROCKER ASM.	1
64	SS7110510SP	SCREW 11/64-40 L=5	1
65	B1633470000	STOPPER PLATE	1
66	22610901	REVERSE FEED CONTROL LEVER, F	1
67	B1653470000	PIN	1

Page 22 — PRESSER BAR & TENSION RELEASE COMPONENTS

Juki LH-3128 parts on page 22
Ref	Part number	Part name	Qty
1	22907802	HAND LIFTER	1
2	B1521555000	SCREW	1
3	R0037180100	RUBBER RING	1
4	22908552	HAND LIFTER CAM ASM.	1
5	22608152	LIFTING LEVER ROD ASM.	1
6	11006350	HAND LIFTER LINK	1
7	11006202	LIFTING LEVER	1
8	11007309	E-RING	1
9	RE0500000K0	E-RING	1
10	22608103	LIFTING LEVER CONNECTING ROD	1
11	40034204	HAND LIFTER SCREW	2
12	RE0500000K0	E-RING	2
13	22908909	HINGE SCREW	1
14	SD0720332SP	HINGE SCREW D= 7.24 H= 3.3	1
15	22908800	KNEE LIFTER LINK	1
16	10125201	CONNECTING ROD, VERTICAL	1
17	SD0600322SD	HINGE SCREW D=6 H=3.2	1
18	RE0500000K0	E-RING	3
19	22920201	RETURN SPRING	1
20	11018108	TENSION RELEASE SHAFT	1
21	22617104	TENSION RELEASE PLATE	1
22	22654958	TENSION RELEASE PLATE ASM.	1
23	22617104	TENSION RELEASE PLATE	1
24	11394509	WIRE CABLE	1
25	22654909	WIRE TUBE	1
26	D3159555B00	SET SCREW	1
27	NS6620310SP	NUT 3/16-32	2
28	D3164555B00	OUTER PRESSER PLATE	2
29	SS4110715SP	SCREW 11/64-40 L=7	1
30	D3163555B00A	FLEXIBLE TUBE SUPPORT PLATE	1
31	SS4111215SP	SCREW 11/64-40 L=12	2
32	22620801	PIPE HOLDER	1
33	SS4111015SP	SCREW 11/64-40 L=10	1
34	22617005	PUSH BAR	1
35	PS0600502KP	SPRING PIN	1
36	22907505	PRESSER SPRING REGULATOR	1
37	22907604	PRESSER SPRING REGULATOR NUT	1
38	22907703	PRESSER GUIDE BAR	1
39	B1505227T00A	PRESSER SPRING T	1
40	B1501581000	PRESSER BAR	1
41	40017058	PRESSER BAR HOLDER	1
42	SS8660810TP	SCREW 1/4-40 L=8	1
43	22907109	PRESSER BAR BUSHING, LOWER	1
44	10152957	PRESSER FOOT ASM. 1/4	1
45	SS7090910TP	SCREW 9/64-40 L= 8.5	1
46	22608400	SPRING, F	1

Page 24 — PRESSER BAR & TENSION RELEASE COMPONENTS

Juki LH-3128 parts on page 24
Ref	Part number	Part name	Qty
47	SS4110515SP	SCREW 11/64-40 L=5	1
48	40039672	PUSH BAR	1
49	40030133	PUSH BAR	1

Page 26 — THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3128-7)

Juki LH-3128 parts on page 26
Ref	Part number	Part name	Qty
1	SS2080810SP	SCREW 1/8-44 L=7.5	4
2	10211605	MOVING KNIFE	2
3	10116051	MOVING KNIFE SHAFT ASM.	2
4	22654255	MOVING KNIFE SUPPORT ASM.	2
5	22654206	MOVING KNIFE SUPPORT PLATE	2
6	10211407	THREAD PRESSER ADJUSTING PLATE	2
7	SS8080610SP	SCREW 1/8-44 L=5.5	2
8	SS9080410SP	SCREW 1/8-44 L=4.3	2
9	SS5090610SP	SCREW 9/64-40 L=6	4
10	22655401	THREAD PRESSER	2
11	22655302	COUNTER KNIFE	2
12	SS7090710SP	SCREW 9/64-40 L= 6.8	2
13	SS6121212TP	SCREW 3/16-28 L=12.0	1
14	22654800	STOPPER, A	1
15	10116804	SHAFT	1
16	SS7151610SP	SCREW 15/64-28 L=16	2
17	B3418180000	SPRING	1
18	10117208	TENSION DISC RELEASE PLATE	1
19	SD0600271SP	HINGE SCREW D= 6 H= 2.7	1
20	22655153	LINK INSTALLING BASE ASM.	1
21	SS8111010TP	SCREW 11/64-40 L=9.5	1
22	22655104	TENSION DISC RELEASE ARM	1
23	10116606	LINK INSTALLING BASE	1
24	10117109	BUSHING	1
25	PS0300201KP	SPRING PIN 3.0X20	1
26	40012461	STOPPER PLATE	1
27	SS2110920TP	SCREW 11/64-40 L=8.5	1
28	SS6111052TP	SCREW	1
29	CS1470710SH	THRUST COLLAR ASM. D=14.72 W=7	1
30	SS8110410TP	SCREW 11/64-40 L= 3.5	2
31	22654107	THREAD TRIMMER CAM	1
32	SS8660810TP	SCREW 1/4-40 L=8	2
33	CS070081BSH	THRUST COLLAR ASM. D=7 W=8	2
34	SS8110510SP	SCREW 11/64-40 L=5	4
35	10116903	SPRING	1
36	WP0753016SZ	WASHER 7.5X16.0X3.0	1
37	10116754	CAM INSTALLING LINK ASM.	1
38	SS6151220SP	SCREW 15/64-28 L=11.5	1
39	D2430555B00	SNAP RING	1
40	10116705	CAM INSTALLING LINK	1
41	D2428555B00A	CAM ROLLER SHAFT	1
42	D2427555B00B	CAM ROLLER	1
43	NM6050001SP	NUT M5	2
44	22654404	DRIVING ARM, LEFT	1
45	SS6121610TP	SCREW 3/16-28 L=15.5	1
46	B1515051000	HAND LIFTER PIN	2
47	22654552	CONNECTING LINK ASM.	1

Page 28 — THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3128-7)

Juki LH-3128 parts on page 28
Ref	Part number	Part name	Qty
48	22654503	CONNECTING LINK, A	1
49	22654602	CONNECTING LINK, B	1
50	SS9111010SP	SCREW 11/64-40 L=9.5	2
51	WP0501016SD	WASHER 5X10.5X1	2
52	SD0650305TP	HINGE SCREW D= 6.5 H= 3	2
53	22654305	DRIVING ARM, RIGHT	1
54	SS6121610TP	SCREW 3/16-28 L=15.5	1
55	10117851	SOLENOID ASM.	1
56	HK03464000B	PIN CONTACT	2
57	HK034610140	HOUSING 14P	1
58	SS6151040SP	SCREW 15/64-28 L=10	2
59	B3041980000	SPRING	1
60	22655005	JOINT ROD	1
61	22654008	DRIVING ARM PLATE	1
62	B3417051000	REAR LIFTING BAR ROLLER	1
63	SS6120940SP	SCREW 3/16-28 L=9	1
64	WP0501016SD	WASHER 5X10.5X1	1
65	EA9500B0100	CABLE BAND	2

Page 30 — AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3128-7)

Juki LH-3128 parts on page 30
Ref	Part number	Part name	Qty
1	22656557	REVERSE FEED SWITCH ASM.	1
2	22656953	BACKWARD FEED SWITCH ASM., F	1
3	SM4040655SP	SCREW M4 L=6	1
4	22656508	REVERSE FEED SWITCH BASE	1
5	11102100	REVERSE FEED SWITCH SHAFT	1
6	11102209	REVERSE FEED SWITCH SPRING	1
7	SM8040802SP	SCREW M4X0.7 L=8	1
8	SM4031501SC	SCREW M3 L=15	2
9	HW500070000	2-CORE CABTYRE CORD	1.4
10	HA001900000	MICROSWITCH	1
11	11102308	MICRO SWITCH PLATE	1
12	22656607	REVERSE FEED SWITCH LEVER	1
13	11072501	REVERSE FEED SWITCH COVER	1
14	22656904	SWITCH LEVER, F	1
15	SS7110710SP	SCREW 11/64-40 L=7	4
16	WP0501016SD	WASHER 5X10.5X1	4
17	10161305	SOLENOID COVER	1
18	10119105	REVERSE FEED SOLENOID, AC24V	1
19	10119204	SOLENOID INSTALLING PLATE	1
20	WP0501016SD	WASHER 5X10.5X1	4
21	SS9111010SP	SCREW 11/64-40 L=9.5	4
22	D2464555B00	LINK DRIVING MAGNET PIN	1
23	RE0400000K0	E-RING 4	2
24	SS7151210SP	SCREW 15/64-28 L=12	2
25	WS0631510KP	SPRING WASHER	2
26	WP0621016SD	WASHER 6.2X13X1	2
27	22656409	LINK FULCULUM	1
28	22656300	REVERSE FEED LINK, L	1
29	SS4153015SP	PAN-SCREW 15/64-28 L=30	1
30	WS0610002KP	SPRING WASHER	1
31	WP0612056SD	WASHER 6.1X18.5X2	1
32	22656201	REVERSE FEED LINK,(2)	1
33	22656102	REVERSE FEED LINK,(1)	1
34	SD0640321SP	HINGE SCREW D= 6.35 H= 3.2	2
35	HK03464000B	PIN CONTACT	4
36	SS7120760SP	SCREW 3/16-28 L= 7.0	1
37	22952501	BACK LEVER STOPPER	1
38	SS6121840SP	SCREW 3/16-28 L=18	1
39	26226407	TENSION SPRING HOOK	1
40	26226209	SPRING	1
41	22656003	SPRING SUSPENSION	1
42	SS4120615SP	SCREW 3/16-28 L=6	1
43	SS4120615SP	SCREW 3/16-28 L=6	2

Page 32 — WIPER MECHANISM COMPONENTS (FOR LH-3128-7)

Juki LH-3128 parts on page 32
Ref	Part number	Part name	Qty
1	22657159	WIPER SOLENOID ASM.	1
2	11072709	WIPER COVER	1
3	SL4030891SC	SCREW M3X8	1
4	SL4030891SC	SCREW M3 X 6	3
5	SD0650321TP	HINGE SCREW D=6.5 H=3.2	1
6	22657209	WIPER LINK, A	1
7	40009196	SUSPENSION SCREW	1
8	11110707	WIPER HINGE SCREW COLLAR	1
9	22657308	WIPER SPRING	1
10	NS6110310SP	NUT 11/64-40	1
11	11110400	WIPER RUBBER A	1
12	11110509	WIPER RUBBER B	1
13	11110301	WIPER SOLENOID	1
14	22957104	WIPER SOLENOID SHAFT	1
15	HA000590000	POWER SWITCH	1
16	HW200390000	ELECTRIC WIRE	0.1
17	HW500070000	2-CORE CABTYRE CORD	1.4
18	22657100	WIPER SOLENOID BASE	1
19	WP0371016SD	WASHER 3.7X8X1	2
20	10209203	WIPER 3/32"-3/8	1
21	10209500	WIPER	1
22	10209807	WIPER	1
23	10209906	WIPER	1
24	HK03464000B	PIN CONTACT	2
25	SS4120615SP	SCREW 3/16-28 L=6	1
26	NS6090310SP	NUT 9/64-40	1
27	SD0500301SP	HINGE SCREW D= 5 H= 3	1
28	22657050	WIPER LINK ASM., 2	1
29	10208551	WIPER BASE ASM.	1
30	SS9111010SP	SCREW 11/64-40 L=9.5	2
31	RE0320000K0	E-RING 3.2	2
32	10208700	WIPER LINK SHAFT	1
33	SS3090520SP	SCREW 9/64-40 L=4.5	2

Page 34 — LUBRICATION COMPONENTS

Juki LH-3128 parts on page 34
Ref	Part number	Part name	Qty
1	22924708	OIL SIGHT WINDOW	1
2	RO195240100	RUBBER RING	1
3	SS4111815SP	SCREW 11/64 L=18	2
4	10216703	OIL TANK	1
5	NS6110310SN	NUT 11/64-40	2
6	22620355	OIL PIPE ASM.	1
7	22620454	FELT ASM.	1
8	22620702	OIL TUBE	1
9	22620108	PIPE HOLDER, B	1
10	SS4110715SP	SCREW 11/64-40 L=7	1
11	22619209	OIL WICK GUIDE	1
12	SS6121610TP	SCREW 3/16-28 L=15.5	1
13	NS6120310SP	NUT 3/16-28	1
14	22620504	OIL WICK HOLDER	1
15	SS4111215SP	SCREW 11/64-40 L=12	1
16	NS6110420SP	NUT 11/64-40	1
17	B3517009000	OIL FELT REAR	2
18	22619415	OIL ADJUSTING SHAFT	1
19	SS8701782TP	SCREW 5/16-24 L=17.0	1
20	NS6700420SP	NUT 5/16-24	1
21	22620801	PIPE HOLDER	1
22	SS6111610SP	SCREW 11/64-40 L=16	1
23	40012577	PIPE HOLDER	1
24	SS4110615SP	SCREW 11/64-40 L=6	1
25	22619803	VILENE HOLDER	1
26	SS4110715SP	SCREW 11/64-40 L=7	1
27	22619605	VILENE	1
28	22619001	SUCTION	1
29	SS2110930SP	SCREW 11/64-40 L=8.7	1
30	B1851512000	FILTER SCREEN	1
31	B1850512000	BUSHING HOLDER	1
32	SS7090910SP	SCREW 9/64-40 L= 8.5	1
33	NS6090310SP	NUT 9/64-40	1
34	10623403	BASE	1
35	SS6111610SP	SCREW 11/64-40 L=16	2
36	B1834512000A	OIL ADJUSTING SCREW	1
37	NS6110310SP	NUT 11/64-40	1
38	23630007	TUBE	0.12
39	SQ1150451MZ	CONNECTING SCREW	1
40	SQ1110401MZ	CONNECTING SCREW	1
41	23630007	TUBE	0.02
42	23630007	TUBE	0.08
43	23630007	TUBE	0.09
44	13765607	OIL CONNEC. ARM	3
45	23630007	TUBE	0.51
46	23630007	TUBE	0.4
47	23630007	TUBE	0.05

Page 36 — LUBRICATION COMPONENTS

Juki LH-3128 parts on page 36
Ref	Part number	Part name	Qty
48	23630007	TUBE	0.21
49	23630007	TUBE	0.15
50	SQ1110401MZ	CONNECTING SCREW	2
51	B3534155000	PLUNGER	1
52	B1214038000	PLUNGER SPRING	1
53	B3524552000	PLUNGER THRUST PLATE	1
54	SS4110815SP	SCREW 11/64-40 L=8	1
55	B3534012000	GASKET	1
56	B3538112000	OIL RETURN TUBE HOLDER	1
57	SS4110815SP	SCREW 11/64-40 L=8	1
58	EA9500B0100	CABLE BAND	3
59	B1414512000	OIL WICK RETAINER	1
60	23630007	TUBE	0.01
61	23630007	TUBE	0.01
62	22619704	OILING JOINT	1
63	22619704	OILING JOINT	1
64	SQ1110401MZ	CONNECTING SCREW	1

Page 38 — BELT COVER & BOBBIN WINDER COMPONENTS

Juki LH-3128 parts on page 38
Ref	Part number	Part name	Qty
1	22603401	BELT COVER A ASM.	1
2	11076858	BELT COVER B COMPL.	1
3	11076809	BELT COVER B	1
4	11076957	BELT COVER B CAP ASM.	1
5	SS4111215SP	SCREW 11/64-40 L=12	2
6	SS6121610TP	SCREW 3/16-28 L=15.5	1
7	WS0451040KP	SPRING WASHER 4.5X8.5X1	3
8	WP0501016SD	WASHER 5X10.5X1	3
9	SK3412000SC	WOOD SCREW D=4.1 L=20	2
10	WP0501016SC	WASHER 5X10.5X1	2
11	22927354	BOBBIN WINDER COMPL.	1
12	22928501	THREAD TENSION POST BASE	1
13	SS4110515SP	SCREW 11/64-40 L=5	1
14	22928907	THREAD TENSION DISK	2
15	22929004	THREAD TENSION SPRING	1
16	22928808	NUT	1
17	SS7110350SP	SCREW 11/64-40 L=3.5	1
18	22928402	CONTROL RUBBER HOLDING PLATE	1
19	22928303	CONTROL RUBBER	1
20	22928105	BOBBIN PRESSER	1
21	SD0490261SP	HINGE SCREW D=4.9 H=2.6	1
22	SS7081310SP	SCREW 1/8-44 L=12.5	1
23	SS8110510SP	SCREW 11/64-40 L=5	1
24	22928709	THREAD TENSION POST	1
25	22927305	BOBBIN WINDER BASE	1
26	22927404	BOBBIN WINDER	1
27	22927602	BOBBIN WINDER SPINDLE	1
28	WP0501016SC	WASHER 5X10.5X1	2
29	SK3482500SC	WOOD SCREW D=4.8 L=25	2
30	22621155	THREAD WINDER COMPL.	1
31	22929004	THREAD TENSION SPRING	2
32	22928808	NUT	2
33	SS4110515SP	SCREW 11/64-40 L=5	1
34	22928402	CONTROL RUBBER HOLDING PLATE	1
35	22928303	CONTROL RUBBER	1
36	22621106	BOBBIN PRESSER	1
37	SD0490261SP	HINGE SCREW D=4.9 H=2.6	1
38	SS7081310SP	SCREW 1/8-44 L=12.5	1
39	WP0480856SP	WASHER 4.8X8.4X0.8	1
40	22621056	TENSION BAR BASE COMPL.	1
41	SS7110840SP	SCREW 11/64-40 L=7.8	1
42	22928907	THREAD TENSION DISK	4
43	WP0501016SC	WASHER 5X10.5X1	2
44	SK3482500SC	WOOD SCREW D=4.8 L=25	2
45	B8233555000	BELT COVER SUPPORT STUD	2

Page 40 — OIL RESERVOI & KNEE LIFTER COMPONENTS

Juki LH-3128 parts on page 40
Ref	Part number	Part name	Qty
1	10162253	OIL RESERVOIR ASM.	1
2	10162204	OIL RESERVOIR	1
3	10162600	RUBBER CUSHION	2
4	11047107	RUBBER CUSHION	2
5	SM0081001SD	SCREW	1
6	RO098240100	RUBBER RING	1
7	11024015	CONNECTING ROT, VERTICAL	1
8	11024106	SPRING	1
9	RE1000000K0	E-RING 10	1
10	22932453	BRACKET ASM.	1
11	11024205	KNEE PRESS ROD	1
12	NM6060001SE	NUT M6	2
13	SM8063012TR	SCREW M6 L=30	2
14	SM9061853SR	SCREW M6 L=17.5	1
15	22622104	OIL RESERVOIR SPACER, B	1
16	22934251	KNEE PAD PLATE ASM.	1
17	22934509	KNEE PAD PLATE COVER	1
18	22934608	KNEE PAD UPRIGHT SHAFT	1
19	22934400	KNEE PAD PLATE RUBBER	1
20	22934202	KNEE PAD PLATE	1
21	22934301	KNEE PAD PLATE SUPPORT	1
22	SM9061203SE	SCREW M6 L=12	1
23	11024304	KNEE PRESS LIFTER ROD	1
24	22622005	OIL RESERVOIR SPACER, A	1

Page 42 — THREAD STAND COMPONENTS (1) (FOR USE IN JAPAN)

Juki LH-3128 parts on page 42
Ref	Part number	Part name	Qty
1	13167556	THREAD STANDING DEVICE ASM.	1
2	22930556	SPOOL REST ARM ASM.	2
3	22930507	SPOOL REST ARM	2
4	22930705	THREAD GUIDE ARM JOINT	4
5	22931406	THREAD STANDING ROD RUBBER CAP	1
6	22930408	THREAD STANDING ROD, UPPER	1
7	22931307	THREAD STANDING ROD JOINT	1
8	13167903	THREAD STANDING THREAD GUIDE	1
9	13168000	THREAD STANDING GUIDE BASE	1
10	13168109	THREAD STANDING GUIDE ARM	1
11	13168208	THREAD STANDING GUIDE ARM BASE	1
12	22930309	THREAD STANDING ROD, LOWER	1
13	22931109	SPOOL RETAINER	4
14	22931000	SPOOL PIN	4
15	22930903	SPOOL REST CUSHION	4
16	22930804	SPOOL REST	4
17	SM6061610SC	SCREW M6 L=16	4
18	SM4051405SE	SCREW M5 L=14	2
19	NM6050001SE	NUT M5	2
20	SM4041001SC	SCREW M4X0.7 L=10	2
21	NM6040002SE	NUT M4X0.7	2
22	SM4041201SC	SCREW M4 L=12	1
23	SM4042001SC	SCREW M4 X 20	1
24	NM6040002SE	NUT M4X0.7	2
25	WP1612616SE	WASHER 16X30X2.6	2
26	WS1643202KR	SPRING WASHER	1
27	NM6160511SE	NUT M16X1.5	1
28	NM6050001SE	NUT M5	4
29	WS0510002KN	SPRING WASHER	4

Page 44 — THREAD STAND COMPONENTS (2) (EXCEPT USE IN JAPAN)

Juki LH-3128 parts on page 44
Ref	Part number	Part name	Qty
1	26910158	THREAD STANDING DEVICE ASM.	1
2	22930507	SPOOL REST ARM	2
3	22930705	THREAD GUIDE ARM JOINT	4
4	22931406	SPOOL REST ROD RUBBER CAP	1
5	22930408	SPOOL REST ROD, UPPER	1
6	22931307	SPOOL REST ROD JOINT	1
7	22930309	SPOOL REST ROD, LOWER	1
8	22931109	SPOOL RETAINER	4
9	22931000	SPOOL PIN	4
10	22930903	SPOOL REST CUSHION	4
11	22930804	SPOOL REST	4
12	SM6061610SC	SCREW M6 L=16	4
13	SM4051405SE	SCREW M5 L=14	2
14	NM6050001SE	NUT M5	2
15	WP1612616SE	WASHER 16X30X2.6	2
16	WS1643202KR	SPRING WASHER	1
17	NM6160511SE	NUT M16X1.5	1
18	NM6050001SE	NUT M5	4
19	WS0510002KN	SPRING WASHER	4
20	22930556	THREAD STANDING ARM ASM.	2

Page 46 — LH-3128-7 EXCLUSIVE PARTS FOR BOBBIN THREAD CLAMPLESS TYPE

Juki LH-3128 parts on page 46
Ref	Part number	Part name	Qty
1	22673859	SLIDE PRESSER FOOT ASM.1/4	1
2	22673552	SLIDE PRESSER FOOT ASM.5/32	1
3	22673651	SLIDE PRESSER FOOT ASM.3/16	1
4	22673750	SLIDE PRESSER FOOT ASM.7/32	1
5	22673958	SLIDE PRESSER FOOT ASM.9/32	1
6	22674055	SLIDE PRESSER FOOT ASM.5/16	1
7	22674154	SLIDE PRESSER FOOT ASM.3/8	1
8	22674253	SLIDE PRESSER FOOT ASM.7/16	1
9	22674352	SLIDE PRESSER FOOT ASM.1/2	1
10	22674451	SLIDE PRESSER FOOT ASM.5/8	1
11	22674550	SLIDE PRESSER FOOT ASM.3/4	1
12	22674659	SLIDE PRESSER FOOT ASM.7/8	1
13	22674758	SLIDE PRESSER FOOT ASM.1	1
14	22674857	SLIDE PRESSER FOOT ASM.1.1/8	1
15	22674956	SLIDE PRESSER FOOT ASM.1.1/4	1
16	22671853	SLIDE PRESSER FOOT ASM.3/32	1
17	22671952	SLIDE PRESSER FOOT ASM.1/8	1
18	22672059	SLIDE PRESSER FOOT ASM.5/32	1
19	22672158	SLIDE PRESSER FOOT ASM.3/16	1
20	22672257	SLIDE PRESSER FOOT ASM.7/32	1
21	22672356	SLIDE PRESSER FOOT ASM.1/4	1
22	22672455	SLIDE PRESSER FOOT ASM.9/32	1
23	22672554	SLIDE PRESSER FOOT ASM.5/16	1
24	22672653	SLIDE PRESSER FOOT ASM.3/8	1
25	22672752	SLIDE PRESSER FOOT ASM.7/16	1
26	22672851	SLIDE PRESSER FOOT ASM.1/2	1
27	22672950	SLIDE PRESSER FOOT ASM.5/8	1
28	22673057	SLIDE PRESSER FOOT ASM.3/4	1
29	22673156	SLIDE PRESSER FOOT ASM.7/8	1
30	22673255	SLIDE PRESSER FOOT ASM.1	1
31	22673354	SLIDE PRESSER FOOT ASM.1.1/8	1
32	22673453	SLIDE PRESSER FOOT ASM.1.1/4	1
33	22675706	RECTIFICATION PLATE	2
34	SS5090610SP	SCREW 9/64-40 L=6	4
35	22675904	COUNTER KNIFE SPACER	2
36	22675656	AIR NOZZLE ASM.,RIGHT	1
37	SS2091210SP	SCREW 9/64-40 L=12.3	2
38	22675557	AIR NOZZLE ASM.,LEFT	1
39	SS2091210SP	SCREW 9/64-40 L=12.3	2
40	22671101	RUBBER PLUG	1
41	22675854	SOLENOID VALVE MOUNT PLATE ASM	1
42	22675805	SOLENOID VALVE MOUNT PLATE	1
43	B3538112000	OIL RETURN TUBE HOLDER	1
44	BT0600401EB	TUBE	0.2
45	PF0552040A0	FILTER REGULATOR ASM.	1
46	PJ020500001	PLUG	1
47	PJ301040502	HALF UNION 4XM5	1

Page 48 — LH-3128-7 EXCLUSIVE PARTS FOR BOBBIN THREAD CLAMPLESS TYPE

Juki LH-3128 parts on page 48
Ref	Part number	Part name	Qty
48	PJ301060503	HALF UNION	1
49	PJ301065201	HALF UNION 6XPT1/4	1
50	PJ309005203	QUICK JOINT PLUG	1
51	PV130523000	MAGNETIC VALVE	1
52	HK034610100	10P CONNECTOR	1
53	HK03464000B	PIN CONTACT	4
54	HW100470990	VINYL COVERED WIRE	0.1
55	HW500140000	2-C CABLE	1
56	SM4032001SC	SCREW M3X0.5 L=20	2
57	SM4061001SB	SCREW M6 L=10	2
58	SL4030691SC	SCREW M3X6	1
59	NM6030001SB	NUT M3	2
60	NM6060001SB	NUT M6	2
61	HK034610020	2-POLE NYLON PLUG	1
62	HK034620020	2P PLUG	1
63	HK03464000B	PIN CONTACT	2
64	HK034630000	TERMINAL	2
65	BT0400201EB	TUBE4X2	1.3
66	D2113555B00	CORD SET HOOK, B	2
67	EA9500B0100	CABLE BAND	4
68	PJ308040002	QUICK COUPLING	1
69	SK3482500SC	WOOD SCREW D=4.8 L=25	4
70	SS4091520SP	SCREW 9/64-40 L=15	1

Page 49 — TABLE OF EXCHANGING GAUGE PARTS (1)

Juki LH-3128 parts on page 49
Ref	Part number	Part name
1	226-25008
2	226-25107
3	226-25206
4	226-25305
5	226-25404
6	226-25503
7	226-25602
8	226-25701
9	226-25800
10	226-25909
11	226-26006
12	226-26105
13	226-26204
14	226-26303
15	226-26402
16	226-26501
17	226-26600
18	226-26709
19	226-26808
39	226-30206	B1613-512-D0H
40	226-30404	B1613-512-E0H
41	226-30503	B1613-512-F0H
42	226-30602	B1613-512-G0H
43	226-30800	B1613-512-H0H
44	226-30909	B1613-512-K0H
46	226-31006	B1613-512-L0H
47	226-31105	B1613-512-M0H
48	226-31303	B1613-512-N0H
49	226-31402	B1613-512-P0H
50	226-31501	B1613-512-Q0H
51	226-31709	B1613-512-R0H
52	226-31808	B1613-512-S0H
53	226-31907	B1613-512-T0H
54	226-32004	B1613-512-U0H
55	226-32103	B1613-512-U0H
70	226-32202	B1613-512-U0H

Page 50 — TABLE OF EXCHANGING GAUGE PARTS (1)

Juki LH-3128 parts on page 50
Ref	Part number	Part name	Qty
1	22625008	THROAT PLATE 3/32" (2.4MM)	1
2	22625107	THROAT PLATE 1/8" (3.2MM)	1
3	22625206	THROAT PLATE 5/32" (4MM)	1
4	22625305	THROAT PLATE 3/16" (4.8MM)	1
5	22625404	THROAT PLATE 7/32" (5.6MM)	1
6	22625503	THROAT PLATE 1/4	1
7	22625602	THROAT PLATE 9/32" (7.1MM)	1
8	22625701	THROAT PLATE 5/16" (7.9MM)	1
9	22625800	THROAT PLATE 3/8" (9.5MM)	1
10	22625909	THROT PLATE 7/16 (11.1M)	1
11	22626006	THROAT PLATE 1/2" (12.7MM)	1
12	22626105	THROAT PLATE 5/8" (15.9MM)	1
13	22626204	THROAT PLATE 3/4" (19.1MM)	1
14	22626303	THROAT PLATE 7/8" (22.2MM)	1
15	22626402	THROAT PLATE 1" (25.4MM)	1
16	22626501	THROAT PLATE 1.1/8" (28.6MM)	1
17	22626600	THROAT PLATE 1.1/4" (31.8MM)	1
18	22626709	THROAT PLATE 1.3/8" (34.9MM)	1
19	22626808	THROAT PLATE 1.1/2" (38.1MM)	1
20	22635007	FEED DOG 3/32" (2.4MM)	1
21	22630107	FEED DOG 1/8" (3.2MM)	1
22	22635205	FEED DOG 5/32" (4.0MM)	1
23	22635304	FEED DOG 3/16" (4.8MM)	1
24	22635403	FEED DOG 7/32" (5.6MM)	1
25	22635502	FEED DOG 1/4" (6.4MM)	1
26	22635700	FEED DOG 9/32" (7.1MM)	1
27	22635809	FEED DOG 5/16" (7.9MM)	1
28	22635908	FEED DOG 3/8" (9.5MM)	1
29	22636005	FEED DOG 7/16" (11.1MM)	1
30	22636203	FEED DOG 1/2" (12.7MM)	1
31	22636302	FEED DOG 5/8" (15.9MM)	1
32	22636401	FEED DOG 3/4" (19.1MM)	1
33	22636609	FEED DOG 7/8	1
34	22636708	FEED DOG 1" (25.4MM)	1
35	22636807	FEED DOG 1.1/8" (28.6MM)	1
36	22636906	FEED DOG 1.1/4" (34.9MM)	1
37	22637003	FEED DOG 1.3/8" (34.9MM)	1
38	22637102	FEED DOG 1.1/2" (38.1MM)	1
39	22630206	FEED DOG 5/32" (4.0MM)	1
40	22630404	FEED DOG 3/16" (4.8MM)	1
41	22630503	FEED DOG 7/32" (5.6MM)	1
42	22630602	FEED DOG 1/4	1
43	22630800	FEED DOG 9/32" (7.1MM)	1
44	22630909	FEED DOG 5/16" (7.9MM)	1
45	22631006	FEED DOG 3/8" (9.5MM)	1
46	22631105	FEED DOG 7/16" (11.1MM)	1
47	22631303	FEED DOG 1/2" (12.7MM)	1

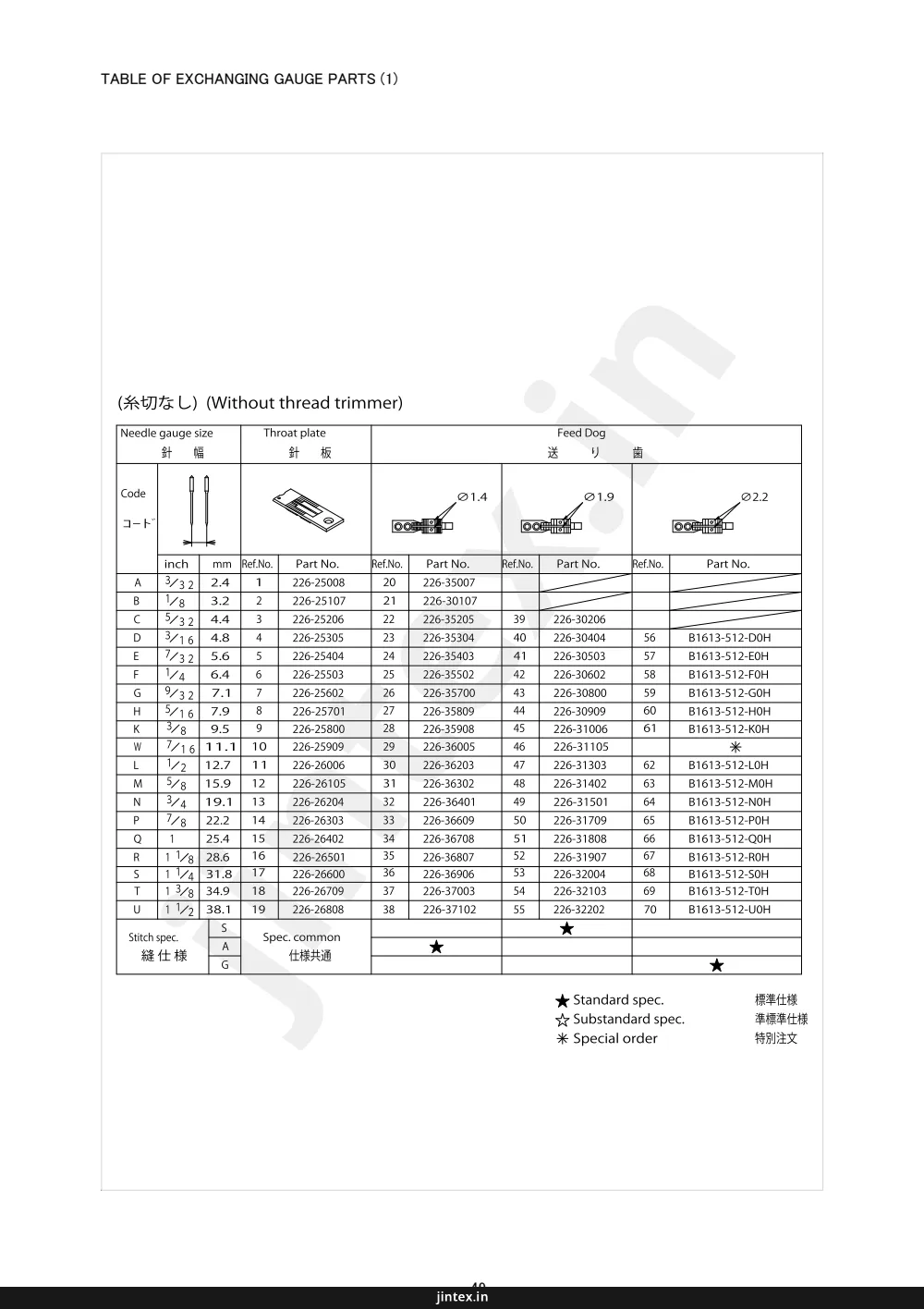

Page 51 — TABLE OF EXCHANGING GAUGE PARTS (1)

Juki LH-3128 parts on page 51
Ref	Part number	Part name
1	226-25008
2	226-25107
3	226-25206
4	226-25305
5	226-25404
6	226-25503
7	226-25602
8	226-25701
9	226-25800
10	226-25909
11	226-26006
12	226-26105
13	226-26204
14	226-26303
15	226-26402
16	226-26501
17	226-26600
18	226-26709
19	226-26808
20	226-35007
21	226-30107
39	226-30206
40	226-30404	B1613-512-D0H
41	226-30503	B1613-512-E0H
42	226-30602	B1613-512-F0H
43	226-30800	B1613-512-G0H
44	226-30909	B1613-512-H0H
45	226-31006	B1613-512-K0H
47	226-31303	B1613-512-L0H
48	226-31402	B1613-512-M0H
49	226-31501	B1613-512-N0H
50	226-31709	B1613-512-P0H
51	226-31808	B1613-512-Q0H
52	226-31907	B1613-512-R0H
53	226-32004	B1613-512-S0H
54	226-32103	B1613-512-T0H
55	226-32202	B1613-512-U0H

Page 52 — TABLE OF EXCHANGING GAUGE PARTS (1)

Juki LH-3128 parts on page 52
Ref	Part number	Part name	Qty
48	22631402	FEED DOG 5/8" (15.9MM)	1
49	22631501	FEED DOG 3/4" (19.1MM)	1
50	22631709	FEED DOG 7/8" (2.2MM)	1
51	22631808	FEED DOG 1" (25.4MM)	1
52	22631907	FEED DOG 1.1/8" (28.6MM)	1
53	22632004	FEED DOG 1.1/4" (31.4MM)	1
54	22632103	FEED DOG 1.3/8" (34.9MM)	1
55	22632202	FEED DOG 1.1/2" (38.1MM)	1
56	B1613512D0H	FEED DOG 3/16	1
57	B1613512E0H	FEED DOG 7/32	1
58	B1613512F0H	FEED DOG 1/4	1
59	B1613512G0H	FEED DOG 9/32	1
60	B1613512H0H	FEED DOG 5/16	1
61	B1613512K0H	FEED DOG 3/8	1
62	B1613512L0H	FEED DOG 1/2	1
63	B1613512M0H	FEED DOG 5/8	1
64	B1613512N0H	FEED DOG 3/4	1
65	B1613512P0H	FEED DOG 7/8	1
66	B1613512Q0H	FEED DOG 1	1
67	B1613512R0H	FEED DOG 1-1/8	1
68	B1613512S0H	FEED DOG 1-1/4	1
69	B1613512T0H	FEED DOG 1-3/8	1
70	B1613512U0H	FEED DOG 1-1/2	1

Page 53 — TABLE OF EXCHANGING GAUGE PARTS (2)

Juki LH-3128 parts on page 53
Ref	Part number	Part name	Qty
1	226-37557
2	226-37656
3	226-37755
4	226-37854
5	226-37953
6	226-38050
7	226-38258
8	226-38357
9	226-38456
10	226-38555
11	226-38753
12	226-38852
13	226-38951
14	226-39157
15	226-39256
16	226-39355
17	226-39454
18	226-39553
19	226-39652
20	101-52650
21	101-52759
22	101-52858
23	101-52957
24	101-53054
25	101-53153
26	101-53252
27	101-53351
28	101-53450
29	101-53559
30	101-53658
31	101-53757
32	101-53856
33	101-53955
34	101-54052
35	101-54151
36	101-54250
37	226-40353
38	226-40452
39	226-40551
40	226-40759
41	226-40858
42	226-40957
43	226-41054
44	226-41252
45	226-41351
46	226-41450
47	226-41658
48	226-41757
49	226-41856
50	226-41955
51	226-42052
52	226-42151

Page 54 — TABLE OF EXCHANGING GAUGE PARTS (2)

Juki LH-3128 parts on page 54
Ref	Part number	Part name	Qty
1	22637557	PRESSER FOOT ASM.3/32"(2.4MM)	1
2	22637656	PRESSER FOOT ASM.1/8"(3.2MM)	1
3	22637755	PRESSER FOOT ASM.5/32"(4.4MM)	1
4	22637854	PRESSER FOOT ASM.3/16"(4.8MM)	1
5	22637953	PRESSER FOOT ASM.7/32"(5.6MM)	1
6	22638050	PRESSER FOOT ASM.1/4"(6.4MM)	1
7	22638258	PRESSER FOOT ASM.9/32"(7.1MM)	1
8	22638357	PRESSER FOOT ASM.5/16"(7.9MM)	1
9	22638456	PRESSER FOOT ASM.3/8"(9.5MM)	1
10	22638555	PRESSER FOOT ASM.7/16"(11.1MM)	1
11	22638753	PRESSER FOOT ASM.1/2"(12.7MM)	1
12	22638852	PRESSER FOOT ASM.5/8"(15.9MM)	1
13	22638951	PRESSER FOOT ASM.3/4"(19.1MM)	1
14	22639157	PRESSER FOOT ASM.7/8"(22.2MM)	1
15	22639256	PRESSER FOOT ASM.1"(25.4MM)	1
16	22639355	PRESSER FOOT ASM.1.1/8"(28.6MM)	1
17	22639454	PRESSER FOOT ASM.1.1/4"(31.8MM)	1
18	22639553	PRESSER FOOT ASM.1.3/8"(34.9MM)	1
19	22639652	PRESSER FOOT ASM.1.1/2"(38.1MM)	1
20	10152650	PRESSER FOOT ASM. 5/32	1
21	10152759	PRESSER FOOT ASM. 3/16	1
22	10152858	PRESSER FOOT ASM. 7/32	1
23	10152957	PRESSER FOOT ASM. 1/4	1
24	10153054	PRESSER FOOT ASM. 9/32	1
25	10153153	PRESSER FOOT ASM. 5/16	1
26	10153252	PRESSER FOOT ASM. 3/8	1
27	10153351	PRESSER FOOT ASM. 7/16	1
28	10153450	PRESSER FOOT ASM. 1/2	1
29	10153559	PRESSER FOOT ASM. 5/8	1
30	10153658	PRESSER FOOT ASM. 3/4	1
31	10153757	PRESSER FOOT ASM. 7/8	1
32	10153856	PRESSER FOOT ASM. 1	1
33	10153955	PRESSER FOOT ASM. 1-1/8	1
34	10154052	PRESSER FOOT ASM. 1-1/4	1
35	10154151	PRESSER FOOT ASM. 1-3/8	1
36	10154250	PRESSER FOOT ASM. 1-1/2	1
37	22640353	PRESSER FOOT ASM.3/16"(4.8MM)	1
38	22640452	PRESSER FOOT ASM.7/32"(5.6MM)	1
39	22640551	PRESSER FOOT ASM.1/4"(6.4MM)	1
40	22640759	PRESSER FOOT ASM.9/32"(7.1MM)	1
41	22640858	PRESSER FOOT ASM.5/16"(7.9MM)	1
42	22640957	PRESSER FOOT ASM.3/8"(9.5MM)	1
43	22641054	PRESSER FOOT ASM.7/16"(11.1MM)	1
44	22641252	PRESSER FOOT ASM.1/2"(12.7MM)	1
45	22641351	PRESSER FOOT ASM.5/8"(15.9MM)	1
46	22641450	PRESSER FOOT ASM.3/4"(19.1MM)	1
47	22641658	PRESSER FOOT ASM.7/8"(22.2MM)	1

Page 55 — TABLE OF EXCHANGING GAUGE PARTS (2)

Juki LH-3128 parts on page 55
Ref	Part number	Part name	Qty
1	226-37557
2	226-37656
3	226-37755
4	226-37854
5	226-37953
6	226-38050
7	226-38258
8	226-38357
9	226-38456
10	226-38555
11	226-38753
12	226-38852
13	226-38951
14	226-39157
16	226-39355
17	226-39454
18	226-39553
19	226-39652
20	101-52650
21	101-52759
22	101-52858
23	101-52957
24	101-53054
25	101-53153
26	101-53252
27	101-53351
28	101-53450
29	101-53559
30	101-53658
31	101-53757
33	101-53955
35	101-54151
36	101-54250
37	226-40353
38	226-40452
39	226-40551
41	226-40858
42	226-40957
43	226-41054
44	226-41252
45	226-41351
46	226-41450
47	226-41658
49	226-41856
50	226-41955
51	226-42052
52	226-42151

Page 56 — TABLE OF EXCHANGING GAUGE PARTS (2)

Juki LH-3128 parts on page 56
Ref	Part number	Part name	Qty
48	22641757	PRESSER FOOT ASM.1"(25.4MM)	1
49	22641856	PRESSER FOOT ASM.1.1/8"(28.6MM)	1
50	22641955	PRESSER FOOT ASM.1.1/4"(31.8MM)	1
51	22642052	PRESSER FOOT ASM.1.3/8"(34.9MM)	1
52	22642151	PRESSER FOOT ASM.1.1/2"(38.1MM)	1

Page 57 — TABLE OF EXCHANGING GAUGE PARTS (3)

Juki LH-3128 parts on page 57
Ref	Part number	Part name	Qty
1	226-60104
18	226-65004
64	101-47551
2	226-60203
19	226-65103
65	101-47650
3	226-60302
20	226-65202
35	102-37907
66	101-47759
4	226-60401
21	226-65301
36	102-38004
50	102-39101
67	101-47858
5	226-60500
22	226-65400
37	102-38103
51	102-39200
68	101-47957
6	226-60609
23	226-65509
38	102-38202
52	102-39309
69	101-48054
7	226-60708
24	226-65707
39	102-38301
53	102-39408
70	101-48153
8	226-60807
25	226-65806
40	102-38400
54	102-39507
71	101-48252
9	226-60906
26	226-65905
41	102-38509
55	102-39606
72	101-48351
10	226-61003
27	226-66002
42	101-68300
56	101-70801
73	101-48450
11	226-61102
28	226-66200
43	102-38707
57	102-39804
74	101-48559
12	226-61201
29	226-66309
44	102-38806
58	102-39903
75	101-48658
13	226-61300
30	226-66408
45	102-38905
59	101-71106
76	101-48757
14	226-61409
31	226-66606
46	101-68706
60	101-71205
77	101-48856
15	226-61508
32	226-66705
47	102-39002
61	101-71304
78	101-48955
16	226-61607
33	226-66804
48	101-68904
62	101-71403
79	101-49052
17	226-61706
34	226-66903
49	101-69001
63	101-71502
80	101-49151
81	101-49250
82	101-49359

Page 58 — TABLE OF EXCHANGING GAUGE PARTS (3)

Juki LH-3128 parts on page 58
Ref	Part number	Part name	Qty
1	22660104	THROAT PLATE 3/32	1
2	22660203	THROAT PLATE 1/8	1
3	22660302	THROAT PLATE 5/32	1
4	22660401	THROAT PLATE 3/16	1
5	22660500	THROAT PLATE 7/32	1
6	22660609	THROAT PLATE 1/4	1
7	22660708	THROAT PLATE 9/32	1
8	22660807	THROAT PLATE 5/16	1
9	22660906	THROAT PLATE 3/8	1
10	22661003	THROAT PLATE 7/16	1
11	22661102	THROAT PLATE 1/2	1
12	22661201	THROAT PLATE 5/8	1
13	22661300	THROAT PLATE 3/4	1
14	22661409	THROAT PLATE 7/8	1
15	22661508	THROAT PLATE 1	1
16	22661607	THROAT PLATE 1.1/8	1
17	22661706	THROAT PLATE 1.1/4	1
18	22665004	FEED DOG 3/32	1
19	22665103	FEED DOG 1/8	1
20	22665202	FEED DOG 5/32	1
21	22665301	FEED DOG 3/16	1
22	22665400	FEED DOG 7/32	1
23	22665509	FEED DOG 1/4	1
24	22665707	FEED DOG 9/32	1
25	22665806	FEED DOG 5/16	1
26	22665905	FEED DOG 3/8	1
27	22666002	FEED DOG 7/16	1
28	22666200	FEED DOG 1/2	1
29	22666309	FEED DOG 5/8	1
30	22666408	FEED DOG 3/4	1
31	22666606	FEED DOG 7/8	1
32	22666705	FEED DOG 1	1
33	22666804	FEED DOG 1.1/8	1
34	22666903	FEED DOG 1.1/4	1
35	10237907	FEED DOG 5/32	1
36	10238004	FEED DOG 3/16	1
37	10238103	FEED DOG 7/32	1
38	10238202	FEED DOG 1/4	1
39	10238301	FEED DOG 9/32	1
40	10238400	FEED DOG 5/16	1
41	10238509	FEED DOG 3/8	1
42	10168300	FEED DOG 7/16	1
43	10238707	FEED DOG 1/2	1
44	10238806	FEED DOG 5/8	1
45	10238905	FEED DOG 3/4	1
46	10168706	FEED DOG 7/8	1
47	10239002	FEED DOG 1	1

Page 59 — TABLE OF EXCHANGING GAUGE PARTS (3)

Juki LH-3128 parts on page 59
Ref	Part number	Part name	Qty
1	226-60104
2	226-60203
3	226-60302
4	226-60401
5	226-60500
6	226-60609
7	226-60708
8	226-60807
9	226-60906
10	226-61003
11	226-61102
12	226-61201
13	226-61300
14	226-61409
15	226-61508
16	226-61607
17	226-61706
18	226-65004
19	226-65103
20	226-65202
21	226-65301
22	226-65400
23	226-65509
24	226-65707
25	226-65806
26	226-65905
27	226-66002
28	226-66200
29	226-66309
30	226-66408
31	226-66606
32	226-66705
33	226-66804
34	226-66903
35	102-37907
36	102-38004
37	102-38103
38	102-38202
39	102-38301
40	102-38400
41	102-38509
42	101-68300
43	102-38707
44	102-38806
45	102-38905
46	101-68706
47	102-39002
48	101-68904
49	101-69001
50	102-39101
51	102-39200
52	102-39309
53	102-39408
54	102-39507
55	102-39606
56	101-70801
57	102-39804
58	102-39903
59	101-71106
60	101-71205
61	101-71304
62	101-71403
63	101-71502
64	101-47551
65	101-47650
66	101-47759
67	101-47858
68	101-47957
69	101-48054
70	101-48153
71	101-48252
72	101-48351
73	101-48450
74	101-48559
75	101-48658
76	101-48757
77	101-48856
78	101-48955
79	101-49052
80	101-49151
81	101-49250
82	101-49359

Page 60 — TABLE OF EXCHANGING GAUGE PARTS (3)

Juki LH-3128 parts on page 60
Ref	Part number	Part name	Qty
48	10168904	FEED DOG 1-1/8	1
49	10169001	FEED DOG 1-1/4	1
50	10239101	FEED DOG 3/16	1
51	10239200	FEED DOG 7/32	1
52	10239309	FEED DOG 1/4	1
53	10239408	FEED DOG 9/32	1
54	10239507	FEED DOG 5/16	1
55	10239606	FEED DOG 3/8	1
56	10170801	FEED DOG 7/16	1
57	10239804	FEED DOG 1/2	1
58	10239903	FEED DOG 5/8	1
59	10171106	FEED DOG 3/4	1
60	10171205	FEED DOG 7/8	1
61	10171304	FEED DOG 1	1
62	10171403	FEED DOG 1-1/8	1
63	10171502	FEED DOG 1-1/4	1
64	10147551	NEEDLE CLAMP ASM. 3/32	1
65	10147650	NEEDLE CLAMP ASM. 1/8	1
66	10147759	NEEDLE CLAMP ASM. 5/32	1
67	10147858	NEEDLE CLAMP ASM. 3/16	1
68	10147957	NEEDLE CLAMP ASM. 7/32	1
69	10148054	NEEDLE CLAMP ASM. 1/4	1
70	10148153	NEEDLE CLAMP ASM. 9/32	1
71	10148252	NEEDLE CLAMP ASM. 5/16	1
72	10148351	NEEDLE CLAMP ASM. 3/8	1
73	10148450	NEEDLE CLAMP ASM. 7/16	1
74	10148559	NEEDLE CLAMP ASM. 1/2	1
75	10148658	NEEDLE CLAMP ASM. 5/8	1
76	10148757	NEEDLE CLAMP ASM. 3/4	1
77	10148856	NEEDLE CLAMP ASM. 7/8	1
78	10148955	NEEDLE CLAMP ASM. 1	1
79	10149052	NEEDLE CLAMP ASM. 1-1/8	1
80	10149151	NEEDLE CLAMP ASM. 1-1/4	1
81	10149250	NEEDLE CLAMP ASM. 1-3/8	1
82	10149359	NEEDLE CLAMP ASM. 1-1/2	1

Page 61 — TABLE OF EXCHANGING GAUGE PARTS (4)

Juki LH-3128 parts on page 61
Ref	Part number	Part name
1	226-28002
2	226-28101	Needle gauge size
3	226-28200	Needle gauge size
4	226-28309	Needle gauge size
5	226-28408	Needle gauge size
6	226-28507	Needle gauge size
7	226-28606	Needle gauge size
8	226-25107	Throat plate
9	226-25206	Throat plate
10	226-25305	Throat plate
11	226-25404	Throat plate
12	226-25503	Throat plate
13	226-25602	Throat plate
14	226-25701	Throat plate
15	226-34000	Feed Dog
16	226-34109	Feed Dog
17	226-34208	Feed Dog
18	226-34307	Feed Dog
19	226-34406	Feed Dog
20	226-34505	Feed Dog
21	226-34604	Feed Dog
22	226-27152	Presser Foot asm.
23	226-27251	Presser Foot asm.
24	226-27350	Presser Foot asm.
25	226-27459	Presser Foot asm.
26	226-27558	Presser Foot asm.
27	226-27657	Presser Foot asm.
28	226-27756	Presser Foot asm.
29	226-47051	Swivel guide Presser asm.
30	226-47150	Swivel guide Presser asm.
31	226-47259	Swivel guide Presser asm.
32	226-47358	Swivel guide Presser asm.
33	226-47457	Swivel guide Presser asm.
34	226-47556	Swivel guide Presser asm.
35	226-50857	Bed Slide asm. (with Tread Trimmer)
36	226-50956	Bed Slide asm. (with Tread Trimmer)
37	226-51053	Bed Slide asm. (with Tread Trimmer)
38	226-51152	Bed Slide asm. (with Tread Trimmer)
39	226-50352	Bed Slide asm. (Right)
40	226-50451	Bed Slide asm. (Right)
41	226-50550	Bed Slide asm. (Right)
42	226-50659	Bed Slide asm. (Right)
43	226-01058	Bed Slide asm. (Left)
44	226-01157	Bed Slide asm. (Left)
45	226-01256	Bed Slide asm. (Left)
46	226-01355	Bed Slide asm. (Left)
47	226-00555	Bed Slide asm. (with Tread Trimmer Stitch spec.F)
48	226-00654	Bed Slide asm. (with Tread Trimmer Stitch spec.F)
49	226-00753	Bed Slide asm. (with Tread Trimmer Stitch spec.F)
50	226-00852	Bed Slide asm. (with Tread Trimmer Stitch spec.F)
51	B1802-512-0A0-A
52	B1802-512-0AB
53	B1803-515-0A0	Front metal
54	101-12357	Front metal
55	102-09203	Inner metal
56	102-09500	Wiper
57	102-09807	Inner metal
58	102-09906	Wiper

Page 62 — TABLE OF EXCHANGING GAUGE PARTS (4)

Juki LH-3128 parts on page 62
Ref	Part number	Part name	Qty
1	22628002	THROAT PLATE 1/8	1
2	22628101	THROAT PLATE 5/32	1
3	22628200	THROAT PLATE 3/16	1
4	22628309	THROAT PLATE, 7/32	1
5	22628408	THROAT PLATE 1/4	1
6	22628507	THROAT PLATE 9/32	1
7	22628606	TAPING THROT PLATE 5/16	1
8	22625107	THROAT PLATE 1/8" (3.2MM)	1
9	22625206	THROAT PLATE 5/32" (4MM)	1
10	22625305	THROAT PLATE 3/16" (4.8MM)	1
11	22625404	THROAT PLATE 7/32" (5.6MM)	1
12	22625503	THROAT PLATE 1/4" (6.4MM)	1
13	22625602	THROAT PLATE 9/32" (7.1MM)	1
14	22625701	THROAT PLATE 5/16" (7.9MM)	1
15	22634000	FEED DOG F 1/8	1
16	22634109	FEED DOG F 5/32	1
17	22634208	FEED DOG F 3/16	1
18	22634307	FEED DOG, 7/32	1
19	22634406	FEED DOG F 1/4	1
20	22634505	FEED DOG F 9/32	1
21	22634604	FEED DOG F 5/16	1
22	22627152	PRESSER FOOT F ASM. 1/8	1
23	22627251	PRESSER FOOT F ASM. 5/32	1
24	22627350	F PRESSER FOOT ASM. 3/16	1
25	22627459	PRESSER FOOT ASM., 7/32	1
26	22627558	PRESSER FOOT F ASM. 1/4	1
27	22627657	PRESSER FOOT ASM., F 9/32	1
28	22627756	PRESSER FOOT ASM., F 5/16	1
29	22647051	SWIVEL GUIDE PRESSER ASM. 1/8	1
30	22647150	GUIDE PRESSER ASM. 3/16	1
31	22647259	GUIDE PRESSER ASM. 7/32	1
32	22647358	GUIDE PRESSER ASM. 1/4	1
33	22647457	GUIDE PRESSER ASM. 9/32	1
34	22647556	SWIVEL GUIDE PRESSER ASM.5/16	1
35	22650857	BED SLIDE LEFT, ASM., A	1
36	22650956	LEFT SLIDER PLATE B ASM.	1
37	22651053	BED SLIDE LEFT, ASM., C	1
38	22651152	BED SLIDE LEFT, ASM., D	1
39	22650352	BED SLIDE RIGHT, ASM., A	1
40	22650451	RIGHT SLIDER PLATE B ASM.	1
41	22650550	BED SLIDE RIGHT, ASM., C	1
42	22650659	BED SLIDE RIGHT, ASM., D	1
43	22601058	BED SLIDE LEFT, ASM., A	1
44	22601157	LEFT SLIDER PLATE B ASM.	1
45	22601256	BED SLIDE LEFT, ASM., C	1
46	22601355	BED SLIDE LEFT, ASM., C	1
47	22600555	BED SLIDE RIGHT, ASM., A	1

Page 63 — TABLE OF EXCHANGING GAUGE PARTS (4)

Juki LH-3128 parts on page 63
Ref	Part number	Part name	Qty
1	226-28002
2	226-28101
3	226-28200
4	226-28309
5	226-28408
6	226-28507
7	226-28606
8	226-25107
9	226-25206
10	226-25305
11	226-25404
12	226-25503
13	226-25602
14	226-25701
15	226-34000
16	226-34109
17	226-34208
18	226-34307
19	226-34406
20	226-34505
21	226-34604
22	226-27152
23	226-27251
24	226-27350
25	226-27459
26	226-27558
27	226-27657
28	226-27756
29	226-47051
30	226-47150
31	226-47259
32	226-47358
33	226-47457
34	226-47556
35	226-50857
36	226-50956
37	226-51053
38	226-51152
39	226-50352
40	226-50451
41	226-50550
42	226-50659
43	226-01058
44	226-01157
45	226-01256
46	226-01355
47	226-00555
48	226-00654
49	226-00753
50	226-00852
51	B1802-512-0A0-A
52	B1802-512-0AB
53	B1803-515-0A0
54	101-12357
55	102-09203
56	102-09500
57	102-09807
58	102-09906

Page 64 — TABLE OF EXCHANGING GAUGE PARTS (4)

Juki LH-3128 parts on page 64
Ref	Part number	Part name	Qty
48	22600654	RIGHT SLIDER PLATE B ASM.	1
49	22600753	BED SLIDE RIGHT, ASM., C	1
50	22600852	BED SLIDE RIGHT, ASM., D	1
51	B18025120A0A	BUSHING ASM., FRONT	1
52	B18025120AB	BUSHING ASM., FRONT	1
53	B18035150A0	BUSHING ASM., INTERMEDIATE	1
54	10112357	BUSHING ASM. INTERMEDIATE	1
55	10209203	WIPER 3/32"-3/8	1
56	10209500	WIPER	1
57	10209807	WIPER	1
58	10209906	WIPER	1

Page 65 — LIST FOR INFORMATION OF CHANGE

Juki LH-3128 parts on page 65
Ref	Part number	Part name	Qty
48	232-04209
49	226-06602
50	PT-0502700-S0

Page 66 — NUMERICAL INDEX OF PARTS

Juki LH-3128 parts on page 66
Ref	Part number	Qty
3	10101004	2
61	10104800	8
50	10106102	18
39	10107902	16
13	10108009	16
2	10108512	12
13	10108611	12
36	10109908	12
87	10110500	12
87	10110500	14
26	10110609	12
47	10111201	14
81	10111508	14
7	10112001	12
54	10112357	62
37	10112407	12
29	10112803	12
31	10112902	12
3	10116051	24
23	10116606	24
40	10116705	24
37	10116754	24
15	10116804	24
35	10116903	24
24	10117109	24
18	10117208	24
55	10117851	26
18	10119105	28
19	10119204	28
10	10124204	10
15	10124303	10
16	10125201	20
64	10147551	58
65	10147650	58
66	10147759	58
67	10147858	58
68	10147957	58
68	10148054	8
69	10148054	58
70	10148153	58
71	10148252	58
72	10148351	58
73	10148450	58
74	10148559	58
75	10148658	58
76	10148757	58
77	10148856	58
78	10148955	58
79	10149052	58
80	10149151	58
81	10149250	58
82	10149359	58
20	10152650	52
21	10152759	52
22	10152858	52
44	10152957	20
23	10152957	52
24	10153054	52
25	10153153	52
26	10153252	52
27	10153351	52
28	10153450	52
29	10153559	52
30	10153658	52
31	10153757	52
32	10153955	52
33	10154052	52
34	10154151	52
35	10154250	52
17	10161305	28
2	10162204	38
1	10162253	38
3	10162600	38
42	10168300	56
46	10168706	56
48	10168904	58
49	10169001	58
56	10170801	58
59	10171106	58
60	10171205	58
61	10171304	58
62	10171403	58
63	10171502	58
29	10208551	30
32	10208700	30
20	10209203	30
55	10209203	62
21	10209500	30
56	10209500	62
22	10209807	30
57	10209807	62
23	10209906	30
58	10209906	62
20-80	10210805	14
6	10211407	24
2	10211605	24
4	10216703	32
35	10237907	56
36	10238004	56
37	10238103	56
36	10238202	16
38	10238202	56
39	10238301	56
40	10238400	56
41	10238509	56
43	10238707	56
44	10238806	56
45	10238905	56
47	10239002	56
50	10239101	58
51	10239200	58
52	10239309	58
53	10239408	58
54	10239507	58
55	10239606	58
57	10239804	58
58	10239903	58
62	10315208	18
63	10315455	18
56	10315505	18
2	10602902	2
15	10604809	6
19	10611457	12
34	10623403	32
36	10697506	10
41	10697605	10
11	10741106	10
7	11006202	20
6	11006350	20
8	11007309	20
20	11018108	20
7	11024015	38
8	11024106	38
11	11024205	38

Page 67 — NUMERICAL INDEX OF PARTS

Juki LH-3128 parts on page 67
Ref	Part number	Qty
23	11024304	38
12	11045101	10
4	11047107	38
14	11072402	10
13	11072501	28
2	11072709	30
3	11076809	36
2	11076858	36
4	11076957	36
13	11093606	10
5	11102100	28
6	11102209	28
11	11102308	28
11	11110301	30
11	11110400	30
12	11110509	30
8	11110707	30
24	11394509	20
22	11956802	10
1	13167556	40
9	13167903	40
9	13168000	40
10	13168109	40
11	13168208	40
44	13765607	32
42	22600555	2
47	22600555	60
48	22600654	62
49	22600753	62
50	22600852	62
38	22601058	2
43	22601058	60
44	22601157	60
45	22601256	60
46	22601355	60
17-53	22602007	2
20	22602254	2
32	22602304	2
46	22602601	2
25	22603013	2
27	22603112	2
29	22603203	2
1	22603401	36
50	22603609	4
51	22603708	4
30	22603906	6
41	22604003	6
43	22604300	6
37	22604409	6
17	22604508	6
33	22604607	6
32	22604656	6
42	22604904	6
2	22605307	6
1	22605356	6
7	22605406	6
67	22606008	8
50	22606800	8
54	22607006	8
58	22607105	8
59	22607204	8
52	22607303	8
53	22607402	8
10	22608103	20
5	22608152	20
39-46	22608400	20
61	22608509	4
27	22609002	16
31	22609101	16
26	22609200	16
58	22609309	18
45	22609408	16
57	22609606	18
38	22609705	16
37	22609754	16
9	22609804	12
6	22610000	16
2	22610109	16
4	22610208	16
8	22610307	16
24	22610406	16
16-66	22610505	16
9	22610604	16
16-66	22610901	18
16	22611602	12
15	22611651	12
12	22611701	12
70	22611909	14
23	22612006	12
22	22612055	12
27	22612105	12
28	22612204	12
30	22612303	12
24	22612402	12
32	22612501	12
84	22612600	14
83	22612659	14
77	22612758	14
33	22612808	12
86	22612907	14
52	22613004	14
50	22613103	14
76	22613400	14
35	22613509	12
72	22613608	14
49	22613905	14
46	22614101	12
57	22615009	14
56	22615108	14
60	22615207	14
59	22615306	14
55-88	22615454	14
55-88	22615462	14
61	22615702	14
63	22615801	14
64	22615959	14
65	22616254	14
34-48	22617005	20
23	22617104	20
30	22617609	10
24	22617708	10
23	22617807	10
17	22617906	10
9	22618052	10
1~4	22618060	10
6	22618102	10
42	22618201	10
5	22618300	10
1~4	22618458	10
1~4	22618557	10
1~4	22618656	10
40	22618706	10
31	22618805	10
27	22618904	10
28	22619001	32

Page 68 — NUMERICAL INDEX OF PARTS

Juki LH-3128 parts on page 68
Ref	Part number	Part name	Qty
11.56	22619100
11	22619209
18	22619415
27	22619605
63-64	22619704
25	22619803
9	22620108
25	22620355
7	22620454
14	22620504
8	22620702
32	22620801
21	22620801
14	22620900
40	22621056
36	22621106
30	22621155
24	22622005
15	22622104
31	22622351
29	22622401
1	22623102
44	22623201
1	22625008
2	22625107
8	22625107
3	22625206
9	22625206
4	22625305
10	22625305
5	22625404
11	22625404
40	22625503
6	22625503
12	22625602
7	22625602
13	22625701
8	22625701
14	22625800
9	22625909
10	22626006
11	22626105
12	22626204
13	22626303
15	22626402
16	22626501
17	22626600
18	22626709
19	22626808
22	22627152
23	22627251
24	22627350
25	22627459
26	22627558
27	22627657
28	22627756
1	22628002
2	22628101
3	22628200
4	22628309
5	22628408
6	22628507
7	22628606
21	22630107
39	22630206
40	22630404
41	22630503
35	22630602
42	22630602
43	22630800
44	22630909
45	22631006
46	22631105
47	22631303
48	22631402
49	22631501
50	22631709
51	22631808
52	22631907
53	22632004
54	22632103
55	22632202
15	22634000
16	22634109
17	22634208
18	22634307
19	22634406
20	22634505
21	22634604
20	22635007
22	22635205
23	22635304
24	22635403
25	22635502
26	22635700
27	22635908
28	22636005
29	22636203
30	22636302
31	22636401
32	22636609
34	22636708
35	22636807
36	22636906
37	22637003
38	22637102
1	22637557
2	22637656
3	22637755
4	22637854
5	22637953
6	22638050
7	22638258
8	22638357
9	22638456
10	22638555
11	22638753
12	22638852
13	22638951
14	22639157
15	22639256
16	22639355
18	22639553
19	22639652
37	22640353
38	22640452
39	22640551
40	22640759
41	22640858
42	22640957
43	22641054
44	22641252

Page 69 — NUMERICAL INDEX OF PARTS

Juki LH-3128 parts on page 69
Ref	Part number	Part name	Qty
45	22641351
46	22641450
47	22641658
48	22641757
49	22641856
50	22641955
51	22642052
52	22642151
29	22647051
30	22647150
31	22647259
32	22647358
33	22647457
34	22647556
45	22650055
43	22650352
39	22650352
40	22650451
41	22650550
42	22650659
39	22650857
35	22650857
36	22650956
37	22651053
38	22651152
54	22651202
49	22651459
21	22651509
20	22651558
19	22651566
45	22651608
68	22651905
28	22652002
10	22652101
14	22653059
78	22653158
53	22653505
51	22653604
14	22653802
26	22654008
24	22654107
24	22654206
24	22654255
26	22654305
24	22654404
48	22654503
47	22654552
49	22654602
14	22654800
25	22654909
22	22654958
60	22655005
22	22655104
20	22655153
11	22655302
10	22655401
41	22656003
33	22656102
32	22656201
28	22656300
27	22656409
4	22656508
1-2	22656557
12-14	22656807
12-14	22656904
1-2	22656953
28	22657050
18	22657100
1	22657159
6	22657209
9	22657308
11-56	22657803
1	22660104
2	22660203
3	22660302
4	22660401
5	22660500
41	22660609
6	22660609
7	22660708
8	22660807
9	22660906
10	22661003
11	22661102
12	22661201
13	22661300
14	22661409
15	22661508
16	22661607
17	22661706
18	22665004
19	22665103
20	22665202
21	22665301
22	22665400
23	22665509
24	22665707
25	22665806
26	22665905
27	22666002
28	22666200
29	22666309
30	22666408
31	22666606
32	22666705
33	22666804
34	22666903
40	22671101
16	22671853
17	22671952
18	22672059
19	22672158
20	22672257
21	22672356
22	22672455
23	22672554
24	22672653
25	22672752
26	22672851
27	22672950
28	22673057
29	22673156
30	22673255
31	22673354
32	22673453
2	22673552
3	22673651
4	22673750
1	22673859
5	22673958
6	22674055
7	22674154
8	22674253
9	22674352
10	22674451

Page 70

Juki LH-3128 parts on page 70
Ref	Part number	Part name	Qty
11	22674550
12	22674659
13	22674758
14	22674857
15	22674956
38	22675557
36	22675656
33	22675706
42	22675805
41	22675854
35	22675904
11	22680656
85	22688501
60	22811558
17-53	22818009
34	22901805
52	22904155
43	22907109
36	22907505
37	22907604
38	22907703
1	22907802
4	22908552
15	22908800
13	22908909
18	22911804
21	22911903
20	22912000
19	22912109
19	22920201
23	22920706
1	22924708
25	22927305
11	22927354
26	22927404
27	22927602
20	22928105
35	22928303
34	22928402
12	22928501
24	22928709
32	22928808
42	22928907
31	22929004
12	22930309
7	22930309
6	22930408
5	22930408
3	22930507
2	22930507
2	22930556
20	22930556
4	22930705
3	22930705
16	22930804
11	22930804
15	22930903
10	22930903
14	22931000
9	22931000
13	22931109
8	22931109
7	22931307
6	22931307
5	22931406
4	22931406
10	22932453
20	22934202
16	22934251
21	22934301
19	22934400
17	22934509
18	22934608
28	22937965
22	22940506
8	22951552
37	22952501
14	22957104
5	23203706
6	23203805
47	23204258
10	23204308
63-65	23204506
63-65	23204605
63-65	23204704
18	23204803
61	23630007
61	23630007
40	26226209
39	26226407
1	26910158
7	40009196
26	40012461
23	40012577
41	40017058
62	40021415
34-48-49	40030133
11	40034204
34-48-49	40039672
31	B1104051000
14	B1202512000
52	B1214038000
59	B1414512000
51	B1438512B00
40	B1501581000
39-46	B1505227T00A
46	B1515051000
2	B1521555000
48	B1603512000
43	B1604012000A
33	B1610512000
56	B1613512D0H
57	B1613512E0H
58	B1613512F0H
59	B1613512G0H
60	B1613512H0H
61	B1613512K0H
62	B1613512L0H
63	B1613512M0H
64	B1613512N0H
65	B1613512P0H
66	B1613512Q0H
67	B1613512R0H
68	B1613512S0H
69	B1613512T0H
70	B1633470000
32	B1636581B00
67	B1653470000
3	B18025120A0A
51	B18025120A0A
52	B1802512AB
11	B18035150A0
53	B18035150A0
5	B1816512000

Page 71 — NUMERICAL INDEX OF PARTS

Juki LH-3128 parts on page 71
Ref	Part number	Part name
39	B1820051000	D2113555B00
41	B1821051000	D2427555B00B
42	B1822051000	D2428555B00A
45	B1823051000	D2430555B00
36	B1834512000A	D2464555B00
31	B1850512000	D3129555D00
30	B1851512000	D3159555B00
59	B3041980000	D3163555B00A
21	B3112704000	D3164555B00
20	B311322000	D3171415B0H
39	B3121352000	EA9500B0100
16	B3126012000	EA9500B0100
38	B3129012A00	EA9500B0100
32	B31375270A0	HA000590000
29	B3138527000	HA001900000
33	B3139527000	HK034610020
25	B3141527000	HK034610100
34	B3142527000	HK034610140
35	B3143527000	HK034620020
54	B3417051000	HK034630000
17	B3418180000	HK03464000B
17	B3517009000	HK03464000B
53	B352452000	HK03464000B
55	B3534012000	HK03464000B
51	B353415000	HW100470990
56	B3538112000	HW20039000
45	B3538112000	HW500070000
45	B8233555000	HW500070000
20-80	B9117051000	HW500140000
65	BT0400201EB	M4002110000
53	BT0500300EA	M40071100AA
44	BT0600401EB	M40071100AB
59	CM300200101	M6043350AAA
38	CM3002001A1	MDP500B1400
12	CQ202000000	NM6040002SE
44	CQ202000000	NM6050001SE
6	CQ252000000	NM6050001SE
18	CQ252000000	NM6050001SE
6	CQ505000000	NM6050001SP
24	CS070081BSH	NM6050001SP
16	CS102121ASH	NM6060001SB
24	CS1470710SH	NM6060001SE
14	CS1471012SH	NM6160511SE
2	D2112555B00	NS6080210SP
4	D2112555B00	NS6090310SP
66	NS6090310SP	D2113555B00
42	NS6110310SN	D2427555B00B
41	NS6110310SP	D2428555B00A
39	NS6110310SP	D2430555B00
22	NS6110310SP	D2464555B00
19	NS6110420SP	D3129555D00
26	NS6110420SP	D3159555B00
30	NS6120310SP	D3163555B00A
28	NS6150430SP	D3164555B00
62	NS6620310SP	D3171415B0H
65	NS680320SP	EA9500B0100
58	NS6700420SP	EA9500B0100
67	PF0552040A0	EA9500B0100
15	PJ020500001	HA000590000
10	PJ01040502	HA001900000
61	PJ01060503	HK034610020
52	PJ01065201	HK034610100
57	PJ08040002	HK034610140
62	PJ09005203	HK034620020
64	PS0300201KP	HK034630000
35	PS0600502KP	HK03464000B
24	PV130523000	HK03464000B
63	RE0320000K0	HK03464000B
54	RE0400000K0	HW100470990
16	RE0500000K0	HW20039000
9	RE0500000K0	HW500070000
17	RE0500711KP	HW500070000
55	RE0900000K0	HW500140000
9	RE1000000K0	M4002110000
3	RO037180100	M40071100AA
24	RO092270200	M40071100AB
6	RO098240100	M6043350AAA
2	RO195240100	MDP500B1400
35	RO437200200	NM6040002SE
34	SB120000200	NM6050001SE
7	SD0470281SP	NM6050001SE
37	SD0490261SP	NM6050001SP
27	SD0500301SP	NM6050001SP
19	SD0600271SP	NM6060001SB
17	SD0600322SD	NM6060001SE
34	SD0640321SP	NM6160511SE
52	SD0650305TP	NS6080210SP
5	SD0650321TP	NS6090310SP
14	SD0720332SP	NM6160511SE

Page 72 — NUMERICAL INDEX OF PARTS

Juki LH-3128 parts on page 72
Ref	Part number	Part name
5	SD0800422CP	SS411081SS
56	SD0870601SP	SS411081SS
61	SD0900701TP	SS411081SS
9	SK3412000SC	SS411081SS
44	SK3482500SC	SS4111015SP
69	SK3482500SC	SS4111015SP
58	SL4030891SC	SS4111215SP
4	SL4030891SC	SS4111215SP
5	SM0081001SD	SS4111215SP
8	SM4031501SC	SS4111815SP
56	SM4032001SC	SS4120615SP
3	SM4040655SP	SS4120615SP
20	SM4041001SC	SS4120615SP
22	SM4041201SC	SS4120615SP
23	SM4042001SC	SS4121015SP
18	SM4051405SE	SS4150915SP
13	SM4051405SE	SS4153015SP
57	SM4061001SB	SS5090610SP
17	SM6061610SC	SS5090610SP
12	SM6061610SC	SS5090610SP
69	SM6082502TP	SS6090630TP
7	SM8040802SP	SS6090670TP
44	SM8050502TP	SS6090810SP
13	SM8063012TR	SS6111052TP
22	SM9061203SE	SS611140SP
14	SM9061853SR	SS6111210SP
63-64	SQ1110401MZ	SS6111610SP
63-64	SQ1110401MZ	SS6120940SP
39	SQ1150451MZ	SS6121212TP
1	SS2080810SP	SS6121610TP
35	SS2090710TP	SS6121610TP
37	SS2091210SP	SS6121610TP
27	SS2110920TP	SS6121610TP
29	SS2110920TP	SS6121610TP
33	SS2110930SP	SS6121840SP
19	SS3090520SP	SS6121860SP
70	SS3090610SP	SS6151040SP
66	SS4091520SP	SS6151220SP
47	SS4110515SP	SS6152440SP
33	SS4110515SP	SS6153040SP
37	SS4110515SP	SS6580752TP
24	SS4110615SP	SS6661110SP
29	SS4110615SP	SS6661110SP
20	SS4110715SP	SS7081310SP
32	SS4110715SP	SS7090510SP
16	SS411081SS	SS7090710SP
14	SS411081SS	SS7090910SP
22	SS411081SS	SS7090910SP
36	SS411081SS	SS7090910TP
18	SS4111015SP	SS7110350SP
28	SS4111015SP	SS7110510SP
20	SS4111215SP	SS7110710SP
32	SS4111215SP	SS7110710SP
36	SS4111215SP	SS7110710SP
32	SS4111815SP	SS7110840SP
2	SS4120615SP	SS7110910SP
10	SS4120615SP	SS7111310TP
28	SS4120615SP	SS7111810SP
30	SS4120615SP	SS7120760SP
2	SS4121015SP	SS7120760SP
2	SS4150915SP	SS7120760SP
28	SS4153015SP	SS7120910SP
4	SS5090610SP	SS7121410TP
24	SS5090610SP	SS7151610SP
44	SS5090610SP	SS7151610SP
18	SS6081810SP	SS7681750TP
2	SS6090630TP	SS8080610SP
16	SS6090670TP	SS8080660TP
14	SS6090810SP	SS8110410TP
24	SS6111052TP	SS8110510SP
2	SS611140SP	SS8110510SP
6	SS6111210SP	SS8111010TP
32	SS6111610SP	SS8120740SP
26	SS6120940SP	SS8151150SP
24	SS6121212TP	SS8151150SP
8	SS6121610TP	SS8151150SP
18	SS6121610TP	SS8151150SP
24	SS6121610TP	SS8151550SP
26	SS6121610TP	SS8660530TP
36	SS6121610TP	SS8660530TP
28	SS6121840SP	SS8660530TP
16	SS6121860SP	SS8660610TP
26	SS6151040SP	SS8660810TP
24	SS6151220SP	SS8660810TP
8	SS6152440SP	SS8660810TP
12	SS6153040SP	SS8661030SP
16	SS6580752TP	SS8680540SP
6	SS6661110SP	SS8681650TP
16	SS6661110SP	SS8681650TP

Page 73 — NUMERICAL INDEX OF PARTS

Juki LH-3128 parts on page 73
Ref	Part number	Part name
19	SS8701782TP	SS8701782TP
8	SS9080410SP	SS9080410SP
33	SS9110460CP	SS9110460CP
50	SS9111010SP	SS9111010SP
21	SS9111010SP	SS9111010SP
30	SS9111010SP	SS9111010SP
40	SS9151440GP	SS9151440GP
67	TA0500601M0	TA0500601M0
12	TA0750404R0	TA0750404R0
15	TA0750704R0	TA0750704R0
47	TA1250406R0	TA1250406R0
47	TA1250406R0	TA1250406R0
34	WP0371016SD	WP0371016SD
19	WP0371016SD	WP0371016SD
27	WP0450801SD	WP0450801SD
39	WP0480856SP	WP0480856SP
43	WP0501016SC	WP0501016SC
38	WP0501016SD	WP0501016SD
64	WP0501016SD	WP0501016SD
20	WP0501016SD	WP0501016SD
8	WP0501016SD	WP0501016SD
31	WP0612056SD	WP0612056SD
41	WP0621016SD	WP0621016SD
26	WP0621016SD	WP0621016SD
36	WP0753016SZ	WP0753016SZ
68	WP0850002SP	WP0850002SP
25	WP1612616SE	WP1612616SE
15	WP1612616SE	WP1612616SE
7	WS0451040KP	WS0451040KP
29	WS0510002KN	WS0510002KN
19	WS0510002KN	WS0510002KN
30	WS0610002KP	WS0610002KP
25	WS0631510KP	WS0631510KP
26	WS1643202KR	WS1643202KR
16	WS1643202KR	WS1643202KR
10	WT0530002KS	WT0530002KS

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS

Page 8 — MAIN SHAFT, THREAD TAKE-UP & NEEDLE BAR COMPONENTS

Page 10 — MAIN SHAFT, THREAD TAKE-UP & NEEDLE BAR COMPONENTS

Page 12 — TENSION POST COMPONENTS

Page 14 — HOOK & HOOK DRIVING SHAFT COMPONENTS

Page 16 — HOOK & HOOK DRIVING SHAFT COMPONENTS

Page 18 — FEED MECHANISM COMPONENTS

Page 20 — FEED MECHANISM COMPONENTS

Page 22 — PRESSER BAR & TENSION RELEASE COMPONENTS

Page 24 — PRESSER BAR & TENSION RELEASE COMPONENTS

Page 26 — THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3128-7)

Page 28 — THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3128-7)

Page 30 — AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3128-7)

Page 32 — WIPER MECHANISM COMPONENTS (FOR LH-3128-7)

Page 34 — LUBRICATION COMPONENTS

Page 36 — LUBRICATION COMPONENTS

Page 38 — BELT COVER & BOBBIN WINDER COMPONENTS

Page 40 — OIL RESERVOI & KNEE LIFTER COMPONENTS

Page 42 — THREAD STAND COMPONENTS (1) (FOR USE IN JAPAN)

Page 44 — THREAD STAND COMPONENTS (2) (EXCEPT USE IN JAPAN)

Page 46 — LH-3128-7 EXCLUSIVE PARTS FOR BOBBIN THREAD CLAMPLESS TYPE

Page 48 — LH-3128-7 EXCLUSIVE PARTS FOR BOBBIN THREAD CLAMPLESS TYPE

Page 49 — TABLE OF EXCHANGING GAUGE PARTS (1)

Page 50 — TABLE OF EXCHANGING GAUGE PARTS (1)

Page 51 — TABLE OF EXCHANGING GAUGE PARTS (1)

Page 52 — TABLE OF EXCHANGING GAUGE PARTS (1)

Page 53 — TABLE OF EXCHANGING GAUGE PARTS (2)

Page 54 — TABLE OF EXCHANGING GAUGE PARTS (2)

Page 55 — TABLE OF EXCHANGING GAUGE PARTS (2)

Page 56 — TABLE OF EXCHANGING GAUGE PARTS (2)

Page 57 — TABLE OF EXCHANGING GAUGE PARTS (3)

Page 58 — TABLE OF EXCHANGING GAUGE PARTS (3)

Page 59 — TABLE OF EXCHANGING GAUGE PARTS (3)

Page 60 — TABLE OF EXCHANGING GAUGE PARTS (3)

Page 61 — TABLE OF EXCHANGING GAUGE PARTS (4)

Page 62 — TABLE OF EXCHANGING GAUGE PARTS (4)

Page 63 — TABLE OF EXCHANGING GAUGE PARTS (4)

Page 64 — TABLE OF EXCHANGING GAUGE PARTS (4)

Page 65 — LIST FOR INFORMATION OF CHANGE

Page 66 — NUMERICAL INDEX OF PARTS

Page 67 — NUMERICAL INDEX OF PARTS

Page 68 — NUMERICAL INDEX OF PARTS

Page 69 — NUMERICAL INDEX OF PARTS

Page 70

Page 71 — NUMERICAL INDEX OF PARTS

Page 72 — NUMERICAL INDEX OF PARTS

Page 73 — NUMERICAL INDEX OF PARTS

Juki LH-3128 — parts catalog
