Juki LH-3168 (36 pages) — Part Book

Juki LH-3168 (36 pages) — parts catalog

Page 16 (diagram): This page displays a diagram of presser bar and tension release components, with numbered parts and their corresponding references.
Page 17 (parts_list): This page lists parts for LH-3168 and LH-3168-7, including hand lifters, screws, rings, levers, and various plates and holders, with quantities and some Japanese descriptions.
Page 18 (diagram): This page displays a diagram of the thread trimmer mechanism components for the LH-3168-7 model, with numbered parts for identification.
Page 19 (parts_list): This page lists parts for a sewing machine, including screws, plates, shafts, and various assemblies, with their corresponding part numbers, descriptions, and quantities.
Page 20 (diagram): This page displays a diagram of the automatic reverse feed mechanism components for the LH-3168-7 model, with numbered parts indicated.
Page 21 (parts_list): This page lists parts for a sewing machine, including various screws, switches, washers, and links, with their corresponding part numbers and descriptions.
Page 22 (diagram): This page displays a diagram of wiper mechanism components for the LH-3168-7 model, with numbered parts indicated.
Page 23 (parts_list): This page lists parts for a Viper sewing machine, including various screws, washers, links, and solenoids, with their corresponding part numbers and quantities.
Page 24 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with numbered parts and their corresponding references.
Page 25 (parts_list): This page lists parts for a sewing machine, including part numbers, descriptions, and quantities. It contains items from reference number 1 to 60.
Page 26 (diagram): This page displays a diagram of the oil reservoir and knee lifter components, along with a parts list detailing part numbers, descriptions, and quantities.
Page 27 (parts_list): This page lists parts for Belt Cover & Bobbin Winder Components, including part numbers, descriptions, and quantities.
Page 28 (parts_list): This page lists components for the thread stand, including part numbers, descriptions, and quantities.
Page 29 (diagram): This page displays a diagram and parts list for motor pulley components, including clutch motors, motor pulleys of various diameters, and V-belts, with notes indicating their applicability to specific LH-3168 models.
Page 30 (parts_list): This page contains a table listing parts for sewing machines, including needle gauge sizes, throat plates, feed dogs, and presser feet, along with their corresponding part numbers and specifications.

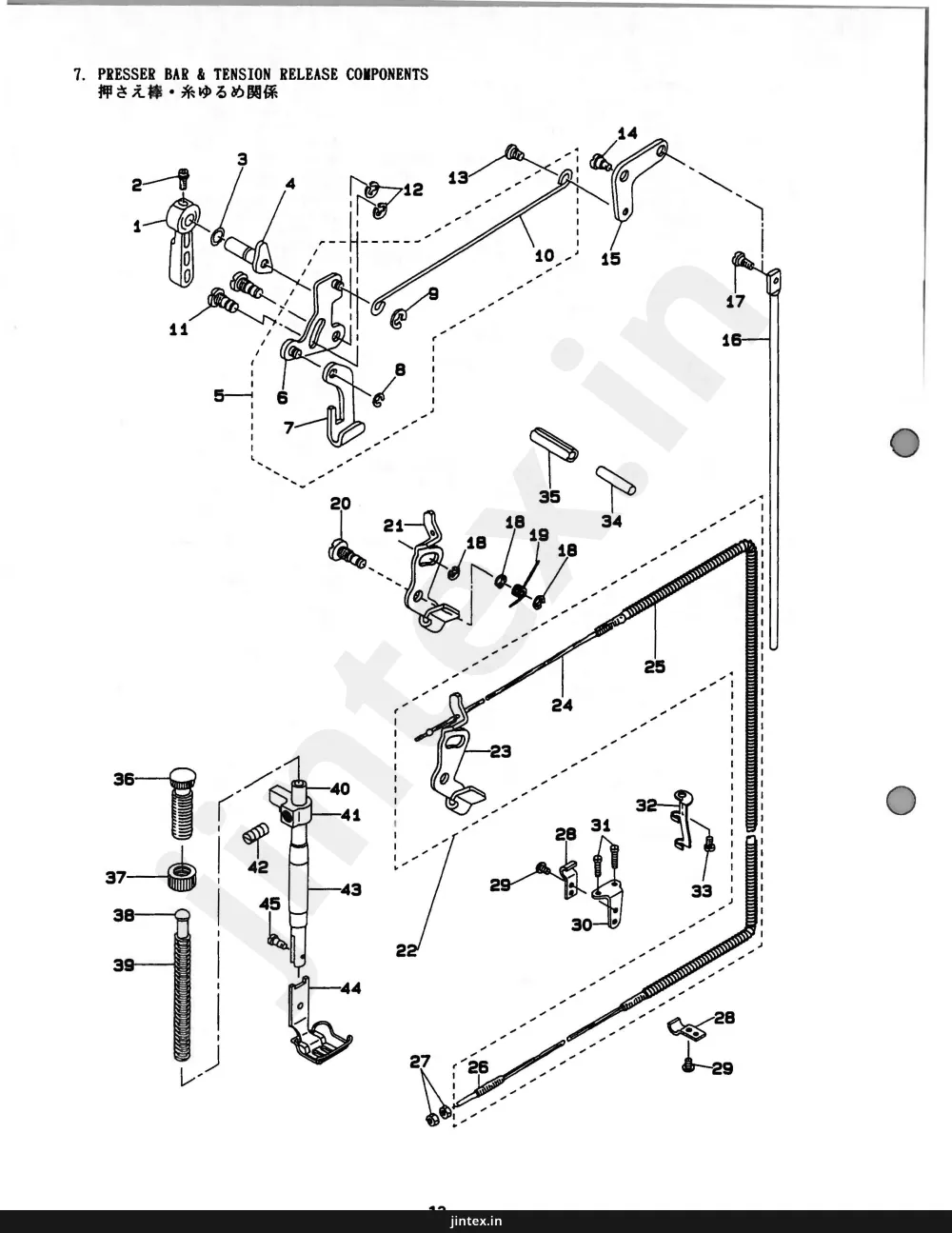

Page 16 — 7. PRESSER BAR & TENSION RELEASE COMPONENTS

Juki LH-3168 (36 pages) parts on page 16
Ref	Part number	Part name	Qty
	1	PRESSER BAR & TENSION RELEASE COMPONENTS
	2	押さえ棒・糸ゆるめ関係
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45

7. PRESSER BAR & TENSION RELEASE COMPONENTS 押さえ棒・糸ゆるめ関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17

Juki LH-3168 (36 pages) parts on page 17
Part number	Part name	Qty
110-71800	HAND LIFTER	1
B1521-055-000	SCREW	1
R0-0371801-00	RUBBER RING	1
110-06756	HAND LIFTER CAM ASM.	1
226-08152	LIFTING LEVER ROD ASM.	1
110-06350	HAND LIFTER LINK	(1)
110-06202	LIFTING LEVER	(1)
110-07309	LIFTING LEVER RING	(1)
RE-0500000-KO	E-RING	(1)
226-08103	LIFTING LEVER CONNECTING ROD	(1)
110-06509	LINK SHAFT	2
RE-0500000-KO	E-RING	2
110-07101	HINGE SCREW	1
SD-0720332-SP	HINGE SCREW D= 7.24 H= 3.3	1
110-07002	LIFTING LEVER LINK	1
101-25201	CONNECTING ROD, VERTICAL	1
SD-0600322-SD	HINGE SCREW D=6 H=3.2	3
RE-0500000-KO	E-RING	1
110-18207	TENSION RELEASE RETURN SPRING	1
110-18108	TENSION RELEASE SHAFT	1
226-17104	TENSION RELEASE PLATE	1
226-54909	TENSION RELEASE PLATE ASM.	(1)
226-17104	TENSION RELEASE PLATE	(1)
113-94509	WIRE CABLE	(1)
226-54909	WIRE TUBE	(1)
D3159-555-BOO	SET SCREW	(1)
NS-6620310-SP	NUT 3/16-32	2
D3164-555-BOO	OUTER PRESSER PLATE	2
SS-4110715-SP	SCREW 11/64-40 L=7	2
D3163-555-BOO-A	FLEXIBLE TUBE SUPPORT PLATE	1
SS-4111215-SP	SCREW 11/64-40 L=12	2
113-06206	WIRE CABLE HOLDER	1
SS-4110715-SP	SCREW 11/64-40 L=7	1
226-17005	PUSH BAR	1
PS-0600502-KP	SPRING PIN	1
110-71602	PRESSER SPRING REGULATOR	1
110-71701	NUT	1
B1510-227-000	PRESSER GUIDE BAR	1
B1505-227-000-A	PRESSER SPRING T	1
B1501-581-000	PRESSER BAR	1
226-08004	NEEDLE BAR GUIDE BRACKET	1
SS-8660810-TP	SCREW 1/4-40 L=8	1
B1502-541-000	PRESSER BAR BUSHING, LOWER	1
101-52957	PRESSER FOOT ASM. 1/4"	1
SS-7090910-TP	SCREW 9/64-40 L= 8.5	1

REF. NO NOTE PART NO. D E S C R I P T I O N ヒンメイ Qty 1 110-71800 HAND LIFTER オテエアゲレバー 1 2 B1521-055-000 SCREW オテエアゲレバートメネジ 1 3 R0-0371801-00 RUBBER RING 0リング 1 4 110-06756 HAND LIFTER CAM ASM. オテエアゲカムクミ 1 5 226-08152 LIFTING LEVER ROD ASM. ヒラアゲヨコホク(クミ) 1 6 110-06350 HAND LIFTER LINK ヒラアゲリンククミ (1) 7 110-06202 LIFTING LEVER ヒラアゲイタ (1) 8 110-07309 LIFTING LEVER RING ヒラアゲイタ E リング (1) 9 RE-0500000-KO E-RING Eかタトメワ 5 (1) 10 226-08103 LIFTING LEVER CONNECTING ROD ヒラアゲヨコホク (1) 11 110-06509 LINK SHAFT ヒラアゲリンクシツク 2 12 RE-0500000-KO E-RING Eかタトメワ 5 2 13 110-07101 HINGE SCREW ヒラアゲヨコウネシ 1 14 SD-0720332-SP HINGE SCREW D= 7.24 H= 3.3 タツンネジ D= 7.24 H= 3.3 1 15 110-07002 LIFTING LEVER LINK ヒラアゲリンク 1 16 101-25201 CONNECTING ROD, VERTICAL ヒラアゲヨコホク 1 17 SD-0600322-SD HINGE SCREW D=6 H=3.2 タツンネジ D=6 H=3.2 3 18 RE-0500000-KO E-RING Eかタトメワ 5 1 19 110-18207 TENSION RELEASE RETURN SPRING イトユルメイタシバネ 1 20 110-18108 TENSION RELEASE SHAFT イトユルメイタジツク 1 21 #01 226-17104 TENSION RELEASE PLATE サラユルメイタ 1 22 #02 226-54909 TENSION RELEASE PLATE ASM. サラユルメイタ(クミ) (1) 23 226-17104 TENSION RELEASE PLATE サラユルメイタ (1) 24 113-94509 WIRE CABLE ワイヤーケーブル (ケツコウ) (1) 25 226-54909 WIRE TUBE ワイヤーチューブ (1) 26 D3159-555-BOO SET SCREW ワイヤーセツトネジ (1) 27 #02 NS-6620310-SP NUT 3/16-32 ロツカクナツト 3/16-32 2 28 #02 D3164-555-BOO OUTER PRESSER PLATE アウターオサエ 2 29 #02 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 2 30 #02 D3163-555-BOO-A FLEXIBLE TUBE SUPPORT PLATE フレキシブルトリツケダイ 1 31 #02 SS-4111215-SP SCREW 11/64-40 L=12 ナベネジ 11/64-40 L=12 2 32 #02 113-06206 WIRE CABLE HOLDER ワイヤーケーブルアテ 1 33 #02 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 1 34 226-17005 PUSH BAR オシホウバ 1 35 PS-0600502-KP SPRING PIN スプリングピン 1 36 110-71602 PRESSER SPRING REGULATOR オサエチョウセツネジ 1 37 110-71701 NUT オサエチョウセツネジナツト 1 38 B1510-227-000 PRESSER GUIDE BAR オサエアンナイボー 1 39 B1505-227-000-A PRESSER SPRING T オサエチョーセツバネ 1 40 B1501-581-000 PRESSER BAR オサエボー 1 41 226-08004 NEEDLE BAR GUIDE BRACKET ハリボートウキ 1 42 SS-8660810-TP SCREW 1/4-40 L=8 トメネジ 1/4-40 L=8 1 43 B1502-541-000 PRESSER BAR BUSHING, LOWER オサエボーシタメツル 1 44 #03 101-52957 PRESSER FOOT ASM. 1/4" オサエ (2.0) 1/4 クミ 1 45 SS-7090910-TP SCREW 9/64-40 L= 8.5 マルヒラネジ 9/64-40 L=8.5 1 Note ( 注記 )#01...FOR LH-3168 LH-3168 用 #02...FOR LH-3168-7 LH-3168-7 用 #03...EXCHANGING GAUGE PART 交換ゲージ部品 (SEE P.27, 28) ( 27, 28ページご参照下さい。) From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18 — 8. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3168-7)

Juki LH-3168 (36 pages) parts on page 18
Ref	Part number	Part name
1	1	SCREW
2	2	SPRING
3	3	SHAFT
4	4	BRACKET
5	5	SPRING
6	6	SPRING
7	7	PIN
8	8	SCREW
9	9	SCREW
10	10	BRACKET
11	11	SCREW
12	12	SCREW
13	13	SCREW
14	14	BRACKET
15	15	SHAFT
16	16	SCREW
17	17	SPRING
18	18	BRACKET
19	19	SCREW
20	20	BRACKET
21	21	SPRING
22	22	BRACKET
23	23	SPRING
24	24	SCREW
25	25	BRACKET
26	26	BRACKET
27	27	SPRING
28	28	SCREW
29	29	BRACKET
30	30	SCREW
31	31	SHAFT
32	32	SPRING
33	33	BRACKET
34	34	SCREW
35	35	SPRING
36	36	SPRING
37	37	SHAFT
38	38	SPRING
39	39	SPRING
40	40	SPRING
41	41	SPRING
42	42	SPRING
43	43	NUT
44	44	BRACKET
45	45	SCREW
46	46	SPRING
47	47	BRACKET
48	48	BRACKET
49	49	BRACKET
50	50	SPRING
51	51	SPRING
52	52	SCREW
53	53	SHAFT
54	54	SCREW
55	55	BRACKET
56	56	CONNECTOR
57	57	CONNECTOR
58	58	SCREW
59	59	SPRING
60	60	SHAFT
61	61	BRACKET
62	62	SPRING
63	63	SPRING
64	64	NUT
65	65	WIRE

8. THREAD TRIMMER MECHANISM COMPONENTS (FOR LH-3168-7) 糸切り装置関係 (LH-3168-7 用) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19

Juki LH-3168 (36 pages) parts on page 19
Part number	Part name	Qty
SS-2080810-SP	SCREW 1/8-44 L=7.5	4
102-11605	MOVING KNIFE	2
101-16051	MOVING KNIFE SHAFT ASM.	2
226-54255	MOVING KNIFE SUPPORT ASM.	2
226-54206	MOVING KNIFE SUPPORT PLATE	(2)
102-11407	THREAD PRESSER ADJUSTING PLATE	(2)
SS-8080610-SP	SCREW 1/8-44 L=5.5	(2)
SS-9080410-SP	SCREW 1/8-44 L=4.3	(2)
SS-5090610-SP	SCREW 9/64-40 L=6	4
226-55401	THREAD PRESSER	2
226-55302	COUNTER KNIFE	(2)
SS-7090710-SP	SCREW 9/64-40 L=6.8	(2)
SS-6121212-TP	SCREW 3/16-28 L=12.0	1
226-54800	GUIDE PLATE	1
101-16804	SHAFT	1
SS-7151610-SP	SCREW 15/64-28 L=16	2
B3418-180-000	SPRING	1
101-17208	TENSION DISC RELEASE PLATE	1
SD-0600271-SP	SCREW D= 6 H= 2.7	1
226-55153	HINGE INSTALLING BASE ASM.	(1)
SS-8111010-TP	SCREW 11/64-40 L=9.5	(1)
226-55104	TENSION DISC RELEASE ARM	(1)
101-16606	LINK INSTALLING BASE	(1)
101-17109	BUSHING	(1)
PS-0300201-KP	SPRING PIN 3.0X20	(1)
226-54701	STOPPER PLATE	1
SS-2110920-SP	SCREW 11/64-40 L=8.5	1
SS-2110930-SP	SCREW 11/64-40 L=8.7	1
CS-1470710-SH	THRUST COLLAR ASM. D=14.72 W=7	(2)
SS-8110410-TP	SCREW 11/64-40 L=3.5	1
226-54107	THREAD TRIMMER CAM	2
SS-8660810-TP	SCREW 1/4-40 L=8	2
CS-070081B-SH	THRUST COLLAR ASM. D=7 W=8	2
SS-8110510-SP	SCREW 11/64-40 L=5	1
101-16903	SPRING	1
B1853-512-000C	HOOK SHAFT WASHER, C	1
101-16754	CAM INSTALLING LINK ASM.	1
SS-612220-SP	SCREW 15/64-28 L=11.5	(1)
D2430-555-B00	SNAP RING	(1)
101-16705	CAM INSTALLING LINK	(1)
D2428-555-B00-A	CAM ROLLER	(1)
D2427-555-B00	CAM ROLLER	(1)
NM-6050001-SP	NUT M5	2
226-54404	DRIVING ARM, LEFT	1
SS-6121610-TP	SCREW 3/16-28 L=15.5	1
B1515-051-000	HAND LIFTER PIN	2
226-54504	CONNECTING LINK ASM.	1
226-54503	CONNECTING LINK, A	(1)
226-54602	CONNECTING LINK, B	(1)
SS-9111010-SP	SCREW 11/64-40 L=9.5	(2)
VP-0501016-SD	WASHER 5X10.5X1	(2)
SD-0650305-TP	SCREW D=6.5 H= 3	(2)
226-54305	SPRING	1
SS-6121610-TP	SCREW 3/16-28 L=15.5	1
101-17851	SOLENOID ASM.	1
HK-0346400-OB	PIN CONTACT	2
HK-0346101-40	HOUSING 14P	1
SS-6151040-SP	SCREW 15/64-28 L=10	2
B3041-980-000	SPRING	1
226-55005	JOINT ROD	1
226-54008	DRIVING ARM PLATE	1
B3417-051-000	REAR LIFTING BAR ROLLER	1
SS-6120940-SP	SCREW 3/16-28 L=9	1
WP-0501016-SD	WASHER 5X10.5X1	1
EA-9500B01-00	CABLE BAND	2

REF.NO NOTE PART NO. DESCRIPTION HIN MEI Qty -------------------------------------------------------------------------------- 1 SS-2080810-SP SCREW 1/8-44 L=7.5 4 2 102-11605 MOVING KNIFE 2 3 101-16051 MOVING KNIFE SHAFT ASM. 2 4 226-54255 MOVING KNIFE SUPPORT ASM. 2 5 226-54206 MOVING KNIFE SUPPORT PLATE (2) 6 102-11407 THREAD PRESSER ADJUSTING PLATE (2) 7 SS-8080610-SP SCREW 1/8-44 L=5.5 (2) 8 SS-9080410-SP SCREW 1/8-44 L=4.3 (2) 9 SS-5090610-SP SCREW 9/64-40 L=6 4 10 226-55401 THREAD PRESSER 2 11 226-55302 COUNTER KNIFE (2) 12 SS-7090710-SP SCREW 9/64-40 L=6.8 (2) 13 SS-6121212-TP SCREW 3/16-28 L=12.0 1 14 226-54800 GUIDE PLATE 1 15 101-16804 SHAFT 1 16 SS-7151610-SP SCREW 15/64-28 L=16 2 17 B3418-180-000 SPRING 1 18 101-17208 TENSION DISC RELEASE PLATE 1 19 SD-0600271-SP SCREW D= 6 H= 2.7 1 20 226-55153 HINGE INSTALLING BASE ASM. (1) 21 SS-8111010-TP SCREW 11/64-40 L=9.5 (1) 22 226-55104 TENSION DISC RELEASE ARM (1) 23 101-16606 LINK INSTALLING BASE (1) 24 101-17109 BUSHING (1) 25 PS-0300201-KP SPRING PIN 3.0X20 (1) 26 226-54701 STOPPER PLATE 1 27 SS-2110920-SP SCREW 11/64-40 L=8.5 1 28 SS-2110930-SP SCREW 11/64-40 L=8.7 1 29 CS-1470710-SH THRUST COLLAR ASM. D=14.72 W=7 (2) 30 SS-8110410-TP SCREW 11/64-40 L=3.5 1 31 226-54107 THREAD TRIMMER CAM 2 32 SS-8660810-TP SCREW 1/4-40 L=8 2 33 CS-070081B-SH THRUST COLLAR ASM. D=7 W=8 2 34 SS-8110510-SP SCREW 11/64-40 L=5 1 35 101-16903 SPRING 1 36 B1853-512-000C HOOK SHAFT WASHER, C 1 37 101-16754 CAM INSTALLING LINK ASM. 1 38 SS-612220-SP SCREW 15/64-28 L=11.5 (1) 39 D2430-555-B00 SNAP RING (1) 40 101-16705 CAM INSTALLING LINK (1) 41 D2428-555-B00-A CAM ROLLER (1) 42 D2427-555-B00 CAM ROLLER (1) 43 NM-6050001-SP NUT M5 2 44 226-54404 DRIVING ARM, LEFT 1 45 SS-6121610-TP SCREW 3/16-28 L=15.5 1 46 B1515-051-000 HAND LIFTER PIN 2 47 226-54504 CONNECTING LINK ASM. 1 48 226-54503 CONNECTING LINK, A (1) 49 226-54602 CONNECTING LINK, B (1) 50 SS-9111010-SP SCREW 11/64-40 L=9.5 (2) 51 VP-0501016-SD WASHER 5X10.5X1 (2) 52 SD-0650305-TP SCREW D=6.5 H= 3 (2) 53 226-54305 SPRING 1 54 SS-6121610-TP SCREW 3/16-28 L=15.5 1 55 101-17851 SOLENOID ASM. 1 56 HK-0346400-OB PIN CONTACT 2 57 HK-0346101-40 HOUSING 14P 1 58 SS-6151040-SP SCREW 15/64-28 L=10 2 59 B3041-980-000 SPRING 1 60 226-55005 JOINT ROD 1 61 226-54008 DRIVING ARM PLATE 1 62 B3417-051-000 REAR LIFTING BAR ROLLER 1 63 SS-6120940-SP SCREW 3/16-28 L=9 1 64 WP-0501016-SD WASHER 5X10.5X1 1 65 EA-9500B01-00 CABLE BAND 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20 — 9. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)

Juki LH-3168 (36 pages) parts on page 20
Ref	Part number	Part name	Qty
	1	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	2	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	3	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	4	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	5	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	6	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	7	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	8	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	9	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	10	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	11	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	12	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	13	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	14	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	15	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	16	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	17	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	18	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	19	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	20	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	21	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	22	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	23	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	24	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	25	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	26	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	27	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	28	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	29	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	30	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	31	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	32	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	33	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	34	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	35	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	36	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	37	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	38	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	39	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	40	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	41	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)
	42	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7)

9. AUTOMATIC REVERSE FEED MECHANISM COMPONENTS (FOR LH-3168-7) 自動逆送り関係 (LH-3168-7 用) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21

Juki LH-3168 (36 pages) parts on page 21
Ref	Part number	Part name	Qty
	226-56557	REVERSE FEED SWITCH ASM.
	110-72501	REVERSE FEED SWITCH COVER
	SS-4110615-SP	SCREW 11/64-40 L=6
	226-56508	REVERSE FEED SWITCH BASE
	111-02100	REVERSE FEED SWITCH SHAFT
	111-02209	REVERSE FEED SWITCH SPRING
	SS-4111815-SP	SCREW 11/64-40 L=18
	SM-4031501-SC	SCREW
	HW-5000700-00	2-CORE CABTYRE CORD
	HA-0019000-00	MICROSWITCH
	111-02308	REVERSE FEED SWITCH PLATE
	226-56607	REVERSE FEED SWITCH LEVER
13	HK-0346400-0B	PIN CONTACT	4
14	SS-4120615-SP	SCREW 3/16-28 L=6	2
15	WP-7110710-SP	SCREW 11/64-40 L=7	4
16	WP-0501016-SD	WASHER 5X10.5X1	4
17	101-61305	SOLENOID COVER	1
18	101-19105	REVERSE FEED SOLENOID, AC24V	1
19	101-19204	SOLENOID INSTALLING PLATE	1
20	WP-0501016-SD	WASHER 5X10.5X1	4
21	SS-9111010-SP	SCREW 11/64-40 L=9.5	4
22	D2464-555-B00	LINK DRIVING MAGNET PIN	1
23	RE-0400000-KO	E-SHAPED SNAP RING (4MM)	1
24	SS-7151510-XP	SCREW 15/64-28 L=12	2
25	WS-0631510-XP	SPRING WASHER	2
26	WP-0621016-SD	WASHER 6.2X13X1	2
27	226-56409	LINK FULCULUM	1
28	226-56300	REVERSE FEED LINK, L	1
29	SS-4153015-SP	PAN-SCREW 15/64-28 L=30	1
30	WS-0610002-KP	SPRING WASHER	1
31	226-56201	WASHER 6.1X18.5X2	1
32	226-56102	REVERSE FEED LINK, (2)	1
33	226-56102	REVERSE FEED LINK, (1)	1
34	SD-0640326-TP	HINGE SCREW	2
35	NS-6110350-SP	NUT 11/64-40	2
36	SS-7120760-SP	SCREW 3/16-28 L=7.0	1
37	111-00500	REVERSE FEED LEVER STOPPER	1
38	SS-6121840-SP	SCREW 3/16-28 L=18.0	1
39	B1506-352-000	TENSION SPRING RACK B	1
40	135-15606	SPRING	1
41	226-56003	SPRING SUSPENSION	1
42	SS-4120615-SP	SCREW 3/16-28 L=6	1

REF.NO NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 226-56557 REVERSE FEED SWITCH ASM. ギヤウクリスツイツチ(クミ) (1) 2 110-72501 REVERSE FEED SWITCH COVER ギヤウクリスツイツチカバ- (1) 3 SS-4110615-SP SCREW 11/64-40 L=6 ナベコネジ (1) 4 226-56508 REVERSE FEED SWITCH BASE ギヤウクリスツイツチダィ (1) 5 111-02100 REVERSE FEED SWITCH SHAFT ギヤウクリスツイツチジク (1) 6 111-02209 REVERSE FEED SWITCH SPRING ギヤウクリスツイツチバネ (1) 7 SS-4111815-SP SCREW ギヤウクリネジ 11/64-40 L=18 (1) 8 SM-4031501-SC SCREW ナベネジ (2) 9 HW-5000700-00 2-CORE CABTYRE CORD 2シン (1.4) 10 HA-0019000-00 MICROSWITCH マイクロスイツチ (1) 11 111-02308 REVERSE FEED SWITCH PLATE ギヤウクリスツイツチメイツ (1) 12 226-56607 REVERSE FEED SWITCH LEVER ギヤウクリスツイツチレバ- (1) 13 HK-0346400-0B PIN CONTACT ピンコンタクト 4 14 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 2 15 WP-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 4 16 WP-0501016-SD WASHER 5X10.5X1 ヒラガネ 5X10.5X1 4 17 101-61305 SOLENOID COVER メツトカバ- 1 18 101-19105 REVERSE FEED SOLENOID, AC24V ギヤウクリマクネツト 24V 1 19 101-19204 SOLENOID INSTALLING PLATE マクネツトトリツケダイ 1 20 WP-0501016-SD WASHER 5X10.5X1 ヒラガネ 5X10.5X1 4 21 SS-9111010-SP SCREW 11/64-40 L=9.5 ロツカクボルト 11/64-40 L=9.5 4 22 D2464-555-B00 LINK DRIVING MAGNET PIN マクネツトリソクピン 1 23 RE-0400000-KO E-SHAPED SNAP RING (4MM) エトメツワ 4 1 24 SS-7151510-XP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 2 25 WS-0631510-XP SPRING WASHER ハネガネ 2 26 WP-0621016-SD WASHER 6.2X13X1 ヒラガネ 6.2X13X1 2 27 226-56409 LINK FULCULUM Lリンクシテン 1 28 226-56300 REVERSE FEED LINK, L ジヤクリLリンク 1 29 SS-4153015-SP PAN-SCREW 15/64-28 L=30 ナベネジ 15/64-28 L=30 1 30 WS-0610002-KP SPRING WASHER ハネガネ 1 31 226-56201 WASHER 6.1X18.5X2 ヒラガネ 6.1X18.5X2 1 32 226-56102 REVERSE FEED LINK, (2) ジヤクリリンク(2) 1 33 226-56102 REVERSE FEED LINK, (1) ジヤクリリンク(1) 1 34 SD-0640326-TP HINGE SCREW タンネジ 2 35 NS-6110350-SP NUT 11/64-40 ロツカクナット 11/64-40 2 36 SS-7120760-SP SCREW 3/16-28 L=7.0 マルヒラネジ 3/16-28 L=7 1 37 111-00500 REVERSE FEED LEVER STOPPER レバ-ストツパ- 1 38 SS-6121840-SP SCREW 3/16-28 L=18.0 ヒラネジ 3/16-28 L=18 1 39 B1506-352-000 TENSION SPRING RACK B ヒサツリハネガネ B 1 40 135-15606 SPRING イトキリハネ 1 41 226-56003 SPRING SUSPENSION レバ-ハネガネ 1 42 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ 3/16-28 L=6 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22 — 10. WIPER MECHANISM COMPONENTS (FOR LH-3168-7)

Juki LH-3168 (36 pages) parts on page 22
Ref	Part number	Part name	Qty
	1	COVER
	2	BRACKET
	3	WASHER
	4	BRACKET
	5	BRACKET
	6	BRACKET
	7	BRACKET
	8	SPRING
	9	SPRING
	10	NUT
	11	WASHER
	12	WASHER
	13	MOTOR
	14	SHAFT
	15	BRACKET
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	BRACKET
	20	BRACKET
	21	WASHER
	22	BRACKET
	23	NUT
	24	HARNESS
	25	SCREW
	26	SCREW
	27	SCREW
	28	BRACKET
	29	BRACKET
	30	SCREW
	31	BRACKET
	32	SHAFT
	33	WASHER
	34	SCREW
	35	SCREW
	36	WASHER
	37	WASHER
	38	NUT

10. WIPER MECHANISM COMPONENTS (FOR LH-3168-7) ワイパー装置関係 (LH-3168-7 用) 1 2 3 4 25 5 6 7 26 13 14 12 11 10 9 8 15 21 23 22 16 17 18 19 20 24 27 28 30 29 31 32 34 33 34 33 35 36 37 38 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23

Juki LH-3168 (36 pages) parts on page 23
Part number	Part name	Qty
226-57159	VIPER SOLENOID ASM.	1
110-72709	VIPER COVER	(1)
SM-4030601-SN	SCREW M3 X 6	(1)
VP-0320501-SC	WASHER M3	(1)
SD-0650321-TP	HINGE SCREW	(1)
226-57209	VIPER LINK, A	(1)
B2024-771-000	SUSPENSION SCREW	(1)
111-10707	VIPER HINGE SCREW COLLAR	(1)
226-57308	VIPER SPRING	(1)
NS-6110310-SP	NUT 11/64-40	(1)
111-10400	VIPER RUBBER A	(1)
111-10509	VIPER RUBBER B	(1)
111-10301	VIPER SOLENOID	(1)
111-11705	VIPER SOLENOID PIN	(1)
HA-0000900-00	POWER SWITCH	(1)
HW-2003900-00	ELECTRIC WIRE	(0.1)
HW-5000700-00	2-CORE CABTYRE CORD	(1.4)
226-57100	VIPER SOLENOID BASE	(1)
WS-0310002-KR	SPRING WASHER 3.1X5.9X1.4	(3)
SM-4030601-SN	SCREW M3 X 6	(3)
111-11804	VIPER LINK COLLAR	(1)
CS-0300711-SP	THRUST COLLAR	(1)
SS-6080320-SP	SCREW 1/8-44 L= 2.5	(2)
HK-0346400-OB	PIN CONTACT	2
SS-4120615-SP	SCREW 3/16-28 L=6	1
NS-6090310-SP	NUT 9/64-40	1
SD-0500404-SP	HINGE SCREW	1
226-57050	VIPER LINK ASM., 2	1
102-08551	VIPER BASE ASM.	1
SS-9111010-SP	SCREW 11/64-40 L=9.5	2
RE-0320000-KO	SNAP RING 3.2	2
102-08700	VIPER LINK SHAFT	1
SS-3090520-SP	SCREW 9/64-40 L=4.5	2
WP-0371016-SD	WASHER 3.7X8X1	2
102-09203	VIPER 3/32"-3/8"
102-09500	VIPER
102-09807	VIPER
102-09906	VIPER

REF.NO NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 226-57159 VIPER SOLENOID ASM. ワイヤ-ソルノイド (クミ) 1 2 110-72709 VIPER COVER ワイヤ-カバ- (1) 3 SM-4030601-SN SCREW M3 X 6 ナベコネジ M3X0.5 L=6 (1) 4 VP-0320501-SC WASHER M3 ヒラコネジ 3.2X7X0.5 (1) 5 SD-0650321-TP HINGE SCREW ダンネジ (1) 6 226-57209 VIPER LINK, A ワイヤ-リンク A (1) 7 B2024-771-000 SUSPENSION SCREW ウワイトネジ (1) 8 111-10707 VIPER HINGE SCREW COLLAR ワイヤ-ダンネジカラー (1) 9 226-57308 VIPER SPRING ワイヤ-バネ (1) 10 NS-6110310-SP NUT 11/64-40 ロツカツト 11/64-40 (1) 11 111-10400 VIPER RUBBER A ワイヤ-ゴム A (1) 12 111-10509 VIPER RUBBER B ワイヤ-ゴム B (1) 13 111-10301 VIPER SOLENOID ワイヤ-ソルノイド (1) 14 111-11705 VIPER SOLENOID PIN ワイヤ-ソルノイドシン (1) 15 HA-0000900-00 POWER SWITCH デンスイッチ (1) 16 Hw-2003900-00 ELECTRIC WIRE ヒニ-ンデンスセン 17-0.16 シロ (0.1) 17 Hw-5000700-00 2-CORE CABTYRE CORD 2シンキャブタイヤコート (1.4) 18 226-57100 VIPER SOLENOID BASE ワイヤ-ソルノイドベース (1) 19 WS-0310002-KR SPRING WASHER 3.1X5.9X1.4 ハネコネジ 3.1X5.9X0.7 (3) 20 SM-4030601-SN SCREW M3 X 6 ナベコネジ M3X0.5 L=6 (3) 21 111-11804 VIPER LINK COLLAR ワイヤ-リンクカラー (1) 22 CS-0300711-SP THRUST COLLAR スラストカラー (1) 23 SS-6080320-SP SCREW 1/8-44 L= 2.5 ヒラネジ 1/8-44 L=2.5 (2) 24 HK-0346400-OB PIN CONTACT ピンコンタクト 2 25 SS-4120615-SP SCREW 3/16-28 L=6 ピンネジ 3/16-28 L=6 1 26 NS-6090310-SP NUT 9/64-40 ロツカツト 9/64-40 1 27 SD-0500404-SP HINGE SCREW ダンネジ 1 28 226-57050 VIPER LINK ASM., 2 ワイヤ-リンク(2) (クミ) 1 29 102-08551 VIPER BASE ASM. ワイヤ-ベースクミ 1 30 SS-9111010-SP SCREW 11/64-40 L=9.5 ロツカツト 11/64-40 L=9.5 2 31 RE-0320000-KO SNAP RING 3.2 Eナトメワ 3.2 2 32 102-08700 VIPER LINK SHAFT ワイヤ-リンクシヤフト 1 33 SS-3090520-SP SCREW 9/64-40 L=4.5 マルネジ 9/64-40 L=4.5 2 34 WP-0371016-SD WASHER 3.7X8X1 ヒラコネジ 3.7X8X1 2 35 #01 102-09203 VIPER 3/32"-3/8" ワイヤ- 1 36 #01 102-09500 VIPER ワイヤ- 1 37 #01 102-09807 VIPER ワイヤ- 1 38 #01 102-09906 VIPER ワイヤ- 1 Note ( 注記 ) #01...SELECTIVE PART 選択部品 From the library of: Superior-Sewing Machine & Supply LLC jintex.in

Page 24 — 11. LUBRICATION COMPONENTS

Juki LH-3168 (36 pages) parts on page 24
Ref	Part number	Part name
60	60	SCREW
59	59	BRACKET
9	9	WASHER
10	10	NUT
20	20	NUT
19	19	WASHER
22	22	SCREW
17	17	BRACKET
21	21	BRACKET
1	1	CAP
15	15	BRACKET
18	18	BRACKET
2	2	GASKET
3	3	PIPE
12	12	SCREW
16	16	NUT
14	14	BRACKET
4	4	PIPE
5	5	PIPE
11	11	BRACKET
6	6	TUBE
7	7	TUBE
13	13	NUT
23	23	BRACKET
24	24	SCREW
25	25	BRACKET
26	26	TUBE
46	46	PIPE
45	45	PIPE
39	39	PIPE
40	40	PIPE
42	42	BRACKET
43	43	BRACKET
44	44	PIPE
47	47	PIPE
41	41	PIPE
35	35	PIPE
28	28	PIPE
29	29	PIPE
30	30	PIPE
31	31	PIPE
32	32	PIPE
33	33	PIPE
36	36	SCREW
37	37	WASHER
38	38	PIPE
49	49	PIPE
50	50	SCREW
48	48	PIPE
56	56	BRACKET
57	57	SCREW
51	51	SPRING
52	52	BRACKET
53	53	SCREW
54	54	SCREW
58	58	CABLE TIE

11. LUBRICATION COMPONENTS 給油関係 60 59 9 10 20 19 22 17 21 1 15 18 2 3 12 16 14 6 4 5 11 7 13 23 24 25 26 46 45 39 40 42 43 44 47 41 35 28 29 30 31 32 33 36 37 38 49 50 48 56 57 51 52 53 54 58 From the library of: Superior-Sewing Machine & Supply LLC jintex.in

Page 25

Juki LH-3168 (36 pages) parts on page 25
Part number	Part name	Qty
B3530-555-000	OIL SIGHT WINDOW	1
RO-1952401-00	RUBBER RING	1
SS-4111815-SP	SCREW
102-16703	OIL TANK	1
NS-6110310-SN	NUT
226-20355	OIL PIPE ASM.	1
226-20454	FELT ASM.	1
226-20702	OIL TUBE	1
226-20108	PIPE HOLDER, B	1
SS-4110715-SP	SCREW
226-19209	OIL WICK GUIDE	1
SS-6121610-SP	SCREW
NS-6120310-SP	NUT
226-20504	OIL WICK HOLDER	1
SS-4111215-SP	SCREW
NS-6110430-SP	NUT
226-19308	OIL ADJUSTING FELT	1
226-19407	OIL ADJUSTING SHAFT	1
SS-8701782-TP	SCREW
NS-6700420-SP	NUT
226-20801	PIPE HOLDER	1
SS-6111610-SP	SCREW
226-20009	PIPE HOLDER	1
SS-4110615-SP	SCREW
226-19803	VILENE HOLDER	1
SS-4110715-SP	SCREW
226-19605	VILENE	1
226-19001	SUCTION	1
SS-2110930-SP	SCREW
B1851-512-000	FILTER SCREEN	1
B1850-512-000	BUSHING HOLDER	1
SS-4090915-SP	SCREW
NS-6090310-SP	NUT
106-23403	BASE	1
SS-6111610-SP	SCREW
106-23601	OIL ADJUSTING SCREW	1
NS-6110310-SP	NUT
BT-0500300-EA	OIL TUBE	0.12
SQ-1150451-MZ	CONNECTING SCREW	1
SQ-1110401-MZ	CONNECTING SCREW	2
BT-0500300-EA	OIL TUBE	0.04
BT-0500300-EA	OIL TUBE	0.08
BT-0500300-EA	OIL TUBE	0.09
137-65607	OIL CONNEC. ARM	2
BT-0500300-EA	OIL TUBE	0.47
BT-0500300-EA	OIL TUBE	0.4
BT-0500300-EA	OIL TUBE	0.03
BT-0500300-EA	OIL TUBE	0.21
BT-0500300-EA	OIL TUBE	0.15
SQ-1150451-MZ	CONNECTING SCREW	1
B3534-155-000	PLUNGER	1
B1214-038-000	PLUNGER SPRING	1
B3524-552-000	PLUNGER THRUST PLATE	1
SS-4110815-SP	SCREW
139-41307	OIL RETURN FELT PIPE	1
B3538-112-000	CORD HOLDER	1
SS-4110815-SP	SCREW
EA-9500B01-00	CABLE BAND	1
226-86307	OIL GUIDE	1
SS-7090610-SP	SCREW

REF.NO NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 B3530-555-000 OIL SIGHT WINDOW アフタマト 1 2 RO-1952401-00 RUBBER RING Oリング 1 3 SS-4111815-SP SCREW ナベネジ 11/64-40 L=18 2 4 102-16703 OIL TANK オイルタンク 1 5 NS-6110310-SN NUT 11/64-40 ロツカナット 11/64-40 2 6 226-20355 OIL PIPE ASM. メンブパイプ (クミ) 1 7 226-20454 FELT ASM. カンリユウフエルト(クミ) 1 8 226-20702 OIL TUBE キユウユウカン 1 9 226-20108 PIPE HOLDER, B カンリユウパイプオオエ B 1 10 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 1 11 226-19209 OIL WICK GUIDE メンブジユシンガイド 1 12 SS-6121610-SP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 1 13 NS-6120310-SP NUT 3/16-28 ロツカナット 3/16-28 1 14 226-20504 OIL WICK HOLDER メンブジユシンホルーダー 1 15 SS-4111215-SP SCREW 11/64-40 L=12 ナベネジ 11/64-40 L=12 1 16 NS-6110430-SP NUT 11/64-40 ロツカナット 11/64-40 1 17 226-19308 OIL ADJUSTING FELT メンブジユシンフエルト 1 18 226-19407 OIL ADJUSTING SHAFT ユリヨウジユシンジヤフト 1 19 SS-8701782-TP SCREW 5/16-24 L=17.0 トメネジ 5/16-24 L=17 1 20 NS-6700420-SP NUT 5/16-24 ロツカナット 5/16-24 1 21 226-20801 PIPE HOLDER キユウユウカンオサエ 1 22 SS-6111610-SP SCREW 11/64-40 L=16 ヒラネジ 11/64-40 L=16 1 23 226-20009 PIPE HOLDER メンブジユシンパイプオサエ 1 24 SS-4110615-SP SCREW 11/64-40 L=6 ナベコネジ 11/64-40 L=6 1 25 226-19803 VILENE HOLDER カンリユウイリ-ン 1 26 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 1 27 226-19605 VILENE カンリユウイリ-ン 1 28 226-19001 SUCTION キユウユウ 1 29 SS-2110930-SP SCREW 11/64-40 L=8.75 マルチラネジ 11/64-40 L=8.75 1 30 B1851-512-000 FILTER SCREEN キユウユウアミ 1 31 B1850-512-000 BUSHING HOLDER キユユースホルーダー 1 32 SS-4090915-SP SCREW 9/64-40 L=9 ナベネジ 9/64-40 L=9 1 33 NS-6090310-SP NUT 9/64-40 ロツカナット 9/64-40 1 34 106-23403 BASE アフタパイタン 1 35 SS-6111610-SP SCREW 11/64-40 L=16 ヒラネジ 11/64-40 L=16 2 36 106-23601 OIL ADJUSTING SCREW ユリヨウジユシンネジ 1 37 NS-6110310-SP NUT 11/64-40 ロツカナット 11/64-40 1 38 BT-0500300-EA OIL TUBE チユーブ 0.12 39 SQ-1150451-MZ CONNECTING SCREW チユーブレンケツネジ 1 40 SQ-1110401-MZ CONNECTING SCREW チユーブレンケツネジ 2 41 BT-0500300-EA OIL TUBE チユーブ 0.04 42 BT-0500300-EA OIL TUBE チユーブ 0.08 43 BT-0500300-EA OIL TUBE チユーブ 0.09 44 137-65607 OIL CONNEC. ARM キユウユウサテ 2 45 BT-0500300-EA OIL TUBE チユーブ 0.47 46 BT-0500300-EA OIL TUBE チユーブ 0.4 47 BT-0500300-EA OIL TUBE チユーブ 0.03 48 BT-0500300-EA OIL TUBE チユーブ 0.21 49 BT-0500300-EA OIL TUBE チユーブ 0.15 50 SQ-1150451-MZ CONNECTING SCREW チユーブレンケツネジ 1 51 B3534-155-000 PLUNGER プランジヤ 1 52 B1214-038-000 PLUNGER SPRING プランジヤスプリング 1 53 B3524-552-000 PLUNGER THRUST PLATE プランジヤスラスト 1 54 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 1 55 139-41307 OIL RETURN FELT PIPE カンリユウフエルトパイプ 1 56 B3538-112-000 CORD HOLDER コ-トホルーダー 1 57 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 1 58 EA-9500B01-00 CABLE BAND シユセンバンド 1 59 226-86307 OIL GUIDE メンブジユシンガイド 1 60 SS-7090610-SP SCREW 9/64-40 L=6 マルチラネジ 9/64-40 L=6 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26 — 12. OIL RESERVOIR & KNEE LIFTER COMPONENTS

Juki LH-3168 (36 pages) parts on page 26
Part number	Part name	Qty
101-62253	OIL RESERVOIR ASM.	1
101-62204	OIL RESERVOIR	(1)
101-62600	RUBBER CUSHION	(2)
110-47107	RUBBER CUSHION	(2)
SS-6700710-SH	SCREW	(1)
RO-0982401-00	RUBBER RING	(1)
110-24007	CONNECTING ROD, VERTICAL	(1)
110-24106	SPRING	(1)
RE-1000000-KO	E-RING	(1)
110-24502	KNEE PRESS LOD BEARING BRACKET	(1)
SS-9182010-SN	SCREW 9/32-20 L=20	(2)
NS-6150430-SR	NUT 15/64-28	(2)
SS-8153010-SR	SCREW 15/64-28 L=30	(2)
SS-9151810-SR	SCREW	(1)
110-24205	KNEE PRESS ROD	(1)
110-23751	KNEE PRESS PLATE ASM.	1
B3431-552-000-A	KNEE PRESS PLATE COVER	(1)
B3419-122-000	KNEE LIFTER PLATE ROD	(1)
110-24403	RUBBER	(1)
110-23702	KNEE PRESS PLATE	(1)
110-23801	KNEE PRESS PLATE HOLDER	(1)
SS-9151540-SR	SCREW 15/64-28 L=15	1
110-24304	KNEE PRESS LIFTER ROD	1
226-22005	OIL RESERVOIR SPACER, A	1
226-22104	OIL RESERVOIR SPACER, B	1

12. OIL RESERVOIR & KNEE LIFTER COMPONENTS 油潤・膝上げ関係 23- 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 24 25 DESCRIPTION REF.NO NOTE PART NO. 101-62253 101-62204 101-62600 110-47107 SS-6700710-SH RO-0982401-00 110-24007 110-24106 RE-1000000-KO 110-24502 SS-9182010-SN NS-6150430-SR SS-8153010-SR SS-9151810-SR 110-24205 110-23751 B3431-552-000-A B3419-122-000 110-24403 110-23702 110-23801 SS-9151540-SR 110-24304 226-22005 226-22104 OIL RESERVOIR ASM. OIL RESERVOIR RUBBER CUSHION RUBBER CUSHION SCREW RUBBER RING CONNECTING ROD, VERTICAL SPRING E-RING KNEE PRESS LOD BEARING BRACKET SCREW 9/32-20 L=20 NUT 15/64-28 SCREW 15/64-28 L=30 SCREW KNEE PRESS ROD KNEE PRESS PLATE ASM. KNEE PRESS PLATE COVER KNEE LIFTER PLATE ROD RUBBER KNEE PRESS PLATE KNEE PRESS PLATE HOLDER SCREW 15/64-28 L=15 KNEE PRESS LIFTER ROD OIL RESERVOIR SPACER, A OIL RESERVOIR SPACER, B ヒンメイアブラタ(クミ) アブラタトウブサエゴムトウブサエゴムヒラネジ Oリングヒザアゲカイテンウデヒザアゲスプリング E-リングヒザアゲドウシトリツケウデロツカクボルト 9/32-20 L=20 ロツカクナット 15/64-28 トメネジ 15/64-28 L=30 ロツカクボルトヒザアゲロツドヒザアゲプレートアスヒザアゲプレートカバーヒザアゲプレートロツドゴムヒザアゲプレートヒザアゲプレートホルダロツカクボルト 15/64-28 L=15 ヒザアゲリフターロツドアブラタマリガ A アブラタマリガ B Qty 1 (1) (2) (2) (1) (1) (1) (1) (1) (1) (2) (2) (2) (1) (1) 1 (1) (1) (1) (1) (1) 1 1 From the library of: Superb-Sewing Machine & Supply LLC jintex.in

Page 27 — BELT COVER & BOBBIN WINDER COMPONENTS

Juki LH-3168 (36 pages) parts on page 27
Part number	Part name	Qty
226-03401	BELT COVER A ASM.	1
110-76858	BELT COVER B ASM.	1
226-51350	BELT COVER B ASM.	1
110-76809	BELT COVER B	(1)
226-51301	BELT COVER B	(1)
110-76957	BELT COVER, B COVER ASM.	(1)
SS-4111215-SP	SCREW 11/64-40 L=12	2
SS-4121615-SP	SCREW	1
WS-0451040-KP	SPRING WASHER 4.5X8.5X1	3
VP-0501016-SD	WASHER 5X10.5X1	3
SK-3412000-SC	WOOD SCREW D=4.1 L=20	2
VP-0450826-SC	WASHER 4.5X10X0.8	2
110-77567	BOBBIN WINDER COMPL.	1
110-78250	THREAD TENSION BRACKET ASM.	(1)
SS-7110840-SP	SCREW 11/64-40 L=7.8	(1)
B3126-012-B00	THREAD TENSION SPRING	(1)
B3129-012-B00	THREAD TENSION SPRING	(1)
110-72204	TENSION NUT	(1)
SS-7110350-SP	SCREW 11/64-40 L=3	(1)
110-78102	PRESSER PLATE	1
B3211-555-000	RUBBER BRAKE	(1)
110-78003	POSITIONING FINGER	(1)
SD-0490261-SP	HINGE SCREW D=4.9 H=2.6	(1)
SS-7081310-SP	SCREW 1/8-44 L=12.5	2
VP-0450826-SC	WASHER 4.5X10X0.8	2
SK-3412000-SC	WOOD SCREW D=4.1 L=20	2

13. BELT COVER & BOBBIN WINDER COMPONENTS ベルトカバー・糸巻き装置関係 REF.NO NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 226-03401 BELT COVER A ASM. ベルトカバー A 1 2 #01 110-76858 BELT COVER B ASM. ベルトカバー B ケツゴウ 1 3 #02 226-51350 BELT COVER B ASM. ベルトカバー B (イトキリツキ) クミ 1 4 #01 110-76809 BELT COVER B ベルトカバー B (イトキリツキ) (1) 5 #02 226-51301 BELT COVER B ベルトカバー B (1) 6 110-76957 BELT COVER, B COVER ASM. ベルトカバー, B フタクミ (1) 7 SS-4111215-SP SCREW 11/64-40 L=12 ナベネジ 2 8 SS-4121615-SP SCREW ナベネジ 1 9 WS-0451040-KP SPRING WASHER 4.5X8.5X1 ハネジナガメ 3 10 VP-0501016-SD WASHER 5X10.5X1 ヒラダガネ 3 11 SK-3412000-SC WOOD SCREW D=4.1 L=20 マルモクネジ 2 12 VP-0450826-SC WASHER 4.5X10X0.8 ヒラダガネ 2 13 110-77567 BOBBIN WINDER COMPL. イトマキソウチクミ 1 14 110-78250 THREAD TENSION BRACKET ASM. イトマキイトチョウシブラケットクミ (1) 15 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 (1) 16 B3126-012-B00 THREAD TENSION SPRING イトチョウシバネ (1) 17 B3129-012-B00 THREAD TENSION SPRING イトチョウシバネ (1) 18 110-72204 TENSION NUT イトチョウシナット (1) 19 SS-7110350-SP SCREW 11/64-40 L=3 マルヒラネジ 11/64-40 L=3.5 (1) 20 110-78102 PRESSER PLATE セイトウコﾞム 1 21 B3211-555-000 RUBBER BRAKE ラハ゛ーフ゛レーキ (1) 22 110-78003 POSITIONING FINGER オヒ゛ンオサエ (1) 23 SD-0490261-SP HINGE SCREW D=4.9 H=2.6 ダンネジ D=4.9 H=2.6 (1) 24 SS-7081310-SP SCREW 1/8-44 L=12.5 マルヒラネジ 1/8-44 L=12.5 2 25 VP-0450826-SC WASHER 4.5X10X0.8 ヒラダガネ 2 26 SK-3412000-SC WOOD SCREW D=4.1 L=20 マルモクネジ D=4.1 L=20 2 Note ( 注記 )#01...FOR LH-3168 LH-3168 用 #02...FOR LH-3168-7 LH-3168-7 用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28 — 14. THREAD STAND COMPONENTS

Juki LH-3168 (36 pages) parts on page 28
Ref	Part number	Part name	Qty
1	226-21551	THREAD STAND ASM.	1
2	B3319-704-L00	THREAD GUIDE	(3)
3	SM-6061610-SC	SCREW M6 L=16	(2)
4	B3318-704-L00-A	THREAD GUIDE ARM JOINT	(2)
5	111-84108	SPOOL REST ROD RUBBER CAP	(1)
6	111-83704	SPOOL REST ROD, UPPER	(1)
7	B3305-704-000-A	SPOOL REST ROD JOINT	(1)
8	NM-6050001-SE	NUT M5X0.8	(2)
9	SM-4051405-SE	SCREW M5X0.8 L=14	(2)
10	111-84009	SPOOL RETAINER	(3)
11	B3320-704-L00-A	SPOOL PIN	(3)
12	B3311-012-000	SPOOL REST CUSHION	(3)
13	111-83902	SPOOL REST	(3)
14	111-83605	SPOOL REST ROD, LOWER	(1)
15	119-57602	THREAD GUIDE ARM. A	(2)
16	B3317-704-000	NUT C15	(2)
17	WP-1702600-SO	WASHER 17X30X2.6	(2)
18	WS-1643202-KR	SPRING WASHER	(1)
19	MA0-11532000	CORD STAPLE	(3)
20	WS-0510002-KN	SPRING WASHER	(3)
21	NH-6050001-SE	NUT M5X0.8	(3)
22	B3310-555-D00	RUBBER WASHER	(1)
23	B3309-704-0A0	THREAD GUIDE ARM ASM.	1

14. THREAD STAND COMPONENTS 糸立装置関係 REF.NO NOTE PART NO. DESCRIPTION ヒンメイ Qty 1 226-21551 THREAD STAND ASM. イトタツチ(クミ) 1 2 B3319-704-L00 THREAD GUIDE イトミチ (3) 3 SM-6061610-SC SCREW M6 L=16 ヒラコネジ M6 L=15 (2) 4 B3318-704-L00-A THREAD GUIDE ARM JOINT イトタツチシメカクナク (2) 5 111-84108 SPOOL REST ROD RUBBER CAP イトタツボウホコゴム (1) 6 111-83704 SPOOL REST ROD, UPPER イトタツボウ (ウエ) (1) 7 B3305-704-000-A SPOOL REST ROD JOINT イトタツボウーッギテ (1) 8 NM-6050001-SE NUT M5X0.8 ロツカクナット M5X0.8 1シュ (2) 9 SM-4051405-SE SCREW M5X0.8 L=14 ロツカクネジ M5X0.8 L=14 (2) 10 111-84009 SPOOL RETAINER イトマキフレートメ (3) 11 B3320-704-L00-A SPOOL PIN イトマキウケ (3) 12 B3311-012-000 SPOOL REST CUSHION イトマキウケテ (3) 13 111-83902 SPOOL REST イトマキウケテラ (3) 14 111-83605 SPOOL REST ROD, LOWER イトタツボウ (シタ) (1) 15 119-57602 THREAD GUIDE ARM. A イトタツチアーム (A) (2) 16 B3317-704-000 NUT C15 イトタツチナツト (2) 17 WP-1702600-SO WASHER 17X30X2.6 ヒラワッシャー 17X30X2.6 (2) 18 WS-1643202-KR SPRING WASHER バネワッシャー 16.4X26.6X3.2 (1) 19 MA0-11532000 CORD STAPLE コードステツプル (3) 20 WS-0510002-KN SPRING WASHER バネワッシャー 5.1X9.2X1.3 (3) 21 NH-6050001-SE NUT M5X0.8 ロツカクナット M5X0.8 1シュ (3) 22 B3310-555-D00 RUBBER WASHER イトボウーホーシンゴム (1) 23 B3309-704-0A0 THREAD GUIDE ARM ASM. イトアンナイウデクミ 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 29 — 15. MOTOR PULLEY COMPONENTS

Juki LH-3168 (36 pages) parts on page 29
Ref	Part number	Part name
1	MTL-2200040S	CLUTCH MOTOR
2	MTK-P0070000	MOTOR PULLEY D=70
3	MTK-P0060000	MOTOR PULLEY D=60
4	MTJ-VH00420A	V-BELT, 42 INCH
5	MTJ-VH00410A	V-BELT, 41 INCH
6	MTJ-VH00400A	V-BELT, 40 INCH
7	MTS-P008000	MOTOR PULLEY ASM. 80

15. MOTOR PULLEY COMPONENTS モータープーリー関係 4.5 2.3 6 7 D E S C R I P T I O N ヒンメイ Qty REF.NO NOTE PART NO. 1 #01 MTL-2200040S CLUTCH MOTOR モータクミ (サンソークラッチ) 1 2 #02 MTK-P0070000 MOTOR PULLEY D=70 モータプーリー P.D.C 70 1 3 #03 MTK-P0060000 MOTOR PULLEY D=60 モータプーリー D=60 1 4 #02 MTJ-VH00420A V-BELT, 42 INCH V-ベルト 42インチ 1 5 #03 MTJ-VH00410A V-BELT, 41 INCH V-ベルト 1 6 #04 MTJ-VH00400A V-BELT, 40 INCH V-ベルト 1 7 #04 MTS-P008000 MOTOR PULLEY ASM. 80 モータプーリークミ 80 1 Note (注記) #01...FOR LH-3168 #02...FOR LH-3168 (50HZ) #03...FOR LH-3168 (60HZ) #04...FOR LH-3168-7 LH-3168 用 LH-3168 (50HZ) 用 LH-3168 (60HZ) 用 LH-3168-7 用 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30 — 16. TABLE OF EXCHANGING GAUGE PARTS

Juki LH-3168 (36 pages) parts on page 30
Ref	Part number	Part name
B	226-25107	226-30206
C	226-25205	226-30304
D	226-25305	226-30404
E	226-25404	226-30503
F	226-25503	226-30602
G	226-25602	226-30700
H	226-25701	226-30800
K	226-25800	226-30909
L	226-25906	226-31006
M	226-26105	226-31303
N	226-26204	226-31402
Q	226-26402	226-31709
B	226-37656	101-52759
C	226-37854	101-52759
D	226-37953	101-52858
E	226-37953	101-52957
F	226-38050	101-53054
G	226-38258	101-53153
H	226-38357	101-53252
K	226-38456	101-53450
L	226-38753	101-53559
M	226-38852	101-53658
N	226-38951	101-53856
Q	226-39256	101-53856
B	226-60203	226-65103
C	226-60302	226-65202
D	226-60401	226-65301
E	226-60500	226-65400
F	226-60609	226-65509
G	226-60708	226-65707
H	226-60807	226-65806
K	226-60906	226-65905
L	226-61102	226-66200
M	226-61201	226-66309
N	226-61300	226-66408
Q	226-61508	226-66705
C	102-37907	B1402-528-BA0-A
D	102-38004	102-39101
E	102-38103	102-39200
F	102-38202	102-39309
G	102-38301	102-39408
H	102-38400	102-39507
K	102-38509	102-39606
L	102-38707	102-39804
M	102-38806	102-39903
Q	102-39002	101-71304
B	B1402-528-BA0-A	B1402-528-BA0-A
C	B1402-528-CA0-A	B1402-528-CA0-A
D	B1402-528-DAL-A	B1402-528-DAL-A
E	B1402-528-EAL	B1402-528-EAR
F	B1402-528-FAL	B1402-528-FAR
G	B1402-528-GAL	B1402-528-GAR
H	B1402-528-HAL-A	B1402-528-HAR-A
K	B1402-528-KAL-A	B1402-528-KAR-A
L	B1402-528-LAL	B1402-528-LAR
M	B1402-528-MAL	B1402-528-MAR
N	B1402-528-NAL	B1402-528-NAR
Q	B1402-528-QAL	B1402-528-QAR

16. TABLE OF EXCHANGING GAUGE PARTS 交換ゲージ部品一覧表 Needle gauge size 針幅 Throat plate 針板 Feed Dog 送り Presser foot asm. 押え (組) Code コード inch mm $1.4 $1.9 $2.2 (Tip-divided) (棒先式分れ) B 32 226-25107 226-30206 226-37656 C 44 226-25205 226-30304 B1613-512-DOH 226-37854 101-52759 226-40353 D 48 226-25305 226-30404 B1613-512-E0H 226-37953 101-52858 226-40452 E 56 226-25404 226-30503 B1613-512-F0H 226-37953 101-52957 226-40551 F 64 226-25503 226-30602 B1613-512-G0H 226-38050 101-53054 226-40759 G 71 226-25602 226-30700 B1613-512-H0H 226-38258 101-53153 226-40858 H 79 226-25701 226-30800 B1613-512-10H 226-38357 101-53252 226-40957 K 95 226-25800 226-30909 B1613-512-K0H 226-38456 101-53450 226-41252 L 127 226-25906 226-31006 B1613-512-L0H 226-38753 101-53559 226-41351 M 159 226-26105 226-31303 B1613-512-M0H 226-38852 101-53658 226-41450 N 191 226-26204 226-31402 B1613-512-N0H 226-38951 101-53856 226-41757 Q 254 226-26402 226-31709 B1613-512-Q0H 226-39256 101-53856 226-41757 Stitch spec. S Spec. common 仕上共通仕上仕様 A G Needle gauge size Throat plate (with Thread Trimmer) Feed dog (with Thread Trimmer) 送り (糸切付) Needle clamp asm. Left 針棒 (組)左 Needle clamp asm. Right 針棒 (組)右針幅 Code コード inch mm B 32 226-60203 226-65103 B1402-528-BA0-A B1402-528-BA0-A C 44 226-60302 226-65202 102-37907 B1402-528-CA0-A B1402-528-CA0-A D 48 226-60401 226-65301 102-38004 102-39101 B1402-528-DAL-A B1402-528-DAL-A E 56 226-60500 226-65400 102-38103 102-39200 B1402-528-EAL B1402-528-EAR F 64 226-60609 226-65509 102-38202 102-39309 B1402-528-FAL B1402-528-FAR G 71 226-60708 226-65707 102-38301 102-39408 B1402-528-GAL B1402-528-GAR H 79 226-60807 226-65806 102-38400 102-39507 B1402-528-HAL-A B1402-528-HAR-A K 95 226-60906 226-65905 102-38509 102-39606 B1402-528-KAL-A B1402-528-KAR-A L 127 226-61102 226-66200 102-38707 102-39804 B1402-528-LAL B1402-528-LAR M 159 226-61201 226-66309 102-38806 102-39903 B1402-528-MAL B1402-528-MAR N 191 226-61300 226-66408 102-38905 102-39903 B1402-528-NAL B1402-528-NAR Q 254 226-61508 226-66705 102-39002 101-71304 B1402-528-QAL B1402-528-QAR Stitch spec. Spec. common 仕上仕様仕上共通 Spec. common 仕上共通 Standard spec. 標準仕様 Substandard spec. 標準仕様 Special order 特別注文 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Part Books

Search
