Juki LS-1340, 1341 Parts Book (PDF)
Text index — Juki LS-1340, 1341
Page 4 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 214-01757 | FACE PLATE ASM. | 1 |
| 2 | SS-4111215-SP | SCREW 11/64-40 L=12 | 3 |
| 3 | TA-1250406-RO | RUBBER PLUG D=12.5 L=4 | 2 |
| 4 | 213-31301 | TOP COVER B | 1 |
| 5 | SS-4110815-SP | SCREW 11/64-40 L=8 | 6 |
| 6 | 213-55904 | ARM THREAD GUIDE | 1 |
| 7 | SS-7621040-SP | SCREW 3/16-32 L= 9.5 | 2 |
| 8 | TA-1450404-RO | RUBBER PLUG D=14.5 L=4 | 1 |
| 9 | 213-31756 | WINDOW PLATE A ASM. | 1 |
| 10 | 213-31202 | SETSCREW | 1 |
| 11 | TA-0750404-RO | PLUG D=7.5 L=3.5 | 2 |
| 12 | 213-31806 | WINDOW PLATE B | 1 |
| 13 | 213-32002 | WINDOW PLATE PACKING B | 1 |
| 14 | SS-4110815-SP | SCREW 11/64-40 L=8 | 5 |
| 15 | TA-1250504-RO | RUBBER PLUG | 1 |
| 16 | 213-32309 | SIDE COVER | 1 |
| 17 | SS-4110815-SP | SCREW 11/64-40 L=8 | 1 |
| 18 | 213-31608 | BALANCE COVER | 1 |
| 19 | SS-7150910-TP | SCREW 15/64-28 L=9 | 1 |
| 20 | 213-55805 | THREAD GUIDE | 1 |
| 21 | SS-5090610-SP | SCREW 9/64-40 L=6 | 1 |
| 22 | B1129-051-000 | FRAME THREAD GUIDE, UPPER | 1 |
| 23 | SS-2090710-TP | SCREW 9/64-40 L=7.2 | 2 |
| 24 | 214-08554 | THREAD GUIDE ASM. | 1 |
| 25 | 214-08505 | THREAD GUIDE PLATE | (1) |
| 26 | 179-12106 | NEEDLE THREAD PRESSER PLATE | (1) |
| 27 | B1132-521-000 | THREAD PRESSER PLATE SPRING | (1) |
| 28 | SD-0380551-SL | HINGE SCREW D= 3.80 H= 5.5 | (1) |
| 29 | SS-2090710-TP | SCREW 9/64-40 L=7.2 | 1 |
| 30 | B3138-512-000 | TAKE-UP SPRING ADJUSTING PLATE | 1 |
| 31 | SS-7090520-TP | SCREW 9/64-40 L= 4.5 | 1 |
| 32 | 214-26754 | CYLINDER COVER ASM. | 1 |
| 33 | 214-26705 | CYLINDER COVER | (1) |
| 34 | NM-6030003-SC | NUT M3 | (2) |
| 35 | 214-26903 | FELT PRESSER PLATE | (1) |
| 36 | 214-26853 | CYLINDER COVER FELT ASM. | (1) |
| 37 | SM-4030601-SC | SCREW M3 X 6 | (2) |
| 38 | TA-0550604-RO | RUBBER PLUG | 1 |
| 39 | SS-5110710-SP | SCREW 11/64-40 L=7 | 1 |
| 40 | TA-1050504-RO | RUBBER PLUG | 4 |
| 41 | CM-3002001-01 | SAFETY LABEL, 1(SMALL) | 1 |
| 42 | CM-3002001-A1 | SAFETY LABEL, 3 (SMALL) | 1 |
| 43 | CM-3002000-B1 | LABEL(16) | 1 |
| 44 | CM-3002000-01 | ATTENTION SEAL | 1 |
| 45 | 100-04109 | GROUND MARK | 1 |
| 46 | SS-2090520-SL | SCREW 9/64-40 L=5 | 4 |
| 47 | 214-26606 | BED SLIDE SIDE PLATE , LEFT | 1 |
| 48 | 231-00506 | BED SLIDE SIDE PLATE , RIGHT | 1 |
| 49 | 212-20413 | BED PLATE | 1 |
| 50 | 212-21908 | THOAT PLATE | 1 |
| 51 | SS-7112810-SP | SCREW 11/64-40 L=28 | 2 |
| 52 | 214-26200 | THROAT PLATE BASE | 1 |
| 53 | SS-7113110-SP | SCREW 1/64-40 L=30 | 2 |
| 54 | 214-28206 | FEED BASE SUPPORT | 1 |
| 55 | SM-8040502-TP | SCREW M4X0.7 L=5 | 1 |
| 56 | 214-26051 | THROAT PLATE BASE COVER ASM. | 1 |
| 57 | NM-6030003-SC | NUT M3 | (2) |
| 58 | 214-26101 | THROAT PLATE BASE COVER SPRING | (1) |
| 59 | 214-26002 | THROAT PLATE BASE COVER | (1) |
| 60 | SM-4030401-SC | SCREW M3X0.5 L=4 | (2) |
| 61 | B1117-246-000 | HOOK | 1 |
| 62 | B1116-246-000 | WING BOLT | 1 |
| 63 | SD-0800352-SP | HINGE SCREW D= 8 H= 3.5 | 1 |
| 64 | SM-6082002-TP | SCREW M8 L=20 | 8 |
| 65 | 214-26507 | HINGE | 1 |
| 66 | 214-26309 | BED HOLDING BASE | 1 |
| 67 | 214-26408 | BED HOLDING BASE PACKING | 1 |
| 68 | SS-6111140-SP | SCREW 11/64-40 L=11 | 1 |
| 69 | WT-0530002-KS | TOOTHED WASHER D=5.3 | 1 |
| 70 | 102-01200 | RUBBER PLUG | 1 |
| 71 | 226-19100 | CAP | 1 |
| 72 | B1105-340-000 | THROAT PLATE | 1 |
| B1129-001-000 | FRAME THREAD GUIDE, UPPER | 1 |
Page 5 — 2. UPPER SHAFT DRIVING & BALANCE COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 213-32705 | UPPER SHAFT | 1 |
| 2 | 213-33000 | UPPER SHAFT FRONT METAL | 1 |
| 3 | 214-02102 | THREAD TAKE-UP LEVER | 1 |
| 4 | 226-05406 | TAKE-UP LEVER THRUST PIN | 1 |
| 5 | CQ-2020000-00 | OIL WICK | 0.03 |
| 6 | B1906-051-000 | TAKE-UP LEVER PIN | 1 |
| 7 | CQ-3030000-00 | OIL WICK | 0.2 |
| 8 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 9 | 213-39106 | NEEDLE BAR CRANK ROD | 1 |
| 10 | B1210-051-000 | NEEDLE BAR CRANK PIN | 1 |
| 11 | CQ-5050000-00 | OIL WICK | 0.03 |
| 12 | 213-32507 | COUNTER WEIGHT (A) (36MM) | 1 |
| 13 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 14 | SM-8080812-TP | SCREW M8X8 | 2 |
| 15 | 213-39502 | UPPER FEED CAM (3.5) | 1 |
| 16 | SS-8660810-TP | SCREW 1/4-40 L=8 | 2 |
| 17 | 213-33109 | UPPER SHAFT INNER METAL | 1 |
| 18 | CQ-2020000-00 | OIL WICK | 0.25 |
| 19 | 213-36557 | ECCENTRIC CAM A ASM. | 1 |
| 20 | 213-36508 | ECCENTRIC CAM A | (1) |
| 21 | SS-8660810-TP | SCREW 1/4-40 L=8 | (2) |
| 22 | 213-53008 | HORIZONTAL FEED CAM COVER | 1 |
| 23 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 24 | 226-04904 | UPPER SPROCKET | 1 |
| 25 | SS-6661110-SP | SCREW 1/4-40 L=11 | 2 |
| 25 | SS-6561110-SP | SCREW 1/4-40 L=11 | |
| 26 | 214-27109 | TIMING BELT | 1 |
| 27 | 214-02300 | UPPER SHAFT BEARING HOOK | 1 |
| 27 | 214-02360 | UPPER SHAFT BEARING HOOK | |
| 28 | SM-8060602-TP | SCREW M6X6 | 2 |
| 29 | B1203-512-000 | BUSHING, REAR | 1 |
| 30 | 214-27000 | FLYWHEEL | 1 |
| 31 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 32 | 213-33406 | BALANCER | 1 |
| 33 | SS-8151550-SP | SCREW 15/64-28 L=15 | 2 |
| 34 | B1905-053-000 | THREAD TAKE-UP | 1 |
| 34 | B1907-053-000 | THREAD TAKE-UP | |
| 35 | B1907-051-000 | TAKE-UP LEVER THRUST PIN | 1 |
Page 6 — 3. NEEDLE BAR ROCKING COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B1420-563-000 | NEEDLE BAR FRAME | 1 |
| 2 | 214-05204 | HINGE STUD | 1 |
| 3 | SS-8151150-TP | SCREW 15/64-28 L=10.5 | 1 |
| 4 | 228-14909 | FELT | 1 |
| 5 | B1401-053-000 | NEEDLE BAR | 1 |
| 6 | B1411-053-0A0 | NEEDLE BAR CONNECTION ASM. | 1 |
| 7 | SS-7090910-SP | SCREW 9/64-40 L=8.5 | (1) |
| 8 | B1411-053-000 | NEEDLE BAR CONNECTION | (1) |
| 9 | B1412-051-000 | FELT | 1 |
| 10 | SS-7080510-TP | SCREW 1/8-44 L=4.5 | 1 |
| 11 | MC-3720016-00 | NEEDLE SY3355 160 | 1 |
| 12 | B1467-563-000 | UPPER FEED BAR GUIDE | 1 |
| 13 | SS-7110910-TP | SCREW 11/64-40 L=8.5 | 2 |
| 14 | 213-38702 | ROCKING BASE GUIDE | 1 |
| 15 | SS-7110830-SP | SCREW 11/64-40 L=7.5 | 2 |
| 16 | 213-38603 | ROCKING BASE GUIDE (B) | 1 |
| 17 | SS-6091022-TP | SCREW | 2 |
| 18 | 213-38900 | ROCKING SHAFT | 1 |
| 19 | 213-38801 | ROCKING FRONT ARM | 1 |
| 20 | SM-8080802-TP | SCREW | 2 |
| 21 | B1410-771-000 | STUD | 1 |
| 22 | B1414-232-000 | SQUARE BLOCK | 1 |
| 23 | 213-39304 | ROCKING SHAFT FRONT METAL | 1 |
| 24 | 213-39205 | ROCKING SHAFT REAR METAL | 1 |
| 25 | 228-14909 | FELT | 1 |
| 26 | 214-30053 | ROCKING REAR ARM ASM. | 1 |
| 27 | 214-30004 | ROCKING REAR ARM | (1) |
| 28 | SS-6152440-SP | SCREW 15/64-28 L=23.5 | (1) |
| 29 | 214-30103 | ROCKING REAR ARM FELT | (1) |
| 30 | EA-9500B01-00 | CABLE BAND | (2) |
| 31 | 103-08609 | THREAD GUARD | 1 |
| 32 | MC-3720014-00 | NEEDLE SY3355 NM140 | 1 |
| SS-8150150-TP | SCREW 15/64-28 L=10.5 | 1 |
Page 8 — 4. PRESSURE ADJUSTING & UPPER FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 213-40401 | UPPER FEED SHAFT | 1 |
| 2 | 213-40500 | UPPER FEED FRONT ARM | 1 |
| 3 | SS-8660612-TP | SCREW 1/4-40 L=6 | 2 |
| 4 | 213-41904 | FRONT METAL | 1 |
| 5 | 213-78302 | FEED SHAFT METAL | 1 |
| 6 | 229-04155 | MAIN SHAFT THRUST COLLAR ASM. | 1 |
| 7 | 229-04106 | MAIN SHAFT THRUST COLLAR | (1) |
| 8 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 9 | SS-8150710-SP | SCREW 15/64-28 L=7 | 1 |
| 10 | TA-0550604-RO | RUBBER PLUG | 1 |
| 11 | B1470-053-0AO | WALKING FOOT ASM. | 1 |
| 12 | 213-39908 | UPPER FEED LINK | 1 |
| 13 | 213-47109 | FELT | 1 |
| 14 | EA-9500B00-00 | CLIP CV-70S | 2 |
| 15 | B3016-141-H00 | HINGE SCREW, B | 2 |
| 16 | SD-0640701-SP | HINGE SCREW D=6.35 H=7 | 1 |
| 17 | B1414-555-000 | SLIDE BLOCK | 1 |
| 18 | WP-0501046-SC | WASHER 5 X 13 X 1 | 1 |
| 19 | 213-40807 | TRIANGULAR LEVER | 1 |
| 20 | SS-7110510-SP | SCREW 11/64-40 L=5 | 1 |
| 21 | B1414-555-000 | SLIDE BLOCK | 1 |
| 22 | 105-09701 | FELT | 1 |
| 23 | B1465-053-000 | WALKING BAR DRIVING LINK | 1 |
| 24 | B1466-563-000 | WALKING BAR | 1 |
| 25 | B1467-053-0AO | WALKING BAR ASM. | 1 |
| 26 | B1468-053-000 | WALKING BAR SPRING | 1 |
| 27 | SS-6151780-SP | SCREW 15/64-28 L=17.0 | 1 |
| 28 | 214-06509 | UPPER FEED GUIDE PLATE | 1 |
| 29 | 135-14310 | ROLLER | 1 |
| 30 | SS-6151920-SP | SCREW 15/64-28 L=19.0 | 1 |
| 31 | 213-40104 | UPPER FEED ROD | 1 |
| 32 | D1456-055-B00 | HINGE SCREW | 1 |
| 33 | D1455-055-B00 | CONNECTING STUD | 1 |
| 34 | WP-0482086-SD | WASHER 4.8X11.5X2 | 1 |
| 35 | NS-6110530-SP | NUT 11/64-40 | 1 |
| 36 | 213-40203 | UPPER FEED REAR ARM | 1 |
| 37 | SW-9062250-SC | SCREW M6 L=22 | 1 |
| 38 | B1525-563-DAO | PRESSER FOOT ASM. | 1 |
| 39 | 213-41052 | PRESSER BAR HOLDER ASM. | 1 |
| 40 | 213-41003 | PRESSER BAR HOLDER | (1) |
| 41 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | (1) |
| 42 | 213-40906 | PRESSER ADJUSTING SCREW | 1 |
| 43 | 110-71701 | NUT | 1 |
| 44 | B1502-246-000 | PRESSER SPRING | 1 |
| 45 | SD-0800481-SP | HINGE SCREW D= 8 H= 4.9 | 1 |
| 46 | 213-41151 | THREAD RELEASE HOLDING PLATE | 1 |
| 47 | B1462-053-000 | THREAD RELEASE SPRING | 1 |
| 48 | 214-06103 | PRESSER LIFTER LEVER | 1 |
| 49 | B1510-155-000 | PRESSER BAR LOWER BUSHING | 1 |
| 50 | B1470-241-HAO | WALKING FOOT ASM. | 1 |
| 51 | B1470-241-H00 | WALKING FOOT | (1) |
| 52 | B1471-241-H00 | SCREW | (1) |
| 53 | B1525-241-HAO | PRESSER FOOT ASM. | 1 |
| 54 | B1525-241-H00 | PRESSER FOOT | (1) |
| 55 | 103-37905 | FINGER GUARD | (1) |
| 56 | SS-7150740-SP | SCREW 15/64-28 L=7 | 1 |
| 57 | 214-06608 | GUIDE PLATE SPACER | 1 |
| 58 | B1501-241-H00 | PRESSER BAR | 1 |
| WP-0501048-SC | WASHER 5 X 13 X 1 | ||
| SM-9062250-SC | SCREW M6 L=22 |
Page 10 — 5. FEED MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 214-35003 | FEED DOG | 1 |
| 2 | SS-7110840-SP | SCREW 11/64-40 L=7.8 | 1 |
| 3 | 214-28008 | FEED BASE | 1 |
| 4 | PS-0200102-KH | SPRING PIN 2.0 X 10 | 1 |
| 5 | 214-28107 | FEED BASEPIN | 1 |
| 6 | B1414-232-000 | SQUARE BLOCK | 1 |
| 7 | 214-29006. | VERTICAL FEED SHAFT | 1 |
| 8 | SS-6121220-TP | SCREW 3/16-28 L=11.5 | 1 |
| 9 | 214-29501 | VERTICAL FEED SHAFT METAL | 1 |
| 10 | SS-8110710-SP | SCREW 11/64-40 L=6.5 | 1 |
| 11 | 214-29105 | VERTICAL FEED ARM | 1 |
| 12 | SS-6121850-TP | SCREW 3/16-28 L=18 | 1 |
| 13 | SS-6120930-TP | SCREW 3/16-28 L=9 | 2 |
| 14 | 214-29709 | VERTICAL FEED THRUST COLLAR | 1 |
| 15 | SM-8040502-TP | SCREW M4X0.7 L=5 | 2 |
| 16 | SD-0900701-TP | HINGE SCREW D=9 H=7 | 1 |
| 17 | 210-48707 | HINGE SCREW | 1 |
| 18 | 214-29204 | VERTICAL FEED ROD | 1 |
| 19 | EA-9500B02-00 | CABLE BAND 150 | 1 |
| 20 | 214-29600 | VERTICAL FEED ROD FELT | 1 |
| 21 | 228-14909 | FELT | 1 |
| 22 | 102-05201 | NEEDLE BAR FRAME ROD | 1 |
| 23 | 214-27901 | HORIZONTAL FEED BASE SUPPORT | 1 |
| 24 | SS-6110610-TP | SCREW 11/64-40 L=6 | 2 |
| 25 | B1414-232-000 | SQUARE BLOCK | 1 |
| 26 | SD-0640752-TP | HINGE SCREW D=6.35 H=7.5 | 1 |
| 27 | 214-27802 | HORIZONTAL FEED BASE | 1 |
| 28 | SD-0790701-SP | HINGE SCREW D=7.94 H=7 | 1 |
| 29 | NS-6660430-SP | NUT 1/4-40 | 1 |
| 30 | 214-27604 | HORIZONTAL FEED SHAFT | 1 |
| 31 | B1607-246-000 | BUSHING, FRONT | 1 |
| 32 | CS-111101C-SH | THRUST COLLAR ASM.D=11.11 W=10 | 1 |
| 33 | CS-1111019-SH | THRUST COLLAR D=11.11 W=10 | (1) |
| 34 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 35 | 214-27703 | HORIZONTAL FEED SHAFT D | 1 |
| 36 | B1806-038-000 | OIL FELT | 1 |
| 37 | SS-8150510-TP | SCREW 15/64-28 L=4.7 | 1 |
| 38 | 214-28305 | HORIZONTAL FEED ARM | 1 |
| 39 | SS-6121610-SP | SCREW 3/16-28 L=15.5 | 1 |
| 40 | 214-28503 | HORIZONTAL FEED ARM STOPPER | 1 |
| 41 | 214-28404 | HORIZONTAL FEED ARM ROD | 1 |
| 42 | WP-0621016-SH | WASHER | 1 |
| 43 | SS-9152130-CP | SCREW 15/64-28 L=20.5 | 1 |
| 44 | 213-37506 | FEED ADJUSTING BASE | 1 |
| 45 | 213-37506 | FEED ADJUSTING BASE | 2 |
| 46 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 4 |
| 47 | 213-37407 | SQUARE BLOCK | 2 |
| 48 | 213-37803 | FEED ADJUSTING BASE SUPPORT | 2 |
| 49 | SS-8150822-TP | SCREW 15/64-28 L=8 | 2 |
| 50 | 213-38306 | FELT SUPPORT | 1 |
| 51 | SS-7090610-SP | SCREW 9/64-40 L=6 | 2 |
| 52 | 213-37902 | ECCENTRIC PIN | 1 |
| 53 | SS-7090910-TP | SCREW 9/64-40 L= 8.5 | 2 |
| 54 | 213-37308 | FEED ADJUSTING ROD | 1 |
| 55 | SD-0800402-TP | HINGE SCREW D= 8 H= 4 | 1 |
| 56 | 213-37605 | SPRING | 1 |
| 57 | 213-38009 | SPRING HOOK | 1 |
| 58 | SS-6111610-SP | SCREW 11/64-40 L=16 | 2 |
| 59 | 214-30202 | FEED ADJUSTING | 1 |
| 60 | SM-6061802-TP | SCREW M6 L=18 | 1 |
| 61 | 214-30301 | FEED ADJUSTING DIAL | 1 |
| 62 | SS-6121860-SP | SCREW 3/16-28 L=18 | 1 |
| 63 | 110-09909 | FEED REGULATOR SCREW | 1 |
| 64 | R0-0922702-00 | RUBBER RING | 1 |
| 65 | 110-32701 | SCREW 3/16-28 L=9 | 1 |
| 66 | 229-12109 | FEED REGULATOR PIN SPRING | 1 |
| 67 | 213-36656 | FEED LINK ASM. | 1 |
| 68 | 213-36607 | FEED LINK | (1) |
| 69 | B1418-761-000 | CONNECTING FORKED LINK PIN | (1) |
| 70 | CQ-2020000-00 | OIL WICK | (0.04) |
| 71 | SM-8050612-TP | SCREW M5X6 | (1) |
| 72 | 213-36706 | FEED ROD A | 1 |
| 73 | 213-38207 | FEED LINK PIN | 1 |
| 74 | SD-1000801-SH | HINGE SCREW D=10 H=8 | 1 |
| 75 | 213-36300 | BACKWARD FEED LEVER SHAFT | 1 |
| 76 | CS-1201010-SH | THRUST COLLAR ASM. D=12 W=10 | 1 |
| 77 | CS-1201011-SH | THRUST COLLAR D=12 W=10 | (1) |
| 78 | SS-8660610-TP | SCREW 1/4-40 L=6 | (2) |
| 79 | RE-0900000-KO | E-RING 9 | 1 |
| 80 | 226-10505 | REVERSE FEED CONTROL LEVER | 1 |
| 213-37806 | FELT SUPPORT | 1 | |
| SS-6110610-SP | SCREW 11/64-40 L=16 | 2 |
Page 12 — 6. HOOK SHAFT & LOWER SHAFT COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B9117-201-000 | BOBBIN | 1 |
| 2 | 214-31358 | CAP HOOK ASM. | 1 |
| 3 | 212-27400 | INNER HOOK GUIDE | 1 |
| 4 | B1827-246-000 | SLIDE BLOCK | 1 |
| 5 | B1826-246-000 | SLIDE BLOCK PIN | 1 |
| 6 | SS-1092810-SP | SCREW 9/64-40 L=25.4 | 1 |
| 7 | SS-7090710-SP | SCREW 9/64-40 L= 6.8 | 1 |
| 8 | 212-31204 | ADJUSTING PLATE | 1 |
| 9 | SM-6051202-TP | SCREW M5X0.8 L=12 | 2 |
| 10 | WP-0520656-SA | WASHER 5.2X9.5X0.6 | 2 |
| 11 | 214-30855 | HOOK SHAFT BASE ASM. | 1 |
| 12 | 214-30954 | HOOK SHAFT BASE | 1 |
| 13 | 214-30806 | HOOK SHAFT BASE | (1) |
| 14 | 214-30905 | HOOK SHAFT BASE | (1) |
| 15 | 214-31002 | HOOK SHAFT METAL | (1) |
| 16 | 214-31101 | HOOK SHAFT METAL | (1) |
| 17 | B1820-246-000 | WASHER | 1 |
| 18 | B1820-246-00A | WASHER A | 1 |
| 19 | B1820-246-00B | WASHER B | 1 |
| 20 | B1820-246-00C | WASHER C | 1 |
| 21 | B1820-246-00D | WASHER | 1 |
| 22 | 212-27301 | HOOK SHAFT GEAR | 1 |
| 23 | B9117-051-000 | BOBBIN | 1 |
| 24 | B1801-340-0A0 | HOOK ASM. | 1 |
| 25 | B1810-340-000 | BOBBIN CASE OPENING LEVER | 1 |
| 26 | B1814-340-000 | HOOK SHAFT GEAR | 1 |
| 27 | 214-31200 | HOOK SHAFT LUBRICATION FELT | 1 |
| 28 | CQ-2020000-00 | OIL WICK | 0.15 |
| 29 | B1836-246-000-A | LOWER SHAFT BEVEL GEAR | 1 |
| 30 | SS-8660610-TP | SCREW 1/4-40 L=6 | 3 |
| 31 | B1803-246-000 | BUSHING, INTERMEDIATE | 1 |
| 32 | BT-0500300-EA | OIL TUBE | 0.05 |
| 33 | 214-29303 | VERTICAL FEED CAM (1.0) | 1 |
| 34 | SS-8660612-TP | SCREW 1/4-40 L=6 | 2 |
| 35 | B1301-340-000 | SAFETY CLUTCH DISK | 1 |
| 36 | SS-8150710-SP | SCREW 15/64-28 L=7 | 2 |
| 37 | 212-23409 | SAFETY CLUTCH PUSH BUTTON | 1 |
| 38 | PS-0200102-KH | SPRING PIN 2.0 X 10 | 1 |
| 39 | B1639-051-000 | SPRING | 1 |
| 40 | 212-23508 | PUSH BUTTON CYLINDER | 1 |
| 41 | 231-02700 | LOWER SHAFT THRUST HOLDER | 1 |
| 42 | SS-8150432-TH | SCREW 15/64-28 L=4 | 2 |
| 43 | 214-27307 | LOWER SHAFT METAL , REAR | 1 |
| 44 | SS-8150710-TP | SCREW 15/64-28 L=7 | 1 |
| 45 | 214-27208 | LOWER SHAFT | 1 |
| 46 | 213-33505 | LOWER SPROCKET | 1 |
| 47 | B1214-019-000 | SPROCKET RING | 1 |
| 48 | B1305-055-000-A | SAFETY CLUTCH SPRING | 1 |
| 49 | B1307-055-000 | SAFETY CLUTCH HOOK | 1 |
| 50 | B1308-055-000 | SAFETY CLUTCH COUNTER-HOOK | 1 |
| 51 | B1309-055-000 | COUNTER-HOOK SPRING | 1 |
| 52 | B1310-055-000 | SAFETY CLUTCH SMALL LINK | 1 |
| 53 | 105-03605 | SAFETY BASE | 1 |
| 54 | B1314-055-000 | SAFETY CLUTCH SMALL LINK PIN | 1 |
| 55 | SS-6661110-SP | SCREW 1/4-40 L=11 | 2 |
| 56 | SD-0640322-TP | HINGE SCREW D= 6.35 H= 3.2 | 1 |
| 57 | SD-0640322-TP | HINGE SCREW D= 6.35 H= 3.2 | 1 |
| 58 | SS-8090540-SP | SCREW 9/64-40 L=5 | 1 |

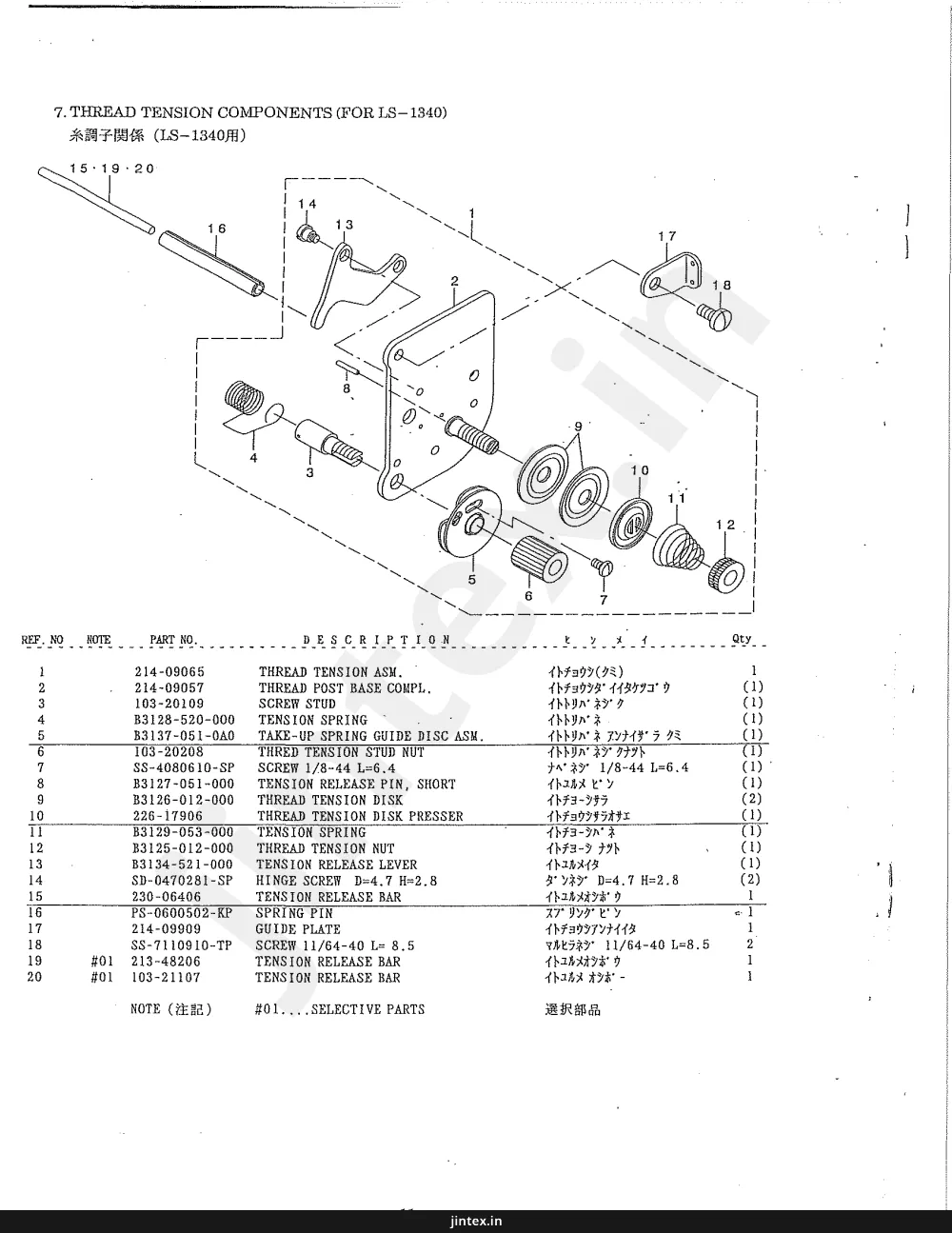

Page 13 — 7. THREAD TENSION COMPONENTS (FOR LS-1340)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 214-09065 | THREAD TENSION ASM. | 1 |
| 2 | 214-09057 | THREAD POST BASE COMPL. | (1) |
| 3 | 103-20109 | SCREW STUD | (1) |
| 4 | B3128-520-000 | TENSION SPRING | (1) |
| 5 | B3137-051-0A0 | TAKE-UP SPRING GUIDE DISC ASM. | (1) |
| 6 | 103-20208 | THRED TENSION STUD NUT | (1) |
| 7 | SS-4080610-SP | SCREW 1/8-44 L=6.4 | (1) |
| 8 | B3127-051-000 | TENSION RELEASE PIN, SHORT | (1) |
| 9 | B3126-012-000 | THREAD TENSION DISK | (2) |
| 10 | 226-17906 | THREAD TENSION DISK PRESSER | (1) |
| 11 | B3129-053-000 | TENSION SPRING | (1) |
| 12 | B3125-012-000 | THREAD TENSION NUT | (1) |
| 13 | B3134-521-000 | TENSION RELEASE LEVER | (1) |
| 14 | SD-0470281-SP | HINGE SCREW D=4.7 H=2.8 | (2) |
| 15 | 230-06406 | TENSION RELEASE BAR | 1 |
| 16 | PS-0600502-KP | SPRING PIN | 1 |
| 17 | 214-09909 | GUIDE PLATE | 1 |
| 18 | SS-7110910-TP | SCREW 11/64-40 L= 8.5 | 2 |
| 19 | 213-48206 | TENSION RELEASE BAR | 1 |
| 20 | 103-21107 | TENSION RELEASE BAR | 1 |
Page 14 — 8. THREAD TENSION COMPONENTS (FOR LS-1341)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 214-41068 | THREAD TENSION ASM. | 1 |
| 2 | 214-41050 | TENSION POST COMPL. | (1) |
| 3 | 103-20109 | SCREW STUD | (1) |
| 4 | B3128-520-000 | TENSION SPRING | (1) |
| 5 | B3137-051-0A0 | TAKE-UP SPRING GUIDE DISC ASM. | (1) |
| 6 | B3125-012-000 | THREAD TENSION NUT | (1) |
| 7 | 226-18201 | TENSION RELEASE PIN, A | (2) |
| 8 | B3126-012-000 | THREAD TENSION DISK | (4) |
| 9 | 226-17906 | THREAD TENSION DISK PRESSER | (2) |
| 10 | B3129-526-000 | TENSION SPRING (1.2) | (2) |
| 11 | B3120-125-000 | ROTATING STOPPER | (2) |
| 12 | 119-56802 | THREAD TENSION KNOB, BLUE | (2) |
| 13 | 101-24204 | THREAD TENSION POST, A | (1) |
| 14 | 107-41106 | FIRST THREAD TENSION PLATE | (2) |
| 15 | 110-45101 | THREAD TENSION SPRING | (1) |
| 16 | 110-72402 | THREAD TENSION NUT | (1) |
| 17 | 214-4110 | TENSION RELEASE PLATE | (1) |
| 18 | SS-4080610-SP | SCREW 1/8-44 L=6.4 | (1) |
| 19 | SD-0470281-SP | HINGE SCREW D=4.7 H=2.8 | (2) |
| 20 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 21 | D3162-555-B00 | THREAD GUIDE | (1) |
| 22 | PS-0600502-KP | SPRING PIN | 1 |
| 23 | SS-7110910-TP | SCREW 11/64-40 L=8.5 | 2 |
| 24 | 213-48206 | TENSION RELEASE BAR | 1 |
| 25 | 103-21107 | TENSION RELEASE BAR | 1 |
| 26 | 230-6406 | THREAD GUIDE | 1 |
| B3162-555-B00 | THREAD GUIDE | (1) | |
| #01 213-48206 | TENSION RELEASE BAR | 1 | |
| #01 103-21107 | TENSION RELEASE BAR | 1 |
Page 15 — 9. KNEE LIFTER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 214-32851 | KNEE LIFTER LEVER ASM. | 1 |
| 2 | SM-6062502-TP | SCREW M6 L=25 | 2 |
| 3 | 214-32703 | NEE LIFTER CONNECTING PLATE | 1 |
| 4 | SD-0790451-SP | HINGE SCREW D= 7.94 H= 4.5 | 2 |
| 5 | 214-33008 | NEE LIFTER CONNECTING PLATE | 1 |
| 6 | PS-0400222-KO | SPRING PIN | 1 |
| 7 | 214-33107 | KNEE LIFTER SPRING | 1 |
| 8 | 214-05709 | KNEE LIFTER ARM | 1 |
| 9 | SM-6052002-TP | SCREW M5 L=20 | 1 |
| 10 | 214-32604 | KNEE LIFTER STOPPER ARM | 1 |
| 11 | SM-6052002-TP | SCREW M5 L=20 | 1 |
| 12 | SM-8052502-TP | SCREW M5X0.8 L=25 | 1 |
| 13 | NM-6050001-SD | NUT M5X0.8 | 1 |
| 14 | 214-33206 | STOPPER ARM | 1 |
| 15 | SS-6121210-SP | SCREW 3/16-28 L=12 | 2 |
| 16 | 214-32505 | KNEE LIFTER SHAFT | 1 |
| 17 | 229-32453 | BRACKET ASM. | 1 |
| 18 | 229-32404 | BRACKET | (1) |
| 19 | 229-34707 | SCREW | (2) |
| 20 | 214-33354 | KNEE PRESS PLATE ASM. | 1 |
| 21 | SM-9061203-SE | SCREW M6 L=12 | (1) |
| 22 | 214-33305 | KNEE PRESS LEVER | (1) |
| 23 | 229-34509 | KNEE PAD PLATE COVER | (1) |
| 24 | 229-34400 | KNEE PAD PLATE RUBBER | (1) |
| 25 | 229-34202 | KNEE PAD PLATE | (1) |
| 26 | 229-34301 | KNEE PAD PLATE SUPPORT | (1) |
| 27 | 214-33404 | PRESSER LIFTER ARM | 1 |
| 28 | SM-6051602-TP | SCREW M5X0.8 L=16 | 1 |
| 29 | 214-33503 | PRESSER LIFTER PLATE | 1 |
| 30 | SM-6051552-TP | SCREW M5 L=15 | 2 |
| 31 | B8131-019-000 | CHAIN | 1 |
| 32 | B8133-019-000 | S SHAPED HOOK | 2 |
| 229-34409 | BRACKET | (1) |
Page 16 — 10. LUBRICATION COMPONENTS / 給油関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 213-45756 | ARM ONCE THROUGH OIL FELT ASM. | 1 |
| 2 | 213-45707 | ARM ONCE THROUGH FELT A | (1) |
| 3 | 213-45806 | FELT B | (1) |
| 4 | 213-45905 | FACE ONCE THROUGH FELT | (1) |
| 5 | 213-46358 | FELT SUPPORT ASM. | 1 |
| 6 | 213-46309 | FELT | (1) |
| 7 | 213-46507 | FEED CHANGE FELT | (1) |
| 8 | 213-46408 | FELT | (1) |
| 9 | EA-9500B00-00 | CLIP CV-70S | (2) |
| 10 | SS-6110480-SP | SCREW 11/64-40 L=4.3 | 1 |
| 11 | 213-40708 | UPPER FEED OIL BAR PLATE | 1 |
| 12 | SS-7110510-SP | SCREW 11/64-40 L=5 | 1 |
| 13 | CQ-2020000-00 | OIL WICK | 0.2 |
| 14 | 213-47000 | TAKE-UP OIL PLATE | 1 |
| 15 | CQ-2020000-00 | OIL WICK | 0.2 |
| 16 | 213-47208 | TAKE-UP LUBRICATION FELT | 1 |
| 17 | SS-3090610-SP | SCREW 9/64-40 L=6 | 1 |
| 18 | 213-46002 | FELT | 1 |
| 19 | B1412-051-000 | FELT | 1 |
| 20 | CQ-2520000-00 | OIL WICK | 0.3 |
| 21 | BT-0500300-EA | OIL TUBE | 0.25 |
| 22 | 214-07507 | OIL TANK A | 1 |
| 23 | 214-07606 | OIL TANK B | 1 |
| 24 | 214-07705 | FELT | 2 |
| 25 | SS-6111010-SP | SCREW 11/64-40 L=9.5 | 2 |
| 26 | CQ-2020000-00 | OIL WICK | 0.2 |
| 27 | 213-39700 | UPPER FEED STOPPER PLATE (B) | 1 |
| 28 | SS-7111120-TP | SCREW | 2 |
| 29 | WP-0450801-SD | WASHER 4.5X10X0.8 | 1 |
| 30 | 226-20504 | OIL WICK HOLDER | 1 |
| 31 | EA-9500B00-00 | CLIP CV-70S | 1 |
| 32 | PS-0500202-KP | SPRING PIN 5X20 | 1 |
| 33 | 214-33800 | OIL TANK | 1 |
| 34 | B1203-051-000 | OIL FELT | 1 |
| 35 | SS-7110710-SP | SCREW 11/64-40 L=7 | 2 |
| 36 | SQ-1110401-MZ | CONNECTING SCREW | 1 |
| 37 | CQ-2020000-00 | OIL WICK | 0.3 |
| 38 | B1140-051-000 | TAKE-UP OIL SPLASHER | 1 |
Page 17 — ベルトカバー・油抜き関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 213-51150 | BELT COVER ASM. (RIGHT) | 1 |
| 213-51101 | BELT COVER (RIGHT) | ||
| 213-51002 | BELT COVER AUXILIARY PLATE | ||
| 213-51200 | BELT COVER (LEFT) | ||
| D8232-241-E00 | BELT COVER SUPPORT A | ||
| SS-6153040-SP | SCREW 15/64-28 L=30 | 2 | |
| SS-6151440-SP | SCREW 15/64-28 L=14 | 1 | |
| SS-5110740-TP | SCREW 11/64-40 L=6.6 | 1 | |
| 214-34451 | BELT COVER ASM. LOWER | ||
| 214-34402 | BELT COVER LOWER | ||
| 214-34501 | BELT COVER | ||
| SK-3241601-SC | WOOD SCREW D=2.4 L=16 | 4 | |
| B8202-205-000 | OIL MANAGEMENT | 1 | |
| B9121-012-000 | OIL CAN | 1 | |
| WP-0612076-SP | WASHER 6.1X11X2 | 1 |
Page 18 — 12. LOWER THREAD WINDER MECHANISM COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 213-57967 | BOBBIN DEVICE ASM. | 1 |
| 2 | 225-37658 | BOBBIN FITTING BASIS COMPL. | (1) |
| 3 | 213-57959 | BOBBIN SHAFT COMPL. | (1) |
| 4 | 225-38151 | BOBBIN CAM SHAFT COMPL. | (1) |
| 5 | 236-36202 | BOBBIN LEVER | (1) |
| 6 | 225-38409 | ADJUSTING PLATE | (1) |
| 7 | B1529-890-00C-A | PRESSUR FOOT SPRING | (1) |
| 8 | 106-18304 | VERTICAL ROLLER WASHER | (2) |
| 9 | A3216-001-00A | RUBBER RING | (1) |
| 10 | B3205-210-000 | CUSHION | (1) |
| 11 | B1148-555-000 | SPRING | (1) |
| 12 | RC-0560711-KP | RETAINING RING | (1) |
| 13 | RE-0500000-KO | E-RING | (1) |
| 14 | RO-0922702-00 | RUBBER RING | (1) |
| 15 | SS-7091410-SP | SCREW 9/64-40 L=13.5 | (1) |
| 16 | SS-6090520-SP | SCREW 9/64-40 L=5.0 | (1) |
| 17 | 145-12503 | BOBBIN ADJUSTING PLATE | (1) |
| 18 | SS-6110810-TP | SCREW 11/64-40 L=8 | 3 |
| 19 | 107-04807 | BOBBIN FRICTION WHEEL | 1 |
| 20 | SM-8050602-TP | SCREW M5 L=6 | 2 |
| 21 | 105-02300 | THREAD CUTTER | 1 |
| 22 | SS-6090620-TP | SCREW | 1 |
| 23 | 213-55755 | LOWER THREAD GUIDE ASM. | 1 |
| 24 | 213-55706 | FITTING BASE | (1) |
| 25 | D3162-555-BOO | THREAD GUIDE | (1) |
| 26 | NS-6110310-SP | NUT 11/64-40 | (1) |
| 27 | D3168-555-H0B | TENSION SPRING NO.1 | (1) |
| 28 | B3214-047-000 | BOBBIN WINDER TENSION DISC | (2) |
| 29 | 213-78708 | THREAD TENSION POST | (1) |
| 30 | 110-72402 | THREAD TENSION NUT | (1) |
| 31 | SM-6040800-SP | SCREW | 2 |
| 32 | 225-38706 | PACKING | 1 |
Page 19 — 13. THREAD STAND COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 229-30358 | THREAD STAND ASM. | 1 |
| 2 | 229-31109 | SPOOL RETAINER | (2) |
| 3 | 229-31000 | SPOOL PIN | (2) |
| 4 | 229-30903 | SPOOL REST CUSHION | (2) |
| 5 | 229-30804 | SPOOL REST | (2) |
| 6 | SM-6061610-SC | SCREW M6 L=16 | (2) |
| 7 | 229-30705 | THREAD GUIDE ARM JOINT. | (2) |
| 8 | 229-31406 | SPOOL REST ROD RUBBER CAP | (1) |
| 9 | 229-30507 | SPOOL REST ARM | (2) |
| 10 | 229-30408 | SPOOL REST ROD, UPPER | (1) |
| 11 | 229-31307 | SPOOL REST ROD JOINT | (1) |
| 12 | SM-4051405-SE | SCREW M5 L=14 | (2) |
| 13 | NM-6050001-SE | NUT M5 | (2) |
| 14 | 229-30309 | SPOOL REST ROD, LOWER | (1) |
| 15 | 229-31208 | THREAD GUIDE | (2) |
| 16 | WS-0510002-KN | SPRING WASHER | (2) |
| 17 | NM-6050001-SE | NUT M5 | (2) |
| 18 | NM-6160511-SE | NUT M16X1.5 | (1) |
| 19 | WP-1702600-SO | WASHER 17X30X2.6 | (2) |
Page 20 — 14. GAUGE COMPONENTS (OPTIONAL PARTS)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B9101-340-0A0 | EDGE GUIDE ASM. | 1 |
| 2 | MAM-22709000 | SCREW | 2 |
| 3 | WP-0551016-SH | WASHER 5.5X13X1 | 2 |
| 4 | B9104-340-000 | FIXING BINDER FITTING PLATE. | 1 |
| 5 | 212-25305 | FEED DOG, 3.2MM | 1 |
| 6 | 212-25008 | FEED DOG | 1 |
| 7 | 212-31006 | WALKING FOOT | 1 |
Page 21 — 15. BINDER COMPONENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 214-27455 | BINDER SET | 1 |
| 2 | 214-27406 | THROAT PLATE | (1) |
| 3 | MAQ-14302000 | FEED PLATE A ASM. | (1) |
| 4 | MAQ-14303000 | FEED PLATE B | (1) |
| 5 | MAQ-09205000 | BINDER LOCK NUT | (2) |
| 6 | MAQ-09204000 | BINDER SETSCREW | (2) |
| 7 | SS-7110510-SP | SCREW 11/64-40 L=5 | (2) |
| 8 | SS-7110510-SP | SCREW 11/64-40 L=5 | (1) |
| 9 | MAQ-09206000 | TAPE GUIDE | (1) |
| 10 | SD-0721112-SN | HINGE SCREW D=7.24 H=11.1 | (1) |
| 11 | 212-32004 | SPRING | (1) |
| 12 | MAQ-14306000 | FEED | (1) |
| 13 | MAQ-14307000 | FEED VERTICAL CAM | (1) |
| 14 | MAQ-093080A0 | PRESSER FOOT ASM. | (1) |
| 15 | MAQ-09307000 | WALKING FOOT | (1) |
| 16 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | (1) |
| 17 | MAQ-143010A0 | BINDER SET (Q143) | 1 |
| 18 | MAQ-14301000 | THROAT PLATE | (1) |
| 19 | MAQ-14302000 | FEED PLATE A ASM. | (1) |
| 20 | MAQ-14303000 | FEED PLATE B | (1) |
| 21 | MAQ-09205000 | BINDER LOCK NUT | (2) |
| 22 | MAQ-09204000 | BINDER SETSCREW | (2) |
| 23 | SS-7110510-SP | SCREW 11/64-40 L=5 | (2) |
| 24 | SS-7110510-SP | SCREW 11/64-40 L=5 | (1) |
| 25 | MAQ-09206000 | TAPE GUIDE | (1) |
| 26 | SD-0721112-SN | HINGE SCREW D=7.24 H=11.1 | (1) |
| 27 | 212-32004 | SPRING | (1) |
| 28 | MAQ-14306000 | FEED | (1) |
| 29 | MAQ-14307000 | FEED VERTICAL CAM | (1) |
| 30 | MAQ-093080A0 | PRESSER FOOT ASM. | (1) |
| 31 | MAQ-09307000 | WALKING FOOT | (1) |
| 32 | SS-6110710-TP | SCREW 11/64-40 L= 6.5 | (1) |
Page 22 — 16. ACCESSORIES PARTS COMPONENTS / 付属品関係
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | B9101-552-000 | ACCESSORY BOX | 1 |
| 2 | 229-33006 | SCREW DRIVER,LARGE | 1 |
| 3 | B9110-012-000 | SCREW DRIVER, MIDDLE | 1 |
| 4 | B9111-012-000 | SCREW DRIVER, SMALL | 1 |
| 5 | B9113-012-000 | WRENCH (9X10) | 1 |
| 6 | MDF-RX2700C0 | NEW DEFRIX OIL NO.2(700CC) | 1 |
| 7 | J1067-000-000 | OILER | 1 |
| 8 | B9117-201-000 | BOBBIN | 1 |
| 9 | B9117-051-000 | BOBBIN | 1 |
| 10 | 229-58300 | NEEDLE THREAD GUIDE PIN | 1 |
| 11 | B8204-245-00A | FRAME SUPPORT BAR | 1 |
| 12 | 105-29808 | COVER | 1 |
| 13 | B9130-245-000 | BOLT | 4 |
| 14 | WP-0751576-SD | WASHER 7.5X19X1.5 | 4 |
| 15 | NM-6060001-SD | NUT M6 | 4 |
| 16 | MC-3720016-02 | NEEDLE SY3355 #160-2 | 1 |
| 17 | MC-3720014-02 | NEEDLE SY3355 NM140-2 | 1 |
Juki LS-1340, 1341 — parts catalog
- Page 1 (cover): This is the cover page for the JUKI LS-1340 and LS-1341 sewing machine parts list. It includes model names in English and Japanese, and the title "PARTS LIST".
- Page 2 (toc): This page is a table of contents for a sewing machine parts catalog, listing sections from "FRAME & MISCELLANEOUS COVER COMPONENTS" to "NUMERICAL INDEX OF PARTS" with corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated.
- Page 4 (parts_list): This page lists parts for the sewing machine, including part numbers, descriptions, quantities, and notes. It covers items from reference number 1 to 72.
- Page 5 (diagram): This page displays a diagram of the upper shaft driving and balance components, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 6 (parts_list): This page lists needle bar rocking components with part numbers, descriptions, and quantities, including specific notes for models LS-1341 and LS-1340.
- Page 7 (diagram): This page displays a diagram of the pressure adjusting and upper feed mechanism components, with numbered parts for identification.
- Page 8 (parts_list): This page lists parts for an industrial sewing machine, including part numbers, descriptions, quantities, and notes. It covers components from the upper feed shaft to the presser bar.
- Page 9 (diagram): This page displays a diagram of the feed mechanism components, including various screws, shafts, levers, and other mechanical parts, with reference numbers for identification.
- Page 10 (parts_list): This page lists parts for a sewing machine, including feed dogs, screws, feed bases, springs, and various other components with their corresponding part numbers and descriptions.
- Page 11 (diagram): This page displays a diagram of hook shaft and lower shaft components, with numbered parts for identification.
- Page 12 (parts_list): A parts list for sewing machine hook, bobbin, and safety clutch assemblies, with reference numbers, note codes, part numbers, English and Japanese descriptions, and quantities, plus notes on selective parts for LS-1341 and LS-1340.
- Page 13 (parts_list): This page lists thread tension components for the LS-1340 model, including part numbers, descriptions, and quantities.
- Page 14 (parts_list): This page lists thread tension components for the LS-1341 model, including part numbers, descriptions, and quantities.
- Page 15 (diagram): This page displays a diagram of knee lifter components, along with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 16 (diagram): Exploded diagram of lubrication components with a parts table listing 38 reference items, part numbers, descriptions and quantities for the LS-1340/LS-1341 oil wick, felt and oil tank assemblies.
- Page 17 (diagram): This page displays a diagram of belt cover and oil drain related components, along with a parts list detailing part numbers, descriptions, and quantities.
- Page 18 (diagram): This page contains a diagram and parts list for the lower thread winder mechanism components, including part numbers, descriptions, and quantities.
- Page 19 (diagram): This page displays a diagram of thread stand components and a parts list for items 1 through 19.
- Page 20 (parts_list): This page lists gauge components (optional parts) for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 21 (parts_list): This page lists binder components with their part numbers, descriptions, and quantities. It includes parts like throat plates, feed plates, binder setscrews, and springs, with specific notes for LS-1341 and LS-1340 models.
- Page 22 (parts_list): Parts list and exploded illustration of accessories components including screwdrivers, wrench, oil bottle, oiler, bobbins, frame support bar, cover, bolts, washers, nut and needles, with notes for LS-1340 and non-Japan versions.
- Page 26 (cover): This is the cover page of a JUKI sewing machine parts catalog, copyrighted in 2001 and printed in Japan. It includes contact information for orders and further inquiries.
