Page 1 — PARTS LIST
Cylinder-bed,1-Needle, Unison-feed, Lockstitch Machine
(Standard Hook)
筒型一本針本縫総合送りミシン (小釜)
LS-1340
Cylinder-bed,1-Needle, Unison-feed, Lockstitch Machine
(Large Hook)
筒型一本針本縫総合送りミシン (大釜)
LS-1341
PARTS LIST
HOW TO MAKE USE OF THIS PARTS LIST
1. As to "#01" and "#02" refer to the "Note" given at the bottom of the respective pages.
2. Codes on the "Qty" column
Each numeral indicates the number of parts required.
"0.1" and "2.5" indicate the length (in meters) of the respective parts.
3. Parentheses mean that the corresponding part is a subpart that constructs an assembly part.
4. Dotted lines on the Figures indicate assembly parts.
パーツリストご利用に際して
1. リストページ の #01、#02 等の印は、ページ下の"注記"の説明をご参照下さい。
2. 数量欄の数字は、個数を表し、0.1、2.5等の数値は、長さ(単位メートル)を表します。
3. 数量欄の( )は、組部品を構成している子部品であることを意味します。
4. イラストページの---枠は、組構成であることを意味します。
29351202
No.1313-00
jintex.in

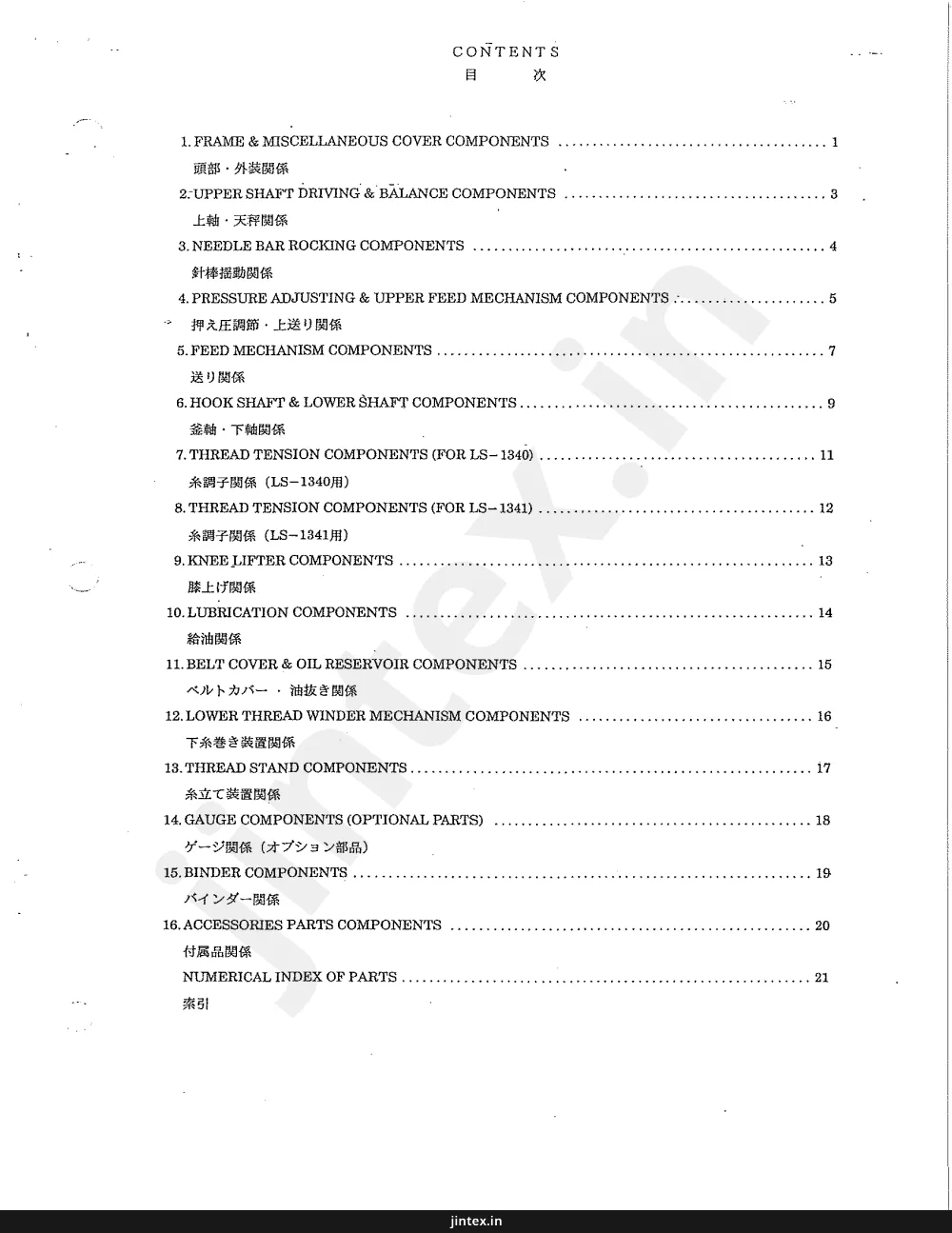

Page 2 — CONTENTS
CONTENTS
目 次
1. FRAME & MISCELLANEOUS COVER COMPONENTS 1
頭部・外装関係
2. UPPER SHAFT DRIVING & BALANCE COMPONENTS 3
上軸・天秤関係
3. NEEDLE BAR ROCKING COMPONENTS 4
針棒揺動関係
4. PRESSURE ADJUSTING & UPPER FEED MECHANISM COMPONENTS 5
押え圧調節・上送り関係
5. FEED MECHANISM COMPONENTS 7
送り関係
6. HOOK SHAFT & LOWER SHAFT COMPONENTS 9
釜軸・下軸関係
7. THREAD TENSION COMPONENTS (FOR LS-1340) 11
糸調子関係 (LS-1340用)
8. THREAD TENSION COMPONENTS (FOR LS-1341) 12
糸調子関係 (LS-1341用)
9. KNEE LIFTER COMPONENTS 13
膝上げ関係
10. LUBRICATION COMPONENTS 14
給油関係
11. BELT COVER & OIL RESERVOIR COMPONENTS 15
ベルトカバー・油抜き関係
12. LOWER THREAD WINDER MECHANISM COMPONENTS 16
下糸巻き装置関係
13. THREAD STAND COMPONENTS 17
糸立て装置関係
14. GAUGE COMPONENTS (OPTIONAL PARTS) 18
ゲージ関係 (オプション部品)
15. BINDER COMPONENTS 19
バインダー関係
16. ACCESSORIES PARTS COMPONENTS 20
付属品関係
NUMERICAL INDEX OF PARTS 21
索引
Page 3 — 1. FRAME & MISCELLANEOUS COVER COMPONENTS
1. FRAME & MISCELLANEOUS COVER COMPONENTS
頭部・外装関係
14
12
13
10
9
19
18
68
69
45
15
11
40
16
17
3
2
3
46
49
47
48
46
52
53
54
24
25
26
27
28
29
51
50
72
30
31
35
34
33
36
37
32
39
65
64
66
67
60
56
57
58
59
- 1 -
jintex.in
8
7
6
5
4
70
71
41
42
61
62
20
21
22
23
63
38
84
Page 4
REF. NO. NOTE PART NO. DESCRIPTION Qty
1 214-01757 FACE PLATE ASM. 1
2 SS-4111215-SP SCREW 11/64-40 L=12 3
3 TA-1250406-RO RUBBER PLUG D=12.5 L=4 2
4 213-31301 TOP COVER B 2
5 SS-4110815-SP SCREW 11/64-40 L=8 6
6 213-55904 ARM THREAD GUIDE 1
7 SS-7621040-SP SCREW 3/16-32 L=9.5 2
8 TA-1450404-RO RUBBER PLUG D=14.5 L=4 1
9 213-31756 WINDOW PLATE A ASM. 1
10 213-31202 SETSCREW 1
11 TA-0750404-RO PLUG D=7.5 L=3.5 2
12 213-31806 WINDOW PLATE B 1
13 213-32002 WINDOW PLATE PACKING B 1
14 SS-4110815-SP SCREW 11/64-40 L=8 5
15 TA-1250504-RO RUBBER PLUG 1
16 213-32309 SIDE COVER 1
17 SS-4110815-SP SCREW 11/64-40 L=8 1
18 213-31608 BALANCE COVER 1
19 SS-7150910-TP SCREW 15/64-28 L=9 1
20 213-55805 THREAD GUIDE 1
21 SS-5090610-SP SCREW 9/64-40 L=6 1
22 B1129-001-000 FRAME THREAD GUIDE, UPPER 1
23 SS-2090710-TP SCREW 9/64-40 L=7.2 2
24 214-08554 THREAD GUIDE ASM. (1)
25 214-08505 THREAD GUIDE PLATE (1)
26 179-12106 NEEDLE THREAD PRESSER PLATE (1)
27 B1132-521-000 THREAD PRESSER PLATE SPRING (1)
28 SD-0380551-SL HINGE SCREW D= 3.80 H= 5.5 (1)
29 SS-2090710-TP SCREW 9/64-40 L=7.2 1
30 B3138-512-000 TAKE-UP SPRING ADJUSTING PLATE 1
31 SS-7090520-TP SCREW 9/64-40 L=4.5 1
32 214-26754 CYLINDER COVER ASM. (1)
33 214-26705 CYLINDER COVER (1)
34 NM-6030003-SC NUT M3 (2)
35 214-26903 FELT PRESSER PLATE (1)
36 214-26853 SYLINDER COVER FELT ASM. (1)
37 SM-4030601-SC SCREW M3 X 6 (2)
38 TA-0550604-RO RUBBER PLUG 1
39 SS-5110710-SP SCREW 11/64-40 L=7 1
40 TA-1050504-RO RUBBER PLUG 4
41 #01 CM-3002001-01 SAFETY LABEL, 1(SMALL). 1
42 #02 CM-3002001-A1 SAFETY LABEL, 3 (SMALL). 1
43 #01 CM-3002000-B1 LABEL(16) 1
44 #02 CM-3002000-01 ATTENTION SEAL 1
45 100-04109 GROUND MARK 1
46 SS-5090610-SP SCREW 9/64-40 L=5 4
47 214-26606 BED SLIDE SIDE PLATE, LEFT 1
48 231-00506 BED SLIDE SIDE PLATE, RIGHT 1
49 212-20413 BED PLATE 1
50 #03 212-21908 THOAT PLATE 1
51 SS-7112810-SP SCREW 11/64-40 L=28 2
52 214-26200 THROAT PLATE BASE 1
53 SS-7113110-SP SCREW 1/64-40 L=30 2
54 214-28206 FEED BASE SUPPORT 1
55 SM-8040502-TP SCREW M4X0.7 L=5 1
56 214-26051 THROAT PLATE BASE COVER ASM. 1
57 NM-6030003-SC NUT M3 (2)
58 214-26101 THROAT PLATE BASE COVER SPRING (1)
59 214-26002 THROAT PLATE BASE COVER (1)
60 SM-4030401-SC SCREW M3X0.5 L=4 (2)
61 B1117-246-000 HOOK 1
62 B1116-246-000 WING BOLT 1
63 SD-0800352-SP HINGE SCREW D= 8 H= 3.5 1
64 SM-6082002-TP SCREW M8 L=20 8
65 214-26507 HINGE 1
66 214-26309 BED HOLDING BASE 1
67 214-26408 BED HOLDING BASE PACKING 1
68 SS-6111140-SP SCREW 11/64-40 L=11 1
69 WT-0530002-KS TOOTHED WASHER D= 5.3 1
70 102-01200 RUBBER PLUG 1
71 226-19100 CAP 1
72 #04 B1105-340-000 THROAT PLATE
NOTE (注記)
#01...FOR JAPAN
#02...EXCEPT JAPAN
#03...FOR LS-1341
#04...FOR LS-1340
Page 5 — 2. UPPER SHAFT DRIVING & BALANCE COMPONENTS
2. UPPER SHAFT DRIVING & BALANCE COMPONENTS
上軸・天秤関係
REF. NO
NOTE
PART NO.
D E S C R I P T I O N
Qty.
1
213-32705
UPPER SHAFT
ウツヅク
1
2
213-33000
UPPER SHAFT FRONT METAL
ウツヅク クマエ
1
3
#01
214-02102
THREAD TAKE-UP LEVER
テンピン
1
4
#01
226-05406
THREAD TAKE-UP LEVER PIN
テンピン スライド
1
5
CQ-2020000-00
OIL WICK
ユシ
1
6
B1906-051-000
THREAD TAKE-UP LEVER PIN
テンピン スライド
0.03
7
CQ-3030000-00
OIL WICK
ユシ
1
8
SS-8150822-TP
SCREW 15/64-28 L=8
トメネジ 15/64-28 L=8
2
9
213-39106
NEEDLE BAR CRANK ROD
ハリざまクランクロツド
1
10
B1210-051-000
NEEDLE BAR CRANK PIN
ハリざまクランクピン
1
11
CQ-5050000-00
OIL WICK
ユシ
0.03
12
213-32507
COUNTER WEIGHT (A) (36MM)
プリアイスイ(A)(36MM)
1
13
SS-8150822-TP
SCREW 15/64-28 L=8
トメネジ 15/64-28 L=8
2
14
SM-8080812-TP
SCREW M8X8
トメネジ M8
2
15
213-39502
UPPER FEED CAM (3.5)
ウエオツカミ(3.5)
1
16
SS-8660810-TP
SCREW 1/4-40 L=8
トメネジ 1/4-40 L=8
2
17
213-33109
UPPER SHAFT INNER METAL
ウツヅク クナカメ
1
18
CQ-2020000-00
OIL WICK
ユシ
0.25
19
213-36557
ECCENTRIC CAM A ASM.
シンクンカククミ(クミ)
1
20
213-36508
ECCENTRIC CAM A
シンクンカククミ
(1)
21
SS-8660810-TP
SCREW 1/4-40 L=8
トメネジ 1/4-40 L=8
(2)
22
213-53008
HORIZONTAL FEED CAM COVER
スイヘイオツカミフタ
1
23
SS-7110710-SP
SCREW 11/64-40 L=7
トメネジ 11/64-40 L=7
2
24
226-04904
UPPER SPROCKET
ウエツプ スプロケツト
1
25
SS-6561110-SP
SCREW 1/4-40 L=11
トメネジ 1/4-40 L=11
2
26
214-27109
TIMING BELT
タイミング ベルト
1
27
214-02360
UPPER SHAFT BEARING HOOK
ウエツプ シャフト ベアリング フツク
1
28
SM-8060602-TP
SCREW M6X6
トメネジ M6X6
2
29
B1203-512-000
BUSHING, REAR
ウツヅク クシヨウ ブツシユ
1
30
214-27000
FLY WHEEL
フライホイール
1
31
SS-8150822-TP
SCREW 15/64-28 L=8
トメネジ 15/64-28 L=8
2
32
213-33406
BANCER
バンサー
1
33
SS-8151550-SP
SCREW 15/64-28 L=15
トメネジ 15/64-28 L=15
2
34
#02
B1907-053-000
THREAD TAKE-UP
テンピン
1
35
#02
B1907-051-000
TAKE-UP LEVER THRUST PIN
テンピン スライド
1
NOTE (注記)
#01...FOR LS-1340
LS-1340用
#02...FOR LS-1340
LS-1340用
-3-
Page 6 — 3. NEEDLE BAR ROCKING COMPONENTS
3. NEEDLE BAR ROCKING COMPONENTS
針棒揺動関係
REF. NO NOTE
PART NO.
DESCRIPTION
Qty
1
B1420-563-000
NEEDLE BAR FRAME
1
2
214-05204
HINGE STUD
1
3
SS-8150150-TP
SCREW 15/64-28 L=10.5
1
4
228-14909
FELT
1
5
B1401-053-000
NEEDLE BAR
1
6
B1411-053-0A0
NEEDLE BAR CONNECTION ASM.
(1)
7
SS-7090910-SP
SCREW 9/64-40 L=8.5
(1)
8
B1411-053-000
NEEDLE BAR CONNECTION
(1)
9
SS-7080510-TP
SCREW
1
10
SS-7080510-TP
SCREW 1/8-44 L=4.5
1
11
#01
MC-3720016-00
NEEDLE SY3355 160
1
12
B1467-563-000
UPPER FEED BAR GUIDE
1
13
SS-7110910-TP
SCREW 11/64-40 L=8.5
2
14
213-38702
ROCKING BASE GUIDE
2
15
SS-7110830-SP
SCREW 11/64-40 L=7.5
1
16
213-38603
ROCKING BASE GUIDE (B)
1
17
SS-6091022-TP
SCREW
2
18
213-38900
ROCKING SHAFT
1
19
213-38801
ROCKING FRONT ARM
1
20
SM-8080802-TP
SCREW
2
21
B1410-771-000
STUD
1
22
B1414-232-000
SQUARE BLOCK
1
23
213-39304
ROCKING SHAFT FRONT METAL
1
24
213-39205
ROCKING SHAFT REAR METAL
1
25
228-14909
FELT
1
26
214-30053
ROCKING REAR ARM ASM.
1
27
214-30004
ROCKING REAR ARM
(2)
28
SS-6152440-SP
SCREW 15/64-28 L=23.5
(1)
29
214-30103
ROCKING REAR ARM FELT
(1)
30
EA-9500B01-00
CABLE BAND
(1)
31
103-08609
THREAD GUARD
1
32
#02
MC-3720014-00
NEEDLE SY3355 NM140
1
NOTE (注記)
S01...FOR LS-1341
LS-1341用
S02...FOR LS-1340
LS-1340用
-4-
jintex.in
Page 7 — 4. PRESSURE ADJUSTING & UPPER FEED MECHANISM COMPONENTS
4. PRESSURE ADJUSTING & UPPER FEED MECHANISM COMPONENTS
押え圧調節・上送り関係
6
37
36
35
31
33
34
32
5
3
4
10
9
8
7
42
43
45
44
39
40
41
14
2
13
47
12
19
15
18
17
16
23
22
21
20
27
26
46
58
25
24
29
28
30
59
38
57
56
48
50
52
51
53
54
55
-5-
jintex.in
Page 8
REF. NO NOTE PART NO. D E S C R I P T I O N Qty.
1 213-40401 UPPER FEED SHAFT ウワオクリジク 1
2 213-40500 UPPER FEED FRONT ARM ウワオクリゼンプウデ 1
3 SS-8660612-TP SCREW 1/4-40 L=6 メネシ 1/4-40 L=6 2
4 213-41904 FRONT METAL ウワオクリジク クマエメタル 1
5 213-78302 FEED SHAFT METAL イハイオクリジク クマエメタル 1
6 229-04155 MAIN SHAFT THRUST COLLAR ASM. ウワジク クラスラトウケ (タミ) 1
7 229-04106 MAIN SHAFT THRUST COLLAR ウワジク クラスラトウケ (1)
8 SS-8660610-TP SCREW 1/4-40 L=6 メネシ 1/4-40 L=6 (2)
9 SS-8150710-SP SCREW 15/64-28 L=7 メネシ 15/64-28 L=7 1
10 TA-0550604-RO RUBBER PLUG トメセン 1
11 #02. B1470-053-0AO WALKING FOOT ASM. ウワオクリ アシ クミ 1
12 213-39908 UPPER FEED LINK ウワオクリリンク 1
13 213-47109 FELT ウワオクリリンクフェルト 1
14 EA-9500B00-00 CLIP CV-70S サスクペント 60 2
15 B3016-141-H00 HINGE SCREW, B メタロッド ダンネン 2
16 SD-0640701-SP HINGE SCREW D=6.35 H=7 シネシ D=6.35 H=7 1
17 B1414-555-000 SLIDE BLOCK ウタキ アンナイコロ 1
18 WP-0501048-SC WASHER 5 X 13 X 1 ワタシネ 5X13X1 1
19 213-40807 TRIANGULAR LEVER サンカクテコ 1
20 SS-7110510-SP SCREW 11/64-40 L=5 マガネシ 11/64-40 L=5 1
21 B1414-555-000 SLIDE BLOCK マガネシ 11/64-40 L=5 1
22 105-09701 FELT エローラ クト ウロツトフェルト 1
23 B1465-053-000 WALKING BAR DRIVING LINK ウワクリ ヨード・リンク 1
24 B1466-563-000 WALKING BAR ウワクリハ シシ・クミ 1
25 B1467-053-0AO WALKING BAR ASM. ウワクリボ・オチエハネ 1
26 B1468-053-000 WALKING BAR SPRING ウワネシ 15/64-28 L=17 1
27 SS-6151780-SP SCREW 15/64-28 L=17.0 オクリガイト・イタ 1
28 214-06509 UPPER FEED GUIDE PLATE キリネシヨコ 1
29 135-14310 ROLLER シネシ 15/64-28 L=19 1
30 SS-6151920-SP SCREW 15/64-28 L=19.0 オクリロツト 1
31 213-40104 UPPER FEED ROD ウワクリ ロツド・ダンネシ 1
32 D1456-055-B00 HINGE SCREW オクリロツド レンゲジシク 1
33 D1455-055-B00 HINGE SCREW D=6.35 H=7 サガネ 4.8X11.5X2 1
34 WP-0482086-SD WASHER 4.8X11.5X2 サガネ 4.8X11.5X2 1
35 NS-6110530-SP SCREW 11/64-40 カクナツト 11/64-40 1
36 213-40203 UPPER FEED REAR ARM オクリコウブ・ウデ 1
37 SM-9062250-SC SCREW M6 L=22 カクボルト M6 L=22 1
38 #02 B1525-563-DAO PRESSER FOOT ASM. エアジク クミ 1
39 213-41052 PRESSER FOOT ASM. エボ ウタキ(クミ) 1
40 213-41003 PRESSER FOOT HOLDER ASM. エボ ウタキ 1
41 SS-7110910-TP PRESSER HOLDER エボ ウタキ 1
42 213-40906 SCREW 11/64-40 L=8.5 ビフネシ 11/64-40 L=8.5 (1)
43 110-71701 NUT エチヨウセツネシ・ナツト 1
44 B1502-246-000 PRESSER SPRING エチヨウセツベ・ハネ 1
45 SD-0800481-SP HINGE SCREW D=8 H=4.9 コンネンシ D=8 H=4.9 1
46 213-41151 THREAD RELEASE HOLDING PLATE コルムケイタ(ケサコウリ) 1
47 B1462-053-000 THREAD RELEASE SPRING コルムケイタ ハネ 1
48 214-06103 PRESSER LIFTER LEVER エアゲ レバー 1
49 B1510-155-000 PRESSER BAR LOWER BUSHING エボ・シタメタル 1
50 #01 B1470-241-HAO WALKING FOOT ASM. ウワオクリ アシ クミ 1
51 B1470-241-H00 WALKING FOOT ウワオクリ アシ (1)
52 B1471-241-H00 SCREW ネジ (1)
53 #01 B1525-241-HAO PRESSER FOOT ASM. オチヤク アシ クミ 1
54 B1525-241-H00 PRESSER FOOT オチヤク アシ (1)
55 103-37905 FINGER GUARD ユビバ・ガード 1
56 SS-7150740-SP SCREW 15/64-28 L=7 マルビネシ 15/64-28 L=7 (1)
57 214-06608 GUIDE PLATE SPACER ガイド・イタスベータ 1
58 B1501-241-H00 PRESSER BAR オチヤク 1
NOTE (注記) #01...FOR LS-1341 LS-1341用
#02...FOR LS-1340 LS-1340用
-6-
jintex.in
Page 9 — 5. FEED MECHANISM COMPONENTS
5. FEED MECHANISM COMPONENTS
送り関係
51
49
48
54
50
52
44
45
53
48
46
55
58
57
56
13
80
79
76
78
77
78
75
73
72
67
47
71
69
70
68
21
60
59
64
63
66
65
61
62
16
22
74
15
14
15
11
9
12
10
27
A
24
23
25
26
28
32
33
31
30
29
35
36
37
34
39
40
41
42
43
19
20
- 7 -
jintex.in
Page 10
REF. NO NOTE DESCRIPTION Qty
1 214-35003 FEED DOG 1
2 SS-7110840-SP SCREW 11/64-40 L=7,8 1
3 214-28008 FEED BASE 1
4 PS-0200102-KH SPRING PIN 2,0 X 10 1
5 214-28107 FEED BASEPIN 1
6 B1414-232-000 SQUARE BLOCK 1
7 214-29006. VERTICAL FEED SHAFT 1
8 SS-6121220-TP SCREW 3/16-28 L=11,5 1
9 214-29501 VERTICAL FEED SHAFT METAL 1
10 SS-8110710-SP SCREW 11/64-40 L=6,5 1
11 214-29105 VERTICAL FEED ARM 1
12 SS-6121850-TP SCREW 3/16-28 L=18 1
13 SS-6120930-TP SCREW 3/16-28 L=9 2
14 214-29709 VERTICAL FEED THRUST COLLAR 1
15 SM-8040502-TP SCREW M4X0.7 L=5 2
16 SD-0900701-TP HINGE SCREW D=9 H=7 1
17 210-48707 HINGE SCREW 1
18 214-29204 VERTICAL FEED ROD 1
19 EA-9500B02-00 CABLE BAND 150 1
20 214-29600 VERTICAL FEED ROD FELT 1
21 228-14909 FELT 1
22 102-05201 NEEDLE BAR FRAME ROD 1
23 214-27901 HORIZONTAL FEED BASE SUPPORT 1
24 SS-6110610-TP SCREW 11/64-40 L=6 2
25 B1414-232-000 SQUARE BLOCK 1
26 SD-0640752-TP HINGE SCREW D= 6.35 H= 7.5 1
27 214-27802 HORIZONTAL FEED BASE 1
28 SD-0790701-SP HINGE SCREW D=7.94 H=7 1
29 NS-6660430-SP NUT 1/4-40 1
30 214-27604 HORIZONTAL FEED SHAFT 1
31 B1607-246-000 BUSHING, FRONT 1
32 CS-111101C-SH THRUST COLLAR ASM. D=11.11 W=10 1
33 CS-1111019-SH THRUST COLLAR D=11.11 W=10 1
34 SS-8660610-TP SCREW 1/4-40 L=6 (1)
35 214-27703 HORIZONTAL FEED SHAFT D 1
36 B1806-038-000 OIL FELT 1
37 SS-8150510-TP SCREW 15/64-28 L= 4.7 1
38 214-28305 HORIZONTAL FEED ARM 1
39 SS-6121610-SP SCREW 3/16-28 L=15.5 1
40 214-28503 HORIZONTAL FEED ARM STOPPER 1
41 214-28404 HORIZONTAL FEED ARM ROD 1
42 WP-0621016-SH WASHER 1
43 SS-9152130-CP SCREW 15/64-28 L=20.5 1
44 213-37506 FEED ADJUSTING BASE 2
45 213-37506 FEED ADJUSTING BASE 2
46 SS-7110910-TP SCREW 11/64-40 L=8.5 4
47 213-37407 SQUARE BLOCK 2
48 213-37803 FEED ADJUSTING BASE SUPPORT 2
49 SS-8150822-TP SCREW 15/64-28 L=8 2
50 213-37806 FELT SUPPORT 1
51 SS-7090610-SP SCREW 9/64-40 L=6 2
52 213-37902 ECCENTRIC PIN 1
53 SS-7090910-TP SCREW 9/64-40 L= 8.5 2
54 213-37308 FEED ADJUSTING ROD 1
55 SD-0800402-TP HINGE SCREW D= 8 H= 4 1
56 213-37605 SPRING 1
57 213-38009 SPRING HOOK 1
58 SS-6110610-SP SCREW 11/64-40 L=16 2
59 214-30202 FEED ADJUSTING 1
60 SM-6061802-TP SCREW M6 L=18 1
61 214-30301 FEED ADJUSTING DIAL 1
62 SS-6121860-SP SCREW 3/16-28 L=18 1
63 110-09909 FEED REGULATOR SCREW 1
64 R0-0922702-00 SCREW 9/64-40 L=9 1
65 110-32701 RUBBER RING 1
66 229-12109 SCREW 3/16-28 L=9 1
67 213-36656 FEED REGULATOR PIN SPRING 1
68 213-36607 FEED LINK ASM. 1
69 B1418-761-000 FEED LINK 1
70 CQ-2020000-00 CONNECTING FORKED LINK PIN 1
71 SM-8050612-TP OIL WICK (1)
72 213-36706 SCREW M5X0.8 L=6 (1)
73 213-38207 FEED ROD A 1
74 SD-1000801-SH FEED LINK PIN 1
75 213-36300 FEED LINK 1
76 CS-1201010-SH BACKWARD FEED LEVER SHAFT 1
77 CS-1201011-SH THRUST COLLAR ASM. D=12 W=10 (1)
78 SS-8660610-TP THRUST COLLAR D=12 W=10 (2)
79 RE-0900000-KO E-RING 9 1
80 226-10505 REVERSE FEED CONTROL LEVER 1
- 8 -
jintex.in
Page 11 — 6. HOOK SHAFT & LOWER SHAFT COMPONENTS
6. HOOK SHAFT & LOWER SHAFT COMPONENTS
釜軸・下軸関係
1.23
2.24
6
3.25
7
4
27
5
8
11.12
13.14
15.16
17~21
22.26
32
28
49
57
51
50
54
52
58
46
47
48
55
63
55
37
38
39
40
42
43
45
36
33
41
42
35
36
34
30
29
-9-
jintex.in
Page 13 — 7. THREAD TENSION COMPONENTS (FOR LS-1340)
7. THREAD TENSION COMPONENTS (FOR LS-1340)
糸調子関係 (LS-1340用)
15.19.20
REF. NO. NOTE
PART NO.
DESCRIPTION
Qty.
1
214-09065
THREAD TENSION ASM.
イトチョウケン(クミ)
(1)
2
214-09057
THREAD POST BASE COMPL.
イトチョウシタ イタダケ
(1)
3
103-20109
SCREW STUD
イトトリバ ネジク
(1)
4
B3128-520-000
TENSION SPRING
イトトリバネ
(1)
5
B3137-051-0A0
TAKE-UP GUIDE DISC ASM.
イトトリバネ アンナイディスククミ
(1)
6
103-20208
THREAD TENSION STUD NUT
イトトリバ ネジク ナツト
(1)
7
SS-4080610-SP
SCREW 1/8-44 L=6.4
ナベネジ 1/8-44 L=6.4
(1)
8
B3127-051-000
TENSION RELEASE PIN, SHORT
イトスルメ ピン
(1)
9
B3126-012-000
THREAD TENSION DISK
イトチョーサラ
(2)
10
226-17906
TENSION DISK PRESSER
イトチョウサラオサエ
(1)
11
B3129-053-000
TENSION SPRING
イトチョーシバネ
(1)
12
B3125-012-000
TENSION SPRING NUT
イトチョーシ ナツト
(1)
13
B3134-521-000
TENSION RELEASE LEVER
イトスルメイタ
(1)
14
SD-0470281-SP
HINGE SCREW D=4.7 H=2.8
ダンネジ D=4.7 H=2.8
(2)
15
230-06406
TENSION RELEASE BAR
イトスルメオシボリ
1
16
PS-0600502-KP
SPRING PIN
スプリング ピン
1
17
214-09909
GUIDE PLATE
イトチョウアンナイイタ
1
18
SS-7110910-TP
SCREW 11/64-40 L=8.5
マルヒラネジ 11/64-40 L=8.5
1
19
#01
213-48206
TENSION RELEASE BAR
イトスルメオシボリ
1
20
#01
103-21107
TENSION RELEASE BAR
イトスルメオシボリ
1
NOTE (注記)
#01...SELECTIVE PARTS
選択部品
jintex.in
Page 14 — 8. THREAD TENSION COMPONENTS (FOR LS-1341)
8. THREAD TENSION COMPONENTS (FOR LS-1341)
糸調子関係 (LS-1341用)
24.25 26
REF. NO NOTE
PART NO.
DESCRIPTION
Qty
1
214-41068
THREAD TENSION ASM.
イトチョウシ クミ
(1)
2
214-41050
THREAD TENSION COMPL.
イトチョウシ ケゴウサ
(1)
3
103-20109
SCREW STUD
イトトリツケ ネジク
(1)
4
B3128-520-000
TENSION SPRING
イトトリツケバネ
(1)
5
B3137-051-0A0
TAKE-UP SPRING GUIDE DISC ASM.
イトトリツケ アンナイデラクミ
(1)
6
B3125-012-000
THREAD TENSION NUT
イトチョウシ ナツト
(1)
7
226-18201
THREAD TENSION RELEASE PIN, A
イトコルヌメピン (A)
(2)
8
B3126-012-000
THREAD TENSION DISK
イトチョウシサラ
(4)
9
226-17906
THREAD TENSION DISK PRESSER
イトチョウシサラオエ
(2)
10
B3129-526-000
TENSION SPRING (1.2)
イトチョウシバネ (1.2)
(2)
11
B3120-125-000
ROATING STOPPER
イトチョウシサラ カイテンドメ
(2)
12
119-56802
THREAD TENSION KNOB, BLUE
イトチョウシツマミ (アオ)
(2)
13
101-24204
THREAD TENSION POST, A
ダイイトリツケヨーシキー A
(1)
14
107-41106
FIRST THREAD TENSION PLATE
ダイイチイトチョウシサラ
(2)
15
110-45101
THREAD TENSION SPRING
ダイイチイトチョウシバネ
(1)
16
110-72402
THREAD TENSION NUT
ダイイチイトチョウシ ナツト
(1)
17
214-4110
THREAD TENSION POST, A
イトチョウシポスト A
(1)
18
SS-4080610-SP
SCREW 1/8-44 L=6.4
メネジ 1/8-44 L=6.4
(1)
19
SD-0470281-SP
HINGE SCREW D=4.7 H=2.8
ダンネジ D=4.7 H=2.8
(2)
20
NS-6110310-SP
NUT 11/64-40
ロツカクナツト 11/64-40
(1)
21
B3162-555-B00
THREAD GUIDE
イトトルメガイド
(1)
22
PS-0600502-KP
SPRING PIN
スプ リングピン
1
23
SS-7110910-TP
SCREW 11/64-40 L=8.5
マルヒラネジ 11/64-40 L=8.5
2
24
#01 213-48206
TENSION RELEASE BAR
イトトルメニホン
1
25
#01 103-21107
TENSION RELEASE BAR
イトトルメニホン
1
26
230-6406
THREAD GUIDE
ダイイチチョウシ アンナイ
1
NOTE (注記)
#01...SELECTIVE PARTS
選択部品
12
jintex.in
Page 15 — 9. KNEE LIFTER COMPONENTS
9. KNEE LIFTER COMPONENTS
膝上げ関係
FIG. NO.
NOTE
PART NO.
D E S C R I P T I O N
Qty
1
214-32851
KNEE LIFTER LEVER ASM.
1
2
SM-6062502-TP
SCREW M6 L=25
2
3
214-32703
NEE LIFTTER CONNECTING PLATE
1
4
SD-0790451-SP
HINGE SCREW D=7.94 H= 4.5
2
5
214-33008
NEE LIFTTER CONNECTING PLATE
1
6
PS-0400222-KO
SPRING PIN
1
7
214-33107
KNEE LIFTER SPRING
1
8
214-05709
KNEE LIFTER ARM
1
9
SM-6052002-TP
SCREW M5 L=20
1
10
214-32604
KNEE LIFTER STOPPER ARM
1
11
SM-6052002-TP
SCREW M5 L=20
1
12
SM-8052502-TP
SCREW M5X0.8 L=25
1
13
NM-6050001-SD
NUT M5X0.8
1
14
214-33206
STOPPER ARM
1
15
SS-6121210-SP
SCREW 3/16-28 L=12
1
6
214-32505
KNEE LIFTER SHAFT
1
7
229-32453
BRACKET ASM.
1
8
229-34409
BRACKET
(1)
9
229-34707
SCREW
(2)
0
214-33354
KNEE PRESS PLATE ASM.
1
1
SM-9061203-SE
SCREW M6 L=12
(1)
2
229-34509
KNEE PAD PLATE
(1)
3
229-34400
KNEE PAD PLATE
(1)
4
229-34202
KNEE PAD PLATE
(1)
5
229-34301
KNEE PAD PLATE
(1)
7
214-33404
PRESSER LIFTER ASM.
1
8
#01
214-33503
PRESSER LIFTER ARM
(1)
9
#01
SM-6051602-TP
SCREW M5X0.8 L=16
(1)
0
#01
B8133-019-000
S SHAPED HOOK
2
NOTE (注記)
#01...OPTIONAL PARTS
Page 17 — ベルトカバー・油抜き関係
ベルトカバー・油抜き関係
REF. NO. NOTE PART NO. DESCRIPTION Qty.
1 213-51150 BELT COVER ASM. (RIGHT) ベルトカバー・ニジヨイタ (1)
2 213-51101 BELT COVER (RIGHT) ベルトカバー-(ヒダリ)
3 213-51002 BELT COVER AUXILIARY PLATE ベルトカバー・シチユウ A
4 213-51200 BELT COVER (LEFT) ベルトカバー(ヒダリ)
5 D8232-241-E00 BELT COVER SUPPORT A
6 SS-6153040-SP SCREW 15/64-28 L=30 ヒラネジ 15/64-28 L=30 2
7 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 1
8 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1
9 SS-5110740-TP SCREW 11/64-40 L=6.6 トラスネジ 11/64-40 L=6.6 1
10 214-34451 BELT COVER ASM. LOWER ベルトカバー・シタ
11 214-34402 BELT COVER LOWER ベルトカバー・シタ (クミ) (1)
12 214-34501 BELT COVER (1)
13 SS-6153040-SP SCREW 15/64-28 L=30 ヒラネジ 15/64-28 L=30 2
14 SS-6151440-SP SCREW 15/64-28 L=14 ヒラネジ 15/64-28 L=14 2
15 SK-3241601-SC WOOD SCREW D=2.4 L=16 マルモクネジ D=2.4 L=16 4
16 WP-0320501-SC WASHER M3 ヒラザガネ 3.2X7X0.5 4
17 B8202-205-000 OIL MANAGEMENT アブ ラビ 1
18 B9121-012-000 OIL CAN アブ ラビ 1
19 WP-0612076-SP WASHER 6.1X11X2 ヒラザガネ 6.1X11X2 1
-15-
Page 18 — 12. LOWER THREAD WINDER MECHANISM COMPONENTS
12. LOWER THREAD WINDER MECHANISM COMPONENTS
下糸巻き関係
31
26
24
23
25
29
28
27
30
19
20
18
21
22
32
9
11 3
13
14
8
1
2
10
17
16
15
REF. NO
NOTE
PART NO.
DESCRIPTION
qty.
1
213-57967
BOBBIN DEVICE ASM.
1
2
225-37658
BOBBIN FITTING BASIS COMPL.
(1)
3
213-57959
BOBBIN SHAFT COMPL.
(1)
4
225-38151
BOBBIN CAM SHAFT COMPL.
(1)
5
236-36202
BOBBIN LEVER
(1)
6
225-38409
ADJUSTING PLATE
(1)
7
B1529-890-00C-A
PRESSUR FOOT SPRING
(1)
8
106-18304
VERTICAL ROLLER WASHER
(2)
9
A3216-001-00A
RUBBER RING
(1)
10
B3205-210-000
CUSHION
(1)
11
B1148-555-000
SPRING
(1)
12
RC-0560711-KP
RETAINING RING
(1)
13
RE-0500000-KO
E-RING
(1)
14
RO-0922702-00
RUBBER RING
(1)
15
SS-7091410-SP
SCREW 9/64-40 L=13.5
(1)
16
SS-6090520-SP
SCREW 9/64-40 L= 5.0
(1)
17
145-12503
BOBBIN ADJUSTING PLATE
(1)
18
SS-6110810-TP
SCREW 11/64-40 L=8
3
19
107-04807
BOBBIN FRICTION WHEEL
1
20
SM-8050602-TP
SCREW M5 L=6
2
21
105-02300
THREAD CUTTER
1
22
SS-6090620-TP
SCREW
1
23
213-55755
LOWER THREAD GUIDE ASM.
(1)
24
213-55706
FITTING BASE
(1)
25
D3162-555-BOO
THREAD GUIDE
(1)
26
NS-6110310-SP
NUT 11/64-40
(1)
27
B3214-555-HOB
TENSION SPRING NO.1
(1)
28
B3214-047-000
BOBBIN WINDER TENSION DISC
(1)
29
213-78708
THREAD TENSION POST
(1)
30
110-72402
THREAD TENSION NUT
2
31
SM-6040800-SP
SCREW
1
32
225-38706
PACKING
1
- 16 -
jintex.in
Page 19 — 13. THREAD STAND COMPONENTS
13. THREAD STAND COMPONENTS
糸立て装置関係
REF. NO. NOTE
PART NO.
DESCRIPTION
Qty.
1
229-30358
THREAD STAND ASM.
イトマキウケ (クミ)
(2)
2
229-31109
SPOOL RETAINER
イトマキウケ
(2)
3
229-31000
SPOOL PIN
イトマキウケ
(2)
4
229-30903
SPOOL REST CUSHION
イトマキウケ クッション
(2)
5
229-30804
SPOOL REST
イトマキウケ
(2)
6
SM-6061610-SC
SCREW M6 L=16
ヒラコネジ M6 L=16
(2)
7
229-30705
THREAD GUIDE ARM JOINT.
イトマキウデジョイント
(1)
8
229-31406
SPOOL REST ROD RUBBER CAP
イトマキウデゴムキャップ
(2)
9
229-30507
SPOOL REST ARM
イトマキウデ
(1)
10
229-30408
SPOOL REST ROD, UPPER
イトマキウデ (ウエ)
(2)
11
229-31307
SPOOL REST ROD JOINT
イトマキウデジョイント
(1)
12
SM-4051405-SE
SCREW M5 L=14
コネジ M5 L=14
(2)
13
NM-6050001-SE
NUT M5
ロツカクナット M5
(2)
14
229-30309
SPOOL REST ROD, LOWER
イトマキウデ (シタ)
(1)
15
229-31208
THREAD GUIDE
イトミチ
(2)
16
WS-0510002-KN
SPRING WASHER
バネザガネ 5.1X9.2X1.3
(2)
17
NM-6050001-SE
NUT M5
ロツカクナット M5
(2)
18
NM-6160511-SE
NUT M16X1.5
ロツカクナット M16X1.5 1シュ
(1)
19
WP-1702600-SO
WASHER 17X30X2.6
ヒラザガネ 17X30X2.6
(2)
- 17 -
jintex.in
Page 20 — 14. GAUGE COMPONENTS (OPTIONAL PARTS)
14. GAUGE COMPONENTS (OPTIONAL PARTS)
ゲージ関係 (オプション部品)
REF. NO NOTE PART NO. DESCRIPTION Qty.
1 B9101-340-0A0 EDGE GUIDE ASM. エッジガイド(クミ) 1
2 MAM-22709000 SCREW リツケイトメネジ 2
3 WP-0551016-SH WASHER 5.5X13X1 コラバインダーフィットツケイツケ 2
4 B9104-340-000 FIXING BINDER FITTING PLATE. フィー ド ボグ, 3.2MM 1
5 212-25305 FEED DOG, 3.2MM オクリバ(オプション ハリアナ:3.2) 1
6 212-25008 FEED DOG オクリバ 1
7 212-31006 WALKING FOOT ワオクリアシ 1
-18-
Page 21 — 15. BINDER COMPONENTS
15. BINDER COMPONENTS
バインダー関係
REF. NO NOTE
PART NO.
DESCRIPTION
Qty
1
#01
214-27455
BINDER SET
1
2
214-27406
THROAT PLATE
(1)
3
MAQ-14306000
FEED PLATE A ASM.
(1)
4
MAQ-14303000
FEED PLATE B
(1)
5
MAQ-09205000
BINDER LOCK NUT
(2)
6
MAQ-09204000
BINDER SETSCREW
(2)
7
SS-7110510-SP
SCREW 11/64-40 L=5
(2)
8
SS-7110510-SP
SCREW 11/64-40 L=5
(1)
9
MAQ-09206000
TAPE GUIDE
(1)
10
SD-0721112-SN
HINGE SCREW D=7.24 H=11.1
(1)
11
212-32004
SPRING
(1)
12
MAQ-14306000
FEED
(1)
13
MAQ-14307000
FEED VERTICAL CAM
(1)
14
MAQ-093080A0
PRESSER FOOT ASM.
(1)
15
MAQ-09307000
WALKING FOOT
(1)
16
SS-6110710-TP
SCREW 11/64-40 L= 6.5
(1)
17
#02
MAQ-143010A0
BINDER SET (Q143)
1
18
MAQ-14301000
FEED PLATE A ASM.
(1)
19
MAQ-14302000
FEED PLATE B
(1)
20
MAQ-14303000
BINDER LOCK NUT
(1)
21
MAQ-09205000
BINDER SETSCREW
(2)
22
MAQ-09204000
SCREW 11/64-40 L=5
(2)
23
SS-7110510-SP
SCREW 11/64-40 L=5
(1)
24
SS-7110510-SP
TAPE GUIDE
(1)
25
MAQ-09206000
HINGE SCREW D=7.24 H=11.1
(1)
26
SD-0721112-SN
SPRING
(1)
27
212-32004
FEED
(1)
28
MAQ-14306000
FEED VERTICAL CAM
(1)
29
MAQ-14307000
PRESSER FOOT ASM.
(1)
30
MAQ-093080A0
WALKING FOOT
(1)
31
MAQ-09307000
SCREW 11/64-40 L=6.5
(1)
32
SS-6110710-TP
NOTE (注記)
#01...FOR LS-1341
LS-1341用
#02...FOR LS-1340
LS-1340用
- 19 -
jintex.in
Page 26
JUKI
JUKI 株式会社
JUKI CORPORATION
お買い求め、ご相談は
To order or for further
information,
please contact:
Copyright © 2001 JUKI CORP.
本書の内容を如何様で転載、複写すること
を禁止します。
※このパーツリストは商品改良のため予告なく変更する事があります。
* The description covered in this parts list is subject to change for improvement of the commodity without notice.
※このパーツリストは、2001年8月現在の商品仕様で編集したものです。
* This parts list is edited in accordance with the product specifications as of August 2001.
All rights reserved throughout the world.
2001. 8. Printed in Japan
jintex.in
