Parts index — Juki LZ-2280tap a row to open its page

Page 2 — CONTENTS

Juki LZ-2280 parts on page 2

Ref	Part number	Part name	Qty
	1	FRAME & MISCELLANEOUS COVER COMPONENTS (1)
	5	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	7	MAIN SHAFT & NEEDLE BAR COMPONENTS
	11	NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (1)
	13	NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (2)
	15	PRESSER BAR & FEED REGULATOR COMPONENTS

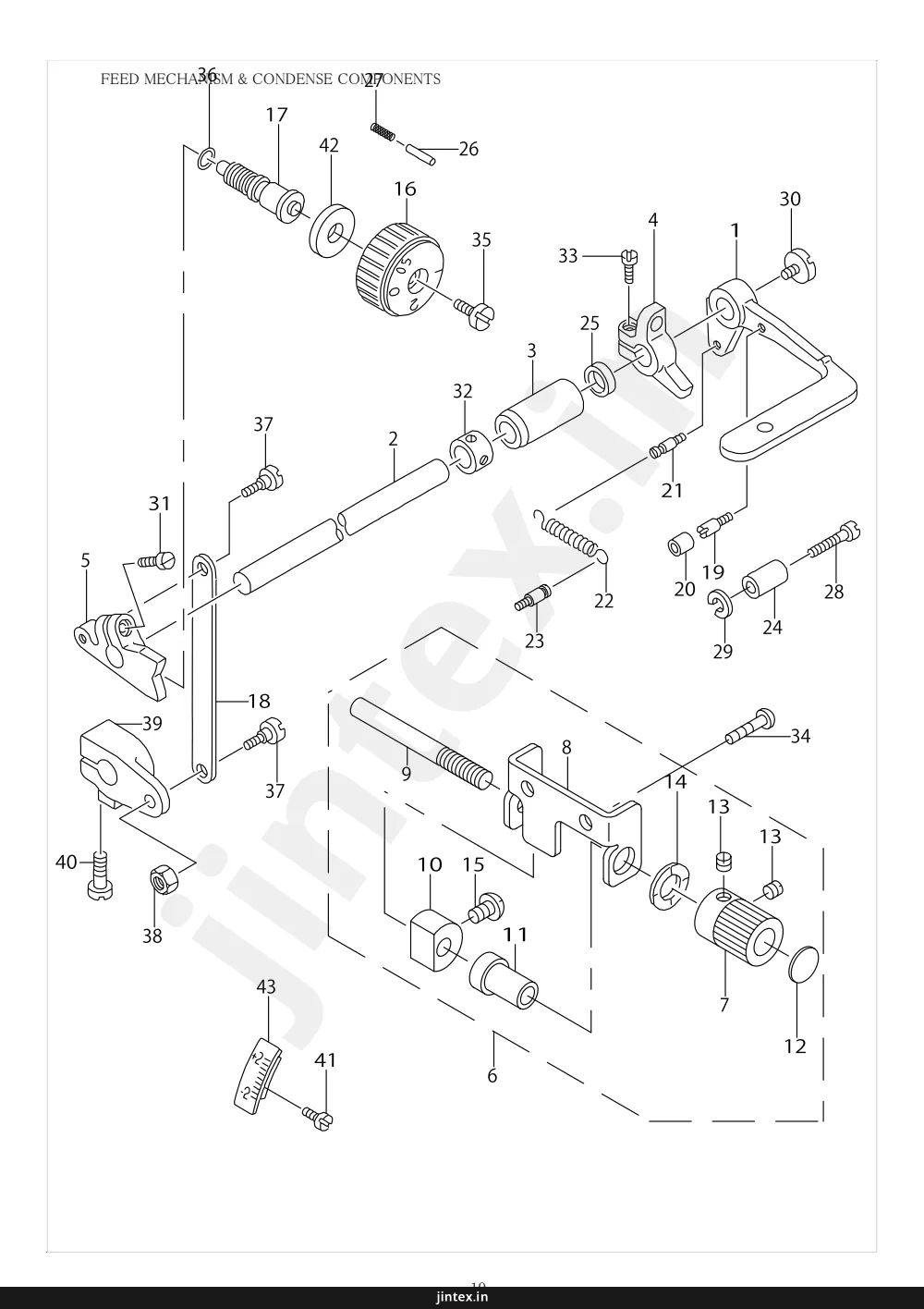

	19	FEED MECHANISM & CONDENSE COMPONENTS
	21	FEED MECHANISM COMPONENTS
	25	HOOK DRIVING SHAFT & HOOK COMPONENTS
	27	LUBRICATION COMPONENTS
	29	THREAD TRIMMER MECHANISM COMPONENTS
	33	UPPER THREAD FEEDER COMPONENTS
	35	AUTOMATIC REVERSE FEED MECHANISM COMPONENTS
	37	WIPER MECHANISM COMPONENTS
	39	THREAD STAND COMPONENTS (1)
	41	THREAD STAND COMPONENTS(2)
	43	BELT COVER COMPONENTS
	45	OIL RESERVOIR & KNEE LIFTER COMPONENTS
	47	EXCLUSIVE PARTS FOR LZ-2286
	49	EXCLUSIVE PARTS FOR LZ-2285(1)
	51	EXCLUSIVE PARTS FOR LZ-2285(2)
	55	EXCLUSIVE PARTS FOR LZ-2287
	59	EXCLUSIVE PARTS FOR LZ-2281(-7)
	61	EXCLUSIVE PARTS FOR LZ-2288
	65	SPECIAL ORDER PARTS FOR LZ-2280,2281,2286,2288
	67	EXCLUSIVE PARTS FOR R TYPE

Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LZ-2280 parts on page 3

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	COVER
4	4	COVER
5	5	BRACKET
6	6	GASKET
7	7	COVER
8	8	COVER
9	9	COVER
10	10	BRACKET
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	BRACKET
15	15	COVER
16	16	BRACKET
17	17	COVER
18	18	COVER
19	19	COVER
20	20	CAP
21	21	BRACKET
22	22	BRACKET
23	23	PIN
24	24	BRACKET
25	25	BRACKET
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	SCREW
33	33	SCREW
34	34	SCREW
35	35	SCREW
36	36	SCREW
37	37	PLUG
38	38	PLUG
39	39	PLUG
40	40	SCREW
41	41	SCREW
42	42	RING
43	43	SCREW
44	44	BRACKET
45	45	BRACKET
46	46	BRACKET
47	47	SCREW
48	48	SCREW
49	49	SPRING
50	50	WASHER
51	51	SPRING
52	52	SPRING
53	53	SPRING
54	54	SPRING
55	55	SPRING
56	56	SPRING
57	57	SPRING
58	58	SPRING
59	59	SPRING
60	60	SPRING
61	61	PIN
62	62	SPRING
63	63	BRACKET
64	64	BRACKET
65	65	BRACKET
66	66	BRACKET
67	67	SCREW
68	68	SCREW
69	69	SCREW
70	70	SCREW
71	71	SCREW
72	72	PLUG
73	73	PIN
	74	COVER

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Juki LZ-2280 parts on page 4

Ref	Part number	Part name	Qty
	22501159	SIDE COVER COMPL.	1
	22501209	GASKET	1
	22501357	FACE PLATE COMPL.	1
	22501506	GASKET	1
	22501605	TENSION RELEASE WINDO	1
	22501704	GASKET	1
	22502009	BALANCE COVER BASE	1
	22502108	BALANCE COVER	1
	22502207	SPRING	1
	22502603	BALANCE THREAD GUIDE	1
	22502702	SPRING GUARD	1
	22502801	SCREW	2
	22502900	BALANCE THREAD GUIDE	1
	22503007	SPRING GUARD	1
	10000206	ARM OIL SHIELD	1
	TA1050604R0	RUBBER PLUG	1
	10001709	TAKE-UP THREAD CUTTE	1
	11070901	SIDE PLATE	1
	11000619	GASKET	1
	11046604	OIL SIGHT WINDOW	1
	11043601	RUBBER STOPPER	1
	TA0800504R0	PLUG D=8 L=4.5	1
	TA1050604R0	RUBBER PLUG	2
	TA0750404R0	PLUG D=7.5 L=3.5	1
	WT0530002KS	TOOTHED WASHER D=5.3	1
	SS4121415SP	SCREW 3/16-28 L=14	5
	SS1110840SP	SCREW 11/64-40 L=9	9
	SS7080410SP	SCREW 1/8-44 L= 3.8	1
	SD0640751SP	HINGE SCREW D= 6.35 H=	1
	WZ0641510KP	WAVED WASHER 6.4X11X1	1
	WP0651056SD	WASHER 6.5X11X1	1
	SS4110915SP	SCREW 11/64-40 L=9	2
	SS2090710SP	SCREW 9/64-40 L=7	1
	SS4120615SP	SCREW 3/16-28 L=6	4
	SS6120620TP	SCREW	1
	TA0900707R0	RUBBER PLUG	2
	TA1250705R0	RUBBER PLUG	1
	TA1100604R0	RUBBER PLUG	1
	TA0750704R0	RUBBER PLUG	1
	TA0750704R0	RUBBER PLUG	1
	SS4121015SP	SCREW 3/16-28 L=10	8
	RO195240100	RUBBER RING	1
	SS5090420SP	SCREW 9/64-40 L=3.5	1
	EA9502B0200	CABLE CLIP C	1
	D2112555B00	CORD HOLDER, LARGE	2
	11030301	CABLE HOLDER	1
	SS4121015SP	SCREW 3/16-28 L=10	1
	SS4121015SP	SCREW 3/16-28 L=10	1
	22528053	THREAD TENSION ASM.	1
	22528350	THREAD TENSION DISK C	1
	22528152	THREAD TENSION ROD AS	1
	10006104	TAKE-UP SPRING	1
	10005650	TENSION POST ASM.	1
	22528509	FELT	1
	10006005	TENSION DISC HOLDER	1
	10007854	TENSION RELEASE PIN ASN	1
	B3129012A00	TENSION SPRING	1
	B3120125000	ROTATING STOPPER	1
	B3116125000	TENSION NUT	1
	SS8090670SP	SCREW 9/64-40 L= 5.5	1

Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS

Juki LZ-2280 parts on page 5

Ref	Part number	Part name	Qty
1	1	COVER
2	2	COVER
3	3	COVER
4	4	COVER
5	5	BRACKET
6	6	GASKET
7	7	COVER
8	8	COVER
10	10	BRACKET
11	11	BRACKET
12	12	SCREW
13	13	BRACKET
14	14	BRACKET
15	15	COVER
16	16	BRACKET
17	17	COVER
18	18	COVER
19	19	COVER
20	20	COVER
21	21	BRACKET
22	22	BRACKET
23	23	PIN
24	24	BRACKET
25	25	BRACKET
26	26	SCREW
27	27	SCREW
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	SCREW
33	33	SCREW
34	34	SCREW
35	35	SCREW
36	36	SCREW
37	37	PIN
38	38	PIN
39	39	PIN
40	40	SCREW
41	41	SCREW
42	42	RING
43	43	SCREW
44	44	BRACKET
45	45	BRACKET
46	46	BRACKET
47	47	BRACKET
48	48	BRACKET
49	49	SPRING
50	50	WASHER
51	51	SPRING
52	52	SPRING
53	53	SPRING
54	54	SPRING
55	55	SPRING
56	56	SPRING
57	57	SPRING
58	58	SPRING
59	59	SPRING
60	60	SPRING
61	61	PIN
62	62	BRACKET
63	63	BRACKET
64	64	BRACKET
65	65	BRACKET
66	66	BRACKET
67	67	BRACKET
68	68	SCREW
69	69	SCREW
70	70	SCREW
71	71	SCREW
72	72	PIN
73	73	PIN
74	74	PLATE

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

Juki LZ-2280 parts on page 6

Ref	Part number	Part name	Qty
	22528608	THREAD RELEASE	1
	22529002	SUPPORT BALANCE	1
	22529101	SUPPORT BALANCE BASE	1
	22529200	MOUNTING BASE	1
	22529700	PRE-TENSION CONTROLL	1
	SS8110750SP	SCREW 11/64-40 L= 6.5	1
	22542708	OPERATION SEAL	1
	SS6090540SP	SCREW 9/64-40 L= 5.0	2
	SS6580752TP	SCREW 1/8-40 L=7	2
	WP03305000E	WASHER 3.3X6X0.5	2
	WP03505000P	SCREW 11/64-40 L=9	2
	TA1250705R0	RUBBER PLUG	1
	22502504	THREAD GUIDE BAR	1
	22535801	TIMING GAUGE	1

Page 7 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Juki LZ-2280 parts on page 7

Ref	Part number	Part name	Qty
	29	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	30	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	25	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	20	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	27	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	33	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	34	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	35	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	31	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	32	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	23	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	19	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	17	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	16	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	7	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	8	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	6	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	28	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	36	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	9	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	18	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	13	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	22	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	1	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	15	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	14	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	10	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	12	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	11	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	10	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	5	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	3	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	5	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	4	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	2	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	21	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	24	FRAME & MISCELLANEOUS COVER COMPONENTS (2)
	26	FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

Juki LZ-2280 parts on page 8

Ref	Part number	Part name	Qty
	22501803	SUPPORT PLATE	1
	22501951	HELICAL GEAR BOX COVE	1
	22501902	HELICAL GEAR BOX COVE	1
	10100410	BED SCREW STUD	2
	NS6700320SP	NUT 5/16-24	4
	10100410	THROAT PLATE	1
	10004208	BED PLATE	1
	10004307	BED SLIDE	1
	11001609	BED SLIDE SPRING	1
	SS4110515SP	SCREW 11/64-40 L=5	2
	10037307	OIL SHIELD PLATE	1
	10037406	OIL SHIELD RUBBER	1
	22552400	HELICAL BEVEL GEAR BO	1
	11044054	GROUND WIRE ASM.	1
	SS41111215SP	SCREW 11/64-40 L=12	2
	SS2090810SP	SCREW 9/64-40 L= 7.5	2
	SS2090810SP	SCREW 9/64-40 L= 7.5	2
	SS6060210SP	SCREW 3/32-56 L= 1.9	2
	TA0950806R0	RUBBER PLUG	1
	M6093350AAS	RESISTANCE PACK AS ASM	1
	10031805	HELICAL BEVEL GEAR BO	1
	10031904	GASKET	1
	10032001	NYLON CAP	1
	SS4110915SP	SCREW 11/64-40 L=9	3
	SS4121215SP	SCREW 3/16-28 L=12	1
	SS4110915SP	SCREW 11/64-40 L=9	4
	M6093350AAL	RESISTANCE PACK AL ASM	1
	22545008	THROAT PLATE	1
	WP0501016SD	WASHER 5X10.5X1	1
	WS0510002KP	SPRING WASHER 5.1X9.2X1	1
	CM300200101	SAFETY LABEL 1	1
	CM3002001A1	SAFETY LABEL 1	1
	M6093350AAF	RESISTANCE PACK ASM.	1
	CM3002000A1	SEAL	1
	CM300200001	ATTENTION SEAL	1
	22548705	THROAT PLATE	1

Page 9 — MAIN SHAFT&NEEDLE BAR COMPONENTS

Juki LZ-2280 parts on page 9

Ref	Part number	Part name	Qty
	1	SHAFT
	2	COLLAR
	3	COLLAR
	4	COLLAR
	5	COLLAR
	6	COLLAR
	7	COLLAR
	8	PULLEY
	10	COLLAR
	11	SHAFT
	12	COLLAR
	13	COLLAR
	14	BRACKET
	15	COLLAR
	16	PLATE
	17	BELT
	18	SPRING
	19	PIN
	20	SCREW
	21	SPRING
	22	SCREW
	23	RING
	24	SCREW
	25	COLLAR
	26	PIN
	27	RING
	28	SCREW
	29	COLLAR
	30	COLLAR
	31	COLLAR
	32	SHAFT
	33	COLLAR
	34	PULLEY
	35	COLLAR
	36	COLLAR
	37	COLLAR
	38	COLLAR
	39	COLLAR
	40	RING
	41	COLLAR
	42	COLLAR
	43	COLLAR
	44	COLLAR
	45	COLLAR
	46	BRACKET
	47	COLLAR
	48	COLLAR
	49	COLLAR
	50	COLLAR
	51	COLLAR
	52	PIN
	53	COLLAR
	54	COLLAR
	55	SCREW
	56	SCREW
	57	COLLAR
	58	COLLAR
	59	COLLAR
	60	COLLAR
	61	COLLAR
	62	COLLAR
	63	COLLAR
	64	COLLAR
	65	PIN
	66	COLLAR
	67	COLLAR
	68	SHAFT
	69	COLLAR
	70	COLLAR

Page 10 — MAIN SHAFT AENEEDLE BAR COMPONENTS

Juki LZ-2280 parts on page 10

Ref	Part number	Part name	Qty
	22505101	MAIN SHAFT	1
	22505259	THRUST COLLAR ASM.	1
	22505200	THRUST COLLAR	1
	SB120000100	BEARING D=20X47	1
	SS860610TP	SCREW 1/4-40 L=6	2
	22505309	OIL SEAL COLLAR	1
	22505408	SPROCKET	1
	22505507	HAND WHEEL	1
	22506109	BALANCE	1
	10008100	MAIN SHAFT BUSHING, FR	1
	B1203227000A	MAIN SHAFT BUSHING, IN	1
	B1208552000A	OIL SEAL	1
	10008407	COUNTERWEIGHT	1
	10008476	COUNTERWEIGHT PROTE	1
	10008605	NEEDLE BAR CRANK	1
	10008753	TAKE-UP COUNTERWEIGH	1
	22505705	TIMING BELT	1
	10035608	PIN	1
	B1810552000	OIL WICK	1
	RO029180100	RUBBER RING	1
	SS8151150SP	SCREW 15/64-28 L=10.5	1
	SS7151120SP	SCREW 15/64-28 L=11	1
	RO437200200	RUBBER RING	1
	SS8151550SP	SCREW 15/64-28 L=15	2
	SS860610TP	SCREW 1/4-40 L=6	2
	SS7681650TP	SCREW 9/32-28 L=16	1
	RO044240100	RUBBER RING	1
	RO048190100	RUBBER RING	1
	SS860610TP	SCREW 1/4-40 L=6	2
	SS860610TP	SCREW 1/4-40 L=6	2
	SS1090930SP	SCREW 9/64-40 L=8.6	3
	CS147121ASH	THRUST COLLAR ASM.D=1	1
	22551568	HAND WHEEL ASM.	1
	22551550	HAND WHEEL COMPL.	1
	M40071100AB	MAGNET FITTING BASE B	1
	M40071100AA	MAGNET FITTING BASE A	1
	SS8151550SP	SCREW 15/64-28 L=15	2
	SS6111210SP	SCREW 11/64-40 L=12	2
	WP0450801SD	WASHER 4.5X10X0.8	2
	11032562	DYNAMO STATOR	1
	10604809	SCREW	2
	22507156	NEEDLE BAR CRANK ROD	1
	22507305	NEEDLE BAR CONNECTIO	1
	22507404	THREAD RACK	1
	22507503	NEEDLE ROD	1
	10010304	GUIDE BLOCK	1
	10010502	CRANK ROD GUIDE	1
	B1905541A00	NEEDLE BEARING, A	1
	B1905541B00	NEEDLE BEARING, B	1
	B1905541C00	NEEDLE BEARING, C	1
	B1905541D00	NEEDLE BEARING, D	1
	MC192300750	NEEDLE 438 #75	1
	SS7080520SP	SCREW 1/8-44 L=4.9	1
	SS7090910TP	SCREW 9/64-40 L=8.5	1
	SS4110915SP	SCREW 11/64-40 L=9	2
	SS4110715SP	SCREW 11/64-40 L=7	2
	SS7060310SP	SCREW 3/32-56 L=3	1
	22509152	NEEDLE BAR YOKE ASM.	1
	22509103	NEEDLE BAR YOKE	1
	22509202	SHAFT	1

Page 11 — MAIN SHAFT&NEEDLE BAR COMPONENTS

Juki LZ-2280 parts on page 11

Ref	Part number	Part name	Qty
	1	SHAFT
	2	COLLAR
	3	COLLAR
	4	COLLAR
	5	COLLAR
	6	COLLAR
	7	COLLAR
	8	PULLEY
	9	WHEEL
	10	COLLAR
	11	COLLAR
	12	COLLAR
	13	COLLAR
	14	BRACKET
	15	SHAFT
	16	PLATE
	17	BELT
	18	SPRING
	19	SPRING
	20	SCREW
	21	SPRING
	22	SCREW
	23	RING
	24	SCREW
	25	COLLAR
	26	SCREW
	27	RING
	28	SCREW
	29	COLLAR
	30	COLLAR
	31	SCREW
	32	SHAFT
	33	COLLAR
	34	PULLEY
	35	COLLAR
	36	COLLAR
	37	COLLAR
	38	COLLAR
	39	COLLAR
	40	PLATE
	41	COLLAR
	42	COLLAR
	43	COLLAR
	44	COLLAR
	45	COLLAR
	46	BRACKET
	47	COLLAR
	48	COLLAR
	49	COLLAR
	50	COLLAR
	51	COLLAR
	52	PIN
	53	COLLAR
	54	COLLAR
	55	SCREW
	56	SCREW
	57	COLLAR
	58	COLLAR
	59	COLLAR
	60	COLLAR
	61	COLLAR
	62	COLLAR
	63	COLLAR
	64	COLLAR
	65	PIN
	66	COLLAR
	67	COLLAR
	68	SHAFT
	69	COLLAR
	70	COLLAR

Page 12 — MAIN SHAFT TAENEEDLE BAR COMPONENTS

Juki LZ-2280 parts on page 12

Ref	Part number	Part name	Qty
	10013019	NEEDLE BAR BUSHING, UF	1
	10013118	NEEDLE BAR BUSHING, LC	1
	PS0400202KH	SPRING PIN 4X20	1
	11010907	FEED ROCKER SHAFT BUS	1
	22509400	NEEDLE BAR YOKE PRESS	1
	22509509	SCREW	1
	10013407	GUIDE PIN	1
	10013803	SHAFT BUSHING, REAR	1
	SS8120740SP	SCREW 3/16-28 L=7	.1
	CQ202000000	OIL WICK	.1
	22506208	BALANCE V	1

Page 13 — NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (1)

Juki LZ-2280 parts on page 13

Ref	Part number	Part name	Qty
	1	NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (1)
	3~6	PIN
	7	BRACKET
	8	BRACKET
	9	SCREW
	10	WASHER
	11	LINK
	12~15	PIN
	16	COLLAR
	17	SCREW
	18	SCREW
	19	BRACKET
	20	SHAFT
	21	GEAR
	22	LINK
	23	PLATE
	24	SCREW
	25~28	WORM GEAR
	29	SHAFT
	30	COLLAR
	31	SHAFT
	32	BRACKET
	33~36	NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS
	37	SPRING
	38	SCREW
	39	RING
	40	COLLAR
	41	COLLAR
	42	SCREW
	43	WASHER

Page 15 — NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (2)

Juki LZ-2280 parts on page 15

Ref	Part number	Part name	Qty
1	1	PLATE, NEEDLE VIBRATOR
2	2	BRACKET, NEEDLE VIBRATOR
3	3	SHAFT, NEEDLE VIBRATOR
4	4	BRACKET, NEEDLE VIBRATOR
5	5	BRACKET, NEEDLE VIBRATOR
6~9	6~9	SCREW, MACHINE
10	10	SCREW, MACHINE
11	11	COLLAR
12	12	SPRING, NEEDLE VIBRATOR
13	13	WASHER
14	14	SPRING, NEEDLE VIBRATOR
15	15	DISC, ADJUSTING
16	16	PIN, SPRING
17	17	WASHER
18	18	SCREW, MACHINE
19	19	SCREW, MACHINE
20	20	WASHER
21	21	WASHER
22	22	SPRING, NEEDLE VIBRATOR
23	23	NUT
24	24	SPRING, NEEDLE VIBRATOR
25	25	SPRING, NEEDLE VIBRATOR
26	26	NUT
27	27	SPRING, NEEDLE VIBRATOR
28	28	BRACKET, NEEDLE VIBRATOR
29	29	SHAFT, NEEDLE VIBRATOR
30	30	BRACKET, NEEDLE VIBRATOR
31	31	SCREW, MACHINE
32	32	WASHER
33	33	BRACKET, NEEDLE VIBRATOR
34	34	BRACKET, NEEDLE VIBRATOR
35	35	BRACKET, NEEDLE VIBRATOR
36	36	PLATE, NEEDLE VIBRATOR
37	37	SCREW, MACHINE
38	38	SCREW, MACHINE
39	39	PLATE, NEEDLE VIBRATOR
40	40	COVER
41	41	WASHER
42	42	NUT
43	43	SPRING, NEEDLE VIBRATOR
44	44	BRACKET, NEEDLE VIBRATOR
45	45	SPRING, NEEDLE VIBRATOR
46	46	SCREW, MACHINE
47	47	SCREW, MACHINE
48	48	SCREW, MACHINE
49	49	WASHER
50	50	WASHER
51	51	WASHER
52	52	NUT

Page 16 — NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (2)

Juki LZ-2280 parts on page 16

Ref	Part number	Part name	Qty
	22512057	BASE ASM.	1
	22512008	BASE MOUNTING PLATE	1
	22512701	SHAFT	1
	10017317	NEEDLE POSITION ADJUST	1
	10016012	ARM	1
	10016517	SHAFT D	1
	10016210	SHAFT A	1
	10016319	SHAFT B	1
	10016418	SHAFT C	1
	10017168	STOPPER ASM.	1
	10018000	NUT	1
	10018109	NUT STOPPER	1
	10015360	LEVER ASM.	1
	10017408	SPRING	1
	10017606	OIL SHIELD	1
	B2608761000	HAND STOP CRANK SHAFT	1
	WZ0850302K0	WAVED WASHER 8.5X12.5X	3
	NS6150310SP	NUT 15/64-28	1
	SS6090620SP	SCREW 9/64-40 L=6	3
	WP1020616SD	WASHER	2
	WZ1052010KP	WAVED WASHER	1
	RC0100001KP	SNAP RING M10	1
	NS6150310SP	NUT 15/64-28	1
	RE0200000K0	E-RING	1
	RE0400000K0	E-RING 4	1
	SS6090520SP	SCREW 9/64-40 L= 5.0	1
	SD0800402TP	HINGE SCREW D=8 H= 4	1
	22512156	KNOB ASM.	1
	22512107	KNOB	1
	10015907	LEVER STOPPER	2
	SS4090610SP	SCREW 9/64-40 L=6	2
	WP0371016SD	WASHER 3.7X8X1	2
	22512206	LEVER	1
	22512354	SCALE PLATE ASM.	1
	22512305	SCALE PLATE	1
	22512453	SCALE MOUNTING BASE C	1
	SS6080320SP	SCREW 1/8-44 L= 2.5	2
	22512552	LEVER ASM.	1
	22512503	LEVER	1
	22512602	KNOB	1
	10015907	LEVER STOPPER	2
	SS7090410SP	SCREW 9/64-40 L= 3.5	2
	WP0371016SD	WASHER 3.7X8X1	2
	10015105	KEY	1
	10017705	SPRING	1
	SS4121015SP	SCREW 3/16-28 L=10	4
	SS7090910TP	SCREW 9/64-40 L= 8.5	1
	SS7620750SP	SCREW 3/16-32 L= 6.5	1
	WP1021016SD	WASHER	2
	WZ1052010KP	WAVED WASHER	1
	WP1020616SD	WASHER	1
	WP0371036SD	WASHER 3.7X6X1	1

Page 17

Juki LZ-2280 parts on page 17

Ref	Part number	Part name	Qty
	19	PRESSER BAR & FEED REGULATOR COMPONENTS
	24
	23
	20
	35
	9
	21
	26
	25
	11
	13
	12
	40
	22
	39
	18
	57
	17
	33
	1
	4
	7
	6
	5
	3
	2
	8
	41
	44
	46
	47
	42
	43
	45
	48
	49
	50
	54
	55
	52
	51
	53
	58
	56
	59
	60
	61
	62
	64
	63
	12
	29
	31
	16
	30
	14
	15
	37
	28
	10
	32
	36

Page 18 — PRESSER BAR & FEED REGULATOR COMPONENTS

Juki LZ-2280 parts on page 18

Ref	Part number	Part name	Qty
	22547962	PRESSER FOOT ASM.	1
	22547954	PRESSER FOOT ASM.	1
	22547905	PRESSER FOOT (LOWER)	1
	22546964	PRESSER FOOT (UPPER)	1
	22547962	PRESSER FOOT (UPPER)	1
	22548663	PRESSER FOOT (UPPER)	1
	22549869	PRESSER FOOT (UPPER)	1
	22547806	PRESSER PIN	1
	B1525582000	SPRING	1
	SS6090810SP	SCREW 9/64-40 L= 7.5	1
	22547004	SAFETY COVER	1
	22515357	HAND LIFTER CAM COMP.	1
	22515506	LIFTING LEVER	1
	B1516552000	LIFTING LEVER LINK	1
	11007101	HINGE SCREW	2
	11006905	LIFTING LEVER CONNECT	1
	B3414555000	LIFTING LEVER LINK ARM	1
	B3416555000	SWIVEL	1
	B3416555000	CONNECTING ROD HINGE	1
	10022010	PRESSER BAR	1
	10022309	PRESSER BAR GUIDE BRAC	1
	11071602	PRESSER SPRING REGULA	1
	B1510227000	PRESSER GUIDE BAR	1
	B1505227000A	PRESSER SPRING	1
	B1502541000	PRESSER BAR BUSHING, L	1
	11071800	HAND LIFTER	1
	B1521555000	SCREW	1
	B3431581000	LIFTING LEVER GASKET	1
	B1517552000	HINGE PIN	1
	B1523226000	SNAP RING	1
	10022606	CONNECTING ROD, VERTI	1
	GAK33041000	KNEE LIFTING LINK STEP-	1
	GAK33042000	KNEE LIFTING LINK SPRIN	1
	RE0500000K0	E-RING	1
	SD0630301SP	HINGE SCREW D= 6.35 H=5	1
	SS7090910TP	SCREW 9/64-40 L= 8.5	1
	SS8150710SP	SCREW 15/64-28 L=7	1
	RO037180100	RUBBER RING	1
	SD0630275SP	HINGE SCREW D= 6.35 H=	1
	NS6620310SP	NUT 3/16-32	1
	RE0600000K0	E-RING 6	1
	SS8151720SP	SCREW	1
	SS8150510TP	SCREW 15/64-28 L= 4.7	1
	22545362	PRESSER FOOT ASM.	1
	22545354	PRESSER FOOT ASM.	1
	22545305	PRESSER FOOT (LOWER)	1
	22545206	PRESSER FOOT (UPPER)	1
	10021103	PRESSER PIN	1
	SS6090810SP	SPRING	1
	B1525582000	SAFETY COVER	1
	22545404	PRESSER FOOT ASM.	1
	22548663	PRESSER FOOT ASM.	1
	22548655	PRESSER (LOWER)	1
	22548606	PRESSER (UPPER)	1
	22546808	PRESSER (UPPER)	1
	22546808	PRESSER (UPPER)	1
	22546808	PRESSER (UPPER)	1
	22546808	PRESSER (UPPER)	1
	22547806	PRESSER PIN	1
	SS6090810SP	SCREW 9/64-40 L= 7.5	1

Page 19 — PRESSER BAR & FEED REGULATOR COMPONENTS

Juki LZ-2280 parts on page 19

Ref	Part number	Part name	Qty
	19	PRESSER BAR & FEED REGULATOR COMPONENTS
	24	SCREW
	23	LEVER
	20	PRESSER BAR
	9	SPRING
	35	SCREW
	12	SCREW
	29	SPRING
	31	SPRING
	16	SCREW
	30	SPRING
	14	BRACKET
	13	ROD
	21	SPRING
	26	SCREW
	25	WASHER
	11	BRACKET
	15	SLEEVE
	40	SCREW
	22	COLLAR
	39	SCREW
	27	SPRING
	38	SPRING
	32	SCREW
	10	BRACKET
	36	SCREW
	57	SCREW
	18	HOLDER
	17	TUBE
	33	SPRING
	44	BRACKET
	46	SCREW
	47	SPRING
	42	FOOT
	43	SPRING
	45	PIN
	48	FOOT
	49	FOOT
	58	FOOT
	1	BRACKET
	2	FOOT
	4	BRACKET
	7	SCREW
	6	SPRING
	5	PIN
	3	SPRING
	8	FOOT
	52	BRACKET
	54	SCREW
	55	SPRING
	50	FOOT
	56	FOOT
	59	BRACKET
	64	SCREW
	63	SPRING
	60	FOOT
	61	PIN
	62	FOOT

Page 20 — PRESSER BAR & FEED REGULATOR COMPONENTS

Juki LZ-2280 parts on page 20

Ref	Part number	Part name	Qty
	B1525582000	SPRING	1
	22547004	SAFETY COVER	1
	SS7111110TP	SCREW 11/64-40 L=10.5	1
	22548960	PRESSER FOOT ASM.	1
22547558	22545206	PRESSER FOOT (UPPER)	1
	22548903	PRESSER FOOT (LOWER)	1
	10021103	PRESSER PIN	1
	22545404	SAFETY COVER	1
	B1525582000	SPRING	1
	SS6090810SP	SCREW 9/64-40 L= 7.5	1

Page 21 — FEED MECHANISM & CONDENSE COMPONENTS

Juki LZ-2280 parts on page 21

Ref	Part number	Part name	Qty
36	36	SPRING
17	17	COLLAR
42	42	WASHER
26	26	PIN
16	16	FEED DOG
35	35	SCREW
33	33	BRACKET
4	4	BRACKET
1	1	LEVER
30	30	NUT
25	25	SPRING
3	3	SLEEVE
32	32	COLLAR
2	2	SHAFT
31	31	SCREW
37	37	SCREW
5	5	BRACKET
18	18	BRACKET
39	39	SUPPORT
37	37	SCREW
40	40	SCREW
38	38	NUT
9	9	SHAFT
8	8	BRACKET
14	14	WASHER
13	13	PIN
13	13	PIN
10	10	BLOCK
15	15	SCREW
11	11	SLEEVE
7	7	DRUM
12	12	RING
43	43	ADJUSTING PLATE
41	41	SCREW
6	6	SPRING
21	21	SPRING
22	22	SPRING
23	23	PIN
20	20	COLLAR
19	19	SPRING
24	24	SLEEVE
28	28	SCREW
29	29	WASHER
34	34	PIN

Page 22 — FEED MECHANISM & CONDENSE COMPONENTS

Juki LZ-2280 parts on page 22

Ref	Part number	Part name	Qty
	22518005	LEVER	1
	22518104	SHAFT
	22518203	BUSHING	1
	22518351	CONDENSE STOPPER ARM	1
	22518401	FEED DRIVING ADJUSTER	1
	22518559	KNOB ASM.	1
	22518500	KNOB	1
	22518609	ADJUSTING SCREW BASE	1
	22518708	ADJUSTING SCREW	1
	22518807	SETTER	1
	22518906	SHAFT	1
	11212503	STOPPER DIAL PLATE	1
	SS8110410TP	SCREW 11/64-40 L= 3.5	2
	WZ1052010KP	WAVED WASHER	1
	SS4110715SP	SCREW 11/64-40 L=7	1
	22519102	DIAL	1
	22519201	ADJUSTING SCREW	1
	22519300	FEED REVERSAL LINK	1
	B1114280000	PIN	1
	10119907	CUSHION	1
	10120004	SPRING SUSPENSION	1
	D2515232D00	TORSION SPRING	1
	B1631012B00	SUSPENSION STUD B	1
	11100500	REVERSE FEED LEVER STO	1
	B2508704000	OIL SEAL	1
	11052701	PIN	1
	B114855000	SPRING	1
	SS6121840SP	SCREW 3/16-28 L=18	1
	WS0510002KP	SPRING WASHER 5.1X9.2X1	1
	SS620750SP	SCREW 3/16-28 L= 6.5	1
	SS7121410TP	SCREW 3/16-28 L=14	1
	CS1031210SH	THRUST COLLAR ASM. D=	1
	SS7121410TP	SCREW 3/16-28 L=14	1
	SS4120615SP	SCREW 3/16-28 L=6	2
	SS6121860SP	SCREW 3/16-28 L=18	1
	R0074240100	RUBBER RING	1
	SD0600321SP	HINGE SCREW D=6 H=3.2	2
	NS6120310SP	NUT 3/16-28	1
	10028900	FEED VARIABLE ARM B	1
	SS6121610TP	SCREW 3/16-28 L=15.5	1
	SS4120615SP	SCREW 3/16-28 L=6	2
	D2468555B00	RUBBER PLUNGER	1
	22519805	SCALE PLATE	1

Page 23

Juki LZ-2280 parts on page 23

Ref	Part number	Part name	Qty
5	5	5
32	32	32
9	9	9
33	33	33
22	22	22
18	18	18
8-59-61	8-59-61	8-59-61
11	11	11
16	16	16
10	10	10
12	12	12
3	3	3
19	19	19
20	20	20
6	6	6
14	14	14
51	51	51
2	2	2
54	54	54
55	55	55
15	15	15
13	13	13
57	57	57
58	58	58
1	1	1
49	49	49
44	44	44
22	22	22
23	23	23
21	21	21
34	34	34
60	60	60
26	26	26
27	27	27
28	28	28
35	35	35
24	24	24
29	29	29
46	46	46
48	48	48
47	47	47
30	30	30
7	7	7
31	31	31
56	56	56
4	4	4
50	50	50
26	26	26
36	36	36
37	37	37
27	27	27
25	25	25
38~42	38~42	38~42
45	45	45
52	52	52
53	53	53

Page 24 — FEED MECHANISM COMPONENTS

Juki LZ-2280 parts on page 24

Ref	Part number	Part name	Qty
	22519508	FEED REVERSAL LINK	1
	22519607	TENSION SPRING RACK	1
	22519706	FEED BASE	1
	22519706	FEED BASE	1
	SS8150510TP	SCREW 15/64-28 L= 4.7	1
	22519904	FELT	1
	22520001	LINK	1
	22520159	BALANCE WEIGHT COMPI	1
	22548119	FEED DOG	1
	10026102	ECCENTRIC SHAFT	1
	10026201	SPACER	2
	10026300	FEED ROCKER	1
	10026508	LINK PIN	1
	10026508	LINK PIN	1
	SD0600321SP	HINGE SCREW D=6 H=3.2	2
	NS6120310SP	NUT 3/16-28	2
	SS6111140SP	SCREW 11/64-40 L=11	1
	SS6580752TP	SCREW 1/8-40 L=7	2
	SS8120740SP	SCREW 3/16-28 L=7	2
	SS7121410TP	SCREW 3/16-28 L=14	2
	SS7121410TP	SCREW 3/16-28 L=14	1
	RE030000K0	E-RING 3	1
	CS1111010SH	THRUST COLLAR ASM. D=	1
	CS1111019SH	THRUST COLLAR D=11.11	1
	SS6660710TP	SCREW 1/4-40 L=7	1
	SS8660810TP	SCREW 1/4-40 L=8	2
	SS4080610SP	SCREW 1/8-44 L=6.4	2
	SD0900701TP	HINGE SCREW D=9 H=7	2
	NS6680410SP	NUT 9/32-28	2
	SS6121610TP	SCREW 3/16-28 L=15.5	1
	SS7110910TP	SCREW 11/64-40 L=8.5	4
	SS5110710SP	SCREW 11/64-40 L=7	1
	SS511052TP	SCREW 11/64-40 L=10	2
	10026607	FEED ROCKER SHAFT	1
	B1604141H00	BUSHING, FRONT	1
	B1604155000	FEED ROCKER SHAFT BUS	1
	10026706	ECCENTRIC CAM	1
	10026805	ROD	1
	10026904	SIDE DISC PLATE	1
	B1609804A00	BUSHING	1
	B1609804B00	NEEDLE BEARING	1
	B1609804C00	BEARING	1
	B1609804D00	BEARING	1
	B1609804E00	BEARING	1
	10027001	CONNECTING ROD	1
	10027100	FEED ROCKER SHAFT CR/	1
	10027209	FEED DRIVING ROCKER	1
	10027308	PLATE A	1
	10027407	STOPPER PLATE	1
	10027492	PLATE B	1
	10028702	FEED VARIABLE SHAFT	1
	10028801	BUSHING	1
	10029007	FEED VARIABLE ARM C	1
	10029601	FEED DRIVING ROCKER BI	2
	B1653470000	PIN	1
	B164655000	TENSION SPRING	1
	SS7121410TP	SCREW 3/16-28 L=14	1
	WP0450846SP	WASHER	2
	10029304	REVERSE FEED LIMITER	1
	SS6111140SP	SCREW 11/64-40 L=11	1

Page 25

Juki LZ-2280 parts on page 25

Ref	Part number	Part name	Qty
5	5	SHAFT
32	32	SHAFT
9	9	SHAFT
33	33	COLLAR
22	22	SPRING
18	18	SCREW
8-59-61	8-59-61	SPRING
11	11	BRACKET
16	16	SCREW
3	3	BRACKET
10	10	WASHER
12	12	COLLAR
6	6	BRACKET
20	20	SPRING
19	19	SCREW
2	2	BRACKET
54	54	SPRING
15	15	SCREW
14	14	NUT
55	55	SCREW
51	51	BRACKET
13	13	BRACKET
57	57	BRACKET
58	58	SPRING
1	1	BRACKET
49	49	SHAFT
4	4	SCREW
50	50	COLLAR
7	7	BRACKET
31	31	COLLAR
56	56	SPRING
45	45	SHAFT
30	30	SCREW
47	47	BRACKET
29	29	SCREW
46	46	PLATE
48	48	BRACKET
52	52	BRACKET
53	53	BRACKET
21	21	SCREW
22	22	COLLAR
23	23	SCREW
34	34	COLLAR
60	60	SPRING
44	44	BRACKET
27	27	NUT
28	28	SCREW
43	43	BRACKET
36	36	COLLAR
26	26	SCREW
37	37	PLATE
25	25	SHAFT
38~42	38~42	BEARING
24	24	SCREW
35	35	COLLAR
27	27	NUT

Page 26 — FEED MECHANISM COMPONENTS

Juki LZ-2280 parts on page 26

Ref	Part number	Part name	Qty
	22545107	FEED DOG	1
	SS8150710SP	SCREW 15/64-28 L=7	2
	22548804	FEED DOG	1

Page 27 — HOOK DRIVING SHAFT & HOOK COMPONENTS

Juki LZ-2280 parts on page 27

Ref	Part number	Part name	Qty
	37	HOOK DRIVING SHAFT & HOOK COMPONENTS
	36
	5
	31
	35
	6.47
	7.48
	21
	32
	33
	42
	41
	40
	39
	43
	44
	45
	46
	17
	23
	34
	26
	23
	4
	16
	18
	20
	19
	30
	26
	28
	8
	11~14
	9
	38
	25
	3
	15
	29
	24
	1
	22
	10
	27

Page 28 — HOOK DRIVING SHAFT & HOOK COMPONENTS

Juki LZ-2280 parts on page 28

Ref	Part number	Part name	Qty
	22523708	BUSHING	1
	22523807	SHAFT	1
	22523906	HOOK DRIVING SHAFT	1
	B13081550A0	PINION ASM.	1
	22524201	BOBBIN	1
	22525059	HOOK COMPL., R	1
	22524805	REVERSE PLATE	1
	10030203	BUSHING, INTERMEDIATE	1
	10030302	BUSHING, REAR	1
	10030401	HOOK DRIVING SHAFT SPI	1
	10030509	HELICAL GEAR A	1
	10030708	HELICAL GEAR B	1
	10030807	HELICAL GEAR C	1
	10030906	HELICAL GEAR D	1
	10031003	HELICAL GEAR B	1
	10031300	HOOK SHAFT	1
	10031300	HOOK SHAFT	1
	10031300	HOOK SHAFT	1
	10031409	HOOK SHAFT BUSHING A	1
	10031409	HOOK SHAFT BUSHING A	1
	10031409	HOOK SHAFT BUSHING A	1
	10031516	HOOK SHAFT BUSHING B	1
	10031615	BUSHING CAP	1
	10031714	GASKET	1
	10033207	BOBBIN CASE POSITIONIN	1
	SS8150710SP	SCREW 15/64-28 L=7	1
	SS8660810TP	SCREW 1/4-40 L=8	4
	SS6660710TP	SCREW 1/4-40 L=7	2
	SS8150710SP	SCREW 15/64-28 L=7	3
	SS8150822TP	SCREW 15/64-28 L=8	2
	SB109530100	BEARING D=9.5X22X22.22	1
	SS8660810TP	SCREW 1/4-40 L=8	2
	SS8660810TP	SCREW 1/4-40 L=8	2
	SS4080620TP	SCREW 1/8-44 L=6	2
	SS6111010SP	SCREW 11/64-40 L= 9.5	1
	B1808552000	OIL SEAL SCREW	1
	11019966	OIL WICK	1
	B13071550A0	PINION ASM. LARGE	1
	22524169	BOBBIN CASE ASM.	1
	13729702	BOBBIN CASE SPRING	1
	22524151	BOBBIN CASE COMPL.	1
	10030104	BUSHING, FRONT	1
	19800903	LC-601-1/ LATCH LEVER	1
	19801000	LC-602-2/ LATCH	1
	19801307	SMS-801-B/ SETSCREW PI	1
	19801109	LSP-4/ LATCH SPRING	1
	19801208	LFP-1/ LATCH PIN	1
	19801406	TSP-604-B/ TENSION SPR	1
	19801505	SMS-608-B/ TENSION SCRE	1
	19801604	SMS-609-B/ SETSCREW TE	1
	22525851	HOOK COMPL. V	1
	22526206	REVERSE PLATE V	1

Page 29 — LUBRICATION COMPONENTS

Juki LZ-2280 parts on page 29

Ref	Part number	Part name	Qty
	7	7
	6	6
	35	35
	18	18
	28	28
	13	13
	36	36
	14	14
	37	37
	15	15
	24	24
	23	23
	5	5
	39	39
	21	21
	38	38
	30	30
	19	19
	12	12
	27	27
	32	32
	17	17
	33	33
	34	34
	16	16
	31	31
	40	40
	8	8
	22	22
	1	1
	10	10
	11	11
	26	26
	41	41
	48	48
	42	42
	43	43
	44	44
	49	49
	45	45
	46	46
	51	51
	47	47
	52	52
	53	53
	9	9
	3	3
	2	2
	29	29
	33	33

Page 30 — LUBRICATION COMPONENTS

Juki LZ-2280 parts on page 30

Ref	Part number	Part name	Qty
	22531156	OIL SUPPLY PIPE ASM.	1
	22531206	OIL SUPPLY PIPE	1
	22531305	DISTRIBUTOR	1
	22531552	FELT ASM.	1
	22531701	FELT PRESSER	1
	22531909	GASKET	1
	22531909	GASKET	1
	22531909	GASKET	1
	22531909	GASKET	1
	22532006	OIL TUBE	1
	10035301	BUSHING	1
	SS8110510SP	SCREW 11/64-40 L=5	1
	B1301555000	UPRIGHT SHAFT	1
	10035111	PUMP DRIVING GEAR	1
	10035004	PUMP DRIVING GEAR A	1
	B3524552000	PLUNGER THRUST PLATE	1
	B1214038000	PLUNGER SPRING	1
	B3534155000	PLUNGER	1
	10037109	OIL REGULATING SCREW	1
	B3538112000	OIL RETURN TUBE HOLDE	1
	10125904	OIL TANK	1
	10035707	OIL REGULATING SCREW	1
	B2616372000	SPRING	1
	B3565771000	OIL FELT GUIDE	1
	SS8150710SP	SCREW 15/64-28 L=7	1
	SS4110715SP	SCREW 11/64-40 L=7	1
	SQ1110402MZ	CONNECTING SCREW	2
	SS611140SP	SCREW 1/4-40 L=4.5	2
	SS8660530TP	SCREW 1/4-40 L=4.5	2
	SS8660530TP	SCREW 1/4-40 L=4.5	2
	SS4110715SP	SCREW 11/64-40 L=7	1
	SQ1110402MZ	CONNECTING SCREW	1
	CQ202000000	OIL WICK	.2
	NS6150310SP	NUT 15/64-28	1
	SS4110515SP	SCREW 11/64-40 L=5	1
	BT0500300EA	OIL TUBE	.4
	SQ1110402MZ	CONNECTING SCREW	2
	SS4111215SP	SCREW 11/64-40 L=12	2
	SQ1150451MZ	CONNECTING SCREW	1
	BT0600402EA	OIL TUBE	.3
	SS4110515SP	SCREW 11/64-40 L=5	1
	RQ0029180100	RUBBER RING	1
	CS079073ASH	THRUST COLLAR ASM.	1
	B3501555000	LUBRICATING OIL PUMP A	1
	B3503555000	OIL PUMP INSTALLING BA	1
	B3505555000	RUBBER JOINT	1
	B3506555000	RUBBER JOINT	1
	B3501555000	LUBRICATING OIL PUMP	1
	B3507555000	OIL PUMP IMPELLER	1
	B3508555000	OIL PUMP IMPELLER COV	1
	SM4031001SC	SCREW M3X0.5 L=10	3
	NM60300000ZK	WASHER	3
	NM60300000E	NUT M3X0.5	3
	B3502555000	LUBRICATING OIL PUMP C	3
	SE4301031SR	SCREW	5
	EA9500B0100	CABLE BAND	1
	CQ202000000	OIL WICK	.2

Page 31 — THREAD TRIMMER MECHANISM COMPONENTS

Juki LZ-2280 parts on page 31

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	SHAFT
3	3	PIN
4	4	SOLENOID
5	5	SCREW
6	6	BUSH
7	7	BRACKET
8	8	BRACKET
9	9	SPRING
10	10	SPRING
11	11	SPRING
12	12	SCREW
13	13	LEVER
14	14	BRACKET
15	15	LEVER
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	SCREW
23	23	SCREW
24	24	SCREW
25	25	BLADE
26	26	PIN
27	27	BRACKET
28	28	BRACKET
29	29	PIN
30	30	BRACKET
31	31	CABLE TIE
32	32	SCREW
33	33	SPRING
34	34	SCREW
35	35	WASHER
36	36	SCREW
37	37	NUT
38	38	NUT
39	39	SCREW
40	40	SCREW
41	41	HANDLE
42	42	NUT
43	43	BRACKET
44	44	SCREW
45	45	SPRING
46	46	SCREW
47	47	SCREW
48	48	SCREW
49	49	PULLEY
50	50	BRACKET
51	51	MOTOR
52	52	BRACKET
53	53	BRACKET
54	54	SHAFT
55	55	BRACKET
56	56	NUT
57	57	SCREW
58	58	PIN
59	59	CIRCLIP
60	60	SCREW
61	61	CONNECTOR
62	62	BUSH
63	63	SPRING

Page 32 — THREAD TRIMMER MECHANISM COMPONENTS

Juki LZ-2280 parts on page 32

Ref	Part number	Part name	Qty
	22554158	BASE PLATE ASM.	1
	22554356	CLUTCH PLATE ASM.	1
	22554505	CLUTCH LINK	1
	22554604	MAGNET	1
	22554703	MOVING KNIFE LINK PIN	1
	22554802	MOVING KNIFE LINK BASE	1
	22554901	DRIVING ARM STOPPER	1
	22555007	MOVING KNIFE LINK	1
	22555106	KNIFE RETURN SPRING	1
	22555205	CLUTCH SPRING	1
	22555304	ROLLER RETURN SPRING	1
	22555403	THREAD CUTTING CAM	1
	22555551	FORK KNIFE ASM.	1
	22556906	FIXED PLATE	1
	22557003	CORD PRESSER	1
	22556054	KNIFE UNIT	1
	22556302	FIXED KNIFE	1
	22556450	CLAMP PLATE ASM.	1
	22556609	SLIDING PLATE	1
	22556708	DRIVING BASE	1
	22556807	DRIVING BASE	1
	SS1090510SP	SCREW 9/64-40 L=5	2
	SS6090420SP	SCREW 9/64-40 L= 4.0	2
	SS7090710SP	SCREW 9/64-40 L= 6.8	2
	22556153	DRIVING KNIFE ASM.	1
	D2107555B00	WIPER LINK SHAFT, A	1
	11040854	KNIFE DRIVING ARM ASM.	1
	11041308	ROLLER ARM BRACKET	1
	11041407	ROLLER FULCRUM SHAFT	1
	22555858	ROLLER ARM ASM.	1
	EA9500B0100	CABLE BAND	2
	SS4150915SP	SCREW 15/64-28 L=9	2
	RE060000K0	E-RING 6	1
	SD06000291TP	HINGE SCKEW D=6 H=2.9	1
	RE0250000K0	E-RING 2.5	2
	SM4040601SB	SCREW M4 L=6	3
	WP0621016SH	WASHER	1
	NS6150430SP	NUT 15/64-28	1
	SS4110915SP	SCREW 11/64-40 L=9	2
	RE050000K0	E-RING	1
	SD0791503SP	HINGE SCREW D=7.94 H=1	1
	NS6150310SP	NUT 15/64-28	1
	RE060000K0	E-RING 6	1
	SS7090610SP	SCREW 9/64-40 L=6	1
	RE040000K0	E-RING 4	1
	SS2110920TP	SCREW 11/64-40 L=8.5	1
	SS2111010TP	SCREW 11/64-40 L=9.5	1
	SS6660710TP	SCREW 1/4-40 L=7	2
	CS095101BSH	THRUST COLLAR ASM. D=	1
	HK00443002A	HOUSING 2P	1
	22552764	SOLENOID ASM.	1
	22552806	SOLENOID FITTING BASE	1
	22552905	THREAD RELEASE PUSH P	1
	22552756	SCREW 9/64-40 L=14	1
	NM6030001SC	NUT M3	2
	NM6040001SN	NUT M4X0.7	1
	SS4120615SP	SCREW 3/16-28 L=6	4
	PS0300182KF	SPRING PIN 3X18	1
	RE040000K0	E-RING 4	1
	SS4110515SP	SCREW 11/64-40 L=5	1

Page 33 — THREAD TRIMMER MECHANISM COMPONENTS

Juki LZ-2280 parts on page 33

Ref	Part number	Part name	Qty
	1	BRACKET
	2	SHAFT
	3	SPRING PIN
	4	SOLENOID
	5	SCREW
	6	WASHER
	7	BRACKET
	8	BRACKET
	9	SPRING
	10	SPRING
	11	SPRING
	12	SCREW
	13	LEVER
	14	BRACKET
	15	SPRING
	16	BRACKET
	17	BRACKET
	18	BRACKET
	19	PLATE
	20	BRACKET
	21	BRACKET
	22	SCREW
	23	SCREW
	24	SCREW
	25	BLADE
	26	PIN
	27	BRACKET
	28	BRACKET
	29	PIN
	30	BRACKET
	31	CABLE TIE
	32	SCREW
	33	SPRING WASHER
	34	SCREW
	35	WASHER
	36	SCREW
	37	NUT
	38	NUT
	39	SCREW
	40	SCREW
	41	HANDLE
	42	NUT
	43	BRACKET
	44	SCREW
	45	SPRING
	46	SCREW
	47	SCREW
	48	SCREW
	49	PULLEY
	50	BRACKET
	51	MOTOR
	52	BRACKET
	53	BRACKET
	54	SHAFT
	55	BRACKET
	56	NUT
	57	SCREW
	58	PIN
	59	SPRING
	60	SCREW
	61	CONNECTOR
	62	COLLAR
	63	SPRING

Page 34 — THREAD TRIMMER MECHANISM COMPONENTS

Juki LZ-2280 parts on page 34

Ref	Part number	Part name	Qty
	HK034610140	HOUSING 14P	1
	D2467555B00	RUBBER PLUG	2
	D3133555B00	SPRING	1

Page 35 — UPPER THREAD FEEDER COMPONENTS

Juki LZ-2280 parts on page 35

Ref	Part number	Part name	Qty
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38

Page 36

Juki LZ-2280 parts on page 36

Ref	Part number	Part name	Qty
	22564157	THREAD FEEDER ASM.	1
	22564256	FITTING BASE COMPL.	1
	22564454	FEED LEVER COMPL.	1
	22564702	FEED LEVER SHAFT	1
	22564801	LINK	1
	22565204	FEED LEVER SPRING	1
	22565303	STOPPER	1
	22565402	SHAFT	1
	22565501	SOLENOID COVER	1
	22565659	PLATE	1
	22565857	SOLENOID COMPL.	1
	11234408	SOLENOID RUBBER	1
	11234507	PLUNGER CONNECTING P.	1
	B2560372000	BUTTON CLAMP STOP PIN	1
	B2626372000	SPRING	1
	B2034372000	THREAD RELEASING SCRE	1
	B2024771000	SUSPENSION SCREW	1
	SS4120915SP	SCREW 3/16-28 L=9	2
	RE090000K0	E-RING 9	1
	RE030000K0	E-RING 3	2
	SD0640241SP	HINGE SCREW D= 6.35 H=	1
	SS7110540SP	SCREW 11/64-40 L=5	2
	SD0481451SP	HINGE SCREW D= 4.80 H=1	1
	NS6080340SP	NUT 1/8-44	1
	SS4120615SP	SCREW 3/16-28 L=6	1
	NS6120310SP	NUT 3/16-28	1
	SS7110540SP	SCREW 11/64-40 L=5	2
	CS0640863SH	THRUST COLLAR D=6.35 V	1
	22564959	FITTING PLATE COMPL.	1
	22565105	WIRE	1
	22566152	STOPPER PLATE COMPL.	1
	SL4030881SF	SCREW	4
	SS6090540SP	SCREW 9/64-40 L= 5.0	2
	SS9090610TP	SCREW 9/64-40 L=5.5	2
	SS9110620TP	SCREW	2
	22566301	STOPPER PLATE GUIDE	1
	HX00123000A	CABLE CLIP	1
	SS4121015SP	SCREW 3/16-28 L=10	1

Page 37 — AUTOMATIC REVERSE FEED MECHANISM COMPONENTS

Juki LZ-2280 parts on page 37

Ref	Part number	Part name	Qty
	1	AUTOMATIC REVERSE FEED MECHANISM
	2	BRACKET
	3	COVER
	4	LEVER
	5	BRACKET
	6	SHAFT
	7	SPRING
	8	BRACKET
	9	BRACKET
	10	COVER
	11	ROD
	12	ROD
	13	SCREW
	14	SCREW
	15	SCREW
	16	WASHER
	17	SCREW
	18	SCREW
	19	CIRCLIP
	20	CIRCLIP
	21	WASHER
	22	PIN
	23	NUT
	24	SCREW
	25	PIN

Page 38

Juki LZ-2280 parts on page 38

Ref	Part number	Part name	Qty
	22559058	MAGNET ASM.	1
	22544159	REVERSE FEED LINK ASM.	1
	22559850	REVERSE FEED SWITCH	1
	22559900	REVERSE FEED SWITCH LI	1
	11102001	REVERSE FEED SWITCH B1	1
	11102100	REVERSE FEED SWITCH SH	1
	11102209	REVERSE FEED SWITCH SI	1
	HA0019000000	MICROSWITCH	1
	11102308	MICRO SWITCH PLATE	1
	11072501	REVERSE FEED SWITCH C.	1
	HK03464000B	PIN CONTACT	2
	HW500070000	2-CORE CABTYRE CORD	1.5
	SS4110615SP	SCREW 11/64-40 L=6	1
	SS9111610SP	SCREW 11/64-40 L=16	1
	SM4031501SC	SCREW M3 L=15	2
	D246855B00	RUBBER PLUNGER	1
	B1213372000	SCREW	1
	SS4150915SP	SCREW 15/64-28 L=9	2
	RE040000K0	E-RING 4	2
	RE120000K0	E-RING 12	1
	WP1602616SZ	WASHER 16X24X2.6	1
	SD0791503SP	HINGE SCREW D=7.94 H=19	1
	NS6150310SP	NUT 15/64-28	1
	SS4120615SP	SCREW 3/16-28 L=6	2
	11101003	PLUNGER ARM PIN	1

Page 39 — WIPER MECHANISM COMPONENTS

Juki LZ-2280 parts on page 39

Ref	Part number	Part name	Qty
1	1	BRACKET
2	2	BRACKET
3	3	BRACKET
4	4	BRACKET
5	5	BRACKET
6	6	BRACKET
7	7	BRACKET
8	8	BRACKET
9	9	BRACKET
10	10	BRACKET
11	11	BRACKET
12	12	BRACKET
13	13	BRACKET
14	14	BRACKET
15	15	BRACKET
16	16	BRACKET
17	17	BRACKET
18	18	BRACKET
19	19	BRACKET
20	20	BRACKET
21	21	BRACKET
22	22	BRACKET
23	23	BRACKET
24	24	BRACKET
25	25	BRACKET
26	26	BRACKET
27	27	BRACKET
28	28	BRACKET
29	29	BRACKET
30	30	BRACKET
31	31	BRACKET
32	32	BRACKET
33	33	BRACKET
34	34	BRACKET
35	35	BRACKET
36	36	BRACKET
37	37	BRACKET
38	38	BRACKET
39	39	BRACKET

Page 40 — WIPER MECHANISM COMPONENTS

Juki LZ-2280 parts on page 40

Ref	Part number	Part name	Qty
	22561757	WIPER ASM.	1
	22561856	WIPER BASE ASM.	1
	22561807	WIPER BASE	1
	10208601	WIPER LINK 1	1
	D2107490D00	PIN	2
	22561955	WIPER LINK COMPL.	1
	22561906	WIPER LINK	1
	10208858	WIPER LINK ASM. 2	1
	D2107490D00	PIN	1
	10208700	WIPER LINK SHAFT	1
	22561708	WIPER	1
	RE0320000K0	E-RING 3.2	2
	WP0371016SD	WASHER 3.7X8X1	2
	SS3090520SP	SCREW 9/64-40 L=4.5	2
	22562052	SOLENOID ASM.	1
	22562102	WIPER BASE	1
	22562201	WIPER LINK	1
	11110301	WIPER SOLENOID	1
	11110400	WIPER RUBBER A	1
	11110509	WIPER RUBBER B	1
	11110707	WIPER HINGE SCREW COL	1
	11110806	WIPER SPRING	1
	11072709	WIPER COVER	1
	11112000	WIPER SOLENOID PIN	1
	11111804	WIPER LINK COLLAR	1
	HK03464000B	PIN CONTACT	2
	HA000590000	POWER SWITCH	1
	HW500070000	2-CORE CABTYRE CORD	1.5
	HW200390000	ELECTRIC WIRE	0.1
	NS6110310SP	NUT 11/64-40	1
	SD0650321TP	HINGE SCREW D=6.5 H=3.2	1
	SM4030601SN	SCREW M3 X 6	4
	SM4030601SN	SCREW M3 X 6	1
	WS0310002KN	SPRING WASHER M3	4
	WP0320501SC	WASHER M3	1
	SS6111040SP	SCREW 11/64-40 L=9.5	1
	SS4120615SP	SCREW 3/16-28 L=6	2
	SD0600271SP	HINGE SCREW D=6 H=2	1
	NS6110310SP	NUT 11/64-40	1

Page 41 — THREAD STAND COMPONENTS (1)

Juki LZ-2280 parts on page 41

Ref	Part number	Part name	Qty
	1	THREAD STAND COMPONENTS (1)
	2	WASHER
	3	SPRING GUIDE
	4	WING NUT
	5	WASHER
	6	SPACER
	7	SPRING
	8	GUIDE
	9	SPRING
	10	GUIDE
	11	POST
	12	DISC
	13	DISC
	14	WASHER
	15	WASHER
	16	SCREW
	17	WASHER
	18	NUT
	19	SCREW
	20	BASE

Page 42 — THREAD STAND COMPONENTS (1)

Juki LZ-2280 parts on page 42

Ref	Part number	Part name	Qty
	11185167	THREAD STAND ASM.	1
	WS1002560KR	SPRING WASHER 10X18X2	1
	B3307012000	THREAD GUIDE	2
	B3310012000	POSITION CUP SET SCREW	1
	WS0641560KR	SPRING WASHER 6.4X11.9X0.8	1
	B3309012000	POSITION CUP	1
	B3308012000	ROD WASHER	1
	B3306012000	SPOOL ROD	1
	NM6061061SE	NUT M6	1
	B3302012000	SPOOL REST ROD	1
	B3320704L00A	SPOOL PIN	2
	B3311012000	SPOOL REST CUSHION	1
	11183209	SPOOL REST	1
	WP0560860SE	WASHER 5.6X12X0.8	2
	WS0531060KR	SPRING WASHER 5.3X8.3X0.8	2
	NS6123881SE	NUT 3/16-28	2
	SM9061080SE	SCREW M6 L=10	1
	NM6100663SE	NUT M10	2
	SK3452000SE	WOOD SCREW D=4.5 L=20	3
	11183100	THREAD STAND	1

Page 44 — THREAD STAND COMPONENTS(2)

Juki LZ-2280 parts on page 44

Ref	Part number	Part name	Qty
	13946751	THREAD STAND ASM.	1
	13946751	THREAD STAND ASM.	1
	11185105	SPOOL REST ROD,LOWER	1
	11185204	SPOOL REST ROD,UPPER	1
	11969409	THREAD GUIDE ARM B
	B3305704000A	SPOOL REST ROD JOINT	1
	B3318704L00A	THREAD GUIDE ARM JOIN	2
	B3311704000	SPOOL REST ROD CAP	1
	B3320704L00A	SPOOL PIN	2
	11966504	SPOOL REST	2
	B3311012000	SPOOL REST CUSHION	2
	11185501	SPOOL RETAINER
	B3317704000	NUT	1
	B3319704L00	THREAD GUIDE	2
	WP1612616SE	WASHER 16X30X2.6	2
	SM4051405SE	SCREW M5 L=14	2
	NM6060001SE	NUT M5	2
	SM6061610SC	SCREW M6 L=16	2
	NM6050001SE	NUT M5	2
	MAO11532000	CORD STAPLE	3

Page 45

Juki LZ-2280 parts on page 45

Ref	Part number	Part name	Qty
	2	BELT COVER COMPONENTS
	3
	5
	6
	27
	26
	25
	15
	2114
	16
	17
	9
	22
	23
	11
	18
	20
	28
	29
	19
	24
	13
	12
	7
	8
	4

Page 46 — BELT COVER COMPONENTS

Juki LZ-2280 parts on page 46

Ref	Part number	Part name	Qty
	22535009	BELT COVER A	1
	22535108	BELT COVER B	1
	22535108	BELT COVER B	1
	22535108	BELT COVER B	1
	22535108	BELT COVER B	1
	22535108	BELT COVER B	1
	22535108	BELT COVER B	1
	22535108	BELT COVER B	1
	22535108	BELT COVER B	1
	10039105	BELT COVER SUPPORT ST	1
	10039659	BELT COVER PRESS PLATI	1
	SS4150915SP	SCREW 15/64-28 L=9	3
	SS6110480SP	SCREW 11/64-40 L=4.3	3
	SK3482500SC	WOOD SCREW D=4.8 L=25
	WP0501016SC	WASHER 5X10.5X1	1
	22536957	BOBBIN DEVICE ASM.
	22537203	BOBBIN PRESSER
	22537302	BOBBIN WINDER POST
	B321155000	RUBBER BRAKE
	11078102	PRESSER PLATE
	11078250	THREAD TENSION BRACKI
	B3126012000	THREAD TENSION DISK	2
	B3129012B00	THREAD TENSION SPRING	1
	11072204	TENSION NUT
	SS7081310SP	SCREW 1/8-44 L=12.5
	SS4110515SP	SCREW 11/64-40 L=5
	SD0490261SP	HINGE SCREW D=4.9 H=2.
	SS7110840SP	SCREW 11/64-40 L=7.8
	B3224771000	COLLAR
	B3210771000	BOBBIN STOP SPRING
	WP0480856SP	WASHER 4.8X8.4X0.8
	22535462	SYNCHRONIZER SUPPORT
	22535454	SYNCHRONIZER SUPPORT
	WP0450801SD	WASHER 4.5X10X0.8
	SK3482500SC	WOOD SCREW D=4.8 L=25	2
	WP0501016SC	WASHER 5X10.5X1	2

Page 47 — OIL RESERVOIR & KNEE LIFTER COMPONENTS

Juki LZ-2280 parts on page 47

Ref	Part number	Part name	Qty
1	1	OIL RESERVOIR
2	2	COVER
3	3	GASKET
4	4	SCREW
5	5	BRACKET
6	6	BRACKET
7	7	SHAFT
8	8	SPRING
9	9	WASHER
10	10	SCREW
11	11	SCREW
12	12	SPRING
13	13	BRACKET
14	14	SCREW
15	15	SCREW
16	16	SPRING
17	17	COVER
18	18	PLUG
19	19	PLUG
20	20	BRACKET
21	21	KNEE LIFTER PLATE
22	22	COVER
23	23	KNEE LIFTER
24	24	BRACKET
25	25	BRACKET

Page 48 — OIL RESERVOIR & KNEE LIFTER COMPONENTS

Juki LZ-2280 parts on page 48

Ref	Part number	Part name	Qty
	22534051	OIL RESERVOIR ASM.	1
	22534002	OIL RESERVOIR	1
	10038107	OIL RESERVOIR GASKET	1
	11047107	RUBBER CUSHION	4
	11024007	CONNECTING ROD, VERTI	1
	11024502	KNEE PRESS LOD BEARING	1
	11024205	KNEE PRESS ROD	1
	11024106	SPRING	1
	B1115850000	RUBBER PLUG	1
	RO098240100	RUBBER RING	1
	SS6700710SH	SCREW 5/16-24 L=7	2
	NS6150430SR	NUT 15/64-28	2
	SS8153010SR	SCREW 15/64-28 L=30	1
	SS9151810SR	SCREW	2
	SS9182010SN	SCREW 9/32-20 L=20	1
	RE1000000K0	E-RING 10	1
	22534101	OIL RESERVOIR BASE	1
	B3421555000	KNEE PRESS LIFTER ROD	1
	B8228125000	OIL RESERVOIR MAGNET	1
	11023751	KNEE PRESS PLATE ASM.	1
	11023702	KNEE PRESS PLATE	1
	B3431552000A	KNEE PRESS PLATE COVE	1
	B3419122000	KNEE LIFTER PLATE ROD	1
	11024403	RUBBER	1
	11023801	KNEE PRESS PLATE HOLD	1

Page 49

Juki LZ-2280 parts on page 49

Ref	Part number	Part name	Qty
36	41	PRESSER FOOT
36	39	PRESSER FOOT
36	40	PRESSER FOOT
36	38	PRESSER FOOT
36	37	PRESSER FOOT
36	42	PRESSER FOOT
47	49	PRESSER FOOT
47	48	PRESSER FOOT
47	52	PRESSER FOOT
23	25	FACE PLATE
23	24	FACE PLATE
23	26	FACE PLATE
28	33	PRESSER FOOT
28	31	PRESSER FOOT
28	32	PRESSER FOOT
28	29	PRESSER FOOT
28	30	PRESSER FOOT
28	34	PRESSER FOOT
53	58	PRESSER FOOT
53	56	PRESSER FOOT
53	57	PRESSER FOOT
53	54	PRESSER FOOT
53	53	PRESSER FOOT
53	55	PRESSER FOOT
51	51	NEEDLE PLATE
43	43	NEEDLE PLATE
50	50	NEEDLE PLATE
1	1	NEEDLE PLATE
44-45	44-45	NEEDLE PLATE
3	3	ARM SHAFT
5	4	GEAR
5	6	GEAR
2	2	HANDWHEEL
18	18	HANDWHEEL
20	20	FEED DOG
9~12	9~12	FEED DOG
46	46	MODEL PLATE
8	8	NEEDLE CLAMP
13	13	NEEDLE BAR
14	14	NEEDLE BAR
15~17	15~17	NEEDLE BAR
19	19	NEEDLE BAR
21	21	NEEDLE BAR
7	7	NEEDLE BAR
22	22	NEEDLE BAR

Page 50 — EXCLUSIVE PARTS FOR LZ-2286

Juki LZ-2280 parts on page 50

Ref	Part number	Part name	Qty
	22581409	THROAT PLATE	1
	22585400	NEEDLE VIBRATING CAM.
	22585657	WORM WHEEL COMPL.	1
	22585608	WORM WHEEL HUB	1
	10043415	WORM WHEEL	1
	SS7111120SP	SCREW 11/64-40 L=10.5	3
	22585707	SHAFT	1
	22586507	STOPPER	1
	10043016	WORM A	1
	10043115	WORM B	1
	10043214	WORM C	1
	10043313	WORM D	1
	10044014	NEEDLE VIBRATING ROD	1
	10044105	ROD GUIDE	1
	B2502280BOA	FEED CAM ROLLER	1
	B2502280BOB	FEED CAM ROLLER	1
	B2502280BOC	FEED CAM ROLLER	1
	SS7111410SP	SCREW 11/64-40 L=14	3
	SS8110422TP	SCREW 11/64-40 L=4	1
	SS8660610TP	SCREW 1/4-40 L=6	4
	SS8660810TP	SCREW 1/4-40 L=8	1
	SS8660970TP	SCREW 1/4-40 L=8.5	1
	22586259	SCALE ASM.	1
	22586200	SCALE	1
	22512453	SCALE MOUNTING BASE C	1
	SS6080320SP	SCREW 1/8-44 L=2.5	2
	22580864	PRESSER ASM.	1
	10055069	PRESSER A ASM.	1
	10055002	PRESSER LOWER A	1
	10021004	PRESSER UPPER	1
	10056109	PRESSER PIN A	1
	10056109	PRESSER PIN A	1
	10056109	PRESSER PIN A	1
	B1525582000	SPRING	1
	SS6090810SP	SCREW 9/64-40 L=7.5	1
	22580302	SAFETY COVER	1
	22580260	PRESSER FOOT ASM.	1
	22580252	PRESSER FOOT ASM.	1
	22545206	PRESSER FOOT (UPPER)	1
	22580203	PRESSER FOOT (LOWER)	1
	10021103	PRESSER PIN	1
	B1525582000	SPRING	1
	SS6090810SP	SCREW 9/64-40 L=7.5	1
	22545404	SAFETY COVER	1
	22581508	FEED DOG	1
	M6094350AAL	RESISTANCE PACK AL ASM	1
	M6094350AAF	RESISTANCE PACK AF ASM	1
	22586705	TIMING GAUGE	1
	MAB109000B0	TAPING FOOT	1
	MAB109000A0	TAPING PRESSER ASM.	1
	22545404	SAFETY COVER	1
	22580005	THROAT PLATE	1
	22580104	FEED DOG	1
	22584965	PRESSER FOOT ASM.	1
	22545206	PRESSER FOOT (UPPER)	1
	22584965	PRESSER FOOT (LOWER)	1
	22545404	SAFETY COVER	1
	10021103	PRESSER PIN	1
	B1525582000	SPRING	1
	SS6090810SP	SCREW 9/64-40 L=7.5	1

Page 51 — EXCLUSIVE PARTS FOR LZ-2285(1)

Juki LZ-2280 parts on page 51

Ref	Part number	Part name	Qty
	4	Needle
	2	Needle Plate
	1	Side Cover
	3	Knob
	6	Gear
	5	Pulley
	12	Needle Bar Connecting Link
	14~16	Needle Bar Connecting Link Screw
	13	Needle Bar Connecting Link Support
	19	Spring
	8~11	Spring Guide
	17	Screw
	27	Shaft
	28	Screw
	44	Nut
	40	Lever
	39	Screw
	32~35	Screw
	36	Nut
	37	Lever
	26	Bracket
	24	Screw
	21	Screw
	20	Screw
	7	Pin
	45	Cover
	47	Cover
	49	Screw
	46	Cover
	48	Screw
	29	Washer
	30	Washer
	31	Screw
	43	Disc
	23	Bracket
	42	Screw
	25	Cover
	22	Cover
	54	Presser Foot
	53	Presser Foot
	54	Presser Foot
	52	Presser Foot

Page 52 — EXCLUSIVE PARTS FOR LZ-2285(1)

Juki LZ-2280 parts on page 52

Ref	Part number	Part name	Qty
	22592505	ARM SIDE COVER	1
	10061554	THROAT PLATE ASM.	1
	TA1871602R0	RUBBER PLUG	1
	MC1923F0800	NEEDLE 438SUK 80	1
	22585509	NEEDLE VIBRATING CAM	1
	22585657	WORM WHEEL COMPL.	1
	22585707	SHAFT	1
	10043016	WORM A	1
	10043115	WORM B	1
	10043214	WORM C	1
	10043313	WORM D	1
	10044014	NEEDLE VIBRATING ROD	1
	10044105	ROD GUIDE	1
	B2502280B0A	FEED CAM ROLLER	1
	B2502280B0B	FEED CAM ROLLER	1
	B2502280B0C	FEED CAM ROLLER	1
	SS71111410SP	SCREW 11/64-40 L=14	3
	SS8110422TP	SCREW 11/64-40 L=4	1
	SS8660610TP	SCREW 1/4-40 L=6	4
	SS8660810TP	SCREW 1/4-40 L=8	1
	SS8660970TP	SCREW 1/4-40 L= 8.5	1
	22592653	BASE ASM.	1
	10054112	ARM SETTING BASE	1
	SS7110910TP	SCREW 11/64-40 L= 8.5	2
	22592604	MOUNTING PLATE	1
	10016012	ARM	1
	22512701	SHAFT	1
	SS6090620SP	SCREW 9/64-40 L=6	3
	WP1020616SD	WASHER	2
	WZ1052010KP	WAVED WASHER	1
	RC0100001KP	SNAP RING M10	1
	10016210	SHAFT	1
	10016319	SHAFT	1
	10016418	SHAFT	1
	10016517	SHAFT	1
	NS6150310SP	NUT 15/64-28	1
	10017168	STOPPER ASM.	1
	RE0200000K0	E-RING	1
	10018000	NUT	1
	10018109	NUT STOPPER	1
	10015360	LEVER ASM.	1
	RE0400000K0	E-RING 4	1
	10017606	OIL SHIELD	1
	SS6090520SP	SCREW 9/64-40 L= 5.0	1
	22590053	SCALE ASM.	1
	22586200	SCALE	1
	22592802	SCALE MOUNTING BASE	1
	SS6080320SP	SCREW 1/8-44 L= 2.5	2
	SS6111010SP	SCREW 11/64-40 L= 9.5	1
	SS6110510SP	SCREW 11/64-40 L=5	1
	WP0480856SP	WASHER 4.8X8.4X0.8	1
	MAM097000A0	FAGOTTING FELLER	1
	MAM09700BA0	FAGOTING FOLDER ASM.	1
	SS5110710SP	SCREW 11/64-40 L=7	2

Page 53

Juki LZ-2280 parts on page 53

Ref	Part number	Part name	Qty
	1	Presser foot assembly
	2	Presser foot spring
	3	Presser foot screw
	4	Presser foot
	5	Presser foot screw
	6	Presser foot screw
	7	Presser bar holder
	8	Presser foot spring
	9	Presser foot spring
	10	Presser foot spring
	11	Presser foot screw
	12	Presser foot screw
	13	Presser foot screw
	14	Presser foot assembly
	15	Presser foot spring
	16	Presser bar holder
	17	Presser foot screw
	18	Presser foot
	19	Presser foot screw
	20	Presser foot screw
	21	Presser foot screw
	22	Presser foot screw
	23	Presser foot spring
	24	Presser foot spring
	25	Presser foot spring
	26	Link
	27	Wrench
	28	Handwheel
	29	Shaft
	30	Spring
	31	Base plate
	32	Shaft
	33	Holder
	34	Washer
	35	Connecting rod
	36	Shaft
	37	Shaft
	38	Screw
	39	Screw
	40	Screw
	41	Screw
	42	Screw
	43	Screw
	44	Screw
	45	Screw
	46	Nut
	47	Washer
	48	Nut
	49	Washer
	50	Nut
	51	Screw
	52	Pulley
	53	Screw
	54	Screw
	55	Spring
	56	Screw
	57	Screw
	58	Lever
	59	Tube assembly
	60	Tube assembly
	61	Nut
	62	Tube connector
	63	Screw
	64	Screw
	65	Screw
	66	Screw
	67	Lever
	68	Screw
	69	Screw
	70	Lever
	71	Screw
	72	LZ-2286
	73	Gear

Page 54 — EXCLUSIVE PARTS FOR LZ-2285(2)

Juki LZ-2280 parts on page 54

Ref	Part number	Part name	Qty
	22591564	PRESSER FOOT ASM.	1
	22591101	FINGER GUARD	1
	10062701	PRESSER FOOT, LEFT	1
	10062800	PRESSER FOOT, RIGHT	1
	22591408	PRESSER FOOT ASM.	1
	10063303	PIN	2
	10063402	PRESSER FOOT, UPPER	1
	10063501	PIN	1
	10063600	SPRING	2
	SS8080410TP	SCREW 1/8-44 L=3.5	1
	SS7111110TP	SCREW 11/64-40 L=10.5	2
	SS6580752TP	SCREW 1/8-40 L=7	1
	WP0220300SC	WASHER	2
	22591663	PRESSER FOOT ASM.	1
	22591101	FINGER GUARD	1
	SS6580752TP	SCREW 1/8-40 L=7	1
	10062701	PRESSER FOOT, LEFT	1
	10062800	PRESSER FOOT, RIGHT	1
	10063204	PRESSER FOOT ARM	2
	10063303	PIN	2
	10063402	PRESSER FOOT, UPPER	1
	10063501	PIN	1
	10063600	SPRING	2
	SS8080410TP	SCREW 1/8-44 L=3.5	1
	SS8111010TP	SCREW 11/64-40 L=9.5	2
	22590301	LEVER	1
	B9113012000	WRENCH (9X10)	1
	22590400	FEED CAM	1
	22590509	SHAFT	1
	10063808	WORM	1
	10064004	FEED DOG	1
	10064103	FEED ROCKER SHAFT	1
	10064202	FEED ROCKER SHAFT CRA	1
	10064301	BALL JOINT A	1
	10064400	BALL JOINT B	1
	10064608	FEED REGULATOR	1
	10064905	FEED CAM SHAFT	1
	10065001	FEED CAM ROLLER SHAF	1
	B250228000A	FEED CAM ROLLER A	1
	B250228000B	FEED CAM ROLLER B	1
	B250228000C	FEED CAM ROLLER C	1
	SS6121210SP	SCREW 3/16-28 L=12	1
	CS1031210SH	THRUST COLLAR ASM. D=	1
	NS6150430SP	NUT 15/64-28	1
	SD0601051SP	HIGE SCREW D=6 H=13	1
	WP0612066SP	WASHER 6.1X11X2	1
	WP0612066SP	WASHER 6.1X11X2	1
	NS6150430SP	NUT 15/64-28	1
	NM6060001SE	NUT M6	1
	SS71111410TP	SCREW 11/64-40 L=14	3
	CS1031210SH	THRUST COLLAR ASM. D=	1
	SS9661120CP	SCREW 1/4-40 L=10.5	3
	SS9661120CP	SCREW 1/4-40 L=10.5	3
	SS8660610TP	SCREW 1/4-40 L=6	4
	SS8660610TP	SCREW 1/4-40 L=6	2
	SS8660610TP	SCREW 1/4-40 L=6	2
	22586507	STOPPER	1
	22590855	OIL SUPPLY PIPE ASM.	1
	22590806	OIL SUPPLY PIPE	1

Page 55

Juki LZ-2280 parts on page 55

Ref	Part number	Part name	Qty
11	11	SCREW
12	12	SCREW
13	13	SPRING
9	9	SPRING
10	10	SPRING
8	8	SPRING
5	5	SPRING
6	6	SPRING
3	3	SPRING
7	7	PRESSER FOOT
4	4	PRESSER FOOT
2	2	PRESSER FOOT
16	16	PRESSER FOOT
21	21	PRESSER FOOT
18	18	PRESSER FOOT
15	15	PRESSER FOOT
25	25	SPRING
23	23	SPRING
24	24	SPRING
22	22	SPRING
20	20	SPRING
19	19	SPRING
17	17	SPRING
31	31	BASE PLATE
27	27	WRENCH
32	32	ROD
67	67	SPRING
71	71	SCREW
72	72	LZ-2286
70	70	BRACKET
58	58	BRACKET
37	37	SHAFT
68	68	SPRING
54	54	SPRING
62	62	TUBE
59	59	TUBE
60	60	TUBE
33	33	CLAMP
46	46	WASHER
34	34	SPRING
50	50	NUT
36	36	SHAFT
29	29	SHAFT
73	73	GEAR
28	28	WHEEL
30	30	SPRING
42	42	SCREW
45	45	SCREW
35	35	BRACKET
47	47	WASHER
26	26	BRACKET
49	49	WASHER
48	48	NUT
39~41	39~41	SPRING
38	38	SPRING
44	44	NUT
43	43	WASHER
69	69	SPRING
53	53	SPRING
52	52	COLLAR
57	57	SCREW
51	51	SCREW
63	63	TUBE
64	64	TUBE
66	66	TUBE
65	65	TUBE
61	61	TUBE

Page 57

Juki LZ-2280 parts on page 57

Ref	Part number	Part name	Qty
	63	Screw
	62	Cover
	44	Screw
	43	Nut
	37	Spring
	36	Lever
	27	Shaft
	29	Lever
	30~33	Screw
	39	Screw
	34	Screw
	45	Screw
	41	Screw
	28	Shaft
	38	Bracket
	46	Washer
	40	Screw
	47	Washer
	35	Disc
	25	Shaft
	42	Shaft
	26	Plate
	9	Gear
	10-12	Disc
	16	Screw
	50	Presser Foot Assembly
	53	Lever
	55	Spring
	54	Shaft
	51	Presser Foot
	52	Base
	64	Presser Foot Assembly
	65	Lever
	70	Spring
	67	Shaft
	69	Presser Foot
	68	Base
	66	Screw
	11	Connecting Rod
	2	Needle Plate
	1	Base Plate
	21	Shaft
	23	Bracket
	22	Cover
	24	Screw
	49	Screw
	13~15	Shaft
	17	Screw
	4	Lever
	19	Screw
	20	Screw
	48	Plate LZ-2286
	3	Pin
	5~8	Shaft
	18	Screw
	59	Bush
	60	Screw
	57	Washer
	61	Lever

Page 58 — EXCLUSIVE PARTS FOR LZ-2287

Juki LZ-2280 parts on page 58

Ref	Part number	Part name	Qty
	22592505	ARM SIDE COVER	1
	22581409	THROAT PLATE	1
	22585707	SHAFT	1
	10044105	ROD GUIDE	1
	10053007	WORM ASM. A	1
	10053106	WORM B	1
	10053205	WORM C	1
	10053304	WORM D	1
	10053452	WORM WHEEL ASM.	1
	10053502	NEEDLE VIBRATING CAM	1
	10053905	NEEDLE VIBRATING ROD	1
	10053601	NEEDLE VIBRATING CAM	1
	B2502280B0A	FEED CAM ROLLER	1
	B2502280B0B	FEED CAM ROLLER	1
	B2502280B0C	FEED CAM ROLLER	1
	SS7111410SP	SCREW 11/64-40 L=14	3
	SS8110422TP	SCREW 11/64-40 L=4	1
	SS8660610TP	SCREW 1/4-40 L=6	4
	SS8660810TP	SCREW 1/4-40 L=8	1
	SS8660970TP	SCREW 1/4-40 L= 8.5	1
	22592752	SCALE ASM.	1
	22592703	SCALE	1
	22592802	SCALE MOUNTING BASE	1
	SS6080320SP	SCREW 1/8-44 L= 2.5	2
	22592653	BASE ASM.	1
	22592604	MOUNTING PLATE	1
	22512701	SHAFT	1
	10015360	LEVER ASM.	1
	10016012	ARM	1
	10016210	SHAFT	1
	10016319	SHAFT	1
	10016418	SHAFT	1
	10016517	SHAFT	1
	10017168	STOPPER ASM.	1
	10017606	OIL SHIELD	1
	10018000	NUT	1
	10018109	NUT STOPPER	1
	10054112	ARM SETTING BASE	1
	NS6150310SP	NUT 15/64-28	1
	RC0100001KP	SNAP RING M10	1
	RE0200000K0	E-RING	1
	RE0400000K0	E-RING 4	1
	SS6090520SP	SCREW 9/64-40 L= 5.0	1
	SS6090620SP	SCREW 9/64-40 L= 6	3
	SS7110910TP	SCREW 11/64-40 L= 8.5	2
	WP1020616SD	WASHER	2
	WZ1052010KP	WAVED WASHER	1
	22586705	TIMING GAUGE	1
	SS6111010SP	SCREW 11/64-40 L= 9.5	1
	22580864	SAFETY COVER	1
	22580302	PRESSER LOWER A	1
	10055002	PRESSER UPPER	1
	10021004	PRESSER PIN A	1
	10056109	PRESSER PIN A	1
	10056109	PRESSER PIN A	1
	10056109	PRESSER PIN A	1
	SS6090810SP	SCREW 9/64-40 L= 7.5	1
	B1525582000	SPRING	1
	11527207	WASHER	1
	22581508	FEED DOG	1

Page 59

Juki LZ-2280 parts on page 59

Ref	Part number	Part name	Qty
	63	Screw
	44	Spring
	27	Shaft
	36	Lever
	37	Spring
	30~33	Screw
	39	Screw
	43	Nut
	29	Lever
	34	Screw
	45	Screw
	46	Washer
	40	Screw
	47	Washer
	35	Disc
	46	Washer
	62	Cover
	9	Gear
	10-12	Pulley
	16	Screw
	50	Needle Plate
	53	Bracket
	55	Spring
	54	Pin
	51	Presser Foot
	52	Presser Foot
	64	Lever
	65	Bracket
	70	Screw
	67	Spring
	69	Lever
	68	Screw
	66	Spring
	11	Connecting Rod
	2	Needle Plate
	1	Base Plate
	21	Cover
	23	Bracket
	22	Bracket
	24	Screw
	49	Screw
	13-15	Shaft
	43	Nut
	17	Screw
	18	Screw
	5~8	Shaft
	3	Pin
	4	Lever
	19	Screw
	20	Screw
	48	LZ-2286
	59	Bush
	60	Screw
	57	Washer
	61	Lever

Page 60 — EXCLUSIVE PARTS FOR LZ-2287

Juki LZ-2280 parts on page 60

Ref	Part number	Part name	Qty
	CS1031210SH	THRUST COLLAR ASM. D=	1
	SS8660610TP	SCREW 1/4-40 L=6	2
	22586507	STOPPER	1
	22593107	BELT COVER	1
	SS4120615SP	SCREW 3/16-28 L=6	2
	22584965	PRESSER FOOT ASM.	1
	22584908	PRESSER FOOT (UPPER)	1
	22584965	PRESSER FOOT (LOWER)	1
	10021103	PRESSER PIN	1
	22545404	SAFETY COVER	1
	B1525582000	SPRING	1
	SS6090810SP	SCREW 9/64-40 L= 7.5	1

Page 61

Juki LZ-2280 parts on page 61

Ref	Part number	Part name	Qty
10	10	Presser Foot
11	11	Presser Foot
12	12	Presser Foot
13	13	Needle Plate
14	14	Feed Dog
15	15	Presser Foot
16	16	Presser Foot
17	17	Presser Foot
18	18	Needle Plate
19	19	Feed Dog
27	27	Presser Bar
22	22	Stitch Regulator
23	23	Stitch Regulator Knob
30	30	LZ-2286
31-20	31-20	Wire
26	26	Screw
28	28	Screw
34	34	Screw
33	33	Washer
32	32	Bracket
21	21	Link
24	24	Link
25	25	Link
29	29	Screw
6	6	Gear
7	7	Shaft
5	5	Shaft
8	8	Disc
9	9	Screw
1	1	Base Plate
2	2	Indicator
3	3	Base Plate
4	4	Screw

Page 62 — EXCLUSIVE PARTS FOR LZ-2281(-7)

Juki LZ-2280 parts on page 62

Ref	Part number	Part name	Qty
	22540751	SCALE PLATE ASM.	1
	22540702	SCALE PLATE	1
3	22512453	SCALE MOUNTING BASE C	1
4	SS6080320SP	SCREW 1/8-44 L= 2.5	2
5	22542559	NEEDLE VIBRATING CAM	1
6	22542500	NEEDLE VIBRATING CAM	1
7	22510101	NEEDLE VIBRATING ROD	1
8	22510200	CAM COVER	1
9	SS2110920TP	SCREW 11/64-40 L=8.5	2
10	22580369	PRESSER FOOT ASM.	1
11	10045060	PRESSER FOOT ASM.	1
12	22580302	SAFETY COVER	1
13	22581409	THROAT PLATE	1
14	22540009	FEED DOG	1
15	22548663	PRESSER FOOT ASM.	1
16	22548655	PRESSER FOOT ASM.	1
17	22547004	SAFETY COVER	1
18	22548010	THROAT PLATE	1
19	22548119	FEED DOG	1
20	M6093350AAL	RESISTANCE PACK AL ASM	1
21	22541106	FEED DRIVING ADJUSTER	1
22	22540207	SCALE PLATE	1
23	11071909	FEED DIAL	1
24	22540454	BALANCE WEIGHT COMPI	1
25	22541007	CONNECTING ROD	1
26	B16085550A0	FEED ROCKER SHAFT CR/	1
27	B1608555000	FEED ROCKER SHAFT CR/	1
28	SS6121610TP	SCREW 3/16-28 L=15.5	1
29	NS6680320SP	NUT 9/32-28	1
30	22586705	TIMING GAUGE	1
31	M6093350AAS	RESISTANCE PACK AS ASM	1
32	22540108	PLATE B STOPPER PLATE	1
33	SS7111410TP	SCREW 11/64-40 L=14	1
34	WP0480856SP	WASHER 4.8X8.4X0.8	1

Page 63 — EXCLUSIVE PARTS FOR LZ-2288

Juki LZ-2280 parts on page 63

Ref	Part number	Part name	Qty
1	1	Needle plate
2	2	Presser foot
3	3	Presser foot
4	4	Presser foot
5	5	Oil pipe
6	6	Oil pipe
7	7	Oil pipe
8	8	Oil cup
9	9	LZ-2286
10	10	Allen wrench
11	11	Button
12	12	Button
13	13	Button
14	14	Button
15	15	Button
16	16	Button
17~27	17~27	Pulley
28~31	28~31	Shaft sleeve
32	32	Shaft
33	33	Shaft
34	34	Shaft
35	35	Shaft sleeve
36	36	Shaft sleeve
37~40	37~40	Gear
41	41	Pulley
42	42	Shaft
43	43	Shaft
44	44	Shaft sleeve
45	45	Shaft sleeve
46	46	Shaft
47	47	Shaft
48	48	Gear
49	49	Shaft
50~53	50~53	Shaft sleeve
54	54	Screw
55	55	Screw
56	56	Shaft
57	57	Bracket
58~61	58~61	Shaft sleeve
62	62	Shaft sleeve
63	63	Screw
64	64	Screw
65	65	Screw
66	66	Screw
67	67	Screw
68	68	Screw
69	69	Screw
70	70	Spring
71	71	Screw
72	72	Button
73	73	Feed dog
74	74	Presser foot assembly
75	75	Presser foot
76	76	Presser foot
77	77	Presser foot
78	78	Presser foot
79	79	Presser foot
80	80	Screw

Page 64 — EXCLUSIVE PARTS FOR LZ-2288

Juki LZ-2280 parts on page 64

Ref	Part number	Part name	Qty
	22581409	THROAT PLATE	1
	10080961	PRESSER ASM.
	1005051	PRESSER A ASM.
	22580302	SAFETY COVER
	22574156	ARM SHAFT OIL PIPE ASM
	22574107	ARM SHAFT OIL PIPE
	B3527552000	RUBBER JOINT	2
	22574255	HEAD SUPPORT ROD ASM.
	22586705	TIMING GAUGE
	17348905	SOCKET SCREW KEYS
	TA1050504R0	RUBBER PLUG
	TA0980502R0	RUBBER PLUG	4
	TA0980502R0	RUBBER PLUG	2
	TA1550902R0	RUBBER PLUG
	TA1750502R0	RUBBER PLUG
	TA2200502R0	RUBBER PLUG
	22568851	CAM A ASM.
	22568950	CAM B ASM.
	22569057	CAM C ASM.
	22569156	CAM D ASM.
	22569255	CAM E ASM.
	22569354	NEEDLE VIBRATING CAM
	22569453	NEEDLE VIBRATING CAM
	22569552	NEEDLE VIBRATING CAM
	22569651	NEEDLE VIBRATING CAM
	22569750	NEEDLE VIBRATING CAM
	22569859	NEEDLE VIBRATING CAM
	22571103	CAM ROLLER A
	22571202	CAM ROLLER B
	22571301	CAM ROLLER C
	22571400	CAM ROLLER D
	CS140111ATH	THRUST COLLAR ASM. D=
	SS6660710TP	SCREW 1/4-40 L=7	2
	22570006	CAM SHAFT
	22570105	CAM SHAFT METAL A
	22570204	CAM SHAFT BUSHING, B
	22570303	CAM SHAFT GEAR A
	22570402	CAM SHAFT GEAR B
	22570501	CAM SHAFT GEAR B
	22570600	CAM SHAFT GEAR D
	22570758	CAM HOLDER COMPL.
	22570907	CAM ARM
	22571509	DRIVING SHAFT
	22571608	DRIVING SHAFT METAL A
	22571707	DRIVING SHAFT METAL B
	22571806	DRIVING ARM
	22571905	DRIVING ROD
	22572457	WORM WHEEL COMPL.
	22571004	CAM ROLLER SHAFT
	22572002	DRIVING PIN A
	22572101	DRIVING PIN B
	22572200	DRIVING PIN C
	22572309	DRIVING PIN D
	SS8110422TP	SCREW 11/64-40 L=4	2
	SS8660610TP	SCREW 1/4-40 L=6	4
	22573802	SHAFT	1
	22573901	FEEDER CHANGE LINK A
	10053007	WORM ASM. A
	10053106	WORM B
	10053205	WORM C

Page 65

Juki LZ-2280 parts on page 65

Ref	Part number	Part name	Qty
1	1	NEEDLE PLATE
2	2	PRESSER FOOT
3	3	PRESSER FOOT
4	4	PRESSER FOOT
5	5	OIL TUBE
6	6	OIL TUBE
7	7	OIL TUBE
8	8	OIL WICK
9	9	LZ-2286
10	10	WRENCH
11	11	CAP
12	12	CAP
13	13	CAP
14	14	CAP
15	15	CAP
16	16	CAP
17~27	17~27	HANDWHEEL
28~31	28~31	SHAFT
32	32	SHAFT
33	33	SHAFT
34	34	SHAFT
35	35	SHAFT
36	36	SHAFT
37~40	37~40	SHAFT
41	41	FLANGE
42	42	BRACKET
43	43	SHAFT
44	44	COLLAR
45	45	COLLAR
46	46	BRACKET
47	47	BRACKET
48	48	GEAR
49	49	SHAFT
50~53	50~53	COLLAR
54	54	SCREW
55	55	SPRING
56	56	SHAFT
57	57	BRACKET
58~61	58~61	SPRING
62	62	COLLAR
63	63	COLLAR
64	64	SCREW
65	65	SPRING
66	66	SCREW
67	67	SCREW
68	68	SCREW
69	69	SCREW
70	70	SPRING
71	71	SCREW
72	72	CAP
73	73	FEED DOG
74	74	PRESSER FOOT
75	75	PRESSER FOOT
76	76	PRESSER FOOT
77	77	PRESSER FOOT
78	78	PRESSER FOOT
79	79	PRESSER FOOT
80	80	PRESSER FOOT

Page 66 — EXCLUSIVE PARTS FOR LZ-2288

Juki LZ-2280 parts on page 66

Ref	Part number	Part name	Qty
	10053304	WORM D	1
	CS140111ATH	THRUST COLLAR ASM. D=	2
	SS6660710TP	SCREW 1/4-40 L=7	4
	SM6051402TP	SCREW M5X0.8 L=14	1
	SM6051402TP	SCREW M5X0.8 L=14	3
	SM8050612TP	SCREW M5X6	2
	SS8110422TP	SCREW 11/64-40 L=4	2
	SS8110422TP	SCREW 11/64-40 L=4	2
	SS8660810TP	SCREW 1/4-40 L=8	2
	SS8661012TP	SCREW	1
	SS9151740CP	SCREW 15/64-28 L=17	1
	TA2201002R0	PLUG	1
	22581508	FEED DOG	1
	22584965	PRESSER FOOT ASM.	1
	22545206	PRESSER FOOT (UPPER)	1
	22584965	PRESSER FOOT (LOWER)	1
	10021103	PRESSER PIN	1
	22545404	SAFETY COVER	1
	B1525582000	SPRING	1
	SS6090810SP	SCREW 9/64-40 L= 7.5	1

Page 67 — SPECIAL ORDER PARTS FOR LZ-2280,2281,2286,2288

Juki LZ-2280 parts on page 67

Ref	Part number	Part name	Qty
7	7	Screw
3	3	Lever
10	10	Nut
13	13	Screw
2	2	Motor
9	9	Washer
5	5	Pin
11	11	Circlip
16	16	Washer
12	12	Clip
15	15	Screw
17	17	Cover
6	6	Lever
14	14	Screw
8	8	Shaft
4	4	Lever
1	1	Assembly

Page 68 — SPECIAL ORDER PARTS FOR LZ-2280,2281,2286,2288

Juki LZ-2280 parts on page 68

Ref	Part number	Part name	Qty
	22561559	AUTOMATIC BACK MACH	1
	22559058	MAGNET ASM.	1
	22544159	REVERSE FEED MAGNET L	1
	22559850	REVERSE FEED SWITCH	1
	11101003	PLUNGER ARM PIN	1
	11102605	CORD HOLDER	1
	B1213372000	SCREW	1
	D2467555B00	RUBBER PLUG	2
	D2468555B00	RUBBER PLUNGER	1
	NS6150310SP	NUT 15/64-28	1
	RE0400000K0	E-RING 4	2
	RE1200000K0	E-RING 12	1
	SD0791503SP	HINGE SCREW D=7.94 H=1	1
	SS4120615SP	SCREW 3/16-28 L=6	2
	SS4150915SP	SCREW 15/64-28 L=9	2
	WP1602616SZ	WASHER 16X24X2.6	1
	29141900	INSTRUCTION MANUAL	1

Page 69 — EXCLUSIVE PARTS FOR R TYPE

Juki LZ-2280 parts on page 69

Ref	Part number	Part name	Qty
18	LZ 2280R	18
1	1	1
8	8	8
13	13	13
14	14	14
15	15	15
3	3	3
12	12	12
4	4	4
21-22	21-22	21-22
5	5	5
6	6	6
2	2	2
7	7	7
9	9	9
10	10	10
11	11	11
16	16	16
19	19	19
20	20	20
17	17	17

Page 70 — EXCLUSIVE PARTS FOR R TYPE

Juki LZ-2280 parts on page 70

Ref	Part number	Part name	Qty
	22528459	THREAD TENSION ASM.	1
	22528350	THREAD TENSION DISK CO	1
	22528152	THREAD TENSION ROD AS
	10006104	TAKE-UP SPRING	1
	10005650	TENSION POST ASM.	1
	22528509	FELT	2
	10006005	TENSION DISC HOLDER	1
	10007854	TENSION RELEASE PIN AS
	B3121352000	TENSION SPRING	1
	B3120125000	ROTATING STOPPER	1
	B3116125000	TENSION NUT	1
	SS8090670SP	SCREW 9/64-40 L= 5.5	1
	22503155	FELT THREAD GUIDE ASM	1
	22503106	FELT THREAD GUIDE	1
	22503205	FELT	1
	22507701	THRED RACK, RIGHT	1
	B1505227T00A	PRESSER SPRING T	1
	22535900	TIMMING GAUGE, RIGHT	1
	BME0000R000	NAME PLATE	1
	29187606	INSTRUCTION MANUAL	1
	M6093350AAS	RESISTANCE PACK AS ASM	1
	M6094350AAL	RESISTANCE PACK AL ASM	1

Page 71 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 71

Ref	Part number	Part name	Qty
15	10000206		2
17	10001709		2
7	10004208		6
8	10004307		6
53	10005650		2
5	10005650		68
55	10006005		2
7	10006005		68
52	10006104		2
4	10006104		68
56	10007854		2
8	10007854		68
10	10008100		8
13	10008407		8
14	10008506		8
15	10008605		8
16	10008753		8
46	10010304		8
47	10010502		8
24	10011004		12
28	10011104		12
27	10011203		12
28	10011302		12
29	10011500		12
33	10011807		12
34	10011906		12
35	10012003		12
36	10012102		12
30	10012201		12
31	10012409		12
32	10012508		12
13	10012607		12
14	10012706		12
15	10012805		12
16	10012904		12
61	10013019		10
62	10013118		10
67	10013407		10
68	10013803		10
44	10015105		14
13	10015360		14
41	10015360		50
28	10015360		56
41	10015907		14
5	10016012		14
26	10016012		50
29	10016012		56
7	10016210		14
32	10016210		50
30	10016210		56
8	10016319		14
33	10016319		50
31	10016319		56
9	10016418		14
34	10016418		50
32	10016418		56
6	10016517		14
35	10016517		50
33	10016517		56
11	10016608		12
10	10017168		14
37	10017168		50
34	10017168		56
4	10017317		14
14	10017408		14
15	10017606		14
43	10017606		50
35	10017606		56
45	10017705		14
11	10018000		14
39	10018000		50
36	10018000		56
12	10018109		14
40	10018109		50
37	10018109		56
30	10021004		48
53	10021004		56
45	10021103		16
61	10021103		18
56	10021103		48
67	10021103		58
77	10021103		64
17	10022010		16
18	10022309		16
28	10022606		16
9	10026102		22
10	10026201		22
11	10026300		22
12	10026508		22
32	10026607		22
35	10026706		22
36	10026805		22
37	10026904		22
43	10027001		22
44	10027100		22
45	10027209		22
46	10027308		22
48	10027307		22
47	10027506		22
49	10028702		22
50	10028801		22
39	10028900		20
51	10029007		22
57	10029304		22
52	10029601		22
38	10030104		26
8	10030203		26
9	10030302		26
10	10030401		26
11	10030609		26
12	10030708		26
13	10030807		26
14	10030906		26
15	10031003		26
16	10031300		26
17	10031409		26
18	10031516		26
19	10031615		26
20	10031714		26
21	10031805		6
22	10031904		6
23	10032001		6
21	1003207		26
12	10035004		28
8	10035011		28
8	10035301		28
61	10035509		54
18	10035608		8
19	10035707		28
16	10037109		28
11	10037307		6
12	10037406		6
3	10038107		46
3	10039105		44
4	10039659		44

Page 72 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 72

Ref	Part number	Part name	Qty
9	10043016	10043016
8	10043016	10043016
10	10043115	10043115
9	10043115	10043115
11	10043214	10043214
10	10043214	10043214
12	10043313	10043313
11	10043313	10043313
5	10043412	10043412
73	10043461	10043461
13	10044014	10044014
12	10044014	10044014
14	10044105	10044105
13	10044105	10044105
4	10044105	10044105
11	10045060	10045060
5	10053007	10053007
58	10053007	10053007
6	10053106	10053106
59	10053106	10053106
7	10053205	10053205
60	10053205	10053205
8	10053304	10053304
61	10053304	10053304
9	10053452	10053452
10	10053502	10053502
23	10053601	10053601
11	10054005	10054005
23	10054112	10054112
38	10054112	10054112
29	10055002	10055002
52	10055002	10055002
3	10055051	10055051
28	10055069	10055069
48	10056109	10056109
56	10056109	10056109
50	10061554	10061554
52	10062701	10062701
52	10062800	10062800
52	10063204	10063204
52	10063303	10063303
52	10063402	10063402
52	10063501	10063501
52	10063600	10063600
52	10063808	10063808
31	10064004	10064004
32	10064103	10064103
33	10064202	10064202
34	10064301	10064301
35	10064400	10064400
36	10064608	10064608
37	10064905	10064905
38	10065001	10065001
63	10065209	10065209
4	10100410	10100410
20	10119907	10119907
21	10120004	10120004
18	10125904	10125904
4	10208601	10208601
10	10208700	10208700
8	10208858	10208858
41	10604809	10604809
19	11006119	11006119
9	11001609	11001609
13	11006905	11006905
12	11007101	11007101
64	11010907	11010907
33	11015906	11015906
21	11023702	11023702
20	11023751	11023751
25	11023801	11023801
5	11024007	11024007
8	11024106	11024106
7	11024205	11024205
24	11024403	11024403
6	11024502	11024502
46	11030301	11030301
40	11032562	11032562
27	11040854	11040854
28	11041308	11041308
29	11041407	11041407
21	11043601	11043601
14	11044054	11044054
20	11046604	11046604
4	11047107	11047107
26	11052701	11052701
18	11070901	11070901
19	11071602	11071602
23	11071800	11071800
23	11071909	11071909
17	11072204	11072204
10	11072501	11072501
23	11072709	11072709
13	11078102	11078102
14	11078250	11078250
24	11100500	11100500
5	11101003	11101003
5	11101003	11101003
5	11102001	11102001
6	11102100	11102100
7	11102209	11102209
9	11102308	11102308
6	11102605	11102605
18	11103001	11103001
19	1110400	1110400
20	1110509	1110509
21	1110707	1110707
22	1110806	1110806
25	1111804	1111804
24	11112000	11112000
20	11183100	11183100
1	11183167	11183167
13	11183209	11183209
2	11185105	11185105
3	11185204	11185204
11	11185501	11185501
12	11212503	11212503
12	11234408	11234408
13	11234507	11234507
57	11527207	11527207
9	11966504	11966504
4	11969409	11969409
36	13729702	13729702
1	13946751	13946751
10	17348905	17348905
39	19800903	19800903
40	19801000	19801000
42	19801109	19801109
43	19801208	19801208
41	19801307	19801307
44	19801406	19801406
45	19801505	19801505
46	19801604	19801604
1	22501159	22501159
2	22501209	22501209

Page 73 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 73

Ref	Part number	Part name	Qty
3	22501357
4	22501506
5	22501605
6	22501704
1	22501803
3	22501902
2	22501951
7	22502009
8	22502108
9	22502207
73	22502504
10	22502603
11	22502702
12	22502801
13	22502900
14	22503007
14	22503106
13	22503155
15	22503205
1	22505101
2	22505200
2	22505259
6	22505309
7	22505408
8	22505507
17	22505705
71	22506109
42	22506208
8	22507156
8	22507305
8	22507404
8	22507503
68	22507701
8	22509103
8	22509152
8	22509202
10	22509400
10	22509509
12	22509608
12	22509657
12	22509707
12	22509756
12	22510002
12	22510051
12	22510101
7	22510101
23	22510200
8	22510200
2	22512008
1	22512057
29	22512107
28	22512156
33	22512206
35	22512305
34	22512354
36	22512453
25	22512453
3	22512453
39	22512503
38	22512552
40	22512602
3	22512701
27	22512701
27	22512701
4	22512909
5	22513006
3	22513105
6	22513204
9	22515357
10	22515506
1	22518005
2	22518104
3	22518203
4	22518351
5	22518401
7	22518500
6	22518559
8	22518609
9	22518708
10	22518807
11	22518906
16	22519102
17	22519201
18	22519300
1	22519508
2	22519607
3	22519706
43	22519805
5	22519904
6	22520001
7	22520159
1	22523708
2	22523807
3	22523906
37	22524151
35	22524169
5	22524201
7	22524805
6	22525059
47	22525851
48	22526206
49	22528053
51	22528152
3	22528152
50	22528350
2	22528350
1	22528459
54	22528509
6	22528509
61	22528608
65	22528764
62	22529002
63	22529101
64	22529200
1	22531156
2	22531206
3	22531305
4	22531552
5	22531701
6	22531909
7	22532006
2	22534002
1	22534051
17	22534101
1	22535009
2	22535108
26	22535454
25	22535462
74	22535801
18	22535900
9	22536957
10	22537203
11	22537302
14	22540009
32	22540108

Page 74 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 74

Ref	Part number	Part name	Qty
22	22540207	22540207
24	22540454	22540454
2	22540702	22540702
1	22540751	22540751
25	22541007	22541007
21	22541106	22541106
6	22542500	22542500
8	22542559	22542559
67	22542708	22542708
2	22544159	22544159
3	22544159	22544159
28	22545008	22545008
59	22545107	22545107
44	22545206	22545206
59	22545206	22545206
53	22545206	22545206
65	22545206	22545206
75	22545206	22545206
43	22545305	22545305
42	22545354	22545354
41	22545362	22545362
48	22545404	22545404
62	22545404	22545404
55	22545404	22545404
68	22545404	22545404
78	22545404	22545404
52	22546808	22546808
8	22547004	22547004
56	22547004	22547004
17	22547004	22547004
53	22547806	22547806
3	22547905	22547905
2	22547954	22547954
1	22547962	22547962
6	22548010	22548010
18	22548010	22548010
8	22548119	22548119
19	22548119	22548119
51	22548606	22548606
50	22548655	22548655
16	22548655	22548655
49	22548663	22548663
15	22548663	22548663
36	22548705	22548705
61	22548804	22548804
60	22548903	22548903
58	22548960	22548960
34	22551550	22551550
33	22551568	22551568
13	22552400	22552400
54	22552756	22552756
51	22552764	22552764
52	22552806	22552806
53	22552905	22552905
1	22554158	22554158
2	22554356	22554356
3	22554505	22554505
4	22554604	22554604
5	22554703	22554703
6	22554802	22554802
7	22554901	22554901
8	22555007	22555007
9	22555106	22555106
10	22555205	22555205
11	22555304	22555304
12	22555403	22555403
13	22555551	22555551
30	22555858	22555858
16	22556054	22556054
25	22556153	22556153
17	22556302	22556302
18	22556450	22556450
19	22556609	22556609
20	22556708	22556708
21	22556807	22556807
14	22556906	22556906
15	22557003	22557003
1	22559058	22559058
2	22559058	22559058
4	22559850	22559850
4	22559900	22559900
1	22561559	22561559
11	22561708	22561708
1	22561757	22561757
3	22561807	22561807
2	22561856	22561856
7	22561906	22561906
6	22561955	22561955
15	22562052	22562052
16	22562102	22562102
17	22562201	22562201
1	22564157	22564157
2	22564256	22564256
3	22564454	22564454
4	22564702	22564702
5	22564801	22564801
29	22564959	22564959
30	22565105	22565105
6	22565204	22565204
7	22565303	22565303
8	22565402	22565402
9	22565501	22565501
10	22565659	22565659
11	22565857	22565857
31	22566152	22566152
36	22566301	22566301
17	22568851	22568851
18	22568950	22568950
19	22569057	22569057
20	22569156	22569156
21	22569255	22569255
22	22569354	22569354
23	22569453	22569453
24	22569552	22569552
25	22569651	22569651
26	22569750	22569750
27	22569859	22569859
34	22570006	22570006
35	22570105	22570105
36	22570204	22570204
37	22570303	22570303
38	22570402	22570402
39	22570501	22570501
40	22570600	22570600
41	22570758	22570758
42	22570907	22570907
49	22571004	22571004
28	22571103	22571103
29	22571202	22571202
30	22571301	22571301
31	22571400	22571400
43	22571509	22571509
44	22571608	22571608
45	22571707	22571707

Page 75 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 75

Ref	Part number	Part name	Qty
46	22571806	22571806
47	22571905	22571905
50	22572002	22572002
51	22572101	22572101
52	22572200	22572200
53	22572309	22572309
48	22572457	22572457
56	22573802	22573802
57	22573901	22573901
6	22574107	22574107
5	22574156	22574156
8	22574255	22574255
50	22580005	22580005
51	22580104	22580104
38	22580203	22580203
36	22580252	22580252
35	22580260	22580260
34	22580302	22580302
51	22580302	22580302
12	22580302	22580302
4	22580302	22580302
10	22580369	22580369
27	22580864	22580864
50	22580864	22580864
2	22580864	22580864
1	22581409	22581409
13	22581409	22581409
1	22581409	22581409
43	22581409	22581409
58	22581508	22581508
73	22581508	22581508
76	22581508	22581508
54	22584908	22584908
66	22584908	22584908
76	22584908	22584908
52	22584965	22584965
64	22584965	22584965
74	22584965	22584965
2	22585400	22585400
5	22585509	22585509
4	22585608	22585608
3	22585657	22585657
6	22585657	22585657
7	22585707	22585707
7	22585707	22585707
3	22585707	22585707
24	22586200	22586200
46	22586200	22586200
23	22586259	22586259
8	22586507	22586507
58	22586507	22586507
61	22586507	22586507
46	22586705	22586705
72	22586705	22586705
48	22586705	22586705
30	22586705	22586705
9	22586705	22586705
45	22590053	22590053
26	22590301	22590301
28	22590400	22590400
29	22590509	22590509
60	22590806	22590806
59	22590855	22590855
15	22591101	22591101
5	22591408	22591408
1	22591564	22591564
14	22591663	22591663
1	22592505	22592505
1	22592505	22592505
25	22592604	22592604
26	22592604	22592604
22	22592653	22592653
25	22592653	22592653
22	22592703	22592703
21	22592752	22592752
47	22592802	22592802
23	22592802	22592802
70	22593107	22593107
62	22593107	22593107
17	29141900	29141900
20	29187606	29187606
19	B1114280000	B1114280000
9	B1115850000	B1115850000
27	B114855000	B114855000
11	B1203227000A	B1203227000A
12	B1208552000A	B1208552000A
17	B1213372000	B1213372000
7	B1213372000	B1213372000
14	B1214038000	B1214038000
10	B130155000	B130155000
34	B13071550A0	B13071550A0
4	B13081550A0	B13081550A0
22	B1502541000	B1502541000
21	B1505227000A	B1505227000A
17	B1505227T00A	B1505227T00A
20	B1510227000	B1510227000
11	B1511552000	B1511552000
26	B1517552000	B1517552000
24	B1521555000	B1521555000
27	B1523226000	B1523226000
47	B1525582000	B1525582000
63	B1525582000	B1525582000
57	B1525582000	B1525582000
56	B1525582000	B1525582000
69	B1525582000	B1525582000
79	B1525582000	B1525582000
33	B1604141H00	B1604141H00
34	B1604155000	B1604155000
27	B160855000	B160855000
26	B16085550A0	B16085550A0
38	B1609804A00	B1609804A00
39	B1609804B00	B1609804B00
40	B1609804C00	B1609804C00
41	B1609804D00	B1609804D00
42	B1609804E00	B1609804E00
23	B1631012B00	B1631012B00
54	B164655000	B164655000
53	B1653470000	B1653470000
32	B1808552000	B1808552000
19	B1810552000	B1810552000
48	B1905541A00	B1905541A00
49	B1905541B00	B1905541B00
50	B1905541C00	B1905541C00
51	B1905541D00	B1905541D00
17	B2024771000	B2024771000
16	B2034372000	B2034372000
39	B250228000A	B250228000A
40	B250228000B	B250228000B
41	B250228000C	B250228000C
15	B2502280B0A	B2502280B0A
14	B2502280B0A	B2502280B0A
13	B2502280B0A	B2502280B0A
16	B2502280B0B	B2502280B0B
15	B2502280B0B	B2502280B0B
14	B2502280B0B	B2502280B0B

Page 76 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 76

Ref	Part number	Part name	Qty
17	B2502280B0C	B2502280B0C
16	B2502280B0C	B2502280B0C
15	B2502280B0C	B2502280B0C
25	B2508704000	B2508704000
14	B2560372000	B2560372000
16	B2608761000	B2608761000
20	B2616372000	B2616372000
15	B2626372000	B2626372000
59	B3116125000	B3116125000
11	B3116125000	B3116125000
58	B3120125000	B3120125000
10	B3120125000	B3120125000
9	B3121352000	B3121352000
15	B3126012000	B3126012000
57	B3129012A00	B3129012A00
16	B3129012B00	B3129012B00
23	B3210771000	B3210771000
12	B3211555000	B3211555000
22	B3224771000	B3224771000
10	B3302012000	B3302012000
5	B3305704000A	B3305704000A
8	B3306012000	B3306012000
3	B3307012000	B3307012000
7	B3308012000	B3308012000
6	B3309012000	B3309012000
4	B3310012000	B3310012000
12	B3310112000	B3310112000
10	B3310112000	B3310112000
7	B3311704000	B3311704000
12	B3317704000	B3317704000
6	B3318704L00A	B3318704L00A
13	B3319704L00	B3319704L00
11	B3320704L00A	B3320704L00A
8	B3320704L00A	B3320704L00A
14	B3416552000	B3416552000
16	B3416555000	B3416555000
15	B3419122000	B3419122000
18	B3421555000	B3421555000
22	B3431552000A	B3431552000A
25	B3431581000	B3431581000
45	B3501555000	B3501555000
41	B35015550A0	B35015550A0
51	B3502555000	B3502555000
42	B3503555000	B3503555000
43	B390555000	B390555000
44	B3506555000	B3506555000
46	B3507555000	B3507555000
47	B3508555000	B3508555000
13	B3524552000	B3524552000
62	B3527552000	B3527552000
7	B3527552000	B3527552000
15	B3534155000	B3534155000
17	B3538112000	B3538112000
64	B3554481000	B3554481000
21	B3565771000	B3565771000
19	B8228125000	B8228125000
27	B9113012000	B9113012000
19	BME0000R000	BME0000R000
33	BT0500300EA	BT0500300EA
37	BT0600402EA	BT0600402EA
35	CM300200001	CM300200001
34	CM3002000A1	CM3002000A1
31	CM300200101	CM300200101
32	CM3002001A1	CM3002001A1
70	CQ202000000	CQ202000000
54	CQ202000000	CQ202000000
69	CQ303000000	CQ303000000
68	CQ500600000	CQ500600000
28	CS0640863SH	CS0640863SH
16	CS0790720TH	CS0790720TH
40	CS079073ASH	CS079073ASH
49	CS095101BSH	CS095101BSH
40	CS1031210SH	CS1031210SH
32	CS1031210SH	CS1031210SH
52	CS1031210SH	CS1031210SH
59	CS1031210SH	CS1031210SH
41	CS103121BSH	CS103121BSH
21	CS1111010SH	CS1111010SH
22	CS1111019SH	CS1111019SH
32	CS140111ATH	CS140111ATH
62	CS140111ATH	CS140111ATH
32	CS147121ASH	CS147121ASH
9	D2107490D00	D2107490D00
26	D2107555B00	D2107555B00
45	D2112555B00	D2112555B00
62	D2467555B00	D2467555B00
8	D2467555B00	D2467555B00
42	D2468555B00	D2468555B00
16	D2468555B00	D2468555B00
9	D2468555B00	D2468555B00
22	D2515232D00	D2515232D00
63	D3133555B00	D3133555B00
53	EA9500B0100	EA9500B0100
31	EA9500B0100	EA9500B0100
44	EA9502B0200	EA9502B0200
29	GAK33041000	GAK33041000
30	GAK33042000	GAK33042000
27	HA000590000	HA000590000
8	HA001900000	HA001900000
50	HK00443002A	HK00443002A
61	HK034610140	HK034610140
11	HK03464000B	HK03464000B
26	HK03464000B	HK03464000B
29	HW200390000	HW200390000
12	HW500070000	HW500070000
28	HW500070000	HW500070000
37	HX00123000A	HX00123000A
36	M40071100AA	M40071100AA
35	M40071100AB	M40071100AB
33	M6093350AAF	M6093350AAF
27	M6093350AAL	M6093350AAL
20	M6093350AAL	M6093350AAL
20	M6093350AAS	M6093350AAS
31	M6093350AAS	M6093350AAS
21	M6093350AAS	M6093350AAS
45	M6094350AAF	M6094350AAF
44	M6094350AAL	M6094350AAL
22	M6094350AAL	M6094350AAL
48	MAB109000A0	MAB109000A0
47	MAB109000B0	MAB109000B0
52	MAM09700A0	MAM09700A0
53	MAM09700BA0	MAM09700BA0
19	MAO11532000	MAO11532000
52	MC1923F0800	MC1923F0800
4	MC1923F0800	MC1923F0800
50	NM60300000E	NM60300000E
55	NM6030001SC	NM6030001SC
56	NM6040001SN	NM6040001SN
18	NM6050001SE	NM6050001SE
50	NM6060001SE	NM6060001SE
9	NM6061061SE	NM6061061SE
18	NM6100663SE	NM6100663SE
24	NS6080340SP	NS6080340SP
39	NS6110310SP	NS6110310SP

Page 77 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 77

Ref	Part number	Part name	Qty
38	NS6120310SP	NS6120310SP
14	NS6120310SP	NS6120310SP
26	NS6120310SP	NS6120310SP
16	NS6123881SE	NS6123881SE
23	NS6150310SP	NS6150310SP
31	NS6150310SP	NS6150310SP
42	NS6150310SP	NS6150310SP
2	NS6150310SP	NS6150310SP
8	NS6150310SP	NS6150310SP
26	NS6150310SP	NS6150310SP
8	NS6150310SP	NS6150310SP
34	NS6150310SP	NS6150310SP
44	NS6150310SP	NS6150310SP
38	NS6150310SP	NS6150310SP
30	NS6150310SP	NS6150310SP
20	NS6150310SP	NS6150310SP
22	NS6150310SP	NS6150310SP
52	NS6150310SP	NS6150310SP
16	NS6150310SP	NS6150310SP
56	NS6150310SP	NS6150310SP
60	NS6150310SP	NS6150310SP
30	NS6150430SP	NS6150430SP
52	NS6150430SP	NS6150430SP
46	NS6150430SR	NS6150430SR
16	NS6620310SP	NS6620310SP
60	NS6680320SP	NS6680320SP
22	NS6680410SP	NS6680410SP
6	NS6700320SP	NS6700320SP
30	PS0300182KF	PS0300182KF
10	PS0400202KH	PS0400202KH
14	RC0100001KP	RC0100001KP
30	RC0100001KP	RC0100001KP
50	RC0100001KP	RC0100001KP
14	RE0200000K0	RE0200000K0
50	RE0200000K0	RE0200000K0
56	RE0200000K0	RE0200000K0
30	RE0250000K0	RE0250000K0
22	RE0300000K0	RE0300000K0
34	RE0300000K0	RE0300000K0
38	RE0320000K0	RE0320000K0
14	RE0400000K0	RE0400000K0
30	RE0400000K0	RE0400000K0
36	RE0400000K0	RE0400000K0
50	RE0400000K0	RE0400000K0
56	RE0400000K0	RE0400000K0
16	RE0500000K0	RE0500000K0
30	RE0500000K0	RE0500000K0
16	RE0600000K0	RE0600000K0
30	RE0600000K0	RE0600000K0
34	RE0900000K0	RE0900000K0
46	RE1000000K0	RE1000000K0
36	RE1200000K0	RE1200000K0
66	RE1200000K0	RE1200000K0
8	RO029180100	RO029180100
16	RO037180100	RO037180100
8	RO044240100	RO044240100
8	RO048190100	RO048190100
12	RO069180100	RO069180100
20	RO074240100	RO074240100
46	RO098240100	RO098240100
2	RO195240100	RO195240100
8	RO437200200	RO437200200
26	SB109530100	SB109530100
8	SB120000100	SB120000100
34	SD0481451SP	SD0481451SP
44	SD0600261SP	SD0600261SP
38	SD0600271SP	SD0600271SP
30	SD0600291TP	SD0600291TP
20	SD0600321SP	SD0600321SP
22	SD0600321SP	SD0600321SP
52	SD0601051SP	SD0601051SP
16	SD0630275SP	SD0630275SP
16	SD0630301SP	SD0630301SP
34	SD0640241SP	SD0640241SP
2	SD0640751SP	SD0640751SP
38	SD0650321TP	SD0650321TP
30	SD0791503SP	SD0791503SP
36	SD0791503SP	SD0791503SP
66	SD0791503SP	SD0791503SP
14	SD0800402TP	SD0800402TP
22	SD0900701TP	SD0900701TP
28	SE4301031SR	SE4301031SR
40	SK3452000SE	SK3452000SE
44	SK3482500SC	SK3482500SC
34	SL4030881SF	SL4030881SF
38	SM4030601SN	SM4030601SN
28	SM4031001SC	SM4031001SC
36	SM4031501SC	SM4031501SC
30	SM4040601SB	SM4040601SB
42	SM4051405SE	SM4051405SE
64	SM6051402TP	SM6051402TP
42	SM6061610SC	SM6061610SC
64	SM8050612TP	SM8050612TP
40	SM9061080SE	SM9061080SE
28	SQ1110402MZ	SQ1110402MZ
28	SQ1150451MZ	SQ1150451MZ
30	SS1090510SP	SS1090510SP
8	SS1090930SP	SS1090930SP
2	SS1110840SP	SS1110840SP
2	SS2090710SP	SS2090710SP
6	SS2090810SP	SS2090810SP
12	SS2110920TP	SS2110920TP
30	SS2110920TP	SS2110920TP
60	SS2110920TP	SS2110920TP
30	SS2111010TP	SS2111010TP
38	SS3090520SP	SS3090520SP
22	SS4080610SP	SS4080610SP
26	SS4080620TP	SS4080620TP
14	SS4090610SP	SS4090610SP
6	SS4110515SP	SS4110515SP
28	SS4110515SP	SS4110515SP
30	SS4110515SP	SS4110515SP
44	SS4110515SP	SS4110515SP
36	SS4110615SP	SS4110615SP
8	SS4110715SP	SS4110715SP
20	SS4110715SP	SS4110715SP
28	SS4110715SP	SS4110715SP
2	SS4110915SP	SS4110915SP
4	SS4110915SP	SS4110915SP
6	SS4110915SP	SS4110915SP
8	SS4110915SP	SS4110915SP
30	SS4110915SP	SS4110915SP
54	SS4110915SP	SS4110915SP
6	SS4111215SP	SS4111215SP
28	SS4111215SP	SS4111215SP
2	SS4120615SP	SS4120615SP
20	SS4120615SP	SS4120615SP
30	SS4120615SP	SS4120615SP
34	SS4120615SP	SS4120615SP
36	SS4120615SP	SS4120615SP
38	SS4120615SP	SS4120615SP
54	SS4120615SP	SS4120615SP
58	SS4120615SP	SS4120615SP
34	SS4120915SP	SS4120915SP
2	SS4121015SP	SS4121015SP
14	SS4121015SP	SS4121015SP
34	SS4121015SP	SS4121015SP
6	SS4121215SP	SS4121215SP
2	SS4121415SP	SS4121415SP
30	SS4150915SP	SS4150915SP
36	SS4150915SP	SS4150915SP
44	SS4150915SP	SS4150915SP

Page 78 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 78

Ref	Part number	Part name	Qty
15	SS4150915SP
43	SS5090420SP
30	SS5110710SP
54	SS5110710SP
18	SS6060210SP
37	SS6080320SP
26	SS6080320SP
30	SS6080320SP
24	SS6080320SP
4	SS6080320SP
23	SS6090420SP
26	SS6090520SP
44	SS6090520SP
68	SS6090520SP
33	SS6090540SP
19	SS6090540SP
28	SS6090620SP
44	SS6090620SP
54	SS6090620SP
64	SS6090810SP
57	SS6090810SP
55	SS6090810SP
70	SS6090810SP
6	SS6110480SP
31	SS6110510SP
49	SS6111010SP
49	SS6111010SP
36	SS6111010SP
31	SS6111040SP
58	SS6111052TP
25	SS6111140SP
38	SS6111140SP
35	SS6121210SP
42	SS6121210SP
40	SS6121610TP
28	SS6121610TP
60	SS6121610TP
20	SS6121840SP
20	SS6121860SP
16	SS6580752TP
54	SS6580752TP
16	SS6580752TP
23	SS6660710TP
24	SS6660710TP
48	SS6660710TP
33	SS6660710TP
63	SS6660710TP
11	SS6700710SH
57	SS7060310SP
28	SS7080410SP
53	SS7080520SP
18	SS7081310SP
42	SS7090410SP
44	SS7090610SP
24	SS7090710SP
54	SS7090910TP
47	SS7090910TP
27	SS7110540SP
21	SS7110840SP
19	SS7110910TP
29	SS7110910TP
24	SS7110910TP
57	SS7111010TP
11	SS7111010TP
6	SS7111120SP
18	SS7111410SP
17	SS7111410SP
51	SS7111410SP
16	SS7111410SP
33	SS7111410TP
9	SS7121410TP
33	SS7121410TP
55	SS7121410TP
22	SS7151120SP
48	SS7620750SP
26	SS7681650TP
24	SS8080410TP
60	SS8090670SP
12	SS8090670SP
13	SS8110410TP
19	SS8110422TP
18	SS8110422TP
17	SS8110422TP
54	SS8110422TP
68	SS8110422TP
9	SS8110510SP
66	SS8110750SP
25	SS8111010TP
69	SS8120740SP
17	SS8120740SP
43	SS8150410SP
40	SS8150510TP
4	SS8150510TP
42	SS8150710SP
34	SS8150710SP
60	SS8150710SP
25	SS8150710SP
22	SS8150710SP
26	SS8150822TP
21	SS8151150SP
37	SS8151150SP
39	SS815120SP
13	SS8153010SR
27	SS8660530TP
37	SS8660610TP
20	SS8660610TP
19	SS8660610TP
57	SS8660610TP
18	SS8660610TP
60	SS8660610TP
55	SS8660610TP
24	SS8660810TP
29	SS8660810TP
21	SS8660810TP
20	SS8660810TP
19	SS8660810TP
69	SS8660810TP
38	SS8660970TP
22	SS8660970TP
21	SS8660970TP
20	SS8660970TP
70	SS8661012TP
18	SS9090610TP
34	SS9090610TP
35	SS9110620TP
14	SS9111610SP
71	SS9151740CP
14	SS9151810SR

Page 79 — NUMERICAL INDEX OF PARTS

Juki LZ-2280 parts on page 79

Ref	Part number	Part name	Qty
15	SS9182010SN	WP1612616SE
54	SS9661120CP	WS0310002KN
24	TA0750404R0	WS0510002KP
40	TA0750704R0	WS0510002KP
22	TA0800504R0	WS0531060KR
36	TA0900707R0	WS0641560KR
19	TA0950806R0	WS1002560KR
13	TA0980502R0	WT0320002KZ
11	TA1050504R0	WT0530002KS
23	TA1050604R0	WZ0641510KP
38	TA1100604R0	WZ0850302K0
37	TA1250705R0	WZ1052010KP
72	TA1250705R0	WZ1052010KP
14	TA1550902R0	WZ1052010KP
15	TA1750502R0	WZ1052010KP
3	TA1871602R0	WZ1052010KP
16	TA2200502R0	WZ1052010KP
72	TA2201002R0	WZ1052010KP
13	WP0220300SC	WZ1052010KP
35	WP0320501SC	WZ1052010KP
70	WP03305000E	WZ1052010KP
43	WP0371016SD	WZ1052010KP
13	WP0371016SD	WZ1052010KP
52	WP0371036SD	WZ1052010KP
39	WP0450801SD	WZ1052010KP
27	WP0450801SD	WZ1052010KP
56	WP0450846SP	WZ1052010KP
24	WP0480856SP	WZ1052010KP
51	WP0480856SP	WZ1052010KP
34	WP0480856SP	WZ1052010KP
29	WP0501016SC	WZ1052010KP
29	WP0501016SD	WZ1052010KP
66	WP0501016SD	WZ1052010KP
10	WP0510516SD	WZ1052010KP
14	WP0560860SE	WZ1052010KP
47	WP0612066SP	WZ1052010KP
37	WP0621016SH	WZ1052010KP
49	WP0621016SH	WZ1052010KP
31	WP0651056SD	WZ1052010KP
51	WP1020616SD	WZ1052010KP
29	WP1020616SD	WZ1052010KP
46	WP1020616SD	WZ1052010KP
49	WP1021016SD	WZ1052010KP
21	WP1602616SZ	WZ1052010KP
16	WP1602616SZ	WZ1052010KP

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki LZ-2280 — parts catalog

• Page 1 (cover): This is the cover page for the SOFTO RG LZ-2280 SERIES parts list, dated 08/22/2016.
• Page 2 (toc): This page contains the table of contents for the parts catalog, listing various machine components and their corresponding page numbers.
• Page 3 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 4 (parts_list): This page lists frame and miscellaneous cover components for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 5 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 6 (parts_list): This page lists frame and miscellaneous cover components for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 7 (diagram): This page displays a diagram of frame and miscellaneous cover components for an industrial sewing machine, with numbered parts indicated by reference numbers.
• Page 8 (parts_list): This page lists frame and miscellaneous cover components for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 9 (diagram): This page displays a diagram of main shaft and needle bar components, with numbered parts for easy identification and reference.
• Page 10 (parts_list): This page lists main shaft and needle bar components for an industrial sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 11 (diagram): This page displays a diagram of the main shaft and needle bar components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 12 (parts_list): This page lists main shaft and needle bar components, including part numbers, descriptions, quantities, and remarks.
• Page 13 (diagram): This page displays a diagram of needle vibrator and adjustment components, with numbered parts for identification.
• Page 15 (diagram): This page displays a diagram of needle vibrator and adjustment components, with numbered parts indicated for identification.
• Page 16 (parts_list): This page lists needle vibrator and adjustment components, including part numbers, descriptions, quantities, and remarks.
• Page 17 (diagram): This page displays a diagram of presser bar and feed regulator components, with numbered parts indicated for identification.
• Page 18 (parts_list): This page lists components for the Presser Bar & Feed Regulator, including part numbers, descriptions, quantities, and remarks.
• Page 19 (diagram): This page displays a diagram of presser bar and feed regulator components, with numbered parts and their corresponding references.
• Page 20 (parts_list): This page lists components for the Presser Bar & Feed Regulator, including part numbers, descriptions, quantities, and remarks.
• Page 21 (diagram): This page displays a diagram of feed mechanism and condenser components for an industrial sewing machine, with numbered parts indicated.
• Page 22 (parts_list): This page lists parts for the feed mechanism and condenser components, including part numbers, descriptions, quantities, and remarks.
• Page 23 (diagram): This page displays a diagram of the feed mechanism components of an industrial sewing machine, with various parts numbered for identification.
• Page 24 (parts_list): This page lists components for the feed mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 25 (diagram): This page displays a diagram of feed mechanism components, illustrating various parts with reference numbers for identification.
• Page 26 (parts_list): This page lists components for the feed mechanism, including part numbers, descriptions, quantities, and remarks.
• Page 27 (diagram): This page displays a diagram of hook driving shaft and hook components, with numbered parts and their corresponding references.
• Page 28 (parts_list): This page lists components for the Hook Driving Shaft & Hook Components section, including part numbers, descriptions, quantities, and remarks.
• Page 29 (diagram): This page displays a diagram of lubrication components, illustrating various parts with reference numbers for identification.
• Page 30 (parts_list): This page lists lubrication components with part numbers, descriptions, quantities, and remarks.
• Page 31 (diagram): This page displays a diagram of the thread trimmer mechanism components, with numbered parts and their corresponding references.
• Page 32 (parts_list): This page lists components for the thread trimmer mechanism, including part numbers, descriptions, quantities, and other specifications.
• Page 33 (diagram): This page displays a diagram of the thread trimmer mechanism components, with numbered parts and their corresponding references.
• Page 34 (parts_list): This page lists components for the thread trimmer mechanism, including part numbers, names, quantities, and supply codes.
• Page 35 (diagram): This page displays a diagram of upper thread feeder components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 36 (parts_list): This page lists components for the Upper Thread Feeder, including part numbers, descriptions, quantities, and remarks.
• Page 37 (diagram): This page displays a diagram of the automatic reverse feed mechanism components, with numbered parts and their corresponding details.
• Page 38 (parts_list): This page lists components for the AUTOMATIC REVERSE FEED MECHANISM, including part numbers, descriptions, quantities, and specifications.
• Page 39 (diagram): This page displays a diagram of wiper mechanism components, illustrating various parts with reference numbers for identification.
• Page 40 (parts_list): This page lists components for the Wiper Mechanism, including part numbers, descriptions, quantities, and other specifications.
• Page 41 (diagram): This page displays a diagram of thread stand components, with numbered parts and their corresponding references.
• Page 42 (parts_list): This page lists components for a thread stand, including part numbers, descriptions, quantities, and supply codes.
• Page 44 (parts_list): This page lists thread stand components, including part numbers, descriptions, quantities, and supply codes.
• Page 45 (diagram): This page displays a diagram of belt cover components, illustrating various parts with reference numbers for identification.
• Page 46 (parts_list): This page lists components for the BELT COVER, including part numbers, descriptions, quantities, and remarks.
• Page 47 (diagram): This page displays a diagram of oil reservoir and knee lifter components, with numbered parts and their corresponding details.
• Page 48 (parts_list): This page lists components for oil reservoir and knee lifter, including part numbers, descriptions, quantities, and other details.
• Page 49 (diagram): This page displays a diagram of various sewing machine parts for the LZ-2286 model, including presser feet, needle plates, gears, and other components, each identified by a reference number.
• Page 50 (parts_list): This page lists exclusive parts for the LZ-2286 sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 51 (diagram): This page displays a diagram of exclusive parts for the LZ-2285(1) sewing machine, with numbered components and their corresponding part numbers and descriptions.
• Page 52 (parts_list): This page lists exclusive parts for the LZ-2285(1) sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 53 (diagram): This page displays a diagram of exclusive parts for the LZ-2285(2) sewing machine, with various components numbered for identification.
• Page 54 (parts_list): This page lists exclusive parts for the LZ-2285(2) sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 55 (diagram): This page displays a diagram of exclusive parts for the LZ-2285(2) sewing machine, with various components numbered for identification.
• Page 57 (diagram): This page displays a diagram of exclusive parts for the LZ-2287 sewing machine, with various components numbered for identification.
• Page 58 (parts_list): This page lists exclusive parts for the LZ-2287 sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 59 (diagram): This page displays a diagram of exclusive parts for the LZ-2287 sewing machine, with various components numbered for identification.
• Page 60 (parts_list): This page lists exclusive parts for the LZ-2287 sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 61 (diagram): This page displays a diagram of various sewing machine parts, including presser feet, needle plates, gears, and other components, with reference numbers for identification.
• Page 62 (parts_list): This page lists exclusive parts for the LZ-2281(-7) sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 63 (diagram): This page displays a diagram of exclusive parts for the LZ-2288 sewing machine, with various components labeled with reference numbers.
• Page 64 (parts_list): This page lists exclusive parts for the LZ-2288 sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 65 (diagram): This page displays a diagram of exclusive parts for the LZ-2288 sewing machine, with various components labeled with reference numbers.
• Page 66 (parts_list): This page lists exclusive parts for the LZ-2288 sewing machine, including part numbers, descriptions, quantities, and remarks.
• Page 67 (diagram): This page displays a diagram of special order parts for LZ-2280, 2281, 2286, and 2288 sewing machines, with numbered components.
• Page 68 (parts_list): This page lists special order parts for LZ-2280, 2281, 2286, 2288, including part numbers, names, quantities, and other specifications.
• Page 69 (diagram): This page displays a diagram of exclusive parts for the R type, with numbered components and their corresponding part numbers and descriptions.
• Page 70 (parts_list): This page lists exclusive parts for the R type, including part numbers, descriptions, quantities, and remarks for various components.
• Page 71 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers across multiple columns.
• Page 72 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 73 (parts_list): This page contains a numerical index of parts for the sewing machine, listing part numbers, page numbers, and reference numbers.
• Page 74 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page numbers, and reference numbers.
• Page 75 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers from diagrams.
• Page 76 (index): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers from diagrams.
• Page 77 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 78 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, their corresponding page numbers, and reference numbers.
• Page 79 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers.

Page 1 — PARTS LIST

SOFTO RG MODEL : LZ-2280 SERIES List No : 0817-03 PARTS LIST Published:08/22/2016 jintex.in

Page 2 — CONTENTS

CONTENTS FRAME & MISCELLANEOUS COVER COMPONENTS (1)...*

Page 3 — FRAME & MISCELLANEOUS COVER COMPONENTS

FRAME & MISCELLANEOUS COVER COMPONENTS 17 (1) 4 28 3 41 18 19 27 8 35 32 33 20 30 29 31 34 5 6 39 73 72 23 42 40 2 1 26 67 38 37 64 24 22 66 10 36 65 69 70 63 68 62 15 21 11 43 13 10 12 74 LZ-2280 56 51 52 54 57 59 60 49 53 50 55 58 45 47 46 48 44 25 jintex.in

Page 4 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 1 22501159 SIDE COVER COMPL. 1 2 22501209 GASKET 1 3 22501357 23500952 FACE PLATE COMPL. 1 1.00 4 22501506 GASKET 1 5 22501605 TENSION RELEASE WINDO 1 6 22501704 GASKET 1 7 22502009 26305102 BALANCE COVER BASE 1 1.00 8 22502108 BALANCE COVER 1 9 22502207 26305300 SPRING 1 1.00 10 22502603 Discontinue BALANCE THREAD GUIDE 1 11 22502702 SPRING GUARD 1 12 22502801 SS1110840SP SCREW 2 1.00 13 22502900 Discontinue BALANCE THREAD GUIDE 1 14 22503007 26305409 SPRING GUARD 1 1.00 15 10000206 ARM OIL SHIELD 1 16 TA1050604R0 RUBBER PLUG 1 17 10001709 TAKE-UP THREAD CUTTE 1 18 11070901 22900401 SIDE PLATE 1 1.00 19 11000619 40012129 GASKET 1 1.00 20 11046604 22947006 OIL SIGHT WINDOW 1 1.00 21 11043601 RUBBER STOPPER 1 22 TA0800504R0 PLUG D=8 L=4.5 1 23 TA1050604R0 RUBBER PLUG 2 24 TA0750404R0 PLUG D=7.5 L=3.5 1 25 WT0530002KS TOOTHED WASHER D=5.3 1 26 SS4121415SP SCREW 3/16-28 L=14 5 27 SS1110840SP SCREW 11/64-40 L=9 9 28 SS7080410SP SCREW 1/8-44 L= 3.8 1 29 SD0640751SP HINGE SCREW D= 6.35 H= 1 30 WZ0641510KP WAVED WASHER 6.4X11X1 1 31 WP0651056SD WASHER 6.5X11X1 1 32 SS4110915SP SCREW 11/64-40 L=9 2 33 SS2090710SP SS2090710TP SCREW 9/64-40 L=7 1 1.00 34 SS4120615SP SCREW 3/16-28 L=6 4 35 SS6120620TP SCREW 1 36 TA0900707R0 RUBBER PLUG 2 37 TA1250705R0 RUBBER PLUG 1 38 TA1100604R0 RUBBER PLUG 1 39 TA0750704R0 RUBBER PLUG 1 40 TA0750704R0 RUBBER PLUG 1 41 SS4121015SP SCREW 3/16-28 L=10 8 42 RO195240100 RUBBER RING 1 43 SS5090420SP SCREW 9/64-40 L=3.5 1 44 EA9502B0200 CABLE CLIP C 1 FOR LZ-2280-7 45 D2112555B00 CORD HOLDER, LARGE 2 FOR LZ-2280-7 46 11030301 CABLE HOLDER 1 FOR LZ-2280-7 47 SS4121015SP SCREW 3/16-28 L=10 1 FOR LZ-2280-7 48 SS4121015SP SCREW 3/16-28 L=10 1 FOR LZ-2280-7 49 22528053 22528061 THREAD TENSION ASM. 1 1.00 50 22528350 23547557 THREAD TENSION DISK C 1 1.00 51 22528152 THREAD TENSION ROD AS 1 52 10006104 TAKE-UP SPRING 1 53 10005650 10005668 TENSION POST ASM. 1 1.00 54 22528509 FELT 1 55 10006005 TENSION DISC HOLDER 1 56 10007854 TENSION RELEASE PIN ASN 1 57 B3129012A00 TENSION SPRING 1 58 B3120125000 ROTATING STOPPER 1 59 B3116125000 TENSION NUT 1 60 SS8090670SP SCREW 9/64-40 L= 5.5 1 jintex.in

Page 5 — FRAME & MISCELLANEOUS COVER COMPONENTS

FRAME & MISCELLANEOUS COVER COMPONENTS 17 (1) 4 28 3 41 18 19 27 7 8 35 32 33 23 20 42 40 2 1 26 30 31 29 34 5 6 38 37 39 73 72 64 24 22 66 10 63 68 62 15 21 11 43 13 10 12 LZ-2280 74 61 56 51 52 54 57 59 65 49 53 50 55 58 45 46 48 47 44 jintex.in

Page 6 — FRAME & MISCELLANEOUS COVER COMPONENTS (1)

FRAME & MISCELLANEOUS COVER COMPONENTS (1) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 61 22528608 22528616 THREAD RELEASE 1 1.00 62 22529002 SUPPORT BALANCE 1 63 22529101 SUPPORT BALANCE BASE 1 64 22529200 MOUNTING BASE 1 65 22529700 40050700 PRE-TENSION CONTROLL 1 1.00 66 SS8110750SP SCREW 11/64-40 L= 6.5 1 67 22542708 OPERATION SEAL 1 FOR LZ-2281,LZ 68 SS6090540SP SCREW 9/64-40 L= 5.0 2 69 SS6580752TP SCREW 1/8-40 L=7 2 70 WP03305000E WASHER 3.3X6X0.5 2 71 WP03505000P SCREW 11/64-40 L=9 2 72 TA1250705R0 RUBBER PLUG 1 73 22502504 THREAD GUIDE BAR 1 74 22535801 TIMING GAUGE 1 Discontinue jintex.in

Page 7 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

FRAME & MISCELLANEOUS COVER COMPONENTS (2) 29 30 25 20-27-33 34-35 31-32 23 19 17 16 7 8 6-28-36 9 18 13 22 1 15 14 10 12 11 10 5 3 5 4 2 21 24 26 jintex.in

Page 8 — FRAME & MISCELLANEOUS COVER COMPONENTS (2)

FRAME & MISCELLANEOUS COVER COMPONENTS (2) No. C- Le- vel Cons Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 1 22501803 26304907 SUPPORT PLATE 1 1.00 2 22501951 26305052 HELICAL GEAR BOX COVE 1 1.00 3 * 22501902 26305003 HELICAL GEAR BOX COVE 1 1.00 4 * 10100410 BED SCREW STUD 2 5 * NS6700320SP NUT 5/16-24 4 6 10100410 THROAT PLATE 1 7 10004208 26300103 BED PLATE 1 1.00 8 10004307 26314757 BED SLIDE 1 1.00 9 11001609 BED SLIDE SPRING 1 10 SS4110515SP SCREW 11/64-40 L=5 2 11 10037307 OIL SHIELD PLATE 1 12 10037406 OIL SHIELD RUBBER 1 13 22552400 HELICAL BEVEL GEAR BO 1 1.00 FOR LZ-2280-7 14 11044054 22951552 GROUND WIRE ASM. 1 1.00 FOR LZ-2280-7 15 SS41111215SP SCREW 11/64-40 L=12 2 16 SS2090810SP SCREW 9/64-40 L= 7.5 2 17 SS2090810SP SCREW 9/64-40 L= 7.5 2 18 SS6060210SP SCREW 3/32-56 L= 1.9 2 19 TA0950806R0 RUBBER PLUG 1 20 M6093350AAS Discontinue RESISTANCE PACK AS ASM 1 FOR LZ-2280-7 21 10031805 HELICAL BEVEL GEAR BO 1 22 10031904 GASKET 1 23 10032001 NYLON CAP 1 24 SS4110915SP SCREW 11/64-40 L=9 3 25 SS4121215SP SCREW 3/16-28 L=12 1 FOR LZ-2280-7 26 SS4110915SP SCREW 11/64-40 L=9 4 27 M6093350AAL RESISTANCE PACK AL ASM 1 VARIOUS NOS.I 28 22545008 THROAT PLATE 1 VARIOUS NOS.I 29 WP0501016SD WASHER 5X10.5X1 1 30 WS0510002KP SPRING WASHER 5.1X9.2X1 1 31 CM300200101 SAFETY LABEL 1 1 VARIOUS NOS.I 32 CM3002001A1 SAFETY LABEL 1 1 VARIOUS NOS.I 33 M6093350AAF Discontinue RESISTANCE PACK ASM. 1 VARIOUS NOS.I 34 CM3002000A1 SEAL 1 VARIOUS NOS.I 35 CM300200001 ATTENTION SEAL 1 VARIOUS NOS.I 36 22548705 THROAT PLATE 1 VARIOUS NOS.I

Page 9 — MAIN SHAFT&NEEDLE BAR COMPONENTS

MAIN SHAFT&NEEDLE BAR COMPONENTS 9.71 jintex.in

Page 10 — MAIN SHAFT AENEEDLE BAR COMPONENTS

MAIN SHAFT AENEEDLE BAR COMPONENTS No. C- Le- Cons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22505101 26302208 MAIN SHAFT 1 1.00 2 22505259 THRUST COLLAR ASM. 1 3 22505200 THRUST COLLAR 1 4 SB120000100 BEARING D=20X47 1 5 SS860610TP SCREW 1/4-40 L=6 2 6 22505309 26305508 OIL SEAL COLLAR 1 1.00 7 22505408 40044872 SPROCKET 1 1.00 8 22505507 HAND WHEEL 1 9 22506109 BALANCE 1 10 10008100 40040372 MAIN SHAFT BUSHING, FR 1 11 B1203227000A MAIN SHAFT BUSHING, IN 1 12 B1208552000A OIL SEAL 1 1.00 13 10008407 26300202 COUNTERWEIGHT 1 14 10008476 COUNTERWEIGHT PROTE 1 15 10008605 26300301 NEEDLE BAR CRANK 1 1.00 16 10008753 TAKE-UP COUNTERWEIGH 1 17 22505705 TIMING BELT 1 18 10035608 26304402 PIN 1 1.00 19 B1810552000 OIL WICK 1 20 RO029180100 RUBBER RING 1 21 SS8151150SP SS8151150TP SCREW 15/64-28 L=10.5 1 1.00 22 SS7151120SP SCREW 15/64-28 L=11 1 23 RO437200200 RUBBER RING 1 24 SS8151550SP SCREW 15/64-28 L=15 2 25 SS860610TP SCREW 1/4-40 L=6 2 26 SS7681650TP SCREW 9/32-28 L=16 1 27 RO044240100 RUBBER RING 1 28 RO048190100 RUBBER RING 1 29 SS860610TP SCREW 1/4-40 L=6 2 30 SS860610TP SCREW 1/4-40 L=6 2 31 SS1090930SP SCREW 9/64-40 L=8.6 3 32 CS147121ASH 22904155 THRUST COLLAR ASM.D=1 1 1.00 33 22551568 HAND WHEEL ASM. 1 34 22551550 HAND WHEEL COMPL. 1 35 M40071100AB MAGNET FITTING BASE B 1 36 M40071100AA MAGNET FITTING BASE A 1 37 SS8151550SP SCREW 15/64-28 L=15 2 38 SS6111210SP SCREW 11/64-40 L=12 2 39 WP0450801SD WASHER 4.5X10X0.8 2 40 11032562 22937965 DYNAMO STATOR 1 1.00 41 10604809 Discontinue SCREW 2 42 22507156 40082351 NEEDLE BAR CRANK ROD 1 1.00 43 22507305 40056873 NEEDLE BAR CONNECTIO 1 1.00 44 22507404 THREAD RACK 1 45 22507503 40015494 NEEDLE ROD 1 1.00 46 10010304 GUIDE BLOCK 1 47 10010502 26300400 CRANK ROD GUIDE 1 1.00 48 B1905541A00 NEEDLE BEARING, A 1 49 B1905541B00 NEEDLE BEARING, B 1 50 B1905541C00 NEEDLE BEARING, C 1 51 B1905541D00 NEEDLE BEARING, D 1 52 MC192300750 NEEDLE 438 #75 1 53 SS7080520SP SCREW 1/8-44 L=4.9 1 54 SS7090910TP SCREW 9/64-40 L=8.5 1 55 SS4110915SP SCREW 11/64-40 L=9 2 56 SS4110715SP SCREW 11/64-40 L=7 2 57 SS7060310SP SCREW 3/32-56 L=3 1 58 22509152 22509160 NEEDLE BAR YOKE ASM. 1 1.00 59 22509103 22509111 NEEDLE BAR YOKE 1 1.00 60 22509202 SHAFT 1 FOR LZ-2280-7 FOR LZ-2280-7 FOR LZ-2280-7 FOR LZ-2280-7 FOR LZ-2280-7 FOR LZ-2280-7 FOR LZ-2280-7 FOR LZ-2280-7 SELECTIVE PAI SELECTIVE PAI SELECTIVE PAI VARIOUS NOS.I jintex.in

Page 11 — MAIN SHAFT&NEEDLE BAR COMPONENTS

MAIN SHAFT&NEEDLE BAR COMPONENTS jintex.in

Page 12 — MAIN SHAFT TAENEEDLE BAR COMPONENTS

MAIN SHAFT TAENEEDLE BAR COMPONENTS No. C- le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 61 * 10013019 NEEDLE BAR BUSHING, UF 1 62 * 10013118 NEEDLE BAR BUSHING, LC 1 63 * PS0400202KH SPRING PIN 4X20 1 64 11010907 22913008 FEED ROCKER SHAFT BUS 1 1.00 65 22509400 26305904 NEEDLE BAR YOKE PRESS 1 1.00 66 22509509 26306001 SCREW 1 1.00 67 10013407 GUIDE PIN 1 68 10013803 SHAFT BUSHING, REAR 1 69 SS8120740SP SCREW 3/16-28 L=7 .1 70 CQ202000000 OIL WICK .1 71 22506208 BALANCE V 1 Discontinue SPECIAL ORDEI jintex.in

Page 13 — NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (1)

NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (1) 33~36 1 7 9 8 10 12~15 16 18 19 2 21 25~28 37 38 29 22 23 24 39 30 32 31 42 43 41 11 3~6 20 jintex.in

Page 15 — NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (2)

NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (2) 19 3 5 26 12 11 6~9 23 10 27 17 13 24 4 14 16 25 2 15 20 21 22 1 18 41 43 42 39 38 49 36 37 35 34 30 51 50 28 44 29 45 32 31 47 52 33 48 jintex.in

Page 16 — NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (2)

NEEDLE VIBRATOR & ADJUSTMENT COMPONENTS (2) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22512057 BASE ASM. 1 2 26306506 BASE MOUNTING PLATE 1 1.00 3 22512008 26307306 SHAFT 1 1.00 4 10017317 26302703 NEEDLE POSITION ADJUST 1 1.00 5 10016012 26301507 ARM 1 1.00 SELECTIVE PAI 6 10016517 SHAFT D 1 SELECTIVE PAI 7 10016210 SHAFT A 1 SELECTIVE PAI 8 10016319 SHAFT B 1 SELECTIVE PAI 9 10016418 SHAFT C 1 10 10017168 STOPPER ASM. 1 11 10018000 NUT 1 12 10018109 NUT STOPPER 1 13 10015360 LEVER ASM. 1 14 10017408 SPRING 1 15 10017606 OIL SHIELD 1 16 B2608761000 HAND STOP CRANK SHAFT 1 17 WZ0850302K0 WAVED WASHER 8.5X12.5X 3 18 NS6150310SP NUT 15/64-28 1 19 SS6090620SP SS6090620TP SCREW 9/64-40 L=6 3 1.00 20 WP1020616SD WASHER 2 21 WZ1052010KP WAVED WASHER 1 22 RC0100001KP SNAP RING M10 1 23 NS6150310SP NUT 15/64-28 1 24 RE0200000K0 E-RING 1 25 RE0400000K0 E-RING 4 1 26 SS6090520SP SCREW 9/64-40 L= 5.0 1 27 SD0800402TP HINGE SCREW D=8 H= 4 1 28 22512156 KNOB ASM. 1 29 22512107 22512156 KNOB 1 1.00 30 10015907 LEVER STOPPER 2 31 SS4090610SP SCREW 9/64-40 L=6 2 32 WP0371016SD WASHER 3.7X8X1 2 33 22512206 26306803 LEVER 1 1.00 34 22512354 22512362 SCALE PLATE ASM. 1 1.00 35 22512305 22512313 SCALE PLATE 1 1.00 36 22512453 22512461 SCALE MOUNTING BASE C 1 1.00 37 SS6080320SP SCREW 1/8-44 L= 2.5 2 38 22512552 26307157 LEVER ASM. 1 1.00 39 22512503 Discontinue LEVER 1 40 22512602 KNOB 1 41 10015907 LEVER STOPPER 2 42 SS7090410SP SCREW 9/64-40 L= 3.5 2 43 WP0371016SD WASHER 3.7X8X1 2 44 10015105 KEY 1 45 10017705 SPRING 1 46 SS4121015SP SCREW 3/16-28 L=10 4 47 SS7090910TP SCREW 9/64-40 L= 8.5 1 48 SS7620750SP SCREW 3/16-32 L= 6.5 1 49 WP1021016SD WASHER 2 50 WZ1052010KP WAVED WASHER 1 51 WP1020616SD WASHER 1 52 WP0371036SD WASHER 3.7X6X1 1 jintex.in

Page 17

PRESSER BAR & FEED REGULATOR COMPONENTS 12 29 31 16 19 24 23 30 14 20 9 35 13 21 26 25 11 12 15 40 37 22 28 39 18 57 41 44 46 47 42 17 43 48 33 45 49 58 1 2 4 7 6 56 50 54 55 52 51 53 59 60 61 62 63 64 3 8 5 jintex.in

Page 18 — PRESSER BAR & FEED REGULATOR COMPONENTS

PRESSER BAR & FEED REGULATOR COMPONENTS No. C- Le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22547962 2 * 22547954 22547962 PRESSER FOOT ASM. 1 1.00 VARIOUS NOS.I 3 * 22547905 PRESSER FOOT ASM. 1 1.00 4 * 22546808 22546964 PRESSER FOOT (LOWER) 1 1.00 選択部品 A: 4 * 22546808 22547962 PRESSER FOOT (UPPER) 1 1.00 選択部品 B: 4 * 22546808 22548663 PRESSER FOOT (UPPER) 1 1.00 選択部品 C: 4 * 22546808 22549869 PRESSER FOOT (UPPER) 1 1.00 選択部品 D: 5 * 22547806 PRESSER PIN 1 6 * B1525582000 SPRING 1 7 * SS6090810SP SS6090810TP SCREW 9/64-40 L= 7.5 1 1.00 8 * 22547004 SAFETY COVER 1 9 22515357 26307850 HAND LIFTER CAM COMP. 1 1.00 10 22515506 26308007 LIFTING LEVER 1 1.00 11 B1516552000 LIFTING LEVER LINK 1 12 11007101 22908909 HINGE SCREW 2 1.00 13 11006905 22908305 LIFTING LEVER CONNECT 1 1.00 14 B3414555000 LIFTING LEVER LINK ARM 1 15 B3416555000 SWIVEL 1 16 B3416555000 CONNECTING ROD HINGE 1 17 10022010 40125469 PRESSER BAR 1 1.00 18 10022309 26302901 PRESSER BAR GUIDE BRAC 1 1.00 19 11071602 22907554 PRESSER SPRING REGULA 1 1.00 20 B1510227000 22907703 PRESSER GUIDE BAR 1 1.00 21 B1505227000A 22907406 PRESSER SPRING 1 1.00 22 B1502541000 22907109 PRESSER BAR BUSHING, L 1 1.00 23 11071800 22907802 HAND LIFTER 1 24 B1521555000 SCREW 1 25 B3431581000 LIFTING LEVER GASKET 1 26 B1517552000 HINGE PIN 1 27 B1523226000 SNAP RING 1 28 10022606 CONNECTING ROD, VERTI 1 29 GAK33041000 KNEE LIFTING LINK STEP- 1 30 GAK33042000 KNEE LIFTING LINK SPRIN 1 31 RE0500000K0 E-RING 1 32 SD0630301SP HINGE SCREW D= 6.35 H=5 1 33 SS7090910TP SCREW 9/64-40 L= 8.5 1 1.00 34 SS8150710SP SS8150710TP SCREW 15/64-28 L=7 1 1.00 35 RO037180100 RUBBER RING 1 36 SD0630275SP HINGE SCREW D= 6.35 H= 1 37 NS6620310SP NUT 3/16-32 1 38 RE0600000K0 E-RING 6 1 39 SS8151720SP SCREW 1 40 SS8150510TP SCREW 15/64-28 L= 4.7 1 1.00 41 22545362 PRESSER FOOT ASM. 1 1.00 VARIOUS NOS.I 42 * 22545354 22545362 PRESSER FOOT ASM. 1 1.00 43 * 22545305 PRESSER FOOT (LOWER) 1 44 * 22545206 22547558 PRESSER FOOT (UPPER) 1 1.00 45 10021103 PRESSER PIN 1 46 * SS6090810SP SS6090810TP SPRING 1 1.00 47 * B1525582000 SAFETY COVER 1 48 * 22545404 PRESSER FOOT ASM. 1 1.00 VARIOUS NOS.I 49 22548663 PRESSER FOOT ASM. 1 1.00 50 * 22548655 22548663 PRESSER (LOWER) 1 1.00 選擇部品 A: 51 * 22548606 PRESSER (UPPER) 1 1.00 選擇部品 B: 52 * 22546808 22546964 PRESSER (UPPER) 1 1.00 選擇部品 C: 52 * 22546808 22547962 PRESSER (UPPER) 1 1.00 選擇部品 D: 52 * 22546808 22548663 PRESSER (UPPER) 1 1.00 52 * 22546808 22549869 PRESSER (UPPER) 1 1.00 53 * 22547806 PRESSER PIN 1 54 * SS6090810SP SS6090810TP Discontinue SCREW 9/64-40 L= 7.5 1 1.00 jintex.in

Page 19 — PRESSER BAR & FEED REGULATOR COMPONENTS

PRESSER BAR & FEED REGULATOR COMPONENTS 12 29 31 16 19 24 23 30 14 20 9 35 13 21 26 25 11 12 15 40 37 22 39 28 18 57 17 44 46 47 42 43 45 48 33 49 58 1 2 4 7 6 5 3 8 52 54 55 50 56 59 64 63 60 61 62 jintex.in

Page 20 — PRESSER BAR & FEED REGULATOR COMPONENTS

PRESSER BAR & FEED REGULATOR COMPONENTS No. C- Le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 55 * B1525582000 1 SPRING 56 * 22547004 1 SAFETY COVER 57 SS7111110TP 1 SCREW 11/64-40 L=10.5 58 22548960 1 PRESSER FOOT ASM. 59 22545206 22547558 1 PRESSER FOOT (UPPER) 1.00 60 * 22548903 1 PRESSER FOOT (LOWER) 61 * 10021103 1 PRESSER PIN 62 * 22545404 1 SAFETY COVER 63 * B1525582000 1 SPRING 64 * SS6090810SP SS6090810TP 1 SCREW 9/64-40 L= 7.5 1.00 VARIOUS NOS.I jintex.in

Page 21 — FEED MECHANISM & CONDENSE COMPONENTS

FEED MECHANISM & CONDENSE COMPONENTS 36 17 42 26 16 35 33 4 1 30 25 3 32 2 31 37 5 18 39 37 40 38 9 8 14 13 13 10 15 11 7 12 43 41 6 jintex.in

Page 22 — FEED MECHANISM & CONDENSE COMPONENTS

FEED MECHANISM & CONDENSE COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22518005 40056754 LEVER 1 1.00 2 22518104 SHAFT 1 3 22518203 26308205 BUSHING 1 1.00 4 22518351 26308353 CONDENSE STOPPER ARM 1 1.00 5 22518401 26308403 FEED DRIVING ADJUSTER 1 1.00 6 22518559 26308551 KNOB ASM. 1 1.00 7 * 22518500 Discontinue KNOB 1 8 * 22518609 ADJUSTING SCREW BASE 1 9 * 22518708 ADJUSTING SCREW 1 10 * 22518807 SETTER 1 11 * 22518906 SHAFT 1 12 * 11212503 STOPPER DIAL PLATE 1 13 * SS8110410TP SCREW 11/64-40 L= 3.5 2 14 * WZ1052010KP WAVED WASHER 1 15 * SS4110715SP SCREW 11/64-40 L=7 1 16 22519102 Discontinue DIAL 1 17 22519201 ADJUSTING SCREW 1 18 22519300 FEED REVERSAL LINK 1 19 B1114280000 PIN 1 20 10119907 CUSHION 1 21 10120004 40023289 SPRING SUSPENSION 1 1.00 22 D2515232D00 TORSION SPRING 1 23 B1631012B00 SUSPENSION STUD B 1 24 11100500 22952501 REVERSE FEED LEVER STO 1 1.00 25 B2508704000 40010804 OIL SEAL 1 1.00 26 11052701 22912000 PIN 1 1.00 27 B114855000 22912109 SPRING 1 1.00 28 SS6121840SP SCREW 3/16-28 L=18 1 29 WS0510002KP SPRING WASHER 5.1X9.2X1 1 30 SS620750SP SCREW 3/16-28 L= 6.5 1 31 SS7121410TP SCREW 3/16-28 L=14 1 32 CS1031210SH THRUST COLLAR ASM. D= 1 33 SS7121410TP SCREW 3/16-28 L=14 1 34 SS4120615SP SCREW 3/16-28 L=6 2 35 SS6121860SP SCREW 3/16-28 L=18 1 36 R0074240100 RUBBER RING 1 37 SD0600321SP HINGE SCREW D=6 H=3.2 2 38 NS6120310SP NUT 3/16-28 1 39 10028900 26303602 FEED VARIABLE ARM B 1 1.00 40 SS6121610TP SCREW 3/16-28 L=15.5 1 41 SS4120615SP SCREW 3/16-28 L=6 2 42 D2468555B00 RUBBER PLUNGER 1 FOR LZ-2280-7 43 22519805 SCALE PLATE 1

Page 23

FEED MECHANISM COMPONENTS 5 32 9 33 22 18 8-59-61 11 16 10 12 3 19 20 6 14 51 2 54 55 15 13 57 58 1 13 49 44 22 23 21 34 60 26 27 28 35 24 29 46 48 47 30 7 31 56 4 50 26 36 37 27 25 38~42 45 52 53 jintex.in

Page 24 — FEED MECHANISM COMPONENTS

FEED MECHANISM COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22519508 26309104 FEED REVERSAL LINK 1 1.00 2 22519607 TENSION SPRING RACK 1 3 22519706 22519714 FEED BASE 1 1.00 3 22519706 26303107 FEED BASE 1 1.00 4 SS8150510TP SCREW 15/64-28 L= 4.7 1 5 22519904 FELT 1 6 22520001 LINK 1 7 22520159 26309351 BALANCE WEIGHT COMPI 1 1.00 8 22548119 FEED DOG 1 1.00 9 10026102 10026110 ECCENTRIC SHAFT 1 1.00 10 10026201 SPACER 2 11 10026300 26303008 FEED ROCKER 1 1.00 12 10026508 26303107 LINK PIN 1 1.00 12 10026508 22519714 LINK PIN 1 1.00 13 SD0600321SP HINGE SCREW D=6 H=3.2 2 14 NS6120310SP NUT 3/16-28 2 15 SS6111140SP SCREW 11/64-40 L=11 1 16 SS6580752TP SCREW 1/8-40 L=7 2 17 SS8120740SP SCREW 3/16-28 L=7 2 18 SS7121410TP SCREW 3/16-28 L=14 2 19 SS7121410TP SCREW 3/16-28 L=14 1 20 RE030000K0 E-RING 3 1 21 CS1111010SH THRUST COLLAR ASM. D= 1 22 CS1111019SH THRUST COLLAR D=11.11 1 23 SS6660710TP SCREW 1/4-40 L=7 1 24 SS8660810TP SCREW 1/4-40 L=8 2 25 SS4080610SP SS4080620TP SCREW 1/8-44 L=6.4 2 1.00 26 SD0900701TP HINGE SCREW D=9 H=7 2 27 NS6680410SP NUT 9/32-28 2 28 SS6121610TP SCREW 3/16-28 L=15.5 1 29 SS7110910TP SCREW 11/64-40 L=8.5 4 30 SS5110710SP SCREW 11/64-40 L=7 1 31 SS511052TP SCREW 11/64-40 L=10 2 32 10026607 FEED ROCKER SHAFT 1 33 B1604141H00 BUSHING, FRONT 1 34 B1604155000 26314500 FEED ROCKER SHAFT BUS 1 1.00 35 10026706 Discontinue ECCENTRIC CAM 1 36 10026805 26300509 ROD 1 1.00 37 10026904 SIDE DISC PLATE 1 38 B1609804A00 BUSHING 1 SELECTIVE PAI 39 B1609804B00 NEEDLE BEARING 1 SELECTIVE PAI 40 B1609804C00 BEARING 1 SELECTIVE PAI 41 B1609804D00 BEARING 1 SELECTIVE PAI 42 B1609804E00 BEARING 1 SELECTIVE PAI 43 10027001 26303206 CONNECTING ROD 1 1.00 44 10027100 FEED ROCKER SHAFT CR/ 1 45 10027209 Discontinue FEED DRIVING ROCKER 1 46 10027308 26303404 PLATE A 1 1.00 47 10027407 STOPPER PLATE 1 48 10027492 PLATE B 1 49 10028702 26303503 FEED VARIABLE SHAFT 1 1.00 50 10028801 40043912 BUSHING 1 1.00 51 10029007 26303701 FEED VARIABLE ARM C 1 1.00 52 10029601 Discontinue FEED DRIVING ROCKER BI 2 53 B1653470000 40032271 PIN 1 1.00 54 B164655000 TENSION SPRING 1 55 SS7121410TP SCREW 3/16-28 L=14 1 56 WP0450846SP WASHER 2 57 10029304 REVERSE FEED LIMITER 1 58 SS6111140SP SCREW 11/64-40 L=11 1 VARIOUS NOS.I jintex.in

Page 25

FEED MECHANISM COMPONENTS Jinte.in

Page 26 — FEED MECHANISM COMPONENTS

FEED MECHANISM COMPONENTS No. C- Le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 59 22545107 FEED DOG 1 VARIOUS NOS.I 60 SS8150710SP SS8150710TP SCREW 15/64-28 L=7 2 1.00 61 22548804 FEED DOG 1 jintex.in

Page 27 — HOOK DRIVING SHAFT & HOOK COMPONENTS

HOOK DRIVING SHAFT & HOOK COMPONENTS 37 21 36 5 31 42 41 40 39 43 44 45 46 35 6.47 7.48 32 33 17 23 34 26 23 4 16 18 20 19 30 26 28 8 11~14 9 38 25 3 15 29 24 1 22 10 27 jintex.in

Page 28 — HOOK DRIVING SHAFT & HOOK COMPONENTS

HOOK DRIVING SHAFT & HOOK COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 1 22523708 26309609 BUSHING 1 1.00 2 22523807 26309708 SHAFT 1 1.00 3 22523906 40010305 HOOK DRIVING SHAFT 1 1.00 4 B13081550A0 PINION ASM. 1 1.00 5 22524201 22596704 BOBBIN 1 1.00 6 22525059 22525877 HOOK COMPL., R 1 1.00 7 22524805 REVERSE PLATE 1 1.00 8 10030203 10030211 BUSHING, INTERMEDIATE 1 1.00 9 10030302 BUSHING, REAR 1 1.00 10 10030401 HOOK DRIVING SHAFT SPI 1 11 10030509 HELICAL GEAR A 1 12 10030708 HELICAL GEAR B 1 13 10030807 Discontinue HELICAL GEAR C 1 14 10030906 HELICAL GEAR D 1 15 10031003 HELICAL GEAR B 1 16 10031300 40043050 HOOK SHAFT 1 1.00 16 10031300 40043051 HOOK SHAFT 1 1.00 16 10031300 23537202 H hook SHAFT 1 1.00 17 10031409 40043050 H hook SHAFT BUSHING A 1 1.00 17 10031409 23537202 H hook SHAFT BUSHING A 1 1.00 17 10031409 40043051 H hook SHAFT BUSHING A 1 1.00 18 10031516 H hook SHAFT BUSHING B 1 19 10031615 BUSHING CAP 1 20 10031714 GASKET 1 21 10033207 23503402 BOBBIN CASE POSITIONIN 1 1.00 22 SS8150710SP SS8150710TP SCREW 15/64-28 L=7 1 1.00 23 SS8660810TP SCREW 1/4-40 L=8 4 24 SS6660710TP SCREW 1/4-40 L=7 2 25 SS8150710SP SS8150710TP SCREW 15/64-28 L=7 3 1.00 26 SS8150822TP SCREW 15/64-28 L=8 2 27 SB109530100 BEARING D=9.5X22X22.22 1 28 SS8660810TP SCREW 1/4-40 L=8 2 29 SS8660810TP SCREW 1/4-40 L=8 2 30 SS4080620TP SCREW 1/8-44 L=6 2 31 SS6111010SP SS6111010TP SCREW 11/64-40 L= 9.5 1 1.00 32 B1808552000 22916506 OIL SEAL SCREW 1 1.00 33 11019966 OIL WICK 1 34 B13071550A0 PINION ASM. LARGE 1 35 22524169 40003598 BOBBIN CASE ASM. 1 1.00 36 13729702 BOBBIN CASE SPRING 1 37 22524151 40003598 BOBBIN CASE COMPL. 1 1.00 38 10030104 BUSHING, FRONT 1 1.00 39 19800903 LC-601-1/ LATCH LEVER 1 40 19801000 LC-602-2/ LATCH 1 41 19801307 SMS-801-B/ SETSCREW PI 1 42 19801109 LSP-4/ LATCH SPRING 1 43 19801208 LFP-1/ LATCH PIN 1 44 19801406 TSP-604-B/ TENSION SPR 1 45 19801505 SMS-608-B/ TENSION SCRE 1 46 19801604 SMS-609-B/ SETSCREW TE 1 47 22525851 22525877 HOOK COMPL. V 1 1.00 SPECIAL ORDE 48 22526206 REVERSE PLATE V 1 SPECIAL ORDE

Page 29 — LUBRICATION COMPONENTS

LUBRICATION COMPONENTS 7 6 35 18 28 13 36 14 37 15 24 23 5 39 21 38 30 19 12 27 32 17 33 34 16 31 40 8 22 1 10 11 26 41 48 42 43 44 49 45 46 51 47 52 53 9 3 2 29 33 jintex.in

Page 30 — LUBRICATION COMPONENTS

LUBRICATION COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22531156 26315150 OIL SUPPLY PIPE ASM. 1 1.00 2 22531206 26315200 OIL SUPPLY PIPE 1 1.00 3 22531305 26311605 DISTRIBUTOR 1 1.00 4 22531552 FELT ASM. 1 5 22531701 26311902 FELT PRESSER 1 1.00 6 22531909 40070259 GASKET 1 1.00 選択部品 LZ-2280N~228 6 22531909 26315150 GASKET 1 1.00 選択部品 LZ-2280N~228 6 22531909 40070259 GASKET 1 1.00 選択部品 LZ-2285Nシリーズ 6 22531909 22590855 GASKET 1 1.00 選択部品 LZ-2285Nシリーズ 7 22532006 26312009 OIL TUBE 1 1.00 選択部品 LZ-2285Nシリーズ 8 10035301 BUSHING 1 9 SS8110510SP SS8110520TP SCREW 11/64-40 L=5 1 1.00 10 B1301555000 26315408 UPRIGHT SHAFT 1 1.00 11 10035111 PUMP DRIVING GEAR 1 12 10035004 PUMP DRIVING GEAR A 1 13 B3524552000 PLUNGER THRUST PLATE 1 14 B1214038000 PLUNGER SPRING 1 15 B3534155000 PLUNGER 1 16 10037109 OIL REGULATING SCREW 1 1.00 17 B3538112000 OIL RETURN TUBE HOLDE 1 18 10125904 26304600 OIL TANK 1 1.00 19 10035707 26304501 OIL REGULATING SCREW 1 1.00 20 B2616372000 22924906 SPRING 1 1.00 21 B3565771000 40000973 OIL FELT GUIDE 1 22 SS8150710SP SS8150710TP SCREW 15/64-28 L=7 1 1.00 23 SS4110715SP SCREW 11/64-40 L=7 1 24 SQ1110402MZ CONNECTING SCREW 2 25 SS611140SP SCREW 1/4-40 L=4.5 2 26 SS8660530TP SCREW 1/4-40 L=4.5 2 27 SS8660530TP SCREW 1/4-40 L=4.5 2 28 SS4110715SP SCREW 11/64-40 L=7 1 29 SQ1110402MZ CONNECTING SCREW 1 30 CQ202000000 OIL WICK 2 31 NS6150310SP NUT 15/64-28 1 32 SS4110515SP SCREW 11/64-40 L=5 1 33 BT0500300EA OIL TUBE 4 34 SQ1110402MZ CONNECTING SCREW 2 35 SS4111215SP SCREW 11/64-40 L=12 2 36 SQ1150451MZ CONNECTING SCREW 1 37 BT0600402EA OIL TUBE 3 38 SS4110515SP SCREW 11/64-40 L=5 1 39 RQ0029180100 RUBBER RING 1 40 CS079073ASH THRUST COLLAR ASM. 1 41 B3501555000 40020337 LUBRICATING OIL PUMP A 1 1.00 42 * B3503555000 40020337 OIL PUMP INSTALLING BA 1 1.00 43 * B3505555000 40020337 RUBBER JOINT 1 1.00 44 * B3506555000 40020337 RUBBER JOINT 1 1.00 45 * B3501555000 40020337 LUBRICATING OIL PUMP 1 1.00 46 * B3507555000 40020337 OIL PUMP IMPELLER 1 1.00 47 * B3508555000 40020337 OIL PUMP IMPELLER COV 1 1.00 48 * SM4031001SC SCREW M3X0.5 L=10 3 49 * NM60300000ZK WASHER 3 50 * NM60300000E Discontinue NUT M3X0.5 3 51 * B3502555000 B3502555000A Discontinue LUBRICATING OIL PUMP C 3 1.00 52 * SE4301031SR SCREW 5 53 EA9500B0100 CABLE BAND 1 54 CQ202000000 OIL WICK 2

Page 31 — THREAD TRIMMER MECHANISM COMPONENTS

THREAD TRIMMER MECHANISM COMPONENTS 26 3 4 50 1 35 47 46 23 16 19 14 21 17 25 20 18 24 22 15 36 7 39 6 2 33 34 10 32 13 37 38 9 43 49 12 48 5 27 30 31 42 40 11 45 29 28 52 55 53 56 54 51 57 61 58 63 59 62 jintex.in

Page 32 — THREAD TRIMMER MECHANISM COMPONENTS

THREAD TRIMMER MECHANISM COMPONENTS No. C- Le- Cons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22554158 BASE PLATE ASM. 1 2 22554356 CLUTCH PLATE ASM. 1 3 22554505 CLUTCH LINK 1 4 22554604 40106079 MAGNET 1 1.00 5 22554703 40010295 MOVING KNIFE LINK PIN 1 1.00 6 22554802 MOVING KNIFE LINK BASE 1 7 22554901 DRIVING ARM STOPPER 1 8 22555007 MOVING KNIFE LINK 1 9 22555106 KNIFE RETURN SPRING 1 10 22555205 CLUTCH SPRING 1 11 22555304 ROLLER RETURN SPRING 1 12 22555403 THREAD CUTTING CAM 1 13 22555551 FORK KNIFE ASM. 1 14 22556906 FIXED PLATE 1 15 22557003 CORD PRESSER 1 16 22556054 KNIFE UNIT 1 17 22556302 FIXED KNIFE 1 18 22556450 CLAMP PLATE ASM. 1 19 22556609 SLIDING PLATE 1 20 22556708 DRIVING BASE 1 21 22556807 DRIVING BASE 1 22 SS1090510SP SCREW 9/64-40 L=5 2 23 SS6090420SP SCREW 9/64-40 L= 4.0 2 24 SS7090710SP SCREW 9/64-40 L= 6.8 2 25 22556153 DRIVING KNIFE ASM. 1 26 D2107555B00 22948558 WIPER LINK SHAFT, A 1 27 11040854 22948558 KNIFE DRIVING ARM ASM. 1 1.00 28 11041308 22949002 ROLLER ARM BRACKET 1 1.00 29 11041407 22949101 ROLLER FULCRUM SHAFT 1 1.00 30 22555858 ROLLER ARM ASM. 1 31 EA9500B0100 CABLE BAND 2 32 SS4150915SP SCREW 15/64-28 L=9 2 33 RE060000K0 E-RING 6 1 34 SD06000291TP HINGE SCKEW D=6 H=2.9 1 35 RE0250000K0 E-RING 2.5 2 36 SM4040601SB SCREW M4 L=6 3 37 WP0621016SH WASHER 1 38 NS6150430SP NUT 15/64-28 1 39 SS4110915SP SCREW 11/64-40 L=9 2 40 RE050000K0 E-RING 1 41 SD0791503SP HINGE SCREW D=7.94 H=1 1 42 NS6150310SP NUT 15/64-28 1 43 RE060000K0 E-RING 6 1 44 SS7090610SP SCREW 9/64-40 L=6 1 45 RE040000K0 E-RING 4 1 46 SS2110920TP SCREW 11/64-40 L=8.5 1 47 SS2111010TP SCREW 11/64-40 L=9.5 1 48 SS6660710TP SCREW 1/4-40 L=7 2 49 CS095101BSH THRUST COLLAR ASM. D= 1 50 HK00443002A HOUSING 2P 1 51 22552764 SOLENOID ASM. 1 52 22552806 SOLENOID FITTING BASE 1 53 22552905 THREAD RELEASE PUSH P 1 54 22552756 22552764 SCREW 9/64-40 L=14 1 1.00 55 NM6030001SC NUT M3 2 56 NM6040001SN NUT M4X0.7 1 57 SS4120615SP SCREW 3/16-28 L=6 4 58 PS0300182KF SPRING PIN 3X18 1 59 RE040000K0 E-RING 4 1 60 SS4110515SP SCREW 11/64-40 L=5 1

Page 33 — THREAD TRIMMER MECHANISM COMPONENTS

THREAD TRIMMER MECHANISM COMPONENTS 26 3 4 50 1 35 32 10 2 33 34 49 12 48 5 27 30 31 7 39 6 36 9 37 38 42 44 28 11 45 29 52 55 53 56 54 57 51 58 63 59 62 61 31 jintex.in

Page 34 — THREAD TRIMMER MECHANISM COMPONENTS

THREAD TRIMMER MECHANISM COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 61 HK034610140 HOUSING 14P 1 62 D2467555B00 Discontinue RUBBER PLUG 2 63 D3133555B00 SPRING 1 jintex.in

Page 35 — UPPER THREAD FEEDER COMPONENTS

UPPER THREAD FEEDER COMPONENTS 1 20 13 19 12 11 21 5 9 20 14 22 8 17 25 7 22 3 6 26 27 23 15 24 2 28 10 16 4 32 38 37 36 34 31 35 29 30 33 jintex.in

Page 36

UPPER THREAD FEEDER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * 22564157 22564256 22564454 22564702 22564801 22565204 22565303 22565402 22565501 22565659 22565857 11234408 11234507 B2560372000 B2626372000 B2034372000 B2024771000 SS4120915SP RE090000K0 RE030000K0 SD0640241SP SS7110540SP SD0481451SP NS6080340SP SS4120615SP NS6120310SP SS7110540SP CS0640863SH 22564959 22565105 22566152 SL4030881SF SS6090540SP SS9090610TP SS9110620TP 22566301 HX00123000A SS4121015SP 40116710 26020503 40009196 THREAD FEEDER ASM. FITTING BASE COMPL. FEED LEVER COMPL. FEED LEVER SHAFT LINK FEED LEVER SPRING STOPPER SHAFT SOLENOID COVER PLATE SOLENOID COMPL. SOLENOID RUBBER PLUNGER CONNECTING P. BUTTON CLAMP STOP PIN SPRING THREAD RELEASING SCRE SUSPENSION SCREW SCREW 3/16-28 L=9 E-RING 9 E-RING 3 HINGE SCREW D= 6.35 H= SCREW 11/64-40 L=5 HINGE SCREW D= 4.80 H=1 NUT 1/8-44 SCREW 3/16-28 L=6 NUT 3/16-28 SCREW 11/64-40 L=5 THRUST COLLAR D=6.35 V FITTING PLATE COMPL. WIRE STOPPER PLATE COMPL. SCREW SCREW 9/64-40 L= 5.0 SCREW 9/64-40 L=5.5 SCREW STOPPER PLATE GUIDE CABLE CLIP SCREW 3/16-28 L=10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 2 1 2 1 1 1 2 1 1 1 1 4 2 2 2 1 1 1 1.00 1.00 FOR LZ-2280-7 FOR LZ-2280-7 jintex.in

Page 37 — AUTOMATIC REVERSE FEED MECHANISM COMPONENTS

AUTOMATIC REVERSE FEED MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 jintex.in

Page 38

AUTOMATIC REVERSE FEED MECHANISM COMPONENTS No. C- Le- vel Cons Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22559058 40108060 MAGNET ASM. 1 1.00 2 22544159 REVERSE FEED LINK ASM. 1 3 22559850 REVERSE FEED SWITCH 1 4 22559900 REVERSE FEED SWITCH LI 1 5 11102001 22954101 REVERSE FEED SWITCH B1 1 1.00 6 11102100 22954200 REVERSE FEED SWITCH SH 1 1.00 7 11102209 22954309 REVERSE FEED SWITCH SI 1 1.00 8 HA0019000000 MICROSWITCH 1 9 11102308 22954408 MICRO SWITCH PLATE 1 1.00 10 11072501 22954606 REVERSE FEED SWITCH C. 1 1.00 11 HK03464000B PIN CONTACT 2 12 HW500070000 2-CORE CABTYRE CORD 1.5 13 SS4110615SP SCREW 11/64-40 L=6 1 14 SS9111610SP SCREW 11/64-40 L=16 1 15 SM4031501SC SCREW M3 L=15 2 16 D246855B00 RUBBER PLUNGER 1 17 B1213372000 SCREW 1 18 SS4150915SP SCREW 15/64-28 L=9 2 19 RE040000K0 E-RING 4 2 20 RE120000K0 E-RING 12 1 21 WP1602616SZ WASHER 16X24X2.6 1 22 SD0791503SP HINGE SCREW D=7.94 H=19 1 23 NS6150310SP NUT 15/64-28 1 24 SS4120615SP SCREW 3/16-28 L=6 2 25 11101003 22953509 PLUNGER ARM PIN 1 1.00 26 jintex.in

Page 39 — WIPER MECHANISM COMPONENTS

WIPER MECHANISM COMPONENTS 15 23 33 35 37 31 17 36 18 20 19 21 22 30 29 27 25 24 39 1 4 3 10 5 6 2 12 11 13 14 9 8 7 26 16 32 34 jintex.in

Page 40 — WIPER MECHANISM COMPONENTS

WIPER MECHANISM COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22561757 WIPER ASM. 1 2 * 22561856 WIPER BASE ASM. 1 3 * 22561807 22561856 WIPER BASE 1 1.00 4 * 10208601 10208551 WIPER LINK 1 1 1.00 5 * D2107490D00 PIN 2 6 * 22561955 WIPER LINK COMPL. 1 7 * 22561906 22561955 WIPER LINK 1 1.00 8 * 10208858 10208866 WIPER LINK ASM. 2 1 1.00 9 * D2107490D00 PIN 1 10 * 10208700 WIPER LINK SHAFT 1 11 * 22561708 WIPER 1 12 * RE0320000K0 E-RING 3.2 2 13 * WP0371016SD WASHER 3.7X8X1 2 14 * SS3090520SP SCREW 9/64-40 L=4.5 2 15 22562052 SOLENOID ASM. 1 16 * 22562102 WIPER BASE 1 17 * 22562201 WIPER LINK 1 18 * 11110301 40090290 WIPER SOLENOID 1 1.00 19 * 11110400 22955900 WIPER RUBBER A 1 1.00 20 * 11110509 22956007 WIPER RUBBER B 1 1.00 21 * 11110707 22956205 WIPER HINGE SCREW COL 1 1.00 22 * 11110806 22956304 WIPER SPRING 1 1.00 23 * 11072709 22955504 WIPER COVER 1 1.00 24 * 11112000 22957104 WIPER SOLENOID PIN 1 1.00 25 * 11111804 22957203 WIPER LINK COLLAR 1 1.00 26 * H K03464000B PIN CONTACT 2 27 * H A000590000 H A00600000 POWER SWITCH 1 1.00 28 * H W500070000 2-CORE CABTYRE CORD 1.5 29 * H W200390000 ELECTRIC WIRE 0.1 30 * N S6110310SP NUT 11/64-40 1 31 * S D0650321TP HINGE SCREW D=6.5 H=3.2 1 32 * S M4030601SN SCREW M3 X 6 4 33 * S M4030601SN SCREW M3 X 6 1 34 * W S0310002KN SPRING WASHER M3 4 35 * W P0320501SC WASHER M3 1 36 * S S6111040SP SCREW 11/64-40 L=9.5 1 37 S S4120615SP SCREW 3/16-28 L=6 2 38 S D0600271SP HINGE SCREW D=6 H=2 1 39 N S6110310SP NUT 11/64-40 1 jintex.in

Page 41 — THREAD STAND COMPONENTS (1)

THREAD STAND COMPONENTS (1) 1 3 7 8 9 10 4 5 6 11 12 13 14 15 16 17 18 19 20 2 18 jintex.in

Page 42 — THREAD STAND COMPONENTS (1)

THREAD STAND COMPONENTS (1) No. C- Le- vel Cons Parts No. Replacement Supply Code Parts name Qty R- ep- TY Status Spec Remarks 1 11185167 22930358 THREAD STAND ASM. 1 1.00 2 WS1002560KR SPRING WASHER 10X18X2 1 3 B3307012000 THREAD GUIDE 2 4 B3310012000 Discontinue POSITION CUP SET SCREW 1 5 WS0641560KR SPRING WASHER 6.4X11.9X0.8 1 6 B3309012000 Discontinue POSITION CUP 1 7 B3308012000 Discontinue ROD WASHER 1 8 B3306012000 SPOOL ROD 1 9 NM6061061SE Discontinue NUT M6 1 10 B3302012000 SPOOL REST ROD 1 11 B3320704L00A 22931000 SPOOL PIN 2 1.00 12 B3311012000 Discontinue SPOOL REST CUSHION 1 13 11183209 22930358 SPOOL REST 1 1.00 14 WP0560860SE WASHER 5.6X12X0.8 2 15 WS0531060KR SPRING WASHER 5.3X8.3X0.8 2 16 NS6123881SE NUT 3/16-28 2 17 SM9061080SE SCREW M6 L=10 1 18 NM6100663SE NUT M10 2 19 SK3452000SE SK3452001SE WOOD SCREW D=4.5 L=20 3 1.00 20 11183100 22930358 THREAD STAND 1 1.00 jintex.in

Page 44 — THREAD STAND COMPONENTS(2)

THREAD STAND COMPONENTS(2) No. C- Le- vel Cons Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 13946751 22930358 THREAD STAND ASM. 1 1.00 1 * 13946751 MAO11532000 THREAD STAND ASM. 1 3.00 2 * 11185105 22930309 SPOOL REST ROD,LOWER 1 1.00 3 * 11185204 22930408 SPOOL REST ROD,UPPER 1 1.00 4 * 11969409 Discontinue THREAD GUIDE ARM B 2 5 * B3305704000A 22931307 Discontinue SPOOL REST ROD JOINT 1 1.00 6 * B3318704L00A THREAD GUIDE ARM JOIN 2 7 * B3311704000 22931406 Discontinue SPOOL REST ROD CAP 1 1.00 8 * B3320704L00A 22931000 SPOOL PIN 2 1.00 9 * 11966504 22930804 SPOOL REST 2 1.00 10 * B3311012000 SPOOL REST CUSHION 2 11 * 11185501 Discontinue SPOOL RETAINER 2 12 * B3317704000 NM6160511SE NUT 1 1.00 13 * B3319704L00 22931208 THREAD GUIDE 2 1.00 14 * WP1612616SE WASHER 16X30X2.6 2 15 * SM4051405SE SCREW M5 L=14 2 16 * NM6060001SE NUT M5 2 17 * SM6061610SC SCREW M6 L=16 2 18 * NM6050001SE NUT M5 2 19 * MAO11532000 CORD STAPLE 3 jintex.in

Page 45

BELT COVER COMPONENTS 2 3 5 6 5 6 27 26 25 15 2114 16 17 9 22 23 11 18 20 28 29 5 19 24 13 12 7 8 4

Page 46 — BELT COVER COMPONENTS

BELT COVER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 1 22535009 2 22535108 SS4151215SP Discontinue BELT COVER A BELT COVER B 1 1 2.00 2.00 2 22535108 WP0450801SD BELT COVER B 1 2.00 2 22535108 SK3412001SE BELT COVER B 1 2.00 2 22535108 SS4110915SP BELT COVER B 1 2.00 2 22535108 WP0450826SC BELT COVER B 1 1.00 2 22535108 40038990 BELT COVER B 1 1.00 2 22535108 22535603 BELT COVER B 1 2.00 2 22535108 10039105 BELT COVER B 1 1.00 3 10039105 40101337 BELT COVER SUPPORT ST 1 1. 4 10039659 BELT COVER PRESS PLATI 1 5 SS4150915SP SCREW 15/64-28 L=9 3 6 SS6110480SP SCREW 11/64-40 L=4.3 3 7 SK3482500SC SK3482501SE WOOD SCREW D=4.8 L=25 1 1.00 8 WP0501016SC WASHER 5X10.5X1 1 9 22536957 Discontinue BOBBIN DEVICE ASM. 1 10 * 22537203 BOBBIN PRESSER 1 11 * 22537302 Discontinue BOBBIN WINDER POST 1 12 B321155000 RUBBER BRAKE 1 13 * 11078102 PRESSER PLATE 1 14 * 11078250 THREAD TENSION BRACKI 1 15 * B3126012000 22921506 THREAD TENSION DISK 2 1.00 16 * B3129012B00 22929004 THREAD TENSION SPRING 1 1.00 17 11072204 TENSION NUT 1 18 * SS7081310SP SCREW 1/8-44 L=12.5 1 19 * SS4110515SP SCREW 11/64-40 L=5 1 20 * SD0490261SP HINGE SCREW D=4.9 H=2. 1 21 * SS7110840SP SCREW 11/64-40 L=7.8 1 22 * B3224771000 COLLAR 1 23 * B3210771000 BOBBIN STOP SPRING 1 24 * WP0480856SP WASHER 4.8X8.4X0.8 1 25 22535462 SYNCHRONIZER SUPPORT 1 26 * 22535454 SYNCHRONIZER SUPPORT 1 27 * WP0450801SD WASHER 4.5X10X0.8 1 28 SK3482500SC SK3482501SE WOOD SCREW D=4.8 L=25 2 1.00 29 WP0501016SC WASHER 5X10.5X1 2 SPECIAL ORDEI jintex.in

Page 47 — OIL RESERVOIR & KNEE LIFTER COMPONENTS

OIL RESERVOIR & KNEE LIFTER COMPONENTS JINప్రత్య.in

Page 48 — OIL RESERVOIR & KNEE LIFTER COMPONENTS

OIL RESERVOIR & KNEE LIFTER COMPONENTS No. C- le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 1 22534051 23502651 OIL RESERVOIR ASM. 1 1.00 2 22534002 22534051 OIL RESERVOIR 1 1.00 3 10038107 OIL RESERVOIR GASKET 1 4 1.00 11047107 RUBBER CUSHION 11024007 22932156 CONNECTING ROD, VERTI 1 1.00 11024502 22932453 KNEE PRESS LOD BEARING 1 1.00 11024205 22932305 KNEE PRESS ROD 1 1.00 11024106 22932206 SPRING 1 1.00 B1115850000 RUBBER PLUG 1 RO098240100 RUBBER RING 1 SS6700710SH SCREW 5/16-24 L=7 2 1.00 NS6150430SR NS6150430SP NUT 15/64-28 2 SS8153010SR SCREW 15/64-28 L=30 1 SS9151810SR SCREW 2 SS9182010SN SCREW 9/32-20 L=20 1 RE1000000K0 E-RING 10 1 22534101 OIL RESERVOIR BASE 1 B3421555000 KNEE PRESS LIFTER ROD 1 B8228125000 OIL RESERVOIR MAGNET 1 11023751 22934251 KNEE PRESS PLATE ASM. 1 1.00 11023702 22934202 KNEE PRESS PLATE 1 1.00 B3431552000A 22934509 KNEE PRESS PLATE COVE 1 1.00 B3419122000 22934608 KNEE LIFTER PLATE ROD 1 1.00 11024403 22934400 RUBBER 1 1.00 11023801 22934301 KNEE PRESS PLATE HOLD 1 1.00 jintex.in

Page 49

EXCLUSIVE PARTS FOR LZ-2286 jintex.in

Page 50 — EXCLUSIVE PARTS FOR LZ-2286

EXCLUSIVE PARTS FOR LZ-2286 No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22581409 22582407 THROAT PLATE 1 1.00 VARIOUS NOS.I 2 22585400 NEEDLE VIBRATING CAM. 1 1.00 3 22585657 40125633 WORM WHEEL COMPL. 1 1.00 4 * 22585608 22585657 WORM WHEEL HUB 1 1.00 5 10043415 19045657 WORM WHEEL 1 1.00 6 * SS7111120SP SS7111120TP SCREW 11/64-40 L=10.5 3 1.00 7 22585707 SHAFT 1 8 22586507 STOPPER 1 9 10043016 22527303 WORM A 1 1.00 SELECTIVE PAI 10 10043115 Discontinue WORM B 1 SELECTIVE PAI 11 10043214 Discontinue WORM C 1 SELECTIVE PAI 12 10043313 Discontinue WORM D 1 SELECTIVE PAI 13 10044014 NEEDLE VIBRATING ROD 1 14 10044105 ROD GUIDE 1 15 B2502280BOA FEED CAM ROLLER 1 SELECTIVE PAI 16 B2502280BOB FEED CAM ROLLER 1 SELECTIVE PAI 17 B2502280BOC FEED CAM ROLLER 1 SELECTIVE PAI 18 SS7111410SP SS7111410TP SCREW 11/64-40 L=14 3 1.00 19 SS8110422TP SCREW 11/64-40 L=4 1 20 SS8660610TP SCREW 1/4-40 L=6 4 21 SS8660810TP SCREW 1/4-40 L=8 1 22 SS8660970TP SCREW 1/4-40 L=8.5 1 23 22586259 22586267 SCALE ASM. 1 1.00 24 22586200 SCALE 1 25 22512453 22512461 SCALE MOUNTING BASE C 1 1.00 26 * SS6080320SP SCREW 1/8-44 L=2.5 2 VARIOUS NOS.I 27 22580864 PRESSER ASM. 1 28 * 10055069 PRESSER A ASM. 1 VARIOUS NOS.I 29 * 10055002 PRESSER LOWER A 1 30 * 10021004 PRESSER UPPER 1 31 * 10056109 22580864 PRESSER PIN A 1 1.00 選択部品 LZ-2280/2280N, 31 * 10056109 10055051 PRESSER PIN A 1 1.00 選択部品 LZ-2280N 31 * 10056109 40003542 PRESSER PIN A 1 1.00 選択部品 LZ-2290A 32 * B1525582000 SPRING 1 33 * SS6090810SP SS6090810TP SCREW 9/64-40 L=7.5 1 1.00 34 * 22580302 SAFETY COVER 1 35 22580260 PRESSER FOOT ASM. 1 VARIOUS NOS.I 36 * 22580252 22580260 PRESSER FOOT ASM. 1 1.00 VARIOUS NOS.I 37 * 22545206 22547558 PRESSER FOOT (UPPER) 1 1.00 38 * 22580203 PRESSER FOOT (LOWER) 1 1.00 39 * 10021103 PRESSER PIN 1 40 * B1525582000 SPRING 1 41 * SS6090810SP SS6090810TP SCREW 9/64-40 L=7.5 1 1.00 42 * 22545404 SAFETY COVER 1 43 22581508 FEED DOG 1 VARIOUS NOS.J 44 M6094350AAL RESISTANCE PACK AL ASM 1 FOR LZ-2286-7 45 M6094350AAF RESISTANCE PACK AF ASM 1 VARIOUS NOS.I 46 22586705 Discontinue TIMING GAUGE 1 47 MAB109000B0 TAPING FOOT 1 FOR LZ-2286T; 48 * MAB109000A0 TAPING PRESSER ASM. 1 49 * 22545404 SAFETY COVER 1 50 22580005 Discontinue THROAT PLATE 1 1.00 VARIOUS NOS.I 51 22580104 Discontinue FEED DOG 1 VARIOUS NOS.I 52 22584965 PRESSER FOOT ASM. 1 VARIOUS NOS.I 53 * 22545206 22547558 PRESSER FOOT (UPPER) 1 1.00 54 * 22584965 PRESSER FOOT (LOWER) 1 1.00 55 * 22545404 SAFETY COVER 1 56 * 10021103 PRESSER PIN 1 57 * B1525582000 SPRING 1 58 * SS6090810SP SS6090810TP SCREW 9/64-40 L=7.5 1 1.00 jintex.in

Page 51 — EXCLUSIVE PARTS FOR LZ-2285(1)

EXCLUSIVE PARTS FOR LZ-2285(1) 4 2 1 3 6 5 12 14~16 13 19 8~11 17 27 28 44 40 39 32~35 36 37 26 24 21 20 7 45 47 49 46 48 29 30 31 43 23 42 25 22 54 53 54 52 jintex.in

Page 52 — EXCLUSIVE PARTS FOR LZ-2285(1)

EXCLUSIVE PARTS FOR LZ-2285(1) No. C- Le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22592505 ARM SIDE COVER 1 2 10061554 THROAT PLATE ASM. 1 3 TA1871602R0 RUBBER PLUG 1 4 MC1923F0800 NEEDLE 438SUK 80 1 5 22585509 NEEDLE VIBRATING CAM 1 6 22585657 40125633 WORM WHEEL COMPL. 1 1.00 7 22585707 SHAFT 1 1.00 8 10043016 22527303 WORM A 1 SELECTIVE PAI 9 10043115 WORM B 1 SELECTIVE PAI 10 10043214 Discontinue WORM C 1 SELECTIVE PAI 11 10043313 Discontinue WORM D 1 SELECTIVE PAI 12 10044014 NEEDLE VIBRATING ROD 1 13 10044105 ROD GUIDE 1 14 B2502280B0A FEED CAM ROLLER 1 15 B2502280B0B FEED CAM ROLLER 1 16 B2502280B0C FEED CAM ROLLER 1 17 SS71111410SP SS71111410TP SCREW 11/64-40 L=14 3 1.00 18 SS8110422TP SCREW 11/64-40 L=4 1 19 SS8660610TP SCREW 1/4-40 L=6 4 20 SS8660810TP SCREW 1/4-40 L=8 1 21 SS8660970TP SCREW 1/4-40 L= 8.5 1 22 22592653 BASE ASM. 1 23 * 10054112 ARM SETTING BASE 1 24 * SS7110910TP SCREW 11/64-40 L= 8.5 2 25 * 22592604 MOUNTING PLATE 1 26 * 10016012 26301507 ARM 1 1.00 27 * 22512701 26307306 SHAFT 1 1.00 28 * SS6090620SP SS6090620TP SCREW 9/64-40 L=6 3 1.00 29 * WP1020616SD WASHER 2 30 * WZ1052010KP WAVED WASHER 1 31 * RC0100001KP SNAP RING M10 1 32 * 10016210 SHAFT 1 SELECTIVE PAI 33 * 10016319 SHAFT 1 SELECTIVE PAI 34 * 10016418 SHAFT 1 SELECTIVE PAI 35 * 10016517 SHAFT 1 SELECTIVE PAI 36 * NS6150310SP NUT 15/64-28 1 37 * 10017168 STOPPER ASM. 1 38 * RE0200000K0 E-RING 1 39 * 10018000 NUT 1 40 * 10018109 NUT STOPPER 1 41 * 10015360 LEVER ASM. 1 42 * RE0400000K0 E-RING 4 1 43 * 10017606 OIL SHIELD 1 44 * SS6090520SP SCREW 9/64-40 L= 5.0 1 45 22590053 SCALE ASM. 1 46 22586200 SCALE 1 47 * 22592802 SCALE MOUNTING BASE 1 48 * SS6080320SP SCREW 1/8-44 L= 2.5 2 49 * SS6111010SP SS6111010TP SCREW 11/64-40 L= 9.5 1 1.00 50 SS6110510SP SCREW 11/64-40 L=5 1 51 WP0480856SP WASHER 4.8X8.4X0.8 1 52 MAM097000A0 FAGOTTING FELLER 1 SPECIAL ORDE 53 MAM09700BA0 FAGOTING FOLDER ASM. 1 54 SS5110710SP SCREW 11/64-40 L=7 2 jintex.in

Page 53

EXCLUSIVE PARTS FOR LZ-2285(2) 14 11 12 13 9 10 8 5 6 3 7 4 2 25 23 24 22 19 20 17 16 21 18 15 31 27 32 67 71 72 LZ-2286 33 46 34 42 45 35 47 26 49 48 50 36 29 38 39~41 44 69 43 56 70 58 37 68 54 73 28 30 55 62 60 61 63 64 66 52 57 51 65 jintex.in

Page 54 — EXCLUSIVE PARTS FOR LZ-2285(2)

EXCLUSIVE PARTS FOR LZ-2285(2) No. Cons C- Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22591564 PRESSER FOOT ASM. 1 2 * 22591101 FINGER GUARD 1 3 * 10062701 10062750 PRESSER FOOT, LEFT 1 1.00 4 * 10062800 10062750 PRESSER FOOT, RIGHT 1 1.00 5 * 22591408 PRESSER FOOT ASM. 1 6 * 10063303 10062750 PIN 2 1.00 7 * 10063402 PRESSER FOOT, UPPER 1 8 * 10063501 PIN 1 9 * 10063600 SPRING 2 10 * SS8080410TP SCREW 1/8-44 L=3.5 1 11 * SS7111110TP SCREW 11/64-40 L=10.5 2 12 * SS6580752TP SCREW 1/8-40 L=7 1 13 * WP0220300SC WASHER 2 14 22591663 PRESSER FOOT ASM. 1 15 * 22591101 FINGER GUARD 1 16 * SS6580752TP SCREW 1/8-40 L=7 1 17 * 10062701 10062750 PRESSER FOOT, LEFT 1 1.00 18 * 10062800 10062750 PRESSER FOOT, RIGHT 1 1.00 19 * 10063204 10062750 PRESSER FOOT ARM 2 1.00 20 * 10063303 10062750 PIN 2 1.00 21 * 10063402 PRESSER FOOT, UPPER 1 22 * 10063501 PIN 1 23 * 10063600 SPRING 2 24 * SS8080410TP SCREW 1/8-44 L=3.5 1 25 * SS8111010TP SCREW 11/64-40 L=9.5 2 26 22590301 LEVER 1 27 B9113012000 WRENCH (9X10) 1 28 22590400 FEED CAM 1 29 22590509 SHAFT 1 30 10063808 WORM 1 31 10064004 FEED DOG 1 32 10064103 FEED ROCKER SHAFT 1 33 10064202 FEED ROCKER SHAFT CRA 1 34 10064301 BALL JOINT A 1 35 10064400 BALL JOINT B 1 36 10064608 FEED REGULATOR 1 37 10064905 FEED CAM SHAFT 1 38 10065001 FEED CAM ROLLER SHAF 1 39 B250228000A 26224709 FEED CAM ROLLER A 1 1.00 40 B250228000B 26239806 FEED CAM ROLLER B 1 1.00 41 B250228000C 26239905 FEED CAM ROLLER C 1 1.00 42 SS6121210SP SCREW 3/16-28 L=12 1 43 CS1031210SH THRUST COLLAR ASM. D= 1 44 NS6150430SP NUT 15/64-28 1 45 SD0601051SP HIGE SCREW D=6 H=13 1 46 WP0612066SP WASHER 6.1X11X2 1 47 WP0612066SP WASHER 6.1X11X2 1 48 NS6150430SP NUT 15/64-28 1 49 NM6060001SE NUT M6 1 50 SS71111410TP SCREW 11/64-40 L=14 3 1.00 51 CS1031210SH THRUST COLLAR ASM. D= 1 52 SS9661120CP SCREW 1/4-40 L=10.5 3 53 SS9661120CP SCREW 1/4-40 L=10.5 3 54 SS8660610TP SCREW 1/4-40 L=6 4 55 SS8660610TP SCREW 1/4-40 L=6 2 56 SS8660610TP SCREW 1/4-40 L=6 2 57 22586507 STOPPER 1 58 22590855 OIL SUPPLY PIPE ASM. 1 59 22590806 OIL SUPPLY PIPE 1 Discontinue Discontinue NO NECESSARY SPECIAL ORDE SELECTIVE PAI SELECTIVE PAI jintex.in

Page 55

EXCLUSIVE PARTS FOR LZ-2285(2) 14 11 12 13 9 10 8 5 6 3 4 2 25 23 24 22 19 20 17 16 21 18 15 31 27 32 67 71 72 LZ-2286 58 70 33 37 68 54 62 59 60 34 46 50 36 29 73 28 30 42 45 35 47 26 49 48 39~41 38 44 43 69 53 52 57 51 63 64 66 65 61 jintex.in

Page 57

EXCLUSIVE PARTS FOR LZ-2287 jintex.in

Page 58 — EXCLUSIVE PARTS FOR LZ-2287

EXCLUSIVE PARTS FOR LZ-2287 No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22592505 ARM SIDE COVER 1 1.00 2 22581409 22582407 THROAT PLATE 1 1.00 3 22585707 SHAFT 1 4 10044105 ROD GUIDE 1 5 10053007 WORM ASM. A 1 SELECTIVE PAI 6 10053106 WORM B 1 SELECTIVE PAI 7 10053205 WORM C 1 SELECTIVE PAI 8 10053304 WORM D 1 SELECTIVE PAI 9 10053452 WORM WHEEL ASM. 1 10 10053502 NEEDLE VIBRATING CAM 1 FOR LZ-2287 11 10053905 NEEDLE VIBRATING ROD 1 12 10053601 NEEDLE VIBRATING CAM 1 FOR LZ-2287B 13 B2502280B0A Discontinue FEED CAM ROLLER 1 SELECTIVE PAI 14 B2502280B0B Discontinue FEED CAM ROLLER 1 SELECTIVE PAI 15 B2502280B0C Discontinue FEED CAM ROLLER 1 SELECTIVE PAI 16 SS7111410SP SS7111410TP SCREW 11/64-40 L=14 3 1.00 17 SS8110422TP SCREW 11/64-40 L=4 1 18 SS8660610TP SCREW 1/4-40 L=6 4 19 SS8660810TP SCREW 1/4-40 L=8 1 20 SS8660970TP SCREW 1/4-40 L= 8.5 1 21 22592752 SCALE ASM. 1 22 22592703 SCALE 1 23 22592802 SCALE MOUNTING BASE 1 24 SS6080320SP SCREW 1/8-44 L= 2.5 2 25 22592653 BASE ASM. 1 26 22592604 MOUNTING PLATE 1 27 22512701 26307306 SHAFT 1 1.00 28 10015360 LEVER ASM. 1 29 10016012 26301507 ARM 1 30 10016210 SHAFT 1 SELECTIVE PAI 31 10016319 SHAFT 1 SELECTIVE PAI 32 10016418 SHAFT 1 SELECTIVE PAI 33 10016517 SHAFT 1 SELECTIVE PAI 34 10017168 STOPPER ASM. 1 35 10017606 OIL SHIELD 1 36 10018000 NUT 1 37 10018109 NUT STOPPER 1 38 10054112 ARM SETTING BASE 1 39 NS6150310SP NUT 15/64-28 1 40 RC0100001KP SNAP RING M10 1 41 RE0200000K0 E-RING 1 42 RE0400000K0 E-RING 4 1 43 SS6090520SP SCREW 9/64-40 L= 5.0 1 44 SS6090620SP SS6090620TP SCREW 9/64-40 L= 6 3 1.00 45 SS7110910TP SCREW 11/64-40 L= 8.5 2 46 WP1020616SD WASHER 2 47 WZ1052010KP WAVED WASHER 1 48 22586705 TIMING GAUGE 1 49 SS6111010SP SS6111010TP SCREW 11/64-40 L= 9.5 1 1.00 50 22580864 SAFETY COVER 1 51 22580302 PRESSER LOWER A 1 52 10055002 PRESSER UPPER 1 53 10021004 PRESSER PIN A 1 54 10056109 22580864 PRESSER PIN A 1 1.00 選択部品 LZ-2280/2280N, 54 10056109 10055051 PRESSER PIN A 1 1.00 選択部品 LZ-2280N 54 10056109 40003542 PRESSER PIN A 1 1.00 選択部品 LZ-2290A 55 SS6090810SP SS6090810TP SCREW 9/64-40 L= 7.5 1 1.00 56 B1525582000 SPRING 1 57 11527207 Discontinue WASHER 1 58 22581508 FEED DOG 1 VARIOUS NOS.I jintex.in

Page 59

EXCLUSIVE PARTS FOR LZ-2287 jintex.in

Page 60 — EXCLUSIVE PARTS FOR LZ-2287

EXCLUSIVE PARTS FOR LZ-2287 No. C- le- ons vel Parts No. Replacement Supply Code Parts name R- ep. Q- TY Status Spec Remarks 59 CS1031210SH THRUST COLLAR ASM. D= 1 60 SS8660610TP SCREW 1/4-40 L=6 2 61 22586507 STOPPER 1 62 22593107 BELT COVER 1 63 SS4120615SP SCREW 3/16-28 L=6 2 64 22584965 PRESSER FOOT ASM. 1 65 22547558 22584908 PRESSER FOOT (UPPER) 1 1.00 66 22584965 PRESSER FOOT (LOWER) 1 1.00 67 10021103 PRESSER PIN 1 68 22545404 SAFETY COVER 1 69 B1525582000 SPRING 1 70 SS6090810SP SS6090810TP SCREW 9/64-40 L= 7.5 1 1.00 VARIOUS NOS.I jintex.in

Page 61

FOR EXCLUSIVE PARTS FOR LZ-2281(-7) LZ-2281B用 FOR LZ-2281A LZ-2281A用 10 15 11 12 16 17 13 14 18 19 27 22 23 30 31-20 28 26 34 33 32 21 24 25 29 6 7 5 8 9 1 2 3 4 jintex.in

Page 62 — EXCLUSIVE PARTS FOR LZ-2281(-7)

EXCLUSIVE PARTS FOR LZ-2281(-7) No. C- le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22540751 SCALE PLATE ASM. 1 2 22540702 SCALE PLATE 1 3 22512453 22512461 Discontinue SCALE MOUNTING BASE C 1 1.00 4 SS6080320SP SCREW 1/8-44 L= 2.5 2 5 22542559 NEEDLE VIBRATING CAM 1 6 22542500 NEEDLE VIBRATING CAM 1 7 22510101 NEEDLE VIBRATING ROD 1 8 22510200 CAM COVER 1 9 SS2110920TP SCREW 11/64-40 L=8.5 2 10 22580369 PRESSER FOOT ASM. 1 11 10045060 10045052 PRESSER FOOT ASM. 1 1.00 12 22580302 SAFETY COVER 1 13 22581409 22582407 THROAT PLATE 1 1.00 14 22540009 FEED DOG 1 15 22548663 PRESSER FOOT ASM. 1 16 22548655 22548663 PRESSER FOOT ASM. 1 1.00 17 22547004 SAFETY COVER 1 18 22548010 THROAT PLATE 1 19 22548119 FEED DOG 1 20 M6093350AAL RESISTANCE PACK AL ASM 1 21 22541106 FEED DRIVING ADJUSTER 1 22 22540207 SCALE PLATE 1 23 11071909 FEED DIAL 1 24 22540454 BALANCE WEIGHT COMPI 1 25 22541007 40010276 CONNECTING ROD 1 1.00 26 B16085550A0 FEED ROCKER SHAFT CR/ 1 27 B1608555000 FEED ROCKER SHAFT CR/ 1 28 SS6121610TP SCREW 3/16-28 L=15.5 1 29 NS6680320SP NUT 9/32-28 1 30 22586705 TIMING GAUGE 1 31 M6093350AAS Discontinue RESISTANCE PACK AS ASM 1 32 22540108 PLATE B STOPPER PLATE 1 33 SS7111410TP SCREW 11/64-40 L=14 1 34 WP0480856SP WASHER 4.8X8.4X0.8 1 FOR LZ-2281B FOR LZ-2281B FOR LZ-2281B FOR LZ-2281A FOR LZ-2281A FOR LZ-2281A FOR LZ-2281-7

Page 63 — EXCLUSIVE PARTS FOR LZ-2288

EXCLUSIVE PARTS FOR LZ-2288 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17~27 28~31 32 33 34 35 36 37~40 41 42 43 44 45 46 47 48 49 50~53 54 55 56 57 58~61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 jintex.in

Page 64 — EXCLUSIVE PARTS FOR LZ-2288

EXCLUSIVE PARTS FOR LZ-2288 No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22581409 22582407 THROAT PLATE 1 1.00 2 10080961 PRESSER ASM. 1 3 1005051 PRESSER A ASM. 1 4 22580302 SAFETY COVER 1 5 22574156 ARM SHAFT OIL PIPE ASM 1 6 22574107 ARM SHAFT OIL PIPE 1 7 B3527552000 RUBBER JOINT 2 8 22574255 HEAD SUPPORT ROD ASM. 1 9 22586705 TIMING GAUGE 1 10 17348905 SOCKET SCREW KEYS 1 11 TA1050504R0 RUBBER PLUG 1 12 TA0980502R0 RUBBER PLUG 4 13 TA0980502R0 RUBBER PLUG 2 14 TA1550902R0 RUBBER PLUG 1 15 TA1750502R0 RUBBER PLUG 1 16 TA2200502R0 RUBBER PLUG 1 17 22568851 Discontinue CAM A ASM. 1 FOR LZ-2288A 18 22568950 Discontinue CAM B ASM. 1 FOR LZ-2288B 19 22569057 Discontinue CAM C ASM. 1 FOR LZ-2288C 20 22569156 Discontinue CAM D ASM. 1 FOR LZ-2288D 21 22569255 Discontinue CAM E ASM. 1 FOR LZ-2288E 22 22569354 Discontinue NEEDLE VIBRATING CAM 1 FOR LZ-2288F 23 22569453 Discontinue NEEDLE VIBRATING CAM 1 FOR LZ-2288G 24 22569552 Discontinue NEEDLE VIBRATING CAM 1 25 22569651 Discontinue NEEDLE VIBRATING CAM 1 FOR LZ-2288J 26 22569750 Discontinue NEEDLE VIBRATING CAM 1 FOR LZ-2288K 27 22569859 Discontinue NEEDLE VIBRATING CAM 1 FOR LZ-2288L 28 22571103 CAM ROLLER A 1 SELECTIVE PAI 29 22571202 CAM ROLLER B 1 SELECTIVE PAI 30 22571301 CAM ROLLER C 1 SELECTIVE PAI 31 22571400 CAM ROLLER D 1 SELECTIVE PAI 32 CS140111ATH Discontinue THRUST COLLAR ASM. D= 1 33 SS6660710TP SCREW 1/4-40 L=7 2 34 22570006 Discontinue CAM SHAFT 1 35 22570105 Discontinue CAM SHAFT METAL A 1 36 22570204 Discontinue CAM SHAFT BUSHING, B 1 37 22570303 CAM SHAFT GEAR A 1 SELECTIVE PAI 38 22570402 Discontinue CAM SHAFT GEAR B 1 SELECTIVE PAI 39 22570501 CAM SHAFT GEAR B 1 SELECTIVE PAI 40 22570600 Discontinue CAM SHAFT GEAR D 1 SELECTIVE PAI 41 22570758 CAM HOLDER COMPL. 1 42 22570907 CAM ARM 1 43 22571509 DRIVING SHAFT 1 44 22571608 DRIVING SHAFT METAL A 1 45 22571707 Discontinue DRIVING SHAFT METAL B 1 46 22571806 DRIVING ARM 1 47 22571905 DRIVING ROD 1 48 22572457 WORM WHEEL COMPL. 1 49 22571004 Discontinue CAM ROLLER SHAFT 1 50 22572002 DRIVING PIN A 1 SELECTIVE PAI 51 22572101 Discontinue DRIVING PIN B 1 SELECTIVE PAI 52 22572200 DRIVING PIN C 1 SELECTIVE PAI 53 22572309 DRIVING PIN D 1 SELECTIVE PAI 54 SS8110422TP SCREW 11/64-40 L=4 2 55 SS8660610TP SCREW 1/4-40 L=6 4 56 22573802 26312405 SHAFT 1 1.00 57 22573901 Discontinue FEEDER CHANGE LINK A 1 SELECTIVE PAI 58 10053007 Discontinue WORM ASM. A 1 SELECTIVE PAI 59 10053106 Discontinue WORM B 1 SELECTIVE PAI 60 10053205 Discontinue WORM C 1 SELECTIVE PAI jintex.in

Page 65

EXCLUSIVE PARTS FOR LZ-2288 jintex.in

Page 66 — EXCLUSIVE PARTS FOR LZ-2288

EXCLUSIVE PARTS FOR LZ-2288 No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 61 10053304 Discontinue WORM D 1 62 CS140111ATH Discontinue THRUST COLLAR ASM. D= 2 63 * SS6660710TP SCREW 1/4-40 L=7 4 64 SM6051402TP SCREW M5X0.8 L=14 1 65 SM6051402TP SCREW M5X0.8 L=14 3 66 SM8050612TP SCREW M5X6 2 67 SS8110422TP SCREW 11/64-40 L=4 2 68 SS8110422TP SCREW 11/64-40 L=4 2 69 SS8660810TP SCREW 1/4-40 L=8 2 70 SS8661012TP SCREW 1 71 SS9151740CP SCREW 15/64-28 L=17 1 72 TA2201002R0 Discontinue PLUG 1 73 22581508 FEED DOG 1 74 22584965 PRESSER FOOT ASM. 1 75 * 22545206 22547558 PRESSER FOOT (UPPER) 1 1.00 76 * 22584965 22584965 PRESSER FOOT (LOWER) 1 1.00 77 * 10021103 PRESSER PIN 1 78 * 22545404 SAFETY COVER 1 79 * B1525582000 SPRING 1 80 * SS6090810SP SS6090810TP SCREW 9/64-40 L= 7.5 1 1.00 SELECTIVE PAI VARIOUS NOS. jintex.in

Page 67 — SPECIAL ORDER PARTS FOR LZ-2280,2281,2286,2288

SPECIAL ORDER PARTS FOR LZ-2280,2281,2286,2288 1 4 7 3 2 10 13 9 5 11 16 12 15 17 6 14 8 jintex.in

Page 68 — SPECIAL ORDER PARTS FOR LZ-2280,2281,2286,2288

SPECIAL ORDER PARTS FOR LZ-2280,2281,2286,2288 No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22561559 AUTOMATIC BACK MACH 1 1 2 * 22559058 40108060 MAGNET ASM. 1 1.00 3 * 22544159 REVERSE FEED MAGNET L 1 4 * 22559850 REVERSE FEED SWITCH 1 5 * 11101003 22953509 PLUNGER ARM PIN 1 1.00 6 * 11102605 22954705 CORD HOLDER 1 1.00 7 * B1213372000 SCREW 1 8 * D2467555B00 RUBBER PLUG 2 9 * D2468555B00 RUBBER PLUNGER 1 10 * NS6150310SP NUT 15/64-28 1 11 * RE0400000K0 E-RING 4 2 12 * RE1200000K0 E-RING 12 1 13 * SD0791503SP HINGE SCREW D=7.94 H=1 1 14 * SS4120615SP SCREW 3/16-28 L=6 2 15 * SS4150915SP SCREW 15/64-28 L=9 2 16 * WP1602616SZ WASHER 16X24X2.6 1 17 * 29141900 INSTRUCTION MANUAL 1 jintex.in

Page 69 — EXCLUSIVE PARTS FOR R TYPE

EXCLUSIVE PARTS FOR R TYPE 1 8 13 14 15 3 12 4 21-22 LZ 2280R 18 5 6 2 7 9 10 11 16 19 20 17

Page 70 — EXCLUSIVE PARTS FOR R TYPE

EXCLUSIVE PARTS FOR R TYPE No. C- le- ons vel Parts No. Replacement Supply Code Parts name Qty R- ep. Q- TY Status Spec Remarks 1 22528459 22528467 THREAD TENSION ASM. 1 1.00 2 22528350 23547557 THREAD TENSION DISK CO 1 1.00 3 22528152 THREAD TENSION ROD AS 1 4 10006104 TAKE-UP SPRING 1 5 10005650 10005668 TENSION POST ASM. 1 1.00 6 22528509 FELT 2 7 10006005 TENSION DISC HOLDER 1 8 10007854 TENSION RELEASE PIN AS 1 9 B3121352000 TENSION SPRING 1 10 B3120125000 ROTATING STOPPER 1 11 B3116125000 TENSION NUT 1 12 SS8090670SP SCREW 9/64-40 L= 5.5 1 13 22503155 Discontinue FELT THREAD GUIDE ASM 1 14 22503106 FELT THREAD GUIDE 1 15 22503205 22503155 FELT 1 1.00 16 22507701 THRED RACK, RIGHT 1 17 B1505227T00A PRESSER SPRING T 1 18 22535900 Discontinue TIMMING GAUGE, RIGHT 1 19 BME0000R000 Discontinue NAME PLATE 1 20 29187606 Discontinue INSTRUCTION MANUAL 1 21 M6093350AAS Discontinue RESISTANCE PACK AS ASM 1 22 M6094350AAL RESISTANCE PACK AL ASM 1 FOR LZ-2280R FOR LZ-2280R- FOR LZ-2281R- jintex.in

Page 71 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10000206 2 15 10016012 50 26 10026706 22 35 10001709 2 17 10016012 56 29 10026805 22 36 10004208 6 7 10016210 14 7 10026904 22 37 10004307 6 8 10016210 50 32 10027001 22 43 10005650 2 53 10016210 56 30 10027100 22 44 10005650 68 5 10016319 14 8 10027209 22 45 10006005 2 55 10016319 50 33 10027308 22 46 10006005 68 7 10016319 56 31 10027307 22 48 10006104 2 52 10016418 14 9 10027506 22 47 10006104 68 4 10016418 50 34 10028702 22 49 10007854 2 56 10016418 56 32 10028801 22 50 10007854 68 8 10016517 14 6 10028900 20 39 10008100 8 10 10016517 50 35 10029007 22 51 10008407 8 13 10016517 56 33 10029304 22 57 10008506 8 14 10016608 12 11 10029601 22 52 10008605 8 15 10017168 14 10 10030104 26 38 10008753 8 16 10017168 50 37 10030203 26 8 10010304 8 46 10017168 56 34 10030302 26 9 10010502 8 47 10017317 14 4 10030401 26 10 10011004 12 24 10017408 14 14 10030609 26 11 10011104 12 28 10017606 14 15 10030708 26 12 10011203 12 27 10017606 50 43 10030807 26 13 10011302 12 28 10017606 56 35 10030906 26 14 10011500 12 29 10017705 14 45 10031003 26 15 10011807 12 33 10018000 14 11 10031300 26 16 10011906 12 34 10018000 50 39 10031409 26 17 10012003 12 35 10018000 56 36 10031516 26 18 10012102 12 36 10018109 14 12 10031615 26 19 10012201 12 30 10018109 50 40 10031714 26 20 10012409 12 31 10018109 56 37 10031805 6 21 10012508 12 32 10021004 48 30 10031904 6 22 10012607 12 13 10021004 56 53 10032001 6 23 10012706 12 14 10021103 16 45 1003207 26 21 10012805 12 15 10021103 18 61 10035004 28 12 10012904 12 16 10021103 48 56 10035011 28 8 10013019 10 61 10021103 58 67 10035301 28 8 10013118 10 62 10021103 64 77 10035509 54 61 10013407 10 67 10022010 16 17 10035608 8 18 10013803 10 68 10022309 16 18 10035707 28 19 10015105 14 44 10022606 16 28 10037109 28 16 10015360 14 13 10026102 22 9 10037307 6 11 10015360 50 41 10026201 22 10 10037406 6 11 10015360 56 28 10026300 22 11 10038107 46 3 10015907 14 41 10026508 22 12 10039105 44 3 10016012 14 5 10026607 22 32 10039659 44 4 INDEX - 1 jintex.in

Page 72 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 10043016 48 9 10064004 52 31 11072204 44 17 10043016 50 8 10064103 52 32 11072501 36 10 10043115 48 10 10064202 52 33 11072709 38 23 10043115 50 9 10064301 52 34 11078102 44 13 10043214 48 11 10064400 52 35 11078250 44 14 10043214 50 10 10064608 52 36 11100500 20 24 10043313 48 12 10064905 52 37 11101003 36 5 10043313 50 11 10065001 52 38 11101003 36 5 10043412 48 5 10065209 54 63 11102001 36 5 10043461 54 73 10100410 6 4 11102100 36 6 10044014 48 13 10119907 20 20 11102209 36 7 10044014 50 12 10120004 20 21 11102308 36 9 10044105 48 14 10125904 28 18 11102605 66 6 10044105 50 13 10208601 38 4 11103001 38 18 10044105 56 4 10208700 38 10 1110400 38 19 10045060 60 11 10208858 38 8 1110509 38 20 10053007 56 5 10604809 8 41 1110707 38 21 10053007 62 58 11006119 2 19 1110806 38 22 10053106 56 6 11001609 6 9 1111804 38 25 10053106 62 59 11006905 16 13 11112000 38 24 10053205 56 7 11007101 16 12 11183100 40 20 10053205 62 60 11010907 10 64 11183167 40 1 10053304 56 8 11015906 26 33 11183209 40 13 10053304 64 61 11023702 46 21 11185105 42 2 10053452 56 9 11023751 46 20 11185204 42 3 10053502 56 10 11023801 46 25 11185501 42 11 10053601 56 23 11024007 46 5 11212503 20 12 10054005 56 11 11024106 46 8 11234408 34 12 10054112 50 23 11024205 46 7 11234507 34 13 10054112 56 38 11024403 46 24 11527207 56 57 10055002 48 29 11024502 46 6 11966504 42 9 10055002 56 52 11030301 2 46 11969409 42 4 10055051 62 3 11032562 8 40 13729702 26 36 10055069 48 28 11040854 30 27 13946751 42 1 10056109 48 31 11041308 30 28 17348905 62 10 10056109 56 54 11041407 30 29 19800903 26 39 10061554 50 2 11043601 2 21 19801000 26 40 10062701 52 17 11044054 6 14 19801109 26 42 10062800 52 18 11046604 2 20 19801208 26 43 10063204 52 19 11047107 46 4 19801307 26 41 10063303 52 20 11052701 20 26 19801406 26 44 10063402 52 21 11070901 2 18 19801505 26 45 10063501 52 22 11071602 16 19 19801604 26 46 10063600 52 23 11071800 16 23 22501159 2 1 10063808 52 30 11071909 60 23 22501209 2 2 INDEX - 2 jintex.in

Page 73 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22501357 2 3 22510101 60 7 22520159 22 7 22501506 2 4 22510200 12 23 22523708 26 1 22501605 2 5 22510200 60 8 22523807 26 2 22501704 2 6 22512008 14 2 22523906 26 3 22501803 6 1 22512057 14 1 22524151 26 37 22501902 6 3 22512156 14 28 22524169 26 35 22501951 6 2 22512206 14 33 22524201 26 5 22502009 2 7 22512206 14 33 22524805 26 7 22502108 2 8 22512305 14 35 22525059 26 6 22502207 2 9 22512354 14 34 22525851 26 47 22502504 4 73 22512453 14 36 22526206 26 48 22502603 2 10 22512453 48 25 22528053 2 49 22502702 2 11 22512453 60 3 22528152 2 51 22502801 2 12 22512503 14 39 22528152 68 3 22502900 2 13 22512552 14 38 22528350 2 50 22503007 2 14 22512602 14 40 22528350 68 2 22503106 68 14 22512701 14 3 22528459 68 1 22503155 68 13 22512701 50 27 22528509 2 54 22503205 68 15 22512701 56 27 22528509 68 6 22505101 8 1 22512909 12 4 22528608 4 61 22505200 8 2 22513006 12 5 22528764 4 65 22505259 8 2 22513105 12 3 22529002 4 62 22505309 8 6 22513204 12 6 22529101 4 63 22505408 8 7 22515357 16 9 22529200 4 64 22505507 8 8 22515506 16 10 22531156 28 1 22505705 8 17 22518005 20 1 22531206 28 2 22506109 8 71 22518104 20 2 22531305 28 3 22506208 10 42 22518203 20 3 22531552 28 4 22507156 8 42 22518351 20 4 22531701 28 5 22507305 8 43 22518401 20 5 22531909 28 6 22507404 8 44 22518500 20 7 22532006 28 7 22507503 8 45 22518559 20 6 22534002 46 2 22507701 68 16 22518609 20 8 22534051 46 1 22509103 8 59 22518708 20 9 22534101 46 17 22509152 8 58 22518807 20 10 22535009 44 1 22509202 8 60 22518906 20 11 22535108 44 2 22509400 10 65 22519102 20 16 22535454 44 26 22509509 10 66 22519201 20 17 22535462 44 25 22509608 12 8 22519300 20 18 22535801 4 74 22509657 12 7 22519508 22 1 22535900 68 18 22509707 12 2 22519607 22 2 22536957 44 9 22509756 12 1 22519706 22 3 22537203 44 10 22510002 12 21 22519805 20 43 22537302 44 11 22510051 12 20 22519904 22 5 22540009 60 14 22510101 12 22 22520001 22 6 22540108 60 32 INDEX - 3 jintex.in

Page 74 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22540207 60 22 22548903 18 60 22562102 38 16 22540454 60 24 22548960 18 58 22562201 38 17 22540702 60 2 22551550 8 34 22564157 34 1 22540751 60 1 22551568 8 33 22564256 34 2 22541007 60 25 22552400 6 13 22564454 34 3 22541106 60 21 22552756 30 54 22564702 34 4 22542500 60 6 22552764 30 51 22564801 34 5 22542559 60 8 22552806 30 52 22564959 34 29 22542708 4 67 22552905 30 53 22565105 34 30 22544159 36 2 22554158 30 1 22565204 34 6 22544159 66 3 22554356 30 2 22565303 34 7 22545008 6 28 22554505 30 3 22565402 34 8 22545107 24 59 22554604 30 4 22565501 34 9 22545206 16 44 22554703 30 5 22565659 34 10 22545206 18 59 22554802 30 6 22565857 34 11 22545206 48 53 22554901 30 7 22566152 34 31 22545206 58 65 22555007 30 8 22566301 34 36 22545206 64 75 22555106 30 9 22568851 62 17 22545305 16 43 22555205 30 10 22568950 62 18 22545354 16 42 22555304 30 11 22569057 62 19 22545362 16 41 22555403 30 12 22569156 62 20 22545404 16 48 22555551 30 13 22569255 62 21 22545404 18 62 22555858 30 30 22569354 62 22 22545404 48 55 22556054 30 16 22569453 62 23 22545404 58 68 22556153 30 25 22569552 62 24 22545404 64 78 22556302 30 17 22569651 62 25 22546808 16 52 22556450 30 18 22569750 62 26 22547004 16 8 22556609 30 19 22569859 62 27 22547004 18 56 22556708 30 20 22570006 62 34 22547004 60 17 22556807 30 21 22570105 62 35 22547806 16 53 22556906 30 14 22570204 62 36 22547905 16 3 22557003 30 15 22570303 62 37 22547954 16 2 22559058 36 1 22570402 62 38 22547962 16 1 22559058 66 2 22570501 62 39 22548010 6 6 22559850 36 4 22570600 62 40 22548010 60 18 22559900 36 4 22570758 62 41 22548119 22 8 22559900 36 4 22570907 62 42 22548119 60 19 22561559 66 1 22571004 62 49 22548606 16 51 22561708 38 11 22571103 62 28 22548655 16 50 22561757 38 1 22571202 62 29 22548655 60 16 22561807 38 3 22571301 62 30 22548663 16 49 22561856 38 2 22571400 62 31 22548663 60 15 22561906 38 7 22571509 62 43 22548705 6 36 22561955 38 6 22571608 62 44 22548804 24 61 22562052 38 15 22571707 62 45 INDEX - 4 jintex.in

Page 75 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 22571806 62 46 22585707 56 3 B13071550A0 26 34 22571905 62 47 22586200 48 24 B13081550A0 26 4 22572002 62 50 22586200 50 46 B1502541000 16 22 22572101 62 51 22586259 48 23 B1505227000A 16 21 22572200 62 52 22586507 48 8 B1505227T00A 68 17 22572309 62 53 22586507 52 58 B1510227000 16 20 22572457 62 48 22586507 58 61 B1511552000 16 11 22573802 62 56 22586705 48 46 B1517552000 16 26 22573901 62 57 22586705 54 72 B1521555000 16 24 22574107 62 6 22586705 56 48 B1523226000 16 27 22574156 62 5 22586705 60 30 B1525582000 16 47 22574255 62 8 22586705 62 9 B1525582000 18 63 22580005 48 50 22590053 50 45 B1525582000 48 57 22580104 48 51 22590301 52 26 B1525582000 56 56 22580203 48 38 22590400 52 28 B1525582000 58 69 22580252 48 36 22590509 52 29 B1525582000 64 79 22580260 48 35 22590806 52 60 B1604141H00 22 33 22580302 48 34 22590855 52 59 B1604155000 22 34 22580302 56 51 22591101 52 15 B160855000 60 27 22580302 60 12 22591408 52 5 B16085550A0 60 26 22580302 62 4 22591564 52 1 B1609804A00 22 38 22580369 60 10 22591663 52 14 B1609804B00 22 39 22580864 48 27 22592505 50 1 B1609804C00 22 40 22580864 56 50 22592505 56 1 B1609804D00 22 41 22580864 62 2 22592604 50 25 B1609804E00 22 42 22581409 48 1 22592604 56 26 B1631012B00 20 23 22581409 56 13 22592653 50 22 B164655000 22 54 22581409 60 1 22592653 56 25 B1653470000 22 53 22581409 62 43 22592703 56 22 B1808552000 26 32 22581508 48 58 22592752 56 21 B1810552000 8 19 22581508 56 73 22592802 50 47 B1905541A00 8 48 22581508 64 76 22592802 56 23 B1905541B00 8 49 22584908 48 54 22593107 54 70 B1905541C00 8 50 22584908 58 66 22593107 58 62 B1905541D00 8 51 22584908 64 76 29141900 66 17 B2024771000 34 17 22584965 48 52 29187606 68 20 B2034372000 34 16 22584965 58 64 B1114280000 20 19 B250228000A 52 39 22584965 64 74 B1115850000 46 9 B250228000B 52 40 22585400 48 2 B1114855000 20 27 B250228000C 52 41 22585509 50 5 B1203227000A 8 11 B2502280B0A 48 15 22585608 48 4 B1208552000A 8 12 B2502280B0A 50 14 22585657 48 3 B1213372000 36 17 B2502280B0A 56 13 22585657 50 6 B1213372000 66 7 B2502280B0B 48 16 22585707 48 7 B1214038000 28 14 B2502280B0B 50 15 22585707 50 7 B130155000 28 10 B2502280B0B 56 14 INDEX - 5 jintex.in

Page 76 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. B2502280B0C 48 17 B390555000 28 43 D2468555B00 66 9 B2502280B0C 50 16 B3506555000 28 44 D2515232D00 20 22 B2502280B0C 56 15 B3507555000 28 46 D3133555B00 32 63 B2508704000 20 25 B3508555000 28 47 EA9500B0100 28 53 B2560372000 34 14 B3524552000 28 13 EA9500B0100 30 31 B2608761000 14 16 B3527552000 54 62 EA9502B0200 2 44 B2616372000 28 20 B3527552000 62 7 GAK33041000 16 29 B2626372000 34 15 B3534155000 28 15 GAK33042000 16 30 B3116125000 2 59 B3538112000 28 17 HA000590000 38 27 B3116125000 68 11 B3554481000 54 64 HA001900000 36 8 B3120125000 2 58 B3565771000 28 21 HK00443002A 30 50 B3120125000 68 10 B8228125000 46 19 HK034610140 32 61 B3121352000 68 9 B9113012000 52 27 HK03464000B 36 11 B3126012000 44 15 BME0000R000 68 19 HK03464000B 38 26 B3129012A00 2 57 BT0500300EA 28 33 Hw200390000 38 29 B3129012B00 44 16 BT0600402EA 28 37 Hw500070000 36 12 B3210771000 44 23 CM300200001 6 35 Hw500070000 38 28 B3211555000 44 12 CM3002000A1 6 34 Hx00123000A 34 37 B3224771000 44 22 CM300200101 6 31 M40071100AA 8 36 B3302012000 40 10 CM3002001A1 6 32 M40071100AB 8 35 B3305704000A 42 5 CQ202000000 10 70 M6093350AAF 6 33 B3306012000 40 8 CQ202000000 28 54 M6093350AAL 6 27 B3307012000 40 3 CQ303000000 54 69 M6093350AAL 60 20 B3308012000 40 7 CQ500600000 54 68 M6093350AAS 6 20 B3309012000 40 6 CS0640863SH 34 28 M6093350AAS 60 31 B3310012000 40 4 CS0790720TH 12 16 M6093350AAS 68 21 B3310112000 40 12 CS079073ASH 28 40 M6094350AAF 48 45 B3310112000 42 10 CS095101BSH 30 49 M6094350AAL 48 44 B3311704000 42 7 CS1031210SH 12 40 M6094350AAL 68 22 B3317704000 42 12 CS1031210SH 20 32 MAB109000A0 48 48 B3318704L00A 42 6 CS1031210SH 52 52 MAB109000B0 48 47 B3319704L00 42 13 CS1031210SH 58 59 MAM09700A0 50 52 B3320704L00A 40 11 CS103121BSH 12 41 MAM09700BA0 50 53 B3320704L00A 42 8 CS1111010SH 22 21 MAO11532000 42 19 B3416552000 16 14 CS1111019SH 22 22 MC1923F0800 8 52 B3416552000 16 16 CS140111ATH 62 32 MC1923F0800 50 4 B3419122000 46 15 CS140111ATH 64 62 NM60300000E 28 50 B3421555000 46 18 D2107490D00 38 9 NM6030001SC 30 55 B3431552000A 46 22 D2107555B00 30 26 NM6040001SN 30 56 B3431581000 16 25 D2112555B00 2 45 NM6050001SE 42 18 B3501555000 28 45 D2467555B00 32 62 NM6060001SE 52 50 B35015550A0 28 41 D2467555B00 66 8 NM6061066SE 40 9 B3502555000 28 51 D2468555B00 20 42 NS6080340SP 34 24 B3503555000 28 42 D2468555B00 36 16 NS6110310SP 38 39 INDEX - 6 jintex.in

Page 77 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. NS6120310SP 20 RO029180100 28 39 SS1110840SP 2 27 NS6120310SP 22 RO037180100 16 35 SS2090710SP 2 33 NS6120310SP 34 RO044240100 8 27 SS2090810SP 6 17 NS6123881SE 40 RO048190100 8 28 SS2110920TP 12 24 NS6150310SP 14 RO069180100 12 39 SS2110920TP 30 46 NS6150310SP 28 RO074240100 20 36 SS2110920TP 60 9 NS6150310SP 30 RO098240100 46 10 SS2111010TP 30 47 NS6150310SP 36 RO195240100 2 42 SS3090520SP 38 14 NS6150310SP 50 RO437200200 8 23 SS4080610SP 22 25 NS6150310SP 56 SB109530100 26 27 SS4080620TP 26 30 NS6150310SP 66 SB120000100 8 4 SS4090610SP 14 31 NS6150430SP 30 SD0481451SP 34 23 SS4110515SP 6 10 NS6150430SP 52 SD0600261SP 44 20 SS4110515SP 28 38 NS6150430SR 46 SD0600271SP 38 38 SS4110515SP 30 60 NS6620310SP 16 SD0600291TP 30 34 SS4110515SP 44 19 NS6680320SP 60 SD0600321SP 20 37 SS4110615SP 36 13 NS6680410SP 22 SD0600321SP 22 13 SS4110715SP 8 56 NS6700320SP 6 SD0601051SP 52 45 SS4110715SP 20 15 PS0300182KF 30 SD0630275SP 16 36 SS4110715SP 28 28 PS0400202KH 10 SD0630301SP 16 32 SS4110915SP 2 32 RC0100001KP 14 SD0640241SP 34 21 SS4110915SP 4 71 RC0100001KP 30 SD0640751SP 2 29 SS4110915SP 6 26 RC0100001KP 50 SD0650321TP 38 31 SS4110915SP 8 55 RC0200000K0 14 SD0791503SP 30 41 SS4110915SP 30 39 RE0200000K0 50 SD0791503SP 36 22 SS4110915SP 54 65 RE0200000K0 56 SD0791503SP 66 13 SS4111215SP 6 15 RE0250000K0 30 SD0800402TP 14 27 SS4111215SP 28 35 RE0300000K0 22 SD0900701TP 22 26 SS4120615SP 2 34 RE0300000K0 34 SE4301031SR 28 52 SS4120615SP 20 41 RE0320000K0 38 SK3452000SE 40 19 SS4120615SP 30 57 RE0400000K0 14 SK3482500SC 44 28 SS4120615SP 34 25 RE0400000K0 30 SL4030881SF 34 32 SS4120615SP 36 24 RE0400000K0 36 SM4030601SN 38 33 SS4120615SP 38 37 RE0400000K0 50 SM4031001SC 28 48 SS4120615SP 54 71 RE0400000K0 56 SM4031501SC 36 15 SS4120615SP 58 63 RE0500000K0 16 SM4040601SB 30 36 SS4120615SP 66 14 RE0500000K0 30 SM4051405SE 42 15 SS4120915SP 34 18 RE0600000K0 16 SM6051402TP 64 65 SS4121015SP 2 48 RE0600000K0 30 SM6061610SC 42 17 SS4121015SP 14 46 RE0900000K0 34 SM8050612TP 64 66 SS4121015SP 34 38 RE1000000K0 46 SM9061080SE 40 17 SS4121215SP 6 25 RE1200000K0 36 SQ1110402MZ 28 34 SS4121415SP 2 26 RE1200000K0 66 SQ1150451MZ 28 36 SS4150915SP 30 32 RO029180100 8 SS1090510SP 30 22 SS4150915SP 36 18 SS1090930SP 8 31 SS4150915SP 44 5 INDEX - 7 jintex.in

Page 78 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SS4150915SP 66 15 SS6660710TP 22 23 SS8110422TP 64 68 SS5090420SP 2 43 SS6660710TP 26 24 SS8110510SP 28 9 SS5110710SP 22 30 SS6660710TP 30 48 SS8110750SP 4 66 SS5110710SP 50 54 SS6660710TP 62 33 SS8111010TP 52 25 SS6060210SP 6 18 SS6660710TP 64 63 SS8120740SP 10 69 SS6080320SP 14 37 SS6700710SH 46 11 SS8120740SP 22 17 SS6080320SP 48 26 SS7060310SP 8 57 SS8150410SP 12 43 SS6080320SP 50 30 SS7080410SP 2 28 SS8150510TP 16 40 SS6080320SP 56 24 SS7080520SP 8 53 SS8150510TP 22 4 SS6080320SP 60 4 SS7081310SP 44 18 SS8150710SP 12 42 SS6090420SP 30 23 SS7090410SP 14 42 SS8150710SP 16 34 SS6090520SP 14 26 SS7090610SP 30 44 SS8150710SP 24 60 SS6090520SP 50 44 SS7090710SP 30 24 SS8150710SP 26 25 SS6090520SP 56 68 SS7090910TP 8 54 SS8150710SP 28 22 SS6090540SP 4 33 SS7090910TP 14 47 SS8150822TP 26 26 SS6090540SP 34 19 SS7110540SP 34 27 SS8151150SP 8 21 SS6090620SP 14 28 SS7110840SP 44 21 SS8151150SP 8 37 SS6090620SP 50 44 SS7110910TP 12 19 SS815120SP 16 39 SS6090620SP 56 54 SS7110910TP 22 29 SS8153010SR 46 13 SS6090810SP 16 64 SS7110910TP 50 24 SS8660530TP 28 27 SS6090810SP 18 57 SS7111010TP 18 57 SS8660610TP 12 37 SS6090810SP 56 55 SS7111010TP 52 11 SS8660610TP 48 20 SS6090810SP 58 70 SS7111120SP 48 6 SS8660610TP 50 19 SS6110480SP 44 6 SS7111410SP 48 18 SS8660610TP 52 57 SS6110510SP 50 31 SS7111410SP 50 17 SS8660610TP 56 18 SS6111010SP 26 49 SS7111410SP 52 51 SS8660610TP 58 60 SS6111010SP 50 49 SS7111410TP 56 16 SS8660810TP 22 24 SS6111010SP 56 36 SS7111410TP 60 33 SS8660810TP 26 29 SS6111040SP 38 31 SS7121410TP 12 9 SS8660810TP 48 21 SS6111052TP 22 58 SS7121410TP 20 33 SS8660810TP 50 20 SS6111140SP 22 25 SS7121410TP 22 55 SS8660970TP 12 38 SS6111140SP 28 38 SS7151120SP 8 22 SS8660970TP 48 22 SS6121210SP 8 35 SS7620750SP 14 48 SS8660970TP 50 21 SS6121210SP 2 42 SS7681650TP 8 26 SS8660970TP 56 20 SS6121610TP 20 40 SS8080410TP 52 24 SS8661012TP 64 70 SS6121610TP 22 28 SS8090670SP 2 60 SS9090610TP 12 18 SS6121610TP 60 28 SS8090670SP 68 12 SS9090610TP 34 34 SS6121840SP 20 35 SS8110410TP 20 13 SS9110620TP 34 35 SS6121860SP 20 69 SS8110422TP 48 19 SS9111610SP 36 14 SS6580752TP 4 16 SS8110422TP 50 18 SS9151740CP 64 71 SS6580752TP 22 16 SS8110422TP 56 17 SS9151810SR 46 14 SS6580752TP 52 54 SS8110422TP 62 54 INDEX - 8 jintex.in

Page 79 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. SS9182010SN 46 15 WP1612616SE 42 14 SS9661120CP 52 54 WS0310002KN 38 34 TA0750404R0 2 24 WS0510002KP 6 30 TA0750704R0 2 40 WS0510002KP 20 29 TA0800504R0 2 22 WS0531060KR 40 15 TA0900707R0 2 36 WS0641560KR 40 5 TA0950806R0 6 19 WS1002560KR 40 2 TA0980502R0 62 13 WT0320002KZ 28 49 TA1050504R0 62 11 WT0530002KS 2 25 TA1050604R0 2 23 WZ0641510KP 2 30 TA1100604R0 2 38 WZ0850302K0 14 17 TA1250705R0 2 37 WZ1052010KP 14 50 TA1250705R0 4 72 WZ1052010KP 20 14 TA1550902R0 62 14 WZ1052010KP 50 30 TA1750502R0 62 15 WZ1052010KP 56 47 TA1871602R0 50 3 TA2200502R0 62 16 TA2201002R0 64 72 WP0220300SC 52 13 WP0320501SC 38 35 WP03305000E 4 70 WP0371016SD 14 43 WP0371016SD 38 13 WP0371036SD 14 52 WP0450801SD 8 39 WP0450801SD 44 27 WP0450846SP 22 56 WP0480856SP 44 24 WP0480856SP 50 51 WP0480856SP 60 34 WP0501016SC 44 29 WP0501016SD 6 29 WP0501016SD 54 66 WP0510516SD 12 10 WP0560860SE 40 14 WP0612066SP 52 47 WP0621016SH 30 37 WP0621016SH 52 49 WP0651056SD 2 31 WP1020616SD 14 51 WP1020616SD 50 29 WP1020616SD 56 46 WP1021016SD 14 49 WP1602616SZ 36 21 WP1602616SZ 66 16 INDEX - 9 jintex.in
