Page 1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B4420-373-000 | Cushion | ||
| B1234-372-OAO | Loop Positioning Finger Cam | ||
| B1237-373-000 | Yoke Slide | ||
| B2038-372-000 | Thread Guide No.2 | ||
| B2406-372-OAO | Moving Knife Asm. | ||
| B2040-373-000 | Thread Guide | ||
| B2014-372-000 | Tension Disc Pin No.1 | ||
| B3112-372-000 | Needle Bar Thread Guide | ||
| B1207-372-000 | Retaining Washer | ||
| B2715-377-000 | Thread Guide | ||
| B2025-372-OAO | Thread Pull-Off Lever Asm. | ||
| B3109-372-OAO | Thread Tension No.3 Asm. | ||
| B2009-372-000 | Tension Releasing Lever | ||
| B2414-373-000 | Guage | ||
| B4408-372-000 | Connecting Link | ||
| B1242-372-000 | Needle Guard |
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1237-372-000 | Yoke Slide | ||
| B1235-373-000 | Yoke Slide Insert | ||
| B1236-373-000 | Positioning Finger Yoke Slide | ||
| B2529-372-000 | Feed Plate,Small Button | ||
| B2529-372-COO | Feed Plate, Big Button | ||
| B2529-373-000 | Feed Plate,Small Button | ||
| B2529-373-COO | Feed Plate, Big Button | ||
| B1241-373-000 | Throat Plate | ||
| B1241-372-000 | Throat Plate | ||
| B1240-372-000 | Spacer Plate | ||
| B1118-372-000 | Looper Cover | ||
| B3109-377-OAO | Thread Tension No.3 Asm. | ||
| B2039-373-000 | Thread Guide No.1 | ||
| B1421-372-000 | Needle Bar Guard | ||
| B2565-372-000 | Stopper | ||
| B2515-372-000 | Lengthwise Feed Adjusting |

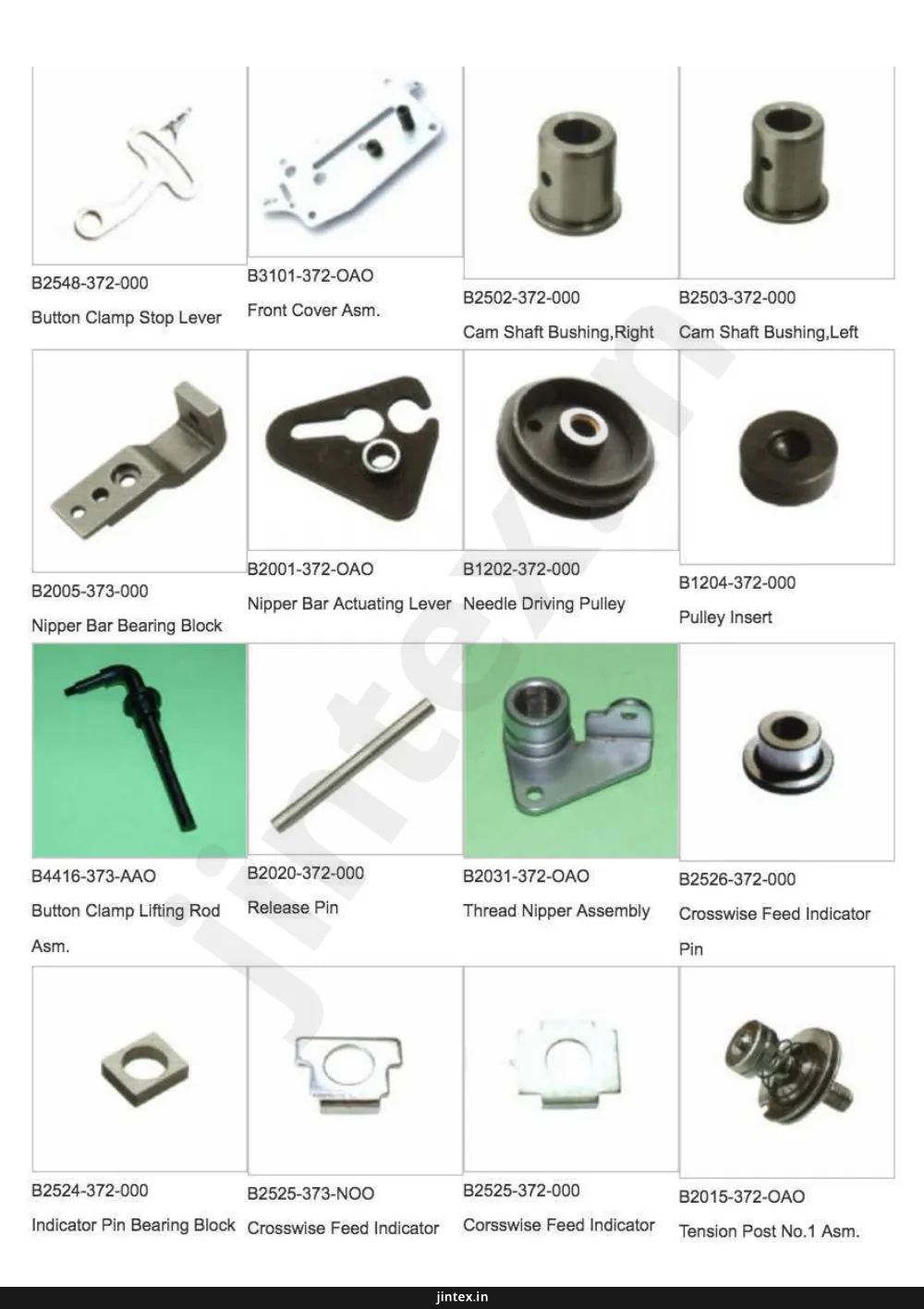

Page 3
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B2548-372-000 | Button Clamp Stop Lever | ||
| B3101-372-OAO | Front Cover Asm. | ||
| B2502-372-000 | Cam Shaft Bushing,Right | ||
| B2503-372-000 | Cam Shaft Bushing,Left | ||
| B2005-373-000 | Nipper Bar Bearing Block | ||
| B2001-372-OAO | Nipper Bar Actuating Lever | ||
| B1202-372-000 | Needle Driving Pulley | ||
| B1204-372-000 | Pulley Insert | ||
| B4416-373-AAO | Button Clamp Lifting Rod Asm. | ||
| B2020-372-000 | Release Pin | ||
| B2031-372-OAO | Thread Nipper Assembly | ||
| B2526-372-000 | Crosswise Feed Indicator Pin | ||
| B2524-372-000 | Indicator Pin Bearing Block | ||
| B2525-373-NOO | Crosswise Feed Indicator | ||
| B2525-372-000 | Corsswise Feed Indicator | ||
| B2015-372-OAO | Tension Post No.1 Asm. |
Page 4
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B2019-372-OAO | Tension Post No.2 Asm. | ||
| B1211-372-000 | Stop Motion Disc Pawl (A) | ||
| B1212-372-000 | Stop Motion Disc Pawl | ||
| B4415-372-000 | Lifting Lever Stopper Plate | ||
| B1215-372-BOO | Thrust Bearing | ||
| B2010-372-000 | Nipper Bar Block,Rear | ||
| B2011-372-000 | Nipper Bar Block | ||
| B2626-372-000 | Spring | ||
| B1205-372-000 | Spring | ||
| B2616-372-000 | Spring | ||
| B2008-372-000 | Nipper Bar Spring | ||
| B4419-372-000 | Lifting Lever Spring | ||
| B2115-372-BOO | Thrust Bearing |
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B2609-372-000 | Stop Motion Lever Spring | ||
| B2560-372-000 | Button Clamp Stop Pin | ||
| B1213-372-000 | Screw | ||
| B1230-372-OAO | Loop Positioning Finger | ||
| B1402-372-000 | Needle Bar Bushing, Upper | ||
| B1403-372-000 | Needle Bar Bushing | ||
| B2410-373-000 | Counter Knife | ||
| B1239-372-000 | Looper | ||
| B3113-372-000 | Needle Bar Clamp | ||
| B1406-372-000 | Needle Bar Bearing Block | ||
| B3127-372-000 | Nipper Releasing Stud | ||
| B1407-372-000 | Bushing | ||
| B1408-372-000 | Button Clamp Lifting Lever Shaft | ||
| B2604-372-000 | Stop Motion Plunger | ||
| B1216-372-000 | Looper Shaft Bushing, Rear | ||
| B1222-372-000 | Looper Shaft Bushing, Rear |
Page 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1227-372-000 | Looper Shaft Bushing,Front | ||
| B4406-372-OAO | Lifting Link Lever Asm. | ||
| B4410-372-OAO | Slide Guide Asm. | ||
| B2630-372-000 | Stitch Adjusting Gear | ||
| B2511-372-OAO | Lengthwise Feed Lever Asm. | ||
| B2510-372-000 | Crosswise Feed Lever | ||
| B2505-372-000 | Crosswise Feed Cam | ||
| B2506-372-000 | Lengthwise Feed Cam | ||
| B2505-373-000 | Crosswise Feed Cam | ||
| B2506-373-000 | Lengthwise Feed Cam | ||
| D2506-373-000 | Lengthwise Feed Cam | ||
| D2506-373-LOO | Lengthwise Feed Cam | ||
| B2639-372-OAO | Friction Plate Holder Asm. | ||
| B4405-372-OAO | Eccentric Cam Asm. | ||
| B2635-372-000 | Speed Slowing Friction Wheel | ||
| B2629-372-000 | Stitch Adjusting Gear |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1234-372-OAO | Looper Positioning Finger Cam Asm. | ||
| B1221-372-OAO | Driven Worm Asm. | ||
| B1220-372-OAO | Cam Shaft Driven Gear Asm. | ||
| B1228-372-OAO | Looper Positioning Finger Cam | ||
| B1208-372-000 | Stop Motion Disc Ass'y | ||
| B1210-372-OAO | Stop Motion Disc Ass'y | ||
| B2403-373-000 | Thread Trimming Connecting | ||
| B2404-373-000 | Thread Trimming Connecting | ||
| B2401-373-000 | Thread Trimming Link | ||
| B2402-373-OOOA | Thread Trimming Lever | ||
| B2611-372-000 | Stop Pressure Applying Lever | ||
| B2636-372-000 | Speed Slowing Lever | ||
| B2642-372-000 | Stitch Selecting Lever | ||
| B2614-372-OAO | Stop Motion Trip Lever Asm. | ||
| B2528-372-000 | Crosswise Feed Graduated Plate | ||
| B2563-372-000 | Lengthwise Feed Graduated Plate |
Page 8
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B2564-372-000 | Lengthwise Feed Graduated Plate | ||
| B1632-180-000 | Feed Adjusting Joint | ||
| B1412-372-OAO | Ball Joint Upper Asm. | ||
| B1416-372-OAO | Ball Joint,Eccentric Asm. | ||
| B2558-372-000 | Button Holder Spring,Right | ||
| B2556-372-000 | Button Holder Spring,Left | ||
| B2028-372-OAO | Nipper Block Asm. | ||
| B2638-372-000 | Rotating Stud | ||
| B2523-372-000 | Hinged Screw | ||
| B2508-372-000 | Feed Cam Roller Stud | ||
| B2521-372-000 | Stud | ||
| B2036-372-000 | Nipper Spring Hook Screw |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B2603-372-000 | Set Screw | ||
| NS-6150430-SP | Nut 15/64-28 | ||
| B8210-372-OAO | Button Tray Asm. | ||
| B1125-372-OOA | Side Cover,Left | ||
| B1126-372-OOA | Side Cover,Right | ||
| B4401-372-OAO | Button Clamp Forked Rod Asm. | ||
| B2410-372-000 | Button Clamp Work Support Plate | ||
| B2419-372-BOO | Shank Button Adapter (B) | ||
| B2409-372-000 | Button Clamp Feed Plate | ||
| B2440-372-OAO | Button Necking Attachment Asm. | ||
| B2552-372-000 | Button Clamp Slide | ||
| B2547-372-000 | Jaw Lever Holder | ||
| B2547-372-OCO | Button Clamp Jaw Lever Holder Asm. | ||
| B2401-372-OBO | Shank Button Clamp Completely | ||
| B2547-372-OBO | Flat Button Clamp Ass'y | ||
| B1401-372-000 | Needle Bar |
Page 10
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B1414-372-000 | Needle Bar Lever | ||
| B2605-372-000 | Stop-Motion Plunger Rod | ||
| B2601-372-000 | Stop Motion Shaft | ||
| B1201-373-000 | Needle Driving Pulley Shaft | ||
| B2004-372-000 | Nipper Bar | ||
| B1219-372-000 | Looper Shaft | ||
| B2522-373-000A | Feed Plate | ||
| B4411-373-000 | Button Clamp Lifting Link | ||
| B4412-373-000 | Button Clammp Lifting Lever | ||
| B1409-372-000B | Needle Bar Rocking Pipe | ||
| B1424-372-OAO | Crank Rod Asm. |
