Page 1

Juki MB-372 (10 pages) parts on page 1
Ref	Part number	Part name	Qty
	B4420-373-000	Cushion
	B1234-372-OAO	Loop Positioning Finger
	B1237-373-000	Yoke Slide
	B2038-372-000	Thread Guide No.2
	B2406-372-OAO	Moving Knife Asm.
	B2040-373-000	Thread Guide
	B2014-372-000	Tension Disc Pin No.1
	B3112-372-000	Needle Bar Thread Guide
	B1207-372-000	Retaining Washer
	B2715-377-000	Thread Guide
	B2025-372-OAO	Thread Pull-Off Lever Asm.
	B3109-372-OAO	Thread Tension No.3 Asm.
	B2009-372-000	Tension Releasing Lever
	B2414-373-000	Guage
	B4408-372-000	Connecting Link
	B1242-372-000	Needle Guard

Page 2

Juki MB-372 (10 pages) parts on page 2
Ref	Part number	Part name	Qty
	B1237-372-000	Yoke Slide
	B1235-373-000	Yoke Slide Insert
	B1236-373-000	Positioning Finger Yoke Slide
	B2529-372-000	Feed Plate,Small Button
	B2529-372-COO	Feed Plate, Big Button
	B2529-373-000	Feed Plate,Small Button
	B2529-373-COO	Feed Plate, Big Button
	B1241-373-000	Throat Plate
	B1241-372-000	Throat Plate
	B1240-372-000	Spacer Plate
	B1118-372-000	Looper Cover
	B3109-377-OAO	Thread Tension No.3 Asm.
	B2039-373-000	Thread Guide No.1
	B1421-372-000	Needle Bar Guard
	B2565-372-000	Stopper
	B2515-372-000	Lengthwise Feed Adjusting

Page 3

Juki MB-372 (10 pages) parts on page 3
Ref	Part number	Part name	Qty
	B2548-372-000	Button Clamp Stop Lever
	B3101-372-OAO	Front Cover Asm.
	B2502-372-000	Cam Shaft Bushing,Right
	B2503-372-000	Cam Shaft Bushing,Left
	B2005-373-000	Nipper Bar Bearing Block
	B2001-372-OAO	Nipper Bar Actuating Lever
	B1202-372-000	Needle Driving Pulley
	B1204-372-000	Pulley Insert
	B4416-373-AAO	Button Clamp Lifting Rod Asm.
	B2020-372-000	Release Pin
	B2031-372-OAO	Thread Nipper Assembly
	B2526-372-000	Crosswise Feed Indicator Pin
	B2524-372-000	Indicator Pin Bearing Block
	B2525-373-NOO	Crosswise Feed Indicator
	B2525-372-000	Corsswise Feed Indicator
	B2015-372-OAO	Tension Post No.1 Asm.

Page 4

Juki MB-372 (10 pages) parts on page 4
Ref	Part number	Part name	Qty
	B4415-372-000	Lifting Lever Stopper Plate
	B1211-372-000	Stop Motion Disc Pawl (A)
	B2019-372-OAO	Tension Post No.2 Asm.
	B2626-372-000	Spring
	B2011-372-000	Nipper Bar Block
	B2010-372-000	Nipper Bar Block, Rear
	B2115-372-BOO	Thrust Bearing
	B2616-372-000	Spring
	B4419-372-000	Lifting Lever Spring
	B2008-372-000	Nipper Bar Spring
	B1205-372-000	Spring

Page 5

Juki MB-372 (10 pages) parts on page 5
Ref	Part number	Part name	Qty
	B2609-372-000	Stop Motion Lever Spring
	B2560-372-000	Button Clamp Stop Pin
	B1213-372-000	Screw
	B1230-372-OAO	Loop Positioning Finger
	B1402-372-000	Needle Bar Bushing, Upper Needle Bar Bushing
	B1403-372-000	Needle Bar Bushing
	B2410-373-000	Counter Knife
	B1239-372-000	Looper
	B3113-372-000	Needle Bar Clamp
	B1406-372-000	Needle Bar Bearing Block
	B3127-372-000	Nipper Releasing Stud
	B1407-372-000	Bushing
	B1408-372-000	Button Clamp Lifting Lever Shaft
	B2604-372-000	Stop Motion Plunger
	B1216-372-000	Looper Shaft Bushing, Rear
	B1222-372-000	Looper Shaft Bushing, Rear

Page 6

Juki MB-372 (10 pages) parts on page 6
Ref	Part number	Part name	Qty

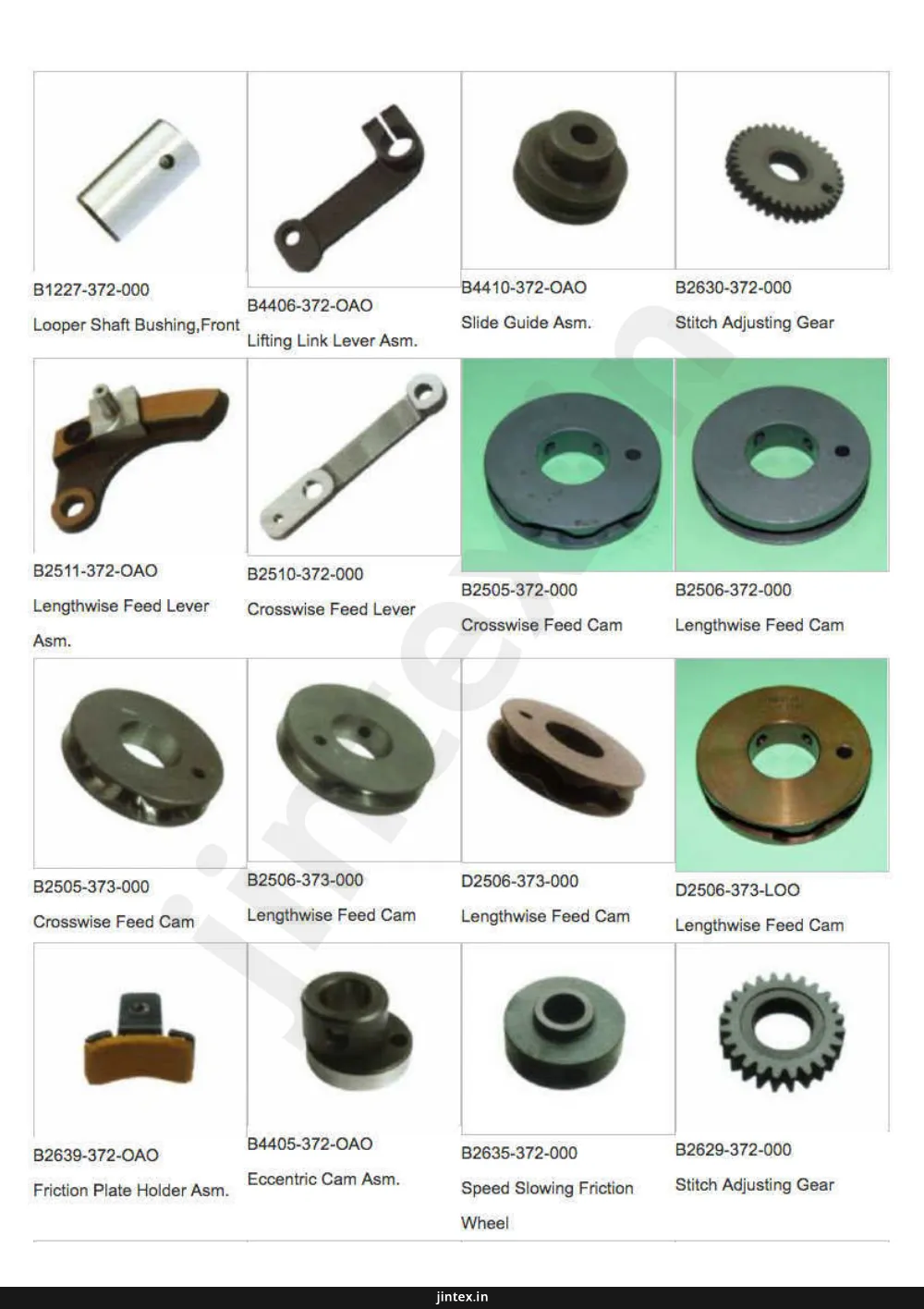

	B1227-372-000	Looper Shaft Bushing,Front
	B4406-372-OAO	Lifting Link Lever Asm.
	B4410-372-OAO	Slide Guide Asm.
	B2630-372-000	Stitch Adjusting Gear
	B2511-372-OAO	Lengthwise Feed Lever Asm.
	B2510-372-000	Crosswise Feed Lever
	B2505-372-000	Crosswise Feed Cam
	B2506-372-000	Lengthwise Feed Cam
	B2505-373-000	Crosswise Feed Cam
	B2506-373-000	Lengthwise Feed Cam
	D2506-373-000	Lengthwise Feed Cam
	D2506-373-LOO	Lengthwise Feed Cam
	B2639-372-OAO	Friction Plate Holder Asm.
	B4405-372-OAO	Eccentric Cam Asm.
	B2635-372-000	Speed Slowing Friction Wheel
	B2629-372-000	Stitch Adjusting Gear

Page 7

Juki MB-372 (10 pages) parts on page 7
Ref	Part number	Part name	Qty
	B1234-372-OAO	Looper Positioning Finger Cam Asm.
	B1221-372-OAO	Driven Worm Asm.
	B1220-372-OAO	Cam Shaft Driven Gear Asm.
	B1228-372-OAO	Looper Positioning Finger Cam
	B1208-372-000	Stop Motion Disc Ass'y
	B1210-372-OAO	Stop Motion Disc Ass'y
	B2403-373-000	Thread Trimming Connecting
	B2404-373-000	Thread Trimming Connecting
	B2401-373-000	Thread Trimming Link
	B2402-373-OOOA	Thread Trimming Lever
	B2611-372-000	Stop Pressure Applying Lever
	B2636-372-000	Speed Slowing Lever
	B2642-372-000	Stitch Selecting Lever
	B2614-372-OAO	Stop Motion Trip Lever Asm.
	B2528-372-000	Crosswise Feed Graduated Plate
	B2563-372-000	Lengthwise Feed Graduated Plate

Page 8

Juki MB-372 (10 pages) parts on page 8
Ref	Part number	Part name	Qty
	B2564-372-000	Lengthwise Feed Graduated Plate
	B1632-180-000	Feed Adjusting Joint
	B1412-372-OAO	Ball Joint Upper Asm.
	B1416-372-OAO	Ball Joint,Eccentric Asm.
	B2558-372-000	Button Holder Spring,Right
	B2556-372-000	Button Holder Spring,Left
	B2028-372-OAO	Nipper Block Asm.
	B2638-372-000	Rotating Stud
	B2523-372-000	Hinged Screw
	B2508-372-000	Feed Cam Roller Stud
	B2521-372-000	Stud
	B2036-372-000	Nipper Spring Hook Screw

Page 9

Juki MB-372 (10 pages) parts on page 9
Ref	Part number	Part name	Qty
	B2603-372-000	Set Screw
	NS-6150430-SP	Nut 15/64-28
	B8210-372-OAO	Button Tray Asm.
	B1125-372-OOA	Side Cover,Left
	B1126-372-OOA	Side Cover,Right
	B4401-372-OAO	Button Clamp Forked Rod Asm.
	B2410-372-000	Button Clamp Work Support Shank Button Adapter (B) Plate
	B2419-372-BOO
	B2409-372-000	Button Clamp Feed Plate
	B2440-372-OAO	Button Necking Attachment Asm.
	JZ-81100
	B2552-372-000	Button Clamp Slide
	B2547-372-000	Jaw Lever Holder
	B2547-372-OCO	Button Clamp Jaw Lever Holder Asm.
	B2401-372-OBO	Shank Button Clamp Completely
	B2547-372-OBO	Flat Button Clamp Ass'y
	B1401-372-000	Needle Bar

Page 10

Juki MB-372 (10 pages) parts on page 10
Ref	Part number	Part name	Qty
	B1201-373-000	Needle Driving Pulley Shaft
	B2601-372-000	Stop Motion Shaft
	B2605-372-000	Stop-Motion Plunger Rod
	B1414-372-000	Needle Bar Lever Connecting
	B1219-372-000	Looper Shaft
	B2004-372-000	Nipper Bar
	B4411-373-000	Button Clamp Lifting Link
	B2522-373-000A	Feed Plate
	B1409-372-000B	Needle Bar Rocking Pipe
	B4412-373-000	Button Clammp Lifting Lever
	B1424-372-OAO	Crank Rod Asm.

Juki MB-372 (10 pages) — parts catalog

Page 1 (parts_list): This page displays a parts list for various sewing machine components, including cushions, finger, yoke slide, thread guides, and needle guards, each with its corresponding part number and name.
Page 2 (parts_list): This page displays a parts list for various sewing machine components, including yoke slides, feed plates, throat plates, looper covers, thread guides, needle bar guards, stoppers, and thread tension assemblies, each with its part number and description.
Page 3 (parts_list): This page displays a parts list for various sewing machine components, including levers, bushings, pulleys, and indicators, each with a part number and description.
Page 4 (parts_list): This page lists various parts for an industrial sewing machine, including pawls, springs, a thrust bearing, and a tension post assembly, each with its part number and description.
Page 5 (parts_list): This page displays a parts list for various sewing machine components, including springs, pins, screws, bushings, loopers, and levers, each with a part number and description.
Page 6 (parts_list): This page displays a list of various sewing machine parts, including bushings, levers, cams, and gears, each with its part number and description.
Page 7 (parts_list): This page displays a variety of sewing machine parts, including looper positioning fingers, worm assemblies, gears, discs, trimming levers, and feed graduated plates, each with its corresponding part number and description.
Page 8 (parts_list): This page displays a variety of sewing machine parts with their corresponding part numbers and descriptions, including feed plates, joints, studs, and screws.
Page 9 (parts_list): This page displays a parts list for various sewing machine components, including screws, nuts, button trays, covers, clamps, and holders, each with a part number and description.
Page 10 (parts_list): This page displays a parts list for various sewing machine components, including shafts, levers, plates, and bars, each with a part number and description.
