Page 2

Juki MB-372 / MB-373 parts on page 2

Ref	Part number	Part name	Qty
	AO-14/Z025 (No.0009)	Electric magnetic starting unit for button attaching machin (Double starter)
	Z025	Electric wiper unit for button attaching machine
	MB-373/BR-1 (No.0089)	Single thread, chainstitch button sewing machine with automatic thread trimmer and automatic button feeder

Page 3

Juki MB-372 / MB-373 parts on page 3

Ref	Part number	Part name	Qty
	B1401-100-000	Needle bar
	B1401-100-000-A	Needle bar
	B1105-200-000	Frame cover
	B1105-300-000	Frame cover
	B1105-500-000	Frame cover
	B1105-500-000	Frame cover

Page 4 — CONTENTS

Juki MB-372 / MB-373 parts on page 4

Ref	Part number	Part name	Qty
	1	BUTTON CLAMP MECHANISM COMPONENTS. ボタンつまみ関係
	2	ARM & MISCELLANEOUS COVERS COMPONENTS. アームベッド関係
	3	LOOPER SHAFT MECHANISM COMPONENTS. ルーバー軸関係
	4	NIPPER & THREAD TENSION PARTS COMPONENTS. 糸調子、ニッパー関係
	5	FEED PLATE COMPONENTS. 送り関係
	6	BUTTON CLAMP LIFTER COMPONENTS. 引き上げ関係
	7	NEEDLE DRIVING PULLEY SHAFT COMPONENTS. 駆動軸関係
	8	NEEDLE BAR DRIVING MECHANISM COMPONENTS. 針棒関係
	9	STOP MOTION MECHANISM COMPONENTS. 遮断装置関係
	10	STITCH SELECTING PARTS COMPONENTS. 針数調節関係
	11	SUBCLASS COMPONENTS FOR MODEL MB-372. MB-372 サブクラス関係
	12	SUBCLASS COMPONENTS FOR MODEL MB-373. MB-373 サブクラス関係
	13	ATTACHMENT COMPONENTS FOR MODEL MB-372 (1). MB-372 アタッチメント関係 (1)
	14	ATTACHMENT COMPONENTS FOR MODEL MB-372 (2). MB-372 アタッチメント関係 (2)
	15	ATTACHMENT COMPONENTS FOR MODEL MB-372 (3). MB-372 アタッチメント関係 (3)
	16	ATTACHMENT COMPONENTS FOR MODEL MB-372 (4). MB-372 アタッチメント関係 (4)
	17	ATTACHMENT COMPONENTS FOR MODEL MB-373 (1). MB-373 アタッチメント関係 (1)
	18	ATTACHMENT COMPONENTS FOR MODEL MB-373 (2). MB-373 アタッチメント関係 (2)
	19	ATTACHMENT COMPONENTS FOR MODEL MB-373 (3). MB-373 アタッチメント関係 (3)
	20	ATTACHMENT COMPONENTS FOR MODEL MB-373 (4). MB-373 アタッチメント関係 (4)
	21	BARTER PARTS (Z003,Z033). 交換部品 (Z003,Z033)
	22	BARTER PARTS (Z008,Z038). 交換部品 (Z008,Z038)
	NUMERICAL INDEX OF PARTS.	索引

Page 5 — BUTTON CLAMP MECHANISM COMPONENTS

Juki MB-372 / MB-373 parts on page 5

Ref	Part number	Part name	Qty
3	3	3
4	4	4
5	5	5
7	7	7
8	8	8
9	9	9
10	10	10
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
23	23	23
24	24	24
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38

Page 6

Juki MB-372 / MB-373 parts on page 6

Ref	Part number	Part name	Qty
	B2547-372-0B0	FLAT BUTTON CLAMP ASM.	1
	B2547-372-0BA	FLAT BUTTON CLAMP ASM.	1
	B2546-372-000	BUTTON CLAMP LIFTING ROD	1
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2542-372-000	BUTTON CLAMP HOLDER	(1)
	B2542-372-00A	BUTTON CLAMP HOLDER	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	B2547-372-0C0	JAW LEVER HOLDER ASM.	(1)
	SD-0550181-SP	HINGE SCREW D= 5.50 H= 1.8	(1)
	B2549-372-000	CLAMP SCREW A	(1)
	B2548-372-000	SNAP FASTENER CLAMP STOP LEVER	(1)
	SD-0550301-SP	HINGE SCREW D=5.5 H=3	(1)
	B2547-372-000	JAW LEVER HOLDER	(1)
	B2555-372-0A0	BUTTON CLAMP LEVER JAW, LEFT ASM.	(1)
	B2555-372-000	BUTTON CLAMP LEVER JAW (LEFT)	(1)
	B2556-372-000	BUTTON HOLDING SPRING, LEFT	(1)
	B2559-372-000	BUTTON CLAMP LOCATING PIN	(1)
	SS-7090410-SP	SCREW 9/64-40 L= 3.5	(1)
	B2557-372-0A0	BUTTON CLAMP LEVER JAW, RIGHT ASM.	(1)
	B2557-372-000	BUTTON CLAMP LEVER JAW RIGHT	(1)
	B2558-372-000	BUTTON HOLDING SPRING, RIGHT	(1)
	B2559-372-000	BUTTON CLAMP LOCATING PIN	(1)
	SS-7090410-SP	SCREW 9/64-40 L= 3.5	(1)
	B2560-372-000	BUTTON CLAMP STOP PIN	(2)
	SD-0640391-TP	HINGE SCREW D= 6.35 H= 3.9	(2)
	B2561-372-000	BUTTON CLAMP SPRING	(1)
	B2552-372-000	BUTTON CLAMP SLIDE	(1)
	B2553-372-000	NUT	(1)
	B2540-372-000	HINGE PIN	1
	B2541-372-000	SNAP RING	1
	NS-6160520-SP	NUT 1/4-24	1
	B2543-372-000	BUTTON CLAMP STOPPER PIN	1
	B2544-372-000	BUTTON CLAMP PRESSURE ADJUSTING BAR	1
	B2545-372-000	PRESSURE ADJUSTING SPRING	1
	B3125-012-000	THREAD TENSION STUD NUT	2
	B3130-372-000-A	FINGER GUARD	1

Page 7 — ARM & MISCELLANEOUS COVERS COMPONENTS

Juki MB-372 / MB-373 parts on page 7

Ref	Part number	Part name	Qty
2	242526	ARM & MISCELLANEOUS COVERS COMPONENTS
13	13	PIN
24	24	SCREW
28	28	WASHER
27	27	SPRING
29	29	SCREW
30	30	BRACKET
31	31	SPRING
32	32	SCREW
33	33	WASHER
35	35	COVER
37	37	COVER
38	38	COVER
36	36	COVER
34	34	COVER
39	39	SCREW
40	40	SCREW
52	52	SCREW
51	51	WASHER
53	53	SPRING
54	54	SPRING
49	49	COVER
50	50	COVER
55	55	COVER
42	42	COVER
4344	4344	COVER
41	41	COVER
45	45	SHAFT
46	46	SHAFT
47	47	COVER
45	45	SHAFT
48	48	PIN
14	14	COVER
17	17	SCREW
19	19	SCREW
20	20	WASHER
21	21	SPRING
16	16	COVER
15	15	COVER
18	18	BRACKET
23	23	BRACKET
22	22	BRACKET
57	57	COVER
56	56	COVER
58	58	SCREW
59	59	SCREW
60	60	SPRING
1	1	COVER
2	2	COVER
3	3	COVER
4	4	COVER
5	5	COVER
6	6	COVER
7	7	COVER
8	8	COVER
9	9	COVER
10	10	COVER
11	11	COVER
12	12	COVER

Page 8

Juki MB-372 / MB-373 parts on page 8

Ref	Part number	Part name	Qty
	B3101-372-0A0	FRONT COVER ASM.	1
	SS-4110815-SP	SCREW 11/64-40 L=8	3
	B3149-123-A00	TENSION SPRING	1
	B3103-372-000	NIPPER RELEASING PLUNGER THUMB NUT	1
	B3109-372-000	THREAD TENSION GUIDE NO. 3 ASM.	1
	B3148-123-000	TENSION DISC	(2)
	B3110-372-000	TENSION SPRING	(1)
	RE-0300000-KO	E-SHAPED SNAP RING (3MM)	(1)
	SS-7110340-SP	SCREW 11/64-40 L= 3.2	1
	B3108-372-000	THREAD GUIDE NO. 4	1
	B3107-373-000	THREAD GUIDE NO.3	1
	SS-5110810-SP	SCREW 11/64-40 L=8	1
	B3104-372-000	NIPPER RELEASING PLUNGER	1
	B3120-372-0A0	SAFETY PLATE ASM.
	B3120-372-000	SAFETY PLATE
	SS-4110715-SP	SCREW 11/64-40 L=7
	WP-0450801-SD	WASHER 4.5X10.0X0.8
	B3121-372-000	SAFETY PLATE INSTALLING PLATE
	SD-0600401-SD	HINGE SCREW D= 6 H= 4
	B3125-155-000	DISC SPRING
	WP-0650876-SD	WASHER 6.5X13X0.8
	B3122-372-000	SAFETY PLATE MOUNTING BASE
	PS-0200062-KH	SPRING PIN 2X6
	SS-4110815-SP	SCREW 11/64-40 L=8
	B1113-372-000	SIDE COVER, LEFT
	B1113-372-00A	SIDE COVER, LEFT
	B1112-372-000	SIDE COVER, RIGHT
	17810904	SIDE PLATE, RIGHT
	SM-6083042-CH	SCREW M8 L=30
	SM-6083542-CH	SCREW M8 L=35
	B1105-372-000	GUIDE PIN
	B1106-372-0A0	SET SCREW ASM.
	B3501-372-0B0	OIL FELT ASM., LARGE
	CQ-2020000-00	OIL WICK
	B3502-372-0B0	OIL FELT ASM., SMALL
	CQ-2020000-00	OIL WICK
	SS-7110840-SP	SCREW 11/64-40 L=7.8
	B3503-372-000	OIL SUPPLY FELT
	B1111-372-000	SIDE COVER SPRING
	SS-7090520-SP	SCREW 9/64-40 L= 4.5
	B1120-372-000	SCREW STUD
	B1104-372-A00	OIL DRIP FELT (A)
	B1109-372-000	SIDE COVER, RIGHT
	B1109-372-00A	SIDE COVER, RIGHT
	B1110-372-000	SIDE COVER HINGE SHAFT
	SS-8150410-SP	SCREW 15/64-28 L=4
	B1103-372-000	MACHINE SUB-BASE
	SS-8151150-SP	SCREW 15/64-28 L=10.5
	B1108-372-000	COVER, LEFT
	B1108-373-N00	SIDE COVER, LEFT
	B1118-372-000	LOOPER COVER
	B1118-373-N00	LOOPER COVER
	WS-0650389-KP	SPRING WASHER 6.5X14.0X17
	SD-0600271-SP	HINGE SCREW D= 6 H= 2.7
	B2504-372-000	CAM INDICATING PIN
	B8210-372-0A0	BUTTON TRAY ASM.
	178-48458	BUTTON TRAY ASM.
	SS-8150710-SP	SCREW 15/64-28 L=7
	B1119-373-000	BED OIL SHIELD
	SS-7110840-SP	SCREW 11/64-40 L=7.8

Page 9 — LOOPER SHAFT MECHANISM COMPONENTS

Juki MB-372 / MB-373 parts on page 9

Ref	Part number	Part name	Qty
1	1	Screw
2	2	Plate
3	3	Plate
4	4	Screw
5	5	Lever
6	6	Looper
7	7	Screw
8	8	Base
9	9	Looper
10	10	Shaft
11	11	Screw
12	12	Plate
13	13	Screw
14	14	Plate
15	15	Lever
16	16	Screw
17	17	Lever
18	18	Screw
19	19	Spring
20	20	Lever
21	21	Looper
22	22	Looper
23	23	Spring
24	24	Base
25	25	Shaft
26	26	Gear
27	27	Washer
28	28	Collar
29	29	Screw
30	30	Shaft
31	31	Spring
32	32	Gear
33	33	Washer
34	34	Screw
35	35	Gear
36	36	Shaft
37	37	Collar
38	38	Screw
39	39	Collar
40	40	Gear
41	41	Gear
42	42	Gear
43	43	Shaft
44	44	Spring
45	45	Gear
46	46	Gear
47	47	Gear
48	48	Screw

Page 10

Juki MB-372 / MB-373 parts on page 10

Ref	Part number	Part name	Qty
	SS-2110920-TP	SCREW 11/64-40 L=8.5	4
	B1241-372-000	THROAT PLATE	1
	B1240-372-000	SPACER PLATE	1
	SS-7110840-SP	SCREW 11/64-40 L=7.8	1
	B1242-372-000	NEEDLE GUARD	1
	B1236-372-000	POSITIONING FINGER YOKE SLIDE	1
	SS-1110710-SP	SCREW 11/64-40 L=7	1
	B1235-372-000	YOKE SLIDE INSERT	1
	B1237-372-000	YOKE SLIDE	1
	B1230-372-0A0	LOOP POSITIONING FINGER LEVER	1
	SD-0640241-SP	HINGE SCREW D= 6.35 H= 2.4	1
	B1232-372-000	LOOP POSITIONING FINGER LEVER	1
	SS-2110920-TP	SCREW 11/64-40 L=8.5	3
	B1241-373-000	THROAT PLATE	1
	B2406-373-0A0	MOVING KNIFE ASM.	1
	SD-0600095-TH	HINGE SCREW D= 6 H= 0.85	1
	B2410-373-000	COUNTER KNIFE	1
	SS-7080310-SP	SCREW 1/8-44 L= 3.0	2
	B1242-373-000	NEEDLE GUARD	1
	B1237-373-000	YOKE SLIDE	1
	B1236-373-000	POSITIONING FINGER YOKE SLIDE	1
	B1235-373-000	YOKE SLIDE INSERT	1
	B2414-373-000	GAUGE	1
	B1241-372-B00	THROAT PLATE	1
	B1239-372-000	LOOPER	1
	CS-079072A-TH	THRUST COLLAR ASM.	1
	SS-7090620-TP	SCREW 9/64-40 L=6.1	(1)
	B1234-372-0A0	LOOP POSITIONING FINGER CAM ASM.	1
	SS-8110410-TP	SCREW 11/64-40 L=3.5	(2)
	B1233-372-0A0	LOOPER & CAM SLEEVE	1
	SS-8150410-TP	SCREW 15/64-28 L= 4.0	(2)
	B1228-372-0A0	LOOP POSITIONING FINGER ASM.	1
	SS-8110310-SP	SCREW 11/64-40 L=2.8	(2)
	B1227-372-000	LOOPER SHAFT BUSHING, FRONT	1
	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
	B1219-372-000	LOOPER SHAFT	1
	CS-111101B-SH	THRUST COLLAR ASM. D=11.11 W=10	1
	SS-8660512-TP	SCREW 1/4-40 L=5	(1)
	SS-8660330-SP	SCREW 1/4-40 L=3	(1)
	B1224-372-0A0	LOOPER SHAFT DRIVEN GEAR ASM.	1
	SS-8660612-TP	SCREW 1/4-40 L=6	(2)
	B1215-372-A00	THRUST BALL BEARING	1
	B1222-372-000	LOOPER SHAFT BUSHING, REAR	1
	SS-8151150-SP	SCREW 15/64-28 L=10.5	1
	B1221-372-0A0	DRIVEN WORM ASM.	1
	SS-8660712-TP	SCREW 1/4-40 L= 7.0	(2)
	B1220-372-0A0	CAM SHAFT DRIVEN GEAR ASM.	1
	SS-8660612-TP	SCREW 1/4-40 L= 6.0	(2)

Page 11 — 4. NIPPER & THREAD TENSION PARTS COMPONENTS

Juki MB-372 / MB-373 parts on page 11

Ref	Part number	Part name	Qty
1	1	SCREW
2	2	SPRING
3	3	SCREW
4	4	WASHER
5	5	WASHER
6	6	SPRING
7	7	SPRING
8	8	SPRING
9	9	SPRING
10	10	SCREW
11	11	SPRING
12	12	HOLDER
13	13	SCREW
14	14	BRACKET
15	15	SPRING
16	16	SPRING
17	17	SPRING
18	18	SPRING
19	19	SPRING
20	20	SPRING
21	21	SPRING
22	22	SPRING
23	23	SPRING
24	24	BRACKET
25	25	SCREW
26	26	NUT
27	27	WASHER
28	28	WASHER
29	29	SPRING
30	30	SPRING
31	31	SPRING
32	32	SPRING
33	33	SCREW
34	34	SPRING
353637	353637	TENSION ASSEMBLY
38	38	SCREW
39	39	NUT
40	40	WASHER
41	41	SPRING
42	42	SPRING
43	43	U-SHAPED SPRING
44	44	SCREW
45	45	BRACKET
46	46	SPRING
47	47	SPRING
48	48	SPRING
49	49	SPRING
50	50	SPRING
51	51	SPRING
52	52	SPRING
53	53	SPRING
54555657	54555657	BRACKET
58	58	BRACKET
59	59	BRACKET
60	60	SCREW
61	61	SPRING
62	62	NUT

Page 12

Juki MB-372 / MB-373 parts on page 12

Ref	Part number	Part name	Qty
	SS-7151210-SP	SCREW 15/64-28 L=12
	B2038-372-000	THREAD GUIDE NO. 2
	SD-0791271-SP	HINGE SCREW D= 7.94 H=12.7
	NS-6080210-SP	NUT 1/8-44
	B2035-372-000	NUT
	B2031-372-0A0	THREAD NIPPER ASM.
	B2034-372-000	THREAD RELEASING SCREW STUD
	B2037-372-000	NIPPER BAR BLOCK SPRING
	B2036-372-000	NIPPER BAR BLOCK SPRING SCREW
	SD-0402001-TP	SCREW D=4 H=20
	B2029-372-000	NIPPER BLOCK SPRING
	B2028-372-000	NIPPER BLOCK
	SD-0791501-SP	HINGE SCREW D= 7.94 H=15.0
	B2025-372-0BO	THREAD PULL-OFF LEVER ASM.
	B2040-373-000	THREAD GUIDE
	SS-7090510-SP	SCREW 9/64-40 L= 4.6
	B2024-372-000	L-SHAPED THREAD GUIDE
	B2012-372-000	NIPPER BAR BLOCK SPRING PIN
	SS-6120930-TP	SCREW 3/16-28 L=9.0
	WP-0501016-SD	WASHER 5X10.5X1
	B2011-372-000	NIPPER BAR BLOCK
	B2010-372-000	NIPPER BAR BLOCK REAR
	B2004-372-000	NIPPER BAR
	SS-6120930-TP	SCREW 3/16-28 L=9.0
	B2019-372-0A0	TENSION POST ASM.
	B3116-125-000	TENSION DISC STOPPER
	B3120-125-000	TENSION SPRING, NO. 2
	B3114-232-000	TENSION DISC HOLDER
	B3132-012-000	TENSION DISC
	B2016-372-000	TENSION DISC
	B2019-372-000	TENSION POST NO. 2
	B2020-372-000	TENSION RELEASE PIN
	NS-6160520-SP	NUT 1/4-24
	PS-0200162-KH	SPRING PIN
	SS-6120930-TP	SCREW 3/16-28 L=9.0
	WP-0501016-SD	WASHER 5X10.5X1
	B2009-372-000	THREAD TENSION RELEASING LEVER
	B2015-372-0A0	THREAD TENSION ASM. (NO.1)
	B3125-012-000	THREAD TENSION STUD NUT
	B2017-372-000	TENSION SPRING NO.1
	B2016-372-000	TENSION DISC
	B2015-372-000	THREAD TENSION STAFF NO. 1
	B2014-372-000	THREAD BUILDE
	B1111-232-000	THREAD GUIDE PLATE
	B2039-373-000	THREAD GUIDE NO.1
	SS-4151215-SP	SCREW 15/64-28 L=12
	B2005-372-000	NIPPER BAR BEARING BLOCK
	B2006-372-000	ADJUSTING SCREW
	WP-0480856-SP	WASHER 4.8X8.4X0.8
	SS-6121610-TP	SCREW 3/16-28 L=15.5
	SS-6121050-SP	SCREW 3/16-28 L= 9.5
	B2008-372-000	NIPPER BAR SPRING
	B2007-372-000	NIPPER BAR SPRING SCREW
	WP-0371016-SD	WASHER 3.7X8X1
	NS-6080340-SP	NUT 1/8-44
	SD-0790802-SP	HINGE SCREW D= 7.94 H= 8.0
	B2001-372-0A0	NIPPER BAR ACTUATING LEVER ASM.
	B1421-372-000	NEEDLE BAR GUARD
	B2005-373-000	NIPPER BAR BEARING BLOCK
	SS-6121610-TP	SCREW 3/16-28 L=15.5
	SS-9151420-TP	BOLT 15/64-28 L=14
	NS-6150310-SP	NUT 15/64-28

Page 13 — 5. FEED PLATE COMPONENTES

Juki MB-372 / MB-373 parts on page 13

Ref	Part number	Part name	Qty
2	2	FEED PLATE
3	3	FEED PLATE
4	4	SCREW
5	5	WASHER
6	6	SPRING
7	7	WASHER
8	8	NUT
9	9	FEED PLATE
10	10	SCREW
11	11	SCREW
12	12	SCREW
13	13	SCREW
14	14	SCREW
15	15	SCREW
16	16	SCREW
17	17	SCREW
19	19	SCREW
20	20	FEED PLATE
21	21	FEED PLATE
22	22	SCREW
23	23	SPRING
24	24	FEED PLATE
25	25	FEED PLATE
26	26	FEED PLATE
27	27	FEED PLATE
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	SCREW
33	33	SPRING
34	34	SCREW
35	35	SHAFT
36	36	COLLAR
37	37	SCREW
38	38	COLLAR
39	39	SCREW
40	40	SCREW
41	41	BOBBIN CASE
42	42	SCREW
44	44	BOBBIN CASE
4539	4539	SCREW
46	46	SCREW
47	47	SCREW
48	48	SCREW
49	49	SCREW
50	50	SCREW
51	51	SCREW

Page 14

Juki MB-372 / MB-373 parts on page 14

Ref	Part number	Part name	Qty
	B2529-372-000	FEED PLATE, SMALL BUTTON
	B2529-373-000	FEED PLATE, SMALL BUTTON
	B2529-372-C00	FEED PLATE, SMALL BUTTON
	SS-9120643-TP	SCREW 3/16-28 L=6	2
	B2524-372-000	LNDICATOR PIN BEARING BLOCK
	B2525-372-000	CROSSWISE FEED INDICATOR
	B2526-372-000	CROSSWISE FEED INDICATOR PIN
	NS-6160520-SP	NUT 1/4-24
	B2518-372-000-A	SLIDE PLATE CONNECTING LINK A
	SD-0640481-SP	HINGE SCREW D= 6.35 H= 4.8
	B2521-372-000	STUD
	B2519-372-000	INTERMEDI CONNECTING LINK
	WP-0501016-SD	WASHER 5X10.5X1
	NS-6120310-SP	NUT 3/16-28
	B2513-372-000	INDICATOR SPRING CONNECTING LINK
	SD-0640961-SP	HINGE SCREW D= 6.35 H= 9.6
	B2515-372-000	HANDLE & INDICATOR SPRING
	SS-4090610-SP	SCREW 9/64-40 L=6	2
	B2507-372-000	CAM ROLL
	B2511-372-0AO	LENGTHWISE FEED LEVER ASM.
	B2512-372-000	LENGTHWISE FEED LEVER SLIDE BLOCK
	B2508-372-000	CAM ROLL SCREW STUD
	B2509-372-000-A	FEED STUD
	B2563-372-0AO	LENGTHWISE FEED SCALE ASM.
	B2563-372-000	LENGTHWISE FEED GRADUATE PLATE
	B2564-372-000	PLATE BASE
	B2565-372-000	FEED REGULATOR LEVER STOPPER
	SS-4120615-SP	SCREW 3/16-28 L=6	2
	NS-6150540-SP	NUT 15/64-28
	B2531-372-000	SET SCREW
	SD-0640481-SP	HINGE SCREW D= 6.35 H= 4.8
	B2519-372-000	INTERMEDI CONNECTING LINK
	SS-8152030-SP	SCREW 15/64-28 L=20
	B2510-372-000	CROSSWISE FEED LEVER
	B2501-372-000	CAM SHAFT
	B2530-372-0AO	CAM BOSS
	SS-8680810-TP	SCREW 9/32-28 L=8.0	4
	B2502-372-000	CAM SHAFT BUSHING, RIGHT
	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
	B2505-372-000	CROSSWISE FEED CAM
	B2505-373-000	CROSSWISE FEED CAM
	SS-8681412-TP	SCREW 9/32-28 L=13.5	5
	B2506-372-000	LENGHTWISE FEED CAM
	B2506-373-000	LENGHTWISE FEED CAM
	B2503-372-000	CAM SHAFT BUSHING, LEFT
	SS-7060810-SP	SCREW 3/32-56 L= 8.0
	B2527-372-000	CROSSWISE FEED GRADUATED PLATE
	B2528-372-000	CROSSWISE FEED GRADUATED PLATE
	B2523-372-000	HINGE SCREW FOR CROSSWISE FEED
	B2522-373-000-A	FEED PLATE
	WP-0501016-SD	WASHER 5X10.5X1

Page 15 — 6. BUTTON CLAMP LIFTER COMPONENTS

Juki MB-372 / MB-373 parts on page 15

Ref	Part number	Part name	Qty
	1	BUTTON CLAMP LIFTER COMPONENTS
	2	引き上げ関係
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	44	44
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	4543	4543

Page 16

Juki MB-372 / MB-373 parts on page 16

Ref	Part number	Part name	Qty
	B1407-372-000	BUTTON CLAMP LIFTING LEVER
	B1408-372-000	BUSHING
	B1408-372-000	BUTTON CLAMP LIFTING LEVER SHAFT
	SS-7150740-SP	SCREW 15/64-28 L=7
	B4415-372-000	BUTTON CLAMP LIFTING LEVER STOP
	B4419-372-000	NIPPER BAR ACTUATING LEVER SPRING
	B4418-372-000	WASHER
	SD-0641001-SP	HINGE SCREW D= 6.35 H=10.0
	B4411-372-000-A	BUTTON CLAMP LIFTING LINK
	B4410-372-0A0	SLIDING ROLLER ASM.
	SS-8660612-TP	SCREW 1/4-40 L= 6.0	(1)
	B4405-372-0A0	ECCENTRIC CAM ASM.
	SS-8660612-TP	SCREW 1/4-40 L= 6.0	(2)
	B4401-372-0A0	BUTTON CLAMP LIFTING LINK ASM.
	CS-0950810-SH	THRUST COLLAR ASM. D=9.5 W=8	2
	SS-8110410-TP	SCREW 11/64-40 L= 3.5	(4)
	B4404-372-000	LEVER SHAFT
	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
	B4408-372-000	LIFTING LINK CONNECTING LINK
	B4406-372-0A0-A	LIFTING LINK LEVER ASM.
	SS-6121610-TP	SCREW 3/16-28 L=15.5	(1)
	SD-0640471-SP	HINGE SCREW D= 6.35 H= 4.7
	SD-0640211-SP	HINGE SCREW D= 6.35 H= 2.1
	NS-6090310-SP	NUT 9/64-40
	WP-0371026-SD	WASHER 3.7X7X1
	B4417-372-000	BUTTON CLAMP LIFTING ROD ROLI.
	B4416-372-000	BUTTON CLAMP LIFTING ROD
	SS-9151120-CP	SCREW 15/64-28 L=11
	B2404-373-R00	CONNECTING LINK, FRONT
	B2413-373-000	JOINT STUD
	B1632-180-000	FEED ADJUSTING JOINT
	WP-0510516-SD	WASHER 5.1X7.5X0.5
	NM-6050001-SP	NUT M5	2
	B2412-373-000	CONNECTING SCREW
	NS-6680320-SP	NUT 9/32-28	2
	B2403-373-000-A	CONNECTING LINK, REAR
	SD-0640323-TP	HINGE SCREW D= 6.35 H= 3.2
	SD-0790402-TP	HINGE SCREW D= 7.94 H= 4
	NS-6620310-SP	NUT 3/16-32
	NS-6150310-SP	NUT 15/64-28
	B2402-373-000-A	THREAD TRIMMING LEVER
	SD-0790311-TP	HINGE SCREW D= 7.94 H= 3.1
	NS-6110530-SP	NUT 11/64-40
	B2405-373-000	THREAD TRIM LEVER BASE
	SS-7111410-TP	SCREW 11/64-40 L=14	2
	B2401-373-000	THREAD TRIMMING LINK
	SD-0641322-TP	HINGE SCREW D=6.35 H=13.2
	B4411-373-000	BUTTON CLAMP LIFTING LINK
	B4412-373-000	BUTTON CLAMP LIFTING LEVER
	WP-0751576-SD	WASHER 7.5X19X1.5	2
	B4420-373-000	CUSHION
	D9219-555-B00	SAFETY MAGNET
	B4416-373-AA0	BUTTON CLAMP LIFTING ROD ASM.
	WP-0704016-SP	WASHER 7X20X4
	WP-0703516-SP	WASHER 7X20X3.5
	WP-0704016-SP	WASHER 7X20X4
	B4420-373-000	CUSHION
	WP-0751576-SD	WASHER 7.5X19X1.5	2
	WP-0851846-SC	WASHER 8.5X22.0X1.8	2

Page 17 — 7. NEEDLE DRIVING PULLEY SHAFT COMPONENTS

Juki MB-372 / MB-373 parts on page 17

Ref	Part number	Part name	Qty
	B1203-372-000	BALL LARGE	1
	B1204-372-000	PULLEY INSERT	1
	B1246-372-000	BALL SMALL	1
	B1205-372-000	SPRING	1
	B1202-372-000	NEEDLE DRIVING PULLEY	1
	SS-8110750-SP	SCREW 11/64-40 L= 6.5	1
	SS-8150410-SP	SCREW 15/64-28 L=4	1
	B1243-372-000	NEEDLE BEARING	2
	B1206-372-000	GREASE RETAINING WICK	1
	B1207-372-000	RETAINING WASHER	1
	SS-6152440-SP	SCREW 15/64-28 L=23.5	2
	WP-0621026-SP	WASHER 6.2X9.5X1	2
	B1208-372-000	NEEDLE DRIVING PULLEY CLUTCH DISC	1
	B1210-372-0A0	STOP MOTION DISC ASM.	1
	B1211-372-000	STOP MOTION DISC PAWL (A)	(1)
	B1212-372-000	STOP MOTION DISC LATCH (B)	(1)
	B1213-372-000	SCREW	(2)
	NS-6150430-SP	NUT 15/64-28	2
	SS-8701042-TP	SCREW 5/16-24 L=10.0	3
	SS-8701782-TP	SCREW 5/16-24 L=17.0	1
	NS-6150430-SP	ECCENTRIC WASHER	1
	NS-6150430-SP	NUT 15/64-28	2
	B1215-372-B00	THRUST BALL BEARING	1
	SS-8151150-SP	SCREW 15/64-28 L=10.5	2
	B1216-372-000	PULLEY SHAFT BUSHING, RIGHT	1
	B1218-372-000	PULLEY SHAFT BUSHING, LEFT	1
	B1217-372-0A0	DRIVING GEAR ASM.	1
	SS-8660612-TP	SCREW 1/4-40 L= 6.0	(2)
#01	B1201-372-000	NEEDLE DRIVING PULLEY SHAFT
#02	B1201-373-000	NEEDLE DRIVING PULLEY SHAFT

Page 18 — 8. NEEDLE BAR DRIVING MECHANISM COMPONENTS

Juki MB-372 / MB-373 parts on page 18

Ref	Part number	Part name	Qty
1	MTQ-700B1600	NEEDLE TQX7 #16	1
2	MTQ-700B2000	NEEDLE TQX7 #20	1
3	SS-7080510-TP	SCREW 1/8-44 L=4.5	1
4	B1401-372-000-A	NEEDLE BAR	1
5	B1403-372-000-A	NEEDLE BAR BUSHING LOWER	1
6	B3112-372-000	NEEDLE BAR BALANCE	1
7	B3113-372-000	NEEDLE BAR CLAMP	1
8	SS-6091210-TP	SCREW 9/64-40 L=12	1
9	B1402-372-000	NEEDLE BAR BUSHING, UPPER	1
10	B1406-372-000	NEEDLE BAR BEARING BLOCK	1
11	B1409-372-000	NEEDLE BAR LEVER	1
12	SS-9151630-CP	SCREW 15/64-28 L=15.5	2
13	NS-6150440-SP	NUT 15/64-28	1
14	B1411-372-0A0	WASHER	1
15	B1412-372-0A0	BALL JOINT UPPER ASM.	(2)
16	B1413-372-000	CLAMP SCREW	1
17	NS-6680410-SP	NUT 9/32-28	1
18	B1414-372-0A0	CONNECTING ROD ASM.	(0.3)
19	CQ-2000000-00	OIL WICK	1
20	NS-6680480-SP	NUT 9/32-28	1
21	B1416-372-0A0	BALL JOINT ECCENTRIC ASM.	1
22	SS-8660612-TP	SCREW 1/4-40 L=6.0	(1)
23	SS-8660942-TP	SCREW 1/4-40 L=8.5	(1)
24	B1418-372-000	CLAMP SCREW LOWER	(2)
25	B3541-012-000	OIL WICK	(0.1)

Page 19 — 9. STOP MOTION MECHANISM COMPONENTS

Juki MB-372 / MB-373 parts on page 19

Ref	Part number	Part name	Qty
	B2605-372-000	STOP MOTION PLUNGER ROD	1
	PD-0201000-0D	SPLIT PIN 2X10	1
	B2604-372-000	STOP MOTION PLUNGER	1
	SS-6151040-SP	SCREW 15/64-28 L=10	1
	B2602-372-000	STOP MOTION PLUNGER LEVER	1
	B2606-372-000	STOP MOTION DISC SPRING	30
	B2608-280-000	RUBBER CUSHION	4
	B8220-804-000	WASHER	1
	NS-6680410-SP	NUT 9/32-28	2
	B2601-372-000	STOP MOTION LEVER SHAFT	1
	B2611-372-000	STOP MOTION DISC PRESSURE LEVER	1
	B2603-372-000	SCREW	1
	SS-6151570-SP	SCREW 15/64-28 L=15.0	1
	NS-6150310-SP	NUT 15/64-28	1
	SD-0680271-SP	HINGE SCREW D= 6.80 H= 2.7	1
	NS-6150310-SP	NUT 15/64-28	1
	B2615-372-000	STOP SCREW	1
	NS-6150310-SP	NUT 15/64-28	1
	SS-9151160-CP	SCREW 15/64-28 L=10.5	1
	B2614-372-000	STOP MOTION TRIP LEVER	1
	B2612-372-000	STOP MOTION TRIP LEVER BRACKET	1
	SS-9150860-SP	SCREW 15/64-28 L=8	2
	B2616-372-000	SPRING	1
	B8133-019-000	S SHAPED HOOK	1
	B2608-372-000	STOP MOTION LEVER SPRING PIN	1
	B2609-372-000	STOP MOTION LEVER SPRING	1
	B2610-372-000	SCREW STUD	1
	NS-6150310-SP	NUT 15/64-28	1

Page 20 — 10. STITCH SELECTING PARTS COMPONENTS

Juki MB-372 / MB-373 parts on page 20

Ref	Part number	Part name	Qty
	SD-1127321-SP	HINGE SCREW D= 12.70 H= 3.2	1
	B2643-372-000	SPRING FOR FRICTION PLATE	1
	B2638-372-000	FRICTION PLATE ROTATING STUD	1
	B2637-372-000	SLIDE BLOCK	1
	B2636-372-000	SPEED SLOWING LEVER	1
	SD-0791331-SP	HINGE SCREW D= 7.94 H=13.3	1
	B2639-372-000	FRICTION PLATE HOLDER ASM.	1
	B2639-372-000	FRICTION PLATE HOLDER	(1)
	B2640-372-000	SPEED SLOWING FRICTION PLATE	(1)
	B3211-232-000	POSITIONING PIN	(2)
	NS-6110310-SP	NUT 11/64-40	1
	B2619-372-000	STOP MOTION TRIPPING LEVER CAM ROLI.	1
	B2618-372-0AO	STOP MOTION TRIPPING LEVER ASM.	1
	SS-9202443-CP	SCREW 5/16-18 L=24	(1)
	B2620-372-000	STOP MOTION CAM.	(1)
	B2621-372-0AO	STOP MOTION CAM ASM.	(1)
	B2623-372-000	STOP MOTION CAM SHOE	(1)
	B2624-372-000	SCREW FOR STOP MOTION CAM SHOE	(1)
	B2625-372-000	STOP MOTION CAM KNOB	(1)
	SD-0481452-SP	HINGE SCREW D= 4.80 H=14.5	(2)
	SS-6151142-TP	SCREW 15/64-28 L=10.5	(1)
	B2629-372-000	STITCH SELECTING SPUR GEAR, MIDDLE	1
	B2628-372-000	SCREW STUD	1
	B2633-372-000	STITCH SELECTING LEVER	1
	B2630-372-000-A	SPEED SLOWING FRICTION SPUR GEAR, LARGE	1
	B2631-372-000	SCREW	2
	B2632-372-000-A	ROLL	1
	B2634-372-000	STITCH SELECTING LATCH	1
	B2635-372-000-A	SPEED SLOWING FRICTION WHEEL.	1
	SD-0640961-SP	HINGE SCREW D= 6.35 H= 9.6	1
	B2635-372-000-A	SPEED SLOWING FRICTION WHEEL.	1
	SS-8151150-TP	SCREW 15/64-28 L=10.5	2
	SS-9111010-SP	SCREW 11/64-40 L=9.5	1
	WP-0501016-SD	WASHER 5X10.5X1	1
	SS-6081210-SP	SCREW 1/8-44 L=12	1
	NS-6080210-SP	NUT 1/8-44	1

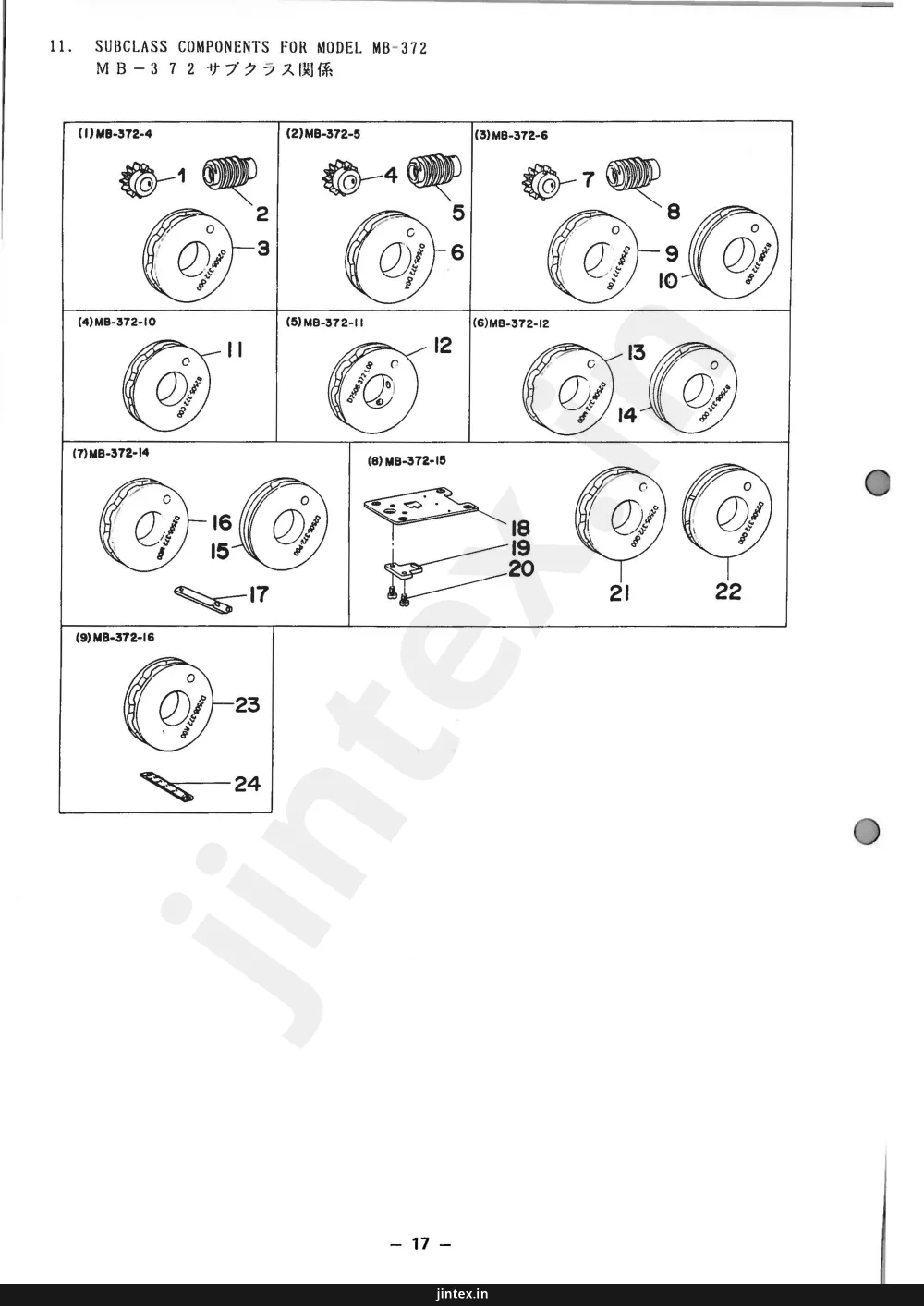

Page 21 — SUBCLASS COMPONENTS FOR MODEL MB-372

Juki MB-372 / MB-373 parts on page 21

Ref	Part number	Part name	Qty
1	MB-372-4	1
2	MB-372-4	2
3	MB-372-4	3
4	MB-372-5	4
5	MB-372-5	5
6	MB-372-5	6
7	MB-372-6	7
8	MB-372-6	8
9	MB-372-6	9
10	MB-372-6	10
11	MB-372-10	11
12	MB-372-11	12
13	MB-372-12	13
14	MB-372-12	14
15	MB-372-14	15
16	MB-372-14	16
17	MB-372-14	17
18	MB-372-15	18
19	MB-372-15	19
20	MB-372-15	20
21	MB-372-15	21
22	MB-372-15	22
23	MB-372-16	23
24	MB-372-16	24

Page 22

Juki MB-372 / MB-373 parts on page 22

Ref	Part number	Part name	Qty
	D1220-372-D00	CAM SHAFT DRIVEN GEAR (6,12,24)	1
	D1221-372-D00	DRIVEN WORM GEAR FOR 6,12,24	1
	D2505-372-D00	CROSSWISE FEED CAM (6,12,24)	1
	D1220-372-D00	CAM SHAFT DRIVEN GEAR (6,12,24)	1
	D1221-372-D00	DRIVEN WORM GEAR FOR 6,12,24	1
	D2505-372-D0A	CROSSWISE FEED CAM, 7.-SHAPE	1
	D1220-372-D00	CAM SHAFT DRIVEN GEAR (6,12,24)	1
	D1221-372-D00	DRIVEN WORM GEAR FOR 6,12,24	1
	D2506-372-F00	LENGTH WISE FEED CAM	1
	B2506-372-000	LENGTHWISE FEED CAM
	B2505-372-C00	CROSS FEED CAM (8,16,32)	1
	D2506-372-1.00	LENGTHWISE FEED CAM FOR X-SHAPE	1
	D2506-372-M00	LENGTH WISE FEED CAM	1
	B2506-372-000	LENGTHWISE FEED CAM
	D2505-372-P00	CROSSWISE FEED CAM	1
	D2506-372-M00	LENGTH WISE FEED CAM
	D2528-372-P00	CROSS FEED SCALE	1
	D1241-372-Q00	THROAT PLATE	1
	D1250-372-Q00	NEEDLE HOLE GUIDE	1
	SS-7110510-SP	SCREW 11/64-40 L=5	2
	D2505-372-Q00	CROSS WISE FEED CAM	1
	D2506-372-R00	LENGTH WISE FEED CAM	1
	D2505-372-R00	CROSSWISE FEED CAM	1
	D2528-372-R00	CROSSFEED SCALE	1

Page 23 — SUBCLASS COMPONENTS FOR MODEL MB-373

Juki MB-372 / MB-373 parts on page 23

Ref	Part number	Part name	Qty
1	MB-373-4	SPROCKET
2	MB-373-4	BOBBIN WINDER SPINDLE
3	MB-373-4	BOBBIN WINDER
4	MB-373-5	SPROCKET
5	MB-373-5	BOBBIN WINDER SPINDLE
6	MB-373-5	BOBBIN WINDER
7	MB-373-6	SPROCKET
8	MB-373-6	BOBBIN WINDER SPINDLE
9	MB-373-6	BOBBIN WINDER
11	MB-373-10	BOBBIN WINDER
12	MB-373-11	BOBBIN WINDER
13	MB-373-12	BOBBIN WINDER
14	MB-373-12	BOBBIN WINDER
15	MB-373-14	BOBBIN WINDER
16	MB-373-14	BOBBIN WINDER
17	MB-373-14	PIN
18	MB-373-15	BRACKET
19	MB-373-15	BRACKET
20	MB-373-15	BRACKET
21	MB-373-15	BOBBIN WINDER
22	MB-373-15	BOBBIN WINDER
23	MB-373-15	SPRING GUIDE
24	MB-373-15	SPRING GUIDE
25	MB-373-15	SPRING
26	MB-373-15	WASHER
27	MB-373-15	WASHER
28	MB-373-16	BOBBIN WINDER
29	MB-373-16	PIN

Page 24

Juki MB-372 / MB-373 parts on page 24

Ref	Part number	Part name	Qty
	D1220-372-D00	CAM SHAFT DRIVEN GEAR (6,12,24)	1
	D1221-372-D00	DRIVEN WORM GEAR FOR 6,12,24	1
	D2505-373-D00	FEED CAM	1
	D1220-372-D00	CAM SHAFT DRIVEN GEAR (6,12,24)	1
	D1221-372-D00	DRIVEN WORM GEAR FOR 6,12,24	1
	D2505-373-E00	CROSS WISE FEED CAM	1
	D1220-372-D00	CAM SHAFT DRIVEN GEAR (6,12,24)	1
	D1221-372-D00	DRIVEN WORM GEAR FOR 6,12,24	1
	D2506-373-F00	LENGTH WISE FEED CAM	1
	B2506-373-000	LENGTHWISE FEED CAM
	B2505-373-C00	CROSS WISE FEED CAM. Z-SHAPE	1
	D2506-373-L00	LENGTH WISE FEED CAM	1
	D2506-373-M00	LENGTH WISE FEED CAM (8,16,32)	1
	B2506-373-000	LENGTHWISE FEED CAM
	D2505-372-P00	CROSSWISE FEED CAM	1
	D2506-373-M00	LENGTH WISE FEED CAM (8,16,32)
	D2528-372-P00	CROSS FEED SCALE	1
	D1241-373-000	THROAT PLATE	1
	D1250-372-000	NEEDL HOLE GUIDE	1
	SS-7110510-SP	SCREW 11/64-40 L=5	2
	D2505-372-000	CROSS WISE FEED CAM	1
	D2506-372-000	LENGTH WISE FEED CAM	1
	B4416-373-0A0	MOVING KNIFE PUSH-BACK SPRING ASM.	1
	B4416-373-000	SPRING GUIDE SHAFT	(1)
	D9317-762-T00	GIMP GUIDE SHAFT SPRING	(1)
	WP-0751576-SD	WASHER 7.5X19X1.5	(1)
	B4420-373-000	CUSHION	(1)
	D2505-373-R00	CROSSWISE FEED CAM	1
	D2528-372-R00	CROSSFEED SCALE	1

Page 25 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (1)

Juki MB-372 / MB-373 parts on page 25

Ref	Part number	Part name	Qty
16	B2547-372 080	SMALL BUTTON
16	B2547-372 OBA	SMALL BUTTON
16	D2547 372 C80	LARGE BUTTON
16	D2547-372 CBA	LARGE BUTTON
59	B2529-372-000	SMALL BUTTON
59	D2529-372-800	MIDDLE BUTTON
59	D2529-372 C00	LARGE BUTTON

Page 26

Juki MB-372 / MB-373 parts on page 26

Ref	Part number	Part name	Qty
	MAZ-001000AO	LARGE BUTTON CLAMP ASM.	1
	MAZ-001000AA	LARGE BUTTON CLAMP ASM.	1
	D2547-372-CB0	WORK CLAMP FOOT ASM. (LARGE BUTTON)	(1)
	D2547-372-CBA	LARGE BUTTON CLAMP ASM.	(1)
	D2555-372-C00	WORK CLAMP FOOT ASM. (LEFT & LARGE)	(1)
	D2555-372-C00	WORK CLAMP FOOT ASM. (LEFT)	(1)
	D2556-372-C00	BUTTON HOLDING SPRING, LEFT	(1)
	SS-7090410-SP	SCREW 9/64-40 L=3.5	(1)
	B2559-372-000	BUTTON CLAMP LOCATING PIN	(1)
	D2557-372-CA0	BUTTON CLAMP LEVER JAW, RIGHT	(1)
	D2557-372-C00	BUTTON HOLDING SPRING, RIGHT	(1)
	D2557-372-C00	BUTTON HOLDING SPRING, RIGHT	(1)
	SS-7090410-SP	SCREW 9/64-40 L=3.5	(1)
	B2559-372-000	BUTTON CLAMP LOCATING PIN	(1)
	D2529-372-C00	FEED PLATE, LARGE BUTTON	(1)
	D2529-372-B00	FEED MEDIUM SIZE BUTTON	(1)
	B2401-372-0B0	SHANK BUTTON CLAMP ASM.	(1)
	B2401-372-0BA	SHANK BUTTON CLAMP ASM.	(1)
	SS-8120740-SP	SCREW 3/16-28 L=7	(1)
	B2411-372-000	BUTTON CLAMP STUD	(1)
	B2412-372-000	BUTTON CLAMP BLOCK	(1)
	SS-7110540-SP	SCREW 11/64-40 L=5	(1)
	B2405-372-000	BUTTON CLAMP LEVER	(1)
	SS-7110710-SP	SCREW 11/64-40 L=7	(1)
	B2406-372-000	SHANK BUTTON HOLDING CLAMP	(1)
	SS-7110570-SP	SCREW 11/64-40 L=4.8	(1)
	B2402-372-000	BUTTON CLAMP HOLDING SHAFT	(1)
	B2401-372-000	SHANK BUTTON HOLDING CLAMP	(1)
	B2401-372-00B	SHANK BUTTON CLAMP BRACKET	(1)
	CS-072081A-SP	THRUST COLLAR ASM. D=7.24 W=8	(1)
	SS-8110410-TP	SCREW 11/64-40 L=3.5	(1)
	B2546-372-000	SPRING FOR LEVER HOLDING SHAFT	(1)
	B2448-372-000	BUTTON CLAMP LIFTING ROD	(1)
	SS-6111140-SP	SCREW 11/64-40 L=11	(1)
	B2408-372-000	SHANK BUTTON GUARD	(1)
	B2419-372-A00	BUTTON CLAMP ADAPTER (A)	(1)
	B2419-372-B00	SHANK BUTTON ADAPTER (B)	(1)
	SS-6110480-SP	SCREW 11/64-40 L=4.3	(1)
	B2410-372-000	BUTTON CLAMP WORK SUPPORT PLATE	(1)
	B2409-372-000	BUTTON CLAMP FEED PLATE	(1)
	SS-9120910-TP	SCREW 3/16-28 L=9	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2542-372-000	BUTTON CLAMP HOLDER	(1)
	B2542-372-00A	BUTTON CLAMP HOLDER	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	B2410-372-00A	WORK SUPPORT PLATE A	1
	B2410-372-00B	WORK SUPPORT PLATE B	1
	B2410-372-00C	WORK SUPPORT PLATE C	1
	B2410-372-00D	WORK SUPPORT PLATE D	1
	B2447-372-0A0	WRAPPED AROUND BUTTON CLAMP, FIRST	(1)
	B2447-372-000	SHANKING FOOT	(1)
	WP-0501016-SD	WASHER 5X10.5X1	(1)
	SS-9120910-TP	SCREW 3/16-28 L=9	(1)
	B2446-372-000	GUIDE PIN	(1)
	B2440-372-0A0	BUTTON NECKING ATTACHMENT ASM. NO. 2	(1)
	B2440-372-000	FEED PLATE	(1)
	B2441-372-000	WRAPPED GUIDE (LARGE)	(1)
	B2442-372-0A0	WRAPPED GUIDE (MIDDLE) ASM.	(1)
	B2442-372-000	WRAPPED GUIDE (MIDDLE)	(1)
	SS-9110513-TP	SCREW 11/64-40 L=5	(1)
	B2448-372-000	SPRING	(2)
	SS-6060220-SP	SCREW 3/32-56 L=2.0	(2)

Page 27 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (2)

Juki MB-372 / MB-373 parts on page 27

Ref	Part number	Part name	Qty
01	B2547-372-0B0	SMALL BUTTON
01	B2547-372-0BA	SMALL BUTTON
01	B2547-372-CBO	LARGE BUTTON
01	B2547-372-CBA	LARGE BUTTON

Page 28

Juki MB-372 / MB-373 parts on page 28

Ref	Part number	Part name	Qty
	B2552-372-BAO	SNAP FASTENER CLAMP COMPLETE
01	B2552-372-BAA	SNAP FASTENER CLAMP COMPLETE
	B3107-372-B00	THREAD GUIDE NO. 3, SNAP FASTENER
	B2546-372-000	BUTTON CLAMP LIFTING ROD
	SD-0550181-SP	HINGE SCREW D= 5.50 H= 1.8
	B2549-372-000	CLAMP SCREW A
	B2548-372-000	SNAP FASTENER CLAMP STOP LEVER
	SS-9621413-SP	SCREW 3/16-32 L=13.5
	WP-0501016-SD	WASHER 5X10.5X1
	SD-0550301-SP	HINGE SCREW D=5.5 H=3
	B2547-372-000	JAW LEVER HOLDER
	B2555-372-B00	SNAP FASTENER CLAMP JAW LEVER, LEFT
	B2557-372-B00	SNAP FASTENER CLAMP JAW LEVER, RIGHT
	B2560-372-000	BUTTON CLAMP STOP PIN
	B2552-372-B00	SNAP FASTENER CLAMP JAW LEVER, RIGHT
	B2553-372-000	NUT
	B2529-372-B00	SLIDE SUPPORT PLATE
	SS-7150940-SP	SCREW 15/64-28 L=9
	SS-7150940-SP	SCREW 15/64-28 L=9
	B2542-372-000	BUTTON CLAMP HOLDER
01	B2542-372-00A	BUTTON CLAMP HOLDER
	SD-0640391-TP	HINGE SCREW D= 6.35 H= 3.9
	B2561-372-000	BUTTON CLAMP SPRING
	B2420-372-0AO	METAL SHANK BUTTON CLAMP COMPLETE
01	B2420-372-0AA	METAL SHANK BUTTON CLAMP COMPLETE
	SS-8120740-SP	SCREW 3/16-28 L=7
	B2411-372-000	BUTTON CLAMP STUD
	B2412-372-000	BUTTON CLAMP BLOCK
	SS-7110540-SP	SCREW 11/64-40 L=5
	B2405-372-000	BUTTON CLAMP LEVER
	SS-7110710-SP	SCREW 11/64-40 L=7
	B2406-372-000	SHANK BUTTON HOLDING CLAMP
	SS-7110570-SP	SCREW 11/64-40 L=4.8
	B2402-372-000	METAL BUTTON LEVER HOLDING SHAFT
	B2401-372-000	BUTTON CLAMP BRACKET
01	B2401-372-00B	SHANK BUTTON CLAMP BRACKET
	CS-072081A-SP	THRUST COLLAR ASM. D=7.24 W=8
	SS-8110410-TP	SCREW 11/64-40 L= 3.5
	B2404-372-000	SPRING FOR LEVER HOLDING SHAFT
	B2546-372-000	BUTTON CLAMP LIFTING ROD
	SS-6111140-SP	SCREW 11/64-40 L=11
	B2422-372-000	METAL SHANK BUTTON GUARD
	B2421-372-000	METAL SHANK BUTTON ADAPTER
	SS-6110480-SP	SCREW 11/64-40 L=4.3
	B2423-372-000	METAL SHANK BUTTON SUPPORT PLATE
	B2409-372-000	BUTTON CLAMP FEED PLATE
	SS-9621413-SP	SCREW 3/16-32 L=13.5
	WP-0501016-SD	WASHER 5X10.5X1
	B2542-372-000	BUTTON CLAMP HOLDER
01	B2542-372-00A	BUTTON CLAMP HOLDER
	SS-7150940-SP	SCREW 15/64-28 L=9
	SS-7150940-SP	SCREW 15/64-28 L=9
	SS-9120910-TP	SCREW 3/16-28 L=9
	MAT-60901ZA0	FEED PLATE ASM.
	MAT-60905Z00-A	HOLDER (B)
	SS-4080310-SP	SCREW 1/8-44 L=3.4
	MAT-60903Z00-A	GUIDE (B)
	MAT-60902Z00	GUIDE (A)
	SS-6080410-SP	SCREW 1/8-44 L=4
	MAZ-00906000	PRESSER SPRING
	MAT-60904Z00-A	HOLDER (A)
	MAT-60901Z00	FEED PLATE

Page 29 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (3)

Juki MB-372 / MB-373 parts on page 29

Ref	Part number	Part name	Qty
	28	28
	33	33
	30	30
	31	31
	32	32
	29	29
	25	25
	24	24
	26	26
	27	27
	13	13
	14	14
	12	12
	15	15
	11	11
	16	16
	19	19
	18	18
	17	17
	20	20
	9	9
	10	10
	35	35
	34	34
	36	36
	28	28
	8	8
	7	7
	5	5
	6	6
	21	21
	4	4
	3	3
	64	64
	6667	6667
	65	65
	61	61
	60	60
	63	63
	62	62
	49	49
	48	48
	50	50
	45	45
	46	46
	69	69
	68	68
	70	70
	51	51
	52	52
	55	55
	47	47
	43	43
	44	44
	4142	4142
	57	57
	54	54
	53	53
	59	59
	58	58
	39	39
	40	40

Page 30

Juki MB-372 / MB-373 parts on page 30

Ref	Part number	Part name	Qty
	MAZ-010000A0	SHANK BUTTON CLAMP ASM.
	MAZ-010000AA	SHANK BUTTON CLAMP ASM.
	B2401-372-LA0	SHANK BUTTON CLAMP (I.) ASM.
	B2401-372-LAA	SHANK BUTTON CLAMP (I.) ASM.
	B2542-372-L00	BUTTON CLAMP HOLDER, L
	B2542-372-L0A	BUTTON CLAMP HOLDER, L
	B2401-372-L0A	BUTTON CLAMP BRACKET (L)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2402-372-L00	ROLLER STUD, FOR TRIPPING LEVER (L.)	(1)
	B2404-372-L00	SPRING FOR HOLDING SHAFT	(1)
	B2426-372-L00-A	THRUST RING	(1)
	SS-7090620-TP	SET SCREW	(2)
	B2405-372-L00	BUTTON CLAMP LEVER	(1)
	B2429-372-L00	SET SCREW	(1)
	B2406-372-L00-A	SHANK BUTTON HOLDING CLAMP (L)	(1)
	SS-7110720-SP	SET SCREW	(1)
	SS-6111140-SP	SCREW	(1)
	B2546-372-L00	BUTTON CLAMP LIFTING ROD (L)	(1)
	B2431-372-L00	SET SCREW	(1)
	B2419-372-L00	SHANK BUTTON ADAPTER	(1)
	B2408-372-L00	SHANK BUTTON GUARD	(1)
	B2412-372-L00	BUTTON CLAMP BLOCK	(1)
	B2411-372-L00	BUTTON CLAMP STUD	(1)
	SS-8120740-SP	SCREW 3/16-28 L=7	(1)
	B2433-372-L00	SET SCREW	(1)
	B2409-372-LA0	BUTTON CLAMP FEED PLATE ASM.	(1)
	B2409-372-L00	BUTTON CLAMP FEED PLATE (L)	(1)
	B2410-372-LOA	WORK SUPPORT PLATE (L)	(1)
	B2410-372-LOB	WORK SUPPORT PLATE (L)	(1)
	B2410-372-LOC	WORK SUPPORT PLATE (L)	(1)
	B2434-372-1.00	SET SCREW	(1)
	B2544-372-L00-A	PRESSURE ADJUSTING BAR (L.)	(1)
	B2435-372-L00-A	NUT	2
	B2543-372-L00	BUTTON CLAMP STOPPER PIN (I.)	1
	MAZ-010000A0	SHANK BUTTON CLAMP ASM., B
	MAZ-010000AA	SHANK BUTTON CLAMP ASM., B
	B2401-372-BA0	SHANK BUTTON CLAMP ASM., B
	B2401-372-BAA	SHANK BUTTON CLAMP ASM., B
	B2542-372-L00	BUTTON CLAMP HOLDER, L	(1)
	B2542-372-L0A	BUTTON CLAMP HOLDER, L	(1)
	B2401-372-L00-A	SHANK BUTTON CLAMP BRACKET, L.	(1)
	B2401-372-LOA	SHANK BUTTON CLAMP BRACKET, L.	(1)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2402-372-L00	ROLLER STUD, FOR TRIPPING LEVER (L.)	(1)
	B2404-372-L00	SPRING FOR HOLDING SHAFT	(1)
	B2426-372-L00-A	THRUST RING	(1)
	SS-7090620-TP	SET SCREW	(2)
	B2405-372-L00	BUTTON CLAMP LEVER	(1)
	B2429-372-L00	SET SCREW	(1)
	B2406-372-B00	SHANK BUTTON HOLDING CLAMP (B)	(1)
	SS-7110720-SP	SCREW 11/64-40 L=7	(1)
	SS-6111140-SP	SCREW	(1)
	B2546-372-L00	BUTTON CLAMP LIFTING ROD (L.)	(1)
	B2431-372-L00	SET SCREW	(1)
	B2419-372-C00	SHANK BUTTON ADAPTER	(1)
	B2408-372-B00	SHANK BUTTON GUARD	(1)
	B2412-372-L00	BUTTON CLAMP BLOCK	(1)
	B2411-372-L00	BUTTON CLAMP STUD	(1)
	SS-8120740-SP	SCREW 3/16-28 L=7	(1)
	B2433-372-L00	SET SCREW	(1)
	B2409-372-BA0	BUTTON CLAMP FEED PLATE ASM.	(1)
	B2409-372-L00	BUTTON CLAMP FEED PLATE (L)	(1)
	B2410-372-B00	BUTTON CLAMP SUPPORT PLATE 6MM	(1)
	B2434-372-L00	SET SCREW	(1)
	B2544-372-L00-A	PRESSURE ADJUSTING BAR (L.)	(1)
	B2435-372-L00-A	NUT	2
	B2543-372-L00	BUTTON CLAMP STOPPER PIN (I.)	1

Page 31 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (4)

Juki MB-372 / MB-373 parts on page 31

Ref	Part number	Part name	Qty
	MAT-61401ZBO	LABEL SEWER ATTACHMENT ASM.	1
	MAT-61401ZBA	LABEL SEWER ATTACHMENT ASM.	1
	MAT-61401ZAO	CLAMP ASM. FOR LABFL.	(1)
	MAT-61401Z00	CLAMP FOR LABEL	(1)
	MAT-61402Z00	SPRING	(1)
	SS-5060310-SP	SCREW 3/32-56 L=2.8	(2)
	MAT-61403Z00	STOPPER	(1)
	MAZ-01404000	FEED PLATE	(1)
	B2542-372-000	BUTTON CLAMP HOLDER	(1)
	B2542-372-00A	BUTTON CLAMP HOLDER	(1)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	B2546-372-000	BUTTON CLAMP LIFTING ROD	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	MAT-61601ZAO	FEED PLATE ASM.	1
	MAT-61601Z00	FEED PLATE	(1)
	MAT-61603Z00	CLOTH PLATE	(1)
	MAT-61602Z00	PLATE	(1)
	SS-7110570-SP	SCREW 11/64-40 L=4.8	(1)
	B2449-372-000	WRAPPED FOOT	1
	B2450-372-000	WRAPPED FOOT BASE	1
	B2547-372-000	JAW LEVER HOLDER A	1
	B2446-372-000	GUIDE PIN	1
	B2549-372-000	CLAMP SCREW A	1
	SS-9120910-TP	SCREW 3/16-28 L=9	1
	WP-0501016-SD	WASHER 5X10.5X1	1

Page 32 — ATTACHMENT COMPONENTS FOR MODEL MB-373 (1)

Juki MB-372 / MB-373 parts on page 32

Ref	Part number	Part name	Qty
1	HAZ-031000AA	LARGE BUTTON CLAMP ASM.
2	HAZ-031000AA	LARGE BUTTON CLAMP ASM.
3	D2547-372-CB0	WORK CLAMP FOOT ASM. (LARGE BUTTON)
4	D2547-372-CBA	WORK CLAMP FOOT ASM. (LARGE BUTTON)
5	D2555-372-CAO	WORK CLAMP FOOT ASM. (LEFT & LARGE)
6	D2555-372-COO	WORK CLAMP FOOT ASM. (LEFT)
7	SS-7090410-SP	SCREW 9/64-40 L=3.5
8	B2559-372-000	BUTTON CLAMP LOCATING PIN
9	D2557-372-COO	BUTTON CLAMP LEVER JAV. RIGHT
10	B2557-372-CAO	BUTTON CLAMP LEVER JAV. RIGHT
11	B2557-372-COO	BUTTON HOLDING SPRING. RIGHT
12	D2558-372-COO	BUTTON HOLDING SPRING. RIGHT
13	SS-7090410-SP	SCREW 9/64-40 L=3.5
14	B2559-372-000	BUTTON CLAMP LOCATING PIN
15	D2529-373-COO	FEED PLATE. LARGE BUTTON
16	D2529-373-B00	FEED PLATE (SMALL BUTTON)
17	B2401-373-080	SHANK BUTTON CLAMP ASM.
18	B2401-373-08A	SHANK BUTTON CLAMP ASM.
19	B2401-372-000	SHANK BUTTON CLAMP ASM.
20	B2401-372-000	SHANK BUTTON CLAMP ASM.
21	SS-8120740-SP	SCREW 3/16-28 L=7
22	B2405-372-000	BUTTON CLAMP LEVER
23	B2411-372-000	BUTTON CLAMP STUD
24	B2412-372-000	BUTTON CLAMP BLOCK
25	SS-7110540-SP	SCREW 11/64-40 L=5
26	B2408-372-000	SHANK BUTTON HOLDING SHAFT
27	B2410-372-000	SHANK BUTTON CLAMP BRACKET
28	B2405-372-000	SHANK BUTTON GUARD
29	B2401-372-00B	SHANK BUTTON ADAPTER (A)
30	SS-8110410-TP	SCREW 11/64-40 L=3.5
31	B2419-372-000	SPRING FOR LEVER HOLDING SHAFT
32	B2546-372-000	BUTTON CLAMP LIFTING ROD
33	SS-6111140-SP	SCREW 11/64-40 L=11
34	B2408-372-000	SHANK BUTTON GUARD
35	SS-6110480-SP	SCREW 11/64-40 L=4.3
36	B2419-372-A00	SHANK BUTTON ADAPTER (B)
37	B2419-372-B00	SHANK BUTTON ADAPTER (B)
38	SS-6110480-SP	SCREW 11/64-40 L=4.3
39	B2410-372-000	BUTTON CLAMP WORK SUPPORT PLATE
40	B2470-373-000	BUTTON CLAMP FEED PLATE
41	SS-9120910-TP	SCREW 3/16-28 L=9
42	VP-0501016-SD	WASHER 5X10.5X1
43	VP-0501016-SP	WASHER 5X10.5X1
44	VP-0501016-SD	WASHER 5X10.5X1
45	B2542-372-000	BUTTON CLAMP HOLDER
46	B2542-372-00A	BUTTON CLAMP HOLDER
47	SS-7150940-SP	SCREW 15/64-28 L=9
48	SS-7150940-SP	SCREW 15/64-28 L=9

Page 33 — 18. ATTACHMENT COMPONENTS FOR MODEL MB-373 (2)

Juki MB-372 / MB-373 parts on page 33

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14-15	14-15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37-38	37-38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	7273	7273
	74	74
	75	75
	B2547-372-080	(SMALL BUTTON)
	B2547-372-0BA	(SMALL BUTTON)
	D2547-372-CBO	(LARGE BUTTON)
	D2547-372-CBA	(LARGE BUTTON)

Page 34

Juki MB-372 / MB-373 parts on page 34

Ref	Part number	Part name	Qty
	B2440-373-000	WRAPPED-AROUND BUTTON CLAMP ASM.	1
	B2440-373-000	FEED PLATE	(1)
	B2441-372-000	WRAPPED GUIDE, LARGE	(1)
	B2442-372-000	WRAPPED GUIDE (MIDDLE) ASM.	(1)
	B2442-372-000	WRAPPED GUIDE (MIDDLE)	(1)
	B2448-372-000	THREAD CLAMP SPRING	(2)
	SS-9110513-TP	SCREW 11/64-40 L=5	(1)
	SS-9110513-TP	SCREW 11/64-40 L=5	(1)
	B4416-373-0AO	MOVING KNIFE PUSH-BACK SPRING ASM.	(1)
	B4416-373-000	SPRING GUIDE SHAFT	(1)
	D9317-762-T00	GIMP GUIDE SHAFT	(1)
	WP-0751576-SD	WASHER 7.5X19X1.5	(2)
	B4420-373-000	CUSHION	(1)
	B2552-373-BAO	SNAP CLAMP ASM.	1
	B2552-373-BAA	SNAP CLAMP ASM.	(1)
	B3107-372-B00	THREAD GUIDE NO. 3, SNAP FASTENER	(1)
	B2546-372-000	BUTTON CLAMP LIFTING ROD	(1)
	SD-0550181-SP	HINGE SCREW D= 5.50 H= 1.8	(1)
	B2549-372-000	CLAMP SCREW	(1)
	B2548-372-000	SNAP FASTENER CLAMP STOP LEVER	(1)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	VP-0501016-SD	WASHER 5X10.5X1	(2)
	SD-0550301-SP	HINGE SCREW D=5.5 H=3	(1)
	B2547-372-000	JAV LEVER HOLDER	(1)
	B2555-372-B00	SNAP CLAMP JAW LEVER, LEFT	(1)
	B2557-372-B00	CLAMP JAW LEVER, RIGHT	(1)
	B2560-372-000	BUTTON CLAMP STOP PIN	(2)
	B2552-372-B00	CLAMP JAW LEVER, RIGHT	(1)
	B2553-372-000	NUT	(1)
	B2529-373-B00	FEED PLATE (MEDIUM SIZE BUTTON)	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	B2542-372-000	BUTTON CLAMP HOLDER	(1)
	B2542-372-00A	BUTTON CLAMP HOLDER	(1)
	SD-0640391-TP	HINGE SCREW D= 6.35 H= 3.9	(2)
	B2561-372-000	BUTTON CLAMP SPRING	(1)
	B2420-373-0AO	METAL BUTTON CLAMP ASM.	1
	B2420-373-0AA	METAL BUTTON CLAMP ASM.	(1)
	SS-8120740-SP	SCREW 3/16-28 L=7	(1)
	B2411-372-000	BUTTON CLAMP STUD	(1)
	B2412-372-000	BUTTON CLAMP BLOCK	(1)
	SS-7110540-SP	SCREW 11/64-40 L=5	(1)
	B2405-372-000	BUTTON CLAMP LEVER	(1)
	SS-7110570-SP	SCREW 11/64-40 L=7	(1)
	B2406-372-000	SHANK BUTTON HOLDING CLAMP	(1)
	SS-7110570-SP	SCREW 11/64-40 L=4.8	(1)
	B2402-372-000	BUTTON CLAMP LEVER HOLDING SHAFT	(1)
	B2401-372-000	SHANK BUTTON CLAMP BRACKET	(1)
	B2401-372-00B	SHANK BUTTON CLAMP BRACKET	(1)
	CS-072081A-SP	ST COLLAR ASM. D=7.24 W=8	(1)
	SS-8110410-TP	SCREW 11/64-40 L= 3.5	(1)
	B2404-372-000	SPRING FOR LEVER HOLDING SHAFT	(1)
	B2546-372-000	BUTTON CLAMP LIFTING ROD	(1)
	SS-6111140-SP	SCREW 11/64-40 L=11	(1)
	B2422-372-000	METAL SHANK BUTTON GUARD	(1)
	B2421-372-000	METAL SHANK BUTTON ADAPTER	(1)
	SS-6110480-SP	SCREW 11/64-40 L=4.3	(1)
	B2423-373-000	METAL BUTTON WORK SUPPORT PLATE	(1)
	B2470-373-000	BUTTON CLAMP FEED PLATE	(1)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2542-372-000	BUTTON CLAMP HOLDER	(1)
	B2542-372-00A	BUTTON CLAMP HOLDER	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	SS-9120910-TP	SCREW 3/16-28 L=9	(2)
	MAZ-039010A0	REINFORCING-STAY BUTTON ATCHMT.	(1)
	MAT-60905Z00-A	HOLDER (B)	(1)
	SS-6080340-SP	SCREW 1/8-44 L=3.0	(1)
	MAT-60903Z00-A	GUIDE (B)	(1)
	MAT-60902Z00	GUIDE (A)	(1)
	SS-6080340-SP	SCREW 1/8-44 L=3.0	(4)
	MAZ-00906000	PRESSER SPRING	(1)
	MAT-60904Z00-A	HOLDER (A)	(1)
	MAZ-03901000	FEED PLATE	(1)

Page 35 — ATTACHMENT COMPONENTS FOR MODEL MB-373 (3)

Juki MB-372 / MB-373 parts on page 35

Ref	Part number	Part name	Qty
	28	28
	33	33
	30	30
	31	31
	32	32
	29	29
	25	25
	24	24
	27	27
	26	26
	35	35
	14	14
	12	12
	13	13
	34	34
	36	36
	20	20
	15	15
	11	11
	9	9
	10	10
	16	16
	19	19
	17	17
	8	8
	5	5
	6	6
	21	21
	7	7
	23	23
	22	22
	4	4
	3	3
	6667	6667
	65	65
	64	64
	61	61
	60	60
	63	63
	62	62
	50	50
	49	49
	48	48
	49	49
	47	47
	56	56
	45	45
	69	69
	68	68
	70	70
	51	51
	52	52
	55	55
	44	44
	4142	4142
	57	57
	5453	5453
	59	59
	58	58
	43	43
	39	39
	40	40

Page 36

Juki MB-372 / MB-373 parts on page 36

Ref	Part number	Part name	Qty
	MAZ-040000AO	Z040 ASM.	1
	MAZ-040000AA	Z040 ASM.	1
	B2401-372-LA0	SHANK BUTTON CLAMP (L) ASM.	1
	B2401-372-LAA	SHANK BUTTON CLAMP (L) ASM.	1
	B2542-372-L00	BUTTON CLAMP HOLDER, L	1
	B2542-372-LOA	BUTTON CLAMP HOLDER, L	(1)
	B2401-372-LOO-A	SHANK BUTTON CLAMP BRACKET, L	(1)
	B2401-372-LOA	SHANK BUTTON CLAMP BRACKET, L	(2)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2402-372-LOO	ROLLER STUD. FOR TRIPPING LEVER (L.)	(1)
	B2404-372-LOO	SPRING FOR HOLPING SHAFT	(1)
	B2426-372-LOO-A	THRUST RING	(2)
	SS-7090620-TP	SET SCREW	(2)
	B2405-372-LOO	BUTTON CLAMP LEVER	(1)
	B2429-372-LOO	SET SCREW	(1)
	B2406-372-LOO-A	SHANK BUTTON HOLDING CLAMP (L)	(1)
	SS-7110730-SP	SET SCREW	(1)
	SS-6111140-SP	SCREW	(1)
	B2546-372-LOO	BUTTON CLAMP LIFTING ROD (L)	(1)
	B2431-372-LOO	SET SCREW	(1)
	B2419-372-LOO	SHANK BUTTON ADAPTER	(1)
	B2408-372-LOO	SHANK BUTTON GUARD	(1)
	B2412-372-LOO	BUTTON CLAMP BLOCK	(1)
	B2411-372-LOO	BUTTON CLAMP STUD	(1)
	SS-8120740-SP	SCREW 3/16-28 L=7	(1)
	B2433-372-LOO	SET SCREW	(1)
	B2409-373-LOO	BUTTON CLAMP FEED PLATE ASM. (L)	(1)
	B2409-373-LOO	BUTTON CLAMP FEED PLATE (L)	(1)
	B2410-372-LOA	WORK SUPPORT PLATE (L)	(1)
	B2410-372-LOB	WORK SUPPORT PLATE (L)	(1)
	B2434-372-LOO	WORK SUPPORT PLATE (L)	(1)
	B2434-372-LOO	SET SCREW	(1)
	B2544-372-LOO-A	PRESSURE ADJUSTING BAR (L)	2
	B2435-372-LOO-A	NUT	1
	B2543-372-LOO	BUTTON CLAMP STOPPER PIN (L)	1
	MAZ-040000BAO	Z040-B ASM.	1
	MAZ-040000BAA	Z040-B ASM.	1
	B2401-372-BAO	SHANK BUTTON CLAMP ASM., B	1
	B2401-372-BAA	SHANK BUTTON CLAMP ASM., B	1
	B2542-372-LOO	BUTTON CLAMP HOLDER, L	(1)
	B2542-372-LOA	BUTTON CLAMP HOLDER, L	(1)
	B2401-372-LOO	SHANK BUTTON CLAMP BRACKET, L	(1)
	B2401-372-LOA	SHANK BUTTON CLAMP BRACKET, L	(2)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	WP-0501016-SD	WASHER 5X10.5X1	(2)
	B2402-372-LOO	ROLLER STUD. FOR TRIPPING LEVER (L)	(1)
	B2404-372-LOO	SPRING FOR HOLPING SHAFT	(1)
	B2426-372-LOO	THRUST RING	(2)
	B2427-372-LOO	SET SCREW	(2)
	B2405-372-LOO	BUTTON CLAMP LEVER	(1)
	B2429-372-LOO	SET SCREW	(1)
	B2406-372-BOO	SHANK BUTTON HOLDING CLAMP (B)	(1)
	SS-7110730-SP	SCREW 11/64-40 L=7	(1)
	B2430-372-LOO	SCREW	(1)
	B2546-372-LOO	BUTTON CLAMP LIFTING ROD (L)	(1)
	B2431-372-LOO	SET SCREW	(1)
	B2419-372-LOO	SHANK BUTTON ADAPTER	1
	B2408-372-BOO	SHANK BUTTON GUARD	1
	B2412-372-LOO	BUTTON CLAMP BLOCK	1
	B2411-372-LOO	BUTTON CLAMP STUD	1
	SS-8120740-SP	SCREW 3/16-28 L=7	1
	B2433-372-LOO	SET SCREW	1
	B2409-373-BAO	FEED PLATE ASM.	(1)
	B2409-373-LOO	BUTTON CLAMP FEED PLATE (L)	(1)
	B2410-372-BOO	BUTTON CLAMP SUPPORT PLATE 6MM	(1)
	B2434-372-LOO	SET SCREW	(1)
	B2544-372-LOO	PRESSURE ADJUSTING BAR (L)	2
	B2435-372-LOO	NUT	1
	B2543-372-LOO	BUTTON CLAMP STOPPER PIN (L)	1

Page 37 — ATTACHMENT COMPONENTS FOR MODEL MB-373 (4)

Juki MB-372 / MB-373 parts on page 37

Ref	Part number	Part name	Qty
	B2547-372-0B0	SMALL BUTTON
#01	B2547-372-0BA	SMALL BUTTON
	B2547-372-800	MIDDLE BUTTON
	D2547-372-CBA	LARGE BUTTON
	B2529-372-000	SMALL BUTTON
	B2529-372-800	MIDDLE BUTTON
	D2529-372-C00	LARGE BUTTON

Page 38

Juki MB-372 / MB-373 parts on page 38

Ref	Part number	Part name	Qty
	MAZ-041010A0	WRAPPED AROUND BUTTON CLAMP ASM.	1
	MAZ-04101000	ADJUSTING BASE	(1)
	MAZ-04102000	GUIDE BAR	(1)
	SD-0630301-SP	HINGE SCREW D=6.35 H=3	(1)
	MAZ-04103000	GUIDE BAR (SHANK BUTTON WIDTH)	(1)
	SS-5080710-SP	SCREW 1/8-44 L=6.5	(1)
	B2549-372-000	CLAMP SCREW A	(1)
	MAT-64401ZBO	LABEL SEWER ATTACHMENT ASM.	1
	MAT-64401ZBA	LABEL SEWER ATTACHMENT ASM.	1
	MAT-64401ZA0	CLAMP ASM. FOR LABEL	(1)
	MAT-61401Z00	CLAMP FOR LABEL	(1)
	MAT-61402Z00	SPRING	(1)
	SS-5060310-SP	SCREW 3/32-56 L=2.8	(2)
	MAT-61403Z00	STOPPER	(1)
	MAZ-04404000	FEED PLATE	(1)
	B2542-372-00A	BUTTON CLAMP HOLDER	(1)
	B2542-372-00A	BUTTON CLAMP HOLDER	(1)
	SS-9621413-SP	SCREW 3/16-32 L=13.5	(2)
	B2546-372-000	BUTTON CLAMP LIFTING ROD	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	SS-7150940-SP	SCREW 15/64-28 L=9	(1)
	MAZ-046010A0	FEED PLATE ASM.	1
	MAZ-04601000	PAJAMAS FITTING PLATE	(1)
	MAT-61603Z00	CLOTH PLATE	(1)
	MAT-61602Z00	PLATE	(1)
	SS-7110570-SP	SCREW 11/64-40 L=4.8	(1)

Page 39 — 21. BARTER PARTS (Z003, Z033)

Juki MB-372 / MB-373 parts on page 39

Ref	Part number	Part name	Qty
1	B2419372D00	パールボタン用 つまみ足 (D)	1
1	B2408372000	つまみ足	1
2	B2419372F00	パールボタン用 つまみ足 (F)	2
2	B2408372C00	つまみ足 (C)	2
3	B2419372M00	パールボタン用 つまみ足 (M)	3
4	B2419372N00	パールボタン用 つまみ足 (N)	4

Page 40 — 22. BARTER PARTS (Z008,Z038)

Juki MB-372 / MB-373 parts on page 40

Ref	Part number	Part name	Qty
	B242137200B	金ボタン用 つまみ足板ばね(B)	1
	B242137200P	金ボタン用 つまみ足(P)	2
	B240837200B	金ボタン板ばね(B)
	B242137200Q	金ボタン用 つまみ足(Q)	3
	B240837200B	金ボタン板ばね(C)
	B242137200J	金ボタン用つまみ足(J)	4
	B242137200C	金ボタン板ばね(C)
	B242137200T	金ボタン用つまみ足(T)	5
	B2422372001	金ボタン板ばね(I)
	B242137200V	金ボタン用つまみ足(V)	6
	B2408372J00	金ボタン板ばね(J)
	B242137200Y	金ボタン用つまみ足(Y)	7
	B240837200L	金ボタン板ばね(L)
	B242137200R	金ボタン用つまみ足板ばね(L)	8
	B240837200B	金ボタン用つまみ足板ばね(H)
	B242137200L	金ボタン用つまみ足(H)	9
	B242237200H	金ボタン用つまみ足板ばね(H)
	B242237200C	金ボタン用つまみ足(C)	10
	B2422372000	金ボタン用つまみ足板ばね

Page 43 — NUMERICAL INDEX OF PARTS

Juki MB-372 / MB-373 parts on page 43

Ref	Part number	Part name	Qty
52	D9219-555-B00
25	D9317-762-T00
11	D9317-762-T00
54	MAT-60901ZA0
62	MAT-60901Z00
58	MAT-60902Z00
71	MAT-60902Z00
70	MAT-60903Z00-A
57	MAT-60903Z00-A
61	MAT-60904Z00-A
68	MAT-60905Z00-A
2	MAT-61401ZBA
3	MAT-61401ZBO
4	MAT-61401Z00
11	MAT-61401Z00
5	MAT-61402Z00
12	MAT-61402Z00
7	MAT-61403Z00
14	MAT-61403Z00
15	MAT-61601ZA0
16	MAT-61601Z00
18	MAT-61602Z00
25	MAT-61602Z00
17	MAT-61603Z00
24	MAT-61603Z00
10	MAT-64401ZBA
9	MAT-64401ZBA
8	MAT-64401ZBO
2	MAZ-001000AA
1	MAZ-001000AA
60	MAZ-00906000
2	MAZ-010000AA
37	MAZ-010000AA
8	MAZ-01404000
2	MAZ-031000AA
1	MAZ-031000AA
67	MAZ-039010A0
75	MAZ-03901000
38	MAZ-04000BA0
37	MAZ-04000BA0
2	MAZ-04000AA
1	MAZ-04000A0
1	MAZ-041010A0
2	MAZ-041010A0
3	MAZ-04102000
5	MAZ-04103000
15	MAZ-04404000
22	MAZ-046010A0
23	MAZ-04601000
1	MTQ-700B1600
2	MTQ-700B2000
33	NM-6050001-SP
36	NS-6080210-SP
55	NS-6080340-SP
24	NS-6090310-SP
11	NS-6110310-SP
43	NS-6110530-SP
14	NS-6120310-SP
62	NS-6150310-SP
40	NS-6150310-SP
14	NS-6150310-SP
16	NS-6150310-SP
18	NS-6150430-SP
22	NS-6150430-SP
13	NS-6150440-SP
29	NS-6150540-SP
33	NS-6160520-SP
8	NS-6160520-SP
39	NS-6620310-SP
35	NS-6680320-SP
17	NS-6680410-SP
9	NS-6680410-SP
2	PD-0201000-OD
23	PS-0200062-KH
34	PS-0200162-KH
8	RE-0300000-KO
10	SS-0402001-TP
21	SS-0481451-SP
11	SS-0550181-SP
5	SS-0550181-SP
18	SS-0550181-SP
14	SS-0550301-SP
10	SS-0550301-SP
23	SS-0550301-SP
16	SS-0600095-TH
54	SD-0600271-SP
19	SD-0600401-SP
23	SD-0640211-SP
11	SD-0640301-SP
37	SD-0640323-TP
27	SD-0640391-TP
22	SD-0640391-TP
35	SD-0640391-TP
22	SD-0640471-SP
10	SD-0640481-SP
31	SD-0640481-SP
16	SD-0640961-SP
30	SD-0640961-SP
8	SD-0641001-SP
47	SD-0641322-TP
15	SD-0680271-SP
42	SD-0790311-TP
38	SD-0790402-TP
56	SD-0790802-SP
3	SD-0791271-SP
6	SD-0791331-SP
13	SD-0791501-SP
29	SM-6083042-CH
30	SM-6083542-CH
7	SS-1110710-SP
13	SS-2110920-TP
29	SS-2110920-TP
56	SS-4080310-SP
18	SS-4090610-SP
16	SS-4110715-SP
24	SS-4110815-SP
28	SS-4120615-SP
57	SS-6110480-SP
34	SS-6111140-SP
41	SS-6111140-SP
55	SS-6111140-SP
34	SS-6111140-SP
54	SS-6111140-SP
19	SS-6111140-SP
19	SS-6120930-TP
24	SS-6120930-TP
35	SS-6120930-TP
51	SS-6121050-SP
50	SS-6121610-TP
60	SS-6121610-TP
4	SS-6152440-SP
46	SS-6660712-TP
46	SS-7060810-SP
18	SS-7080310-SP
3	SS-7080510-TP
20	SS-7090410-SP
25	SS-7090410-SP
8	SS-7090410-SP
13	SS-7090410-SP
13	SS-7090410-SP
40	SS-7090520-SP
48	SS-7090520-SP
14	SS-7090620-TP
50	SS-7090620-TP
9	SS-710340-SP
29	SS-710540-SP
22	SS-710540-SP
42	SS-710540-SP
26	SS-710570-SP
33	SS-710570-SP
19	SS-710570-SP
26	SS-710570-SP
46	SS-710570-SP
26	SS-710570-SP
24	SS-7110710-SP
31	SS-7110710-SP
44	SS-7110710-SP
54	SS-7110720-SP
54	SS-7110720-SP
18	SS-7110730-SP
18	SS-7110730-SP
60	SS-7110840-SP
4	SS-7110840-SP
45	SS-7111410-TP
4	SS-7150740-SP
65	SS-7150940-SP
21	SS-7150940-SP
47	SS-7150940-SP
48	SS-7150940-SP
18	SS-7150940-SP
51	SS-7150940-SP
52	SS-7150940-SP
13	SS-7150940-SP
14	SS-7150940-SP
47	SS-7150940-SP
48	SS-7150940-SP
31	SS-7150940-SP
32	SS-7150940-SP
64	SS-7150940-SP
33	SS-8110310-SP
29	SS-8110410-TP
16	SS-8110410-TP
31	SS-8110410-TP
38	SS-8110410-TP
51	SS-8110410-TP
6	SS-8110750-SP
19	SS-8120740-SP
26	SS-8120740-SP
62	SS-8120740-SP
19	SS-8120740-SP
39	SS-8120740-SP
26	SS-8120740-SP
58	SS-8150410-SP
31	SS-8150410-SP
13	SS-8150410-SP
35	SS-8151150-SP
39	SS-8151150-SP
13	SS-8151150-SP
24	SS-8151150-SP
32	SS-8151150-SP
13	SS-8151570-SP
33	SS-8152030-SP
39	SS-8660330-SP
38	SS-8660512-TP
41	SS-8660612-TP
48	SS-8660612-TP
13	SS-8660612-TP
28	SS-8660612-TP
23	SS-8660942-TP
37	SS-8680810-TP
42	SS-8681412-TP
19	SS-8701042-TP
63	SS-9110513-TP
7	SS-9110513-TP
8	SS-9110513-TP
33	SS-9111010-SP
4	SS-9120643-TP
41	SS-9120910-TP
56	SS-9120910-TP
53	SS-9120910-TP
25	SS-9120910-TP
41	SS-9120910-TP
66	SS-9120910-TP
22	SS-9150860-SP
28	SS-9151120-CP
61	SS-9151420-TP
19	SS-9151420-TP
5	SS-9621413-SP
43	SS-9621413-SP
8	SS-9621413-SP
47	SS-9621413-SP
9	SS-9621413-SP
45	SS-9621413-SP
11	SS-9621413-SP
43	SS-9621413-SP
21	SS-9621413-SP
60	SS-9621413-SP
9	SS-9621413-SP
45	SS-9621413-SP

Page 44 — NUMERICAL INDEX OF PARTS

Juki MB-372 / MB-373 parts on page 44

Ref	Part number	Part name	Qty
	SS-9621413-SP
	WP-0371016-SD
	WP-0371026-SD
	WP-0450801-SD
	WP-0480856-SP
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0501016-SD
	WP-0510516-SD
	WP-0621026-SP
	WP-0650876-SD
	WP-0703516-SP
	WP-0704016-SP
	WP-0704516-SP
	WP-0751576-SD
	WP-0751576-SD
	WP-0751576-SD
	WP-0751576-SD
	WP-0851846-SC
	WS-0650389-KP
	178-10904
	178-48458

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki MB-372 / MB-373 — parts catalog

• Page 1 (cover): This is the cover page for the JUKI MB-372Series and MB-373Series parts list. It features illustrations of the machines and the JUKI logo.
• Page 2 (text): This page lists other parts related to the model, including an electric magnetic starting unit for button attaching machines and a single thread, chainstitch button sewing machine with automatic thread trimmer and automatic button feeder.
• Page 3 (text): This page explains how to use the parts list, including codes for changed parts, obsolete parts, and how to order spare parts. It also contains a small table of parts with their numbers and descriptions.
• Page 4 (toc): This page is a table of contents for a sewing machine parts catalog, listing various components and their corresponding page numbers. It includes sections on button clamp mechanisms, arm and miscellaneous covers, looper shafts, nipper and thread tension parts, feed plates, button clamp lifters, needle driving pulleys, needle bars, stop motion mechanisms, stitch selecting parts, subclass components for models MB-372 and MB-373, attachment components for models MB-372 and MB-373, barter parts, and a numerical index.
• Page 5 (diagram): This page displays a diagram of the button clamp mechanism components, with numbered parts indicated for reference.
• Page 6 (parts_list): This page contains a parts list for various components of an industrial sewing machine, including clamps, screws, washers, and pins, with their corresponding part numbers, descriptions, and quantities.
• Page 7 (diagram): This page displays a diagram of arm and miscellaneous cover components for a JUKI sewing machine, with numbered parts and their corresponding part numbers and descriptions.
• Page 8 (parts_list): This page lists parts for MB-372 and MB-373, including screws, washers, plates, covers, and oil felts, with their corresponding part numbers and descriptions.
• Page 9 (diagram): This page displays a diagram of the looper shaft mechanism components, with numbered parts and their corresponding references.
• Page 10 (parts_list): This page lists parts for sewing machines, including screws, plates, guards, and various assemblies, with part numbers, descriptions, and quantities.
• Page 11 (diagram): This page displays a diagram of nipper and thread tension parts components, with numbered parts and their corresponding references.
• Page 12 (parts_list): This page lists parts for MB-372 and MB-373 models, including screws, nuts, springs, and levers, with their corresponding part numbers and descriptions.
• Page 13 (diagram): This page displays a diagram of feed plate components, with numbered parts and their corresponding references.
• Page 14 (parts_list): This page lists parts for MB-372 and MB-373 sewing machines, including feed plates, screws, indicators, and various links and shafts, with quantities and notes.
• Page 15 (diagram): This page displays a diagram of button clamp lifter components, with numbered parts and their corresponding references.
• Page 16 (parts_list): This page lists parts for MB-372 and MB-373, including various screws, washers, nuts, and specialized components like lifting levers and connecting links, with quantities and notes.
• Page 17 (diagram): This page displays a diagram of needle driving pulley shaft components, along with a detailed parts list including part numbers, descriptions, and quantities.
• Page 18 (diagram): This page displays a diagram of the needle bar driving mechanism components, along with a detailed parts list including part numbers, descriptions, and quantities.
• Page 19 (parts_list): This page lists components for the stop motion mechanism, including part numbers, descriptions, and quantities.
• Page 20 (parts_list): This page lists stitch selecting parts components, including part numbers, descriptions, and quantities.
• Page 21 (diagram): This page displays subclass components for model MB-372, with parts numbered 1 through 24, each associated with a specific part number and diagram reference.
• Page 22 (parts_list): This page lists parts for MB-372-4 through MB-372-16, including part numbers, descriptions, and quantities.
• Page 23 (diagram): This page displays subclass components for model MB-373, including various spools, gears, and assembly parts with reference numbers.
• Page 24 (parts_list): This page lists parts for models MB-373-4, MB-373-5, MB-373-6, MB-373-11, MB-373-12, MB-373-14, MB-373-15, and MB-373-16. It includes part numbers, descriptions, and quantities.
• Page 25 (diagram): This page displays attachment components for model MB-372 (1), featuring diagrams labeled (1)ZOO1, (2)ZOO2, (3)ZOO3, (4)ZOO4, and (5)ZOO5, with associated part numbers and descriptions.
• Page 26 (parts_list): This page lists parts for various attachments for large, middle, and small size buttons, as well as attachments for the first and second process of wrapped-around buttons. It includes part numbers, descriptions, and quantities.
• Page 27 (diagram): This page contains diagrams of attachment components for model MB-372, with numbered parts and their corresponding part numbers and descriptions.
• Page 28 (parts_list): This page lists parts for Z007 Attachment for Snaps and Z008 Attachment for Metal Buttons, including part numbers, descriptions, and quantities.
• Page 29 (diagram): This page displays diagrams of attachment components for model MB-372, with two sections labeled (9)Z010 and (10)Z010-B, showing various parts with reference numbers.
• Page 30 (parts_list): This page lists parts for the (9) 2010 Attachment for Louis Type Shank Buttons and (10) 2010-B Attachment for Louis Type Shank Buttons, including part numbers, descriptions, and quantities.
• Page 31 (parts_list): This page lists attachment components for model MB-372 (4), including parts for labels, second process of wrapped-around buttons, and first process of wrapped-around buttons sliders.
• Page 32 (parts_list): This page lists attachment components for model MB-373 (1), including parts for large buttons, middle buttons, and shank buttons, with their respective part numbers and descriptions.
• Page 33 (diagram): This page displays attachment components for model MB-373 (2), featuring diagrams labeled (4)Z035, (6)Z038, (5)Z037, and (7)Z039, with various numbered parts indicated.
• Page 34 (parts_list): This page lists parts for attachments for second process of wrapped around buttons, snaps, and metal buttons, as well as reinforcing-stay buttons. It includes part numbers, descriptions, and quantities.
• Page 35 (diagram): This page contains diagrams of attachment components for model MB-373 (3), specifically showing parts for (8)Z040 and (9)Z040-B.
• Page 36 (parts_list): This page lists parts for the Z040 and Z040-B attachment for Louis Type Shank Buttons, including part numbers, descriptions, and quantities.
• Page 37 (diagram): This page displays diagrams of attachment components for model MB-373 (4), specifically showing parts for (10)Z041 and (11)Z044, along with a list of parts for different button sizes.
• Page 38 (parts_list): This page lists parts for attachments for wrapped-around buttons, including the first and second process, with part numbers, descriptions, and quantities.
• Page 39 (parts_list): This page lists barter parts with part numbers, descriptions, and dimensions for button sizes, including a note about ordering specific button sizes.
• Page 40 (parts_list): This page lists various button parts with their part numbers, descriptions, dimensions, and applicable button sizes. It includes a note about special orders for non-standard button sizes.
• Page 43 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, page references, and reference numbers.
• Page 44 (parts_list): This page contains a numerical index of parts for a sewing machine, listing part numbers, page references, and reference numbers from diagrams.
• Page 45 (unknown): This page contains a watermark and library information at the bottom. There is no other discernible content such as a title, part list, or diagrams.
• Page 46 (unknown): This page contains a watermark and a footer with library information. There is no other discernible content.
• Page 47 (cover): This is the cover page of a JUKI industrial sewing machine parts catalog. It includes company contact information and a disclaimer about potential changes to part specifications.

Page 1 — PARTS LIST

JUKI Single Thread, Chainstitch Button Attaching Machine 高速単糸環縫ボタン付けミシン MB-372Series Single Thread, Chainstitch Button Attaching Machine With Automatic Thread Trimmer 高速単糸環縫ボタン付け自動糸切り装置つきミシン MB-373Series PARTS LIST BE3720TOPJA No.0013-21 From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 2

Other parts lists related to this model: この機種に関連するパーツリストとして下記のパーツリストがあります。 1. AO-14/Z025 (No.0009) AO-14...Electric magnetic starting unit for button attaching machin (Double starter) ボタン付け用電磁起動装置 (ダブルスターター) Z025...Electric wiper unit for button attaching machine ワイパー電装装置 2. MB-373/BR-1 (No.0089) Single thread, chainstitch button sewing machine with automatic thread trimmer and automatic button feeder 高速単糸環縫ボタン付ミシン (自動糸切装置、自動ボタン供給装置付) From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3

HOW TO MAKE USE OF THIS PARTS LIST パーツリストの見方 1. The part numbers of parts shown in the figure indicate the corresponding numbers (Ref. No.) shown by the Index. 図に示された部品の番号は、図にみられているNo (Ref No)に対応するインデックスによって、その品番かわかります 2. Explanation of codes 記号の説明 1) Codes on the "Note" column "注記"欄の記号 ① △...means this part is changed from the previous parts list. 前回 のパーツリストに対して今回変更された部品を意味します ② #01. refer to the "Note" explanation at bottom of page. 001 ヘージ下の"注記"の説明を参照して下さい。 2) Codes on the "E.C. (Engineering change)" column "変更年月"欄の記号 ① A.10/83 Added from October, 1983 1983年10月より追加された。 ② D.10/83 Obsoleted from October, 1983 1983年10月より削除された。 ③ When previous parts (Obsoleted part) and new parts (Added parts) are not interchangeable with each other. 部品の互換性ない変更の場合 In this case, even obsoleted part (D.) can be ordered with the obsoleted part number, so select the parts with changed dates and place your orders. この場合は削除 (D)された品番でも注文できますから、変更年月により、いずれかの部品を選択してご注文下さい。 Example (例) Ref. No. Note 注記 Part No. 品番 Description E.C. 変更年月 品 名 Amt. Req. 数量 1 B1401-100-000 Needle bar Δ 1-1 B1401-100-000-A Needle bar Δ D.10/83 A.10/83 ハリホー ハリホー 1 2 B1105-200-000 Frame cover Δ D.10/83 B1105-300-000 1 B1105-500-000 Frame cover Δ A.10/83 フレームカバー 1 4) In case when previous parts and new part are interchangeable with each other. 部品の互換性がある場合の変更 In this case the new part number is replaced on the "品名 (Japanese)" column of the previous parts list, so please order by the new part number. この場合は、旧部品の注文番号に変更がな い、新しい品番が記入してありますので、新しい品番でご注文下さい。 5) C.10/83 B1105-500-000 Frame cover C.10/83 B1105-500-000 1 Correct No. 正しい品番 Wrong No. 誤り品番 Please order by the correct part number. 正しい品番でご注文下さい。 6) M.10/83 The amount required is changed from Oct. 1983. 1983年10月より数量が変更になった The new amount required is shown in the "Amt. Req." column. この場合数量欄には新しい数量が表示してあります 3) Codes on the "Amt. Req." column "数量"欄の記号 ① 2 Indicates amount required is 2. 数量、2個をを表わします。 ② 2.0 Indicates length in meters. (unit is meter) 長さ、2メートルを表わします (単位はメート ルです) ③ - Indicates parts obsoleted from the parts list. このパーツリストから削除された部品です。 ④ (1) Indicates sub parts which construct the assembly part. Assembly part is shown as "asm." and クミ in Japanese, in the "Description" column. 組立部品を構成している子部品をを表わします 組部品は品名欄に英文で"asm"と和文でクミと表示してあります。 When Ordering The Spare Parts: In order to ensure that we deliver the correct parts to you, please clearly state when ordering the corresponding PART NUMBER (ex. B1105-012-A00) or the MACHINE SERIAL NUMBER, because there are some parts which have been changed. 補用部品注文の際のご注意 このパーツリストに記載されている補用部品をご注文の際、部品の番号(例えば、B1109-012-A00)でご注文下さい。 合わせて、ご覧のパーツリストの管理番号(表紙右下、例えば、No0010-01)又は、機械番号をご連絡頂ければ幸いで す。又、改良のため部品の一部が変更になる場合がありますのでご了承下さい。 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — CONTENTS

CONTENTS 目 次 1. BUTTON CLAMP MECHANISM COMPONENTS. ボタンつまみ関係 2. ARM & MISCELLANEOUS COVERS COMPONENTS. アームベッド関係 3. LOOPER SHAFT MECHANISM COMPONENTS. ルーバー軸関係 4. NIPPER & THREAD TENSION PARTS COMPONENTS. 糸調子、ニッパー関係 5. FEED PLATE COMPONENTS. 送り関係 6. BUTTON CLAMP LIFTER COMPONENTS. 引き上げ関係 7. NEEDLE DRIVING PULLEY SHAFT COMPONENTS. 駆動軸関係 8. NEEDLE BAR DRIVING MECHANISM COMPONENTS. 針棒関係 9. STOP MOTION MECHANISM COMPONENTS. 遮断装置関係 10. STITCH SELECTING PARTS COMPONENTS. 針数調節関係 11. SUBCLASS COMPONENTS FOR MODEL MB-372. MB-372 サブクラス関係 12. SUBCLASS COMPONENTS FOR MODEL MB-373. MB-373 サブクラス関係 13. ATTACHMENT COMPONENTS FOR MODEL MB-372 (1). MB-372 アタッチメント関係 (1) 14. ATTACHMENT COMPONENTS FOR MODEL MB-372 (2). MB-372 アタッチメント関係 (2) 15. ATTACHMENT COMPONENTS FOR MODEL MB-372 (3). MB-372 アタッチメント関係 (3) 16. ATTACHMENT COMPONENTS FOR MODEL MB-372 (4). MB-372 アタッチメント関係 (4) 17. ATTACHMENT COMPONENTS FOR MODEL MB-373 (1). MB-373 アタッチメント関係 (1) 18. ATTACHMENT COMPONENTS FOR MODEL MB-373 (2). MB-373 アタッチメント関係 (2) 19. ATTACHMENT COMPONENTS FOR MODEL MB-373 (3). MB-373 アタッチメント関係 (3) 20. ATTACHMENT COMPONENTS FOR MODEL MB-373 (4). MB-373 アタッチメント関係 (4) 21. BARTER PARTS (Z003,Z033). 交換部品 (Z003,Z033) 22. BARTER PARTS (Z008,Z038). 交換部品 (Z008,Z038) NUMERICAL INDEX OF PARTS. 索引 1 3 5 7 9 11 13 14 15 16 17 19 21 23 25 27 28 29 31 33 35 36 37 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 5 — BUTTON CLAMP MECHANISM COMPONENTS

1. BUTTON CLAMP MECHANISM COMPONENTS ボタンつまみ関係 1.2 38 3 10 33 34 4 35 12 13 36 5 37 14 7 15 8 16 20 19 18 17 9 27 28 29 25 30 24 26 23 22 21 - 1 - From the library of: Superior Sewing Machine & Supply LLC Jintez.in

Page 6

REF. NO. NOTE PART NO. D E S C R I P T I O N H E N M E I AMT. 1 B2547-372-0B0 FLAT BUTTON CLAMP ASM. ホボタン ツマミアシ トリツケダイ クミ 1 2 #02 B2547-372-0BA FLAT BUTTON CLAMP ASM. ホボタン ツマミアシ トリツケダイ クミ 1 3 B2546-372-000 BUTTON CLAMP LIFTING ROD ツマミソーチ ヒケシアゲフツク 1 4 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 5 SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) 6 WP-0501016-SD WASHER 5X10.5X1 ヒラザガネ 5X10.5X1 (2) 7 B2542-372-000 BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 8 #02 B2542-372-00A BUTTON CLAMP HOLDER ツマキソーチ トリツケダイ (1) 9 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 10 B2547-372-0C0 JAW LEVER HOLDER ASM. ツマミアシトリツケダイ クミ (1) 11 SD-0550181-SP HINGE SCREW D= 5.50 H= 1.8 ダンネジ D= 5.5 H= 1.8 (1) 12 B2549-372-000 CLAMP SCREW A ヒラキレバー トメネジ A (1) 13 B2548-372-000 SNAP FASTENER CLAMP STOP LEVER ツマミアシ ヒラキレバー (1) 14 SD-0550301-SP HINGE SCREW D=5.5 H=3 ダンネジ D=5.5 H=3 (1) 15 B2547-372-000 JAW LEVER HOLDER ホボタン ツマミアシ トリツケダイ (1) 16 B2555-372-0A0 BUTTON CLAMP LEVER JAW, LEFT ASM. ショーホタン タンヨー ツマミアシ ヒダリ クミ (1) 17 B2555-372-000 BUTTON CLAMP LEVER JAW (LEFT) ショーホタン タンヨー ツマミアシ ヒダリ (1) 18 B2556-372-000 BUTTON HOLDING SPRING, LEFT ツマミアシ イタハネ ガイド"ピン (1) 19 B2559-372-000 BUTTON CLAMP LOCATING PIN ツマミアシ イタハネ ガイド"ピン (1) 20 SS-7090410-SP SCREW 9/64-40 L= 3.5 マルヒラネジ 9/64-40 L=3.5 (1) 21 B2557-372-0A0 BUTTON CLAMP LEVER JAW, RIGHT ASM. ショーホタン タンヨー ツマミアシ ミギ クミ (1) 22 B2557-372-000 BUTTON CLAMP LEVER JAW RIGHT ショーホタン タンヨー ツマミアシ ミギ (1) 23 B2558-372-000 BUTTON HOLDING SPRING, RIGHT ショーホタン タンヨー ツマミアシ ミギ" (1) 24 B2559-372-000 BUTTON CLAMP LOCATING PIN ツマミアシ イタハネ ガイド"ピン (1) 25 SS-7090410-SP SCREW 9/64-40 L= 3.5 マルヒラネジ 9/64-40 L=3.5 (1) 26 B2560-372-000 BUTTON CLAMP STOP PIN サマミアシ ヒラキピン (2) 27 SD-0640391-TP HINGE SCREW D= 6.35 H= 3.9 ダンネジ D= 6.35 H=3.9 (2) 28 B2561-372-000 BUTTON CLAMP SPRING ホボタン ツマミアシ バネ (1) 29 B2552-372-000 BUTTON CLAMP SLIDE ホボタン ガイド"アシ (1) 30 B2553-372-000 NUT ホボタン ガイド"アシ トメネジ B (1) 31 B2540-372-000 HINGE PIN ツマミソーチ トリツケジク (1) 32 B2541-372-000 SNAP RING ツマミソーチ トリツケジク スナップリング (1) 33 NS-6160520-SP NUT 1/4-24 ロツカクナット 1/4-24 1 34 B2543-372-000 BUTTON CLAMP STOPPER PIN ツマミソーチ ストツパー"ピン (1) 35 B2544-372-000 BUTTON CLAMP PRESSURE ADJUSTING BAR オサエ アツリヨク チョーセツバー (1) 36 B2545-372-000 PRESSURE ADJUSTING SPRING オサエ アツリヨク チョーセツバネ (1) 37 B3125-012-000 THREAD TENSION STUD NUT オサエ アツリヨク チョーセツナット (2) 38 #01 B3130-372-000-A FINGER GUARD ユビ"ガード (1) Note (注記) #01... Special order parts for MB-372, MB-373 MB-372, MB-373 用 特別注文部品 #02... MB-372, MB-373 for domestic use (Urban White) MB-372, MB-373 国内仕様 (アーバンホワイト)

Page 7 — ARM & MISCELLANEOUS COVERS COMPONENTS

2. ARM & MISCELLANEOUS COVERS COMPONENTS アームベッド関係 242526 13 24 28 27 29 24 30 31 32 33 35 37 38 36 34 39 40 52 51 53 54 49 50 55 42 4344 41 45 46 45 47 14 17 19 20 21 16 15 23 22 48 56 57 58 -3- From the library of: Superior Sewing Machine & Supply LLC Jitex.in

Page 8

REF. NO. NOTE PART NO. D E S C R I P T I O N H I N ME I AMT. 1 B3101-372-0A0 FRONT COVER ASM. メンイタ クミ 1 2 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 3 3 B3149-123-A00 TENSION SPRING イトアンナイ サラ ハネ 1 4 B3103-372-000 NIPPER RELEASING PLUNGER THUMB NUT ニツパー イトエルメホー ナツト 1 5 B3109-372-000 THREAD TENSION GUIDE NO. 3 ASM. タイイ3 イトチヨーサラ イトアンナイ クミ 1 6 B3148-123-000 TENSION DISC タイイ3 イトアンナイ サラ (2) 7 B3110-372-000 TENSION SPRING タイイ3 イトチコーシ ハネ (1) 8 RE-0300000-KO E-SHAPED SNAP RING (3MM) Eガタタトメワ 3 (1) 9 SS-7110340-SP SCREW 11/64-40 L= 3.2 マルヒラネジ 11/64-40 L= 3.2 1 10 B3108-372-000 THREAD GUIDE NO. 4 タイイ4 イトアンナイ 1 11 B3107-373-000 THREAD GUIDE NO.3 タイイ3 イトアンナイ 1 12 SS-5110810-SP SCREW 11/64-40 L=8 トラスネジ 11/64-40 L=8 1 13 B3104-372-000 NIPPER RELEASING PLUNGER ニツパー イトエルメ 1 14 #02 B3120-372-0A0 SAFETY PLATE ASM. アンゼン プレート クミ 1 15 #02 B3120-372-000 SAFETY PLATE アンゼン プレート (1) 16 #02 SS-4110715-SP SCREW 11/64-40 L=7 ナベネジ 11/64-40 L=7 (2) 17 WP-0450801-SD WASHER 4.5X10.0X0.8 ヒラサカネ 4.5X10X0.8 (2) 18 B3121-372-000 SAFETY PLATE INSTALLING PLATE アンゼン プレート トリツケタイ 1 19 SD-0600401-SD HINGE SCREW D= 6 H= 4 ダンネジ D= 6 H= 4 (1) 20 B3125-155-000 DISC SPRING サラ ハネ (1) 21 WP-0650876-SD WASHER 6.5X13X0.8 ヒラサカネ 6.5X13X0.8 (1) 22 B3122-372-000 SAFETY PLATE MOUNTING BASE アンゼン プレート トリツケダイ 1 23 PS-0200062-KH SPRING PIN 2X6 スプリンクピン 2X6 (1) 24 SS-4110815-SP SCREW 11/64-40 L=8 ナベネジ 11/64-40 L=8 8 25 B1113-372-000 SIDE COVER, LEFT ソクメンイタ ヒダリ 1 26 #04 B1113-372-00A SIDE COVER, LEFT ソクメンイタ ヒダリ 1 27 B1112-372-000 SIDE COVER, RIGHT ソクメンイタ ミギ 1 28 #04 17810904 SIDE PLATE, RIGHT ソクメンイタ ミギ 1 29 SM-6083042-CH SCREW M8 L=30 ロツカクアナボルト M8 L=30 2 30 SM-6083542-CH SCREW M8 L=35 ロツカクアナボルト M8 L=35 2 31 B1105-372-000 GUIDE PIN アームベツト ケツゴー ガイド ピン 2 32 B1106-372-0A0 SET SCREW ASM. アームベツト トリツケネジ クミ 1 33 B3501-372-0B0 OIL FELT ASM., LARGE アブ*ラタマリフエルト ダイ(クミ) 1 34 CQ-2020000-00 OIL WICK ユシン (0.1) 35 B3502-372-0B0 OIL FELT ASM., SMALL アブ*ラタマリフエルト シヨウ(クミ) 1 36 CQ-2020000-00 OIL WICK ユシン (0.2) 37 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 38 B3503-372-000 OIL SUPPLY FELT ウオームヨー フエルト 1 39 B1111-372-000 SIDE COVER SPRING ソクメンカバー ハネ 2 40 SS-7090520-SP SCREW 9/64-40 L= 4.5 マルヒラネジ 9/64-40 L=4.5 2 41 B1120-372-000 SCREW STUD ソクメンカバー ハネジツク 2 42 #03 B1104-372-A00 OIL DRIP FELT (A) キユーユ フエルト A 1 43 B1109-372-000 SIDE COVER, RIGHT ソクメンカバー ミギ 1 44 #04 B1109-372-00A SIDE COVER, RIGHT ソクメンカバー ミギ 1 45 B1110-372-000 SIDE COVER HINGE SHAFT ソクメンカバー ジ*ク 2 46 SS-8150410-SP SCREW 15/64-28 L=4 トメネジ 15/64-28 L=4 1 47 B1103-372-000 MACHINE SUB-BASE ヘツト トリツケタイ 1 48 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 1 49 B1108-372-000 COVER, LEFT ソクメンカバー ヒダリ 1 50 #04 B1108-373-N00 SIDE COVER, LEFT ソクメンカバー ヒダリ 1 51 B1118-372-000 LOOPER COVER ルーパ カバ- 1 52 #04 B1118-373-N00 LOOPER COVER ルーパ カバ- 1 53 WS-0650389-KP SPRING WASHER 6.5X14.0X17 ハネ*サカネ 6.5X14X1.7 1 54 SD-0600271-SP HINGE SCREW D= 6 H= 2.7 ダンネジ D=6 H=2.7 1 55 B2504-372-000 CAM INDICATING PIN オクリカム イチ*メ シン 2 56 B8210-372-0A0 BUTTON TRAY ASM. ボタン ウケサラ クミ 1 57 #04 178-48458 BUTTON TRAY ASM. ボタン ウケサラ クミ 1 58 SS-8150710-SP SCREW 15/64-28 L=7 トメネジ 15/64-28 L=7 2 59 #01 B1119-373-000 BED OIL SHIELD ヘツト ユボーハン 1 60 #01 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 2 Note (注記) #01...For MB-373 MB-373用 #02...Special order parts for MB-372, MB-373 MB-372, MB-373 特別注文部品 #03...Selective parts 選択部品 #04...MB-372, MB-373 for domestic use (Urban White) MB-372, MB-373 国内仕様 (アーバンホワイト) - 4 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 9 — LOOPER SHAFT MECHANISM COMPONENTS

3. LOOPER SHAFT MECHANISM COMPONENTS ルーパー軸関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 - 5 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10

REF. NO. NOTE PART NO. D E S C R I P T I O N ヒン メ イ AMT. 1 #01 SS-2110920-TP SCREW 11/64-40 L=8.5 マルサラネジ 11/64-40 L=8.5 4 2 #01 B1241-372-000 THROAT PLATE ハリイタ 1 3 #01 B1240-372-000 SPACER PLATE ハリイタ シタイタ 1 4 SS-7110840-SP SCREW 11/64-40 L=7.8 マルヒラネジ 11/64-40 L=7.8 1 5 #01 B1242-372-000 NEEDLE GUARD ハリカバーイド 1 6 #01 B1236-372-000 POSITIONING FINGER YOKE SLIDE イトヨセ ササエ 1 7 SS-1110710-SP SCREW 11/64-40 L=7 イトヨセ 1 8 #01 B1235-372-000 YOKE SLIDE INSERT サラネジ 11/64-40 L=7 1 9 #01 B1237-372-000 YOKE SLIDE イトヨセ サシエダイ 1 10 B1230-372-0A0 LOOP POSITIONING FINGER LEVER イトヨセ 1 11 SD-0640241-SP HINGE SCREW D= 6.35 H= 2.4 イトヨセ セツコウデクミ 1 12 B1232-372-000 LOOP POSITIONING FINGER LEVER ダンネジ D=6.35 H=2.4 1 13 #02 SS-2110920-TP SCREW 11/64-40 L=8.5 イトヨセカムコロ 1 14 #02 B1241-373-000 THROAT PLATE マルサラネジ 11/64-40 L=8.5 1 15 #02 B2406-373-0A0 MOVING KNIFE ASM. ハリイタ 3 16 #02 SD-0600095-TH HINGE SCREW D= 6 H= 0.85 トーメス クミ 1 17 #02 B2410-373-000 COUNTER KNIFE ダンネジ D=6 H=0.85 1 18 #02 SS-7080310-SP SCREW 1/8-44 L= 3.0 コテイメス 1 19 #02 B1242-373-000 NEEDLE GUARD マルヒラネジ 1/8-44 L=3 2 20 #02 B1237-373-000 YOKE SLIDE ハリカバーイド 1 21 #02 B1236-373-000 POSITIONING FINGER YOKE SLIDE イトヨセ 1 22 #02 B1235-373-000 YOKE SLIDE INSERT イトヨセ ササエ 1 23 #02 B2414-373-000 GAUGE イトヨセ サシエダイ 1 24 #03 B1241-372-B00 THROAT PLATE トーメス イチアワセ ケージ 1 25 B1239-372-000 LOOPER ハリイタ (フトハリイタ) 1 26 CS-079072A-TH THRUST COLLAR ASM. ルーパ 1 27 SS-7090620-TP SCREW 9/64-40 L=6.1 スラストウケ クミ 1 28 B1234-372-0A0 LOOP POSITIONING FINGER CAM ASM. マルヒラネジ 9/64-40 L=6.1 (1) 29 SS-8110410-TP SCREW 11/64-40 L=3.5 イトヨセ サンカクカム クミ 1 30 B1233-372-0A0 LOOPER & CAM SLEEVE トメネジ 11/64-40 L=3.5 (2) 31 SS-8150410-TP SCREW 15/64-28 L= 4.0 ルーパ トリツケジク クミ 1 32 B1228-372-0A0 LOOP POSITIONING FINGER ASM. トメネジ 15/64-28 L=4 (2) 33 SS-8110310-SP SCREW 11/64-40 L=2.8 イトヨセカム クミ 1 34 B1227-372-000 LOOPER SHAFT BUSHING, FRONT トメネジ 11/64-40 L=2.8 (2) 35 SS-8151150-SP SCREW 15/64-28 L=10.5 ルーパジク マエメタル 1 36 B1219-372-000 LOOPER SHAFT トメネジ 15/64-28 L=10.5 2 37 CS-111101B-SH THRUST COLLAR ASM. D=11.11 W=10 ルーパ 1 38 SS-8660512-TP SCREW 1/4-40 L=5 スラストウケ D=11.11 W=10 クミ 1 39 SS-8660330-SP SCREW 1/4-40 L=3 トメネジ 1/4-40 L=5 (1) 40 B1224-372-0A0 LOOPER SHAFT DRIVEN GEAR ASM. トメネジ 1/4-40 L=3 (1) 41 SS-8660612-TP SCREW 1/4-40 L=6 ネジハグルマ B クミ 2 42 B1215-372-A00 THRUST BALL BEARING トメネジ 1/4-40 L=6 (2) 43 B1222-372-000 LOOPER SHAFT BUSHING, REAR ルーパジク スラストベアリング 1 44 SS-8151150-SP SCREW 15/64-28 L=10.5 ルーパジク ウシロメタル 1 45 B1221-372-0A0 DRIVEN WORM ASM. トメネジ 15/64-28 L=10.5 1 46 SS-8660712-TP SCREW 1/4-40 L= 7.0 ウオーム クミ 1 47 B1220-372-0A0 CAM SHAFT DRIVEN GEAR ASM. ヒラネジ 1/4-40 L=7 (2) 48 SS-8660612-TP SCREW 1/4-40 L= 6.0 ウオームハグルマ クミ 1 Note (注記) #01...For MB-372 MB-372 用 トメネジ 1/4-40 L=6 (2) #02...For MB-373 MB-373 用 #03...Special order pats for MB-372 MB 372用特別注文部品 - 6 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 11 — 4. NIPPER & THREAD TENSION PARTS COMPONENTS

4. NIPPER & THREAD TENSION PARTS COMPONENTS 糸調子、ニッパー関係 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 353637 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54555657 59 60 61 62 -7- From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 12

REF. NO. NOTE PART NO. DESCRIPTION HINT. AMT. 1 SS-7151210-SP SCREW 15/64-28 L=12 マルヒラネジ 15/64-28 L=12 1 2 B2038-372-000 THREAD GUIDE NO. 2 ダマ12 イトアンナイ 1 3 SD-0791271-SP HINGE SCREW D= 7.94 H=12.7 ダマネジ D=7.94 H=12.7 1 4 NS-6080210-SP NUT 1/8-44 ロツカクナット 1/8-44 2 5 B2035-372-000 NUT ニツパ イトエルメピン ナツト 1 6 B2031-372-0A0 THREAD NIPPER ASM. ニツパ クミ 1 7 B2034-372-000 THREAD RELEASING SCREW STUD ニツパ イトエルメピン 1 8 B2037-372-000 NIPPER BAR BLOCK SPRING ニツパ ヒツパブリハネ 1 9 B2036-372-000 NIPPER BAR BLOCK SPRING SCREW ニツパ ヒツパブリハネジツク 1 10 SD-0402001-TP SCREW D=4 H=20 ダマネジ D=4 H=20 1 11 B2029-372-000 NIPPER BLOCK SPRING ニツパ カクゴマハネ 1 12 B2028-372-000 NIPPER BLOCK ニツパ カクゴマ 1 13 SD-0791501-SP HINGE SCREW D= 7.94 H=15.0 ダマネジ D=7.94 H=15 1 14 B2025-372-0BO THREAD PULL-OFF LEVER ASM. イトチヨーセツレバー クミ 1 15 #02 B2040-373-000 THREAD GUIDE イトチヨーセツレバー イトアンナイ 1 16 #02 SS-7090510-SP SCREW 9/64-40 L= 4.6 マルヒラネジ 9/64-40 L=4.6 1 17 B2024-372-000 L-SHAPED THREAD GUIDE Lガタ イトアンナイ 2 18 B2012-372-000 NIPPER BAR BLOCK SPRING PIN ニツパ ヒツパブリハネピン 1 19 SS-6120930-TP SCREW 3/16-28 L=9.0 ヒラネジ 3/16-28 L=9 1 20 WP-0501016-SD WASHER 5X10.5X1 ヒラサガネ 5X10.5X1 2 21 B2011-372-000 NIPPER BAR BLOCK ニツパ ヨートコマ 1 22 B2010-372-000 NIPPER BAR BLOCK REAR イトチヨーシレバー ヨートコマ 1 23 B2004-372-000 NIPPER BAR イトチヨーシ チョーセツカン 1 24 SS-6120930-TP SCREW 3/16-28 L=9.0 ヒラネジ 3/16-28 L=9 1 25 B2019-372-0A0 TENSION POST ASM. ダマ12 イトチヨーシボー クミ 1 26 B3116-125-000 TENSION DISC STOPPER ダマ12 イトチヨーシ ナツト (1) 27 B3120-125-000 TENSION SPRING, NO. 2 イトチヨーサライ カイテンドメ (1) 28 B3114-232-000 TENSION DISC HOLDER ダマ12 イトチヨーシ ハネ (1) 29 B3132-012-000 TENSION DISC イトチヨーサオサエ (1) 30 B2016-372-000 TENSION DISC イトチヨーシ サラ (2) 31 B2019-372-000 TENSION POST NO. 2 ダマ12 イトチヨーシボー (1) 32 B2020-372-000 TENSION RELEASE PIN チョーササラ ウカシボー (1) 33 NS-6160520-SP NUT 1/4-24 ロツカクナット 1/4-24 (1) 34 PS-0200162-KH SPRING PIN スプリングピン 2X16 1 35 SS-6120930-TP SCREW 3/16-28 L=9.0 ヒラネジ 3/16-28 L=9 1 36 WP-0501016-SD WASHER 5X10.5X1 ヒラサガネ 5X10.5X1 1 37 B2009-372-000 THREAD TENSION RELEASING LEVER チョーシサラ ウカシイタ 1 38 B2015-372-0A0 THREAD TENSION ASM. (NO.1) ダマ11 イトチヨーシ クミ 1 39 B3125-012-000 THREAD TENSION STUD NUT ダマ11 イトチヨーシ ナツト (1) 40 B2017-372-000 TENSION SPRING NO.1 ダマ11 イトチヨーシ ハネ (1) 41 B2016-372-000 TENSION DISC イトチヨーシ サラ (2) 42 B2015-372-000 THREAD TENSION STAFF NO. 1 ダマ11 イトチヨーシホー (1) 43 B2014-372-000 THREAD BUILDE ダマ11 イトチヨーシサラ アンナイボー 1 44 #01 B1111-232-000 THREAD GUIDE PLATE ダマ11 イトアンナイ イタ 1 45 #02 B2039-373-000 THREAD GUIDE NO.1 ダマ11 イトアンナイ 1 46 SS-4151215-SP SCREW 15/64-28 L=12 ナベネジ 15/64-28 L=12 1 47 #01 B2005-372-000 NIPPER BAR BEARING BLOCK イトチヨーシ チョーセツカン アンナイダイ 1 48 B2006-372-000 ADJUSTING SCREW イトチヨーシ チョーセツカン アンナイジク 1 49 WP-0480856-SP WASHER 4.8X8.4X0.8 ヒラサガネ 4.8X8.4X0.8 2 50 #01 SS-6121610-TP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 1 51 SS-6121050-SP SCREW 3/16-28 L= 9.5 ヒラネジ 3/16-28 L=9.5 1 52 B2008-372-000 NIPPER BAR SPRING イトチヨーシ チョーセツカン ヒツパブリハネ 1 53 B2007-372-000 NIPPER BAR SPRING SCREW チョーセツカン ヒツパブリハ ネジ 1 54 WP-0371016-SD WASHER 3.7X8X1 ヒラサガネ 3.7X8X1 1 55 NS-6080340-SP NUT 1/8-44 ロツカクナット 1/8-44 1 56 SD-0790802-SP HINGE SCREW D= 7.94 H= 8.0 ダマネジ D=7.94 H=8 1 57 B2001-372-0A0 NIPPER BAR ACTUATING LEVER ASM. サンカクイタ クミ 1 58 B1421-372-000 NEEDLE BAR GUARD ハリホーカパー 1 59 #02 B2005-373-000 NIPPER BAR BEARING BLOCK イトチヨーシ チョーセツカン アンナイダイ 1 60 #02 SS-6121610-TP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 1 61 #02 SS-9151420-TP BOLT 15/64-28 L=14 ロツカクボルト 15/64-28 L=14 1 62 #02 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 Note (注記) #01... For MB-372 MB-372 用 #02... For MB-373 MB-373 用 -8- From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13 — 5. FEED PLATE COMPONENTES

5. FEED PLATE COMPONENTES 送り関係 15 16 17 10 11 12 13 14 24 25 26 27 28 29 30 31 32 22 23 33 34 19 4 5 6 7 8 9 51 2 50 49 37 42 46 47 4539 364243 44 42 35 42 40 37 36 38 39 41 -9- From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 14

REF. NO. NOTE PART NO. DESCRIPTION ヒン メイ AMT. 1 #01 B2529-372-000 FEED PLATE, SMALL BUTTON ショーホ"タンヨー ヌノオサエ シタイタ 1 2 #02 B2529-373-000 FEED PLATE, SMALL BUTTON ショーホ"タンヨー ヌノオサエ シタイタ 1 3 #03 B2529-372-C00 FEED PLATE, SMALL BUTTON ショーホ"タンヨー ヌノオサエ シタイタ 1 4 SS-9120643-TP SCREW 3/16-28 L=6 ロツカクボルト 3/16-28 L=6 2 5 B2524-372-000 LNDICATOR PIN BEARING BLOCK ヨコオクリ シンシン"ク コマ 1 6 B2525-372-000 CROSSWISE FEED INDICATOR ヨコオクリ シンシン 1 7 B2526-372-000 CROSSWISE FEED INDICATOR PIN ヨコオクリ シンシン"ク 1 8 NS-6160520-SP NUT 1/4-24 ロツカクナット 1/4-24 1 9 B2518-372-000-A SLIDE PLATE CONNECTING LINK A オクリレンケツ"ツ"リンク 1 10 SD-0640481-SP HINGE SCREW D= 6.35 H= 4.8 タンネジ D=6.35 H=4.8 1 11 B2521-372-000 STUD オクリレバー" 6カクシ"ク 1 12 B2519-372-000 INTERMEDI CONNECTING LINK オクリリンク 1 13 WP-0501016-SD WASHER 5X10.5X1 ヒラサ"ガネ 5X10.5X1 1 14 NS-6120310-SP NUT 3/16-28 ロツカクナット 3/16-28 1 15 B2513-372-000 INDICATOR SPRING CONNECTING LINK タテオクリ チョーセツ"レバー"タイ 1 16 SD-0640961-SP HINGE SCREW D= 6.35 H= 9.6 タンネジ D=6.35 H=9.6 1 17 B2515-372-000 HANDLE & INDICATOR SPRING タテオクリ チョーセツレバー" 1 18 SS-4090610-SP SCREW 9/64-40 L=6 ナベネジ" 9/64-40 L=9 2 19 B2507-372-000 CAM ROLL オクリカム コロ 2 20 B2511-372-0AO LENGTHWISE FEED LEVER ASM. タテオクリ レバー" クミ 1 21 B2512-372-000 LENGTHWISE FEED LEVER SLIDE BLOCK タテオクリ チョーセツコマ 2 22 B2508-372-000 CAM ROLL SCREW STUD オクリカム コロジ"ク 2 23 B2509-372-000-A FEED STUD オクリジ"ク 1 24 B2563-372-0AO LENGTHWISE FEED SCALE ASM. タテオクリメモリ"ク クミ 1 25 B2563-372-000 LENGTHWISE FEED GRADUATE PLATE タテオクリメモリ"ハン" 1 26 B2564-372-000 PLATE BASE タテオクリメモリ"ハン" トリツケダイ" 1 27 B2565-372-000 FEED REGULATOR LEVER STOPPER タテオクリ チョーセツレバー" ストツパー" 1 28 SS-4120615-SP SCREW 3/16-28 L=6 ナベネジ" 3/16-28 L=6 2 29 NS-6150540-SP NUT 15/64-28 ロツカクナット 15/64-28 1 30 B2531-372-000 SET SCREW セ"ン"シュ" オクリジ"ク トメネジ" 1 31 SD-0640481-SP HINGE SCREW D= 6.35 H= 4.8 タンネジ D=6.35 H=4.8 2 32 B2519-372-000 INTERMEDI CONNECTING LINK オクリリンク 1 33 SS-8152030-SP SCREW 15/64-28 L=20 トメネジ" 15/64-28 L=20 1 34 B2510-372-000 CROSSWISE FEED LEVER ヨコオクリ レバー" 1 35 B2501-372-000 CAM SHAFT カムジ"ク 1 36 B2530-372-0AO CAM BOSS オクリカム ボス"クミ 2 37 SS-8680810-TP SCREW 9/32-28 L=8.0 トメネジ" 9/32-28 L=8 4 38 B2502-372-000 CAM SHAFT BUSHING, RIGHT メタル 1 39 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ" 15/64-28 L=10.5 2 40 #01 B2505-372-000 CROSSWISE FEED CAM サユウ オクリカム 1 41 #02 B2505-373-000 CROSSWISE FEED CAM サユウ オクリカム 1 42 SS-8681412-TP SCREW 9/32-28 L=13.5 トメネジ" 9/32-28 L=13.5 5 43 #01 B2506-372-000 LENGHTWISE FEED CAM セ"ン"シュ" オクリカム 1 44 #02 B2506-373-000 LENGHTWISE FEED CAM セ"ン"シュ" オクリカム 1 45 B2503-372-000 CAM SHAFT BUSHING, LEFT カムジ"ク メタル ヒタ"リ 1 46 SS-7060810-SP SCREW 3/32-56 L= 8.0 マルヒラネジ" 3/32-56 L=8 1 47 B2527-372-000 CROSSWISE FEED GRADUATED PLATE ヨコオクリ メモリイタ" トリツケダイ" 2 48 B2528-372-000 CROSSWISE FEED GRADUATED PLATE ヨコオクリ メモリイタ" 1 49 B2523-372-000 HINGE SCREW FOR CROSSWISE FEED ヨコオクリ ササエネジ" 1 50 B2522-373-000-A FEED PLATE オクリタイ" 1 51 WP-0501016-SD WASHER 5X10.5X1 ヒラサ"ガネ 5X10.5X1 2 Note (注記) #01...For MB-372 MB-372 用 #02...For MB-373 MB-373 用 #03...Special order parts for MB-372 MB-372 用特別注文部品 - 10 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 15 — 6. BUTTON CLAMP LIFTER COMPONENTS

6. BUTTON CLAMP LIFTER COMPONENTS 引き上げ関係 1 2 3 4 567 8 28 58 59 57 54 55 56 27 26 24 25 18 17 19 20 21 23 22 9 10 11 12 13 15 16 48 49 50 51 50 52 53 34 36 29 30 31 32 33 35 4543 38 44 42 41 39 47 46 37 40 - 11 - From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 16

REF. NO. NOTE PART NO. DESCRIPTION HIN MEI AMT. 1 #01 B1407-372-000 BUTTON CLAMP LIFTING LEVER ヒキアゲ レバー 1 2 B1408-372-000 BUSHING ハリホー ヨードーカン シデンジク メタル 1 3 B1408-372-000 BUTTON CLAMP LIFTING LEVER SHAFT ハリホー ヨードーカン シデンジク 1 4 #01 SS-7150740-SP SCREW 15/64-28 L=7 マルヒラネジ 15/64-28 L=7 1 5 #01 B4415-372-000 BUTTON CLAMP LIFTING LEVER STOP ヒキアゲ レバー ストツパー イタ 1 6 B4419-372-000 NIPPER BAR ACTUATING LEVER SPRING ヒキアゲ レバー ヒツパリバネ 1 7 B4418-372-000 WASHER ヒキアゲ レバー ヒツパリバ ネザカバネ 1 8 #01 SD-0641001-SP HINGE SCREW D= 6.35 H=10.0 タツンネジ D=6.35 H=10 1 9 #01 B4411-372-000-A BUTTON CLAMP LIFTING LINK ヒキアゲ イタ 1 10 B4410-372-0A0 SLIDING ROLLER ASM. ヒキアゲ イタ スライドアンナイ クミ 1 11 SS-8660612-TP SCREW 1/4-40 L= 6.0 トメネジ 1/4-40 L=6 (1) 12 B4405-372-0A0 ECCENTRIC CAM ASM. ヒキアゲ ヘンシンカム クミ 1 13 SS-8660612-TP SCREW 1/4-40 L= 6.0 トメネジ 1/4-40 L=6 (2) 14 B4401-372-0A0 BUTTON CLAMP LIFTING LINK ASM. ヒキアゲ フタマタロツド クミ 1 15 CS-0950810-SH THRUST COLLAR ASM. D=9.5 W=8 スラストウケ D=9.5 W=8 クミ 2 16 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L=3.5 (4) 17 B4404-372-000 LEVER SHAFT ヒキアゲ フタマタロツド シク 1 18 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 2 19 B4408-372-000 LIFTING LINK CONNECTING LINK ヒキアゲ イタ リンク 1 20 B4406-372-0A0-A LIFTING LINK LEVER ASM. ヒキアゲ イタ アンナイロツド クミ 1 21 SS-6121610-TP SCREW 3/16-28 L=15.5 ヒラネジ 3/16-28 L=15.5 (1) 22 SD-0640471-SP HINGE SCREW D= 6.35 H= 4.7 タツンネジ D=6.35 H=4.7 1 23 SD-0640211-SP HINGE SCREW D= 6.35 H= 2.1 タツンネジ D=6.35 H=2.1 1 24 NS-6090310-SP NUT 9/64-40 ロツカクナット 9/64-40 1 25 WP-0371026-SD WASHER 3.7X7X1 ヒラサガネ 3.7X7X1 1 26 B4417-372-000 BUTTON CLAMP LIFTING ROD ROLI. L.ガタ ヒキアゲボー コロ 1 27 #02 B4416-372-000 BUTTON CLAMP LIFTING ROD L.ガタ ヒキアゲボー - 1 28 SS-9151120-CP SCREW 15/64-28 L=11 ロツカクボルト 15/64-28 L=11 1 29 #02 B2404-373-R00 CONNECTING LINK, FRONT イトキリ レンケツツイタ マエ 1 30 #02 B2413-373-000 JOINT STUD イトキリ レンケツ ジヨイントジク 1 31 #02 B1632-180-000 FEED ADJUSTING JOINT イトキリ レンケツ ジヨイント 1 32 #02 WP-0510516-SD WASHER 5.1X7.5X0.5 ヒラサガネ 5.1X7.5X0.5 1 33 #02 NM-6050001-SP NUT M5 ロツカクナット M5X0.8 1シュ 2 34 #02 B2412-373-000 CONNECTING SCREW イトキリ レンケツネジ 1 35 #02 NS-6680320-SP NUT 9/32-28 ロツカクナット 9/32-28 2 36 #02 B2403-373-000-A CONNECTING LINK, REAR イトキリ レンケツツイタ ウシロ 1 37 #02 SD-0640323-TP HINGE SCREW D= 6.35 H= 3.2 タツンネジ D=6.35 H=3.2 1 38 #02 SD-0790402-TP HINGE SCREW D= 7.94 H= 4 タツンネジ D=7.94 H=4 1 39 #02 NS-6620310-SP NUT 3/16-32 ロツカクナット 3/16-32 1 40 #02 NS-6150310-SP NUT 15/64-28 ロツカクナット 15/64-28 1 41 #02 B2402-373-000-A THREAD TRIMMING LEVER イトキリ レバー - 1 42 #02 SD-0790311-TP HINGE SCREW D= 7.94 H= 3.1 タツンネジ D=7.94 H=3.1 1 43 #02 NS-6110530-SP NUT 11/64-40 ロツカクナット 11/64-40 1 44 #02 B2405-373-000 THREAD TRIM LEVER BASE イトキリ レバーダーテイ 1 45 #02 SS-7111410-TP SCREW 11/64-40 L=14 マルヒラネジ 11/64-40 L=14 2 46 #02 B2401-373-000 THREAD TRIMMING LINK イトキリ リンク 1 47 #02 SD-0641322-TP HINGE SCREW D=6.35 H=13.2 タツンネジ D=6.35 H=13.2 1 48 #02 B4411-373-000 BUTTON CLAMP LIFTING LINK ヒキアゲ イタ 1 49 #02 B4412-373-000 BUTTON CLAMP LIFTING LEVER ヒキアゲ レバー - 1 50 #02 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサガネ 7.5X19X1.5 2 51 #02 B4420-373-000 CUSHION シヤタツン クツシヨン 1 52 D9219-555-B00 SAFETY MAGNET シヤタツン クツシヨン バネ 1 53 B4416-373-AA0 BUTTON CLAMP LIFTING ROD ASM. L.ガタ ヒキアゲボー クミ 1 54 #03 WP-0704016-SP WASHER 7X20X4 ヒラサガネ 7X20X4 1 55 #03 WP-0703516-SP WASHER 7X20X3.5 ヒラサガネ 7X20X3.5 1 56 #03 WP-0704016-SP WASHER 7X20X4 ヒラサガネ 7X20X4 1 57 B4420-373-000 CUSHION シヤタツン クツシヨン 1 58 #04 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサガネ 7.5X19X1.5 2 59 #04 WP-0851846-SC WASHER 8.5X22.0X1.8 ヒラサガネ 8.5X22.0X1.8 2 Note (注記) #01.....For MB-372 #02.....For MB-373 #03.....Selective parts (use of one parts) 選択部品 (いつれか一個使用) #04.....Selective parts (use of one or two parts) 選択部品 (いつれか一個又は二個使用) - 12 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17 — 7. NEEDLE DRIVING PULLEY SHAFT COMPONENTS

7. NEEDLE DRIVING PULLEY SHAFT COMPONENTS 駆動軸関係 18 26 24 23 22 21 19 20 13 11 10 9 8 14 12 27 28 29 30 REF. NO. NOTE PART NO. DESCRIPTION ヒン メ イ AMT. 1 B1203-372-000 BALL LARGE キト-ボール ウケタイ 1 2 B1204-372-000 PULLEY INSERT シュシクハネ ボール 1 3 B1246-372-000 BALL SMALL シュシクハネ 1 4 B1205-372-000 SPRING シュシクハネ 1 5 B1202-372-000 NEEDLE DRIVING PULLEY クドー・プーリー 1 6 SS-8110750-SP SCREW 11/64-40 L= 6.5 トメネジ 11/64-40 L=6.5 1 7 SS-8150410-SP SCREW 15/64-28 L=4 トメネジ 15/64-28 L=4 1 8 B1243-372-000 NEEDLE BEARING ニードルベアリング 2 9 B1206-372-000 GREASE RETAINING WICK グリースアブソラントメフエルトケース 1 10 B1207-372-000 RETAINING WASHER シュシクアブソラントメフエルト ケース 1 11 SS-6152440-SP SCREW 15/64-28 L=23.5 トメネジ 15/64-28 L=23.5 2 12 WP-0621026-SP WASHER 6.2X9.5X1 ヒラサガネ 6.2X9.5X1 2 13 B1208-372-000 NEEDLE DRIVING PULLEY CLUTCH DISC クドー・クツシヨン 1 14 B1210-372-0A0 STOP MOTION DISC ASM. シヤタンカム クミ 1 15 B1211-372-000 STOP MOTION DISC PAWL (A) シヤタン ツメ A (1) 16 B1212-372-000 STOP MOTION DISC LATCH (B) シヤタン ツメ トメネジ (1) 17 B1213-372-000 SCREW シヤタン ツメ (2) 18 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 2 19 SS-8701042-TP SCREW 5/16-24 L=10.0 トメネジ 5/16-24 L=10 3 20 SS-8701782-TP SCREW 5/16-24 L=17.0 トメネジ 5/16-24 L=17 1 21 NS-6150430-SP ECCENTRIC WASHER シヤタンカム ザガネ 1 22 NS-6150430-SP NUT 15/64-28 ロツカクナツト 15/64-28 2 23 B1215-372-B00 THRUST BALL BEARING スラストベアリング メタル 1 24 SS-8151150-SP SCREW 15/64-28 L=10.5 トメネジ 15/64-28 L=10.5 2 25 B1216-372-000 PULLEY SHAFT BUSHING, RIGHT クドーシヤク メタル ミギ 1 26 B1218-372-000 PULLEY SHAFT BUSHING, LEFT クドーシヤク メタル ヒダリ 1 27 B1217-372-0A0 DRIVING GEAR ASM. ハツドウギヤ A クミ 1 28 SS-8660612-TP SCREW 1/4-40 L= 6.0 トメネジ 1/4-40 L=6 (2) 29 #01 B1201-372-000 NEEDLE DRIVING PULLEY SHAFT クドーシヤク 1 30 #02 B1201-373-000 NEEDLE DRIVING PULLEY SHAFT クドーシヤク 1 Note (注記) #01....For MB 372 MB 372 用 #02....For MB-373 MB-373 用 - 13 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18 — 8. NEEDLE BAR DRIVING MECHANISM COMPONENTS

8. NEEDLE BAR DRIVING MECHANISM COMPONENTS 針棒関係 REF.NO. NOTE PART NO. DESCRIPTION ヒン メ イ AMT. 1 #01 MTQ-700B1600 NEEDLE TQX7 #16 ハリ TQX7 #16 1 2 #02 MTQ-700B2000 NEEDLE TQX7 #20 ハリ TQX7 #20 1 3 SS-7080510-TP SCREW 1/8-44 L=4.5 マルヒラネジ 1/8-44 L=4.5 1 4 B1401-372-000-A NEEDLE BAR ハリボー 1 5 B1403-372-000-A NEEDLE BAR BUSHING LOWER ハリボー・シタメタル 1 6 B3112-372-000 NEEDLE BAR BALANCE ハリボー・テンビン 1 7 B3113-372-000 NEEDLE BAR CLAMP ハリボー・ダーキ 1 8 SS-6091210-TP SCREW 9/64-40 L=12 ヒラネジ 9/64-40 L=12 1 9 B1402-372-000 NEEDLE BAR BUSHING, UPPER ハリボー・ウワメタル 1 10 #03 B1406-372-000 NEEDLE BAR BEARING BLOCK ハリボー・ダーキ スライドコマ 1 11 B1409-372-000 NEEDLE BAR LEVER ハリボー・ヨートーカン 1 12 SS-9151630-CP SCREW 15/64-28 L=15.5 ロッカクボルト 15/64-28 2 13 NS-6150440-SP NUT 15/64-28 ロッカクナット 15/64-28 1 14 #03 B1411-372-0A0 WASHER クランクピン ザガネ A 1 15 B1412-372-0A0 BALL JOINT UPPER ASM. クランククロツト ショー ジメネジ (2) 16 B1413-372-000 CLAMP SCREW クランククロツト クミ 1 17 NS-6680410-SP NUT 9/32-28 ロッカクナット 9/32-28 1 18 B1414-372-0A0 CONNECTING ROD ASM. クランクホー ユシン (0.3) 19 CQ-2000000-00 OIL WICK クランクホー ユシン 20 NS-6680480-SP NUT 9/32-28 ロッカクナット 9/32-28 ヒタリネジ 1 21 B1416-372-0A0 BALL JOINT ECCENTRIC ASM. ヘンシン キユーケイカム クミ 1 22 SS-8660612-TP SCREW 1/4-40 L=6.0 トメネジ 1/4-40 L=6 (1) 23 SS-8660942-TP SCREW 1/4-40 L=8.5 トメネジ 1/4-40 L=8.5 (1) 24 B1418-372-000 CLAMP SCREW LOWER クランククロツト ダイ シメネジ (2) 25 B3541-012-000 OIL WICK クランククロツト ダイ ユシン (0.1) Note (注記) #01....For MB-372 MB-372 用 #02....For MB-373 MB-373 用 #03....Selective parts 選択部品 - 14 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19 — 9. STOP MOTION MECHANISM COMPONENTS

9. STOP MOTION MECHANISM COMPONENTS 遮断装置関係 REF. NO. NOTE PART NO. DESCRIPTION ヒン メ イ AMT. 1 B2605-372-000 STOP MOTION PLUNGER ROD シヤタアアサシユク ジク 1 2 PD-0201000-0D SPLIT PIN 2X10 ワリピン 1.8X10 1 3 B2604-372-000 STOP MOTION PLUNGER シヤタアンプリツク 1 4 SS-6151040-SP SCREW 15/64-28 L=10 ヒラネジ 15/64-28 L=10 1 5 B2602-372-000 STOP MOTION PLUNGER LEVER シヤタアンプレーム 1 6 B2606-372-000 STOP MOTION DISC SPRING シヤタアアサシユク バネ 30 7 B2608-280-000 RUBBER CUSHION シヤタアユゴムクツシヨン 4 8 B8220-804-000 WASHER シヤタアユゴムクツシヨン ザカネ 1 9 NS-6680410-SP NUT 9/32-28 ロツカクナツト 9/32-28 2 10 B2601-372-000 STOP MOTION LEVER SHAFT シヤタアンスク 1 11 B2611-372-000 STOP MOTION DISC PRESSURE LEVER ク トーブプーリ オシケイタ 1 12 B2603-372-000 SCREW シヤタアツソーチ トリツケネジ 1 13 SS-6151570-SP SCREW 15/64-28 L=15.0 トメネジ 15/64-28 L=15 1 14 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 15 SD-0680271-SP HINGE SCREW D= 6.80 H= 2.7 ダンネジ D=6.8 H=2.7 1 16 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 17 B2615-372-000 STOP SCREW キトーリンク ピン 1 18 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 19 SS-9151160-CP SCREW 15/64-28 L=10.5 ロツカクボルト 15/64-28 L=115 1 20 B2614-372-000 STOP MOTION TRIP LEVER キトーリンク 1 21 B2612-372-000 STOP MOTION TRIP LEVER BRACKET キトーリンク トリツケダイ 1 22 SS-9150860-SP SCREW 15/64-28 L=8 ロツカクボルト 15/64-28 L=8 2 23 B2616-372-000 SPRING キトーリンク カエシバネ 1 24 B8133-019-000 S SHAPED HOOK Sカク カナク 1 25 B2608-372-000 STOP MOTION LEVER SPRING PIN シヤタアンスーチ ヒツパリバネ トメピン 1 26 B2609-372-000 STOP MOTION LEVER SPRING シヤタアンプフレーム ヒツパリバネ 1 27 B2610-372-000 SCREW STUD シヤタアンスーチ ヒツパリバネ トメネジ 1 28 NS-6150310-SP NUT 15/64-28 ロツカクナツト 15/64-28 1 - 15 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20 — 10. STITCH SELECTING PARTS COMPONENTS

10. STITCH SELECTING PARTS COMPONENTS 針数調節関係 1 2 3 4 5 6 11 12 13 14 7 10 33 343536 25 26 24 23 22 17 22 18 16 15 21 20 19 REF. NO. NOTE PART NO. DESCRIPTION ヒン メ イ AMT. 1 SD-1127321-SP HINGE SCREW D= 12.70 H= 3.2 1 2 B2643-372-000 SPRING FOR FRICTION PLATE 1 3 B2638-372-000 FRICTION PLATE ROTATING STUD 1 4 B2637-372-000 SLIDE BLOCK 1 5 B2636-372-000 SPEED SLOWING LEVER 1 6 SD-0791331-SP HINGE SCREW D= 7.94 H=13.3 1 7 B2639-372-000 FRICTION PLATE HOLDER ASM. 1 8 B2639-372-000 FRICTION PLATE HOLDER (1) 9 B2640-372-000 SPEED SLOWING FRICTION PLATE (1) 10 B3211-232-000 POSITIONING PIN (2) 11 NS-6110310-SP NUT 11/64-40 1 12 B2619-372-000 STOP MOTION TRIPPING LEVER CAM ROLI. 1 13 B2618-372-0AO STOP MOTION TRIPPING LEVER ASM. 1 14 SS-9202443-CP SCREW 5/16-18 L=24 (1) 15 B2620-372-000 STOP MOTION CAM. (1) 16 B2621-372-0AO STOP MOTION CAM ASM. (1) 17 B2623-372-000 STOP MOTION CAM SHOE (1) 18 B2624-372-000 SCREW FOR STOP MOTION CAM SHOE (1) 19 B2625-372-000 STOP MOTION CAM KNOB (1) 20 SD-0481452-SP HINGE SCREW D= 4.80 H=14.5 (2) 21 SS-6151142-TP SCREW 15/64-28 L=10.5 (1) 22 B2629-372-000 STITCH SELECTING SPUR GEAR, MIDDLE 1 23 B2628-372-000 SCREW STUD 1 24 B2633-372-000 STITCH SELECTING LEVER 1 25 B2630-372-000-A SPEED SLOWING FRICTION SPUR GEAR, LARGE 1 26 B2631-372-000 SCREW 2 27 B2632-372-000-A ROLL 1 28 B2634-372-000 STITCH SELECTING LATCH 1 29 B2635-372-000-A SPEED SLOWING FRICTION WHEEL. 1 30 SD-0640961-SP HINGE SCREW D= 6.35 H= 9.6 1 31 B2635-372-000-A SPEED SLOWING FRICTION WHEEL. 1 32 SS-8151150-TP SCREW 15/64-28 L=10.5 2 33 SS-9111010-SP SCREW 11/64-40 L=9.5 1 34 WP-0501016-SD WASHER 5X10.5X1 1 35 SS-6081210-SP SCREW 1/8-44 L=12 1 36 NS-6080210-SP NUT 1/8-44 1 - 16 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21 — SUBCLASS COMPONENTS FOR MODEL MB-372

11. SUBCLASS COMPONENTS FOR MODEL MB-372 MB-372 サブクラス関係 (1) MB-372-4 1 2 3 (4) MB-372-10 11 (7) MB-372-14 16 15 17 (9) MB-372-16 23 24 (2) MB-372-5 4 5 6 (5) MB-372-11 12 (8) MB-372-15 18 19 20 21 22 (3) MB-372-6 7 8 9 10 13 14 - 17 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22

REF. NO. NOTE PART NO. D E S C R I P T I O N H I N X I AMT. (1) MB-372-4 1 D1220-372-D00 CAM SHAFT DRIVEN GEAR (6,12,24) 6,12,24シンヨー ウオーム ハクマルマ 1 2 D1221-372-D00 DRIVEN WORM GEAR FOR 6,12,24 6,12,24シンヨー ウオーム 1 3 D2505-372-D00 CROSSWISE FEED CAM (6,12,24) 2ノシヌイ サユーオクリカム 1 (2) MB-372-5 4 D1220-372-D00 CAM SHAFT DRIVEN GEAR (6,12,24) 6,12,24シンヨー ウオーム ハクマルマ 1 5 D1221-372-D00 DRIVEN WORM GEAR FOR 6,12,24 6,12,24シンヨー ウオーム 1 6 D2505-372-D0A CROSSWISE FEED CAM, 7.-SHAPE 6,12,24シンヨー-7.ヌイ サユーオクリカム 1 (3) MB-372-6 7 D1220-372-D00 CAM SHAFT DRIVEN GEAR (6,12,24) 6,12,24シンヨー ウオーム ハクマルマ 1 8 D1221-372-D00 DRIVEN WORM GEAR FOR 6,12,24 6,12,24シンヨー ウオーム 1 9 D2506-372-F00 LENGTH WISE FEED CAM ゼンシヨ オクリカム 1 10 #01 B2506-372-000 LENGTHWISE FEED CAM ゼンシヨ オクリカム 1 (4) MB-372-10 11 B2505-372-C00 CROSS FEED CAM (8,16,32) 8,16,32シンヨーZヌイサユーオクリカム 1 (5) MB-372-11 12 D2506-372-1.00 LENGTHWISE FEED CAM FOR X-SHAPE モンヌイ ゼンシヨオクリカム 1 (6) MB-372-12 13 D2506-372-M00 LENGTH WISE FEED CAM モンヌイ ゼンシヨオクリカム 1 14 #01 B2506-372-000 LENGTHWISE FEED CAM ゼンシヨ オクリカム 1 (7) MB-372-14 15 D2505-372-P00 CROSSWISE FEED CAM 1ヌイ サユオクリカム 1 16 #02 D2506-372-M00 LENGTH WISE FEED CAM モカヌイ ゼンシヨオクリカム 1 17 D2528-372-P00 CROSS FEED SCALE サユオクリ メモリイタ 1 * The machine is exclusive use for buttons have vertical two holes. * このミシンは縦穴タツ穴専用ミシンです。 (8) MB-372-15 18 D1241-372-Q00 THROAT PLATE SUB 15ヨー ハリイタ 1 19 D1250-372-Q00 NEEDLE HOLE GUIDE SUB 15ヨー ハリアナ ガイド 1 20 SS-7110510-SP SCREW 11/64-40 L=5 マルヒラネシ 11/64-40 L=5 2 21 D2505-372-Q00 CROSS WISE FEED CAM SUB 15ヨー サユオクリカム 1 22 D2506-372-R00 LENGTH WISE FEED CAM SUB 15ヨー ゼンシヨオクリカム 1 * This machine uses, in combination, Z016 (Attachment for second process of wrapped- around buttons) * このミシンはZ016 (根巻第二工程用アタッチメント) を共用します。 (9) MB-372-16 23 D2505-372-R00 CROSSWISE FEED CAM コブリエー サユオクリカム 1 24 D2528-372-R00 CROSSFEED SCALE コブリエー ヨコオクリ メモリイタ 1 * This machine uses, in combination, Z010-B (Attachment for louis type shank buttons) * このミシンはZ010-B (ルイスタィプパールボタン用アタッチメント) を共用します。 ☆ All parts not mentioned above are same as those of Model MB-372. ☆ 上記以外の部品はMB-372と共通です。 Note (注記) #01..... Lengthwise feed cam of MB-372 Is used as crosswise feed cam. MB-372の前送りカムを左右送りカムとして使用します。 #02..... This machine uses, in combination, Lengthwise feed cam of MB-372-12. MB-372の後送りカムを共用します。 - 18 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — SUBCLASS COMPONENTS FOR MODEL MB-373

12. SUBCLASS COMPONENTS FOR MODEL MB-373 MB-373 サブクラス関係 (1)MB-373-4 1 2 3 (4)MB-373-10 11 (7)MB-373-14 02505-373-000 16 15 17 (9)MB-373-16 02505-373-000 28 29 (2)MB-373-5 4 5 6 02505-373-000 (5)MB-373-11 12 02505-373-000 (8)MB-373-15 18 19 20 (3)MB-373-6 7 8 9 10 02505-373-000 (6)MB-373-12 13 14 02505-373-000 21 22 23 24 25 26 27 26 02505-372-000 - 19 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 24

REF. NO. NOTE PART NO. D E S C R I P T I O N H ン メ イ AMT. (1) MB-373-4 1 D1220-372-D00 CAM SHAFT DRIVEN GEAR (6,12,24) 6,12,24シンヨー ウオーム ハク゛ルマ 1 2 D1221-372-D00 DRIVEN WORM GEAR FOR 6,12,24 6,12,24シンヨー ウオーム 1 3 D2505-373-D00 FEED CAM 2ノシ゛ヌイヨー サユウオクリカム 1 (2) MB-373-5 4 D1220-372-D00 CAM SHAFT DRIVEN GEAR (6,12,24) 6,12,24シンヨー ウオーム ハク゛ルマ 1 5 D1221-372-D00 DRIVEN WORM GEAR FOR 6,12,24 6,12,24シンヨー ウオーム 1 6 D2505-373-E00 CROSS WISE FEED CAM 6,12,24シンヨーZヌイサユウオクリカム 1 (3) MB-373-6 7 D1220-372-D00 CAM SHAFT DRIVEN GEAR (6,12,24) 6,12,24シンヨー ウオーム ハク゛ルマ 1 8 D1221-372-D00 DRIVEN WORM GEAR FOR 6,12,24 6,12,24シンヨー ウオーム 1 9 D2506-373-F00 LENGTH WISE FEED CAM セ゛ンヨ゛オクリカム 1 10 #01 B2506-373-000 LENGTHWISE FEED CAM セ゛ンヨ゛オクリカム 1 (4) MB-373-10 11 B2505-373-C00 CROSS WISE FEED CAM. Z-SHAPE 8,16,32シンヨーZヌイサユウオクリカム 1 (5) MB-373-11 12 D2506-373-L00 LENGTH WISE FEED CAM Xシ゛イヨー セ゛ンヨ゛オクリカム 1 (6) MB-373-12 13 D2506-373-M00 LENGTH WISE FEED CAM (8,16,32) 8,16,32シンモンヌイセ゛ンヨ゛オクリカム 1 14 #01 B2506-373-000 LENGTHWISE FEED CAM セ゛ンヨ゛オクリカム 1 ☆ All parts not mentioned above are same as those of Model MB-373. ☆ 上記以外の部品はMB-373と共通です。 (7) MB-373-14 15 D2505-372-P00 CROSSWISE FEED CAM Iヌイ サユウ オクリカム 1 16 #02 D2506-373-M00 LENGTH WISE FEED CAM (8,16,32) 8,16,32シンモンヌイセ゛ンヨ゛オクリカム 1 17 D2528-372-P00 CROSS FEED SCALE サユウ オクリ メモリイタ 1 * This machine is exclusive use for buttons vertical twe holes. * このミシンは縦2ツ穴専用ミシンです。 (8) MB-373-15 18 D1241-373-000 THROAT PLATE SUB 15ヨ- ハリイタ 1 19 D1250-372-000 NEEDL HOLE GUIDE SUB 15ヨ- ハリアナ ガイト゛ 1 20 SS-7110510-SP SCREW 11/64-40 L=5 マ儿ヒラネシ゛ 11/64-40 L=5 2 21 D2505-372-000 CROSS WISE FEED CAM SUB 15ヨ- サユウ オクリカム 1 22 D2506-372-000 LENGTH WISE FEED CAM SUB 15ヨ- セ゛ンヨ゛オクリカム 1 23 B4416-373-0A0 MOVING KNIFE PUSH-BACK SPRING ASM. ト゛ーメス゛ モト゛シハ゛ネ 1 24 B4416-373-000 SPRING GUIDE SHAFT ハ゛ネウケホー 1 25 D9317-762-T00 GIMP GUIDE SHAFT SPRING ト゛ーメス゛ モト゛シハ゛ネ (1) 26 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサ゛ガネ 7.5X19X1.5 (1) 27 B4420-373-000 CUSHION シヤタ゛ン クツシヨン (1) * This machine uses, in conbination, Z046 (Attachment for second process of wrapped- around buttons) * このミシンはZ046 (根巻第二工程用アタッチメント) を共用します。 (9) MB-373-16 28 D2505-373-R00 CROSSWISE FEED CAM コフ゛リヨー サユウオクリカム 1 29 D2528-372-R00 CROSSFEED SCALE コフ゛リヨー ヨコオクリメモリイタ 1 * This machine uses, in combination, Z040-B (Attachment for louis type shank buttons) * このミシンはZ040-B (ルイスタイプパールボタン用アタッチメント) を共用します。 Note (注記) #01....Lengthwise feed cam of MB-373 is used as crosswise feed cam. MB-373 の前後送りカムを左右送りカムとして使用します。 #02....This machine uses, in combination, lengthwise feed cam of MB-372-12. MB-372-12 の前後送りカムを共用します。 - 20 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (1)

13. ATTACHMENT COMPONENTS FOR MODEL MB-372 (1) MB-372アタッチメント関係 (1) (1)ZOO1 2 1 CLAMP 3 4 8 7 6 9 14 131211 15 10 17 18 (2)ZOO2 CLAMP B2547-372 080 (SMALL BUTTON) #02 B2547-372 OBA (SMALL BUTTON) D2547 372 C80 (LARGE BUTTON) #02 D2547-372 CBA (LARGE BUTTON) 16 19 20 21 22 33 32 31 30 29 48 23 24 25262728 34353637383940 43 41 42 44 46 47 (3)ZOO3 (4)ZOO4 53 56-9 55 54 57 (5)ZOO5 6564 58 61 63 62 60 59 FEED PLATE B2529-372-000 (SMALL BUTTON) D2529-372-800 (MIDDLE BUTTON) D2529-372 C00 (LARGE BUTTON) - 21 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26

REF. NO. NOTE PART NO. DESCRIPTION ヒン メ イ AMT. (1) Z001 ATTACHMENT FOR LARGE BUTTONS 大ボタンアタッチメント 1 MAZ-001000AO LARGE BUTTON CLAMP ASM. 1 2 #02 MAZ-001000AA LARGE BUTTON CLAMP ASM. 1 3 D2547-372-CB0 WORK CLAMP FOOT ASM. (LARGE BUTTON) (1) 4 #02 D2547-372-CBA LARGE BUTTON CLAMP ASM. (1) 5 D2555-372-C00 WORK CLAMP FOOT ASM. (LEFT & LARGE) (1) 6 D2555-372-C00 WORK CLAMP FOOT ASM. (LEFT) (1) 7 D2556-372-C00 BUTTON HOLDING SPRING, LEFT (1) 8 SS-7090410-SP SCREW 9/64-40 L=3.5 (1) 9 B2559-372-000 BUTTON CLAMP LOCATING PIN (1) 10 D2557-372-CA0 BUTTON CLAMP LEVER JAW, RIGHT (1) 11 D2557-372-C00 BUTTON HOLDING SPRING, RIGHT (1) 12 D2557-372-C00 BUTTON HOLDING SPRING, RIGHT (1) 13 SS-7090410-SP SCREW 9/64-40 L=3.5 (1) 14 B2559-372-000 BUTTON CLAMP LOCATING PIN (1) 15 D2529-372-C00 FEED PLATE, LARGE BUTTON (1) (2) Z002 ATTACHMENT FOR MIDDLE BUTTON 中ボタン用アタッチメント 16 D2529-372-B00 FEED MEDIUM SIZE BUTTON (1) (3) Z003 ATTACHMENT FOR SHANK BUTTONS ハールボタン用アタッチメント 17 #02 B2401-372-0B0 SHANK BUTTON CLAMP ASM. (1) 18 B2401-372-0BA SHANK BUTTON CLAMP ASM. (1) 19 SS-8120740-SP SCREW 3/16-28 L=7 (1) 20 B2411-372-000 BUTTON CLAMP STUD (1) 21 B2412-372-000 BUTTON CLAMP BLOCK (1) 22 SS-7110540-SP SCREW 11/64-40 L=5 (1) 23 B2405-372-000 BUTTON CLAMP LEVER (1) 24 SS-7110710-SP SCREW 11/64-40 L=7 (1) 25 B2406-372-000 SHANK BUTTON HOLDING CLAMP (1) 26 SS-7110570-SP SCREW 11/64-40 L=4.8 (1) 27 B2402-372-000 BUTTON CLAMP HOLDING SHAFT (1) 28 B2401-372-000 SHANK BUTTON HOLDING CLAMP (1) 29 #02 B2401-372-00B SHANK BUTTON CLAMP BRACKET (1) 30 CS-072081A-SP THRUST COLLAR ASM. D=7.24 W=8 (1) 31 SS-8110410-TP SCREW 11/64-40 L=3.5 (1) 32 B2546-372-000 SPRING FOR LEVER HOLDING SHAFT (1) 33 B2448-372-000 BUTTON CLAMP LIFTING ROD (1) 34 SS-6111140-SP SCREW 11/64-40 L=11 (1) 35 B2408-372-000 SHANK BUTTON GUARD (1) 36 B2419-372-A00 BUTTON CLAMP ADAPTER (A) (1) 37 B2419-372-B00 SHANK BUTTON ADAPTER (B) (1) 38 SS-6110480-SP SCREW 11/64-40 L=4.3 (1) 39 B2410-372-000 BUTTON CLAMP WORK SUPPORT PLATE (1) 40 B2409-372-000 BUTTON CLAMP FEED PLATE (1) 41 SS-9120910-TP SCREW 3/16-28 L=9 (2) 42 WP-0501016-SD WASHER 5X10.5X1 (2) 43 SS-9621413-SP SCREW 3/16-32 L=13.5 (2) 44 WP-0501016-SD WASHER 5X10.5X1 (2) 45 B2542-372-000 BUTTON CLAMP HOLDER (1) 46 #02 B2542-372-00A BUTTON CLAMP HOLDER (1) 47 SS-7150940-SP SCREW 15/64-28 L=9 (1) 48 SS-7150940-SP SCREW 15/64-28 L=9 (1) 49 #01 B2410-372-00A WORK SUPPORT PLATE A (1) 50 #01 B2410-372-00B WORK SUPPORT PLATE B (1) 51 #01 B2410-372-00C WORK SUPPORT PLATE C (1) 52 B2410-372-00D WORK SUPPORT PLATE D (1) (4) Z004 ATTACHMENT FOR FIRST PROCESS OF WRAPPED-AROUND BUTTONS 根巻第一工程用アタッチメント 53 B2447-372-0A0 WRAPPED AROUND BUTTON CLAMP, FIRST (1) 54 B2447-372-000 SHANKING FOOT (1) 55 WP-0501016-SD WASHER 5X10.5X1 (1) 56 SS-9120910-TP SCREW 3/16-28 L=9 (1) 57 B2446-372-000 GUIDE PIN (1) * This attachment can be also used for MB-373. * このアタッチメントはMB-373にも使用できます。 (5) Z005 ATTACHMENT FOR SECOND PROCESS OF WRAPPED-AROUND BUTTONS 根巻第二工程用アタッチメント 58 B2440-372-0A0 BUTTON NECKING ATTACHMENT ASM. NO. 2 (1) 59 B2440-372-000 FEED PLATE (1) 60 B2441-372-000 WRAPPED GUIDE (LARGE) (1) 61 B2442-372-0A0 WRAPPED GUIDE (MIDDLE) ASM. (1) 62 B2442-372-000 WRAPPED GUIDE (MIDDLE) (1) 63 SS-9110513-TP SCREW 11/64-40 L=5 (1) 64 B2448-372-000 SPRING (2) 65 SS-6060220-SP SCREW 3/32-56 L=2.0 (2) Note (注記) #01....Special order parts for MB-372. #02....MB-372 for domestic use (Urban White) MB-372用特別注文部品 MB-372, MB-373 国内仕様 (アーバンホワイト) - 22 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 27 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (2)

14. ATTACHMENT COMPONENTS FOR MODEL MB-372 (2) MB-372 アタッチメント関係 (2) (6)Z007 1.2 (7)Z008 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 19 20 21 22 23 24-25 (8)Z009 CLAMP B2547-372-0B0 (SMALL BUTTON) #01 B2547-372-0BA (SMALL BUTTON) #01 B2547-372-CBO (LARGE BUTTON) #01 B2547-372-CBA (LARGE BUTTON) 54 26 27 28 29 30 31 32 333436 35 37 38 39 40 41 42 43 53 44 45 46 47 48 49 50 51 52 57 5960 56 58 61 62 55 - 23 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28

REF. NO. NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ AMT. (6) Z007 ATTACHMENT FOR SNAPS スナツプ付用アタツチメント 1 B2552-372-BAO SNAP FASTENER CLAMP COMPLETE スナツプヨー ツマミソーチ クミ (1) 2 #01 B2552-372-BAA SNAP FASTENER CLAMP COMPLETE スナツプヨー ツマミソーチ クミ (1) 3 B3107-372-B00 THREAD GUIDE NO. 3, SNAP FASTENER スナツプヨー ダ イ3イトアンナイ (1) 4 B2546-372-000 BUTTON CLAMP LIFTING ROD ツマミソーチ ヒキアゲフツク (1) 5 SD-0550181-SP HINGE SCREW D= 5.50 H= 1.8 ダーンネジ D= 5.5 H= 1.8 (1) 6 B2549-372-000 CLAMP SCREW A ヒラキレバー トメネジ A (1) 7 B2548-372-000 SNAP FASTENER CLAMP STOP LEVER ツマミアシ ヒラキレバー (1) 8 SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) 9 WP-0501016-SD WASHER 5X10.5X1 ヒラサガネ 5X10.5X1 (2) 10 SD-0550301-SP HINGE SCREW D=5.5 H=3 ダーンネジ D=5.5 H=3 (1) 11 B2547-372-000 JAW LEVER HOLDER ホ゜タン ツマミアシ トリツケダイ (1) 12 B2555-372-B00 SNAP FASTENER CLAMP JAW LEVER, LEFT スナツプヨー ホ゜タンツマミアシ ヒダリ (1) 13 B2557-372-B00 SNAP FASTENER CLAMP JAW LEVER, RIGHT スナツプヨー ホ゜タンツマミアシ ミギ (1) 14 B2560-372-000 BUTTON CLAMP STOP PIN ツマミアシ ヒラキピン (2) 15 B2552-372-B00 SNAP FASTENER CLAMP JAW LEVER, RIGHT スナツプヨー ホ゜タンツマミアシ ヒダリ (1) 16 B2553-372-000 NUT ホ゜タン ガイト アシ (2) 17 B2529-372-B00 SLIDE SUPPORT PLATE スナツプヨー ヌノサエ シタイタ (1) 18 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 19 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 20 B2542-372-000 BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 21 #01 B2542-372-00A BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 22 SD-0640391-TP HINGE SCREW D= 6.35 H= 3.9 ダーンネジ D= 6.35 H= 3.9 (2) 23 B2561-372-000 BUTTON CLAMP SPRING ホ゜タン ツマミアシ ハ゜ネ (1) (7) Z008 ATTACHMENT FOR METAL BUTTONS 金ホ゜タン用アタツチメント 24 B2420-372-0AO METAL SHANK BUTTON CLAMP COMPLETE キンホ゜タンツケ クミ (1) 25 #01 B2420-372-0AA METAL SHANK BUTTON CLAMP COMPLETE キンホ゜タンツケ クミ (1) 26 SS-8120740-SP SCREW 3/16-28 L=7 トメネジ 3/16-28 L=7 (1) 27 B2411-372-000 BUTTON CLAMP STUD ホ゜タンオサエ ヒラキホー (1) 28 B2412-372-000 BUTTON CLAMP BLOCK ホ゜タン ヒラキコマ (1) 29 SS-7110540-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 (1) 30 B2405-372-000 BUTTON CLAMP LEVER ハ゜ールホ゜タン オサエホー (1) 31 SS-7110710-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 32 B2406-372-000 SHANK BUTTON HOLDING CLAMP ハ゜ールホ゜タン オサエ (1) 33 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 (1) 34 B2402-372-000 METAL BUTTON LEVER HOLDING SHAFT ハ゜ールホ゜タン オサエ カイデンシ゛ツク (1) 35 B2401-372-000 BUTTON CLAMP BRACKET ハ゜ールホ゜タン ツマミアシ トリツケダイ (1) 36 #01 B2401-372-00B SHANK BUTTON CLAMP BRACKET ハ゜ールホ゜タン ツマミアシ トリツケダイ (1) 37 CS-072081A-SP THRUST COLLAR ASM. D=7.24 W=8 スラストウケ D=7.24 W=8 クミ (1) 38 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L= 3.5 (1) 39 B2404-372-000 SPRING FOR LEVER HOLDING SHAFT ホ゜タン オサエ カイデンシ゛ツク ハ゜ネ (1) 40 B2546-372-000 BUTTON CLAMP LIFTING ROD ツマミソーチ ヒキアゲフツク (1) 41 SS-6111140-SP SCREW 11/64-40 L=11 ヒラサガネ 11/64-40 L=11 (1) 42 B2422-372-000 METAL SHANK BUTTON GUARD キンホ゜タン タンヨー ツマミアシイタ (1) 43 B2421-372-000 METAL SHANK BUTTON ADAPTER キンホ゜タン タンヨー ツマミアシ (1) 44 SS-6110480-SP SCREW 11/64-40 L=4.3 ヒラサガネ 11/64-40 L=4.3 (1) 45 B2423-372-000 METAL SHANK BUTTON SUPPORT PLATE キンホ゜タン ヌノサエ シタイタ (1) 46 B2409-372-000 BUTTON CLAMP FEED PLATE エツキホ゜タン ヌノサエ シタイタダイ (1) 47 SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) 48 WP-0501016-SD WASHER 5X10.5X1 ヒラサガネ 5X10.5X1 (2) 49 B2542-372-000 BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 50 #01 B2542-372-00A BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 51 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 52 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 53 SS-9120910-TP SCREW 3/16-28 L=9 マルヒラネジ 3/16-28 L=9 (2) (8) Z009 ATTACHMENT FOR REINFORCING-STAY BUTTONS カホ゜タン用アタツチメント 54 MAT-60901ZA0 FEED PLATE ASM. チカラホ゜タン タンヨー ヌノサエ シタイタ クミ (1) 55 MAT-60905Z00-A HOLDER (B) チカラホ゜タン ホルダ- B (1) 56 SS-4080310-SP SCREW 1/8-44 L=3.4 ナヘ゛ネジ 1/8-44 L=3.4 (1) 57 MAT-60903Z00-A GUIDE (B) チカラホ゜タン ホルダ-アンナイ B (1) 58 MAT-60902Z00 GUIDE (A) チカラホ゜タン ホルダ-アンナイ A (1) 59 SS-6080410-SP SCREW 1/8-44 L=4 ヒラサガネ 1/8-44 L=4 (4) 60 MAZ-00906000 PRESSER SPRING チカラホ゜タン オサエハ゜ネ (1) 61 MAT-60904Z00-A HOLDER (A) チカラホ゜タン ホルダ- A (1) 62 MAT-60901Z00 FEED PLATE チカラホ゜タン ヌノサエ シタイタ (1) Note (注記) #01....MB-372, MB-373 for domestic use (Urban White) MB-372, MB-373 国内仕様 (アーバンホワイト) - 24 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 29 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (3)

15. ATTACHMENT COMPONENTS FOR MODEL MB-372 (3) MB-372アタッチメント関係(3) (9)Z010 1.2 28 33 30 31 32 29 25 24 26 13 1412 15 11 16 19 18 17 23 22 20 35 34 36 28 8 7 5 6 21 4 3 (10)Z010-B 37.38 64 6667 65 61 60 63 62 69 49 48 50 45 46 68 70 51 52 55 47 43 44 4142 57 59 58 39 40 - 25 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30

REF. NO. NOTE PART NO. DESCRIPTION ヒ ン メ イ AMT. (9) 2010 ATTACHMENT FOR LOUIS TYPE SHANK BUTTONS ルイス・タイプパールボタン用アタッチメント 1 MAZ-010000A0 SHANK BUTTON CLAMP ASM. パールボタン アタッチメント クミ 1 #01 MAZ-010000AA SHANK BUTTON CLAMP ASM. パールボタン アタッチメント クミ 1 B2401-372-LA0 SHANK BUTTON CLAMP (I.) ASM. パールボタン トリツケ L クミ 1 #01 B2401-372-LAA SHANK BUTTON CLAMP (I.) ASM. パールボタン トリツケ L クミ 1 B2542-372-L00 BUTTON CLAMP HOLDER, L ツマミソーチ トリツケダイ L (1) #01 B2542-372-L0A BUTTON CLAMP HOLDER, L ツマミソーチ トリツケダイ L (1) B2401-372-L0A BUTTON CLAMP BRACKET (L) ツマミアシ トリツケダイ L (1) #01 B2401-372-L0A BUTTON CLAMP BRACKET (L) ツマミアシ トリツケダイ L (1) SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) WP-0501016-SD WASHER 5X10.5X1 ヒラサガネ 5X10.5X1 (2) B2402-372-L00 ROLLER STUD, FOR TRIPPING LEVER (L.) パールボタン タンオサエ カイテンジク L (1) B2404-372-L00 SPRING FOR HOLDING SHAFT ホタンオサエ カイテンジク (1) B2426-372-L00-A THRUST RING パールボタン タンヨー スラストリング L (1) SS-7090620-TP SET SCREW スラストリング L トメネジ (2) B2405-372-L00 BUTTON CLAMP LEVER パールボタン オサエボー L (1) B2429-372-L00 SET SCREW トメネジ (1) B2406-372-L00-A SHANK BUTTON HOLDING CLAMP (L) パールボタン タンオサエ L (1) SS-7110720-SP SET SCREW マルヒラネジ L (1) SS-6111140-SP SCREW パールボタン タンヨー ツマミ (1) B2546-372-L00 BUTTON CLAMP LIFTING ROD (L) ツマミソーチ ヒキアゲケツク L (1) B2431-372-L00 SET SCREW ツマミソーチ ヒキアケフック L トメネジ (1) B2419-372-L00 SHANK BUTTON ADAPTER パールボタン タンヨー ツマミケフック L (1) B2408-372-L00 SHANK BUTTON GUARD パールボタン タンヨー ウマ L (1) B2412-372-L00 BUTTON CLAMP BLOCK ホタンオサエ ヒラキコマ L (1) B2411-372-L00 BUTTON CLAMP STUD ホタンオサエ ヒラキホー L (1) SS-8120740-SP SCREW 3/16-28 L=7 トメネジ 3/16-28 L=7 (1) B2433-372-L00 SET SCREW ホタンオサエ ヒラキコマ L トメネジ (1) B2409-372-LA0 BUTTON CLAMP FEED PLATE ASM. ヌノオサエ シタイタダイ L クミ (1) B2409-372-L00 BUTTON CLAMP FEED PLATE (L) ヌノオサエ シタイタダイ L (1) B2410-372-LOA WORK SUPPORT PLATE (L) ヌノオサエ シタイタダイ L (シュー) (1) B2410-372-LOB WORK SUPPORT PLATE (L) ヌノオサエ シタイタダイ L (チュー) (1) B2410-372-LOC WORK SUPPORT PLATE (L) ヌノオサエ シタイタダイ L (ダイ) (1) B2434-372-1.00 SET SCREW ヌノオサエ シタイタダイ L トメネジ (1) B2544-372-L00-A PRESSURE ADJUSTING BAR (L.) オサエアシ チョーセツヨーク L (1) B2435-372-L00-A NUT オサエアツリヨク チョーセツナツト L 2 B2543-372-L00 BUTTON CLAMP STOPPER PIN (I.) サマミソーチ ストツパーピン L. 1 (10) 2010-B ATTACHMENT FOR LOUIS TYPE SHANK BUTTONS ルイス・タイプパールボタン用アタッチメント MAZ-010000A0 SHANK BUTTON CLAMP ASM., B パールボタン アタッチメント B クミ 1 #01 MAZ-010000AA SHANK BUTTON CLAMP ASM., B パールボタン アタッチメント B クミ 1 B2401-372-BA0 SHANK BUTTON CLAMP ASM., B パールボタン クミツケケ B クミ 1 #01 B2401-372-BAA SHANK BUTTON CLAMP ASM., B パールボタン クミツケケ B クミ 1 B2542-372-L00 BUTTON CLAMP HOLDER, L ツマミソーチ トリツケダイ L (1) #01 B2542-372-L0A BUTTON CLAMP HOLDER, L ツマミソーチ トリツケダイ L (1) B2401-372-L00-A SHANK BUTTON CLAMP BRACKET, L. ツマミアシ トリツケダイ L (1) #01 B2401-372-LOA SHANK BUTTON CLAMP BRACKET, L. ツマミアシ トリツケダイ L (1) SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) WP-0501016-SD WASHER 5X10.5X1 ヒラサガネ 5X10.5X1 (2) B2402-372-L00 ROLLER STUD, FOR TRIPPING LEVER (L.) パールボタン タンオサエ カイテンジク L (1) B2404-372-L00 SPRING FOR HOLDING SHAFT ホタンオサエ カイテンジク (1) B2426-372-L00-A THRUST RING パールボタン タンヨー スラストリング L (1) SS-7090620-TP SET SCREW スラストリング L トメネジ (2) B2405-372-L00 BUTTON CLAMP LEVER パールボタン オサエボー L (1) B2429-372-L00 SET SCREW トメネジ (1) B2406-372-B00 SHANK BUTTON HOLDING CLAMP (B) パールボタン タンオサエ L トメネジ (1) SS-7110720-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) SS-6111140-SP SCREW パールボタン タンヨー ツマミ (1) B2546-372-L00 BUTTON CLAMP LIFTING ROD (L.) ツマミソーチ ヒキアゲケツク L トメネジ (1) B2431-372-L00 SET SCREW ツマミソーチ ヒキアケフック L (1) B2419-372-C00 SHANK BUTTON ADAPTER パールボタン タンヨー ツマミケフック L (1) B2408-372-B00 SHANK BUTTON GUARD パールボタン タンヨー ウマ C (1) B2412-372-L00 BUTTON CLAMP BLOCK ホタンオサエ ヒラキコマ L (1) B2411-372-L00 BUTTON CLAMP STUD ホタンオサエ ヒラキホー L (1) SS-8120740-SP SCREW 3/16-28 L=7 トメネジ 3/16-28 L=7 (1) B2433-372-L00 SET SCREW ホタンオサエ ヒラキコマ L トメネジ (1) B2409-372-BA0 BUTTON CLAMP FEED PLATE ASM. ヌノオサエ シタイタダイ L クミ (1) B2409-372-L00 BUTTON CLAMP FEED PLATE (L) ヌノオサエ シタイタダイ L (1) B2410-372-B00 BUTTON CLAMP SUPPORT PLATE 6MM ヌノオサエ シタイタダイ B (1) B2434-372-L00 SET SCREW ヌノオサエ シタイタダイ L トメネジ (1) B2544-372-L00-A PRESSURE ADJUSTING BAR (L.) オサエアシ チョーセツヨーク L (1) B2435-372-L00-A NUT オサエアツリヨク チョーセツナツト L 2 B2543-372-L00 BUTTON CLAMP STOPPER PIN (I.) サマミソーチ ストツパーピン L. 1 * This attachment is used in common with MB 372 16. このアタッチメントはMB 372 16 のミシンと共用します。 Note (注記) #01....MB-372. MB-373 for domestic use (Urban White) MB 372. MB 373 国内仕様 (アーバンホワイト) - 26 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — ATTACHMENT COMPONENTS FOR MODEL MB-372 (4)

16. ATTACHMENT COMPONENTS FOR MODEL MB-372 (4) M B - 3 7 2 ア タ ッ チ メ ン ト 関 係 ( 4 ) (11)Z014 (12)Z016 1.2 11 9 10 13 12 14 3 4 5 6 7 8 24 21 20 25 23 26 22 REF. NO. NOTE PART NO. D E S C R I P T I O N ヒン メ イ AMT. (11) Z014 ATTACHMENT FOR LABELS 1 MAT-61401ZBO LABEL SEWER ATTACHMENT ASM. ラベル付アタッチメント 1 2 #01 MAT-61401ZBA LABEL SEWER ATTACHMENT ASM. ラペルツケ アタッチメント クミ 1 3 MAT-61401ZAO CLAMP ASM. FOR LABFL. クランプ クミ (ラペルツキ) (1) 4 MAT-61401Z00 CLAMP FOR LABEL ラペルツキ クランプ (1) 5 MAT-61402Z00 SPRING スプリング (1) 6 SS-5060310-SP SCREW 3/32-56 L=2.8 トラスネジ 3/32-56 L=2.8 (2) 7 MAT-61403Z00 STOPPER ストッパー (1) 8 MAZ-01404000 FEED PLATE ラペルツケ シタイタ (1) 9 B2542-372-000 BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 10 #01 B2542-372-00A BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 11 SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) 12 B2546-372-000 BUTTON CLAMP LIFTING ROD ツマミソーチ ヒキアゲフック (1) 13 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 14 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) (12) Z016 ATTACHMENT FOR SECOND PROCESS OF WRAPPED-AROUND BUTTONS 根巻第二工程用アタッチメント 15 MAT-61601ZAO FEED PLATE ASM. ネマキトリツケ クミ 1 16 MAT-61601Z00 FEED PLATE ネマキ トリツケ (1) 17 MAT-61603Z00 CLOTH PLATE ネマキ ボタン ウケイタ (1) 18 MAT-61602Z00 PLATE ネマキ ボタン ウケイタ (1) 19 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 (1) (13) Z172 ATTACHMENT FOR FIRST PROCESS OF WRAPPED-AROUND BOTTONS SLIDER スライド式根巻第一工程用アタッチメント 20 B2449-372-000 WRAPPED FOOT スライドフットベース 1 21 B2450-372-000 WRAPPED FOOT BASE スライドフットベース 1 22 B2547-372-000 JAW LEVER HOLDER A ホタンツマミトリツケダイ A 1 23 B2446-372-000 GUIDE PIN ガイドピン 1 24 B2549-372-000 CLAMP SCREW A ヒラキレバー トメネジ A 1 25 SS-9120910-TP SCREW 3/16-28 L=9 ロツカクボルト 3/16-28 L=9 1 26 WP-0501016-SD WASHER 5X10.5X1 ヒラサカアナイ 5X10.5X1 1 * This attachment is used in common with MB-372 15. * このアタッチメントはMB-372 15 のミシンと共用します。 Note (注記) #01... MB-372, MB-373 for domestic use (Urban White) MB-372, MB-373 国内仕様 (アーバンホワイト) - 27 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 32 — ATTACHMENT COMPONENTS FOR MODEL MB-373 (1)

17. ATTACHMENT COMPONENTS FOR MODEL MB-373 (1) MB-373 アタッチメント関係 (1) (1)ZO31 1, 2 CLAMP 3 4 5 6 7 8 9 10 14 11 12 13 15 (2)ZO32 CLAMP 16 (3)ZO33 17-18 19 20 21 22 23 24 25 343536 37 2627 28 29 383940 41 42 43 44 45 46 47 48 REF NO. NOTE PART NO. DESCRIPTION ヒン ANT. (1) ZO31 ATTACHMENT FOR LARGE BUTTONS 1 HAZ-031000AA LARGE BUTTON CLAMP ASM. 大ボタン クミ ZO31 1 2 #01 HAZ-031000AA LARGE BUTTON CLAMP ASM. 大ボタン クミ ZO31 1 3 D2547-372-CB0 WORK CLAMP FOOT ASM. (LARGE BUTTON) 大ボタン フット アシ. (LARGE BUTTON) (1) 4 #01 D2547-372-CBA WORK CLAMP FOOT ASM. (LARGE BUTTON) 大ボタン フット アシ. (LARGE BUTTON) (1) 5 D2555-372-CAO WORK CLAMP FOOT ASM. (LEFT & LARGE) 大ボタン フット アシ. (LEFT & LARGE) (1) 6 D2555-372-COO WORK CLAMP FOOT ASM. (LEFT) 大ボタン フット アシ. (LEFT) (1) 7 SS-7090410-SP SCREW 9/64-40 L=3.5 マルヒラネジ 9/64-40 L=3.5 (1) 8 B2559-372-000 BUTTON CLAMP LOCATING PIN ボタン クランプ ピン (1) 9 D2557-372-COO BUTTON CLAMP LEVER JAV. RIGHT ボタン クランプ レバー JAV. RIGHT (1) 10 B2557-372-CAO BUTTON CLAMP LEVER JAV. RIGHT ボタン クランプ レバー JAV. RIGHT (1) 11 B2557-372-COO BUTTON HOLDING SPRING. RIGHT ボタン ホールディング スプリング. RIGHT (1) 12 D2558-372-COO BUTTON HOLDING SPRING. RIGHT ボタン ホールディング スプリング. RIGHT (1) 13 SS-7090410-SP SCREW 9/64-40 L=3.5 マルヒラネジ 9/64-40 L=3.5 (1) 14 B2559-372-000 BUTTON CLAMP LOCATING PIN ボタン クランプ ピン (1) 15 D2529-373-COO FEED PLATE. LARGE BUTTON ダイ ボタン フイード プレ-ト (1) (2) ZO32 ATTACHMENT FOR MIDDLE BUTTONS 16 D2529-373-B00 FEED PLATE (SMALL BUTTON) 中ボタン用 アタツチメント (チュ-ボ 1 (3) ZO33 ATTACHMENT FOR SHANK BUTTONS 17 B2401-373-080 SHANK BUTTON CLAMP ASM. パールボタン クランプ クミ 1 18 #01 B2401-373-08A SHANK BUTTON CLAMP ASM. パールボタン クランプ クミ 1 19 B2401-372-000 SHANK BUTTON CLAMP ASM. パールボタン クランプ クミ (1) 20 B2401-372-000 SHANK BUTTON CLAMP ASM. パールボタン クランプ クミ (1) 21 SS-8120740-SP SCREW 3/16-28 L=7 トメネジ 3/16-28 L=7 (1) 22 B2405-372-000 BUTTON CLAMP LEVER ボタン クランプ レバー (1) 23 B2411-372-000 BUTTON CLAMP STUD ボタン クランプ スタッド (1) 24 B2412-372-000 BUTTON CLAMP BLOCK ボタン クランプ ブロック (1) 25 SS-7110540-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 (1) 26 B2408-372-000 SHANK BUTTON HOLDING SHAFT パールボタン ホールディング シャフト (1) 27 B2410-372-000 SHANK BUTTON CLAMP BRACKET パールボタン クランプ ブラケット (1) 28 B2405-372-000 SHANK BUTTON GUARD パールボタン ガード (1) 29 #01 B2401-372-00B SHANK BUTTON ADAPTER (A) パールボタン アダプター (A) (1) 30 SS-8110410-TP SCREW 11/64-40 L=3.5 マルヒラネジ 11/64-40 L=3.5 (1) 31 B2419-372-000 SPRING FOR LEVER HOLDING SHAFT レバー ホールディング シャフト スプリング (1) 32 B2546-372-000 BUTTON CLAMP LIFTING ROD ボタン クランプ リフティング ロッド (1) 33 SS-6111140-SP SCREW 11/64-40 L=11 マルヒラネジ 11/64-40 L=11 (1) 34 B2408-372-000 SHANK BUTTON GUARD パールボタン ガード (1) 35 SS-6110480-SP SCREW 11/64-40 L=4.3 マルヒラネジ 11/64-40 L=4.3 (1) 36 B2419-372-A00 SHANK BUTTON ADAPTER (B) パールボタン アダプター (B) (1) 37 B2419-372-B00 SHANK BUTTON ADAPTER (B) パールボタン アダプター (B) (1) 38 SS-6110480-SP SCREW 11/64-40 L=4.3 マルヒラネジ 11/64-40 L=4.3 (1) 39 B2410-372-000 BUTTON CLAMP WORK SUPPORT PLATE ボタン クランプ ワーク サポート プレ-ト (1) 40 B2470-373-000 BUTTON CLAMP FEED PLATE ボタン クランプ フイード プレ-ト (1) 41 SS-9120910-TP SCREW 3/16-28 L=9 エガキネジ 3/16-28 L=9 (2) 42 VP-0501016-SD WASHER 5X10.5X1 ワッシャー 5X10.5X1 (2) 43 VP-0501016-SP WASHER 5X10.5X1 ワッシャー 5X10.5X1 (2) 44 VP-0501016-SD WASHER 5X10.5X1 ワッシャー 5X10.5X1 (2) 45 B2542-372-000 BUTTON CLAMP HOLDER ボタン クランプ ホルダ (1) 46 #01 B2542-372-00A BUTTON CLAMP HOLDER ボタン クランプ ホルダ (1) 47 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 48 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) Note (注) #01... MB-372, MB-373 for domestic use (Urban White) MB-372, MB-373 国内仕様 (アーバンホワイト) - 28 - From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 33 — 18. ATTACHMENT COMPONENTS FOR MODEL MB-373 (2)

18. ATTACHMENT COMPONENTS FOR MODEL MB-373 (2) MB-373 アタッチメント関係 (2) (4)Z035 1 4 6 7 3 2 8 9 10 11 12 13 12 (5)Z037 14-15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 34 33 32 35 36 (6)Z038 37-38 40 41 42 43 44 45 46 47 48 49 50 53 52 51 65 64 54 55 56 66 57 58 59 60 61 (7)Z039 CLAMP B2547-372-080 (SMALL BUTTON) #01 B2547-372-0BA (SMALL BUTTON) #01 D2547-372-CBO (LARGE BUTTON) D2547-372-CBA (LARGE BUTTON) 67 70 7273 71 69 74 75 68 - 29 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 34

REF. NO. NOTE PART NO. DESCRIPTION H E N AMT. (1) Z035 ATTACHMENT FOR SECOND PROCESS OF WRAPPED AROUND BUTTONS 根 卷 第二工程用 アタッチメント 1 B2440-373-000 WRAPPED-AROUND BUTTON CLAMP ASM. ネマキ タ゛イ2コウティ アタツメト クミ 1 2 B2440-373-000 FEED PLATE ネマキ トリツケタイ (1) 3 B2441-372-000 WRAPPED GUIDE, LARGE ネマキ ヨ- カナク (タ゛イ) (1) 4 B2442-372-000 WRAPPED GUIDE (MIDDLE) ASM. ネマキ カナク チユー- クミ (1) 5 B2442-372-000 WRAPPED GUIDE (MIDDLE) ネマキ カナク (チユー-) (1) 6 B2448-372-000 THREAD CLAMP SPRING イトオサエハネ (2) 7 SS-9110513-TP SCREW 11/64-40 L=5 ロツカクボルト 11/64-40 L=4.5 (1) 8 SS-9110513-TP SCREW 11/64-40 L=5 ロツカクボルト 11/64-40 L=4.5 (1) 9 B4416-373-0AO MOVING KNIFE PUSH-BACK SPRING ASM. ト゛ーメス モト゛シハネ クミ (1) 10 B4416-373-000 SPRING GUIDE SHAFT ハ゛ネウケケ゛ー (1) 11 D9317-762-T00 GIMP GUIDE SHAFT シンヒモ アンナイシ゛ク ハ゛ネ (1) 12 WP-0751576-SD WASHER 7.5X19X1.5 ヒラサ゛ガネ 7.5X19X1.5 (2) 13 B4420-373-000 CUSHION シヤタ゛ン クツシヨン (1) (5) Z037 ATTACHMENT FOR SNAPS スナツプ用アタッチメント 14 B2552-373-BAO SNAP CLAMP ASM. スナツプ ク゛リツフ゜ ヨ- クミ 1 15 #01 B2552-373-BAA SNAP CLAMP ASM. スナツプ ク゛リツフ゜ ヨ- クミ (1) 16 B3107-372-B00 THREAD GUIDE NO. 3, SNAP FASTENER スナツプヨ- タ゛イト゛アンナイ (1) 17 B2546-372-000 BUTTON CLAMP LIFTING ROD ツマミソーチ ヒキアケ゛フック (1) 18 SD-0550181-SP HINGE SCREW D= 5.50 H= 1.8 タ゛ンネジ D=5.5 H=1.8 (1) 19 B2549-372-000 CLAMP SCREW ヒラキレバー トメネジ A (1) 20 B2548-372-000 SNAP FASTENER CLAMP STOP LEVER スナツプ ヒラキレバー (1) 21 SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) 22 VP-0501016-SD WASHER 5X10.5X1 ヒラサ゛ガネ 5X10.5X1 (2) 23 SD-0550301-SP HINGE SCREW D=5.5 H=3 タ゛ンネジ D=5.5 H=3 (1) 24 B2547-372-000 JAV LEVER HOLDER ツマミヨ- ホ゛タン ツマミヨ- (1) 25 B2555-372-B00 SNAP CLAMP JAW LEVER, LEFT スナツプヨ- ホ゛タン ツマミヨ- ヒタ゛リ (1) 26 B2557-372-B00 CLAMP JAW LEVER, RIGHT スナツプヨ- ホ゛タン ツマミヨ- ミキ゛ (1) 27 B2560-372-000 BUTTON CLAMP STOP PIN スナツプヨ- ホ゛タン ガイト゛アシ (2) 28 B2552-372-B00 CLAMP JAW LEVER, RIGHT スナツプヨ- ホ゛タン ガイト゛アシ (1) 29 B2553-372-000 NUT ホ゛タン ガイト゛アシ (1) 30 B2529-373-B00 FEED PLATE (MEDIUM SIZE BUTTON) スナツプヨ- ヌノオサエ シタ゛ (1) 31 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 32 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 33 B2542-372-000 BUTTON CLAMP HOLDER ツマミソーチ トリツケタイ (1) 34 #01 B2542-372-00A BUTTON CLAMP HOLDER ツマミソーチ トリツケタイ (1) 35 SD-0640391-TP HINGE SCREW D= 6.35 H= 3.9 タ゛ンネジ D=6.35 H=3.9 (2) 36 B2561-372-000 BUTTON CLAMP SPRING ホ゛タン スツマミ アシ ハ゛ネ (1) (6) Z038 ATTACHMENT FOR METAL BUTTONS 金ボタン用アタッチメント 37 B2420-373-0AO METAL BUTTON CLAMP ASM. キンホ゛タンヨ- トリツケク゛ミ 1 38 #01 B2420-373-0AA METAL BUTTON CLAMP ASM. キンホ゛タンヨ- トリツケク゛ミ (1) 39 SS-8120740-SP SCREW 3/16-28 L=7 トメネジ 3/16-28 L=7 (1) 40 B2411-372-000 BUTTON CLAMP STUD ホ゛タン ク゛リツフ゜スタツト゛ (1) 41 B2412-372-000 BUTTON CLAMP BLOCK ホ゛タン ヒ゛ロクマ (1) 42 SS-7110540-SP SCREW 11/64-40 L=5 マルヒラネジ 11/64-40 L=5 (1) 43 B2405-372-000 BUTTON CLAMP LEVER ハ゛ーホ゛タン オサエハ゛ー (1) 44 SS-7110570-SP SCREW 11/64-40 L=7 マルヒラネジ 11/64-40 L=7 (1) 45 B2406-372-000 SHANK BUTTON HOLDING CLAMP マルヒラホ゛タン オサエ (1) 46 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 (1) 47 B2402-372-000 BUTTON CLAMP LEVER HOLDING SHAFT ハ゛ーホ゛タン オサエ カイテンシ゛ク (1) 48 B2401-372-000 SHANK BUTTON CLAMP BRACKET ハ゛ーホ゛タンヨ- サマミアシ (1) 49 #01 B2401-372-00B SHANK BUTTON CLAMP BRACKET ハ゛ーホ゛タンヨ- サマミアシ (1) 50 CS-072081A-SP ST COLLAR ASM. D=7.24 W=8 スラストウケ D=7.24 W=8 (1) 51 SS-8110410-TP SCREW 11/64-40 L= 3.5 トメネジ 11/64-40 L= 3.5 (1) 52 B2404-372-000 SPRING FOR LEVER HOLDING SHAFT ホ゛タンオサエ カイテンシ゛ク ハ゛ネ (1) 53 B2546-372-000 BUTTON CLAMP LIFTING ROD ツマミソーチ ヒキアケ゛フック (1) 54 SS-6111140-SP SCREW 11/64-40 L=11 ヒラサ゛ガネ 11/64-40 L=11 (1) 55 B2422-372-000 METAL SHANK BUTTON GUARD アシイタ ハ゛ネ (1) 56 B2421-372-000 METAL SHANK BUTTON ADAPTER アシ (1) 57 SS-6110480-SP SCREW 11/64-40 L=4.3 ヒラサ゛ガネ 11/64-40 L=4.3 (1) 58 B2423-373-000 METAL BUTTON WORK SUPPORT PLATE キンホ゛タン ヨ- オサエシタ゛イタ (1) 59 B2470-373-000 BUTTON CLAMP FEED PLATE エサキ゛ホ゛タンヨ- タ゛ンオサエシタ゛イタ (1) 60 SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) 61 WP-0501016-SD WASHER 5X10.5X1 ヒラサ゛ガネ 5X10.5X1 (2) 62 B2542-372-000 BUTTON CLAMP HOLDER ツマミソーチ トリツケタイ (1) 63 #01 B2542-372-00A BUTTON CLAMP HOLDER ツマミソーチ トリツケタイ (1) 64 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 65 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 66 SS-9120910-TP SCREW 3/16-28 L=9 ロツカクボルト 3/16-28 L=9 (2) (7) Z039 ATTACHMENT FOR REINFORCING-STAY BUTTONS カボタン用アタッチメント 67 MAZ-039010A0 REINFORCING-STAY BUTTON ATCHMT. チカホ゛タンヨ- オサエシタ゛イタクミ (1) 68 MAT-60905Z00-A HOLDER (B) チカホ゛タン ホルタ゛ー B (1) 69 SS-6080340-SP SCREW 1/8-44 L=3.0 ヒラサ゛ガネ 1/8-44 L=2.9 (1) 70 MAT-60903Z00-A GUIDE (B) チカホ゛タン ホルタ゛ー-アンナイ B (1) 71 MAT-60902Z00 GUIDE (A) チカホ゛タン ホルタ゛ー-アンナイ A (1) 72 SS-6080340-SP SCREW 1/8-44 L=3.0 ヒラサ゛ガネ 1/8-44 L=2.9 (4) 73 MAZ-00906000 PRESSER SPRING チカホ゛タン オサエハ゛ネ (1) 74 MAT-60904Z00-A HOLDER (A) チカホ゛タン ホルタ゛ー - A (1) 75 MAZ-03901000 FEED PLATE チカホ゛タン タンヨー オサエシタ゛ (1) Note (注記) #01... MB-372. MB-373 for domestic use (Urban White) MB-372. MB-373 国内仕様 (アーバンホワイト) - 30 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 35 — ATTACHMENT COMPONENTS FOR MODEL MB-373 (3)

19. ATTACHMENT COMPONENTS FOR MODEL MB-373 (3) MB-373 アタッチメント関係 (3) (8)Z040 1.2 28 33 30 31 32 29 25 24 27 26 35 1412 13 34 36 20 13 15 11 9 10 16 19 17 8 5 6 21 7 23 22 4 3 (9)Z040-B 37-38 6667 65 64 61 60 63 62 50 49 48 49 47 56 45 69 68 70 51 52 55 44 4142 57 59 58 43 39 40 5453 - 31 - From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 36

REF. NO. NOTE PART NO. D E S C R I P T I O N ヒ ン メ イ AMT. (RI 7010 ATTACHMENT FOR LOUIS TYPE SHANK BUTTONS ルイ スタイプ バール ボタン用 アタッチメント 1 MAZ-040000AO Z040 ASM. Z040 クミ 1 2 #01 MAZ-040000AA Z040 ASM. Z040 クミ 1 3 B2401-372-LA0 SHANK BUTTON CLAMP (L) ASM. 1 4 #01 B2401-372-LAA SHANK BUTTON CLAMP (L) ASM. 1 5 B2542-372-L00 BUTTON CLAMP HOLDER, L 1 6 #01 B2542-372-LOA BUTTON CLAMP HOLDER, L (1) 7 B2401-372-LOO-A SHANK BUTTON CLAMP BRACKET, L (1) 8 #01 B2401-372-LOA SHANK BUTTON CLAMP BRACKET, L (2) 9 SS-9621413-SP SCREW 3/16-32 L=13.5 (2) 10 WP-0501016-SD WASHER 5X10.5X1 (2) 11 B2402-372-LOO ROLLER STUD. FOR TRIPPING LEVER (L.) (1) 12 B2404-372-LOO SPRING FOR HOLPING SHAFT (1) 13 B2426-372-LOO-A THRUST RING (2) 14 SS-7090620-TP SET SCREW (2) 15 B2405-372-LOO BUTTON CLAMP LEVER (1) 16 B2429-372-LOO SET SCREW (1) 17 B2406-372-LOO-A SHANK BUTTON HOLDING CLAMP (L) (1) 18 SS-7110730-SP SET SCREW (1) 19 SS-6111140-SP SCREW (1) 20 B2546-372-LOO BUTTON CLAMP LIFTING ROD (L) (1) 21 B2431-372-LOO SET SCREW (1) 22 B2419-372-LOO SHANK BUTTON ADAPTER (1) 23 B2408-372-LOO SHANK BUTTON GUARD (1) 24 B2412-372-LOO BUTTON CLAMP BLOCK (1) 25 B2411-372-LOO BUTTON CLAMP STUD (1) 26 SS-8120740-SP SCREW 3/16-28 L=7 (1) 27 B2433-372-LOO SET SCREW (1) 28 B2409-373-LOO BUTTON CLAMP FEED PLATE ASM. (L) (1) 29 B2409-373-LOO BUTTON CLAMP FEED PLATE (L) (1) 30 B2410-372-LOA WORK SUPPORT PLATE (L) (1) 31 B2410-372-LOB WORK SUPPORT PLATE (L) (1) 32 B2434-372-LOO WORK SUPPORT PLATE (L) (1) 33 B2434-372-LOO SET SCREW (1) 34 B2544-372-LOO-A PRESSURE ADJUSTING BAR (L) (2) 35 B2435-372-LOO-A NUT (1) 36 B2543-372-LOO BUTTON CLAMP STOPPER PIN (L) (1) (RI 7010 II ATTACHMENT FOR LOUIS TYPE SHANK BUTTONS ルイ スタイプ バール ボタン用 アタッチメント 37 MAZ-040000BAO Z040-B ASM. Z040-B クミ 1 38 #01 MAZ-040000BAA Z040-B ASM. Z040-B クミ 1 39 B2401-372-BAO SHANK BUTTON CLAMP ASM., B (1) 40 #01 B2401-372-BAA SHANK BUTTON CLAMP ASM., B (1) 41 B2542-372-LOO BUTTON CLAMP HOLDER, L (1) 42 #01 B2542-372-LOA BUTTON CLAMP HOLDER, L (1) 43 B2401-372-LOO SHANK BUTTON CLAMP BRACKET, L (1) 44 #01 B2401-372-LOA SHANK BUTTON CLAMP BRACKET, L (2) 45 SS-9621413-SP SCREW 3/16-32 L=13.5 (2) 46 WP-0501016-SD WASHER 5X10.5X1 (2) 47 B2402-372-LOO ROLLER STUD. FOR TRIPPING LEVER (L) (1) 48 B2404-372-LOO SPRING FOR HOLPING SHAFT (1) 49 B2426-372-LOO THRUST RING (2) 50 B2427-372-LOO SET SCREW (2) 51 B2405-372-LOO BUTTON CLAMP LEVER (1) 52 B2429-372-LOO SET SCREW (1) 53 B2406-372-BOO SHANK BUTTON HOLDING CLAMP (B) (1) 54 SS-7110730-SP SCREW 11/64-40 L=7 (1) 55 B2430-372-LOO SCREW (1) 56 B2546-372-LOO BUTTON CLAMP LIFTING ROD (L) (1) 57 B2431-372-LOO SET SCREW (1) 58 B2419-372-LOO SHANK BUTTON ADAPTER (1) 59 B2408-372-BOO SHANK BUTTON GUARD (1) 60 B2412-372-LOO BUTTON CLAMP BLOCK (1) 61 B2411-372-LOO BUTTON CLAMP STUD (1) 62 SS-8120740-SP SCREW 3/16-28 L=7 (1) 63 B2433-372-LOO SET SCREW (1) 64 B2409-373-BAO FEED PLATE ASM. (1) 65 B2409-373-LOO BUTTON CLAMP FEED PLATE (L) (1) 66 B2410-372-BOO BUTTON CLAMP SUPPORT PLATE 6MM (1) 67 B2434-372-LOO SET SCREW (1) 68 B2544-372-LOO PRESSURE ADJUSTING BAR (L) (2) 69 B2435-372-LOO NUT (1) 70 B2543-372-LOO BUTTON CLAMP STOPPER PIN (L) (1) * This attachment is used in common with VB-373-15 * このアタッチメントはVB-373-15のミシンと共用します Note (注記) #01... MB-372. MB-373 for domestic use (Urban While) VB-372. VB-373 [K]以外は (アーバンホワイト) - 32 - From the library: Superior Sewing Machine & Supply LLC jintex.in

Page 37 — ATTACHMENT COMPONENTS FOR MODEL MB-373 (4)

20. ATTACHMENT COMPONENTS FOR MODEL MB-373 (4) MB-373 アタッチメント関係 (4) (10)Z041 1 7 2 5 6 3 4 CLAMP FEED PLATE B2547-372-0B0 (SMALL BUTTON) #01 B2547-372-0BA (SMALL BUTTON) B2547-372-800 (MIDDLE BUTTON) D2547-372-CBA (LARGE BUTTON) B2529-372-000 (SMALL BUTTON) B2529-372-800 (MIDDLE BUTTON) D2529-372-C00 (LARGE BUTTON) (11)Z044 8-9 13 12 11 10 14 19 20 18 16 17 (12)Z046 22 26 25 24 23 - 33 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 38

REF. NO. NOTE PART NO. DESCRIPTION HIN MEI AMT. (10) Z041 ATTACHMENT FOR FIRST PROCESS OF WRAPPED-AROUND BUTTONS 根巻第一工程用アタッチメント 1 MAZ-041010A0 WRAPPED AROUND BUTTON CLAMP ASM. ネマキボタンアタッチメント クミ 1 2 MAZ-04101000 ADJUSTING BASE チョーセツタイ (1) 3 MAZ-04102000 GUIDE BAR ネマキアンナイホウタイ (1) 4 SD-0630301-SP HINGE SCREW D=6.35 H=3 ダンネジ D=6.35 H=3 (1) 5 MAZ-04103000 GUIDE BAR (SHANK BUTTON WIDTH) ネマキハバアンナイホウ (1) 6 SS-5080710-SP SCREW 1/8-44 L=6.5 トラスネジ 1/8-44 L=6.5 (1) 7 B2549-372-000 CLAMP SCREW A ヒラキレバー トメネジ A (1) (11) Z044 ATTACHMENT FOR LABELS ラベル付用アタッチメント 8 MAT-64401ZBO LABEL SEWER ATTACHMENT ASM. ラベルツケ アタッチメント クミ 1 9 #01 MAT-64401ZBA LABEL SEWER ATTACHMENT ASM. ラベルツケ アタッチメント クミ 1 10 MAT-64401ZA0 CLAMP ASM. FOR LABEL ラベルツケ クランプ クミ (1) 11 MAT-61401Z00 CLAMP FOR LABEL ラベルツケ クランプ (1) 12 MAT-61402Z00 SPRING クランプバネ (1) 13 SS-5060310-SP SCREW 3/32-56 L=2.8 トラスネジ 3/32-56 L=2.8 (2) 14 MAT-61403Z00 STOPPER ストツパー (1) 15 MAZ-04404000 FEED PLATE ラベルツケ ヨーヌオサエシタイタ (1) 16 B2542-372-00A BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 17 #01 B2542-372-00A BUTTON CLAMP HOLDER ツマミソーチ トリツケダイ (1) 18 SS-9621413-SP SCREW 3/16-32 L=13.5 ロツカクボルト 3/16-32 L=13.5 (2) 19 B2546-372-000 BUTTON CLAMP LIFTING ROD ツマミソーチ ヒキアゲフツク (1) 20 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) 21 SS-7150940-SP SCREW 15/64-28 L=9 マルヒラネジ 15/64-28 L=9 (1) (12) Z046 ATTACHMENT FOR SECOND PROCESS OF WRAPPED-AROUND BUTTONS 根巻第二工程用アタッチメント 22 MAZ-046010A0 FEED PLATE ASM. ネマキ トリツケダイ クミ 1 23 MAZ-04601000 PAJAMAS FITTING PLATE ネマキ トリツケダイ (1) 24 MAT-61603Z00 CLOTH PLATE ネマキ ホタンウケイタ (1) 25 MAT-61602Z00 PLATE ネマキ ホタンウケイタ (1) 26 SS-7110570-SP SCREW 11/64-40 L=4.8 マルヒラネジ 11/64-40 L=4.8 (1) * This attachment is used in common with MB-373-15. * このアタッチメントはMB-373-15 のミシンと共用します。 Note (注記) #01...MB-372, MB-373 for domestic use (Urban White) MB-372, MB-373 国内仕様 (アーバンホワイト) - 34 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 39 — 21. BARTER PARTS (Z003, Z033)

21. BARTER PARTS (Z003, Z033) 交換部品 (Z003, Z033) applicable size of button 該当ボタンサイズ (mm) Parts No. No. Description size of each part 各部寸法 (mm) applicable size of button 該当ボタンサイズ (mm) 品 番 品 名 A (a) B C D a b C d 1 B2419372D00 パールボタン用 つまみ足 (D) 5.4 (3.1) 7.2 24.5 2.4 5.15 5.2 3.6 2.4 B2408372000 つまみ足 5.7 4.7 2.7 2 B2419372F00 パールボタン用 つまみ足 (F) 4.8 (2.2) 7 21 5 5.35 2 4.55 3 1.4 2 B2408372C00 つまみ足 (C) 2.2 4.8 21 4.75 3.5 2.5 2.3 3 B2419372M00 パールボタン用 つまみ足 (M) Without a part of attachment for shank buttons 4 B2419372N00 パールボタン用 つまみ足 (N) シャンク取付部 ブランク品 Note (注記) ...If you use button of a size other than the sizes listed above, be sure to enclose with your order a sample of the button (This will be dealt as a special order) 上記以外のボタンサイズ使用事は、必ず現品 (ボタン) を添いて 御注文下さい。(特注となります。) - 35 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 40 — 22. BARTER PARTS (Z008,Z038)

22. BARTER PARTS (Z008,Z038) 交換部品(Z008,Z038) applicable size of buttons 該当ボタンサイズ Parts No. No 品 番 Description 品 名 size of each part 各部寸法(mm) applicable size of buttons 該当ボタンサイズ(mm) A(a) B C D a b C d 1 B242137200B 金ボタン用 つまみ足板ばね(B) 4.2 6 31 0.7 3.95 4.5 3.8 1 (2.2) S S S 2 B242137200P 金ボタン用 つまみ足(P) 4.6 5 31 0.7 4.35 3.5 2.8 0.7 (2.2) S S S B240837200B 金ボタン板ばね(B) 2.2 5 28 4.55 3.5 2.8 3 B242137200Q 金ボタン用 つまみ足(Q) 4.6 6 31 0.7 4.35 4 3.3 0.7 (2.2) S S S B240837200B 金ボタン板ばね(C) 2.2 6 28 4.55 4.5 3.8 4 B242137200J 金ボタン用つまみ足(J) 5.6 6.5 31 1.5 5.35 5 1.5 (2.4) S S S B242137200C 金ボタン板ばね(C) 2.2 6 28 5.55 5 3.5 1.8 5 B242137200T 金ボタン用つまみ足(T) 3.2 4 31 0.5 2.95 2 1.9 0.5 (2) S S S 6 B2422372001 金ボタン板ばね(I) 2 4 28 3.15 2.5 2 0.8 B242137200V 金ボタン用つまみ足(V) 4.4 4.7 31 0.7 4.15 2.7 1.9 0.7 (2.2) S S S 7 B2408372J00 金ボタン板ばね(J) 2.2 4.7 28 4.35 3.2 2.5 1 B242137200Y 金ボタン用つまみ足(Y) 4.2 5.5 31 0.9 3.95 3.5 1.9 0.9 (2.2) S S S 8 B240837200L 金ボタン板ばね(L) 2.2 5.5 28 4.15 4 3.1 1.2 B242137200R 金ボタン用つまみ足板ばね(L) 4.4 5.5 31 0.7 4.15 3.5 1.9 0.7 (2.2) S S S 9 B240837200B 金ボタン用つまみ足板ばね(H) 2.2 6.5 28 4.9 5 3.5 2.5 B242137200L 金ボタン用つまみ足(H) 4.4 6.5 24.5 2.5 4.15 4.5 3 2.5 (2.2) S S S 10 B242237200H 金ボタン用つまみ足板ばね(H) 2.2 6.5 21 5.55 5 4.1 0.9 B242237200C 金ボタン用つまみ足(C) 6.4 7 31 0.9 6.05 5 4.1 1.2 B2422372000 金ボタン用つまみ足板ばね 2.2 8 27 6.25 5.5 4.6 1.2 Note (注記) If you use button of a size other than the sizes listed above. be sure to enclose with your order a sample of the button (This will be dealt as a special order) 上記以外のボタンサイズ使用は、必ず現品(ボタン)を添いて 御注文下さい。(特注となります。) - 36 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS Part No. Page Ref. No. Part No. Page Ref. No. Part No. Page Ref. No. D9219-555-B00 12 52 NS-6150440-SP 14 13 SS-6110480-SP 30 57 SS-7150940-SP 30 65 D9317-762-T00 20 25 NS-6150540-SP 10 29 SS-6111140-SP 22 34 SS-7150940-SP 34 21 D9317-762-T00 30 11 NS-6160520-SP 2 33 SS-6111140-SP 24 41 SS-7150940-SP 34 21 MAT-60901ZA0 24 54 NS-6160520-SP 10 8 SS-6111140-SP 26 55 SS-8110310-SP 6 33 MAT-60901Z00 24 62 NS-6620310-SP 12 39 SS-6111140-SP 28 34 SS-8110410-TP 6 29 MAT-60902Z00 24 58 NS-6680320-SP 12 35 SS-6111140-SP 30 54 SS-8110410-TP 12 16 MAT-60902Z00 30 71 NS-6680410-SP 14 17 SS-6111140-SP 32 19 SS-8110410-TP 22 31 MAT-60903Z00-A 30 70 NS-6680410-SP 15 9 SS-6120930-TP 8 19 SS-8110410-TP 24 38 MAT-60903Z00-A 30 57 PD-0201000-OD 15 2 SS-6120930-TP 8 24 SS-8110410-TP 28 31 MAT-60904Z00-A 30 61 PS-0200062-KH 4 23 SS-6120930-TP 8 35 SS-8110410-TP 30 51 MAT-60905Z00-A 24 68 PS-0200162-KH 8 34 SS-6121050-SP 8 51 SS-8110750-SP 13 6 MAT-61401ZBA 27 2 RE-0300000-KO 4 8 SS-6121610-TP 8 50 SS-8120740-SP 22 19 MAT-61401ZBO 27 3 SS-6121610-TP 8 60 SS-8120740-SP 24 26 MAT-61401Z00 27 4 SS-0402001-TP 8 10 SS-6152440-SP 13 4 SS-8120740-SP 26 62 MAT-61401Z00 34 11 SS-0481451-SP 16 21 SS-6660712-TP 6 46 SS-8120740-SP 28 19 MAT-61402Z00 27 5 SS-0550181-SP 2 11 SS-7060810-SP 10 46 SS-8120740-SP 30 39 MAT-61402Z00 34 12 SS-0550181-SP 24 5 SS-7080310-SP 6 18 SS-8120740-SP 32 26 MAT-61403Z00 27 7 SS-0550181-SP 30 18 SS-7080510-TP 14 3 SS-8120740-SP 32 62 MAT-61403Z00 34 14 SS-0550301-SP 2 14 SS-7090410-SP 2 20 SS-8150410-SP 4 58 MAT-61601ZA0 27 15 SS-0550301-SP 24 10 SS-7090410-SP 2 25 SS-8150410-SP 4 31 MAT-61601Z00 27 16 SS-0550301-SP 30 23 SS-7090410-SP 22 8 SS-8150410-SP 13 13 MAT-61602Z00 27 18 SS-0600095-TH 6 16 SS-7090410-SP 22 13 SS-8151150-SP 6 35 MAT-61602Z00 34 25 SD-0600271-SP 4 54 SS-7090410-SP 28 13 SS-8151150-SP 6 39 MAT-61603Z00 27 17 SD-0600401-SP 4 19 SS-7090520-SP 4 40 SS-8151150-SP 10 13 MAT-61603Z00 34 24 SD-0640211-SP 12 23 SS-7090520-SP 4 48 SS-8151150-SP 12 24 MAT-64401ZBA 34 10 SD-0640301-SP 6 11 SS-7090620-TP 26 14 SS-8151150-SP 13 32 MAT-64401ZBA 34 9 SD-0640323-TP 12 37 SS-7090620-TP 26 50 SS-8151570-SP 15 13 MAT-64401ZBO 34 8 SD-0640391-TP 2 27 SS-710340-SP 4 9 SS-8152030-SP 10 33 MAZ-001000AA 22 2 SD-0640391-TP 24 22 SS-710540-SP 24 29 SS-8660330-SP 6 39 MAZ-001000AA 22 1 SD-0640391-TP 30 35 SS-710540-SP 28 22 SS-8660512-TP 6 38 MAZ-00906000 24 60 SD-0640471-SP 12 22 SS-710540-SP 30 42 SS-8660612-TP 6 41 MAZ-010000AA 26 2 SD-0640481-SP 10 10 SS-710570-SP 22 26 SS-8660612-TP 12 48 MAZ-010000AA 26 37 SD-0640481-SP 10 31 SS-710570-SP 24 33 SS-8660612-TP 13 28 MAZ-01404000 27 8 SD-0641001-SP 12 8 SS-710570-SP 27 19 SS-8660612-TP 14 22 MAZ-031000AA 28 2 SD-0641322-TP 12 47 SS-710570-SP 28 26 SS-8660942-TP 14 23 MAZ-031000AA 28 1 SD-0680271-SP 15 15 SS-710570-SP 30 46 SS-8680810-TP 10 37 MAZ-039010A0 30 67 SD-0790311-TP 12 42 SS-710570-SP 34 26 SS-8681412-TP 10 42 MAZ-03901000 30 75 SD-0790402-TP 12 38 SS-710570-SP 34 26 SS-8701042-TP 13 19 MAZ-04000BA0 32 38 SD-0790802-SP 8 56 SS-710570-SP 34 26 SS-9110513-TP 22 63 MAZ-04000BA0 32 37 SD-0791271-SP 8 3 SS-710570-SP 34 26 SS-9110513-TP 30 7 MAZ-04000AA 32 2 SD-0791331-SP 16 6 SS-7110710-SP 22 24 SS-9110513-TP 30 8 MAZ-04000A0 32 1 SD-0791501-SP 8 13 SS-7110710-SP 24 31 SS-9111010-SP 16 33 MAZ-041010A0 34 1 SM-6083042-CH 4 29 SS-7110710-SP 28 24 SS-9120643-TP 10 4 MAZ-041010A0 34 2 SM-6083542-CH 4 30 SS-7110710-SP 30 44 SS-9120910-TP 22 41 MAZ-04102000 34 3 SS-1110710-SP 6 7 SS-7110720-SP 26 54 SS-9120910-TP 22 56 MAZ-04103000 34 5 SS-2110920-TP 6 13 SS-7110720-SP 32 54 SS-9120910-TP 24 25 MAZ-04404000 34 15 SS-2110920-TP 6 29 SS-7110730-SP 26 18 SS-9120910-TP 27 41 MAZ-046010A0 34 22 SS-4080310-SP 24 56 SS-7110730-SP 32 18 SS-9120910-TP 28 41 MAZ-04601000 34 23 SS-4090610-SP 10 18 SS-7110840-SP 4 60 SS-9120910-TP 30 66 MTQ-700B1600 14 1 SS-4110715-SP 4 16 SS-7110840-SP 6 4 SS-9150860-SP 15 22 MTQ-700B2000 14 2 SS-4110815-SP 4 24 SS-7110840-SP 12 45 SS-9151120-CP 12 28 NM-6050001-SP 12 33 SS-4120615-SP 10 28 SS-7150740-SP 12 4 SS-9151420-TP 8 61 NS-6080210-SP 16 36 SS-4151630-CP 14 12 SS-7150940-SP 2 9 SS-9151420-TP 14 19 NS-6080340-SP 8 55 SS-8120740-SP 26 62 SS-7150940-SP 22 47 SS-9202443-CP 16 14 NS-6090310-SP 12 24 SS-8120740-SP 28 19 SS-7150940-SP 22 48 SS-9621413-SP 2 5 NS-6110310-SP 16 11 SS-8120740-SP 30 39 SS-7150940-SP 24 18 SS-9621413-SP 22 43 NS-6110530-SP 12 43 SS-8120740-SP 32 26 SS-7150940-SP 24 51 SS-9621413-SP 24 8 NS-6120310-SP 10 14 SS-8120740-SP 32 62 SS-7150940-SP 24 52 SS-9621413-SP 26 9 NS-6150310-SP 8 62 SS-8150410-SP 4 58 SS-7150940-SP 27 13 SS-9621413-SP 27 11 NS-6150310-SP 12 40 SS-8150410-SP 4 31 SS-7150940-SP 27 14 SS-9621413-SP 28 43 NS-6150310-SP 15 14 SS-8150410-SP 13 13 SS-7150940-SP 28 47 SS-9621413-SP 30 21 NS-6150310-SP 15 16 SS-8151150-SP 6 35 SS-7150940-SP 28 48 SS-9621413-SP 30 60 NS-6150430-SP 13 18 SS-8151150-SP 6 39 SS-7150940-SP 30 31 SS-9621413-SP 32 9 NS-6150430-SP 13 22 SS-8151150-SP 10 13 SS-7150940-SP 30 32 SS-9621413-SP 32 45 - 39 - From the library of: Superior Sewing Machine & Supply LLC Jinte.in

Page 44 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS 索 引 Part No. Page Ref. Part No. Page Ref. Part No. Page Ref. 品 番 頁 No. 品 番 頁 No. 品 番 頁 No. SS-9621413-SP 34 18 WP-0371016-SD 8 54 WP-0371026-SD 12 25 WP-0450801-SD 4 17 WP-0480856-SP 8 49 WP-0501016-SD 2 6 WP-0501016-SD 8 20 WP-0501016-SD 8 36 WP-0501016-SD 10 13 WP-0501016-SD 10 51 WP-0501016-SD 16 34 WP-0501016-SD 22 42 WP-0501016-SD 22 44 WP-0501016-SD 22 55 WP-0501016-SD 24 9 WP-0501016-SD 24 48 WP-0501016-SD 26 10 WP-0501016-SD 26 46 WP-0501016-SD 27 26 WP-0501016-SD 28 42 WP-0501016-SD 28 44 WP-0501016-SD 30 22 WP-0501016-SD 30 61 WP-0501016-SD 32 10 WP-0501016-SD 32 46 WP-0510516-SD 12 32 WP-0621026-SP 13 12 WP-0650876-SD 4 21 WP-0703516-SP 12 55 WP-0704016-SP 12 56 WP-0704516-SP 12 54 WP-0751576-SD 12 50 WP-0751576-SD 12 58 WP-0751576-SD 20 26 WP-0751576-SD 30 12 WP-0851846-SC 12 59 WS-0650389-KP 4 53 178-10904 4 28 178-48458 4 57 - 40 - From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 45

jinte x.in From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 46

jinttex.in From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 47

JUKI JUKI CORPORATION HEAD OFFICE 8-2-1 KOKURYO-CHO, CHOFU-CITY, TOKYO 182, JAPAN BUSINESS OFFICE 1-23-3 KABUKI-CHO SHINJUKU-KU, TOKYO 160, JAPAN PHONE : 03(3205)1188, 1189, 1190 FAX : 03(3203)8260, (3205)9131 TELEX : J22967, 232-2301 JUKI 株式会社 〒182 東京都調布市国領町8-2-1 TEL. 03-3480-1111(代表) 工業製品販売本部 TEL. 03-3480-1113(ダイヤルイン) お買い求め、ご相談は To order or for further information, please contact: ※このパーツリストは商品改良のため予告なく変更する事があります。 *The description covered in this parts list is subject to change for improvement of the commodity without notice. ※このパーツリストは、1992年7月現在の商品仕様で編集・印刷したものです。 *This parts list is edited and printed in accordance with the product specifications as of July 1992. From the library of: Superior Sewing Machine & Supply LLC jintex.in Printed in Japan
