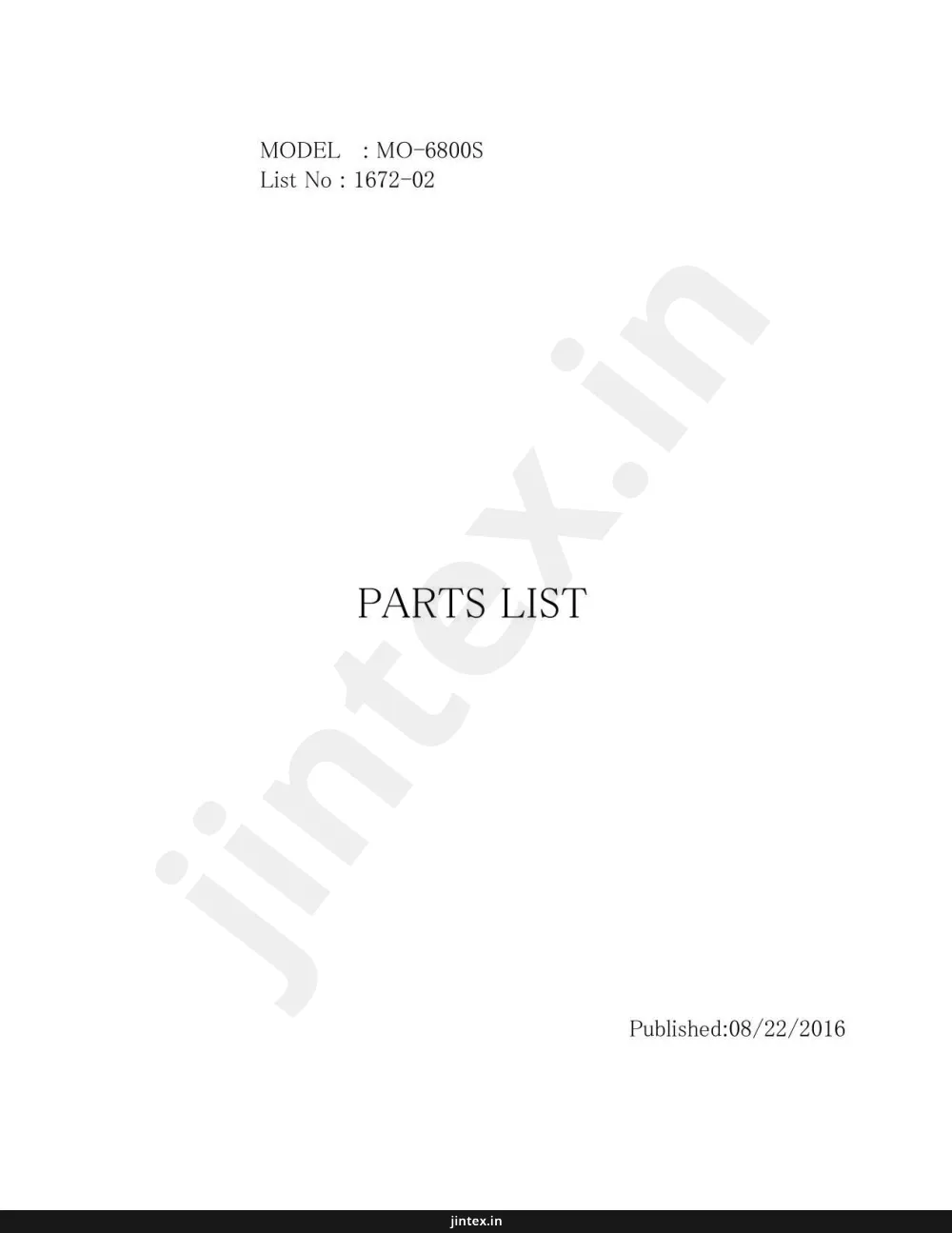

Juki MO-6800S Series Parts Book (PDF)

Overlock · also listed as MO6800S, 6800SDownload PDF

Text index — Juki MO-6800S Series

Page 4 — MISCELLANEOUS COVER COMPONENTS (1)

Juki MO-6800S Series parts on page 4
Ref	Part number	Part name	Qty
1	70000363	WASHER	4
2	70000365	WASHER	4
3	40159534	RUBBER PLUG	1
4	40172525	COVER	1
5	70000443	METAL FOAM GASKET	1
6	********	NAME PLATE	1
7	70000515	E_SCREW	1
8	70000522	E_SCREW	1
9	70000529	E_SCREW	1
10	70000543	E_SCREW	4
11	70000544	E_SCREW	4
12	70000550	E_SCREW	3
13	70000586	M_SCREW	1
14	70000659	PIN	1
15	70000670	PIN	1
16	70000671	PIN	1
17	70000672	PIN	1
18	70000753	RIVET	2
19	70000754	DUCT	2
20	70000515	E_SCREW	2
21	70000515	E_SCREW	4
22	70000529	E_SCREW	1
23	40159531	SIDE COVER	1
24	40159532	METAL FOAM GASKET	1
25	40159533	COVER	1
26	40159537	RUBBER PLUG COMB.	1
27	40159538	RUBBER PLUG	1
28	40159539	FELT	1
29	40159540	RUBBER PLUG COVER	1

Page 6 — MISCELLANEOUS COVER COMPONENTS (2)

Juki MO-6800S Series parts on page 6
Ref	Part number	Part name	Qty
1	40159557	FABRIC PLATE COVER CO	1
2	70000368	WASHER	2
3	70000574	M_SCREW	2
4	70000490	RUBBER PLUG	1
5	70000334	FIXED SEAT	1
6	40159562	WASHER	1
7	40159563	M_SCREW	1
8	40159556	SIDE COVER	1
9	40159555	FABRIC PLATE COVER	1
10	40159564	LEVER	1
11	40159565	SPRING	1
12	70000528	E_SCREW	1
13	40159558	BUSHING	1
14	40159559	WASHER	1
15	40159560	WASHER	1
16	70000577	M_SCREW	1
17	40159561	RUBBER PLUG	1
18	40159552	M_SCREW	1
19	40159553	GUIDE PLATE	1
20	40159554	OILER COVER	1
21	70000516	E_SCREW	2
22	70000404	FIXED PLATE	1
23	70000518	E_SCREW	1
24	70000453	NUT	1
25	70000452	NUT	1
26	70000563	E_SCREW	1
27	70000494	SCREW	2
28	70000493	FABRIC GUIDE	1
29	70000515	E_SCREW	2
30	70000755	SPONGY CUSHION	1
31	40159551	LABEL_(GROUND_MARK)	1

Page 8 — MISCELLANEOUS COVER COMPONENTS (3)

Juki MO-6800S Series parts on page 8
Ref	Part number	Part name	Qty
1	40159571	SIDE COVER	1
2	40159573	M_SCREW	1
3	40159572	WASHER	1
4	40159572	WASHER	1
5	40159577	SAFETY PLATE COMB.	1
6	40159576	WASHER	2
7	40159575	SAFETY PLATE	1
8	40159574	SAFETY PLATE BRACKET	1
9	70000908	M_SCREW	2
10	70000736	LABEL	1
11	40159579	OIL LEVEL INSPECTION LI	1
12	70000136	GASKET	1
13	40159578	OIL LEVEL INSPECTION LI	1
14	70000161	LABEL	1
15	70000222	O-RING	1
16	40159582	TOP COVER	1
17	40159583	TOP COVER (43 SIZE)	1
18	40159580	E_SCREW	2
19	40159581	THREAD GUIDE PLATE	1
20	70000563	E_SCREW	4
21	40159584	MOTOR COVER	1
22	70000520	E_SCREW	3
23	70000745	GUIDE PLATE	1
24	70000555	E_SCREW	1
25	********	EMBLEM	1
26	40159585	FRONT COVER COMB.	1
27	40159593	FRONT COVER COMB.	1
28	70000481	FRONT COVER	1
29	70000660	PIN	1
30	40159590	SHAFT	1
31	70000577	M_SCREW	2
32	40159586	FIXED SEAT	1
33	40159587	SPRING	1
34	70000744	RETAINING CLIP	1
35	70000577	M_SCREW	1
36	70000570	M_SCREW	1
37	70000569	M_SCREW	1
38	40159591	E_SCREW	1
39	40159592	FRONT COVER	1
40	70000573	M_SCREW	2
41	70000820	FRONT COVER	1
42	40159589	E_SCREW	3

Page 10 — CRANKSHAFT COMPONENTS

Juki MO-6800S Series parts on page 10
Ref	Part number	Part name	Qty
1	40159606	MAIN SHAFT COMB.	1
2	40159607	MAIN SHAFT COMB. (HIGH	1
3	40159604	MAIN SHAFT	1
4	40159605	MAIN SHAFT (HIGH TYPE)	1
5	70000565	E_SCREW	2
6	70000564	E_SCREW	2
7	70000565	E_SCREW	1
8	70000619	BALANCE BLOCK	1
9	70000620	BALANCE BLOCK	1
10	70000535	E_SCREW	4
11	70000737	SHAFT	1
12	40159608	M_SCREW	1
13	70000460	FASTENER PIN	1
14	70000130	BUSHING	1
15	70000701	BEARING COVER	1
16	70000554	E_SCREW	2
17	70000562	E_SCREW	1
18	70000694	BEARING	1
19	70000145	O-RING	1
20	70000700	BEARING COVER	1
21	70000508	E_SCREW	3
22	40159602	HAND WHEEL COMB.	1
23	40159601	HAND WHEEL	1
24	70000536	E_SCREW	1
25	70000546	E_SCREW	1
26	70000341	GASKET	1
27	70000612	WASHER	1
28	40159603	M_SCREW	1
29	70000750	FAN BLADE	1
30	70000431	SIDE COVER COMB.	1
31	70000430	SIDE COVER	1
32	70000145	O-RING	1
33	70000521	E_SCREW	3
34	70000143	O-RING	1
35	70000149	WORM WHEEL	1
36	70000699	WASHER	1
37	70000695	BEARING	1
38	70000259	WORM WHEEL	1
39	70000257	WORM WHEEL	1
40	70000522	E_SCREW	1
41	70000314	SHAFT	1
42	70000696	BEARING	1
43	70000449	STOP RING	1
44	40164012	MAIN SHAFT COMB.(30P)	1
45	40164011	MAIN SHAFT (30P)	1
46	40164057	HAND WHEEL COMB.(30P)	1
47	40164058	HAND WHEEL (30P)	1
48	40159660	HAND WHEEL COMB.(SYN	1
49	40159659	HAND WHEEL (SYNCHRO)	1
50	70000536	E_SCREW	1
51	70000546	E_SCREW	1
52	70000612	WASHER	1
53	70000928	M_SCREW	1
54	40170846	SYNCHRONIZER_STOPPER_	1
55	40170847	SYNCHRONIZER_BASE_STU	1
56	40170848	SYNCHRONIZER_STOPPER_	1
57	40022255	SYNCHRONIZER STOPPER	1
58	SS6120940SP	SCREW 3/16-28 L=9	1
59	SS6111010TP	SCREW 11/64-40 L= 9.5	1
60	40164010	HAND WHEEL COMB.(30P_	1

Page 12 — CRANKSHAFT COMPONENTS

Juki MO-6800S Series parts on page 12
Ref	Part number	Part name	Qty
61	40164059	HAND WHEEL (30P_SYNCH)	1

Page 14 — NEEDLE DRIVING SHAFT COMPONENTS

Juki MO-6800S Series parts on page 14
Ref	Part number	Part name	Qty
1	40159615	SHAFT COMB.	1
2	70000643	SHAFT	1
3	70000640	NEEDLE BAR ROCKER	1
4	70000588	M_SCREW	1
5	70000646	PIN	1
6	70000522	E_SCREW	1
7	40159618	CONNECTING ROD COMB.	1
8	40159617	CONNECTING ROD	1
9	70000578	M_SCREW	2
10	70000267	OIL FELT	1
11	70000266	PLUG	1
12	70000677	OIL FELT	1
13	70000437	COLLAR	1
14	70000432	COLLAR	1
15	70000522	E_SCREW	2
16	70000637	BUSHING	1
17	70000362	WASHER	1
18	70000134	E_CIRCLIPS	1
19	70000639	BUSHING	1
20	70000635	ARBOR	1
21	40159619	NEEDLE BAR COMB.	1
22	70000633	CONNECTING ROD COMB.	1
23	70000632	CONNECTING ROD	1
24	70000593	M_SCREW	1
25	70000638	SHAFT COMB.	1
26	70000636	SHAFT	1
27	70000728	OIL YARN	2
28	70000729	OIL WICK	1
29	70000654	NEEDLE BAR	1
30	40159620	BUSHING	1
31	70000676	OIL FELT	1
32	40159658	NEEDLE BAR (44H)	1
33	70000503	E_SCREW	1
34	70000445	PLUG	1
35	70000141	O-RING	2
36	40159623	NEEDLE BAR COMB.(44H)	1

Page 16 — THREAD TENSION COMPONENTS

Juki MO-6800S Series parts on page 16
Ref	Part number	Part name	Qty
1	40159645	THREAD GUIDE PLATE	1
2	70000513	E_SCREW	1
3	70000173	FIXED PLATE COMB.	1
4	70000832	FIXED PLATE COMB.	1
5	70000822	THREAD GUIDE PLATE	1
6	40159650	THREAD GUIDE PLATE	1
7	70000164	FIXED PLATE	1
8	70000498	E_SCREW	1
9	70000549	E_SCREW	1
10	40159646	THREAD GUIDE PLATE	1
11	70000174	FIXED PLATE COMB.	1
12	70000833	FIXED SEAT COMB.	1
13	70000171	FIXED SEAT	1
14	70000559	E_SCREW	1
15	70000498	E_SCREW	2
16	40159647	THREAD GUIDE PLATE	1
17	40159651	THREAD GUIDE PLATE	1
18	40159648	THREAD GUIDE PLATE	1
19	70000169	FIXED BLOCK	1
20	70000513	E_SCREW	2
21	70000555	E_SCREW	1
22	70000168	THREAD GUIDE PLATE	1
23	70000629	CATCHER	1
24	70000653	CRAMP	1
25	70000652	CRAMP	1
26	70000572	M_SCREW	1
27	40159629	M_SCREW	1
28	70000598	SPRING	1
29	70000626	THREAD GRIP	1
30	70000627	THREAD GRIP	1
31	********	NEEDLE CLAMP	1
32	********	NEEDLE CLAMP	1
33	********	NEEDLE CLAMP	1
34	70000498	E_SCREW	2
35	70000567	M_SCREW	1
36	70000831	M_SCREW	1
37	70000628	THREAD CROSSING	1
38	70000828	THREAD CROSSING	1
39	70000829	THREAD CROSSING	1
40	********	NEEDLE	2
41	********	NEEDLE	1
42	********	NEEDLE	3
43	70000550	E_SCREW	2
44	70000469	NEEDLE GUARD	1
45	70000827	NEEDLE GUARD	1
46	70000555	E_SCREW	1
47	70000887	OILER	1
48	40159652	OILER	1
49	70000849	OILER COVER	1
50	70000847	OILER	1
51	70000848	OIL FELT	1
52	70000885	OIL FELT	1
53	40159630	THREAD TAKE-UP LEVER	1
54	40159653	THREAD TAKE-UP LEVER	1
55	40159654	THREAD TAKE-UP LEVER	1
56	40159655	THREAD TAKE-UP LEVER	1
57	70000505	E_SCREW	2
58	40159628	NEEDLE PLATE BRACKET	1
59	70000704	RUBBER PLUG	2
60	40159626	NEEDLE PLATE BRACKET	1
	70000198	E_SCREW	2

Page 18 — THREAD TENSION COMPONENTS

Juki MO-6800S Series parts on page 18
Ref	Part number	Part name	Qty
61	70000516	E_SCREW	2
62	********	THROAT PLATE	1
63	70000850	THREAD GUIDE PLATE	1
64	40159649	THREAD GUIDE PLATE	1
65	40159625	E_SCREW	1
66	70000337	FIXED SEAT COMB.	1
67	70000336	NEEDLE GUARD	1
68	70000497	E_SCREW	2
69	70000630	NEEDLE GUARD	1
70	70000335	NEEDLE GUARD	1
71	70000526	E_SCREW	2
72	70000497	E_SCREW	2
73	70000550	E_SCREW	2
74	40159627	NEEDLE PLATE BRACKET	1
75	40159631	THREAD GUIDE PLATE	11
76	40159644	THREAD GUIDE PLATE	1
77	40159640	THREAD TENSION COMB.(	3
78	40159632	THREAD TENSION SHAFT	1
79	40159634	SLEEVE	1
80	70000211	SPRING	1
81	40159636	FIXED RING	1
82	40178548	THREAD TENSION KNOB.(	1
83	40159633	THREAD TENSION RUBBER	12
84	70000203	THREAD GRIP	24
85	70000213	OIL FELT	12
86	70000513	E_SCREW	1
87	40159641	THREAD TENSION COMB.(	3
88	40159632	THREAD TENSION SHAFT	1
89	40159634	SLEEVE	1
90	40159624	SPRING	1
91	40159636	FIXED RING	1
92	40178550	THREAD TENSION KNOB.(	1
93	40159642	THREAD TENSION COMB.	2
94	40159632	THREAD TENSION SHAFT	1
95	40159634	SLEEVE	1
96	40159624	SPRING	1
97	40159636	FIXED RING	1
98	40178549	THREAD TENSION KNOB.(	1
99	40159642	THREAD TENSION COMB.(	1
100	40159656	THREAD TENSION COMB.(	1
101	40159632	THREAD TENSION SHAFT	1
102	40159634	SLEEVE	1
103	40159624	SPRING	1
104	40159657	SPRING	1
105	40159636	FIXED RING	1
106	40178549	THREAD TENSION KNOB.(	1
107	40159643	THREAD TENSION COMB.(	3
108	40178550	THREAD TENSION KNOB.(	1
109	40159632	THREAD TENSION SHAFT	1
110	40159634	SLEEVE	1
111	70000211	SPRING	1
112	40159636	FIXED RING	1
113	40164056	THREAD TAKE-UP LEVER	1
114	40172527	THREAD CROSSING	1

Page 20 — UPPER LOOPER COMPONENTS

Juki MO-6800S Series parts on page 20
Ref	Part number	Part name	Qty
1	40159686	BALL CONNECTING ROD	1
2	40159687	BALL CONNECTING ROD	1
3	40179596	CONNECTING ROD	1
4	40179597	E_SCREW	2
5	40179597	E_SCREW	2
6	40178084	BALL CONNECTING ROD	1
7	70000545	E_SCREW	1
8	40159684	FIXED JAW	1
9	70000254	BALL CONNECTING ROD	1
10	40159678	BALL CONNECTING ROD	1
11	70000253	BALL CONNECTING ROD	1
12	70000834	BALL CONNECTING ROD	1
13	70000590	M_SCREW	1
14	40159675	CONNECTING ROD SEAT	1
15	70000498	E_SCREW	1
16	70000251	LOOPER CONNECTING RC	1
17	70000661	PIN	1
18	70000728	OIL YARN	2
19	70000729	OIL WICK	1
20	40172535	LOOPER CONNECTING RC	1
21	70000240	CONNECTING ROD COMB.	1
22	70000239	CONNECTING ROD	1
23	70000593	M_SCREW	1
24	40159675	CONNECTING ROD SEAT	1
25	40159681	CONNECTING ROD SEAT	1
26	40159682	CONNECTING ROD SEAT	1
27	70000678	OIL WICK	1
28	70000243	FIXED PLATE	1
29	40159671	OIL FELT	1
30	40159672	FELT COVER	1
31	70000538	E_SCREW	1
32	70000193	THREAD CROSSING	1
33	70000560	E_SCREW	1
34	40159674	E_SCREW	1
35	70000241	LOOPER GUIDE SHAFT	1
35	70000241	LOOPER GUIDE SHAFT	1
35	70000241	LOOPER GUIDE SHAFT	1
36	40159673	CONNECTING ROD SEAT	1
37	40159679	CONNECTING ROD SEAT	1
38	40159680	CONNECTING ROD SEAT	1
39	70000248	BUSHING	1
40	70000749	COVER	1
41	70000748	COVER	1
42	70000268	OIL SEAL	1
43	70000515	E_SCREW	1
44	70000202	THREAD CROSSING COMB	1
45	70000197	THREAD CROSSING	1
46	70000198	THREAD CROSSING	1
47	70000501	E_SCREW	1
48	70000521	E_SCREW	2
49	70000521	E_SCREW	2
50	70000201	GRADUATED PLATE COMB	1
51	70000194	FIXED PLATE	1
52	70000200	THREAD CROSSING	1
53	70000195	THREAD CROSSING	1
54	70000501	E_SCREW	2
55	70000350	WASHER	2
56	********	LOOPER	1
57	40159670	WASHER	1
58	70000504	E_SCREW	1

Page 22 — UPPER LOOPER COMPONENTS

Juki MO-6800S Series parts on page 22
Ref	Part number	Part name	Qty
59	70000196	THREAD CROSSING	1
60	70000812	THREAD GUIDE	1
61	40159683	THREAD GUIDE	1
62	70000247	BUSHING	1
63	70000246	ARBOR COMB.	1
64	70000342	GASKET	1
65	70000613	WASHER	1
66	70000517	E_SCREW	1
67	70000522	E_SCREW	1
68	70000587	M_SCREW	2
69	70000679	OIL WICK	2
70	40159666	COLLAR COMB.	1
71	70000807	COLLAR COMB.	1
72	40159676	COLLAR COMB.	1
73	40159677	COLLAR COMB.	1
74	40159665	COLLAR	1
75	70000522	E_SCREW	2
76	70000522	E_SCREW	1
77	40159669	OIL TUBE	1
78	40159668	OIL WICK	1
79	40159667	OIL TUBE	1
80	40159681	CONNECTING ROD SEAT C	1
81	40159682	CONNECTING ROD SEAT C	1
82	40177859	COLLAR	1
83	40159715	COLLAR	1
84	40176583	LOOPER	1

Page 24 — LOWER LOOPER COMPONENTS

Juki MO-6800S Series parts on page 24
Ref	Part number	Part name	Qty
1	40159692	LOOPER HOLDER COMB.	1
2	40159694	LOOPER HOLDER COMB.	1
3	70000407	LOOPER HOLDER	1
4	70000406	LOOPER HOLDER	1
5	70000667	PIN	1
6	70000380	GASKET	1
7	70000531	E_SCREW	1
8	70000751	WASHER	1
9	70000511	E_SCREW	1
10	70000175	EJECTOR PLATE	1
11	70000505	E_SCREW	1
12	70000405	LOOPER	1
13	70000525	E_SCREW	1
14	70000506	E_SCREW	1
15	70000199	THREAD GUIDE PLATE	1
16	40159693	THREAD GUIDE PLATE	1
17	40159689	BALL CONNECTING ROD	1
18	40179596	CONNECTING ROD	1
19	40178084	BALL CONNECTING ROD	1
20	40179597	E_SCREW	2
21	40179597	E_SCREW	2
22	40159684	FIXED JAW	1
23	70000545	E_SCREW	1
24	70000415	BALL CONNECTING ROD	1
25	70000413	BALL CONNECTING ROD	1
26	70000590	M_SCREW	1
27	70000517	E_SCREW	1
28	70000410	BUSHING	1
29	70000270	OIL SEAL	1
30	70000752	WASHER	1
31	70000410	BUSHING	1
32	70000409	ARBOR	1
33	70000343	GASKET	1
34	70000614	WASHER	1
35	40159690	BALL CONNECTING ROD	1
36	70000416	BALL CONNECTING ROD	1
37	70000414	BALL CONNECTING ROD	1
38	70000522	E_SCREW	1
39	70000590	M_SCREW	1

Page 26 — CHAIN LOOPER COMPONENTS (1)

Juki MO-6800S Series parts on page 26
Ref	Part number	Part name	Qty
1	70000479	CONNECTING ROD COMB.	1
2	70000139	O-RING	1
3	70000317	BUSHING	1
4	70000346	GASKET	1
5	70000357	WASHER	1
6	70000463	ADJUSTING SEAT	1
7	70000464	ADJUSTING SEAT	1
8	70000467	SHAFT	1
9	70000478	CONNECTING ROD	1
10	70000514	E_SCREW	1
11	70000561	E_SCREW	1
12	70000616	WASHER	1
13	70000697	BEARING	1
14	70000703	ECCENTRIC	1
15	70000465	SLIDE BLOCK GUIDE	1
16	70000461	SHAFT	1
17	70000466	SLIDE BLOCK GUIDE	1
18	70000462	SLIDE BLOCK GUIDE	1
19	70000590	M_SCREW	1
20	70000475	LOOPER COMB.	1
21	70000476	LOOPER HOLDER	1
22	70000351	WASHER	1
23	70000474	LOOPER HOLDER	1
24	70000380	GASKET	1
25	70000531	E_SCREW	1
26	70000473	LOOPER	1
27	70000508	E_SCREW	1
28	70000270	OIL SEAL	1
29	70000525	SCREW	1
30	70000471	LOOPER CONNECTING RC	1
31	70000470	LOOPER CONNECTING RC	1
32	70000590	M_SCREW	1
33	70000477	BUSHING	1
34	70000410	BUSHING	1
35	70000472	CONNECTING ROD	1
36	70000317	BUSHING	1
37	70000346	GASKET	1
38	70000514	E_SCREW	1

Page 28 — CHAIN LOOPER COMPONENTS (2)

Juki MO-6800S Series parts on page 28
Ref	Part number	Part name	Qty
1	70000397	DUCT COMB.	1
2	70000172	PLUG	2
3	70000396	DUCT	1
4	70000398	FIXED PLATE	2
5	70000359	WASHER	2
6	70000387	THREAD GUIDE PLATE	1
7	70000519	E_SCREW	1
8	70000576	M_SCREW	1
9	70000384	THREAD CROSSING	1
10	70000513	E_SCREW	1
11	70000391	THREAD TAKE-UP DEVICE	1
12	70000392	THREAD GRIP	2
13	70000393	THREAD TENSION KNOB	1
14	70000394	SPRING	1
15	70000395	THREAD TENSION SHAFT	1
16	70000388	BRACKET	1
17	70000389	THREAD GUIDE PLATE	1
18	70000390	THREAD GUIDE PLATE	1
19	70000571	M_SCREW	2
20	70000452	NUT	1
21	70000557	E_SCREW	1
22	70000383	THREAD GUIDE PLATE	1
23	70000448	SPRING PLATE	1
24	70000386	THREAD TENSION CAM	1
25	70000385	THREAD TENSION CAM	1
26	70000498	E_SCREW	2
27	70000453	NUT	1
28	70000452	NUT	1
29	70000563	E_SCREW	1
30	70000518	E_SCREW	1
31	70000610	FIXED PLATE	1

Page 30 — FEED MECHANISM COMPONENTS (1)

Juki MO-6800S Series parts on page 30
Ref	Part number	Part name	Qty
1	40159707	FEED DOG SEAT COMB.	1
2	70000140	O-RING	1
3	70000344	GASKET	2
4	70000345	WASHER	1
5	70000349	WASHER	2
6	70000372	FIXED BLOCK	2
7	70000373	ADJUSTING SEAT	1
8	70000379	ADJUSTING PLATE	1
9	70000450	NUT	1
10	70000495	SCREW	1
11	70000542	E_SCREW	1
12	70000601	SPRING	1
13	70000512	E_SCREW	2
14	70000131	E_CIRCLIPS	1
15	70000353	WASHER	1
16	40159702	SPACER	2
17	40159703	ADJUSTING SCREW	1
18	40159704	SPRING	1
19	40159705	BLOCK	1
20	40159706	FEED DOG SEAT	1
21	70000523	E_SCREW	2
22	70000370	DIFFERENTIAL CONNECTING	1
23	70000369	DIFFERENTIAL CONNECTING	1
24	70000590	M_SCREW	1
25	40159700	BUSHING	1
26	70000552	E_SCREW	1
27	40159701	CONNECTING ROD	1
28	70000276	ADJUSTING WHEEL	1
29	70000275	ADJUSTING WHEEL	1
30	70000582	M_SCREW	2
31	70000666	PIN	1
32	40159709	CONNECTING ROD COMB.	1
33	70000162	SPRING PLATE	1
34	70000277	CONNECTING ROD	1
35	70000602	SPRING	1
36	70000662	PIN	1
37	70000698	BEARING	1
38	40159629	M_SCREW	1
39	70000503	E_SCREW	1
40	70000282	ECCENTRIC	1
41	70000665	PIN	2
42	70000289	ECCENTRIC	1
43	70000288	ECCENTRIC	1
44	70000502	E_SCREW	2
45	70000741	ADJUSTING WHEEL COMB	1
46	70000740	ADJUSTING WHEEL	1
47	70000583	M_SCREW	1
48	70000738	SLIDE BLOCK	1
49	70000739	ADJUSTING WHEEL	1
50	70000582	M_SCREW	1
51	70000694	BEARING	1
52	70000284	SHAFT COMB.	1
53	70000137	O-RING	1
54	70000286	SHAFT	1
55	70000283	SHAFT	1
56	70000131	E_CIRCLIPS	1
57	70000358	WASHER	1
58	70000600	SPRING	1

Page 32 — FEED MECHANISM COMPONENTS (2)

Juki MO-6800S Series parts on page 32
Ref	Part number	Part name	Qty
1	********	FEED DOG	1
2	70000509	E_SCREW	1
3	70000683	CRANK COMB.	1
4	70000374	ROCKING SEAT	1
5	70000375	ROCKING SEAT	1
6	70000558	E_SCREW	2
7	70000684	CRANK	1
8	70000681	CRANK	1
9	70000590	M_SCREW	1
10	70000361	WASHER	1
11	70000280	BUSHING	1
12	70000446	OIL SEAL	1
13	40159717	ECCENTRIC SHAFT COMB	1
14	70000133	E_CIRCLIPS	1
15	40159716	ECCENTRIC SHAFT	1
16	70000435	COLLAR	1
17	70000433	COLLAR	1
18	70000522	E_SCREW	1
19	70000147	OIL SEAL COMB.	1
20	70000138	OIL SEAL	1
21	70000548	E_SCREW	1
22	70000734	ECCENTRIC SHAFT	1
23	70000135	E_CIRCLIPS	1
24	70000733	ECCENTRIC SHAFT	1
25	70000141	O-RING	1
26	70000685	CRANK	1
27	70000682	CRANK	1
28	70000590	M_SCREW	1
29	70000356	WASHER	1
30	70000458	NUT	1
31	70000688	ADJUSTING SHAFT	1
32	70000410	BUSHING	1
33	40159676	COLLAR	1
34	70000522	E_SCREW	2
35	40159715	COLLAR	1
36	70000433	COLLAR	1
37	70000522	E_SCREW	1
38	70000731	FEED DOG SEAT COMB.	1
39	70000422	FEED DOG SEAT	1
40	70000423	CONNECTING ROD	1
41	70000429	SLIDE BLOCK	1
42	70000686	SLIDE BLOCK	1
43	70000689	FEED DOG SEAT	1
44	70000732	SLIDE BLOCK	1
45	70000317	BUSHING	1
46	70000346	GASKET	1
47	70000514	E_SCREW	1
48	70000572	M_SCREW	1
49	********	FEED DOG	1
50	********	FEED DOG	1
51	70000509	E_SCREW	1
52	70000530	E_SCREW	4
53	70000151	OIL SCRAPER HOLDER	1
54	70000152	OIL SEAL	2
55	70000508	E_SCREW	2
56	40159718	OIL SEAL	1
57	40159719	SLIDE BLOCK	1
58	70000132	E_CIRCLIPS	1
	70000009	E_SCREW	1

Page 34 — KNIFE COMPONENTS

Juki MO-6800S Series parts on page 34
Ref	Part number	Part name	Qty
1	70000230	SHAFT	1
2	70000235	SWING AXLE	1
3	70000269	OIL SEAL	1
4	70000237	BUSHING	1
5	70000436	COLLAR	2
6	70000434	COLLAR	2
7	70000522	E_SCREW	2
8	70000236	BUSHING	1
9	40178003	KNIFE SEAT COMB.	1
10	40159734	KNIFE SEAT COMB	1
11	40172528	KNIFE SEAT	1
12	40172529	KNIFE SEAT	1
13	70000229	KNIFE	1
14	70000347	GASKET	1
15	70000510	E_SCREW	1
16	40159729	CONNECTING ROD	1
17	40159732	CONNECTING ROD	1
18	40159728	CONNECTING ROD	1
19	40159727	CONNECTING ROD	1
20	70000578	M_SCREW	2
21	70000721	ROCKING BAR	1
22	70000842	ROCKING BAR COMB.	1
23	70000720	ROCKING BAR	1
24	70000841	ROCKING BAR	1
25	70000590	M_SCREW	1
26	40159726	PIN	1
27	70000522	E_SCREW	1
28	70000402	KNIFE SEAT COMB.	1
29	70000845	KNIFE SEAT COMB.	1
30	70000399	KNIFE	1
31	70000400	FIXED PLATE	1
32	70000517	E_SCREW	1
33	70000403	KNIFE SEAT	1
34	70000813	KNIFE SEAT	1
35	70000521	E_SCREW	1
36	70000603	SPRING	1
37	70000524	E_SCREW	1
38	70000401	FIXED PLATE	1
39	70000515	E_SCREW	2

Page 36 — PRESSER FOOT COMPONENTS

Juki MO-6800S Series parts on page 36
Ref	Part number	Part name	Qty
1	40159745	SCREW ROD COMB.	1
2	40159746	SCREW ROD COMB.	1
3	40159741	SCREW ROD	1
4	40159742	NUT	1
5	40159744	FIXED BUTTON	1
6	70000141	O-RING	1
7	40159743	FIXED BUTTON	1
8	70000142	O-RING	1
9	70000608	SPRING	1
10	40159753	THIMBLE	1
11	70000142	O-RING	1
12	40170670	PRESSER FOOT ARM	1
13	70000309	SLIDER	1
14	70000664	SHAFT	1
15	70000669	PIN	1
16	70000141	O-RING	1
17	70000293	SUPPORTER	1
18	70000584	M_SCREW	1
19	70000458	NUT	1
20	70000292	STOPPER	1
21	70000515	E_SCREW	2
22	70000294	HOOK BAR	1
23	70000295	PRESSER FOOT ARM	1
24	70000592	M_SCREW	1
25	70000604	SPRING	1
26	40159749	SUPPORTER	1
27	40159703	ADJUSTING SCREW	1
28	70000584	M_SCREW	1
29	70000458	NUT	1
30	40159704	SPRING	1
31	40159748	STOPPER	1
32	70000131	E_CIRCLIPS	1
33	40159750	BLOCK	1
34	70000355	WASHER	1
35	40159754	SPRING	1
36	70000522	E_SCREW	1
37	70000528	E_SCREW	1
38	40159752	LEVER	1
39	70000291	DRAG LINK	1
40	70000302	COLLAR	1
41	70000301	COLLAR	1
42	40159751	M_SCREW	1
43	70000605	SPRING	1
44	40178006	PRESSER FOOT SEAT COM	1
45	40178007	PRESSER BAR COMB.	1
46	40172530	PRESSER FOOT LIFTING L	1
47	70000297	PRESSER FOOT ARM	1
48	70000566	M_SCREW	1
49	70000673	SHAFT	1
50	70000176	KNIFE	1
51	70000303	BUSHING	1
52	70000538	E_SCREW	1
53	70000522	E_SCREW	1
54	********	PRESSER FOOT	1
55	70000304	FIXED PLATE	1
56	70000500	E_SCREW	1
57	********	PRESSER FOOT	1
58	70000735	FINGER GUARD	1
59	70000538	E_SCREW	1
60	70000505	E_SCREW	1

Page 38 — PRESSER FOOT COMPONENTS

Juki MO-6800S Series parts on page 38
Ref	Part number	Part name	Qty
61	********	PRESSER FOOT	1
62	70000419	LEVER	1
63	70000420	PRESSER FOOT LIFTING L	1
64	70000480	THREAD GUIDE PLATE	1
65	70000496	E_SCREW	1
66	70000499	E_SCREW	1
67	70000537	E_SCREW	1
68	70000606	SPRING	1
69	70000609	SPRING	1
70	********	PRESSER FOOT	1
71	70000505	E_SCREW	1
72	70000500	E_SCREW	1
73	70000538	E_SCREW	1
74	70000735	FINGER GUARD	1
75	40172531	PRESSER ARM STOPPER	1
76	40178005	E_SCREW	1
77	70000561	E_SCREW	1
78	70000349	WASHER	1

Page 40 — LUBRICATION MECHANISM COMPONENTS

Juki MO-6800S Series parts on page 40
Ref	Part number	Part name	Qty
1	70000327	OIL TUBU GROUP	1
2	70000326	HOSE	1
3	70000631	OIL TUBE	1
4	70000658	SPRING CLAMP	1
5	70000534	E_SCREW	1
6	70000693	COPPER TUBE	1
7	70000658	SPRING CLAMP	1
8	40159760	JOINT	1
9	70000329	HOSE COMB.	1
10	70000323	JOINT	2
11	70000325	HOSE	1
12	70000658	SPRING CLAMP	2
13	70000532	E_SCREW	2
14	70000675	OIL FILTER	1
15	70000144	O-RING	1
16	70000674	OIL FILTER COVER	1
17	70000312	OIL FILTER	1
18	70000520	E_SCREW	3
19	70000328	OIL TUBE COMB	1
20	70000428	JOINT	1
21	70000326	HOSE	1
22	70000658	SPRING CLAMP	2
23	40159762	OIL LEVEL INSPECTION LI	1
24	70000157	OIL LEVEL INSPECTION LI	1
25	70000158	NAME PLATE	1
26	40159761	NAME PLATE	1
27	70000160	OIL INDICATOR ROD COM	1
28	70000159	OIL INDICATOR ROD	1
29	70000261	OIL INDICATOR	1
30	70000262	BAFFLE	1
31	70000521	E_SCREW	2
32	40159764	OIL RESERVOIR COMB.	1
33	70000146	OIL SEAL	1
34	70000273	O-RING	1
35	70000381	MAGNET	1
36	70000382	BAFFLE	1
37	70000533	E_SCREW	1
38	70000518	E_SCREW	1
39	40159763	OIL RESERVOIR COMB.	1
40	70000267	HOSE COMB.	1
41	70000318	HOSE	1
42	70000657	SPRING CLAMP	1
43	70000716	PUMP COMB.	1
44	70000715	PUMP COMB.	1
45	70000260	GEAR	1
46	70000258	WORM WHEEL	1
47	70000582	M_SCREW	1
48	70000713	PUMP BODY	1
49	70000322	JOINT	2
50	40159765	GEAR	1
51	70000148	GEAR	1
52	70000148	GEAR	1
53	40159765	GEAR	1
54	70000714	PUMP BODY	1
55	70000712	SHAFT	1
56	70000717	PUMP COVER	1
57	70000710	FILTER NET	1
58	70000711	GASKET	1
59	70000575	M_SCREW	3
60	70000324	HOSE	1

Page 42 — LUBRICATION MECHANISM COMPONENTS

Juki MO-6800S Series parts on page 42
Ref	Part number	Part name	Qty
61	70000657	SPRING CLAMP	1
62	70000322	JOINT	1
63	70000657	SPRING CLAMP	1
64	70000657	SPRING CLAMP	1
65	70000527	E_SCREW	2
66	70000323	JOINT	1
67	70000522	E_SCREW	1
68	70000532	E_SCREW	1

Page 44 — NEEDLE COOLER UNIT COMPONENTS

Juki MO-6800S Series parts on page 44
Ref	Part number	Part name	Qty
1	40159772	OILER	1
2	40159775	OILER	1
3	70000658	SPRING CLAMP	1
4	40159768	HOSE	1
5	40159769	OIL WICK	1
6	40159770	BALL	1
7	40159771	OILER	1
8	40159776	DIVIDING SEAT	1
9	40159774	DIVIDING SEAT	1
10	40159778	NAIL	1
11	40159777	OIL FELT	1
12	40159773	OIL FELT	1
13	40159779	OILER COVER	1
14	70000658	SPRING CLAMP	1
15	70000526	E_SCREW	1
16	70001060	E_SCREW	2
17	70000518	E_SCREW	1

Page 46 — THREAD STAND COMPONENTS (FOR MO-6804S)

Juki MO-6800S Series parts on page 46
Ref	Part number	Part name	Qty
1	40179483	THREAD STAND COMB.	1
2	70000179	THREAD GUIDE BAR	1
3	70000180	FIXED SEAT	1
4	70000181	FIXED SEAT	1
5	70000182	THREAD GUIDE BAR	1
6	70000183	THREAD GUIDE BAR	1
7	70000186	SUPPORTER	1
8	70000188	THREAD STAND ROD	1
9	70000189	THREAD STAND COVER	1
10	70000190	THREAD STAND ROD	1
11	70000191	FIXED PLATE	2
12	70000192	CONNECTING LOOP	1
13	70000215	COILING SEAT	3
14	70000216	SPONGY CUSHION	3
15	70000217	CONNECTING LOOP	3
16	70000218	THREAD STEADY BALL SE	3
17	70000219	PLUG	3
18	70000354	WASHER	2
19	70000454	NUT	2
20	70000455	NUT	1
21	70000456	NUT	2
22	70000547	E_SCREW	1
23	70000579	M_SCREW	1
24	70000580	M_SCREW	1
25	70000581	M_SCREW	1
26	70000589	M_SCREW	2
27	70000611	WASHER	2
28	70000615	WASHER	3
29	70000618	WASHER	1
30	70000580	M_SCREW	1
31	70000580	M_SCREW	1
32	70000454	NUT	2
33	70000454	NUT	1
34	70000454	NUT	3
35	70000178	THREAD GUIDE PLATE	1

Page 48 — THREAD STAND COMPONENTS (FOR MO-6814S)

Juki MO-6800S Series parts on page 48
Ref	Part number	Part name	Qty
1	40179484	THREAD STAND COMB.	1
2	70000179	THREAD GUIDE BAR	1
3	70000180	FIXED SEAT	1
4	70000181	FIXED SEAT	1
5	70000182	THREAD GUIDE BAR	1
6	70000183	THREAD GUIDE BAR	1
7	70000184	THREAD GUIDE BAR	1
8	70000185	THREAD GUIDE BAR	1
9	70000186	SUPPORTER	1
10	70000188	THREAD STAND ROD	1
11	70000189	THREAD STAND COVER	1
12	70000190	THREAD STAND ROD	1
13	70000192	CONNECTING LOOP	1
14	70000354	WASHER	2
15	70000454	NUT	2
16	70000455	NUT	1
17	70000547	E_SCREW	1
18	70000579	M_SCREW	1
19	70000580	M_SCREW	1
20	70000581	M_SCREW	1
21	70000618	WASHER	1
22	70000219	PLUG	4
23	70000456	NUT	4
24	70000580	M_SCREW	1
25	70000580	M_SCREW	1
26	70000454	NUT	2
27	70000611	WASHER	4
28	70000218	THREAD STEADY BALL SE	4
29	70000454	NUT	1
30	70000454	NUT	4
31	70000615	WASHER	4
32	70000217	CONNECTING LOOP	4
33	70000216	SPONGY CUSHION	4
34	70000215	COILING SEAT	4
35	70000191	FIXED PLATE	4
36	70000589	M_SCREW	4
37	70000178	THREAD GUIDE PLATE	1

Page 50 — THREAD STAND COMPONENTS (FOR MO-6816S)

Juki MO-6800S Series parts on page 50
Ref	Part number	Part name	Qty
1	40179485	THREAD STAND COMB.	1
2	70000179	THREAD GUIDE BAR	1
3	70000180	FIXED SEAT	1
4	70000181	FIXED SEAT	1
5	70000182	THREAD GUIDE BAR	1
6	70000183	THREAD GUIDE BAR	1
7	70000184	THREAD GUIDE BAR	1
8	70000185	THREAD GUIDE BAR	1
9	70000186	SUPPORTER	1
10	70000188	THREAD STAND ROD	1
11	70000189	THREAD STAND COVER	1
12	70000190	THREAD STAND ROD	1
13	70000192	CONNECTING LOOP	1
14	70000354	WASHER	2
15	70000454	NUT	2
16	70000455	NUT	1
17	70000547	E_SCREW	1
18	70000579	M_SCREW	1
19	70000580	M_SCREW	1
20	70000581	M_SCREW	1
21	70000618	WASHER	1
22	70000219	PLUG	5
23	70000456	NUT	4
24	70000580	M_SCREW	1
25	70000580	M_SCREW	1
26	70000454	NUT	2
27	70000611	WASHER	4
28	70000218	THREAD STEADY BALL SE	5
29	70000454	NUT	1
30	70000454	NUT	5
31	70000615	WASHER	5
32	70000217	CONNECTING LOOP	5
33	70000216	SPONGY CUSHION	5
34	70000215	COILING SEAT	5
35	70000191	FIXED PLATE	4
36	70000589	M_SCREW	4
37	70000177	THREAD GUIDE BAR	1

Page 52 — THREAD STAND COMPONENTS (FOR MO-6843S)

Juki MO-6800S Series parts on page 52
Ref	Part number	Part name	Qty
1	40179486	THREAD STAND COMB.	1
2	70000179	THREAD GUIDE BAR	1
3	70000180	FIXED SEAT	1
4	70000181	FIXED SEAT	1
5	70000182	THREAD GUIDE BAR	1
6	70000183	THREAD GUIDE BAR	1
7	70000186	SUPPORTER	1
8	70000187	SUPPORTER	1
9	70000188	THREAD STAND ROD	1
10	70000189	THREAD STAND COVER	1
11	70000190	THREAD STAND ROD	1
12	70000192	CONNECTING LOOP	1
13	70000354	WASHER	2
14	70000454	NUT	2
15	70000455	NUT	1
16	70000547	E_SCREW	1
17	70000579	M_SCREW	1
18	70000580	M_SCREW	1
19	70000581	M_SCREW	1
20	70000618	WASHER	1
21	70000219	PLUG	6
22	70000456	NUT	4
23	70000580	M_SCREW	1
24	70000580	M_SCREW	1
25	70000454	NUT	2
26	70000611	WASHER	4
27	70000218	THREAD STEADY BALL SE	6
28	70000454	NUT	2
29	70000454	NUT	6
30	70000615	WASHER	6
31	70000217	CONNECTING LOOP	6
32	70000216	SPONGY CUSHION	6
33	70000215	COILING SEAT	6
34	70000183	THREAD GUIDE BAR	1
35	70000182	THREAD GUIDE BAR	1
36	70000547	E_SCREW	1
37	70000581	M_SCREW	1
38	70000191	FIXED PLATE	4
39	70000589	M_SCREW	4
40	70000177	THREAD GUIDE BAR	1

Page 54 — SEMI-SUNKEN TYPE TABLE COMPONENTS

Juki MO-6800S Series parts on page 54
Ref	Part number	Part name	Qty
1	70000264	CHASSIS	1
2	70000263	CHASSIS	1
3	70000438	RUBBER PAD	1
4	70000340	RUBBER BLOCK	1
5	70000338	RUBBER BLOCK	4
6	70000265	BOLT COMB.	1
7	70000332	FIXED SHAFT	4
8	70000339	RUBBER BLOCK	4
9	70000707	BOLT	4
10	40159780	GASKET	4
11	40159781	GASKET	4
12	70000348	WASHER	4
13	70000617	WASHER	4
14	70000484	WASTE FABRIC CHUTE CO	1
15	70000352	WASHER	4
16	70000482	WASTE FABRIC CHUTE	1
17	70000483	WASTE FABRIC CHUTE	1
18	70000485	WASTE FABRIC CHUTE	1
19	70000540	E_SCREW	3
20	70000541	E_SCREW	4
21	70000854	TABLE	1

Page 56 — FULLY-SUNKEN TYPE TABLE COMPONENTS

Juki MO-6800S Series parts on page 56
Ref	Part number	Part name	Qty
1	70000444	TABLE	1
2	70000706	FIXED TABLE	1
3	70000884	BOLT ASM.	1

Page 58 — ACCESSORIES PARTS COMPONENTS

Juki MO-6800S Series parts on page 58
Ref	Part number	Part name	Qty
1	40159786	HEAD COVER	1
2	40159785	SEWING OIL J18(3)	1
3	70000757	FUNNEL	1
4	70000759	TWEEZERS	1
5	70000760	CHAIN	1
6	40159796	SPANNER COMB.	1
7	40159794	RING SPANNER	1
8	40159795	SPANNER	1
9	40159793	HEXAGONAL ROD SPANNER	1
10	40159789	HEXAGONAL ROD SPANNER	1
11	40159790	HEXAGONAL ROD SPANNER	1
12	40159791	HEXAGONAL ROD SPANNER	1
13	70000763	DESICCATIVE	1
14	70000758	HEXAGON SCREWDRIVER	1
15	40159792	SCREW DRIVER COMB.	1
16	40159787	SCREW DRIVER	1
17	40159788	SCREW DRIVER	1
18	70000761	TOOL BAG	1
19	70000498	E_SCREW	1
20	70000399	KNIFE	1
21	MDC270B1100	NEEDLE DCX27 #11	5
22	MDC270B0800	NEEDLE DCX27 #8	5
23	MDC270B0900	NEEDLE DCX27 #9	5
24	MDC270B1400	NEEDLE DCX27 #14	5
25	MDC270B1600	NEEDLE DCX27 #16	5

Page 60 — PACKING COMPONENTS

Juki MO-6800S Series parts on page 60
Ref	Part number	Part name	Qty
1	40159800	THREAD STAND	1
2	70000264	CHASSIS	1
3	70000263	CHASSIS	1
4	70000438	RUBBER PAD	1
5	40159803	POLYSTYRENE	1
6	70000767	POLYSTYRENE	1
7	40159801	POLYSTYRENE	1
8	40159802	POLYSTYRENE	1

Page 62 — TAPE INSERTION COMPONENTS

Juki MO-6800S Series parts on page 62
Ref	Part number	Part name	Qty
1	70000908	M_SCREW	2
2	40159574	SAFETY PLATE BRACKET	1
3	40159576	WASHER	2
4	40159810	SAFETY PLATE	1
5	70000549	E_SCREW	1
6	40159817	PRESSER FOOT	1
7	40159815	TAPE GUIDE COMB.	1
8	70000908	M_SCREW	1
9	70000452	NUT	1
10	70000359	WASHER	1
11	40159576	WASHER	1
12	40159811	TAPE GUIDE	1
13	40159813	TAPE GUIDE	1
14	40159814	E_SCREW	1
15	40159812	TAPE GUIDE	1
16	70000098	TAPE HOLDER	1

Page 64 — 30P COMPONENTS

Juki MO-6800S Series parts on page 64
Ref	Part number	Part name	Qty
1	40164048	THROAT PLATE	1
2	40164047	THROAT PLATE	1
3	40164049	THROAT PLATE	1
4	40164050	FEED DOG	1
5	40164052	FEED DOG	1
6	40164051	FEED DOG	1
7	40164044	FEED DOG	1
8	40164046	FEED DOG	1
9	40164045	FEED DOG	1
10	40164055	NEEDLE CLAMP	1
11	40164058	HAND WHEEL(30P)	1
12	40164056	THREAD TAKE-UP LEVER	1
13	40164021	PRESSER FOOT ASM.	1
14	40164026	REAR PRESSER FOOT	1
15	40164027	PRESSER FOOT HINGE	1
16	70000735	FINGER GUARD	1
17	70000500	E_SCREW	1
18	70000496	E_SCREW	1
19	70000505	E_SCREW	1
20	70000538	E_SCREW	1
21	40164028	PRESSER FOOT ARM SPRIN	1
22	40164024	STITCH TONGUE	1
23	70000558	E_SCREW	1
24	40164053	PRESSER FOOT 514_30P	1
25	40164020	PRESSER FOOT ASM.	1
26	40164023	STITCH TONGUE	1
27	40164029	PRESSER FOOT ASM.	1
28	40164032	STITCH TONGUE	1
29	40164039	HINGE SCREW	1
30	40164037	SPRING	1
31	70000505	E_SCREW	1
32	70000538	E_SCREW	1
33	40164034	FINGER GUARD	1
34	40159855	E_SCREW	1
35	40164036	SPRING	1
36	40164038	PRESSER FOOT HINGE	1
37	70000500	E_SCREW	1
38	40164033	PRESSER FOOT ARM SPRIN	1
39	40164035	PRESSER FOOT	1
40	40164043	NUT	1
41	40164042	PIN	1

Page 65 — MO-6800S GAUGE TABLE

Juki MO-6800S Series parts on page 65
Ref	Part number	Part name	Qty
	401-59827	THROAT PLATE
	401-59825	THROAT PLATE
	401-59828	THROAT PLATE
	401-59829	THROAT PLATE
	401-59828	THROAT PLATE
	401-59829	THROAT PLATE
	401-59829	THROAT PLATE
	401-59830	THROAT PLATE
	401-59831	THROAT PLATE
	401-59834	THROAT PLATE
	401-59835	THROAT PLATE
	401-59832	THROAT PLATE
	401-59833	THROAT PLATE
	401-59826	THROAT PLATE
	401-64048	THROAT PLATE
	401-64047	THROAT PLATE
	401-64049	THROAT PLATE
	401-59844	PRESSER FOOT
	401-59842	PRESSER FOOT
	401-59843	PRESSER FOOT
	401-59843	PRESSER FOOT
	401-59817	PRESSER FOOT
	401-59817	PRESSER FOOT
	401-59817	PRESSER FOOT
	401-59850	PRESSER FOOT
	401-59849	PRESSER FOOT
	401-59849	PRESSER FOOT
	401-59849	PRESSER FOOT
	401-59847	PRESSER FOOT
	401-59848	PRESSER FOOT
	401-59845	PRESSER FOOT
	401-64021	PRESSER FOOT
	401-64020	PRESSER FOOT
	401-64029	PRESSER FOOT

Page 66 — MO-6800S GAUGE TABLE

Juki MO-6800S Series parts on page 66
Ref	Part number	Part name	Qty
	2-02
	2-02

Page 67 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 67
Ref	Part number	Qty
6	*********	2
25	*********	6
42	*********	14
62	*********	16
56	*********	18
56	*********	30
57	*********	34
70	*********	36
57	40022255	8
23	40159531	2
24	40159532	2
25	40159533	2
3	40159534	2
26	40159537	2
27	40159538	2
28	40159539	2
29	40159540	2
31	40159551	4
18	40159552	4
19	40159553	4
20	40159554	4
9	40159555	4
8	40159556	4
1	40159557	4
13	40159558	4
14	40159559	4
15	40159560	4
17	40159561	4
6	40159562	4
7	40159563	4
10	40159564	4
11	40159565	4
1	40159571	6
4	40159572	6
2	40159573	6
8	40159574	6
25	40159574	60
7	40159575	6
6	40159576	6
11	40159576	60
5	40159577	6
13	40159578	6
11	40159579	6
18	40159580	6
19	40159581	6
16	40159582	6
17	40159583	6
21	40159584	6
26	40159585	6
32	40159586	6
33	40159587	6
42	40159589	6
30	40159590	6
38	40159591	6
39	40159592	6
27	40159593	6
23	40159601	8
22	40159602	8
28	40159603	8
3	40159604	8
4	40159605	8
1	40159606	8
2	40159607	8
12	40159608	8
1	40159615	12
8	40159617	12
7	40159618	12
21	40159619	12
30	40159620	12
36	40159623	12
103	40159624	16
65	40159625	16
60	40159626	14
74	40159627	16
58	40159628	14
27	40159629	14
38	40159629	28
53	40159630	14
75	40159631	16
109	40159632	16
83	40159633	16
110	40159634	16
112	40159636	16
77	40159640	16
87	40159641	16
99	40159642	16
107	40159643	16
76	40159644	16
1	40159645	14
10	40159646	14
16	40159647	14
18	40159648	14
64	40159649	16
6	40159650	14
17	40159651	14
48	40159652	14
54	40159653	14
55	40159654	14
56	40159655	14
100	40159656	16
104	40159657	16
32	40159658	12
49	40159659	8
48	40159660	8
74	40159665	20
70	40159666	20
79	40159667	20
78	40159668	20
77	40159669	20
57	40159670	18
29	40159671	18
30	40159672	18
36	40159673	18
34	40159674	18
24	40159675	18
72	40159676	20
33	40159676	30
73	40159677	20
10	40159678	18
37	40159679	18
38	40159680	18
25	40159681	18
80	40159681	20
26	40159682	18
81	40159682	20
61	40159683	20
8	40159684	18
22	40159684	22
1	40159686	18
2	40159687	18
17	40159689	22
35	40159690	22
1	40159692	22
16	40159693	22
2	40159694	22

Page 68 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 68
Ref	Part number	Part name	Qty
25	40159700
27	40159701
16	40159702
17	40159703
27	40159703
18	40159704
30	40159704
28	40159705
28	40159706
28	40159707
28	40159709
20	40159715
30	40159715
30	40159716
30	40159717
30	40159718
30	40159719
32	40159726
32	40159727
32	40159728
32	40159729
32	40159732
32	40159734
34	40159741
34	40159742
34	40159743
34	40159744
34	40159745
34	40159746
34	40159748
34	40159749
34	40159750
34	40159751
34	40159752
34	40159753
34	40159754
38	40159760
38	40159761
38	40159762
38	40159763
38	40159764
38	40159765
42	40159768
42	40159769
42	40159770
62	40164029
62	40164032
62	40164033
62	40164034
62	40164035
62	40164036
62	40164037
62	40164038
62	40164039
62	40164042
62	40164043
62	40164044
62	40164045
62	40164046
62	40164047
62	40164048
62	40164049
62	40164050
62	40164051
62	40164052
62	40164053
62	40164055
16	40164056
62	40164056
8	40164057
8	40164058
62	40164058
10	40164059
34	40170670
8	40170846
8	40170847
8	40170848
2	40172525
16	40172527
32	40172529
32	40172529
34	40172530
36	40172531
18	40172535
20	40176583
20	40177859
32	40178003
36	40178005
34	40178006
34	40178007

Page 69 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 69
Ref	Part number	Part name	Qty
6	40178084
19	40178084
82	40178548
106	40178549
108	40178550
1	40179483
1	40179484
1	40179485
1	40179486
3	40179596
18	40179596
5	40179597
21	40179597
16	70000098
14	70000130
56	70000131
32	70000131
58	70000132
14	70000133
18	70000134
23	70000135
12	70000136
53	70000137
20	70000138
24	70000139
28	70000140
12	70000141
30	70000141
34	70000141
34	70000142
8	70000143
38	70000144
8	70000145
38	70000146
30	70000147
38	70000148
8	70000149
30	70000151
30	70000152
38	70000157
38	70000158
38	70000159
38	70000160
6	70000161
28	70000162
7	70000164
22	70000168
19	70000169
13	70000171
2	70000172
3	70000173
11	70000174
10	70000175
50	70000176
37	70000177
40	70000177
35	70000178
37	70000178
2	70000179
2	70000179
2	70000179
2	70000179
3	70000180
3	70000180
3	70000180
3	70000180
4	70000181
4	70000181
4	70000181
4	70000181
5	70000182
5	70000182
5	70000182
35	70000182
6	70000183
6	70000183
6	70000183
34	70000183
7	70000184
7	70000184
8	70000185
8	70000185
7	70000186
9	70000186
9	70000186
7	70000186
8	70000187
9	70000188
9	70000188
10	70000188
10	70000188
9	70000189
11	70000189
11	70000189
10	70000189
10	70000190
12	70000190
11	70000190
11	70000191
35	70000191
35	70000191
38	70000191
12	70000192
13	70000192
13	70000192
12	70000192
32	70000193
51	70000194
53	70000195
59	70000196
45	70000197
46	70000198
15	70000199
52	70000200
50	70000201
44	70000202
84	70000203
111	70000211
85	70000213
13	70000215
34	70000215
34	70000215
33	70000215
14	70000216
33	70000216
33	70000216
32	70000216
15	70000217
32	70000217
32	70000217
31	70000217
16	70000218
28	70000218
28	70000218

Page 70 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 70
Ref	Part number	Part name	Qty
27	70000218
17	70000219
22	70000219
22	70000219
21	70000219
15	70000222
14	70000224
1	70000230
2	70000235
8	70000236
4	70000237
22	70000239
21	70000240
35	70000241
28	70000243
63	70000246
62	70000247
39	70000248
16	70000251
11	70000253
9	70000254
39	70000257
46	70000258
38	70000259
45	70000260
29	70000261
30	70000262
2	70000263
3	70000263
1	70000264
2	70000264
6	70000265
11	70000266
10	70000267
40	70000268
42	70000269
3	70000270
29	70000270
34	70000273
11	70000275
28	70000276
34	70000277
11	70000280
40	70000282
55	70000283
52	70000284
54	70000286
43	70000288
42	70000289
39	70000291
20	70000292
17	70000293
22	70000294
23	70000295
47	70000297
41	70000301
40	70000302
51	70000303
55	70000304
13	70000309
17	70000312
41	70000314
36	70000317
45	70000317
41	70000318
10	70000322
62	70000322
10	70000323
66	70000323
60	70000324
11	70000325
21	70000326
1	70000327
19	70000328
9	70000329
7	70000332
5	70000334
70	70000335
67	70000336
66	70000337
5	70000338
8	70000339
4	70000340
26	70000341
64	70000342
33	70000343
3	70000344
4	70000345
37	70000346
46	70000346
14	70000347
12	70000348
5	70000349
78	70000349
55	70000350
22	70000351
15	70000352
15	70000353
18	70000354
14	70000354
14	70000354
13	70000354
34	70000355
29	70000356
5	70000357
57	70000358
5	70000359
10	70000359
10	70000361
17	70000362
1	70000363
2	70000365
2	70000368
23	70000369
22	70000370
6	70000372
7	70000373
4	70000374
5	70000375
8	70000379
6	70000380
24	70000380
35	70000381
36	70000382
22	70000383
9	70000384
25	70000385
24	70000386
6	70000387
16	70000388
17	70000389
18	70000390
11	70000391
12	70000392

Page 71 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 71
Ref	Part number	Part name	Qty
13	70000393
14	70000394
15	70000395
3	70000396
1	70000397
4	70000398
30	70000399
20	70000399
31	70000400
38	70000401
28	70000402
33	70000403
22	70000404
12	70000405
4	70000406
3	70000407
32	70000409
31	70000410
34	70000410
32	70000410
25	70000413
22	70000414
22	70000415
22	70000416
36	70000419
36	70000420
30	70000422
30	70000423
38	70000428
30	70000429
8	70000430
8	70000431
12	70000432
30	70000433
32	70000434
30	70000435
32	70000436
12	70000437
52	70000438
58	70000438
2	70000443
54	70000444
12	70000445
30	70000446
26	70000448
8	70000449
28	70000450
4	70000452
26	70000452
60	70000452
4	70000453
26	70000453
44	70000454
46	70000454
48	70000454
50	70000454
44	70000455
46	70000455
48	70000455
44	70000456
46	70000456
48	70000456
50	70000456
30	70000458
34	70000458
8	70000460
24	70000461
24	70000462
24	70000463
24	70000464
24	70000465
24	70000466
24	70000467
14	70000469
24	70000470
24	70000471
24	70000472
24	70000473
24	70000474
24	70000475
24	70000476
24	70000477
24	70000478
24	70000479
36	70000480
6	70000481
52	70000482
52	70000483
52	70000484

Page 72 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 72
Ref	Part number	Part name	Qty
61	70000516
66	70000517
27	70000517
32	70000517
4	70000518
26	70000518
38	70000518
42	70000518
26	70000519
6	70000520
38	70000520
8	70000521
18	70000521
32	70000521
38	70000521
2	70000522
8	70000522
12	70000522
20	70000522
22	70000522
30	70000522
32	70000522
34	70000522
40	70000522
28	70000523
32	70000524
22	70000525
24	70000525
16	70000526
42	70000526
40	70000527
4	70000528
34	70000528
2	70000529
30	70000530
22	70000531
24	70000531
38	70000532
40	70000532
38	70000533
38	70000534
8	70000535
8	70000536
36	70000537
18	70000538
6	70000573
4	70000574
38	70000575
26	70000576
4	70000577
6	70000577
12	70000578
32	70000578
44	70000579
46	70000579
48	70000579
50	70000579
44	70000580
46	70000580
48	70000580
50	70000580
44	70000581
46	70000581
48	70000581
50	70000581
28	70000582
38	70000582
28	70000583
34	70000584
2	70000586
20	70000587
12	70000588
44	70000589
46	70000589
48	70000589
50	70000589
18	70000590
22	70000590
24	70000590
28	70000590
34	70000592
12	70000593
18	70000593
14	70000598
28	70000600
28	70000601
28	70000602
32	70000603

Page 73 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 73
Ref	Part number	Part name	Qty
25	70000604
43	70000605
68	70000606
9	70000608
69	70000609
31	70000610
27	70000611
27	70000611
26	70000611
52	70000612
65	70000613
34	70000614
28	70000615
31	70000615
31	70000615
30	70000615
12	70000616
13	70000617
29	70000618
21	70000618
21	70000618
20	70000618
8	70000619
8	70000620
14	70000626
14	70000627
14	70000628
14	70000629
16	70000630
38	70000631
12	70000632
12	70000633
12	70000635
12	70000636
12	70000637
12	70000638
12	70000639
12	70000640
12	70000643
12	70000646
14	70000652
14	70000653
12	70000654
38	70000657
40	70000657
38	70000658
42	70000658
2	70000659
6	70000660
18	70000661
28	70000662
34	70000664
28	70000665
28	70000666
22	70000667
34	70000669
2	70000670
2	70000671
2	70000672
34	70000673
38	70000674
38	70000675
12	70000676
12	70000677
18	70000678
20	70000679
30	70000681
30	70000682
30	70000683
30	70000684
30	70000685
30	70000686
30	70000688
30	70000689
38	70000693
8	70000694
28	70000694
8	70000695
8	70000696
24	70000697
28	70000698
8	70000699
8	70000700
8	70000701
24	70000703
14	70000704
54	70000706
52	70000707
38	70000710
38	70000711
38	70000712
38	70000713
38	70000714
38	70000715
38	70000716
38	70000717
32	70000720
32	70000721
12	70000728
18	70000728
12	70000729
18	70000729
30	70000730
30	70000732
30	70000733
30	70000734
34	70000735
36	70000735
62	70000735
6	70000736
8	70000737
28	70000738
28	70000739
28	70000740
28	70000741
6	70000744
6	70000745
18	70000748
18	70000749
8	70000750
22	70000751
22	70000752
2	70000753
2	70000754
4	70000755
56	70000757
56	70000758
56	70000759
56	70000760
56	70000761
56	70000763
58	70000767
20	70000807
20	70000812

Page 74 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 74
Ref	Part number	Part name
34	70000813
41	70000820
5	70000822
45	70000827
38	70000828
39	70000829
36	70000831
4	70000832
12	70000833
12	70000834
24	70000841
22	70000842
29	70000845
50	70000847
51	70000848
49	70000849
63	70000850
21	70000854
3	70000884
53	70000885
47	70000887
9	70000908
8	70000908
53	70000928
16	70001060
22	MDC270B0800	MDC270B0800
23	MDC270B0900	MDC270B0900
21	MDC270B1100	MDC270B1100
24	MDC270B1400	MDC270B1400
25	MDC270B1600	MDC270B1600
59	SS6111010TP	SS6111010TP
58	SS6120940SP	SS6120940SP

Page 4 — MISCELLANEOUS COVER COMPONENTS (1)

Page 6 — MISCELLANEOUS COVER COMPONENTS (2)

Page 8 — MISCELLANEOUS COVER COMPONENTS (3)

Page 10 — CRANKSHAFT COMPONENTS

Page 12 — CRANKSHAFT COMPONENTS

Page 14 — NEEDLE DRIVING SHAFT COMPONENTS

Page 16 — THREAD TENSION COMPONENTS

Page 18 — THREAD TENSION COMPONENTS

Page 20 — UPPER LOOPER COMPONENTS

Page 22 — UPPER LOOPER COMPONENTS

Page 24 — LOWER LOOPER COMPONENTS

Page 26 — CHAIN LOOPER COMPONENTS (1)

Page 28 — CHAIN LOOPER COMPONENTS (2)

Page 30 — FEED MECHANISM COMPONENTS (1)

Page 32 — FEED MECHANISM COMPONENTS (2)

Page 34 — KNIFE COMPONENTS

Page 36 — PRESSER FOOT COMPONENTS

Page 38 — PRESSER FOOT COMPONENTS

Page 40 — LUBRICATION MECHANISM COMPONENTS

Page 42 — LUBRICATION MECHANISM COMPONENTS

Page 44 — NEEDLE COOLER UNIT COMPONENTS

Page 46 — THREAD STAND COMPONENTS (FOR MO-6804S)

Page 48 — THREAD STAND COMPONENTS (FOR MO-6814S)

Page 50 — THREAD STAND COMPONENTS (FOR MO-6816S)

Page 52 — THREAD STAND COMPONENTS (FOR MO-6843S)

Page 54 — SEMI-SUNKEN TYPE TABLE COMPONENTS

Page 56 — FULLY-SUNKEN TYPE TABLE COMPONENTS

Page 58 — ACCESSORIES PARTS COMPONENTS

Page 60 — PACKING COMPONENTS

Page 62 — TAPE INSERTION COMPONENTS

Page 64 — 30P COMPONENTS

Page 65 — MO-6800S GAUGE TABLE

Page 66 — MO-6800S GAUGE TABLE

Page 67 — NUMERICAL INDEX OF PARTS

Page 68 — NUMERICAL INDEX OF PARTS

Page 69 — NUMERICAL INDEX OF PARTS

Page 70 — NUMERICAL INDEX OF PARTS

Page 71 — NUMERICAL INDEX OF PARTS

Page 72 — NUMERICAL INDEX OF PARTS

Page 73 — NUMERICAL INDEX OF PARTS

Page 74 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series — parts catalog
