Page 3 — MISCELLANEOUS COVER COMPONENTS (1)

Juki MO-6800S Series parts on page 3

Ref	Part number	Part name	Qty
26	26	26
27	27	27
28	28	28
29	29	29
7	7	7
9	9	9
22	22	22
20	20	20
20	20	20
25	25	25
23	23	23
24	24	24
12	12	12
3	3	3
13	13	13
19	19	19
21	21	21
4	4	4
5	5	5
8	8	8
14	14	14
6	6	6
18	18	18
17	17	17
16	16	16
15	15	15
11	11	11
2	2	2
1	1	1
10	10	10

Page 4 — MISCELLANEOUS COVER COMPONENTS (1)

Juki MO-6800S Series parts on page 4

Ref	Part number	Part name	Qty
	70000363	WASHER	4
	70000365	WASHER	4
	40159534	RUBBER PLUG	1
	40172525	COVER	1
	70000443	METAL FOAM GASKET	1
	*********	NAME PLATE	1
	70000515	E_SCREW	1
	70000522	E_SCREW	1
	70000529	E_SCREW	1
	70000543	E_SCREW	4
	70000544	E_SCREW	4
	70000550	E_SCREW	3
	70000586	M_SCREW	1
	70000659	PIN	1
	70000670	PIN	1
	70000671	PIN	1
	70000672	PIN	1
	70000753	RIVET	2
	70000754	DUCT	2
	70000515	E_SCREW	2
	70000515	E_SCREW	4
	70000529	E_SCREW	1
	40159531	SIDE COVER	1
	40159532	METAL FOAM GASKET	1
	40159533	COVER	1
	40159537	RUBBER PLUG COMB.	1
	40159538	RUBBER PLUG	1
	40159539	FELT	1
	40159540	RUBBER PLUG COVER	1

Page 5 — MISCELLANEOUS COVER COMPONENTS (2)

Juki MO-6800S Series parts on page 5

Ref	Part number	Part name	Qty
	31	31
	27	27
	28	28
	26	26
	25	25
	24	24
	23	23
	22	22
	30	30
	18	18
	19	19
	20	20
	21	21
	5	5
	4	4
	9	9
	10	10
	11	11
	12	12
	8	8
	13	13
	14	14
	15	15
	16	16
	17	17
	2	2
	3	3
	6	6
	7	7
	1	1

Page 6 — MISCELLANEOUS COVER COMPONENTS (2)

Juki MO-6800S Series parts on page 6

Ref	Part number	Part name	Qty
	40159557	FABRIC PLATE COVER CO	1
	70000368	WASHER	2
	70000574	M_SCREW	2
	70000490	RUBBER PLUG	1
	70000334	FIXED SEAT	1
	40159562	WASHER	1
	40159563	M_SCREW	1
	40159556	SIDE COVER	1
	40159555	FABRIC PLATE COVER	1
	40159564	LEVER	1
	40159565	SPRING	1
	70000528	E_SCREW	1
	40159558	BUSHING	1
	40159559	WASHER	1
	40159560	WASHER	1
	70000577	M_SCREW	1
	40159561	RUBBER PLUG	1
	40159552	M_SCREW	1
	40159553	GUIDE PLATE	1
	40159554	OILER COVER	1
	70000516	E_SCREW	2
	70000404	FIXED PLATE	1
	70000518	E_SCREW	1
	70000453	NUT	1
	70000452	NUT	1
	70000563	E_SCREW	1
	70000494	SCREW	2
	70000493	FABRIC GUIDE	1
	70000515	E_SCREW	2
	70000755	SPONGY CUSHION	1
	40159551	LABEL (GROUND_MARK)	1

Page 7 — FIG. 1 MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

Juki MO-6800S Series parts on page 7

Ref	Part number	Part name	Qty
	28	04S/14S
	41	16S/43S
	26	PARTS NO
	27	PARTS NO
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	30	30
	10	10

Page 8 — MISCELLANEOUS COVER COMPONENTS (3)

Juki MO-6800S Series parts on page 8

Ref	Part number	Part name	Qty
	40159571	SIDE COVER	1
	40159573	M_SCREW	1
	40159572	WASHER	1
	40159572	WASHER	1
	40159577	SAFETY PLATE COMB.	1
	40159576	WASHER	2
	40159575	SAFETY PLATE	1
	40159574	SAFETY PLATE BRACKET	1
	70000908	M_SCREW	2
	70000736	LABEL	1
	40159579	OIL LEVEL INSPECTION LI	1
	70000136	GASKET	1
	40159578	OIL LEVEL INSPECTION LI	1
	70000161	LABEL	1
	70000222	O-RING	1
	40159582	TOP COVER	1
	40159583	TOP COVER (43 SIZE)	1
	40159580	E_SCREW	2
	40159581	THREAD GUIDE PLATE	1
	70000563	E_SCREW	4
	40159584	MOTOR COVER	1
	70000520	E_SCREW	3
	70000745	GUIDE PLATE	1
	70000555	E_SCREW	1
	*********	EMBLEM	1
	40159585	FRONT COVER COMB.	1
	40159593	FRONT COVER COMB.	1
	70000481	FRONT COVER	1
	70000660	PIN	1
	40159590	SHAFT	1
	70000577	M_SCREW	2
	40159586	FIXED SEAT	1
	40159587	SPRING	1
	70000744	RETAINING CLIP	1
	70000577	M_SCREW	1
	70000570	M_SCREW	1
	70000569	M_SCREW	1
	40159591	M_SCREW	1
	40159592	FRONT COVER	1
	70000573	M_SCREW	2
	70000820	FRONT COVER	1
	40159589	E_SCREW	3

Page 9 — MODEL CRANKSHAFT COMPONENTS 045/14S 16S/43S

Juki MO-6800S Series parts on page 9

Ref	Part number	Part name	Qty
	20	CRANKSHAFT COMPONENTS
	15	CRANKSHAFT COMPONENTS
	12	PARTS NO
	13	PARTS NO
	21	PARTS NO
	16/17	PARTS NO
	22.46	PARTS NO
	23.47	PARTS NO
	24	PARTS NO
	25	PARTS NO
	26	PARTS NO
	27	PARTS NO
	28	PARTS NO
	29	PARTS NO
	30	PARTS NO
	31	PARTS NO
	32	PARTS NO
	33	PARTS NO
	34	PARTS NO
	35	PARTS NO
	36	PARTS NO
	37	PARTS NO
	38	PARTS NO
	39	PARTS NO
	40	PARTS NO
	41	PARTS NO
	1.2.44	PARTS NO
	43	PARTS NO
	42	PARTS NO
	3.4.45	PARTS NO
	7	PARTS NO
	5	PARTS NO
	6	PARTS NO
	11	PARTS NO
	8	PARTS NO
	9	PARTS NO
	10	PARTS NO
	10	PARTS NO
	13	PARTS NO
	12	PARTS NO
	14	PARTS NO
	19	PARTS NO
	18	PARTS NO
	15	PARTS NO
	16	PARTS NO
	17	PARTS NO
	20	PARTS NO
	21	PARTS NO
	48.60	PARTS NO
	49.61	PARTS NO
	51	PARTS NO
	50	PARTS NO
	52	PARTS NO
	53	PARTS NO
	54	PARTS NO
	55	PARTS NO
	56	PARTS NO
	59	PARTS NO
	57	PARTS NO
	58	PARTS NO

Page 10 — CRANKSHAFT COMPONENTS

Juki MO-6800S Series parts on page 10

Ref	Part number	Part name	Qty
	40159606	MAIN SHAFT COMB.	1
	40159607	MAIN SHAFT COMB. (HIGH)	1
	40159604	MAIN SHAFT	1
	40159605	MAIN SHAFT (HIGH TYPE)	1
	70000565	E.SCREW	2
	70000564	E.SCREW	1
	70000565	E.SCREW	1
	70000619	BALANCE BLOCK	1
	70000620	BALANCE BLOCK	1
	70000535	E.SCREW	4
	70000737	SHAFT	1
	40159608	M.SCREW	1
	70000460	FASTENER PIN	1
	70000130	BUSHING	1
	70000701	BEARING COVER	1
	70000554	E.SCREW	2
	70000562	E.SCREW	1
	70000694	BEARING	1
	70000145	O-RING	1
	70000700	BEARING COVER	1
	70000508	E.SCREW	3
	40159602	HAND WHEEL COMB.	1
	40159601	HAND WHEEL	1
	70000536	E.SCREW	1
	70000546	E.SCREW	1
	70000341	GASKET	1
	70000612	WASHER	1
	40159603	M.SCREW	1
	70000750	FAN BLADE	1
	70000431	SIDE COVER COMB.	1
	70000130	SIDE COVER	1
	70000521	O-RING	1
	70000221	E.SCREW	3
	70000143	O-RING	1
	70000149	WORM WHEEL	1
	70000699	WASHER	1
	70000695	BEARING	1
	70000259	WORM WHEEL	1
	70000257	WORM WHEEL	1
	70000522	E.SCREW	1
	70000314	SHAFT	1
	70000696	BEARING	1
	70000449	STOP RING	1
	40164012	MAIN SHAFT COMB.(30P)	1
	40164011	MAIN SHAFT (30P)	1
	40164057	HAND WHEEL COMB.(30P)	1
	40164058	HAND WHEEL (30P)	1
	40159660	MAIN SHAFT COMB.(SYN)	1
	40159659	HAND WHEEL COMB.(SYNCHRO)	1
	70000536	E.SCREW	1
	70000546	E.SCREW	1
	70000612	WASHER	1
	70000928	M.SCREW	1
	40170846	SYNCHRONIZER STOPPER	1
	40170847	SYNCHRONIZER BASE,STU	1
	40170848	SYNCHRONIZER STOPPER	1
	40022255	SYNCHRONIZER STOPPER	1
	SS6120940SP	SCREW 3/16-28 L=9	1
	SS6111010TP	SCREW 11/64-40 L= 9.5	1
	40164010	HAND WHEEL COMB.(30P)	1

Page 11 — CRANKSHAFT COMPONENTS 16S/43S

Juki MO-6800S Series parts on page 11

Ref	Part number	Part name	Qty
	20	CRANKSHAFT COMPONENTS
	15	CRANKSHAFT COMPONENTS
	12	PARTS NO
	13	PARTS NO
	21	PARTS NO
	16/17	PARTS NO
	22.46	PARTS NO
	23.47	PARTS NO
	27	PARTS NO
	28	PARTS NO
	26	PARTS NO
	29	PARTS NO
	24	PARTS NO
	30	PARTS NO
	25	PARTS NO
	33	PARTS NO
	31	PARTS NO
	32	PARTS NO
	34	PARTS NO
	35	PARTS NO
	36	PARTS NO
	37	PARTS NO
	38	PARTS NO
	40	PARTS NO
	39	PARTS NO
	41	PARTS NO
	1.2.44	PARTS NO
	3.4.45	PARTS NO
	43	PARTS NO
	42	PARTS NO
	7	PARTS NO
	5	PARTS NO
	6	PARTS NO
	11	PARTS NO
	9	PARTS NO
	8	PARTS NO
	10	PARTS NO
	48.60	PARTS NO
	49.61	PARTS NO
	52	PARTS NO
	53	PARTS NO
	51	PARTS NO
	50	PARTS NO
	14	PARTS NO
	18	PARTS NO
	19	PARTS NO
	15	PARTS NO
	16	PARTS NO
	17	PARTS NO
	20	PARTS NO
	21	PARTS NO
	54	PARTS NO
	56	PARTS NO
	59	PARTS NO
	55	PARTS NO
	57	PARTS NO
	58	PARTS NO

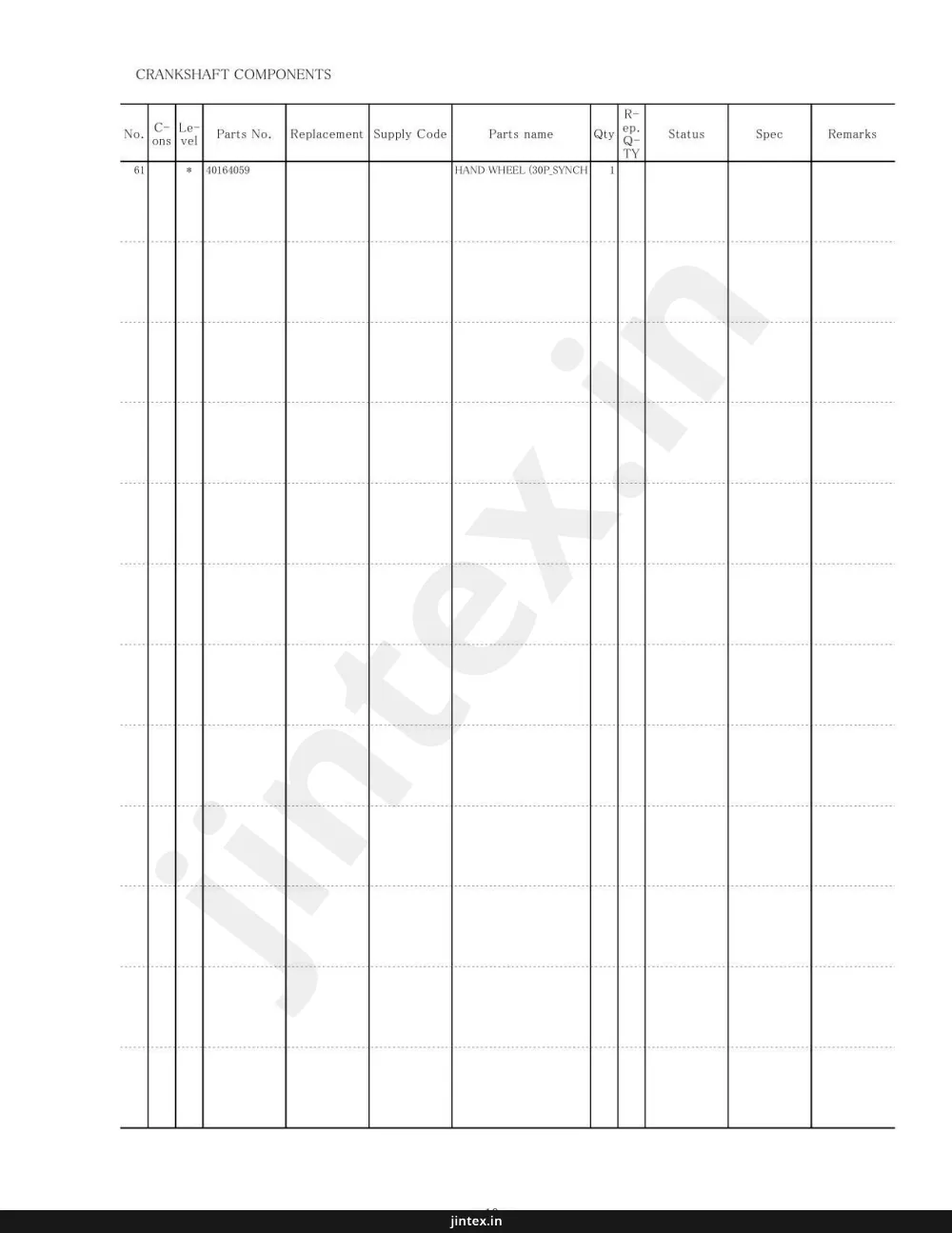

Page 12 — CRANKSHAFT COMPONENTS

Juki MO-6800S Series parts on page 12

Ref	Part number	Part name	Qty
61	40164059	HAND WHEEL (30P_SYNCH)	1

Page 13 — NEEDLE DRIVING SHAFT COMPONENTS

Juki MO-6800S Series parts on page 13

Ref	Part number	Part name	Qty
1	1	SHAFT
2	2	COLLAR
3	3	COLLAR
4	4	SCREW
5	5	COLLAR
6	6	CONNECTING ROD
7	7	SCREW
8	8	CONNECTING ROD
9	9	SCREW
10	10	COLLAR
11	11	COLLAR
12	12	COLLAR
13	13	COLLAR
14	14	COLLAR
15	15	COLLAR
16	16	COLLAR
17	17	COLLAR
18	18	SPRING WASHER
19	19	COLLAR
20	20	SHAFT
21	21	SHAFT
22	22	COLLAR
23	23	COLLAR
24	24	SCREW
25	25	COLLAR
26	26	COLLAR
27	27	COLLAR
28	28	COLLAR
29	29	COLLAR
30	30	COLLAR
31	31	COLLAR
32	32	COLLAR
33	33	COLLAR
34	34	COLLAR
35	35	COLLAR
36	36	SHAFT

Page 14 — NEEDLE DRIVING SHAFT COMPONENTS

Juki MO-6800S Series parts on page 14

Ref	Part number	Part name	Qty
	40159615	SHAFT COMB.	1
	70000643	SHAFT	1
	70000640	NEEDLE BAR ROCKER	1
	70000588	M_SCREW	1
	70000646	PIN	1
	70000522	E_SCREW	1
	40159618	CONNECTING ROD COMB.
	40159617	CONNECTING ROD	1
	70000578	M_SCREW	2
	70000267	OIL FELT	1
	70000266	PLUG	1
	70000677	OIL FELT	1
	70000437	COLLAR	1
	70000432	COLLAR	1
	70000522	E_SCREW	2
	70000637	BUSHING	1
	70000362	WASHER	1
	70000134	E_CIRCLIPS	1
	70000639	BUSHING	1
	70000635	ARBOR	1
	40159619	NEEDLE BAR COMB.
	70000633	CONNECTING ROD COMB.
	70000632	CONNECTING ROD	1
	70000593	M_SCREW	1
	70000638	SHAFT COMB.
	70000636	SHAFT	1
	70000728	OIL YARN	2
	70000729	OIL WICK	1
	70000654	NEEDLE BAR	1
	40159620	BUSHING	1
	70000676	OIL FELT	1
	40159658	NEEDLE BAR (44H)	1
	70000503	E_SCREW	1
	70000445	PLUG	1
	70000141	O-RING	2
	40159623	NEEDLE BAR COMB.(44H)	1

Page 15

Juki MO-6800S Series parts on page 15

Ref	Part number	Part name	Qty
	5	THREAD TENSION COMPONENTS
	6	THREAD TENSION COMPONENTS
	10	THREAD TENSION COMPONENTS
	17	THREAD TENSION COMPONENTS
	113	THREAD TENSION COMPONENTS
	54	THREAD TENSION COMPONENTS
	53	THREAD TENSION COMPONENTS
	55	THREAD TENSION COMPONENTS
	56	THREAD TENSION COMPONENTS
	51	THREAD TENSION COMPONENTS
	51	THREAD TENSION COMPONENTS
	52	THREAD TENSION COMPONENTS
	52	THREAD TENSION COMPONENTS
	63	THREAD TENSION COMPONENTS
	63	THREAD TENSION COMPONENTS
	64	THREAD TENSION COMPONENTS
	64	THREAD TENSION COMPONENTS
	44	THREAD TENSION COMPONENTS
	44	THREAD TENSION COMPONENTS
	45	THREAD TENSION COMPONENTS
	45	THREAD TENSION COMPONENTS
	38	THREAD TENSION COMPONENTS
	37	THREAD TENSION COMPONENTS
	114	THREAD TENSION COMPONENTS
	39	THREAD TENSION COMPONENTS
	8	THREAD TENSION COMPONENTS
	8	THREAD TENSION COMPONENTS
	15	THREAD TENSION COMPONENTS
	15	THREAD TENSION COMPONENTS
	2	THREAD TENSION COMPONENTS
	2	THREAD TENSION COMPONENTS
	20	THREAD TENSION COMPONENTS
	20	THREAD TENSION COMPONENTS
	9	THREAD TENSION COMPONENTS
	9	THREAD TENSION COMPONENTS
	21	THREAD TENSION COMPONENTS
	21	THREAD TENSION COMPONENTS
	35	THREAD TENSION COMPONENTS
	35	THREAD TENSION COMPONENTS
	14	THREAD TENSION COMPONENTS
	14	THREAD TENSION COMPONENTS
	3	THREAD TENSION COMPONENTS
	4	THREAD TENSION COMPONENTS
	36	THREAD TENSION COMPONENTS
	36	THREAD TENSION COMPONENTS
	47	THREAD TENSION COMPONENTS
	47	THREAD TENSION COMPONENTS
	11	THREAD TENSION COMPONENTS
	12	THREAD TENSION COMPONENTS
	48	THREAD TENSION COMPONENTS
	48	THREAD TENSION COMPONENTS
	48	THREAD TENSION COMPONENTS
	48	THREAD TENSION COMPONENTS
1	1	FOR(04S/14S)
10	10	FOR(04S/14S)
2	2	FOR(04S/14S)
3	3	FOR(04S/14S)
4	4	FOR(04S/14S)
5	5	FOR(04S/14S)
6	6	FOR(04S/14S)
7	7	FOR(04S/14S)
8	8	FOR(04S/14S)
9	9	FOR(04S/14S)
11	11	FOR(16S/43S)
12	12	FOR(16S/43S)
13	13	FOR(16S/43S)
15	15	FOR(16S/43S)
16	16	FOR(16S/43S)
17	17	FOR(16S/43S)
18	18	FOR(16S/43S)
19	19	FOR(16S/43S)
20	20	FOR(16S/43S)
21	21	FOR(16S/43S)
22	22	FOR(16S/43S)
1	1	FOR(16S/43S)
10	10	FOR(16S/43S)
20	20	FOR(16S/43S)
23	23	MAIN MACHINE BODY
24	24	MAIN MACHINE BODY
25	25	MAIN MACHINE BODY
26	26	MAIN MACHINE BODY
27	27	MAIN MACHINE BODY
28	28	MAIN MACHINE BODY
29	29	MAIN MACHINE BODY
30	30	MAIN MACHINE BODY
31	31	MAIN MACHINE BODY
32	32	MAIN MACHINE BODY
33	33	MAIN MACHINE BODY
34	34	MAIN MACHINE BODY
35	35	MAIN MACHINE BODY
36	36	MAIN MACHINE BODY
37	37	MAIN MACHINE BODY
39	39	MAIN MACHINE BODY
40	40	MAIN MACHINE BODY
41	41	MAIN MACHINE BODY
42	42	MAIN MACHINE BODY
43	43	MAIN MACHINE BODY
44	44	MAIN MACHINE BODY
45	45	MAIN MACHINE BODY
46	46	MAIN MACHINE BODY
47	47	MAIN MACHINE BODY
48	48	MAIN MACHINE BODY
49	49	MAIN MACHINE BODY
50	50	MAIN MACHINE BODY
51	51	MAIN MACHINE BODY
52	52	MAIN MACHINE BODY
53	53	MAIN MACHINE BODY
54	54	MAIN MACHINE BODY
55	55	MAIN MACHINE BODY
56	56	MAIN MACHINE BODY
57	57	MAIN MACHINE BODY
58	58	MAIN MACHINE BODY
59	59	MAIN MACHINE BODY
60	60	MAIN MACHINE BODY
61	61	MAIN MACHINE BODY
62	62	MAIN MACHINE BODY
63	63	MAIN MACHINE BODY
64	64	MAIN MACHINE BODY
65	65	MAIN MACHINE BODY
66	66	FOR(16S/43S)
67	67	FOR(16S/43S)
68	68	FOR(16S/43S)
69	69	FOR(16S/43S)
70	70	FOR(16S/43S)
71	71	FOR(16S/43S)
72	72	FOR(16S/43S)
73	73	MAIN MACHINE BODY
74	74	MAIN MACHINE BODY
75	75	FOR(04S)
75	75	FOR(14S/16S)
75	75	FOR(43S)
76	76	FOR(43S)
77	77	FOR(04S)
77	77	FOR(14S/16S)
77	77	FOR(43S)
78	78	FOR(04S)
78	78	FOR(14S/16S)
78	78	FOR(43S)
79	79	FOR(04S)
79	79	FOR(14S/16S)
79	79	FOR(43S)
80	80	FOR(04S)
80	80	FOR(14S/16S)
80	80	FOR(43S)
81	81	FOR(04S)
81	81	FOR(14S/16S)
81	81	FOR(43S)
82	82	FOR(04S)
82	82	FOR(14S/16S)
82	82	FOR(43S)
83	83	FOR(04S)
83	83	FOR(14S/16S)
83	83	FOR(43S)
84	84	FOR(04S)
84	84	FOR(14S/16S)
84	84	FOR(43S)
85	85	FOR(04S)
85	85	FOR(14S/16S)
85	85	FOR(43S)
86	86	FOR(04S)
87	87	FOR(04S)
87	87	FOR(14S/16S)
87	87	FOR(43S)
88	88	FOR(04S)
88	88	FOR(14S/16S)
88	88	FOR(43S)
89	89	FOR(04S)
89	89	FOR(14S/16S)
89	89	FOR(43S)
90	90	FOR(04S)
90	90	FOR(14S/16S)
90	90	FOR(43S)
91	91	FOR(04S)
91	91	FOR(14S/16S)
91	91	FOR(43S)
92	92	FOR(04S)
92	92	FOR(14S/16S)
92	92	FOR(43S)
93	93	FOR(04S)
93	93	FOR(14S/16S)
93	93	FOR(43S)
94	94	FOR(04S)
94	94	FOR(14S/16S)
94	94	FOR(43S)
95	95	FOR(04S)
95	95	FOR(14S/16S)
96	96	FOR(04S)
96	96	FOR(14S/16S)
97	97	FOR(04S)
97	97	FOR(14S/16S)
98	98	FOR(04S)
98	98	FOR(14S/16S)
99	99	FOR(14S/16S)
100	100	FOR(14S/16S)
101	101	FOR(14S/16S)
102	102	FOR(14S/16S)
103	103	FOR(14S/16S)
104	104	FOR(14S/16S)
105	105	FOR(14S/16S)
106	106	FOR(14S/16S)
107	107	FOR(14S/16S)
107	107	FOR(43S)
108	108	FOR(14S/16S)
108	108	FOR(43S)
109	109	FOR(14S/16S)
109	109	FOR(43S)
110	110	FOR(14S/16S)
110	110	FOR(43S)
111	111	FOR(14S/16S)
111	111	FOR(43S)
112	112	FOR(14S/16S)
112	112	FOR(43S)

Page 16 — THREAD TENSION COMPONENTS

Juki MO-6800S Series parts on page 16

Ref	Part number	Part name	Qty
	40159645	THREAD GUIDE PLATE	1
	70000513	E_SCREW	1
	70000173	FIXED PLATE COMB.	1
	70000832	FIXED PLATE COMB.	1
	70000822	THREAD GUIDE PLATE	1
	40159650	THREAD GUIDE PLATE	1
	70000164	FIXED PLATE	1
	70000549	E_SCREW	1
	70000549	E_SCREW	1
	40159646	THREAD GUIDE PLATE	1
	70000174	FIXED PLATE	1
	70000833	FIXED SEAT COMB.	1
	70000171	FIXED SEAT	1
	70000559	E_SCREW	2
	70000198	E_SCREW	2
	40159647	THREAD GUIDE PLATE	1
	40159651	THREAD GUIDE PLATE	1
	40159648	THREAD GUIDE PLATE	1
	70000169	FIXED BLOCK	1
	70000513	E_SCREW	2
	70000555	E_SCREW	1
	70000168	THREAD GUIDE PLATE	1
	70000629	CATCHER	1
	70000653	CRAMP	1
	70000652	CRAMP	1
	70000572	M_SCREW	1
	40159629	M_SCREW	1
	70000598	SPRING	1
	70000626	THREAD GRIP	1
	70000627	THREAD GRIP	1
	*********	NEEDLE CLAMP	1
	*********	NEEDLE CLAMP	1
	*********	NEEDLE CLAMP	1
	70000498	E_SCREW	2
	70000567	M_SCREW	1
	70000831	M_SCREW	1
	70000628	THREAD CROSSING	1
	70000828	THREAD CROSSING	1
	70000829	THREAD CROSSING	1
	*********	NEEDLE	2
	*********	NEEDLE	1
	*********	NEEDLE	3
	70000550	NEEDLE	2
	70000469	NEEDLE GUARD	2
	70000827	NEEDLE GUARD	1
	70000555	OILER	1
	70000887	OILER	1
	40159652	OILER	1
	70000849	OILER COVER	1
	70000847	OILER	1
	70000848	OIL FELT	1
	70000885	OIL FELT	1
	40159630	THREAD TAKE-UP LEVER	1
	40159653	THREAD TAKE-UP LEVER	1
	40159654	THREAD TAKE-UP LEVER	1
	40159655	THREAD TAKE-UP LEVER	1
	70000505	E_SCREW	2
	40159628	NEEDLE PLATE BRACKET	1
	70000704	RUBBER PLUG	2
	40159626	NEEDLE PLATE BRACKET	1

Page 17

Juki MO-6800S Series parts on page 17

Ref	Part number	Part name	Qty
	5	5
	6	6
	10	10
	17	17
	54	54
	53	53
	55	55
	56	56
	113	113
	51	51
	51	51
	52	52
	52	52
	63	63
	63	63
	64	64
	64	64
	44	44
	44	44
	45	45
	45	45
	38	38
	37	37
	114	114
	39	39
	8	8
	8	8
	15	15
	15	15
	2	2
	2	2
	20	20
	20	20
	9	9
	9	9
	21	21
	21	21
	35	35
	35	35
	14	14
	14	14
	3	3
	4	4
	36	36
	36	36
	47	47
	47	47
	11	11
	12	12
	48	48
	48	48
	1	1
	10	10
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	11	11
	12	12
	13	13
	14	14
	15	15
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	34	34
	35	35
	36	36
	37	37
	39	39
	40	40
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	56	56
	57	57
	58	58
	59	59
	60	60
	61	61
	61	61
	62	62
	63	63
	64	64
	65	65
	66	66
	67	67
	68	68
	69	69
	70	70
	71	71
	72	72
	73	73
	74	74
	75	75
	75	75
	75	75
	76	76
	77	77
	78	78
	78	78
	78	78
	79	79
	80	80
	81	81
	82	82
	83	83
	83	83
	83	83
	84	84
	84	84
	84	84
	85	85
	85	85
	85	85
	86	86
	87	87
	88	88
	88	88
	88	88
	89	89
	89	89
	89	89
	90	90
	90	90
	90	90
	91	91
	91	91
	91	91
	92	92
	92	92
	92	92
	93	93
	93	93
	94	94
	94	94
	95	95
	96	96
	97	97
	98	98
	99	99
	100	100
	101	101
	102	102
	103	103
	104	104
	105	105
	106	106
	107	107
	107	107
	108	108
	108	108
	109	109
	109	109
	109	109
	110	110
	110	110
	111	111
	111	111
	112	112
	112	112
	113	113
	114	114

Page 18

Juki MO-6800S Series parts on page 18

Ref	Part number	Part name	Qty
	70000516	E_SCREW	2
	*********	THROAT PLATE	1
	70000850	THREAD GUIDE PLATE	1
	40159649	THREAD GUIDE PLATE	1
	40159625	E_SCREW	1
	70000337	FIXED SEAT COMB.	1
	70000336	NEEDLE GUARD	1
	70000497	E_SCREW	2
	70000630	NEEDLE GUARD	1
	70000335	NEEDLE GUARD	1
	70000526	E_SCREW	2
	70000497	E_SCREW	2
	70000550	E_SCREW	2
	40159627	NEEDLE PLATE BRACKET	1
	40159631	THREAD GUIDE PLATE	11
	40159644	THREAD GUIDE PLATE	1
	40159640	THREAD TENSION COMB. (	3
	40159632	THREAD TENSION SHAFT	1
	40159634	SLEEVE	1
	70000211	SPRING	1
	40159636	FIXED RING	1
	40178548	THREAD TENSION KNOB. (	1
	40159633	THREAD TENSION RUBBER	12
	70000203	THREAD GRIP	24
	70000213	OIL FELT	12
	70000513	E_SCREW	1
	40159641	THREAD TENSION COMB. (	3
	40159632	THREAD TENSION SHAFT	1
	40159634	SLEEVE	1
	40159624	SPRING	1
	40159636	FIXED RING	1
	40178550	THREAD TENSION KNOB. (	1
	40159642	THREAD TENSION COMB.	1
	40159632	THREAD TENSION SHAFT	1
	40159634	SLEEVE	1
	40159624	SPRING	1
	40159636	FIXED RING	1
	40178549	THREAD TENSION KNOB. (	1
	40159642	THREAD TENSION COMB. (	1
	40159656	THREAD TENSION COMB. (	1
	40159632	THREAD TENSION SHAFT	1
	40159634	SLEEVE	1
	40159624	SPRING	1
	40159657	SPRING	1
	40159636	FIXED RING	1
	40178549	THREAD TENSION KNOB. (	1
	40159643	THREAD TENSION COMB. (	3
	40178550	THREAD TENSION KNOB. (	1
	40159632	THREAD TENSION SHAFT	1
	40159634	SLEEVE	1
	70000211	SPRING	1
	40159636	FIXED RING	1
	40164056	THREAD TAKE-UP LEVER	1
	40172527	THREAD CROSSING	1

Page 19

Juki MO-6800S Series parts on page 19

Ref	Part number	Part name	Qty
	73	73
	72	72
	70	70
	71+72	71+72
	12	12
	11	11
	12	12
	10	10
	9	9
	10	10
	1	1
	2	2
	36	36
	37	37
	38	38
	24	24
	25	25
	26	26
	59	59
	60	60
	61	61
	14	14
	80	80
	81	81
	14	14
	82	82
	83	83
	74	74
	3	3
	5	5
	7	7
	6	6
	4	4
	8	8
	66	66
	64	64
	65	65
	63	63
	70~73	70~73
	62	62
	75	75
	9.10	9.10
	11.12	11.12
	74.82.83	74.82.83
	13	13
	14.80.81	14.80.81
	15	15
	39	39
	23	23
	22	22
	21	21
	40	40
	41	41
	42	42
	43	43
	24~26	24~26
	36~38	36~38
	27	27
	35	35
	28	28
	29	29
	30	30
	31	31
	59~61	59~61
	53	53
	51	51
	52	52
	55	55
	54	54
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	57	57
	58	58
	33	33
	32	32
	34	34
	77	77
	78	78
	79	79
	56	56
	20	20
	16	16
	17	17
	19	19
	18	18
	69	69
	68	68
	84	84

Page 20 — UPPER LOOPER COMPONENTS

Juki MO-6800S Series parts on page 20

Ref	Part number	Part name	Qty
	40159686	BALL CONNECTING ROD (	1
	40159687	BALL CONNECTING ROD (	1
	40179596	E_SCREW	2
	40179597	E_SCREW	2
	40179597	BALL CONNECTING ROD (	1
	70000545	E_SCREW	1
	70000546	FIXED JAW	1
	70000254	BALL CONNECTING ROD (	1
	40159678	BALL CONNECTING ROD (	1
	40159679	BALL CONNECTING ROD (	1
	70000834	BALL CONNECTING ROD (	1
	70000590	M_SCREW	1
	70000591	CONNECTING ROD SEAT (	1
	70000198	E_SCREW	1
	70000199	LOOPER CONNECTING RC	1
	70000661	PIN	2
	70000728	OIL YARN	1
	70000729	OIL WICK	1
	40172535	LOOPER CONNECTING RC	1
	70000240	CONNECTING ROD COMB.	1
	70000239	CONNECTING ROD	1
	70000593	M_SCREW	1
	40159675	CONNECTING ROD SEAT (	1
	40159681	CONNECTING ROD SEAT (	1
	40159682	CONNECTING ROD SEAT (	1
	70000678	OIL WICK	1
	70000243	FIXED PLATE	1
	40159671	OIL FELT	1
	40159672	FELT COVER	1
	70000538	E_SCREW	1
	70000193	THREAD CROSSING	1
	70000560	E_SCREW	1
	40159674	E_SCREW	1
	70000241	LOOPER GUIDE SHAFT	1
	70000241	LOOPER GUIDE SHAFT	1
	70000241	LOOPER GUIDE SHAFT	1
	40159673	CONNECTING ROD SEAT (	1
	40159679	CONNECTING ROD SEAT (	1
	40159680	CONNECTING ROD SEAT (	1
	70000248	BUSHING	1
	70000749	COVER	1
	70000748	COVER	1
	70000268	OIL SEAL	1
	70000515	E_SCREW	1
	70000202	THREAD CROSSING COMB	1
	70000197	THREAD CROSSING	1
	70000198	THREAD CROSSING	1
	70000501	E_SCREW	2
	70000521	E_SCREW	2
	70000521	GRADUATED PLATE COMI	1
	70000201	FIXED PLATE	1
	70000194	THREAD CROSSING	1
	70000200	THREAD CROSSING	1
	70000195	E_SCREW	2
	70000501	WASHER	2
	70000350	LOOPER	1
	*********	WASHER	1
	40159670	E_SCREW	1
	70000504	REFER "MO-680	1

Page 21

Juki MO-6800S Series parts on page 21

Ref	Part number	Part name	Qty
	73	73
	72	72
	70	70
	71 + /2	71 + /2
	12	12
	11	11
	12	12
	10	10
	9	9
	10	10
	2	2
	2	2
	37	37
	38	38
	36	36
	24	24
	26	26
	24	24
	59	59
	60	60
	61	61
	14	14
	81	81
	14	14
	82	82
	83	83
	74	74
3	3	3
5	5	5
7	7	7
4	4	4
6	6	6
8	8	8
66	66	66
64	64	64
65	65	65
63	63	63
62	62	62
75	75	75
9	9	9
10	10	10
11	11	11
12	12	12
74	74	74
82	82	82
83	83	83
13	13	13
39	39	39
23	23	23
22	22	22
40	40	40
41	41	41
15	15	15
42	42	42
43	43	43
69	69	69
27	27	27
36~38	36~38	36~38
45	45	45
46	46	46
47	47	47
48	48	48
35	35	35
24~26	24~26	24~26
28	28	28
53	53	53
51	51	51
52	52	52
44	44	44
59~61	59~61	59~61
54	54	54
50	50	50
55	55	55
54	54	54
49	49	49
29	29	29
31	31	31
30	30	30
57	57	57
58	58	58
32	32	32
33	33	33
34	34	34
77	77	77
78	78	78
79	79	79
76	76	76
20	20	20
56	56	56
17	17	17
16	16	16
19	19	19
18	18	18
84	84	84

Page 22 — UPPER LOOPER COMPONENTS

Juki MO-6800S Series parts on page 22

Ref	Part number	Part name	Qty
	70000196	THREAD CROSSING	1
	70000812	THREAD GUIDE	1
	40159683	THREAD GUIDE	1
	70000247	BUSHING	1
	70000246	ARBOR COMB.	1
	70000257	GASKET	1
	7000013	WASHER	1
	70000517	E.SCREW	1
	70000522	E.SCREW	1
	70000587	M.SCREW	2
	70000679	OIL WICK	1
	40159666	COLLAR COMB.	1
	70000807	COLLAR COMB.	1
	40159676	COLLAR COMB.	1
	40159677	COLLAR COMB.	1
	40159665	COLLAR	1
	70000522	E.SCREW	2
	70000522	E.SCREW	1
	40159669	OIL TUBE	1
	40159668	OIL WICK	1
	40159667	OIL TUBE	1
	40159681	CONNECTING ROD SEAT C	1
	40159682	CONNECTING ROD SEAT C	1
	40177859	COLLAR	1
	40159715	COLLAR	1
	40176583	LOOPER	1

Page 23 — MODEL 045/145 COMPONENTS 16S-50H

Juki MO-6800S Series parts on page 23

Ref	Part number	Part name	Qty
	15	1	1
	16	2	2
	25	37	37
	24	38	38
	17	36	36
	35	35	35

Page 24

Juki MO-6800S Series parts on page 24

Ref	Part number	Part name	Qty
	40159692	LOOPER HOLDER COMB.	1
	40159694	LOOPER HOLDER COMB.	1
	70000407	LOOPER HOLDER	1
	70000406	LOOPER HOLDER	1
	70000667	PIN	1
	70000380	GASKET	1
	70000531	E_SCREW	1
	70000751	WASHER	1
	70000511	E_SCREW	1
	70000175	EJECTOR PLATE	1
	70000505	E_SCREW	1
	70000405	LOOPER	1
	70000525	E_SCREW	1
	70000506	E_SCREW	1
	70000199	THREAD GUIDE PLATE	1
	40159693	THREAD GUIDE PLATE	1
	40159689	BALL CONNECTING ROD C	1
	40179596	CONNECTING ROD	1
	40178084	BALL CONNECTING ROD	1
	40179597	E_SCREW	2
	40179597	E_SCREW	2
	40159684	FIXED JAW	1
	70000545	E_SCREW	1
	70000415	BALL CONNECTING ROD	1
	70000413	BALL CONNECTING ROD	1
	70000590	M_SCREW	1
	70000517	E_SCREW	1
	70000410	BUSHING	1
	70000270	OIL SEAL	1
	70000752	WASHER	1
	70000410	BUSHING	1
	70000409	ARBOR	1
	70000343	GASKET	1
	70000614	WASHER	1
	40159690	BALL CONNECTING ROD C	1
	70000416	BALL CONNECTING ROD	1
	70000414	BALL CONNECTING ROD	1
	70000522	E_SCREW	1
	70000590	M_SCREW	1

Page 25 — CHAIN LOOPER COMPONENTS (1)

Juki MO-6800S Series parts on page 25

Ref	Part number	Part name	Qty
	1	CHAIN LOOPER COMPONENTS (1)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38

Page 26 — CHAIN LOOPER COMPONENTS (1)

Juki MO-6800S Series parts on page 26

Ref	Part number	Part name	Qty
	70000179	CONNECTING ROD COMB.	1
	70000139	O-RING	1
	70000317	BUSHING	1
	70000346	GASKET	1
	70000357	WASHER	1
	70000463	ADJUSTING SEAT	1
	70000464	ADJUSTING SEAT	1
	70000467	SHAFT	1
	70000478	CONNECTING ROD	1
	70000514	E_SCREW	1
	70000561	E_SCREW	1
	70000616	WASHER	1
	70000697	BEARING	1
	70000703	ECCENTRIC	1
	70000465	SLIDE BLOCK GUIDE	1
	70000461	SHAFT	1
	70000466	SLIDE BLOCK GUIDE	1
	70000462	SLIDE BLOCK GUIDE	1
	70000590	M_SCREW	1
	70000475	LOOPER COMB.	1
	70000476	LOOPER HOLDER	1
	70000351	WASHER	1
	70000474	LOOPER HOLDER	1
	70000380	GASKET	1
	70000531	E_SCREW	1
	70000473	LOOPER	1
	70000508	E_SCREW	1
	70000270	OIL SEAL	1
	70000525	SCREW	1
	70000471	LOOPER CONNECTING RC	1
	70000470	LOOPER CONNECTING RC	1
	70000590	M_SCREW	1
	70000477	BUSHING	1
	70000410	BUSHING	1
	70000472	BUSHING	1
	70000317	CONNECTING ROD	1
	70000346	GASKET	1
	70000514	E_SCREW	1

Page 27

Juki MO-6800S Series parts on page 27

Ref	Part number	Part name	Qty
	1	CHAIN LOOPER COMPONENTS (2)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31

Page 28 — CHAIN LOOPER COMPONENTS (2)

Juki MO-6800S Series parts on page 28

Ref	Part number	Part name	Qty
	70000397	DUST COMB.	1
	70000172	PLUG	2
	70000396	DUCT	1
	70000398	FIXED PLATE	2
	70000359	WASHER	2
	70000387	THREAD GUIDE PLATE	1
	70000519	E-SCREW	1
	70000576	M_SCREW	1
	70000384	THREAD CROSSING	1
	70000513	E_SCREW	1
	70000391	THREAD TAKE-UP DEVICE	1
	70000392	THREAD GRIP	2
	70000393	THREAD TENSION KNOB	1
	70000394	SPRING	1
	70000395	THREAD TENSION SHAFT	1
	70000388	BRACKET	1
	70000389	THREAD GUIDE PLATE	1
	70000390	THREAD GUIDE PLATE	1
	70000571	E_SCREW	1
	70000452	NUT	1
	70000557	E_SCREW	1
	70000383	THREAD GUIDE PLATE	1
	70000148	SPRING PLATE	1
	70000386	THREAD TENSION CAM	1
	70000385	THREAD TENSION CAM	1
	70000198	E_SCREW	2
	70000453	NUT	1
	70000452	NUT	1
	70000563	E_SCREW	1
	70000518	E_SCREW	1
	70000610	FIXED PLATE	1

Page 29 — FEED MECHANISM COMPONENTS (1)

Juki MO-6800S Series parts on page 29

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41
	42	42
	43	43
	44	44
	45	45
	46	46
	47	47
	48	48
	49	49
	50	50
	51	51
	52	52
	53	53
	54	54
	55	55
	56	56
	57	57
	58	58

Page 30 — FEED MECHANISM COMPONENTS (1)

Juki MO-6800S Series parts on page 30

Ref	Part number	Part name	Qty
	40159707	FEED DOG SEAT COMB.	1
	70000140	O-RING	1
	70000344	GASKET	2
	70000345	WASHER	1
	70000349	WASHER	2
	70000372	FIXED BLOCK	2
	70000373	ADJUSTING SEAT	1
	70000379	ADJUSTING PLATE	1
	70000450	NUT	1
	70000495	SCREW	1
	70000542	E_SCREW	1
	70000601	SPRING	1
	70000512	E_SCREW	2
	70000131	E_CLIPS	1
	70000353	WASHER	1
	40159702	SPACER	2
	40159703	ADJUSTING SCREW	1
	40159704	SPRING	1
	40159705	BLOCK	1
	40159706	FEED DOG SEAT	1
	70000523	E_SCREW	2
	70000370	DIFFERENTIAL CONNECTI	1
	70000369	DIFFERENTIAL CONNECTI	1
	70000590	M_SCREW	1
	40159700	BUSHING	1
	70000552	E_SCREW	1
	40159701	CONNECTING ROD	1
	70000276	ADJUSTING WHEEL	1
	70000275	ADJUSTING WHEEL	1
	70000582	M_SCREW	2
	70000666	PIN	1
	40159709	CONNECTING ROD COMB.	1
	70000162	SPRING PLATE	1
	70000277	CONNECTING ROD	1
	70000602	SPRING	1
	70000662	PIN	1
	70000698	BEARING	1
	40159629	M_SCREW	1
	70000503	E_SCREW	1
	70000282	ECCENTRIC	1
	70000665	PIN	2
	70000289	ECCENTRIC	1
	70000288	ECCENTRIC	1
	70000502	E_SCREW	2
	70000741	ADJUSTING WHEEL COMB	1
	70000740	ADJUSTING WHEEL	1
	70000583	M_SCREW	1
	70000738	SLIDE BLOCK	1
	70000739	ADJUSTING WHEEL	1
	70000582	M_SCREW	1
	70000694	SCREW	1
	70000284	SHAFT COMB.	1
	70000137	O-RING	1
	70000286	SHAFT	1
	70000283	SHAFT	1
	70000131	E_CLIPS	1
	70000358	WASHER	1
	70000600	SPRING	1

Page 31 — FEED MECHANISM COMPONENTS (2)

Juki MO-6800S Series parts on page 31

Ref	Part number	Part name	Qty
	1	FEED MECHANISM COMPONENTS (2)
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58

Page 32 — FEED MECHANISM COMPONENTS (2)

Juki MO-6800S Series parts on page 32

Ref	Part number	Part name	Qty
	*********	FEED DOG	1
	70000009	E_SCREW	1
	70000683	CRANK COMB.	1
	70000374	ROCKING SEAT	1
	70000375	ROCKING SEAT	1
	70000558	E_SCREW	2
	70000684	CRANK	1
	70000681	CRANK	1
	70000590	M_SCREW	1
	70000361	WASHER	1
	70000280	BUSHING	1
	70000446	OIL SEAL	1
	40159717	ECCENTRIC SHAFT COMB	1
	70000133	E_CIRCLIPS	1
	40159716	ECCENTRIC SHAFT	1
	70000435	COLLAR	1
	70000433	COLLAR	1
	70000522	E_SCREW	1
	70000147	OIL SEAL COMB.	1
	70000138	OIL SEAL	1
	70000548	E_SCREW	1
	70000734	ECCENTRIC SHAFT	1
	70000135	E_CIRCLIPS	1
	70000733	ECCENTRIC SHAFT	1
	70000141	O-RING	1
	70000685	CRANK	1
	70000682	CRANK	1
	70000590	M_SCREW	1
	70000356	WASHER	1
	70000458	NUT	1
	70000688	ADJUSTING SHAFT	1
	70000410	BUSHING	1
	40159676	COLLAR	1
	70000522	E_SCREW	2
	40159715	COLLAR	1
	70000433	COLLAR	1
	70000522	E_SCREW	1
	70000731	FEED DOG SEAT COMB.	1
	70000422	FEED DOG SEAT	1
	70000423	CONNECTING ROD	1
	70000429	SLIDE BLOCK	1
	70000686	SLIDE BLOCK	1
	70000689	FEED DOG SEAT	1
	70000732	SLIDE BLOCK	1
	70000317	BUSHING	1
	70000346	GASKET	1
	70000514	E_SCREW	1
	70000572	M_SCREW	1
	*********	FEED DOG	1
	*********	FEED DOG	1
	70000509	E_SCREW	1
	70000530	E_SCREW	1
	70000151	OIL SCRAPER HOLDER	1
	70000152	OIL SEAL	2
	70000508	E_SCREW	2
	40159718	OIL SEAL	1
	40159719	SLIDE BLOCK	1
	70000132	E_CIRCLIPS	1

Page 33

Juki MO-6800S Series parts on page 33

Ref	Part number	Part name	Qty
23	23	24
21	21	22
16	16	17
11	11	12
9	9	10
33	33	34
28	28	29
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17
18	18	18
19	19	19
20	20	20
21	21	21
22	22	22
25	25	25
26	26	26
27	27	27
28	28	28
29	29	29
30	30	30
31	31	31
32	32	32
33	33	33
34	34	34
35	35	35
36	36	36
37	37	37
38	38	38
39	39	39

Page 34 — KNIFE COMPONENTS

Juki MO-6800S Series parts on page 34

Ref	Part number	Part name	Qty
	70000230	SHAFT	1
	70000235	SWING AXLE	1
	70000269	OIL SEAL	1
	70000237	BUSHING	1
	70000436	COLLAR	1
	70000434	COLLAR	2
	70000522	E_SCREW	2
	70000236	BUSHING	1
	40178003	KNIFE SEAT COMB.	1
	40159734	KNIFE SEAT COMB.	1
	40172528	KNIFE SEAT	1
	40172529	KNIFE SEAT	1
	70000229	KNIFE	1
	70000347	GASKET	1
	70000510	E_SCREW	1
	40159729	CONNECTING ROD	1
	40159732	CONNECTING ROD	1
	40159728	CONNECTING ROD	1
	40159727	CONNECTING ROD	1
	70000578	M_SCREW	2
	70000721	ROCKING BAR	1
	70000842	ROCKING BAR COMB.	1
	70000720	ROCKING BAR	1
	70000841	ROCKING BAR	1
	70000590	M_SCREW	1
	40159726	PIN	1
	70000522	E_SCREW	1
	70000402	KNIFE SEAT COMB.	1
	70000845	KNIFE SEAT COMB.	1
	70000399	KNIFE	1
	70000400	FIXED PLATE	1
	70000517	E_SCREW	1
	70000403	KNIFE SEAT	1
	70000813	KNIFE SEAT	1
	70000521	E_SCREW	1
	70000603	SPRING	1
	70000524	E_SCREW	1
	70000401	FIXED PLATE	1
	70000515	E_SCREW	2

Page 35

Juki MO-6800S Series parts on page 35

Ref	Part number	Part name	Qty
	27	PRESSER FOOT COMPONENTS
	28
	29
	30
	31
	32
	33
	26
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	16
	12
	13
	14
	15
	17
	18
	19
	20
	21
	22
	23
	24
	25
	34
	35
	75
	36
	37
	76
	78
	42
	41
	40
	77
	39
	43
	53
	44
	48
	46
	49
	47
	51
	45
	50
	52
	54
	57
	60
	55
	56
	59
	58
	61
	63
	68
	66
	71
	62
	69
	70
	72
	73
	74
	65
	64

Page 36 — PRESSER FOOT COMPONENTS

Juki MO-6800S Series parts on page 36

Ref	Part number	Part name	Qty
	40159745	SCREW ROD COMB.	1
	40159741	SCREW ROD COMB.	1
	40159741	SCREW ROD	1
	40159742	NUT	1
	40159744	FIXED BUTTON	1
	70000141	O-RING	1
	40159743	FIXED BUTTON	1
	70000142	O-RING	1
	70000608	SPRING	1
	40159753	THIMBLE	1
	70000142	O-RING	1
	40170670	PRESSER FOOT ARM	1
	70000309	SLIDER	1
	70000664	SHAFT	1
	70000669	PIN	1
	70000141	O-RING	1
	70000293	SUPPORTER	1
	70000584	M_SCREW	1
	70000458	NUT	1
	70000292	STOPPER	1
	70000515	E_SCREW	2
	70000294	HOOK BAR	1
	70000295	PRESSER FOOT ARM	1
	70000592	M_SCREW	1
	70000604	SPRING	1
	40159749	SUPPORTER	1
	40159703	ADJUSTING SCREW	1
	70000584	M_SCREW	1
	70000458	NUT	1
	40159704	SPRING	1
	40159748	STOPPER	1
	70000131	E_CIRCLIPS	1
	40159750	BLOCK	1
	70000355	WASHER	1
	40159754	SPRING	1
	70000522	E_SCREW	1
	70000528	E_SCREW	1
	40159752	LEVER	1
	70000291	DRAG LINK	1
	70000302	COLLAR	1
	70000301	COLLAR	1
	40159751	M_SCREW	1
	70000605	SPRING	1
	40178006	PRESSER FOOT SEAT COM	1
	40178007	PRESSER BAR COMB.	1
	40172530	PRESSER FOOT LIFTING L	1
	70000297	PRESSER FOOT ARM	1
	70000566	M_SCREW	1
	70000673	SHAFT	1
	70000176	KNIFE	1
	70000303	BUSHING	1
	70000538	E_SCREW	1
	70000522	E_SCREW	1
	*********	PRESSER FOOT	1
	70000304	FIXED PLATE	1
	70000500	E_SCREW	1
	*********	PRESSER FOOT	1
	70000735	FINGER GUARD	1
	70000538	E_SCREW	1
	70000505	E_SCREW	1

Page 37

Juki MO-6800S Series parts on page 37

Ref	Part number	Part name	Qty
	27	PRESSER FOOT COMPONENTS
	28
	29
	30
	31
	32
	33
	26
	22
	24
	23
	25
	17
	18
	19
	21
	20
	34
	35
	37
	75
	36
	38
	76
	78
	42
	77
	41
	39
	40
	43
	53
	44
	46
	51
	48
	49
	47
	45
	50
	52
	54
	57
	60
	55
	59
	58
	56
	61
	63
	68
	66
	71
	62
	69
	70
	65
	64
	72
	73
	74
	67
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	16
	12
	15
	13
	14

Page 38 — PRESSER FOOT COMPONENTS

Juki MO-6800S Series parts on page 38

Ref	Part number	Part name	Qty
	*********	PRESSER FOOT	1
	70000419	LEVER	1
	70000420	PRESSER FOOT LIFTING L	1
	70000480	THREAD GUIDE PLATE	1
	70000496	E.SCREW	1
	70000499	E.SCREW	1
	70000537	E.SCREW	1
	70000606	SPRING	1
	70000609	SPRING	1
	*********	PRESSER FOOT	1
	70000505	E.SCREW	1
	70000500	E.SCREW	1
	70000538	E.SCREW	1
	70000735	FINGER GUARD	1
	40172531	PRESSER ARM STOPPER	1
	40178005	E.SCREW	1
	70000561	E.SCREW	1
	70000349	WASHER	1

Page 39 — LUBRICATION MECHANISM COMPONENTS

Juki MO-6800S Series parts on page 39

Ref	Part number	Part name	Qty
1	1	PIPE
2	2	PIPE
3	3	CLAMP
4	4	CLAMP
5	5	UNION
6	6	UNION
7	7	UNION
8	8	UNION
9	9	UNION
10	10	UNION
11	11	PIPE
12	12	CLAMP
13	13	UNION
14	14	OIL FILTER ASSEMBLY
15	15	O-RING
16	16	COVER
17	17	OIL FILTER
18	18	SCREW
19	19	PIPE
20	20	UNION
21	21	PIPE
22	22	CLAMP
23	23	UNION
24	24	UNION
25	25	UNION
26	26	UNION
27	27	UNION
28	28	PIPE
29	29	UNION
30	30	UNION
31	31	UNION
32	32	PIPE
33	33	UNION
34	34	OIL PAN
35	35	UNION
36	36	UNION
37	37	UNION
38	38	UNION
39	39	UNION
40	40	PIPE
41	41	PIPE
42	42	UNION
43	43	UNION
44	44	UNION
45	45	UNION
46	46	UNION
47	47	UNION
48	48	UNION
49	49	UNION
50	50	UNION
51	51	UNION
52	52	UNION
53	53	UNION
54	54	UNION
55	55	PIPE
56	56	UNION
57	57	UNION
58	58	UNION
59	59	UNION
60	60	PIPE
61	61	UNION
62	62	UNION
63	63	UNION
64	64	UNION
65	65	UNION
66	66	UNION
67	67	CLAMP
68	68	UNION

Page 40

Juki MO-6800S Series parts on page 40

Ref	Part number	Part name	Qty
	70000327	OIL TUBU GROUP	1
	70000631	HOSE	1
	70000658	OIL TUBE	1
	70000534	SPRING CLAMP	1
	70000693	E.SCREW	1
	70000658	COPPER TUBE	1
	70000658	SPRING CLAMP	1
	40159760	JOINT	1
	70000329	HOSE COMB.	1
	70000323	JOINT	2
	70000325	HOSE	1
	70000658	SPRING CLAMP	2
	70000532	E.SCREW	2
	70000675	OIL FILTER	1
	70000144	O-RING	1
	70000674	OIL FILTER COVER	1
	70000312	OIL FILTER	1
	70000520	E.SCREW	3
	70000328	OIL TUBE COMB	1
	70000128	JOINT	1
	70000326	HOSE	1
	70000658	SPRING CLAMP	2
	40159762	OIL LEVEL INSPECTION LI	1
	70000157	OIL LEVEL INSPECTION LI	1
	70000158	NAME PLATE	1
	40159761	NAME PLATE	1
	70000160	OIL INDICATOR ROD COM	1
	70000159	OIL INDICATOR ROD	1
	70000261	OIL INDICATOR	1
	70000262	BAFFLE	1
	70000521	E.SCREW	2
	40159764	OIL RESERVOIR COMB.	1
	70000146	OIL SEAL	1
	70000273	O-RING	1
	70000381	MAGNET	1
	70000382	BAFFLE	1
	70000533	E.SCREW	1
	70000518	E.SCREW	1
	40159763	OIL RESERVOIR COMB.	1
	70000267	HOSE COMB.	1
	70000318	HOSE	1
	70000657	SPRING CLAMP	1
	70000716	PUMP COMB.	1
	70000715	PUMP COMB.	1
	70000260	GEAR	1
	70000258	WORM WHEEL	1
	70000582	M.SCREW	1
	70000713	PUMP BODY	1
	70000322	JOINT	2
	40159765	GEAR	1
	70000148	GEAR	1
	70000148	GEAR	1
	40159765	GEAR	1
	70000714	PUMP BODY	1
	70000712	SHAFT	1
	70000717	PUMP COVER	1
	70000710	FILTER NET	1
	70000711	GASKET	1
	70000575	M.SCREW	3
	70000324	HOSE	1

Page 41 — LUBRICATION MECHANISM COMPONENTS

Juki MO-6800S Series parts on page 41

Ref	Part number	Part name	Qty
	1	TUBE
	2	TUBE
	3	CLAMP
	4	CLAMP
	5	NIPPLE
	6	NIPPLE
	7	CLAMP
	8	CLAMP
	9	UNION
	10	UNION
	11	TUBE
	12	CLAMP
	13	UNION
	14	OIL FILTER COVER ASSEMBLY
	15	GASKET
	16	COVER
	17	OIL FILTER ELEMENT
	18	SCREW
	19	TUBE
	20	UNION
	21	TUBE
	22	CLAMP
	23	UNION
	24	UNION
	25	CLAMP
	26	CLAMP
	27	TUBE
	28	TUBE
	29	UNION
	30	UNION
	31	CLAMP
	32	TUBE
	33	WASHER
	34	OIL PAN
	35	WASHER
	36	GASKET
	37	SCREW
	38	PLUG
	39	PLUG
	40	TUBE
	41	TUBE
	42	UNION
	43	UNION
	44	UNION
	45	UNION
	46	UNION
	47	UNION
	48	UNION
	49	UNION
	50	UNION
	51	UNION
	52	WASHER
	53	WASHER
	54	UNION
	55	TUBE
	56	WASHER
	57	WASHER
	58	WASHER
	59	SCREW
	60	TUBE
	61	CLAMP
	62	UNION
	63	UNION
	64	UNION
	65	UNION
	66	UNION
	67	CLAMP
	68	UNION

Page 42 — LUBRICATION MECHANISM COMPONENTS

Juki MO-6800S Series parts on page 42

Ref	Part number	Part name	Qty
61	70000657	SPRING CLAMP	1
62	70000322	JOINT	1
63	70000657	SPRING CLAMP	1
64	70000657	SPRING CLAMP	1
65	70000527	E_SCREW	2
66	70000323	JOINT	1
67	70000522	E_SCREW	1
68	70000532	E_SCREW	1

Page 43 — MODELLE CO045/14S 16S/43S

Juki MO-6800S Series parts on page 43

Ref	Part number	Part name	Qty
11	11	11
12	12	12
8	8	8
9	9	9
1	1	1
2	2	2
15	15	15
16	16	16
1	1	1
2	2	2
3	3	3
4	4	4
5	5	5
6	6	6
7	7	7
8	8	8
9	9	9
10	10	10
11	11	11
12	12	12
13	13	13
14	14	14
15	15	15
16	16	16
17	17	17

Page 44 — NEEDLE COOLER UNIT COMPONENTS

Juki MO-6800S Series parts on page 44

Ref	Part number	Part name	Qty
	40159772	OILIER	1
	40159775	OILIER	1
	70000658	SPRING CLAMP	1
	40159768	HOSE	1
	40159769	OIL WICK	1
	40159770	BALL	1
	40159771	OILIER	1
	40159776	DIVIDING SEAT	1
	40159774	DIVIDING SEAT	1
	40159778	NAIL	1
	40159777	OIL FELT	1
	40159773	OIL FELT	1
	40159779	OILIER COVER	1
	70000658	SPRING CLAMP	1
	70000526	E.SCREW	1
	70001060	E.SCREW	2
	70000518	E.SCREW	1

Page 45 — THREAD STAND COMPONENTS (FOR MO-6804S)

Juki MO-6800S Series parts on page 45

Ref	Part number	Part name	Qty
26	26	11
11	11	11
27	27	27
6	6	6
17	17	17
25	25	25
7	7	7
22	22	22
16	16	16
15	15	15
14	14	14
13	13	13
28	28	28
34	34	34
33	33	33
26	26	11
11	11	11
27	27	27
5	5	5
8	8	8
2	2	2
4	4	4
30	30	30
31	31	31
32	32	32
19	19	19
3	3	3
23	23	23
24	24	24
12	12	12
35	35	35
10	10	10
18	18	18
18	18	18
29	29	29
20	20	20

Page 46 — THREAD STAND COMPONENTS (FOR MO-6804S)

Juki MO-6800S Series parts on page 46

Ref	Part number	Part name	Qty
	40179483	THREAD STAND COMB.	1
	70000179	THREAD GUIDE BAR	1
	70000180	FIXED SEAT	1
	70000181	FIXED SEAT	1
	70000182	THREAD GUIDE BAR	1
	70000183	THREAD GUIDE BAR	1
	70000186	SUPPORTER	1
	70000188	THREAD STAND ROD	1
	70000189	THREAD STAND COVER	1
	70000190	THREAD STAND ROD	1
	70000191	FIXED PLATE	2
	70000192	CONNECTING LOOP	1
	70000215	COILING SEAT	3
	70000216	SPONGY CUSHION	3
	70000217	CONNECTING LOOP	3
	70000218	THREAD STEADY BALL SE	3
	70000219	PLUG	3
	70000354	WASHER	2
	70000454	NUT	2
	70000455	NUT	1
	70000456	M.SCREW	2
	70000547	M.SCREW	1
	70000579	M.SCREW	1
	70000580	M.SCREW	1
	70000581	M.SCREW	1
	70000589	M.SCREW	2
	70000611	WASHER	2
	70000615	WASHER	3
	70000618	WASHER	1
	70000580	M.SCREW	1
	70000580	M.SCREW	1
	70000454	NUT	2
	70000454	NUT	1
	70000454	NUT	3
	70000178	THREAD GUIDE PLATE	1

Page 47

Juki MO-6800S Series parts on page 47

Ref	Part number	Part name	Qty
	1	THREAD STAND COMPONENTS (FOR MO-6814S)
	6	Part 6
	22	Part 22
	20	Part 20
	9	Part 9
	17	Part 17
	28	Part 28
	32	Part 32
	33	Part 33
	34	Part 34
	36	Part 36
	35	Part 35
	11	Part 11
	27	Part 27
	23	Part 23
	22	Part 22
	7	Part 7
	10	Part 10
	18	Part 18
	2	Part 2
	4	Part 4
	25	Part 25
	26	Part 26
	36	Part 36
	35	Part 35
	5	Part 5
	27	Part 27
	23	Part 23
	14	Part 14
	21	Part 21
	16	Part 16
	19	Part 19
	3	Part 3
	15	Part 15
	12	Part 12
	14	Part 14
	14	Part 14
	21	Part 21
	36	Part 36
	27	Part 27
	23	Part 23
	31	Part 31
	30	Part 30
	8	Part 8
	31	Part 31
	30	Part 30
	29	Part 29

Page 48 — THREAD STAND COMPONENTS (FOR MO-6814S)

Juki MO-6800S Series parts on page 48

Ref	Part number	Part name	Qty
	40179484	THREAD STAND COMB.	1
	70000179	THREAD GUIDE BAR	1
	70000180	FIXED SEAT	1
	70000181	FIXED SEAT	1
	70000182	THREAD GUIDE BAR	1
	70000183	THREAD GUIDE BAR	1
	70000184	THREAD GUIDE BAR	1
	70000185	THREAD GUIDE BAR	1
	70000186	SUPPORTER	1
	70000188	THREAD STAND ROD	1
	70000189	THREAD STAND COVER	1
	70000190	THREAD STAND ROD	1
	70000192	CONNECTING LOOP	1
	70000354	WASHER	2
	70000454	NUT	2
	70000455	NUT	1
	70000547	E_SCREW	1
	70000579	M_SCREW	1
	70000580	M_SCREW	1
	70000581	M_SCREW	1
	70000618	WASHER	1
	70000219	PLUG	4
	70000456	NUT	4
	70000580	M_SCREW	1
	70000580	M_SCREW	1
	70000454	NUT	2
	70000611	WASHER	4
	70000218	THREAD STEADY BALL SE	4
	70000454	NUT	1
	70000454	NUT	4
	70000615	WASHER	4
	70000217	CONNECTING LOOP	4
	70000216	SPONGY CUSHION	4
	70000215	COILING SEAT	4
	70000191	FIXED PLATE	4
	70000589	M_SCREW	4
	70000178	THREAD GUIDE PLATE	1

Page 49 — THREAD STAND COMPONENTS (FOR MO-6816S)

Juki MO-6800S Series parts on page 49

Ref	Part number	Part name	Qty
36	36	SCREW
35	35	WASHER
27	27	SCREW
23	23	NUT
22	22	WASHER
6	6	BRACKET
7	7	BRACKET
1	1	THREAD STAND
11	11	BRACKET
35	35	WASHER
27	27	SCREW
23	23	NUT
36	36	SCREW
35	35	WASHER
10	10	POST
19	19	SCREW
18	18	BRACKET
3	3	BRACKET
15	15	SCREW
2	2	ROD
13	13	COLLAR
37	37	BRACKET
4	4	BRACKET
25	25	BRACKET
26	26	BRACKET
12	12	POST
14	14	WASHER
14	14	WASHER
28	28	THREAD GUIDE
32	32	POST
33	33	WASHER
34	34	WASHER
5	5	BRACKET
27	27	SCREW
23	23	NUT
36	36	SCREW
35	35	WASHER
28	28	THREAD GUIDE
32	32	POST
33	33	WASHER
34	34	WASHER
31	31	SCREW
30	30	WASHER
29	29	BRACKET
8	8	BRACKET
31	31	SCREW
30	30	WASHER
27	27	SCREW
23	23	NUT
36	36	SCREW
35	35	WASHER
21	21	WASHER
16	16	NUT
9	9	BRACKET
17	17	BRACKET
20	20	SCREW

Page 50 — THREAD STAND COMPONENTS (FOR MO-6816S)

Juki MO-6800S Series parts on page 50

Ref	Part number	Part name	Qty
	40179485	THREAD STAND COMB.	1
	70000179	THREAD GUIDE BAR	1
	70000180	FIXED SEAT	1
	70000181	FIXED SEAT	1
	70000182	THREAD GUIDE BAR	1
	70000183	THREAD GUIDE BAR	1
	70000184	THREAD GUIDE BAR	1
	70000185	THREAD GUIDE BAR	1
	70000186	SUPPORTER	1
	70000188	THREAD STAND ROD	1
	70000189	THREAD STAND COVER	1
	70000190	THREAD STAND ROD	1
	70000192	CONNECTING LOOP	1
	70000354	WASHER	2
	70000454	NUT	2
	70000455	NUT	1
	70000547	E_SCREW	1
	70000579	M_SCREW	1
	70000580	M_SCREW	1
	70000581	M_SCREW	1
	70000618	WASHER	1
	70000219	PLUG	5
	70000456	NUT	4
	70000580	M_SCREW	1
	70000580	M_SCREW	1
	70000454	NUT	2
	70000611	WASHER	4
	70000218	THREAD STEADY BALL SE	5
	70000454	NUT	1
	70000454	NUT	5
	70000615	WASHER	5
	70000217	CONNECTING LOOP	5
	70000216	SPONGY CUSHION	5
	70000215	COILING SEAT	5
	70000191	FIXED PLATE	4
	70000589	M_SCREW	4
	70000177	THREAD GUIDE BAR	1

Page 51 — THREAD STAND COMPONENTS (FOR MO-6843S)

Juki MO-6800S Series parts on page 51

Ref	Part number	Part name	Qty
39	39	SCREW
38	38	BRACKET
26	26	WASHER
22	22	NUT
10	10	THREAD GUIDE
21	21	BRACKET
34	34	BRACKET
6	6	BRACKET
9	9	POST
18	18	SCREW
3	3	BRACKET
17	17	SCREW
14	14	BRACKET
2	2	BRACKET
12	12	COLLAR
4	4	BRACKET
24	24	SCREW
40	40	BRACKET
19	19	SCREW
7	7	BRACKET
16	16	THREAD GUIDE
27	27	THREAD GUIDE
31	31	POST
32	32	BASE
33	33	BASE
5	5	BRACKET
13	13	WASHER
20	20	COLLAR
15	15	COLLAR
11	11	POST
28	28	SCREW
35	35	BRACKET
30	30	SCREW
29	29	SCREW
37	37	SCREW
36	36	BRACKET
8	8	BRACKET

Page 52 — THREAD STAND COMPONENTS (FOR MO-6843S)

Juki MO-6800S Series parts on page 52

Ref	Part number	Part name	Qty
	40179486	THREAD STAND COMB.	1
	70000179	THREAD GUIDE BAR	1
	70000180	FIXED SEAT	1
	70000181	FIXED SEAT	1
	70000182	THREAD GUIDE BAR	1
	70000183	THREAD GUIDE BAR	1
	70000186	SUPPORTER	1
	70000187	SUPPORTER	1
	70000188	THREAD STAND ROD	1
	70000189	THREAD STAND COVER	1
	70000190	THREAD STAND ROD	1
	70000192	CONNECTING LOOP	1
	70000354	WASHER	2
	70000454	NUT	2
	70000455	NUT	1
	70000547	NUT	1
	70000579	E_SCREW	1
	70000580	M_SCREW	1
	70000581	M_SCREW	1
	70000618	WASHER	1
	70000219	PLUG	6
	70000456	NUT	4
	70000580	M_SCREW	1
	70000580	M_SCREW	1
	70000454	NUT	2
	70000611	WASHER	4
	70000218	THREAD STEADY BALL SE	6
	70000454	NUT	2
	70000454	NUT	6
	70000615	WASHER	6
	70000217	CONNECTING LOOP	6
	70000216	SPONGY CUSHION	6
	70000215	COILING SEAT	6
	70000183	THREAD GUIDE BAR	1
	70000182	THREAD GUIDE BAR	1
	70000547	E_SCREW	1
	70000581	M_SCREW	1
	70000191	FIXED PLATE	4
	70000589	M_SCREW	4
	70000177	THREAD GUIDE BAR	1

Page 53 — SEMI-SUNKEN TYPE TABLE COMPONENTS

Juki MO-6800S Series parts on page 53

Ref	Part number	Part name	Qty
	1	FRAME
	2	BRACKET
	3	BRACKET
	4	LEG
	5	LEG
	6	LEG
	7	LEG
	8	WASHER
	9	BOLT
	10	BOLT
	11	BOLT
	12	BOLT
	13	BOLT
	14	BRACKET
	15	BRACKET
	16	SUPPORT
	17	BRACKET
	18	SUPPORT
	19	BRACKET
	20	BOLT
	21	BRACKET

Page 54 — SEMI-SUNKEN TYPE TABLE COMPONENTS

Juki MO-6800S Series parts on page 54

Ref	Part number	Part name	Qty
	70000264	CHASSIS	1
	70000263	CHASSIS	1
	70000438	RUBBER PAD	1
	70000340	RUBBER BLOCK	1
	70000338	RUBBER BLOCK	4
	70000265	BOLT COMB.	1
	70000332	FIXED SHAFT	4
	70000339	RUBBER BLOCK	4
	70000707	BOLT	4
	40159780	GASKET	4
	40159781	GASKET	4
	70000348	WASHER	4
	70000617	WASHER	4
	70000484	WASTE FABRIC CHUTE CO	1
	70000352	WASHER	4
	70000482	WASTE FABRIC CHUTE	1
	70000483	WASTE FABRIC CHUTE	1
	70000485	WASTE FABRIC CHUTE	1
	70000540	E_SCREW	3
	70000541	E_SCREW	4
	70000854	TABLE	1

Page 55 — FULLY-SUNKEN TYPE TABLE COMPONENTS

Juki MO-6800S Series parts on page 55

Ref	Part number	Part name	Qty
1	1	Table
2	2	Base
3	3	Screw

Page 56 — FULLY-SUNKEN TYPE TABLE COMPONENTS

Juki MO-6800S Series parts on page 56

Ref	Part number	Part name	Qty
	70000444	TABLE	1
	70000706	FIXED TABLE	1
	70000884	BOLT ASM.	1

Page 57

Juki MO-6800S Series parts on page 57

Ref	Part number	Part name	Qty
	1	Accessory Box
	2	Oil Can
	3	Funnel
	4	Spool Pin
	5	Thread Guide
	6	Wrench
	7	Wrench
	8	Wrench
	9	Wrench
	10	Allen Wrench
	11	Allen Wrench
	12	Allen Wrench
	13	Manual
	14	Needle Clamp Screw
	15	Screwdriver
	16	Screwdriver
	17	Screwdriver
	18	Lint Brush
	19	Screw
	20	Presser Foot
	21~25	Needles

Page 58 — ACCESSORIES PARTS COMPONENTS

Juki MO-6800S Series parts on page 58

Ref	Part number	Part name	Qty
	40159786	HEAD COVER	1
	40159785	SEWING OIL J18(3)	1
	70000757	FUNNEL	1
	70000759	TWEIZERS	1
	70000760	CHAIN	1
	40159796	SPANNER COMB.	1
	40159794	RING SPANNER	1
	40159795	SPANNER	1
	40159793	HEXAGONAL ROD SPANNE	1
	40159789	HEXAGONAL ROD SPANNE	1
	40159790	HEXAGONAL ROD SPANNE	1
	40159791	HEXAGONAL ROD SPANNE	1
	70000763	DESICCATIVE	1
	70000758	HEXAGON SCREWDRIVER	1
	40159792	SCREW DRIVER COMB.	1
	40159787	SCREW DRIVER	1
	40159788	SCREW DRIVER	1
	70000761	TOOL BAG	1
	70000498	E_SCREW	1
	70000399	KNIFE	1
	MDC270B1100	NEEDLE DCX27 #11	5
	MDC270B0800	NEEDLE DCX27 #8	5
	MDC270B0900	NEEDLE DCX27 #9	5
	MDC270B1400	NEEDLE DCX27 #14	5
	MDC270B1600	NEEDLE DCX27 #16	5

Page 59 — PACKING COMPONENTS

Juki MO-6800S Series parts on page 59

Ref	Part number	Part name	Qty
	1	BOX
	2	PACKING MATERIAL
	3	PACKING MATERIAL
	4	PACKING MATERIAL
	5	PACKING MATERIAL
	6	PACKING MATERIAL
	7	PACKING MATERIAL
	8	PACKING MATERIAL

Page 60 — PACKING COMPONENTS

Juki MO-6800S Series parts on page 60

Ref	Part number	Part name	Qty
	40159800	THREAD STAND	1
	70000264	CHASSIS	1
	70000263	CHASSIS	1
	70000438	RUBBER PAD	1
	40159803	POLYSTYRENE	1
	70000767	POLYSTYRENE	1
	40159801	POLYSTYRENE	1
	40159802	POLYSTYRENE	1

Page 61 — TAPE INSERTION COMPONENTS

Juki MO-6800S Series parts on page 61

Ref	Part number	Part name	Qty
1	1	NUT
2	2	BRACKET
3	3	WASHER
4	4	BRACKET
5	5	SCREW
6	6	TAPE GUIDE
7	7	BRACKET
8	8	SCREW
9	9	WASHER
10	10	SCREW
11	11	SCREW
12	12	BRACKET
13	13	BRACKET
14	14	WASHER
15	15	BRACKET
16	16	TAPE GUIDE ROD

Page 62 — TAPE INSERTION COMPONENTS

Juki MO-6800S Series parts on page 62

Ref	Part number	Part name	Qty
	70000908	M.SCREW	2
	40159574	SAFETY PLATE BRACKET	1
	40159576	WASHER	2
	40159810	SAFETY PLATE	1
	70000549	E.SCREW	1
	40159817	PRESSER FOOT	1
	40159815	TAPE GUIDE COMB.	1
	70000908	M.SCREW	1
	70000452	NUT	1
	70000359	WASHER	1
	40159576	WASHER	1
	40159811	TAPE GUIDE	1
	40159813	TAPE GUIDE	1
	40159814	E.SCREW	1
	40159812	TAPE GUIDE	1
	70000098	TAPE HOLDER	1

Page 63 — 30P COMPONENTS

Juki MO-6800S Series parts on page 63

Ref	Part number	Part name	Qty
	1	1~3
	4	4.5
	6	6
	7	7~9
	10	10
	11	11
	12	12
	13	13.25
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22.26
	23	23
	24	24
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
	40	40
	41	41

Page 64 — 30P COMPONENTS

Juki MO-6800S Series parts on page 64

Ref	Part number	Part name	Qty
	40164048	THROAT PLATE	1
	40164047	THROAT PLATE	1
	40164049	THROAT PLATE	1
	40164050	FEED DOG	1
	40164052	FEED DOG	1
	40164051	FEED DOG	1
	40164044	FEED DOG	1
	40164046	FEED DOG	1
	40164045	FEED DOG	1
	40164055	NEEDLE CLAMP	1
	40164058	HAND WHEEL(30P)	1
	40164056	THREAD TAKE-UP LEVER	1
	40164021	PRESSER FOOT ASM.	1
	40164026	REAR PRESSER FOOT	1
	40164027	PRESSER FOOT HINGE	1
	70000735	FINGER GUARD	1
	70000500	E_SCREW	1
	70000496	E_SCREW	1
	70000505	E_SCREW	1
	70000538	E_SCREW	1
	40164028	PRESSER FOOT ARM SPRIN	1
	40164024	STITCH TONGUE	1
	70000558	E_SCREW	1
	40164053	PRESSER FOOT 514.30P	1
	40164020	PRESSER FOOT ASM.	1
	40164023	STITCH TONGUE	1
	40164029	PRESSER FOOT ASM.	1
	40164032	STITCH TONGUE	1
	40164039	HINGE SCREW	1
	40164037	SPRING	1
	70000505	E_SCREW	1
	70000538	E_SCREW	1
	40164034	FINGER GUARD	1
	40159855	E_SCREW	1
	40164036	SPRING	1
	40164038	PRESSER FOOT HINGE	1
	70000500	E_SCREW	1
	40164033	PRESSER FOOT ARM SPRIN	1
	40164035	PRESSER FOOT	1
	40164043	NUT	1
	40164042	PIN	1

Page 65 — MO-6800S GAUGE TABLE

Juki MO-6800S Series parts on page 65

Ref	Part number	Part name	Qty
	401-59827	401-59820
	401-59825	401-59820
	401-59828	401-59822
	401-59828	401-59822
	401-59829	401-59822
	401-59829	401-59822
	401-59829	401-59822
	401-59830	401-59821
	401-59831	401-59821
	401-59832	401-59821
	401-59834	401-59821
	401-59832	401-59821
	401-59833	401-59821
	401-59826	401-59823
	401-64048	401-64050
	401-64047	401-64050
	401-64049	401-64052
	401-59844	700-00798
	401-59842	700-00798
	401-59843	700-00238
	401-59843	700-00798
	401-59817	700-00238
	401-59817	700-00238
	401-59817	700-00799
	401-59850	700-00238
	401-59849	700-00238
	401-59849	700-00799
	401-59849	700-00799
	401-59847	700-00238
	401-59848	700-00238
	401-59845	401-59841
	401-64021	700-00238
	401-64020	700-00238
	401-64029	700-00238

Page 66 — MO-6800S GAUGE TABLE

Juki MO-6800S Series parts on page 66

Ref	Part number	Part name	Qty
	2-02	28	2-02

Page 67 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 67

Ref	Part number	Part name	Qty
6	*********		2
25	*********		6
42	*********		14
62	*********		16
56	*********		18
56	*********		30
57	*********		34
70	*********		36
57	40022255		8
23	40159531		2
24	40159532		2
25	40159533		2
3	40159534		2
26	40159537		2
27	40159538		2
28	40159539		2
29	40159540		2
31	40159551		4
18	40159552		4
19	40159553		4
20	40159554		4
9	40159555		4
8	40159556		4
1	40159557		4
13	40159558		4
14	40159559		4
15	40159560		4
17	40159561		4
6	40159562		4
7	40159563		4
10	40159564		4
11	40159565		4
1	40159571		6
4	40159572		6
2	40159573		6
8	40159574		6
25	40159574		60
7	40159575		6
6	40159576		6
11	40159576		60
5	40159577		6
13	40159578		6
11	40159579		6
18	40159580		6
19	40159581		6
16	40159582		6
17	40159583		6
21	40159584		6
26	40159585		6
32	40159586		6
33	40159587		6
42	40159589		6
30	40159590		6
38	40159591		6
39	40159592		6
27	40159593		6
23	40159601		8
22	40159602		8
28	40159603		8
3	40159604		8
4	40159605		8
1	40159606		8
2	40159607		8
12	40159608		8
1	40159615		12
8	40159617		12
7	40159618		12
21	40159619		12
30	40159620		12
36	40159623		12
103	40159624		16
65	40159625		16
60	40159626		14
74	40159627		16
58	40159628		14
27	40159629		14
38	40159629		28
53	40159630		14
75	40159631		16
109	40159632		16
83	40159633		16
110	40159634		16
112	40159636		16
77	40159640		16
87	40159641		16
99	40159642		16
107	40159643		16
76	40159644		16
1	40159645		14
10	40159646		14
16	40159647		14
18	40159648		14
64	40159649		16
6	40159650		14
17	40159651		14
48	40159652		14
54	40159653		14
55	40159654		14
56	40159655		14
100	40159656		16
104	40159657		16
32	40159658		12
49	40159659		8
48	40159660		8
74	40159665		20
70	40159666		20
79	40159667		20
78	40159668		20
77	40159669		20
57	40159670		18
29	40159671		18
30	40159672		18
36	40159673		18
34	40159674		18
24	40159675		18
72	40159676		20
33	40159676		30
73	40159677		20
10	40159678		18
37	40159679		18
38	40159680		18
25	40159681		18
80	40159681		20
26	40159682		18
81	40159682		20
61	40159683		20
8	40159684		18
22	40159684		22
1	40159686		18
2	40159687		18
17	40159689		22
35	40159690		22
1	40159692		22
16	40159693		22
2	40159694		22

Page 68 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 68

Ref	Part number	Part name	Qty
25	40159700	40159771
27	40159701	40159772
16	40159702	40159773
17	40159703	40159774
27	40159703	40159775
18	40159704	40159776
30	40159704	40159777
28	40159705	40159778
28	40159706	40159779
28	40159707	40159780
28	40159709	40159781
20	40159715	40159785
30	40159715	40159786
30	40159716	40159787
30	40159717	40159788
30	40159718	40159789
30	40159719	40159790
32	40159726	40159791
32	40159727	40159792
32	40159728	40159793
32	40159729	40159794
32	40159732	40159795
32	40159734	40159796
34	40159741	40159800
34	40159742	40159801
34	40159743	40159802
34	40159744	40159803
34	40159745	40159810
34	40159746	40159811
34	40159748	40159812
34	40159749	40159813
34	40159750	40159814
34	40159751	40159815
34	40159752	40159817
34	40159753	40159855
34	40159754	40164010
38	40159760	40164011
38	40159761	40164012
38	40159762	40164020
38	40159763	40164021
38	40159764	40164023
38	40159765	40164024
42	40159768	40164026
42	40159769	40164027
42	40159770	40164028
62	40164029	40164029
62	40164032	40164032
62	40164033	40164033
62	40164034	40164034
62	40164035	40164035
62	40164036	40164036
62	40164037	40164037
62	40164038	40164038
62	40164039	40164039
62	40164042	40164042
62	40164043	40164043
62	40164044	40164044
62	40164045	40164045
62	40164046	40164046
62	40164047	40164047
62	40164048	40164048
62	40164049	40164049
62	40164050	40164050
62	40164051	40164051
62	40164052	40164052
62	40164053	40164053
62	40164055	40164055
16	40164056	40164056
62	40164056	40164056
8	40164057	40164057
8	40164058	40164058
62	40164058	40164058
10	40164059	40164059
34	40170670	40170670
8	40170846	40170846
8	40170847	40170847
8	40170848	40170848
2	40172525	40172525
16	40172527	40172527
32	40172529	40172529
32	40172529	40172529
34	40172530	40172530
36	40172531	40172531
18	40172535	40172535
20	40176583	40176583
20	40177859	40177859
32	40178003	40178003
36	40178005	40178005
34	40178006	40178006
34	40178007	40178007

Page 69 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 69

Ref	Part number	Part name	Qty
6	40178084	40178084
19	40178084	40178084
82	40178548	40178548
106	40178549	40178549
108	40178550	40178550
1	40179483	40179483
1	40179484	40179484
1	40179485	40179485
1	40179486	40179486
3	40179596	40179596
18	40179596	40179596
5	40179597	40179597
21	40179597	40179597
16	70000098	70000098
14	70000130	70000130
56	70000131	70000131
32	70000131	70000131
58	70000132	70000132
14	70000133	70000133
18	70000134	70000134
23	70000135	70000135
12	70000136	70000136
53	70000137	70000137
20	70000138	70000138
24	70000139	70000139
28	70000140	70000140
12	70000141	70000141
30	70000141	70000141
34	70000141	70000141
34	70000142	70000142
8	70000143	70000143
38	70000144	70000144
8	70000145	70000145
38	70000146	70000146
30	70000147	70000147
38	70000148	70000148
8	70000149	70000149
30	70000151	70000151
30	70000152	70000152
38	70000157	70000157
38	70000158	70000158
38	70000159	70000159
38	70000160	70000160
6	70000161	70000161
28	70000162	70000162
7	70000164	70000164
22	70000168	70000168
19	70000169	70000169
13	70000171	70000171
2	70000172	70000172
3	70000173	70000173
11	70000174	70000174
10	70000175	70000175
50	70000176	70000176
37	70000177	70000177
40	70000177	70000177
35	70000178	70000178
37	70000178	70000178
2	70000179	70000179
2	70000179	70000179
2	70000179	70000179
2	70000179	70000179
3	70000180	70000180
3	70000180	70000180
3	70000180	70000180
3	70000180	70000180
4	70000181	70000181
4	70000181	70000181
4	70000181	70000181
4	70000181	70000181
5	70000182	70000182
5	70000182	70000182
5	70000182	70000182
35	70000182	70000182
6	70000183	70000183
6	70000183	70000183
6	70000183	70000183
34	70000183	70000183
7	70000184	70000184
7	70000184	70000184
8	70000185	70000185
8	70000185	70000185
7	70000186	70000186
9	70000186	70000186
9	70000186	70000186
7	70000186	70000186
8	70000187	70000187
9	70000188	70000188
9	70000188	70000188
10	70000188	70000188
10	70000188	70000188
9	70000189	70000189
11	70000189	70000189
11	70000189	70000189
10	70000189	70000189
10	70000190	70000190
12	70000190	70000190
11	70000190	70000190
11	70000191	70000191
35	70000191	70000191
35	70000191	70000191
38	70000191	70000191
12	70000192	70000192
13	70000192	70000192
13	70000192	70000192
12	70000192	70000192
32	70000193	70000193
51	70000194	70000194
53	70000195	70000195
59	70000196	70000196
45	70000197	70000197
46	70000198	70000198
15	70000199	70000199
52	70000200	70000200
50	70000201	70000201
44	70000202	70000202
84	70000203	70000203
111	70000211	70000211
85	70000213	70000213
13	70000215	70000215
34	70000215	70000215
34	70000215	70000215
33	70000215	70000215
14	70000216	70000216
33	70000216	70000216
33	70000216	70000216
32	70000216	70000216
15	70000217	70000217
32	70000217	70000217
32	70000217	70000217
31	70000217	70000217
16	70000218	70000218
28	70000218	70000218
28	70000218	70000218

Page 70 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 70

Ref	Part number	Part name	Qty
27	70000218	70000218
17	70000219	70000219
22	70000219	70000219
22	70000219	70000219
21	70000219	70000219
15	70000222	70000222
14	70000224	70000224
1	70000230	70000230
2	70000235	70000235
8	70000236	70000236
4	70000237	70000237
22	70000239	70000239
21	70000240	70000240
35	70000241	70000241
28	70000243	70000243
63	70000246	70000246
62	70000247	70000247
39	70000248	70000248
16	70000251	70000251
11	70000253	70000253
9	70000254	70000254
39	70000257	70000257
46	70000258	70000258
38	70000259	70000259
45	70000260	70000260
29	70000261	70000261
30	70000262	70000262
2	70000263	70000263
3	70000263	70000263
1	70000264	70000264
2	70000264	70000264
6	70000265	70000265
11	70000266	70000266
10	70000267	70000267
40	70000268	70000268
42	70000269	70000269
3	70000270	70000270
29	70000270	70000270
34	70000273	70000273
11	70000275	70000275
28	70000276	70000276
34	70000277	70000277
11	70000280	70000280
40	70000282	70000282
55	70000283	70000283
52	70000284	70000284
54	70000286	70000286
43	70000288	70000288
42	70000289	70000289
39	70000291	70000291
20	70000292	70000292
17	70000293	70000293
22	70000294	70000294
23	70000295	70000295
47	70000297	70000297
41	70000301	70000301
40	70000302	70000302
51	70000303	70000303
55	70000304	70000304
13	70000309	70000309
17	70000312	70000312
41	70000314	70000314
36	70000317	70000317
45	70000317	70000317
41	70000318	70000318
10	70000322	70000322
62	70000322	70000322
10	70000323	70000323
66	70000323	70000323
60	70000324	70000324
11	70000325	70000325
21	70000326	70000326
1	70000327	70000327
19	70000328	70000328
9	70000329	70000329
7	70000332	70000332
5	70000334	70000334
70	70000335	70000335
67	70000336	70000336
66	70000337	70000337
5	70000338	70000338
8	70000339	70000339
4	70000340	70000340
26	70000341	70000341
64	70000342	70000342
33	70000343	70000343
3	70000344	70000344
4	70000345	70000345
37	70000346	70000346
46	70000346	70000346
14	70000347	70000347
12	70000348	70000348
5	70000349	70000349
78	70000349	70000349
55	70000350	70000350
22	70000351	70000351
15	70000352	70000352
15	70000353	70000353
18	70000354	70000354
14	70000354	70000354
14	70000354	70000354
13	70000354	70000354
34	70000355	70000355
29	70000356	70000356
5	70000357	70000357
57	70000358	70000358
5	70000359	70000359
10	70000359	70000359
10	70000361	70000361
17	70000362	70000362
1	70000363	70000363
2	70000365	70000365
2	70000368	70000368
23	70000369	70000369
22	70000370	70000370
6	70000372	70000372
7	70000373	70000373
4	70000374	70000374
5	70000375	70000375
8	70000379	70000379
6	70000380	70000380
24	70000380	70000380
35	70000381	70000381
36	70000382	70000382
22	70000383	70000383
9	70000384	70000384
25	70000385	70000385
24	70000386	70000386
6	70000387	70000387
16	70000388	70000388
17	70000389	70000389
18	70000390	70000390
11	70000391	70000391
12	70000392	70000392

Page 71 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 71

Ref	Part number	Part name	Qty
13	70000393	70000449
14	70000394	70000450
15	70000395	70000452
3	70000396	70000452
1	70000397	70000452
4	70000398	70000453
30	70000399	70000453
20	70000399	70000454
31	70000400	70000454
38	70000401	70000454
28	70000402	70000454
33	70000403	70000455
22	70000404	70000455
12	70000405	70000455
4	70000406	70000455
3	70000407	70000456
32	70000409	70000456
31	70000410	70000456
34	70000410	70000456
32	70000410	70000458
25	70000413	70000458
22	70000414	70000460
22	70000415	70000461
22	70000416	70000462
36	70000419	70000463
36	70000420	70000464
30	70000422	70000465
30	70000423	70000466
38	70000428	70000467
30	70000429	70000469
8	70000430	70000470
8	70000431	70000471
12	70000432	70000472
30	70000433	70000473
32	70000434	70000474
30	70000435	70000475
32	70000436	70000476
12	70000437	70000477
52	70000438	70000478
58	70000438	70000479
2	70000443	70000480
54	70000444	70000481
12	70000445	70000482
30	70000446	70000483
26	70000448	70000484
8	70000449	70000485
28	70000450	70000490
4	70000452	70000493
26	70000452	70000494
60	70000452	70000495
4	70000453	70000496
26	70000453	70000496
44	70000454	70000497
46	70000454	70000498
48	70000454	70000498
50	70000454	70000498
44	70000455	70000498
46	70000455	70000499
48	70000455	70000500
44	70000456	70000500
46	70000456	70000500
48	70000456	70000501
50	70000456	70000502
30	70000458	70000503
34	70000458	70000503
8	70000460	70000504
24	70000461	70000505
24	70000462	70000505
24	70000463	70000505
24	70000464	70000505
24	70000465	70000505
24	70000466	70000506
24	70000467	70000508
14	70000469	70000508
24	70000470	70000508
24	70000471	70000509
24	70000472	70000510
24	70000473	70000511
24	70000474	70000512
24	70000475	70000513
24	70000476	70000513
24	70000477	70000513
24	70000478	70000514
24	70000479	70000514
36	70000480	70000515
6	70000481	70000515
52	70000482	70000515
52	70000483	70000515
52	70000484	70000516

Page 72 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 72

Ref	Part number	Part name	Qty
61	70000516	70000538
66	70000517	70000538
27	70000517	70000538
32	70000517	70000540
4	70000518	70000541
26	70000518	70000542
38	70000518	70000543
42	70000518	70000544
26	70000519	70000545
6	70000520	70000545
38	70000520	70000546
8	70000521	70000547
18	70000521	70000547
32	70000521	70000547
38	70000521	70000547
2	70000522	70000548
8	70000522	70000549
12	70000522	70000549
20	70000522	70000550
22	70000522	70000550
30	70000522	70000550
32	70000522	70000550
34	70000522	70000552
40	70000522	70000554
28	70000523	70000555
32	70000524	70000555
22	70000525	70000557
24	70000525	70000558
16	70000526	70000558
42	70000526	70000559
40	70000527	70000560
4	70000528	70000561
34	70000528	70000561
2	70000529	70000562
30	70000530	70000563
22	70000531	70000563
24	70000531	70000564
38	70000532	70000565
40	70000532	70000566
38	70000533	70000567
38	70000534	70000569
8	70000535	70000570
8	70000536	70000571
36	70000537	70000572
18	70000538	70000572
6	70000573	70000573
4	70000574	70000574
38	70000575	70000575
26	70000576	70000576
4	70000577	70000577
6	70000577	70000577
12	70000578	70000578
32	70000578	70000578
44	70000579	70000579
46	70000579	70000579
48	70000579	70000579
50	70000579	70000579
44	70000580	70000580
46	70000580	70000580
48	70000580	70000580
50	70000580	70000580
44	70000581	70000581
46	70000581	70000581
48	70000581	70000581
50	70000581	70000581
28	70000582	70000582
38	70000582	70000582
28	70000583	70000583
34	70000584	70000584
2	70000586	70000586
20	70000587	70000587
12	70000588	70000588
44	70000589	70000589
46	70000589	70000589
48	70000589	70000589
50	70000589	70000589
18	70000590	70000590
22	70000590	70000590
24	70000590	70000590
28	70000590	70000590
34	70000592	70000592
12	70000593	70000593
18	70000593	70000593
14	70000598	70000598
28	70000600	70000600
28	70000601	70000601
28	70000602	70000602
32	70000603	70000603

Page 73 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 73

Ref	Part number	Part name	Qty
25	70000604
43	70000605
68	70000606
9	70000608
69	70000609
31	70000610
27	70000611
27	70000611
26	70000611
52	70000612
65	70000613
34	70000614
28	70000615
31	70000615
31	70000615
30	70000615
12	70000616
13	70000617
29	70000618
21	70000618
21	70000618
20	70000618
8	70000619
8	70000620
14	70000626
14	70000627
14	70000628
14	70000629
16	70000630
38	70000631
12	70000632
12	70000633
12	70000635
12	70000636
12	70000637
12	70000638
12	70000639
12	70000640
12	70000643
12	70000646
14	70000652
14	70000653
12	70000654
38	70000657
40	70000657
38	70000658
42	70000658
2	70000659
6	70000660
18	70000661
28	70000662
34	70000664
28	70000665
28	70000666
22	70000667
34	70000669
2	70000670
2	70000671
2	70000672
34	70000673
38	70000674
38	70000675
12	70000676
12	70000677
18	70000678
20	70000679
30	70000681
30	70000682
30	70000683
30	70000684
30	70000685
30	70000686
30	70000688
30	70000689
38	70000693
8	70000694
28	70000694
8	70000695
8	70000696
24	70000697
28	70000698
8	70000699
8	70000700
8	70000701
24	70000703
14	70000704
54	70000706
52	70000707
38	70000710
38	70000711
38	70000712
38	70000713
38	70000714
38	70000715
38	70000716
38	70000717
32	70000720
32	70000721
12	70000728
18	70000728
12	70000729
18	70000729
30	70000730
30	70000732
30	70000733
30	70000734
34	70000735
36	70000735
62	70000735
6	70000736
8	70000737
28	70000738
28	70000739
28	70000740
28	70000741
6	70000744
6	70000745
18	70000748
18	70000749
8	70000750
22	70000751
22	70000752
2	70000753
2	70000754
4	70000755
56	70000757
56	70000758
56	70000759
56	70000760
56	70000761
56	70000763
58	70000767
20	70000807
20	70000812

Page 74 — NUMERICAL INDEX OF PARTS

Juki MO-6800S Series parts on page 74

Ref	Part number	Part name	Qty
34	70000813	70000813
41	70000820	70000820
5	70000822	70000822
45	70000827	70000827
38	70000828	70000828
39	70000829	70000829
36	70000831	70000831
4	70000832	70000832
12	70000833	70000833
12	70000834	70000834
24	70000841	70000841
22	70000842	70000842
29	70000845	70000845
50	70000847	70000847
51	70000848	70000848
49	70000849	70000849
63	70000850	70000850
21	70000854	70000854
3	70000884	70000884
53	70000885	70000885
47	70000887	70000887
9	70000908	70000908
8	70000908	70000908
53	70000928	70000928
16	70001060	70001060
22	MDC270B0800	MDC270B0800
23	MDC270B0900	MDC270B0900
21	MDC270B1100	MDC270B1100
24	MDC270B1400	MDC270B1400
25	MDC270B1600	MDC270B1600
59	SS6111010TP	SS6111010TP
58	SS6120940SP	SS6120940SP

Part BooksPartsSearchNotes

Part Books

×

Search

×

Juki MO-6800S Series — parts catalog

• Page 1 (cover): This is the cover page for the parts list of the MO-6800S model, list number 1672-02. It was published on 08/22/2016 and is from the library of Superior Sewing Machine & Supply LLC.
• Page 3 (diagram): This page displays a diagram of miscellaneous cover components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 4 (parts_list): This page lists miscellaneous cover components with their part numbers, descriptions, and quantities.
• Page 5 (diagram): This page displays a diagram of miscellaneous cover components for an industrial sewing machine, with numbered parts indicated.
• Page 6 (parts_list): This page lists miscellaneous cover components with part numbers, descriptions, and quantities.
• Page 7 (diagram): This page displays a diagram of machine components, including a table listing parts with their numbers and corresponding reference numbers.
• Page 8 (parts_list): This page lists miscellaneous cover components, including part numbers, names, quantities, and remarks for various parts like screws, washers, plates, and covers.
• Page 9 (diagram): This page displays a diagram of various sewing machine components, including crankshaft components, bearings, and mounting hardware, with corresponding reference numbers for identification.
• Page 10 (parts_list): This page lists crankshaft components with their part numbers, names, quantities, and remarks. It includes parts like main shafts, screws, bearings, and washers, with some parts specified for particular models or as optional.
• Page 11 (diagram): This page displays a diagram of various sewing machine components, including crankshafts, bearings, gears, and mounting hardware, with corresponding reference numbers for identification.
• Page 12 (parts_list): This page lists crankshaft components, including part number 40164059 for a HAND WHEEL (30P_SYNCH).
• Page 13 (diagram): This page displays a diagram of needle driving shaft components, illustrating various parts with reference numbers for identification.
• Page 14 (parts_list): This page lists needle driving shaft components with part numbers, descriptions, quantities, and remarks. It includes parts like shaft comb, needle bar rocker, screws, oil felt, collars, bushings, washers, and plugs.
• Page 15 (diagram): This page displays diagrams of various sewing machine components for models 04S, 14S, 16S, 43S, and 14S-30P, along with detailed part breakdowns for specific sections like "FOR(04S/14S)", "FOR(16S/43S)", "FOR(04S)", "FOR(14S/16S)", and "FOR(43S)".
• Page 16 (parts_list): This page lists thread tension components with part numbers, descriptions, quantities, and remarks.
• Page 17 (diagram): This page contains diagrams of various sewing machine parts and their corresponding reference numbers, organized by model compatibility (FOR(04S/14S), FOR(16S/43S), FOR(04S), FOR(14S/16S), FOR(43S)). It also includes a table detailing thread tension components for different models.
• Page 18 (parts_list): This page lists thread tension components with part numbers, names, quantities, and remarks.
• Page 19 (parts_list): This page contains a parts list for various sewing machine models including 045/16S, 14S/43S, 14S-44H, and 16S-50H, with corresponding part numbers and diagrams.
• Page 20 (parts_list): This page lists upper looper components with part numbers, descriptions, quantities, and remarks.
• Page 21 (diagram): This page contains a diagram of sewing machine parts with corresponding reference numbers and a table listing part numbers for different models: 045/16S, 14S/43S, 14S-44H, and 16S-50H.
• Page 22 (parts_list): This page lists upper looper components with part numbers, descriptions, quantities, and remarks.
• Page 23 (diagram): This page displays a diagram of various sewing machine components, including part numbers and their corresponding references in the diagram. It also includes a table listing parts for models 045/145 and 16S-50H.
• Page 24 (parts_list): This page lists lower looper components with their part numbers, names, quantities, and remarks.
• Page 25 (diagram): This page displays a diagram of chain looper components, with numbered parts and their corresponding references.
• Page 26 (parts_list): This page lists chain looper components with part numbers, descriptions, and quantities.
• Page 27 (diagram): This page displays a diagram of chain looper components, with numbered parts indicated for identification.
• Page 28 (parts_list): This page lists chain looper components with part numbers, descriptions, and quantities.
• Page 29 (diagram): This page displays a diagram of the feed mechanism components, with numbered parts indicated for identification.
• Page 30 (parts_list): This page lists feed mechanism components, including part numbers, descriptions, quantities, and other specifications.
• Page 31 (diagram): This page displays a diagram of feed mechanism components, with numbered parts indicated for identification.
• Page 32 (parts_list): This page lists parts for the feed mechanism components (2) of an industrial sewing machine, including part numbers, names, quantities, and remarks.
• Page 33 (diagram): This page displays a diagram of sewing machine parts, with a table listing parts numbers and corresponding references for models 16S/43S and COMP4S/14S.
• Page 34 (parts_list): This page lists knife components with their part numbers, descriptions, quantities, and remarks.
• Page 35 (diagram): This page displays a diagram of presser foot components for an industrial sewing machine, with numbered parts and their corresponding references.
• Page 36 (parts_list): This page lists components for the presser foot, including part numbers, names, quantities, and remarks.
• Page 37 (diagram): This page displays a diagram of presser foot components, with numbered parts and their corresponding references.
• Page 38 (parts_list): This page lists components for the presser foot, including part numbers, names, quantities, and remarks.
• Page 39 (diagram): This page displays a diagram of lubrication mechanism components, detailing various parts with reference numbers and descriptions.
• Page 40 (parts_list): This page lists lubrication mechanism components with part numbers, descriptions, and quantities.
• Page 41 (diagram): This page displays a diagram of lubrication mechanism components, illustrating various parts with reference numbers and labels.
• Page 42 (parts_list): This page lists lubrication mechanism components with their part numbers, descriptions, and quantities.
• Page 43 (diagram): This page contains a diagram of sewing machine parts, with a table listing part numbers and corresponding reference numbers for models 045/14S and 16S/43S.
• Page 44 (parts_list): This page lists components for the Needle Cooler Unit, including part numbers, names, quantities, and remarks.
• Page 45 (diagram): This page displays a diagram of thread stand components for the MO-6804S sewing machine, with numbered parts indicated.
• Page 46 (parts_list): This page lists thread stand components for the MO-6804S model, including part numbers, names, quantities, and other specifications.
• Page 47 (diagram): This page displays a diagram of thread stand components for model MO-6814S, with various parts numbered for identification.
• Page 48 (parts_list): This page lists thread stand components for model MO-6814S, including part numbers, names, quantities, and other specifications.
• Page 49 (diagram): This page displays a diagram of thread stand components for the MO-6816S sewing machine, illustrating various parts with reference numbers.
• Page 50 (parts_list): This page lists thread stand components for the MO-6816S sewing machine, including part numbers, names, quantities, and other specifications.
• Page 51 (diagram): This page displays a diagram of thread stand components for the MO-6843S sewing machine, with numbered parts and their corresponding references.
• Page 52 (parts_list): This page lists thread stand components for model MO-6843S, including part numbers, names, quantities, and other specifications.
• Page 53 (diagram): This page displays a diagram of semi-sunken type table components, with various parts numbered for identification.
• Page 54 (parts_list): This page lists components for the Semi-Sunken Type Table, including part numbers, names, quantities, and other specifications.
• Page 55 (diagram): This page displays a diagram of fully-sunken type table components, with parts labeled with reference numbers 1, 2, and 3.
• Page 56 (parts_list): This page lists components for the FULLY-SUNKEN TYPE TABLE, including part numbers, descriptions, quantities, and remarks.
• Page 57 (diagram): This page displays a diagram of various sewing machine accessories and components, numbered from 1 to 25, including tools, needles, and other small parts.
• Page 58 (parts_list): This page lists accessories and parts components, including part numbers, names, quantities, and remarks.
• Page 59 (diagram): This page displays a diagram of packing components for an industrial sewing machine, with numbered parts indicated.
• Page 60 (parts_list): This page lists packing components with their part numbers, names, and quantities.
• Page 61 (diagram): This page displays a diagram of tape insertion components, with numbered parts indicated for reference.
• Page 62 (parts_list): This page lists tape insertion components with part numbers, descriptions, quantities, and remarks.
• Page 63 (diagram): This page displays a diagram of 30P components, illustrating various parts with reference numbers.
• Page 64 (parts_list): This page lists 30P components with part numbers, descriptions, quantities, and remarks, including part numbers like 40164048 and 40164047.
• Page 65 (parts_list): This page contains a parts list for MO-6800S Gauge Table, detailing various models and their corresponding parts such as Throat Plate, Feed Dog, Presser Foot, Looper, Needle Clamp, and Needle.
• Page 66 (parts_list): This page contains a parts list for the MO-6800S GAUGE TABLE, with columns for No., C-ons, Le-vel, Parts No., Replacement, Supply Code, Parts name, Qty, R-Q-TY, Status, Spec, and Remarks.
• Page 67 (parts_list): This page contains a numerical index of parts for Superior Sewing Machine & Supply LLC, listing part numbers, page numbers, and reference numbers.
• Page 68 (parts_list): This page contains a numerical index of parts with part numbers, page numbers, and reference numbers across multiple columns.
• Page 69 (parts_list): This page contains a numerical index of parts for Superior Sewing Machine & Supply LLC, listing part numbers, page numbers, and reference numbers across multiple columns.
• Page 70 (parts_list): This page contains a numerical index of parts for Superior Sewing Machine & Supply LLC, listing part numbers, page references, and reference numbers across multiple columns.
• Page 71 (parts_list): This page contains a numerical index of parts for Superior Sewing Machine & Supply LLC, listing part numbers, page numbers, and reference numbers across multiple columns.
• Page 72 (parts_list): This page contains a numerical index of parts for Superior Sewing Machine & Supply LLC, listing part numbers, page numbers, and reference numbers across multiple columns.
• Page 73 (parts_list): This page contains a numerical index of parts, listing part numbers, page numbers, and reference numbers across multiple columns.
• Page 74 (parts_list): This page contains a numerical index of parts with their corresponding page and reference numbers. It lists part numbers such as 70000813, 70000820, and MDC270B0800, along with their associated page and reference numbers.

Page 1 — PARTS LIST

MODEL : MO-6800S List No : 1672-02 PARTS LIST Published:08/22/2016 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 3 — MISCELLANEOUS COVER COMPONENTS (1)

MISCELLANEOUS COVER COMPONENTS (1) 26 27 28 29 7 9 22 20 20 25 23 24 12 3 13 19 21 4 5 8 14 6 18 17 16 15 11 2 1 10 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 4 — MISCELLANEOUS COVER COMPONENTS (1)

MISCELLANEOUS COVER COMPONENTS (1) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 1 70000363 WASHER 4 2 70000365 WASHER 4 3 40159534 RUBBER PLUG 1 4 40172525 COVER 1 5 70000443 METAL FOAM GASKET 1 6 *** NAME PLATE 1 7 70000515 E_SCREW 1 8 70000522 E_SCREW 1 9 70000529 E_SCREW 1 10 70000543 E_SCREW 4 11 70000544 E_SCREW 4 12 70000550 E_SCREW 3 13 70000586 M_SCREW 1 14 70000659 PIN 1 15 70000670 PIN 1 16 70000671 PIN 1 17 70000672 PIN 1 18 70000753 RIVET 2 19 70000754 DUCT 2 20 70000515 E_SCREW 2 21 70000515 E_SCREW 4 22 70000529 E_SCREW 1 23 40159531 SIDE COVER 1 24 40159532 METAL FOAM GASKET 1 25 40159533 COVER 1 26 40159537 RUBBER PLUG COMB. 1 27 * 40159538 RUBBER PLUG 1 28 * 40159539 FELT 1 29 * 40159540 RUBBER PLUG COVER 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 5 — MISCELLANEOUS COVER COMPONENTS (2)

MISCELLANEOUS COVER COMPONENTS (2) 31 27 28 26 25 24 23 22 30 18 19 20 21 5 4 9 10 11 12 8 13 14 15 16 17 2 3 6 7 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 6 — MISCELLANEOUS COVER COMPONENTS (2)

MISCELLANEOUS COVER COMPONENTS (2) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 1 * 40159557 FABRIC PLATE COVER CO 1 2 * 70000368 WASHER 2 3 * 70000574 M_SCREW 2 4 * 70000490 RUBBER PLUG 1 5 * 70000334 FIXED SEAT 1 6 * 40159562 WASHER 1 7 * 40159563 M_SCREW 1 8 * 40159556 SIDE COVER 1 9 * 40159555 FABRIC PLATE COVER 1 10 * 40159564 LEVER 1 11 * 40159565 SPRING 1 12 * 70000528 E_SCREW 1 13 * 40159558 BUSHING 1 14 * 40159559 WASHER 1 15 * 40159560 WASHER 1 16 * 70000577 M_SCREW 1 17 * 40159561 RUBBER PLUG 1 18 40159552 M_SCREW 1 19 40159553 GUIDE PLATE 1 20 40159554 OILER COVER 1 21 70000516 E_SCREW 2 22 70000404 FIXED PLATE 1 23 70000518 E_SCREW 1 24 70000453 NUT 1 25 * 70000452 NUT 1 26 * 70000563 E_SCREW 1 27 70000494 SCREW 2 28 70000493 FABRIC GUIDE 1 29 70000515 E_SCREW 2 30 70000755 SPONGY CUSHION 1 31 40159551 LABEL (GROUND_MARK) 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 7 — FIG. 1 MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS

MODEL 04S/14S 16S/43S MISCELLANEOUS COVER COMPONENTS (3) PARTS NO 28 41 26 27 1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 31 32 33 34 35 36 37 38 39 40 41 42 30 10 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 8 — MISCELLANEOUS COVER COMPONENTS (3)

MISCELLANEOUS COVER COMPONENTS (3) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Q- TY Status Spec Remarks 1 * 40159571 SIDE COVER 1 2 * 40159573 M_SCREW 1 3 * 40159572 WASHER 1 4 * 40159572 WASHER 1 5 * 40159577 SAFETY PLATE COMB. 1 6 * 40159576 WASHER 2 7 * 40159575 SAFETY PLATE 1 8 * 40159574 SAFETY PLATE BRACKET 1 9 * 70000908 M_SCREW 2 10 70000736 LABEL 1 11 40159579 OIL LEVEL INSPECTION LI 1 12 * 70000136 GASKET 1 13 * 40159578 OIL LEVEL INSPECTION LI 1 14 70000161 LABEL 1 15 70000222 O-RING 1 16 40159582 TOP COVER 1 17 40159583 TOP COVER (43 SIZE) 1 18 40159580 E_SCREW 2 19 40159581 THREAD GUIDE PLATE 1 20 70000563 E_SCREW 4 21 40159584 MOTOR COVER 1 22 70000520 E_SCREW 3 23 70000745 GUIDE PLATE 1 24 70000555 E_SCREW 1 25 *** EMBLEM 1 26 40159585 FRONT COVER COMB. 1 FOR 43S 27 40159593 FRONT COVER COMB. 1 FOR 04S,14S 28 * 70000481 FRONT COVER 1 FOR 04S,14S 29 70000660 PIN 1 30 40159590 SHAFT 1 31 * 70000577 M_SCREW 2 32 * 40159586 FIXED SEAT 1 33 * 40159587 SPRING 1 34 * 70000744 RETAINING CLIP 1 35 * 70000577 M_SCREW 1 36 * 70000570 M_SCREW 1 37 * 70000569 M_SCREW 1 38 * 40159591 M_SCREW 1 39 * 40159592 FRONT COVER 1 40 * 70000573 M_SCREW 2 41 70000820 FRONT COVER 1 FOR 16S,43S 42 40159589 E_SCREW 3 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 9 — MODEL CRANKSHAFT COMPONENTS 045/14S 16S/43S

MODEL 045/14S CRANKSHAFT COMPONENTS 16S/43S PARTS NO 20 15 12 13 21 16/17 22.46 27 28 23.47 26 29 30 24 33 25 34 31 32 1.2.44 43 42 37 3.4.45 38 40 39 41 48.60 49.61 53 52 51 50 14 19 18 15 16 17 20 21 54 56 59 55 57 58 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 10 — CRANKSHAFT COMPONENTS

CRANKSHAFT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Q- ty Qty Status Spec Remarks 1 40159606 MAIN SHAFT COMB. 1 2 40159607 MAIN SHAFT COMB. (HIGH) 1 3 40159604 MAIN SHAFT 1 FOR 14S-40H,14 4 40159605 MAIN SHAFT (HIGH TYPE) 1 FOR 14S-40H,14 5 70000565 E.SCREW 2 6 70000564 E.SCREW 1 7 70000565 E.SCREW 1 8 70000619 BALANCE BLOCK 1 9 70000620 BALANCE BLOCK 1 10 70000535 E.SCREW 4 11 70000737 SHAFT 1 12 40159608 M.SCREW 1 FOR 04S, 14S 13 70000460 FASTENER PIN 1 FOR 16S,43S 14 70000130 BUSHING 1 15 70000701 BEARING COVER 1 FOR 16S,43S 16 70000554 E.SCREW 2 FOR 16S,43S 17 70000562 E.SCREW 1 FOR 16S,43S 18 70000694 BEARING 1 19 70000145 O-RING 1 20 70000700 BEARING COVER 1 FOR 04S, 14S 21 70000508 E.SCREW 3 FOR 04S, 14S 22 40159602 HAND WHEEL COMB. 1 23 40159601 HAND WHEEL 1 24 70000536 E.SCREW 1 25 70000546 E.SCREW 1 26 70000341 GASKET 1 27 70000612 WASHER 1 28 40159603 M.SCREW 1 29 70000750 FAN BLADE 1 30 70000431 SIDE COVER COMB. 1 31 70000130 SIDE COVER 1 32 70000521 O-RING 1 33 70000221 E.SCREW 3 34 70000143 O-RING 1 35 70000149 WORM WHEEL 1 36 70000699 WASHER 1 37 70000695 BEARING 1 38 70000259 WORM WHEEL 1 39 70000257 WORM WHEEL 1 40 70000522 E.SCREW 1 41 70000314 SHAFT 1 42 70000696 BEARING 1 43 70000449 STOP RING 1 44 40164012 MAIN SHAFT COMB.(30P) 1 FOR 30P 45 40164011 MAIN SHAFT (30P) 1 FOR 30P 46 40164057 HAND WHEEL COMB.(30P) 1 FOR 30P 47 40164058 HAND WHEEL (30P) 1 FOR 30P 48 40159660 MAIN SHAFT COMB.(SYN) 1 OPTIONAL PAR 49 40159659 HAND WHEEL COMB.(SYNCHRO) 1 50 70000536 E.SCREW 1 51 70000546 E.SCREW 1 52 70000612 WASHER 1 OPTIONAL PAR 53 70000928 M.SCREW 1 OPTIONAL PAR 54 40170846 SYNCHRONIZER STOPPER 1 OPTIONAL PAR 55 40170847 SYNCHRONIZER BASE,STU 1 56 40170848 SYNCHRONIZER STOPPER 1 57 40022255 SYNCHRONIZER STOPPER 1 58 SS6120940SP SCREW 3/16-28 L=9 1 59 SS6111010TP SCREW 11/64-40 L= 9.5 1 60 40164010 HAND WHEEL COMB.(30P) 1 OPTIONAL PAR From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 11 — CRANKSHAFT COMPONENTS 16S/43S

MODEL 045/14S CRANKSHAFT COMPONENTS 16S/43S PARTS NO 20 15 12 13 21 16/17 22.46 27 28 23.47 26 29 24 30 25 33 31 32 34 35 36 37 38 40 39 41 1.2.44 3.4.45 43 42 7 5 6 11 9 8 10 10 48.60 49.61 52 53 51 50 14 18 19 15 16 17 20 21 54 56 59 55 57 58 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 12 — CRANKSHAFT COMPONENTS

CRANKSHAFT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 61 * 40164059 HAND WHEEL (30P_SYNCH) 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 13 — NEEDLE DRIVING SHAFT COMPONENTS

NEEDLE DRIVING SHAFT COMPONENTS 1 2 4 3 13 15 14 16 17 18 19 20 21 36 24 23 22 25 26 27 28 29 32 35 30 33 31 12 11 10 8 7 9 34 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 14 — NEEDLE DRIVING SHAFT COMPONENTS

NEEDLE DRIVING SHAFT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Qty Spec Remarks 1 40159615 SHAFT COMB. 1 2 70000643 SHAFT 1 3 70000640 NEEDLE BAR ROCKER 1 4 70000588 M_SCREW 1 5 70000646 PIN 1 6 70000522 E_SCREW 1 7 40159618 Discontinue CONNECTING ROD COMB. 1 8 40159617 CONNECTING ROD 1 9 70000578 M_SCREW 2 10 70000267 OIL FELT 1 11 70000266 PLUG 1 12 70000677 OIL FELT 1 13 70000437 COLLAR 1 14 70000432 COLLAR 1 15 70000522 E_SCREW 2 16 70000637 BUSHING 1 17 70000362 WASHER 1 18 70000134 E_CIRCLIPS 1 19 70000639 BUSHING 1 20 70000635 ARBOR 1 21 40159619 NEEDLE BAR COMB. 1 22 70000633 Discontinue CONNECTING ROD COMB. 1 23 70000632 CONNECTING ROD 1 24 70000593 M_SCREW 1 25 70000638 SHAFT COMB. 1 26 70000636 Discontinue SHAFT 1 27 70000728 OIL YARN 2 28 70000729 OIL WICK 1 29 70000654 NEEDLE BAR 1 30 40159620 BUSHING 1 31 70000676 OIL FELT 1 32 40159658 NEEDLE BAR (44H) 1 FOR 14S-44H 33 70000503 E_SCREW 1 34 70000445 PLUG 1 35 70000141 O-RING 2 36 40159623 NEEDLE BAR COMB.(44H) 1 FOR 14S-44H

Page 15

MODEL 04S 14S 16S 43S 14S-30P THREAD TENSION COMPONENTS 1 6 10 17 5 54 53 55 56 113 51 51 52 52 63 63 64 64 44 44 45 45 38 37 114 39 8 8 15 15 2 2 20 20 9 9 21 21 35 35 14 14 3 4 36 36 47 47 11 12 48 48 PARTS NO 53~56 113 24 23 26 29 27 25 30 35-36 33 32 34 37~39 114 31 40~42 FOR(04S) 75 A 94 93 75 83 84 85 88 87 86 83 84 85 75 78 83 84 85 79 80 81 82 FOR(14S/16S) 標準 14S-44H/16S-50H 103 104 99 100 75 A 99-100 101 83 84 85 88 102 103-104 105 106 89 90 91 92 83 84 85 78 83 84 85 109 110 111 112 107 108 77 79 80 81 82 FOR(04S/14S) 3.4 1.10 5.6 7 9 8 FOR(16S/43S) 11-12 13 18 15 16 22 1.10 20 21 19 1714 20 FOR(16S/43S) 67 68 66 70 72 71 69 FOR(43S) 76 94 93 75 83 84 85 88 89 90 91 92 87 75 83 84 85 109 110 111 112 107 108 77 75 83 84 85 78 83 84 85 79 80 81 82 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 16 — THREAD TENSION COMPONENTS

THREAD TENSION COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Q- ty Status Spec Remarks 1 40159645 THREAD GUIDE PLATE 1 FOR 14S,43S 2 70000513 E_SCREW 1 FOR 04S,14S 3 70000173 FIXED PLATE COMB. 1 FOR 04S 4 70000832 FIXED PLATE COMB. 1 FOR 14S 5 70000822 THREAD GUIDE PLATE 1 FOR 14S 6 40159650 THREAD GUIDE PLATE 1 FOR 14S 7 70000164 FIXED PLATE 1 8 70000549 E_SCREW 1 FOR 04S,14S 9 70000549 E_SCREW 1 FOR 04S,14S 10 40159646 THREAD GUIDE PLATE 1 FOR 04S,16S 11 70000174 FIXED PLATE 1 FOR 16S 12 70000833 FIXED SEAT COMB. 1 FOR 43S 13 70000171 FIXED SEAT 1 14 70000559 E_SCREW 2 FOR 16S,43S 15 70000198 E_SCREW 2 FOR 16S,43S 16 40159647 THREAD GUIDE PLATE 1 FOR 16S 17 40159651 THREAD GUIDE PLATE 1 FOR 43S 18 40159648 THREAD GUIDE PLATE 1 19 70000169 FIXED BLOCK 1 20 70000513 E_SCREW 2 FOR 16S,43S 21 70000555 E_SCREW 1 FOR 16S,43S 22 70000168 THREAD GUIDE PLATE 1 23 70000629 CATCHER 1 24 70000653 CRAMP 1 25 70000652 CRAMP 1 26 70000572 M_SCREW 1 27 40159629 M_SCREW 1 28 70000598 SPRING 1 29 70000626 THREAD GRIP 1 30 70000627 THREAD GRIP 1 31 ********* NEEDLE CLAMP 1 REFER "MO-680 32 ********* NEEDLE CLAMP 1 REFER "MO-680 33 ********* NEEDLE CLAMP 1 REFER "MO-680 34 70000498 E_SCREW 2 35 70000567 M_SCREW 1 FOR 04S,14S 36 70000831 M_SCREW 1 FOR 16S,43S 37 70000628 THREAD CROSSING 1 FOR 14S 38 70000828 THREAD CROSSING 1 FOR 04S 39 70000829 THREAD CROSSING 1 FOR 43S 40 ********* NEEDLE 2 REFER "MO-680 41 ********* NEEDLE 1 REFER "MO-680 42 ********* NEEDLE 3 REFER "MO-680 43 70000550 NEEDLE 2 44 70000469 NEEDLE GUARD 2 FOR 04S,14S 45 70000827 NEEDLE GUARD 1 FOR 16S,43S 46 70000555 OILER 1 47 70000887 OILER 1 FOR 04S,14S 48 40159652 OILER 1 FOR 16S,43S 49 70000849 OILER COVER 1 50 70000847 OILER 1 51 70000848 OIL FELT 1 FOR 04S,14S 52 70000885 OIL FELT 1 FOR 16S,43S 53 40159630 THREAD TAKE-UP LEVER 1 FOR 14S 54 40159653 THREAD TAKE-UP LEVER 1 FOR 04S 55 40159654 THREAD TAKE-UP LEVER 1 FOR 16S 56 40159655 THREAD TAKE-UP LEVER 1 FOR 43S 57 70000505 E_SCREW 2 58 40159628 NEEDLE PLATE BRACKET 1 59 70000704 RUBBER PLUG 2 60 40159626 NEEDLE PLATE BRACKET 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 17

MODEL 04S 14S 16S 43S 14S-30P THREAD TENSION COMPONENTS 5 6 10 17 54 53 55 56 113 51 51 52 52 63 63 64 64 44 44 45 45 38 37 114 39 8 8 15 15 2 2 20 20 9 9 21 21 35 35 14 14 3 4 36 36 47 47 11 12 48 48 PARTS NO 53~56 113 24 26 29 23 25 27 30 35-36 33 34 37~39 114 31 40~42 47-48 49 50 63 64 51 52 61 62 73 59 43 60 58 46 44 45 FOR(04S/14S) 3.4 1.10 5.6 7 9 8 FOR(16S/43S) 11 12 21 13 19 15 18 16 1714 22 1.10 20 20 FOR(16S/43S) 67 68 66 70 72 71 69 FOR(04S) 75 A 94 93 83 84 85 84 85 84 85 89 90 91 92 86 75 78 83 84 85 84 85 79 80 81 82 FOR(14S/16S) 標準 14S-44H/16S-50H 103 104 99 100 75 A 99-100 101 83 84 85 84 85 84 85 102 103-104 105 1106 89 90 91 92 75 88 83 84 85 84 85 109 75 78 83 84 85 84 85 79 80 81 82 110 111 112 107 108 FOR(43S) 76 75 A 94 93 83 84 85 84 85 89 90 91 92 87 75 88 83 84 85 84 85 109 75 78 83 84 85 84 85 79 80 81 82 110 111 112 107 108 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 18

THREAD TENSION COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Q- ty Status Spec Remarks 61 70000516 E_SCREW 2 62 ********* THROAT PLATE 1 63 70000850 THREAD GUIDE PLATE 1 64 40159649 THREAD GUIDE PLATE 1 65 40159625 E_SCREW 1 66 70000337 FIXED SEAT COMB. 1 67 * 70000336 NEEDLE GUARD 1 68 * 70000497 E_SCREW 2 69 * 70000630 NEEDLE GUARD 1 70 70000335 NEEDLE GUARD 1 71 70000526 E_SCREW 2 72 70000497 E_SCREW 2 73 70000550 E_SCREW 2 74 40159627 NEEDLE PLATE BRACKET 1 75 40159631 THREAD GUIDE PLATE 11 76 40159644 THREAD GUIDE PLATE 1 77 40159640 THREAD TENSION COMB. ( 3 78 * 40159632 THREAD TENSION SHAFT 1 79 * 40159634 SLEEVE 1 80 * 70000211 SPRING 1 81 * 40159636 FIXED RING 1 82 * 40178548 THREAD TENSION KNOB. ( 1 83 40159633 THREAD TENSION RUBBER 12 84 70000203 THREAD GRIP 24 85 70000213 OIL FELT 12 86 70000513 E_SCREW 1 87 40159641 THREAD TENSION COMB. ( 3 88 * 40159632 THREAD TENSION SHAFT 1 89 * 40159634 SLEEVE 1 90 * 40159624 SPRING 1 91 * 40159636 FIXED RING 1 92 * 40178550 THREAD TENSION KNOB. ( 1 93 40159642 THREAD TENSION COMB. 1 94 * 40159632 THREAD TENSION SHAFT 1 95 * 40159634 SLEEVE 1 96 * 40159624 SPRING 1 97 * 40159636 FIXED RING 1 98 * 40178549 THREAD TENSION KNOB. ( 1 99 40159642 THREAD TENSION COMB. ( 1 100 40159656 THREAD TENSION COMB. ( 1 101 * 40159632 THREAD TENSION SHAFT 1 102 * 40159634 SLEEVE 1 103 * 40159624 SPRING 1 104 * 40159657 SPRING 1 105 * 40159636 FIXED RING 1 106 * 40178549 THREAD TENSION KNOB. ( 1 107 40159643 THREAD TENSION COMB. ( 3 108 40178550 THREAD TENSION KNOB. ( 1 109 * 40159632 THREAD TENSION SHAFT 1 110 * 40159634 SLEEVE 1 111 * 70000211 SPRING 1 112 * 40159636 FIXED RING 1 113 40164056 THREAD TAKE-UP LEVER 1 114 * 40172527 THREAD CROSSING 1 REFER "MO-680 FOR 04S,14S FOR 16S,43S FOR 14S-44H,16 FOR 14S-44H,16 FOR 14S-30P FOR 16S From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 19

MODEL 045/16S 14S/43S 14S-44H 16S-50H PARTS NO 73 72 70 71+72 12 11 11 12 10 9 9 10 1 1 2 36 37 38 36 24 25 26 24 59 60 61 14 80 81 14 82 83 74 83 66 64 1.2 65 63 70~73 62 75 9.10 11.12 74.82.83 13 14.80.81 15 24~26 36~38 27 35 29 31 57 77 78 79 76 20 16 17 19 18 3 5 7 6 4 8 23 22 21 40 41 42 43 45 46 47 53 51 52 55 54 54 49 50 59~61 48 44 49 68 84 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 20 — UPPER LOOPER COMPONENTS

UPPER LOOPER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 1 * 40159686 BALL CONNECTING ROD ( 1 FOR 14S,43S,14 2 * 40159687 BALL CONNECTING ROD ( 1 FOR 04S,16S,16 3 * 40179596 E_SCREW 2 4 * 40179597 E_SCREW 2 5 * 40179597 BALL CONNECTING ROD ( 1 6 * 70000545 E_SCREW 1 7 * 70000546 FIXED JAW 1 8 * 70000254 BALL CONNECTING ROD ( 1 FOR 14S,43S,14 9 * 40159678 BALL CONNECTING ROD ( 1 FOR 04S,16S,16 10 * 40159679 BALL CONNECTING ROD ( 1 FOR 04S,16S,16 11 * 70000834 BALL CONNECTING ROD ( 1 FOR 04S,16S,16 12 * 70000590 M_SCREW 1 13 * 70000591 CONNECTING ROD SEAT ( 1 FOR 04S,16S 14 * 70000198 E_SCREW 1 15 * 70000199 LOOPER CONNECTING RC 1 16 * 70000661 PIN 2 17 * 70000728 OIL YARN 1 18 * 70000729 OIL WICK 1 19 * 40172535 LOOPER CONNECTING RC 1 20 * 70000240 CONNECTING ROD COMB. 1 21 * 70000239 CONNECTING ROD 1 22 * 70000593 M_SCREW 1 23 * 40159675 CONNECTING ROD SEAT ( 1 FOR 04S,16S,16 24 * 40159681 CONNECTING ROD SEAT ( 1 FOR 14S,43S 25 * 40159682 CONNECTING ROD SEAT ( 1 FOR 14S-44H 26 * 70000678 OIL WICK 1 27 * 70000243 FIXED PLATE 1 28 * 40159671 OIL FELT 1 29 * 40159672 FELT COVER 1 30 * 70000538 E_SCREW 1 31 * 70000193 THREAD CROSSING 1 32 * 70000560 E_SCREW 1 33 * 40159674 E_SCREW 1 34 * 70000241 70000836 LOOPER GUIDE SHAFT 1 1.00 選択部品 for 3 NEEDLE 35 * 70000241 70000837 LOOPER GUIDE SHAFT 1 1.00 選択部品 for 4 NEEDLE 35 * 70000241 70000245 LOOPER GUIDE SHAFT 1 1.00 選択部品 for 5 NEEDLE 36 * 40159673 CONNECTING ROD SEAT ( 1 FOR 04S,16S,16 37 * 40159679 CONNECTING ROD SEAT ( 1 FOR 14S,43S 38 * 40159680 CONNECTING ROD SEAT ( 1 FOR 14S-44H 39 70000248 BUSHING 1 40 70000749 COVER 1 41 * 70000748 COVER 1 42 * 70000268 OIL SEAL 1 43 70000515 E_SCREW 1 44 70000202 THREAD CROSSING COMB 1 45 * 70000197 THREAD CROSSING 1 46 * 70000198 THREAD CROSSING 1 47 * 70000501 E_SCREW 2 48 * 70000521 E_SCREW 2 49 70000521 GRADUATED PLATE COMI 1 50 70000201 FIXED PLATE 1 51 * 70000194 THREAD CROSSING 1 52 * 70000200 THREAD CROSSING 1 53 * 70000195 E_SCREW 2 54 * 70000501 WASHER 2 55 * 70000350 LOOPER 1 56 ********* WASHER 1 57 40159670 E_SCREW 1 58 70000504 REFER "MO-680 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 21

MODEL 045/16S 14S/43S 14S-44H 16S-50H PARTS NO 73 72 70 71 + /2 12 11 11 12 10 9 9 10 2 1 1 1 37 38 36 24 25 26 24 59 60 61 14 80 81 14 82 83 74 83 66 64 1.2 65 63 70~73 62 75 9.10 11.12 74.82.83 13 39 23 40 22 41 14.80.81 15 42 43 69 24~26 45 46 47 27 36~38 48 35 28 59~61 53 51 52 54 50 55 54 49 29 31 30 57 58 32 33 34 77 78 79 76 20 56 17 16 19 18 84 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 22 — UPPER LOOPER COMPONENTS

UPPER LOOPER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- ep- Q- TY Status Spec Remarks 59 70000196 THREAD CROSSING 1 FOR 04S,14S,16 60 70000812 THREAD GUIDE 1 FOR 14S-44H 61 40159683 THREAD GUIDE 1 FOR 16S-50H 62 70000247 BUSHING 1 63 70000246 ARBOR COMB. 1 64 70000257 GASKET 1 65 7000013 WASHER 1 66 70000517 E.SCREW 1 67 70000522 E.SCREW 1 68 70000587 M.SCREW 2 69 70000679 OIL WICK 1 70 40159666 COLLAR COMB. 1 FOR 14S-44H 71 70000807 COLLAR COMB. 1 FOR 16S-50H 72 40159676 COLLAR COMB. 1 FOR 14S,43S,16 73 40159677 COLLAR COMB. 1 FOR 04S,16S 74 * 40159665 COLLAR 1 FOR 14S-44H 75 * 70000522 E.SCREW 2 76 70000522 E.SCREW 1 77 40159669 OIL TUBE 1 78 * 40159668 OIL WICK 1 79 * 40159667 OIL TUBE 1 80 40159681 CONNECTING ROD SEAT C 1 FOR 14S,43S 81 40159682 CONNECTING ROD SEAT C 1 FOR 14S-44H 82 * 40177859 COLLAR 1 FOR 04S,16S 83 * 40159715 COLLAR 1 FOR 14S,43S,16 84 40176583 LOOPER 1 OPTIONAL PAR From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 23 — MODEL 045/145 COMPONENTS 16S-50H

MODEL 045/145 COMPONENTS 16S-50H PARTS NO 15 1 25 37 24 38 17 36 35 27 34 33 32 31 30 25 26 24 21 19 20 22 17 18 23 28 29 1.2 10 9 8 4 5 12 11 3 7 6 13 15 16 14 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 24

LOWER LOOPER COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- ep Qty Status Spec Remarks 1 40159692 LOOPER HOLDER COMB. 1 FOR 04S,14S,16 2 40159694 LOOPER HOLDER COMB. 1 FOR 16-50H 3 70000407 LOOPER HOLDER 1 4 70000406 LOOPER HOLDER 1 5 70000667 PIN 1 6 70000380 GASKET 1 7 70000531 E_SCREW 1 8 70000751 WASHER 1 9 70000511 E_SCREW 1 10 70000175 EJECTOR PLATE 1 11 70000505 E_SCREW 1 12 70000405 LOOPER 1 13 70000525 E_SCREW 1 14 70000506 E_SCREW 1 15 70000199 THREAD GUIDE PLATE 1 FOR 04S,14S,16 16 40159693 THREAD GUIDE PLATE 1 FOR 16-50H 17 40159689 BALL CONNECTING ROD C 1 FOR 04S,14S 18 40179596 CONNECTING ROD 1 19 40178084 BALL CONNECTING ROD 1 20 40179597 E_SCREW 2 21 40179597 E_SCREW 2 22 40159684 FIXED JAW 1 23 70000545 E_SCREW 1 24 70000415 BALL CONNECTING ROD 1 FOR 04S,14S 25 70000413 BALL CONNECTING ROD 1 FOR 04S,14S 26 70000590 M_SCREW 1 27 70000517 E_SCREW 1 28 70000410 BUSHING 1 29 70000270 OIL SEAL 1 30 70000752 WASHER 1 31 70000410 BUSHING 1 32 70000409 ARBOR 1 33 70000343 GASKET 1 34 70000614 WASHER 1 35 40159690 BALL CONNECTING ROD C 1 FOR 16S,43S 36 70000416 BALL CONNECTING ROD 1 FOR 16S,43S 37 70000414 BALL CONNECTING ROD 1 FOR 16S,43S 38 70000522 E_SCREW 1 FOR 16S,43S 39 70000590 M_SCREW 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 25 — CHAIN LOOPER COMPONENTS (1)

CHAIN LOOPER COMPONENTS (1) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 26 — CHAIN LOOPER COMPONENTS (1)

CHAIN LOOPER COMPONENTS (1) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 1 * 70000179 CONNECTING ROD COMB. 1 2 * 70000139 O-RING 1 3 * 70000317 BUSHING 1 4 * 70000346 GASKET 1 5 * 70000357 WASHER 1 6 * 70000463 ADJUSTING SEAT 1 7 * 70000464 ADJUSTING SEAT 1 8 * 70000467 SHAFT 1 9 * 70000478 CONNECTING ROD 1 10 * 70000514 E_SCREW 1 11 * 70000561 E_SCREW 1 12 * 70000616 WASHER 1 13 * 70000697 BEARING 1 14 * 70000703 ECCENTRIC 1 15 70000465 SLIDE BLOCK GUIDE 1 16 * 70000461 SHAFT 1 17 * 70000466 SLIDE BLOCK GUIDE 1 18 * 70000462 SLIDE BLOCK GUIDE 1 19 * 70000590 M_SCREW 1 20 70000475 LOOPER COMB. 1 21 * 70000476 LOOPER HOLDER 1 22 * 70000351 WASHER 1 23 * 70000474 LOOPER HOLDER 1 24 * 70000380 GASKET 1 25 * 70000531 E_SCREW 1 26 * 70000473 LOOPER 1 27 * 70000508 E_SCREW 1 28 70000270 OIL SEAL 1 29 70000525 SCREW 1 30 70000471 LOOPER CONNECTING RC 1 31 * 70000470 LOOPER CONNECTING RC 1 32 * 70000590 M_SCREW 1 33 70000477 BUSHING 1 34 70000410 BUSHING 1 35 70000472 BUSHING 1 36 70000317 CONNECTING ROD 1 37 70000346 GASKET 1 38 70000514 E_SCREW 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 27

CHAIN LOOPER COMPONENTS (2) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 28 — CHAIN LOOPER COMPONENTS (2)

CHAIN LOOPER COMPONENTS (2) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Qty Spec Remarks 1 70000397 DUST COMB. 1 2 70000172 PLUG 2 3 70000396 DUCT 1 4 70000398 FIXED PLATE 2 5 70000359 WASHER 2 6 70000387 THREAD GUIDE PLATE 1 7 70000519 E-SCREW 1 8 70000576 M_SCREW 1 9 70000384 THREAD CROSSING 1 10 70000513 E_SCREW 1 11 70000391 THREAD TAKE-UP DEVICE 1 12 70000392 THREAD GRIP 2 13 70000393 THREAD TENSION KNOB 1 14 70000394 SPRING 1 15 70000395 THREAD TENSION SHAFT 1 16 70000388 BRACKET 1 17 70000389 THREAD GUIDE PLATE 1 18 70000390 THREAD GUIDE PLATE 1 19 70000571 E_SCREW 1 20 70000452 NUT 1 21 70000557 E_SCREW 1 22 70000383 THREAD GUIDE PLATE 1 23 70000148 SPRING PLATE 1 24 70000386 THREAD TENSION CAM 1 25 70000385 THREAD TENSION CAM 1 26 70000198 E_SCREW 2 27 70000453 NUT 1 28 70000452 NUT 1 29 70000563 E_SCREW 1 30 70000518 E_SCREW 1 31 70000610 FIXED PLATE 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 29 — FEED MECHANISM COMPONENTS (1)

FEED MECHANISM COMPONENTS (1) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 30 — FEED MECHANISM COMPONENTS (1)

FEED MECHANISM COMPONENTS (1) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep- TY Status Spec Remarks 1 * 40159707 FEED DOG SEAT COMB. 1 2 * 70000140 O-RING 1 3 * 70000344 GASKET 2 4 * 70000345 WASHER 1 5 * 70000349 WASHER 2 6 * 70000372 FIXED BLOCK 2 7 * 70000373 ADJUSTING SEAT 1 8 * 70000379 ADJUSTING PLATE 1 9 * 70000450 NUT 1 10 * 70000495 SCREW 1 11 * 70000542 E_SCREW 1 12 * 70000601 SPRING 1 13 * 70000512 E_SCREW 2 14 * 70000131 E_CLIPS 1 15 * 70000353 WASHER 1 16 * 40159702 SPACER 2 17 * 40159703 ADJUSTING SCREW 1 18 * 40159704 SPRING 1 19 * 40159705 BLOCK 1 20 * 40159706 FEED DOG SEAT 1 21 70000523 E_SCREW 2 22 70000370 DIFFERENTIAL CONNECTI 1 23 * 70000369 DIFFERENTIAL CONNECTI 1 24 * 70000590 M_SCREW 1 25 40159700 BUSHING 1 26 70000552 E_SCREW 1 27 40159701 CONNECTING ROD 1 28 70000276 ADJUSTING WHEEL 1 29 70000275 ADJUSTING WHEEL 1 30 * 70000582 M_SCREW 2 31 * 70000666 PIN 1 32 40159709 CONNECTING ROD COMB. 1 33 * 70000162 SPRING PLATE 1 34 * 70000277 CONNECTING ROD 1 35 * 70000602 SPRING 1 36 * 70000662 PIN 1 37 * 70000698 BEARING 1 38 * 40159629 M_SCREW 1 39 * 70000503 E_SCREW 1 40 * 70000282 ECCENTRIC 1 41 * 70000665 PIN 2 42 * 70000289 ECCENTRIC 1 43 * 70000288 ECCENTRIC 1 44 * 70000502 E_SCREW 2 45 * 70000741 ADJUSTING WHEEL COMB 1 46 * 70000740 ADJUSTING WHEEL 1 47 * 70000583 M_SCREW 1 48 * 70000738 SLIDE BLOCK 1 49 * 70000739 ADJUSTING WHEEL 1 50 * 70000582 M_SCREW 1 51 * 70000694 SCREW 1 52 70000284 SHAFT COMB. 1 53 * 70000137 O-RING 1 54 * 70000286 SHAFT 1 55 * 70000283 SHAFT 1 56 * 70000131 E_CLIPS 1 57 * 70000358 WASHER 1 58 * 70000600 SPRING 1 Discontinue Discontinue From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 31 — FEED MECHANISM COMPONENTS (2)

FEED MECHANISM COMPONENTS (2) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 32 — FEED MECHANISM COMPONENTS (2)

FEED MECHANISM COMPONENTS (2) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep Q- TY Status Spec Remarks 1 *** FEED DOG 1 2 70000009 E_SCREW 1 3 70000683 CRANK COMB. 1 4 * 70000374 ROCKING SEAT 1 5 * 70000375 ROCKING SEAT 1 6 * 70000558 E_SCREW 2 7 * 70000684 CRANK 1 8 * 70000681 CRANK 1 9 * 70000590 M_SCREW 1 10 70000361 WASHER 1 11 70000280 BUSHING 1 12 70000446 OIL SEAL 1 13 40159717 ECCENTRIC SHAFT COMB 1 14 * 70000133 E_CIRCLIPS 1 15 * 40159716 ECCENTRIC SHAFT 1 16 70000435 COLLAR 1 17 * 70000433 COLLAR 1 18 * 70000522 E_SCREW 1 19 70000147 OIL SEAL COMB. 1 20 * 70000138 OIL SEAL 1 21 * 70000548 E_SCREW 1 22 70000734 ECCENTRIC SHAFT 1 23 * 70000135 E_CIRCLIPS 1 24 * 70000733 ECCENTRIC SHAFT 1 25 * 70000141 O-RING 1 26 70000685 CRANK 1 27 * 70000682 CRANK 1 28 * 70000590 M_SCREW 1 29 70000356 WASHER 1 30 70000458 NUT 1 31 70000688 ADJUSTING SHAFT 1 32 70000410 BUSHING 1 33 40159676 COLLAR 1 34 * 70000522 E_SCREW 2 35 * 40159715 COLLAR 1 36 70000433 COLLAR 1 37 70000522 E_SCREW 1 38 70000731 FEED DOG SEAT COMB. 1 39 * 70000422 FEED DOG SEAT 1 40 * 70000423 CONNECTING ROD 1 41 * 70000429 70000731 SLIDE BLOCK 1 1.00 42 * 70000686 70000731 SLIDE BLOCK 1 1.00 43 * 70000689 70000731 FEED DOG SEAT 1 1.00 44 * 70000732 SLIDE BLOCK 1 45 * 70000317 BUSHING 1 46 * 70000346 GASKET 1 47 * 70000514 E_SCREW 1 48 70000572 M_SCREW 1 49 *** FEED DOG 1 50 *** FEED DOG 1 51 70000509 E_SCREW 1 52 70000530 E_SCREW 1 53 70000151 OIL SCRAPER HOLDER 1 54 70000152 OIL SEAL 2 55 70000508 E_SCREW 2 56 40159718 OIL SEAL 1 57 40159719 SLIDE BLOCK 1 58 70000132 E_CIRCLIPS 1 Discontinue Discontinue REFER "MO-68( REFER "MO-68( From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 33

MODEL COMP4S/14S 16S/43S PARTS NO 23 24 21 22 16 17 11 12 9 10 33 34 28 29 1 2 3 4 5 6 7 8 9.10 15 14 13 35 21.22 25 26 27 16.17 18 19 20 33.34 31 32 30 36 37 38 39 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 34 — KNIFE COMPONENTS

KNIFE COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep Q- TY Status Spec Remarks 1 70000230 SHAFT 1 2 70000235 SWING AXLE 1 3 70000269 OIL SEAL 1 4 70000237 BUSHING 1 5 70000436 COLLAR 1 6 * 70000434 COLLAR 2 7 * 70000522 E_SCREW 2 8 70000236 BUSHING 1 9 40178003 KNIFE SEAT COMB. 1 FOR 04S,14S 10 40159734 KNIFE SEAT COMB. 1 FOR 16S,43S 11 * 40172528 KNIFE SEAT 1 FOR 04S,14S 12 * 40172529 KNIFE SEAT 1 FOR 16S,43S 13 * 70000229 KNIFE 1 14 * 70000347 GASKET 1 15 * 70000510 E_SCREW 1 16 40159729 CONNECTING ROD 1 FOR 04S,14S 17 40159732 CONNECTING ROD 1 FOR 16S,43S 18 * 40159728 CONNECTING ROD 1 19 * 40159727 CONNECTING ROD 1 20 * 70000578 M_SCREW 2 21 * 70000721 ROCKING BAR 1 FOR 04S,14S 22 * 70000842 ROCKING BAR COMB. 1 FOR 16S,43S 23 * 70000720 ROCKING BAR 1 FOR 04S,14S 24 * 70000841 ROCKING BAR 1 FOR 16S,43S 25 * 70000590 M_SCREW 1 26 * 40159726 PIN 1 27 * 70000522 E_SCREW 1 28 70000402 KNIFE SEAT COMB. 1 FOR 04S,14S 29 70000845 KNIFE SEAT COMB. 1 FOR 16S,43S 30 * 70000399 KNIFE 1 31 * 70000400 FIXED PLATE 1 32 * 70000517 E_SCREW 1 33 * 70000403 KNIFE SEAT 1 FOR 04S,14S 34 * 70000813 KNIFE SEAT 1 FOR 16S,43S 35 70000521 E_SCREW 1 36 70000603 SPRING 1 37 70000524 E_SCREW 1 38 70000401 FIXED PLATE 1 39 70000515 E_SCREW 2 Discontinue From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 35

PRESSER FOOT COMPONENTS 27 28 30 29 33 31 32 22 24 23 25 17 18 19 20 21 34 35 75 36 37 76 78 42 77 41 40 39 43 53 44 48 46 49 47 51 45 50 52 55 56 59 58 57 54 60 61 63 68 66 71 62 69 70 72 73 74 65 64 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 36 — PRESSER FOOT COMPONENTS

PRESSER FOOT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep Q- TY Status Spec Remarks 1 * 40159745 SCREW ROD COMB. 1 2 * 40159741 SCREW ROD COMB. 1 3 * 40159741 SCREW ROD 1 4 * 40159742 NUT 1 5 * 40159744 FIXED BUTTON 1 6 * 70000141 O-RING 1 7 * 40159743 FIXED BUTTON 1 8 * 70000142 O-RING 1 9 70000608 SPRING 1 10 40159753 THIMBLE 1 11 70000142 O-RING 1 12 40170670 PRESSER FOOT ARM 1 13 70000309 SLIDER 1 14 70000664 SHAFT 1 15 70000669 PIN 1 16 70000141 O-RING 1 17 70000293 SUPPORTER 1 18 * 70000584 M_SCREW 1 19 * 70000458 NUT 1 20 * 70000292 STOPPER 1 21 70000515 E_SCREW 2 22 70000294 HOOK BAR 1 23 70000295 PRESSER FOOT ARM 1 24 70000592 M_SCREW 1 25 70000604 SPRING 1 26 40159749 SUPPORTER 1 27 * 40159703 ADJUSTING SCREW 1 28 * 70000584 M_SCREW 1 29 * 70000458 NUT 1 30 * 40159704 SPRING 1 31 * 40159748 STOPPER 1 32 * 70000131 E_CIRCLIPS 1 33 * 40159750 BLOCK 1 34 70000355 WASHER 1 35 40159754 SPRING 1 36 70000522 E_SCREW 1 37 70000528 E_SCREW 1 38 40159752 LEVER 1 39 70000291 DRAG LINK 1 40 70000302 COLLAR 1 41 * 70000301 COLLAR 1 42 * 40159751 M_SCREW 1 43 70000605 SPRING 1 44 40178006 PRESSER FOOT SEAT COM 1 45 * 40178007 PRESSER BAR COMB. 1 46 * 40172530 PRESSER FOOT LIFTING L 1 47 * 70000297 PRESSER FOOT ARM 1 48 70000566 M_SCREW 1 49 70000673 SHAFT 1 50 70000176 KNIFE 1 51 * 70000303 BUSHING 1 52 * 70000538 E_SCREW 1 53 70000522 E_SCREW 1 54 *** PRESSER FOOT 1 55 * 70000304 FIXED PLATE 1 56 * 70000500 E_SCREW 1 57 * *** PRESSER FOOT 1 58 * 70000735 FINGER GUARD 1 59 * 70000538 E_SCREW 1 60 * 70000505 E_SCREW 1 Discontinue OPTIONAL PAR REFER "MO-680 REFER "MO-680 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 37

PRESSER FOOT COMPONENTS 27 28 30 29 33 31 32 22 24 23 25 17 18 19 21 20 34 35 37 75 36 38 76 78 42 77 41 39 40 43 53 44 46 51 48 49 47 45 50 52 54 57 60 55 59 58 56 61 63 68 66 71 62 69 70 65 64 72 73 74 67 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 38 — PRESSER FOOT COMPONENTS

PRESSER FOOT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- ep Qty Status Spec Remarks 61 *** PRESSER FOOT 1 REFER "MO-68( 62 * 70000419 LEVER 1 63 * 70000420 PRESSER FOOT LIFTING L 1 64 * 70000480 THREAD GUIDE PLATE 1 65 * 70000496 E.SCREW 1 66 * 70000499 E.SCREW 1 67 * 70000537 E.SCREW 1 68 * 70000606 SPRING 1 69 * 70000609 SPRING 1 70 * *** PRESSER FOOT 1 REFER "MO-68( 71 * 70000505 E.SCREW 1 72 * 70000500 E.SCREW 1 73 * 70000538 E.SCREW 1 74 * 70000735 FINGER GUARD 1 75 40172531 PRESSER ARM STOPPER 1 76 40178005 E.SCREW 1 77 70000561 E.SCREW 1 78 70000349 WASHER 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 39 — LUBRICATION MECHANISM COMPONENTS

LUBRICATION MECHANISM COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 68 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 40

LUBRICATION MECHANISM COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Q- ty Qty Status Spec Remarks 1 70000327 OIL TUBU GROUP 1 2 70000631 HOSE 1 3 70000658 OIL TUBE 1 4 70000534 SPRING CLAMP 1 5 70000693 E.SCREW 1 6 70000658 COPPER TUBE 1 7 70000658 SPRING CLAMP 1 8 40159760 JOINT 1 9 70000329 HOSE COMB. 1 10 70000323 JOINT 2 11 70000325 HOSE 1 12 70000658 SPRING CLAMP 2 13 70000532 E.SCREW 2 14 70000675 OIL FILTER 1 15 70000144 O-RING 1 16 70000674 OIL FILTER COVER 1 17 70000312 OIL FILTER 1 18 70000520 E.SCREW 3 19 70000328 OIL TUBE COMB 1 20 70000128 JOINT 1 21 70000326 HOSE 1 22 70000658 SPRING CLAMP 2 23 40159762 OIL LEVEL INSPECTION LI 1 24 70000157 OIL LEVEL INSPECTION LI 1 25 70000158 NAME PLATE 1 26 40159761 NAME PLATE 1 27 70000160 OIL INDICATOR ROD COM 1 28 70000159 OIL INDICATOR ROD 1 29 70000261 OIL INDICATOR 1 30 70000262 BAFFLE 1 31 70000521 E.SCREW 2 32 40159764 OIL RESERVOIR COMB. 1 33 70000146 OIL SEAL 1 34 70000273 O-RING 1 35 70000381 MAGNET 1 36 70000382 BAFFLE 1 37 70000533 E.SCREW 1 38 70000518 E.SCREW 1 39 40159763 OIL RESERVOIR COMB. 1 40 70000267 HOSE COMB. 1 41 70000318 HOSE 1 42 70000657 SPRING CLAMP 1 43 70000716 PUMP COMB. 1 44 70000715 PUMP COMB. 1 45 70000260 GEAR 1 46 70000258 WORM WHEEL 1 47 70000582 M.SCREW 1 48 70000713 PUMP BODY 1 49 70000322 JOINT 2 50 40159765 GEAR 1 51 70000148 GEAR 1 52 70000148 GEAR 1 53 40159765 GEAR 1 54 70000714 PUMP BODY 1 55 70000712 SHAFT 1 56 70000717 PUMP COVER 1 57 70000710 FILTER NET 1 58 70000711 GASKET 1 59 70000575 M.SCREW 3 60 70000324 HOSE 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 41 — LUBRICATION MECHANISM COMPONENTS

LUBRICATION MECHANISM COMPONENTS 1 2 3 4 67 5 8 7 9 10 12 11 13 A 13 A 14 15 16 18 17 19 20 21 22 23 24 25 26 27 28 29 30 31 40 41 42 43 44 45 46 47 48 49 61 60 62 63 64 65 66 68 50 51 54 52 53 55 56 57 58 59 32 33 34 35 36 37 38 39 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 42 — LUBRICATION MECHANISM COMPONENTS

LUBRICATION MECHANISM COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 61 * 70000657 SPRING CLAMP 1 62 70000322 JOINT 1 63 70000657 SPRING CLAMP 1 64 70000657 SPRING CLAMP 1 65 70000527 E_SCREW 2 66 70000323 JOINT 1 67 70000522 E_SCREW 1 68 70000532 E_SCREW 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 43 — MODELLE CO045/14S 16S/43S

MODELLE CO045/14S 16S/43S PARTS NO 11 8 1 15 12 9 2 16 1.2 11.12 10 15.16 5 14 6 13 3 4 7 17 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 44 — NEEDLE COOLER UNIT COMPONENTS

NEEDLE COOLER UNIT COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- ep Qty TY Status Spec Remarks 1 40159772 OILIER 1 FOR 04S,14S 2 40159775 OILIER 1 FOR 16S,43S 3 70000658 SPRING CLAMP 1 4 40159768 HOSE 1 5 40159769 OIL WICK 1 6 40159770 BALL 1 7 40159771 OILIER 1 FOR 04S,14S 8 40159776 DIVIDING SEAT 1 FOR 16S,43S 9 40159774 DIVIDING SEAT 1 10 40159778 NAIL 1 11 40159777 OIL FELT 1 FOR 04S,14S 12 40159773 OIL FELT 1 FOR 16S,43S 13 40159779 OILIER COVER 1 14 70000658 SPRING CLAMP 1 15 70000526 E.SCREW 1 FOR 04S,14S 16 70001060 E.SCREW 2 FOR 16S,43S 17 70000518 E.SCREW 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 45 — THREAD STAND COMPONENTS (FOR MO-6804S)

THREAD STAND COMPONENTS (FOR MO-6804S) 1 26 11 27 6 17 25 7 22 16 15 14 13 28 34 33 26 11 27 5 8 2 4 30 31 32 19 3 23 24 12 35 10 18 18 29 20 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 46 — THREAD STAND COMPONENTS (FOR MO-6804S)

THREAD STAND COMPONENTS (FOR MO-6804S) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep- Q- TY Status Spec Remarks 1 40179483 THREAD STAND COMB. 1 2 70000179 THREAD GUIDE BAR 1 3 70000180 FIXED SEAT 1 4 70000181 FIXED SEAT 1 5 70000182 THREAD GUIDE BAR 1 6 70000183 THREAD GUIDE BAR 1 7 70000186 SUPPORTER 1 8 70000188 THREAD STAND ROD 1 9 70000189 THREAD STAND COVER 1 10 70000190 THREAD STAND ROD 1 11 70000191 FIXED PLATE 2 12 70000192 CONNECTING LOOP 1 13 70000215 COILING SEAT 3 14 70000216 SPONGY CUSHION 3 15 70000217 CONNECTING LOOP 3 16 70000218 THREAD STEADY BALL SE 3 17 70000219 PLUG 3 18 70000354 WASHER 2 19 70000454 NUT 2 20 70000455 NUT 1 21 70000456 M.SCREW 2 22 70000547 M.SCREW 1 23 70000579 M.SCREW 1 24 70000580 M.SCREW 1 25 70000581 M.SCREW 1 26 70000589 M.SCREW 2 27 70000611 WASHER 2 28 70000615 WASHER 3 29 70000618 WASHER 1 30 70000580 M.SCREW 1 31 70000580 M.SCREW 1 32 70000454 NUT 2 33 70000454 NUT 1 34 70000454 NUT 3 35 70000178 THREAD GUIDE PLATE 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 47

THREAD STAND COMPONENTS (FOR MO-6814S) 1 6 22 20 9 17 28 32 33 34 36 35 11 27 23 22 7 10 18 2 4 25 26 36 35 5 27 23 14 21 16 19 3 15 12 14 14 21 36 27 23 31 30 8 31 30 29 28 32 33 34 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 48 — THREAD STAND COMPONENTS (FOR MO-6814S)

THREAD STAND COMPONENTS (FOR MO-6814S) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep Q- TY Status Spec Remarks 1 40179484 THREAD STAND COMB. 1 2 * 70000179 THREAD GUIDE BAR 1 3 * 70000180 FIXED SEAT 1 4 * 70000181 FIXED SEAT 1 5 * 70000182 THREAD GUIDE BAR 1 6 * 70000183 THREAD GUIDE BAR 1 7 * 70000184 THREAD GUIDE BAR 1 8 * 70000185 THREAD GUIDE BAR 1 9 * 70000186 SUPPORTER 1 10 * 70000188 THREAD STAND ROD 1 11 * 70000189 THREAD STAND COVER 1 12 * 70000190 THREAD STAND ROD 1 13 * 70000192 CONNECTING LOOP 1 14 * 70000354 WASHER 2 15 * 70000454 NUT 2 16 * 70000455 NUT 1 17 * 70000547 E_SCREW 1 18 * 70000579 M_SCREW 1 19 * 70000580 M_SCREW 1 20 * 70000581 M_SCREW 1 21 * 70000618 WASHER 1 22 * 70000219 PLUG 4 23 * 70000456 NUT 4 24 * 70000580 M_SCREW 1 25 * 70000580 M_SCREW 1 26 * 70000454 NUT 2 27 * 70000611 WASHER 4 28 * 70000218 THREAD STEADY BALL SE 4 29 * 70000454 NUT 1 30 * 70000454 NUT 4 31 * 70000615 WASHER 4 32 * 70000217 CONNECTING LOOP 4 33 * 70000216 SPONGY CUSHION 4 34 * 70000215 COILING SEAT 4 35 * 70000191 FIXED PLATE 4 36 * 70000589 M_SCREW 4 37 * 70000178 THREAD GUIDE PLATE 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 49 — THREAD STAND COMPONENTS (FOR MO-6816S)

THREAD STAND COMPONENTS (FOR MO-6816S) 1 36 35 22 6 27 23 7 22 23 27 35 36 11 10 19 18 3 15 2 13 37 4 25 26 12 14 14 28 32 33 34 5 27 23 36 35 28 32 33 34 31 30 29 8 31 30 27 23 36 35 21 16 From the library of: Superior Sewing Machine & Supply LLC Jinttex.in

Page 50 — THREAD STAND COMPONENTS (FOR MO-6816S)

THREAD STAND COMPONENTS (FOR MO-6816S) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 1 40179485 THREAD STAND COMB. 1 2 * 70000179 THREAD GUIDE BAR 1 3 * 70000180 FIXED SEAT 1 4 * 70000181 FIXED SEAT 1 5 * 70000182 THREAD GUIDE BAR 1 6 * 70000183 THREAD GUIDE BAR 1 7 * 70000184 THREAD GUIDE BAR 1 8 * 70000185 THREAD GUIDE BAR 1 9 * 70000186 SUPPORTER 1 10 * 70000188 THREAD STAND ROD 1 11 * 70000189 THREAD STAND COVER 1 12 * 70000190 THREAD STAND ROD 1 13 * 70000192 CONNECTING LOOP 1 14 * 70000354 WASHER 2 15 * 70000454 NUT 2 16 * 70000455 NUT 1 17 * 70000547 E_SCREW 1 18 * 70000579 M_SCREW 1 19 * 70000580 M_SCREW 1 20 * 70000581 M_SCREW 1 21 * 70000618 WASHER 1 22 * 70000219 PLUG 5 23 * 70000456 NUT 4 24 * 70000580 M_SCREW 1 25 * 70000580 M_SCREW 1 26 * 70000454 NUT 2 27 * 70000611 WASHER 4 28 * 70000218 THREAD STEADY BALL SE 5 29 * 70000454 NUT 1 30 * 70000454 NUT 5 31 * 70000615 WASHER 5 32 * 70000217 CONNECTING LOOP 5 33 * 70000216 SPONGY CUSHION 5 34 * 70000215 COILING SEAT 5 35 * 70000191 FIXED PLATE 4 36 * 70000589 M_SCREW 4 37 * 70000177 THREAD GUIDE BAR 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 51 — THREAD STAND COMPONENTS (FOR MO-6843S)

THREAD STAND COMPONENTS (FOR MO-6843S) 1 39 38 26 22 21 34 10 26 22 21 39 9 18 3 17 14 2 12 4 24 40 19 7 16 27 31 32 33 39 38 26 22 5 13 13 20 15 39 27 31 32 33 38 28 30 29 26 22 37 36 8 28 35 30 29 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 52 — THREAD STAND COMPONENTS (FOR MO-6843S)

THREAD STAND COMPONENTS (FOR MO-6843S) No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 1 * 40179486 THREAD STAND COMB. 1 2 * 70000179 THREAD GUIDE BAR 1 3 * 70000180 FIXED SEAT 1 4 * 70000181 FIXED SEAT 1 5 * 70000182 THREAD GUIDE BAR 1 6 * 70000183 THREAD GUIDE BAR 1 7 * 70000186 SUPPORTER 1 8 * 70000187 SUPPORTER 1 9 * 70000188 THREAD STAND ROD 1 10 * 70000189 THREAD STAND COVER 1 11 * 70000190 THREAD STAND ROD 1 12 * 70000192 CONNECTING LOOP 1 13 * 70000354 WASHER 2 14 * 70000454 NUT 2 15 * 70000455 NUT 1 16 * 70000547 NUT 1 17 * 70000579 E_SCREW 1 18 * 70000580 M_SCREW 1 19 * 70000581 M_SCREW 1 20 * 70000618 WASHER 1 21 * 70000219 PLUG 6 22 * 70000456 NUT 4 23 * 70000580 M_SCREW 1 24 * 70000580 M_SCREW 1 25 * 70000454 NUT 2 26 * 70000611 WASHER 4 27 * 70000218 THREAD STEADY BALL SE 6 28 * 70000454 NUT 2 29 * 70000454 NUT 6 30 * 70000615 WASHER 6 31 * 70000217 CONNECTING LOOP 6 32 * 70000216 SPONGY CUSHION 6 33 * 70000215 COILING SEAT 6 34 * 70000183 THREAD GUIDE BAR 1 35 * 70000182 THREAD GUIDE BAR 1 36 * 70000547 E_SCREW 1 37 * 70000581 M_SCREW 1 38 * 70000191 FIXED PLATE 4 39 * 70000589 M_SCREW 4 40 * 70000177 THREAD GUIDE BAR 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 53 — SEMI-SUNKEN TYPE TABLE COMPONENTS

SEMI-SUNKEN TYPE TABLE COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

Page 54 — SEMI-SUNKEN TYPE TABLE COMPONENTS

SEMI-SUNKEN TYPE TABLE COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Qty Q- TY Status Spec Remarks 1 * 70000264 CHASSIS 1 2 * 70000263 CHASSIS 1 3 * 70000438 RUBBER PAD 1 4 70000340 RUBBER BLOCK 1 5 * 70000338 RUBBER BLOCK 4 6 70000265 BOLT COMB. 1 7 * 70000332 FIXED SHAFT 4 8 * 70000339 RUBBER BLOCK 4 9 * 70000707 BOLT 4 10 * 40159780 GASKET 4 11 * 40159781 GASKET 4 12 * 70000348 WASHER 4 13 * 70000617 WASHER 4 14 70000484 WASTE FABRIC CHUTE CO 1 15 * 70000352 WASHER 4 16 * 70000482 WASTE FABRIC CHUTE 1 17 * 70000483 WASTE FABRIC CHUTE 1 18 * 70000485 WASTE FABRIC CHUTE 1 19 * 70000540 E_SCREW 3 20 * 70000541 E_SCREW 4 21 70000854 TABLE 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 55 — FULLY-SUNKEN TYPE TABLE COMPONENTS

FULLY-SUNKEN TYPE TABLE COMPONENTS 1 2 3

Page 56 — FULLY-SUNKEN TYPE TABLE COMPONENTS

FULLY-SUNKEN TYPE TABLE COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- ep Q- TY Status Spec Remarks 1 70000444 TABLE 1 2 70000706 FIXED TABLE 1 3 70000884 BOLT ASM. 1 FIVE PARTS EN From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 57

ACCESSORIES PARTS COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 19 14 16 17 21~25 20 18 13 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 58 — ACCESSORIES PARTS COMPONENTS

ACCESSORIES PARTS COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- ep Qty Status Spec Remarks 1 40159786 HEAD COVER 1 2 40159785 Discontinue SEWING OIL J18(3) 1 3 70000757 FUNNEL 1 4 70000759 TWEIZERS 1 5 70000760 CHAIN 1 6 40159796 SPANNER COMB. 1 7 40159794 RING SPANNER 1 8 40159795 SPANNER 1 9 40159793 HEXAGONAL ROD SPANNE 1 10 40159789 HEXAGONAL ROD SPANNE 1 11 40159790 HEXAGONAL ROD SPANNE 1 12 40159791 HEXAGONAL ROD SPANNE 1 13 70000763 DESICCATIVE 1 14 70000758 HEXAGON SCREWDRIVER 1 15 40159792 SCREW DRIVER COMB. 1 16 40159787 SCREW DRIVER 1 17 40159788 SCREW DRIVER 1 18 70000761 TOOL BAG 1 19 70000498 E_SCREW 1 20 70000399 KNIFE 1 21 MDC270B1100 NEEDLE DCX27 #11 5 22 MDC270B0800 NEEDLE DCX27 #8 5 FOR 04S-150 23 MDC270B0900 NEEDLE DCX27 #9 5 FOR 14S-24H 24 MDC270B1400 NEEDLE DCX27 #14 5 FOR 14S-44H,45 25 MDC270B1600 NEEDLE DCX27 #16 5 FOR 16S-50H From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 59 — PACKING COMPONENTS

PACKING COMPONENTS 1 2 3 4 5 6 7 8 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 60 — PACKING COMPONENTS

PACKING COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 1 40159800 THREAD STAND 1 2 70000264 CHASSIS 1 3 70000263 CHASSIS 1 4 70000438 RUBBER PAD 1 5 40159803 POLYSTYRENE 1 6 70000767 POLYSTYRENE 1 7 40159801 POLYSTYRENE 1 8 40159802 POLYSTYRENE 1 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 61 — TAPE INSERTION COMPONENTS

TAPE INSERTION COMPONENTS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 62 — TAPE INSERTION COMPONENTS

TAPE INSERTION COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- ep Qty TY Status Spec Remarks 1 70000908 M.SCREW 2 2 40159574 SAFETY PLATE BRACKET 1 3 40159576 WASHER 2 4 40159810 SAFETY PLATE 1 5 70000549 E.SCREW 1 6 40159817 PRESSER FOOT 1 7 40159815 TAPE GUIDE COMB. 1 8 * 70000908 M.SCREW 1 9 * 70000452 NUT 1 10 * 70000359 WASHER 1 11 * 40159576 WASHER 1 12 * 40159811 TAPE GUIDE 1 13 * 40159813 TAPE GUIDE 1 14 * 40159814 E.SCREW 1 15 * 40159812 TAPE GUIDE 1 16 70000098 TAPE HOLDER 1 OPTIONAL PAR From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 63 — 30P COMPONENTS

30P COMPONENTS 1~3 4.5 6 7~9 10 13.25 27 11 12 18 14 15 19 20 21 16 23 24 22.26 31 36 41 30 29 38 37 32 33 28 39 35 34 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 64 — 30P COMPONENTS

30P COMPONENTS No. C- ons Le- vel Parts No. Replacement Supply Code Parts name R- Q- TY Status Spec Remarks 1 40164048 THROAT PLATE 1 FOR 14S-BE6-3 2 40164047 THROAT PLATE 1 FOR 14S-BB6-3 3 40164049 THROAT PLATE 1 FOR 16S-DE4-3 4 40164050 FEED DOG 1 FOR 14S-BE6-3 5 40164052 FEED DOG 1 FOR 16S-DE4-3 6 40164051 FEED DOG 1 FOR 14S-BE6-3 7 40164044 FEED DOG 1 FOR 14S-BE6-3 8 40164046 FEED DOG 1 FOR 14S-BB6-3 9 40164045 FEED DOG 1 FOR 16S-DE4-3 10 40164055 NEEDLE CLAMP 1 FOR 14S-BE6-3 11 40164058 HAND WHEEL(30P) 1 FOR 14S-BE6-3 12 40164056 THREAD TAKE-UP LEVER 1 FOR 14S-BE6-3 13 40164021 PRESSER FOOT ASM. 1 FOR 14S-BE6-3 14 40164026 REAR PRESSER FOOT 1 FOR 14S-BE6-3 15 40164027 PRESSER FOOT HINGE 1 FOR 14S-BB6-3 16 70000735 FINGER GUARD 1 FOR 16S-DE4-3 17 70000500 E_SCREW 1 FOR 14S-BE6-3 18 70000496 E_SCREW 1 FOR 14S-BE6-3 19 70000505 E_SCREW 1 FOR 14S-BE6-3 20 70000538 E_SCREW 1 FOR 14S-BE6-3 21 40164028 PRESSER FOOT ARM SPRIN 1 FOR 14S-BE6-3 22 40164024 STITCH TONGUE 1 FOR 14S-BB6-3 23 70000558 E_SCREW 1 FOR 14S-BB6-3 24 40164053 PRESSER FOOT 514.30P 1 FOR 16S-DE4-3 25 40164020 PRESSER FOOT ASM. 1 FOR 14S-BE6-3 26 40164023 STITCH TONGUE 1 FOR 14S-BE6-3 27 40164029 PRESSER FOOT ASM. 1 FOR 14S-BE6-3 28 40164032 STITCH TONGUE 1 FOR 16S-DE4-3 29 40164039 HINGE SCREW 1 FOR 16S-DE4-3 30 40164037 SPRING 1 FOR 16S-DE4-3 31 70000505 E_SCREW 1 FOR 16S-DE4-3 32 70000538 E_SCREW 1 FOR 16S-DE4-3 33 40164034 FINGER GUARD 1 FOR 16S-DE4-3 34 40159855 E_SCREW 1 FOR 16S-DE4-3 35 40164036 SPRING 1 FOR 16S-DE4-3 36 40164038 PRESSER FOOT HINGE 1 FOR 16S-DE4-3 37 70000500 E_SCREW 1 FOR 16S-DE4-3 38 40164033 PRESSER FOOT ARM SPRIN 1 FOR 16S-DE4-3 39 40164035 PRESSER FOOT 1 FOR 16S-DE4-3 40 40164043 NUT 1 FOR 16S-DE4-3 41 40164042 PIN 1 FOR 16S-DE4-3 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 65 — MO-6800S GAUGE TABLE

MO-6800S GAUGE TABLE MODEL THROAT PLATE FEED DOG FEED DOG MO-6804S-0E4-30H 401-59827 401-59820 700-00782 401-59836 MO-6804S-0A4-150 401-59825 401-59820 700-00784 401-59836 MO-6814S-BD6-30H 401-59828 401-59822 700-00782 401-59837 MO-6814S-BE6-40H 401-59828 401-59822 700-00782 401-59837 MO-6814S-BD6-24H/G44/Q143 401-59829 401-59822 700-00782 401-59837 MO-6814S-BE6-24H/G44/Q143 401-59829 401-59822 700-00782 401-59837 MO-6814S-BE6-44H/G44/Q143 401-59829 401-59822 700-00782 401-59838 MO-6816S-DE6-30H 401-59830 401-59821 700-00782 401-59838 MO-6816S-FF6-30H 401-59831 401-59821 700-00782 401-59839 MO-6816S-FF6-50H 401-59832 401-59821 700-00782 401-59839 MO-6816S-FH6-50H 401-59834 401-59821 700-00782 401-59839 MO-6843S-1D6-40H 401-59832 401-59821 700-00782 401-59839 MO-6843S-2D6-40H 401-59833 401-59821 700-00782 401-59839 MO-6845S-FF6-360-N075 401-59826 401-59823 401-59824 401-59840 MO-6814S-BE6-30P 401-64048 401-64050 401-64051 401-64044 MO-6814S-BB6-30P 401-64047 401-64050 401-64051 401-64046 MO-6816S-DE4-30P 401-64049 401-64052 401-64051 401-64045 MODEL PRESSER FOOT LOOPER NEEDLE CLAMP NEEDLE MO-6804S-0E4-30H 401-59844 700-00798 700-00801 DCX27#11 MO-6804S-0A4-150 401-59842 700-00798 700-00801 DCX27#8 MO-6814S-BD6-30H 401-59843 700-00238 700-00802 DCX27#11 * 2 MO-6814S-BE6-40H 401-59843 700-00798 700-00802 DCX27#11 * 2 MO-6814S-BD6-24H/G44/Q143 401-59817 700-00238 700-00802 DCX27#9 * 2 MO-6814S-BE6-24H/G44/Q143 401-59817 700-00238 700-00802 DCX27#9 * 2 MO-6814S-BE6-44H/G44/Q143 401-59817 700-00799 700-00802 DCX27#14 * 2 MO-6816S-DE6-30H 401-59850 700-00238 700-00803 DCX27#11 * 2 MO-6816S-FF6-30H 401-59849 700-00238 700-00804 DCX27#11 * 2 MO-6816S-FF6-50H 401-59849 700-00799 700-00804 DCX27#16 * 2 MO-6816S-FH6-50H 401-59849 700-00799 700-00804 DCX27#16 * 2 MO-6843S-1D6-40H 401-59847 700-00238 700-00805 DCX27#11 * 3 MO-6843S-2D6-40H 401-59848 700-00238 700-00806 DCX27#11 * 3 MO-6845S-FF6-360-N075 401-59845 401-59841 DCX27#14 * 2 MO-6814S-BE6-30P 401-64021 700-00238 401-64055 DCX27#11 * 2 MO-6814S-BB6-30P 401-64020 700-00238 401-64055 DCX27#11 * 2 MO-6816S-DE4-30P 401-64029 700-00238 700-00803 DCX27#11 * 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 66 — MO-6800S GAUGE TABLE

MO-6800S GAUGE TABLE No. C- ons Le- vel Parts No. Replacement Supply Code Parts name Qty R- Q- TY Status Spec Remarks 2-02 28 2-02 29 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 67 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. *** 2 6 40159582 6 16 40159647 14 16 *** 6 25 40159583 6 17 40159648 14 18 *** 14 42 40159584 6 21 40159649 16 64 *** 16 62 40159585 6 26 40159650 14 6 *** 18 56 40159586 6 32 40159651 14 17 *** 30 56 40159587 6 33 40159652 14 48 *** 34 57 40159589 6 42 40159653 14 54 *** 36 70 40159590 6 30 40159654 14 55 40022255 8 57 40159591 6 38 40159655 14 56 40159531 2 23 40159592 6 39 40159656 16 100 40159532 2 24 40159593 6 27 40159657 16 104 40159533 2 25 40159601 8 23 40159658 12 32 40159534 2 3 40159602 8 22 40159659 8 49 40159537 2 26 40159603 8 28 40159660 8 48 40159538 2 27 40159604 8 3 40159665 20 74 40159539 2 28 40159605 8 4 40159666 20 70 40159540 2 29 40159606 8 1 40159667 20 79 40159551 4 31 40159607 8 2 40159668 20 78 40159552 4 18 40159608 8 12 40159669 20 77 40159553 4 19 40159615 12 1 40159670 18 57 40159554 4 20 40159617 12 8 40159671 18 29 40159555 4 9 40159618 12 7 40159672 18 30 40159556 4 8 40159619 12 21 40159673 18 36 40159557 4 1 40159620 12 30 40159674 18 34 40159558 4 13 40159623 12 36 40159675 18 24 40159559 4 14 40159624 16 103 40159676 20 72 40159560 4 15 40159625 16 65 40159676 30 33 40159561 4 17 40159626 14 60 40159677 20 73 40159562 4 6 40159627 16 74 40159678 18 10 40159563 4 7 40159628 14 58 40159679 18 37 40159564 4 10 40159629 14 27 40159680 18 38 40159565 4 11 40159629 28 38 40159681 18 25 40159571 6 1 40159630 14 53 40159681 20 80 40159572 6 4 40159631 16 75 40159682 18 26 40159573 6 2 40159632 16 109 40159682 20 81 40159574 6 8 40159633 16 83 40159683 20 61 40159574 60 25 40159634 16 110 40159684 18 8 40159575 6 7 40159636 16 112 40159684 22 22 40159576 6 6 40159640 16 77 40159686 18 1 40159576 60 11 40159641 16 87 40159687 18 2 40159577 6 5 40159642 16 99 40159689 22 17 40159578 6 13 40159643 16 107 40159690 22 35 40159579 6 11 40159644 16 76 40159692 22 1 40159580 6 18 40159645 14 1 40159693 22 16 40159581 6 19 40159646 14 10 40159694 22 2 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 68 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40159700 28 25 40159771 42 7 40164029 62 27 40159701 28 27 40159772 42 1 40164032 62 28 40159702 28 16 40159773 42 12 40164033 62 38 40159703 28 17 40159774 42 9 40164034 62 33 40159703 34 27 40159775 42 2 40164035 62 39 40159704 28 18 40159776 42 8 40164036 62 35 40159704 34 30 40159777 42 11 40164037 62 30 40159705 28 19 40159778 42 10 40164038 62 36 40159706 28 20 40159779 42 13 40164039 62 29 40159707 28 1 40159780 52 10 40164042 62 41 40159709 28 32 40159781 52 11 40164043 62 40 40159715 20 83 40159785 56 2 40164044 62 7 40159715 30 30 40159786 56 1 40164045 62 9 40159716 30 15 40159787 56 16 40164046 62 8 40159717 30 13 40159788 56 17 40164047 62 2 40159718 30 56 40159789 56 10 40164048 62 1 40159719 30 57 40159790 56 11 40164049 62 3 40159726 32 26 40159791 56 12 40164050 62 4 40159727 32 19 40159792 56 15 40164051 62 6 40159728 32 18 40159793 56 9 40164052 62 5 40159729 32 16 40159794 56 7 40164053 62 24 40159732 32 17 40159795 56 3 40164055 62 10 40159734 32 10 40159796 56 6 40164056 16 113 40159741 34 3 40159800 58 1 40164056 62 12 40159742 34 4 40159801 58 7 40164057 8 46 40159743 34 7 40159802 58 8 40164058 8 47 40159744 34 5 40159803 58 5 40164058 62 11 40159745 34 1 40159810 60 4 40164059 10 61 40159746 34 2 40159811 60 12 40170670 34 12 40159748 34 31 40159812 60 15 40170846 8 54 40159749 34 26 40159813 60 13 40170847 8 55 40159750 34 33 40159814 60 14 40170848 8 56 40159751 34 42 40159815 60 7 40172525 2 4 40159752 34 38 40159817 60 6 40172527 16 114 40159753 34 10 40159855 62 34 40172529 32 11 40159754 34 45 40164010 8 60 40172529 32 12 40159760 38 8 40164011 8 45 40172530 34 46 40159761 38 26 40164012 8 44 40172531 36 75 40159762 38 23 40164020 62 25 40172535 18 20 40159763 38 39 40164021 62 13 40176583 20 84 40159764 38 32 40164023 62 26 40177859 20 82 40159765 38 53 40164024 62 22 40178003 32 9 40159768 42 4 40164026 62 14 40178005 36 76 40159769 42 5 40164027 62 15 40178006 34 44 40159770 42 6 40164028 62 21 40178007 34 45 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 69 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 40178084 18 6 70000164 14 7 70000188 50 9 40178084 22 19 70000168 14 22 70000189 44 9 40178548 16 82 70000169 14 19 70000189 46 11 40178549 16 106 70000171 14 13 70000189 48 11 40178550 16 108 70000172 26 2 70000189 50 10 40179483 44 1 70000173 14 3 70000190 44 10 40179484 46 1 70000174 14 11 70000190 46 12 40179485 48 1 70000175 22 10 70000190 48 12 40179486 50 1 70000176 34 50 70000190 50 11 40179596 18 3 70000177 48 37 70000191 44 11 40179596 22 18 70000177 50 40 70000191 46 35 40179597 18 5 70000178 44 35 70000191 48 35 40179597 22 21 70000178 46 37 70000191 50 38 70000098 60 16 70000179 44 2 70000192 44 12 70000130 8 14 70000179 46 2 70000192 46 13 70000131 28 56 70000179 48 2 70000192 48 13 70000131 34 32 70000179 50 2 70000192 50 12 70000132 30 58 70000180 44 3 70000193 18 32 70000133 30 14 70000180 46 3 70000194 18 51 70000134 12 18 70000180 48 3 70000195 18 53 70000135 30 23 70000180 50 3 70000196 20 59 70000136 6 12 70000181 44 4 70000197 18 45 70000137 28 53 70000181 46 4 70000198 18 46 70000138 30 20 70000181 48 4 70000199 22 15 70000139 24 2 70000181 50 4 70000200 18 52 70000140 28 2 70000182 44 5 70000201 18 50 70000141 12 35 70000182 46 5 70000202 18 44 70000141 30 25 70000182 48 5 70000203 16 84 70000141 34 16 70000182 50 35 70000211 16 111 70000142 34 11 70000183 44 6 70000213 16 85 70000143 8 34 70000183 46 6 70000215 44 13 70000144 38 15 70000183 48 6 70000215 46 34 70000145 8 32 70000183 50 34 70000215 48 34 70000146 38 33 70000184 46 7 70000215 50 33 70000147 30 19 70000184 48 7 70000216 44 14 70000148 38 32 70000185 46 8 70000216 46 33 70000149 8 35 70000185 48 8 70000216 48 33 70000151 30 53 70000186 44 7 70000216 50 32 70000152 30 54 70000186 46 9 70000217 44 15 70000157 38 24 70000186 48 9 70000217 46 32 70000158 38 25 70000186 50 7 70000217 48 32 70000159 38 28 70000187 50 8 70000217 50 31 70000160 38 27 70000188 44 8 70000218 44 16 70000161 6 14 70000188 46 10 70000218 46 28 70000162 28 33 70000188 48 10 70000218 48 28 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 70 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 70000218 50 27 70000283 28 55 70000346 30 46 70000219 44 17 70000284 28 52 70000347 32 14 70000219 46 22 70000286 28 54 70000348 52 12 70000219 48 22 70000288 28 43 70000349 28 5 70000219 50 21 70000289 28 42 70000349 36 78 70000222 6 15 70000291 34 39 70000350 18 55 70000224 32 14 70000292 34 20 70000351 24 22 70000230 32 1 70000293 34 17 70000352 52 15 70000235 32 2 70000294 34 22 70000353 28 15 70000236 32 8 70000295 34 23 70000354 44 18 70000237 32 4 70000297 34 47 70000354 46 14 70000239 18 22 70000301 34 41 70000354 48 14 70000240 18 21 70000302 34 40 70000354 50 13 70000241 18 35 70000303 34 51 70000355 34 34 70000243 18 28 70000304 34 55 70000356 30 29 70000246 20 63 70000309 34 13 70000357 24 5 70000247 20 62 70000312 38 17 70000358 28 57 70000248 18 39 70000314 8 41 70000359 26 5 70000251 18 16 70000317 24 36 70000359 60 10 70000253 18 11 70000317 30 45 70000361 30 10 70000254 18 9 70000318 38 41 70000362 12 17 70000257 8 39 70000322 38 10 70000363 2 1 70000258 38 46 70000322 40 62 70000365 2 2 70000259 8 38 70000323 38 10 70000368 4 2 70000260 38 45 70000323 40 66 70000369 28 23 70000261 38 29 70000324 38 60 70000370 28 22 70000262 38 30 70000325 38 11 70000372 28 6 70000263 52 2 70000326 38 21 70000373 28 7 70000263 58 3 70000327 38 1 70000374 30 4 70000264 52 1 70000328 38 19 70000375 30 5 70000264 58 2 70000329 38 9 70000379 28 8 70000265 52 6 70000332 52 7 70000380 22 6 70000266 12 11 70000334 4 5 70000380 24 24 70000267 12 10 70000335 16 70 70000381 38 35 70000268 18 40 70000336 16 67 70000382 38 36 70000269 32 42 70000337 16 66 70000383 26 22 70000270 22 3 70000338 52 5 70000384 26 9 70000270 24 29 70000339 52 8 70000385 26 25 70000273 38 34 70000340 52 4 70000386 26 24 70000275 28 11 70000341 8 26 70000387 26 6 70000276 28 28 70000342 20 64 70000388 26 16 70000277 28 34 70000343 22 33 70000389 26 17 70000280 30 11 70000344 28 3 70000390 26 18 70000282 28 40 70000345 28 4 70000391 26 11 70000346 24 37 70000392 26 12 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 71 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 70000393 26 13 70000449 8 43 70000485 52 18 70000394 26 14 70000450 28 9 70000490 4 4 70000395 26 15 70000452 4 25 70000493 4 28 70000396 26 3 70000452 26 28 70000494 4 27 70000397 26 1 70000452 60 9 70000495 28 10 70000398 26 4 70000453 4 24 70000496 36 65 70000399 32 30 70000453 26 27 70000496 62 18 70000399 26 20 70000454 44 34 70000497 16 72 70000400 32 31 70000454 46 30 70000498 14 34 70000401 32 38 70000454 48 30 70000498 18 15 70000402 32 28 70000454 50 29 70000498 26 26 70000403 32 33 70000455 44 20 70000498 56 19 70000404 4 22 70000455 46 16 70000499 36 66 70000405 22 12 70000455 48 16 70000500 34 56 70000406 22 4 70000455 50 15 70000500 36 72 70000407 22 3 70000456 44 21 70000500 62 37 70000409 22 32 70000456 46 23 70000501 18 54 70000410 22 31 70000456 48 23 70000502 28 44 70000410 24 34 70000456 50 22 70000503 12 33 70000410 30 32 70000458 30 30 70000503 28 39 70000413 22 25 70000458 34 29 70000504 18 58 70000414 22 37 70000460 8 13 70000505 14 57 70000415 22 24 70000461 24 16 70000505 22 11 70000416 22 36 70000462 24 18 70000505 34 60 70000419 36 62 70000463 24 6 70000505 36 71 70000420 36 63 70000464 24 7 70000505 62 31 70000422 30 39 70000465 24 15 70000506 22 14 70000423 30 40 70000466 24 17 70000508 8 21 70000428 38 20 70000467 24 8 70000508 24 27 70000429 30 41 70000469 14 44 70000508 30 55 70000430 8 31 70000470 24 31 70000509 30 51 70000431 8 30 70000471 24 30 70000510 32 15 70000432 12 11 70000472 24 35 70000511 22 9 70000433 30 6 70000473 24 26 70000512 28 13 70000434 32 16 70000474 24 23 70000513 14 20 70000435 30 16 70000475 24 20 70000513 16 86 70000436 32 5 70000476 24 21 70000513 26 10 70000437 12 13 70000477 24 33 70000514 24 38 70000438 52 3 70000478 24 9 70000514 30 47 70000438 58 4 70000479 24 1 70000515 2 21 70000443 2 1 70000480 36 64 70000515 4 29 70000444 54 34 70000481 6 28 70000515 18 43 70000445 12 34 70000482 52 16 70000515 32 39 70000446 30 12 70000483 52 17 70000515 34 21 70000448 26 23 70000484 52 14 70000516 4 21 From the library of: Superior Sewing Machine & Supply LLC JIntex.in

Page 72 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 70000516 16 61 70000538 34 59 70000573 6 40 70000517 20 66 70000538 36 73 70000574 4 3 70000517 22 27 70000538 62 32 70000575 38 59 70000517 32 32 70000540 52 19 70000576 26 8 70000518 4 23 70000541 52 20 70000577 4 16 70000518 26 30 70000542 28 11 70000577 6 35 70000518 38 38 70000543 2 10 70000578 12 9 70000518 42 17 70000544 2 11 70000578 32 20 70000519 26 7 70000545 18 7 70000579 44 23 70000520 6 22 70000545 22 23 70000579 46 18 70000520 38 18 70000546 8 51 70000579 48 18 70000521 8 33 70000547 44 22 70000579 50 17 70000521 18 49 70000547 46 17 70000580 44 31 70000521 32 35 70000547 48 17 70000580 46 25 70000521 38 31 70000547 50 36 70000580 48 25 70000522 2 8 70000548 30 21 70000580 50 24 70000522 8 40 70000549 14 9 70000581 44 25 70000522 12 15 70000549 60 5 70000581 46 20 70000522 20 76 70000550 2 12 70000581 48 20 70000522 22 38 70000550 14 43 70000581 50 37 70000522 30 37 70000550 16 73 70000582 28 47 70000522 32 27 70000552 28 26 70000582 38 47 70000522 34 53 70000554 8 16 70000583 28 47 70000522 40 67 70000555 6 24 70000584 34 28 70000523 28 21 70000555 14 46 70000586 2 13 70000524 32 37 70000557 26 21 70000587 20 68 70000525 22 13 70000558 30 6 70000588 12 4 70000525 24 29 70000558 62 23 70000589 44 26 70000526 16 71 70000559 14 14 70000589 46 36 70000526 42 15 70000560 18 33 70000589 48 36 70000527 40 65 70000561 24 11 70000589 50 39 70000528 4 12 70000561 36 77 70000590 18 13 70000528 34 37 70000562 8 17 70000590 22 39 70000529 2 22 70000563 4 26 70000590 24 32 70000530 30 52 70000563 6 20 70000590 28 24 70000531 22 7 70000563 26 29 70000590 30 28 70000531 24 25 70000564 8 6 70000590 32 25 70000532 38 13 70000565 8 7 70000592 34 24 70000532 40 68 70000566 34 48 70000593 12 24 70000533 38 37 70000567 14 35 70000593 18 23 70000534 38 5 70000569 6 37 70000598 14 28 70000535 8 10 70000570 6 36 70000600 28 58 70000536 8 50 70000571 26 19 70000601 28 12 70000537 36 67 70000572 14 26 70000602 28 35 70000538 18 31 70000572 30 48 70000603 32 36 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 73 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. PART NO PAGE REF NO. PART NO PAGE REF NO. 70000604 34 70000657 40 64 70000711 38 58 70000605 34 43 70000658 38 22 70000712 38 55 70000606 36 68 70000658 42 14 70000713 38 48 70000608 34 9 70000659 2 14 70000714 38 54 70000609 36 69 70000660 6 29 70000715 38 44 70000610 26 31 70000661 18 17 70000716 38 43 70000611 44 27 70000662 28 36 70000717 38 56 70000611 46 27 70000664 34 14 70000720 32 23 70000611 48 27 70000665 28 41 70000721 32 21 70000611 50 26 70000666 28 31 70000728 12 27 70000612 8 52 70000667 22 5 70000728 18 18 70000613 20 65 70000669 34 15 70000729 12 28 70000614 22 34 70000670 2 15 70000729 18 19 70000615 44 28 70000671 2 16 70000730 30 38 70000615 46 31 70000672 2 17 70000732 30 44 70000615 48 31 70000673 34 49 70000733 30 24 70000615 50 30 70000674 38 16 70000734 30 22 70000616 24 12 70000675 38 14 70000735 34 58 70000617 52 13 70000676 12 31 70000735 36 74 70000618 44 29 70000677 12 12 70000735 62 16 70000618 46 21 70000678 18 27 70000736 6 10 70000618 48 21 70000679 20 69 70000737 8 11 70000618 50 20 70000681 30 8 70000738 28 48 70000619 8 8 70000682 30 27 70000739 28 49 70000620 8 9 70000683 30 3 70000740 28 46 70000626 14 29 70000684 30 7 70000741 28 45 70000627 14 30 70000685 30 26 70000744 6 34 70000628 14 37 70000686 30 42 70000745 6 23 70000629 14 23 70000688 30 31 70000748 18 41 70000630 16 69 70000689 30 43 70000749 18 40 70000631 38 3 70000693 38 6 70000750 8 29 70000632 12 23 70000694 8 18 70000751 22 8 70000633 12 22 70000694 28 51 70000752 22 30 70000635 12 20 70000695 8 37 70000753 2 18 70000636 12 26 70000696 8 42 70000754 2 19 70000637 12 16 70000697 24 13 70000755 4 30 70000638 12 25 70000698 28 37 70000757 56 3 70000639 12 19 70000699 8 36 70000758 56 14 70000640 12 3 70000700 8 20 70000759 56 4 70000643 12 2 70000701 8 15 70000760 56 5 70000646 12 2 70000703 24 14 70000761 56 18 70000652 14 25 70000704 14 59 70000763 56 13 70000653 14 24 70000706 54 2 70000767 58 6 70000654 12 29 70000707 52 9 70000807 20 71 70000657 38 42 70000710 38 57 70000812 20 60 From the library of: Superior Sewing Machine & Supply LLC jintex.in

Page 74 — NUMERICAL INDEX OF PARTS

NUMERICAL INDEX OF PARTS PART NO PAGE REF NO. 70000813 32 34 70000820 6 41 70000822 14 5 70000827 14 45 70000828 14 38 70000829 14 39 70000831 14 36 70000832 14 4 70000833 14 12 70000834 18 12 70000841 32 24 70000842 32 22 70000845 32 29 70000847 14 50 70000848 14 51 70000849 14 49 70000850 16 63 70000854 52 21 70000884 54 3 70000885 14 53 70000887 14 47 70000908 6 9 70000908 60 8 70000928 8 53 70001060 42 16 MDC270B0800 56 22 MDC270B0900 56 23 MDC270B1100 56 21 MDC270B1400 56 24 MDC270B1600 56 25 SS6111010TP 8 59 SS6120940SP 8 58 From the library of: Superior Sewing Machine & Supply LLC jintex.in
