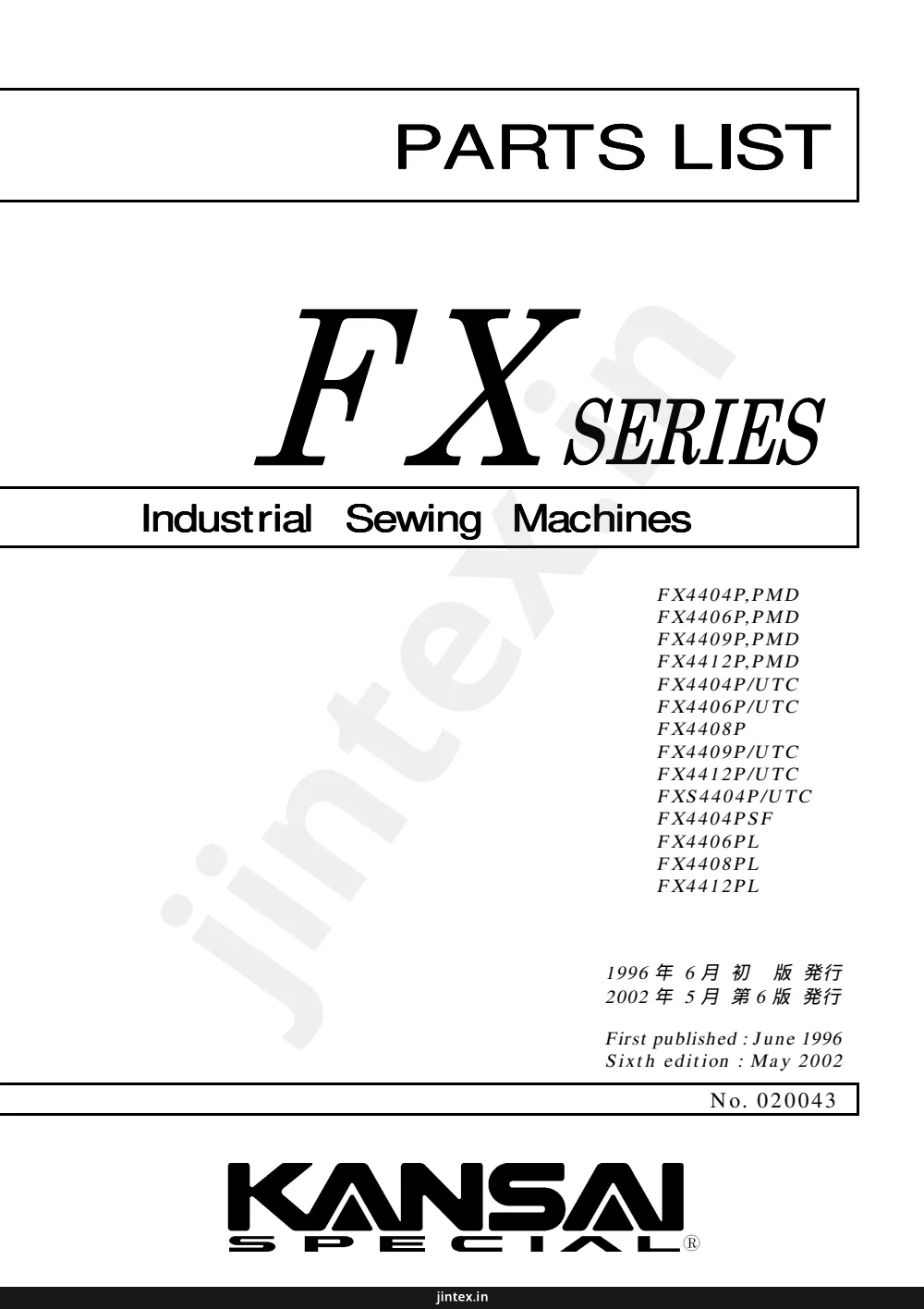

KANSAI FX4404P-FX4412P Parts Book (PDF)
Text index — KANSAI FX4404P-FX4412P
Page 3 — 1. フレーム関係 (1) FRAME ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-01 | 02-118 | WASHER | 1 |
| 01-02 | 02-119 | WASHER | 1 |
| 01-03 | 05-444 | GUIDE | 1 |
| 01-04 | 05-445 | BRACKET | 1 |
| 01-05 | 05-446 | PIPE | 1 |
| 01-06 | 05-558 | BAR | 1 |
| 01-07 | 21-975 | COVER | 1 |
| 01-08 | 21-264 | NEEDLE BAR COVER | 1 |
| 01-09 | 21-265 | COVER | 1 |
| 01-10 | 21-266 | NEEDLE BAR COVER | 1 |
| 01-11 | 21-267 | COVER | 1 |
| 01-12 | 21-273 | EYE GUARD | 1 |
| 01-13 | 21-274 | EYE GUARD | 1 |
| 01-14 | 21-275 | BRACKET | 1 |
| 01-15 | 21-276 | BRACKET | 1 |
| 01-16 | 21-459 | TOP COVER | 1 |
| 01-17 | 21-499 | HEAD COVER | 1 |
| 01-18 | 21-711 | COVER | 1 |
| 01-19 | 23-427 | PLUG | 4 |
| 01-20 | 23-462 | GASKET | 1 |
| 01-21 | 23-465 | GASKET | 1 |
| 01-22 | 24-053 | TYPE PLATE | 1 |
| 01-23 | 24-401 | OIL MARK | 1 |
| 01-24 | 24-052 | KS MARK | 3 |
| 01-25 | 39-502 | OIL SIGHT WINDOW | 1 |
| 01-26 | 71-580 | PIN | 2 |
| 01-27 | 75-224 | WASHER | 2 |
| 01-28 | 75-225 | SPRING WASHER | 4 |
| 01-29 | 75-436 | WASHER | 4 |
| 01-30 | 75-452 | WASHER | 1 |
| 01-31 | 84-396 | SCREW | 1 |
| 01-32 | 87-092 | BOLT | 1 |
| 01-33 | 87-099 | SCREW | 2 |
| 01-34 | 87-113 | BOLT | 1 |
| 01-35 | 87-177 | BOLT | 2 |
| 01-36 | 87-224 | BOLT | 8 |
| 01-37 | 87-264 | SCREW | 1 |
| 01-38 | 87-270 | SCREW | 2 |
| 01-39 | 87-092 | SCREW | 3 |
| 01-40 | 87-409 | SCREW | 1 |
| 01-41 | 87-661 | BOLT | 4 |
| 01-42 | 88-166 | NUT | 1 |
| 01-43 | 93-701 | PIN | 2 |
| 01-01 02-118 | |||
| 01-02 02-119 | |||
| 01-03 05-444 | |||
| 01-04 05-445 | |||
| 01-05 05-446 | |||
| 01-06 05-558 | |||
| 01-07 21-975 | |||
| 01-08 21-264 | |||
| 01-09 21-265 | |||
| 01-10 21-266 | |||
| 01-11 21-273 | |||
| 01-12 21-274 | |||
| 01-13 21-275 | |||
| 01-14 21-276 | |||
| 01-15 21-459 | |||
| 01-16 21-499 | |||
| 01-17 21-711 | |||
| 01-18 21-711 | |||
| 01-19 23-427 | |||
| 01-20 23-462 | |||
| 01-21 23-465 | |||
| 01-22 24-053 | |||
| 01-23 24-401 | |||
| 01-24 24-052 | KSマーク | ||
| 01-25 39-502 | |||
| 01-26 71-580 | |||
| 01-27 75-224 | |||
| 01-28 75-225 | |||
| 01-29 75-436 | |||
| 01-30 75-452 | |||
| 01-31 84-396 | |||
| 01-32 87-092 | |||
| 01-33 87-099 | |||
| 01-34 87-113 | |||
| 01-35 87-177 | |||
| 01-36 87-224 | |||
| 01-37 87-264 | |||
| 01-38 87-270 | |||
| 01-39 87-092 | |||
| 01-40 87-409 | |||
| 01-41 87-661 | |||
| 01-42 88-166 | |||
| 01-43 93-701 |
Page 4 — 2. フレーム関係(2) FRAME ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-01 | 01-108 | COVER | 1 |
| 02-02 | 02-112 | WASHER | 1 |
| 02-03 | 09-402 | FABRIC GUIDE (RIGHT) | 1 |
| 02-04 | 09-403 | TAPE GUIDE (LEFT) | 1 |
| 02-05 | 09-404 | TAPE HOLDER | 1 |
| 02-06 | 14-438 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 02-07 | 14-439 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 02-08 | 21-268 | PULLEY COVER | 1 |
| 02-09 | 21-269 | UPPER COVER | 1 |
| 02-10 | 21-270 | FRONT PLATE COVER | 1 |
| 02-11 | 26-712 | WASHER | 1～2 |
| 02-12 | 21-272 | FRONT COVER | 1 |
| 02-13 | 21-279 | COVER | 1 |
| 02-14 | 21-280 | COVER | 1 |
| 02-15 | 21-297 | COVER | 1 |
| 02-16 | 21-298 | FRONT COVER | 1 |
| 02-17 | 21-460 | COVER | 1 |
| 02-18 | 23-166 | PLUG | 1 |
| 02-19 | 23-463 | GASKET | 1 |
| 02-20 | 23-467 | PLUG | 1 |
| 02-21 | 23-501 | PLUG | 2 |
| 02-22 | 23-512 | CUSHION RUBBER | 1 |
| 02-23 | 23-427 | SEAL CAP | 1 |
| 02-24 | 25-503 | SCREW | 1 |
| 02-25 | 25-516 | HINGE | 1 |
| 02-26 | 25-517 | SCREW | 1 |
| 02-27 | 25-522 | SCREW | 1 |
| 02-28 | 31-503 | OIL FILTER SCREEN | 1 |
| 02-29 | 35-416 | OIL FENCE | 1 |
| 02-30 | 39-503 | CLAMP | 1 |
| 02-31 | 71-116 | PIN | 1 |
| 02-32 | 71-579 | PIN | 2 |
| 02-33 | 75-455 | WASHER | 6 |
| 02-34 | 75-456 | WASHER | 1 |
| 02-35 | 75-468 | WASHER | 2 |
| 02-36 | 79-522 | SPRING | 2 |
| 02-37 | 79-912 | SPRING | 2 |
| 02-38 | 79-922 | SPRING | 2 |
| 02-39 | 84-364 | SCREW | 2 |
| 02-40 | 87-098 | SCREW | 1 |
| 02-41 | 87-145 | SCREW | 4 |
| 02-42 | 87-177 | BOLT | 4 |
| 02-43 | 87-213 | BOLT | 4 |
| 02-44 | 87-214 | BOLT | 2 |
| 02-45 | 85-181 | SCREW | 2～4 |
| 02-46 | 87-258 | PIN | 3 |
| 02-47 | 87-269 | SCREW | 11 |
| 02-48 | 87-270 | SCREW | 2 |
| 02-49 | 87-272 | SCREW | 2 |
| 02-51 | 87-284 | SCREW | 3 |
| 02-52 | 87-286 | SCREW | 2 |
| 02-53 | 87-410 | PIN | 1 |
| 02-54 | 87-411 | SCREW | 4 |
| 02-55 | 87-415 | SCREW | 2 |
| 02-56 | 87-418 | SCREW | 1 |
| 02-57 | 88-146 | NUT | 2 |
| 02-58 | 94-506 | OIL SEAL | 1 |
Page 5 — 3. フレーム関係 (3) FRAME ASSEMBLY (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-0102-112 | 1 | ||
| 03-0209-402 | 1 | ||
| 03-0309-403 | 1 | ||
| 03-0409-404 | 1 | ||
| 03-0521-268 | 1 | ||
| 03-0621-270 | 1 | ||
| 03-0721-272 | 1 | ||
| 03-0821-277 | 1 | ||
| 03-0921-278 | 横カバー-(UTC) | 1 | |
| 03-1021-460 | 1 | ||
| 03-1122-407 | 1 | ||
| 03-1223-166 | 1 | ||
| 03-1323-463 | 1 | ||
| 03-1423-467 | 1 | ||
| 03-1523-501 | 2 | ||
| 03-1623-512 | 1 | ||
| 03-1723-427 | 1 | ||
| 03-1825-503 | 1 | ||
| 03-1925-516 | 1 | ||
| 03-2025-517 | 1 | ||
| 03-2125-522 | 1 | ||
| 03-2231-503 | 1 | ||
| 03-2335-416 | 1 | ||
| 03-2439-503 | 1 | ||
| 03-2571-116 | 1 | ||
| 03-2675-455 | 2 | ||
| 03-2775-468 | 1 | ||
| 03-2879-412 | 2 | ||
| 03-2979-912 | 2 | ||
| 03-3079-922 | 2 | ||
| 03-3187-098 | 1 | ||
| 03-3287-145 | 4 | ||
| 03-3387-177 | 4 | ||
| 03-3487-214 | 2 | ||
| 03-35 | |||
| 03-3687-258 | 3 | ||
| 03-3787-269 | 7 | ||
| 03-3887-284 | 5 | ||
| 03-3987-286 | 2 | ||
| 03-4087-411 | 4 | ||
| 03-4187-415 | 1 | ||
| 03-4287-418 | 1 | ||
| 03-4394-506 | 1 | ||
| 03-4487-410 | 1 |
Page 6 — 4. 糸調子機構(FX4404) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-01 | 23-324 | FELT | 8 |
| 04-02 | 41-101 | THREAD TENSION NUT | 8 |
| 04-03 | 41-105 | SPRING POST | 8 |
| 04-04 | 41-107 | SPRING CUP | 8 |
| 04-05 | 41-110 | TENSION DISC | 16 |
| 04-06 | 41-115 | THREAD GUIDE | 8 |
| 04-07 | 41-117 | THREAD GUIDE | 8 |
| 04-08 | 41-448 | BRACKET | 1 |
| 04-09 | 41-449 | THREAD RELEASER | 1 |
| 04-10 | 41-510 | SCREW STUD | 8 |
| 04-11 | 41-701 | SPRING(HEAVY) | 4 |
| 04-12 | 41-702 | SPRING(LIGHT) | 4 |
| 04-13 | 45-123 | THREAD EYELET | 1 |
| 04-14 | 45-133 | THREAD EYELET | 1 |
| 04-15 | 45-428 | THREAD EYELET | 1 |
| 04-16 | 45-429 | THREAD TAKE-UP PLATE | 1 |
| 04-17 | 45-430 | THREAD EYELET | 1 |
| 04-18 | 45-431 | THREAD EYELET | 1 |
| 04-19 | 45-438 | THREAD EYELET | 1 |
| 04-20 | 45-546 | THREAD GUIDE | 1 |
| 04-21 | 45-547 | BRACKET | 1 |
| 04-22 | 47-104 | THREAD EYELET | 2 |
| 04-23 | 47-411 | THREAD EYELET | 1 |
| 04-24 | 47-412 | THREAD EYELET | 1 |
| 04-25 | 47-413 | THREAD EYELET | 1 |
| 04-26 | 75-394 | COLLAR | 2 |
| 04-27 | 75-455 | WASHER | 5 |
| 04-29 | 79-514 | SPRING | 1 |
| 04-30 | 84-501 | SCREW | 1 |
| 04-31 | 87-010 | SCREW | 2 |
| 04-32 | 87-092 | BOLT | 2 |
| 04-33 | 87-113 | BOLT | 3 |
| 04-34 | 87-129 | BOLT | 2 |
| 04-35 | 87-177 | BOLT | 2 |
| 04-36 | 87-269 | SCREW | 2 |
| 04-37 | 87-270 | SCREW | 2 |
| 04-38 | 87-278 | SCREW | 2 |
| 04-39 | 87-272 | SCREW | 2 |
| 04-40 | 87-288 | SCREW | 1 |
| 04-01 23-324 | |||
| 04-02 41-101 | |||
| 04-03 41-105 | |||
| 04-04 41-107 | |||
| 04-05 41-110 | |||
| 04-06 41-115 | |||
| 04-07 41-117 | |||
| 04-08 41-448 | |||
| 04-09 41-449 | |||
| 04-10 41-510 | |||
| 04-11 41-701 | |||
| 04-12 41-702 | |||
| 04-13 45-123 | |||
| 04-14 45-133 | |||
| 04-15 45-428 | |||
| 04-16 45-429 | |||
| 04-17 45-430 | |||
| 04-18 45-431 | |||
| 04-19 45-438 | |||
| 04-20 45-546 | |||
| 04-21 45-547 | |||
| 04-22 47-104 | |||
| 04-23 47-411 | |||
| 04-24 47-412 | |||
| 04-25 47-413 | |||
| 04-26 75-394 | |||
| 04-27 75-455 | |||
| 04-28 | SCREW | ||
| 04-29 79-514 | |||
| 04-30 84-501 | |||
| 04-31 87-010 | |||
| 04-32 87-092 | |||
| 04-33 87-113 | |||
| 04-34 87-129 | |||
| 04-35 87-177 | |||
| 04-36 87-269 | |||
| 04-37 87-270 | |||
| 04-38 87-278 | |||
| 04-39 87-272 | |||
| 04-40 87-288 |
Page 7 — 5. 糸調子機構 (FX4404UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-01 | 05-434 | SHAFT | 1 |
| 05-02 | 05-435 | HOLDER | 4 |
| 05-03 | 05-436 | BRACKET | 1 |
| 05-04 | 05-438 | AIR CYLINDER | 1 |
| 05-05 | 05-439 | AIR CYLINDER | 1 |
| 05-06 | 05-440 | BLOCK | 1 |
| 05-07 | 05-441 | PLATE | 1 |
| 05-08 | 05-478 | BRACKET | 4 |
| 05-09 | 23-324 | FELT | 8 |
| 05-10 | 41-101 | THREAD TENSION NUT | 8 |
| 05-11 | 41-105 | SPRING POST | 8 |
| 05-12 | 41-107 | SPRING CUP | 8 |
| 05-13 | 41-110 | TENSION DISC | 16 |
| 05-14 | 41-115 | THREAD GUIDE | 8 |
| 05-15 | 41-117 | THREAD GUIDE | 8 |
| 05-16 | 41-448 | BRACKET | 1 |
| 05-17 | 41-449 | THREAD RELEASER | 1 |
| 05-18 | 41-450 | THREAD EYELET | 1 |
| 05-19 | 41-510 | SCREW STUD | 8 |
| 05-20 | 41-701 | SPRING(HEAVY) | 4 |
| 05-21 | 41-702 | SPRING(LIGHT) | 4 |
| 05-22 | 75-455 | WASHER | 1 |
| 05-23 | 75-943 | COLLAR | 2 |
| 05-24 | 79-514 | SPRING | 1 |
| 05-25 | 79-540 | SPRING | 1 |
| 05-26 | 84-501 | SCREW | 1 |
| 05-27 | 87-092 | BOLT | 4 |
| 05-28 | 87-098 | SCREW | 2 |
| 05-29 | 87-177 | BOLT | 2 |
| 05-30 | 87-286 | SCREW | 9 |
| 05-31 | 87-246 | SCREW | 2 |
| 05-32 | 93-201 | E-RING | 1 |
| 79-943 |
Page 8 — 6. 糸調子機構 (FX4406~4412) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-01 | 45-107 | THREAD EYELET | 2 |
| 06-02 | 45-127 | THREAD EYELET | 1 |
| 06-03 | 45-432 | THREAD EYELET | 1 |
| 06-04 | 45-433 | THREAD EYELET | 1 |
| 06-05 | 45-434 | THREAD EYELET | 1 |
| 06-06 | 45-435 | THREAD TAKE-UP PLATE | 1 |
| 06-07 | 45-437 | THREAD EYELET | 1 |
| 06-08 | 47-408 | THREAD EYELET | 1 |
| 06-09 | 47-409 | THREAD EYELET | 2 |
| 06-10 | 47-410 | THREAD EYELET | 1 |
| 06-11 | 47-413 | THREAD EYELET | 1 |
| 06-12 | 75-455 | WASHER | 2 |
| 06-13 | 75-522 | WASHER | 2 |
| 06-14 | 87-010 | SCREW | 2 |
| 06-15 | 87-113 | BOLT | 1 |
| 06-16 | 87-177 | BOLT | 7 |
| 06-17 | 87-269 | SCREW | 2 |
| 06-18 | 87-270 | SCREW | 2 |
| 06-19 | 87-272 | SCREW | 2 |
| 06-20 | 87-288 | SCREW | 1 |
| 06-0145-107 | |||
| 06-0245-127 | |||
| 06-0345-432 | |||
| 06-0445-433 | |||
| 06-0545-434 | |||
| 06-0645-435 | |||
| 06-0745-437 | |||
| 06-0847-408 | |||
| 06-0947-409 | |||
| 06-1047-410 | |||
| 06-1147-413 | |||
| 06-1275-455 | |||
| 06-1375-522 | |||
| 06-1487-010 | |||
| 06-1587-113 | |||
| 06-1687-177 | |||
| 06-1787-269 | |||
| 06-1887-270 | |||
| 06-1987-272 | |||
| 06-2087-288 |
Page 9 — 7. 糸調子機構 (FX4406UTC~4412UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-0105-442 | |||
| 07-0205-443 | |||
| 07-0305-479 | |||
| 07-0405-480 | |||
| 07-0545-107 | |||
| 07-0645-127 | |||
| 07-0745-432 | |||
| 07-0845-433 | |||
| 07-0945-434 | |||
| 07-1045-435 | |||
| 07-1145-436 | |||
| 07-1245-437 | |||
| 07-1347-408 | |||
| 07-1447-409 | |||
| 07-1547-410 | |||
| 07-1647-413 | |||
| 07-1775-455 | |||
| 07-1875-456 | |||
| 07-1975-522 | |||
| 07-2087-010 | |||
| 07-2187-113 | |||
| 07-2287-177 | |||
| 07-2387-269 | |||
| 07-2487-270 | |||
| 07-2587-272 | |||
| 07-2687-288 |
Page 10 — 8. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 08-0181-407 | |||
| 08-0281-408 | |||
| 08-0381-425 | |||
| 08-0481-426 | |||
| 08-0581-427 | |||
| 08-0681-428 | |||
| 08-0781-429 | |||
| 08-0881-430 | |||
| 08-0981-432 | |||
| 08-1081-433 | |||
| 08-1181-517 | |||
| 08-1281-559 | |||
| 08-1394-502 |
Page 11 — 9. 針棒. 弓機構 NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-01 | 11-407 | NEEDLE BAR | 1 |
| 09-02 | 23-195 | O-RING | 2 |
| 09-03 | 23-464 | GASKET | 1 |
| 09-04 | 23-555 | FELT | 2 |
| 09-05 | 66-404 | LINK | 1 |
| 09-06 | 69-444 | NEEDLE LEVER | 1 |
| 09-07 | 69-437 | WASHER | 1 |
| 09-08 | 69-438 | NEEDLE BAR GUIDE | 1 |
| 09-09 | 71-485 | PIN | 2 |
| 09-10 | 71-495 | NEEDLE LEVER STUD | 1 |
| 09-11 | 73-402 | NEEDLE BAR CLAMP | 1 |
| 09-12 | 73-403 | BRACKET | 1 |
| 09-13 | 75-452 | WASHER | 1 |
| 09-14 | 75-486 | WASHER | 1 |
| 09-15 | 81-409 | BUSHING | 1 |
| 09-16 | 81-410 | BUSHING | 1 |
| 09-17 | 87-113 | BOLT | 2 |
| 09-18 | 87-177 | BOLT | 2 |
| 09-19 | 87-233 | SCREW | 2 |
| 09-20 | 87-242 | SCREW | 2 |
| 09-21 | 87-203 | BOLT | 2 |
| 09-22 | 87-405 | BOLT | 1 |
| 09-23 | 69-4440-2 | NEEDLE LEVER (WITH BUSHING) | 1 |
| 09-01 11-407 | |||
| 09-02 23-195 | O-リング | ||
| 09-03 23-464 | |||
| 09-04 23-555 | |||
| 09-05 66-404 | |||
| 09-06 69-444 | |||
| 09-07 69-438 | |||
| 09-08 71-485 | |||
| 09-09 71-485 | |||
| 09-10 71-495 | |||
| 09-11 73-402 | |||
| 09-12 73-403 | |||
| 09-13 75-452 | |||
| 09-14 75-486 | |||
| 09-15 81-409 | |||
| 09-16 81-410 | |||
| 09-17 87-113 | |||
| 09-18 87-177 | |||
| 09-19 87-233 | |||
| 09-20 87-242 | |||
| 09-21 87-203 | |||
| 09-22 87-405 | |||
| 09-23 69-444-0-2号 |
Page 12 — 10. CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10-01 | 23-197 | O-RING | 1 |
| 10-02 | 23-384 | FELT | 1 |
| 10-03 | 23-466 | O-RING | 1 |
| 10-04 | 31-422 | SCREW GEAR | 1 |
| 10-05 | 60-4080 | CONNECTING ROD ASS'Y | 1 |
| 10-06 | 60-4100 | BEARING ASS'Y | 1 |
| 10-07 | 60-4130 | BEARING ASS'Y | 1 |
| 10-08 | 61-415 | ECCENTRIC | 1 |
| 10-09 | 61-416 | CRANK ROD | 1 |
| 10-10 | 61-711 | CONNECTING ROD BALL | 1 |
| 10-11 | 63-422 | CONNECTING ROD | 1 |
| 10-12 | 63-621 | BALL JOINT | 1 |
| 10-13 | 63-713 | BALL JOINT | 1 |
| 10-14 | 65-302 | CONNECTING BAR | 1 |
| 10-15 | 69-121 | GUIDE | 1 |
| 10-16 | 69-440 | SLEEVE | 1 |
| 10-17 | 69-445 | COLLAR | 1 |
| 10-18 | 69-446 | PULLEY | 1 |
| 10-19 | 69-447 | FLANGE | 1 |
| 10-20 | 71-447 | CRANK SHAFT(34.5) | 1 |
| 10-21 | 71-480 | SHAFT | 1 |
| 10-22 | 75-327 | WASHER | 1 |
| 10-23 | 75-329 | WASHER | 1 |
| 10-24 | 84-567 | SCREW | 2 |
| 10-25 | 84-568 | SCREW | 2 |
| 10-26 | 84-572 | SCREW | 1 |
| 10-27 | 86-741 | NUT | 1 |
| 10-28 | 86-742 | NUT | 1 |
| 10-29 | 87-113 | BOLT | 3 |
| 10-30 | 87-172 | SCREW | 3 |
| 10-31 | 87-203 | BOLT | 1 |
| 10-32 | 87-214 | BOLT | 2 |
| 10-33 | 87-242 | SCREW | 2 |
| 10-34 | 87-253 | SCREW | 3 |
| 10-35 | 87-254 | SCREW | 6 |
| 10-36 | 91-403 | BEARING | 1 |
| 10-37 | 91-404 | BEARING | 1 |
| 10-38 | 93-264 | RING | 1 |
| 10-39 | 60-3700 | CONNECTING ROD ASS'Y | 1 |
| 10-01 23-197 | O-RING | 1 | |
| 10-02 23-384 | FELT | 1 | |
| 10-03 23-466 | O-RING | 1 | |
| 10-04 31-422 | PUMP GEAR | 1 | |
| 10-05 60-4080 | CONNECTING ROD ASS'Y | 1 | |
| 10-06 60-4100 | BEARING ASS'Y | 1 | |
| 10-07 60-4130 | BEARING ASS'Y | 1 | |
| 10-08 61-415 | ECCENTRIC | 1 | |
| 10-09 61-416 | CRANK ROD | 1 | |
| 10-10 61-711 | CONNECTING ROD BALL | 1 | |
| 10-11 63-422 | CONNECTING ROD | 1 | |
| 10-12 63-621 | BALL JOINT | 1 | |
| 10-13 63-713 | BALL JOINT | 1 | |
| 10-14 65-302 | CONNECTING BAR | 1 | |
| 10-15 69-121 | GUIDE | 1 | |
| 10-16 69-440 | SLEEVE | 1 | |
| 10-17 69-445 | COLLAR | 1 | |
| 10-18 69-446 | PULLEY | 1 | |
| 10-19 69-447 | FLANGE | 1 | |
| 10-20 71-447 | CRANK SHAFT (34. 5) | 1 | |
| 10-21 71-480 | SHAFT | 1 | |
| 10-22 75-327 | WASHER | 1 | |
| 10-23 75-329 | WASHER | 2 | |
| 10-24 84-567 | SCREW | 2 | |
| 10-25 84-568 | SCREW | 2 | |
| 10-26 84-572 | SCREW | 1 | |
| 10-27 86-741 | NUT | 1 | |
| 10-28 86-742 | NUT | 1 | |
| 10-29 87-113 | BOLT | 3 | |
| 10-30 87-172 | SCREW | 3 | |
| 10-31 87-203 | BOLT | 1 | |
| 10-32 87-214 | BOLT | 2 | |
| 10-33 87-242 | SCREW | 2 | |
| 10-34 87-253 | SCREW | 3 | |
| 10-35 87-254 | SCREW | 6 | |
| 10-36 91-403 | BEARING | 1 | |
| 10-37 91-404 | BEARING | 1 | |
| 10-38 93-264 | RING | 1 | |
| 10-39 60-3700 | CONNECTING ROD ASS'Y | 1 |
Page 13 — 11. 送り機構 FEED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-01 | 23-166 | PLUG | 1 |
| 11-02 | 23-183 | O-RING | 1 |
| 11-03 | 23-341 | FELT | 3 |
| 11-04 | 55-430 | FEED DOG HOLDER | 1 |
| 11-05 | 55-431 | FEED ROCKER | 1 |
| 11-06 | 55-432 | FEED ROCKER | 1 |
| 11-07 | 61-410 | FEED ECCENTRIC | 1 |
| 11-08 | 61-411 | ECCENTRIC | 1 |
| 11-09 | 61-412 | ECCENTRIC | 1 |
| 11-10 | 63-420 | LINK | 1 |
| 11-11 | 63-423 | CONNECTING ROD | 1 |
| 11-12 | 67-423 | LEVER | 1 |
| 11-13 | 69-431 | REGULATING GEAR | 1 |
| 11-14 | 69-432 | SPRING | 1 |
| 11-15 | 69-433 | REGULATING PLATE | 1 |
| 11-16 | 69-434 | ECCENTRIC COLLAR | 1 |
| 11-17 | 69-435 | PUSH BUTTON | 1 |
| 11-18 | 69-442 | PIN | 1 |
| 11-19 | 71-351 | SHAFT | 1 |
| 11-20 | 71-431 | PIN | 1 |
| 11-21 | 71-434 | SHAFT | 1 |
| 11-22 | 71-487 | PIN | 2 |
| 11-23 | 71-488 | SHAFT | 1 |
| 11-24 | 71-491 | SHAFT | 1 |
| 11-25 | 75-189 | COLLAR | 1 |
| 11-26 | 75-453 | WASHER | 1 |
| 11-27 | 75-482 | WASHER | 1 |
| 11-28 | 75-509 | WASHER | 1 |
| 11-29 | 79-420 | SPRING | 2 |
| 11-30 | 79-421 | SPRING | 1 |
| 11-31 | 84-521 | SCREW | 2 |
| 11-32 | 87-104 | SCREW | 2 |
| 11-33 | 87-129 | BOLT | 1 |
| 11-34 | 87-171 | BOLT | 1 |
| 11-35 | 87-172 | SCREW | 2 |
| 11-36 | 87-233 | SCREW | 2 |
| 11-37 | 87-253 | SCREW | 1 |
| 11-38 | 87-254 | SCREW | 4 |
| 11-39 | 87-274 | SCREW | 1 |
| 11-40 | 87-286 | SCREW | 1 |
| 11-41 | 87-401 | SCREW | 1 |
| 11-42 | 87-407 | SCREW | 1 |
| 11-43 | 87-408 | SCREW | 2 |
| 11-44 | 91-406 | BEARING | 1 |
| 11-45 | 91-430 | NEEDLE BEARING | 1 |
| 11-46 | 93-202 | E-RING | 1 |
| 11-47 | 93-205 | E-RING | 1 |
| 11-48 | 93-406 | C-RING | 1 |
| 11-49 | 87-317 | SCREW | 1 |
| 11-01 23-166 | |||
| 11-02 23-183 | O-リング | ||
| 11-03 23-341 | |||
| 11-04 55-430 | |||
| 11-05 55-431 | |||
| 11-06 55-432 | |||
| 11-07 61-410 | |||
| 11-08 61-411 | |||
| 11-09 61-412 | |||
| 11-10 63-420 | |||
| 11-11 63-423 | |||
| 11-12 67-423 | |||
| 11-13 69-431 | |||
| 11-14 69-432 | |||
| 11-15 69-433 | |||
| 11-16 69-434 | |||
| 11-17 69-435 | |||
| 11-18 69-442 | |||
| 11-19 71-351 | |||
| 11-20 71-431 | |||
| 11-21 71-434 | |||
| 11-22 71-487 | |||
| 11-23 71-488 | |||
| 11-24 71-491 | |||
| 11-25 75-189 | |||
| 11-26 75-453 | |||
| 11-27 75-482 | |||
| 11-28 75-509 | |||
| 11-29 79-420 | |||
| 11-30 79-421 | |||
| 11-31 84-521 | |||
| 11-32 87-104 | |||
| 11-33 87-129 | |||
| 11-34 87-171 | |||
| 11-35 87-172 | |||
| 11-36 87-233 | |||
| 11-37 87-253 | |||
| 11-38 87-254 | |||
| 11-39 87-274 | |||
| 11-40 87-286 | |||
| 11-41 87-401 | |||
| 11-42 87-407 | |||
| 11-43 87-408 | |||
| 11-44 91-406 | |||
| 11-45 91-430 | |||
| 11-46 93-202 | E-リング | ||
| 11-47 93-205 | E-リング | ||
| 11-48 93-406 | |||
| 11-49 87-317 |
Page 14 — 12. ルーバー機構 LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-01 | 04-111 | PLATE | 1 |
| 12-02 | 04-444 | LOOPER ROCKER STOPPER | 1 |
| 12-03 | 04-445 | SHAFT | 1 |
| 12-04 | 04-446 | STUD | 1 |
| 12-05 | 19-475 | LOOPER ROCKER | 1 |
| 12-06 | 23-341 | FELT | 2 |
| 12-07 | 23-519 | PLUG | 1 |
| 12-08 | 23-534 | FELT | 1 |
| 12-09 | 47-220 | TAKE-UP ROD | 1 |
| 12-10 | 61-413 | ECCENTRIC | 2 |
| 12-11 | 63-419 | ECCENTRIC LINK | 2 |
| 12-12 | 67-421 | TAKE-UP DRIVE LEVER | 1 |
| 12-13 | 67-422 | LOOPER DRIVE LEVER | 1 |
| 12-14 | 67-425 | LEVER | 1 |
| 12-15 | 71-431 | PIN | 2 |
| 12-16 | 71-478 | SHAFT | 1 |
| 12-17 | 71-479 | PIN | 1 |
| 12-18 | 71-489 | SHAFT | 1 |
| 12-19 | 71-911 | SHAFT | 1 |
| 12-20 | 73-404 | RETAINER BAR HOLDER | 1 |
| 12-21 | 75-381 | WASHER | 2 |
| 12-22 | 75-455 | WASHER | 2 |
| 12-23 | 75-483 | COLLAR | 1 |
| 12-24 | 75-504 | WASHER | 1 |
| 12-25 | 75-515 | WASHER | 1 |
| 12-26 | 75-527 | SPRING WASHER | 1 |
| 12-27 | 75-537 | COLLAR | 1 |
| 12-28 | 75-675 | WASHER | 1 |
| 12-29 | 75-901 | WASHER | 1 |
| 12-30 | 79-161 | SPRING | 1 |
| 12-31 | 79-163 | SPRING | 1 |
| 12-32 | 79-164 | SPRING | 1 |
| 12-33 | 81-142 | BUSHING | 1 |
| 12-34 | 81-143 | BUSHING | 1 |
| 12-35 | 87-113 | BOLT | 1 |
| 12-36 | 87-171 | BOLT | 1 |
| 12-37 | 87-177 | BOLT | 1 |
| 12-38 | 87-203 | BOLT | 1 |
| 12-39 | 87-224 | BOLT | 2 |
| 12-40 | 87-233 | SCREW | 2 |
| 12-41 | 87-254 | SCREW | 6 |
| 12-42 | 87-274 | SCREW | 2 |
| 12-43 | 91-430 | NEEDLE BEARING | 2 |
| 12-44 | 92-233 | BEARING | 1 |
| 12-45 | 93-211 | E-RING | 1 |
| 12-46 | 93-222 | E-RING | 1 |
| 12-47 | 93-402 | C-RING | 2 |
| 12-48 | 98-871 | O-RING | 1 |
| 12-49 | 19-4750-2 | LOOPER ROCKER ASS'Y | 1 |
| 12-50 | 75-410 | SPRING WASHER | 1 |
| 12-01 04-111 | |||
| 12-02 04-444 | |||
| 12-03 04-445 | |||
| 12-04 04-446 | |||
| 12-05 19-475 | |||
| 12-06 23-341 | |||
| 12-07 23-519 | |||
| 12-08 23-534 | |||
| 12-09 47-220 | |||
| 12-10 61-413 | |||
| 12-11 63-419 | |||
| 12-12 67-421 | |||
| 12-13 67-422 | |||
| 12-14 67-425 | |||
| 12-15 71-431 | |||
| 12-16 71-478 | |||
| 12-17 71-479 | |||
| 12-18 71-489 | |||
| 12-19 71-911 | |||
| 12-20 73-404 | |||
| 12-21 75-381 | |||
| 12-22 75-455 | |||
| 12-23 75-483 | |||
| 12-24 75-504 | |||
| 12-25 75-515 | |||
| 12-26 75-527 | |||
| 12-27 75-537 | |||
| 12-28 75-675 | |||
| 12-29 75-901 | |||
| 12-30 79-161 | |||
| 12-31 79-163 | |||
| 12-32 79-164 | |||
| 12-33 81-142 | |||
| 12-34 81-143 | |||
| 12-35 87-113 | |||
| 12-36 87-171 | |||
| 12-37 87-177 | |||
| 12-38 87-203 | |||
| 12-39 87-224 | |||
| 12-40 87-233 | |||
| 12-41 87-254 | |||
| 12-42 87-274 | |||
| 12-43 91-430 | |||
| 12-44 92-233 | |||
| 12-45 93-211 | E-リング | ||
| 12-46 93-222 | E-リング | ||
| 12-47 93-402 | C-リング | ||
| 12-48 98-871 | O-リング | ||
| 12-49 19-4750-2 | LOOPER ROCKER ASS'Y | ||
| 12-50 75-410 |
Page 15 — 13. 押え揚げ機構 PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-404 | |||
| 05-427 | |||
| 00-6082 | |||
| 05-891 | |||
| 23-265 | |||
| 71-203 | |||
| 71-492 | |||
| 71-507 | |||
| 75-332 | |||
| 75-458 | |||
| 75-537 | |||
| 75-552 | |||
| 77-419 | |||
| 77-421 | |||
| 77-422 | |||
| 77-423 | |||
| 77-424 | |||
| 77-425 | |||
| 77-426 | |||
| 77-427 | |||
| 77-428 | |||
| 77-429 | |||
| 77-430 | |||
| 77-436 | |||
| 77-509 | |||
| 77-511 | |||
| 79-422 | |||
| 79-423 | |||
| 79-424 | |||
| 79-519 | |||
| 84-561 | |||
| 87-112 | |||
| 84-581 | |||
| 84-588 | |||
| 84-813 | |||
| 86-411 | |||
| 87-129 | |||
| 87-171 | |||
| 87-177 | |||
| 87-193 | |||
| 87-203 | |||
| 87-252 | |||
| 87-274 | |||
| 87-403 | |||
| 87-404 | |||
| 88-003 | |||
| 93-205 | E-リング | ||
| 71-446 | |||
| 06-579 |
Page 16 — 14. 給油機構 LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-01 | 17-8010-G | PIN | 1 |
| 14-02 | 21-632 | OIL FILTER CAP | 1 |
| 14-03 | 23-304 | SEAL | 1 |
| 14-04 | 23-506 | O-RING | 1 |
| 14-05 | 23-508 | O-RING | 1 |
| 14-06 | 75-552 | WASHER | 1 |
| 14-07 | 30-0130 | PUMP ASS'Y | 1 |
| 14-08 | 31-156 | PUMP MESH | 1 |
| 14-09 | 31-157 | CLAMP | 1 |
| 14-10 | 31-222 | OIL FILTER | 1 |
| 14-11 | 31-314 | JOINT | 1 |
| 14-12 | 31-514 | JOINT | 1 |
| 14-13 | 31-507 | OIL RESERVOIR | 1 |
| 14-14 | 31-702 | PUMP GEAR | 1 |
| 14-15 | 31-703 | PLATE | 1 |
| 14-16 | 31-704 | PUMP HOUSING | 1 |
| 14-17 | 31-705 | OUTER ROTER | 1 |
| 14-18 | 31-706 | PUMP SHAFT | 1 |
| 14-19 | 31-707 | INNER ROTER | 1 |
| 14-20 | 31-708 | PLATE | 1 |
| 14-21 | 35-413 | CLAMP | 1 |
| 14-22 | 35-414 | OIL FENCE | 1 |
| 14-23 | 35-415 | OIL RELEASER | 1 |
| 14-24 | 35-417 | OIL DISTRIBUTOR | 1 |
| 14-25 | 35-418 | OILER | 1 |
| 14-26 | 35-419 | TUBE | 1 |
| 14-27 | 35-420 | TUBE | 2 |
| 14-28 | 88-165 | NUT | 1 |
| 14-29 | 35-505 | JOINT | 4 |
| 14-30 | 35-506 | JOINT | 1 |
| 14-31 | 35-509 | JOINT | 1 |
| 14-32 | 35-519 | TUBE | 1 |
| 14-33 | 35-521 | TUBE | 1 |
| 14-34 | 35-528 | JOINT SCREW | 3 |
| 14-35 | 35-529 | JOINT SCREW | 1 |
| 14-36 | 39-403 | TUBE HOLDER | 1 |
| 14-37 | 39-504 | OIL SIGHT GAUGE | 1 |
| 14-38 | 87-092 | BOLT | 7 |
| 14-39 | 87-123 | BOLT | 3 |
| 14-40 | 87-129 | BOLT | 6 |
| 14-41 | 87-140 | BOLT | 1 |
| 14-42 | 87-225 | BOLT | 2 |
| 14-43 | 87-254 | SCREW | 1 |
| 14-44 | 87-311 | SCREW | 1 |
| 14-45 | 87-663 | BOLT | 4 |
| 14-46 | 88-137 | NUT | 1 |
| 14-47 | 30-0131 | PUMP ASS'Y | 1 |
| 14-48 | 30-5070 | OIL TANK ASS'Y | 1 |
Page 17 — 15. 後プーラー機構 REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-01 | 02-112 | WASHER | 1 |
| 15-02 | 02-406 | SHAFT | 1 |
| 15-03 | 02-407 | BRACKET | 1 |
| 15-04 | 02-408 | LEVER | 1 |
| 15-05 | 02-409 | PLATE | 1 |
| 15-06 | 61-209 | PULLER DRIVING ECCENTRIC | 1 |
| 15-07 | 61-418 | BALL JOINT | 1 |
| 15-08 | 63-208 | CONNECTING LINK | 1 |
| 15-09 | 63-711 | BALL JOINT | 1 |
| 15-10 | 65-306 | CONNECTING BAR | 1 |
| 15-11 | 67-426 | LEVER | 1 |
| 15-12 | 67-529 | LEVER | 1 |
| 15-13 | 71-493 | SHAFT | 1 |
| 15-14 | 71-729 | GUIDE PIN | 1 |
| 15-15 | 75-187 | WASHER | 1 |
| 15-16 | 75-211 | COLLAR | 1 |
| 15-17 | 75-452 | WASHER | 1 |
| 15-18 | 79-425 | SPRING | 1 |
| 15-19 | 84-567 | SCREW | 2 |
| 15-20 | 84-569 | SCREW | 1 |
| 15-21 | 84-581 | SCREW | 2 |
| 15-22 | 84-582 | SCREW | 1 |
| 15-23 | 85-671 | SCREW | 1 |
| 15-24 | 86-311 | NUT | 1 |
| 15-25 | 86-741 | NUT | 1 |
| 15-26 | 86-742 | NUT | 1 |
| 15-27 | 87-171 | BOLT | 1 |
| 15-28 | 87-172 | SCREW | 5 |
| 15-29 | 87-225 | BOLT | 1 |
| 15-30 | 87-287 | BOLT | 1 |
| 15-31 | 87-754 | SCREW | 1 |
| 15-32 | 88-166 | NUT | 1 |
| 15-33 | 93-223 | E-RING | 1 |
| 15-34 | 93-258 | SNAP RING | 1 |
| 15-35 | 93-261 | C-RING | 1 |
| 15-36 | 94-506 | OIL SEAL | 1 |
| 15-37 | 60-3780 | BALL JOINT ASS'Y | 1 |
| 15-01 02-112 | |||
| 15-02 02-406 | |||
| 15-03 02-407 | |||
| 15-04 02-408 | |||
| 15-05 02-409 | |||
| 15-06 61-209 | |||
| 15-07 61-418 | |||
| 15-08 63-208 | |||
| 15-09 63-711 | |||
| 15-10 65-306 | |||
| 15-11 67-426 | |||
| 15-12 67-529 | |||
| 15-13 71-493 | |||
| 15-14 71-729 | |||
| 15-15 75-187 | |||
| 15-16 75-211 | |||
| 15-17 75-452 | |||
| 15-18 79-425 | |||
| 15-19 84-567 | |||
| 15-20 84-569 | |||
| 15-21 84-581 | |||
| 15-22 84-582 | |||
| 15-23 85-671 | |||
| 15-24 86-311 | |||
| 15-25 86-741 | |||
| 15-26 86-742 | |||
| 15-27 87-171 | |||
| 15-28 87-172 | |||
| 15-29 87-225 | |||
| 15-30 87-287 | |||
| 15-31 87-754 | |||
| 15-32 88-166 | |||
| 15-33 93-223 | E型止メ輪 | ||
| 15-34 93-258 | |||
| 15-35 93-261 | Cリング | ||
| 15-36 94-506 | |||
| 15-37 60-3780 |
Page 18 — 16. 後プーラー機構 (FX4404) REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16-01 | 01-115 | SLEEVE | 2 |
| 16-0101-115 | |||
| 16-0202-117 | |||
| 16-0302-123 | |||
| 16-0402-136 | |||
| 16-0502-153 | |||
| 16-0602-178 | |||
| 16-0702-250 | |||
| 16-0802-268 | |||
| 16-0902-415 | |||
| 16-1002-417 | |||
| 16-1171-444 | |||
| 16-1271-490 | |||
| 16-1375-407 | |||
| 16-1475-451 | |||
| 16-1575-484 | |||
| 16-1675-485 | |||
| 16-1775-519 | |||
| 16-1879-551 | |||
| 16-1981-321 | |||
| 16-2081-322 | |||
| 16-2181-323 | |||
| 16-2284-162 | |||
| 16-2384-462 | |||
| 16-2484-573 | |||
| 16-2584-813 | |||
| 16-2686-411 | |||
| 16-2786-901 | |||
| 16-2887-113 | |||
| 16-2987-129 | |||
| 16-3087-181 | |||
| 16-3187-225 | |||
| 16-3287-286 | |||
| 16-3388-179 | |||
| 16-3491-407 | |||
| 16-3593-221 | |||
| 16-3698-600 | |||
| 16-3798-601 | |||
| 16-3898-821 | |||
| 16-3998-864 | |||
| 16-4000-3281 | |||
| 16-4100-2003 |
Page 19 — 17. 後プーラー機構 (FX4406~4412) REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-01 | 01-115 | SLEEVE | 2 |
| 17-02 | 02-117 | PLATE | 1 |
| 17-03 | 02-124 | HOUSING | 1 |
| 17-04 | 02-138 | REAR PULLER | 1 |
| 17-05 | 02-221 | CONNECTING PLATE | 1 |
| 17-06 | 02-246 | BRACKET | 1 |
| 17-07 | 02-420 | REAR PULLER GEAR (SMOOTH) | 1 |
| 17-08 | 02-496 | REAR PULLER GEAR (14TEETH) | 1 |
| 17-09 | 02-458 | BRACKET | 1 |
| 17-10 | 02-494 | REAR PULLER | 1 |
| 17-11 | 71-445 | SHAFT | 1 |
| 17-12 | 71-490 | SHAFT | 1 |
| 17-13 | 75-407 | WASHER | 3 |
| 17-14 | 75-451 | WASHER | 1 |
| 17-15 | 75-484 | GUIDE COLLAR | 1 |
| 17-16 | 75-519 | WASHER | 1 |
| 17-17 | 79-551 | PULLER PLATE SPRING | 1 |
| 17-18 | 81-321 | BUSHING | 1 |
| 17-19 | 81-322 | BUSHING | 1 |
| 17-20 | 81-323 | BUSHING | 1 |
| 17-21 | 84-162 | SCREW | 6 |
| 17-22 | 84-462 | SCREW | 3 |
| 17-23 | 84-573 | SCREW | 1 |
| 17-24 | 84-813 | SCREW | 1 |
| 17-25 | 86-411 | NUT | 1 |
| 17-26 | 86-901 | NUT | 1 |
| 17-27 | 87-113 | BOLT | 2 |
| 17-28 | 87-129 | BOLT | 1 |
| 17-29 | 87-181 | SCREW | 1 |
| 17-30 | 87-225 | BOLT | 1 |
| 17-31 | 87-286 | SCREW | 3 |
| 17-32 | 88-179 | NUT | 2 |
| 17-33 | 91-407 | BEARING | 2 |
| 17-34 | 93-221 | E-RING | 1 |
| 17-35 | 98-600 | CONNECTING BAR | 1 |
| 17-36 | 98-601 | BEARING SLEEVE | 2 |
| 17-37 | 98-821 | BEARING | 2 |
| 17-38 | 98-864 | SCREW | 1 |
| 17-39 | 00-3222 | 28TEETH PULLER ASS'Y | 1 |
| 17-40 | 00-2402 | SMOOTH PULLER ASS'Y | 1 |
| 17-0101-115 | |||
| 17-0202-117 | |||
| 17-0302-124 | |||
| 17-0402-138 | |||
| 17-0502-221 | |||
| 17-0602-246 | |||
| 17-0702-420 | |||
| 17-0802-496 | |||
| 17-0902-458 | |||
| 17-1002-494 | |||
| 17-1171-445 | |||
| 17-1271-490 | |||
| 17-1375-407 | |||
| 17-1475-451 | |||
| 17-1575-484 | |||
| 17-1675-519 | |||
| 17-1779-551 | |||
| 17-1881-321 | |||
| 17-1981-322 | |||
| 17-2081-323 | |||
| 17-2184-162 | |||
| 17-2284-462 | |||
| 17-2384-573 | |||
| 17-2484-813 | |||
| 17-2586-411 | |||
| 17-2686-901 | |||
| 17-2787-113 | |||
| 17-2887-129 | |||
| 17-2987-181 | |||
| 17-3087-225 | |||
| 17-3187-286 | |||
| 17-3288-179 | |||
| 17-3391-407 | |||
| 17-3493-221 | |||
| 17-3598-600 | |||
| 17-3698-601 | |||
| 17-3798-821 | |||
| 17-3898-864 | |||
| 17-3900-3222 | |||
| 17-4000-2402 |
Page 20 — 18. UTC糸切り装置 UTC KNIFE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-01 | 05-395 | NEEDL PLATE SUPPORT BRACKET | 1 |
| 18-02 | 05-420 | SEAL | 2 |
| 18-03 | 05-421 | GUIDE BRACKET | 2 |
| 18-04 | 05-426 | ROD | 2 |
| 18-05 | 05-428 | SPEED CONTROLER | 2 |
| 18-06 | 05-429 | UPPER KNIFE | 1 |
| 18-07 | 05-430 | GUIDE ROLLER (S) | 4 |
| 18-08 | 05-431 | GUIDE ROLLER (L) | 4 |
| 18-09 | 05-433 | STOPPER | 2 |
| 18-10 | 05-447 | LEAF SPRING | 4 |
| 18-11 | 06-585 | SPEED CONTROLER | 2 |
| 18-12 | 05-544 | AIR CYLINDER | 1 |
| 18-13 | 05-545 | AIR CYLINDER | 1 |
| 18-14 | 05-546 | COVER | 2 |
| 18-15 | 05-547 | PLATE | 2 |
| 18-16 | 05-548 | LOWER KNIFE | 4 |
| 18-17 | 05-549 | LEAF SPRING (UPPER) | 4 |
| 18-18 | 23-183 | O-RING | 6 |
| 18-19 | 23-512 | CUSHION RUBBER | 2 |
| 18-20 | 71-201 | PIN | 4 |
| 18-21 | 71-579 | PIN | 2 |
| 18-22 | 87-011 | SCREW | 2 |
| 18-23 | 87-097 | SCREW | 4 |
| 18-24 | 87-100 | BOLT | 16 |
| 18-25 | 87-254 | SCREW | 2 |
| 18-26 | 87-274 | SCREW | 1 |
| 18-27 | 87-278 | SCREW | 4 |
| 18-28 | 87-412 | SCREW | 4 |
| 18-29 | 87-413 | SCREW | 2 |
| 18-30 | 87-415 | SCREW | 4 |
| 18-31 | 87-416 | SCREW | 2 |
| 18-32 | 93-236 | C-RING | 2 |
| 18-33 | 98-857 | O-RING | 2 |
| 18-01 05-395 | |||
| 18-02 05-420 | |||
| 18-03 05-421 | |||
| 18-04 05-426 | |||
| 18-05 05-428 | |||
| 18-06 05-429 | |||
| 18-07 05-430 | |||
| 18-08 05-431 | |||
| 18-09 05-433 | |||
| 18-10 05-447 | |||
| 18-11 05-565 | |||
| 18-12 05-544 | |||
| 18-13 05-545 | |||
| 18-14 05-546 | |||
| 18-15 05-547 | |||
| 18-16 05-548 | |||
| 18-17 05-549 | |||
| 18-18 23-183 | O-リング | ||
| 18-19 23-512 | |||
| 18-20 71-201 | |||
| 18-21 71-579 | |||
| 18-22 87-011 | |||
| 18-23 87-097 | |||
| 18-24 87-100 | |||
| 18-25 87-254 | |||
| 18-26 87-274 | |||
| 18-27 87-278 | |||
| 18-28 87-412 | |||
| 18-29 87-413 | |||
| 18-30 87-415 | |||
| 18-31 87-416 | |||
| 18-32 93-236 | |||
| 18-33 98-857 | O-リング |
Page 21 — 19. 糸立て及びテーブル (FX4404) THREAD STAND AND TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-01 | 42-718 | THREAD STAND ASSEMBLY 8 | 1 |
| 23-509 | |||
| 93-501 | U型止め輪 | ||
| 42-501 | |||
| 75-536 | |||
| 75-527 | M6用ハネ座金 | ||
| 88-166 | |||
| 87-901 | |||
| 21-629 | |||
| 21-032 | |||
| 21-025 |
Page 22 — 20. 糸立て及びテーブル (FX4406, 4412) THREAD STAND AND TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-01 | 42-190 | THREAD STAND ASSEMBLY 12 | 1 |
| 20-02 | 42-186 | THREAD STAND ASSEMBLY 24 | 1 |
| 20-03 | 23-509 | CUSHION RUBBER | 4 |
| 20-04 | 93-501 | U-RING | 4 |
| 20-05 | 42-501 | SCREW | 4 |
| 20-06 | 75-536 | WASHER | 4 |
| 20-07 | 75-527 | WASHER | 4 |
| 20-08 | 88-166 | NUT | 4 |
| 20-09 | 87-901 | SCREW | 3 |
| 20-10 | 21-629 | COVER | 1 |
| 20-11 | 21-085 | FLAT TABLE | 1 |
| 20-12 | 21-084 | WITH ASSISTANCE TABLE | 1 |
Page 23 — 21. テンションスタンド"(FX4406) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-01 | 23-324 | FELT | 12 |
| 21-02 | 41-101 | THREAD TENSION NUT | 12 |
| 21-03 | 41-105 | SPRING POST | 12 |
| 21-04 | 41-107 | SPRING CUP | 12 |
| 21-05 | 41-110 | TENSION DISC | 24 |
| 21-06 | 41-115 | THREAD GUIDE | 12 |
| 21-07 | 41-117 | THREAD GUIDE | 12 |
| 21-08 | 41-449 | THREAD RELEASER | 2 |
| 21-09 | 41-448 | BRACKET | 2 |
| 21-10 | 41-510 | SCREW STUD | 12 |
| 21-11 | 41-701 | SPRING(HEAVY) | 6 |
| 21-12 | 41-702 | SPRING(LIGHT) | 6 |
| 21-13 | 42-201 | BRACKET ASS'Y | 1 |
| 21-14 | 75-384 | WASHER | 2 |
| 21-15 | 75-455 | WASHER | 2 |
| 21-16 | 75-526 | SPRING WASHER | 4 |
| 21-17 | 75-552 | WASHER | 2 |
| 21-18 | 77-430 | WIRERING SET | 1 |
| 21-19 | 77-432 | BRACKET | 1 |
| 21-20 | 77-435 | BRACKET | 1 |
| 21-21 | 77-436 | BRACKET | 1 |
| 21-22 | 79-514 | SPRING | 2 |
| 21-23 | 84-501 | SCREW | 2 |
| 21-24 | 84-588 | SCREW | 1 |
| 21-25 | 87-123 | BOLT | 2 |
| 21-26 | 87-171 | BOLT | 2 |
| 21-27 | 87-177 | BOLT | 2 |
| 21-28 | 87-252 | BOLT | 3 |
| 21-29 | 87-419 | BAR | 2 |
| 21-30 | 87-421 | BAR | 1 |
| 21-31 | 88-157 | NUT | 3 |
| 21-0123-324 | |||
| 21-0241-101 | |||
| 21-0341-105 | |||
| 21-0441-107 | |||
| 21-0541-110 | |||
| 21-0641-115 | |||
| 21-0741-117 | |||
| 21-0841-449 | |||
| 21-0941-448 | |||
| 21-1041-510 | |||
| 21-1141-701 | |||
| 21-1241-702 | |||
| 21-1342-201 | |||
| 21-1475-384 | |||
| 21-1575-455 | |||
| 21-1675-526 | |||
| 21-1775-552 | |||
| 21-1877-430 | |||
| 21-1977-432 | |||
| 21-2077-435 | |||
| 21-2177-436 | |||
| 21-2279-514 | |||
| 21-2384-501 | |||
| 21-2484-588 | |||
| 21-2587-123 | |||
| 21-2687-171 | |||
| 21-2787-177 | |||
| 21-2887-252 | |||
| 21-2987-419 | |||
| 21-3087-421 | |||
| 21-3188-157 |
Page 24 — 22. テンションスタンド (FX4406UTC) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-01 | 05-450 | AIR CYLINDER | 1 |
| 22-02 | 05-557 | BRACKET | 1 |
| 22-03 | 09-506 | WASHER | 2 |
| 22-04 | 23-324 | FELT | 12 |
| 22-05 | 41-101 | THREAD TENSION NUT | 12 |
| 22-06 | 41-105 | SPRING POST | 12 |
| 22-07 | 41-107 | SPRING CUP | 12 |
| 22-08 | 41-110 | TENSION DISC | 24 |
| 22-09 | 41-115 | THREAD GUIDE | 12 |
| 22-10 | 41-117 | THREAD GUIDE | 12 |
| 22-11 | 41-449 | THREAD RELEASER | 2 |
| 22-12 | 41-448 | BRACKET | 2 |
| 22-13 | 41-510 | SCREW STUD | 12 |
| 22-14 | 41-701 | SPRING(HEAVY) | 6 |
| 22-15 | 41-702 | SPRING(LIGHT) | 6 |
| 22-16 | 42-201 | BRACKET ASS'Y | 1 |
| 22-17 | 75-384 | WASHER | 2 |
| 22-18 | 75-453 | WASHER | 2 |
| 22-19 | 75-455 | WASHER | 2 |
| 22-20 | 75-526 | SPRING WASHER | 4 |
| 22-21 | 79-514 | SPRING | 2 |
| 22-22 | 84-501 | SCREW | 2 |
| 22-23 | 87-177 | BOLT | 2 |
| 22-24 | 87-252 | BOLT | 3 |
| 22-25 | 87-419 | BAR | 2 |
| 22-26 | 87-421 | BAR | 1 |
| 22-27 | 87-422 | CONNECTING BAR | 1 |
| 22-28 | 88-157 | NUT | 5 |
| 22-29 | 06-928 | CLAMP | 1 |
| 22-30 | 87-129 | BOLT | 1 |
| 22-31 | 88-146 | NUT | 1 |
| 22-0105-450 | |||
| 22-0205-557 | |||
| 22-0309-506 | |||
| 22-0423-324 | |||
| 22-0541-101 | |||
| 22-0641-105 | |||
| 22-0741-107 | |||
| 22-0841-110 | |||
| 22-1041-117 | |||
| 22-1141-449 | |||
| 22-1241-448 | |||
| 22-1341-510 | |||
| 22-1441-701 | |||
| 22-1541-702 | |||
| 22-1642-201 | |||
| 22-1775-384 | |||
| 22-1875-453 | |||
| 22-1975-455 | |||
| 22-2075-526 | スプリング washer | ||
| 22-2179-514 | |||
| 22-2284-501 | |||
| 22-2387-177 | |||
| 22-2487-252 | |||
| 22-2587-419 | |||
| 22-2687-421 | |||
| 22-2787-422 | |||
| 22-2888-157 | |||
| 22-2906-928 | |||
| 22-3087-129 | |||
| 22-3188-146 |
Page 25 — 23. テンションスタンド (FX4412) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-01 | 23-324 | FELT | 24 |
| 23-02 | 41-101 | THREAD TENSION NUT | 24 |
| 23-03 | 41-105 | SPRING POST | 24 |
| 23-04 | 41-107 | SPRING CUP | 24 |
| 23-05 | 41-110 | TENSION DISC | 48 |
| 23-06 | 41-115 | THREAD GUIDE | 24 |
| 23-07 | 41-117 | THREAD GUIDE | 24 |
| 23-08 | 41-449 | THREAD RELEASER | 3 |
| 23-09 | 41-448 | BRACKET | 3 |
| 23-10 | 41-510 | SCREW STUD | 24 |
| 23-11 | 41-701 | SPRING(HEAVY) | 12 |
| 23-12 | 41-702 | SPRING(LIGHT) | 12 |
| 23-13 | 42-201 | BRACKET ASS'Y | 1 |
| 23-14 | 75-384 | WASHER | 2 |
| 23-15 | 75-455 | WASHER | 2 |
| 23-16 | 75-526 | SPRING WASHER | 4 |
| 23-17 | 75-552 | WASHER | 2 |
| 23-18 | 77-430 | WIRERING SET | 1 |
| 23-19 | 77-432 | BRACKET | 1 |
| 23-20 | 77-435 | BRACKET | 1 |
| 23-21 | 77-436 | BRACKET | 1 |
| 23-22 | 79-514 | SPRING | 3 |
| 23-23 | 84-501 | SCREW | 3 |
| 23-24 | 84-588 | SCREW | 1 |
| 23-25 | 87-123 | BOLT | 2 |
| 23-26 | 87-171 | BOLT | 2 |
| 23-27 | 87-177 | BOLT | 2 |
| 23-28 | 87-252 | BOLT | 3 |
| 23-29 | 87-419 | BAR | 4 |
| 23-30 | 87-420 | BAR | 1 |
| 23-31 | 87-421 | BAR | 1 |
| 23-32 | 88-157 | NUT | 3 |
Page 26 — 24. テンションスタンド(FX4412UTC) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24-01 | 05-450 | AIR CYLINDER | 1 |
| 24-02 | 05-557 | BRACKET | 1 |
| 24-03 | 09-506 | WASHER | 2 |
| 24-04 | 23-324 | FELT | 24 |
| 24-05 | 41-101 | THREAD TENSION NUT | 24 |
| 24-06 | 41-105 | SPRING POST | 24 |
| 24-07 | 41-107 | SPRING CUP | 24 |
| 24-08 | 41-110 | TENSION DISC | 48 |
| 24-09 | 41-115 | THREAD GUIDE | 24 |
| 24-10 | 41-117 | THREAD GUIDE | 24 |
| 24-11 | 41-449 | THREAD RELEASER | 3 |
| 24-12 | 41-448 | BRACKET | 3 |
| 24-13 | 41-510 | SCREW STUD | 24 |
| 24-14 | 41-701 | SPRING(HEAVY) | 12 |
| 24-15 | 41-702 | SPRING(LIGHT) | 12 |
| 24-16 | 42-201 | BRACKET ASS'Y | 1 |
| 24-17 | 75-384 | WASHER | 2 |
| 24-18 | 75-453 | WASHER | 2 |
| 24-19 | 75-455 | WASHER | 2 |
| 24-20 | 75-526 | SPRING WASHER | 4 |
| 24-21 | 79-514 | SPRING | 3 |
| 24-22 | 84-501 | SCREW | 3 |
| 24-23 | 87-177 | BOLT | 2 |
| 24-24 | 87-252 | BOLT | 3 |
| 24-25 | 87-419 | BAR | 4 |
| 24-26 | 87-420 | BAR | 1 |
| 24-27 | 87-421 | BAR | 1 |
| 24-28 | 87-422 | CONNECTING BAR | 1 |
| 24-29 | 88-157 | NUT | 5 |
| 24-30 | 06-928 | CLAMP | 1 |
| 24-31 | 87-129 | BOLT | 1 |
| 24-32 | 88-146 | NUT | 1 |
| 24-0105-450 | AIR CYLINDER | 1 | |
| 24-0205-557 | BRACKET | 1 | |
| 24-0309-506 | WASHER | 2 | |
| 24-0423-324 | FELT | 24 | |
| 24-0541-101 | THREAD TENSION NUT | 24 | |
| 24-0641-105 | SPRING POST | 24 | |
| 24-0741-107 | SPRING CUP | 24 | |
| 24-0841-110 | TENSION DISC | 48 | |
| 24-0941-115 | THREAD GUIDE | 24 | |
| 24-1041-117 | THREAD GUIDE | 24 | |
| 24-1141-449 | THREAD RELEASER | 3 | |
| 24-1241-448 | BRACKET | 3 | |
| 24-1341-510 | SCREW STUD | 24 | |
| 24-1441-701 | SPRING (HEAVY) | 12 | |
| 24-1541-702 | SPRING (LIGHT) | 12 | |
| 24-1642-201 | BRACKET ASS'Y | 1 | |
| 24-1775-384 | WASHER | 2 | |
| 24-1875-453 | WASHER | 2 | |
| 24-1975-455 | WASHER | 2 | |
| 24-2075-526 | SPRING WASHER | 4 | |
| 24-2179-514 | SPRING | 3 | |
| 24-2284-501 | SCREW | 3 | |
| 24-2387-177 | BOLT | 2 | |
| 24-2487-252 | BOLT | 3 | |
| 24-2587-419 | BAR | 4 | |
| 24-2687-420 | BAR | 1 | |
| 24-2787-421 | BAR | 1 | |
| 24-2887-422 | CONNECTING BAR | 1 | |
| 24-2988-157 | NUT | 5 | |
| 24-3006-928 | CLAMP | 1 | |
| 24-3187-129 | BOLT | 1 | |
| 24-3288-146 | NUT | 1 |
Page 27 — 25. ゴム張り機構 GUIDE ROLLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-0109-145 | COLLAR | 1 | |
| 25-0209-147 | COLLAR | 2 | |
| 25-0309-519 | REAR ROLLER BRACKET | 1 | |
| 25-0409-521 | SLIDE PLATE | 2 | |
| 25-0509-522 | SCREW | 2 | |
| 25-0609-523 | SHAFT | 2 | |
| 25-0709-524 | REAR ROLLER | 1 | |
| 25-0809-525 | BRACKET | 1 | |
| 25-0909-526 | BRACKET | 2 | |
| 25-1009-527 | KNOB | 2 | |
| 25-1109-528 | BAR | 1 | |
| 25-1209-529 | JOINT BLOCK | 1 | |
| 25-1309-530 | ROLLER | 1 | |
| 25-1409-531 | BAR | 1 | |
| 25-1509-553 | HANDLE | 2 | |
| 25-1609-727 | TAPER ROLLER | 1 | |
| 25-1752-177 | BUSHING | 2 | |
| 25-1875-451 | WASHER | 5 | |
| 25-1975-452 | WASHER | 2 | |
| 25-2075-453 | WASHER | 2 | |
| 25-2284-570 | SCREW | 3 | |
| 25-2387-172 | SCREW | 1 | |
| 25-2487-203 | SCREW | 2 | |
| 25-2587-213 | BOLT | 1 | |
| 25-2687-501 | BOLT | 2 | |
| 25-2787-502 | SCREW | 2 | |
| 25-2887-503 | SCREW | 4 | |
| 25-2987-663 | BOLT | 2 | |
| 25-3088-176 | BOLT | 1 | |
| 25-3115019XX | NUT | 4 | |
| 25-3115019XX | GUIDE ROLLER ASS'Y | 1 |
Page 28 — 26. 配管、配線図(FX4404UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-02 | 06-928 | CLAMP | 8 |
| 26-03 | 53-254 | JUNCTION CORD | 1 |
| 26-04 | 87-140 | BOLT | 2 |
| 26-05 | 87-272 | SCREW | 8 |
| 26-06 | 87-903 | BOLT | 2 |
| 26-07 | 05-485 | SOLENOIDO VALVE | 1 |
| 26-08 | 05-482 | JOINT | 2 |
| 26-09 | 05-483 | JOINT | 2 |
| 26-10 | 05-484 | JOINT | 2 |
| 26-11 | 05-486 | TUBE | 1 |
| 26-12 | 05-489 | TUBE | 1 |
| 26-13 | 05-490 | TUBE | 1 |
| 26-14 | 05-491 | TUBE | 1 |
| 26-15 | 05-492 | TUBE | 1 |
| 26-16 | 05-493 | TUBE | 1 |
| 26-17 | 05-494 | TUBE | 1 |
| 26-18 | 05-495 | TUBE | 1 |
| 26-19 | 05-505 | TUBE | 1 |
| 26-20 | 05-506 | TUBE | 1 |
| 26-21 | 05-507 | TUBE | 1 |
| 26-22 | 05-508 | TUBE | 1 |
| 26-23 | 05-514 | TUBE | 1 |
| 26-24 | 05-515 | TUBE | 1 |
| 26-25 | 05-516 | TUBE | 1 |
| 26-26 | 05-517 | TUBE | 1 |
| 26-27 | 05-212 | REGULATOR | 1 |
| 26-28 | 05-218 | JOINT | 1 |
| 26-29 | 06-516 | CONNECTOR | 1 |
| 26-30 | 06-517 | CONNECTOR | 1 |
| 26-31 | 87-171 | BOLT | 2 |
| 26-32 | 88-166 | NUT | 2 |
| 26-01 | |||
| 26-02 06-928 | |||
| 26-03 53-254 | |||
| 26-04 87-140 | |||
| 26-05 87-272 | |||
| 26-06 87-903 | |||
| 26-07 05-485 | |||
| 26-08 05-482 | |||
| 26-09 05-483 | |||
| 26-10 05-484 | |||
| 26-11 05-486 | |||
| 26-12 05-489 | |||
| 26-13 05-490 | |||
| 26-14 05-491 | |||
| 26-15 05-492 | |||
| 26-16 05-493 | |||
| 26-17 05-494 | |||
| 26-18 05-495 | |||
| 26-19 05-505 | |||
| 26-20 05-506 | |||
| 26-21 05-507 | |||
| 26-22 05-508 | |||
| 26-23 05-514 | |||
| 26-24 05-515 | |||
| 26-25 05-516 | |||
| 26-26 05-517 | |||
| 26-27 05-212 | |||
| 26-28 05-218 | |||
| 26-29 06-516 | |||
| 26-30 06-517 | |||
| 26-31 87-171 | |||
| 26-32 88-166 |
Page 29 — 27. 配管、配線図(FX4406UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27-02 | 06-928 | CLAMP | 7 |
| 27-03 | 53-254 | JUNCTION CORD | 1 |
| 27-04 | 87-140 | BOLT | 2 |
| 27-05 | 87-272 | SCREW | 7 |
| 27-06 | 87-903 | BOLT | 2 |
| 27-07 | 05-488 | SOLENOIDO VALVE | 1 |
| 27-08 | 05-482 | JOINT | 2 |
| 27-09 | 05-483 | JOINT | 3 |
| 27-10 | 05-484 | JOINT | 1 |
| 27-11 | 05-486 | TUBE | 1 |
| 27-12 | 05-489 | TUBE | 1 |
| 27-13 | 05-490 | TUBE | 1 |
| 27-14 | 05-491 | TUBE | 1 |
| 27-15 | 05-492 | TUBE | 1 |
| 27-16 | 05-493 | TUBE | 1 |
| 27-17 | 05-494 | TUBE | 1 |
| 27-18 | 05-495 | TUBE | 1 |
| 27-19 | 05-505 | TUBE | 1 |
| 27-20 | 05-506 | TUBE | 1 |
| 27-21 | 05-507 | TUBE | 1 |
| 27-22 | 05-508 | TUBE | 1 |
| 27-23 | 05-498 | TUBE | 1 |
| 27-24 | 05-499 | TUBE | 1 |
| 27-25 | 05-509 | TUBE | 1 |
| 27-26 | 05-510 | TUBE | 1 |
| 27-27 | 05-496 | TUBE | 1 |
| 27-28 | 05-212 | REGULATOR | 1 |
| 27-29 | 05-218 | JOINT | 1 |
| 27-30 | 06-516 | CONNECTOR | 1 |
| 27-31 | 06-517 | CONNECTOR | 1 |
| 27-32 | 87-171 | BOLT | 2 |
| 27-33 | 88-166 | NUT | 2 |
| 27-01 | |||
| 27-02 06-928 | |||
| 27-03 53-254 | |||
| 27-04 87-140 | |||
| 27-05 87-272 | |||
| 27-06 87-903 | |||
| 27-07 05-488 | |||
| 27-08 05-482 | |||
| 27-09 05-483 | |||
| 27-10 05-484 | |||
| 27-11 05-486 | |||
| 27-12 05-489 | |||
| 27-13 05-490 | |||
| 27-14 05-491 | |||
| 27-15 05-492 | |||
| 27-16 05-493 | |||
| 27-17 05-494 | |||
| 27-18 05-495 | |||
| 27-19 05-505 | |||
| 27-20 05-506 | |||
| 27-21 05-507 | |||
| 27-22 05-508 | |||
| 27-23 05-498 | |||
| 27-24 05-499 | |||
| 27-25 05-509 | |||
| 27-26 05-510 | |||
| 27-27 05-496 | |||
| 27-28 05-212 | |||
| 27-29 05-218 | |||
| 27-30 06-516 | |||
| 27-31 06-517 | |||
| 27-32 87-171 | |||
| 27-33 88-166 |
Page 30 — 28. 配管、配線図 (FX4412UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-02 | 06-928 | CLAMP | 7 |
| 28-03 | 53-254 | JUNCTION CORD | 1 |
| 28-04 | 87-140 | BOLT | 2 |
| 28-05 | 87-272 | SCREW | 7 |
| 28-06 | 87-903 | BOLT | 2 |
| 28-07 | 05-488 | SOLENOIDO VALVE | 1 |
| 28-08 | 05-482 | JOINT | 2 |
| 28-09 | 05-483 | JOINT | 3 |
| 28-10 | 05-484 | JOINT | 1 |
| 28-11 | 05-486 | TUBE | 1 |
| 28-12 | 05-489 | TUBE | 1 |
| 28-13 | 05-490 | TUBE | 1 |
| 28-14 | 05-491 | TUBE | 1 |
| 28-15 | 05-492 | TUBE | 1 |
| 28-16 | 05-493 | TUBE | 1 |
| 28-17 | 05-494 | TUBE | 1 |
| 28-18 | 05-495 | TUBE | 1 |
| 28-19 | 05-505 | TUBE | 1 |
| 28-20 | 05-506 | TUBE | 1 |
| 28-21 | 05-507 | TUBE | 1 |
| 28-22 | 05-508 | TUBE | 1 |
| 28-23 | 05-498 | TUBE | 1 |
| 28-24 | 05-499 | TUBE | 1 |
| 28-25 | 05-509 | TUBE | 1 |
| 28-26 | 05-510 | TUBE | 1 |
| 28-27 | 05-496 | TUBE | 1 |
| 28-28 | 05-212 | REGULATOR | 1 |
| 28-29 | 05-218 | JOINT | 1 |
| 28-30 | 06-516 | CONNECTOR | 1 |
| 28-31 | 06-517 | CONNECTOR | 1 |
| 28-32 | 87-171 | BOLT | 2 |
| 28-33 | 88-166 | NUT | 2 |
| 28-01 | CLAMP | 1 | |
| 28-02 06-928 | |||
| 28-03 53-254 | |||
| 28-04 87-140 | |||
| 28-05 87-272 | |||
| 28-06 87-903 | |||
| 28-07 05-488 | |||
| 28-08 05-482 | |||
| 28-09 05-483 | |||
| 28-10 05-484 | |||
| 28-11 05-486 | |||
| 28-12 05-489 | |||
| 28-13 05-490 | |||
| 28-14 05-491 | |||
| 28-15 05-492 | |||
| 28-16 05-493 | |||
| 28-17 05-494 | |||
| 28-18 05-495 | |||
| 28-19 05-505 | |||
| 28-20 05-506 | |||
| 28-21 05-507 | |||
| 28-22 05-508 | |||
| 28-23 05-498 | |||
| 28-24 05-499 | |||
| 28-25 05-509 | |||
| 28-26 05-510 | |||
| 28-27 05-496 | |||
| 28-28 05-212 | |||
| 28-29 05-218 | |||
| 28-30 06-516 | |||
| 28-31 06-517 | |||
| 28-32 87-171 | |||
| 28-33 88-166 |
Page 31 — 29. PMD機構 (FX4404) METERING DEVICE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29-01 | 01-101 | BRACKET | 1 |
| 29-02 | 01-113 | CLUTCH DRIVING COLLAR | 1 |
| 29-03 | 01-103 | SLEEVE | 2 |
| 29-04 | 01-111 | BRACKET | 1 |
| 29-05 | 01-116 | PLATE | 1 |
| 29-06 | 01-132 | PULLER | 1 |
| 29-07 | 01-134 | LOWER ROLLER | 1 |
| 29-08 | 01-136 | ROLLER HOLDER | 2 |
| 29-09 | 01-138 | PIVOT SHAFT HOLDER | 2 |
| 29-10 | 01-141 | RUBBER TIGHTENER | 1 |
| 29-11 | 01-143 | ROLLER CONTROLER | 1 |
| 29-12 | 01-145 | LEVER | 1 |
| 29-13 | 01-146 | COVER | 1 |
| 29-14 | 01-147 | PIN | 1 |
| 29-15 | 01-152 | GUIDE | 1 |
| 29-16 | 05-954 | ROD | 1 |
| 29-17 | 61-409 | ECCENTRIC | 1 |
| 29-18 | 63-425 | CONNECTING ROD | 1 |
| 29-19 | 65-335 | CONNECTING BAR | 1 |
| 29-20 | 67-419 | LEVER | 1 |
| 29-21 | 71-208 | PIN | 2 |
| 29-22 | 71-227 | PIN | 1 |
| 29-23 | 71-353 | SHAFT | 1 |
| 29-24 | 71-361 | PIVOT SHAFT (LARGE) | 2 |
| 29-25 | 71-362 | PIVOT SHAFT (SMALL) | 1 |
| 29-26 | 75-152 | COLLAR | 1 |
| 29-27 | 75-446 | WASHER | 1 |
| 29-28 | 75-451 | WASHER | 2 |
| 29-29 | 75-468 | WASHER | 2 |
| 29-30 | 75-480 | WASHER | 1 |
| 29-31 | 75-490 | WASHER | 1 |
| 29-32 | 75-552 | WASHER | 3 |
| 29-33 | 79-171 | SPRING | 1 |
| 29-34 | 81-125 | BUSHING | 2 |
| 29-35 | 84-162 | SCREW | 6 |
| 29-36 | 84-314 | SCREW | 1 |
| 29-37 | 87-006 | SCREW | 1 |
| 29-38 | 87-092 | BOLT | 2 |
| 29-39 | 87-106 | SCREW | 2 |
| 29-40 | 87-129 | BOLT | 2 |
| 29-41 | 87-173 | BOLT | 2 |
| 29-42 | 87-177 | BOLT | 2 |
| 29-43 | 87-181 | SCREW | 6 |
| 29-44 | 87-203 | BOLT | 1 |
| 29-45 | 87-225 | BOLT | 2 |
| 29-46 | 87-253 | SCREW | 1 |
| 29-47 | 87-254 | SCREW | 3 |
| 29-48 | 87-456 | SCREW | 1 |
| 29-49 | 88-161 | NUT | 1 |
| 29-50 | 88-166 | NUT | 2 |
| 29-51 | 88-456 | NUT | 1 |
| 29-52 | 91-405 | BEARING | 2 |
| 29-53 | 91-411 | BEARING | 1 |
| 29-54 | 93-200 | E-RING | 1 |
| 29-55 | 00-1402 | METERING DEVICE ASS'Y | 1 |
| 29-0101-101 | |||
| 29-0201-113 | |||
| 29-0301-103 | |||
| 29-0401-111 | |||
| 29-0501-116 | |||
| 29-0601-132 | |||
| 29-0701-134 | |||
| 29-0801-136 | |||
| 29-0901-138 | |||
| 29-1001-141 | |||
| 29-1101-143 | |||
| 29-1201-145 | |||
| 29-1301-146 | |||
| 29-1401-147 | |||
| 29-1501-152 | |||
| 29-1605-954 | |||
| 29-1761-409 | |||
| 29-1863-425 | |||
| 29-1965-335 | |||
| 29-2067-419 | |||
| 29-2171-208 | |||
| 29-2271-227 | |||
| 29-2371-353 | |||
| 29-2471-361 | |||
| 29-2571-362 | |||
| 29-2675-152 | |||
| 29-2775-446 | |||
| 29-2875-451 | |||
| 29-2975-468 | |||
| 29-3075-480 | |||
| 29-3175-490 | |||
| 29-3275-552 | |||
| 29-3379-171 | |||
| 29-3481-125 | |||
| 29-3584-162 | |||
| 29-3684-314 | |||
| 29-3787-006 | |||
| 29-3887-092 | |||
| 29-3987-106 | |||
| 29-4087-129 | |||
| 29-4187-173 | |||
| 29-4287-177 | |||
| 29-4387-181 | |||
| 29-4487-203 | |||
| 29-4587-225 | |||
| 29-4687-253 | |||
| 29-4787-254 | |||
| 29-4887-456 | |||
| 29-4988-161 | |||
| 29-5088-166 | |||
| 29-5188-456 | |||
| 29-5291-405 | |||
| 29-5391-411 | |||
| 29-5493-200 | |||
| 29-5500-1402 | PMD装置(組) |
Page 32 — 30. PMD機構(FX4406-12) METERING DEVICE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30-01 | 01-101 | BRACKET | 1 |
| 30-02 | 01-113 | CLUTCH DRIVING COLLAR | 1 |
| 30-03 | 01-103 | SLEEVE | 2 |
| 30-04 | 01-104 | LOWER ROLLER | 1 |
| 30-05 | 01-105 | RUBBER TENSIONER | 1 |
| 30-06 | 01-106 | PULLER COVER | 1 |
| 30-07 | 01-107 | GUIDE WIRE | 1 |
| 30-08 | 01-112 | PULLER ROCKER | 1 |
| 30-09 | 01-116 | PLATE | 1 |
| 30-10 | 01-133 | PULLER | 1 |
| 30-11 | 01-136 | ROLLER HOLDER | 2 |
| 30-12 | 01-138 | PIVOT SHAFT HOLDER | 2 |
| 30-13 | 01-143 | ROLLER CONTROLER | 1 |
| 30-14 | 01-145 | LEVER | 1 |
| 30-15 | 01-147 | PIN | 1 |
| 30-16 | 05-954 | ROD | 1 |
| 30-17 | 61-409 | ECCENTRIC | 1 |
| 30-18 | 63-425 | CONNECTING ROD | 1 |
| 30-19 | 65-335 | CONNECTING BAR | 1 |
| 30-20 | 67-419 | LEVER | 1 |
| 30-21 | 71-208 | PIN | 2 |
| 30-22 | 71-227 | PIN | 1 |
| 30-23 | 71-354 | SHAFT | 1 |
| 30-24 | 71-355 | SHAFT | 2 |
| 30-25 | 71-356 | SHAFT | 1 |
| 30-27 | 75-446 | WASHER | 1 |
| 30-28 | 75-451 | WASHER | 2 |
| 30-29 | 75-480 | WASHER | 1 |
| 30-30 | 75-490 | WASHER | 1 |
| 30-31 | 75-552 | WASHER | 3 |
| 30-32 | 79-171 | SPRING | 1 |
| 30-33 | 81-125 | BUSHING | 2 |
| 30-34 | 84-162 | SCREW | 6 |
| 30-35 | 84-314 | SCREW | 1 |
| 30-36 | 87-006 | SCREW | 1 |
| 30-37 | 87-092 | BOLT | 2 |
| 30-39 | 87-129 | BOLT | 2 |
| 30-40 | 87-173 | BOLT | 2 |
| 30-41 | 87-177 | BOLT | 2 |
| 30-42 | 87-181 | SCREW | 6 |
| 30-43 | 87-203 | BOLT | 1 |
| 30-44 | 87-225 | BOLT | 2 |
| 30-45 | 87-253 | SCREW | 1 |
| 30-46 | 87-254 | SCREW | 3 |
| 30-47 | 87-456 | SCREW | 1 |
| 30-48 | 88-161 | NUT | 1 |
| 30-49 | 88-166 | NUT | 2 |
| 30-50 | 88-456 | NUT | 1 |
| 30-51 | 91-405 | BEARING | 2 |
| 30-52 | 91-411 | BEARING | 1 |
| 30-53 | 93-200 | E-RING | 1 |
| 30-54 | 00-1403 | METERING DEVICE ASS'Y | 1 |
| 30-01 01-101 | BRACKET | 1 | |
| 30-02 01-113 | CLUTCH DRIVING COLLAR | 1 | |
| 30-03 01-103 | SLEEVE | 2 | |
| 30-04 01-104 | LOWER ROLLER | 1 | |
| 30-05 01-105 | RUBBER TENSIONER | 1 | |
| 30-06 01-106 | PULLER COVER | 1 | |
| 30-07 01-107 | GUIDE WIRE | 1 | |
| 30-08 01-112 | PULLER ROCKER | 1 | |
| 30-09 01-116 | PLATE | 1 | |
| 30-10 01-133 | PULLER | 1 | |
| 30-11 01-136 | ROLLER HOLDER | 2 | |
| 30-12 01-138 | PIVOT SHAFT HOLDER | 2 | |
| 30-13 01-143 | ROLLER CONTROLLER | 1 | |
| 30-14 01-145 | LEVER | 1 | |
| 30-15 01-147 | PIN | 2 | |
| 30-16 05-954 | PIN | 1 | |
| 30-17 61-409 | ROD | 1 | |
| 30-18 63-425 | ECCENTRIC | 1 | |
| 30-19 65-335 | CONNECTING ROD | 1 | |
| 30-20 67-419 | CONNECTING BAR | 1 | |
| 30-21 71-208 | PIN | 2 | |
| 30-22 71-227 | PIN | 1 | |
| 30-23 71-354 | SHAFT | 1 | |
| 30-24 71-355 | SHAFT | 2 | |
| 30-25 71-356 | SHAFT | 1 | |
| 30-27 75-446 | WASHER | 1 | |
| 30-28 75-451 | WASHER | 2 | |
| 30-29 75-480 | WASHER | 1 | |
| 30-30 75-490 | WASHER | 1 | |
| 30-31 75-552 | WASHER | 3 | |
| 30-32 79-171 | SPRING | 1 | |
| 30-33 81-125 | BUSHING | 2 | |
| 30-34 84-162 | SCREW | 6 | |
| 30-35 87-006 | SCREW | 1 | |
| 30-36 87-092 | BOLT | 2 | |
| 30-37 87-173 | BOLT | 2 | |
| 30-39 87-129 | BOLT | 2 | |
| 30-40 87-173 | BOLT | 2 | |
| 30-41 87-177 | BOLT | 2 | |
| 30-42 87-181 | SCREW | 6 | |
| 30-43 87-203 | BOLT | 1 | |
| 30-44 87-225 | BOLT | 2 | |
| 30-45 87-253 | SCREW | 1 | |
| 30-46 87-254 | SCREW | 3 | |
| 30-47 87-456 | SCREW | 1 | |
| 30-48 88-161 | NUT | 1 | |
| 30-49 88-166 | NUT | 2 | |
| 30-50 88-456 | NUT | 1 | |
| 30-51 91-405 | ONE WAY CLUTCH | 1 | |
| 30-52 91-411 | BEARING | 2 | |
| 30-53 93-200 | E-RING | 1 | |
| 30-54 00-1403 | METERING DEVICE ASS'Y | 1 |
Page 33 — 31. アクセサリー ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-0010 | |||
| 28-454 | ドライバー(S) | ||
| 28-452 | ドライバー(L) | ||
| 28-011 | |||
| 28-317 | グリップ付六角レンチ 1.5mm | ||
| 28-311 | 六角レンチ 2mm | ||
| 28-312 | 六角レンチ 2.5mm | ||
| 28-313 | 六角レンチ 3mm | ||
| 28-314 | 六角レンチ 5mm | ||
| 20-6020 | |||
| 20-6460 | |||
| 28-920 | |||
| 28-613 | |||
| 13-0540-5 | 針 DV×57 #14 | 10 | |
| 28-615 | |||
| 28-614 |
Page 34 — 32. ゲージパーツ GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 32-01 | ※ | NEEDLE PLATE | 1 |
| 32-02 | ※ | LOWER KNIFE BASE | 1 |
| 32-03 | ※ | SPRING BASE | 1 |
| 32-04 | ※ | NEEDLE CLAMP | 1 |
| 32-05 | 13-0540-5 | NEEDLE | ※ |
| 32-06 | ※ | NEEDLE PLATE | 1 |
| 32-07 | ※ | FEED DOG | 1 |
| 32-08 | 17-3710-A | SHANK | 2 |
| 32-09 | 17-3710-C | BRACKET | 1 |
| 32-10 | ※ | BOTTOM | 1 |
| 32-11 | ※ | BOTTOM | 1 |
| 32-12 | 17-8190-F | SPRING | 1 |
| 32-13 | ※ | RETAINER HOLDER | 1 |
| 32-14 | ※ | LOOPER HOLDER | 1 |
| 32-15 | ※ | LOOPER HOLDER | 1 |
| 32-16 | 19-404 | RETAINER LOOPER | ※ |
| 32-17 | 19-405 | NEEDLE GUIDE | ※ |
| 32-18 | 19-406 | BRACKET | ※ |
| 32-19 | 19-416 | NEEDLE GUARD | ※ |
| 32-20 | 19-431 | LOOPER | ※ |
| 32-21 | ※ | THREAD GUIDE | 1 |
| 32-22 | 71-215 | PIN | ※ |
| 32-23 | 84-162 | SCREW | ※ |
| 32-24 | 84-367 | SCREW | ※ |
| 32-25 | 84-380 | SCREW | ※ |
| 32-26 | 84-464 | SCREW | 4 |
| 32-27 | 84-588 | SCREW | 1 |
| 32-28 | 87-099 | SCREW | 2 |
| 32-29 | 87-104 | SCREW | ※ |
| 32-30 | 87-113 | BOLT | ※ |
| 32-31 | 87-289 | SCREW | 2 |
| 32-32 | 88-146 | NUT | 2 |
| 32-33 | 84-314 | SCREW | ※ |
| 32-34 | 87-106 | SCREW | 1 |
| 32-35 | 87-233 | SCREW | 1 |
| 32-36 | ※ | PRESSER FOOT ASS'Y | 1 |
| 32-37 | 17-4210-A | BRACKET | 1 |
| 32-38 | ※ | BOTTOM | 1 |
| 32-39 | 17-4210-C | BRACKET | 2 |
| 32-40 | 17-4210-E | LINK PLATE | 1 |
| 32-41 | 17-4210-G | SLIDE PLATE | 1 |
| 32-42 | 17-5810-D | PIN | 2 |
| 32-43 | 17-5810-F | SCREW | 1 |
| 32-44 | 79-282 | FINGER GUARD | 2 |
| 32-45 | 84-114 | SCREW | 2 |
| 32-46 | 84-361 | SCREW | 2 |
| 32-47 | 84-364 | SCREW | 3 |
| 32-48 | 84-591 | BOLT | 1 |
| 32-01* | |||
| 32-02* | |||
| 32-03* | |||
| 32-04* | |||
| 32-06* | |||
| 32-07* | |||
| 32-10* | |||
| 32-11* | |||
| 32-13* | |||
| 32-14* | |||
| 32-15* | |||
| 32-21* | |||
| 32-36* | |||
| 32-38* |
Page 35 — 33. FXSシリーズ専用部品 FXS SERISE EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 33-01 | 04-447 | SHAFT | 1 |
| 05-202 | 4 | ||
| 05-533 | 2 | ||
| 05-543 | 1 | ||
| 05-550 | 1 | ||
| 06-592 | 2 | ||
| 09-405 | 1 | ||
| 09-406 | 1 | ||
| 21-257 | 1 | ||
| 23-470 | 1 | ||
| 27-040 | 1 | ||
| 27-041 | 1 | ||
| 71-201 | 2 | ||
| 71-448 | 1 | ||
| 71-449 | 1 | ||
| 75-456 | 2 | ||
| 75-492 | 1 | ||
| 79-912 | 1 | ||
| 87-096 | 2 | ||
| 87-124 | 2 | ||
| 87-145 | 2 | ||
| 87-177 | 1 | ||
| 87-288 | 5 | ||
| 87-291 | 1 | ||
| 87-301 | 2 | ||
| 88-157 | 1 | ||
| 60-4140 | 1 |
Page 36 — 34. ゲージ部品一覧表 GAUGE PARTS TABLE 35. UTCゲージ専用部品一覧表 UTC GAUGE PARTS TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-3510-1 | NEEDLE HOLDER | ||
| 12-3520-1 | NEEDLE HOLDER | ||
| 12-3530-1 | NEEDLE HOLDER | ||
| 12-3540-1 | NEEDLE HOLDER | ||
| 12-3550-1 | NEEDLE HOLDER | ||
| 12-3620-1 | NEEDLE HOLDER | ||
| 12-3630-1 | NEEDLE HOLDER | ||
| 12-3580-1 | NEEDLE HOLDER | ||
| 12-3590-1 | NEEDLE HOLDER | ||
| 12-3600-1 | NEEDLE HOLDER | ||
| 12-3560-1 | NEEDLE HOLDER | ||
| 12-3610-1 | NEEDLE HOLDER | ||
| 12-3570-1 | NEEDLE HOLDER | ||
| 12-3560-1 | NEEDLE HOLDER | ||
| 12-3640-1 | NEEDLE HOLDER | ||
| 12-3610-1 | NEEDLE HOLDER | ||
| 12-3590-1 | NEEDLE HOLDER | ||
| 05-351 | NEEDLE PLATE | ||
| 05-352 | NEEDLE PLATE | ||
| 05-353 | NEEDLE PLATE | ||
| 05-354 | NEEDLE PLATE | ||
| 05-355 | NEEDLE PLATE | ||
| 05-356 | NEEDLE PLATE | ||
| 05-357 | NEEDLE PLATE | ||
| 05-358 | NEEDLE PLATE | ||
| 05-359 | NEEDLE PLATE | ||
| 05-360 | NEEDLE PLATE | ||
| 45-371 | |||
| 17-3780-1 | |||
| 45-381 | |||
| 05-451 | |||
| 05-454 | |||
| 05-455 | |||
| 05-458 | |||
| 05-382 | |||
| 05-467 | |||
| 05-469 | 5mm | ||
| 05-471 | |||
| 05-464 | FX4409 |
KANSAI FX4404P-FX4412P — parts catalog
- Page 1 (cover): This is the cover page for the FX Series Industrial Sewing Machines parts list, published by KANSAI SPECIAL in May 2002.
- Page 2 (toc): This page contains the table of contents for the FX series parts book, listing mechanisms and components with their corresponding page numbers.
- Page 3 (parts_list): This page contains a parts list for frame assembly components, including part numbers, descriptions, and quantities for various parts like washers, brackets, covers, and screws.
- Page 4 (diagram): This page displays a diagram of frame assembly components for various sewing machine models, including parts like covers, brackets, and screws, with corresponding reference numbers.
- Page 5 (parts_list): This page contains a parts list for Frame Assembly (3) for Model UTC, including part numbers, descriptions, and quantities.
- Page 6 (parts_list): This page lists parts for the Thread Tension Mechanism (FX4404), including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of the thread tension mechanism (FX4404UTC) with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 8 (parts_list): This page contains a parts list for the thread tension mechanism, including part numbers, descriptions, and quantities.
- Page 9 (parts_list): This page contains a parts list for the thread tension mechanism (FX4406UTC-4412UTC), detailing part numbers, descriptions, and quantities for various components like bars, cylinders, plates, and screws.
- Page 10 (diagram): This page contains a diagram of the bushing mechanism for an industrial sewing machine, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 11 (parts_list): This page contains a parts list for the Needle Bar Mechanism, including part numbers, descriptions, and quantities for various components.
- Page 12 (parts_list): This page contains a parts list for the crankshaft mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 13 (parts_list): This page contains a parts list for the FEED MECHANISM, detailing part numbers, descriptions, and quantities for various components.
- Page 14 (parts_list): This page contains a parts list for the Looper Mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 15 (parts_list): This page contains a parts list for the presser foot mechanism, including part numbers, descriptions, and quantities for various components.
- Page 16 (parts_list): This page contains a parts list for the lubrication mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 17 (parts_list): This page contains a parts list for the REAR PULLER MECHANISM, detailing part numbers, descriptions, and quantities for various components.
- Page 18 (parts_list): This page lists parts for the Rear Puller Mechanism (FX4404), including part numbers, descriptions, and quantities.
- Page 19 (parts_list): This page lists parts for the Rear Puller Mechanism (FX4406-4412), including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of the UTC knife mechanism, with numbered parts and a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 21 (diagram): This page displays a diagram of the thread stand and table assembly for model FX4404, along with a parts list detailing components like cushion rubber, O-rings, screws, washers, nuts, and the table itself.
- Page 22 (parts_list): This page contains a parts list for thread stand and table components for models FX4406 and FX4412, including part numbers, descriptions, and quantities.
- Page 23 (parts_list): This page lists parts for the Tension Stand (FX4406) mechanism, including felt, nuts, posts, cups, discs, guides, brackets, screws, springs, washers, and wire sets, with their corresponding part numbers and quantities.
- Page 24 (parts_list): This page lists parts for the Tension Stand Mechanism (FX4406UTC), including part numbers, descriptions, and quantities.
- Page 25 (parts_list): This page lists parts for the Tension Stand (FX4412) mechanism, including felt, nuts, posts, cups, discs, guides, and various brackets and hardware, with their corresponding part numbers and quantities.
- Page 26 (parts_list): This page contains a parts list for the Tension Stand Mechanism (FX4412UTC), detailing part numbers, descriptions, quantities, and reference numbers.
- Page 27 (parts_list): This page contains a parts list for the guide roller mechanism, including part numbers, descriptions, and quantities for various components.
- Page 28 (diagram): This page displays a wiring and piping diagram for the FX4404UTC model, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 29 (diagram): This page displays a diagram of the wiring and piping for the FX4406UTC sewing machine, along with a detailed parts list.
- Page 30 (diagram): This page displays a wiring and piping diagram for the FX4412UTC sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 31 (parts_list): This page lists parts for the PMD (FX4404) Metering Device Mechanism, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of the PMD Metering Device Mechanism (FX4406-12) with a corresponding parts list.
- Page 33 (parts_list): This page lists accessories for the sewing machine, including a driver, tweezers, allen keys, tape stand, chain, oil, needle, oil funnel, and oiler.
- Page 34 (parts_list): This page lists parts for GAUGE PARTS, including part numbers, descriptions, and quantities. It also shows diagrams of different gauge types.
- Page 35 (parts_list): This page lists parts for the 33. FXS Series Exclusive Parts, including part numbers, descriptions, and quantities. It also contains a diagram of the parts.
- Page 36 (parts_list): This page contains two parts lists: one for GAUGES PARTS TABLE and another for UTC GAUGE PARTS TABLE, detailing various models and their corresponding part numbers for different components.
