Kansai Special DLR-1508P Parts Book (PDF)

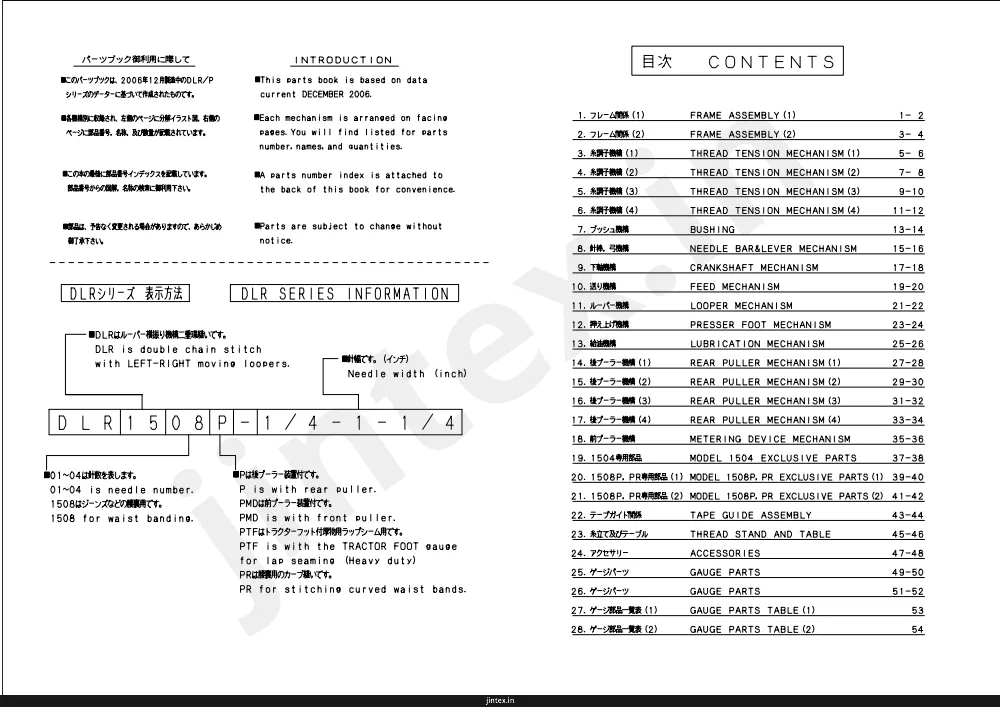

Text index — Kansai Special DLR-1508P
Page 3 — 1. フレーム関係(1) FRAME ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-01 | 02-119 | WASHER | 1 |
| 01-02 | 21-273 | EYE GUARD | 1 |
| 01-03 | 21-275 | BRACKET | 1 |
| 01-04 | 21-276 | BRACKET | 1 |
| 01-05 | 21-934 | COVER | 1 |
| 01-06 | 21-935 | COVER | 1 |
| 01-07 | 21-972 | PULLEY COVER | 1 |
| 01-08 | 23-157 | GASKET | 1 |
| 01-09 | 23-206 | GASKET | 1 |
| 01-10 | 23-263 | GASKET C | 1 |
| 01-11 | 23-285 | O RING | 1 |
| 01-12 | 23-296 | PLUG | 1 |
| 01-13 | 23-427 | PLUG | 1 |
| 01-14 | 24-052 | BRAND NAME PLATE | 3 |
| 01-15 | 27-017 | TOP COVER | 1 |
| 01-16 | 27-018 | HEAD COVER | 1 |
| 01-17 | 39-108 | COVER | 1 |
| 01-18 | 39-137 | PIPE SUPPORT | 1 |
| 01-19 | 39-234 | OIL POT | 1 |
| 01-20 | 75-224 | WASHER | 2 |
| 01-21 | 75-455 | WASHER | 2 |
| 01-22 | 87-010 | SCREW | 3 |
| 01-23 | 87-092 | BOLT | 2 |
| 01-24 | 87-099 | SCREW | 2 |
| 01-25 | 87-123 | BOLT | 1 |
| 01-26 | 87-129 | BOLT | 9 |
| 01-27 | 87-177 | BOLT | 5 |
| 01-28 | 87-264 | SCREW | 1 |
| 021-119 |
Page 4 — 2. フレーム関係(2) FRAME ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-01 | 02-112 | WASHER | 2 |
| 02-02 | 14-159 | NEEDLE SUPPORT BRACKET | 1 |
| 02-03 | 21-137 | FRONT COVER | 1 |
| 02-04 | 21-897 | COVER | 1 |
| 02-05 | 23-137 | GASKET | 1 |
| 02-06 | 23-229 | GASKET | 1 |
| 02-07 | 23-296 | PLUG | 1 |
| 02-08 | 24-053 | TYPE PLATE | 1 |
| 02-09 | 26-712 | WASHER | 1 |
| 02-10 | 27-044 | SIDE COVER | 1 |
| 02-11 | 27-048 | COVER | 1 |
| 02-12 | 27-049 | FRONT COVER | 1 |
| 02-13 | 27-050 | SLIDE COVER | 1 |
| 02-14 | 31-438 | FILTER | 1 |
| 02-15 | 71-257 | PIN | 2 |
| 02-16 | 71-255 | PIN | 2 |
| 02-17 | 75-455 | WASHER | 3 |
| 02-18 | 79-521 | PLATE SPRING(A) | 1 |
| 02-19 | 87-318 | SCREW | 1 |
| 02-20 | 84-364 | SCREW | 1 |
| 02-21 | 84-761 | SCREW | 3 |
| 02-22 | 84-763 | SCREW | 2 |
| 02-23 | 84-862 | SCREW | 3 |
| 02-24 | 85-181 | SCREW | 2 |
| 02-25 | 87-092 | BOLT | 3 |
| 02-26 | 87-113 | BOLT | 5 |
| 02-27 | 87-278 | SCREW | 2 |
| 02-28 | 05-061 | SCREW | 5 |
| 02-29 | 87-280 | SCREW | 1 |
| 02-30 | 87-292 | SCREW | 1 |
| 02-31 | 88-166 | NUT | 2 |
| 02-32 | 93-701 | PIN | 2 |
| 02-33 | 20-0480 | UPPER COVER ASS'Y | 1 |
| 02-34 | 23-512 | CUSHION RUBBER | 2 |
| 02-35 | 75-468 | WASHER | 2 |
| 02-36 | 79-552 | SPRING | 1 |
| 02-37 | 87-287 | BOLT | 2 |
| 02-38 | 20-2330 | UPPER COVER ASS'Y | 1 |
| 02-39 | 21-366 | COVER B | 1 |
| 02-40 | 25-173 | BRACKET | 1 |
| 02-41 | 87-213 | BOLT | 1 |
| 02-42 | 87-310 | SCREW | 1 |
| 02-01-02-112 | WASHER | 2 | |
| 02-02-14-159 | NEEDLE SUPPORT BRACKET | 1 | |
| 02-03-21-137 | FRONT COVER | 1 | |
| 02-04-21-897 | COVER | 1 | |
| 02-05-23-137 | GASKET | 1 | |
| 02-06-23-229 | GASKET | 1 | |
| 02-07-23-296 | GASKET | 1 | |
| 02-08-24-053 | LUG | 1 | |
| 02-09-26-712 | TYPE PLATE | 1 | |
| 02-10-27-044 | WASHER | 1 | |
| 02-11-27-048 | SIDE COVER | 1 | |
| 02-12-27-049 | COVER | 1 | |
| 02-13-27-050 | FRONT COVER | 1 | |
| 02-14-31-438 | SIDE COVER | 1 | |
| 02-15-71-257 | FILTER | 1 | |
| 02-16-71-255 | PIN | 2 | |
| 02-17-75-455 | PIN | 2 | |
| 02-18-79-521 | WASHER | 3 | |
| 02-19-87-318 | PLATE SPRING (A) | 1 | |
| 02-20-84-364 | SCREW | 1 | |
| 02-21-84-761 | SCREW | 1 | |
| 02-22-84-762 | SCREW | 3 | |
| 02-23-84-862 | SCREW | 2 | |
| 02-24-85-181 | SCREW | 3 | |
| 02-25-87-092 | BOLT | 2 | |
| 02-26-87-113 | BOLT | 3 | |
| 02-27-87-278 | SCREW | 5 | |
| 02-28-05-061 | SCREW | 2 | |
| 02-29-87-280 | SCREW | 5 | |
| 02-30-87-292 | SCREW | 1 | |
| 02-31-88-166 | NUT | 1 | |
| 02-32-93-701 | PIN | 2 | |
| 02-33-20-0480 | UPPER COVER ASS'Y | 1 | |
| 02-34-23-512 | CUSHION RUBBER | 2 | |
| 02-35-75-468 | WASHER | 2 | |
| 02-36-79-552 | SPRING | 1 | |
| 02-37-87-287 | BOLT | 2 | |
| 02-38-20-2330 | UPPER COVER ASS'Y | 1 | |
| 02-39-21-366 | COVER B | 1 | |
| 02-40-25-173 | RACKET | 1 | |
| 02-41-87-213 | BOLT | 1 | |
| 02-42-87-310 | SCREW | 1 |
Page 5 — 3. 糸調子機構 (1) THREAD TENSION MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-0123-324 | |||
| 03-0241-101 | |||
| 03-0341-105 | |||
| 03-0441-107 | |||
| 03-0541-110 | |||
| 03-0641-113 | |||
| 03-0741-120 | |||
| 03-0841-121 | |||
| 03-0941-132 | カラー B | ||
| 03-1041-510 | |||
| 03-1141-701 | |||
| 03-1241-702 | |||
| 03-1343-335 | |||
| 03-1443-344 | |||
| 03-1543-346 | |||
| 03-1645-100 | |||
| 03-1745-120 | |||
| 03-1845-130 | |||
| 03-1945-429 | |||
| 03-2045-441 | |||
| 03-2145-442 | |||
| 03-2247-131 | |||
| 03-2347-132 | |||
| 03-2471-191 | |||
| 03-2575-455 | |||
| 03-2675-456 | |||
| 03-2775-468 | |||
| 03-2884-161 | |||
| 03-2984-361 | |||
| 03-3084-764 | |||
| 03-3186-411 | |||
| 03-3287-129 | |||
| 03-3387-177 | |||
| 03-3487-293 | |||
| 03-3587-272 | |||
| 03-3640-7370 | |||
| 03-3740-7380 |
Page 6 — 4. 糸調子機構 (2) THREAD TENSION MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-01 | 23-324 | FELT | 4 |
| 04-02 | 41-101 | THREAD TENSION NUT | 4 |
| 04-03 | 41-105 | SPRING POST | 4 |
| 04-04 | 41-107 | SPRING CUP | 4 |
| 04-05 | 41-110 | TENSION DISC | 8 |
| 04-06 | 41-113 | TENSION POST SUPPORT | 1 |
| 04-07 | 41-120 | THREAD EYELET | 4 |
| 04-08 | 41-121 | TENSION POST HOLDER | 1 |
| 04-09 | 41-510 | SCREW STUD | 4 |
| 04-10 | 41-701 | SPRING(HEAVY) | 2 |
| 04-11 | 41-702 | SPRING(LIGHT) | 2 |
| 04-12 | 43-105 | GUIDE WIRE | 1 |
| 04-13 | 43-335 | LOOPER THREAD RETAINER WIRE | 1 |
| 04-14 | 43-344 | THREAD GUIDE | 1 |
| 04-15 | 43-346 | BRACKET | 1 |
| 04-16 | 45-101 | THREAD EYELET | 3 |
| 04-17 | 45-121 | THREAD EYELET | 1 |
| 04-18 | 45-131 | THREAD EYELET | 1 |
| 04-19 | 45-429 | THREAD TAKE-UP PLATE | 1 |
| 04-20 | 45-441 | THREAD EYELET | 1 |
| 04-21 | 45-442 | THREAD EYELET | 1 |
| 04-22 | 47-131 | THREAD EYELET | 1 |
| 04-23 | 47-132 | THREAD EYELET | 1 |
| 04-24 | 71-191 | PIN | 2 |
| 04-25 | 75-455 | WASHER | 4 |
| 04-26 | 75-456 | WASHER | 1 |
| 04-27 | 75-468 | WASHER | 1 |
| 04-28 | 84-161 | SCREW | 4 |
| 04-29 | 84-361 | SCREW | 3 |
| 04-30 | 86-411 | NUT | 2 |
| 04-31 | 87-129 | BOLT | 1 |
| 04-32 | 87-177 | BOLT | 2 |
| 04-33 | 87-293 | SCREW | 4 |
| 04-34 | 87-272 | SCREW | 1 |
| 04-35 | 40-3820 | LOOPER THREAD EYELET ASS'Y | 1 |
| 04-36 | 40-7370 | TENSION ASS'Y (HEAVY) | 2 |
| 04-37 | 40-7380 | TENSION ASS'Y (LIGHT) | 2 |
| 04-0123-324 | |||
| 04-0241-101 | |||
| 04-0341-105 | |||
| 04-0441-107 | |||
| 04-0541-110 | |||
| 04-0641-113 | |||
| 04-0741-120 | |||
| 04-0841-121 | |||
| 04-0941-510 | |||
| 04-1041-701 | |||
| 04-1141-702 | |||
| 04-1243-105 | |||
| 04-1343-335 | |||
| 04-1443-344 | |||
| 04-1543-346 | |||
| 04-1645-101 | |||
| 04-1745-121 | |||
| 04-1845-131 | |||
| 04-1945-429 | |||
| 04-2045-441 | |||
| 04-2145-442 | |||
| 04-2247-131 | |||
| 04-2347-132 | |||
| 04-2471-191 | |||
| 04-2575-455 | |||
| 04-2675-456 | |||
| 04-2775-468 | |||
| 04-2884-161 | |||
| 04-2984-361 | |||
| 04-3086-411 | |||
| 04-3187-129 | |||
| 04-3287-177 | |||
| 04-3387-293 | |||
| 04-3487-272 | |||
| 04-3540-3820 | |||
| 04-3640-7370 | |||
| 04-3740-7380 |
Page 7 — 5. 糸調子機構 (3) THREAD TENSION MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-01 | 23-324 | FELT | 6 |
| 05-02 | 41-101 | THREAD TENSION NUT | 6 |
| 05-03 | 41-105 | SPRING POST | 6 |
| 05-04 | 41-107 | SPRING CUP | 6 |
| 05-05 | 41-110 | TENSION DISC | 12 |
| 05-06 | 41-113 | TENSION POST SUPPORT | 1 |
| 05-07 | 41-120 | THREAD EYELET | 6 |
| 05-08 | 41-123 | TENSION POST HOLDER | 1 |
| 05-09 | 41-132 | COLLAR | 1 |
| 05-10 | 41-136 | RUBBER | 1 |
| 05-11 | 41-510 | SCREW STUD | 6 |
| 05-12 | 41-701 | SPRING(HEAVY) | 3 |
| 05-13 | 41-702 | SPRING(LIGHT) | 3 |
| 05-14 | 43-335 | LOOPER THREAD RETAINER WIRE | 1 |
| 05-15 | 43-344 | THREAD GUIDE | 1 |
| 05-16 | 43-346 | BRACKET | 1 |
| 05-17 | 45-123 | THREAD EYELET | 1 |
| 05-18 | 45-133 | THREAD EYELET | 1 |
| 05-19 | 45-429 | THREAD TAKE-UP PLATE | 1 |
| 05-20 | 45-438 | THREAD EYELET | 3 |
| 05-21 | 45-441 | THREAD EYELET | 1 |
| 05-22 | 45-442 | THREAD EYELET | 1 |
| 05-23 | 47-121 | THREAD EYELET | 1 |
| 05-24 | 47-127 | THREAD EYELET | 1 |
| 05-25 | 47-128 | THREAD EYELET | 1 |
| 05-26 | 71-191 | PIN | 2 |
| 05-27 | 75-455 | WASHER | 4 |
| 05-28 | 75-456 | WASHER | 1 |
| 05-29 | 75-468 | WASHER | 1 |
| 05-30 | 84-161 | SCREW | 4 |
| 05-31 | 84-361 | SCREW | 3 |
| 05-32 | 84-764 | SCREW | 1 |
| 05-33 | 86-411 | NUT | 5 |
| 05-34 | 87-129 | BOLT | 1 |
| 05-35 | 87-177 | BOLT | 2 |
| 05-36 | 87-293 | SCREW | 4 |
| 05-37 | 87-272 | SCREW | 1 |
| 05-38 | 40-3540 | LOOPER THREAD EYELET ASS'Y | 1 |
| 05-39 | 40-7370 | TENSION ASS'Y (HEAVY) | 3 |
| 05-40 | 40-7380 | TENSION ASS'Y (LIGHT) | 3 |
| 05-0123-324 | |||
| 05-0241-101 | |||
| 05-0341-105 | |||
| 05-0441-107 | |||
| 05-0541-110 | |||
| 05-0641-113 | |||
| 05-0741-120 | |||
| 05-0841-123 | |||
| 05-0941-132 | カラー B | ||
| 05-1041-136 | |||
| 05-1141-510 | |||
| 05-1241-701 | |||
| 05-1341-702 | |||
| 05-1443-335 | |||
| 05-1543-344 | |||
| 05-1643-346 | |||
| 05-1745-123 | |||
| 05-1845-133 | |||
| 05-1945-429 | |||
| 05-2045-438 | |||
| 05-2145-441 | |||
| 05-2245-442 | |||
| 05-2347-121 | |||
| 05-2447-127 | |||
| 05-2547-128 | |||
| 05-2671-191 | |||
| 05-2775-455 | |||
| 05-2875-456 | |||
| 05-2975-468 | |||
| 05-3084-161 | |||
| 05-3184-361 | |||
| 05-3284-764 | |||
| 05-3386-411 | |||
| 05-3487-129 | |||
| 05-3587-177 | |||
| 05-3687-293 | |||
| 05-3787-272 | |||
| 05-3840-3540 | |||
| 05-3940-7370 | |||
| 05-4040-7380 |

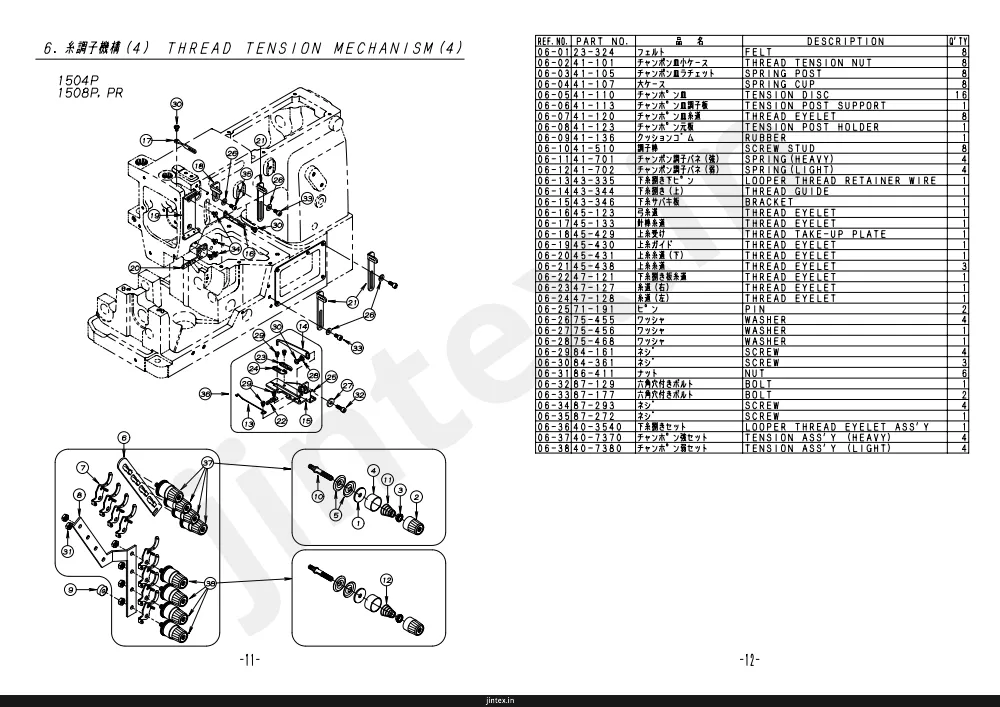

Page 8 — 6. 糸調子機構(4) THREAD TENSION MECHANISM (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-0123-324 | |||
| 06-0241-101 | |||
| 06-0341-105 | |||
| 06-0441-107 | |||
| 06-0541-110 | |||
| 06-0641-113 | |||
| 06-0741-120 | |||
| 06-0841-123 | |||
| 06-0941-136 | |||
| 06-1041-510 | |||
| 06-1141-701 | |||
| 06-1241-702 | |||
| 06-1343-335 | |||
| 06-1443-344 | |||
| 06-1543-345 | |||
| 06-1645-123 | |||
| 06-1745-133 | |||
| 06-1845-429 | |||
| 06-1945-430 | |||
| 06-2045-431 | |||
| 06-2145-438 | |||
| 06-2247-121 | |||
| 06-2347-127 | |||
| 06-2447-128 | |||
| 06-2571-191 | |||
| 06-2675-455 | |||
| 06-2775-456 | |||
| 06-2875-458 | |||
| 06-2984-161 | |||
| 06-3084-361 | |||
| 06-3186-411 | |||
| 06-3287-129 | |||
| 06-3387-177 | |||
| 06-3487-293 | |||
| 06-3587-272 | |||
| 06-3640-3540 | |||
| 06-3740-7370 | |||
| 06-3840-7380 |
Page 9 — 7. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-01 | 81-718 | BUSHING | 1 |
| 07-02 | 81-109 | BUSHING | 1 |
| 07-03 | 94-231 | OIL SEAL | 1 |
| 07-04 | 81-133 | BUSHING | 1 |
| 07-05 | 81-153 | BUSHING | 1 |
| 07-06 | 81-181 | BUSHING | 1 |
| 07-07 | 81-182 | BUSHING | 1 |
| 07-08 | 81-183 | BUSHING | 1 |
| 07-09 | 81-184 | BUSHING | 1 |
| 07-10 | 81-236 | BUSHING | 1 |
| 07-11 | 81-237 | BUSHING | 1 |
| 07-12 | 81-256 | BUSHING | 1 |
| 07-13 | 81-716 | BUSHING | 1 |
| 07-14 | 81-720 | BUSHING | 2 |
| 07-15 | 81-735 | BUSHING | 2 |
| 07-16 | 81-753 | BUSHING | 2 |
| 07-17 | 81-717 | BUSHING | 1 |
| 07-18 | 94-214 | OIL SEAL | 2 |
| 07-19 | 71-262 | PIN | 2 |
| 07-20 | 75-436 | WASHER | 4 |
| 07-21 | 87-661 | BOLT | 4 |
| 07-0181-718 | |||
| 07-0281-109 | |||
| 07-0394-231 | |||
| 07-0481-133 | |||
| 07-0581-153 | |||
| 07-0681-181 | |||
| 07-0781-182 | |||
| 07-0881-183 | |||
| 07-0981-184 | |||
| 07-1081-236 | |||
| 07-1181-237 | |||
| 07-1281-256 | |||
| 07-1381-716 | |||
| 07-1481-720 | |||
| 07-1581-735 | |||
| 07-1681-753 | |||
| 07-1781-717 | |||
| 07-1894-214 | |||
| 07-1971-262 | |||
| 07-2075-436 | |||
| 07-2187-661 |
Page 10 — 8. 針棒, 弓機構 NEEDLE BAR & LEVER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 08-0123-195 | O-リング | ||
| 08-0223-341 | |||
| 08-0323-383 | |||
| 08-0461-711 | CONNECTING ROD BALL | ||
| 08-0563-621 | BALL JOINT | ||
| 08-0663-713 | BALL JOINT | ||
| 08-0765-302 | CONNECTING BER | ||
| 08-0866-111 | CONNECTING LINK | ||
| 08-0969-105 | NEEDLE LEVER E | ||
| 08-1069-117 | NEEDLE BAR GUIDE | ||
| 08-1169-120 | FEED ROCKER LINK PIN | ||
| 08-1271-432 | NEEDLE LEVER STUD | ||
| 08-1371-933 | NEEDLE BAR CLAMP | ||
| 08-1473-113 | NEEDLE BAR CLAMP | ||
| 08-1573-121 | WASHER | ||
| 08-1675-674 | BUSHING | ||
| 08-1781-113 | BUSHING | ||
| 08-1881-412 | SCREW | ||
| 08-1984-365 | SCREW | ||
| 08-2084-366 | SCREW | ||
| 08-2184-564 | SCREW | ||
| 08-2284-567 | SCREW | ||
| 08-2384-568 | SCREW | ||
| 08-24 | SCREW | ||
| 08-2584-574 | SCREW | ||
| 08-2687-242 | SCREW | ||
| 08-2786-741 | NUT | ||
| 08-2886-742 | NUT | ||
| 08-2987-113 | BOLT | ||
| 08-3087-172 | SCREW | ||
| 08-3187-225 | BOLT | ||
| 08-3260-3700 | CONNECTING ROD ASS'Y | ||
| 08-3369-1050-2 | NEEDLE LEVER (WITH BUSHING) | ||
| 08-3485-181 | SCREW | ||
| 08-3575-332 | WASHER |
Page 11 — 9. 下軸機構 CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-01 | 23-197 | O-RING | 1 |
| 09-0123-197 | O-リング | ||
| 09-0223-554 | |||
| 09-0323-384 | |||
| 09-0431-155 | |||
| 09-0549-139 | |||
| 09-0651-017 | |||
| 09-0751-031 | |||
| 09-0860-3570 | DLRルーパ- 振元ロットセット | ||
| 09-0961-533 | |||
| 09-1061-723 | |||
| 09-1163-517 | |||
| 09-1269-216 | |||
| 09-1369-305 | |||
| 09-1471-612 | |||
| 09-1571-753 | 前下シャフト(5C) | ||
| 09-1671-842 | |||
| 09-1871-858 | |||
| 09-1975-107 | |||
| 09-2075-114 | |||
| 09-2175-327 | |||
| 09-2275-329 | |||
| 09-2375-332 | |||
| 09-2475-452 | |||
| 09-2575-673 | |||
| 09-2684-383 | |||
| 09-2784-511 | |||
| 09-2884-635 | |||
| 09-2984-661 | |||
| 09-3084-711 | |||
| 09-3185-212 | |||
| 09-3287-017 | |||
| 09-3387-172 | |||
| 09-3487-177 | |||
| 09-3587-242 | |||
| 09-3693-264 | |||
| 09-3870-0450 | クランクシャフトセット/27mm | ||
| 09-3970-0240 | クランクシャフトセット/34mm | ||
| 09-4023-663 | |||
| 09-4169-141 | |||
| 09-4287-274 |
Page 12 — 10. 送り機構 FEED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10-01 | 23-341 | FELT | 2 |
| 10-0123-341 | |||
| 10-0255-041 | |||
| 10-0355-051 | |||
| 10-0455-155 | |||
| 10-0561-312 | |||
| 10-0661-322 | |||
| 10-0763-232 | |||
| 10-0863-353 | |||
| 10-0967-311 | 送り連結レバー-A | ||
| 10-1071-431 | |||
| 10-1171-432 | |||
| 10-1271-531 | |||
| 10-1371-642 | |||
| 10-1475-139 | |||
| 10-1575-235 | |||
| 10-1675-381 | |||
| 10-1875-675 | |||
| 10-1984-176 | |||
| 10-2084-177 | |||
| 10-2184-366 | |||
| 10-2284-464 | |||
| 10-2384-588 | |||
| 10-2586-501 | |||
| 10-2687-245 | |||
| 10-2787-181 | |||
| 10-2887-252 | |||
| 10-2987-254 | |||
| 10-3091-270 | |||
| 10-3191-406 | |||
| 10-3293-261 | Cリング | ||
| 10-3393-406 | |||
| 10-3560-0800 | |||
| 10-3660-0900 | |||
| 10-3763-3530-2 |
Page 13 — 11. ルーバー機構 LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-722 | |||
| 18-725 | |||
| 19-289 | |||
| 19-292 | |||
| 19-588 | |||
| 19-315 | |||
| 19-316 | |||
| 19-318 | |||
| 23-341 | |||
| 61-312 | |||
| 61-322 | |||
| 61-823 | |||
| 63-232 | |||
| 63-812 | |||
| 63-821 | |||
| 65-401 | |||
| 65-902 | |||
| 67-132 | |||
| 67-222 | |||
| 71-201 | |||
| 71-322 | |||
| 71-431 | |||
| 71-561 | |||
| 71-901 | |||
| 75-139 | |||
| 75-372 | |||
| 75-401 | |||
| 75-452 | |||
| 75-453 | |||
| 75-534 | |||
| 75-552 | |||
| 75-675 | |||
| 79-601 | |||
| 81-401 | |||
| 84-362 | |||
| 84-374 | |||
| 84-386 | |||
| 84-521 | |||
| 60-0800 | |||
| 84-635 | |||
| 84-718 | |||
| 84-767 | |||
| 85-210 | |||
| 86-411 | |||
| 86-412 | |||
| 86-413 | |||
| 86-501 | |||
| 87-181 | |||
| 87-252 | |||
| 87-245 | |||
| 91-406 | |||
| 93-201 | Eリング | ||
| 93-406 | |||
| 60-0900 | |||
| 60-3720 | |||
| 60-3730 | |||
| 19-587 | |||
| 91-106 |
Page 14 — 12. 押え上げ機構 PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-02 | 71-542 | PRESSER BAR (SMALL) | 1 |
| 12-03 | 75-180 | WASHER | 1 |
| 12-04 | 77-509 | BRACKET | 1 |
| 12-05 | 77-516 | GUIDE | 1 |
| 12-06 | 71-544 | PRESSER BAR | 1 |
| 12-07 | 77-107 | CONNECTING PLATE | 1 |
| 12-08 | 77-109 | LIFTER LEVER SPRING SUPPORTER | 1 |
| 12-09 | 77-116 | LIFTER LEVER CONNECTING BAR | 1 |
| 12-10 | 77-131 | LIFT LEVER LINK | 1 |
| 12-11 | 77-517 | PRESSER BAR GUIDE | 1 |
| 12-12 | 77-163 | BRACKET | 1 |
| 12-13 | 77-164 | SHAFT | 1 |
| 12-14 | 77-165 | PIPE | 1 |
| 12-15 | 77-818 | PRESSER FOOT LIFTER LEVER | 1 |
| 12-16 | 79-121 | PRESSER BAR SPRING | 1 |
| 12-17 | 79-550 | SPRING | 1 |
| 12-18 | 84-561 | SCREW | 1 |
| 12-19 | 84-562 | SCREW | 1 |
| 12-20 | 84-563 | SCREW | 1 |
| 12-21 | 87-112 | BOLT | 2 |
| 12-22 | 84-581 | SCREW | 1 |
| 12-23 | 84-551 | SCREW | 1 |
| 12-24 | 85-201 | SCREW | 1 |
| 12-25 | 87-004 | SCREW | 1 |
| 12-26 | 84-813 | SCREW | 1 |
| 12-27 | 87-252 | BOLT | 2 |
| 12-28 | 88-003 | NUT | 1 |
| 12-29 | 93-611 | PIN | 2 |
| 12-30 | 86-411 | NUT | 1 |
| 12-31 | 87-177 | BOLT | 2 |
| 12-01 | PRESSER BAR (SMALL) | 1 |
Page 15 — 13. 給油機構 LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 13-01 | 17-8010-G | PIN | 1 |
| 13-02 | 23-120 | GASKET | 4 |
| 13-03 | 23-160 | SEAL WASHER | 3 |
| 13-04 | 23-304 | SEAL | 1 |
| 13-05 | 23-363 | FELT | 1 |
| 13-06 | 23-451 | GASKET | 1 |
| 13-07 | 23-514 | JOINT SEAL | 4 |
| 13-08 | 31-364 | JOINT | 1 |
| 13-09 | 30-0120 | PUMP ASS'Y | 1 |
| 13-10 | 31-151 | PUMP HOUSING | 1 |
| 13-11 | 31-152 | PUMP SHAFT | 1 |
| 13-12 | 31-153 | PLATE | 1 |
| 13-13 | 31-154 | PUMP REAR PLATE | 1 |
| 13-14 | 31-156 | PUMP MESH | 1 |
| 13-15 | 31-157 | CLAMP | 1 |
| 13-16 | 31-270 | OIL TANK | 1 |
| 13-17 | 31-271 | OIL FILTER SCREEN | 1 |
| 13-18 | 31-314 | JOINT | 1 |
| 13-19 | 75-536 | WASHER | 4 |
| 13-20 | 31-702 | PUMP GEAR | 1 |
| 13-21 | 31-705 | OUTER ROTER | 1 |
| 13-22 | 31-707 | INNER ROTER | 1 |
| 13-23 | 35-122 | PIPE | 1 |
| 13-24 | 35-361 | JOINT | 6 |
| 13-25 | 35-362 | JOINT SCREW | 1 |
| 13-26 | 35-413 | CLAMP | 7 |
| 13-28 | 39-133 | PIPE SUPPORT C | 1 |
| 13-29 | 39-216 | OIL GAUGE | 1 |
| 13-30 | 75-185 | COLLAR | 1 |
| 13-31 | 30-0121 | PUMP ASS'Y | 1 |
| 13-32 | 75-452 | WASHER | 2 |
| 13-33 | 87-092 | BOLT | 2 |
| 13-36 | 87-252 | BOLT | 2 |
| 13-37 | 87-173 | BOLT | 4 |
| 13-38 | 35-528 | BOLT | 2 |
| 13-39 | 87-123 | BOLT | 3 |
| 13-40 | 87-129 | BOLT | 3 |
| 13-41 | 87-140 | BOLT | 1 |
| 13-42 | 87-183 | BOLT | 2 |
| 13-43 | 84-363 | SCREW | 3 |
| 13-44 | 87-254 | SCREW | 1 |
| 13-45 | 87-311 | SCREW | 1 |
| 13-46 | 88-137 | NUT | 1 |
| 13-47 | 35-246 | PIPING | 1 |
| 13-48 | 35-317 | TUBE | 2 |
| 13-49 | 35-318 | TUBE | 1 |
| 13-50 | 35-257 | PIPE A | 1 |
| 13-51 | 35-322 | TUBE | 1 |
| 13-52 | 35-315 | TUBE | 1 |
| 13-53 | 35-343 | TUBE | 1 |
| 13-54 | 31-2700-2 | OIL TANK ASS'Y | 1 |
| 31-14 |
Page 16 — 14. 後プーラー機構 (1) REAR PULLER MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-01 | 01-115 | SLEEVE | 2 |
| 14-01-01-115 | |||
| 14-02-02-278 | カラーB | ||
| 14-03-02-117 | |||
| 14-04-02-122 | |||
| 14-05-02-251 | |||
| 14-06-02-263 | |||
| 14-07-02-266 | |||
| 14-08-02-490 | |||
| 14-09-02-281 | |||
| 14-10-02-491 | |||
| 14-11-02-301 | |||
| 14-12-71-443 | |||
| 14-13-71-439 | |||
| 14-14-71-921 | |||
| 14-16-75-451 | |||
| 14-17-75-519 | |||
| 14-18-79-551 | |||
| 14-19-81-321 | |||
| 14-20-81-322 | |||
| 14-21-81-323 | |||
| 14-22-84-162 | |||
| 14-23-84-465 | |||
| 14-24-84-573 | |||
| 14-25-87-214 | |||
| 14-26-87-113 | |||
| 14-27-87-129 | |||
| 14-28-87-181 | |||
| 14-29-87-225 | |||
| 14-30-88-179 | |||
| 14-31-91-407 | |||
| 14-32-93-221 | |||
| 14-33-00-0181 | |||
| 14-34-00-0601 |
Page 17 — 15. 後プーラー機構 (2) REAR PULLER MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-115 | |||
| 02-278 | カラーB | ||
| 02-117 | |||
| 02-123 | |||
| 02-151 | |||
| 02-166 | |||
| 02-486 | |||
| 02-487 | |||
| 02-263 | |||
| 71-444 | |||
| 71-439 | |||
| 71-921 | |||
| 75-451 | |||
| 75-519 | |||
| 79-551 | |||
| 81-321 | |||
| 81-322 | |||
| 81-323 | |||
| 84-162 | |||
| 84-462 | |||
| 84-573 | |||
| 87-214 | |||
| 87-113 | |||
| 87-129 | |||
| 87-181 | |||
| 87-225 | |||
| 88-179 | |||
| 91-407 | |||
| 93-221 | |||
| 00-2281 | |||
| 00-2011 | |||
| 00-2001 |
Page 18 — 16. 後プーラー機構 (3) REAR PULLER MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16-0100-2601 | |||
| 16-0201-115 | 2 | ||
| 16-0302-010 | 1 | ||
| 16-0402-011 | 1 | ||
| 16-0502-278 | カラーB | 1 | |
| 16-0602-117 | 1 | ||
| 16-0702-123 | 1 | ||
| 16-0802-151 | 1 | ||
| 16-0902-166 | 1 | ||
| 16-1002-197 | 1 | ||
| 16-1102-263 | 1 | ||
| 16-1271-444 | 1 | ||
| 16-1371-439 | 1 | ||
| 16-1471-921 | 1 | ||
| 16-1675-451 | 1 | ||
| 16-1775-455 | 4 | ||
| 16-1875-519 | 1 | ||
| 16-1979-551 | 1 | ||
| 16-2081-321 | 1 | ||
| 16-2181-322 | 1 | ||
| 16-2281-323 | 1 | ||
| 16-2384-162 | 6 | ||
| 16-2484-462 | 3 | ||
| 16-2584-573 | 1 | ||
| 16-2687-113 | 2 | ||
| 16-2787-129 | 1 | ||
| 16-2887-177 | 4 | ||
| 16-2987-181 | 1 | ||
| 16-3087-214 | 1 | ||
| 16-3187-225 | 1 | ||
| 16-3288-179 | 2 | ||
| 16-3391-407 | 2 | ||
| 16-3493-221 | 1 |
Page 19 — 17. 後プーラー機構(4) REAR PULLER MECHANISM (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-01 | 02-112 | WASHER | 1 |
| 17-0102-112 | |||
| 17-0202-204 | |||
| 17-0302-205 | |||
| 17-0402-219 | |||
| 17-0502-408 | |||
| 17-0661-208 | |||
| 17-0761-714 | |||
| 17-0861-810 | |||
| 17-0963-208 | |||
| 17-1063-711 | |||
| 17-1163-810 | |||
| 17-1265-302 | |||
| 17-1367-171 | |||
| 17-1467-172 | |||
| 17-1571-450 | |||
| 17-1671-691 | |||
| 17-1771-726 | |||
| 17-1875-112 | |||
| 17-1975-211 | |||
| 17-2075-247 | |||
| 17-2175-332 | |||
| 17-2275-458 | |||
| 17-2375-491 | |||
| 17-2475-493 | |||
| 17-2575-515 | |||
| 17-2675-520 | |||
| 17-2775-552 | |||
| 17-2877-419 | |||
| 17-2977-420 | |||
| 17-3077-425 | |||
| 17-3179-425 | |||
| 17-3284-567 | |||
| 17-3384-581 | |||
| 17-3484-582 | |||
| 17-3584-635 | |||
| 17-3685-671 | |||
| 17-3786-411 | |||
| 17-3886-501 | |||
| 17-3986-741 | |||
| 17-4086-742 | |||
| 17-4187-171 | |||
| 17-4287-172 | |||
| 17-4387-173 | |||
| 17-4487-214 | |||
| 17-4587-225 | |||
| 17-4787-254 | |||
| 17-4887-285 | |||
| 17-4987-287 | |||
| 17-5087-291 | |||
| 17-5187-754 | |||
| 17-5288-146 | |||
| 17-5388-157 | |||
| 17-5493-203 | E型止め輪 | ||
| 17-5593-205 | E-リング | ||
| 17-5693-222 | Eリング | ||
| 17-5793-258 |
Page 20 — 18. 前プーラー機構 METERING DEVICE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-01 | 00-1401 | METERING DEVICE ASS'Y | 1 |
| 18-02 | 01-102 | SLEEVE | 1 |
| 18-03 | 01-103 | SLEEVE | 1 |
| 18-04 | 01-111 | BRACKET | 1 |
| 18-05 | 01-116 | PLATE | 1 |
| 18-06 | 01-132 | PULLER | 1 |
| 18-07 | 01-134 | LOWER ROLLER | 1 |
| 18-08 | 01-136 | ROLLER HOLDER | 2 |
| 18-09 | 01-138 | PIVOT SHAFT HOLDER | 2 |
| 18-10 | 01-141 | RUBBER TIGHTENER | 1 |
| 18-11 | 01-143 | ROLLER CONTROLER | 1 |
| 18-12 | 01-145 | LEVER | 1 |
| 18-13 | 01-146 | COVER | 1 |
| 18-14 | 01-147 | PIN | 1 |
| 18-15 | 01-152 | GUIDE | 1 |
| 18-16 | 23-341 | FELT | 1 |
| 18-17 | 60-8271 | CONNECTING ROD ASS'Y | 1 |
| 18-18 | 61-821 | CONNECTING ROD BALL | 1 |
| 18-19 | 63-812 | BALL JOINT | 1 |
| 18-20 | 65-334 | PULLER CONNECTING BAR | 1 |
| 18-21 | 66-131 | CONNECTING LINK | 1 |
| 18-22 | 67-180 | PULLER CONNECTING LEVER | 1 |
| 18-23 | 71-227 | PIN | 1 |
| 18-24 | 71-350 | SHAFT | 1 |
| 18-25 | 71-361 | PIVOT SHAFT (LARGE) | 2 |
| 18-26 | 71-362 | PIVOT SHAFT (SMALL) | 1 |
| 18-27 | 71-432 | FEED ROCKER LINK PIN | 1 |
| 18-28 | 75-381 | WASHER | 1 |
| 18-29 | 75-446 | WASHER | 1 |
| 18-30 | 75-451 | WASHER | 2 |
| 18-31 | 75-468 | WASHER | 2 |
| 18-32 | 75-552 | WASHER | 2 |
| 18-33 | 79-171 | SPRING | 1 |
| 18-34 | 81-125 | BUSHING | 2 |
| 18-35 | 84-162 | SCREW | 3 |
| 18-36 | 84-314 | SCREW | 1 |
| 18-37 | 84-635 | SCREW | 2 |
| 18-38 | 84-813 | SCREW | 2 |
| 18-39 | 86-412 | NUT | 1 |
| 18-40 | 86-501 | NUT | 1 |
| 18-41 | 86-701 | NUT | 1 |
| 18-42 | 87-092 | BOLT | 2 |
| 18-43 | 87-129 | BOLT | 2 |
| 18-44 | 87-177 | BOLT | 2 |
| 18-45 | 87-181 | SCREW | 6 |
| 18-46 | 87-253 | SCREW | 1 |
| 18-47 | 87-254 | SCREW | 1 |
| 18-48 | 87-255 | BOLT | 1 |
| 18-49 | 87-456 | SCREW | 1 |
| 18-50 | 88-456 | NUT | 1 |
| 18-51 | 91-405 | BEARING | 2 |
| 18-52 | 93-200 | E-RING | 1 |
| 18-0100-1401 | PMd装置(組) | ||
| 18-0201-102 | |||
| 18-0301-103 | |||
| 18-0401-111 | |||
| 18-0501-116 | |||
| 18-0601-132 | |||
| 18-0701-134 | |||
| 18-0801-136 | |||
| 18-0901-138 | |||
| 18-1001-141 | |||
| 18-1101-143 | |||
| 18-1201-145 | |||
| 18-1301-146 | |||
| 18-1401-147 | |||
| 18-1501-152 | |||
| 18-1623-341 | |||
| 18-1760-8271 | |||
| 18-1861-821 | |||
| 18-1963-812 | |||
| 18-2065-334 | |||
| 18-2166-131 | |||
| 18-2267-180 | |||
| 18-2371-227 | |||
| 18-2471-350 | |||
| 18-2571-361 | |||
| 18-2671-362 | |||
| 18-2771-432 | |||
| 18-2875-381 | |||
| 18-2975-446 | |||
| 18-3075-451 | |||
| 18-3175-468 | |||
| 18-3275-552 | |||
| 18-3379-171 | |||
| 18-3481-125 | |||
| 18-3584-162 | |||
| 18-3684-314 | |||
| 18-3784-635 | |||
| 18-3884-813 | |||
| 18-3986-412 | |||
| 18-4086-501 | |||
| 18-4186-701 | |||
| 18-4287-092 | |||
| 18-4387-129 | |||
| 18-4487-177 | |||
| 18-4587-181 | |||
| 18-4687-253 | |||
| 18-4787-254 | |||
| 18-4887-255 | |||
| 18-4987-456 | |||
| 18-5088-456 | |||
| 18-5191-405 | |||
| 18-5293-200 |
Page 21 — 19. 1504 EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-01 | 19-312 | LOOPER HOLDER | 1 |
| 19-02 | * | SLIDE COVER | 1 |
| 19-03 | 79-801 | SPRING | 1 |
| 19-04 | * | UPPER COVER | 1 |
| 19-05 | 26-712 | WASHER | 1 |
| 19-06 | 55-154 | FEED BAR | 1 |
| 19-07 | 84-163 | SCREW | 2 |
| 19-08 | 87-292 | SCREW | 1 |
| 19-09 | 85-181 | SCREW | 2 |
| 19-10 | 21-366 | COVER B | 1 |
| 19-11 | 19-305 | LOOPER ROCKER | 1 |
| 19-12 | 75-372 | WASHER | 1 |
| 19-13 | 10-9120 | LOOPER HOLDER ASS'Y | 1 |
| 19-14 | 75-404 | WASHER | 1 |
| 19-02 | |||
| 19-04 |
Page 22 — 20. 1508P, PR専用部品(1) MODEL PR EXCLUSIVE PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-302 | |||
| 19-304 | |||
| 19-586 | |||
| 61-823 | |||
| 61-824 | |||
| 63-811 | |||
| 63-812 | |||
| 65-433 | |||
| ※ | |||
| ※ | |||
| 67-133 | |||
| 67-223 | |||
| 67-501 | |||
| 71-901 | |||
| 71-951 | |||
| 75-224 | |||
| 75-247 | |||
| 75-381 | |||
| 75-401 | |||
| 75-452 | |||
| 75-453 | |||
| 75-534 | |||
| 79-457 | |||
| 79-508 | |||
| 81-401 | |||
| 84-374 | |||
| 84-521 | |||
| 84-583 | |||
| 84-635 | |||
| 84-767 | |||
| 84-814 | |||
| 84-816 | |||
| 85-210 | |||
| 86-312 | |||
| 86-411 | |||
| 86-412 | |||
| 86-501 | |||
| 86-502 | |||
| 87-123 | |||
| 60-3880 | |||
| 60-3710 | |||
| ※ | |||
| 84-366 | |||
| 19-587 | |||
| 91-106 | |||
| 66-531 | GAUGE SIZE | ||
| 66-517 | GAUGE SIZE | ||
| 66-519 | GAUGE SIZE | ||
| 19-302 | GAUGE SIZE | ||
| 19-304 | GAUGE SIZE | ||
| 19-304 | GAUGE SIZE | ||
| 10-9240-2 | GAUGE SIZE | ||
| 10-9240-3 | GAUGE SIZE | ||
| 10-9240-1 | GAUGE SIZE |
Page 23 — 21. 1508P, PR専用部品(2) MODEL 1508P, PR EXCLUSIVE PARTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-01 | 02-112 | WASHER | 2 |
| 21-02 | 02-231 | SLIDE ROLLER | 1 |
| 21-03 | 02-232 | LOCK ROLLER | 1 |
| 21-04 | 02-233 | BRACKET | 1 |
| 21-05 | 02-234 | REAR PULLER | 1 |
| 21-06 | 02-235 | REAR PULLER | 1 |
| 21-07 | 14-063 | NEEDLE PLATE SUPPORT | 1 |
| 21-08 | 14-160 | NEEDLE SUPPORT BRACKET | 1 |
| 21-09 | 27-050 | SLIDE COVER | 1 |
| 21-10 | 27-051 | UPPER COVER | 1 |
| 21-11 | 27-052 | FRONT PLATE COVER | 1 |
| 21-12 | 27-053 | UPPER COVER | 1 |
| 21-13 | 23-512 | CUSHION RUBBER | 2 |
| 21-14 | 71-653 | SHAFT | 1 |
| 21-15 | 75-372 | WASHER | 1 |
| 21-16 | 79-456 | SPRING | 2 |
| 21-17 | 79-521 | PLATE SPRING(A) | 1 |
| 21-18 | 75-468 | WASHER | 2 |
| 21-19 | 81-501 | BUSHING | 1 |
| 21-20 | 84-114 | SCREW | 2 |
| 21-21 | 87-318 | SCREW | 1 |
| 21-22 | 84-364 | SCREW | 1 |
| 21-23 | 84-521 | SCREW | 3 |
| 21-24 | 84-761 | SCREW | 2 |
| 21-25 | 88-166 | NUT | 2 |
| 21-26 | 87-123 | BOLT | 1 |
| 21-27 | 87-280 | SCREW | 1 |
| 21-28 | 87-292 | SCREW | 1 |
| 21-29 | 93-402 | C-RING | 2 |
| 21-30 | 26-712 | WASHER | 2 |
| 21-31 | 85-181 | SCREW | 4 |
| 21-32 | 20-0510 | UPPER COVER ASS'Y | 1 |
| 21-33 | 20-0530 | UPPER COVER ASS'Y | 1 |
| 21-34 | 79-552 | SPRING | 1 |
| 21-35 | 87-287 | BOLT | 2 |
| 21-36 | 20-2280 | UPPER COVER ASS'Y | 1 |
| 21-37 | 20-2300 | UPPER COVER ASS'Y | 1 |
| 21-38 | 21-366 | COVER B | 1 |
Page 24 — 22. テープガイド関係 TAPE GUIDE ASSEMBLY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-01 | 20-6020-0 | TAPE STANDS | 1 |
| 22-02 | 20-615 | TAPE STANDS | 1 |
| 22-03 | 20-6030-0 | TAPE STANDS | 1 |
| 22-04 | 20-6400-0 | MOUNTING BASE FOR HOLDER | 1 |
| 20-6015 |
Page 25 — 23. 糸立て及びテーブル THREAD STAND AND TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-01 | 21-045 | TABLE | 1 |
| 25-140 | |||
| 31-163 | |||
| 80-751 | |||
| 42-002 | |||
| 42-706 | |||
| 42-704 | |||
| 42-718 | |||
| 21-0450-1 | PMD用テーブル | ||
| 23-121 | テーブル取付ゴムA | ||
| 23-122 | テーブル取付ゴムB | ||
| 75-535 |
Page 26 — 24. アクセサリー ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-140 | |||
| 28-611 | |||
| 31-163 | |||
| 28-920 | |||
| 20-0020 | |||
| 80-751 | |||
| 28-464 | T型レンチ 10mm | ||
| 28-452 | |||
| 28-011 | |||
| 13-0110-6 | 針 UYX128GAS#11 | ||
| 28-317 | グリップ付六角レンチ 1. 5mm | ||
| 28-311 | 六角レンチ 2mm | ||
| 28-312 | 六角レンチ 2. 5mm | ||
| 28-313 | 六角レンチ 3mm | ||
| 28-314 | 六角レンチ 5mm | ||
| 13-0140-6 | 針 UYX128GAS#14 | ||
| 13-1510-5 | 針 TV×5 #21 | ||
| 28-614 | |||
| 28-615 | |||
| 23-121 | テープル取付ゴムA | ||
| 23-122 | テープル取付ゴムB | ||
| 75-535 |
Page 27 — 25. ゲージパーツ GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-01 | NEEDLE BAR | 1 | |
| 25-02 | NEEDLE HOLDER | 1 | |
| 11-704 | 針棒 NEEDLE HOLDER | 1 | |
| 25-04※ | 針棒 NEEDLE PLATE | 1 | |
| 12-877 | 針棒 FEED DOG | 1 | |
| 25-06※ | 針板 HANK | 1 | |
| 25-07※ | 送り歯 PIN | 1 | |
| 17-4430-A | 押えボス BOTTOM | 1 | |
| 25-09※ | 取付ピン BOTTOM | 1 | |
| 25-10※ | 押え足 HANK | 1 | |
| 25-11※ | 押え足 BOTTOM (REAR) | 1 | |
| 17-5530-A | 押えボス BOTTOM HOLDER | 1 | |
| 17-5530-B | 押え足(後) SPRING | 1 | |
| 17-5530-C | 押え足イド"足ハ"ネ BOTTOM | 1 | |
| 17-5530-D | 押え力イド"足ハ"ネ SPRING | 1 | |
| 25-16※ | 押え足 SPRING | 1 | |
| 17-5530-E | 押え足後ハ"ネ GUIDE | 1 | |
| 17-5530-F | 押え足ハ"ネ NUT | 1 | |
| 17-5530-G | 押え力イド"足調"節ナット SCREW | 6 | |
| 17-5530-1 | 押え力イド"足調"節ナット NEEDLE GUARD | 1 | |
| 17-5530-J | 押え足固定ネジ LOOPPER | 1 | |
| 17-5530-K | ネジ LOOPPER | 1 | |
| 25-23※ | ルーバー LOOPPER | 1 | |
| 25-24※ | ルーバー HANK | 1 | |
| 25-25※ | ルーバー SCREW | 1 | |
| 25-26※ | ルーバー SCREW | 2 | |
| 17-5220-A | 押えボス SCREW | 1 | |
| 84-113 | ネジ SCREW | 1 | |
| 84-167 | ネジ SCREW | 1 | |
| 17-7250-G | 取付ピン PIN | 1 | |
| 87-104 | ネジ SCREW | 1 | |
| 84-368 | ネジ SCREW | 2 | |
| 84-376 | ネジ SCREW | 1 | |
| 84-382 | ネジ SCREW | 1 | |
| 84-575 | ネジ SCREW | 1 | |
| 25-36 | SCREW | 2 | |
| 85-611 | ネジ SCREW | 1 | |
| 17-5020-A | 押えボス HANK | 1 | |
| 17-5320-A | 押えボス HANK | 1 | |
| 17-5020-C | 17-5020-C | 1 | |
| 17-5110-B | 17-5110-B | 1 | |
| 17-5130-B | 17-5130-B | 1 | |
| 17-5220-B | 17-5220-B | 1 | |
| 17-5320-B | 17-5320-B | 1 | |
| 17-5020-B | 17-5020-B | 1 | |
| 17-5530-E | 17-5530-E | 1 | |
| 17-5540-E | 17-5540-E | 1 |
Page 28 — 26. ゲージパーツ GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| * | NEEDLE BAR | 1 | |
| * | NEEDLE HOLDER | 1 | |
| * | NEEDLE PLATE | 1 | |
| * | FEED DOG | 1 | |
| 17-54210-A | RACKET | 1 | |
| 17-5410-C | RACKET | 2 | |
| 17-5410-E | LINK PLATE | 1 | |
| 17-5410-G | SLIDE PLATE | 1 | |
| 17-4430-A | HANK | 1 | |
| 17-4430-C | PIN | 1 | |
| * | BOTTOM | 1 | |
| 17-5810-D | PIN | 2 | |
| 17-5810-E | SCREW | 1 | |
| * | NEEDLE GUARD | 1 | |
| * | LOOPER | 1 | |
| * | LOOPER | 1 | |
| * | LOOPER | 1 | |
| * | LOOPER | 1 | |
| 19-581 | LOOPER | 2 | |
| 19-582 | LOOPER | 2 | |
| 79-282 | FINGER GUARD | 2 | |
| 84-113 | SCREW | 1 | |
| 84-114 | SCREW | 2 | |
| 84-361 | SCREW | 2 | |
| 84-364 | SCREW | 3 | |
| 84-368 | SCREW | 1 | |
| 84-382 | SCREW | 1 | |
| 84-464 | SCREW | 1 | |
| 84-465 | SCREW | 1 | |
| 84-521 | SCREW | 2 | |
| 84-575 | SCREW | 2 | |
| 84-591 | BOLT | 1 | |
| 87-104 | SCREW | * | |
| 26-526 | SIDE GUIDE | 2 |
Page 29 — GAUGE PARTS TABLE (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-8770-1 | NEEDLE HOLDER | 1 | |
| 17-5020-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-502 | NEEDLE PLATE | 1 | |
| 11-504 | NEEDLE BAR | 1 | |
| 3/16 | GAUGE SIZE | 1 | |
| 19-315 | FEED DOG | 1 | |
| 19-546 | LOOPER HOLDER | 1 | |
| 19-541 | LOOPER HOLDER | 1 | |
| 18-501 | NEEDLE HOLDER | 1 | |
| 12-5110-1 | NEEDLE HOLDER | 1 | |
| 17-5110-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-511 | NEEDLE PLATE | 1 | |
| 11-704 | NEEDLE BAR | 1 | |
| 1/4 | GAUGE SIZE | 1 | |
| 19-511 | FEED DOG | 1 | |
| 19-512 | LOOPER HOLDER | 1 | |
| 19-550 | LOOPER HOLDER | 1 | |
| 18-520 | NEEDLE HOLDER | 1 | |
| 12-5220-1 | NEEDLE HOLDER | 1 | |
| 17-5220-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-522 | NEEDLE PLATE | 1 | |
| 9/32 | GAUGE SIZE | 1 | |
| 19-513 | FEED DOG | 1 | |
| 19-513 | LOOPER HOLDER | 1 | |
| 19-553 | LOOPER HOLDER | 1 | |
| 18-521 | NEEDLE HOLDER | 1 | |
| 12-5530-1 | NEEDLE HOLDER | 1 | |
| 17-5320-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-513 | NEEDLE PLATE | 1 | |
| 19-513 | FEED DOG | 1 | |
| 19-513 | LOOPER HOLDER | 1 | |
| 19-556 | LOOPER HOLDER | 1 | |
| 18-522 | NEEDLE HOLDER | 1 | |
| 12-5540-1 | NEEDLE HOLDER | 1 | |
| 17-5540-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-554 | NEEDLE PLATE | 1 | |
| 19-536 | FEED DOG | 1 | |
| 19-536 | LOOPER HOLDER | 1 | |
| 19-557 | LOOPER HOLDER | 1 | |
| 19-557 | LOOPER HOLDER | 1 | |
| 18-541 | NEEDLE HOLDER | 1 | |
| 17-5410-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-541 | NEEDLE PLATE | 1 | |
| 11-402 | NEEDLE BAR | 1 | |
| 1 | GAUGE SIZE | 1 | |
| 19-546 | FEED DOG | 1 | |
| 19-547 | LOOPER HOLDER | 1 | |
| 19-541 | LOOPER HOLDER | 1 | |
| 18-541 | NEEDLE HOLDER | 1 | |
| 17-5820-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-583 | NEEDLE PLATE | 1 | |
| 1/4-1-1/4 | GAUGE SIZE | 1 | |
| 19-583 | FEED DOG | 1 | |
| 19-583 | LOOPER HOLDER | 1 | |
| 19-581 | LOOPER HOLDER | 1 | |
| 18-581 | NEEDLE HOLDER | 1 | |
| 17-5810-1 | PRESSER FOOT ASSEMBLY | 1 | |
| 14-581 | NEEDLE PLATE | 1 | |
| 19-582 | FEED DOG | 1 | |
| 19-581 | LOOPER HOLDER | 1 | |
| 19-581 | LOOPER HOLDER | 1 | |
| 19-581 | NEEDLE HOLDER | 1 |
Kansai Special DLR-1508P — parts catalog
- Page 1 (cover): This is the cover page for the DLR-P Series parts catalog, published in December 2006 by KANSAI SPECIAL.
- Page 2 (toc): This page is a table of contents for the DLR series parts book, listing mechanisms and their corresponding page numbers.
- Page 3 (diagram): This page displays a diagram of frame assembly components for a sewing machine, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 4 (diagram): This page displays a diagram of frame assembly components for models 1501-1503, with a detailed parts list including part numbers, descriptions, and quantities.
- Page 5 (diagram): This page displays a diagram of the thread tension mechanism (1) for the 1501PHD model, along with a detailed parts list.
- Page 6 (diagram): This page displays a diagram of the thread tension mechanism (2) for the 1502P and 1502PHD sewing machine models, along with a detailed parts list.
- Page 7 (parts_list): This page contains a parts list for the thread tension mechanism (3) of the 1503P and 1503PHD PTF sewing machines, detailing part numbers, descriptions, and quantities.
- Page 8 (parts_list): This page contains a parts list for the thread tension mechanism (4), including part numbers, descriptions, quantities, and reference numbers for models 1504P and 1508P, PR.
- Page 9 (diagram): This page displays a diagram of the bushing mechanism (BUSHING) with numbered parts and a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of the needle bar and lever mechanism, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 11 (diagram): This page displays a diagram of the crankshaft mechanism, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of the feed mechanism for an industrial sewing machine, along with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 13 (parts_list): This page contains a parts list for the LOOPER MECHANISM, detailing part numbers, descriptions, and quantities for various components.
- Page 14 (diagram): This page displays a diagram of the presser foot mechanism, with numbered parts and a corresponding parts list detailing part numbers and descriptions.
- Page 15 (parts_list): This page contains a parts list for the lubrication mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 16 (diagram): This page displays a diagram of the rear puller mechanism (1) with a parts list detailing components such as sleeves, collars, plates, and various fasteners, along with their corresponding part numbers and descriptions.
- Page 17 (diagram): This page displays a diagram of the rear puller mechanism (2) with a parts list including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of the rear puller mechanism (3) for models 1508P and 1508PR, along with a detailed parts list.
- Page 19 (parts_list): This page lists parts for the rear puller mechanism (4) with part numbers ranging from 17-0102-112 to 17-5793-258.
- Page 20 (parts_list): This page contains a parts list for the Metering Device Mechanism, including part numbers, descriptions, and quantities.
- Page 21 (parts_list): This page contains a parts list for the 1504 model, detailing parts such as the looper holder, slide cover, upper cover, feed bar, screws, and washers, along with their respective part numbers and quantities.
- Page 22 (parts_list): This page contains a parts list for the model 20-1508P, PR exclusive parts (1). It includes part numbers, descriptions, and quantities for various components.
- Page 23 (parts_list): This page contains a parts list for the 1508P model, detailing part numbers, descriptions, quantities, and reference numbers for various components.
- Page 24 (diagram): This page displays a diagram of the tape guide assembly, with detailed views of components labeled 1 through 4, and a parts list detailing part numbers, descriptions, and quantities.
- Page 25 (parts_list): This page lists parts for thread stand and table assemblies, including part numbers, descriptions, quantities, and reference numbers.
- Page 26 (parts_list): This page lists accessories for the sewing machine, including brackets, oil, rubber cushions, chains, screws, wrenches, screwdrivers, tweezers, needles, Allen keys, oil funnels, and washers.
- Page 27 (parts_list): This page lists parts for gauge components, including part numbers, descriptions, and quantities for various models.
- Page 28 (parts_list): This page lists gauge parts for models 1504P, PMD and 1508P, PR, including part numbers, descriptions, and quantities.
- Page 29 (parts_list): This page contains two parts lists, labeled 27 and 28, detailing gauge parts for different machine models. Each list includes part numbers, names, and associated model numbers.
