Kansai Special FX4404 Parts Book (PDF)

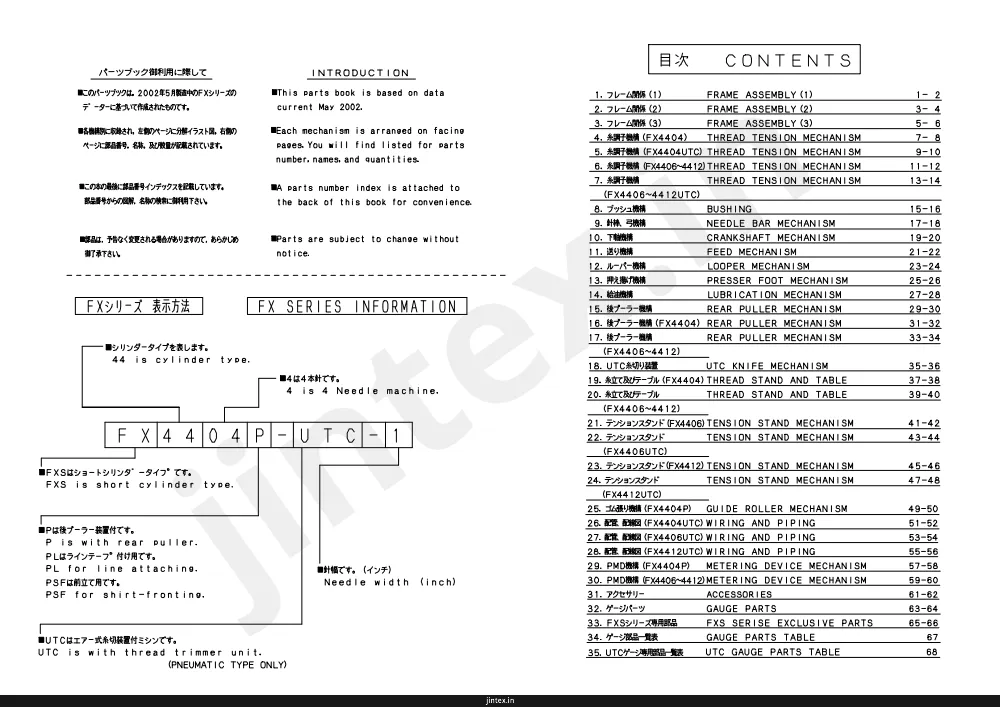

Text index — Kansai Special FX4404
Page 3 — 1. フレーム関係 (1) FRAME ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-01 | 02-118 | WASHER | 1 |
| 01-02 | 02-119 | WASHER | 1 |
| 01-03 | 05-444 | GUIDE | 1 |
| 01-04 | 05-445 | BRACKET | 1 |
| 01-05 | 05-446 | PIPE | 1 |
| 01-06 | 05-558 | BAR | 1 |
| 01-07 | 21-975 | COVER | 1 |
| 01-08 | 21-264 | NEEDLE BAR COVER | 1 |
| 01-09 | 21-265 | COVER | 1 |
| 01-10 | 21-266 | NEEDLE BAR COVER | 1 |
| 01-11 | 21-267 | COVER | 1 |
| 01-12 | 21-273 | EYE GUARD | 1 |
| 01-13 | 21-274 | EYE GUARD | 1 |
| 01-14 | 21-275 | BRACKET | 1 |
| 01-15 | 21-276 | BRACKET | 1 |
| 01-16 | 21-459 | TOP COVER | 1 |
| 01-17 | 21-499 | HEAD COVER | 1 |
| 01-18 | 21-711 | COVER | 1 |
| 01-19 | 23-427 | PLUG | 4 |
| 01-20 | 23-462 | GASKET | 1 |
| 01-21 | 23-465 | GASKET | 1 |
| 01-22 | 24-053 | TYPE PLATE | 1 |
| 01-23 | 24-401 | OIL MARK | 1 |
| 01-24 | 24-052 | KS MARK | 3 |
| 01-25 | 39-502 | OIL SIGHT WINDOW | 1 |
| 01-26 | 71-580 | PIN | 2 |
| 01-27 | 75-224 | WASHER | 2 |
| 01-28 | 75-225 | SPRING WASHER | 4 |
| 01-29 | 75-436 | WASHER | 4 |
| 01-30 | 75-452 | WASHER | 1 |
| 01-31 | 84-396 | SCREW | 1 |
| 01-32 | 87-092 | BOLT | 1 |
| 01-33 | 87-099 | SCREW | 2 |
| 01-34 | 87-113 | BOLT | 1 |
| 01-35 | 87-177 | BOLT | 2 |
| 01-36 | 87-224 | BOLT | 8 |
| 01-37 | 87-264 | SCREW | 1 |
| 01-38 | 87-270 | SCREW | 2 |
| 01-39 | 87-092 | SCREW | 3 |
| 01-40 | 87-409 | SCREW | 1 |
| 01-41 | 87-661 | BOLT | 4 |
| 01-42 | 88-166 | NUT | 1 |
| 01-43 | 93-701 | PIN | 2 |
| 01-01 02-118 | |||
| 01-02 02-119 | |||
| 01-03 05-444 | |||
| 01-04 05-445 | |||
| 01-05 05-446 | |||
| 01-06 05-558 | |||
| 01-07 21-975 | |||
| 01-08 21-264 | |||
| 01-09 21-265 | |||
| 01-10 21-266 | |||
| 01-11 21-273 | |||
| 01-12 21-274 | |||
| 01-13 21-275 | |||
| 01-14 21-276 | |||
| 01-15 21-459 | |||
| 01-16 21-499 | |||
| 01-17 21-711 | |||
| 01-18 21-711 | |||
| 01-19 23-427 | |||
| 01-20 23-462 | |||
| 01-21 23-465 | |||
| 01-22 24-053 | |||
| 01-23 24-401 | |||
| 01-24 24-052 | KSマーク | ||
| 01-25 39-502 | |||
| 01-26 71-580 | |||
| 01-27 75-224 | |||
| 01-28 75-225 | |||
| 01-29 75-436 | |||
| 01-30 75-452 | |||
| 01-31 84-396 | |||
| 01-32 87-092 | |||
| 01-33 87-099 | |||
| 01-34 87-113 | |||
| 01-35 87-177 | |||
| 01-36 87-224 | |||
| 01-37 87-264 | |||
| 01-38 87-270 | |||
| 01-39 87-092 | |||
| 01-40 87-409 | |||
| 01-41 87-661 | |||
| 01-42 88-166 | |||
| 01-43 93-701 |
Page 4 — 2. フレーム関係(2) FRAME ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-01 | 01-108 | COVER | 1 |
| 02-02 | 02-112 | WASHER | 1 |
| 02-03 | 09-402 | FABRIC GUIDE(RIGHT) | 1 |
| 02-04 | 09-403 | TAPE GUIDE(LEFT) | 1 |
| 02-05 | 09-404 | TAPE HOLDER | 1 |
| 02-06 | 14-438 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 02-07 | 14-439 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 02-08 | 21-268 | PULLEY COVER | 1 |
| 02-09 | 21-269 | UPPER COVER | 1 |
| 02-10 | 21-270 | FRONT PLATE COVER | 1 |
| 02-11 | 26-712 | WASHER | 1~2 |
| 02-12 | 21-272 | FRONT COVER | 1 |
| 02-13 | 21-279 | COVER | 1 |
| 02-14 | 21-280 | COVER | 1 |
| 02-15 | 21-297 | COVER | 1 |
| 02-16 | 21-298 | FRONT COVER | 1 |
| 02-17 | 21-460 | COVER | 1 |
| 02-18 | 23-166 | PLUG | 1 |
| 02-19 | 23-463 | GASKET | 1 |
| 02-20 | 23-467 | PLUG | 1 |
| 02-21 | 23-501 | PLUG | 2 |
| 02-22 | 23-512 | CUSHION RUBBER | 1 |
| 02-23 | 23-427 | SEAL CAP | 1 |
| 02-24 | 25-503 | SCREW | 1 |
| 02-25 | 25-516 | HINGE | 1 |
| 02-26 | 25-517 | SCREW | 1 |
| 02-27 | 25-522 | SCREW | 1 |
| 02-28 | 31-503 | OIL FILTER SCREEN | 1 |
| 02-29 | 35-416 | OIL FENCE | 1 |
| 02-30 | 39-503 | CLAMP | 1 |
| 02-31 | 71-116 | PIN | 1 |
| 02-32 | 71-579 | PIN | 2 |
| 02-33 | 75-455 | WASHER | 6 |
| 02-34 | 75-456 | WASHER | 1 |
| 02-35 | 75-468 | WASHER | 2 |
| 02-36 | 79-522 | SPRING | 2 |
| 02-37 | 79-912 | SPRING | 2 |
| 02-38 | 79-922 | SPRING | 2 |
| 02-39 | 84-364 | SCREW | 2 |
| 02-40 | 87-098 | SCREW | 1 |
| 02-41 | 87-145 | SCREW | 4 |
| 02-42 | 87-177 | BOLT | 4 |
| 02-43 | 87-213 | BOLT | 4 |
| 02-44 | 87-214 | BOLT | 2 |
| 02-45 | 85-181 | SCREW | 2~4 |
| 02-46 | 87-258 | PIN | 3 |
| 02-47 | 87-269 | SCREW | 11 |
| 02-48 | 87-270 | SCREW | 2 |
| 02-49 | 87-272 | SCREW | 2 |
| 02-51 | 87-284 | SCREW | 3 |
| 02-52 | 87-286 | SCREW | 2 |
| 02-53 | 87-410 | PIN | 1 |
| 02-54 | 87-411 | SCREW | 4 |
| 02-55 | 87-415 | SCREW | 2 |
| 02-56 | 87-418 | SCREW | 1 |
| 02-57 | 88-146 | NUT | 2 |
| 02-58 | 94-506 | OIL SEAL | 1 |
Page 5 — 3. フレーム関係 (3) FRAME ASSEMBLY (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-0102-112 | 1 | ||
| 03-0209-402 | 1 | ||
| 03-0309-403 | 1 | ||
| 03-0409-404 | 1 | ||
| 03-0521-268 | 1 | ||
| 03-0621-270 | 1 | ||
| 03-0721-272 | 1 | ||
| 03-0821-277 | 1 | ||
| 03-0921-278 | 横カバー-(UTC) | 1 | |
| 03-1021-460 | 1 | ||
| 03-1122-407 | 1 | ||
| 03-1223-166 | 1 | ||
| 03-1323-463 | 1 | ||
| 03-1423-467 | 1 | ||
| 03-1523-501 | 2 | ||
| 03-1623-512 | 1 | ||
| 03-1723-427 | 1 | ||
| 03-1825-503 | 1 | ||
| 03-1925-516 | 1 | ||
| 03-2025-517 | 1 | ||
| 03-2125-522 | 1 | ||
| 03-2231-503 | 1 | ||
| 03-2335-416 | 1 | ||
| 03-2439-503 | 1 | ||
| 03-2571-116 | 1 | ||
| 03-2675-455 | 2 | ||
| 03-2775-468 | 1 | ||
| 03-2879-412 | 2 | ||
| 03-2979-912 | |||
| 03-3079-922 | |||
| 03-3187-098 | 1 | ||
| 03-3287-145 | 4 | ||
| 03-3387-177 | 4 | ||
| 03-3487-214 | 2 | ||
| 03-35 | BOLT | ||
| 03-3687-258 | 3 | ||
| 03-3787-269 | 7 | ||
| 03-3887-284 | 5 | ||
| 03-3987-286 | 2 | ||
| 03-4087-411 | 4 | ||
| 03-4187-415 | 1 | ||
| 03-4287-418 | 1 | ||
| 03-4394-506 | 1 | ||
| 03-4487-410 | 1 |
Page 6 — 4. 糸調子機構 (FX4404) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-01 | 23-324 | FELT | 8 |
| 04-02 | 41-101 | THREAD TENSION NUT | 8 |
| 04-03 | 41-105 | SPRING POST | 8 |
| 04-04 | 41-107 | SPRING CUP | 8 |
| 04-05 | 41-110 | TENSION DISC | 16 |
| 04-06 | 41-115 | THREAD GUIDE | 8 |
| 04-07 | 41-117 | THREAD GUIDE | 8 |
| 04-08 | 41-448 | BRACKET | 1 |
| 04-09 | 41-449 | THREAD RELEASER | 1 |
| 04-10 | 41-510 | SCREW STUD | 8 |
| 04-11 | 41-701 | SPRING(HEAVY) | 4 |
| 04-12 | 41-702 | SPRING(LIGHT) | 4 |
| 04-13 | 45-123 | THREAD EYELET | 1 |
| 04-14 | 45-133 | THREAD EYELET | 1 |
| 04-15 | 45-428 | THREAD EYELET | 1 |
| 04-16 | 45-429 | THREAD TAKE-UP PLATE | 1 |
| 04-17 | 45-430 | THREAD EYELET | 1 |
| 04-18 | 45-431 | THREAD EYELET | 1 |
| 04-19 | 45-438 | THREAD EYELET | 1 |
| 04-20 | 45-546 | THREAD GUIDE | 1 |
| 04-21 | 45-547 | BRACKET | 1 |
| 04-22 | 47-104 | THREAD EYELET | 2 |
| 04-23 | 47-411 | THREAD EYELET | 1 |
| 04-24 | 47-412 | THREAD EYELET | 1 |
| 04-25 | 47-413 | THREAD EYELET | 1 |
| 04-26 | 75-394 | COLLAR | 2 |
| 04-27 | 75-455 | WASHER | 5 |
| 04-29 | 79-514 | SPRING | 1 |
| 04-30 | 84-501 | SCREW | 1 |
| 04-31 | 87-010 | SCREW | 2 |
| 04-32 | 87-092 | BOLT | 2 |
| 04-33 | 87-113 | BOLT | 3 |
| 04-34 | 87-129 | BOLT | 2 |
| 04-35 | 87-177 | BOLT | 2 |
| 04-36 | 87-269 | SCREW | 2 |
| 04-37 | 87-270 | SCREW | 2 |
| 04-38 | 87-278 | SCREW | 2 |
| 04-39 | 87-272 | SCREW | 2 |
| 04-40 | 87-288 | SCREW | 1 |
| 04-28 |
Page 7 — 5. 糸調子機構(FX4404UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-01 | 05-434 | SHAFT | 1 |
| 05-435 | |||
| 05-436 | |||
| 05-438 | |||
| 05-439 | |||
| 05-440 | |||
| 05-441 | |||
| 05-478 | |||
| 23-324 | |||
| 41-101 | |||
| 41-105 | |||
| 41-107 | |||
| 41-110 | |||
| 41-115 | |||
| 41-117 | |||
| 41-448 | |||
| 41-449 | |||
| 41-450 | |||
| 41-510 | |||
| 41-701 | |||
| 41-702 | |||
| 75-455 | |||
| 79-943 | |||
| 79-514 | |||
| 79-540 | |||
| 84-501 | |||
| 87-092 | |||
| 87-098 | |||
| 87-177 | |||
| 87-246 | |||
| 87-286 | |||
| 93-201 | Eリング |
Page 8 — 6. 糸調子機構 (FX4406~4412) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-01 | 45-107 | THREAD EYELET | 2 |
| 06-01 45-107 | |||
| 06-02 45-127 | |||
| 06-03 45-432 | |||
| 06-04 45-433 | |||
| 06-05 45-434 | |||
| 06-06 45-435 | |||
| 06-07 45-437 | |||
| 06-08 47-408 | |||
| 06-09 47-409 | |||
| 06-10 47-410 | |||
| 06-11 47-413 | |||
| 06-12 75-455 | |||
| 06-13 75-522 | |||
| 06-14 87-010 | |||
| 06-15 87-113 | |||
| 06-16 87-177 | |||
| 06-17 87-269 | |||
| 06-18 87-270 | |||
| 06-19 87-272 | |||
| 06-20 87-288 |
Page 9 — 7. 糸調子機構 (FX4406UTC~4412UTC) THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-0105-442 | |||
| 07-0205-443 | |||
| 07-0305-479 | |||
| 07-0405-480 | |||
| 07-0545-107 | |||
| 07-0645-127 | |||
| 07-0745-432 | |||
| 07-0845-433 | |||
| 07-0945-434 | |||
| 07-1045-435 | |||
| 07-1145-436 | |||
| 07-1245-437 | |||
| 07-1347-408 | |||
| 07-1447-409 | |||
| 07-1547-410 | |||
| 07-1647-413 | |||
| 07-1775-455 | |||
| 07-1875-456 | |||
| 07-1975-522 | |||
| 07-2087-010 | |||
| 07-2287-113 | |||
| 07-2387-177 | |||
| 07-2487-269 | |||
| 07-2587-272 | |||
| 07-2687-288 |
Page 10 — 8. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 08-01 | 81-407 | BUSHING | 1 |
| 08-02 | 81-408 | BUSHING | 1 |
| 08-03 | 81-425 | BUSHING | 1 |
| 08-04 | 81-426 | BUSHING | 1 |
| 08-05 | 81-427 | BUSHING | 1 |
| 08-06 | 81-428 | BUSHING | 2 |
| 08-07 | 81-429 | BUSHING | 1 |
| 08-08 | 81-430 | BUSHING | 3 |
| 08-09 | 81-432 | BUSHING | 3 |
| 08-10 | 81-433 | BUSHING | 1 |
| 08-11 | 81-517 | BUSHING | 2 |
| 08-12 | 81-559 | BUSHING | 3 |
| 08-13 | 94-502 | OIL SEAL | 1 |
| 08-0181-407 | |||
| 08-0281-408 | |||
| 08-0381-425 | |||
| 08-0481-426 | |||
| 08-0581-427 | |||
| 08-0681-428 | |||
| 08-0781-429 | |||
| 08-0881-430 | |||
| 08-0981-432 | |||
| 08-1081-433 | |||
| 08-1181-517 | |||
| 08-1281-559 | |||
| 08-1394-502 |
Page 11 — 9. 針棒. 弓機構 NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-01 | 11-407 | NEEDLE BAR | 1 |
| 09-02 | 23-195 | O-RING | 2 |
| 09-03 | 23-464 | GASKET | 1 |
| 09-04 | 23-555 | FELT | 2 |
| 09-05 | 66-404 | LINK | 1 |
| 09-06 | 69-444 | NEEDLE LEVER | 1 |
| 09-07 | 69-437 | WASHER | 1 |
| 09-08 | 69-438 | NEEDLE BAR GUIDE | 1 |
| 09-09 | 71-485 | PIN | 2 |
| 09-10 | 71-495 | NEEDLE LEVER STUD | 1 |
| 09-11 | 73-402 | NEEDLE BAR CLAMP | 1 |
| 09-12 | 73-403 | BRACKET | 1 |
| 09-13 | 75-452 | WASHER | 1 |
| 09-14 | 75-486 | WASHER | 1 |
| 09-15 | 81-409 | BUSHING | 1 |
| 09-16 | 81-410 | BUSHING | 1 |
| 09-17 | 87-113 | BOLT | 2 |
| 09-18 | 87-177 | BOLT | 2 |
| 09-19 | 87-233 | SCREW | 2 |
| 09-20 | 87-242 | SCREW | 2 |
| 09-21 | 87-203 | BOLT | 2 |
| 09-22 | 87-405 | BOLT | 1 |
| 09-23 | 69-4440-2 | NEEDLE LEVER (WITH BUSHING) | 1 |
| 09-01 11-407 | |||
| 09-02 23-195 | O-リング | ||
| 09-03 23-464 | |||
| 09-04 23-555 | |||
| 09-05 66-404 | |||
| 09-06 69-444 | |||
| 09-07 69-438 | |||
| 09-08 69-437 | |||
| 09-09 71-485 | |||
| 09-10 71-495 | |||
| 09-11 73-402 | |||
| 09-12 73-403 | |||
| 09-13 75-452 | |||
| 09-14 75-486 | |||
| 09-15 81-409 | |||
| 09-16 81-410 | |||
| 09-17 87-113 | |||
| 09-18 87-177 | |||
| 09-19 87-233 | |||
| 09-20 87-242 | |||
| 09-21 87-203 | |||
| 09-22 87-405 | |||
| 09-23 69-444-0-2号 |
Page 12 — 10. CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10-01 | 23-197 | O-RING | 1 |
| 10-02 | 23-384 | FELT | 1 |
| 10-03 | 23-466 | O-RING | 1 |
| 10-04 | 31-422 | SCREW GEAR | 1 |
| 10-05 | 60-4080 | CONNECTING ROD ASS'Y | 1 |
| 10-06 | 60-4100 | BEARING ASS'Y | 1 |
| 10-07 | 60-4130 | BEARING ASS'Y | 1 |
| 10-08 | 61-415 | ECCENTRIC | 1 |
| 10-09 | 61-416 | CRANK ROD | 1 |
| 10-10 | 61-711 | CONNECTING ROD BALL | 1 |
| 10-11 | 63-422 | CONNECTING ROD | 1 |
| 10-12 | 63-621 | BALL JOINT | 1 |
| 10-13 | 63-713 | BALL JOINT | 1 |
| 10-14 | 65-302 | CONNECTING BAR | 1 |
| 10-15 | 69-121 | GUIDE | 1 |
| 10-16 | 69-440 | SLEEVE | 1 |
| 10-17 | 69-445 | COLLAR | 1 |
| 10-18 | 69-446 | PULLEY | 1 |
| 10-19 | 69-447 | FLANGE | 1 |
| 10-20 | 71-447 | CRANK SHAFT (34.5) | 1 |
| 10-21 | 71-480 | SHAFT | 1 |
| 10-22 | 75-327 | WASHER | 1 |
| 10-23 | 75-329 | WASHER | 1 |
| 10-24 | 84-567 | SCREW | 2 |
| 10-25 | 84-568 | SCREW | 2 |
| 10-26 | 84-572 | SCREW | 1 |
| 10-27 | 86-741 | NUT | 1 |
| 10-28 | 86-742 | NUT | 1 |
| 10-29 | 87-113 | BOLT | 3 |
| 10-30 | 87-172 | SCREW | 3 |
| 10-31 | 87-203 | BOLT | 1 |
| 10-32 | 87-214 | BOLT | 2 |
| 10-33 | 87-242 | SCREW | 2 |
| 10-34 | 87-253 | SCREW | 3 |
| 10-35 | 87-254 | SCREW | 6 |
| 10-36 | 91-403 | BEARING | 1 |
| 10-37 | 91-404 | BEARING | 1 |
| 10-38 | 93-264 | RING | 1 |
| 10-39 | 60-3700 | CONNECTING ROD ASS'Y | 1 |
| 10-01 23-197 | O-RING | 1 | |
| 10-02 23-384 | FELT | 1 | |
| 10-03 23-466 | O-RING | 1 | |
| 10-04 31-422 | PUMP GEAR | 1 | |
| 10-05 60-4080 | CONNECTING ROD ASS'Y | 1 | |
| 10-06 60-4100 | BEARING ASS'Y | 1 | |
| 10-07 60-4130 | BEARING ASS'Y | 1 | |
| 10-08 61-415 | ECCENTRIC | 1 | |
| 10-09 61-416 | CRANK ROD | 1 | |
| 10-10 61-711 | CONNECTING ROD BALL | 1 | |
| 10-11 63-422 | CONNECTING ROD | 1 | |
| 10-12 63-621 | BALL JOINT | 1 | |
| 10-13 63-713 | BALL JOINT | 1 | |
| 10-14 65-302 | CONNECTING BAR | 1 | |
| 10-15 69-121 | GUIDE | 1 | |
| 10-16 69-440 | SLEEVE | 1 | |
| 10-17 69-445 | COLLAR | 1 | |
| 10-18 69-446 | PULLEY | 1 | |
| 10-19 69-447 | FLANGE | 1 | |
| 10-20 71-447 | CRANK SHAFT (34. 5) | 1 | |
| 10-21 71-480 | SHAFT | 1 | |
| 10-22 75-327 | WASHER | 1 | |
| 10-23 75-329 | WASHER | 2 | |
| 10-24 84-567 | SCREW | 2 | |
| 10-25 84-568 | SCREW | 2 | |
| 10-26 84-572 | SCREW | 1 | |
| 10-27 86-741 | NUT | 1 | |
| 10-28 86-742 | NUT | 1 | |
| 10-29 87-113 | BOLT | 3 | |
| 10-30 87-172 | SCREW | 3 | |
| 10-31 87-203 | BOLT | 1 | |
| 10-32 87-214 | BOLT | 2 | |
| 10-33 87-242 | SCREW | 2 | |
| 10-34 87-253 | SCREW | 3 | |
| 10-35 87-254 | SCREW | 6 | |
| 10-36 91-403 | BEARING | 1 | |
| 10-37 91-404 | BEARING | 1 | |
| 10-38 93-264 | RING | 1 | |
| 10-39 60-3700 | CONNECTING ROD ASS'Y | 1 |
Page 13 — 11. 送り機構 FEED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-01 | 23-166 | PLUG | 1 |
| 11-02 | 23-183 | O-RING | 1 |
| 11-03 | 23-341 | FELT | 3 |
| 11-04 | 55-430 | FEED DOG HOLDER | 1 |
| 11-05 | 55-431 | FEED ROCKER | 1 |
| 11-06 | 55-432 | FEED ROCKER | 1 |
| 11-07 | 61-410 | FEED ECCENTRIC | 1 |
| 11-08 | 61-411 | ECCENTRIC | 1 |
| 11-09 | 61-412 | ECCENTRIC | 1 |
| 11-10 | 63-420 | LINK | 1 |
| 11-11 | 63-423 | CONNECTING ROD | 1 |
| 11-12 | 67-423 | LEVER | 1 |
| 11-13 | 69-431 | REGULATING GEAR | 1 |
| 11-14 | 69-432 | SPRING | 1 |
| 11-15 | 69-433 | REGULATING PLATE | 1 |
| 11-16 | 69-434 | ECCENTRIC COLLAR | 1 |
| 11-17 | 69-435 | PUSH BUTTON | 1 |
| 11-18 | 69-442 | PIN | 1 |
| 11-19 | 71-351 | SHAFT | 1 |
| 11-20 | 71-431 | PIN | 1 |
| 11-21 | 71-434 | SHAFT | 1 |
| 11-22 | 71-487 | PIN | 2 |
| 11-23 | 71-488 | SHAFT | 1 |
| 11-24 | 71-491 | SHAFT | 1 |
| 11-25 | 75-189 | COLLAR | 1 |
| 11-26 | 75-453 | WASHER | 1 |
| 11-27 | 75-482 | WASHER | 1 |
| 11-28 | 75-509 | WASHER | 1 |
| 11-29 | 79-420 | SPRING | 2 |
| 11-30 | 79-421 | SPRING | 1 |
| 11-31 | 84-521 | SCREW | 2 |
| 11-32 | 87-104 | SCREW | 2 |
| 11-33 | 87-129 | BOLT | 1 |
| 11-34 | 87-171 | BOLT | 1 |
| 11-35 | 87-172 | SCREW | 2 |
| 11-36 | 87-233 | SCREW | 2 |
| 11-37 | 87-253 | SCREW | 1 |
| 11-38 | 87-254 | SCREW | 4 |
| 11-39 | 87-274 | SCREW | 1 |
| 11-40 | 87-286 | SCREW | 1 |
| 11-41 | 87-401 | SCREW | 1 |
| 11-42 | 87-407 | SCREW | 1 |
| 11-43 | 87-408 | SCREW | 2 |
| 11-44 | 91-406 | BEARING | 1 |
| 11-45 | 91-430 | NEEDLE BEARING | 1 |
| 11-46 | 93-202 | E-RING | 1 |
| 11-47 | 93-205 | E-RING | 1 |
| 11-48 | 93-406 | C-RING | 1 |
| 11-49 | 87-317 | SCREW | 1 |
| 11-01 23-166 | |||
| 11-02 23-183 | O-リング | ||
| 11-03 23-341 | |||
| 11-04 55-430 | |||
| 11-05 55-431 | |||
| 11-06 55-432 | |||
| 11-07 61-410 | |||
| 11-08 61-411 | |||
| 11-09 61-412 | |||
| 11-10 63-420 | |||
| 11-11 63-423 | |||
| 11-12 67-423 | |||
| 11-13 69-431 | |||
| 11-14 69-432 | |||
| 11-15 69-433 | |||
| 11-16 69-434 | |||
| 11-17 69-435 | |||
| 11-18 69-442 | |||
| 11-19 71-351 | |||
| 11-20 71-431 | |||
| 11-21 71-434 | |||
| 11-22 71-487 | |||
| 11-23 71-488 | |||
| 11-24 71-491 | |||
| 11-25 75-189 | |||
| 11-26 75-453 | |||
| 11-27 75-482 | |||
| 11-28 75-509 | |||
| 11-29 79-420 | |||
| 11-30 79-421 | |||
| 11-31 84-521 | |||
| 11-32 87-104 | |||
| 11-33 87-129 | |||
| 11-34 87-171 | |||
| 11-35 87-172 | |||
| 11-36 87-233 | |||
| 11-37 87-253 | |||
| 11-38 87-254 | |||
| 11-39 87-274 | |||
| 11-40 87-286 | |||
| 11-41 87-401 | |||
| 11-42 87-407 | |||
| 11-43 87-408 | |||
| 11-44 91-406 | |||
| 11-45 91-430 | |||
| 11-46 93-202 | E-リング | ||
| 11-47 93-205 | E-リング | ||
| 11-48 93-406 | |||
| 11-49 87-317 |
Page 14 — 12. ルーバー機構 LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-01 | 04-111 | PLATE | 1 |
| 12-02 | 04-444 | LOOPER ROCKER STOPPER | 1 |
| 12-03 | 04-445 | SHAFT | 1 |
| 12-04 | 04-446 | STUD | 1 |
| 12-05 | 19-475 | LOOPER ROCKER | 1 |
| 12-06 | 23-341 | FELT | 2 |
| 12-07 | 23-519 | PLUG | 1 |
| 12-08 | 23-534 | FELT | 1 |
| 12-09 | 47-220 | TAKE-UP ROD | 1 |
| 12-10 | 61-413 | ECCENTRIC | 2 |
| 12-11 | 63-419 | ECCENTRIC LINK | 2 |
| 12-12 | 67-421 | TAKE-UP DRIVE LEVER | 1 |
| 12-13 | 67-422 | LOOPER DRIVE LEVER | 1 |
| 12-14 | 67-425 | LEVER | 1 |
| 12-15 | 71-431 | PIN | 2 |
| 12-16 | 71-478 | SHAFT | 1 |
| 12-17 | 71-479 | PIN | 1 |
| 12-18 | 71-489 | SHAFT | 1 |
| 12-19 | 71-911 | SHAFT | 1 |
| 12-20 | 73-404 | RETAINER BAR HOLDER | 1 |
| 12-21 | 75-381 | WASHER | 2 |
| 12-22 | 75-455 | WASHER | 2 |
| 12-23 | 75-483 | COLLAR | 1 |
| 12-24 | 75-504 | WASHER | 1 |
| 12-25 | 75-515 | WASHER | 1 |
| 12-26 | 75-527 | SPRING WASHER | 1 |
| 12-27 | 75-537 | COLLAR | 1 |
| 12-28 | 75-675 | WASHER | 1 |
| 12-29 | 75-901 | WASHER | 1 |
| 12-30 | 79-161 | SPRING | 1 |
| 12-31 | 79-163 | SPRING | 1 |
| 12-32 | 79-164 | SPRING | 1 |
| 12-33 | 81-142 | BUSHING | 1 |
| 12-34 | 81-143 | BUSHING | 1 |
| 12-35 | 87-113 | BOLT | 1 |
| 12-36 | 87-171 | BOLT | 1 |
| 12-37 | 87-177 | BOLT | 1 |
| 12-38 | 87-203 | BOLT | 1 |
| 12-39 | 87-224 | BOLT | 2 |
| 12-40 | 87-233 | SCREW | 2 |
| 12-41 | 87-254 | SCREW | 6 |
| 12-42 | 87-274 | SCREW | 2 |
| 12-43 | 91-430 | NEEDLE BEARING | 2 |
| 12-44 | 92-233 | BEARING | 1 |
| 12-45 | 93-211 | E-RING | 1 |
| 12-46 | 93-222 | E-RING | 1 |
| 12-47 | 93-402 | C-RING | 2 |
| 12-48 | 98-871 | O-RING | 1 |
| 12-49 | 19-4750-2 | LOOPER ROCKER ASS'Y | 1 |
| 12-50 | 75-410 | SPRING WASHER | 1 |
| 12-01 04-111 | |||
| 12-02 04-444 | |||
| 12-03 04-445 | |||
| 12-04 04-446 | |||
| 12-05 19-475 | |||
| 12-06 23-341 | |||
| 12-07 23-534 | |||
| 12-08 23-534 | |||
| 12-09 47-220 | |||
| 12-10 61-413 | |||
| 12-11 63-419 | |||
| 12-12 67-421 | |||
| 12-13 67-422 | |||
| 12-14 67-425 | |||
| 12-15 71-431 | |||
| 12-16 71-478 | |||
| 12-17 71-479 | |||
| 12-18 71-489 | |||
| 12-19 71-911 | |||
| 12-20 73-404 | |||
| 12-21 75-381 | |||
| 12-22 75-455 | |||
| 12-23 75-483 | |||
| 12-24 75-504 | |||
| 12-25 75-515 | |||
| 12-26 75-527 | |||
| 12-27 75-537 | |||
| 12-28 75-675 | |||
| 12-29 75-901 | |||
| 12-30 79-161 | |||
| 12-31 79-163 | |||
| 12-32 79-164 | |||
| 12-33 81-142 | |||
| 12-34 81-143 | |||
| 12-35 87-113 | |||
| 12-36 87-171 | |||
| 12-37 87-177 | |||
| 12-38 87-203 | |||
| 12-39 87-224 | |||
| 12-40 87-233 | |||
| 12-41 87-254 | |||
| 12-42 87-274 | |||
| 12-43 91-430 | |||
| 12-44 92-233 | |||
| 12-45 93-211 | E-リング | ||
| 12-46 93-222 | E-リング | ||
| 12-47 93-402 | C-リング | ||
| 12-48 98-871 | O-リング | ||
| 12-49 19-4750-2 | LOOPER ROCKER ASS'Y | ||
| 12-50 75-410 |
Page 15 — 13. 押え揚げ機構 PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-404 | |||
| 05-427 | |||
| 00-6082 | |||
| 05-891 | |||
| 23-265 | |||
| 71-203 | |||
| 71-492 | |||
| 71-507 | |||
| 75-332 | |||
| 75-458 | |||
| 75-537 | |||
| 75-552 | |||
| 77-419 | |||
| 77-421 | |||
| 77-422 | |||
| 77-423 | |||
| 77-424 | |||
| 77-425 | |||
| 77-426 | |||
| 77-427 | |||
| 77-428 | |||
| 77-429 | |||
| 77-430 | |||
| 77-436 | |||
| 77-509 | |||
| 77-511 | |||
| 79-422 | |||
| 79-423 | |||
| 79-424 | |||
| 79-519 | |||
| 84-561 | |||
| 87-112 | |||
| 84-581 | |||
| 84-588 | |||
| 84-813 | |||
| 86-411 | |||
| 87-129 | |||
| 87-171 | |||
| 87-177 | |||
| 87-193 | |||
| 87-203 | |||
| 87-252 | |||
| 87-274 | |||
| 87-403 | |||
| 87-404 | |||
| 88-003 | |||
| 93-205 | E-リング | ||
| 71-446 | |||
| 06-579 |
Page 16 — 14. 給油機構 LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-01 | 17-8010-G | PIN | 1 |
| 14-02 | 21-632 | OIL FILTER CAP | 1 |
| 14-03 | 23-304 | SEAL | 1 |
| 14-04 | 23-506 | O-RING | 1 |
| 14-05 | 23-508 | O-RING | 1 |
| 14-06 | 75-552 | WASHER | 1 |
| 14-07 | 30-0130 | PUMP ASS'Y | 1 |
| 14-08 | 31-156 | PUMP MESH | 1 |
| 14-09 | 31-157 | CLAMP | 1 |
| 14-10 | 31-222 | OIL FILTER | 1 |
| 14-11 | 31-314 | JOINT | 1 |
| 14-12 | 31-514 | JOINT | 1 |
| 14-13 | 31-507 | OIL RESERVOIR | 1 |
| 14-14 | 31-702 | PUMP GEAR | 1 |
| 14-15 | 31-703 | PLATE | 1 |
| 14-16 | 31-704 | PUMP HOUSING | 1 |
| 14-17 | 31-705 | OUTER ROTER | 1 |
| 14-18 | 31-706 | PUMP SHAFT | 1 |
| 14-19 | 31-707 | INNER ROTER | 1 |
| 14-20 | 31-708 | PLATE | 1 |
| 14-21 | 35-413 | CLAMP | 1 |
| 14-22 | 35-414 | OIL FENCE | 1 |
| 14-23 | 35-415 | OIL RELEASER | 1 |
| 14-24 | 35-417 | OIL DISTRIBUTOR | 1 |
| 14-25 | 35-418 | OILER | 1 |
| 14-26 | 35-419 | TUBE | 1 |
| 14-27 | 35-420 | TUBE | 2 |
| 14-28 | 88-165 | NUT | 1 |
| 14-29 | 35-505 | JOINT | 4 |
| 14-30 | 35-506 | JOINT | 1 |
| 14-31 | 35-509 | JOINT | 1 |
| 14-32 | 35-519 | TUBE | 1 |
| 14-33 | 35-521 | TUBE | 1 |
| 14-34 | 35-528 | JOINT SCREW | 3 |
| 14-35 | 35-529 | JOINT SCREW | 1 |
| 14-36 | 39-403 | TUBE HOLDER | 1 |
| 14-37 | 39-504 | OIL SIGHT GAUGE | 1 |
| 14-38 | 87-092 | BOLT | 7 |
| 14-39 | 87-123 | BOLT | 3 |
| 14-40 | 87-129 | BOLT | 6 |
| 14-41 | 87-140 | BOLT | 1 |
| 14-42 | 87-225 | BOLT | 2 |
| 14-43 | 87-254 | SCREW | 1 |
| 14-44 | 87-311 | SCREW | 1 |
| 14-45 | 87-663 | BOLT | 4 |
| 14-46 | 88-137 | NUT | 1 |
| 14-47 | 30-0131 | PUMP ASS'Y | 1 |
| 14-48 | 30-5070 | OIL TANK ASS'Y | 1 |
Page 17 — 15. 後プーラー機構 REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-01 | 02-112 | WASHER | 1 |
| 15-02 | 02-406 | SHAFT | 1 |
| 15-03 | 02-407 | BRACKET | 1 |
| 15-04 | 02-408 | LEVER | 1 |
| 15-05 | 02-409 | PLATE | 1 |
| 15-06 | 61-209 | PULLER DRIVING ECCENTRIC | 1 |
| 15-07 | 61-418 | BALL JOINT | 1 |
| 15-08 | 63-208 | CONNECTING LINK | 1 |
| 15-09 | 63-711 | BALL JOINT | 1 |
| 15-10 | 65-306 | CONNECTING BAR | 1 |
| 15-11 | 67-426 | LEVER | 1 |
| 15-12 | 67-529 | LEVER | 1 |
| 15-13 | 71-493 | SHAFT | 1 |
| 15-14 | 71-729 | GUIDE PIN | 1 |
| 15-15 | 75-187 | WASHER | 1 |
| 15-16 | 75-211 | COLLAR | 1 |
| 15-17 | 75-452 | WASHER | 1 |
| 15-18 | 79-425 | SPRING | 1 |
| 15-19 | 84-567 | SCREW | 2 |
| 15-20 | 84-569 | SCREW | 1 |
| 15-21 | 84-581 | SCREW | 2 |
| 15-22 | 84-582 | SCREW | 1 |
| 15-23 | 85-671 | SCREW | 1 |
| 15-24 | 86-311 | NUT | 1 |
| 15-25 | 86-741 | NUT | 1 |
| 15-26 | 86-742 | NUT | 1 |
| 15-27 | 87-171 | BOLT | 1 |
| 15-28 | 87-172 | SCREW | 5 |
| 15-29 | 87-225 | BOLT | 1 |
| 15-30 | 87-287 | BOLT | 1 |
| 15-31 | 87-754 | SCREW | 1 |
| 15-32 | 88-166 | NUT | 1 |
| 15-33 | 93-223 | E-RING | 1 |
| 15-34 | 93-258 | SNAP RING | 1 |
| 15-35 | 93-261 | C-RING | 1 |
| 15-36 | 94-506 | OIL SEAL | 1 |
| 15-37 | 60-3780 | BALL JOINT ASS'Y | 1 |
Page 18 — 16. 後プーラー機構 (FX4404) REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 16-01 | 01-115 | SLEEVE | 2 |
| 16-02 | 02-117 | PLATE | 1 |
| 16-03 | 02-123 | CLUTCH HOUSING | 1 |
| 16-04 | 02-136 | REAR PULLER (SMOOTH) | 1 |
| 16-05 | 02-153 | REAR PULLER HOLDER | 1 |
| 16-06 | 02-178 | UPPER REAR PULLER28 | 1 |
| 16-07 | 02-250 | BRACKET | 1 |
| 16-08 | 02-268 | CONNECTING PLATE | 1 |
| 16-09 | 02-415 | REAR PULLER(SMOOTH) | 1 |
| 16-10 | 02-417 | REAR PULLER GEAR (15TEETH) | 1 |
| 16-11 | 71-444 | SHAFT | 1 |
| 16-12 | 71-490 | SHAFT | 1 |
| 16-13 | 75-407 | WASHER | 3 |
| 16-14 | 75-451 | WASHER | 1 |
| 16-15 | 75-484 | GUIDE COLLER | 1 |
| 16-16 | 75-485 | COLLAR | 2 |
| 16-17 | 75-519 | WASHER | 1 |
| 16-18 | 79-551 | PULLER PLATE SPRING | 1 |
| 16-19 | 81-321 | BUSHING | 1 |
| 16-20 | 81-322 | BUSHING | 1 |
| 16-21 | 81-323 | BUSHING | 1 |
| 16-22 | 84-162 | SCREW | 6 |
| 16-23 | 84-462 | SCREW | 3 |
| 16-24 | 84-573 | SCREW | 1 |
| 16-25 | 84-813 | SCREW | 1 |
| 16-26 | 86-411 | NUT | 1 |
| 16-27 | 86-901 | NUT | 1 |
| 16-28 | 87-113 | BOLT | 2 |
| 16-29 | 87-129 | BOLT | 1 |
| 16-30 | 87-181 | SCREW | 1 |
| 16-31 | 87-225 | BOLT | 1 |
| 16-32 | 87-286 | SCREW | 3 |
| 16-33 | 88-179 | NUT | 2 |
| 16-34 | 91-407 | BEARING | 2 |
| 16-35 | 93-221 | E-RING | 1 |
| 16-36 | 98-600 | CONNECTING BAR | 1 |
| 16-37 | 98-601 | BEARING SLEEVE | 2 |
| 16-38 | 98-821 | BEARING | 2 |
| 16-39 | 98-864 | SCREW | 1 |
| 16-40 | 00-3281 | 28TEETH PULLER ASS'Y | 1 |
| 16-41 | 00-2003 | SMOOTH PULLER ASS'Y | 1 |
Page 19 — 17. 後プーラー機構 (FX4406~4412) REAR PULLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-01 | 01-115 | SLEEVE | 2 |
| 17-0101-115 | |||
| 17-0202-117 | |||
| 17-0302-124 | |||
| 17-0402-138 | |||
| 17-0502-221 | |||
| 17-0602-246 | |||
| 17-0702-420 | プーラー下ギヤー (SMOOTH) | ||
| 17-0802-496 | |||
| 17-0902-458 | |||
| 17-1002-494 | |||
| 17-1171-445 | |||
| 17-1271-490 | |||
| 17-1375-407 | |||
| 17-1475-451 | |||
| 17-1575-484 | |||
| 17-1675-519 | |||
| 17-1779-551 | |||
| 17-1881-321 | |||
| 17-1981-322 | |||
| 17-2081-323 | |||
| 17-2184-162 | |||
| 17-2284-462 | |||
| 17-2384-573 | |||
| 17-2484-813 | |||
| 17-2586-411 | |||
| 17-2686-901 | |||
| 17-2787-113 | |||
| 17-2887-129 | |||
| 17-2987-181 | |||
| 17-3087-225 | |||
| 17-3187-286 | |||
| 17-3288-179 | |||
| 17-3391-407 | |||
| 17-3493-221 | |||
| 17-3598-600 | |||
| 17-3698-601 | |||
| 17-3798-821 | |||
| 17-3898-864 | |||
| 17-3900-3222 | |||
| 17-4000-2402 |
Page 20 — 18. UTC糸切り装置 UTC KNIFE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-01 | 05-395 | NEEDL PLATE SUPPORT BRACKET | 1 |
| 18-02 | 05-420 | SEAL | 2 |
| 18-03 | 05-421 | GUIDE BRACKET | 2 |
| 18-04 | 05-426 | ROD | 2 |
| 18-05 | 05-428 | SPEED CONTROLER | 2 |
| 18-06 | 05-429 | UPPER KNIFE | 1 |
| 18-07 | 05-430 | GUIDE ROLLER (S) | 4 |
| 18-08 | 05-431 | GUIDE ROLLER (L) | 4 |
| 18-09 | 05-433 | STOPPER | 2 |
| 18-10 | 05-447 | LEAF SPRING | 4 |
| 18-11 | 06-585 | SPEED CONTROLER | 2 |
| 18-12 | 05-544 | AIR CYLINDER | 1 |
| 18-13 | 05-545 | AIR CYLINDER | 1 |
| 18-14 | 05-546 | COVER | 2 |
| 18-15 | 05-547 | PLATE | 2 |
| 18-16 | 05-548 | LOWER KNIFE | 4 |
| 18-17 | 05-549 | LEAF SPRING (UPPER) | 4 |
| 18-18 | 23-183 | O-RING | 6 |
| 18-19 | 23-512 | CUSHION RUBBER | 2 |
| 18-20 | 71-201 | PIN | 4 |
| 18-21 | 71-579 | PIN | 2 |
| 18-22 | 87-011 | SCREW | 2 |
| 18-23 | 87-097 | SCREW | 4 |
| 18-24 | 87-100 | BOLT | 16 |
| 18-25 | 87-254 | SCREW | 2 |
| 18-26 | 87-274 | SCREW | 1 |
| 18-27 | 87-278 | SCREW | 4 |
| 18-28 | 87-412 | SCREW | 4 |
| 18-29 | 87-413 | SCREW | 2 |
| 18-30 | 87-415 | SCREW | 4 |
| 18-31 | 87-416 | SCREW | 2 |
| 18-32 | 93-236 | C-RING | 2 |
| 18-33 | 98-857 | O-RING | 2 |
| 18-01 05-395 | |||
| 18-02 05-420 | |||
| 18-03 05-421 | |||
| 18-04 05-426 | |||
| 18-05 05-428 | |||
| 18-06 05-429 | |||
| 18-07 05-430 | |||
| 18-08 05-431 | |||
| 18-09 05-433 | |||
| 18-10 05-447 | |||
| 18-11 05-565 | |||
| 18-12 05-544 | |||
| 18-13 05-545 | |||
| 18-14 05-546 | |||
| 18-15 05-547 | |||
| 18-16 05-548 | |||
| 18-17 05-549 | |||
| 18-18 23-183 | O-リング | ||
| 18-19 23-512 | |||
| 18-20 71-201 | |||
| 18-21 71-579 | |||
| 18-22 87-011 | |||
| 18-23 87-097 | |||
| 18-24 87-100 | |||
| 18-25 87-254 | |||
| 18-26 87-274 | |||
| 18-27 87-278 | |||
| 18-28 87-412 | |||
| 18-29 87-413 | |||
| 18-30 87-415 | |||
| 18-31 87-416 | |||
| 18-32 93-236 | |||
| 18-33 98-857 | O-リング |
Page 21 — 19. 糸立て及びテーブル (FX4404) THREAD STAND AND TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-01 | 42-718 | THREAD STAND ASSEMBLY 8 | 1 |
| 19-02 | 23-509 | CUSHION RUBBER | 4 |
| 19-03 | 93-501 | U-RING | 4 |
| 19-04 | 42-501 | SCREW | 4 |
| 19-05 | 75-536 | WASHER | 4 |
| 19-06 | 75-527 | WASHER | 4 |
| 19-07 | 88-166 | NUT | 4 |
| 19-08 | 87-901 | SCREW | 3 |
| 19-09 | 21-629 | COVER | 1 |
| 19-10 | 21-032 | FLAT TABLE | 1 |
| 19-11 | 21-025 | WITH ASSISTANCE TABLE | 1 |
Page 22 — 20. 糸立て及びテーブル (FX4406, 4412) THREAD STAND AND TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-01 | 42-190 | THREAD STAND ASSEMBLY 12 | 1 |
| 42-186 | |||
| 23-509 | |||
| 93-501 | U-RING | ||
| 42-501 | |||
| 75-536 | |||
| 75-527 | M6用バネ座金 | ||
| 88-166 | |||
| 87-901 | |||
| 21-629 | |||
| 21-085 | |||
| 21-084 |
Page 23 — 21. テンションスタンド (FX4406) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-01 | 23-324 | FELT | 12 |
| 21-02 | 41-101 | THREAD TENSION NUT | 12 |
| 21-03 | 41-105 | SPRING POST | 12 |
| 21-04 | 41-107 | SPRING CUP | 12 |
| 21-05 | 41-110 | TENSION DISC | 24 |
| 21-06 | 41-115 | THREAD GUIDE | 12 |
| 21-07 | 41-117 | THREAD GUIDE | 12 |
| 21-08 | 41-449 | THREAD RELEASER | 2 |
| 21-09 | 41-448 | BRACKET | 2 |
| 21-10 | 41-510 | SCREW STUD | 12 |
| 21-11 | 41-701 | SPRING(HEAVY) | 6 |
| 21-12 | 41-702 | SPRING(LIGHT) | 6 |
| 21-13 | 42-201 | BRACKET ASS'Y | 1 |
| 21-14 | 75-384 | WASHER | 2 |
| 21-15 | 75-455 | WASHER | 2 |
| 21-16 | 75-526 | SPRING WASHER | 4 |
| 21-17 | 75-552 | WASHER | 2 |
| 21-18 | 77-430 | WIRERING SET | 1 |
| 21-19 | 77-432 | BRACKET | 1 |
| 21-20 | 77-435 | BRACKET | 1 |
| 21-21 | 77-436 | BRACKET | 1 |
| 21-22 | 79-514 | SPRING | 2 |
| 21-23 | 84-501 | SCREW | 2 |
| 21-24 | 84-588 | SCREW | 1 |
| 21-25 | 87-123 | BOLT | 2 |
| 21-26 | 87-171 | BOLT | 2 |
| 21-27 | 87-177 | BOLT | 2 |
| 21-28 | 87-252 | BOLT | 3 |
| 21-29 | 87-419 | BAR | 2 |
| 21-30 | 87-421 | BAR | 1 |
| 21-31 | 88-157 | NUT | 3 |
| 21-01 23-324 | |||
| 21-02 41-101 | |||
| 21-03 41-105 | |||
| 21-04 41-107 | |||
| 21-05 41-110 | |||
| 21-06 41-115 | |||
| 21-07 41-117 | |||
| 21-08 41-449 | |||
| 21-09 41-448 | |||
| 21-10 41-510 | |||
| 21-11 41-701 | |||
| 21-12 41-702 | |||
| 21-13 42-201 | |||
| 21-14 75-384 | |||
| 21-15 75-455 | |||
| 21-16 75-526 | |||
| 21-17 75-552 | |||
| 21-18 77-430 | |||
| 21-19 77-432 | |||
| 21-20 77-435 | |||
| 21-21 77-436 | |||
| 21-22 79-514 | |||
| 21-23 84-501 | |||
| 21-24 84-588 | |||
| 21-25 87-123 | |||
| 21-26 87-171 | |||
| 21-27 87-177 | |||
| 21-28 87-252 | |||
| 21-29 87-419 | |||
| 21-30 87-421 | |||
| 21-31 88-157 |
Page 24 — 22. テンションスタンド(FX4406UTC) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-01 | 05-450 | AIR CYLINDER | 1 |
| 22-01 05-450 | |||
| 22-02 05-557 | |||
| 22-03 09-506 | |||
| 22-04 23-324 | |||
| 22-05 41-101 | |||
| 22-06 41-105 | |||
| 22-07 41-107 | |||
| 22-08 41-110 | |||
| 22-09 41-115 | |||
| 22-10 41-117 | |||
| 22-11 41-449 | |||
| 22-12 41-448 | |||
| 22-13 41-510 | |||
| 22-14 41-701 | |||
| 22-15 41-702 | |||
| 22-16 42-201 | |||
| 22-17 75-384 | |||
| 22-18 75-453 | |||
| 22-19 75-455 | |||
| 22-20 75-526 | |||
| 22-21 79-514 | |||
| 22-22 84-501 | |||
| 22-23 87-177 | |||
| 22-24 87-252 | |||
| 22-25 87-419 | |||
| 22-26 87-421 | |||
| 22-27 87-422 | |||
| 22-28 88-157 | |||
| 22-29 06-928 | |||
| 22-30 87-129 | |||
| 22-31 88-146 |
Page 25 — 23. テンションスタンド (FX4412) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-01 | 23-324 | FELT | 24 |
| 41-101 | |||
| 41-105 | |||
| 41-107 | |||
| 41-110 | |||
| 41-115 | |||
| 41-117 | |||
| 41-449 | |||
| 41-448 | |||
| 41-510 | |||
| 41-701 | |||
| 41-702 | |||
| 42-201 | BRACKET ASS'Y | ||
| 75-384 | |||
| 75-455 | |||
| 75-526 | |||
| 75-552 | |||
| 77-430 | |||
| 77-432 | |||
| 77-435 | |||
| 77-436 | |||
| 79-514 | |||
| 84-501 | |||
| 84-588 | |||
| 87-123 | |||
| 87-171 | |||
| 87-177 | |||
| 87-252 | |||
| 87-419 | |||
| 87-420 | |||
| 87-421 | |||
| 88-157 |
Page 26 — 24. テンションスタンド"(FX4412UTC) TENSION STAND MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24-01 | 05-450 | AIR CYLINDER | 1 |
| 24-0105-450 | |||
| 24-0205-557 | |||
| 24-0309-506 | |||
| 24-0423-324 | |||
| 24-0541-101 | |||
| 24-0641-105 | |||
| 24-0741-107 | |||
| 24-0841-110 | |||
| 24-1041-117 | |||
| 24-1141-449 | |||
| 24-1241-448 | |||
| 24-1341-510 | |||
| 24-1441-701 | |||
| 24-1541-702 | |||
| 24-1642-201 | |||
| 24-1775-384 | |||
| 24-1875-453 | |||
| 24-1975-455 | |||
| 24-2075-526 | |||
| 24-2179-514 | |||
| 24-2284-501 | |||
| 24-2387-177 | |||
| 24-2487-252 | |||
| 24-2587-419 | |||
| 24-2687-420 | |||
| 24-2787-421 | |||
| 24-2887-422 | |||
| 24-2988-157 | |||
| 24-3006-928 | |||
| 24-3187-129 | |||
| 24-3288-146 |
Page 27 — 25. GUIDE ROLLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-01 09-145 | COLLAR | 1 | |
| 25-02 09-147 | COLLAR | 2 | |
| 25-03 09-519 | REAR ROLLER BRACKET | 1 | |
| 25-04 09-521 | SLIDE PLATE | 2 | |
| 25-05 09-522 | SCREW | 2 | |
| 25-06 09-523 | SHAFT | 2 | |
| 25-07 09-524 | REAR ROLLER | 1 | |
| 25-08 09-525 | BRACKET | 1 | |
| 25-09 09-526 | BRACKET | 2 | |
| 25-10 09-527 | KNOB | 2 | |
| 25-11 09-528 | BAR | 1 | |
| 25-12 09-529 | JOINT BLOCK | 1 | |
| 25-13 09-530 | ROLLER | 1 | |
| 25-14 09-531 | BAR | 1 | |
| 25-15 09-553 | HANDLE | 2 | |
| 25-16 09-727 | TAPER ROLLER | 1 | |
| 25-17 52-177 | BUSHING | 2 | |
| 25-18 75-451 | WASHER | 5 | |
| 25-19 75-452 | WASHER | 2 | |
| 25-20 75-453 | WASHER | 2 | |
| 25-21 84-521 | SCREW | 3 | |
| 25-22 84-570 | SCREW | 1 | |
| 25-23 87-172 | SCREW | 2 | |
| 25-24 87-203 | BOLT | 1 | |
| 25-25 87-213 | BOLT | 2 | |
| 25-26 87-501 | SCREW | 2 | |
| 25-27 87-502 | SCREW | 4 | |
| 25-28 87-503 | BOLT | 2 | |
| 25-29 87-663 | BOLT | 1 | |
| 25-30 88-176 | NUT | 4 | |
| 25-31 15019XX | GUIDE ROLLER ASS'Y | 1 |
Page 28 — 26. 配管、配線図(FX4404UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-02 | 06-928 | CLAMP | 8 |
| 26-03 | 53-254 | JUNCTION CORD | 1 |
| 26-04 | 87-140 | BOLT | 2 |
| 26-05 | 87-272 | SCREW | 8 |
| 26-06 | 87-903 | BOLT | 2 |
| 26-07 | 05-485 | SOLENOIDO VALVE | 1 |
| 26-08 | 05-482 | JOINT | 2 |
| 26-09 | 05-483 | JOINT | 2 |
| 26-10 | 05-484 | JOINT | 2 |
| 26-11 | 05-486 | TUBE | 1 |
| 26-12 | 05-489 | TUBE | 1 |
| 26-13 | 05-490 | TUBE | 1 |
| 26-14 | 05-491 | TUBE | 1 |
| 26-15 | 05-492 | TUBE | 1 |
| 26-16 | 05-493 | TUBE | 1 |
| 26-17 | 05-494 | TUBE | 1 |
| 26-18 | 05-495 | TUBE | 1 |
| 26-19 | 05-505 | TUBE | 1 |
| 26-20 | 05-506 | TUBE | 1 |
| 26-21 | 05-507 | TUBE | 1 |
| 26-22 | 05-508 | TUBE | 1 |
| 26-23 | 05-514 | TUBE | 1 |
| 26-24 | 05-515 | TUBE | 1 |
| 26-25 | 05-516 | TUBE | 1 |
| 26-26 | 05-517 | TUBE | 1 |
| 26-27 | 05-212 | REGULATOR | 1 |
| 26-28 | 05-218 | JOINT | 1 |
| 26-29 | 06-516 | CONNECTOR | 1 |
| 26-30 | 06-517 | CONNECTOR | 1 |
| 26-31 | 87-171 | BOLT | 2 |
| 26-32 | 88-166 | NUT | 2 |
Page 29 — 27. 配管、配線図(FX4406UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 27-02 | 06-928 | CLAMP | 7 |
| 27-03 | 53-254 | JUNCTION CORD | 1 |
| 27-04 | 87-140 | BOLT | 2 |
| 27-05 | 87-272 | SCREW | 7 |
| 27-06 | 87-903 | BOLT | 2 |
| 27-07 | 05-488 | SOLENOIDO VALVE | 1 |
| 27-08 | 05-482 | JOINT | 2 |
| 27-09 | 05-483 | JOINT | 3 |
| 27-10 | 05-484 | JOINT | 1 |
| 27-11 | 05-486 | TUBE | 1 |
| 27-12 | 05-489 | TUBE | 1 |
| 27-13 | 05-490 | TUBE | 1 |
| 27-14 | 05-491 | TUBE | 1 |
| 27-15 | 05-492 | TUBE | 1 |
| 27-16 | 05-493 | TUBE | 1 |
| 27-17 | 05-494 | TUBE | 1 |
| 27-18 | 05-495 | TUBE | 1 |
| 27-19 | 05-505 | TUBE | 1 |
| 27-20 | 05-506 | TUBE | 1 |
| 27-21 | 05-507 | TUBE | 1 |
| 27-22 | 05-508 | TUBE | 1 |
| 27-23 | 05-498 | TUBE | 1 |
| 27-24 | 05-499 | TUBE | 1 |
| 27-25 | 05-509 | TUBE | 1 |
| 27-26 | 05-510 | TUBE | 1 |
| 27-27 | 05-496 | TUBE | 1 |
| 27-28 | 05-212 | REGULATOR | 1 |
| 27-29 | 05-218 | JOINT | 1 |
| 27-30 | 06-516 | CONNECTOR | 1 |
| 27-31 | 06-517 | CONNECTOR | 1 |
| 27-32 | 87-171 | BOLT | 2 |
| 27-33 | 88-166 | NUT | 2 |
| 27-01 | |||
| 27-02 06-928 | |||
| 27-03 53-254 | |||
| 27-04 87-140 | |||
| 27-05 87-272 | |||
| 27-06 87-903 | |||
| 27-07 05-488 | |||
| 27-08 05-482 | |||
| 27-09 05-483 | |||
| 27-10 05-484 | |||
| 27-11 05-486 | |||
| 27-12 05-489 | |||
| 27-13 05-490 | |||
| 27-14 05-491 | |||
| 27-15 05-492 | |||
| 27-16 05-493 | |||
| 27-17 05-494 | |||
| 27-18 05-495 | |||
| 27-19 05-505 | |||
| 27-20 05-506 | |||
| 27-21 05-507 | |||
| 27-22 05-508 | |||
| 27-23 05-498 | |||
| 27-24 05-499 | |||
| 27-25 05-509 | |||
| 27-26 05-510 | |||
| 27-27 05-496 | |||
| 27-28 05-212 | |||
| 27-29 05-218 | |||
| 27-30 06-516 | |||
| 27-31 06-517 | |||
| 27-32 87-171 | |||
| 27-33 88-166 |
Page 30 — 28. 配管、配線図 (FX4412UTC) WIRING AND PIPING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-02 | 06-928 | CLAMP | 7 |
| 28-03 | 53-254 | JUNCTION CORD | 1 |
| 28-04 | 87-140 | BOLT | 2 |
| 28-05 | 87-272 | SCREW | 7 |
| 28-06 | 87-903 | BOLT | 2 |
| 28-07 | 05-488 | SOLENOIDO VALVE | 1 |
| 28-08 | 05-482 | JOINT | 2 |
| 28-09 | 05-483 | JOINT | 3 |
| 28-10 | 05-484 | JOINT | 1 |
| 28-11 | 05-486 | TUBE | 1 |
| 28-12 | 05-489 | TUBE | 1 |
| 28-13 | 05-490 | TUBE | 1 |
| 28-14 | 05-491 | TUBE | 1 |
| 28-15 | 05-492 | TUBE | 1 |
| 28-16 | 05-493 | TUBE | 1 |
| 28-17 | 05-494 | TUBE | 1 |
| 28-18 | 05-495 | TUBE | 1 |
| 28-19 | 05-505 | TUBE | 1 |
| 28-20 | 05-506 | TUBE | 1 |
| 28-21 | 05-507 | TUBE | 1 |
| 28-22 | 05-508 | TUBE | 1 |
| 28-23 | 05-498 | TUBE | 1 |
| 28-24 | 05-499 | TUBE | 1 |
| 28-25 | 05-509 | TUBE | 1 |
| 28-26 | 05-510 | TUBE | 1 |
| 28-27 | 05-496 | TUBE | 1 |
| 28-28 | 05-212 | REGULATOR | 1 |
| 28-29 | 05-218 | JOINT | 1 |
| 28-30 | 06-516 | CONNECTOR | 1 |
| 28-31 | 06-517 | CONNECTOR | 1 |
| 28-32 | 87-171 | BOLT | 2 |
| 28-33 | 88-166 | NUT | 2 |
| 28-01 | CLAMP | 1 | |
| 28-02 06-928 | |||
| 28-03 53-254 | |||
| 28-04 87-140 | |||
| 28-05 87-272 | |||
| 28-06 87-903 | |||
| 28-07 05-488 | |||
| 28-08 05-482 | |||
| 28-09 05-483 | |||
| 28-10 05-484 | |||
| 28-11 05-486 | |||
| 28-12 05-489 | |||
| 28-13 05-490 | |||
| 28-14 05-491 | |||
| 28-15 05-492 | |||
| 28-16 05-493 | |||
| 28-17 05-494 | |||
| 28-18 05-495 | |||
| 28-19 05-505 | |||
| 28-20 05-506 | |||
| 28-21 05-507 | |||
| 28-22 05-508 | |||
| 28-23 05-498 | |||
| 28-24 05-499 | |||
| 28-25 05-509 | |||
| 28-26 05-510 | |||
| 28-27 05-496 | |||
| 28-28 05-212 | |||
| 28-29 05-218 | |||
| 28-30 06-516 | |||
| 28-31 06-517 | |||
| 28-32 87-171 | |||
| 28-33 88-166 |
Page 31 — 29. PMD機構 (FX4404) METERING DEVICE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29-01 | 01-101 | BRACKET | 1 |
| 29-02 | 01-113 | CLUTCH DRIVING COLLAR | 1 |
| 29-03 | 01-103 | SLEEVE | 2 |
| 29-04 | 01-111 | BRACKET | 1 |
| 29-05 | 01-116 | PLATE | 1 |
| 29-06 | 01-132 | PULLER | 1 |
| 29-07 | 01-134 | LOWER ROLLER | 1 |
| 29-08 | 01-136 | ROLLER HOLDER | 2 |
| 29-09 | 01-138 | PIVOT SHAFT HOLDER | 2 |
| 29-10 | 01-141 | RUBBER TIGHTENER | 1 |
| 29-11 | 01-143 | ROLLER CONTROLER | 1 |
| 29-12 | 01-145 | LEVER | 1 |
| 29-13 | 01-146 | COVER | 1 |
| 29-14 | 01-147 | PIN | 1 |
| 29-15 | 01-152 | GUIDE | 1 |
| 29-16 | 05-954 | ROD | 1 |
| 29-17 | 61-409 | ECCENTRIC | 1 |
| 29-18 | 63-425 | CONNECTING ROD | 1 |
| 29-19 | 65-335 | CONNECTING BAR | 1 |
| 29-20 | 67-419 | LEVER | 1 |
| 29-21 | 71-208 | PIN | 2 |
| 29-22 | 71-227 | PIN | 1 |
| 29-23 | 71-353 | SHAFT | 1 |
| 29-24 | 71-361 | PIVOT SHAFT (LARGE) | 2 |
| 29-25 | 71-362 | PIVOT SHAFT (SMALL) | 1 |
| 29-26 | 75-152 | COLLAR | 1 |
| 29-27 | 75-446 | WASHER | 1 |
| 29-28 | 75-451 | WASHER | 2 |
| 29-29 | 75-468 | WASHER | 2 |
| 29-30 | 75-480 | WASHER | 1 |
| 29-31 | 75-490 | WASHER | 1 |
| 29-32 | 75-552 | WASHER | 3 |
| 29-33 | 79-171 | SPRING | 1 |
| 29-34 | 81-125 | BUSHING | 2 |
| 29-35 | 84-162 | SCREW | 6 |
| 29-36 | 84-314 | SCREW | 1 |
| 29-37 | 87-006 | SCREW | 1 |
| 29-38 | 87-092 | BOLT | 2 |
| 29-39 | 87-106 | SCREW | 2 |
| 29-40 | 87-129 | BOLT | 2 |
| 29-41 | 87-173 | BOLT | 2 |
| 29-42 | 87-177 | BOLT | 2 |
| 29-43 | 87-181 | SCREW | 6 |
| 29-44 | 87-203 | BOLT | 1 |
| 29-45 | 87-225 | BOLT | 2 |
| 29-46 | 87-253 | SCREW | 1 |
| 29-47 | 87-254 | SCREW | 3 |
| 29-48 | 87-456 | SCREW | 1 |
| 29-49 | 88-161 | NUT | 1 |
| 29-50 | 88-166 | NUT | 2 |
| 29-51 | 88-456 | NUT | 1 |
| 29-52 | 91-405 | BEARING | 2 |
| 29-53 | 91-411 | BEARING | 1 |
| 29-54 | 93-200 | E-RING | 1 |
| 29-55 | 00-1402 | METERING DEVICE ASS'Y | 1 |
| 29-0101-101 | |||
| 29-0201-113 | |||
| 29-0301-103 | |||
| 29-0401-111 | |||
| 29-0501-116 | |||
| 29-0601-132 | |||
| 29-0701-134 | |||
| 29-0801-136 | |||
| 29-0901-138 | |||
| 29-1001-141 | |||
| 29-1101-143 | |||
| 29-1201-145 | |||
| 29-1301-146 | |||
| 29-1401-147 | |||
| 29-1501-152 | |||
| 29-1605-954 | |||
| 29-1761-409 | |||
| 29-1863-425 | |||
| 29-1965-335 | |||
| 29-2067-419 | |||
| 29-2171-208 | |||
| 29-2271-227 | |||
| 29-2371-353 | |||
| 29-2471-361 | |||
| 29-2571-362 | |||
| 29-2675-152 | |||
| 29-2775-446 | |||
| 29-2875-451 | |||
| 29-2975-468 | |||
| 29-3075-480 | |||
| 29-3175-490 | |||
| 29-3275-552 | |||
| 29-3379-171 | |||
| 29-3481-125 | |||
| 29-3584-162 | |||
| 29-3684-314 | |||
| 29-3787-006 | |||
| 29-3887-092 | |||
| 29-3987-106 | |||
| 29-4087-129 | |||
| 29-4187-173 | |||
| 29-4287-177 | |||
| 29-4387-181 | |||
| 29-4487-203 | |||
| 29-4587-225 | |||
| 29-4687-253 | |||
| 29-4787-254 | |||
| 29-4887-456 | |||
| 29-4988-161 | |||
| 29-5088-166 | |||
| 29-5188-456 | |||
| 29-5291-405 | |||
| 29-5391-411 | |||
| 29-5493-200 | |||
| 29-5500-1402 | PMD装置(組) |
Page 32 — 30. PMD機構(FX4406-12) METERING DEVICE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30-01 | 01-101 | BRACKET | 1 |
| 30-02 | 01-113 | CLUTCH DRIVING COLLAR | 1 |
| 30-03 | 01-103 | SLEEVE | 2 |
| 30-04 | 01-104 | LOWER ROLLER | 1 |
| 30-05 | 01-105 | RUBBER TENSIONER | 1 |
| 30-06 | 01-106 | PULLER COVER | 1 |
| 30-07 | 01-107 | GUIDE WIRE | 1 |
| 30-08 | 01-112 | PULLER ROCKER | 1 |
| 30-09 | 01-116 | PLATE | 1 |
| 30-10 | 01-133 | PULLER | 1 |
| 30-11 | 01-136 | ROLLER HOLDER | 2 |
| 30-12 | 01-138 | PIVOT SHAFT HOLDER | 2 |
| 30-13 | 01-143 | ROLLER CONTROLER | 1 |
| 30-14 | 01-145 | LEVER | 1 |
| 30-15 | 01-147 | PIN | 1 |
| 30-16 | 05-954 | ROD | 1 |
| 30-17 | 61-409 | ECCENTRIC | 1 |
| 30-18 | 63-425 | CONNECTING ROD | 1 |
| 30-19 | 65-335 | CONNECTING BAR | 1 |
| 30-20 | 67-419 | LEVER | 1 |
| 30-21 | 71-208 | PIN | 2 |
| 30-22 | 71-227 | PIN | 1 |
| 30-23 | 71-354 | SHAFT | 1 |
| 30-24 | 71-355 | SHAFT | 2 |
| 30-25 | 71-356 | SHAFT | 1 |
| 30-27 | 75-446 | WASHER | 1 |
| 30-28 | 75-451 | WASHER | 2 |
| 30-29 | 75-480 | WASHER | 1 |
| 30-30 | 75-490 | WASHER | 1 |
| 30-31 | 75-552 | WASHER | 3 |
| 30-32 | 79-171 | SPRING | 1 |
| 30-33 | 81-125 | BUSHING | 2 |
| 30-34 | 84-162 | SCREW | 6 |
| 30-35 | 84-314 | SCREW | 1 |
| 30-36 | 87-006 | SCREW | 1 |
| 30-37 | 87-092 | BOLT | 2 |
| 30-39 | 87-129 | BOLT | 2 |
| 30-40 | 87-173 | BOLT | 2 |
| 30-41 | 87-177 | BOLT | 2 |
| 30-42 | 87-181 | SCREW | 6 |
| 30-43 | 87-203 | BOLT | 1 |
| 30-44 | 87-225 | BOLT | 2 |
| 30-45 | 87-253 | SCREW | 1 |
| 30-46 | 87-254 | SCREW | 3 |
| 30-47 | 87-456 | SCREW | 1 |
| 30-48 | 88-161 | NUT | 1 |
| 30-49 | 88-166 | NUT | 2 |
| 30-50 | 88-456 | NUT | 1 |
| 30-51 | 91-405 | BEARING | 2 |
| 30-52 | 91-411 | BEARING | 1 |
| 30-53 | 93-200 | E-RING | 1 |
| 30-54 | 00-1403 | METERING DEVICE ASS'Y | 1 |
| 30-0101-101 | |||
| 30-0201-113 | |||
| 30-0301-103 | |||
| 30-0401-104 | |||
| 30-0501-105 | |||
| 30-0601-106 | |||
| 30-0701-107 | |||
| 30-0801-112 | |||
| 30-0901-116 | |||
| 30-1001-133 | |||
| 30-1101-136 | |||
| 30-1201-138 | |||
| 30-1301-143 | |||
| 30-1401-145 | |||
| 30-1501-147 | |||
| 30-1605-954 | |||
| 30-1761-409 | |||
| 30-1863-425 | |||
| 30-1965-335 | |||
| 30-2067-419 | |||
| 30-2171-208 | |||
| 30-2271-227 | |||
| 30-2371-354 | |||
| 30-2471-355 | |||
| 30-2571-356 | |||
| 30-2775-446 | |||
| 30-2875-451 | |||
| 30-2975-480 | |||
| 30-3075-490 | |||
| 30-3175-552 | |||
| 30-3279-171 | |||
| 30-3381-125 | |||
| 30-3484-162 | |||
| 30-3584-314 | |||
| 30-3687-006 | |||
| 30-3787-092 | |||
| 30-3987-129 | |||
| 30-4087-173 | |||
| 30-4187-177 | |||
| 30-4287-181 | |||
| 30-4387-203 | |||
| 30-4487-225 | |||
| 30-4587-253 | |||
| 30-4687-254 | |||
| 30-4787-456 | |||
| 30-4888-161 | |||
| 30-4988-166 | |||
| 30-5088-456 | |||
| 30-5191-405 | |||
| 30-5291-411 | |||
| 30-5393-200 | |||
| 30-5400-1403 | PMD装置(組) |
Page 33 — 31. アクセサリー ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 31-01 | 20-0010 | ACCESSORIES | 1 |
| 28-454 | ドライバー(S) | ||
| 28-452 | ドライバー(L) | ||
| 28-011 | |||
| 28-317 | グリップ付六角レンチ 1.5mm | ||
| 28-311 | 六角レンチ 2mm | ||
| 28-312 | 六角レンチ 2.5mm | ||
| 28-313 | 六角レンチ 3mm | ||
| 28-314 | 六角レンチ 5mm | ||
| 20-6020 | |||
| 20-6460 | |||
| 28-920 | |||
| 28-613 | |||
| 13-0540-5 | 針 DV×57 #14 | 10 | |
| 28-615 | |||
| 28-614 |
Page 34 — 32. ゲージパーツ GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 32-01 | ※ | NEEDLE PLATE | 1 |
| 32-02 | ※ | LOWER KNIFE BASE | 1 |
| 32-03 | ※ | SPRING BASE | 1 |
| 32-04 | ※ | NEEDLE CLAMP | 1 |
| 32-05 | 13-0540-5 | NEEDLE | ※ |
| 32-06 | ※ | NEEDLE PLATE | 1 |
| 32-07 | ※ | FEED DOG | 1 |
| 32-08 | 17-3710-A | SHANK | 2 |
| 32-09 | 17-3710-C | BRACKET | 1 |
| 32-10 | ※ | BOTTOM | 1 |
| 32-11 | ※ | BOTTOM | 1 |
| 32-12 | 17-8190-F | SPRING | 1 |
| 32-13 | ※ | RETAINER HOLDER | 1 |
| 32-14 | ※ | LOOPER HOLDER | 1 |
| 32-15 | ※ | LOOPER HOLDER | 1 |
| 32-16 | 19-404 | RETAINER LOOPER | ※ |
| 32-17 | 19-405 | NEEDLE GUIDE | ※ |
| 32-18 | 19-406 | BRACKET | ※ |
| 32-19 | 19-416 | NEEDLE GUARD | ※ |
| 32-20 | 19-431 | LOOPER | ※ |
| 32-21 | ※ | THREAD GUIDE | 1 |
| 32-22 | 71-215 | PIN | ※ |
| 32-23 | 84-162 | SCREW | ※ |
| 32-24 | 84-367 | SCREW | ※ |
| 32-25 | 84-380 | SCREW | ※ |
| 32-26 | 84-464 | SCREW | 4 |
| 32-27 | 84-588 | SCREW | 1 |
| 32-28 | 87-099 | SCREW | 2 |
| 32-29 | 87-104 | SCREW | ※ |
| 32-30 | 87-113 | BOLT | ※ |
| 32-31 | 87-289 | SCREW | 2 |
| 32-32 | 88-146 | NUT | 2 |
| 32-33 | 84-314 | SCREW | ※ |
| 32-34 | 87-106 | SCREW | 1 |
| 32-35 | 87-233 | SCREW | 1 |
| 32-36 | ※ | PRESSER FOOT ASS'Y | 1 |
| 32-37 | 17-4210-A | BRACKET | 1 |
| 32-38 | ※ | BOTTOM | 1 |
| 32-39 | 17-4210-C | BRACKET | 2 |
| 32-40 | 17-4210-E | LINK PLATE | 1 |
| 32-41 | 17-4210-G | SLIDE PLATE | 1 |
| 32-42 | 17-5810-D | PIN | 2 |
| 32-43 | 17-5810-F | SCREW | 1 |
| 32-44 | 79-282 | FINGER GUARD | 2 |
| 32-45 | 84-114 | SCREW | 2 |
| 32-46 | 84-361 | SCREW | 2 |
| 32-47 | 84-364 | SCREW | 3 |
| 32-48 | 84-591 | BOLT | 1 |
| 32-01* | 1 | ||
| 32-02* | 1 | ||
| 32-03* | 1 | ||
| 32-04* | 1 | ||
| 32-06* | 1 | ||
| 32-07* | 1 | ||
| 32-10* | 1 | ||
| 32-11* | 1 | ||
| 32-13* | 1 | ||
| 32-14* | 1 | ||
| 32-15* | 1 | ||
| 32-21* | 1 | ||
| 32-36* | 1 | ||
| 32-38* | 2 |
Page 35 — 33. FXSシリーズ専用部品 FXS SERISE EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 33-01 | 04-447 | SHAFT | 1 |
| 33-02 | 05-202 | JOINT | 4 |
| 33-03 | 05-533 | JOINT | 2 |
| 33-04 | 05-543 | AIR CYLINDER | 1 |
| 33-05 | 05-550 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 33-06 | 06-592 | SPEED CONTROLER | 2 |
| 33-07 | 09-405 | TAPE GUIDE(R) | 1 |
| 33-08 | 09-406 | TAPE GUIDE(L) | 1 |
| 33-09 | 21-257 | BRACKET | 1 |
| 33-10 | 23-470 | GASKET | 1 |
| 33-11 | 27-040 | COVER | 1 |
| 33-12 | 27-041 | FRONT COVER | 1 |
| 33-13 | 71-201 | PIN | 2 |
| 33-14 | 71-448 | SHAFT | 1 |
| 33-15 | 71-449 | SHAFT | 1 |
| 33-16 | 75-456 | WASHER | 2 |
| 33-17 | 75-468 | WASHER | 1 |
| 33-18 | 75-492 | GUIDE COLLAR | 1 |
| 33-19 | 79-912 | SPRING | 1 |
| 33-20 | 87-096 | SCREW | 2 |
| 33-21 | 87-124 | SCREW | 2 |
| 33-22 | 87-145 | SCREW | 2 |
| 33-23 | 87-177 | BOLT | 1 |
| 33-24 | 87-288 | SCREW | 5 |
| 33-25 | 87-291 | BOLT | 1 |
| 33-26 | 87-301 | SCREW | 2 |
| 33-27 | 88-157 | NUT | 1 |
| 33-28 | 60-4140 | BEARING ASS'Y | 1 |
Page 36 — 34. ゲージ部品一覧表 GAUGE PARTS TABLE 35. UTCゲージ専用部品一覧表 UTC GAUGE PARTS TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-418 | NEEDLE PLATE | ||
| 14-421 | NEEDLE PLATE | ||
| 14-422 | NEEDLE PLATE | ||
| 14-423 | NEEDLE PLATE | ||
| 14-424 | NEEDLE PLATE | ||
| 14-427 | NEEDLE PLATE | ||
| 14-431 | NEEDLE PLATE | ||
| 14-497 | NEEDLE PLATE | ||
| 14-496 | NEEDLE PLATE | ||
| 14-045 | NEEDLE PLATE | ||
| 14-443 | NEEDLE PLATE | ||
| 14-465 | NEEDLE PLATE | ||
| 14-470 | NEEDLE PLATE | ||
| 14-443 | NEEDLE PLATE | ||
| 14-440 | NEEDLE PLATE | ||
| 14-465 | NEEDLE PLATE | ||
| 14-496 | NEEDLE PLATE | ||
| 05-351 | NEEDLE PLATE | ||
| 05-352 | NEEDLE PLATE | ||
| 05-353 | NEEDLE PLATE | ||
| 05-354 | NEEDLE PLATE | ||
| 05-355 | NEEDLE PLATE | ||
| 05-356 | NEEDLE PLATE | ||
| 05-357 | NEEDLE PLATE | ||
| 05-358 | NEEDLE PLATE | ||
| 05-359 | NEEDLE PLATE | ||
| 05-360 | NEEDLE PLATE | ||
| 12-3510-1 | |||
| 12-3520-1 | 45-371 | ||
| 12-3530-1 | |||
| 12-3540-1 | |||
| 12-3550-1 | 45-381 | ||
| 12-3620-1 | 45-381 | ||
| 12-3630-1 | 45-381 | ||
| 12-3580-1 | 45-397 | ||
| 12-3590-1 | 45-396 | ||
| 12-3600-1 | 5mm | 45-397 | |
| 12-3560-1 | 45-381 | ||
| 12-3610-1 | 45-397 | ||
| 12-3570-1 | 45-397 | ||
| 12-3640-1 | 45-381 | ||
| 05-451 | |||
| 05-453 | |||
| 05-455 | |||
| 05-457 | |||
| 05-382 | |||
| 05-469 | |||
| 05-471 | 5mm | ||
| 05-463 | |||
| 05-465 | |||
| 05-452 | |||
| 05-454 | |||
| 05-456 | |||
| 05-458 | |||
| 05-383 | |||
| 05-468 | |||
| 05-470 | |||
| 05-472 | 5mm | ||
| 05-464 | |||
| 05-466 |
Kansai Special FX4404 — parts catalog
- Page 1 (cover): This is the cover page for the FX Series Industrial Sewing Machines parts list, published by KANSAI SPECIAL in May 2002.
- Page 2 (toc): This page contains the table of contents for the FX series parts book, listing various mechanisms and components with their corresponding page numbers.
- Page 3 (parts_list): This page contains a parts list for frame assembly components, including part numbers, descriptions, and quantities for various parts like washers, brackets, covers, and screws.
- Page 4 (diagram): This page displays a diagram of frame assembly components for various sewing machine models, including parts like covers, brackets, and screws, with corresponding reference numbers.
- Page 5 (parts_list): This page contains a parts list for Frame Assembly (3) for Model UTC, including part numbers, descriptions, and quantities.
- Page 6 (parts_list): This page lists parts for the Thread Tension Mechanism (FX4404), including part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of the thread tension mechanism (FX4404UTC) with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 8 (parts_list): This page contains a parts list for the thread tension mechanism, including part numbers, descriptions, and quantities.
- Page 9 (parts_list): This page contains a parts list for the thread tension mechanism, including part numbers, descriptions, and quantities for various components like bars, cylinders, plates, and screws.
- Page 10 (diagram): This page contains a diagram of the bushing mechanism for an industrial sewing machine, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 11 (parts_list): This page contains a parts list for the Needle Bar Mechanism, including part numbers, descriptions, and quantities.
- Page 12 (parts_list): This page contains a parts list for the crankshaft mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 13 (parts_list): This page contains a parts list for the FEED MECHANISM, detailing part numbers, descriptions, and quantities for various components.
- Page 14 (parts_list): This page contains a parts list for the Looper Mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 15 (parts_list): This page contains a parts list for the presser foot mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 16 (parts_list): This page contains a parts list for the lubrication mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 17 (parts_list): This page contains a parts list for the Rear Puller Mechanism, including part numbers, descriptions, and quantities for various components.
- Page 18 (parts_list): This page contains a parts list for the rear puller mechanism (FX4404) of a sewing machine, detailing part numbers, descriptions, and quantities.
- Page 19 (parts_list): This page lists parts for the Rear Puller Mechanism (FX4406-4412), including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of the UTC knife mechanism, with numbered parts and a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 21 (parts_list): This page lists parts for the Thread Stand and Table (FX4404), including part numbers, descriptions, and quantities.
- Page 22 (parts_list): This page contains a parts list for the thread stand and table assembly, including part numbers, descriptions, and quantities for various components.
- Page 23 (parts_list): This page contains a parts list for the Tension Stand (FX4406) Mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 24 (parts_list): This page contains a parts list for the Tension Stand Mechanism, including part numbers, descriptions, and quantities.
- Page 25 (parts_list): This page contains a parts list for the Tension Stand (FX4412) mechanism, detailing part numbers, descriptions, and quantities for various components like felt, nuts, springs, washers, and brackets.
- Page 26 (parts_list): This page contains a parts list for the Tension Stand Mechanism (FX4412UTC), detailing part numbers, descriptions, and quantities for various components like air cylinders, brackets, washers, and springs.
- Page 27 (parts_list): This page contains a parts list for the Guide Roller Mechanism, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a wiring and piping diagram for the FX4404UTC model, with a detailed parts list including part numbers, descriptions, and quantities.
- Page 29 (diagram): This page displays a wiring and piping diagram for the FX4406UTC, showing various components like clamps, cords, bolts, screws, solenoids, tubes, and regulators, with corresponding part numbers and descriptions.
- Page 30 (diagram): This page displays a wiring and piping diagram for the FX4412UTC sewing machine, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 31 (parts_list): This page lists parts for the PMD (FX4404) Metering Device Mechanism, including part numbers, descriptions, quantities, and reference numbers.
- Page 32 (diagram): This page displays a diagram of the PMD Metering Device Mechanism (FX4406-12) with a corresponding parts list.
- Page 33 (parts_list): This page lists accessories for the sewing machine, including a driver, tweezers, allen keys, tape stand, chain, oil, needle, oil funnel, and oiler.
- Page 34 (parts_list): This page lists parts for GAUGE PARTS, including part numbers, descriptions, and quantities for various models.
- Page 35 (parts_list): This page lists parts for the 33. FXS Series Exclusive Parts, including part numbers, descriptions, and quantities.
- Page 36 (parts_list): This page contains two parts lists: one for GAUGES PARTS TABLE and another for UTC GAUGE PARTS TABLE, detailing various models and their corresponding part numbers for different components.
