Kansai Special RX9800 Series Parts Book (PDF)
Text index — Kansai Special RX9800 Series
Page 3 — 1. フレーム関係 (1) FRAME ASSEMBLY (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-01 | 23-504 | PLUG | 1 |
| 01-02 | 39-502 | ||
| 01-03 | 87-224 | ||
| 01-04 | 21-584 | ||
| 01-05 | 23-569 | ||
| 01-06 | 87-177 | ||
| 01-07 | 27-130 | ||
| 01-08 | 23-503 | 面板Oリング | |
| 01-09 | 21-688 | ||
| 01-10 | 23-501 | ||
| 01-11 | 87-171 | ||
| 01-12 | 93-701 | ||
| 01-13 | 21-253 | ||
| 01-14 | 87-206 | ||
| 01-15 | 27-136 | ||
| 01-16 | 23-427 | ||
| 01-17 | 75-552 | ||
| 01-18 | 71-268 | ||
| 01-19 | 87-228 | ||
| 01-20 | 86-211 | ||
| 01-21 | 21-627 | ||
| 01-22 | 21-626 | ||
| 01-23 | 02-118 | ||
| 01-24 | 84-396 | ||
| 01-25 | 84-412 | ||
| 01-26 | 24-052 | ||
| 01-27 | 06-957 | ||
| 01-28 | 88-166 | ||
| 01-29 | 75-452 | ||
| 01-30 | 24-051 | ||
| 01-31 | 75-520 | ||
| 01-32 | 87-089 | ||
| 01-33 | 87-252 | ||
| 01-34 | 87-409 | ||
| 01-35 | 27-129 | ||
| 01-36 | 23-538 | ||
| 01-37 | 21-717 | ||
| 01-38 | 87-255 | ||
| 01-39 | 87-213 | ||
| 01-40 | 20-6270 |
Page 4 — 2. フレーム関係(2) FRAME ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-01 | 14-083 | NEEDLE SUPPORT BRACKET | 1 |
| 02-02 | 21-610 | UPPER COVER | 1 |
| 02-03 | 21-637 | SIDE COVER HINGE | 1 |
| 02-04 | 21-638 | SIDE COVER | 1 |
| 02-05 | 21-639 | COVER | 1 |
| 02-06 | 21-640 | PLATE | 1 |
| 02-07 | 21-641 | FRONT COVER | 1 |
| 02-08 | 21-642 | FRONT COVER | 1 |
| 02-09 | 21-643 | CRANK CHAMBER COVER | 1 |
| 02-10 | 21-644 | COVER | 1 |
| 02-11 | 21-646 | COVER | 1 |
| 02-12 | 21-670 | OIL DIFENDER | 1 |
| 02-13 | 21-678 | UPPER COVER | 1 |
| 02-14 | 21-679 | SLIDE COVER | 1 |
| 02-15 | 23-298 | SEAL | 1 |
| 02-16 | 23-507 | FELT | 1 |
| 02-17 | 23-512 | CUSHION RUBBER | 2 |
| 02-18 | 23-513 | GASKET | 1 |
| 02-19 | 23-528 | PLUG | 1 |
| 02-20 | 24-053 | TYPE PLATE | 1 |
| 02-21 | 25-527 | SCREW | 1 |
| 02-22 | 25-516 | HINGE | 1 |
| 02-23 | 25-517 | SCREW | 1 |
| 02-24 | 25-521 | PLUG | 1 |
| 02-25 | 25-522 | SCREW | 2 |
| 02-26 | 25-902 | PIN | 1 |
| 02-27 | 27-522 | NEEDLE COOLER | 1 |
| 02-28 | 27-523 | FELT | 1 |
| 02-29 | 27-524 | NEEDLE COOLER TUNK | 1 |
| 02-30 | 27-525 | NEEDLE COOLER COVER | 1 |
| 02-31 | 31-503 | OIL FILTER SCREEN | 1 |
| 02-32 | 31-505 | JOINT | 1 |
| 02-33 | 35-522 | TUBE | 1 |
| 02-34 | 39-503 | CLAMP | 1 |
| 02-35 | 43-515 | THREAD EYELET | 1 |
| 02-36 | 43-516 | TENSION DISK(UPPER) | 1 |
| 02-37 | 43-517 | TENSION DISK(LOWER) | 1 |
| 02-38 | 43-527 | TENSION DISK GUIDE | 1 |
| 02-39 | 43-528 | LOOPER THREAD GUIDE | 1 |
| 02-40 | 69-517 | PUSH BUTTON | 1 |
| 02-41 | 71-202 | SILICONE PIN | 2 |
| 02-42 | 75-455 | WASHER | 4 |
| 02-43 | 79-524 | TENSION SPRING | 1 |
| 02-44 | 79-528 | SPRING | 1 |
| 02-45 | 79-912 | SPRING | 2 |
| 02-46 | 79-922 | SPRING | 2 |
| 02-47 | 84-161 | SCREW | 1 |
| 02-48 | 84-167 | SCREW | 4 |
| 02-49 | 84-175 | SCREW | 1 |
| 02-50 | 84-360 | SCREW | 2 |
| 02-51 | 84-364 | SCREW | 2 |
| 02-52 | 84-464 | SCREW | 3 |
| 02-53 | 84-566 | SCREW | 2 |
| 02-54 | 84-574 | SCREW | 4 |
| 02-55 | 84-575 | SCREW | 1 |
| 02-56 | 84-635 | SCREW | 1 |
Page 5 — 2. フレーム関係 (2) FRAME ASSEMBLY (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-5786-311 | |||
| 02-5887-092 | |||
| 02-5987-113 | |||
| 02-6087-129 | |||
| 02-6187-172 | |||
| 02-6287-177 | |||
| 02-6387-181 | |||
| 02-6487-214 | |||
| 02-6587-258 | |||
| 02-6687-415 | |||
| 02-6787-274 | |||
| 02-6887-409 | |||
| 02-6993-205 | E-リンク | ||
| 02-7093-624 | |||
| 02-7193-701 | |||
| 02-7294-506 | |||
| 02-7320-5240 | RXニードルクーラーセット | ||
| 02-7423-510 | |||
| 02-7527-087 | |||
| 02-7687-087 | |||
| 02-7721-874 | |||
| 02-7823-570 | |||
| 02-7926-822 | |||
| 02-8027-114 | |||
| 02-8187-436 | |||
| 02-8205-061 | |||
| 02-8371-253 | |||
| 02-8487-812 |
Page 6 — THREAD TENSION MECHANISM (WITHOUT UTC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 03-01 | 71-209 | PIN | 1 |
| 03-02 | 45-541 | THREAD EYELET | 1 |
| 03-03 | 71-202 | PIN | 2 |
| 03-04 | 27-533 | CAP | 1 |
| 03-05 | 27-534 | FELT | 1 |
| 03-06 | 84-162 | SCREW | 2 |
| 03-07 | 27-531 | SILICONE OIL RESERVOIR | 1 |
| 03-08 | 75-455 | WASHER | 5 |
| 03-09 | 87-177 | SCREW | 5 |
| 03-10 | 45-550 | THREAD EYELET | 1 |
| 03-11 | 45-556 | THREAD SUPPORT (UPPER) | 1 |
| 03-12 | 75-468 | WASHER | 1 |
| 03-13 | 87-092 | SCREW | 4 |
| 03-14 | 87-269 | SCREW | 1 |
| 03-15 | 41-503 | THREAD GUIDE BRACKET | 1 |
| 03-16 | 23-324 | FELT | |
| 03-17 | 45-546 | THREAD GUIDE | 1 |
| 03-18 | 87-287 | SCREW | 2 |
| 03-19 | 25-217 | LATCH | 2 |
| 03-20 | 45-517 | PIPE | 2 |
| 03-21 | 45-551 | THREAD EYELET | 1 |
| 03-22 | 41-501 | BRACKET | 1 |
| 03-23 | 87-104 | SCREW | 3 |
| 03-24 | 41-115 | THREAD GUIDE (UPPER) | |
| 03-25 | 84-501 | SCREW | 1 |
| 03-26 | 79-514 | SPRING | 1 |
| 03-27 | 41-508 | SCREW STUD (MIDDLE) | |
| 03-28 | 41-502 | THREAD RELEASER | 1 |
| 03-29 | 41-701 | SPRING (HEAVY) | |
| 03-30 | 41-101 | THREAD TENSION NUT | |
| 03-31 | 41-105 | SPRING POST | |
| 03-32 | 41-702 | SPRING (LIGHT) | |
| 03-33 | 41-107 | SPRING CUP | |
| 03-34 | 41-509 | TENSION DISC | |
| 03-35 | 45-547 | BRACKET | 1 |
| 03-36 | 87-099 | SCREW | 2 |
| 03-37 | 41-601 | THREAD NIPPER | 1 |
| 03-38 | 79-533 | SPRING | 1 |
| 03-39 | 84-171 | SCREW | 1 |
| 03-40 | 45-543 | THREAD EYELET | 3 |
| 03-41 | 45-558 | HOLDER | 1 |
| 03-42 | 20-5360 | SILICONE OIL RESERVOIR ASS'Y | 1 |
| 03-43 | 45-552 | THREAD GUIDE | 1 |
| 03-44 | 41-518 | BRACKET | 1 |
| 03-45 | 41-519 | THREAD RELEASER | 1 |
| 03-46 | 45-508 | PLATE | 1 |
| 03-47 | 45-117 | THREAD GUIDE |
Page 7 — 4. ブッシュ機構 BUSHING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 04-01 | 81-508 | BUSHING(RIGHT) | 1 |
| 04-02 | 25-507 | SEAL PLUG Ø17 | 1 |
| 04-03 | 81-507 | BUSHING(LEFT) | 1 |
| 04-04 | 81-506 | BUSHING | 2 |
| 04-05 | 94-804 | OIL SEAL Ø10 | 1~2 |
| 04-06 | 81-505 | BUSHING | 1 |
| 04-07 | 25-506 | SEAL PLUG Ø16 | 1 |
| 04-08 | 81-510 | BUSHING | 1 |
| 04-09 | 81-546 | BUSHING | 1 |
| 04-11 | 94-503 | OIL SEAL | 1 |
| 04-12 | 94-805 | OIL SEAL | 1 |
| 04-13 | 81-572 | BUSHING(UPPER) | 1 |
| 04-14 | 81-550 | BUSHING(LOWER) | 1 |
| 04-15 | 81-517 | BUSHING | 2 |
| 04-16 | 81-515 | BUSHING(FRONT) | 1 |
| 04-17 | 81-516 | BUSHING(REAR) | 1 |
| 04-18 | 81-518 | BUSHING | 1 |
| 04-19 | 81-512 | BUSHING(FRONT) | 1 |
| 04-20 | 81-513 | BUSHING(REAR) | 1 |
| 04-21 | 81-511 | BUSHING(FRONT) | 1 |
| 04-22 | 81-514 | BUSHING(REAR) | 1 |
| 04-23 | 81-531 | BUSHING | 2 |
| 04-24 | 94-231 | OIL SEAL | 1 |
| 04-25 | 94-505 | OIL SEAL | 1 |
Page 8 — 5. 下軸機構 CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-01 | 87-172 | SCREW | 5 |
| 69-535 | |||
| 69-536 | |||
| 91-890 | |||
| 87-213 | |||
| 71-587 | |||
| 85-113 | |||
| 93-718 | |||
| 87-214 | |||
| 61-507 | |||
| 63-505 | |||
| 69-513 | |||
| 87-092 | |||
| 87-203 | |||
| 71-540 | |||
| 87-242 | |||
| 84-314 | |||
| 91-994 | |||
| 69-518 | |||
| 69-537 | Vプーリー | ||
| 87-270 | |||
| 25-520 | ベアリング止メ板(B) | ||
| 34-826 | |||
| 69-529 | |||
| 25-519 | ベアリング止メ板(A) | ||
| 31-701 | |||
| 60-9920 | |||
| 60-9930 | |||
| 60-9950 | |||
| 60-5020 | |||
| 87-259 | |||
| 58-500 | |||
| 06-554 | |||
| 23-547 | |||
| 23-548 | |||
| 23-341 | |||
| 63-504 | |||
| 91-413 | |||
| 61-522 | |||
| 87-254 | |||
| 23-554 |
Page 9 — 6. ルーパー機構 LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-01 | 84-163 | SCREW | 1 |
| 47-801 | |||
| 19-530 | |||
| 06-375 | |||
| 19-507 | |||
| 75-467 | |||
| 84-589 | |||
| 19-506 | |||
| 84-521 | |||
| 19-509 | |||
| 19-508 | |||
| 81-573 | |||
| 93-717 | |||
| 71-538 | |||
| 84-363 | |||
| 23-515 | |||
| 75-513 | |||
| 87-172 | |||
| 71-532 | |||
| 81-520 | |||
| 71-535 | |||
| 86-312 | |||
| 87-171 | |||
| 75-514 | |||
| 10-5010 | |||
| 93-719 | |||
| 75-527 | |||
| 87-203 | |||
| 75-515 | |||
| 71-539 | |||
| 75-901 | |||
| 92-233 | |||
| 67-505 | |||
| 87-011 | |||
| 87-181 | |||
| 19-533 |
Page 10 — 7. 送り機構 (1) FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-01 | 18-805 | NEEDLE GUARD | 1 |
| 07-02 | 84-155 | SCREW | 2 |
| 07-03 | 18-804 | BRACKET | 1 |
| 07-04 | 87-274 | SCREW | 2 |
| 07-05 | 61-530 | ECCENTRIC | 1 |
| 07-06 | 84-616 | SCREW | 1 |
| 07-07 | 18-800 | NEEDLE GUARD LEVER | 1 |
| 07-08 | 18-801 | NEEDLE GUARD LEVER | 1 |
| 07-09 | 18-806 | NEEDLE GUARD | 1 |
| 07-10 | 84-376 | SCREW | 1 |
| 07-11 | 18-803 | BRACKET | 1 |
| 07-12 | 18-799 | BLOCK | 1 |
| 07-13 | 87-242 | SCREW | 2 |
| 07-14 | 51-827 | MAIN FEED BAR | 1 |
| 07-15 | 69-514 | FEED ROCKER GUIDE | 1 |
| 07-16 | 51-822 | FEED LIFT BLOCK (REAR) | 1 |
| 07-17 | 51-826 | DIFFERENTIAL FEED BAR | 1 |
| 07-18 | 61-504 | ECCENTRIC | 1 |
| 07-19 | 87-104 | SCREW | 1 |
| 07-20 | 87-123 | SCREW | 1 |
| 07-21 | 61-503 | FEED ECCENTRIC | 1 |
| 07-22 | 71-530 | PIN | 1 |
| 07-23 | 51-823 | CONNECTING LINK | 1 |
| 07-24 | 87-235 | SCREW | 2 |
| 07-25 | 69-511 | PIN | 1 |
| 07-26 | 52-308 | SPRING PIN | 1 |
| 07-27 | 69-509 | PLATE | 1 |
| 07-28 | 84-374 | SCREW | 3 |
| 07-29 | 93-716 | SPRING PIN | 1 |
| 07-30 | 69-510 | FEED REGULATING STOP | 1 |
| 07-31 | 87-107 | SCREW | 2 |
| 07-32 | 79-525 | SPRING | 1 |
| 07-33 | 69-512 | CAM | 1 |
| 07-34 | 51-819 | ECCENTRIC | 1 |
| 07-35 | 51-820 | CONNECTING LINK | 1 |
| 07-36 | 87-234 | SCREW | 1 |
| 07-37 | 71-558 | FEED SHAFT | 1 |
| 07-38 | 87-129 | SCREW | 2 |
| 07-39 | 71-528 | PIN | 1 |
| 07-40 | 51-824 | FEED BAR GUIDE PLATE | 1 |
| 07-41 | 84-158 | SCREW | 2 |
| 07-42 | 51-825 | DIFFERENTIAL FEED DOG BASE | 1 |
| 07-43 | 71-634 | FEED LIFT SHAFT | 1 |
| 07-44 | 75-512 | COLLER | 2 |
| 07-45 | 71-566 | FEED LIFT SHAFT | 1 |
| 07-46 | 51-821 | FEED LIFT BROCK (FRONT) | 1 |
| 07-47 | 23-531 | FELT | 1 |
| 07-48 | 60-5070 | FEED ECCENTRIC ASS'Y | 1 |
| 07-49 | 23-341 | FELT | 1 |
| 07-50 | 23-554 | FELT | 8 |
| 07-51 | 23-535 | FELT | 2 |
| 07-52 | 23-552 | FELT | 2 |
| 07-53 | 87-181 | SCREW | 4 |
| 07-54 | 69-531 | FEED ROCKER GUIDE | 1 |
| 07-55 | 50-8260 | FEED BRACKET SET | 1 |
Page 11 — 8. 送り機構 (2) FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 87-172 | |||
| 67-504 | |||
| 71-431 | |||
| 63-502 | |||
| 93-402 | |||
| 91-412 | |||
| 61-505 | |||
| 84-366 | |||
| 63-503 | |||
| 71-518 | |||
| 51-817 | |||
| 87-233 | |||
| 51-816 | |||
| 69-515 | |||
| 84-591 | |||
| 71-525 | |||
| 67-509 | |||
| 87-274 | |||
| 51-811 | |||
| 71-520 | |||
| 51-812 | |||
| 79-527 | |||
| 51-809 | |||
| 23-283 | C-リング | ||
| 94-222 | |||
| 51-866 | |||
| 32-281 | |||
| 87-181 | |||
| 87-212 | |||
| 51-815 | |||
| 71-208 | |||
| 51-814 | |||
| 23-192 | C-リング | ||
| 51-813 | |||
| 51-810 | |||
| 51-895 | |||
| 51-804 | |||
| 51-801 | |||
| 51-805 | |||
| 87-265 | |||
| 75-410 | |||
| 51-806 | |||
| 87-177 | |||
| 51-807 | |||
| 51-808 |
Page 12 — 9. 下糸巻き機構 LOOPER THREAD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-01 | 88-166 | NUT | 1 |
| 09-02 | 87-229 | SCREW | 1 |
| 09-03 | 23-511 | CAP | 1 |
| 09-04 | 84-174 | SCREW | 1 |
| 09-05 | 79-523 | SPRING | 1 |
| 09-06 | 43-513 | LEVER | 1 |
| 09-07 | 87-272 | SCREW | 2 |
| 09-08 | 43-506 | STOP BRACKET | 1 |
| 09-09 | 43-507 | SHAFT | 1 |
| 09-10 | 75-105 | COLLAR | 1 |
| 09-11 | 84-314 | SCREW | 1 |
| 09-12 | 84-161 | SCREW | 1 |
| 09-13 | 75-224 | WASHER | 1 |
| 09-14 | 43-538 | CAST-OFF PLATE | 1 |
| 09-15 | 84-521 | SCREW | 1 |
| 09-16 | 43-536 | BRACKET | 1 |
| 09-17 | 43-537 | PLATE | 1 |
| 09-18 | 84-155 | SCREW | 3 |
| 09-19 | 71-207 | PIN | 1 |
| 09-20 | 79-520 | SPRING | 1 |
| 09-21 | 87-083 | SCREW | 2 |
| 09-22 | 43-512 | THREAD EYELET (LEFT) | 1 |
| 09-23 | 43-510 | THREAD EYELET (RIGHT) | 1 |
| 09-24 | 49-501 | LOOPER THREAD TAKEUP CAM | 1 |
| 09-25 | 87-274 | SCREW | 2 |
| 09-26 | 75-511 | COLLAR | 1 |
| 09-27 | 87-104 | SCREW | 1 |
Page 13 — 10. 針棒上軸機構 NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 87-172 | SCREW | 9 | |
| 91-888 | BEARING | 1 | |
| 87-253 | SCREW | 1 | |
| 87-254 | SCREW | 3 | |
| 81-502 | BEARING HOUSING | 1 | |
| 06-553 | TIMING PULLEY | 1 | |
| 73-502 | NEEDLE BAR BRACKET | 1 | |
| 84-359 | SCREW | 1 | |
| 71-674 | PIN | 1 | |
| 63-418 | LINK | 1 | |
| 91-264 | BEARING | 1 | |
| 69-532 | BLOCK | 1 | |
| 75-542 | WASHER | 1 | |
| 69-533 | GUIDE | 1 | |
| 87-112 | SCREW | 3 | |
| 66-504 | NEEDLE CRANK (31) | 1 | |
| 63-501 | CONNECTING ROD | 1 | |
| 61-501 | ECCENTRIC | 1 | |
| 87-214 | BOLT | 2 | |
| 71-819 | UPPER SHAFT (LEFT) | 1 | |
| 87-259 | SCREW | 3 | |
| 87-213 | SCREW | 2 | |
| 69-158 | MOTION | 1 | |
| 87-036 | SCREW | 1 | |
| 61-502 | ECCENTRIC | 1 | |
| 87-242 | SCREW | 1 | |
| 63-426 | LINK | 2 | |
| 60-5010 | CONNECTING ROD ASS'Y | 1 | |
| 75-2700-1 | BEARING ASS'Y | 1 | |
| 69-508 | HAND WHEEL | 1 | |
| 91-993 | BALL BEARING | 1 | |
| 69-538 | HANDWHEEL ADAPTOR (UPPER) | 1 | |
| 71-510 | UPPER SHAFT (RIGHT) | 1 | |
| 91-994 | BALL BEARING | 1 | |
| 75-270 | UPPER SHAFT JOINT | 1 | |
| 87-241 | SCREW | 1 | |
| 11-153 | NEEDLE BAR | 2 | |
| 60-9890 | BEARING ASS' Y | 1 | |
| 60-9970 | BEARING ASS' Y | 1 | |
| 66-505 | NEEDLE CRANK (33) | 1 | |
| 60-9891 | NEEDLE CRANK ASS' Y (31) | 1 | |
| 60-9892 | NEEDLE CRANK ASS' Y (33) | 1 | |
| 71-023 | LINK PIN (C. 5) | 1 | |
| 75-004 | WASHER | 1 | |
| 84-463 | SCREW | 1 | |
| 69-143 | BALANCE WEIGHT | 1 | |
| 87-274 | SCREW | 1 | |
| 75-671 | WASHER | 2 | |
| 91-882 | BEARING | 1 | |
| 91-894 | BALL BEARING | 1 | |
| 69-551 | HAND WHEEL | 1 |
Page 14 — 11. 上糸捌き機構 NEEDLE THREAD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11-01 | 84-374 | SCREW | |
| 11-02 | 45-523 | THREAD EYELET | |
| 11-03 | 45-535 | THREAD EYELET | |
| 11-04 | 85-618 | SCREW | |
| 11-05 | 45-549 | THREAD GUIDE | |
| 11-06 | 87-104 | SCREW | |
| 11-07 | 94-504 | CAP $15 | |
| 11-08 | 87-113 | SCREW | |
| 11-09 | 75-410 | WASHER | |
| 11-10 | 75-508 | WASHER (OUTSIDE) | |
| 11-11 | 71-514 | HAFT | |
| 11-12 | 75-504 | WASHER (CENTER) | |
| 11-13 | 87-112 | SCREW | |
| 11-14 | 75-505 | COLLAR | |
| 11-15 | 75-468 | WASHER | |
| 11-16 | 87-272 | SCREW | |
| 11-17 | 45-536 | NEEDLE THREAD TAKE-UP | |
| 11-18 | 67-502 | EVER | |
| 11-19 | 45-505 | NEEDLE THREAD TAKE-UP | |
| 11-20 | 87-224 | SCREW | |
| 11-21 | 75-526 | SPRING WASHER M5 | |
| 11-22 | 45-515 | THREAD EYELET | |
| 11-23 | 45-507 | THREAD EYELET | |
| 11-24 | 45-502 | THREAD TAKEUP | |
| 11-25 | 45-514 | THREAD EYELET | |
| 11-26 | 45-540 | RACKET | |
| 11-27 | 87-092 | SCREW | |
| 11-28 | 45-513 | THREAD GUIDE | |
| 11-29 | 87-177 | SCREW | |
| 11-30 | 41-517 | TENSION DISC | |
| 11-31 | 84-639 | SCREW | |
| 11-32 | 79-547 | SPRING | |
| 11-33 | 41-601 | THREAD NIPPER | |
| 11-34 | 45-508 | PLATE | |
| 11-35 | 79-533 | SPRING | |
| 11-36 | 84-171 | SCREW |

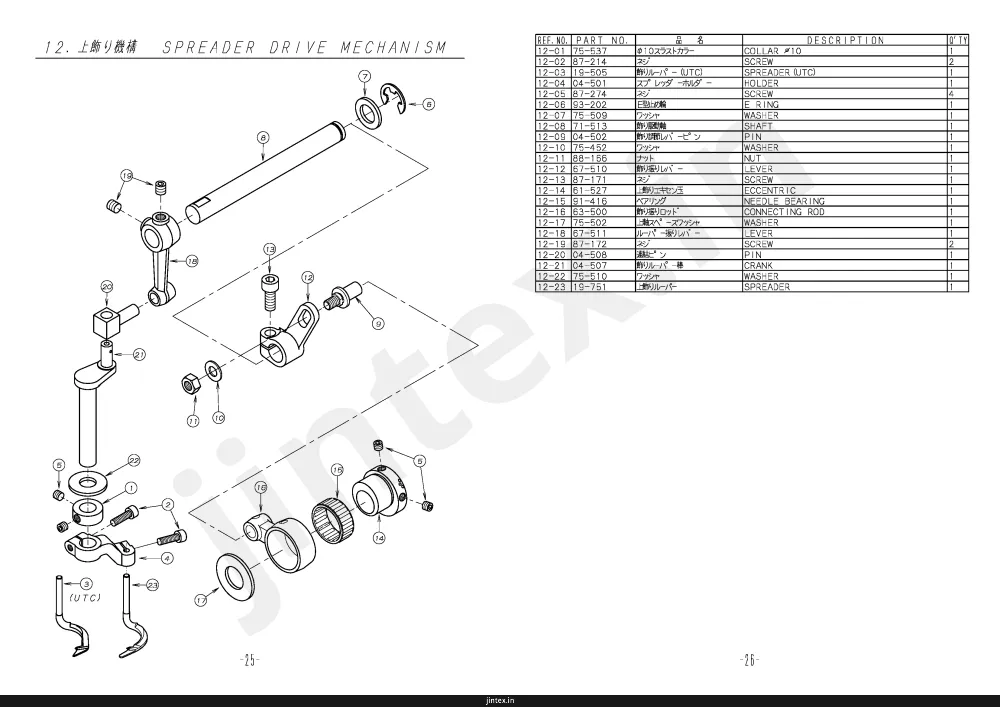

Page 15 — 12. 上飾り機構 SPREADER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-01 | 75-537 | COLLAR ø10 | 1 |
| 12-02 | 87-214 | SCREW | 2 |
| 12-03 | 19-505 | SPREADER (UTC) | 1 |
| 12-04 | 04-501 | HOLDER | 1 |
| 12-05 | 87-274 | SCREW | 4 |
| 12-06 | 93-202 | E RING | 1 |
| 12-07 | 75-509 | WASHER | 1 |
| 12-08 | 71-513 | SHAFT | 1 |
| 12-09 | 04-502 | PIN | 1 |
| 12-10 | 75-452 | WASHER | 1 |
| 12-11 | 88-166 | NUT | 1 |
| 12-12 | 67-510 | LEVER | 1 |
| 12-13 | 87-171 | SCREW | 1 |
| 12-14 | 61-527 | ECCENTRIC | 1 |
| 12-15 | 91-416 | NEEDLE BEARING | 1 |
| 12-16 | 63-500 | CONNECTING ROD | 1 |
| 12-17 | 75-502 | WASHER | 1 |
| 12-18 | 67-511 | LEVER | 1 |
| 12-19 | 87-172 | SCREW | 2 |
| 12-20 | 04-508 | PIN | 1 |
| 12-21 | 04-507 | CRANK | 1 |
| 12-22 | 75-510 | WASHER | 1 |
| 12-23 | 19-751 | SPREADER | 1 |
Page 16 — 13. 押え揚げ機構 PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-265 | |||
| 67-503 | |||
| 71-203 | |||
| 71-507 | |||
| 71-515 | |||
| 71-517 | |||
| 75-001 | |||
| 75-501 | |||
| 77-504 | |||
| 77-518 | |||
| 77-506 | |||
| 77-507 | |||
| 77-508 | |||
| 77-509 | |||
| 77-510 | |||
| 77-511 | |||
| 77-512 | |||
| 79-518 | |||
| 79-519 | スプリング(SMALL) | ||
| 79-538 | |||
| 84-561 | |||
| 84-566 | |||
| 87-112 | |||
| 84-581 | |||
| 84-813 | |||
| 86-411 | |||
| 87-001 | |||
| 87-272 | |||
| 87-213 | |||
| 87-252 | |||
| 87-253 | |||
| 87-254 | |||
| 87-255 | |||
| 88-003 | |||
| 71-038 | |||
| 27-088 | |||
| 27-089 | フィンガーガード (UTC) | ||
| 87-142 | |||
| 80-5030 |
Page 17 — 14 給油機構 (1) LUBRICATION MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14-01 | 23-506 | O-RING | 1 |
| 14-02 | 31-222 | 1 | |
| 14-03 | 35-509 | 1 | |
| 14-04 | 87-129 | 6 | |
| 14-05 | 21-632 | 1 | |
| 14-06 | 87-663 | 4 | |
| 14-07 | 23-508 | O-RING | 1 |
| 14-08 | 87-311 | 1 | |
| 14-09 | 23-304 | 1 | |
| 14-10 | 31-507 | 1 | |
| 14-11 | 87-225 | 2 | |
| 14-12 | 39-504 | 1 | |
| 14-13 | 30-0130 | 1 | |
| 14-14 | 31-702 | 1 | |
| 14-15 | 87-254 | 1 | |
| 14-16 | 17-8010-G | 1 | |
| 14-17 | 87-123 | 3 | |
| 14-18 | 31-708 | 1 | |
| 14-19 | 31-706 | 1 | |
| 14-20 | 31-705 | 1 | |
| 14-21 | 31-707 | 1 | |
| 14-22 | 31-704 | 1 | |
| 14-23 | 31-156 | 1 | |
| 14-24 | 31-703 | 1 | |
| 14-26 | 31-157 | 1 | |
| 14-27 | 87-140 | 1 | |
| 14-28 | 88-137 | 1 | |
| 14-29 | 30-0131 | 1 | |
| 14-30 | 30-5070 | 1 |
Page 18 — 15 LUBRICATION MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 15-01 | 88-165 | NUT | 1 |
| 15-02 | 35-503 | OIL RELEASER | |
| 15-03 | 87-092 | SCREW | |
| 15-04 | 35-539 | JOINT SCREW | |
| 15-05 | 35-528 | JOINT SCREW (SHORT) | |
| 15-06 | 23-567 | FELT | |
| 15-07 | 35-505 | JOINT | |
| 15-08 | 35-521 | TUBE (Ø6XØ3, 560L) | |
| 15-09 | 39-139 | CLAMP | |
| 15-10 | 39-501 | CLAMP | |
| 15-11 | 35-530 | CLAMP | |
| 15-12 | 35-517 | TUBE (Ø6XØ4, 540L) | |
| 15-13 | 31-314 | JOINT | |
| 15-14 | 35-529 | JOINT SCREW | |
| 15-15 | 35-519 | TUBE (Ø6XØ4, 187L) | |
| 15-16 | 35-512 | OIL DISTRIBUTOR | |
| 15-17 | 35-537 | TUBE (Ø6XØ4, 42L) | |
| 15-18 | 35-506 | JOINT | |
| 15-19 | 35-413 | CLAMP | |
| 15-20 | 23-560 | PIPE | |
| 15-22 | 23-558 | SUPPORT | |
| 15-23 | 23-562 | SPONGE | |
| 15-24 | 87-254 | SCREW | |
| 15-25 | 35-520 | TUBE (Ø6XØ4, 27L) | |
| 15-26 | 35-510 | LUG | |
| 15-27 | 23-386 | FELT | |
| 15-28 | 23-540 | FELT | |
| 15-29 | 35-540 | PIPE |
Page 19 — 16. 後プーラー機構 (1) REAR PULLER MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-215 | REAR PULLER BRACKET | 1 | |
| 81-133 | BUSHING | 1 | |
| 71-725 | SHAFT | 1 | |
| 93-261 | E-RING | 1 | |
| 84-562 | SCREW | 1 | |
| 75-519 | WASHER | 1 | |
| 02-216 | PULLER LIFTING LEVER | 1 | |
| 02-112 | CORRUGATED WASHER | 1 | |
| 85-671 | SCREW | 1 | |
| 75-211 | COLLAR | 1 | |
| 84-582 | SCREW | 1 | |
| 02-217 | RACKET | 1 | |
| 87-225 | SCREW | 3 | |
| 86-311 | NUT | 1 | |
| 84-569 | SCREW | 1 | |
| 84-581 | SCREW | 2 | |
| 02-218 | CONNECTING PLATE | 1 | |
| 79-640 | SPRING | 1 | |
| 87-751 | SCREW | 1 | |
| 71-729 | GUIDE PIN | 1 | |
| 71-208 | PIN | 4 | |
| 02-219 | LEVER | 1 | |
| 71-726 | SHAFT | 1 | |
| 93-222 | E-RING | 1 | |
| 87-172 | SCREW | 2 | |
| 77-419 | PIN | 2 | |
| 77-414 | PLATE | 1 | |
| 93-205 | E-RING | 2 | |
| 77-421 | LEVER | 1 | |
| 87-203 | SCREW | 2 | |
| 75-458 | WASHER | 2 | |
| 88-751 | NUT | 1 | |
| 02-220 | BRACKET | 1 | |
| 23-542 | O-RING | 1 | |
| 81-559 | BUSHING | 2 | |
| 23-541 | LUG | 1 | |
| 87-186 | SCREW | 4 | |
| 94-502 | OIL SEAL | 1 | |
| 94-506 | PLUG | 1 | |
| 93-223 | O-RING | 1 | |
| 75-187 | WASHER | 1 | |
| 71-727 | SHAFT | 1 | |
| 87-254 | SCREW | 1 | |
| 67-528 | LEVER | 1 | |
| 88-166 | NUT | 1 | |
| 75-452 | WASHER | 1 | |
| 04-502 | PIN | 1 | |
| 75-545 | COLLAR | 1 | |
| 91-413 | NEEDLE BEARING | 1 | |
| 63-535 | CRANK ROD | 1 | |
| 61-551 | ECCENTRIC | 1 | |
| 23-556 | FELT | 1 | |
| 87-024 | BOLT | 2 |
Page 20 — 17. 後プーラー機構 (2) REAR PULLER MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-0101-115 | |||
| 17-0201-117 | |||
| 17-0302-118 | |||
| 17-0402-123 | |||
| 17-0502-152 | |||
| 17-0602-176 | |||
| 17-0702-177 | |||
| 17-0802-178 | |||
| 17-0902-250 | |||
| 17-1002-252 | |||
| 17-1102-253 | |||
| 17-1202-254 | |||
| 17-1302-255 | |||
| 17-1402-268 | |||
| 17-1502-136 | |||
| 17-1602-451 | |||
| 17-1702-452 | |||
| 17-1802-453 | |||
| 17-1921-715 | |||
| 17-2067-529 | |||
| 17-2171-208 | |||
| 17-2271-444 | |||
| 17-2371-728 | |||
| 17-2475-356 | |||
| 17-2575-407 | |||
| 17-2675-451 | |||
| 17-2775-455 | |||
| 17-2875-519 | |||
| 17-2975-528 | |||
| 17-3079-551 | |||
| 17-3181-321 | |||
| 17-3281-322 | |||
| 17-3381-323 | |||
| 17-3484-162 | |||
| 17-3584-462 | |||
| 17-3684-571 | |||
| 17-3784-573 | |||
| 17-3884-573 | |||
| 17-3984-813 | |||
| 17-4085-607 | |||
| 17-4186-411 | |||
| 17-4286-901 | |||
| 17-4387-129 | |||
| 17-4487-181 | |||
| 17-4587-225 | |||
| 17-4688-175 | |||
| 17-4791-407 | |||
| 17-4893-221 | |||
| 17-4998-600 | |||
| 17-5098-601 | |||
| 17-5198-821 | |||
| 17-5298-864 | |||
| 17-5387-113 | |||
| 17-5400-5281 | |||
| 17-5560-6610 | |||
| 17-5600-2004 |
Page 21 — 18. 後プーラー機構 (3) REAR PULLER MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18-01 | 01-115 | SLEEVE | 2 |
| 18-02 | 02-117 | PLATE | 1 |
| 18-03 | 02-118 | WASHER | 1 |
| 18-04 | 02-124 | HOUSING(LARGE) | 1 |
| 18-05 | 02-138 | REAR PULLER | 1 |
| 18-06 | 02-221 | CONNECTING PLATE | 1 |
| 18-07 | 02-228 | REAR PULLER GEAR(28 TOOTH) | 1 |
| 18-08 | 02-245 | LOWER REAR PULLER GEAR(15 TOOTH) | 1 |
| 18-09 | 02-246 | BRACKET | 1 |
| 18-10 | 02-247 | ELASTIC TAPE GUIDE SHAFT | 1 |
| 18-11 | 02-252 | BRACKET | 1 |
| 18-12 | 02-253 | PLATE | 1 |
| 18-13 | 02-254 | ROLLER | 1 |
| 18-14 | 02-455 | REAR PULLER (SMOOTH) | 1 |
| 18-15 | 02-457 | BRACKET | 1 |
| 18-16 | 09-917 | COLLAR | 1 |
| 18-17 | 09-919 | TAPE GUIDE | 1 |
| 18-18 | 09-923 | ELASTIC GUIDE | 1 |
| 18-19 | 09-984 | END COLLAR | 1 |
| 18-20 | 27-038 | PULLER GUIDE | 1 |
| 18-21 | 67-529 | LEVER | 1 |
| 18-22 | 71-208 | PIN | 2 |
| 18-23 | 71-445 | SHAFT(LARGE) | 1 |
| 18-24 | 71-728 | LOWER REAR PULLER SHAFT | 1 |
| 18-25 | 75-407 | WASHER | 3 |
| 18-26 | 75-451 | WASHER | 1 |
| 18-27 | 75-455 | WASHER | 2 |
| 18-28 | 75-519 | WASHER | 1 |
| 18-29 | 79-551 | PULLER PLATE SPRING | 1 |
| 18-30 | 81-321 | BUSHING | 1 |
| 18-31 | 81-322 | BUSHING | 1 |
| 18-32 | 81-323 | BUSHING | 1 |
| 18-33 | 84-162 | SCREW | 6 |
| 18-34 | 84-368 | SCREW | 2 |
| 18-35 | 84-462 | SCREW | 5 |
| 18-36 | 84-511 | SCREW | 2 |
| 18-37 | 84-521 | SCREW | 2 |
| 18-38 | 84-571 | SCREW | 2 |
| 18-39 | 84-573 | SCREW | 1 |
| 18-40 | 84-711 | SCREW | 4 |
| 18-41 | 84-813 | SCREW | 1 |
| 18-42 | 85-607 | SCREW | 2 |
| 18-43 | 86-411 | NUT | 1 |
| 18-44 | 86-901 | NUT | 1 |
| 18-45 | 87-113 | BOLT | 2 |
| 18-46 | 87-129 | BOLT | 1 |
| 18-47 | 87-181 | SCREW | 1 |
| 18-48 | 87-225 | BOLT | 4 |
| 18-49 | 88-179 | NUT | 2 |
| 18-50 | 91-407 | BEARING | 2 |
| 18-51 | 93-221 | E-RING | 1 |
| 18-52 | 98-600 | CONNECTING BAR | 1 |
| 18-53 | 98-601 | BEARING SLEEVE | 2 |
| 18-54 | 98-821 | BEARING | 2 |
| 18-55 | 98-864 | SCREW | 1 |
| 18-56 | 00-4281 | 28 TOOTH REAR PULLER ASS'Y | 1 |
| 18-57 | 00-4282 | SMOOTH PULLER ASS'Y | 1 |
| 18-58 | 60-6610 | CONNECTING LINK ASS'Y | 1 |
Page 22 — 19. 下糸切り装置 (UTC) KNIFE MECHANISM (UTC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 19-01 | 05-051 | LEVER | 2 |
| 19-02 | 05-052 | RING | 2 |
| 19-03 | 05-053 | NUT | 2 |
| 19-04 | 05-054 | SCREW | 2 |
| 19-05 | 05-055 | SPRING | 1 |
| 19-06 | 05-056 | SCREW | 1 |
| 19-07 | 05-057 | THREAD EYELET | 1 |
| 19-08 | 05-058 | UPPER KNIFE HOLDER | 1 |
| 19-09 | 05-059 | LOWER KNIFE HOLDER | 1 |
| 19-10 | 05-060 | LEVER | 1 |
| 19-11 | 05-061 | SCREW | 9 |
| 19-12 | 05-062 | GUIDE | 1 |
| 19-13 | 05-063 | SPRING | 1 |
| 19-14 | 05-064 | SPRING | 1 |
| 19-15 | 05-065 | GUIDE BRACKET | 1 |
| 19-16 | 05-066 | BASE PLATE | 1 |
| 19-17 | 05-067 | STOPPER | 1 |
| 19-18 | 05-068 | GUIDE | 1 |
| 19-19 | 05-658 | LOWER KNIFE | 1 |
| 19-20 | 05-812 | UPPER KNIFE | 1 |
| 19-21 | 05-814 | LEAF SPRING(UPPER) | 1 |
| 19-22 | 05-815 | LEAF SPRING(LOWER) | 1 |
| 19-23 | 05-822 | BRACKET | 1 |
| 19-24 | 05-882 | GUIDE ROLLER(SMALL) | 1 |
| 19-25 | 05-894 | PLATE | 1 |
| 19-26 | 87-075 | SCREW | 2 |
| 19-27 | 87-077 | SCREW | 3 |
| 19-28 | 87-078 | SCREW | 1 |
| 19-29 | 87-079 | SCREW | 1 |
| 19-30 | 87-091 | SCREW | 2 |
| 19-31 | 87-092 | BOLT | 2 |
| 19-32 | 87-095 | SCREW | 1 |
| 19-33 | 87-098 | SCREW | 1 |
| 19-34 | 87-107 | SCREW | 2 |
| 19-35 | 87-145 | SCREW | 1 |
| 19-37 | 87-414 | SCREW | 1 |
| 19-38 | 00-8031 | THREAD TRIM ASSEMBLY | 1 |
Page 23 — 20. UTC駆動装置(エア-式) THREAD TRIMMING MECHANISM (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-01 | 05-924 | BRACKET | 1 |
| 05-970 | |||
| 05-205 | |||
| 05-842 | |||
| 05-904 | |||
| 05-828 | |||
| 88-176 | |||
| 05-905 | |||
| 05-906 | |||
| 05-837 | |||
| 75-505 | |||
| 87-112 | |||
| 84-612 | |||
| 05-964 | |||
| 05-995 | |||
| 00-6106 | UTC駆動装置 | ||
| 00-6107 | UTC駆動装置 | ||
| 05-959 | |||
| 05-909 | |||
| 05-910 | |||
| 05-911 | |||
| 05-912 | |||
| 87-213 | |||
| 87-171 | |||
| 87-181 | |||
| 87-284 | |||
| 87-282 | |||
| 87-245 | |||
| 93-222 | Eリング | ||
| 05-829 | |||
| 79-540 | |||
| 05-913 | |||
| 05-914 | |||
| 93-211 | Eリング | ||
| 79-642 | |||
| 06-927 | |||
| 87-177 | |||
| 06-580 | |||
| 00-6083 | |||
| 88-166 | |||
| 06-597 | |||
| 05-221 | |||
| 05-490 | |||
| 05-224 | |||
| 05-484 | |||
| 71-208 |
Page 24 — 21. UTC駆動装置(電気式) THREAD TRIMMING MECHANISM (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21-01 | 05-924 | BRACKET | |
| 21-02 | 06-336 | SOLENOID | |
| 21-03 | 05-842 | ROD | |
| 21-04 | 05-904 | SHAFT | |
| 21-05 | 05-828 | BRACKET | |
| 21-06 | 88-176 | NUT | |
| 21-07 | 05-905 | SHAFT | |
| 21-08 | 05-906 | BRACKET | |
| 21-09 | 84-612 | SCREW | |
| 21-10 | 05-959 | PLATE | |
| 21-11 | 05-909 | SWITCH PLATE | |
| 21-12 | 05-910 | PLATE | |
| 21-13 | 05-911 | SWITCH | |
| 21-14 | 05-912 | COVER | |
| 21-15 | 87-213 | SCREW | |
| 21-16 | 87-171 | SCREW | |
| 21-17 | 87-274 | SCREW | |
| 21-18 | 87-284 | SCREW | |
| 21-19 | 87-282 | SCREW | |
| 21-20 | 75-537 | COLLAR | |
| 21-21 | 05-829 | PIN | |
| 21-22 | 79-540 | SPRING | |
| 21-23 | 05-913 | SCREW | |
| 21-24 | 05-914 | PIN | |
| 21-25 | 93-211 | ERING | |
| 21-26 | 79-642 | SPRING | |
| 21-27 | 06-928 | NYLON CLIP 7N | |
| 21-28 | 87-177 | SCREW | |
| 21-29 | 88-179 | NUT | |
| 21-30 | 00-6031 | SOLENOID ASSEMBLY (UTC-E) | |
| 21-31 | 87-181 | SCREW | |
| 21-32 | 71-208 | PIN | |
| 21-33 | 88-166 | NUT |
Page 25 — 22. 糸調子機構 (UTC) THREAD TENSION MECHANISM (UTC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-01 05-850 | |||
| 22-02 05-853 | |||
| 22-03 05-955 | |||
| 22-04 05-956 | |||
| 22-05 05-957 | |||
| 22-06 05-958 | |||
| 22-07 05-961 | |||
| 22-08 05-962 | |||
| 22-09 05-963 | |||
| 22-10 23-324 | |||
| 22-11 41-101 | |||
| 22-12 41-105 | |||
| 22-13 41-107 | |||
| 22-14 41-501 | |||
| 22-15 41-502 | |||
| 22-16 41-508 | |||
| 22-17 41-509 | |||
| 22-18 41-519 | |||
| 22-19 41-525 | |||
| 22-20 41-701 | |||
| 22-21 41-702 | |||
| 22-22 79-542 | |||
| 22-23 84-361 | |||
| 22-24 84-553 | |||
| 22-25 84-561 | |||
| 22-26 84-574 | |||
| 22-27 87-224 | |||
| 22-28 87-286 | |||
| 22-29 87-423 | |||
| 22-30 93-201 | Eリング | ||
| 22-31 93-205 | Eリング | ||
| 22-32 84-364 | ルーバー糸道(A) | ||
| 22-33 84-364 |
Page 26 — 23. 上飾り糸切装置 (エア一式) SPREADER THREAD TRIMMING MECHANISM (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 23-01 | 06-351 | TRIMMING KNIFE | 1 |
| 23-02 | 06-352 | RACKET | |
| 23-03 | 06-353 | OVER | |
| 23-04 | 06-354 | RACKET | |
| 23-05 | 06-355 | LOCK | |
| 23-06 | 06-356 | TOP PLATE | |
| 23-07 | 06-584 | AIR CYLINDER | |
| 23-08 | 06-358 | BASE PLATE | |
| 23-09 | 06-359 | GUIDE | |
| 23-10 | 06-928 | CLAMP | |
| 23-11 | 84-361 | SCREW | |
| 23-12 | 84-360 | SCREW | |
| 23-13 | 84-573 | SCREW | |
| 23-14 | 85-101 | SCREW | |
| 23-15 | 05-481 | SPEED CONTROLLER | |
| 23-16 | 85-106 | SCREW | |
| 23-17 | 85-102 | SCREW | |
| 23-18 | 06-632 | FIXED KNIFE | |
| 23-19 | 06-601 | SCREW | |
| 23-20 | 85-105 | SCREW | |
| 23-21 | 06-630 | PLATE | |
| 23-22 | 06-602 | PLATE | |
| 23-23 | 06-605 | PLATE | |
| 23-24 | 06-603 | LEAF SPRING (LIGHT) | |
| 23-25 | 06-604 | PLATE | |
| 23-26 | 06-608 | LEAF SPRING (HEAVY) | |
| 23-27 | 87-113 | PLATE | |
| 23-28 | 00-8060 | SCREW | |
| 23-29 | 00-8062 | THREAD TRIM ASS'Y (WITHOUT CYLINDER) | |
| 23-30 | 00-8063 | THREAD TRIM ASS'Y (WITH CYLINDER) | |
| 23-31 | 84-566 | AIR CYLINDER SETS | |
| 23-32 | 75-456 | SCREW | |
| 23-33 | 75-452 | WASHER | |
| 23-34 | 87-171 | WASHER | |
| 23-35 | 75-527 | BOLT | |
| 23-36 | 06-361 | WASHER | |
| 23-37 | 87-203 | RACKET | |
| 23-38 | 26-712 | SCREW | |
| 23-39 | 06-368 | BRACKET | |
| 23-40 | 21-764 | RACKET | |
| 23-41 | 87-177 | HEAD COVER | |
| 23-42 | 75-468 | SCREW |
Page 27 — 24. 上飾り糸切装置 (電気式) SPREADER THREAD TRIMMING MECHANISM (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24-01 | 06-367 | SPRING | 1 |
| 24-02 | 06-369 | COVER | |
| 24-03 | 06-370 | HANGER | |
| 24-04 | 87-080 | SCREW | |
| 24-05 | 06-371 | LEVER | |
| 24-06 | 06-372 | ROLLER | |
| 24-07 | 06-373 | BASE PLATE | |
| 24-08 | 06-350 | TOP PLATE | |
| 24-09 | 06-376 | SOLENOID | |
| 24-10 | 06-374 | SCREW | |
| 24-11 | 06-375 | WASHER | |
| 24-12 | 75-455 | WASHER | |
| 24-13 | 84-571 | SCREW | |
| 24-14 | 84-361 | SCREW | |
| 24-15 | 75-468 | WASHER | |
| 24-16 | 88-146 | NUT | |
| 24-17 | 87-112 | SCREW | |
| 24-18 | 86-311 | NUT | |
| 24-19 | 06-354 | BRACKET | |
| 24-20 | 06-351 | TRIMMING KNIFE | |
| 24-21 | 85-101 | SCREW | |
| 24-22 | 05-881 | WASHER (LARGE) | |
| 24-23 | 05-882 | WASHER (SMALL) | |
| 24-24 | 06-352 | BRACKET | |
| 24-25 | 84-360 | SCREW | |
| 24-26 | 06-605 | LEAF SPRING (LIGHT) | |
| 24-27 | 06-603 | PLATE | |
| 24-28 | 06-604 | LEAF SPRING (HEAVY) | |
| 24-29 | 06-608 | PLATE | |
| 24-30 | 06-630 | PLATE | |
| 24-31 | 06-602 | PLATE | |
| 24-32 | 06-632 | FIXED KNIFE | |
| 24-33 | 06-601 | SCREW | |
| 24-34 | 85-106 | SCREW | |
| 24-35 | 85-102 | SCREW | |
| 24-36 | 85-105 | SCREW | |
| 24-37 | 23-511 | CUSHION GOM | |
| 24-38 | 00-8069 | ELECTRIC TRIM ASS'Y (SOLENOID ATTACHED) | |
| 24-39 | 84-566 | SCREW | |
| 24-40 | 75-456 | WASHER | |
| 24-41 | 75-452 | WASHER | |
| 24-42 | 87-171 | BOLT | |
| 24-43 | 75-527 | WASHER | |
| 24-44 | 06-361 | BRACKET | |
| 24-45 | 87-203 | SCREW | |
| 24-46 | 26-712 | BRACKET | |
| 24-47 | 06-368 | BRACKET | |
| 24-48 | 21-764 | HEAD COVER | |
| 24-49 | 87-177 | SCREW | |
| 24-50 | 06-928 | CLAMP | |
| 24-52 | 88-166 | NUT | |
| 24-53 | 87-277 | SCREW | |
| 24-54 | 00-8070 | ELECTRIC TRIM ASS'Y (WITHOUT SOLENOID) |
Page 28 — 25. 上糸払い装置 THREAD WIPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25-01 | 06-491 | BRACKET | 1 |
Page 29 — 26. 押え揚げ装置, レギュレーターセット, 膝スイッチ機構 FOOT LIFTER MECHANISM, REGULATOR SETS, KNEE SWITCH MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26-01 | 00-8028 | FOOT LIFTER SOLENOID ASS'Y | 1 |
Page 30 — 27-1. 配管, 配線図 (エア一式) WIRING AND PIPING (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 00-8062 | spreader thread trimming mechanism (RX9800) | ||
| 00-8045 | thread wiper mechanism (RX9700) | ||
| 00-6082 | presser foot lifter cylinder ass'y | ||
| 00-6106 | air cylinder assembly (UTC-A) | ||
| 05-212 | regulator |
Page 31 — 27-2. 配線図(電気式) CORD CONNECTION (ELECTRIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 00-8069 | spreader thread trimming mechanism | ||
| 00-8028 | presser foot lifter solenoid ass'y | ||
| 00-6031 | solenoid assembly (UTC-E) | ||
| 00-8045 | wiper mechanism ass'y | ||
| 53-257 | relay cord |
Page 32 — 27-3. 配管, 配線図 (ALK, PHK エアー式) WIRING AND PIPING (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 00-8062 | spreader thread trimming mechanism (RX9800) | ||
| 00-8045 | thread wiper mechanism (RX9700) | ||
| 00-6082 | presser foot lifter cylinder ass'y | ||
| 00-6107 | air cylinder assembly (UTC-A) | ||
| 05-212 | regulator | ||
| 00-8018 | dust bag assembly |
Page 33 — 27-4. 配管, 配線図 (PLK エアー式) WIRING AND PIPING (PNEUMATIC TYPE)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 00-8062 | spreader thread trimming mechanism (RX9800) | ||
| 00-8045 | thread wiper mechanism (RX9700) | ||
| 00-6082 | presser foot lifter cylinder ass'y | ||
| 00-6107 | air cylinder assembly (UTC-A) | ||
| 05-212 | regulator | ||
| 00-8018 | dust bag assembly |
Page 34 — 28. テーブル関係 TABLE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 28-01 | 21-027 | FLAT TABLE | 1 |
| 28-02 | 23-509 | CUSHION RUBBER | 4 |
| 28-03 | 93-501 | U-RING | 4 |
| 28-04 | 42-501 | SCREW | 4 |
| 28-05 | 75-536 | WASHER | 4 |
| 28-06 | 75-527 | WASHER | 4 |
| 28-07 | 88-166 | NUT | 4 |
| 28-08 | 21-025 | WITH ASSISTANCE TABLE | 1 |
| 28-09 | 21-026 | SEMI SUBMERGED TABLE | 1 |
| 28-10 | 25-524 | SUPPORTING BOARD | 2 |
| 28-11 | 87-901 | SCREW | 3 |
| 28-12 | 42-503 | NUT | 4 |
| 28-13 | 42-507 | SPACER | 4 |
| 28-14 | 75-535 | WASHER | 12 |
| 28-15 | 42-509 | SWING PROOF RUBBER COLLAR | 4 |
| 28-16 | 42-508 | SWING PROOF RUBBER | 4 |
| 28-17 | 87-281 | BOLT | 4 |
| 28-18 | 21-629 | COVER | 1 |
Page 35 — 29. 糸立て及びアクセサリー関係 THREAD STAND AND ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 29-01 | 00-6102 | KNEE SWITCH ASS'Y | 1 |
| 29-02 | 00-6105 | BRACKET ASS'Y | 1 |
| 29-03 | 00-8014 | TREADLE AIR SWITCH ASSEMBLY | 1 |
| 29-04 | 00-8018 | FABRIC BAG ASSEMBLY | 1 |
| 29-05 | 05-212 | REGULATOR | 1 |
| 29-06 | 05-215 | JOINT | 1 |
| 29-07 | 05-217 | JOINT | 1 |
| 29-08 | 05-221 | SPEED CONTROLER | 2 |
| 29-09 | 05-224 | JOINT | 1 |
| 29-10 | 05-482 | JOINT | 1 |
| 29-11 | 06-516 | CONNECTOR | 1 |
| 29-12 | 06-517 | CONNECTOR | 1 |
| 29-13 | 20-0010 | ACCESSORIES | 1 |
| 29-14 | 28-454 | DRIVER(SMALL) | 1 |
| 29-15 | 28-612 | SILICON OIL | 1 |
| 29-16 | 28-613 | OIL | 1 |
| 29-17 | 28-614 | OILER | 1 |
| 29-18 | 28-615 | OIL FUNNEL | 1 |
| 29-19 | 28-920 | CHAIN | 1 |
| 29-20 | 28-318 | SCREWDRIVER | 1 |
| 29-22 | 13-0110-6 | NEEDLE UY×128GAS #11 | 1 |
| 29-23 | 13-0140-6 | NEEDLE UY×128GAS #14(RX-CHD) | 1 |
| 29-24 | 13-3020-5 | NEEDLE (9804D-6.4mm) #10S | 1 |
| 29-25 | 13-1510-5 | NEEDLE TV×5 #21(RX9701J) | 1 |
| 29-26 | 42-706 | THREAD STAND ASSEMBLY | 1 |
| 29-27 | 42-712 | THREAD STAND ASSEMBLY | 1 |
| 29-28 | 28-452 | DRIVER(LARGE) | 1 |
| 29-29 | 28-011 | TWEZERS | 1 |
| 29-30 | 28-317 | ALLEN KEY (1.5mm) | 1 |
| 29-31 | 28-311 | ALLEN KEY (2mm) | 1 |
| 29-32 | 28-312 | ALLEN KEY (2.5mm) | 1 |
| 29-33 | 28-313 | ALLEN KEY (3mm) | 1 |
| 29-34 | 28-314 | ALLEN KEY (5mm) | 1 |
| 29-35 | 87-104 | SCREW | 5 |
Page 36 — 30, Aタイプ, Cタイプ, Pタイプ 生地ガイド関係 / FABRIC GUIDE FOR MODEL A, C, P
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 30-01 | 26-556 | HEMMING GUIDE (LEFT) | 1 |
| 30-02 | 26-557 | HEMMING GUIDE (RIGHT) | 1 |
| 30-03 | 26-558 | FOLDER CHIP | 1 |
| 30-04 | 87-105 | SCREW | 1 |
| 30-05 | 75-455 | WASHER | 1~2 |
| 30-06 | 84-574 | SCREW | 1~2 |
| 30-07 | 26-824 | GUIDE SUPPORT | 1 |
| 30-08 | 26-825 | GUIDE PLATE | 1 |
| 30-09 | 84-566 | SCREW | 2 |
| 30-10 | 26-826 | EDGE GUIDE (LEFT) | 1 |
| 30-11 | 26-827 | EDGE GUIDE (RIGHT) | 1 |
| 30-12 | 84-167 | SCREW | 1 |
| 30-13 | 84-193 | SCREW | 1 |
| 30-14 | 26-829 | EDGE GUIDE (RIGHT) | 1 |
| 30-15 | 26-828 | EDGE GUIDE (LEFT) | 1 |
| 30-18 | 26-559 | EDGE GUIDE | 1 |
| 30-19 | 85-611 | SCREW | 1 |
Page 37 — 31. 左メス機構 LEFT KNIFE FABRIC TRIMMER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 07-562 | |||
| 71-755 | |||
| 87-181 | |||
| 23-425 | |||
| 81-558 | |||
| 81-537 | |||
| 71-253 | |||
| 87-095 | |||
| 87-213 | |||
| 87-171 | |||
| 07-557 | |||
| 07-558 | |||
| 87-097 | |||
| 07-545 | |||
| 07-544 | |||
| 87-113 | |||
| 07-563 | |||
| 87-096 | |||
| 67-531 | |||
| 79-568 | |||
| 75-561 | |||
| 07-543 | |||
| 04-502 | |||
| 87-214 | |||
| 88-166 | |||
| 75-452 | |||
| 67-527 | |||
| 87-286 | |||
| 07-561 | |||
| 23-540 | |||
| 93-620 | |||
| 71-724 | |||
| 07-564 | |||
| 14-088 | |||
| 87-145 | |||
| 25-522 | |||
| 84-515 | |||
| 86-311 | |||
| 51-849 | |||
| 84-158 | |||
| 23-124 | |||
| 21-739 | |||
| 07-569 | |||
| 07-570 | |||
| 21-638 | |||
| 84-574 | |||
| 71-253 | |||
| 79-512 | |||
| 87-177 | |||
| 21-755 | |||
| 26-564 | |||
| 87-284 | |||
| 75-468 | |||
| 51-827 | |||
| 51-850 | |||
| 50-8270 | |||
| 87-295 | |||
| 87-415 |
Page 38 — 32. ALK専用部品 MODEL ALK EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 32-01 | 26-567 | GUIDE (LEFT) | 1 |
| 32-02 | 85-611 | SCREW | 1 |
| 32-03 | 26-568 | BLOCK | 1 |
| 32-04 | 26-565 | GUIDE (RIGHT) | 1 |
| 32-05 | 75-468 | WASHER | 7 |
| 32-06 | 87-284 | SCREW | 4 |
| 32-07 | 26-566 | BRACKET (RIGHT) | 1 |
| 32-08 | 21-752 | FRONT PLATE | 1 |
| 32-09 | 84-464 | SCREW | 2 |
| 32-10 | 84-575 | SCREW | 1 |
| 32-11 | 79-912 | SPRING | 1 |
| 32-12 | 21-743 | FRONT COVER | 1 |
| 32-13 | 25-517 | SCREW | 1 |
| 32-14 | 79-922 | FLAT SPRING | 2 |
| 32-15 | 25-527 | SCREW | 1 |
| 32-16 | 25-516 | HINGE | 1 |
| 32-17 | 87-274 | SCREW | 2 |
| 32-18 | 87-214 | SCREW | 2 |
| 32-19 | 86-311 | NUT | 1 |
| 32-20 | 84-635 | SCREW | 1 |
| 32-21 | 87-129 | SCREW | 2 |
| 32-22 | 21-737 | COVER | 1 |
| 32-23 | 87-272 | SCREW | 2 |
| 32-24 | 26-570 | FABRIC GUIDE (RIGHT) | 1 |
| 32-25 | 21-767 | SLIDE COVER | 1 |
| 32-26 | 07-549 | PIPE BAND | 1 |
| 32-27 | 07-548 | BRACKET | 1 |
| 32-28 | 07-547 | PIPE | 1 |
| 32-29 | 07-573 | BELT | 1 |
| 32-30 | 07-572 | HOSE | 1 |
| 32-31 | 07-542 | CLAMP | 2 |
| 32-32 | 87-905 | SCREW | 4 |
| 32-33 | 26-571 | PIPE | 1 |
| 32-34 | 87-177 | SCREW | 2 |
| 32-35 | 87-409 | SCREW | 1 |
| 32-38 | 06-935 | CLAMP | 1 |
| 32-39 | 39-131 | CLAMP | 1 |
| 32-40 | 87-096 | SCREW | 2 |
Page 39 — 33. PLK専用部品 MODEL PLK EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 87-270 | |||
| 09-533 | |||
| 09-534 | |||
| 09-537 | |||
| 09-538 | |||
| 09-539 | |||
| 87-145 | |||
| 09-541 | |||
| 75-453 | |||
| 88-157 | |||
| 09-540 | |||
| 06-556 | |||
| 05-202 | |||
| 09-504 | |||
| 09-506 | |||
| 75-108 | |||
| 84-521 | |||
| 87-098 | |||
| 79-912 | |||
| 09-536 | |||
| 75-457 | |||
| 87-213 | |||
| 26-571 | |||
| 87-096 | |||
| 00-6068 | |||
| 84-635 | |||
| 86-311 | |||
| 21-743 | |||
| 25-522 | |||
| 21-752 | |||
| 84-464 | |||
| 87-284 | |||
| 75-468 | |||
| 87-267 | |||
| 75-410 | |||
| 26-566 | |||
| 09-543 | |||
| 09-544 | |||
| 21-767 | |||
| 87-129 | |||
| 21-737 | |||
| 26-570 | |||
| 87-272 | |||
| 07-548 | |||
| 07-549 | |||
| 07-547 | |||
| 87-177 | |||
| 87-409 | |||
| 07-573 | |||
| 07-572 | |||
| 07-542 | |||
| 87-905 | |||
| 05-981 | チューブ $6X600mm | ||
| 26-569 |
Page 40 — 34. ゴム張り機構, GUIDE ROLLER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 09-145 | |||
| 09-147 | |||
| 09-519 | |||
| 09-521 | |||
| 09-522 | |||
| 09-523 | |||
| 09-524 | |||
| 09-525 | |||
| 09-526 | |||
| 09-527 | |||
| 09-528 | |||
| 09-529 | |||
| 09-530 | |||
| 09-531 | |||
| 09-553 | |||
| 09-603 | |||
| 09-614 | |||
| 09-615 | |||
| 09-616 | |||
| 09-617 | |||
| 09-618 | |||
| 09-619 | |||
| 09-620 | |||
| 09-727 | |||
| 52-177 | |||
| 75-451 | |||
| 75-452 | |||
| 75-453 | |||
| 75-527 | |||
| 84-521 | |||
| 84-570 | |||
| 87-106 | |||
| 87-172 | |||
| 87-203 | |||
| 87-213 | |||
| 87-501 | |||
| 87-502 | |||
| 87-503 | |||
| 87-663 | |||
| 88-176 | |||
| 91-110 | |||
| 93-228 | 軸用S形止め輪 | ||
| 93-238 | 穴用C形止め輪呼び 26 |
Page 41 — 35. RX9701J EXCLUSIVE PARTS MODEL RX9701J
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35-0109-015 | |||
| 35-0209-016 | ホルダ"-案内棒 (B) | ||
| 35-0309-017 | |||
| 35-0409-018 | |||
| 35-0509-019 | |||
| 35-0609-020 | ホルダ"-案内棒 (A) | ||
| 35-0709-021 | |||
| 35-0809-022 | |||
| 35-0909-023 | |||
| 35-1009-159 | |||
| 35-1218-010 | |||
| 35-1301-232 | |||
| 35-1487-409 | |||
| 35-1521-244 | |||
| 35-1621-798 | |||
| 35-1723-535 | |||
| 35-1825-522 | |||
| 35-1951-001 | |||
| 35-2051-824 | |||
| 35-2151-872 | |||
| 35-2251-875 | |||
| 35-2351-876 | |||
| 35-2461-016 | |||
| 35-2571-024 | |||
| 35-2671-025 | |||
| 35-2771-039 | |||
| 35-2875-013 | |||
| 35-2975-090 | |||
| 35-3175-452 | |||
| 35-3275-455 | |||
| 35-3379-021 | |||
| 35-3484-314 | |||
| 35-3684-574 | |||
| 35-3784-585 | |||
| 35-3884-616 | |||
| 35-3987-016 | |||
| 35-4087-113 | |||
| 35-4187-129 | |||
| 35-4287-177 | |||
| 35-4387-267 | |||
| 35-4475-105 | |||
| 35-4587-274 | |||
| 35-4688-146 | |||
| 35-4788-157 | |||
| 35-4809-506 | |||
| 35-4984-361 |
Page 42 — 36. RX9701JCD/UTC EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 36-0100-6102 | KNEE SWITCH ASS'Y | 1 | |
| 36-0200-6105 | BRACKET ASS'Y | 1 | |
| 36-0302-118 | WASHER | 1 | |
| 36-0405-202 | JOINT | 1 | |
| 36-0505-222 | CYLINDER | 1 | |
| 36-0605-481 | SPEED CONTROLER | 2 | |
| 36-0705-559 | AIR CYLINDER | 1 | |
| 36-0806-282 | AIR NOZZLE | 1 | |
| 36-0909-015 | BRACKET | 1 | |
| 36-1009-020 | GUIDE BAR(A) | 1 | |
| 36-1109-021 | BRACKET | 1 | |
| 36-1209-022 | GUIDE (LEFT) | 1 | |
| 36-1309-023 | GUIDE (RIGHT) | 1 | |
| 36-1409-024 | BRACKET | 1 | |
| 36-1509-025 | PLATE | 1 | |
| 36-1621-232 | COVER | 1 | |
| 36-1721-695 | BRACKET | 1 | |
| 36-1821-696 | EYE GUARD | 1 | |
| 36-1951-141 | FEED GRADUATIONS | 1 | |
| 36-2051-142 | CONDENSE LEVER | 1 | |
| 36-2151-143 | LOCK | 1 | |
| 36-2251-144 | COVER | 1 | |
| 36-2351-805 | COLLAR | 3 | |
| 36-2451-806 | SPRING | 1 | |
| 36-2551-807 | NUT | 1 | |
| 36-2651-808 | STOPPER | 1 | |
| 36-2751-846 | COLLAR | 2 | |
| 36-2875-105 | WASHER | 1 | |
| 36-2975-452 | WASHER | 2 | |
| 36-3075-453 | WASHER | 6 | |
| 36-3175-455 | WASHER | 1 | |
| 36-3275-456 | WASHER | 2 | |
| 36-3375-538 | WASHER | 1 | |
| 36-3484-396 | SCREW | 2 | |
| 36-3584-412 | SCREW | 1 | |
| 36-3684-314 | SCREW | 2 | |
| 36-3784-574 | SCREW | 4 | |
| 36-3884-585 | SCREW | 2 | |
| 36-3986-211 | NUT | 2 | |
| 36-4086-801 | NUT | 1 | |
| 36-4187-092 | BOLT | 2 | |
| 36-4287-113 | BOLT | 2 | |
| 36-4387-177 | BOLT | 2 | |
| 36-4487-252 | BOLT | 4 | |
| 36-4587-265 | BOLT | 2 | |
| 36-4687-267 | SCREW | 3 | |
| 36-4788-157 | NUT | 2 | |
| 36-4805-969 | SOLENOID VALVE ASS'Y | 1 | |
| 36-4905-932 | AIR TUBE φ4×1500mm | 1 | |
| 36-5005-938 | AIR TUBE φ4×450mm | 1 | |
| 36-5105-939 | AIR TUBE φ4×500mm | 1 | |
| 36-5200-8012 | AIR WIPER ASS' Y | 1 | |
| 36-5305-221 | SPEED CONTROLLER | 2 | |
| 36-5406-597 | PLUG | 2 | |
| 36-5509-506 | WASHER | 1 |
Page 43 — 37. PHK専用部品(1) MODEL PHK EXCLUSIVE PARTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 37-01 | 07-586 | BLOCK | 1 |
| 07-587 | |||
| 07-588 | |||
| 07-589 | |||
| 07-590 | |||
| 07-591 | |||
| 07-592 | |||
| 07-593 | |||
| 07-594 | |||
| 07-595 | Oリング | ||
| 07-596 | 下メス (厚み 1.5mm) | ||
| 07-597 | |||
| 07-599 | |||
| 07-610 | |||
| 07-612 | |||
| 07-613 | |||
| 07-614 | |||
| 07-615 | |||
| 07-616 | |||
| 07-617 | |||
| 23-124 | |||
| 23-341 | |||
| 23-512 | |||
| 23-554 | |||
| 23-566 | |||
| 67-536 | |||
| 71-253 | |||
| 71-596 | |||
| 71-634 | |||
| 71-648 | |||
| 71-650 | |||
| 75-561 | |||
| 79-558 | |||
| 79-559 | |||
| 79-568 | |||
| 81-576 | |||
| 81-577 | |||
| 84-463 | |||
| 87-010 | |||
| 87-092 | |||
| 87-106 | |||
| 87-123 | |||
| 87-181 | |||
| 87-213 | |||
| 87-214 | |||
| 87-234 | |||
| 87-253 | |||
| 87-271 | |||
| 87-276 | |||
| 87-278 | |||
| 93-195 | E形止め輪 | ||
| 93-506 |
Page 44 — 38. PHK專用部品(2) MODEL PHK EXCLUSIVE PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 38-01 | 07-542 | CLAMP | 2 |
| 38-02 | 07-572 | HOSE | 1 |
| 38-03 | 07-573 | BAND | 1 |
| 38-04 | 07-574 | PIPE | 1 |
| 38-05 | 07-575 | PLATE | 1 |
| 38-06 | 07-577 | ELASTIC TAPE GUIDE BAR | 1 |
| 38-07 | 07-578 | ELASTIC GUIDE | 1 |
| 38-08 | 07-579 | STOPPER | 1 |
| 38-09 | 07-580 | BRACKET | 1 |
| 38-10 | 07-581 | SCREW | 1 |
| 38-11 | 07-582 | GUIDE BAR | 1 |
| 38-12 | 07-619 | SHAFT | 1 |
| 38-13 | 07-620 | FABRIC GUIDE | 1 |
| 38-14 | 09-607 | PIN | 1 |
| 38-15 | 09-608 | CLAMP LEVER | 1 |
| 38-16 | 09-610 | BRACKET | 1 |
| 38-17 | 09-611 | COLLAR | 1 |
| 38-18 | 09-612 | FRONT ROLLER | 1 |
| 38-19 | 09-613 | UPPER ROLLER SHAFT | 1 |
| 38-20 | 14-100 | NEEDLE SUPPORT BRACKET | 1 |
| 38-21 | 21-799 | COVER | 1 |
| 38-22 | 27-026 | SLIDE COVER | 1 |
| 38-23 | 27-027 | FRONT COVER | 1 |
| 38-24 | 27-028 | FRONT COVER | 1 |
| 38-25 | 75-441 | WASHER | 2 |
| 38-26 | 75-453 | WASHER | 1 |
| 38-27 | 75-455 | WASHER | 1 |
| 38-28 | 75-458 | WASHER | 2 |
| 38-29 | 75-468 | WASHER | 2 |
| 38-30 | 75-556 | COLLAR | 1 |
| 38-31 | 79-071 | SPRING | 1 |
| 38-32 | 84-314 | SCREW | 2 |
| 38-33 | 87-092 | BOLT | 2 |
| 38-34 | 87-099 | SCREW | 2 |
| 38-35 | 87-113 | BOLT | 2 |
| 38-36 | 87-172 | SCREW | 3 |
| 38-37 | 87-224 | BOLT | 2 |
| 38-38 | 87-274 | SCREW | 1 |
| 38-39 | 87-286 | SCREW | 5 |
| 38-40 | 87-905 | SCREW | 4 |
| 38-41 | 88-146 | NUT | 1 |
| 38-42 | 88-157 | NUT | 1 |
| 38-43 | 07-576 | BRACKET | 1 |
| 38-44 | 87-409 | SCREW | 1 |
Page 45 — 39. PMD (1), S. CC専用部品 MODEL PMD (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 39-01 | 01-156 | BRACKET | 1 |
| 39-02 | 01-157 | PLATE | 1 |
| 39-03 | 14-090 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 39-04 | 14-138 | NEEDLE PLATE SUPPORT BRACKET | 1 |
| 39-05 | 14-139 | BRACKET | 1 |
| 39-06 | 14-846 | NEEDLE PLATE | 1 |
| 39-07 | 15-861 | REAR FEED DOG | 1 |
| 39-08 | 15-862 | FRONT FEED DOG | 1 |
| 39-09 | 23-523 | GASKET | 1 |
| 39-10 | 26-556 | HEMMING GUIDE(LEFT) | 1 |
| 39-11 | 26-557 | HEMMING GUIDE(RIGHT) | 1 |
| 39-12 | 26-558 | FOLDER CHIP | 1 |
| 39-13 | 26-712 | WASHER | 1 |
| 39-14 | 26-822 | PLATE | 1 |
| 39-15 | 26-831 | EDGE GUIDE (LEFT) | 1 |
| 39-16 | 26-832 | EDGE GUIDE (RIGHT) | 1 |
| 39-17 | 26-833 | EDGE GUIDE (LEFT) | 1 |
| 39-18 | 26-834 | EDGE GUIDE (RIGHT) | 1 |
| 39-19 | 27-030 | COVER | 1 |
| 39-20 | 27-031 | PUSH BUTTON | 1 |
| 39-21 | 27-032 | STOP PLATE | 1 |
| 39-22 | 27-033 | OIL COVER | 1 |
| 39-23 | 27-034 | GUIDE PLATE | 1 |
| 39-24 | 27-035 | PLATE | 1 |
| 39-25 | 27-036 | PLATE | 1 |
| 39-26 | 27-037 | SIDE COVER | 1 |
| 39-27 | 27-169 | FRONT COVER | 1 |
| 39-28 | 27-170 | COVER | 1 |
| 39-29 | 71-136 | PIN | 2 |
| 39-30 | 71-253 | PIN | 2 |
| 39-31 | 75-455 | WASHER | * |
| 39-32 | 75-552 | WASHER | 2 |
| 39-33 | 79-549 | SPRING | 1 |
| 39-34 | 84-164 | SCREW | 2 |
| 39-35 | 84-193 | SCREW | 2 |
| 39-36 | 84-566 | SCREW | 2 |
| 39-37 | 84-574 | SCREW | 1 |
| 39-38 | 85-102 | SCREW | 4 |
| 39-39 | 85-181 | SCREW | 4 |
| 39-40 | 87-067 | BOLT | 2 |
| 39-41 | 87-090 | SCREW | 1 |
| 39-42 | 87-093 | SCREW | 2 |
| 39-43 | 87-096 | SCREW | 2 |
| 39-44 | 87-104 | SCREW | 1 |
| 39-45 | 87-105 | SCREW | 1 |
| 39-46 | 87-113 | BOLT | 2 |
| 39-47 | 87-188 | BOLT | 2 |
| 39-48 | 87-288 | SCREW | 4 |
Page 46 — 40. PMD (2)專用部品 MODEL (2) EXCLUSIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40-0101-102 | |||
| 40-0201-103 | |||
| 40-0401-132 | |||
| 40-0501-134 | |||
| 40-0601-136 | |||
| 40-0701-138 | |||
| 40-0801-141 | |||
| 40-0901-143 | |||
| 40-1001-145 | |||
| 40-1101-147 | |||
| 40-1201-153 | |||
| 40-1301-154 | |||
| 40-1401-155 | |||
| 40-1502-118 | |||
| 40-1605-954 | |||
| 40-1723-341 | |||
| 40-1827-168 | |||
| 40-1965-337 | |||
| 40-2066-131 | |||
| 40-2167-419 | |||
| 40-2267-533 | |||
| 40-2371-227 | |||
| 40-2471-350 | |||
| 40-2571-361 | |||
| 40-2671-362 | |||
| 40-2771-432 | |||
| 40-2875-446 | |||
| 40-2975-451 | |||
| 40-3075-468 | |||
| 40-3175-480 | |||
| 40-3275-552 | |||
| 40-3379-171 | |||
| 40-3479-912 | |||
| 40-3581-125 | |||
| 40-3684-162 | |||
| 40-3784-314 | |||
| 40-3884-365 | |||
| 40-3984-396 | |||
| 40-4086-701 | |||
| 40-4187-006 | |||
| 40-4287-129 | |||
| 40-4387-177 | |||
| 40-4487-181 | |||
| 40-4587-214 | |||
| 40-4687-253 | |||
| 40-4787-254 | |||
| 40-4887-255 | |||
| 40-4987-268 | |||
| 40-5087-287 | |||
| 40-5187-456 | |||
| 40-5288-161 | |||
| 40-5388-166 | |||
| 40-5488-456 | |||
| 40-5591-405 | |||
| 40-5693-200 |
Page 47 — 41. ゲージ関係 (1) GAUGE PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-820 | |||
| 41-02* | |||
| 12-849 | |||
| 41-04* | |||
| 13-3020-5 | |||
| 41-06* | |||
| 41-07* | |||
| 41-08* | |||
| 15-835 | |||
| 41-10* | |||
| 18-805 | |||
| 18-806 | |||
| 19-525 | |||
| 19-534 | |||
| 84-374 | |||
| 84-464 | |||
| 85-603 | |||
| 85-624 | |||
| 87-102 | |||
| 41-20* | |||
| 17-7680-A | |||
| 17-7680-B | |||
| 17-7680-K | |||
| 17-8190-J | |||
| 17-8190-J | |||
| 17-8190-G | |||
| 17-8190-G | |||
| 17-8190-J | |||
| 17-8430-A | |||
| 17-8430-B | |||
| 75-228 | |||
| 85-616 | |||
| 87-034 | |||
| 87-035 | |||
| 87-083 | |||
| 87-104 | |||
| 87-107 | |||
| 17-7680-L |
Page 48 — 42. ゲージ関係(2) GAUGE PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42-01 | ※ | NEEDLE HOLDER | 1 |
| 42-02 | ※ | NEEDLE | ※ |
| 42-03 | ※ | NEEDLE PLATE | 1 |
| 42-04 | 15-800 | FEED DOG | 1 |
| 42-05 | ※ | FRONT FEED DOG | 1 |
| 42-06 | ※ | REAR FEED DOG | 1 |
| 42-07 | 17-5530-A | SHANK | 1 |
| 42-08 | 17-5530-C | BOTTOM HOLDER | 1 |
| 42-09 | 17-5530-D | SPRING | 1 |
| 42-10 | 17-5530-F | SPRING | 1 |
| 42-11 | 17-5530-G | SPRING | 1 |
| 42-12 | 17-5530-H | GUIDE | 1 |
| 42-13 | 17-5530-I | NUT | 1 |
| 42-14 | 17-5530-J | SCREW | 1 |
| 42-15 | 17-5530-K | SCREW | 6 |
| 42-16 | 17-7760-D | PIN | 1 |
| 42-17 | 17-7760-F | GUIDE PIN | 1 |
| 42-18 | ※ | PRESSER FOOT ASSEMBLY | 1 |
| 42-19 | 17-8000-A | BOTTOM(REAR) | 1 |
| 42-20 | 17-8000-B | BOTTOM(FRONT) | 1 |
| 42-21 | ※ | BOTTOM | 1 |
| 42-22 | 17-8120-E | GUIDE | 1 |
| 42-23 | 17-8120-F | GUIDE PLATE(S) | 1 |
| 42-24 | 17-8120-G | GUIDE PLATE(L) | 1 |
| 42-25 | 17-8140-D | GUIDE PLATE | 1 |
| 42-26 | 17-8190-A | SHANK | 1 |
| 42-27 | 17-8190-D | SPRING(LEFT) | 1 |
| 42-28 | 17-8190-F | SPRING | 1 |
| 42-29 | 17-8190-G | PIN | 1 |
| 42-30 | 17-8190-J | GUIDE PLATE | 1 |
| 42-31 | 17-8220-B | GUIDE | 1 |
| 42-32 | 17-8260-F | SPRING | 1 |
| 42-33 | 17-8260-G | PIN | 1 |
| 42-34 | 17-8290-D | SHANK | 1 |
| 42-35 | 17-9290-B | GUIDE | 1 |
| 42-36 | 17-9290-C | ELASTIC TAPE GUIDE | 1 |
| 42-37 | 17-9290-D | SPRING | 1 |
| 42-38 | 75-441 | WASHER | 1 |
| 42-39 | 79-191 | SPRING | 1 |
| 42-40 | 84-161 | SCREW | 1 |
| 42-41 | 84-167 | SCREW | 2 |
| 42-42 | 84-171 | SCREW | 1 |
| 42-43 | 84-360 | SCREW | 1 |
| 42-44 | 84-362 | SCREW | 1 |
| 42-45 | 84-374 | SCREW | 1～2 |
| 42-46 | 84-376 | SCREW | 1 |
| 42-47 | 84-382 | SCREW | 1 |
| 42-48 | 84-464 | SCREW | 2 |
| 42-49 | 85-611 | SCREW | 1 |
| 42-50 | 85-621 | SCREW | 2 |
| 42-51 | 87-083 | SCREW | 1 |
| 42-52 | 87-093 | SCREW | 2 |
| 42-53 | 87-104 | SCREW | ※ |
| 42-54 | 87-107 | SCREW | 2 |
| 42-55 | 87-113 | BOLT | 1 |
| 42-56 | 87-130 | SCREW | 1 |
| 42-57 | 88-136 | NUT | 1 |
Page 49 — 43. ゲージパーツ表 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A | 12-8060-1 | 2 | |
| A | 12-8080-1 | 2 | |
| A | 12-8080-1 | 2 | |
| A | 12-8090-1 | 2 | |
| A | 12-8100-1 | 2 | |
| A | 12-8200-1 | 2 | |
| A | 12-8180-1 | 3 | |
| A | 12-8190-1 | 3 | |
| D | 12-8490-1 | 4 | |
| D | 12-8180-1 | 3 | |
| D | 12-8190-1 | 3 | |
| C | 12-8090-1 | 2 | |
| C | 12-8100-1 | 2 | |
| CHD | 12-8180-1 | 3 | |
| CHD | 12-8190-1 | 3 | |
| AHD | 12-8180-1 | 3 | |
| AHD | 12-8190-1 | 3 | |
| DW | 12-8180-1 | 3 | |
| DW | 12-8190-1 | 3 | |
| CLW | 12-8180-1 | 3 | |
| CLW | 12-8190-1 | 3 | |
| CC | 12-8180-1 | 3 | |
| P, PE | 12-8070-1 | 2 | |
| P, PE | 12-8080-1 | 2 | |
| P, PE | 12-8200-1 | 2 | |
| P, PE | 12-8180-1 | 3 | |
| P, PE | 12-8190-1 | 3 | |
| ALK | 12-8070-1 | 2 | |
| ALK | 12-8080-1 | 2 | |
| ALK | 12-8200-1 | 2 | |
| ALK | 12-8180-1 | 3 | |
| ALK | 12-8190-1 | 3 | |
| ALK | 12-8190-1 | 2 | |
| PLK | 12-8180-1 | 3 | |
| PLK | 12-8080-1 | 3 | |
| PHK | 12-8180-1 | 3 | |
| PHK | 12-8190-1 | 3 | |
| PMD | 12-8180-1 | 3 | |
| PMD | 12-8190-1 | 3 |
Kansai Special RX9800 Series — parts catalog
- Page 1 (cover): This is the cover page for the RX Series parts catalog from KANSAI SPECIAL. It includes the series name, model numbers, publication dates, and a catalog number.
- Page 2 (toc): This page is a table of contents for the parts book, listing mechanisms and their corresponding page numbers.
- Page 3 (parts_list): This page lists parts for Frame Assembly (1), including part numbers, descriptions, and quantities for various components like plugs, screws, covers, and washers.
- Page 4 (diagram): This page displays a diagram of frame assembly components for an industrial sewing machine, with numbered parts corresponding to a detailed parts list.
- Page 5 (diagram): This page displays a diagram of frame assembly components, with a table listing part numbers, descriptions, and quantities for various parts.
- Page 6 (parts_list): This page lists parts for the Thread Tension Mechanism (Without UTC) with part numbers, descriptions, and quantities.
- Page 7 (diagram): This page displays a diagram of the bushing mechanism for a sewing machine, along with a parts list detailing components such as bushings, oil seals, and seal plugs with their respective part numbers and descriptions.
- Page 8 (parts_list): This page contains a parts list for the crankshaft mechanism, detailing part numbers, descriptions, and quantities for various components.
- Page 9 (diagram): This page displays a diagram of the looper mechanism, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 10 (parts_list): This page lists parts for the Feed Mechanism (1) of a sewing machine, including part numbers, descriptions, quantities, and reference numbers.
- Page 11 (parts_list): This page lists parts for the Feed Mechanism (2) of an industrial sewing machine, including screws, levers, pins, rods, bearings, and other components with their corresponding part numbers and quantities.
- Page 12 (diagram): This page displays a diagram of the looper thread mechanism with a parts list detailing part numbers, descriptions, and quantities.
- Page 13 (diagram): This page displays a diagram of the needle bar mechanism for 31mm and 33mm stroke sewing machines, along with a detailed parts list.
- Page 14 (diagram): This page contains a diagram of the needle thread mechanism for the RX 9800 sewing machine, along with a parts list detailing components such as screws, eyelets, washers, and guides.
- Page 15 (diagram): This page displays a diagram of the spreader drive mechanism, with a table listing parts including their reference numbers, part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of the presser foot mechanism, with numbered parts and a corresponding parts list detailing part numbers, names, and descriptions.
- Page 17 (diagram): This page displays a diagram of the lubrication mechanism (1) with a corresponding parts list detailing components such as O-rings, filters, screws, bolts, and pump assemblies.
- Page 18 (diagram): This page displays a diagram of the lubrication mechanism (2) for an industrial sewing machine, along with a detailed parts list.
- Page 19 (parts_list): This page contains a parts list for the rear puller mechanism (1), detailing part numbers, descriptions, and quantities for various components.
- Page 20 (parts_list): This page lists parts for the rear puller mechanism (2), including various gears, shafts, screws, and other components with their corresponding part numbers and descriptions.
- Page 21 (diagram): This page displays a diagram of the rear puller mechanism (3) for the PHK model, along with a detailed parts list.
- Page 22 (diagram): This page displays a diagram of the 19. Upper Knife Mechanism (UTC) with a corresponding parts list detailing reference numbers, part numbers, descriptions, and quantities.
- Page 23 (parts_list): This page contains a parts list for the UTC Thread Trimming Mechanism (Pneumatic Type), listing part numbers, descriptions, and quantities for various components.
- Page 24 (diagram): This page displays a diagram of the UTC electric type thread trimming mechanism, along with a detailed parts list including part numbers, descriptions, and quantities.
- Page 25 (parts_list): This page contains a parts list for the RX9703 and RX9803 thread tension mechanisms, detailing part numbers, descriptions, and quantities.
- Page 26 (parts_list): This page lists parts for the Spreader Thread Trimming Mechanism (Pneumatic Type), including part numbers, descriptions, quantities, and reference numbers.
- Page 27 (diagram): This page displays a diagram of the Spreader Thread Trimming Mechanism (Electric Type) with numbered parts and a corresponding parts list.
- Page 28 (diagram): This page shows a diagram of the thread wiper mechanism, with a corresponding parts list detailing part numbers, descriptions, and quantities.
- Page 29 (parts_list): This page lists parts for foot lifter mechanisms, regulator sets, and knee switch mechanisms, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of the wiring and piping for a pneumatic type sewing machine, along with a parts list detailing components like spreader thread trimming mechanism, thread wiper mechanism, presser foot lifter cylinder, air cylinder assembly, and regulator.
- Page 31 (diagram): This page displays a diagram illustrating the cord connection for an electric type sewing machine, along with a parts list detailing various components and their descriptions.
- Page 32 (diagram): This page displays a diagram of pneumatic wiring and piping for sewing machine models RX9800 and RX9700, along with a parts list detailing components such as spreader thread trimming mechanism, thread wiper mechanism, and regulator.
- Page 33 (diagram): This page displays a diagram of the wiring and piping for a pneumatic type machine, along with a parts list detailing components such as spreader thread trimming mechanisms, thread wiper mechanisms, and presser foot lifter cylinders.
- Page 34 (parts_list): This page contains a parts list for table components, including flat type and semi-submerged type tables, with part numbers, descriptions, and quantities.
- Page 35 (diagram): This page displays a diagram of thread stand and accessories, along with a detailed parts list for various components including switches, regulators, and tools.
- Page 36 (parts_list): This page lists parts for fabric guides for models A, C, and P, including part numbers, descriptions, and quantities.
- Page 37 (diagram): This page displays a diagram of the left knife fabric trimmer, with a table listing part numbers, descriptions, and quantities for various components.
- Page 38 (parts_list): This page lists parts for ALK exclusive parts for model ALK, including part numbers, descriptions, and quantities.
- Page 39 (parts_list): This page lists parts for PLK exclusive parts for Model PLK, including part numbers, descriptions, and quantities.
- Page 40 (parts_list): This page contains a parts list for the GUIDE ROLLER MECHANISM, with part numbers, descriptions, and quantities for various components.
- Page 41 (parts_list): This page contains a parts list for the 35-RX9701J model, detailing part numbers, descriptions, and quantities for various components including brackets, bars, plates, screws, and shafts.
- Page 42 (parts_list): This page contains a parts list for the RX9701JCD/UTC exclusive parts, detailing part numbers, descriptions, quantities, and reference numbers.
- Page 43 (parts_list): This page contains a parts list for model PHK exclusive parts (1), including reference numbers, part numbers, descriptions, and quantities.
- Page 44 (parts_list): This page lists parts for PHK exclusive parts (2) with part numbers, descriptions, and quantities.
- Page 45 (parts_list): This page lists parts for Model PMD(1), Model RX-S, and Model RX-CC, including part numbers, descriptions, and quantities.
- Page 46 (parts_list): This page lists exclusive parts for model PMD (2), including part numbers, descriptions, and quantities.
- Page 47 (parts_list): This page lists parts for gauge components, including part numbers, descriptions, and quantities, with specific models indicated for some parts.
- Page 48 (parts_list): Parts table for section 42, Gauge Parts (2), listing reference numbers, maker part numbers, Japanese and English names, and quantities for presser feet, feed dogs, guides, springs, pins and screws.
- Page 49 (parts_list): This page lists gauge parts for RX and ALK models, including part numbers, descriptions, and quantities.
