Page 1 — EX2200 Series High Speed Double Chainstitch Machine Parts Catalog
EX2200 EX2200 Series 高速二重環縫いミシン High speed double chainstitch machine Parts Catalog PEGASUS® jintex.in
Parts index — Pegasus EX2200tap a row to open its page
Page 2
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| EX2241-52P2/083 | |||
| EX2241-42P2/083 | |||
| EX2242-52P2/083 | |||
| EX2241-32P1/063 | |||
| EX2241-32P2/063 | |||
| EX2241-02/083 |
Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2010020 | SPRING PIN | 1 |
| 2 | 2101940 | INDICATOR GUIDE | 1 |
| 3 | 2402990 | SPRING PIN | 1 |
| 4 | 270008-910 | BRACKET ASSEMBLY | 1 |
| 5 | 0045110 | BOLT | 2 |
| 6 | 2700470 | BED PIN | 4 |
| 7 | 2090840 | PLUG | 1 |
| 8 | 2755410 | FILTER | 1 |
| 9 | 2755400 | PLUG | 1 |
Page 7 — カバー機構 (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270020-SD0 | TOP COVER | 1 |
| 2 | 007022A0 | SCREW | 4 |
| 3 | 2700210 | GASKET | 1 |
| 4 | 2403050 | CUSHION RUBBER | 3 |
| 5 | 179107-050 | OIL SIGHT WINDOW | 1 |
| 6 | 2401100 | PLUG | 1 |
| 7 | 0070440 | SCREW | 4 |
| 8 | 270024-9U0 | BELT COVER ASSEMBLY | 1 |
| 9 | 270077-UB0 | BELT COVER | 1 |
| 10 | 2403050 | CUSHION RUBBER | 1 |
| 11 | 0071760 | SCREW | 3 |
| 12 | 2700250 | FAN COVER | 2 |
| 13 | 007019A0 | SCREW | 2 |
| 14 | 270011AUD0 | FRONT COVER (RIGHT) | 1 |
| 15 | 2700140 | HINGE | 1 |
| 16 | 007021A0 | SCREW | 3 |
| 17 | 2400430 | PIN | 1 |
| 18 | 0045430 | SCREW | 2 |
| 19 | 2403010 | SPRING | 1 |
| 20 | 2700180 | LATCH | 1 |
| 21 | 0070090 | SCREW | 1 |
| 22 | 270152A0 | LATCH | 1 |
| 23 | 007017A0 | SCREW | 1 |
| 24 | 2100440 | FLAT SPRING | 1 |
| 25 | 007017A0 | SCREW | 1 |
| 26 | 007018A0 | SCREW | 2 |
| 27 | 270013C0 | FRONT COVER (LEFT) | 1 |
| 28 | 270011-UD0 | FRONT COVER (RIGHT) | 1 |
| 29 | 0045740 | SCREW | 1 |
| 30 | 0045350 | SCREW | 1 |
| 31 | 2700170 | LATCH | 1 |
| 32 | 270013D0 | FRONT COVER (LEFT) | 1 |
| 33 | 2700130 | FRONT COVER (LEFT) | 1 |
Page 9 — カバー機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2700350 | クロスプレート (広巾) | 1 |
| 2 | 270035F911 | クロスプレート (広巾) | 1 |
| 3 | 2700420 | ブッシュ | 1 |
| 4 | 0045430 | 止ネジ/M4×4 | 1 |
| 5 | 2103070 | 波板座金 | 1 |
| 6 | 2041150 | 座金 | 1 |
| 7 | 007018A0 | 止ネジ/M4×6 | 1 |
| 8 | 2403050 | 防振ゴム | 1 |
| 9 | 270030-UB0 | 横カバー (広巾) | 1 |
| 10 | 007025A0 | 平ネジ/M4×20 | 1 |
| 11 | 2012520 | バネ座金 | 1 |
| 12 | 007018A0 | 平ネジ/M4×6 | 2 |
| 13 | 2403430 | 座金 | 2 |
| 14 | 2403050 | 防振ゴム | 1 |
| 15 | 2700490 | ラッチ | 1 |
| 16 | 0071800 | 平ネジ/M3.5×4.5 | 1 |
| 17 | 2700150 | 当板 | 2 |
| 18 | 0070770 | 皿ネジ/M4×7 | 1 |
| 19 | 2700430 | レバー | 1 |
| 20 | 0071720 | 段付ネジ/M4 | 1 |
| 21 | 2700440 | ネジリバネ | 1 |
| 22 | 2700450 | ブラケット | 1 |
| 23 | 2700190 | 布案内 | 1 |
| 24 | 007019A0 | 平ネジ/M4×8 | 2 |
| 25 | 2700330 | アイガード | 1 |
| 26 | 0070620 | 平ネジ/M3×6 | 2 |
| 27 | 2028750 | 座金 | 2 |
| 28 | 2700340 | ブラケット | 1 |
| 29 | 0070660 | 段付ネジ/M4 | 1 |
| 30 | 2103070 | 波板座金 | 2 |
| 31 | 2701770 | 上蓋 | 1 |
| 32 | 0070840 | 六角ボルト/M4×8 | 5 |
| 33 | 2700230 | ガスケット | 1 |
| 34 | 2700260 | 後蓋 | 1 |
| 35 | 0070200 | 平ネジ/M4×10 | 4 |
| 36 | 007023A0 | 平ネジ/M4×16 | 1 |
| 37 | 0048210 | 六角ナット/M4 | 1 |
| 38 | 2106790 | ピン | 2 |
| 39 | 2106790 | ピン | 2 |
| 40 | 2106790 | ピン | 2 |
Page 11 — CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270500A0 | クランク軸 | 1 |
| 2 | 0071510 | 止ネジ/M3.5×3 | 5 |
| 3 | 2705010 | バランスウエイト | 2 |
| 4 | 0070110 | 平ネジ/M3×8 | 4 |
| 5 | 2705030 | 段付ピン | 1 |
| 6 | 0045410 | 止ネジ/M6×8 | 1 |
| 7 | 2403400 | Oリング | 1 |
| 8 | 270507-910 | ボールベアリング (組) | 1 |
| 9 | 0045720 | 止ネジ/M5×10 | 1 |
| 10 | 0045140 | 止ネジ/M5×5 | 1 |
| 11 | 2403350 | 止メ輪 | 1 |
| 12 | 2129870 | ボールベアリング | 1 |
| 13 | 2115260 | ボールベアリング | 1 |
| 14 | 2403060 | 波板座金 | 1 |
| 15 | 2100560 | 油切り | 1 |
| 16 | 2100570 | Oリング | 1 |
| 17 | 2403400 | Oリング | 1 |
| 18 | 2115280 | ハウジング | 1 |
| 19 | 007020A0 | 平ネジ/M4×10 | 3 |
| 20 | 2705050 | ファン (組) | 1 |
| 21 | 270504-UD0 | プーリー | 1 |
| 22 | 0045410 | 止ネジ/M6×8 | 2 |
| 23 | 0045230 | 六角穴ボルト/M6×35 | 1 |
| 24 | 2042930 | バネ座金 | 1 |
| 25 | 2705100 | 段付ピン | 1 |
| 26 | 2705090 | 蓋 | 1 |
| 27 | 0070440 | 皿ネジ/M4×10 | 2 |
| 28 | 0070200 | 平ネジ/M4×10 | 1 |
| 29 | 2086270 | 油栓 | 1 |
| 30 | 270523A0 | スペーサー | 1 |
| 31 | 2705260 | プーリー蓋 | 1 |
Page 13 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529-9T0 | 糸調子(組) | 1 |
| 2 | 263543-TA | 調子ナット | 1 |
| 3 | 2084480 | ラチェット | 1 |
| 4 | 263544-TA | 受皿 | 1 |
| 5 | 2103190 | 調子皿 | 2 |
| 6 | 2084490 | フェルト | 1 |
| 7 | 005082A0 | 調子棒/C5 | 1 |
| 8 | 2010370 | 圧縮バネ(強) | 1 |
| 9 | 2750000 | 糸道 | 1 |
| 10 | 007018A0 | 平ネジ/M4×6 | 2 |
| 11 | 2750010 | 糸道 | 1 |
| 12 | 2028490 | 調子台 | 3 |
| 13 | 004009-1HC0 | 平ネジ/C5×7.5 | 2 |
| 14 | 004009-1HC0 | 平ネジ/C5×7.5 | 2 |
| 15 | 2028490 | 調子台 | 2 |
| 16 | 210529-9T0 | 糸調子(組) | 2 |
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 5 | EX2241 | ||
| 6 | EX2242 | ||
| 10 | EX2241-32P1, P2 | ||
| 11 | EX2241-32P1, P2 |
Page 15 — THREAD GUIDE & THREAD TAKEUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2750210 | ブラケット | 1 |
| 2 | 0070820 | 平ネジ/M4×8 | 2 |
| 3 | 2750220 | 糸道 | 1 |
| 4 | 0045430 | 止ネジ/M4×4 | 1 |
| 5 | 2750280 | 糸道 | 1 |
| 6 | 275028A0 | 糸道 | 1 |
| 7 | 0070170 | 平ネジ/M4×5 | 1 |
| 8 | 2750270 | 針糸繰り | 2 |
| 9 | 0070620 | 平ネジ/M3×6 | 1 |
| 10 | 2750650 | 糸道 | 1 |
| 11 | 0071200 | 平ネジ/M2×3 | 1 |
Page 17 — NEEDLE DRIVE MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 271000-920 | ロッド (組) CONNECTION ASSEMBLY | 1 |
| 2 | 007023A0 | 平ネジ/M4×16 SCREW | 2 |
| 3 | 2710010 | ピン PIN | 1 |
| 4 | 0045380 | 止ネジ/M4×6 SCREW | 1 |
| 5 | 271002-920 | クランク (組) CRANK ASSEMBLY | 1 |
| 6 | 0045330 | 六角穴ボルト/M6×12 BOLT | 1 |
| 7 | 2710030 | 軸 SHAFT | 1 |
| 8 | 2403080 | カラー COLLAR | 1 |
| 9 | 0045430 | 止ネジ/M4×4 SCREW | 2 |
| 10 | 2082350 | 座金 WASHER | 1 |
| 11 | 2025770 | 止メ輪 RING | 1 |
| 12 | 271004-920 | レバー LEVER | 1 |
| 13 | 0071500 | 六角ボルト/M6×12 BOLT | 1 |
| 14 | 271022A910 | 軸 (組) SHAFT ASSEMBLY | 1 |
| 15 | 271008A0 | 軸 SHAFT | 1 |
| 16 | 2021770 | 給油紐 OIL STRING | 2 |
| 17 | 0045460 | 止ネジ/M4×5 SCREW | 1 |
| 18 | 2010220 | Oリング O RING | 1 |
| 19 | 179009-050 | フェルト FELT | 1 |
| 20 | 271009-920 | リング RING | 1 |
| 21 | 0070350 | 平ネジ/M3×6 SCREW | 1 |
| 22 | 2403100 | 栓 PLUG | 1 |
Page 19 — NEEDLE DRIVE MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | 針留(組) | 1 |
| 2 | 0045540 | 止ネジ/M3×3 | 1 |
| 3 | 275019A0 | 糸道 | 1 |
| 4 | 0071200 | 平ネジ/M2×3 | 1 |
| 5 | XXXXXX | 針留 | 1 |
| 6 | 0045540 | 止ネジ/M3×3 | 2 |
| 7 | 2750300 | 糸道 | 1 |
| 8 | 0071190 | 皿ネジ/M2×5 | 1 |
| 9 | XXXXXX | 針留 | 1 |
| 10 | 0045540 | 止ネジ/M3×3 | 1 |
| 11 | 2750300 | 糸道 | 1 |
| 12 | 0071190 | 皿ネジ/M2×5 | 1 |
Page 20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | EX2242-52 | Unknown | |
| 14 | EX2241-32P1, P2 | Unknown | |
| 17 | EX2241-32P1, P2 | Unknown | |
| 15 | EX2242-52 | Unknown | |
| 15 | EX2241-32P1, P2 | Unknown | |
| 19 | EX2241-32P1, P2 | Unknown |
Page 21 — NEEDLE DRIVE MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | 針板 | 1 |
| 2 | 0071700 | 平ネジ/M4×7.5 | 2 |
| 3 | 2710100 | 取付板(前) | 1 |
| 4 | 007019A0 | 平ネジ/M4×8 | 2 |
| 5 | 2403050 | 防振ゴム | 2 |
| 6 | 2710110 | 取付板(後) | 1 |
| 7 | 007019A0 | 平ネジ/M4×8 | 2 |
| 8 | 007019A0 | 平ネジ/M4×8 | 1 |
| 9 | XXXXXX | 針受(前) | 1 |
| 10 | 0070100 | 平ネジ/M3×6 | 2 |
| 11 | XXXXXX | 針受(後) | 1 |
| 12 | 0070100 | 平ネジ/M3×6 | 2 |
| 13 | XXXXXX | 針受(前) | 1 |
| 14 | 0070190 | 平ネジ/M4×8 | 1 |
| 15 | XXXXXX | 針受(後) | 1 |
| 16 | 0070100 | 平ネジ/M3×6 | 2 |
| 17 | 2710240 | ブラケット | 1 |
| 18 | 0071140 | 平ネジ/M4×10 | 2 |
| 19 | 271013A0 | ブラケット | 1 |
Page 23 — DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 271500-920 | ロッド | 1 |
| 2 | 007023A0 | 平ネジ/M4×16 | 2 |
| 3 | 007022A0 | 平ネジ/M4×14 | 2 |
| 4 | 2715010 | 振レ止メ | 1 |
| 5 | 0070410 | 皿ネジ/M3×6 | 2 |
| 6 | 271504A0 | 軸 | 1 |
| 7 | 2403380 | 座金 | 1 |
| 8 | 0071740 | 六角ネジ/M5×10 | 1 |
| 9 | 3030670 | バネ座金 | 1 |
| 10 | 2090840 | 蓋 | 1 |
| 11 | 273511-920 | クランク | 1 |
| 12 | 0045330 | 六角穴ボルト/M6×12 | 1 |
| 13 | 0045140 | 止ネジ/M5×5 | 1 |
Page 25 — DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2735000 | ロッド | 1 |
| 2 | 205015-20 | ニードルベアリング | 1 |
| 3 | 2735010 | クランク | 1 |
| 4 | 2405420 | ブッシュ | 1 |
| 5 | 0070560 | 六角ネジ/M5×13 | 1 |
| 6 | 2400390 | 座金 | 1 |
| 7 | 2735020 | スライダー | 1 |
| 8 | 0045310 | 六角穴ボルト/M5×12 | 1 |
| 9 | 2400620 | 座金 | 1 |
| 10 | 3030670 | バネ座金 | 1 |
| 11 | 2525150 | 段付ピン | 1 |
| 12 | 2089490 | Oリング | 1 |
| 13 | 2735040 | 軸 | 1 |
| 14 | 273505-920 | ホルダー | 1 |
| 15 | 0045330 | 六角穴ボルト/M6×12 | 1 |
| 16 | 273509-920 | クランク | 1 |
| 17 | 0045330 | 六角穴ボルト/M6×12 | 1 |
| 18 | 2725170 | リンク | 1 |
| 19 | 2405420 | ブッシュ | 1 |
| 20 | 0070560 | 六角ネジ/M5×13 | 1 |
| 21 | 2400390 | 座金 | 1 |
| 22 | 2735060 | 軸 | 1 |
| 23 | 204052A0 | オイルシール | 1 |
| 24 | XXXXXX | 二重環ルーパー | 1 |
| 25 | 0070140 | 止ネジ/M3.5×10 | 1 |
| 26 | 273513-920 | ルーパ台 | 1 |
| 27 | 0070550 | 六角ネジ/M5×13 | 1 |
| 28 | XXXXXX | 二重環ルーパー | 1 |
| 29 | 0070130 | 平ネジ/M3.5×8 | 1 |
Page 26
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 24, 25 | EX2242 | Group of parts | |
| 1, 2, 23 | EX2241 | Group of parts | |
| 26, 27, 28, 29, 30 | EX2242 | Group of parts | |
| 5, 21 | EX2241 | Group of parts | |
| 22 | EX2242 | Group of parts |
Page 27 — DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1921200 | THREAD GUIDE PIPE | 1 |
| 2 | 007019A0 | SCREW | 1 |
| 3 | 2750320 | THREAD GUIDE PIPE | 1 |
| 4 | 2061150 | BRACKET | 2 |
| 5 | 2750330 | BRACKET | 1 |
| 6 | 0070660 | SCREW | 1 |
| 7 | 2103070 | WASHER | 2 |
| 8 | 0071671 | SCREW | 1 |
| 9 | 1371080 | TENSION DISC | 2 |
| 10 | 2113880 | SPRING | 1 |
| 11 | 2750340 | KNOB | 1 |
| 12 | 2750350 | THREAD GUIDE | 1 |
| 13 | 0070170 | SCREW | 1 |
| 14 | 2750360 | THREAD GUIDE | 1 |
| 15 | 0070080 | SCREW | 1 |
| 16 | 2750390 | THREAD GUIDE | 1 |
| 17 | 0070080 | SCREW | 1 |
| 18 | 179498-920 | LOOPER THREAD TAKE-UP ASSEMBLY | 1 |
| 19 | 0045540 | SCREW | 2 |
| 20 | 2750370 | FLAT SPRING | 1 |
| 21 | 2750380 | THREAD GUIDE | 1 |
| 22 | 275038A0 | THREAD GUIDE | 1 |
| 23 | 2061150 | BRACKET | 1 |
| 24 | 275066-910 | THREAD PIPE ASSEMBLY | 1 |
| 25 | 275061-910 | THREAD PIPE ASSEMBLY | 1 |
| 26 | 2750640 | BRACKET | 1 |
| 27 | 0071671 | SCREW | 2 |
| 28 | 1371080 | TENSION DISC | 4 |
| 29 | 2113880 | SPRING | 2 |
| 30 | 2750340 | KNOB | 2 |
Page 29 — FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2725000 | ロッド | 1 |
| 2 | 2710010 | ピン | 1 |
| 3 | 0045380 | 止ネジ/M4×6 | 1 |
| 4 | 240012-20 | ニードルベアリング | 1 |
| 5 | 2725010 | エキセン | 1 |
| 6 | 2101290 | 案内/送リエキセン | 1 |
| 7 | 2101300 | 板バネ | 1 |
| 8 | 0045350 | 止ネジ/M3×4 | 1 |
| 9 | 0045350 | 止ネジ/M3×4 | 1 |
| 10 | 272506-910 | 調節台 | 1 |
| 11 | 0045140 | 止ネジ/M5×5 | 2 |
| 12 | 272506A10 | エキセン(組) | 1 |
| 13 | 2725030 | ネジリバネ | 1 |
| 14 | 0070380 | 段付ネジ/M2 | 1 |
| 15 | 2725020 | ラチェット | 1 |
| 16 | 2725090 | プッシュボタン | 1 |
| 17 | 2403150 | ガスケット | 1 |
| 18 | 2403140 | 座金 | 1 |
| 19 | 2403170 | 圧縮バネ | 1 |
| 20 | 2005550 | 止メ輪 | 1 |
| 21 | 2725290 | リンク | 1 |
| 22 | 0070580 | 段付ネジ/M5 | 1 |
| 23 | 2025220 | 止メ輪 | 1 |
| 24 | 272530A920 | レバー | 1 |
| 25 | 0045330 | 六角穴ボルト/M6×12 | 1 |
| 26 | 2725320 | レバー | 1 |
| 27 | 0071610 | 段付ネジ/M5 | 1 |
| 28 | 272533A1 | 軸 | 1 |
| 29 | 2041850 | Oリング | 1 |
| 30 | 2725340 | ネジリバネ | 1 |
| 31 | 2725350 | 調節板 | 1 |
| 32 | 007021A0 | 平ネジ/M4×12 | 2 |
| 33 | 2403210 | スペーサー | 2 |
| 34 | 2520690 | ナット | 1 |
| 35 | 0070590 | 段付ネジ/M4.5 | 1 |
| 36 | 2113010 | バネ座金 | 1 |
| 37 | 2526580 | ストッパー | 2 |
| 38 | 007018A0 | 平ネジ/M4×6 | 2 |
| 39 | 3034480 | 座金 | 1 |
| 40 | 272538A0 | 調節棒 | 1 |
| 41 | 2403220 | シール | 1 |
| 42 | 2005550 | 止メ輪 | 1 |
| 43 | 2405590 | 圧縮バネ | 1 |
| 44 | 272539A0 | 段付ピン | 1 |
| 45 | 2063660 | Oリング | 1 |
Page 31 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2725160 | 軸 | ||
| 2050610 | 止メ輪 | ||
| 2081731 | 栓 | ||
| 2403110 | 座金 | ||
| 272510-910 | クランク | ||
| 0045330 | 六角穴ボルト/M6×12 | ||
| 0070100 | 平ネジ/M3×6 | ||
| 2725180 | 角駒 | ||
| 272514-921 | クランク | ||
| 0045330 | 六角穴ボルト/M6×12 | ||
| 2725151 | ピン | ||
| 0048050 | 六角ナット/M5 | ||
| 2400620 | 座金 | ||
| 2725250 | 段付ピン | ||
| 0072380 | 六角穴ボルト/M4×6 | ||
| 2403180 | ガスケット | ||
| 2403190 | 止メ輪 | ||
| 2010220 | Oリング | ||
| 2725260 | 角駒 | ||
| 2403030 | カラー | ||
| 0045430 | 止メネジ/M4×4 | ||
| 2725170 | リンク | ||
| 2405420 | ブッシュ | ||
| 0070560 | 六角ネジ/M5×13 | ||
| 2400390 | 座金 | ||
| 2725270 | 主送り台 | ||
| XXXXXX | 主送り歯 (組) | ||
| XXXXXX | 主送り歯 | ||
| XXXXXX | 補助送り歯 | ||
| 0070100 | 平ネジ/M3×6 | ||
| 0070130 | 平ネジ/M3.5×8 | ||
| 2725280 | 差動送り台 | ||
| XXXXXX | 差動送り歯 | ||
| 0070130 | 平ネジ/M3.5×8 | ||
| 2725240 | 角駒 | ||
| 2725190 | 送り台案内 (右) | ||
| 0071100 | 六角穴ボルト/M4×9 | ||
| 2725200 | 送り台案内 (左) | ||
| 0071100 | 六角穴ボルト/M4×9 | ||
| 2725210 | 油切り | ||
| 2726170 | 油切り案内 | ||
| 0045730 | 平ネジ/M4×5 |
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | BRACKET | |
| 2 | 2 | SCREW | |
| 3 | 3 | BRACKET | |
| 4 | 4 | SCREW | |
| 5 | 5 | COLLAR | |
| 6 | 6 | SCREW | |
| 7 | 7 | COLLAR | |
| 8 | 8 | SCREW | |
| 9 | 9 | SHAFT | |
| 10 | 10 | SCREW | |
| 11 | 11 | COLLAR | |
| 12 | 12 | SCREW | |
| 13 | 13 | BRACKET | |
| 14 | 14 | PLATE | |
| 15 | 15 | SCREW | |
| 16 | 16 | BRACKET | |
| 17 | 17 | SCREW | |
| 18 | 18 | BRACKET | |
| 19 | 19 | SCREW | |
| 20 | 20 | SPRING | |
| 21 | 21 | BRACKET | |
| 22 | 22 | SCREW | |
| 23 | 23 | PLATE | |
| 24 | 24 | BRACKET | |
| 25 | 25 | SCREW | |
| 26 | 26 | BRACKET |
Page 33 — KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 273000-920 | ロッド | 1 | |
| 007023A0 | 平ネジ/M4×16 | 2 | |
| 273001A920 | クランク | 1 | |
| 0045330 | 六角穴ボルト/M6×12 | 1 | |
| 2710010 | ピン | 1 | |
| 0045380 | 止ネジ/M4×6 | 1 | |
| 240235-920 | カラー | 1 | |
| 0045470 | 止ネジ/M6×5 | 1 | |
| 2730030 | 上メス台 | 1 | |
| 3080360 | ピン付ネジ | 1 | |
| 2730060 | 案内ピン | 1 | |
| 2730140 | 上メス挟ミ | 1 | |
| 0070250 | 平ネジ/M4×20 | 1 | |
| XXXXXX | 上メス | 1 | |
| 0070130 | 平ネジ/M3.5×8 | 1 | |
| 273009B0 | 下メス台 | 1 | |
| 0070190 | 平ネジ/M4×8 | 1 | |
| 2730100 | 案内/下メス台 | 1 | |
| 007019A0 | 平ネジ/M4×8 | 2 | |
| 2403240 | 圧縮バネ | 1 | |
| 2730070 | 当板 | 1 | |
| 007019A0 | 平ネジ/M4×8 | 1 | |
| XXXXXX | 下メス | 1 | |
| 2730120 | 下メス押エ | 1 | |
| 0071730 | 六角ボルト/M5×8 | 1 | |
| 2730130 | スペーサー | 1 |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 42 | EX2241-02 | EX2241-42P2 | |
| 41 | EX2241-02, -42P2 を除く | Except EX2241-02, -42P2 | |
| 26 | EX2241-02 を除く | Except EX2241-02 | |
| 40 | EX2241-02 | ||
| 43 | EX2241-32P1, P2 | ||
| 44 | EX2241-32P1, P2 を除く | Except EX2241-32P1, P2 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2740070 | レバー | 1 | |
| 0070600 | 段付ネジ/M10 | 1 | |
| 2740080 | ネジナリバネ | 1 | |
| 2740090 | ストッパー | 1 | |
| 007020A0 | 平ネジ/M4×10 | 2 | |
| 0071750 | 平ネジ/M5×24 | 1 | |
| 0048050 | 六角ナット/M5 | 1 | |
| 2740060 | リンク | 1 | |
| 2740040 | レバー | 1 | |
| 274003-921 | カラー | 1 | |
| 0045340 | 六角穴付ボルト/M6×14 | 1 | |
| 2740050 | ネジナリバネ | 1 | |
| 2740020 | ブッシュ | 1 | |
| 0071050 | 平ネジ/M4×40 | 1 | |
| 2740010 | 軸/押工台 | 1 | |
| 274000-B0 | 押工台 | 1 | |
| 2085490 | 平行ピン | 1 | |
| 0045940 | 平ネジ/M4×4 | 1 | |
| 274061-920 | ホルダ | 1 | |
| 0070130 | 平ネジ/M3.5×8 | 1 | |
| 274027A0 | フィンガーガード | 1 | |
| 2740580 | ネジナリバネ | 1 | |
| 0070090 | 平ネジ/M3×5 | 1 | |
| 0070080 | 平ネジ/M3×4 | 1 | |
| 274011-910 | 押工棒 | 1 | |
| 2087730 | 圧縮バネ | 1 | |
| 274014A1 | 調節ネジ | 1 | |
| 2740150 | ナット | 1 | |
| 2740160 | レバー | 1 | |
| 0071710 | 段付ネジ/M4 | 1 | |
| 2740170 | ネジナリバネ | 1 | |
| 2740100 | ストッパー | 1 | |
| 0070190 | 平ネジ/M4×4 | 1 | |
| 274026A0 | フィンガーガード | 1 | |
| 0070080 | 平ネジ/M3×4 | 2 | |
| XXXXXX | 小押工 | 1 | |
| 0012290 | 平ネジ/C3×4.5 | 1 | |
| 0011960 | 平ネジ/C3×6.5 | 2 | |
| 270083-9U0 | 側面カバー(組) | 1 | |
| 2403471 | 圧縮バネ | 1 | |
| 2740240 | ネジナリバネ | 1 | |
| 0071660 | 段付ネジ/M3 | 1 | |
| XXXXXX | 押工 | 1 | |
| XXXXXX | 押工(組) | 1 |
Page 36
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | SHAFT | |
| 2 | 2 | GEAR | |
| 3 | 3 | SCREW | |
| 4 | 4 | SHAFT | |
| 5 | 5 | GEAR | |
| 6 | 6 | HOUSING | |
| 7 | 7 | HOUSING | |
| 8 | 8 | SCREW | |
| 9 | 9 | SCREW | |
| 10 | 10 | HOUSING | |
| 11 | 11 | SCREW | |
| 12 | 12 | FILTER | |
| 13 | 13 | COVER | |
| 14 | 14 | SCREW | |
| 15 | 15 | O-RING | |
| 16 | 16 | BALL JOINT | |
| 17 | 17 | SCREW | |
| 18 | 18 | CLIP | |
| 19 | 19 | SHAFT | |
| 20 | 20 | BALL JOINT | |
| 21 | 21 | SCREW | |
| 22 | 22 | CLIP | |
| 23 | 23 | TUBE | |
| 24 | 24 | BALL JOINT | |
| 25 | 25 | SCREW | |
| 26 | 26 | BRACKET | |
| 27 | 27 | SCREW | |
| 28 | 28 | BRACKET | |
| 29 | 29 | WASHER | |
| 30 | 30 | SCREW | |
| 31 | 31 | BRACKET | |
| 32 | 32 | SHAFT | |
| 33 | 33 | SCREW | |
| 34 | 34 | SCREW | |
| 35 | 35 | CLAMP | |
| 36 | 36 | SCREW | |
| 37 | 37 | CLAMP | |
| 38 | 38 | BRACKET |
Page 37 — LUBRICATION MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 274505A910 | ポンプ | ||
| 2116180 | ウォームホイール | ||
| 0050600 | 止ネジ/C8×4.5 | ||
| 212978-910 | ローター (内) 軸 | ||
| 2129810 | ローター (外) | ||
| 2094080 | フィルタ | ||
| 2094090 | フィルタ | ||
| 0070120 | 平ネジ/M3.5×8 | ||
| 0045290 | 六角ボルト/M4×16 | ||
| 2745090 | タンク | ||
| 007022A0 | 平ネジ/M4×14 | ||
| 2062330 | 蓋 | ||
| 2745100 | 蓋 | ||
| 007018A0 | 平ネジ/M4×6 | ||
| 2403070 | Oリング | ||
| 2001360 | 継手 | ||
| 2403280 | 継手ネジ | ||
| 2021990 | クランプ | ||
| 2403270 | チューブ | ||
| 2001360 | 継手 | ||
| 2403280 | 継手ネジ | ||
| 2021990 | クランプ | ||
| 2401350 | チューブ | ||
| 2001360 | 継手 | ||
| 2403280 | 継手ネジ | ||
| 2021990 | クランプ | ||
| 2403340 | チューブ | ||
| 2745120 | 継手 | ||
| 2400200 | Oリング | ||
| 004210-HU0 | 平ネジ/M4×12 | ||
| 274515-910 | 油分配器 (組) | ||
| 2102140 | 栓 | ||
| 004211-HU0 | 平ネジ/M4×16 | ||
| 2403280 | 継手ネジ | ||
| 2094100 | クランプ | ||
| 0070110 | 平ネジ/M3×8 | ||
| 0048000 | 六角ナット | ||
| 2745250 | 給油案内 |
Page 38
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | CAP | |
| 2 | 2 | O-RING | |
| 3 | 3 | SHAFT | |
| 4 | 4 | BRACKET | |
| 5 | 5 | GASKET | |
| 6 | 6 | WASHER | |
| 7 | 7 | PLUG | |
| 8 | 8 | O-RING | |
| 9 | 9 | SCREW | |
| 10 | 10 | WASHER | |
| 11 | 11 | BASE | |
| 12 | 12 | COLLAR | |
| 13 | 13 | SPRING | |
| 14 | 14 | LEVER ASSEMBLY | |
| 15 | 15 | SPRING | |
| 16 | 16 | PIN | |
| 17 | 17 | SCREW | |
| 18 | 18 | LEVER ASSEMBLY | |
| 19 | 19 | WASHER | |
| 20 | 20 | SCREW |
Page 39 — LUBRICATION MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 274502A0 | オイルゲージ | ||
| 2300430 | Oリング | ||
| 210193A910 | オイル指示 | ||
| 2105100 | オイル指示受 | ||
| 004210-HU0 | 平ネジ/M4×12 | ||
| 274503-910 | オイルパン (組) | ||
| 005138B0 | 平ネジ/H11×12 | ||
| 202287A0 | ガスケット | ||
| 0045310 | 六角穴ボルト/M5×12 | ||
| 2403390 | 座金 | ||
| 2745010 | ガスケット | ||
| 2745070 | ウォーム | ||
| 0045140 | 止ネジ/M5×5 | ||
| 274516-910 | パイプ (組) | ||
| 2021750 | 給油紐 | ||
| 2400970 | 栓 | ||
| 0045430 | 止ネジ/M4×4 | ||
| 274523-910 | 継手 (組) | ||
| 2041850 | Oリング | ||
| 007019A0 | 平ネジ/M4×8 |
Page 40
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | EX2241-02 |
Page 41 — H.R.装置
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2755000 | シリコンタンク (上) | ||
| 2755010 | 蓋 | ||
| 2755080 | フェルト | ||
| 2755070 | 糸案内 | ||
| 007020A0 | 平ネジ/M4×10 | ||
| 2755040 | シリコンタンク (下) | ||
| 2755050 | 蓋 | ||
| 004210-HU0 | 平ネジ/M4×12 | ||
| 2021750 | 給油紐 | ||
| 2403310 | チューブ | ||
| 2001550 | クランプ | ||
| 275509A0 | 針冷却器 | ||
| 007019A0 | 平ネジ/M4×8 | ||
| 2102140 | 栓 | ||
| 2044660 | 給油フェルト | ||
| 2107660 | 止ピン |
Page 42
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 3-spool | ||
| 2 | 4-spool | ||
| 3 | Spring | ||
| 4 | Washer | ||
| 5 | Nut | ||
| 6 | Screw | ||
| 7 | Nut | ||
| 8 | Rod | ||
| 9 | Screw | ||
| 10 | Nut | ||
| 11 | Spool disc | ||
| 12 | Spool disc | ||
| 13 | Spool holder | ||
| 14 | Washer | ||
| 15 | Screw | ||
| 16 | Screw | ||
| 17 | Shaft | ||
| 18 | Bracket | ||
| 19 | Bracket | ||
| 20 | Bracket | ||
| 21 | Bracket | ||
| 22 | Screw | ||
| 23 | Screw | ||
| 24 | Rod | ||
| 25 | Screw | ||
| 26 | Nut | ||
| 27 | Bracket | ||
| 28 | Screw | ||
| 29 | Rod | ||
| 30 | Screw | ||
| 31 | Rod | ||
| 32 | Screw | ||
| 33 | Nut | ||
| 34 | Bracket | ||
| 35 | Bracket | ||
| 36 | Screw | ||
| 37 | Screw | ||
| 38 | Bracket | ||
| 39 | Cap |
Page 43 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 000486C9P0 | 糸立 (組) (3 本立) | ||
| 000486B9P0 | 糸立 (組) (4 本立) | ||
| 000503-PA0 | スタンド棒 (下) | ||
| 0005090 | 座金 | ||
| 0054760 | 六角ナット | ||
| 000505-PA0 | ブラケット (3本立) | ||
| 000505APA0 | ブラケット (2本立) | ||
| 000380A0 | 糸立棒 | ||
| 2012520 | バネ座金 | ||
| 0048030 | 六角ナット/M4 | ||
| 000381-PA0 | 受皿 | ||
| 0005070 | ウレタン | ||
| 000382-PA0 | 揺れ止め | ||
| 0071020 | 六角ネジ/M6×32 | ||
| 0005120 | 座金 | ||
| 0040220 | 平ネジ/M6×10 | ||
| 000502-PA0 | スタンド棒 (上) | ||
| 000504-PA0 | ジョイント | ||
| 0040210 | 平ネジ/M5×16 | ||
| 0048050 | 六角ナット/M5 | ||
| 000383-PA0 | ブラケット | ||
| 0040140 | 平ネジ/M4×25 | ||
| 0048030 | 六角ナット/M4 | ||
| 0003840 | 糸道棒腕 | ||
| 0040120 | 平ネジ/M4×12 | ||
| 0048030 | 六角ナット/M4 | ||
| 000233-PA0 | ホルダー | ||
| 0040120 | 平ネジ/M4×12 | ||
| 0048030 | 六角ナット/M4 | ||
| 000293B0 | 糸道棒 (4 本立) | ||
| 000293C0 | 糸道棒 (3 本立) | ||
| 0040120 | 平ネジ/M4×12 | ||
| 0048030 | 六角ナット/M4 | ||
| 000527-PA0 | ブラケット (3本立) | ||
| 000527APA0 | ブラケット (2本立) | ||
| 0005060 | 糸目穴 | ||
| 0041170 | 平ネジ/M5 | ||
| 0048050 | 六角ナット/M5 | ||
| 0003860 | キャップ |
Page 44
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | Base | |
| 2 | 2 | Foot | |
| 3 | 3 | Screw | |
| 4 | 4 | Special washers for a table 35 mm thick | |
| 5 | 5 | Screw | |
| 6 | 6 | Gear | |
| 7 | 7 | Cover | |
| 8 | 8 | Cover | |
| 9 | 9 | Cover | |
| 10 | 10 | Bracket | |
| 11 | 11 | Screw | |
| 12 | 12 | Screw | |
| 13 | 13 | Washer | |
| 14 | 14 | Washer |
Page 45
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2760010 | 据付板 | ||
| 179483-050 | クッションゴム | ||
| 2063360 | 半沈床式ナット/M8 | ||
| 2054670 | スペーサー | ||
| 0045750 | 六角穴ボルト/M8×45 | ||
| 2403040 | 歯付座金 | ||
| 276002-UA0 | シュータ(上) | ||
| 276003-UA0 | シュータ(下) | ||
| 0049040 | 木ネジ/3.5 | ||
| 2760040 | 取付板 | ||
| 0041090 | 平ネジ/M4×10 | ||
| 2401040 | 座金 | ||
| 2063370 | 座金 | ||
| 2014770 | バネ座金 |

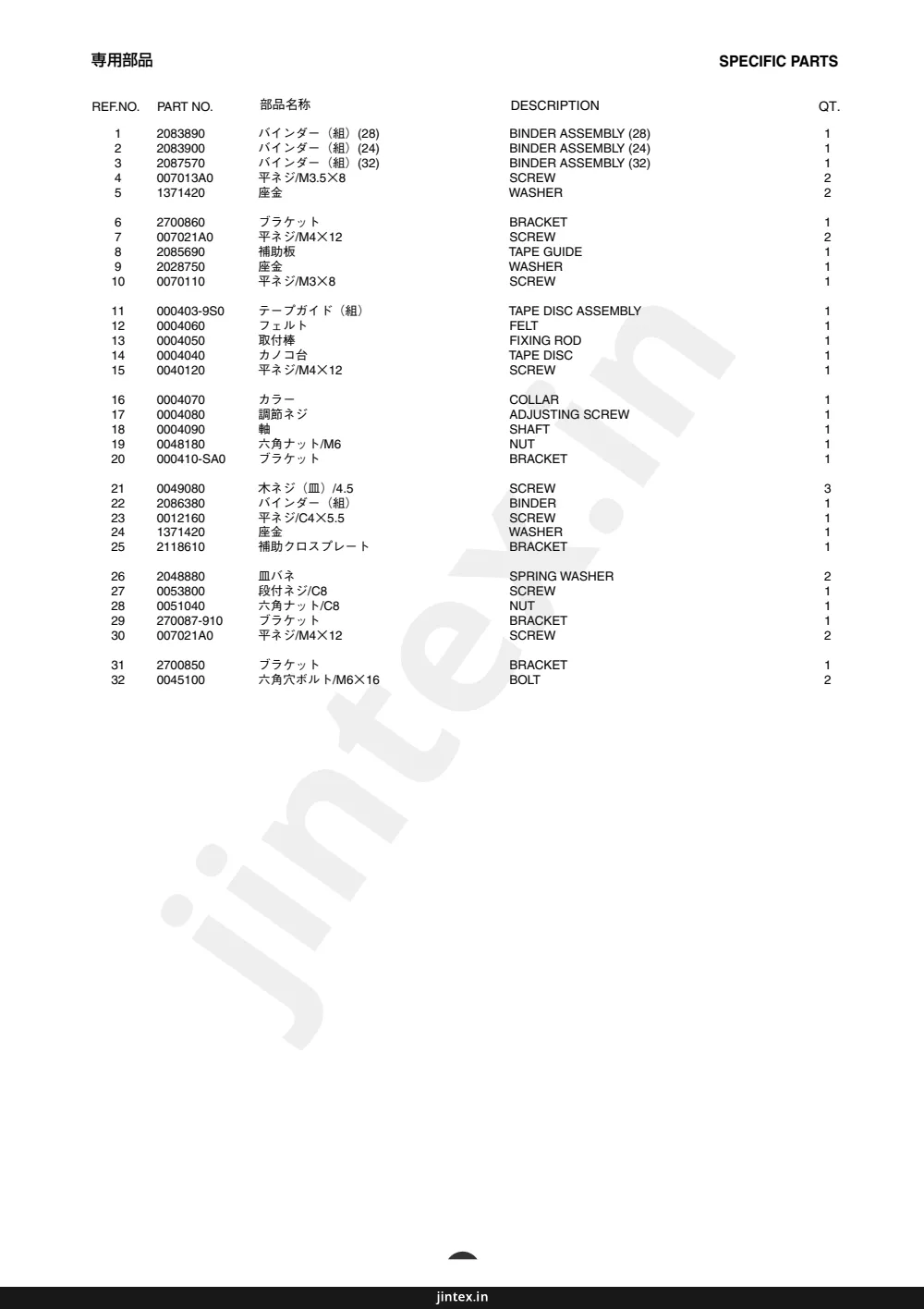

Page 47
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2083890 | バインダー（組）(28) BINDER ASSEMBLY (28) | 1 | |
| 2083900 | バインダー（組）(24) BINDER ASSEMBLY (24) | 1 | |
| 2087570 | バインダー（組）(32) BINDER ASSEMBLY (32) | 1 | |
| 007013A0 | 平ネジ/M3.5×8 SCREW | 2 | |
| 1371420 | 座金 WASHER | 2 | |
| 2700860 | ブラケット BRACKET | 1 | |
| 007021A0 | 平ネジ/M4×12 SCREW | 2 | |
| 2085690 | 補助板 TAPE GUIDE | 1 | |
| 2028750 | 座金 WASHER | 1 | |
| 0070110 | 平ネジ/M3×8 SCREW | 1 | |
| 000403-9S0 | テープガイド（組） TAPE DISC ASSEMBLY | 1 | |
| 0004060 | フェルト FELT | 1 | |
| 0004050 | 取付棒 FIXING ROD | 1 | |
| 0004040 | カノコ台 TAPE DISC | 1 | |
| 0040120 | 平ネジ/M4×12 SCREW | 1 | |
| 0004070 | カラー COLLAR | 1 | |
| 0004080 | 調節ネジ ADJUSTING SCREW | 1 | |
| 0004090 | 軸 SHAFT | 1 | |
| 0048180 | 六角ナット/M6 NUT | 1 | |
| 000410-SA0 | ブラケット BRACKET | 1 | |
| 0049080 | 木ネジ（皿）/4.5 SCREW | 3 | |
| 2086380 | バインダー（組） BINDER | 1 | |
| 0012160 | 平ネジ/C4×5.5 SCREW | 1 | |
| 1371420 | 座金 WASHER | 1 | |
| 2118610 | 補助クロスプレート BRACKET | 1 | |
| 2048880 | 皿バネ SPRING WASHER | 2 | |
| 0053800 | 段付ネジ/C8 SCREW | 1 | |
| 0051040 | 六角ナット/C8 NUT | 1 | |
| 270087-910 | ブラケット BRACKET | 1 | |
| 007021A0 | 平ネジ/M4×12 SCREW | 2 | |
| 2700850 | ブラケット BRACKET | 1 | |
| 0045100 | 六角穴ボルト/M6×16 BOLT | 2 |
Page 48 — EX2200 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 277359-160 | 277548R0 | NEEDLE PLATE | |
| 277359-160 | 277548R0 | NEEDLE PLATE | |
| 277359-160 | 277549R0 | MAIN FEED DOG ASSY. | |
| 277363-160 | 277550R0 | NEEDLE PLATE | |
| 277363-160 | 277550R0 | NEEDLE PLATE | |
| 277433-160 | 277591R0 | NEEDLE PLATE | |
| 2771940 | 277362-160 | DIFF. FEED DOG | |
| 2771960 | 277362-160 | DIFF. FEED DOG | |
| 2771950 | 277362-160 | DIFF. FEED DOG | |
| 2087670 | 277364-160 | PRESSER FOOT ASSY | |
| 2087670 | 277364-160 | PRESSER FOOT ASSY | |
| 2780220 | 277434-160 | PRESSER FOOT ASSY | |
| 2770410 | 2770380 | LOOPER | |
| 2770410 | 2770380 | LOOPER | |
| 2770410 | 2770380 | LOOPER | |
| 2770410 | 2770380 | LOOPER | |
| 2770410 | 2770380 | LOOPER | |
| 2770410 | 2770380 | LOOPER | |
| 2770380 | 2770410 | NEEDLE GUARD FRONT | |
| 2770380 | 2770410 | NEEDLE GUARD FRONT | |
| 2770380 | 2770410 | NEEDLE GUARD FRONT | |
| 2770380 | 2770410 | NEEDLE GUARD FRONT | |
| 2770380 | 2770410 | NEEDLE GUARD FRONT | |
| 2770380 | 2770410 | NEEDLE GUARD FRONT | |
| 2770380 | 2770420 | NEEDLE GUARD REAR | |
| 2770380 | 2770420 | NEEDLE GUARD REAR | |
| 2770380 | 2770420 | NEEDLE GUARD REAR | |
| 2770380 | 2770080 | NEEDLE GUARD REAR | |
| 2770380 | 2770080 | NEEDLE GUARD REAR | |
| 2770380 | 2770080 | NEEDLE GUARD REAR | |
| 2770380 | 2087680 | SHOE PRESSER FOOT | |
| 2770380 | 2087690 | SHOE PRESSER FOOT | |
| 2770380 | 2087700 | SHOE PRESSER FOOT | |
| 2770380 | 2087680 | SHOE PRESSER FOOT | |
| 2770380 | 2087690 | SHOE PRESSER FOOT | |
| 2770380 | 2087700 | SHOE PRESSER FOOT | |
| 202527A0 | 179630-920 | NEEDLE HOLDER | |
| 202527A0 | 179630-920 | NEEDLE HOLDER | |
| 202527A0 | 277028A920 | NEEDLE HOLDER | |
| DCX27 #16 | 277027-920 | NEEDLE HOLDER | |
| DCX27 #16 | 277027-920 | NEEDLE HOLDER | |
| DCX27 #16 | 277028-920 | NEEDLE HOLDER | |
| 2022950 | 202527A0 | UPPER KNIFE | |
| 2022950 | 202527A0 | UPPER KNIFE | |
| 2022950 | 202527A0 | UPPER KNIFE | |
| 2770380 | DCX27 #14 | NEEDLE | |
| 2770380 | DCX27 #14 | NEEDLE | |
| 2770380 | DCX27 #14 | NEEDLE | |
| 2770380 | DCX27 #16 | NEEDLE | |
| 2770380 | DCX27 #16 | NEEDLE | |
| 2770380 | DCX27 #16 | NEEDLE |
Page 49
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 000233-PA0 | 41 | 27 | |
| 0045750 | 43 | 5 | |
| 0070440 | 9 | 27 | |
| 2081731 | 29 | 3 | |
| 2403340 | 35 | 27 | |
| 000293B0 | 41 | 30 | |
| 0045940 | 33 | 18 | |
| 0070550 | 23 | 27 | |
| 2082350 | 15 | 10 | |
| 2403350 | 9 | 11 | |
| 000293C0 | 41 | 31 | |
| 0048000 | 35 | 37 | |
| 0070560 | 23 | 5 | |
| 2083890 | 45 | 1 | |
| 2403380 | 21 | 7 | |
| 000380A0 | 41 | 8 | |
| 0048030 | 41 | 10 | |
| 0070560 | 23 | 20 | |
| 2083900 | 45 | 2 | |
| 2403390 | 37 | 10 | |
| 000381-PA0 | 41 | 11 | |
| 0048030 | 41 | 23 | |
| 0070560 | 29 | 24 | |
| 2084480 | 11 | 3 | |
| 2403400 | 9 | 7 | |
| 000382-PA0 | 41 | 13 | |
| 0048030 | 41 | 26 | |
| 0070580 | 27 | 22 | |
| 2084490 | 11 | 6 | |
| 2403400 | 9 | 17 | |
| 000383-PA0 | 41 | 21 | |
| 0048030 | 41 | 29 | |
| 0070590 | 27 | 35 | |
| 2085490 | 33 | 17 | |
| 2403430 | 7 | 13 | |
| 0003840 | 41 | 24 | |
| 0048030 | 41 | 33 | |
| 0070600 | 33 | 2 | |
| 2085690 | 45 | 8 | |
| 2403471 | 33 | 40 | |
| 0003860 | 41 | 39 | |
| 0048050 | 29 | 12 | |
| 0070620 | 7 | 26 | |
| 2086270 | 9 | 29 | |
| 2405420 | 23 | 4 | |
| 000403-9S0 | 45 | 11 | |
| 0048050 | 33 | 7 | |
| 0070620 | 13 | 9 | |
| 2086380 | 45 | 22 | |
| 2405420 | 23 | 19 | |
| 0004040 | 45 | 14 | |
| 0048050 | 41 | 20 | |
| 0070660 | 7 | 29 | |
| 2087570 | 45 | 3 | |
| 2405420 | 29 | 23 | |
| 0004050 | 45 | 13 | |
| 0048050 | 41 | 38 | |
| 0070660 | 25 | 6 | |
| 2087730 | 33 | 26 | |
| 2405590 | 27 | 43 | |
| 0004060 | 45 | 12 | |
| 0048180 | 45 | 19 | |
| 0070770 | 7 | 18 | |
| 2089490 | 23 | 12 | |
| 2520690 | 27 | 34 | |
| 0004070 | 45 | 16 | |
| 0048210 | 7 | 37 | |
| 0070820 | 13 | 2 | |
| 2090840 | 3 | 7 | |
| 2525150 | 23 | 11 | |
| 0004080 | 45 | 17 | |
| 0049040 | 43 | 9 | |
| 0070840 | 7 | 32 | |
| 2090840 | 21 | 10 | |
| 2526580 | 27 | 37 | |
| 0004090 | 45 | 18 | |
| 0049080 | 45 | 21 | |
| 0071020 | 41 | 14 | |
| 2094080 | 35 | 6 | |
| 263543-TA0 | 11 | 2 | |
| 000410-SA0 | 45 | 20 | |
| 0050600 | 35 | 3 | |
| 0071050 | 33 | 14 | |
| 2094090 | 35 | 7 | |
| 263544-TA0 | 11 | 4 | |
| 000486B9P0 | 41 | 2 | |
| 005082A0 | 11 | 7 | |
| 0071100 | 29 | 37 | |
| 2094100 | 35 | 35 | |
| 270008-910 | 3 | 4 | |
| 000486C9P0 | 41 | 1 | |
| 0051040 | 45 | 28 | |
| 0071100 | 29 | 39 | |
| 2100440 | 5 | 24 | |
| 270011AUD0 | 5 | 14 | |
| 000502-PA0 | 41 | 17 | |
| 005138B0 | 37 | 7 | |
| 0071140 | 19 | 18 | |
| 2100560 | 9 | 15 | |
| 270011-UD0 | 5 | 28 | |
| 000503-PA0 | 41 | 3 | |
| 0053800 | 45 | 27 | |
| 0071190 | 17 | 8 | |
| 2100570 | 9 | 16 | |
| 2700130 | 5 | 33 | |
| 000504-PA0 | 41 | 18 | |
| 0054760 | 41 | 5 | |
| 0071190 | 17 | 12 | |
| 2101290 | 27 | 6 | |
| 270013C0 | 5 | 27 | |
| 000505APA0 | 41 | 7 | |
| 0070080 | 25 | 15 | |
| 0071200 | 13 | 11 | |
| 2101300 | 27 | 7 | |
| 270013D0 | 5 | 32 | |
| 000505-PA0 | 41 | 6 | |
| 0070080 | 25 | 17 | |
| 0071200 | 17 | 4 | |
| 210193A910 | 37 | 3 | |
| 2700140 | 5 | 15 | |
| 0005060 | 41 | 36 | |
| 0070080 | 33 | 24 | |
| 0071500 | 15 | 13 | |
| 2101940 | 3 | 2 | |
| 2700150 | 7 | 17 | |
| 0005070 | 41 | 12 | |
| 0070080 | 33 | 35 | |
| 0071510 | 9 | 2 | |
| 2102140 | 35 | 32 | |
| 2700170 | 5 | 31 | |
| 0005090 | 41 | 4 | |
| 0070090 | 5 | 21 | |
| 0071610 | 27 | 27 | |
| 2102140 | 39 | 14 | |
| 2700180 | 5 | 20 | |
| 0005120 | 41 | 15 | |
| 0070090 | 33 | 23 | |
| 0071660 | 33 | 42 | |
| 2103070 | 7 | 5 | |
| 2700190 | 7 | 23 | |
| 00527APA0 | 41 | 35 | |
| 0070100 | 19 | 10 | |
| 0071671 | 25 | 8 | |
| 2103070 | 7 | 30 | |
| 270020-SD0 | 5 | 1 | |
| 00527-PA0 | 41 | 34 | |
| 0070100 | 19 | 12 | |
| 0071671 | 25 | 27 | |
| 2103070 | 25 | 7 | |
| 2700210 | 5 | 3 | |
| 0011960 | 33 | 38 | |
| 0070100 | 19 | 16 | |
| 0071700 | 19 | 2 | |
| 2103190 | 11 | 5 | |
| 2700230 | 7 | 33 | |
| 0012160 | 45 | 23 | |
| 0070100 | 29 | 7 | |
| 0071710 | 33 | 30 | |
| 2105100 | 37 | 4 | |
| 270024-9U0 | 5 | 8 | |
| 0012290 | 33 | 37 | |
| 0070100 | 29 | 30 | |
| 0071720 | 7 | 20 | |
| 210529-9T0 | 11 | 1 | |
| 2700250 | 5 | 12 | |
| 004009-1HC0 | 11 | 13 | |
| 0070110 | 9 | 4 | |
| 0071730 | 31 | 25 | |
| 210529-9T0 | 11 | 16 | |
| 2700260 | 7 | 34 | |
| 004009-1HC0 | 11 | 14 | |
| 0070110 | 35 | 36 | |
| 0071740 | 21 | 8 | |
| 2106790 | 7 | 38 | |
| 270030-UB0 | 7 | 9 | |
| 0040120 | 41 | 25 | |
| 0070110 | 45 | 10 | |
| 0071750 | 33 | 6 | |
| 2106790 | 7 | 39 | |
| 2700330 | 7 | 25 | |
| 0040120 | 41 | 28 | |
| 0070120 | 35 | 8 | |
| 0071760 | 5 | 11 | |
| 2106790 | 7 | 40 | |
| 2700340 | 7 | 28 | |
| 0040120 | 41 | 32 | |
| 0070130 | 23 | 29 | |
| 0071800 | 7 | 16 | |
| 2107660 | 39 | 16 | |
| 2700350 | 7 | 1 | |
| 0040120 | 45 | 15 | |
| 0070130 | 29 | 31 | |
| 0072380 | 29 | 15 | |
| 2113010 | 27 | 36 | |
| 270035F911 | 7 | 2 | |
| 0040140 | 41 | 22 | |
| 0070130 | 29 | 34 | |
| 1371080 | 25 | 9 | |
| 2113880 | 25 | 10 | |
| 2700420 | 7 | 3 | |
| 0040210 | 41 | 19 | |
| 0070130 | 31 | 15 | |
| 1371080 | 25 | 28 | |
| 2113880 | 25 | 29 | |
| 2700430 | 7 | 19 | |
| 0040220 | 41 | 16 | |
| 007013A0 | 45 | 4 | |
| 1371420 | 45 | 5 | |
| 2115260 | 9 | 13 | |
| 2700440 | 7 | 21 | |
| 0041090 | 43 | 11 | |
| 0070140 | 23 | 25 | |
| 1371420 | 45 | 24 | |
| 2115280 | 9 | 18 | |
| 2700450 | 7 | 22 | |
| 0041170 | 41 | 37 | |
| 0070170 | 13 | 7 | |
| 179009-050 | 15 | 19 | |
| 2116180 | 35 | 2 | |
| 2700470 | 3 | 6 | |
| 004210-HU0 | 35 | 30 | |
| 0070170 | 25 | 13 | |
| 179107-050 | 5 | 5 | |
| 2118610 | 45 | 25 | |
| 2700490 | 7 | 15 | |
| 004210-HU0 | 37 | 5 | |
| 007017A0 | 5 | 23 | |
| 179483-050 | 43 | 2 | |
| 212978-910 | 35 | 4 | |
| 270077-UB0 | 5 | 9 | |
| 004210-HU0 | 39 | 8 | |
| 007017A0 | 5 | 25 | |
| 179498-920 | 25 | 18 | |
| 2129810 | 35 | 5 | |
| 270083-9U0 | 33 | 39 | |
| 004211-HU0 | 35 | 33 | |
| 007018A0 | 5 | 26 | |
| 1921200 | 25 | 1 | |
| 2129870 | 9 | 12 | |
| 2700850 | 45 | 31 | |
| 0045100 | 45 | 32 | |
| 007018A0 | 7 | 7 | |
| 2001360 | 35 | 16 | |
| 2300430 | 37 | 2 | |
| 2700860 | 45 | 6 | |
| 0045110 | 3 | 5 | |
| 007018A0 | 7 | 12 | |
| 2001360 | 35 | 20 | |
| 240012-20 | 27 | 4 | |
| 270087-910 | 45 | 29 | |
| 0045140 | 9 | 10 | |
| 007018A0 | 11 | 10 | |
| 2001360 | 35 | 24 | |
| 2400200 | 35 | 29 | |
| 270152A0 | 5 | 22 | |
| 0045140 | 21 | 13 | |
| 007018A0 | 27 | 38 | |
| 2001550 | 39 | 11 | |
| 2400390 | 23 | 6 | |
| 2701770 | 7 | 31 | |
| 0045140 | 27 | 11 | |
| 007018A0 | 35 | 14 | |
| 2005550 | 27 | 20 | |
| 2400390 | 23 | 21 | |
| 270500A0 | 9 | 1 | |
| 0045140 | 37 | 13 | |
| 00701900 | 19 | 14 | |
| 2005550 | 27 | 42 | |
| 2400390 | 29 | 25 | |
| 2705020 | 9 | 3 | |
| 0045230 | 9 | 23 | |
| 00701900 | 31 | 17 | |
| 2010020 | 3 | 1 | |
| 2400430 | 5 | 17 | |
| 2705030 | 9 | 5 | |
| 0045290 | 35 | 9 | |
| 00701900 | 33 | 33 | |
| 2010220 | 15 | 18 | |
| 2400620 | 23 | 9 | |
| 270504-UD0 | 9 | 21 | |
| 0045310 | 23 | 8 | |
| 007019A0 | 5 | 13 | |
| 2010220 | 29 | 18 | |
| 2400620 | 29 | 13 | |
| 2705050 | 9 | 20 | |
| 0045310 | 37 | 9 | |
| 007019A0 | 7 | 24 | |
| 2010370 | 11 | 8 | |
| 2400970 | 37 | 16 | |
| 270507-910 | 9 | 8 | |
| 0045330 | 15 | 6 | |
| 007019A0 | 19 | 4 | |
| 2012520 | 7 | 11 | |
| 2401040 | 43 | 12 | |
| 2705090 | 9 | 26 | |
| 0045330 | 21 | 12 | |
| 007019A0 | 19 | 7 | |
| 2012520 | 41 | 9 | |
| 2401100 | 5 | 6 | |
| 2705100 | 9 | 25 | |
| 0045330 | 23 | 15 | |
| 007019A0 | 25 | 2 | |
| 2014770 | 43 | 14 | |
| 2401350 | 35 | 23 | |
| 270523A0 | 9 | 30 | |
| 0045330 | 23 | 17 | |
| 007019A0 | 31 | 19 | |
| 2021750 | 37 | 15 | |
| 240235-920 | 31 | 7 | |
| 2705260 | 9 | 31 | |
| 0045330 | 27 | 25 | |
| 007019A0 | 31 | 22 | |
| 2021750 | 39 | 9 | |
| 2402990 | 3 | 3 | |
| 271000-920 | 15 | 1 | |
| 0045330 | 29 | 6 | |
| 007019A0 | 37 | 20 | |
| 2021770 | 15 | 16 | |
| 2403010 | 5 | 19 | |
| 2710010 | 15 | 3 | |
| 0045330 | 29 | 10 | |
| 007019A0 | 39 | 13 | |
| 2021990 | 35 | 18 | |
| 2403030 | 29 | 20 | |
| 2710010 | 27 | 2 | |
| 0045340 | 33 | 11 | |
| 0070200 | 7 | 35 | |
| 2021990 | 35 | 22 | |
| 2403040 | 43 | 6 | |
| 2710010 | 31 | 5 | |
| 0045350 | 5 | 30 | |
| 0070200 | 9 | 28 | |
| 2021990 | 35 | 26 | |
| 2403050 | 5 | 4 | |
| 271002-920 | 15 | 5 | |
| 0045350 | 27 | 8 | |
| 007020A0 | 9 | 19 | |
| 202287A0 | 37 | 8 | |
| 2403050 | 5 | 10 | |
| 2710030 | 15 | 7 | |
| 0045350 | 27 | 9 | |
| 007020A0 | 33 | 5 | |
| 2025220 | 27 | 23 | |
| 2403050 | 7 | 8 | |
| 271004-920 | 15 | 12 | |
| 0045380 | 15 | 4 | |
| 007020A0 | 39 | 5 | |
| 2025770 | 15 | 11 | |
| 2403050 | 7 | 14 | |
| 271008A0 | 15 | 15 | |
| 0045380 | 27 | 3 | |
| 007021A0 | 5 | 16 | |
| 2028490 | 11 | 12 | |
| 2403050 | 19 | 5 | |
| 271009-920 | 15 | 20 | |
| 0045380 | 31 | 6 | |
| 007021A0 | 27 | 32 | |
| 2028490 | 11 | 15 | |
| 2403060 | 9 | 14 | |
| 2710100 | 19 | 3 | |
| 0045410 | 9 | 6 | |
| 007021A0 | 45 | 7 | |
| 2028750 | 7 | 27 | |
| 2403070 | 35 | 15 | |
| 2710110 | 19 | 6 | |
| 0045410 | 9 | 22 | |
| 007021A0 | 45 | 30 | |
| 2028750 | 45 | 9 | |
| 2403080 | 15 | 8 | |
| 271013A0 | 19 | 19 | |
| 0045430 | 5 | 18 | |
| 007022A0 | 5 | 2 | |
| 204052A0 | 23 | 23 | |
| 2403100 | 15 | 22 | |
| 271022A910 | 15 | 14 | |
| 0045430 | 7 | 4 | |
| 007022A0 | 21 | 3 | |
| 2041150 | 7 | 6 | |
| 2403110 | 29 | 4 | |
| 2710240 | 19 | 17 | |
| 0045430 | 13 | 4 | |
| 007022A0 | 35 | 11 | |
| 2041850 | 27 | 29 | |
| 2403140 | 27 | 18 | |
| 271500-920 | 21 | 1 | |
| 0045430 | 15 | 9 | |
| 007022A0 | 35 | 39 | |
| 2041850 | 37 | 19 | |
| 2403150 | 27 | 17 | |
| 2715010 | 21 | 4 | |
| 0045430 | 29 | 21 | |
| 007023A0 | 7 | 36 | |
| 2042930 | 9 | 24 | |
| 2403170 | 27 | 19 | |
| 271504A0 | 21 | 6 | |
| 0045430 | 37 | 17 | |
| 007023A0 | 15 | 2 | |
| 2044660 | 39 | 15 | |
| 2403180 | 29 | 16 | |
| 2725000 | 27 | 1 | |
| 0045460 | 15 | 17 | |
| 007023A0 | 21 | 2 | |
| 2048880 | 45 | 26 | |
| 2403190 | 29 | 17 | |
| 2725010 | 27 | 5 | |
| 0045470 | 31 | 8 | |
| 007023A0 | 31 | 2 | |
| 205015-20 | 23 | 2 | |
| 2403210 | 27 | 33 | |
| 2725020 | 27 | 15 | |
| 0045540 | 17 | 2 | |
| 0070250 | 31 | 13 | |
| 2050610 | 29 | 2 | |
| 2403220 | 27 | 41 | |
| 2725030 | 27 | 13 | |
| 0045540 | 17 | 6 | |
| 007025A0 | 7 | 10 | |
| 2054670 | 43 | 4 | |
| 2403240 | 31 | 20 | |
| 272504-910 | 27 | 12 | |
| 0045540 | 17 | 10 | |
| 0070350 | 15 | 21 | |
| 2061150 | 25 | 4 | |
| 2403270 | 35 | 19 | |
| 272506-910 | 27 | 10 | |
| 0045540 | 25 | 19 | |
| 0070380 | 27 | 14 | |
| 2061150 | 25 | 23 | |
| 2403280 | 35 | 17 | |
| 2725090 | 27 | 16 | |
| 0045720 | 9 | 9 | |
| 0070410 | 21 | 5 | |
| 2062330 | 35 | 12 | |
| 2403280 | 35 | 21 | |
| 272510-910 | 29 | 5 | |
| 0045730 | 29 | 42 | |
| 0070440 | 5 | 7 | |
| 2063360 | 43 | 3 | |
| 2403280 | 35 | 25 | |
| 272514-921 | 29 | 9 | |
| 0045740 | 5 | 29 | |
| 0070440 | 5 | 7 | |
| 2063370 | 43 | 13 | |
| 2403280 | 35 | 34 | |
| 2725151 | 29 | 11 | |
| 0070440 | 9 | 27 | |
| 2081731 | 29 | 3 | |
| 2403340 | 35 | 27 | |
| 2063660 | 27 | 45 | |
| 2403310 | 39 | 10 | |
| 2725160 | 29 | 1 |
Page 50
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 18 | 2725170 | 23 | |
| 22 | 275038A0 | 25 | |
| 22 | 2725170 | 29 | |
| 16 | 2750390 | 25 | |
| 8 | 2725180 | 29 | |
| 25 | 275061-910 | 25 | |
| 36 | 2725190 | 29 | |
| 26 | 2750640 | 25 | |
| 38 | 2725200 | 29 | |
| 10 | 2750650 | 13 | |
| 40 | 2725210 | 29 | |
| 24 | 275066-910 | 25 | |
| 35 | 2725240 | 29 | |
| 1 | 2755000 | 39 | |
| 14 | 2725250 | 29 | |
| 2 | 2755010 | 39 | |
| 19 | 2725260 | 29 | |
| 6 | 2755040 | 39 | |
| 26 | 2725270 | 29 | |
| 7 | 2755050 | 39 | |
| 32 | 2725280 | 29 | |
| 4 | 2755070 | 39 | |
| 21 | 2725290 | 27 | |
| 3 | 2755080 | 39 | |
| 24 | 272530A920 | 27 | |
| 12 | 275509A0 | 39 | |
| 26 | 2725320 | 27 | |
| 9 | 2755400 | 3 | |
| 28 | 272533A1 | 27 | |
| 8 | 2755410 | 3 | |
| 30 | 2725340 | 27 | |
| 1 | 2760010 | 43 | |
| 31 | 2725350 | 27 | |
| 7 | 276002-UA0 | 43 | |
| 40 | 272538A0 | 27 | |
| 8 | 276003-UA0 | 43 | |
| 44 | 272539A0 | 27 | |
| 10 | 2760040 | 43 | |
| 41 | 2726170 | 29 | |
| 9 | 3030670 | 21 | |
| 1 | 273000-920 | 31 | |
| 10 | 3030670 | 23 | |
| 3 | 273001A920 | 31 | |
| 39 | 3034480 | 27 | |
| 9 | 2730030 | 31 | |
| 10 | 3080360 | 31 | |
| 11 | 2730060 | 31 | |
| 21 | 2730070 | 31 | |
| 16 | 273009B0 | 31 | |
| 18 | 2730100 | 31 | |
| 24 | 2730120 | 31 | |
| 26 | 2730130 | 31 | |
| 12 | 2730140 | 31 | |
| 1 | 2735000 | 23 | |
| 3 | 2735010 | 23 | |
| 7 | 2735020 | 23 | |
| 13 | 2735040 | 23 | |
| 14 | 273505-920 | 23 | |
| 22 | 2735060 | 23 | |
| 16 | 273509-920 | 23 | |
| 11 | 273511-920 | 21 | |
| 26 | 273513-920 | 23 | |
| 16 | 274000-B0 | 33 | |
| 15 | 2740010 | 33 | |
| 13 | 2740020 | 33 | |
| 10 | 274003-921 | 33 | |
| 9 | 2740040 | 33 | |
| 12 | 2740050 | 33 | |
| 8 | 2740060 | 33 | |
| 1 | 2740070 | 33 | |
| 3 | 2740080 | 33 | |
| 4 | 2740090 | 33 | |
| 32 | 2740100 | 33 | |
| 25 | 274011-910 | 33 | |
| 27 | 274014A1 | 33 | |
| 28 | 2740150 | 33 | |
| 29 | 2740160 | 33 | |
| 31 | 2740170 | 33 | |
| 41 | 2740240 | 33 | |
| 34 | 274026A0 | 33 | |
| 21 | 274027A0 | 33 | |
| 22 | 2740580 | 33 | |
| 19 | 274061-920 | 33 | |
| 11 | 2745010 | 37 | |
| 1 | 274502A0 | 37 | |
| 6 | 274503-910 | 37 | |
| 1 | 274505A910 | 35 | |
| 12 | 2745070 | 37 | |
| 10 | 2745090 | 35 | |
| 13 | 2745100 | 35 | |
| 28 | 2745120 | 35 | |
| 31 | 274515-910 | 35 | |
| 14 | 274516-910 | 37 | |
| 18 | 274523-910 | 37 | |
| 38 | 2745250 | 35 | |
| 9 | 2750000 | 11 | |
| 11 | 2750010 | 11 | |
| 3 | 275019A0 | 17 | |
| 1 | 2750210 | 13 | |
| 3 | 2750220 | 13 | |
| 8 | 2750270 | 13 | |
| 5 | 2750280 | 13 | |
| 6 | 275028A0 | 13 | |
| 7 | 2750300 | 17 | |
| 11 | 2750300 | 17 | |
| 3 | 2750320 | 25 | |
| 5 | 2750330 | 25 | |
| 11 | 2750340 | 25 | |
| 30 | 2750340 | 25 | |
| 12 | 2750350 | 25 | |
| 14 | 2750360 | 25 | |
| 20 | 2750370 | 25 | |
| 21 | 2750380 | 25 |
Pegasus EX2200 — parts catalog
- Page 1 (cover): This is the cover page for the EX2200 Series High Speed Double Chainstitch Machine Parts Catalog.
- Page 2 (toc): This page provides an introduction to the parts catalog for the EX2200 series, detailing how components are shown, the meaning of 'XXXXXX' in part numbers, and instructions for ordering parts, along with a list of covered models.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various mechanisms and parts with their corresponding page numbers.
- Page 4 (diagram): This page displays an exploded view diagram of a machine component with various parts identified by reference numbers.
- Page 5 (parts_list): This page lists parts for the machine bed frame, including spring pins, indicator guides, bracket assembly, bolts, bed pins, plugs, and filters.
- Page 6 (diagram): This page displays an exploded view diagram of various components, including covers, screws, and other parts, with reference numbers indicating different models.
- Page 7 (parts_list): This page lists parts for the cover mechanism, including various screws, covers, gaskets, and other components, with their part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays an exploded diagram of various components, including covers, plates, and fasteners, with reference numbers for identification.
- Page 9 (parts_list): This page lists parts for the cover mechanism, including various plates, screws, washers, bushings, cushions, springs, brackets, and pins.
- Page 10 (diagram): This page displays an exploded view diagram of various components, including shafts, bearings, and other mechanical parts, with each part clearly numbered for identification.
- Page 11 (parts_list): This page lists parts for the crankshaft drive mechanism, including screws, bearings, rings, and other components, with their part numbers, descriptions, and quantities.
- Page 12 (diagram): This page contains three exploded view diagrams showing various components, with reference numbers indicating individual parts.
- Page 13 (parts_list): This page lists parts for the thread tension mechanism, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 14 (diagram): This page displays an exploded view diagram of various components, including a base plate, screws, levers, and a shaft assembly, with reference numbers for identification.
- Page 15 (parts_list): This page lists parts for the thread guide and thread takeup, including brackets, screws, and thread guides, with their respective part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays an exploded view diagram of various mechanical components, including shafts, levers, and fasteners, with reference numbers indicating individual parts.
- Page 17 (parts_list): This page lists parts for the needle drive mechanism, including connection assembly, screws, pins, shafts, collars, washers, rings, levers, bolts, oil strings, O-rings, felts, and plugs.
- Page 18 (diagram): This page illustrates needle clamp assemblies for 1-needle and 2-needle sewing machines, with corresponding model numbers.
- Page 19 (parts_list): This page lists parts for the needle drive mechanism, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays an exploded view diagram of various components, including screws and levers, with reference numbers indicating specific parts and their applicable models.
- Page 21 (parts_list): This page lists parts for the needle drive mechanism, including needle plates, screws, brackets, and cushion rubbers, with their corresponding part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays an exploded view diagram of various components, including clamps, screws, and a shaft, with reference numbers indicating individual parts.
- Page 23 (parts_list): This page lists parts for the Double Chainstitch Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays an exploded view diagram of various components, including shafts, bearings, and fasteners, with reference numbers indicating different parts.
- Page 25 (parts_list): This page lists parts for the double chainstitch looper drive mechanism, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 26 (diagram): This page displays an exploded view diagram of various components, with parts grouped under EX2242 and EX2241, showing their assembly.
- Page 27 (parts_list): This page lists parts for the Double Chainstitch Looper Drive Mechanism (3), including thread guides, screws, brackets, washers, tension discs, springs, and knobs.
- Page 28 (diagram): This page displays a diagram of various components, including a connecting rod, eccentric, and other related parts, with reference numbers for each item.
- Page 29 (parts_list): This page lists parts for the feed mechanism, including screws, bearings, springs, levers, and other components, with their corresponding part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays an exploded view diagram of various components, likely for a sewing machine, with parts numbered from 1 to 42.
- Page 31 (parts_list): This page lists parts for the FEED MECHANISM (2) with part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various machine parts, including screws, linkages, and other components, with reference numbers for identification. It also notes exceptions for specific models.
- Page 33 (parts_list): This page lists parts for the KNIFE DRIVE MECHANISM, including part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays a diagram of various sewing machine parts, with reference numbers and some part numbers indicated.
- Page 35 (parts_list): This page lists parts for the Presser Foot Mechanism, including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine components, including shafts, gears, housings, fasteners, and linkages, each identified by a reference number.
- Page 37 (parts_list): This page lists parts for the Lubrication Mechanism (1) of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays a diagram of various machine components, including a spindle assembly, a gasket, screws, and levers, with corresponding reference numbers for identification.
- Page 39 (parts_list): This page lists parts for the Lubrication Mechanism (2), including oil sight gauges, O-rings, indicator assemblies, screws, oil reservoirs, gaskets, bolts, washers, and plugs.
- Page 40 (diagram): This page displays diagrams of machine parts, with reference numbers, part numbers, and descriptions for each component. It includes two main diagrams, one labeled EX2241-02 and another with parts numbered 6 through 16, along with a note about exceptions for EX2241-32P1, P2.
- Page 41 (parts_list): This page lists parts for the H.R. Device, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of various components of an industrial sewing machine, including spools, rods, brackets, and fasteners, with reference numbers for each part.
- Page 43 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of various machine parts, including screws, washers, and brackets, with reference numbers and some Japanese text indicating special washers for a 35mm thick table.
- Page 45 (parts_list): This page lists parts for semi-submerged installation, including part numbers, descriptions, and quantities.
- Page 46 (diagram): This page contains a diagram illustrating parts of the sewing machine, with reference numbers pointing to specific components.
- Page 47 (parts_list): This page lists specific parts for an industrial sewing machine, including binders, screws, washers, brackets, and other components, with their corresponding part numbers, descriptions, and quantities.
- Page 48 (parts_list): This page lists gauge parts for the EX2200 sewing machine, including part numbers, descriptions, and specifications like gauge size and needle guard type.
- Page 49 (index): This page is an index listing part numbers and their corresponding page references within the catalog. It includes columns for PART NO., PAGE REF. NO., and multiple instances of PART. NO. and PAGE REF. NO. to cover a wide range of parts.
- Page 50 (index): This page is an index listing part numbers and their corresponding reference page numbers in the catalog. It includes part numbers like 2725170 and 275038A0, along with their associated page references.
- Page 51 (unknown): This page contains a watermark and a website address at the bottom.
- Page 52 (cover): Cover page of the Pegasus Sewing Machine MFG. CO., LTD. parts catalog, catalog number 9B600600000, dated May 2002. It includes contact information for the Osaka headquarters and a notice about potential changes to catalog contents.
Page 2
パーツカタログの見方 ■このパーツカタログは、2002年5月製造中のEX2200シリ ーズのミシンを次の要領で編集しています。 ■2~45頁には部品を機種別に収録し、左頁が部品の分解図、 右頁がパーツリストになっています。 また、部品分解図に付されている番号は、パーツリスト のREF.NO. (参照番号) を示しています。 ■パーツリストの部品番号の表記がXXXXXXの部品は、特 定の形式(サブクラス)にのみ使用されているゲージパ ーツ部品で、形式によって変わります。形式ごとの部品 番号はゲージパーツ表(46頁)に一括して記載していま す。 ■47頁以降には部品番号インデックスを記載し、部品番号 だけで、その図解・名称などが容易に引き出せます。 ■部品を御注文いただく時は、必ず部品番号だけを明示し てください。なお、このパーツカタログの記載事項は改 良により、予告なく変更されることがありますので、あ らかじめ御了承ください。 INTRODUCTION ■This parts catalog covers the EX2200 series which are manufactured in May, 2002. ■The components are shown on pages 2 - 45. The illustrations are on left pages and the part numbers on right pages. The illustrated part and its part number are assigned the same reference number. ■“XXXXXX” indicates gauge part numbers which vary depending on subclasses. Please refer to the gauge part list on page 46. ■The index of part numbers are listed at the back of this book for quick reference. ■When placing an order for any part, please specify the part number. Note that the contents of this book are subject to change for improvement without prior notice. 掲載機種 (Models covered) EX2200 Series EX2241-52P2/083 EX2241-42P2/083 EX2242-52P2/083 EX2241-32P1/063 EX2241-32P2/063 EX2241-02/083 jintex.in
Page 3 — TABLE OF CONTENTS
目 次 頁 ベッド機構 2~3 カバー機構 (1) 4~5 カバー機構 (2) 6~7 クランクシャフト機構 8~9 糸調子機構 10~11 糸道・糸繰り 12~13 針振り機構 (1) 14~15 針振り機構 (2) 16~17 針振り機構 (3) 18~19 二重環ルーパー機構 (1) 20~21 二重環ルーパー機構 (2) 22~23 二重環ルーパー機構 (3) 24~25 送り機構 (1) 26~27 送り機構 (2) 28~29 上下メス機構 30~31 押エ機構 32~33 給油機構 (1) 34~35 給油機構 (2) 36~37 H.R.装置 38~39 糸立台 40~41 半沈床式据付付属品 42~43 専用部品 44~45 ゲージパーツ表 46 部品番号インデックス 47~48 TABLE OF CONTENTS page MACHINE BED FRAME 2~3 COVER (1) 4~5 COVER (2) 6~7 CRANKSHAFT DRIVE MECHANISM 8~9 THREAD TENSION MECHANISM 10~11 THREAD GUIDE & THREAD TAKEUP 12~13 NEEDLE DRIVE MECHANISM (1) 14~15 NEEDLE DRIVE MECHANISM (2) 16~17 NEEDLE DRIVE MECHANISM (3) 18~19 DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (1) 20~21 DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (2) 22~23 DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (3) 24~25 FEED MECHANISM (1) 26~27 FEED MECHANISM (2) 28~29 KNIFE DRIVE MECHANISM 30~31 PRESSER FOOT MECHANISM 32~33 LUBRICATION MECHANISM (1) 34~35 LUBRICATION MECHANISM (2) 36~37 H.R. DEVICE 38~39 THREAD STAND 40~41 PARTS FOR SEMI-SUBMERGED INSTALLATION 42~43 SPECIFIC PARTS 44~45 GAUGE PARTS LIST 46 PART NUMBER INDEX 47~48 jintex.in
Page 4
jintex.in
Page 5 — MACHINE BED FRAME
ベッド機構 REF.NO. PART NO. 1 2010020 2 2101940 3 2402990 4 270008-910 5 0045110 6 2700470 7 2090840 8 2755410 9 2755400 部品名称 スプリングピン 案内/オイル指示 スプリングピン ブラケット(組) 六角穴ボルト/M6×25 足ピン 栓 フィルタ 栓 MACHINE BED FRAME DESCRIPTION SPRING PIN INDICATOR GUIDE SPRING PIN BRACKET ASSEMBLY BOLT BED PIN PLUG FILTER PLUG QT. 1 1 1 1 2 4 1 1 1 jintex.in
Page 6
2 1 8 10 9 5 6 4 3 7 11 13 12 31 EX2241-02 EX2241-32P1, P2 23 24 25 28 EX2241-02 EX2241-32P1, P2 30 29 20 21 26 EX2241-32P1, P2 32 17 18 EX2241-02 33 22 EX2241-02, EX2241-32P1, P2を除く Except EX2241-02, EX2241-32P1, P2 19 15 16 14 EX2241-02, EX2241-32P1, P2を除く Except EX2241-02, EX2241-32P1, P2 27 EX2241-02, EX2241-32P1, P2を除く Except EX2241-02, EX2241-32P1, P2 jintex.in
Page 7 — カバー機構 (1)
カバー機構 (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 270020-SD0 上カバー TOP COVER 1 2 007022A0 平ネジ/M4×14 SCREW 4 3 2700210 ガスケット GASKET 1 4 2403050 防振ゴム CUSHION RUBBER 3 5 179107-050 オイル窓 OIL SIGHT WINDOW 1 6 2401100 栓 PLUG 1 7 0070440 皿ネジ/M4×10 SCREW 4 8 270024-9U0 ベルトカバー (組) BELT COVER ASSEMBLY 1 9 270077-UB0 ベルトカバー BELT COVER 1 10 2403050 防振ゴム CUSHION RUBBER 1 11 0071760 平ネジ/M6×14 SCREW 3 12 2700250 ファンカバー FAN COVER 2 13 007019A0 平ネジ/M4×8 SCREW 2 14 270011AUD0 前カバー (右) FRONT COVER (RIGHT) 1 15 2700140 ヒンジ HINGE 1 16 007021A0 平ネジ/M4×12 SCREW 3 17 2400430 平行ピン PIN 1 18 0045430 止ネジ/M4×4 SCREW 2 19 2403010 圧縮バネ SPRING 1 20 2700180 ラッチ LATCH 1 21 0070090 平ネジ/M3×5 SCREW 1 22 270152A0 ラッチ LATCH 1 23 007017A0 平ネジ/M4×5 SCREW 1 24 2100440 板バネ FLAT SPRING 1 25 007017A0 平ネジ/M4×5 SCREW 1 26 007018A0 平ネジ/M4×6 SCREW 2 27 270013C0 前カバー (左) FRONT COVER (LEFT) 1 28 270011-UD0 前カバー (右) FRONT COVER (RIGHT) 1 29 0045740 止ネジ/M3×12 SCREW 1 30 0045350 止ネジ/M3×4 SCREW 1 31 2700170 ラッチ LATCH 1 32 270013D0 前カバー (左) FRONT COVER (LEFT) 1 33 2700130 前カバー (左) FRONT COVER (LEFT) 1 COVER (1) jintex.in
Page 8
EX2241-32P1, P2を除く 1 Except EX2241-32P1, P2 EX2241-32P1, P2 2 jintex.in
Page 9 — カバー機構 (2)
カバー機構 (2) COVER (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2700350 クロスプレート (広巾) CLOTH PLATE (WIDE) 1 2 270035F911 クロスプレート (広巾) CLOTH PLATE (WIDE) 1 3 2700420 ブッシュ BUSHING 1 4 0045430 止ネジ/M4×4 SCREW 1 5 2103070 波板座金 WASHER 1 6 2041150 座金 WASHER 1 7 007018A0 止ネジ/M4×6 SCREW 1 8 2403050 防振ゴム CUSHION RUBBER 1 9 270030-UB0 横カバー (広巾) SIDE COVER (WIDE) 1 10 007025A0 平ネジ/M4×20 SCREW 1 11 2012520 バネ座金 SPRING WASHER 1 12 007018A0 平ネジ/M4×6 SCREW 2 13 2403430 座金 WASHER 2 14 2403050 防振ゴム CUSHION RUBBER 1 15 2700490 ラッチ LATCH 1 16 0071800 平ネジ/M3.5×4.5 SCREW 1 17 2700150 当板 PLATE 2 18 0070770 皿ネジ/M4×7 SCREW 1 19 2700430 レバー LEVER 1 20 0071720 段付ネジ/M4 SCREW 1 21 2700440 ネジリバネ SPRING 1 22 2700450 ブラケット BRACKET 1 23 2700190 布案内 FABRIC GUARD 1 24 007019A0 平ネジ/M4×8 SCREW 2 25 2700330 アイガード EYE GUARD 1 26 0070620 平ネジ/M3×6 SCREW 2 27 2028750 座金 WASHER 2 28 2700340 ブラケット BRACKET 1 29 0070660 段付ネジ/M4 SCREW 1 30 2103070 波板座金 WASHER 2 31 2701770 上蓋 BED COVER PLATE 1 32 0070840 六角ボルト/M4×8 BOLT 5 33 2700230 ガスケット GASKET 1 34 2700260 後蓋 COVER PLATE 1 35 0070200 平ネジ/M4×10 SCREW 4 36 007023A0 平ネジ/M4×16 SCREW 1 37 0048210 六角ナット/M4 NUT 1 38 2106790 ピン PIN 2 39 2106790 ピン PIN 2 40 2106790 ピン PIN 2 jintex.in
Page 10
jintax.in
Page 11 — CRANKSHAFT DRIVE MECHANISM
クランクシャフト機構 REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 270500A0 クランク軸 CRANKSHAFT 1 2 0071510 止ネジ/M3.5×3 SCREW 5 3 2705010 バランスウエイト BALANCE WEIGHT 2 4 0070110 平ネジ/M3×8 SCREW 4 5 2705030 段付ピン PIN 1 6 0045410 止ネジ/M6×8 SCREW 1 7 2403400 Oリング O RING 1 8 270507-910 ボールベアリング (組) BALL BEARING ASSEMBLY 1 9 0045720 止ネジ/M5×10 SCREW 1 10 0045140 止ネジ/M5×5 SCREW 1 11 2403350 止メ輪 RING 1 12 2129870 ボールベアリング BALL BEARING 1 13 2115260 ボールベアリング BALL BEARING 1 14 2403060 波板座金 WASHER 1 15 2100560 油切り OIL SEAL 1 16 2100570 Oリング O RING 1 17 2403400 Oリング O RING 1 18 2115280 ハウジング HOUSING 1 19 007020A0 平ネジ/M4×10 SCREW 3 20 2705050 ファン (組) FAN ASSEMBLY 1 21 270504-UD0 プーリー MACHINE PULLEY 1 22 0045410 止ネジ/M6×8 SCREW 2 23 0045230 六角穴ボルト/M6×35 BOLT 1 24 2042930 バネ座金 SPRING WASHER 1 25 2705100 段付ピン PIN 1 26 2705090 蓋 COVER 1 27 0070440 皿ネジ/M4×10 SCREW 2 28 0070200 平ネジ/M4×10 SCREW 1 29 2086270 油栓 PLUG 1 30 270523A0 スペーサー SPACER 1 31 2705260 プーリー蓋 PULLEY COVER 1 jintex.in
Page 12
EX2241 EX2242 jintex.in
Page 13 — THREAD TENSION MECHANISM
糸調子機構 THREAD TENSION MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 210529-9T0 糸調子(組) TENSION SPRING ASSEMBLY 1 2 263543-TA 調子ナット NUT 1 3 2084480 ラチェット RATCHET 1 4 263544-TA 受皿 CUP 1 5 2103190 調子皿 TENSION DISC 2 6 2084490 フェルト FELT 1 7 005082A0 調子棒/C5 SCREW STUD 1 8 2010370 圧縮バネ(強) SPRING (HEAVY) 1 9 2750000 糸道 THREAD GUIDE 1 10 007018A0 平ネジ/M4×6 SCREW 2 11 2750010 糸道 THREAD GUIDE 1 12 2028490 調子台 TENSION GUIDE 3 13 004009-1HC0 平ネジ/C5×7.5 SCREW 2 14 004009-1HC0 平ネジ/C5×7.5 SCREW 2 15 2028490 調子台 TENSION GUIDE 2 16 210529-9T0 糸調子(組) TENSION SPRING ASSEMBLY 2 jintex.in
Page 14
EX2241 5 EX2242 6 10 11 EX2241-32P1, P2を除く Except EX2241-32P1, P2 jintex.in
Page 15 — THREAD GUIDE & THREAD TAKEUP
糸道・糸繰り REF.NO. PART NO. 1 2750210 2 0070820 3 2750220 4 0045430 5 2750280 6 275028A0 7 0070170 8 2750270 9 0070620 10 2750650 11 0071200 THREAD GUIDE & THREAD TAKEUP 部品名称 ブラケット 平ネジ/M4×8 糸道 止ネジ/M4×4 糸道 糸道 平ネジ/M4×5 針糸繰り 平ネジ/M3×6 糸道 平ネジ/M2×3 DESCRIPTION BRACKET SCREW THREAD GUIDE SCREW THREAD GUIDE THREAD GUIDE SCREW THREAD TAKE-UP SCREW THREAD GUIDE SCREW QT. 1 2 1 1 1 1 1 2 1 1 1 jintex.in
Page 16
jintex.in
Page 17 — NEEDLE DRIVE MECHANISM (1)
針振り機構 (1) NEEDLE DRIVE MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 271000-920 ロッド (組) CONNECTION ASSEMBLY 1 2 007023A0 平ネジ/M4×16 SCREW 2 3 2710010 ピン PIN 1 4 0045380 止ネジ/M4×6 SCREW 1 5 271002-920 クランク (組) CRANK ASSEMBLY 1 6 0045330 六角穴ボルト/M6×12 BOLT 1 7 2710030 軸 SHAFT 1 8 2403080 カラー COLLAR 1 9 0045430 止ネジ/M4×4 SCREW 2 10 2082350 座金 WASHER 1 11 2025770 止メ輪 RING 1 12 271004-920 レバー LEVER 1 13 0071500 六角ボルト/M6×12 BOLT 1 14 271022A910 軸 (組) SHAFT ASSEMBLY 1 15 271008A0 軸 SHAFT 1 16 2021770 給油紐 OIL STRING 2 17 0045460 止ネジ/M4×5 SCREW 1 18 2010220 Oリング O RING 1 19 179009-050 フェルト FELT 1 20 271009-920 リング RING 1 21 0070350 平ネジ/M3×6 SCREW 1 22 2403100 栓 PLUG 1 jintex.in
Page 18
1本針 (1-needle) EX2241-42P2, 52P2 2本針 (2-needle) EX2242-52P2 EX2241-32P1, P2 EX2241-02 jintex.in
Page 19 — NEEDLE DRIVE MECHANISM (2)
針振り機構 (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 針留(組) NEEDLE HOLDER ASSEMBLY 1 2 0045540 止ネジ/M3×3 SCREW 1 3 275019A0 糸道 THREAD GUIDE 1 4 0071200 平ネジ/M2×3 SCREW 1 5 XXXXXX 針留 NEEDLE HOLDER 1 6 0045540 止ネジ/M3×3 SCREW 2 7 2750300 糸道 THREAD GUIDE 1 8 0071190 皿ネジ/M2×5 SCREW 1 9 XXXXXX 針留 NEEDLE HOLDER 1 10 0045540 止ネジ/M3×3 SCREW 1 11 2750300 糸道 THREAD GUIDE 1 12 0071190 皿ネジ/M2×5 SCREW 1 ●XXXXXXはゲージパーツです。 部品番号は、46頁のゲージパーツ表で確認してください。 ●"XXXXXX" represents the gauge part. Please refer to the gauge part list on page 46. jintex.in
Page 20
2 1 7 6 4 3 8 5 9 10 11 12 14 EX2242-52 EX2241-32P1, P2 13 18 17 EX2241-32P1, P2を除く Except EX2241-32P1, P2 16 15 EX2242-52 EX2241-32P1, P2 19 EX2241-32P1, P2 jintex.in
Page 21 — NEEDLE DRIVE MECHANISM (3)
針振り機構 (3) NEEDLE DRIVE MECHANISM (3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 針板 NEEDLE PLATE 1 2 0071700 平ネジ/M4×7.5 SCREW 2 3 2710100 取付板(前) BRACKET (FRONT) 1 4 007019A0 平ネジ/M4×8 SCREW 2 5 2403050 防振ゴム CUSHION RUBBER 2 6 2710110 取付板(後) BRACKET (REAR) 1 7 007019A0 平ネジ/M4×8 SCREW 2 8 007019A0 平ネジ/M4×8 SCREW 1 9 XXXXXX 針受(前) NEEDLE GUARD (FRONT) 1 10 0070100 平ネジ/M3×6 SCREW 2 11 XXXXXX 針受(後) NEEDLE GUARD (REAR) 1 12 0070100 平ネジ/M3×6 SCREW 2 13 XXXXXX 針受(前) NEEDLE GUARD (FRONT) 1 14 0070190 平ネジ/M4×8 SCREW 1 15 XXXXXX 針受(後) NEEDLE GUARD (REAR) 1 16 0070100 平ネジ/M3×6 SCREW 2 17 2710240 ブラケット BRACKET 1 18 0071140 平ネジ/M4×10 SCREW 2 19 271013A0 ブラケット BRACKET 1 ●XXXXXXはゲージパーツです。 部品番号は、46頁のゲージパーツ表で確認してください。 "XXXXXX" represents the gauge part. Please refer to the gauge part list on page 46. jintex.in
Page 22
jintex.in
Page 23 — DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (1)
二重環ルーパー機構 (1) REF.NO. PART NO. 部品名称 1 271500-920 ロッド 2 007023A0 平ネジ/M4×16 3 007022A0 平ネジ/M4×14 4 2715010 振レ止メ 5 0070410 皿ネジ/M3×6 6 271504A0 軸 7 2403380 座金 8 0071740 六角ネジ/M5×10 9 3030670 バネ座金 10 2090840 蓋 11 273511-920 クランク 12 0045330 六角穴ボルト/M6×12 13 0045140 止ネジ/M5×5 DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (1) DESCRIPTION QT. CONNECTION 1 SCREW 2 SCREW 2 GUIDE 1 SCREW 2 SHAFT 1 WASHER 1 SCREW 1 SPRING WASHER 1 COVER 1 CRANK 1 BOLT 1 SCREW 1 jintex.in
Page 24
EX2242-52P2 EX2241-52P2 EX2242-52P2 EX2241-32P1, P2 EX2241-02 jintex.in
Page 25 — DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (2)
二重環ルーパー機構 (2) DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2735000 ロッド CONNECTION 1 2 205015-20 ニードルベアリング NEEDLE BEARING 1 3 2735010 クランク CRANK 1 4 2405420 ブッシュ BUSHING 1 5 0070560 六角ネジ/M5×13 SCREW 1 6 2400390 座金 WASHER 1 7 2735020 スライダー SLIDER 1 8 0045310 六角穴ボルト/M5×12 BOLT 1 9 2400620 座金 WASHER 1 10 3030670 バネ座金 SPRING WASHER 1 11 2525150 段付ピン PIN 1 12 2089490 Oリング O-RING 1 13 2735040 軸 SHAFT 1 14 273505-920 ホルダー HOLDER 1 15 0045330 六角穴ボルト/M6×12 BOLT 1 16 273509-920 クランク CRANK 1 17 0045330 六角穴ボルト/M6×12 BOLT 1 18 2725170 リンク LINK 1 19 2405420 ブッシュ BUSHING 1 20 0070560 六角ネジ/M5×13 SCREW 1 21 2400390 座金 WASHER 1 22 2735060 軸 SHAFT 1 23 204052A0 オイルシール OIL SEAL 1 24 XXXXXX 二重環ルーパー DOUBLE CHAINSTITCH LOOPER 1 25 0070140 止ネジ/M3.5×10 SCREW 1 26 273513-920 ルーパ台 LOOPER HOLDER 1 27 0070550 六角ネジ/M5×13 SCREW 1 28 XXXXXX 二重環ルーパー DOUBLE CHAINSTITCH LOOPER 1 29 0070130 平ネジ/M3.5×8 SCREW 1 ●XXXXXXはゲージパーツです。 部品番号は、46頁のゲージパーツ表で確認してください。 "XXXXXX" represents the gauge part. Please refer to the gauge part list on page 46. jintex.in
Page 26
EX2242 24 25 EX2241 23 1 2 4 3 EX2242 26 27 17 15 16 14 28 29 30 20 8 9 10 21 EX2241 11 5 EX2241 7 6 EX2242 22 13 12 19 18 jintex.in
Page 27 — DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (3)
二重環ルーバー機構 (3) DOUBLE CHAINSTITCH LOOPER DRIVE MECHANISM (3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 1921200 糸道パイプ THREAD GUIDE PIPE 1 2 007019A0 平ネジ/M4×8 SCREW 1 3 2750320 糸道パイプ THREAD GUIDE PIPE 1 4 2061150 ブラケット BRACKET 2 5 2750330 ブラケット BRACKET 1 6 0070660 段付ネジ/M4 SCREW 1 7 2103070 波板座金 WASHER 2 8 0071671 段付ネジ/M3 SCREW 1 9 1371080 調子皿 TENSION DISC 2 10 2113880 圧縮バネ SPRING 1 11 2750340 ツマミ KNOB 1 12 2750350 糸受 THREAD GUIDE 1 13 0070170 平ネジ/M4×5 SCREW 1 14 2750360 糸受 THREAD GUIDE 1 15 0070080 平ネジ/M3×4 SCREW 1 16 2750390 糸道 THREAD GUIDE 1 17 0070080 平ネジ/M3×4 SCREW 1 18 179498-920 ルーパー糸繰り (組) LOOPER THREAD TAKE-UP ASSEMBLY 1 19 0045540 止ネジ/M3×3 SCREW 2 20 2750370 板バネ FLAT SPRING 1 21 2750380 糸道 THREAD GUIDE 1 22 275038A0 糸道ブラケット THREAD GUIDE 1 23 2061150 糸道パイプ (組) BRACKET 1 24 275066-910 糸道パイプ (組) THREAD PIPE ASSEMBLY 1 25 275061-910 糸道パイプ (組) THREAD PIPE ASSEMBLY 1 26 2750640 ブラケット BRACKET 1 27 0071671 段付ネジ/M3 SCREW 2 28 1371080 調子皿 TENSION DISC 4 29 2113880 圧縮バネ SPRING 2 30 2750340 ツマミ KNOB 2 jintex.in
Page 28
jintax.in
Page 29 — FEED MECHANISM (1)
送り機構 (1) FEED MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2725000 ロッド CONNECTION 1 2 2710010 ピン PIN 1 3 0045380 止ネジ/M4×6 SCREW 1 4 240012-20 ニードルベアリング NEEDLE BEARING 1 5 2725010 エキセン ECCENTRIC 1 6 2101290 案内/送リエキセン GUIDE (FEED ECCENTRIC) 1 7 2101300 板バネ FLAT SPRING 1 8 0045350 止ネジ/M3×4 SCREW 1 9 0045350 止ネジ/M3×4 SCREW 1 10 272506-910 調節台 REGULATOR 1 11 0045140 止ネジ/M5×5 SCREW 2 12 272506A10 エキセン(組) ECCENTRIC ASSEMBLY 1 13 2725030 ネジリバネ SPRING 1 14 0070380 段付ネジ/M2 SCREW 1 15 2725020 ラチェット RATCHET 1 16 2725090 プッシュボタン PUSH BUTTON 1 17 2403150 ガスケット GASKET 1 18 2403140 座金 WASHER 1 19 2403170 圧縮バネ SPRING 1 20 2005550 止メ輪 RING 1 21 2725290 リンク LINK 1 22 0070580 段付ネジ/M5 SCREW 1 23 2025220 止メ輪 RING 1 24 272530A920 レバー LEVER 1 25 0045330 六角穴ボルト/M6×12 BOLT 1 26 2725320 レバー LEVER 1 27 0071610 段付ネジ/M5 SCREW 1 28 272533A1 軸 SHAFT 1 29 2041850 Oリング O RING 1 30 2725340 ネジリバネ SPRING 1 31 2725350 調節板 REGULATOR PLATE 1 32 007021A0 平ネジ/M4×12 SCREW 2 33 2403210 スペーサー SPACER 2 34 2520690 ナット NUT 1 35 0070590 段付ネジ/M4.5 SCREW 1 36 2113010 バネ座金 SPRING WASHER 1 37 2526580 ストッパー STOPPER 2 38 007018A0 平ネジ/M4×6 SCREW 2 39 3034480 座金 WASHER 1 40 272538A0 調節棒 ADJUSTING BAR 1 41 2403220 シール SEAL 1 42 2005550 止メ輪 RING 1 43 2405590 圧縮バネ SPRING 1 44 272539A0 段付ピン PIN 1 45 2063660 Oリング O RING 1 jintex.in
Page 30
jintiex.in
Page 31 — FEED MECHANISM (2)
送り機構 (2) FEED MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2725160 軸 SHAFT 1 2 2050610 止メ輪 RING 1 3 2081731 栓 PLUG 1 4 2403110 座金 WASHER 2 5 272510-910 クランク CRANK 1 6 0045330 六角穴ボルト/M6×12 BOLT 1 7 0070100 平ネジ/M3×6 SCREW 1 8 2725180 角駒 BLOCK 2 9 272514-921 クランク CRANK 1 10 0045330 六角穴ボルト/M6×12 BOLT 1 11 2725151 ピン PIN 1 12 0048050 六角ナット/M5 NUT 1 13 2400620 座金 WASHER 1 14 2725250 段付ピン PIN 1 15 0072380 六角穴ボルト/M4×6 BOLT 1 16 2403180 ガスケット GASKET 1 17 2403190 止メ輪 RING 1 18 2010220 Oリング O RING 1 19 2725260 角駒 BLOCK 1 20 2403030 カラー COLLAR 2 21 0045430 止メネジ/M4×4 SCREW 1 22 2725170 リンク LINK 1 23 2405420 ブッシュ BUSHING 1 24 0070560 六角ネジ/M5×13 SCREW 1 25 2400390 座金 WASHER 1 26 2725270 主送り台 MAIN FEED BAR 1 27 XXXXXX 主送り歯 (組) MAIN FEED DOG ASSEMBLY 1 28 XXXXXX 主送り歯 MAIN FEED DOG 1 29 XXXXXX 補助送り歯 AUXILIARY FEED DOG 1 30 0070100 平ネジ/M3×6 SCREW 1 31 0070130 平ネジ/M3.5×8 SCREW 1 32 2725280 差動送り台 DIFFERENTIAL FEED BAR 1 33 XXXXXX 差動送り歯 DIFFERENTIAL FEED DOG 1 34 0070130 平ネジ/M3.5×8 SCREW 1 35 2725240 角駒 BLOCK 1 36 2725190 送り台案内 (右) FEED BAR GUIDE (RIGHT) 1 37 0071100 六角穴ボルト/M4×9 BOLT 2 38 2725200 送り台案内 (左) FEED BAR GUIDE (LEFT) 1 39 0071100 六角穴ボルト/M4×9 BOLT 2 40 2725210 油切り OIL SEAL 2 41 2726170 油切り案内 GUIDE (FEED BAR OIL SEAL) 1 42 0045730 平ネジ/M4×5 SCREW 2 ●XXXXXXはゲージパーツです。 部品番号は、46頁のゲージパーツ表で確認してください。 "XXXXXX" represents the gauge part. Please refer to the gauge part list on page 46. jintex.in
Page 32
EX2241-02, -32P1, P2を除く Except EX2241-02, -32P1, P2 jintex.in
Page 33 — KNIFE DRIVE MECHANISM
上下メス機構 KNIFE DRIVE MECHANISM REF.NO. PART NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 273000-920 007023A0 273001A920 0045330 2710010 0045380 240235-920 0045470 2730030 3080360 2730060 2730140 0070250 XXXXXX 0070130 273009B0 0070190 2730100 007019A0 2403240 2730070 007019A0 XXXXXX 2730120 0071730 2730130 部品名称 ロッド 平ネジ/M4×16 クランク 六角穴ボルト/M6×12 ピン 止ネジ/M4×6 カラー 止ネジ/M6×5 上メス台 ピン付ネジ 案内ピン 上メス挟ミ 平ネジ/M4×20 上メス 平ネジ/M3.5×8 下メス台 平ネジ/M4×8 案内/下メス台 平ネジ/M4×8 圧縮バネ 当板 平ネジ/M4×8 下メス 下メス押エ 六角ボルト/M5×8 スペーサー DESCRIPTION CONNECTION SCREW CRANK BOLT PIN SCREW COLLAR SCREW UPPER KNIFE HOLDER SCREW PIN UPPER KNIFE CLAMP SCREW UPPER KNIFE SCREW LOWER KNIFE HOLDER SCREW LOWER KNIFE HOLDER GUIDE SCREW SPRING PLATE SCREW LOWER KNIFE LOWER KNIFE CLAMP BOLT SPACER QT. 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 ●XXXXXXはゲージパーツです。 部品番号は、46頁のゲージパーツ表で確認してください。 ●"XXXXXX" represents the gauge part. Please refer to the gauge part list on page 46. jintex.in
Page 34
EX2241-02 EX2241-42P2 EX2241-02, -42P2 を除く Except EX2241-02, -42P2 EX2241-02 を除く Except EX2241-02 EX2241-02 EX2241-32P1, P2 EX2241-32P1, P2 を除く Except EX2241-32P1, P2 jintex.in
Page 35
押工機構 PRESSER FOOT MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2740070 レバー LEVER 1 2 0070600 段付ネジ/M10 SCREW 1 3 2740080 ネジナリバネ SPRING 1 4 2740090 ストッパー STOPPER 1 5 007020A0 平ネジ/M4×10 SCREW 2 6 0071750 平ネジ/M5×24 SCREW 1 7 0048050 六角ナット/M5 NUT 1 8 2740060 リンク LINK 1 9 2740040 レバー LEVER 1 10 274003-921 カラー COLLAR 1 11 0045340 六角穴付ボルト/M6×14 BOLT 1 12 2740050 ネジナリバネ SPRING 1 13 2740020 ブッシュ BUSHING 1 14 0071050 平ネジ/M4×40 SCREW 1 15 2740010 軸/押工台 SHAFT 1 16 274000-B0 押工台 PRESSER ARM 1 17 2085490 平行ピン PIN 1 18 0045940 平ネジ/M4×4 SCREW 1 19 274061-920 ホルダ HOLDER 1 20 0070130 平ネジ/M3.5×8 SCREW 1 21 274027A0 フィンガーガード FINGER GUARD 1 22 2740580 ネジナリバネ SPRING 1 23 0070090 平ネジ/M3×5 SCREW 1 24 0070080 平ネジ/M3×4 SCREW 1 25 274011-910 押工棒 PRESSER BAR 1 26 2087730 圧縮バネ SPRING 1 27 274014A1 調節ネジ SCREW 1 28 2740150 ナット NUT 1 29 2740160 レバー LEVER 1 30 0071710 段付ネジ/M4 SCREW 1 31 2740170 ネジナリバネ SPRING 1 32 2740100 ストッパー STOPPER 1 33 0070190 平ネジ/M4×4 SCREW 1 34 274026A0 フィンガーガード FINGER GUARD 1 35 0070080 平ネジ/M3×4 SCREW 2 36 XXXXXX 小押工 SHOE/PRESSER FOOT 1 37 0012290 平ネジ/C3×4.5 SCREW 1 38 0011960 平ネジ/C3×6.5 SCREW 2 39 270083-9U0 側面カバー(組) SIDE COVER ASSEMBLY 1 40 2403471 圧縮バネ SPRING 1 41 2740240 ネジナリバネ SPRING 1 42 0071660 段付ネジ/M3 SCREW 1 43 XXXXXX 押工 PRESSER FOOT 1 44 XXXXXX 押工(組) PRESSER FOOT ASSEMBLY 1 ●XXXXXXはゲージパーツです。
Page 36
jinttex.in
Page 37 — LUBRICATION MECHANISM (1)
給油機構 (1) LUBRICATION MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 274505A910 ポンプ PUMP 1 2 2116180 ウォームホイール WORM WHEEL 1 3 0050600 止ネジ/C8×4.5 SCREW 2 4 212978-910 ローター (内) 軸 ROTOR (INSIDE) SHAFT 1 5 2129810 ローター (外) ROTOR (OUTSIDE) 1 6 2094080 フィルタ FILTER 1 7 2094090 フィルタ FILTER 1 8 0070120 平ネジ/M3.5×8 SCREW 3 9 0045290 六角ボルト/M4×16 BOLT 2 10 2745090 タンク TANK 1 11 007022A0 平ネジ/M4×14 SCREW 2 12 2062330 蓋 COVER 1 13 2745100 蓋 COVER 1 14 007018A0 平ネジ/M4×6 SCREW 3 15 2403070 Oリング O RING 1 16 2001360 継手 JOINT 2 17 2403280 継手ネジ JOINT SCREW 2 18 2021990 クランプ CLAMP 1 19 2403270 チューブ TUBE 2 20 2001360 継手 JOINT 1 21 2403280 継手ネジ JOINT SCREW 2 22 2021990 クランプ CLAMP 2 23 2401350 チューブ TUBE 1 24 2001360 継手 JOINT 1 25 2403280 継手ネジ JOINT SCREW 1 26 2021990 クランプ CLAMP 2 27 2403340 チューブ TUBE 1 28 2745120 継手 JOINT 1 29 2400200 Oリング O RING 1 30 004210-HU0 平ネジ/M4×12 SCREW 1 31 274515-910 油分配器 (組) OIL DISTRIBUTOR ASSEMBLY 1 32 2102140 栓 PLUG 2 33 004211-HU0 平ネジ/M4×16 SCREW 1 34 2403280 継手ネジ JOINT SCREW 1 35 2094100 クランプ CLAMP 1 36 0070110 平ネジ/M3×8 SCREW 1 37 0048000 六角ナット NUT 1 38 2745250 給油案内 OIL GUIDE 1
Page 38
jinttex.in
Page 39 — LUBRICATION MECHANISM (2)
給油機構 (2) LUBRICATION MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 274502A0 オイルゲージ OIL SIGHT GAUGE 1 2 2300430 Oリング O RING 1 3 210193A910 オイル指示 OIL INDICATOR ASSEMBLY 1 4 2105100 オイル指示受 OIL INDICATOR SUPPORT 1 5 004210-HU0 平ネジ/M4×12 SCREW 2 6 274503-910 オイルパン (組) OIL RESERVOIR ASSEMBLY 1 7 005138B0 平ネジ/H11×12 SCREW 1 8 202287A0 ガスケット GASKET 1 9 0045310 六角穴ボルト/M5×12 BOLT 4 10 2403390 座金 WASHER 4 11 2745010 ガスケット GASKET 1 12 2745070 ウォーム WORM 1 13 0045140 止ネジ/M5×5 SCREW 1 14 274516-910 パイプ (組) PIPE ASSEMBLY 1 15 2021750 給油紐 OIL STRING 1 16 2400970 栓 PLUG 1 17 0045430 止ネジ/M4×4 SCREW 1 18 274523-910 継手 (組) JOINT 1 19 2041850 Oリング O RING 1 20 007019A0 平ネジ/M4×8 SCREW 1 jintex.in
Page 40
EX2241-02 EX2241-32P1, P2を除く Except EX2241-32P1, P2 jintex.in
Page 41 — H.R.装置
H.R.装置 REF.NO. PART NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 2755000 2755010 2755080 2755070 007020A0 2755040 2755050 004210-HU0 2021750 2403310 2001550 275509A0 007019A0 2102140 2044660 2107660 部品名称 シリコンタンク (上) 蓋 フェルト 糸案内 平ネジ/M4×10 シリコンタンク (下) 蓋 平ネジ/M4×12 給油紐 チューブ クランプ 針冷却器 平ネジ/M4×8 栓 給油フェルト 止ピン H.R. DEVICE DESCRIPTION SILICONE OIL RESERVOIR (UPPER) COVER FELT THREAD GUIDE SCREW SILICONE OIL RESERVOIR (LOWER) COVER SCREW OIL STRING TUBE CLAME NEEDLE THREAD LUBRICATOR SCREW PLUG OIL FELT PIN QT. 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 jintex.in
Page 42
3 本立 3-spool 1 4 本立 4-spool 2 31 39 17 38 34 37 23 25 36 21 22 24 20 18 19 27 32 33 30 13 8 16 12 11 9 10 6 15 14 4 5 7 15 16 37 35 36 13 8 12 11 9 10 3 jintex.in
Page 43 — THREAD STAND
糸立台 THREAD STAND REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 000486C9P0 糸立 (組) (3 本立) THREAD STAND ASSEMBLY (3-SPOOL) 0 1 2 000486B9P0 糸立 (組) (4 本立) THREAD STAND ASSEMBLY (4-SPOOL) 1 0 3 000503-PA0 スタンド棒 (下) COLUMN PIPE (LOWER) 1 1 4 0005090 座金 WASHER 1 1 5 0054760 六角ナット NUT 1 1 6 000505-PA0 ブラケット (3本立) BRACKET (3-SPOOL) 0 1 7 000505APA0 ブラケット (2本立) BRACKET (2-SPOOL) 1 0 8 000380A0 糸立棒 SPOOL PIN 2 0 9 2012520 バネ座金 SPRING WASHER 4 3 10 0048030 六角ナット/M4 NUT 4 3 11 000381-PA0 受皿 SPOOL SEAT DISC 4 3 12 0005070 ウレタン SPOOL MAT 4 3 13 000382-PA0 揺れ止め SPOOL CUSHION 4 3 14 0071020 六角ネジ/M6×32 SCREW 2 1 15 0005120 座金 WASHER 2 1 16 0040220 平ネジ/M6×10 SCREW 2 1 17 000502-PA0 スタンド棒 (上) COLUMN PIPE (UPPER) 1 1 18 000504-PA0 ジョイント JOINT 1 1 19 0040210 平ネジ/M5×16 SCREW 2 2 20 0048050 六角ナット/M5 NUT 2 2 21 000383-PA0 ブラケット HOLDER 1 1 22 0040140 平ネジ/M4×25 SCREW 1 1 23 0048030 六角ナット/M4 NUT 1 1 24 0003840 糸道棒腕 THREAD GUIDE ARM 1 1 25 0040120 平ネジ/M4×12 SCREW 1 1 26 0048030 六角ナット/M4 NUT 1 1 27 000233-PA0 ホルダー HOLDER 1 1 28 0040120 平ネジ/M4×12 SCREW 1 1 29 0048030 六角ナット/M4 NUT 1 1 30 000293B0 糸道棒 (4 本立) THREAD GUIDE (4-SPOOL) 1 0 31 000293C0 糸道棒 (3 本立) THREAD GUIDE (3-SPOOL) 0 1 32 0040120 平ネジ/M4×12 SCREW 1 1 33 0048030 六角ナット/M4 NUT 1 1 34 000527-PA0 ブラケット (3本立) BRACKET (3-SPOOL) 0 1 35 000527APA0 ブラケット (2本立) BRACKET (2-SPOOL) 2 0 36 0005060 糸目穴 THREAD EYELET 4 3 37 0041170 平ネジ/M5 SCREW 2 1 38 0048050 六角ナット/M5 NUT 2 1 39 0003860 キャップ ROD CAP 1 1
Page 44
テーブル板厚 35 mm用 Special washers for a table 35 mm thick jintex.in
Page 45
半沈床式据付附属品 PARTS FOR SEMI-SUBMERGED INSTALLATION REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2760010 据付板 REST BOARD 1 2 179483-050 クッションゴム CUSHION RUBBER 4 3 2063360 半沈床式ナット/M8 NUT 4 4 2054670 スペーサー SPACER 4 5 0045750 六角穴ボルト/M8×45 BOLT 4 6 2403040 歯付座金 WASHER 4 7 276002-UA0 シュータ(上) WASTE CHUTE TOP 1 8 276003-UA0 シュータ(下) WASTE CHUTE EXTENSION 1 9 0049040 木ネジ/3.5 SCREW 3 10 2760040 取付板 BRACKET 1 11 0041090 平ネジ/M4×10 SCREW 2 12 2401040 座金 WASHER 2 13 2063370 座金 WASHER 4 14 2014770 バネ座金 SPRING WASHER 4 jintex.in
Page 46
EX2242-52P2 31 EX2241-42P2 32 EX2241-52P2 1 28 mm 2 24 mm 3 32 mm 10 9 6 8 7 5 4 EX2241-32P1, P2 11 EX2242-52P2 12 EX2241-42P2 EX2241-32P2のみ 23 EX2241-52P2 13 24 22 14 31 32 28 15 16 29 30 17 18 25 21 26 27 20 19 44 From the library of: Superior Sewing Machine & Supply LLC
Page 47
専用部品 SPECIFIC PARTS REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2083890 バインダー（組）(28) BINDER ASSEMBLY (28) 1 2 2083900 バインダー（組）(24) BINDER ASSEMBLY (24) 1 3 2087570 バインダー（組）(32) BINDER ASSEMBLY (32) 1 4 007013A0 平ネジ/M3.5×8 SCREW 2 5 1371420 座金 WASHER 2 6 2700860 ブラケット BRACKET 1 7 007021A0 平ネジ/M4×12 SCREW 2 8 2085690 補助板 TAPE GUIDE 1 9 2028750 座金 WASHER 1 10 0070110 平ネジ/M3×8 SCREW 1 11 000403-9S0 テープガイド（組） TAPE DISC ASSEMBLY 1 12 0004060 フェルト FELT 1 13 0004050 取付棒 FIXING ROD 1 14 0004040 カノコ台 TAPE DISC 1 15 0040120 平ネジ/M4×12 SCREW 1 16 0004070 カラー COLLAR 1 17 0004080 調節ネジ ADJUSTING SCREW 1 18 0004090 軸 SHAFT 1 19 0048180 六角ナット/M6 NUT 1 20 000410-SA0 ブラケット BRACKET 1 21 0049080 木ネジ（皿）/4.5 SCREW 3 22 2086380 バインダー（組） BINDER 1 23 0012160 平ネジ/C4×5.5 SCREW 1 24 1371420 座金 WASHER 1 25 2118610 補助クロスプレート BRACKET 1 26 2048880 皿バネ SPRING WASHER 2 27 0053800 段付ネジ/C8 SCREW 1 28 0051040 六角ナット/C8 NUT 1 29 270087-910 ブラケット BRACKET 1 30 007021A0 平ネジ/M4×12 SCREW 2 31 2700850 ブラケット BRACKET 1 32 0045100 六角穴ボルト/M6×16 BOLT 2 45 From the library of: Superior Sewing Machine & Supply LLC
Page 48 — EX2200 GAUGE PARTS LIST
EX2200 ゲージパーツ表 EX2200 GAUGE PARTS LIST ミシン形式 ゲージ 針板 主送り歯(組) 主送り歯本体 補助送り歯 差動送り歯 押工(組) 小押工 ルーバー 針受(前) 針受(後) MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASSY. MAIN FEED DOG AUX. FEED DOG DFF. FEED DOG PRESSER FOOT ASSY SHOE PRESSER FOOT LOOPER NEEDLE GUARD FRONT NEEDLE GUARD REAR NG SW EX2241-52P2/083 24 28 277548R0 277359-160 (277360-160) (277361-160) 277362-160 2771940 2770380 2770410 2770420 32 EX2241-42P2/083 24 28 277548R0 277359-160 (277360-160) (277361-160) 277362-160 2771960 2770380 2770410 2770420 32 EX2242-52P2/083 5 24 28 277549R0 277359-160 (277360-160) (277361-160) 277362-160 2771950 2770380 (27) 2770410 2770420 32 (2 pieces) 2770080 2770060 EX2241-32P1/063 4 5 6 277550R0 277363-160 277364-160 2087670 2087680 2087690 2087700 2770380 2770080 2770060 EX2241-32P2/063 4 5 6 277550R0 277363-160 277364-160 2087670 2087680 2087690 2087700 2770380 2770080 2770060 EX2241-02/083 277591R0 277433-160 277434-160 2780220 2770380 2770080 2770060 EX2200 ゲージパーツ表 EX2200 GAUGE PARTS LIST ミシン形式 ゲージ 針留 上メス 下メス 針 MACHINE TYPE /SPEC GAUGE NEEDLE HOLDER UPPER KNIFE LOWER KNIFE NEEDLE NG SW EX2241-52P2/083 24 28 179630-920 202527A0 2022950 DCX27 #14 32 EX2241-42P2/083 24 28 179630-920 202527A0 2022950 DCX27 #14 32 EX2242-52P2/083 5 24 28 277028A920 202527A0 2022950 DCX27 #14 32 EX2241-32P1/063 4 5 6 277027-920 DCX27 #16 EX2241-32P2/063 4 5 6 277027-920 DCX27 #16 EX2241-02/083 277028-920 DCX27 #16
Page 49
インデックス INDEX PART NO. PAGE REF. NO. PART. NO. PAGE REF. NO. PART. NO. PAGE REF. NO. PART. NO. PAGE REF. NO. PART. NO. PAGE REF. NO. 000233-PA0 41 27 0045750 43 5 0070440 9 27 2081731 29 3 2403340 35 27 000293B0 41 30 0045940 33 18 0070550 23 27 2082350 15 10 2403350 9 11 000293C0 41 31 0048000 35 37 0070560 23 5 2083890 45 1 2403380 21 7 000380A0 41 8 0048030 41 10 0070560 23 20 2083900 45 2 2403390 37 10 000381-PA0 41 11 0048030 41 23 0070560 29 24 2084480 11 3 2403400 9 7 000382-PA0 41 13 0048030 41 26 0070580 27 22 2084490 11 6 2403400 9 17 000383-PA0 41 21 0048030 41 29 0070590 27 35 2085490 33 17 2403430 7 13 0003840 41 24 0048030 41 33 0070600 33 2 2085690 45 8 2403471 33 40 0003860 41 39 0048050 29 12 0070620 7 26 2086270 9 29 2405420 23 4 000403-9S0 45 11 0048050 33 7 0070620 13 9 2086380 45 22 2405420 23 19 0004040 45 14 0048050 41 20 0070660 7 29 2087570 45 3 2405420 29 23 0004050 45 13 0048050 41 38 0070660 25 6 2087730 33 26 2405590 27 43 0004060 45 12 0048180 45 19 0070770 7 18 2089490 23 12 2520690 27 34 0004070 45 16 0048210 7 37 0070820 13 2 2090840 3 7 2525150 23 11 0004080 45 17 0049040 43 9 0070840 7 32 2090840 21 10 2526580 27 37 0004090 45 18 0049080 45 21 0071020 41 14 2094080 35 6 263543-TA0 11 2 000410-SA0 45 20 0050600 35 3 0071050 33 14 2094090 35 7 263544-TA0 11 4 000486B9P0 41 2 005082A0 11 7 0071100 29 37 2094100 35 35 270008-910 3 4 000486C9P0 41 1 0051040 45 28 0071100 29 39 2100440 5 24 270011AUD0 5 14 000502-PA0 41 17 005138B0 37 7 0071140 19 18 2100560 9 15 270011-UD0 5 28 000503-PA0 41 3 0053800 45 27 0071190 17 8 2100570 9 16 2700130 5 33 000504-PA0 41 18 0054760 41 5 0071190 17 12 2101290 27 6 270013C0 5 27 000505APA0 41 7 0070080 25 15 0071200 13 11 2101300 27 7 270013D0 5 32 000505-PA0 41 6 0070080 25 17 0071200 17 4 210193A910 37 3 2700140 5 15 0005060 41 36 0070080 33 24 0071500 15 13 2101940 3 2 2700150 7 17 0005070 41 12 0070080 33 35 0071510 9 2 2102140 35 32 2700170 5 31 0005090 41 4 0070090 5 21 0071610 27 27 2102140 39 14 2700180 5 20 0005120 41 15 0070090 33 23 0071660 33 42 2103070 7 5 2700190 7 23 00527APA0 41 35 0070100 19 10 0071671 25 8 2103070 7 30 270020-SD0 5 1 00527-PA0 41 34 0070100 19 12 0071671 25 27 2103070 25 7 2700210 5 3 0011960 33 38 0070100 19 16 0071700 19 2 2103190 11 5 2700230 7 33 0012160 45 23 0070100 29 7 0071710 33 30 2105100 37 4 270024-9U0 5 8 0012290 33 37 0070100 29 30 0071720 7 20 210529-9T0 11 1 2700250 5 12 004009-1HC0 11 13 0070110 9 4 0071730 31 25 210529-9T0 11 16 2700260 7 34 004009-1HC0 11 14 0070110 35 36 0071740 21 8 2106790 7 38 270030-UB0 7 9 0040120 41 25 0070110 45 10 0071750 33 6 2106790 7 39 2700330 7 25 0040120 41 28 0070120 35 8 0071760 5 11 2106790 7 40 2700340 7 28 0040120 41 32 0070130 23 29 0071800 7 16 2107660 39 16 2700350 7 1 0040120 45 15 0070130 29 31 0072380 29 15 2113010 27 36 270035F911 7 2 0040140 41 22 0070130 29 34 1371080 25 9 2113880 25 10 2700420 7 3 0040210 41 19 0070130 31 15 1371080 25 28 2113880 25 29 2700430 7 19 0040220 41 16 0070130 33 20 1371420 45 5 2115260 9 13 2700440 7 21 0041090 43 11 007013A0 45 4 1371420 45 24 2115280 9 18 2700450 7 22 0041170 41 37 0070140 23 25 179009-050 15 19 2116180 35 2 2700470 3 6 004210-HU0 35 30 0070170 13 7 179107-050 5 5 2118610 45 25 2700490 7 15 004210-HU0 37 5 0070170 25 13 179483-050 43 2 212978-910 35 4 270077-UB0 5 9 004210-HU0 39 8 007017A0 5 23 179498-920 25 18 2129810 35 5 270083-9U0 33 39 004211-HU0 35 33 007017A0 5 25 1921200 25 1 2129870 9 12 2700850 45 31 0045100 45 32 007018A0 5 26 2001360 35 16 2300430 37 2 2700860 45 6 0045110 3 5 007018A0 7 7 2001360 35 20 240012-20 27 4 270087-910 45 29 0045140 9 10 007018A0 7 12 2001360 35 24 2400200 35 29 270152A0 5 22 0045140 21 13 007018A0 11 10 2001550 39 11 2400390 23 6 2701770 7 31 0045140 27 11 007018A0 27 38 2005550 27 20 2400390 23 21 270500A0 9 1 0045140 37 13 007018A0 35 14 2005550 27 42 2400390 29 25 2705020 9 3 0045230 9 23 00701900 19 14 2010020 3 1 2400430 5 17 2705030 9 5 0045290 35 9 00701900 31 17 2010220 15 18 2400620 23 9 270504-UD0 9 21 0045310 23 8 00701900 33 33 2010220 29 18 2400620 29 13 2705050 9 20 0045310 37 9 007019A0 5 13 2010370 11 8 2400970 37 16 270507-910 9 8 0045330 15 6 007019A0 7 24 2012520 7 11 2401040 43 12 2705090 9 26 0045330 21 12 007019A0 19 4 2012520 41 9 2401100 5 6 2705100 9 25 0045330 23 15 007019A0 19 7 2014770 43 14 2401350 35 23 270523A0 9 30 0045330 23 17 007019A0 19 8 2021750 37 15 240235-920 31 7 2705260 9 31 0045330 27 25 007019A0 25 2 2021750 39 9 2402990 3 3 271000-920 15 1 0045330 29 6 007019A0 31 19 2021770 15 16 2403010 5 19 2710010 15 3 0045330 29 10 007019A0 31 22 2021990 35 18 2403030 29 20 2710010 27 2 0045330 31 4 007019A0 37 20 2021990 35 22 2403040 43 6 2710010 31 5 0045340 33 11 007019A0 39 13 2021990 35 26 2403050 5 4 271002-920 15 5 0045350 5 30 0070200 7 35 202287A0 37 8 2403050 5 10 2710030 15 7 0045350 27 8 0070200 9 28 2025220 27 23 2403050 7 8 271004-920 15 12 0045350 27 9 007020A0 9 19 2025770 15 11 2403050 7 14 271008A0 15 15 0045380 15 4 007020A0 33 5 2028490 11 12 2403050 19 5 271009-920 15 20 0045380 27 3 007020A0 39 5 2028490 11 15 2403060 9 14 2710100 19 3 0045380 31 6 007021A0 5 16 2028750 7 27 2403070 35 15 2710110 19 6 0045410 9 6 007021A0 27 32 2028750 45 9 2403080 15 8 271013A0 19 19 0045410 9 22 007021A0 45 7 204052A0 23 23 2403100 15 22 271022A910 15 14 0045430 5 18 007021A0 45 30 2041150 7 6 2403110 29 4 2710240 19 17 0045430 7 4 007022A0 5 2 2041850 27 29 2403140 27 18 271500-920 21 1 0045430 13 4 007022A0 21 3 2041850 37 19 2403150 27 17 2715010 21 4 0045430 15 9 007022A0 35 11 2042930 9 24 2403170 27 19 271504A0 21 6 0045430 29 21 007022A0 35 39 2044660 39 15 2403180 29 16 2725000 27 1 0045430 37 17 007023A0 7 36 2048880 45 26 2403190 29 17 2725010 27 5 0045460 15 17 007023A0 15 2 205015-20 23 2 2403210 27 33 2725020 27 15 0045470 31 8 007023A0 21 2 2050610 29 2 2403220 27 41 2725030 27 13 0045540 17 2 007023A0 31 2 2054670 43 4 2403240 31 20 272504-910 27 12 0045540 17 6 0070250 31 13 2061150 25 4 2403270 35 19 272506-910 27 10 0045540 17 10 007025A0 7 10 2061150 25 23 2403280 35 17 2725090 27 16 0045540 25 19 0070350 15 21 2062330 35 12 2403280 35 21 272510-910 29 5 0045720 9 9 0070380 27 14 2063360 43 3 2403280 35 25 272514-921 29 9 0045730 29 42 0070410 21 5 2063370 43 13 2403280 35 34 2725151 29 11 0045740 5 29 0070440 5 7 2063660 27 45 2403310 39 10 2725160 29 1 47 From the library of: Superior Sewing Machine & Supply LLC
Page 50
インデックス INDEX PART NO. PAGE REF. NO. PART. NO. PAGE REF. NO. PART. NO. PAGE REF. NO. PART. NO. PAGE REF. NO. PART. NO. PAGE REF. NO. 2725170 23 18 275038A0 25 22 2725170 29 22 2750390 25 16 2725180 29 8 275061-910 25 25 2725190 29 36 2750640 25 26 2725200 29 38 2750650 13 10 2725210 29 40 275066-910 25 24 2725240 29 35 2755000 39 1 2725250 29 14 2755010 39 2 2725260 29 19 2755040 39 6 2725270 29 26 2755050 39 7 2725280 29 32 2755070 39 4 2725290 27 21 2755080 39 3 272530A920 27 24 275509A0 39 12 2725320 27 26 2755400 3 9 272533A1 27 28 2755410 3 8 2725340 27 30 2760010 43 1 2725350 27 31 276002-UA0 43 7 272538A0 27 40 276003-UA0 43 8 272539A0 27 44 2760040 43 10 2726170 29 41 3030670 21 9 273000-920 31 1 3030670 23 10 273001A920 31 3 3034480 27 39 2730030 31 9 3080360 31 10 2730060 31 11 2730070 31 21 273009B0 31 16 2730100 31 18 2730120 31 24 2730130 31 26 2730140 31 12 2735000 23 1 2735010 23 3 2735020 23 7 2735040 23 13 273505-920 23 14 2735060 23 22 273509-920 23 16 273511-920 21 11 273513-920 23 26 274000-B0 33 16 2740010 33 15 2740020 33 13 274003-921 33 10 2740040 33 9 2740050 33 12 2740060 33 8 2740070 33 1 2740080 33 3 2740090 33 4 2740100 33 32 274011-910 33 25 274014A1 33 27 2740150 33 28 2740160 33 29 2740170 33 31 2740240 33 41 274026A0 33 34 274027A0 33 21 2740580 33 22 274061-920 33 19 2745010 37 11 274502A0 37 1 274503-910 37 6 274505A910 35 1 2745070 37 12 2745090 35 10 2745100 35 13 2745120 35 28 274515-910 35 31 274516-910 37 14 274523-910 37 18 2745250 35 38 2750000 11 9 2750010 11 11 275019A0 17 3 2750210 13 1 2750220 13 3 2750270 13 8 2750280 13 5 275028A0 13 6 2750300 17 7 2750300 17 11 2750320 25 3 2750330 25 5 2750340 25 11 2750340 25 30 2750350 25 12 2750360 25 14 2750370 25 20 2750380 25 21 48 From the library of: Superior Sewing Machine & Supply LLC
Page 51
jintex.in jintex.in
Page 52
本社 〒553-0002 大阪市福島区鷺洲5-7-2 TEL (06)6458-4739 FAX (06)6454-8785 PEGASUS SEWING MACHINE MFG. CO., LTD. 5-7-2, Sagisu, Fukushima-ku, Osaka 553-0002, Japan. Phone :(06)6458-4739 Telefax:(06)6454-8785 Cat. No. 9B600600000 May 2002 2002 PEGASUS SEWING MACHINE MFG. CO., LTD. このパーツカタログに記載されている内容は、 改良のため予告なく変更することがあります。 The description in this PARTS CATALOG is subject to change without notice. From the library of: Superior Sewing Machine & Supply LLC Powered by TCPDF (www.tcpdf.org)
