Parts index — Pegasus EX3200 / EX5200 (117 pages)tap a row to open its page

Page 2

Pegasus EX3200 / EX5200 (117 pages) parts on page 2
Ref	Part number	Part name	Qty
	EX3215(16)-01/222(K)	EX3200 Series Model
	EX3215(16)-01A/222	EX3200 Series Model
	EX3215(16)N-01/222	EX3200 Series Model
	EX3215(16)N-01/232	EX3200 Series Model
	EX3215(16)N-01S/272	EX3200 Series Model
	EX3215(16)N-01U/232	EX3200 Series Model
	EX3215(16)-02/223(K)	EX3200 Series Model
	EX3215(16)-02A/223	EX3200 Series Model
	EX3215(16)-02A/233	EX3200 Series Model
	EX3215(16)-02U/223(K)	EX3200 Series Model
	EX3215(16)-03/233(K)	EX3200 Series Model
	EX3215(16)-03/333(K)	EX3200 Series Model
	EX3215(16)-03U/233(K)	EX3200 Series Model
	EX3244-03/333(K)	EX3200 Series Model
	EX3215(16)-A04/435(K)	EX3200 Series Model
	EX3244-A04/435(K)	EX3200 Series Model
	EX3215(16)-A05/535(K)	EX3200 Series Model
	EX3215(16)-42/233(K)	EX3200 Series Model
	EX3215(16)-42P1/233(K)	EX3200 Series Model
	EX3215(16)-42P2/233(K)	EX3200 Series Model
	EX3215(16)-43/335(K)	EX3200 Series Model
	EX3215(16)-53/233(K)	EX3200 Series Model
	EX5204-01/223(K)	EX5200 Series Model
	EX5214-01/233(K)	EX5200 Series Model
	EX5214N-01/283(K)	EX5200 Series Model
	EX5214N-01U/283(K)	EX5200 Series Model
	EX5204-02/233(K)	EX5200 Series Model
	EX5204-02H/223(K)	EX5200 Series Model
	EX5212-02/333(K)	EX5200 Series Model
	EX5214-03/333(K)	EX5200 Series Model
	EX5214-M03/333(K)	EX5200 Series Model
	EX5214-04/485(K)	EX5200 Series Model
	EX5205-12/223(K)	EX5200 Series Model
	EX5205-12Z1/223(K)	EX5200 Series Model
	EX5203-12/223(K)	EX5200 Series Model
	EX5203-22/233(K)	EX5200 Series Model
	EX5204-22Z2/213(K)	EX5200 Series Model
	EX5204-23Z3/684(K)	EX5200 Series Model
	EX5204-24/445(K)	EX5200 Series Model
	EX5214-24/445(K)	EX5200 Series Model
	EX5204-32R1/223(K)	EX5200 Series Model
	EX5204-32R2/223L(K)	EX5200 Series Model
	EX5204-32R2/223(K)	EX5200 Series Model
	EX5214-43/333(K)	EX5200 Series Model
	EX5214-43P1/233(K)	EX5200 Series Model
	EX5214-43P2/333(K)	EX5200 Series Model
	EX5214-53C3/333(K)	EX5200 Series Model
	EX5214-M53/333(K)	EX5200 Series Model
	EX5214-54/433(K)	EX5200 Series Model
	EX5214-54/443(K)	EX5200 Series Model
	EX5214-54/445(K)	EX5200 Series Model
	EX5214H-55/545(K)	EX5200 Series Model
	EX5204-82/223(K)	EX5200 Series Model
	EX5204T-82/223(K)	EX5200 Series Model
	EX5204-82/233(K)	EX5200 Series Model
	EX5214-83/323(K)	EX5200 Series Model
	EX5214-84/423(K)	EX5200 Series Model
	EX5204-92M1/223(K)	EX5200 Series Model
	EX5214-92M2/223(K)	EX5200 Series Model

Page 5 — MACHINE BED FRAME

Pegasus EX3200 / EX5200 (117 pages) parts on page 5
Ref	Part number	Part name	Qty
1	2010020	SPRING PIN	1
2	2101820	SPRING PIN	1
3	2101940	INDICATOR GUIDE	2
4	2403250	PIPE	2
5	2402990	PIN	1
6	2081731	PLUG	1
7	270008-910	BRACKET ASSY.	1
8	0045110	BOLT	2
9	2700470	BED PIN	4
10	0084210	OIL MARK	1
11	9A30710	EARTH LABEL	1

Page 7 — カバー機構(1) COVER(1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 7
Ref	Part number	Part name	Qty
1	270020-SD0	上カバー	1
2	007022A0	十字穴ナベ小ネジ/M4 × 14	4
3	2700210	ガスケット	1
4	2403050	防振ゴム	3
5	179107-050	オイル窓	1
6	2401100	栓	1
7	270083-9U0	側面カバー (組)	1
8	270083D9U0	側面カバー (組)	1
9	270083A9U0	側面カバー (組)	1
10	274011-910	押工棒	1
11	274116A910	押工棒	1
12	0070440	皿ネジ/M4 × 10	4
13	270024-9U0	ベルトカバー (組)	1
14	2403050	防振ゴム	1
15	0071760	平ネジ/M6 × 14	3
16	2700250	ファンカバー	1
17	007019A0	十字穴ナベ小ネジ/M4 × 8	2
18	270011-UD0	前カバー (右)	1
19	2700140	ヒンジ	1
20	007021A0	十字穴ナベ小ネジ/M4 × 12	3
21	2400430	平行ピン	1
22	0045430	六角穴止ネジ/M4 × 4	2
23	2403010	圧縮バネ	1
24	2700180	ラッチ	1
25	0070090	平ネジ/M3 × 5	1
26	0045740	六角穴止ネジ/M3 × 12	1
27	0045350	六角穴止ネジ/M3 × 4	1
28	2700170	ラッチ	1
29	007017A0	十字穴ナベ小ネジ/M4 × 5	1
30	2100440	板バネ	1
31	007017A0	十字穴ナベ小ネジ/M4 × 5	1
32	2700120	前カバー (左)	1
33	007018A0	十字穴ナベ小ネジ/M4 × 6	2
34	2701530	カバー	1
35	007020A0	十字穴ナベ小ネジ/M4 × 10	2
36	007021A0	十字穴ナベ小ネジ/M4 × 12	1
37	007022A0	十字穴ナベ小ネジ/M4 × 14	1
38	2700130	前カバー (左)	1
39	XXXXXX	糸通し図	1
40	XXXXXX	糸通し図	1
41	9A30670	操作注意ラベル	1
42	9A30690	ケガ注意ラベル	1
43	9A30720	ラベル	1
44	9A31261	ラベル	1

Page 9 — COVER (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 9
Ref	Part number	Part name	Qty
1	2700350	CLOTH PLATE (WIDE)	1
2	2700370	CLOTH PLATE (NARROW)	1
3	2700420	BUSHING	1
4	0045430	SCREW	1
5	2103070	WASHER	1
6	2041150	WASHER	1
7	00718A0	SCREW	1
8	2403050	CUSHION RUBBER	1
9	270030-UB0	SIDE COVER (WIDE)	1
10	270031-UB0	SIDE COVER (NARROW)	1
11	00725A0	SCREW	1
12	2012520	SPRING WASHER	1
13	007018A0	SCREW	2
14	2403430	WASHER	2
15	2403050	CUSHION RUBBER	1
16	2700490	LATCH	1
17	0071800	SCREW	1
18	2700151	PLATE	1
19	0070770	SCREW	2
20	2700430	LEVER	1
21	0071720	SCREW	1
22	2700440	SPRING	1
23	2700450	BRACKET	1
24	2700190	FABRIC GUIDE	1
25	007019A0	SCREW	2
26	2700320	EYE GUARD	1
27	2700330	EYE GUARD	1
28	0070620	SCREW	2
29	2028750	WASHER	2
30	2700341	BRACKET	1
31	0070660	SCREW	1
32	2103070	WASHER	2
33	2701770	BED COVER PLATE ASSY.	1
34	0070840	BOLT	5
35	2700230	GASKET	1
36	2700260	COVER PLATE	1
37	0070200	SCREW	4
38	007023A0	SCREW	1
39	0048210	NUT	1
40	2106790	PIN	2
41	2106790	PIN	2
42	2106790	PIN	1
43	270030-UB0	SIDE COVER (WIDE)	1
44	270030DUBO	SIDE COVER	1

Page 10

Pegasus EX3200 / EX5200 (117 pages) parts on page 10
Ref	Part number	Part name
3	EX3215(16)H-A05	Part for EX3215(16)H-A05 (Except EX5204-23Z3)
3	EX5204-23Z3	Part for EX5204-23Z3 (Except EX3215(16)H-A05)
23	EX5205-12Z1	Part for EX5205-12Z1 (Except EX5214-83,84)
23	EX5204(T)-82	Part for EX5204(T)-82 (Except EX5214-83,84)
23	EX5214-83,84	Part for EX5214-83,84 (Except EX5205-12Z1, EX5204(T)-82)

Page 11 — CRANKSHAFT DRIVE MECHANISM

Pegasus EX3200 / EX5200 (117 pages) parts on page 11
Ref	Part number	Part name	Qty
1	270500A0	CRANKSHAFT	1
2	270500B0	CRANKSHAFT	1
3	270512A0	CRANKSHAFT	1
4	2705020	BALANCE WEIGHT	2
5	0070110	SCREW	4
6	2705030	PIN	1
7	0073740	SCREW	1
8	2705080	COVER	1
9	007019A0	SCREW	3
10	2403400	O RING	1
11	270507-910	BALL BEARING ASSY.	1
12	0045720	SCREW	1
13	0045140	SCREW	1
14	2403350	RING	1
15	2129870	BALL BEARING	1
16	2115260	BALL BEARING	1
17	2403060	WASHER	1
18	2100560	OIL SEAL	1
19	2100570	O RING	1
20	2403400	O RING	1
21	2115280	RIGHT COVER	1
22	007020A0	SCREW	3
23	2705051	FAN ASSY.	1
24	270504-UD0	MACHINE PULLEY	1
25	0045410	SCREW	2
26	0045230	BOLT	1
27	2042930	SPRING WASHER	1
28	2705100	PIN	1
29	2705090	COVER	1
30	0070440	SCREW	2
31	0070200	SCREW	1
32	270523A0	SPACER	1
33	2705260	COVER	1
34	270500F0	CRANKSHAFT	1
35	270500E0	CRANKSHAFT	1
36	270500H0	CRANKSHAFT	1

Page 13 — THREAD TENSION MECHANISM

Pegasus EX3200 / EX5200 (117 pages) parts on page 13
Ref	Part number	Part name	Qty
1	210529-9TO	糸調子(組)	1
2	263543-TAO	ツマミ	1
3	2084480	ラチェット	1
4	263544-TAO	受皿	1
5	2103190	調子皿	2
6	2084490	フェルト	1
7	005082AO	調子棒/C5	1
8	2010370	圧縮バネ(強)	1
9	210530-9TO	糸調子(組)	1
10	2010860	圧縮バネ(中)	1
11	2750000	糸道	1
12	007018AO	十字穴付小ネジ/M4 × 6	2
13	2750010	糸道	1
14	2028490	調子台	1
15	004009-1HCO	平ネジ/C5 × 7.5	1
16	2750411	糸道	1
17	2750400	糸道	1
18	0030440	六角ナット/C5	1

Page 14 — EX3200(H)(N) Series

Pegasus EX3200 / EX5200 (117 pages) parts on page 14
Ref	Part number	Part name
10	EX3215(16)	2本針(2-needle)
11	EX3244	3本針(3-needle)
12	EX3215(16)H
14	EX3215(16)
14	EX3244
15	EX3215(16)H
3	2本針(2-needle)
4	3本針(3-needle)
21	EX3215(16)
22	EX3244

Page 15 — THREAD GUIDE & THREAD TAKEUP (1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 15
Ref	Part number	Part name	Qty
1	2750210	ブラケット	1
2	0070820	平ネジ/M4 × 8	2
3	2750240	糸道	1
4	2750420	糸道	1
5	0045430	六角穴止ネジ/M4 × 4	1
6	2750260	ブラケット	1
7	0070170	平ネジ/M4 × 5	1
8	2750220	糸道	1
9	0045430	六角穴止ネジ/M4 × 4	1
10	2750290	糸道	1
11	275029A0	糸道	1
12	2750520	糸道	1
13	0070170	平ネジ/M4 × 5	1
14	2750280	糸道	1
15	2750570	糸道	1
16	0070170	平ネジ/M4 × 5	1
17	2750110	小調子台	1
18	2750120	小調子	1
19	0071630	段付ネジ/M2	1
20	2403260	圧縮バネ	1
21	2750270	針糸繰り	1
22	2750440	針糸繰り	1
23	0070620	平ネジ/M3 × 6	2
24	2750490	針糸繰り	1
25	0070410	皿ネジ/M3 × 6	1
26	0070620	平ネジ/M3 × 6	1

Page 16

Pegasus EX3200 / EX5200 (117 pages) parts on page 16
Ref	Part number	Part name
1	EX5203・5204・5205	1本針(1-needle)
2	EX5212・5214	2本針(2-needle)
6	EX5203・5204・5205
7	EX5212・5214
8	EX5214H
14	EX5203・5204・5205
15	EX5212
20	EX5214
	EX5214-01U

Page 17 — THREAD GUIDE & THREAD TAKEUP (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 17
Ref	Part number	Part name	Qty
1	275013A0	糸道	1
2	2750130	糸道	1
3	0045430	六角穴止ネジ/M4 × 4	1
4	2750150	ブラケット	1
5	0070820	平ネジ/M4 × 8	1
6	2750180	糸道	1
7	275018A0	糸道	1
8	275051A0	糸道	1
9	0070820	平ネジ/M4 × 8	1
10	2750110	小調子台	1
11	2750120	小調子皿	1
12	0071630	段付ネジ/M2	1
13	2403260	圧縮バネ	1
14	2750160	針糸繰り	1
15	2750170	針糸繰り	1
16	0070620	平ネジ/M3 × 6	2
17	275017A0	針糸繰り	1
18	0070410	皿ネジ/M3 × 6	1
19	0070620	平ネジ/M3 × 6	1
20	2751060	針糸繰り	1

Page 19 — THREAD GUIDE & THREAD TAKEUP(3)

Pegasus EX3200 / EX5200 (117 pages) parts on page 19
Ref	Part number	Part name	Qty
1	2750040	ブラケット	1
2	2750470	糸道	2
3	0070080	平小ネジ/M3 × 4	2
4	2028750	座金	2
5	2750050	糸繰り	1
6	0070190	平ネジ/M4 × 8	1
7	2750060	糸道	1
8	0070080	平小ネジ/M3 × 4	1
9	2750070	糸道	1
10	2750550	糸道	1
11	2750560	糸道	1
12	2750090	糸繰り	1
13	2750540	糸繰り	1
14	0070120	平小ネジ/M3.5 × 6	1

Page 21 — NEEDLE DRIVE MECHANISM (1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 21
Ref	Part number	Part name	Qty
1	271000-920	ロッド	1
2	007023A0	十字穴ナベ小ネジ /M4 × 16	2
3	2710010	ピン	1
4	0045380	六角穴止ネジ /M4 × 6	1
5	271002-920	クランク	1
6	0045330	六角穴ボルト /M6 × 12	1
7	2710030	軸	1
8	2403080	カラー	1
9	0045430	六角穴止ネジ /M4 × 4	2
10	2082350	座金	1
11	2025770	止メ輪	1
12	271004-920	レバー	1
13	0071500	六角ボルト /M6 × 12	1
14	271022A910	軸 (組)	1
15	2021770	給油紐	2
16	271005B910	ブッシュ (組)	1
17	0045460	六角穴止ネジ /M4 × 5	1
18	2010220	Oリング	1
19	179009-050	フェルト	1
20	271009-920	ホルダー	1
21	0070350	平ネジ /M3 × 6	1
22	2403100	栓	1

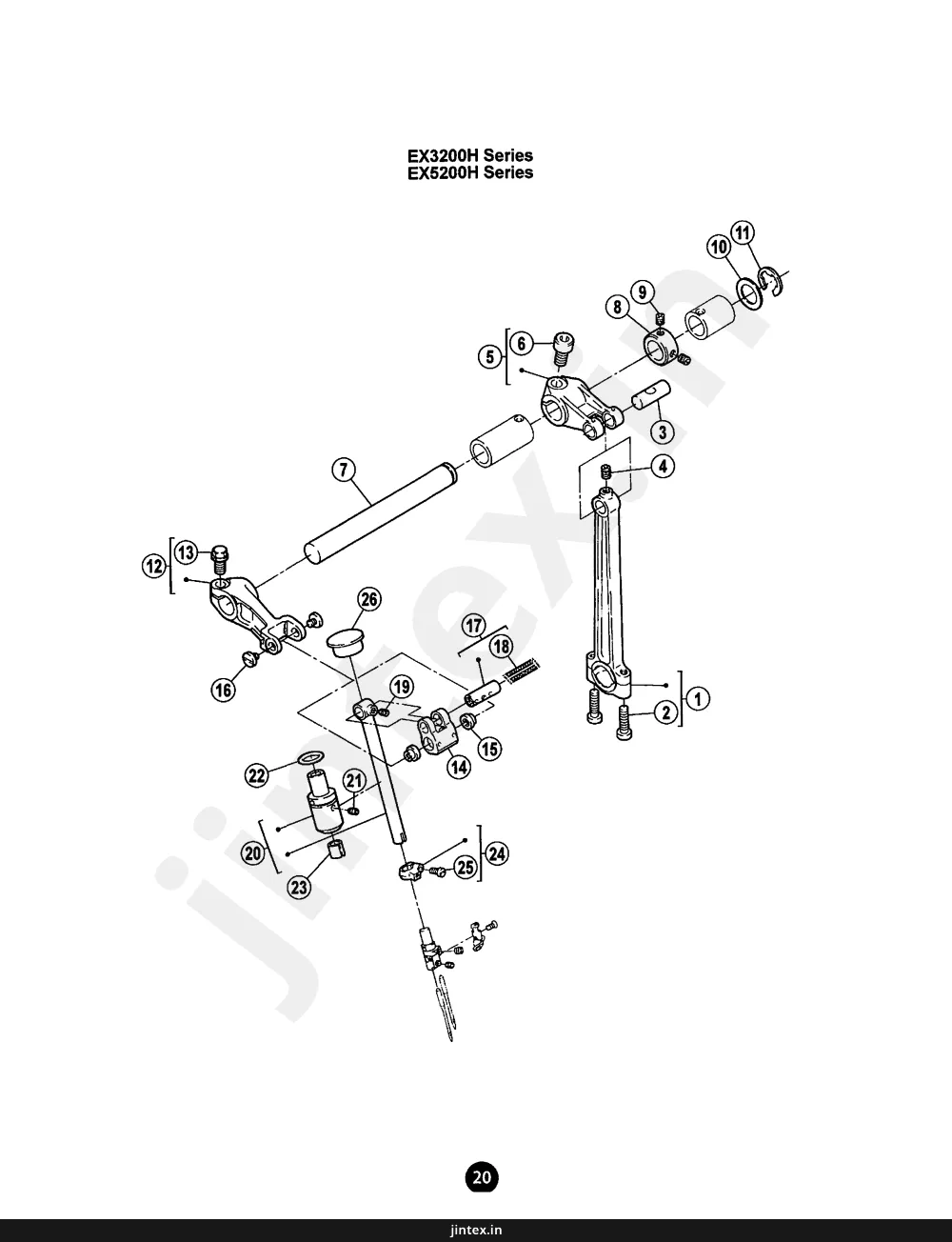

Page 23 — NEEDLE DRIVE MECHANISM (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 23
Ref	Part number	Part name	Qty
1	271000-920	ロッド	1
2	007023A0	十字穴ナベ小ネジ /M4 × 16	2
3	2710010	ピン	1
4	0045380	六角穴止ネジ /M4 × 6	1
5	271002-920	クランク	1
6	0045330	六角穴ボルト /M6 × 12	1
7	2710030	軸	1
8	2403080	カラー	1
9	0045430	六角穴止ネジ /M4 × 4	2
10	2082350	座金	1
11	2025770	止メ輪	1
12	271015-920	レバー	1
13	0071500	六角ボルト /M6 × 12	1
14	2710160	リンク	1
15	2710170	段付ピン	2
16	0071850	平ネジ /M3 × 4	2
17	271023-910	軸 (組)	1
18	2021760	給油紐	2
19	0045450	六角穴止ネジ /M3 × 4	1
20	271018B910	ブッシュ (組)	1
21	0045820	六角穴止ネジ /M4 × 8	1
22	2010220	Oリング	1
23	179009-050	フェルト	1
24	271009-920	ホルダー	1
25	0070350	平ネジ /M3 × 6	1
26	2403100	栓	1

Page 24

Pegasus EX3200 / EX5200 (117 pages) parts on page 24
Ref	Part number	Part name
3	EX3215(16)-A04	EX3215(16)-A04
4	EX3215(16)H-A05	EX3215(16)H-A05
8	EX3244-A04	EX3244-A04

Page 25 — NEEDLE DRIVE MECHANISM (3)

Pegasus EX3200 / EX5200 (117 pages) parts on page 25
Ref	Part number	Part name	Qty
1	XXXXXX	針留(組)	1
2	0045540	六角穴止ネジ/M3 × 3	2
3	275030B0	糸道	1
4	0071190	皿ネジ/M2 × 5	1
5	XXXXXX	針	2
6	XXXXXX	針留(組)	1
7	0045540	六角穴止ネジ/M3 × 3	3
8	275030B0	糸道	1
9	0071190	皿ネジ/M2 × 5	1
10	XXXXXX	針	3
11	XXXXXX	針留(組)	1
12	0045540	六角穴止ネジ/M3 × 3	1
13	275019A0	糸道	1
14	0071200	平ネジ/M2 × 3	1
15	XXXXXX	針	1
16	XXXXXX	針留(組)	1
17	0045540	六角穴止ネジ/M3 × 3	2
18	275019B0	糸道	1
19	0071200	平ネジ/M2 × 3	1
20	XXXXXX	針	2
21	XXXXXX	針留(組)	1
22	0045540	六角穴止ネジ/M3 × 3	2
23	275019C0	糸道	1
24	0071200	平ネジ/M2 × 3	1

Page 27 — NEEDLE DRIVE MECHANISM (4)

Pegasus EX3200 / EX5200 (117 pages) parts on page 27
Ref	Part number	Part name	Qty
1	XXXXXX	針板	1
2	0071700	平ネジ/M4 × 7.5	2
3	2710100	取付板(前)	1
4	007019A0	十字穴ナベ小ネジ/M4 × 8	2
5	2403050	防振ゴム	2
6	2710110	取付板(後)	1
7	007019A0	十字穴ナベ小ネジ/M4 × 8	2
8	XXXXXX	針受(前)	1
9	0070100	平小ネジ/M3 × 6	2
10	XXXXXX	針受(後)	1
11	0072590	六角ボルト/M3 × 5	1
12	2402220	皿バネ	1
13	0071650	段付ネジ/M3	1
14	XXXXXX	針受(前)	1
15	0070190	平ネジ/M4 × 8	1
16	XXXXXX	針受(後)	1
17	0070100	平小ネジ/M3 × 6	2
18	2710130	ブラケット	1
19	0071140	平ネジ/M4 × 10	2
20	XXXXXX	針板	1
21	0071700	平ネジ/M4 × 7.5	2
22	2710100	取付板(前)	1
23	007019A0	十字穴ナベ小ネジ/M4 × 8	2
24	2403050	防振ゴム	2
25	2710110	取付板(後)	1
26	007019A0	十字穴ナベ小ネジ/M4 × 8	2
27	XXXXXX	針受(前)	1
28	0070190	平ネジ/M4 × 8	1
29	XXXXXX	針受(後)	1
30	0072590	六角ボルト/M3 × 5	1
31	2402220	皿バネ	1
32	0071650	段付ネジ/M3	1

Page 29 — UPPER LOOPER DRIVE MECHANISM (1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 29
Ref	Part number	Part name	Qty
1	271500-920	CONNECTION	1
2	007023A0	SCREW	2
3	007022A0	SCREW	2
4	2715010	GUIDE	1
5	0070410	SCREW	2
6	271502-920	CRANK	1
7	271503-920	CRANK	1
8	0045330	BOLT	1
9	2715040	SHAFT	1
10	2403380	WASHER	1
11	0071740	BOLT	1
12	3030670	SPRING WASHER	1
13	2755400	PLUG	1
14	2755410	FILTER	1
15	2101220	SPACER	1
16	210586A0	OIL SEAL	1
17	271517B910	UPPER LOOPER HOLDER ASSY.	1
18	271505-920	LEVER	1
19	0071500	BOLT	1
20	2715460	PIN ASSY.	1
21	2021760	OIL WICK	2
22	0045450	SCREW	1
23	271506B910	UPPER LOOPER HOLDER ASSY.	1
24	179130-050	FELT	1
25	0070541	SCREW	1
26	2330350	FELT	1
27	XXXXXX	UPPER LOOPER	1
28	271510S0	UPPER LOOPER HOLDER BASE	1
29	271510T0	UPPER LOOPER HOLDER BASE	1
30	0045100	BOLT	2
31	2715430	COVER	1
32	0070380	SCREW	1
33	0070330	SCREW	1
34	2715190	FILTER	1
35	2745890	FELT	1
36	2745880	BRACKET	1
37	0070080	SCREW	1
38	271541A910	UPPER LOOPER HOLDER ASSY.	1
39	271542-920	LEVER	1

Page 31 — UPPER LOOPER DRIVE MECHANISM (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 31
Part number	Part name	Qty
271500A920	ロッド	1
007023A0	十字穴ナベ小ネジ / M4 × 16	2
007022A0	十字穴ナベ小ネジ / M4 × 14	2
2715010	振止メ	1
0070410	皿ネジ / M3 × 6	2
271512-920	クランク	1
0045330	六角穴ボルト / M6 × 12	1
2715040	軸	1
2403380	座金	1
0071740	六角ボルト / M5 × 10	1
3030670	バネ座金	1
2755400	栓	1
2755410	フィルター	1
2101220	スペーサー	1
2403020	スペーサー	1
2401020	座金	1
2405410	座金	1
210586A0	オイルシール	1
271518B910	上ルーバー台 (セット)	1
271505-920	レバー	1
0071500	六角ボルト / M6 × 12	1
2715460	平行ピン (組)	1
2021760	給油紐	2
0045450	六角穴ネジ / M3 × 4	1
271513B910	上ルーバー台 (組)	1
179130-050	フェルト	1
0070541	平小ネジ / M3.5 × 6	1
2330350	フェルト	1
XXXXXX	上ルーバー	1
271510T0	上ルーバー台	1
0045100	六角穴ボルト / M6 × 16	2
271543A0	カバー	1
0070390	皿ネジ / M2.5 × 6	1
0070330	平ネジ / M2.5 × 8	1
2715190	フィルター	1
2745890	フェルト	1
2745880	止板	1
0070080	平小ネジ / M3 × 4	1

Page 32

Pegasus EX3200 / EX5200 (117 pages) parts on page 32
Ref	Part number	Part name
1	1	Lever Assembly
2	2	Screw
3	3	Screw
4	4	Lever
5	5	Screw
6	6	EX5200(H)(N)(T) Series
7	7	Shaft
8	8	Shaft
9	9	Washer
10	10	Screw
11	11	Washer
12	12	Ring
13	13	Lever
14	14	Lever
15	15	Screw
16	16	Screw
17	17	Washer
18	18	Screw
19	19	EX3200(H)(N) Series
20	20	Shaft
21	21	Shaft

Page 33 — LOWER LOOPER DRIVE MECHANISM

Pegasus EX3200 / EX5200 (117 pages) parts on page 33
Ref	Part number	Part name	Qty
	271500-920	ロッド
	007023A0	十字穴ナベ小ネジ /M4 × 16
	007022A0	十字穴ナベ小ネジ /M4 × 14
	2715010	振止メ
	0070410	皿ネジ /M3 × 6
	272000-920	クランク
	0045330	六角穴ボルト /M6 × 12
	2715040	軸
	2403380	座金
	0071740	六角穴ボルト /M5 × 10
	3030670	バネ座金
	2403110	座金
	210586A0	オイルシール
	XXXXXX	下ルーバー
	0071680	平小ネジ /M3.5 × 6.5
	272001-920	下ルーバーホルダー (組)
	0070550	六角穴ボルト /M5 × 13
	0071690	平小ネジ /M4 × 7
	273511-920	クランク
	0045330	六角穴ボルト /M6 × 12
	0045140	六角穴止メネジ /M5 × 5

Page 34 — EX3200(H)(N) Series

Pegasus EX3200 / EX5200 (117 pages) parts on page 34
Ref	Part number	Part name	Qty
	1	CONNECTING ROD
	2	BALL BEARING
	3	CONNECTING ROD HOLDER
	4	BOLT
	5	WASHER
	6	SPRING WASHER
	7	BRACKET
	8	BOLT
	9	WASHER
	10	SPRING WASHER
	11	BOLT
	12	BRACKET
	13	COLLAR
	14	BRACKET
	15	BOLT
	16	BOLT
	17	BRACKET
	18	BRACKET
	19	BOLT
	20	WASHER
	21	SPRING WASHER
	22	SHAFT
	23	COLLAR
	24	BRACKET
	25	BOLT
	26	BRACKET
	27	BOLT
	28	WASHER
	29	BOLT

Page 35 — CHAINSTITCH LOOPER DRIVE MECHANISM (1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 35
Ref	Part number	Part name	Qty
	2735000	ロッド
	205015-20	ニードルベアリング
	2735010	クランク
	2405420	ブッシュ
	0070560	六角ボルト /M5 × 13
	2400390	座金
	2735020	スライダー
	0045310	六角ボルト /M5 × 12
	2400620	座金
	3030670	ハネ座金
	2525150	段付ピン
	2089490	Oリング
	2735040	軸
	273505-920	ホルダー
	0045330	六角ボルト /M5 × 12
	273509-920	クランク
	0045330	六角ボルト /M5 × 12
	2725170	リンク
	2405420	ブッシュ
	0070560	六角ボルト /M5 × 13
	2400390	座金
	2735060	軸
	204052A0	オイルシール
	XXXXXX	二重環ルーパー
	0071680	平小ネジ /M3.5 × 6.5
	273510-920	ルーバー台
	0070550	六角ボルト /M5 × 13
	2403371	座金
	0071690	平ネジ /M4 × 7

Page 36

Pegasus EX3200 / EX5200 (117 pages) parts on page 36
Ref	Part number	Part name
1	1	Lever
2	2	Screw
3	3	Shaft
4	4	Bracket
5	5	Base
6	6	Washer
7	7	Screw
8	8	Spring
9	9	Washer
10	10	Washer
11	11	Nut
12	12	Screw
13	13	Screw
14	14	Lever
15	15	Screw
16	16	Lever
17	17	Screw
18	18	Pulley
19	19	Screw
20	20	Screw
21	21	Screw
22	22	Screw

Page 37 — CHAINSTITCH LOOPER DRIVE MECHANISM (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 37
Ref	Part number	Part name	Qty
	1921200	糸道パイプ
	007019A0	十字穴ナベ小ネジ /M4 × 8
	2750320	糸道パイプ
	2061150	ブラケット
	2750330	ブラケット
	0070660	段付ネジ /M4
	2103070	波座金
	0071671	段付ネジ /M3
	1371080	小調子皿
	2113880	圧縮バネ
	2750340	ツマミ
	2750350	糸受
	0070170	平小ネジ /M4 × 5
	2750360	糸道
	0070080	平小ネジ /M3 × 4
	2750390	糸道
	0070080	平小ネジ /M3 × 4
	179498-920	ルーバー糸繰り (組)
	0045540	六角穴止メネジ /M3 × 3
	2750370	皿バネ
	2750380	糸道
	007019A0	十字穴ナベ小ネジ /M4 × 8

Page 38

Pegasus EX3200 / EX5200 (117 pages) parts on page 38
Ref	Part number	Part name
5	EX5214-04,54/445	EX5214H-55を除く
5	EX5214-04,54/445	EX5214H-55
	EX5204-23Z3	No.5~20を除く

Page 39 — FEED MECHANISM (1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 39
Ref	Part number	Part name	Qty
	2725000	ロッド
	2710010	ピン
	0045380	六角穴止メネジ/M4 × 6
	240012-20	ニードルベアリング
	2725010	エキセン
	2101290	案内/送りエキセン
	2101300	板/バネ
	0045350	六角穴止メネジ/M4 × 4
	272506-910	調節台
	0045140	六角穴止メネジ/M5 × 5
	272504-910	エキセン(組)
	2725030	ネジリバネ
	0070380	段付ネジ/M2
	2725020	ラチェット
	2725091	プッシュボタン
	2403150	ガスケット
	2063660	Oリング
	2403140	座金
	2403170	圧縮バネ
	2005550	止メ輪
	2725290	リンク
	0070580	段ネジ/M5
	2025220	止メ輪
	272530A920	レバー
	0045330	六角ボルト/M6 × 12
	2725321	レバー
	0071610	段付ネジ/M5
	272533A1	軸
	2041850	Oリング
	2725340	ネジリバネ
	2725350	調節板
	007021A0	十字穴付バネ/M4 × 12
	2403210	スペーサー
	2520690	丸ナット
	0070590	段付ネジ/M4.5
	2113010	皿バネ
	2526580	ストッパー
	007018A0	十字穴付バネ/M4 × 6
	3034480	座金
	272538A0	調整棒
	2403220	シール
	2005550	止メ輪
	2405590	圧縮バネ
	272539A0	段付ピン

Page 40

Pegasus EX3200 / EX5200 (117 pages) parts on page 40
Ref	Part number	Part name	Qty
	EX5214-04	EX5214-54/445
	EX5214-04	EX5214-54/445

Page 41 — FEED MECHANISM (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 41
Ref	Part number	Part name	Qty
	2725160	軸
	2050610	止メ輪
	2081731	栓
	2403110	座金
	272510-910	クランク
	0045330	六角穴ボルト/M6 × 12
	0070100	平小ネジ/M3 × 6
	2725180	角駒
	272514-921	クランク
	0045330	六角穴ボルト/M6 × 12
	2725151	ピン
	0048050	六角ナット/M5
	2400620	座金
	2725250	段付ピン
	0072380	六角穴ボルト/M4 × 6
	2403180	ガスケット
	2403190	止メ輪
	2010220	Oリング
	2725260	角駒
	2403030	カラー
	0045430	六角穴止ネジ/M4 × 4
	2725170	リンク
	2405420	ブッシュ
	0070560	六角ボルト/M5 × 13
	2400390	座金
	2725270	主送り台
	XXXXXX	主送り歯(組)
	XXXXXX	主送り歯
	XXXXXX	補助送り歯
	0070100	平小ネジ/M3 × 6
	0070130	平小ネジ/M3.5 × 8
	2725280	差動送り台
	XXXXXX	差動送り歯
	0070130	平小ネジ/M3.5 × 8
	2725240	角駒
	2725190	送り台案内(右)
	0071100	六角穴ボルト/M4 × 9
	2725200	送り台案内(左)
	0071100	六角穴ボルト/M4 × 9
	2726170	送り案内
	2725210	油切り
	0045730	六角穴ボルト/M4 × 5

Page 42

Pegasus EX3200 / EX5200 (117 pages) parts on page 42
Ref	Part number	Part name
1	1	SHAFT
2	2	CIR-CLIP
3	3	COLLAR
4	4	COLLAR
5	5	BRACKET
6	6	SCREW
7	7	SCREW
8	8	HOLDER
9	9	BRACKET
10	10	SCREW
11	11	SHAFT
12	12	COLLAR
13	13	WASHER
14	14	SHAFT
15	15	CIR-CLIP
16	16	COLLAR
17	17	SHAFT
18	18	COLLAR
19	19	BLOCK
20	20	COLLAR
21	21	SCREW
22	22	COLLAR
23	23	WASHER
24	24	SCREW
25	25	SCREW
26	26	BRACKET
27	27	BRACKET
28	28	SCREW
29	29	SCREW
30	30	SCREW
31	31	SCREW
32	32	BRACKET
33	33	BRACKET
34	34	SCREW
35	35	BLOCK
36	36	BRACKET
37	37	SCREW
38	38	SCREW
39	39	SCREW
40	40	BRACKET
41	41	BRACKET
42	42	SCREW
43	43	SHAFT
44	44	COLLAR
45	45	COLLAR
46	46	COLLAR
47	47	BRACKET
48	48	BRACKET
49	49	SCREW
50	50	SCREW
51	51	ARM
52	52	SCREW
53	53	WASHER
54	54	WASHER
55	55	SCREW
56	56	COLLAR
57	57	SCREW
58	58	SHAFT
59	59	NUT
60	60	SCREW

Page 43 — FEED MECHANISM (3)

Pegasus EX3200 / EX5200 (117 pages) parts on page 43
Ref	Part number	Part name	Qty
	2725160	軸
	2050610	止メ輪
	2081731	栓
	2403110	座金
	272510-910	クランク
	0045330	六角穴ボルト/M6 × 12
	0070100	平小ネジ/M3 × 6
	2725180	角駒
	272514-921	クランク
	0045330	六角穴ボルト/M6 × 12
	2725151	ピン
	0048050	六角ナット/M5
	2400620	座金
	2725540	段付ピン
	2025220	止メ輪
	2404340	座金
	0045460	六角穴止メネジ/M4 × 5
	2010220	Oリング
	2725260	角駒
	2403030	カラー
	0045430	六角穴止メネジ/M4 × 4
	2725170	リンク
	2405420	ブッシュ
	0070560	六角ボルト/M5 × 13
	2400390	座金
	2725270	主送り台
	XXXXXX	主送り台(組)
	XXXXXX	主送り歯
	XXXXXX	補助送り歯
	0070100	平小ネジ/M3 × 6
	0070130	平小ネジ/M3.5 × 8
	2725280	差動送り台
	XXXXXX	差動送り歯
	0070130	平小ネジ/M3.5 × 8
	2725240	角駒
	2725190	送り台案内(右)
	0071100	六角ボルト/M4 × 9
	2725200	送り台案内(左)
	0071100	六角ボルト/M4 × 9
	2726170	油切り案内
	2725210	油切り
	0045730	六角ボルト/M4 × 5
	2725530	ブッシュ
	2400170	Oリング
	2325080	カラー
	0014590	止メネジ/M4 × 3
	2725560	調整板
	2526580	ストッパー
	3034480	座金
	0070180	平小ネジ/M4 × 6
	272555-920	レバー
	0070140	平小ネジ/M3.5 × 10
	2113010	皿バネ
	2520690	丸ナット/M4.5
	0070590	段ネジ/M4.5
	2403210	スペーサー
	0070210	平小ネジ/M4 × 12
	270076B0	ホルダー
	0048210	六角ナット/M4
	2403050	防振ゴム

Page 44

Pegasus EX3200 / EX5200 (117 pages) parts on page 44
Ref	Part number	Part name	Qty
	EX5204-23Z3,EX5214N-01U	EX3215(16)N-01U
	EX3200H Series	EX5200H Series
	EX3200(N) Series	EX5200(N)(T) Series
	EX5200(H)(N)(T) Series	EX5200(H)(N)(T) Series
	EX3200(H)(N) Series	EX3200(H)(N) Series
	EX5204-23Z3	Except EX5204-23Z3
	EX5200(H)(N)(T) Series	EX5200(H)(N)(T) Series
	EX3200(H)(N) Series	EX3200(H)(N) Series
	EX3215(16)-A04,EX3244-A04	EX3215(16)H-A05
	EX5204-24,EX5214-24	EX5214-54/445,EX5214H-55
	EX3215(16)-A04,EX3244-A04	EX3215(16)H-A05
	EX5204-24,EX5214-24	EX5214-54/445,EX5214H-55
	EX5200(H)(N)(T) Series	EX5200(H)(N)(T) Series
	EX3200(H)(N) Series	EX3200(H)(N) Series
	EX5200(H)(N)(T) Series	EX5200(H)(N)(T) Series
	EX3200(H)(N) Series	EX3200(H)(N) Series
	EX5204-24,EX5204T-82,92M1	EX5205-12Z1
	EX5214-54/445,83,84	を除く
	EX5204-24,EX5204T-82,92M1	EX5205-12Z1
	EX5214-54/445,83,84	Except

Page 45 — KNIFE DRIVE MECHANISM

Pegasus EX3200 / EX5200 (117 pages) parts on page 45
Part number	Part name	Qty
273000-920	ロッド	1
007023A0	十字穴小ネジ / M4 × 16	2
273001-920	クランク	1
273002-920	クランク	1
0045330	六角穴ボルト / M6 × 12	1
2710010	ピン	1
0045380	六角穴止メネジ / M4 × 6	1
240235-920	カラー	1
0045470	六角穴止メネジ / M6 × 5	1
2730030	上メス台	1
2730040	上メス台	1
3080360	ピン付ネジ	1
2730060	案内ピン	1
179712-050	上メス抱キ	1
179713-050	上メス抱キ	1
0070210	平小ネジ / M4 × 12	1
XXXXXX	上メス	1
0070130	平小ネジ / M3.5 × 8	1
2107560	角メス抱キ	1
2107570	角メス抱キ	1
XXXXXX	角メス	1
0012270	平ネジ / C3 × 3.7	1
2107580	角メス押エ	1
179341-150	切屑押エ	1
0070230	平ネジ / M4 × 16	1
0072130	平ネジ / M4 × 22	1
3002480	座金	1
2730070	下メス台	1
2730090	下メス台	1
1B00160	平小ネジ / M4 × 8.5	1
2730101	案内 / 下メス台	1
007019A0	十字穴小ネジ / M4 × 8	2
2403240	圧縮バネ	1
2730070	当板	1
007019A0	十字穴小ネジ / M4 × 8	1
XXXXXX	下メス / 抱メス	1
2730120	下メス押エ	1
0071730	六角ボルト / M5 × 8	1

Page 46

Pegasus EX3200 / EX5200 (117 pages) parts on page 46
Ref	Part number	Part name	Qty
	EX3215(16)-A04	EX3215(16)-A04
	EX3215(16)H-A05	EX3215(16)H-A05
	EX3244-A04	EX3244-A04
	EX3215(16)-A04	EX3215(16)-A04
	EX3215(16)H-A05	EX3215(16)H-A05
	EX5205-12Z1	EX5205-12Z1
	EX3244-A04	EX3244-A04
	EX5214-04,54,84	EX5214-04,54,84
	EX5214H-55	EX5214H-55
	EX3215(16)-A04	EX3215(16)-A04
	EX3215( 16)H-A05	EX3215( 16)H-A05
	EX5205-12Z1	EX5205-12Z1
	EX5214-04,54,8 4	EX5214-04,54,8 4
	EX5214H-55	EX5214H-55
	EX3215( 16)-A04	EX3215( 16)-A04
	EX3215(16)H-A05	EX3215(16)H-A05
	EX3244-A04	EX3244-A04

Page 47 — PRESSER FOOT MECHANISM

Pegasus EX3200 / EX5200 (117 pages) parts on page 47
Part number	Part name	Qty
2740070	LEVER	1
0070600	SCREW
2740080	SPRING
2740090	STOPPER
007020AO	SCREW	2
0071750	SCREW
0048050	NUT
2740060	LINK
2740040	LEVER
274003-921	COLLAR
0045340	BOLT
2740050	SPRING
2740020	BUSHING
0071050	SCREW
2740010	SHAFT
274000-BO	PRESSERARM
2085490	PIN
0045940	SCREW
274018-92BO	HOLDER
0070130	SCREW
2740330	FINGER GUARD
2740200	STOPPER
0070090	SCREW
0070080	SCREW
2740190	FLAT SPRING
0050890	SCREW
2087730	SPRING
274014A1	ADJUSTING SCREW
2740150	NUT
274016AO	LEVER
0071710	SCREW
2740170	SPRING
2740100	STOPPER
0070190	SCREW
2740390	LEVER
2740400	STOPPER

Page 48

Pegasus EX3200 / EX5200 (117 pages) parts on page 48
Ref	Part number	Part name
1	1	HOUSING
2	2	SHAFT
3	3	SPRING
4	4	SHAFT
5	5	GEAR
6	6	HOUSING
7	7	HOUSING
8	8	SCREW
9	9	SCREW
10	10	HOUSING
11	11	SCREW
12	12	FILTER
13	13	COVER
14	14	SCREW
15	15	GASKET
16	16	JOINT
17	17	SCREW
18	18	PIN
19	19	SHAFT
20	20	JOINT
21	21	SCREW
22	22	PIN
23	23	PIN
24	24	JOINT
25	25	SCREW
26	26	SPRING
27	27	PIN
28	28	WASHER
29	29	NUT
30	30	SCREW
31	31	BRACKET
32	32	SCREW
33	33	SCREW
34	34	SCREW
35	35	HOUSING
36	36	SCREW
37	37	SPRING
38	38	BRACKET

Page 49 — LUBRICATIONMECHANISM(1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 49
Part number	Part name	Qty
274505A910	PUMP
2116180	WORM WHEEL
0050600	SCREW	2
212978-910	ROTOR (INSIDE) SHAFT
2129810	ROTOR (OUTSIDE)
2094080	FILTER
2094090	FILTER
0070120	SCREW	3
0045290	BOLT	2
2745090	TANK
007022AO	SCREW	2
2062330	FILTER ELEMENT
2745100	COVER
007018AO	SCREW	3
2403070	ORING
2001360	JOINT	2
2403280	JOINT SCREW	2
2021990	CLAMP	2
2403270	TUBE	1
2001360	JOINT	2
2403280	JOINT SCREW	2
2021990	CLAMP	2
2401350	TUBE
2001360	JOINT
2403280	JOINT SCREW
2021990	CLAMP	2
2403340	TUBE
2745120	JOINT
2400200	ORING
004210-HUO	SCREW
274515-910	OIL DISTRIBUTOR ASSY.	1
2102140	PLUG	2
004211-HUO	SCREW
2403280	JOINT SCREW
2094100	CLAMP
0070110	SCREW
0048000	NUT
2745250	OIL GUIDE

Page 50

Pegasus EX3200 / EX5200 (117 pages) parts on page 50
Ref	Part number	Part name
1	1	COVER
2	2	PACKING
3	3	PACKING
4	4	PACKING
5	5	PACKING
6	6	PACKING
7	7	PACKING
8	8	PACKING
9	9	SCREW
10	10	SCREW
11	11	PACKING
12	12	PACKING
13	13	SCREW
14	14	PACKING
15	15	PACKING
16	16	PACKING
17	17	PACKING
18	18	PACKING
19	19	PACKING
20	20	PACKING
21	21	PACKING
22	22	PACKING
23	23	PACKING
24	24	PACKING
25	25	PACKING
26	26	PACKING
27	27	PACKING
28	28	PACKING
29	29	PACKING
30	30	PACKING
31	31	PACKING
32	32	PACKING
33	33	PACKING

Page 51 — LUBRICATION MECHANISM(2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 51
Ref	Part number	Part name	Qty
1	274502AO	OIL SIGHT GAUGE
2	2300430	ORING
3	210193A910	INDICATOR ASSY.
4	2105100	OIL INDICATOR SUPPORT	1
5	004210-HUO	SCREW	2
6	274503-910	OIL RESERVOIR ASSY.
7	005138BO	SCREW
8	202287AO	WASHER	1
9	0045310	BOLT	4
10	2403390	WASHER	4
11	2745010	GASKET
12	2745070	WORM
13	0045140	SCREW
14	274517B910	PIPEASSY.
15	2400970	BALL
16	0045430	SCREW
17	274593B910	PIPEASSY.
18	274516-910	PIPEASSY.
19	2021750	OIL WICK	1
20	2400970	BALL	2
21	0045430	SCREW
22	274523-910	JOINT
23	2745220	FELT
24	2041850	ORING
25	007019AO	SCREW
26	2021750	OIL WICK
27	2745290	FELT
28	2745300	COVER
29	0071920	SCREW
30	274551-910	JOINT
31	2745560	FELT
32	2041850	ORING
33	0045430	SCREW

Page 53 — H.R. DEVICE

Pegasus EX3200 / EX5200 (117 pages) parts on page 53
Ref	Part number	Part name	Qty
1	2755000	SILICONE OIL RESERVOIR (UPPER)
2	2755010	COVER
3	2755030	FELT
4	2755080	FELT
5	2755020	THREAD GUIDE
6	2755070	THREAD GUIDE
7	007020AO	SCREW
8	2700900	COVER
9	2700840	COVER
10	0070180	SCREW	2
11	2755040	SILICONE OIL RESERVOIR (LOWER)
12	2755050	COVER
13	004210-HUO	SCREW
14	2021750	OIL WICK
15	2403310	TUBE
16	2001550	CLAMP	2
17	2755060	NEEDLE THREAD LUBRICATOR
18	007021AO	SCREW	2
19	2102140	PLUG	1
20	2044660	OIL FELT
21	2107660	PIN
22	2755090	NEEDLE THREAD LUBRICATOR
23	007019AO	SCREW	2
24	2102140	PLUG
25	2044660	OIL FELT
26	2755280	FELT
27	2107660	PIN

Page 54

Pegasus EX3200 / EX5200 (117 pages) parts on page 54
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39

Page 55 — THREAD STAND

Pegasus EX3200 / EX5200 (117 pages) parts on page 55
Part number	Part name	Qty
000100-9PO	THREAD STAND ASSY. (6-SPOOL)
000100A9PO	THREAD STAND ASSY. (5-SPOOL)
000100B9PO	THREAD STANDASSY. (4-SPOOL)
000100C9PO	THREAD STAND ASSY. (3-SPOOL)
000101-PAO	COLUMN PIPE (UPPER)
000102-PAO	COLUMN PIPE (LOWER)
0001030	JOINT	1
004066-HUO	SCREW	2
004067-HUO	NUT	2
000104-PAO	BRACKET (3-SPOOL)
000104APAO	BRACKET (2-SPOOL)	- 2 1
0001160	HOLDER	2
004068-HUO	SCREW	1
0001050	SPOOL PIN	3
303067AO	SPRING WASHER	3
004067-HUO	NUT	3
000106-PAO	SPOOL TRAY	3
0001070	CUSHON	3
000108-PAO	SPOOL RETAINING FIN	3
000109-PAO	BRACKET
0041130	SCREW
0048030	NUT
0001100	THREAD GUIDE BAR
004065-HUO	SCREW
0048030	NUT
000111-PAO	BRACKET
004065-HUO	SCREW
0048030	NUT
0001120	THREAD GUIDE BAR (6-SPOOL)
000112AO	THREAD GUIDE BAR (5-SPOOL)
000112BO	THREAD GUIDE BAR (3-SPOOL)
004065-HUO	SCREW
0048030	NUT	1
000104-PAO	BRACKET (3-SPOOL)	2
000104APAO	BRACKET (2-SPOOL)	- 2 1
0001160	HOLDER	2
004068-HUO	SCREW	2
0001130	THREAD GUIDE	3
0001140	ROD CAP	1
0001150	WASHER	2
0001170	SPRING WASHER
007370-HUO	NUT

Page 56

Pegasus EX3200 / EX5200 (117 pages) parts on page 56
Ref	Part number	Part name	Qty
	1	Bracket
	2	Bracket
	3	Table
	4	Special washers for a table 35mm thick
	5	Bolt
	6	Washer
	7	Bracket
	8	Bracket
	9	Screw
	10	Bracket
	11	Screw
	12	Washer
	13	Washer
	14	Washer

Page 57 — PARTS FOR SEMI-SUBMERGED INSTALLATION

Pegasus EX3200 / EX5200 (117 pages) parts on page 57
Part number	Part name	Qty
2760010	REST BOARD
179483-050	CUSHION RUBBER	4
2063360	NUT	4
2054670	SPACER	4
0045750	BOLT	4
2403040	WASHER	4
276002-UAO	WASTE CHUTE {TOP)
276003-UAO	WASTE CHUTE {LOWER)
0049040	SCREW	3
2760040	BRACKET	1
0041090	SCREW	2
2401040	WASHER	2
2063370	WASHER	4
2014770	SPRING WASHER	4

Page 58

Pegasus EX3200 / EX5200 (117 pages) parts on page 58
Ref	Part number	Part name
3	3	Screw
4	4	Screw
5	5	Nut
6	6	Washer
7	7	Base Plate
8	8	Screw
9	9	Screw
10	10	Bracket
11	11	Plate
12	12	Screw
13	13	Screw
14	14	Nut
15	15	Screw
1	1	Support
2	2	Support
16	16	Bracket
17	17	Screw
18	18	Nut
19	19	Lever
20	20	Lever
21	21	Screw
22	22	Nut

Page 59 — PARTS FOR FULLY-SUBMERGEDINSTALLATION

Pegasus EX3200 / EX5200 (117 pages) parts on page 59
Ref	Part number	Part name	Qty
1	2760010	REST BOARD	1
2	179483-050	CUSHION RUBBER	4
3	0072370	BOLT	1
4	0072360	BOLT	4
5	2027000	WASHER	15
6	0048160	NUT	15
7	2760120	AUXILIARY PLATE
8	0045750	BOLT	3
9	2403040	WASHER	3
10	0048080	NUT	3
11	2760130	ANGLED UPPER KNIFE PLATE	1
12	0045750	BOLT	2
13	2403040	WASHER	2
14	0048080	NUT	2
15	0045120	BOLT	3
16	2760140	BRACKET
17	0041090	SCREW	3
18	2401040	WASHER	3
19	276002-UAO	WASTE CHUTE (TOP)
20	276003-UAO	WASTE CHUTE (LOWER)
21	007013AO	SCREW	3
22	1670660	WASHER	3

Page 60

Pegasus EX3200 / EX5200 (117 pages) parts on page 60
Ref	Part number	Part name
1	EX5204-01,02	EX5204-01,02
	EX5212-02	EX5212-02
	EX5214-01,03,M03	EX5214-01,03,M03
	EX3244-03	EX3244-03
	EX3215(16)-01,02,03	EX3215(16)-01,02,03
	EX3244-03	EX3244-03
	EX3215(16)-01 A,02A	EX3215(16)-01 A,02A

Page 61 — SPECIFIC PARTS (1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 61
Ref	Part number	Part name
1	xxxxxx	PRESSER FOOT
2	xxxxxx	PRESSER FOOT FINGER
3	2771260	FABRIC GUARD
4	0012310	SCREW
5	2116000	UNCURLER
6	0050300	SCREW
7	271014-920	CRANK
8	0045330	BOLT
9	xxxxxx	PRESSER FOOTASSY.
10	0070130	SCREW
11	208958-BO	PIN
12	212499-BO	PIN
13	0054090	NUT
14	2124980	LATCH
15	2740280	SPRING
16	0031530	NUT
17	2085310	FABRIC GUIDE
18	0050300	SCREW
19	2740220	SPRING
20	0070090	SCREW
21	2740260	FINGER GUARD
22	0070080	SCREW
23	274021-9280	HOLDER
24	0070130	SCREW
25	2740230	SPRING
26	0070090	SCREW
27	274025AO	FINGER GUARD
28	0070080	SCREW
29	xxxxxx	PRESSER FOOT
30	2119190	PIN
31	2119180	SPRING
32	0031500	NUT
33	2119200	SPRING PIN
34	211915AO	PRESSER FOOT FINGER
35	211916AO	PRESSER FOOT FINGER
36	2119170	BRACKET
37	0050890	SCREW
38	3002480	WASHER
39	2401020	WASHER
40	2102220	SPACER
41	2403020	SPACER
42	2750540	THREAD TAKE-UP

Page 62 — 地縫い(Plain seaming)

Pegasus EX3200 / EX5200 (117 pages) parts on page 62
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	9	9
	10	10
	11	11
	12	12 SW=3-4
	13	13 SW=5-6
	15	15
	16	16
	14	14
	24	24
	20	20
	21	21
	19	19
	18	18
	23	23
	22	22
	17	17
	25	25
	29	29
	27	27
	26	26
	49	49
	50	50
	30	30
	31	31
	39	39
	38	38
	37	37
	36	36
	35	35
	33	33
	32	32
	34	34
	41	41
	40	40
	42	42
	43	43
	46	46
	47	47
	48	48
	44	44
	45	45

Page 63 — SPECIFIC PARTS (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 63
Ref	Part number	Part name
1	274021-92BO	HOLDER
2	0070130	SCREW
3	2740230	SPRING
4	0070090	SCREW
5	274025AO	FINGER GUARD
6	0070080	SCREW
7	xxxxxx	PRESSER FOOT
8	2119190	PIN
9	2119180	SPRING
10	0031500	NUT
11	2119200	SPRING PIN
12	211915AO	PRESSER FOOT FINGER
13	211916AO	PRESSER FOOT FINGER
14	2119170	BRACKET
15	0050890	SCREW
16	3002480	WASHER
17	xxxxxx	PRESSER FOOT
18	xxxxxx	PRESSER FOOT FINGER
19	0012290	SCREW
20	2740300	SET PLATE
21	0012290	SCREW
22	2126680	UNCURLER
23	0050300	SCREW
24	274029-92BO	HOLDER
25	0070130	SCREW
26	2740330	FINGER GUARD
27	0070090	SCREW
28	2740630	SPRING
29	0070080	SCREW
30	xxxxxx	PRESSER FOOT ASSY.
31	0070130	SCREW
32	208958-BO	PIN
33	212499-BO	PIN
34	0054090	NUT
35	2124980	LATCH
36	2740280	SPRING
37	0031530	NUT
38	2085310	FABRIC GUIDE
39	0050300	SCREW
40	2740220	SPRING
41	0070090	SCREW
42	2740260	FINGER GUARD
43	0070080	SCREW
44	270083E9UO	SIDE COVER ASSY.
45	274116A910	PRESSER BAR.
46	275027AO	NEEDLE THREAD TAKE-UP
47	273004BO	UPPER KNIFE LEVER
48	270204-910	FABRIC GUIDE
49	2401020	WASHER
50	2101220	SPACER

Page 64

Pegasus EX3200 / EX5200 (117 pages) parts on page 64
Ref	Part number	Part name
1	1	Presser foot
2	2	Presser foot spring
3	3	Presser foot bar
4	4	Presser foot holder
5	5	Presser foot
6	6	Presser foot spring
7	7	Needle plate
8	8	Feed dog
9	9	Feed dog spring
10	10	Feed dog
11	11	Feed dog spring
12	12	Feed dog
13	13	Feed dog spring
14	14	Feed dog
15	15	Feed dog spring
16	16	Feed dog
17	17	Feed dog spring
18	18	Screw
19	19	Washer
20	20	Blind hemming presser foot
21	21	Presser foot holder
22	22	Screw
23	23	Screw
24	24	Presser foot bar
25	25	Presser foot spring
26	26	Presser foot
27	27	Presser foot
28	28	Screw
29	29	Screw
30	30	Screw
31	31	Presser foot
32	32	Presser foot
33	33	36mm
34	34	Presser foot
35	35	Presser foot
36	36	Presser foot
37	37	Presser foot

Page 65 — SPECIFIC PARTS (3)

Pegasus EX3200 / EX5200 (117 pages) parts on page 65
Ref	Part number	Part name	Qty
1	xxxxxx	PRESSER FOOT
2	2119940	FABRIC GUARD
3	0013330	SCREW	1 X 4
4	xxxxxx	PRESSER FOOT FINGER
5	2116000	UNCURLER
6	0050300	SCREW	1 X 2.3
7	2106850	CLOTH GUIDE BRACKETASSY.
8	2106800	CLOTH GUIDE BRACKET
9	2106810	HINGE/EDGEGUIDE BRACKET
10	0051840	SCREW	5
11	2011910	SPRING
12	0030440	NUT	5
13	2106820	STOPPER
14	0050530	SCREW	4 X 4.8
15	2106830	PIN
16	2106840	FLAT SPRING
17	0029060	SCREW	4 X 2.6
18	0070200	SCREW	M4 X 10
19	2012520	SPRING WASHER
20	2122650	CLOTH GUIDE ASSY.
21	2106900	BRACKET
22	0050880	BOLT	4 x 7.5
23	1670660	WASHER
24	2122660	CLOTH GUIDE	2
25	0050570	SCREW	3 X 5
26	2106890	ADJUSTING PLATE
27	0051570	SCREW	3 X 4.5
28	0053630	SCREW
29	0029050	SCREW	5 X 4.5
30	1371420	WASHER
31	2122670	STOPPER
32	0012060	SCREW	4 X 5.3
33	212268A910	FOLDERASSY. (36mm)	36mm
34	205835AO	AUXILIARY PLATE
35	0052990	SCREW	3 X 2.6
36	303312AO	STOPPER
37	3033130	CLAMP

Page 66

Pegasus EX3200 / EX5200 (117 pages) parts on page 66
Ref	Part number	Part name
1	EX5214-04	Plain seaming
2	EX5214-04	Plain seaming
3	EX5214-04	Plain seaming
4	EX5214-04	Plain seaming
5	EX5214-04	Plain seaming
6	EX5214-04	Plain seaming
7	EX5214-04	Plain seaming
8	EX5214-04	Plain seaming
9	EX5214-04	Plain seaming
10	EX5214-04	Plain seaming
11	EX5214-04	Plain seaming
12	EX5214-04	Plain seaming
13	EX5214-04	Plain seaming
14	EX5214-04	Plain seaming
15	EX5214-04	Plain seaming
16	EX5214-04	Plain seaming
17	EX5214-04	Plain seaming
18	EX5214-04	Plain seaming
19	EX5214-04	Plain seaming
20	EX5214-04	Plain seaming
21	EX5214-04	Plain seaming
22	EX5214-04	Plain seaming
23	EX5214-04	Plain seaming

Page 67 — SPECIFIC PARTS (4)

Pegasus EX3200 / EX5200 (117 pages) parts on page 67
Ref	Part number	Part name	Qty
e	xxxxxx	NEEDLE PLATE
2	271010AO	BRACKET(FRONT)
3	xxxxxx	PRESSER FOOT
4	xxxxxx	PRESSER FOOT FINGER
5	2771260	FABRIC GUARD
6	0012310	SCREW
7	2116600	UNCURLER
8	0050300	SCREW	1
9	210530A9TO	TENSION SPRING ASSY.	1
10	263543-TAO	KNOB	2
11	2084480	RATCHET	2
12	263544-TAO	SPRING SHIELD	2
13	2103190	TENSION DISC	4
14	2084490	FELT	2
15	005082AO	SCREW STUD	2
16	201086AO	SPRING (MEDIUM)
17	210531-9TO	TENSION SPRING ASSY.
18	2010680	SPRING (LIGHT)
19	2103370	SPRING
20	2405410	WASHER
21	2403020	SPACER
22	272528AO	DIFFERENTIALFEED BAR
23	272501AO	ECCENTRIC
e	xxxxxx	"xxxxxx"representsthe gauge part.

Page 68

Pegasus EX3200 / EX5200 (117 pages) parts on page 68
Part number	Part name	Qty
EX3215(16)-A04	seaming)	11
EX3215(16)H-A05	seaming)
EX3215(16)-A04	seaming)

Page 69 — SPECIFIC PARTS (5)

Pegasus EX3200 / EX5200 (117 pages) parts on page 69
Part number	Part name	Qty
210530A9TO	TENSION SPRINGASSY.
263543-TAO	KNOB
2084480	RATCHET
263544-TAO	SPRING SHIELD
2103190	TENSION DISC	2
2084490	FELT
005082AO	SCREW STUD
201086AO	SPRING (MEDIUM)
210531-9TO	TENSION SPRINGASSY.
2010680	SPRING (LIGHT)
xxxxxx	PRESSER FOOT ASSY.
0070130	SCREW	1
208958-80	PIN	3
2771080	FABRIC GUARD
2028750	WASHER
0051570	SCREW
2740240	SPRING
0071660	SCREW
2740270	FINGER GUARD
0070080	SCREW
2403471	SPRING
273009AO	LOWER KNIFE HOLDER
275030AO	THREAD GUIDE
2101220	SPACER
2405410	WASHER
27051281	CRANKSHAFT
270083C9UO	SIDE COVER ASSY.
274116-910	PRESSER BAR.
2751220	NEEDLE THREAD TAKE-UP
2741120	SHAFT
274114-920	COLLAR
0045310	BOLT
2401020	WASHER
2050610	RING
2741130	SHAFT

Page 70

Pegasus EX3200 / EX5200 (117 pages) parts on page 70
Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13 トラクター押工 Tractor presser foot
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31

Page 71 — SPECIFIC PARTS (6)

Pegasus EX3200 / EX5200 (117 pages) parts on page 71
Part number	Part name	Qty
210530A9TO	TENSION SPRINGASSY.
263543-TAO	KNOB	1
2084480	RATCHET
263544-TAO	SPRING SHIELD
2103190	TENSION DISC	2
2084490	FELT
005082AO	SCREW STUD
201086AO	SPRING (MEDIUM)
210531-9TO	TENSION SPRINGASSY.
2010680	SPRING (LIGHT)
xxxxxx	PRESSER FOOT ASSY.
0070130	SCREW
208958-BO	PIN	3
2740240	SPRING
0071660	SCREW
2740270	FINGER GUARD
0070080	SCREW
2403470	SPRING
273009AO	LOWER KNIFE HOLDER
275030AO	THREAD GUIDE
2403020	SPACER
2405410	WASHER
270083C9UO	SIDE COVER ASSY.
274116-910	PRESSER BAR.
275122AO	NEEDLE THREAD TAKE-UP
2741120	SHAFT
274114-920	COLLAR
0045310	BOLT
2401020	WASHER
2050610	RING
2741130	SHAFT

Page 72

Pegasus EX3200 / EX5200 (117 pages) parts on page 72
Ref	Part number	Part name
1	1	SCREW
2	2	BRACKET
3	3	SPRING
4	4	SCREW
5	5	WASHER
6	6	BRACKET
7	7	BRACKET
8	8	SCREW
9	9	SPRING
10	10	SCREW
11	11	BRACKET
12	12	SPRING
13	13	SCREW
14	14	BLIND HEMMING ATTACHMENT
15	15	SCREW
16	16	SCREW
17	17	WASHER
18	18	SCREW
19	19	SPRING
20	20	SCREW
21	21	BRACKET
22	22	SCREW
23	23	SPRING
24	24	SCREW
25	25	BRACKET
26	26	SCREW
27	27	GUIDE
28	28	BRACKET
29	29	SCREW
30	30	SPRING
31	31	SCREW
32	32	BRACKET
33	33	SPRING
34	34	BRACKET
35	35	SCREW
36	36	WASHER
37	37	COVER
38	38	BRACKET
39	39	BRACKET
40	40	FAN
41	41	BRACKET
42	42	SPRING
43	43	SCREW
44	44	WASHER
45	45	SCREW
46	46	BRACKET
47	47	SPRING

Page 73 — SPECIFIC PARTS (7)

Pegasus EX3200 / EX5200 (117 pages) parts on page 73
Part number	Part name	Qty
2106850	CLOTH GUIDE BRACKETASSY.
2106800	CLOTH GUIDE BRACKET
2106810	HINGE/EDGEGUIDE BRACKET
0051840	SCREW
2011910	SPRING
0030440	NUT
2106820	STOPPER
0050530	SCREW
2106830	PIN
2106840	FLAT SPRING
0029060	SCREW
0070200	SCREW
2012520	SPRING WASHER
2106910	CLOTH GUIDEASSY.
2106900	BRACKET
0050880	BOLT	2
1670660	WASHER	2
2053610	BRACKET
0050570	SCREW
2106890	ADJUSTING PLATE
0051570	SCREW	2
0024300	SCREW
0029050	SCREW
1371420	WASHER
2106920	STOPPER
0012060	SCREW
201211C910	FOLDERASSY. (40 rum )
2058350	AUXILIARY PLATE
0052990	SCREW
303312AO	STOPPER
3033130	CLAMP
xxxxxx	PRESSER FOOT
xxxxxx	PRESSER FOOT FINGER
2105840	UNCURLER
0050300	SCREW
2105850	WASHER
270037DO	CLOTH PLATE (NARROW)
3080930	LEVER
270012DO	FRONT COVER (LEFT)
270505A1	FANASSY.
xxxxxx	PRESSER FOOT
xxxxxx	PRESSER FOOT FINGER
2105840	UNCURLER
2105850	WASHER
0050300	SCREW
273008EO	LOWER KNIFE HOLDER
2119410	SPRING

Page 74

Pegasus EX3200 / EX5200 (117 pages) parts on page 74
Part number	Part name	Qty
EX5203-22	EX5203-22	1
EX5204-22Z2	EX5204-22Z2	1
EX5204-23Z3	EX5204-23Z3	1

Page 75 — SPECIFIC PARTS (8)

Pegasus EX3200 / EX5200 (117 pages) parts on page 75
Ref	Part number	Part name
	xxxxxx	PRESSER FOOT
2	xxxxxx	PRESSER FOOT FINGER
3	2771260	FABRIC GUARD
4	0012310	SCREW
5	2116000	UNCURLER
6	0050300	SCREW
7	xxxxxx	PRESSER FOOT
8	3017250	FABRIC GUARD
9	0012290	SCREW
10	xxxxxx	PRESSER FOOT FINGER
11	270012DO	FRONT COVER (LEFn
12	xxxxxx	PRESSER FOOT
13	2771260	FABRIC GUARD
14	0012310	SCREW
15	xxxxxx	PRESSER FOOT FINGER
16	204668AO	UNCURLER
17	0050300	SCREW
18	273003AO	UPPER KNIFE LEVER
19	273014AO	UPPER KNIFE CLAMP
20	270012FO	FRONT COVER (LEFn
21	270500GO	CRANKSHAFT
22	271518B910	UPPER LOOPER HOLDERASSY.
23	271505-920	LEVER
24	0071500	BOLT
25	2715460	PINASSY.
26	2021760	OIL WICK
27	0045450	SCREW
28	271513B910	UPPER LOOPER HOLDERASSY.
29	179130-050	FELT
30	0070541	SCREW
31	2330350	FELT
32	271510RO	UPPER LOOPER HOLDER BASE
33	2050881	PLUG
34	272616-920	ECCENTRIC
35	0045140	SCREW
36	2405390	WASHER

Page 76

Pegasus EX3200 / EX5200 (117 pages) parts on page 76
Ref	Part number	Part name
6	EX5204-24	Serging
5	EX5204-24	Serging
2	EX5204-24	Serging
4	EX5204-24	Serging
3	EX5204-24	Serging
1	EX5204-24	Serging
13	EX5204-24	Serging
12	EX5204-24	Serging
11	EX5204-24	Serging
7	EX5204-24	Serging
10	EX5204-24	Serging
14	EX5204-24	Serging
9	EX5204-24	Serging
8	EX5204-24	Serging
13	EX5204-24	Serging
12	EX5204-24	Serging
11	EX5204-24	Serging
15	EX5204-24	Serging
10	EX5204-24	Serging
16	EX5204-24	Serging
9	EX5204-24	Serging
8	EX5204-24	Serging
28	EX5204-24	Serging
17	EX5204-24	Serging
25	EX5204-24	Serging
26	EX5214-24	Serging
18	EX5204-32R1,32R2	Turn down hemming
29	EX5204-32R1,32R2	Turn down hemming
27	EX5204-32R1,32R2	Turn down hemming
24	EX5204-32R1,32R2	Turn down hemming
23	EX5204-32R1,32R2	Turn down hemming
20	EX5204-32R1,32R2	Turn down hemming
22	EX5204-32R1,32R2	Turn down hemming
21	EX5204-32R1,32R2	Turn down hemming
19	EX5204-32R1,32R2	Turn down hemming

Page 77 — SPECIFIC PARTS (9)

Pegasus EX3200 / EX5200 (117 pages) parts on page 77
Ref	Part number	Part name
1	XXXXXX	押工
2	XXXXXX	押工爪
3	2771280	補助押工
4	0012310	平小ネジ/C1 × 3.4
5	2116000	押工補助板
6	0050300	平小ネジ/C1 × 2.3
7	210530A9T0	糸調子 (組)
8	263543-TA0	ツマミ
9	2084480	ラチェット
10	263544-TA0	受皿
11	2103190	調子皿
12	2084490	フェルト
13	005082A0	調子棒/C5
14	201086A0	圧縮バネ (中)
15	210531-9T0	糸調子 (組)
16	2010680	圧縮バネ (弱)
17	2405410	座金
18	273008A0	下メス台
19	XXXXXX	押工
20	XXXXXX	押工爪
21	2771260	補助押工
22	0012310	平小ネジ/C1 × 3.4
23	2116000	押工補助板
24	0050300	平小ネジ/C1 × 2.3
25	2101220	スペーサー
26	2403020	スペーサー
27	2750080	糸道
28	2750170	針糸繰
29	2750090	糸繰り

Page 78 — ヒダ取り(Shirring)

Pegasus EX3200 / EX5200 (117 pages) parts on page 78
Ref	Part number	Part name	Qty
	50	EX5214-43,43P1,43P2
	51	EX3215(16)-42,42P1 42P2,43
	57	EX5214-43P1,43P2
	66	20mm
	58	EX3215(16)-42P1,42P2 25mm
	59	42P2,43
	56	EX5214-43P1,EX3215(16)-42P1 20mm
	56	Option EX5214-43P1,EX3215(16)-42P1

Page 79 — SPECIFIC PARTS (10)

Pegasus EX3200 / EX5200 (117 pages) parts on page 79
Ref	Part number	Part name	Qty
	275514-911	ヒダ取り付け製
	2755150	ブラケット
	007022A0	十字穴ナベネジ/M4 × 14
	2403320	スペーサー
	0071910	平ネジ/M4 × 27
	2109470	板バネ
	0012060	平ネジ/C4 × 5.3
	2755160	ブラケット
	0071600	段付ネジ/M6
	2048880	皿バネ
	0048060	六角ナット/M6
	2109450	ブラケット
	0053280	平ネジ/C4 × 5.5
	2109460	板バネ
	0012060	平ネジ/C4 × 5.3
	275517-920	バネ案内
	007021A0	十字穴ナベネジ/M4 × 12
	263543-TA0	ツマミ
	2084480	ラチェット
	2109400	圧縮バネ
	2040910	座金
	005082A0	調子棒/C5
	2109440	座金
	2755180	レバー
	0048060	六角ナット/M6
	2755200	ブラケット
	2403200	圧縮バネ
	2755210	軸
	2025220	リング
	2070450	座金
	2403230	圧縮バネ
	2062250	カラー
	001457-10	止ネジ/C5 × 3.3
	2109550	座金
	0050290	平ネジ/C3 × 7.5
	2124350	ケーブル
	2124360	ケーブル受ケ
	0070990	段付ネジ/M6
	2024330	座金
	0048060	六角ナット/M6
	2755220	ラッチ
	179765-150	ナット/M4
	0071640	段付ネジ/M6
	2401040	座金
	2755230	ブラケット
	007022A0	十字穴ナベネジ/M4 × 14
	2109610	布案内
	0070120	平ネジ/M3.5 × 6
	2755240	座金
	2755250	ブレード
	2000980	ブレード
	270035B1	座金
	2109620	クロスプレート
	0052100	ブラケット/バインダー
	2118850	止ネジ/C7 × 4
	0012020	バインダー (20)
	1670660	平ネジ/C4 × 7
	2118860	座金
	2118860	バインダー (25)

Page 80

Pegasus EX3200 / EX5200 (117 pages) parts on page 80
Ref	Part number	Part name
4	EX5214-43	Shirring
3	EX5214-43	Shirring
2	EX5214-43	Shirring
1	EX5214-43	Shirring
5	EX3215(16)-42,43	Shirring
6	EX3215(16)-42,43	Shirring
7	EX3215(16)-42,43	Shirring
8	EX3215(16)-42,43	Shirring
9	EX3215(16)-42,43	Shirring
10	EX3215(16)-42,43	Shirring
11	EX3215(16)-42,43	Shirring
12	EX3215(16)-42,43	Shirring
13	EX3215(16)-42,43	Shirring
14	EX3215(16)-42,43	Shirring
15	EX3215(16)-42,43	Shirring
16	EX3215(16)-42,43	Shirring
17	EX3215(16)-42,43	Shirring
18	EX3215(16)-42,43	Shirring
21	EX5214-43P1,43P2	Piping
20	EX5214-43P1,43P2	Piping
19	EX5214-43P1,43P2	Piping
23	EX3215(16)-42P1,42P2	Piping
24	EX3215(16)-42P1,42P2	Piping
25	EX3215(16)-42P1,42P2	Piping
26	EX3215(16)-42P1,42P2	Piping
27	EX3215(16)-42P1,42P2	Piping
28	EX3215(16)-42P1,42P2	Piping
29	EX3215(16)-42P1,42P2	Piping
30	EX3215(16)-42P1,42P2	Piping
31	EX3215(16)-42P1,42P2	Piping
22	EX3215(16)-42P1,42P2	Piping
32	EX3215(16)-42P2	Piping
32	EX5214-43P2	Piping
32	EX3215(16)-42P1,EX5214-43P1	Piping
	EX3215(16)-43P1,EX5214-43P1	Piping
33	EX5214-43P1,43P2	Piping
34	EX5214-43P1,43P2	Piping
35	EX5214-43P1,43P2	Piping
36	EX5214-43P1,43P2	Piping
37	EX5214-43P1,43P2	Piping
38	EX5214-43P1,43P2	Piping
39	EX5214-43P1,43P2	Piping
40	EX5214-43P1,43P2	Piping
41	EX5214-43P1,43P2	Piping
42	EX5214-43P1,43P2	Piping
43	EX5214-43P1,43P2	Piping
44	EX5214-43P1,43P2	Piping

Page 81 — SPECIFIC PARTS (11)

Pegasus EX3200 / EX5200 (117 pages) parts on page 81
Ref	Part number	Part name	Qty
	XXXXXX	押工
	2116000	押工補助板
	0050300	平ネジ/C1 × 2.3
	274025A0	フィンガーガード
	XXXXXX	押工
	0070130	平小ネジ/M3.5 × 8
	208958-B0	ピン
	212499-B0	段付ピン
	0054090	六角ナット
	2124980	ラッチ
	2740280	ネジバネ
	0031530	ナット/C1
	2085320	補助押工
	0050300	平ネジ/C1 × 2.3
	2740220	スプリング
	0070090	平ネジ/M3 × 5
	2740260	フィンガーガード
	0070080	平小ネジ/M3 × 4
	XXXXXX	押工
	2025880	座金
	274025A0	フィンガーガード
	XXXXXX	押工
	274103-910	押工取付台(組)
	0070130	平小ネジ/M3.5 × 8
	208958-B0	ピン
	2028750	座金
	0029210	平小ネジ/C3 × 4
	2044600	補助押工
	0050770	平ネジ/C1 × 3.4
	2740270	フィンガーガード
	0070080	平小ネジ/M3 × 4
	0041300	テープ通し具
	2403020	スペーサー
	000403-9S0	テープガイドセット
	0004060	フェルト
	0004040	カノコ台
	0040120	平ネジ/M4 × 12
	0004070	カラー
	0004080	調節ネジ
	0040050	取付棒
	0004090	取付軸
	0048180	六角ナット
	000410-SA0	ブラケット
	0049080	木ネジ/M5

Page 82 — Uテープ付け(Attaching U-shaped tape) EX3216-53

Pegasus EX3200 / EX5200 (117 pages) parts on page 82
Ref	Part number	Part name
1	1	U-shaped tape attaching mechanism
2	2	Screw
3	3	SW=5mm
4	4	SW=4mm
5	5	Screw
6	6	Bracket
7	7	Screw
8	8	Part
9	9	Screw
10	10	Part
11	11	Part
12	12	Part
13	13	Part
14	14	Part
15	15	Part
16	16	Part
17	17	Part
18	18	Part
19	19	Part
20	20	Part
21	21	Part
22	22	Part
23	23	Part
24	24	Part
25	25	Part
26	26	Part
27	27	Part
28	28	Part
29	29	Part
30	30	Part
31	31	Part
32	32	Part
33	33	Part
34	34	Part
35	35	Part

Page 83 — 専用部品 (12)

Pegasus EX3200 / EX5200 (117 pages) parts on page 83
Part number	Part name	Qty
2755120	テープ案内	1
0071800	平ネジ /M3.5 × 4.5	2
2092000	バインダー (袋綴 10)	1
2089940	バインダー (袋綴 8)	1
0012160	平ネジ /C4 × 5.5	1
2089970	案内板/バインダー	1
270013A0	前カバー(左)	1
XXXXXX	押工(組)	1
0070130	平小ネジ/M3.5 × 8	1
208958-B0	ピン	1
212499-B0	段付ピン	1
0054090	六角ナット/C3	1
2124980	ラッチ	1
2740280	ネジリバネ	1
0031530	ナット/C1	1
2085310	補助押工	1
0050300	平ネジ/C1 × 2.3	1
2740220	ネジリバネ	1
0070090	平ネジ/M3 × 5	1
2740260	フィンガーガード	1
0070080	平小ネジ/M3 × 4	1
0003370	テープ台 (組)	1
0003440	ブラケット	1
0049080	木ネジ/4.5	2
0003410	軸	1
0001890	座金	1
3030670	バネ座金	1
0048050	六角ナット/M5	1
0003380	カノコ台	1
0003390	段付ネジ	1
0003400	カノコ台	1
0004670	バネ受ケ	1
0003430	圧縮バネ	1
0004680	カラー	1
0003390	段付ネジ	1

Page 84

Pegasus EX3200 / EX5200 (117 pages) parts on page 84
Ref	Part number	Part name
13	EX5214-M53,53C3	EX5214-M53,53C3
14	EX5214-M53	EX5214-M53
	EX5214-84	EX5214-84

Page 85 — SPECIFIC PARTS (13)

Pegasus EX3200 / EX5200 (117 pages) parts on page 85
Ref	Part number	Part name	Qty
	275542-910	テープ案内 (組)
	2755100	テープ案内
	0070660	段付ネジ/M4
	2103070	波板座金
	2755110	テープ案内
	2112670	テープ繰り
	2087350	テープ案内
	0013330	平小ネジ/C1 × 4
	XXXXXX	押工
	XXXXXX	押工爪
	2116000	押工補助板
	0050300	平ネジ/C1 × 2.3
	2403020	スペーサー
	2750540	糸繰り

Page 86

Pegasus EX3200 / EX5200 (117 pages) parts on page 86
Ref	Part number	Part name
	EX5214-54	テープ付け(Attaching tape)
12	EX5214-54	EX5214-54
16	EX5214-54/445	EX5214-54/445
	EX5214-54/445	EX5214-54/445

Page 87 — SPECIFIC PARTS (14)

Pegasus EX3200 / EX5200 (117 pages) parts on page 87
Ref	Part number	Part name	Qty
	210530A9T0	糸調子(組)
	263543-TA0	ツマミ
	2084480	ラチェット
	263544-TA0	受皿
	2103190	調子皿
	2084490	フェルト
	005082A0	調子棒/C2
	201086A0	圧縮バネ(中)
	210531-9T0	糸調子(組)
	2010880	圧縮バネ(弱)
	2119410	圧縮バネ
	2403020	スペーサー
	272528A0	駆動送り台
	272501A0	エキセン
	273008A0	下メス台
	2405410	座金

Page 88

Pegasus EX3200 / EX5200 (117 pages) parts on page 88
Ref	Part number	Part name
1	1	Backlatching
2	2	Backlatching
3	3	Backlatching
4	4	Backlatching
5	5	Backlatching
6	6	Backlatching
7	7	Backlatching
8	8	Backlatching
9	9	Backlatching
10	10	Backlatching
11	11	Backlatching
12	12	Backlatching
13	13	Backlatching
14	14	Backlatching
15	15	Backlatching
16	16	Backlatching
17	17	Backlatching
18	18	Backlatching

Page 89 — SPECIFIC PARTS (15)

Pegasus EX3200 / EX5200 (117 pages) parts on page 89
Ref	Part number	Part name	Qty
	270037C0	クロスプレート (狭巾)
	271010A0	取付板(前)
	270037D0	クロスプレート (狭巾)
	3080930	レバー
	308085-D0	取付板(前)
	XXXXXX	押工
	XXXXXX	押工爪
	2771260	補助押工
	0012310	平小ネジ/C1 × 3.4
	XXXXXX	押工
	XXXXXX	押工爪
	273008B0	下メス台
	2119410	圧縮バネ
	XXXXXX	針板
	2087350	テープ案内
	0013330	平小ネジ/C1 × 4
	270505B1	ファン (組)
	2403020	スペーサー

Page 90 — 地縫い・バックタック・裾引き (Plain seaming・Backlatching・Blindhemming) EX5204-92M1

Pegasus EX3200 / EX5200 (117 pages) parts on page 90
Ref	Part number	Part name
1	1	Base Plate
2	2	Presser Foot
3	3	Presser Foot Spring
4	4	Presser Foot Holder
5	5	Screw
6	6	Screw
7	7	Cover
8	8	Base Plate
9	9	Screw
10	10	Base Plate
11	11	Lever
12	12	Shaft
13	13	Screw
14	14	Screw
15	15	Lever
16	16	Spring
17	17	Screw
18	18	Shaft
19	19	Screw
20	20	Screw
21	21	Screw
22	22	Spring
23	23	Base Plate
24	24	Lever
25	25	Screw
26	26	Screw
27	27	Base Plate
28	28	Lever
29	29	Screw
30	30	Screw
31	31	Screw
32	32	Screw
33	33	Washer
34	34	Lever
35	35	Screw
	36	Hemmer
37	37	Base Plate
38	38	Screw
39	39	Lever
40	40	Screw

Page 91 — SPECIFIC PARTS (16)

Pegasus EX3200 / EX5200 (117 pages) parts on page 91
Ref	Part number	Part name	Qty
	XXXXXX	押工
	2119940	補助押工
	0013330	平小ネジ/C1 × 4
	XXXXXX	押工爪
	2116000	押工補助板
	0050300	平ネジ/C1 × 2.3
	270037C0	クロスプレート (狭巾)
	271010A0	取付板(前)
	273008B0	下メス台
	2106850	定規ブラケット (組)
	2106800	定規ブラケット
	2106810	ヒンジ/エッジブラケット
	0051840	段ネジ/C5
	2011910	皿バネ
	0030440	六角ナット/C5
	2106820	ストッパー
	0050530	平ネジ/C4 × 4.8
	2106830	段付ピン
	2106840	板バネ
	0029060	平ネジ/C4 × 2.6
	0070200	平ネジ/M4 × 10
	2012520	バネ座金
	275529-910	裾引定規台
	210690A0	ブラケット
	0050880	六角ボルト/C4 × 7.5
	1670660	座金
	2122660	裾引定規台
	0050570	平ネジ/C3 × 5
	2755300	調節板
	0051570	平ネジ/C3 × 4.5
	0053630	調節ネジ
	0029050	平ネジ/C5 × 4.5
	1371420	座金
	2122670	ストッパー
	0012060	平ネジ/C4 × 5.3
	212268A910	定規羽根(組)(36mm)
	205835A0	補助羽根
	0052990	平ネジ/C3 × 2.6
	303312A0	ストッパー
	3033130	クランプ

Page 92

Pegasus EX3200 / EX5200 (117 pages) parts on page 92
Ref	Part number	Part name
1	1	BASE PLATE
2	2	GUIDE
3	3	PRESSER FOOT
4	4	SCREW
5	5	SPRING
37	37	GUIDE
38	38	GUIDE
39	39	GUIDE
6	6	GUIDE
7	7	GUIDE
8	8	GUIDE
9	9	GUIDE
10	10	GUIDE
11	11	GUIDE
12	12	GUIDE
13	13	GUIDE
14	14	GUIDE
15	15	GUIDE
16	16	GUIDE
17	17	SCREW
18	18	SPRING
19	19	GUIDE
20	20	GUIDE
21	21	GUIDE
22	22	GUIDE
23	23	GUIDE
24	24	GUIDE
25	25	GUIDE
26	26	GUIDE
27	27	GUIDE
28	28	SCREW
29	29	SPRING
30	30	GUIDE
31	31	GUIDE
32	32	40mm
33	33	GUIDE
34	34	GUIDE
35	35	GUIDE
36	36	GUIDE

Page 93 — SPECIFIC PARTS (17)

Pegasus EX3200 / EX5200 (117 pages) parts on page 93
Ref	Part number	Part name
1	XXXXXX	押工
2	XXXXXX	押工爪
3	2105840	押工補助机
4	0050300	平ネジ/C1 × 2.3
5	2105850	座金
6	2106850	定規ブラケット(組)
7	2106800	定規ブラケット
8	2106810	ヒンジ/定規ブラケット
9	0051840	段ネジ/C5
10	2011910	皿バネ
11	0030440	六角ナット
12	2106820	ストッパー
13	0050530	平ネジ/C4 × 4.8
14	2106830	段付ピン
15	2106840	板バネ
16	0029060	平ネジ/C4 × 2.6
17	0070200	平ネジ/M4 × 10
18	2012520	バネ座金
19	2106910	裾引定規(組)
20	2106900	ブラケット
21	0050880	六角ボルト/C4 × 7.5
22	1670660	座金
23	2053610	ブラケット
24	0050570	平ネジ/C3 × 5
25	2106890	調節板
26	0051570	平ネジ/C3 × 5
27	0024300	調節ネジ/C3 × 12
28	0029050	平ネジ/C3 × 4.5
29	1371420	座金
30	2106920	ストッパー
31	0012060	平ネジ/C4 × 5.3
32	201211C910	定規羽根(組)(40mm)
33	2058350	補助羽根
34	0052990	平ネジ/C3 × 2.6
35	303312A0	ストッパー
36	3033130	クランプ
37	2401020	座金
38	2101220	スペーサー
39	2750170	針糸繰

Page 94 — オプション(Option)

Pegasus EX3200 / EX5200 (117 pages) parts on page 94
Ref	Part number	Part name
	EX5203-22	EX5204-01,02,24,32R1,32R2
	EX5212-02	EX5214-01,03,M03,24,53C3,M53,54
	EX5214H-55	EX5214N-01
	EX3215(126)-01,01A,02,02A,03,A04	EX3244-03,A04
	EX3215(16)H-A05	EX3215(16)N-01,01S
20	EX3200(H)(N) Series	Part 20
21	EX3200(H)(N) Series	Part 21
	1	Part 1
	2	Part 2
	3	Part 3
	4	Part 4
	5	Part 5
	6	Part 6
	7	Part 7
	8	Part 8
	9	Part 9
	10	Part 10
	11	Part 11
	12	Part 12
	13	Part 13
	14	Part 14
	15	Part 15
	16	Part 16
	17	Part 17
	18	Part 18
	19	Part 19

Page 95

Pegasus EX3200 / EX5200 (117 pages) parts on page 95
Ref	Part number	Part name	Qty
	2106850	定規ブラケット(組)
	2106800	定規ブラケット
	2106810	ヒンジ/定規ブラケット
	0051840	段ネジ/C5
	2011910	皿バネ
	0030440	六角ナット/C5
	2106820	ストッパー
	0050530	平ネジ/C4 × 4.8
	2106830	段付ピン
	2106840	板バネ
	0029060	平ネジ/C4 × 2.6
	0070200	平ネジ/C4 × 10
	2012520	バネ座金
	2106860	定規台(組)
	2106870	定規台
	0050880	六角ボルト/C4 × 7.5
	1670660	座金
	0012020	平ネジ/C4 × 7
	1670660	座金
	2046670	定規
	201233A0	定規

Page 96 — EX3200 GAUGE PARTS LIST(1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 96
Ref	Part number	Part name	Qty
(16)	277514P300	NEEDLE PLATE	2
(16)	277514P400	NEEDLE PLATE	3
(16)	277515P300	NEEDLE PLATE	4
(16)	277513P400	NEEDLE PLATE	5
(16) EX3215-01/222(K)	277323-130	MAIN FEED DOG ASSM.	2
(16) EX3215-01/222(K)	(277324-130)	MAIN FEED DOG	2
(16) EX3215-01/222(K)	(277318-130)	AUX.FEED DOG	2
(16) EX3215-01/222(K)	277326-130	DIFF.FEED DOG	2
(16) EX3215-01/222(K)	2771170	PRESSER FOOT ASSM.	2
(16) EX3215-01/222(K)	2770100 #2	UPPER LOOPER	2
(16) EX3215-01/222(K)	277014A1 #8	UPPER LOOPER	2
(16) EX3215-01/222(K)	2770150	LOWER LOOPER	2
(16) EX3215-01/222(K)	2770180	CHAINSTITCH LOOPER	2
(16) EX3215-01/222(K)	277513P400	NEEDLE PLATE	3
(16) EX3215-01/222(K)	277513P500	NEEDLE PLATE	4
(16) EX3215-01/222(K)	277514P300	NEEDLE PLATE	5
(16) EX3215-01/222(K)	277514P400	NEEDLE PLATE	3
(16) EX3215-01/222(K)	277515P300	NEEDLE PLATE	4
(16) EX3215-01/222(K)	277513P400	NEEDLE PLATE	5
(16) EX3215-01A/222	277323-130	MAIN FEED DOG ASSM.	3
(16) EX3215-01A/222	(277324-130)	MAIN FEED DOG	3
(16) EX3215-01A/222	(277318-130)	AUX.FEED DOG	3
(16) EX3215-01A/222	277326-130	DIFF.FEED DOG	3
(16) EX3215-01A/222	211907B0	PRESSER FOOT ASSM.	3
(16) EX3215-01A/222	2770100 #2	UPPER LOOPER	3
(16) EX3215-01A/222	277014A1 #8	UPPER LOOPER	3
(16) EX3215-01A/222	2770150	LOWER LOOPER	3
(16) EX3215-01A/222	2770180	CHAINSTITCH LOOPER	3
(16) EX3215-01A/222	277325-130	DIFF.FEED DOG	2
(16) EX3215-01A/222	211909B0	PRESSER FOOT ASSM.	2
(16) EX3215-01A/222	277325-130	DIFF.FEED DOG	3
(16) EX3215-01A/222	211910B0	PRESSER FOOT ASSM.	3
(16) EX3215-01/222(K)	201121A0	FLAT NIFE	2
(16) EX3215-01/222(K)	2107550	ANGLED KNIFE	2
(16) EX3215-01/222(K)	2022950	OVERLOCK KNIFE	2
(16) EX3215-01/222(K)	2770070	FRONT	2
(16) EX3215-01/222(K)	2770040	REAR	2
(16) EX3215-01/222(K)	2770080	FRONT	2
(16) EX3215-01/222(K)	2770060	REAR	2
(16) EX3215-01/222(K)	277026-921	NEEDLE HOLDER	2
(16) EX3215-01/222(K)	DCX27 #11	NEEDLE	2
(16) EX3215-01/222(K)	277027-921	NEEDLE HOLDER	3
(16) EX3215-01/222(K)	277026-921	NEEDLE HOLDER	4
(16) EX3215-01/222(K)	277027-921	NEEDLE HOLDER	5
(16) EX3215-01A/222	202527A0	FLAT NIFE	2
(16) EX3215-01A/222	2022950	OVERLOCK KNIFE	2
(16) EX3215-01A/222	2770070	FRONT	2
(16) EX3215-01A/222	2770040	REAR	2
(16) EX3215-01A/222	2770080	FRONT	2
(16) EX3215-01A/222	2770060	REAR	2
(16) EX3215-01A/222	277026-921	NEEDLE HOLDER	2
(16) EX3215-01A/222	DCX27 #11	NEEDLE	2
(16) EX3215-01A/222	277027-921	NEEDLE HOLDER	3
(16) EX3215-01A/222	277027-921	NEEDLE HOLDER	4
(16) EX3215-01A/222	277027-921	NEEDLE HOLDER	5

Page 97 — EX3200 GAUGE PARTS LIST (2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 97
Ref	Part number	Part name	Qty
3	277563P400	GAUGE	4
3	277376-130	MAIN FEED DOG ASSM.	4
3	27737-130	MAIN FEED DOG	4
3	277318B130	AUX.FEED DOG	4
3	277325-130	DIFF.FEED DOG	4
3	211909B0	PRESSER FOOT ASSM.	4
3	2770100 #2	UPPER LOOPER	4
3	277014A1 #6	UPPER SPREADER	4
3	2770150	LOWER LOOPER	4
3	2770180	CHAINSTITCH LOOPER	4
3	277563P500	GAUGE	5
3	211910B0	PRESSER FOOT ASSM.	5
5	277561P400	GAUGE	4
5	277374-130	MAIN FEED DOG ASSM.	4
5	277375-130	MAIN FEED DOG	4
5	277318B130	AUX.FEED DOG	4
5	277330-130	DIFF.FEED DOG	4
5	2771870	PRESSER FOOT ASSM.	4
5	2770100 #2	UPPER LOOPER	4
5	277014A1 #6	UPPER SPREADER	4
5	2770150	LOWER LOOPER	4
5	2770180	CHAINSTITCH LOOPER	4
5	277563P500	GAUGE	5
5	277329-130	DIFF.FEED DOG	5
5	2771880	PRESSER FOOT ASSM.	5
5	277562P500	GAUGE	6
3	277562P400	GAUGE	4
3	277405-130	MAIN FEED DOG ASSM.	4
3	277406-130	MAIN FEED DOG	4
3	277318-130	AUX.FEED DOG	4
3	277325A130	DIFF.FEED DOG	4
3	211909C0	PRESSER FOOT ASSM.	4
3	2770100 #2	UPPER LOOPER	4
3	277014A1 #6	UPPER SPREADER	4
3	2770150	LOWER LOOPER	4
3	2770180	CHAINSTITCH LOOPER	4
3	277562P500	GAUGE	5
3	211910C0	PRESSER FOOT ASSM.	5
3	202527A0	GAUGE	4
3	2022950	OVERLOCK FRONT	4
3	2770070	OVERLOCK FRONT	4
3	2770040	OVERLOCK REAR	4
3	2770080	CHAINSTITCH NEEDLE GUARD FRONT	4
3	2770060	CHAINSTITCH NEEDLE GUARD REAR	4
3	277027-021	NEEDLE HOLDER	4
3	DCX27 #11	NEEDLE HOLDER	4
3	202527A0	GAUGE	5
3	2022950	OVERLOCK FRONT	5
3	2770070	OVERLOCK FRONT	5
3	2770040	OVERLOCK REAR	5
3	2770080	CHAINSTITCH NEEDLE GUARD FRONT	5
3	2770060	CHAINSTITCH NEEDLE GUARD REAR	5
3	277028-020	NEEDLE HOLDER	5
3	DCX27 #11	NEEDLE HOLDER	5
5	202527A0	GAUGE	6
5	2022950	OVERLOCK FRONT	6
5	2770070	OVERLOCK FRONT	6
5	2770040	OVERLOCK REAR	6
5	2770080	CHAINSTITCH NEEDLE GUARD FRONT	6
5	2770060	CHAINSTITCH NEEDLE GUARD REAR	6
5	277027-021	NEEDLE HOLDER	6
5	DCX27 #11	NEEDLE HOLDER	6
3	202527A0	GAUGE	4
3	2022950	OVERLOCK FRONT	4
3	2770070	OVERLOCK FRONT	4
3	2770040	OVERLOCK REAR	4
3	2770080	CHAINSTITCH NEEDLE GUARD FRONT	4
3	2770060	CHAINSTITCH NEEDLE GUARD REAR	4
3	277027-021	NEEDLE HOLDER	4
3	DCX27 #11	NEEDLE HOLDER	4
3	202527A0	GAUGE	5
3	2022950	OVERLOCK FRONT	5
3	2770070	OVERLOCK FRONT	5
3	2770040	OVERLOCK REAR	5
3	2770080	CHAINSTITCH NEEDLE GUARD FRONT	5
3	2770060	CHAINSTITCH NEEDLE GUARD REAR	5
3	277027-021	NEEDLE HOLDER	5
3	DCX27 #11	NEEDLE HOLDER	5

Page 98 — EX3200 GAUGE PARTS LIST (3)

Pegasus EX3200 / EX5200 (117 pages) parts on page 98
Ref	Part number	Part name	Qty
2771860	277582P400	277330-130	3
277375-130	277582P500	277374-130	5
2770100 #2	277318B130	2771870	5
2771880	277583P500	277329-130	5
	277583P600	2771170	6
2770100 #2	277514R300	277326-160	2
2770150	277514R400	277014A1 #8	4
(277324-160)	277515R300	277323-160	3
2770150	(277318-130)	2771180	4
2770180	277513R400	277325-160	5
2770150	277513R500	277014A1 #8	5
2770070	202527A0	2022950	5
277006A0	2770040	2770080	5
277028-020	277027-021	DCX27 #11	5
2022950	201121A0	2107550	2
2770080	2770070	2770040	2
DCX27 #11	2770060	277026-921	2
2770080	2770070	2770040	3
DCX27 #11	2770060	277027-921	3
2770080	2770070	2770040	4
DCX27 #11	2770060	277027-921	4
2770080	2770070	2770040	5
DCX27 #11	2770060	277027-921	5

Page 99 — EX3200 GAUGE PARTS LIST(4)

Pegasus EX3200 / EX5200 (117 pages) parts on page 99
Ref	Part number	Part name	Qty
SW	277514R300	NEEDLE PLATE	2
SW	277514R400	NEEDLE PLATE	3
SW	277515R300	NEEDLE PLATE	3
SW	277513R500	NEEDLE PLATE	4
SW	277564P500	NEEDLE PLATE	5
SW	277564P600	NEEDLE PLATE	6
SW	277580R500	NEEDLE PLATE	3
NG	277323-160	MAIN FEED DOG ASSM.	3
NG	(277324-160)	MAIN FEED DOG	3
NG	(277318-130)	AUX.FEED DOG	3
NG	277326-160	DIFF.FEED DOG	3
NG	277907B0	PRESSER FOOT ASSM.	3
NG	2770100 #2	UPPER LOOPER	3
NG	277014A1 #8	UPPER LOOPER	3
NG	2770150	LOWER LOOPER	3
NG	2770180	CHAINSTITCH LOOPER	3
NG	211909B0	PRESSER FOOT ASSM.	3
NG	211910B0	PRESSER FOOT ASSM.	3
NG	277327-160	MAIN FEED DOG ASSM.	5
NG	(277328-160)	MAIN FEED DOG	5
NG	(277318-130)	AUX.FEED DOG	5
NG	277329-160	DIFF.FEED DOG	5
NG	2771880	PRESSER FOOT ASSM.	5
NG	2770100 #2	UPPER LOOPER	5
NG	277014A1 #8	UPPER LOOPER	5
NG	2770150	LOWER LOOPER	5
NG	2770180	CHAINSTITCH LOOPER	5
NG	277325-160	DIFF.FEED DOG	3
NG	2771180	PRESSER FOOT ASSM.	3
NG	2770100 #2	UPPER LOOPER	3
NG	277014A1 #8	UPPER LOOPER	3
NG	2770150	LOWER LOOPER	3
NG	2770180	CHAINSTITCH LOOPER	3
SW	277026-921	NEEDLE HOLDER	2
SW	202527A0	UPPER KNIFE	3
SW	2022950	LOWER KNIFE	3
FRONT	2770070	OVERLOCK KNIFE	3
REAR	2770040	OVERLOCK KNIFE	3
FRONT	2770080	CHAINSTITCH NEEDLE GUARD	3
REAR	2770060	CHAINSTITCH NEEDLE GUARD	3
SW	DCX27 #11	NEEDLE HOLDER	3
SW	277027-921	NEEDLE HOLDER	3
SW	202527A0	UPPER KNIFE	5
SW	2022950	LOWER KNIFE	5
FRONT	2770070	OVERLOCK KNIFE	5
REAR	2770040	OVERLOCK KNIFE	5
FRONT	2770080	CHAINSTITCH NEEDLE GUARD	5
REAR	2770060	CHAINSTITCH NEEDLE GUARD	5
SW	DCX27 #11	NEEDLE HOLDER	5
SW	277028-920	NEEDLE HOLDER	5
SW	201121A0	UPPER KNIFE	3
SW	2107550	ANGLED KNIFE	3
SW	2022950	LOWER KNIFE	3
FRONT	2770070	OVERLOCK KNIFE	3
REAR	2770040	OVERLOCK KNIFE	3
FRONT	2770080	CHAINSTITCH NEEDLE GUARD	3
REAR	277006A0	CHAINSTITCH NEEDLE GUARD	3
SW	DCX27 #11	NEEDLE HOLDER	3
SW	277027-921	NEEDLE HOLDER	3

Page 100 — EX3200 GAUGE PARTS LIST(5)

Pegasus EX3200 / EX5200 (117 pages) parts on page 100
Part number	Part name	Qty
277517R400	NEEDLE PLATE	3
277517R500	NEEDLE PLATE	5
277516R500	NEEDLE PLATE	6
277517R400	NEEDLE PLATE	3
277516R500	NEEDLE PLATE	5
277581R500	NEEDLE PLATE	3
277518R400	NEEDLE PLATE	5
277518R400	NEEDLE PLATE	3X2
277519R400	NEEDLE PLATE	5X2
277327-160	MAIN FEED DOG ASSM.	3
(277328-160)	MAIN FEED DOG	3
(277318-132)	AUX.FEED DOG	3
277330-160	DIFF.FEED DOG	3
2771180	PRESSER FOOT ASSM.	3
277010A0 #5	UPPER LOOPER	3
277014B0 #9	UPPER LOOPER	3
2770150	LOWER LOOPER	3
2770180	CHAINSTITCH LOOPER	3
277327-160	MAIN FEED DOG ASSM.	5
(277328-160)	MAIN FEED DOG	5
(277318-132)	AUX.FEED DOG	5
277329-160	DIFF.FEED DOG	5
2771190	PRESSER FOOT ASSM.	5
277010A0 #2	UPPER LOOPER	3
277014A1 #8	UPPER LOOPER	3
2770150	LOWER LOOPER	3
2770180	CHAINSTITCH LOOPER	3
277327-160	MAIN FEED DOG ASSM.	3
(277328-160)	MAIN FEED DOG	3
(277318-132)	AUX.FEED DOG	3
277330-160	DIFF.FEED DOG	3
2771180	PRESSER FOOT ASSM.	3
277010A0 #5	UPPER LOOPER	3
277014B0 #9	UPPER LOOPER	3
2770150	LOWER LOOPER	3
2770180	CHAINSTITCH LOOPER	3
277327-160	MAIN FEED DOG ASSM.	3 X 2
(277328-160)	MAIN FEED DOG	3 X 2
(277318-132)	AUX.FEED DOG	3 X 2
277329-160	DIFF.FEED DOG	3 X 2
277118A0	PRESSER FOOT ASSM.	3 X 2
277010A0 #5	UPPER LOOPER	3 X 2
2770150	LOWER LOOPER	3 X 2
2770180	CHAINSTITCH LOOPER	3 X 2
277327-160	MAIN FEED DOG ASSM.	5 X 2
(277328-160)	MAIN FEED DOG	5 X 2
(277318-132)	AUX.FEED DOG	5 X 2
277329-160	DIFF.FEED DOG	5 X 2
277119A0	PRESSER FOOT ASSM.	5 X 2
277010A0 #5	UPPER LOOPER	5 X 2
2770150	LOWER LOOPER	5 X 2
2770180	CHAINSTITCH LOOPER	5 X 2
201121A0	FLAT NIFE	3
2107550	ANGLED KNIFE	3
2022950	LOWER KNIFE	3
2770070	OVERLOCK FRONT	3
2770040	NEEDLE GUARD REAR	3
2770080	CHAINSTITCH FRONT	3
2770060	NEEDLE GUARD REAR	3
277027-921	NEEDLE HOLDER	3
DCX27 #14	NEEDLE HOLDER	3
277028-920	NEEDLE HOLDER	3
201121A0	FLAT NIFE	5
2107550	ANGLED KNIFE	5
2022950	LOWER KNIFE	5
2770070	OVERLOCK FRONT	5
2770040	NEEDLE GUARD REAR	5
2770080	CHAINSTITCH FRONT	5
2770060	NEEDLE GUARD REAR	5
277027-921	NEEDLE HOLDER	5
DCX27 #14	NEEDLE HOLDER	5
277028-920	NEEDLE HOLDER	5
201121A0	FLAT NIFE	3
2107550	ANGLED KNIFE	3
2022950	LOWER KNIFE	3
2770070	OVERLOCK FRONT	3
2770040	NEEDLE GUARD REAR	3
2770080	CHAINSTITCH FRONT	3
277006A0	NEEDLE GUARD REAR	3
277027-921	NEEDLE HOLDER	3
DCX27 #14	NEEDLE HOLDER	3
201121A0	FLAT NIFE	5
2107550	ANGLED KNIFE	5
2022950	LOWER KNIFE	5
2770070	OVERLOCK FRONT	5
2770040	NEEDLE GUARD REAR	5
2770080	CHAINSTITCH FRONT	5
2770060	NEEDLE GUARD REAR	5
277027-921	NEEDLE HOLDER	5
DCX27 #14	NEEDLE HOLDER	5
201121A0	FLAT NIFE	3 X 2
2107550	ANGLED KNIFE	3 X 2
2022950	LOWER KNIFE	3 X 2
2770070	OVERLOCK FRONT	3 X 2
2770040	NEEDLE GUARD REAR	3 X 2
2770080	CHAINSTITCH FRONT	3 X 2
2770060	NEEDLE GUARD REAR	3 X 2
277030-920	NEEDLE HOLDER	3 X 2
DCX27 #11	NEEDLE HOLDER	3 X 2
201121A0	FLAT NIFE	5 X 2
2107550	ANGLED KNIFE	5 X 2
2022950	LOWER KNIFE	5 X 2
2770070	OVERLOCK FRONT	5 X 2
2770040	NEEDLE GUARD REAR	5 X 2
2770080	CHAINSTITCH FRONT	5 X 2
2770060	NEEDLE GUARD REAR	5 X 2
277031-920	NEEDLE HOLDER	5 X 2

Page 101 — EX3200 GAUGE PARTS LIST(6)

Pegasus EX3200 / EX5200 (117 pages) parts on page 101
Ref	Part number	Part name	Qty
	277524T502	277337-252
	277524T602	277337-252
	277525T402	277337-252
	277525T502	277337-252
	277524T602	277337-252
	277524T702	277337-252
	277521R400	277334-160
	277521R500	277334-160
	277520R500	277331-160
	277520R600	277331-160
	277524T502	277339-251
	277524T602	277339-251
	277525T402	277339-251
	277525T502	277339-251
	277524T602	277339-251
	277524T702	277336-160
	277521R400	277336-160
	277520R500	277333-160
	277520R600	277333-160
	2770110 #3	2770140 #1
	2770110 #3	2770150
	2770170 #11	277014A1 #8
	277010A0 #5	277014B0 #9
	2770000	2116621
	2770000	2116621
	201121A0	2107550
	2770070	2770040
	2770070	2770040
	2770070	2770040
	277029-820	DCX27 #21
	277032-820	DCX27 #21
	277073-820	DOX 5 #21
	277027-921	DCX27 #14
	277028-820

Page 102 — EX3200 GAUGE PARTS LIST(7)

Pegasus EX3200 / EX5200 (117 pages) parts on page 102
Ref	Part number	Part name	Qty
4	277521R400	NEEDLE PLATE	3
6	277520R601	NEEDLE PLATE	5
4	277521R400	NEEDLE PLATE	3
6	277520R601	NEEDLE PLATE	5
5	277520S500	NEEDLE PLATE	5
6	277520R600	NEEDLE PLATE	6
4	277523R401	NEEDLE PLATE	4
5	277523R501	NEEDLE PLATE	5
5	277522R501	NEEDLE PLATE	5
4	277334-160	MAIN FEED DOG ASSM.	3
6	277331-160	MAIN FEED DOG ASSM.	5
4	277334-160	MAIN FEED DOG ASSM.	3
6	277331-160	MAIN FEED DOG ASSM.	5
5	277331-250	MAIN FEED DOG ASSM.	5
4	277330A160	MAIN FEED DOG ASSM.	4
5	277327A160	MAIN FEED DOG ASSM.	5
4	(277335-160)	MAIN FEED DOG	3
6	(277332-160)	MAIN FEED DOG	5
4	(277335-160)	MAIN FEED DOG	3
6	(277332-160)	MAIN FEED DOG	5
5	(277332-250)	MAIN FEED DOG	5
5	(277328-160)	MAIN FEED DOG	5
4	277336-160	AUX.FEED DOG	3
6	277318-130	AUX.FEED DOG	5
4	277336-160	AUX.FEED DOG	3
6	277318-130	AUX.FEED DOG	5
5	277318-130	AUX.FEED DOG	5
5	277318-130	AUX.FEED DOG	5
4	277333-160	DIFF.FEED DOG	3
6	277335-160	DIFF.FEED DOG	5
4	277336-160	DIFF.FEED DOG	3
6	277335-160	DIFF.FEED DOG	5
5	277333-250	DIFF.FEED DOG	5
5	277329A160	DIFF.FEED DOG	5
4	204502A1	PRESSER FOOT ASSM.	3
6	204505A0	PRESSER FOOT ASSM.	5
4	204502A1	PRESSER FOOT ASSM.	3
6	204505A0	PRESSER FOOT ASSM.	5
5	2771210	PRESSER FOOT ASSM.	5
5	277119B0	PRESSER FOOT ASSM.	5
4	277010A0 #5	UPPER LOOPER	3
6	277010A0 #5	UPPER LOOPER	5
4	277010A0 #5	UPPER LOOPER	3
6	277010A0 #5	UPPER LOOPER	5
5	2770100 #2	UPPER LOOPER	5
4	2770100 #2	UPPER LOOPER	4
4	277014B0 #9	UPPER SPREADER	3
6	277014B0 #9	UPPER SPREADER	5
4	277014B0 #9	UPPER SPREADER	3
6	277014B0 #9	UPPER SPREADER	5
5	277014A1 #8	UPPER SPREADER	5
4	2770150	LOWER LOOPER	3
6	2770150	LOWER LOOPER	5
4	2770150	LOWER LOOPER	3
6	2770150	LOWER LOOPER	5
5	2770150	LOWER LOOPER	5
5	2770150	LOWER LOOPER	5
4	2770180	CHAINSTITCH LOOPER	3
6	2770180	CHAINSTITCH LOOPER	5
4	2770180	CHAINSTITCH LOOPER	3
6	2770180	CHAINSTITCH LOOPER	5
5	2770180	CHAINSTITCH LOOPER	5
5	2770180	CHAINSTITCH LOOPER	5
4	201121A0	UPPER KNIFE	3
4	2107550	UPPER KNIFE	3
6	201121A0	UPPER KNIFE	5
6	2107550	UPPER KNIFE	5
5	201121A0	UPPER KNIFE	5
5	2107550	UPPER KNIFE	5
4	201121A0	UPPER KNIFE	3
4	2107550	UPPER KNIFE	3
6	201121A0	UPPER KNIFE	5
6	2107550	UPPER KNIFE	5
5	201121A0	UPPER KNIFE	5
5	2107550	UPPER KNIFE	5
4	2022950	LOWER KNIFE	3
4	2770070	LOWER KNIFE	3
6	2022950	LOWER KNIFE	5
6	2770070	LOWER KNIFE	5
5	2022950	LOWER KNIFE	5
5	2770070	LOWER KNIFE	5
4	2022950	LOWER KNIFE	3
4	2770070	LOWER KNIFE	3
6	2022950	LOWER KNIFE	5
6	2770070	LOWER KNIFE	5
5	2022950	LOWER KNIFE	5
5	2770070	LOWER KNIFE	5
4	2770040	OVERLOCK NEEDLE GUARD FRONT	3
6	2770040	OVERLOCK NEEDLE GUARD FRONT	5
5	2770040	OVERLOCK NEEDLE GUARD FRONT	5
4	2770040	OVERLOCK NEEDLE GUARD FRONT	3
6	2770040	OVERLOCK NEEDLE GUARD FRONT	5
5	2770040	OVERLOCK NEEDLE GUARD FRONT	5
4	2770080	CHAINSTITCH NEEDLE GUARD FRONT	3
6	2770080	CHAINSTITCH NEEDLE GUARD FRONT	5
5	2770080	CHAINSTITCH NEEDLE GUARD FRONT	5
4	2770080	CHAINSTITCH NEEDLE GUARD FRONT	3
6	2770080	CHAINSTITCH NEEDLE GUARD FRONT	5
5	2770080	CHAINSTITCH NEEDLE GUARD FRONT	5
4	2770060	CHAINSTITCH NEEDLE GUARD REAR	3
6	2770060	CHAINSTITCH NEEDLE GUARD REAR	5
5	2770060	CHAINSTITCH NEEDLE GUARD REAR	5
4	2770060	CHAINSTITCH NEEDLE GUARD REAR	3
6	2770060	CHAINSTITCH NEEDLE GUARD REAR	5
5	2770060	CHAINSTITCH NEEDLE GUARD REAR	5
4	277027-921	NEEDLE HOLDER	3
4	DCX27 #14	NEEDLE HOLDER	3
6	277027-921	NEEDLE HOLDER	5
6	DCX27 #14	NEEDLE HOLDER	5
5	277028-920	NEEDLE HOLDER	5
5	DCX27 #16	NEEDLE HOLDER	5
4	277027-921	NEEDLE HOLDER	3
4	DCX27 #11	NEEDLE HOLDER	3
5	277028-920	NEEDLE HOLDER	5
5	DCX27 #11	NEEDLE HOLDER	5

Page 103 — EX5200 GAUGE PARTS LIST(1)

Pegasus EX3200 / EX5200 (117 pages) parts on page 103
Ref	Part number	Part name	Qty
	277500P300	277300-16F0
	277500P400	(277318-13F0)
	277500P500	201230C0
	277500P300	201396B0 #56
	277505P401	201310A0 #55
	277585P300	277372A16F0
	277585P400	(277318D13F0)
	277585P300	2780050
	277585P400	277200A0 #65
	277585P300	277372A16F0
	277585P400	(277318D13F0)
	277585P300	2780050
	277585P400	277200A0 #65
	277585P300	277372A16F0
	277585P400	(277318D13F0)
	277585P300	2780050
	277585P400	277200A0 #65
	201121A0	2107550
	2770050	2770040
	201121A0	2107550
	2770050	2770040
	201121A0	2107550
	2770050	2770040
	201121A0	2107550
	201121A0	2107550
	2770050	2770040
	201121A0	2107550
	201121A0	2107550
	2770050	2770040
	201121A0	2107550

Page 104 — EX5200 GAUGE PARTS LIST(2)

Pegasus EX3200 / EX5200 (117 pages) parts on page 104
Ref	Part number	Part name	Qty
NG	277504R300	NEEDLE PLATE	3
NG	277504R400	MAIN FEED DOG ASSM.	4
SW	277303-16F0	MAIN FEED DOG ASSM.	4
SW	(277304-16F0)	MAIN FEED DOG	4
SW	(277318-130)	AUX.FEED DOG	4
SW	277305-16F0	DIFF.FEED DOG	4
SW	201230C0	PRESSER FOOT ASSM.	4
SW	2103700 #1	PRESSER FOOT FINGER	3
SW	2770100	UPPER LOOPER	3
NG	277504R500	NEEDLE PLATE	5
NG	277500P300	NEEDLE PLATE	3
SW	277300-16F0	MAIN FEED DOG ASSM.	4
SW	(277301-16F0)	MAIN FEED DOG	4
SW	(277318-130)	AUX.FEED DOG	4
SW	277302-16F0	DIFF.FEED DOG	4
SW	211991A0	PRESSER FOOT ASSM.	4
SW	2103710 #2	PRESSER FOOT FINGER	4
SW	2770150	LOWER LOOPER	4
NG	277500P400	NEEDLE PLATE	5
SW	277115A0 #12	PRESSER FOOT FINGER	3
SW	2770100 #2	UPPER LOOPER	3
NG	277505R300	NEEDLE PLATE	3
SW	277303-16F0	MAIN FEED DOG ASSM.	4
SW	(277304-16F0)	MAIN FEED DOG	4
SW	(277318-130)	AUX.FEED DOG	4
SW	277305-16F0	DIFF.FEED DOG	4
SW	201230C0	PRESSER FOOT ASSM.	4
SW	2105030 #5	PRESSER FOOT FINGER	5
SW	2770150	LOWER LOOPER	5
NG	277505R400	NEEDLE PLATE	4
SW	277103A0 #13	PRESSER FOOT FINGER	4
SW	2770130 #7	UPPER LOOPER	4
NG	277505R500	NEEDLE PLATE	5
SW	2103740 #7	PRESSER FOOT FINGER	5
NG	201121A0	UPPER KNIFE	3
NG	2107550	FLAT KNIFE	3
NG	2022950	ANGLED KNIFE	3
NG	2770050	LOWER KNIFE	3
NG	2770040	OVERLOCK NEEDLE GUARD FRONT	3
NG	179630-920	NEEDLE HOLDER	3
NG	DCX27 #9	NEEDLE	3
NG	201121A0	UPPER KNIFE	4
NG	2107550	FLAT KNIFE	4
NG	2022950	ANGLED KNIFE	4
NG	2770050	LOWER KNIFE	4
NG	2770040	OVERLOCK NEEDLE GUARD FRONT	4
NG	179630-920	NEEDLE HOLDER	4
NG	DCX27 #9	NEEDLE	4
NG	201121A0	UPPER KNIFE	5
NG	2107550	FLAT KNIFE	5
NG	2022950	ANGLED KNIFE	5
NG	2770050	LOWER KNIFE	5
NG	2770040	OVERLOCK NEEDLE GUARD FRONT	5
NG	277022-920	NEEDLE HOLDER	5
NG	DCX27 #14	NEEDLE	5

Page 105 — EX5200 GAUGE PARTS LIST (3)

Pegasus EX3200 / EX5200 (117 pages) parts on page 105
Ref	Part number	Part name	Qty
4	277505R400	NEEDLE PLATE	2
4	277303-16F0	MAIN FEED DOG ASSM.	2
4	277318-130	AUX.FEED DOG	2
4	201230C0	PRESSER FOOT ASSM.	2
4	2103740 #7	PRESSER FOOT FINGER	2
4	277010A0 #5	UPPER LOOPER	2
4	2770150	LOWER LOOPER	2
3	277505R500	NEEDLE PLATE	2
5	277505R500	NEEDLE PLATE	2
4	277505R400	NEEDLE PLATE	2
4	277303-16F0	MAIN FEED DOG ASSM.	2
4	277318-130	AUX.FEED DOG	2
4	201230C0	PRESSER FOOT ASSM.	2
4	2105030 #5	PRESSER FOOT FINGER	2
4	277010A0 #5	UPPER LOOPER	2
4	2770340	LOWER LOOPER	2
3	277505R500	NEEDLE PLATE	2
5	277505R500	NEEDLE PLATE	2
4	277578-400	NEEDLE PLATE	2
4	277369-25F0	MAIN FEED DOG ASSM.	2
4	277348-16F0	MAIN FEED DOG	2
4	201230C0	PRESSER FOOT ASSM.	2
4	2103740 #7	PRESSER FOOT FINGER	2
4	2770120 #4	UPPER LOOPER	2
4	2770160	LOWER LOOPER	2
4	201121A0	UPPER KNIFE	2
4	2107550	FLAT NIFE	2
4	2022950	ANGLED KNIFE	2
4	2770050	LOWER KNIFE	2
4	2770040	OVERLOCK NEEDLE GUARD FRONT	2
4	277022-920	NEEDLE GUARD REAR	2
4	DCX27 #9	NEEDLE HOLDER	2
4	201121A0	UPPER KNIFE	2
4	2107550	FLAT NIFE	2
4	2022950	ANGLED KNIFE	2
4	2770050	LOWER KNIFE	2
4	2770040	OVERLOCK NEEDLE GUARD FRONT	2
4	277022-920	NEEDLE GUARD REAR	2
4	DCX27 #9	NEEDLE HOLDER	2
4	201121A0	UPPER KNIFE	2
4	2107550	FLAT NIFE	2
4	2022950	ANGLED KNIFE	2
4	2770050	LOWER KNIFE	2
4	2770040	OVERLOCK NEEDLE GUARD FRONT	2
4	277002-920	NEEDLE GUARD REAR	2
4	DCX27 #16	NEEDLE HOLDER	2

Page 106 — EX5200 GAUGE PARTS LIST (4)

Pegasus EX3200 / EX5200 (117 pages) parts on page 106
Part number	Part name	Qty
277500P300	NEEDLE PLATE	3
277500P400	NEEDLE PLATE	4
277300-16F0	MAIN FEED DOG ASSM.	3
(277301-16F0)	MAIN FEED DOG ASSM.	3
(277318-130)	MAIN FEED DOG ASSM.	3
277302-16F0	DIFF.FEED DOG	3
201152E0	PRESSER FOOT ASSM.	3
2771150 #10	PRESSER FOOT FINGER	3
2770100 #2	UPPER LOOPER	3
2770150	LOWER LOOPER	3
2771030 #11	PRESSER FOOT FINGER	4
2770100 #2	UPPER LOOPER	4
277504R500	NEEDLE PLATE	5
277303A160	MAIN FEED DOG ASSM.	5
(277304-160)	MAIN FEED DOG ASSM.	5
(277318A130)	MAIN FEED DOG ASSM.	5
277305-160	DIFF.FEED DOG	5
2027990	PRESSER FOOT ASSM.	5
2103710 #2	PRESSER FOOT FINGER	5
277014B0	UPPER LOOPER	5
2770150	LOWER LOOPER	5
277504R600	NEEDLE PLATE	6
2103720 #3	PRESSER FOOT FINGER	6
277542R400	NEEDLE PLATE	4
277354A160	MAIN FEED DOG ASSM.	4
(277355A160)	MAIN FEED DOG ASSM.	4
(277358A160)	MAIN FEED DOG ASSM.	4
277357A160	DIFF.FEED DOG	4
301724A0	PRESSER FOOT ASSM.	4
2103710 #2	PRESSER FOOT FINGER	4
2770100 #2	UPPER LOOPER	4
2770150	LOWER LOOPER	4
277542R500	NEEDLE PLATE	5
201121A0	UPPER KNIFE	3
2107550	FLAT NIFE	3
2022950	LOWER KNIFE	3
2770050	OVERLOCK FRONT	3
2770040	NEEDLE GUARD REAR	3
179630-920	NEEDLE HOLDER	3
DCX27 #9	NEEDLE	3
201121A0	UPPER KNIFE	4
2107550	FLAT NIFE	4
2022950	LOWER KNIFE	4
2770050	OVERLOCK FRONT	4
2770040	NEEDLE GUARD REAR	4
179630-920	NEEDLE HOLDER	4
DCX27 #9	NEEDLE	4
201121A0	UPPER KNIFE	5
2107550	FLAT NIFE	5
2022950	LOWER KNIFE	5
2770050	OVERLOCK FRONT	5
2770040	NEEDLE GUARD REAR	5
179630-920	NEEDLE HOLDER	5
DCX27 #14	NEEDLE	6
DCX27 #9	NEEDLE	5

Page 107 — EX5200 GAUGE PARTS LIST (5)

Pegasus EX3200 / EX5200 (117 pages) parts on page 107
Ref	Part number	Part name	Qty
NG	277577T960	NEEDLE PLATE	96
SW	277410-200	MAIN FEED DOG ASSM.
SW	277304B200	MAIN FEED DOG
SW	277356B160	AUX.FEED DOG
SW	277371-200	DIFF.FEED DOG
SW	2772880	PRESSER FOOT ASSM.
SW	2772890 #32	PRESSER FOOT FINGER
SW	277010B0	UPPER LOOPER
SW	2770150	LOWER LOOPER
NG	277511S700	NEEDLE PLATE	7
SW	277376A250	MAIN FEED DOG ASSM.
SW	277379-250	MAIN FEED DOG
SW	277319A130	AUX.FEED DOG
SW	277390-250	DIFF.FEED DOG
SW	2771100	PRESSER FOOT ASSM.
SW	2103720 #3	PRESSER FOOT FINGER
SW	2770110 #3	UPPER LOOPER
SW	2770150	LOWER LOOPER
NG	277510S400	NEEDLE PLATE	8
NG	277510S500	NEEDLE PLATE	5
SW	277376A250	MAIN FEED DOG ASSM.
SW	277379-250	MAIN FEED DOG
SW	277319A130	AUX.FEED DOG
SW	277390-250	DIFF.FEED DOG
SW	2771100	PRESSER FOOT ASSM.
SW	2103760 #8	PRESSER FOOT FINGER
SW	2770110 #3	UPPER LOOPER
SW	2770150	LOWER LOOPER
NG	277503S300	NEEDLE PLATE	3
SW	277300A16F0	MAIN FEED DOG ASSM.
SW	277301-16F0	MAIN FEED DOG
SW	277315-130	AUX.FEED DOG
SW	277302-160	DIFF.FEED DOG
SW	2027990	PRESSER FOOT ASSM.
SW	2107610	PRESSER FOOT FINGER
SW	277010A0	UPPER LOOPER
SW	2770150	LOWER LOOPER
NG	277502P150	NEEDLE PLATE	1.5
SW	277315-16F0	MAIN FEED DOG ASSM.
SW	277301-16F0	MAIN FEED DOG
SW	277319-130	AUX.FEED DOG
SW	277302-16F0	DIFF.FEED DOG
SW	2027990	PRESSER FOOT ASSM.
SW	2055250 #57	PRESSER FOOT FINGER
SW	2770100 #2	UPPER LOOPER
SW	2770150	LOWER LOOPER
NG	277512P150	NEEDLE PLATE	1.5
SW	277315-16F0	MAIN FEED DOG ASSM.
SW	277301-16F0	MAIN FEED DOG
SW	277319-130	AUX.FEED DOG
SW	277302-16F0	DIFF.FEED DOG
SW	2027990	PRESSER FOOT ASSM.
SW	2055250 #57	PRESSER FOOT FINGER
SW	2770100 #2	UPPER LOOPER
SW	2770150	LOWER LOOPER
NG	201121A0	UPPER KNIFE	96
SW	2107550	FLAT NIFE
SW	2022950	ANGLED KNIFE
SW	2770050	LOWER KNIFE
SW	2770040	OVERLOCK NEEDLE GUARD FRONT
SW	179630-920	OVERLOCK NEEDLE GUARD REAR
SW	DCX27 #18	NEEDLE HOLDER
SW	DCX27 #18	NEEDLE
NG	2770000	UPPER KNIFE	7
SW	2116621	FLAT NIFE
SW	2770091	ANGLED KNIFE
SW	2770050	LOWER KNIFE
SW	2770040	OVERLOCK NEEDLE GUARD FRONT
SW	179630-920	OVERLOCK NEEDLE GUARD REAR
SW	DCX27 #18	NEEDLE HOLDER
SW	DCX27 #18	NEEDLE
NG	2770000	UPPER KNIFE	3
SW	2116621	FLAT NIFE
SW	2770091	ANGLED KNIFE
SW	2770050	LOWER KNIFE
SW	2770040	OVERLOCK NEEDLE GUARD FRONT
SW	277024-920	OVERLOCK NEEDLE GUARD REAR
SW	DCX27 #18	NEEDLE HOLDER
SW	DCX27 #18	NEEDLE
NG	201121A0	UPPER KNIFE	3
SW	2107550	FLAT NIFE
SW	2107620	ANGLED KNIFE
SW	2770050	LOWER KNIFE
SW	2770040	OVERLOCK NEEDLE GUARD FRONT
SW	179630-920	OVERLOCK NEEDLE GUARD REAR
SW	DCX27 #16	NEEDLE HOLDER
SW	DCX27 #16	NEEDLE
NG	201121A0	UPPER KNIFE	1.5
SW	2107550	FLAT NIFE
SW	2022950	ANGLED KNIFE
SW	2770050	LOWER KNIFE
SW	2770040	OVERLOCK NEEDLE GUARD FRONT
SW	179630-920	OVERLOCK NEEDLE GUARD REAR
SW	DCX27 #11	NEEDLE HOLDER
SW	DCX27 #11	NEEDLE
NG	201121A0	UPPER KNIFE	1.5
SW	2107550	FLAT NIFE
SW	2022950	ANGLED KNIFE
SW	2770050	LOWER KNIFE
SW	2770040	OVERLOCK NEEDLE GUARD FRONT
SW	179630-920	OVERLOCK NEEDLE GUARD REAR
SW	DCX27 #11	NEEDLE HOLDER
SW	DCX27 #11	NEEDLE

Page 108 — EX5200 GAUGE PARTS LIST (6)

Pegasus EX3200 / EX5200 (117 pages) parts on page 108
Ref	Part number	Part name	Qty
3	277505R300	NEEDLE PLATE	2
4	277505R400	NEEDLE PLATE	2
3	277306-160	MAIN FEED DOG ASSM.	2
3	(277307-160)	MAIN FEED DOG	2
3	(277318-130)	AUX.FEED DOG	2
3	277308-160	DIFF.FEED DOG	2
3	2771240	PRESSER FOOT ASSM.	2
3	277010A0 #5	UPPER LOOPER	2
3	2770150	LOWER LOOPER	2
4	277505R300	NEEDLE PLATE	2
4	277306-160	MAIN FEED DOG ASSM.	2
4	(277307-160)	MAIN FEED DOG	2
4	(277318-130)	AUX.FEED DOG	2
4	277308-160	DIFF.FEED DOG	2
4	2771250	PRESSER FOOT ASSM.	2
4	277010A0 #5	UPPER LOOPER	2
4	2770150	LOWER LOOPER	2
3	277505R300	NEEDLE PLATE	2
3	277303-16F0	MAIN FEED DOG ASSM.	2
3	(277304-16F0)	MAIN FEED DOG	2
3	(277318-130)	AUX.FEED DOG	2
3	277305-16F0	DIFF.FEED DOG	2
3	2771120	PRESSER FOOT ASSM.	2
3	2771590 #22	PRESSER FOOT FINGER	2
3	2086510 #58	PRESSER FOOT FINGER	2
3	277010A0 #5	UPPER LOOPER	2
3	2770150	LOWER LOOPER	2
4	277505R400	NEEDLE PLATE	2
4	277303-16F0	MAIN FEED DOG ASSM.	2
4	(277304-16F0)	MAIN FEED DOG	2
4	(277318-130)	AUX.FEED DOG	2
4	277305-16F0	DIFF.FEED DOG	2
4	2771120	PRESSER FOOT ASSM.	2
4	2771590 #22	PRESSER FOOT FINGER	2
4	2086510 #58	PRESSER FOOT FINGER	2
4	277010A0 #5	UPPER LOOPER	2
4	2770150	LOWER LOOPER	2
5	277505R500	NEEDLE PLATE	2
3	277505R300	NEEDLE PLATE	2
5	277303-16F0	MAIN FEED DOG ASSM.	2
5	(277304-16F0)	MAIN FEED DOG	2
5	(277318-130)	AUX.FEED DOG	2
5	277305-16F0	DIFF.FEED DOG	2
5	2771120	PRESSER FOOT ASSM.	2
5	2771590 #22	PRESSER FOOT FINGER	2
5	2086510 #58	PRESSER FOOT FINGER	2
5	277010A0 #5	UPPER LOOPER	2
5	2770340	LOWER LOOPER	2
3	277505R300	NEEDLE PLATE	2
3	201121A0	UPPER KNIFE FLAT NIFE	2
3	2107550	UPPER KNIFE ANGLED KNIFE	2
3	2022950	LOWER KNIFE	2
3	2770050	OVERLOCK NEEDLE GUARD FRONT	2
3	2770040	NEEDLE GUARD REAR	2
3	277022-920	NEEDLE HOLDER	2
3	DCX27 #11	NEEDLE	2
4	201121A0	UPPER KNIFE FLAT NIFE	2
4	2107550	UPPER KNIFE ANGLED KNIFE	2
4	2022950	LOWER KNIFE	2
4	2770050	OVERLOCK NEEDLE GUARD FRONT	2
4	2770040	NEEDLE GUARD REAR	2
4	277022-920	NEEDLE HOLDER	2
4	DCX27 #11	NEEDLE	2
3	201121A0	UPPER KNIFE FLAT NIFE	2
3	2107550	UPPER KNIFE ANGLED KNIFE	2
3	2022950	LOWER KNIFE	2
3	2770050	OVERLOCK NEEDLE GUARD FRONT	2
3	2770040	NEEDLE GUARD REAR	2
3	277022-920	NEEDLE HOLDER	2
3	DCX27 #11	NEEDLE	2
4	201121A0	UPPER KNIFE FLAT NIFE	2
4	2107550	UPPER KNIFE ANGLED KNIFE	2
4	2022950	LOWER KNIFE	2
4	2770050	OVERLOCK NEEDLE GUARD FRONT	2
4	2770040	NEEDLE GUARD REAR	2
4	277022-920	NEEDLE HOLDER	2
4	DCX27 #11	NEEDLE	2
5	201121A0	UPPER KNIFE FLAT NIFE	2
5	2107550	UPPER KNIFE ANGLED KNIFE	2
5	2022950	LOWER KNIFE	2
5	2770050	OVERLOCK NEEDLE GUARD FRONT	2
5	2770040	NEEDLE GUARD REAR	2
5	277022-920	NEEDLE HOLDER	2
5	DCX27 #9	NEEDLE	2

Page 109 — EX5200 GAUGE PARTS LIST (7)

Pegasus EX3200 / EX5200 (117 pages) parts on page 109
Ref	Part number	Part name	Qty
	277505R300	277505R300
	277505R400	277303-16F0
	277505R500	(277318-13F0)
	2771120	2086510 #58
	2770150	2770150
	277505R300	2771590 #22
	277507R400	277507R400
	277507R500	277378-16F0
	277380-16F0	2771110
	27701190 #17	27701580
	277507R350	277507R350
	277508R450	2771050 #17
	277510S400	277378-25F0
	(277318-13F0)	277380A25F0
	2771050 #17	2770120
	277510S500	277510S500
	201121A0	2107550
	2770050	2770040
	DCX27 #11	DCX27 #11
	201121A0	2107550
	2770050	2770040
	277023-920	277023-920
	DCX27 #11	DCX27 #11
	2770000	2116621
	2770050	2770040
	DCX27 #16	DCX27 #16

Page 110 — EX5200 GAUGE PARTS LIST(8)

Pegasus EX3200 / EX5200 (117 pages) parts on page 110
Part number	Part name	Qty
277526S350	GAUGE	2.5
277526S450	GAUGE	3.5
277510S400	GAUGE	4.5
277378-25F0	MAIN FEED DOG ASSM.	3
(277379-25F0)	MAIN FEED DOG	3
(277318-130)	AUX. FEED DOG	3
277380A25F0	DIFF. FEED DOG	3
2771270	PRESSER FOOT ASSM.	3
2771570 #20	PRESSER FOOT FINGER	3
2770190 #12	UPPER LOOPER	3
277016A0	LOWER LOOPER	3
277510S500	GAUGE	4
277531-300	GAUGE	5
2771150 #10	PRESSER FOOT FINGER	5
277531-400	GAUGE	3
277340-16F0	MAIN FEED DOG ASSM.	3
(277341-16F0)	MAIN FEED DOG	3
(277318-130)	AUX. FEED DOG	3
277342-16F0	DIFF. FEED DOG	3
2771140	PRESSER FOOT ASSM.	3
2770100 #2	UPPER LOOPER	3
2770150	LOWER LOOPER	3
277531-500	GAUGE	4
277532-300	GAUGE	5
2772010 #29	PRESSER FOOT FINGER	5
277532-400	GAUGE	3
277303B16F0	MAIN FEED DOG ASSM.	3
(277304A16F0)	MAIN FEED DOG	3
(277318-130)	AUX. FEED DOG	3
277342A16F0	DIFF. FEED DOG	3
2771140	PRESSER FOOT ASSM.	3
2770380 #13	UPPER LOOPER	3
2770150	LOWER LOOPER	3
2773040 #30	PRESSER FOOT FINGER	4
277532-500	GAUGE	5
2771150 #10	PRESSER FOOT FINGER	5
277531-300	GAUGE	3
277303B16F0	MAIN FEED DOG ASSM.	3
(277304A16F0)	MAIN FEED DOG	3
(277318-130)	AUX. FEED DOG	3
277342A16F0	DIFF. FEED DOG	3
2771140	PRESSER FOOT ASSM.	3
2770100 #2	UPPER LOOPER	3
2770150	LOWER LOOPER	3
277531-400	GAUGE	4
277531-500	GAUGE	5
2771150 #10	PRESSER FOOT FINGER	5
2770000	GAUGE	2.5
2116621	UPPER KNIFE	2.5
2770091	FLAT NIFE	2.5
2770050	LOWER KNIFE	2.5
2770040	OVERLOCK NEEDLE GUARD FRONT	2.5
277023-920	NEEDLE HOLDER	2.5
DO X 5 #16	NEEDLE	2.5
2770190	UPPER LOOPER	3.5
277024-920	NEEDLE	4.5
201121A0	GAUGE	3
2107550	UPPER KNIFE	3
2022950	FLAT NIFE	3
2770050	LOWER KNIFE	3
2770040	OVERLOCK NEEDLE GUARD FRONT	3
179630-920	NEEDLE HOLDER	3
DCX27 #9	NEEDLE	3
201121A0	GAUGE	4
2107550	UPPER KNIFE	4
2011270	FLAT NIFE	4
2022950	LOWER KNIFE	4
2770050	OVERLOCK NEEDLE GUARD FRONT	4
179630-920	NEEDLE HOLDER	4
DCX27 #9	NEEDLE	4
201121A0	GAUGE	5
2107550	UPPER KNIFE	5
2022950	FLAT NIFE	5
2770050	LOWER KNIFE	5
2770040	OVERLOCK NEEDLE GUARD FRONT	5
179630-920	NEEDLE HOLDER	5
DCX27 #9	NEEDLE	5
201121A0	GAUGE	4
2107550	UPPER KNIFE	4
2022950	FLAT NIFE	4
2770050	LOWER KNIFE	4
2770040	OVERLOCK NEEDLE GUARD FRONT	4
179630-920	NEEDLE HOLDER	4
DCX27 #9	NEEDLE	4

Page 111 — EX5200 GAUGE PARTS LIST(9)

Pegasus EX3200 / EX5200 (117 pages) parts on page 111
Ref	Part number	Part name	Qty
277340-16F0	277530-300	MAIN FEED DOG ASSM.	2
(277341-16F0)	277530-400	MAIN FEED DOG ASSM.	4
(277318-13F0)	277530-300	MAIN FEED DOG ASSM.	2
277342-16F0	277530-400	MAIN FEED DOG ASSM.	4
2771140	277531-300	MAIN FEED DOG ASSM.	3
3015100 #59	277531-400	MAIN FEED DOG ASSM.	4
277115A0 #12	277501R300	MAIN FEED DOG ASSM.	2
2770100 #2	277501R401	MAIN FEED DOG ASSM.	4
277340-16F0	277530-300	MAIN FEED DOG	2
(277341-16F0)	277530-400	MAIN FEED DOG	4
(277318-13F0)	277530-300	MAIN FEED DOG	2
277317-16F0	277530-400	MAIN FEED DOG	4
277340-16F0	277531-300	MAIN FEED DOG	3
(277341-16F0)	277531-400	MAIN FEED DOG	4
(277318-13F0)	277501R300	MAIN FEED DOG	2
277302-16F0	277501R401	MAIN FEED DOG	4
277340-16F0	277340-16F0	AUX.FEED DOG	2
(277341-16F0)	(277341-16F0)	AUX.FEED DOG	4
(277318-13F0)	(277318-13F0)	AUX.FEED DOG	2
277317-16F0	277317-16F0	AUX.FEED DOG	4
(277318-13F0)	(277318-13F0)	AUX.FEED DOG	3
(277318-13F0)	(277318-13F0)	AUX.FEED DOG	4
(277318-13F0)	(277318-13F0)	AUX.FEED DOG	2
(277318-13F0)	(277318-13F0)	AUX.FEED DOG	4
277342-16F0	277342-16F0	DIFF.FEED DOG	2
277342-16F0	277342-16F0	DIFF.FEED DOG	4
277317-16F0	277317-16F0	DIFF.FEED DOG	2
277302-16F0	277302-16F0	DIFF.FEED DOG	4
211991A0	211991A0	DIFF.FEED DOG	3
201152E0	201152E0	DIFF.FEED DOG	4
201152E0	201152E0	DIFF.FEED DOG	2
201152E0	201152E0	DIFF.FEED DOG	4
2771140	2771140	PRESSER FOOT ASSM.	2
2771130	2771130	PRESSER FOOT ASSM.	2
277115A0 #12	277115A0 #12	PRESSER FOOT ASSM.	3
201396B0 #56	201396B0 #56	PRESSER FOOT ASSM.	2
3015100 #59	3015100 #59	PRESSER FOOT FINGER	2
2771600 #23	2771600 #23	PRESSER FOOT FINGER	2
277103A0 #13	277103A0 #13	PRESSER FOOT FINGER	3
201310A0 #55	201310A0 #55	PRESSER FOOT FINGER	4
277010A0 #5	277010A0 #5	UPPER LOOPER	2
277011B0 #17	277011B0 #17	UPPER LOOPER	2
2770100 #2	2770100 #2	UPPER LOOPER	3
277010B0 #6	277010B0 #6	UPPER LOOPER	2
2770150	2770150	LOWER LOOPER	2
277015B0	277015B0	LOWER LOOPER	2
2770150	2770150	LOWER LOOPER	3
2770150	2770150	LOWER LOOPER	2
201121A0	201121A0	UPPER KNIFE FLAT NIFE	2
2107550	2107550	UPPER KNIFE ANGLED KNIFE	4
201121A0	201121A0	UPPER KNIFE FLAT NIFE	2
2107550	2107550	UPPER KNIFE ANGLED KNIFE	4
201121A0	201121A0	UPPER KNIFE FLAT NIFE	3
2107550	2107550	UPPER KNIFE ANGLED KNIFE	4
201121A0	201121A0	UPPER KNIFE FLAT NIFE	2
2107550	2107550	UPPER KNIFE ANGLED KNIFE	4
2022950	2022950	LOWER KNIFE	2
2022950	2022950	LOWER KNIFE	4
2022950	2022950	LOWER KNIFE	2
2022950	2022950	LOWER KNIFE	4
2022950	2022950	LOWER KNIFE	3
2022950	2022950	LOWER KNIFE	4
2022950	2022950	LOWER KNIFE	2
2022950	2022950	LOWER KNIFE	4
2770050	2770050	OVERBLOCK NEEDLE GUARD FRONT	2
2770040	2770040	OVERBLOCK NEEDLE GUARD FRONT	4
2770050	2770050	OVERBLOCK NEEDLE GUARD FRONT	2
2770040	2770040	OVERBLOCK NEEDLE GUARD FRONT	4
2770050	2770050	OVERBLOCK NEEDLE GUARD FRONT	3
2770040	2770040	OVERBLOCK NEEDLE GUARD FRONT	4
2770050	2770050	OVERBLOCK NEEDLE GUARD FRONT	2
2770040	2770040	OVERBLOCK NEEDLE GUARD FRONT	4
277022-920	277022-920	OVERBLOCK NEEDLE GUARD REAR	2
277022-920	277022-920	OVERBLOCK NEEDLE GUARD REAR	4
179630-920	179630-920	OVERBLOCK NEEDLE GUARD REAR	3
277022-920	277022-920	OVERBLOCK NEEDLE GUARD REAR	2
277022-920	277022-920	OVERBLOCK NEEDLE GUARD REAR	4
DCX27 #9	DCX27 #9	NEEDLE HOLDER	2
DCX27 #11	DCX27 #11	NEEDLE HOLDER	2
DCX27 #9	DCX27 #9	NEEDLE HOLDER	3
DCX27 #9	DCX27 #9	NEEDLE HOLDER	2
DCX27 #9	DCX27 #9	NEEDLE HOLDER	4
DCX27 #9	DCX27 #9	NEEDLE	2
DCX27 #11	DCX27 #11	NEEDLE	2
DCX27 #9	DCX27 #9	NEEDLE	3
DCX27 #9	DCX27 #9	NEEDLE	2
DCX27 #9	DCX27 #9	NEEDLE	4

Page 112 — 糸通し図一覧

Pegasus EX3200 / EX5200 (117 pages) parts on page 112
Ref	Part number	Part name	Qty
39 40	9A00860 9A00910	EX3215-01, 01A, 02, 02A, 02U, 03, 03U EX3215-42,42P1,42P2,43 EX3215N-01,01S,01U	4
39 40	9A00940 9A00910	EX3215-A05 EX3215H-A05	4
39 40	9A00850 9A00910	EX3216-01,01A,02,02A,02U,03,03U EX3216-42,42P1,42P2,43,53 EX3216N-01,01S,01U	4
39 40	9A00950 9A00910	EX3216-A04 EX3216H-A05	4
39 40	9A00870 9A00910	EX3244-03	4
39 40	9A00960 9A00910	EX3244-A04	4
39	9A00790	EX5203-12,22	4
39	9A00800	EX5204-01,02,02H,22Z2,23Z3,32R1,32R2,82,92M1 EX5205--12,12Z1 EX5204T-82	4
39	9A00810	EX5204-24	4
39	9A00820	EX5214-01,03,M03,43,43P1,43P2,53,C53,83,92M2 EX5214N-01,01U	4
39	9A00830	EX5214-24,54,84	4
39	9A00840	EX5212-02	4
39	9A00930	EX5214-04 EX5214H-55	4

Page 116

Pegasus EX3200 / EX5200 (117 pages) parts on page 116
Ref	Part number	Qty
13	2755410	29
13	2755410	29
1	275542-910	83
1	2760010	55
1	2760010	55
7	276002-UA0	57
19	276002-UA0	57
8	276003-UA0	55
20	276003-UA0	57
10	2760040	55
7	2760120	57
11	2760130	57
16	2760140	57
14	2771080	67
3	2771260	59
5	2771260	65
3	2771260	73
13	2771260	73
8	2771260	87
3	2771280	75
27	3002480	43
38	3002480	59
16	3002480	61
8	3017250	73
11	3030670	29
11	3030670	31
10	3030670	33
27	3030670	81
12	303067A0	53
36	303312A0	63
30	303312A0	71
39	303312A0	89
35	303312A0	91
37	3033130	63
31	3033130	71
40	3033130	89
36	3033130	91
39	3034480	37
49	3034480	41
12	3060360	43
12	3060360	43
38	3060930	71
4	3060930	87
42	9A30670	5
41	9A30690	5
11	9A30710	3
43	9A30720	5
44	9A31261	5

Pegasus EX3200 / EX5200 (117 pages) — parts catalog

Page 1 — EX3200-5200 Parts Catalog

EX3200-5200 EX3200 Series 安全縫いミシン Safety stitch machines EX5200 Series オーバーロックミシン Overedgers Parts Catalog PEGASUS jintex.in

Page 2

パーツカタログの見方 ■このパーツカタログは、2003年06月製造中のEX3200・5200シリーズのミシンを次の要領で編集しています。 ■2~93頁には部品を機構別に収録し、左頁が部品の分解図、右頁がパーツリストになっています。また、部品分解図に付されている番号は、パーツリストのREF.NO. (参照番号) を示しています。 ■パーツリストの部品番号の表記がXXXXXXの部品は、特定の形式 (サブクラス) にのみ使用されているゲージパーツ部品で、形式によって変わります。形式ごとの部品番号はゲージパーツ表 (94~109頁) に一括して記載しています。 ■巻末には部品番号インデックスを記載し、部品番号だけで、その図解・名称などが容易に引き出せます。 ■部品を御注文いただく時は、部品番号を明示してください。なお、このパーツカタログの記載事項は改良により、予告なく変更されることがありますので、あらかじめご了承ください。 INTRODUCTION ■This parts catalog covers the EX3200-5200 series machine manufactured in June, 2003. ■The components of EX series are arranged according to the mechanism on pages 2-93. The illustrations are on left pages and the part numbers on right pages. The illustrated part and its part number are assigned the same reference number. ■"XXXXXX" indicates gauge part numbers which vary depending on subclasses. Please refer to the gauge part list (pages 94-109). ■The index of part numbers are listed at the back of this book for quick reference. ■To place an order for any part, please specify the part number. Note that the contents of this book are subject to change for improvement without prior notice. 掲載機種 (Models inserted) EX3200 Series EX3215(16)-01/222(K) EX3215(16)-01A/222 EX3215(16)N-01/222 EX3215(16)N-01/232 EX3215(16)N-01S/272 EX3215(16)N-01U/232 EX3215(16)-02/223(K) EX3215(16)-02A/223 EX3215(16)-02A/233 EX3215(16)-02U/223(K) EX3215(16)-03/233(K) EX3215(16)-03/333(K) EX3215(16)-03U/233(K) EX3244-03/333(K) EX3215(16)-A04/435(K) EX3244-A04/435(K) EX3215(16)-A05/535(K) EX3215(16)-42/233(K) EX3215(16)-42P1/233(K) EX3215(16)-42P2/233(K) EX3215(16)-43/335(K) EX3215(16)-53/233(K) EX5200 Series EX5204-01/223(K) EX5214-01/233(K) EX5214N-01/283(K) EX5214N-01U/283(K) EX5204-02/233(K) EX5204-02H/223(K) EX5212-02/333(K) EX5214-03/333(K) EX5214-M03/333(K) EX5214-04/485(K) EX5205-12/223(K) EX5205-12Z1/223(K) EX5203-12/223(K) EX5203-22/233(K) EX5204-22Z2/213(K) EX5204-23Z3/684(K) EX5204-24/445(K) EX5214-24/445(K) EX5204-32R1/223(K) EX5204-32R2/223L(K) EX5204-32R2/223(K) EX5214-43/333(K) EX5214-43P1/233(K) EX5214-43P2/333(K) EX5214-53C3/333(K) EX5214-M53/333(K) EX5214-54/433(K) EX5214-54/443(K) EX5214-54/445(K) EX5214H-55/545(K) EX5204-82/223(K) EX5204T-82/223(K) EX5204-82/233(K) EX5214-83/323(K) EX5214-84/423(K) EX5204-92M1/223(K) EX5214-92M2/223(K) jintex.in

Page 3 — TABLE OF CONTENTS

目次頁ベッド機構カバー機構(1) カバー機構(2) クランクシャフト機構糸調子機構糸道・糸繰り (1) 糸道・糸繰り (2) 糸道・糸繰り (3) 針振り機構(1) 針振り機構(2) 針振り機構(3) 針振り機構(4) 上ルーパー機構(1) 上ルーパー機構(2) 下ルーパー機構二重環ルーパー機構(1) 二重環ルーパー機構(2) 送り機構(1) 送り機構(2) 送り機構(3) 上メス機構押工機構給油機構(1) 給油機構(2) H. R. 装置糸立台半沈床式据付付属品全沈床式据付付属品専用部品 (1) EX3215(16)-01,01A,02,02A,03 EX3244-03 EX5204-01,02 EX5212-02 EX5214-01,03,M03 専用部品 (2) EX3215(16)N-01,01S,01U EX5214N-01,01U 専用部品 (3) EX5204-02H 専用部品 (4) EX5214-04 専用部品 (5) EX3215(16)-A04 EX3215(16)H-A05 専用部品 (6) EX3244-A04 専用部品 (7) EX5203,5205-12 EX5205-12Z1 専用部品 (8) EX520-22 EX5204-22Z2,23Z3 専用部品 (9) EX5204,5214-24 EX5204-32R1,32R2 専用部品 (10) EX3215(16)-42,42P1,42P2,43 EX5214-43,43P1,43P2 専用部品 (11) EX3215(16)-42,42P1,42P2,43 EX5214-43,43P1,43P2 専用部品 (12) EX3216-53 専用部品 (13) EX5214-53C3,M53,54,84 EX5214H-55 専用部品 (14) EX5214-54 EX5214H-55 専用部品 (15) EX5204(T)-82 EX5214-83,84 専用部品 (16) EX5204-92M1 専用部品 (17) EX5214-92M2 オプションゲージパーツ表糸通し図一覧インデックス 2-3 4-5 6-7 8-9 10-11 12-13 14-15 16-17 18-19 20-21 22-23 24-25 26-27 28-29 30-31 32-33 34-35 36-37 38-39 40-41 42-43 44-45 46-47 48-49 50-51 52-53 54-55 56-57 58-59 60-61 62-63 64-65 66-67 68-69 70-71 72-73 74-75 76-77 78-79 80-81 82-83 84-85 86-87 88-89 90-91 92-93 94-109 110 111-114 TABLE OF CONTENTS page MACHINE BED FRAME COVER(1) COVER (2) CRANKSHAFT DRIVE MECHANISM THREAD TENSION MECHANISM THREAD GUIDE & THREAD TAKEUP (1) THREAD GUIDE & THREAD TAKEUP (2) THREAD GUIDE & THREAD TAKEUP(3) NEEDLE DRIVE MECHANISM (1) NEEDLE DRIVE MECHANISM (2) NEEDLE DRIVE MECHANISM (3) NEEDLE DRIVE MECHANISM (4) UPPER LOOPER DRIVE MECHANISM (1) UPPER LOOPER DRIVE MECHANISM (2) LOWER LOOPER DRIVE MECHANISM CHAINSTITCH LOOPER DRIVE MECHANISM (1) CHAINSTITCH LOOPER DRIVE MECHANISM (2) FEED MECHANISM (1) FEED MECHANISM (2) FEED MECHANISM (3) KNIFE DRIVE MECHANISM PRESSER FOOT MECHANISM LUBRICATION MECHANISM (1) LUBRICATION MECHANISM (2) H.R. DEVICE THREAD STAND PARTS FOR SEMI-SUBMERGED INSTALLATION PARTS FOR FULLY-SUBMERGED INSTALLATION SPECIFIC PARTS (1) EX3215(16)-01,01A,02,02A,03 EX3244-03 EX5204-01,02 EX5212-02 EX5214-01,03,M03 SPECIFIC PARTS (2) EX3215(16)N-01,01S,01U EX5214N-01,01U SPECIFIC PARTS (3) EX5204-02H SPECIFIC PARTS (4) EX5214-04 SPECIFIC PARTS (5) EX3215(16)-A04 EX3215(16)H-A05 SPECIFIC PARTS (6) EX3244-A04 SPECIFIC PARTS (7) EX5203,5205-12 EX5205-12Z1 SPECIFIC PARTS (8) EX520-22 EX5204-22Z2,23Z3 SPECIFIC PARTS (9) EX5204,5214-24 EX5204-32R1,32R2 SPECIFIC PARTS (10) EX3215(16)-42,42P1,42P2,43 EX5214-43,43P1,43P2 SPECIFIC PARTS (11) EX3215(16)-42,42P1,42P2,43 EX5214-43,43P1,43P2 SPECIFIC PARTS (12) EX3216-53 SPECIFIC PARTS (13) EX5214-53C3,M53,54,84 EX5214H-55 SPECIFIC PARTS (14) EX5214-54 EX5214H-55 SPECIFIC PARTS (15) EX5204(T)-82 EX5214-83,84 SPECIFIC PARTS (16) EX5204-92M1 SPECIFIC PARTS (17) EX5214-92M2 OPTION GAUGE PARTS LIST THREADING DIAGRAM LIST INDEX 2-3 4-5 6-7 8-9 10-11 12-13 14-15 16-17 18-19 20-21 22-23 24-25 26-27 28-29 30-31 32-33 34-35 36-37 38-39 40-41 42-43 44-45 46-47 48-49 50-51 52-53 54-55 56-57 58-59 60-61 62-63 64-65 66-67 68-69 70-71 72-73 74-75 76-77 78-79 80-81 82-83 84-85 86-87 88-89 90-91 92-93 94-109 110 111-114 1 jintex.in

Page 4

6 EX5200(H)(N)(T) Series 2 jintex.in

Page 5 — MACHINE BED FRAME

ベッド機構 MACHINE BED FRAME REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2010020 スプリングピン SPRING PIN 1 2 2101820 スプリングピン SPRING PIN 1 3 2101940 案内/オイル指示 INDICATOR GUIDE 2 4 2403250 パイプ PIPE 2 5 2402990 ロールピン PIN 1 6 2081731 栓 PLUG 1 7 270008-910 ブラケット (組) BRACKET ASSY. 1 8 0045110 六角穴ボルト /M6 x 25 BOLT 2 9 2700470 足ピン BED PIN 4 10 0084210 オイルマーク OIL MARK 1 11 9A30710 アースラベル EARTH LABEL 1 3 jintex.in

Page 6

※7 EX3215(16)-02U,-03U,-A04 EX3215(16)N-01U EX3244-A04 EX5214N-01Uを除く Except EX3215(16)-02U,-03U,-A04 EX3215(16)N-01U EX3244-A04 EX5214N-01U 5 6 41 2 1 13 14 4 3 42 43 12 15 16 17 29 28 36 EX3200N(T) Series EX5200N(T) Series 7 EX3200H Series 8 EX3200N(T) Series EX5200N(T) Series 10 30 31 EX5200H Series 9 EX3200H Series EX5200H Series 11 37 26 27 39 34 35 24 21 25 33 EX3200(H)(N) Series 38 40 EX5200(H)(N)(T) Series 32 EX3216-53 EX5204-22Z2,23Z3 EX5205-12Z1を除く Except EX3216-53 EX5204-22Z2,23Z3 EX5205-12Z1 18 22 44 19 20 23 4 jintex.in

Page 7 — カバー機構(1) COVER(1)

カバー機構(1) COVER(1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 270020-SD0 上カバー TOP COVER 1 2 007022A0 十字穴ナベ小ネジ/M4 × 14 SCREW 4 3 2700210 ガスケット GASKET 1 4 2403050 防振ゴム CUSHION RUBBER 3 5 179107-050 オイル窓 OIL SIGHT WINDOW 1 6 2401100 栓 PLUG 1 7 270083-9U0 側面カバー (組) SIDE COVER ASSY. 1 8 270083D9U0 側面カバー (組) SIDE COVER ASSY. 1 9 270083A9U0 側面カバー (組) SIDE COVER ASSY. 1 10 274011-910 押工棒 PRESSER BAR 1 11 274116A910 押工棒 PRESSER BAR 1 12 0070440 皿ネジ/M4 × 10 SCREW 4 13 270024-9U0 ベルトカバー (組) BELT COVER ASSY. 1 14 2403050 防振ゴム CUSHION RUBBER 1 15 0071760 平ネジ/M6 × 14 SCREW 3 16 2700250 ファンカバー FAN COVER 1 17 007019A0 十字穴ナベ小ネジ/M4 × 8 SCREW 2 18 270011-UD0 前カバー (右) FRONT COVER (RIGHT) 1 19 2700140 ヒンジ HINGE 1 20 007021A0 十字穴ナベ小ネジ/M4 × 12 SCREW 3 21 2400430 平行ピン PIN 1 22 0045430 六角穴止ネジ/M4 × 4 SCREW 2 23 2403010 圧縮バネ SPRING 1 24 2700180 ラッチ LATCH 1 25 0070090 平ネジ/M3 × 5 SCREW 1 26 0045740 六角穴止ネジ/M3 × 12 SCREW 1 27 0045350 六角穴止ネジ/M3 × 4 SCREW 1 28 2700170 ラッチ LATCH 1 29 007017A0 十字穴ナベ小ネジ/M4 × 5 SCREW 1 30 2100440 板バネ FLAT SPRING 1 31 007017A0 十字穴ナベ小ネジ/M4 × 5 SCREW 1 32 2700120 前カバー (左) FRONT COVER (LEFT) 1 33 007018A0 十字穴ナベ小ネジ/M4 × 6 SCREW 2 34 2701530 カバー COVER 1 35 007020A0 十字穴ナベ小ネジ/M4 × 10 SCREW 2 36 007021A0 十字穴ナベ小ネジ/M4 × 12 SCREW 1 37 007022A0 十字穴ナベ小ネジ/M4 × 14 SCREW 1 38 2700130 前カバー (左) FRONT COVER (LEFT) 1 39 XXXXXX 糸通し図 Threading diagram 1 40 XXXXXX 糸通し図 Threading diagram 1 41 9A30670 操作注意ラベル CAUTION LABEL 1 42 9A30690 ケガ注意ラベル CAUTION LABEL 1 43 9A30720 ラベル LABEL 1 44 9A31261 ラベル LABEL 1 ● XXXXXX は糸通し図です。部品番号は 110 頁の糸通し図一覧を参照してください。 ● "XXXXXX" represents the thread diagram. Please refer to the thread diagram list (page -110). 5 jintex.in

Page 8

※1 EX5214-43,43P1,43P2を除く Except EX5214-43,43P1,43P2 ※2 EX5204-82,92M1 EX5205-12Z1,EX5214-83,84 を除く Except EX5204-82,92M1 EX5205-12Z1,EX5214-83,84 34 33 35 42 ※24 EX3215(16)-02U,03U EX3215(16)N-01U EX5214N-01Uを除く Except EX3215(16)-02U,03U EX3215(16)N-01U EX5214N-01U 37 36 27 EX3200(H)(N) Series 26 EX5200(H)(N)(T) Series 40 25 31 32 30 29 28 41 EX5200(H)(N) Series 広巾(Wide) ※1 狭巾(Narrow) ※2 39 38 EX3200(H)(N) Series 1 18 EX3215(16)-42,42P1 EX3215(16)-42P2,43を除く Except EX3215(16)-42,42P1 EX3215(16)-42P2,43 23 19 8 17 16 3 4 5 6 7 20 EX5205-12Z1,EX5214-83,84を除く Except EX5205-12Z1,EX5214-83,84 22 21 14 13 15 EX5200(H) Series 広巾(Wide) 9 狭巾(Narrow) 10 EX3200(H) Series 43 EX3200N Series 44 EX5200N Series 12 11 EX5205-12Z1 No.9~17,24,25は不要 Without No.9~17,24,25 EX5204-22Z2 No.1~17,20~32は不要 Without No.1~15,20~32 6 jintex.in

Page 9 — COVER (2)

カバー機構 (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2700350 クロスプレート (広巾) CLOTH PLATE (WIDE) 1 2 2700370 クロスプレート (狭巾) CLOTH PLATE (NARROW) 1 3 2700420 ブッシュ BUSHING 1 4 0045430 六角穴止ネジ/M4 × 4 SCREW 1 5 2103070 波座金 WASHER 1 6 2041150 座金 WASHER 1 7 00718A0 十字穴ナベ小ネジ/M4 × 6 SCREW 1 8 2403050 防振ゴム CUSHION RUBBER 1 9 270030-UB0 横カバー (広巾) SIDE COVER (WIDE) 1 10 270031-UB0 横カバー (狭巾) SIDE COVER (NARROW) 1 11 00725A0 十字穴ナベ小ネジ/M4 × 20 SCREW 1 12 2012520 バネ座金 SPRING WASHER 1 13 007018A0 十字穴ナベ小ネジ/M4 × 6 SCREW 2 14 2403430 座金 WASHER 2 15 2403050 防振ゴム CUSHION RUBBER 1 16 2700490 ラッチ LATCH 1 17 0071800 平ネジ/M3.5 × 4.5 SCREW 1 18 2700151 当板 PLATE 1 19 0070770 皿ネジ/M4 × 7 SCREW 2 20 2700430 レバー LEVER 1 21 0071720 段付ネジ/M4 SCREW 1 22 2700440 ネジリバネ SPRING 1 23 2700450 ブラケット BRACKET 1 24 2700190 布案内 FABRIC GUIDE 1 25 007019A0 十字穴ナベ小ネジ/M4 × 8 SCREW 2 26 2700320 アイガード EYE GUARD 1 27 2700330 アイガード EYE GUARD 1 28 0070620 平ネジ/M3 × 6 SCREW 2 29 2028750 座金 WASHER 2 30 2700341 ブラケット BRACKET 1 31 0070660 段付ネジ/M4 SCREW 1 32 2103070 波座金 WASHER 2 33 2701770 上蓋 (組) BED COVER PLATE ASSY. 1 34 0070840 六角ボルト/M4 × 8 BOLT 5 35 2700230 ガスケット GASKET 1 36 2700260 後蓋 COVER PLATE 1 37 0070200 平ネジ/M4 × 10 SCREW 4 38 007023A0 十字穴ナベ小ネジ/M4 × 16 SCREW 1 39 0048210 六角ナット/M4 NUT 1 40 2106790 ピン PIN 2 41 2106790 ピン PIN 2 42 2106790 ピン PIN 1 43 270030-UB0 横カバー (広巾) SIDE COVER (WIDE) 1 44 270030DUBO 横カバー SIDE COVER 1 COVER (2) 7 jintex.in

Page 10

EX3200(H) Series EX5200(H) Series 1 スタンダードリフト・ハイリフト Standard lift High lift 2 超ハイリフト Extra-high lift 3 ウルトラハイリフト Ultra-high lift 34 EX3200N Series 35 EX5200N Series 36 EX5200T Series EX3200(H) EX5200(H) 2: スタンダードリフト(Standard lift) 3: ハイリフト(High lift) 4: 超ハイリフト(Extra-high lift) 5: ウルトラハイリフト(Ultra-high lift) 3 EX3215(16)H-A05 EX5204-23Z3 を除く Except EX5204-23Z3 EX3215(16)H-A05 30 31 29 EX3200(H)(N) Series 10 1 13 12 11 9 8 EX5200(H)(N)(T) Series 4 5 6 EX5200(H)(N)(T) Series 7 19 18 17 EX3200(H)(N) Series 28 16 32 15 14 33 26 27 24 25 23 EX5205-12Z1,EX5204(T)-82 EX5214-83,84を除く Except EX5205-12Z1,EX5204(T)-82 EX5214-83,84 20 21 22 8 jintex.in

Page 11 — CRANKSHAFT DRIVE MECHANISM

クランクシャフト機構 CRANKSHAFT DRIVE MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 270500A0 クランク軸 CRANKSHAFT 1 2 270500B0 クランク軸 CRANKSHAFT 1 3 270512A0 クランク軸 CRANKSHAFT 1 4 2705020 バランスウエイト BALANCE WEIGHT 2 5 0070110 平小ネジ/M3 × 8 SCREW 4 6 2705030 段付ピン PIN 1 7 0073740 平小ネジ/M6 × 6.5 SCREW 1 8 2705080 蓋 COVER 1 9 007019A0 十字穴ナベ小ネジ/M4 × 8 SCREW 3 10 2403400 Oリング O RING 1 11 270507-910 ボールベアリング (組) BALL BEARING ASSY. 1 12 0045720 六角穴付止ネジ/M5 × 10 SCREW 1 13 0045140 六角穴付止ネジ/M5 × 5 SCREW 1 14 2403350 止メ輪 RING 1 15 2129870 ボールベアリング BALL BEARING 1 16 2115260 ボールベアリング BALL BEARING 1 17 2403060 波板座金 WASHER 1 18 2100560 油切り OIL SEAL 1 19 2100570 Oリング O RING 1 20 2403400 Oリング O RING 1 21 2115280 右蓋 RIGHT COVER 1 22 007020A0 十字穴ナベ小ネジ/M4 × 10 SCREW 3 23 2705051 ファン (組) FAN ASSY. 1 24 270504-UD0 プーリー MACHINE PULLEY 1 25 0045410 六角穴付止ネジ/M6 × 8 SCREW 2 26 0045230 六角穴付ボルト/M6 × 35 BOLT 1 27 2042930 バネ座金 SPRING WASHER 1 28 2705100 段付ピン PIN 1 29 2705090 蓋 COVER 1 30 0070440 皿ネジ/M4 × 10 SCREW 2 31 0070200 平ネジ/M4 × 10 SCREW 1 32 270523A0 スペーサー SPACER 1 33 2705260 蓋 COVER 1 34 270500F0 クランク軸 CRANKSHAFT 1 35 270500E0 クランク軸 CRANKSHAFT 1 36 270500H0 クランク軸 CRANKSHAFT 1 9 jintex.in

Page 12

1本針(1-needle) EX5203・5204・5205 9 EX5204-24を除く Except EX5204-24 2本針(2-needle) EX5212・5214 EX3215(16) EX5214-04,24,54 EX5214H-55 EX3215(16)-A04 EX3215(16)H-A05を除く Except EX5214-04,24,54 EX5214H-55 EX3215(16)-A04 9 EX3215(16)H-A05 3本針(1-needle) EX3244 9 EX3244-A04を除く Except EX3244-A04 10 jintex.in

Page 13 — THREAD TENSION MECHANISM

糸調子機構 THREAD TENSION MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 210529-9TO 糸調子(組) TENSION SPRING ASSY. 1 2 263543-TAO ツマミ KNOB 1 3 2084480 ラチェット RATCHET 1 4 263544-TAO 受皿 SPRING SHIELD 1 5 2103190 調子皿 TENSION DISC 2 6 2084490 フェルト FELT 1 7 005082AO 調子棒/C5 SCREW STUD 1 8 2010370 圧縮バネ(強) SPRING (HEAVY) 1 9 210530-9TO 糸調子(組) TENSION SPRING ASSY. 1 10 2010860 圧縮バネ(中) SPRING (MEDIUM) 1 11 2750000 糸道 THREAD GUIDE 1 12 007018AO 十字穴付小ネジ/M4 × 6 SCREW 2 13 2750010 糸道 THREAD GUIDE 1 14 2028490 調子台 TENSION GUIDE 1 15 004009-1HCO 平ネジ/C5 × 7.5 SCREW 1 16 2750411 糸道 THREAD GUIDE 1 17 2750400 糸道 THREAD GUIDE 1 18 0030440 六角ナット/C5 NUT 1 jintex.in

Page 14 — EX3200(H)(N) Series

■2本針(2-needle) EX3215(16) ■3本針(3-needle) EX3244 EX3200(H)(N) Series 1 9 2 8 16 13 EX3215(16) 10 EX3244 11 EX3215(16)H 12 EX3215(16) 14 EX3244 15 EX3215(16)H 6 5 7 3 2本針(2-needle) 4 3本針(3-needle) 17 18 20 19 EX3200(N) Series EX3200H Series 23 21 EX3215(16) 22 EX3244 EX3215(16)N-01U EX3215(16)-02U,03U,A04 EX3244-A04 Except EX3215(16)N-01U EX3215(16)-02U,03U,A04 EX3244-A04 24 25 26 12 jintex.in

Page 15 — THREAD GUIDE & THREAD TAKEUP (1)

糸道・糸繰り (1) THREAD GUIDE & THREAD TAKEUP (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2750210 ブラケット BRACKET 1 2 0070820 平ネジ/M4 × 8 SCREW 2 3 2750240 糸道 THREAD GUIDE 1 4 2750420 糸道 THREAD GUIDE 1 5 0045430 六角穴止ネジ/M4 × 4 SCREW 1 6 2750260 ブラケット BRACKET 1 7 0070170 平ネジ/M4 × 5 SCREW 1 8 2750220 糸道 THREAD GUIDE 1 9 0045430 六角穴止ネジ/M4 × 4 SCREW 1 10 2750290 糸道 THREAD GUIDE 1 11 275029A0 糸道 THREAD GUIDE 1 12 2750520 糸道 THREAD GUIDE 1 13 0070170 平ネジ/M4 × 5 SCREW 1 14 2750280 糸道 THREAD GUIDE 1 15 2750570 糸道 THREAD GUIDE 1 16 0070170 平ネジ/M4 × 5 SCREW 1 17 2750110 小調子台 THREAD RETAINER BRACKET 1 18 2750120 小調子 THREAD RETAINER 1 19 0071630 段付ネジ/M2 SCREW 1 20 2403260 圧縮バネ SPRING 1 21 2750270 針糸繰り NEEDLE THREAD TAKE-UP 1 22 2750440 針糸繰り NEEDLE THREAD TAKE-UP 1 23 0070620 平ネジ/M3 × 6 SCREW 2 24 2750490 針糸繰り NEEDLE THREAD TAKE-UP 1 25 0070410 皿ネジ/M3 × 6 SCREW 1 26 0070620 平ネジ/M3 × 6 SCREW 1 13 jintex.in

Page 16

EX5200(H)(N)(T) Series 1本針(1-needle) EX5203・5204・5205 2本針(2-needle) EX5212・5214 4 5 3 9 EX5203・5204・5205 6 EX5212・5214 7 EX5214H 8 1 1本針(1-needle) 2 2本針(2-needle) 10 11 13 12 EX5200(N)(T) Series EX5200H Series 16 14 EX5203・5204・5205 15 EX5212 20 EX5214 EX5214N-01U EX5214-24,92M2を除く EX5214-01U EX5214-24,92M2 17 18 19 14 jintex.in

Page 17 — THREAD GUIDE & THREAD TAKEUP (2)

糸道・糸繰り (2) THREAD GUIDE & THREAD TAKEUP (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 275013A0 糸道 THREAD GUIDE 1 2 2750130 糸道 THREAD GUIDE 1 3 0045430 六角穴止ネジ/M4 × 4 SCREW 1 4 2750150 ブラケット BRACKET 1 5 0070820 平ネジ/M4 × 8 SCREW 1 6 2750180 糸道 THREAD GUIDE 1 7 275018A0 糸道 THREAD GUIDE 1 8 275051A0 糸道 THREAD GUIDE 1 9 0070820 平ネジ/M4 × 8 SCREW 1 10 2750110 小調子台 THREAD RETAINER BRACKET 1 11 2750120 小調子皿 THREAD RETAINER 1 12 0071630 段付ネジ/M2 SCREW 1 13 2403260 圧縮バネ SPRING 1 14 2750160 針糸繰り NEEDLE THREAD TAKE-UP 1 15 2750170 針糸繰り NEEDLE THREAD TAKE-UP 1 16 0070620 平ネジ/M3 × 6 SCREW 2 17 275017A0 針糸繰り NEEDLE THREAD TAKE-UP 1 18 0070410 皿ネジ/M3 × 6 SCREW 1 19 0070620 平ネジ/M3 × 6 SCREW 1 20 2751060 針糸繰り NEEDLE THREAD TAKE-UP 1 jintex.in

Page 18

EX32□□(H)(N)-□□/□□□ 2: スタンダードリフト (Standard lift) 3: ハイリフト (High lift) 4: 超ハイリフト (Extra-high lift) 5: ウルトラハイリフト (Ultra-high lift) EX5204-24, EX5214-24を除く Except EX5204-24, EX5214-24 10 超ハイリフトウルトラハイリフト Extra-high lift Ultra-high lift 9 スタンダードリフト・ハイリフト Standard lift・High lift EX5212を除く Except EX5212 2 1 4 3 5 6 7 8 11 14 スタンダードリフトハイリフト Standard lift High lift 12 EX5214-M03, M53を除く Except EX5214-M03, M53 13 超ハイリフトウルトラハイリフト Extra-high lift Ultra-high lift EX5204-24 EX5214-24を除く Except EX5204-24 EX5214-24 16 jintex.in

Page 19 — THREAD GUIDE & THREAD TAKEUP(3)

糸道・糸繰り (3) THREAD GUIDE & THREAD TAKEUP(3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2750040 ブラケット BRACKET 1 2 2750470 糸道 THREAD GUIDE 2 3 0070080 平小ネジ/M3 × 4 SCREW 2 4 2028750 座金 WASHER 2 5 2750050 糸繰り THREAD TAKE-UP 1 6 0070190 平ネジ/M4 × 8 SCREW 1 7 2750060 糸道 THREAD GUIDE 1 8 0070080 平小ネジ/M3 × 4 SCREW 1 9 2750070 糸道 THREAD GUIDE 1 10 2750550 糸道 THREAD GUIDE 1 11 2750560 糸道 THREAD GUIDE 1 12 2750090 糸繰り THREAD TAKE-UP 1 13 2750540 糸繰り THREAD TAKE-UP 1 14 0070120 平小ネジ/M3.5 × 6 SCREW 1 17 jintex.in

Page 20

EX3200(N) Series EX5200(N)(T) Series EX5212-02を除く Except EX5212-02 6 5 7 12 13 22 15 14 18 17 16 19 21 20 8 9 10 11 3 4 1 2 18 jintex.in

Page 21 — NEEDLE DRIVE MECHANISM (1)

針振り機構 (1) NEEDLE DRIVE MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 271000-920 ロッド CONNECTION 1 2 007023A0 十字穴ナベ小ネジ /M4 × 16 SCREW 2 3 2710010 ピン PIN 1 4 0045380 六角穴止ネジ /M4 × 6 SCREW 1 5 271002-920 クランク CRANK 1 6 0045330 六角穴ボルト /M6 × 12 BOLT 1 7 2710030 軸 SHAFT 1 8 2403080 カラー COLLAR 1 9 0045430 六角穴止ネジ /M4 × 4 SCREW 2 10 2082350 座金 WASHER 1 11 2025770 止メ輪 RING 1 12 271004-920 レバー LEVER 1 13 0071500 六角ボルト /M6 × 12 BOLT 1 14 271022A910 軸 (組) SHAFT ASSY. 1 15 2021770 給油紐 OIL WICK 2 16 271005B910 ブッシュ (組) BUSHING ASSY. 1 17 0045460 六角穴止ネジ /M4 × 5 SCREW 1 18 2010220 Oリング O RING 1 19 179009-050 フェルト FELT 1 20 271009-920 ホルダー HOLDER 1 21 0070350 平ネジ /M3 × 6 SCREW 1 22 2403100 栓 PLUG 1 jintex.in

Page 22

EX3200H Series EX5200H Series 20 jintex.in

Page 23 — NEEDLE DRIVE MECHANISM (2)

針振り機構 (2) NEEDLE DRIVE MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 271000-920 ロッド CONNECTION 1 2 007023A0 十字穴ナベ小ネジ /M4 × 16 SCREW 2 3 2710010 ピン PIN 1 4 0045380 六角穴止ネジ /M4 × 6 SCREW 1 5 271002-920 クランク CRANK 1 6 0045330 六角穴ボルト /M6 × 12 BOLT 1 7 2710030 軸 SHAFT 1 8 2403080 カラー COLLAR 1 9 0045430 六角穴止ネジ /M4 × 4 SCREW 2 10 2082350 座金 WASHER 1 11 2025770 止メ輪 RING 1 12 271015-920 レバー LEVER 1 13 0071500 六角ボルト /M6 × 12 BOLT 1 14 2710160 リンク LINK 1 15 2710170 段付ピン PIN 2 16 0071850 平ネジ /M3 × 4 SCREW 2 17 271023-910 軸 (組) SHAFT ASSY. 1 18 2021760 給油紐 OIL WICK 2 19 0045450 六角穴止ネジ /M3 × 4 SCREW 1 20 271018B910 ブッシュ (組) BUSHING ASSY. 1 21 0045820 六角穴止ネジ /M4 × 8 SCREW 1 22 2010220 Oリング O RING 1 23 179009-050 フェルト FELT 1 24 271009-920 ホルダー HOLDER 1 25 0070350 平ネジ /M3 × 6 SCREW 1 26 2403100 栓 PLUG 1 jintex.in 21

Page 24

EX3200(H)(N) Series 2本針(2-needle) EX3215(16) EX3215(16)-A04 EX3215(16)H-A05を除く Except EX3215(16)-A04 EX3215(16)H-A05 3本針(3-needle) EX3244 EX3244-A04を除く Except EX3244-A04 EX5200(H)(N)(T) Series 1本針(1-needle) EX5203・5204・5205 2本針(2-needle) EX5212・5214 NG=2mm NG=2.5mm NG=3mm 22 jintex.in

Page 25 — NEEDLE DRIVE MECHANISM (3)

針振り機構 (3) NEEDLE DRIVE MECHANISM (3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 針留(組) NEEDLE HOLDER ASSY. 1 2 0045540 六角穴止ネジ/M3 × 3 SCREW 2 3 275030B0 糸道 THREAD GUIDE 1 4 0071190 皿ネジ/M2 × 5 SCREW 1 5 XXXXXX 針 NEEDLE 2 6 XXXXXX 針留(組) NEEDLE HOLDER ASSY. 1 7 0045540 六角穴止ネジ/M3 × 3 SCREW 3 8 275030B0 糸道 THREAD GUIDE 1 9 0071190 皿ネジ/M2 × 5 SCREW 1 10 XXXXXX 針 NEEDLE 3 11 XXXXXX 針留(組) NEEDLE HOLDER ASSY. 1 12 0045540 六角穴止ネジ/M3 × 3 SCREW 1 13 275019A0 糸道 THREAD GUIDE 1 14 0071200 平ネジ/M2 × 3 SCREW 1 15 XXXXXX 針 NEEDLE 1 16 XXXXXX 針留(組) NEEDLE HOLDER ASSY. 1 17 0045540 六角穴止ネジ/M3 × 3 SCREW 2 18 275019B0 糸道 THREAD GUIDE 1 19 0071200 平ネジ/M2 × 3 SCREW 1 20 XXXXXX 針 NEEDLE 2 21 XXXXXX 針留(組) NEEDLE HOLDER ASSY. 1 22 0045540 六角穴止ネジ/M3 × 3 SCREW 2 23 275019C0 糸道 THREAD GUIDE 1 24 0071200 平ネジ/M2 × 3 SCREW 1 ● “XXXXXX” represents the gauge part. Please refer to the gauge part list (page 94-109). ● XXXXXX はゲージパーツです。部品番号は 94 ~ 109 頁のゲージパーツ表を参照してください。 23 jintex.in

Page 26

EX3200(H)(N) Series EX5200(H)(N)(T) Series EX5204-82,83,84,92M1 EX5204T-82,EX5214-04を除く Except EX5204-82,83,84,92M1 EX5204T-82,EX5214-04 24 jintex.in

Page 27 — NEEDLE DRIVE MECHANISM (4)

針振り機構 (4) NEEDLE DRIVE MECHANISM (4) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 針板 NEEDLE PLATE 1 2 0071700 平ネジ/M4 × 7.5 SCREW 2 3 2710100 取付板(前) BRACKET (FRONT) 1 4 007019A0 十字穴ナベ小ネジ/M4 × 8 SCREW 2 5 2403050 防振ゴム CUSHION RUBBER 2 6 2710110 取付板(後) BRACKET (REAR) 1 7 007019A0 十字穴ナベ小ネジ/M4 × 8 SCREW 2 8 XXXXXX 針受(前) NEEDLE GUARD (FRONT) 1 9 0070100 平小ネジ/M3 × 6 SCREW 2 10 XXXXXX 針受(後) NEEDLE GUARD (REAR) 1 11 0072590 六角ボルト/M3 × 5 BOLT 1 12 2402220 皿バネ SPRING 1 13 0071650 段付ネジ/M3 SCREW 1 14 XXXXXX 針受(前) NEEDLE GUARD (FRONT) 1 15 0070190 平ネジ/M4 × 8 SCREW 1 16 XXXXXX 針受(後) NEEDLE GUARD (REAR) 1 17 0070100 平小ネジ/M3 × 6 SCREW 2 18 2710130 ブラケット BRACKET 1 19 0071140 平ネジ/M4 × 10 SCREW 2 20 XXXXXX 針板 NEEDLE PLATE 1 21 0071700 平ネジ/M4 × 7.5 SCREW 2 22 2710100 取付板(前) BRACKET (FRONT) 1 23 007019A0 十字穴ナベ小ネジ/M4 × 8 SCREW 2 24 2403050 防振ゴム CUSHION RUBBER 2 25 2710110 取付板(後) BRACKET (REAR) 1 26 007019A0 十字穴ナベ小ネジ/M4 × 8 SCREW 2 27 XXXXXX 針受(前) NEEDLE GUARD (FRONT) 1 28 0070190 平ネジ/M4 × 8 SCREW 1 29 XXXXXX 針受(後) NEEDLE GUARD (REAR) 1 30 0072590 六角ボルト/M3 × 5 BOLT 1 31 2402220 皿バネ SPRING 1 32 0071650 段付ネジ/M3 SCREW 1 ● XXXXXX はゲージパーツです。部品番号は 94 ~ 109 頁のゲージパーツ表を参照してください。 ● "XXXXX" represents the gauge part. Please refer to the gauge part list (page 94-109). 25 jintex.in

Page 28

EX3200(N) Series EX5200(N)(T) Series EX32□□(H)(N)-□□/□□ 2: スタンダードリフト(Standard lift) 3: ハイリフト(High lift) 4: 超ハイリフト(Extra-high lift) 5: ウルトラハイリフト(Ultra-high lift) 13 14 11 12 10 9 ※15 EX3215(16)-A04,EX3244-03,A04 EX5204-24,EX5212-02 EX5214-01,03,M03,04,24,43,43P1,43P2 EX5214-M53,53C3,54,83,84,92M2 EX5214N-01,01Uを除く Except EX3215(16)-A04,EX3244-03,A04 EX5204-24,EX5212-02 EX5214-01,03,M03,04,24,43,43P1,43P2 EX5214-M53,53C3,54,83,84,92M2 EX5214N-01,01U 5 4 2 1 3 EX5204-23Z3を除く Except EX5204-23Z3 スタンダードリフト Standard lift ハイリフト High lift 超ハイリフト Extra-high lift 28 29 ※15 スタンダードリフト Standard lift ハイリフト・超ハイリフト High lift・Extra-high lift 6 7 8 16 34 30 35 37 36 31 33 32 27 EX3200(N) Series EX5200(N) Series 17 EX5200T Series 38 EX5204-23Z3を除く Except EX5204-23Z3 24 25 23 19 20 22 EX3200(N) Series EX5200(N) Series EX5200T Series 18 39 21 26 26 jintex.in

Page 29 — UPPER LOOPER DRIVE MECHANISM (1)

上ルーパー機構 (1) UPPER LOOPER DRIVE MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 271500-920 ロッド CONNECTION 1 2 007023A0 十字穴ナベ小ネジ /M4 × 16 SCREW 2 3 007022A0 十字穴ナベ小ネジ /M4 × 14 SCREW 2 4 2715010 振レ止メ GUIDE 1 5 0070410 皿ネジ /M3 × 6 SCREW 2 6 271502-920 クランク CRANK 1 7 271503-920 クランク CRANK 1 8 0045330 六角穴付ボルト /M6 × 12 BOLT 1 9 2715040 軸 SHAFT 1 10 2403380 座金 WASHER 1 11 0071740 六角ボルト /M5 × 10 BOLT 1 12 3030670 バネ座金 SPRING WASHER 1 13 2755400 栓 PLUG 1 14 2755410 フィルター FILTER 1 15 2101220 スペーサー SPACER 1 16 210586A0 オイルシール OIL SEAL 1 17 271517B910 上ルーパー台 (セット) UPPER LOOPER HOLDER ASSY. 1 18 271505-920 レバー LEVER 1 19 0071500 六角ボルト /M6 × 12 BOLT 1 20 2715460 平行ピン (組) PIN ASSY. 1 21 2021760 給油紐 OIL WICK 2 22 0045450 六角穴止メネジ /M3 × 4 SCREW 1 23 271506B910 上ルーパー台 (組) UPPER LOOPER HOLDER ASSY. 1 24 179130-050 フェルト FELT 1 25 0070541 平小ネジ /M3.5 × 6 SCREW 1 26 2330350 フェルト FELT 1 27 XXXXXX 上ルーパー UPPER LOOPER 1 28 271510S0 上ルーパー土台 UPPER LOOPER HOLDER BASE 1 29 271510T0 上ルーパー土台 UPPER LOOPER HOLDER BASE 1 30 0045100 六角穴付ボルト /M6 × 16 BOLT 2 31 2715430 カバー COVER 1 32 0070380 皿ネジ /M2.5 × 6 SCREW 1 33 0070330 平ネジ /M2.5 × 8 SCREW 1 34 2715190 フィルター FILTER 1 35 2745890 フェルト FELT 1 36 2745880 止板 BRACKET 1 37 0070080 平ネジ /M3 × 4 SCREW 1 38 271541A910 上ルーパー台 (セット) UPPER LOOPER HOLDER ASSY. 1 39 271542-920 レバー LEVER 1 ● “xxxxxx” はゲージパーツです。部品番号は 94 ~ 109 頁のゲージパーツ表を参照してください。 ● “xxxxxx” represents the gauge part. Please refer to the gauge part list (page 94-109). 27 jintex.in

Page 30

EX3200H Series EX5200H Series EX3200H Series 14 EX5200H Series 15 EX3200H Series 16 EX5200H Series 17 28 jintex.in

Page 31 — UPPER LOOPER DRIVE MECHANISM (2)

UPPER LOOPER DRIVE MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 271500A920 ロッド CONNECTION 1 2 007023A0 十字穴ナベ小ネジ / M4 × 16 SCREW 2 3 007022A0 十字穴ナベ小ネジ / M4 × 14 SCREW 2 4 2715010 振止メ GUIDE 1 5 0070410 皿ネジ / M3 × 6 SCREW 2 6 271512-920 クランク CRANK 1 7 0045330 六角穴ボルト / M6 × 12 BOLT 1 8 2715040 軸 SHAFT 1 9 2403380 座金 WASHER 1 10 0071740 六角ボルト / M5 × 10 BOLT 1 11 3030670 バネ座金 SPRING WASHER 1 12 2755400 栓 PLUG 1 13 2755410 フィルター FILTER 1 14 2101220 スペーサー SPACER 1 15 2403020 スペーサー SPACER 1 16 2401020 座金 WASHER 1 17 2405410 座金 WASHER 1 18 210586A0 オイルシール OIL SEAL 1 19 271518B910 上ルーバー台 (セット) UPPER LOOPER HOLDER ASSY. 1 20 271505-920 レバー LEVER 1 21 0071500 六角ボルト / M6 × 12 BOLT 1 22 2715460 平行ピン (組) PIN ASSY. 1 23 2021760 給油紐 OIL WICK 2 24 0045450 六角穴ネジ / M3 × 4 SCREW 1 25 271513B910 上ルーバー台 (組) UPPER LOOPER HOLDER ASSY. 1 26 179130-050 フェルト FELT 1 27 0070541 平小ネジ / M3.5 × 6 SCREW 1 28 2330350 フェルト FELT 1 29 XXXXXX 上ルーバー UPPER LOOPER 1 30 271510T0 上ルーバー台 UPPER LOOPER HOLDER BASE 1 31 0045100 六角穴ボルト / M6 × 16 BOLT 2 32 271543A0 カバー COVER 1 33 0070390 皿ネジ / M2.5 × 6 SCREW 1 34 0070330 平ネジ / M2.5 × 8 SCREW 1 35 2715190 フィルター FILTER 1 36 2745890 フェルト FELT 1 37 2745880 止板 BRACKET 1 38 0070080 平小ネジ / M3 × 4 SCREW 1 ● xxxxxx はゲージパーツです。 ● "xxxxxx" represents the gauge part. Please 部品番号は94~109頁のゲージパーツ表を refer to the gauge part list (page 94-109). 参照してください。 29 jintex.in

Page 32

EX5200(H)(N)(T) Series 6 7 EX3200(H)(N) Series 19 21 20 1 2 3 4 5 12 13 14 15 16 17 18 8 9 10 11 30 jintex.in

Page 33 — LOWER LOOPER DRIVE MECHANISM

下ルーバー機構 LOWER LOOPER DRIVE MECHANISM REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 271500-920 ロッド CONNECTION 1 2 007023A0 十字穴ナベ小ネジ /M4 × 16 SCREW 2 3 007022A0 十字穴ナベ小ネジ /M4 × 14 SCREW 2 4 2715010 振止メ GUIDE 1 5 0070410 皿ネジ /M3 × 6 SCREW 2 6 272000-920 クランク CRANK 1 7 0045330 六角穴ボルト /M6 × 12 BOLT 1 8 2715040 軸 SHAFT 1 9 2403380 座金 WASHER 1 10 0071740 六角穴ボルト /M5 × 10 BOLT 1 11 3030670 バネ座金 SPRING WASHER 1 12 2403110 座金 WASHER 1 13 210586A0 オイルシール OIL SEAL 1 14 XXXXXX 下ルーバー LOWER LOOPER 1 15 0071680 平小ネジ /M3.5 × 6.5 SCREW 1 16 272001-920 下ルーバーホルダー (組) LOWER LOOPER HOLDER ASSY. 1 17 0070550 六角穴ボルト /M5 × 13 BOLT 1 18 0071690 平小ネジ /M4 × 7 SCREW 1 19 273511-920 クランク CRANK 1 20 0045330 六角穴ボルト /M6 × 12 BOLT 1 21 0045140 六角穴止メネジ /M5 × 5 SCREW 1 ● xxxxxx はゲージパーツです。 ● "xxxxxx" represents the gauge part. Please 部品番号は 94~109 頁のゲージパーツ表を refer to the gauge part list (page 94-109). 参照してください。 31 jintex.in

Page 34 — EX3200(H)(N) Series

EX3200(H)(N) Series 32 jintex.in

Page 35 — CHAINSTITCH LOOPER DRIVE MECHANISM (1)

二重環ルーパー機構 (1) CHAINSTITCH LOOPER DRIVE MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2735000 ロッド CONNECTION 1 2 205015-20 ニードルベアリング NEEDLE BEARING 1 3 2735010 クランク CRANK 1 4 2405420 ブッシュ BUSHING 1 5 0070560 六角ボルト /M5 × 13 BOLT 1 6 2400390 座金 WASHER 1 7 2735020 スライダー SLIDER 1 8 0045310 六角ボルト /M5 × 12 BOLT 1 9 2400620 座金 WASHER 1 10 3030670 ハネ座金 SPRING WASHER 1 11 2525150 段付ピン PIN 1 12 2089490 Oリング O RING 1 13 2735040 軸 SHAFT 1 14 273505-920 ホルダー HOLDER 1 15 0045330 六角ボルト /M5 × 12 BOLT 1 16 273509-920 クランク CRANK 1 17 0045330 六角ボルト /M5 × 12 BOLT 1 18 2725170 リンク LINK 1 19 2405420 ブッシュ BUSHING 1 20 0070560 六角ボルト /M5 × 13 BOLT 1 21 2400390 座金 WASHER 1 22 2735060 軸 SHAFT 1 23 204052A0 オイルシール OIL SEAL 1 24 XXXXXX 二重環ルーパー DOUBLE CHAINSTITCH LOOPER 1 25 0071680 平小ネジ /M3.5 × 6.5 SCREW 1 26 273510-920 ルーバー台 LOOPER HOLDER 1 27 0070550 六角ボルト /M5 × 13 BOLT 1 28 2403371 座金 WASHER 1 29 0071690 平ネジ /M4 × 7 SCREW 1 ●xxxxx はゲージパーツです。 xxxxx represents the gauge part. Please 部品番号は94~109頁のゲージパーツ表を refer to the gauge part list (page 94-109). 参照してください。 33 jintex.in

Page 36

EX3200(H)(N) Series jintex.in 34

Page 37 — CHAINSTITCH LOOPER DRIVE MECHANISM (2)

二重環ルーパー機構 (2) CHAINSTITCH LOOPER DRIVE MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 1921200 糸道パイプ PIPE 1 2 007019A0 十字穴ナベ小ネジ /M4 × 8 SCREW 1 3 2750320 糸道パイプ PIPE 1 4 2061150 ブラケット BRACKET 3 5 2750330 ブラケット BRACKET 1 6 0070660 段付ネジ /M4 SCREW 1 7 2103070 波座金 WASHER 2 8 0071671 段付ネジ /M3 SCREW 1 9 1371080 小調子皿 THREAD RETAINER 2 10 2113880 圧縮バネ SPRING 1 11 2750340 ツマミ KNOB 1 12 2750350 糸受 THREAD GUIDE 1 13 0070170 平小ネジ /M4 × 5 SCREW 1 14 2750360 糸道 THREAD GUIDE 1 15 0070080 平小ネジ /M3 × 4 SCREW 1 16 2750390 糸道 THREAD GUIDE 1 17 0070080 平小ネジ /M3 × 4 SCREW 1 18 179498-920 ルーバー糸繰り (組) LOOPER THREAD TAKE-UP ASSY. 1 19 0045540 六角穴止メネジ /M3 × 3 SCREW 2 20 2750370 皿バネ FLAT SPRING 1 21 2750380 糸道 THREAD GUIDE 1 22 007019A0 十字穴ナベ小ネジ /M4 × 8 SCREW 1 35 jintex.in

Page 38

EX5204-23Z3 No.5~20を除く Except No.5~20 5 EX5214-04,54/445 EX5214H-55を除く Except EX5214-04,54/445 EX5214H-55 23 1 2 6 7 8 9 10 3 4 14 11 12 13 16 17 19 15 20 21 22 24 25 28 29 26 27 30 31 32 33 34 35 36 38 39 37 41 40 42 43 44 36 jintex.in

Page 39 — FEED MECHANISM (1)

FEED MECHANISM (1) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2725000 ロッド CONNECTION 1 2 2710010 ピン PIN 1 3 0045380 六角穴止メネジ/M4 × 6 SCREW 1 4 240012-20 ニードルベアリング NEEDLE BEARING 1 5 2725010 エキセン ECCENTRIC 1 6 2101290 案内/送りエキセン GUIDE (FEED ECCENTRIC) 1 7 2101300 板/バネ FLAT SPRING 1 8 0045350 六角穴止メネジ/M4 × 4 SCREW 2 9 272506-910 調節台 REGULATOR 1 10 0045140 六角穴止メネジ/M5 × 5 SCREW 2 11 272504-910 エキセン(組) ECCENTRIC ASSY. 1 12 2725030 ネジリバネ SPRING 1 13 0070380 段付ネジ/M2 SCREW 1 14 2725020 ラチェット RATCHET 1 15 2725091 プッシュボタン PUSH BUTTON 1 16 2403150 ガスケット GASKET 1 17 2063660 Oリング O RING 1 18 2403140 座金 WASHER 1 19 2403170 圧縮バネ SPRING 1 20 2005550 止メ輪 RING 1 21 2725290 リンク LINK 1 22 0070580 段ネジ/M5 SCREW 1 23 2025220 止メ輪 RING 1 24 272530A920 レバー LEVER 1 25 0045330 六角ボルト/M6 × 12 BOLT 1 26 2725321 レバー LEVER 1 27 0071610 段付ネジ/M5 SCREW 1 28 272533A1 軸 SHAFT 1 29 2041850 Oリング O RING 1 30 2725340 ネジリバネ SPRING 1 31 2725350 調節板 REGULATOR PLATE 1 32 007021A0 十字穴付バネ/M4 × 12 SCREW 2 33 2403210 スペーサー SPACER 2 34 2520690 丸ナット NUT 1 35 0070590 段付ネジ/M4.5 SCREW 1 36 2113010 皿バネ SPRING 1 37 2526580 ストッパー STOPPER 2 38 007018A0 十字穴付バネ/M4 × 6 SCREW 2 39 3034480 座金 WASHER 2 40 272538A0 調整棒 ADJUSTING BAR 1 41 2403220 シール SEAL 1 42 2005550 止メ輪 RING 1 43 2405590 圧縮バネ SPRING 1 44 272539A0 段付ピン PIN 1 37 jintex.in

Page 40

EX3200(H) Series EX5200(H)(T) Series EX5214-04 EX5214-54/445 EX5214H-55を除く Except EX5214-04 EX5214-54/445 EX5214H-55 jintex.in 38

Page 41 — FEED MECHANISM (2)

FEED MECHANISM (2) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2725160 軸 SHAFT 1 2 2050610 止メ輪 RING 1 3 2081731 栓 PLUG 1 4 2403110 座金 WASHER 2 5 272510-910 クランク CRANK 1 6 0045330 六角穴ボルト/M6 × 12 BOLT 1 7 0070100 平小ネジ/M3 × 6 SCREW 2 8 2725180 角駒 BLOCK 1 9 272514-921 クランク CRANK 1 10 0045330 六角穴ボルト/M6 × 12 BOLT 1 11 2725151 ピン PIN 1 12 0048050 六角ナット/M5 NUT 1 13 2400620 座金 WASHER 1 14 2725250 段付ピン PIN 1 15 0072380 六角穴ボルト/M4 × 6 BOLT 1 16 2403180 ガスケット GASKET 1 17 2403190 止メ輪 RING 1 18 2010220 Oリング O RING 1 19 2725260 角駒 BLOCK 1 20 2403030 カラー COLLAR 2 21 0045430 六角穴止ネジ/M4 × 4 SCREW 1 22 2725170 リンク LINK 1 23 2405420 ブッシュ BUSHING 1 24 0070560 六角ボルト/M5 × 13 BOLT 1 25 2400390 座金 WASHER 1 26 2725270 主送り台 MAIN FEED BAR 1 27 XXXXXX 主送り歯(組) MAIN FEED DOG ASSY. 1 28 XXXXXX 主送り歯 MAIN FEED DOG 1 29 XXXXXX 補助送り歯 AUXILIARY FEED DOG 1 30 0070100 平小ネジ/M3 × 6 SCREW 1 31 0070130 平小ネジ/M3.5 × 8 SCREW 1 32 2725280 差動送り台 DIFFERENTIAL FEED BAR 1 33 XXXXXX 差動送り歯 DIFFERENTIAL FEED DOG 1 34 0070130 平小ネジ/M3.5 × 8 SCREW 1 35 2725240 角駒 BLOCK 1 36 2725190\n送り台案内(右) FEED BAR GUIDE (RIGHT) 1 37 0071100 六角穴ボルト/M4 × 9 BOLT 2 38 2725200 送り台案内(左) FEED BAR GUIDE (LEFT) 1 39 0071100 六角穴ボルト/M4 × 9 BOLT 2 40 2726170 送り案内 GUIDE (FEED BAR OIL SEAL) 1 41 2725210 油切り OIL SEAL 2 42 0045730 六角穴ボルト/M4 × 5 BOLT 2 ● xxxxxx はゲージパーツです。部品番号は 94〜109 頁のゲージパーツ表を参照してください。 "xxxxxx" represents the gauge part. Please refer to the gauge part list (page 94-109). 39 jintex.in

Page 42

EX3200N Series EX5200N Series 40 jintex.in

Page 43 — FEED MECHANISM (3)

FEED MECHANISM (3) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2725160 軸 SHAFT 1 2 2050610 止メ輪 RING 1 3 2081731 栓 PLUG 1 4 2403110 座金 WASHER 2 5 272510-910 クランク CRANK 1 6 0045330 六角穴ボルト/M6 × 12 BOLT 1 7 0070100 平小ネジ/M3 × 6 SCREW 2 8 2725180 角駒 BLOCK 1 9 272514-921 クランク CRANK 1 10 0045330 六角穴ボルト/M6 × 12 BOLT 1 11 2725151 ピン PIN 1 12 0048050 六角ナット/M5 NUT 1 13 2400620 座金 WASHER 1 14 2725540 段付ピン PIN 1 15 2025220 止メ輪 RING 1 16 2404340 座金 WASHER 1 17 0045460 六角穴止メネジ/M4 × 5 SCREW 1 18 2010220 Oリング O RING 1 19 2725260 角駒 BLOCK 1 20 2403030 カラー COLLAR 2 21 0045430 六角穴止メネジ/M4 × 4 SCREW 2 22 2725170 リンク LINK 1 23 2405420 ブッシュ BUSHING 1 24 0070560 六角ボルト/M5 × 13 BOLT 1 25 2400390 座金 WASHER 1 26 2725270 主送り台 MAIN FEED BAR 1 27 XXXXXX 主送り台(組) MAIN FEED DOG ASSY. 1 28 XXXXXX 主送り歯 MAIN FEED DOG 1 29 XXXXXX 補助送り歯 AUXILIARY FEED DOG 1 30 0070100 平小ネジ/M3 × 6 SCREW 1 31 0070130 平小ネジ/M3.5 × 8 SCREW 1 32 2725280 差動送り台 DIFFERENTIAL FEED BAR 1 33 XXXXXX 差動送り歯 DIFFERENTIAL FEED DOG 1 34 0070130 平小ネジ/M3.5 × 8 SCREW 1 35 2725240 角駒 BLOCK 1 36 2725190 送り台案内(右) FEED BAR GUIDE (RIGHT) 1 37 0071100 六角ボルト/M4 × 9 BOLT 2 38 2725200 送り台案内(左) FEED BAR GUIDE (LEFT) 1 39 0071100 六角ボルト/M4 × 9 BOLT 2 40 2726170 油切り案内 GUIDE (FEED BAR OIL SEAL) 1 41 2725210 油切り OIL SEAL 2 42 0045730 六角ボルト/M4 × 5 BOLT 2 43 2725530 ブッシュ BUSHING 1 44 2400170 Oリング O RING 1 45 2325080 カラー COLLAR 1 46 0014590 止メネジ/M4 × 3 SCREW 2 47 2725560 調整板 REGULATOR PLATE 1 48 2526580 ストッパー STOPPER 2 49 3034480 座金 WASHER 2 50 0070180 平小ネジ/M4 × 6 SCREW 1 51 272555-920 レバー LEVER 1 52 0070140 平小ネジ/M3.5 × 10 SCREW 2 53 2113010 皿バネ SPRING 1 54 2520690 丸ナット/M4.5 NUT 1 55 0070590 段ネジ/M4.5 SCREW 1 56 2403210 スペーサー SPACER 4 57 0070210 平小ネジ/M4 × 12 SCREW 4 58 270076B0 ホルダー PIN 1 59 0048210 六角ナット/M4 NUT 1 60 2403050 防振ゴム CUSHION RUBBER 1 ● XXXXX はゲージパーツです。部品番号は94~109頁のゲージパーツ表を参照してください。 "XXXXXX" represents the gauge part. Please refer to the gauge part list (page 94-109). 41 jintex.in

Page 44

7 1 2 10 EX5204-23Z3,EX5214N-01U EX3215(16)N-01U EX3215(16)N-02U,03U 11 EX3200H Series EX5200H Series EX3200(N) Series EX5200(N)(T) Series 10 12 13 18 14 EX5200-23Z3 Except EX5204-23Z3 EX5200(H)(N)(T) Series 15 EX3200(H)(N) Series 3 EX5200(H)(N)(T) Series 4 EX3200(H)(N) Series 5 6 9 8 16 17 22 21 23 24 27 EX3215(16)-A04,EX3244-A04 EX3215(16)H-A05 EX5204-24,EX5214-24 EX5214-54/445,EX5214H-55 Without EX3215(16)-A04,EX3244-A04 EX3215(16)H-A05 EX5204-24,EX5214-24 EX5214-54/445,EX5214H-55 19 EX5200(H)(N)(T) Series 20 EX3200(H)(N) Series 25 EX5200(H)(N)(T) Series 26 EX3200(H)(N) Series 27 EX3200(H)(N) Series 29 EX5204-24,EX5204T-82,92M1 EX5205-12Z1 EX5214-54/445,83,84 を除く Except EX5204-24,EX5204T-82,92M1 EX5205-12Z1 EX5214-54/445,83,84 33 30 31 32 34 35 36 37 38 42 jintex.in

Page 45 — KNIFE DRIVE MECHANISM

KNIFE DRIVE MECHANISM REF.NO. PART NO. 部品名称 CONNECTION QT. 1 273000-920 ロッド 2 007023A0 十字穴小ネジ / M4 × 16 SCREW CRANK 1 273001-920 クランク CRANK 1 273002-920 クランク BOLT 1 0045330 六角穴ボルト / M6 × 12 6 2710010 ピン PIN 1 7 0045380 六角穴止メネジ / M4 × 6 SCREW 1 8 240235-920 カラー COLLAR 1 9 0045470 六角穴止メネジ / M6 × 5 SCREW 1 10 2730030 上メス台 UPPER KNIFE LEVER 1 11 2730040 上メス台 UPPER KNIFE LEVER 1 12 3080360 ピン付ネジ PIN 1 13 2730060 案内ピン PIN 1 14 179712-050 上メス抱キ UPPER KNIFE CLAMP 1 15 179713-050 上メス抱キ UPPER KNIFE CLAMP 1 16 0070210 平小ネジ / M4 × 12 SCREW 1 17 XXXXXX 上メス UPPER KNIFE 1 18 0070130 平小ネジ / M3.5 × 8 SCREW 1 19 2107560 角メス抱キ ANGLED UPPER KNIFE CLAMP 1 20 2107570 角メス抱キ ANGLED UPPER KNIFE CLAMP 1 21 XXXXXX 角メス ANGLED KNIFE 1 22 0012270 平ネジ / C3 × 3.7 SCREW 1 23 2107580 角メス押エ ANGLED UPPER KNIFE GIB 1 24 179341-150 切屑押エ WASTE GUARD 1 25 0070230 平ネジ / M4 × 16 SCREW 1 26 0072130 平ネジ / M4 × 22 SCREW 1 27 3002480 座金 WASHER 1 28 2730070 下メス台 LOWER KNIFE HOLDER 1 29 2730090 下メス台 LOWER KNIFE HOLDER 1 30 1B00160 平小ネジ / M4 × 8.5 SCREW 1 31 2730101 案内 / 下メス台 LOWER KNIFE HOLDER GUIDE 1 32 007019A0 十字穴小ネジ / M4 × 8 SCREW 2 33 2403240 圧縮バネ SPRING 1 34 2730070 当板 PLATE 1 35 007019A0 十字穴小ネジ / M4 × 8 SCREW 1 36 XXXXXX 下メス / 抱メス LOWER KNIFE (THICK) 1 37 2730120 下メス押エ LOWER KNIFE CLAMP 1 38 0071730 六角ボルト / M5 × 8 BOLT 1 XXXXXX はゲージパーツです。部品番号は 94~109頁のゲージパーツ表を参照してください。 "xxxxxx" represents the gauge part. Please refer to the gauge part list (page 94-109). 43 jintex.in

Page 46

*@ EX3215(16)-A04 EX3215(16)H-A05 EX3244-A04!;tl'if;< Except EX3215(16)-A04 EX3215(16)H-A05 *® EX5205-12Z1 EX3244-A04 EX5214-04,54,84 EX5214H-55 EX3215(16)-A04 EX3215( 16)H-A05 < Except EX5205-12Z1 EX5214-04,54,8 4 EX5214H-55 EX3215( 16)-A04 EX3215(16)H-A05 EX3244-A04 lI I EX5200(H)(T) Series • From the library of: Superior Sewing Machine & Supply LLC

Page 47 — PRESSER FOOT MECHANISM

Al.:r.atlt PRESSER FOOT MECHANISM REF.NO. PART NO. DESCRIPTION QT. 1 2740070 LEVER 2 0070600 m"*:; /M1o SCREW 3 2740080 -*'l'JJ{* SPRING 4 2740090 STOPPER 5 007020AO X 10 SCREW 2 6 0071750 /MS X 24 SCREW 7 0048050 t\tf:!"T•:t t-/M5 NUT 8 2740060 1)/"J LINK 9 2740040 LEVER 10 274003-921 1J5- COLLAR 11 0045340 v t\tf:!1\;J(J t- /M6 X 14 BOLT 12 2740050 SPRING 13 2740020 /·:t:Y:::J. BUSHING 14 0071050 :/ /M4 X 40 SCREW 15 2740010 fl!I/¥Px.a SHAFT 16 274000-BO ¥Px.a PRESSERARM 17 2085490 PIN 18 0045940 t\flj 'l /M4 X 4 SCREW 19 274018-92BO *'v1i'- HOLDER 20 0070130 :/ /M3.5 X 8 SCREW 21 2740330 7-{ ";/jj'-"jj- FINGER GUARD 22 2740200 STOPPER 23 0070090 /M3 X 5 SCREW 24 0070080 :/ /M3 X 4 SCREW 25 2740190 FLAT SPRING 26 0050890 /(3 X 5.45 SCREW 27 2087730 SPRING 28 274014A1 ADJUSTING SCREW 29 2740150 7-·:tt- NUT 30 274016AO LEVER 31 0071710 /M4 SCREW 32 2740170 SPRING 33 2740100 STOPPER 34 0070190 X8 SCREW 35 2740390 LEVER 36 2740400 STOPPER • From the library of: Superior Sewing Machine & Supply LLC

Page 48

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 46 jintex.in

Page 49 — LUBRICATIONMECHANISM(1)

LUBRICATIONMECHANISM(1) REF.NO. PART NO. DESCRIPTION QT. 274505A910 if./:1 PUMP 2 2116180 r:J :t-.hit-1'-Jv WORM WHEEL 3 0050600 1.1:.*9/(8 X 4.5 SCREW 2 4 212978-910 IJ-9- <rJ-J>.m ROTOR (INSIDE) SHAFT 5 2129810 IJ-9- ($1.) ROTOR (OUTSIDE) 6 2094080 7-1'Jv9- FILTER 7 2094090 7-1'Jv9- FILTER 8 0070120 ljZ1j\;f.9 /M3.5 X 6 SCREW 3 9 0045290 1-- /M4 X 16 BOLT 2 10 2745090 9/? TANK 11 007022AO /M4 X 14 SCREW 2 12 2062330 FILTER ELEMENT 13 2745100 § COVER 14 007018AO 9 /M4 X 6 SCREW 3 15 2403070 ORING 16 2001360 ti=F JOINT 2 17 2403280 tl=¥*9 JOINT SCREW 2 18 2021990 ?7/:1 CLAMP 2 19 2403270 7-:J.-7 TUBE 1 20 2001360 ti=F JOINT 2 21 2403280 tl=F;f.9 JOINT SCREW 2 22 2021990 ?7/:1 CLAMP 2 23 2401350 7-:J.-7 TUBE 24 2001360 II=F JOINT 25 2403280 ti=F;f.9 JOINT SCREW 26 2021990 ?7/:1 CLAMP 2 27 2403340 7-:J.-/ TUBE 28 2745120 ti=F JOINT 29 2400200 QIJ//f ORING 30 004210-HUO /M4 X 12 SCREW 31 274515-910 <*II> OIL DISTRIBUTOR ASSY. 1 32 2102140 PLUG 2 33 004211-HUO /M4 X 16 SCREW 34 2403280 fi=F;f.9 JOINT SCREW 35 2094100 ?7/:1 CLAMP 36 0070110 lJL!J,;f.9/M3 X 8 SCREW 37 0048000 1'\tf:l'T•:;1-- /M3 NUT 38 2745250 OIL GUIDE • From the library of: Superior Sewing Machine & Supply LLC

Page 50

EX3200(N) Series EX5200(N)(T) Series 18 21 20 19 22 23 24 EX3200H Series EX5200H Series 26 27 29 30 31 32 33 25 14 EX3200(H)(N) Series EX5200(H)(N) Series 17 EX5200T Series 13 12 2 1 15 3 4 5 16 11 6 8 7 9 10 48 jintex.in

Page 51 — LUBRICATION MECHANISM(2)

tt51btlll(2) LUBRICATIONMECHANISM(2) REF.NO. PART NO. DESCRIPTION QT. 1 274502AO OIL SIGHT GAUGE 2 2300430 ORING 3 210193A910 ;t -1'' <m> INDICATOR ASSY. 4 2105100 OIL INDICATOR SUPPORT 1 5 004210-HUO /M4 X 12 SCREW 2 6 274503-910 <m> OIL RESERVOIR ASSY. 7 005138BO /H11 X 12 SCREW 8 202287AO WASHER 1 9 0045310 i'\lij7\i1{Jv 1-- /MS X 12 BOLT 4 10 2403390 WASHER 4 11 2745010 1J?..'T·:; "" GASKET 12 2745070 ?-t-b. WORM 13 0045140 i'\lij 7\1.1:..:?:. /MS X 5 SCREW 14 274517B910 (tfi) PIPEASSY. 15 2400970 BALL 16 0045430 i'\ft:l7\1.1:.;;.. /M4 X 4 SCREW 17 274593B910 PIPEASSY. 18 274516-910 PIPEASSY. 19 2021750 OIL WICK 1 20 2400970 BALL 2 21 0045430 i'\ft:l7\1.1:.;;.. /M4 X 4 SCREW 22 274523-910 ti=F (fti) JOINT 23 2745220 7.:r.JIII-- FELT 24 2041850 ORING 25 007019AO /M4 X 8 SCREW 26 2021750 OIL WICK 27 2745290 7.:r.JIII-- FELT 28 2745300 COVER 29 0071920 9 /M4 SCREW 30 274551-910 ti=F Uti) JOINT 31 2745560 7.:r.JIII-- FELT 32 2041850 ORING 33 0045430 i'\lij 7\1.1:.;?:. /M4 X 4 SCREW • From the library of: Superior Sewing Machine & Supply LLC

Page 52

EX3200(N) Series EX3200H Series EX5200(N)(T) Series EX5200H Series EX5204-23Z3&;t'!'R 8 'Mthout EX5204-23Z3 EX3215(16)(N) EX5200(H)(N)(T) Series EX3200(H)(N) Series From the library of: Superior Sewing Machine & Supply LLC

Page 53 — H.R. DEVICE

H. R H.R. DEVICE REF.NO. PART NO. DESCRIPTION QT. 1 2755000 :J/-$l/? (.t) SILICONE OIL RESERVOIR (UPPER) 2 2755010 II COVER 3 2755030 7IJ!Il'- FELT 4 2755080 7IJ!Ii'- FELT 5 2755020 THREAD GUIDE 6 2755070 THREAD GUIDE 7 007020AO +!¥!1\T""'J'-*9/M4 X 10 SCREW 8 2700900 COVER 9 2700840 COVER 10 0070180 X 6 SCREW 2 11 2755040 1) :J/-$l /? (""f) SILICONE OIL RESERVOIR (LOWER) 12 2755050 II COVER 13 004210-HUO /M4 X 12 SCREW 14 2021750 OIL WICK 15 2403310 =f:J.-/ TUBE 16 2001550 ?5// CLAMP 2 17 2755060 NEEDLE THREAD LUBRICATOR 18 007021AO +!¥!1\T""'J'-*9/M4 X 12 SCREW 2 19 2102140 PLUG 1 20 2044660 1-- OIL FELT 21 2107660 11:1:::''/ PIN 22 2755090 NEEDLE THREAD LUBRICATOR 23 007019AO X 8 SCREW 2 24 2102140 PLUG 25 2044660 1-- OIL FELT 26 2755280 7IJ!Ii'- FELT 27 2107660 11:1:::''/ PIN • From the library of: Superior Sewing Machine & Supply LLC

Page 54

1 2 36 SET UP INSTRUCTIONS 取付説明書 32 35 34 33 31 18 21 22 19 33 34 20 4 27 26 28 5 6 29 24 23 30 3 16 11 15 14 7 12 13 9 10 37 38 39 8 12 13 附属品に梱入 Packed in accessories 52 jintex.in

Page 55 — THREAD STAND

THREAD STAND REF.NO. PART NO. $.?o:Bf11 DESCRIPTION QT. QT. QT. QT. 000100-9PO !tt.II. (ftl} (6 *II.) THREAD STAND ASSY. (6-SPOOL) 000100A9PO !tt.II. Uti> (5 *II.> THREAD STAND ASSY. (5-SPOOL) 000100B9PO !tt.II. (ftl) (4 *ll.) THREAD STANDASSY. (4-SPOOL) 1 000100C9PO !ttrr em> <3 *II.> THREAD STAND ASSY. (3-SPOOL) 2 000101-PAO A; / t-:'t¥ Lt) COLUMN PIPE (UPPER) 3 000102-PAO A; / t-:'t¥ (""F) COLUMN PIPE (LOWER) 4 0001030 93-1'/1-- JOINT 1 1 1 5 004066-HUO 9 /MS X 14 SCREW 2 2 2 2 6 004067-HUO •:J 1-- /MS NUT 2 2 2 2 7 000104-PAO -:17 'r ':I "' (3 *tL> BRACKET (3-SPOOL) 2 8 000104APAO -:17'r•:J "' (2 *II.) BRACKET (2-SPOOL) - 2 1 9 0001160 iNv1i- HOLDER 2 2 2 10 004068-HUO X 16 SCREW 1 2 2 2 11 0001050 !tt.II.t¥ SPOOL PIN 3 4 5 6 12 303067AO '(;;.,m:at SPRING WASHER 3 4 5 6 13 004067-HUO 1-- /MS NUT 3 4 5 6 14 000106-PAO SPOOL TRAY 3 4 5 6 15 0001070 ?1.--;/ CUSHON 3 4 5 6 16 000108-PAO SPOOL RETAINING FIN 3 4 5 6 17 000109-PAO /7'r ':1 "' BRACKET 1 18 0041130 X 20 SCREW 19 0048030 t\fl.! -J- •:J 1-- /M4 NUT 20 0001100 !ttlrtt¥ THREAD GUIDE BAR 21 004065-HUO /M4 X 12 SCREW 22 0048030 t-/M4 NUT 23 000111-PAO -:17'r•:J "' BRACKET 24 004065-HUO /M4 X 12 SCREW 25 0048030 t\fl.!7 ':1 t- /M4 NUT 26 0001120 !ttiit¥ (6 *1r) THREAD GUIDE BAR (6-SPOOL) 27 000112AO !ttiit¥ (5 *II.> THREAD GUIDE BAR (5-SPOOL) 28 000112BO !ttiiti (3 *II.) THREAD GUIDE BAR (3-SPOOL) 29 004065-HUO X 12 SCREW 30 0048030 t\fl.! 7 •:J 1-- /M4 NUT 1 31 000104-PAO -:17 'r ':I t- (3 *ti.) BRACKET (3-SPOOL) 2 32 000104APAO -:17 'r ':I "' (2 *II.> BRACKET (2-SPOOL) - 2 1 33 0001160 i.t-Jv1i- HOLDER 2 2 2 34 004068-HUO X 16 SCREW 2 2 2 35 0001130 !ttii THREAD GUIDE 3 4 5 6 36 0001140 ::f-v •:J/ ROD CAP 1 1 1 37 0001150 WASHER 2 2 2 2 38 0001170 SPRING WASHER 39 007370-HUO 1-- /M16 NUT • From the library of: Superior Sewing Machine & Supply LLC

Page 56

4 テーブル板厚 35mm用 Special washers for a table 35mm thick 54 jintex.in

Page 57 — PARTS FOR SEMI-SUBMERGED INSTALLATION

PARTS FOR SEMI-SUBMERGED INSTALLATION REF.NO. PART NO. DESCRIPTION QT. 2760010 REST BOARD 2 179483-050 CUSHION RUBBER 4 3 2063360 t- NUT 4 4 2054670 A."\--t:t- SPACER 4 5 0045750 1- /M8 X 45 BOLT 4 6 2403040 WASHER 4 7 276002-UAO Lt) WASTE CHUTE {TOP) 8 276003-UAO CF) WASTE CHUTE {LOWER) 9 0049040 *'*-913.5 SCREW 3 10 2760040 lfXi\ft& BRACKET 1 11 0041090 :!JL;{:.'l/M4 X 10 SCREW 2 12 2401040 WASHER 2 13 2063370 WASHER 4 14 2014770 SPRING WASHER 4 • From the library of: Superior Sewing Machine & Supply LLC

Page 58

3 4 5 6 5 6 7 10 11 14 15 1 2 12 13 8 9 16 18 17 19 21 22 20 56 jintex.in

Page 59 — PARTS FOR FULLY-SUBMERGEDINSTALLATION

PARTS FOR FULLY-SUBMERGEDINSTALLATION REF.NO. PART NO. DESCRIPTION QT. 1 2760010 U!ii'.tti REST BOARD 1 2 179483-050 ?·.!I.Y3/::fb. CUSHION RUBBER 4 3 0072370 tt:J*H.tl.itliiftlvt-- BOLT 1 4 0072360 tt:J*H.tl.itliiftlvt-- BOLT 4 5 2027000 WASHER 15 6 0048160 t\tf:J-T•:; t--/MlO NUT 15 7 2760120 MiDJ.Jti AUXILIARY PLATE 8 0045750 t\tt:J7\iftlvt-- /MS X 45 BOLT 3 9 2403040 WASHER 3 10 0048080 t\tf:J-T·:; t--/MS NUT 3 11 2760130 MiDJ.Jti ANGLED UPPER KNIFE PLATE 1 12 0045750 i'\tf:J7\iftlvt-- /MS X 45 BOLT 2 13 2403040 WASHER 2 14 0048080 t\tf:J-T·:; t--/MS NUT 2 15 0045120 t\PJ7\;ftlv t-- /MS X 55 BOLT 3 16 2760140 lllH'.tti BRACKET 17 0041090 /M4 X 10 SCREW 3 18 2401040 WASHER 3 19 276002-UAO (J:.) WASTE CHUTE (TOP) 20 276003-UAO ("f) WASTE CHUTE (LOWER) 21 007013AO +!¥7\T-"''J'.:f..y /M3.5 X 8 SCREW 3 22 1670660 WASHER 3 • From the library of: Superior Sewing Machine & Supply LLC

Page 60

(Plain seaming) ®--1 ®-q> EX5204-01,02 EX5212-02 EX5214-01,03,M03 EX3244-03 EX3215(16)-01,02,03 EX3244-03 !30 . 32 EX3215(16)-01 A,02A • From the library of: Superior Sewing Machine & Supply LLC

Page 61 — SPECIFIC PARTS (1)

WJIIBfa (1) SPECIFIC PARTS (1) REF.NO. PART NO. DESCRIPTION QT. 1 xxxxxx ¥iii PRESSER FOOT 2 xxxxxx ¥!lilT\ PRESSER FOOT FINGER 3 2771260 MiDJ.Jtlf!I FABRIC GUARD 4 0012310 /(1 X 3.4 SCREW 5 2116000 UNCURLER 6 0050300 /(1 X 2.3 SCREW 7 271014-920 ?5/? CRANK 8 0045330 7\tf.l7\ ;J{J v1-- /M6 X 12 BOLT 9 xxxxxx ¥iii (I}) PRESSER FOOTASSY. 10 0070130 /M3.5 X 8 SCREW 11 208958-BO PIN 12 212499-BO PIN 13 0054090 i'\fij -r ':I 1-- /C3 NUT 14 2124980 5•:J7 LATCH 15 2740280 SPRING 16 0031530 1-•:J!--IC1 NUT 17 2085310 MiDJ.Jtlf!I FABRIC GUIDE 18 0050300 /(1 X 2.3 SCREW 19 2740220 SPRING 20 0070090 /M3 X 5 SCREW 21 2740260 7 ... /fl-tJ- t-:' FINGER GUARD 22 0070080 /M3 X 4 SCREW 23 274021-9280 ;Ntt1f- HOLDER 24 0070130 /M3.5 X 8 SCREW 25 2740230 SPRING 26 0070090 /M3 X 5 SCREW 27 274025AO 7 ... /tj'-tj'- t-:' FINGER GUARD 28 0070080 /M3 X 4 SCREW 29 xxxxxx tlf!I PRESSER FOOT 30 2119190 PIN 31 2119180 SPRING 32 0031500 i'\tf.l-T•:J 1-- /(1 NUT 33 2119200 SPRING PIN 34 211915AO tlf!IIT\ PRESSER FOOT FINGER 35 211916AO tlf!IIT\ PRESSER FOOT FINGER 36 2119170 l&i'.t:t& BRACKET 37 0050890 /(3 X 5.45 SCREW 38 3002480 WASHER 39 2401020 WASHER 40 2102220 A."''.-"t- SPACER 41 2403020 A."''.-"t- SPACER 42 2750540 THREAD TAKE-UP e xxxxxx e "xxxxxx"representsthe gauge part. Please 94 ... 109 refer to the gauge part list (page 94-109). (.,l ( tc';!\,'o From the library of: Superior Sewing Machine & Supply LLC

Page 62 — 地縫い(Plain seaming)

地縫い(Plain seaming) EX3215(16)N-01,01S,01U, EX3215(16)-02U,03U EX3215(16)N-01,01S,01U 1 2 3 4 6 5 7 9 10 11 12 13 SW=3-4 SW=5-6 EX5214N-01,01U 24 20 21 19 18 23 22 17 25 29 27 26 49 50 EX3215(16)-02U,03U 30 31 39 38 37 36 35 33 32 34 41 40 42 43 EX3215(16)N-01U EX3215(16)-02U,03U EX5214N-01U 46 47 48 44 45 60 jintex.in

Page 63 — SPECIFIC PARTS (2)

WilliS& (2) SPECIFIC PARTS (2) REF.NO. PART NO. DESCRIPTION QT. 1 274021-92BO ;J\Jv1i'- HOLDER 2 0070130 :./ /M3.5 X 8 SCREW 3 2740230 SPRING 4 0070090 :./ /M3 X 5 SCREW 5 274025AO 7 -1' ',.rjj-15- FINGER GUARD 6 0070080 :./ /M3 X 4 SCREW 7 xxxxxx ¥JII PRESSER FOOT 8 2119190 PIN 9 2119180 SPRING 10 0031500 t\fl:j"j- ':1 t- /(1 NUT 11 2119200 A "'j'IJ /-11::'/ SPRING PIN 12 211915AO ¥JIIffi PRESSER FOOT FINGER 13 211916AO ¥J1Iffi PRESSER FOOT FINGER 14 2119170 IfXi'it& BRACKET 15 0050890 :./ /C3 X 5.45 SCREW 16 3002480 Bil?i WASHER 17 xxxxxx ¥JII PRESSER FOOT 18 xxxxxx ¥JIIffi PRESSER FOOT FINGER 19 0012290 :./ /C3 X 4.5 SCREW 20 2740300 t'liiifXi'i*& SET PLATE 21 0012290 lJ!Ij\;j',:.) /(3 X 4.5 SCREW 22 2126680 ¥JIIflfiD}J*& UNCURLER 23 0050300 :./ /(1 X 2.3 SCREW 24 274029-92BO ;J\Jv1i'- HOLDER 25 0070130 /M3.5 X 8 SCREW 26 2740330 FINGER GUARD 27 0070090 :./ /M3 X 5 SCREW 28 2740630 SPRING 29 0070080 /M3 X 4 SCREW 30 xxxxxx ¥JII (tfi) PRESSER FOOT ASSY. 31 0070130 :./ /M3.5 X 8 SCREW 32 208958-BO I::/ PIN 33 212499-BO PIN 34 0054090 t\fl:l -j- ':I 1-- /C3 NUT 35 2124980 5•:J=f LATCH 36 2740280 SPRING 37 0031530 -j- ':1 1-- /(1 NUT 38 2085310 flfiDJ.Jtllii FABRIC GUIDE 39 0050300 :./ /(1 X 2.3 SCREW 40 2740220 SPRING 41 0070090 :./ /M3 X 5 SCREW 42 2740260 7 -1' /'fJ-jj'- t-:' FINGER GUARD 43 0070080 lJ!iJ''*'l/M3 X4 SCREW 44 270083E9UO (m,) SIDE COVER ASSY. 45 274116A910 ¥J!It4 PRESSER BAR. 46 275027AO NEEDLE THREAD TAKE-UP 47 273004BO UPPER KNIFE LEVER 48 270204-910 FABRIC GUIDE 49 2401020 Bil?i WASHER 50 2101220 A.l"\-"'t- SPACER e xxxxxx e "xxxxxx" representsthe gauge part. Please 94-109 refer to the gauge part list (page 94-109). From the library of: Superior Sewing Machine & Supply LLC

Page 64

地縫い(Plain seaming) 裾引き(Blindhemming) EX5204-02H 裾引き(Blindhemming) 33 36mm 62 jintex.in

Page 65 — SPECIFIC PARTS (3)

8NB& (3) SPECIFIC PARTS (3) REF.NO. PART NO. DESCRIPTION QT. 1 xxxxxx PRESSER FOOT 2 2119940 FABRIC GUARD 3 0013330 /(1 X 4 SCREW 4 xxxxxx PRESSER FOOT FINGER 5 2116000 UNCURER 6 0050300 /(1 X 2.3 SCREW 7 2106850 CLOTH GUIDE BRACKETASSY. 8 2106800 CLOTH GUIDE BRACKET 9 2106810 HINGE/EDGEGUIDE BRACKET 10 0051840 /(5 SCREW 11 2011910 SPRING 12 0030440 /(5 NUT 13 2106820 STOPPER 14 0050530 /(4 X 4.8 SCREW 15 2106830 PIN 16 2106840 FLAT SPRING 17 0029060 /(4 X 2.6 SCREW 18 0070200 /M4 X 10 SCREW 19 2012520 SPRING WASHER 20 2122650 CLOTH GUIDE ASSY. 21 2106900 BRACKET 22 0050880 /(4 x 7.5 BOLT 2 23 1670660 WASHER 24 2122660 CLOTH GUIDE 2 25 0050570 /(3 X 5 SCREW 26 2106890 ADJUSTING PLATE 27 0051570 /(3 X 4.5 SCREW 2 28 0053630 SCREW 29 0029050 /(5 X 4.5 SCREW 30 1371420 WASHER 31 2122670 STOPPER 32 0012060 /(4 X 5.3 SCREW 33 212268A910 {36mm} FOLDERASSY. (36mm) 34 205835AO AUXILIARY PLATE 35 0052990 /(3 X 2.6 SCREW 36 303312AO STOPPER 37 3033130 CLAMP e XXXXXX e "xxxxxx" representsthe gauge part. Please 94-109 refer to the gauge part list (page 94-109). ( ft-;!\, 'o From the library of: Superior Sewing Machine & Supply LLC

Page 66

地縫い(Plain seaming) EX5214-04 64 jintex.in

Page 67 — SPECIFIC PARTS (4)

WJ89fa (4) SPECIFIC PARTS (4) REF.NO. PART NO. DESCRIPTION QT. xxxxxx &U& NEEDLE PLATE 2 271010AO Ciru> BRACKET(FRONT) 3 xxxxxx ¥iii PRESSER FOOT 4 xxxxxx ¥!lilT\ PRESSER FOOT FINGER 5 2771260 MiDJ.J¥!1I FABRIC GUARD 6 0012310 /(1 X 3.4 SCREW 7 2116600 UNCURLER 8 0050300 .!Jl:t. /(1 X 2.3 SCREW 1 9 210530A9TO (M!) TENSION SPRING ASSY. 1 10 263543-TAO KNOB 2 11 2084480 57-:r:.•:;J-. RATCHET 2 12 263544-TAO SPRING SHIELD 2 13 2103190 &1.1-TJID TENSION DISC 4 14 2084490 7:r:.JII 1-- FELT 2 15 005082AO SCREW STUD 2 16 201086AO l±til (If!) SPRING (MEDIUM) 17 210531-9TO (*D) TENSION SPRING ASSY. 18 2010680 SPRING (LIGHT) 19 2103370 SPRING 20 2405410 WASHER 21 2403020 A."\-ij"- SPACER 22 272528AO m!Dhz•Ji:t DIFFERENTIALFEED BAR 23 272501AO I*--t!/ ECCENTRIC e xxxxxx I o e "xxxxxx"representsthe gauge part. Please 94- 1o9 refer to the gauge part list (page 94- 109). From the library of: Superior Sewing Machine & Supply LLC

Page 68

seaming) EX3215(16)-A04 EX3215(16)H-A05 11 \ EX3215(16)-A04 From the library of: Superior Sewing Machine & Supply LLC

Page 69 — SPECIFIC PARTS (5)

WJiilli.(S) SPECIFIC PARTS (5) REF.NO. PART NO. DESCRIPTION QT. 210530A9TO TENSION SPRINGASSY. 2 263543-TAO KNOB 3 2084480 RATCHET 4 263544-TAO SPRING SHIELD 5 2103190 TENSION DISC 2 6 2084490 FELT 7 005082AO SCREW STUD 8 201086AO SPRING (MEDIUM) 9 210531-9TO TENSION SPRINGASSY. 10 2010680 SPRING (LIGHT) 11 xxxxxx PRESSER FOOT ASSY. 12 0070130 SCREW 1 13 208958-80 PIN 3 14 2771080 FABRIC GUARD 15 2028750 WASHER 16 0051570 SCREW 17 2740240 SPRING 18 0071660 SCREW 19 2740270 FINGER GUARD 20 0070080 SCREW 21 2403471 SPRING 22 273009AO LOWER KNIFE HOLDER 23 275030AO THREAD GUIDE 24 2101220 SPACER 25 2405410 WASHER 26 27051281 CRANKSHAFT 27 270083C9UO SIDE COVER ASSY. 28 274116-910 PRESSER BAR. 29 2751220 NEEDLE THREAD TAKE-UP 30 2741120 SHAFT 31 274114-920 COLLAR 32 0045310 BOLT 33 2401020 WASHER 34 2050610 RING 35 2741130 SHAFT XXXXXX e "xxxxxx"representsthe gauge part. Please 94--109 refer to the gauge part list (page 94-1 09). ( fcc!.'o From the library of: Superior Sewing Machine & Supply LLC

Page 70

地縫い(Plain seaming) EX3244-A04 1 6 7 5 4 8 3 2 9 10 11 12 13 トラクター押工 Tractor presser foot 14 15 16 17 19 20 25 18 23 24 27 29 30 28 26 31 21 22 68 jintex.in

Page 71 — SPECIFIC PARTS (6)

WJIIB£ (6) SPECIFIC PARTS (6) REF.NO. PART NO. DESCRIPTION QT. 210530A9TO (1ffi) TENSION SPRINGASSY. 2 263543-TAO 'Yx2 KNOB 3 2084480 RATCHET 4 263544-TAO SPRING SHIELD 5 2103190 TENSION DISC 2 6 2084490 7I.J!I t- FELT 7 005082AO SCREW STUD 8 201086AO I±*il (tp) SPRING (MEDIUM) 9 210531-9TO (ftfi) TENSION SPRINGASSY. 10 2010680 (jpj) SPRING (LIGHT) 11 xxxxxx ttfii (kfi) PRESSER FOOT ASSY. 12 0070130 7J /M3.5 X 8 SCREW 13 208958-BO PIN 3 14 2740240 SPRING 15 0071660 /M3 SCREW 16 2740270 7-< /tJ-jj- F FINGER GUARD 17 0070080 li!'J'-*:J /M3 X 4 SCREW 18 2403470 SPRING 19 273009AO ""f}C:Ai:l' LOWER KNIFE HOLDER 20 275030AO THREAD GUIDE 21 2403020 :A"'\-ij"- SPACER 22 2405410 WASHER 23 270083C9UO iJIIJmit.JI{- Uti) SIDE COVER ASSY. 24 274116-910 ttfiit/j PRESSER BAR. 25 275122AO NEEDLE THREAD TAKE-UP 26 2741120 ttfii"f:i'fi!l SHAFT 27 274114-920 t.J5- COLLAR 28 0045310 t- /MS X 12 BOLT 29 2401020 WASHER 30 2050610 RING 31 2741130 fill SHAFT • XXXXXX e "xxxxxx"representsthe gauge part. Please 94-109 refer to the gauge part list (page 94-1 09). "(( From the library of: Superior Sewing Machine & Supply LLC

Page 72

裾引き(Blindhemming) EX5203・5205-12 EX5205-12Z1 40mm 70 jintex.in

Page 73 — SPECIFIC PARTS (7)

wmms& (7) SPECIFIC PARTS (7) REF.NO. PART NO. DESCRIPTION QT. 1 2106850 CLOTH GUIDE BRACKETASSY. 2 2106800 CLOTH GUIDE BRACKET 3 2106810 HINGE/EDGEGUIDE BRACKET 4 0051840 SCREW 5 2011910 SPRING 6 0030440 NUT 7 2106820 STOPPER 8 0050530 SCREW 9 2106830 PIN 10 2106840 FLAT SPRING 11 0029060 SCREW 12 0070200 SCREW 13 2012520 SPRING WASHER 14 2106910 CLOTH GUIDEASSY. 15 2106900 BRACKET 16 0050880 BOLT 2 17 1670660 WASHER 2 18 2053610 BRACKET 19 0050570 SCREW 20 2106890 ADJUSTING PLATE 21 0051570 SCREW 2 22 0024300 SCREW 23 0029050 SCREW 24 1371420 WASHER 25 2106920 STOPPER 26 0012060 SCREW 27 201211C910 FOLDERASSY. (40 rum ) 28 2058350 AUXILIARY PLATE 29 0052990 SCREW 30 303312AO STOPPER 31 3033130 CLAMP 32 xxxxxx PRESSER FOOT 33 xxxxxx PRESSER FOOT FINGER 34 2105840 UNCURLER 35 0050300 SCREW 36 2105850 WASHER 37 270037DO CLOTH PLATE (NARROW) 38 3080930 LEVER 39 270012DO FRONT COVER (LEFT) 40 270505A1 FANASSY. 41 xxxxxx PRESSER FOOT 42 xxxxxx PRESSER FOOT FINGER 43 2105840 UNCURLER 44 2105850 WASHER 45 0050300 SCREW 46 273008EO LOWER KNIFE HOLDER 47 2119410 SPRING • xxxxxx I o e "xxxxxx''representsthe gauge part. Please 94- 109 refer to the gauge part list (page 94-109). From the library of: Superior Sewing Machine & Supply LLC

Page 74

?'(Serging) EX5203-22 EX5204-22Z2 EX5204-23Z3 @) • From the library of: Superior Sewing Machine & Supply LLC

Page 75 — SPECIFIC PARTS (8)

wmtB& (s) SPECIFIC PARTS (8) REF.NO. PART NO. DESCRIPTION QT. xxxxxx t'f!I PRESSER FOOT 2 xxxxxx PIJI/1\ PRESSER FOOT FINGER 3 2771260 flliDJJPIJI FABRIC GUARD 4 0012310 /(1 X 3.4 SCREW 5 2116000 UNCURLER 6 0050300 ljl;jt /(1 X 2.3 SCREW 1. 7 xxxxxx t'f!I PRESSER FOOT 1 8 3017250 flliDJJPIJI FABRIC GUARD 9 0012290 /(3 X 4.5 SCREW 10 xxxxxx PIJI/1\ PRESSER FOOT FINGER 11 270012DO (_tc) FRONT COVER (LEFn 12 xxxxxx ¥iii PRESSER FOOT 13 2771260 flfiDJ.Jfipi FABRIC GUARD 14 0012310 .IJllj\;;._ /(1 X 3.4 SCREW 15 xxxxxx Will\ PRESSER FOOT FINGER 16 204668AO PIJififiDJ.Jti UNCURLER 17 0050300 .!J!-*-:J /(1 X 2.3 SCREW 18 273003AO ..t)'!.At:i' UPPER KNIFE LEVER 19 273014AO J:)I!.Am:f. UPPER KNIFE CLAMP 20 270012FO (_tc) FRONT COVER (LEFn 21 270500GO ?5/?fl!l CRANKSHAFT 22 271518B910 J:J It- -t:i' (-t! •y 1--) UPPER LOOPER HOLDERASSY. 23 271505-920 LEVER 24 0071500 i'\tfpfiJ v 1-- /M6 X 12 BOLT 25 2715460 t:'/ <fiD PINASSY. 26 2021760 OIL WICK 27 0045450 :t\tf:l7\.lJ:-* /M3 X 4 SCREW 28 271513B910 <m> UPPER LOOPER HOLDERASSY. 29 179130-050 7IJvt-- FELT 30 0070541 .JJl!J'-* /M3.5 X 6 SCREW 31 2330350 7IJ!I 1-- FELT 32 271510RO J:Jv-1 UPPER LOOPER HOLDER BASE 33 2050881 :f.i PLUG 34 272616-920 I:f.i!/ ECCENTRIC 35 0045140 :t\tf:I7\.1J:;?-. /MS X 5 SCREW 36 2405390 WASHER • XXXXXX e "xxxxxx''representsthe gauge part. Please 94-109 refer to the gauge part list (page 94-109). From the library of: Superior Sewing Machine & Supply LLC

Page 76

サージング(Serging) EX5204-5214-24 EX5204-24 EX5204-24 EX5214-24 巻き縫い(Turn down hemming) EX5204-32R1,32R2 74 jintex.in

Page 77 — SPECIFIC PARTS (9)

専用部品 (9) SPECIFIC PARTS (9) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 押工 PRESSER FOOT 1 2 XXXXXX 押工爪 PRESSER FOOT FINGER 1 3 2771280 補助押工 FABRIC GUARD 1 4 0012310 平小ネジ/C1 × 3.4 SCREW 1 5 2116000 押工補助板 UNCURLER 1 6 0050300 平小ネジ/C1 × 2.3 SCREW 1 7 210530A9T0 糸調子 (組) TENSION SPRING ASSY. 1 8 263543-TA0 ツマミ KNOB 1 9 2084480 ラチェット RATCHET 1 10 263544-TA0 受皿 SPRING SHIELD 1 11 2103190 調子皿 TENSION DISC 2 12 2084490 フェルト FELT 1 13 005082A0 調子棒/C5 SCREW STUD 1 14 201086A0 圧縮バネ (中) SPRING (MEDIUM) 1 15 210531-9T0 糸調子 (組) TENSION SPRING ASSY. 1 16 2010680 圧縮バネ (弱) SPRING (LIGHT) 1 17 2405410 座金 WASHER 1 18 273008A0 下メス台 LOWER KNIFE HOLDER 1 19 XXXXXX 押工 PRESSER FOOT 1 20 XXXXXX 押工爪 PRESSER FOOT FINGER 1 21 2771260 補助押工 FABRIC GUARD 1 22 0012310 平小ネジ/C1 × 3.4 SCREW 1 23 2116000 押工補助板 UNCURLER 1 24 0050300 平小ネジ/C1 × 2.3 SCREW 1 25 2101220 スペーサー SPACER 1 26 2403020 スペーサー SPACER 1 27 2750080 糸道 THREAD GUIDE 1 28 2750170 針糸繰り NEEDLE THREAD TAKE-UP 1 29 2750090 糸繰り THREAD TAKE-UP 1 ● XXXXX はゲージパーツです。部品番号は94~109頁のゲージパーツ表を参照してください。 "XXXXX" represents the gauge part. Please refer to the gauge part list (page 94-109). 75 jintex.in

Page 78 — ヒダ取り(Shirring)

ヒダ取り(Shirring) EX3215(16)-42,42P1,42P2,43 EX5214-43,43P1,43P2 1 37 9 40 4 10 39 38 7 2 43 44 6 5 42 45 46 14 15 36 37 8 35 13 12 34 33 32 11 EX5214-43,43P1,43P2 50 EX3215(16)-42,42P1 42P2,43 51 EX5214-43P1,43P2 57 66 EX3215(16)-42P1,42P2 58 20mm 59 42P2,43 25mm 55 54 53 * 56 EX5214-43P1,EX3215(16)-42P1 20mm Option EX5214-43P1,EX3215(16)-42P1 27 26 17 16 31 23 22 21 20 19 18 47 49 48 76 jintex.in

Page 79 — SPECIFIC PARTS (10)

SPECIFIC PARTS (10) REF.NO. PART NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 275514-911 2755150 007022A0 2403320 0071910 2109470 0012060 2755160 0071600 2048880 0048060 2109450 0053280 2109460 0012060 275517-920 007021A0 263543-TA0 2084480 2109400 2040910 005082A0 2109440 2755180 0048060 2755200 2403200 2755210 2025220 2070450 2403230 2062250 001457-10 2109550 0050290 2124350 2124360 0070990 2024330 0048060 2755220 179765-150 0071640 2401040 2755230 007022A0 2109610 0070120 1379060 2755240 2755250 2000980 270035B1 2109620 0052100 2118850 0012020 1670660 2118860 部品名称ヒダ取り付け製ブラケット十字穴ナベネジ/M4 × 14 スペーサー平ネジ/M4 × 27 板バネ平ネジ/C4 × 5.3 ブラケット段付ネジ/M6 皿バネ六角ナット/M6 ブラケット平ネジ/C4 × 5.5 板バネ平ネジ/C4 × 5.3 バネ案内十字穴ナベネジ/M4 × 12 ツマミラチェット圧縮バネ座金調子棒/C5 座金レバー六角ナット/M6 ブラケット圧縮バネ軸リング座金圧縮バネカラー止ネジ/C5 × 3.3 座金平ネジ/C3 × 7.5 ケーブルケーブル受ケ段付ネジ/M6 座金六角ナット/M6 ラッチナット/M4 段付ネジ/M6 座金ブラケット十字穴ナベネジ/M4 × 14 布案内平ネジ/M3.5 × 6 座金ブレードブレード座金クロスプレートブラケット/バインダー止ネジ/C7 × 4 バインダー (20) 平ネジ/C4 × 7 座金バインダー (25) DESCRIPTION SHIRRING ATTACHMENT ASSY. BRACKET SCREW SPACER SCREW FLAT SPRING SCREW BRACKET SCREW SPRING NUT BRACKET SCREW FLAT SPRING SCREW SPRING GUIDE SCREW KNOB RATCHET SPRING WASHER SCREW STUD WASHER LEVER NUT BRACKET SPRING SHAFT RING WASHER SPRING COLLAR SCREW WASHER SCREW CABLE CABLE SUPPORT SCREW WASHER NUT LATCH NUT SCREW WASHER BRACKET SCREW FABRIC GUIDE SCREW WASHER BLADE BLADE WASHER CLOTH PLATE BINDER BRACKET SCREW BINDER (20) SCREW WASHER BINDER (25) QT. 1 1 1 1 1 1 2 1 1 2 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 2 1 1 1 1 1 1 1 1 1 1 2 1 2 1 77 jintex.in

Page 80

ヒダ取り (Shirring) EX5214-43 4 3 2 1 パイピング (Paiping) EX5214-43P1,43P2 21 19 EX3215(16)-42P2 EX5214-43P2 32 EX3215(16)-42P1,EX5214-43P1 注文品です。 Option EX3215(16)-43P1,EX5214-43P1 33 EX5214-43P1,43P2 EX3215(16)-42,43 5 6 14 13 10 8 15 16 18 17 7 12 11 9 EX3215(16)-42P1,42P2 23 24 30 31 25 27 26 29 28 22 34 35 40 36 38 37 39 41 44 43 42 78 jintex.in

Page 81 — SPECIFIC PARTS (11)

REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 押工 PRESSER FOOT 1 2 2116000 押工補助板 UNCURLLER 1 3 0050300 平ネジ/C1 × 2.3 SCREW 1 4 274025A0 フィンガーガード FINGER GUARD 1 5 XXXXXX 押工 PRESSER FOOT 1 6 0070130 平小ネジ/M3.5 × 8 SCREW 1 7 208958-B0 ピン PIN 1 8 212499-B0 段付ピン PIN 1 9 0054090 六角ナット NUT 1 10 2124980 ラッチ LATCH 1 11 2740280 ネジバネ SPRING 1 12 0031530 ナット/C1 NUT 1 13 2085320 補助押工 FABRIC GUIDE 1 14 0050300 平ネジ/C1 × 2.3 SCREW 1 15 2740220 スプリング SPRING 1 16 0070090 平ネジ/M3 × 5 SCREW 1 17 2740260 フィンガーガード FINGER GUARD 1 18 0070080 平小ネジ/M3 × 4 SCREW 1 19 XXXXXX 押工 PRESSER FOOT 1 20 2025880 座金 WASHER 1 21 274025A0 フィンガーガード FINGER GUARD 1 22 XXXXXX 押工 PRESSER FOOT 1 23 274103-910 押工取付台(組) BRACKET ASSY. 1 24 0070130 平小ネジ/M3.5 × 8 SCREW 1 25 208958-B0 ピン PIN 1 26 2028750 座金 WASHER 1 27 0029210 平小ネジ/C3 × 4 SCREW 1 28 2044600 補助押工 FABRIC GUIDE 1 29 0050770 平ネジ/C1 × 3.4 SCREW 1 30 2740270 フィンガーガード FINGER GUARD 1 31 0070080 平小ネジ/M3 × 4 SCREW 1 32 0041300 テープ通し具 TAPE WIRE 2 33 2403020 スペーサー SPACER 1 34 000403-9S0 テープガイドセット TAPE DISC ASSY. 1 35 0004060 フェルト FELT 1 36 0004040 カノコ台 TAPE DISC 1 37 0040120 平ネジ/M4 × 12 SCREW 1 38 0004070 カラー COLLAR 1 39 0004080 調節ネジ SCREW 1 40 0040050 取付棒 BAR 1 41 0004090 取付軸 SHAFT 1 42 0048180 六角ナット NUT 1 43 000410-SA0 ブラケット BRACKET 1 44 0049080 木ネジ/M5 SCREW 3 ● XXXXXX はゲージパーツです。部品番号は94~109頁のゲージパーツ表を参照してください。 "XXXXXX" represents the gauge part. Please refer to the gauge part list (page 94-109). 79 jintex.in

Page 82 — Uテープ付け(Attaching U-shaped tape) EX3216-53

Uテープ付け(Attaching U-shaped tape) EX3216-53 SW=5mm 3 SW=4mm 4 1 2 5 6 7 8 9 17 16 18 19 20 21 12 10 11 13 14 15 22 29 30 23 26 27 28 24 31 35 32 33 34 80 jintex.in

Page 83 — 専用部品 (12)

専用部品 (12) SPECIFIC PARTS (12) REF.NO. PART NO. 1 2755120 2 0071800 3 2092000 4 2089940 5 0012160 6 2089970 7 270013A0 8 XXXXXX 9 0070130 10 208958-B0 11 212499-B0 12 0054090 13 2124980 14 2740280 15 0031530 16 2085310 17 0050300 18 2740220 19 0070090 20 2740260 21 0070080 22 0003370 23 0003440 24 0049080 25 0003410 26 0001890 27 3030670 28 0048050 29 0003380 30 0003390 31 0003400 32 0004670 33 0003430 34 0004680 35 0003390 部品名称テープ案内平ネジ /M3.5 × 4.5 バインダー (袋綴 10) バインダー (袋綴 8) 平ネジ /C4 × 5.5 案内板/バインダー前カバー(左) 押工(組) 平小ネジ/M3.5 × 8 ピン段付ピン六角ナット/C3 ラッチネジリバネナット/C1 補助押工平ネジ/C1 × 2.3 ネジリバネ平ネジ/M3 × 5 フィンガーガード平小ネジ/M3 × 4 テープ台 (組) ブラケット木ネジ/4.5 軸座金バネ座金六角ナット/M5 カノコ台段付ネジカノコ台バネ受ケ圧縮バネカラー段付ネジ DESCRIPTION TAPE GUIDE SCREW BINDER (10) BINDER (8) SCREW BINDER GUIDE FRONT COVER (LEFT) PRESSER FOOT ASSY. SCREW PIN PIN NUT LATCH SPRING NUT FABRIC GUIDE SCREW SPRING SCREW FINGER GUARD SCREW TAPE DISC ASSY. BRACKET SCREW ROD WASHER SPRING WASHER NUT TAPE REEL STAND SCREW TAPE REEL STAND COVER SPRING SEAT SPRING COLLAR SCREW QT. 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 ● xxxxxx はゲージパーツです。部品番号は94~109頁のゲージパーツ表を参照してください。 "xxxx" represents the gauge part. Please refer to the gauge part list (page 94-109). 81 jintex.in

Page 84

テープ付け(Attaching tape) EX5214-53C3,M53,54,84 EX5214H-55 EX5214-M53,53C3 EX5214-84は除く Except EX5214-84 14 EX5214-M53 82 jintex.in

Page 85 — SPECIFIC PARTS (13)

専用部品 (13) SPECIFIC PARTS (13) REF.NO. PART NO. 部品名称 DESCRIPTION Q.T. 1 275542-910 テープ案内 (組) TAPE GUIDE ASSY. 1 2 2755100 テープ案内 TAPE GUIDE 1 3 0070660 段付ネジ/M4 SCREW 1 4 2103070 波板座金 WASHER 2 5 2755110 テープ案内 TAPE GUIDE 1 6 2112670 テープ繰り TAPE TAKE-UP 1 7 2087350 テープ案内 TAPE GUIDE 1 8 0013330 平小ネジ/C1 × 4 SCREW 1 9 XXXXXX 押工 SCREW 1 10 XXXXXX 押工爪 PRESSER FOOT FINGER 1 11 2116000 押工補助板 UNCURLER 1 12 0050300 平ネジ/C1 × 2.3 SCREW 1 13 2403020 スペーサー SPACER 1 14 2750540 糸繰り THREAD TAKE-UP 1 ● XXXXXX はゲージパーツです。 ● "XXXXXX" represents the gauge part. Please 部品番号は 94~109 頁のゲージパーツ表を refer to the gauge part list (page 94-109). 参照してください。 83 jintex.in

Page 86

テープ付け(Attaching tape) EX5214-54 EX5214H-55 7 6 5 1 4 8 3 2 9 10 11 EX5214-54 12 EX5214-54/445 16 EX5214-54/445 EX5214H-55 13 14 15 84 jintex.in

Page 87 — SPECIFIC PARTS (14)

専用部品 (14) SPECIFIC PARTS (14) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 210530A9T0 糸調子(組) TENSIÓN SPRING ASSY. 1 2 263543-TA0 ツマミ KNOB 1 3 2084480 ラチェット RATCHET 1 4 263544-TA0 受皿 SPRING SHIELD 1 5 2103190 調子皿 TENSION DISC 2 6 2084490 フェルト FELT 1 7 005082A0 調子棒/C2 SCREW STUD 1 8 201086A0 圧縮バネ(中) SPRING (MEDIUM) 1 9 210531-9T0 糸調子(組) TENSION SPRING ASSY. 1 10 2010880 圧縮バネ(弱) SPRING (LIGHT) 1 11 2119410 圧縮バネ SPRING 1 12 2403020 スペーサー SPACER 1 13 272528A0 駆動送り台 DIFFERENTIAL FEED BAR 1 14 272501A0 エキセン ECCENTRIC 1 15 273008A0 下メス台 LOWER KNIFE HOLDER 1 16 2405410 座金 WASHER 1 85 jintex.in

Page 88

バックタック (Backlatching) EX5204(T)-82 EX5214-83,84 EX5214-84 EX5204(T)-82 EX5214-83 EX5204(T)-82 EX5214-83,84 EX5214-84 86 jintex.in

Page 89 — SPECIFIC PARTS (15)

専用部品 (15) SPECIFIC PARTS (15) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 270037C0 クロスプレート (狭巾) CLOTH PLATE (NARROW) 1 2 271010A0 取付板(前) BRACKET (FRONT) 1 3 270037D0 クロスプレート (狭巾) CLOTH PLATE (NARROW) 1 4 3080930 レバー LEVER 1 5 308085-D0 取付板(前) BRACKET (FRONT) 1 6 XXXXXX 押工 PRESSER FOOT 1 7 XXXXXX 押工爪 PRESSER FOOT FINGER 1 8 2771260 補助押工 FABRIC GUARD 1 9 0012310 平小ネジ/C1 × 3.4 SCREW 1 10 XXXXXX 押工 PRESSER FOOT 1 11 XXXXXX 押工爪 PRESSER FOOT FINGER 1 12 273008B0 下メス台 LOWER KNIFE HOLDER 1 13 2119410 圧縮バネ SPRING 1 14 XXXXXX 針板 NEEDLE PLATE 1 15 2087350 テープ案内 TAPE GUIDE 1 16 0013330 平小ネジ/C1 × 4 SCREW 1 17 270505B1 ファン (組) FAN ASSY. 1 18 2403020 スペーサー SPACER 1 ● XXXXXX はゲージパーツです。 ● "XXXXXX" represents the gauge part. Please 部品番号は94~109頁のゲージパーツ表を refer to the gauge part list (page 94-109). 参照してください。 87 jintex.in

Page 90 — 地縫い・バックタック・裾引き (Plain seaming・Backlatching・Blindhemming) EX5204-92M1

地縫い・バックタック・裾引き (Plain seaming・Backlatching・Blindhemming) EX5204-92M1 裾引き(Blindhemming) 36mm 88 jintex.in

Page 91 — SPECIFIC PARTS (16)

専用部品 (16) SPECIFIC PARTS (16) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 押工 PRESSER FOOT 1 2 2119940 補助押工 FABRIC GUARD 1 3 0013330 平小ネジ/C1 × 4 SCREW 1 4 XXXXXX 押工爪 PRESSER FOOT FINGER 1 5 2116000 押工補助板 UNCURLER 1 6 0050300 平ネジ/C1 × 2.3 SCREW 1 7 270037C0 クロスプレート (狭巾) CLOTH PLATE (NARROW) 1 8 271010A0 取付板(前) BRACKET (FRONT) 1 9 273008B0 下メス台 LOWER KNIFE HOLDER 1 10 2106850 定規ブラケット (組) CLOTH GUIDE BRACKET ASSY. 1 11 2106800 定規ブラケット CLOTH GUIDE BRACKET 1 12 2106810 ヒンジ/エッジブラケット HINGE/EDGE GUIDE BRACKET 1 13 0051840 段ネジ/C5 SCREW 1 14 2011910 皿バネ SPRING 1 15 0030440 六角ナット/C5 NUT 1 16 2106820 ストッパー STOPPER 1 17 0050530 平ネジ/C4 × 4.8 SCREW 1 18 2106830 段付ピン PIN 1 19 2106840 板バネ FLAT SPRING 1 20 0029060 平ネジ/C4 × 2.6 SCREW 1 21 0070200 平ネジ/M4 × 10 SCREW 1 22 2012520 バネ座金 SPRING WASHER 1 23 275529-910 裾引定規台 CLOTH GUIDE 1 24 210690A0 ブラケット BRACKET 1 25 0050880 六角ボルト/C4 × 7.5 BOLT 2 26 1670660 座金 WASHER 2 27 2122660 裾引定規台 CLOTH GUIDE 1 28 0050570 平ネジ/C3 × 5 SCREW 1 29 2755300 調節板 ADJUSTING PLATE 1 30 0051570 平ネジ/C3 × 4.5 SCREW 2 31 0053630 調節ネジ SCREW 1 32 0029050 平ネジ/C5 × 4.5 SCREW 1 33 1371420 座金 WASHER 1 34 2122670 ストッパー STOPPER 1 35 0012060 平ネジ/C4 × 5.3 SCREW 1 36 212268A910 定規羽根(組)(36mm) FOLDER ASSY. (36mm) 1 37 205835A0 補助羽根 AUXILIARY PLATE 1 38 0052990 平ネジ/C3 × 2.6 SCREW 1 39 303312A0 ストッパー STOPPER 1 40 3033130 クランプ CLAMP 1 ● xxxxxx はゲージパーツです。 "xxxxxx" represents the gauge part. Please 部品番号は 94~109頁のゲージパーツ表を refer to the gauge part list (page 94-109). 参照してください。 89 jintex.in

Page 92

地縫い・裾引き (Plain seaming・Blindhemming) EX5214-92M2 裾引き (Blindhemming) 32 40mm 90 jintex.in

Page 93 — SPECIFIC PARTS (17)

専用部品 (17) SPECIFIC PARTS (17) REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 XXXXXX 押工 PRESSER FOOT 1 2 XXXXXX 押工爪 PRESSER FOOT FINGER 1 3 2105840 押工補助机 UNCURILER 1 4 0050300 平ネジ/C1 × 2.3 SCREW 1 5 2105850 座金 WASHER 1 6 2106850 定規ブラケット(組) CLOTH GUIDE BRACKET ASSY. 1 7 2106800 定規ブラケット CLOTH GUIDE BRACKET 1 8 2106810 ヒンジ/定規ブラケット HINGE/EDGE GUIDE BRACKET 1 9 0051840 段ネジ/C5 SCREW 1 10 2011910 皿バネ SPRING 1 11 0030440 六角ナットストッパー/C5 NUT 1 12 2106820 ストッパー STOPPER 1 13 0050530 平ネジ/C4 × 4.8 SCREW 1 14 2106830 段付ピン PIN 1 15 2106840 板バネ FLAT SPRING 1 16 0029060 平ネジ/C4 × 2.6 SCREW 1 17 0070200 平ネジ/M4 × 10 SCREW 1 18 2012520 バネ座金 SPRING WASHER 1 19 2106910 裾引定規(組) CLOTH GUIDE ASSY. 1 20 2106900 ブラケット BRACKET 1 21 0050880 六角ボルト/C4 × 7.5 BOLT 2 22 1670660 座金 WASHER 2 23 2053610 ブラケット BRACKET 1 24 0050570 平ネジ/C3 × 5 SCREW 1 25 2106890 調節板 ADJUSTING PLATE 1 26 0051570 平ネジ/C3 × 5 SCREW 2 27 0024300 調節ネジ/C3 × 12 SCREW 1 28 0029050 平ネジ/C3 × 4.5 SCREW 1 29 1371420 座金 WASHER 1 30 2106920 ストッパー STOPPER 1 31 0012060 平ネジ/C4 × 5.3 SCREW 1 32 201211C910 定規羽根(組)(40mm) FOLDER ASSY. (40 mm) 1 33 2058350 補助羽根 AUXILIARY PLATE 1 34 0052990 平ネジ/C3 × 2.6 SCREW 1 35 303312A0 ストッパー STOPPER 1 36 3033130 クランプ CLAMP 1 37 2401020 座金 WASHER 1 38 2101220 スペーサー SPACER 1 39 2750170 針糸繰り 91 NEEDLE THREAD TAKE-UP 1 ● XXXXX はゲージパーツです。 "XXXXXX" represents the gauge part. Please 部品番号は94~109頁のゲージパーツ表を refer to the gauge part list (page 94-109). 参照してください。 jinte.in

Page 94 — オプション(Option)

オプション(Option) EX5203-22, EX5204-01,02,24,32R1,32R2 EX5212-02 EX5214-01,03,M03,24,53C3,M53,54 EX5214H-55,EX5214N-01 EX3200(H)(N) Series 20 EX3200(H)(N) Series 21 EX3215(126)-01,01A,02,02A,03,A04, EX3244-03,A04 EX3215(16)H-A05 EX3215(16)N-01,01S 14 18 19 15 1 2 7 8 16 17 3 9 10 11 4 5 6 13 12 92 jintex.in

Page 95

オプション Option REF.NO. PART NO. 部品名称 DESCRIPTION QT. 1 2106850 定規ブラケット(組) CLOTH GUIDE BRACKET ASSY. 1 2 2106800 定規ブラケット CLOTH GUIDE BRACKET 1 3 2106810 ヒンジ/定規ブラケット HINGE/EDGE GUIDE BRACKET 1 4 0051840 段ネジ/C5 SCREW 1 5 2011910 皿バネ SPRING 1 6 0030440 六角ナット/C5 NUT 1 7 2106820 ストッパー STOPPER 1 8 0050530 平ネジ/C4 × 4.8 SCREW 1 9 2106830 段付ピン PIN 1 10 2106840 板バネ FLAT SPRING 1 11 0029060 平ネジ/C4 × 2.6 SCREW 1 12 0070200 平ネジ/C4 × 10 SCREW 1 13 2012520 バネ座金 SPRING WASHER 1 14 2106860 定規台(組) EDGE GUIDE BRACKET ASSY. 1 15 2106870 定規台 EDGE GUIDE BRACKET 1 16 0050880 六角ボルト/C4 × 7.5 BOLT 2 17 1670660 座金 WASHER 2 18 0012020 平ネジ/C4 × 7 SCREW 1 19 1670660 座金 WASHER 1 20 2046670 定規 EDGE GUIDE 1 21 201233A0 定規 EDGE GUIDE 1 93 jintex.in

Page 96 — EX3200 GAUGE PARTS LIST(1)

EX3200 ゲージパーツ表 (1) EX3200 GAUGE PARTS LIST(1) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押え(組) 上ルーバー上スプレッダー下ルーバー二重環ルーバー MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASSM. MAIN FEED DOG AUX.FEED DOG DIFF.FEED DOG PRESSER FOOT ASSM. UPPER LOOPER UPPER LOOPER LOWER LOOPER CHAINSTITCH LOOPER (16) EX3215-01/222(K) 2 3 4 5 277514P300 277514P400 277515P300 277513P400 277513P500 277323-130 (277324-130) (277318-130) 277326-130 2771170 2770100 #2 277014A1 #8 2770150 2770180 277325-130 2771180 (16) EX3215-01A/222 2 3 4 5 277514P300 277514P400 277515P300 277513P400 277513P500 277323-130 (277324-130) (277318-130) 277326-130 211907B0 2770100 #2 277014A1 #8 2770150 2770180 277325-130 211909B0 211910B0 94 ミシン形式ゲージ上メス下メステーラー受け二重環針受針留針 MACHINE TYPE /SPEC GAUGE NG SW 平メス FLAT NIFE 角メス ANGLED KNIFE OVERLOCK KNIFE FRONT REAR NEEDLE HOLDER NEEDLE 2 3 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 277026-921 DCX27 (16) EX3215-01/222(K) 3 4 5 #11 2 3 277027-921 277026-921 (16) EX3215-01A/222 3 4 5 202527A0 2022950 2770070 2770040 2770080 2770060 DCX27 277027-921 #11 jinte.in

Page 97 — EX3200 GAUGE PARTS LIST (2)

EX3200 ゲージパーツ表 (2) EX3200 GAUGE PARTS LIST (2) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工(組) 上ルーバー上スプレッダー下ルーバー二重環ルーバー MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASSM. MAIN FEED DOG AUX.FEED DOG DIFF.FEED DOG PRESSER FOOT ASSM. UPPER LOOPER UPPER SPREADER LOWER LOOPER CHAINSTITCH LOOPER (16) EX3215N-01/222 3 4 277563P400 277376-130 (27737-130) (277318B130) 277325-130 211909B0 2770100 #2 277014A1 #6 2770150 2770180 5 277563P500 211910B0 (16) EX3215N-01/232 3 4 277561P400 277374-130 (277375-130) (277318B130) 277330-130 2771870 5 277563P500 2770100 #2 277014A1 #6 2770150 2770180 5 277562P500 277329-130 2771880 (16) EX3215N-01S/272 3 4 277562P400 277405-130 (277406-130) (277318-130) 277325A130 211909C0 2770100 #2 277014A1 #6 2770150 2770180 5 277562P500 211910C0 95 ミシン形式ゲージ上メス角メス下メスオーバーロック二重環曲針針留 MACHINE TYPE /SPEC GAUGE UPPER KNIFE FLAT KNIFE ANGLED KNIFE LOWER KNIFE OVERLOCK FRONT REAR CHAINSTITCH NEEDLE GUARD FRONT REAR NEEDLE HOLDER (16) EX3215N-01/222 3 4 202527A0 2022950 2770070 2770040 2770080 2770060 277027-021 DCX27 #11 5 5 4 DCX27 (16) EX3215N-01/232 3 202527A0 2022950 2770070 2770040 2770080 2770060 277028-020 #11 5 6 (16) EX3215N-01S/272 3 4 202527A0 2022950 2770070 2770040 2770080 2770060 277027-021 DCX27 #11 5 Jinte x.in

Page 98 — EX3200 GAUGE PARTS LIST (3)

EX3200 ゲージパーツ表 (3) EX3200 GAUGE PARTS LIST (3) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工(組) 上ルーバー上スプレッダー下ルーバー二重ループーバー MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER UPPER UPPER LOWER CHAINSTITCH /SPEC NG SW PLATE DOG ASSM. DOG DOG FOOT ASSM. LOOPER LOOPER LOOPER LOOPER (16) 3 277582P400 277330-130 2771860 EX3215N-01U/232 5 277582P500 277374-130 277375-130 277318B130 2771870 2770100 #2 277014A1 #8 2770150 2770180 5 277583P500 277329-130 2771880 6 277583P600 2 3 277514R300 2771170 4 277514R400 277326-160 (16) 3 277515R300 277323-160 (277324-160) (277318-130) 2770100 #2 277014A1 #8 2770150 2770180 EX3215-02/223(K) 4 277513R400 2771180 5 277513R500 277325-160 96 ミシン形式ゲージ上メス角メス下メスオーバーロック二重針受針留平メス MACHINE TYPE GAUGE UPPER KNIFE LOWER OVERLOCK NEEDLE GUARD CHAINSTITCH NEEDLE GUARD NEEDLE /SPEC NG SW FLAT NIFE ANGLED KNIFE KNIFE REAR FRONT REAR FRONT HOLDER (16) 5 277027-021 EX3215N-01U/232 6 202527A0 2022950 2770070 2770040 2770080 277006A0 DCX27 #11 5 277028-020 2 3 4 277026-921 (16) 3 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 DCX27 EX3215-02/223(K) 4 #11 5 277027-921 jinte

Page 99 — EX3200 GAUGE PARTS LIST(4)

EX3200 ゲージパーツ表 (4) EX3200 GAUGE PARTS LIST(4) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工(組) 上ルーバー上スプレッダ下ルーバー二重環ルーバー MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASSM. MAIN FEED DOG AUX.FEED DOG DIFF.FEED DOG PRESSER FOOT ASSM. UPPER LOOPER UPPER LOOPER LOWER LOOPER CHAINSTITCH LOOPER NG SW 277514R300 277514R400 277323-160 (277324-160) (277318-130) 277326-160 277907B0 2770100 #2 277014A1 #8 2770150 2770180 (16) EX3215-02A/223 3 4 277515R300 3 4 277513R500 277323-160 (277324-160) (277318-130) 277325-160 211909B0 211910B0 (16) EX3215-02A/233 5 5 277564P500 277327-160 (277328-160) (277318-130) 277329-160 2771880 2770100 #2 277014A1 #8 2770150 2770180 6 277564P600 (16) EX3215-02U/223(K) 3 5 277580R500 277323-160 (277324-160) (277318-130) 277325-160 2771180 2770100 #2 277014A1 #8 2770150 2770180 97 ミシン形式ゲージ上メス下メスオーバーロック二重環受針留 MACHINE TYPE /SPEC GAUGE NG SW UPPER KNIFE FLAT NIFE 角メス ANGLED KNIFE LOWER KNIFE 前 REAR 前 FRONT 後 REAR CHAINSTITCH NEEDLE GUARD 前 FRONT 後 REAR NEEDLE HOLDER (16) EX3215-02A/223 2 3 4 277026-921 3 5 202527A0 2022950 2770070 2770040 2770080 2770060 DCX27 #11 277027-921 4 5 (16) EX3215-02A/233 5 5 202527A0 2022950 2770070 2770040 2770080 2770060 277028-920 DCX27 #11 6 (16) EX3215-02U/223(K) 3 5 201121A0 2107550 2022950 2770070 2770040 2770080 277006A0 277027-921 DCX27 #11 Jinte .in

Page 100 — EX3200 GAUGE PARTS LIST(5)

EX3200 ゲージパーツ表 (5) EX3200 GAUGE PARTS LIST(5) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工組上ルーバー上スプレッダー下ルーバー二重環ルーバー MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER UPPER UPPER LOWER CHAINSTITCH /SPEC NG SW PLATE DOG ASSM. DOG DOG FOOT ASSM. LOOPER LOOPER LOOPER CHAINSTITCH (16) 3 277517R400 277330-160 2771180 EX3215-03/233(K) 5 277517R500 277010A0 #5 277014B0 #9 2770150 2770180 6 277516R500 277329-160 2771190 (16) 3 4 277517R400 277327-160 (277328-160) (277318-132) 277330-160 2771180 EX3215-03/233(K) 5 277516R500 277010A0 #2 277014A1 #8 2770150 2770180 (16) 3 5 277581R500 277327-160 (277328-160) (277318-132) 277330-160 2771180 277010A0 #5 277014B0 #9 2770150 2770180 EX3215-03U/233(K) 5 277518R400 277329-160 2771190 EX3244-03/333(K) 3X2 4 277518R400 277327-160 (277328-160) (277318-132) 277329-160 277118A0 277010A0 #5 2770150 2770180 5X2 4 277519R400 277119A0 98 ミシン形式ゲージ上メス角メス下メスオーバーロック針受二重環針受針留 MACHINE TYPE GAUGE UPPER KNIFE LOWER KNIFE OVERLOCK NEEDLE CHAINSTITCH NEEDLE /SPEC NG SW FLAT NIFE ANGLED KNIFE REAR FRONT REAR FRONT REAR HOLDER (16) 3 5 277027-921 EX3215-03/233(K) 5 6 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 DCX27 #14 277028-920 (16) 3 4 277027-921 EX3215-03/233(K) 5 5 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 DCX27 #14 277028-920 (16) 3 5 277027-921 EX3215-03U/233(K) 5 201121A0 2107550 2022950 2770070 2770040 2770080 277006A0 DCX27 #14 EX3244-03/333(K) 3X2 4 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 277030-920 DCX27 5X2 4 277031-920 #11 Jinte.in

Page 101 — EX3200 GAUGE PARTS LIST(6)

EX3200 ゲージパーツ表 (6) EX3200 GAUGE PARTS LIST(6) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工(組) 上ルーバー上スプレッダ下ルーバー二重環ルーバー MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER UPPER UPPER LOWER CHAINSTITCH /SPEC NG SW PLATE DOG DOG DOG DOG FOOT ASSM. LOOPER LOOPER LOOPER CHAINSTITCH (16) 5 277524T502 277337-252 (277427-250) (277428-200) 277339-251 2771220 2770110 #3 2770140 #1 2770150 277018-CO EX3215-A04/435(K) 6 277524T602 EX3244-A04/435(K) 5 X 3 4 277525T402 277337-252 (277427-250) (277428-200) 277339-251 2771230 2770110 #3 2770150 277018-CO 277525T502 (16) 5 277524T602 277337-252 (277427-250) (277428-200) 277339-251 277122CO 2770170 #11 277014A1 #8 277015A0 277018-CO EX3215H-A05/535(K) 6 277524T702 7 277521R400 4 277521R400 277334-160 (277335-160) 277336-160 2771200 (16) 5 277520R500 277010A0 #5 277014B0 #9 2770150 2770180 EX3215-42/233(K) 5 277520R500 277331-160 (277332-160) 277333-160 2771210 6 277520R600 ミシン形式ゲージ上メス角メス下メスオーバート刺受二重環刺受針留 MACHINE TYPE GAUGE UPPER KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD CHAINSTITCH NEEDLE GUARD NEEDLE /SPEC NG SW FLAT NIFE ANGLED KNIFE FRONT REAR FRONT REAR HOLDER (16) 5 2770000 2116621 2770091 2770070 2770040 2770060 2770060 277029-820 DCX27 EX3215-A04/435(K) 6 #21 EX3244-A04/435(K) 5 X 3 4 2770000 2116621 2770091 2770070 2770040 2770060 2770060 277032-820 DCX27 #21 (16) 5 2770000 2116621 2770091 2770070 2770040 2770060 2770060 277073-820 DOX 5 EX3215H-A05/535(K) 6 #21 7 277027-921 4 201121A0 2107550 2022950 2770070 2770040 2770060 2770060 DCX27 (16) 5 #14 EX3215-42/233(K) 5 6 277028-820 99 Jinte.in

Page 102 — EX3200 GAUGE PARTS LIST(7)

EX3200 ゲージパーツ表 (7) EX3200 GAUGE PARTS LIST(7) ミシン形式ゲージ針板主送り歯 (組) 主送り歯本体補助送り歯差動送り歯押工 (組) 上ルーバー上スプレッダー下ルーバー二重ルーバー MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER UPPER UPPER LOWER CHAINSTITCH ISPEC NG SW PLATE DOG ASSM. DOG DOG DOG FOOT ASSM. LOOPER LOOPER LOOPER LOOPER (16) 3 4 277521R400 277334-160 (277335-160) 277336-160 277333-160 204502A1 277010A0 #5 277014B0 #9 2770150 2770180 EX3215-42P1/233(K) 5 6 277520R601 277331-160 (277332-160) 277318-130 277335-160 204505A0 (16) 3 4 277521R400 277334-160 (277335-160) 277336-160 204502A1 277010A0 #5 277014B0 #9 2770150 2770180 EX3215-42P2/233(K) 5 6 277520R601 277331-160 (277332-160) 277318-130 277335-160 204505A0 (16) 5 5 277520S500 277331-250 (277332-250) 277318-130 277333-250 2771210 2770100 #2 277014A1 #8 2770150 2770180 EX3215-43/335(K) 6 6 277520R600 (16) 4 4 277523R401 277330A160 277118B0 EX3215-53/233(K) 3 5 277523R501 277327A160 (277328-160) (277318-130) 2770100 #2 2770100 (16) 5 5 277522R501 277329A160 277119B0 100 ミシン形式ゲージ上メス角メス下メス前後前後針留針 MACHINE TYPE GAUGE UPPER KNIFE LOWER OVERLOCK NEEDLE GUARD CHAINSTITCH NEEDLE GUARD NEEDLE HOLDER ISPEC NG SW FLAT NIFE ANGLED KNIFE KNIFE FRONT REAR FRONT REAR (16) 3 4 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 277027-921 DCX27 EX3215-42P1/233(K) 5 6 277028-920 #14 (16) 3 4 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 277027-921 DCX27 EX3215-42P2/233(K) 5 6 277028-920 #14 (16) 5 5 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 277028-920 DCX27 EX3215-43/335(K) 6 6 #16 (16) 3 4 201121A0 2107550 2022950 2770070 2770040 2770080 2770060 277027-921 DCX27 EX3215-53/233(K) 5 5 277028-920 #11 jintex.in

Page 103 — EX5200 GAUGE PARTS LIST(1)

EX5200 ゲージパーツ表 (1) EX5200 GAUGE PARTS LIST(1) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工(組) 押工爪上ルーバー下ルーバー MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER PRESSER UPPER LOWER /SPEC NG SW PLATE DOG ASSM. DOG DOG FOOT ASSM. FOOT FINGER. LOOPER LOOPER EX5204-01/223(K) 3 277500P300 277300-16F0 (277301-16F0) (277318-13F0) 277302-16F0 201230C0 2103700 #1 2770100 #2 2770150 4 277500P400 5 277500P500 EX5204-01/233(K) 2 3 277500P300 277303-16F0 (277304-16F0) (277318-13F0) 277305-16F0 201230C0 201396B0 #56 277010B0 #6 2770150 4 277505P401 201310A0 #55 EX5214-01/283(K) 2 3 277585P300 277372A16F0 (277304B16F0) (277318D13F0) 277373-16F0 2780050 277199A0 #64 277010B0 #6 2770150 4 277585P400 277200A0 #65 EX5214N-01/283(K) 2 3 277585P300 277372A16F0 (277304B16F0) (277318D13F0) 277373-16F0 2780050 277199A0 #64 277010B0 #6 2770150 4 277585P400 277200A0 #65 EX5214N-01U/283(K) 2 3 277585P300 277372A16F0 (277304B16F0) (277318D13F0) 277373-16F0 2780050 277199A0 #64 277010B0 #6 2770150 4 277585P400 277200A0 #65 101 ミシン形式ゲージ上メス身メス下メスオーバーロック受針留針 MACHINE TYPE GAUGE UPPER KNIFE LOWER OVERLOCK NEEDLE GUARD NEEDLE /SPEC NG SW FLAT KNIFE ANGLED KNIFE FRONT REAR HOLDER NEEDLE EX5204-01/223(K) 4 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #9 5 EX5204-01/233(K) 2 3 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #9 4 EX5214-01/283(K) 2 3 201121A0 2107550 2011270 2770050 2770040 277022-920 DCX27 #9 4 2022950 EX5214N-01/283(K) 2 3 201121A0 2107550 2011270 2770050 2770040 277022-920 DCX27 #9 4 2022950 EX5214N-01U/283(K) 2 3 201121A0 2107550 2011270 2770050 2770040 277022-920 DCX27 #9 4 2022950 Jinte.in

Page 104 — EX5200 GAUGE PARTS LIST(2)

EX5200 ゲージパーツ表 (2) EX5200 GAUGE PARTS LIST(2) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工(組) 押工爪上ルーパー下ルーパー MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASSM. MAIN FEED DOG AUX.FEED DOG DIFF.FEED DOG PRESSER FOOT ASSM. PRESSER FOOT FINGER UPPER LOOPER LOWER LOOPER EX5204-02/233(K) - 3 277504R300 2103700 #1 2770100 4 277504R400 277303-16F0 (277304-16F0) (277318-130) 277305-16F0 201230C0 2103710 #2 2770150 5 277504R500 EX5204-02H/223(K) - 3 277500P300 277115A0 #12 2770100 #2 2770150 4 277500P400 277300-16F0 (277301-16F0) (277318-130) 277302-16F0 211991A0 277103A0 #13 5 277505R300 2105030 #5 EX5212-02/333(K) 2 4 277505R400 277303-16F0 (277304-16F0) (277318-130) 277305-16F0 201230C0 2770130 #7 2770150 5 277505R500 2103740 #7 102 ミシン形式ゲージ上メス角メス下メスオーバーロック針留針 MACHINE TYPE /SPEC GAUGE UPPER KNIFE FLAT KNIFE ANGLED KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD FRONT NEEDLE HOLDER NEEDLE REAR EX5204-02/233(K) - 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #9 4 5 EX5204-02H/223(K) - 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #9 4 5 EX5212-02/333(K) 2 3 4 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #14 5 jinte.in

Page 105 — EX5200 GAUGE PARTS LIST (3)

EX5200 ゲージパーツ表 (3) EX5200 GAUGE PARTS LIST (3) ミシン形式 MACHINE TYPE /SPEC ゲージ GAUGE NG SW 針板 NEEDLE PLATE 主送り歯(組) MAIN FEED DOG ASSM. 主送り歯本体 MAIN FEED DOG 補助送り歯 AUX.FEED DOG 差動送り歯 DIFF.FEED DOG 押工(組) PRESSER FOOT ASSM. 押工爪 PRESSER FOOT FINGER 上ルーパ UPPER LOOPER 下ルーパ LOWER LOOPER EX5214-03/333(K) 2 4 277505R400 277303-16F0 (277304-16F0) 277318-130 277305-16F0 201230C0 2103740 #7 277010A0 #5 2770150 3 277505R500 4 277505R400 2105030 #5 EX5214-M03/333(K) 2 4 277505R400 277303-16F0 (277304-16F0) 277318-130 277305-16F0 201230C0 2103740 #7 277010A0 #5 2770340 5 277505R500 EX5214-04/485(K) 2 4 277578-400 277369-25F0 (277304B25F0) (277348-16F0) 277371A25F0 201230C0 2103740 #7 2770120 #4 2770160 103 ミシン形式 MACHINE TYPE /SPEC ゲージ GAUGE NG SW 上メス平メス角メス UPPER KNIFE FLAT NIFE ANGLED KNIFE 下メス LOWER KNIFE オーダ受前 OVERLOCK NEEDLE GUARD FRONT 後 NEEDLE GUARD REAR 針留 NEEDLE HOLDER 針 NEEDLE EX5214-03/333(K) 2 4 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #9 3 5 EX5214-M03/333(K) 2 4 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #9 3 5 EX5214-04/485(K) 2 4 201121A0 2107550 2022950 2770050 2770040 277002-920 DCX27 #16 jinte

Page 106 — EX5200 GAUGE PARTS LIST (4)

EX5200 ゲージパーツ表 (4) EX5200 GAUGE PARTS LIST (4) ミシン形式ゲージ針板主送り歯 (組) 主送り歯本体補助送り歯差動送り歯押工 (組) 押工爪上ルーバー下ルーバー MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER PRESSER UPPER LOWER /SPEC NG SW PLATE DOG ASSM. DOG DOG FOOTASSM. FOOT FINGER LOOPER LOOPER EX5205-12/223(K) 3 277500P300 277300-16F0 (277301-16F0) (277318-130) 277302-16F0 201152E0 2771150 #10 2770100 #2 2770150 4 277500P400 2771030 #11 EX5205-12Z1/223(K) 3 277500P300 277300-16F0 (277301-16F0) (277318-130) 277302-16F0 201152E0 2771150 #10 2770100 #2 2770150 4 277500P400 2771030 #11 EX5203-12/223(K) 3 277500P300 277300-16F0 (277301-16F0) (277318-130) 277302-16F0 201152E0 2771150 #10 277014A1 2770150 4 277500P400 2771030 #11 EX5203-22/233(K) 5 277504R500 277303A160 (277304-160) (277318A130) 277305-160 2027990 2103710 #2 277014B0 2770150 6 277504R600 2103720 #3 EX5204-22Z2/213(K) 4 277542R400 277354A160 (277355A160) (277358A160) 277357A160 301724A0 2103710 #2 2770100 #2 2770150 5 277542R500 104 ミシン形式ゲージ上メス角メス下メスオーバーロック針留針 MACHINE TYPE FLAT NIFE ANGLED KNIFE REAR NEEDLE NEEDLE /SPEC NG SW UPPER KNIFE LOWER KNIFE FRONT HOLDER EX5205-12/223(K) 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 4 #9 EX5205-12Z1/223(K) 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 4 #9 EX5203-12/223(K) 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 4 #9 EX5203-22/233(K) 5 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 6 #14 EX5204-22Z2/213(K) 4 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 5 #9 jintexin.in

Page 107 — EX5200 GAUGE PARTS LIST (5)

EX5200 ゲージパーツ表 (5) EX5200 GAUGE PARTS LIST (5) ミシン形式ゲージ針板主送り歯 (組) 主送り歯本体補助送り歯差動送り歯押工 (組) 押工爪上ルーバー下ルーバー MACHINE TYPE /SPEC GAUGE NG SW NEEDLE PLATE MAIN FEED DOG ASSM. MAIN FEED DOG AUX.FEED DOG DIFF.FEED DOG PRESSER FOOT ASSM. PRESSER FOOT FINGER UPPER LOOPER LOWER LOOPER EX5204-23Z3/684(K) - 96 277577T960 277410-200 (277304B200) (277356B160) 277371-200 2772880 2772890 #32 277010B0 2770150 EX5204-24/445(K) 7 277511S700 277376A250 (277379-250) (277319A130) 277390-250 2771100 2103720 #3 2770110 #3 2770150 8 277511S800 EX5204-24/445(K) 3 4 277510S400 277376A250 (277379-250) (277319A130) 277390-250 2771100 2103760 #8 2770110 #3 2770150 5 277510S500 EX5204-32R1/223(K) 3 277503S300 277300A16F0 (277301-16F0) (277315-130) 277302-160 2027990 2107610 277010A0 2770150 EX5204-32R2/23L(K) 1.5 277502P150 277315-16F0 (277301-16F0) (277319-130) 277302-16F0 2027990 2055250 #57 2770100 #2 2770150 EX5204-32R2/223(K) 1.5 277512P150 277315-16F0 (277301-16F0) (277319-130) 277302-16F0 2027990 2055250 #57 2770100 #2 2770150 105 ミシン形式ゲージ上メス下メスオーバーロック針留針 MACHINE TYPE /SPEC GAUGE NG SW UPPER KNIFE FLAT NIFE ANGLED KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD FRONT REAR NEEDLE HOLDER NEEDLE EX5204-23Z3/684(K) 96 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #18 EX5204-24/445(K) 7 2770000 2116621 2770091 2770050 2770040 179630-920 DCX27 #18 8 EX5204-24/445(K) 3 5 2770000 2116621 2770091 2770050 2770040 277024-920 DCX27 #18 EX5204-32R1/223(K) 3 201121A0 2107550 2107620 2770050 2770040 179630-920 DCX27 #16 EX5204-32R2/23L(K) 1.5 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #11 EX5204-32R2/223(K) 1.5 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #11 jinte.in

Page 108 — EX5200 GAUGE PARTS LIST (6)

EX5200 ゲージパーツ表 (6) EX5200 GAUGE PARTS LIST (6) ミシン形式ゲージ針板主送り歯 (組) 主送り歯本体補助送り歯差動送り歯押工 (組) 押工爪上ルーバー下ルーバー MACHINE TYPE GAUGE NEEDLE MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER PRESSER UPPER LOWER /SPEC NG SW PLATE DOG ASSM. DOG DOG FOOT ASSM. FOOT FINGER LOOPER LOOPER EX5214-43/333(K) 2 3 277505R300 277505R400 277306-160 (277307-160) (277318-130) 277308-160 2771240 277010A0 #5 2770150 4 277505R300 EX5214-43P1/333(K) 2 3 277306-160 (277307-160) (277318-130) 277308-160 2771250 277010A0 #5 2770150 4 277505R400 277505R300 EX5214-43P2/333(K) 2 3 277306-160 (277307-160) (277318-130) 277308-160 2771250 277010A0 #5 2770150 4 277505R400 277505R300 277303-16F0 (277304-16F0) (277318-130) 277305-16F0 2771120 2771590 #22 EX5214-53C3/333(K) 2 4 277505R400 2086510 #58 277010A0 #5 2770150 5 277505R500 277505R300 277303-16F0 (277304-16F0) (277318-130) 277305-16F0 2771120 2771590 #22 EX5214-M53/333(K) 2 4 277505R400 2086510 #58 277010A0 #5 2770340 5 277505R500 106 ミシン形式ゲージ平メス角メス下メスオーバロック針受針留針 MACHINE TYPE GAUGE UPPER KNIFE LOWER OVERLOCK NEEDLE GUARD NEEDLE HOLDER NEEDLE /SPEC NG SW FLAT NIFE ANGLED KNIFE KNIFE FRONT REAR EX5214-43/333(K) 2 3 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #11 4 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #11 EX5214-43P1/333(K) 2 3 2770040 277022-920 DCX27 #11 4 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #11 EX5214-43P2/333(K) 2 3 2770040 277022-920 DCX27 #11 4 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #11 EX5214-53C3/333(K) 2 4 2770040 277022-920 DCX27 #11 5 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #9 EX5214-M53/333(K) 2 3 4 5 jinte.in

Page 109 — EX5200 GAUGE PARTS LIST (7)

EX5200 ゲージパーツ表 (7) EX5200 GAUGE PARTS LIST (7) ミシン形式ゲージ針板主送り歯 (組) 主送り歯本体補助送り歯押工 (組) 押工爪上ルーバー下ルーバー MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASSM. MAIN FEED DOG DFF.FEED DOG PRESSER FOOT ASSM. PRESSER FOOT FINGER UPPER LOOPER LOWER LOOPER NG SW EX5214-54/433(K) 2 4 277505R300 277505R400 277303-16F0 (277304-16F0) (277318-13F0) 277316-16F0 2771120 2086510 #58 2770110 #3 2770150 5 277505R500 3 277505R300 2771590 #22 4 277507R400 EX5214-54/443(K) 2 5 277507R500 277378-16F0 (277379-16F0) (277318-13F0) 277380-16F0 2771110 27701040 #16 27701190 #17 27701580 3.5 277507R350 2771050 #17 4.5 277508R450 EX5214-54/445(K) 3 4 277510S400 277378-25F0 (277379-25F0) (277318-13F0) 277380A25F0 2771270 2771050 #17 2770120 #4 2770120 5 277510S500 ミシン形式ゲージ上メス角メス下メスオーバー前針留 MACHINE TYPE /SPEC GAUGE 平メス UPPER FLAT NIFE ANGLED KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD FRONT REAR NEEDLE HOLDER NEEDLE NG SW EX5214-54/433(K) 2 4 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 #11 5 3 2 4 277022-920 5 201121A0 2107550 2022950 2770050 2770040 DCX27 #11 3.5 EX5214-54/443(K) 4.5 277023-920 3 4 2770000 2116621 2770091 2770050 2770040 277024-920 DCX27 #16 5 EX5214-54/445(K) 107 jintex.in

Page 110 — EX5200 GAUGE PARTS LIST(8)

EX5200 ゲージパーツ表 (8) EX5200 GAUGE PARTS LIST(8) ミシン形式ゲージ針板主送り歯 (組) 主送り歯本体補助送り歯差動送り歯押工 (組) 押工爪上ルーバー下ルーバー MACHINE TYPE /SPEC GAUGE NEEDLE PLATE MAIN FEED DOG ASSM. MAIN FEED DOG AUX. FEED DOG DIFF. FEED DOG PRESSER FOOT ASSM. PRESSER FOOT FINGER UPPER LOOPER LOWER LOOPER NG SW 2.5 3.5 277526S350 277526S450 EX5214H-55/545(K) 3 4.5 277510S400 277378-25F0 (277379-25F0) (277318-130) 277380A25F0 2771270 2771570 #20 2770190 #12 277016A0 3 277510S500 4 277531-300 2771150 #10 EX5204-82/223(K) 4 277531-400 277340-16F0 (277341-16F0) (277318-130) 277342-16F0 2771140 2770100 #2 2770150 5 277531-500 3 277532-300 2772010 #29 EX5204T-82/223(K) 4 277303B16F0 (277304A16F0) (277318-130) 277342A16F0 2771140 2770380 #13 2770150 4 277532-400 2773040 #30 5 277532-500 2771150 #10 3 277531-300 277303B16F0 (277304A16F0) (277318-130) 277342A16F0 2771140 2770100 #2 2770150 EX5204-82/233(K) 4 277531-400 5 277531-500 2771150 #10 108 ミシン形式ゲージ上メス角メス下メスオーバーロック受け針留針 MACHINE TYPE /SPEC GAUGE UPPER KNIFE FLAT NIFE ANGLED KNIFE LOWER KNIFE OVERLOCK NEEDLE GUARD FRONT REAR NEEDLE HOLDER NEEDLE NG SW 2.5 277023-920 3.5 2770000 2116621 2770091 2770050 2770040 DO X 5 #16 EX5214H-55/545(K) 4.5 2770190 2770150 3 4 277024-920 5 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #9 EX5204-82/223(K) 4 5 3 201121A0 2107550 2011270 2022950 2770050 2770040 179630-920 DCX27 #9 EX5204T-82/223(K) 4 5 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 #9 EX5204-82/233(K) 4 5 jinte .in

Page 111 — EX5200 GAUGE PARTS LIST(9)

EX5200 ゲージパーツ表 (9) EX5200 GAUGE PARTS LIST(9) ミシン形式ゲージ針板主送り歯(組) 主送り歯本体補助送り歯差動送り歯押工(組) 押工爪上ルーバー下ルーバー MACHINE TYPE NG SW MAIN FEED MAIN FEED AUX.FEED DIFF.FEED PRESSER PRESSER UPPER LOWER /SPEC DOG ASSM. DOG DOG FOOT ASSM. FOOT FINGER LOOPER LOOPER EX5214-83/323(K) 2 277530-300 277340-16F0 (277341-16F0) (277318-13F0) 277342-16F0 2771140 3015100 #59 277010A0 #5 2770150 4 277530-400 EX5214-84/423(K) 2 277530-300 277340-16F0 (277341-16F0) (277318-13F0) 277317-16F0 2771130 2771600 #23 277011B0 #17 277015B0 4 277530-400 EX5204-92M1/223(K) 3 277531-300 277340-16F0 (277341-16F0) (277318-13F0) 277342-16F0 211991A0 277115A0 #12 2770100 #2 2770150 4 277531-400 EX5214-92M2/223(K) 2 277501R300 201396B0 #56 4 277501R401 277300-16F0 (2377301-16F0) (277318-13F0) 277302-16F0 201152E0 201310A0 #55 277010B0 #6 2770150 109 ミシン形式ゲージ上メス角メスオーバーロック受け針留針 MACHINE TYPE FLAT NIFE ANGLED KNIFE OVERBLOCK NEEDLE GUARD NEEDLE /SPEC NG SW UPPER KNIFE LOWER NEEDLE FRONT REAR HOLDER EX5214-83/323(K) 2 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 4 #9 EX5214-84/423(K) 2 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 4 #11 EX5204-92M1/223(K) 3 201121A0 2107550 2022950 2770050 2770040 179630-920 DCX27 4 #9 EX5214-92M2/223(K) 2 201121A0 2107550 2022950 2770050 2770040 277022-920 DCX27 4 #9 jintex.in

Page 112 — 糸通し図一覧

糸通し図一覧 Threading diagram EX3200(H)(N) page REF.NO. 部番 PART NO. 適用機種 Applicable machines 4 39 40 9A00860 9A00910 EX3215-01, 01A, 02, 02A, 02U, 03, 03U EX3215-42,42P1,42P2,43 EX3215N-01,01S,01U 4 39 40 9A00940 9A00910 EX3215-A05 EX3215H-A05 4 39 40 9A00850 9A00910 EX3216-01,01A,02,02A,02U,03,03U EX3216-42,42P1,42P2,43,53 EX3216N-01,01S,01U 4 39 40 9A00950 9A00910 EX3216-A04 EX3216H-A05 4 39 40 9A00870 9A00910 EX3244-03 4 39 40 9A00960 9A00910 EX3244-A04 EX5200(H)(N)(T) page REF.NO. 部番 PART NO. 適用機種 Applicable machines 4 39 9A00790 EX5203-12,22 4 39 9A00800 EX5204-01,02,02H,22Z2,23Z3,32R1,32R2,82,92M1 EX5205--12,12Z1 EX5204T-82 4 39 9A00810 EX5204-24 4 39 9A00820 EX5214-01,03,M03,43,43P1,43P2,53,C53,83,92M2 EX5214N-01,01U 4 39 9A00830 EX5214-24,54,84 4 39 9A00840 EX5212-02 4 39 9A00930 EX5214-04 EX5214H-55 110 jintex.in

Page 116

インデックス INDEX PART NO. PAGE REF.NO. 2755410 29 13 2755410 29 13 275542-910 83 1 2760010 55 1 2760010 55 1 276002-UA0 57 7 276002-UA0 57 19 276003-UA0 55 8 276003-UA0 57 20 2760040 55 10 2760120 57 7 2760130 57 11 2760140 57 16 2771080 67 14 2771260 59 3 2771260 65 5 2771260 73 3 2771260 73 13 2771260 87 8 2771280 75 3 3002480 43 27 3002480 59 38 3002480 61 16 3017250 73 8 3030670 29 11 3030670 31 11 3030670 33 10 3030670 81 27 303067A0 53 12 303312A0 63 36 303312A0 71 30 303312A0 89 39 303312A0 91 35 3033130 63 37 3033130 71 31 3033130 89 40 3033130 91 36 3034480 37 39 3034480 41 49 3060360 43 12 3060360 43 12 3060930 71 38 3060930 87 4 9A30670 5 42 9A30690 5 41 9A30710 3 11 9A30720 5 43 9A31261 5 44 114 jintex.in

Page 117

ペガサスミシン製造株式会社本社〒 553-0002 大阪市福島区鷺洲 5-7-2 TEL (06)6458-4739 FAX (06)6454-8785 PEGASUS SEWING MACHINE MFG. CO., LTD. 5-7-2, Sagisu, Fukushima-ku, Osaka 553-0002, Japan. Phone : (06)6458-4739 Telefax: (06)6454-8785 Cat. No. 96050 June 2003 © 1993 PEGASUS SEWING MACHINE MFG. CO., LTD. このパーツカタログに記載されている内容は、改良のため予告なく変更することがあります。 The description in this PARTS CATALOG is subject to change without prior notice. jintex.in

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39

Ref	Part number	Part name	Qty
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
	9	9
	10	10
	11	11
	12	12
	13	13
	14	14
	15	15
	16	16
	17	17
	18	18
	19	19
	20	20
	21	21
	22	22
	23	23
	24	24
	25	25
	26	26
	27	27
	28	28
	29	29
	30	30
	31	31
	32	32
	33	33
	34	34
	35	35
	36	36
	37	37
	38	38
	39	39
