Pegasus EX5400 Parts Book (PDF)
Text index — Pegasus EX5400

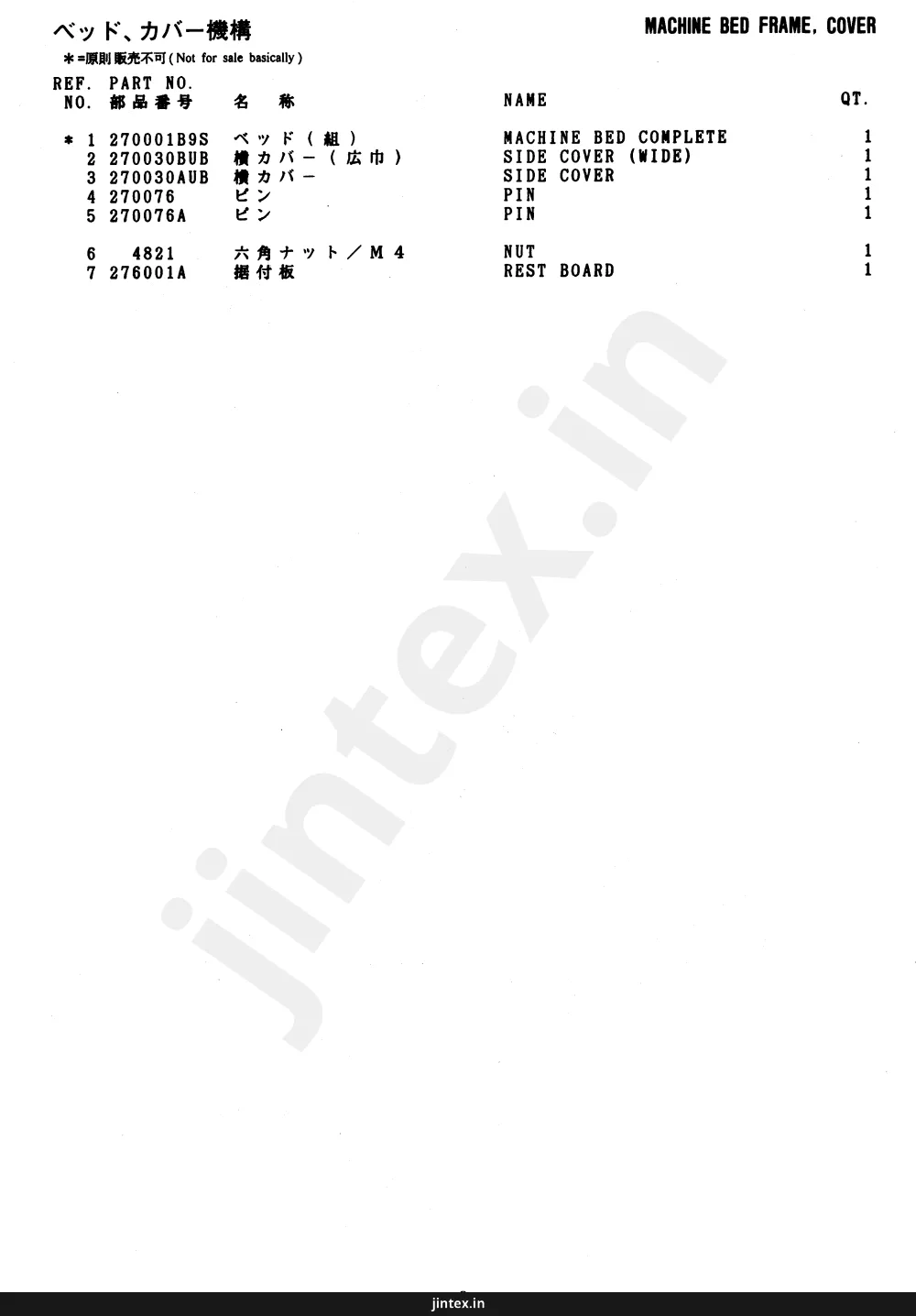

Page 5 — MACHINE BED FRAME, COVER
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 270001B9S | MACHINE BED COMPLETE | 1 |
| 2 | 270030BUB | SIDE COVER (WIDE) | 1 |
| 3 | 270030AUB | SIDE COVER | 1 |
| 4 | 270076 | PIN | 1 |
| 5 | 270076A | PIN | 1 |
| 6 | 4821 | NUT | 1 |
| 7 | 276001A | REST BOARD | 1 |
Page 7 — FEED MECHANISM (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 272549 | ROD | 1 |
| 2 | 272506A91 | REGULATOR | 1 |
| 3 | 4514 | SCREW | 2 |
| 4 | 272546 | LINK | 1 |
| 5 | 272547-92 | LEVER | 1 |
| 6 | 4533 | SCREW | 1 |
Page 9 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 240311 | WASHER | 1 |
| 2 | 240312 | WASHER | 1 |
| 3 | 272543 | BLOCK GUIDE | 1 |
| 4 | 252531A | BLOCK | 1 |
| 5 | 272545 | LEVER | 1 |
| 6 | 4568 | SCREW | 1 |
| 7 | 202522 | RING | 1 |
| 8 | 272540-91 | CRANK | 1 |
| 9 | 272541 | CRANK | 1 |
| 10 | 4533 | SCREW | 1 |
| 11 | 272542 | PIN | 1 |
| 12 | 272512 | CRANK PIN | 1 |
| 13 | 272513 | CRANK PIN | 1 |
| 14 | 7010 | SCREW | 2 |
Page 11 — FEED MECHANISM (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 272548 | SHAFT | 1 |
| 2 | 204185 | O RING | 1 |
| 3 | 272550 | LEVER | 1 |
| 4 | 7193 | SCREW | 1 |
| 5 | 272551 | SPRING | 1 |
| 6 | 7161 | SCREW | 1 |
| 7 | 275543 | LEVER | 1 |
| 8 | 7130 | SCREW | 2 |
| 9 | 275544 | HOLDER | 1 |
| 10 | 7143 | SCREW | 1 |
| 11 | 272552 | REGULATOR PLATE | 1 |
| 12 | 7021 | SCREW | 2 |
| 13 | 240321 | SPACER | 2 |
| 14 | 179202-25 | NUT | 1 |
| 15 | 7059 | SCREW | 1 |
| 16 | 211301 | SPRING WASHER | 1 |
| 17 | 252658 | STOPPER | 2 |
| 18 | 7018 | SCREW | 2 |
| 19 | 303448 | WASHER | 2 |
Page 13 — KNEE LIFTER DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 207345 | KNEE PAD BASE | 1 |
| 2 | 5658 | BOLT | 1 |
| 3 | 207346 | KNEE PAD | 1 |
| 4 | 212492 | ROD | 1 |
| 5 | 212493-SA | BRACKET | 1 |
| 6 | 5543 | BOLT | 2 |
| 7 | 207341-SA | BRACKET | 2 |
| 8 | 4906 | SCREW | 4 |
| 9 | 212485 | ROD | 1 |
| 10 | 207344-SA | COLLAR | 3 |
| 11 | 5543 | BOLT | 3 |
| 12 | 209287 | SPRING | 1 |
| 13 | 207350-SA | BRACKET | 1 |
| 14 | 5543 | BOLT | 1 |
| 15 | 212486 | LEVER | 1 |
| 16 | 5543 | BOLT | 1 |
| 17 | 4805 | NUT | 1 |
| 18 | 204585 | WASHER | 1 |
| 19 | 212435C | CABLE | 1 |
| 20 | 275545 | BRACKET | 1 |
| 21 | 7029 | SCREW | 2 |
| 22 | 240360 | BRACKET | 2 |
| 23 | 7017 | SCREW | 2 |
Page 14 — GAUGE PARTS CONSTRUCTION CHART
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 277504R30 | |||
| 277504R40 | |||
| 277504R50 | |||
| 277303-16F | |||
| 277304-16F | |||
| 277318-13 | |||
| 277305-16F | |||
| 201230C | |||
| 210370 | |||
| 210371 | |||
| 210371 | |||
| 277532-30 | |||
| 277532-40 | |||
| 277532-50 | |||
| 277303B16F | |||
| 277304A16F | |||
| 277318-13 | |||
| 277305A16F | |||
| 277114 | |||
| 277115 | |||
| 277103 | |||
| 277103 |

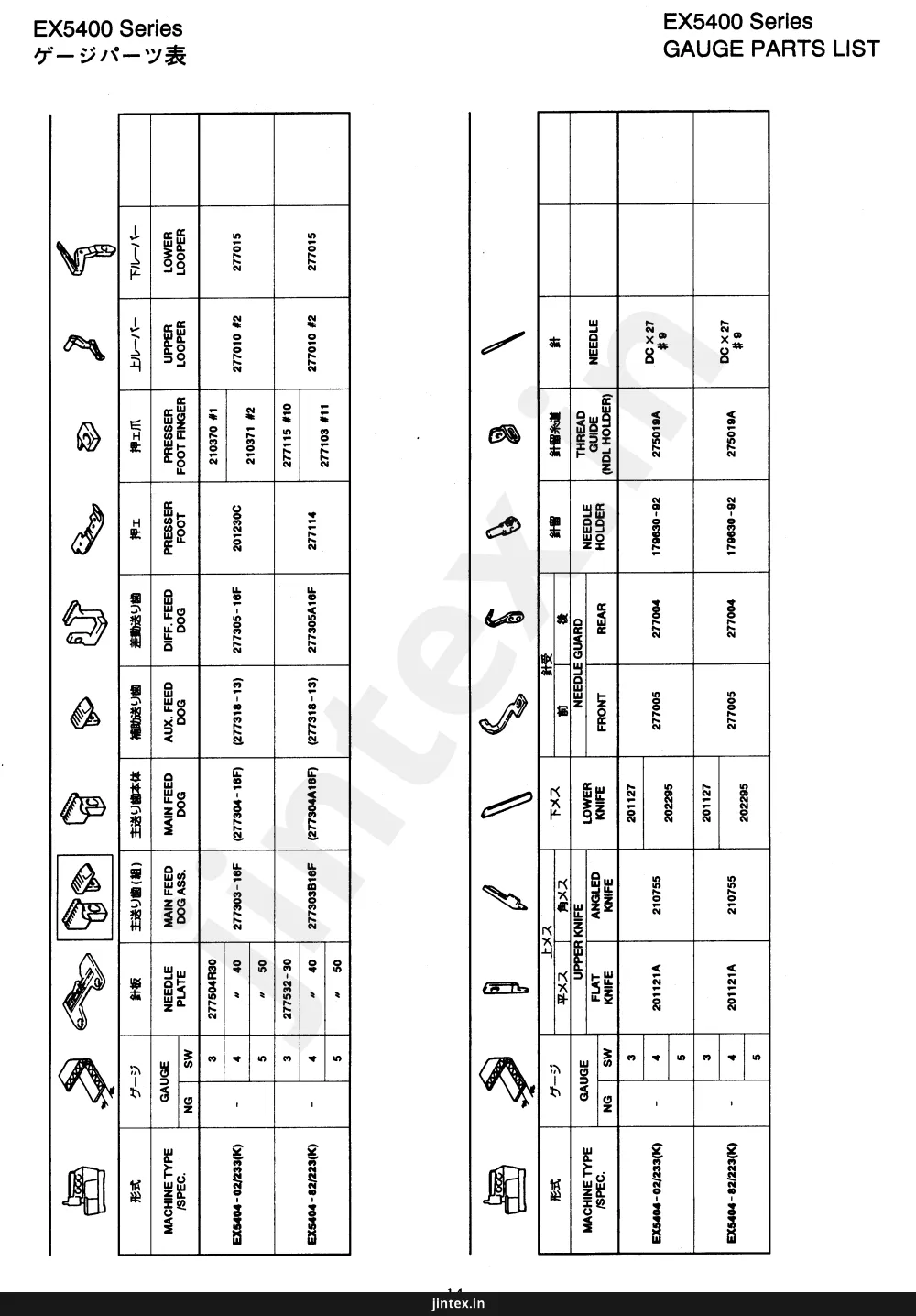

Page 15 — PLAIN SEAMING (LIGHT FABRIC) / BACKLATCHING (LIGHT FABRIC)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 179630-92 | |||
| 275019A | |||
| 277010 #2 | |||
| 277015 | |||
| 201121A | |||
| 210755 | |||
| 3 | 201127 | ||
| 4 | 202295 | ||
| 5 | 202295 | ||
| 277005 | |||
| 277004 | |||
| #2 | 277010 | Unknown |
Page 16 — GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 277504R30 | NEEDLE PLATE | ||
| 277532-30 | NEEDLE PLATE | ||
| 277303-16F | MAIN FEED DOG ASS. | ||
| 277303B16F | MAIN FEED DOG ASS. | ||
| (277304-16F) | MAIN FEED DOG | ||
| (277304A16F) | MAIN FEED DOG | ||
| (277318-13) | AUX. FEED DOG | ||
| 277305-16F | DIFF. FEED DOG | ||
| 277305A16F | DIFF. FEED DOG | ||
| 201230C | PRESSER FOOT | ||
| 277114 | PRESSER FOOT | ||
| 210370 #1 | PRESSER FOOT FINGER | ||
| 210371 #2 | PRESSER FOOT FINGER | ||
| 277115 #10 | PRESSER FOOT FINGER | ||
| 277103 #11 | PRESSER FOOT FINGER | ||
| 277010 #2 | UPPER LOOPER | ||
| 277010 #2 | UPPER LOOPER | ||
| 277015 | LOWER LOOPER | ||
| 277015 | LOWER LOOPER | ||
| 201127 | LOWER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 201127 | LOWER KNIFE | ||
| 202295 | LOWER KNIFE | ||
| 210755 | ANGLED KNIFE | ||
| 210755 | ANGLED KNIFE | ||
| 201121A | FLAT KNIFE | ||
| 201121A | FLAT KNIFE | ||
| 277005 | FRONT NEEDLE GUARD | ||
| 277005 | FRONT NEEDLE GUARD | ||
| 277004 | REAR NEEDLE GUARD | ||
| 277004 | REAR NEEDLE GUARD | ||
| 179830-92 | NEEDLE HOLDER | ||
| 179830-92 | NEEDLE HOLDER | ||
| 275019A | THREAD GUIDE (NDL HOLDER) | ||
| 275019A | THREAD GUIDE (NDL HOLDER) | ||
| DC X 27 #9 | NEEDLE | ||
| DC X 27 #9 | NEEDLE | ||
| 210370 | PRESSER FOOT FINGER | 3 | |
| 277010 | UPPER LOOPER | 3 | |
| 210371 | PRESSER FOOT FINGER | 4 | |
| 277532-R30 | NEEDLE PLATE | 3 | |
| 277115 | PRESSER FOOT FINGER | 3 | |
| 277103 | UPPER LOOPER | 3 | |
| 179630-92 | NEEDLE HOLDER | 3 | |
| DC x 27 | NEEDLE | 3 |
Page 18 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 14 | DCX27 # 9 | ||
| 3 | 4514 | ||
| 1 | 4533 | ||
| 10 | 4533 | ||
| 6 | 4568 | ||
| 17 | 4805 | ||
| 6 | 4821 | ||
| 8 | 4906 | ||
| 11 | 5543 | ||
| 14 | 5543 | ||
| 16 | 5543 | ||
| 2 | 5658 | ||
| 14 | 7010 | ||
| 23 | 7017 | ||
| 18 | 7018 | ||
| 12 | 7021 | ||
| 21 | 7029 | ||
| 15 | 7059 | ||
| 8 | 7130 | ||
| 10 | 7143 | ||
| 6 | 7161 | ||
| 4 | 7193 | ||
| 14 | 179202-25 | ||
| 179630-92 | |||
| 201121A | |||
| 201127 | |||
| 201230C | |||
| 7 | 202295 | ||
| 7 | 202522 | ||
| 2 | 204185 | ||
| 18 | 204585 | ||
| 7 | 207341-SA | ||
| 10 | 207344-SA | ||
| 1 | 207345 | ||
| 3 | 207346 | ||
| 13 | 207350-SA | ||
| 12 | 209287 | ||
| 210370 | |||
| 210371 | |||
| 210755 | |||
| 16 | 211301 | ||
| 9 | 212435C | ||
| 15 | 212485 | ||
| 15 | 212486 | ||
| 4 | 212492 | ||
| 5 | 212493-SA | ||
| 1 | 240311 | ||
| 2 | 240312 | ||
| 13 | 240321 | ||
| 22 | 240360 | ||
| 4 | 252531A | ||
| 17 | 252658 | ||
| 1 | 270001B9S | ||
| 2 | 270030AUB | ||
| 3 | 270030BUB | ||
| 4 | 270076 | ||
| 5 | 270076A | ||
| 2 | 272506A91 | ||
| 12 | 272512 | ||
| 13 | 272513 | ||
| 8 | 272540-91 | ||
| 9 | 272541 | ||
| 11 | 272542 | ||
| 3 | 272543 | ||
| 5 | 272545 | ||
| 4 | 272546 | ||
| 5 | 272547-92 | ||
| 1 | 272548 | ||
| 1 | 272549 | ||
| 3 | 272550 | ||
| 5 | 272551 | ||
| 11 | 272552 | ||
| 275019A | |||
| 7 | 275543 | ||
| 9 | 275544 | ||
| 20 | 275545 | ||
| 7 | 276001A | ||
| 277004 | |||
| 277005 | |||
| 277010 | |||
| 277015 | |||
| 277103 | |||
| 277114 | |||
| 277115 | |||
| 277303-16F | |||
| 277303B16F | |||
| 277304-16F | |||
| 277304A16F | |||
| 277305-16F | |||
| 277305A16F | |||
| 277318-13 | |||
| 277504R30 | |||
| 277504R40 | |||
| 277504R50 | |||
| 277532-30 | |||
| 277532-40 | |||
| 277532-50 | |||
| 19 | 303448 |
