Pegasus EX5400 — Part Book

Pegasus EX5400 — parts catalog

Page 1 (cover): This is the cover page for the Specific Parts Catalog for the EX Series of machine models, specifically the EX5400 Series, issued in May 1992.
Page 2 (text): This page provides an introduction to the parts catalog, explaining how to use it, the types of parts included, and how to order parts.
Page 3 (toc): This page is a table of contents for a parts catalog, listing sections such as machine bed frame, feed mechanism, knee lifter device, gauge parts construction chart, gauge parts list, and part number index with their corresponding page numbers.
Page 4 (diagram): This page displays an exploded view diagram of various components, including a machine frame, a part with wide and narrow variations, and another component with wide and narrow variations, along with their corresponding reference numbers and part numbers.
Page 5 (parts_list): This page lists parts for the machine bed frame and cover, including the complete machine bed, side covers, pins, a nut, and a rest board.
Page 6 (diagram): This page displays an exploded view diagram of various mechanical components, likely part of a sewing machine's internal mechanism, with several parts numbered for identification.
Page 7 (parts_list): This page lists parts for the feed mechanism, including rods, regulators, screws, links, and levers, with their corresponding part numbers, names, and quantities.
Page 8 (diagram): This page displays an exploded view diagram of various machine components, including shafts, levers, and mounting hardware, with reference numbers indicating individual parts.
Page 9 (parts_list): This page lists parts for the feed mechanism, including washers, blocks, levers, screws, rings, cranks, and pins.
Page 10 (diagram): This page displays an exploded diagram of various components, including screws, washers, springs, and levers, with each part clearly numbered for identification.
Page 11 (parts_list): This page lists parts for the FEED MECHANISM (3), including shafts, O-rings, levers, screws, springs, spacers, nuts, stoppers, and washers, with their corresponding part numbers and quantities.
Page 12 (diagram): This page displays two exploded view diagrams of various components, likely related to a sewing machine's operational mechanisms, with parts numbered for identification.
Page 13 (parts_list): This page lists parts for the KNEE LIFTER DEVICE, including various bolts, brackets, screws, and other components with their corresponding part numbers and quantities.
Page 14 (diagram): This page displays gauge parts construction charts for EX5400 Series sewing machines, specifically for plain seaming and backlaching operations, showing various part numbers and their corresponding diagrams.
Page 15 (diagram): This page displays various parts for industrial sewing machines, including needles, loopers, and other components, categorized by their application for plain seaming and backlatching on light fabric.
Page 16 (parts_list): This page is a gauge parts list for the EX5400 Series, detailing various components such as needle plates, feed dogs, presser feet, loopers, knives, needle holders, and needles, along with their part numbers and applicable machine models.
Page 17 (unknown): This page is blank except for a watermark, a page number, and a website address.
Page 18 (index): This page is an index listing part numbers, their corresponding page numbers, and reference numbers.
Page 19 (unknown): This page is blank except for a watermark and a footer with a website address.
Page 20 (cover): This page is the cover of a parts catalog for Pegasus sewing machines, displaying the company name and logo.

Page 1 — EX SERIES

専用部品パーツカタログ SPECIFIC PARTS CATALOG Cat. No. 9628 May, 1992 EX SERIES MACHINE MODELS: EX5400 SERIES First edition ; issued in May, 1992 初版 (1992年5月発行) PEGASUS® jintex.in

Page 2 — INTRODUCTION

Pegasus EX5400 parts on page 2
Ref	Part number	Part name	Qty
	EX5404 - 02/233	EX5404 - 02/233
	EX5414 - 82/223	EX5414 - 82/223

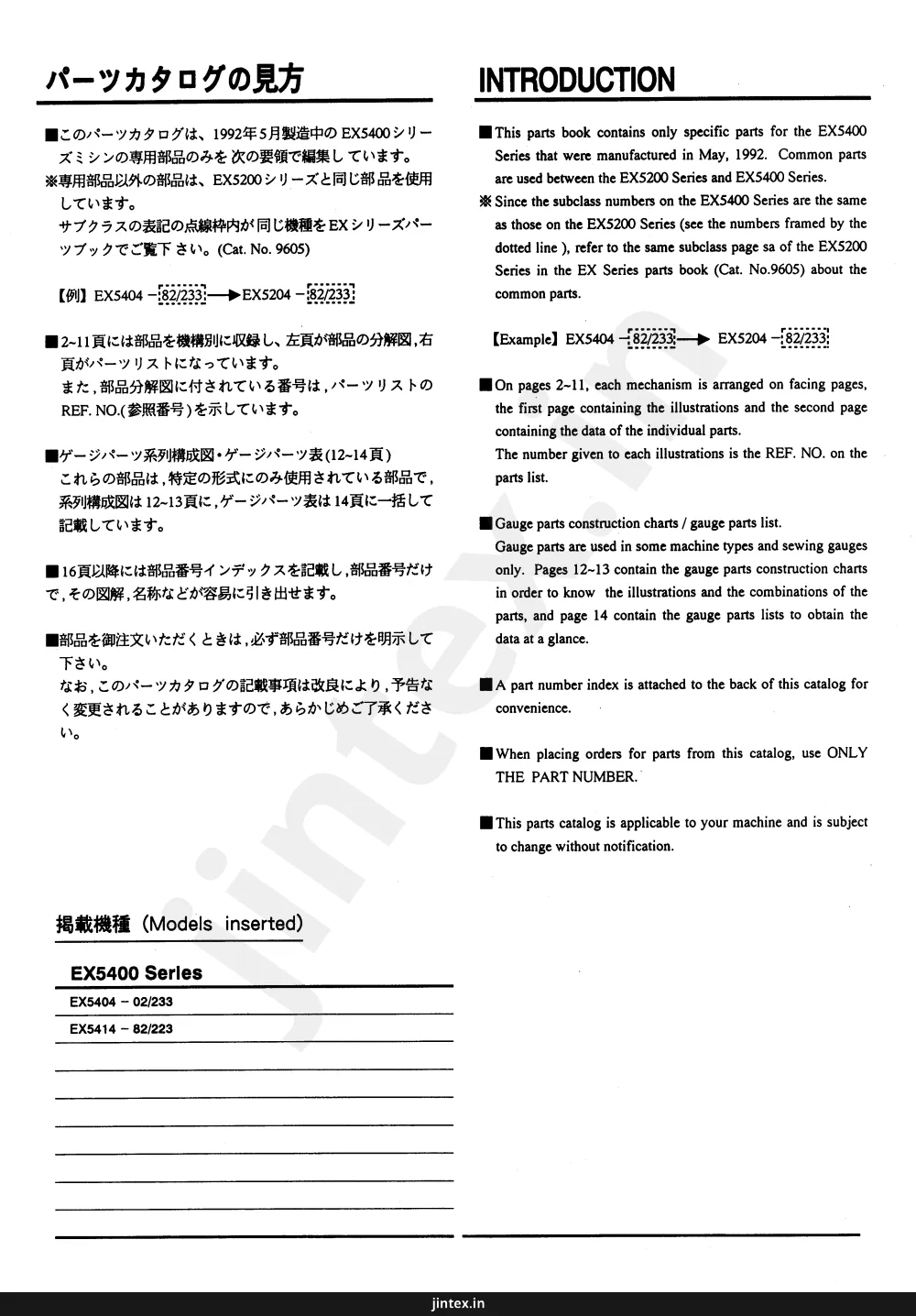

パーツカタログの見方 ■このパーツカタログは、1992年5月製造中のEX5400シリーズミシンの専用部品のみを次の要領で編集しています。 ※専用部品以外の部品は、EX5200シリーズと同じ部品を使用しています。サブクラスの表記の点線枠内が同じ機種をEXシリーズパーツブックでご覧下さい。(Cat. No. 9605) 【例】EX5404-82/233 EX5204-82/233 ■2~11頁には部品を機構別に収録し、左頁が部品の分解図、右頁がパーツリストになっています。また、部品分解図に付されている番号は、パーツリストの REF. NO.(参照番号)を示しています。 ■ゲージパーツ系列構成図・ゲージパーツ表(12~14頁) これらの部品は、特定の形式にのみ使用されている部品で、系列構成図は12~13頁に、ゲージパーツ表は14頁に一括して記載しています。 ■16頁以降には部品番号インデックスを記載し、部品番号だけで、その図解、名称などが容易に引き出せます。 ■部品を御注文いただくときは、必ず部品番号だけを明示して下さい。なお、このパーツカタログの記載事項は改良により、予告なく変更されることがありますので、あらかじめご了承ください。掲載機種(Models inserted) EX5400 Series EX5404 - 02/233 EX5414 - 82/223 INTRODUCTION ■This parts book contains only specific parts for the EX5400 Series that were manufactured in May, 1992. Common parts are used between the EX5200 Series and EX5400 Series. ※Since the subclass numbers on the EX5400 Series are the same as those on the EX5200 Series (see the numbers framed by the dotted line ), refer to the same subclass page as of the EX5200 Series in the EX Series parts book (Cat. No. 9605) about the common parts. 【Example】EX5404-82/233 EX5204-82/233 ■On pages 2~11, each mechanism is arranged on facing pages, the first page containing the illustrations and the second page containing the data of the individual parts. The number given to each illustrations is the REF. NO. on the parts list. ■Gauge parts construction charts / gauge parts list. Gauge parts are used in some machine types and sewing gauges only. Pages 12~13 contain the gauge parts construction charts in order to know the illustrations and the combinations of the parts, and page 14 contain the gauge parts lists to obtain the data at a glance. ■A part number index is attached to the back of this catalog for convenience. ■When placing orders for parts from this catalog, use ONLY THE PART NUMBER. ■This parts catalog is applicable to your machine and is subject to change without notification. jintex.in

Page 3 — TABLE OF CONTENTS

目次 TABLE OF CONTENTS 頁 Page ベッド,カバー機構 2-3 送り機構(1)~(3) 4-9 ヒザ駆動装置 10-11 ゲージパーツ系列構成図 12-13 ゲージパーツ表 14 部品番号インデックス 16 MACHINE BED FRAME , COVER 2-3 FEED MECHANISM(1)~(3) 4-9 KNEE LIFTER DEVICE 10-11 GAUGE PARTS CONSTRUCTION CHART 12-13 GAUGE PARTS LIST 14 PART NUMBER INDEX 16 jintex.in

Page 4

Pegasus EX5400 parts on page 4
Ref	Part number	Part name	Qty
2	EX5404-02	広巾 (Wide)
3	EX5404-82	狭巾 (Narrow)

広巾 (Wide) 4 狭巾 (Narrow) 5 広巾 (Wide) EX5404-02 狭巾 (Narrow) EX5404-82 2 3 1 6 7 jintex.in

Page 5 — MACHINE BED FRAME, COVER

Pegasus EX5400 parts on page 5
Ref	Part number	Part name	Qty
1	270001B9S	MACHINE BED COMPLETE	1
2	270030BUB	SIDE COVER (WIDE)	1
3	270030AUB	SIDE COVER	1
4	270076	PIN	1
5	270076A	PIN	1
6	4821	NUT	1
7	276001A	REST BOARD	1

ベッド、カバー機構 * =原則販売不可(Not for sale basically) REF. PART NO. NO. 部品番号 * 1 270001B9S 2 270030BUB 3 270030AUB 4 270076 5 270076A 6 4821 7 276001A ベッド(組) 横カバー(広巾) 横カバーピンピン六角ナット/M4 据付板 MACHINE BED FRAME, COVER NAME MACHINE BED COMPLETE SIDE COVER (WIDE) SIDE COVER PIN PIN NUT REST BOARD QT. 1 1 1 1 1 1 1

Page 6

jintex.in

Page 7 — FEED MECHANISM (1)

Pegasus EX5400 parts on page 7
Ref	Part number	Part name	Qty
1	272549	ROD	1
2	272506A91	REGULATOR	1
3	4514	SCREW	2
4	272546	LINK	1
5	272547-92	LEVER	1
6	4533	SCREW	1

送り機構(1) FEED MECHANISM (1) REF. PART NO. NO. 部品番号名称 NAME QT. 1 272549 ロッド ROD 1 2 272506A91 調節台 REGULATOR 1 3 4514 止ネジ/M5×5 SCREW 2 4 272546 リンク LINK 1 5 272547-92 レバー LEVER 1 6 4533 平ネジ/M6×12 SCREW 1 jintex.in

Page 8

8 13 12 14 9 11 10 2 1 7 5 6 3 4 jintex.in

Page 9 — FEED MECHANISM (2)

Pegasus EX5400 parts on page 9
Ref	Part number	Part name	Qty
1	240311	WASHER	1
2	240312	WASHER	1
3	272543	BLOCK GUIDE	1
4	252531A	BLOCK	1
5	272545	LEVER	1
6	4568	SCREW	1
7	202522	RING	1
8	272540-91	CRANK	1
9	272541	CRANK	1
10	4533	SCREW	1
11	272542	PIN	1
12	272512	CRANK PIN	1
13	272513	CRANK PIN	1
14	7010	SCREW	2

送り機構(2) *=原則販売不可(Not for sale basically) REF. PART NO. NO. 部品番号名称 1 240311 座金 2 240312 座金 3 272543 角駒案内 4 252531A 角駒 5 272545 レバー 6 4568 止ネジ/M5×8 7 202522 止メ輪 8 272540-91 クランク *9 272541 クランク本体 10 4533 平ネジ/M6×12 *11 272542 段付ピン *12 272512 クランクピン *13 272513 クランクピン 14 7010 平ネジ/M3×6 FEED MECHANISM (2) NAME WASHER WASHER BLOCK GUIDE BLOCK LEVER SCREW RING CRANK CRANK SCREW PIN CRANK PIN CRANK PIN SCREW QT. 1 1 1 1 1 1 1 1 1 1 1 1 1 2 jintex.in

Page 10

17 18 18 19 16 15 14 18 13 11 12 8 7 8 6 5 1 2 3 4 10 9 jintex.in

Page 11 — FEED MECHANISM (3)

Pegasus EX5400 parts on page 11
Ref	Part number	Part name
1	272548	SHAFT
2	204185	O RING
3	272550	LEVER
4	7193	SCREW
5	272551	SPRING
6	7161	SCREW
7	275543	LEVER
8	7130	SCREW
9	275544	HOLDER
10	7143	SCREW
11	272552	REGULATOR PLATE
12	7021	SCREW
13	240321	SPACER
14	179202-25	NUT
15	7059	SCREW
16	211301	SPRING WASHER
17	252658	STOPPER
18	7018	SCREW
19	303448	WASHER

送り機構(3) REF. PART NO. NO. 部品番号 1 272548 2 204185 3 272550 4 7193 5 272551 6 7161 7 275543 8 7130 9 275544 10 7143 11 272552 12 7021 13 240321 14 179202-25 15 7059 16 211301 17 252658 18 7018 19 303448 名称軸 Oリングレバー段付ネジネジリバネ段付ネジ/M5 レバー平ネジ/M4×7 ホルダー平ネジ/M4×5.5 調節板平ネジ/M4×12 スペーサーナット段付ネジ/4:5 皿バネストッパー平ネジ/M4×6 座金 FEED MECHANISM (3) NAME SHAFT O RING LEVER SCREW SPRING SCREW LEVER SCREW HOLDER SCREW REGULATOR PLATE SCREW SPACER NUT SCREW SPRING WASHER STOPPER SCREW WASHER QT. 1 1 1 1 1 1 1 2 1 1 1 2 2 1 1 1 2 2 2 jintex.in

Page 12

jintex.in

Page 13 — KNEE LIFTER DEVICE

Pegasus EX5400 parts on page 13
Ref	Part number	Part name	Qty
1	207345	KNEE PAD BASE	1
2	5658	BOLT	1
3	207346	KNEE PAD	1
4	212492	ROD	1
5	212493-SA	BRACKET	1
6	5543	BOLT	2
7	207341-SA	BRACKET	2
8	4906	SCREW	4
9	212485	ROD	1
10	207344-SA	COLLAR	3
11	5543	BOLT	1
12	209287	SPRING	1
13	207350-SA	BRACKET	1
14	5543	BOLT	1
15	212486	LEVER	1
16	5543	BOLT	1
17	4805	NUT	1
18	204585	WASHER	1
19	212435C	CABLE	1
20	275545	BRACKET	1
21	7029	SCREW	2
22	240360	BRACKET	2
23	7017	SCREW	2

ヒザ駆動装置 KNEE LIFTER DEVICE REF. PART NO. NO. 部品番号名称 NAME QT. 1 207345 ヒザ当テ KNEE PAD BASE 1 2 5658 六角ボルト BOLT 1 3 207346 ヒザ当テカバー KNEE PAD 1 4 212492 軸 ROD 1 5 212493-SA ブラケット BRACKET 1 6 5543 四角ボルト/W5 BOLT 2 7 207341-SA ブラケット BRACKET 2 8 4906 木ネジ(平)/4.8 SCREW 4 9 212485 軸 ROD 1 10 207344-SA カラー COLLAR 3 11 5543 四角ボルト/W5 BOLT 1 12 209287 ネジリバネ SPRING 1 13 207350-SA ブラケット BRACKET 1 14 5543 四角ボルト/W5 BOLT 1 15 212486 レバー LEVER 1 16 5543 四角ボルト/W5 BOLT 1 17 4805 六角ナット/M5 NUT 1 18 204585 座金 WASHER 1 19 212435C ケーブル CABLE 1 20 275545 ブラケット BRACKET 1 21 7029 平ネジ/M5×12 SCREW 2 22 240360 ブラケット BRACKET 2 23 7017 平ネジ/M4×5 SCREW 2 jintex.in

Page 14 — GAUGE PARTS CONSTRUCTION CHART

Pegasus EX5400 parts on page 14
Ref	Part number	Part name
3	277504R30	SW
4	277504R40	SW
5	277504R50	SW
	277303-16F
	277304-16F
	277318-13
	277305-16F
	201230C
3	210370	SW
4	210371	SW
5	210371	SW
3	277532-30	SW
4	277532-40	SW
5	277532-50	SW
	277303B16F
	277304A16F
	277318-13
	277305A16F
	277114
3	277115	SW
4	277103	SW
5	277103	SW

地縫用バックタック用 PLAIN SEAMING BACKLACHING EX5400 Series EX5404-02/233(K) SW 3 277504R30 4 277504R40 5 277504R50 SW 277303-16F 277304-16F 277318-13 1.6 1.25 277305-16F 1.6 201230C SW 3 210370 #1 4 210371 #2 5 210371 #2 ゲージパーツ系列構成図 GAUGE PARTS CONSTRUCTION CHART EX5404-82/233(K) SW 3 277532-30 4 277532-40 5 277532-50 SW 277303B16F 277304A16F 277318-13 1.6 1.25 277305A16F 1.6 277114 SW 3 277115 #10 4 277103 #11 5 277103 #11 jintex.in

Page 15

Pegasus EX5400 parts on page 15
Ref	Part number	Part name
	179630-92	Unknown
	275019A	Unknown
#2	277010	Unknown
	277015	Unknown
	201121A	Unknown
	210755	Unknown
3	201127	Unknown
4	202295	Unknown
5	202295	Unknown
	277005	Unknown
	277004	Unknown

EX5404-02/233(K) EX5404-82/233(K) 179630-92 275019A 277010 #2 277015 -02-82/233 -02-82/233K 201121A 210755 SW 3 201127 SW 4 202295 5 202295 277005 277004 地縫用(薄生地) PLAIN SEAMING (LIGHT FABRIC) バックタック用(薄生地) BACKLATCHING (LIGHT FABRIC) jintex.in

Page 16 — GAUGE PARTS LIST

Pegasus EX5400 parts on page 16
Part number	Part name	Qty
277504R30	NEEDLE PLATE	3
277303-16F	MAIN FEED DOG ASS.	3
(277304-16F)	MAIN FEED DOG	3
(277318-13)	AUX. FEED DOG	3
277305-16F	DIFF. FEED DOG	3
201230C	PRESSER FOOT	3
210370	PRESSER FOOT FINGER	3
277010	UPPER LOOPER	3
277015	LOWER LOOPER	3
277504R30	NEEDLE PLATE	4
277303-16F	MAIN FEED DOG ASS.	4
(277304-16F)	MAIN FEED DOG	4
(277318-13)	AUX. FEED DOG	4
277305-16F	DIFF. FEED DOG	4
201230C	PRESSER FOOT	4
210371	PRESSER FOOT FINGER	4
277010	UPPER LOOPER	4
277015	LOWER LOOPER	4
277504R30	NEEDLE PLATE	5
277303-16F	MAIN FEED DOG ASS.	5
(277304-16F)	MAIN FEED DOG	5
(277318-13)	AUX. FEED DOG	5
277305-16F	DIFF. FEED DOG	5
201230C	PRESSER FOOT	5
210371	PRESSER FOOT FINGER	5
277010	UPPER LOOPER	5
277015	LOWER LOOPER	5
277532-R30	NEEDLE PLATE	3
277303B16F	MAIN FEED DOG ASS.	3
(277304A16F)	MAIN FEED DOG	3
(277318-13)	AUX. FEED DOG	3
277305A16F	DIFF. FEED DOG	3
277114	PRESSER FOOT	3
277115	PRESSER FOOT FINGER	3
277103	UPPER LOOPER	3
277015	LOWER LOOPER	3
277532-R30	NEEDLE PLATE	4
277303B16F	MAIN FEED DOG ASS.	4
(277304A16F)	MAIN FEED DOG	4
(277318-13)	AUX. FEED DOG	4
277305A16F	DIFF. FEED DOG	4
277114	PRESSER FOOT	4
277115	PRESSER FOOT FINGER	4
277103	UPPER LOOPER	4
277015	LOWER LOOPER	4
277532-R30	NEEDLE PLATE	5
277303B16F	MAIN FEED DOG ASS.	5
(277304A16F)	MAIN FEED DOG	5
(277318-13)	AUX. FEED DOG	5
277305A16F	DIFF. FEED DOG	5
277114	PRESSER FOOT	5
277115	PRESSER FOOT FINGER	5
277103	UPPER LOOPER	5
277015	LOWER LOOPER	5
201121A	FLAT KNIFE	3
210755	UPPER KNIFE ANGLED KNIFE	3
201127	LOWER KNIFE	3
277005	GUARD FRONT	3
277004	GUARD REAR	3
179630-92	NEEDLE HOLDER	3
275019A	THREAD GUIDE (NDL HOLDER)	3
DC x 27	NEEDLE	3
201121A	FLAT KNIFE	4
210755	UPPER KNIFE ANGLED KNIFE	4
202295	LOWER KNIFE	4
277005	GUARD FRONT	4
277004	GUARD REAR	4
179630-92	NEEDLE HOLDER	4
275019A	THREAD GUIDE (NDL HOLDER)	4
DC x 27	NEEDLE	4
201121A	FLAT KNIFE	5
210755	UPPER KNIFE ANGLED KNIFE	5
202295	LOWER KNIFE	5
277005	GUARD FRONT	5
277004	GUARD REAR	5
179630-92	NEEDLE HOLDER	5
275019A	THREAD GUIDE (NDL HOLDER)	5
DC x 27	NEEDLE	5
201121A	FLAT KNIFE	3
210755	UPPER KNIFE ANGLED KNIFE	3
201127	LOWER KNIFE	3
277005	GUARD FRONT	3
277004	GUARD REAR	3
179630-92	NEEDLE HOLDER	3
275019A	THREAD GUIDE (NDL HOLDER)	3
DC x 27	NEEDLE	3
201121A	FLAT KNIFE	4
210755	UPPER KNIFE ANGLED KNIFE	4
202295	LOWER KNIFE	4
277005	GUARD FRONT	4
277004	GUARD REAR	4
179630-92	NEEDLE HOLDER	4
275019A	THREAD GUIDE (NDL HOLDER)	4
DC x 27	NEEDLE	4
201121A	FLAT KNIFE	5
210755	UPPER KNIFE ANGLED KNIFE	5
202295	LOWER KNIFE	5
277005	GUARD FRONT	5
277004	GUARD REAR	5
179630-92	NEEDLE HOLDER	5
275019A	THREAD GUIDE (NDL HOLDER)	5
DC x 27	NEEDLE	5

EX5400 Series ゲージパーツ表 EX5400 Series GAUGE PARTS LIST MACHINE TYPE /SPEC. 形式ゲージ GAUGE NG SW 針板 NEEDLE PLATE MAIN FEED DOG ASS. 主送り歯(組) AUX. FEED DOG 補助送り歯 MAIN FEED DOG 主送り歯本体 DIFF. FEED DOG 差動送り歯 PRESSER FOOT 押工 PRESSER FOOT FINGER 押工爪 UPPER LOOPER 上ルーパー LOWER LOOPER 下ルーパー EX5404-02/233(K) - 3 277504R30 277303-16F (277304-16F) (277318-13) 277305-16F 201230C 210370 #1 277010 #2 277015 4 " 40 " " " " 210371 #2 " 5 " 50 " " " " " " EX5404-82/233(K) - 3 277532-R30 277303B16F (277304A16F) (277318-13) 277305A16F 277114 277115 #10 277103 #11 277015 4 " 40 " " " " " " 5 " 50 " " " " " " MACHINE TYPE /SPEC. 形式ゲージ GAUGE NG SW 平メス FLAT KNIFE UPPER KNIFE ANGLED KNIFE 上メス角メス LOWER KNIFE 下メス FRONT 前 REAR 後 NEEDLE HOLDER 針留 THREAD GUIDE (NDL HOLDER) 針留糸道 NEEDLE 針 EX5404-02/233(K) - 3 201121A 210755 201127 277005 277004 179630-92 275019A DC x 27 #9 4 " " 202295 " " " " " 5 " " " " " " " " EX5404-82/223(K) - 3 201121A 210755 201127 277005 277004 179630-92 275019A DC x 27 #9 4 " " 202295 " " " " " 5 " " " " " " " " jintex.in

Page 17

jintex.in 15 jintex.in

Page 18 — INDEX

Pegasus EX5400 parts on page 18
Ref	Part number	Part name	Qty
14	DCX27 # 9
3	4514
1	4533
10	4533
6	4568
17	4805
6	4821
8	4906
11	5543
14	5543
16	5543
2	5658
14	7010
23	7017
18	7018
12	7021
21	7029
15	7059
8	7130
10	7143
6	7161
4	7193
14	179202-25
	179630-92
	201121A
	201127
	201230C
7	202295
7	202522
2	204185
18	204585
7	207341-SA
10	207344-SA
1	207345
3	207346
13	207350-SA
12	209287
	210370
	210371
	210755
16	211301
9	212435C
15	212485
15	212486
4	212492
5	212493-SA
1	240311
2	240312
13	240321
22	240360
4	252531A
17	252658
1	270001B9S
2	270030AUB
3	270030BUB
4	270076
5	270076A
2	272506A91
12	272512
13	272513
8	272540-91
9	272541
11	272542
3	272543
5	272545
4	272546
5	272547-92
1	272548
1	272549
3	272550
5	272551
11	272552
	275019A
7	275543
9	275544
20	275545
7	276001A
	277004
	277005
	277010
	277015
	277103
	277114
	277115
	277303-16F
	277303B16F
	277304-16F
	277304A16F
	277305-16F
	277305A16F
	277318-13
	277504R30
	277504R40
	277504R50
	277532-30
	277532-40
	277532-50
19	303448

INDEX PART NO. PAGE REF. NO. DCX27 # 9 14 4514 5 3 4533 6 1 4533 7 10 4568 7 6 4805 11 17 4821 3 6 4906 11 8 5543 11 11 5543 11 14 5543 11 16 5658 11 2 7010 7 14 7017 11 23 7018 9 18 7021 9 12 7029 11 21 7059 9 15 7130 9 8 7143 9 10 7161 9 6 7193 9 4 179202-25 9 14 179630-92 14 201121A 14 201127 14 201230C 14 202295 14 7 202522 7 7 204185 9 2 204585 11 18 207341-SA 11 7 207344-SA 11 10 207345 11 1 207346 11 3 207350-SA 11 13 209287 11 12 210370 14 210371 14 210755 14 211301 9 16 212435C 11 9 212485 11 15 212486 11 15 212492 11 4 212493-SA 11 5 240311 7 1 240312 7 2 240321 9 13 240360 11 22 252531A 7 4 252658 9 17 270001B9S 3 1 270030AUB 3 2 270030BUB 3 3 270076 3 4 270076A 3 5 272506A91 5 2 272512 7 12 272513 7 13 272540-91 7 8 272541 7 9 272542 7 11 272543 7 3 272545 7 5 272546 5 4 272547-92 5 5 272548 9 1 272549 5 1 272550 9 3 272551 9 5 272552 9 11 275019A 14 275543 9 7 275544 9 9 275545 11 20 276001A 3 7 277004 14 277005 14 277010 14 277015 14 277103 14 277114 14 277115 14 277303-16F 14 277303B16F 14 277304-16F 14 277304A16F 14 277305-16F 14 PART NO. PAGE REF. NO. 277305A16F 14 277318-13 14 277504R30 14 277504R40 14 277504R50 14 277532-30 14 277532-40 14 277532-50 14 303448 9 19 -16- jintex.in

Page 19

jintex.in

Page 20

PEGASUS SEWING MACHINE MFG. CO., LTD. jintex.in
