Pegasus FR002 / FR151 Parts Book (PDF)
Text index — Pegasus FR002 / FR151
Page 4 — Application table for FR/EX5100 FR/EXT5100
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 308543-910 | Rear roller assy. | ||
| 308541-910 | Lower roller assy. | ||
| 305206-910 | Front roller assy. | ||
| 302474-910 | Erastic guide assy. | ||
| 302500-910 | Edge guide assy. | ||
| 9A20500 | Table diagram | ||
| 302459A9R0 | Waste chute assy. | ||
| 305211-910 | Rear roller assy. | ||
| 305199A910 | Lower roller assy. | ||
| 305206-910 | Front roller assy. | ||
| 305226A910 | Edge guide assy. | ||
| 302477A910 | Valve set | ||
| 350645-910 | Knee switch assy. | ||
| 6010890 | Joint | ||
| 9A20500 | Table diagram | ||
| 302459A9R0 | Waste chute assy. |
Page 7 — FR002, FR151 REAR ROLLER ASSY.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 308543-910 | REAR ROLLER ASSY. | 1 |
| 2 | 308544-910 | BRACKET | 1 |
| 3 | 0049050 | SCREW | 3 |
| 4 | 3024490 | BRACKET | 1 |
| 5 | 2404820 | CLAMP LEVER | 1 |
| 6 | 3033350 | WASHER | 1 |
| 7 | 3024510 | ROLLER | 1 |
| 8 | 3024520 | ROLLER | 1 |
| 9 | 0055460 | SCREW | 1 |
| 10 | 2400620 | WASHER | 1 |
| 11 | 305211-910 | REAR ROLLER ASSY. | 1 |
| 12 | 305212-910 | ROLLER | 1 |
| 13 | 0071300 | SCREW | 1 |
| 14 | 2011850 | WASHER | 1 |
| 15 | 3052020 | SHAFT | 1 |
| 16 | 2025220 | RING | 1 |
| 17 | 305205-920 | HING | 1 |
| 18 | 0070730 | SCREW | 1 |
| 19 | 3052090 | ARM | 1 |
| 20 | 0071300 | SCREW | 2 |
| 21 | 3052100 | BRACKET | 1 |
| 22 | 5131070 | AIR CYLINDER | 1 |
| 23 | 5270020 | SPEED CONTROLLER | 2 |
| 24 | 6001750 | TUBE | 2 |
| 25 | 3052250 | SHAFT | 1 |
| 26 | 0045380 | SCREW | 2 |
| 27 | 2404750 | CILLAR | 1 |
| 28 | 2404810 | URETHAN WASHER | 1 |
| 29 | 3052150 | BRACKET | 1 |
| 30 | 0040260 | BOLT | 2 |
| 31 | 3033350 | WASHER | 2 |
| 32 | 2404730 | BUSHING | 1 |
| 33 | 0070110 | SCREW | 2 |
| 34 | 305216-910 | BRACKET | 1 |
| 35 | 2404820 | CLAMP LEVER | 1 |
| 36 | 2007280 | WASHER | 1 |
| 37 | 3052180 | BRACKET | 1 |
| 38 | 0049050 | SCREW | 4 |
| 39 | 9A30690 | CAUTION LABEL | 1 |
Page 9 — FRONT ROLLER ASSY. • LOWER ROLLER ASSY.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305206-910 | FRONT ROLLER ASSY. | 1 |
| 2 | 2590360 | ROLLER | 1 |
| 3 | 2590380 | COLLAR | 2 |
| 4 | 0045540 | SCREW | 2 |
| 5 | 2045200 | WASHER | 1 |
| 6 | 0053320 | SCREW | 1 |
| 7 | 2590140 | COLLAR | 1 |
| 8 | 0045430 | SCREW | 1 |
| 9 | 3069260 | SHAFT | 1 |
| 10 | 2590060 | JOINT | 1 |
| 11 | 0045110 | BOLT | 1 |
| 12 | 259015A0 | CLAMP LEVER | 1 |
| 13 | 0070680 | BOLT | 2 |
| 14 | 3052190 | SHAFT | 1 |
| 15 | 259006A0 | JOINT | 1 |
| 16 | 0045110 | BOLT | 1 |
| 17 | 259015A0 | CLAMP LEVER | 1 |
| 18 | 0070680 | BOLT | 2 |
| 19 | 259005B0 | SHAFT | 1 |
| 20 | 0070680 | BOLT | 1 |
| 21 | 2590040 | BRACKET | 1 |
| 22 | 0049050 | SCREW | 2 |
| 23 | 308541-910 | LOWER ROLLER ASSY. | 1 |
| 24 | 308542-910 | BRACKET | 1 |
| 25 | 0045020 | BOLT | 4 |
| 26 | 0048200 | BOLT | 4 |
| 27 | 3033350 | WASHER | 4 |
| 28 | 3030670 | WASHER | 4 |
| 29 | 3068290 | BRACKET | 1 |
| 30 | 306830B | SCREW | 1 |
| 31 | 3085480 | CLAMP LEVER | 1 |
| 32 | 2007280 | WASHER | 1 |
| 33 | 302445A0 | ROLLER | 1 |
| 34 | 302444A0 | SHAFT | 1 |
| 35 | 0053320 | SCREW | 1 |
| 36 | 2045200 | WASHER | 1 |
Page 11 — FR151 LOWER ROLLER ASSY.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305199A910 | LOWER ROLLER ASSY. | 1 |
| 2 | 305200-910 | ROLLER | 2 |
| 3 | 0071300 | SCREW | 2 |
| 4 | 2011850 | WASHER | 2 |
| 5 | 3052020 | SHAFT | 2 |
| 6 | 2025220 | RING | 2 |
| 7 | 305205-920 | FABLIC GUIDE | 2 |
| 8 | 0070730 | SCREW | 2 |
| 9 | 3052030 | BRACKET | 1 |
| 10 | 0072800 | SCREW | 1 |
| 11 | 259015A0 | CLAMP LEVER | 1 |
| 12 | 2040230 | WASHER | 1 |
| 13 | 3052200 | BRACKET | 1 |
| 14 | 0070200 | SCREW | 2 |
| 15 | 2011850 | WASHER | 2 |
| 16 | 5140010 | CYLINDER | 1 |
| 17 | 3052210 | BRACKET | 2 |
| 18 | 0071300 | SCREW | 4 |
| 19 | 2011850 | WASHER | 4 |
| 20 | 5270020 | SPEED CONTROLLER | 2 |
| 21 | 6000320 | TUBE | 1 |
| 22 | 6001010 | TUBE | 1 |
| 23 | 7480020 | BAND | 2 |
| 24 | 6011200 | JOINT | 2 |
| 25 | 3052240 | HOUSING | 1 |
| 26 | 3052230 | SHEET | 1 |
| 27 | 3506650 | SEAL | 1 |
| 28 | 0040260 | BOLT | 2 |
| 29 | 3033350 | WASHER | 2 |
| 30 | 2042930 | WASHER | 2 |
| 31 | 3052220 | STOPPER | 1 |
| 32 | 2403050 | RUBBER CUSHION | 2 |
| 33 | 2404820 | CLAMP LEVER | 1 |
| 34 | 2040230 | WASHER | 1 |
| 35 | 3052040 | BRACKET | 1 |
| 36 | 0045020 | BOLT | 4 |
| 37 | 3033350 | WASHER | 4 |
| 38 | 3030670 | WASHER | 4 |
| 39 | 0048200 | NUT | 4 |
| 40 | 7480150 | BAND | 5 |
| 41 | 0049200 | SCREW | 3 |
| 42 | 7480420 | BAND | 3 |
| 43 | 9A30690 | CAUTION LABEL | 1 |

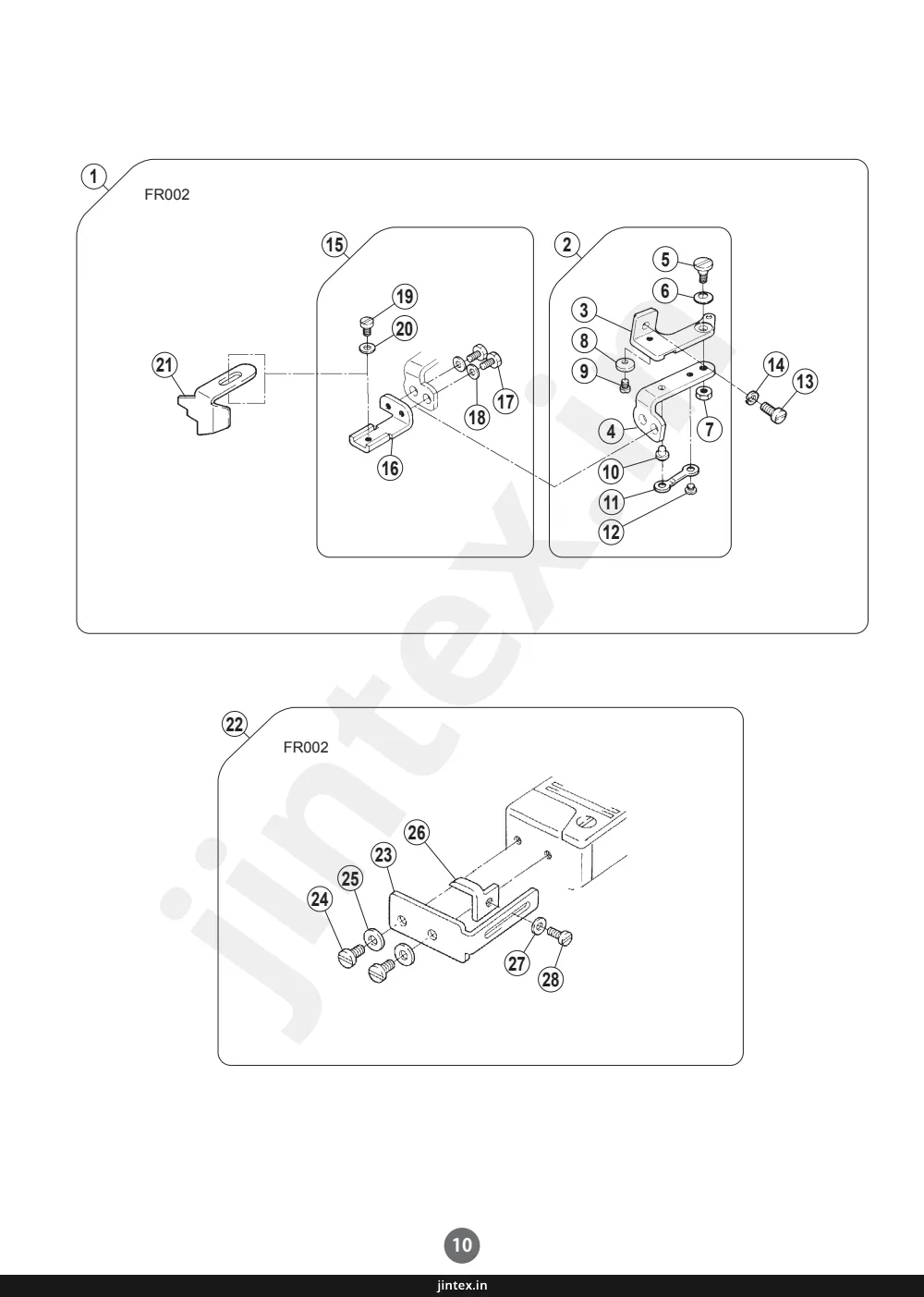

Page 13 — FR002 EGDE GUIDE ASSY. • ERASTIC GUIDE ASSY.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 302500-910 | EDGE GUIDE ASSY. | 1 |
| 2 | 2106850 | BRACKET ASSY. | 1 |
| 3 | 2106800 | BRACKET | 1 |
| 4 | 2106810 | HINGE | 1 |
| 5 | 0051840 | SCREW | 1 |
| 6 | 2011910 | SPRING | 1 |
| 7 | 0030440 | NUT | 1 |
| 8 | 2106820 | WASHER | 1 |
| 9 | 0050530 | SCREW | 1 |
| 10 | 2106830 | PIN | 1 |
| 11 | 2106840 | FLAT SPRING | 1 |
| 12 | 0029060 | SCREW | 1 |
| 13 | 007021A0 | SCREW | 1 |
| 14 | 2022860 | WASHER | 1 |
| 15 | 2106860 | BRACKET ASSY. | 1 |
| 16 | 2106870 | BRACKET | 1 |
| 17 | 0050880 | BOLT | 2 |
| 18 | 1670660 | WASHER | 2 |
| 19 | 0012020 | SCREW | 1 |
| 20 | 1670660 | WASHER | 1 |
| 21 | 3024480 | EDGE GUIDE | 1 |
| 22 | 302474-910 | ERASTIC GUIDE ASSY. | 1 |
| 23 | 3024550 | BRACKET | 1 |
| 24 | 007018A0 | SCREW | 2 |
| 25 | 2011850 | WASHER | 2 |
| 26 | 3024560 | ERASTIC GUIDE | 1 |
| 27 | 0050120 | SCREW | 1 |
| 28 | 2028750 | WASHER | 1 |
Page 15 — FR151 EDGE GUIDE ASSY. • KNEE SWITCH ASSY.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 305226A910 | EDGE GUIDE ASSY. | 1 |
| 2 | 3052270 | BRACKET | 1 |
| 3 | 0070260 | SCREW | 1 |
| 4 | 2403320 | SPACER | 1 |
| 5 | 0070200 | SCREW | 1 |
| 6 | 305228-910 | BRACKET | 1 |
| 7 | 0071600 | SCREW | 1 |
| 8 | 0048180 | NUT | 1 |
| 9 | 2048880 | SPRING | 2 |
| 10 | 2060550 | WASHER | 1 |
| 11 | 0W00128-20 | SCREW | 1 |
| 12 | 3052300 | PLATE | 1 |
| 13 | 0071300 | SCREW | 1 |
| 14 | 2011850 | WASHER | 1 |
| 15 | 3052340 | SPACER | 1 |
| 16 | 3052310 | GUIDE (LEFT) | 1 |
| 17 | 0071430 | SCREW | 1 |
| 18 | 2011850 | WASHER | 1 |
| 19 | 3052320 | BRACKET | 1 |
| 20 | 0071430 | SCREW | 1 |
| 21 | 3052330 | GUIDE (RIGHT) | 2 |
| 22 | 0070240 | 1 | |
| 23 | 2011850 | WASHER | 1 |
| 24 | 2052340 | SPACER | 1 |
| 25 | 3052350 | SEPARATER | 1 |
| 26 | 3052360 | AUXILIARY GUIDE | 1 |
| 27 | 3503360 | LATCH | 1 |
| 28 | 0045270 | BOLT | 1 |
| 29 | 3052380 | STOPPER | 1 |
| 30 | 2403050 | RUBBER CUSHION | 1 |
| 31 | 0070210 | SCREW | 1 |
| 32 | 0072810 | NUT | 1 |
| 33 | 3052390 | SPRING | 1 |
| 34 | 0045540 | SCREW | 2 |
| 35 | 5131080 | AIR CYLINDER | 1 |
| 36 | 2109300 | WASHER | 2 |
| 37 | 2011850 | WASHER | 2 |
| 38 | 5270060 | SPEED CONTROLLER | 1 |
| 39 | 6010970 | JOINT | 1 |
| 40 | 3052370 | BRACKET | 1 |
| 41 | 0070210 | SCREW | 2 |
| 42 | 0072810 | NUT | 2 |
| 43 | 2011850 | WASHER | 2 |
| 44 | 350645-910 | KNEE SWITCH ASSY. | 1 |
| 45 | 0001970 | BRACKET | 1 |
| 46 | 0049100 | SCREW | 2 |
| 47 | 2045850 | WASHER | 2 |
| 48 | 3506430 | BRACKET | 1 |
| 49 | 3002200 | VALVE ACTUATOR ASSY. | 1 |
| 50 | 0051830 | SCREW | 1 |
| 51 | 0030440 | NUT | 1 |
| 52 | 0051180 | SCREW | 1 |
| 53 | 1371420 | WASHER | 2 |
| 54 | 7E2004A0000 | SWITCH | 1 |
| 55 | 6A028100000 | BRACKET | 1 |
| 56 | 5320010 | AIR VALVE | 1 |
| 57 | 1D001400000 | NUT | 1 |
| 58 | 6011150 | JOINT | 1 |
| 59 | 6011070 | JOINT | 2 |
| 60 | 6000320 | TUBE | 1 |
| 61 | 6000780 | TUBE | 1 |
| 62 | 6000770 | TUBE | 1 |
Page 17 — FR151 VALVE SET
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 302477A910 | VALVE SET | 1 |
| 2 | 532007-910 | AIR VALVE ASSY. | 1 |
| 3 | 5320010 | AIR VALVE | 1 |
| 4 | 3067310 | BRACKET | 1 |
| 5 | 3004690 | STOPPER | 1 |
| 6 | 3004680 | ACTUATOR | 1 |
| 7 | 3067330 | PITMAN ROD | 1 |
| 8 | 6010020 | JOINT | 3 |
| 9 | 2017590 | WASHER | 3 |
| 10 | 6010430 | SLEEVE | 3 |
| 11 | 3039910 | JOINT | 2 |
| 12 | 6000150 | TUBE | 2 |
| 13 | 306733A0 | PITMAN ROD | 1 |
| 14 | 1375580 | SPRING | 1 |
| 15 | 6000240 | TUBE | 1 |
| 16 | 0043200 | BOLT | 3 |
| 17 | 3024690 | BRACKET | 1 |
| 18 | 0049210 | SCREW | 2 |
| 19 | 0045020 | BOLT | 2 |
| 20 | 3030670 | WASHER | 2 |
| 21 | 0048200 | NUT | 2 |
| 22 | 3024700 | BRACKET | 1 |
| 23 | 6010890 | JOINT | 1 |
Page 19 — TABLE • WASTE CHUTE ASSY.
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 9A90500 | TABLE | 1 |
| 2 | 202459A9R0 | WASTE CHUTE ASSY. | 1 |
| 3 | 302453-RA0 | WASTE CHUTE | 1 |
| 4 | 302454-RA0 | WASTE CHUTE | 1 |
| 5 | 0030440 | NUT | 4 |
| 6 | 0054530 | SCREW | 4 |
| 7 | 3030670 | WASHER | 4 |
| 8 | 3053600 | BRACKET | 1 |
| 9 | 0041090 | SCREW | 2 |
| 10 | 2401040 | WASHER | 2 |
| 11 | 0048210 | NUT | 2 |
| 12 | 0049050 | SCREW | 2 |
Page 20 — INDEX
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 45 | 0001970 | ||
| 19 | 0012020 | ||
| 12 | 0029060 | ||
| 7 | 0030440 | ||
| 51 | 0030440 | ||
| 5 | 0030440 | ||
| 30 | 0040260 | ||
| 28 | 0040260 | ||
| 9 | 0041090 | ||
| 16 | 0043200 | ||
| 25 | 0045020 | ||
| 36 | 0045020 | ||
| 19 | 0045020 | ||
| 11 | 0045110 | ||
| 16 | 0045110 | ||
| 28 | 0045270 | ||
| 26 | 0045380 | ||
| 8 | 0045430 | ||
| 4 | 0045540 | ||
| 34 | 0045540 | ||
| 8 | 0048180 | ||
| 26 | 0048200 | ||
| 39 | 0048200 | ||
| 21 | 0048200 | ||
| 11 | 0048210 | ||
| 3 | 0049050 | ||
| 38 | 0049050 | ||
| 22 | 0049050 | ||
| 12 | 0049050 | ||
| 46 | 0049100 | ||
| 41 | 0049200 | ||
| 18 | 0049210 | ||
| 27 | 0050120 | ||
| 9 | 0050530 | ||
| 17 | 0050880 | ||
| 52 | 0051180 | ||
| 50 | 0051830 | ||
| 5 | 0051840 | ||
| 6 | 0053320 | ||
| 35 | 0053320 | ||
| 6 | 0054530 | ||
| 9 | 0055460 | ||
| 33 | 0070110 | ||
| 24 | 007018A0 | ||
| 14 | 0070200 | ||
| 5 | 0070200 | ||
| 31 | 0070210 | ||
| 41 | 0070210 | ||
| 13 | 007021A0 | ||
| 22 | 0070240 | ||
| 3 | 0070260 | ||
| 13 | 0070680 | ||
| 18 | 0070680 | ||
| 20 | 0070680 | ||
| 18 | 0070730 | ||
| 8 | 0070730 | ||
| 13 | 0071300 | ||
| 20 | 0071300 | ||
| 3 | 0071300 | ||
| 18 | 0071300 | ||
| 13 | 0071300 | ||
| 17 | 0071430 | ||
| 20 | 0071430 | ||
| 7 | 0071600 | ||
| 10 | 0072800 | ||
| 32 | 0072810 | ||
| 42 | 0072810 | ||
| 11 | 0W00128-20 | ||
| 53 | 1371420 | ||
| 14 | 1375580 | ||
| 18 | 1670660 | ||
| 20 | 1670660 | ||
| 57 | 1D001400000 | ||
| 36 | 2007280 | ||
| 32 | 2007280 | ||
| 14 | 2011850 | ||
| 4 | 2011850 | ||
| 15 | 2011850 | ||
| 19 | 2011850 | ||
| 25 | 2011850 | ||
| 14 | 2011850 | ||
| 18 | 2011850 | ||
| 23 | 2011850 | ||
| 37 | 2011850 | ||
| 43 | 2011850 | ||
| 6 | 2011910 | ||
| 9 | 2017590 | ||
| 14 | 2022860 | ||
| 2 | 202459A9R0 | ||
| 16 | 2025220 | ||
| 6 | 2025220 | ||
| 28 | 2028750 | ||
| 12 | 2040230 | ||
| 34 | 2040230 | ||
| 30 | 2042930 | ||
| 5 | 2045200 | ||
| 36 | 2045200 | ||
| 47 | 2045850 | ||
| 9 | 2048880 | ||
| 24 | 2052340 | ||
| 15 | 2052340 | ||
| 10 | 2060550 | ||
| 3 | 2106800 | ||
| 4 | 2106810 | ||
| 8 | 2106820 | ||
| 10 | 2106830 | ||
| 11 | 2106840 | ||
| 2 | 2106850 | ||
| 15 | 2106860 | ||
| 16 | 2106870 | ||
| 36 | 2109300 | ||
| 10 | 2400620 | ||
| 10 | 2401040 | ||
| 32 | 2403050 | ||
| 30 | 2403320 | ||
| 4 | 2403330 | ||
| 32 | 2404730 | ||
| 27 | 2404750 | ||
| 28 | 2404810 | ||
| 35 | 2404820 | ||
| 33 | 2404820 | ||
| 21 | 2404820 | ||
| 19 | 2590040 | ||
| 10 | 259005B0 | ||
| 15 | 2590060 | ||
| 7 | 259006A0 | ||
| 12 | 2590140 | ||
| 17 | 259015A0 | ||
| 11 | 259015A0 | ||
| 2 | 259015A0 | ||
| 3 | 2590360 | ||
| 13 | 2590380 | ||
| 49 | 3002200 | ||
| 6 | 3004680 | ||
| 5 | 3004690 | ||
| 34 | 302444A0 | ||
| 33 | 302445A0 | ||
| 21 | 3024480 | ||
| 4 | 3024490 | ||
| 7 | 3024510 | ||
| 8 | 3024520 | ||
| 3 | 302453-RA0 | ||
| 4 | 302454-RA0 | ||
| 23 | 3024550 | ||
| 26 | 3024560 | ||
| 17 | 3024690 | ||
| 22 | 3024700 | ||
| 22 | 302474-910 | ||
| 1 | 302477A910 | ||
| 1 | 302500-910 | ||
| 28 | 3030670 | ||
| 38 | 3030670 | ||
| 20 | 3030670 | ||
| 7 | 3030670 | ||
| 6 | 3033350 | ||
| 31 | 3033350 | ||
| 27 | 3033350 | ||
| 29 | 3033350 | ||
| 37 | 3033350 | ||
| 11 | 3039910 | ||
| 1 | 305199A910 | ||
| 2 | 305200-910 | ||
| 15 | 3052020 | ||
| 5 | 3052020 | ||
| 35 | 3052030 | ||
| 7 | 3052040 | ||
| 1 | 305205-920 | ||
| 19 | 305205-920 | ||
| 1 | 305206-910 | ||
| 19 | 3052090 | ||
| 21 | 3052100 | ||
| 11 | 305211-910 | ||
| 12 | 305212-910 | ||
| 29 | 3052150 | ||
| 34 | 305216-910 | ||
| 37 | 3052180 | ||
| 14 | 3052190 | ||
| 13 | 3052200 | ||
| 17 | 3052210 | ||
| 31 | 3052220 | ||
| 26 | 3052230 | ||
| 25 | 3052240 | ||
| 25 | 3052250 | ||
| 1 | 305226A910 | ||
| 2 | 3052270 | ||
| 6 | 305228-910 | ||
| 12 | 3052300 | ||
| 16 | 3052310 | ||
| 19 | 3052320 | ||
| 21 | 3052330 | ||
| 15 | 3052340 | ||
| 25 | 3052350 | ||
| 26 | 3052360 | ||
| 40 | 3052370 | ||
| 29 | 3052380 | ||
| 33 | 3052390 | ||
| 8 | 3053600 | ||
| 4 | 3067310 | ||
| 7 | 3067330 | ||
| 13 | 306733A0 | ||
| 29 | 3068290 | ||
| 30 | 306830B | ||
| 9 | 3069260 | ||
| 23 | 308541-910 | ||
| 24 | 308542-910 | ||
| 1 | 308543-910 | ||
| 2 | 308544-910 | ||
| 31 | 3085480 | ||
| 27 | 3503360 | ||
| 48 | 3506430 | ||
| 44 | 350645-910 | ||
| 27 | 3506650 | ||
| 22 | 5131070 | ||
| 35 | 5131080 | ||
| 16 | 5140010 | ||
| 20 | 5270020 | ||
| 23 | 5270020 | ||
| 38 | 5270060 | ||
| 56 | 5320010 | ||
| 3 | 5320010 | ||
| 2 | 532007-910 | ||
| 12 | 6000150 | ||
| 15 | 6000240 | ||
| 21 | 6000320 | ||
| 60 | 6000320 | ||
| 62 | 6000770 | ||
| 61 | 6000780 | ||
| 22 | 6001010 | ||
| 24 | 6001750 | ||
| 8 | 6010020 | ||
| 10 | 6010430 | ||
| 23 | 6010890 | ||
| 39 | 6010970 | ||
| 59 | 6011070 | ||
| 58 | 6011150 | ||
| 24 | 6011200 | ||
| 55 | 6A028100000 | ||
| 23 | 7480020 | ||
| 40 | 7480150 | ||
| 42 | 7480420 | ||
| 54 | 7E2004A0000 | ||
| 39 | 9A30690 | ||
| 43 | 9A30690 | ||
| 1 | 9A90500 |
Pegasus FR002 / FR151 — parts catalog
- Page 1 (cover): This is the cover page for the FR Fabric Tensioner Device Parts Catalog for Pegasus EX(T)5100 Series machine models.
- Page 2 (toc): This page provides an introduction to the parts catalog, explaining how to use it, and lists the models covered by the catalog.
- Page 3 (toc): This page is a table of contents for a parts catalog, listing various assemblies and their corresponding page numbers.
- Page 4 (parts_list): This page provides application tables for FR/EX5100 and FR/EXT5100 models, detailing features and component parts for different types.
- Page 5 (unknown): This page is blank except for a watermark 'jintex.in' and a footer with the same text.
- Page 6 (diagram): This page displays two diagrams, FR002 and FR151, illustrating various components and their assembly.
- Page 7 (parts_list): This page lists parts for the FR002 and FR151 rear roller assembly, including part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays two diagrams, FR002 and FR151, showing various components and their assembly, with a note about packed accessories.
- Page 9 (parts_list): This page lists parts for the FR002 and FR151 models, specifically for the front roller assembly and lower roller assembly, including part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays an exploded view diagram of the FR151 assembly, showing various components and accessories.
- Page 11 (parts_list): This page lists parts for the FR151 Lower Roller Assembly, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays two diagrams, FR002 and FR002, illustrating various components and their assembly with numbered references.
- Page 13 (parts_list): This page lists parts for the FR002 Edge Guide Assembly and Erastic Guide Assembly, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays two diagrams, FR151, illustrating various components and their assembly.
- Page 15 (parts_list): This page lists parts for the FR151 Edge Guide Assy. and Knee Switch Assy., including screws, washers, nuts, brackets, and other components with their respective part numbers and quantities.
- Page 16 (diagram): This page displays a diagram of various components, including a bracket, screws, nuts, washers, rods, and a valve assembly, with reference numbers for each part.
- Page 17 (parts_list): This page lists parts for the FR151 Valve Set, including part numbers, descriptions in Japanese and English, and quantities.
- Page 18 (diagram): This page displays a diagram of components for FR002 and FR151 models, showing various parts with reference numbers.
- Page 19 (parts_list): This page lists parts for the FR002 and FR151 models, specifically for the table and waste chute assembly, including part numbers, descriptions, and quantities.
- Page 20 (index): This page is an index listing part numbers, their corresponding page numbers, and reference numbers.
- Page 21 (unknown): This page is blank except for a watermark 'jintex.in' and a footer 'jintex.in'.
- Page 22 (unknown): This page is blank except for a watermark and a footer.
- Page 23 (unknown): This page is blank except for a watermark 'jintex.in' and a footer with the same text.
- Page 24 (cover): This page is the cover of a parts catalog from Pegasus Sewing Machine Mfg. Co., Ltd., published in February 2007, and includes contact information for their main office.
