Pegasus M700 Series Parts Book (PDF)
Text index — Pegasus M700 Series
Page 2 — M700 Series
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M752-01 | M752-01 | ||
| M752-13 | M752-13 | ||
| M752-13H | M752-13H | ||
| M752-16S2 | M752-16S2 | ||
| M752-17 | M752-17 | ||
| M752-23B | M752-23B | ||
| M752-54A | M752-54A | ||
| M752-55A | M752-55A | ||
| M752-180 | M752-180 | ||
| M752-181 | M752-181 | ||
| M732-36 | M732-36 | ||
| M732-38 | M732-38 | ||
| M732-48 | M732-48 | ||
| M732-48P2 | M732-48P2 | ||
| M732-70 | M732-70 | ||
| M732-86 | M732-86 | ||
| M732-355 | M732-355 |
Page 4 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | M700 | SERIES M700 SEWING MACHINE | |
| 1 | 570 | TYPE | |
| 1 | DEVICE | DEVICE | |
| 6 | M752 | M752 | |
| 7 | M732 | M732 |
Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2700470 | BED PIN | 4 |
| 2 | 2040030 | OIL SIGHT GAUGE | 1 |
| 3 | 2106790 | PIN | 2 |
| 4 | 2106790 | PIN | 2 |
| 5 | 9A30710 | STICKER | 1 |
| 6 | 2095370 | BRACKET | 1 |
| 7 | 2095380 | BRACKET | 1 |
| 8 | 2403361 | SPRING PIN | 1 |
| 9 | 0045110 | BOLT | 2 |
| 10 | 2403250 | PIPE | 2 |
| 11 | 2403361 | SPRING PIN | 1 |
Page 7 — COVER(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209535-PD0 | SIDE COVER | 1 |
| 2 | 0070200 | SCREW | 2 |
| 3 | 0070240 | SCREW | 1 |
| 4 | 209512-PD0 | TOP COVER | 1 |
| 5 | 0070240 | SCREW | 4 |
| 6 | 2095790 | GASKET | 1 |
| 7 | 2064571 | OIL SIGHT WINDOW | 1 |
| 8 | 2066820 | GASKET | 1 |
| 9 | 9A30670 | STICKER | 1 |
| 10 | 2095510 | FAN COVER | 1 |
| 11 | 0070190 | SCREW | 2 |
| 12 | 2095180 | COVER | 1 |
| 13 | 0070190 | SCREW | 3 |
| 14 | 0070820 | SCREW | 1 |
| 15 | 2096330 | FABRIC GUARD | 1 |
| 16 | 2096340 | FABRIC GUARD | 1 |
| 17 | 2097360 | BRACKET | 1 |
| 18 | 0072320 | SCREW | 1 |
| 19 | 0070190 | SCREW | 3 |
| 20 | 209515-PD0 | FRONT COVER (RIGHT) | 1 |
| 21 | 270018A0 | LATCH | 1 |
| 22 | 0070090 | SCREW | 1 |
| 23 | 2096800 | LATCH | 1 |
| 24 | 0070170 | SCREW | 1 |
| 25 | 2100440 | FLAT SPRING | 1 |
| 26 | 0070170 | SCREW | 1 |
| 27 | 2400430 | PIN | 1 |
| 28 | 0045430 | SCREW | 2 |
| 29 | 2403010 | SPRING | 1 |
| 30 | 2095160 | HINGE | 1 |
| 31 | 0070210 | SCREW | 3 |
| 32 | 2096640 | FRONT COVER (CENTER) | 1 |
| 33 | 2096650 | FRONT COVER (CENTER) | 1 |
| 34 | 0070180 | SCREW | 2 |
| 35 | 2096570 | OIL GUARD | 1 |
| 36 | 0070180 | SCREW | 1 |
| 37 | 209550-PB0 | BELT COVER | 1 |
| 38 | 0071760 | SCREW | 3 |
| 39 | 9A30690 | STICKER | 1 |
| 40 | 9A30480 | STICKER | 1 |
| 41 | 2097020 | SPONGE | 1 |
Page 9 — COVER(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2096870 | COVER PLATE | 1 |
| 2 | 0070200 | SCREW | 4 |
| 3 | 2095170 | BED COVER PLATE | 1 |
| 4 | 0070840 | BOLT | 4 |
| 5 | 209513-PD0 | NEEDLE BAR COVER | 1 |
| 6 | 2096410 | PIN | 1 |
| 7 | 0045430 | SCREW | 1 |
| 8 | 2096450 | SPRING | 1 |
| 9 | 0070170 | SCREW | 1 |
| 10 | 2096360 | SCREW | 1 |
| 11 | 2096180 | EYE GUARD | 1 |
| 12 | 2096190 | EYE GUARD | 1 |
| 13 | 0070620 | SCREW | 2 |
| 14 | 2028750 | WASHER | 2 |
| 15 | 2096510 | BRACKET | 1 |
| 16 | 2403050 | CUSHION RUBBER | 1 |
| 17 | 0070660 | SCREW | 1 |
| 18 | 2103070 | WASHER | 2 |
| 19 | 2095430 | FRONT COVER (LEFT) | 1 |
| 20 | 0070770 | SCREW | 2 |
| 21 | 209576-910 | CLOTH PLATE ASSEMBLY | 1 |
| 22 | 209571-910 | CLOTH PLATE ASSEMBLY | 1 |
| 23 | 2700420 | BUSHING | 1 |
| 24 | 0045430 | SCREW | 1 |
| 25 | 2103070 | WASHER | 1 |
| 26 | 0070660 | SCREW | 1 |
| 27 | 2700430 | LEVER | 1 |
| 28 | 2700440 | SPRING | 1 |
| 29 | 0071720 | SCREW | 1 |
| 30 | 2700450 | BRACKET | 1 |
| 31 | 2403050 | CUSHION RUBBER | 1 |
| 32 | 007023A0 | SCREW | 1 |
| 33 | 0048210 | NUT | 1 |
| 34 | 209547-PB0 | SIDE COVER | 1 |
| 35 | 0070180 | SCREW | 2 |
| 36 | 2403430 | WASHER | 2 |
| 37 | 0070250 | SCREW | 1 |
| 38 | 2012520 | SPRING WASHER | 1 |
| 39 | 2403050 | CUSHION RUBBER | 1 |
| 40 | 2700480 | LATCH | 1 |
| 41 | 0070080 | SCREW | 1 |
| 42 | 2700490 | LATCH | 1 |
| 43 | 0071800 | SCREW | 1 |
| 44 | 2403050 | CUSHION RUBBER | 1 |
| 45 | 2096440 | FACE PLATE | 1 |
| 46 | 0070820 | SCREW | 1 |
Page 11 — CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209686-910 | CRANK SHAFT | 1 |
| 2 | 0014590 | SCREW | 2 |
| 3 | 0053040 | SCREW | 1 |
| 4 | 0045410 | SCREW | 1 |
| 5 | 2705100 | PIN | 1 |
| 6 | 2096080 | LEFT COVER | 1 |
| 7 | 0070190 | SCREW | 3 |
| 8 | 2096090 | LEFT COVER | 1 |
| 9 | 0070440 | SCREW | 2 |
| 10 | 0070200 | SCREW | 1 |
| 11 | 2095810 | GASKET | 1 |
| 12 | 209671-920 | BUSHING | 1 |
| 13 | 0070130 | SCREW | 2 |
| 14 | 2096370 | SCREW | 1 |
| 15 | 2405510 | BUSHING | 1 |
| 16 | 204019A0 | SPACER | 1 |
| 17 | 2040180 | SPRING WASHER | 4 |
| 18 | 2405520 | BUSHING | 1 |
| 19 | 2096060 | RIGHT COVER | 1 |
| 20 | 2403400 | O RING | 1 |
| 21 | 2096070 | PLATE | 1 |
| 22 | 0070200 | SCREW | 3 |
| 23 | 2084761 | OIL SEAL | 1 |
| 24 | 2082720 | O RING | 1 |
| 25 | 2094810 | FAN | 1 |
| 26 | 2096050 | MACHINE PULLEY | 1 |
| 27 | 0045560 | SCREW | 1 |
| 28 | 0045410 | SCREW | 1 |
| 29 | 0045100 | BOLT | 1 |
| 30 | 2405360 | WASHER | 1 |
| 31 | 209514-PD0 | COVER | 1 |
| 32 | 0071050 | SCREW | 3 |
| 33 | 209591-910 | BALL BEARING ASSEMBLY | 1 |
| 34 | 0045720 | SCREW | 1 |
| 35 | 0045140 | SCREW | 1 |
| 36 | 209613-D0 | WORM | 1 |
| 37 | 0045140 | SCREW | 1 |
Page 13 — NEEDLE DRIVE MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209544-920 | ROD | 1 |
| 2 | 007023A0 | SCREW | 2 |
| 3 | 209552-920 | CRANK | 1 |
| 4 | 0045330 | BOLT | 1 |
| 5 | 2710010 | PIN | 1 |
| 6 | 0045380 | SCREW | 1 |
| 7 | 2095820 | COLLAR | 1 |
| 8 | 2050610 | RING | 1 |
| 9 | 2403110 | WASHER | 1 |
| 10 | 2405370 | COLLAR | 1 |
| 11 | 0045430 | SCREW | 2 |
| 12 | 2082500 | OIL SEAL | 1 |
| 13 | 209567-920 | LEVER | 1 |
| 14 | 0071500 | BOLT | 1 |
| 15 | 2084250 | LINK/NEEDLE BAR DRIVE | 1 |
| 16 | 209690-910 | PIN ASSEMBLY | 2 |
| 17 | 0045450 | SCREW | 2 |
| 18 | 208903-C0 | NEEDLE BAR | 1 |
| 19 | 209566-920 | NEEDLE BAR CLAMP | 1 |
| 20 | 0070130 | SCREW | 1 |
| 21 | 2096400 | CAP | 1 |
| 22 | 2401290 | O RING | 1 |
| 23 | 0045430 | SCREW | 1 |
| 24 | XXXXXX | NEEDLE HOLDER | 1 |
| 25 | 005292-HU0 | SCREW | 1 |
| 26 | 005292-HU0 | SCREW | 2 |
| 27 | 005292-HU0 | SCREW | 3 |
| 28 | 2096470 | COVER | 1 |
| 29 | 2096480 | COVER | 1 |
| 30 | 2096420 | FELT | 1 |
| 31 | 0071920 | SCREW | 2 |
| 32 | 2096460 | COVER | 1 |
| 33 | 0070180 | SCREW | 1 |
Page 15 — 針振り機構(2)NEEDLE DRIVE MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2095390 | BRACKET | 1 |
| 2 | 0070200 | SCREW | 2 |
| 3 | XXXXXX | NEEDLE PLATE | 1 |
| 4 | 004009-1HC0 | SCREW | 2 |
| 5 | 2089351 | SUPPORT/NEEDLE PLATE | 1 |
| 6 | 0070190 | SCREW | 2 |
| 7 | 2046310 | KEY | 1 |
| 8 | 0070120 | SCREW | 2 |
| 9 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 10 | 0055010 | SCREW | 1 |
| 11 | 2109300 | SPRING WASHER | 1 |
| 12 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 13 | 0070120 | SCREW | 1 |
| 14 | 204636B0 | BRACKET | 1 |
| 15 | 0070140 | SCREW | 2 |
| 16 | 2403050 | CUSHION RUBBER | 1 |
| 17 | 2095410 | BRACKET | 1 |
| 18 | 0070190 | SCREW | 1 |
| 19 | 2095400 | BRACKET | 1 |
| 20 | 0070200 | SCREW | 2 |
| 21 | XXXXXX | NEEDLE PLATE | 1 |
| 22 | 005484-HC0 | SCREW | 2 |
| 23 | XXXXXX | NEEDLE PLATE FINGER | 1 |
| 24 | 0053150 | SCREW | 1 |
| 25 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 26 | 0055010 | SCREW | 1 |
| 27 | 2109300 | SPRING WASHER | 1 |
| 28 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 29 | 0070100 | SCREW | 2 |
| 30 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 31 | 0070320 | SCREW | 2 |
| 32 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 33 | 0070100 | SCREW | 1 |
Page 17 — UPPER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209546-920 | ROD | 1 |
| 2 | 007023A0 | SCREW | 4 |
| 3 | 2096600 | GUIDE | 2 |
| 4 | 209560-920 | CRANK | 1 |
| 5 | 0073690 | BOLT | 2 |
| 6 | 2095830 | SHAFT | 1 |
| 7 | 2403380 | WASHER | 1 |
| 8 | 0071740 | SCREW | 1 |
| 9 | 3030670 | SPRING WASHER | 1 |
| 10 | 210586A0 | OIL SEAL | 1 |
| 11 | 2405640 | PLUG | 1 |
| 12 | 209568-920 | LEVER | 1 |
| 13 | 0071500 | BOLT | 1 |
| 14 | 209587-910 | UPPER LOOPER HOLDER ASSEMBLY | 1 |
| 15 | 179130-050 | FELT | 1 |
| 16 | 179136A910 | PIN ASSEMBLY | 1 |
| 17 | 0045450 | SCREW | 1 |
| 18 | 2095890 | BASE/UPPER LOPPER HOLDER | 1 |
| 19 | 0045100 | BOLT | 2 |
| 20 | 2715190 | FILTER | 1 |
| 21 | 2095900 | COVER | 1 |
| 22 | 0070390 | SCREW | 1 |
| 23 | XXXXXX | UPPER LOPPER | 1 |
| 24 | 001998-20 | SCREW | 1 |
| 25 | 209703-910 | PIN ASSEMBLY | 1 |
| 26 | 2102140 | PLUG | 1 |
| 27 | 0045430 | SCREW | 1 |
| 28 | 2096530 | COVER | 1 |
| 29 | 0070180 | SCREW | 1 |
| 30 | 0070330 | SCREW | 1 |
Page 19 — LOWER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209546-920 | ROD | 1 |
| 2 | 007023A0 | SCREW | 4 |
| 3 | 2096600 | GUIDE | 2 |
| 4 | 209560-920 | CRANK | 1 |
| 5 | 0073690 | BOLT | 2 |
| 6 | 209563-920 | CRANK | 1 |
| 7 | 0073690 | BOLT | 2 |
| 8 | 2095830 | SHAFT | 1 |
| 9 | 2403380 | WASHER | 1 |
| 10 | 0071740 | SCREW | 1 |
| 11 | 3030670 | SPRING WASHER | 1 |
| 12 | 210586A0 | OIL SEAL | 1 |
| 13 | 209007-911 | LOWER LOOPER HOLDER ASSEMBLY | 1 |
| 14 | 2082590 | PIN | 1 |
| 15 | 2090830 | PIN | 1 |
| 16 | 0071500 | BOLT | 1 |
| 17 | XXXXXX | LOWER LOOPER | 1 |
| 18 | 001175-30 | SCREW | 1 |
Page 21 — FEED MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209556-910 | CRANK ASSEMBLY | 1 |
| 2 | 0070110 | SCREW | 2 |
| 3 | 0045330 | BOLT | 1 |
| 4 | 204140A0 | LINK/DIFF. FEED REGULATING | 1 |
| 5 | 0070580 | SCREW | 2 |
| 6 | 209570-920 | LEVER | 1 |
| 7 | 0045330 | BOLT | 1 |
| 8 | 272533A1 | SHAFT | 1 |
| 9 | 2041850 | O RING | 1 |
| 10 | 2096490 | LEVER | 1 |
| 11 | 2725340 | SPRING | 1 |
| 12 | 0071610 | SCREW | 1 |
| 13 | 2096500 | REGULATOR PLATE | 1 |
| 14 | 204143A0 | STOPPER | 2 |
| 15 | 0070210 | SCREW | 2 |
| 16 | 252069A0 | NUT | 1 |
| 17 | 0070590 | SCREW | 1 |
| 18 | 2113010 | SPRING WASHER | 1 |
| 19 | 2095940 | ROD | 1 |
| 20 | 209555-920 | CRANK | 1 |
| 21 | 0045330 | BOLT | 1 |
| 22 | 2710010 | PIN | 1 |
| 23 | 0045380 | SCREW | 1 |
| 24 | 240012-20 | NEEDLE BEARING | 1 |
| 25 | 209592-910 | REGULATOR | 1 |
| 26 | 2107170 | PIN | 1 |
| 27 | 0045140 | SCREW | 2 |
| 28 | 2725010 | ECCENTRIC | 1 |
| 29 | 2101290 | GUIDE/FEED ECCENTRIC | 1 |
| 30 | 2101300 | FLAT SPRING | 1 |
| 31 | 0045350 | SCREW | 2 |
| 32 | 272504-910 | ECCENTRIC ASSEMBLY | 1 |
| 33 | 2404360 | SPRING PIN | 2 |
| 34 | 2725020 | RATCHET | 1 |
| 35 | 2725030 | SPRING | 1 |
| 36 | 0070380 | SCREW | 1 |
| 37 | 2096390 | PUSH BUTTON | 1 |
| 38 | 2405170 | SPRING | 1 |
| 39 | 2025220 | RING | 1 |
| 40 | 2404840 | WASHER | 2 |
| 41 | 2000200 | O RING | 2 |
Page 23 — FEED MECHANISM (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2041241 | DIFFERENTIAL FEED BAR | 1 |
| 2 | XXXXXX | DIFFERENTIAL FEED DOG | 1 |
| 3 | 0011890 | SCREW | 1 |
| 4 | 001175-30 | SCREW | 1 |
| 5 | 2041220 | LINK/DIFFERENTIAL FEED | 1 |
| 6 | 2041140 | BUSHING | 1 |
| 7 | 0052310 | SCREW | 1 |
| 8 | 2041150 | WASHER | 1 |
| 9 | 2058570 | BLOCK/FEED BAR GUIDE | 1 |
| 10 | 204439A0 | WASHER | 1 |
| 11 | 0070410 | SCREW | 1 |
| 12 | 2403100 | PLUG | 1 |
| 13 | 2048100 | BLOCK/FEED BAR LIFT | 1 |
| 14 | 2095950 | GUIDE/FEED BAR | 1 |
| 15 | 0070190 | SCREW | 4 |
| 16 | 2081090 | OIL SHIELD/FEED BAR GUIDE | 2 |
| 17 | 2095190 | GUIDE/FEED BAR OIL SEAL | 1 |
| 18 | 0070090 | SCREW | 4 |
| 19 | 2095840 | SHAFT | 4 |
| 20 | 2050610 | RING | 1 |
| 21 | 2403110 | WASHER | 2 |
| 22 | 2081731 | PLUG | 1 |
| 23 | 204123A1 | MAIN FEED BAR | 1 |
| 24 | XXXXXX | MAIN FEED DOG ASSEMBLY | 1 |
| 25 | XXXXXX | MAIN FEED DOG | 1 |
| 26 | XXXXXX | AUXILIARY FEED DOG | 1 |
| 27 | 0054920 | SCREW | 1 |
| 28 | 001175-20 | SCREW | 1 |
| 29 | 204111A0 | LINK/MAIN FEED | 1 |
| 30 | 2041140 | BUSHING | 1 |
| 31 | 0052310 | SCREW | 1 |
| 32 | 2041150 | WASHER | 1 |
| 33 | 209564-920 | CRANK | 1 |
| 34 | 0045330 | BOLT | 1 |
| 35 | 2096770 | PIN | 1 |
| 36 | 0048050 | NUT | 1 |
| 37 | 2400620 | WASHER | 1 |
| 38 | 2096720 | FEED BAR PIN | 1 |
| 39 | 0045430 | SCREW | 2 |
| 40 | 2096730 | BUSHING | 1 |
Page 25 — KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209545-920 | ROD | 1 |
| 2 | 007023A0 | SCREW | 2 |
| 3 | 209554-920 | CRANK | 1 |
| 4 | 0045330 | BOLT | 1 |
| 5 | 2710010 | PIN | 1 |
| 6 | 0045380 | SCREW | 1 |
| 7 | 2082350 | WASHER | 1 |
| 8 | 2095980 | UPPER BLADE LEVER | 1 |
| 9 | 2046380 | UPPER BLADE CLAMP | 1 |
| 10 | 2084021 | UPPER BLADE CLAMP | 1 |
| 11 | 2096740 | PIN | 1 |
| 12 | 2096750 | PIN | 1 |
| 13 | 0070130 | SCREW | 2 |
| 14 | XXXXXX | UPPER BLADE | 1 |
| 15 | 0050880 | SCREW | 1 |
| 16 | 2088510 | LOWER BLADE HOLDER | 1 |
| 17 | 2095420 | LOWER BLADE LEVER | 1 |
| 18 | 0070190 | SCREW | 1 |
| 19 | XXXXXX | LOWER BLADE | 1 |
| 20 | 2101840 | CLAMP/LOWER BLADE | 1 |
| 21 | 0021930 | SCREW | 1 |
| 22 | 2041580 | SPRING | 1 |
| 23 | 2096660 | GUIDE | 1 |
| 24 | 0070200 | SCREW | 2 |
| 25 | 2096670 | GUIDE | 1 |
| 26 | 0070210 | SCREW | 2 |
Page 27 — 押工機構(1) PRESSER FOOT MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2096780 | PRESSER ARM | 1 |
| 2 | 2085490 | PIN | 1 |
| 3 | 0045940 | SCREW | 1 |
| 4 | 2094711 | FINGER GUARD | 1 |
| 5 | 2094721 | FINGER GUARD | 1 |
| 6 | 0070080 | SCREW | 1 |
| 7 | 2024510 | CHAIN CUTTER | 1 |
| 8 | 0070090 | SCREW | 1 |
| 9 | 2095960 | SHAFT | 1 |
| 10 | 2095970 | BUSHING | 1 |
| 11 | 0045430 | SCREW | 1 |
| 12 | 2740050 | SPRING | 1 |
| 13 | 2740040 | LEVER | 1 |
| 14 | 274003-921 | COLLAR | 1 |
| 15 | 0045340 | SCREW | 1 |
| 16 | 2740060 | LINK | 1 |
| 17 | 2094520 | LEVER/FOOT LIFT | 1 |
| 18 | 2094580 | SPRING | 1 |
| 19 | 0070600 | SCREW | 1 |
| 20 | 2096760 | STOPPER | 1 |
| 21 | 0070200 | SCREW | 2 |
| 22 | 0071750 | SCREW | 1 |
| 23 | 0048050 | NUT | 1 |
| 24 | 209603-910 | PRESSER BAR | 1 |
| 25 | 2055840 | SPRING PIN | 1 |
| 26 | 2740130 | PIN | 1 |
| 27 | 2087730 | SPRING | 1 |
| 28 | 2096380 | SCREW | 1 |
| 29 | 274016A0 | LEVER | 1 |
| 30 | 2740170 | SPRING | 1 |
| 31 | 0071710 | SCREW | 1 |
| 32 | 2096520 | STOPPER | 1 |
| 33 | 0071300 | SCREW | 1 |
Page 29 — 押エ機構(2) PRESSER FOOT MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | PRESSER FOOT | 1 |
| 2 | XXXXXX | PRESSER FOOT FINGER | 1 |
| 3 | 2011560 | SET PLATE/PRESSER FOOT | 1 |
| 4 | 0050890 | SCREW | 1 |
| 5 | 0050300 | SCREW | 1 |
| 6 | 2085470 | REGULATOR | 1 |
| 7 | 0070080 | SCREW | 1 |
| 8 | 208525-92B0 | BRACKET/PRESSER FOOT | 1 |
| 9 | 0053280 | SCREW | 1 |
| 10 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 11 | 208958-B0 | PIN | 1 |
| 12 | 208528-B0 | PIN | 1 |
| 13 | 2089130 | SPRING | 1 |
| 14 | 0054090 | NUT | 1 |
| 15 | 2085310 | FABRIC GUIDE | 1 |
| 16 | 0050300 | SCREW | 1 |
| 17 | 0053280 | SCREW | 1 |
| 18 | 0070080 | SCREW | 1 |
| 19 | 2085290 | SPRING | 1 |
Page 31 — 給油機構 / LUBRICATION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209610-910 | PUMP ASSEMBLY | 1 |
| 2 | 209612-D0 | WORM WHEEL | 1 |
| 3 | 0045140 | SCREW | 1 |
| 4 | 212978-910 | ROTOR (INSIDE) SHAFT | 1 |
| 5 | 2129810 | ROTOR (OUTSIDE) | 1 |
| 6 | 0070120 | SCREW | 3 |
| 7 | 2094080 | FILTER (INSIDE) | 1 |
| 8 | 2094090 | FILTER (OUTSIDE) | 1 |
| 9 | 2094100 | CLAMP | 1 |
| 10 | 0070110 | SCREW | 1 |
| 11 | 0048000 | NUT | 1 |
| 12 | 0045290 | BOLT | 2 |
| 13 | 205113A0 | OIL TUBE | 1 |
| 14 | 2001360 | JOINT | 2 |
| 15 | 2021990 | CLAMP | 2 |
| 16 | 2096540 | OIL DISTRIBUTOR | 1 |
| 17 | 0070170 | SCREW | 1 |
| 18 | 007023A0 | SCREW | 1 |
| 19 | 2745860 | JOINT SCREW | 1 |
| 20 | 2096560 | SCREW | 1 |
| 21 | 2403280 | JOINT SCREW | 2 |
| 22 | 2096580 | OIL DISTRIBUTOR | 1 |
| 23 | 2745920 | JOINT | 1 |
| 24 | 209688-910 | OIL RESERVOIR | 1 |
| 25 | 005138B0 | SCREW | 1 |
| 26 | 202287A0 | WASHER | 1 |
| 27 | 2095780 | GASKET | 1 |
| 28 | 0045310 | BOLT | 4 |
| 29 | 2403390 | WASHER | 4 |
| 30 | 2405660 | OIL TUBE | 1 |
Page 33 — THREAD GUIDE & THREAD TAKEUP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2096210 | THREAD GUIDE | 1 |
| 2 | 0070190 | SCREW | 1 |
| 3 | 2096280 | NEEDLE THREAD GUIDE | 1 |
| 4 | 2096290 | NEEDLE THREAD GUIDE | 1 |
| 5 | 0070820 | SCREW | 1 |
| 6 | 2097130 | NEEDLE THREAD GUIDE | 1 |
| 7 | 2087780 | NEEDLE THREAD GUIDE | 1 |
| 8 | 0070820 | SCREW | 2 |
| 9 | 2096790 | THREAD RETAINER | 1 |
| 10 | 0070100 | SCREW | 1 |
| 11 | 2000410 | TENSION DISC | 1 |
| 12 | 200041A0 | THREAD RETAINER | 1 |
| 13 | 2024950 | GUIDE | 1 |
| 14 | 2097280 | SPRING | 1 |
| 15 | 0073650 | SCREW | 1 |
| 16 | 2096810 | NEEDLE THREAD TAKE-UP | 1 |
| 17 | 0073660 | SCREW | 2 |
| 18 | 2096840 | THREAD GUIDE | 1 |
| 19 | 0073670 | SCREW | 1 |
| 20 | 2096240 | THREAD TAKE-UP | 1 |
| 21 | 0070190 | SCREW | 1 |
| 22 | 2096250 | THREAD TAKE-UP | 1 |
| 23 | 0070080 | SCREW | 1 |
| 24 | 2028750 | WASHER | 1 |
| 25 | 2096260 | THREAD TAKE-UP | 1 |
| 26 | 0070190 | SCREW | 1 |
| 27 | 2103530 | THREAD GUIDE | 1 |
| 28 | 2096230 | THREAD GUIDE | 1 |
| 29 | 0070180 | SCREW | 1 |
| 30 | 2096830 | THREAD GUIDE | 1 |
Page 35 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 2 | 263543-TA0 | NUT | 1 |
| 3 | 2084480 | RATCHET | 1 |
| 4 | 263544-TA0 | CUP | 1 |
| 5 | 2010370 | SPRING (HEAVY) | 1 |
| 6 | 2103190 | TENSION DISC | 2 |
| 7 | 2084490 | FELT | 1 |
| 8 | 005082A0 | SCREW STUD | 1 |
| 9 | 210530-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 10 | 2010860 | SPRING (MEDIUM) | 1 |
| 11 | 210531-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 12 | 2010680 | SPRING (LIGHT) | 1 |
| 13 | 2096200 | THREAD GUIDE | 1 |
| 14 | 0071700 | SCREW | 2 |
| 15 | 2028490 | TENSION GUIDE | 3 |
| 16 | 2096220 | TENSION GUIDE | 1 |

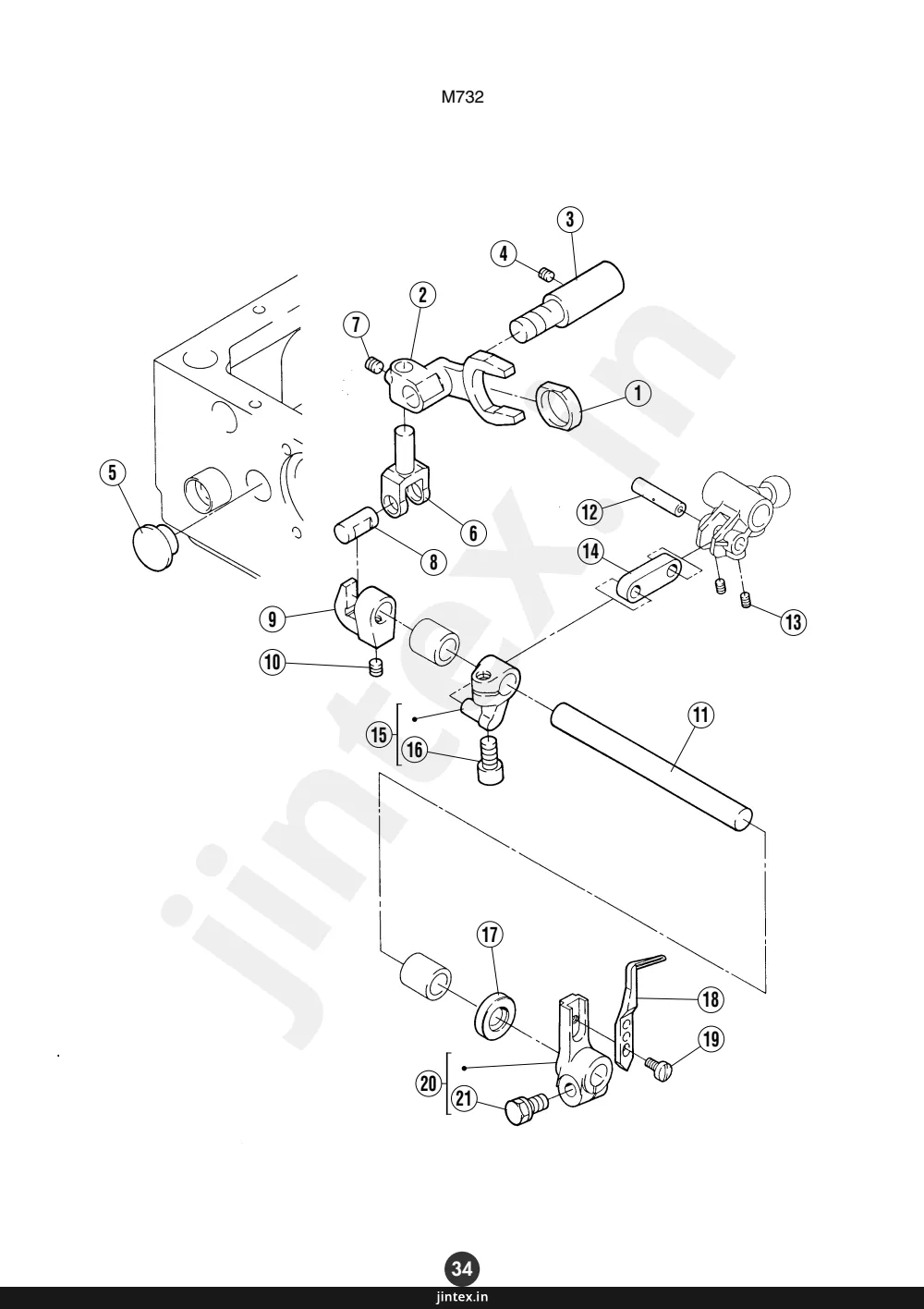

Page 37 — 二重環ルーパー機構(1)CHAINSTITCH LOOPER DRIVE MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2096000 | BLOCK | 1 |
| 2 | 2095990 | LEVER | 1 |
| 3 | 2095860 | SHAFT | 1 |
| 4 | 0045140 | SCREW | 1 |
| 5 | 2403100 | PLUG | 1 |
| 6 | 2096010 | PIN | 1 |
| 7 | 0045140 | SCREW | 1 |
| 8 | 2735040 | SHAFT | 1 |
| 9 | 2096020 | HOLDER | 1 |
| 10 | 0045140 | SCREW | 1 |
| 11 | 2095850 | SHAFT | 1 |
| 12 | 2081950 | PIN | 1 |
| 13 | 0045350 | SCREW | 2 |
| 14 | 2081940 | LINK/LOOPER DRIVE | 1 |
| 15 | 209569-920 | CRANK | 1 |
| 16 | 0045330 | BOLT | 1 |
| 17 | 210586A0 | OIL SEAL | 1 |
| 18 | XXXXXX | CHAINSTITCH LOOPER | 1 |
| 19 | 0011890 | SCREW | 1 |
| 20 | 209689-920 | LOOPER HOLDER | 1 |
| 21 | 0071500 | BOLT | 1 |
Page 39 — CHAINSTITCH LOOPER DRIVE MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2096990 | THREAD GUIDE PIPE | 1 |
| 2 | 2061150 | BRACKET | 1 |
| 3 | 0070190 | SCREW | 1 |
| 4 | 2096310 | THREAD GUIDE PIPE | 1 |
| 5 | 2061150 | BRACKET | 2 |
| 6 | 275033A0 | BRACKET | 1 |
| 7 | 0070660 | SCREW | 1 |
| 8 | 2103070 | WASHER | 2 |
| 9 | 2750370 | FLAT SPRING | 1 |
| 10 | 0071671 | SCREW | 1 |
| 11 | 1371080 | TENSION DISC | 2 |
| 12 | 2113880 | SPRING | 1 |
| 13 | 2750340 | KNOB | 1 |
| 14 | 2750350 | THREAD GUIDE | 1 |
| 15 | 0070170 | SCREW | 1 |
| 16 | 2750360 | THREAD GUIDE | 1 |
| 17 | 0070080 | SCREW | 1 |
| 18 | 2750390 | THREAD GUIDE | 1 |
| 19 | 0070080 | SCREW | 1 |
| 20 | 179498-920 | LOOPER THREAD TAKE-UP ASSEMBLY | 1 |
| 21 | 0045540 | SCREW | 2 |
| 22 | 2096300 | THREAD GUIDE | 1 |
| 23 | 0070190 | SCREW | 1 |
Page 41 — H.R.装置 / H.R. DEVICE
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2096140 | OIL RESERVOIR E551(UPPER) | 1 |
| 2 | 2096430 | FELT | 1 |
| 3 | 2096150 | COVER | 1 |
| 4 | 2096270 | THREAD GUIDE | 1 |
| 5 | 0070200 | SCREW | 1 |
| 6 | 2096160 | OIL RESERVOIR (LOWER) | 1 |
| 7 | 2096170 | COVER | 1 |
| 8 | 0070200 | SCREW | 1 |
| 9 | 3034480 | WASHER | 1 |
| 10 | 2021750 | OIL WICK | 1 |
| 11 | 2001550 | CLAMP | 1 |
| 12 | 2096610 | NEEDLE THREAD LUBRICATOR | 1 |
| 13 | 2096620 | NEEDLE THREAD LUBRICATOR | 1 |
| 14 | 2096630 | NEEDLE THREAD LUBRICATOR | 1 |
| 15 | 2102140 | PLUG | 1 |
| 16 | 0070190 | SCREW | 2 |
| 17 | 2401780 | OIL FELT | 1 |
| 18 | 2044660 | OIL FELT | 1 |
| 19 | 2107660 | PIN | 1 |
| 20 | 2096970 | COVER | 1 |
Page 43 — 半沈床式据付付属品 / PARTS FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2054661 | MACHINE REST BOARD | 1 |
| 2 | 205470-PA0 | WASTE CHUTE | 1 |
| 3 | 0049040 | SCREW | 3 |
| 4 | 205468-PA0 | WASTE CHUTE | 1 |
| 5 | 0049050 | SCREW | 4 |
| 6 | 205469-PA0 | WASTE CHUTE | 1 |
| 7 | 2063360 | NUT | 4 |
| 8 | 0045750 | BOLT | 4 |
| 9 | 2014770 | SPRING WASHER | 4 |
| 10 | 2405650 | WASHER | 4 |
| 11 | 2403040 | WASHER | 4 |
| 12 | 2405650 | WASHER | 20 |
| 13 | 2054730 | CUSHION RUBBER | 4 |
Page 45 — 糸立台 / THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000486-9P0 | THREAD STAND ASSEMBLY (6-SPOOL) | 1 |
| 2 | 000486A9P0 | THREAD STAND ASSEMBLY (5-SPOOL) | 1 |
| 3 | 000486B9P0 | THREAD STAND ASSEMBLY (4-SPOOL) | 1 |
| 4 | 000486C9P0 | THREAD STAND ASSEMBLY (3-SPOOL) | 1 |
| 5 | 0002930 | THREAD GUIDE BAR (6-SPOOL) | 1 |
| 6 | 000293A0 | THREAD GUIDE BAR (5-SPOOL) | 1 |
| 7 | 000293B0 | THREAD GUIDE BAR (4-SPOOL) | 1 |
| 8 | 000293C0 | THREAD GUIDE BAR (3-SPOOL) | 1 |
| 9 | 0040210 | SCREW | 2 |
| 10 | 0048050 | NUT | 2 |
| 11 | 000505-PA0 | BRACKET | 2 |
| 12 | 000505APA0 | BRACKET | 1 |
| 13 | 0071020 | SCREW | 2 |
| 14 | 0005120 | WASHER | 2 |
| 15 | 0040220 | SCREW | 2 |
| 16 | 000380A0 | SPOOL PIN | 6 |
| 17 | 2012520 | SPRING WASHER | 6 |
| 18 | 0048030 | NUT | 6 |
| 19 | 000381-PA0 | SPOOL TRAY | 6 |
| 20 | 0005070 | CUSHION | 6 |
| 21 | 000382-PA0 | SPOOL RETAINING FIN | 6 |
| 22 | 000383-PA0 | BRACKET | 1 |
| 23 | 0040140 | SCREW | 1 |
| 24 | 0048030 | NUT | 1 |
| 25 | 0003840 | THREAD GUIDE BAR ROD | 1 |
| 26 | 0040120 | SCREW | 1 |
| 27 | 0048030 | NUT | 1 |
| 28 | 000233-PA0 | HOLDER | 1 |
| 29 | 0040120 | SCREW | 1 |
| 30 | 0048030 | NUT | 1 |
| 31 | 000502-PA0 | THREAD STAND ROD (UPPER) | 1 |
| 32 | 000503-PA0 | THREAD STAND ROD (LOWER) | 1 |
| 33 | 000504-PA0 | JOINT | 1 |
| 34 | 0040120 | SCREW | 1 |
| 35 | 0048030 | NUT | 1 |
| 36 | 000527-PA0 | BRACKET (3-SPOOL) | 2 |
| 37 | 000527APA0 | BRACKET (2-SPOOL) | 1 |
| 38 | 0040210 | SCREW | 2 |
| 39 | 0048050 | NUT | 2 |
| 40 | 0005060 | THREAD EYELET | 6 |
| 41 | 0003860 | ROD CAP | 1 |
| 42 | 0005090 | WASHER | 1 |
| 43 | 0048350 | NUT | 1 |
Page 47 — SPECIFIC PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2106850 | CLOTH GUIDE BRACKET ASSEMBLY | 1 |
| 2 | 2106800 | CLOTH GUIDE BRACKET | 1 |
| 3 | 2106810 | HINGE/EDGE GUIDE BRACKET | 1 |
| 4 | 0051840 | SCREW | 1 |
| 5 | 2011910 | SPRING WASHER | 1 |
| 6 | 0030440 | NUT | 1 |
| 7 | 2106820 | STOPPER | 1 |
| 8 | 0050530 | SCREW | 1 |
| 9 | 2106830 | PIN | 1 |
| 10 | 2106840 | FLAT SPRING | 1 |
| 11 | 0029060 | SCREW | 1 |
| 12 | 0070200 | SCREW | 1 |
| 13 | 2012520 | SPRING WASHER | 1 |
| 14 | 2106910 | CLOTH GUIDE ASSEMBLY | 1 |
| 15 | 2106900 | BRACKET | 1 |
| 16 | 0050880 | SCREW | 2 |
| 17 | 1670660 | WASHER | 2 |
| 18 | 2053610 | CLOTH GUIDE | 1 |
| 19 | 0051570 | SCREW | 1 |
| 20 | 2106890 | ADJUSTING PLATE | 1 |
| 21 | 0050570 | SCREW | 1 |
| 22 | 0024300 | SCREW | 1 |
| 23 | 0029050 | SCREW | 1 |
| 24 | 1371420 | WASHER | 1 |
| 25 | 2106920 | STOPPER | 1 |
| 26 | 0012060 | SCREW | 1 |
| 27 | 201211C910 | FOLDER ASSEMBLY (40mm) | 1 |
| 28 | 2058350 | AUXILIARY PLATE | 1 |
| 29 | 0052990 | SCREW | 1 |
| 30 | 3033130 | FLAT SPRING | 1 |
| 31 | 209574-910 | CLOTH PLATE ASSEMBLY | 1 |
| 32 | 209548-PB0 | SIDE COVER | 1 |
| 33 | 2105840 | UNCURLER | 1 |
| 34 | 2105850 | WASHER | 1 |
Page 49 — SPECIFIC PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209562-920 | CRANK | 1 |
| 2 | 0073690 | BOLT | 2 |
| 3 | XXXXXX | NEEDLE PLATE | 1 |
| 4 | XXXXXX | NEEDLE PLATE FINGER | 1 |
| 5 | 0053300 | SCREW | 1 |
| 6 | 2116000 | UNCURLER | 1 |
| 7 | 2087350 | FABRIC GUARD | 1 |
| 8 | 0013330 | SCREW | 1 |
| 9 | 2096350 | TAPE GUIDE | 1 |
| 10 | 2053190 | TAPE TAKE-UP | 1 |
| 11 | 201265B0 | FABRIC GUARD | 1 |
| 12 | 0012310 | SCREW | 1 |
| 13 | 2116000 | UNCURLER | 1 |
| 14 | 209562-920 | CRANK | 1 |
Page 51 — 専用部品(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209553-920 | CRANK | 1 |
| 2 | 0045330 | BOLT | 1 |
| 3 | 209562-920 | CRANK | 3 |
| 4 | 0073690 | BOLT | 2 |
| 5 | 2101470 | LINK | 1 |
| 6 | 2101480 | BUSHING | 1 |
| 7 | 0054890 | BOLT | 1 |
| 8 | 209564A920 | CRANK | 1 |
| 9 | 0045330 | BOLT | 1 |
| 10 | 2097310 | PIN | 1 |
| 11 | XXXXXX | UPPER KNIFE | 1 |
| 12 | 0070160 | SCREW | 1 |
| 13 | 2113760 | WASHER | 1 |
| 14 | 2048300 | UPPER KNIFE SUPPORT | 1 |
| 15 | 0071680 | SCREW | 1 |
| 16 | 2041550 | GIB | 1 |
| 17 | 2041560 | WASTE GUARD | 1 |
| 18 | 209666A0 | BRACKET | 1 |
| 19 | 2097300 | THREAD GUIDE | 1 |
| 20 | 0070430 | SCREW | 1 |
Page 53 — SPECIFIC PARTS (4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209574B910 | CLOTH PLATE ASSEMBLY | 1 |
| 2 | 209548-PB0 | SIDE COVER | 1 |
| 3 | 209664A0 | FRONT COVER (MIDDLE) | 1 |
| 4 | 308243-911 | PIN ASSEMBLY | 1 |
| 5 | 3082440 | PIN | 1 |
| 6 | 2089490 | O RING | 2 |
| 7 | 270504-PD0 | PULLEY | 1 |
| 8 | 0045230 | BOLT | 1 |
| 9 | 2402930 | BUSHING | 1 |
| 10 | 2705260 | PULLEY CAP | 1 |
| 11 | 2097430 | SPACER | 1 |
| 12 | 2097140 | BRACKET | 1 |
| 13 | 204631A0 | NEEDLE PLATE KEY | 1 |
| 14 | 0072670 | SCREW | 2 |
Page 55 — SPECIFIC PARTS (5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209633A0 | FABRIC GUARD | 1 |
| 2 | 210529-9T0 | THREAD TENSION ASSEMBLY | 2 |
| 3 | 263543-TA0 | NUT | 1 |
| 4 | 2084480 | RATCHET | 1 |
| 5 | 263544-TA0 | CUP | 1 |
| 6 | 2010370 | SPRING (HEAVY) | 1 |
| 7 | 2103190 | TENSION DISC | 2 |
| 8 | 2084490 | FELT | 1 |
| 9 | 005082A0 | SCREW STUD | 1 |
| 10 | 210530-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 11 | 2010860 | SPRING (MEDIUM) | 1 |
| 12 | 210531-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 13 | 2010680 | SPRING (LIGHT) | 1 |
| 14 | 2097350 | THREAD GUIDE | 1 |
| 15 | 0071700 | SCREW | 2 |
| 16 | 2028490 | TENSION GUIDE | 4 |
| 17 | 209562-920 | CRANK | 1 |
| 18 | 0073690 | BOLT | 2 |
Page 57 — SPECIFIC PARTS (6)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209633A0 | FABRIC GUARD | 1 |
| 2 | 209550APB0 | BELT COVER | 1 |
| 3 | 209737-910 | BELT GEAR ASSEMBLY | 1 |
| 4 | 209738-920 | GEAR | |
| 5 | 2097390 | PULLEY COLLAR | |
| 6 | 0045560 | SCREW | 1 |
| 7 | 209605A0 | PULLEY | 1 |
| 8 | 0045230 | BOLT | 1 |
| 9 | 2105840 | PRESSER FOOT FABRIC GUARD | 1 |
| 10 | 209562-920 | CRANK | 1 |
| 11 | 0073690 | BOLT | 2 |
| 12 | 210529-9T0 | THREAD TENSION ASSEMBLY | 2 |
| 13 | 263543-TA0 | NUT | 1 |
| 14 | 2084480 | RATCHET | 1 |
| 15 | 263544-TA0 | CUP | 1 |
| 16 | 2010370 | SPRING (HEAVY) | 1 |
| 17 | 2103190 | TENSION DISC | 2 |
| 18 | 2084490 | FELT | 1 |
| 19 | 005082A0 | SCREW STUD | 1 |
| 20 | 210530-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 21 | 2010860 | SPRING (MEDIUM) | 1 |
| 22 | 210531-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 23 | 2010680 | SPRING (LIGHT) | 1 |
| 24 | 2028490 | TENSION GUIDE | 3 |
| 25 | 209620A0 | THREAD GUIDE | 1 |
| 26 | 0071700 | SCREW | 2 |
| 27 | 2096220 | TENSION GUIDE | 1 |
Page 59 — SPECIFIC PARTS (7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 210529-9T0 | THREAD TENSION ASSEMBLY | 2 |
| 2 | 263543-TA0 | NUT | 1 |
| 3 | 2084480 | RATCHET | 1 |
| 4 | 263544-TA0 | CUP | 1 |
| 5 | 2010370 | SPRING (HEAVY) | 1 |
| 6 | 2103190 | TENSION DISC | 2 |
| 7 | 2084490 | FELT | 1 |
| 8 | 005082A0 | SCREW STUD | 1 |
| 9 | 210530-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 10 | 2010860 | SPRING (MEDIUM) | 1 |
| 11 | 210531-9T0 | THREAD TENSION ASSEMBLY | 1 |
| 12 | 2010680 | SPRING (LIGHT) | 1 |
| 13 | 2096200 | THREAD GUIDE | 1 |
| 14 | 0071700 | SCREW | 2 |
| 15 | 2096220 | TENSION GUIDE | 1 |
| 16 | 2028490 | TENSION GUIDE | 3 |
| 17 | 2096940 | THREAD GUIDE | 1 |
| 18 | 209576A910 | CLOTH PLATE ASSEMBLY | 1 |
| 19 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 20 | 208958-B0 | PIN | 1 |
| 21 | 208528-B0 | PIN | 1 |
| 22 | 2089130 | SPRING | 1 |
| 23 | 0054090 | NUT | 1 |
| 24 | 2085320 | FABRIC GUIDE | 1 |
| 25 | 0050300 | SCREW | 1 |
| 26 | 0053280 | SCREW | 1 |
Page 61 — SPECIFIC PARTS (8)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209692-911 | SHIRRING ATTACHMENT | 1 |
| 2 | 2755150 | BRACKET | 1 |
| 3 | 0070220 | SCREW | 1 |
| 4 | 2403320 | SPACER | 1 |
| 5 | 0071910 | SCREW | 1 |
| 6 | 2000980 | WASHER | 1 |
| 7 | 2109470 | FLAT SPRING | 1 |
| 8 | 0012060 | SCREW | 2 |
| 9 | 2755160 | BRACKET | 1 |
| 10 | 0071600 | SCREW | 1 |
| 11 | 2048880 | SPRING WASHER | 2 |
| 12 | 0048060 | NUT | 1 |
| 13 | 2109450 | BRACKET | 1 |
| 14 | 0053280 | SCREW | 2 |
| 15 | 2109460 | FLAT SPRING | 1 |
| 16 | 0012060 | SCREW | 1 |
| 17 | 275517-920 | SPRING GUIDE | 1 |
| 18 | 0070210 | SCREW | 1 |
| 19 | 2109400 | SPRING | 1 |
| 20 | 005082A0 | SCREW STUD | 1 |
| 21 | 2109440 | WASHER | 1 |
| 22 | 2040910 | WASHER | 1 |
| 23 | 2084480 | RATCHET | 1 |
| 24 | 263543-TA0 | NUT | 1 |
| 25 | 2755180 | LEVER | 1 |
| 26 | 0048060 | NUT | 1 |
| 27 | 2755200 | BRACKET | 1 |
| 28 | 2403200 | SPRING | 1 |
| 29 | 2755210 | SHAFT | 1 |
| 30 | 2025220 | RING | 1 |
| 31 | 2070450 | WASHER | 1 |
| 32 | 2403230 | SPRING | 1 |
| 33 | 2062250 | COLLAR | 1 |
| 34 | 001457-10 | SCREW | 2 |
| 35 | 2109550 | WASHER | 1 |
| 36 | 0050290 | SCREW | 2 |
| 37 | 2124350 | CABLE | 1 |
| 38 | 2124360 | CABLE SUPPORT | 2 |
| 39 | 0070990 | SCREW | 1 |
| 40 | 2024330 | WASHER | 1 |
| 41 | 0048060 | NUT | 1 |
| 42 | 2755220 | LATCH | 1 |
| 43 | 179765-150 | NUT | 1 |
| 44 | 0071640 | SCREW | 1 |
| 45 | 2401040 | WASHER | 1 |
| 46 | 2096930 | BRACKET | 1 |
| 47 | 0070520 | SCREW | 2 |
| 48 | 2109610 | CLOTH GUIDE | 1 |
| 49 | 0070120 | SCREW | 2 |
| 50 | 1379060 | WASHER | 2 |
| 51 | 2755250 | BLADE | 1 |
| 52 | 2109620 | BRACKET | 1 |
| 53 | 0052100 | SCREW | 2 |
| 54 | 2118860 | BINDER | 1 |
| 55 | 0012020 | SCREW | 2 |
| 56 | 1670660 | WASHER | 2 |
| 57 | 0004130 | TAPE WIRE | 1 |
Page 63 — SPECIFIC PARTS (9)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 208554-910 | BRACKET ASSEMBLY | 1 |
| 2 | 208958-B0 | PIN | 1 |
| 3 | 0053280 | SCREW | 1 |
| 4 | 2028750 | WASHER | 1 |
| 5 | 0029210 | SCREW | 1 |
| 6 | XXXXXX | PRESSER FOOT | 1 |
| 7 | 2044600 | PRESSER FOOT FABRIC GUARD | 1 |
| 8 | 0050770 | SCREW | 1 |
| 9 | 000403-9S0 | TAPE DISC ASSEMBLY | 1 |
| 10 | 0004040 | TAPE DISC | 1 |
| 11 | 0004050 | ROD | 1 |
| 12 | 0040120 | SCREW | 1 |
| 13 | 0004060 | FELT | 1 |
| 14 | 0004070 | COLLAR | 1 |
| 15 | 0004080 | SCREW | 1 |
| 16 | 0004090 | SHAFT | 1 |
| 17 | 0048180 | NUT | 1 |
| 18 | 000410-SA0 | BRACKET | 1 |
| 19 | 0049080 | SCREW | 3 |
| 20 | XXXXXX | PRESSER FOOT ASSEMBLY | 1 |
| 21 | 208958-B0 | PIN | 3 |
| 22 | 2046830 | FABRIC GUARD | 1 |
| 23 | 0051570 | SCREW | 1 |
| 24 | 2028750 | WASHER | 1 |
| 25 | 0053280 | SCREW | 1 |
| 26 | 2089780 | SPRING | 1 |
| 27 | 0073650 | SCREW | 1 |
Page 65 — SPECIFIC PARTS (10)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 209553-920 | CRANK ASSEMBLY | 1 |
| 2 | 0045330 | BOLT | 1 |
| 3 | 209562-920 | CRANK | 1 |
| 4 | 0073690 | BOLT | 2 |
| 5 | 210529-9T0 | TENSION SPRING ASSEMBLY | 3 |
| 6 | 210530-9T0 | TENSION SPRING ASSEMBLY | 1 |
| 7 | 210531-9T0 | TENSION SPRING ASSEMBLY | 1 |
| 8 | 263543-TA0 | NUT | 1 |
| 9 | 2084480 | RATCHET | 1 |
| 10 | 263544-TA0 | CUP | 1 |
| 11 | 2010370 | SPRING(HEAVY) | 1 |
| 12 | 2103190 | TENSION DISC | 2 |
| 13 | 2084490 | FELT | 1 |
| 14 | 005082A0 | SCREW STUD | 1 |
| 15 | 2010860 | SPRING(MEDIUM) | 1 |
| 16 | 2010680 | SPRING(LIGHT) | 1 |
| 17 | 2096200 | THREAD GUIDE | 1 |
| 18 | 0071700 | SCREW | 2 |
| 19 | 2097110 | THREAD GUIDE | 1 |
| 20 | 2028490 | TENSION GUIDE | 4 |
| 21 | 2096940 | THREAD GUIDE | 1 |
| 22 | 2097120 | THREAD GUIDE | 1 |
Page 66 — M732 GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2043670 | NEEDLE PLATE | ||
| (2105050) | NEEDLE PLATE FINGER | ||
| 2080650 | MAIN FEED DOG ASSM. | ||
| (2043950) | MAIN FEED DOG | ||
| (2044250) | AUX. FEED DOG | ||
| 2082180 | DIFF. FEED DOG | ||
| 2085010 | PRESSER FOOT ASSM. | ||
| 2040620 #2 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 2096850 | CHAINSTITCH LOOPER | ||
| 2043670 | NEEDLE PLATE | ||
| (2105050) | NEEDLE PLATE FINGER | ||
| 2080660 | MAIN FEED DOG ASSM. | ||
| (2043960) | MAIN FEED DOG | ||
| (2080600) | AUX. FEED DOG | ||
| 2082190 | DIFF. FEED DOG | ||
| 2085010 | PRESSER FOOT ASSM. | ||
| 2047020 #4 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 2096850 | CHAINSTITCH LOOPER | ||
| 2049400 | NEEDLE PLATE | ||
| (2105050) | NEEDLE PLATE FINGER | ||
| 2080740 | MAIN FEED DOG ASSM. | ||
| (2049310) | MAIN FEED DOG | ||
| (2080610) | AUX. FEED DOG | ||
| 2044201 | DIFF. FEED DOG | ||
| 2085080 | PRESSER FOOT ASSM. | ||
| 2047020 #4 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 2096850 | CHAINSTITCH LOOPER | ||
| 204360A0 | NEEDLE PLATE | ||
| (2105060) | NEEDLE PLATE FINGER | ||
| 2080630 | MAIN FEED DOG ASSM. | ||
| (204248B0) | MAIN FEED DOG | ||
| (2080590) | AUX. FEED DOG | ||
| 2082150 | DIFF. FEED DOG | ||
| 2085020 | PRESSER FOOT ASSM. | ||
| 2047020 #4 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 2096850 | CHAINSTITCH LOOPER | ||
| 2045290 | NEEDLE PLATE | ||
| (2105090) | NEEDLE PLATE FINGER | ||
| 2080640 | MAIN FEED DOG ASSM. | ||
| (2043940) | MAIN FEED DOG | ||
| (2080590) | AUX. FEED DOG | ||
| 2082170 | DIFF. FEED DOG | ||
| 2089550 | PRESSER FOOT ASSM. | ||
| 2047030 #6 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 209685AC0 | CHAINSTITCH LOOPER | ||
| 2086480 | NEEDLE PLATE | ||
| (2091580) | NEEDLE PLATE FINGER | ||
| 2080660 | MAIN FEED DOG ASSM. | ||
| (2043960) | MAIN FEED DOG | ||
| (2080600) | AUX. FEED DOG | ||
| 2082190 | DIFF. FEED DOG | ||
| 2086490 | PRESSER FOOT ASSM. | ||
| 2049630 #8 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 2096850 | CHAINSTITCH LOOPER | ||
| 2049400 | NEEDLE PLATE | ||
| (2105050) | NEEDLE PLATE FINGER | ||
| 2080740 | MAIN FEED DOG ASSM. | ||
| (2049310) | MAIN FEED DOG | ||
| (2080610) | AUX. FEED DOG | ||
| 2044201 | DIFF. FEED DOG | ||
| 204502A1 | PRESSER FOOT ASSM. | ||
| 2047020 #4 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 2096850 | CHAINSTITCH LOOPER | ||
| 2080950 | MAIN FEED DOG ASSM. | 3 | |
| (2043910) | MAIN FEED DOG | 3 | |
| 201121A0 | UPPER KNIFE | 3 | |
| 2041610 | LOWER KNIFE | 3 | |
| 2096680 | OVERLOCK NEEDLE GUARD FRONT | 3 | |
| 2090090 | OVERLOCK NEEDLE GUARD REAR | 3 | |
| 2045360 | CHAINSTITCH NEEDLE GUARD FRONT | 3 | |
| 2096690 | CHAINSTITCH NEEDLE GUARD REAR | 3 | |
| 208909B920 | NEEDLE HOLDER | 3 | |
| DCX27 #11 | NEEDLE | 3 | |
| DCX27 #14 | NEEDLE | 3 | |
| 2040420 | CHAINSTITCH NEEDLE GUARD FRONT | 5 | |
| 209669A0 | CHAINSTITCH NEEDLE GUARD REAR | 5 | |
| 208910B920 | NEEDLE HOLDER | 5 | |
| DCX27 #21 | NEEDLE | 5 | |
| 208965B920 | NEEDLE HOLDER | 3X2 |
Page 67 — M752 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 2048350 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 201121A0 | UPPER KNIFE | ||
| 2057730 | NEEDLE PLATE | ||
| 202554E0 | NEEDLE PLATE | ||
| 202499E0 | NEEDLE PLATE | ||
| 2054650 | NEEDLE PLATE | ||
| 20508-450 | NEEDLE PLATE | ||
| 2053210 | NEEDLE PLATE | ||
| 2029830 | NEEDLE PLATE | ||
| 202618A0 | NEEDLE PLATE |
Page 68 — M752 GAUGE PARTS LIST(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 2097320 | NEEDLE PLATE | ||
| ー | NEEDLE PLATE | ||
| 209740-16F0 | MAIN FEED DOG ASSM. | ||
| 209741-16F0 | MAIN FEED DOG | ||
| 2046770 | AUX. FEED DOG | ||
| 209742-16F0 | DIFF. FEED DOG | ||
| 2052530 | PRESSER FOOT ASSM. | ||
| 2097340 #66 | PRESSER FOOT FINGER | ||
| 2097330 #14 | UPPER LOOPER | ||
| 2040720 | LOWER LOOPER | ||
| 201121A0 | UPPER KNIFE | ||
| 2022950 | LOWER KNIFE | ||
| 2046591 | NEEDLE GUARD FRONT | ||
| 2090090 | NEEDLE GUARD REAR | ||
| 208905A920 | NEEDLE HOLDER | ||
| DC×27 #9 | NEEDLE |
Pegasus M700 Series — parts catalog
- Page 1 (cover): This is the cover page for the Parts Catalog for the PEGASUS M732 Series High speed safety stitch machines and M752 Series High speed overedgers.
- Page 2 (parts_list): This page lists parts for the M700 Series, with part numbers such as M752-01 and M732-36.
- Page 3 (toc): Table of Contents for a sewing machine parts catalog, listing sections like "Bed Mechanism", "Cover Mechanism", "Needle Drive Mechanism", and "Specific Parts" with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of machine components with numbered callouts, including parts like screws, pins, and a housing.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of various components of an industrial sewing machine, including screws, covers, and internal parts, with reference numbers for identification.
- Page 7 (parts_list): This page lists parts for COVER(1) including side covers, screws, gaskets, oil sight windows, fan covers, fabric guards, brackets, front covers, latches, flat springs, pins, springs, hinges, and oil guards.
- Page 8 (diagram): This page displays a diagram of various machine components, including screws, brackets, and covers, with reference numbers and part numbers indicated for M732 and M752 models.
- Page 9 (parts_list): This page lists parts for COVER (2) with part numbers, descriptions, and quantities.
- Page 10 (diagram): This page displays a diagram of various components and sub-assemblies for sewing machine models M752, M732, M752-54A, M752-55A, M752-180, and M752-181, with numbered parts indicated.
- Page 11 (parts_list): This page lists parts for the Crankshaft Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of various sewing machine components, including part numbers, reference numbers, and descriptions for different models.
- Page 13 (parts_list): This page lists parts for the Needle Drive Mechanism (1), including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page contains diagrams of parts for models M732 and M752, with numbered references for each part.
- Page 15 (parts_list): This page lists parts for the Needle Drive Mechanism (2) of an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine parts, including linkages, bearings, and fasteners, with reference numbers and some part numbers indicated.
- Page 17 (parts_list): This page lists parts for the Upper Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various machine parts, including screws, washers, bearings, and other components, with reference numbers and some model applicability information.
- Page 19 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of various machine parts, including components labeled with reference numbers from 1 to 41. The diagram illustrates the assembly and relationships between these parts.
- Page 21 (parts_list): This page lists parts for the FEED MECHANISM(1) with part numbers, descriptions, and quantities.
- Page 22 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their location and associated part numbers and descriptions.
- Page 23 (parts_list): This page lists parts for the FEED MECHANISM (2) with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of various machine parts, including part numbers and reference numbers for identification.
- Page 25 (parts_list): This page lists parts for the KNIFE DRIVE MECHANISM, including part numbers, descriptions, and quantities.
- Page 26 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and a housing unit, with reference numbers for each component.
- Page 27 (parts_list): This page lists parts for the Presser Foot Mechanism (1), including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays diagrams of parts for models M732 (Except M732-86) and M752, with numbered references for each part.
- Page 29 (parts_list): This page lists parts for the Presser Foot Mechanism (2), including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various machine parts, including screws, bolts, and assembled components, with reference numbers for each item.
- Page 31 (parts_list): This page lists parts for the lubrication mechanism, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays diagrams of various machine parts for models M732 and M752, with numbered references for each part.
- Page 33 (parts_list): This page lists parts for the Thread Guide & Thread Takeup mechanism, including part numbers, descriptions, and quantities.
- Page 34 (diagram): This page contains diagrams of parts for models M752 and M732, with detailed illustrations and part references.
- Page 35 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of machine components with reference numbers for identification, including parts labeled 1 through 21.
- Page 37 (parts_list): This page lists parts for the CHAINSTITCH LOOPER DRIVE MECHANISM(1), including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays a diagram of various sewing machine parts, identified by reference numbers from 1 to 23, with the model number M732 indicated at the top.
- Page 39 (parts_list): This page lists parts for the CHAINSTITCH LOOPER DRIVE MECHANISM(2), including part numbers, descriptions, and quantities.
- Page 40 (diagram): This page displays diagrams of parts for models M752 and M732, with numbered components and associated part numbers and descriptions.
- Page 41 (parts_list): This page lists parts for the H.R.装置 and H.R. DEVICE, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of various machine parts, including screws, brackets, and other components, with reference numbers and a note about table thickness affecting part quantity.
- Page 43 (parts_list): This page lists parts for semi-submerged installation, including part numbers, descriptions, and quantities.
- Page 44 (diagram): This page displays a diagram of various parts of an industrial sewing machine, including frame components, spools, and mounting hardware, with each part labeled with a reference number.
- Page 45 (parts_list): This page lists parts for the Thread Stand, including part numbers, descriptions, and quantities for various components like brackets, screws, nuts, and rods.
- Page 46 (diagram): This page displays a diagram of blind hemming components for the M752-01 sewing machine, with numbered parts and their corresponding descriptions.
- Page 47 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 48 (diagram): This page displays diagrams of tape attaching components and parts for models M752-13, 13H, M752-16S2, 17, and 23B, including parts for turn down hemming and plain seaming on heavy weight fabric.
- Page 49 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 50 (diagram): This page displays a diagram of parts for plain seaming on heavy weight fabric, with reference numbers for various components.
- Page 51 (parts_list): This page lists specific parts for the industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 52 (diagram): This page displays a diagram of backlatching components for models M752-180 and M752-181, with numbered parts for identification.
- Page 53 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities.
- Page 54 (diagram): This page displays a diagram of various machine parts, including screws, washers, springs, and housings, with reference numbers for identification.
- Page 55 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 56 (diagram): This page displays diagrams of various components for models M752-54A and M752-55A, including a section labeled 'Attaching elastic tape' and detailed breakdowns of sub-assemblies with numbered parts.
- Page 57 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions in Japanese and English, and quantities. It covers items from reference number 1 to 27.
- Page 58 (diagram): This page displays diagrams of shirring components for models M732-48 and M732-48P2, with numbered parts for identification.
- Page 59 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities, with a note about gauge part numbers.
- Page 60 (diagram): This page displays a diagram of the Shirring (ヒダ取り) mechanism for the M732-48,48P2 sewing machine, with numbered parts indicated.
- Page 61 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities. It covers items from reference number 1 to 57.
- Page 62 (diagram): This page contains diagrams and part numbers for shirring and piping attachments (M732-48P2) and plain seaming on heavy weight fabric (M732-86).
- Page 63 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities, with a note indicating that 'XXXXXX' denotes gauge part numbers.
- Page 64 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions.
- Page 65 (parts_list): This page lists specific parts for model 10, including crank assemblies, bolts, tension springs, nuts, ratchets, cups, springs, thread guides, screws, and tension guides, with their corresponding part numbers and quantities.
- Page 66 (parts_list): This page lists gauge parts for the M732 series sewing machines, including part numbers, descriptions, and applicable models.
- Page 67 (parts_list): This page contains a parts list for M752 gauge parts, including machine type, gauge specifications, needle plate, needle plate finger, main feed dog assembly, main feed dog, auxiliary feed dog, differential feed dog, presser foot assembly, presser foot, upper looper, lower looper, upper knife, lower knife, needle guard (front and rear), needle holder, and needle.
- Page 68 (parts_list): This page contains a parts list for the M752 gauge, including part numbers and descriptions for various components like needle plates, feed dogs, presser feet, and loopers.
- Page 69 (unknown): This page contains a watermark with the text "jintex.in" and a page number "67". There is no other discernible content.
- Page 72 (cover): This is the cover page of a parts catalog for PEGASUS SEWING MACHINE MFG. CO., LTD., catalog number 97580A, dated July 2002.
