Page 5 — MACHINE BED FRAME
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205530 | Machine bed frame | 1 |
| 2 | 2913-1 | oil hole plug screw | 6 |
| 3 | 204006 | bottom pin | 4 |
| 4 | 205531 | Machine arm | 1 |
| 5 | 5078 | screw | 4 |
| 6 | 201002 | dowel pin | 2 |
| 7 | 201004 | Oil filter screen | 1 |
| 8 | 205708 | plate | 1 |
| 9 | 1775-2 | screw | 3 |
| 10 | 205738 | Type plate blank | 1 |
| 11 | 205543 | Feed bar cover | 1 |
| 12 | 205544 | screw | 1 |
| 13 | 201191 | spring washer | 3 |
| 14 | 205545 | spring | 1 |
| 15 | 1775-2 | screw | 1 |
| 16 | 205527 | Oil cooler cover | 1 |
| 17 | 202748 | gasket | 1 |
| 18 | 5094 | screw | 3 |
| 19 | 5133 | Oil pan bolt | 4 |
| 20 | 202045 | washer | 4 |
Page 7 — MISCELLANEOUS COVERS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 206457 | Oil splash sight window | 1 |
| 2 | 206550 | gasket | 1 |
| 3 | 205540 | Cloth plate, complete | 1 |
| 4 | 202576 | hinge stud thrust washer | 1 |
| 5 | 201139 | collar | 1 |
| 6 | 5084 | screw | 2 |
| 7 | 204218 | lock spring | 1 |
| 8 | 1216 | screw | 2 |
| 9 | 200162 A | washer | 1 |
| 10 | 5232 | pin | 1 |
| 11 | 5002 | stop screw | 1 |
| 12 | 3044 | nut | 1 |
| 13 | 205546 | Cloth plate fabric guard | 1 |
| 14 | 1216 | screw | 2 |
| 15 | 202521 | pin | 1 |
| 16 | 1457 | screw | 1 |
| 17 | 202522 | retaining ring | 1 |
| 18 | 205547 | Top cover | 1 |
| 19 | 205539 | gasket | 1 |
| 20 | 208482 | cushion | 3 |
| 21 | 5152 | screw | 6 |
| 22 | 205550 | Upper knife cover | 1 |
| 23 | 205676 | hinge | 1 |
| 24 | 2918 | screw | 2 |
| 25 | 202579 | pin | 2 |
| 26 | 202517 | lock spring | 1 |
| 27 | 5117 | screw | 1 |
| 28 | 205722 | name plate | 1 |
| 29 | 205552 | Front cover | 1 |
| 30 | 205553 | hinge | 1 |
| 31 | 1216 | screw | 2 |
| 32 | 206022 | pin | 1 |
| 33 | 5146 | screw | 1 |
| 34 | 201203 | lock spring | 1 |
| 35 | 1216 | screw | 1 |
| 36 | 205554 | Front cover extension | 1 |
| 37 | 2921 | screw | 2 |
| 38 | 205555 | Chip guard | 1 |
| 39 | 1216 | screw (upper) | 1 |
| 40 | 2905 | (lower) | 1 |
| 41 | 205556 | Upper looper cover | 1 |
| 42 | 1216 | screw | 2 |
| 43 | 205557 | Looper thread plate | 1 |
| 44 | 1216 | screw | 3 |
Page 9 — CRANKSHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205558 | Crankshaft, set with 205559 | 1 |
| 2 | 205559 | key | 1 |
| 3 | 205489 | oil flow regulator | 1 |
| 4 | 5146 | oil stop screw | 1 |
| 5 | 1448 | " " screw | 2 |
| 6 | 5315 | oil hole plug screw | 3 |
| 7 | 205537 | Crankshaft bearing (right) | 1 |
| 8 | 202907 | gasket | 1 |
| 9 | 205560 | retainer | 1 |
| 10 | 205663 | retainer | 1 |
| 11 | 1175-2 | retainer screw | 2 |
| 12 | 205649 | oil seal | 1 |
| 13 | 205562 | Crankshaft bushing (center) | 1 |
| 14 | 2022-3 | screw | 1 |
| 15 | 205568 | Worm | 1 |
| 16 | 5060 | screw | 2 |
| 17 | 205569 | Counterweight | 1 |
| 18 | 5154 | screw | 2 |
| 19 | 205537 | Crankshaft bearing (left) | 1 |
| 20 | 205563 | rubber washer | 1 |
| 21 | 205564 | washer | 1 |
| 22 | 205565 | retaining bracket | 1 |
| 23 | 205566 | " " gasket | 1 |
| 24 | 5117 | " " screw | 3 |
| 25 | 205649 | oil seal | 1 |
| 26 | 205567 | Oil cooling fan | 1 |
| 27 | 205616 | Pulley | 1 |
| 28 | 205617 | key | 1 |
| 29 | 5238 | screw | 1 |
| 30 | 204023 | " washer | 1 |
Page 11 — NEEDLE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205570 | Needle arm drive connection | 1 |
| 2 | 2213-1 | cap screw | 2 |
| 3 | 205495 | pin | 1 |
| 4 | 1457 | " screw | 1 |
| 5 | 201025 | Needle arm drive crank | 1 |
| 6 | 5084 | screw | 2 |
| 7 | 205273 | Needle arm drive shaft | 1 |
| 8 | 201027 A | bushing | 2 |
| 9 | 202910 | thrust washer | 1 |
| 10 | 202911 | oil seal | 1 |
| 11 | 201029 | thrust collar | 1 |
| 12 | 1457 | " " screw | 1 |
| 13 | 5084 | " " screw | 1 |
| 14 | 205571 | Needle arm | 1 |
| 15 | 5002 | clamp screw | 1 |
| 16 | 205572 | needle clamp | 1 |
| 17 | 201239 A | " " screw | 1 |
| 18 | 3044 | " " nut | 1 |
| 19 | UO×154 | Needle, size #16 | 1 |
| UO×154 | Needle, size #11 | 1 | |
| 20 | 205639 | Needle thread takeup | 1 |
| 21 | 1186 | screw | 1 |
| 22 | 205573 | Needle plate | 1 |
| 23 | 205674 | Needle plate | 1 |
| 24 | 4009-1 | screw | 2 |
| 25 | 205574 | key | 1 |
| 26 | 5053 | " screw | 1 |
| 27 | 205575 | support | 1 |
| 28 | 1175-3 | " screw | 1 |
| 29 | 205576 | Needle guard (front) | 1 |
| 30 | 205577 | bracket | 1 |
| 31 | 205578 | Needle guard (rear) | 1 |
| 32 | 5364 | screw | 2 |
| 33 | 202492 | bracket | 1 |
| 34 | 1175-3 | bracket screw | 2 |
| 202478 | Needle thread tension, complete with 201035A, 202278, 201037, 201039, 201482x2 & 5082A | 1 | |
| 35 | 201035 A | nut | 1 |
| 36 | 202278 | spring bushing | 1 |
| 37 | 201037 | spring (heavy) | 1 |
| 38 | 201039 | " cup | 1 |
| 39 | 201482 | disc | 2 |
| 40 | 5082 A | post | 1 |
| 41 | 202849 | guide | 1 |
| 42 | 201048 A | Needle thread eyelet | 1 |
| 43 | 205579 | Needle thread guide | 1 |
| 44 | 1174 | screw | 1 |
| 45 | 3091 | " nut | 1 |

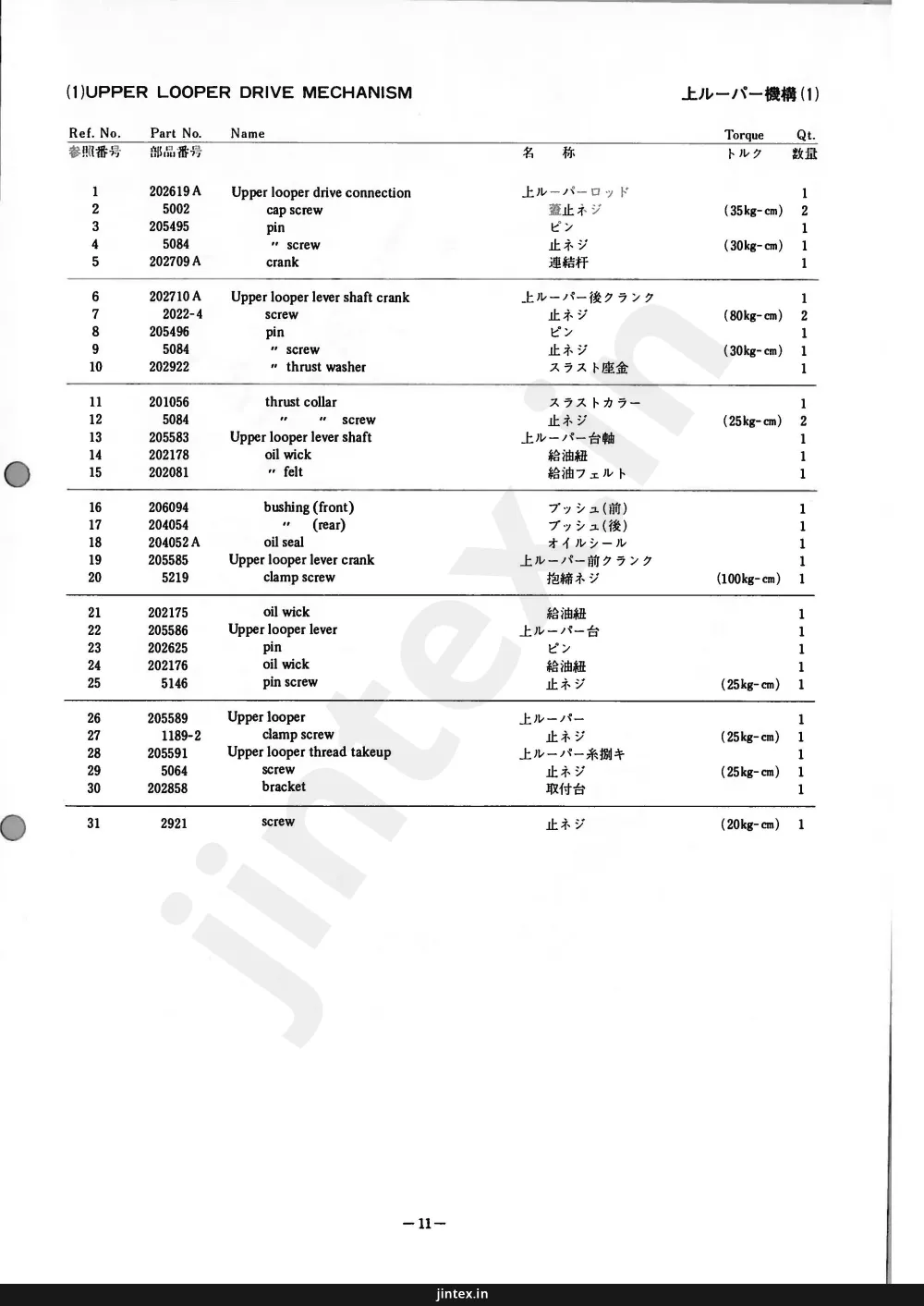

Page 13 — (1)UPPER LOOPER DRIVE MECHANISM / 上ルーパー機構(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202619 A | Upper looper drive connection | 1 |
| 2 | 5002 | cap screw | 2 |
| 3 | 205495 | pin | 1 |
| 4 | 5084 | " screw | 1 |
| 5 | 202709 A | crank | 1 |
| 6 | 202710 A | Upper looper lever shaft crank | 1 |
| 7 | 2022-4 | screw | 2 |
| 8 | 205496 | pin | 1 |
| 9 | 5084 | " screw | 1 |
| 10 | 202922 | " thrust washer | 1 |
| 11 | 201056 | thrust collar | 1 |
| 12 | 5084 | " " screw | 2 |
| 13 | 205583 | Upper looper lever shaft | 1 |
| 14 | 202178 | oil wick | 1 |
| 15 | 202081 | " felt | 1 |
| 16 | 206094 | bushing (front) | 1 |
| 17 | 204054 | " (rear) | 1 |
| 18 | 204052 A | oil seal | 1 |
| 19 | 205585 | Upper looper lever crank | 1 |
| 20 | 5219 | clamp screw | 1 |
| 21 | 202175 | oil wick | 1 |
| 22 | 205586 | Upper looper lever | 1 |
| 23 | 202625 | pin | 1 |
| 24 | 202176 | oil wick | 1 |
| 25 | 5146 | pin screw | 1 |
| 26 | 205589 | Upper looper | 1 |
| 27 | 1189-2 | clamp screw | 1 |
| 28 | 205591 | Upper looper thread takeup | 1 |
| 29 | 5064 | screw | 1 |
| 30 | 202858 | bracket | 1 |
| 31 | 2921 | screw | 1 |
Page 15 — (2)UPPER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205492 | Upper looper lever guide | 1 |
| 2 | 205493 | oil felt | 1 |
| 3 | 205494 | retainer | 1 |
| 4 | 1231 | screw | 1 |
| 5 | 202177 | oil wick | 2 |
| 6 | 202917 | shaft bushing (front) | 1 |
| 7 | 5305 | clamp screw | 1 |
| 8 | 202919 | (rear) | 1 |
| 9 | 202920 | retaining ring | 1 |
| 10 | 202921 | oil stopper | 1 |
| 11 | 202174 | oil wick | 1 |
| 12 | 205588 | shaft bushing (front) bracket | 1 |
| 13 | 5187 | screw | 2 |
| 14 | 201035 A | nut | 1 |
| 202479 | Upper looper thread tension, complete with 201035A, 202278, 201068, 201039, 201482x2 & 5082A | 1 | |
| 15 | 202278 | spring bushing | 1 |
| 16 | 201068 | spring (weak) | 1 |
| 17 | 201039 | cup | 1 |
| 18 | 201482 | disc | 2 |
| 19 | 5082 A | post | 1 |
| 20 | 202849 | guide | 1 |
| 21 | 205590 | Upper looper thread guide (lower) | 1 |
| 22 | 2921 | screw | 1 |
| 23 | 202875 | washer | 1 |
| 24 | 201089 | Upper looper thread guide (upper) | 1 |
| 25 | 2921 | screw | 1 |
| 26 | 202875 | washer | 1 |
| 27 | 201048 A | Upper looper thread eyelet | 1 |
| 28 | 201048 A | Upper looper thread eyelet | 1 |
| 29 | 1459 | screw | 1 |
Page 17 — LOWER LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 201073 B | Lower looper drive connection | 1 |
| 2 | 5002 | cap screw (large) | 2 |
| 3 | 1170-1 | " " (small) | 2 |
| 4 | 201074 A | guide | 1 |
| 5 | 1156 | " screw | 1 |
| 6 | 202286 | " " spring washer | 1 |
| 7 | 201075 | ball stud | 1 |
| 8 | 5048 | " " screw | 1 |
| 9 | 205592 | Lower looper drive crank | 1 |
| 10 | 5385 | screw | 2 |
| 11 | 205593 | Lower looper lever shaft | 1 |
| 12 | 201081 A | bushing | 2 |
| 13 | 202923 | oil seal | 1 |
| 14 | 206055 | thrust washer | 1 |
| 15 | 205594 | Lower looper lever | 1 |
| 16 | 5274 | clamp screw | 1 |
| 17 | 205655 | Lower looper | 1 |
| 18 | 5328 | screw | 1 |
| 202480 | Lower looper thread tension, complete with 201035A, 202278, 201086 201039, 201482x2 & 5082A | 1 | |
| 19 | 201035 A | nut | 1 |
| 20 | 202278 | spring bushing | 1 |
| 21 | 201086 | spring (middle) | 1 |
| 22 | 201039 | spring cup | 1 |
| 23 | 201482 | disc | 2 |
| 24 | 5082 A | post | 1 |
| 25 | 202849 | guide | 1 |
| 26 | 201089 | Lower looper thread guide | 1 |
| 27 | 2921 | screw | 1 |
| 28 | 202875 | " washer | 1 |
| 29 | 201048 A | Lower looper thread eyelet | 1 |
| 30 | 201048 A | Lower looper thread eyelet | 1 |
| 31 | 1459 | screw | 1 |
| 32 | 202860 | Lower looper thread guide | 1 |
| 33 | 2921 | screw | 1 |
| 34 | 202875 | " washer | 1 |
| 35 | 205596 | Lower looper thread takeup | 1 |
| 36 | 2921 | screw | 1 |
| 37 | 201088 | bracket | 1 |
| 38 | 1202 | " screw | 1 |
| 39 | 201091 | Lower looper thread tube | 1 |
| 40 | 1892 | screw | 1 |
| 41 | 205597 | bracket | 1 |
| 42 | 1175-2 | " screw | 2 |
Page 19 — FEED DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205598 | Feed bar | 1 |
| 2 | 205599 | Feed dog | 1 |
| 3 | 205656 | Feed dog | 1 |
| 4 | 1202 | screw | 1 |
| 5 | 205498 | Feed connecting link | 1 |
| 6 | 201099 | bushing | 1 |
| 7 | 201100 | screw | 1 |
| 8 | 3044 | nut | 1 |
| 9 | 200098 | washer | 1 |
| 10 | 205500-5 | Feed eccentric #5 | 1 |
| 205500-6 | Feed eccentric #6 | 1 | |
| 11 | 205501 | needle bearing | 1 |
| 12 | 205587 | Feed connecting link collar | 1 |
| 13 | 5213 | Feed eccentric lock nut | 1 |
| 14 | 206126 | washer | 1 |
| 15 | 205600 | Feed bar lift block | 1 |
| 16 | 205601 | needle bearing | 1 |
| 17 | 205602 | retaining ring | 1 |
| 18 | 201107 | Feed bar guide block | 1 |
| 19 | 202566 | collar | 1 |
| 20 | 202200 | pin | 1 |
| 21 | 2022 | screw | 1 |
| 22 | 205603 | Feed bar guide (left) | 1 |
| 23 | 1175-3 | screw | 2 |
| 24 | 167066 | washer | 2 |
| 25 | 205604 | Feed bar guide (right) | 1 |
| 26 | 5095 | screw | 2 |
Page 21 — FEED DRIVE MECHANISM (FOR R57L-02 ONLY)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205664 | Main feed bar | 1 |
| 2 | 205598 | Differential feed bar | 1 |
| 3 | 205660 | Main feed dog | 1 |
| 4 | 1175-2 | screw | 1 |
| 5 | 205661 | Auxiliary feed dog | 1 |
| 6 | 2922 | screw | 1 |
| 7 | 205662 | Diff. feed dog | 1 |
| 8 | 1202 | screw | 1 |
| 9 | 205499 | Main feed connecting link | 1 |
| 10 | 201099 | bushing | 1 |
| 11 | 201100 | screw | 1 |
| 12 | 3044 | nut | 1 |
| 13 | 200098 | washer | 1 |
| 14 | 205498 | Diff. feed connecting link | 1 |
| 15 | 201099 | bushing | 1 |
| 16 | 201100 | screw | 1 |
| 17 | 3044 | nut | 1 |
| 18 | 200098 | washer | 1 |
| 19 | 205500-12 | Main feed eccentric #12 | 1 |
| 20 | 205501 | needle bearing | 1 |
| 21 | 205500-10 | Diff. feed eccentric #10 | 1 |
| 22 | 205501 | needle bearing | 1 |
| 23 | 5213 | Feed eccentric lock nut | 1 |
| 24 | 206126 | washer | 1 |
| 25 | 205600 | Feed bar lift block | 1 |
| 26 | 205601 | needle bearing | 1 |
| 27 | 205602 | retaining ring | 1 |
| 28 | 201107 | Feed bar guide block | 2 |
| 29 | 202200 | pin | 1 |
| 30 | 2022 | screw | 1 |
| 31 | 205603 | Feed bar guide (left) | 1 |
| 32 | 1175-3 | screw | 2 |
| 33 | 167066 | washer | 2 |
| 34 | 205604 | Feed bar guide (right) | 1 |
| 35 | 5095 | screw | 2 |
Page 23 — UPPER AND LOWER KNIFE DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 202925 | Upper knife drive connection | 1 |
| 2 | 5187 | cap screw | 2 |
| 3 | 205495 | pin | 1 |
| 4 | 1457 | " screw | 1 |
| 5 | 201360 B | Upper knife drive crank | 1 |
| 6 | 5381 | clamp screw | 1 |
| 7 | 205605 | Upper knife lever | 1 |
| 8 | 201115 A | shaft bushing | 2 |
| 9 | 202927 | oil seal | 1 |
| 10 | 201117 | thrust collar | 1 |
| 11 | 5084 | " " screw | 2 |
| 12 | 205606 | Upper knife lever guide | 1 |
| 13 | 2022 | screw | 1 |
| 14 | 205607 | Upper knife | 1 |
| 15 | 5088 | screw | 1 |
| 16 | 205608 | clamp holder | 1 |
| 17 | 1175-2 | " clamp screw | 1 |
| 18 | 202638 B | " guide | 1 |
| 19 | 1189 | " " screw | 1 |
| 20 | 201125 | " " pin | 1 |
| 21 | 205609 | Lower knife | 1 |
| 22 | 205610 | holder | 1 |
| 23 | 4009-1 | " screw | 1 |
| 24 | 201129 | " spring | 1 |
| 25 | 201130 A | " " retainer | 1 |
| 26 | 1175-3 | " " " screw | 1 |
| 27 | 205611 | " guide | 1 |
| 28 | 1175-3 | " " screw | 2 |
| 29 | 201132 B | clamp stud | 1 |
| 30 | 5260 | " " nut | 1 |
| 31 | 201134 | " " " washer | 1 |
Page 25 — PRESSER FOOT AND LIFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 205615 | Presser arm | 1 |
| 2 | 205529 | stopper | 1 |
| 3 | 4009-1 | " screw | 2 |
| 4 | 208549 | hinge pin | 1 |
| 5 | 5167 | " " screw | 1 |
| 6 | 202451 | Chain cutter knife | 1 |
| 7 | 2921 | screw | 1 |
| 8 | 208525 | Presser foot holder | 1 |
| 9 | 5136 | clamp screw | 1 |
| 10 | 205612 | Presser foot | 1 |
| 11 | 205657 | Presser foot | 1 |
| 12 | 205675 | chaining-off finger | 1 |
| 13 | 205613 | hinge spring | 1 |
| 14 | 5157 | " " screw | 1 |
| 15 | 205614 | regulator | 1 |
| 16 | 1229 | " screw | 1 |
| 17 | 205618 | Foot lift lever shaft | 1 |
| 18 | 202589 | bushing | 3 |
| 19 | 201139 | thrust collar | 1 |
| 20 | 5084 | " " screw | 2 |
| 21 | 205595 | Presser bar, complete | 1 |
| 22 | 208540 | spring | 1 |
| 23 | 205622 | thumb screw | 1 |
| 24 | 205549 | " " lock nut | 1 |
| 25 | 205623 | hand lift lever | 1 |
| 26 | 5256 | " " " screw | 1 |
| 27 | 202683 | " " " stopper | 1 |
| 28 | 5345 | " " " " screw | 1 |
| 29 | 205624 | Foot lift lever | 1 |
| 30 | 202868 | washer | 1 |
| 31 | 201161 | pin | 1 |
| 32 | 2022 | " screw | 1 |
| 33 | 205625 | spring | 1 |
| 34 | 201165 | connecting pin | 1 |
| 35 | 201166 | split pin | 2 |
| 36 | 201167 A | bracket | 1 |
| 37 | 5142 | " screw | 2 |
| 38 | 5097 | regulating screw | 2 |
| 39 | 3044 | " " lock nut | 2 |
| 40 | 201163 | Foot lift intermediate lever | 1 |
| 41 | 205626 | collar | 1 |
| 42 | 5001 | clamp screw | 1 |
Page 27 — PUMP LUBRICATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 205627 | Gear pump, complete with parts of Ref. Nos. 1-11 | 1 | |
| 1 | 205628 | Gear pump housing, complete | 2 |
| 2 | 201293 A | plate | 1 |
| 3 | 5117 | " screw | 4 |
| 4 | 201294 | Pump gear (left) | 1 |
| 5 | 201295 | Pump gear (right) | 1 |
| 6 | 205631 | Pump gear shaft (long), set with 201009 | 1 |
| 7 | 201009 | key | 1 |
| 8 | 204184 | Pump gear shaft (short) | 1 |
| 9 | 1458 | screw | 2 |
| 10 | 205632 | Worm wheel | 1 |
| 11 | 5060 | screw | 2 |
| 12 | 5094 | Gear pump housing screw | 2 |
| 13 | 204185 | Pump outlet o ring | 1 |
| 14 | 205635 | Oil releif valve, complete | 1 |
| 15 | 206233 | Oil cleaner | 1 |
| 16 | 206429 | box | 1 |
| 17 | 206430 | " cover | 1 |
| 18 | 206431 | " " o ring | 1 |
| 19 | 5010 | " " screw | 3 |
| 20 | 204185 | " o ring | 2 |
| 21 | 5186 | " screw | 2 |
| 22 | 205640 | Oil distributor | 1 |
| 23 | 202903 | oil plug | 1 |
| 24 | 200152 | screw | 1 |
| 25 | 205535 | Oil splash pipe, complete | 1 |
| 26 | 201758 | oil splash screw | 1 |
| 27 | 201759 | " " " washer | 2 |
| 28 | 205641 | Oil pan | 1 |
| 29 | 208238 | gasket | 1 |
| 30 | 5138 B | oil drain screw | 1 |
| 31 | 202287 A | " " washer | 1 |
| 32 | 205648 | Oil pipe | 1 |
| 33 | 1457 | screw | 1 |
| 34 | 202176 | oil wick | 1 |
| 35 | 205665 | Oil level gauge | 1 |
| 36 | 205666 | bar, complete | 1 |
| 37 | 205669 | sight window | 1 |
| 38 | 1435 | " " screw | 1 |
| 39 | 205670 | float, complete | 1 |
| 40 | 205534 | float guide pin | 1 |
Page 29 — ACCESSORIES FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 208231 | Machine rest board | 2 |
| 9008 | bolt set, with 206335 x4, 206336 x4, 206337 x4 & 202700 x4 | 1 | |
| 2 | 206335 | bolt | 4 |
| 3 | 202700 | " nut washer (large) | 4 |
| 4 | 206337 | " " " (small) | 4 |
| 5 | 206336 | " nut | 4 |
| 9002 | cushion rubber set, with 202693A x4 & 202765 x4 | 1 | |
| 6 | 202765 | cushion rubber (upper) | 4 |
| 7 | 202693 A | " " (lower) | 4 |
| 9016 | cushion rubber set, with 206338 x4 | 1 | |
| 8 | 206338 | Machine cushion rubber | 4 |
| 9 | 5232 | guide pin | 4 |
| 10 | 205470 | Waste chute top | 1 |
| 11 | 175 | screw | 2 |
| 12 | 205468 | Waste chute | 1 |
| 13 | 5019 | screw | 3 |
| 14 | 205469 | Waste chute extension | 1 |
Page 31 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 288 | Thread stand, complete – 3 spools with parts of Ref. Nos. 1-34 | 1 | |
| 1 | 216 | Thread stand upper rod | 1 |
| 2 | 217 | nut | 1 |
| 3 | 218 | Thread stand lower rod | 1 |
| 4 | 219 | Spool pin bracket | 1 |
| 5 | 243 | clamp plate | 1 |
| 6 | 221 | clamp screw | 2 |
| 7 | 222 | " " nut | 2 |
| 8 | 223 | Spool pin | 3 |
| 9 | 224 | washer | 3 |
| 10 | 225 | nut spring washer | 3 |
| 11 | 226 | nut | 3 |
| 12 | 227 | Spool tray | 3 |
| 13 | 228 | Spool retaining fin | 3 |
| 14 | 229 | Thread guide bar rod bracket | 1 |
| 15 | 230 | clamp screw | 1 |
| 16 | 231 | " " nut | 1 |
| 17 | 292 | Thread guide bar rod | 1 |
| 18 | 230 | clamp screw | 1 |
| 19 | 231 | " " nut | 1 |
| 20 | 233 | Thread guide rod retaining block | 1 |
| 21 | 230 | clamp screw | 1 |
| 22 | 231 | " " nut | 1 |
| 23 | 293 | Thread guide bar | 1 |
| 24 | 230 | clamp screw | 1 |
| 25 | 231 | " " nut | 1 |
| 26 | 235 | Thread guide wire (long) | 2 |
| 27 | 236 | lock nut | 2 |
| 28 | 237 | Thread guide wire (short) | 1 |
| 29 | 236 | lock nut | 1 |
| 30 | 260 | Thread guide wire holder | 1 |
| 31 | 239 | screw | 1 |
| 32 | 240 | Thread stand base | 1 |
| 33 | 241 | wooden screw | 3 |
| 34 | 242 | Thread stand lower rod screw | 2 |
Page 33 — ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 134 | Oil container (750cc) | 1 |
| 2 | 132 | Oiler | 1 |
| 3 | 135 A | Oil funnel | 1 |
| 4 | 130 A | Wrench – 12mm, 14mm | 1 |
| 5 | 286 | " – 9.5mm | 1 |
| 6 | 284 | " – 7mm | 1 |
| 7 | 283 | " – 6mm | 1 |
| 8 | 282 | " – 5mm | 1 |
| 9 | 127 | Screwdriver (large) | 1 |
| 10 | 128 | " (medium) | 1 |
| 11 | 129 | " (small) | 1 |
| 12 | 152 | Socket wrench | 1 |
| 13 | 154 | Feed eccentric extractor | 1 |
| 14 | 200 | Allen key – 4.76mm | 1 |
| 15 | 131 | Tweezers | 1 |
| 16 | 153 | Threading wire | 1 |
| 17 | 245 | Treadle | 1 |
| 18 | 126 | " chain | 1 |
Page 35 — SPARE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 206233 | Oil cleaner | 1 |
| 2 | 205589 | Upper looper | 1 |
| 3 | 205586 | lever | 1 |
| 4 | 205492 | guide | 1 |
| 5 | 205655 | Lower looper | 1 |
| 6 | UO×154 | Needle #11 | 10 |
| UO×154 | Needle #16 | 10 | |
| 7 | 205573 | Needle plate | 1 |
| 8 | 205674 | Needle plate | 1 |
| 9 | 205612 | Presser foot | 1 |
| 10 | 205657 | Presser foot | 1 |
| 11 | 205675 | Presser foot chaining-off finger | 1 |
| 12 | 205613 | Presser foot hinge spring | 1 |
| 13 | 205607 | Upper knife | 1 |
| 14 | 205609 | Lower knife | 3 |
| 15 | 205500-5.5 | Feed eccentric #5.5 | 1 |
| 205500-7 | Feed eccentric #7 | 1 | |
| 205500-8 | Feed eccentric #8 | 1 | |
| 205500-14 | Feed eccentric #14 | 1 | |
| 16 | 205501 | needle bearing | 1 |
| 17 | 205600 | Feed bar lift block | 1 |
| 18 | 205601 | needle bearing | 1 |
| 19 | 205599 | Feed dog | 1 |
| 20 | 205656 | Feed dog | 1 |
| 21 | 205660 | Main feed dog | 1 |
| 22 | 205661 | Auxiliary feed dog | 1 |
| 23 | 205662 | Differential feed dog | 1 |
| 205500-5 | |||
| 205500-6 | |||
| 205500-10 | |||
| 205500-11 | |||
| 205500-12 | |||
| 205500-16 | |||
| 205500-18 | |||
| 205500-20 |
Page 36 — Page for Manufacturer's only
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 205527 | 1 | ||
| 205528 | 1 | ||
| 201317 | 1 | ||
| 205540 | 1 | ||
| 205541 | 1 | ||
| 204217 | 1 | ||
| 1457 | 2 | ||
| 204247 | 1 | ||
| 205542 | 1 | ||
| 205550 | 1 | ||
| 205677 | 1 | ||
| 202581 | 1 | ||
| 205552 | 前カバー（A） | 1 | |
| 205532 | 1 | ||
| 205551 | 1 | ||
| 205555 | 前カバー（C） | 1 | |
| 205533 | 1 | ||
| 201090 | 1 | ||
| 205556 | 1 | ||
| 205548 | 1 | ||
| 202939 | 1 | ||
| 202478 | 1 | ||
| 201035 A | 1 | ||
| 202278 | 1 | ||
| 201037 | 1 | ||
| 201039 | 1 | ||
| 201482 | 2 | ||
| 5082 A | 1 | ||
| 202479 | 1 | ||
| 201035 A | 1 | ||
| 202278 | 1 | ||
| 201068 | 1 | ||
| 201039 | 1 | ||
| 201482 | 2 | ||
| 5082 A | 1 | ||
| 202480 | 1 | ||
| 201035 A | 1 | ||
| 202278 | 1 | ||
| 201086 | 1 | ||
| 201039 | 1 | ||
| 201482 | 2 | ||
| 5082 A | 1 | ||
| 205605 | 1 | ||
| 201125 | 1 | ||
| 205595 | 1 | ||
| 205561 | 1 | ||
| 205584 | 1 | ||
| 205627 | 1 | ||
| 205628 | 1 | ||
| 201293 A | 1 | ||
| 5117 | 4 | ||
| 201294 | ポンプギャー（A） | 1 | |
| 201295 | ポンプギャー（B） | 1 | |
| 205631 | ギャーシャフト（A） | 1 | |
| 201009 | 1 | ||
| 204184 | ギャーシャフト（B） | 1 | |
| 1458 | 2 | ||
| 205632 | 1 | ||
| 5060 | 2 | ||
| 205628 | 1 | ||
| 205629 | 1 | ||
| 201290 A | 1 | ||
| 2213-1 | 2 | ||
| 204182 | 2 | ||
| 5145 | 2 | ||
| 205635 | 1 | ||
| 205636 | 1 | ||
| 205509 | 1 | ||
| 205638 | 1 | ||
| 205510 | 1 | ||
| 205535 | 1 | ||
| 205536 | 1 | ||
| 201757 | 1 | ||
| 205666 | 1 | ||
| 205668 | 1 | ||
| 205667 | 1 | ||
| 205670 | 1 | ||
| 205671 | 1 | ||
| 205672 | 1 | ||
| 9008 | 1 | ||
| 206335 | 4 | ||
| 202700 | 4 | ||
| 206337 | 4 | ||
| 206336 | 4 | ||
| 9002 | 1 | ||
| 202693 A | 4 | ||
| 202765 | 4 | ||
| 9016 | 1 | ||
| 206338 | 4 | ||
| 288 | 1 |
Page 38 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 11 | 202176 | ||
| 13 | 202176 | ||
| 13 | 202177 | ||
| 17 | 202200 | ||
| 19 | 202200 | ||
| 13 | 202278 | ||
| 15 | 202278 | ||
| 202278 | |||
| 202278 | |||
| 15 | 202286 | ||
| 23 | 202451 | ||
| 202478 | |||
| 202478 | |||
| 202479 | |||
| 202480 | |||
| 202480 | |||
| 9 | 202492 | ||
| 5 | 202517 | ||
| 5 | 202521 | ||
| 5 | 202522 | ||
| 17 | 202566 | ||
| 5 | 202576 | ||
| 5 | 202579 | ||
| 202581 | |||
| 11 | 202619 A | ||
| 11 | 202625 | ||
| 21 | 202638 B | ||
| 23 | 202683 | ||
| 27 | 202693 A | ||
| 202700 | |||
| 202700 | |||
| 11 | 202709 A | ||
| 11 | 202710 A | ||
| 3 | 202748 | ||
| 27 | 202765 | ||
| 202765 | |||
| 9 | 202849 | ||
| 13 | 202849 | ||
| 15 | 202849 | ||
| 11 | 202858 | ||
| 15 | 202868 | ||
| 13 | 202875 | ||
| 15 | 202875 | ||
| 15 | 202875 | ||
| 25 | 202903 | ||
| 9 | 202910 | ||
| 9 | 202911 | ||
| 13 | 202917 | ||
| 13 | 202920 | ||
| 13 | 202921 | ||
| 11 | 202922 | ||
| 15 | 202923 | ||
| 21 | 202925 | ||
| 21 | 202927 | ||
| 202939 | |||
| 3 | 204006 | ||
| 7 | 204023 | ||
| 11 | 204054 | ||
| 204182 | |||
| 25 | 204184 | ||
| 204184 | |||
| 204185 | |||
| 204185 | |||
| 204217 | |||
| 204218 | |||
| 9 | 204247 | ||
| 27 | 204268 | ||
| 27 | 205469 | ||
| 7 | 205490 | ||
| 3 | 205491 | ||
| 33 | 205492 | ||
| 13 | 205493 | ||
| 13 | 205494 | ||
| 11 | 205495 | ||
| 11 | 205496 | ||
| 17 | 205498 | ||
| 19 | 205498 | ||
| 19 | 205499 | ||
| 21 | 205500-10 | ||
| 205500-11 | |||
| 33 | 205500-12 | ||
| 205500-13 | |||
| 33 | 205500-14 | ||
| 205500-16 | |||
| 205500-18 | |||
| 33 | 205500-20 | ||
| 205500-5 | |||
| 205500-5.5 | |||
| 33 | 205500-6 | ||
| 205500-7 | |||
| 33 | 205500-7 | ||
| 205500-8 | |||
| 205500-8 | |||
| 205501 | |||
| 19 | 205501 | ||
| 205501 | |||
| 205509 | |||
| 205510 | |||
| 3 | 205527 | ||
| 205527 | |||
| 205528 | |||
| 3 | 205530 | ||
| 3 | 205531 | ||
| 205533 | |||
| 25 | 205534 | ||
| 25 | 205535 | ||
| 205535 | |||
| 205536 | |||
| 7 | 205537 | ||
| 5 | 205539 | ||
| 5 | 205540 | ||
| 205540 | |||
| 205541 | |||
| 205542 | |||
| 3 | 205543 | ||
| 3 | 205544 | ||
| 3 | 205545 | ||
| 5 | 205546 | ||
| 205548 | |||
| 5 | 205550 | ||
| 205551 | |||
| 5 | 205552 | ||
| 205552 | |||
| 5 | 205553 | ||
| 5 | 205554 | ||
| 5 | 205555 | ||
| 205556 | |||
| 5 | 205556 | ||
| 7 | 205557 | ||
| 7 | 205558 | ||
| 7 | 205559 | ||
| 17 | 205600 | ||
| 19 | 205600 | ||
| 205600 | |||
| 17 | 205601 | ||
| 19 | 205601 | ||
| 33 | 205601 | ||
| 205602 | |||
| 19 | 205602 | ||
| 17 | 205603 | ||
| 17 | 205604 | ||
| 19 | 205604 | ||
| 205605 | |||
| 205605 | |||
| 21 | 205606 | ||
| 21 | 205607 | ||
| 33 | 205607 | ||
| 21 | 205608 | ||
| 21 | 205609 | ||
| 33 | 205609 | ||
| 21 | 205610 | ||
| 21 | 205611 | ||
| 23 | 205612 | ||
| 33 | 205612 | ||
| 23 | 205613 | ||
| 33 | 205613 | ||
| 23 | 205614 | ||
| 23 | 205615 | ||
| 7 | 205616 | ||
| 23 | 205617 | ||
| 23 | 205618 | ||
| 23 | 205622 | ||
| 23 | 205623 | ||
| 23 | 205624 | ||
| 23 | 205625 | ||
| 23 | 205626 | ||
| 205627 | |||
| 25 | 205635 | ||
| 205635 | |||
| 205636 | |||
| 205638 | |||
| 25 | 205639 | ||
| 25 | 205640 | ||
| 25 | 205641 | ||
| 25 | 205648 | ||
| 7 | 205649 | ||
| 7 | 205649 | ||
| 15 | 205655 | ||
| 33 | 205655 | ||
| 17 | 205656 | ||
| 33 | 205656 | ||
| 23 | 205657 | ||
| 33 | 205657 | ||
| 33 | 205660 | ||
| 19 | 205661 | ||
| 33 | 205661 | ||
| 19 | 205662 | ||
| 33 | 205662 | ||
| 7 | 205663 | ||
| 19 | 205664 | ||
| 25 | 205665 | ||
| 25 | 205666 | ||
| 205666 | |||
| 205667 | |||
| 205668 | |||
| 25 | 205669 | ||
| 25 | 205670 | ||
| 205670 | |||
| 205671 | |||
| 205672 | |||
| 9 | 205674 | ||
| 33 | 205674 | ||
| 23 | 205675 | ||
| 33 | 205675 | ||
| 5 | 205676 | ||
| 205677 | |||
| 3 | 205708 | ||
| 5 | 205722 | ||
| 3 | 205738 | ||
| 5 | 206022 | ||
| 15 | 206055 | ||
| 11 | 206094 | ||
| 17 | 206126 | ||
| 19 | 206126 | ||
| 25 | 206233 | ||
| 27 | 206335 |
Page 39 — NUMERICAL INDEX OF PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 206335 | 34 | ||
| 5 | 206336 | 27 | |
| 206336 | 34 | ||
| 4 | 206337 | 27 | |
| 206337 | 34 | ||
| 8 | 206338 | 27 | |
| 206338 | 34 | ||
| 16 | 206429 | 25 | |
| 17 | 206430 | 25 | |
| 18 | 206431 | 25 | |
| 1 | 206457 | 5 | |
| 2 | 206550 | 5 | |
| 1 | 208231 | 27 | |
| 29 | 208238 | 25 | |
| 20 | 208482 | 5 | |
| 8 | 208525 | 23 | |
| 22 | 208540 | 23 | |
| 4 | 208549 | 23 |
Pegasus R57L — parts catalog
- Page 1 (cover): This is the cover page for the Pegasus R57L Parts List, featuring an image of the sewing machine and the manufacturer's name.
- Page 2 (cover): This is the cover page of a parts catalog from Superior Sewing Machine & Supply LLC, featuring a large watermark of 'jintex.in'.
- Page 3 (toc): This page contains the table of contents for the R57L series parts list, with entries in both English and Japanese, and corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of various machine components and hardware, including screws, bolts, washers, and housing parts, with reference numbers for identification.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME, including part numbers, names, torque specifications, and quantities.
- Page 6 (diagram): This page displays a diagram of machine parts, with numbered components and their corresponding references. It includes a page number and library information at the bottom.
- Page 7 (parts_list): This page lists miscellaneous covers and their components, including part numbers, names, quantities, and torque specifications.
- Page 8 (diagram): This page displays a diagram of various sewing machine parts, including a shaft, housing components, screws, and washers, with reference numbers for each part.
- Page 9 (parts_list): This page lists parts for the Crankshaft Mechanism, including part numbers, names, quantities, and torque specifications.
- Page 10 (diagram): This page contains a diagram of various sewing machine parts, with reference numbers and some part numbers indicated.
- Page 11 (parts_list): This page lists parts for the Needle Drive Mechanism, including part numbers, names, quantities, and torque specifications.
- Page 12 (diagram): This page displays a diagram of various sewing machine components, with numbered references for each part.
- Page 13 (parts_list): Parts list for the upper looper drive mechanism (1), giving reference numbers, part numbers, English and Japanese names, torque values and quantities for 31 items.
- Page 14 (diagram): This page contains a diagram of various sewing machine components, with numbered parts indicated for reference.
- Page 15 (parts_list): This page lists parts for the (2) Upper Looper Drive Mechanism, including part numbers, names, torque specifications, and quantities.
- Page 16 (diagram): This page contains a diagram of various sewing machine parts, with reference numbers indicating their location. The page is numbered 14.
- Page 17 (parts_list): This page lists parts for the Lower Looper Drive Mechanism, including part numbers, names, quantities, and torque specifications.
- Page 18 (diagram): This page displays a diagram of sewing machine parts, with numbered components and their corresponding part numbers and descriptions.
- Page 19 (parts_list): This page lists parts for the Feed Drive Mechanism (For R57L-14S and R57L-19 only), including part numbers, names, and quantities.
- Page 20 (diagram): This page contains a diagram of various sewing machine parts, including screws, nuts, bearings, and levers, with reference numbers for each component.
- Page 21 (parts_list): This page lists parts for the Feed Drive Mechanism (R57L-02) with part numbers, names, and quantities.
- Page 22 (diagram): This page displays a diagram of various sewing machine components, with numbered references for each part.
- Page 23 (parts_list): This page lists parts for the Upper and Lower Knife Drive Mechanism, including part numbers, names, quantities, and torque specifications.
- Page 24 (diagram): This page displays a diagram of various sewing machine parts, including levers, springs, screws, and brackets, with reference numbers for each component.
- Page 25 (parts_list): This page lists parts for the Presser Foot and Lift Mechanism, including part numbers, names, quantities, and torque specifications.
- Page 26 (diagram): This page displays a diagram of various sewing machine components, including a filter assembly, pump housing, and gasket, with numbered references for each part.
- Page 27 (parts_list): This page lists parts for the Pump Lubricating Mechanism, including part numbers, names, quantities, and torque specifications.
- Page 28 (diagram): This page displays a diagram of various machine parts, including screws, brackets, and covers, with reference numbers for identification.
- Page 29 (parts_list): This page lists accessories for semi-submerged installation, including machine rest boards, bolts, nuts, washers, and screws, with their respective part numbers, quantities, and descriptions.
- Page 30 (diagram): This page displays a diagram of various sewing machine parts, including screws, nuts, brackets, and other components, identified by reference numbers.
- Page 31 (parts_list): This page lists parts for a Thread Stand, including part numbers, names, quantities, and references.
- Page 32 (diagram): This page displays a diagram of various sewing machine accessories and tools, including wrenches, screwdrivers, a chain, and a presser foot, each labeled with a reference number.
- Page 33 (parts_list): This page lists accessories for the sewing machine, including oil containers, oilers, funnels, wrenches, screwdrivers, socket wrenches, feed eccentric extractors, Allen keys, tweezers, threading wires, treadles, and chains, along with their part numbers and quantities.
- Page 34 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 23, illustrating their assembly and placement within the machine. The page also includes footer information indicating it is page 32 from the library of Superior Sewing Machine & Supply LLC.
- Page 35 (parts_list): This page lists spare parts for an industrial sewing machine, including part numbers, names, quantities, and associated models. It also provides a table of available feed eccentrics and a key for part markings.
- Page 36 (parts_list): This page contains a parts list for various components of the sewing machine, including covers, shafts, gears, and fasteners, with part numbers, descriptions, and quantities.
- Page 38 (parts_list): This page contains a numerical index of parts for industrial sewing machines, listing part numbers, corresponding page numbers, and reference numbers from diagrams.
- Page 39 (parts_list): This page contains a numerical index of parts for an industrial sewing machine, listing part numbers, page references, and reference numbers from diagrams.
- Page 40 (cover): This is the cover page for a Pegasus Sewing Machine Co., Ltd. parts catalog, identified as Cat. No. 8470, printed in December 1977 in Japan.
