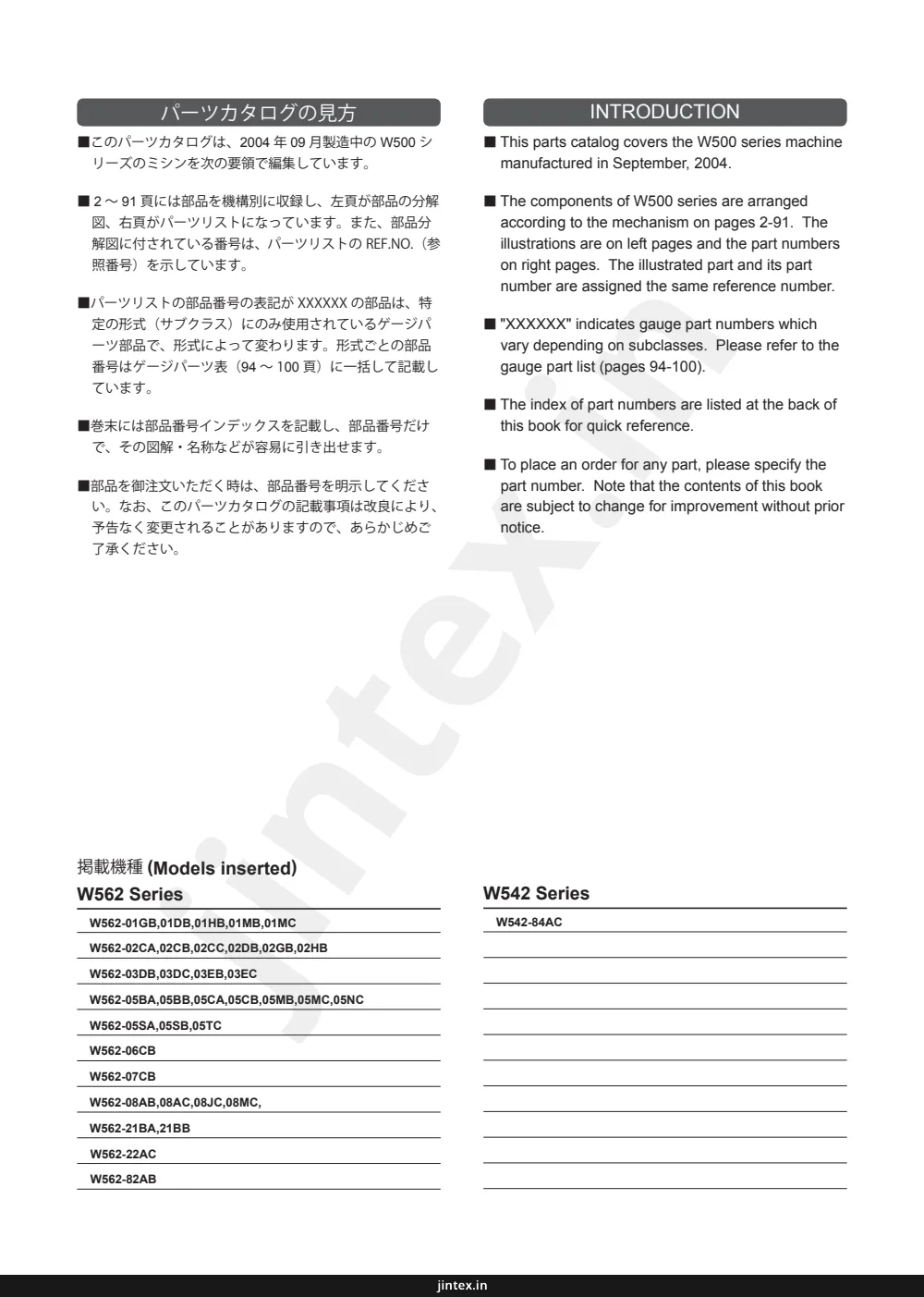

Page 2 — INTRODUCTION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| W562-01GB,01DB,01HB,01MB,01MC | W562 Series | ||
| W562-02CA,02CB,02CC,02DB,02GB,02HB | W562 Series | ||
| W562-03DB,03DC,03EB,03EC | W562 Series | ||
| W562-05BA,05BB,05CA,05CB,05MB,05MC,05NC | W562 Series | ||
| W562-05SA,05SB,05TC | W562 Series | ||
| W562-06CB | W562 Series | ||
| W562-07CB | W562 Series | ||
| W562-08AB,08AC,08JC,08MC, | W562 Series | ||
| W562-21BA,21BB | W562 Series | ||
| W562-22AC | W562 Series | ||
| W562-82AB | W562 Series | ||
| W542-84AC | W542 Series |
Page 5 — アーム・ベッド機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2501170 | SHOULDER PIN | 4 |
| 2 | 2065900 | OIL LEVEL GAUGE | 1 |
| 3 | 2402280 | PIUG | 1 |
| 4 | 2400520 | PLUG | 4 |
| 5 | 2081731 | PLUG | 3 |
| 6 | 2401100 | PLUG | 1 |
| 7 | 2400010 | RETAINING RING | 1 |
| 8 | 2501480 | FILTER | 1 |
| 9 | 2500200 | COVER | 1 |
| 10 | 007017A0 | SCREW | 2 |
| 11 | 2401270 | MARK | 1 |
| 12 | 2106790 | PIN | 2 |
| 13 | 2106790 | PIN | 2 |
| 14 | 2106790 | PIN | 2 |
| 15 | 007018A0 | SCREW | 1 |
| 16 | 3034480 | WASHER | 1 |
| 17 | 0045410 | SCREW | 1 |
| 18 | 9A30670 | STICKER | 1 |
| 19 | 9A30690 | CAUTION LABEL | 2 |
| 20 | 9A30710 | STICKER | 1 |
| 21 | 9A30720 | STICKER | 1 |
| 22 | 2500030 | TOP COVER (RIGHT) | 1 |
| 23 | 0070840 | BOLT | 4 |
| 24 | 2500040 | GASKET | 1 |
| 25 | 250069A0 | TOP COVER PLATE (LEFT) | 1 |
| 26 | 2500490 | GASKET | 1 |
| 27 | 0070840 | BOLT | 4 |
Page 7 — カバー機構 (1) / COVER(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250016FTD0 | ARM COVER (LEFT) | 1 |
| 2 | 0052420 | SCREW | 1 |
| 3 | 2500170 | O RING | 1 |
| 4 | 007021A0 | SCREW | 4 |
| 5 | 2402630 | WASHER | 1 |
| 6 | 250150-PD1 | ARM COVER (TOP) | 1 |
| 7 | 2402261 | PLUG | 1 |
| 8 | 179107-050 | OIL SIGHT WINDOW | 1 |
| 9 | 2500190 | O RING | 1 |
| 10 | 007021A0 | SCREW | 7 |
| 11 | 250224A0 | NEEDLE BAR GUARD | 1 |
| 12 | 007019A0 | SCREW | 2 |
| 13 | 250231-910 | THREAD TAKE-UP GUARD ASSY. | 1 |
| 14 | 2502250 | THREAD TAKE-UP GUARD | 1 |
| 15 | 2502260 | FINGER GUARD | 1 |
| 16 | 0070180 | SCREW | 2 |
| 17 | 3034480 | WASHER | 2 |
| 18 | 2502270 | BRACKET | 1 |
| 19 | 0070180 | SCREW | 2 |
| 20 | 3034480 | WASHER | 2 |
| 21 | 0070520 | SCREW | 2 |
| 22 | 250005-TD0 | LOOPER THREAD GUIDE COVER | 1 |
| 23 | 007019A0 | SCREW | 1 |
| 24 | 250022-TB0 | PULLER COVER | 1 |
| 25 | 0070750 | SCREW | 2 |
| 26 | 0070890 | SCREW | 1 |
| 27 | 2500510 | FLAT SPRING | 1 |
| 28 | 007018A0 | SCREW | 2 |
| 29 | 007023A0 | SCREW | 2 |
| 30 | 2100250 | CUSHON | 2 |
| 31 | 2045850 | WASHER | 2 |
| 32 | 0070340 | SCREW | 2 |
| 33 | 2502570 | EYE GUARD | 1 |
| 34 | 0070090 | SCREW | 2 |
| 35 | 2028750 | WASHER | 2 |
| 36 | 2502560 | BRACKET | 1 |
| 37 | 2103070 | WASHER | 1 |
| 38 | 0070660 | SCREW | 1 |
| 39 | 2502550 | BRACKET | 1 |
| 40 | 007020A0 | SCREW | 2 |
| 41 | 3034480 | WASHER | 2 |
| 42 | 9A31261 | STICKER | 1 |
Page 9 — COVER(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 007021A0 | SCREW | 2 |
| 2 | 0070430 | SCREW | 1 |
| 3 | 250052BPD1 | BED COVER (LEFT) | 1 |
| 4 | 250074APD1 | BED COVER (RIGHT) | 1 |
| 5 | 007021A0 | SCREW | 4 |
| 6 | 250071-910 | COVER | 1 |
| 7 | 250039-PD0 | SIDE COVER ASSY. | 1 |
| 8 | 2500370 | SCREW | 1 |
| 9 | 2011910 | SPRING | 2 |
| 10 | 2401980 | PIN | 1 |
| 11 | 0045350 | SCREW | 2 |
| 12 | 007020A0 | SCREW | 2 |
| 13 | 2100250 | CUSHON | 2 |
| 14 | 007020A0 | SCREW | 1 |
| 15 | 0048210 | NUT | 1 |
| 16 | 2500470 | BRACKET | 1 |
| 17 | 007019A0 | SCREW | 2 |
| 18 | 2060230 | FLAT SPRING | 1 |
| 19 | 007018A0 | SCREW | 2 |
| 20 | 0070890 | SCREW | 1 |
Page 11 — CRANKSHAFT DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250501B910 | CRANKSHAFT ASSY. | 1 |
| 2 | 252009-920 | CONNECTION ASSY. | 1 |
| 3 | 007015A0 | SCREW | 4 |
| 4 | 252008-920 | CRANK | 1 |
| 5 | 0045340 | BOLT | 1 |
| 6 | 0045450 | SCREW | 1 |
| 7 | 2505060 | JOINT | 1 |
| 8 | 0045550 | SCREW | 1 |
| 9 | 0045470 | SCREW | 3 |
| 10 | 250508-910 | BUSHING | 1 |
| 11 | 0045470 | SCREW | 2 |
| 12 | 250543A910 | BUSHING | 1 |
| 13 | 0045470 | SCREW | 2 |
| 14 | 250511-910 | GEAR (LOWER) | 1 |
| 15 | 0045470 | SCREW | 4 |
| 16 | 250530-910 | BUSHING | 1 |
| 17 | 0045550 | SCREW | 1 |
| 18 | 0045470 | SCREW | 1 |
| 19 | 2505140 | COVER | 1 |
| 20 | 0070820 | SCREW | 2 |
| 21 | 250515A0 | MACHINE PULLER | 1 |
| 22 | 0045410 | SCREW | 1 |
| 23 | 0045560 | SCREW | 1 |
| 24 | 2401260 | WASHER | 1 |
| 25 | 0045000 | BOLT | 1 |
| 26 | 2505070 | SHAFT | 1 |
| 27 | 2068370 | O RING | 1 |
| 28 | 206050C1 | TIMING BELT | 1 |
| 29 | 2505250 | ADJUSTING BAR | 1 |
| 30 | 201074A0 | GUIDE | 1 |
| 31 | 0040190 | SCREW | 1 |
| 32 | 2022860 | WASHER | 1 |
Page 13 — ARM SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250526B910 | MOTION ASSY. | 1 |
| 2 | 0045920 | SCREW | 1 |
| 3 | 0070280 | SCREW | 2 |
| 4 | 0071530 | SCREW | 1 |
| 5 | 0071520 | SCREW | 1 |
| 6 | 0072680 | SCREW | 1 |
| 7 | 250517A0 | CRANKSHAFT | 1 |
| 8 | 253500-920 | CONNECTION ASSY. | 1 |
| 9 | 007015A0 | SCREW | 2 |
| 10 | 007021A0 | SCREW | 2 |
| 11 | 253501A920 | CRANK ASSY. | 1 |
| 12 | 0045340 | BOLT | 1 |
| 13 | 2505060 | JOINT | 1 |
| 14 | 0045550 | SCREW | 2 |
| 15 | 0045470 | SCREW | 2 |
| 16 | 2505240 | BALANCE WEIGHT | 1 |
| 17 | 0045140 | SCREW | 2 |
| 18 | 2505520 | SHAFT | 1 |
| 19 | 250529-910 | BUSHING | 1 |
| 20 | 0045470 | SCREW | 2 |
| 21 | 250521A0 | GEAR (UPPER) | 1 |
| 22 | 0045470 | SCREW | 4 |
| 23 | 250528-910 | BUSHING | 1 |
| 24 | 0045550 | SCREW | 1 |
| 25 | 0045470 | SCREW | 1 |
| 26 | 250566ATD0 | HANDWHEEL | 1 |
| 27 | 0045410 | SCREW | 1 |
| 28 | 0045560 | SCREW | 1 |
| 29 | 2045850 | WASHER | 1 |
| 30 | 0045010 | BOLT | 1 |
Page 15 — NEEDLE BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 251000-910 | NEEDLE BAR | 1 |
| 2 | 261500-920 | NEEDLE BAR CLAMP | 1 |
| 3 | 0070200 | SCREW | 1 |
| 4 | 2060520 | LINK/NEEDLE BAR DRIVE | 1 |
| 5 | 2060530 | PIN | 1 |
| 6 | 240098-20 | NEEDLE BEARING | 1 |
| 7 | 2401010 | WASHER | 1 |
| 8 | 2060630 | BLOCK | 1 |
| 9 | 2060620 | GUIDE BLOCK/NEEDLE BAR | 1 |
| 10 | 007020A0 | SCREW | 1 |
| 11 | 007021A0 | SCREW | 2 |
| 12 | 2510090 | LATCH | 1 |
| 13 | 179040-050 | SPONGE | 1 |
| 14 | XXXXXX | NEEDLE HOLDER | 1 |
| 15 | 0045540 | SCREW | 2 |
| 16 | 0045540 | SCREW | 3 |
| 17 | XXXXXX | NEEDLE PLATE | 1 |
| 18 | 005373-HC0 | SCREW | 2 |
| 19 | 251007L0 | BRACKET | 1 |
| 20 | 007019A0 | SCREW | 2 |
| 21 | 0070820 | SCREW | 1 |
| 22 | 2401230 | CUSHON RUBBER | 1 |
| 23 | 2121860 | OIL WICK | 1 |
| 24 | 2065240 | OIL WICK RETAINER | 1 |
Page 17 — NEEDLE GUARD MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 251515-910 | ECCENTRIC ASSY. | 1 |
| 2 | 0045390 | SCREW | 2 |
| 3 | 255501-920 | CONNECTION ASSY. | 1 |
| 4 | 007015A0 | SCREW | 2 |
| 5 | 0045430 | SCREW | 1 |
| 6 | 3060930 | CRANK | 1 |
| 7 | 0050840 | SCREW | 2 |
| 8 | 205495-20 | PIN | 1 |
| 9 | 2515180 | SHAFT | 1 |
| 10 | 2067480 | FELT | 3 |
| 11 | 2021760 | OIL WICK | 1 |
| 12 | 2401020 | WASHER | 1 |
| 13 | 2050610 | RING | 1 |
| 14 | 204052A0 | OIL SEAL | 1 |
| 15 | 251519-920 | LEVER ASSY. | 1 |
| 16 | 0045000 | BOLT | 1 |
| 17 | 3030670 | WASHER | 1 |
| 18 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 19 | 0071300 | SCREW | 1 |
| 20 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 21 | 0070310 | SCREW | 1 |
| 22 | 2068370 | O RING | 1 |
Page 19 — LOOPER DRIVE MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | LOOPER | 1 |
| 2 | 252007-920 | LOOPER HOLDER ASSY. | 1 |
| 3 | 0070860 | SCREW | 1 |
| 4 | 0045010 | BOLT | 1 |
| 5 | 0070850 | SCREW | 1 |
| 6 | 3030670 | WASHER | 1 |
| 7 | 2105860 | OIL SEAL | 1 |
| 8 | 2520060 | SHAFT | 1 |
| 9 | 252000-920 | ECCENTRIC ASSY. | 1 |
| 10 | 0045390 | SCREW | 2 |
| 11 | 252001-920 | CONNECTION ASSY. | 1 |
| 12 | 007015A0 | SCREW | 2 |
| 13 | 2520100 | BALANCE WEIGHT | 1 |
| 14 | 0070110 | SCREW | 2 |
| 15 | 252002A0 | CRANK | 1 |
| 16 | 0045390 | SCREW | 1 |
| 17 | 2520340 | SCREW | 1 |
| 18 | 2400620 | WASHER | 1 |
| 19 | 0048050 | NUT | 1 |
| 20 | 2520030 | BLOCK PIN | 1 |
| 21 | 2080280 | WASHER | 1 |
| 22 | 2620160 | COLLAR | 1 |
| 23 | 0070180 | SCREW | 1 |
| 24 | 0048020 | NUT | 1 |
| 25 | 2520040 | SHAFT | 1 |
| 26 | 2050610 | RING | 1 |
| 27 | 2401020 | WASHER | 1 |
Page 21 — FEED MECHANISM(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252500-910 | MAIN FEED BAR | 1 |
| 2 | XXXXXX | MAIN FEED DOG | 1 |
| 3 | 0055900 | SCREW | 1 |
| 4 | 252502-910 | DIFFERNTIAL FEED BAR | 1 |
| 5 | XXXXXX | DIFFERNTIAL FEED DOG | 1 |
| 6 | 0055900 | SCREW | 1 |
| 7 | 2096730 | BUSHING | 1 |
| 8 | 0045390 | SCREW | 1 |
| 9 | 2096720 | ECCENTRIC PIN | 1 |
| 10 | 0045430 | SCREW | 1 |
| 11 | 2058570 | BLOCK/FEED BAR GUIDE | 1 |
| 12 | 204439A0 | WASHER | 1 |
| 13 | 0070410 | SCREW | 1 |
| 14 | 252504A0 | GUIDE (RIGHT) | 1 |
| 15 | 0045390 | SCREW | 1 |
| 16 | 2525070 | GUIDE (LEFT) | 1 |
| 17 | 0070190 | SCREW | 2 |
| 18 | 2061330 | OIL SHIELD | 2 |
| 19 | 2525090 | COVER | 1 |
| 20 | 2525080 | GUIDE (LOWER) | 1 |
| 21 | 007020A0 | SCREW | 2 |
| 22 | 206128-20 | NEEDLE BEARING | 1 |
| 23 | 2525190 | BLOCK | 1 |
| 24 | 2525200 | WASHER | 1 |
| 25 | 2065620 | LINK/MAIN FEED | 1 |
| 26 | 206125-20 | NEEDLE BEARING | 1 |
| 27 | 2525210 | ECCENTRIC | 1 |
| 28 | 2525220 | REGULATOR | 1 |
| 29 | 252523-910 | ECCENTRIC RETAINER | 1 |
| 30 | 2525160 | SCREW | 1 |
| 31 | 2401250 | SPRING | 5 |
| 32 | 2525250 | SPACER | 1 |
| 33 | 2525430 | NUT | 1 |
| 34 | 0045140 | SCREW | 1 |
| 35 | 2625370 | SCREW | 1 |
| 36 | 2061190 | BUSHING | 1 |
| 37 | 2065630 | GUIDE BLOCK | 1 |
| 38 | 2000980 | WASHER | 1 |
| 39 | 0048320 | NUT | 1 |
| 40 | 262537A0 | SCREW | 1 |
| 41 | 2065660 | BUSHING | 1 |
| 42 | 2065650 | RING | 1 |
| 43 | 2065640 | LINK/DIFFERENTIAL FEED | 1 |
| 44 | 2000980 | WASHER | 1 |
| 45 | 0048320 | NUT | 1 |
| 46 | 2525260 | PIN | 1 |
| 47 | 2401220 | SPRING | 1 |
| 48 | 2063660 | O RING | 1 |
| 49 | 2045850 | WASHER | 1 |
| 50 | 2005550 | RING | 1 |
| 51 | 2065690 | PIN | 1 |
| 52 | 0045460 | SCREW | 1 |
| 53 | 252527-910 | CRANK | 1 |
| 54 | 0070310 | SCREW | 1 |
| 55 | 2525100 | SHAFT | 1 |
| 56 | 0045390 | SCREW | 1 |
| 57 | 2073580 | FELT | 2 |
| 58 | 2021750 | OIL WICK | 1 |
| 59 | 2401190 | SPACER | 1 |
| 60 | 2065710 | BUSHING | 1 |
| 61 | 0045390 | SCREW | 1 |
| 62 | 2515201 | BRACKET | 1 |
| 63 | 007019A0 | SCREW | 3 |
Page 23 — FEED MECHANISM(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2525310 | BLOCK | 1 |
| 2 | 2625410 | GUIDE/BLOCK | 1 |
| 3 | 252533-920 | LEVER | 1 |
| 4 | 0045310 | BOLT | 1 |
| 5 | 0070580 | SCREW | 1 |
| 6 | 2625420 | COLLAR | 1 |
| 7 | 0070360 | SCREW | 2 |
| 8 | 0070660 | SCREW | 1 |
| 9 | 2525360 | SPRING | 1 |
| 10 | 2401290 | O RING | 1 |
| 11 | 252539A910 | BRACKET | 1 |
| 12 | 007019A0 | SCREW | 5 |
| 13 | 2401621 | PLUG | 1 |
| 14 | 252664-910 | LEVER ASSY. | 1 |
| 15 | 2525380 | SCALE PLATE | 1 |
| 16 | 007021A0 | SCREW | 2 |
| 17 | 2401240 | SPACER | 2 |
| 18 | 2101710 | STOPPER | 2 |
| 19 | 0029050 | SCREW | 2 |
| 20 | 2011850 | WASHER | 2 |
| 21 | 2101670 | THUMB NUT | 1 |
| 22 | 0054860 | SCREW | 1 |
| 23 | 2113010 | SPRING | 1 |
Page 25 — 押工機構
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253000-910 | ADJUSTING BAR | 1 |
| 2 | 2530031 | NUT | 1 |
| 3 | 2401120 | SPRING | 1 |
| 4 | 263007-920 | PRESSER BAR CLAMP | 1 |
| 5 | 0070210 | SCREW | 1 |
| 6 | 2061570 | LINK | 1 |
| 7 | 0053860 | SCREW | 1 |
| 8 | 0070941 | SCREW | 1 |
| 9 | 253005-910 | GUIDE ASSY. | 1 |
| 10 | 007025A0 | SCREW | 2 |
| 11 | 2401130 | SPRING | 1 |
| 12 | 2530180 | OIL GUARD | 1 |
| 13 | 2400950 | O RING | 1 |
| 14 | 2530040 | PRESSER BAR | 1 |
| 15 | 2530280 | FINGER GUARD | 1 |
| 16 | 0070100 | SCREW | 1 |
| 17 | 2404740 | WASHER | 1 |
| 18 | XXXXXX | PRESSER FOOT ASSY. | 1 |
| 19 | 001170-30 | SCREW | 1 |
| 20 | 253008-910 | LEVER | 1 |
| 21 | 2530100 | SPRING | 1 |
| 22 | 2061560 | COLLAR | 1 |
| 23 | 0050840 | SCREW | 2 |
| 24 | 1920240 | COLLAR | 1 |
| 25 | 0W00024-10 | SCREW | 1 |
| 26 | 2061490 | BELL CRANK (UPPER) | 1 |
| 27 | 0051870 | SCREW | 1 |
| 28 | 2530110 | LINK | 1 |
| 29 | 0051840 | SCREW | 2 |
| 30 | 2061480 | BELL CRANK (LOWER) | 1 |
| 31 | 002022-40 | SCREW | 1 |
| 32 | 2530130 | SHAFT | 1 |
| 33 | 2530140 | LEVER | 1 |
| 34 | 0070340 | SCREW | 1 |
| 35 | 2530150 | BRACKET | 1 |
| 36 | 007019A0 | SCREW | 2 |
| 37 | 0045810 | BOLT | 1 |
| 38 | 0048050 | NUT | 1 |
| 39 | 250230-RA0 | GUARD/PRESSER FOOT LIFT LEVER | 1 |
Page 27 — SPREADER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | SPREADER | 1 |
| 2 | 254516-920 | LEVER/ASSY. | 1 |
| 3 | 0070200 | SCREW | 1 |
| 4 | 0070220 | SCREW | 1 |
| 5 | 2545080 | CRANKSHAFT | 1 |
| 6 | 2120390 | COLLAR | 1 |
| 7 | 0012270 | SCREW | 2 |
| 8 | 2021760 | OIL WICK | 1 |
| 9 | 2079250 | FELT | 2 |
| 10 | 2330200 | O RING | 1 |
| 11 | 254506B0 | CRANK | 1 |
| 12 | 0045470 | SCREW | 2 |
| 13 | 2545070 | BLOCK | 1 |
| 14 | 2545190 | SHAFT | 1 |
| 15 | 2061800 | WASHER | 1 |
| 16 | 3066710 | RING | 1 |
| 17 | 254501A920 | ECCENTRIC ASSY. | 1 |
| 18 | 0045140 | SCREW | 2 |
| 19 | 2545110 | CONNECTION | 1 |
| 20 | 254503-920 | CRANK | 1 |
| 21 | 0045340 | BOLT | 1 |
| 22 | 2545040 | SCREW | 1 |
| 23 | 2400620 | WASHER | 1 |
| 24 | 0048050 | NUT | 1 |
Page 29 — THREAD TENSION MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 254000-910 | LEVER | 1 |
| 2 | 2540220 | SPACER | 1 |
| 3 | 002133-10 | SCREW | 1 |
| 4 | 254003B910 | CRANK | 1 |
| 5 | 0045310 | BOLT | 1 |
| 6 | 2028680 | WASHER | 1 |
| 7 | 2540080 | THREAD GUIDE | 1 |
| 8 | 007019A0 | SCREW | 2 |
| 9 | 1921200 | PIPE | 2 |
| 10 | 2061150 | BRACKET | 2 |
| 11 | 0070180 | SCREW | 1 |
| 12 | 3034480 | WASHER | 1 |
| 13 | 254023C9T0 | TENSION CONTROL MECHANISM | 1 |
| 14 | 254023E9T0 | TENSION CONTROL MECHANISM | 1 |
| 15 | 2540190 | BRACKET | 1 |
| 16 | 2540210 | THREAD RELEASER | 1 |
| 17 | 263542A9T0 | TENSION SPRING ASSY. | 2 |
| 18 | 263542B9T0 | TENSION SPRING ASSY. | 1 |
| 19 | 263542C9T0 | TENSION SPRING ASSY. | 1 |
| 20 | 2540200 | THREAD GUIDE | 4 |
| 21 | 2062030 | THREAD GUIDE | 4 |
| 22 | 2062020 | SPACER | 4 |
| 23 | 3063010 | SPRING | 1 |
| 24 | 0054470 | SCREW | 1 |
| 25 | 263542A9T0 | TENSION SPRING ASSY. | 3 |
| 26 | 2540200 | THREAD GUIDE | 5 |
| 27 | 2062030 | THREAD GUIDE | 5 |
| 28 | 2062020 | SPACER | 5 |
| 29 | 007019A0 | SCREW | 2 |
| 30 | 001817-2A0 | SCREW STUD | 1 |
| 31 | 2103190 | TENSION DISC | 2 |
| 32 | 263544-TA0 | SPRING SHIELD | 1 |
| 33 | 2010370 | SPRING (HEAVY) | 1 |
| 34 | 2010860 | SPRING (MEDIUM) | 1 |
| 35 | 2010680 | SPRING (LIFHT) | 1 |
| 36 | 2084480 | RATCHET | 1 |
| 37 | 263543-TA0 | KNOB | 1 |
Page 31 — NEEDLE & SPREADER THREAD HANDLING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 204754A0 | COLLAR | 1 |
| 2 | 0021930 | SCREW | 2 |
| 3 | 2535030 | SHAFT | 1 |
| 4 | 2041070 | WASHER | 1 |
| 5 | 2012520 | WASHER | 1 |
| 6 | 0045270 | BOLT | 1 |
| 7 | 2105860 | OIL SEAL | 1 |
| 8 | 2050610 | RING | 1 |
| 9 | 253504-920 | LEVER | 1 |
| 10 | 0045010 | BOLT | 1 |
| 11 | 3030670 | WASHER | 1 |
| 12 | 253505A1 | THREAD TAKE-UP | 1 |
| 13 | 007019A0 | SCREW | 2 |
| 14 | 3034480 | WASHER | 2 |
| 15 | 2535070 | THREAD GUIDE | 1 |
| 16 | 0070090 | SCREW | 1 |
| 17 | 253508A0 | THREAD GUIDE | 1 |
| 18 | 0070770 | SCREW | 1 |
| 19 | 253509A0 | THREAD SUPPORT | 1 |
| 20 | 2404740 | WASHER | 1 |
| 21 | 0070080 | SCREW | 1 |
| 22 | 2535440 | THREAD GUIDE | 1 |
| 23 | 007019A0 | SCREW | 1 |
| 24 | 3034480 | WASHER | 1 |
| 25 | 2535450 | HOLDER | 1 |
| 26 | 2345210 | THREAD GUIDE | |
| 27 | 0045350 | SCREW | |
| 28 | 0070100 | SCREW | 2 |
| 29 | 2535160 | THREAD TENSION BRACKET | 1 |
| 30 | 007019A0 | SCREW | 1 |
| 31 | 2345610 | THREAD GUIDE | 1 |
| 32 | 2535930 | THREAD RETAINER | 1 |
| 33 | 2535170 | SPRING | 1 |
| 34 | 0W 09070-20 | SCREW | 1 |
| 35 | 2535060 | THREAD TAKE-UP | 1 |
| 36 | 2535150 | THREAD GUIDE | 1 |
| 37 | 007019A0 | SCREW | 1 |
| 38 | 2535140 | THREAD GUIDE | 1 |
| 39 | 007019A0 | SCREW | 2 |
| 40 | 253548B0 | THREAD GUIDE | 1 |
| 41 | 0070190 | SCREW | 2 |
| 42 | 3034480 | WASHER | 2 |
| 43 | 2535470 | THREAD GUIDE | 1 |
| 44 | 0071671 | SCREW | 1 |
| 45 | 1371080 | THREAD RETAINER | 2 |
| 46 | 2113880 | SPRING | 1 |
| 47 | 2535110 | THREAD GUIDE | 1 |
| 48 | 0045540 | SCREW | 1 |
| 49 | 2502290 | GUIDE/THREAD TAKE-UP LEVER | 1 |
| 50 | 2750340 | KNOB | 1 |
Page 33 — 下糸繰り機構 LOOPER THREAD HANDLING
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253691-910 | THREAD TAKE-UP | 1 |
| 2 | 0045140 | SCREW | 2 |
| 3 | 2535240 | BRACKET | 1 |
| 4 | 2535250 | SHAFT | 1 |
| 5 | 2401150 | SPRING | 1 |
| 6 | 3038650 | O RING | 2 |
| 7 | 2005550 | RING | 1 |
| 8 | 0045540 | SCREW | 1 |
| 9 | 2535260 | SHAFT | 1 |
| 10 | 0045540 | SCREW | 1 |
| 11 | 2005550 | RING | 1 |
| 12 | 2535270 | STOPPER | 1 |
| 13 | 2535280 | SPRING | 1 |
| 14 | 0070870 | SCREW | 1 |
| 15 | 007023A0 | SCREW | 2 |
| 16 | 210955A0 | WASHER | 1 |
| 17 | 253612A0 | BRACKET | 1 |
| 18 | 2536140 | THREAD GUIDE | 1 |
| 19 | 3034480 | WASHER | 1 |
| 20 | 0043250 | BOLT | 1 |
| 21 | 2536130 | THREAD SUPPORT | 1 |
| 22 | 0045540 | SCREW | 1 |
| 23 | 2635510 | BRACKET | 1 |
| 24 | 2103531 | THREAD GUIDE | 1 |
| 25 | 0070080 | SCREW | 1 |
| 26 | 253533D0 | THREAD GUIDE | 2 |
| 27 | 2105850 | WASHER | 2 |
| 28 | 0070310 | SCREW | 2 |
| 29 | 0071671 | SCREW | 1 |
| 30 | 1371080 | THREAD RETAINER | 2 |
| 31 | 2113880 | SPRING | 1 |
| 32 | 2750340 | KNOB | 1 |
| 33 | 0070430 | SCREW | 2 |
| 34 | 2535360 | THREAD GUIDE | 1 |
| 35 | 007018A0 | SCREW | 1 |
| 36 | 2536150 | THREAD GUIDE | 1 |
Page 35 — 給油機構 (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2550030 | OIL PIPE | 1 |
| 2 | 2401360 | FELT | 1 |
| 3 | 2107660 | PIN | 1 |
| 4 | 0045140 | SCREW | 1 |
| 5 | 2550210 | FELT | 1 |
| 6 | 2550390 | PIPE | 1 |
| 7 | 2550050 | LATCH | 1 |
| 8 | 007018A0 | SCREW | 1 |
| 9 | 2401430 | TUBE | 1 |
| 10 | 2405680 | TUBE | 1 |
| 11 | 2402850 | TUBE | 1 |
| 12 | 2550380 | JOINT | 1 |
| 13 | 2021990 | CLAMP | 2 |
| 14 | 2550060 | OIL GUARD | 1 |
| 15 | 007018A0 | SCREW | 2 |
| 16 | 255007-910 | OIL DISTRIBUTOR | 1 |
| 17 | 0048210 | NUT | 1 |
| 18 | 2405000 | TUBE | 1 |
| 19 | 2021990 | CLAMP | 2 |
| 20 | 255010A910 | OIL DISTRIBUTOR | 1 |
| 21 | 007018A0 | SCREW | 1 |
| 22 | 2402700 | TUBE | 1 |
| 23 | 2551230 | JOINT | 1 |
| 24 | 2021990 | CLAMP | 2 |
| 25 | 2001520 | JOINT SCREW | 1 |
| 26 | 255035-910 | PIPE | 1 |
| 27 | 2550370 | JOINT SCREW | 1 |
| 28 | 205113A0 | TUBE | 1 |
| 29 | 2001360 | JOINT | 2 |
| 30 | 2021990 | CLAMP | 2 |
| 31 | 2001520 | JOINT SCREW | 2 |
Page 37 — 給油機構 (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255091A910 | OIL PUMP ASSY. | 1 |
| 2 | 2550240 | SHAFT | 1 |
| 3 | 2550250 | ROTOR | 1 |
| 4 | 2550260 | ROTOR | 1 |
| 5 | 2550270 | ROTOR | 2 |
| 6 | 2550280 | COVER | 1 |
| 7 | 0071050 | SCREW | 2 |
| 8 | 0070260 | SCREW | 2 |
| 9 | 2550190 | WORM WHEEL | 1 |
| 10 | 0045140 | SCREW | 2 |
| 11 | 0045310 | BOLT | 2 |
| 12 | 2550930 | JOINT SCREW | 1 |
| 13 | 255000-920 | OIL RESERVOIR | 1 |
| 14 | 005138B0 | SCREW | 1 |
| 15 | 202287A0 | WASHER | 1 |
| 16 | 0045040 | BOLT | 5 |
| 17 | 2551550 | O RING | 1 |
| 18 | 2062330 | FILTER ELEMENT | 1 |
| 19 | 2102000 | BRACKET/FILTER ELEMENT | 1 |
| 20 | 2064310 | O RING | 1 |
| 21 | 210201-PD1 | COVER | 1 |
| 22 | 007021A0 | SCREW | 3 |
| 23 | 9A30020 | FILTER SEAL | 1 |
Page 39 — HR装置
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2550130 | NEEDLE COOLER (LOWER) | 1 |
| 2 | 0070100 | SCREW | 2 |
| 3 | 2550140 | FELT | 1 |
| 4 | 2107660 | PIN | 1 |
| 5 | 2401170 | TUBE | 1 |
| 6 | 2061150 | BRACKET | 1 |
| 7 | 007017A0 | SCREW | 1 |
| 8 | 2021750 | OIL WICK | 1 |
| 9 | 2001550 | CLAMP | 1 |
| 10 | 2550150 | SILICONE OIL RESERVOIR (LOWER) | 1 |
| 11 | 2550160 | CAP | 1 |
| 12 | 004210-HU0 | SCREW | 1 |
| 13 | 207065-9P0 | SILICONE OIL RESERVOIR (UPPER) ASSY. | 1 |
| 14 | 207066-PD0 | SILICONE OIL RESERVOIR (UPPER) | 1 |
| 15 | 207067-PD0 | CAP | 1 |
| 16 | 2067810 | PIN | 2 |
| 17 | 2070680 | FELT | 1 |
| 18 | 0050530 | SCREW | 2 |
Page 41 — THREAD STAND
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 000100-9P0 | THREAD STAND ASSY. (6-SPOOL) | |
| 1 | 000100A9P0 | THREAD STAND ASSY. (5-SPOOL) | 1 |
| 2 | 000101-PA0 | THREAD BAR (UPPER) | 1 |
| 3 | 000102-PA0 | THREAD BAR (LOER) | 1 |
| 4 | 0001030 | JOINT | 1 |
| 5 | 004066-HU0 | SCREW | 2 |
| 6 | 004067-HU0 | NUT | 2 |
| 7 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 8 | 000104APA0 | BRACKET (2-SPOOL) | 1 |
| 9 | 0001160 | HOLDER | 2 |
| 10 | 004068-HU0 | SCREW | 2 |
| 11 | 0001050 | SPOOL PIN | 5 |
| 12 | 303067A0 | WASHER | 5 |
| 13 | 004067-HU0 | NUT | 5 |
| 14 | 000106-PA0 | SPOOL TRAY | 5 |
| 15 | 0001070 | CUSHION | 5 |
| 16 | 000108-PA0 | SPOOL RETAINING FIN | 5 |
| 17 | 000109-PA0 | BRACKET | 1 |
| 18 | 0041130 | SCREW | 1 |
| 19 | 0048030 | NUT | 1 |
| 20 | 0001100 | THREAD GUIDE BAR | 1 |
| 21 | 004065-HU0 | SCREW | 1 |
| 22 | 0048030 | NUT | 1 |
| 23 | 000111-PA0 | BRACKET | 1 |
| 24 | 004065-HU0 | SCREW | 1 |
| 25 | 0048030 | NUT | 1 |
| 26 | 0001120 | THREAD GUIDE BAR (6-SPOOL) | |
| 27 | 000112A0 | THREAD GUIDE BAR (5-SPOOL) | 1 |
| 28 | 004065-HU0 | SCREW | 1 |
| 29 | 0048030 | NUT | 1 |
| 30 | 000104-PA0 | BRACKET (3-SPOOL) | 1 |
| 31 | 000104APA0 | BRACKET (2-SPOOL) | 1 |
| 32 | 0001160 | HOLDER | 2 |
| 33 | 004068-HU0 | SCREW | 2 |
| 34 | 0001130 | THREAD GUIDE | 5 |
| 35 | 0001140 | RID CAP | 1 |
| 36 | 0001150 | WASHER | 2 |
| 37 | 0001170 | WASHER | 1 |
| 38 | 007370-HU0 | NUT | 1 |
Page 43 — PARTS FOR SEMI-SUBMERGED INSTALLATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 0090480 | SCREW(SET) | 1 |
| 2 | 2063360 | NUT | 4 |
| 3 | 0045120 | BOLT | 4 |
| 4 | 2063370 | WASHER | 12 |
| 5 | 2057640 | RUBBER CUSHION | 4 |
| 6 | 2057650 | SPACER | 4 |
| 7 | 2054670 | SPACER | 4 |
| 8 | 0002720 | ALLEN KEY/6MM | 1 |
| 9 | 2590000 | REST BOARD | 2 |
| 10 | 0070930 | SCREW | 4 |
| 11 | 2063380 | RUBBER CUSHION | 4 |
| 12 | 2063290 | TREADLE CHAIN GUIDE | 1 |
| 13 | 0070270 | SCREW | 2 |
Page 45 — SPECIFIC PARTS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250032EPD2 | FRONT COVER ASSY. | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2401980 | PIN | 1 |
| 4 | 2011910 | SPRING | 3 |
| 5 | 0045390 | SCREW | 2 |
| 6 | 258013-910 | FABRIC GUIDE | 1 |
| 7 | 007020A0 | SCREW | 2 |
| 8 | 3034480 | WASHER | 2 |
| 9 | 2590400 | BRACKET | 1 |
| 10 | 0070340 | SCREW | 2 |
| 11 | 2403390 | WASHER | 2 |
| 12 | 2590410 | FABRIC GUIDE | 1 |
| 13 | 0072180 | SCREW | 1 |
| 14 | 2590420 | FABRIC GUIDE | 1 |
| 15 | 0072180 | SCREW | 1 |
| 16 | 250032BPD2 | FRONT COVER ASSY. | 1 |
| 17 | 0070800 | SCREW | 1 |
Page 47 — SPECIFIC PARTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 253544A0 | THREAD GUIDE | 1 |
| 2 | 253545A0 | HOLDER | 1 |
| 3 | 2345210 | THREAD GUIDE | 4 |
| 4 | 0045350 | SCREW | 4 |
| 5 | 253505B0 | THREAD TAKE-UP | 1 |
| 6 | 253507A0 | THREAD GUIDE | 1 |
| 7 | 253584B0 | THREAD GUIDE | 1 |
| 8 | XXXXXX | NEEDLE HOLDER | 1 |
| 9 | 0055621 | SCREW | 5 |
| 10 | 254024-9T0 | TENSION CONTROL MECHANISM | 1 |
| 11 | 254019A0 | BRACKET | 1 |
| 12 | 254021A0 | THREAD RELEASER | 1 |
| 13 | 263542A9T0 | TENSION SPRING ASSY. | 4 |
| 14 | 263542B9T0 | TENSION SPRING ASSY. | 1 |
| 15 | 263542C9T0 | TENSION SPRING ASSY. | 1 |
| 16 | 2540200 | THREAD GUIDE | 6 |
| 17 | 2062030 | THREAD GUIDE | 6 |
| 18 | 2062020 | SPACER | 6 |
| 19 | 3063010 | SPRING | 1 |
| 20 | 0054470 | SCREW | 1 |
Page 49 — SPECIFIC PARTS(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2536780 | BRACKET | 1 |
| 2 | 2536770 | THREAD GUIDE | 1 |
| 3 | 2536840 | THREAD GUIDE | 1 |
| 4 | 2536830 | BRACKET | 1 |
| 5 | 2536820 | NEEDLE THREAD CAM | 1 |
| 6 | 0071540 | SCREW | 2 |
| 7 | 2028750 | WASHER | 2 |
| 8 | 2504340 | THREAD TAKE-UP GUARD | 1 |
| 9 | 2504350 | NEEDLE BAR GUARD | 1 |
| 10 | 252007A920 | LOOPER HOLDER ASSY. | 1 |
| 11 | 0070860 | SCREW | 1 |
| 12 | 0045010 | BOLT | 1 |
| 13 | 3030670 | WASHER | 1 |
Page 51 — SPECIFIC PARTS(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250033-PD1 | FRONT COVER ASSY. | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2401980 | PIN | 1 |
| 4 | 2011910 | SPRING | 3 |
| 5 | 0045390 | SCREW | 2 |
| 6 | 250050-PD1 | FRONT COVER (SMALL) | 1 |
| 7 | 0070270 | SCREW | 2 |
| 8 | 206601A0 | FABRIC GUARD | 1 |
| 9 | 206601B0 | FABRIC GUARD | 1 |
| 10 | 0070790 | SCREW | 2 |
| 11 | 2064390 | AUXILIARY PLATE/FRONT COVER | 1 |
| 12 | 2045850 | WASHER | 2 |
| 13 | 0070790 | SCREW | 2 |
| 14 | 2019130 | BRACKET | 1 |
| 15 | 0051130 | SCREW | 2 |
| 16 | 0055400 | BOLT | 1 |
| 17 | 2019140 | BRACKET | 1 |
| 18 | 2064600 | WASHER | 1 |
| 19 | 0070280 | SCREW | 2 |
| 20 | 252007A920 | LOOPER HOLDER ASSY. | 1 |
| 21 | 0070860 | SCREW | 1 |
| 22 | 0045010 | BOLT | 1 |
| 23 | 3030670 | WASHER | 1 |
Page 53 — SPECIFIC PARTS(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250074BPD1 | BED COVER (RIGHT) | 1 |
| 2 | 250071A910 | COVER | 1 |
| 3 | 250343-PD0 | BED COVER (LEFT) ASSY. | 1 |
| 4 | 0070430 | SCREW | 2 |
| 5 | 250039BPD0 | SIDE COVER ASSY. | 1 |
| 6 | 2500370 | SCREW | 1 |
| 7 | 2401980 | PIN | 1 |
| 8 | 2011910 | SPRING | 2 |
| 9 | 0045350 | SCREW | 2 |
| 10 | 250034APD1 | FRONT COVER ASSY. | 1 |
| 11 | 2500130 | SCREW | 1 |
| 12 | 2401980 | PIN | 1 |
| 13 | 2011910 | SPRING | 3 |
| 14 | 0045390 | SCREW | 2 |
| 15 | 2100250 | CUSHION | 1 |
| 16 | 250025AME0 | FRONT COVER (SMALL) | 1 |
| 17 | 007018A0 | SCREW | 2 |
| 18 | 2500260 | BRACKET | 1 |
| 19 | 0070280 | SCREW | 1 |
| 20 | 2500270 | SHAFT | 1 |
| 21 | 3069200 | PIN | 1 |
| 22 | 0045140 | SCREW | 1 |
| 23 | 2500280 | STOPPER | 1 |
| 24 | 007018A0 | SCREW | 2 |
| 25 | 2023400 | SPRING | 1 |
| 26 | 2500660 | PLUG | 1 |
| 27 | 2556370 | FABRIC GUIDE | 1 |
| 28 | 2045850 | WASHER | 2 |
| 29 | 0070790 | SCREW | 2 |
| 30 | 258130-910 | BINDER ASSY. | 1 |
| 31 | 0070310 | SCREW | 2 |
| 32 | 2105850 | WASHER | 2 |
| 33 | 2581280 | BRACKET | 1 |
| 34 | 0070170 | SCREW | 2 |
| 35 | 3034480 | WASHER | 2 |
| 36 | 250501-910 | CRANKSHAFT ASSY. | 1 |
| 37 | 250504-910 | BUSHING | 1 |
| 38 | 0045140 | SCREW | 2 |
| 39 | 2505340 | BALANCE WEIGHT | 1 |
| 40 | 0070110 | SCREW | 2 |
| 41 | 2068370 | O RING | 1 |
Page 55 — SPECIFIC PARTS(6)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 251007A0 | BRACKET | 1 |
| 2 | 251007B0 | BRACKET | 1 |
| 3 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 4 | 251505-920 | LEVER ASSY. | 1 |
| 5 | 0045000 | BOLT | 1 |
| 6 | 3030670 | WASHER | 1 |
| 7 | 0070170 | SCREW | 1 |
| 8 | 2515030 | SHAFT | 1 |
| 9 | 2079240 | WASHER | 1 |
| 10 | 2009830 | RING | 1 |
| 11 | 251504-920 | LEVER | 1 |
| 12 | 0045140 | SCREW | 1 |
| 13 | 251500-911 | BRACKET | 1 |
| 14 | 0070810 | SCREW | 1 |
| 15 | 0070190 | SCREW | 3 |
| 16 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 17 | 0070310 | SCREW | 1 |
| 18 | 0070800 | SCREW | 1 |
| 19 | 253004A0 | PRESSER BAR | 1 |
| 20 | 2530310 | FINGER GUARD | 1 |
| 21 | 0056000 | SCREW | 1 |
| 22 | XXXXXX | PRESSER FOOT ASSY. | 1 |
Page 57 — SPECIFIC PARTS(7)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250016GTD0 | ARM COVER (LEFT) | 1 |
| 2 | 350118A910 | PULLER ASSY. | 1 |
| 3 | 250052KPD1 | BED COVER (LEFT) | 1 |
| 4 | 250052LPD1 | BED COVER (LEFT) | 1 |
Page 59 — SPECIFIC PARTS(8)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 255500-920 | ECCENTRIC ASSY. | 1 |
| 2 | 0045390 | SCREW | 2 |
| 3 | 255501-920 | CONNECTION ASSY. | 1 |
| 4 | 007015A0 | SCREW | 2 |
| 5 | 0045430 | SCREW | 1 |
| 6 | 3060930 | CRANK | 1 |
| 7 | 0050840 | SCREW | 2 |
| 8 | 205495-20 | PIN | 1 |
| 9 | 252001-920 | CONNECTION ASSY. | 1 |
| 10 | 007015A0 | SCREW | 1 |
| 11 | 2555020 | SHAFT | 1 |
| 12 | 2401020 | WASHER | 1 |
| 13 | 2050610 | RING | 1 |
| 14 | 2400970 | BALL | 1 |
| 15 | 2021760 | OIL WICK | 1 |
| 16 | 2067480 | FELT | 3 |
| 17 | 204052A0 | OIL SEAL | 1 |
| 18 | 255503-920 | LEVER ASSY. | 1 |
| 19 | 0045010 | BOLT | 1 |
| 20 | 2555040 | LATCH | 1 |
| 21 | 0070090 | SCREW | 1 |
| 22 | 2021750 | OIL WICK | 1 |
| 23 | 2555050 | BLOCK | 1 |
| 24 | 2079250 | FELT | 1 |
| 25 | 2021740 | OIL WICK | 1 |
| 26 | 0045450 | SCREW | 1 |
| 27 | 255514-910 | BRACKET ASSY. | 1 |
| 28 | 2400990 | NEEDLE BEARING | 2 |
| 29 | 255508-20 | SHAFT | 1 |
| 30 | 0045150 | BOLT | 2 |
| 31 | 3061050 | SPRING | 1 |
| 32 | 1920240 | COLLAR | 1 |
| 33 | 0W00024-10 | SCREW | 1 |
| 34 | 2025220 | RING | 1 |
| 35 | 2070450 | WASHER | 1 |
| 36 | 255507-910 | UPPER KNIFE LEVER ASSY. | 1 |
| 37 | 0045470 | SCREW | 1 |
| 38 | 3063940 | UPPER KNIFE | 1 |
| 39 | 0051090 | SCREW | 1 |
| 40 | 2555090 | LOWER KNIFE HOLDER | 1 |
| 41 | 0070360 | SCREW | 1 |
| 42 | 2041610 | LOWER KNIFE | 1 |
| 43 | 2555100 | LOWER KNIFE CLAMP | 1 |
| 44 | 0070280 | SCREW | 1 |
| 45 | 2555130 | SCREW | 1 |
| 46 | 2555110 | GUIDE | 1 |
| 47 | 0070100 | SCREW | 1 |
| 48 | 2555150 | CHIP GUARD | 1 |
| 49 | 0070080 | SCREW | 2 |
| 50 | 255514A910 | BRACKET ASSY. | 1 |
| 51 | 2400990 | NEEDLE BEARING | 2 |
| 52 | 255508-20 | SHAFT | 1 |
| 53 | 0045180 | BOLT | 2 |
| 54 | 255507A910 | UPPER KNIFE LEVER ASSY. | 1 |
| 55 | 0045470 | SCREW | 1 |
Page 61 — SPECIFIC PARTS(9)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 306473-UA0 | WASTE CHUTE TOP (C) | 1 |
| 2 | 0049040 | SCREW | 3 |
| 3 | 306474A0 | BRACKET | 1 |
| 4 | 0049050 | SCREW | 4 |
| 5 | 009050-9U0 | WASTE CHUTE ASSY. | 1 |
| 6 | 205468-UA0 | WASTE CHUTE TOP (A) | 1 |
| 7 | 205469-UA0 | WASTE CHUTE TOP (B) | 1 |
| 8 | 3034480 | WASHER | 4 |
| 9 | 0040120 | SCREW | 4 |
| 10 | 000257A9S0 | TAPE GUIDE ASSY. | 1 |
| 11 | 000247-SA0 | TAPE DISC | 1 |
| 12 | 0002700 | WASHER | 1 |
| 13 | 0002530 | TAPE DISC POST | 1 |
| 14 | 0002500 | TAPE DISC POST | 1 |
| 15 | 0014480 | SCREW | 1 |
| 16 | 000251-SA0 | BRACKET | 1 |
| 17 | 0049130 | SCREW | 3 |
| 18 | 0002520 | TAPE TENSION GUIDE POST LONG | 2 |
| 19 | 3030670 | WASHER | 2 |
| 20 | 0002260 | SPOOL PIN NUT | 2 |
| 21 | 2045850 | WASHER | 2 |
| 22 | 0002530 | TAPE DISC POST | 2 |
| 23 | 0002540 | HOLDER | 2 |
| 24 | 0051610 | SCREW | 4 |
| 25 | 0002550 | GUIDE POST BAR | 1 |
| 26 | 000256-SA0 | BRACKET | 1 |
| 27 | 007023A0 | SCREW | 2 |
| 28 | 0048030 | NUT | 2 |
Page 63 — SPECIFIC PARTS(10)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250032-PD2 | FRONT COVER ASSY. | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2401980 | PIN | 1 |
| 4 | 2011910 | SPRING | 3 |
| 5 | 0045390 | SCREW | 2 |
Page 65 — SPECIFIC PARTS(11)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250052CPD1 | BED COVER (LEFT) | 1 |
| 2 | 250039APD0 | SIDE COVER ASSY. | 1 |
| 3 | 2500370 | SCREW | 1 |
| 4 | 2401980 | PIN | 1 |
| 5 | 2011910 | SPRING | 2 |
| 6 | 0045350 | SCREW | 2 |
| 7 | 250034-PD1 | FRONT COVER ASSY. | 1 |
| 8 | 2500130 | SCREW | 1 |
| 9 | 2401980 | PIN | 1 |
| 10 | 2011910 | SPRING | 3 |
| 11 | 0045390 | SCREW | 2 |
| 12 | 2100250 | CUSHON | 1 |
| 13 | 250025-ME0 | FRONT COVER (SMALL) | 1 |
| 14 | 007018A0 | SCREW | 2 |
| 15 | 2500260 | BRACKET | 1 |
| 16 | 0070280 | SCREW | 1 |
| 17 | 2500270 | SHAFT | 1 |
| 18 | 3069200 | PIN | 1 |
| 19 | 0045140 | SCREW | 1 |
| 20 | 2500280 | STOPPER | 1 |
| 21 | 007018A0 | SCREW | 2 |
| 22 | 2023400 | SPRING | 1 |
| 23 | 2500660 | PLUG | 1 |
| 24 | 2555170 | FABRIC GUIDE | 1 |
| 25 | 0070790 | SCREW | 2 |
| 26 | 2045850 | WASHER | 2 |
| 27 | 250501-910 | CRANKSHAFT ASSY. | 1 |
| 28 | 250504-910 | BUSHING | 1 |
| 29 | 0045140 | SCREW | 2 |
| 30 | 2505340 | BALANCE WEIGHT | 1 |
| 31 | 0070110 | SCREW | 2 |
| 32 | 2068370 | O RING | 1 |
Page 67 — SPECIFIC PARTS(12)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | XXXXXX | NEEDLE GUARD (REAR) | 1 |
| 2 | 251505-920 | LEVER ASSY. | 1 |
| 3 | 0045000 | BOLT | 1 |
| 4 | 3030670 | WASHER | 1 |
| 5 | 0070170 | SCREW | 1 |
| 6 | 2515030 | SHAFT | 1 |
| 7 | 2079240 | WASHER | 1 |
| 8 | 2009830 | RING | 1 |
| 9 | 251504-920 | LEVER | 1 |
| 10 | 0045140 | SCREW | 1 |
| 11 | 251500-911 | BRACKET | 1 |
| 12 | 0070810 | SCREW | 1 |
| 13 | 0070190 | SCREW | 3 |
| 14 | XXXXXX | NEEDLE GUARD (FRONT) | 1 |
| 15 | 0070310 | SCREW | 1 |
| 16 | 250074BPD1 | BED COVER (RIGHT) | 1 |
| 17 | 250071A910 | COVER | 1 |
| 18 | 251007A0 | BRACKET | 1 |
| 19 | 251007B0 | BRACKET | 1 |
| 20 | 0070800 | SCREW | 1 |
| 21 | 253004A0 | PRESSER BAR | 1 |
| 22 | 2530310 | FINGER GUARD | 1 |
| 23 | 0056000 | SCREW | 1 |
| 24 | XXXXXX | PRESSER FOOT ASSY. | 1 |
Page 69 — SPECIFIC PARTS(13)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250032BPD2 | FRONT COVER ASSY. | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2011910 | SPRING | 3 |
| 4 | 2401980 | PIN | 1 |
| 5 | 0045390 | SCREW | 2 |
| 6 | 3061570 | FABRIC GUIDE | 1 |
| 7 | 0070790 | SCREW | 2 |
| 8 | 2045850 | WASHER | 2 |
| 9 | 2530290 | FINGER GUARD | 1 |
| 10 | 258000-910 | LACE GUIDE ASSY. | 1 |
| 11 | 306249-RA0 | BRACKET | 1 |
| 12 | 0052340 | SCREW | 2 |
| 13 | 2062130 | CRANK | 2 |
| 14 | 0051870 | SCREW | 2 |
| 15 | 2580010 | SCREW | 2 |
| 16 | 3062500 | PIN | 8 |
| 17 | 1670660 | WASHER | 7 |
| 18 | 2012520 | WASHER | 7 |
| 19 | 0030910 | NUT | 7 |
| 20 | 3062520 | HOLDER | 8 |
| 21 | 0051160 | SCREW | 2 |
| 22 | 3062510 | PIPE | 8 |
| 23 | 2580020 | BRACKET | 1 |
| 24 | 0045150 | BOLT | 2 |
| 25 | 2580030 | JOINT | 1 |
| 26 | 0070190 | SCREW | 1 |
| 27 | 2109300 | SPRING | 1 |
| 28 | 0030910 | NUT | 1 |
| 29 | 258004-910 | BRACKET ASSY. | 1 |
| 30 | 2109300 | SPRING | 2 |
| 31 | 0045290 | BOLT | 1 |
| 32 | 0048030 | NUT | 1 |
| 33 | 2560390 | LACE GUIDE | 1 |
| 34 | 0045540 | SCREW | 1 |
| 35 | 256039A0 | LACE GUIDE | 1 |
| 36 | 0045540 | SCREW | 1 |
| 37 | 2560380 | STOPPER | 1 |
| 38 | 0045270 | BOLT | 1 |
Page 71 — SPECIFIC PARTS(14)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 306469A9S0 | REEL STAND ASSY. | 1 |
| 2 | 306468ASA0 | BRACKET | 1 |
| 3 | 306466ASA0 | ROD | 1 |
| 4 | 0048350 | NUT | 1 |
| 5 | 000383-SA0 | BRACKET | 1 |
| 6 | 0040140 | SCREW | 1 |
| 7 | 0048030 | NUT | 1 |
| 8 | 0040120 | SCREW | 1 |
| 9 | 0048030 | NUT | 1 |
| 10 | 3064640 | SHAFT | 1 |
| 11 | 3064630 | COLLAR | 2 |
| 12 | 0012850 | SCREW | 2 |
| 13 | 3064620 | REEL GUIDE | 2 |
| 14 | 000233-SA0 | BRACKET | 1 |
| 15 | 0040120 | SCREW | 2 |
| 16 | 0048030 | NUT | 2 |
| 17 | 3064670 | ROD | 1 |
| 18 | 0049130 | SCREW | 3 |
| 19 | 0003860 | ROD CAP | 1 |
Page 73 — SPECIFIC PARTS(15)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 256066C9T0 | MD DEVICE ASSY. | 1 |
| 2 | 256061-910 | ECCENTRIC CONNECTION ASSY. | 1 |
| 3 | 250552A0 | SHAFT | 1 |
| 4 | 256043-910 | ECCENTRIC ASSY. | 1 |
| 5 | 256005-910 | CONNECTION ASSY. | 1 |
| 6 | 0070230 | SCREW | 2 |
| 7 | 0045140 | SCREW | 2 |
| 8 | 2560070 | BALL STUD | 1 |
| 9 | 3062380 | BUSHING | 1 |
| 10 | 3062390 | NEEDLE BEARING | 1 |
| 11 | 256062-910 | CRANK ASSY. | 1 |
| 12 | 2560090 | INDICATOR | 1 |
| 13 | 2040230 | WASHER | 1 |
| 14 | 2560080 | PIN | 1 |
| 15 | 2560480 | BUTTERFLY NUT | 1 |
| 16 | 2560100 | CRANK | 1 |
| 17 | 2560410 | SCREW | 1 |
| 18 | 2560420 | SET PLATE | 1 |
| 19 | 0070100 | SCREW | 2 |
| 20 | 0070830 | SCREW | 3 |
| 21 | 256049-91Y0 | CLUTCH ASSY. | 1 |
| 22 | 2560120 | CLUTCH | 2 |
| 23 | 3065000 | PIN | 6 |
| 24 | 3062430 | GUIDE ASSY. | 6 |
| 25 | 240114B0 | SPRING | 12 |
| 26 | 2560460 | SLEEVE | 1 |
| 27 | 0045470 | SCREW | 2 |
| 28 | 0045480 | SCREW | 1 |
| 29 | 2560110 | STOP PLATE | 1 |
| 30 | 0070830 | SCREW | 3 |
| 31 | 3065680 | SHAFT | 1 |
| 32 | 0045140 | SCREW | 1 |
| 33 | 2011850 | WASHER | 1 |
| 34 | 0051170 | SCREW | 1 |
| 35 | 250214-9T0 | COVER ASSY. | 1 |
| 36 | 250070-9T0 | MD COVER ASSY. | 1 |
| 37 | 250067-TBO | MD COVER | 1 |
| 38 | 250068-TBO | COVER | 1 |
| 39 | 0070200 | SCREW | 2 |
| 40 | 9A30690 | CAUTION LABEL | 1 |
Page 75 — SPECIFIC PARTS(16)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 256066C9T0 | MD DEVICE ASSY. | 1 |
| 2 | 256064B9P0 | ELASTIC FEED BASE ASSY. | 1 |
| 3 | 256016-9P0 | BRACKET ASSY. | 1 |
| 4 | 3063640 | BUSHING | 2 |
| 5 | 256018-PD0 | BRACKET | 1 |
| 6 | 0045150 | BOLT | 4 |
| 7 | 256019-910 | ROLLER ASSY. | 1 |
| 8 | 0045350 | SCREW | 4 |
| 9 | 2560220 | ROLLER | 1 |
| 10 | 2560250 | SHAFT | 1 |
| 11 | 2560470 | BRACKET | 2 |
| 12 | 0045140 | SCREW | 4 |
| 13 | 2560230 | SHAFT | 1 |
| 14 | 2024330 | WASHER | 2 |
| 15 | 2560240 | LEVER | 1 |
| 16 | 0070100 | SCREW | 2 |
| 17 | 3063780 | SCREW | 1 |
| 18 | 210328A0 | NUT | 1 |
| 19 | 3063760 | SPRING | 1 |
| 20 | 3063770 | SHAFT | 1 |
| 21 | 2005550 | RING | 1 |
| 22 | 2560260 | GUIDE | 1 |
| 23 | 256027B0 | LACE GUIDE | 1 |
| 24 | 007019A0 | SCREW | 2 |
| 25 | 3060570 | GUIDE | 2 |
| 26 | 0051410 | SCREW | 2 |
| 27 | 007019A0 | SCREW | 1 |
| 28 | 2560380 | STOPPER | 1 |
| 29 | 007020A0 | SCREW | 1 |
| 30 | 256034-910 | BRACKET | 1 |
| 31 | 2109300 | SPRING | 2 |
| 32 | 0045280 | BOLT | 1 |
| 33 | 0048030 | NUT | 1 |
| 34 | 2560390 | LACE GUIDE | 1 |
| 35 | 0045540 | SCREW | 1 |
| 36 | 256039A0 | LACE GUIDE | 1 |
| 37 | 0045540 | SCREW | 1 |
| 38 | 250231B910 | THREAD TAKE-UP GUARD ASSY. | 1 |
| 39 | 2502250 | THREAD TAKE-UP GUARD | 1 |
| 40 | 2502260 | FINGER GUARD | 1 |
| 41 | 0070180 | SCREW | 4 |
| 42 | 3034480 | WASHER | 4 |
| 43 | 2502280 | BRACKET | 1 |
| 44 | 256063-910 | SHAFT ASSY. | 1 |
| 45 | 2560140 | SHAFT | 1 |
| 46 | 2401020 | WASHER | 1 |
| 47 | 2025770 | RING | 1 |
| 48 | 0070740 | SCREW | 2 |
| 49 | 256065-910 | LACE GUIDE ASSY. | 1 |
| 50 | 2560300 | LACE GUIDE | 1 |
| 51 | 2560310 | SCREW | 2 |
| 52 | 2045850 | WASHER | 2 |
| 53 | 007019A0 | SCREW | 2 |
Page 77 — SPECIFIC PARTS(17)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 256061-910 | ECCENTRIC CONNECTION ASSY. | 1 |
| 2 | 250552A0 | SHAFT | 1 |
| 3 | 256043-910 | ECCENTRIC ASSY. | 1 |
| 4 | 256005-910 | CONNECTION ASSY. | 1 |
| 5 | 0070230 | SCREW | 2 |
| 6 | 0045140 | SCREW | 2 |
| 7 | 2560070 | BALL STUD | 1 |
| 8 | 3062380 | BUSHING | 1 |
| 9 | 3062390 | NEEDLE BEARING | 1 |
| 10 | 256062-910 | CRANK ASSY. | 1 |
| 11 | 2560090 | INDICATOR | 1 |
| 12 | 2040230 | WASHER | 1 |
| 13 | 2560080 | PIN | 1 |
| 14 | 2560480 | BUTTERFLY NUT | 1 |
| 15 | 2560100 | CRANK | 1 |
| 16 | 2560410 | SCREW | 1 |
| 17 | 2560420 | SET PLATE | 1 |
| 18 | 0070100 | SCREW | 2 |
| 19 | 0070830 | SCREW | 3 |
| 20 | 256049-91YO | CLUTCH ASSY. | 1 |
| 21 | 2560120 | CLUTCH | 2 |
| 22 | 3065000 | PIN | 6 |
| 23 | 3062430 | GUIDE ASSY. | 6 |
| 24 | 240114B0 | SPRING | 12 |
| 25 | 2560460 | SLEEVE | 1 |
| 26 | 0045470 | SCREW | 2 |
| 27 | 0045480 | SCREW | 1 |
| 28 | 2560110 | STOP PLATE | 1 |
| 29 | 0070830 | SCREW | 3 |
| 30 | 3065680 | SHAFT | 1 |
| 31 | 0045140 | SCREW | 1 |
| 32 | 2011850 | WASHER | 1 |
| 33 | 0051170 | SCREW | 1 |
| 34 | 250214-9T0 | COVER ASSY. | 1 |
| 35 | 250070-9T0 | MD COVER ASSY. | 1 |
| 36 | 250067-TBO | MD COVER | 1 |
| 37 | 250068-TBO | COVER | 1 |
| 38 | 0070200 | SCREW | 2 |
| 39 | 9A30690 | CAUTION LABEL | 1 |
Page 79 — 専用部品(18)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 256095-9P0 | ELASTIC FEED BASE ASSY. | 1 |
| 2 | 256071-9P0 | BRACKET ASSY. | 1 |
| 3 | 3063640 | BUSHING | 2 |
| 4 | 256018-PD0 | BRACKET | 1 |
| 5 | 0045150 | BOLT | 4 |
| 6 | 256073-910 | ROLLER ASSY. | 1 |
| 7 | 0045350 | SCREW | 4 |
| 8 | 2560750 | ROLLER | 1 |
| 9 | 2560770 | SHAFT | 1 |
| 10 | 2560470 | BRACKET | 2 |
| 11 | 0045140 | SCREW | 4 |
| 12 | 2560780 | SHAFT | 1 |
| 13 | 2024330 | WASHER | 2 |
| 14 | 2560240 | LEVER | 1 |
| 15 | 0070100 | SCREW | 2 |
| 16 | 3063780 | SCREW | 1 |
| 17 | 210328A0 | NUT | 1 |
| 18 | 3063760 | SPRING | 1 |
| 19 | 3063770 | SHAFT | 1 |
| 20 | 2005550 | RING | 1 |
| 21 | 2560790 | LACE GUIDE | 1 |
| 22 | 2560800 | LACE GUIDE | 1 |
| 23 | 007019A0 | SCREW | 2 |
| 24 | 3060570 | GUIDE | 2 |
| 25 | 0051410 | SCREW | 2 |
| 26 | 2560370 | BRACKET | 1 |
| 27 | 007019A0 | SCREW | 1 |
| 28 | 2560380 | STOPPER | 1 |
| 29 | 007020A0 | SCREW | 1 |
| 30 | 256081-910 | LEVER ASSY. | 1 |
| 31 | 2109300 | SPRING | 2 |
| 32 | 0045280 | BOLT | 1 |
| 33 | 0048030 | NUT | 1 |
| 34 | 256084-910 | LACE GUIDE ASSY. | 1 |
| 35 | 2560390 | LACE GUIDE | 1 |
| 36 | 0045540 | SCREW | 1 |
| 37 | 256039A0 | LACE GUIDE | 1 |
| 38 | 0045540 | SCREW | 1 |
| 39 | 0045140 | SCREW | 2 |
| 40 | 0072320 | SCREW | 1 |
| 41 | 256063A910 | SHAFT ASSY. | 1 |
| 42 | 256014B0 | SHAFT | 1 |
| 43 | 2401020 | WASHER | 1 |
| 44 | 2025770 | RING | 1 |
| 45 | 0070740 | SCREW | 2 |
| 46 | 256097-910 | LACE GUIDE ASSY. | 1 |
| 47 | 2560940 | LACE GUIDE | 1 |
| 48 | 2560310 | SCREW | 2 |
| 49 | 2045850 | WASHER | 2 |
| 50 | 007019A0 | SCREW | 2 |
| 51 | 256096-910 | LACE GUIDE ASSY. | 1 |
| 52 | 2560910 | WASHER | 1 |
| 53 | 2560870 | BRACKET | 1 |
| 54 | 2020580 | WASHER | 2 |
| 55 | 0050700 | SCREW | 2 |
| 56 | 256088-910 | LACE GUIDE ASSY. | 1 |
| 57 | 0051610 | SCREW | 2 |
| 58 | 2560930 | LACE GUIDE | 1 |
| 59 | 0045540 | SCREW | 1 |
| 60 | 2560920 | LACE GUIDE | 1 |
| 61 | 0045540 | SCREW | 1 |
Page 81 — SPECIFIC PARTS(19)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 2535480 | THREAD GUIDE | 1 |
| 2 | 1371090 | SPRING | 1 |
| 3 | 0053870 | SCREW | 1 |
| 4 | 250523ATD0 | HANDWHEEL | 1 |
| 5 | 2530290 | FINGER GUARD | 1 |
| 6 | 2530340 | FINGER GUARD | 1 |
| 7 | 250016GTD0 | ARM COVER (LEFT) | 1 |
| 8 | 351204-910 | PULLEY ASSY. | 1 |
| 9 | 250032FPD1 | FRONT COVER ASSY. | 1 |
| 10 | 2500130 | SCREW | 1 |
| 11 | 2011910 | SPRING | 3 |
| 12 | 2401980 | PIN | 1 |
| 13 | 0045390 | SCREW | 2 |
| 14 | 351217-910 | THREAD TAKE-UP GUARD ASSY. | 1 |
| 15 | 2502250 | THREAD TAKE-UP GUARD | 1 |
| 16 | 2502260 | FINGER GUARD | 1 |
| 17 | 0070170 | SCREW | 2 |
| 18 | 3034480 | WASHER | 2 |
| 19 | 3512200 | BRACKET | 1 |
| 20 | 007018A0 | SCREW | 2 |
| 21 | 3034480 | WASHER | 2 |
| 22 | 007018A0 | SCREW | 2 |
| 23 | 2530290 | FINGER GUARD | 1 |
Page 83 — SPECIFIC PARTS(20)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250032BPD2 | FRONT COVER ASSY. | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2011910 | SPRING | 3 |
| 4 | 2401980 | PIN | 1 |
| 5 | 0045390 | SCREW | 2 |
| 6 | 258013-910 | FABRIC GUIDE | 1 |
| 7 | 007020A0 | SCREW | 2 |
| 8 | 3034480 | WASHER | 2 |
| 9 | 2575710 | HEMMING GUIDE | 1 |
| 10 | 2575720 | HEMMING GUIDE | 1 |
| 11 | 0071200 | SCREW | 1 |
| 12 | 250032HPD1 | FRONT COVER ASSY. | 1 |
| 13 | 2581820 | FABRIC GUIDE | 1 |
| 14 | 004524-HU0 | SCREW | 2 |
| 15 | 3034480 | WASHER | 2 |
| 16 | 2579480 | SPACER | 1 |
| 17 | 0073770 | SCREW | 2 |
| 18 | 2579490 | FABRIC GUIDE | 1 |
| 19 | 0070370 | SCREW | 2 |
Page 85 — SPECIFIC PARTS(21)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250052WPD0 | BED COVER (LEFT) | 1 |
| 2 | 250022FTB0 | PULLER COVER | 1 |
| 3 | 250032-PD2 | FRONT COVER ASSY. | 1 |
| 4 | 2500130 | SCREW | 1 |
| 5 | 2011910 | SPRING | 3 |
| 6 | 2401980 | PIN | 1 |
| 7 | 0045390 | SCREW | 2 |
Page 87 — SPECIFIC PARTS(22)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250501C910 | CRANKSHAFT ASSY. | 1 |
| 2 | 250526C910 | MOTION ASSY. | 1 |
| 3 | 0045920 | SCREW | 1 |
| 4 | 0070280 | SCREW | 2 |
| 5 | 2510100 | ECCENTRIC PIN | 1 |
| 6 | 251010A0 | ECCENTRIC PIN | 1 |
| 7 | 2050970 | WASHER | 1 |
| 8 | 0070410 | SCREW | 1 |
| 9 | XXXXXX | NEEDLE HOLDER | 1 |
| 10 | 0045540 | SCREW | 3 |
| 11 | 2510080 | THREAD GUIDE | 1 |
| 12 | 0070310 | SCREW | 1 |
| 13 | 253584B0 | THREAD GUIDE | 1 |
| 14 | 2536680 | THREAD GUIDE | 1 |
| 15 | 0045540 | SCREW | 1 |
| 16 | 253548C0 | THREAD GUIDE | 1 |
Page 89 — SPECIFIC PARTS(23)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 252004A0 | SHAFT | 1 |
| 2 | 204052A0 | OIL SEAL | 1 |
| 3 | 252007A920 | LOOPER HOLDER ASSY. | 1 |
| 4 | 0070860 | SCREW | 1 |
| 5 | 0045010 | BOLT | 1 |
| 6 | 3030670 | WASHER | 1 |
| 7 | 252732-910 | CRANK | 1 |
| 8 | 0070310 | SCREW | 1 |
| 9 | 0070800 | SCREW | 1 |
| 10 | 255003A0 | OIL PIPE | 1 |
Page 91 — SPECIFIC PARTS(24)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250243-PD0 | BED COVER (LEFT) | 1 |
| 2 | 0070430 | SCREW | 2 |
| 3 | 250246-PD2 | FRONT COVER ASSY. | 1 |
| 4 | 2500130 | SCREW | 1 |
| 5 | 2401980 | PIN | 1 |
| 6 | 2011910 | SPRING | 3 |
| 7 | 0045390 | SCREW | 2 |
| 8 | 0070770 | SCREW | 3 |
| 9 | 2502490 | BRACKET | 1 |
| 10 | 0070250 | SCREW | 2 |
| 11 | 0045300 | SCREW | 2 |
| 12 | 2502500 | SCREW | 2 |
| 13 | 251007E0 | BRACKET | 1 |
| 14 | 5130740 | AIR CYLINDER | 1 |
| 15 | 6011070 | JOINT | 2 |
| 16 | 0070110 | SCREW | 2 |
| 17 | 2510200 | BRACKET | 1 |
| 18 | 0070200 | SCREW | 2 |
| 19 | 0070820 | SCREW | 1 |
| 20 | 7480030 | CLIP | 1 |
| 21 | 2540260 | BRACKET | 1 |
| 22 | 0070200 | SCREW | 1 |
| 23 | 0048030 | NUT | 1 |
| 24 | 3034480 | WASHER | 1 |
| 25 | 0043250 | BOLT | 1 |
| 26 | 5110141 | AIR CYLINDER | 1 |
| 27 | 0048280 | NUT | 1 |
| 28 | 601110A0 | CONNECTOR | 1 |
| 29 | 0070100 | SCREW | 2 |
Page 93 — SPECIFIC PARTS(25)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 511013-910 | AIR CYLINDER ASSY. | 1 |
| 2 | 5110041 | AIR CYLINDER | 1 |
| 3 | 179449-25 | BRACKET | 1 |
| 4 | 3014950 | SPACER | 1 |
| 5 | 0055940 | SCREW | 1 |
| 6 | 0054260 | NUT | 1 |
| 7 | 6010680 | JOINT | 1 |
| 8 | 3501890 | BRACKET | 1 |
| 9 | 0045150 | BOLT | 2 |
| 10 | 2024330 | WASHER | 2 |
| 11 | 2020450 | WASHER | 2 |
| 12 | 5220071 | FILTER REGULATOR ASSY. | 1 |
| 13 | 5220320 | FILTER REGULATOR | 1 |
| 14 | 3005900 | BRACKET | 1 |
| 15 | 6010530 | JOINT | 1 |
| 16 | 6010490 | JOINT | 1 |
| 17 | 6080020 | HOSE CLAMP | 1 |
| 18 | 0049100 | SCREW | 2 |
| 19 | 0043040 | BOLT | 2 |
| 20 | 0048060 | NUT | 2 |
| 21 | 2100610 | WASHER | 2 |
| 22 | 561021A910 | SOLENOID VALVE ASSY. | 1 |
| 23 | 561010-910 | SOLENOID VALVE ASSY. | 1 |
| 24 | 6010950 | JOINT | 1 |
| 25 | 6010860 | JOINT | 1 |
| 26 | 6000990 | TUBE | 1 |
| 27 | 6001000 | TUBE | 1 |
| 28 | 6000160 | TUBE | 1 |
| 29 | 6011020 | JOINT | 1 |
| 30 | 6000110 | TUBE | 1 |
| 31 | 6000260 | TUBE | 1 |
| 32 | 0049110 | SCREW | 2 |
| 33 | 562025A910 | SOLENOID VALVE ASSY. | 1 |
| 34 | 562026A910 | SOLENOID VALVE | 1 |
| 35 | 3502581 | BRACKET | 1 |
| 36 | 0042050 | SCREW | 2 |
| 37 | 6011070 | JOINT | 2 |
| 38 | 6011160 | JOINT | 1 |
| 39 | 6000770 | TUBE | 2 |
| 40 | 0070270 | SCREW | 2 |
| 41 | 3030100 | BRACKET ASSY. | 1 |
| 42 | 0001970 | BASE BRACKET | 1 |
| 43 | 0043000 | BOLT | 2 |
| 44 | 0048050 | NUT | 2 |
| 45 | 2045850 | WASHER | 2 |
| 46 | 0049100 | SCREW | 2 |
| 47 | 7080040 | KNEE SWITCH ASSY.(MOMENTARY) | 1 |
| 48 | 7080150 | KNEE SWITCH | 1 |
| 49 | 303018A0 | BRACKET | 1 |
| 50 | 0030010 | SCREW | 2 |
| 51 | 0051170 | SCREW | 2 |
| 52 | 1371420 | WASHER | 2 |
Page 95 — SPECIFIC PARTS(26)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 250032-PD2 | FRONT COVER ASSY. | 1 |
| 2 | 2500130 | SCREW | 1 |
| 3 | 2011910 | SPRING | 3 |
| 4 | 2401980 | PIN | 1 |
| 5 | 0045390 | SCREW | 2 |
| 6 | 2575910 | FLAT SPRING | 1 |
| 7 | 0071350 | SCREW | 1 |
| 8 | XXXXXX | LOOPER | 1 |
| 9 | 254023H9T0 | TENSION CONTROL MECHANISM | 1 |
| 10 | 2540190 | BRACKET | 1 |
| 11 | 2540210 | THREAD RELEASER | 1 |
| 12 | 263542B9T0 | TENSION SPRING ASSY. | 2 |
| 13 | 263542C9T0 | TENSION SPRING ASSY. | 1 |
| 14 | 2540200 | THREAD GUIDE | 3 |
| 15 | 2062030 | THREAD GUIDE | 3 |
| 16 | 2062020 | SPACER | 3 |
| 17 | 3063010 | SPRING | 1 |
| 18 | 0054470 | SCREW | 1 |
Page 96 — W562 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-321 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257542-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257513-600 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257542-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-241 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER |
Page 97 — W562 GAUGE PARTS LIST(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-321 | |||
| 257541-401 | |||
| 257541-481 | |||
| 257542-561 | |||
| 257542-641 | |||
| 257541-401 | |||
| 257541-481 | |||
| 257542-561 | |||
| 257542-641 | |||
| 257542-481 | |||
| 257542-561 | |||
| 257542-641 | |||
| 257541-401 | |||
| 257541-481 | |||
| 257542-561 | |||
| 257542-641 | |||
| 257542-481 | |||
| 257542-561 | |||
| 257542-641 | |||
| 257541-401 | |||
| 257541-481 | |||
| 257542-561 | |||
| 257542-641 | |||
| 257542-481 | |||
| 257542-561 | |||
| 257542-641 |
Page 98 — W562 GAUGE PARTS LIST (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 240 | 257541-401 | NEEDLE HOLDER | |
| 248 | 257541-481 | NEEDLE HOLDER | |
| 256 | 257542-561 | NEEDLE HOLDER | |
| 264 | 257542-641 | NEEDLE HOLDER | |
| 348 | 257542-481 | NEEDLE HOLDER | |
| 356 | 257542-561 | NEEDLE HOLDER | |
| 364 | 257542-641 | NEEDLE HOLDER | |
| 224 | 257541-241 | NEEDLE HOLDER | |
| 232 | 257541-321 | NEEDLE HOLDER | |
| 240 | 257541-401 | NEEDLE HOLDER | |
| 248 | 257541-481 | NEEDLE HOLDER | |
| 256 | 257542-561 | NEEDLE HOLDER | |
| 264 | 257542-641 | NEEDLE HOLDER | |
| 348 | 257542-481 | NEEDLE HOLDER | |
| 356 | 257542-561 | NEEDLE HOLDER | |
| 364 | 257542-641 | NEEDLE HOLDER | |
| 224 | 257541-241 | NEEDLE HOLDER | |
| 232 | 257541-321 | NEEDLE HOLDER | |
| 240 | 257541-401 | NEEDLE HOLDER | |
| 248 | 257541-481 | NEEDLE HOLDER | |
| 256 | 257542-561 | NEEDLE HOLDER | |
| 264 | 257542-641 | NEEDLE HOLDER | |
| 348 | 257542-481 | NEEDLE HOLDER | |
| 356 | 257542-561 | NEEDLE HOLDER | |
| 364 | 257542-641 | NEEDLE HOLDER |
Page 99 — W562 GAUGE PARTS LIST(4)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 224 | 257541-241 | ||
| 232 | 257541-321 | ||
| 240 | 257541-401 | ||
| 248 | 257541-481 | ||
| 256 | 257542-561 | ||
| 264 | 257542-641 | ||
| 348 | 257542-481 | ||
| 356 | 257542-561 | ||
| 364 | 257542-641 | ||
| 224 | 257541-241 | ||
| 232 | 257541-321 | ||
| 240 | 257541-401 | ||
| 248 | 257541-481 | ||
| 256 | 257542-561 | ||
| 264 | 257542-641 | ||
| 348 | 257542-481 | ||
| 356 | 257542-561 | ||
| 364 | 257542-641 | ||
| 240 | 257541-401 | 1 | |
| 356 | 257542-561 | ||
| 364 | 257542-641 | ||
| 356 | 257542-561 | ||
| 364 | 257542-641 |
Page 100 — W562 GAUGE PARTS LIST(5)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-241 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257542-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257541-241 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257542-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER |
Page 101 — W562 GAUGE PARTS LIST(6)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 257541-401 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257544-561 | NEEDLE HOLDER | ||
| 257544-641 | NEEDLE HOLDER | ||
| 257544-561 | NEEDLE HOLDER | ||
| 257544-641 | NEEDLE HOLDER | ||
| 257501A560 | NEEDLE HOLDER | ||
| 257541-241 | NEEDLE HOLDER | ||
| 257541-401 | NEEDLE HOLDER | ||
| 257541-481 | NEEDLE HOLDER | ||
| 257542-561 | NEEDLE HOLDER | ||
| 257542-641 | NEEDLE HOLDER |
Page 102 — W542 GAUGE PARTS LIST(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| W542-84AC | MACHINE TYPE /SPEC | ||
| 232 | GAUGE | ||
| 257541-321 | NEEDLE HOLDER | ||
| 257141-320 | NEEDLE PLATE | ||
| 257206-16F0 | MAIN FEED DOG | ||
| 257258-16F0 | DIFF FEED DOG | ||
| 257357-320 | PRESSER FOOT ASSY. | ||
| 257550G910 | LOOPER | ||
| 2575531 | NEEDLE GUARD FRONT | ||
| 257551B0 | NEEDLE GUARD REAR | ||
| 2575650 | SPREADER | ||
| UY128GAS #12 | NEEDLE |
Pegasus W500 — parts catalog
- Page 1 (cover): This is the cover page for the W500 Parts Catalog for Flatbed interlock stitch machines, also known as 平型偏平縫いミシン, from Pegasus.
- Page 2 (parts_list): This page lists parts for the W562 and W542 series of sewing machines, including part numbers and models.
- Page 3 (toc): This page contains the table of contents for the parts catalog, listing various machine mechanisms and specific parts with their corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of various machine components, including covers, screws, and other miscellaneous parts, with reference numbers for identification.
- Page 5 (parts_list): This page lists parts for the MACHINE BED FRAME, including part numbers, descriptions, and quantities.
- Page 6 (diagram): This page displays a diagram of various machine components, including covers, screws, and brackets, with corresponding part numbers and model exceptions.
- Page 7 (parts_list): This page lists parts for COVER(1) with part numbers, descriptions, and quantities.
- Page 8 (diagram): This page displays a diagram of various machine components, including screws, brackets, and covers, with reference numbers and part numbers indicated for each item.
- Page 9 (parts_list): This page lists parts for COVER(2) with part numbers, descriptions, and quantities. It includes screws, covers, pins, and brackets.
- Page 10 (diagram): This page displays a diagram of various machine parts, including screws, pulleys, and shafts, with reference numbers and some part numbers indicated.
- Page 11 (parts_list): This page lists parts for the crankshaft drive mechanism, including part numbers, descriptions, and quantities.
- Page 12 (diagram): This page displays a diagram of various machine parts, including shafts, couplings, pulleys, and motor components, with reference numbers and some part numbers indicated.
- Page 13 (parts_list): This page lists parts for the ARM SHAFT MECHANISM, including part numbers, descriptions, and quantities.
- Page 14 (diagram): This page displays a diagram of various sewing machine parts, including needles, screws, and other components, with reference numbers and some part numbers indicated.
- Page 15 (parts_list): This page lists parts for the Needle Bar Mechanism, including part numbers, descriptions, and quantities.
- Page 16 (diagram): This page displays a diagram of various machine components, including a piston, connecting rod, crankshaft, and lever mechanisms, with numbered references for each part.
- Page 17 (parts_list): This page lists parts for the Needle Guard Mechanism, including part numbers, descriptions, and quantities.
- Page 18 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers, with specific exclusions noted for certain models.
- Page 19 (parts_list): This page lists parts for the LOOPER DRIVE MECHANISM, including part numbers, descriptions, and quantities.
- Page 20 (diagram): This page displays a diagram of various machine parts, including screws, brackets, shafts, and rollers, with reference numbers ranging from 1 to 63.
- Page 21 (parts_list): This page lists parts for the FEED MECHANISM(1) with part numbers, descriptions, and quantities. It includes a note explaining that 'xxxxxx' represents the gauge part and refers to page 94-100 for the gauge part list.
- Page 22 (diagram): This page contains a diagram of various machine components, including levers, springs, screws, and plates, with corresponding reference numbers for identification.
- Page 23 (parts_list): This page lists parts for the FEED MECHANISM(2) with part numbers, descriptions, and quantities.
- Page 24 (diagram): This page displays a diagram of various sewing machine components, including levers, springs, screws, and brackets, with reference numbers for each part.
- Page 25 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions, quantities, and references.
- Page 26 (diagram): This page displays a diagram of various machine components, including levers, shafts, bearings, and fasteners, with reference numbers for each part.
- Page 27 (parts_list): This page lists parts for the Spreader Mechanism, including part numbers, descriptions, and quantities.
- Page 28 (diagram): This page displays a diagram of various sewing machine parts, including screws, brackets, needles, and other components, with reference numbers and part names indicated.
- Page 29 (parts_list): This page lists parts for the Thread Tension Mechanism, including part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of the W562 Series parts, including various components like screws, brackets, and levers, with reference numbers and part numbers indicated.
- Page 31 (parts_list): This page lists parts for the Needle & Spreader Thread Handling mechanism, including part numbers, descriptions, and quantities.
- Page 32 (diagram): This page displays a diagram of various sewing machine parts, including screws, springs, levers, and other components, with reference numbers for identification.
- Page 33 (parts_list): This page lists parts for the LOOPER THREAD HANDLING section of the sewing machine, including part numbers, descriptions, and quantities.
- Page 34 (diagram): This page displays a diagram of various components, including part number W562-22, with reference numbers ranging from 1 to 31. It also includes the text "Except W562-22" and the page number 32.
- Page 35 (parts_list): This page lists parts for the Lubrication Mechanism (1), including part numbers, descriptions, and quantities.
- Page 36 (diagram): This page displays a diagram of various machine components, including shafts, gears, brackets, and fasteners, with reference numbers for each part.
- Page 37 (parts_list): This page lists parts for the Lubrication Mechanism (2), including part numbers, descriptions, and quantities.
- Page 38 (diagram): This page displays a diagram of various machine components, including a reservoir, tubes, brackets, and fasteners, with corresponding reference numbers.
- Page 39 (parts_list): This page lists parts for the HR Device, including part numbers, descriptions, and quantities. It details components like needle coolers, screws, felt, pins, tubes, brackets, oil wicks, clamps, and silicone oil reservoirs.
- Page 40 (diagram): This page displays a diagram of machine parts with reference numbers, including components like stands, spools, and various fasteners.
- Page 41 (parts_list): This page lists parts for a Thread Stand, including part numbers, descriptions, and quantities.
- Page 42 (diagram): This page displays a diagram of machine components, with numbered parts and a list of parts applicable to specific models, except for W562-08J.
- Page 43 (parts_list): This page lists parts for semi-submerged installation, including screws, nuts, bolts, washers, spacers, and other components with their respective part numbers and quantities.
- Page 44 (diagram): This page displays diagrams for machine models W562-01G, 01H, 01M and W562-01D, showing various components and their reference numbers.
- Page 45 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 46 (diagram): This page displays a diagram of various sewing machine parts, including components labeled with reference numbers 1 through 20, and a part number W562-01D at the top.
- Page 47 (parts_list): This page lists specific parts for the machine, including part numbers, descriptions, and quantities. It also provides a note that 'xxxxxx' represents gauge parts and directs the user to pages 94-100 for a gauge part list.
- Page 48 (diagram): This page displays a diagram of sewing machine components, with parts numbered 1 through 13, and lists applicable models as W562-01M, 05M, 05N, 05T, 08J, 08M.
- Page 49 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 50 (diagram): This page displays a diagram of sewing machine components, with parts numbered 1 through 23, and includes part numbers like W562-02C, W562-02G, and W562-02H.
- Page 51 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, quantities, and reference numbers.
- Page 52 (diagram): This page displays a diagram of the W562-02D,02H sewing machine, illustrating components such as the cover, crankshaft drive mechanism, and various screws and fasteners, with reference numbers for each part.
- Page 53 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 54 (diagram): This page displays diagrams for the Needle Bar Mechanism, Needle Guard Mechanism, Feed Mechanism, and Presser Foot Mechanism, with numbered parts for identification.
- Page 55 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities, with a note indicating that 'xxxxxx' denotes gauge parts found on pages 94-100.
- Page 56 (diagram): This page displays diagrams of parts for models W562-02H, 02D/AT310, 410, W562-02H, 02D/TK310, 410, W562-05S, 05T/AT310, 410, and W562-05S, 05T/TK310, 410. It includes part references and descriptions.
- Page 57 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 58 (diagram): This page displays a diagram of various machine parts, including screws, shafts, and assemblies, with reference numbers and some part numbers indicated.
- Page 59 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities. It contains 55 listed parts.
- Page 60 (diagram): This page displays diagrams of machine parts for models W562-02D/FT141 and W562-05/FT140, with numbered components and associated part information.
- Page 61 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, and quantities. It details items such as waste chute tops, screws, brackets, washers, and nuts.
- Page 62 (diagram): This page displays a diagram of machine components, labeled with reference numbers 1 through 5, illustrating the assembly of a part.
- Page 63 (parts_list): This page lists specific parts for a machine, including part numbers, descriptions, and quantities.
- Page 64 (diagram): This page displays a diagram of the W562-05 crankshaft drive mechanism and cover components, with numbered parts for identification.
- Page 65 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions, quantities, and reference numbers.
- Page 66 (diagram): This page displays diagrams for the Needle Guard Mechanism (W562-05), Cover, Needle Bar Mechanism, Presser Foot Mechanism, and Feed Mechanism, with associated part numbers and reference indicators.
- Page 67 (parts_list): This page lists specific parts for model (12), including part numbers, descriptions, and quantities.
- Page 68 (diagram): This page contains diagrams of machine parts for models W562-06,07 and W562-06(LG210), with numbered parts indicated.
- Page 69 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 70 (diagram): This page displays a diagram of machine components with reference numbers, part numbers, and descriptions for the W562-06,07 (LR10) model.
- Page 71 (parts_list): This page lists specific parts for a machine, including part numbers, descriptions, and quantities. It contains 19 listed parts.
- Page 72 (diagram): This page displays a diagram of various components of the W562-07/MD230 sewing machine, with numbered parts indicated for identification.
- Page 73 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 74 (diagram): This page displays a diagram of various machine parts, including screws, brackets, shafts, and levers, with reference numbers for identification.
- Page 75 (parts_list): This page lists specific parts for industrial sewing machines, including part numbers, descriptions, and quantities.
- Page 76 (diagram): This page displays a diagram of various components of the W562-07/MD240 sewing machine, with numbered parts indicated for reference.
- Page 77 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 78 (diagram): This page displays a diagram of various machine parts, including screws, brackets, shafts, and other components, with reference numbers for identification.
- Page 79 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 80 (diagram): This page displays diagrams of parts for W562/MD230,240 and W562-07/MD440,441 sewing machines, with numbered references for each component.
- Page 81 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 82 (diagram): This page displays diagrams for machine models W562-08A, 08M and W562-08J, showing various components and their reference numbers.
- Page 83 (parts_list): This page lists specific parts for a machine, including part numbers, descriptions, and quantities.
- Page 84 (diagram): This page displays a diagram of machine components, including part numbers W562-08J and W562-21,22, with various parts labeled with reference numbers.
- Page 85 (parts_list): This page lists specific parts for a machine, including part numbers, descriptions, and quantities. It details items like bed covers, puller covers, front cover assemblies, screws, pins, and springs.
- Page 86 (diagram): This page displays diagrams for the Crankshaft Drive Mechanism, Arm Shaft Mechanism, Needle Bar/Needle Mechanism, and Spreader Thread Handling, with associated part numbers and reference indicators.
- Page 87 (parts_list): This page lists specific parts for the sewing machine, including part numbers, descriptions, and quantities, with reference numbers for identification.
- Page 88 (diagram): This page displays diagrams for the Looper Mechanism, Feed Mechanism, and Lubrication Mechanism, with numbered parts for identification.
- Page 89 (parts_list): This page lists specific parts for a sewing machine, including part numbers, descriptions in both Japanese and English, and quantities.
- Page 90 (diagram): This page displays a diagram of various sewing machine mechanisms including the cover, needle bar, thread tension, and looper thread mechanisms, with numbered parts for identification.
- Page 91 (parts_list): This page lists specific parts for an industrial sewing machine, including part numbers, descriptions, and quantities.
- Page 92 (diagram): This page displays diagrams of various machine components, including cylinders, brackets, filters, and electrical parts, with corresponding reference numbers for identification.
- Page 93 (parts_list): This page lists specific parts for the machine, including part numbers, descriptions, and quantities, with items numbered from 1 to 52.
- Page 94 (diagram): This page displays diagrams of various machine components, including a main frame assembly with associated hardware, and a sub-assembly with levers and rollers, identified by reference numbers 1 through 18.
- Page 95 (parts_list): This page lists specific parts for the sewing machine, including part numbers, descriptions, and quantities. It also provides a note about 'xxxxxx' representing gauge parts and directs the user to refer to pages 94-100 for the gauge part list.
- Page 96 (parts_list): This page contains a parts list for the W562 GAUGE, including machine type/spec, gauge size, and various part numbers for components like needle holder, needle plate, main feed dog, diff feed dog, presser foot assy., looper, needle guard (front and rear), spreader, and needle.
- Page 97 (parts_list): This page contains a parts list for W562 gauge parts, including machine type, gauge, needle holder, needle plate, main feed dog, diff feed dog, looper, needle guard (front and rear), spreader, and needle.
- Page 98 (parts_list): This page contains a parts list for W562 gauge parts, listing part numbers and descriptions for various machine types and specifications.
- Page 99 (parts_list): This page contains a parts list for W562 gauge parts, listing part numbers and descriptions for various machine types and specifications.
- Page 100 (parts_list): This page contains a parts list for W562 gauge parts, listing machine types, gauge sizes, and corresponding part numbers for various components like needle holders, needle plates, feed dogs, loopers, needle guards, spreaders, and needles.
- Page 101 (parts_list): This page lists parts for the W562 gauge, including machine type/spec, gauge, needle holder, needle plate, main feed dog, diff feed dog, looper, needle guard (front and rear), spreader, and needle.
- Page 102 (parts_list): This page lists parts for the W542 Gauge, including machine type, gauge, needle holder, needle plate, main feed dog, diff feed dog, presser foot assembly, looper, needle guard front, needle guard rear, spreader, and needle.
- Page 104 (index): Index page listing maker part numbers with their catalog page and reference numbers, arranged in five columns, followed by the jintex.in footer.
- Page 106 (unknown): This page contains a watermark with the text "jinttex.in" and a footer with the same text. There is no other discernible content on the page.
- Page 107 (unknown): This page contains a watermark with the text "jinttex.in" and a footer with the same text. There is no other discernible content on the page.
- Page 108 (cover): This is the cover page for the PEGASUS SEWING MACHINE MFG. CO., LTD. parts catalog, catalog number 84940, dated September 2004. It includes the company's name in both Japanese and English, along with contact information and a disclaimer about potential changes to the catalog's content.
