Pegasus W644 / W664 Parts Book (PDF)

Text index — Pegasus W644 / W664

Page 5 — アーム、ベッド機構

Pegasus W644 / W664 parts on page 5
Ref	Part number	Part name	Qty
1	250132ASD	MACHINE FRAME	1
2	240108	PIN	1
3	240061	PIN	4
4	250146	BUSHING	1
5	251003	BUSHING	1
6	240020	O RING	1
7	250147	BUSHING	1
8	250136	BUSHING	1
9	210102	BUSHING	1
10	250135	BUSHING	2
11	210297	BUSHING	1
12	253012	BUSHING	1
13	253016	BUSHING	2
14	250137	BUSHING	1
15	250138	BUSHING	1
16	210125	BUSHING	2
17	204089	BUSHING	1
18	250140	BUSHING	1
19	250141	BUSHING	1
20	206941	BUSHING	1
21	250142	BUSHING	1
22	250194	BUSHING	1
23	250195	BUSHING	1
24	250145	BUSHING	1
25	250143	BUSHING	1
26	250139	BUSHING	1
27	250144	BUSHING	1
28	250191	BUSHING	1
29	250197	BUSHING	1
30	250199-SD	MACHINE FRAME	1
31	206527	PLUG	1
32	210003	PLUG	1

Page 7 — COVER (1)

Pegasus W644 / W664 parts on page 7
Ref	Part number	Part name	Qty
1	206590	OIL SIGHT GAUGE	1
2	204006	BED PIN	4
3	240111	PLUG	1
4	240052	PLUG	1
5	240227	PLUG	1
6	240110	PLUG	1
7	210003	PLUG	1
8	209084	PLUG	1
9	240226	PLUG	1
10	240045	PLUG	1
11	205088	PLUG	1
12	250148	FILTER	1
13	240001	RING	1
14	255108	PIN	1
15	207358	OIL FELT	1
16	250158-91	COVER	1
17	250020	COVER	1
18	250157	SPONGE	1
19	7017	SCREW	2
20	240127	MARK	1
21	230047A	SERIAL NUMBER PLATE	1
22	210679	PIN	2
23	202526	NAME PLATE	1
24	250233	TYPE PLATE	1
25	210679	PIN	2
26	7018	SCREW	1
27	303448	WASHER	1
28	4541	SCREW	1
29	4522	SCREW	1
30	250232	NAME PLATE	1
31	4539	SCREW	2

Page 9 — COVER (2)

Pegasus W644 / W664 parts on page 9
Ref	Part number	Part name	Qty
1	250149-UD	ARM COVER (TOP)	1
2	240226	PLUG	1
3	179107-05	OIL SIGHT WINDOW	1
4	250019	O RING	1
5	7021	SCREW	7
6	250151-UD	ARM COVER (LEFT)	1
7	5242	SCREW	1
8	250153	O RING	1
9	7021	SCREW	4
10	240263	WASHER	1
11	250154-SD	ARM COVER (REAR)	1
12	250155	GASKET	1
13	7052	SCREW	6
14	250021-UD	NEEDLE BAR COVER	1
15	7019	SCREW	2
16	250023-UD	THREAD TAKEUP COVER	1
17	7052	SCREW	1
18	207924	WASHER	1
19	250156-UB	PULLEY COVER	1
20	7075	SCREW	2
21	250159	AIR GUIDE	1
22	7079	SCREW	2
23	250177-SD	FRONT COVER ASSEMBLY	1
24	250178	FRONT COVER	1
25	250179	HINGE	1
26	250182	AUXILIARY PLATE/FRONT COVER	1
27	7043	SCREW	3
28	250013	SCREW	1
29	201191	SPRING	2
30	240198	PIN	1
31	4554	SCREW	2
32	250181	ECCENTRIC PIN	1
33	4543	SCREW	1
34	210025	CUSHION	2
35	7022	SCREW	2
36	250236-91	BRACKET COMPLETE	1
37	7028	SCREW	2
38	204585	WASHER	2
39	250234-UD	COVER/LOOPER THREAD GUIDE	1
40	7019	SCREW	1
41	7034	SCREW	2
42	204585	WASHER	2

Page 11 — COVER (3)

Pegasus W644 / W664 parts on page 11
Ref	Part number	Part name	Qty
1	250160	TOP COVER	1
2	250161	GASKET	1
3	7082	SCREW	8
4	250180	FLAT SPRING	1
5	7082	SCREW	1
6	250162-SD	BED COVER	1
7	7020	SCREW	3
8	250167	SLIDE PLATE	1
9	250168	BRACKET/NEEDLE PLATE	1
10	210025	CUSHION	1
11	7020	SCREW	2
12	250176	FLAT SPRING	1
13	7017	SCREW	2
14	250169-SD	SIDE COVER	1
15	7024	SCREW	4
16	250200-SD	COVER PLATE ASSEMBLY	1
17	250170-SD	COVER PLATE ASSEMBLY	1
18	250171	COVER PLATE	1
19	250172	HINGE	1
20	250173	PIN	1
21	250174	GASKET	1
22	7082	SCREW	2
23	250175	CLOTH PLATE	1
24	7018	SCREW	2
25	250181	ECCENTRIC PIN	1
26	4537	SCREW	1
27	240228	PLUG	1
28	250183	COVER	1
29	250255	BRACKET	1
30	7020	SCREW	2
31	303448	WASHER	2
32	250256	BRACKET	1
33	7066	SCREW	1
34	210307	WASHER	1
35	250257	EYE GUARD	1
36	7009	SCREW	2
37	202875	WASHER	2

Page 13 — CRANKSHAFT DRIVE MECHANISM

Pegasus W644 / W664 parts on page 13
Ref	Part number	Part name	Qty
1	250551	CRANKSHAFT	1
2	7036	SCREW	1
3	250563-91	CRANKSHAFT ASSEMBLY	1
4	250554-92	CRANKSHAFT	1
5	250554	CRANKSHAFT	1
6	7128	SCREW	2
7	250555-91	CRANKSHAFT ASSEMBLY	1
8	210091	CONNECTION	1
9	5376	SCREW	4
10	252056-92	CRANK	1
11	4534	SCREW	1
12	250557-91	BUSHING	1
13	250544	WORM	1
14	240230	BALL BEARING	1
15	4547	SCREW	2
16	250529A91	BUSHING	1
17	4547	SCREW	2
18	250545-91	GEAR (LOWER)	1
19	4547	SCREW	4
20	250530-91	BUSHING	1
21	4555	SCREW	1
22	4547	SCREW	1
23	250514	SET PLATE	1
24	7082	SCREW	2
25	250556	FAN	1
26	250561	MACHINE PULLEY	1
27	4556	SCREW	1
28	4541	SCREW	1
29	240126	WASHER	1
30	4500	SCREW	1
31	206050C	TIMING BELT	1

Page 15 — ARM SHAFT MECHANISM

Pegasus W644 / W664 parts on page 15
Ref	Part number	Part name	Qty
1	250526-91	MOTION ASSEMBLY	1
2	250516-92	MOTION	1
3	7028	SCREW	2
4	4542	SCREW	2
5	7152	SCREW	1
6	7153	SCREW	1
7	250559-91	CRANKSHAFT ASSEMBLY	1
8	250560	CRANKSHAFT	1
9	253500-92	CONNECTION ASSEMBLY	1
10	253500	CONNECTION	1
11	7021	SCREW	2
12	7015	SCREW	2
13	253501A92	CRANK ASSEMBLY	1
14	253501A	CRANK	1
15	4534	SCREW	1
16	250524	BALANCE WEIGHT	1
17	4514	SCREW	2
18	250506	JOINT	1
19	4555	SCREW	2
20	4547	SCREW	2
21	250518	SHAFT	1
22	250529-91	BUSHING	1
23	240091	BALL BEARING	1
24	4547	SCREW	2
25	250547	GEAR (UPPER)	1
26	4547	SCREW	6
27	250528-91	BUSHING	1
28	240091A	BALL BEARING	1
29	4555	SCREW	1
30	4547	SCREW	1
31	250519	SHAFT	1
32	250523-UD	HANDWHEEL	1
33	4541	SCREW	1
34	4556	SCREW	1
35	204585	WASHER	1
36	4501	SCREW	1

Page 17 — NEEDLE BAR, NEEDLE GUARD MECHANISM

Pegasus W644 / W664 parts on page 17
Ref	Part number	Part name	Qty
1	251014-91	NEEDLE BAR	1
2	206061	NEEDLE BAR CLAMP	1
3	5325	SCREW	1
4	251016	LINK	1
5	206053	PIN	1
6	240098	NEEDLE BEARING	1
7	240101	WASHER	1
8	206063	GUIDE BLOCK	1
9	251017	GUIDE	1
10	7020	SCREW	1
11	7021	SCREW	1
12	251018	LATCH	1
13	7021	SCREW	1
14	179040-05	SPONGE	1
15	206524	OIL WICK RETAINER	1
16	212186	OIL WICK	1
17	XXXXXX	NEEDLE HOLDER	1
18	UY128GAS	NEEDLE	3
19	4554	SCREW	3
20	XXXXXX	NEEDLE PLATE	1
21	5511-HC	SCREW	2
22	251510-92	ECCENTRIC	1
23	251510	ECCENTRIC	1
24	4543	SCREW	2
25	251511	LEVER	1
26	7086	SCREW	1
27	251512	NEEDLE GUARD (REAR)	1
28	257567	NEEDLE GUARD (REAR)	1
29	4543	SCREW	1
30	251513-92	LEVER	1
31	251513	LEVER	1
32	7013	SCREW	1
33	251514	NEEDLE GUARD (FRONT)	1
34	257568	NEEDLE GUARD (FRONT)	1
35	4543	SCREW	1

Page 19 — LOOPER DRIVE MECHANISM

Pegasus W644 / W664 parts on page 19
Ref	Part number	Part name	Qty
1	252036-92	ECCENTRIC	1
2	252036	ECCENTRIC	1
3	4547	SCREW	1
4	206172	NEEDLE BEARING	1
5	252035	ROD	1
6	252037-91	PIN ASSEMBLY	1
7	4805	NUT	1
8	240062	WASHER	1
9	252039	GUIDE/LOOPER SHAFT	1
10	201074A	GUIDE	1
11	202286	SPRING WASHER	1
12	5546	SCREW	1
13	252044	SHAFT	1
14	240232	WASHER	1
15	4524	SCREW	1
16	201252	SPRING WASHER	1
17	240231	WASHER	1
18	252046-92	LEVER	1
19	252046	LEVER	1
20	4534	SCREW	1
21	252040-92	HOLDER	1
22	252040	HOLDER	1
23	7021	SCREW	1
24	252041	WASHER	1
25	252042	SLIDER	1
26	252043	PIN	1
27	4543	SCREW	1
28	252045-92	HOLDER	1
29	252045	HOLDER	1
30	7021	SCREW	1
31	252041	WASHER	1
32	252047	WASHER	2
33	252052	BUSHING	1
34	4522	SCREW	1
35	252049-91	BUSHING	1
36	252050	BUSHING	1
37	252051	OIL SEAL	1
38	231011	O RING	1
39	4522	SCREW	1
40	252048	SHAFT	1
41	240229	PLUG	1
42	252053-92	LOOPER HOLDER	1
43	252053	LOOPER HOLDER	1
44	7145	SCREW	1
45	252055	WASHER	1
46	257566	LOOPER	1
47	7129	SCREW	1
48	252053A92	LOOPER HOLDER	1
49	252053A	LOOPER HOLDER	1

Page 21 — FEED MECHANISM (1)

Pegasus W644 / W664 parts on page 21
Ref	Part number	Part name	Qty
1	252607-92	ECCENTRIC	1
2	252607	ECCENTRIC	1
3	4539	SCREW	2
4	204084	NEEDLE BEARING	1
5	240236	NEEDLE BEARING	1
6	240234	RING	1
7	240237	RING	1
8	252608	ROD	1
9	252609-92	CRANK	1
10	252609	CRANK	1
11	4531	SCREW	1
12	240055	WASHER	1
13	7041	SCREW	1
14	252612	ROD	1
15	252614	LINK	1
16	252615	LINK	1
17	4537	SCREW	2
18	252613	PIN	2
19	202178	OIL WICK	2
20	207358	OIL FELT	6
21	252616	PIN	1
22	202176	OIL WICK	1
23	207925	FELT	4
24	252617	CRANK	1
25	7142	SCREW	2
26	252618-91	LINK	1
27	252619	LINK	1
28	4547	SCREW	2
29	252622	GUIDE	1
30	4539	SCREW	1
31	252620	SPRING	1
32	7131	SCREW	1
33	252621	SHAFT	1
34	240017	O RING	1
35	252623	LEVER	1
36	7034	SCREW	1
37	252624-VB	INDICATION PLATE	1
38	7044	SCREW	2
39	252625	SCREW	1
40	201629	RING	1
41	200983	RING	1
42	240251	O RING	1
43	206067	PIN	1
44	4537	SCREW	2
45	252626	LINER	1
46	252660	NUT	1

Page 23 — FEED MECHANISM (2)

Pegasus W644 / W664 parts on page 23
Ref	Part number	Part name	Qty
1	252610	CRANKSHAFT	1
2	202177	OIL WICK	1
3	240148	PLUG	1
4	240097	PLUG	1
5	179320-05	OIL FELT	1
6	207358	OIL FELT	3
7	206748	FELT	1
8	240235	COLLAR	2
9	4547	SCREW	2
10	204052A	OIL SEAL	1
11	252633-91	CRANKSHAFT	1
12	202177	OIL WICK	1
13	206748	FELT	4
14	240241	OIL SEAL	1
15	240239	COLLAR	1
16	7128	SCREW	2
17	252611	BLOCK	1
18	252631	BLOCK	1
19	207925	FELT	2
20	207925	FELT	5
21	202175	OIL WICK	1
22	4514	SCREW	1
23	252659-91	FEED BAR ASSEMBLY	1
24	252627	MAIN FEED BAR	1
25	252638	DIFFERENTIAL FEED BAR	1
26	240240	FELT	1
27	207925	FELT	5
28	252639	GUIDE/DIFFERENTIAL FEED BAR	1
29	7143	SCREW	2
30	252628	GUIDE (RIGHT)	1
31	4522	SCREW	1
32	252629	GUIDE (LEFT)	1
33	7130	SCREW	2
34	252636	LINK	1
35	202175	OIL WICK	1
36	210766	PIN	2
37	252637	BUSHING	1
38	240039	WASHER	1
39	7056	SCREW	1
40	252632	BLOCK	1
41	210238	NEEDLE BEARING	1
42	XXXXXX	MAIN FEED DOG	1
43	7019	SCREW	1
44	XXXXXX	DIFFERENTIAL FEED DOG	1
45	7019	SCREW	1
46	252630	PIN	1
47	252635	CRANK PIN	1
48	252640	CRANK PIN	1
49	7041	SCREW	2
50	252634	CRANKSHAFT	1

Page 25 — FEED MECHANISM (3)

Pegasus W644 / W664 parts on page 25
Ref	Part number	Part name	Qty
1	252641	BLOCK	1
2	252642	GUIDE	1
3	202522	RING	1
4	252643	FEED BAR PIN	1
5	252647	SHAFT	1
6	240129	O RING	1
7	4540	SCREW	1
8	252644	LEVER	1
9	252646	SHAFT	1
10	240129	O RING	1
11	4540	SCREW	1
12	202522	RING	1
13	252645	SPRING	1
14	232508	COLLAR	1
15	1998-2	SCREW	1
16	252648-91	LEVER	1
17	206942	OIL SEAL	1
18	252651-92	CRANK	1
19	252651	CRANK	1
20	7029	SCREW	1
21	7132	SCREW	1
22	252652-92	LEVER	1
23	252652	LEVER	1
24	4531	SCREW	1
25	252653-91	LEVER	1
26	240235	COLLAR	1
27	4547	SCREW	1
28	252657	SPRING	1
29	252656	SCALE PLATE	1
30	240124	SPACER	2
31	7022	SCREW	2
32	252658	STOPPER	2
33	200098	WASHER	2
34	7018	SCREW	2
35	179202-25	NUT	1
36	211301	SPRING	1
37	7059	SCREW	1
38	240063	OIL SEAL	1

Page 27 — 押工機構

Pegasus W644 / W664 parts on page 27
Ref	Part number	Part name	Qty
1	253000-91	ADJUSTING BAR	1
2	253003	NUT	1
3	240252	SPRING	1
4	240253	SPRING	1
5	253026	PRESSER BAR	1
6	253018	OIL GUARD	1
7	206139	PRESSER BAR CLAMP	1
8	5118	SCREW	1
9	253005-91	GUIDE	1
10	7025	SCREW	2
11	7010	SCREW	1
12	202875	WASHER	1
13	253008-91	LEVER	1
14	192024	COLLAR	1
15	W00030-1	SCREW	1
16	206157	LINK	1
17	5386	SCREW	2
18	253010	SPRING	1
19	206156	COLLAR	1
20	5084	SCREW	2
21	206149	BELL CRANK (UPPER)	1
22	5187	SCREW	1
23	253027	LINK	1
24	5184	SCREW	2
25	206148	BELL CRANK (LOWER)	1
26	2022-4	SCREW	1
27	253013	SHAFT	1
28	253014	LEVER	1
29	7034	SCREW	1
30	206942	OIL SEAL	1
31	253015	BRACKET	1
32	7019	SCREW	2
33	4549	SCREW	1
34	4805	NUT	1
35	253028	FINGER GUARD	1
36	253029	FINGER GUARD	1
37	XXXXXX	PRESSER FOOT ASSEMBLY	1
38	1170-3	SCREW	1

Page 29 — SPREADER MECHANISM

Pegasus W644 / W664 parts on page 29
Ref	Part number	Part name	Qty
1	254500A91	ECCENTRIC CONNECTION ASSEMBLY	1
2	254501A92	ECCENTRIC ASSEMBLY	1
3	254501A	ECCENTRIC	1
4	4514	SCREW	2
5	254511	CONNECTION	1
6	254503-92	CRANK ASSEMBLY	1
7	254503	CRANK	1
8	4534	SCREW	1
9	254504	SCREW	1
10	240062	WASHER	1
11	4805	NUT	1
12	254519	SHAFT	1
13	206180	WASHER	1
14	306671	RING	1
15	254506	CRANK	1
16	4547	SCREW	2
17	254507	BLOCK	1
18	254518	CRANKSHAFT	1
19	207925	FELT	2
20	202176	OIL WICK	1
21	233020	O RING	1
22	212039	COLLAR	1
23	1227	SCREW	2
24	254516-92	LEVER ASSEMBLY	1
25	254516	LEVER	1
26	7020	SCREW	1
27	7022	SCREW	1
28	257565	SPREADER	1

Page 31 — 糸調子機構

Pegasus W644 / W664 parts on page 31
Ref	Part number	Part name	Qty
1	254008	THREAD GUIDE	1
2	7019	SCREW	2
3	192120	PIPE	2
4	254009	LATCH	1
5	7017	SCREW	1
6	254003-91	CRANK	1
7	254004-92	CRANK	1
8	4531	SCREW	1
9	202868	WASHER	1
10	254000-91	LEVER	1
11	254022	COLLAR	1
12	2133-1	SCREW	1
13	254023C9U	TENSION CONTROL MECHANISM	1
14	254023E9U	TENSION CONTROL MECHANISM	1
15	254019	BRACKET	1
16	254021	THREAD RELEASER	1
17	254010A9U	THREAD TENSION COMPLETE
18	254010B9U	THREAD TENSION COMPLETE
19	254010C9U	THREAD TENSION COMPLETE
20	254020	THREAD GUIDE
21	206203	THREAD GUIDE
22	306301	SPRING	1
23	5447	SCREW	1
24	206202	TENSION POST COLLAR
25	7019	SCREW	2
26	1817-2A	SCREW STUD	1
27	210319	TENSION DISC	2
28	208450-UA	CUP	1
29	201037	SPRING (HEAVY)	1
30	208448	SPRING BUSHING	1
31	208447-UA	POST NUT	1
32	201086	SPRING (MEDIUM)	1
33	201068	SPRING (LIGHT)	1
34	254023B9U	TENSION CONTROL MECHANISM	1
35	254023D9U	TENSION CONTROL MECHANISM	1

Page 33 — 針糸・飾り糸機構

Pegasus W644 / W664 parts on page 33
Ref	Part number	Part name	Qty
1	253503	SHAFT	1
2	204107	WASHER	1
3	201252	SPRING WASHER	1
4	4527	SCREW	1
5	205061	RING	1
6	240201-92	COLLAR ASSEMBLY	1
7	240201	COLLAR	1
8	7110	SCREW	1
9	240102	WASHER	1
10	210586	OIL SEAL	1
11	253504-92	LEVER ASSEMBLY	1
12	253504	LEVER	1
13	4501	SCREW	1
14	303067	SPRING WASHER	1
15	253505A	THREAD TAKEUP	1
16	7019	SCREW	2
17	253544	THREAD GUIDE	1
18	7019	SCREW	1
19	303448	WASHER	1
20	253545	HOLDER	1
21	7010	SCREW	2
22	234521	THREAD GUIDE	3
23	4535	SCREW	3
24	253507	THREAD GUIDE	1
25	7009	SCREW	1
26	253508A	THREAD GUIDE	1
27	7077	SCREW	1
28	253509A	THREAD SUPPORT	1
29	7009	SCREW	1
30	202588	WASHER	1
31	253516	THREAD GUIDE BRACKET	1
32	7019	SCREW	1
33	253593	TENSION DISC	1
34	234561	THREAD GUIDE	1
35	253517	SPRING	1
36	W09070-2	SCREW	1
37	253506	THREAD TAKEUP	1
38	253515	THREAD GUIDE	1
39	7019	SCREW	1
40	253514	THREAD GUIDE	1
41	7019	SCREW	2
42	253548	THREAD GUIDE	1
43	7019	SCREW	2
44	303448	WASHER	2
45	253547	THREAD GUIDE	1
46	137108	TENSION DISC	2
47	137109	SPRING	1
48	5387	SCREW	1
49	253511	THREAD GUIDE	1
50	4554	SCREW	1
51	303448	WASHER	2

Page 35 — 下糸繰り機構 / LOOPER THREAD MECHANISM

Pegasus W644 / W664 parts on page 35
Ref	Part number	Part name	Qty
1	253589-91	LOOPER THREAD TAKEUP	1
2	4537	SCREW	2
3	253592	BRACKET/LOOPER THREAD GUIDE	1
4	253534	THREAD GUIDE	1
5	210585	WASHER	1
6	7031	SCREW	1
7	253533	THREAD GUIDE	1
8	210585	WASHER	1
9	7031	SCREW	1
10	4543	SCREW	1
11	4538	SCREW	1
12	253600	SHAFT	1
13	240261	COLLAR	1
14	4554	SCREW	1
15	253606	SPRING	1
16	253599	THREAD SUPPORT	1
17	7009	SCREW	1
18	253598	BRACKET	1
19	4543	SCREW	1
20	253595-91	THREAD GUIDE	1
21	253607-91	BRACKET COMPLETE	1
22	253602-91	BRACKET	1
23	253601	SHAFT	1
24	202647A	PIN	1
25	240123	CUSHION RUBBER	1
26	7082	SCREW	2
27	253605	FLAT SPRING	1
28	7017	SCREW	1
29	253586	THREAD GUIDE	1
30	253587	TENSION DISC	1
31	253588	TENSION DISC	1
32	240242	SPRING	1
33	7133	SCREW	1
34	167079	THREAD EYELET	1
35	7018	SCREW	1
36	7008	SCREW	1

Page 37 — LUBRICATION MECHANISM (1)

Pegasus W644 / W664 parts on page 37
Ref	Part number	Part name	Qty
1	255035-91	PIPE	1
2	255037	JOINT SCREW	1
3	240135	TUBE	1
4	200136	JOINT	2
5	202199	CLAMP	2
6	200152	JOINT SCREW	2
7	255003	PIPE	1
8	240136	FELT	1
9	210766	PIN	1
10	4514	SCREW	1
11	255021	FELT	1
12	255005	LATCH	1
13	7018	SCREW	1
14	240143	TUBE	1
15	240144	TUBE	1
16	255038	JOINT	1
17	240145	TUBE	1
18	202199	CLAMP	2
19	255099	OIL RELEASE PLUG	1
20	7018	SCREW	2
21	255097-91	OIL DISTRIBUTOR	1
22	4821	NUT	1
23	240134	TUBE	1
24	202199	CLAMP	2
25	200136	JOINT	1
26	255094-91	OIL DISTRIBUTOR	1
27	200136	JOINT	1
28	205111	JOINT SCREW	1
29	202199	CLAMP	2
30	255100-91	EXHAUST OIL DISTRIBUTOR	1
31	255102	PIPE	1
32	7017	SCREW	1
33	206840	OIL TUBE	1
34	202199	CLAMP	2
35	240245	FELT	1
36	240244	OIL TUBE	1
37	240143	TUBE	1
38	7018	SCREW	1
39	255039	PIPE	1
40	202028A	OIL TUBE	1

Page 39 — 給油機構 (2)

Pegasus W644 / W664 parts on page 39
Ref	Part number	Part name	Qty
1	255041	OIL RESERVOIR ASSEMBLY	1
2	255048	OIL RESERVOIR	1
3	202287A	GASKET	1
4	5138B	SCREW	1
5	4504	SCREW	4
6	255042	O RING	1
7	255091-91	PUMP ASSEMBLY	1
8	255092	PUMP BODY	1
9	255023	PUMP BODY	1
10	255024	SHAFT	1
11	255025	ROTOR	1
12	255026	ROTOR	1
13	255027	ROTOR	2
14	255028	COVER	1
15	7026	SCREW	2
16	7105	SCREW	2
17	255033	BRACKET	1
18	255019	WORM WHEEL	1
19	4514	SCREW	2
20	4531	SCREW	2
21	255093	JOINT SCREW	2
22	206233	OIL FILTER	1
23	210200	BRACKET/OIL FILTER	1
24	206431	O RING	1
25	210201-SD	OIL FILTER CAP	1
26	7021	SCREW	3
27	9A3002	FILTER SEAL	1

Page 41 — H.R.装置 / H.R. DEVICE

Pegasus W644 / W664 parts on page 41
Ref	Part number	Part name	Qty
1	207065-9U	SILI.OIL RESERVOIR UPPER ASS.	1
2	207066-UD	SILICONE OIL RESERVOIR (UPPER)	1
3	207067-UD	CAP	1
4	206781	PIN	2
5	5053	SCREW	2
6	207068	FELT	1
7	255103-91	SILICONE OIL RESERVOIR COM.	1
8	7082	SCREW	2
9	255107	NEEDLE COOLER (LOWER)	1
10	7019	SCREW	1
11	240247	FELT	1
12	210766	PIN	1
13	240246	TUBE	1
14	202175	OIL WICK	1
15	206851	PLUG	1

Page 43 — INSTALLATION PARTS

Pegasus W644 / W664 parts on page 43
Ref	Part number	Part name	Qty
1	206336	NUT	4
2	259000	REST BOARD	2
3	4512	SCREW	4
4	206337	WASHER	12
5	205764	CUSHION RUBBER	4
6	205765	LINER	4
7	7093	SCREW	4
8	9016	CUSHION RUBBER (SET)	1
9	206338	CUSHION RUBBER	4
10	206329	TREADLE CHAIN GUIDE	1
11	7027	SCREW	2
12	205467	SPACER	4
13	9032	SCREW (SET)	4
14	207073	SCREW	4
15	207074	RING	4
16	200728	WASHER	4
17	202045	SPRING WASHER	4
18	5020	NUT	4
19	259003-UD	BELT COVER	1
20	4906	SCREW	3

Page 45 — THREAD STAND

Pegasus W644 / W664 parts on page 45
Ref	Part number	Part name
	486A9C	THREAD STAND ASS. (5-SPOOLS)
	486B9C	THREAD STAND ASS. (4-SPOOLS)
	486C9C	THREAD STAND ASS. (3-SPOOLS)
1	503-CA	THREAD STAND ROD (LOWER)
2	509	WASHER
3	5476	NUT
4	505-CA	BRACKET
5	505ACA	BRACKET
6	380A	SPOOL PIN
7	201252	SPRING WASHER
8	4803	NUT
9	381-CA	SPOOL TRAY
10	507	CUSHION
11	382-CA	SPOOL RETAINING FIN
12	7102	SCREW
13	512	WASHER
14	4022	SCREW
15	502-CA	THREAD STAND ROD (UPPER)
16	504-CA	JOINT
17	4021	SCREW
18	4805	NUT
19	383-CA	BRACKET
20	384	THREAD GUIDE BAR ROD
21	4014	SCREW
22	4803	NUT
23	233-CA	HOLDER
24	4012	SCREW
25	4803	NUT
26	293A	THREAD GUIDE BAR (5-SPOOLS)
27	293B	THREAD GUIDE BAR (4-SPOOLS)
28	293C	THREAD GUIDE BAR (3-SPOOLS)
29	4012	SCREW
30	4803	NUT
31	527-CA	BRACKET
32	527ACA	BRACKET
33	506	THREAD EYELET
34	4117	SCREW
35	4805	NUT
36	386	ROD CAP

Page 47 — 付属品

Pegasus W644 / W664 parts on page 47
Ref	Part number	Part name
1	453	OIL CONTAINER/1000CC
2	485	OILER
3	484	OIL FUNNEL
4	178	CONTAINER - SILICONE
5	131	TWEEZERS
6	285	WRENCH/8MM
7	282	WRENCH/5MM
8	399	ALLEN KEY/3MM
9	127	SCREWDRIVER (LARGE)
10	528	SCREWDRIVER (SMALL)
11	474	ALLEN KEY DRIVER/1.5MM
12	529	ALLEN KEY DRIVER/2.0MM
13	125	CHAIN
14	908	DUST COVER
15	482	ACCESSORY BAG
16	671B	NEEDLE
17	478	PEDAL
18	138	GREASE
19	204161	LOWER KNIFE
20	672B	NEEDLE

Page 49 — W664-02 COVER W644-02 カバー機構

Pegasus W644 / W664 parts on page 49
Ref	Part number	Part name	Qty
1	250184-SD	FRONT COVER ASSEMBLY	1
2	250185	FRONT COVER	1
3	250187-91	AUXILIARY PLATE/FRONT COVER	1
4	7043	SCREW	2
5	250179	HINGE	1
6	250013	SCREW	1
7	201191	SPRING	2
8	240198	PIN	1
9	4554	SCREW	2
10	250167A	SLIDE PLATE	1
11	250186-SD	FRONT COVER (SMALL)	1
12	7027	SCREW	2
13	206439	AUXILIARY PLATE/FRONT COVER	1
14	7079	SCREW	2
15	204585	WASHER	2
16	250193	FABRIC GUARD	1
17	7017	SCREW	2
18	250196	COVER	1
19	7018	SCREW	2
20	250190	BRACKET	1
21	206460	WASHER	1
22	7027	SCREW	2
23	------	BINDER	1
24	250189	CLAMP PLATE	1
25	5113	SCREW	1
26	7027	SCREW	1
27	240042	WASHER	1
28	257A9C	TAPE GUIDE ASSEMBLY	1
29	247-CA	TAPE BASE	1
31	270	WASHER	1
32	253	PIN	1
33	250	TAPE DISC POST	1
34	1448	SCREW	1
35	251-CA	BRACKET	1
36	4913	SCREW	3
37	252	SCREW	2
38	204585	WASHER	2
39	225	SPRING WASHER	2
40	226	NUT	2
41	253	PIN	2
42	254	HOLDER	2
43	5161	SCREW	4
44	255	BAR	1
45	230	SCREW	1
46	4803	NUT	1
47	256-CA	HOLDER	1
48	230	SCREW	1
49	4803	NUT	1

Page 51 — カバー機構

Pegasus W644 / W664 parts on page 51
Ref	Part number	Part name	Qty
1	250177BSD	FRONT COVER ASSEMBLY	1
2	250178A	FRONT COVER	1
3	250182B	AUXILIARY PLATE/FRONT COVER	1
4	7043	SCREW	3
5	250179	HINGE	1
6	250013	SCREW	1
7	201191	SPRING	2
8	240198	PIN	1
9	4554	SCREW	2
10	257569	FABRIC GUIDE (LEFT)	1
11	257570	FABRIC GUIDE (RIGHT)	1
12	7009	SCREW	2
13	257575	FABRIC GUIDE (LEFT)	1
14	257576	FABRIC GUIDE (RIGHT)	1
15	250236-91	BRACKET COMPLETE	1
16	7028	SCREW	2
17	204585	WASHER	2
18	7034	SCREW	2
19	204585	WASHER	2
20	250263	BRACKET	1
21	7009	SCREW	2
22	258010	FABRIC GUIDE (RIGHT)	1
23	258011	FABRIC GUIDE (LEFT)	1
24	7028	SCREW	2
25	204585	WASHER	2
26	257718	GUIDE	1
27	7120	SCREW	1

Page 53 — W664-05-33 W644-05-33 ベッド、カバー機構

Pegasus W644 / W664 parts on page 53
Ref	Part number	Part name	Qty
1	250204-SD	MACHINE FRAME	1
2	250205-SD	MACHINE FRAME	1
3	256015	BUSHING	1
4	250168A	BRACKET	1
5	250177CSD	FRONT COVER ASSEMBLY	1
6	250178B	FRONT COVER	1
7	250182C	AUXILIARY PLATE/FRONT COVER	1
8	7043	SCREW	2
9	250179	HINGE	1
10	250013	SCREW	1
11	201191	SPRING	2
12	240198	PIN	1
13	4554	SCREW	2
14	250167A	SLIDE PLATE	1
15	7074	SCREW	1
16	250177HSD	FRONT COVER ASSEMBLY	1
17	250178G	FRONT COVER	1
18	250182G	AUXILIARY PLATE/FRONT COVER	1

Page 55 — FT装置(1) / FT DEVICE (1)

Pegasus W644 / W664 parts on page 55
Ref	Part number	Part name	Qty
1	255521	SHAFT	1
2	202177	OIL WICK	1
3	207358	OIL FELT	3
4	255522	CRANK	1
5	207925	FELT	2
6	202176	OIL WICK	1
7	4522	SCREW	2
8	255523	PIN	1
9	202175	OIL WICK	1
10	207925	FELT	4
11	306011	RING	1
12	255524	LINK	1
13	255525	PIN	1
14	4553	SCREW	1
15	255526	CRANK	1
16	4514	SCREW	1
17	240008	KEY	1
18	255527	GUIDE SHAFT(RIGHT)	1
19	240251	O RING	1
20	4539	SCREW	1
21	255528	GUIDE SHAFT(LEFT)	1
22	240251	O RING	1
23	4539	SCREW	1
24	230030	WASHER	1
25	255548	SPRING	1
26	255546	NUT	1
27	255519-9S	BRACKET	1
28	4500	SCREW	2
29	4502	SCREW	1
30	7081	SCREW	1
31	255531	O RING	1
32	7020	SCREW	1
33	255543-91	FABRIC GUIDE ASSEMBLY	1
34	4537	SCREW	1
35	255536-91	SUCTION PIPE ASSEMBLY	1
36	7017	SCREW	2
37	255542	BRACKET	1
38	7019	SCREW	2
39	601110A	CONNECTOR	1

Page 57 — FT装置(2) / FT DEVICE (2)

Pegasus W644 / W664 parts on page 57
Ref	Part number	Part name	Qty
1	255529	SHAFT	1
2	255534-91	LOWER KNIFE HOLDER ASSEMBLY	1
3	204161	LOWER KNIFE	1
4	255533-91	LOWER KNIFE CLAMP ASSEMBLY	1
5	7082	SCREW	1
6	257573	UPPER KNIFE	1
7	7062	SCREW	1
8	255545-91	UPPER KNIFE LEVER ASSEMBLY	1
9	7028	SCREW	1
10	257573A	UPPER KNIFE	1
11	255586	SHAFT	1
12	307023	BLADE	1
13	7168	SCREW	2
14	255571	CHIP GUARD	1
15	7012	SCREW	2
16	306473-JA	WASTE CHUTE TOP	1
17	4904	SCREW	3
18	306474A	BRACKET	1
19	4905	SCREW	4
20	9050	WASTE CHUTE SET	1
21	205468-JA	WASTE CHUTE TOP (A)	1
22	205469-JA	WASTE CHUTE TOP (B)	1
23	4012	SCREW	4
24	200098	WASHER	4
25	255587	WASTE CHUTE	1
26	7143	SCREW	2
27	255588	WASTE CHUTE	1
28	255589	LATCH	1
29	4910	SCREW	1
30	307018	ELASTIC GUIDE	1
31	307019	ELASTIC GUIDE	1
32	5465	SCREW	1

Page 59 — W664-05 MD装置(1) MD231 W664-05 MD DEVICE (1)

Pegasus W644 / W664 parts on page 59
Ref	Part number	Part name	Qty
	256066A9U	METERING DEVICE ASSEMBLY	1
1	256000	SHAFT	1
2	256043-91	ECCENTRIC ASSEMBLY	1
3	256059-91	CONNECTION ASSEMBLY	1
4	256006-92	CONNECTION ASSEMBLY	1
5	256007	BALL STUD	1
6	7023	SCREW	2
7	4514	SCREW	2
8	256008	PIN	1
9	256010	CRANK	1
10	256009	INDICATOR	1
11	306238	BUSHING	1
12	306239	NEEDLE BEARING	1
13	204023	WASHER	1
14	256048	NUT	1
15	256041	SCERW	1
16	256042	STOP PLATE	1
17	7010	SCREW	2
18	7083	SCREW	3
19	256046	SLEEVE	1
20	4547	SCREW	3
21	256012	CLUTCH	2
22	240114B	SPRING	12
23	306243	GUIDE PLATE ASSEMBLY	6
24	306500	PIN	6
25	256011	STOP PLATE	1
26	7083	SCREW	3
27	306568	PIN	1
28	5117	SCREW	1
29	201185	WASHER	1
30	4514	SCREW	1
31	250207-9U	COVER ASSEMBLY	1
32	250206-UB	COVER	1
33	250068-UB	COVER	1
34	7020	SCREW	2
35	256061A91	ECCENTRIC CONNECTION ASSEMBLY	1
36	256062-91	CRANK ASSEMBLY	1
37	250214A9U	COVER ASSEMBLY	1
38	256049-91Y	CLUTCH ASSEMBLY	1

Page 61 — MD装置(2) / MD DEVICE (2)

Pegasus W644 / W664 parts on page 61
Ref	Part number	Part name	Qty
1	256030	LACE GUIDE	1
2	256031	SCREW	2
3	7019	SCREW	2
4	204585	WASHER	2
5	256027	LACE GUIDE	1
6	256026	GUIDE	1
7	7019	SCREW	2
8	306057	BLOCK	2
9	5141	SCREW	2
10	256016-9S	BRACKET COMPLETE	1
11	256017-SD	BRACKET	1
12	306364	BUSHING	2
13	256018-SD	BRACKET	1
14	4515	BOLT	2
15	4515	BOLT	2
16	306378	SCREW	1
17	210328A	ADJUSTING SCREW NUT	1
18	306376	SPRING	1
19	306377	SHAFT	1
20	200555	RING	1
21	256019-91	ROLLER ASSEMBLY	1
22	4535	SCREW	4
23	256014	SHAFT	1
24	7074	SCREW	1
25	240102	WASHER	1
26	202577	RING	1
27	7074	SCREW	1
28	256037	BRACKET	1
29	256038	STOPPER	1
30	7020	SCREW	1
31	256034-91	BRACKET COMPLETE	1
32	4528	SCREW	1
33	210930	SPRING WASHER	1
34	4803	NUT	1
35	256039A	LACE GUIDE	1
36	4554	SCREW	1
37	256039	LACE GUIDE	1
38	4554	SCREW	1
39	256023	SHAFT	1
40	256024	LEVER	1
41	7010	SCREW	2
42	202433	WASHER	2
43	256047	BRACKET	2
44	4514	SCREW	4
45	256022	ROLLER	1
46	256025	SHAFT	1
47	7019	SCREW	1
48	256065-91	LACE GUIDE ASSEMBLY	1
49	256064-9S	BASE/FEED ELASTIC	1
50	256063-91	SHAFT ASSEMBLY	1

Page 63 — MD装置(1) / MD DEVICE (1)

Pegasus W644 / W664 parts on page 63
Ref	Part number	Part name	Qty
1	350196-9S	METERING DEVICE ASSEMBLY	1
2	256016-9S	BRACKET COMPLETE	1
3	256017-SD	BRACKET	1
4	306364	BUSHING	2
5	4515	BOLT	2
6	256018-SD	BRACKET	1
7	4515	BOLT	2
8	256027	LACE GUIDE	1
9	256026	GUIDE	1
10	7019	SCREW	2
11	306057	BLOCK	2
12	5141	SCREW	2
13	306378	SCREW	1
14	210328A	ADJUSTING SCREW NUT	1
15	306376	SPRING	1
16	306377	SHAFT	1
17	200555	RING	1
18	256019-91	ROLLER ASSEMBLY	1
19	4535	SCREW	4
20	256037	BRACKET	1
21	256038	STOPPER	1
22	7020	SCREW	1
23	256034-91	BRACKET COMPLETE	1
24	4528	SCREW	1
25	210930	SPRING WASHER	1
26	4803	NUT	1
27	256039	LACE GUIDE	1
28	256039A	LACE GUIDE	1
29	4554	SCREW	2
30	256023	SHAFT	1
31	256024	LEVER	1
32	7010	SCREW	2
33	202433	WASHER	2
34	256047	BRACKET	2
35	4514	SCREW	4
36	256022	ROLLER	1
37	256025	SHAFT	1
38	350195	SHAFT	1
39	7074	SCREW	1
40	4514	SCREW	1
41	240224	COUPLING	1
42	4543	SCREW	4
43	350194	BRACKET	1
44	4528	SCREW	2
45	805001-91	STEPPING MOTOR COMPLETE	1
46	4528	SCREW	4
47	748003	CLAMP	1
48	7019	SCREW	1
49	256030	LACE GUIDE	1
50	256031	SCREW	2
51	7019	SCREW	2
52	204585	WASHER	2
53	7019	SCREW	1
54	256064-9S	BASE/FEED ELASTIC	1
55	256065-91	LACE GUIDE ASSEMBLY	1

Page 65 — MD装置(2) MD001・MD002 / MD DEVICE (2)

Pegasus W644 / W664 parts on page 65
Ref	Part number	Part name	Qty
1	760186-9D	MD CONTROLLER ASSEMBLY	1
2	760188-DD	SHASSIS	1
3	745095	INPUT/OUTPUT BOARD	1
4	302723	SPACER	4
5	4204	SCREW	4
6	4800	NUT	3
7	745094	CPU BOARD	1
8	861004	READ ONLY MEMORY	1
9	302721	SPACER	4
10	302724	WASHER	1
11	4204	SCREW	7
12	760190	PANEL (FRONT)	1
13	202875	WASHER	2
14	4204	SCREW	2
15	704007	ROTARY SWITCH	1
16	745096	PANEL BOARD	1
17	302722	SPACER	3
18	4800	NUT	3
19	750020	THUMB NUT	1
20	750020A	THUMB NUT	3
21	760191	CONNECTOR PANEL	1
22	202875	WASHER	2
23	4204	SCREW	2
24	742334	HARNESS (CONTROL)	1
25	4104	SCREW	2
26	4800	NUT	2
27	302719	NAME PLATE	1
28	742332	HARNESS (SWITCH)	1
29	742333	HARNESS (POWER SOURCE)	1
30	760189-DD	COVER	1
31	202875	WASHER	4
32	4204	SCREW	4
33	302707-9H	BRACKET	1
34	201185	WASHER	4
35	201252	SPRING WASHER	4
36	4109	SCREW	4
37	302708-HD	FLANGE	1
38	4908	SCREW	3
39	7027	SCREW	2

Page 67 — MD装置(3) / MD DEVICE (3)

Pegasus W644 / W664 parts on page 67
Ref	Part number	Part name	Qty
1	760187-9J	BOX/POWER SUPPLY	1
2	760192-JD	SHASSIS	1
3	791037	TRANSFORMER	1
4	201185	WASHER	4
5	201252	SPRING WASHER	4
6	4109	SCREW	4
7	4803	NUT	4
8	745099	INPUT BOARD	1
9	302723	SPACER	4
10	4204	SCREW	4
11	4800	NUT	4
12	745097	POWER CONTROL BOARD	1
13	4118	SCREW	2
14	302723A	SPACER	2
15	4204	SCREW	2
16	4800	NUT	2
17	745098	SCREWDRIVER BORD	1
18	4118	SCREW	2
19	302723B	SPACER	2
20	4204	SCREW	2
21	202875	WASHER	2
22	204586	SPRING WASHER	2
23	4800	NUT	2
24	701014	SWITCH	1
25	4104	SCREW	2
26	772001	FUSE HOLDER	1
27	771004	FUSE (3A)	1
28	742337	HARNESS	1
29	4800	NUT	2
30	4104	SCREW	2
31	742335	HARNESS	1
32	742336	HARNESS	1
33	742338	HARNESS	1
34	742339	HARNESS	1
35	748033	HARNESS CLANP	2
36	302720	INDICATION PLATE	1
37	762003-JD	BRACKET	1
38	4204	SCREW	8
39	4905	SCREW	6
40	748007	STAPLE	5
41	748002	BAND	2
42	748004	BAND	3
43	771004	FUSE (3A)	1

Page 69 — MD装置(4) / MD DEVICE (4)

Pegasus W644 / W664 parts on page 69
Ref	Part number	Part name	Qty
1	742327-91	JUNCTION CORD SET	1
2	742328-91	JUNCTION CORD SET	1
3	742320	JUNCTION CORD	1
4	742321-91	JUNCTION CORD	1
5	742322-91	JUNCTION CORD	1
6	742323-91	JUNCTION CORD	1
7	742324-91	JUNCTION CORD	1
8	716020-91	REVOLUTION DETECTOR ASSEMBLY	1
9	716015-91	REVOLUTION DETECTOR	1
10	7019	SCREW	2
11	748005	CLAMP	1
12	7019	SCREW	1
13	708004	KNEE SWITCH	1
14	708013	KNEE SWITCH	1
15	303010	BRACKET COMPLETE	1
16	197	BRACKET	1
17	4300	SCREW	2
18	4805	NUT	2
19	204585	WASHER	2
20	4910	SCREW	2
21	742257A91	POWER SOURCE CORD	1
22	742257-91	POWER SOURCE CORD	1
23	742257B91	POWER SOURCE CORD	1
24	742257C91	POWER SOURCE CORD	1
25	750006A91	POWER JUNCTION BOX ASS.	1
26	750006B91	POWER JUNCTION BOX ASS.	1
27	350118B91	MACHINE PULLEY	1

Page 71 — W664-08 W644-08 カバー機構

Pegasus W644 / W664 parts on page 71
Ref	Part number	Part name	Qty
1	250177ASD	FRONT COVER ASSEMBLY	1
2	250178	FRONT COVER	1
3	250182A	AUX. PLATE/FRONT COVER	1
4	7043	SCREW	3
5	250179	HINGE	1
6	250013	SCREW	1
7	201191	SPRING	2
8	240198	PIN	1
9	4554	SCREW	2
10	250167A	SLIDE PLATE	1
11	257571	HEMMING GUIDE	1
12	257572	HEMMING GUIDE	1
13	7120	SCREW	1
14	258013-91	FABRIC GUIDE	1
15	7020	SCREW	2
16	303448	WASHER	2
17	257577	HEMMING GUIDE (LEFT)	1
18	257579	SPACER	1
19	7071	SCREW	1
20	257578	HEMMING GUIDE (RIGHT)	1
21	257761	FABRIC GUIDE	1
22	257761A	FABRIC GUIDE	1
23	7031	SCREW	2
24	250236-91	BRACKET COMPLETE	1
25	7028	SCREW	2
26	204585	WASHER	2

Page 73 — 前カバー組 / COVER

Pegasus W644 / W664 parts on page 73
Ref	Part number	Part name	Qty
1	250177GSD	FRONT COVER ASSEMBLY	1
2	25017BF	FRONT COVER	1
3	250179	HINGE	1
4	250013	SCREW	1
5	201191	SPRING	2
6	240198	PIN	1
7	4554	SCREW	2
8	250182F	AUXILIARY PLATE/FRONT COVER	1
9	7043	SCREW	3
10	250212-91	SLIDE PLATE ASSEMBLY	1
11	250850-91	BINDER COMPLETE	1
12	303448	WASHER	2
13	7017	SCREW	2
14	250871-91	FABRIC GUIDE ASSEMBLY	1
15	303448	WASHER	2
16	7018	SCREW	2
17	250254	BRACKET	1
18	7018	SCREW	2
19	250814	FABRIC GUIDE	1
20	303448	WASHER	2
21	7018	SCREW	2
22	250847	BRACKET	1
23	250846A	GUIDE BAR	1
24	7019	SCREW	2
25	4543	SCREW	2
26	25776l	FABRIC GUIDE	1
27	25776lA	FABRIC GUIDE	1
28	7031	SCREW	2
29	250874	BRACKET	1
30	250823	BINDER	1
31	258020A91	ELASTIC GUIDE	1
32	7143	SCREW	2
33	258073	FABRIC GUIDE	1
34	303448	WASHER	2
35	7017	SCREW	2

Page 75 — W664-32 W644-32 カバー機構

Pegasus W644 / W664 parts on page 75
Ref	Part number	Part name	Qty
1	250177FSD	FRONT COVER ASSEMBLY	1
2	250178E	FRONT COVER	1
3	250179	HINGE	1
4	250013	SCREW	1
5	201191	SPRING	2
6	240198	PIN	1
7	4554	SCREW	2
8	250182E	AUXILIARY PLATE/FRONT COVER	1
9	7043	SCREW	2
10	250167A	SLIDE PLATE	1
11	250252	CLOTH PLATE	1
12	7077	SCREW	2
13	258072	BRACKET	1
14	303448	WASHER	2
15	7019	SCREW	3
16	306941	SHAFT	1
17	306940	ROLLER	2
18	3144	NUT	2
19	208286	WASHER	3
20	167066	WASHER	1
21	1206	SCREW	1
22	258069-91	BINDER COMPLETE 25MM	1
23	258069A91	BINDER COMPLETE 30MM	1
24	258069B91	BINDER COMPLETE 35MM	1
25	258069C91	BINDER COMPLETE 40MM	1
26	258070-91	BINDER COMPLETE 25MM	1
27	258070A91	BINDER COMPLETE 30MM	1
28	258070B91	BINDER COMPLETE 35MM	1
29	258070C91	BINDER COMPLETE 40MM	1
30	258071	BRACKET	1
31	137906	WASHER	1
32	201252	SPRING WASHER	1
33	5328-HC	SCREW	1
34	258068	BRACKET	1
35	7077	SCREW	2
36	250168C	BRACKET/NEEDLE PLATE	1
37	7143	SCREW	1
38	250169ASD	SIDE COVER	1
39	258047	BRACKET	1
40	258046	GUIDE BAR	1
41	7019	SCREW	2
42	4543	SCREW	2
43	240104	WASHER	2

Page 77 — 定規開閉装置 FABRIC GUIDE SWITCHING DEVICE

Pegasus W644 / W664 parts on page 77
Ref	Part number	Part name	Qty
1	350292-91	AIR CYLINDER ASSEMBLY	1
2	513075	AIR CYLINDER	1
3	527005	SPEED CONTROLLER	1
4	350272	BRACKET	1
5	7029	SCREW	2
6	350273	SPACER	1
7	350274	SHAFT	1
8	240344	COLLAR	1
9	7017	SCREW	1
10	4803	NUT	2
11	350275	BRACKET	1
12	7018	SCREW	2
13	522007	FILTER/REGULATOR ASSEMBLY	1
14	522008	FILTER/REGULATOR	1
15	601049	CONNECTOR	1
16	608002	HOSE BAND	1
17	601053	JOINT	1
18	300372	BRACKET	1
19	4910	SCREW	2
20	350293-91	KNEE SWITCH ASSEMBLY	1
21	531001	AIR VALVE	1
22	601116	CONNECTOR	1
23	600016	TUBE	1
24	601107	JOINT	1
25	600077	TUBE	1
26	300216	BRACKET	1
27	300220	VALVE ACTUATOR ASSEMBLY	1
28	197	BRACKET	1
29	4910	SCREW	2
30	204585	WASHER	2
31	5183	SCREW	1
32	5118	SCREW	1
33	3044	NUT	1
34	137142	WASHER	2
35	601102	CONNECTOR	1
36	4304	SCREW	2
37	210061	WASHER	2
38	4806	NUT	2

Page 79 — W664-30-32 W644-30-32 FABRIC GUIDE SWITCHING DEVICE

Pegasus W644 / W664 parts on page 79
Ref	Part number	Part name	Qty
1	350292-91	AIR CYLINDER ASSEMBLY	1
2	513075	AIR CYLINDER	1
3	527005	SPEED CONTROLLER	1
4	350272	BRACKET	1
5	7029	SCREW	2
6	350273	SPACER	1
7	350274	SHAFT	1
8	240344	COLLAR	1
9	7017	SCREW	1
10	4805	NUT	2
11	350275	BRACKET	1
12	7018	SCREW	2
13	522007	FILTER/REGULATOR ASSEMBLY	1
14	522008	FILTER/REGULATOR	1
15	601049	CONNECTOR	1
16	608002	HOSE BAND	1
17	601053	JOINT	1
18	300372	BRACKET	1
19	4910	SCREW	2
20	350294-91	PITMAN-SWITCH COMPLETE	1
21	480	PEDAL	1
22	302470	BRACKET	1
23	303991	BALL JOINT	1
24	306733A	PITMAN ROD	1
25	306731	BRACKET	1
26	531001	AIR VALVE	1
27	601107	JOINT	1
28	600080	TUBE	1
29	601110A	CONNECTOR	1
30	600015	TUBE (4X6X830)	1
31	4320	SCREW	1
32	240272	SPRING	1
33	300468	ACTUATOR	1
34	4320	SCREW	1
35	300469	COLLAR	1
36	4320	SCREW	1
37	306733	PITMAN ROD	1
38	303991	BALL JOINT	1
39	302469	BRACKET	1
40	4910	SCREW	2
41	601102	CONNECTOR	1
42	4304	SCREW	2
43	210061	WASHER	2
44	4806	NUT	2

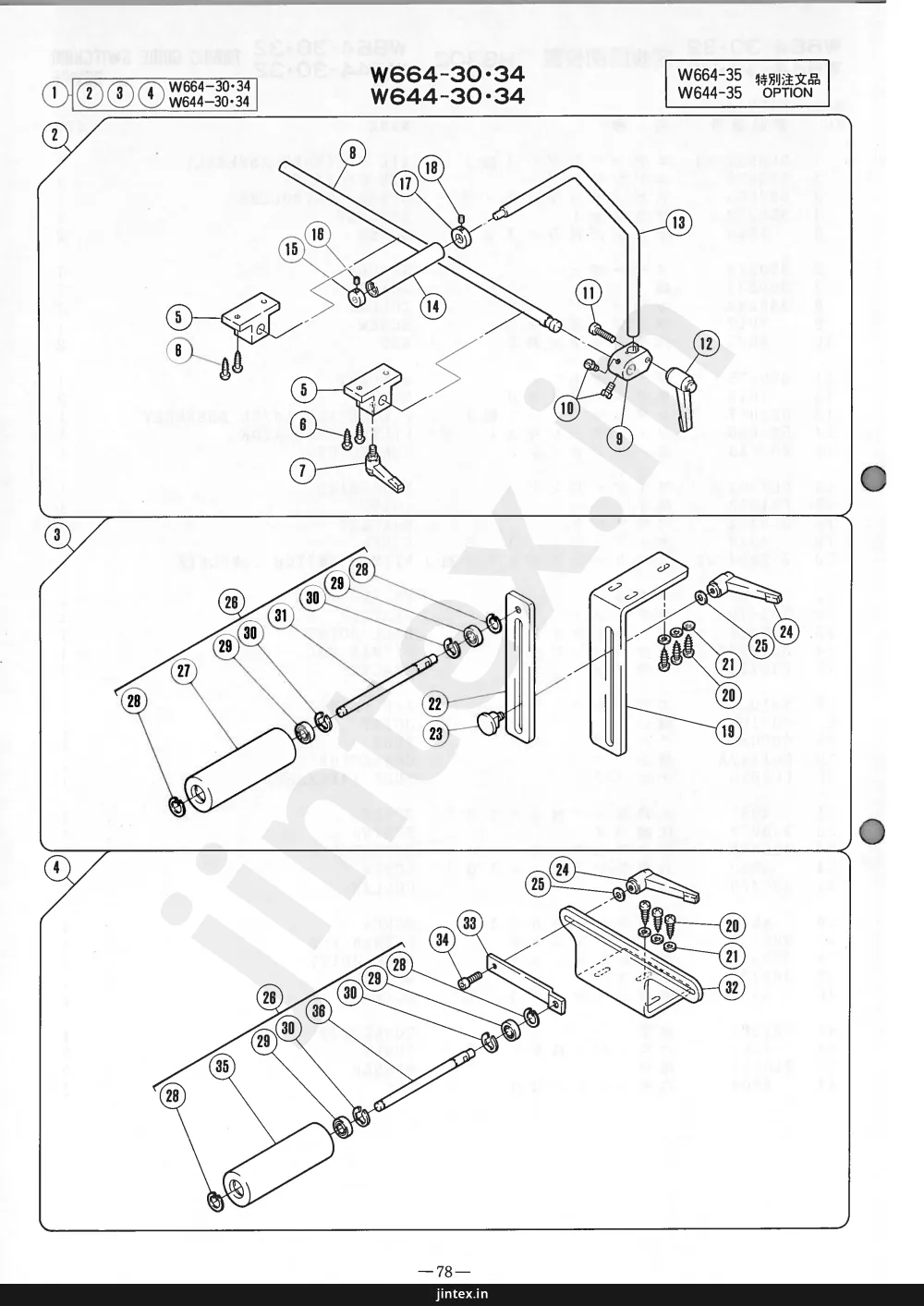

Page 81 — W644-30·34 布送りローラー装置 / FABRIC TENSIONER DEVICE

Pegasus W644 / W664 parts on page 81
Ref	Part number	Part name	Qty
1	259026-91	FABRIC TENSION DEVICE ASS'Y	1
2	259021-91	FRONT ROLLER ASSEMBLY	1
3	259022-91	LOWER ROLLER ASSEMBLY	1
4	259023-91	REAR ROLLER ASSEMBLY	1
5	259004	BRACKET	2
6	4906	SCREW	4
7	259015	CLAMP LEVER	1
8	259005	SHAFT	1
9	259006	JOINT	1
10	4302	SCREW	2
11	4511	SCREW	1
12	259015A	CLAMP LEVER	1
13	259012	SHAFT	1
14	259013	ROLLER	1
15	259020	COLLAR	1
16	4543	SCREW	1
17	259014	COLLAR	1
18	4543	SCREW	1
19	259007	BRACKET	1
20	4906	SCREW	3
21	137142	WASHER	3
22	306829	GUIDE PLATE	1
23	306830B	CLAMP PLATE	1
24	259015A	CLAMP LEVER	1
25	204023	WASHER	1
26	259018-91	ROLLER ASSEMBLY	1
27	259009	ROLLER	1
28	240250	RING	2
29	240249	BALL BEARING	2
30	205061	RING	2
31	259008	SHAFT	1
32	259010	BRACKET	1
33	259011	BRACKET	1
34	4503	SCREW	1
35	259009	ROLLER	1
36	259008	SHAFT	1

Page 83 — W664-32 W644-32 布張りローラー装置 / W664-32 W644-32 FABRIC TENSION DEVICE

Pegasus W644 / W664 parts on page 83
Ref	Part number	Part name	Qty
1	259026A91	FABRIC TENSION DEVICE ASS.	1
2	259021A91	FRONT ROLLER ASSEMBLY	1
3	259022A91	LOWER ROLLER ASSEMBLY	1
4	259023-91	REAR ROLLER ASSEMBLY	1
5	259004	BRACKET	2
6	4906	SCREW	4
7	259015	CLAMP LEVER	1
8	259005	SHAFT	1
9	259006	JOINT	1
10	4302	SCREW	2
11	4511	SCREW	1
12	259015A	CLAMP LEVER	1
13	259012	SHAFT	1
14	259013	ROLLER	1
15	259020	COLLAR	1
16	4543	SCREW	1
17	259028	COLLAR	1
18	4554	SCREW	1
19	259014	COLLAR	1
20	4543	SCREW	1
21	259007	BRACKET	1
22	4906	SCREW	3
23	137142	WASHER	3
24	306829	GUIDE PLATE	1
25	306830B	CLAMP PLATE	1
26	259015A	CLAMP LEVER	1
27	204023	WASHER	1
28	259018A91	ROLLER ASSEMBLY	1
29	259009A	ROLLER	1
30	240250	RING	2
31	240249	BALL BEARING	2
32	205061	RING	2
33	259008A	SHAFT	1
34	259010	BRACKET	1
35	259011	BRACKET	1
36	4503	SCREW	1
37	259018-91	ROLLER ASSEMBLY	1
38	259009	ROLLER	1
39	259008	SHAFT	1

Page 85 — W664-33 W644-33 ゴム付装置(組) / ELASTIC ATTACHING DEVICE

Pegasus W644 / W664 parts on page 85
Ref	Part number	Part name	Qty
1	258045-91	ELASTIC ATTACHING DEVICE	1
2	258031	SCREW	1
3	4820	NUT	1
4	258032	BRACKET	1
5	7027	SCREW	1
6	258038	SHAFT	1
7	258037	BLADE	1
8	7040	SCREW	2
9	258039-91	LEVER ASSEMBLY	1
10	7017	SCREW	1
11	258036	STOPPER	1
12	7079	SCREW	1
13	258041	SPRING	1
14	240266	COLLAR	1
15	7008	SCREW	1
16	240267	COLLAR	1
17	4543	SCREW	1
18	258044	ROLLER	1
19	167066	WASHER	1
20	7012	SCREW	1
21	258043	SHAFT	1
22	204585	WASHER	1
23	4805	NUT	1
24	258042	BRACKET	1
25	259015	CLAMP LEVER	1
26	204585	WASHER	1
27	258035	BRACKET	1
28	7027	SCREW	1
29	258034	HOLDER	1
30	7018	SCREW	1
31	258033	ELASTIC GUIDE	1
32	4554	SCREW	1
33	258046	GUIDE BAR	1
34	4553	SCREW	2
35	258047	BRACKET	1
36	7019	SCREW	2

Page 87 — W664-33 / W644-33 布張リローラー装置 / FABRIC TENSION DEVICE

Pegasus W644 / W664 parts on page 87
Ref	Part number	Part name	Qty
1	259027-91	FABRIC TENSION DEVICE ASS.	1
2	259024-91	FRONT ROLLER ASSEMBLY	1
3	259025-91	LOWER ROLLER ASSEMBLY	1
4	259023-91	REAR ROLLER ASSEMBLY	1
5	259004	BRACKET	2
6	4906	SCREW	4
7	259015	CLAMP LEVER	1
8	259005A	SHAFT	1
9	259006	JOINT	1
10	4302	SCREW	2
11	4511	SCREW	1
12	259015A	CLAMP LEVER	1
13	306823	SHAFT	1
14	306838	BRACKET	1
15	2913-1	SCREW	4
16	259017	SHAFT	1
17	307025	ROLLER	1
18	7052	SCREW	1
19	204520	WASHER	1
20	307026	CLOTH GUIDE	1
21	2022	SCREW	2
22	306843	COLLAR	1
23	259007	BRACKET	1
24	4906	SCREW	3
25	137142	WASHER	3
26	306829	GUIDE PLATE	1
27	306830B	CLAMP PLATE	1
28	259015A	CLAMP LEVER	1
29	204023	WASHER	1
30	259019-91	ROLLER ASSEMBLY	1
31	259016	ROLLER	1
32	240250	RING	2
33	240249	BALL BEARING	2
34	205061	RING	2
35	259008B	SHAFT	1
36	259010	BRACKET	1
37	259011	BRACKET	1
38	4503	SCREW	1
39	259018-91	ROLLER ASSEMBLY	1
40	259009	ROLLER	1
41	259008	SHAFT	1

Page 89 — WASTE FABRIC SUCTION MECHANISM

Pegasus W644 / W664 parts on page 89
Ref	Part number	Part name	Qty
1	350234-91	PITMAN-SWITCH COMPLETE	1
2	300468	ACTUATOR	1
3	4320	SCREW	1
4	240272	SPRING	1
5	306731	BRACKET	1
6	4320	SCREW	1
7	300469	COLLAR	1
8	4320	SCREW	1
9	531001	AIR VALVE	1
10	601116	CONNECTOR	1
11	600101	TUBE(4X6X1010)	1
12	601110	CONNECTOR	1
13	600015	TUBE(4X6X830)	1
15	350236A91	DUST DRUM ASSEMBLY	1
16	300415-9J	COVER ASSEMBLY	1
17	300390-JA	COVER/BODY	1
18	300392	GASKET	1
19	300391	GUIDE PIN	4
20	4202	SCREW	4
21	300416-JA	COVER	1
22	300407-91	FILTER	1
23	300404	GASKET	1
24	4202	SCREW	8
25	4805	NUT	8
26	303067	SPRING WASHER	8
27	300409	HANDLE	1
28	300400	CONNECTOR	1
29	300417	CONNECTOR	1
30	300401	NUT	2
31	300418	BASE	2
32	300419	VALVE	2
33	300420	PIN	2
34	300421	SPRING	2
35	210525	NAME PLATE	1
36	300411	FIBER DRUM	1
37	601106	CONNECTOR (LARGE)	1
38	600143	HOSE	1
39	608000	CORD BAND	1
40	300526	SADDLE	1
41	4905	SCREW	1
42	300412	LATCH	1
43	522007	FILTER/REGULATOR ASSEMBLY	1
44	300372	BRACKET	1
45	4910	SCREW	2
46	608002	HOSE BAND	1
47	601049	CONNECTOR	1
48	522008	FILTER/REGULATOR	1
49	601053	JOINT	1
50	601102	CONNECTOR	1
51	350241-91	WASTE FABRIC SUCTION DEVICE	1
52	350241A91	WASTE FABRIC SUCTION DEVICE	1
53	4304	SCREW	2
54	210061	WASHER	2
55	4806	NUT	2

Page 91 — SPECIFIC PARTS

Pegasus W644 / W664 parts on page 91
Ref	Part number	Part name	Qty
1	250237-SD	MACHINE FRAME	1
2	250208-SD	MACHINE FRAME	1
3	250526A91	MOTION ASSEMBLY	1
4	250516A92	MOTION	1
5	7028	SCREW	2
6	4542	SCREW	2
7	250533A91	CRANKSHAFT ASSEMBLY	1
8	250517	CRANKSHAFT	1
9	253500-92	CONNECTION ASSEMBLY	1
10	253500	CONNECTION	1
11	7021	SCREW	2
12	7015	SCREW	2
13	253501A92	CRANK ASSEMBLY	1
14	253501A	CRANK	1
15	4534	SCREW	2
16	251010A	ECCENTRIC PIN	1
17	205097	WASHER	1
18	7041	SCREW	1

Page 93 — W664-34-35 W644-34-35 カバー機構

Pegasus W644 / W664 parts on page 93
Ref	Part number	Part name	Qty
1	250177DSD	FRONT COVER ASSEMBLY	1
2	250178C	FRONT COVER	1
3	250179	HINGE	1
4	250013	SCREW	1
5	201191	SPRING	2
6	240198	PIN	1
7	4554	SCREW	2
8	250168B	BRACKET	1
9	250209	AUXILIARY PLATE/FRONT COVER	1
10	7043	SCREW	3
11	250210-91	CLOTH PLATE COMPLETE	1
12	250212-91	SLIDE PLATE ASSEEMBLY	1
13	258050-91	BINDER COMPLETE	1
14	303448	WASHER	2
15	7017	SCREW	2
16	258015A91	FABRIC GUIDE ASSEMBLY	1
17	303448	WASHER	2
18	7018	SCREW	2
19	258017B91	FABRIC GUIDE ASSEMBLY	1
20	303448	WASHER	2
21	7017	SCREW	2
22	258014	FABRIC GUIDE	1
23	303448	WASHER	2
24	7018	SCREW	2
25	258020A91	ELASTIC GUIDE	1
26	258023	BINDER	1
27	258024	BRACKET	1
28	7143	SCREW	2
29	258026	WASHER	1
30	258027	BRACKET	1
31	7019	SCREW	2
32	258047	BRACKET	1
33	258046A	GUIDE BAR	1
34	7019	SCREW	2
35	4543	SCREW	2
36	257743	FABRIC GUIDE	1
37	257743A	FABRIC GUIDE	1
38	7031	SCREW	2
39	258051-91	ELASTIC ATTACHING GUIDE ASS.	1
40	258049-91	AUXILIARY PLATE ASSEMBLY	1
41	7143	SCREW	1
42	258020B91	ELASTIC GUIDE	1
43	303448	WASHER	2
44	250264-91	AUXILIARY PLATE/FRONT COVER	1

Page 95 — W664-34・35 / W644-34・35 FT装置 / FT DEVICE

Pegasus W644 / W664 parts on page 95
Ref	Part number	Part name	Qty
1	252610A	CRANKSHAFT	1
2	255552	CRANK	1
3	4547	SCREW	2
4	7057	SCREW	1
5	240039	WASHER	2
6	179160-05	BUSHING	1
7	255553	NUT	1
8	255554	CRANK	1
9	4547	SCREW	1
10	240008	KEY	1
11	252557A	LINK	1
12	202174	OIL WICK	1
13	202175	OIL WICK	1
14	255077	LATCH	1
15	7061	SCREW	1
16	255555	SHAFT	1
17	230030	WASHER	1
18	255548	SPRING	1
19	255546	NUT	1
20	255549-9S	BRACKET COMPLETE	1
21	4501	SCREW	2
22	4502	SCREW	1
23	255557	GASKET	1
24	255564-91	UPPER KNIFE HOLDER ASSEMBLY	1
25	7028	SCREW	1
26	257574	UPPER KNIFE	1
27	7062	SCREW	1
28	255560	LOWER KNIFE HOLDER	1
29	7030	SCREW	1
30	204161A	LOWER KNIFE	1
31	255558-91	LOWER KNIFE CLAMP	1
32	7082	SCREW	1
33	255569-91	DUST CHUTE SET	1
34	7012	SCREW	2
35	255567-91	SUCTION PIPE ASSEMBLY	1
36	608005	HOSE BAND	1
37	255562	LATCH	1
38	7143	SCREW	2
39	601115	CONNECTOR	1

Page 97 — W664-34-35 W644-34-35 FABRIC GUIDE SWITCHING DEVICE

Pegasus W644 / W664 parts on page 97
Ref	Part number	Part name	Qty
1	350232-91	AIR CYLINDER ASSEMBLY	1
2	513070	AIR CYLINDER	1
3	527006	SPEED CONTROLLER	2
4	258030	BRACKET	1
5	7027	SCREW	2
6	258029	STOPPER	1
7	350235	BRACKET	1
8	7018	SCREW	2
9	748004	BAND	3
10	522014-91	FILTER/REGULATOR ASSEMBLY	1
11	522008	FILTER/REGULATOR	1
12	601049	CONNECTOR	1
13	608002	HOSE BAND	1
14	601089	CONNECTOR	1
15	601072	PLUG	1
16	300372	BRACKET	1
17	4910	SCREW	2
18	350233-91	KNEE SWITCH ASSEMBLY	1
19	532001	AIR VALVE	1
20	601110	CONNECTOR	1
21	600016	TUBE	1
22	601097	JOINT	2
23	600077	TUBE	1
24	600141	TUBE	1
25	300216	BRACKET	1
26	300220	VALVE ACTUATOR ASSEMBLY	1
27	197	BRACKET	1
28	4910	SCREW	2
29	204585	WASHER	2
30	5183	SCREW	1
31	5118	SCREW	1
32	3044	NUT	1
33	137142	WASHER	2

Page 99 — W664-34 定規開閉装置 HG303 W644-34 FABRIC GUIDE SWITCHING DEVICE

Pegasus W644 / W664 parts on page 99
Ref	Part number	Part name	Qty
1	350232-91	AIR CYLINDER ASSEMBLY	1
2	513070	AIR CYLINDER	1
3	527006	SPEED CONTROLLER	2
4	258030	BRACKET	1
5	7027	SCREW	2
6	258029	STOPPER	1
7	350235	BRACKET	1
8	7018	SCREW	2
9	748004	BAND	3
10	522014-91	FILTER/REGULATOR ASSEMBLY	1
11	522008	FILTER/REGULATOR	1
12	601049	CONNECTOR	1
13	608002	HOSE BAND	1
14	601072	PLUG	1
15	601089	CONNECTOR	1
16	300372	BRACKET	1
17	4910	SCREW	2
18	350295-91	PITMAN-SWITCH COMPLETE	1
19	480	PEDAL	1
20	302470	BRACKET	1
21	303991	BALL JOINT	1
22	306733A	PITMAN ROD	1
23	306731	BRACKET	1
24	532001	AIR VALVE	1
25	601097	JOINT	2
26	600083	TUBE	1
27	600080	TUBE	1
28	601110	CONNECTOR	1
29	600015	TUBE (4X6X830)	1
30	4320	SCREW	1
31	240272	SPRING	1
32	300468	ACTUATOR	1
33	4320	SCREW	1
34	300469	COLLAR	1
35	4320	SCREW	1
36	306733	PITMAN ROD	1
37	303991	BALL JOINT	1
38	302469	BRACKET	1
39	4910	SCREW	2

Page 101 — W664-34・35 W644-34・35 切層吸込装置 / WASTE FABRIC SUCTION MECHANISM

Pegasus W644 / W664 parts on page 101
Ref	Part number	Part name	Qty
1	350234-91	PITMAN-SWITCH COMPLETE	1
2	300468	ACTUATOR	1
3	4320	SCREW	1
4	240272	SPRING	1
5	306731	BRACKET	1
6	4320	SCREW	1
7	300469	COLLAR	1
8	4320	SCREW	1
9	531001	AIR VALVE	1
10	601116	CONNECTOR	1
11	600101	TUBE(4X6X1010)	1
12	601110	CONNECTOR	1
13	600015	TUBE(4X6X830)	1
15	350236-91	DUST DRUM ASSEMBLY	1
16	300415-9J	COVER ASSEMBLY	1
17	300390-JA	COVER/BODY	1
18	300392	GASKET	1
19	300391	GUIDE PIN	4
20	4202	SCREW	4
21	300416-JA	COVER	1
22	300407-91	FILTER	1
23	300404	GASKET	1
24	4202	SCREW	8
25	4805	NUT	8
26	303067	SPRING WASHER	8
27	300409	HANDLE	1
28	300400	CONNECTOR	1
29	300417	CONNECTOR	1
30	300401	NUT	2
31	300418	BASE	2
32	300419	VALVE	2
33	300420	PIN	2
34	300421	SPRING	2
35	210525	NAME PLATE	1
36	300411	FIBER DRUM	1
37	601024	CONNECTOR (LARGE)	1
38	600142	HOSE	1
39	608000	CORD BAND	1
40	302218	SADDLE	1
41	4905	SCREW	1
42	300412	LATCH	1

Page 103 — 集塵装置(特別注文品)

Pegasus W644 / W664 parts on page 103
Ref	Part number	Part name	Qty
1	350256-91	SUCTION PIPE ASSEMBLY	1
2	600143	HOSE	1
3	608000	CORD BAND	1
4	601106	CONNECTOR (LARGE)	1
5	300526	SADDLE	1
6	4905	SCREW	1
8	300338-91	J-DUST COLLECTOR	1
9	608000	CORD BAND	1
10	304040A	T-DUST COLLECTOR DEVICE	1
11	304039A	T-DUST COLLECTOR DEVICE	1

Page 105 — W664-71 W644-71 COVER

Pegasus W644 / W664 parts on page 105
Ref	Part number	Part name	Qty
1	250177ESD	FRONT COVER ASSEMBLY	1
2	250178A	FRONT COVER	1
3	250179	HINGE	1
4	250182D	AUX. PLATE/FRONT COVER	1
5	7043	SCREW	3
6	250013	SCREW	1
7	201191	SPRING	2
8	240198	PIN	1
9	4554	SCREW	2
10	250167A	SLIDE PLATE	1
11	257569	FABRIC GUIDE (LEFT)	1
12	257570	FABRIC GUIDE (RIGHT)	1
13	7009	SCREW	2
14	257761	FABRIC GUIDE	1
15	257761A	FABRIC GUIDE	1
16	7031	SCREW	2

Page 107 — COVER

Pegasus W644 / W664 parts on page 107
Ref	Part number	Part name	Qty
1	250240-SD	MACHINE FRAME	1
2	250241-SD	MACHINE FRAME	1
3	350247-9S	FRONT COVER ASSEMBLY	1
4	250178D	FRONT COVER	1
5	350248	HINGE	1
6	250182A	AUX. PLATE/FRONT COVER	1
7	7043	SCREW	3
8	250013	SCREW	1
9	201191	SPRING	2
10	240198	PIN	1
11	4554	SCREW	2
12	250212-91	SLIDE PLATE ASSEEMBLY	1
13	257761	FABRIC GUIDE	1
14	257761A	FABRIC GUIDE	1
15	7031	SCREW	2
16	207786	CLOTH GUIDE	1
17	7032	SCREW	1
18	258014	FABRIC GUIDE	1
19	7018	SCREW	2
20	303448	WASHER	2
21	250236-91	BRACKET COMPLETE	1
22	7028	SCREW	2
23	204585	WASHER	2
24	7028	SCREW	2
25	235040	WASHER	2
26	7020	SCREW	2
27	201185	WASHER	2

Page 109 — MD装置(1) / MD DEVICE (1)

Pegasus W644 / W664 parts on page 109
Ref	Part number	Part name	Qty
1	207796-9C	REEL STAND ASSEMBLY	1
2	207795-CA	ROD	1
3	383-CA	BRACKET	1
4	4014	SCREW	1
5	306464	BAR	1
6	4012	SCREW	1
7	233-CA	HOLDER	1
8	4012	SCREW	1
9	4803	NUT	3
10	306463	COLLAR	2
11	1285	SCREW	2
12	306462	REEL GUIDE	2
13	306467	ROD	1
14	4012	SCREW	1
15	4803	NUT	1
16	5476	NUT	1
17	306468-CA	THREAD BRACKET	1
18	4913	SCREW	3
19	386	ROD CAP	1
20	319	ALLEN KEY/5MM	1

Page 111 — MD装置(2) / MD DEVICE (2)

Pegasus W644 / W664 parts on page 111
Ref	Part number	Part name	Qty
1	207340	KNEE LIFTER ASSEMBLY	1
2	207343	SHAFT	1
3	207350-JA	BRACKET	1
4	5543	BOLT	1
5	207342-JA	FRAME	1
6	4906	SCREW	2
7	207344-JA	COLLAR	1
8	5543	BOLT	1
9	207341-JA	FRAME	1
10	4906	SCREW	2
11	207349	LEVER	1
12	5543	BOLT	1
13	390	CHAIN	1
14	207348-JA	BRACKET	1
15	5543	BOLT	1
16	207347	SHAFT	1
17	5542	NUT	1
18	207345-JA	KNEE PAD BASE	1
19	207346	KNEE PAD	1
20	5543	BOLT	1
21	207351	PULLEY ASSEMBLY	1
22	207352	BRACKET	1
23	4908	SCREW	2
24	207354	SCREW	1
25	202577	RING	1
26	202924	WASHER	1
27	207353	PULLEY	1
28	4812	NUT	1
29	202922	WASHER	1

Page 113 — MD装置(3) / MD DEVICE (3)

Pegasus W644 / W664 parts on page 113
Ref	Part number	Part name	Qty
1	350249-9S	METERING DEVICE ASSEMBLY	1
2	350244-9S	BRACKET	1
3	350245-SD	BRACKET	1
4	306364	BUSHING	1
5	4518	SCREW	2
6	350246	SHAFT	1
7	4514	SCREW	1
8	7074	SCREW	1
9	240224	COUPLING	1
10	4543	SCREW	4
11	805001-91	STEPPING MOTOR COMPLETE	1
12	4528	SCREW	4
13	350242-9S	BASE/FEED ELASTIC	1
14	350243-SD	BRACKET	1
15	4500	SCREW	2
16	207773A9S	BRACKET COMPLETE	1
17	207774ASD	BRACKET	1
18	306364	BUSHING	2
19	4500	SCREW	2
20	306369A	METERING ROLLER (LARGE) ASS.	1
21	4535	SCREW	4
22	207777A	SCREW	1
23	306376	SPRING	1
24	207778	POST	1
25	200555	RING	1
26	210328A	ADJUSTING SCREW NUT	1
27	306380A	LEVER	1
28	4514	SCREW	1
29	256047	BRACKET	2
30	4514	SCREW	4
31	202433	WASHER	2
32	207776	SHAFT	1
33	207779A	ELASTIC GUIDE	2
34	4554	SCREW	2
35	306372A	METERING ROLLER (SMALL)	1
36	306373	SHAFT	1
37	207780	PIN	1
38	4535	SCREW	2
39	207775-SD	COVER/ROLLER	1
40	4500	SCREW	2

Page 115 — MD装置(4) / MD DEVICE (4)

Pegasus W644 / W664 parts on page 115
Ref	Part number	Part name	Qty
1	742327A91	JUNCTION CORD SET	1
2	742320	JUNCTION CORD	1
3	742321A91	JUNCTION CORD	1
4	742322-91	JUNCTION CORD	1
5	716020-91	REVOLUTION DETECTOR ASSEMBLY	1
6	716015-91	REVOLUTION DETECTOR	1
7	7019	SCREW	2
8	748005	CLAMP	1
9	7019	SCREW	1
10	708004	KNEE SWITCH ASSEMBLY	1
11	708013	KNEE SWITCH ASSEMBLY	1
12	303010	BRACKET COMPLETE	1
13	197	BRACKET	1
14	4300	SCREW	2
15	4805	NUT	2
16	204585	WASHER	2
17	4910	SCREW	2
18	742257A91	POWER SOURCE CORD	1
19	742257-91	POWER SOURCE CORD	1
20	742257B91	POWER SOURCE CORD	1
21	742257C91	POWER SOURCE CORD	1
22	350118B91	MACHINE PULLEY	1

Page 117 — RP装置(1)(特別注文品)

Pegasus W644 / W664 parts on page 117
Ref	Part number	Part name	Qty
	256551-9S	REAR PULLER ASSEMBLY	1
	256551A9S	REAR PULLER ASSEMBLY	1
1	256552-91Y	ECCENTRIC-CONNECTION ASSEMBLY	1
2	256500-92	ECCENTRIC	1
3	256500	ECCENTRIC	1
4	4555	SCREW	2
5	4548	SCREW	2
6	256501	CONNECTION	1
7	240236	NEEDLE BEARING	1
8	256502	COLLAR	1
9	4547	SCREW	2
10	256553-9SY	BRACKET ASSEMBLY	1
11	256503	CRANK	1
12	4548	SCREW	2
13	254504	SCREW	1
14	240062	WASHER	1
15	4805	NUT	1
16	201635	COLLAR	1
17	5060	SCREW	2
18	256504-9S	BRACKET COMPLETE	1
19	256507	O RING	1
20	256508	PLUG	1
21	4523	SCREW	4
22	210069	OIL SEAL	1
23	256509	SHAFT	1
24	206180	WASHER	1
25	306671	RING	1
26	211247	PLUG	1
27	256557-9SY	BRACKET COMPLETE	1
28	256536-9S	BRACKET ASSEMBLY	1
29	256545	GUIDE BAR	1
30	4518	SCREW	2
31	4514	SCREW	2
32	256546	COVER	1
33	256547	COVER	1
34	7062	SCREW	2
35	256540	LOWER TOOTHED ROLLER	1
36	256541	LOWER TOOTHED ROLLER	1
37	256544	LOWER ROLLER	1
38	256556-91Y	CONNECTING PLATE ASSEMBLY	1
39	256522	CONNECTING PLATE	1
40	256523	LEVER	1
41	7141	SCREW	2
42	306789	CUSHION RUBBER	2
43	7079	SCREW	1
44	4821	NUT	2

Page 119 — RP装置(2)(特別注文品) RP DEVICE (2) (OPTION)

Pegasus W644 / W664 parts on page 119
Ref	Part number	Part name	Qty
1	256554-9SY	UPPER ROLLER ASSEMBLY	1
2	256510-9S	BRACKET ASSEMBLY	1
3	256511-SD	BRACKET ASSEMBLY	1
4	256512	ADJUSTING SCREW	1
5	4503	SCREW	2
6	256518	SHAFT	1
7	202901	RING	1
8	240257	SPRING	1
9	256517	BRACKET	1
10	4510	SCREW	1
11	7025	SCREW	1
12	4821	NUT	1
13	256519	LINK	1
14	7066	SCREW	2
15	306789	CUSHION RUBBER	1
16	256520	LEVER	1
17	256521	SCREW	1
18	256524-91	LEVER	1
19	256527	SCREW	1
20	240258	WASHER	1
21	256529A	GUIDE PLATE	1
22	7068	SCREW	2
23	256530A	SHAFT	1
24	4514	SCREW	1
25	256531	CRANK	1
26	7083	SCREW	3
27	256533	FLAT SPRING	1
28	256528-92	BRACKET	1
29	4510	SCREW	1
30	4539	SCREW	1
31	256532	SHAFT	1
32	240259	WASHER	1
33	240102	WASHER	1
34	7140	NUT	1
35	4568	SCREW	1
36	256548	COVER	1
37	7074	SCREW	2
38	7068	SCREW	2
39	256555-91Y	CLUTCH ASSEMBLY	1
40	256012	CLUTCH	2
41	306500	PIN	6
42	306243	GUIDE PLATE ASSEMBLY	6
43	240114B	SPRING	12
44	7083	SCREW	3
45	256535	CLUTCH PLATE	1
46	256550-91	SLEEVE ASSEMBLY	1
47	7139	SCREW	1
48	4539	SCREW	1
49	256558	NUT	1
50	256513-92	CRANK	1
51	256513	CRANK	1
52	4534	SCREW	1
53	256514	PIN	1
54	137441	WASHER	2
55	256515	BUSHING	2
56	240011	NEEDLE BEARING	2
57	256516	LINK	1
58	4805	NUT	2
59	137441	WASHER	1
60	7138	BOLT	1
61	256543	UPPER ROLLER	1
62	256538	UPPER TOOTHED ROLLER	1
63	256539	UPPER TOOTHED ROLLER	1
64	7083	SCREW	3
65	240257A	SPRING	1
66	256554A9SY	UPPER ROLLER ASSEMBLY	1

Page 121 — UT装置メス機構

Pegasus W644 / W664 parts on page 121
Ref	Part number	Part name	Qty
1	350207-91	KNIFE HOLDER ASSEMBLY	1
2	350207A91	KNIFE HOLDER ASSEMBLY	1
3	350208	COVER PLATE	1
4	350209	LEVER	1
5	350209A	LEVER	1
6	350223	WASHER	1
7	7134	SCREW	1
8	350210	LOWER KNIFE HOLDER	1
9	350222	WASHER	1
10	350223	WASHER	1
11	240254	WASHER	2
12	7134	SCREW	2
13	350224	THREAD GUIDE	1
14	7135	SCREW	2
15	350220	LOWER KNIFE	1
16	7135	SCREW	2
17	350218	UPPER KNIFE	1
18	7136	SCREW	2
19	7137	SCREW	1
20	350217	GUIDE/KNIFE LOWER	1
21	350215	FLAT SPRING	1
22	350211-91	GUIDE KNIFE HOLDER ASSEMBLY	1
25	7134	SCREW	1
26	350223	WASHER	1
27	350221	FLAT SPRING	1
28	7135	SCREW	2
29	350214	SPACER	1
30	350216	FLAT SPRING	1
31	350219	BRACKET	1
32	7071	SCREW	2
33	350228	SPRING	1
34	7007	SCREW	1
35	350227	WASHER	1
36	7007	SCREW	1
37	350225	BRACKET	1
38	350226	BRACKET	1
39	7007	SCREW	1
40	7018	SCREW	2
41	350200	SCREW	1
42	240255	SPRING	1
43	350201	BRACKET	1
44	4758	SCREW	1
45	4805	NUT	3
46	350202	BRACKET	1
47	350223	WASHER	1
48	7134	SCREW	1
49	7014	SCREW	1
50	350291	SPRING	1
51	7181	SCREW	1
52	4804	NUT	1

Page 123 — UT DEVICE UPPER THREAD WIPER MECHANISM

Pegasus W644 / W664 parts on page 123
Ref	Part number	Part name	Qty
1	350062-91	THREAD WIPER ASSEMBLY	1
2	811063-91	SOLENOID	1
3	350031	BRACKET	1
4	7019	SCREW	2
5	306553	GUIDE	1
6	202522	RING	2
7	350026-92	CRANK ASSEMBLY	1
8	350026	CRANK	1
9	4500	SCREW	1
10	350027	PIN	1
11	200555	RING	1
12	7009	SCREW	1
14	350028-91	BRACKET COMPLETE	1
15	350058	THREAD WIPER	1
16	350034	WASHER	1
17	7008	SCREW	1
18	350059	FLAT SPRING	1
19	7183	SCREW	1
20	748005	CLAMP	3
21	7019	SCREW	2
22	708004	KNEE SWITCH ASSEMBLY	1
23	303010	BRACKET COMPLETE	1
24	197	BRACKET	1
25	4300	SCREW	2
26	4805	NUT	2
27	204585	WASHER	2
28	4910	SCREW	2
29	742272-91	JUNCTION CORD	1

Page 125 — UT装置糸調子機構

Pegasus W644 / W664 parts on page 125
Ref	Part number	Part name	Qty
1	350203-92	CRANK	1
2	350203	CRANK	1
3	4531	SCREW	1
4	350204	LEVER	1
5	7027	SCREW	2
6	350038-92	CRANK ASSEMBLY	1
7	350038	CRANK	1
8	4531	SCREW	1
9	7066	SCREW	1
10	202868	WASHER	1
11	350039-91	LEVER-SHAFT ASSEMBLY	1
12	254022	COLLAR	1
13	2133-1	SCREW	1
14	350043	HOLDER	1
15	200983	RING	2
16	4554	SCREW	1
17	350042	SHAFT	1
18	350047	HOLDER	1
19	350045	THREAD RELEASER	2
20	4554	SCREW	3
21	350046	HOLDER	4
22	350045	THREAD RELEASER	4
23	4554	SCREW	8
24	254023C9U	TENSION CONTROL MECHANISM	1
25	254023B9U	TENSION CONTROL MECHANISM	1
26	254023E9U	TENSION CONTROL MECHANISM	1
27	254023D9U	TENSION CONTROL MECHANISM	1
28	254019	BRACKET	1
29	254021	THREAD RELEASER	1
30	254010A9U	THREAD TENSION COMPLETE
31	254010B9U	THREAD TENSION COMPLETE
32	254010C9U	THREAD TENSION COMPLETE
33	254020	THREAD GUIDE
34	206203	THREAD GUIDE
35	306301	SPRING	1
36	5447	SCREW	1
37	206202	TENSION POST COLLAR
38	7019	SCREW	2
39	254018	THREAD GUIDE PLATE	1
40	7017	SCREW	2

Page 127 — UT装置糸切り機構(電気式) UT DEVICE THREAD TRIMMING MECHANISM (ELECTRIC TYPE)

Pegasus W644 / W664 parts on page 127
Ref	Part number	Part name	Qty
1	811067-91	SOLENOID ASSEMBLY	1
2	350197-RA	BRACKET	1
3	4515	BOLT	2
4	811048-91	SOLENOID	1
5	4531	SCREW	3
6	350011	SHAFT	1
7	240130	SPRING	1
8	201665	COLLAR	1
9	5084	SCREW	1
10	350199	CRANK	1
11	4808	NUT	1
12	201665	COLLAR	1
13	5084	SCREW	2
14	240062	WASHER	1
15	4820	NUT	1
16	7088	NUT	1
17	350198	BRACKET	1
18	7027	SCREW	2
19	750014-91	TERMINAL BOX ASSEMBLY	1
20	760149-KA	TERMINAL BOX	1
21	760150	CAP	1
22	7018	SCREW	2
23	750015	TERMINAL BOARD	1
24	4020	SCREW	2
25	9A2519	INDICATION PLATE	1
26	747005	BUSHING	2
27	747006	BUSHING	1
28	7019	SCREW	2

Page 129 — UT装置糸切リ機構(空圧式) / UT DEVICE THREAD TRIMMING MECHANISM (PNEUMATIC TYPE)

Pegasus W644 / W664 parts on page 129
Ref	Part number	Part name	Qty
1	350231-91	AIR CYLINDER ASSEMBLY	1
2	350197-RA	BRACKET	1
3	4515	BOLT	2
4	350186	JOINT	1
5	350199	CRANK	1
6	4808	NUT	1
7	350188	SPACER	3
8	4561	SCREW	3
9	350011	SHAFT	1
10	240130	SPRING	1
11	201665	COLLAR	2
12	5084	SCREW	3
13	240062	WASHER	1
14	4820	NUT	1
15	7088	NUT	1
16	513065	CYLINDER	1
17	601095	CONNECTOR	2
18	350187	BRACKET	1
19	350050	BRACKET	1
20	7009	SCREW	2
21	750014-91	TERMINAL BOX ASSEMBLY	1
22	760149-KA	TERMINAL BOX	1
23	760150	CAP	1
24	7018	SCREW	2
25	750015	TERMINAL BOARD	1
26	4020	SCREW	2
27	9A2519	INDICATION PLATE	1
28	747005	BUSHING	2
29	747006	BUSHING	1
30	7019	SCREW	2
31	350237	BRACKET	1
32	4567	SCREW	2
33	4819	NUT	2
34	562022-91	SOLENOID VALVE	1
35	527009	SPEED CONTROLLER	2
36	601068	CONNECTOR	1
37	600010	TUBE	2
38	600101	TUBE	1

Page 133 — UT DEVICE PNEUMATIC FOOT LIFTER

Pegasus W644 / W664 parts on page 133
Ref	Part number	Part name	Qty
1	511013-91	CYLINDER COMPLETE	1
2	511004	AIR CYLINDER	1
3	601068	CONNECTOR	1
4	350189	BRACKET	1
5	4515	BOLT	2
6	202045	SPRING WASHER	2
7	202433	WASHER	2
8	179449-25	DRIVING PLATE	1
9	5594	SCREW	1
10	301495	WASHER	1
11	5426	NUT	1
12	561021-91	SOLENOID VALVE ASSEMBLY	1
13	561010-91	SOLENOID VALVE	1
14	601095	CONNECTOR	1
15	601086	CONNECTOR	1
16	600101	TUBE	1
17	600099	TUBE	1
18	4911	SCREW	2
19	522007	FILTER/REGULATOR ASSEMBLY	1
20	522008	FILTER/REGULATOR	1
21	300372	BRACKET	1
22	601053	JOINT	1
23	601049	CONNECTOR	1
24	608002	HOSE BAND	1
25	4910	SCREW	2
26	4304	SCREW	2
27	210061	WASHER	2
28	4806	NUT	2

Page 135 — テープカッター(TK202・TK402) TAPE CUTTER(TK202・TK402)

Pegasus W644 / W664 parts on page 135
Ref	Part number	Part name	Qty
1	350307-9S	TAPE CUTTER ASSEMBLY	1
2	350097BSD	FRAME	1
3	811061-91	SOLENOID	1
4	4806	NUT	2
5	204293	SPRING WASHER	2
6	306003	SHAFT	1
7	204115	WASHER	1
8	306004	SPRING	1
9	306005	SCREW	1
10	4543	SCREW	1
11	350096-SD	MOVABLE BLADE BASE	1
12	4538	SCREW	1
13	350081	MOVABLE BLADE	1
14	7043	SCREW	2
15	306008A	LEVER	1
16	5381	SCREW	1
17	306012	BLOCK	1
18	5403	SCREW	1
19	3018	NUT	1
20	306025	SPRING	1
21	5422	SCREW	1
22	306010	PIN	1
23	306011	RING	1
24	350061A	STATIONARY BLADE	1
25	5189	SCREW	2
26	307003	WASHER	1
27	5324	SCREW	1
28	350300	SAFETY COVER	1
29	7019	SCREW	4
30	240104	WASHER	4
31	306022	CLOTH GUIDE PLATE (LARGE)	1
32	5077	SCREW	2
33	306023	CLOTH GUIDE PLATE (SMALL)	1
34	2921	SCREW	1
35	306015	SPACER	2
36	306014B	BRACKET	1
37	5230	SCREW	2
38	350299-91	BRACKET COMPLETE	1
39	350298	BRACKET	1
40	202647A	PIN	1
41	7046	SCREW	4
42	350297	BRACKET	1
43	7182	SCREW	1
44	204888	SPRING	2
45	4818	NUT	1
46	350302	CLAMP LEVER	1
47	204023	WASHER	1
48	350301	NUT	1
49	250028	STOPPER	1
50	7017	SCREW	2
51	4510	SCREW	2
52	303335	WASHER	2
53	350310	NAME PLATE	1
54	350305-9S	TAPE CUTTER ASSEMBLY	1
55	811058-91	SOLENOID ASSEMBLY	1
56	350308	NAME PLATE	1
57	708004	KNEE SWITCH ASSEMBLY	1
58	303010	BRACKET COMPLETE	1
59	197	BRACKET	1
60	4300	SCREW	2
61	4805	NUT	2
62	204585	WASHER	2
63	4910	SCREW	2
64	350097BSD	FRAME	1

Page 137 — テープカッター(TK302)

Pegasus W644 / W664 parts on page 137
Ref	Part number	Part name	Qty
1	350306-9S	TAPE CUTTER ASSEMBLY	1
2	350074ASD	FRAME	1
3	513073	AIR CYLINDER	1
4	7148	SCREW	2
5	303067	SPRING WASHER	2
6	601071	CONNECTOR	2
7	350107	SPACER	1
8	350075	KNUCKLE	1
9	350076	LINK	1
10	350077	PIN	1
11	4543	SCREW	2
12	350078	LINK	1
13	350079	PIN	1
14	350080-SD	MOVABLE BLADE BASE	1
15	306003	SHAFT	1
16	204115	WASHER	1
17	306004	SPRING	1
18	306005	SCREW	1
19	4543	SCREW	1
20	350082	PIN	1
21	4537	SCREW	2
22	350081	MOVABLE BLADE	1
23	7043	SCREW	2
24	4538	SCREW	1
25	350061A	STATIONARY BLADE	1
26	5189	SCREW	2
27	307003	WASHER	1
28	5324	SCREW	1
29	350300	SAFETY COVER	1
30	7019	SCREW	4
31	240104	WASHER	4
32	306022	CLOTH GUIDE PLATE (LARGE)	1
33	5077	SCREW	2
34	306023	CLOTH GUIDE PLATE (SMALL)	1
35	2921	SCREW	2
36	350309	NAME PLATE	1
37	350299-91	BRACKET COMPLETE	1
38	350298	BRACKET	1
39	202647A	PIN	1
40	7046	SCREW	4
41	350297	BRACKET	1
42	7182	SCREW	1
43	204888	SPRING	2
44	4818	NUT	1
45	350302	CLAMP LEVER	1
46	204023	WASHER	1
47	350301	NUT	1
48	250028	STOPPER	1
49	7017	SCREW	2
50	4510	SCREW	2
51	303335	WASHER	2

Page 139 — TK コントローラー(TK202) / TK CONTROLLER(TK202)

Pegasus W644 / W664 parts on page 139
Ref	Part number	Part name	Qty
1	760040	TK CONTROLLER (200/250V)	1
2	742075	POWER SUPPLY CORD	1
3	760041	TK CONTROLLER (100V)	1
4	790001	AUTO TRANSFORMER	1
5	4122	SCREW	2
6	303448	WASHER	2
7	201252	SPRING WASHER	2
8	4804	NUT	2
9	742076	POWER SUPPLY CORD	1
10	760042	CASE	1
11	202013	RUBBER PLUG	2
12	4107	SCREW	2
13	303026	WASHER	2
14	4802	NUT	2
15	201252	SPRING WASHER	2
16	791008	TRANSFORMER	1
17	4119	SCREW	2
18	202875	WASHER	2
19	204586	SPRING WASHER	2
20	4800	NUT	2
21	772002	FUSE HOLDER	1
22	4105	SCREW	1
23	202875	WASHER	2
24	204586	SPRING WASHER	1
25	4800	NUT	1
26	771003	FUSE (1A)	2
27	701008	MAIN SWITCH	1
28	783001	NEON LAMP	1
29	742136	CABLE	1
30	742137	CABLE/SOLENOID	1
31	771004	FUSE (3A)	2
32	752024	CONNECTOR/CONTROL BOARD	1
33	4104	SCREW	2
34	204586	SPRING WASHER	2
35	745022	PRINTED CIRCUIT PANEL	1
36	748011	TAPPING SUPPORT	1
37	4118	SCREW	1
38	301498	INDICATION PLATE	1
39	771001	FUSE (2A)	2
40	303500	BRACKET COMPLETE	1
41	303499	BRACKET	1
42	4911	SCREW	3
43	742044	JUNCTION CORD	1
44	748004	BAND	3
45	760044	TK CONTROLLER	1
46	742087	POWER SUPPLY CORD	1
47	790003	AUTO TRANSFORMER	1
48	791022	TRANSFORMER	1
49	742085	POWER INPUT CABLE	1
50	742143	POWER INPUT CABLE	1
51	742107	POWER INPUT CABLE	1
52	742139	LEAD WIRE	1
53	742138	LEAD WIRE	1
54	742144	LEAD WIRE	1

Page 141 — TK CONTROLLER(TK402) / TKコントローラー(TK402)

Pegasus W644 / W664 parts on page 141
Ref	Part number	Part name	Qty
1	760154-91	TK CONTROLLER	1
2	760117-7	SHASSIS	1
3	760176	COVER	1
4	202013	RUBBER PLUG	2
5	303026	WASHER	2
6	4107	SCREW M4X16	2
7	201252	SPRING WASHER	2
8	4802	NUT	2
9	4100	SCREW M3X6	4
10	204586	SPRING WASHER	4
11	303448	WASHER	4
12	745063	TK BOARD	1
13	4100	SCREW M3X6	4
14	303448	WASHER	4
15	303721B	SPACER	4
16	4100	SCREW M3X6	4
17	701008	MAIN SWITCH	1
18	783001	NEON LAMP	1
19	4100	SCREW M3X6	3
20	204586	SPRING WASHER	3
21	303448	WASHER	3
22	91036	TRANSFORMER	1
23	4110	SCREW M4X8	4
24	303448	WASHER	4
25	4804	NUT	4
26	772002	FUSE HOLDER	1
27	4105	SCREW M3X15	1
28	202875	WASHER	1
29	204586	SPRING WASHER	1
30	4800	NUT	1
31	771001	FUSE (2A)	1
32	742314	HARNESS (POWER SOURCE)	1
33	742315	HARNESS (SOLENOID)	1
34	742316	HARNESS (SWITCH)	1
35	302385	SEAL	1
36	303500	BRACKET COMPLETE	1
37	303499	BRACKET	1
38	4911	SCREW	3
39	748002	BAND	3
40	748007	STAPLE	4
41	742257-91	POWER SOURCE CORD	1
42	742257A91	POWER SOURCE CORD	1
43	742257B91	POWER SOURCE CORD	1
44	742257C91	POWER SOURCE CORD	1
45	742242-91	JUNCTION CORD	1

Page 143 — 制御ユニット

Pegasus W644 / W664 parts on page 143
Ref	Part number	Part name	Qty
1	605008-91	CONTROL UNIT	1
2	522008	FILTER/REGULATOR	1
3	300372	BRACKET	1
4	4304	SCREW	1
5	210061	WASHER	2
6	4806	NUT	2
7	4910	SCREW	2
8	601049	CONNECTOR	1
9	608002	HOSE BAND	1
10	602004	CONNECTOR	1
11	601002	JOINT	1
12	201759	GASKET	1
13	532004	AIR VALVE	1
14	601042	CONNECTOR	2
15	555001	AIR ACTUATOR	1
16	601020	ELBOW	1
17	601002	JOINT	1
18	201759	GASKET	1
19	600013	TUBE	1
20	600014	TUBE	1
21	300220	VALVE ACTUATOR ASSEMBLY	1
22	300216	BRACKET	1
23	5118	SCREW	1
24	137142	WASHER	1
25	5183	SCREW	1
26	3044	NUT	1
27	137142	WASHER	1
28	531001	AIR VALVE	1
29	601002	JOINT	1
30	201759	GASKET	2
31	600015	TUBE (4X6X830)	1
32	600016	TUBE	1
33	601043	SLEEVE	4
34	197	BRACKET	1
35	4910	SCREW	2

Page 145 — SPECIFIC PARTS(W600/TK)

Pegasus W644 / W664 parts on page 145
Ref	Part number	Part name	Qty
1	350339-91	SLIDE PLATE ASSEEMBLY	1
2	350340-91	SLIDE PLATE ASSEEMBLY	1
3	350337	SLIDE PLATE	1
4	350338	SLIDE PLATE	1
5	200186A	THUMB NUT	1
6	250162ASD	MACHINE BED COVER	1
7	256168D	BRACKET	1
8	256168E	BRACKET	1
9	210025A	CUSHION	1

Page 146 — W664-01CA,CB,CC

Pegasus W644 / W664 parts on page 146
Ref	Part number	Part name	Qty
	257517-24
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257518-48
	257518-56
	257518-64
	257015(A・B・C)24
	257015(A・B・C)32
	257015(A・B・C)40
	257015(A・B・C)48
	257017(A・B・C)56
	257017(A・B・C)64
	257016(A・B・C)48
	257018(A·B·C)56
	257018(A·B·C)64
	257565
	257566
	257567
	257568
	257242-16F
	257243-16F
	257289-16F
	257290-16F
	257300 A 24
	257300 A 32
	257300 A 40
	257300 A 48
	257300 A 56
	257300 A 64
	257301 A 48
	257301 A 56
	257301 A 64

Page 147 — W644-01CA,CB,CC

Pegasus W644 / W664 parts on page 147
Ref	Part number	Part name	Qty
	257517-24
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257518-48
	257518-56
	257518-64
	257015(A・B・C)24
	257015(A・B・C)32
	257015(A・B・C)40
	257015(A・B・C)48
	257017(A・B・C)56
	257017(A・B・C)64
	257016(A・B・C)48
	257018(A・B・C)56
	257018(A・B・C)64
	257242-16F
	257243-16F
	257289-16F
	257290-16F
	257302 A 24
	257302 A 32
	257302 A 40
	257302A48
	257302A56
	257302A64
	257303 A 48
	257303 A 56
	257303 A 64
	W644-01CA	NEEDLE PLATE
	W644-01CB	NEEDLE PLATE
	W644-01CC	NEEDLE PLATE

Page 148 — W664-02BA,BB,BC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 148
Ref	Part number	Part name	Qty
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257029(A•B•C)32
	257030(A•B•C)40
	257030(A•B•C)48
	257032(A•B•C)56
	257032(A•B•C)64
	257244-16F
	257245-16F
	257246-16F
	257291-16F
	257292-16F
	257293-16F
	257317A32
	257318A40
	257318A48
	257319A56
	257319A64
	257029	3.2 257029 (A・B・C) 32
	257030	4.0 257030 (A・B・C) 40
	257032	5.6 257032 (A・B・C) 56

Page 149 — W664-02BA,BB,BC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 149
Ref	Part number	Part name	Qty
	257518-56
	257518-64
	257033(A·B·C)56
	257033(A·B·C)64
	257246-16F
	257293-16F
	257321A56
	257321A64

Page 150 — W644-02BA,BB,BC

Pegasus W644 / W664 parts on page 150
Ref	Part number	Part name	Qty
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257029(A·B·C)32
	257030(A·B·C)40
	257030(A·B·C)48
	257032(A·B·C)56
	257032(A·B·C)64
	257244-16F
	257245-16F
	257246-16F
	257291-16F
	257292-16F
	257293-16F
	257322A32
	257323A40
	257323A48
	257324A56
	257324A64
	257032	(A・B・C) 56
	W644-02BA	A TYPE
	W644-02BB	B TYPE
	W644-02BC	C TYPE

Page 151 — W644-02BA,BB,BC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 151
Ref	Part number	Part name	Qty
	257518-56
	257518-64
	257033 (A・B・C)56
	257033 (A・B・C) 64
	257246-16F
	257293-16F
	257326A56
	257326A64
	W644-02BA	A TYPE
	W644-02BB	B TYPE
	W644-02BC	C TYPE

Page 152 — W664-03FB,FC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 152
Ref	Part number	Part name	Qty
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257518-56
	257518-64
	257098(B・C)32
	257098(B・C)40
	257099(B・C)48
	257096(B・C)56
	257096(B・C)64
	257097(B・C)56
	257097(B・C)64
	257242-16F
	259102-16F
	259103-16F
	259214-16F
	259215-16F
	257403-32
	257403-40
	257403-48
	257403-56
	257403-64
	257404-56
	257404-64
	257098(B・C)48	NG
	257405-56	NG
	257405-64	NG
	W664-03FB	MACHINE
	W644-03F	MACHINE
	W664-03FC	NEEDLE PLATE

Page 153 — GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 153
Ref	Part number	Part name	Qty
	257098 (B-C) 32
	257098 (B-C) 40
	257099 (B·C)48
	257096 (B-C) 56
	257096 (B-C) 64
	257097 (B-C) 56
	257097 (B-C) 64
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257518-56
	257518-64
	257405-32
	257405-40
	257405-48
	257405-56
	257405-64
	257406-56
	257406-64
	257242-16F
	259214-16F
	259102-16F
	259215-16F
	259103-16F
	257098 (B-C) 48	NG

Page 154 — W664-03GB,GC

Pegasus W644 / W664 parts on page 154
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257517-56
	257517-64
	257518-56
	257518-64
	257103 (B-C) 40
	257103 (B-C) 48
	257104 (B-C) 56
	257104 (B-C) 64
	257105(B•C)56
	257105(B•C)64
	257242-16F
	257243-16F
	259211-16F
	259212-16F
	257399-40
	257399-48
	257399-56
	257399-64
	257400-56
	257400-64
	W664-03GB	B TYPE
	W664-03GC	C TYPE

Page 155 — W644-03GB,GC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 155
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257517-56
	257517-64
	257518-56
	257518-64
	257103(B•C)40
	257103(B•C)48
	257104 (B-C) 56
	257104 (B-C) 64
	257105 (B-C) 56
	257105 (B-C) 64
	257242-16F
	257243-16F
	259211-16F
	259212-16F
	257410-40
	257410-48
	257410-56
	257410-64
	257411-56
	257411-64

Page 156 — W664-05BA,BB

Pegasus W644 / W664 parts on page 156
Ref	Part number	Part name
3.2	257049	(A-B) 32
4.0	257050	(A-B) 40
5.6	257052	(A-B) 56
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257049(A·B)32
	257050(A·B)40
	257050(A·B)48
	257052(A·B)56
	257052(A·B)64
	259104-16F
	259105-16F
	259106-16F
	259216-16F
	259217-16F
	259218-16F
	257418-32
	257419-40
	257419-48
	257420-56
	257420-64

Page 157 — W664-05BA,BB GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 157
Ref	Part number	Part name	Qty
	257518-56
	257518-64
	257053 (A-B) 56
	257053 (A-B) 64
	259106-16F
	259218-16F
	257421-56
	257421-64
	W664-05BA	A TYPE
	W664-05BB	B TYPE

Page 158 — W644-05BA,BB GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 158
Ref	Part number	Part name	Qty
	257517-32
	257517-40
	257517-48
	257517-56
	257517-64
	257049(A·B)32
	257050(A·B)40
	257050(A·B)48
	257052(A·B)56
	257052(A·B)64
	259104-16F
	259105-16F
	259106-16F
	259216-16F
	259217-16F
	259218-16F
	257422-32
	257423-40
	257423-48
	257424-56
	257424-64
	257049	NG (A-B)
	257050	NG (A-B)
	257052	NG (A-B)

Page 159 — W644-05BA,BB

Pegasus W644 / W664 parts on page 159
Ref	Part number	Part name	Qty
	257518-56
	257518-64
	257053(A·B)56
	257053(A·B)64
	259106-16F
	259218-16F
	257425-56
	257425-64
	W644-05BA	A TYPE
	W644-05BB	B TYPE

Page 160 — W664-08AB,AC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 160
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257084(B•C)40
	257084(B•C)48
	257084
	257095(B•C)64
	257242-16F
	257243-16F
	257294-16F
	257295-16F
	257300 A 40
	257300 A 48
	257301 A 56
	257301 A 64

Page 161 — W644-08AB,AC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 161
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257084 (B-C) 40
	257084 (B-C) 48
	257095 (B-C) 56
	257095 (B-C) 64
	257242-16F
	257243-16F
	257294-16F
	257295-16F
	257302 A 40
	257302 A 48
	257303 A 56
	257303 A 64

Page 162 — W664-08BB,BC W664-08DC,EC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 162
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257107 (B-C) 40
	257107 (B-C) 48
	257108 (B-C) 56
	257108 (B-C) 64
	257125C48
	257126C48
	259109-16F
	259110-16F
	257242-16F
	259109-16F
	259219-16F
	259220-16F
	257294-16F
	259219-16F
	257413-40
	257413-48
	257414-56
	257414-64
	257300 A 48
	257413-48

Page 163 — W644-08BB,BC W644-08DC,EC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 163
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257517-48
	257107 (B-C) 40
	257107 (B-C) 48
	257108 (B-C) 56
	257108 (B-C) 64
	257125C48
	257126C48
	259109-16F
	259110-16F
	257242-16F
	259109-16F
	259219-16F
	259220-16F
	257294-16F
	259219-16F
	257415-40
	257415-48
	257416-56
	257416-64
	257302A48
	257415-48

Page 164 — W664-30AB,AC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 164
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257122(B·C)40
	257122(B·C)48
	257123(B·C)56
	257123(B·C)64
	259109-16F
	259110-16F
	259219-16F
	259220-16F
	257428-40
	257428-48
	257429-56
	257429-64
	257122	NG
	257123	NG

Page 165 — W644-30AB,AC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 165
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257122 (B-C) 40
	257122 (B-C) 48
	257123 (B-C) 56
	257123 (B-C) 64
	259109-16F
	259110-16F
	259219-16F
	259220-16F
	257430-40
	257430-48
	257431-56
	257431-64

Page 166 — W664-32AB,AC W644-32AB,AC

Pegasus W644 / W664 parts on page 166
Ref	Part number	Part name	Qty
	257518-56
	257518-64
	257033(B・C)56
	257033(B・C)64
	257246-16F
	257293-16F
	306841
	307042

Page 167 — GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 167
Ref	Part number	Part name	Qty
	257518-56
	257518-64
	257053 (B-C) 56
	257053 (B-C) 64
	259106-16F
	259218A16F
	307010
	307012

Page 168 — GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 168
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257517-56
	257518-56
	257518-64
	257100(B•C)40
	257100 (B-C) 48
	257101 (B-C) 56
	257102 (B-C) 56
	257102 (B-C) 64
	259100-16F
	259101-16F
	259202-16F
	259203-16F
	257426-40
	257426-48
	257426-56
	257427-56
	257427-64

Page 169 — W644-34AB,AC W644-35AB,AC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 169
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257517-56
	257518-56
	257518-64
	257100(B-C)40
	257101
	257101(B-C)56
	257102(B-C)56
	257102(B-C)64
	259100-16F
	259101-16F
	259202-16F
	259203-16F
	257408-40
	257408-48
	257408-56
	257409-56
	257409-64
	257102	NG

Page 170 — GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 170
Ref	Part number	Part name	Qty
	257518-56
	257112(B·C)56
	259110-16F
	259220-16F
	257429-56
	257431-56
	5.6 257518-56	NG
	5.6 257112 (B·C) 56	NG
	5.6 257429-56	NG
	5.6 257431-56	NG
	W664-71AB	B TYPE
	W664-71AC	C TYPE
	W644-71AB	B TYPE
	W644-71AC	C TYPE

Page 171 — W664-81AB,AC

Pegasus W644 / W664 parts on page 171
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257111(B・C)40
	257111(B・C)48
	257112(B・C)56
	257112(B・C)64
	259109-16F
	259110-16F
	259219-16F
	259220-16F
	257428-40	NG
	257428-48	NG
	257429-56	NG
	257429-64	NG

Page 172 — W644-81AB,AC GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 172
Ref	Part number	Part name	Qty
	257517-40
	257517-48
	257518-56
	257518-64
	257111(B·C)40
	257111(B·C)48
	257112(B·C)56
	257112(B·C)64
	259109-16F
	259110-16F
	259219-16F
	259220-16F
	257430-40
	257430-48
	257431-56
	257431-64
	257111	NG

Page 173 — W664-01EB GAUGE PARTS CONSTRUCTION CHART

Pegasus W644 / W664 parts on page 173
Ref	Part number	Part name	Qty
	257518-56
	257518-64
	257128B56
	257243-16F
	257298-16F
	257400 A 56

Page 174 — W664-01 GAUGE PARTS LIST (1)

Pegasus W644 / W664 parts on page 174
Ref	Part number	Part name	Qty
2.4	257015A24	A32	2
2.4	257015C24	C32	2
2.4	257242-16F		2
2.4	257289-16F		2
2.4	257300A24	A32	2
2.4	UY128GAS		2
3.2	257302A24	A32	2
4.8	257016A48	A64	3
4.8	257016C48	C64	3
4.8	257303A48	A56	3
5.6	257017B56	B56	2
5.6	257017C56	C56	2
5.6	257018B56	B64	3
5.6	257243-16F		2
5.6	257290-16F		2
5.6	257301A48	A56	2
5.6	257128B56		3
5.6	257298-16F		3
5.6	257400A56		3
6.4	257018A56	B64	2
6.4	257018C56	C64	2
	257517-24	NEEDLE HOLDER
	257517-32	NEEDLE HOLDER
	257517-40	NEEDLE HOLDER
	257517-48	NEEDLE HOLDER
	257517-56	NEEDLE HOLDER
	257517-64	NEEDLE HOLDER
	257518-48	NEEDLE HOLDER
	257518-56	NEEDLE HOLDER
	257518-64	NEEDLE HOLDER
	257518-56	NEEDLE HOLDER
	257565 (W664)	SPREADER
	257566	LOOPER
	257567	NEEDLE GUARD (REAR)
	257568	NEEDLE GUARD (FRONT)

Page 175 — W664-02 GAUGE PARTS LIST (2)

Pegasus W644 / W664 parts on page 175
Part number	Part name	Qty
257517-32	NEEDLE HOLDER
257029A32	NEEDLE PLATE
257244-16F	MAIN FEED DOG
257291-16F	DIFF. FEED DOG
257317A32	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257518-56	NEEDLE HOLDER
257029B32	NEEDLE PLATE
257517-32	NEEDLE HOLDER
257244-16F	MAIN FEED DOG
257291-16F	DIFF. FEED DOG
257317A32	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257029C32	NEEDLE PLATE
257517-32	NEEDLE HOLDER
257244-16F	MAIN FEED DOG
257291-16F	DIFF. FEED DOG
257317A32	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-32	NEEDLE HOLDER
257029A32	NEEDLE PLATE
257244-16F	MAIN FEED DOG
257291-16F	DIFF. FEED DOG
257322A32	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-32	NEEDLE HOLDER
257029B32	NEEDLE PLATE
257244-16F	MAIN FEED DOG
257291-16F	DIFF. FEED DOG
257322A32	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257029C32	NEEDLE PLATE
257517-32	NEEDLE HOLDER
257244-16F	MAIN FEED DOG
257291-16F	DIFF. FEED DOG
257322A32	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257245-16F	257292-16F	2
257246-16F	257293-16F	2
257566	LOOPER
257567	NEEDLE GUARD(REAR)
257568	NEEDLE GUARD(FRONT)

Page 176 — W664-03 GAUGE PARTS LIST (3) W644-03

Pegasus W644 / W664 parts on page 176
Part number	Part name	Qty
257517-32
257098B32
257242-16F
259214-16F
257403-32
UY128GAS
257099B48
259102-16F
259215-16F
257404-56
257517-40	NEEDLE HOLDER	2
257518-56	NEEDLE HOLDER	3
257098C32	NEEDLE PLATE	2
257103C40	NEEDLE PLATE	2
257097C56	NEEDLE PLATE	3
257105B56	NEEDLE PLATE	3
257105C56	NEEDLE PLATE	3
259103-16F	MAIN FEED DOG	2
257405-32	PRESSER FOOT ASS.	2
257399-40	PRESSER FOOT ASS.	2
257410-40	PRESSER FOOT ASS.	2
257406-56	PRESSER FOOT ASS.	3
257400-56	PRESSER FOOT ASS.	3
257411-56	PRESSER FOOT ASS.	3
257565	SPREADER (W664)
257566	LOOPER
257567	NEEDLE GUARD (REAR)
257568	NEEDLE GUARD (FRONT)

Page 177 — W664-05 GAUGE PARTS LIST (4)

Pegasus W644 / W664 parts on page 177
Part number	Part name	Qty
257517-32	NEEDLE HOLDER
257517-40	NEEDLE HOLDER
257517-48	NEEDLE HOLDER
257517-56	NEEDLE HOLDER
257517-64	NEEDLE HOLDER
257518-56	NEEDLE HOLDER
257518-64	NEEDLE HOLDER
257049A32	NEEDLE PLATE
257050A40	NEEDLE PLATE
257052A56	NEEDLE PLATE
257053A56	NEEDLE PLATE
259104-16F	MAIN FEED DOG
259105-16F	MAIN FEED DOG
259106-16F	MAIN FEED DOG
259216-16F	DIFF. FEED DOG
259217-16F	DIFF. FEED DOG
259218-16F	DIFF. FEED DOG
257418-32	PRESSER FOOT ASS.
257419-40	PRESSER FOOT ASS.
257420-56	PRESSER FOOT ASS.
257421-56	PRESSER FOOT ASS.
UY128GAS	NEEDLE
UY128GAS	NEEDLE
257565	SPREADER (W664)	1
257566	LOOPER	1
257567	NEEDLE GUARD(REAR)	1
257568	NEEDLE GUARD(FRONT)	1

Page 178 — W664-08 GAUGE PARTS LIST (5)

Pegasus W644 / W664 parts on page 178
Part number	Part name	Qty
257517-40	NEEDLE HOLDER
257084B40	NEEDLE PLATE
257242-16F	MAIN FEED DOG
257294-16F	DIFF. FEED DOG
257300A40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-40	NEEDLE HOLDER
257084C40	NEEDLE PLATE
257242-16F	MAIN FEED DOG
257294-16F	DIFF. FEED DOG
257300A40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-40	NEEDLE HOLDER
257084B40	NEEDLE PLATE
257242-16F	MAIN FEED DOG
257294-16F	DIFF. FEED DOG
257302A40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-40	NEEDLE HOLDER
257084C40	NEEDLE PLATE
257242-16F	MAIN FEED DOG
257294-16F	DIFF. FEED DOG
257302A40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-40	NEEDLE HOLDER
257107B40	NEEDLE PLATE
259109-16F	MAIN FEED DOG
259219-16F	DIFF. FEED DOG
257413-40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-40	NEEDLE HOLDER
257107C40	NEEDLE PLATE
259109-16F	MAIN FEED DOG
259219-16F	DIFF. FEED DOG
257413-40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-40	NEEDLE HOLDER
257107B40	NEEDLE PLATE
259109-16F	MAIN FEED DOG
259219-16F	DIFF. FEED DOG
257415-40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-40	NEEDLE HOLDER
257107C40	NEEDLE PLATE
259109-16F	MAIN FEED DOG
259219-16F	DIFF. FEED DOG
257415-40	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-48	NEEDLE HOLDER
257125C48	NEEDLE PLATE
257242-16F	MAIN FEED DOG
257294-16F	DIFF. FEED DOG
257300A48	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-48	NEEDLE HOLDER
257125C48	NEEDLE PLATE
257242-16F	MAIN FEED DOG
257294-16F	DIFF. FEED DOG
257302A48	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-48	NEEDLE HOLDER
257126C48	NEEDLE PLATE
259109-16F	MAIN FEED DOG
259219-16F	DIFF. FEED DOG
257413-48	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257517-48	NEEDLE HOLDER
257126C48	NEEDLE PLATE
259109-16F	MAIN FEED DOG
259219-16F	DIFF. FEED DOG
257415-48	PRESSER FOOT ASS.
UY128GAS	NEEDLE
257095C56	NEEDLE HOLDER	2
257108C56	NEEDLE HOLDER	2
257518-56	NEEDLE HOLDER	3
257243-16F	MAIN FEED DOG	2
259110-16F	MAIN FEED DOG	2
257295-16F	DIFF. FEED DOG	2
259220-16F	DIFF. FEED DOG	2
257301A56	PRESSER FOOT ASS.	2
257303A56	PRESSER FOOT ASS.	2
257414-56	PRESSER FOOT ASS.	2
257416-56	PRESSER FOOT ASS.	2
257565	SPREADER (W664)	1
257566	LOOPER	1
257567	NEEDLE GUARD(REAR)	1
257568	NEEDLE GUARD(FRONT)	1

Page 179 — W664-30-32 GAUGE PARTS LIST(6) W644-30-32

Pegasus W644 / W664 parts on page 179
Ref	Part number	Part name	Qty
4.0	257517-40	257122B40	2
4.0	259109-16F	259219-16F	2
4.8	259110-16F	259220-16F	2
4.0	257428-40	UY128GAS	2
5.6	257429-56		3
5.6	306841	UY128GAS	3
6.4	307042		3
	257517-40 / -48 / 257518-56 / -64	NEEDLE HOLDER
	257122B40 B48 / 257123B56 B64	NEEDLE PLATE
	259109-16F / 259110-16F	MAIN FEED DOG
	259219-16F / 259220-16F	DIFF. FEED DOG
	257428-40 / -48 / 257429-56 / -64	PRESSER FOOT ASS.
	UY128GAS #9 / #10 / #10	NEEDLE
	257517-40 / -48 / 257518-56 / -64	NEEDLE HOLDER
	257122C40 C48 / 257123C56 C64	NEEDLE PLATE
	259109-16F / 259110-16F	MAIN FEED DOG
	259219-16F / 259220-16F	DIFF. FEED DOG
	257428-40 / -48 / 257429-56 / -64	PRESSER FOOT ASS.
	UY128GAS #9 / #10 / #10	NEEDLE
	257517-40 / -48 / 257518-56 / -64	NEEDLE HOLDER
	257122B40 B48 / 257123B56 B64	NEEDLE PLATE
	259109-16F / 259110-16F	MAIN FEED DOG
	259219-16F / 259220-16F	DIFF. FEED DOG
	257430-40 / -48 / 257431-56 / -64	PRESSER FOOT ASS.
	UY128GAS #9 / #10 / #10	NEEDLE
	W644-30AC	NEEDLE HOLDER
	257122C40 C48 / 257123C56 C64	NEEDLE PLATE
	259109-16F / 259110-16F	MAIN FEED DOG
	259219-16F / 259220-16F	DIFF. FEED DOG
	257430-40 / -48 / 257431-56 / -64	PRESSER FOOT ASS.
	UY128GAS #9 / #10 / #10	NEEDLE
	257518-56 / -64 (gauge 5.6, 6.4)	NEEDLE HOLDER
	257033B56 B64	NEEDLE PLATE
	257246-16F	MAIN FEED DOG
	257293-16F	DIFF. FEED DOG
	306841 / 307042	PRESSER FOOT ASS.
	UY128GAS #10	NEEDLE
	257518-56	NEEDLE HOLDER
	W664-32AC	NEEDLE PLATE
	257246-16F	MAIN FEED DOG
	257293-16F	DIFF. FEED DOG
	306841 / 307042	PRESSER FOOT ASS.
	UY128GAS #10	NEEDLE
	257518-56	NEEDLE HOLDER
	W644-32AB	NEEDLE PLATE
	257246-16F	MAIN FEED DOG
	257293-16F	DIFF. FEED DOG
	306841 / 307042	PRESSER FOOT ASS.
	UY128GAS #10	NEEDLE
	257518-56	NEEDLE HOLDER
	257033C56 C64	NEEDLE PLATE
	257246-16F	MAIN FEED DOG
	257293-16F	DIFF. FEED DOG
	W644-32AC	PRESSER FOOT ASS.
	UY128GAS #10	NEEDLE
	257565	SPREADER (W664)	1
	257566	LOOPER	1
	257567	NEEDLE GUARD(REAR)	1
	257568	NEEDLE GUARD(FRONT)	1

Page 181 — W664-71 / W644-71 GAUGE PARTS LIST (9)

Pegasus W644 / W664 parts on page 181
Ref	Part number	Part name	Qty
	257518-56	NEEDLE HOLDER
	257112B56	NEEDLE PLATE
	259110-16F	MAIN FEED DOG
	259220-16F	DIFF. FEED DOG
	257429-56	PRESSER FOOT ASS.
	UY128GAS #10	NEEDLE

Page 192 — SPECIFICATIONS FOR W SERIES UT MOTOR [1] (MITSUBISHI L MOTOR)

Pegasus W644 / W664 parts on page 192
Ref	Part number	Part name	Qty
	802044-91
	802045-91
	802044D91	802044D91
	802045A91	802045A91
	802044H91	802044H91
	802045B91	802045B91
	802044M91	802044M91
	802045C91	802045C91
	802044A91	802044A91
	802046-91
	802044E91	802044E91
	802044F91	802044F91
	802046D91	802046D91
	802044B91	802044B91
	802046C91	802046C91
	802044H91	802044H91
	802046191
	802044P91	802044P91
	802046K91	802046K91
	802044Q91	802044Q91
	802046L91	802046L91
	802044F91	802044F91
	802046D91	802046D91
	802044C91	802044C91
	802046E91	802046E91
	802044L91	802044L91
	802046H91	802046H91
	802044R91	802044R91
	802046J91	802046J91
	802050-91
	802046-91
	802050D91	802050D91
	802046C91	802046C91
	802050-91
	802048F91	802048F91
	802050D91	802050D91
	802048C91	802048C91
	802050H91	802050H91
	802048K91	802048K91
	802050M91	802050M91
	802048P91	802048P91
	802050A91	802050A91
	802048G91	802048G91
	802050E91	802050E91
	802048F91	802048F91
	802050J91	802050J91
	802048L91	802048L91
	802050N91	802050N91
	802048Q91	802048Q91
	802050B91	802050B91
	802048H91	802048H91
	802050F91	802050F91
	802048E91	802048E91
	802050K91	802050K91
	802048J91	802048J91
	802050P91	802050P91
	802048R91	802048R91
	802051-91
	802048D91	802048D91
	802051C91	802051C91
	802046C91	802046C91
	802051F91	802051F91
	802048H91	802048H91
	802051J91	802051J91
	802048M91	802048M91
	802051-91
	802049A91	802049A91
	802051C91	802051C91
	802049A91	802049A91
	802051F91	802051F91
	802049B91	802049B91
	802051K91	802051K91
	802049C91	802049C91
	802051B91	802051B91
	802048E91	802048E91
	802051E91	802051E91
	802048E91	802048E91
	802051G91	802051G91
	802048J91	802048J91
	802051L91	802051L91
	802048J91	802048J91
	802046C91	802046C91
	802046F91	802046F91
	802048D91	802048D91
	802048H91	802048H91
	802048M91	802048M91
	802048E91	802048E91
	802048N91	802048N91
	802048A91	802048A91
	802048J91	802048J91

Page 5 — アーム、ベッド機構

Page 7 — COVER (1)

Page 9 — COVER (2)

Page 11 — COVER (3)

Page 13 — CRANKSHAFT DRIVE MECHANISM

Page 15 — ARM SHAFT MECHANISM

Page 17 — NEEDLE BAR, NEEDLE GUARD MECHANISM

Page 19 — LOOPER DRIVE MECHANISM

Page 21 — FEED MECHANISM (1)

Page 23 — FEED MECHANISM (2)

Page 25 — FEED MECHANISM (3)

Page 27 — 押工機構

Page 29 — SPREADER MECHANISM

Page 31 — 糸調子機構

Page 33 — 針糸・飾り糸機構

Page 35 — 下糸繰り機構 / LOOPER THREAD MECHANISM

Page 37 — LUBRICATION MECHANISM (1)

Page 39 — 給油機構 (2)

Page 41 — H.R.装置 / H.R. DEVICE

Page 43 — INSTALLATION PARTS

Page 45 — THREAD STAND

Page 47 — 付属品

Page 49 — W664-02 COVER W644-02 カバー機構

Page 51 — カバー機構

Page 53 — W664-05-33 W644-05-33 ベッド、カバー機構

Page 55 — FT装置(1) / FT DEVICE (1)

Page 57 — FT装置(2) / FT DEVICE (2)

Page 59 — W664-05 MD装置(1) MD231 W664-05 MD DEVICE (1)

Page 61 — MD装置(2) / MD DEVICE (2)

Page 63 — MD装置(1) / MD DEVICE (1)

Page 65 — MD装置(2) MD001・MD002 / MD DEVICE (2)

Page 67 — MD装置(3) / MD DEVICE (3)

Page 69 — MD装置(4) / MD DEVICE (4)

Page 71 — W664-08 W644-08 カバー機構

Page 73 — 前カバー組 / COVER

Page 75 — W664-32 W644-32 カバー機構

Page 77 — 定規開閉装置 FABRIC GUIDE SWITCHING DEVICE

Page 79 — W664-30-32 W644-30-32 FABRIC GUIDE SWITCHING DEVICE

Page 81 — W644-30·34 布送りローラー装置 / FABRIC TENSIONER DEVICE

Page 83 — W664-32 W644-32 布張りローラー装置 / W664-32 W644-32 FABRIC TENSION DEVICE

Page 85 — W664-33 W644-33 ゴム付装置(組) / ELASTIC ATTACHING DEVICE

Page 87 — W664-33 / W644-33 布張リローラー装置 / FABRIC TENSION DEVICE

Page 89 — WASTE FABRIC SUCTION MECHANISM

Page 91 — SPECIFIC PARTS

Page 93 — W664-34-35 W644-34-35 カバー機構

Page 95 — W664-34・35 / W644-34・35 FT装置 / FT DEVICE

Page 97 — W664-34-35 W644-34-35 FABRIC GUIDE SWITCHING DEVICE

Page 99 — W664-34 定規開閉装置 HG303 W644-34 FABRIC GUIDE SWITCHING DEVICE

Page 101 — W664-34・35 W644-34・35 切層吸込装置 / WASTE FABRIC SUCTION MECHANISM

Page 103 — 集塵装置(特別注文品)

Page 105 — W664-71 W644-71 COVER

Page 107 — COVER

Page 109 — MD装置(1) / MD DEVICE (1)

Page 111 — MD装置(2) / MD DEVICE (2)

Page 113 — MD装置(3) / MD DEVICE (3)

Page 115 — MD装置(4) / MD DEVICE (4)

Page 117 — RP装置(1)(特別注文品)

Page 119 — RP装置(2)(特別注文品) RP DEVICE (2) (OPTION)

Page 121 — UT装置 メス機構

Page 123 — UT DEVICE UPPER THREAD WIPER MECHANISM

Page 125 — UT装置 糸調子機構

Page 127 — UT装置 糸切り機構(電気式) UT DEVICE THREAD TRIMMING MECHANISM (ELECTRIC TYPE)

Page 129 — UT装置 糸切リ機構(空圧式) / UT DEVICE THREAD TRIMMING MECHANISM (PNEUMATIC TYPE)

Page 133 — UT DEVICE PNEUMATIC FOOT LIFTER

Page 135 — テープカッター(TK202・TK402) TAPE CUTTER(TK202・TK402)

Page 137 — テープカッター(TK302)

Page 139 — TK コントローラー(TK202) / TK CONTROLLER(TK202)

Page 141 — TK CONTROLLER(TK402) / TKコントローラー(TK402)

Page 143 — 制御ユニット

Page 145 — SPECIFIC PARTS(W600/TK)

Page 146 — W664-01CA,CB,CC

Page 147 — W644-01CA,CB,CC

Page 148 — W664-02BA,BB,BC GAUGE PARTS CONSTRUCTION CHART

Page 149 — W664-02BA,BB,BC GAUGE PARTS CONSTRUCTION CHART

Page 150 — W644-02BA,BB,BC

Page 151 — W644-02BA,BB,BC GAUGE PARTS CONSTRUCTION CHART

Page 152 — W664-03FB,FC GAUGE PARTS CONSTRUCTION CHART

Page 153 — GAUGE PARTS CONSTRUCTION CHART

Page 154 — W664-03GB,GC

Page 155 — W644-03GB,GC GAUGE PARTS CONSTRUCTION CHART

Page 121 — UT装置メス機構

Page 125 — UT装置糸調子機構

Page 127 — UT装置糸切り機構(電気式) UT DEVICE THREAD TRIMMING MECHANISM (ELECTRIC TYPE)

Page 129 — UT装置糸切リ機構(空圧式) / UT DEVICE THREAD TRIMMING MECHANISM (PNEUMATIC TYPE)
