Page 1
SIRUBA 銀箭牌工業用縫紉機 INDUSTRIAL SEWING MACHINE FA007 使用說明與零件圖 INSTRUCTION AND PARTS LIST CE KAULIN MFG. CO., LTD. FA007-364XL/DP MFG. NO. jintex.in KAULIN MFG. CO., LTD.
Parts index — Siruba FA007tap a row to open its page
Page 5 — FEATURES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FA007 | Double Chain Stitch Feed-off-the-arm Machine |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | machine bed | ||
| 2 | pulley cover base | ||
| 3 | hexagonal bolts | ||
| 4 | bar cushions | ||
| 5 | presser bar lifter chain | ||
| 6 | belt hole | ||
| 7 | cushions | ||
| 8 | set screws | ||
| 9 | screws | ||
| 1 | connecting lever bearing | ||
| 2 | nut | ||
| 4 | connecting lever L | ||
| 3 | connecting lever shaft | ||
| 5 | connecting lever shaft collar | ||
| 4 | connecting lever L | ||
| 6 | square head bolts | ||
| 7 | connecting rod | ||
| 4 | connecting lever L | ||
| 8 | treadle connecting shaft | ||
| 9 | hexagonal bolts | ||
| 10 | pedal stopper | ||
| 11 | presser foot lifter pedal | ||
| 8 | treadle shaft | ||
| 12 | pedal stopper | ||
| 12 | treadle stopper | ||
| 13 | treadle | ||
| 8 | treadle shaft | ||
| 12 | treadle stopper | ||
| 13 | treadle | ||
| 14 | treadle support | ||
| 8 | treadle shaft | ||
| 7 | connecting rod | ||
| 4 | connecting lever L | ||
| 13 | treadle | ||
| 15 | chain | ||
| 11 | presser foot lifter pedal | ||
| 13 | treadle |
Page 9 — CORRECT OPERATION
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| #16 | Cotton #50 | ||
| #19 | Cotton #30 | ||
| #22 | Cotton #20 |
Page 14 — STANDARD ADJUSTMENTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FA007-364M | 3.2-3.5 mm | ||
| FA007-364XL/SP,DP | 3.0-3.2 mm |
Page 15 — 3 Looper Timing for Avoiding Contact with Needles 4 Needle Guard Adjustment
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FA007-364 M | Model | ||
| FA007-364 XL/SP, DP | Model | ||
| FA007-364 M | Model | ||
| FA007-364 M | Model |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| FA007-364M | Model FA007-364 M | ||
| FA007-364XL /SP.DP | Model FA007-364 XL /SP, DP |
Page 18
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | stop screw | |
| 2 | 2 | thread release shaft | |
| 1 | 1 | stop screw | |
| 2 | 2 | upper thread nipper tension bracket | |
| 3 | 3 | tension plates | |
| 1 | 1 | lower thread take-up | |
| 3 | 3 | stop screws | |
| 2 | 2 | lower thread take-up bracket | |
| 1 | 1 | screw | |
| 2 | 2 | screw |
Page 21 — CONTENTS 目録
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| CO-MACHINE BODY | 機體下拉布輪 | ||
| C1-UPPER SHAFT MACHANISM | 上軸結構 | ||
| C2-NEEDLE BAR MECHANISM-FEED MECHANISM | 針柱與送布傳動結構 | ||
| C3-PULLY MECHANISM | 皮帶傳動結構 | ||
| C4- PRESSER BAR MECHANISM | 壓腳柱結構 | ||
| C5-LOOPER MECHANISM | 彎針傳動結構 | ||
| C6-UPPER THREADING MECHANISM | 上導線張力結構 | ||
| C7-LOWER THREADING MECHANISM | 下導線張力結構 | ||
| C8-LOWER SHAFT MECHANISM-GAUGE PARTS | 下軸結構與針位組 | ||
| C9-GAUGE PARTS(SP) SP | 針位組 | ||
| C10-GAUGE PARTS (DP) DP | 針位組 | ||
| C11-PULLER DEVICE MECHANISM DP、SP | 上拉布輪結構 | ||
| C12-ACCESSORIES | 配件 |

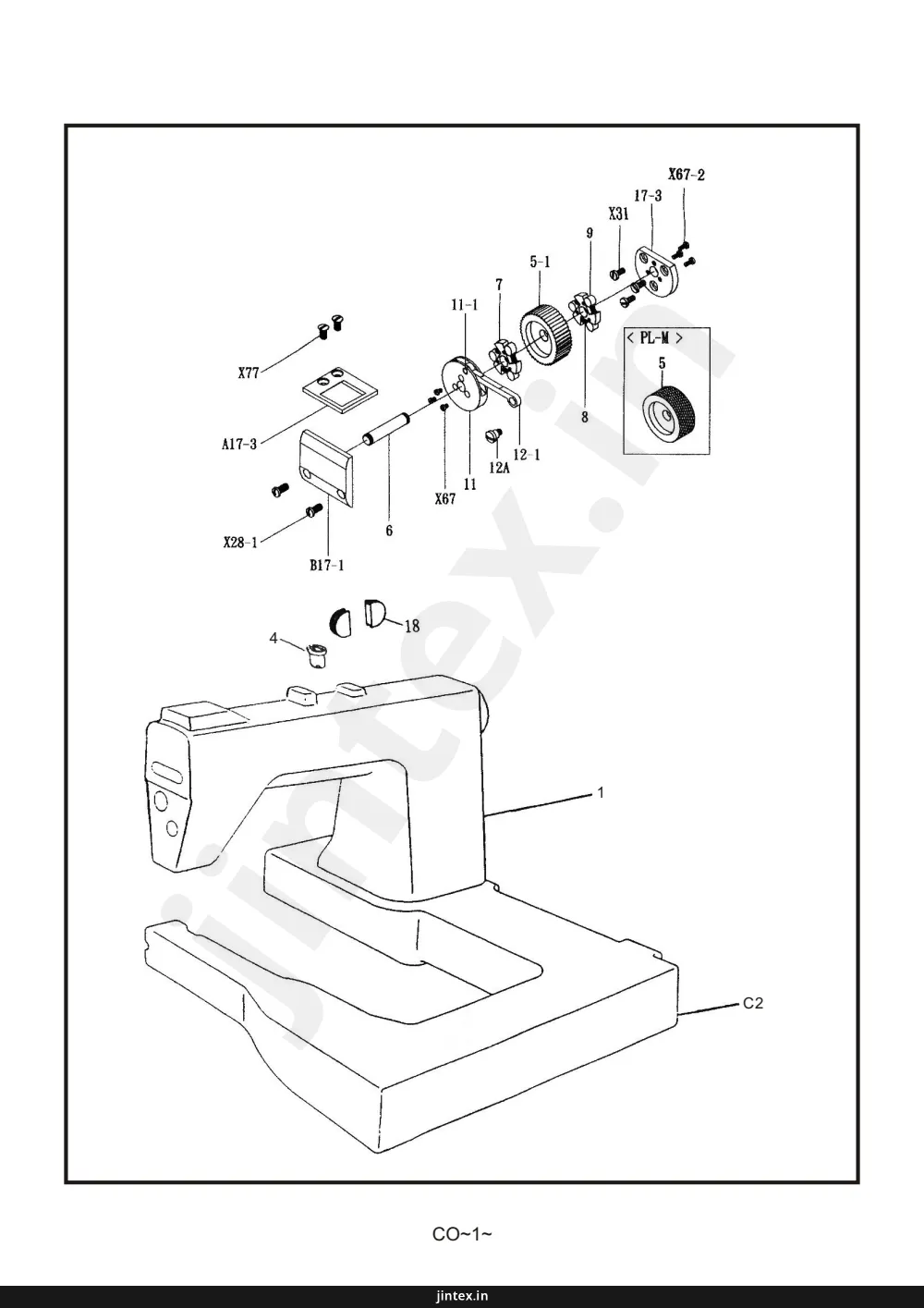

Page 22
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 17-3 | X67-2 | SCREW | |
| 9 | X31 | SCREW | |
| 7 | 5-1 | GEAR | |
| 11 | 11-1 | SHAFT | |
| 11 | X67 | BRACKET | |
| 12A | 12 | SPRING | |
| 8 | 8 | MOTOR | |
| 5 | 5 | BELT | |
| X77 | X77 | COVER | |
| A17-3 | A17-3 | BRACKET | |
| X28-1 | X28-1 | SCREW | |
| 6 | 6 | SHAFT | |
| B17-1 | B17-1 | BRACKET | |
| 18 | 18 | WASHER | |
| 4 | 4 | BASE | |
| 1 | 1 | MACHINE BODY | |
| C2 | C2 | COVER |
Page 23 — MACHINE BODY
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C0-01 | MACHINE HEAD 機體(上) | 1 | |
| C0-C2 | MACHINE REST BOARD 機體(下) | 1 | |
| C0-04 | OIL PLUG 油塞 | 1 | |
| C0-05 | LOWER WHEEL 拉布輪 | 1 | |
| C0-05-1 | LOWER WHEEL 拉布輪 | 1 | |
| C0-06 | LOWER WHEEL CONNECTION 拉布輪軸 | 1 | |
| C0-07 | ONE WAY TRIANGULAR AXLE 單向三角軸片 | 2 | |
| C0-08 | ONE WAY STILL BALL 單向彈簧 | 6 | |
| C0-09 | ONE WAY STILL BALL 單向滾珠 | 6 | |
| C0-11 | ONE WAY PUSHING PLATE單向推輪 | 1 | |
| C0-11-1 | PIN 銷 | 1 | |
| C0-12-1 | FEED DOG PUSHING PLATE LINK 推輪連桿 | 1 | |
| C0-12A | SCREW 合葉螺釘 | 1 | |
| C0-B17-1 | PULLER COVER 導蓋(右) | 1 | |
| C0-A17-3 | PULLER TOP COVER 護輪蓋 | 3 | |
| C0-17-3 | PACKING 導塞 | 2 | |
| C0-18 | PLASTIC COVER 橡膠塞 | 2 | |
| C0-X28-1 | SCREW 11/64×40 螺釘 | 3 | |
| C0-X31 | SCREW 9/64×40 L8 螺釘 | 3 | |
| C0-X67 | SCREW 3/32×56 螺釘 | 3 | |
| C0-X67-2 | SCREW 3/32×56 L6 螺釘 | 3 | |
| C0-X77 | SCREW 11/64×40 L9 螺釘 | 2 |
Page 24
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4-1 | 4-1 | ||
| 29 | 29 | ||
| 22A | 22A | ||
| X9 | X9 | ||
| 9-1 | 9-1 | ||
| 6-1 | 6-1(PL,SP,PL-M) | ||
| 7-1 | 7-1 | ||
| X4 | X4 | ||
| II | II | ||
| X3 | X3 | ||
| 6(SM) | 6(SM) | ||
| 31 | 31 | ||
| X6 | X6 | ||
| 17 | 17 | ||
| 13 | 13 | ||
| 16 | 16 | ||
| X5 | X5 | ||
| 12 | 12 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 10 | 10 | ||
| 102 | 102 | ||
| 102-1 | 102-1 | ||
| 18-1 | 18-1 | ||
| 18-2 | 18-2 | ||
| 18-3 | 18-3 | ||
| X7 | X7 | ||
| 18 | 18 | ||
| 21 | 21 | ||
| 27 | 27 | ||
| X38-1 | X38-1 | ||
| 29 | 29 | ||
| 25 | 25 | ||
| 24 | 24 | ||
| 22 | 22 | ||
| 23 | 23 | ||
| 30 | 30 | ||
| 3 | 3 | ||
| 2 | 2 | ||
| 4 | 4 | ||
| Y2 | Y2 | ||
| 1 | 1 |
Page 25 — UPPER SHAFT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C1-01 | PULL BAR ENDING SCREW 合葉螺釘 | 1 | |
| C1-02 | VERTICAL PULL BAR 傳動連桿 | 1 | |
| C1-03 | PULL BAR BEARING 滾柱軸承 | 2 | |
| C1-04 | VERTICAL PULL BAR FIXING SCREW 合葉螺釘 | 1 | |
| C1-04-1 | WASER 熱圈 | 1 | |
| C1-Y2 | PULL BAR SCREW NUT 止動螺母 | 1 | |
| C1-06 | UPPER SHAFT 上主軸 | 1 | |
| C1-06-1 | UPPER SHAFT 上主軸 | 1 | |
| C1-07 | BALL BEARING 6202 軸承 | 1 | |
| C1-08 | BEARING SUPPORT 軸承圈 | 1 | |
| C1-09 | OIL STOPPER 油封 | 1 | |
| C1-7-1 | FIXING BUSHING 上軸套(前) | 1 | |
| C1-9-1 | CHOCK RING 定位圈 | 1 | |
| C1-10 | BEARING CASE ASSEMBLY 軸套筒 | 1 | |
| C1-11 | BEARING 6302 軸承 | 1 | |
| C1-12 | OIL TANK 儲油器 | 1 | |
| C1-13 | OIL GAUGE WINDOW 油鏡 | 1 | |
| C1-14 | PACKING 油封墊圈 | 1 | |
| C1-15 | OIL GAUGE FLANGE 儲油蓋 | 1 | |
| C1-16 | PACKING 油銅墊圈 | 1 | |
| C1-17 | PACKING 橡膠墊圈 | 1 | |
| C1-18 | UPPER WHEEL ECCENTRIC WHEEL 偏心凸輪 | 1 | |
| C1-18-1 | ECCENTRIC WHEEL WASHER 凸輪蓋 | 1 | |
| C1-18-2 | BEARING 滾柱軸承 | 1 | |
| C1-18-3 | SCREW 9/64×40 螺釘 | 2 | |
| C1-19 | UPPER WHEEL MOVING PULL BAR 凸輪連動連桿 | 1 | |
| C1-21 | PULL BAR SCREW NUT 合葉螺釘 | 1 | |
| C1-22 | PULL BAR SCREW WASHER 止滑墊圈 | 2 | |
| C1-22A | WASHER 墊圈(厚PL, PL-M, SP)(薄PL, PL-M) | 2 | |
| C1-23 | PULL BAR SCREW NUT 螺母 | 2 | |
| C1-24 | THICKNESS ADJUSTING PULL BAR 擺動傳桿 | 2 | |
| C1-25 | PULL BAR FIXING PULL BAR 螺釘 | 2 | |
| C1-26 | UPPER WHEEL CONNECTION 傳動軸 | 2 | |
| C1-27 | MOVABLE LEFT-RIGHT CHOCK RING 定位圈 | 2 | |
| C1-29 | CONNECTION COPPER TUBE 銅套筒 | 1 | |
| C1-30 | VERTICAL PULL BAR 雙頭合葉螺釘 | 1 | |
| C1-31 | WASHER 熱圈 | 1 | |
| C1-102 | BEARING FIXING SCREW 外牙螺母 | 1 | |
| C1-102-1 | BEARING FIXING BUSHING 緊套套筒 | 1 | |
| C1-X3 | SCREW 15/64×28 螺釘 | 1 | |
| C1-X4 | SCREW 15/64×28 螺釘 | 4 | |
| C1-X5 | SCREW 9/64×40 螺釘 | 1 | |
| C1-X6 | CAP SCREW 覆蓋螺釘 | 2 | |
| C1-X7 | SCREW 1/4×28 螺釘 | 2 | |
| C1-X9 | SCREW 15/64×28 螺釘 | 2 | |
| C1-X38-1 | SCREW 11/64×40 螺釘 | 2 |
Page 26
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 10 | 10 | PL-M,SM | |
| 10 | 10-1 | PL,SP | |
| 9 | 9 | PL-M,SM | |
| 9 | 9-1 | PL,SP | |
| 11 | 11 | PL-M,SM | |
| 11 | 11-1 | PL,SP | |
| 12-1 | 12-1 | PL-M,SM | |
| 12 | 12 | PL,SP | |
| X10 | X10 | Screw | |
| X7 | PL,SP | Screw | 66 |
| X7 | PL-M,SM | Screw | 7 |
| X31-1 | X31-1 | Screw | |
| 3 | 3 | PL-M,SM | |
| 3-1 | 3-1 | PL,SP | |
| C6 | C6 | Cord | |
| 22 | PL,SP,#22 | Part | |
| 18 | PL-M,SM,#18 | Part | |
| X9 | X9 | Screw | |
| X8 | X8 | Screw | |
| X7 | X7 | Screw | |
| C19 | C19 | Bearing | |
| C25 | C25 | Part | |
| 24 | 24 | Part | |
| 16 | 16 | Part | |
| X14 | X14 | Screw | |
| 17 | 17 | Part | |
| X49 | X49 | Screw | |
| 26 | 26 | Part | |
| 20 | 20 | Part | |
| 18 | 18 | Part | |
| C21-1 | C21-1 | Part | |
| 23 | 23 | Part |
Page 27 — NEEDLE BAR MECHANISM-FEED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C2-01 | NEEDLE BAR CRANK 固定軸 | 1 | |
| C2-02 | NEEDLE BAR CRANK BOD 提升連桿 | 1 | |
| C2-03 | NEEDLE BAR BRACKET 針夾 | 1 | |
| C2-03-1 | NEEDLE BAR BRACKET 針夾 | 1 | |
| C2-04 | WICK 油蕊 | 1 | |
| C2-05 | OIL LEAK PROOF CAP 防油蓋 | 1 | |
| C2-06 | WICK 油蕊 | 1 | |
| C2-07 | NEEDLE BAR GUIDE SLIDE BLOCK 四方滑塊 | 1 | |
| C2-08 | NEEDLE BAR GUIDE 導軌 | 1 | |
| C2-09 | NEEDLE BAR 針柱 | 1 | |
| C2-09-1 | NEEDLE BAR 針柱 | 1 | |
| C2-10 | NEEDLE BAR BUSHING (UPPER) 針套筒(上) | 1 | |
| C2-10-1 | NEEDLE BAR BUSHING (UPPER) 針套筒(上) | 1 | |
| C2-11 | NEEDLE BAR BUSHING (LOWER) 針套筒(下) | 1 | |
| C2-11-1 | NEEDLE BAR BUSHING (LOWER) 針套筒(下) | 1 | |
| C2-12 | THREAD TAKE-UP CRANK 平衡凸塊 | 1 | |
| C2-12-1 | THREAD TAKE-UP CRANK 平衡凸塊 | 1 | |
| C2-14 | OIL CAP 膠蓋 | 1 | |
| C2-15 | NEEDLE (PL, SP#22)(PL-M, SM#1B) 針(PL, SP#22)(PL-M, SM#1B) | 3 | |
| C2-16 | FEED DOG ECCENTRIC AXLE 調節凸輪 | 1 | |
| C2-17 | WASHER 墊圈 | 1 | |
| C2-18 | ECCENTRIC WHEEL SLEEVE 圓凸輪 | 1 | |
| C2-C19 | ECCENTRIC WHEEL WITH SCREW 上下凸輪 | 1 | |
| C2-20 | ECCENTRIC WHEEL SLEEVE 圓凸輪 | 1 | |
| C2-C21-1 | FEED BAR SLIDE BLOCK ASSEMBLY 送布傳動曲柄 | 1 | |
| C2-22 | PACKING 油封 | 1 | |
| C2-23 | FEED LIFTING FORK 又動柄 | 1 | |
| C2-24 | FEED BAR SLIDE BLOCK ASSEMBLY 四方滑塊 | 1 | |
| C2-C25 | FEED BAR ECCENTRIC SHAFT 偏心軸 | 1 | |
| C2-26 | FEED DOG ECCENTRIC SET 固定座 | 1 | |
| C2-X7 | SCREW 1/4×40 螺釘 | 5 | |
| C2-X8 | SCREW 11/64×40 L12 螺釘 | 4 | |
| C2-X9 | SCREW 15/64×28 螺釘 | 5 | |
| C2-X10 | SCREW 15/64×28 螺釘 | 2 | |
| C2-X14 | FEED BAR ECCENTRIC ADJUSTING SCREW 倒位螺釘 | 1 | |
| C2-X31-1 | SCREW 9/64×40 螺釘 | 1 | |
| C2-X49 | SCREW 9/64×40 L5 螺釘 | 1 | |
| C2-X66 | THREAD TAKE-UP CRANK 平衡凸塊 | 1 |
Page 28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20 | 20 | GEAR | |
| 2 | 2 | BRACKET | |
| X7 | X7 | SCREW | |
| X18 | X18 | SCREW | |
| 1 | 1 | PULLEY | |
| X9 | X9 | SCREW | |
| X1 | X1 | SCREW | |
| 7 | 7 | SHAFT | |
| X79 | X79 | SCREW | |
| 5 | 5 | ARM | |
| 8 | 8 | WASHER | |
| X22 | X22 | BOLT | |
| 10 | 10 | WASHER | |
| 3 | 3 | GEAR | |
| X7 | X7 | SCREW | |
| 4 | 4 | GEAR | |
| 6 | 6 | GEAR |
Page 29 — PULLY MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C3-01 | PULLEY 皮帶輪 | 1 | |
| C3-02 | TIMING BELT WHEEL ASSEMBLY (SUPPER) 同步皮帶輪(上) | 1 | |
| C3-03 | TIMING BELT WHEEL ASSEMBLY (LOWER) 同步皮帶輪(下) | 1 | |
| C3-04 | TIMING BELT 同步時皮帶 | 1 | |
| C3-05 | BELT COVER 皮帶座 | 1 | |
| C3-06 | BELT COVER PLATE 皮帶座蓋板 | 1 | |
| C3-07 | PACKING 防油墊片 | 1 | |
| C3-08 | PULLEY COVER BASE 配重固定塊 | 1 | |
| C3-09 | PULLEY COVER 皮帶輪護蓋 | 1 | |
| C3-10 | WASHER O型墊圈 | 1 | |
| C3-20 | SPRING COIL O型彈簧圈 | 2 | |
| C3-X01 | SCREW1/4 ×28 螺釘 | 3 | |
| C3-X07 | SCREW1/4 ×28 螺釘 | 2 | |
| X3-X09 | SCREW 1/4 ×28 螺釘 | 5 | |
| C3-X18 | SCREW 15/64 ×28 螺釘 | 2 | |
| C3-X22 | SCREW 7/16 ×14 螺釘 | 2 | |
| C3-X79 | SCREW 3/16 ×32 L8 螺釘 | 2 |
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| X26 | COVER | ||
| 9 | LEVER | ||
| 11 | SPRING GUIDE | ||
| 13 | KNOB | ||
| 12 | SPRING | ||
| 10 | BRACKET | ||
| X25 | LEVER | ||
| Y02 | SPRING | ||
| X27 | SHAFT | ||
| 14 | BRACKET | ||
| 15 | SPRING | ||
| D2-27 | SPRING SEAT | ||
| 16 | SPRING | ||
| 17 | CHAIN | ||
| 24 | WASHER | ||
| 3 | RING | ||
| 4 | SPRING | ||
| X9 | SHAFT | ||
| (SP,SM) B18 | COVER | ||
| 8 | BRACKET | ||
| X8 | SCREW | ||
| X95 | BRACKET | ||
| 20 | SPRING | ||
| 2 | HINGE | ||
| 19 | BRACKET | ||
| X60 | SCREW | ||
| X44 | BRACKET | ||
| X31 | SCREW | ||
| 6 | BRACKET | ||
| 7 | BRACKET | ||
| SP | SPOOL | ||
| 1A | SPOOL | ||
| 5-1 | SPOOL | ||
| 1B(PL) | SPOOL | ||
| 1(PL-M,SM) | SPOOL | ||
| 5(PL,PL-M,SM) | SPOOL |
Page 31 — PRESSER BAR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C4-01 | PRESSR BAR 壓腳柱 | 1 | |
| C4-1A | PRESSR BAR 壓腳柱 | 1 | |
| C4-1B | PRESSR BAR 壓腳柱 | 1 | |
| C4-02 | FACE PLATE 壓腳後鈕 | 1 | |
| C4-03 | STEEL BALL 鋼珠 | 1 | |
| C4-04 | PRESSER BAR BUSHING (UPPER) 壓腳柱軸套(上) | 1 | |
| C4-05 | PRESSER BAR BUSHING (LOWER) 壓腳柱軸套(下) | 1 | |
| C4-5-1 | PRESSER BAR BUSHING (LOWER) 壓腳柱軸套(下) | 1 | |
| C4-06 | FACE PLATE (LOWER) 前蓋板(下) | 1 | |
| C4-07 | PACKING 防油墊片 | 1 | |
| C4-08 | PRESSER BAR CLAMP ASSEMBLY 壓腳夾 | 1 | |
| C4-09 | PRESSER BAR CLAMP SPRING 壓力彈片 | 1 | |
| C4-10 | PRESSER BAR CLAMP SPRING PIN 定位銷 | 1 | |
| C4-11 | PRESSER BAR CLAMP SPRING ASSEMBLY 上壓力彈片 | 1 | |
| C4-12 | GUIDE WASHER 定向墊片 | 1 | |
| C4-13 | WING NUT 蝶母 | 1 | |
| C4-14 | PRESSER BAR LIFTER 壓腳提起放勾 | 1 | |
| C4-15 | PRESSER BAR LIFTER 壓腳提起放勾 | 1 | |
| C4-16 | KNEE LIFTER SPRING 壓腳提起放彈簧 | 1 | |
| C4-17 | PRESSER FOOT LIFTER CHAIN ASSEMBLY 傳動鏈條 | 1 | |
| C4-B18 | FACE PLATE (UPPER) 前蓋板 | 1 | |
| C4-19 | PRESSER SPRING PLATE (L) 彈片勾(外) | 1 | |
| C4-20 | STOPPER SPRING PLATE (S) 彈片勾(内) | 1 | |
| C4-24 | OIP CAP 油塞 | 1 | |
| C4-X8 | SCREW11/64×40 螺釘 | 2 | |
| C4-X9 | SCREW 15/64×28 螺釘 | 1 | |
| C4-X25 | PRESSER ADJUSTING SCREW 全牙螺釘 | 1 | |
| C4-X26 | STUD SCREW 15/64×28 螺釘 | 1 | |
| C4-X27 | STUD SCREW 5/16×28 螺釘 | 1 | |
| C4-X31 | SCREW 9/64×40 L10 螺釘 | 3 | |
| C4-X44 | SCREW 9/64×40 螺釘 | 4 | |
| C4-X60 | SCREW 9/64×40 螺釘 | 1 | |
| C4-X95 | SCREW 9/64×40 螺釘 | 1 | |
| C4-Y02 | SCREW 3/16×32 螺母 | 1 | |
| C4-D2-27 | RUBBER PLUR 橡膠塞 | 1 |
Page 32
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25 | X36-1 | 25- | |
| C30 | Y01 | C30 | |
| C28 | X28 | C28 | |
| C5-X34 | C5-X34 | C5-X34 | |
| X56 | X56 | X56 | |
| C5 | C5 | C5 | |
| C3 | C3 | C3 | |
| C4 | C4 | C4 | |
| X28-1 | X28-1 | X28-1 | |
| C31 | C31 | C31 | |
| C29 | C29 | C29 | |
| X35 | X35 | X35 | |
| X37 | 12 | X37 | |
| 27 | 27 | 27 | |
| 6 | 6 | 6 | |
| X9 | X9 | X9 | |
| A14 | A14 | A14 | |
| 9 | 9 | 9 | |
| 16 | 16 | 16 | |
| X28 | X28 | X28 | |
| 17 | 17 | 17 | |
| X56 | X56 | X56 | |
| C15 | C15 | C15 | |
| C8 | C8 | C8 | |
| 10 | 10 | 10 | |
| 702 | 702 | 702 | |
| X38-1 | X38-1 | X38-1 | |
| C11 | C11 | C11 | |
| X31 | X31 | X31 | |
| 20 | 20 | 20 | |
| 21 | 21 | 21 | |
| C18 | C18 | C18 | |
| C19 | C19 | C19 | |
| 32 | 32 | 32 | |
| 33 | 33 | 33 | |
| X50 | X50 | X50 | |
| 22 | 22 | 22 | |
| 23 | 23 | 23 | |
| X32 | X32 | X32 | |
| 2 | 2 | 2 | |
| 26 | 26 | 26 | |
| X42 | X42 | X42 | |
| 21 | 21 | 21 | |
| X42 | X42 | X42 |
Page 33 — LOOPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C5-02 | ECCENTRIC WHEEL SLEEVE 鍋滑塊 | 1 | |
| C5-C3 | LOOPER FEEDING FORK 滑動叉 | 1 | |
| C5-C4 | LOOPER FEEDING SHAFT 滑動叉(軸) | 1 | |
| C5-C5 | LOOPER FEEDING SHAFT BRACKET 滑動叉基座 | 1 | |
| C5-06 | PIN 叉銷 | 1 | |
| C5-C7 | LOOPER FRONT-REAR TRANSMISSION 前後驅動連桿 | 1 | |
| C5-C8 | ROCK SHAFT 固定軸牙 | 1 | |
| C5-C9 | LOOPER LEVER SHAFT ?節固定軸 | 1 | |
| C5-10 | PACKING 墊圈 | 1 | |
| C5-C11 | CONNECTING ROD GUIDE PLATE 上下驅動連桿 | 1 | |
| C5-12 | WASHER 墊圈 | 1 | |
| C5-C13 | LOOPER SHAFT CLAMP 傳動軸夾 | 1 | |
| C5-A14 | LOOPER SHAFT 傳動軸 | 1 | |
| C5-15 | LOOPER SHAFT BUSHING (F) 傳動軸套筒(後) | 1 | |
| C5-16 | LOOPER SHAFT BUSHING (B) 傳動軸套筒(前) | 1 | |
| C5-17 | SET COLLAR 定位夾 | 1 | |
| C5-C18 | FORWARD ARM CONER ASSY 平面蓋板 | 1 | |
| C5-C19 | PACKING 防油墊片 | 3 | |
| C5-20 | OIL GAUGE 探油棒 | 1 | |
| C5-21 | PACKING 橡膠墊圈 | 1 | |
| C5-22 | CAP PLATE 上軸蓋 | 1 | |
| C5-23 | PACKING 防油墊片 | 1 | |
| C5-25 | "8"TYPE TRANSMISSION DEVICE 8字銅連桿 | 1 | |
| C5-26 | ECCENTRIC WITH SCREW 小凸輪 | 1 | |
| C5-27 | EYEPIECE H型連桿 | 1 | |
| C5-C28 | STEEL BALL 萬向滾珠 | 1 | |
| C5-C29 | LOOPER SLIDE BASE 連桿固定片 | 1 | |
| C5-C30 | WASHER 波浪彈片 | 1 | |
| C5-C31 | LOOPER FEEDING FORK 叉動柄 | 1 | |
| C5-32 | -- | 1 | |
| C5-33 | -- | 1 | |
| C5-702 | SQUARE BALL 四方滑塊 | 1 | |
| C5-X9 | SCREW 15/64×28 螺釘 | 2 | |
| C5-X28 | SCREW 11/64×40 螺釘 | 1 | |
| C5-X28-1 | SCREW 11/64×40 螺釘 | 1 | |
| C5-X31 | SCREW 11/64×40 螺釘 | 16 | |
| C5-X32 | SCREW 11/64×40 螺釘 | 2 | |
| C5-X34 | SCREW 3/16×32 螺釘 | 1 | |
| C5-X36-1 | SCREW M3.5 L=10 螺釘 | 4 | |
| C5-X37 | SCREW 11/64×40 螺釘 | 1 | |
| C5-X38-1 | SCREW 11/64×40 螺釘 | 2 | |
| C5-X42 | SCREW 1/2×28 螺釘 | 3 | |
| C5-X50 | SCREW 9/64×40 L=5 螺釘 | 4 | |
| C5-X56 | SCREW 15/64×28 螺釘 | 2 | |
| C5-Y01 | NUT 15/64×28 螺釘 | 1 |
Page 34
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 25 | X47 | lever | |
| 26 | X48 | lever | |
| 10 | X58 | shaft | |
| 11 | X59 | bracket | |
| 12 | Y04 | bracket | |
| 3 | X65 | bracket | |
| 6 | X44 | bracket | |
| 7-1 | 7-1 | pin | |
| 14 | X34-1 | bracket | |
| 29 | X51 | lever | |
| 30 | X31-1 | lever | |
| 31 | X8 | lever | |
| 44 | C22 | lever | |
| 44 | X56 | shaft | |
| 35 | X50 | lever | |
| 36 | X54 | lever | |
| 34 | lever | ||
| 34-1 | lever | ||
| 38 | X50 | lever | |
| 33 | X53 | lever | |
| 28 | X49 | lever | |
| 27 | A40 | lever | |
| 41 | X9 | lever | |
| 43 | Y04 | bracket | |
| 23 | 23 | bracket | |
| 24 | 24 | bracket |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C6-01 | UPPER THREAD GUIDE RETAINER 上導線座 | 1 | |
| C6-03 | BRACKET 導線架 | 1 | |
| C6-06 | THREAD HANGER 導線圈 | 1 | |
| C6-07 | LINE GUIDE DEVICE 倒位基座 | 1 | |
| C6-7-1 | PIN 銷 | 1 | |
| C6-08 | TENSION SPRING WASHER 彈簧墊圈 | 3 | |
| C6-09 | TENSION SPRING WASHER 彈簧墊圈 | 3 | |
| C6-10 | NUT 螺母 | 3 | |
| C6-11 | TENSION DISC 沙拉片 | 6 | |
| C6-12 | UPPER THREAD TENSION SPRING 張力彈簧 | 3 | |
| C6-13 | UPPER THREAD TENSION SPRING 張力彈簧 | 3 | |
| C6-14 | UPPER THREAD RELEASE PIN 銷 | 1 | |
| C6-15 | THREAD RELEASER SHAFT 轉軸 | 1 | |
| C6-16 | -- | 1 | |
| C6-17 | -- | 1 | |
| C6-18 | UPPER THREAD TENSION SUTD SCREW 過線固定片 | 3 | |
| C6-23 | LOWER THREAD TENSION PLATE 張力夾線片 | 4 | |
| C6-24 | PIN 銷 | 1 | |
| C6-25 | TENSION RELEASE CRANK 連桿 | 1 | |
| C6-26 | TENSION RELEASE CONNECTING BAR 上線鬆放提柄 | 1 | |
| C6-27 | THREAD RELEASER LEVER 撥線片 | 1 | |
| C6-28 | THREAD RELEASER SHAFT 撥線軸 | 1 | |
| C6-29 | TENSION RELEASE CONNECTING ROD 連桿 | 1 | |
| C6-30 | TENSION RELEASE LINK 小連柄 | 1 | |
| C6-31 | TENSION RELEASE SUTD 壓腳柱夾 | 1 | |
| C6-32 | THREAD GUIDE 導線勾 | 1 | |
| C6-33 | WASHER 墊圈 | 1 | |
| C6-34 | UPPER THREAD TAKE-UP LEEVER ASSEMBLY 天秤 | 1 | |
| C6-34-1 | UPPER THREAD TAKE-UP LEEVER ASSEMBLY 天秤 | 1 | |
| C6-35 | THREAD CHECKER 天秤夾線片 | 1 | |
| C6-36 | SPRING 彈簧 | 1 | |
| C6-37 | LOWER THREAD GUIDE 導線勾(D) | 1 | |
| C6-38 | WASHER 墊圈 | 1 | |
| C6-39 | UPPER THREAD TENSION REGULATOR ASSEMBLY 導線壓力輪 | 1 | |
| C6-A40 | UPPER THREAD TENSION ASSEMBLY 張力調節輪 | 1 | |
| C6-41 | UPPER THREAD TENSION SPRING 彈簧 | 1 | |
| C6-43 | WASHER 墊圈 | 1 | |
| C6-44 | UPPER THREAD FASTENING CAM WITH SCREW 上線張力凸輪 | 1 | |
| C6-X8 | SCREW 9/64x40 螺釘 | 2 | |
| C6-X9 | SCREW 15/64x28 螺釘 | 1 | |
| C6-X31-1 | SCREW 9/64x40 螺釘 | 1 | |
| C6-X34-1 | SCREW 11/64x40 螺釘 | 2 | |
| C6-X44 | SCREW 9/64x40 L=5 螺釘 | 1 | |
| C6-X47 | SCREW 11/64x40 螺釘 | 1 | |
| C6-X48 | SCREW 9/64x40 螺釘 | 2 | |
| C6-X49 | SCREW 9/64x40 L=6 螺釘 | 1 | |
| C6-X50 | SCREW 9/64x40 螺釘 | 1 | |
| C6-X51 | SCREW 11/64x40 螺釘 | 1 | |
| C6-X53 | SCREW 9/64x40 螺釘 | 1 | |
| C6-X54 | SCREW 3/32x56 螺釘 | 2 | |
| C6-X56 | SCREW 15/64x28 螺釘 | 3 | |
| C6-X58 | UPPER THREAD TENSION STUD SCREW 叉口合葉螺釘 | 1 | |
| C6-X59 | SCREW 11/64x40 螺釘 | 2 | |
| C6-X65 | SCREW 3/32x56 L=4 螺釘 | 2 | |
| C6-B26 | TENSION RELEASE CONNECTING BAR 上線鬆放提柄 | 1 | |
| C6-C22 | THREAD TAKE-UP COVER 天秤護蓋 | 1 | |
| C6-Y04 | NUT 11/64x40 螺釘 | 1 |
Page 36
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 3N | 3N | Screw | |
| 2N | 2N | Screw | |
| X31 | X31 | Screw | |
| X67-1 | X67-1 | Screw | |
| 49 | 49 | Bracket | |
| 47-1 | 47-1 | Washer | |
| A55 | A55 | Cover | |
| X9 | X9 | Screw | |
| X67-1 | X67-1 | Screw | |
| 50 | 50 | Bracket | |
| A51 | A51 | Bracket | |
| A50-2 | A50-2 | Screw | |
| X64 | X64 | Screw | |
| A50-4 | A50-4 | Bracket | |
| A11 | A11 | Screw | |
| X31-1 | X31-1 | Screw | |
| A14 | A14 | Bracket | |
| 12-1 | 12-1 | Screw | |
| X31-2 | X31-2 | Screw | |
| A12 | A12 | Screw | |
| 17 | 17 | Screw | |
| Y05 | Y05 | Screw | |
| C20-B | C20-B | Screw | |
| C23-B | C23-B | Screw | |
| C25-B | C25-B | Screw | |
| C22-B | C22-B | Screw | |
| 48 | 48 | Bracket | |
| 45 | 45 | Rod | |
| X65 | X65 | Bracket | |
| X92 | X92 | Screw | |
| X44 | X44 | Screw | |
| 3 | 3 | Screw | |
| X31-1 | X31-1 | Screw | |
| 27 | 27 | Screw | |
| 28 | 28 | Screw | |
| X64 | X64 | Screw | |
| X44 | X44 | Screw | |
| 40 | 40 | Screw | |
| X44 | X44 | Screw | |
| X65 | X65 | Screw | |
| 32 | 32 | Screw | |
| 30 | 30 | Screw | |
| 33 | 33 | Screw | |
| 31 | 31 | Screw | |
| 41 | 41 | Screw | |
| X50 | X50 | Screw | |
| 39 | 39 | Screw | |
| 29 | 29 | Screw | |
| C68 | C68 | Screw | |
| X60 | X60 | Screw | |
| 35 | 35 | Screw | |
| X45 | X45 | Screw | |
| 36 | 36 | Screw | |
| 34 | 34 | Screw | |
| 37 | 37 | Screw | |
| 44 | 44 | Screw | |
| X66 | X66 | Part | |
| A14-1 | A14-1 | Bracket | |
| X95 | X95 | Part | |
| X31-1A11 | X31-1A11 | Screw | |
| X31-1 | X31-1 | Screw | |
| X31-1 | X31-1 | Screw | |
| X44 | X44 | Screw | |
| A17 | A17 | Bracket | |
| X31-1 | X31-1 | Screw | |
| 17 | 17 | Screw | |
| A18 | A18 | Screw | |
| A51-4 | A51-4 | Bracket | |
| A50-3 | A50-3 | Screw | |
| A10 | A10 | Part |
Page 37 — LOWER THREADING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C7-01 | LOERT THREAD GUIDE RETAINER 導線(上) | 1 | |
| C7-02N | THREE PIPE-LINE THREAD TUBE 三線過線管 | 1 | |
| C7-03 | BRACKET 過線片 | 1 | |
| C7-03N | THREAD TUBE CLAMP 導線圈 | 6 | |
| C7-06 | LOWER THREAD GUIDE SUPPORTER 支架輔助 | 1 | |
| C7-12 | LOWER THREAD GUIDE HINGE ASSEMBLY 活動鈕(上) | 2 | |
| C7-12-1 | LOWER THREAD GUIDE HINGE ASSEMBLY 活動鈕插銷 | 2 | |
| C7-17 | LOWER THREAD COVER 橡膠墊 | 1 | |
| C7-A10 | LOWER THREAD COVER 下前蓋 | 2 | |
| C7-A11 | PLATE SPRING 彈片 | 2 | |
| E7-A12 | FIXING PLATE 活動鈕(下) | 1 | |
| C7-A14 | LOWER THREAD TENSION BRACKET 三通過線片 | 2 | |
| C7-A14-1 | THREAD GUIDE 穩線片 | 1 | |
| C7-A17 | LOWER THREAD GUIDE RETAINER ?通過線片 | 1 | |
| C7-A18 | PLATE SPRING 彈片 | 2 | |
| C7-A50 | LOOPER SIDE COVER (R) ASSY 彎針護蓋 | 1 | |
| C7-A51 | LOOPER SIDE COVER (L) ASSY 彎針護蓋 | 1 | |
| C7-C20-B | THREAD TENSION ROD 沙拉螺柱 | 3 | |
| C7-C21-B | LOWER THREAD TENSION BRACKET 沙拉托架 | 3 | |
| C7-C22-B | LOWER TEREAD TENSION NUT 沙拉螺母 | 3 | |
| C7-C23-B | LOWER TEREAD TENSION PLATE 沙拉片 | 6 | |
| C7-C25-B | LOWER TEREAD TENSION SPRING 沙拉彈簧 | 3 | |
| C7-27 | THREAD TAKE-UP LEVER COVER 護線蓋 | 1 | |
| C7-28 | SPRING 彈簧 | 1 | |
| C7-29 | LOWER THREAD TAKE-UP LEVER FRAME 過線輔助架 | 1 | |
| C7-30 | LOWER THREAD TAKE-UP LEVER COVER SHAFT 銷 | 1 | |
| C7-31 | LOWER THREAD TAKE-UP LEVER BASE 過線支架 | 1 | |
| C7-32 | PLATE 過線輔助架 | 1 | |
| C7-33 | WASHER 墊圈 | 1 | |
| C7-34 | LOERT THREAD GUIDE PLATE 固定片 | 1 | |
| C7-35 | SCREW 彈簧 | 1 | |
| C7-36 | WASHER 墊圈 | 1 | |
| C7-37 | LOWER THREAD GUIDE(LEFT) 導線勾 | 1 | |
| C7-38 | LOWER THREAD GUIDE(RIGHT) 導線勾 | 2 | |
| C7-40 | LOWER THREAD GUIDE(LEFT) 導線勾 | 1 | |
| C7-41 | LOWER THREAD TAKE-UP DISC ASSEMBLY 配線凸輪 | 1 | |
| C7-44 | LOWER THREAD FEED TUBE 過線管 | 1 | |
| C7-47 | LOOPER THREAD GUIDE BRACKET 針受座 | 1 | |
| C7-47-1 | THREAD CUTTER GUIDE PLATE 切線刀 | 1 | |
| C7-48 | THREAD CUTTER 切線刀 | 1 | |
| C7-A50-2 | STOPPER SPRING PLATE 彈片勾 | 2 | |
| C7-A50-3 | PIN 銷 | 4 | |
| C7-A50-4 | FACE PLATE UPPER HINGE ASSEMBLY(R) 蝴蝶後扭(右) | 1 | |
| C7-A51-4 | FACE PLATE UPPER HINGE ASSEMBLY(L) 蝴蝶後扭(左) | 1 | |
| C7-C68 | PIN 銷 | 1 | |
| C7-X9 | SCREW 15/64×28 螺釘 | 1 | |
| C7-X31 | SCREW 11/64×40 螺釘 | 12 | |
| C7-X31-1 | SCREW 11/64×40 螺釘 | 2 | |
| C7-X31-2 | SCREW 11/64×40 螺釘 | 7 | |
| C7-X44 | SCREW 9/64×40 L5 螺釘 | 2 | |
| C7-X45 | SCREW 9/64×40 | 2 | |
| C7-X50 | SCREW 9/64 螺釘 | 1 | |
| C7-X60 | SCREW 9/64×40 L4 螺釘 | 3 | |
| C7-X64 | SCREW 3/32×56 螺釘 | 2 | |
| C7-X65 | SCREW 3/32×56 L4 螺釘 | 2 | |
| C7-X66 | SCREW 1/4×40 螺釘 | 6 | |
| C7-X67-1 | SCREW 3/32×56 螺釘 | 1 | |
| C7-X92 | SCREW 9/64×40 螺釘 | 1 | |
| C7-X95 | SCREW 9/64×40 螺釘 | 2 | |
| C7-Y05 | NUT 9/64×40 螺母 | 1 |
Page 38 — PL-M,SM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| X75 | X75 | Shaft assembly | |
| C1 | C1 | Shaft | |
| 2 | 2 | Bearing | |
| 6200 | 6200 | Bearing | |
| 3 | 3 | Bearing | |
| 6201 | 6201 | Bearing | |
| 4 | 4 | Shaft | |
| X32 | X32 | Screw | |
| 11 | 11 | Bearing | |
| 5 | 5 | Shaft | |
| X74-1 | X74-1 | Gear | |
| 102 | 102 | Shaft assembly | |
| 6 | 6 | Shaft | |
| 6302 | 6302 | Bearing | |
| X3 | X3 | Screw | |
| X32 | X32 | Screw | |
| 7 | 7 | Bracket | |
| 8 | 8 | Bracket | |
| X77 | X77 | Screw | |
| X31 | X31 | Screw | |
| 9 | 9 | Presser foot holder | |
| 15 | 15 | Spring | |
| 10 | 10 | Presser foot | |
| X79 | X79 | Screw | |
| L1 L2 18 | L1 L2 18 | Shaft assembly | |
| X44 | X44 | Screw | |
| X50 | X50 | Screw | |
| A20 | A20 | Lever | |
| A19 | A19 | Lever | |
| A21 | A21 | Lever | |
| C10-11 | C10-11 | Part | |
| 14H | 14H | Bracket | |
| X82 | X82 | Screw |
Page 39 — LOWER SHAFT MECHANISM-GAUGE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C8-C1 | LOVER SHAFT 下主軸 | 1 | |
| C8-02 | BEARING 6200 Z 軸承 | 1 | |
| C8-03 | BEARING 6201 Z 軸承 | 1 | |
| C8-04 | BALL BEARING BUSHING 內套筒 | 1 | |
| C8-05 | BEARING CASE ASSEMBLY 軸套筒(下) | 1 | |
| C8-06 | BEARING FIXING BUSHING 緊壓套筒 | 1 | |
| C8-07 | NEEDLE CLAMP WITH SCREW 針夾 | 1 | |
| C8-08 | NEEDLE PLATE 針板 | 1 | |
| C8-09 | PRESSER FOOT ASSEMBLY 壓腳組 | 1 | |
| C8-10 | FEED DOG 送布齒 | 1 | |
| C8-C10-11 | NEEDLE GUARD 針受 | 1 | |
| C8-11 | BEARING 6302 軸承 | 1 | |
| C8-14H | LAPPER ASSEMBLY 導布架喇叭 | 1 | |
| C8-15 | SPRING 彈簧 | 1 | |
| C8-18 | LOOPER LONG 彎針(長) | 1 | |
| C8-A19 | LOOPER HOLDER (SHORT) 彎針台(短) | 1 | |
| C8-A20 | LOOPER HOLDER (MIDDLE) 彎針台(中) | 1 | |
| C8-A21 | LOOPER HOLDER (LONG) 彎針台(長) | 1 | |
| C8-102 | BEARING FIXING SCREW 外牙螺母 | 1 | |
| C8-L1 | LOOPER SHORT 彎針(短) | 1 | |
| C8-L2 | LOOPER MEDIUM 彎針(中) | 1 | |
| C8-X3 | SCREW 5/16×28 螺釘 | 3 | |
| C8-X11 | SCREW 9/64×40 螺釘 | 3 | |
| C8-X31 | SCREW 9/64×40 螺釘 | 3 | |
| C8-X32 | SCREW 11/64×40 螺釘 | 3 | |
| C8-X44 | SCREW 9/64×40 螺釘 | 3 | |
| C8-X50 | SCREW 9/64×40 L10 螺釘 | 3 | |
| C8-X74-1 | SCREW1/4×28 螺釘 | 1 | |
| C8-X75 | SCREW 11/64×40 螺釘 | 3 | |
| C8-X77 | SCREW 11/64×40 螺釘 | 1 | |
| C8-X79 | SCREW 3/16×32 螺釘 | 1 | |
| C8-X81 | SCREW 9/64×40 螺釘 | 1 | |
| C8-X82 | SCREW 9/64×40 螺釘 | 2 |
Page 40
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | X93 | 1 | |
| 2 | X77 | 2 | |
| 3 | X9 | 3 | |
| 6 | X83 | 6 | |
| 5 | X86 | 5 | |
| 7 | X91 | 7 | |
| 8 | X79 | 8 | |
| 10 | D8-13K X50 | 10 | |
| 10 | X50 | 10 | |
| 11 | 11 | 11 | |
| 15 | Y05 | 15 | |
| A17 | A17 | A17 | |
| A16 | A16 | A16 | |
| A18 | A18 | A18 | |
| 12 | X44 | 12 | |
| A20 | A20 | A20 | |
| A19 | A19 | A19 | |
| A21 | A21 | A21 | |
| 14XL | 14XL | 14XL | |
| 82 | 82 | 82 |
Page 41 — GAUGE PARTS(SP) SP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C9-01 | NEEDLE CLAMP ASSEMBLY 針夾 | 1 | |
| C9-02 | NEEDLE PLATE | 1 | |
| C9-03 | PRESSER FOOT ASSEMBLY 壓腳頭 | 1 | |
| C9-05 | PRESSER FOOT (F) SPRING 彈簧 | 1 | |
| C9-06 | PRESSER FOOT ASSEMBLY 壓腳底 | 1 | |
| C9-07 | FEED DOG 導布齒 | 1 | |
| C9-09 | FEED DOG | 1 | |
| C9-11 | NEEDLE GUARD 針受 | 1 | |
| C9-14XL | LAPPER ASSEMBLY 導布架喇叭 | 1 | |
| C9-15 | NEEDLE GUARD BRACKET 針受連結 | 1 | |
| C9-A16 | LOOPER (SHORT) 彎針(短) | 1 | |
| C9-A17 | LOOPER (MIDDLE) 彎針(中) | 1 | |
| C9-A18 | LOOPER (LONG) 彎針(長) | 1 | |
| C9-A19 | LOOPER HOLDER (SHORT) 彎針台(短) | 1 | |
| C9-A20 | LOOPER HOLDER (MIDDLE) 彎針台(中) | 1 | |
| C9-A21 | LOOPER HOLDER (LONG) 彎針台(長) | 1 | |
| C9-X9 | SCREW 15/64×28 螺釘 | 1 | |
| C9-X44 | SCREW 9/64×40 螺釘 | 4 | |
| C9-X50 | SCREW 9/64×40 螺釘 | 3 | |
| C9-X77 | SCREW 11/64×40 螺釘 | 1 | |
| C9-X79 | SCREW 3/16×32 螺釘 | 1 | |
| C9-X82 | SCREW 9/64×40 螺釘 | 2 | |
| C9-X83 | STUD SCREW 螺釘鉗 | 1 | |
| C9-X85 | SCREW 3/32×56 合葉螺釘 | 2 | |
| C9-X86 | SCREW 5/64×60 螺釘 | 3 | |
| C9-X91 | SCREW 1/8×44 螺釘 | 1 | |
| C9-X93 | NUT 9/64×40 螺釘 | 1 | |
| C9-D8-13K | SCREW 9/64×40 螺釘 | 1 |
Page 42
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | X93 | 1 | |
| 2 | X77 | 2 | |
| X31 | X31 | X31 | |
| X87 | X87 | X87 | |
| 10 | 10 | 10 | |
| X65 | X65 | X65 | |
| 5 | 5 | 5 | |
| X88 | X88 | X88 | |
| 8 | 8 | 8 | |
| X89 | X89 | X89 | |
| 3 | 3 | 3 | |
| X86 | X86 | X86 | |
| 4 | 4 | 4 | |
| X83 | X83 | X83 | |
| 6 | 6 | 6 | |
| 7 | X91 | 7 | |
| X79 | X79 | X79 | |
| 9 | 9 | 9 | |
| X32 | X32 | X32 | |
| 14XL | 14XL | 14XL | |
| X82 | X82 | X82 | |
| 11 | 11 | 11 | |
| A17 | A17 | A17 | |
| A16 | A16 | A16 | |
| A18 | A18 | A18 | |
| X44 | X44 | X44 | |
| X50 | X50 | X50 | |
| A20 | A20 | A20 | |
| A19 | A19 | A19 | |
| A21 | A21 | A21 |
Page 43 — GAUGE PARTS (DP)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C10-01 | NEEDLE CLAMP ASSEMBLY 針夾 | 1 | |
| C10-02 | NEEDLE PLATE 針板 | 1 | |
| C10-03 | SPRING M 彈簧 | 1 | |
| C10-04 | SPRING F 彈簧 | 1 | |
| C10-05 | SPRING BL 彈簧 | 1 | |
| C10-06 | PRESSER FOOT ASSEMBLY 前壓腳底 | 1 | |
| C10-07 | SUB FEED DOG 導布齒 | 1 | |
| C10-08H | NUT 1/8×44 螺母 | 1 | |
| C10-09 | FEED DOG 送布齒 | 1 | |
| C10-10 | SPRING BS 彈簧 | 1 | |
| C10-11 | NEEDLE GUARD 針受 | 1 | |
| C10-14XL | LAPPER ASSEMBLY 導布架喇叭 | 1 | |
| C10-A16 | LOOPER (SHORT) 彎針(短) | 1 | |
| C10-A17 | LOOPER (MIDDLE) 彎針(中) | 1 | |
| C10-A18 | LOOPER (LONG) 彎針(長) | 1 | |
| C10-A19 | LOOPER HOLDER (SHORT) 彎針台(短) | 1 | |
| C10-A20 | LOOPER HOLDER (MIDDLE) 彎針台(中) | 1 | |
| C10-A21 | LOOPER HOLDER (LONG) 彎針台(長) | 1 | |
| C10-X31 | SCREW 9/64×40 螺釘 | 3 | |
| C10-X32 | SCREW 11/64×40 螺釘 | 3 | |
| C10-X44 | SCREW 9/64×40 螺釘 | 3 | |
| C10-X50 | SCREW 9/64×40 螺釘 | 3 | |
| C10-X65 | SCREW 3/32×56 螺釘 | 3 | |
| C10-X77 | SCREW 11/64×40 螺釘 | 3 | |
| C10-X79 | SCREW 3/16×32 螺釘 | 1 | |
| C10-X82 | SCREW 9/64×40 螺釘 | 3 | |
| C10-X83 | STUD SCREW 螺釘銷 | 1 | |
| C10-X86 | SCREW 3/32×56 螺釘 | 3 | |
| C10-X87 | SCREW 1/8×44 L5 螺釘 | 1 | |
| C10-X88 | SCREW 1/8×44 螺釘 | 1 | |
| C10-X89 | SCREW 3/32×56 螺釘 | 3 | |
| C10-X91 | SCREW 5/64×56 螺釘 | 1 | |
| C10-X93 | SCREW 1/8×44 螺釘 | 2 |
Page 44 — PL,PL-M
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 1 | ||
| 2 | 2 | ||
| 3 | 3 | ||
| 5 | 5 | ||
| 6 | 6 | ||
| 7 | 7 | ||
| 8 | 8 | ||
| 9 | 9 | ||
| 10 | 10 | ||
| 11 | 11 | ||
| 12 | 12 | ||
| 13 | 13 | ||
| 14 | 14 | ||
| 15 | 15 | ||
| 17 | 17 | ||
| 1A | 1A | ||
| 2A | 2A | ||
| 3A | 3A | ||
| 4A | 4A | ||
| 5A | 5A | ||
| 6A | 6A | ||
| 8A | 8A | ||
| 9A | 9A | ||
| 10A | 10A | ||
| 11A | 11A | ||
| 12A | 12A | ||
| 13A | 13A | ||
| 14A | 14A | ||
| 16A | 16A | ||
| 17A | 17A | ||
| 18A | 18A | ||
| 19A | 19A | ||
| 20A | 20A | ||
| 21A | 21A | ||
| 22A | 22A |
Page 45 — PULLER DEVICE MECHANISM DP、SP
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C11-01 | PRESSURE ADJUSTING SCREW 外牙螺母 | 1 | |
| C11-02 | UPPER WHEEL PRESSER BAR 立軸 | 1 | |
| C11-03 | SPRING 張力彈簧 | 1 | |
| C11-05 | WHEEL DIRECTION FIXING DEVICE 拉布輪壓力提柄 | 1 | |
| C11-06 | PRESSER ROD BUSHING 軸套 | 1 | |
| C11-07 | UPPER WHEEL SEAT 拉布輪架 | 1 | |
| C11-08 | UPPER WHEEL CONNECTON 固定軸 | 1 | |
| C11-09 | ONE WAY PULL HOLDER 拉柄 | 1 | |
| C11-10 | PACKING 防油墊片 | 1 | |
| C11-12 | ONE WAY TRIANGULAR WHEEL 單向三角輪片 | 2 | |
| C11-13 | UPPER WHEEL 拉布輪 | 1 | |
| C11-14 | ONE WAY STILL BALL 單向滾珠 | 6 | |
| C11-15 | ONE WAY STILL SPRING 單向彈簧 | 6 | |
| C11-17 | CHOCK RING E型扣環 | 1 | |
| C11-A18-1 | FACE PLATE (UPPER) DP上前蓋座 | 1 | |
| C11-D1-9 | RUBBER PLUG 橡膠塞 | 4 | |
| C11-X09 | SCREW 15/64×28 螺釘 | 1 | |
| C11-X19 | SCREW 螺釘 | 2 | |
| C11-X31 | SCREW 9/64×40 螺釘 | 1 | |
| C11-X47 | PRESSER FOOT LIFTER 螺釘 | 1 | |
| C11-X47 | SCREW 螺釘 | 1 | |
| C11-X67 | SCREW 3/32×56 螺釘 | 3 | |
| C11-X67-1 | SCREW 3/32×56 螺釘 | 6 | |
| C11-X67-2 | SCREW 3/32×56 螺釘 | 3 | |
| C11-X82 | SCREW 9/64×40 螺釘 | 3 | |
| C11-01A | PRESSURE ADJUSTING SCREEW 外牙螺母 | 2 | |
| C11-02A | NUT 螺母 | 1 | |
| C11-03A | PRESSER FOOT LIFTER 手提柄 | 1 | |
| C11-04A | STUD SCREW 固定銷 | 1 | |
| C11-05A | SPRING 張力彈簧 | 1 | |
| C11-06A | PRESSER BAR GUIDE ASSEMBLY 拉布輪壓力提柄 | 1 | |
| C11-08A | ROLLER PRESSER LIFTER 舌片 | 5 | |
| C11-09A | SCREW PRESSER ROD BUSHING 螺釘 | 1 | |
| C11-10A | PRESSER ROD BUSHING 軸套 | 1 | |
| C11-12A | UPPER WHEEL PRESSER BAR 立軸 | 1 | |
| C11-14A | PULLER SUPPORTER ASSEMBLY 拉布輪架 | 1 | |
| C11-16A | ONE WAY PULL HOLDER 拉柄 | 1 | |
| C11-17A | UPPER WHEEL CONNECTON 固定軸 | 1 | |
| C11-18A | FACE PLATE 拉布輪基座 | 2 | |
| C11-19A | ONE WAY TRIANGULAR WHEEL 單向三角輪片 | 1 | |
| C11-20A | UPPER WHEEL 拉布輪 | 6 | |
| C11-21A | ONE WAY STILL BALL 單向滾珠 | 6 | |
| C11-22A | ONE WAY STILL SPRING 單向彈簧 | 6 |
Page 46
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Upper shaft assembly | ||
| 2 | Presser foot assembly | ||
| 2-1 | Washer | ||
| 3 | Bobbin winder assembly | ||
| 4 | Cloth plate | ||
| 5 | Oil can | ||
| 6 | Oil can | ||
| 7 | Screw driver | ||
| 8 | Screw driver | ||
| 9 | Screw driver | ||
| 10 | Wrench | ||
| 11 | Screw driver | ||
| 12 | Screw driver | ||
| 13 | Screw driver | ||
| 14 | Presser foot bar | ||
| 16 | Wrench |
Page 47 — ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C12-01 | THREAD STAND 六葉線架 | 1 | |
| C12-02 | CUSHION ASSEMBLY 固定座 | 2 | |
| C12-2-1 | WASHER 墊圈 | 2 | |
| C12-03 | BASE CUSHION 橡膠墊塊 | 2 | |
| C12-04 | HEAD COVER 防塵套 | 1 | |
| C12-05 | OIL TANK 大油壺 | 1 | |
| C12-06 | OILER ASSEMBLY 小油瓶 | 1 | |
| C12-07 | NEEDLE 針 | 1 | |
| C12-08 | TWEÉZERS 鑷子 | 1 | |
| C12-09 | SPANNER 固定板手(#7) | 1 | |
| C12-10 | SPANNER 固定板手(#8) | 1 | |
| C12-11 | SCREW DRIVER 大起子 | 1 | |
| C12-12 | SCREW DRIVER 小起子 | 1 | |
| C12-13 | SCREW DRIVER 中起子 | 1 | |
| C12-14 | THREADLE 腳踏板 | 1 | |
| C12-15 | SPANNER 固定板手(#10) | 2 | |
| C12-X1 | SCREW1/4×28 螺釘 | 2 | |
| C12-X2 | SCREW 6.2×26 木螺釘 | 2 |
Siruba FA007 — parts catalog
- Page 1 (cover): This is the cover page for the SIRUBA FA007 Industrial Sewing Machine Instruction and Parts List, manufactured by KAULIN MFG. CO., LTD.
- Page 2 (unknown): This page contains a watermark and a website address at the bottom.
- Page 3 (unknown): This page contains a watermark and a website address at the bottom.
- Page 4 (toc): This page contains the table of contents for the manual, listing sections such as Features, Specifications, Installing, Lubrication and Running In, Correct Operation, Standard Adjustments, and Troubleshooting, along with their corresponding page numbers.
- Page 5 (text): This page lists the features of the FA007 Double Chain Stitch Feed-off-the-arm sewing machine, highlighting its suitability for medium to heavy materials and its advanced puller system for precise feeding.
- Page 6 (text): This page contains specifications for sewing machines, including stitch pattern, sewing speed, needle gauge, and other details, followed by a table of standard gauge specifications for different models.
- Page 7 (text): This page contains instructions for installing the machine head and the treadle and chain, with diagrams and numbered steps.
- Page 8 (text): This page contains instructions for installing the motor pulley, belt tension adjustment, installing the pulley cover, motor and motor pulley specifications, spool stand assembly, and lubrication instructions for the sewing machine.
- Page 9 (text): This page contains instructions for running in the machine and installing needles, along with a table specifying needle and thread combinations.
- Page 10 (diagram): This page contains diagrams illustrating the upper and lower threading procedures for a sewing machine, with numbered steps and measurements indicated.
- Page 11 (text): This page contains instructions for installing the lapper, sewing, and adjusting thread tension, along with diagrams illustrating these processes.
- Page 12 (text): This page contains instructions for adjusting the presser foot pressure, stitch length, and puller feed, along with diagrams illustrating these adjustments.
- Page 13 (diagram): This page illustrates the effect of puller feed on fabric with high and low elasticity, showing correct, insufficient, and excessive feed scenarios with corresponding stitch results.
- Page 14 (text): This page details the standard adjustments for needle and looper timing, and needle bar height, for various sewing machine models including FA007-364M and FA007-364 XL/SP/DP.
- Page 15 (diagram): This page contains diagrams and instructions for adjusting the looper timing and needle guard on Model FA007-364 M and FA007-364 XL/SP, DP sewing machines.
- Page 16 (text): This page contains instructions for adjusting the needle guard height and feed dog height for models FA007-364 XL/SP, DP, and FA007-364 M, along with a diagram illustrating needle guard adjustment.
- Page 17 (text): This page contains instructions for installing a spacer and adjusting the upper thread take-up thread guide and thread release lever for specific sewing machine models.
- Page 18 (text): This page contains instructions for adjusting the thread release shaft, upper thread nipper, lower thread take-up timing, and puller device timing on a sewing machine, including diagrams and specific measurements.
- Page 19 (text): This page contains a troubleshooting guide for common sewing machine issues, including thread breaks, needle breaks, skipped stitches, and loose upper threads, with corresponding causes, inspection steps, and remedies.
- Page 20 (text): This page contains a troubleshooting guide for sewing machine issues related to feeding work, non-alignment, and wrinkles, with corresponding causes, inspections, remedies, and page references.
- Page 21 (toc): This page is a table of contents for a parts catalog, listing various machine mechanisms and their corresponding page numbers.
- Page 22 (diagram): This page displays a diagram of sewing machine components, including part numbers and reference indicators for various parts like the main body, motor components, and smaller fittings.
- Page 23 (parts_list): This page lists parts for the MACHINE BODY, including part numbers, names, and quantities.
- Page 24 (diagram): This page displays a diagram of various machine parts, including shafts, bearings, and housings, with reference numbers and some part names like PL,PL-M,SP and SM.
- Page 25 (parts_list): This page lists parts for the Upper Shaft Mechanism, including reference numbers, part numbers, names, and quantities.
- Page 26 (diagram): This page displays diagrams of various sewing machine parts, including screws, shafts, and housings, with corresponding reference numbers and part identifiers.
- Page 27 (parts_list): This page lists parts for the Needle Bar Mechanism-Feed Mechanism, including part numbers, names, and quantities.
- Page 28 (diagram): This page displays a diagram of various machine parts, including gears, screws, and a washer, with reference numbers and labels.
- Page 29 (parts_list): This page lists parts for the Pully Mechanism, including pulleys, timing belt assemblies, covers, washers, coils, and various screws, along with their reference numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of various sewing machine components, including part numbers, reference numbers, and descriptions for items like covers, levers, chains, and spools.
- Page 31 (parts_list): This page lists parts for the Presser Bar Mechanism, including part numbers, names, and quantities.
- Page 32 (diagram): This page displays a diagram of various machine components, including levers, shafts, screws, and mounting plates, with corresponding reference numbers and part identifiers.
- Page 33 (parts_list): This page lists parts for the Looper Mechanism, including part numbers, names, and quantities.
- Page 34 (diagram): This page displays a diagram of various machine components, including levers, shafts, springs, and mounting brackets, with corresponding reference numbers and part identifiers.
- Page 35 (parts_list): This page lists parts for the Upper Threading Mechanism, including part numbers, names, and quantities.
- Page 36 (diagram): This page displays a diagram of various sewing machine components, including screws, brackets, and other hardware, with corresponding part numbers and reference labels.
- Page 37 (parts_list): This page lists parts for the lower threading mechanism, including part numbers, names, and quantities.
- Page 38 (diagram): This page displays diagrams of various machine parts, including shafts, bearings, gears, and smaller components like screws and brackets, with reference numbers and some part numbers indicated.
- Page 39 (parts_list): This page lists parts for the LOWER SHAFT MECHANISM-GAUGE, including part numbers, names, and quantities.
- Page 40 (diagram): This page displays a diagram of various sewing machine parts, including screws, brackets, and plates, with corresponding reference numbers and part identifiers.
- Page 41 (parts_list): This page lists gauge parts (SP) with reference numbers, part numbers, names, and quantities required.
- Page 42 (diagram): This page displays a diagram of various sewing machine parts, including screws, plates, and assembled components, with reference numbers and part identifiers.
- Page 43 (parts_list): This page lists gauge parts (DP) with their corresponding part numbers, names, and quantities. It includes items like needle clamp assembly, spring M, presser foot assembly, feed dog, and various screws.
- Page 44 (diagram): This page displays diagrams of machine parts for models PL and PL-M, and SP, with numbered components and associated part numbers.
- Page 45 (parts_list): This page lists parts for the Puller Device Mechanism DP, SP, including part numbers, names, and quantities.
- Page 46 (diagram): This page displays a diagram of various sewing machine parts, including tools, a presser foot assembly, oil cans, and a bobbin winder assembly, with reference numbers for each component.
- Page 47 (parts_list): This page lists accessories for an industrial sewing machine, including part numbers, names, and quantities required.
- Page 48 (diagram): This page contains a diagram of the table cut-out for the FA007 series sewing machine, including dimensions and mounting details.
Page 2
jinte.in jintex.in
Page 3
jinte.in jintex.in
Page 4 — CONTENTS
CONTENTS FEATURES 2 SPECIFICATIONS 2 TABLE OF STANDARD GAUGE 2 INST ALLING 3 1 Installing the Machine Head 3 2 Installing the Treadle and Chain 3 3 Installing the Motor Pulley 4 4 Belt Tension adjustment 4 5 Installing the Pulley Cover 4 6 Motor and Motor Pulley 4 7 Spool Stand 4 LUBRICATION AND RUNNING IN 4 1 Lubrication 4 2 Running In 5 CORRECT OPERATION 5 1 Needles and Threads 5 2 Installing the Needles 5 3 Upper Threading 6 4 Lower Threading 6 5 Installing the Lapper 7 6 Sewing 7 7 Thread Tension 7 8 Presser Foot Pressure Adjustment 8 9 Stitch Length Adjustment 8 10 Puller Feed Adjustment (Model 928-SP,-PL) 8 STANDARD ADJUSTMENTS 10 1 Needle and Looper Timing Adjustment 10 2 Needle Bar Height Adjustment 10 3 Looper Timing for Avoiding Contact with Needles 11 4 Needle Guard Adjustment 11 5 Feed Dog Height Adjustment 12 6 Puller Height Adjustment (Model 928-SP,-PL) 12 7 Installing the Spacer (For the denim specifications) 13 8 Upper Thread Take-up Thread Guide Adjustment 13 9 Thread Release Lever Adjustment 13 10 Thread Release Shaft Adjustment 14 11 Upper Thread Nipper Adjustment 14 12 Lower Thread Take-up Timing Adjustment 14 13 Puller Device Timing Adjustment (Model 928-SP,-PL) 14 TROUBLESHOOTING 15 jintex.in
Page 5 — FEATURES
FEATURES Model FA007 Double Chain Stitch Feed-off-the-arm Machine is most suitable for sewing tubes of medium and heavy materials, such as those of jackets, denim trousers, fatigue clothes and work trousers. Machines made to the puller and the denim specifications employ a presser foot, a needle plate, and feed dogs that have steps to prevent sewing irregularity and assure easy sewing of materials which may be different in thickness. Machines made to the puller and the denim specifications employ a movable needle guard which makes them ideal for sewing heavy materials. Machines made to the puller and the denim specifications have independent loopers for ease of adjustment. Machines made to the puller specifications employ a proximity puller system which assures outstanding feeding performance for a wide range of materials from medium heavy to heavy. ~1~ jintex.in
Page 6 — SPECIFICATIONS
SPECIFICATIONS Model FA007-364 M FA007-364 XL/SP FA007-364 XL/DP Stitch pattern 3-line parallel sewing 2-line parallel sewing 3-line parallel sewing 2-line parallel sewing 3-line parallel sewing Sewing speed 3,600 spm Stitch length 1.4~4.2mm 2~4.2mm No. of Needle 3 2 3 2 3 Needle gauge 7/64 7/64 (5.6mm) 5/32 5/32 (8.0mm) 3/16 3/16 (4.8mm) 1/4 1/4 (6.4mm) 1/8 1/8 (6.4mm) 5/32 5/32 (8.0mm) 1/8 1/8 (6.4mm) 5/32 5/32 (8.0mm) Needle bar stroke 33.4mm 35mm Minimum tube size 190mm Puller device None Equipped Equipped Equipped Equipped TABLE OF STANDARD GAUGE Specification Needle gauge Needle clamp Needle Plate Presser foot Feed dog Looper assembly Lapper Standard Specification FA007-364 M 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/32 MH 7/32 H 1/4 MH 1/4 H 5/16 MH 5/16 H 3/8 MH 3/8 H Denim Specification FA007-364 XL /SP, DP 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/64 7/64 1/8 1/8 5/32 5/32 3/16 3/16 7/32 MH 7/32 H 1/4 MH 1/4 H 5/16 MH 5/16 H 3/8 MH 3/8 H ~2~ jintex.in
Page 7
INSTALLING 1 Installing the Machine Head 1. Install pulley cover base 2 on machine bed 1 with two hexagonal bolts 3. 2. Insert bar cushions 4 into the holes in the bottom of the bed. 3. Place the machine head on the table, adjust its position in forward and backward directions by aligning it with the hole for presser bar lifter chain 5, and in sidewise directions by aligning it with belt hole 6. 4. After fastening cushions 7 to the machine bed and pulley cover base with set screws 8, fix them to the table with screws 9. 2 Installing the Treadle and Chain 1. Fasten connecting lever bearing 1 to the beam in the upper part of the table legs with nut 2. 2. Slide connecting lever L 4 onto connecting lever shaft 3, fit it to connecting lever bearing 1, and secure it with connect- ing lever shaft collar 5. 3. Set connecting lever L 4 in line with the clutch lever hole, and tighten it with square head bolts 6. 4. Hook connecting rod 7 to the clutch lever and connecting lever L 4. 5. Slide another connecting lever L 4 onto connecting lever shaft 3, and fix it with square head bolts 6. 6. Fasten treadle connecting shaft 8 onto the lower beam across the table legs with hexagonal bolts 9. 7. Slide pedal stopper 10 and presser foot lifter pedal 11 onto treadle shaft 8, and fasten it with pedal stopper 12. 8. Slide treadle stopper 12 and treadle 13 onto treadle shaft 8, and fasten treadle stopper 12 in such a way that treadle 13 will move lightly. 9. Slide treadle support 14 onto the end of treadle shaft 8, turn it until treadle shaft 8 is parallel with the floor, and fasten it. 10. Hook one end of connecting rod 7 to connecting lever L 4, and hook the other end of it to treadle 13. 11. Hook one end of chain 15 to the presser foot lifter lever, pass the other end through the hole in presser foot lifter pedal 11, and adjust the chain length so that the pedal will be at the same height as treadle 13. ~3~ jintex.in
Page 8
3 Installing the Motor Pulley With motor shaft key way up, insert key into the key way, slide motor pulley onto the motor shaft, and fasten it with nut 4. 4 Belt Tension Adjustment Place belt on machine pulley and motor pulley, and adjust the belt tension with tension regulator so that the belt sags about 25 to 30 mm when it is pressed with the thumb at the center point between the pulleys. 5 Installing the Pulley Cover Install pulley cover on the pulley cover base with two set screws. 6 Motor and Motor Pulley 1. Use the motor specified below Three-phase 200 V 2-pole, 400 W motor 2. Motor Pulley Use the correct motor pulley suitable to the frequency of your power supply as specified below. Frequency Sewing speed Motor pulley Belt size 50Hz 3,100 85 M-45 3,600 95 M-46 60Hz 3,100 70 M-44 3,600 80 M-45 7 Spool Stand Assemble spool stand as shown below, and install it at the right frontal corner of the table with screws. LUBRICATION AND RUNNING IN 1 Lubrication Be sure to oil the following points before using your sewing machine. 1. After setting up the machine, remove adjusting cover screw, and pour oil in up to the reference line on oil gauge. 2. Turn the pulley until oil cap is up, remove oil cap and pour oil into oil tank until it is full. If the oil in the oil tank decreases below tank center line the oil will not be drawn into the upper shaft, causing imperfect lubrication. Be sure to keep the oil in the oil tank above oil tank center line. 3. Pour about 5 drops of oil weekly, into oil cups, upper thread nipper tension bracket oil hole, and needle bar bushing oil hole. 4. Remove oil drain screw from time to time to discharge the used oil which has collected in the front bed oil sump. 5. Wipe arm jaw and rear bed oil sump from time to time to remove oil from them. Use white spindle oil. ~4~ jintex.in
Page 9 — CORRECT OPERATION
2 Running In 1. Motor switch on, depress the treadle, and make sure that the pulley runs in the arrow direction. If the pulley runs in the opposite direction, remove the plug, and reconnect two of the three wires (but not the earth wire) of the 3-phase cord. 2. To run in your machine, operate it at about 3,100 spm for the first 3 or 4 days. CORRECT OPERATION 1 Needles and Threads The needle and threads to be used vary depending on sew- ing conditions. Select the correct ones by referring to the table below. Needle #16 #19 #22 Thread Upper thread Cotton #50 Cotton #30 Cotton #20 Lower thread Cotton #60 Cotton #50 Cotton #30 2 Installing the Needles 1. Turn the pulley until needle holder is raised to the highest position. 2. Loosen needle set screws hold needles with their long grooved side facing front, insert them into needle holder all the way, and fasten the needle with needle set screws ~5~ jintex.in
Page 10
3 Upper Threading 50-60 mm 4 Lower Threading ~6~ jintex.in
Page 11
5 Installing the Lapper Presser foot Lapper Oblong groove Lapper guide plate Bring it into full contact Needle plate Insert the lapper guide plate into the oblong groove in the forward feed arm, and fit the lapper into place in such a way that its tip will not touch the presser foot. If the lapper is too hard to move, or fails to reach the correct position, loosen set screw 1 slightly and adjust the lapper position. 6 Sewing 1. Switch the power on, step down on presser foot lifter pedal 1, place a fabric under the presser foot, and release presser foot lifter pedal 2. 2. Depress treadle 2 to start the machine. 3. After sewing the work, keep sewing until it reaches thread cutter 3, and then cut the threads with thread cutter 3. 7 Thread Tension Thread tension differs with sewing conditions. Adjust it to suit your particular sewing conditions. Less tension More tension Good stitches Upper thread Lower thread Loose, bad stitches Lower thread Upper thread 1. Adjust the upper thread tension properly by turning upper thread adjusting screw 1. 2. Adjust the lower thread tension properly by turning lower thread adjusting screw 2. ~7~ jintex.in
Page 12
8 Presser Foot Pressure Adjustment Adjust the presser foot pressure by turning wing nut to such a level that it is just enough to keep the work from slipping. In case of Model -SP and -DP, the puller pressure can be adjusted as appropriate to the work by loosening adjusting thumbscrew nut and turning presser ad- justing screw . 9 Stitch Length Adjustment 1. Remove adjusting cap screw . 2. Turn the pulley toward yourself until set screw comes to the position of the adjusting cap screw hole. 3. Loosen set screw with a screwdriver, turn the pulley again by about one-quarter of a turn in the same direction to bring horizontal eccentric adjusting screw to the position of the adjusting cap screw hole. 4. Stitch length will decrease when horizontal eccentric adjusting screw is turned clockwise with the screwdriver, and increase when it is turned counter-clockwise. 5. After the adjustment, tighten set screw securely. In case of Model -SP and -DP, readjust the needle guard after adjusting the stitch pitch. In case of Model -7A and -8A, read- just the needle guard and puller feed. 10 Puller Feed Adjustment (Model FA007-364 XL / SP, DP) 1. After adjusting the STITCH LENGTH, you have to readjust the PULLER FEED again. 2. Loosen the nut , you can get more feed toward outside, get less toward inside. 3. After adjusting, tighten the nut . ~8~ jintex.in
Page 13
The table below shows samples of stitches made with a highly elastic fabric and a fabric which is not so elastic. Adjust the puller feed by referring to this table. Puller feed Fabric with high elasticity Fabric with low elasticity Correct Feed direction Feed direction Neither non-alignment nor sewing wrinkles. Neither non-alignment nor sewing wrinkles. Insufficient Non-aligned, and wrinkled. Non-aligned, and wrinkled. Excessive Non-aligned, and very wavy. Non-aligned, and very wavy. ~9~ jintex.in
Page 14 — STANDARD ADJUSTMENTS
STANDARD ADJUSTMENTS 1 Needle and Looper Timing Adjustment Model FA007-364M 3.2-3.5 mm Model FA007-364XL/SP,DP 3.0-3.2 mm /SP,DP Model FA007-364 M Make an adjustment so that, when needles 1 come down to the lowest position, loopers 2 will be at the end of their backward travel and that the distance between the centers of the needles and the tips of the loopers will be somewhere from 3.2 to 3.5 mm. Model FA007-364 XL /SP, DP Make an adjustment so that, when needles 1 come down to the lowest position, loopers 2 will be at the end of their backward travel and that the distance between the centers of the needles and the tips of the loopers will be somewhere from 3.0 to 3.2 mm. (Adjusting Method) 1. Remove the presser foot, needle plate and feed dogs. 2. Loosen two set screws 4 and cap screw 5 on lower belt wheel 3. 3. Turn the pulley toward yourself until needles 1 come down to the lowest posi- tion. 4. Turn the lower-shaft until loopers 2 reach the end of their backward travel. 5. Tighten cap screw 5 and two set screws 4 securely. 6. Loosen set screw 6, move looper holder 7 in the arrow direction until the distance between the needle center and the looper tip is 3.2 to 3.5 mm, and retighten set screw 6 securely. *In case of machines made to the denim specifications, the individual loopers must be adjusted because they are independent of one another. 2 Needle Bar Height Adjustment Looper forward travel Looper backward travel The looper of standard specification The looper of denim specification Adjust the needle bar height so that the looper thread eyes will match the needle eyes in the forward and backward travels of the loopers. (Adjusting Method) 1. Turn the pulley toward yourself until the loopers move forward from the rightmost position to a point where the looper thread eyes are in line with the needles eyes. 2. Open face plate 1, loosen needle bar clamp screw 8, and move needle bar 9 up or down until the looper thread eyes are in line with the needle eyes. 3. Retighten needle bar clamp screw 8 securely. 4. After the adjustment, turn the pulley toward yourself and make sure that the looper thread eyes match the needle eyes in the forward and backward travels of the loopers. ~10~ jintex.in
Page 15 — 3 Looper Timing for Avoiding Contact with Needles 4 Needle Guard Adjustment
3 Looper Timing for Avoiding Contact with Needles 0~0.05 mm 0.2~0.3 mm Needle Locus of looper Model FA007-364 M Model FA007-364 XL/SP, DP Model FA007-364 M Make an adjustment so that there will be a clearance of 0 to 0.05 mm between the needles and the loopers in the forward and backward movements of the loopers. Model FA007-364 XL/SP, DP In the forward movement of the loopers, push needles by loopers by 0.2 mm. In the backward movement of the loopers, adjust that the clearance between the loopers and the needles will be 0.2 to 0.3 mm. (Adjusting Method) 1. Remove forward feed arm cover ①, and turn the pulley toward yourself until the longitudinal eccentric wheel stop screw shows itself at adjusting hole ②. 2. Loosen the longitudinal eccentric wheel stop screw until it hardly comes out of the surface of the wheel, turn the pulley again toward yourself, and loosen the other stop screw. 3. With the screwdriver holding the stop screw, turn the pulley to adjust the clearance between the needles and the loopers. 4. After the adjustment, retighten the two stop screws and the forward feed arm cover screw. 4 Needle Guard Adjustment Model FA007-364 M 0.1~0.2 mm Make an adjustment so that, when the loopers meet the needles in their forward movement, there will be a clearance of 0.1 to 0.2 mm between the needles and the needle guard. (Adjusting Method) 1. Turn the pulley toward yourself until the needles come down to the lowest position. 2. Loosen stop screw ① from the underside of the tip of the forward feed arm. 3. Adjust the clearance between needles and needles guard to somewhere from 0.1 to 0.2 mm by moving needle guard 4. After the adjustment, retighten stop screw securely. ~11~ jintex.in
Page 16
Model FA007-364 XL /SP , DP The clearance between the needles and the tips of the loopers will be 0.05 mm, pushing the needle guard . (Adjusting Method) 1. Turn the pulley toward yourself until the needles come down to the lowest position. 2. Loosen stop screw , and raise or lower needle guard so that the bottom ends of the needle eyes will be about 0.5 mm above the bottom of needle guard . 3. Turn the pulley toward yourself again until the tips of the loopers come to the centers of the needles. 4. Loosen stop screw , move needle guard left or to the right, and adjust so that the clearance between the needles and the tips of the loopers will be 0.05 mm, pushing needle points by needle guard . At this time, please make sure that the clearance between the loopers and the needles is 0.2-0.3 mm in the backward movement of the loopers. Feed Dog Height Adjustment Model FA007-364 M Make an adjustment so that, when feed dog is at the highest position, the feed dog will be 0.8 mm above the top surface of the needle plate. Model FA007-364 XL /SP , DP Make an adjustment so that the highest part of the feed dog will be 1.2 mm above the top surface of the needle plate. (Adjusting Method) Adjusting the feed dog height by turning feed base eccentric shaft Puller Height Adjustment (Model FA007-364 XL /SP , DP) Adjust the height of puller so that it is 0.1 to 0.2 mm high from the top of the needle plate. (Adjusting Method) Loosen set screw , and move puller support up or down until puller is 0.1 to 0.2 mm above the top of the needle plate. ~12~ jintex.in
Page 17
7 Installing the Spacer (For the denim specifications) If stitch irregularities develop in sewing very heavy materi- als, adjust the sub-feed dog to the correct height by spacer. (Adjusting Method) 1. Remove set screw and sub-feed dog. 2. Placer spacer under sub-feed dog and retighten set screw. The spacer is in the parts box. 8 Upper Thread Take-up Thread Guide Adjustment Thread guide 7-8 mm Upper thread take-up Model FA007-364M Model FA007-364XL /SP.DP Model FA007-364 M Make an adjustment so that, when the needle bar is down at the lowest position, the top of the upper thread take-up thread hole meets the bottom of the thread guide. Model FA007-364 XL /SP, DP Please adjust the distance between the center of the upper thread take-up and the top of the thread guide will be 7-8 mm. (Adjusting Method) 1. Turn the pulley toward yourself until the needle bar is down at the lowest position. 2. Loosen set screw and move upper thread take-up thread guide up or down until its bottom meets the top of the upper thread take-up thread hole. The higher the upper thread take-up thread guide, the greater will be the upper thread loops. 9 Thread Release Lever Adjustment Make an adjustment so that, when the needle bar is down at the lowest position, the thread release lever thread hole meets the thread hole in upper thread tension bracket. (Adjusting Method) 1. Turn the pulley until the needle bar is down at the lowest position. 2. Loosen set screw and raise or lower thread release lever until its thread hole meets the thread hole in upper thread tension bracket. The higher the thread release lever, the tighter will be the stitches. ~13~ jintex.in
Page 18
10 Thread Release Shaft Adjustment Make an adjustment so that the thread tension discs will loosen when the presser foot is raised, and tighten when the presser foot is lowered. (Adjusting Method) 1. Loosen stop screw 2. Make an adjustment by turning thread release shaft so that the thread tension discs will begin to loosen when the presser foot is raised 4 mm above the top surface of the needle plate. 3. After the adjustment, retighten stop screw securely. 11 Upper Thread Nipper Adjustment Thread nipper cam Adjust the clearance between the upper thread nipper tension bracket and tension plates to somewhere between 0.8 mm and 1.0 mm. (Adjusting Method) 1. Loosen stop screw, and move upper thread nipper tension bracket in or out until the clearance between it and tension plates is somewhere from 0.8 to 1.0 mm. *Stitch tightness can be improved by narrowing the clear- ance between upper thread nipper tension bracket and the arm. 12 Lower Thread Take-up Timing Adjustment Make an adjustment so that, when the loopers begin to move backward, lower thread take-up will rise about 5 to 7 mm above lower thread take-up bracket. (Adjusting Method) 1. Insert a screwdriver into the adjusting hole in the bed, and loosen two stop screws. 2. Raise lower thread take-up to 5 to 7 mm above thread take-up bracket. 3. After the adjustment, retighten two stop screw. Adjusting hole Thread 7 mm 13 Puller Device Timing Adjustment (Model FA007-364 XL/SP, DP) 1. With 3mm wrench to loosen the screw 2. The timing of the feed will be starting when the needle is away from the needle plate about 5 or 6mm, and stoping at 10mm. 3. After adjusting the timing, retighten the screw &. ~14~ jintex.in
Page 19
TROUBLESHOOTING Trouble Cause Inspection Remedy Page Needles installed improperly. Direction of long groove. Refer to instructions for needle installing. 5 Upper thread tension too great. Upper thread tension. Adjust upper thread tension. 7 Lower thread tension too great. Lower thread tension. Adjust lower thread tension. 7 Thread breaks. Thread release lever out of position. Thread release lever position. Adjust thread release lever. 13 Needle eyes too small for threads. Needle size and thread count. Refer to the section on "Needles and Threads" 5 Loopers damaged. Smooth loopers with sandpaper or buff. Needles damaged. Replace needles with good ones. 5 Needles hit loopers. Clearance between needles and loopers. Adjust looper timing to avoid contact with needles. 11 Needles break. Needles installed improperly. Direction of long groove. Refer to instructions for needle installing. 5 Needles hit needles guard. Clearance between needles and needles guard. Adjust needles guard. 11 Stitches skip. Needle eyes too small for threads. Needle size and thread count. Refer to the section on "Needles and Threads" 5 Needles installed improperly. Direction of long groove. Refer to instructions for needle installing. 5 Looper points are dull. Replace loopers with good ones. 10 11 Needle and looper timing wrong. Needle and looper timing. Adjust needle and looper timing. 10 Clearance between needles and loopers too great. Clearance between needles and loopers. Adjust clearance between needles and loopers. 11 Lower thread take-up timing wrong. Lower thread take-up timing. Adjust lower thread take-up timing. 14 Upper thread tension too small. Upper thread tension. Adjust upper thread tension. 7 Lower thread tension too great. Lower thread tension. Adjust lower thread tension. 7 Upper threads loose. Upper thread take-up thread guide out of position. Adjust upper thread take-up thread guide position. 13 Upper thread nipper does not tighten upper threads. Tension plate clearance. Adjust upper thread nipper. 14 ~15~ jintex.in
Page 20
Trouble Cause Inspection Remedy Page Machine does not feed work. Feed dog too low. Feed dog height. Adjust feed dog height. 12 Presser foot pressure too small. Presser foot pressure. Adjust presser foot pressure. 8 Feed dog worn out. Have serviceman check it. Presser foot floats and does not fully press work. Have serviceman check it. Feed dog and presser foot work on one side only. Have serviceman check them. Non-alignment and wrinkles (Model - FA007-364M ) Sub feed dog height incorrect. Sub feed dog height. Adjust sub feed dog height. 13 Presser foot pressure incorrect. Presser foot pressure. Adjust presser foot pressure. 8 Feed dog height incorrect. Feed dog height. Adjust feed dog height. 12 Non-alignment and wrinkles (Model - FA007-364XL/SP,DP) Puller timing wrong. Puller timing. Adjust puller device timing. 14 Puller feed incorrect. Puller feed. Adjust puller feed. 8 Presser foot pressure incorrect. Presser foot pressure. Adjust presser foot pressure. 8 Feed dog height incorrect. Feed dog height. Adjust feed dog height. 12 ~16~ jintex.in
Page 21 — CONTENTS 目録
CONTENTS 目録 CO-MACHINE BODY 機體下拉布輪 1 C1-UPPER SHAFT MACHANISM 3 上軸結構 C2-NEEDLE BAR MECHANISM-FEED MECHANISM 5 針柱與送布傳動結構 C3-PULLY MECHANISM 7 皮帶傳動結構 C4- PRESSER BAR MECHANISM 9 壓腳柱結構 C5-LOOPER MECHANISM 11 彎針傳動結構 C6-UPPER THREADING MECHANISM 13 上導線張力結構 C7-LOWER THREADING MECHANISM 15 下導線張力結構 C8-LOWER SHAFT MECHANISM-GAUGE PARTS 17 下軸結構與針位組 C9-GAUGE PARTS(SP) SP 19 針位組 C10-GAUGE PARTS (DP) DP 21 針位組 C11-PULLER DEVICE MECHANISM DP、SP 23 上拉布輪結構 C12-ACCESSORIES 25 配件 ~17~ jintex.in
Page 22
X67-2 X31 17-3 9 5-1 7 11-1 X67 11 12 12A 8 <PL-M> 5 X77 A17-3 X28-1 6 B17-1 4 18 1 C2 CO~1~ jintex.in
Page 23 — MACHINE BODY
MACHINE BODY REF. NO.部品編號 NAME OF PARTS 說明 Amt req需求量 C0-01 MACHINE HEAD 機體(上) 1 C0-C2 MACHINE REST BOARD 機體(下) 1 C0-04 OIL PLUG 油塞 1 C0-05 LOWER WHEEL 拉布輪 1 C0-05-1 LOWER WHEEL 拉布輪 1 C0-06 LOWER WHEEL CONNECTION 拉布輪軸 1 C0-07 ONE WAY TRIANGULAR AXLE 單向三角軸片 2 C0-08 ONE WAY STILL BALL 單向彈簧 6 C0-09 ONE WAY STILL BALL 單向滾珠 6 C0-11 ONE WAY PUSHING PLATE 單向推輪 1 C0-11-1 PIN 銷 1 C0-12-1 FEED DOG PUSHING PLATE LINK 推輪連桿 1 C0-12A SCREW 合葉螺釘 1 C0-B17-1 PULLER COVER 導蓋(右) 1 C0-A17-3 PULLER TOP COVER 護輪蓋 3 C0-17-3 PACKING 導塞 2 C0-18 PLASTIC COVER 橡膠塞 2 C0-X28-1 SCREW 11/64×40 螺釘 3 C0-X31 SCREW 9/64×40 L8 螺釘 3 C0-X67 SCREW 3/32×56 螺釘 3 C0-X67-2 SCREW 3/32×56 L6 螺釘 3 C0-X77 SCREW 11/64×40 L9 螺釘 2 ~2~ jintex.in
Page 24
Y2 3 2 4 4-1 1 3 30 22 23 29 22A 25 SM 8 7 9 PL,PL-M,SP X9- 6-1(PL,SP,PL-M) 9-1 24 25 21 18-3 19 18-1 18-2 X7 18 PL,PL-M,SP 6(SM) 7-1 X4 II X3 31 X6 17 13 16 X5 12 14 15 10 102 102-1 C1~3~ jintex.in
Page 25 — UPPER SHAFT MECHANISM
UPPER SHAFT MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C1-01 PULL BAR ENDING SCREW 合葉螺釘 1 C1-02 VERTICAL PULL BAR 傳動連桿 1 C1-03 PULL BAR BEARING 滾柱軸承 2 C1-04 VERTICAL PULL BAR FIXING SCREW 合葉螺釘 1 C1-04-1 WASER 熱圈 1 C1-Y2 PULL BAR SCREW NUT 止動螺母 1 C1-06 UPPER SHAFT 上主軸 1 C1-06-1 UPPER SHAFT 上主軸 1 C1-07 BALL BEARING 6202 軸承 1 C1-08 BEARING SUPPORT 軸承圈 1 C1-09 OIL STOPPER 油封 1 C1-7-1 FIXING BUSHING 上軸套(前) 1 C1-9-1 CHOCK RING 定位圈 1 C1-10 BEARING CASE ASSEMBLY 軸套筒 1 C1-11 BEARING 6302 軸承 1 C1-12 OIL TANK 儲油器 1 C1-13 OIL GAUGE WINDOW 油鏡 1 C1-14 PACKING 油封墊圈 1 C1-15 OIL GAUGE FLANGE 儲油蓋 1 C1-16 PACKING 油銅墊圈 1 C1-17 PACKING 橡膠墊圈 1 C1-18 UPPER WHEEL ECCENTRIC WHEEL 偏心凸輪 1 C1-18-1 ECCENTRIC WHEEL WASHER 凸輪蓋 1 C1-18-2 BEARING 滾柱軸承 1 C1-18-3 SCREW 9/64×40 螺釘 2 C1-19 UPPER WHEEL MOVING PULL BAR 凸輪連動連桿 1 C1-21 PULL BAR SCREW NUT 合葉螺釘 1 C1-22 PULL BAR SCREW WASHER 止滑墊圈 2 C1-22A WASHER 墊圈(厚PL, PL-M, SP)(薄PL, PL-M) 2 C1-23 PULL BAR SCREW NUT 螺母 2 C1-24 THICKNESS ADJUSTING PULL BAR 擺動傳桿 2 C1-25 PULL BAR FIXING PULL BAR 螺釘 2 C1-26 UPPER WHEEL CONNECTION 傳動軸 2 C1-27 MOVABLE LEFT-RIGHT CHOCK RING 定位圈 2 C1-29 CONNECTION COPPER TUBE 銅套筒 1 C1-30 VERTICAL PULL BAR 雙頭合葉螺釘 1 C1-31 WASHER 熱圈 1 C1-102 BEARING FIXING SCREW 外牙螺母 1 C1-102-1 BEARING FIXING BUSHING 緊套套筒 1 C1-X3 SCREW 15/64×28 螺釘 1 C1-X4 SCREW 15/64×28 螺釘 4 C1-X5 SCREW 9/64×40 螺釘 1 C1-X6 CAP SCREW 覆蓋螺釘 2 C1-X7 SCREW 1/4×28 螺釘 2 C1-X9 SCREW 15/64×28 螺釘 2 C1-X38-1 SCREW 11/64×40 螺釘 2 ~4~ jintex.in
Page 26
14 10(PL-M,SM) 10-1(PL,SP) X9 C6 (PL,SP,#22) (PL-M,SM,#18) 9(PL-M,SM) 9-1(PL,SP) 11(PL-M,SM) 11-1(PL,SP) X31-1 3(PL-M,SM) 3-1(PL,SP) 5 2 X8 7 8 12-1(PL-M,SM) 12(PL,SP) X10 (PL,SP)x66 (PL-M,SM)x7 X7 C25 22 X9 24 C19 16 X49 17 X7 20 18 C21-1 X8 23 X8 26 X9 C2~5~ jintex.in
Page 27 — NEEDLE BAR MECHANISM-FEED MECHANISM
NEEDLE BAR MECHANISM-FEED MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C2-01 NEEDLE BAR CRANK 固定軸 1 C2-02 NEEDLE BAR CRANK BOD 提升連桿 1 C2-03 NEEDLE BAR BRACKET 針夾 1 C2-03-1 NEEDLE BAR BRACKET 針夾 1 C2-04 WICK 油蕊 1 C2-05 OIL LEAK PROOF CAP 防油蓋 1 C2-06 WICK 油蕊 1 C2-07 NEEDLE BAR GUIDE SLIDE BLOCK 四方滑塊 1 C2-08 NEEDLE BAR GUIDE 導軌 1 C2-09 NEEDLE BAR 針柱 1 C2-09-1 NEEDLE BAR 針柱 1 C2-10 NEEDLE BAR BUSHING (UPPER) 針套筒(上) 1 C2-10-1 NEEDLE BAR BUSHING (UPPER) 針套筒(上) 1 C2-11 NEEDLE BAR BUSHING (LOWER) 針套筒(下) 1 C2-11-1 NEEDLE BAR BUSHING (LOWER) 針套筒(下) 1 C2-12 THREAD TAKE-UP CRANK 平衡凸塊 1 C2-12-1 THREAD TAKE-UP CRANK 平衡凸塊 1 C2-14 OIL CAP 膠蓋 1 C2-15 NEEDLE (PL, SP#22)(PL-M, SM#1B) 針(PL, SP#22)(PL-M, SM#1B) 3 C2-16 FEED DOG ECCENTRIC AXLE 調節凸輪 1 C2-17 WASHER 墊圈 1 C2-18 ECCENTRIC WHEEL SLEEVE 圓凸輪 1 C2-C19 ECCENTRIC WHEEL WITH SCREW 上下凸輪 1 C2-20 ECCENTRIC WHEEL SLEEVE 圓凸輪 1 C2-C21-1 FEED BAR SLIDE BLOCK ASSEMBLY 送布傳動曲柄 1 C2-22 PACKING 油封 1 C2-23 FEED LIFTING FORK 又動柄 1 C2-24 FEED BAR SLIDE BLOCK ASSEMBLY 四方滑塊 1 C2-C25 FEED BAR ECCENTRIC SHAFT 偏心軸 1 C2-26 FEED DOG ECCENTRIC SET 固定座 1 C2-X7 SCREW 1/4×40 螺釘 5 C2-X8 SCREW 11/64×40 L12 螺釘 4 C2-X9 SCREW 15/64×28 螺釘 5 C2-X10 SCREW 15/64×28 螺釘 2 C2-X14 FEED BAR ECCENTRIC ADJUSTING SCREW 倒位螺釘 1 C2-X31-1 SCREW 9/64×40 螺釘 1 C2-X49 SCREW 9/64×40 L5 螺釘 1 C2-X66 THREAD TAKE-UP CRANK 平衡凸塊 1 ~6~ jintex.in
Page 28
20 2 X7 X18 1 X9 X1 7 X79 5 8 X22 10 3 X7 20 4 6 C3~7~ jintex.in
Page 29 — PULLY MECHANISM
PULLY MECHANISM REF. NO. 部件編號 C3-01 C3-02 C3-03 C3-04 C3-05 C3-06 C3-07 C3-08 C3-09 C3-10 C3-20 C3-X01 C3-X07 X3-X09 C3-X18 C3-X22 C3-X79 NAME OF PARTS 說明 PULLEY 皮帶輪 TIMING BELT WHEEL ASSEMBLY (SUPPER) 同步皮帶輪(上) TIMING BELT WHEEL ASSEMBLY (LOWER) 同步皮帶輪(下) TIMING BELT 同步時皮帶 BELT COVER 皮帶座 BELT COVER PLATE 皮帶座蓋板 PACKING 防油墊片 PULLEY COVER BASE 配重固定塊 PULLEY COVER 皮帶輪護蓋 WASHER O型墊圈 SPRING COIL O型彈簧圈 SCREW1/4 ×28 螺釘 SCREW1/4 ×28 螺釘 SCREW 1/4 ×28 螺釘 SCREW 15/64 ×28 螺釘 SCREW 7/16 ×14 螺釘 SCREW 3/16 ×32 L8 螺釘 Amt req需求量 1 1 1 1 1 1 1 1 1 1 2 3 2 5 2 2 2 ~8~ jintex.in
Page 30
X26 9 11 13 12 10 X25 Y02 X27 14 15 D2-27 16 17 24 3 4 X9 (SP,SM) B18 8 X8 X95 20 2 X9 19 X60 X44 X31 6 7 SP 1A 5-1 1B(PL) 1(PL-M,SM) 5(PL,PL-M,SM) C4~9~ jintex.in
Page 31 — PRESSER BAR MECHANISM
PRESSER BAR MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C4-01 PRESSR BAR 壓腳柱 1 C4-1A PRESSR BAR 壓腳柱 1 C4-1B PRESSR BAR 壓腳柱 1 C4-02 FACE PLATE 壓腳後鈕 1 C4-03 STEEL BALL 鋼珠 1 C4-04 PRESSER BAR BUSHING (UPPER) 壓腳柱軸套(上) 1 C4-05 PRESSER BAR BUSHING (LOWER) 壓腳柱軸套(下) 1 C4-5-1 PRESSER BAR BUSHING (LOWER) 壓腳柱軸套(下) 1 C4-06 FACE PLATE (LOWER) 前蓋板(下) 1 C4-07 PACKING 防油墊片 1 C4-08 PRESSER BAR CLAMP ASSEMBLY 壓腳夾 1 C4-09 PRESSER BAR CLAMP SPRING 壓力彈片 1 C4-10 PRESSER BAR CLAMP SPRING PIN 定位銷 1 C4-11 PRESSER BAR CLAMP SPRING ASSEMBLY 上壓力彈片 1 C4-12 GUIDE WASHER 定向墊片 1 C4-13 WING NUT 蝶母 1 C4-14 PRESSER BAR LIFTER 壓腳提起放勾 1 C4-15 PRESSER BAR LIFTER 壓腳提起放勾 1 C4-16 KNEE LIFTER SPRING 壓腳提起放彈簧 1 C4-17 PRESSER FOOT LIFTER CHAIN ASSEMBLY 傳動鏈條 1 C4-B18 FACE PLATE (UPPER) 前蓋板 1 C4-19 PRESSER SPRING PLATE (L) 彈片勾(外) 1 C4-20 STOPPER SPRING PLATE (S) 彈片勾(内) 1 C4-24 OIP CAP 油塞 1 C4-X8 SCREW11/64×40 螺釘 2 C4-X9 SCREW 15/64×28 螺釘 1 C4-X25 PRESSER ADJUSTING SCREW 全牙螺釘 1 C4-X26 STUD SCREW 15/64×28 螺釘 1 C4-X27 STUD SCREW 5/16×28 螺釘 1 C4-X31 SCREW 9/64×40 L10 螺釘 3 C4-X44 SCREW 9/64×40 螺釘 4 C4-X60 SCREW 9/64×40 螺釘 1 C4-X95 SCREW 9/64×40 螺釘 1 C4-Y02 SCREW 3/16×32 螺母 1 C4-D2-27 RUBBER PLUR 橡膠塞 1 ~10~ jintex.in
Page 32
C28 X28 C30 Y01 25- X36-1 C13 2 C3 C5 C5-X34 X56 C29 X35 16 27- X37 12 6 9 X9 A14 X28-1 C31 X35 10 702 X9 X28 17 X56 C15 C8 X38-1 20 C11 X31 21 C18 C19 32 33 X50 22 23 X32 2 26 X42 21 X42 C5~11~ jintex.in
Page 33 — LOOPER MECHANISM
LOOPER MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C5-02 ECCENTRIC WHEEL SLEEVE 鍋滑塊 1 C5-C3 LOOPER FEEDING FORK 滑動叉 1 C5-C4 LOOPER FEEDING SHAFT 滑動叉(軸) 1 C5-C5 LOOPER FEEDING SHAFT BRACKET 滑動叉基座 1 C5-06 PIN 叉銷 1 C5-C7 LOOPER FRONT-REAR TRANSMISSION 前後驅動連桿 1 C5-C8 ROCK SHAFT 固定軸牙 1 C5-C9 LOOPER LEVER SHAFT ?節固定軸 1 C5-10 PACKING 墊圈 1 C5-C11 CONNECTING ROD GUIDE PLATE 上下驅動連桿 1 C5-12 WASHER 墊圈 1 C5-C13 LOOPER SHAFT CLAMP 傳動軸夾 1 C5-A14 LOOPER SHAFT 傳動軸 1 C5-15 LOOPER SHAFT BUSHING (F) 傳動軸套筒(後) 1 C5-16 LOOPER SHAFT BUSHING (B) 傳動軸套筒(前) 1 C5-17 SET COLLAR 定位夾 1 C5-C18 FORWARD ARM CONER ASSY 平面蓋板 1 C5-C19 PACKING 防油墊片 3 C5-20 OIL GAUGE 探油棒 1 C5-21 PACKING 橡膠墊圈 1 C5-22 CAP PLATE 上軸蓋 1 C5-23 PACKING 防油墊片 1 C5-25 "8"TYPE TRANSMISSION DEVICE 8字銅連桿 1 C5-26 ECCENTRIC WITH SCREW 小凸輪 1 C5-27 EYEPIECE H型連桿 1 C5-C28 STEEL BALL 萬向滾珠 1 C5-C29 LOOPER SLIDE BASE 連桿固定片 1 C5-C30 WASHER 波浪彈片 1 C5-C31 LOOPER FEEDING FORK 叉動柄 1 C5-32 -- 1 C5-33 -- 1 C5-702 SQUARE BALL 四方滑塊 1 C5-X9 SCREW 15/64×28 螺釘 2 C5-X28 SCREW 11/64×40 螺釘 1 C5-X28-1 SCREW 11/64×40 螺釘 1 C5-X31 SCREW 11/64×40 螺釘 16 C5-X32 SCREW 11/64×40 螺釘 2 C5-X34 SCREW 3/16×32 螺釘 1 C5-X36-1 SCREW M3.5 L=10 螺釘 4 C5-X37 SCREW 11/64×40 螺釘 1 C5-X38-1 SCREW 11/64×40 螺釘 2 C5-X42 SCREW 1/2×28 螺釘 3 C5-X50 SCREW 9/64×40 L=5 螺釘 4 C5-X56 SCREW 15/64×28 螺釘 2 C5-Y01 NUT 15/64×28 螺釘 1 ~12~ jintex.in
Page 34
25 (B26) 26 X48 15 PL, SP, PL-M SM 26 B26 X47 12 11 X48 X58 10 8 13 18 9 X59 Y04 14 X65 X65 3 6 7-1 X44 X34-1 X51 X31-1 29 30 X8 X9 31 C22 44 X56 X50 X54 36 35 34(PL-M,SM) 34-1(PL,SP) 32 33 X53 37 38 X50 27 A40 41 X9 39 23 24 43 Y04 28 X49 C6~13~ jintex.in
Page 35
UPPER THREADING MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C6-01 UPPER THREAD GUIDE RETAINER 上導線座 1 C6-03 BRACKET 導線架 1 C6-06 THREAD HANGER 導線圈 1 C6-07 LINE GUIDE DEVICE 倒位基座 1 C6-7-1 PIN 銷 1 C6-08 TENSION SPRING WASHER 彈簧墊圈 3 C6-09 TENSION SPRING WASHER 彈簧墊圈 3 C6-10 NUT 螺母 3 C6-11 TENSION DISC 沙拉片 6 C6-12 UPPER THREAD TENSION SPRING 張力彈簧 3 C6-13 UPPER THREAD TENSION SPRING 張力彈簧 3 C6-14 UPPER THREAD RELEASE PIN 銷 1 C6-15 THREAD RELEASER SHAFT 轉軸 1 C6-16 -- 1 C6-17 -- 1 C6-18 UPPER THREAD TENSION SUTD SCREW 過線固定片 3 C6-23 LOWER THREAD TENSION PLATE 張力夾線片 4 C6-24 PIN 銷 1 C6-25 TENSION RELEASE CRANK 連桿 1 C6-26 TENSION RELEASE CONNECTING BAR 上線鬆放提柄 1 C6-27 THREAD RELEASER LEVER 撥線片 1 C6-28 THREAD RELEASER SHAFT 撥線軸 1 C6-29 TENSION RELEASE CONNECTING ROD 連桿 1 C6-30 TENSION RELEASE LINK 小連柄 1 C6-31 TENSION RELEASE SUTD 壓腳柱夾 1 C6-32 THREAD GUIDE 導線勾 1 C6-33 WASHER 墊圈 1 C6-34 UPPER THREAD TAKE-UP LEEVER ASSEMBLY 天秤 1 C6-34-1 UPPER THREAD TAKE-UP LEEVER ASSEMBLY 天秤 1 C6-35 THREAD CHECKER 天秤夾線片 1 C6-36 SPRING 彈簧 1 C6-37 LOWER THREAD GUIDE 導線勾(D) 1 C6-38 WASHER 墊圈 1 C6-39 UPPER THREAD TENSION REGULATOR ASSEMBLY 導線壓力輪 1 C6-A40 UPPER THREAD TENSION ASSEMBLY 張力調節輪 1 C6-41 UPPER THREAD TENSION SPRING 彈簧 1 C6-43 WASHER 墊圈 1 C6-44 UPPER THREAD FASTENING CAM WITH SCREW 上線張力凸輪 1 C6-X8 SCREW 9/64x40 螺釘 2 C6-X9 SCREW 15/64x28 螺釘 1 C6-X31-1 SCREW 9/64x40 螺釘 1 C6-X34-1 SCREW 11/64x40 螺釘 2 C6-X44 SCREW 9/64x40 L=5 螺釘 1 C6-X47 SCREW 11/64x40 螺釘 1 C6-X48 SCREW 9/64x40 螺釘 2 C6-X49 SCREW 9/64x40 L=6 螺釘 1 C6-X50 SCREW 9/64x40 螺釘 1 C6-X51 SCREW 11/64x40 螺釘 1 C6-X53 SCREW 9/64x40 螺釘 1 C6-X54 SCREW 3/32x56 螺釘 2 C6-X56 SCREW 15/64x28 螺釘 3 C6-X58 UPPER THREAD TENSION STUD SCREW 叉口合葉螺釘 1 C6-X59 SCREW 11/64x40 螺釘 2 C6-X65 SCREW 3/32x56 L=4 螺釘 2 C6-B26 TENSION RELEASE CONNECTING BAR 上線鬆放提柄 1 C6-C22 THREAD TAKE-UP COVER 天秤護蓋 1 C6-Y04 NUT 11/64x40 螺釘 1 ~14~ jintex.in
Page 36
3N 2N X31電 X67-1 49 47-1 A55 X9 X67-1 50 A51 A50-2 X64 A50-4 A11 X31-1 A14 12-1 X31-2 A12 17 C7~15~ jintex.in Y05 C20-B C23-B C25-B C22-B 48 45 X65 X92 X44 3 X31-1 27 28 X64 X44 40 X44 X65 32 30 33 31 41 X50 39 29 C68 X60 44 X66 A14-1 X95 X31-1A11 X31-1 X31-1 X44 A17 X31-1 17 A18 A12 X31-2 A10
Page 37 — LOWER THREADING MECHANISM
LOWER THREADING MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C7-01 LOERT THREAD GUIDE RETAINER 導線(上) 1 C7-02N THREE PIPE-LINE THREAD TUBE 三線過線管 1 C7-03 BRACKET 過線片 1 C7-03N THREAD TUBE CLAMP 導線圈 6 C7-06 LOWER THREAD GUIDE SUPPORTER 支架輔助 1 C7-12 LOWER THREAD GUIDE HINGE ASSEMBLY 活動鈕(上) 2 C7-12-1 LOWER THREAD GUIDE HINGE ASSEMBLY 活動鈕插銷 2 C7-17 LOWER THREAD COVER 橡膠墊 1 C7-A10 LOWER THREAD COVER 下前蓋 2 C7-A11 PLATE SPRING 彈片 2 E7-A12 FIXING PLATE 活動鈕(下) 1 C7-A14 LOWER THREAD TENSION BRACKET 三通過線片 2 C7-A14-1 THREAD GUIDE 穩線片 1 C7-A17 LOWER THREAD GUIDE RETAINER ?通過線片 1 C7-A18 PLATE SPRING 彈片 2 C7-A50 LOOPER SIDE COVER (R) ASSY 彎針護蓋 1 C7-A51 LOOPER SIDE COVER (L) ASSY 彎針護蓋 1 C7-C20-B THREAD TENSION ROD 沙拉螺柱 3 C7-C21-B LOWER THREAD TENSION BRACKET 沙拉托架 3 C7-C22-B LOWER TEREAD TENSION NUT 沙拉螺母 3 C7-C23-B LOWER TEREAD TENSION PLATE 沙拉片 6 C7-C25-B LOWER TEREAD TENSION SPRING 沙拉彈簧 3 C7-27 THREAD TAKE-UP LEVER COVER 護線蓋 1 C7-28 SPRING 彈簧 1 C7-29 LOWER THREAD TAKE-UP LEVER FRAME 過線輔助架 1 C7-30 LOWER THREAD TAKE-UP LEVER COVER SHAFT 銷 1 C7-31 LOWER THREAD TAKE-UP LEVER BASE 過線支架 1 C7-32 PLATE 過線輔助架 1 C7-33 WASHER 墊圈 1 C7-34 LOERT THREAD GUIDE PLATE 固定片 1 C7-35 SCREW 彈簧 1 C7-36 WASHER 墊圈 1 C7-37 LOWER THREAD GUIDE(LEFT) 導線勾 1 C7-38 LOWER THREAD GUIDE(RIGHT) 導線勾 2 C7-40 LOWER THREAD GUIDE(LEFT) 導線勾 1 C7-41 LOWER THREAD TAKE-UP DISC ASSEMBLY 配線凸輪 1 C7-44 LOWER THREAD FEED TUBE 過線管 1 C7-47 LOOPER THREAD GUIDE BRACKET 針受座 1 C7-47-1 THREAD CUTTER GUIDE PLATE 切線刀 1 C7-48 THREAD CUTTER 切線刀 1 C7-A50-2 STOPPER SPRING PLATE 彈片勾 2 C7-A50-3 PIN 銷 4 C7-A50-4 FACE PLATE UPPER HINGE ASSEMBLY(R) 蝴蝶後扭(右) 1 C7-A51-4 FACE PLATE UPPER HINGE ASSEMBLY(L) 蝴蝶後扭(左) 1 C7-C68 PIN 銷 1 C7-X9 SCREW 15/64×28 螺釘 1 C7-X31 SCREW 11/64×40 螺釘 12 C7-X31-1 SCREW 11/64×40 螺釘 2 C7-X31-2 SCREW 11/64×40 螺釘 7 C7-X44 SCREW 9/64×40 L5 螺釘 2 C7-X45 SCREW 9/64×40 2 C7-X50 SCREW 9/64 螺釘 1 C7-X60 SCREW 9/64×40 L4 螺釘 3 C7-X64 SCREW 3/32×56 螺釘 2 C7-X65 SCREW 3/32×56 L4 螺釘 2 C7-X66 SCREW 1/4×40 螺釘 6 C7-X67-1 SCREW 3/32×56 螺釘 1 C7-X92 SCREW 9/64×40 螺釘 1 C7-X95 SCREW 9/64×40 螺釘 2 C7-Y05 NUT 9/64×40 螺母 ~16~ jintex.in
Page 38 — PL-M,SM
X75 C1 2 6200 3 6201 4 X32 11 5 X74-1 102 6 6302 X3 PL-M,SM X32 8 X77 7 L1 L2 18 X44 X50 A20 A19 A21 8 X31 9 15 10 X79 C10-11 14H X82 C8~17~
Page 39 — LOWER SHAFT MECHANISM-GAUGE PARTS
LOWER SHAFT MECHANISM-GAUGE PARTS REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C8-C1 LOVER SHAFT 下主軸 1 C8-02 BEARING 6200 Z 軸承 1 C8-03 BEARING 6201 Z 軸承 1 C8-04 BALL BEARING BUSHING 內套筒 1 C8-05 BEARING CASE ASSEMBLY 軸套筒(下) 1 C8-06 BEARING FIXING BUSHING 緊壓套筒 1 C8-07 NEEDLE CLAMP WITH SCREW 針夾 1 C8-08 NEEDLE PLATE 針板 1 C8-09 PRESSER FOOT ASSEMBLY 壓腳組 1 C8-10 FEED DOG 送布齒 1 C8-C10-11 NEEDLE GUARD 針受 1 C8-11 BEARING 6302 軸承 1 C8-14H LAPPER ASSEMBLY 導布架喇叭 1 C8-15 SPRING 彈簧 1 C8-18 LOOPER LONG 彎針(長) 1 C8-A19 LOOPER HOLDER (SHORT) 彎針台(短) 1 C8-A20 LOOPER HOLDER (MIDDLE) 彎針台(中) 1 C8-A21 LOOPER HOLDER (LONG) 彎針台(長) 1 C8-102 BEARING FIXING SCREW 外牙螺母 1 C8-L1 LOOPER SHORT 彎針(短) 1 C8-L2 LOOPER MEDIUM 彎針(中) 1 C8-X3 SCREW 5/16×28 螺釘 3 C8-X11 SCREW 9/64×40 螺釘 3 C8-X31 SCREW 9/64×40 螺釘 3 C8-X32 SCREW 11/64×40 螺釘 3 C8-X44 SCREW 9/64×40 螺釘 3 C8-X50 SCREW 9/64×40 L10 螺釘 3 C8-X74-1 SCREW1/4×28 螺釘 1 C8-X75 SCREW 11/64×40 螺釘 3 C8-X77 SCREW 11/64×40 螺釘 1 C8-X79 SCREW 3/16×32 螺釘 1 C8-X81 SCREW 9/64×40 螺釘 1 C8-X82 SCREW 9/64×40 螺釘 2 ~18~ jintex.in
Page 40
SP 1 X93 2 X77 9 7 X91 X79 D8-13K X50 A17 A16 A18 X44 X50 A20 A19 A21 3 X9 X83 5 X86 15 Y05 11 14XL 82 C9~19~ jintex.in
Page 41 — GAUGE PARTS(SP) SP
GAUGE PARTS(SP) SP REF. NO.部件事編號 NAME OF PARTS 說明 Amt req需求量 C9-01 NEEDLE CLAMP ASSEMBLY 針夾 1 C9-02 NEEDLE PLATE 1 C9-03 PRESSER FOOT ASSEMBLY 壓腳頭 1 C9-05 PRESSER FOOT (F) SPRING 彈簧 1 C9-06 PRESSER FOOT ASSEMBLY 壓腳底 1 C9-07 FEED DOG 導布齒 1 C9-09 FEED DOG 1 C9-11 NEEDLE GUARD 針受 1 C9-14XL LAPPER ASSEMBLY 導布架喇叭 1 C9-15 NEEDLE GUARD BRACKET 針受連結 1 C9-A16 LOOPER (SHORT) 彎針(短) 1 C9-A17 LOOPER (MIDDLE) 彎針(中) 1 C9-A18 LOOPER (LONG) 彎針(長) 1 C9-A19 LOOPER HOLDER (SHORT) 彎針台(短) 1 C9-A20 LOOPER HOLDER (MIDDLE) 彎針台(中) 1 C9-A21 LOOPER HOLDER (LONG) 彎針台(長) 1 C9-X9 SCREW 15/64×28 螺釘 1 C9-X44 SCREW 9/64×40 螺釘 4 C9-X50 SCREW 9/64×40 螺釘 3 C9-X77 SCREW 11/64×40 螺釘 1 C9-X79 SCREW 3/16×32 螺釘 1 C9-X82 SCREW 9/64×40 螺釘 2 C9-X83 STUD SCREW 螺釘鉗 1 C9-X85 SCREW 3/32×56 合葉螺釘 2 C9-X86 SCREW 5/64×60 螺釘 3 C9-X91 SCREW 1/8×44 螺釘 1 C9-X93 NUT 9/64×40 螺釘 1 C9-D8-13K SCREW 9/64×40 螺釘 1 ~20~ jintex.in
Page 42
PL 1 X93 2 X77 8 X31 X87- 10 X65 5 X88 X89 3 X86 4 X83 6 7 X91 X79 9 X32 14XL X82 11 A17 A16 A18 X44 X50 A20 A19 A21 C10~21~ jintex.in
Page 43 — GAUGE PARTS (DP)
GAUGE PARTS (DP) REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C10-01 NEEDLE CLAMP ASSEMBLY 針夾 1 C10-02 NEEDLE PLATE 針板 1 C10-03 SPRING M 彈簧 1 C10-04 SPRING F 彈簧 1 C10-05 SPRING BL 彈簧 1 C10-06 PRESSER FOOT ASSEMBLY 前壓腳底 1 C10-07 SUB FEED DOG 導布齒 1 C10-08H NUT 1/8×44 螺母 1 C10-09 FEED DOG 送布齒 1 C10-10 SPRING BS 彈簧 1 C10-11 NEEDLE GUARD 針受 1 C10-14XL LAPPER ASSEMBLY 導布架喇叭 1 C10-A16 LOOPER (SHORT) 彎針(短) 1 C10-A17 LOOPER (MIDDLE) 彎針(中) 1 C10-A18 LOOPER (LONG) 彎針(長) 1 C10-A19 LOOPER HOLDER (SHORT) 彎針台(短) 1 C10-A20 LOOPER HOLDER (MIDDLE) 彎針台(中) 1 C10-A21 LOOPER HOLDER (LONG) 彎針台(長) 1 C10-X31 SCREW 9/64×40 螺釘 3 C10-X32 SCREW 11/64×40 螺釘 3 C10-X44 SCREW 9/64×40 螺釘 3 C10-X50 SCREW 9/64×40 螺釘 3 C10-X65 SCREW 3/32×56 螺釘 3 C10-X77 SCREW 11/64×40 螺釘 3 C10-X79 SCREW 3/16×32 螺釘 1 C10-X82 SCREW 9/64×40 螺釘 3 C10-X83 STUD SCREW 螺釘銷 1 C10-X86 SCREW 3/32×56 螺釘 3 C10-X87 SCREW 1/8×44 L5 螺釘 1 C10-X88 SCREW 1/8×44 螺釘 1 C10-X89 SCREW 3/32×56 螺釘 3 C10-X91 SCREW 5/64×56 螺釘 1 C10-X93 SCREW 1/8×44 螺釘 2 ~22~ jintex.in
Page 44 — PL,PL-M
PL,PL-M D1-9 A18-1 9A 2 1 3 X9 5 6 10 X19 7 17 X67-1 8 <PL-M> 11 14 13 15 12 X67-2 9 SP 1A 2A 4A 18A 3A X31 13A X82 X67-1 22A 21A 20A 19A 14A X82 5A 6A X47 8A 9A 11A 12A 16A X67 17A C11~23~
Page 45 — PULLER DEVICE MECHANISM DP、SP
PULLER DEVICE MECHANISM DP、SP REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C11-01 PRESSURE ADJUSTING SCREW 外牙螺母 1 C11-02 UPPER WHEEL PRESSER BAR 立軸 1 C11-03 SPRING 張力彈簧 1 C11-05 WHEEL DIRECTION FIXING DEVICE 拉布輪壓力提柄 1 C11-06 PRESSER ROD BUSHING 軸套 1 C11-07 UPPER WHEEL SEAT 拉布輪架 1 C11-08 UPPER WHEEL CONNECTON 固定軸 1 C11-09 ONE WAY PULL HOLDER 拉柄 1 C11-10 PACKING 防油墊片 1 C11-12 ONE WAY TRIANGULAR WHEEL 單向三角輪片 2 C11-13 UPPER WHEEL 拉布輪 1 C11-14 ONE WAY STILL BALL 單向滾珠 6 C11-15 ONE WAY STILL SPRING 單向彈簧 6 C11-17 CHOCK RING E型扣環 1 C11-A18-1 FACE PLATE (UPPER) DP上前蓋座 1 C11-D1-9 RUBBER PLUG 橡膠塞 4 C11-X09 SCREW 15/64×28 螺釘 1 C11-X19 SCREW 螺釘 2 C11-X31 SCREW 9/64×40 螺釘 1 C11-X47 PRESSER FOOT LIFTER 螺釘 1 C11-X47 SCREW 螺釘 1 C11-X67 SCREW 3/32×56 螺釘 3 C11-X67-1 SCREW 3/32×56 螺釘 6 C11-X67-2 SCREW 3/32×56 螺釘 3 C11-X82 SCREW 9/64×40 螺釘 3 C11-01A PRESSURE ADJUSTING SCREEW 外牙螺母 2 C11-02A NUT 螺母 1 C11-03A PRESSER FOOT LIFTER 手提柄 1 C11-04A STUD SCREW 固定銷 1 C11-05A SPRING 張力彈簧 1 C11-06A PRESSER BAR GUIDE ASSEMBLY 拉布輪壓力提柄 1 C11-08A ROLLER PRESSER LIFTER 舌片 5 C11-09A SCREW PRESSER ROD BUSHING 螺釘 1 C11-10A PRESSER ROD BUSHING 軸套 1 C11-12A UPPER WHEEL PRESSER BAR 立軸 1 C11-14A PULLER SUPPORTER ASSEMBLY 拉布輪架 1 C11-16A ONE WAY PULL HOLDER 拉柄 1 C11-17A UPPER WHEEL CONNECTON 固定軸 1 C11-18A FACE PLATE 拉布輪基座 2 C11-19A ONE WAY TRIANGULAR WHEEL 單向三角輪片 1 C11-20A UPPER WHEEL 拉布輪 6 C11-21A ONE WAY STILL BALL 單向滾珠 6 C11-22A ONE WAY STILL SPRING 單向彈簧 6 ~24~ jintex.in
Page 46
13 11 12 9 8 7 6 5 4 1 14 3 X1 2 X2 2-1 C12~25~ jintex.in
Page 47 — ACCESSORIES
ACCESSORIES REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C12-01 THREAD STAND 六葉線架 1 C12-02 CUSHION ASSEMBLY 固定座 2 C12-2-1 WASHER 墊圈 2 C12-03 BASE CUSHION 橡膠墊塊 2 C12-04 HEAD COVER 防塵套 1 C12-05 OIL TANK 大油壺 1 C12-06 OILER ASSEMBLY 小油瓶 1 C12-07 NEEDLE 針 1 C12-08 TWEÉZERS 鑷子 1 C12-09 SPANNER 固定板手(#7) 1 C12-10 SPANNER 固定板手(#8) 1 C12-11 SCREW DRIVER 大起子 1 C12-12 SCREW DRIVER 小起子 1 C12-13 SCREW DRIVER 中起子 1 C12-14 THREADLE 腳踏板 1 C12-15 SPANNER 固定板手(#10) 2 C12-X1 SCREW1/4×28 螺釘 2 C12-X2 SCREW 6.2×26 木螺釘 2 ~26~ jintex.in
Page 48 — TABLE CUT - OUT
SIRUBA TABLE CUT - OUT Series FA007 Item Code FA007-T1 Subclass / Remark • FOR FA007 Series Mounting Fully-submerged Date 2014/7/18 單位/UNIT:mm 所有尺寸公差/Tolerance:±2 全封邊炭裕光塑膠 所有孔徑公制CO 0.5 0 180 280 299 385 535 750 725 012 20 210 4-R10 30 4 A 33 66 2-08.5 57 4 A 150 017 85 0 40 85 0 jintex.in
