Page 16

Model FA007-364 XL /SP , DP The clearance between the needles and the tips of the loopers will be 0.05 mm, pushing the needle guard . (Adjusting Method) 1. Turn the pulley toward yourself until the needles come down to the lowest position. 2. Loosen stop screw , and raise or lower needle guard so that the bottom ends of the needle eyes will be about 0.5 mm above the bottom of needle guard . 3. Turn the pulley toward yourself again until the tips of the loopers come to the centers of the needles. 4. Loosen stop screw , move needle guard left or to the right, and adjust so that the clearance between the needles and the tips of the loopers will be 0.05 mm, pushing needle points by needle guard . At this time, please make sure that the clearance between the loopers and the needles is 0.2-0.3 mm in the backward movement of the loopers. Feed Dog Height Adjustment Model FA007-364 M Make an adjustment so that, when feed dog is at the highest position, the feed dog will be 0.8 mm above the top surface of the needle plate. Model FA007-364 XL /SP , DP Make an adjustment so that the highest part of the feed dog will be 1.2 mm above the top surface of the needle plate. (Adjusting Method) Adjusting the feed dog height by turning feed base eccentric shaft Puller Height Adjustment (Model FA007-364 XL /SP , DP) Adjust the height of puller so that it is 0.1 to 0.2 mm high from the top of the needle plate. (Adjusting Method) Loosen set screw , and move puller support up or down until puller is 0.1 to 0.2 mm above the top of the needle plate. ~12~ jintex.in

Page 17

Siruba FA007 parts on page 17
RefPart numberPart nameQty
FA007-364MModel FA007-364 M
FA007-364XL /SP.DPModel FA007-364 XL /SP, DP

7 Installing the Spacer (For the denim specifications) If stitch irregularities develop in sewing very heavy materi- als, adjust the sub-feed dog to the correct height by spacer. (Adjusting Method) 1. Remove set screw and sub-feed dog. 2. Placer spacer under sub-feed dog and retighten set screw. The spacer is in the parts box. 8 Upper Thread Take-up Thread Guide Adjustment Thread guide 7-8 mm Upper thread take-up Model FA007-364M Model FA007-364XL /SP.DP Model FA007-364 M Make an adjustment so that, when the needle bar is down at the lowest position, the top of the upper thread take-up thread hole meets the bottom of the thread guide. Model FA007-364 XL /SP, DP Please adjust the distance between the center of the upper thread take-up and the top of the thread guide will be 7-8 mm. (Adjusting Method) 1. Turn the pulley toward yourself until the needle bar is down at the lowest position. 2. Loosen set screw and move upper thread take-up thread guide up or down until its bottom meets the top of the upper thread take-up thread hole. The higher the upper thread take-up thread guide, the greater will be the upper thread loops. 9 Thread Release Lever Adjustment Make an adjustment so that, when the needle bar is down at the lowest position, the thread release lever thread hole meets the thread hole in upper thread tension bracket. (Adjusting Method) 1. Turn the pulley until the needle bar is down at the lowest position. 2. Loosen set screw and raise or lower thread release lever until its thread hole meets the thread hole in upper thread tension bracket. The higher the thread release lever, the tighter will be the stitches. ~13~ jintex.in

Page 18

Siruba FA007 parts on page 18
RefPart numberPart nameQty
11stop screw
22thread release shaft
11stop screw
22upper thread nipper tension bracket
33tension plates
11lower thread take-up
33stop screws
22lower thread take-up bracket
11screw
22screw

10 Thread Release Shaft Adjustment Make an adjustment so that the thread tension discs will loosen when the presser foot is raised, and tighten when the presser foot is lowered. (Adjusting Method) 1. Loosen stop screw 2. Make an adjustment by turning thread release shaft so that the thread tension discs will begin to loosen when the presser foot is raised 4 mm above the top surface of the needle plate. 3. After the adjustment, retighten stop screw securely. 11 Upper Thread Nipper Adjustment Thread nipper cam Adjust the clearance between the upper thread nipper tension bracket and tension plates to somewhere between 0.8 mm and 1.0 mm. (Adjusting Method) 1. Loosen stop screw, and move upper thread nipper tension bracket in or out until the clearance between it and tension plates is somewhere from 0.8 to 1.0 mm. *Stitch tightness can be improved by narrowing the clear- ance between upper thread nipper tension bracket and the arm. 12 Lower Thread Take-up Timing Adjustment Make an adjustment so that, when the loopers begin to move backward, lower thread take-up will rise about 5 to 7 mm above lower thread take-up bracket. (Adjusting Method) 1. Insert a screwdriver into the adjusting hole in the bed, and loosen two stop screws. 2. Raise lower thread take-up to 5 to 7 mm above thread take-up bracket. 3. After the adjustment, retighten two stop screw. Adjusting hole Thread 7 mm 13 Puller Device Timing Adjustment (Model FA007-364 XL/SP, DP) 1. With 3mm wrench to loosen the screw 2. The timing of the feed will be starting when the needle is away from the needle plate about 5 or 6mm, and stoping at 10mm. 3. After adjusting the timing, retighten the screw &. ~14~ jintex.in

Page 19

TROUBLESHOOTING Trouble Cause Inspection Remedy Page Needles installed improperly. Direction of long groove. Refer to instructions for needle installing. 5 Upper thread tension too great. Upper thread tension. Adjust upper thread tension. 7 Lower thread tension too great. Lower thread tension. Adjust lower thread tension. 7 Thread breaks. Thread release lever out of position. Thread release lever position. Adjust thread release lever. 13 Needle eyes too small for threads. Needle size and thread count. Refer to the section on "Needles and Threads" 5 Loopers damaged. Smooth loopers with sandpaper or buff. Needles damaged. Replace needles with good ones. 5 Needles hit loopers. Clearance between needles and loopers. Adjust looper timing to avoid contact with needles. 11 Needles break. Needles installed improperly. Direction of long groove. Refer to instructions for needle installing. 5 Needles hit needles guard. Clearance between needles and needles guard. Adjust needles guard. 11 Stitches skip. Needle eyes too small for threads. Needle size and thread count. Refer to the section on "Needles and Threads" 5 Needles installed improperly. Direction of long groove. Refer to instructions for needle installing. 5 Looper points are dull. Replace loopers with good ones. 10 11 Needle and looper timing wrong. Needle and looper timing. Adjust needle and looper timing. 10 Clearance between needles and loopers too great. Clearance between needles and loopers. Adjust clearance between needles and loopers. 11 Lower thread take-up timing wrong. Lower thread take-up timing. Adjust lower thread take-up timing. 14 Upper thread tension too small. Upper thread tension. Adjust upper thread tension. 7 Lower thread tension too great. Lower thread tension. Adjust lower thread tension. 7 Upper threads loose. Upper thread take-up thread guide out of position. Adjust upper thread take-up thread guide position. 13 Upper thread nipper does not tighten upper threads. Tension plate clearance. Adjust upper thread nipper. 14 ~15~ jintex.in

Page 20

Trouble Cause Inspection Remedy Page Machine does not feed work. Feed dog too low. Feed dog height. Adjust feed dog height. 12 Presser foot pressure too small. Presser foot pressure. Adjust presser foot pressure. 8 Feed dog worn out. Have serviceman check it. Presser foot floats and does not fully press work. Have serviceman check it. Feed dog and presser foot work on one side only. Have serviceman check them. Non-alignment and wrinkles (Model - FA007-364M ) Sub feed dog height incorrect. Sub feed dog height. Adjust sub feed dog height. 13 Presser foot pressure incorrect. Presser foot pressure. Adjust presser foot pressure. 8 Feed dog height incorrect. Feed dog height. Adjust feed dog height. 12 Non-alignment and wrinkles (Model - FA007-364XL/SP,DP) Puller timing wrong. Puller timing. Adjust puller device timing. 14 Puller feed incorrect. Puller feed. Adjust puller feed. 8 Presser foot pressure incorrect. Presser foot pressure. Adjust presser foot pressure. 8 Feed dog height incorrect. Feed dog height. Adjust feed dog height. 12 ~16~ jintex.in

Page 21 — CONTENTS 目録

Siruba FA007 parts on page 21
RefPart numberPart nameQty
CO-MACHINE BODY機體下拉布輪
C1-UPPER SHAFT MACHANISM上軸結構
C2-NEEDLE BAR MECHANISM-FEED MECHANISM針柱與送布傳動結構
C3-PULLY MECHANISM皮帶傳動結構
C4- PRESSER BAR MECHANISM壓腳柱結構
C5-LOOPER MECHANISM彎針傳動結構
C6-UPPER THREADING MECHANISM上導線張力結構
C7-LOWER THREADING MECHANISM下導線張力結構
C8-LOWER SHAFT MECHANISM-GAUGE PARTS下軸結構與針位組
C9-GAUGE PARTS(SP) SP針位組
C10-GAUGE PARTS (DP) DP針位組
C11-PULLER DEVICE MECHANISM DP、SP上拉布輪結構
C12-ACCESSORIES配件

CONTENTS 目録 CO-MACHINE BODY 機體下拉布輪 1 C1-UPPER SHAFT MACHANISM 3 上軸結構 C2-NEEDLE BAR MECHANISM-FEED MECHANISM 5 針柱與送布傳動結構 C3-PULLY MECHANISM 7 皮帶傳動結構 C4- PRESSER BAR MECHANISM 9 壓腳柱結構 C5-LOOPER MECHANISM 11 彎針傳動結構 C6-UPPER THREADING MECHANISM 13 上導線張力結構 C7-LOWER THREADING MECHANISM 15 下導線張力結構 C8-LOWER SHAFT MECHANISM-GAUGE PARTS 17 下軸結構與針位組 C9-GAUGE PARTS(SP) SP 19 針位組 C10-GAUGE PARTS (DP) DP 21 針位組 C11-PULLER DEVICE MECHANISM DP、SP 23 上拉布輪結構 C12-ACCESSORIES 25 配件 ~17~ jintex.in

Page 22

Siruba FA007 parts on page 22
RefPart numberPart nameQty
17-3X67-2SCREW
9X31SCREW
75-1GEAR
1111-1SHAFT
11X67BRACKET
12A12SPRING
88MOTOR
55BELT
X77X77COVER
A17-3A17-3BRACKET
X28-1X28-1SCREW
66SHAFT
B17-1B17-1BRACKET
1818WASHER
44BASE
11MACHINE BODY
C2C2COVER

X67-2 X31 17-3 9 5-1 7 11-1 X67 11 12 12A 8 <PL-M> 5 X77 A17-3 X28-1 6 B17-1 4 18 1 C2 CO~1~ jintex.in

Page 23 — MACHINE BODY

Siruba FA007 parts on page 23
RefPart numberPart nameQty
C0-01MACHINE HEAD 機體(上)1
C0-C2MACHINE REST BOARD 機體(下)1
C0-04OIL PLUG 油塞1
C0-05LOWER WHEEL 拉布輪1
C0-05-1LOWER WHEEL 拉布輪1
C0-06LOWER WHEEL CONNECTION 拉布輪軸1
C0-07ONE WAY TRIANGULAR AXLE 單向三角軸片2
C0-08ONE WAY STILL BALL 單向彈簧6
C0-09ONE WAY STILL BALL 單向滾珠6
C0-11ONE WAY PUSHING PLATE單向推輪1
C0-11-1PIN 銷1
C0-12-1FEED DOG PUSHING PLATE LINK 推輪連桿1
C0-12ASCREW 合葉螺釘1
C0-B17-1PULLER COVER 導蓋(右)1
C0-A17-3PULLER TOP COVER 護輪蓋3
C0-17-3PACKING 導塞2
C0-18PLASTIC COVER 橡膠塞2
C0-X28-1SCREW 11/64×40 螺釘3
C0-X31SCREW 9/64×40 L8 螺釘3
C0-X67SCREW 3/32×56 螺釘3
C0-X67-2SCREW 3/32×56 L6 螺釘3
C0-X77SCREW 11/64×40 L9 螺釘2

MACHINE BODY REF. NO.部品編號 NAME OF PARTS 說明 Amt req需求量 C0-01 MACHINE HEAD 機體(上) 1 C0-C2 MACHINE REST BOARD 機體(下) 1 C0-04 OIL PLUG 油塞 1 C0-05 LOWER WHEEL 拉布輪 1 C0-05-1 LOWER WHEEL 拉布輪 1 C0-06 LOWER WHEEL CONNECTION 拉布輪軸 1 C0-07 ONE WAY TRIANGULAR AXLE 單向三角軸片 2 C0-08 ONE WAY STILL BALL 單向彈簧 6 C0-09 ONE WAY STILL BALL 單向滾珠 6 C0-11 ONE WAY PUSHING PLATE 單向推輪 1 C0-11-1 PIN 銷 1 C0-12-1 FEED DOG PUSHING PLATE LINK 推輪連桿 1 C0-12A SCREW 合葉螺釘 1 C0-B17-1 PULLER COVER 導蓋(右) 1 C0-A17-3 PULLER TOP COVER 護輪蓋 3 C0-17-3 PACKING 導塞 2 C0-18 PLASTIC COVER 橡膠塞 2 C0-X28-1 SCREW 11/64×40 螺釘 3 C0-X31 SCREW 9/64×40 L8 螺釘 3 C0-X67 SCREW 3/32×56 螺釘 3 C0-X67-2 SCREW 3/32×56 L6 螺釘 3 C0-X77 SCREW 11/64×40 L9 螺釘 2 ~2~ jintex.in

Page 24

Siruba FA007 parts on page 24
RefPart numberPart nameQty
4-14-1
2929
22A22A
X9X9
9-19-1
6-16-1(PL,SP,PL-M)
7-17-1
X4X4
IIII
X3X3
6(SM)6(SM)
3131
X6X6
1717
1313
1616
X5X5
1212
1414
1515
1010
102102
102-1102-1
18-118-1
18-218-2
18-318-3
X7X7
1818
2121
2727
X38-1X38-1
2929
2525
2424
2222
2323
3030
33
22
44
Y2Y2
11

Y2 3 2 4 4-1 1 3 30 22 23 29 22A 25 SM 8 7 9 PL,PL-M,SP X9- 6-1(PL,SP,PL-M) 9-1 24 25 21 18-3 19 18-1 18-2 X7 18 PL,PL-M,SP 6(SM) 7-1 X4 II X3 31 X6 17 13 16 X5 12 14 15 10 102 102-1 C1~3~ jintex.in

Page 25 — UPPER SHAFT MECHANISM

Siruba FA007 parts on page 25
RefPart numberPart nameQty
C1-01PULL BAR ENDING SCREW 合葉螺釘1
C1-02VERTICAL PULL BAR 傳動連桿1
C1-03PULL BAR BEARING 滾柱軸承2
C1-04VERTICAL PULL BAR FIXING SCREW 合葉螺釘1
C1-04-1WASER 熱圈1
C1-Y2PULL BAR SCREW NUT 止動螺母1
C1-06UPPER SHAFT 上主軸1
C1-06-1UPPER SHAFT 上主軸1
C1-07BALL BEARING 6202 軸承1
C1-08BEARING SUPPORT 軸承圈1
C1-09OIL STOPPER 油封1
C1-7-1FIXING BUSHING 上軸套(前)1
C1-9-1CHOCK RING 定位圈1
C1-10BEARING CASE ASSEMBLY 軸套筒1
C1-11BEARING 6302 軸承1
C1-12OIL TANK 儲油器1
C1-13OIL GAUGE WINDOW 油鏡1
C1-14PACKING 油封墊圈1
C1-15OIL GAUGE FLANGE 儲油蓋1
C1-16PACKING 油銅墊圈1
C1-17PACKING 橡膠墊圈1
C1-18UPPER WHEEL ECCENTRIC WHEEL 偏心凸輪1
C1-18-1ECCENTRIC WHEEL WASHER 凸輪蓋1
C1-18-2BEARING 滾柱軸承1
C1-18-3SCREW 9/64×40 螺釘2
C1-19UPPER WHEEL MOVING PULL BAR 凸輪連動連桿1
C1-21PULL BAR SCREW NUT 合葉螺釘1
C1-22PULL BAR SCREW WASHER 止滑墊圈2
C1-22AWASHER 墊圈(厚PL, PL-M, SP)(薄PL, PL-M)2
C1-23PULL BAR SCREW NUT 螺母2
C1-24THICKNESS ADJUSTING PULL BAR 擺動傳桿2
C1-25PULL BAR FIXING PULL BAR 螺釘2
C1-26UPPER WHEEL CONNECTION 傳動軸2
C1-27MOVABLE LEFT-RIGHT CHOCK RING 定位圈2
C1-29CONNECTION COPPER TUBE 銅套筒1
C1-30VERTICAL PULL BAR 雙頭合葉螺釘1
C1-31WASHER 熱圈1
C1-102BEARING FIXING SCREW 外牙螺母1
C1-102-1BEARING FIXING BUSHING 緊套套筒1
C1-X3SCREW 15/64×28 螺釘1
C1-X4SCREW 15/64×28 螺釘4
C1-X5SCREW 9/64×40 螺釘1
C1-X6CAP SCREW 覆蓋螺釘2
C1-X7SCREW 1/4×28 螺釘2
C1-X9SCREW 15/64×28 螺釘2
C1-X38-1SCREW 11/64×40 螺釘2

UPPER SHAFT MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C1-01 PULL BAR ENDING SCREW 合葉螺釘 1 C1-02 VERTICAL PULL BAR 傳動連桿 1 C1-03 PULL BAR BEARING 滾柱軸承 2 C1-04 VERTICAL PULL BAR FIXING SCREW 合葉螺釘 1 C1-04-1 WASER 熱圈 1 C1-Y2 PULL BAR SCREW NUT 止動螺母 1 C1-06 UPPER SHAFT 上主軸 1 C1-06-1 UPPER SHAFT 上主軸 1 C1-07 BALL BEARING 6202 軸承 1 C1-08 BEARING SUPPORT 軸承圈 1 C1-09 OIL STOPPER 油封 1 C1-7-1 FIXING BUSHING 上軸套(前) 1 C1-9-1 CHOCK RING 定位圈 1 C1-10 BEARING CASE ASSEMBLY 軸套筒 1 C1-11 BEARING 6302 軸承 1 C1-12 OIL TANK 儲油器 1 C1-13 OIL GAUGE WINDOW 油鏡 1 C1-14 PACKING 油封墊圈 1 C1-15 OIL GAUGE FLANGE 儲油蓋 1 C1-16 PACKING 油銅墊圈 1 C1-17 PACKING 橡膠墊圈 1 C1-18 UPPER WHEEL ECCENTRIC WHEEL 偏心凸輪 1 C1-18-1 ECCENTRIC WHEEL WASHER 凸輪蓋 1 C1-18-2 BEARING 滾柱軸承 1 C1-18-3 SCREW 9/64×40 螺釘 2 C1-19 UPPER WHEEL MOVING PULL BAR 凸輪連動連桿 1 C1-21 PULL BAR SCREW NUT 合葉螺釘 1 C1-22 PULL BAR SCREW WASHER 止滑墊圈 2 C1-22A WASHER 墊圈(厚PL, PL-M, SP)(薄PL, PL-M) 2 C1-23 PULL BAR SCREW NUT 螺母 2 C1-24 THICKNESS ADJUSTING PULL BAR 擺動傳桿 2 C1-25 PULL BAR FIXING PULL BAR 螺釘 2 C1-26 UPPER WHEEL CONNECTION 傳動軸 2 C1-27 MOVABLE LEFT-RIGHT CHOCK RING 定位圈 2 C1-29 CONNECTION COPPER TUBE 銅套筒 1 C1-30 VERTICAL PULL BAR 雙頭合葉螺釘 1 C1-31 WASHER 熱圈 1 C1-102 BEARING FIXING SCREW 外牙螺母 1 C1-102-1 BEARING FIXING BUSHING 緊套套筒 1 C1-X3 SCREW 15/64×28 螺釘 1 C1-X4 SCREW 15/64×28 螺釘 4 C1-X5 SCREW 9/64×40 螺釘 1 C1-X6 CAP SCREW 覆蓋螺釘 2 C1-X7 SCREW 1/4×28 螺釘 2 C1-X9 SCREW 15/64×28 螺釘 2 C1-X38-1 SCREW 11/64×40 螺釘 2 ~4~ jintex.in

Page 26

Siruba FA007 parts on page 26
RefPart numberPart nameQty
1010PL-M,SM
1010-1PL,SP
99PL-M,SM
99-1PL,SP
1111PL-M,SM
1111-1PL,SP
12-112-1PL-M,SM
1212PL,SP
X10X10Screw
X7PL,SPScrew66
X7PL-M,SMScrew7
X31-1X31-1Screw
33PL-M,SM
3-13-1PL,SP
C6C6Cord
22PL,SP,#22Part
18PL-M,SM,#18Part
X9X9Screw
X8X8Screw
X7X7Screw
C19C19Bearing
C25C25Part
2424Part
1616Part
X14X14Screw
1717Part
X49X49Screw
2626Part
2020Part
1818Part
C21-1C21-1Part
2323Part

14 10(PL-M,SM) 10-1(PL,SP) X9 C6 (PL,SP,#22) (PL-M,SM,#18) 9(PL-M,SM) 9-1(PL,SP) 11(PL-M,SM) 11-1(PL,SP) X31-1 3(PL-M,SM) 3-1(PL,SP) 5 2 X8 7 8 12-1(PL-M,SM) 12(PL,SP) X10 (PL,SP)x66 (PL-M,SM)x7 X7 C25 22 X9 24 C19 16 X49 17 X7 20 18 C21-1 X8 23 X8 26 X9 C2~5~ jintex.in

Page 27 — NEEDLE BAR MECHANISM-FEED MECHANISM

Siruba FA007 parts on page 27
RefPart numberPart nameQty
C2-01NEEDLE BAR CRANK 固定軸1
C2-02NEEDLE BAR CRANK BOD 提升連桿1
C2-03NEEDLE BAR BRACKET 針夾1
C2-03-1NEEDLE BAR BRACKET 針夾1
C2-04WICK 油蕊1
C2-05OIL LEAK PROOF CAP 防油蓋1
C2-06WICK 油蕊1
C2-07NEEDLE BAR GUIDE SLIDE BLOCK 四方滑塊1
C2-08NEEDLE BAR GUIDE 導軌1
C2-09NEEDLE BAR 針柱1
C2-09-1NEEDLE BAR 針柱1
C2-10NEEDLE BAR BUSHING (UPPER) 針套筒(上)1
C2-10-1NEEDLE BAR BUSHING (UPPER) 針套筒(上)1
C2-11NEEDLE BAR BUSHING (LOWER) 針套筒(下)1
C2-11-1NEEDLE BAR BUSHING (LOWER) 針套筒(下)1
C2-12THREAD TAKE-UP CRANK 平衡凸塊1
C2-12-1THREAD TAKE-UP CRANK 平衡凸塊1
C2-14OIL CAP 膠蓋1
C2-15NEEDLE (PL, SP#22)(PL-M, SM#1B) 針(PL, SP#22)(PL-M, SM#1B)3
C2-16FEED DOG ECCENTRIC AXLE 調節凸輪1
C2-17WASHER 墊圈1
C2-18ECCENTRIC WHEEL SLEEVE 圓凸輪1
C2-C19ECCENTRIC WHEEL WITH SCREW 上下凸輪1
C2-20ECCENTRIC WHEEL SLEEVE 圓凸輪1
C2-C21-1FEED BAR SLIDE BLOCK ASSEMBLY 送布傳動曲柄1
C2-22PACKING 油封1
C2-23FEED LIFTING FORK 又動柄1
C2-24FEED BAR SLIDE BLOCK ASSEMBLY 四方滑塊1
C2-C25FEED BAR ECCENTRIC SHAFT 偏心軸1
C2-26FEED DOG ECCENTRIC SET 固定座1
C2-X7SCREW 1/4×40 螺釘5
C2-X8SCREW 11/64×40 L12 螺釘4
C2-X9SCREW 15/64×28 螺釘5
C2-X10SCREW 15/64×28 螺釘2
C2-X14FEED BAR ECCENTRIC ADJUSTING SCREW 倒位螺釘1
C2-X31-1SCREW 9/64×40 螺釘1
C2-X49SCREW 9/64×40 L5 螺釘1
C2-X66THREAD TAKE-UP CRANK 平衡凸塊1

NEEDLE BAR MECHANISM-FEED MECHANISM REF. NO. 部件編號 NAME OF PARTS 說明 Amt req需求量 C2-01 NEEDLE BAR CRANK 固定軸 1 C2-02 NEEDLE BAR CRANK BOD 提升連桿 1 C2-03 NEEDLE BAR BRACKET 針夾 1 C2-03-1 NEEDLE BAR BRACKET 針夾 1 C2-04 WICK 油蕊 1 C2-05 OIL LEAK PROOF CAP 防油蓋 1 C2-06 WICK 油蕊 1 C2-07 NEEDLE BAR GUIDE SLIDE BLOCK 四方滑塊 1 C2-08 NEEDLE BAR GUIDE 導軌 1 C2-09 NEEDLE BAR 針柱 1 C2-09-1 NEEDLE BAR 針柱 1 C2-10 NEEDLE BAR BUSHING (UPPER) 針套筒(上) 1 C2-10-1 NEEDLE BAR BUSHING (UPPER) 針套筒(上) 1 C2-11 NEEDLE BAR BUSHING (LOWER) 針套筒(下) 1 C2-11-1 NEEDLE BAR BUSHING (LOWER) 針套筒(下) 1 C2-12 THREAD TAKE-UP CRANK 平衡凸塊 1 C2-12-1 THREAD TAKE-UP CRANK 平衡凸塊 1 C2-14 OIL CAP 膠蓋 1 C2-15 NEEDLE (PL, SP#22)(PL-M, SM#1B) 針(PL, SP#22)(PL-M, SM#1B) 3 C2-16 FEED DOG ECCENTRIC AXLE 調節凸輪 1 C2-17 WASHER 墊圈 1 C2-18 ECCENTRIC WHEEL SLEEVE 圓凸輪 1 C2-C19 ECCENTRIC WHEEL WITH SCREW 上下凸輪 1 C2-20 ECCENTRIC WHEEL SLEEVE 圓凸輪 1 C2-C21-1 FEED BAR SLIDE BLOCK ASSEMBLY 送布傳動曲柄 1 C2-22 PACKING 油封 1 C2-23 FEED LIFTING FORK 又動柄 1 C2-24 FEED BAR SLIDE BLOCK ASSEMBLY 四方滑塊 1 C2-C25 FEED BAR ECCENTRIC SHAFT 偏心軸 1 C2-26 FEED DOG ECCENTRIC SET 固定座 1 C2-X7 SCREW 1/4×40 螺釘 5 C2-X8 SCREW 11/64×40 L12 螺釘 4 C2-X9 SCREW 15/64×28 螺釘 5 C2-X10 SCREW 15/64×28 螺釘 2 C2-X14 FEED BAR ECCENTRIC ADJUSTING SCREW 倒位螺釘 1 C2-X31-1 SCREW 9/64×40 螺釘 1 C2-X49 SCREW 9/64×40 L5 螺釘 1 C2-X66 THREAD TAKE-UP CRANK 平衡凸塊 1 ~6~ jintex.in

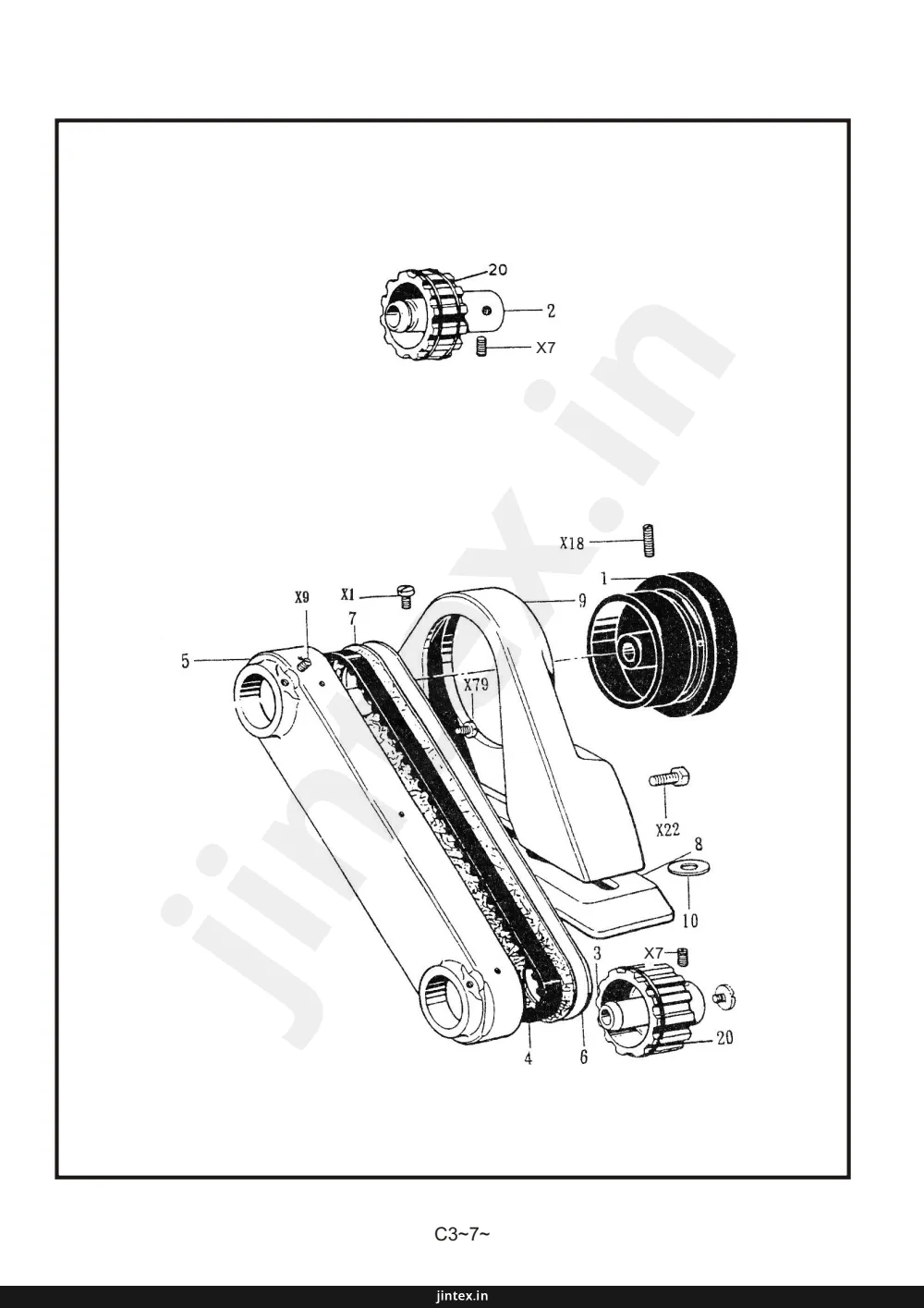

Page 28

Siruba FA007 parts on page 28
RefPart numberPart nameQty
2020GEAR
22BRACKET
X7X7SCREW
X18X18SCREW
11PULLEY
X9X9SCREW
X1X1SCREW
77SHAFT
X79X79SCREW
55ARM
88WASHER
X22X22BOLT
1010WASHER
33GEAR
X7X7SCREW
44GEAR
66GEAR

20 2 X7 X18 1 X9 X1 7 X79 5 8 X22 10 3 X7 20 4 6 C3~7~ jintex.in

Page 29 — PULLY MECHANISM

Siruba FA007 parts on page 29
RefPart numberPart nameQty
C3-01PULLEY 皮帶輪1
C3-02TIMING BELT WHEEL ASSEMBLY (SUPPER) 同步皮帶輪(上)1
C3-03TIMING BELT WHEEL ASSEMBLY (LOWER) 同步皮帶輪(下)1
C3-04TIMING BELT 同步時皮帶1
C3-05BELT COVER 皮帶座1
C3-06BELT COVER PLATE 皮帶座蓋板1
C3-07PACKING 防油墊片1
C3-08PULLEY COVER BASE 配重固定塊1
C3-09PULLEY COVER 皮帶輪護蓋1
C3-10WASHER O型墊圈1
C3-20SPRING COIL O型彈簧圈2
C3-X01SCREW1/4 ×28 螺釘3
C3-X07SCREW1/4 ×28 螺釘2
X3-X09SCREW 1/4 ×28 螺釘5
C3-X18SCREW 15/64 ×28 螺釘2
C3-X22SCREW 7/16 ×14 螺釘2
C3-X79SCREW 3/16 ×32 L8 螺釘2

PULLY MECHANISM REF. NO. 部件編號 C3-01 C3-02 C3-03 C3-04 C3-05 C3-06 C3-07 C3-08 C3-09 C3-10 C3-20 C3-X01 C3-X07 X3-X09 C3-X18 C3-X22 C3-X79 NAME OF PARTS 說明 PULLEY 皮帶輪 TIMING BELT WHEEL ASSEMBLY (SUPPER) 同步皮帶輪(上) TIMING BELT WHEEL ASSEMBLY (LOWER) 同步皮帶輪(下) TIMING BELT 同步時皮帶 BELT COVER 皮帶座 BELT COVER PLATE 皮帶座蓋板 PACKING 防油墊片 PULLEY COVER BASE 配重固定塊 PULLEY COVER 皮帶輪護蓋 WASHER O型墊圈 SPRING COIL O型彈簧圈 SCREW1/4 ×28 螺釘 SCREW1/4 ×28 螺釘 SCREW 1/4 ×28 螺釘 SCREW 15/64 ×28 螺釘 SCREW 7/16 ×14 螺釘 SCREW 3/16 ×32 L8 螺釘 Amt req需求量 1 1 1 1 1 1 1 1 1 1 2 3 2 5 2 2 2 ~8~ jintex.in

Page 30

Siruba FA007 parts on page 30
RefPart numberPart nameQty
X26COVER
9LEVER
11SPRING GUIDE
13KNOB
12SPRING
10BRACKET
X25LEVER
Y02SPRING
X27SHAFT
14BRACKET
15SPRING
D2-27SPRING SEAT
16SPRING
17CHAIN
24WASHER
3RING
4SPRING
X9SHAFT
(SP,SM) B18COVER
8BRACKET
X8SCREW
X95BRACKET
20SPRING
2HINGE
19BRACKET
X60SCREW
X44BRACKET
X31SCREW
6BRACKET
7BRACKET
SPSPOOL
1ASPOOL
5-1SPOOL
1B(PL)SPOOL
1(PL-M,SM)SPOOL
5(PL,PL-M,SM)SPOOL

X26 9 11 13 12 10 X25 Y02 X27 14 15 D2-27 16 17 24 3 4 X9 (SP,SM) B18 8 X8 X95 20 2 X9 19 X60 X44 X31 6 7 SP 1A 5-1 1B(PL) 1(PL-M,SM) 5(PL,PL-M,SM) C4~9~ jintex.in
