Page 16
十八、弯针相对机针的同步(图23) / The timing of looper in reference to needle (Fig.23)
机针在最低点时,弯针退到最后,旋松图示齿轮的螺钉进
行同步调整(如图23)。
The looper shall be moved backward to the lowest position
while the needle is at the bottom dead centre; loosen the screw on
the gear and make timing adjustment of the looper in relation to the
needle (refer to Fig 23.)
图23
Fig.23
十九、弯针的勾取量(图24) / Thread-guiding amount of the looper (Fig.24)
1、弯针的针尖到达机针的中心位置时,弯针针尖离机针上端的距离标准值是2mm,此时针杆下端线和针杆
下衬套下端面对齐。(如图24)
2、弯针的后退量约3.5mm。
3、机针孔和弯针孔的相对关系如图24所示。(左右弯针可以分别调整)
1) The standard value of the vertical distance of the point of the looper away from the upper end of the eye of the
needle is 2mm, then the graduation mark on the lower part of the needle bar shall be in line with the lower end of the
needle bar bushing, lower.(refer to Fig.24)
2) The value of the stroke moved backward by the looper is about 3.5mm.
3) The relation between the eye of the needle and the eye of the looper is indicated Fig.24.
(Note that the left looper and the right one can be separately adjusted.)
图24
Fig.24
2mm
3.5mm
二十、弯针和机针间的间隙 / The clearance of looper and needle
保针架调整后,机针和弯针间应留有一定间隙,即用手指轻压机针,机针也不应碰到弯针针尖。如果间隙
太小了,机针的侧面与弯针针尖就会因互相碰撞而损伤。
After adjusting the needle guard, the clearance of a given value between the needle and the looper shall be kept
unchanged; the needle shall not touch at the point of the looper when it is pressed down softly. If the clearance is narrower
than usual, the side of the needle and the point of the looper are apt to incur breakage due to the impact of the needle side
against the looper point.
-9-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 18 — The position of the thread-amount adjusting plate of the thread take-up lever (Fig.28) / Frame thread eyelet (Fig.29) / Replacement of throat plate (Fig.30)
Siruba L381 parts on page 18| Ref | Part number | Part name | Qty |
|---|
| 80~50 | Cotton thread | |
| 80~50 | Cotton thread | |
| 80~50 | Thread of chemical fibre | |
| 80~50 | Thread of chemical fibre | |
二十四、挑线杆线量调节板的位置(图28) / The position of the thread-amount adjusting plate
of the thread take-up lever (Fig.28)
针杆在最低点时,如(图28)所示,用挑线杆线量调节板挡
住面线,这样勾取面线时,面线环变大。
此外,针杆在最低处时,也有拉紧面线环的作用,通常
在使用较细的缝纫时,应把线量调节板降到最低点。
The thread-amount adjusting plate will retain the bobbin at
bottom dead centre; in such a way
to become bigger when the needle
the loop of the needle thread is to
thread is hooked. In addition to the foregoing there is afunction of
the tight pulling of the needle thread loop. The thread-amount adju-
sting plate usually reduces to the lowest point when a thread finer
than normal is used.
Note that take-up thread tension lever is another name for thre-
ad-amount adjusting plate.
图28
Fig.28
二十五、中间导线钩(图29) / Frame thread eyelet (Fig.29)
中间导线钩的位置也关系到跳针现象发生,一般把下列位
置作为基准(图29)
棉线#80~#50
中间导线钩刻度2~3
棉线#30~#20
中间导线钩刻度3~4
化纤线#80~#50
中间导线钩刻度1~2
化纤线#30~#20
中间导线钩刻度2~3
图29
Fig.29
The improper-positioning of the frame thread eyelet my be the cause of occurrence of skipping stitch.
The following locations are generally regarded as criteria (refer to Fig29)
Cotton thread#80~#50
Graduation marked on the frame thread eyelet 2-3
Cotton thread#80~#50
Graduation marked on the frame thread eyelet 3-4
Thread of chemical fibre #80~#50
Graduation marked on the frame thread eyelet 1-2
Thread of chemical fibre #80~#50
Graduation marked on the frame thread eyelet 2-3
二十六、针板的调换(图30) / Replacement of throat plate (Fig.30)
单针链缝机的针板出厂标准规格为1/4" (6.4mm)。(图30)
改变缝线间距通常同时要更换:
1、针夹 2、活压脚 3、针 4、送料牙 5、摆动护针杆
6、卷边器左弯针和右弯针在1/8"~1/2"针板规格之内部通用。
针板宽度大时,除上述零件外还要调换推板和凸轮盖。
The sandard size of the throat plate in parts book, which is
1/4", equivalent to 6.4mm. (Fig.30)
stipulated by the manufactory, is
The replacement of the following components is ususlly needed
at the time when changing the gauge of double-row thread stitch.
图30
Fig.30
Stitch length
-11-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 20
2
跳线
1、调整弯针匀取量
2、调整弯针与机针的间隙
3、调整机针同弯针的同步
4、根据线的
情况调整线量
弯针
1、面线跳针
5、调整中间导线钩的位置
6、检查机针安装是否正确
7、检查保针架的位置和同步
是否正确
8、检查缝线是否穿正确
2、底线跳针
1、按上述面线跳针1、2检查
2、检查底线凸轮的同步
3、稍微增强底线的张力
4、检查缝线穿得是否正确
1、使用硅油
3、使用化纤线时的跳针
2、降低转速
3、使用化纤线用的机针
1、降低转速
4、使用合成纤维线时的跳针
2、使用硅油
1、面线张力太弱
1、旋紧底线夹线螺母
3
线迹不良
2、底线张力太弱
2、旋紧底线夹线螺母
3、缝线太粗
3、调换大号机针
4、中间导线钩的位置不够正确
4、调整中间导线钩的位置
5、换线杆线量调节板位置不正确
5、调整线量调节板的位置
6、针眼
6、使用针孔大的针板
4
断针
1、机针弯
1、调换机针
2、送料和机针不同步
2、调整到同步
3、压脚的安装有问题
3、压脚孔、针板孔的中心与
机针中心要一致
4、保针架有问题
4、检查保针架的位置和同步
5、面线张力过强
5、放松面线张力
6、机针太粗
6、使用合适的机针
1、缝线张力过强
1、降低缝线张力,特别是底
线的张力
5
起
约
2、底线凸轮不同步
2、进行调节,使其同步
3、各过线处光洁度有问题
3、研磨各过线部件
4、压脚压力太强
4、旋松压脚螺钉
-13-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in

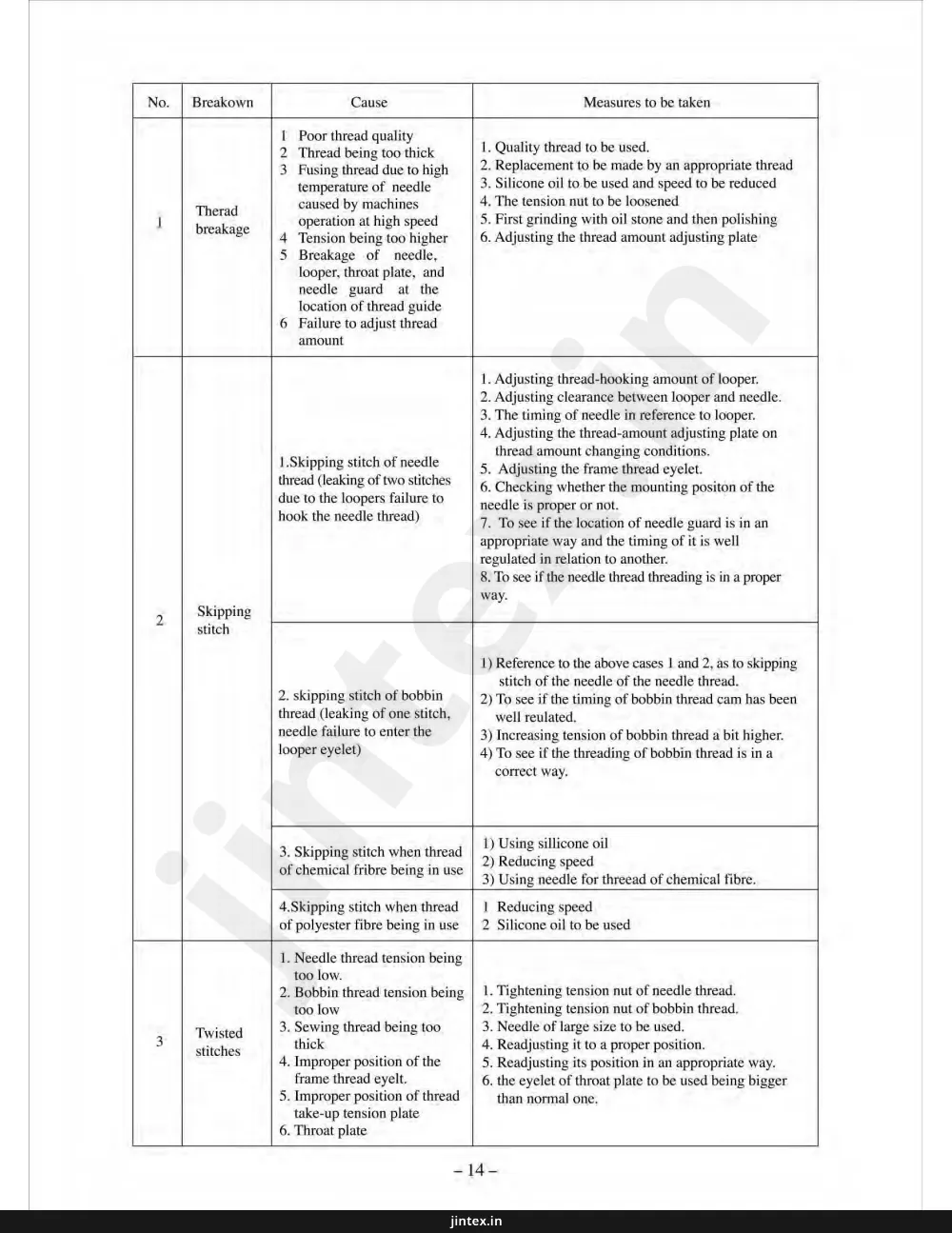

Page 21
No. Breakdown Cause Measures to be taken
1
Therad
breakage
1. Poor thread quality
2. Thread being too thick
3. Fusing thread due to high
temperature of needle
caused by machines
operation at high speed
4. Tension being too higher
5. Breakage of needle,
looper, throat plate, and
needle guard at the
location of thread guide
6 Failure to adjust thread
amount
1. Quality thread to be used.
2. Replacement to be made by an appropriate thread
3. Silicone oil to be used and speed to be reduced
4. The tension nut to be loosened.
5. First grinding with oil stone and then polishing
6. Adjusting the thread amount adjusting plate
2
Skipping
stitch
1.Skipping stitch of needle
thread (leaking of two stitches
due to the loopers failure to
hook the needle thread)
1. Adjusting thread-hooking amount of looper.
2. Adjusting clearance between looper and needle.
3. The timing of needle in reference to looper.
4. Adjusting the thread-amount adjusting plate on
thread amount changing conditions.
5. Adjusting the frame thread eyelet.
6. Checking whether the mounting position of the
needle is proper or not.
7. To see if the location of needle guard is in an
appropriate way and the timing of it is well
regulated in relation to another.
8. To see if the needle thread threading is in a proper
way.
2. skipping stitch of bobbin
thread (leaking of one stitch,
needle failure to enter the
looper eyelet)
1) Reference to the above cases 1 and 2, as to skipping
stitch of the needle of the needle thread.
2) To see if the timing of bobbin thread cam has been
well regulated.
3) Increasing tension of bobbin thread a bit higher.
4) To see if the threading of bobbin thread is in a
correct way.
3
Twisted
stitches
3. Skipping stitch when thread
of chemical fribre being in use
4.Skipping stitch when thread
of polyester fibre being in use
1. Needle thread tension being
too low
2. Bobbin thread tension being
too low
3. Sewing thread being too
thick
4. Improper position of the
frame thread eyelet.
5. Improper position of thread
take-up tension plate
6. Throat plate
1) Using sillicone oil
2) Reducing speed
3) Using needle for thread of chemical fibre.
1. Reducing speed
2. Silicone oil to be used
1. Tightening tension nut of needle thread.
2. Tightening tension nut of bobbin thread.
3. Needle of large size to be used.
4. Readjusting it to a proper position.
5. Readjusting its position in an appropriate way.
6. the eyelet of throat plate to be used being bigger
than normal one.
-14-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 22
Siruba L381 parts on page 22| Ref | Part number | Part name | Qty |
|---|
| 4 | Breakage of needle | |
| 5 | Puckering | |
1) Needle being bent.
2) The operation of feed dog being not well regulated in reference to the motion of needle.
3) Setting-up of the presser foot.
4) The problem of the timing of the needle guard remaining unsolved
5) Needle thread tension being too high.
6) Needle being too thick.
1) Thread tension being too high.
2) The problem of the timing of the bobbin thread cam for thread guiding failing to be solved.
3) The problem of surface finish arising from bobbin thread going through the parts on the thread guide.
4) The force on the presser foot being too great.
1) Needle to be replaced by another of proper size.
2) Readjusting the timing to feed dog in respect to the needle.
3) To make both the centre of the hole of the presser foot and the centre of the eyelet of the throat.
4) The positioning & the timing of the needle guard to be taken into account.
5) Relaxing needle thread
6) Appropriate needle to be used.
1. Decreasing thread tension; esp. tension of bobbin thread.
2. Readjusting of the very cam said to solve the timing problem.
3. Surface finishing all the parts on the thread guide.
4. Turning counter-clockwise the pressure-regulating screw.
4
Breakage of
needle
5
Puckering
-15-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 23
- 16-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 24
零件手册
PARTS BOOK
- 17 -
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 25
Siruba L381 parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 9 | 9 | |
| 7 | 7 | |
| 8 | 8 | |
| 10 | 10 | |
| 4 | 4 | |
| 5 | 5 | |
| 6 | 6 | |
| 40 | 40 | |
| 41 | 41 | |
| 42 | 42 | |
| 1 | 1 | |
| 43 | 43 | |
| 11 | 11 | |
| 13 | 13 | |
| 12 | 12 | |
| 14 | 14 | |
| 15 | 15 | |
| 40 | 40 | |
| 45 | 45 | |
| 44 | 44 | |
| 38 | 38 | |
| 39 | 39 | |
| 16 | 16 | |
| 3 | 3 | |
| 17 | 17 | |
| 36 | 36 | |
| 37 | 37 | |
| 2 | 2 | |
| 19 | 19 | |
| 26 | 26 | |
| 27 | 27 | |
| 20 | 20 | |
| 48 | 48 | |
| 32 | 32 | |
| 34 | 34 | |
| 33 | 33 | |
| 35 | 35 | |
| 31 | 31 | |
| 30 | 30 | |
| 29 | 29 | |
| 28 | 28 | |
| 21 | 21 | |
| 22 | 22 | |
| 23 | 23 | |
| 24 | 24 | |
| 25 | 25 | |
| 46 | 46 | |
| 47 | 47 | |
9
7
8
10
4
5
6
9
40
41
40
41
42
1
43
11
13
12
14
15
40
45
44
38
39
16
3
17
36
37
2
19
26
27
20
48
32
34
33
35
31
30
29
28
21
22
23
24
25
46
47
-18-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 26 — 1、机壳分组件
Arm bed components
Siruba L381 parts on page 26| Ref | Part number | Part name | Qty |
|---|
| GQ202/13 | 机壳部件 | |
| GS0127 | 底板支承螺钉 | |
| GR1823 | 底板支承板 | |
| GK186 | 后窗板 | |
| GR1812 | 后窗垫 | |
| GS100 | 后窗板螺钉 | |
| GR1757/2 | 面板部件 | |
| GR1758 | 面板垫 | |
| GS100 | 面板螺钉 | |
| GR1458 | 面板调节螺孔塞 | |
| GR1813 | 凸轮盖压板 | |
| GW287 | 凸轮盖压板弹簧 | |
| GR1814 | 凸轮盖压板弹簧座 | |
| GS069 | 凸轮盖压板弹簧座螺钉 | |
| GM241 | 附件安装板 | |
| GW288 | 附件安装板弹簧 | |
| GS0128 | 附件安装板弹簧螺钉 | |
| GS012 | 附件安装板定位螺钉 | |
| GM242/9 | 凸轮盖部件 | |
| GM243 | 凸轮盖 | |
| GW289 | 凸轮盖托板 | |
| GW290 | 凸轮盖弹簧 | |
| GS045 | 凸轮盖弹簧螺钉 | |
| GR1815 | 凸轮盖导轮 | |
| GS0129 | 凸轮盖导轮螺钉 | |
| GM244/6 | 推板部件 | |
| GM245 | 推板 | |
| GW291 | 推板弹簧 | |
| GS045 | 推板弹簧螺钉 | |
| GR1816 | 推板导轮 | |
| GS0129 | 推板导轮螺钉 | |
| GW292 | 推板锁簧 | |
| GS010 | 推板锁簧螺钉 | |
| GR1817 | 推板翼把手 | |
| GS44 | 推板翼把手螺钉 | |
| GR1818 | 送料轴底板挡油板 | |
| GS010 | 底板挡油板螺钉 | |
| GR1819 | 底板挡油板油板 | |
| GS010 | 底板挡油板螺钉 | |
| GR1461 | 轴套定位螺孔塞 | |
| GR1462 | 上轴套油线孔塞 | |
| GR1463 | 针杆柄螺孔塞 | |
| GR1464 | 送料针距调节器孔塞 | |
| GR1465 | 抬牙轴孔塞 | |
| GR1466 | 下轴盲孔塞 | |
| GR1916/5 | 卷边部件(1/4") | |
| GR1923 | 卷边垫块 | |
| GS0148 | 卷边器螺钉 | |
1、机壳分组件
Arm bed components
序 号
Ref. No.
件 号
Part No
名 称
Description
数量
Amt. Req.
1
GQ202/13
机壳部件
Arm bed complete
1
2
GS0127
底板支承螺钉
Bed screw stud
2
3
GR1823
底板支承板
Bed support
1
4
GK186
后窗板
Side plate
1
5
GR1812
后窗垫
Gasket
1
6
GS100
后窗板螺钉
Side plate screw
8
7
GR1757/2
面板部件
Face plate asm.
1
8
GR1758
面板垫
Face plate gasket
1
9
GS100
面板螺钉
Screw
3
10
GR1458
面板调节螺孔塞
Rubber plug
2
11
GR1813
凸轮盖压板
Cam cover latch
1
12
GW287
凸轮盖压板弹簧
Spring
1
13
GR1814
凸轮盖压板弹簧座
Spring suspension
1
14
GS069
凸轮盖压板弹簧座螺钉
Screw
1
15
GM241
附件安装板
Attachment installing plate
1
16
GW288
附件安装板弹簧
Spring
1
17
GS0128
附件安装板弹簧螺钉
Screw
2
18
GS012
附件安装板定位螺钉
Screw
1
19
GM242/9
凸轮盖部件
Cam cover asm
(1)
20
GM243
凸轮盖
Cam cover
1
21
GW289
凸轮盖托板
Cam cover
1
22
GW290
凸轮盖弹簧
Spring
1
23
GS045
凸轮盖弹簧螺钉
Screw
4
24
GR1815
凸轮盖导轮
Cam cover guide
1
25
GS0129
凸轮盖导轮螺钉
Screw
1
26
GM244/6
推板部件
Bed slide asm.
(1)
27
GM245
推板
Bed slide
1
28
GW291
推板弹簧
Spring
1
29
GS045
推板弹簧螺钉
Screw
2
30
GR1816
推板导轮
Bed slide guide
1
31
GS0129
推板导轮螺钉
Screw
1
32
GW292
推板锁簧
Bed slide lock spring
1
33
GS010
推板锁簧螺钉
Screw
2
34
GR1817
推板翼把手
Latch
1
35
GS44
推板翼把手螺钉
Screw
1
36
GR1818
送料轴底板挡油板
Bed oil shield
1
37
GS010
底板挡油板螺钉
Screw
2
38
GR1819
底板挡油板油板
Bed oil shield
1
39
GS010
底板挡油板螺钉
Screw
2
40
GR1461
轴套定位螺孔塞
Rubber plug
4
41
GR1462
上轴套油线孔塞
Rubber plug
2
42
GR1463
针杆柄螺孔塞
Rubber plug
1
43
GR1464
送料针距调节器孔塞
Rubber plug
1
44
GR1465
抬牙轴孔塞
Rubber plug
1
45
GR1466
下轴盲孔塞
Rubber plug
1
46
GR1916/5
卷边部件(1/4")
Folder
1
47
GR1923
卷边垫块
Gasket
1
48
GS0148
卷边器螺钉
Screw
2
-19-
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 27
Siruba L381 parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 1 | 1 | Screw | |
| 2 | 2 | Pulley | |
| 3 | 3 | Screw | |
| 4 | 4 | Washer | |
| 5 | 5 | Shaft | |
| 6 | 6 | Collar | |
| 7 | 7 | Collar | |
| 8 | 8 | Set Screw | |
| 9 | 9 | Shaft | |
| 10 | 10 | Pin | |
| 11 | 11 | Collar | |
| 12 | 12 | Spring | |
| 13 | 13 | Screw | |
| 14 | 14 | Screw | |
| 15 | 15 | Screw | |
| 16 | 16 | Screw | |
| 17 | 17 | Shaft | |
| 18 | 18 | Screw | |
| 19 | 19 | Washer | |
| 20 | 20 | Screw | |
| 21 | 21 | Screw | |
| 22 | 22 | Shaft | |
| 23 | 23 | Screw | |
| 24 | 24 | Shaft | |
| 25 | 25 | Nut | |
| 26 | 26 | Screw | |
| 27 | 27 | Shaft | |
| 28 | 28 | Pin | |
| 29 | 29 | Cap | |
| 30 | 30 | Shaft | |
| 31 | 31 | Screw | |
| 32 | 32 | Shaft | |
| 33 | 33 | Screw | |
| 34 | 34 | Shaft | |
| 35 | 35 | Shaft | |
| 36 | 36 | Screw | |
| 37 | 37 | Shaft | |
| 38 | 38 | Bracket | |
| 39 | 39 | Screw | |
13
14
15
16
5
12
11
10
9
8
7
6
4
2
3
1
26
25
24
21
23
17
18
19
20
29
28
27
31
32
30
33
34
35
36
37
39
38
- 20 -
Jjintez.in
From the library of: Superior Sewing Machine & Supply LLC
Page 28 — 2、上轴针杆分组件
Main shaft & needle bar components
Siruba L381 parts on page 28| Ref | Part number | Part name | Qty |
|---|
| GS02 | 上轴安全螺钉 | |
| GP132 | 上轮 | |
| GS03 | 上轮螺钉 | |
| GR1468/2 | 上轴油封 | |
| GZ303 | 上轴 | |
| GO262/2 | 上轴后轴套部件 | |
| GR1824 | 上轴挡圈 | |
| GS33 | 上轴挡圈螺钉 | |
| GO265-1 | 上轴中轴套部件 | |
| GS05 | 中轴套螺钉 | |
| GO303/2 | 上轴前轴套部件 | |
| GS04 | 轴套螺钉 | |
| GR1470 | 曲柄油量限制毡 | |
| GX334 | 曲柄油量调节销 | |
| GO269 | 曲柄油量调节销套 | |
| GR1471 | 曲柄油量调节销O形圈 | |
| GH378 | 针杆曲柄 | |
| GS06 | 针杆曲柄定位螺钉 | |
| GR1472 | 定位螺钉O形圈 | |
| GS07 | 针杆曲柄紧固螺钉 | |
| GH379 | 针杆连杆销 | |
| GS48 | 挑线曲柄定位螺钉 | |
| GS041 | 挑线曲柄螺钉 | |
| GH334 | 针杆连杆连杆 | |
| GO270 | 针杆连杆滚针轴承 | |
| GS09 | 针杆连杆左旋螺钉 | |
| GO271 | 针杆上衬套 | |
| GS012 | 针杆上衬套螺钉 | |
| GR1479 | 针杆上衬套孔塞 | |
| GO288 | 针杆下衬套 | |
| GR1478-7 | 针杆连接柱 | |
| GS011 | 针杆连接柱螺钉 | |
| GU168-7 | 针杆连接柱滑块 | |
| GZ304 | 针杆 | |
| GR1826 | 针夹(1/4") | |
| GS0130 | 支针螺钉 | |
| GV18 | 机针 | |
| GR0341-7 | 针杆接头滑块导轨 | |
| GS766 | 滑块导轨螺钉 | |
2、上轴针杆分组件
Main shaft & needle bar components
序 号 件 号
Ref. No. Part No
1
GS02
2
GP132
3
GS03
4
GR1468/2
5
GZ303
6
GO262/2
7
GR1824
8
GS33
9
GO265-1
10
GS05
11
GO303/2
12
GS04
13
GR1470
14
GX334
15
GO269
16
GR1471
17
GH378
18
GS06
19
GR1472
20
GS07
21
GH379
22
GS48
23
GS041
24
GH334
25
GO270
26
GS09
27
GO271
28
GS012
29
GR1479
30
GO288
31
GR1478-7
32
GS011
33
GU168-7
34
GZ304
35
GR1826
36
GS0130
37
GV18
38
GR0341-7
39
GS766
名 称
上轴安全螺钉
上轮
上轮螺钉
上轴油封
上轴
上轴后轴套部件
上轴挡圈
上轴挡圈螺钉
上轴中轴套部件
中轴套螺钉
上轴前轴套部件
轴套螺钉
曲柄油量限制毡
曲柄油量调节销
曲柄油量调节销O形圈
针杆曲柄
针杆曲柄定位螺钉
定位螺钉O形圈
针杆曲柄紧固螺钉
针杆连杆销
挑线曲柄定位螺钉
挑线曲柄螺钉
针杆连杆连杆
针杆连杆滚针轴承
针杆连杆左旋螺钉
针杆上衬套
针杆上衬套螺钉
针杆上衬套孔塞
针杆下衬套
针杆连接柱
针杆连接柱螺钉
针杆连接柱滑块
针杆
针夹(1/4")
支针螺钉
机针
针杆接头滑块导轨
滑块导轨螺钉
Description
End screw
Hand wheel
Screw
Oil seal
Main shaft
Main shaft bushing,rear
Main shaft thrust collar
Screw
Main shaft bushing intermediate
Screw
Main shaft bushing,front
Screw
Roller felt
Crank oil adjusting pin
Rubber bushing
O-Rubber ring
Counterweight asm.
Screw
O-Rubber ring
Screw
Needle crank
Screw
Needle bar crank rod
Needle roller bearing
Left twist screw
Needle bar bushing upper
Screw
Rubber plug
Needle bar bushing, lower
Needle bar connection asm
Screw
Crank slide block
Needle bar
Needle clamp(1/4")
Screw
Needle
Slide blcok bushing
Screw
数 量
Amt. Req.
1
1
2
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
2
- 21 -
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
Page 29
Siruba L381 parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 24 | 24 | Screw | |
| 25 | 25 | Washer | |
| 28 | 28 | Rod | |
| 29 | 29 | Spring | |
| 30 | 30 | Hook | |
| 31 | 31 | Lever | |
| 22 | 22 | Lever | |
| 26 | 26 | Spring | |
| 27 | 27 | Screw | |
| 32 | 32 | Screw | |
| 33 | 33 | Screw | |
| 20 | 20 | Bracket | |
| 23 | 23 | Screw | |
| 21 | 21 | Screw | |
| 16 | 16 | Screw | |
| 15 | 15 | Lever | |
| 19 | 19 | Screw | |
| 17 | 17 | Bracket | |
| 18 | 18 | Lever | |
| 34 | 34 | Rod | |
| 1 | 1 | Nut | |
| 2 | 2 | Screw | |
| 4 | 4 | Spring | |
| 3 | 3 | Washer | |
| 6 | 6 | Screw | |
| 7 | 7 | Screw | |
| 9 | 9 | Cord | |
| 5 | 5 | Screw | |
| 11 | 11 | Screw | |
| 10 | 10 | Bracket | |
| 8 | 8 | Shaft | |
| 36 | 36 | Washer | |
| 14 | 14 | Screw | |
| 13 | 13 | Spring | |
| 12 | 12 | Lever | |
24 25 28 29 30 31 22 26 29 32 27 33 20 23 35 21 16 15 19 17 18 34 1 2 4 3 6 7 9 5 11 10 8 36 14 13 12 - 22 - From the library of: Superior Sewing Machine & Supply LLC jinttex.in
Page 30
Siruba L381 parts on page 30| Ref | Part number | Part name | Qty |
|---|
| 1 | GS018 | 调压螺钉 | 1 |
| 2 | GL18 | 调压螺钉螺母 | 1 |
| 3 | GR1494 | 调压导杆 | 1 |
| 4 | GW253 | 调压簧 | 1 |
| 5 | GZ305 | 压杆 | 1 |
| 6 | GR1827 | 压杆导架 | 1 |
| 7 | GS019 | 压杆导架螺钉 | 1 |
| 8 | GO273 | 压杆衬套 | 1 |
| 9 | GR1525 | 压杆油线 | 1 |
| 10 | GM246/5 | 压脚部件1/4" | 1 |
| 11 | GS020 | 压脚螺钉 | 1 |
| 12 | GR1832 | 切线刀 | 1 |
| 13 | GR1833 | 切线刀导钩 | 1 |
| 14 | GS0129 | 切线刀导钩螺钉 | 1 |
| 15 | GR1499 | 压脚扳手 | 1 |
| 16 | GS021 | 压脚扳手螺钉 | 1 |
| 17 | GR1500 | 压脚扳手垫圈 | 1 |
| 18 | GR1501/2 | 压脚扳手凸轮部件 | 1 |
| 19 | GR1503 | 压脚扳手轴O形圈 | 1 |
| 20 | GR1504 | 压脚升降板 | 1 |
| 21 | GS022 | 升降板轴位螺钉 | 1 |
| 22 | GR1505 | 抬压脚前杠杆 | 1 |
| 23 | GS023 | 前杠杆轴位螺钉 | 1 |
| 24 | GS024 | 前杠杆螺纹销 | 1 |
| 25 | GR1506 | 前杠杆螺纹销垫圈 | 1 |
| 26 | GR1508 | 前杠杆特制开口挡圈 | 1 |
| 27 | GR1507 | 前杠杆开口挡圈 | 1 |
| 28 | GR1834 | 抬压脚拉杆 | 1 |
| 29 | GS025 | 抬压脚拉杆螺钉 | 2 |
| 30 | GR1510 | 抬压脚拉杆开口挡圈 | 2 |
| 31 | GR1835 | 抬压脚后杠杆 | 1 |
| 32 | GS0131 | 后杠杆轴位螺钉 | 1 |
| 33 | GR1836 | 抬压脚顶杆接头 | 1 |
| 34 | GX378 | 抬压脚顶杆 | 1 |
| 35 | GL19 | 抬压脚顶杆螺钉 | 1 |
| 36 | GR1353-7 | 压杆密封套 | 1 |
3、压料分组件
Presser bar components
序 号 件 号
Ref. No. Part No
1
GS018
2
GL18
3
GR1494
4
GW253
5
GZ305
6
GR1827
7
GS019
8
GO273
9
GR1525
10
GM246/5
11
GS020
12
GR1832
13
GR1833
14
GS0129
15
GR1499
16
GS021
17
GR1500
18
GR1501/2
19
GR1503
20
GR1504
21
GS022
22
GR1505
23
GS023
24
GS024
25
GR1506
26
GR1508
27
GR1507
28
GR1834
29
GS025
30
GR1510
31
GR1835
32
GS0131
33
GR1836
34
GX378
35
GL19
36
GR1353-7
名 称
调压螺钉
调压螺钉螺母
调压导杆
调压簧
压杆
压杆导架
压杆导架螺钉
压杆衬套
压杆油线
压脚部件1/4"
压脚螺钉
切线刀
切线刀导钩
切线刀导钩螺钉
压脚扳手
压脚扳手螺钉
压脚扳手垫圈
压脚扳手凸轮部件
压脚扳手轴O形圈
压脚升降板
升降板轴位螺钉
抬压脚前杠杆
前杠杆轴位螺钉
前杠杆螺纹销
前杠杆螺纹销垫圈
前杠杆特制开口挡圈
前杠杆开口挡圈
抬压脚拉杆
抬压脚拉杆螺钉
抬压脚拉杆开口挡圈
抬压脚后杠杆
后杠杆轴位螺钉
抬压脚顶杆接头
抬压脚顶杆
抬压脚顶杆螺钉
压杆密封套
Description
Presser spring regulator
Nut
Presser bar guide bar
Presser spring
Presser bar
Presser bar guide bracket asm.
Screw
Presser bar bushing,lower
Oil wick
Presser foot asm.
Screw
Thread knife
Thead knife guide
Screw
Hand lifter
Screw
Washer
Hand lifter cam asm.
Rubber ring
Lifting lever
Hinge screw
Lifting link for lifting lever
Hing screw
Hinge pin
Lifting lever gasket
Snap ring
Snap ring
Lifting lever connecting rod
Screw
Snap ring
Lifting lever link rear
Hinge screw
Swivel
Lifting lever connecting rod,vertical
Nut
Rubber rule
数量
Amt. Req.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
- 23 -
From the library of: Superior Sewing Machine & Supply LLC
jintex.in
