Page 16 — Needle Bar & Needle Bar Driving Mechanism
SunStar KM-506 / KM-530 parts on page 16| Ref | Part number | Part name | Qty |
|---|
| G-1 | G-1 | |
| G-1-1 | G-1-1 | |
| G-2 | G-2 | |
| G-3 | G-3 | |
| G-4 | G-4 | |
| G-5 | G-5 | |
| G-6 | G-6 | |
| G-7 | G-7 | |
| G-8 | G-8 | |
| G-9 | G-9 | |
| G-10 | G-10 | |
| G-11 | G-11 | |
| G-12 | G-12 | |
| G-13 | G-13 | |
| G-14 | G-14 | |
| G-15 | G-15 | |
| G-16 | G-16 | |
| G-17 | G-17 | |
| G-18 | G-18 | |
| G-19 | G-19 | |
| G-20 | G-20 | |
| G-21 | G-21 | |
| G-22 | G-22 | |
| G-23 | G-23 | |
| G-24 | G-24 | |
| G-25 | G-25 | |
| G-26 | G-26 | |
| G-27 | G-27 | |
| G-28 | G-28 | |
| G-29 | G-29 | |
| G-30 | G-30 | |
| G-31 | G-31 | |
| G-32 | G-32 | |
| G-33 | G-33 | |
| G-34 | G-34 | |
| G-35 | G-35 | |
| G-37 | G-37 | |
| G-38 | G-38 | |
| G-39 | G-39 | |
| G-42 | G-42 | |
| G-43 | G-43 | |
| G-44 | G-44 | |
| G-45 | G-45 | |
| G-46 | G-46 | |
G
Needle Bar & Needle Bar Driving
Mechanism
바늘대 및 바늘대 요동 관계
16
G-34
G-33
G-39
G-35
G-44
G-43
G-45
G-37
G-38
G-32
G-31
G-30
G-29
G-5
G-43
G-45
G-1
G-4
G-2
G-3
G-1-1
G-46
G-8
G-42
G-12
G-13
G-11
G-9
G-10
G-6
G-7
G-14
G-15
G-16
G-20
G-21
G-23
G-19
G-17
G-18
G-19
G-18
G-24
G-26
G-25
G-27
G-28
jintex.in
Page 17
SunStar KM-506 / KM-530 parts on page 17| Ref | Part number | Part name | Qty |
|---|
| 15-101A-3500 | Needle Bar Frame | |
| SC-0113-3400 | Needle Bar Frame | |
| 15-002A-3500 | Needle Bar Frame Guide | |
| SC-0157-1230 | Screw (9/64" n = 40) | |
| 15-103A-3500 | Needle Bar Frame Shaft Bushing | |
| SC-0352-7400 | Screw (3/16" n = 28) | |
| 15-104A-3500 | Slide Block Guide | |
| SC-0184-1600 | Screw (3/16" n = 28) | |
| 15-105A-3500 | Needle Bearing | |
| 15-106A-3500 | Driving Link | |
| 15-007P-3500 | Needle Bar Link Pin | |
| SC-0159-3500 | Screw (9/64" n = 40) | |
| 15-009A-3500 | Driving Crank(F) | |
| SC-0497-1230 | Screw (3/16" n = 28) | |
| 15-010A-3500 | Rock Shaft Bushing(F) | |
| 15-112A-3500 | Needle Feed Connection Shaft | |
| 15-013A-3500 | Rock Shaft Bushing(R) | |
| SC-0352-7400 | Screw (3/16" n = 28) | |
| 15-011A-3500 | Collar For G-15 | |
| SC-0114-1230 | Screw (15/64" n = 28) | |
| 15-014A-3500 | Driving Crank(R) | |
| SC-0497-1230 | Screw (3/16" n = 28) | |
| 15-015S-3500 | Stud Screw For G-20 | |
| SN-0105-3400 | Nut (15/64" n = 28) | |
| 15-116A-3500 | Needle Feed Connection Rod | |
| 15-017A-3500 | Needle Feed Connection Shaft | |
| 06-051W-7400 | Washer For G-24 | |
| SN-0105-3400 | Nut (15/64" n = 28) | |
| SC-0316-2350 | Screw (11/64" n = 40) | |
| 04-001A-3500 | Needle Bar | |
| 01-045M-3500 | Gasket | |
| 01-046A-3500 | Gasket Base | |
| SC-0516-3500 | Screw (3/16" n = 28) | |
| 04-108A-2350 | Needle Bar Bush(U) | |
| 04-003R-1600 | Rubber Cap For G-33 | |
| 04-103A-257A | Needle Bar Bush(L) | |
| 04-010A-5060 | Slide Block Guide | |
| SC-0307-1230 | Screw (3/16" n = 32) | |
| 04-001A-5060 | Needle Bar | |
| 04-006A-5060 | Needle Bar Slide Guide Block | |
| 04-006C-5300 | Needle Bar Thread Guide | |
| SC-A131-4522 | Screw (1/8" n = 44) | |
| 11-017C-7507 | Nut For G-3 | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
G-1
15-101A-3500
M, M-7
Needle Bar Frame
바늘대 후레임 (110-03559)
1
G-1-1
SC-0113-3400
M, M-7
Needle Bar Frame
바늘대 붓싱나사
1
G-2
15-002A-3500
M, M-7
Needle Bar Frame Guide
바늘대 후레임 가이드
1
G-3
SC-0157-1230
M, M-7
Screw (9/64" n = 40)
노루발 죔나사(9/64" n=40)
2
G-4
15-103A-3500
M, M-7
Needle Bar Frame Shaft Bushing
바늘대 후레임축 붓싱
1
G-5
SC-0352-7400
M, M-7
Screw (3/16" n = 28)
가마축 붓싱 죔나사(3/16" n=28)
1
G-6
15-104A-3500
M, M-7
Slide Block Guide
슬라이드 블럭 가이드
1
G-7
SC-0184-1600
M, M-7
Screw (3/16" n = 28)
수평밀대 크랭크 죔나사(3/16" n=28)
1
G-8
15-105A-3500
M, M-7
Needle Bearing
니이들 베어링 (B2813-412-NOO)
1
G-9
15-106A-3500
M, M-7
Driving Link
요동 링크
1
G-10
15-007P-3500
M, M-7
Needle Bar Link Pin
바늘대 링크 핀
2
G-11
SC-0159-3500
M, M-7
Screw (9/64" n = 40)
바늘대 링크핀 죔나사(9/64" n=40)
2
G-12
15-009A-3500
M, M-7
Driving Crank(F)
요동 크랭크(전)
1
G-13
SC-0497-1230
M, M-7
Screw (3/16" n = 28)
돌대 크랭크(전) 고정나사(3/16" n=28)
1
G-14
15-010A-3500
M, M-7
Rock Shaft Bushing(F)
요동축 붓싱(전)
1
G-15
15-112A-3500
M, M-7
Needle Feed Connection Shaft
침송 연결축
1
G-16
15-013A-3500
M, M-7
Rock Shaft Bushing(R)
요동축 붓싱(후)
1
G-17
SC-0352-7400
M, M-7
Screw (3/16" n = 28)
가마축 붓싱 죔나사(3/16" n=28)
1
G-18
15-011A-3500
M, M-7
Collar For G-15
침송 연결축 카라
2
G-19
SC-0114-1230
M, M-7
Screw (15/64" n = 28)
돌대 크랭크(후) 죔나사(15/64" n=28)
4
G-20
15-014A-3500
M, M-7
Driving Crank(R)
요동 크랭크(후)
1
G-21
SC-0497-1230
M, M-7
Screw (3/16" n = 28)
돌대 크랭크(전) 고정나사(3/16" n=28)
1
G-22
15-015S-3500
M, M-7
Stud Screw For G-20
요동 크랭크(후) 단나사
1
G-23
SN-0105-3400
M, M-7
Nut (15/64" n = 28)
수평 운동로드 단나사 너트(15/64" n=28)
1
G-24
15-116A-3500
M, M-7
Needle Feed Connection Rod
침송 연결로드
1
G-25
15-017A-3500
M, M-7
Needle Feed Connection Shaft
침송 연결로드 축
1
G-26
06-051W-7400
M, M-7
Washer For G-24
포크 조임 와셔
1
G-27
SN-0105-3400
M, M-7
Nut (15/64" n = 28)
수평 운동로드 단나사 너트(15/64" n=28)
1
G-28
SC-0316-2350
M, M-7
Screw (11/64" n = 40)
스프링걸이 위치 고정나사(11/64" n=40)
1
G-29
04-001A-3500
M, M-7
Needle Bar
바늘대(비사절)
1
G-30
01-045M-3500
M, M-7
Gasket
가스켓
1
G-31
01-046A-3500
M, M-7
Gasket Base
가스켓 베이스
1
G-32
SC-0516-3500
M, M-7
Screw (3/16" n = 28)
홈볼이 접시 작은나사(3/16" n=28)
4
G-33
04-108A-2350
L-7, L
Needle Bar Bush(U)
바늘대 상부붓싱
1
G-34
04-003R-1600
L-7, L
Rubber Cap For G-33
바늘대 상부붓싱 마개
1
G-35
04-103A-257A
L-7, L
Needle Bar Bush(L)
바늘대 하부붓싱(PBB)
1
G-37
04-010A-5060
L-7, L
Slide Block Guide
슬라이드 블럭 가이드
1
G-38
SC-0307-1230
L-7, L
Screw (3/16" n = 32)
톱니 받침 크랭크 죔나사(3/16" n=32)
3
G-39
04-001A-5060
L-7, L
Needle Bar
바늘대
1
G-42
04-006A-5060
Needle Bar Slide Guide Block
바늘대 안내블럭
1
G-43
04-006C-5300
Needle Bar Thread Guide
바늘대 실 안내
1
G-44
SC-A131-4522
Screw (1/8" n = 44)
홈볼이 납작 작은나사(1/8" n=44)
1
G-45
Needle
바늘
1
G-46
11-017C-7507
M, M-7
Nut For G-3
와이퍼 링크 A 연결 단나사 너트
2
NOTE:
L-7=KM-506-7S
M-7=KM-530-7S
L=KM-506
M=KM-530
=Common Part
*=Gauge Part
jintex.in
17
Page 18 — Presser Foot & Tension Release Mechanism
SunStar KM-506 / KM-530 parts on page 18| Ref | Part number | Part name | Qty |
|---|
| H-1 | H-1 | |
| H-2 | H-2 | |
| H-4 | H-4 | |
| H-3 | H-3 | |
| H-18c | H-18c | |
| H-13T | H-13T | |
| H-120 | H-120 | |
| H-11 | H-11 | |
| H-5 | H-5 | |
| H-10 | H-10 | |
| H-9 | H-9 | |
| H-36 | H-36 | |
| H-39 | H-39 | |
| H-37 | H-37 | |
| H-38 | H-38 | |
| H-23 | H-23 | |
| H-26 | H-26 | |
| H-22 | H-22 | |
| H-24 | H-24 | |
| H-29 | H-29 | |
| H-16 | H-16 | |
| H-19 | H-19 | |
| H-17 | H-17 | |
| H-14 | H-14 | |
| H-15 | H-15 | |
| H-20 | H-20 | |
| H-35 | H-35 | |
| H-32 | H-32 | |
| H-21 | H-21 | |
| H-34 | H-34 | |
| H-33 | H-33 | |
| H-31 | H-31 | |
| H-30 | H-30 | |
| H-27 | H-27 | |
| H-7 | H-7 | |
| H-8 | H-8 | |
| H-42 | H-42 | |
| H-40 | H-40 | |
| H-41 | H-41 | |
| H-45 | H-45 | |
| H-46 | H-46 | |
| H-25 | H-25 | |
| H-43 | H-43 | |
| H-44 | H-44 | |
| H-28 | H-28 | |
H Presser Foot &
Tension Release Mechanism
노루발 및 실 놓기 관계
18
H-1
H-2
H-4
H-3
H-18c
H-13T
H-120
H-11
H-5
H-10
H-9
H-36
H-39
H-37
H-38
H-23
H-26
H-22
H-24
H-29
H-16
H-19
H-17
H-14
H-15
H-20
H-35
H-32
H-21
H-34
H-33
H-31
H-30
H-27
H-7
H-8
H-42
H-40
H-41
H-45
H-46
H-25
H-43
H-44
H-28
jintex.in
Page 19
SunStar KM-506 / KM-530 parts on page 19| Ref | Part number | Part name | Qty |
|---|
| SC-0339-1230 | Screw (9/16" n = 20) | |
| 05-002C-2500 | Presser Adjusting Nut | |
| 05-014C-250A | Presser Adjusting Spring | |
| 05-007C-1230 | Presser Adjusting Bar | |
| GP-012153-00 | Presser Bar | |
| 05-115A-2500 | Presser Bar Bushing | |
| 05-108A-3500 | Presser Bar Holder | |
| SC-0174-1230 | Screw (11/64" n = 40) | |
| 빵 • 사시스토프 | Presser Foot Ass'y | |
| SC-0157-1230 | Screw (9/64" n = 40) | |
| 43-001A-2500 | Presser Lifter | |
| 02-019W-1230 | Washer For H-11 | |
| SC-0158-3710 | Screw (9/64" n = 40) | |
| 43-102A-2500 | Cam Shaft For Presser Bar | |
| 02-016R-1230 | O-Ring For H-14 | |
| 43-103A-2500 | Presser Lifter Link | |
| 43-004S-3500 | Hinge Screw For H-16 | |
| 04-009C-3710 | E-Ring (Ø 5) | |
| 43-005A-3500 | Collar For Trust | |
| SC-0092-2500 | Screw (9/64" n = 40) | |
| 43-106C-2500 | Presser Lifter Lever | |
| 43-106C-2500 | Presser Lifter Connection Bar | |
| 43-9078-2500 | Stud Screw For H-22 | |
| 43-108A-2500 | Knee Lifting Link | |
| 43-108A-3500 | Knee Lifting Link | |
| SC-000437-00 | Hinge Screw for H-24, 25 | |
| 43-109C-2500 | Knee Lifting Bar | |
| 43-109C-3500 | Knee Lifting Bar | |
| 43-010S-2500 | Hinge Screw for H-27, 28 | |
| 40-014A-5300 | Tension Release Link | |
| SC-000477-00 | Screw For H-30 | |
| 40-016A-5300 | Tension Release Plate | |
| 40-008S-3500 | Hinge Screw For H-32 | |
| 04-009C-3710 | E-Ring (Ø 5) | |
| 40-009G-3500 | Spring For H-32 | |
| 40-008A-2500 | Tension Release Cable (Ass'y) | |
| 40-109A-257A | Cable Holder(U) | |
| SC-0516-3500 | Screw (3/16" n = 28) | |
| SC-0543-2302 | Screw (11/64" n = 40) | |
| 40-003A-2700 | Cable Connection Bolt | |
| 40-005C-2700 | Nut "B" For H-41 | |
| 40-004C-2700 | Nut "A" For H-41 | |
| 44-026G-7400 | Tension Release Cable Holder(M) | |
| SC-0548-7400 | Screw(3/16" n = 28) | |
| 40-210A-257A | Tension Release Cable Holder | |
| SC-0543-2302 | Screw (11/64" n = 40) | |
| GP-008999-01 | Finger Guard | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
H-1
SC-0339-1230
Screw (9/16" n = 20)
압력 조절 나사 (9/16" n=20)
1
H-2
05-002C-2500
Presser Adjusting Nut
압력 조절 나사 너트
1
H-3
05-014C-250A
Presser Adjusting Spring
압력 조절 스프링(A-Type)
1
H-4
05-007C-1230
Presser Adjusting Bar
압력 조절봉
1
H-5
GP-012153-00
Presser Bar
누름대
1
H-6
05-115A-2500
Presser Bar Bushing
누름대 붓싱
1
H-7
05-108A-3500
Presser Bar Holder
누름대 잡이
1
H-8
SC-0174-1230
Screw (11/64" n = 40)
어스나사(11/64" n=40)
1
H-9
빵 • 사시스토프
Presser Foot Ass'y
노루발
1조
H-10
SC-0157-1230
Screw (9/64" n = 40)
노루발 죔나사
1조
H-11
43-001A-2500
Presser Lifter
누름대 올리기
1
H-12
02-019W-1230
Washer For H-11
상축 휠트 와셔
1
H-13
SC-0158-3710
Screw (9/64" n = 40)
홈붙이 둥근납작 죔나사(9/64" n=40)
1
H-14
43-102A-2500
Cam Shaft For Presser Bar
누름대 올리기 캠축
1
H-15
02-016R-1230
O-Ring For H-14
상축 유량 조절 오링
1조
H-16
43-103A-2500
Presser Lifter Link
누름대 올리기 링크
1조
H-17
43-004S-3500
Hinge Screw For H-16
수동 올림 링크 힌지니사
1
H-18
04-009C-3710
E-Ring (Ø 5)
E링 (Ø5)
2
H-19
43-005A-3500
Collar For Trust
트러스트 카라
1
H-20
SC-0092-2500
Screw (9/64" n = 40)
윗뚜껑 고정 나사(대)
1
H-21
43-106C-2500
Presser Lifter Lever
누름대 올림 레버
1
H-22
43-106C-2500
Presser Lifter Connection Bar
누름대 올리기 연결봉
1
H-23
43-9078-2500
Stud Screw For H-22
누름대 올리기 연결봉 단나사
1
H-24
43-108A-2500
L, L-7
Knee Lifting Link
무릎 올림 링크
1
H-25
43-108A-3500
M, M-7
Knee Lifting Link
무릎 올림 링크
1
H-26
SC-000437-00
Hinge Screw for H-24, 25
무릎 올림 링크 힌지니사
1
H-27
43-109C-2500
L, L-7
Knee Lifting Bar
무릎 올림봉
1
H-28
43-109C-3500
M, M-7
Knee Lifting Bar
무릎 올림봉
1
H-29
43-010S-2500
Hinge Screw for H-27, 28
무릎 올림봉 힌지니사
1
H-30
40-014A-5300
Tension Release Link
실높추기 링크
1
H-31
SC-000477-00
Screw For H-30
실높추기 링크 단나사
1
H-32
40-016A-5300
Tension Release Plate
실높추기 판(조)
1조
H-33
40-008S-3500
Hinge Screw For H-32
실높추기 판 힌지니사
1
H-34
04-009C-3710
E-Ring (Ø 5)
E링(Ø5)
1
H-35
40-009G-3500
Spring For H-32
실높추기 스프링
1
H-36
40-008A-2500
L-7, M-7
Tension Release Cable (Ass'y)
실높추기 케이블(조)
1조
H-37
40-109A-257A
L-7, M-7
Cable Holder(U)
케이블잡이(U)
1
H-38
SC-0516-3500
L-7, M-7
Screw (3/16" n = 28)
가스켓 죔나사(11/64" n=40)
1
H-39
SC-0543-2302
L-7, M-7
Screw (11/64" n = 40)
홈붙이 둥근납작 작은나사
1
H-40
40-003A-2700
L-7, M-7
Cable Connection Bolt
케이블 연결 볼트
1
H-41
40-005C-2700
L-7, M-7
Nut "B" For H-41
케이블 연결 너트(B)
1
H-42
40-004C-2700
L-7, M-7
Nut "A" For H-41
케이블 연결 너트(A)
1
H-43
44-026G-7400
L-7, M-7
Tension Release Cable Holder(M)
휠트잡이 스프링
1
H-44
SC-0548-7400
L-7, M-7
Screw(11/64" n = 28)
다이알판 죔나사(L)
1
H-45
40-210A-257A
L-7, M-7
Tension Release Cable Holder
케이블잡이
1
H-46
SC-0543-2302
L-7, M-7
Screw (11/64" n = 40)
톱 카바 힌지 고정나사
1
H-47
GP-008999-01
Finger Guard
핑거 가드
1
NOTE:
L-7=KM-506-7S
M-7=KM-530-7S
L=KM-506
M=KM-530
=Common Part
*=Gauge Part
jintex.in
19
Page 20 — Thread Wiper Mechanism
와이퍼 관계
SunStar KM-506 / KM-530 parts on page 20| Ref | Part number | Part name | Qty |
|---|
| 11-001A-5307 | Wiper Bracket Ass' y | |
| SC-0548-7400 | Screw (3/16" n = 28) | |
| 11-030A-5307 | Wiper Lever "A" Ass' y | |
| SC-0105-7500 | Screw (M4) | |
| 11-060A-5307 | Wiper Lever "B" Ass' y | |
| 11-007A-5307 | Wiper Crank Ass' y | |
| 11-013S-5060 | Stud Screw For I-8 | |
| SN-0101-1600 | Nut (11/64" n = 40) | |
| 11-010A-5307 | Wiper Crank Base | |
| 11-011A-5307 | Wiper | |
| SC-0531-2302 | Screw (9/64" n = 40) | |
| 11-013A-5307 | Wiper Base | |
| SC-0548-7400 | Screw (3/16" n = 28) | |
| 11-013C-257A | Wiper Cover | |
| SC-0120-1230 | Screw (9/64" n = 40) | |
| 11-015A-5067 | Wiper Solenoid Ass' y | |
| SC-0196-2700 | Screw (M3×0.5) | |
| 11-016W-2700 | Spring Washer For I-18 | |
| 11-017W-2700 | Washer For I-18 | |
| 11-020W-5307 | Stopper Washer For I-18 | |
| 11-021R-5307 | Stopper Rubber Washer For I-18 | |
20
Thread Wiper Mechanism
와이퍼 관계
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
I-1
11-001A-5307
L-7, M-7
Wiper Bracket Ass' y
와이퍼 브라켓(組)
1
I-2
SC-0548-7400
L-7, M-7
Screw (3/16" n = 28)
다이알판 죠나사(3/16" n=28)
2
I-3
11-030A-5307
L-7, M-7
Wiper Lever "A" Ass' y
와이퍼 레버"A"(組)
1
I-6
SC-0105-7500
L-7, M-7
Screw (M4)
동메스 축 카라 고정나사(M4)
2
I-7
11-060A-5307
L-7, M-7
Wiper Lever "B" Ass' y
와이퍼 레버"B"(組)
1
I-8
11-007A-5307
L-7, M-7
Wiper Crank Ass' y
와이퍼 크랭크(組)
1
I-9
11-013S-5060
L-7, M-7
Stud Screw For I-8
와이퍼 크랭크(組) 단나사
2
I-10
SN-0101-1600
L-7, M-7
Nut (11/64" n = 40)
스프링걸이 축 나사너트(11/64" n=40)
1
I-11
11-010A-5307
L-7, M-7
Wiper Crank Base
와이퍼 크랭크 베이스
1
I-12
11-011A-5307
L-7, M-7
Wiper
와이퍼
1
I-13
SC-0531-2302
L-7, M-7
Screw (9/64" n = 40)
톱카바 고정 나사(9/64" n=40)
1
I-14
11-013A-5307
L-7, M-7
Wiper Base
와이퍼 베이스
1
I-15
SC-0548-7400
L-7, M-7
Screw (3/16" n = 28)
다이알판 죠나사(3/16" n=28)
2
I-16
11-013C-257A
L-7, M-7
Wiper Cover
와이퍼 커버
1
I-17
SC-0120-1230
L-7, M-7
Screw (9/64" n = 40)
오일펌프 카바나사(9/64" n=40)
2
I-18
11-015A-5067
L-7, M-7
Wiper Solenoid Ass' y
와이퍼 솔레노이드(組)
1
I-19
SC-0196-2700
L-7, M-7
Screw (M3×0.5)
솔레노이드 부착 고정나사(M3×0.5)
4
I-20
11-016W-2700
L-7, M-7
Spring Washer For I-18
솔레노이드 부착 스프링 와셔
4
I-21
11-017W-2700
L-7, M-7
Washer For I-18
솔레노이드 부착 평와셔
4
I-22
11-020W-5307
L-7, M-7
Stopper Washer For I-18
와이퍼 솔레노이드 스토퍼 와셔
1
I-23
11-021R-5307
L-7, M-7
Stopper Rubber Washer For I-18
와이퍼 솔레노이드 고무와셔
1
NOTE:
L-7=KM-506-7S
M-7=KM-530-7S
L=KM-506
M=KM-530
=Common Part
*=Gauge Part
jintex.in
Page 21 — Reverse Button Mechanism
SunStar KM-506 / KM-530 parts on page 21| Ref | Part number | Part name | Qty |
|---|
| 12-001A-5607 | Reverse Button Case | |
| SC-0523-1230 | Screw (9/64" n = 40) | |
| 12-131A-5607 | Reverse Button S/W (Ass' y) | |
| 12-012S-2700 | Screw (M2×0.4) | |
| 12-104P-5607 | Reverse Button Actuator Pin | |
| 43-009C-1600 | E-Ring (φ 9) | |
| 12-007A-5307 | Reverse Feed Control Lever | |
| SC-0178-7400 | Screw (11/64" n = 40) | |
| 12-008G-5607 | Spring For J-7 | |
| 12-009R-5607 | Insulated Rubber | |
| 12-010A-5607 | Reverse Button Cable Bushing | |
J SunStar Reverse Button Mechanism 역진 버튼 관계 21 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. J-1 12-001A-5607 L-7, M-7 Reverse Button Case 버튼 케이스 1 J-2 SC-0523-1230 L-7, M-7 Screw (9/64" n = 40) 무릎올림 링크 고정나사(9/64" n=40) 2 J-3 12-131A-5607 L-7, M-7 Reverse Button S/W (Ass' y) 역진 버튼 스위치(조) 1 J-4 12-012S-2700 L-7, M-7 Screw (M2×0.4) 스위치 고정 볼트 2 J-5 12-104P-5607 L-7, M-7 Reverse Button Actuator Pin 역진 버튼 작동핀 1 J-6 43-009C-1600 L-7, M-7 E-Ring (φ 9) 제어체 축링(E링 9) 2 J-7 12-007A-5307 L-7, M-7 Reverse Feed Control Lever 역진 버튼 작동 레버(조) 1 J-8 SC-0178-7400 L-7, M-7 Screw (11/64" n = 40) 윗뚜껑 점나사(11/64" n=40) 1 J-9 12-008G-5607 L-7, M-7 Spring For J-7 역진 버튼 스위치 누름대 스프링 1 J-10 12-009R-5607 L-7, M-7 Insulated Rubber 스위치 받침 절연 고무 1 J-11 12-010A-5607 L-7, M-7 Reverse Button Cable Bushing 역진 버튼 케이블 붓싱 1 NOTE: L-7=KM-506-7S M-7=KM-530-7S L=KM-506 M=KM-530 =Common Part *=Gauge Part jintex.in
Page 22
SunStar KM-506 / KM-530 parts on page 22| Ref | Part number | Part name | Qty |
|---|
| KM-2507 | Auto Knee Lifter Solenoid Ass y | |
| HEC-2507 | Auto Knee Lifter Solenoid | |
| SC-0183-2700 | Screw (15/64" n=28) | |
| 06-051W-7400 | Washer For K-7-4, K-7-5 | |
| SN-0121-7400 | Nut (15/64" n=28) | |
| 43-013A-257A | Knee Lifter Connection Crank | |
| SC-0497-1230 | Screw (3/16" n=28) | |
| 43-014A-257A | Back Cover For Knee Lifter | |
| 43-015A-257A | Knee Lifter Shaft Bushing | |
| 43-016R-257A | Oil Seal For K-7-12 | |
| 43-017C-257A | Nut For Knee Lifter | |
| 43-018A-257A | Knee Lifter Shaft | |
| 06-021W-7400 | Washer For K-8-1 | |
| 43-021A-257A | Collar For K-8-1 | |
| SC-0512-1230 | Screw (11/64" n=40) | |
| SC-0548-7400 | Screw (3/16" n=28) | |

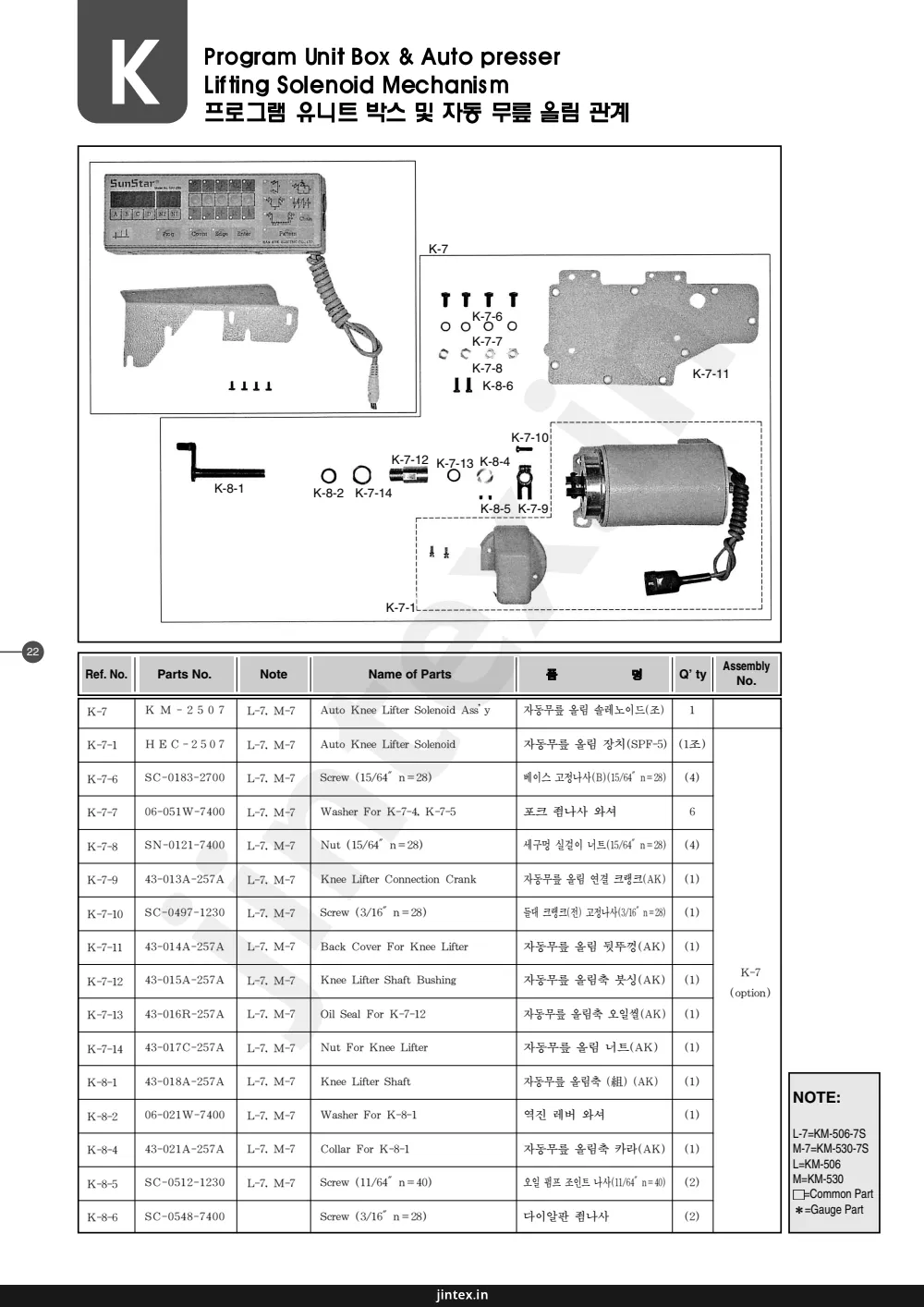

K Program Unit Box & Auto presser Lifting Solenoid Mechanism 프로그램 유니트 박스 및 자동 무릎 올림 관계 K-7 T T T T K-7-6 O O K-7-7 K-7-8 II K-8-6 K-7-11 K-8-1 K-8-2 K-7-14 K-7-12 K-7-13 K-8-4 K-7-10 K-7-1 K-8-5 K-7-9 22 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. K-7 KM-2507 L-7, M-7 Auto Knee Lifter Solenoid Ass y 자동무릎 올림 솔레노이드(조) 1 K-7-1 HEC-2507 L-7, M-7 Auto Knee Lifter Solenoid 자동무릎 올림 장치(SPF-5) (1조) K-7-6 SC-0183-2700 L-7, M-7 Screw (15/64" n=28) 베이스 고정나사(B)(15/64" n=28) (4) K-7-7 06-051W-7400 L-7, M-7 Washer For K-7-4, K-7-5 포크 켐나사 와셔 6 K-7-8 SN-0121-7400 L-7, M-7 Nut (15/64" n=28) 세구멍 실걸이 너트(15/64" n=28) (4) K-7-9 43-013A-257A L-7, M-7 Knee Lifter Connection Crank 자동무릎 올림 연결 크랭크(AK) (1) K-7-10 SC-0497-1230 L-7, M-7 Screw (3/16" n=28) 볼대 크랭크(3/16" n=28) (1) K-7-11 43-014A-257A L-7, M-7 Back Cover For Knee Lifter 자동무릎 올림 뒷뚜껑(AK) (1) K-7-12 43-015A-257A L-7, M-7 Knee Lifter Shaft Bushing 자동무릎 올림축 부싱(AK) (1) K-7-13 43-016R-257A L-7, M-7 Oil Seal For K-7-12 자동무릎 올림 오일씰(AK) (1) K-7-14 43-017C-257A L-7, M-7 Nut For Knee Lifter 자동무릎 올림 너트(AK) (1) K-8-1 43-018A-257A L-7, M-7 Knee Lifter Shaft 자동무릎 올림축 (組) (AK) (1) K-8-2 06-021W-7400 L-7, M-7 Washer For K-8-1 역진 레버 와셔 (1) K-8-4 43-021A-257A L-7, M-7 Collar For K-8-1 자동무릎 올림축 카라(AK) (1) K-8-5 SC-0512-1230 L-7, M-7 Screw (11/64" n=40) 오일 펌프 조인트 나사(11/64" n=40) (2) K-8-6 SC-0548-7400 L-7, M-7 Screw (3/16" n=28) 다이알판 켐나사 (2) K-7 (option) NOTE: L-7=KM-506-7S M-7=KM-530-7S L=KM-506 M=KM-530 □=Common Part *=Gauge Part jintex.in
Page 23
SunStar KM-506 / KM-530 parts on page 23| Ref | Part number | Part name | Qty |
|---|
| L-1 | 44-001C-2500 | Oil Gauge Window | |
| L-2 | 44-002R-2500 | O-Ring For L-1 | |
| L-4 | 44-131C-1230 | Arm Oil Shield | |
| L-5 | 44-0000-1230 | Oil Wick | |
| L-6 | SC-0120-1230 | Screw (9/64" n = 40) | |
| L-7-1 | 44-012C-1230 | Oil Return Tube "A" | |
| L-7-2 | 44-055A-5060 | Oil Return Felter | |
| L-7-3 | 44-052C-5300 | Oil Return Felter | |
| L-7-4 | 44-012C-1230 | Oil Return Tube "B" | |
| L-7-5 | 44-056G-5300 | Return Oil Tube Spring | |
| L-7-6 | 44-055C-5300 | Return Oil Pipe | |
| L-8 | 44-048M-3500 | Oil Return Pipe Holder | |
| L-9 | 01-009R-2350 | Oil Return Pipe Holder | |
| L-10 | SC-0548-7400 | Screw (3/16" n = 28) | |
| L-11 | 44-008P-2500 | Upper Shaft Oil Pipe Ass'y | |
| L-13 | 44-009P-2500 | Oil Pipe For Lower Shaft | |
| L-14 | 44-150A-2500 | Oil Pump Ass' y | |
| L-14-1 | 44-012A-2350 | Oil Pump Body | |
| L-14-2 | 44-011W-1600 | Washer For L-14-1 | |
| L-14-3 | SC-0528-1230 | Screw (9/64" n = 40) | |
| L-14-4 | 44-010C-1600 | Nipple For Oil Return Pipe | |
| L-14-5 | 44-009C-1600 | Nipple For Lower Shaft | |
| L-14-6 | 44-126A-1230 | Impeller | |
| L-14-7 | 44-117A-1230 | Piston | |
| L-14-8 | 44-118G-1230 | Piston Spring | |
| L-14-9 | 44-119S-1230 | Pin Screw For L-14-8 | |
| L-14-10 | 44-120P-1230 | Pin For L-14-8 | |
| L-14-11 | 44-104C-2350 | Cover For Oil Pump | |
| L-14-12 | 44-024C-1230 | Oil Pump Cap | |
| L-14-13 | 44-105C-2350 | Magnetic Holder | |
| L-14-14 | SC-0120-1230 | Screw (9/64" n = 40) | |
| L-14-15 | 44-119A-1230 | Collar For Impeller Shaft | |
| L-14-16 | SC-0512-1230 | Screw (3/16" n = 40) | |
| L-15 | 44-010A-2500 | Oil Pump Bracket | |
| L-16 | SC-0548-7400 | Screw (3/16" n = 28) | |
| L-17 | 44-016G-1230 | Oil Pump Connection Spring | |
| L-18 | 44-115A-1230 | Oil Pump Connection Collar | |
| L-19 | SC-0542-1230 | Screw (11/64" n = 40) | |
Lubrication
급유관계
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
L-1
44-001C-2500
Oil Gauge Window
유창
1
L-2
44-002R-2500
O-Ring For L-1
유창 오링 (G25)
1
L-4
44-131C-1230
L, L-7
Arm Oil Shield
바늘대 급유판
1
L-5
44-0000-1230
L, L-7
Oil Wick
오일 심지
1
L-6
SC-0120-1230
L, L-7
Screw (9/64" n = 40)
오일 펌프 카바나사 (9/64" n=40)
1
L-7-1
44-012C-1230
Oil Return Tube "A"
환류 파이프
(1)
L-7-2
44-055A-5060
L, L-7
Oil Return Felter
환류 펠트(A)
(1)
L-7-3
44-052C-5300
M, M-7
Oil Return Felter
환류 펠트(A)
(1)
L-7
L-7-4
44-012C-1230
Oil Return Tube "B"
환류 파이프
(1)
L-7-5
44-056G-5300
Return Oil Tube Spring
환류 호스 스프링
(1)
L-7-6
44-055C-5300
Return Oil Pipe
환류 파이프
(1)
L-8
44-048M-3500
Oil Return Pipe Holder
환류 파이프 홀더
1
L-9
01-009R-2350
Oil Return Pipe Holder
케이블 잡이
2
L-10
SC-0548-7400
Screw (3/16" n = 28)
다이알관 죠인트 나사(3/16" n=28)
2
L-11
44-008P-2500
Upper Shaft Oil Pipe Ass'y
상축 급유 파이프(조)
1조
L-13
44-009P-2500
Oil Pipe For Lower Shaft
하축 급유 파이프
1
L-14
44-150A-2500
Oil Pump Ass' y
오일 펌프(조)
1
L-14-1
44-012A-2350
Oil Pump Body
오일 펌프 몸체
(1)
L-14-2
44-011W-1600
Washer For L-14-1
오일 펌프 몸체 죠인트 와셔(φ4)
(3)
L-14-3
SC-0528-1230
Screw (9/64" n = 40)
톱 카바나사(9/64" n=40)
(3)
L-14-4
44-010C-1600
Nipple For Oil Return Pipe
환류 파이프 니플
(1)
L-14-5
44-009C-1600
Nipple For Lower Shaft
하축 급유 니플
(1)
L-14-6
44-126A-1230
Impeller
임펠러
(1)
L-14-7
44-117A-1230
Piston
피스톤
(1)
L-14-8
44-118G-1230
Piston Spring
피스톤 스프링
(1)
L-14-9
44-119S-1230
Pin Screw For L-14-8
피스톤 스프링 핀나사
(1)
L-14-10
44-120P-1230
Pin For L-14-8
피스톤 스프링 핀(RP2×8)
(1)
L-14-11
44-104C-2350
Cover For Oil Pump
오일 펌프 커버
(1)
L-14-12
44-024C-1230
Oil Pump Cap
오일 펌프 휄타 캡
(1)
L-14-13
44-105C-2350
Magnetic Holder
자석 잡이
(1)
L-14-14
SC-0120-1230
Screw (9/64" n = 40)
오일 펌프 카바나사(9/64" n=40)
(4)
L-14-15
44-119A-1230
Collar For Impeller Shaft
오일 펌프 카라
(1)
L-14-16
SC-0512-1230
Screw (3/16" n = 40)
오일 펌프 죠인트 카바(조) (11/64" n=40)
(2)
L-15
44-010A-2500
Oil Pump Bracket
오일 펌프 브라켓
1
L-16
SC-0548-7400
Screw (3/16" n = 28)
다이알관 죠인트 나사(3/16" n=28)
3
L-17
44-016G-1230
Oil Pump Connection Spring
오일 펌프 죠인트 스트링
1
L-18
44-115A-1230
Oil Pump Connection Collar
오일 펌프 죠인트 카라(조)
1
L-19
SC-0542-1230
Screw (11/64" n = 40)
실 죠인트 고정나사(11/64" n=40)
2
NOTE:
L-7=KM-506-7S
M-7=KM-506-7S
L=KM-506
M=KM-530
=Common Part
*=Gauge Part
jintex.in
23
Page 24
SunStar KM-506 / KM-530 parts on page 24| Ref | Part number | Part name | Qty |
|---|
| M-14 | Accessories | |
| M-55 | | |
| M-50 | | |
| M-51 | | |
| M-52 | | |
| M-46 | | |
| M-46-1 | | |
| M-46-2 | | |
| M-20 | | |
| M-53 | | |
| M-56 | | |
| M-19 | | |
| M-18 | | |
| M-17 | | |
| M-16 | | |
| M-37 | | |
| M-57 | | |
| M-12 | SunStar | |
| M-58 | | |
| M-1 | | |
| M-9 | | |
| M-10 | | |
| M-15 | | |
| M-3 | | |
| M-2 | | |
| M-21 | | |
| M-44 | | |
| M-27 | | |
| M-25 | | |
| M-29 | | |
| M-30 | | |
| M-23 | | |
| M-22 | | |
| M-24 | | |
| M-49 | | |
| M-49-2 | | |
| M-49-3 | | |
| M-45 | | |
| M-31 | | |
| M-36 | | |
| M-35-7 | | |
| M-35-1 | | |
| M-49-1 | | |
| M-49-5 | | |
| M-49-6 | | |
| M-35-2 | | |
| M-35-3 | | |
| M-35-4 | | |
| M-35 | | |
| M-35-6 | | |
| M-35-8 | | |
| M-48 | | |
| M-47 | | |
| M-32 | | |
| M-38 | | |
| M-42 | | |
| M-34 | | |
| M-42 | | |
| M-33 | | |
| M-40 | | |
| M-39 | | |
| M-41 | | |
| M-43 | | |
M Accessories 액세서리 M-14 M-55 M-50 M-51 M-52 M-46 M-46-1 M-46-2 M-20 M-53 M-56 M-19 M-18 M-17 M-16 M-37 M-57 M-12 SunStar M-58 M-1 M-9 M-10 M-15 M-3 M-2 M-21 M-44 M-27 M-25 M-29 M-30 M-23 M-22 M-24 M-49 M-49-2 M-49-3 M-45 M-31 M-36 M-35-7 M-35-1 M-49-1 M-49-5 M-49-6 M-35-2 M-35-3 M-35-4 M-35 M-35-6 M-35-8 M-48 M-47 M-32 M-38 M-42 M-34 M-42 M-33 M-40 M-39 M-41 M-43 24 jintex.in
Page 25
SunStar KM-506 / KM-530 parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 91-001C-1230 | Accessory Bag | |
| 91-102C-1230 | Driver(Large) | |
| 91-103C-1230 | Driver(Middle,Small) | |
| Needle | 바늘 | |
| 07-105A-2700 | Bobbin (AL) | |
| 91-105C-2700 | Spanner | |
| 91-001C-2700 | Spanner(2mm) | |
| 10-201A-2700 | Fixed Mes | |
| 10-101A-2700 | Fixed Mes | |
| 91-106C-2700 | Head Cover | |
| 91-008C-1230 | Magnetic | |
| 44-010C-1230 | Head Hinge | |
| 01-043C-1230 | Rubber Cushion For Hinge | |
| 01-042R-1230 | Head Support Rubber "A" | |
| 01-214R-1230 | Head Support Rubber "B" | |
| 01-213R-1230 | Nail | |
| Head Rest | 미싱 받침대 | |
| 60-001A-2500 | Belt Cover "A" | |
| 60-003A-2500 | Belt Cover(N.P) | |
| 60-002A-2500 | Belt Cover "B" | |
| SC-0344-8260 | Screw (5/16" n=24) | |
| 09-025W-8270 | Washer For M-22, 23 | |
| SC-0184-1600 | Screw (3/16" n=28) | |
| 10-020W-2700 | Washer For M-22, 23 | |
| 91-002S-3400 | Nail For M-24 | |
| 41-101A-1230 | Bobbin Winder Ass'y | |
| 44-030A-5300 | Oil Pan | |
| 44-003M-1230 | Oil Pan Gasket | |
| SC-0347-1230 | Screw (M8×1.25) | |
| 44-005R-1230 | Packing | |
| 43-001A-1600 | Knee Lifter Pad Ass'y | |
| 43-106C-1600 | Knee Lifter Shaft | |
| 43-101R-1600 | Knee Lifter Pad | |
| 43-102C-1600 | Knee Lifter Pad Insert Plate | |
| 43-101A-1230 | Holder For M-35-2 | |
| 43-108S-1230 | Set Screw For M-32-4 | |
| 43-106C-1230 | Knee Lifter Arm Joint Complete | |
| SC-0181-1230 | Screw (5/16" n=18) | |
| 43-108C-1600 | Shaft For M-34-1 | |
| 43-009C-1600 | E-Ring($9) | |
| 91-007A-2302 | Thread Stand Ass'y | |
| 43-007A-1600 | Knee Lifting Controller | |
| SC-0106-7400 | Screw (15/64" n=28) | |
| SC-0545-1230 | Screw (15/64" n=28) | |
| 43-002S-3500 | Screw (15/64" n=28) | |
| SN-0105-3400 | Nut (15/64" n=28) | |
| 43-008G-1600 | Spring For M-38 | |
| 43-010A-1600 | Knee Base Rubber | |
| 04-104R-1230 | Oil Cap | |
| 01-050A-5300 | Sub Needle Plate Cover | |
| 01-051A-5300 | Fixed Plate For M-37 | |
| 01-052S-5300 | Screw (1/4" n=44) | |
| 44-026A-5300 | Chip Shute Guide(L) | |
| SC-0543-2302 | Screw (11/64" n=40) | |
| 90-041A-5300 | Table Holder | |
| 90-043A-5300 | Chip Shute Plate(U) | |
| 90-044A-5300 | Chip Shute Plate(L) | |
| 91-002S-3400 | Nail For M-40-1 | |
| SC-0525-5300 | Screw (11/64" n=40) | |
| SN-0101-1600 | Nut (11/64" n=40) | |
| SN-0101-1600 | Nut (11/64" n=40) | |
| 13-153A-5300 | Hook Protect Plate (1/8") | |
| 13-051A-5300 | Hook Protect Plate (1/8") | |
| 01-035A-5060 | Needle Plate(1/8") | |
| 06-107A-5060 | Feed Dog(1/8") | |
| 05-010A-5300 | Presser Foot(1/8") | |
| 01-035A-5300 | Needle Plate(1/8") | |
| 06-138A-5300 | Feed Dog (1/8") | |
| 91-011C-1230 | Oil Tank | |
| 44-011R-2350 | Packing | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
M-1
91-001C-1230
Accessory Bag
액세서리 박스
1
M-2
91-102C-1230
Driver(Large)
드라이버(대)
1
M-3
91-103C-1230
Driver(Middle,Small)
드라이버(중, 소)
1
M-5
Needle
바늘
1
M-6
07-105A-2700
Bobbin (AL)
보빈
4
M-8
91-105C-2700
L-7, M-7
Spanner
고정 메스 장력 조절용 스패너
1
M-9
91-001C-2700
L-7, M-7
Spanner(2mm)
L 렌치(2mm)
1
M-11
10-201A-2700
L-7, M-7
Fixed Mes
고정메스(7AN701)(극잔사)
1
M-11-1
10-101A-2700
M-7
Fixed Mes
고정메스
1
M-12
91-106C-2700
Head Cover
미싱 커버
2
M-14
91-008C-1230
Magnetic
자석
2
M-15
44-010C-1230
Head Hinge
힌지
2
M-16
01-043C-1230
Rubber Cushion For Hinge
힌지 고무(大)
2
M-17
01-042R-1230
Head Support Rubber "A"
힌지 고무(中)
2
M-18
01-214R-1230
Head Support Rubber "B"
힌지 고무(小)
2
M-19
01-213R-1230
Nail
못
8
M-20
Head Rest
미싱 받침대
1
M-21
60-001A-2500
N.P 제외
Belt Cover "A"
벨트 커버 "A"
1
M-22
60-003A-2500
N.P 사양
Belt Cover(N.P)
벨트 커버 (N.P)
1
M-24
60-002A-2500
Belt Cover "B"
벨트 커버
1
M-25
SC-0344-8260
Screw (5/16" n=24)
포스트 고정나사(5/16" n=24)
2
M-26
09-025W-8270
Washer For M-22, 23
새들 죠나사 와셔
2
M-27
SC-0184-1600
Screw (3/16" n=28)
평밀대 크랭크 죠나사(3/16" n=28)
1
M-28
10-020W-2700
Washer For M-22, 23
스토퍼 죠나사 와셔
1
M-29
91-002S-3400
Nail For M-24
못나사
2
M-30
41-101A-1230
Bobbin Winder Ass'y
실감기(조립)
1조
M-31
44-030A-5300
Oil Pan
오일팬
1조
M-32
44-003M-1230
Oil Pan Gasket
오일 가스켓
2
M-33
SC-0347-1230
Screw (M8×1.25)
배유구멍 마개나사(M8×1.25)
1
M-34
44-005R-1230
Packing
배유구멍 마개나사 오링
1
M-35
43-001A-1600
Knee Lifter Pad Ass'y
무릎 올림(조립)
1
M-35-1
43-106C-1600
Knee Lifter Shaft
무릎 받침축
1
M-35-2
43-101R-1600
Knee Lifter Pad
무릎 받침 고무
1
M-35-3
43-102C-1600
Knee Lifter Pad Insert Plate
무릎 받침 고무 삽입판
1
M-35-4
43-101A-1230
Holder For M-35-2
무릎 받침 고무 연결 링크
1
M-35-5
43-108S-1230
Set Screw For M-32-4
무릎 받침 연결 링크 죠나사
1
M-35-6
43-106C-1230
Knee Lifter Arm Joint Complete
무릎 받침 연결 크랭크
1
M-35-7
SC-0181-1230
Screw (5/16" n=18)
받침축 고정나사(5/16" n=18)
2
M-35-8
43-108C-1600
Shaft For M-34-1
제어체 축
1
M-36
43-009C-1600
E-Ring($9)
제어체 축 링(E링 $9)
1
M-37
91-007A-2302
Thread Stand Ass'y
실패 꽃이(조립)
1조
M-38
43-007A-1600
Knee Lifting Controller
제어체
1
M-39
SC-0106-7400
Screw (15/64" n=28)
죠나사(육각)(15/64" n=28)
1
M-40
SC-0545-1230
Screw (15/64" n=28)
죠나사(육각)(15/64" n=28)
1
M-41
43-002S-3500
Screw (15/64" n=28)
죠나사(육각)(15/64" n=28)
1
M-42
SN-0105-3400
Nut (15/64" n=28)
수평운동 죠나사 너트(15/64" n=28)
2
M-43
43-008G-1600
Spring For M-38
제어체 스프링
1
M-44
43-010A-1600
Knee Base Rubber
무릎 올림봉 받침 캡
1
M-45
04-104R-1230
N.P 사양
Oil Cap
바늘대 상부 싱 싱
1
M-46
01-050A-5300
Sub Needle Plate Cover
보조 침판 커버
1
M-46-1
01-051A-5300
Fixed Plate For M-37
커버 고정판
1
M-46-2
01-052S-5300
Screw (1/4" n=44)
홈볼이 덮개 작은나사(1/4" n=44)
1
M-47
44-026A-5300
Chip Shute Guide(L)
칩 배출 가이드(下)
1
M-48
SC-0543-2302
Screw (11/64" n=40)
카바 죠나사(11/64" n=40)
2
M-49
90-041A-5300
Table Holder
테이블 부착판
1
M-49-1
90-043A-5300
Chip Shute Plate(U)
칩 배출판(上)
1
M-49-2
90-044A-5300
Chip Shute Plate(L)
칩 배출판(下)
1
M-49-3
91-002S-3400
Nail For M-40-1
못나사
3
M-49-4
SC-0525-5300
Screw (11/64" n=40)
메스 구동 링크 축 죠나사(11/64" n=40)
8
M-49-5
SN-0101-1600
Nut (11/64" n=40)
프링걸이 축 죠나사 너트(11/64" n=40)
8
M-49-6
SN-0101-1600
L, M
Nut (11/64" n=40)
프링걸이 축 죠나사 너트(11/64" n=40)
8
M-50
13-153A-5300
L-7, M
Hook Protect Plate (1/8")
훅 보호판(사절 1/8")
1
M-51
13-051A-5300
L-7
Hook Protect Plate (1/8")
훅 보호판(사절 1/8")
1
M-52
01-035A-5060
L, L-7
Needle Plate(1/8")
침판(1/8")
1
M-53
06-107A-5060
L, L-7
Feed Dog(1/8")
톱니(1/8")
1
M-54
05-010A-5300
Presser Foot(1/8")
노루발(1/8")
1
M-55
01-035A-5300
M, M-7
Needle Plate(1/8")
침판(1/8")
1
M-56
06-138A-5300
M, M-7
Feed Dog (1/8")
톱니(1/8")
1
M-57
91-011C-1230
Oil Tank
유차
1
M-58
44-011R-2350
Packing
오일팬 누유방지 고무
1
NOTE:
L-7=KM-506-7S
M-7=KM-530-7S
L=KM-506
M=KM-530
=Common Part
*=Gauge Part
jintex.in
Page 26 — Special Parts For <KM-506-7N.KM-530-7N> 전용 부품 관계
SunStar KM-506 / KM-530 parts on page 26| Ref | Part number | Part name | Qty |
|---|
| N-1 | 01-035M-506N | Model Mark(KM-506-7N) | |
| N-2 | 01-040M-537N | Model Mark(KM-530-7N) | |
| N-3 | 02-101A-537N | Main Shaft | |
| N-5 | 02-003A-2350 | Pulley | |
| N-6 | 12-0000-4701 | Synchronizer Ass' y | |
| N-6-25 | 01-019P-2350 | Guide Pin For Synchronizer | |
| N-6-26 | SC-0108-2350 | Screw (M6) | |
| N-6-27 | 01-020W-2350 | Washer For Synchronizer | |
N Special Parts For <KM-506-7N.KM-530-7N> 전용 부품 관계
N-3
N-5
N-6
KM-506-7N
SUNSTAR MACHINERY CO.,LTD.
N-1
KM-530-7N
SUNSTAR MACHINERY CO.,LTD.
N-2
26
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
N-1
01-035M-506N
Model Mark(KM-506-7N)
모델 마크
1
N-2
01-040M-537N
Model Mark(KM-530-7N)
모델 마크
1
N-3
02-101A-537N
Main Shaft
주축(MP) L= 431
1
N-5
02-003A-2350
Pulley
풀리
1
N-6
12-0000-4701
Synchronizer Ass' y
싱크로나이저(조)
1
N-6-25
01-019P-2350
Guide Pin For Synchronizer
싱크로 베이스 기준핀
(2)
N-6-26
SC-0108-2350
Screw (M6)
육각구멍붙이 볼트(M6)
(2)
N-6
N-6-27
01-020W-2350
Washer For Synchronizer
싱크로 베이스 스프링 와셔
(2)
jintex.in
Page 27
SunStar KM-506 / KM-530 parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 01-035A-5060 | Needle Plate | |
| 06-107A-5060 | Feed Dog | |
| 05-010A-5300 | Presser Foot | |
| 01-210A-5060 | Needle Plate | |
| 06-107A-5060 | Feed Dog | |
| 05-111A-5300 | Presser Foot | |
| 01-310A-5060 | Needle Plate | |
| 06-107A-5060 | Feed Dog | |
| 05-111A-5300 | Presser Foot | |
| 01-410A-5060 | Needle Plate | |
| 05-112A-5300 | Presser Foot | |
| 01-036A-5060 | Needle Plate | |
| 05-112A-5300 | Presser Foot | |
| 01-510A-5060 | Needle Plate | |
| 05-112A-5300 | Presser Foot | |
| 01-110A-5060 | Needle Plate | |
| 01-110A-5060 | Feed Dog | |
| 01-110A-5060 | Presser Foot | |
| 01-035A-5300 | Needle Plate | |
| 06-138A-5300 | Feed Dog | |
| 05-010A-5300 | Presser Foot | |
| 01-111A-5300 | Needle Plate | |
| 06-138A-5300 | Feed Dog | |
| 05-111A-5300 | Presser Foot | |
| 01-112A-5300 | Needle Plate | |
| 06-138A-5300 | Feed Dog | |
| 05-111A-5300 | Presser Foot | |
| 01-113A-5300 | Needle Plate | |
| 06-111A-5300 | Feed Dog | |
| 05-112A-5300 | Presser Foot | |
| 01-114A-5300 | Needle Plate | |
| 06-111A-5300 | Feed Dog | |
| 05-112A-5300 | Presser Foot | |
| 01-115A-5300 | Needle Plate | |
| 06-111A-5300 | Feed Dog | |
| 05-112A-5300 | Presser Foot | |
Gauge Parts
게이지 관계
SunStar
[KM-506 Series]
Name of Parts
Needle Plate
Feed Dog
Presser Foot
Gauge Size
(A-31)
(D-42)
(H-9)
1/8" (3.2mm)
01-035A-5060
06-107A-5060
05-010A-5300
5/32" (4mm)
01-210A-5060
06-107A-5060
05-111A-5300
3/16" (4.8mm)
01-310A-5060
06-107A-5060
05-111A-5300
7/32" (5.6mm)
01-410A-5060
ΔΤΗΜΣΣΣΣΣΣΣΣΣ
05-112A-5300
1/4" (6.4mm)
01-036A-5060
ΔΤΗΜΣΣΣΣΣΣΣΣΣ
05-112A-5300
3/8" (9.5mm)
01-510A-5060
ΔΤΗΜΣΣΣΣΣΣΣΣΣ
05-112A-5300
5/64" (2mm)
01-110A-5060
01-110A-5060
01-110A-5060
27
[KM-530 Series]
Name of Parts
Needle Plate
Feed Dog
Presser Foot
Gauge Size
(A-32)
(D-43)
(H-9)
1/8" (3.2mm)
01-035A-5300
06-138A-5300
05-010A-5300
5/32" (4mm)
01-111A-5300
06-138A-5300
05-111A-5300
3/16" (4.8mm)
01-112A-5300
06-138A-5300
05-111A-5300
7/32" (5.6mm)
01-113A-5300
06-111A-5300
05-112A-5300
1/4" (6.4mm)
01-114A-5300
06-111A-5300
05-112A-5300
3/8" (9.5mm)
01-115A-5300
06-111A-5300
05-112A-5300
jintex.in
