SunStar KM-506 / KM-530 Parts Book (PDF)
Text index — SunStar KM-506 / KM-530

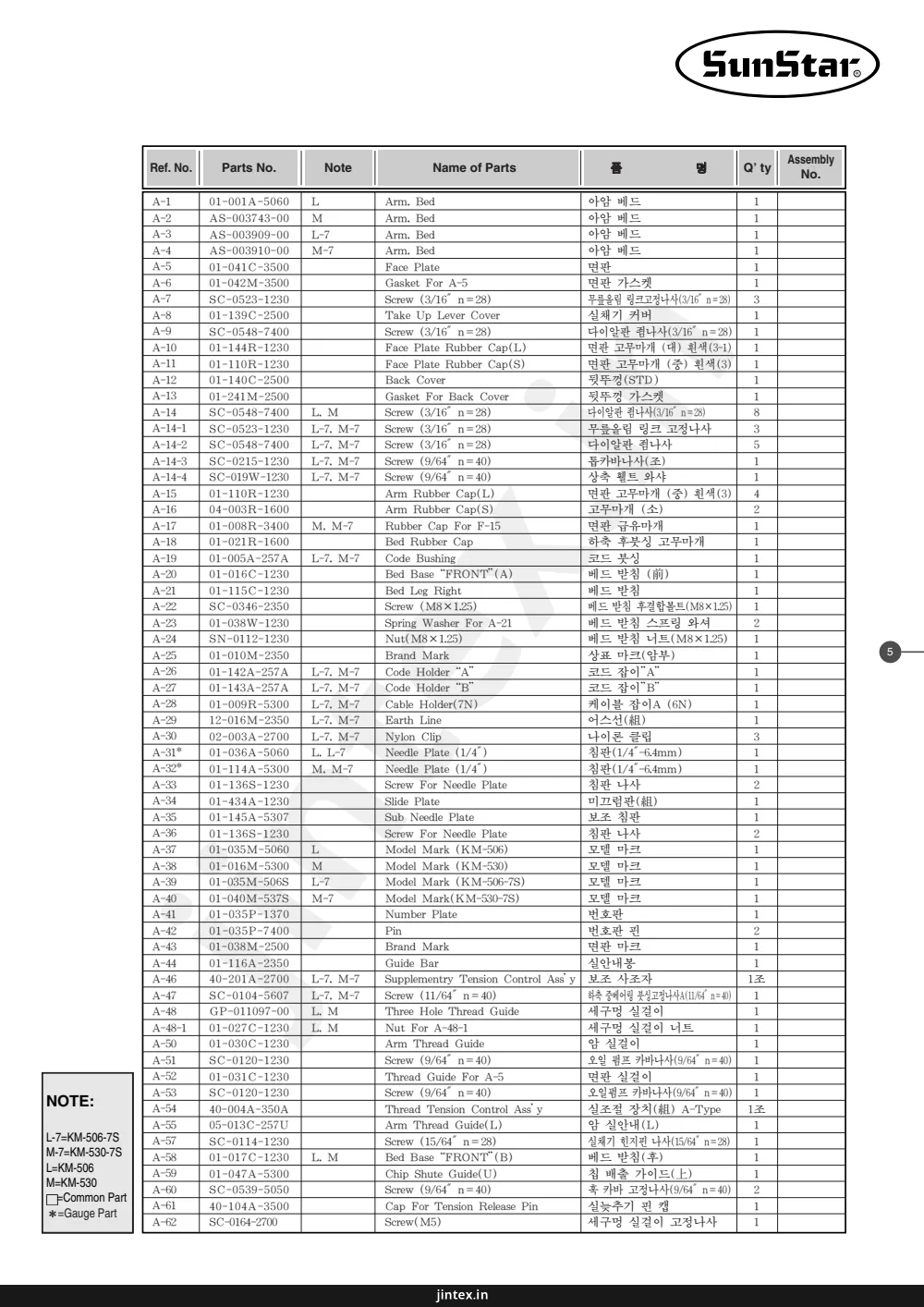

Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | 01-001A-5060 | Arm, Bed | 1 |
| A-2 | AS-003743-00 | Arm, Bed | 1 |
| A-3 | AS-003909-00 | Arm, Bed | 1 |
| A-4 | AS-003910-00 | Arm, Bed | 1 |
| A-5 | 01-041C-3500 | Face Plate | 1 |
| A-6 | 01-042M-3500 | Gasket For A-5 | 1 |
| A-7 | SC-0523-1230 | Screw (3/16" n=28) | 3 |
| A-8 | 01-139C-2500 | Take Up Lever Cover | 1 |
| A-9 | SC-0548-7400 | Screw (3/16" n=28) | 1 |
| A-10 | 01-144R-1230 | Face Plate Rubber Cap(L) | 1 |
| A-11 | 01-110R-1230 | Face Plate Rubber Cap(S) | 1 |
| A-12 | 01-140C-2500 | Back Cover | 1 |
| A-13 | 01-241M-2500 | Gasket For Back Cover | 1 |
| A-14 | SC-0548-7400 | Screw (3/16" n=28) | 8 |
| A-14-1 | SC-0523-1230 | Screw (3/16" n=28) | 3 |
| A-14-2 | SC-0548-7400 | Screw (3/16" n=28) | 5 |
| A-14-3 | SC-0215-1230 | Screw (9/64" n=40) | 1 |
| A-14-4 | SC-019W-1230 | Screw (9/64" n=40) | 1 |
| A-15 | 01-110R-1230 | Arm Rubber Cap(L) | 4 |
| A-16 | 04-003R-1600 | Arm Rubber Cap(S) | 2 |
| A-17 | 01-008R-3400 | Rubber Cap For F-15 | 1 |
| A-18 | 01-021R-1600 | Bed Rubber Cap | 1 |
| A-19 | 01-005A-257A | Code Bushing | 1 |
| A-20 | 01-016C-1230 | Bed Base "FRONT"(A) | 1 |
| A-21 | 01-115C-1230 | Bed Leg Right | 1 |
| A-22 | SC-0346-2350 | Screw (M8×1.25) | 1 |
| A-23 | 01-038W-1230 | Spring Washer For A-21 | 2 |
| A-24 | SN-0112-1230 | Nut(M8×1.25) | 1 |
| A-25 | 01-010M-2350 | Brand Mark | 1 |
| A-26 | 01-142A-257A | Code Holder "A" | 1 |
| A-27 | 01-143A-257A | Code Holder "B" | 1 |
| A-28 | 01-009R-5300 | Cable Holder(7N) | 1 |
| A-29 | 12-016M-2350 | Earth Line | 1 |
| A-30 | 02-003A-2700 | Nylon Clip | 3 |
| A-31* | 01-036A-5060 | Needle Plate (1/4") | 1 |
| A-32* | 01-114A-5300 | Needle Plate (1/4") | 1 |
| A-33 | 01-136S-1230 | Screw For Needle Plate | 2 |
| A-34 | 01-434A-1230 | Slide Plate | 1 |
| A-35 | 01-145A-5307 | Sub Needle Plate | 1 |
| A-36 | 01-136S-1230 | Screw For Needle Plate | 2 |
| A-37 | 01-035M-5060 | Model Mark (KM-506) | 1 |
| A-38 | 01-016M-5300 | Model Mark (KM-530) | 1 |
| A-39 | 01-035M-506S | Model Mark (KM-506-7S) | 1 |
| A-40 | 01-040M-537S | Model Mark(KM-530-7S) | 1 |
| A-41 | 01-035P-1370 | Number Plate | 1 |
| A-42 | 01-035P-7400 | Pin | 2 |
| A-43 | 01-038M-2500 | Brand Mark | 1 |
| A-44 | 01-116A-2350 | Guide Bar | 1 |
| A-46 | 40-201A-2700 | Supplementry Tension Control Ass'y | 1조 |
| A-47 | SC-0104-5607 | Screw (11/64" n=40) | 1 |
| A-48 | GP-011097-00 | Three Hole Thread Guide | 1 |
| A-48-1 | 01-027C-1230 | Nut For A-48-1 | 1 |
| A-50 | 01-030C-1230 | Arm Thread Guide | 1 |
| A-51 | SC-0120-1230 | Screw (9/64" n=40) | 1 |
| A-52 | 01-031C-1230 | Thread Guide For A-5 | 1 |
| A-53 | SC-0120-1230 | Screw (9/64" n=40) | 1 |
| A-54 | 40-004A-350A | Thread Tension Control Ass'y | 1조 |
| A-55 | 05-013C-257U | Arm Thread Guide(L) | 1 |
| A-57 | SC-0114-1230 | Screw (15/64" n=28) | 1 |
| A-58 | 01-017C-1230 | Bed Base "FRONT"(B) | 1 |
| A-59 | 01-047A-5300 | Chip Shute Guide(U) | 1 |
| A-60 | SC-0539-5050 | Screw (9/64" n=40) | 2 |
| A-61 | 40-104A-3500 | Cap For Tension Release Pin | 1 |
| A-62 | SC-0164-2700 | Screw(M5) | 1 |
Page 6 — Upper Shaft & Thread Take Up Lever Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | 02-101A-5300 | Upper Shaft | 1 |
| B-2 | 02-115C-2500 | Oil Adjusting Pin For B-1 | 1 |
| B-3 | 02-016R-1230 | O-Ring For B-2 | 1 |
| B-4 | 02-018W-1230 | Rubber for B-2 | 1 |
| B-5 | GP-008586-00 | Upper Shaft Felter | 1 |
| B-7 | 02-110A-5300 | Link Cam | 1조 |
| B-7-1 | 02-111A-5300 | Mes Cam | 1 |
| B-7-2 | 02-011P-5300 | Pin For B-7-1 | 1 |
| B-9 | SC-0123-1230 | Screw (9/32" n=28) | 1 |
| B-13 | 02-115A-5300 | Upper Shaft Bushing (F) | 1 |
| B-14 | 02-105A-2500 | Upper Shaft Bushing (M) | 1 |
| B-16 | 02-121A-1230 | Upper Shaft Collar | 1 |
| B-17 | SC-A129-4515 | Screw (1/4" n=40) | 2 |
| B-18 | 02-211A-1230 | Upper Shaft Gear | 1 |
| B-19 | SC-A129-4515 | Screw (1/4" n=40) | 2 |
| B-21 | 02-106A-257B | Upper Shaft Bushing(R) | 1 |
| B-22 | 02-028C-1230 | Oil Seal For B-20, 21 | 1 |
| B-23 | 02-207A-257A | Pulley (Only for Trimming M/C) | 1 |
| B-23-1 | 02-207A-257A | Pulley (Only for Regulator M/C) | 1 |
| B-25 | SC-0150-2500 | Screw (15/64" n=28) | 2 |
| B-26 | SC-0188-1230 | Screw(5/16" n=24) | 1 |
| B-27 | 08-201A-250A | Thread Take Up Lever Ass'y | 1 |
| B-28 | SC-0504-1230 | Screw (1/4" n=40) | 1 |
| B-28-1 | SC-0129-7400 | Screw (1/4" n=40) | 1 |
| B-30 | 44-0000-1230 | Oil Wick | 1 |
| B-31 | SC-0507-1230 | Screw (15/64" n=28) | 1 |
| B-32 | 08-005R-250A | Oil Protection Rubber | 1 |
| B-33 | 08-106C-2500 | Protection Plate | 1 |
| B-34-1 | 11-020A-2500 | Magnetic Holder | (2) |
| B-34-2 | 11-022W-2500 | Washer For B-34-1 | (4) |
| B-34-3 | 11-021S-2500 | Screw For B-34-1 | (4) |
| B-34-4 | 13-0000-SE55 | Synchronizer Ass'y (Servo) | (1) |
| B-35 | SC-0507-1230 | Screw (15/64" n=28) | 1 |
Page 7 — Upright Shaft & Lower Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 03-001A-1600 | Upright Shaft | 1 |
| C-2 | 02-112A-1230 | Upright Shaft Gear(U) | 1 |
| C-3 | SC-A129-4515 | Screw(1/4" n=40) | 2 |
| C-5 | 03-002A-257A | Upright Shaft Bushing(U) | 1 |
| C-6 | SC-0507-1230 | Screw (15/64" n=28) | 1 |
| C-7 | 03-103A-1230 | Upper Shaft Lower B/S | 1 |
| C-8 | 02-213A-1230 | Upright Shaft Gear(L) | 1 |
| C-9 | SC-A129-4515 | Screw (1/4" n=40) | 2 |
| C-10 | 07-103A-257A | Lower Shaft | 1 |
| C-10-1 | 07-103A-257A | Lower Shaft | 1 |
| C-11 | 02-214A-1230 | Lower Shaft Gear | 1 |
| C-12 | 07-005M-1230 | Lower Shaft Felter | 1 |
| C-13 | 07-004S-1230 | Cap Screw For Lower Shaft Oil | 1 |
| C-14 | SC-A129-4515 | Screw (1/4" n=40) | 2 |
| C-16 | 07-102A-1600 | Lower Shaft Bushing(R) | 1 |
| C-17 | SC-0507-1230 | Screw (15/64" n=28) | 1 |
| C-18 | 07-103A-1600 | Lower Shaft Bushing(M) | 1 |
| C-19 | 07-107A-257A | Lower Shaft Bushing(F) | 1 |
| C-20 | 07-107A-250A | Lower Shaft Bushing(F) | 1 |
| C-21 | SC-0114-1230 | Screw (15/64" n=28) | 1 |
| C-22 | SC-0361-1230 | Screw (3/16" n=32) | 1 |
| C-23 | 07-015G-1230 | Spring For C-22 | 1 |
| C-24 | 44-025A-1230 | Collar For Lower Shaft | 1 |
| C-25 | SC-0104-5607 | Screw (11/64" n=40) | 1 |
| C-26 | 07-003A-270A | Rotary Hook Ass'y | 1조 |
| C-26-1 | 07-001A-357A | Rotary Hook Ass'y | 1조 |
| C-27 | 07-007A-123A | Rotary Hook Ass'y | 1 |
| C-27-1 | 07-003A-350A | Rotary Hook Ass'y | 1 |
| C-28 | 07-105A-2700 | Bobbin(AL) | 1 |
| C-29 | 07-105A-2700 | Bobbin(AL) | 1 |
| C-30 | 07-104A-2700 | Bobbin Case Ass'y | 1조 |
| C-30 | 07-004A-3500 | Bobbin Case Ass'y | 1조 |
| C-31 | 07-106A-123A | Bobbin Case Ass'y | 1조 |
| C-32 | 07-013A-1230 | Inner Bobbin Stopper | 1 |
| C-33 | SC-0174-1230 | Screw (11/64" n=40) | 1 |
| C-34 | 07-011W-1230 | Washer For C-33 | 1 |
Page 9 — Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 06-101A-250A | Feed Cam A | 1 |
| D-2 | SC-0129-7400 | Screw (1/4" n=40) | 2 |
| D-3 | 06-101A-350A | Feed Cam A | 1 |
| D-4 | 06-103C-235B | Stop Ring "C" For D-1,3 | 1 |
| D-5 | 06-102A-2500 | Feed Cam C | 1 |
| D-6 | 06-102A-3500 | Feed Cam C | 1 |
| D-7 | 06-103A-2500 | Feed Rocker Shaft Connecting Rod | 1 |
| D-8 | 06-154A-1230 | Crank Rod | 1 |
| D-9 | 06-104A-257A | Feed Regulator Link | 1 |
| D-10 | 06-103A-2350 | Feed Regulator Link | 1 |
| D-11 | 06-104P-2350 | Feed Connection Link Pin(A) | 1 |
| D-12 | SC-0496-3710 | Screw (11/64" n=40) | 1 |
| D-13 | 06-105A-2350 | Feed Connection Link(A) | 2 |
| D-14 | 06-106A-2350 | Feed Connection Link(B) | 2 |
| D-15 | 06-107P-2350 | Feed Adjusting Link hinge Pin(A) | 1 |
| D-16 | SC-0504-1230 | Screw (1/4" n=40) | 1 |
| D-17 | 06-108P-2350 | Feed Adjusting Link Hinge Pin(B) | 1 |
| D-18 | SC-0504-1230 | Screw (1/4" n=40) | 1 |
| D-19 | 06-109P-2350 | Feed Connection Link pin(B) | 1 |
| D-21 | 06-110P-2350 | Feed Connection Link Pin(C) | 1 |
| D-22 | SC-0175-1230 | Screw (11/64" n=40) | 1 |
| D-23 | 06-023P-2350 | Hinge Pin for D-72 | 1 |
| D-24 | 04-009C-3710 | E-Ring (ϕ5) | 1 |
| D-25 | SC-0175-1230 | Screw (11/64" n=40) | 1 |
| D-26 | 06-112A-2350 | Feed Rock Shaft | 1 |
| D-27 | 44-0000-1230 | Wick For D-26,51 | 1 |
| D-28 | 06-140A-1230 | Feed Rock Shaft Bushing(R) | 1 |
| D-29 | SC-0114-1230 | Screw (15/64" n=28) | 1 |
| D-30 | 06-113A-2350 | Feed Rock Shaft Bushing(F) | 1 |
| D-31 | SC-0114-1230 | Screw (15/64" n=28) | 1 |
| D-32 | 06-021R-1230 | Oil cover For D-26,51 | 2 |
| D-33 | 06-008A-2350 | Feed Bar Crank | 1 |
| D-34 | SC-0307-1230 | Screw (3/16" n=32) | 2 |
| D-35 | 06-114A-2350 | Feed Bar Shaft | 1 |
| D-37 | 44-009C-1230 | Wick Holder For D-35 | 1 |
| D-38 | SC-0133-1230 | Screw (1/8" n=44) | 2 |
| D-39 | 06-102W-2350 | Washer For D-35 | 1 |
| D-40 | SC-0122-1230 | Screw (15/64" n=28) | 1 |
| D-41 | 06-215A-2350 | Feed Bar | 1 |
| D-42* | GP-011202-00 | Feed Dog (7/32", 1/4", 3/8") | 1 |
| D-43* | 06-111A-5300 | Feed Dog (7/32", 1/4", 3/8") | 1 |
| D-44 | SC-0130-1230 | Screw (1/8" n=44) | 2 |
| D-45 | 06-117A-1230 | Feed Bar Block And Shaft | 1 |
| D-47 | 06-020S-1230 | Screw (3/16" n=32) | 1 |
| D-48 | 06-128A-2350 | Feed Lifting Shaft Crank(F) | 1 |
| D-49 | 44-0000-1230 | Oil Wick | 1 |
| D-50 | SC-0497-1230 | Screw (3/16" n=28) | 1 |
| D-51 | 06-116A-2350 | Feed Lifting Shaft | 1 |
| D-52 | 44-029M-1230 | Stopper For Wick | 2 |
| D-53 | 06-139A-1230 | Feed Lifting Shaft Bushing(F) | 1 |
| D-54 | SC-0114-1230 | Screw (15/64" n=28) | 1 |
| D-55 | 06-140A-1230 | Feed Lifting Shaft Bushing(R) | 1 |
| D-56 | SC-0114-1230 | Screw (15/64" n=28) | 1 |
| D-57 | 06-038A-235A | Feed Lifting Shaft Crank(R) | 1 |
| D-58 | SC-0497-1230 | Screw (3/16" n=28) | 1 |
| D-59 | SC-0504-1230 | Screw (1/4" n=40) | 2 |
| D-60 | 06-037P-1230 | Crank Rod Connection Pin | 1 |
| D-61 | SC-0175-1230 | Screw (11/64" n=40) | 1 |
| D-62 | 01-037R-1230 | Rubber Cap (F) For D-26,51 | 2 |
| D-63 | GP-008523-00 | Feed Regulator Shaft | 1 |
Page 11 — Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-64 | 06-043R-1230 | O-Ring For D-63 | 2 |
| D-65 | SC-0507-1230 | Screw (15/64" n=28) | 1 |
| D-66 | GP-008525-00 | Feed Regulator | 1 |
| D-67 | GP-008524-00 | Feed Regulator | 1 |
| D-68 | SC-0174-1230 | Screw (11/64" n=40) | 2 |
| D-69 | 06-220A-2350 | Collar For D-63 | 1 |
| D-70 | SC-0129-7400 | Screw (1/4" n=40) | 2 |
| D-71 | 06-221A-2350 | Feed Adjusting Shaft | 1 |
| D-72 | 06-122A-2500 | Connecting Rod For Feed Regulator | 1 |
| D-72-1 | 06-122A-1370 | Connecting Rod For Feed Regulator | 1 |
| D-73 | 04-009C-3710 | E-Ring(φ 5) | 1 |
| D-74 | 06-023C-257A | B/T Spring Holder | 1 |
| D-75 | SC-0158-3710 | Screw (9/64" n=40) | 1 |
| D-76 | 06-023G-7400 | Reverse Feed Spring | 1 |
| D-77 | 06-024C-257A | Holder For D-76 | 1 |
| D-78 | 06-125A-2500 | Reverse Feed Control Lever Shaft | 1 |
| D-79 | 06-042R-1230 | O-Ring For D-78 | 1 |
| D-80 | 06-026A-257A | Reverse Feed Lever Crank (Ass'y) | 1 |
| D-81 | 06-026A-250A | Reverse Feed Lever Crank (Ass'y) | 1 |
| D-82 | SC-0184-1600 | Screw (3/16" n=28) | 1 |
| D-83 | SC-0174-1230 | Screw (11/64" n=40) | 1 |
| D-84 | 06-023G-7400 | Spring For D-109 | 1 |
| D-85 | 06-056G-2350 | Spring For D-109 | 1 |
| D-86 | 06-040S-1600 | Holder For D-84, 85 | 1 |
| D-87 | SN-0101-1600 | Nut (11/64" n=40) | 2 |
| D-88 | GP-016930-00 | Feed Regulator Dial Shaft | 1 |
| D-89 | 06-010R-1230 | O-Ring For D-88 | 2 |
| D-90 | 06-028C-350B | Feed Regulator Control Plate (5mm) | 1 |
| D-91 | SC-0193-1230 | Screw (3/16" n=28) | 1 |
| D-92 | PN-000273-00 | Pin for D-90 | 1 |
| D-93 | 06-027G-1230 | Spring for D-92 | 1 |
| D-94 | 06-048A-2507 | Reverse Feed Solenoid Ass'y | 1조 |
| D-95 | 06-130A-257A | Bracket For Reverse Feed Solenoid | 1 |
| D-96 | SC-0166-2350 | Screw (M5×0.8) | 2 |
| D-97 | 01-020W-2350 | Spring Washer For D-95 | 3 |
| D-98 | SC-0109-2350 | Screw (M6) | 3 |
| D-99 | 06-131A-257A | Reverse Feed Solenoid Crank | 1 |
| D-100 | 06-032S-257A | Stud Screw For D-99 | 1 |
| D-101 | SC-000550-00 | Hinge Screw For D-103 | 1 |
| D-102 | 40-005C-2700 | Hinge Nut For D-103 | 1 |
| D-103 | 06-034A-257A | Reverse Solenoid Connecting Rod | 1 |
| D-104 | 06-035A-257A | Hinge Pin For D-103 | 1 |
| D-105 | SC-0175-1230 | Screw (11/64" n=40) | 1 |
| D-107 | 06-053W-1230 | Washer For D-77 | 1 |
| D-108 | 06-036C-2500 | Feed Regulator Lever | 1 |
| D-109 | SC-0186-1230 | Screw (3/16" n=32) | 1 |
| D-110 | SC-0185-1230 | Screw (3/16" n=32) | 1 |
| D-111 | 06-072R-7507 | Stopper Rubber For D-108 | 1 |
| D-112 | 06-017S-7507 | Stopper Stud Screw For D-108 | 1 |
| D-113 | 11-019M-2350 | Terminal Tube(L) | 1 |
| D-114 | 11-018M-2350 | Solenoid Terminal(12P) | 1 |
| D-115 | 06-311A-2350 | Lever Feed Crank(R) | 1 |
| D-116 | SC-0497-1230 | Screw (3/16" n=28) | 2 |
| D-117 | 06-129A-3500 | Lever Feed Crank(R) | 1 |
| D-118 | SC-0327-3500 | Screw (9/32" n=28) | 2 |
| D-119 | SC-0496-3716 | Screw (11/64" n=40) | 1 |
| D-120 | 06-028C-357B | Feed Regulatr Control Plate(5mm)INSERT | 1 |
| D-121 | PN-000267-00 | Dial Pin | 1 |
| D-122 | GP-016425-00 | Dial Shaft Eccentric Stopper | 1 |
| D-123 | GP-016351-01 | Dial Shaft Eccentric Stopper Spring | 1 |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | 10-101A-2700 | Fixed Mes | 1 |
| E-2 | SC-A301-4119 | Screw (9/64" n=40) | 1 |
| E-3 | SC-0137-2700 | Screw (1/8" n=40) | 1 |
| E-4 | SN-0103-2700 | Nut (1/8" n=40) | 1 |
| E-5 | 10-005A-2700 | Thread Retaining Plate | 1 |
| E-6 | SC-0543-2302 | Screw (11/64" n=40) | 1 |
| E-7 | 01-017W-1600 | Washer For E-6 | 1 |
| E-8 | 10-106A-2700 | Rotary Mes | 1 |
| E-9 | SC-A154-4114 | Screw (11/64" n=40) | 2 |
| E-10 | 10-108A-257A | Thread Trimming Holder | 1 |
| E-11 | 10-009C-2700 | Stop Ring For E-11 | 1 |
| E-12 | 10-110W-2700 | Washer For E-11 | 1 |
| E-13 | 10-011A-2700 | Needle Bearing | 1 |
| E-14 | 10-015A-5307 | Thread Trimming Lever Connecting Link | 1 |
| E-15 | 10-013S-257A | Stud Screw For E-15 | 2 |
| E-16 | SN-0101-1600 | Nut (11/64" n=40) | 1 |
| E-17 | 10-114A-257A | Thread Trimming Lever | 1 |
| E-18 | SC-0108-2350 | Screw (M6) | 1 |
| E-19 | 10-115A-257A | Thread Trimming Shaft | 1 |
| E-20 | 10-116W-257A | Thread Trimming Shaft Washer | 1 |
| E-21 | 43-009C-1600 | E-Ring (ϕ9) | 1 |
| E-22 | 10-017A-257A | Return Spring Guide Bushing | 1 |
| E-23 | 10-018G-257A | Slide Arm Return Spring | 1 |
| E-24 | 10-119A-257A | Slide Arm | 1 |
| E-25 | 10-066A-7507 | Roller | 1 |
| E-26 | 10-067S-7507 | Stud Screw For E-26 | 1 |
| E-26-1 | 07-011W-1230 | Washer | 1 |
| E-27 | SN-0115-7400 | Nut (3/16" n=32) | 1 |
| E-28 | 10-044R-5607 | Cushion Washer For E-20 | 2 |
| E-29 | 10-121A-257A | Cam Follower Crank | 1 |
| E-30 | 15-002S-5607 | Screw For E-30 | 2 |
| E-31 | 10-032S-257A | Stopper Screw | 1 |
| E-31-1 | 10-032R-257A | Cushion Rubber for E-32 | 1 |
| E-32 | SN-0105-3400 | Nut (15/64" n=28) | 1 |
| E-33 | 10-122P-257A | Stopper Pin | 1 |
| E-34 | 10-023G-257A | Spring For E-30 | 1 |
| E-35 | 10-124C-257A | Spring Holder | 1 |
| E-36 | SC-0548-7400 | Screw (3/16" n=28) | 2 |
| E-37 | 10-125A-257A | Thread Trimming Cam | 1 |
| E-38 | SC-A308-4517 | Screw (1/4" n=40) | 2 |
| E-39 | 10-126A-257A | Clutch Lever | 1조 |
| E-40 | 10-027S-257A | Stud Screw For E-40 | 1 |
| E-41 | SN-0105-3400 | Nut (15/64" n=28) | 1 |
| E-42 | 43-004S-3400 | Clutch Lever Moving Pin Screw | 1 |
| E-44 | SN-0115-7400 | Nut (3/16" n=32) | 1 |
| E-45 | 10-029A-257A | Base Plate | 1 |
| E-46 | SC-0548-7400 | Screw (3/16" n=28) | 3 |
| E-47 | 10-130A-257A | Solenoid Connection Link | 1 |
| E-48 | 10-131P-257A | Solenoid Pin | 1 |
| E-49 | SC-0496-3710 | Screw (11/64" n=40) | 1 |
| E-50 | 04-009C-3710 | E-Ring (ϕ 5) | 1 |
| E-51 | 10-044A-2507 | Thread Trimming Solenoid Ass'y | 1조 |
| E-52 | 10-033A-257A | Base For E-52 | 1 |
| E-53 | 01-020W-2350 | Washer For E-52 | 2 |
| E-54 | SC-0183-2700 | Screw (15/64" n=28) | 2 |
Page 15 — Mes Driving Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 13-101A-5300 | Mes Driving Rod | 1 |
| F-2 | 55-042A-5050 | Needle Bearing | 1 |
| F-3 | 13-003A-5300 | Needle Bearing Cover | 1 |
| F-4 | 13-104A-5300 | Mes Driving Rod Link | 1 |
| F-5 | 13-005P-5300 | Link Pin For F-4 | 1 |
| F-6 | SC-0502-2302 | Screw (9/64" n=40) | 1 |
| F-7 | 13-007A-5300 | Shaft For F-4 | 1 |
| F-8 | SC-0507-1230 | Screw (15/64" n=28) | 1 |
| F-9 | SC-0525-5300 | Screw (11/64" n=40) | 1 |
| F-10 | 13-110A-5300 | Mes Driving Link "A" | 1 |
| F-11 | SC-0525-5300 | Screw (11/64" n=40) | 1 |
| F-12 | 13-112A-5300 | Mes Driving Link "B" | 1 |
| F-13 | 13-113A-5300 | Mes Driving Link "C" | 1 |
| F-14 | 13-005P-5300 | Mes Driving Link Pin | 1 |
| F-15 | SC-0531-2302 | Screw (9/64" n=40) | 1 |
| F-16 | SC-0525-5300 | Screw (11/64" n=40) | 1 |
| F-17 | 13-017A-5300 | Link Support Arm | 1 |
| F-18 | 13-018S-5300 | Hinge Screw For F-17 | 1 |
| F-19 | SC-0497-1230 | Screw (3/16" n=28) | 1 |
| F-20 | 13-020A-5300 | Mes Lever Shaft | 1 |
| F-21 | 13-021R-5300 | O-Ring for F-20 | 1 |
| F-22 | 13-022A-5300 | Mes Lever Base | 1 |
| F-23 | SC-0497-1230 | Screw (3/16" n=28) | 1 |
| F-24 | 13-024A-5300 | Mes Lever Pin | 1 |
| F-25 | SN-0105-3400 | Nut For F-24 | 1 |
| F-26 | 04-009C-3710 | E-Ring (ϕ 5) | 1 |
| F-27 | 13-027A-5300 | Mes Lever Return Spring | 1 |
| F-28 | 13-028S-5300 | Stud Screw For F-27 | 1 |
| F-29 | 13-029A-5300 | Mes Lever Base Plate | 1 |
| F-30 | SC-0183-2700 | Screw (15/64" n=28) | 2 |
| F-31 | 13-031A-5300 | Mes Driving Lever | 1 |
| F-32 | 13-032S-5300 | Stud Screw For F-31 | 1 |
| F-33 | 43-005C-7500 | Nut for F-32 | 1 |
| F-34 | 13-034A-5300 | Stopper For F-31 | 1 |
| F-35 | SC-0548-7400 | Screw (3/16" n=28) | 2 |
| F-36 | SC-0355-5300 | Screw (15/64" n=28) | 2 |
| F-37 | SN-0105-3400 | Nut For F-36 | 2 |
| F-38 | 13-138A-5300 | Mes Driving Holder | 1 |
| F-39 | SC-0158-3710 | Screw (9/64" n=40) | 1 |
| F-40 | 13-140A-5300 | Mes Driving Shaft Bush | 1 |
| F-41 | 13-041A-5300 | Mes Driving Shaft | 1 |
| F-42 | 13-142A-5300 | Mes Mounting Base Guide | 1 |
| F-43 | SC-0190-2700 | Screw (3/16" n=32) | 2 |
| F-44 | 10-020W-2700 | Washer For F-42 | 2 |
| F-45 | 13-146A-5300 | Mes Mounting Base | 1 |
| F-46 | SC-0190-2700 | Screw (3/16" n=32) | 1 |
| F-47 | SN-0105-3400 | Nut | 1 |
| F-48 | 13-147A-5300 | Mes Position Adjusting Plate | 1 |
| F-49 | SC-0174-1230 | Screw (11/64" n=40) | 1 |
| F-50 | 15-007W-3800 | Washer For F-48 | 1 |
| F-51 | 13-148A-5300 | Mes Mounting Plate | 1 |
| F-51-1 | SC-0513-5050 | Screw (1/8" n=44) | 2 |
| F-52 | SC-0528-1230 | Screw (9/64" n=40) | 1 |
| F-53 | 02-019W-1230 | Washer For F-51 | 1 |
| F-55 | SN-0105-3400 | Nut For F-45 | 1 |
| F-56 | 04-210A-5300 | Mes | 1 |
| F-58 | 55-104W-5050 | Washer For F-56, 57 | 1 |
| F-59 | SC-0312-5050 | Screw (1/8" n=44) | 2 |
| F-60 | 13-053A-5300 | Hook Protecting Plate(1/4") | 1 |
| F-60-1 | 13-151A-5300 | Hook Protect Plate(1/4") | 1 |
| F-61 | 13-052W-5300 | Washer For F-60 | 1 |
| F-62 | 01-052S-5300 | Screw (1/8" n=44) | 2 |
| F-63 | 13-054A-5300 | Chip Shute Guide(M) | 1 |
| F-64 | SC-0531-2302 | Screw (9/64" n=40) | 2 |
Page 17 — Needle Bar & Needle Bar Driving Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 15-101A-3500 | Needle Bar Frame | 1 |
| G-1-1 | SC-0113-3400 | Screw | 1 |
| G-2 | 15-002A-3500 | Needle Bar Frame Guide | 1 |
| G-3 | SC-0157-1230 | Screw (9/64" n=40) | 2 |
| G-4 | 15-103A-3500 | Needle Bar Frame Shaft Bushing | 1 |
| G-5 | SC-0352-7400 | Screw (3/16" n=28) | 1 |
| G-6 | 15-104A-3500 | Slide Block Guide | 1 |
| G-7 | SC-0184-1600 | Screw (3/16" n=28) | 1 |
| G-8 | 15-105A-3500 | Needle Bearing | 1 |
| G-9 | 15-106A-3500 | Driving Link | 1 |
| G-10 | 15-007P-3500 | Needle Bar Link Pin | 2 |
| G-11 | SC-0159-3500 | Screw (9/64" n=40) | 2 |
| G-12 | 15-009A-3500 | Driving Crank(F) | 1 |
| G-13 | SC-0497-1230 | Screw (3/16" n=28) | 1 |
| G-14 | 15-010A-3500 | Rock Shaft Bushing(F) | 1 |
| G-15 | 15-112A-3500 | Needle Feed Connection Shaft | 1 |
| G-16 | 15-013A-3500 | Rock Shaft Bushing(R) | 1 |
| G-17 | SC-0352-7400 | Screw (3/16" n=28) | 1 |
| G-18 | 15-011A-3500 | Collar For G-15 | 2 |
| G-19 | SC-0114-1230 | Screw (15/64" n=28) | 4 |
| G-20 | 15-014A-3500 | Driving Crank(R) | 1 |
| G-21 | SC-0497-1230 | Screw (3/16" n=28) | 1 |
| G-22 | 15-015S-3500 | Stud Screw For G-20 | 1 |
| G-23 | SN-0105-3400 | Nut (15/64" n=28) | 1 |
| G-24 | 15-116A-3500 | Needle Feed Connection Rod | 1 |
| G-25 | 15-017A-3500 | Needle Feed Connection Shaft | 1 |
| G-26 | 06-051W-7400 | Washer For G-24 | 1 |
| G-27 | SN-0105-3400 | Nut (15/64" n=28) | 1 |
| G-28 | SC-0316-2350 | Screw (11/64" n=40) | 1 |
| G-29 | 04-001A-5300 | Needle Bar | 1 |
| G-30 | 01-045M-3500 | Gasket | 1 |
| G-31 | 01-046A-3500 | Gasket Base | 1 |
| G-32 | SC-0516-3500 | Screw (3/16" n=28) | 4 |
| G-33 | 04-108A-2350 | Needle Bar Bush(U) | 1 |
| G-34 | 04-003R-1600 | Rubber Cap For G-33 | 1 |
| G-35 | 04-103A-257A | Needle Bar Bush(L) | 1 |
| G-37 | 04-010A-5060 | Slide Block Guide | 1 |
| G-38 | SC-0307-1230 | Screw (3/16" n=32) | 3 |
| G-39 | 04-001A-5060 | Needle Bar | 1 |
| G-42 | 04-006A-5060 | Needle Bar Slide Guide Block | 1 |
| G-43 | 04-006C-5300 | Needle Bar Thread Guide | 1 |
| G-44 | SC-A131-4522 | Screw (1/8" n=44) | 1 |
| G-46 | 11-017C-7507 | Nut For G-3 | 2 |
Page 19 — Presser Foot & Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | SC-0339-1230 | Screw (9/16" n=20) | 1 |
| H-2 | 05-002C-2500 | Presser Adjusting Nut | 1 |
| H-3 | 05-014C-250A | Presser Adjusting Spring | 1 |
| H-4 | 05-007C-1230 | Presser Adjusting Bar | 1 |
| H-5 | GP-012153-00 | Presser Bar | 1 |
| H-6 | 05-115A-2500 | Presser Bar Bushing | 1 |
| H-7 | 05-108A-3500 | Presser Bar Holder | 1 |
| H-8 | SC-0174-1230 | Screw (11/64" n=40) | 1 |
| H-10 | SC-0157-1230 | Screw (9/64" n=40) | 1 |
| H-11 | 43-001A-2500 | Presser Lifter | 1 |
| H-12 | 02-019W-1230 | Washer For H-11 | 1 |
| H-13 | SC-0158-3710 | Screw (9/64" n=40) | 1 |
| H-14 | 43-102A-2500 | Cam Shaft For Presser Bar | 1 |
| H-15 | 02-016R-1230 | O-Ring For H-14 | 1 |
| H-16 | 43-103A-2500 | Presser Lifter Link | 1조 |
| H-17 | 43-004S-3500 | Hinge Screw For H-16 | 1 |
| H-18 | 04-009C-3710 | E-Ring (ϕ5) | 2 |
| H-19 | 43-005A-3500 | Collar For Trust | 1 |
| H-20 | SC-0502-2302 | Screw (9/64" n=40) | 1 |
| H-21 | 43-106C-3500 | Presser Lifter Lever | 1 |
| H-22 | 43-106C-2500 | Presser Lifter Connection Bar | 1 |
| H-23 | 43-007S-2500 | Stud Screw For H-22 | 1 |
| H-24 | 43-108A-2500 | Knee Lifting Link | 1 |
| H-25 | 43-108A-3500 | Knee Lifting Link | 1 |
| H-26 | SC-000437-00 | Hinge Screw for H-24, 25 | 1 |
| H-27 | 43-109C-2500 | Knee Lifting Bar | 1 |
| H-28 | 43-109C-3500 | Knee Lifting Bar | 1 |
| H-29 | 43-010S-2500 | Hinge Screw For H-27, 28 | 1 |
| H-30 | 40-014A-5300 | Tension Release Link | 1 |
| H-31 | SC-000477-00 | Screw For H-30 | 1 |
| H-32 | 40-016A-5300 | Tension Release Plate | 1조 |
| H-33 | 40-008S-3500 | Hinge Screw For H-32 | 1 |
| H-34 | 04-009C-3710 | E-Ring (ϕ5) | 1 |
| H-35 | 40-009G-3500 | Spring For H-32 | 1 |
| H-36 | 40-008A-2500 | Tension Release Cable (Ass'y) | 1조 |
| H-37 | 40-109A-257A | Cable Holder(U) | 1 |
| H-38 | SC-0516-3500 | Screw (3/16" n=28) | 1 |
| H-39 | SC-0543-2302 | Screw (11/64" n=40) | 1 |
| H-40 | 40-003A-2700 | Cable Connection Bolt | 1 |
| H-41 | 40-005C-2700 | Nut "B" For H-41 | 1 |
| H-42 | 40-004C-2700 | Nut "A" For H-41 | 1 |
| H-43 | 44-026G-7400 | Tension Release Cable Holder(M) | 1 |
| H-44 | SC-0548-7400 | Screw(3/16" n=28) | 1 |
| H-45 | 40-210A-257A | Tension Release Cable Holder | 1 |
| H-46 | SC-0543-2302 | Screw (11/64" n=40) | 1 |
| H-47 | GP-008999-01 | Finger Guard | 1 |
Page 20 — Thread Wiper Mechanism 와이퍼 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 11-001A-5307 | Wiper Bracket Ass'y | 1 |
| I-2 | SC-0548-7400 | Screw (3/16" n=28) | 2 |
| I-3 | 11-030A-5307 | Wiper Lever "A" Ass'y | 1 |
| I-6 | SC-0105-7500 | Screw (M4) | 2 |
| I-7 | 11-060A-5307 | Wiper Lever "B" Ass'y | 1 |
| I-8 | 11-007A-5307 | Wiper Crank Ass'y | 1 |
| I-9 | 11-013S-5060 | Stud Screw For I-8 | 2 |
| I-10 | SN-0101-1600 | Nut (11/64" n=40) | 1 |
| I-11 | 11-010A-5307 | Wiper Crank Base | 1 |
| I-12 | 11-011A-5307 | Wiper | 1 |
| I-13 | SC-0531-2302 | Screw (9/64" n=40) | 1 |
| I-14 | 11-013A-5307 | Wiper Base | 1 |
| I-15 | SC-0548-7400 | Screw (3/16" n=28) | 2 |
| I-16 | 11-013C-257A | Wiper Cover | 1 |
| I-17 | SC-0120-1230 | Screw (9/64" n=40) | 2 |
| I-18 | 11-015A-5067 | Wiper Solenoid Ass'y | 1 |
| I-19 | SC-0196-2700 | Screw (M3×0.5) | 4 |
| I-20 | 11-016W-2700 | Spring Washer For I-18 | 4 |
| I-21 | 11-017W-2700 | Washer For I-18 | 4 |
| I-22 | 11-020W-5307 | Stopper Washer For I-18 | 1 |
| I-23 | 11-021R-5307 | Stopper Rubber Washer For I-18 | 1 |
Page 21 — Reverse Button Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 12-001A-5607 | Reverse Button Case | 1 |
| J-2 | SC-0523-1230 | Screw (9/64" n=40) | 2 |
| J-3 | 12-131A-5607 | Reverse Button S/W (Ass'y) | 1 |
| J-4 | 12-012S-2700 | Screw (M2×0.4) | 2 |
| J-5 | 12-104P-5607 | Reverse Button Actuator Pin | 1 |
| J-6 | 43-009C-1600 | E-Ring (φ9) | 2 |
| J-7 | 12-007A-5307 | Reverse Feed Control Lever | 1 |
| J-8 | SC-0178-7400 | Screw (11/64" n=40) | 1 |
| J-9 | 12-008G-5607 | Spring For J-7 | 1 |
| J-10 | 12-009R-5607 | Insulated Rubber | 1 |
| J-11 | 12-010A-5607 | Reverse Button Cable Bushing | 1 |
Page 22 — Program Unit Box & Auto presser Lifting Solenoid Mechanism / 프로그램 유니트 박스 및 자동 무릎 올림 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-7 | KM-2507 | Auto Knee Lifter Solenoid Ass'y | 1 |
| K-7-1 | HEC-2507 | Auto Knee Lifter Solenoid | (1조) |
| K-7-6 | SC-0183-2700 | Screw (15/64" n=28) | (4) |
| K-7-7 | 06-051W-7400 | Washer For K-7-4, K-7-5 | 6 |
| K-7-8 | SN-0121-7400 | Nut (15/64" n=28) | (4) |
| K-7-9 | 43-013A-257A | Knee Lifter Connection Crank | (1) |
| K-7-10 | SC-0497-1230 | Screw (3/16" n=28) | (1) |
| K-7-11 | 43-014A-257A | Back Cover For Knee Lifter | (1) |
| K-7-12 | 43-015A-257A | Knee Lifter Shaft Bushing | (1) |
| K-7-13 | 43-016R-257A | Oil Seal For K-7-12 | (1) |
| K-7-14 | 43-017C-257A | Nut For Knee Lifter | (1) |
| K-8-1 | 43-018A-257A | Knee Lifter Shaft | (1) |
| K-8-2 | 06-021W-7400 | Washer For K-8-1 | (1) |
| K-8-4 | 43-021A-257A | Collar For K-8-1 | (1) |
| K-8-5 | SC-0512-1230 | Screw (11/64" n=40) | (2) |
| K-8-6 | SC-0548-7400 | Screw (3/16" n=28) | (2) |
Page 23 — Lubrication / 급유관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | 44-001C-2500 | Oil Gauge Window | 1 |
| L-2 | 44-002R-2500 | O-Ring For L-1 | 1 |
| L-4 | 44-131C-1230 | Arm Oil Shield | 1 |
| L-5 | 44-0000-1230 | Oil Wick | 1 |
| L-6 | SC-0120-1230 | Screw (9/64" n=40) | 1 |
| L-7-1 | 44-012C-1230 | Oil Return Tube "A" | |
| L-7-2 | 44-055A-5060 | Oil Return Felter | |
| L-7-3 | 44-052C-5300 | Oil Return Felter | |
| L-7-5 | 44-056G-5300 | Return Oil Tube Spring | |
| L-7-6 | 44-055C-5300 | Return Oil Pipe | |
| L-8 | 44-048M-3500 | Oil Return Pipe Holder | |
| L-9 | 01-009R-2350 | Oil Return Pipe Holder | |
| L-10 | SC-0548-7400 | Screw (3/16" n = 28) | |
| L-11 | 44-008P-2500 | Upper Shaft Oil Pipe Ass'y | |
| L-13 | 44-009P-2500 | Oil Pipe For Lower Shaft | |
| L-14 | 44-150A-2500 | Oil Pump Ass' y | |
| L-14-1 | 44-012A-2350 | Oil Pump Body | |
| L-14-2 | 44-011W-1600 | Washer For L-14-1 | |
| L-14-3 | SC-0528-1230 | Screw (9/64" n = 40) | |
| L-14-4 | 44-010C-1600 | Nipple For Oil Return Pipe | |
| L-14-5 | 44-009C-1600 | Nipple For Lower Shaft | |
| L-14-6 | 44-126A-1230 | Impeller | |
| L-14-7 | 44-117A-1230 | Piston | |
| L-14-8 | 44-118G-1230 | Piston Spring | |
| L-14-9 | 44-119S-1230 | Pin Screw For L-14-8 | |
| L-14-10 | 44-120P-1230 | Pin For L-14-8 | |
| L-14-11 | 44-104C-2350 | Cover For Oil Pump | |
| L-14-12 | 44-024C-1230 | Oil Pump Cap | |
| L-14-13 | 44-105C-2350 | Magnetic Holder | |
| L-14-15 | 44-119A-1230 | Collar For Impeller Shaft | |
| L-14-16 | SC-0512-1230 | Screw (3/16" n = 40) | |
| L-15 | 44-010A-2500 | Oil Pump Bracket | |
| L-17 | 44-016G-1230 | Oil Pump Connection Spring | |
| L-18 | 44-115A-1230 | Oil Pump Connection Collar | |
| L-19 | SC-0542-1230 | Screw (11/64" n = 40) |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | 91-001C-1230 | Accessory Bag | 1 |
| M-2 | 91-102C-1230 | Driver(Large) | 1 |
| M-3 | 91-103C-1230 | Driver(Middle.Small) | 1 |
| M-6 | 07-105A-2700 | Bobbin(AL) | 4 |
| M-8 | 91-105C-2700 | Spanner | 1 |
| M-9 | 91-001C-2700 | L Wrench(2mm) | 1 |
| M-11 | 10-201A-2700 | Fixed Mes | 1 |
| M-11-1 | 10-101A-2700 | Fixed Mes | 1 |
| M-12 | 91-106C-2700 | Head Cover | 1 |
| M-14 | 91-008C-1230 | Oil Tank | 1 |
| M-15 | 44-010C-1230 | Magnetic | 2 |
| M-16 | 01-043C-1230 | Head Hinge | 2 |
| M-17 | 01-042R-1230 | Rubber Cushion For Hinge | 2 |
| M-18 | 01-214R-1230 | Head Support Rubber "A" | 2 |
| M-19 | 01-213R-1230 | Head Support Rubber "B" | 2 |
| M-22 | 60-001A-2500 | Belt Cover "A" | 1 |
| M-23 | 60-003A-2500 | Belt Cover(N.P) | 1 |
| M-24 | 60-002A-2500 | Belt Cover "B" | 1 |
| M-25 | SC-0344-8260 | Screw (5/16" n=24) | 2 |
| M-26 | 09-025W-8270 | Washer For M-22, 23 | 2 |
| M-27 | SC-0184-1600 | Screw (3/16" n=28) | 1 |
| M-28 | 10-020W-2700 | Washer For M-22, 23 | 1 |
| M-29 | 91-002S-3400 | Nail For M-24 | 2 |
| M-30 | 41-101A-1230 | Bobbin Winder Ass'y | 1조 |
| M-31 | 44-030A-5300 | Oil Pan | 1조 |
| M-32 | 44-003M-1230 | Oil Pan Gasket | 2 |
| M-33 | SC-0347-1230 | Screw (M8×1.25) | 1 |
| M-34 | 44-005R-1230 | Packing For M-33 | 1 |
| M-35 | 43-001A-1600 | Knee Lifter Pad Ass'y | 1 |
| M-35-1 | 43-106C-1600 | Knee Lifter Shaft | 1 |
| M-35-2 | 43-101R-1600 | Knee Lifter Pad | 1 |
| M-35-3 | 43-102C-1600 | Knee Lifter Pad Insert Plate | 1 |
| M-35-4 | 43-101A-1230 | Holder For M-35-2 | 1 |
| M-35-5 | 43-108S-1230 | Set Screw For M-32-4 | 1 |
| M-35-6 | 43-106C-1230 | Knee Lifter Arm Joint Complete | 1 |
| M-35-7 | SC-0181-1230 | Screw (5/16" n=18) | 2 |
| M-35-8 | 43-108C-1600 | Shaft For M-34-1 | 1 |
| M-36 | 43-009C-1600 | E-Ring(φ9) | 1 |
| M-37 | 91-007A-2302 | Thread Stand Ass'y | 1조 |
| M-38 | 43-007A-1600 | Knee Lifting Controller | 1 |
| M-39 | SC-0106-7400 | Screw (15/64" n=28) | 1 |
| M-40 | SC-0545-1230 | Screw (15/64" n=28) | 1 |
| M-41 | 43-002S-3500 | Screw (15/64" n=28) | 1 |
| M-42 | SN-0105-3400 | Nut (15/64" n=28) | 2 |
| M-43 | 43-008G-1600 | Spring For M-38 | 1 |
| M-44 | 43-010A-1600 | Knee Base Rubber | 1 |
| M-45 | 04-104R-1230 | Oil Cap | 1 |
| M-46 | 01-050A-5307 | Sub Needle Plate Cover | 1 |
| M-46-1 | 01-051A-5300 | Fixed Plate For M-37 | 1 |
| M-46-2 | 01-052S-5300 | Screw (1/4" n=44) | 1 |
| M-47 | 44-026A-5300 | Chip Shute Guide(L) | 1 |
| M-48 | SC-0543-2302 | Screw (11/64" n=40) | 2 |
| M-49-1 | 90-041A-5300 | Table Holder | 1 |
| M-49-2 | 90-043A-5300 | Chip Shute Plate(U) | 1 |
| M-49-3 | 90-044A-5300 | Chip Shute Plate(L) | 1 |
| M-49-4 | 91-002S-3400 | Nail For M-40-1 | 3 |
| M-49-5 | SC-0525-5300 | Screw (11/64" n=40) | 8 |
| M-49-6 | SN-0101-1600 | Nut (11/64" n=40) | 8 |
| M-50 | 13-153A-5300 | Hook Protect Plate (1/8") | 1 |
| M-51 | 13-051A-5300 | Hook Protect Plate (1/8") | 1 |
| M-52 | 01-035A-5060 | Needle Plate(1/8") | 1 |
| M-53 | 06-107A-5060 | Feed Dog(1/8") | 1 |
| M-54 | 05-010A-5300 | Presser Foot(1/8") | 1 |
| M-55 | 01-035A-5300 | Needle Plate(1/8") | 1 |
| M-56 | 06-138A-5300 | Feed Dog (1/8") | 1 |
| M-57 | 91-011C-1230 | Oil Tank | 1 |
| M-58 | 44-011R-2350 | Packing | 1 |
| Needle |
Page 26 — Special Parts For 전용 부품 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N-1 | 01-035M-506N | Model Mark(KM-506-7N) | 1 |
| N-2 | 01-040M-537N | Model Mark(KM-530-7N) | 1 |
| N-3 | 02-101A-537N | Main Shaft | 1 |
| N-5 | 02-003A-2350 | Pulley | 1 |
| N-6 | 12-0000-4701 | Synchronizer Ass'y | 1 |
| N-6-25 | 01-019P-2350 | Guide Pin For Synchronizer | (2) |
| N-6-26 | SC-0108-2350 | Screw (M6) | (2) |
| N-6-27 | 01-020W-2350 | Washer For Synchronizer | (2) |
Page 27 — Gauge Parts 게이지 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-035A-5060 | Needle Plate | ||
| 06-107A-5060 | Feed Dog | ||
| 05-010A-5300 | Presser Foot | ||
| 01-210A-5060 | Needle Plate | ||
| 06-107A-5060 | Feed Dog | ||
| 05-111A-5300 | Presser Foot | ||
| 01-310A-5060 | Needle Plate | ||
| 06-107A-5060 | Feed Dog | ||
| 05-111A-5300 | Presser Foot | ||
| 01-410A-5060 | Needle Plate | ||
| 05-112A-5300 | Presser Foot | ||
| 01-036A-5060 | Needle Plate | ||
| 05-112A-5300 | Presser Foot | ||
| 01-510A-5060 | Needle Plate | ||
| 05-112A-5300 | Presser Foot | ||
| 01-110A-5060 | Needle Plate | ||
| 01-110A-5060 | Feed Dog | ||
| 01-110A-5060 | Presser Foot | ||
| 01-115A-5300 | Needle Plate | ||
| 01-035A-5300 | Needle Plate | ||
| 06-138A-5300 | Feed Dog | ||
| 01-111A-5300 | Needle Plate | ||
| 01-112A-5300 | Needle Plate | ||
| 01-113A-5300 | Needle Plate | ||
| 06-111A-5300 | Feed Dog | ||
| 01-114A-5300 | Needle Plate |
SunStar KM-506 / KM-530 — parts catalog
- Page 1 (cover): This is the cover page of a SunStar Parts Book for sewing machines, featuring the "PARTS BOOK" title and images of a SunStar sewing machine. It also includes model numbers KM-506-7S, KM-506-7N, KM-530-7S, and KM-530-7N, along with the document number PME-060525 and the manufacturer "SUNSTAR MACHINERY CO., LTD.".
- Page 2 (text): This page lists models and their corresponding descriptions for the KM-506 and KM-530 series of sewing machines.
- Page 4 (diagram): This page displays a diagram of the machine body and thread tension adjusting mechanism, with various parts labeled with reference numbers and some part numbers indicated.
- Page 5 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers, with notes explaining model codes.
- Page 6 (parts_list): This page lists parts for the Upper Shaft & Thread Take Up Lever Mechanism, including part numbers, names, quantities, and assembly information.
- Page 7 (diagram): This page displays a diagram of the Upright Shaft & Lower Shaft Mechanism, along with a parts list detailing components like shafts, gears, screws, and bushings with their respective part numbers and descriptions.
- Page 8 (diagram): This page displays a diagram of the feed mechanism with various parts labeled with their corresponding part numbers, including D-1 through D-123.
- Page 9 (parts_list): This page lists parts for SunStar sewing machines, including reference numbers, part numbers, notes, names of parts, and quantities.
- Page 11 (parts_list): Parts list page from a SunStar sewing machine part book listing reference numbers D-64 through D-123 with part numbers, English and Korean names, notes, and quantities for feed regulator, reverse feed lever, and solenoid assemblies.
- Page 12 (diagram): This page displays a diagram of the thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
- Page 13 (parts_list): Parts list page from a SunStar sewing machine catalog giving reference numbers, part numbers, English and Korean names, and quantities for thread trimming and related components E-1 to E-54.
- Page 14 (diagram): This page displays a diagram of the Mes Driving Mechanism, with various parts labeled with their corresponding part numbers from F-1 to F-64.
- Page 15 (parts_list): This page contains a parts list for SunStar industrial sewing machines, detailing various components with their part numbers, names, quantities, and assembly numbers.
- Page 16 (diagram): This page displays a diagram of the Needle Bar & Needle Bar Driving Mechanism, with various parts labeled with reference numbers and part numbers.
- Page 17 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes. It also provides a key for common and gauge parts.
- Page 18 (diagram): This page displays a diagram of the Presser Foot & Tension Release Mechanism, with various parts labeled with reference numbers and part numbers.
- Page 19 (parts_list): This page lists parts for SunStar industrial sewing machines, including part numbers, names, quantities, and assembly numbers. It also contains notes regarding common and gauge parts.
- Page 20 (parts_list): This page lists parts for the Thread Wiper Mechanism, including part numbers, descriptions, quantities, and assembly numbers.
- Page 21 (parts_list): This page lists parts for the SunStar Reverse Button Mechanism, including part numbers, descriptions, quantities, and notes.
- Page 22 (parts_list): This page contains a parts list for the K-7 and K-8 series components, including part numbers, descriptions, quantities, and assembly notes.
- Page 23 (parts_list): This page contains a parts list for lubrication components, including part numbers, names, quantities, and assembly numbers.
- Page 24 (diagram): This page displays a diagram of various sewing machine accessories and parts, including oil cans, needles, screwdrivers, spools, and machine components labeled with part numbers from M-1 to M-58.
- Page 25 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers. It also includes a note section explaining abbreviations.
- Page 26 (parts_list): This page lists special parts for KM-506-7N, KM-530-7N machines, including model marks, shafts, pulleys, synchronizer assemblies, guide pins, screws, and washers, with their corresponding part numbers and quantities.
- Page 27 (parts_list): This page lists parts for the KM-506 Series and KM-530 Series sewing machines, including Needle Plate, Feed Dog, and Presser Foot components with their corresponding part numbers and gauge sizes.
