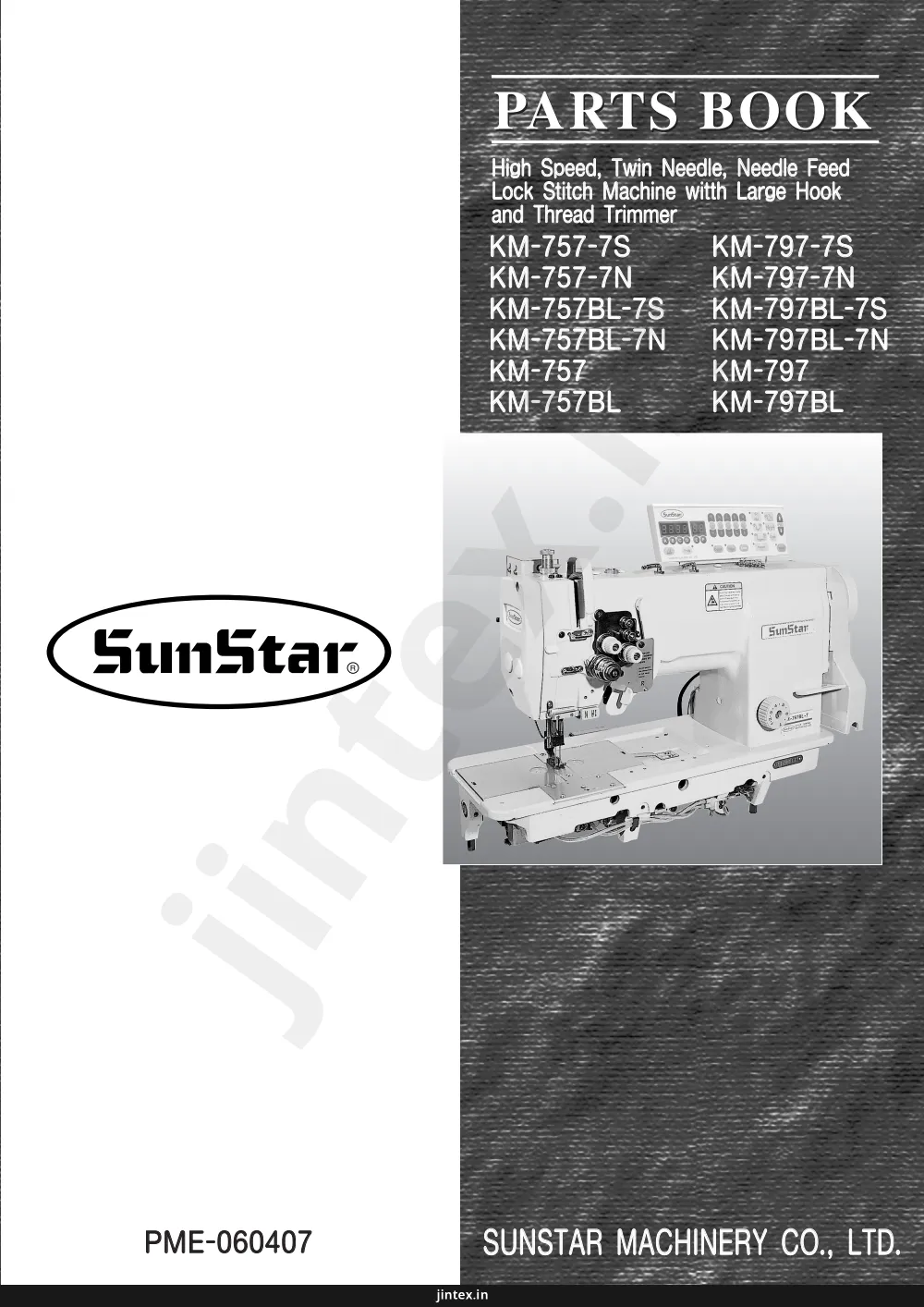

SunStar KM-757 / KM-797 Parts Book (PDF)
Text index — SunStar KM-757 / KM-797
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | 01-001A-577S | Arm. Bed | 1 |
| A-1-1 | 01-001A-577N | Arm. Bed | 1 |
| A-2 | 01-001A-5700 | Arm. Bed | 1 |
| A-3 | AS-003809-00 | Arm. Bed | 1 |
| A-4 | 01-001A-9700 | Arm. Bed | 1 |
| A-6 | 01-007S-7500 | Screw(Upper) For A-5 | 1 |
| A-7 | 01-007W-7400 | Washer(Upper) For A-5 | 1 |
| A-8 | 01-009S-7500 | Screw(Lower) For A-5 | 1 |
| A-9 | 01-006A-7900 | Face Plate | 1 |
| A-10 | 01-029M-1230 | Brand Mark | 1 |
| A-11 | 01-008R-3400 | Face Plate Rubber Cap | 2 |
| A-12 | SC-0158-3710 | Screw(9/64" n=40) | 2 |
| A-13 | SC-0519-2302 | Screw(9/64" n=40) | 1 |
| A-14 | 01-018A-7500 | Arm Thread Guide Plate(U) | 1 |
| A-15 | 01-013R-7900 | Rubber Cap For Slide Block Cover | 1 |
| A-16 | 01-020A-7500 | Arm Thread Guide Plate(M) | 1 |
| A-17 | SC-0519-2302 | Screw(9/64" n=40) | 1 |
| A-18 | 01-022A-7500 | Arm Thread Guide Plate(L) | 1 |
| A-18-1 | 01-024A-7500 | Felt Presser For Upper Thread Oil Supply | 1 |
| A-18-2 | SC-0536-7500 | Screw(3/64" n=56) | 2 |
| A-19 | 44-024M-7500 | Felt For Upper Thread Oil Supply | 1 |
| A-20 | SC-0519-2302 | Screw(9/64" n=40) | 1 |
| A-21 | GP-013234-00 | Thread Take Up Cover | 1 |
| A-23 | 44-021R-7400 | Rubber Cap | 3 |
| A-24 | 01-037R-1230 | Rubber Cap | 2 |
| A-25 | 01-010A-5607 | Thread Retainer | 2 |
| A-26 | SN-0121-7400 | Nut(15/64" n=28) | 2 |
| A-27 | 01-018M-9570 | Rubber Cap | 1 |
| A-28 | 01-080R-9770 | Cable Holder (4N) | 3 |
| A-29 | SC-0531-2302 | Screw For A-28 | 3 |
| A-30 | 01-011C-2350 | Cable holder (5N) | 2 |
| A-31 | SC-0531-2302 | Screw For A-30 | 2 |
| A-32 | 01-009R-2700 | Cable Holder (6N) | 1 |
| A-33 | 02-003A-2700 | Band Clip | 5 |
| A-34 | 01-038A-7500 | Back Cover Plate | 1 |
| A-34-1 | GP-008528-00 | Gasket For Back Cover Plate | 1 |
| A-35 | SC-0179-3710 | Screw(11/64" n=40) | 6 |
| A-36 | 01-010M-2350 | Brand Mark | 1 |
| A-37 | 06-001C-7400 | Oil Cap | 1 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-38 | 01-046A-7500 | Stopper For Slide Plate(R) | 1 |
| A-39 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
| A-40 | 01-028M-577S | Model Mark(KM-757-7S) | 1 |
| A-41 | 01-028M-577N | Model Mark(KM-757-7N) | 1 |
| A-42 | 01-028M-57LS | Model Mark(KM-757BL-7S) | 1 |
| A-43 | 01-028M-57LN | Model Mark(KM-757BL-7N) | 1 |
| A-44 | 01-028M-5700 | Model Mark(KM-757) | 1 |
| A-45 | 01-028M-570L | Model Mark(KM-757BL) | 1 |
| A-46 | 01-028M-977S | Model Mark(KM-797-7S) | 1 |
| A-47 | 01-028M-977N | Model Mark(KM-797-7N) | 1 |
| A-48 | 01-028M-97LS | Model Mark(KM-797BL-7S) | 1 |
| A-49 | 01-028M-97LN | Model Mark(KM-797BL-7N) | 1 |
| A-50 | 01-028M-9700 | Model Mark(KM-797) | 1 |
| A-51 | 01-028M-970L | Model Mark(KM-797BL) | 1 |
| A-52 | 01-035P-1370 | Machine Number Plate | 1 |
| A-53 | 01-035P-7400 | Pin For A-52 | 2 |
| A-54 | 01-048A-7500 | Bobbin Window | 2 |
| A-55 | 01-044A-7500 | Slide Plate(L) | 1 |
| A-56 * | 01-40TA-7507 | Needle Plate 1/4 | 1 |
| A-57 | SC-0119-7600 | Screw(11/64" n=40) | 2 |
| A-58 | 01-045A-7500 | Slide Plate(R) | 1 |
| A-59 | 01-042A-7500 | Slide Plate "Front" Ass'y | 1 |
| A-60 | 01-078A-5700 | Silde Plate(L) | 1 |
| A-61 | 01-027A-740L | Needle Plate 1/4 | 1 |
| A-61-1 | GP-010507-00 | Needle Plate 1/4 | 1 |
| A-62 | SC-A170-4124 | Screw(11/64" n=40) | 1 |
| A-63 | SC-A119-4119 | Screw(11/64" n=40) | 1 |
| A-64 | 01-079A-5700 | Slide Plate(R) | 1 |
| A-65 | 01-032A-7400 | Slide Plate "Front" Ass'y | 1 |
| A-66 | SC-0110-1230 | Screw(15/64" n=28) | 1 |
| A-67 | 01-071A-5700 | Bed Base | 4 |
| A-68 | 01-070R-5700 | Rubber Cap | 1 |
| A-69 | 01-006R-2350 | Rubber Cap | 1 |
| A-70 | 40-010A-5607 | Tension Release Bar | 1 |
| A-71 | SC-0158-3710 | Screw(9/64" n=40) | 1 |
| A-72 | SC-0543-2302 | Screw(11/64" n=40) | 1 |
| A-73 | 40-002A-7500 | Thread Tension Adjusting Ass'y | 1 |
| A-74 | 01-019C-7400 | Stopper For A-73 | 1 |
| A-75 | SC-0531-2302 | Screw(9/64" n=40) | 1 |
| A-76 | 40-020P-5770 | Tension Release Bar For Thread Trimmer | 1 |
| A-77 | 02-006M-2350 | Earth Line | 1 |
Page 9 — Upper Shaft & Thread Take up Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | 02-029A-577S | Pulley(Servo) | 1 |
| B-2 | 02-021A-7507 | Pulley(N.P) | 1 |
| B-3 | GP-010873-00 | Pulley | 1 |
| B-4 | SC-0188-1230 | Screw(5/64" n=24) | 1 |
| B-5 | SC-0150-2500 | Screw(15/64" n=28) | 2 |
| B-6 | 07-011A-5607 | Bearing(6004NR) | 1 |
| B-9 | 02-101A-5700 | Upper Shaft | 1 |
| B-10 | 02-101A-577N | Upper Shaft | 1 |
| B-12 | 02-015C-7400 | Side Ring | 2 |
| B-13 | 02-013A-7400 | Timing Belt | 1 |
| B-14 | SC-A117-4417 | Screw(1/64" n=40) | 1 |
| B-15 | SC-A308-4517 | Screw(1/64" n=40) | 1 |
| B-16 | GP-012975-00 | Upper Shaft Bushing(M) | 1 |
| B-17 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| B-18 | 02-009M-7400 | Oil Felt For B-16 | 1 |
| B-19 | 02-110A-5700 | Upper Shaft Bushing(F) | 1 |
| B-19-1 | 44-0000-1230 | Oil Wick | 1 |
| B-20 | 02-009M-7400 | Oil Felt For B-18 | 1 |
| B-21 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| B-24 | SC-0123-1230 | Screw(9/64" n=28) | 1 |
| B-25 | SC-0124-7400 | Screw(9/64" n=28) | 1 |
| B-26 | 44-0000-1230 | Oil Wick | 1 |
| B-29 | SC-A308-4517 | Screw(1/64" n=40) | 1 |
| B-30 | SC-0129-7400 | Screw(1/64" n=40) | 1 |
| B-31 | 08-101A-8130 | Hinge Pin For Thread Take Up Lever | 1 |
| B-32 | 44-0000-1230 | Oil Wick | 1 |
| B-33 | SC-0508-1230 | Screw(15/64" n=28) | 2 |
| B-34 | 08-102A-750L | Thread Take-Up Lever | 1 |
| B-35 | 08-103A-7500 | Thread Take-Up Lever | 1 |
| B-36 | 08-104A-790L | Thread Take-Up Lever | 1 |
| B-37 | 44-0000-1230 | Oil Wick | 1 |
| B-38 | 02-103A-740L | Thread Take-Up Lever Holder | 1 |
| B-39 | 06-033M-7400 | Oil Felt | 1 |
| B-40 | 02-027S-577S | Bushing For B-6 | 1 |
| B-41 | SC-A117-4417 | Screw(1/64" n=40) | 2 |
| B-42 | 07-011A-5607 | Bearing(6004NR) | 1 |
| A,AL,A-1,AL-1 | Link Cam | ||
| B,BL,B-1,BL-1 | Link Cam |
Page 11 — Needle Bar Flip-Up Mechanism 바늘대 절환 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 17-001A-7900 | Needle Bar Change Lever Bracket | 1 |
| C-2 | SC-0175-1230 | Screw(3/64" n=32) | 2 |
| C-3 | 17-003A-7900 | Slide Plate | 1 |
| C-4 | 17-004A-7900 | Set Screw For Slide Plate | 2 |
| C-5 | 17-007G-7900 | Spring For C-6 | 1 |
| C-7 | SC-0502-2302 | Screw(9/64" n=40) | 2 |
| C-8 | 17-008A-7900 | Needle Bar Change Lever Assembly | 1 |
| C-9 | 17-084A-7900 | Stud For Needle Bar Change Guide Plate | 2 |
| C-10 | 17-010A-7900 | Needle Bar Change Indication Plate | 1 |
| C-11 | SC-0175-1230 | Screw(3/64" n=32) | 2 |
| C-12 | 17-012A-7900 | Ball Guide Bushing | 1 |
| C-13 | 17-013G-7900 | Neutral Spring For C-8 | 1 |
| C-14 | 17-014A-7900 | Neutral Positioning Ball | 1 |
| C-15 | 17-015A-7900 | Crank For Needle Bar Stopping Shaft | 1 |
| C-16 | SC-0186-1230 | Screw(3/64" n=32) | 1 |
| C-17 | 17-017S-7900 | Hinge Pin Screw For C-18, 19 | 1 |
| C-18 | 17-023A-7900 | Slide Block Moving Shaft(S) | 1 |
| C-19 | 17-028A-7900 | Collar For Slide Block Moving Shaft | 3 |
| C-20 | SC-0195-7507 | Screw(M5) | 5 |
| C-21 | 17-019G-7907 | Return Spring For C-8 | 2 |
| C-22 | 17-020A-7900 | Bracket For Slide Block Moving Shaft | 1 |
| C-23 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
| C-24 | 17-024A-7900 | Slide Block Moving Lever | 1 |
| C-25 | 06-011G-8270 | Positioning Spring For Slide Block | 2 |
| C-26 | SC-0195-7507 | Screw(M4×0.7) | 1 |
Page 13 — D-29 Needle Bar Clamp Assembly
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 04-110A-7400 | Needle Bar Rock Shaft | 1 |
| D-2 | 04-111A-7400 | Needle Bar Rock Shaft Bush(F) | 1 |
| D-3 | 04-114A-7400 | Needle Bar Rock Shaft Bush(R) | 1 |
| D-4-1 | 04-009P-7400 | Taper Pin | 1 |
| D-5 | 04-105A-7400 | Needle Bar Guide Slide Block | 1 |
| 04-107A-7400 | Needle Bar Guide Plate | ||
| SC-A116-4120 | Screw(3/64" n = 56) | ||
| 04-004A-7400 | Needle Bar Crank | ||
| 04-102A-7400 | Needle Bar Crank | ||
| SC-0158-3710 | Needle Bar Crank | ||
| 04-012C-7400 | Needle Bar Wick Holder(Upper) | ||
| 44-0000-1230 | Oil Wick | ||
| 44-070A-7500 | Needle Bar Wick Holder(Lower) | ||
| 44-107M-7900 | Felt For Needle Bar Frame | ||
| 04-101A-7500 | Needle Bar | ||
| 02-021A-7400 | Needle Clamp 1/4 | ||
| SC-0160-5607 | Screw(9/64" n = 40) | ||
| 04-020S-7400 | Wick Supporter | ||
| 04-021C-7400 | Screw(9/64" n = 40) | ||
| SC-0531-2302 | Needle Bar Rock Link | ||
| 04-115A-7400 | Needle Bar Rock Link | ||
| 04-016S-7400 | Screw For Needle Bar Rock Link | ||
| SN-0109-3710 | Nut(5/64" n = 24) | ||
| SC-0253-7400 | Screw(1/64" n = 28) | ||
| 04-010A-7900 | Needle Bar Clamp Assembly | ||
| 04-016A-7900 | Needle Bar Clamp | ||
| 04-021S-7900 | Screw For D-29-3 | ||
| 04-024A-7900 | Cover For Releasing Pin | ||
| 04-030G-7900 | Release Pin Return Spring | ||
| 04-025P-7900 | Needle Bar Releasing Pin | ||
| 04-031G-7900 | Clutch Lever Return Spring | ||
| 04-020A-7900 | Clutch Lever | ||
| 04-026P-7900 | Hinge Pin "A" For Clutch Lever | ||
| 04-033P-7900 | Needle Bar Down Positioning Pin | ||
| 04-028P-7900 | Hinge Pin "B" For Clutch Lever | ||
| 04-029P-7900 | Hinge Pin For Latchet | ||
| 04-018A-7900 | Latchet(L) | ||
| 04-019A-7900 | Latchet(R) | ||
| 04-032G-7900 | Latchet Return Spring | ||
| 04-023A-7900 | Latchet Bracket | ||
| 04-022S-7900 | Screw For D-29-15 | ||
| 15-117A-7900 | Needle Bar Guide Slide Block | ||
| 04-005A-7900 | Needle Bar Crank | ||
| 15-021P-7900 | Needle Bar Up Positioning Pin | ||
| 15-022G-7900 | Spring For D-32 | ||
| 15-023C-7900 | Spring Cover | ||
| SC-0323-7900 | Screw(1/8" n = 40) | ||
| 15-325A-7900 | Needle Bar Rotate Stopper Block | ||
| 15-021A-7900 | Slide Block | ||
| 15-020A-7900 | Slide Block Cover | ||
| 15-018A-7900 | Screw(1/8" n = 40) | ||
| GP-012980-00 | Needle Bar(L) | ||
| GP-012979-00 | Needle Bar(R) | ||
| 04-11LA-7900 | Needle Clamp(L) | ||
| 04-11RA-7900 | Needle Clamp(R) | ||
| SC-A297-4118 | Screw(1/8" n = 40) | ||
| SC-A320-4222 | Screw(1/8" n = 40) | ||
| SC-A350-4515 | Screw(1/8" n = 40) | ||
| 44-108M-7900 | Needle Bar Felt(B) | ||
| 44-109C-7900 | Oil Wick Holder | ||
| SC-0167-7900 | Screw(M8×1.25) |
Page 15 — Presser Foot, Knee Lifting Mechanism & Tension Release Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | 05-002C-2500 | Nut(9/64" n=20) | 1 |
| E-2 | SC-0339-1230 | Screw(9/64" n=20) | 1 |
| E-3 | 05-014C-250A | Spring For E-2 | 1 |
| SC-0507-1230 | Screw (15/64" n = 28) | ||
| 05-001A-7500 | Presser Bar Bushing (L) | ||
| 05-106A-2070 | Presser Bar | ||
| SC-0315-2302 | Screw (9/64" n = 40) | ||
| 05-010A-740L | Presser Foot (1/64") | ||
| GP-013204-00 | Presser Bar Holder | ||
| SC-0174-1230 | Screw (9/64" n = 40) | ||
| 43-001A-640L | Screw (M5) | ||
| SC-0164-2700 | Screw (M5) | ||
| 43-001A-7500 | Presser Bar Lifter Crank | ||
| SC-0528-1230 | Screw (9/64" n = 40) | ||
| 11-017S-7500 | Nut For E-16 | ||
| GP-012864-00 | Spring For Presser Bar Lifter Lever | ||
| 43-006A-7500 | Presser Bar Lifter Lever | ||
| 43-048A-5770 | Presser Bar Lifter Lever | ||
| 40-022W-5770 | Washer For E-21 | ||
| 40-021C-5770 | Thread Tension Release Lever | ||
| SC-0113-3400 | Screw (11/64" n = 40) | ||
| 43-008A-7500 | Collar For E-24 | ||
| 43-007P-5700 | Presser Bar Lifter Stud | ||
| 43-005C-7500 | Nut For E-17, 19 | ||
| SC-0511-7500 | Screw (1/64" n = 28) | ||
| 43-015A-7500 | Knee Lifter Connecting Rod | ||
| 43-017S-7500 | Stud Screw For E-27 | ||
| 43-014S-7500 | Stud Screw For E-30 | ||
| 43-016A-5700 | Knee Lifter Bar | ||
| 40-024A-5770 | Tension Release Cable Ass'y | ||
| 40-025C-5770 | Holder (U) For E-32 | ||
| SC-0543-2302 | Screw (9/64" n = 40) | ||
| 06-043C-3800 | Spring Pin (φ 4) | ||
| 40-003A-2700 | Connecting Bolt For E-32 | ||
| 40-005C-2700 | Nut For E-32 | ||
| 40-045A-5770 | Lever (B) For E-48 | ||
| 17-017S-7507 | Stud Screw For E-38 | ||
| 40-042A-5770 | Supporter For E-44 | ||
| 07-029S-7500 | Screw For E-44 | ||
| 07-011W-1230 | Washer For E-44 | ||
| 10-053S-7507 | Stud Screw For E-44 | ||
| 40-038C-5770 | Lever(A) For E-48 | ||
| 40-032A-5770 | Bracket For E-48 | ||
| SC-0109-2350 | Screw (M6 x P1.0) | ||
| 04-020W-2350 | Washer For E-45 | ||
| 06-023M-2700 | Plug For E-48 | ||
| 17-436C-7907 | Tube For E-48 | ||
| 01-009R-2350 | Cable Holder | ||
| SC-0531-2302 | Screw (9/64" n = 40) | ||
| 01-101C-7500 | Finger Guard | ||
| 01-101C-7507 | Finger Guard | ||
| 05-014C-250B | Spring For E-2 | ||
| 05-007C-1230 | Presser Adjusting Bar |
Page 17 — F Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 06-001A-7500 | Length Control Dial Plate | 1 |
| F-2 | 06-013M-740L | Length Control Dial Plate | 1 |
| F-3 | SC-0193-1230 | Screw(3/64" n=28) | 1 |
| F-4 | 06-012P-7400 | Pin For F-1 | 1 |
| F-5 | 06-027G-7400 | Spring For F-1 | 1 |
| F-6 | 06-010R-1230 | O-Ring For F-7 | 1 |
| F-7 | GP-013504-00 | Feed Regulator Dial Shaft | 1 |
| F-8 | 06-108A-5770 | Reverse Feed Control Shaft | 1 |
| F-9 | 06-108A-5700 | Reverse Feed Control Shaft | 1 |
| F-9-1 | 06-051R-1600 | O-Ring For F-8, 9 | 1 |
| F-10 | 06-109A-7500 | Feed Regulator | 1 |
| F-11 | 06-110A-750L | Feed Regulator | 1 |
| F-12 | SC-A117-4417 | Screw(1/64" n=40) | 1 |
| F-13 | 06-112A-7500 | Feed Regulator Eccentric Wheel Shaft | 1 |
| F-14 | SC-0173-1230 | Screw(3/64" n=32) | 1 |
| F-15 | 06-114A-7500 | Feed Regulator Connecting Rod | 1 |
| F-16 | 06-015A-7500 | Stud Screw For F-15 | 1 |
| F-17 | 06-116A-7500 | Feed Regulator Shaft | 1 |
| F-18 | 06-116A-750L | Feed Regulator Shaft | 1 |
| F-19 | 07-252A-5607 | Stopper Collar For F-17, F-18 | 1 |
| F-20 | SC-0317-2700 | Screw(15/64" n=28) | 2 |
| F-21 | 06-033M-7400 | Felt For F-17, F-18 | 4 |
| F-22 | 44-0000-1230 | Oil Wick | 1 |
| F-23 | 44-058C-5607 | Wick Holder For F-17, F-18 | 1 |
| F-24 | SC-0549-2302 | Screw(1/8" n=44) | 2 |
| F-25 | 06-120A-7500 | Feed Cam | 1 |
| F-26 | 06-120A-750L | Feed Cam | 1 |
| F-27 | SC-A308-4517 | Screw(1/64" n=40) | 2 |
| F-28 | 06-036A-7400 | Needle Bearing For F-25, F-26 | 1 |
| F-29 | 06-024A-7500 | Bearing Cover For Feed Cam | 1 |
| F-30 | SC-A301-4119 | Screw(9/64" n=40) | 2 |
| F-31 | 06-135A-7400 | Feed Cam Connecting Rod | 1 |
| F-32 | 06-032P-7400 | Slide Block Shaft | 1 |
| F-33 | 15-220A-7900 | Slide Block | 2 |
| F-34 | 06-029A-7500 | Slide Block Guide Plate | 2 |
| F-35 | SC-0543-2302 | Screw(11/64" n=40) | 4 |
| F-36 | 06-137A-7400 | Level Feed Connecting Link | 1 |
| F-37 | 06-141A-7400 | Level Feed Crank | 1 |
| F-38 | 06-141A-750L | Level Feed Crank | 1 |
| F-39 | SC-0253-7400 | Screw(1/64" n=28) | 1 |
| F-40 | 06-040P-7400 | Stud For F-37, F-38 | 1 |
| F-41 | 06-020C-7400 | E-Ring(φ6) | 2 |
| F-42 | 06-139A-7400 | Feed Rock Shaft Bushing(R) | 1 |
| F-43 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| F-44 | 06-142A-7400 | Collar For F-48 | 2 |
| F-45 | SC-0129-7400 | Screw(1/64" n=40) | 4 |
| F-46 | 06-141A-7500 | Feed Rock Shaft Front Bushing | 1 |
| F-47 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| F-48 | 06-143A-5700 | Feed Rock Shaft | 1 |
| F-49 | 06-144A-7500 | Feed Bar Crank | 1 |
| F-50 | SC-0184-1600 | Screw(3/64" n=28) | 2 |
Page 19 — F Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-51 | 06-146A-5700 | Feed Bar Shaft | 1 |
| F-52 | 06-020S-1230 | Screw(3/64" n=32) | 1 |
| F-53 | 06-046W-7400 | Washer For F-51 | 2 |
| F-54 | 06-149A-7507 | Feed Bar | 1 |
| F-55 | 06-150A-7500 | Feed Bar | 1 |
| F-56 | 06-152A-7400 | Feed Bar Fork | 1 |
| F-57 | SC-0106-7400 | Screw(15/64" n=28) | 1 |
| F-58 | 06-051W-7400 | Washer For Feed Bar Fork | 1 |
| F-59-1 * | 06-054A-7400 | Feed Dog 1/4 | 1 |
| F-59-2 * | 06-577A-7507 | Feed Dog 1/64"(Trimming) | 1 |
| F-60 | SC-A306-4113 | Screw(1/8" n=44) | 2 |
| F-61 | SC-0212-7400 | Screw(1/8" n=44) | 1 |
| F-62 | SN-0113-7400 | Nut(1/8" n=44) | 1 |
| F-63 | 06-053M-7400 | Felt For F-56 | 1 |
| F-64 | SC-0531-2302 | Screw(9/64" n=40) | 1 |
| F-65 | 02-019W-1230 | Washer For Upper Shaft Felt | 1 |
| F-68 | SC-0186-1230 | Screw(3/64" n=32) | 1 |
| F-69 | SC-0185-1230 | Screw(3/64" n=32) | 1 |
| F-70 | 06-053W-1230 | Washer For F-67 | 1 |
| F-71 | 06-066G-7507 | Reverse Lever Spring(A) | 1 |
| F-72 | 06-043W-5607 | Washer For F-73 | 2 |
| F-73 | 06-044A-5607 | Auto Reverse Lever | 1 |
| F-74 | SC-A117-4417 | Screw(1/64" n=40) | 1 |
| F-75 | SC-A308-4517 | Screw(1/64" n=40) | 1 |
| F-76 | 06-071S-7507 | Stud Screw For F-67 | 1 |
| F-77 | 06-072R-7507 | Upper Stopper Rubber For Reverse Lever | 1 |
| F-78 | 06-022C-7400 | Reverse Lever Stopper(Lower) | 1 |
| F-79 | SC-0543-2302 | Screw(11/64" n=40) | 1 |
| F-80 | 06-075A-7507 | Reverse Crank Assembly | 1 |
| F-81 | SC-0296-3900 | Screw(3/64" n=32) | 1 |
| F-82 | SC-0122-1230 | Screw(15/64" n=28) | 1 |
| F-83 | 06-005A-7500 | Link For Reverse Lever Spring Assembly | 1 |
| F-83-1 | 06-018P-7400 | Pin | 1 |
| F-84 | SC-0122-1230 | Screw(15/64" n=28) | 1 |
| F-85 | 06-024G-1230 | Reverse Lever Return Spring | 1 |
| F-86 | 06-139C-1600 | Spring Hook For Reverse Lever | 1 |
| F-87 | SC-0173-1230 | Screw(3/64" n=32) | 1 |
| F-88 | 06-040S-1600 | Stud Screw For F-86 | 1 |
| F-89 | SN-0101-1600 | Nut(3/64" n=32) | 2 |
| F-90 | 06-019A-5607 | Stud Screw For F-80 | 1 |
| F-90-1 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| F-91 | 06-086A-7507 | Reverse Link | 1 |
| F-92 | 06-118A-5607 | Reverse Solenoid Crank | 1 |
| F-93 | 06-022A-5607 | Stud Screw For F-92 | 1 |
| F-95 | 06-024A-5607 | Stud For F-92 | 1 |
| F-96 | SC-0253-7400 | Screw(1/4" n=28) | 3 |
| F-97 | 06-026A-5607 | Reverse Solenoid Assembly | 1 |
| F-98 | SC-0173-1230 | Screw(3/64" n=32) | 3 |
| F-99 | 06-029A-5607 | Reverse Solenoid Cover | 1 |
| F-101 | SC-0173-1230 | Screw(3/64" n=32) | 1 |
| F-102 | 44-0000-1230 | Oil Wick | 1 |
Page 21 — Lower Shaft & Rotary Hook Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 07-101A-5700 | Lower Shaft | 1 |
| G-2# | 07-102A-5700 | Lower Shaft Front Bushing | 1 |
| G-4 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| G-5# | 07-106A-5700 | Lower Shaft Middle Bushing | 1 |
| G-6 | SC-0507-1230 | Screw(15/64" n=28) | 1 |
| G-7 | 07-106A-7500 | Bearing Bushing | 1 |
| G-8 | 07-007A-5607 | Bearing(6904NR) | 1 |
| G-9 | SC-A117-4417 | Screw(1/64" n=40) | 1 |
| G-10 | SC-A308-4517 | Screw(1/64" n=40) | 1 |
| G-11 | 07-108A-5607 | Bearing Bushing | 1 |
| G-12 | 07-011A-5607 | Bearing(6004NR) | 1 |
| G-13 | SC-A117-4417 | Screw(1/64" n=40) | 1 |
| G-14 | SC-A308-4517 | Screw(1/64" n=40) | 1 |
| G-15 | 07-112A-5607 | Bearing Presser | 1 |
| G-16 | SC-0155-7400 | Screw(9/64" n=40) | 3 |
| G-17-1 | 02-015C-7400 | Safety Clutch Belt Pulley Ring | 1 |
| G-17-3 | SC-A117-4417 | Screw(1/64" n=40) | 1 |
| G-17-4 | SC-A308-4517 | Screw(1/64" n=40) | 1 |
| G-25 | SC-A308-4517 | Screw(1/64" n=40) | 4 |
| G-26 | SC-A117-4417 | Screw(1/64" n=40) | 2 |
| G-27 | 06-054A-5700 | Vertical Feed Eccentric Cam | 1 |
| G-28 | SC-A550-4517 | Screw(1/64" n=40) | 1 |
| G-29 | 07-036A-7500 | Rotary Hook Base(Left) | 1 |
| G-30 | 07-036A-750L | Rotary Hook Base(Left) | 1 |
| G-31 | 07-038A-7500 | Rotary Hook Base(Right) | 1 |
| G-32 | 07-038A-750L | Rotary Hook Base(Right) | 1 |
| G-33 | 44-039M-7500 | Hook Oil Felt | 2 |
| G-34 | 44-040W-7500 | Felt Washer For Hook Base | 2 |
| G-35 | 44-098M-7500 | Hook Base Cover Gasket | 2 |
| G-36 | 44-100A-7500 | Hook Base Cover(L) | 1 |
| G-37 | 44-099A-7500 | Hook Base Cover(R) | 1 |
| G-38 | SC-0158-3710 | Screw(9/64" n=40) | 8 |
| G-39 | 44-094R-7500 | Oil Adjusting Tube | 2 |
| G-40 | 44-095P-7500 | Oil Adjusting Pin | 2 |
| G-41 | SC-0354-7500 | Screw(M6×1.0) | 2 |
| G-42 | 44-097C-7500 | Nut For Oil Adjusting | 2 |
| G-46 | SC-A550-4515 | Screw(1/64" n=40) | 6 |
Page 23 — Lower Shaft & Rotary Hook Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-47 | 07-142A-7500 | Rotary Hook Bushing(Lower) | 2 |
| G-48 | SC-0105-7500 | Screw(3/64" n=28) | 2 |
| G-49 | 07-144A-7500 | Rotary Hook Bushing(Upper) | 2 |
| G-50 | 07-145A-750L | Rotary Hook Bushing(Upper) | 2 |
| G-51 | SC-0105-7500 | Screw(3/64" n=28) | 2 |
| G-52 | 07-047W-7500 | Rotary Hook Bearing Stop Ring | 2 |
| G-53 | 07-048A-7500 | Rotary Hook Needle Bearing | 2 |
| G-54 | 07-049W-7500 | Hook Thrust Ring | 2 |
| G-55 | 07-050W-750L | Hook Thrust Washer | 2 |
| G-56 | 09-105A-7400 | Opener Link | 2 |
| G-57 | 09-116A-740L | Opener Link | 2 |
| G-58 | 09-104A-7400 | Opener Lever | 2 |
| G-59 | 09-115A-740L | Opener Lever | 2 |
| G-60 | SN-0115-7400 | Nut(3/64" n=32) | 2 |
| G-61 | 09-106A-7400 | Screw For Opener Link Shaft | 2 |
| G-64 | 02-019W-1230 | Washer For G-62, G-63 | 2 |
| G-65 | SC-0502-2302 | Screw(9/64" n=40) | 2 |
| G-66 | 07-172A-7500 | Opener Lever Shaft | 2 |
| G-67 | 44-0000-1230 | Oil Wick | 2 |
| G-68 | SC-0353-7400 | Screw(3/64" n=32) | 2 |
| G-69 | 07-051A-7507 | Hook | 2 |
| G-70 | 07-053A-7500 | Hook | 2 |
| G-71 | 07-056A-7907 | Hook | 2 |
| G-72 | 07-055A-7900 | Hook | 2 |
| G-73 | 07-052A-75L7 | Hook | 2 |
| G-74 | 07-054A-750L | Hook | 2 |
| G-75 | 07-052A-790L | Hook | 2 |
| G-77 | 09-043G-740L | Bobbin Tension Spring | 2 |
| G-78 | 07-160A-7500 | Bobbin | 2 |
| G-79 | 07-161A-750L | Bobbin | 2 |
| G-80 | 07-063A-7900 | Bobbin Case | 2 |
| G-82 | 07-062A-75L7 | Bobbin Case | 2 |
| G-83 | 07-064A-790L | Bobbin Case | 2 |
| G-85-1 | 09-126A-7400 | Pinch Sleeve(Upper) | 2 |
| G-85-2 | 09-127A-7400 | Pinch Sleeve(Lower) | 2 |
| G-85-3 | SC-0331-7400 | Screw(15/64" n=28) | 2 |
| G-89 | 09-034W-7400 | Washer For Hook Base | 2 |
| G-90 | 04-020S-7400 | Screw For Hook Base | 2 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | 44-033C-5607 | Oil Cover | 1 |
| H-2 | 44-016M-7400 | Oil Felt For Thread Take-Up | 1 |
| H-3 | 44-018C-8130 | Oil Tube Choke Plate | 1 |
| H-4 | SC-0173-1230 | Screw(3/64" n=32) | 1 |
| H-5 | 44-033C-7500 | Oil Cover | 1 |
| H-6 | 44-071M-7500 | Oil Stopper Plate Presser | 1 |
| H-7 | 44-004A-7500 | Dust Protector | 1 |
| H-8 | 44-106A-7900 | Dust Protector | 1 |
| H-9 | SC-0502-2302 | Screw(9/64" n=40) | 2 |
| H-10 | 44-116M-7900 | Needle Bar Oil Supply Mark | 1 |
| H-11 | 44-122C-5700 | Nut(3/8" n=28) | 1 |
| H-12 | 44-121S-5700 | Oil Adjusting Screw For Face Plate Part | 1 |
| H-13 | 44-123R-5700 | Oil Adjusting Rubber For Face Plate Part | 1 |
| H-16 | 44-173M-5700 | Oil Adjusting Mark For Face Plate Part | 1 |
| H-17 | 44-119S-5700 | Oil Supply Nipple For Face Plate Part | 1 |
| H-18 | SC-0499-1230 | Screw(11/64" n=40) | 1 |
| H-20 | 44-001C-2500 | Oil Window | 1 |
| H-21 | 44-002R-2500 | O-Ring For H-20 | 1 |
| H-22 | 44-156A-5700 | Oil Catcher | 1 |
| H-23 | SC-0498-3710 | Screw(11/64" n=40) | 3 |
| H-24 | 10-065A-9577 | Cable Holder(3N) | 1 |
| H-25 | SC-0502-2302 | Screw(9/64" n=40) | 1 |
| H-26 | 44-134C-5700 | Nipple | 6 |
| H-27 | 44-136C-5700 | Piston | 2 |
| H-28 | 44-137G-5700 | Piston Spring | 2 |
| H-31 | 44-001C-5700 | Oil Suction Hose | 1 |
| H-32 | 44-001C-5700 | Oil Exhaust Hose | 1 |
| H-33 | 44-046M-3500 | Oil Return Felt(A) | 1 |
| H-34 | 44-129M-5700 | Oil Return Felt(B) | 1 |
| H-35 | 44-130G-5700 | Oil Return Felt Holder | 1 |
| H-36 | 44-001C-5700 | Oil Return Hose | 1 |
| H-37 | 01-009R-2350 | Oil Return Hose Holder | 1 |
| H-38 | SC-0531-2302 | Screw(9/64" n=40) | 1 |
| H-39 | 44-001C-5700 | Upper Oil Terminal Connecting Hose | 1 |
| H-40 | 44-021A-7500 | Oil Terminal(Upper) | 1 |
| H-41 | SC-0531-2302 | Screw(9/64" n=40) | 2 |
| H-42 | 44-001C-1230 | Tube Holder Spring | 9 |
| H-43 | 44-018R-7500 | Rubber Cap For Oil Terminal | 2 |
| H-44 | 44-001C-5700 | Oil Supply Hose For Feed Regulator Shaft | 1 |
| H-45 | 44-001C-5700 | Lower Oil Terminal Connecting Hose | 1 |
| H-46 | 44-011C-7400 | Guider Plate For Oil Hose | 1 |
| H-47 | SC-0531-2302 | Screw(9/64" n=40) | 1 |
| H-48 | 01-009R-2350 | Holder For H-44 | 1 |
| H-49 | SC-0531-2302 | Screw(9/64" n=40) | 1 |
| H-50 | 44-142C-5700 | Oil Terminal(Lower) | 1 |
| H-51 | SC-0531-2302 | Screw(9/64" n=40) | 2 |
| H-52 | 44-0000-1230 | Oil Wick For Hook Base | 1 |
| H-53 | 44-001C-5700 | Oil Hose For Hook Base(Right) | 1 |
| H-54 | 44-001C-5700 | Oil Hose For Hook Base(Left) | 1 |
| H-55 | 44-001C-5700 | Oil Hose For Lower Shaft | 1 |
| H-56 | 44-026G-7400 | Holder For Oil Hose | 2 |
| H-57 | SC-0531-2302 | Screw(9/64" N=40) | 2 |
| H-58 | 44-011C-7400 | Holder For H-53, H-54 | 1 |
| H-59 | SC-0531-2302 | Screw(9/64" n=40) | 1 |
| H-60 | 44-0129-7500 | Oil Tube Pin For Hook Base | 2 |
| H-61 | 07-003M-7400 | Cover Felt For Lower Shaft Front B/S | 1 |
| H-62 | 44-152A-5700 | Oil Absord Body | 1 |
| H-63 | 44-120P-1230 | Pin For H-62 | 1 |
| H-64 | SC-0496-3710 | Screw(11/64" n=40) | 1 |
| H-65 | 44-149G-5700 | Oil Filter Holder | 1 |
| H-66 | SC-0137-4122 | Screw(1/8" n=40) | 1 |
| H-67 | SN-0103-2700 | Nut(1/8" n=40) | 1 |
| H-68 | 44-148M-5700 | Oil Filter | 1 |
| H-69 | 44-0000-1230 | Oil Wick | 1 |
| H-70 | 44-279C-5700 | Beinforcement Plate | 1 |
| H-71 | SC-0543-2302 | Screw | 2 |
| H-72 | SC-000440-00 | Screw | 2 |
Page 27 — Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 10-001A-7507 | Moving Knife Shaft(L) | 1 |
| I-2 | 10-101A-7507 | Moving Knife Shaft(R) | 1 |
| I-3 | GP-012112-00 | Moving Knife | 2 |
| I-4 | SC-A154-4114 | Screw(11/64" n=40) | 4 |
| I-5 | 10-004A-7507 | Moving Knife Shaft Collar | 2 |
| I-6 | SC-0105-7500 | Screw(M4) | 4 |
| I-7 | 10-106A-7507 | Thread Catcher | 2 |
| I-8 | GP-012111-00 | Fixed Knife | 2 |
| I-10 | SC-A154-4114 | Screw(11/64" n=40) | 2 |
| I-11 | 10-010W-7507 | Washer For Moving Knife Tension Adjusting | 4 |
| I-12 | 10-011A-7507 | Moving Knife Bracket | 2 |
| I-13 | SC-0211-7500 | Screw(M4×0.7) | 4 |
| I-14 | 10-013A-7507 | Thread Trimming Rock Link Shaft | 1 |
| I-15 | 10-017S-8577 | Screw For I-14 | 1 |
| I-16 | 10-044R-5607 | Cushion Rubber | 1 |
| I-17 | 10-015A-7507 | Thread Trimming Rock Link | 1 |
| I-18 | 41-288G-7500 | Return Spring For Stopper Pin | 1 |
| I-19 | 10-050S-8577 | Screw For Stopper Pin | 1 |
| I-20 | 07-011W-1230 | Washer For Stopper Pin | 1 |
| I-21 | 10-033C-7507 | Nut For Stopper Pin | 1 |
| I-22 | 10-034S-7507 | Stud Screw For Rod End(R) | 1 |
| I-23 | 07-011W-1230 | Washer For I-22 | 1 |
| I-24 | 10-033C-7507 | Nut For I-22 | 1 |
| I-25 | 10-066A-7507 | Roller For Thread Trimming Cam | 1 |
| I-26 | 10-067S-7507 | Stud Screw For Thread Trimming Cam Roller | 1 |
| I-27 | 07-011W-1230 | Washer For I-26 | 1 |
| I-28 | 10-033C-7507 | Nut For I-26 | 1 |
| I-29 | 06-040S-1600 | Adjusting Screw For Return Spring | 1 |
| I-30 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| I-31 | 10-021G-7507 | Thread Trimming Return Spring | 1 |
| I-32 | 10-019S-7507 | Screw For Return Spring | 1 |
| I-33 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| I-34 | 10-129A-7507 | Holder For Stopper Pin | 1 |
| I-35 | 01-020W-2350 | Washer For I-34 | 2 |
| I-36 | SC-0108-2350 | Screw(M6) | 2 |
| I-37 | 10-220A-8577 | Rod End Bearing(R) | 1 |
| I-38 | 10-033C-7507 | Nut(R) For I-37 | 1 |
| I-39# | 10-034A-7507 | Joint Connection Stud(1/64"~1½") | 1 |
| I-41 | 10-221A-8577 | Rod End Bearing(L) | 1 |
| I-42 | 10-036C-7507 | Nut(L) For I-41 | 1 |
| I-43 | 10-024S-8677 | Screw For Moving Knife Shaft Joint | 1 |
| I-44 | 10-038A-7507 | Moving Knife Shaft Crank(R) | 1 |
| I-45 | SC-0162-5607 | Screw(M5×0.8) | 1 |
| I-46 | 10-140A-7507 | Moving Knife Shaft Bushing(R) | 1 |
| I-47 | SC-0105-7500 | Screw(M4) | 2 |
| I-48 | 10-044A-7507 | Moving Knife Shaft Connection Rod(R) | 1 |
| I-49 | 10-045A-7507 | Moving Knife Shaft Connection Rod(L) | 1 |
| I-50 | 10-046S-7507 | Hinge Screw For I-48, I-49 | 2 |
| I-51 | 10-020W-2700 | Washer For I-49 | 2 |
| I-52 | SC-0332-7500 | Screw(M5×0.8) | 2 |
| I-53 | 10-149A-7507 | Moving Knife Shaft Crank(L) | 1 |
| I-54 | SC-0162-5607 | Screw(M5×0.8) | 1 |
| I-55 | 10-151A-7507 | Moving Knife Shaft Bushing(L) | 1 |
| I-56 | SC-0105-7500 | Screw(M4) | 1 |
| I-57 | 10-053S-7507 | Stud Screw For Clutch Lever | 1 |
| I-58 | 10-551S-7507 | Screw For Clutch Lever Pin | 1 |
| I-59 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| I-60 | 10-554A-7507 | Clutch Lever | 1 |
| I-61 | 10-056A-7507 | Thread Trimming Solenoid Assembly | 1 |
| I-62 | 10-057A-7507 | Bracket For I-61 | 1 |
| I-63 | 01-020W-2350 | Spring Washer For I-62 | 2 |
| I-64 | SC-0109-2350 | Screw(M6) | 2 |
| I-66 | SC-A308-4517 | Screw(1/64" n=40) | 3 |
| I-69 | 11-019M-2350 | Tube(Large) For I-61 | 1 |
| I-70 | 11-019M-2350 | Plug(Large) For I-61 | 1 |
Page 28 — Wiper Mechanism / 와이퍼 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 11-001A-7507 | Wiper Solenoid | 1 |
| J-2 | 11-002A-7507 | Wiper Solenoid Bracket | 1 |
| J-3 | 11-003A-7507 | Wiper Solenoid Cover | 1 |
| J-4 | SC-0531-2302 | Screw(9/64" n=40) | 3 |
| J-5 | SC-0196-2700 | Screw(M3×0.5) | 4 |
| J-6 | 11-017W-2700 | Washer For J-1 | 4 |
| J-7 | 11-016W-2700 | Spring Washer For J-1 | 4 |
| J-9 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
| J-13 | 11-014A-7507 | Wiper Link "A" Ass'y | 1 |
| J-14 | 11-015S-7507 | Stud Screw For J-13 | 1 |
| J-16 | 11-017C-7507 | Nut For J-14 | 1 |
| J-17 | 11-015S-7507 | Stud Screw For J-20 | 1 |
| J-19 | 11-017C-7507 | Stud Nut For J-17 | 1 |
| J-20 | 11-021A-7507 | Wiper Shaft Ass'y | 1 |
| J-21 | 11-022A-7507 | Wiper Link Shaft | 1 |
| J-22 | 11-023A-7507 | Collar For J-23 | 1 |
| J-23 | SC-0105-7500 | Screw(M4) | 2 |
| J-24 | 11-125A-7507 | Wiper Link "C" | 2 |
| J-25 | 11-026A-7507 | Wiper Holder | 2 |
| J-26 | SC-0298-7500 | Screw(M3×0.5) | 2 |
| J-27 | SC-0132-7500 | Screw(M3) | 2 |
| J-28 | 11-029A-7507 | Wiper(Right) | 1 |
| J-29 | 11-029B-7507 | Wiper(Left) | 1 |
| J-30 | 11-030A-7507 | Wiper Link Body | 1 |
| J-31 | SC-0173-1230 | Screw(3/64" n=32) | 2 |
| J-32 | 11-032P-7507 | Stopper | 1 |
| J-33 | SC-0173-1230 | Screw(3/64" n=32) | 2 |
| J-34 | 10-020W-2700 | Washer For J-32 | 2 |
Page 29 — Reverse Button Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | 12-001A-7507 | Reverse Button Case | 1 |
| K-2 | 12-002A-7507 | Insulation Film | 1 |
| K-3 | 12-013A-7507 | Reverse Button Assembly | 1 |
| K-4 | 12-004A-7507 | Spring For Reverse Button | 1 |
| K-5 | 06-033M-3800 | E-Ring(ϕ3) | 1 |
| K-6 | 12-006P-7507 | Stopper For Reverse Button | 1 |
| K-7 | SC-0531-2302 | Screw(9/64" n=40) | 1 |
| K-8 | 12-003A-7507 | Reverse Button S/W Assembly | 1 |
| K-9 | SC-0126-3800 | Screw(3/64" n=56) | 2 |
| K-10 | SC-0195-7507 | Screw(M4×0.7) | 1 |
| K-11 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
Page 30 — Synchronizer(Servo Motor Type) / 위치검출기 관계(서보모터형)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | 11-0000-2507 | Synchronizer Ass'y | 1Set |
| L-1-1 | 11-020A-2500 | Magnetic Holder | 2 |
| L-1-2 | 11-022W-2500 | Washer For L-1 | 4 |
| L-1-3 | 11-021S-2500 | Screw For L-1 | 4 |
| L-1-4 | 13-0000-SE55 | Synchronizer Ass'y (Servo) | 1 |
Page 31 — Synchronizer(470 Motor Type) 위치검출기 관계(470모터형)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | 06-302A-SC51 | Synchronizer Shaft | 1 |
| M-2 | 11-024P-3701 | Roll Pin(φ3) For L-1 | 1 |
| M-3 | 16-010S-2000 | Screw For L-1 | 2 |
| M-4 | 16-301A-SC51 | Synchronizer Base | 1 |
| M-5 | 01-019P-2350 | Guide Pin For L-4 | 2 |
| M-6 | SC-0108-2350 | Bolt For L-4 | 2 |
| M-7 | 01-020W-2350 | Washer For L-4 | 2 |
| M-8 | 11-003A-SC53 | Plug For L-8 | 1 |
| M-9 | 11-003A-SC53 | Cable For L-8 | 1 |
| M-10 | 11-003A-SC53 | Plug For L-8 | 1 |
| M-11 | 11-008W-SC53 | Washer For L-12, L-13 | 3 |
| M-12 | 11-006M-SC53 | Synchronizer Film(Lower) | 1 |
| M-13 | 11-006M-SC53 | Synchronizer Film(Lower) | 1 |
| M-14 | 11-006C-SC53 | Collar For L-12, L-13 | 1 |
| M-15 | 11-007S-SC53 | Screw For L-12, L-13 | 1 |
| M-16 | 16-003B-5600 | Synchronizer Cover | 1 |
| M-17 | 16-008S-2000 | Screw For L-16 | 1 |
| M-18 | 40-014M-7507 | Cable Holder | 3 |
| M-19 | SC-0543-2302 | Screw For L-18 | 3 |
| M-20 | 02-003A-2700 | Band Clip For L-9 | 1 |
| M-21 | 12-1000-4701 | Synchronizer Ass'y | 1Set |
Page 33 — Program Unit Box
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N-1 | SP-200 | Program Unit Box | 1 |
| N-2 | 20-016A-S100 | Cable For M-1 | 1 |
| N-3 | 20-016A-S100 | Plug For M-1 | 1 |
| N-4 | 91-029S-S100 | Screw For M-1 | 4 |
| N-5 | 91-002S-S100 | Bracket For M-1 | 1 |
Page 35 — Accessories
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| O-1 | 91-001C-1230 | Accessory Box | 1 |
| O-2 | 91-008M-640L | Head Cover | 1 |
| O-3 | 01-008C-1230 | Oil | 1 |
| O-4 | 91-011C-1230 | Oiler | 1 |
| O-6 | 01-241R-1230 | Head Support Rubber(Middle) | 2 |
| O-7 | 01-213R-1230 | Head Support Rubber(Small) | 2 |
| O-8 | 01-042R-1230 | Rubber Cushion For Hinge | 2 |
| O-9 | 91-004C-7400 | Hinge | 2 |
| O-10 | SC-0118-7400 | Screw(1/64" n=24) | 4 |
| O-11 | 07-160A-7500 | Bobbin | 4 |
| O-12 | 07-161A-750L | Bobbin | 4 |
| O-14 | 91-007C-7400 | Needle Thread Inserting Guide | 1 |
| O-15 | 91-002C-2700 | L Wrench(5mm) | 1 |
| O-16 | 91-001C-3800 | L Wrench(4mm) | 1 |
| O-17 | 91-003C-2700 | L Wrench(3mm) | 1 |
| O-18 | 91-004C-2700 | L Wrench(2.5mm) | 1 |
| O-19 | 91-001C-2700 | L Wrench(2mm) | 1 |
| O-20 | 02-003A-2700 | Nylon Clip | 5 |
| O-21 | 10-107A-7507 | Fixed Mes | 1 |
| O-22 | 10-010W-7507 | Washer For Moving Mes Tension Adjusting | 4 |
| O-23 | 91-102C-1230 | Driver(Middle, Small) | 1 |
| O-24 | 91-103C-1230 | Driver(Large) | 1 |
| O-25 | 44-024M-7500 | Felt | 1 |
| O-26 | 91-012C-1230 | Head Rest | 1 |
| O-27 | 41-001A-1230 | Bobbin Winder Assembly | 1Set |
| O-28 | 91-008A-7400 | Thread Stand Assembly | 1Set |
| O-29 | 60-002A-7507 | Belt Cover "A" | 1 |
| O-30 | SC-A156-4118 | Screw(9/64" n=40) | 1 |
| O-31 | 60-001S-5607 | Screw(3/64" n=28) | 3 |
| O-32 | 10-020W-2700 | Washer For O-29 | 3 |
| O-33 | 60-005R-5607 | Rubber Collar For O-29 | 3 |
| O-34 | 91-002S-3400 | Set Screw For O-35 | 2 |
| O-35 | 60-004A-2350 | Belt Cover(D) | 1 |
| O-36 | 44-166A-5700 | Oil Pan | 1 |
| O-37 | 44-167M-5700 | Oil Pan Filter A | 1 |
| O-38 | 44-168M-5700 | Oil Pan Filter B | 1 |
| O-39 | 44-010C-1230 | Magnetic | 1 |
| O-40 | SC-0347-1230 | Screw(M8×1.25) | 1 |
| O-41 | 44-005R-1230 | O-Ring For O-41 | 1 |
| O-42 | 43-010A-1600 | Knee Base Rubber | 1 |
| O-43 | 43-009C-1600 | E-Ring(φ9) | 1 |
| O-45 | 43-044G-5700 | Return Spring For C-57 | 1 |
| O-46 | 43-007A-1600 | Knee Lifting Controller | 1 |
| O-47 | SC-0545-1230 | Screw(15/64" n=28) | 1 |
| O-48 | SC-0546-1230 | Screw(15/64" n=28) | 1 |
| O-49 | SN-0105-3400 | Nut(15/64" n=28) | 2 |
| O-50 | SC-0106-7400 | Screw(15/64" n=28) | 1 |
| O-51 | 43-036A-5700 | Knee Lifting Pad Assembly | 1Set |
| Nail | Nail | 16 | |
| Needle | Needle | 5 |
Page 36 — Gauge Parts / 게이지 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 01-44TA-7507 | |||
| 01-43TA-7507 | |||
| 01-42TA-7507 | |||
| 01-59TA-7507 | |||
| 01-41TA-7507 | |||
| 01-48TA-7507 | |||
| 01-40TA-7507 | |||
| 01-45TA-7507 | |||
| 01-46TA-7507 | |||
| 01-49TA-7507 | |||
| 01-50TA-7507 | |||
| 01-51TA-7507 | |||
| 01-52TA-7507 | |||
| 01-53TA-7507 | |||
| 01-54TA-7507 | |||
| 01-55TA-7507 | |||
| 01-56TA-7507 | |||
| 01-57TA-7507 | |||
| 01-58TA-7507 | |||
| 01-01TA-5770 | |||
| 01-527A-740L | |||
| 01-127A-740L | |||
| 01-227A-740L | |||
| 01-028A-740L | |||
| 01-327A-740L | |||
| 01-727A-740L | |||
| 01-027A-740L | |||
| 01-427A-740L | |||
| 01-627A-740L | |||
| 01-128A-740L | |||
| 01-827A-740L | |||
| 01-228A-740L | |||
| 01-328A-740L | |||
| 01-428A-740L | |||
| 01-927A-740L | |||
| 01-528A-740L | |||
| 01-728A-740L | |||
| 01-628A-740L | |||
| 01-828A-740L | |||
| 01-928A-740L |
Page 37 — Presser Foot
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 05-210A-7400 | |||
| 05-110A-7400 | |||
| 05-510A-7400 | |||
| 05-911A-7400 | |||
| 05-310A-7400 | |||
| 05-111A-7500 | |||
| 05-010A-7400 | |||
| 05-410A-7400 | |||
| 05-610A-7400 | |||
| 05-112A-7500 | |||
| 05-810A-7400 | |||
| 05-113A-7400 | |||
| 05-114A-7400 | |||
| 05-115A-7500 | |||
| 05-910A-7400 | |||
| 05-116A-7500 | |||
| 05-120A-7500 | |||
| 05-117A-7500 | |||
| 05-118A-7500 | |||
| 05-119A-7500 | |||
| 05-410A-750L | |||
| 05-110A-740L | |||
| 05-210A-740L | |||
| 05-510A-750L | |||
| 05-310A-740L | |||
| 05-115A-790L | |||
| 05-010A-740L | |||
| 05-610A-750L | |||
| 05-710A-750L | |||
| 05-116A-750L | |||
| 05-810A-750L | |||
| 05-910A-750L | |||
| 05-117A-750L | |||
| 05-118A-750L | |||
| 05-111A-750L | |||
| 05-112A-750L | |||
| 05-113A-750L | |||
| 05-114A-750L |
Page 38 — Gauge Parts / 게이지 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-221A-7400 | |||
| 02-121A-7400 | |||
| 02-521A-7400 | |||
| 02-922A-7400 | |||
| 02-321A-7400 | |||
| 02-021A-7400 | |||
| 02-421A-7400 | |||
| 02-621A-7400 | |||
| 02-102A-7500 | |||
| 02-821A-7400 | |||
| 02-721A-7400 | |||
| 02-104A-7500 | |||
| 02-105A-7500 | |||
| 02-921A-7400 | |||
| 02-106A-7500 | |||
| 02-107A-7500 | |||
| 02-108A-7500 | |||
| 02-109A-7500 | |||
| 02-110A-7500 | |||
| 04-15LA-7900 | |||
| 04-15RA-7900 | |||
| 04-16LA-7900 | |||
| 04-16RA-7900 | |||
| 04-17LA-7900 | |||
| 04-17RA-7900 | |||
| 04-14LA-7900 | |||
| 04-14RA-7900 | |||
| 04-18LA-7900 | |||
| 04-18RA-7900 | |||
| 04-11LA-7900 | |||
| 04-11RA-7900 | |||
| 04-12LA-7900 | |||
| 04-12RA-7900 | |||
| 04-13LA-7900 | |||
| 04-13RA-7900 | |||
| 04-19LA-7900 | |||
| 04-19RA-7900 | |||
| 04-20LA-7900 | |||
| 04-20RA-7900 | |||
| 04-21LA-7900 | |||
| 04-21RA-7900 |
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-58TA-7507 | |||
| 06-59TA-7507 | |||
| 06-60TA-7507 | |||
| 06-61TA-7507 | |||
| 06-62TA-7507 | |||
| 06-63TA-7507 | |||
| 06-57TA-7507 | |||
| 06-64TA-7507 | |||
| 06-65TA-7507 | |||
| 06-66TA-7507 | |||
| 06-67TA-7507 | |||
| 06-68TA-7507 | |||
| 06-69TA-7507 | |||
| 06-70TA-7507 | |||
| 06-71TA-7507 | |||
| 06-72TA-7507 | |||
| 06-73TA-7507 | |||
| 06-74TA-7507 | |||
| 06-75TA-7507 | |||
| 06-01TA-5770 | |||
| 06-01TA-75L7 | |||
| 06-02TA-75L7 | |||
| 06-03TA-75L7 | |||
| 06-04TA-75L7 | |||
| 06-05TA-75L7 | |||
| 06-06TA-7907 | |||
| 06-07TA-75L7 | |||
| 06-19TA-75L7 | |||
| 06-08TA-75L7 | |||
| 06-10TA-75L7 | |||
| 06-11TA-75L7 | |||
| 06-12TA-75L7 | |||
| 06-13TA-75L7 | |||
| 06-14TA-75L7 | |||
| 06-15TA-75L7 | |||
| 06-16TA-75L7 | |||
| 06-17TA-75L7 | |||
| 06-18TA-75L7 | |||
| 06-01TA-79L7 | |||
| 06-02TA-79L7 | |||
| 06-03TA-79L7 | |||
| 06-04TA-79L7 | |||
| 06-05TA-79L7 | |||
| 06-07TA-79L7 | |||
| 06-06TA-79L7 | |||
| 06-08TA-79L7 | |||
| 06-09TA-79L7 | |||
| 06-10TA-79L7 | |||
| 06-11TA-79L7 |
Page 40 — Gauge Parts 게이지 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 06-254A-7400 | |||
| 06-154A-7400 | |||
| 06-554A-7400 | |||
| 06-69SA-7500 | |||
| 06-354A-7400 | |||
| 06-70SA-7900 | |||
| 06-054A-7400 | |||
| 06-454A-7400 | |||
| 06-654A-7400 | |||
| 06-58SA-7500 | |||
| 06-854A-7400 | |||
| 06-754A-7400 | |||
| 06-67SA-7500 | |||
| 06-68SA-7500 | |||
| 06-954A-7400 | |||
| 06-62SA-7500 | |||
| 06-66SA-7500 | |||
| 06-63SA-7500 | |||
| 06-64SA-7500 | |||
| 06-65SA-7500 | |||
| 06-01SA-5700 | |||
| 06-01SA-750L | |||
| 06-02SA-750L | |||
| 06-03SA-750L | |||
| 06-04SA-750L | |||
| 06-05SA-750L | |||
| 06-06SA-7900 | |||
| 06-07SA-750L | |||
| 06-08SA-750L | |||
| 06-09SA-750L | |||
| 06-10SA-750L | |||
| 06-11SA-750L | |||
| 06-12SA-750L | |||
| 06-13SA-750L | |||
| 06-14SA-750L | |||
| 06-15SA-750L | |||
| 06-16SA-750L | |||
| 06-17SA-750L | |||
| 06-18SA-750L | |||
| 06-01SA-790L | |||
| 06-02SA-790L | |||
| 06-03SA-790L | |||
| 06-04SA-790L | |||
| 06-05SA-790L | |||
| 06-06SA-790L | |||
| 06-07SA-790L | |||
| 06-08SA-790L | |||
| 06-09SA-790L | |||
| 06-10SA-790L | |||
| 06-11SA-790L |
Page 41 — 2-1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-40 | 15-121A-7900 | Slide Block Assembly 05(11.05mm) | |
| 15-122A-7900 | 10(11.10mm) | ||
| 15-123A-7900 | 15(11.15mm) | ||
| 15-124A-7900 | 20(11.20mm) | ||
| 15-125A-7900 | 25(11.25mm) | ||
| 15-126A-7900 | 30(11.30mm) | ||
| 15-127A-7900 | 35(11.35mm) | ||
| 15-128A-7900 | 40(11.40mm) | ||
| 15-129A-7900 | 45(11.45mm) | ||
| 15-130A-7900 | 50(11.50mm) | ||
| 15-131A-7900 | 55(11.55mm) | ||
| 15-132A-7900 | 60(11.60mm) | ||
| 15-133A-7900 | 65(11.65mm) | ||
| 15-134A-7900 | 70(11.70mm) | ||
| 15-135A-7900 | 75(11.75mm) | ||
| 15-136A-7900 | 80(11.80mm) | ||
| 15-137A-7900 | 85(11.85mm) | ||
| 15-138A-7900 | 90(11.90mm) | ||
| 15-139A-7900 | 95(11.95mm) | ||
| GP-010501-00 | GP-010501-00 | ||
| GP-010502-00 | GP-010502-00 | ||
| GP-010503-00 | GP-010503-00 | ||
| GP-010504-00 | GP-010504-00 | ||
| GP-010505-00 | GP-010505-00 | ||
| 01-828A-7400 | 01-828A-7400 | ||
| 01-027A-7400 | 01-027A-7400 | ||
| GP-010508-00 | GP-010508-00 | ||
| GP-010509-00 | GP-010509-00 | ||
| GP-010510-00 | GP-010510-00 | ||
| GP-010511-00 | GP-010511-00 | ||
| GP-010512-00 | GP-010512-00 | ||
| GP-010513-00 | GP-010513-00 | ||
| GP-010514-00 | GP-010514-00 | ||
| GP-010515-00 | GP-010515-00 | ||
| GP-010516-00 | GP-010516-00 | ||
| 01-928A-7400 | 01-928A-7400 | ||
| GP-010520-00 | GP-010520-00 | ||
| 01-229A-7400 | 01-229A-7400 | ||
| 01-329A-7400 | 01-329A-7400 | ||
| 01-01SA-5700 | 01-01SA-5700 |
SunStar KM-757 / KM-797 — parts catalog
- Page 1 (cover): This is the cover page for the SunStar Parts Book PME-060407, featuring a description of the High Speed, Twin Needle, Needle Feed Lock Stitch Machine with Large Hook and Thread Trimmer, along with a list of applicable models and a photograph of the machine.

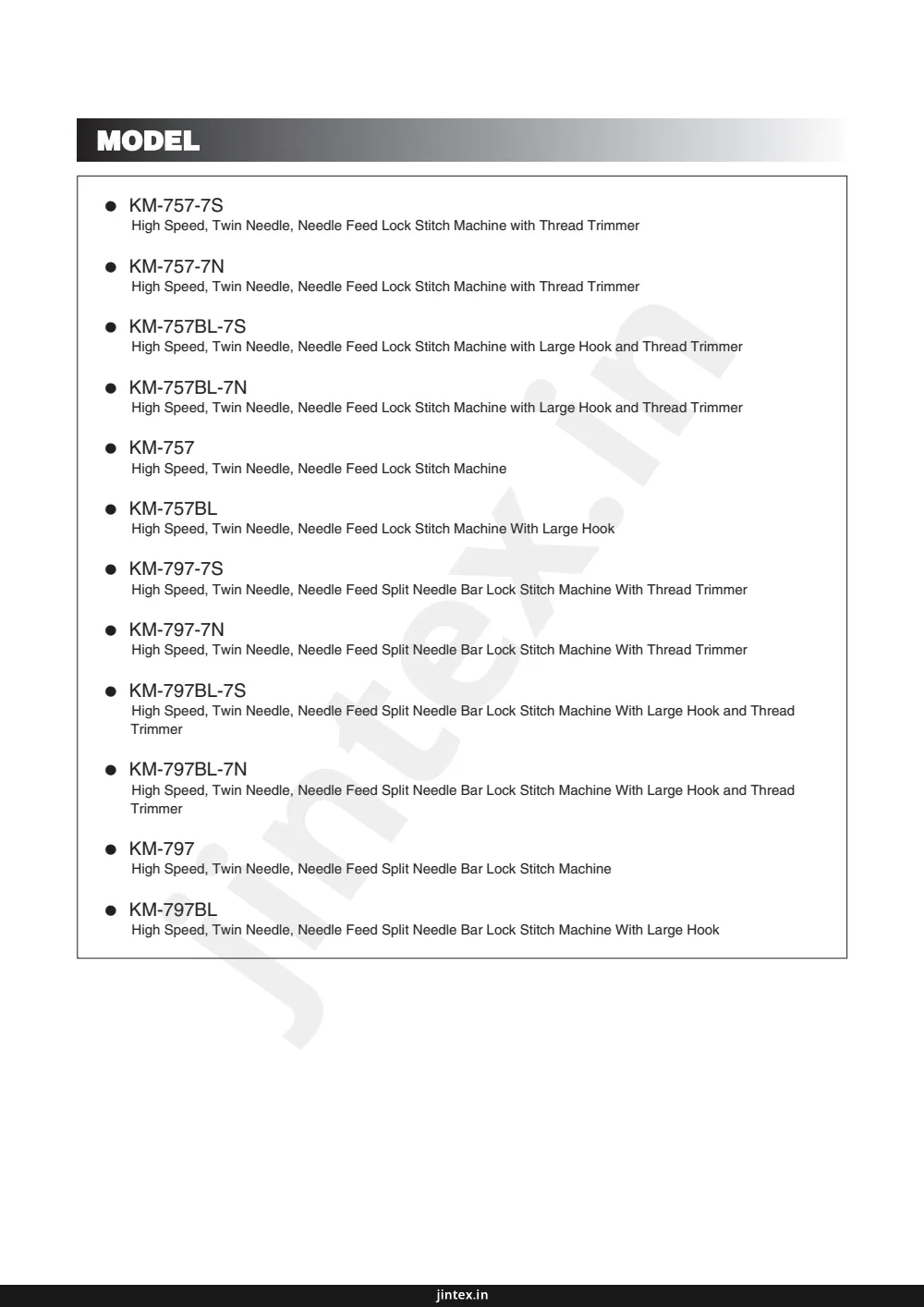

- Page 2 (text): This page lists various models of industrial sewing machines, including their part numbers and descriptions, such as KM-757-7S High Speed, Twin Needle, Needle Feed Lock Stitch Machine with Thread Trimmer.
- Page 4 (diagram): This page displays a diagram of the machine body mechanism, with various parts labeled with reference numbers and some part numbers indicated.
- Page 5 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers. It also includes a note explaining abbreviations and optional parts.
- Page 6 (diagram): This page displays a diagram of the machine body mechanism, with various parts labeled with reference numbers and some including part numbers and descriptions.
- Page 7 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes. It also includes a legend for part number designations.
- Page 8 (diagram): This page displays a diagram of the upper shaft and thread take-up mechanism, with various parts labeled with their corresponding part numbers.
- Page 9 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes, with a reference section explaining abbreviations.
- Page 10 (diagram): This page displays a diagram of the Needle Bar Flip-Up Mechanism, also known as 바늘대 절환 관계, with various parts labeled with reference numbers and part numbers.
- Page 11 (parts_list): This page lists parts for the SunStar sewing machine, including reference numbers, part numbers, descriptions, quantities, and assembly numbers. It also includes a note section explaining abbreviations.
- Page 12 (diagram): This page displays a diagram of the Needle Bar Rocking Mechanism, with various parts labeled with reference numbers and part numbers.
- Page 13 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing part numbers, descriptions, quantities, and assembly numbers.
- Page 14 (diagram): This page displays a diagram of the Presser Foot, Knee Lifting Mechanism & Tension Release Mechanism, with various parts labeled with reference numbers and part numbers.
- Page 15 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes. It also provides a key for specific part designations.
- Page 16 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with each part labeled with a reference number and part number.
- Page 17 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, and quantities, with a note section detailing model codes.
- Page 18 (diagram): This page displays a diagram of the feed mechanism and its associated parts, with each part labeled with a reference number and part number.
- Page 19 (parts_list): This page lists parts for SunStar sewing machines, including feed bar components, screws, washers, and reverse lever parts, with their corresponding part numbers, quantities, and notes.
- Page 20 (diagram): This page displays a diagram of the lower shaft and rotary hook mechanism, with various parts labeled with reference numbers and part numbers.
- Page 21 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly information, with a note explaining model variations.
- Page 22 (diagram): This page displays a diagram of the lower shaft and rotary hook mechanism, with various parts labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes.
- Page 24 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 25 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes.
- Page 26 (diagram): This page displays a diagram of the thread trimmer mechanism with various parts labeled with their corresponding part numbers, such as I-1, I-2, I-3, and so on, up to I-70.
- Page 27 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes. It also contains a section for notes and references to other pages.
- Page 28 (parts_list): This page lists parts for the Wiper Mechanism, including part numbers, names, quantities, and assembly notes.
- Page 29 (parts_list): This page lists parts for the SunStar Reverse Button Mechanism, including part numbers, descriptions, quantities, and notes.
- Page 30 (parts_list): This page lists parts for the Synchronizer (Servo Motor Type) with part numbers, descriptions, quantities, and notes.
- Page 31 (diagram): This page displays a diagram of the Synchronizer (470 Motor Type) and a parts list with reference numbers, part numbers, notes, names of parts, quantity, and assembly numbers.
- Page 32 (diagram): This page displays a diagram of the Program Unit Box components, labeled N-1 through N-5, with associated part numbers and descriptions.
- Page 33 (parts_list): This page lists parts for SunStar sewing machines, including reference numbers, part numbers, names, notes, quantities, and assembly numbers. It also includes notes explaining abbreviations for part types.
- Page 34 (diagram): This page displays a diagram of various accessories for SunStar sewing machines, including oil cans, needles, screwdrivers, and other small components, each labeled with a reference number.
- Page 35 (parts_list): This page lists parts for SunStar industrial sewing machines, including reference numbers, part numbers, names, quantities, and assembly numbers. It also includes a note explaining part number variations.
- Page 36 (parts_list): This page lists needle plates for gauge sizes, with part numbers and model applicability for models A, AL, A-1, AL-1, B, BL, B-1, and BL-1. It includes a note explaining model codes.
- Page 37 (parts_list): This page lists parts for Presser Foot (E-8) with part numbers and model applicability for sections 3 and 4.
- Page 38 (parts_list): This page contains parts lists for sections 5 and 6, detailing gauge parts and needle clamp components with their corresponding part numbers and model applicability.
- Page 39 (parts_list): This page lists parts for Feed Dog (F-59-2) with part numbers and model applicability for gauge sizes 7, 8, and 9.
- Page 40 (parts_list): This page lists gauge parts for Feed Dog (F-59-1) with part numbers, gauge sizes, and applicable models for sections 10, 11, and 12.
- Page 41 (parts_list): This page lists parts for the Needle Plate (A-61-1) with part numbers and model applicability for SunStar sewing machines.
