SunStar KM-757 / KM-797 — parts catalog
- Page 16 (diagram): This page displays a diagram of the feed mechanism components for an industrial sewing machine, with each part labeled with a reference number and part number.
- Page 17 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, and quantities, with a note section detailing model codes.
- Page 18 (diagram): This page displays a diagram of the feed mechanism and its associated parts, with each part labeled with a reference number and part number.
- Page 19 (parts_list): This page lists parts for SunStar sewing machines, including feed bar components, screws, washers, and reverse lever parts, with their corresponding part numbers, quantities, and notes.

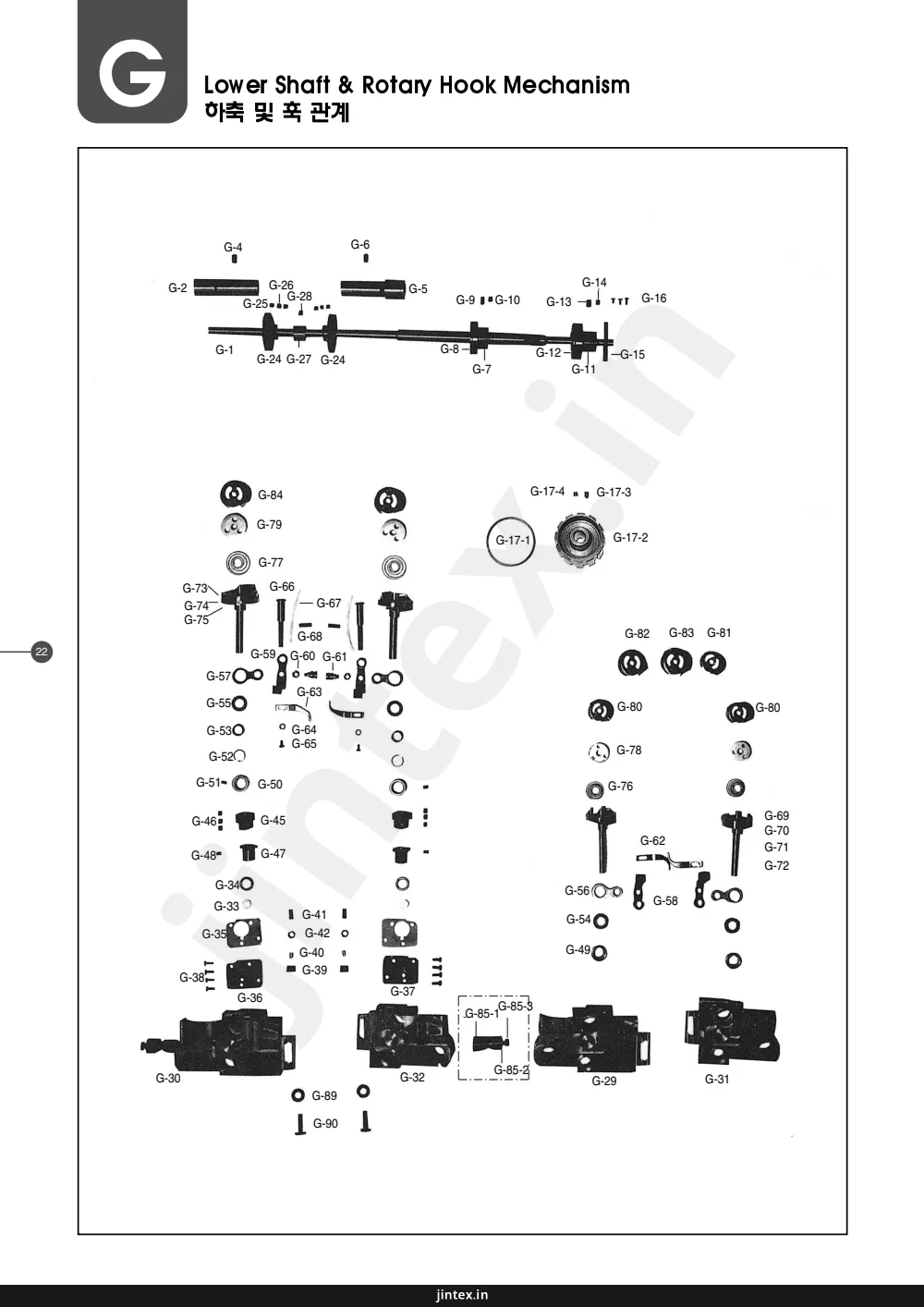

- Page 20 (diagram): This page displays a diagram of the lower shaft and rotary hook mechanism, with various parts labeled with reference numbers and part numbers.
- Page 21 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly information, with a note explaining model variations.
- Page 22 (diagram): This page displays a diagram of the lower shaft and rotary hook mechanism, with various parts labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes.
- Page 24 (diagram): This page displays a diagram of lubrication components for an industrial sewing machine, with various parts labeled with reference numbers and part numbers.
- Page 25 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes.
- Page 26 (diagram): This page displays a diagram of the thread trimmer mechanism with various parts labeled with their corresponding part numbers, such as I-1, I-2, I-3, and so on, up to I-70.
- Page 27 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and notes. It also contains a section for notes and references to other pages.
- Page 28 (parts_list): This page lists parts for the Wiper Mechanism, including part numbers, names, quantities, and assembly notes.
- Page 29 (parts_list): This page lists parts for the SunStar Reverse Button Mechanism, including part numbers, descriptions, quantities, and notes.
- Page 30 (parts_list): This page lists parts for the Synchronizer (Servo Motor Type) with part numbers, descriptions, quantities, and notes.
Page 16 — F Feed Mechanism
SunStar KM-757 / KM-797 parts on page 16| Ref | Part number | Part name | Qty |
|---|
| F-1 | 1 | |
| F-2 | 2 | |
| F-3 | 3 | |
| F-4 | 4 | |
| F-5 | 5 | |
| F-6 | 6 | |
| F-7 | 7 | |
| F-8 | 8 | |
| F-9 | 9 | |
| F-10 | 10 | |
| F-11 | 11 | |
| F-12 | 12 | |
| F-13 | 13 | |
| F-14 | 14 | |
| F-15 | 15 | |
| F-16 | 16 | |
| F-17 | 17 | |
| F-18 | 18 | |
| F-19 | 19 | |
| F-20 | 20 | |
| F-21 | 21 | |
| F-22 | 22 | |
| F-23 | 23 | |
| F-24 | 24 | |
| F-25 | 25 | |
| F-26 | 26 | |
| F-27 | 27 | |
| F-28 | 28 | |
| F-29 | 29 | |
| F-30 | 30 | |
| F-31 | 31 | |
| F-32 | 32 | |
| F-33 | 33 | |
| F-34 | 34 | |
| F-35 | 35 | |
| F-36 | 36 | |
| F-37 | 37 | |
| F-38 | 38 | |
| F-39 | 39 | |
| F-40 | 40 | |
| F-41 | 41 | |
| F-42 | 42 | |
| F-43 | 43 | |
| F-44 | 44 | |
| F-45 | 45 | |
| F-46 | 46 | |
| F-47 | 47 | |
| F-48 | 48 | |
| F-49 | 49 | |
| F-50 | 50 | |
| F-51 | 51 | |
| F-52 | 52 | |
| F-53 | 53 | |
| F-54 | 54 | |
| F-55 | 55 | |
| F-56 | 56 | |
| F-57 | 57 | |
| F-58 | 58 | |
| F-59 | 59 | |
| F-60 | 60 | |
| F-61 | 61 | |
| F-62 | 62 | |
| F-63 | 63 | |
| F-64 | 64 | |
| F-66 | 66 | |
| F-67 | 67 | |
| F-68 | 68 | |
| F-69 | 69 | |
| F-70 | 70 | |
| F-71 | 71 | |
| F-72 | 72 | |
| F-73 | 73 | |
| F-74 | 74 | |
| F-75 | 75 | |
| F-76 | 76 | |
| F-77 | 77 | |
| F-78 | 78 | |
| F-79 | 79 | |
| F-80 | 80 | |
| F-81 | 81 | |
| F-82 | 82 | |
| F-83 | 83 | |
| F-84 | 84 | |
| F-85 | 85 | |
| F-86 | 86 | |
| F-87 | 87 | |
| F-88 | 88 | |
| F-89 | 89 | |
| F-90 | 90 | |
| F-90-1 | 90-1 | |
| F-91 | 91 | |
| F-92 | 92 | |
| F-93 | 93 | |
| F-94 | 94 | |
| F-95 | 95 | |
| F-96 | 96 | |
| F-97 | 97 | |
| F-98 | 98 | |
| F-99 | 99 | |
| F-101 | 101 | |
| F-102 | 102 | |
F
Feed Mechanism
피이드 관계
F-8
F-9
F-75
F-2 F-4 F-5
F-12
F-14
F-3
F-6
F-7
F-10
F-13
F-1
F-64
F-59
F-60
F-62
F-61
F-56
F-53
F-51
F-52
F-49
F-50
F-47
F-46
F-48
F-45
F-44
F-39 F-38
F-37
F-41 C
F-40
F-20
F-21
F-17
F-22
F-23
F-24
F-19
F-36
F-32
F-33
F-34 F-35
F-31
F-28
F-26
F-25
F-27
F-29
F-30
F-80
F-82
F-71
F-72 O
F-74 F-75
F-73
F-81
F-77 F-76
F-66
F-68
F-83
F-70
F-69
F-85
F-86
F-84
F-87
F-67
F-15
F-16
F-11
F-101
F-99
F-97
F-78 F-79
F-63
F-55
F-54
F-58
F-57
F-102
F-90
F-91
F-92
F-93
F-90-1
F-95
F-94
F-96
F-98
16
jintex.in
Page 17
SunStar KM-757 / KM-797 parts on page 17| Ref | Part number | Part name | Qty |
|---|
| 06-001A-7500 | Length Control Dial Plate | |
| 06-013M-740L | Length Control Dial Plate | |
| SC-0193-1230 | Screw(3/64" n = 28) | |
| 06-012P-7400 | Pin For F-1 | |
| 06-027G-7400 | Spring For F-1 | |
| 06-010R-1230 | O-Ring For F-7 | |
| GP-013504-00 | Feed Regulator Dial Shaft | |
| 06-108A-5770 | Reverse Feed Control Shaft | |
| 06-108A-5700 | Reverse Feed Control Shaft | |
| 06-051R-1600 | O-Ring For F-8, 9 | |
| 06-109A-7500 | Feed Regulator | |
| 06-110A-750L | Feed Regulator | |
| SC-A117-4417 | Screw(1/64" n = 40) | |
| 06-112A-7500 | Feed Regulator Eccentric Wheel Shaft | |
| SC-0173-1230 | Screw(3/64" n = 32) | |
| 06-114A-7500 | Feed Regulator Connecting Rod | |
| 06-015A-7500 | Stud Screw For F-15 | |
| 06-116A-7500 | Feed Regulator Shaft | |
| 06-116A-750L | Feed Regulator Shaft | |
| 07-252A-5607 | Stopper Collar For F-17, F-18 | |
| SC-0317-2700 | Screw(15/64" n = 28) | |
| 06-033M-7400 | Felt For F-17, F-18 | |
| 44-0000-1230 | Oil Wick | |
| 44-058C-5607 | Wick Holder For F-17, F-18 | |
| SC-0549-2302 | Screw(1/8" n = 44) | |
| 06-120A-7500 | Feed Cam | |
| 06-120A-750L | Feed Cam | |
| SC-A308-4517 | Screw(1/64" n = 40) | |
| 06-036A-7400 | Needle Bearing For F-25, F-26 | |
| 06-024A-7500 | Bearing Cover For Feed Cam | |
| SC-A301-4119 | Screw(9/64" n = 40) | |
| 06-135A-7400 | Feed Cam Connecting Rod | |
| 06-032P-7400 | Slide Block Shaft | |
| 15-220A-7900 | Slide Block | |
| 06-029A-7500 | Slide Block Guide Plate | |
| SC-0543-2302 | Screw(11/64" n = 40) | |
| 06-137A-7400 | Level Feed Connecting Link | |
| 06-141A-7400 | Level Feed Crank | |
| 06-141A-750L | Level Feed Crank | |
| SC-0523-7400 | Screw(1/64" n = 28) | |
| 06-040P-7400 | Stud For F-37, F-38 | |
| 06-020C-7400 | E-Ring(Ø 6) | |
| 06-139A-7400 | Feed Rock Shaft Bushing(R) | |
| SC-0507-1230 | Screw(15/64" n = 28) | |
| 06-142A-7400 | Collar For F-48 | |
| SC-0507-1230 | Felt For F-17, F-18 | |
| 06-141A-7500 | Feed Rock Shaft Front Bushing | |
| SC-0507-1230 | Screw(15/64" n = 28) | |
| 06-143A-5700 | Feed Rock Shaft | |
| 06-144A-7500 | Feed Bar Crank | |
| SC-0184-1600 | Screw(3/64" n = 28) | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
F-1
06-001A-7500
A, A-1, B, B-1
Length Control Dial Plate
다이알 문자판(5)
1
F-2
06-013M-740L
AL A-1, BL-1
Length Control Dial Plate
다이알 문자판(7)
1
F-3
SC-0193-1230
Screw(3/64" n = 28)
다이알 문자판 죠나사
1
F-4
06-012P-7400
Pin For F-1
다이알 문자판 핀
1
F-5
06-027G-7400
Spring For F-1
다이알 문자판 핀 스프링
1
F-6
06-010R-1230
O-Ring For F-7
다이알 축 오링
1
F-7
GP-013504-00
Feed Regulator Dial Shaft
다이얼 조절기 축
1
F-8
06-108A-5770
A, AL, B, BL
Reverse Feed Control Shaft
역진 레버 축(사절)
1
F-9
06-108A-5700
A-1, AL-1, B-1, BL-1
Reverse Feed Control Shaft
역진 레버 축(비사절)
1
F-9-1
06-051R-1600
O-Ring For F-8, 9
O링
1
F-10
06-109A-7500
A, A-1, B, B-1
Feed Regulator
피이드 조절기(S)
1
F-11
06-110A-750L
AL A-1, BL-1
Feed Regulator
피이드 조절기(BL)
1
F-12
SC-A117-4417
Screw(1/64" n = 40)
피이드 조절기 고정나사
1
F-13
06-112A-7500
Feed Regulator Eccentric Wheel Shaft
피이드 조절기 편심축
1
F-14
SC-0173-1230
Screw(3/64" n = 32)
피이드 조절기 편심축 고정나사
1
F-15
06-114A-7500
Feed Regulator Connecting Rod
절환기 연결로드(2본침)
1
F-16
06-015A-7500
Stud Screw For F-15
절환기 연결로드 단나사
1
F-17
06-116A-7500
A, A-1, B, B-1
Feed Regulator Shaft
절환기(S)
1
F-18
06-116A-750L
AL A-1, BL-1
Feed Regulator Shaft
절환기(BL)
1
F-19
07-252A-5607
Stopper Collar For F-17, F-18
절환기 스토퍼 카라
1
F-20
SC-0317-2700
Screw(15/64" n = 28)
절환기 스토퍼 카라 고정나사
2
F-21
06-033M-7400
Felt For F-17, F-18
절환기 펠트
4
F-22
44-0000-1230
Oil Wick
절환기 유심잡이
1
F-23
44-058C-5607
Wick Holder For F-17, F-18
절환기 유심잡이 죠나사
2
F-24
SC-0549-2302
Screw(1/8" n = 44)
절환기 유심잡이 죠나사
2
F-25
06-120A-7500
A, A-1, B, B-1
Feed Cam
피이드 캠(S)
1
F-26
06-120A-750L
AL A-1, BL-1
Feed Cam
피이드 캠(BL)
1
F-27
SC-A308-4517
Screw(1/64" n = 40)
피이드 캠 고정나사
2
F-28
06-036A-7400
Needle Bearing For F-25, F-26
니이들 베어링
1
F-29
06-024A-7500
Bearing Cover For Feed Cam
피이드 캠 베어링 커버
1
F-30
SC-A301-4119
Screw(9/64" n = 40)
피이드 캠 베어링 커버 죠나사
2
F-31
06-135A-7400
Feed Cam Connecting Rod
베어링 로드
1
F-32
06-032P-7400
Slide Block Shaft
베어링 로드 연결핀
1
F-33
15-220A-7900
Slide Block
슬라이드 블록(절환기)
2
F-34
06-029A-7500
Slide Block Guide Plate
슬라이드 블록 안내판
2
F-35
SC-0543-2302
Screw(11/64" n = 40)
슬라이드 블록 안내판 죠나사
4
F-36
06-137A-7400
Level Feed Connecting Link
수평 피이드 연결링크(K807)
1
F-37
06-141A-7400
A, A-1, B, B-1
Level Feed Crank
수평 밀대 크랭크
1
F-38
06-141A-750L
AL A-1, BL-1
Level Feed Crank
수평 밀대 크랭크
1
F-39
SC-0523-7400
Screw(1/64" n = 28)
수평 밀대 크랭크 죠나사
1
F-40
06-040P-7400
Stud For F-37, F-38
연결핀
1
F-41
06-020C-7400
E-Ring(Ø 6)
E링(Ø 6)
2
F-42
06-139A-7400
Feed Rock Shaft Bushing(R)
수평 밀대 후부싱
1
F-43
SC-0507-1230
Screw(15/64" n = 28)
수평 밀대 후부싱 고정나사
1
F-44
06-142A-7400
Collar For F-48
수평 밀대 카라
2
F-45
SC-0507-1230
Felt For F-17, F-18
수평 밀대 카라 고정나사
4
F-46
06-141A-7500
Feed Rock Shaft Front Bushing
수평 밀대 전붓싱
1
F-47
SC-0507-1230
Screw(15/64" n = 28)
수평 밀대 전붓싱 고정나사
1
F-48
06-143A-5700
Feed Rock Shaft
수평 밀대
1
F-49
06-144A-7500
Feed Bar Crank
톱니받침 크랭크
1
F-50
SC-0184-1600
Screw(3/64" n = 28)
톱니받침 크랭크 죠나사
2
NOTE:
① A=KM-757-7
AL=KM-757BL-7
A-1=KM-757
AL-1=KM-757BL
B=KM-797-7
BL=KM-797BL-7
B-1=KM-797
BL-1=KM-797BL
17
jintex.in
Page 18 — F Feed Mechanism
SunStar KM-757 / KM-797 parts on page 18| Ref | Part number | Part name | Qty |
|---|
| F-1 | Dial | |
| F-2 | Dial | |
| F-3 | Pin | |
| F-4 | Washer | |
| F-5 | Screw | |
| F-6 | Washer | |
| F-7 | Screw | |
| F-8 | Shaft | |
| F-9 | Shaft | |
| F-10 | Lever | |
| F-11 | Lever | |
| F-12 | Screw | |
| F-13 | Screw | |
| F-14 | Screw | |
| F-15 | Link | |
| F-16 | Screw | |
| F-17 | Feed Dog | |
| F-18 | Feed Dog | |
| F-19 | Ring | |
| F-20 | Screw | |
| F-21 | Washer | |
| F-22 | Bracket | |
| F-23 | Screw | |
| F-24 | Screw | |
| F-25 | Ring | |
| F-26 | Ring | |
| F-27 | Screw | |
| F-28 | Ring | |
| F-29 | Plate | |
| F-30 | Screw | |
| F-31 | Arm | |
| F-32 | Bracket | |
| F-33 | Bracket | |
| F-34 | Screw | |
| F-35 | Screw | |
| F-36 | Lever | |
| F-37 | Bracket | |
| F-38 | Bracket | |
| F-39 | Screw | |
| F-40 | Pin | |
| F-41 | Clip | |
| F-42 | Shaft | |
| F-43 | Screw | |
| F-44 | Screw | |
| F-45 | Screw | |
| F-46 | Shaft | |
| F-47 | Screw | |
| F-48 | Shaft | |
| F-49 | Bracket | |
| F-50 | Screw | |
| F-51 | Shaft | |
| F-52 | Bracket | |
| F-53 | Washer | |
| F-54 | Lever | |
| F-55 | Lever | |
| F-56 | Bracket | |
| F-57 | Screw | |
| F-58 | Washer | |
| F-59 | Bracket | |
| F-60 | Screw | |
| F-61 | Screw | |
| F-62 | Screw | |
| F-63 | Bracket | |
| F-64 | Screw | |
| F-66 | Base | |
| F-67 | Base | |
| F-68 | Screw | |
| F-69 | Screw | |
| F-70 | Ring | |
| F-71 | Shaft | |
| F-72 | Ring | |
| F-73 | Shaft | |
| F-74 | Screw | |
| F-75 | Screw | |
| F-76 | Screw | |
| F-77 | Washer | |
| F-78 | Clip | |
| F-79 | Screw | |
| F-80 | Lever | |
| F-81 | Screw | |
| F-82 | Screw | |
| F-83 | Lever | |
| F-84 | Bracket | |
| F-85 | Spring | |
| F-86 | Lever | |
| F-87 | Screw | |
| F-88 | Shaft | |
| F-89 | Screw | |
| F-90 | Screw | |
| F-90-1 | Screw | |
| F-91 | Link | |
| F-92 | Lever | |
| F-93 | Screw | |
| F-94 | Bracket | |
| F-95 | Screw | |
| F-96 | Screw | |
| F-97 | Bobbin Winder Assembly | |
| F-98 | Screw | |
| F-99 | Cover | |
| F-101 | Screw | |
| F-102 | Shaft | |
F
Feed Mechanism
피이드 관계
F-9-10
F-8
F-9
F-2
F-4 F-5
F-3
F-6
F-7
F-1
F-64
F-59
F-63
F-56
F-60
F-62
F-58
F-61
F-57
F-53
F-52
F-51
F-50
F-49
F-46
F-47 F-45
F-44
F-48
F-43
F-42
F-39 F-38
F-37
F-41 C
F-40
F-36
F-17
F-20
F-21
F-19
F-23
F-24
F-33
F-32
F-34 F-35
F-31
F-28
F-26
F-25
F-27
F-29
F-18
F-80
F-82
F-12
F-14
F-13
F-15
F-16
F-85
F-81
F-88
F-89
F-86
F-87
F-84
F-77
F-76
F-66
F-68
F-70
F-69
F-67
F-71
F-72
F-73
F-74 F-75
F-78 F-79
F-99
F-97
F-101
F-102
F-90
F-91
F-95
F-92
F-93
F-96
F-94
F-98
jintex.in
Page 19
SunStar KM-757 / KM-797 parts on page 19| Ref | Part number | Part name | Qty |
|---|
| 06-146A-5700 | Feed Bar Shaft | |
| 06-020S-1230 | Screw(3/64" n = 32) | |
| 06-046W-7400 | Washer For F-51 | |
| 06-149A-7507 | Feed Bar | |
| 06-150A-7500 | Feed Bar | |
| 06-152A-7400 | Feed Bar Fork | |
| SC-0106-7400 | Screw(15/64" n = 28) | |
| 06-051W-7400 | Washer For Feed Bar Fork | |
| 06-054A-7400 | Feed Dog 1/4 | |
| 06-577A-7507 | Feed Dog 1/4"(Trimming) | |
| SC-A306-4113 | Screw(1/8" n = 44) | |
| SC-0212-7400 | Screw(1/8" n = 44) | |
| SN-0113-7400 | Nut(1/8" n = 44) | |
| 06-053M-7400 | Felt For F-56 | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 02-019W-1230 | Washer For Upper Shaft Felt | |
| A, AL, B, BL | Reverse Lever | |
| A-1, AL-1, B-1, BL-1 | Reverse Lever | |
| SC-0186-1230 | Screw(3/64" n = 32) | |
| SC-0185-1230 | Screw(3/64" n = 32) | |
| 06-053W-1230 | Washer For F-67 | |
| 06-066G-7507 | Reverse Lever Spring(A) | |
| 06-043W-5607 | Washer For F-73 | |
| 06-044A-5607 | Auto Reverse Lever | |
| SC-A117-4417 | Screw(1/64" n = 40) | |
| SC-A308-4517 | Screw(1/64" n = 40) | |
| 06-071S-7507 | Stud Screw For F-67 | |
| 06-072R-7507 | Upper Stopper Rubber For Reverse Lever | |
| 06-072R-7507 | Reverse Lever Stopper(Lower) | |
| SC-0543-2302 | Screw(11/64" n = 40) | |
| 06-075A-7507 | Reverse Crank Assembly | |
| SC-0296-3900 | Screw(3/64" n = 32) | |
| SC-0122-1230 | Screw(15/64" n = 28) | |
| 06-005A-7500 | Link For Reverse Lever Spring Assembly | |
| 06-018P-7400 | Pin | |
| SC-0122-1230 | Screw(15/64" n = 28) | |
| 06-024G-1230 | Reverse Lever Return Spring | |
| 06-139C-1930 | Spring Hook For Reverse Lever | |
| SC-0173-1230 | Screw(3/64" n = 32) | |
| 06-040S-1600 | Stud Screw For F-86 | |
| SN-0101-1600 | Nut(3/64" n = 32) | |
| 06-019A-5607 | Stud Screw For F-80 | |
| SN-0101-1600 | Nut(11/64" n = 40) | |
| 06-086A-7507 | Reverse Link | |
| 06-118A-5607 | Reverse Solenoid Crank | |
| 06-022A-5607 | Stud Screw For F-92 | |
| A, AL, B, BL | Reverse Solenoid Bracket | |
| 06-024A-5607 | Stud For F-92 | |
| SC-0253-7400 | Screw(1/64" n = 28) | |
| 06-026A-5607 | Reverse Solenoid Assembly | |
| SC-0173-1230 | Screw(3/64" n = 32) | |
| 06-029A-5607 | Reverse Solenoid Cover | |
| SC-0173-1230 | Screw(3/64" n = 32) | |
| 44-0000-1230 | Oil Wick | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q'ty
Assembly
No.
F-51
06-146A-5700
Feed Bar Shaft
톱니받침 크랭크 축
1
F-52
06-020S-1230
Screw(3/64" n = 32)
톱니받침 크랭크 축 고정나사
1
F-53
06-046W-7400
Washer For F-51
톱니받침 축 와셔
2
F-54
06-149A-7507
A, AL, B, BL
Feed Bar
톱니받침(사절)
1
F-55
06-150A-7500
A-1, AL-1, B-1, BL-1
Feed Bar
톱니받침(비사절)
1
F-56
06-152A-7400
Feed Bar Fork
톱니받침 포오크(KSM004)
1
F-57
SC-0106-7400
Screw(15/64" n = 28)
톱니받침 포오크 잼나사
1
F-58
06-051W-7400
Washer For Feed Bar Fork
포오크 와셔
1
F-59-1
06-054A-7400
Feed Dog 1/4
톱니 1/4 (Φ2)
1
F-59-2
06-577A-7507
A, AL, B, BL
Feed Dog 1/4"(Trimming)
톱니 1/4(사절)
1
F-60
SC-A306-4113
Screw(1/8" n = 44)
톱니 고정나사
2
F-61
SC-0212-7400
Screw(1/8" n = 44)
톱니 높이 조절나사
1
F-62
SN-0113-7400
Nut(1/8" n = 44)
톱니 높이 조절나사 너트
1
F-63
06-053M-7400
Felt For F-56
포크 벨트
1
F-64
SC-0531-2302
Screw(9/64" n = 40)
톱니받침 포오크 벨트 잼나사
1
F-65
02-019W-1230
Washer For Upper Shaft Felt
상축 벨트 와셔
1
F-66
Δ
A, AL, B, BL
Reverse Lever
역진 레버(사절)
1
F-67
A-1, AL-1, B-1, BL-1
Reverse Lever
역진 레버(비사절)
1
F-68
SC-0186-1230
A-1, AL-1, B-1, BL-1
Screw(3/64" n = 32)
역진 레버 잼나사
1
F-69
SC-0185-1230
A-1, AL-1, B-1, BL-1
Screw(3/64" n = 32)
역진 레버 축 단나사
1
F-70
06-053W-1230
A-1, AL-1, B-1, BL-1
Washer For F-67
레버 와셔
1
F-71
06-066G-7507
A, AL, B, BL
Reverse Lever Spring(A)
역진 레버 스프링(A)
1
F-72
06-043W-5607
A, AL, B, BL
Washer For F-73
역진 레버 와셔
2
F-73
06-044A-5607
A, AL, B, BL
Auto Reverse Lever
역진 레버 B(K2888)
1
F-74
SC-A117-4417
A, AL, B, BL
Screw(1/64" n = 40)
자동 역진 레버 고정나사(A)
1
F-75
SC-A308-4517
A, AL, B, BL
Screw(1/64" n = 40)
자동 역진 레버 고정나사(B)
1
F-76
06-071S-7507
A, AL, B, BL
Stud Screw For F-67
역진 레버 스토퍼(上) 단나사
1
F-77
06-072R-7507
A, AL, B, BL
Upper Stopper Rubber For Reverse Lever
역진 레버 스토퍼(上) 고무
1
F-78
06-072R-7507
A, AL, B, BL
Reverse Lever Stopper(Lower)
역진 레버 스토퍼(下)
1
F-79
SC-0543-2302
Screw(11/64" n = 40)
역진 레버 스토퍼 잼나사
1
F-80
06-075A-7507
A, AL, B, BL
Reverse Crank Assembly
역진 크랭크
1
F-81
SC-0296-3900
A, AL, B, BL
Screw(3/64" n = 32)
역진 크랭크 잼나사
1
F-82
SC-0122-1230
A, AL, B, BL
Screw(15/64" n = 28)
역진 크랭크 고정나사
1
F-83
06-005A-7500
A-1, AL-1, B-1, BL-1
Link For Reverse Lever Spring Assembly
역진 레버 스프링 링크
1
F-83-1
06-018P-7400
Pin
레버축 스프링 걸이 핀
1
F-84
SC-0122-1230
A-1, AL-1, B-1, BL-1
Screw(15/64" n = 28)
홈볼이 납작 작은나사(15/64" n=28)
1
F-85
06-024G-1230
Reverse Lever Return Spring
레버 스프링
1
F-86
06-139C-1930
Spring Hook For Reverse Lever
역진 레버 스프링 걸이
1
F-87
SC-0173-1230
Screw(3/64" n = 32)
역진레버 스프링 걸이 잼나사
1
F-88
06-040S-1600
Stud Screw For F-86
스프링 걸이 축 나사
1
F-89
SN-0101-1600
Nut(3/64" n = 32)
스프링 걸이 축 나사 너트
2
F-90
06-019A-5607
A, AL, B, BL
Stud Screw For F-80
역진 크랭크 단나사
1
F-90-1
SN-0101-1600
A, AL, B, BL
Nut(11/64" n = 40)
육각 너트
1
F-91
06-086A-7507
A, AL, B, BL
Reverse Link
역진 솔레노이드 연결링크
1
F-92
06-118A-5607
A, AL, B, BL
Reverse Solenoid Crank
백택 솔레노이드 크랭크
1
F-93
06-022A-5607
A, AL, B, BL
Stud Screw For F-92
백택 솔레노이드 연결 링크 축(X)
1
F-94
Δ
A, AL, B, BL
Reverse Solenoid Bracket
백택 솔레노이드 브라켓
1
F-95
06-024A-5607
A, AL, B, BL
Stud For F-92
백택 솔레노이드 크랭크 축
1
F-96
SC-0253-7400
A, AL, B, BL
Screw(1/64" n = 28)
백택 솔레노이드 브라켓 잼나사
3
F-97
06-026A-5607
A, AL, B, BL
Reverse Solenoid Assembly
백택 솔레노이드(組)
1
F-98
SC-0173-1230
A, AL, B, BL
Screw(3/64" n = 32)
백택 솔레노이드 부착 잼나사
3
F-99
06-029A-5607
A, AL, B, BL
Reverse Solenoid Cover
백택 솔레노이드 커버(X)
1
F-101
SC-0173-1230
A, AL, B, BL
Screw(3/64" n = 32)
백택 솔레노이드 커버 잼나사
1
F-102
44-0000-1230
Oil Wick
수평 밀대 유심
1
NOTE:
① A=KM-757-7
AL=KM-757BL-7
A-1=KM-757
AL-1=KM-757BL
B=KM-797-7
BL=KM-797BL-7
B-1=KM-797
BL-1=KM-797BL
jintex.in
19
Page 20 — Lower Shaft & Rotary Hook Mechanism
SunStar KM-757 / KM-797 parts on page 20| Ref | Part number | Part name | Qty |
|---|
| G-4 | G-4 | |
| G-6 | G-6 | |
| G-2 | G-2 | |
| G-26 | G-26 | |
| G-5 | G-5 | |
| G-9 | G-9 | |
| G-10 | G-10 | |
| G-14 | G-14 | |
| G-25 | G-25 | |
| G-28 | G-28 | |
| G-13 | G-13 | |
| G-16 | G-16 | |
| G-1 | G-1 | |
| G-24 | G-24 | |
| G-27 | G-27 | |
| G-8 | G-8 | |
| G-12 | G-12 | |
| G-7 | G-7 | |
| G-11 | G-11 | |
| G-15 | G-15 | |
| G-84 | G-84 | |
| G-17-4 | G-17-4 | |
| G-17-3 | G-17-3 | |
| G-79 | G-79 | |
| G-17-1 | G-17-1 | |
| G-17-2 | G-17-2 | |
| G-77 | G-77 | |
| G-73 | G-73 | |
| G-66 | G-66 | |
| G-74 | G-74 | |
| G-67 | G-67 | |
| G-75 | G-75 | |
| G-68 | G-68 | |
| G-59 | G-59 | |
| G-60 | G-60 | |
| G-61 | G-61 | |
| G-57 | G-57 | |
| G-63 | G-63 | |
| G-55 | G-55 | |
| G-64 | G-64 | |
| G-53 | G-53 | |
| G-84 | G-84 | |
| G-65 | G-65 | |
| G-52 | G-52 | |
| G-51 | G-51 | |
| G-50 | G-50 | |
| G-46 | G-46 | |
| G-45 | G-45 | |
| G-48 | G-48 | |
| G-47 | G-47 | |
| G-33 | G-33 | |
| G-41 | G-41 | |
| G-35 | G-35 | |
| G-42 | G-42 | |
| G-40 | G-40 | |
| G-39 | G-39 | |
| G-36 | G-36 | |
| G-37 | G-37 | |
| G-85-1 | G-85-1 | |
| G-85-3 | G-85-3 | |
| G-30 | G-30 | |
| G-85-2 | G-85-2 | |
| G-32 | G-32 | |
| G-29 | G-29 | |
| G-31 | G-31 | |
| G-89 | G-89 | |
| G-90 | G-90 | |
G
Lower Shaft & Rotary Hook Mechanism
하축 및 훅 관계
G-4
G-6
G-2
G-26
G-5
G-9 G-10
G-14
G-25
G-28
G-13
G-16
G-1
G-24 G-27 G-28
G-8
G-12
G-7
G-11
G-15
G-84
G-17-4 G-17-3
G-79
G-17-1
G-17-2
G-77
G-73
G-66
G-74
G-67
G-75
G-68
G-59
G-60 G-61
G-57
G-63
G-55
G-64
G-53
G-84
G-65
G-52
G-51
G-50
G-46
G-45
G-48
G-47
G-33
G-41
G-35
G-42
G-40
G-39
G-36
G-37
G-85-1 G-85-3
G-30
G-85-2
G-32
G-29
G-31
G-89
G-90
jintex.in
Page 21
SunStar KM-757 / KM-797 parts on page 21| Ref | Part number | Part name | Qty |
|---|
| G-1 | 07-101A-5700 | Lower Shaft | |
| G-2# | 07-102A-5700 | Lower Shaft Front Bushing | |
| G-4 | SC-0507-1230 | Screw(1/64" n = 28) | |
| G-5# | 07-106A-5700 | Lower Shaft Middle Bushing | |
| G-6 | SC-0507-1230 | Screw(15/64" n = 28) | |
| G-7 | 07-106A-7500 | Bearing Bushing | |
| G-8 | 07-007A-5607 | Bearing(6004NR) | |
| G-9 | SC-A117-4417 | Screw(1/64" n = 40) | |
| G-10 | SC-A308-4517 | Screw(1/64" n = 40) | |
| G-11 | 07-108A-5607 | Bearing Bushing | |
| G-12 | 07-011A-5607 | Bearing(6004NR) | |
| G-13 | SC-A117-4417 | Screw(1/64" n = 40) | |
| G-14 | SC-A308-4517 | Screw(1/64" n = 40) | |
| G-15 | 07-112A-5607 | Bearing Presser | |
| G-16 | SC-0155-7400 | Screw(9/64" n = 40) | |
| G-17-1 | 02-015C-7400 | Safety Clutch Belt Pulley Ring | |
| G-17-2 | ΔΤΗΛΛΧΣΠΠΔΔΧΧ | Timming Belt Pulley(Lower) | |
| G-17-3 | SC-A117-4417 | Screw(1/64" n = 40) | |
| G-17-4 | SC-A308-4517 | Screw(1/64" n = 40) | |
| G-24 | ΔΤΗΛΛΧΣΠΠΔΔΧΧ | Lower Shaft Spiral Gear | |
| G-25 | SC-A308-4517 | Screw(1/64" n = 40) | |
| G-26 | SC-A117-4417 | Screw(1/64" n = 40) | |
| G-27 | 06-054A-5700 | Vertical Feed Eccentric Cam | |
| G-28 | SC-A550-4515 | Screw(1/64" n = 40) | |
| G-29 | 07-036A-7500 | Rotary Hook Base(Left) | |
| G-30 | 07-036A-750L | Rotary Hook Base(Left) | |
| G-31 | 07-038A-7500 | Rotary Hook Base(Right) | |
| G-32 | 07-038A-750L | Rotary Hook Base(Right) | |
| G-33 | 44-039M-7500 | Hook Oil Felt | |
| G-34 | 44-040W-7500 | Felt Washer For Hook Base | |
| G-35 | 44-098M-7500 | Hook Base Cover Gasket | |
| G-36 | 44-100A-7500 | Hook Base Cover(L) | |
| G-37 | 44-099A-7500 | Hook Base Cover(R) | |
| G-38 | SC-0158-3710 | Screw(9/64" n = 40) | |
| G-39 | 44-094R-7500 | Oil Adjusting Tube | |
| G-40 | 44-095P-7500 | Oil Adjusting Pin | |
| G-41 | SC-0354-7500 | Screw(M6×1.0) | |
| G-42 | 44-097C-7500 | Nut For Oil Adjusting | |
| G-45 | ΔΤΗΛΛΧΣΠΠΔΔΧΧ | Hook Gear | |
| G-46 | SC-A550-4515 | Screw(1/64" n = 40) | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
G-1
07-101A-5700
Lower Shaft
하축
1
G-2#
07-102A-5700
Lower Shaft Front Bushing
하축 전봇싱 (표준)
1
G-4
SC-0507-1230
Screw(1/64" n = 28)
하축 전봇싱 고정나사
1
G-5#
07-106A-5700
Lower Shaft Middle Bushing
하축 중봇싱 (표준)
1
G-6
SC-0507-1230
Screw(15/64" n = 28)
하축 중봇싱 고정나사
1
G-7
07-106A-7500
Bearing Bushing
하축 중 베어링 붓싱
1
G-8
07-007A-5607
Bearing(6004NR)
하축 중 베어링 (6004NR)
1
G-9
SC-A117-4417
Screw(1/64" n = 40)
하축 중 베어링 붓싱 고정나사(A)
1
G-10
SC-A308-4517
Screw(1/64" n = 40)
하축 중 베어링 붓싱 고정나사(B)
1
G-11
07-108A-5607
Bearing Bushing
하축 후 베어링 붓싱
1
G-12
07-011A-5607
Bearing(6004NR)
하축 후 베어링 (6004NR)
1
G-13
SC-A117-4417
Screw(1/64" n = 40)
하축 후 베어링 붓싱 고정나사(A)
1
G-14
SC-A308-4517
Screw(1/64" n = 40)
하축 후 베어링 붓싱 고정나사(B)
1
G-15
07-112A-5607
Bearing Presser
하축 후 베어링 누름판
1
G-16
SC-0155-7400
Screw(9/64" n = 40)
하축 후 베어링 누름판 점나사
3
G-17-1
02-015C-7400
Safety Clutch Belt Pulley Ring
후렌치
1
G-17-2
ΔΤΗΛΛΧΣΠΠΔΔΧΧ
Timming Belt Pulley(Lower)
타이밍 벨트 풀리(下)
1
G-17-3
SC-A117-4417
Screw(1/64" n = 40)
타이밍 벨트 풀리(下) 고정나사(A)
1
G-17-4
SC-A308-4517
Screw(1/64" n = 40)
타이밍 벨트 풀리(下) 고정나사(B)
1
G-24
ΔΤΗΛΛΧΣΠΠΔΔΧΧ
Lower Shaft Spiral Gear
기어(大)
2
G-25
SC-A308-4517
Screw(1/64" n = 40)
하축 기어 점나사(A)
4
G-26
SC-A117-4417
Screw(1/64" n = 40)
하축 기어 점나사(B)
2
G-27
06-054A-5700
Vertical Feed Eccentric Cam
편심 캠
1
G-28
SC-A550-4515
Screw(1/64" n = 40)
편심 캠 고정나사
1
G-29
07-036A-7500
A, A-1, B, B-1
Rotary Hook Base(Left)
훅 받침(左)
1
G-30
07-036A-750L
AL, A-1, BL, B-1
Rotary Hook Base(Left)
훅 받침(左)
1
G-31
07-038A-7500
A, A-1, B, B-1
Rotary Hook Base(Right)
훅 받침(右)
1
G-32
07-038A-750L
AL, A-1, BL, B-1
Rotary Hook Base(Right)
훅 받침(右)
1
G-33
44-039M-7500
Hook Oil Felt
훅 급유 펠트
2
G-34
44-040W-7500
Felt Washer For Hook Base
훅 급유 펠트 와셔
2
G-35
44-098M-7500
Hook Base Cover Gasket
훅 받침 커버 가스켓
2
G-36
44-100A-7500
Hook Base Cover(L)
훅 받침 커버(左)
1
G-37
44-099A-7500
Hook Base Cover(R)
훅 받침 커버(右)
1
G-38
SC-0158-3710
Screw(9/64" n = 40)
훅 받침 커버 점나사
8
G-39
44-094R-7500
Oil Adjusting Tube
유량 조절 고무
2
G-40
44-095P-7500
Oil Adjusting Pin
유량 조절 핀
2
G-41
SC-0354-7500
Screw(M6×1.0)
유량 조절 나사
2
G-42
44-097C-7500
Nut For Oil Adjusting
유량 조절 너트
2
G-45
ΔΤΗΛΛΧΣΠΠΔΔΧΧ
Hook Gear
기어(小)
2
G-46
SC-A550-4515
Screw(1/64" n = 40)
훅 기어 점나사
6
NOTE:
① A=KM-757-7
AL=KM-757BL-7
A-1=KM-757
AL-1=KM-757BL
B=KM-797-7
BL=KM-797BL-7
B-1=KM-797
BL-1=KM-797BL
jintex.in
21
Page 22 — Lower Shaft & Rotary Hook Mechanism
SunStar KM-757 / KM-797 parts on page 22| Ref | Part number | Part name | Qty |
|---|
| G-1 | Lower Shaft & Rotary Hook Mechanism | |
| G-2 | | |
| G-4 | | |
| G-5 | | |
| G-6 | | |
| G-7 | | |
| G-8 | | |
| G-9 | | |
| G-10 | | |
| G-11 | | |
| G-13 | | |
| G-14 | | |
| G-15 | | |
| G-16 | | |
| G-17-1 | | |
| G-17-2 | | |
| G-17-3 | | |
| G-17-4 | | |
| G-24 | | |
| G-25 | | |
| G-26 | | |
| G-27 | | |
| G-28 | | |
| G-29 | | |
| G-30 | | |
| G-31 | | |
| G-32 | | |
| G-33 | | |
| G-34 | | |
| G-35 | | |
| G-36 | | |
| G-37 | | |
| G-39 | | |
| G-40 | | |
| G-41 | | |
| G-42 | | |
| G-44 | | |
| G-45 | | |
| G-46 | | |
| G-47 | | |
| G-48 | | |
| G-49 | | |
| G-50 | | |
| G-51 | | |
| G-52 | | |
| G-53 | | |
| G-54 | | |
| G-55 | | |
| G-56 | | |
| G-57 | | |
| G-58 | | |
| G-59 | | |
| G-60 | | |
| G-61 | | |
| G-62 | | |
| G-63 | | |
| G-64 | | |
| G-65 | | |
| G-66 | | |
| G-67 | | |
| G-68 | | |
| G-69 | | |
| G-70 | | |
| G-71 | | |
| G-72 | | |
| G-73 | | |
| G-74 | | |
| G-75 | | |
| G-76 | | |
| G-77 | | |
| G-78 | | |
| G-79 | | |
| G-80 | | |
| G-81 | | |
| G-82 | | |
| G-83 | | |
| G-84 | | |
| G-85-1 | | |
| G-85-2 | | |
| G-85-3 | | |
| G-89 | | |
| G-90 | | |
G
Lower Shaft & Rotary Hook Mechanism
하축 및 훅 관계
G-4
G-6
G-2
G-26
G-5
G-25
G-28
G-1
G-24 G-27
G-8
G-9 G-10
G-13
G-14
G-7
G-11
G-15
G-16
G-84
G-79
G-17-4
G-17-3
G-77
G-17-1
G-17-2
G-73
G-67
G-74
G-66
G-75
G-68
G-59
G-61
G-60
G-57
G-63
G-55
G-64
G-53
G-44
G-65
G-52
G-51
G-50
G-46
G-45
G-48
G-47
G-34
G-33
G-41
G-35
G-42
G-40
G-39
G-32
G-37
G-85-1
G-85-3
G-85-2
G-30
G-36
G-89
G-90
G-29
G-31
G-82
G-83
G-81
G-80
G-78
G-76
G-69
G-70
G-71
G-72
G-56
G-58
G-54
G-49
jintex.in
22
Page 23
SunStar KM-757 / KM-797 parts on page 23| Ref | Part number | Part name | Qty |
|---|
| 07-142A-7500 | Rotary Hook Bushing(Lower) | |
| SC-0105-7500 | Screw(3/64" n = 28) | |
| 07-144A-7500 | Rotary Hook Bushing(Upper) | |
| 07-145A-750L | Rotary Hook Bushing(Upper) | |
| SC-0105-7500 | Screw(3/64" n = 28) | |
| 07-047W-7500 | Rotary Hook Bearing Stop Ring | |
| 07-048A-7500 | Rotary Hook Needie Bearing | |
| 07-049W-7500 | Hook Thrust Ring | |
| 07-050W-750L | Hook Thrust Washer | |
| 09-105A-7400 | Opener Link | |
| 09-116A-740L | Opener Link | |
| 09-104A-7400 | Opener Lever | |
| 09-115A-740L | Opener Lever | |
| SN-0115-7400 | Nut(3/64" n = 32) | |
| 09-106A-7400 | Screw For Opener Link Shaft | |
| △ | Opener | |
| △ | Opener | |
| 02-019W-1230 | Washer For G-62, G-63 | |
| SC-0502-2302 | Screw(5/64" n = 40) | |
| 07-172A-7500 | Opener Lever Shaft | |
| 44-0000-1230 | Oil Wick | |
| SC-0353-7400 | Screw(3/64" n = 32) | |
| 07-051A-7507 | Hook | |
| 07-053A-7500 | Hook | |
| 07-056A-7907 | Hook | |
| 07-055A-7900 | Hook | |
| 07-052A-75L7 | Hook | |
| 07-054A-750L | Hook | |
| 07-052A-790L | Hook | |
| △ | Bobbin Tension Spring | |
| 09-043G-740L | Bobbin Tension Spring | |
| 07-160A-7500 | Bobbin | |
| 07-161A-750L | Bobbin | |
| 07-063A-7900 | Bobbin Case | |
| 07-062A-75L7 | Bobbin Case | |
| 07-064A-790L | Bobbin Case | |
| 09-126A-7400 | Pinch Sleeve(Upper) | |
| 09-127A-7400 | Pinch Sleeve(Lower) | |
| SC-0331-7400 | Screw(15/64" n = 28) | |
| 09-034W-7400 | Washer For Hook Base | |
| 04-020S-7400 | Screw For Hook Base | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
G-47
07-142A-7500
Rotary Hook Bushing(Lower)
로터리 훅 붓싱(下)
2
G-48
SC-0105-7500
Screw(3/64" n = 28)
로터리 훅 붓싱(下) 고정나사
2
G-49
07-144A-7500
A, A-1, B, B-1
Rotary Hook Bushing(Upper)
로터리 훅 붓싱(上)
2
G-50
07-145A-750L
AL, BL, BL-1
Rotary Hook Bushing(Upper)
로터리 훅 붓싱(上)
2
G-51
SC-0105-7500
Screw(3/64" n = 28)
로터리 훅 붓싱(上) 고정나사
2
G-52
07-047W-7500
Rotary Hook Bearing Stop Ring
로터리 훅 B/R(중정링)
2
G-53
07-048A-7500
Rotary Hook Needie Bearing
로터리 훅 니들 베어링
2
G-54
07-049W-7500
A, A-1, B, B-1
Hook Thrust Ring
훅 받침 링
2
G-55
07-050W-750L
AL, BL, BL-1
Hook Thrust Washer
훅 받침 와셔
2
G-56
09-105A-7400
A, A-1, B, B-1
Opener Link
오프너 링크
2
G-57
09-116A-740L
AL, AL-1, BL, BL-1
Opener Link
오프너 링크
2
G-58
09-104A-7400
A, A-1, B, B-1
Opener Lever
오프너 레버
2
G-59
09-115A-740L
AL, AL-1, BL, BL-1
Opener Lever
오프너 레버
2
G-60
SN-0115-7400
Nut(3/64" n = 32)
오프너 링크 축나사 너트
2
G-61
09-106A-7400
Screw For Opener Link Shaft
오프너 링크 축나사
2
G-62
△
A, A-1, B, B-1
Opener
보빈 케이스 오프너
2
G-63
AL, AL-1, BL, BL-1
Opener
보빈 케이스 오프너
2
G-64
02-019W-1230
Washer For G-62, G-63
상축 휄트 와셔
2
23
G-65
SC-0502-2302
Screw(5/64" n = 40)
오프너 레버축
2
G-66
07-172A-7500
Opener Lever Shaft
오프너 레버축
2
G-67
44-0000-1230
Oil Wick
오프너 레버축 유심
2
G-68
SC-0353-7400
Screw(3/64" n = 32)
오프너 레버축 죔나사
2
G-69
07-051A-7507
A
Hook
가마 H12-15L(TRI)
2
G-70
07-053A-7500
A-1
Hook
가마 H12-15L
2
G-71
07-056A-7907
B
Hook
가마 H12-15LC TRI/CP
2
G-72
07-055A-7900
B-1
Hook
가마 H12-15LC/CP
2
G-73
07-052A-75L7
AL, BL
Hook
가마 H12MC(1) TR/CP-BR
2
G-74
07-054A-750L
AL-1
Hook
가마 H12M(BR)
2
G-75
07-052A-790L
BL-1
Hook
가마 H12MC(1)/CP
2
G-76
△
A, A-1, B, B-1
Bobbin Tension Spring
보빈 받침 스프링
2
G-77
09-043G-740L
AL, AL-1, BL, BL-1
Bobbin Tension Spring
배터리 방지 스프링
2
G-78
07-160A-7500
A, A-1, B, B-1
Bobbin
실토리(보빈) 표준
2
G-79
07-161A-750L
AL, AL-1, BL, BL-1
Bobbin
실토리(보빈) 2배
2
G-80
07-063A-7900
B, B-1
Bobbin Case
보빈 케이스 캡
2
G-82
07-062A-75L7
AL
Bobbin Case
보빈 케이스 캡
2
G-83
07-064A-790L
BL, BL-1
Bobbin Case
보빈 케이스 캡
2
G-85-1
09-126A-7400
Pinch Sleeve(Upper)
가마토대 슬리브(上)
2
G-85
G-85-2
09-127A-7400
Pinch Sleeve(Lower)
가마토대 슬리브(下)
2
Pinch Sleeve
G-85-3
SC-0331-7400
Screw(15/64" n = 28)
축받침 슬리브 죔나사
2
Ass' y
G-89
09-034W-7400
Washer For Hook Base
훅 받침 와셔
2
G-90
04-020S-7400
Screw For Hook Base
요동 롯드 죔나사
2
NOTE:
① A=KM-757-7
AL=KM-757BL-7
A-1=KM-757
AL-1=KM-757BL
B=KM-797-7
BL=KM-797BL-7
B-1=KM-797
BL-1=KM-797BL
jintex.in
Page 24
SunStar KM-757 / KM-797 parts on page 24| Ref | Part number | Part name | Qty |
|---|
| H-1 | H-1 | |
| H-2 | H-2 | |
| H-3 | H-3 | |
| H-4 | H-4 | |
| H-5 | H-5 | |
| H-6 | H-6 | |
| H-7 | H-7 | |
| H-8 | H-8 | |
| H-9 | H-9 | |
| H-10 | H-10 | |
| H-11 | H-11 | |
| H-12 | H-12 | |
| H-13 | H-13 | |
| H-16 | H-16 | |
| H-17 | H-17 | |
| H-18 | H-18 | |
| H-19 | H-19 | |
| H-20 | H-20 | |
| H-21 | H-21 | |
| H-22 | H-22 | |
| H-24 | H-24 | |
| H-25 | H-25 | |
| H-26 | H-26 | |
| H-27 | H-27 | |
| H-28 | H-28 | |
| H-31 | H-31 | |
| H-32 | H-32 | |
| H-33 | H-33 | |
| H-34 | H-34 | |
| H-35 | H-35 | |
| H-36 | H-36 | |
| H-37 | H-37 | |
| H-38 | H-38 | |
| H-39 | H-39 | |
| H-40 | H-40 | |
| H-41 | H-41 | |
| H-42 | H-42 | |
| H-43 | H-43 | |
| H-44 | H-44 | |
| H-45 | H-45 | |
| H-46 | H-46 | |
| H-47 | H-47 | |
| H-48 | H-48 | |
| H-49 | H-49 | |
| H-50 | H-50 | |
| H-51 | H-51 | |
| H-52 | H-52 | |
| H-53 | H-53 | |
| H-54 | H-54 | |
| H-55 | H-55 | |
| H-56 | H-56 | |
| H-57 | H-57 | |
| H-58 | H-58 | |
| H-59 | H-59 | |
| H-60 | H-60 | |
| H-61 | H-61 | |
| H-62 | H-62 | |
| H-63 | H-63 | |
| H-64 | H-64 | |
| H-65 | H-65 | |
| H-66 | H-66 | |
| H-67 | H-67 | |
| H-68 | H-68 | |
| H-69 | H-69 | |
| H-70 | H-70 | |
| H-71 | H-71 | |
| H-72 | H-72 | |
H Lubrication
급유관계
H-6
H-5
H-4
H-2
H-1
H-9
H-8
H-7
H-21
H-11
H-20
H-12
H-22
H-16
H-18
H-13
H-17
H-19
H-39
H-10
H-32
H-72
H-25
H-24
H-36
H-28
H-27
H-26
H-34
H-35
H-37
H-38
H-69
H-40
H-41
H-31
H-46
H-47
H-61
H-48
H-44
H-45
H-42
H-56
H-59
H-57
H-53 H-54
H-43
H-51
H-52
H-58
H-50
H-62
H-64
H-55
H-42
H-66
H-67
H-63
H-65
H-70
H-71
H-68
24
jintex.in
Page 25
SunStar KM-757 / KM-797 parts on page 25| Ref | Part number | Part name | Qty |
|---|
| 44-033C-5607 | Oil Cover | |
| 44-016M-7400 | Oil Felt For Thread Take-Up | |
| 44-018C-8130 | Oil Tube Choke Plate | |
| SC-0173-1230 | Screw(3/64" n = 32) | |
| 44-033C-7500 | Oil Cover | |
| 44-071M-7500 | Oil Stopper Plate Presser | |
| 44-004A-7500 | Dust Protector | |
| 44-106A-7900 | Dust Protector | |
| SC-0502-2302 | Screw(3/64" n = 40) | |
| 44-116M-7900 | Needle Bar Oil Supply Mark | |
| 44-122C-5700 | Oil Adjusting Screw For Face Plate Part | |
| 44-121S-5700 | Oil Adjusting Rubber For Face Plate Part | |
| 44-123R-5700 | Oil Adjusting Mark For Face Plate Part | |
| 44-173M-5700 | Oil Supply Nipple For Face Plate Part | |
| 44-119S-5700 | Oil Supply Nipple Pipe For Face Plate Part | |
| SC-0499-1230 | Screw(11/64" n = 40) | |
| 44-004A-7500 | Oil Supply Pipe For Face Plate Part | |
| 44-001C-2500 | Oil Window | |
| 44-002R-2500 | O-Ring For H-20 | |
| 44-156A-5700 | Oil Catcher | |
| SC-0498-3710 | Screw(11/64" n = 40) | |
| 10-065A-9577 | Cable Holder(3N) | |
| SC-0502-2302 | Screw(9/64" n = 40) | |
| 44-134C-5700 | Nipple | |
| 44-136C-5700 | Piston | |
| 44-137G-5700 | Piston Spring | |
| 44-001C-5700 | Oil Exhaust Hose | |
| 44-001C-5700 | Oil Exhaust Hose | |
| 44-046M-3500 | Oil Return Felt(A) | |
| 44-129M-5700 | Oil Return Felt(B) | |
| 44-130G-5700 | Oil Return Felt Holder | |
| 44-001C-5700 | Oil Return Hose | |
| 01-009R-2350 | Oil Return Hose Holder | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 44-001C-5700 | Upper Oil Terminal Connecting Hose | |
| 44-021A-7500 | Oil Terminal(Upper) | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 44-001C-1230 | Tube Holder Spring | |
| 44-018R-7500 | Rubber Cap For Oil Terminal | |
| 44-001C-5700 | Oil Supply Hose For Feed Regulator Shaft | |
| 44-001C-5700 | Lower Oil Terminal Connecting Hose | |
| 44-001C-7400 | Guider Plate For Oil Hose | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 01-009R-2350 | Holder For H-44 | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 44-142C-5700 | Oil Terminal(Lower) | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 44-0000-1230 | Oil Wick For Hook Base | |
| 44-001C-5700 | Oil Hose For Hook Base(Right) | |
| 44-001C-5700 | Oil Hose For Hook Base(Left) | |
| 44-001C-5700 | Oil Hose For Lower Shaft | |
| 44-026G-7400 | Holder For Oil Hose | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 44-011C-7400 | Holder For H-53, H-54 | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 44-0129-7500 | Oil Tube Pin For Hook Base | |
| 07-003M-7400 | Cover Felt For Lower Shaft Front B/S | |
| 44-152A-5700 | Oil Absord Body | |
| 44-120P-1230 | Pin For H-62 | |
| SC-0496-3710 | Screw(11/64" n = 40) | |
| 44-149G-5700 | Oil Filter Holder | |
| SC-0137-4122 | Screw(1/8" n = 40) | |
| SN-0103-2700 | Nut(1/8" n = 40) | |
| 44-148M-5700 | Oil Filter | |
| 44-0000-1230 | Oil Wick | |
| 44-279C-5700 | Reinforcement Plate | |
| SC-0543-2302 | Screw | |
| SC-000440-00 | Screw | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
H-1
44-033C-5607
A, AL, A-1, AL-1
Oil Cover
유방판
1
H-2
44-016M-7400
Oil Felt For Thread Take-Up
실체기 급유 펠트
1
H-3
44-018C-8130
Oil Tube Choke Plate
유방판 쵸크 링
1
H-4
SC-0173-1230
Screw(3/64" n = 32)
유방판 쵸크 링 나사
1
H-5
44-033C-7500
B, BL, B-1, BL-1
Oil Cover
유방판
1
H-6
44-071M-7500
B, BL, B-1, BL-1
Oil Stopper Plate Presser
오일 스토퍼 플레이트 프레서
1
H-7
44-004A-7500
A, AL, A-1, AL-1
Dust Protector
먼지 막이 판
1
H-8
44-106A-7900
B, BL, B-1, BL-1
Dust Protector
먼지 막이 판
1
H-9
SC-0502-2302
Screw(3/64" n = 40)
먼지 막이 판 나사
2
H-10
44-116M-7900
B, BL, B-1, BL-1
Needle Bar Oil Supply Mark
바늘대 급유 표시 스티커
1
H-11
44-122C-5700
Oil Adjusting Screw For Face Plate Part
면판부 유량 조절 나사
1
H-12
44-121S-5700
Oil Adjusting Rubber For Face Plate Part
면판부 유량 조절 고무
1
H-13
44-123R-5700
Oil Adjusting Mark For Face Plate Part
면판부 유량 조절 마크
1
H-16
44-173M-5700
Oil Supply Nipple For Face Plate Part
면판부 급유 니플
1
H-17
44-119S-5700
Oil Supply Nipple Pipe For Face Plate Part
면판부 급유 니플 파이프
1
H-18
SC-0499-1230
Screw(11/64" n = 40)
면판부 급유 니플 나사
1
H-19
44-004A-7500
Oil Supply Pipe For Face Plate Part
면판부 급유 파이프
1
H-20
44-001C-2500
Oil Window
유창
1
H-21
44-002R-2500
O-Ring For H-20
유창 O-링
1
H-22
44-156A-5700
Oil Catcher
유창 오일받이
1
H-23
SC-0498-3710
Screw(11/64" n = 40)
유창 오일받이 죠인트 나사
3
H-24
10-065A-9577
Cable Holder(3N)
흡입 호스 죠임
1
H-25
SC-0502-2302
Screw(9/64" n = 40)
흡입 호스 죠임 나사
1
H-26
44-134C-5700
Nipple
니플
6
H-27
44-136C-5700
Piston
피스톤
2
H-28
44-137G-5700
Piston Spring
피스톤 스프링
2
H-31
44-001C-5700
Oil Exhaust Hose
오일 토출 호스
1
H-32
44-001C-5700
Oil Exhaust Hose
오일 토출 호스
1
H-33
44-046M-3500
Oil Return Felt(A)
환류 펠트(A)
1
H-34
44-129M-5700
Oil Return Felt(B)
환류 펠트(B)
1
H-35
44-130G-5700
Oil Return Felt Holder
환류 펠트 잡이
1
H-36
44-001C-5700
Oil Return Hose
오일 리턴 호스
1
H-37
01-009R-2350
Oil Return Hose Holder
환류 호스 잡이
1
H-38
SC-0531-2302
Screw(9/64" n = 40)
환류 호스 잡이 죠인트 나사
1
H-39
44-001C-5700
Upper Oil Terminal Connecting Hose
오일터미널(상) 연결호스
1
H-40
44-021A-7500
Oil Terminal(Upper)
오일터미널(상)
1
H-41
SC-0531-2302
Screw(9/64" n = 40)
오일터미널(상) 죠인트 나사
2
H-42
44-001C-1230
Tube Holder Spring
오일터미널 호스잡이 스프링
9
H-43
44-018R-7500
Rubber Cap For Oil Terminal
오일터미널 고무마개
2
H-44
44-001C-5700
Oil Supply Hose For Feed Regulator Shaft
절환기 급유 호스
1
H-45
44-001C-5700
Lower Oil Terminal Connecting Hose
오일터미널(하) 연결호스
1
H-46
44-001C-7400
Guider Plate For Oil Hose
급유호스 가이드 판
1
H-47
SC-0531-2302
Screw(9/64" n = 40)
급유호스 가이드 판 죠인트 나사
1
H-48
01-009R-2350
Holder For H-44
절환기 급유 호스잡이
1
H-49
SC-0531-2302
Screw(9/64" n = 40)
절환기 급유 호스잡이 죠인트 나사
1
H-50
44-142C-5700
Oil Terminal(Lower)
오일터미널(하)
1
H-51
SC-0531-2302
Screw(9/64" n = 40)
오일터미널(하) 죠인트 나사
2
H-52
44-0000-1230
Oil Wick For Hook Base
훅반침(좌) 급유 유심
1
H-53
44-001C-5700
Oil Hose For Hook Base(Right)
훅반침(우) 급유 호스
1
H-54
44-001C-5700
Oil Hose For Hook Base(Left)
훅반침(좌) 급유 호스
1
H-55
44-001C-5700
Oil Hose For Lower Shaft
하축 급유 호스
1
H-56
44-026G-7400
Holder For Oil Hose
오일 호스 잡이
2
H-57
SC-0531-2302
Screw(9/64" n = 40)
오일 호스 잡이 죠인트 나사
1
H-58
44-011C-7400
Holder For H-53, H-54
훅급유 오일 호스잡이
1
H-59
SC-0531-2302
Screw(9/64" n = 40)
훅급유 오일 호스잡이 죠인트 나사
1
H-60
44-0129-7500
Oil Tube Pin For Hook Base
훅 반침 급유 유심 튜브 핀
2
H-61
07-003M-7400
Cover Felt For Lower Shaft Front B/S
하축 전봇싱 마개 펠트
1
H-62
44-152A-5700
Oil Absord Body
오일 흡수 몸체
1
H-63
44-120P-1230
Pin For H-62
오일 흡수 몸체 고정핀
1
H-64
SC-0496-3710
Screw(11/64" n = 40)
오일 흡수 몸체 죠인트 나사
1
H-65
44-149G-5700
Oil Filter Holder
오일 필터 잡이
1
H-66
SC-0137-4122
Screw(1/8" n = 40)
오일 필터 잡이 죠인트 나사
1
H-67
SN-0103-2700
Nut(1/8" n = 40)
오일 필터 잡이 너트
1
H-68
44-148M-5700
Oil Filter
오일 필터
1
H-69
44-0000-1230
Oil Wick
바늘대 요동축 유심
1
H-70
44-279C-5700
Reinforcement Plate
보강판
1
H-71
SC-0543-2302
Screw
나사
2
H-72
SC-000440-00
Screw
오일펌프 피스톤 마개나사
2
NOTE:
① A=KM-757-7
AL=KM-757BL-7
A-1=KM-757
AL-1=KM-757BL
B=KM-797-7
BL=KM-797BL-7
B-1=KM-797
BL-1=KM-797BL
jintex.in
Page 26 — Thread Trimmer Mechanism
SunStar KM-757 / KM-797 parts on page 26| Ref | Part number | Part name | Qty |
|---|
| I-10 | T | |
| I-8 | | |
| I-7 | | |
| I-14 | | |
| I-12 | | |
| I-11 | | |
| I-4 | | |
| I-13 | | |
| I-3 | | |
| I-1 | | |
| I-6 | | |
| I-5 | | |
| I-56 | | |
| I-55 | | |
| I-54 | | |
| I-53 | | |
| I-45 | | |
| I-44 | | |
| I-49 | | |
| I-50 | | |
| I-51 | | |
| I-52 | | |
| I-46 | | |
| I-47 | | |
| I-43 | | |
| I-42 | | |
| I-41 | | |
| I-39 | | |
| I-38 | | |
| I-37 | | |
| I-19 | | |
| I-22 | | |
| I-30 | | |
| I-23 | | |
| I-20 | | |
| I-24 | | |
| I-21 | | |
| I-32 | | |
| I-33 | | |
| I-31 | | |
| I-34 | | |
| I-35 | | |
| I-36 | | |
| I-14 | | |
| I-15 | | |
| I-16 | | |
| I-57 | | |
| I-58 | | |
| I-59 | | |
| I-60 | | |
| I-61 | | |
| I-62 | | |
| I-63 | | |
| I-64 | | |
| I-25 | | |
| I-26 | | |
| I-27 | | |
| I-28 | | |
| I-18 | | |
| I-65 | | |
| I-66 | | |
| I-69 | | |
| I-70 | | |
| I-2 | | |
I
Thread Trimmer Mechanism
sa절관계
26
I-10 T
I-8
I-7
I-14
I-12
I-11
I-4
I-13
I-3
I-1
I-6
I-5
I-56
I-55
I-54
I-53
I-45
I-44
I-49
I-50
I-51
I-52
I-10 T
I-8
I-7
I-12
I-11
I-4
I-13
I-2
I-5
I-6
I-47
I-43
I-42
I-41
I-39
I-38
I-37
I-46
I-41
I-19
I-22
I-23
I-24
I-32
I-33
I-31
I-30
I-20
I-21
I-26
I-27
I-28
I-25
I-65
I-14
I-15
I-16
I-17
I-18
I-57
I-58
I-59
I-60
I-61
I-62
I-63
I-64
I-66
I-69
I-70
jintex.in
Page 27
SunStar KM-757 / KM-797 parts on page 27| Ref | Part number | Part name | Qty |
|---|
| 10-001A-7507 | Moving Knife Shaft(L) | |
| GP-012112-00 | Moving Knife Shaft(R) | |
| GP-012112-00 | Moving Knife | |
| SC-A154-4114 | Screw(11/64" n = 40) | |
| 10-004A-7507 | Moving Knife Shaft Collar | |
| SC-0105-7500 | Screw(M4) | |
| 10-106A-7507 | Thread Catcher | |
| GP-012111-00 | Fixed Knife | |
| SC-A154-4114 | Screw(11/64" n = 40) | |
| 10-010W-7507 | Washer For Moving Knife Tension Adjusting | |
| 10-011A-7507 | Moving Knife Bracket | |
| SC-0211-7500 | Screw(M4×0.7) | |
| 10-013A-7507 | Thread Trimming Rock Link Shaft | |
| 10-017S-8577 | Screw For I-14 | |
| 10-044R-5607 | Cushion Rubber | |
| 10-015A-7507 | Thread Trimming Rock Link | |
| 41-288G-7500 | Return Spring For Stopper Pin | |
| 10-050S-8577 | Screw For Stopper Pin | |
| 07-011W-1230 | Washer For Stopper Pin | |
| 10-033C-7507 | Nut For Stopper Pin | |
| 10-034S-7507 | Stud Screw For Rod End(R) | |
| 07-011W-1230 | Washer For I-22 | |
| 10-033C-7507 | Nut For I-22 | |
| 10-066A-7507 | Roller For Thread Trimming Cam | |
| 10-033C-7507 | Stud Screw For Thread Trimming Cam Roller | |
| 07-011W-1230 | Washer For I-26 | |
| 10-033C-7507 | Nut For I-26 | |
| 06-040S-1600 | Adjusting Screw For Return Spring | |
| SN-0101-1600 | Nut(11/64" n = 40) | |
| 10-021G-7507 | Thread Trimming Return Spring | |
| 10-019S-7507 | Screw For Return Spring | |
| SN-0101-1600 | Nut(11/64" n = 40) | |
| 10-129A-7507 | Holder For Stopper Pin | |
| 01-020W-2350 | Washer For I-34 | |
| SC-0108-2350 | Screw(M6) | |
| 10-220A-8577 | Rod End Bearing(R) | |
| 10-033C-7507 | Nut(R) For I-37 | |
| 10-034A-7507 | Joint Connection Stud(1/64"~1/2") | |
| 10-221A-8577 | Rod End Bearing(L) | |
| 10-033C-7507 | Nut(L) For I-41 | |
| 10-024S-8677 | Screw For Moving Knife Shaft Joint | |
| 10-038A-7507 | Moving Knife Shaft Crank(R) | |
| SC-0162-5607 | Screw(M5×0.8) | |
| 10-140A-7507 | Moving Knife Shaft Bushing(R) | |
| SC-0105-7500 | Screw(M4) | |
| 10-044A-7507 | Moving Knife Shaft Connection Rod(R) | |
| 10-045A-7507 | Moving Knife Shaft Connection Rod(L) | |
| 10-046S-7507 | Hinge Screw For I-48, I-49 | |
| 10-020W-2700 | Washer For I-49 | |
| SC-0332-7500 | Screw(M5×0.8) | |
| 10-149A-7507 | Moving Knife Shaft Crank(L) | |
| SC-0162-5607 | Screw(M5×0.8) | |
| 10-151A-7507 | Moving Knife Shaft Bushing(L) | |
| SC-0105-7500 | Screw(M4) | |
| 10-053S-7507 | Stud Screw For Clutch Lever | |
| 10-551S-7507 | Screw For Clutch Lever Pin | |
| SN-0101-1600 | Nut(11/64" n = 40) | |
| 10-554A-7507 | Clutch Lever | |
| 10-056A-7507 | Thread Trimming Solenoid Assembly | |
| 10-057A-7507 | Bracket For I-61 | |
| 01-020W-2350 | Spring Washer For I-62 | |
| SC-0109-2350 | Screw(M6) | |
| 11-019M-2350 | Thread Trimming Cam | |
| 11-019M-2350 | Screw(1/64" n = 40) | |
| 11-019M-2350 | Tube(Large) For I-61 | |
| 11-019M-2350 | Plug(Large) For I-61 | |
SunStar
Ref. No.
Parts No.
Note
Name of Parts
품
명
Q' ty
Assembly
No.
I-1
10-001A-7507
A. AL. B. BL
Moving Knife Shaft(L)
동 메스 축(좌)
1
I-2
GP-012112-00
A. AL. B. BL
Moving Knife Shaft(R)
동 메스 축(우)
1
I-3
GP-012112-00
A. AL. B. BL
Moving Knife
동 메스(2122707-553A)
2
I-4
SC-A154-4114
A. AL. B. BL
Screw(11/64" n = 40)
동 메스 고정 나사
4
I-5
10-004A-7507
A. AL. B. BL
Moving Knife Shaft Collar
동 메스 축 카라
2
I-6
SC-0105-7500
A. AL. B. BL
Screw(M4)
동 메스 축 카라 고정 나사
4
I-7
10-106A-7507
A. AL. B. BL
Thread Catcher
밀실 잡이
2
I-8
GP-012111-00
A. AL. B. BL
Fixed Knife
고정 메스(2122707-556A)
2
I-10
SC-A154-4114
A. AL. B. BL
Screw(11/64" n = 40)
동 메스 고정 나사
4
I-11
10-010W-7507
A. AL. B. BL
Washer For Moving Knife Tension Adjusting
동 메스 장력 조절 와셔
4
I-12
10-011A-7507
A. AL. B. BL
Moving Knife Bracket
메스 브라켓
1
I-13
SC-0211-7500
A. AL. B. BL
Screw(M4×0.7)
메스 브라켓 고정 나사
4
I-14
10-013A-7507
A. AL. B. BL
Thread Trimming Rock Link Shaft
사절 요동 링크 축
1
I-15
10-017S-8577
A. AL. B. BL
Screw For I-14
사절 요동 링크 축 고정 나사
1
I-16
10-044R-5607
A. AL. B. BL
Cushion Rubber
쿠션 고무(B)
1
I-17
10-015A-7507
A. AL. B. BL
Thread Trimming Rock Link
사절 요동 링크
1
I-18
41-288G-7500
A. AL. B. BL
Return Spring For Stopper Pin
스토퍼 핀 복귀 스프링
1
I-19
10-050S-8577
A. AL. B. BL
Screw For Stopper Pin
스토퍼 핀 나사
1
I-20
07-011W-1230
A. AL. B. BL
Washer For Stopper Pin
스토퍼 핀 와셔
1
I-21
10-033C-7507
A. AL. B. BL
Nut For Stopper Pin
볼 조인트 링 너트(좌)
1
I-22
10-034S-7507
A. AL. B. BL
Stud Screw For Rod End(R)
요동 링트 죠인트 단나사
1
I-23
07-011W-1230
A. AL. B. BL
Washer For I-22
가마잡이 와셔
1
I-24
10-033C-7507
A. AL. B. BL
Nut For I-22
볼 조인트 링 너트(좌)
1
I-25
10-066A-7507
A. AL. B. BL
Roller For Thread Trimming Cam
롤러
1
I-26
10-033C-7507
A. AL. B. BL
Stud Screw For Thread Trimming Cam Roller
사절 캠 롤러 단나사
1
I-27
07-011W-1230
A. AL. B. BL
Washer For I-26
가마잡이 와셔
1
I-28
10-033C-7507
A. AL. B. BL
Nut For I-26
볼 조인트 링 너트(좌)
1
I-29
06-040S-1600
A. AL. B. BL
Adjusting Screw For Return Spring
스프링 걸이 축 나사
1
I-30
SN-0101-1600
A. AL. B. BL
Nut(11/64" n = 40)
스프링 걸이 축 나사 너트
1
I-31
10-021G-7507
A. AL. B. BL
Thread Trimming Return Spring
사절 리턴 스프링
1
I-32
10-019S-7507
A. AL. B. BL
Screw For Return Spring
리턴 스프링 걸이 축 나사
1
I-33
SN-0101-1600
A. AL. B. BL
Nut(11/64" n = 40)
리턴 스프링 걸이 축 나사 너트
1
I-34
10-129A-7507
A. AL. B. BL
Holder For Stopper Pin
사절 캠 운동핀 홀더
1
I-35
01-020W-2350
A. AL. B. BL
Washer For I-34
싱크로 베이스 스프링 와셔($6)
2
I-36
SC-0108-2350
A. AL. B. BL
Screw(M6)
볼트(M6)
2
I-37
10-220A-8577
A. AL. B. BL
Rod End Bearing(R)
로드 앤드(우)
1
I-38
10-033C-7507
A. AL. B. BL
Nut(R) For I-37
볼 조인트 링 너트(우)
1
I-39 #
10-034A-7507
A. AL. B. BL
Joint Connection Stud(1/64"~1/2")
볼 조인트 연결봉(1/64"~1/2")
1
I-41
10-221A-8577
A. AL. B. BL
Rod End Bearing(L)
로드 앤드(좌)
1
I-42
10-033C-7507
A. AL. B. BL
Nut(L) For I-41
볼 조인트 링 너트(좌)
1
I-43
10-024S-8677
A. AL. B. BL
Screw For Moving Knife Shaft Joint
동 메스 축 연결 조인트 죔나사
1
I-44
10-038A-7507
A. AL. B. BL
Moving Knife Shaft Crank(R)
동 메스 축 크랭크(우)
1
I-45
SC-0162-5607
A. AL. B. BL
Screw(M5×0.8)
육각구멍붙이 보울트(M5×0.8)
1
I-46
10-140A-7507
A. AL. B. BL
Moving Knife Shaft Bushing(R)
동 메스 축 붓싱(우)
1
I-47
SC-0105-7500
A. AL. B. BL
Screw(M4)
육각구멍붙이 덤춤나사(M4)
2
I-48
10-044A-7507
A. AL. B. BL
Moving Knife Shaft Connection Rod(R)
동 메스 축 연결 롯드(우)
1
I-49
10-045A-7507
A. AL. B. BL
Moving Knife Shaft Connection Rod(L)
동 메스 축 연결 롯드(좌)
1
I-50
10-046S-7507
A. AL. B. BL
Hinge Screw For I-48, I-49
동 메스 축 연결 롯드 힌지나사
2
I-51
10-020W-2700
A. AL. B. BL
Washer For I-49
스토퍼 와셔
2
I-52
SC-0332-7500
A. AL. B. BL
Screw(M5×0.8)
육각구멍붙이 보울트(M5×0.8)
2
I-53
10-149A-7507
A. AL. B. BL
Moving Knife Shaft Crank(L)
동 메스 축 크랭크(좌)
1
I-54
SC-0162-5607
A. AL. B. BL
Screw(M5×0.8)
육각구멍붙이 보울트(M5×0.8)
1
I-55
10-151A-7507
A. AL. B. BL
Moving Knife Shaft Bushing(L)
동 메스 축 붓싱(좌)
1
I-56
SC-0105-7500
A. AL. B. BL
Screw(M4)
육각구멍붙이 덤춤나사(M4)
1
I-57
10-053S-7507
A. AL. B. BL
Stud Screw For Clutch Lever
클러치 레버 단나사
1
I-58
10-551S-7507
A. AL. B. BL
Screw For Clutch Lever Pin
클러치 레버 핀나사
1
I-59
SN-0101-1600
A. AL. B. BL
Nut(11/64" n = 40)
클러치 레버 너트
1
I-60
10-554A-7507
A. AL. B. BL
Clutch Lever
클러치 레버
1
I-61
10-056A-7507
A. AL. B. BL
Thread Trimming Solenoid Assembly
사절 솔레노이드(조립)
1
I-62
10-057A-7507
A. AL. B. BL
Bracket For I-61
사절 솔레노이드 브라켓
1
I-63
01-020W-2350
A. AL. B. BL
Spring Washer For I-62
싱크로 베이스 스프링 와셔($6)
2
I-64
SC-0109-2350
A. AL. B. BL
Screw(M6)
육각구멍붙이 보울트(M6)
2
I-65
A. AL. B. BL
Thread Trimming Cam
사절 캠
1
I-66
11-019M-2350
A. AL. B. BL
Screw(1/64" n = 40)
사절 캠 고정나사
3
I-69
11-019M-2350
A. AL. B. BL
Tube(Large) For I-61
솔레노이드 튜브
1
I-70
11-019M-2350
A. AL. B. BL
Plug(Large) For I-61
솔레노이드 플러그
1
NOTE:
① A=KM-757-7
AL=KM-757BL-7
A-1=KM-757
AL-1=KM-757BL
B=KM-797-7
BL=KM-797BL-7
B-1=KM-797
BL-1=KM-797BL
② Refer to page
37 for items
marked with
an asterisk(#)
jintex.in
27
Page 28
SunStar KM-757 / KM-797 parts on page 28| Ref | Part number | Part name | Qty |
|---|
| 11-001A-7507 | Wiper Solenoid | |
| 11-002A-7507 | Wiper Solenoid Bracket | |
| 11-003A-7507 | Wiper Solenoid Cover | |
| SC-0531-2302 | Screw (9/64" n = 40) | |
| SC-0196-2700 | Screw (M3×0.5) | |
| 11-017W-2700 | Washer For J-1 | |
| 11-016W-2700 | Spring Washer For J-1 | |
| SC-0543-2302 | Screw (11/64" n = 40) | |
| 11-014A-7507 | Return Spring For J-1 | |
| 11-014A-7507 | Wiper Link "A" Ass' y | |
| 11-015S-7507 | Stud Screw For J-13 | |
| 11-017C-7507 | Nut For J-14 | |
| 11-015S-7507 | Stud Screw For J-20 | |
| 11-017C-7507 | Stud Nut For J-17 | |
| 11-021A-7507 | Wiper Shaft Ass' y | |
| 11-022A-7507 | Wiper Link Shaft | |
| 11-023A-7507 | Collar For J-23 | |
| SC-0105-7500 | Screw (M4) | |
| 11-125A-7507 | Wiper Link "C" | |
| 11-026A-7507 | Wiper Holder | |
| SC-0298-7500 | Screw (M3×0.5) | |
| SC-0132-7500 | Screw (M3) | |
| 11-029A-7507 | Wiper (Right) | |
| 11-029B-7507 | Wiper (Left) | |
| 11-030A-7507 | Wiper Link Body | |
| SC-0173-1230 | Screw (3/64" n = 32) | |
| 11-032P-7507 | Stopper | |
| SC-0173-1230 | Screw (3/64" n = 32) | |
| 10-020W-2700 | Washer For J-32 | |
J Wiper Mechanism 와이퍼 관계
28
Ref. No.
Parts No.
Note
Name of Parts
Assembly
No.
Q' ty
와이퍼 솔레노이드(組)
1
J-1
11-001A-7507
A, AL, B, BL
Wiper Solenoid
J-2
11-002A-7507
A, AL, B, BL
Wiper Solenoid Bracket
와이퍼 솔레노이드 브라켓
1
J-3
11-003A-7507
A, AL, B, BL
Wiper Solenoid Cover
와이퍼 솔레노이드 커버
1
J-4
SC-0531-2302
A, AL, B, BL
Screw (9/64" n = 40)
홈붙이 둥근납작 작은나사(9/64")
3
J-5
SC-0196-2700
A, AL, B, BL
Screw (M3×0.5)
홈붙이 넘비 작은나사(M3×0.5)
4
J-6
11-017W-2700
A, AL, B, BL
Washer For J-1
솔레노이드 부착 평와셔
4
J-7
11-016W-2700
A, AL, B, BL
Spring Washer For J-1
솔레노이드 부착 스프링 와셔
4
J-9
SC-0543-2302
A, AL, B, BL
Screw (11/64" n = 40)
홈붙이 납작 작은나사(11/64" n=40)
2
J-12
11-014A-7507
A, AL, B, BL
Return Spring For J-1
와이퍼 솔레노이드 리턴 스프링
1
J-13
11-014A-7507
A, AL, B, BL
Wiper Link "A" Ass' y
와이퍼 링크 A(組)
1
J-14
11-015S-7507
A, AL, B, BL
Stud Screw For J-13
와이퍼 링크 A 연결 단나사
1
J-16
11-017C-7507
A, AL, B, BL
Nut For J-14
와이퍼 링크 A 연결 단나사 너트
1
J-17
11-015S-7507
A, AL, B, BL
Stud Screw For J-20
와이퍼 링크 A 연결 단나사
1
J-19
11-017C-7507
A, AL, B, BL
Stud Nut For J-17
와이퍼 링크 A 연결 단나사 너트
1
J-20
11-021A-7507
A, AL, B, BL
Wiper Shaft Ass' y
와이퍼 가이드 축(組)-40MM
1
J-21
11-022A-7507
A, AL, B, BL
Wiper Link Shaft
와이퍼 링크 축
2
J-22
11-023A-7507
A, AL, B, BL
Collar For J-23
와이퍼 링크 축 카라
1
J-23
SC-0105-7500
A, AL, B, BL
Screw (M4)
육각구멍붙이 멈춤나사(M4)
2
J-24
11-125A-7507
A, AL, B, BL
Wiper Link "C"
와이퍼 링크 C
2
J-25
11-026A-7507
A, AL, B, BL
Wiper Holder
와이퍼 잡이
2
J-26
SC-0298-7500
A, AL, B, BL
Screw (M3×0.5)
육각구멍붙이 보울트(M3×0.5)
2
J-27
SC-0132-7500
A, AL, B, BL
Screw (M3)
육각구멍붙이 보울트(M3)
2
J-28
11-029A-7507
A, AL, B, BL
Wiper (Right)
와이퍼 우(組)
1
J-29
11-029B-7507
A, AL, B, BL
Wiper (Left)
와이퍼 좌(組)
1
J-30
11-030A-7507
A, AL, B, BL
Wiper Link Body
와이퍼 링크 부착 몸체
1
J-31
SC-0173-1230
A, AL, B, BL
Screw (3/64" n = 32)
홈붙이 넘비 작은나사(3/64" n=32)
2
J-32
11-032P-7507
A, AL, B, BL
Stopper
스토퍼
1
J-33
SC-0173-1230
A, AL, B, BL
Screw (3/64" n = 32)
홈붙이 넘비 작은나사(3/64" n=32)
2
J-34
10-020W-2700
A, AL, B, BL
Washer For J-32
스토퍼 겹와셔
2
NOTE:
① A=KM-757-7
AL=KM-757BL-7
A=KM-757
AL=1=KM-757BL
B=KM-797-7
BL=KM-797BL-7
B=1=KM-797
BL=1=KM-797BL
jintex.in
Page 29 — Reverse Button Mechanism
SunStar KM-757 / KM-797 parts on page 29| Ref | Part number | Part name | Qty |
|---|
| 12-001A-7507 | Reverse Button Case | |
| 12-002A-7507 | Insulation Film | |
| 12-013A-7507 | Reverse Button Assembly | |
| 12-004A-7507 | Spring For Reverse Button | |
| 06-033M-3800 | E-Ring(φ3) | |
| 12-006P-7507 | Stopper For Reverse Button | |
| SC-0531-2302 | Screw(9/64" n = 40) | |
| 12-003A-7507 | Reverse Button S/W Assembly | |
| SC-0126-3800 | Screw(3/64" n = 56) | |
| SC-0195-7507 | Screw(M4×0.7) | |
| SC-0543-2302 | Screw(11/64" n = 40) | |
K Reverse Button Mechanism 역진버튼 관계 SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. K-1 12-001A-7507 A, AL, B, BL Reverse Button Case 역진 버튼 케이스 1 K-2 12-002A-7507 A, AL, B, BL Insulation Film 역진 버튼 스위치 절연 필름 1 K-3 12-013A-7507 A, AL, B, BL Reverse Button Assembly 역진 버튼(조립) 1 K-4 12-004A-7507 A, AL, B, BL Spring For Reverse Button 역진 버튼 스프링 1 K-5 06-033M-3800 A, AL, B, BL E-Ring(φ3) 톱니 받침 블럭축 E링 3 1 K-6 12-006P-7507 A, AL, B, BL Stopper For Reverse Button 역진 버튼 스토퍼 1 K-7 SC-0531-2302 A, AL, B, BL Screw(9/64" n = 40) 홈붙이 둥근납작 작은나사(소)(9/64" n=40) 1 K-8 12-003A-7507 A, AL, B, BL Reverse Button S/W Assembly 역진 버튼 스위치(조립) 1 K-9 SC-0126-3800 A, AL, B, BL Screw(3/64" n = 56) 홈붙이 냄비 작은나사(3/64" n=56) 2 K-10 SC-0195-7507 A, AL, B, BL Screw(M4×0.7) 홈붙이 납작 작은나사(M4×0.7) 1 K-11 SC-0543-2302 A, AL, B, BL Screw(11/64" n = 40) 홈붙이 납작 작은나사(11/64" n=40) 2 NOTE: ① A=KM-757-7 AL=KM-757BL-7 A-1=KM-757 AL-1=KM-757BL B=KM-797-7 B-1=KM-797 BL-1=KM-797BL jintex.in 29
Page 30
SunStar KM-757 / KM-797 parts on page 30| Ref | Part number | Part name | Qty |
|---|
| 11-0000-2507 | Synchronizer Ass' y | |
| 11-020A-2500 | Magnetic Holder | |
| 11-022W-2500 | Washer For L-1 | |
| 11-021S-2500 | Screw For L-1 | |
| 13-0000-SE55 | Synchronizer Ass' y (Servo) | |
L Synchronizer(Servo Motor Type) 위치검출기 관계(서보모터형) L-1 L-1-1 L-1-3 L-1-2 L-1-4 30 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. L-1 11-0000-2507 A(s), AL(s), B(s), BL(s) Synchronizer Ass' y 싱크로나이저 조 1Set L-1-1 11-020A-2500 A(s), AL(s), B(s), BL(s) Magnetic Holder 마그네틱 홀더 2 L-1-2 11-022W-2500 A(s), AL(s), B(s), BL(s) Washer For L-1 마그네틱 홀더 와셔 4 L-1-3 11-021S-2500 A(s), AL(s), B(s), BL(s) Screw For L-1 마그네틱 홀더 잼나사 4 L-1-4 13-0000-SE55 A(s), AL(s), B(s), BL(s) Synchronizer Ass' y (Servo) 싱크로나이저(조)Servo 1 NOTE: ① A=KM-757-7 AL=KM-757BL-7 A-1=KM-757 AL-1=KM-757BL B=KM-797-7 BL=KM-797BL-7 B-1=KM-797 BL-1=KM-797BL ② S=Servo Motor N=N.P Motor jintex.in
