SunStar SPS/B-1201 Parts Book (PDF)
Text index — SunStar SPS/B-1201
Page 5 — Arm, Bed & Machine Body Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | ΔΤΦΑΑΑΧΖΙΙΖΦΒΙΙΑΑΑΑΑ | Arm | 1 |
| A-2 | 01-003A-120H | Bed | 1 |
| A-3 | 01S006S-306H | Brand Mark(Face Plate) | 1 |
| A-4 | 01-007A-120H | Face Plate | 1 |
| A-5 | 01-008M-120H | Face Plate Gasket | 1 |
| A-6 | SC-A174-4122 | Screw(11/64" n=40) | 10 |
| A-7 | 01-110R-1230 | Rubber Cap For Face Plate | 1 |
| A-8 | 91-001M-120D | Caution Sticker | 1 |
| A-9 | 01-011A-120H | Take-up Lever Cover | 1 |
| A-10 | SC-0528-1230 | Screw(9/64" n=40) | 1 |
| A-11 | 01-013A-120H | Bed Cover(L) | 1 |
| A-12 | 01-014M-120H | Bed Cover Gasket(L) | 1 |
| A-13 | SC-0543-2302 | Screw(11/64" n=40) | 14 |
| A-14 | 01-016A-120H | Bed Cover(R) | 1 |
| A-15 | 01-017M-120H | Bed Cover Gasket(R) | 1 |
| A-16 | 44S061S-306H | Oil Tank Rubber Cap | 1 |
| A-17 | 01-127A-1230 | Thread Guide with Three Holes | 1Set |
| A-19 | 01-003C-250B | Thread Guide(L) | 1 |
| A-20 | SC-0120-1230 | Screw(9/64" n=40) | 3 |
| A-21 | 01-030C-1230 | Thread Guide(R) | 1 |
| A-22 | ΔΤΦΑΑΑΧΖΙΙΖΦΒΙΙΑΑΑΑΑ | Arm Thread Guide Ass'y | 1 |
| A-24 | 01-028C-120H | Thread Guide(L) | 1 |
| A-25 | 01S037S-306H | Silicon Tank Ass'y | 1Set |
| A-26 | 01S038S-306H | Silicon Tank | 1 |
| A-27 | 01S039S-306H | Silicon Oil Window | 1 |
| A-28 | 01S040S-306H | Silicon Felt | 1 |
| A-29 | GP-013053-00 | Felt for Silicon Oil Supply | 1 |
| A-30 | SC-0104-5607 | Screw(11/64" n=40) | 1 |
| A-31 | 01S064S-306H | Brand Mark | 2 |
| A-32 | 04-104R-1230 | Arm Upper Part Rubber Cap | 3 |
| A-33 | 01-110R-1230 | Needle Bar Rubber Cap | 2 |
| A-34 | 01-042R-640L | Rubber Cap(L) | 3 |
| A-35 | 44-021R-7400 | Rubber Cap(S) | 6 |
| A-36 | 01-073R-120H | Bed Rubber | 1 |
| A-37 | 01-041M-120D | Model Sticker(H) | 1 |
| A-38 | 01-042M-120D | Model Sticker(M) | 1 |
| A-39 | 01-043M-120D | Model Sticker(L) | 1 |
| A-40 | 01-044M-120D | Model Sticker(K) | 1 |
| A-41 | 01-009R-5300 | Cable Holder | 3 |
| A-42 | 01-051A-120H | Top Cover | 1 |
| A-43 | 41-101A-120H | Bobbin Winder Ass'y | 1Set |
| A-44 | 41S001S-306H | Bobbin Winder Base Ass'y | 1 |
| A-45 | 41-005A-120H | Bobbin Winder Shaft | 1 |
| A-46 | G P - 0 0 2 9 5 8 | Sticker(BL) | 1 |
| A-47 | SC-0105-7500 | Screw(M4) | 1 |
| A-48 | 41S006S-306H | Bobbin Winder | 1 |
| A-49 | SC-0104-5607 | Screw(11/64" n=40) | 2 |
| A-50 | 41S008S-306H | Bobbin Winder Action Ring | 1 |
Page 7 — Arm, Bed & Machine Body Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-51 | 41S009S-306H | Bobbin Winder Shaft Rubber Ring | 1 |
| A-52 | 41S010S-306H | Bobbin Winder Lever | 1 |
| A-53 | 41S011S-306H | Bobbin Winder Adjusting Plate | 1 |
| A-54 | SC-0130-1230 | Screw(1/8" n=40) | 1 |
| A-55 | 02-011W-2302 | Washer | 1 |
| A-56 | 41S013S-306H | Bobbin Winder Lever Shaft | 1 |
| A-57 | 41S014S-306H | Bobbin Winder Adjusting Cam | 1 |
| A-58 | SC-0211-7500 | Screw(M4×P0.7) | 1 |
| A-59 | 04-009C-3710 | E-Ring(ϕ5) | 2 |
| A-60 | 41S017S-306H | Bobbin Winder Action Plate | 1 |
| A-61 | 41-018A-120H | Bobbin Winder Action Body | 1 |
| A-62 | 40-007W-1600 | Washer | 2 |
| A-63 | 41S021S-306H | Bobbin Winder Spring | 1 |
| A-64 | 41S022S-306H | Bobbin Stopper | 1 |
| A-65 | 41S023S-306H | Screw | 5 |
| A-66 | 41S024S-306H | Bobbin Stand | 1 |
| A-67 | 41S025S-306H | Bobbin Winder Mes | 1 |
| A-68 | SC-0120-1230 | Screw(1/8" n=40) | 2 |
| A-69 | 41S027S-306H | Thread Tension Adjusting Ass'y | 1Set |
| A-70 | 41S028S-306H | Thread Tension Adjusting Shaft | 1 |
| A-71 | 41S026S-306H | Thread Guide Plate | 1 |
| A-72 | 40-204A-1230 | Thread Tension Disk | 2 |
| A-73 | 40-333G-123A | Thread Tension Spring | 1 |
| A-74 | 40-804W-1230 | Thread Tension Spring Stopper | 1 |
| A-75 | 40-024A-1230 | Spring Cover | 1 |
| A-76 | 40-204A-2350 | Thread Tension Nut | 1 |
| A-77 | SN-0121-7400 | Nut(15/64" n=28) | 1 |
| A-78 | 01-042R-640L | Rubber Cap(L) | 1 |
| A-79 | 01S043S-306H | Safety Plate Ass'y | 1Set |
| A-80 | 01S044S-306H | Safety Plate | 1 |
| A-81 | 01S045S-306H | Safety Plate Bracket | 1 |
| A-82 | 01S046S-306H | Safety Plate Holder | 1 |
| A-83 | 01S047S-306H | Safety Plate Hinge Screw | 1 |
| A-84 | SN-0101-1600 | Nut(3/16" n=28) | 3 |
| A-85 | 06-051W-7400 | Washer | 1 |
| A-86 | 01S050S-306H | Safety Plate Spring | 1 |
| A-87 | 01S051S-306H | Safety Plate Spring Hook | 1 |
| A-88 | SN-0119-1230 | Nut(3/16" n=28) | 1 |
| A-89 | 01-038A-120D | Motor Cover | 1 |
| A-90 | SC-0498-3710 | Screw(11/64" n=40) | 4 |
| A-91 | 40-004W-1600 | Washer | 4 |
| A-93 | GP-002108-00 | Safety Switch | 1 |
| A-94 | 03071SC-A001 | Screw(M3×L15) | 2 |
| A-95 | 08112SN-A001 | Nut(M3) | 2 |
| A-96 | GP-006543-00 | Safety Switch Bracket | 1 |
| A-97 | SC-A174-1230 | Screw(11/64" n=40) | 2 |
| A-98 | 10-020W-2700 | Washer | 2 |
Page 9 — Upper Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-1 | 02-001A-1254 | Upper Shaft | 1 |
| B-2 | 02-102A-120H | Link Cam | 1 |
| B-3 | 02S102S-306H | Link Cam(A) | 1 |
| B-4 | 02S003S-306H | Link Cam Washer | 1 |
| B-5 | 02-003S-2500 | Screw(15/64" n=28) | 1 |
| B-6 | SC-0150-2500 | Screw(9/32" n=28) | 1 |
| B-7 | SC-0183-2700 | Screw(15/64" n=28) | 1 |
| B-8 | 08S101P-306H | Thread Take-Up Lever Ass'y(H) | 1Set |
| B-9 | 08S501P-306H | Thread Take-Up Lever(H) | 1 |
| B-10 | 08S502P-306H | Needle Bar Crank(H) | 1 |
| B-11 | 08S503P-306H | Thread Take-Up Lever Crank | 1 |
| B-12 | 08-511A-123A | Needle Bearing | 1 |
| B-13 | 08-511A-123A | Needle Bearing | 1 |
| B-14 | 08S504S-306H | Needle Bar Crank Rod | 1 |
| B-15 | 08S507S-123A | Screw | 1 |
| B-16 | 08S101S-306H | Thread Take-Up Lever Ass'y(L) | 1Set |
| B-17 | 08S501S-306H | Thread Take-Up Lever(L) | 1 |
| B-18 | 08S502S-306H | Needle Bar Crank(L) | 1 |
| B-19 | SC-0317-2700 | Screw(15/64" n=28) | 1 |
| B-20 | 08S505S-306H | Needle Bar Holder | 1 |
| B-21 | 08-508S-123A | Screw | 1 |
| B-22 | 08S506S-306H | Thread Take-Up Pin | 1 |
| B-23 | SC-0317-2700 | Screw(15/64" n=28) | 3 |
| B-24 | 04-001A-120H | Needle Bar | 1 |
| B-25 | 04S102S-306H | Needle Bar Bushing(U) | 1 |
| B-26 | SC-0164-2700 | Screw(11/64" n=40) | 2 |
| B-27 | 04S204S-306H | Needle Bar Bushing(L) | 1 |
| B-28 | 04S106S-306H | Needle Bar Guide Block | 1 |
| B-29 | 04-007A-120H | Thread Guide For Needle Bar(H) | 1 |
| B-30 | 04-008A-120M | Thread Guide For Needle Bar(M) | 1 |
| B-31 | SC-A131-4522 | Screw | 1 |
| B-35 | 02S107S-306H | Upper Shaft Bushing(F) | 1 |
| B-36 | 02S009S-306H | Bobbin Winder Driving Wheel | 1 |
| B-37 | 10-017S-8577 | Screw | 2 |
| B-38 | 02S111S-306H | Upper Shaft Bushing(M) | 1 |
| B-39 | 02-121A-1230 | Upper Shaft Collar | 1 |
| B-40 | SC-A308-5607 | Screw(15/64" n=28) | 2 |
| B-41 | 25S001S-306H | Hand Pulley Gear "A" | 1 |
| B-42 | SC-A308-4517 | Screw | 4 |
| B-43 | 25S001S-306H | Hand Pulley Gear "A" | 1 |
| B-44 | 25S009S-306H | Hand Pulley Bushing | 1 |
| B-45 | SC-0114-1230 | Screw | 1 |
| B-46 | 25S105S-306H | Hand Pulley Shaft | 1 |
| B-47 | 25S007S-306H | Hand Pulley Roller | 1 |
| B-48 | 25S006S-306H | Hand Pulley Roller Hinge Pin | 1 |
| B-50 | 25S011S-306H | Hand Pulley Spring | 1 |
| B-51 | 02-026A-120D | Hand Pulley | 1 |
| B-52 | 25S012S-306H | Screw | 1 |
| B-53 | 02-016A-120D | Upper Shaft Bearing (R) | 1 |
| B-54 | 02-023R-120D | Spacer O-Ring(P15) | 1 |
| B-55 | 02-017A-120D | Coupling | 1 |
| B-56 | 08-037SC-120D | Screw | 8 |
| B-57 | 02-119A-120D | Main Motor | 1 |
| B-58 | 02-020S-120D | Screw | 4 |
| B-59 | 07-011W-1230 | Spring Washer | 4 |
| B-60 | 10-020W-2700 | Washer | 4 |
Page 11 — Lower Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | AS-003752-00 | Lower Shaft Ass'y | 1Set |
| C-2 | GP-013203-00 | Lower Shaft | 1 |
| C-3 | GP-010180-01 | Lower Shaft Gear | 1 |
| C-4 | PN-000215-00 | Taper Pin | 1 |
| C-5 | SC-0512-1230 | Screw | 5 |
| C-6 | 07S006S-306H | Lower Shaft Rear Bushing | 1 |
| C-7 | 07S007S-306H | Needle Bearing(KT8110) | 2 |
| C-8 | 07S008S-306H | Thrust Washer | 1 |
| C-9 | 10S114S-306H | Lower Shaft Collar | 1 |
| C-10 | 07S111S-306H | Crank Rod | 1 |
| SC-0179-3710 | Screw(11/64" n=40) | ||
| 07S013S-306H | Crank Rod Hinge Screw | ||
| SN-0116-3400 | Nut(1/4" n=40) | ||
| 07S115S-306H | Oscillator Shaft | ||
| SC-0317-2700 | Screw(15/64" n=28) | ||
| 07S117S-306H | Oscillator Shaft Collar(L) | ||
| 07S019S-306H | Oscillator | ||
| 07S020S-306H | Washer | ||
| 43-009C-1600 | E-Ring | ||
| 07-023A-120H | Bobbin Case Ass'y | ||
| 07-224A-120H | Bobbin | ||
| 07-021A-120H | Shuttle Race Ring(H) | ||
| 07-022A-120M | Shuttle Race Ring(M) | ||
| 07-023A-120L | Shuttle Race Ring(L) | ||
| 07-128A-120H | Shuttle(H) | ||
| 07-129A-120M | Shuttle(M) | ||
| 07-030A-120H | Shuttle Driver | ||
| 07S033S-306H | Screw(M5×P0.8) | ||
| 07S132S-306H | Shuttle(L) | ||
| SC-0525-5300 | Screw(11/64" n=40) | ||
| 07S035S-306H | Shuttle Race Adjusting Shaft | ||
| 07S107S-306H | Needle Roller Bearing | ||
| 07S038S-306H | Shuttle Bearing Washer | ||
| 07S040S-306G | Shuttle Upper Spring | ||
| SC-A121-4122 | Screw(3/32" n=56) | ||
| 07S042S-306H | Inner Hook Presser Shaft Ass'y | ||
| 06-033M-3800 | E-Ring | ||
| 07S046S-306H | Inner Hook Spring | ||
| 07S047S-306H | Hook Cover Ass'y | ||
| 07S051S-306H | Hook Cover Plate Spring A | ||
| 07S052S-306H | Hook Cover Plate Spring B | ||
| 07S050S-306H | Spring Pin(φ 2× 19.8) | ||
| SC-0543-2302 | Screw(11/64" n=40) | ||
| 07-042G-120L | Shuttle Upper Spring (L) | ||
| 07-041G-120L | Shuttle Upper Spring (U) | ||
| 07S023S-306H | Bobbin Case Ass'y(BL) | ||
| 07S026S-306H | Bobbin(BL) | ||
| 07S027S-306H | Shuttle Race Ring(BL) | ||
| 07S028S-306H | Shuttle(HBL) | ||
| 07S029S-306G | Shuttle(MBL) | ||
| 07S030S-306H | Shuttle Driver(BL) | ||
| 07S116S-306H | Oscillator O-Ring |
Page 13 — Presser Plate Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 21-101A-120H | Presser Plate Bushing | 1 |
| D-2 | 01-0000-BT13 | Presser Plate Solenoid Ass'y | 1Set |
| D-3 | 21-003S-120H | Screw A | 4 |
| D-4 | 21-036S-120H | Screw B | 2 |
| D-5 | 01-017W-1600 | Washer | 2 |
| D-6 | 21-133A-120H | Presser Plate Solenoid Base | 1 |
| D-7 | SC-0307-1230 | Screw(3/16" n=32) | 4 |
| D-8 | 21-105A-120H | Presser Plate Link(A) | 1 |
| D-9 | 21-206A-120H | Presser Plate Link Shaft(A) | 1 |
| D-10 | SC-0164-2700 | Screw(11/64" n=40) | 2 |
| D-11 | 09-025W-8270 | Washer | 5 |
| D-12 | 21-103P-120H | Snap Pin(∮8) | 4 |
| D-13 | 21-110A-120H | Presser Plate Link(B) | 1 |
| D-14 | 21-111A-120H | Presser Plate Link Shaft(B) | 1 |
| D-15 | 21-114A-120H | Presser Plate Link(C) | 1 |
| D-16 | 21-016A-120H | Presser Plate Link Shaft(C) | 1 |
| D-17 | 21-101P-120H | Snap Pin(∮5) | 1 |
| D-18 | 21-118G-1201H | Presser Plate Return Spring | 2 |
| D-19 | 21-019P-120H | Holder For D-17 | 2 |
| D-20 | 21-120A-120H | Presser Plate Sensor Slit | 1 |
| D-21 | SC-0158-3710 | Screw(M3) | 2 |
| D-22 | 15-027A-2070 | Presser Plate Sensor | 1 |
| D-23 | 21-123A-120H | Base For Presser Plate | 1 |
| D-24 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
| D-25 | SC-0164-2700 | Screw(M5) | 1 |
| D-26 | 21-035A-120H | Guide For D-14 | 1 |
| D-27 | SC-0174-1230 | Screw | 2 |
| D-28 | 10-020W-2700 | Washer | 2 |
| D-29 | 09-025W-8270 | Washer | 1 |
| D-30 | 21-103P-120H | Snap Pin(∮8) | 1 |
| D-31 | 21S039S-306H | Washer | 1 |
| D-32 | 21-026A-120H | Presser Plate Shaft | 1 |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | 40-040A-120H | Thread Tension Adjusting Ass'y(H) | 1Set |
| E-2 | 40S002S-306H | Thread Tension Adjusting Body | 1 |
| E-3 | 40S003S-306H | Thread Tension Adjusting Shaft | 1 |
| E-4 | 40-604S-1230 | Screw(9/64" n=40) | 2 |
| E-5 | 40S005S-306H | Thread Take-Up Spring(H) | 1 |
| E-6 | 40S006S-306G | Thread Take-Up Spring(M) | 1 |
| E-7 | 40-204A-1230 | Thread Guide Disk | 4 |
| E-8 | 40-304A-1230 | Presser Plate For E-7 | 1 |
| E-9 | 40S009S-306H | Spring Cover | 1 |
| E-10 | 40S010S-306H | Thread Tension Adjusting Spring(H) | 1 |
| E-11 | 40-333G-123A | Thread Tension Adjusting Spring(M) | 1 |
| E-12 | 40-804W-1230 | Spring Stopper | 2 |
| E-13 | 40-204A-2350 | Thread Adjusting Nut | 1 |
| E-14 | SC-0108-2350 | Screw(M6) | 1 |
| E-15 | AS-002639-00 | Second Thread Tension Adjusting Ass'y | 1Set |
| E-16 | GP-008767-01 | Second Thread Tension Adjusting Shaft | 1 |
| E-17 | 40S019S-306H | Second Thread Tension Adjusting Spring | 1 |
| E-18 | 40-704C-1230 | Second Thread Adjusting Nut | 1 |
| E-20 | 40S023S-306H | Thread Release Link | 1 |
| E-21 | 40S024S-306H | Thread Release Link Hinge Screw | 1 |
| E-22 | 40-025A-120H | Thread Release Connecting Rod | 1 |
| E-23 | 40S026S-306H | Hinge Screw A For E-22 | 1 |
| E-24 | SN-0111-1600 | Nut(3/16" n=28) | 1 |
| E-25 | 40S028S-306H | Hinge Screw B For E-22 | 1 |
| E-26 | 06-046W-7400 | Washer | 1 |
| E-27 | 40-030C-120H | Thread Release Stopper | 1 |
| E-28 | 55-011S-5050 | Screw(3/16" n=28) | 2 |
| E-29 | 40-032C-120H | Thread Release Adjusting Plate(A) | 1 |
| E-30 | 40-033C-120H | Thread Release Adjusting Plate(B) | 1 |
| E-31 | 40S033S-306H | Thread Release Return Spring | 1 |
| E-32 | SC-0180-3800 | Screw(11/64" n=28) | 1 |
| E-33 | 10-020W-2700 | Washer | 1 |
| E-34 | 40-037C-120H | Thread Release Shaft | 1 |
| E-35 | SC-0352-7400 | Screw(3/16" n=28) | 1 |
| E-36 | 40-039C-120H | Thread Release Bar | 1 |
| E-37 | 16-015S-3710 | Hinge Screw For E-36 | 1 |
| E-38 | 40S044S-306H | Thread Release Bar Guide | 1 |
| E-39 | SC-0528-1230 | Screw(9/64" n=40) | 2 |
| E-40 | 40-040A-120M | Thread Tension Adjusting Ass'y(M) | 1Set |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 11-101A-120H | Wiper Driving Lever | 1 |
| F-2 | 06-027P-7400 | Wiper Driving Lever Shaft | 1 |
| F-3 | SC-0164-2700 | Screw(11/64" n=40) | 2 |
| F-4 | 11-004A-120D | Wiper Rod A | 1 |
| F-5 | 11-205A-120H | Wiper Rod Shaft | 1 |
| F-6 | 06-046W-7400 | Washer | 1 |
| F-7 | 11-013S-5060 | Hinge Screw For F-4 | 1 |
| F-8 | SN-0101-1600 | Nut(11/64" n=40) | 1 |
| F-9 | GP-011319-00 | Wiper Connecting Arm Ass'y | 1Set |
| F-10 | 05-014C-1230 | E-Ring(ϕ4) | 2 |
| F-12 | 06-027P-7400 | Wiper Connecting Arm Shaft | 1 |
| F-13 | SC-0164-2700 | Screw(9/64" n=40) | 1 |
| F-14 | 11-018A-120H | Wiper Connecting Rod | 1 |
| F-15 | 11-019R-120H | Oil Shield Cap | 1 |
| F-16 | GP-012584-00 | Wiper Ass'y | 1Set |
| F-17 | SC-000332-00 | Hinge Screw For F-16 | 1 |
| F-18 | GP-012585-00 | Wiper Base Plate | 1 |
| F-19 | SC-A174-4122 | Screw(9/64" n=40) | 1 |
| F-20 | 11-012P-120H | Wiper Connecting Arm Shaft | 1 |
Page 19 — Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 12-0000-BT13 | Thread Trimming Sol. Ass'y | 1Set |
| G-2 | 10S002S-306H | Thread Trimming Sol. Bracket | 1 |
| G-3 | SC-0202-5050 | Screw(3/16" n=28) | 2 |
| G-4 | SN-0101-1600 | Nut(11/64" n=40) | 5 |
| G-5 | 10S005S-306H | Link For G-1 | 1 |
| G-6 | 10S006S-306H | Screw(M4×P0.7) | 1 |
| G-7 | 10S007S-306H | Thread Trimming Driving Link Stopper | 1 |
| G-8 | 10S009S-306H | Thread Trimming Cam | 1 |
| G-9 | SC-A129-4515 | Screw(1/4" n=40) | 2 |
| G-10 | 10S011S-306H | Thread Release Notch | 1 |
| G-11 | 02014SC-4113 | Screw(M4×P0.7) | 2 |
| G-12 | 10S113S-306H | Thread Trimming Shaft | 1 |
| G-13 | 10S114S-306H | Thread Trimming Shaft Collar | 2 |
| G-14 | SC-0164-2700 | Screw(M5) | 2 |
| G-15 | 10S017S-306H | Rubber Washer For G-12 | 1 |
| G-16 | 10S018S-306H | Thread Trimming Driving Link Ass'y | 1Set |
| G-17 | SC-0317-2700 | Screw(15/64" n=28) | 1 |
| G-18 | 10S022S-306H | Thread Trimming Shaft Spring | 1 |
| G-19 | 10S023S-306H | Thread Trimming Cam Roller | 1 |
| G-20 | 10S024S-306H | Hinge Screw for G-19 | 1 |
| G-21 | 10S026S-306H | Thread Release Lever | 1 |
| G-22 | 10S027S-306H | Thread Release Lever Pin | 1 |
| G-23 | SN-0105-3400 | Nut(15/64" n=28) | 1 |
| G-24 | 10-029A-120H | Thread Trimming Connecting Rod | 1 |
| G-25 | 10-220A-8577 | Rod End(R) | 2 |
| G-26 | 0869SN-9311 | Nut(M5) | 3 |
| G-27 | 10S032S-306H | Hinge Screw For G-24 | 2 |
| G-28 | 06-036W-3800 | Washer | 1 |
| G-29 | 10S135S-306H | Thread Trimming Connecting Link | 1 |
| G-31 | 10-037A-120H | Thread Trimming Connecting Bar | 1 |
| G-32 | 10S038S-306H | Hinge Screw For G-31 | 1 |
| G-33 | 10S062S-306H | Link Stopper Screw | 1 |
| G-34 | 10S064S-306H | Return Spring For G-31 | 1 |
| G-35 | 10-019S-7507 | Spring Holder | 1 |
| G-36 | 10-140A-120H | Needle Plate | 1 |
| G-37 | 01-136S-1230 | Screw(11/64" n=40) | 4 |
| G-38 | 10-041A-120H | Needle Plate Cover(H) | 1 |
| G-39 | 10-043A-120M | Needle Plate Cover(M) | 1 |
| G-40 | 10-143A-120K | Needle Plate Cover(L, K) | 1 |
| G-41 | 04107SC-A001 | Screw | 2 |
| G-42 | 10-101A-120H | Fixed Mes | 1 |
| G-43 | 10S046S-306H | Screw(9/64" n=40) | 2 |
| G-44 | 10-106A-120H | Moving Mes | 1 |
| G-45 | 10-048A-120H | Hinge Screw For G-44 | 1 |
| G-46 | 10S049S-306H | Washer(t=0.4) | 1 |
| G-46 | 10S050S-306H | Washer(t=0.5) | 1 |
| G-46 | 10-051W-120H | Washer(t=0.6) | 1 |
| G-46 | 10-052W-120H | Washer(t=0.7) | 1 |
| G-47 | 10S053S-306H | Moving Mes Link | 1 |
| G-48 | 10S055S-306G | Thread Trimming Lever "B" | 1 |
| G-49 | 10S056S-306H | Thread Trimming Lever Ring | 1 |
| G-50 | 10S057S-306H | Thread Trimming Lever Shaft | 1 |
| G-51 | 10S058S-306H | Thread Trimming Lever "A" | 1 |
| G-52 | 10S059S-306H | Thread Trimming Lever Screw | 1 |
| G-53 | 10S060S-306H | Screw(11/64" n=40) | 1 |
| G-54 | 10-020W-2700 | Washer | 1 |
| G-55 | SN-0119-1230 | Nut(3/16" n=28) | 1 |
| G-56 | PN-000246-00 | Thread Trimming Connecting Link Pin | 1 |
| G-57 | SC-0164-2700 | Screw(M5×L5) | 1 |

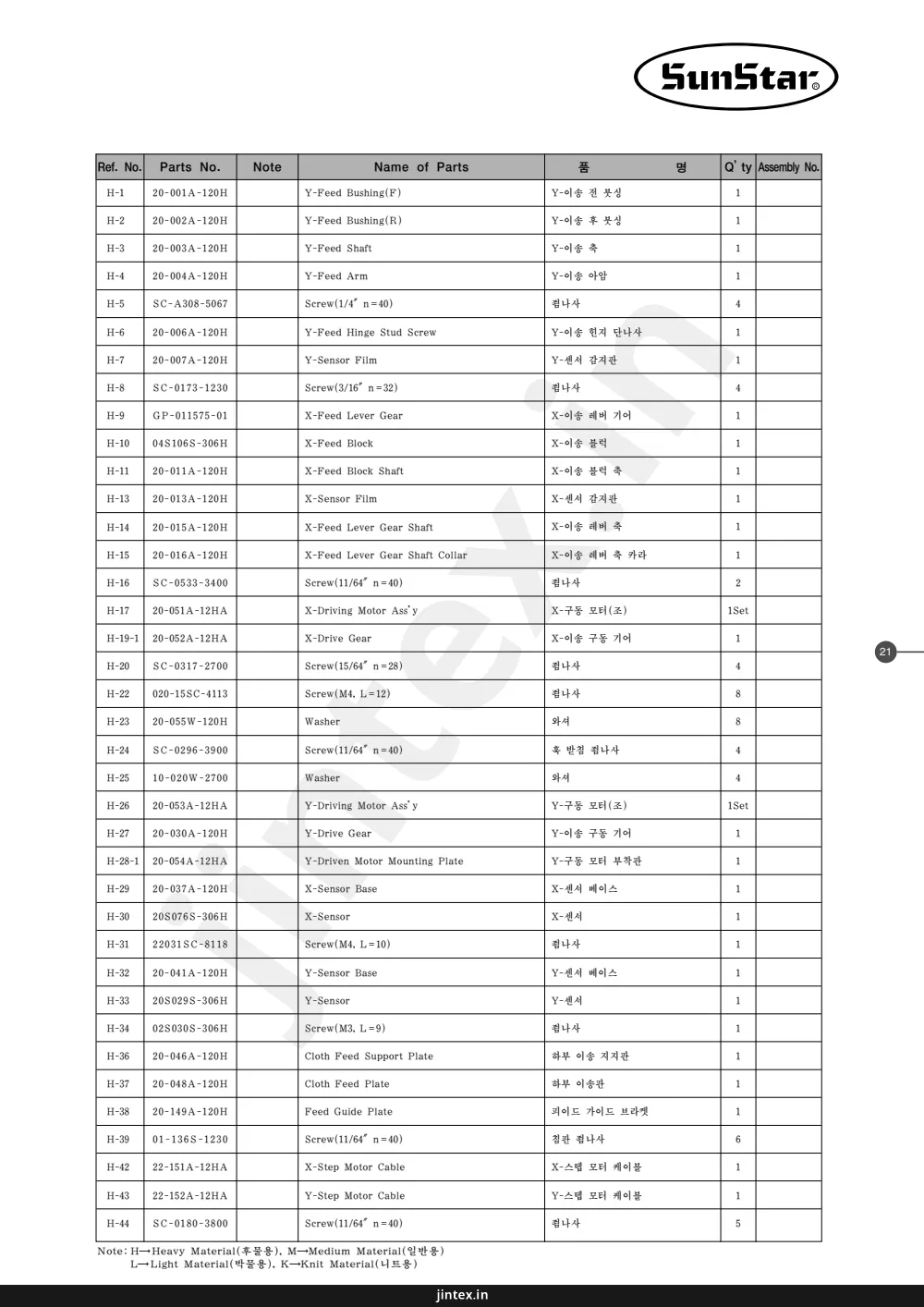

Page 21 — X-Y Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | 20-001A-120H | Y-Feed Bushing(F) | 1 |
| H-2 | 20-002A-120H | Y-Feed Bushing(R) | 1 |
| H-3 | 20-003A-120H | Y-Feed Shaft | 1 |
| H-4 | 20-004A-120H | Y-Feed Arm | 1 |
| H-5 | SC-A308-5067 | Screw(1/4" n=40) | 4 |
| H-6 | 20-006A-120H | Y-Feed Hinge Stud Screw | 1 |
| H-7 | 20-007A-120H | Y-Sensor Film | 1 |
| H-8 | SC-0173-1230 | Screw(3/16" n=32) | 4 |
| H-9 | GP-011575-01 | X-Feed Lever Gear | 1 |
| H-10 | 04S106S-306H | X-Feed Block | 1 |
| H-11 | 20-011A-120H | X-Feed Block Shaft | 1 |
| H-13 | 20-013A-120H | X-Sensor Film | 1 |
| H-14 | 20-015A-120H | X-Feed Lever Gear Shaft | 1 |
| H-15 | 20-016A-120H | X-Feed Lever Gear Shaft Collar | 1 |
| H-16 | SC-0533-3400 | Screw(11/64" n=40) | 2 |
| H-17 | 20-051A-12HA | X-Driving Motor Ass'y | 1Set |
| H-19-1 | 20-052A-12HA | X-Drive Gear | 1 |
| H-20 | SC-0317-2700 | Screw(15/64" n=28) | 4 |
| H-22 | 020-15SC-4113 | Screw(M4, L=12) | 8 |
| H-23 | 20-055W-120H | Washer | 8 |
| H-24 | SC-0296-3900 | Screw(11/64" n=40) | 4 |
| H-25 | 10-020W-2700 | Washer | 4 |
| H-26 | 20-053A-12HA | Y-Driving Motor Ass'y | 1Set |
| H-27 | 20-030A-120H | Y-Drive Gear | 1 |
| H-28-1 | 20-054A-12HA | Y-Driven Motor Mounting Plate | 1 |
| H-29 | 20-037A-120H | X-Sensor Base | 1 |
| H-30 | 20S076S-306H | X-Sensor | 1 |
| H-31 | 22031SC-8118 | Screw(M4, L=10) | 1 |
| H-32 | 20-041A-120H | Y-Sensor Base | 1 |
| H-33 | 20S029S-306H | Y-Sensor | 1 |
| H-34 | 02S030S-306H | Screw(M3, L=9) | 1 |
| H-36 | 20-046A-120H | Cloth Feed Support Plate | 1 |
| H-37 | 20-048A-120H | Cloth Feed Plate | 1 |
| H-38 | 20-149A-120H | Feed Guide Plate | 1 |
| H-39 | 01-136S-1230 | Screw(11/64" n=40) | 6 |
| H-42 | 22-151A-12HA | X-Step Motor Cable | 1 |
| H-43 | 22-152A-12HA | Y-Step Motor Cable | 1 |
| H-44 | SC-0180-3800 | Screw(11/64" n=40) | 5 |
Page 23 — Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 22-001A-120H | Feed Bracket | 1 |
| I-2 | 22-002A-120H | Lifting Lever(L) | 1 |
| I-3 | 22-003A-120H | Lifting Lever(R) | 1 |
| I-4 | 22-004A-120H | Lifting Lever Shaft | 1 |
| I-5 | SC-0317-2700 | Screw(15/64" n=28) | 1 |
| I-6 | 06-046W-7400 | Washer | 1 |
| I-7 | 04-009C-3710 | E-Ring | 1 |
| I-8 | 22-008A-120H | Adjusting Plate | 2 |
| I-9 | 01S106S-306H | Screw | 2 |
| I-10 | 10-020W-2700 | Washer | 2 |
| I-11 | 22-011A-120H | Spring Guide Rod | 2Set |
| I-12 | 43-010S-2500 | Hinge Screw For I-11 | 2 |
| I-13 | SN-0111-1600 | Nut(3/16" n=28) | 2 |
| I-14 | 22-016G-120H | Spring For Lifting Lever(H) | 2 |
| I-15 | 22-017C-120H | Spring Collar A | 2 |
| I-16 | 22-018C-120H | Spring Collar B | 2 |
| I-17 | 22-019A-120H | Work Clamp Foot-L(H) | 1 |
| I-18 | 22-020A-120H | Work Clamp Foot-R(H) | 1 |
| I-19 | 22-021A-120M | Work Clamp Foot-L(M) | 1 |
| I-20 | 22-022A-120M | Work Clamp Foot-R(M) | 1 |
| I-21 | 22-023A-120L | Work Clamp Foot-L(L) | 1 |
| I-22 | 22-024A-120L | Work Clamp Foot-R(L) | 1 |
| I-23 | 22-023A-120H | Guide Cover For Work Clamp Foot | 1 |
| I-24 | SC-0310-8130 | Screw(9/64" n=40) | 4 |
| I-25 | 22-125A-120H | Finger Guard | 1 |
| I-26 | SC-0528-1230 | Screw(9/64" n=40) | 2 |
| I-27 | SC-0108-2350 | Bolt(M6×l 20) | 2 |
| I-28 | 22S025S-306H | Washer | 4 |
| I-29 | 22-329A-120H | Feed Plate(H) | 1 |
| I-30 | 22-030A-120M | Feed Plate(M) | 1 |
| I-31 | 22-033A-120L | Feed Plate(L)-A | 1 |
| I-32 | 22-034A-120L | Feed Plate(L)-B | 1 |
| I-33 | 22-035A-120K | Feed Plate(K) | 1 |
| I-34 | 22-031A-120H | Screw(M6×l 10) | 2 |
| I-35 | 22-038A-120H | Ball Support Plate | 1 |
| I-36 | 22-039S-120H | Screw(M6) | 2 |
| I-37 | 06-034A-3900 | Ball | 7 |
| I-38 | 22-040A-120H | Ball Base | 1 |
| I-39 | SN-0116-3400 | Nut(1/4" n=40) | 1 |
| I-41 | 22-016G-120M | Spring For Lifting Lever(M) | 2 |
| I-42 | 22-023A-120K | Work Clamp Foot -L(K) | 1 |
| I-43 | 22-024A-120K | Work Clamp Foot -R(K) | 1 |
| I-44 | GP-007807-02 | Dust Plate(L) | 1 |
| I-45 | GP-007808-02 | Dust Plate(R) | 1 |
Page 25 — J Lubrication Mechanism 급유 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 44-0000-1230 | Oil Wick | |
| J-2 | 44-012C-1230 | Oil Hose | |
| J-3 | 44S007S-306H | Oil Return Felt A | 1 |
| J-4 | 44S008S-306H | Arm Oil Return Felt | 1 |
| J-5 | 44S002S-306H | Oil Hose For J-4 | 1 |
| J-6 | 44-008C-120H | Holder For J-5 | 1 |
| J-7 | SC-A156-4118 | Screw(9/64" n=40) | 2 |
| J-8 | 44S024S-306H | Crank Rod Lubrication Plate | 1 |
| J-9 | SC-0548-7400 | Screw(3/16" n=28) | 2 |
| J-10 | 44S027S-306H | Crank Rod Lubrication Felt | 1 |
| J-11 | 44-017C-120H | Needle Bar Crank Rod Lubrication Plate | 1 |
| J-12 | 44-019M-120H | Needle Bar Crank Rod Lubrication Felt | 1 |
| J-13 | 44S032S-306H | Oil Hose Holder(L) | 1 |
| J-14 | SC-0543-2302 | Screw(11/64" n=40) | 4 |
| J-15 | 44S034S-306H | Balance Lubrication Plate | 1 |
| J-16 | 44S035S-306H | Balance Lubrication Felt | 1 |
| J-17 | SC-0340-3710 | Screw(9/64" n=40) | 1 |
| J-18 | 44S039S-306H | Bed Oil Return Felt | 1 |
| J-19 | 44S001S-306H | Oil Hose For J-18 | 1 |
| J-20 | 44S041S-306H | Oscillator Lubrication Plate | 1 |
| J-21 | 44S042S-306H | Oscillator Lubrication Felt | 1 |
| J-22 | 44S005S-306H | Cable Holder | 1 |
| J-23 | 44S044S-306H | Shuttle Lubrication Plate | 1 |
| J-24 | 44S046S-306H | Shuttle Lubrication Felt(L) | 1 |
| J-25 | 06-033M-7400 | Shuttle Lubrication Felt(S) | 2 |
| J-26 | 44-034R-120H | Bed Oil Wick Rubber Cap | 1 |
| J-27 | 44S052S-306H | Oil Window | 2 |
| J-28 | 44S053S-306H | Oil Gauge | 2 |
| J-29 | 44S054S-306H | Oil Window Rubber Ring | 2 |
Page 27 — Table & Thread Stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-2 | TZ-001-1000 | Table Stand Ass'y | 1Set |
| K-6 | 90A008S-811H | Accessary Case | 1 |
| K-8 | 01S122S-306H | Hinge | 2 |
| K-9 | 01S123S-306H | Hinge Rubber | 2 |
| K-10 | 01S124S-306H | Hinge Pin | 2 |
| K-11 | SC-0164-2700 | Screw(M5×P0.8) | 2 |
| K-12 | 01S126S-306H | Bolt(M6×ℓ60) | 5 |
| K-13 | 01S127S-306H | Nut(M6) | 8 |
| K-14 | 01S128S-306H | Washer | 9 |
| K-15 | 91-106A-120H | Oil Pan | 1 |
| K-16 | 44-0000-1230 | Oil Wick | 1 |
| K-18 | 91-002C-7400 | Oiler | 1 |
| K-19 | 90S008S-306H | Oil Supporter | 1 |
| K-21 | 90S010S-306H | Cushion Rubber | 2 |
| K-22 | 91-007A-2302 | Thread Stand Ass'y | 1Set |
| K-23 | 91-005A-SH51 | Power Switch | 1 |
| K-25 | GP-006544-00 | Support Rubber Safety Switch | 1 |

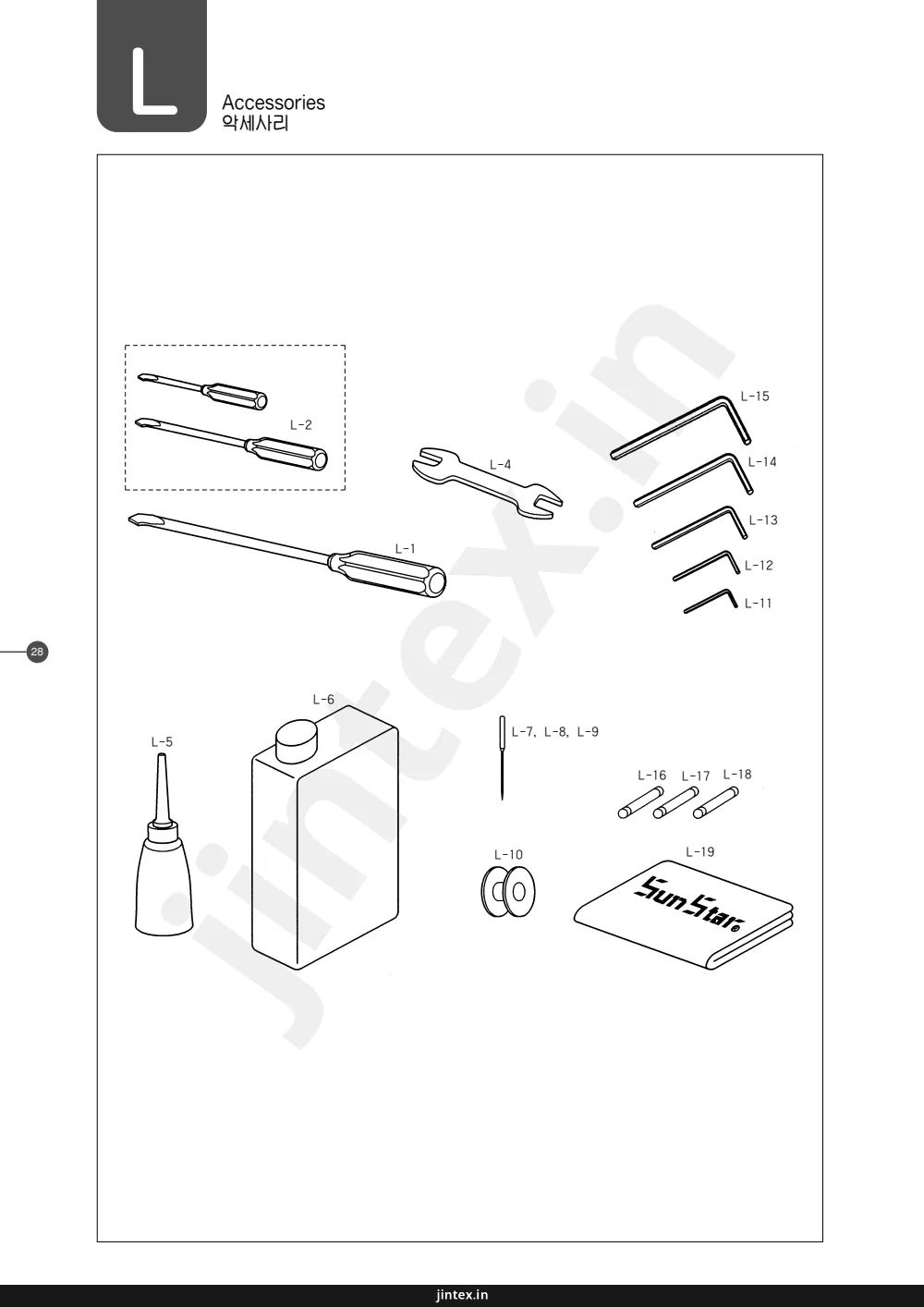

Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | 91-102C-1230 | Driver(L) | 1 |
| L-2 | 91-103C-1230 | Driver(M), (S) | 1 |
| L-4 | 91S004S-306H | Spaner(9×10) | 1 |
| L-5 | 91-011C-1230 | Oiler | 1 |
| L-6 | 91-108C-1230 | Oil | 1 |
| L-10 | 07-224A-120H | Bobbin | 2 |
| L-11 | 91-001C-2700 | L-Shaped Wrench | 1 |
| L-12 | 91-004C-2700 | L-Shaped Wrench | 1 |
| L-13 | 91-003C-2700 | L-Shaped Wrench | 1 |
| L-14 | 91-001C-3800 | L-Shaped Wrench | 1 |
| L-15 | 91-002C-2700 | L-Shaped Wrench | 1 |
| L-16 | 12-0146-SC53 | Fuse(1A, 30mm) | 1 |
| L-17 | 05-002C-SW65 | Fuse(10A, 30mm) | 1 |
| L-18 | 12-046C-SC53 | Fuse(15A, 30mm) | 1 |
| L-19 | 91-001C-120H | Head Cover | 1 |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | SSBT-0000035 | Control Box Ass'y | 1 |
| M-2 | GP-008658-01 | Box Body | 1 |
| M-3 | GP-008671-00 | Front Profile Upper | 1 |
| M-4 | 10-016S-CPT1 | Screw(M4×L12) | 2 |
| M-5 | GP-008672-00 | Front Profile Lower | 1 |
| M-6 | 10-016S-CPT1 | Screw(M4×L12) | 2 |
| M-7 | GP-008673-00 | Rear Profile Upper | 2 |
| M-8 | 10-016S-CPT1 | Screw(M4×L12) | 4 |
| M-9 | GP-008674-00 | Rear Profile Lower | 1 |
| M-10 | 10-016S-CPT1 | Screw(M4×L12) | 2 |
| M-11 | GP-008666-01 | Upper Frame | 1 |
| M-12 | 10-004M-SW68 | Screw(M3×L5) | 4 |
| M-13 | GP-008663-01 | Lower Frame | 1 |
| M-14 | 10-004M-SW68 | Screw(M3×L5) | 4 |
| M-15 | GP-008662-00 | Upper Cover | 1 |
| M-16 | EP-000040-00 | Control Box Fan | 1 |
| M-17 | SC-000392-00 | Screw(M4×L30) | 4 |
| M-18 | 09-041S-3701 | Fan Nut(M4) | 4 |
| M-19 | 10-004M-SW68 | Screw(M3×L5) | 6 |
| M-20 | GP-008667-00 | Insulation Plate | 3 |
| M-21 | BD-000204-00 | Backplane Board | 1 |
| M-22 | 10-020M-SW66 | Screw(M3×L12) | 18 |
| M-23 | GP-008659-01 | Rear Cover | 1 |
| M-24 | 10-004M-SW68 | Screw(M3×L5) | 6 |
| M-25 | EP-000039-00 | SMPS | 1 |
| M-26 | GP-008701-01 | SMPS Bracket | 1 |
| M-27 | 10-002S-SW66 | Screw(M3×L8) | 5 |
| M-28 | BD-000203-00 | DDC Board | 1 |
| M-29 | 10-002S-SW66 | Screw(M3×L8) | 6 |
| M-30 | BD-000205-00 | Digital Board | 1 |
| M-31 | GP-008668-01 | Digital Board Bracket | 1 |
| M-32 | GP-007198-00 | SMD FET Ragiator Sheet | 1 |
| M-33 | 10-002S-SW66 | Screw(M3×L8) | 4 |
| M-34 | BD-000207-00 | Step Board | 1 |
| M-35 | GP-006318-00 | Step Board Radiator | 1 |
| M-36 | GP-007197-00 | SMD FET Ragiator | 1 |
| M-37 | 10-004M-SW68 | Screw(M3×L5) | 1 |
| M-38 | EP-000041-00 | Step Board Fan | 2 |
| M-39 | 01-017C-DU33 | Screw(M4×L25) | 4 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-40 | GP-010656-00 | Step Board Stud(A) | 5 |
| M-41 | GP-007198-00 | SMD FET Radiator Sheet | 2 |
| M-42 | 10-012M-PT10 | Step Board Stud(B) | 5 |
| M-43 | GP-007196-00 | Step Board FET Radiator | 2 |
| M-44 | 07-004S-SM5S | Screw(M4×L10) | 4 |
| M-45 | GP-007199-00 | FET Radiator Sheet A | 1 |
| M-46 | GP-007201-00 | FET Radiator Sheet B | 1 |
| M-47 | 07-005S-SM5S | Screw(M3×L10) | 11 |
| M-48 | GP-008669-01 | Step Board Bracket | 1 |
| M-49 | 10-004M-SW68 | Screw(M3×L5) | 5 |
| M-50 | BD-000206-00 | Main Board | 1 |
| M-51 | GP-007203-00 | Main Board Radiator | 1 |
| M-52 | 10-012M-PT10 | Main Board Stud | 3 |
| M-53 | 01-003S-2070 | Screw(M4×L16) | 1 |
| M-54 | 10-003M-PT10 | Screw(M4×L10) | 2 |
| M-55 | GP-008670-01 | Main Board Bracket | 1 |
| M-56 | 10-002S-SW66 | Screw(M3×L8) | 4 |
| M-57 | 07-004S-SM5S | Screw(M4×L10) | 1 |
| M-58 | GP-008660-00 | Cable Cover | 1 |
| M-59 | 10-003M-PT01 | Screw(M4×L8) | 4 |
| M-60 | GP-007711-00 | Digital Board Sticker | 1 |
| M-61 | GP-007712-00 | Step Board Sticker | 1 |
| M-62 | GP-007713-00 | Main Board Sticker | 1 |
| M-63 | 09-023C-SC53 | QC Passed Sticker | 1 |
| M-64 | GP-010843-00 | Voltage Sticker | 1 |
| M-65 | 04-004S-AU10 | Caution Sticker | 1 |
| M-66 | CA-00342-00 | SMPS Connecting Cable1 | 1 |
| M-67 | CA-00343-00 | SMPS Connecting Cable2 | 1 |
| M-68 | CA-00351-00 | Jumper Cable | 1 |
| M-69 | 04-001C-SE50 | Screw(ST5×L16) | 4 |
| M-70 | 01-001M-PT01 | Screw(M6×L45) | 4 |
| M-71 | 01-003S-SW66 | Spring Washer(M6) | 4 |
| M-72 | 01-004S-SW66 | Washer(M6) | 4 |
| M-73 | 91-001C-BT10 | Urethane Washer | 4 |
| M-74 | 01-001S-NET1 | Screw(M3×L6) | 6 |
| M-75 | GP-012617-00 | Board Bracket Handle | 3 |
| M-76 | 10-073S-3701 | Screw(M3×L10) | 6 |
| M-77 | GP-011488-00 | Brand Sticker | 1 |
Page 35 — Operation Unit Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N-1 | GP-011454-00 | Membrane Switch | 1 |
| N-2 | GP-011450-00 | Front Cover | 1 |
| N-3 | BD-000217-00 | O/P Board | 1 |
| N-4 | CA-000344-00 | Operation Cable | 1 |
| N-5 | 11-002S-5050 | Fixing Screw For O/P Board | 4 |
| N-6 | BD-000216-00 | CF Card Board | 1 |
| N-7 | CA-000395-00 | CF Card Power Cable | 1 |
| N-8 | CA-000396-00 | CF Card Cable | 1 |
| N-9 | 11-002S-5050 | Fixing Screw For CF Card Board | 2 |
| N-10 | 15-026M-1000 | Cable Tie | 2 |
| N-11 | GP-011452-01 | CF Card Cover | 1 |
| N-12 | GP-011451-00 | Rear Cover | 1 |
| N-13 | 11-002S-5050 | Fixing Screw For Rear Cove | 4 |
| N-14 | GP-011455-00 | Stand For OP Box | 1 |
| N-15 | SC-000410-00 | Fixing Screw For OP Box | 2 |
| N-16 | SC-000411-00 | Fixing Screw For OP Box Stand | 4 |
Page 37 — Pedal Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| O-1 | 10-001A-PT11 | Cover | 1 |
| O-2 | 10-002A-PT11 | Base | 1 |
| O-3 | 10-001B-PT11 | Stopper A | 1 |
| O-4 | 10-002B-PT11 | Stopper B | 1 |
| O-5 | 10-003B-PT11 | Stopper C | 1 |
| O-6 | 10-004B-PT11 | Guide A | 1 |
| O-7 | 10-005B-PT11 | Guide B | 2 |
| O-8 | 10-006S-PT11 | Spring A | 2 |
| O-9 | 10-007S-PT11 | Spring B | 2 |
| O-10 | 10-006B-PT11 | Guide Base | 1 |
| O-11 | 10-007B-PT11 | Guide Cover | 1 |
| O-12 | 10-008B-PT11 | Switch Cover | 1 |
| O-13 | 10-003A-PT11 | Shaft | 1 |
| O-14 | 10-001S-SW68 | E-Ring | 1 |
| O-15 | 10-004A-PT11 | MICRO SWITCH | 2 |
| O-16 | 10-001C-PT11 | GROMMET BUSH | 1 |
| O-17 | 10-028S-SC53 | Screw Guide Base(M3×P0.5 L=7) | 4 |
| O-18 | 10-008M-PT11 | Screw MICRO SWITCH(M3×P0.5 L=38) | 2 |
| O-19 | 10-021M-SW66 | Screw Guide Cover(M3×P0.5 L=6) | 4 |
| O-20 | 10-008S-PT11 | Spring C | 1 |
| O-21 | 11-002M-PT10 | Sponge(t5×B10) | 2 |
Page 39 — Cable Unit
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| P-1 | 02-001B-BT01 | Operator Cable | 1 |
| P-2 | 02-008B-BT01 | Step Motor Drive Signal Cable | 1 |
| P-4 | 02-011B-BT01 | Solenoid Power Cable | 1 |
| P-5 | 02-028A-120H | X Axis Step Motor Cable | 1 |
| P-6 | 02-013B-BT01 | Step Motor Power Cable | 1 |
| P-7 | 02-009B-BT01 | Servo Motor Drive Signal Cable | 1 |
| P-8 | 21-029A-120H | Presser Foot Solenoid Cable | 1 |
| P-8 | 21-029A-120H | Thread Trimming Solenoid Cable | 1 |
| P-9 | 02-012B-BT01 | Servo Motor Power Cable | 1 |
| P-12 | 02-010B-BT01 | Servo Motor Auxiliary Cable | 1 |
| P-14 | 02-014B-BT01 | Cooling Fan Cable | 1 |
| P-15 | 02-029A-120H | Y Axis Step Motor Cable | 1 |
Page 41
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| Q-1 | 22-073A-12HA | Feed Bracket | 1 |
| Q-2 | 22-075A-12HA | Lifting Lever(Right) | 1 |
| Q-3 | 22-074A-12HA | Lifting Lever(Left) | 1 |
| Q-4 | 22-076A-12HA | Air Cylinder | 2 |
| Q-5 | 22A030S-306H | Cylinder Knuckle | 2 |
| Q-7 | 05-014C-1230 | E-Ring(ϕ4) | 4 |
| Q-8 | 49A003S-811H | Hose Elbow(M-5HL-4) | 4 |
| Q-9 | 05A039S-811H | Air Hose(TU-0425) | - |
| Q-10 | 22A048S-811H | Air Hose Label(S4L) | 2 |
| Q-11 | 22A049S-811H | Air Hose Label(S3R) | 2 |
| Q-13 | 04-009C-3710 | E-Ring | 1 |
| Q-14 | 22A048C-811H | Air Hose Label(S4R) | 2 |
| Q-15 | 22A049S-811H | Air Hose Label(S3R) | 2 |
| Q-16 | 22-077A-12HA | Cylinder Shaft | 1 |
| Q-17-1 | 22-023A-12HA | Pneumatic Presser Foot(L) | 1 |
| Q-17-2 | 22-024A-12HA | Pneumatic Presser Foot(R) | 1 |
Page 42 — Thread Trimmer Mechanism 사절 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| R-1 | 10A042S-811E | Needle Plate Cover | 1 |
| R-2 | 10S045S-306H | Fixed Mes | 1 |
| R-3 | 10S047S-306H | Moving Mes | 1 |
| R-4 | 10S048S-306H | Hinge Screw For S-3 | 1 |
Page 43 — X-Y Mechanism / X-Y관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S-1 | 20-052A-12HA | X-Drive Gear | 1 |
| S-2 | 20--051A-12HA | X-Driving Motor Asm. | 1 |
| S-3 | 02-001W-2302 | Washer | 4 |
| S-4 | 07-016S-4113 | Screw(M4×P0.7×L12) | 4 |
| S-5 | 20-054A-12HA | Y-Motor Mounting Plate | 1 |
| S-6 | 20-053A-12HA | Y-Driving Motor Asm. | 1 |
Page 45 — Air Control Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| T-1 | 49-001A-12HA | Quick Coupling(PY0400) | 2 |
| T-2 | 05A039S-811H | Air Hose | — |
| T-3 | 22A065S-811H | Hose Lable(S3F) | 2 |
| T-4 | 22A066S-811H | Hose Label(S4F) | 2 |
| T-5 | 49-002A-12HA | Solenoid Valve Asm | 1Set |
| T-7 | 05A039S-811H | Air Hoce | 0.5 |
| T-8 | 49-004C-5030 | Elbow Union | 1 |
| T-9 | 49A007S-811H | Air Pressure Switch | 1 |
| T-10 | 49A006S-811H | Filter Regulator | 1 |
| T-14 | 49A005S-811H | Finger Valve | 1 |
| T-15 | 49-002C-5030 | Quick Joint Plug | 1 |
| T-16 | 01A148S-811H | Cable Tie | 5 |
| T-17 | 49-016A-12HA | Pneumatic I/O Cable | 1 |
Page 47 — Air Control Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| T-1 | 22 A046S-306H | Solenoid Valve | 2 |
| T-2 | 49 A019S-811H | Manifold Block | 1 |
| T-3 | 49 A020S-811H | Silencer | 2 |
| T-4 | 49 A021S-811H | Plug B | 3 |
| T-5 | 49 A015S-811H | Hose Nipple | 4 |
| T-6 | 49 A014S-811H | Half Union | 1 |
| T-7 | 90S021S-306H | Screw (M3×L30) | 2 |
| T-8 | 49-016A-12HA | Pneumatic I/O Cable | 1 |
| T-9 | 22 A046S-306H | Solenoid Valve | 2 |
| T-10 | 49 A019S-811H | Manifold Block | 1 |
| T-11 | 49 A020S-811H | Silencer | 2 |
| T-12 | 49 A021S-811H | Plug B | 3 |
| T-13 | 49 A015S-811H | Hose Nipple | 3 |
| T-14 | 49-008A-106L | Half Union | 1 |
| T-15 | 09-004S-5030 | Plug Bolt | 1 |
| T-16 | 90S021S-306H | Screw (M3×L30) | 2 |
| T-17 | 49-016A-12HA | Pneumatic I/O Cable | 1 |
| T-18 | 49 A016S-811H | Quick Coupling | 2 |
| T-19 | 05 A039S-811H | Air Hose | 2 |
| T-20 | 22 A201S-811H | Air Hose Tube | 2 |
| T-21 | 22 A046S-306H | Solenoid Valve | 3 |
| T-22 | 50 A048S-811H | Manifold Block | 1 |
| T-23 | 49 A020S-811H | Silencer | 2 |
| T-24 | 49 A021S-811H | Plug B | 3 |
| T-25 | 49 A015S-811H | Hose Nipple | 5 |
| T-26 | 49-008A-106L | Half Union | 1 |
| T-27 | 09-004S-5030 | Plug Bolt | 1 |
| T-28 | 90S21S-306H | Screw (M3×L30) | 2 |
| T-29 | 49-016A-12HA | Pneumatic I/O Cable | 1 |
Page 49 — Wiper Mechanism (Option)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| U-1 | GP-012588-00 | Wiper Base | 1 |
| U-2 | 11-028A-12HA | Solenoid | 1 |
| U-5 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
| U-8 | GP-012587-00 | Wiper Crank | 1 |
| U-9 | SC-0330-7400 | Screw(15/64" n=28) | 1 |
| U-10 | 11-024A-12HA | Wiper Link | 1 |
| U-11 | GP-008203-00 | Hinge Screw For Wiper Link | 2 |
| U-12 | GP-012633-00 | Wiper | 1 |
| U-13 | GP-012585-00 | Wiper Base Plate | 1 |
| U-14 | 11-024C-120H | Hinge Screw For S-12 | 1 |
| U-15 | SC-0541-7600 | Screw(9/64" n=40) | 1 |
| U-16 | 11-033A-12HA | Wiper Cover | 1 |
| U-17 | 40-004W-1600 | Washer | 2 |
| U-18 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
| U-19 | 11-034C-12HA | Wiper Solenoid Cable | 1 |
| U-20 | 11-035R-12HA | Rubber For Wiper Stopper | 1 |
Page 50 — Upper Thread Holding Device (Option)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| U-Ⅱ-1 | 01-002A-12HA | Arm(Pneumatic Type) | 1 |
| U-Ⅱ-2 | 01-054M-120D | Model Mark(Mono-Lithic Driven Presser Foot) | 1 |
| U-Ⅱ-3 | 01-056M-120D | Model Mark(Separately Driven Presser Foot) | 1 |
| U-Ⅱ-4 | 09-002A-5030 | Upper Thread Holding Pin Cylinder(Ass'y) | 1(조) |
| U-Ⅱ-5 | 62-001A-12HA | Upper Thread Holding Pin Cylinder Bracket | 1 |
| U-Ⅱ-6 | 07016SC-4113 | Screw | 2 |
| U-Ⅱ-7 | 18014SW-3115 | Spring Washer | 2 |
| U-Ⅱ-8 | 18015CW-3111 | Washer | 2 |
| U-Ⅱ-9 | 09-003C-5030 | Upper Thread Holding Pin Cylinder Knuckle | 1 |
| U-Ⅱ-10 | 62-007G-12HA | Upper Thread Holding Pin Cylinder Knuckle Cap | 1 |
| U-Ⅱ-11 | 49A003S-811H | Hose Elbow | 1 |
| U-Ⅱ-12 | 49A001S-811H | Air Tube | 1 |
| U-Ⅱ-13 | 01-070M-12HA | Wiper Sub-Class Sticker (Electric) | 1 |
| U-Ⅱ-14 | 01-070M-12HA | Upper Thread Holding Divce Sticker | 1 |
Page 51 — Pedal Mechanism / 페달 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| V-I-1 | 12-012A-PT11 | Foot Switch Ass'y | 1Set |
| V-I-2 | 11-001A-PT10 | Base Foot Switch | 1 |
| V-I-3 | 11-1000-PT11 | One Step Stroke | 1 |
| V-I-4 | 11-2000-PT11 | Two Step Stroke | 1 |
| V-I-5 | 08-015C-3701 | Clamp Cable | 2 |
| V-I-6 | 09-031S-3701 | Screw Clamping Cable Ass'y(M4×0.7 L=8) | 1 |
| V-I-7 | 11-001S-PT10 | Ending Bushing | 1 |
| V-I-8 | 11-003A-PT10 | Cover Foot Switch | 1 |
| V-I-9 | 07-004S-SM5S | Screw Ass'y for "A" Foot Switch Cover(M4×0.7 L=8) | 2 |
| V-I-10 | 10-028S-SC53 | Screw Ass'y for "B" Foot Switch Cover(M3×0.5 L=8) | 2 |
| V-I-11 | 11-002M-PT10 | Sponge | 2 |
Page 53 — V-II Needle Cooler Device (Option) 니들쿨러 장치 (옵션)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| V-II -1 | Face Plate | 1 | |
| V-II -2 | Guide A | 1 | |
| V-II -3 | Guide B | 1 | |
| V-II -4 | Guide Bracket | 1 | |
| V-II -5 | Nozzle | 1 | |
| V-II -6 | Bracket For Air Blow Speed Controller | 1 | |
| V-II -7 | Speed Controller | 1 | |
| V-II -8 | Bolt For Speed Controller | 2 | |
| V-II -9 | Washer For Speed Controller | 2 | |
| V-II -10 | Screw | 2 | |
| V-II -11 | Screw | 1 | |
| V-II -12 | Air Tube (Ø4) | 0.3m | |
| V-II -13 | Screw | 2 |
Page 55 — SPS/D-B1201M (HP) 벨트홀 장치 관계 (HP)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| W-1 | A-B1201-HP | Hole Pattern Attachment | 1조 |
| W-2 | 85-001A-12HP | Cover Guide | 1조 |
| W-3 | 85-002A-12HP | Pin Plate A | 1조 |
| W-4 | 85-003P-12HP | Pin A | 1조 |
| W-5 | 85-004A-12HP | Pin Plate B | 1조 |
| W-6 | 85-005A-12HP | Pin Plate C | 1조 |
| W-7 | 85-006A-12HP | Pin Plate D | 1조 |
| W-8 | 85-007C-12HP | Link-Lever A | 1조 |
| W-9 | 85-008C-12HP | Link-Lever B | 1조 |
| W-10 | 15-015S-3500 | Bolt A | 1조 |
| W-11 | 85-010S-12HP | Bolt B | 1조 |
| W-12 | 85-011A-12HP | Sensor Plate | 1조 |
| W-13 | 85-012C-12HP | Stoper | 1조 |
| W-14 | 85-013A-12HP | Cover A | 1조 |
| W-15 | 85-014A-12HP | Cover B | 1조 |
| W-16 | 10-044A-12HP | Solenoid | 1조 |
| W-17 | 85-016P-12HP | Pin B | 2조 |
| W-18 | 85-017P-12HP | Pin C | 1조 |
| W-19 | 85-034A-12HP | Bearing | 1조 |
| W-20 | 85-019C-12HP | Bearing | 1조 |
| W-21 | 85-037C-12HP | E Ring | 1조 |
| W-22 | 85-020S-12HP | Screw | 5조 |
| W-23 | 85-021W-12HP | Washer | 2조 |
| W-24 | 85-033S-12HP | Screw | 1조 |
| W-25 | SC-A119-4119 | Screw | 5조 |
| W-26 | 15-015S-3500 | Screw | 2조 |
| W-27 | 85-036HP-12HP | Wave Washer | 2조 |
| W-28 | SN-0107-1230 | Nut | 1조 |
| W-29 | 85-035S-12HP | Nut | 1조 |
| W-30 | 85-025S-12HP | Screw | 3조 |
| W-31 | 85-026S-12HP | Screw | 3조 |
| W-32 | 85-027S-12HP | Screw | 4조 |
| W-33 | 85-028S-12HP | Screw | 1조 |
| W-34 | 85-029S-12HP | Screw | 2조 |
| W-35 | 85-030S-12HP | Screw | 1조 |
| W-36 | 15-027A-2070 | Sensor | 1조 |
| W-37 | 88-032S-12HP | Screw | 1조 |
| W-38 | 85-038G-12HP | Spring | 1조 |
| W-39 | 85-039S-12HP | Screw | 1조 |
| W-40 | 85-040S-12HP | Nut | 1조 |
| W-41 | 85-018R-12HP | Rubber Cap | 1 |
| W-42 | 07S147S-306H | Hook Cover | 1 |
| W-43 | 10-340A-120H | Needle Plate | 1 |
| W-44 | 20-048A-120H | Cloth Feed Plate | 1 |
| W-45 | 20-249A-120H | Feed Guide Bracket | 1 |
| W-46 | 15-027A-12HP | Sensor connecting Cable | 1 |
Page 56 — 표준형 / Standard Type
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-501A-120H | Ass'y | ||
| U:22-601A-120H D:22-602A-120H | Left | ||
| 22-019A-120H | Left | ||
| 22-021A-120M | Left | ||
| U:22-603A-120H D:22-604A-120H | Right | ||
| 22-0202A-120H | Right | ||
| 22-022A-120M | Right | ||
| 22-143A-120H | Feed plate | ||
| 22-029A-120H | Feed plate | ||
| 22-146A-120H | Feed plate | ||
| 22-030A-120M | Feed plate | ||
| 22-023A-120L | Left | ||
| 22-024A-120L | Right | ||
| 22-023A-120K | Left | ||
| 22-123A-120K | Left | ||
| 22-024A-120K | Right | ||
| 22-124A-120K | Right | ||
| 22-033A-120L | Feed plate | ||
| 22-034A-120L | Feed plate | ||
| 22-035A-120L | Feed plate | ||
| 22-035A-120K | Feed plate | ||
| 22-135A-120K | Feed plate | ||
| U:22-601A-120H | Left (좌) | ||
| D:22-602A-120H | Left (좌) | ||
| U:22-603A-120H | Right (우) | ||
| D:22-604A-120H | Right (우) |
Page 57 — 선택형 / Option Type
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-119A-120H | |||
| 22-120A-120H | |||
| 22-129A-120H | |||
| 22-121A-120H | |||
| 22-122A-120H | |||
| 22-130A-120H | |||
| 22-126A-120H | |||
| 22-127A-120H | |||
| 22-128A-120H | |||
| 22-135A-120H | |||
| 22-136A-120H | |||
| 22-030A-120M | |||
| 22-141A-120H | |||
| 22-142A-120H | |||
| 22-143A-120H | |||
| 22-502A-120H | |||
| 22-144A-120H | |||
| 22-145A-120H | |||
| 22-147A-120H | |||
| 22-123A-120L | |||
| 22-124A-120L | |||
| 22-133A-120L | |||
| 22-125A-120H | |||
| 22-131A-120H | |||
| 22-132A-120H | |||
| 22-134A-120H | |||
| 22-231A-120H | |||
| 22-232A-120H | |||
| 22-234A-120H | |||
| 22-138A-120H | |||
| 22-139A-120H | |||
| 22-140A-120H | |||
| 22-238A-120H | |||
| 22-239A-120H | |||
| 22-240A-120H | |||
| 22-539A-120H |
SunStar SPS/B-1201 — parts catalog
- Page 1 (cover): This is the cover page of the SunStar Parts Book for the SPS/D-B1201 Series Electronically Controlled Bartacking Machine (Direct Drive Type). It includes the SunStar logo, the title of the book, a picture of the machine, and the model number PME-051130.
- Page 2 (diagram): This page illustrates the classification of bar tacking sewing machines, detailing models with electronic and pneumatic presser foot lifters, and categorizing hook types and material types.
- Page 3 (toc): This page is a table of contents for a SunStar industrial sewing machine parts book, listing sections for Machine Part, Control Part, Pneumatic Type, and Option Parts with corresponding page numbers.
- Page 5 (parts_list): This page contains a parts list for SunStar industrial sewing machines, detailing part numbers, names, quantities, and assembly numbers.
- Page 6 (diagram): This page displays a diagram of arm, bed, and machine body parts, with various components labeled with part numbers such as A-1 through A-98.
- Page 7 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It also includes a note explaining material codes.
- Page 8 (diagram): This page displays a diagram of the Upper Shaft Mechanism, detailing various components with their corresponding part numbers and reference labels.
- Page 9 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, notes, and quantities, with a note explaining material codes.
- Page 10 (diagram): This page displays a diagram of the lower shaft mechanism, illustrating various components and their assembly.
- Page 11 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing part numbers, names, quantities, and assembly numbers, along with notes on material types.
- Page 12 (diagram): This page displays a diagram of the Presser Plate Mechanism, showing various components labeled with part numbers like D-1, D-2, D-3, and so on, along with their corresponding references.
- Page 13 (parts_list): This page lists parts for SunStar industrial sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 14 (diagram): This page displays a diagram of the thread release and thread tension mechanism, with various parts labeled with reference numbers such as E-1 through E-40.
- Page 15 (parts_list): This page lists parts for a SunStar sewing machine, including part numbers, names, quantities, and notes.
- Page 16 (diagram): This page displays a diagram of the wiper mechanism, with various parts labeled with reference numbers and part numbers.
- Page 17 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 18 (diagram): This page displays a diagram of the thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
- Page 19 (parts_list): This page lists parts for the SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It also includes a note explaining material codes.
- Page 20 (diagram): This page displays a diagram of the X-Y Mechanism, showing various components labeled with part numbers such as H-2, H-3, H-5, H-6, H-7, H-8, H-9, H-10, H-11, H-13, H-14, H-15, H-16, H-17, H-19-1, H-20, H-21, H-22, H-23, H-24, H-25, H-26, H-27, H-28-1, H-29, H-30, H-31, H-32, H-33, H-34, H-36, H-37, H-38, H-39, H-42, and H-43.
- Page 21 (parts_list): This page contains a parts list for SunStar sewing machines, detailing reference numbers, part numbers, names, quantities, and assembly numbers for various components.
- Page 22 (diagram): This page displays a diagram of the feed mechanism, showing various parts labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page contains a parts list for various components of the SunStar sewing machine, including feed brackets, levers, screws, washers, springs, and plates, with their corresponding part numbers, names, and quantities.
- Page 24 (diagram): This page displays a diagram of the lubrication mechanism, with various parts labeled with reference numbers such as J-1, J-2, J-3, J-4, J-5, J-6, J-7, J-8, J-9, J-10, J-11, J-12, J-13, J-14, J-15, J-16, J-17, J-18, J-19, J-20, J-21, J-22, J-23, J-24, J-25, J-26, J-27, J-28, and J-29.
- Page 25 (parts_list): This page lists parts for SunStar sewing machines, including oil wicks, hoses, felt parts, screws, and plates, with their corresponding part numbers and quantities.
- Page 26 (diagram): This page displays a diagram of the Table & Thread Stand components, with various parts labeled with reference numbers and part numbers like K-1, K-2, K-3, K-4, K-5, K-6, K-7, K-8, K-9, K-10, K-11, K-12, K-13, K-14, K-15, K-16, K-17, K-18, K-19, K-20, K-21, K-22, K-23, and K-24.
- Page 27 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers.
- Page 28 (diagram): This page displays a diagram of various accessories for an industrial sewing machine, including screwdrivers, wrenches, oil cans, and cleaning cloths, each labeled with a part number.
- Page 29 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly information.
- Page 30 (diagram): This page displays a diagram of the control box mechanism, illustrating various components with their corresponding reference numbers.
- Page 31 (parts_list): This page lists parts for SunStar industrial sewing machines, including reference numbers, part numbers, names, quantities, and assembly numbers.
- Page 32 (diagram): This page displays a diagram of the control box mechanism, illustrating various components labeled with part numbers from M-1 to M-77.
- Page 33 (parts_list): This page lists various parts for an industrial sewing machine, including screws, brackets, stickers, and cables, with their corresponding part numbers, names, quantities, and assembly numbers.
- Page 34 (diagram): This page displays a diagram of the operation unit mechanism, showing various components labeled with reference numbers such as N-1 through N-16.
- Page 35 (parts_list): This page lists parts for a SunStar machine, including membrane switches, covers, cables, and screws, with their corresponding part numbers, descriptions, quantities, and assembly numbers.
- Page 36 (diagram): This page displays a diagram of the pedal mechanism, showing various components with reference numbers and labels.
- Page 37 (parts_list): This page lists parts for a SunStar industrial sewing machine, including part numbers, names, quantities, and assembly numbers.
- Page 38 (diagram): This page displays a diagram of various cable units and their components, numbered from 1 to 15.
- Page 39 (parts_list): This page lists parts for SunStar industrial sewing machines, including reference numbers, part numbers, names, and quantities.
- Page 40 (diagram): This page displays a diagram of the feed mechanism, illustrating various components labeled with part numbers and reference designators.
- Page 41 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers.
- Page 42 (diagram): This page displays a diagram of the thread trimmer mechanism and a parts list for components R-1 through R-4, including their part numbers, names, and quantities.
- Page 43 (diagram): This page displays a diagram of the X-Y Mechanism and a parts list for various components including gears, motors, screws, and plates.
- Page 44 (diagram): This page displays a diagram of the air control mechanism with various components labeled with reference numbers such as T-1 through T-17.
- Page 45 (parts_list): This page lists parts for a SunStar machine, including part numbers, names, quantities, and assembly numbers. It details items like quick couplings, hoses, labels, solenoid valves, screws, and cables.
- Page 46 (diagram): This page displays diagrams of air control mechanisms for models SPS/A-B1201-22, SPS/A-B1201-20-TH, and SPS/A-B1201-22-TH, detailing various components labeled with reference numbers.
- Page 47 (parts_list): This page lists parts for a SunStar machine, including solenoids, blocks, silencers, plugs, and cables, with their corresponding part numbers, quantities, and Korean descriptions.
- Page 48 (diagram): This page displays a diagram of the wiper mechanism (option) with various labeled parts including U-1 through U-19.
- Page 49 (parts_list): This page lists parts for a SunStar industrial sewing machine, including wiper bases, solenoids, screws, and other components with their part numbers, descriptions, quantities, and Korean translations.
- Page 50 (parts_list): This page lists parts for the U-II Upper Thread Holding Device (Option), including part numbers, names, quantities, and assembly numbers.
- Page 51 (parts_list): This page lists parts for the V-I Pedal Mechanism, including foot switches, cables, screws, and sponges, with their corresponding part numbers, quantities, and descriptions.
- Page 52 (diagram): This page displays a diagram of the V-II Needle Cooler Device (Option) with various parts labeled with their corresponding part numbers.
- Page 53 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 54 (diagram): This page contains a diagram of the SPS/D-B1201M (HP) belt tensioner components, with various parts numbered for identification.
- Page 55 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 56 (parts_list): This page lists option parts for the SPS/C(D)-B1201 model, including different types of work clamp feet and feed plates with their corresponding part numbers and dimensions.
- Page 57 (parts_list): This page lists various option types for sewing machine parts, including work clamp feet and feed plates, with their corresponding part numbers and dimensions.
