PARTS BOOK SPS/D-B1201 Series Electronically Controlled Bartacking Machine (Direct Drive Type) SunStar SunStar PME-051130 Jinttex.in SUNSTAR MACHINERY CO., LTD.
Parts index — SunStar SPS/B-1201tap a row to open its page
Page 3 — CONTENTS

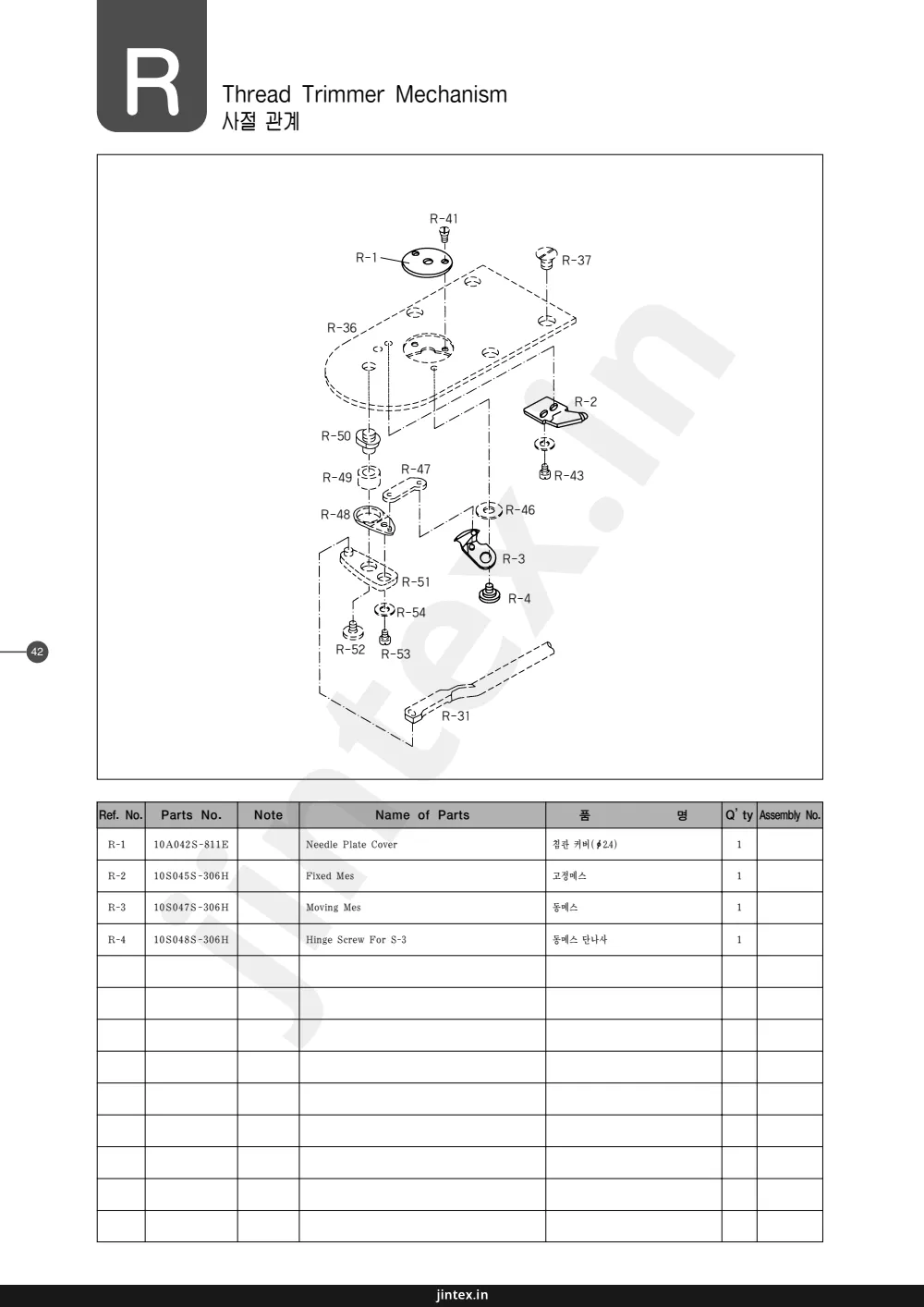

| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 4 | Arm, Bed & Machine Body Parts | ||
| 8 | Upper Shaft Mechanism | ||
| 10 | Lower Shaft Mechanism | ||
| 12 | Presser Plate Mechanism | ||
| 14 | Thread Release & Thread Tension Mechanism | ||
| 16 | Wiper Mechanism | ||
| 18 | Thread Trimmer Mechanism | ||
| 20 | X-Y Mechanism | ||
| 22 | Feed Mechanism | ||
| 24 | Lubrication Mechanism | ||
| 26 | Table & Thread Stand | ||
| 28 | Accessories | ||
| 30 | Control Box Mechanism | ||
| 34 | Operation Unit Mechanism | ||
| 36 | Pedal Mechanism | ||
| 38 | Cable Unit | ||
| 40 | Feed Mechanism | ||
| 42 | Thread Trimmer Mechanism | ||
| 43 | X-Y Mechanism | ||
| 44 | Air Control Mechanism | ||
| 46 | Air Control Mechanism (1) | ||
| 48 | Wiper Mechanism(Option) | ||
| 50 | Upper Thread Holding Device(Option) | ||
| 51 | Pedal Mechanism | ||
| 52 | Needle Cooler Device(Option) | ||
| 54 | SPS/D-B1201M (HP) | ||
| 56 | Option Parts |
Page 5
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | Arm | 1 | |
| 01-003A-120H | Bed | 1 | |
| 01S006S-306H | Brand Mark(Face Plate) | 1 | |
| 01-007A-120H | Face Plate | 1 | |
| 01-008M-120H | Face Plate Gasket | 1 | |
| SC-A174-4122 | Screw(11/64" n=40) | 10 | |
| 01-110R-1230 | Rubber Cap For Face Plate | 1 | |
| 91-001M-120D | Caution Sticker | 1 | |
| 01-011A-120H | Take-up Lever Cover | 1 | |
| SC-0528-1230 | Screw (9/64" n=40) | 1 | |
| 01-013A-120H | Bed Cover(L) | 1 | |
| 01-014M-120H | Bed Cover Gasket(L) | 1 | |
| SC-0543-2302 | Screw(11/64" n=40) | 14 | |
| 01-016A-120H | Bed Cover(R) | 1 | |
| 01-017M-120H | Bed Cover Gasket(R) | 1 | |
| 44S061S-306H | Oil Tank Rubber Cap | 1 | |
| 01-127A-1230 | Thread Guide with Three Holes | 1Set | |
| 01-003C-250B | Thread Guide(L) | 3 | |
| SC-0120-1230 | Screw (9/64" n=40) | 1 | |
| 01-030C-1230 | Thread Guide(R) | 1 | |
| A-22 | Arm Thread Guide Ass'y | 3 | |
| 01-028C-120H | Thread Guide(L) | 1 | |
| 01S037S-306H | Silicon Tank Ass'y | 1Set | |
| 01S038S-306H | Silicon Tank | 1 | |
| 01S039S-306H | Silicon Oil Window | 1 | |
| 01S040S-306H | Silicon Felt | 1 | |
| GP-013053-00 | Felt for Silicon Oil Supply | 1 | |
| SC-0104-5607 | Screw(11/64" n=40) | 2 | |
| 01S064S-306H | Brand Mark | 3 | |
| 04-104R-1230 | Arm Upper Part Rubber Cap | 2 | |
| 01-110R-1230 | Needle Bar Rubber Cap | 3 | |
| 01-042R-640L | Rubber Cap(L) | 2 | |
| 44-021R-7400 | Rubber Cap(S) | 6 | |
| 01-073R-120H | Bed Rubber | 1 | |
| 01-041M-120D | Model Sticker(H) | 1 | |
| 01-042M-120D | Model Sticker(M) | 1 | |
| 01-043M-120D | Model Sticker(L) | 1 | |
| 01-044M-120D | Model Sticker(K) | 1 | |
| 01-009R-5300 | Cable Holder | 3 | |
| 01-051A-120H | Top Cover | 1 | |
| 41-101A-120H | Bobbin Winder Ass'y | 1Set | |
| 41S001S-306H | Bobbin Winder Base Ass'y | 1 | |
| 41-005A-120H | Bobbin Winder Shaft | 1 | |
| G P - 0 0 2 9 5 8 | Sticker(BL) | 1 | |
| SC-0105-7500 | Screw(M4) | 1 | |
| 41S006S-306H | Bobbin Winder | 1 | |
| SC-0104-5607 | Screw(11/64" n=40) | 2 | |
| 41S008S-306H | Bobbin Winder Action Ring | 1 |
Page 6 — Arm, Bed & Machine Body Parts
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | A-1 | ||
| A-2 | A-2 | ||
| A-3 | A-3 | ||
| A-4 | A-4 | ||
| A-5 | A-5 | ||
| A-6 | A-6 | ||
| A-7 | A-7 | ||
| A-8 | A-8 | ||
| A-9 | A-9 | ||
| A-10 | A-10 | ||
| A-11 | A-11 | ||
| A-12 | A-12 | ||
| A-13 | A-13 | ||
| A-14 | A-14 | ||
| A-15 | A-15 | ||
| A-16 | A-16 | ||
| A-17 | A-17 | ||
| A-19 | A-19 | ||
| A-20 | A-20 | ||
| A-21 | A-21 | ||
| A-22 | A-22 | ||
| A-24 | A-24 | ||
| A-25 | A-25 | ||
| A-26 | A-26 | ||
| A-27 | A-27 | ||
| A-28 | A-28 | ||
| A-29 | A-29 | ||
| A-30 | A-30 | ||
| A-31 | A-31 | ||
| A-32 | A-32 | ||
| A-33 | A-33 | ||
| A-34 | A-34 | ||
| A-35 | A-35 | ||
| A-36 | A-36 | ||
| A-37, 38, 39, 40 | A-37, 38, 39, 40 | ||
| A-41 | A-41 | ||
| A-42 | A-42 | ||
| A-43 | A-43 | ||
| A-44 | A-44 | ||
| A-47 | A-47 | ||
| A-48 | A-48 | ||
| A-49 | A-49 | ||
| A-50 | A-50 | ||
| A-51 | A-51 | ||
| A-52 | A-52 | ||
| A-53 | A-53 | ||
| A-54 | A-54 | ||
| A-55 | A-55 | ||
| A-56 | A-56 | ||
| A-57 | A-57 | ||
| A-58 | A-58 | ||
| A-59 | A-59 | ||
| A-60 | A-60 | ||
| A-61 | A-61 | ||
| A-62 | A-62 | ||
| A-63 | A-63 | ||
| A-64 | A-64 | ||
| A-65 | A-65 | ||
| A-66 | A-66 | ||
| A-67 | A-67 | ||
| A-68 | A-68 | ||
| A-69 | A-69 | ||
| A-70 | A-70 | ||
| A-71 | A-71 | ||
| A-72 | A-72 | ||
| A-73 | A-73 | ||
| A-74 | A-74 | ||
| A-75 | A-75 | ||
| A-76 | A-76 | ||
| A-77 | A-77 | ||
| A-79 | A-79 | ||
| A-80 | A-80 | ||
| A-81 | A-81 | ||
| A-82 | A-82 | ||
| A-83 | A-83 | ||
| A-84 | A-84 | ||
| A-85 | A-85 | ||
| A-86 | A-86 | ||
| A-87 | A-87 | ||
| A-88 | A-88 | ||
| A-89 | A-89 | ||
| A-90 | A-90 | ||
| A-91 | A-91 | ||
| A-93 | A-93 | ||
| A-94 | A-94 | ||
| A-95 | A-95 | ||
| A-96 | A-96 | ||
| A-97 | A-97 | ||
| A-98 | A-98 |
Page 7
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 41S009S-306H | Bobbin Winder Shaft Rubber Ring | 1 | |
| 41S010S-306H | Bobbin Winder Lever | 1 | |
| 41S011S-306H | Bobbin Winder Adjusting Plate | 1 | |
| SC-0130-1230 | Screw(1/8" n=40) | 1 | |
| 02-011W-2302 | Washer | 1 | |
| 41S013S-306H | Bobbin Winder Lever Shaft | 1 | |
| 41S014S-306H | Bobbin Winder Adjusting Cam | 1 | |
| SC-0211-7500 | Screw(M4×P0.7) | 1 | |
| 04-009C-3710 | E-Ring($5) | 2 | |
| 41S017S-306H | Bobbin Winder Action Plate | 1 | |
| 41-018A-120H | Bobbin Winder Action Body | 1 | |
| 40-007W-1600 | Washer | 2 | |
| 41S021S-306H | Bobbin Winder Spring | 1 | |
| 41S022S-306H | Bobbin Stopper | 1 | |
| 41S023S-306H | Screw | 5 | |
| 41S024S-306H | Bobbin Stand | 1 | |
| 41S025S-306H | Bobbin Winder Mes | 1 | |
| SC-0120-1230 | Screw(1/8" n=40) | 2 | |
| 41S027S-306H | Thread Tension Adjusting Ass'y | 1Set | |
| 41S028S-306H | Thread Tension Adjusting Shaft | 1 | |
| 40-204A-1230 | Thread Guide Plate | 1 | |
| 40-204A-1230 | Thread Tension Disk | 2 | |
| 40-333G-123A | Thread Tension Spring | 1 | |
| 40-804W-1230 | Thread Tension Spring Stopper | 1 | |
| 40-024A-1230 | Spring Cover | 1 | |
| 40-204A-2350 | Thread Tension Nut | 1 | |
| SN-0121-7400 | Nut(15/64" n=28) | 1 | |
| 01-042R-640L | Rubber Cap(L) | 1 | |
| 01S043S-306H | Safety Plate Ass'y | 1Set | |
| 01S044S-306H | Safety Plate | 1 | |
| 01S046S-306H | Safety Plate Bracket | 1 | |
| 01S046S-306H | Safety Plate Holder | 1 | |
| 01S047S-306H | Safety Plate Hinge Screw | 1 | |
| SN-0101-1600 | Nut(3/16" n=28) | 3 | |
| 06-051W-7400 | Washer | 1 | |
| 01S050S-306H | Safety Plate Spring | 1 | |
| 01S051S-306H | Safety Plate Spring Hook | 1 | |
| SN-0119-1230 | Nut(3/16" n=28) | 1 | |
| 01-038A-120D | Motor Cover | 1 | |
| SC-0498-3710 | Screw(11/64" n=40) | 4 | |
| 40-004W-1600 | Washer | 4 | |
| GP-002108-00 | Safety Switch | 1 | |
| 03071SC-A001 | Screw(M3×L15) | 2 | |
| 08112SN-A001 | Nut(M3) | 2 | |
| GP-006543-00 | Safety Switch Bracket | 1 | |
| SC-A174-1230 | Screw(11/64" n=40) | 2 | |
| 10-020W-2700 | Washer | 2 |
Page 8 — Upper Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-52 | B-52 | ||
| B-51 | B-51 | ||
| B-50 | B-50 | ||
| B-46 | B-46 | ||
| B-45 | B-45 | ||
| B-47 | B-47 | ||
| B-44 | B-44 | ||
| B-42 | B-42 | ||
| B-43 | B-43 | ||
| B-37 | B-37 | ||
| B-42 | B-42 | ||
| B-41 | B-41 | ||
| B-40 | B-40 | ||
| B-39 | B-39 | ||
| B-38 | B-38 | ||
| B-42 | B-42 | ||
| B-23 | B-23 | ||
| B-6 | B-6 | ||
| B-5 | B-5 | ||
| B-19 | B-19 | ||
| B-4 | B-4 | ||
| B-2, B-3 | B-2, B-3 | ||
| B-7 | B-7 | ||
| B-1 | B-1 | ||
| B-36 | B-36 | ||
| B-35 | B-35 | ||
| B-56 | B-56 | ||
| B-56 | B-56 | ||
| B-55 | B-55 | ||
| B-54 | B-54 | ||
| B-53 | B-53 | ||
| B-56 | B-56 | ||
| B-26 | B-26 | ||
| B-25 | B-25 | ||
| B-11 | B-11 | ||
| B-9, B-17 | B-9, B-17 | ||
| B-58 | B-58 | ||
| B-57 | B-57 | ||
| B-59 | B-59 | ||
| B-60 | B-60 | ||
| B-24 | B-24 | ||
| B-10, B-18 | B-10, B-18 | ||
| B-12 | B-12 | ||
| B-22 | B-22 | ||
| B-13 | B-13 | ||
| B-14 | B-14 | ||
| B-31 | B-31 | ||
| B-27 | B-27 | ||
| B-20 | B-20 | ||
| B-15 | B-15 | ||
| B-28 | B-28 | ||
| B-29 | B-29 | ||
| B-8, B-16 | B-8, B-16 | ||
| B-21 | B-21 | ||
| B-32, B-33, B-34 | B-32, B-33, B-34 |
Page 9
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 02-001A-1254 | Upper Shaft | ||
| 02-102A-120H | Link Cam | ||
| 02S102S-306H | Link Cam(A) | ||
| 02S003S-306H | Link Cam Washer | ||
| 02-003S-2500 | Screw (15/64" n=28) | ||
| SC-0150-2500 | Screw (9/32" n=28) | ||
| SC-0183-2700 | Screw (15/64" n=28) | ||
| 08S101P-306H | Thread Take-Up Lever Ass'y(H) | ||
| 08S101P-306H | Thread Take-Up Lever(H) | ||
| 08S502P-306H | Needle Bar Crank(H) | ||
| 08S503P-306H | Thread Take-Up Lever Crank | ||
| 08-511A-123A | Needle Bearing | ||
| 08-511A-123A | Needle Bearing | ||
| 08S504S-306H | Needle Bar Crank Rod | ||
| 08S507S-123A | Screw | ||
| 08S101S-306H | Thread Take-Up Lever Ass'y(L) | ||
| 08S501S-306H | Thread Take-Up Lever(L) | ||
| 08S502S-306H | Needle Bar Crank(L) | ||
| SC-0317-2700 | Screw | ||
| 08S505S-306H | Needle Bar Holder | ||
| 08-508S-123A | Screw | ||
| 08S506S-306H | Thread Take-Up Pin | ||
| SC-0317-2700 | Screw (15/64" n=28) | ||
| 04-001A-120H | Needle Bar | ||
| 04S102S-306H | Needle Bar Bushing(U) | ||
| SC-0164-2700 | Screw (11/64" n=40) | ||
| 04S204S-306H | Needle Bar Bushing(L) | ||
| 04S106S-306H | Needle Bar Guide Block | ||
| 04-007A-120H | Thread Guide For Needle Bar(H) | ||
| 04-008A-120M | Thread Guide For Needle Bar(M) | ||
| SC-A131-4522 | Screw | ||
| H | Needle(DP×17 #19) | ||
| M | Needle(DP×5 #16 (#14)) | ||
| L, K | Needle(DP×5 #11) | ||
| 02S107S-306H | Upper Shaft Bushing(F) | ||
| 02S009S-306H | Bobbin Winder Driving Wheel | ||
| 10-017S-8577 | Screw | ||
| 02S111S-306H | Upper Shaft Bushing(M) | ||
| 02-121A-1230 | Upper Shaft Collar | ||
| SC-A308-5607 | Screw (15/64" n=28) | ||
| 25S001S-306H | Hand Pulley Gear "A" | ||
| SC-A308-4517 | Screw | ||
| 25S001S-306H | Hand Pulley Gear "A" | ||
| 25S009S-306H | Hand Pulley Bushing | ||
| SC-0114-1230 | Screw | ||
| 25S105S-306H | Hand Pulley Shaft | ||
| 25S007S-306H | Hand Pulley Roller | ||
| 25S006S-306H | Hand Pulley Roller Hinge Pin | ||
| 25S011S-306H | Hand Pulley Spring | ||
| 02-026A-120D | Hand Pulley | ||
| 25S012S-306H | Screw | ||
| 02-016A-120D | Upper Shaft Bearing (R) | ||
| 02-023R-120D | Spacer O-Ring(P15) | ||
| 02-017A-120D | Coupling | ||
| 08-037SC-120D | Screw | ||
| 02-119A-120D | Main Motor | ||
| 02-020S-120D | Screw | ||
| 07-011W-1230 | Spring Washer | ||
| 10-020W-2700 | Washer |
Page 10 — Lower Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-11 | C-11 | ||
| C-10 | C-10 | ||
| C-19 | C-19 | ||
| C-15 | C-15 | ||
| C-56 | C-56 | ||
| C-20 | C-20 | ||
| C-14 | C-14 | ||
| C-4 | C-4 | ||
| C-3 | C-3 | ||
| C-18 | C-18 | ||
| C-15 | C-15 | ||
| C-5 | C-5 | ||
| C-13 | C-13 | ||
| C-16 | C-16 | ||
| C-17 | C-17 | ||
| C-1 | C-1 | ||
| C-2 | C-2 | ||
| C-5 | C-5 | ||
| C-49 | C-49 | ||
| C-5 | C-5 | ||
| C-7 | C-7 | ||
| C-39 | C-39 | ||
| C-48 | C-48 | ||
| C-6 | C-6 | ||
| C-36 | C-36 | ||
| C-9 | C-9 | ||
| C-41 | C-41 | ||
| C-30 | C-30 | ||
| C-32 | C-32 | ||
| C-35 | C-35 | ||
| C-31 | C-31 | ||
| C-42 | C-42 | ||
| C-34 | C-34 | ||
| C-28, C-55 | C-28, C-55 | ||
| C-29 | C-29 | ||
| C-40 | C-40 | ||
| C-26, C-27, C-53, C-54 | C-26, C-27, C-53, C-54 | ||
| C-23, C-24, C-25, C-52 | C-23, C-24, C-25, C-52 | ||
| C-22, C-51 | C-22, C-51 | ||
| C-21, C-50 | C-21, C-50 | ||
| C-43 | C-43 | ||
| C-44 | C-44 | ||
| C-46 | C-46 | ||
| C-45 | C-45 | ||
| C-47 | C-47 |
Page 11
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| AS-003752-00 | Lower Shaft Ass'y | ||
| GP-013203-00 | Lower Shaft | ||
| GP-010180-01 | Lower Shaft Gear | ||
| PN-000215-00 | Taper Pin | ||
| SC-0512-1230 | Screw | ||
| 07S006S-306H | Lower Shaft Rear Bushing | ||
| 07S007S-306H | Needle Bearing(KT8110) | ||
| 07S008S-306H | Thrust Washer | ||
| 10S114S-306H | Lower Shaft Collar | ||
| 07S111S-306H | Crank Rod | ||
| SC-0179-3710 | Screw(11/64" n=40) | ||
| 07S013S-306H | Crank Rod Hinge Screw | ||
| SN-0116-3400 | Nut(1/4" n=40) | ||
| 07S115S-306H | Oscillator Shaft | ||
| SC-0317-2700 | Screw(15/64" n=28) | ||
| 07S117S-306H | Oscillator Shaft Collar(L) | ||
| 07S019S-306H | Oscillator | ||
| 07S020S-306H | Washer | ||
| 43-009C-1600 | E-Ring | ||
| 07S019S-306H | Oscillator Shaft Collar(R) | ||
| 07-023A-120H | Bobbin Case Ass'y | ||
| 07-224A-120H | Bobbin | ||
| 07-021A-120H | Shuttle Race Ring(H) | ||
| 07-022A-120M | Shuttle Race Ring(M) | ||
| 07-023A-120L | Shuttle Race Ring(L) | ||
| 07-128A-120H | Shuttle(H) | ||
| 07-129A-120M | Shuttle(M) | ||
| 07-030A-120H | Shuttle Driver | ||
| 07S033S-306H | Screw(M5×P0.8) | ||
| 07S132S-306H | Shuttle(L) | ||
| 7711000000000000 | Screw(15/64" n=28) | ||
| SC-0525-5300 | Screw(11/64" n=40) | ||
| 07S035S-306H | Shuttle Race Adjusting Shaft | ||
| 07S107S-306H | Needle Roller Bearing | ||
| 07S038S-306H | Shuttle Bearing Washer | ||
| 07S040S-306G | Shuttle Upper Spring | ||
| SC-A121-4122 | Screw(3/32" n=56) | ||
| 07S042S-306H | Inner Hook Presser Shaft Ass'y | ||
| 06-033M-3800 | E-Ring | ||
| 07S046S-306H | Inner Hook Spring | ||
| 07S047S-306H | Hook Cover Ass'y | ||
| 07S051S-306H | Hook Cover Plate Spring A | ||
| 07S052S-306H | Hook Cover Plate Spring B | ||
| 07S050S-306H | Spring Pin(φ 2× 19.8) | ||
| SC-0543-2302 | Screw(11/64" n=40) | ||
| 07-042G-120L | Shuttle Upper Spring (L) | ||
| 07-041G-120L | Shuttle Upper Spring (U) | ||
| 07S023S-306H | Bobbin Case Ass'y(BL) | ||
| 07S026S-306H | Bobbin(BL) | ||
| 07S027S-306H | Shuttle Race Ring(BL) | ||
| 07S028S-306H | Shuttle(HBL) | ||
| 07S029S-306G | Shuttle(MBL) | ||
| 07S030S-306H | Shuttle Driver(BL) | ||
| 07S116S-306H | Oscillator O-Ring |
Page 12 — Presser Plate Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | D-1 | ||
| D-2 | D-2 | ||
| D-3 | D-3 | ||
| D-4 | D-4 | ||
| D-5 | D-5 | ||
| D-6 | D-6 | ||
| D-7 | D-7 | ||
| D-8 | D-8 | ||
| D-9 | D-9 | ||
| D-10 | D-10 | ||
| D-11 | D-11 | ||
| D-12 | D-12 | ||
| D-13 | D-13 | ||
| D-14 | D-14 | ||
| D-15 | D-15 | ||
| D-16 | D-16 | ||
| D-17 | D-17 | ||
| D-18 | D-18 | ||
| D-19 | D-19 | ||
| D-20 | D-20 | ||
| D-21 | D-21 | ||
| D-22 | D-22 | ||
| D-23 | D-23 | ||
| D-24 | D-24 | ||
| D-25 | D-25 | ||
| D-26 | D-26 | ||
| D-27 | D-27 | ||
| D-28 | D-28 | ||
| D-29 | D-29 | ||
| D-30 | D-30 | ||
| D-31 | D-31 | ||
| D-32 | D-32 |
Page 13
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 21-101A-120H | Presser Plate Bushing | 1 |
| D-2 | 01-0000-BT13 | Presser Plate Solenoid Ass'y | 1Set |
| D-3 | 21-003S-120H | Screw A | 4 |
| D-4 | 21-036S-120H | Screw B | 2 |
| D-5 | 01-017W-1600 | Washer | 2 |
| D-6 | 21-133A-120H | Presser Plate Solenoid Base | 1 |
| D-7 | SC-0307-1230 | Screw(3/16" n=32) | 4 |
| D-8 | 21-105A-120H | Presser Plate Link (A) | 1 |
| D-9 | 21-206A-120H | Presser Plate Link Shaft (A) | 1 |
| D-10 | SC-0164-2700 | Screw(11/64" n=40) | 2 |
| D-11 | 09-025W-8270 | Washer | 5 |
| D-12 | 21-103P-120H | Snap Pin($8) | 4 |
| D-13 | 21-110A-120H | Presser Plate Link (B) | 1 |
| D-14 | 21-111A-120H | Presser Plate Link Shaft (B) | 1 |
| D-15 | 21-114A-120H | Presser Plate Link (C) | 1 |
| D-16 | 21-016A-120H | Presser Plate Link Shaft (C) | 1 |
| D-17 | 21-101P-120H | Snap Pin($5) | 1 |
| D-18 | 21-118G-1201H | Presser Plate Return Spring | 2 |
| D-19 | 01-019P-120H | Holder For D-17 | 2 |
| D-20 | 21-120A-120H | Presser Plate Sensor Slit | 1 |
| D-21 | SC-0158-3710 | Screw(M3) | 2 |
| D-22 | 15-027A-2070 | Presser Plate Sensor | 1 |
| D-23 | 21-123A-120H | Base For Presser Plate | 1 |
| D-24 | SC-0543-2302 | Screw(11/64" n=40) | 2 |
| D-25 | SC-0164-2700 | Screw(M5) | 1 |
| D-26 | 21-035A-120H | Guide For D-14 | 1 |
| D-27 | SC-0174-1230 | Screw | 2 |
| D-28 | 10-020W-2700 | Washer | 2 |
| D-29 | 09-025W-8270 | Washer | 1 |
| D-30 | 21-103P-120H | Snap Pin($8) | 1 |
| D-31 | 21S039S-306H | Washer | 1 |
| D-32 | 21-026A-120H | Presser Plate Shaft | 1 |
Page 14
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-28 | Screw | ||
| E-24 | Nut | ||
| E-21 | Screw | ||
| E-20 | Bracket | ||
| E-27 | Lever | ||
| E-25 | Screw | ||
| E-26 | Washer | ||
| E-22 | Lever | ||
| E-23 | Screw | ||
| E-31 | Spring | ||
| E-35 | Pin | ||
| E-34 | Shaft | ||
| E-30 | Bracket | ||
| E-29 | Lever | ||
| E-33 | Screw | ||
| E-32 | Screw | ||
| E-37 | Screw | ||
| E-36 | Lever | ||
| E-15 | Tension assembly | ||
| E-16 | Screw | ||
| E-14 | Disc | ||
| E-2 | Shaft | ||
| E-7 | Disc | ||
| E-17 | Spring | ||
| E-12 | Washer | ||
| E-18 | Disc | ||
| E-3 | Screw | ||
| E-5, E-6 | Spring | ||
| E-1 | Disc | ||
| E-40 | Disc | ||
| E-8 | Disc | ||
| E-9 | Disc | ||
| E-10, E-11 | Spring | ||
| E-12 | Washer | ||
| E-13 | Disc | ||
| E-39 | Screw | ||
| E-38 | Bracket |
Page 15
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 40-040A-120H | Thread Tension Adjusting Ass'y(H) | ||
| 40S002S-306H | Thread Tension Adjusting Body | ||
| 40S003S-306H | Thread Tension Adjusting Shaft | ||
| 40-604S-1230 | Screw (9/64" n=40) | ||
| 40S005S-306H | Thread Take-Up Spring(H) | ||
| 40S006S-306G | Thread Take-Up Spring(M) | ||
| 40-204A-1230 | Thread Guide Disk | ||
| 40-304A-1230 | Presser Plate For E-7 | ||
| 40S009S-306H | Spring Cover | ||
| 40S010S-306H | Thread Tension Adjusting Spring(H) | ||
| 40-333G-123A | Thread Tension Adjusting Spring(M) | ||
| 40-804W-1230 | Spring Stopper | ||
| 40-204A-2350 | Thread Adjusting Nut | ||
| SC-0108-2350 | Screw (M6) | ||
| AS-002639-00 | Second Thread Tension Adjusting Ass'y | ||
| GP-008767-01 | Second Thread Tension Adjusting Shaft | ||
| 40S019S-306H | Second Thread Tension Adjusting Spring | ||
| 40-704C-1230 | Thread Adjusting Nut | ||
| 40S023S-306H | Thread Release Link | ||
| 40S024S-306H | Thread Release Link Hinge Screw | ||
| 40-025A-120H | Thread Release Connecting Rod | ||
| 40S026S-306H | Hinge Screw A For E-22 | ||
| SN-0111-1600 | Nut (3/16" n=28) | ||
| 40S028S-306H | Hinge Screw B For E-22 | ||
| 06-046W-7400 | Washer | ||
| 40-030C-120H | Thread Release Stopper | ||
| 55-011S-5050 | Screw (3/16" n=28) | ||
| 40-032C-120H | Thread Release Adjusting Plate(A) | ||
| 40-033C-120H | Thread Release Adjusting Plate(B) | ||
| 40S033S-306H | Thread Release Return Spring | ||
| SC-0180-3800 | Screw (11/64" n=28) | ||
| 10-020W-2700 | Washer | ||
| 40-037C-120H | Thread Release Shaft | ||
| SC-0352-7400 | Screw (3/16" n=28) | ||
| 40-039C-120H | Thread Release Bar | ||
| 16-015S-3710 | Hinge Screw For E-36 | ||
| 40S044S-306H | Thread Release Bar Guide | ||
| SC-0528-1230 | Screw (9/64" n=40) | ||
| 40-040A-120M | Thread Tension Adjusting Ass'y(M) |
Page 16
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | F-1 | ||
| F-2 | F-2 | ||
| F-3 | F-3 | ||
| F-4 | F-4 | ||
| F-5 | F-5 | ||
| F-6 | F-6 | ||
| F-7 | F-7 | ||
| F-8 | F-8 | ||
| F-9 | F-9 | ||
| F-10 | F-10 | ||
| F-12 | F-12 | ||
| F-13 | F-13 | ||
| F-14 | F-14 | ||
| F-15 | F-15 | ||
| F-16 | F-16 | ||
| F-17 | F-17 | ||
| F-18 | F-18 | ||
| F-19 | F-19 |
Page 17
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 11-101A-120H | Wiper Driving Lever | 1 |
| F-2 | 06-027P-7400 | Wiper Driving Lever Shaft | 1 |
| F-3 | SC-0164-2700 | Screw (11/64" n=40) | 2 |
| F-4 | 11-004A-120D | Wiper Rod A | 1 |
| F-5 | 11-205A-120H | Wiper Rod Shaft | 1 |
| F-6 | 06-046W-7400 | Washer | 1 |
| F-7 | 11-013S-5060 | Hinge Screw For F-4 | 1 |
| F-8 | SN-0101-1600 | Nut (11/64" n=40) | 1 |
| F-9 | GP-011319-00 | Wiper Connecting Arm Ass' y | 1Set |
| F-10 | 05-014C-1230 | E-Ring (4) | 2 |
| F-12 | 06-027P-7400 | Wiper Connecting Arm Shaft | 1 |
| F-13 | SC-0164-2700 | Screw (9/64" n=40) | 1 |
| F-14 | 11-018A-120H | Wiper Connecting Rod | 1 |
| F-15 | 11-019R-120H | Oil Shield Cap | 1 |
| F-16 | GP-012584-00 | Wiper Ass' y | 1Set |
| F-17 | SC-000332-00 | Hinge Screw For F-16 | 1 |
| F-18 | GP-012585-00 | Wiper Base Plate | 1 |
| F-19 | SC-A174-4122 | Screw (9/64" n=40) | 1 |
| F-20 | 11-012P-120H | Wiper Connecting Arm Shaft | 1 |
Page 18 — Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | G-1 | ||
| G-2 | G-2 | ||
| G-3 | G-3 | ||
| G-4 | G-4 | ||
| G-5 | G-5 | ||
| G-6 | G-6 | ||
| G-7 | G-7 | ||
| G-8 | G-8 | ||
| G-9 | G-9 | ||
| G-10 | G-10 | ||
| G-11 | G-11 | ||
| G-12 | G-12 | ||
| G-13 | G-13 | ||
| G-14 | G-14 | ||
| G-15 | G-15 | ||
| G-16 | G-16 | ||
| G-17 | G-17 | ||
| G-18 | G-18 | ||
| G-19 | G-19 | ||
| G-20 | G-20 | ||
| G-21 | G-21 | ||
| G-22 | G-22 | ||
| G-23 | G-23 | ||
| G-25 | G-25 | ||
| G-26 | G-26 | ||
| G-27 | G-27 | ||
| G-28 | G-28 | ||
| G-29 | G-29 | ||
| G-30 | G-30 | ||
| G-31 | G-31 | ||
| G-32 | G-32 | ||
| G-33 | G-33 | ||
| G-34 | G-34 | ||
| G-35 | G-35 | ||
| G-36 | G-36 | ||
| G-37 | G-37 | ||
| G-38 | G-38 | ||
| G-39 | G-39 | ||
| G-40 | G-40 | ||
| G-41 | G-41 | ||
| G-42 | G-42 | ||
| G-43 | G-43 | ||
| G-44 | G-44 | ||
| G-45 | G-45 | ||
| G-46 | G-46 | ||
| G-47 | G-47 | ||
| G-48 | G-48 | ||
| G-49 | G-49 | ||
| G-50 | G-50 | ||
| G-51 | G-51 | ||
| G-52 | G-52 | ||
| G-53 | G-53 | ||
| G-54 | G-54 | ||
| G-55 | G-55 | ||
| G-56 | G-56 | ||
| G-57 | G-57 |
Page 19
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 12-0000-BT13 | Thread Trimming Sol. Ass' y | ||
| 10S002S-306H | Thread Trimming Sol. Bracket | ||
| SC-0202-5050 | Screw (3/16" n=28) | ||
| SN-0101-1600 | Nut (11/64" n=40) | ||
| 10S005S-306H | Link For G-1 | ||
| 10S006S-306H | Screw (M4×P0.7) | ||
| 10S008S-306H | Thread Trimming Driving Link Stopper | ||
| 10S009S-306H | Thread Trimming Cam | ||
| SC-A129-4515 | Screw (1/4" n=40) | ||
| 10S011S-306H | Thread Trimming Shaft | ||
| 02014SC-4113 | Screw (M4×P0.7) | ||
| 10S113S-306H | Thread Trimming Shaft Collar | ||
| 10S114S-306H | Screw (M5) | ||
| SC-0164-2700 | Rubber Washer For G-12 | ||
| 10S017S-306H | Thread Trimming Driving Link Ass'y | ||
| SC-0317-2700 | Screw (15/64" n=28) | ||
| 10S022S-306H | Thread Trimming Shaft Spring | ||
| 10S023S-306H | Thread Trimming Cam Roller | ||
| 10S024S-306H | Hinge Screw for G-19 | ||
| 10S026S-306H | Thread Release Lever | ||
| 10S027S-306H | Thread Release Lever Pin | ||
| SC-0185-3400 | Nut(15/64" n=28) | ||
| 10-029A-8577 | Thread Trimming Connecting Rod | ||
| 10-220A-8577 | Rod End(R) | ||
| 0869SN-9311 | Nut(M5) | ||
| 10S032S-306H | Hinge Screw for G-24 | ||
| 06-036W-3800 | Washer | ||
| 10S135S-306H | Thread Trimming Connecting Link | ||
| 10-037A-120H | Thread Trimming Connecting Bar | ||
| 10S038S-306H | Hinge Screw for G-31 | ||
| 10S062S-306H | Link Stopper Screw | ||
| 10S064S-306H | Return Spring for G-31 | ||
| 10-019S-7507 | Spring Holder | ||
| 10-140A-120H | Needle Plate | ||
| 01-136S-1230 | Screw (11/64" n=40) | ||
| 10-041A-120H | Needle Plate Cover(H) | ||
| 10-043A-120M | Needle Plate Cover(M) | ||
| 10-143A-120K | Needle Plate Cover(L, K) | ||
| 04107SC-A001 | Screw | ||
| 10-101A-120H | Fixed Mes | ||
| 10S046S-306H | Screw (9/64" n=40) | ||
| 10-106A-120H | Moving Mes | ||
| 10-048A-120H | Hinge Screw For G-44 | ||
| 10S049S-306H | Washer (t=0.4) | ||
| 10S050S-306H | Washer (t=0.5) | ||
| 10-051W-120H | Washer (t=0.6) | ||
| 10-052W-120H | Washer (t=0.7) | ||
| 10S053S-306H | Moving Mes Link | ||
| 10S055S-306G | Thread Trimming Lever "B" | ||
| 10S056S-306H | Thread Trimming Lever Ring | ||
| 10S057S-306H | Thread Trimming Lever Shaft | ||
| 10S058S-306H | Thread Trimming Lever "A" | ||
| 10S059S-306H | Thread Trimming Lever Screw | ||
| 10S060S-306H | Screw (11/64" n=40) | ||
| 10-020W-2700 | Washer | ||
| SN-0119-1230 | Nut (3/16" n=28) | ||
| PN-000246-00 | Thread Trimming Connecting Link Pin | ||
| SC-0164-2700 | Screw (M5×L5) |
Page 20 — X-Y Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-39 | H-39 | ||
| H-38 | H-38 | ||
| H-11 | H-11 | ||
| H-37 | H-37 | ||
| H-31 | H-31 | ||
| H-30 | H-30 | ||
| H-44 | H-44 | ||
| H-36 | H-36 | ||
| H-2 | H-2 | ||
| H-8 | H-8 | ||
| H-29 | H-29 | ||
| H-3 | H-3 | ||
| H-14 | H-14 | ||
| H-7 | H-7 | ||
| H-6 | H-6 | ||
| H-27 | H-27 | ||
| H-1 | H-1 | ||
| H-20 | H-20 | ||
| H-19-1 | H-19-1 | ||
| H-13 | H-13 | ||
| H-4 | H-4 | ||
| H-34 | H-34 | ||
| H-5 | H-5 | ||
| H-9 | H-9 | ||
| H-33 | H-33 | ||
| H-32 | H-32 | ||
| H-10 | H-10 | ||
| H-15 | H-15 | ||
| H-16 | H-16 | ||
| H-28-1 | H-28-1 | ||
| H-25 | H-25 | ||
| H-24 | H-24 | ||
| H-17 | H-17 | ||
| H-26 | H-26 | ||
| H-23 | H-23 | ||
| H-22 | H-22 | ||
| H-21 | H-21 | ||
| H-42 | H-42 | ||
| H-43 | H-43 |
Page 21
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20-001A-120H | Y-Feed Bushing(F) | ||
| 20-002A-120H | Y-Feed Bushing(R) | ||
| 20-003A-120H | Y-Feed Shaft | ||
| 20-004A-120H | Y-Feed Arm | ||
| SC-A308-5067 | Screw(1/4" n=40) | ||
| 20-006A-120H | Y-Feed Hinge Stud Screw | ||
| 20-007A-120H | Y-Sensor Film | ||
| SC-0173-1230 | Screw(3/16" n=32) | ||
| GP-011575-01 | X-Feed Lever Gear | ||
| 04S106S-306H | X-Feed Block | ||
| 20-011A-120H | X-Feed Block Shaft | ||
| 20-013A-120H | X-Sensor Film | ||
| 20-015A-120H | X-Feed Lever Gear Shaft | ||
| 20-016A-120H | X-Feed Lever Gear Shaft Collar | ||
| SC-0533-3400 | Screw(11/64" n=40) | ||
| 20-051A-12HA | X-Driving Motor Ass'y | ||
| 20-052A-12HA | X-Drive Gear | ||
| SC-0317-2700 | Screw(15/64" n=28) | ||
| 020-15SC-4113 | Screw(M4, L=12) | ||
| 20-055W-120H | Washer | ||
| SC-0296-3900 | Screw(11/64" n=40) | ||
| 10-020W-2700 | Washer | ||
| 20-053A-12HA | Y-Driving Motor Ass'y | ||
| 20-030A-120H | Y-Drive Gear | ||
| 20-054A-12HA | Y-Driven Motor Mounting Plate | ||
| 20-037A-120H | X-Sensor Base | ||
| 20S076S-306H | X-Sensor | ||
| 22031SC-8118 | Screw(M4, L=10) | ||
| 20-041A-120H | Y-Sensor Base | ||
| 20S029S-306H | Y-Sensor | ||
| 02S030S-306H | Screw(M3, L=9) | ||
| 20-046A-120H | Cloth Feed Support Plate | ||
| 20-048A-120H | Cloth Feed Plate | ||
| 20-149A-120H | Feed Guide Plate | ||
| 01-136S-1230 | Screw(11/64" n=40) | ||
| 22-151A-12HA | X-Step Motor Cable | ||
| 22-152A-12HA | Y-Step Motor Cable | ||
| SC-0180-3800 | Screw(11/64" n=40) |
Page 22 — Feed Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | I-1 | FEED MECHANISM | |
| I-2 | I-2 | FEED ROCKER ARM | |
| I-3 | I-3 | FEED ROCKER ARM | |
| I-5 | I-5 | SCREW | |
| I-6 | I-6 | SPRING PIN | |
| I-7 | I-7 | SPRING PIN | |
| I-8 | I-8 | BRACKET | |
| I-9 | I-9 | SCREW | |
| I-10 | I-10 | SCREW | |
| I-11 | I-11 | FEED DOG | |
| I-12 | I-12 | FEED DOG | |
| I-13 | I-13 | FEED DOG | |
| I-14 | I-14 | FEED DOG | |
| I-14,41 | I-14,41 | FEED DOG | |
| I-15 | I-15 | FEED DOG | |
| I-16 | I-16 | FEED DOG | |
| I-17,19,21,42 | I-17,19,21,42 | FEED ROCKER ARM | |
| I-18,20,22,43 | I-18,20,22,43 | FEED ROCKER ARM | |
| I-23 | I-23 | FEED ROCKER ARM | |
| I-24 | I-24 | FEED ROCKER ARM | |
| I-25 | I-25 | FEED ROCKER ARM | |
| I-26 | I-26 | FEED ROCKER ARM | |
| I-27 | I-27 | SCREW | |
| I-28 | I-28 | WASHER | |
| I-28 | I-28 | WASHER | |
| I-29,30,31,33 | I-29,30,31,33 | FEED ROCKER ARM | |
| I-32 | I-32 | FEED ROCKER ARM | |
| I-34 | I-34 | FEED ROCKER ARM | |
| I-35 | I-35 | FEED ROCKER ARM | |
| I-36 | I-36 | FEED ROCKER ARM | |
| I-37 | I-37 | FEED ROCKER ARM | |
| I-38 | I-38 | FEED ROCKER ARM | |
| I-39 | I-39 | FEED ROCKER ARM | |
| I-44 | I-44 | FEED ROCKER ARM | |
| I-45 | I-45 | FEED ROCKER ARM |
Page 23
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-001A-120H | Feed Bracket | ||
| 22-002A-120H | Lifting Lever(L) | ||
| 22-003A-120H | Lifting Lever(R) | ||
| 22-004A-120H | Lifting Lever Shaft | ||
| SC-0317-2700 | Screw(15/64" n=28) | ||
| 06-046W-7400 | Washer | ||
| 04-009C-3710 | E-Ring | ||
| 22-008A-120H | Adjusting Plate | ||
| 01S106S-306H | Screw | ||
| 10-020W-2700 | Washer | ||
| 22-011A-120H | Spring Guide Rod | ||
| 43-010S-2500 | Hinge Screw For I-11 | ||
| SN-0111-1600 | Nut(3/16" n=28) | ||
| 22-016G-120H | Spring For Lifting Lever(H) | ||
| 22-017C-120H | Spring Collar A | ||
| 22-018C-120H | Spring Collar B | ||
| 22-019A-120H | Work Clamp Foot-L(H) | ||
| 22-020A-120H | Work Clamp Foot-R(H) | ||
| 22-021A-120M | Work Clamp Foot-L(M) | ||
| 22-022A-120M | Work Clamp Foot-R(M) | ||
| 22-023A-120L | Work Clamp Foot-L(L) | ||
| 22-024A-120L | Work Clamp Foot-R(L) | ||
| 22-023A-120H | Guide Cover For Work Clamp Foot | ||
| SC-0310-8130 | Screw(9/64" n=40) | ||
| 22-125A-120H | Finger Guard | ||
| SC-0528-1230 | Screw(9/64" n=40) | ||
| SC-0108-2350 | Bolt(M6 x 1 20) | ||
| 22S025S-306H | Washer | ||
| 22-329A-120H | Feed Plate(H) | ||
| 22-030A-120M | Feed Plate(M) | ||
| 22-033A-120L | Feed Plate(L)-A | ||
| 22-034A-120L | Feed Plate(L)-B | ||
| 22-035A-120K | Feed Plate(K) | ||
| 22-031A-120H | Screw(M6 x 10) | ||
| 22-038A-120H | Ball Support Plate | ||
| 22-039S-120H | Screw(M6) | ||
| 06-034A-3900 | Ball | ||
| 22-040A-120H | Ball Base | ||
| SN-0116-3400 | Nut(1/4" n=40) | ||
| 22-016G-120M | Spring For Lifting Lever(M) | ||
| 22-023A-120K | Work Clamp Foot -L(K) | ||
| 22-024A-120K | Work Clamp Foot -R(K) | ||
| GP-007807-02 | Dust Plate(L) | ||
| GP-007808-02 | Dust Plate(R) |
Page 24 — J Lubrication Mechanism 급유 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1, J-2 | J-1, J-2 | J-1, J-2 | |
| J-3 | J-3 | J-3 | |
| J-4 | J-4 | J-4 | |
| J-5 | J-5 | J-5 | |
| J-6 | J-6 | J-6 | |
| J-7 | J-7 | J-7 | |
| J-8 | J-8 | J-8 | |
| J-9 | J-9 | J-9 | |
| J-10 | J-10 | J-10 | |
| J-11 | J-11 | J-11 | |
| J-12 | J-12 | J-12 | |
| J-13 | J-13 | J-13 | |
| J-14 | J-14 | J-14 | |
| J-15 | J-15 | J-15 | |
| J-16 | J-16 | J-16 | |
| J-17 | J-17 | J-17 | |
| J-18, J-19 | J-18, J-19 | J-18, J-19 | |
| J-20 | J-20 | J-20 | |
| J-21 | J-21 | J-21 | |
| J-22 | J-22 | J-22 | |
| J-23 | J-23 | J-23 | |
| J-24 | J-24 | J-24 | |
| J-25 | J-25 | J-25 | |
| J-26 | J-26 | J-26 | |
| J-27 | J-27 | J-27 | |
| J-28 | J-28 | J-28 | |
| J-29 | J-29 | J-29 |
Page 25
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 44-0000-1230 | Oil Wick | |
| J-2 | 44-012C-1230 | Oil Hose | |
| J-3 | 44S007S-306H | Oil Return Felt A | |
| J-4 | 44S008S-306H | Arm Oil Return Felt | |
| J-5 | 44S002S-306H | Oil Hose For J-4 | |
| J-6 | 44-008C-120H | Holder For J-5 | |
| J-7 | SC-A156-4118 | Screw(9/64" n=40) | |
| J-8 | 44S024S-306H | Crank Rod Lubrication Plate | |
| J-9 | SC-0548-7400 | Screw(3/16" n=28) | |
| J-10 | 44S027S-306H | Crank Rod Lubrication Felt | |
| J-11 | 44-017C-120H | Needle Bar Crank Rod Lubrication Plate | |
| J-12 | 44-019M-120H | Needle Bar Crank Rod Lubrication Felt | |
| J-13 | 44S032S-306H | Oil Hose Holder(L) | |
| J-14 | SC-0543-2302 | Screw(11/64" n=40) | |
| J-15 | 44S034S-306H | Balance Lubrication Plate | |
| J-16 | 44S035S-306H | Balance Lubrication Felt | |
| J-17 | SC-0340-3710 | Screw(9/64" n=40) | |
| J-18 | 44S039S-306H | Bed Oil Return Felt | |
| J-19 | 44S001S-306H | Oil Hose For J-18 | |
| J-20 | 44S041S-306H | Oscillator Lubrication Plate | |
| J-21 | 44S042S-306H | Oscillator Lubrication Felt | |
| J-22 | 44S005S-306H | Cable Holder | |
| J-23 | 44S044S-306H | Shuttle Lubrication Plate | |
| J-24 | 44S046S-306H | Shuttle Lubrication Felt(L) | |
| J-25 | 06-033M-7400 | Shuttle Lubrication Felt(S) | |
| J-26 | 44-034R-120H | Bed Oil Wick Rubber Cap | |
| J-27 | 44S052S-306H | Oil Window | |
| J-28 | 44S053S-306H | Oil Gauge | |
| J-29 | 44S054S-306H | Oil Window Rubber Ring |
Page 26 — Table & Thread Stand
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | TABLE TOP | ||
| K-2 | LEG FRAME | ||
| K-3 | DRAWER | ||
| K-4 | DRAWER SLIDE RAIL | ||
| K-5 | DRAWER SLIDE RAIL | ||
| K-6 | CONTROL BOX COVER | ||
| K-7 | CONTROL BOX COVER SCREW | ||
| K-8 | BRACKET | ||
| K-9 | BRACKET | ||
| K-10 | BRACKET SCREW | ||
| K-11 | BRACKET SCREW | ||
| K-12 | BRACKET SCREW | ||
| K-13 | BRACKET SCREW | ||
| K-14 | BRACKET SCREW | ||
| K-15 | BRACKET | ||
| K-16 | BRACKET | ||
| K-17 | BRACKET | ||
| K-18 | THREAD STAND | ||
| K-19 | THREAD STAND BASE | ||
| K-20 | THREAD STAND BASE SCREW | ||
| K-21 | THREAD STAND BASE SCREW | ||
| K-22 | THREAD STAND TOP PART | ||
| K-23 | LEG FRAME BRACKET | ||
| K-24 | LEG FRAME BRACKET | ||
| K-25 | BRACKET |
Page 27
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-2 | TZ-001-1000 | Table Stand Ass'y | |
| K-6 | 90A008S-811H | Accessary Case | |
| K-8 | 01S122S-306H | Hinge | |
| K-9 | 01S123S-306H | Hinge Rubber | |
| K-10 | 01S124S-306H | Hinge Pin | |
| K-11 | SC-0164-2700 | Screw(M5×P0.8) | |
| K-12 | 01S126S-306H | Bolt(M6×60) | |
| K-13 | 01S127S-306H | Nut(M6) | |
| K-14 | 01S128S-306H | Washer | |
| K-15 | 91-106A-120H | Oil Pan | |
| K-16 | 44-0000-1230 | Oil Wick | |
| K-18 | 91-002C-7400 | Oiler | |
| K-19 | 90S008S-306H | Oil Supporter | |
| K-21 | 90S010S-306H | Cushion Rubber | |
| K-22 | 91-007A-2302 | Thread Stand Ass'y | |
| K-23 | 91-005A-SH51 | Power Switch | |
| K-25 | GP-006544-00 | Support Rubber Safety Switch |
Page 28
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | L-1 | SCREW DRIVER | |
| L-2 | L-2 | SCREW DRIVER SET | |
| L-4 | L-4 | WRENCH | |
| L-5 | L-5 | OIL CAN | |
| L-6 | L-6 | OIL CAN | |
| L-7, L-8, L-9 | L-7, L-8, L-9 | NEEDLE | |
| L-10 | L-10 | BOBBIN | |
| L-11 | L-11 | ALLEN WRENCH | |
| L-12 | L-12 | ALLEN WRENCH | |
| L-13 | L-13 | ALLEN WRENCH | |
| L-14 | L-14 | ALLEN WRENCH | |
| L-15 | L-15 | ALLEN WRENCH | |
| L-16 | L-16 | NEEDLE BAR | |
| L-17 | L-17 | NEEDLE BAR | |
| L-18 | L-18 | NEEDLE BAR | |
| L-19 | L-19 | CLEANING CLOTH |
Page 29
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | 91-102C-1230 | Driver(L) | |
| L-2 | 91-103C-1230 | Driver(M), (S) | |
| L-4 | 91S004S-306H | Spaner(9×10) | |
| L-5 | 91-011C-1230 | Oiler | |
| L-6 | 91-108C-1230 | Oil | |
| L-7 | H | Needle(DP×17 #19) | |
| L-8 | M | Needle(DP×5 #16) | |
| L-9 | L,K | Needle(DP×5 #11) | |
| L-10 | 07-224A-120H | Bobbin | |
| L-11 | 91-001C-2700 | L-Shaped Wrench | |
| L-12 | 91-004C-2700 | L-Shaped Wrench | |
| L-13 | 91-003C-2700 | L-Shaped Wrench | |
| L-14 | 91-001C-3800 | L-Shaped Wrench | |
| L-15 | 91-002C-2700 | L-Shaped Wrench | |
| L-16 | 12-0146-SC53 | Fuse(1A, 30mm) | |
| L-17 | 05-002C-SW65 | Fuse(10A, 30mm) | |
| L-18 | 12-046C-SC53 | Fuse(15A, 30mm) | |
| L-19 | 91-001C-120H | Head Cover |
Page 30
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | M-1 | ||
| M-17 | M-17 | ||
| M-16 | M-16 | ||
| M-18 | M-18 | ||
| M-15 | M-15 | ||
| M-66 | M-66 | ||
| M-67 | M-67 | ||
| M-25 | M-25 | ||
| M-27 | M-27 | ||
| M-28 | M-28 | ||
| M-26 | M-26 | ||
| M-19 | M-19 | ||
| M-3 | M-3 | ||
| M-77 | M-77 | ||
| M-5 | M-5 | ||
| M-76 | M-76 | ||
| M-33 | M-33 | ||
| M-74 | M-74 | ||
| M-31 | M-31 | ||
| M-60 | M-60 | ||
| M-75 | M-75 | ||
| M-30 | M-30 | ||
| M-74 | M-74 | ||
| M-32 | M-32 | ||
| M-31 | M-31 | ||
| M-48 | M-48 | ||
| M-61 | M-61 | ||
| M-47 | M-47 | ||
| M-46 | M-46 | ||
| M-43 | M-43 | ||
| M-39 | M-39 | ||
| M-74 | M-74 | ||
| M-35 | M-35 | ||
| M-38 | M-38 | ||
| M-41 | M-41 | ||
| M-49 | M-49 | ||
| M-36 | M-36 | ||
| M-40 | M-40 | ||
| M-37 | M-37 | ||
| M-45 | M-45 | ||
| M-44 | M-44 | ||
| M-43 | M-43 | ||
| M-19 | M-19 | ||
| M-9 | M-9 | ||
| M-20 | M-20 | ||
| M-20 | M-20 | ||
| M-21 | M-21 | ||
| M-22 | M-22 | ||
| M-13 | M-13 | ||
| M-14 | M-14 | ||
| M-6 | M-6 | ||
| M-2 | M-2 | ||
| M-4 | M-4 | ||
| M-12 | M-12 | ||
| M-8 | M-8 | ||
| M-69 | M-69 | ||
| M-65 | M-65 | ||
| M-64 | M-64 | ||
| M-63 | M-63 | ||
| M-10 | M-10 | ||
| M-11 | M-11 | ||
| M-50 | M-50 | ||
| M-51 | M-51 | ||
| M-52 | M-52 | ||
| M-56 | M-56 | ||
| M-53 | M-53 | ||
| M-54 | M-54 | ||
| M-55 | M-55 | ||
| M-62 | M-62 | ||
| M-59 | M-59 | ||
| M-24 | M-24 | ||
| M-57 | M-57 | ||
| M-58 | M-58 | ||
| M-23 | M-23 |
Page 31
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| SSBT-0000035 | Control Box Ass'y | 1 | |
| GP-008658-01 | Box Body | 1 | |
| GP-008671-00 | Front Profile Upper | 1 | |
| 10-016S-CPT1 | Screw(M4×L12) | 2 | |
| GP-008672-00 | Front Profile Lower | 1 | |
| 10-016S-CPT1 | Screw(M4×L12) | 2 | |
| GP-008673-00 | Rear Profile Upper | 2 | |
| 10-016S-CPT1 | Screw(M4×L12) | 4 | |
| GP-008674-00 | Rear Profile Lower | 1 | |
| 10-016S-CPT1 | Screw(M4×L12) | 2 | |
| GP-008666-01 | Upper Frame | 1 | |
| 10-004M-SW68 | Screw(M3×L5) | 4 | |
| GP-008663-01 | Lower Frame | 1 | |
| 10-004M-SW68 | Screw(M3×L5) | 4 | |
| GP-008662-00 | Upper Cover | 1 | |
| EP-000040-00 | Control Box Fan | 1 | |
| SC-000392-00 | Screw(M4×L30) | 4 | |
| 09-041S-3701 | Fan Nut(M4) | 6 | |
| 10-004M-SW68 | Screw(M3×L5) | 6 | |
| GP-008667-00 | Insulation Plate | 3 | |
| BD-000204-00 | Backplane Board | 1 | |
| 10-020M-SW66 | Screw(M3×L12) | 18 | |
| GP-008659-01 | Rear Cover | 1 | |
| 10-004M-SW68 | Screw(M3×L5) | 6 | |
| EP-000039-00 | SMPS | 1 | |
| GP-008701-01 | SMPS Bracket | 1 | |
| 10-002S-SW66 | Screw(M3×L8) | 5 | |
| BD-000203-00 | DDC Board | 1 | |
| 10-002S-SW66 | Screw(M3×L8) | 6 | |
| BD-000205-00 | Digital Board | 1 | |
| GP-008668-01 | Digital Board Bracket | 1 | |
| GP-007198-00 | SMD FET Radiator Sheet | 1 | |
| 10-002S-SW66 | Screw(M3×L8) | 4 | |
| BD-000207-00 | Step Board | 1 | |
| GP-006318-00 | Step Board Radiator | 1 | |
| GP-007197-00 | SMD FET Radiator | 1 | |
| 10-004M-SW68 | Screw(M3×L5) | 1 | |
| EP-000041-00 | Step Board Fan | 2 | |
| 01-017C-DU33 | Screw(M4×L25) | 4 |
Page 32 — Control Box Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-1 | Control Box Mechanism | ||
| M-17 | M-17 | ||
| M-16 | M-16 | ||
| M-18 | M-18 | ||
| M-15 | M-15 | ||
| M-66 | M-66 | ||
| M-25 | M-25 | ||
| M-27 | M-27 | ||
| M-28 | M-28 | ||
| M-26 | M-26 | ||
| M-19 | M-19 | ||
| M-19 | M-19 | ||
| M-3 | M-3 | ||
| M-5 | M-5 | ||
| M-77 | M-77 | ||
| M-76 | M-76 | ||
| M-33 | M-33 | ||
| M-74 | M-74 | ||
| M-31 | M-31 | ||
| M-75 | M-75 | ||
| M-60 | M-60 | ||
| M-30 | M-30 | ||
| M-74 | M-74 | ||
| M-31 | M-31 | ||
| M-48 | M-48 | ||
| M-61 | M-61 | ||
| M-34 | M-34 | ||
| M-37 | M-37 | ||
| M-47 | M-47 | ||
| M-45 | M-45 | ||
| M-46 | M-46 | ||
| M-43 | M-43 | ||
| M-39 | M-39 | ||
| M-74 | M-74 | ||
| M-41 | M-41 | ||
| M-49 | M-49 | ||
| M-36 | M-36 | ||
| M-40 | M-40 | ||
| M-35 | M-35 | ||
| M-38 | M-38 | ||
| M-62 | M-62 | ||
| M-55 | M-55 | ||
| M-50 | M-50 | ||
| M-24 | M-24 | ||
| M-57 | M-57 | ||
| M-59 | M-59 | ||
| M-58 | M-58 | ||
| M-23 | M-23 | ||
| M-22 | M-22 | ||
| M-21 | M-21 | ||
| M-20 | M-20 | ||
| M-9 | M-9 | ||
| M-7 | M-7 | ||
| M-29 | M-29 | ||
| M-12 | M-12 | ||
| M-4 | M-4 | ||
| M-2 | M-2 | ||
| M-6 | M-6 | ||
| M-14 | M-14 | ||
| M-11 | M-11 | ||
| M-13 | M-13 | ||
| M-69 | M-69 | ||
| M-8 | M-8 | ||
| M-65 | M-65 | ||
| M-64 | M-64 | ||
| M-63 | M-63 | ||
| M-10 | M-10 | ||
| M-51 | M-51 | ||
| M-56 | M-56 | ||
| M-52 | M-52 | ||
| M-53 | M-53 | ||
| M-54 | M-54 |
Page 33
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-40 | GP-010656-00 | Step Board Stud(A) | 5 |
| M-41 | GP-007198-00 | SMD FET Radiator Sheet | 2 |
| M-42 | 10-012M-PT10 | Step Board Stud(B) | 5 |
| M-43 | GP-007196-00 | Step Board FET Radiator | 2 |
| M-44 | 07-004S-SM5S | Screw(M4×L10) | 4 |
| M-45 | GP-007199-00 | FET Radiator Sheet A | 1 |
| M-46 | GP-007201-00 | FET Radiator Sheet B | 1 |
| M-47 | 07-005S-SM5S | Screw(M3×L10) | 11 |
| M-48 | GP-008669-01 | Step Board Bracket | 1 |
| M-49 | 10-004M-SW68 | Screw(M3×L5) | 5 |
| M-50 | BD-000206-00 | Main Board | 1 |
| M-51 | GP-007203-00 | Main Board Radiator | 1 |
| M-52 | 10-012M-PT10 | Main Board Stud | 3 |
| M-53 | 01-003S-2070 | Screw(M4×L16) | 1 |
| M-54 | 10-003M-PT10 | Screw(M4×L10) | 2 |
| M-55 | GP-008670-01 | Main Board Bracket | 1 |
| M-56 | 10-002S-SW66 | Screw(M3×L8) | 4 |
| M-57 | 07-004S-SM5S | Screw(M4×L10) | 1 |
| M-58 | GP-008660-00 | Cable Cover | 1 |
| M-59 | 10-003M-PT01 | Screw(M4×L8) | 4 |
| M-60 | GP-007711-00 | Digital Board Sticker | 1 |
| M-61 | GP-007712-00 | Step Board Sticker | 1 |
| M-62 | GP-007713-00 | Main Board Sticker | 1 |
| M-63 | 09-023C-SC53 | QC Passed Sticker | 1 |
| M-64 | GP-010843-00 | Voltage Sticker | 1 |
| M-65 | 04-004S-AU10 | Caution Sticker | 1 |
| M-66 | CA-00342-00 | SMPS Connecting Cable1 | 1 |
| M-67 | CA-00343-00 | SMPS Connecting Cable2 | 1 |
| M-68 | CA-00351-00 | Jumper Cable | 1 |
| M-69 | 04-001C-SE50 | Screw(S7.5×L16) | 4 |
| M-70 | 01-001M-PT01 | Screw(M6×L45) | 4 |
| M-71 | 01-003S-SW66 | Spring Washer(M6) | 4 |
| M-72 | 01-004S-SW66 | Washer(M6) | 4 |
| M-73 | 91-001C-BT10 | Urethane Washer | 4 |
| M-74 | 01-001S-NET1 | Screw(M3×L6) | 6 |
| M-75 | GP-012617-00 | Board Bracket Handle | 3 |
| M-76 | 10-073S-3701 | Screw(M3×L10) | 6 |
| M-77 | GP-011488-00 | Brand Sticker | 1 |
Page 34 — Operation Unit Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N-1 | Operation Unit Mechanism | ||
| N-2 | Operation Unit Mechanism | ||
| N-3 | Operation Unit Mechanism | ||
| N-4 | Operation Unit Mechanism | ||
| N-5 | Operation Unit Mechanism | ||
| N-6 | Operation Unit Mechanism | ||
| N-7 | Operation Unit Mechanism | ||
| N-8 | Operation Unit Mechanism | ||
| N-9 | Operation Unit Mechanism | ||
| N-10 | Operation Unit Mechanism | ||
| N-11 | Operation Unit Mechanism | ||
| N-12 | Operation Unit Mechanism | ||
| N-13 | Operation Unit Mechanism | ||
| N-14 | Operation Unit Mechanism | ||
| N-15 | Operation Unit Mechanism | ||
| N-16 | Operation Unit Mechanism |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| GP-011454-00 | Membrane Switch | ||
| GP-011450-00 | Front Cover | ||
| BD-000217-00 | O/P Board | ||
| CA-000344-00 | Operation Cable | ||
| 11-002S-5050 | Fixing Screw For O/P Board | ||
| BD-000216-00 | CF Card Board | ||
| CA-000395-00 | CF Card Power Cable | ||
| CA-000396-00 | CF Card Cable | ||
| 11-002S-5050 | Fixing Screw For CF Card Board | ||
| 15-026M-1000 | Cable Tie | ||
| GP-011452-01 | CF Card Cover | ||
| GP-011451-00 | Rear Cover | ||
| 11-002S-5050 | Fixing Screw For Rear Cove | ||
| GP-011455-00 | Stand For OP Box | ||
| SC-000410-00 | Fixing Screw For OP Box | ||
| SC-000411-00 | Fixing Screw For OP Box Stand |
Page 36 — Pedal Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 0-1 | SunStar | ||
| 0-2 | |||
| 0-3 | |||
| 0-4 | |||
| 0-5 | |||
| 0-6 | |||
| 0-7 | |||
| 0-8 | |||
| 0-9 | |||
| 0-10 | |||
| 0-11 | |||
| 0-13 | |||
| 0-14 | |||
| 0-15 | |||
| 0-16 | |||
| 0-17 | |||
| 0-18 | |||
| 0-19 | |||
| 0-20 | |||
| 0-21 |
Page 37
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 0-1 | 10-001A-PT11 | Cover | |
| 0-2 | 10-002A-PT11 | Base | |
| 0-3 | 10-001B-PT11 | Stopper A | |
| 0-4 | 10-002B-PT11 | Stopper B | |
| 0-5 | 10-003B-PT11 | Stopper C | |
| 0-6 | 10-004B-PT11 | Guide A | |
| 0-7 | 10-005B-PT11 | Guide B | |
| 0-8 | 10-006S-PT11 | Spring A | |
| 0-9 | 10-007S-PT11 | Spring B | |
| 0-10 | 10-006B-PT11 | Guide Base | |
| 0-11 | 10-007B-PT11 | Guide Cover | |
| 0-12 | 10-008B-PT11 | Switch Cover | |
| 0-13 | 10-003A-PT11 | Shaft | |
| 0-14 | 10-001S-SW68 | E-Ring | |
| 0-15 | 10-004A-PT11 | MICRO SWITCH | |
| 0-16 | 10-001C-PT11 | GROMMET BUSH | |
| 0-17 | 10-028S-SC53 | Screw Guide Base(M3×P0.5 L=7) | |
| 0-18 | 10-008M-PT11 | Screw MICRO SWITCH(M3×P0.5 L=38) | |
| 0-19 | 10-021M-SW66 | Screw Guide Cover(M3×P0.5 L=6) | |
| 0-20 | 10-008S-PT11 | Spring C | |
| 0-21 | 11-002M-PT10 | Sponge(t5×B10) |
Page 38 — Cable Unit
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | Cable Unit | ||
| 2 | Cable Unit | ||
| 3 | Cable Unit | ||
| 4 | Cable Unit | ||
| 5 | Cable Unit | ||
| 6 | Cable Unit | ||
| 7 | Cable Unit | ||
| 8 | Cable Unit | ||
| 9 | Cable Unit | ||
| 10 | Cable Unit | ||
| 12 | Cable Unit | ||
| 14 | Cable Unit | ||
| 15 | Cable Unit |
Page 39
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| P-1 | 02-001B-BT01 | Operator Cable | 1 |
| P-2 | 02-008B-BT01 | Step Motor Drive Signal Cable | 1 |
| P-4 | 02-011B-BT01 | Solenoid Power Cable | 1 |
| P-5 | 02-028A-120H | X Axis Step Motor Cable | 1 |
| P-6 | 02-013B-BT01 | Step Motor Power Cable | 1 |
| P-7 | 02-009B-BT01 | Servo Motor Drive Signal Cable | 1 |
| P-8 | 21-029A-120H | Presser Foot Solenoid Cable | 1 |
| 21-029A-120H | Thread Trimming Solenoid Cable | 1 | |
| P-9 | 02-012B-BT01 | Servo Motor Power Cable | 1 |
| P-12 | 02-010B-BT01 | Servo Motor Auxiliary Cable | 1 |
| P-14 | 02-014B-BT01 | Cooling Fan Cable | 1 |
| P-15 | 02-029A-120H | Y Axis Step Motor Cable | 1 |
Page 40
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| Q-6 | Q-6 | ||
| Q-7 | Q-7 | ||
| Q-5 | Q-5 | ||
| Q-8 | Q-8 | ||
| Q-14 | Q-14 | ||
| Q-9 | Q-9 | ||
| Q-8 | Q-8 | ||
| Q-9 | Q-9 | ||
| Q-15 | Q-15 | ||
| Q-4 | Q-4 | ||
| Q-1 | Q-1 | ||
| I-27 | I-27 | ||
| I-28 | I-28 | ||
| Q-6 | Q-6 | ||
| Q-7 | Q-7 | ||
| Q-5 | Q-5 | ||
| Q-8 | Q-8 | ||
| Q-10 | Q-10 | ||
| Q-9 | Q-9 | ||
| Q-8 | Q-8 | ||
| Q-11 | Q-11 | ||
| Q-4 | Q-4 | ||
| Q-13 | Q-13 | ||
| Q-12 | Q-12 | ||
| Q-4 | Q-4 | ||
| Q-16 | Q-16 | ||
| I-37 | I-37 | ||
| I-38 | I-38 | ||
| I-39 | I-39 | ||
| I-40 | I-40 | ||
| I-6 | I-6 | ||
| I-7 | I-7 | ||
| I-35 | I-35 | ||
| I-36 | I-36 | ||
| R-2 | R-2 | ||
| I-23 | I-23 | ||
| I-24 | I-24 | ||
| I-26 | I-26 | ||
| R-3 | R-3 | ||
| I-4 | I-4 | ||
| I-25 | I-25 | ||
| Q-17-2 | Q-17-2 | ||
| Q-17-1 | Q-17-1 | ||
| I-34 | I-34 | ||
| I-28 | I-28 | ||
| I-32 | I-32 | ||
| I-29, I-30 | I-29, I-30 | ||
| I-31, I-32 | I-31, I-32 |
Page 41
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| Q-1 | 22-073A-12HA | Feed Bracket | 1 |
| Q-2 | 22-075A-12HA | Lifting Lever(Right) | 1 |
| Q-3 | 22-074A-12HA | Lifting Lever(Left) | 1 |
| Q-4 | 22-076A-12HA | Air Cylinder | 2 |
| Q-5 | 22A030S-306H | Cylinder Knuckle | 2 |
| Q-7 | 05-014C-1230 | E-Ring(φ4) | 4 |
| Q-8 | 49A003S-811H | Hose Elbow(M-5HL-4) | 4 |
| Q-9 | 05A039S-811H | Air Hose(TU-0425) | |
| Q-10 | 22A048S-811H | Air Hose Label(S4L) | 2 |
| Q-11 | 22A049S-811H | Air Hose Label(S3R) | 2 |
| Q-12 | 22A048S-811H | Cylinder Shaft Washer | 2 |
| Q-13 | 04-009C-3710 | E-Ring | 1 |
| Q-14 | 22A048C-811H | Air Hose Label(S4R) | 2 |
| Q-15 | 22A049S-811H | Air Hose Label(S3R) | 2 |
| Q-16 | 22-077A-12HA | Cylinder Shaft | 1 |
| Q-17-1 | 22-023A-12HA | Pneumatic Presser Foot(L) | 1 |
| Q-17-2 | 22-024A-12HA | Pneumatic Presser Foot(R) | 1 |
Page 42 — Thread Trimmer Mechanism 사절 관계
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| R-1 | 10A042S-811E | Needle Plate Cover | |
| R-2 | 10S045S-306H | Fixed Mes | |
| R-3 | 10S047S-306H | Moving Mes | |
| R-4 | 10S048S-306H | Hinge Screw For S-3 |
Page 43
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| S-1 | 20-052A-12HA | X-Drive Gear | |
| S-2 | 20--051A-12HA | X-Driving Motor Asm. | |
| S-3 | 02-001W-2302 | Washer | |
| S-4 | 07-016S-4113 | Screw(M4×P0.7×L12) | |
| S-5 | 20-054A-12HA | Y-Motor Mounting Plate | |
| S-6 | 20-053A-12HA | Y-Driving Motor Asm. |
Page 44 — SPS/A-B1201-20
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| T-1 | T-1 | ||
| T-2 | T-2 | ||
| T-3 | T-3 | ||
| T-4 | T-4 | ||
| T-5 | T-5 | ||
| T-6 | T-6 | ||
| T-7 | T-7 | ||
| T-8 | T-8 | ||
| T-9 | T-9 | ||
| T-10 | T-10 | ||
| T-11 | T-11 | ||
| T-12 | T-12 | ||
| T-13 | T-13 | ||
| T-14 | T-14 | ||
| T-15 | T-15 | ||
| T-16 | T-16 | ||
| T-17 | T-17 |
Page 45
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| T-1 | 49-001A-12HA | Quick Coupling(PY0400) | |
| T-2 | 05A039S-811H | Air Hose | |
| T-3 | 22A065S-811H | Hose Lable(S3F) | |
| T-4 | 22A066S-811H | Hose Label(S4F) | |
| T-5 | 49-002A-12HA | Solenoid Valve Asm | |
| T-7 | 05A039S-811H | Air Hoce | |
| T-8 | 49-004C-5030 | Elbow Union | |
| T-9 | 49A007S-811H | Air Pressure Switch | |
| T-10 | 49A006S-811H | Filter Regulator | |
| T-14 | 49A005S-811H | Finger Valve | |
| T-15 | 49-002C-5030 | Quick Joint Plug | |
| T-16 | 01A148S-811H | Cable Tie | |
| T-17 | 49-016A-12HA | Pneumatic I/O Cable |
Page 46 — Air Control Mechanism (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| T-1 | T-1 | ||
| T-2 | T-2 | ||
| T-3 | T-3 | ||
| T-4 | T-4 | ||
| T-5 | T-5 | ||
| T-6 | T-6 | ||
| T-7 | T-7 | ||
| T-8 | T-8 | ||
| T-9 | T-9 | ||
| T-10 | T-10 | ||
| T-11 | T-11 | ||
| T-12 | T-12 | ||
| T-13 | T-13 | ||
| T-14 | T-14 | ||
| T-15 | T-15 | ||
| T-16 | T-16 | ||
| T-17 | T-17 | ||
| T-18 | T-18 | ||
| T-19 | T-19 | ||
| T-20 | T-20 | ||
| T-21 | T-21 | ||
| T-22 | T-22 | ||
| T-23 | T-23 | ||
| T-24 | T-24 | ||
| T-25 | T-25 | ||
| T-26 | T-26 | ||
| T-27 | T-27 | ||
| T-28 | T-28 | ||
| T-29 | T-29 |
Page 47
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22 A046S-306H | Solenoid Valve | 2 | |
| 49 A019S-811H | Manifold Block | 1 | |
| 49 A020S-811H | Silencer | 2 | |
| 49 A021S-811H | Plug B | 3 | |
| 49 A015S-811H | Hose Nipple | 4 | |
| 49 A014S-811H | Half Union | 1 | |
| 90S021S-306H | Screw | 2 | |
| 49-016A-12HA | Pneumatic I/O Cable | 1 | |
| 22 A046S-306H | Solenoid Valve | 2 | |
| 49 A019S-811H | Manifold Block | 1 | |
| 49 A020S-811H | Silencer | 2 | |
| 49 A021S-811H | Plug B | 3 | |
| 49 A015S-811H | Hose Nipple | 3 | |
| 49-008A-106L | Half Union | 1 | |
| 09-004S-5030 | Plug Bolt | 1 | |
| 90S021S-306H | Screw | 2 | |
| 49-016A-12HA | Pneumatic I/O Cable | 1 | |
| 49 A016S-811H | Quick Coupling | 2 | |
| 05 A039S-811H | Air Hose | 2 | |
| 22 A201S-811H | Air Hose Tube | 2 | |
| 22 A046S-306H | Solenoid Valve | 3 | |
| 50 A048S-811H | Manifold Block | 1 | |
| 49 A020S-811H | Silencer | 2 | |
| 49 A021S-811H | Plug B | 3 | |
| 49 A015S-811H | Hose Nipple | 5 | |
| 49-008A-106L | Half Union | 1 | |
| 09-004S-5030 | Plug Bolt | 1 | |
| 90S021S-306H | Screw | 2 | |
| 49-016A-12HA | Pneumatic I/O Cable | 1 |
Page 48 — Wiper Mechanism (Option)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| U-1 | U-1 | ||
| U-2 | U-2 | ||
| U-3 | U-3 | ||
| U-4 | U-4 | ||
| U-5 | U-5 | ||
| U-8 | U-8 | ||
| U-9 | U-9 | ||
| U-10 | U-10 | ||
| U-11 | U-11 | ||
| U-12 | U-12 | ||
| U-13 | U-13 | ||
| U-14 | U-14 | ||
| U-15 | U-15 | ||
| U-16 | U-16 | ||
| U-17 | U-17 | ||
| U-18 | U-18 | ||
| U-19 | U-19 | ||
| U-20 | U-20 |
Page 49
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| U-1 | GP-012588-00 | Wiper Base | |
| U-2 | 11-028A-12HA | Solenoid | |
| U-5 | SC-0543-2302 | Screw (11/64" n=40) | |
| U-8 | GP-012587-00 | Wiper Crank | |
| U-9 | SC-0330-7400 | Screw (15/64" n=28) | |
| U-10 | 11-024A-12HA | Wiper Link | |
| U-11 | GP-008203-00 | Hinge Screw For Wiper Link | |
| U-12 | GP-012633-00 | Wiper | |
| U-13 | GP-012585-00 | Wiper Base Plate | |
| U-14 | 11-024C-120H | Hinge Screw For S-12 | |
| U-15 | SC-0541-7600 | Screw (9/64" n=40) | |
| U-16 | 11-033A-12HA | Wiper Cover | |
| U-17 | 40-004W-1600 | Washer | |
| U-18 | SC-0543-2302 | Screw (11/64" n=40) | |
| U-19 | 11-034C-12HA | Wiper Solenoid Cable | |
| U-20 | 11-035R-12HA | Rubber For Wiper Stopper |
Page 50 — Upper Thread Holding Device (Option)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| U-II-1 | 01-002A-12HA | Arm (Pneumatic Type) | 1 |
| U-II-2 | 01-054M-120D | Model Mark(Mono-Lithic Driven Presser Foot) | 1 |
| U-II-3 | 01-056M-120D | Model Mark(Separately Driven Presser Foot) | 1 |
| U-II-4 | 09-002A-5030 | Upper Thread Holding Pin Cylinder(Ass'y) | 1(조) |
| U-II-5 | 62-001A-12HA | Upper Thread Holding Pin Cylinder Bracket | 1 |
| U-II-6 | 07016SC-4113 | Screw | 2 |
| U-II-7 | 18014SW-3111 | Spring Washer | 2 |
| U-II-8 | 18015CW-3111 | Washer | 2 |
| U-II-9 | 09-003C-5030 | Upper Thread Holding Pin Cylinder Knuckle | 1 |
| U-II-10 | 62-007G-12HA | Upper Thread Holding Pin Cylinder Knuckle Cap | 1 |
| U-II-11 | 49A003S-811H | Hose Elbow | 1 |
| U-II-12 | 49A001S-811H | Air Tube | 1 |
| U-II-13 | 01-070M-12HA | Wiper Sub-Class Sticker (Electric) | 1 |
| U-II-14 | 01-070M-12HA | Upper Thread Holding Divce Sticker | 1 |
Page 51
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| V-I-1 | 12-012A-PT11 | Foot Switch Ass'y | |
| V-I-2 | 11-001A-PT10 | Base Foot Switch | |
| V-I-3 | 11-1000-PT11 | One Step Stroke | |
| V-I-4 | 11-2000-PT11 | Two Step Stroke | |
| V-I-5 | 08-015C-3701 | Clamp Cable | |
| V-I-6 | 09-031S-3701 | Screw Clamping Cable Ass'y(M4×0.7 L=8) | |
| V-I-7 | 11-001S-PT10 | Ending Bushing | |
| V-I-8 | 11-003A-PT10 | Cover Foot Switch | |
| V-I-9 | 07-004S-SM5S | Screw Ass'y for "A" Foot Switch Cover(M4×0.7 L=8) | |
| V-I-10 | 10-028S-SC53 | Screw Ass'y for "B" Foot Switch Cover(M3×0.5 L=8) | |
| V-I-11 | 11-002M-PT10 | Sponge |
Page 52 — V-II Needle Cooler Device (Option) 니들쿨러 장치 (옵션)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| V-II-8 | Screw | ||
| V-II-9 | Valve | ||
| V-II-12 | Tube | ||
| V-II-7 | Valve | ||
| V-II-13 | Screw | ||
| V-II-6 | Bracket | ||
| V-II-1 | Cover | ||
| V-II-11 | Screw | ||
| V-II-4 | Screw | ||
| V-II-2 | Bracket | ||
| V-II-3 | Lever | ||
| V-II-10 | Screw |
Page 53
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| V-II -1 | Face Plate | 1 | |
| V-II -2 | Guide A | 1 | |
| V-II -3 | Guide B | 1 | |
| V-II -4 | Guide Bracket | 1 | |
| V-II -5 | Nozzle | 1 | |
| V-II -6 | Bracket For Air Blow Speed Controller | 1 | |
| V-II -7 | Speed Controller | 1 | |
| V-II -8 | Bolt For Speed Controller | 2 | |
| V-II -9 | Washer For Speed Controller | 2 | |
| V-II -10 | Screw | 2 | |
| V-II -11 | Screw | 1 | |
| V-II -12 | Air Tube (Ø4) | 0.3m | |
| V-II -13 | Screw | 2 |
Page 54 — SPS/D-B1201M (HP) 벨트홀 장치 관계 (HP)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 45 | Cover | ||
| 43 | Cover | ||
| 42 | Cover | ||
| 44 | Lever | ||
| 22 | Screw | ||
| 14 | Shaft | ||
| 2 | Shaft | ||
| 41 | Screw | ||
| 25 | Screw | ||
| 27 | Gear | ||
| 26 | Gear | ||
| 34 | Screw | ||
| 31 | Screw | ||
| 6 | Lever | ||
| 13 | Bracket | ||
| 30 | Screw | ||
| 17 | Spring | ||
| 15 | Cover | ||
| 39 | Washer | ||
| 40 | Screw | ||
| 18 | Lever | ||
| 21 | Pin | ||
| 20 | Lever | ||
| 5 | Shaft | ||
| 24 | Shaft | ||
| 3 | Screw | ||
| 7 | Shaft | ||
| 28 | Shaft | ||
| 22 | Screw | ||
| 26 | Gear | ||
| 27 | Gear | ||
| 11 | Shaft | ||
| 37 | Screw | ||
| 36 | Lever | ||
| 32 | Screw | ||
| 16 | Lever | ||
| 12 | Shaft | ||
| 10 | Shaft | ||
| 29 | Screw | ||
| 23 | Screw | ||
| 8 | Shaft | ||
| 35 | Screw | ||
| 38 | Spring | ||
| 46 | Screw |
Page 55
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| W-1 | A-B1201-HP | Hole Pattern Attachment | 1조 |
| W-2 | 85-001A-12HP | Cover Guide | 1조 |
| W-3 | 85-002A-12HP | Pin Plate A | 1조 |
| W-4 | 85-003P-12HP | Pin A | 1조 |
| W-5 | 85-004A-12HP | Pin Plate B | 1조 |
| W-6 | 85-005A-12HP | Pin Plate C | 1조 |
| W-7 | 85-006A-12HP | Pin Plate D | 1조 |
| W-8 | 85-007C-12HP | Link-Lever A | 1조 |
| W-9 | 85-008C-12HP | Link-Lever B | 1조 |
| W-10 | 15-015S-3500 | Bolt A | 1조 |
| W-11 | 85-010S-12HP | Bolt B | 1조 |
| W-12 | 85-011A-12HP | Sensor Plate | 1조 |
| W-13 | 85-012C-12HP | Stoper | 1조 |
| W-14 | 85-013A-12HP | Cover A | 1조 |
| W-15 | 85-014A-12HP | Cover B | 1조 |
| W-16 | 10-044A-12HP | Solenoid | 1조 |
| W-17 | 85-016P-12HP | Pin B | 2조 |
| W-18 | 85-017P-12HP | Pin C | 1조 |
| W-19 | 85-034A-12HP | Bearing | 1조 |
| W-20 | 85-019C-12HP | Bearing | 1조 |
| W-21 | 85-037C-12HP | E Ring | 1조 |
| W-22 | 85-020S-12HP | Screw | 5조 |
| W-23 | 85-021W-12HP | Washer | 2조 |
| W-24 | 85-033S-12HP | Screw | 5조 |
| W-25 | SC-A119-4119 | Screw | 2조 |
| W-26 | 15-015S-3500 | Screw | 2조 |
| W-27 | 85-036HP-12HP | Wave Washer | 2조 |
| W-28 | SN-0107-1230 | Nut | 1조 |
| W-29 | 85-035S-12HP | Nut | 1조 |
| W-30 | 85-025S-12HP | Screw | 3조 |
| W-31 | 85-026S-12HP | Screw | 3조 |
| W-32 | 85-027S-12HP | Screw | 4조 |
| W-33 | 85-028S-12HP | Screw | 1조 |
| W-34 | 85-029S-12HP | Screw | 2조 |
| W-35 | 85-030S-12HP | Screw | 1조 |
| W-36 | 15-027A-2070 | Sensor | 1조 |
| W-37 | 88-032S-12HP | Screw | 1조 |
| W-38 | 85-038G-12HP | Spring | 1조 |
| W-39 | 85-039S-12HP | Screw | 1조 |
| W-40 | 85-040S-12HP | Nut | 1조 |
| W-41 | 85-018R-12HP | Rubber Cap | 1 |
| W-42 | 07S147S-306H | Hook Cover | 1 |
| W-43 | 10-340A-120H | Needle Plate | 1 |
| W-44 | 20-048A-120H | Cloth Feed Plate | 1 |
| W-45 | 20-249A-120H | Feed Guide Bracket | 1 |
| W-46 | 15-027A-12HP | Sensor connecting Cable | 1 |
Page 56
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 22-501A-120H | Ass'y (조) | ||
| U:22-601A-120H | Left (좌) | ||
| D:22-602A-120H | Left (좌) | ||
| 22-019A-120H | Left (좌) | ||
| 22-021A-120M | Left (좌) | ||
| U:22-603A-120H | Right (우) | ||
| D:22-604A-120H | Right (우) | ||
| 22-0202A-120H | Right (우) | ||
| 22-022A-120M | Right (우) | ||
| 22-143A-120H | FEED PLATE (이송판) | ||
| 22-029A-120H | FEED PLATE (이송판) | ||
| 22-146A-120H | FEED PLATE (이송판) | ||
| 22-030A-120M | FEED PLATE (이송판) | ||
| 22-023A-120L | Left(좌) | ||
| 22-023A-120K | Left(좌) | ||
| 22-123A-120K | Left(좌) | ||
| 22-024A-120L | Right(우) | ||
| 22-024A-120K | Right(우) | ||
| 22-124A-120K | Right(우) | ||
| 22-033A-120L | FEED PLATE (이송판) | ||
| 22-034A-120L | FEED PLATE (이송판) | ||
| 22-035A-120L | FEED PLATE (이송판) | ||
| 22-135A-120K | FEED PLATE (이송판) |
Page 57
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22-119A-120H | WORK CLAMP FOOT (노루발) | |
| 2 | 22-121A-120H | WORK CLAMP FOOT (노루발) | |
| 3 | 22-126A-120H | WORK CLAMP FOOT (노루발) | |
| 4 | 22-135A-120H | WORK CLAMP FOOT (노루발) | |
| 5 | 22-141A-120H | WORK CLAMP FOOT (노루발) | |
| 22-502A-120H | WORK CLAMP FOOT (노루발) | ||
| 6 | 22-144A-120H | WORK CLAMP FOOT (노루발) | |
| 1 | 22-120A-120H | WORK CLAMP FOOT (노루발) | |
| 2 | 22-122A-120H | WORK CLAMP FOOT (노루발) | |
| 3 | 22-127A-120H | WORK CLAMP FOOT (노루발) | |
| 4 | 22-136A-120H | WORK CLAMP FOOT (노루발) | |
| 5 | 22-142A-120H | WORK CLAMP FOOT (노루발) | |
| 6 | 22-145A-120H | WORK CLAMP FOOT (노루발) | |
| 22-129A-120H | FEED PLATE ('이송판) | ||
| 22-130A-120H | FEED PLATE ('이송판) | ||
| 22-128A-120H | FEED PLATE ('이송판) | ||
| 22-030A-120M | FEED PLATE ('이송판) | ||
| 22-143A-120H | FEED PLATE ('이송판) | ||
| 22-147A-120H | FEED PLATE ('이송판) | ||
| 22-123A-120L | WORK CLAMP FOOT (노루발) | ||
| 22-131A-120H | Option-Halt Moon (반달 옵션) | ||
| 22-231A-120H | Option-Halt Moon (반달 옵션) | ||
| 22-138A-120H | Option-Circle(원형 옵션) | ||
| 22-238A-120H | Option-Circle(원형 옵션) | ||
| 22-539A-120H | Option-Circle(원형 옵션) | ||
| 22-124A-120L | WORK CLAMP FOOT (노루발) | ||
| 22-132A-120H | Option-Halt Moon (반달 옵션) | ||
| 22-232A-120H | Option-Halt Moon (반달 옵션) | ||
| 22-139A-120H | Option-Circle(원형 옵션) | ||
| 22-239A-120H | Option-Circle(원형 옵션) | ||
| 22-133A-120L | FEED PLATE ('이송판) | ||
| 22-134A-120H | FEED PLATE ('이송판) | ||
| 22-234A-120H | FEED PLATE ('이송판) | ||
| 22-140A-120H | FEED PLATE ('이송판) | ||
| 22-240A-120H | FEED PLATE ('이송판) | ||
| 22-125A-120H | FINGER GUARD (핑거 가드) |
SunStar SPS/B-1201 — parts catalog
- Page 1 (cover): This is the cover page of the SunStar Parts Book for the SPS/D-B1201 Series Electronically Controlled Bartacking Machine (Direct Drive Type). It includes the SunStar logo, the title of the book, a picture of the machine, and the model number PME-051130.
- Page 2 (diagram): This page illustrates the classification of bar tacking sewing machines, detailing models with electronic and pneumatic presser foot lifters, and categorizing hook types and material types.
- Page 3 (toc): This page is a table of contents for a SunStar industrial sewing machine parts book, listing sections for Machine Part, Control Part, Pneumatic Type, and Option Parts with corresponding page numbers.
- Page 5 (parts_list): This page contains a parts list for SunStar industrial sewing machines, detailing part numbers, names, quantities, and assembly numbers.
- Page 6 (diagram): This page displays a diagram of arm, bed, and machine body parts, with various components labeled with part numbers such as A-1 through A-98.
- Page 7 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It also includes a note explaining material codes.
- Page 8 (diagram): This page displays a diagram of the Upper Shaft Mechanism, detailing various components with their corresponding part numbers and reference labels.
- Page 9 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, notes, and quantities, with a note explaining material codes.
- Page 10 (diagram): This page displays a diagram of the lower shaft mechanism, illustrating various components and their assembly.
- Page 11 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing part numbers, names, quantities, and assembly numbers, along with notes on material types.
- Page 12 (diagram): This page displays a diagram of the Presser Plate Mechanism, showing various components labeled with part numbers like D-1, D-2, D-3, and so on, along with their corresponding references.
- Page 13 (parts_list): This page lists parts for SunStar industrial sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 14 (diagram): This page displays a diagram of the thread release and thread tension mechanism, with various parts labeled with reference numbers such as E-1 through E-40.
- Page 15 (parts_list): This page lists parts for a SunStar sewing machine, including part numbers, names, quantities, and notes.
- Page 16 (diagram): This page displays a diagram of the wiper mechanism, with various parts labeled with reference numbers and part numbers.
- Page 17 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 18 (diagram): This page displays a diagram of the thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
- Page 19 (parts_list): This page lists parts for the SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It also includes a note explaining material codes.
- Page 20 (diagram): This page displays a diagram of the X-Y Mechanism, showing various components labeled with part numbers such as H-2, H-3, H-5, H-6, H-7, H-8, H-9, H-10, H-11, H-13, H-14, H-15, H-16, H-17, H-19-1, H-20, H-21, H-22, H-23, H-24, H-25, H-26, H-27, H-28-1, H-29, H-30, H-31, H-32, H-33, H-34, H-36, H-37, H-38, H-39, H-42, and H-43.
- Page 21 (parts_list): This page contains a parts list for SunStar sewing machines, detailing reference numbers, part numbers, names, quantities, and assembly numbers for various components.
- Page 22 (diagram): This page displays a diagram of the feed mechanism, showing various parts labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page contains a parts list for various components of the SunStar sewing machine, including feed brackets, levers, screws, washers, springs, and plates, with their corresponding part numbers, names, and quantities.
- Page 24 (diagram): This page displays a diagram of the lubrication mechanism, with various parts labeled with reference numbers such as J-1, J-2, J-3, J-4, J-5, J-6, J-7, J-8, J-9, J-10, J-11, J-12, J-13, J-14, J-15, J-16, J-17, J-18, J-19, J-20, J-21, J-22, J-23, J-24, J-25, J-26, J-27, J-28, and J-29.
- Page 25 (parts_list): This page lists parts for SunStar sewing machines, including oil wicks, hoses, felt parts, screws, and plates, with their corresponding part numbers and quantities.
- Page 26 (diagram): This page displays a diagram of the Table & Thread Stand components, with various parts labeled with reference numbers and part numbers like K-1, K-2, K-3, K-4, K-5, K-6, K-7, K-8, K-9, K-10, K-11, K-12, K-13, K-14, K-15, K-16, K-17, K-18, K-19, K-20, K-21, K-22, K-23, and K-24.
- Page 27 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers.
- Page 28 (diagram): This page displays a diagram of various accessories for an industrial sewing machine, including screwdrivers, wrenches, oil cans, and cleaning cloths, each labeled with a part number.
- Page 29 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly information.
- Page 30 (diagram): This page displays a diagram of the control box mechanism, illustrating various components with their corresponding reference numbers.
- Page 31 (parts_list): This page lists parts for SunStar industrial sewing machines, including reference numbers, part numbers, names, quantities, and assembly numbers.
- Page 32 (diagram): This page displays a diagram of the control box mechanism, illustrating various components labeled with part numbers from M-1 to M-77.
- Page 33 (parts_list): This page lists various parts for an industrial sewing machine, including screws, brackets, stickers, and cables, with their corresponding part numbers, names, quantities, and assembly numbers.
- Page 34 (diagram): This page displays a diagram of the operation unit mechanism, showing various components labeled with reference numbers such as N-1 through N-16.
- Page 35 (parts_list): This page lists parts for a SunStar machine, including membrane switches, covers, cables, and screws, with their corresponding part numbers, descriptions, quantities, and assembly numbers.
- Page 36 (diagram): This page displays a diagram of the pedal mechanism, showing various components with reference numbers and labels.
- Page 37 (parts_list): This page lists parts for a SunStar industrial sewing machine, including part numbers, names, quantities, and assembly numbers.
- Page 38 (diagram): This page displays a diagram of various cable units and their components, numbered from 1 to 15.
- Page 39 (parts_list): This page lists parts for SunStar industrial sewing machines, including reference numbers, part numbers, names, and quantities.
- Page 40 (diagram): This page displays a diagram of the feed mechanism, illustrating various components labeled with part numbers and reference designators.
- Page 41 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers.
- Page 42 (diagram): This page displays a diagram of the thread trimmer mechanism and a parts list for components R-1 through R-4, including their part numbers, names, and quantities.
- Page 43 (diagram): This page displays a diagram of the X-Y Mechanism and a parts list for various components including gears, motors, screws, and plates.
- Page 44 (diagram): This page displays a diagram of the air control mechanism with various components labeled with reference numbers such as T-1 through T-17.
- Page 45 (parts_list): This page lists parts for a SunStar machine, including part numbers, names, quantities, and assembly numbers. It details items like quick couplings, hoses, labels, solenoid valves, screws, and cables.
- Page 46 (diagram): This page displays diagrams of air control mechanisms for models SPS/A-B1201-22, SPS/A-B1201-20-TH, and SPS/A-B1201-22-TH, detailing various components labeled with reference numbers.
- Page 47 (parts_list): This page lists parts for a SunStar machine, including solenoids, blocks, silencers, plugs, and cables, with their corresponding part numbers, quantities, and Korean descriptions.
- Page 48 (diagram): This page displays a diagram of the wiper mechanism (option) with various labeled parts including U-1 through U-19.
- Page 49 (parts_list): This page lists parts for a SunStar industrial sewing machine, including wiper bases, solenoids, screws, and other components with their part numbers, descriptions, quantities, and Korean translations.
- Page 50 (parts_list): This page lists parts for the U-II Upper Thread Holding Device (Option), including part numbers, names, quantities, and assembly numbers.
- Page 51 (parts_list): This page lists parts for the V-I Pedal Mechanism, including foot switches, cables, screws, and sponges, with their corresponding part numbers, quantities, and descriptions.
- Page 52 (diagram): This page displays a diagram of the V-II Needle Cooler Device (Option) with various parts labeled with their corresponding part numbers.
- Page 53 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 54 (diagram): This page contains a diagram of the SPS/D-B1201M (HP) belt tensioner components, with various parts numbered for identification.
- Page 55 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers.
- Page 56 (parts_list): This page lists option parts for the SPS/C(D)-B1201 model, including different types of work clamp feet and feed plates with their corresponding part numbers and dimensions.
- Page 57 (parts_list): This page lists various option types for sewing machine parts, including work clamp feet and feed plates, with their corresponding part numbers and dimensions.
Page 2 — Models of bar tacking sewing machines / 바택 재봉기 기종 구분
Models of bar tacking sewing machines / 바택 재봉기 기종 구분 1) With an electronic presser foot lifter / 전자식 노루발 상승 장치 부착형 SPS / D - B 1 2 0 1 H ① Sunstar Pattern System ② Series Classification 시리즈 구분 C: Belt Type (벨트형) D: Direct Drive Type (모터 직결형) ③ Name of Bar Tacking Sewing Machine 바택 재봉기명 ④ Pneumatic Presser Foot Lifting System 공압식 노루발 상승장치 ⑤ Classification of Presser Foot Lifting System 노루발 구동 방식 구분 20: Monolithic Driven Presser Foot (일체형 노루발 구동) 22: Separate Driven Presser Foot (분리형 노루발 구동) ⑥ Hook Type BL: Large Shuttle Hook (2배 셔틀 훅) ④ Material Type 용도구분 H: Heavy Material (후물용) M: Medium Material (일반용) L: Light Material (박물용) K: Knit Material (니트용) 2) With a pneumatic presser foot lifter / 공압식 노루발 상승 장치 부착형 SPS / D - B 1 2 0 1 HA - ⑦ Hook Type BL: Large Shuttle Hook (2배 셔틀 훅) ⑥ Options 옵션 구분 W: Electronic wiper (전자식 와이퍼 부착형) TH: Upper thread holding device (윗실 홀더 장치 부착형) jintex.in
Page 3 — CONTENTS
SunStar 목 차 CONTENTS I Machine Part • 기계부분 A. Arm, Bed & Machine Body Parts B. Upper Shaft Mechanism C. Lower Shaft Mechanism D. Presser Plate Mechanism E. Thread Release & Thread Tension Mechanism F. Wiper Mechanism G. Thread Trimmer Mechanism H. X-Y Mechanism I. Feed Mechanism J. Lubrication Mechanism K. Table & Thread Stand L. Accessories 4 8 10 12 14 16 18 20 22 24 26 28 Arm, Bed 및 외장품 관계 상측 관계 하측 관계 누름판 관계 실 늦추기 및 실 장력 조절 관계 와이퍼 관계 사절 관계 X-Y 관계 피이드 관계 급유 관계 테이블 및 실패꽃이 관계 악세사리 II Control Part • 전기부분 M. Control Box Mechanism N. Operation Unit Mechanism O. Pedal Mechanism P. Cable Unit 30 34 36 38 콘트롤 박스 관계 오퍼레이션 관계 페달 관계 케이블 관계 III Pneumatic Type • 공압사양 Q. Feed Mechanism R. Thread Trimmer Mechanism S. X-Y Mechanism T-I. Air Control Mechanism T-II. Air Control Mechanism (1) U-I. Wiper Mechanism(Option) U-II. Upper Thread Holding Device(Option) V-I. Pedal Mechanism V-II. Needle Cooler Device(Option) W. SPS/D-B1201M (HP) 40 42 43 44 46 48 50 51 52 54 피이드 관계 사절 관계 X-Y 관계 에어 제어 관계 에어 제어 관계 (1) 와이퍼 관계(옵션) 윗실 홀딩 장치(옵션) 페달 관계 니들쿨러 장치(옵션) 벤트홀 장치 관계(HP) IV Option Parts • 옵션 관계 X. Option Parts 56 옵션 관계 본 책자는 Parts Book으로 제작되었으므로 메뉴얼로 사용 불가합니다. This is a parts book. It cannot be used as a manual. jintex.in
Page 5
SunStar Ref. No. Parts No. Note Name of Parts 품 Q' ty Assembly No. A-1 Arm 아암 1 A-2 01-003A-120H Bed 베드 1 A-3 01S006S-306H Brand Mark(Face Plate) 상표 마크(면판부) 1 A-4 01-007A-120H Face Plate 면판 1 A-5 01-008M-120H Face Plate Gasket 면판 가스켓 1 A-6 SC-A174-4122 Screw(11/64" n=40) 철나사 10 A-7 01-110R-1230 Rubber Cap For Face Plate 면판 고무마개 1 A-8 91-001M-120D Caution Sticker 경고 스티커 1 A-9 01-011A-120H Take-up Lever Cover 실체기 커버 1 A-10 SC-0528-1230 Screw (9/64" n=40) 볼카바나사(우) 1 A-11 01-013A-120H Bed Cover(L) 베드 커버(좌) 1 A-12 01-014M-120H Bed Cover Gasket(L) 베드 커버 가스켓(좌) 1 A-13 SC-0543-2302 Screw(11/64" n=40) 볼카바 힌지 고정나사 14 A-14 01-016A-120H Bed Cover(R) 베드 커버(우) 1 A-15 01-017M-120H Bed Cover Gasket(R) 베드 커버 가스켓(우) 1 A-16 44S061S-306H Oil Tank Rubber Cap 오일 탱크 고무마개 1 A-17 01-127A-1230 Thread Guide with Three Holes 세구멍 실걸이(조) 1Set A-19 01-003C-250B Thread Guide(L) 면판 실걸이 3 A-20 SC-0120-1230 Screw (9/64" n=40) 철나사 1 A-21 01-030C-1230 Thread Guide(R) 암실걸이 1 A-22 Arm Thread Guide Ass'y 아암 실안내 걸이(조) 3 A-24 01-028C-120H Thread Guide(L) 실안내(좌) 1 A-25 01S037S-306H Silicon Tank Ass'y 실리콘 급유 탱크(조) 1Set A-26 01S038S-306H Silicon Tank 실리콘 급유 탱크 1 A-27 01S039S-306H H Silicon Oil Window 실리콘 유창 1 A-28 01S040S-306H H Silicon Felt 실리콘 급유 탱크 펠트 1 A-29 GP-013053-00 H Felt for Silicon Oil Supply 실리콘 급유 탱크 펠트잡이 1 A-30 SC-0104-5607 H Screw(11/64" n=40) 철나사 2 A-31 01S064S-306H H Brand Mark 상표 마크 3 A-32 04-104R-1230 Arm Upper Part Rubber Cap 아암 상부 고무 마개 2 A-33 01-110R-1230 Needle Bar Rubber Cap 바늘대 고무 마개 3 A-34 01-042R-640L Rubber Cap(L) 고무마개(대) 2 A-35 44-021R-7400 Rubber Cap(S) 고무마개(소) 6 A-36 01-073R-120H Bed Rubber 베드 고무 1 A-37 01-041M-120D Model Sticker(H) 모델 스티커-후물용 1 A-38 01-042M-120D Model Sticker(M) 모델 스티커-일반용 1 A-39 01-043M-120D H Model Sticker(L) 모델 스티커-박물용 1 A-40 01-044M-120D M Model Sticker(K) 모델 스티커-니트용 1 A-41 01-009R-5300 L Cable Holder 케이블 홀더(7N) 3 A-42 01-051A-120H K Top Cover 윗뚜껑 1 A-43 41-101A-120H Bobbin Winder Ass'y 실감기 (조) 1Set A-44 41S001S-306H Bobbin Winder Base Ass'y 실감기 베이스(조) 1 A-45 41-005A-120H Bobbin Winder Shaft 실감기 구동축 1 A-46 G P - 0 0 2 9 5 8 BL Sticker(BL) 2배 셔틀 훅 스티커 1 A-47 SC-0105-7500 Screw(M4) 철나사 1 A-48 41S006S-306H Bobbin Winder 실감기 작동 풀리 1 A-49 SC-0104-5607 Screw(11/64" n=40) 철나사 2 A-50 41S008S-306H Bobbin Winder Action Ring 실감기 작동링 1 Note: H Heavy Material(후물용), M Medium Material(일반용), HA Pneumatic Heavy Material(공압식 후물용) L→Light Material(박물용), K→Knit Material(니트용), BL→Large Shuttle Hook(2배 셔틀 훅용) jintex.in
Page 6 — Arm, Bed & Machine Body Parts
A Arm, Bed & Machine Body Parts Arm, Bed 및 외장품 관계 A-43 A-54 A-53 A-55 A-47 A-52 A-56 A-58 A-55 A-57 A-60 A-63 A-51 A-59 A-49 A-48 A-50 A-13 A-11 A-10 A-12 A-34 A-33 A-32 A-5 A-4 A-3 A-8 A-7 A-6 A-65 A-44 A-64 A-62 A-57 A-63 A-61 A-59 A-49 A-48 A-50 A-13 A-10 A-9 A-35 A-36 A-34 A-32 A-35 A-1 A-96 A-95 A-97 A-98 A-94 A-93 A-13 A-41 A-37, 38, 39, 40 A-31 A-2 A-16 A-14 A-15 A-17 A-13 A-82 A-83 A-84 A-81 A-86 A-85 A-88 A-87 A-79 A-13 A-80 A-26 A-27 A-25 A-28 A-29 A-30 A-19 A-20 A-21 A-22 A-24 A-20 A-20 A-20 A-68 A-67 A-42 A-35 A-6 A-69 A-76 A-74 A-73 A-75 A-72 A-70 A-71 A-77 A-6 A-89 A-90 A-91 jintex.in
Page 7
SunStar. Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. A-51 41S009S-306H Bobbin Winder Shaft Rubber Ring 실감기 구동 고무링 1 A-52 41S010S-306H Bobbin Winder Lever 실감기 레버 1 A-53 41S011S-306H Bobbin Winder Adjusting Plate 실감기 조정판 1 A-54 SC-0130-1230 Screw(1/8" n=40) 톱니 톱니나사 1 A-55 02-011W-2302 Washer 와셔 1 A-56 41S013S-306H Bobbin Winder Lever Shaft 실감기 레버 축 1 A-57 41S014S-306H Bobbin Winder Adjusting Cam 실감기 조정 캠 1 A-58 SC-0211-7500 Screw(M4×P0.7) 톱니나사 1 A-59 04-009C-3710 E-Ring($5) E-링(호칭경 5) 2 A-60 41S017S-306H Bobbin Winder Action Plate 실감기 작동판 1 A-61 41-018A-120H Bobbin Winder Action Body 실감기 작동체 1 A-62 40-007W-1600 Washer 와셔 2 A-63 41S021S-306H Bobbin Winder Spring 실감기 인장 스프링 1 A-64 41S022S-306H Bobbin Stopper 보빈 스토퍼 1 A-65 41S023S-306H Screw 톱니나사 5 A-66 41S024S-306H Bobbin Stand 보빈 스탠드 1 A-67 41S025S-306H Bobbin Winder Mes 실감기 메스 1 A-68 SC-0120-1230 Screw(1/8" n=40) 고정메스 조정나사 2 A-69 41S027S-306H Thread Tension Adjusting Ass'y 실감기 장력 조절장치(조) 1Set A-70 41S028S-306H Thread Tension Adjusting Shaft 실감기 장력 조절 축 1 A-71 40-204A-1230 Thread Guide Plate 실안내 판 1 A-72 40-204A-1230 Thread Tension Disk 실안내 디스크 2 A-73 40-333G-123A Thread Tension Spring 실장력 조절 스프링 1 A-74 40-804W-1230 Thread Tension Spring Stopper 실장력 조절 스프링 스토퍼 1 A-75 40-024A-1230 Spring Cover 스프링 커버 1 A-76 40-204A-2350 Thread Tension Nut 실장력 조절 캡 너트 1 A-77 SN-0121-7400 Nut(15/64" n=28) 실장력 조절 너트 1 A-78 01-042R-640L M, L, K Rubber Cap(L) 고무마개(대) 1 A-79 01S043S-306H Safety Plate Ass'y 안전판(조) 1Set Ass'y A-80 01S044S-306H Safety Plate 안전판 1 A-81 01S046S-306H Safety Plate Bracket 안전판 브라켓 1 A-82 01S046S-306H Safety Plate Holder 안전판 홀더 1 A-83 01S047S-306H Safety Plate Hinge Screw 안전판 단나사 1 A-84 SN-0101-1600 Nut(3/16" n=28) 너트 3 A-85 06-051W-7400 Washer 와셔 1 A-86 01S050S-306H Safety Plate Spring 안전판 스프링 1 A-87 01S051S-306H Safety Plate Spring Hook 안전판 스프링 걸이 1 A-88 SN-0119-1230 Nut(3/16" n=28) 너트 1 A-89 01-038A-120D Motor Cover 모터커버 1 A-90 SC-0498-3710 Screw(11/64" n=40) 톱니나사 4 A-91 40-004W-1600 Washer 와셔 4 A-93 GP-002108-00 Safety Switch 안전 스위치 1 A-94 03071SC-A001 Screw(M3×L15) 안전 스위치 톱니나사(M3×L15) 2 A-95 08112SN-A001 Nut(M3) 안전 스위치 너트(M3) 2 A-96 GP-006543-00 Safety Switch Bracket 안전 스위치 브라켓 1 A-97 SC-A174-1230 Screw(11/64" n=40) 안전 스위치 브라켓 톱니나사(11/64" n=40) 2 A-98 10-020W-2700 Washer 안전 스위치 브라켓 톱니나사 와셔 2 Note: H→Heavy Material(후물용), M→Medium Material(일반용), HA→Pneumatic Heavy Material(공압식 후물용) L→Light Material(박물용), K→Knit Material(니트용) jintex.in
Page 8 — Upper Shaft Mechanism
B Upper Shaft Mechanism 상축 관계 B-52 B-51 B-50 B-46 B-45 B-47 B-44 B-42 B-43 B-37 B-42 B-41 B-40 B-39 B-38 B-42 B-23 B-6 B-5 B-19 B-4 B-2, B-3 B-7 B-1 B-36 B-35 B-56 B-56 B-55 B-54 B-53 B-56 B-26 B-25 B-11 B-9, B-17 B-58 B-57 B-59 B-60 B-24 B-10, B-18 B-12 B-22 B-13 B-14 B-31 B-27 B-20 B-15 B-28 B-29 B-8, B-16 B-21 B-32, B-33, B-34 8 jintex.in
Page 9
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. B-1 02-001A-1254 Upper Shaft 상축 1 B-2 02-102A-120H H, M Link Cam 링크 캠 1 B-3 02S102S-306H L, K Link Cam(A) 링크 캠(A) 1 B-4 02S003S-306H Link Cam Washer 링크 캠 와셔 1 B-5 02-003S-2500 Screw (15/64" n=28) 컵나사 1 B-6 SC-0150-2500 Screw (9/32" n=28) 컵나사 1 B-7 SC-0183-2700 Screw (15/64" n=28) 컵나사 1 B-8 08S101P-306H H, M Thread Take-Up Lever Ass'y(H) 실체기(조)-후물용 1Set B-9 08S101P-306H H, M Thread Take-Up Lever(H) 실체기-후물용 1 B-10 08S502P-306H H, M Needle Bar Crank(H) 바늘대 크랭크-후물용 1 B-11 08S503P-306H Thread Take-Up Lever Crank 실체기 크랭크 1 B-12 08-511A-123A Needle Bearing 실체기 니들 베어링(KT8123NC3) 1 B-13 08-511A-123A Needle Bearing 실체기 니들 베어링(KT8123NC3) 1 B-14 08S504S-306H Needle Bar Crank Rod 바늘대 크랭크 로드 1 B-15 08S507S-123A Screw 바늘대 C/R 원나사 1 B-16 08S101S-306H L, K Thread Take-Up Lever Ass'y(L) 실체기(조)-박물용 1Set B-17 08S501S-306H L, K Thread Take-Up Lever(L) 실체기-박물용 1 B-18 08S502S-306H L, K Needle Bar Crank(L) 바늘대 크랭크-박물용 1 B-19 SC-0317-2700 Screw 컵나사 1 B-20 08S505S-306H Needle Bar Holder 바늘대 잡이 1 B-21 08-508S-123A Screw 바늘대 잡이 나사 1 B-22 08S506S-306H Thread Take-Up Pin 실체기 핀 1 B-23 SC-0317-2700 Screw (15/64" n=28) 캡 접촉 안내 고정나사 3 B-24 04-001A-120H Needle Bar 바늘대 1 B-25 04S102S-306H Needle Bar Bushing(U) 바늘대 상부싱 1 B-26 SC-0164-2700 M5 Screw (11/64" n=40) 캡 접촉 카라 고정나사 2 B-27 04S204S-306H Needle Bar Bushing(L) 바늘대 하부싱 1 B-28 04S106S-306H Needle Bar Guide Block 바늘대 안내 블럭 1 B-29 04-007A-120H H Thread Guide For Needle Bar(H) 바늘대 안내-후물용 1 B-30 04-008A-120M M, L, K Thread Guide For Needle Bar(M) 바늘대 안내-일반용 1 B-31 SC-A131-4522 Screw 컵나사 1 B-32 H Needle(DP×17 #19) 바늘-후물용 1 B-33 M Needle(DP×5 #16 (#14)) 바늘-일반용 1 B-34 L, K Needle(DP×5 #11) 바늘-박물용 1 B-35 02S107S-306H Upper Shaft Bushing(F) 상축 전 부싱 1 B-36 02S009S-306H Bobbin Winder Driving Wheel 실감기 구동 휠 1 B-37 10-017S-8577 Screw 동메스 B/S 고정나사 2 B-38 02S111S-306H Upper Shaft Bushing(M) 상축 중 부싱 1 B-39 02-121A-1230 Upper Shaft Collar 상축 카라 1 B-40 SC-A308-5607 Screw (15/64" n=28) 사절캡 고정나사 A 2 B-41 25S001S-306H Hand Pulley Gear "A" 핸드풀리 기어 "A" 1 B-42 SC-A308-4517 Screw 고정나사(15/64" n=28) 4 B-43 25S001S-306H Hand Pulley Gear "A" 핸드풀리 기어 "A" 1 B-44 25S009S-306H Hand Pulley Bushing 핸드풀리 부싱 1 B-45 SC-0114-1230 Screw 고정나사(15/64" n=28) 1 B-46 25S105S-306H Hand Pulley Shaft 핸드풀리 축 1 B-47 25S007S-306H Hand Pulley Roller 핸드풀리 로울러 1 B-48 25S006S-306H Hand Pulley Roller Hinge Pin 핸드풀리 로울러 단나사 1 B-50 25S011S-306H Hand Pulley Spring 핸드풀리 스프링 1 B-51 02-026A-120D Hand Pulley 핸드풀리 1 B-52 25S012S-306H Screw 핸드풀리 컵나사 1 B-53 02-016A-120D Upper Shaft Bearing (R) 상축후 베어링(6302ZZ NR) 1 B-54 02-023R-120D Spacer O-Ring(P15) 스페이서 O링 1 B-55 02-017A-120D Coupling 커플링 1 B-56 08-037SC-120D Screw 컵나사(M6×1.0 L=8) 8 B-57 02-119A-120D Main Motor 주축모터 1 B-58 02-020S-120D Screw 컵나사(M5×0.8 L=25) 4 B-59 07-011W-1230 Spring Washer 스프링와셔($5) 4 B-60 10-020W-2700 Washer 평와셔($5) 4 Note: H=Heavy Material(후물용), M=Medium Material(일반용) L=Light Material(박물용), K=Knit Material(니트용) jintex.in
Page 10 — Lower Shaft Mechanism
C Lower Shaft Mechanism 하축 관계 C-11 C-10 C-19 C-15 C-56 C-20 C-14 C-4 C-3 C-18 C-15 C-5 C-13 C-16 C-17 C-1 C-2 C-5 C-49 C-5 C-7 C-39 C-48 C-6 C-36 C-9 C-41 C-30 C-32 C-35 C-31 C-42 C-34 C-28, C-55 C-29 C-40 C-26, C-27, C-53, C-54 C-23, C-24, C-25, C-52 C-22, C-51 C-21, C-50 C-43 C-44 C-46 C-45 C-47 10 jintex.in
Page 11
SunStar Assembly No. Ref. No. Parts No. Note Name of Parts 품 명 Q' ty C-1 AS-003752-00 Lower Shaft Ass'y 하측(조) 1Set C-2 GP-013203-00 Lower Shaft 하측 1 C-3 GP-010180-01 Lower Shaft Gear 하측 기어 1 C-4 PN-000215-00 Taper Pin 테이퍼 핀 1 C-5 SC-0512-1230 Screw 점나사 5 C-6 07S006S-306H Lower Shaft Rear Bushing 하측 후 붓싱 1 C-7 07S007S-306H Needle Bearing(KT8110) 니들 베어링 2 C-8 07S008S-306H Thrust Washer 트러스트 와셔 1 C-9 10S114S-306H Lower Shaft Collar 하측 카라 1 C-10 07S111S-306H Crank Rod 크랭크 로드 1 C-11 SC-0179-3710 Screw(11/64" n=40) 점나사 2 C-12 07S013S-306H Crank Rod Hinge Screw 크랭크 로드 단나사 1 C-13 SN-0116-3400 Nut(1/4" n=40) 너트 1 C-14 07S115S-306H Oscillator Shaft 오실레이터 축 1 C-15 SC-0317-2700 Screw(15/64" n=28) 점나사 1 C-16 07S117S-306H Oscillator Shaft Collar(L) 오실레이터 축 카라(좌) 1 C-17 07S019S-306H Oscillator 요동 기어 1 C-18 07S020S-306H Washer 와셔 1 C-19 43-009C-1600 E-Ring E-링(호칭경 9) 1 C-20 07S019S-306H Oscillator Shaft Collar(R) 오실레이터 축 카라(우) 1 C-21 07-023A-120H Bobbin Case Ass'y 보빈 케이스(조) 1Set C-22 07-224A-120H Bobbin 보빈 1 C-23 07-021A-120H H Shuttle Race Ring(H) 셔틀 레이스 링-후물용 1 C-24 07-022A-120M M Shuttle Race Ring(M) 셔틀 레이스 링-일반용 1 C-25 07-023A-120L L, K Shuttle Race Ring(L) 셔틀 레이스 링-박물용 1 C-26 07-128A-120H H Shuttle(H) 셔틀-후물용 1 C-27 07-129A-120M M, L, K Shuttle(M) 셔틀-일반용 1 C-28 07-030A-120H Shuttle Driver 셔틀 드라이버 1 C-29 07S033S-306H Screw(M5×P0.8) 점나사 1 C-30 07S132S-306H Shuttle(L) 니들롤러 베어링용 1 C-31 7711000000000000 Screw(15/64" n=28) 점나사 1 C-32 SC-0525-5300 Screw(11/64" n=40) 점나사 1 C-33 07S035S-306H Shuttle Race Adjusting Shaft 셔틀 레이스 조절 축 1 C-34 07S107S-306H Needle Roller Bearing 니들 롤러 베어링 1 C-35 07S038S-306H Shuttle Bearing Washer 셔틀 베어링 와셔 1 C-36 07S040S-306G H, M Shuttle Upper Spring 셔틀 상면 스프링(GS) 1 C-39 SC-A121-4122 Screw(3/32" n=56) 점나사 2 C-40 07S042S-306H Inner Hook Presser Shaft Ass'y 속 가마 누름 축(조) 2 C-41 06-033M-3800 E-Ring E-링(호칭경 3) 2 C-42 07S046S-306H Inner Hook Spring 속 가마 압력 스프링 2 C-43 07S047S-306H Hook Cover Ass'y 훅 커버(조) 1Set C-44 07S051S-306H Hook Cover Plate Spring A 훅 커버 판 스프링 A 1 C-45 07S052S-306H Hook Cover Plate Spring B 훅 커버 판 스프링 B 1 C-46 07S050S-306H Spring Pin(φ 2× 19.8) 스프링 핀 1 C-47 SC-0543-2302 Screw(11/64" n=40) 톱카바 힌지 고정나사 2 C-48 07-042G-120L L, K Shuttle Upper Spring (L) 셔틀 상면 스프링 (하) 1 C-49 07-041G-120L L, K Shuttle Upper Spring (U) 셔틀 상면 스프링 (상) 1 C-50 07S023S-306H BL Bobbin Case Ass'y(BL) 보빈 케이스(2배 서률 ᆞ용) 1Set C-51 07S026S-306H BL Bobbin(BL) 보빈(2배 서률 ᆞ용) 1 C-52 07S027S-306H BL Shuttle Race Ring(BL) 셔틀 레이스 링(2배 서률 ᆞ용) 1 C-53 07S028S-306H HBL Shuttle(HBL) 셔틀(후물 2배 서률 ᆞ용) 1 C-54 07S029S-306G MBL Shuttle(MBL) 셔틀(일반 2배 서률 ᆞ용) 1 C-55 07S030S-306H BL Shuttle Driver(BL) 셔틀 드라이버(2배 서률 ᆞ용) 1 C-56 07S116S-306H Oscillator O-Ring 오실레이터 O-링 1 Note: H→Heavy Material(후물용), M→Medium Material, L→Light Material(박물용), K→Knit Material(니트용), BL→Large Shuttle Hook(2배 서률 ᆞ용), HBL→Heavy Material & Large Shuttle Hook(후물 2배 서률 ᆞ용), MBL→Medium Material & Large Shuttle Hook(일반 2배 서률 ᆞ용), jintex.in 11
Page 12 — Presser Plate Mechanism
D Presser Plate Mechanism 누름판 관계 D-24 D-23 D-22 D-21 D-20 D-11 D-11 D-19 D-18 D-19 D-18 D-11 D-8 D-15 D-27 D-28 D-3 D-7 D-26 D-4 D-5 D-11 D-12 D-14 D-17 D-16 D-1 D-31 D-32 D-25 D-10 D-9 D-13 D-2 D-6 D-30 D-29 12 jintex.in
Page 13
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. D-1 21-101A-120H Presser Plate Bushing 누름판 붓싱 1 D-2 01-0000-BT13 Presser Plate Solenoid Ass'y 누름판 솔레노이드 (조) 1Set D-3 21-003S-120H Screw A 컵나사 4 D-4 21-036S-120H Screw B 컵나사 B 2 D-5 01-017W-1600 Washer 컵나사 B 와셔 2 D-6 21-133A-120H Presser Plate Solenoid Base 누름판 솔레노이드 부착 베이스 1 D-7 SC-0307-1230 Screw(3/16" n=32) 컵나사 4 D-8 21-105A-120H Presser Plate Link (A) 누름판 링크(A) 1 D-9 21-206A-120H Presser Plate Link Shaft (A) 누름판 링크 축(A) 1 D-10 SC-0164-2700 Screw(11/64" n=40) 컵나사 2 D-11 09-025W-8270 Washer 와셔 5 D-12 21-103P-120H Snap Pin($8) 스냅핀 (호칭경 $8) 4 D-13 21-110A-120H Presser Plate Link (B) 누름판 링크(B) 1 D-14 21-111A-120H Presser Plate Link Shaft (B) 누름판 링크 축(B) 1 D-15 21-114A-120H Presser Plate Link (C) 누름판 링크 (C) 1 D-16 21-016A-120H Presser Plate Link Shaft (C) 누름판 링크 축(C) 1 D-17 21-101P-120H Snap Pin($5) 스냅핀 (호칭경 $5) 1 D-18 21-118G-1201H Presser Plate Return Spring 누름판 리턴 스프링(총권수 37) 2 D-19 01-019P-120H Holder For D-17 누름판 리턴 스프링 걸이 2 D-20 21-120A-120H Presser Plate Sensor Slit 누름판 센서 감지판 1 D-21 SC-0158-3710 Screw(M3) 컵나사 2 D-22 15-027A-2070 Presser Plate Sensor 누름판 센서 1 D-23 21-123A-120H Base For Presser Plate 누름판 센서 베이스 1 D-24 SC-0543-2302 Screw(11/64" n=40) 누름판 센서 베이스 컵나사 2 D-25 SC-0164-2700 Screw(M5) 누름판 붓싱 컵나사 1 D-26 21-035A-120H Guide For D-14 누름판 링크(C) 가이드 1 D-27 SC-0174-1230 Screw 누름판 링크(C) 가이드 컵나사 2 D-28 10-020W-2700 Washer 누름판 링크(C) 가이드 와셔 2 D-29 09-025W-8270 Washer 솔레노이드 축 연결핀 와셔 1 D-30 21-103P-120H Snap Pin($8) 솔레노이드 축 연결핀 분할핀 1 D-31 21S039S-306H Washer 누름판 축 고무와셔 1 D-32 21-026A-120H Presser Plate Shaft 누름판 축 1 jintex.in 13
Page 14
E Thread Release & Thread Tension Mechanism 실 늦추기 및 실 장력 조절 관계 E-28 E-24 E-21 E-27 E-20 E-25 E-26 E-22 E-23 E-31 E-35 E-34 E-30 E-29 E-33 E-32 E-36 E-37 E-15 E-16 E-14 E-2 E-7 E-17 E-12 E-18 E-3 E-5, E-6 E-1 E-40 E-8 E-9 E-10, E-11 E-12 E-13 E-39 E-38 14 jintex.in
Page 15
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. E-1 40-040A-120H H Thread Tension Adjusting Ass'y(H) 실장력 조절 장치(조)-후물용 1Set E-2 40S002S-306H Thread Tension Adjusting Body 실장력 조절 장치 몸체 1 E-3 40S003S-306H Thread Tension Adjusting Shaft 실장력 조절 장치 축 1 E-4 40-604S-1230 Screw (9/64" n=40) 컵나사 2 E-5 40S005S-306H H Thread Take-Up Spring(H) 실체기 스프링-후물용 1 E-6 40S006S-306G M, L, K Thread Take-Up Spring(M) 실체기 스프링-일반용 1 E-7 40-204A-1230 Thread Guide Disk 실안내 접시 4 E-8 40-304A-1230 Presser Plate For E-7 실안내 접시 누름판 1 E-9 40S009S-306H Spring Cover 스프링 커버 1 E-10 40S010S-306H Thread Tension Adjusting Spring(H) 실장력 조절 스프링-후물용 1 E-11 40-333G-123A M, L, K Thread Tension Adjusting Spring(M) 실장력 조절 스프링-일반용 1 E-12 40-804W-1230 Spring Stopper 스프링 스토퍼 2 E-13 40-204A-2350 Thread Adjusting Nut 실조절 장치 너트 1 E-14 SC-0108-2350 Screw (M6) 컵나사 1 E-15 AS-002639-00 Second Thread Tension Adjusting Ass'y 보조 실조절 장치(조) 1Set E-16 GP-008767-01 Second Thread Tension Adjusting Shaft 보조 실조절 장치축 1 E-17 40S019S-306H Second Thread Tension Adjusting Spring 보조 실 안내 접시 스프링 1 E-18 40-704C-1230 Thread Adjusting Nut 보조 조절 장치 너트 1 E-20 40S023S-306H Thread Release Link 실 늦추기 링크 1 E-21 40S024S-306H Thread Release Link Hinge Screw 실 늦추기 링크 단나사 1 E-22 40-025A-120H Thread Release Connecting Rod 실 늦추기 연결로드 1 E-23 40S026S-306H Hinge Screw A For E-22 실 늦추기 연결로드 단나사 A 1 E-24 SN-0111-1600 Nut (3/16" n=28) 너트 1 E-25 40S028S-306H Hinge Screw B For E-22 실 늦추기 연결로드 단나사 B 1 E-26 06-046W-7400 Washer 와셔 1 E-27 40-030C-120H Thread Release Stopper 실 늦추기 스토퍼 1 E-28 55-011S-5050 Screw (3/16" n=28) 컵나사 2 E-29 40-032C-120H Thread Release Adjusting Plate(A) 실 늦추기 조정판(A) 1 E-30 40-033C-120H Thread Release Adjusting Plate(B) 실 늦추기 조정판(B) 1 E-31 40S033S-306H Thread Release Return Spring 실 늦추기 리턴 스프링 1 E-32 SC-0180-3800 Screw (11/64" n=28) 컵나사 1 E-33 10-020W-2700 Washer 와셔 1 E-34 40-037C-120H Thread Release Shaft 실 늦추기 축 1 E-35 SC-0352-7400 Screw (3/16" n=28) 컵나사 1 E-36 40-039C-120H Thread Release Bar 실 늦추기 작동봉 1 E-37 16-015S-3710 Hinge Screw For E-36 실 늦추기 작동봉 단나사 1 E-38 40S044S-306H Thread Release Bar Guide 실 늦추기 작동봉 안내 1 E-39 SC-0528-1230 Screw (9/64" n=40) 컵나사 2 E-40 40-040A-120M M, L, K Thread Tension Adjusting Ass'y(M) 실장력 조절 장치(조)-일반용 1Set Note: H Heavy Material(후물용), M Medium Material(일반용), K Knit Material(니트용) jintex.in 15
Page 16
F Wiper Mechanism 와이퍼 관계 F-3 F-1 F-4 F-5 F-2 F-8 F-13 F-15 F-6 F-9 F-7 F-14 F-10 F-16 F-17 F-19 F-18 jintex.in
Page 17
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. F-1 11-101A-120H Wiper Driving Lever 와이퍼 구동 레버 1 F-2 06-027P-7400 Wiper Driving Lever Shaft 와이퍼 구동 레버 축 1 F-3 SC-0164-2700 Screw (11/64" n=40) 컵나사 2 F-4 11-004A-120D Wiper Rod A 와이퍼 로드 A 1 F-5 11-205A-120H Wiper Rod Shaft 와이퍼 로드 축(M5) 1 F-6 06-046W-7400 Washer 와셔 1 F-7 11-013S-5060 Hinge Screw For F-4 와이퍼 로드 단나사 1 F-8 SN-0101-1600 Nut (11/64" n=40) 너트 1 F-9 GP-011319-00 Wiper Connecting Arm Ass' y 와이퍼 연결 아암(조) 1Set F-10 05-014C-1230 E-Ring (4) E-링(호링경 4) 2 F-12 06-027P-7400 Wiper Connecting Arm Shaft 와이퍼 연결 아암 축 1 F-13 SC-0164-2700 Screw (9/64" n=40) 캡접촉 카라 컵나사 1 F-14 11-018A-120H Wiper Connecting Rod 와이퍼 연결 로드 1 F-15 11-019R-120H Oil Shield Cap 누유 방지 캡 1 F-16 GP-012584-00 Wiper Ass' y 와이퍼(조) 1Set F-17 SC-000332-00 Hinge Screw For F-16 와이퍼 단나사 1 F-18 GP-012585-00 Wiper Base Plate 와이퍼 베이스 판 1 F-19 SC-A174-4122 Screw (9/64" n=40) 가마잡이 나사 1 F-20 11-012P-120H Wiper Connecting Arm Shaft 와이퍼 연결암 축 1 17 jintex.in
Page 18 — Thread Trimmer Mechanism
G Thread Trimmer Mechanism 사절 관계 18 G-1 G-2 G-3 G-4 G-5 G-6 G-7 G-8 G-9 G-10 G-11 G-12 G-13 G-14 G-15 G-16 G-17 G-18 G-19 G-20 G-21 G-22 G-23 G-25 G-26 G-27 G-28 G-29 G-30 G-31 G-32 G-33 G-34 G-35 G-36 G-37 G-38 G-39 G-40 G-41 G-42 G-43 G-44 G-45 G-46 G-47 G-48 G-49 G-50 G-51 G-52 G-53 G-54 G-55 G-56 G-57 jintex.in
Page 19
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. G-1 12-0000-BT13 Thread Trimming Sol. Ass' y 사절 솔레노이드(조) (BAR-TACK) 1Set G-2 10S002S-306H Thread Trimming Sol. Bracket 사절 솔레노이드 브라켓 1 G-3 SC-0202-5050 Screw (3/16" n=28) 쉼나사 2 G-4 SN-0101-1600 Nut (11/64" n=40) 너트 5 G-5 10S005S-306H Link For G-1 사절 솔레노이드 회전 링크 1 G-6 10S006S-306H Screw (M4×P0.7) 쉼나사 1 G-7 10S008S-306H Thread Trimming Driving Link Stopper 사절 구동 링크 스토퍼 1 G-8 10S009S-306H Thread Trimming Cam 사절 캠 1 G-9 SC-A129-4515 Screw (1/4" n=40) 쉼나사 1 G-10 10S011S-306H Thread Trimming Shaft 사절 축 2 G-11 02014SC-4113 Screw (M4×P0.7) 쉼나사 2 G-12 10S113S-306H Thread Trimming Shaft Collar 사절 축 카라 1 G-13 10S114S-306H Screw (M5) 쉼나사 2 G-14 SC-0164-2700 Rubber Washer For G-12 사절 고무 와셔 2 G-15 10S017S-306H Thread Trimming Driving Link Ass'y 사절 구동 링크(조) 1Set G-16 SC-0317-2700 Screw (15/64" n=28) 쉼나사 1 G-17 10S022S-306H Thread Trimming Shaft Spring 사절 축 스프링 1 G-18 10S023S-306H Thread Trimming Cam Roller 사절 캠 롤러 1 G-19 10S024S-306H Hinge Screw for G-19 사절 캠 롤러 단나사 1 G-20 10S026S-306H Thread Release Lever 실 늦추기 레버 1 G-21 10S027S-306H Thread Release Lever Pin 실 늦추기 레버 핀 1 G-22 SC-0185-3400 Nut(15/64" n=28) 너트 1 G-23 10-029A-8577 Thread Trimming Connecting Rod 사절 연결 로드 1 G-24 10-220A-8577 Rod End(R) Rod End(우) 2 G-25 0869SN-9311 Nut(M5) 너트 3 G-26 10S032S-306H Hinge Screw for G-24 사절 연결 로드 단나사 2 G-28 06-036W-3800 Washer 와셔 1 G-29 10S135S-306H Thread Trimming Connecting Link 사절 연결 링크 1 G-31 10-037A-120H Thread Trimming Connecting Bar 사절 연결봉 1 G-32 10S038S-306H Hinge Screw for G-31 사절 연결봉 단나사 1 G-33 10S062S-306H Link Stopper Screw 링크 스토퍼 나사 1 G-34 10S064S-306H Return Spring for G-31 사절 연결봉 리턴 스프링 1 G-35 10-019S-7507 Spring Holder 스프링 걸이 1 G-36 10-140A-120H Needle Plate 침판 1 G-37 01-136S-1230 Screw (11/64" n=40) 침판 쉼나사 4 G-38 10-041A-120H Needle Plate Cover(H) 침판 커버-후물용 1 G-39 10-043A-120M Needle Plate Cover(M) 침판 커버-일반용 1 G-40 10-143A-120K L, K Needle Plate Cover(L, K) 침판 커버-박물용 1 G-41 04107SC-A001 Screw 침판 커버 쉼나사 2 G-42 10-101A-120H Fixed Mes 고정 메스 1 G-43 10S046S-306H Screw (9/64" n=40) 쉼나사 2 G-44 10-106A-120H Moving Mes 동 메스 1 G-45 10-048A-120H Hinge Screw For G-44 동 메스 단나사 1 10S049S-306H Washer (t=0.4) 동 메스 와셔(t0.4) 1 G-46 10S050S-306H Washer (t=0.5) 동 메스 와셔(t0.5) 1 10-051W-120H Washer (t=0.6) 동 메스 와셔(t0.6) 1 10-052W-120H Washer (t=0.7) 동 메스 와셔(t0.7) 1 G-47 10S053S-306H Moving Mes Link 동 메스 링크 1 G-48 10S055S-306G Thread Trimming Lever "B" 사절 레버 "B" 1 G-49 10S056S-306H Thread Trimming Lever Ring 사절 레버 링 1 G-50 10S057S-306H Thread Trimming Lever Shaft 사절 레버 축 1 G-51 10S058S-306H Thread Trimming Lever "A" 사절 레버 "A" 1 G-52 10S059S-306H Thread Trimming Lever Screw 사절 레버 고정나사 1 G-53 10S060S-306H Screw (11/64" n=40) 자절레버 B 쉼나사 1 G-54 10-020W-2700 Washer 와셔 1 G-55 SN-0119-1230 Nut (3/16" n=28) 사절 연결봉 단나사 너트 1 G-56 PN-000246-00 Thread Trimming Connecting Link Pin 사절 연결 링크 핀 1 G-57 SC-0164-2700 Screw (M5×L5) 고정나사 1 Note: H→Heavy Material(후물용), M→Medium Material(일반용) L→Light Material(박물용), K→Knit Material(니트용) jintex.in 19
Page 20 — X-Y Mechanism
H X-Y Mechanism X-Y 관계 H-39 H-38 H-11 H-37 H-39 H-31 H-44 H-36 H-2 H-8 H-30 H-44 H-3 H-29 H-14 H-7 H-27 H-6 H-1 H-20 H-19-1 H-13 H-4 H-34 H-5 H-5 H-9 H-33 H-8 H-10 H-5 H-15 H-32 H-16 H-28-1 H-25 H-24 H-17 H-26 H-23 H-22 H-21 H-42 H-43 20 jintex.in
Page 21
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. H-1 20-001A-120H Y-Feed Bushing(F) Y-이송 전 붓싱 1 H-2 20-002A-120H Y-Feed Bushing(R) Y-이송 후 붓싱 1 H-3 20-003A-120H Y-Feed Shaft Y-이송 축 1 H-4 20-004A-120H Y-Feed Arm Y-이송 아암 1 H-5 SC-A308-5067 Screw(1/4" n=40) 쉼나사 4 H-6 20-006A-120H Y-Feed Hinge Stud Screw Y-이송 힌지 단나사 1 H-7 20-007A-120H Y-Sensor Film Y-센서 감지판 1 H-8 SC-0173-1230 Screw(3/16" n=32) 쉼나사 4 H-9 GP-011575-01 X-Feed Lever Gear X-이송 레버 기어 1 H-10 04S106S-306H X-Feed Block X-이송 블럭 1 H-11 20-011A-120H X-Feed Block Shaft X-이송 블럭 축 1 H-13 20-013A-120H X-Sensor Film X-센서 감지판 1 H-14 20-015A-120H X-Feed Lever Gear Shaft X-이송 레버 축 1 H-15 20-016A-120H X-Feed Lever Gear Shaft Collar X-이송 레버 축 카라 1 H-16 SC-0533-3400 Screw(11/64" n=40) 쉼나사 2 H-17 20-051A-12HA X-Driving Motor Ass'y X-구동 모터(조) 1Set H-19-1 20-052A-12HA X-Drive Gear X-이송 구동 기어 1 H-20 SC-0317-2700 Screw(15/64" n=28) 쉼나사 4 H-22 020-15SC-4113 Screw(M4, L=12) 쉼나사 8 H-23 20-055W-120H Washer 와셔 8 H-24 SC-0296-3900 Screw(11/64" n=40) 혹 받침 쉼나사 4 H-25 10-020W-2700 Washer 와셔 4 H-26 20-053A-12HA Y-Driving Motor Ass'y Y-구동 모터(조) 1Set H-27 20-030A-120H Y-Drive Gear Y-이송 구동 기어 1 H-28-1 20-054A-12HA Y-Driven Motor Mounting Plate Y-구동 모터 부착판 1 H-29 20-037A-120H X-Sensor Base X-센서 베이스 1 H-30 20S076S-306H X-Sensor X-센서 1 H-31 22031SC-8118 Screw(M4, L=10) 쉼나사 1 H-32 20-041A-120H Y-Sensor Base Y-센서 베이스 1 H-33 20S029S-306H Y-Sensor Y-센서 1 H-34 02S030S-306H Screw(M3, L=9) 쉼나사 1 H-36 20-046A-120H Cloth Feed Support Plate 하부 이송 지지판 1 H-37 20-048A-120H Cloth Feed Plate 하부 이송판 1 H-38 20-149A-120H Feed Guide Plate 피이드 가이드 브라켓 1 H-39 01-136S-1230 Screw(11/64" n=40) 점판 쉼나사 6 H-42 22-151A-12HA X-Step Motor Cable X-스텝 모터 케이블 1 H-43 22-152A-12HA Y-Step Motor Cable Y-스텝 모터 케이블 1 H-44 SC-0180-3800 Screw(11/64" n=40) 쉼나사 5 Note: H Heavy Material(후물용), M Medium Material(일반용) L Light Material(박물용), K Knit Material(니트용) jintex.in 21
Page 22 — Feed Mechanism
Feed Mechanism 피이드 관계 I-27 I-28 I-45 I-44 I-1 I-13 I-12 I-11 I-9 I-15 I-14,41 I-16 I-35 I-36 I-37 I-38 I-39 I-7 I-6 I-5 I-3 I-8 I-2 I-10 I-14 I-17,19,21,42 I-23 I-24 I-26 I-25 I-34 I-28 I-32 I-29,30,31,33 jintex.in
Page 23
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. I-1 22-001A-120H Feed Bracket 피이드 브라켓 1 I-2 22-002A-120H Lifting Lever(L) 올림 레버(좌) 1 I-3 22-003A-120H Lifting Lever(R) 올림 레버(우) 1 I-4 22-004A-120H Lifting Lever Shaft 올림 레버 축 1 I-5 SC-0317-2700 Screw(15/64" n=28) 컵나사 1 I-6 06-046W-7400 Washer 와셔 1 I-7 04-009C-3710 E-Ring E-링(호칭경 5) 1 I-8 22-008A-120H Adjusting Plate 조정판 2 I-9 01S106S-306H Screw 컵나사 2 I-10 10-020W-2700 Washer 조정판 컵나사용 와셔 2 I-11 22-011A-120H Spring Guide Rod 스프링 가이드 로드 2Set I-12 43-010S-2500 Hinge Screw For I-11 스프링 가이드 로드 단나사 2 I-13 SN-0111-1600 Nut(3/16" n=28) 너트 2 I-14 22-016G-120H H Spring For Lifting Lever(H) 올림 레버 스프링-후물용 2 I-15 22-017C-120H Spring Collar A 스프링 카라(A) 2 I-16 22-018C-120H Spring Collar B 스프링 카라(B) 2 I-17 22-019A-120H H Work Clamp Foot-L(H) 노루발(좌)-후물용 1 I-18 22-020A-120H H Work Clamp Foot-R(H) 노루발(우)-후물용 1 I-19 22-021A-120M M Work Clamp Foot-L(M) 노루발(좌)-일반용 1 I-20 22-022A-120M M Work Clamp Foot-R(M) 노루발(우)-일반용 1 I-21 22-023A-120L L Work Clamp Foot-L(L) 노루발(좌)-박물용 1 I-22 22-024A-120L L Work Clamp Foot-R(L) 노루발(우)-박물용 1 I-23 22-023A-120H Guide Cover For Work Clamp Foot 노루발 가이드 커버 1 I-24 SC-0310-8130 Screw(9/64" n=40) 컵나사 4 I-25 22-125A-120H Finger Guard 핑거 가드 1 I-26 SC-0528-1230 Screw(9/64" n=40) 톱 카나사(후) 2 I-27 SC-0108-2350 Bolt(M6 x 1 20) 고정볼트 2 I-28 22S025S-306H Washer 와셔 4 I-29 22-329A-120H H Feed Plate(H) 이송판-후물용 1 I-30 22-030A-120M M Feed Plate(M) 이송판-일반용 1 I-31 22-033A-120L L Feed Plate(L)-A 이송판(A)-박물용 1 I-32 22-034A-120L L Feed Plate(L)-B 이송판(B)-박물용 1 I-33 22-035A-120K K Feed Plate(K) 이송판-니트용 1 I-34 22-031A-120H Screw(M6 x 10) 컵나사 2 I-35 22-038A-120H Ball Support Plate 볼 지지판 1 I-36 22-039S-120H Screw(M6) 볼 지지판 컵나사(M6) 2 I-37 06-034A-3900 Ball 볼 7 I-38 22-040A-120H Ball Base 볼 베이스 1 I-39 SN-0116-3400 Nut(1/4" n=40) 수평운동 조절 너트 1 I-41 22-016G-120M M, L, K Spring For Lifting Lever(M) 올림 레버 스프링-일반용 2 I-42 22-023A-120K K Work Clamp Foot -L(K) 노루발(좌)-니트용 1 I-43 22-024A-120K K Work Clamp Foot -R(K) 노루발(우)-니트용 1 I-44 GP-007807-02 Dust Plate(L) 먼지 막이 부착판(좌) 1 I-45 GP-007808-02 Dust Plate(R) 먼지 막이 부착판(우) 1 Note: H=Heavy Material(후물용), M=Medium Material(일반용), L=Light Material(박물용), K=Knit Material(니트용) jintex.in
Page 24 — J Lubrication Mechanism 급유 관계
J Lubrication Mechanism 급유 관계 J-9 J-8 J-14 J-10 J-17 J-1, J-2 J-13 J-16 J-15 J-12 J-7 J-11 J-6 J-5 J-7 J-3 J-4 J-14 J-1, J-2 J-26 J-18, J-19 J-22 J-23 J-25 J-14 J-24 J-29 J-28 J-27 J-21 J-14 J-20 jintex.in
Page 25
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. J-1 44-0000-1230 Oil Wick 오일 유 J-2 44-012C-1230 Oil Hose 570 우레탄 호수 (3×5) J-3 44S007S-306H Oil Return Felt A 환류 오일 펠트 "A" J-4 44S008S-306H Arm Oil Return Felt 아암부 환류 펠트 1 J-5 44S002S-306H Oil Hose For J-4 아암부 환류 펠트 오일 호스 1 J-6 44-008C-120H Holder For J-5 아암 환류 펠트 호스 잡이 1 J-7 SC-A156-4118 Screw(9/64" n=40) 칩나사 2 J-8 44S024S-306H Crank Rod Lubrication Plate 크랭크 로드 급유 판 1 J-9 SC-0548-7400 Screw(3/16" n=28) 칩나사 2 J-10 44S027S-306H Crank Rod Lubrication Felt 크랭크 로드 급유 펠트 1 J-11 44-017C-120H Needle Bar Crank Rod Lubrication Plate 바늘대 크랭크 로드 급유판 1 J-12 44-019M-120H Needle Bar Crank Rod Lubrication Felt 바늘대 크랭크 로드 급유 펠트 1 J-13 44S032S-306H Oil Hose Holder(L) 오일 호스 잡이(大) 1 J-14 SC-0543-2302 Screw(11/64" n=40) 칩나사 4 J-15 44S034S-306H Balance Lubrication Plate 밸런스 급유 판 1 J-16 44S035S-306H Balance Lubrication Felt 밸런스 급유 펠트 1 J-17 SC-0340-3710 Screw(9/64" n=40) 칩나사 1 J-18 44S039S-306H Bed Oil Return Felt 베드부 환류 펠트 1 J-19 44S001S-306H Oil Hose For J-18 베드부 환류 펠트 오일 호스 1 J-20 44S041S-306H Oscillator Lubrication Plate 요동축 기어 급유 판 1 J-21 44S042S-306H Oscillator Lubrication Felt 요동축 기어 급유 펠트 1 J-22 44S005S-306H Cable Holder 오일 호스잡이 (A) 1 J-23 44S044S-306H Shuttle Lubrication Plate 서틀 급유 판 1 J-24 44S046S-306H Shuttle Lubrication Felt(L) 서틀 급유 펠트(大) 1 J-25 06-033M-7400 Shuttle Lubrication Felt(S) 서틀 급유 펠트(小) 2 J-26 44-034R-120H Bed Oil Wick Rubber Cap 베드 유심 고무 마개 1 J-27 44S052S-306H Oil Window 유창 2 J-28 44S053S-306H Oil Gauge 오일 게이지 2 J-29 44S054S-306H Oil Window Rubber Ring 유창 고무링 2 jintex.in 25
Page 26 — Table & Thread Stand
K Table & Thread Stand 테이블 및 실패꽃이 관계 K-22 K-12 K-25 K-17 K-14 K-10 K-9 K-16 K-15 K-8 K-11 K-20 K-19 K-21 Sun Star. K-18 K-14 K-13 K-13 K-4 K-5 K-3 K-1 K-7 K-6 K-23 K-24 K-2 26 jintex.in
Page 27
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q ' ty Assembly No. K-1 Table Ass'y 테이블(조) 1Set K-2 TZ-001-1000 Table Stand Ass'y 테이블 다리(조) 1Set K-3 Table Drawer 테이블 서랍 1 K-4 Support Bracket For K-3 테이블 서랍 받침 브라켓 2 K-5 Screw Nail 태핑 나사 4 K-6 90A008S-811H Accessary Case 보관대 1 K-7 Screw 태핑 나사 2 K-8 01S122S-306H Hinge 힌지쇠 2 K-9 01S123S-306H Hinge Rubber 힌지쇠 고무 2 K-10 01S124S-306H Hinge Pin 힌지쇠 핀 2 K-11 SC-0164-2700 Screw(M5×P0.8) 점나사 2 K-12 01S126S-306H Bolt(M6×60) 볼트 5 K-13 01S127S-306H Nut(M6) 너트 8 K-14 01S128S-306H Washer 와셔 9 K-15 91-106A-120H Oil Pan 오일 받이 1 K-16 44-0000-1230 Oil Wick 오일 받이 유심 1 K-17 Screw Nail 태핑 나사 5 K-18 91-002C-7400 Oiler 오일 저장통 1 K-19 90S008S-306H Oil Supporter 오일통 받이 1 K-20 Nail 고정 못 4 K-21 90S010S-306H Cushion Rubber 쿠션 고무 2 K-22 91-007A-2302 Thread Stand Ass'y 실패꽃이(조) 1Set K-23 91-005A-SH51 Power Switch 전원 스위치 1 K-24 Screw Power Switch 전원 스위치 고정나사 2 K-25 GP-006544-00 Support Rubber Safety Switch 안전 스위치 받침 고무 1 jintex.in 27
Page 28
L Accessories 악세사리 L-2 L-1 L-4 L-15 L-14 L-13 L-12 L-11 L-5 L-6 L-7, L-8, L-9 L-10 L-16 L-17 L-18 Sun Star 28 jintex.in
Page 29
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. L-1 91-102C-1230 Driver(L) 드라이버(大) 1 L-2 91-103C-1230 Driver(M), (S) 드라이버(中), (小) 1 Ass' y L-4 91S004S-306H Spaner(9×10) 스패너 1 L-5 91-011C-1230 Oiler 오일 주유통 1 L-6 91-108C-1230 Oil 오일 1 L-7 H Needle(DP×17 #19) 바늘(DP×17 #19) 1 L-8 M Needle(DP×5 #16) 바늘(DP×5 #16) 1 L-9 L,K Needle(DP×5 #11) 바늘(DP×5 #11) 1 L-10 07-224A-120H Bobbin 보빈 2 L-11 91-001C-2700 L-Shaped Wrench L자 렌치(2mm) 1 L-12 91-004C-2700 L-Shaped Wrench L자 렌치(2.5mm) 1 L-13 91-003C-2700 L-Shaped Wrench L자 렌치(3mm) 1 L-14 91-001C-3800 L-Shaped Wrench L자 렌치(4mm) 1 L-15 91-002C-2700 L-Shaped Wrench L자 렌치(5mm) 1 L-16 12-0146-SC53 Fuse(1A, 30mm) 퓨즈(1A, 30mm) 1 L-17 05-002C-SW65 Fuse(10A, 30mm) 퓨즈(10A, 30mm) 1 L-18 12-046C-SC53 Fuse(15A, 30mm) 퓨즈(15A, 30mm) 1 L-19 91-001C-120H Head Cover 미싱 커버 1 29 jintex.in
Page 30
M Control Box Mechanism 콘트롤 박스 관계 M-1 M-17 M-16 M-18 M-15 M-66 M-67 M-25 M-27 M-28 M-26 M-19 M-3 M-77 M-5 M-76 M-33 M-74 M-31 M-60 M-75 M-30 M-74 M-32 M-31 M-48 M-61 M-47 M-46 M-43 M-39 M-74 M-35 M-38 M-41 M-49 M-36 M-40 M-37 M-45 M-44 M-43 M-19 M-9 M-20 M-20 M-21 M-22 M-13 M-14 M-6 M-2 M-4 M-12 M-8 M-69 M-65 M-64 M-63 M-10 M-11 M-50 M-51 M-52 M-56 M-53 M-54 M-55 M-62 M-59 M-24 M-57 M-58 M-23 30 jintex.in
Page 31
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. M-1 SSBT-0000035 Control Box Ass'y 콘트롤박스 (組) 1 M-2 GP-008658-01 Box Body 박스바디 1 M-3 GP-008671-00 Front Profile Upper 전면부 프로파일-상 1 M-4 10-016S-CPT1 Screw(M4×L12) 전면부 프로파일-상 고정나사(M4×L12) 2 M-5 GP-008672-00 Front Profile Lower 전면부 프로파일-하 1 M-6 10-016S-CPT1 Screw(M4×L12) 전면부 프로파일-하 고정나사(M4×L12) 2 M-7 GP-008673-00 Rear Profile Upper 후면부 프로파일-상 2 M-8 10-016S-CPT1 Screw(M4×L12) 후면부 프로파일-상 고정나사(M4×L12) 4 M-9 GP-008674-00 Rear Profile Lower 후면부 프로파일-하 1 M-10 10-016S-CPT1 Screw(M4×L12) 후면부 프로파일-하 고정나사(M4×L12) 2 M-11 GP-008666-01 Upper Frame 가로지지대-상 1 M-12 10-004M-SW68 Screw(M3×L5) 가로지치대-상 고정나사(M3×L5) 4 M-13 GP-008663-01 Lower Frame 가로지치대-하 1 M-14 10-004M-SW68 Screw(M3×L5) 가로지치대-하 고정나사(M3×L5) 4 M-15 GP-008662-00 Upper Cover 상면커버 1 M-16 EP-000040-00 Control Box Fan 콘트롤박스 Fan 1 M-17 SC-000392-00 Screw(M4×L30) 콘트롤박스 Fan 고정나사(M4×L30) 4 M-18 09-041S-3701 Fan Nut(M4) Fan 너트(M4) 6 M-19 10-004M-SW68 Screw(M3×L5) 상면커버 고정나사(M3×L5) 6 M-20 GP-008667-00 Insulation Plate 절연 플레이트 3 M-21 BD-000204-00 Backplane Board 백플레인 보드 1 M-22 10-020M-SW66 Screw(M3×L12) Backplane Board 고정나사(Set)(M3×L12) 18 M-23 GP-008659-01 Rear Cover 후면커버 1 M-24 10-004M-SW68 Screw(M3×L5) 후면커버 고정나사(M3×L5) 6 M-25 EP-000039-00 SMPS SMPS 1 M-26 GP-008701-01 SMPS Bracket SMPS 브라켓 1 M-27 10-002S-SW66 Screw(M3×L8) SMPS 고정나사(Set)(M3×L8) 5 M-28 BD-000203-00 DDC Board DDC 보드 1 M-29 10-002S-SW66 Screw(M3×L8) DDC 보드 고정나사(Set)(M3×L8) 6 M-30 BD-000205-00 Digital Board 디지탈 보드 1 M-31 GP-008668-01 Digital Board Bracket 디지탈 보드 브라켓 1 M-32 GP-007198-00 SMD FET Radiator Sheet 디지탈 보드 SMD FET 방열 시트 1 M-33 10-002S-SW66 Screw(M3×L8) 디지탈 보드 고정나사(Set)(M3×L8) 4 M-34 BD-000207-00 Step Board 스템 보드 1 M-35 GP-006318-00 Step Board Radiator 스템 보드 방열판 1 M-36 GP-007197-00 SMD FET Radiator SMD FET 방열판 1 M-37 10-004M-SW68 Screw(M3×L5) SMD FET 방열판 고정나사(Set)(M3×L5) 1 M-38 EP-000041-00 Step Board Fan 스템보드 Fan 2 M-39 01-017C-DU33 Screw(M4×L25) 스템보드 Fan 고정나사(M4×L25) 4 31 jintex.in
Page 32 — Control Box Mechanism
M Control Box Mechanism 콘트롤 박스 관계 M-1 M-17 M-16 M-18 M-15 M-66 M-25 M-27 M-28 M-26 M-19 M-19 M-3 M-5 M-77 M-76 M-33 M-74 M-31 M-75 M-60 M-30 M-74 M-31 M-48 M-61 M-34 M-37 M-47 M-45 M-46 M-43 M-39 M-74 M-41 M-49 M-36 M-40 M-35 M-38 M-62 M-55 M-50 M-24 M-57 M-59 M-58 M-23 M-22 M-21 M-20 M-9 M-7 M-29 M-12 M-4 M-2 M-6 M-14 M-11 M-13 M-69 M-8 M-65 M-64 M-63 M-10 M-51 M-56 M-52 M-53 M-54 jintex.in 32
Page 33
Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. M-40 GP-010656-00 Step Board Stud(A) 스텝 보드 스터드(A)(3-5-5) 5 M-41 GP-007198-00 SMD FET Radiator Sheet 스텝보드 SMD FET 방열 시트 2 M-42 10-012M-PT10 Step Board Stud(B) 스텝 보드 스터드(B)(3-5-15) 5 M-43 GP-007196-00 Step Board FET Radiator Step Board FET 방열판 2 M-44 07-004S-SM5S Screw(M4×L10) Step Board FET 방열판 고정나사 (Set)(M4×L10) 4 M-45 GP-007199-00 FET Radiator Sheet A FET 방열 시트 A 1 M-46 GP-007201-00 FET Radiator Sheet B FET 방열 시트 B 1 M-47 07-005S-SM5S Screw(M3×L10) FET 고정나사 (Set)(M3×L10) 11 M-48 GP-008669-01 Step Board Bracket 스텝 보드 브라켓 1 M-49 10-004M-SW68 Screw(M3×L5) 스텝 보드 고정나사 (M3×L5) 5 M-50 BD-000206-00 Main Board 주축보드 1 M-51 GP-007203-00 Main Board Radiator 주축보드 방열판 1 M-52 10-012M-PT10 Main Board Stud 주축보드 스터드(3-5-15) 3 M-53 01-003S-2070 Screw(M4×L16) 브릿지다이오드 고정나사(Set)(M4×L16) 1 M-54 10-003M-PT10 Screw(M4×L10) IPM 고정나사(Set)(M4×L10) 2 M-55 GP-008670-01 Main Board Bracket 주축보드 브라켓 1 M-56 10-002S-SW66 Screw(M3×L8) 주축보드 고정나사(Set)(M3×L8) 4 M-57 07-004S-SM5S Screw(M4×L10) 후면커버 고정나사(Set)(M4×L10) 1 M-58 GP-008660-00 Cable Cover 케이블 커버 1 M-59 10-003M-PT01 Screw(M4×L8) 케이블 커버 고정나사(M4×L8) 4 M-60 GP-007711-00 Digital Board Sticker 디지털 보드 스티커 1 M-61 GP-007712-00 Step Board Sticker 스텝 보드 스티커 1 M-62 GP-007713-00 Main Board Sticker 주축 보드 스티커 1 M-63 09-023C-SC53 QC Passed Sticker QC Passed 스티커 1 M-64 GP-010843-00 Voltage Sticker 전압 스티커 1 M-65 04-004S-AU10 Caution Sticker 전원 경고 스티커 1 M-66 CA-00342-00 SMPS Connecting Cable1 SMPS 연결 케이블1(입력) 1 M-67 CA-00343-00 SMPS Connecting Cable2 SMPS 연결 케이블2(출력) 1 M-68 CA-00351-00 Jumper Cable 발판 점퍼 케이블 1 M-69 04-001C-SE50 Screw(S7.5×L16) 콘트롤박스 고정나사(A) 4 M-70 01-001M-PT01 Screw(M6×L45) 콘트롤박스 고정나사(B) 4 M-71 01-003S-SW66 Spring Washer(M6) 스프링 와셔 4 M-72 01-004S-SW66 Washer(M6) 평 와셔 4 M-73 91-001C-BT10 Urethane Washer 우레탄 와셔 4 M-74 01-001S-NET1 Screw(M3×L6) 보드 브라켓 고정나사 6 M-75 GP-012617-00 Board Bracket Handle 보드 브라켓 손잡이 3 M-76 10-073S-3701 Screw(M3×L10) 보드 브라켓 손잡이 고정나사 6 M-77 GP-011488-00 Brand Sticker 상품 스티커 1 33 jintex.in
Page 34 — Operation Unit Mechanism
N Operation Unit Mechanism 오퍼레이션 관계 Back N-7 N-8 SunStar N-3 N-5 N-6 N-9 N-13 N-12 N-11 N-2 N-1 SunStar N-4 N-10 N-15 N-14 N-16 34 jinte.in
Page 35
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. N-1 GP-011454-00 Membrane Switch 멤브레인 스위치 1 N-2 GP-011450-00 Front Cover 전면커버 1 N-3 BD-000217-00 O/P Board O/P 보드 1 N-4 CA-000344-00 Operation Cable 조작판 연결 케이블 1 N-5 11-002S-5050 Fixing Screw For O/P Board O/P 보드 고정나사(ST3×L8) 4 N-6 BD-000216-00 * CF Card Board CF CARD 보드 1 N-7 CA-000395-00 CF Card Power Cable CF CARD 전원연결 케이블 1 N-8 CA-000396-00 CF Card Cable CF CARD 통신연결 케이블 1 N-9 11-002S-5050 * Fixing Screw For CF Card Board CF CARD 보드 고정나사(ST3×L8) 2 N-10 15-026M-1000 Cable Tie 케이블 타이 4inch 2 N-11 GP-011452-01 CF Card Cover CF CARD 커버 1 N-12 GP-011451-00 Rear Cover 후면커버 1 N-13 11-002S-5050 Fixing Screw For Rear Cove 후면커버 고정나사(ST3×L8) 4 N-14 GP-011455-00 Stand For OP Box OP Box 스탠드 1 N-15 SC-000410-00 Fixing Screw For OP Box OP Box 고정나사(M4×12) 2 N-16 SC-000411-00 Fixing Screw For OP Box Stand OP Box 스탠드 고정나사(ST4×L16) 4 35 *-옵션품목임 jintex.in
Page 36 — Pedal Mechanism
Pedal Mechanism 페달 관계 SunStar 0-1 0-14 0-9 0-5 0-4 0-7 0-11 0-19 0-11 0-17 0-18 0-8 0-2 0-16 0-13 0-15 0-21 0-3 0-20 0-6 0-10 jintex.in
Page 37
SunStar Ref. No. Parts No. Note Name of Parts 0-1 10-001A-PT11 Cover 0-2 10-002A-PT11 Base 0-3 10-001B-PT11 Stopper A 0-4 10-002B-PT11 Stopper B 0-5 10-003B-PT11 Stopper C 0-6 10-004B-PT11 Guide A 0-7 10-005B-PT11 Guide B 0-8 10-006S-PT11 Spring A 0-9 10-007S-PT11 Spring B 0-10 10-006B-PT11 Guide Base 0-11 10-007B-PT11 Guide Cover 0-12 10-008B-PT11 Switch Cover 0-13 10-003A-PT11 Shaft 0-14 10-001S-SW68 E-Ring 0-15 10-004A-PT11 MICRO SWITCH 0-16 10-001C-PT11 GROMMET BUSH 0-17 10-028S-SC53 Screw Guide Base(M3×P0.5 L=7) 0-18 10-008M-PT11 Screw MICRO SWITCH(M3×P0.5 L=38) 0-19 10-021M-SW66 Screw Guide Cover(M3×P0.5 L=6) 0-20 10-008S-PT11 Spring C 0-21 11-002M-PT10 Sponge(t5×B10) 명 Q' ty Assembly No. 커버 1 베이스 1 스토퍼 A 1 스토퍼 B 1 스토퍼 C 1 가이드 A 1 가이드 B 2 스프링 A 2 스프링 B 2 가이드 베이스 1 가이드 커버 1 스위치 커버 1 축 1 E-링 멈춤링(호칭경 5) 1 마이크로 스위치 2 GROMMET BUSH(호칭, DASB-500-6) 1 가이드 베이스 조임 나사 4 MICRO S/W 조임 나사 2 가이드 커버 조임 나사 4 스프링 C 1 스폰지 2 37 jintex.in
Page 38 — Cable Unit
P Cable Unit 케이블 관계 1 2 3 4 5 6 7 8 9 10 11 12 14 15 38 jintex.in
Page 39
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. P-1 02-001B-BT01 Operator Cable 조작반 케이블 1 P-2 02-008B-BT01 Step Motor Drive Signal Cable 스텝 모터 구동 신호 케이블 1 P-3 Foot Switch Input Cable 발판 스위치 입력 케이블 1 P-4 02-011B-BT01 Solenoid Power Cable 솔레노이드 전원 케이블 1 P-5 02-028A-120H X Axis Step Motor Cable X 축 스텝 모터 출력 케이블 1 P-6 02-013B-BT01 Step Motor Power Cable 스텝 모터 전원 케이블 1 P-7 02-009B-BT01 Servo Motor Drive Signal Cable 서보 모터 구동 신호 1 P-8 21-029A-120H Presser Foot Solenoid Cable 누름판 솔레노이드 케이블 1 21-029A-120H Thread Trimming Solenoid Cable 사절 솔레노이드 케이블 1 P-9 02-012B-BT01 Servo Motor Power Cable 서보 모터 전원 케이블 1 P-10 Sensor Input Cable 센서 입력 케이블 1 P-12 02-010B-BT01 Servo Motor Auxiliary Cable 서보 모터 보조 케이블 1 P-14 02-014B-BT01 Cooling Fan Cable 냉각팬 케이블 1 P-15 02-029A-120H Y Axis Step Motor Cable Y 축 스텝 모터 출력 케이블 1 39 jintex.in
Page 40
Q Feed Mechanism 피드 관계 Q-6 Q-7 Q-5 Q-8 Q-14 Q-9 Q-8 Q-9 Q-15 Q-4 Q-1 I-27 I-28 40 Q-6 Q-7 Q-5 Q-8 Q-10 Q-9 Q-8 Q-11 Q-4 Q-13 Q-12 Q-4 Q-16 I-37 I-38 I-39 I-40 I-6 I-7 I-35 I-36 R-2 I-23 I-24 I-26 R-3 I-4 I-25 Q-17-2 Q-17-1 I-34 I-28 I-32 I-29, I-30 I-31, I-32 jintex.in
Page 41
SunStar Ref. No. Parts No. Note Name of Parts 품 명 명 Q' ty Assembly No. Q-1 22-073A-12HA Feed Bracket 피드 브라켓 1 Q-2 22-075A-12HA Lifting Lever(Right) 올림레버(우) 1 Q-3 22-074A-12HA Lifting Lever(Left) 올림레버(좌) 1 Q-4 22-076A-12HA Air Cylinder 에어 실린더(Q2DL6-KR-25D) 2 Q-5 22A030S-306H Cylinder Knuckle 실린더 너클 2 Q-6 Knuckle Pin 너클 핀 2 Q-7 05-014C-1230 E-Ring(φ4) E-링(φ4) 4 Q-8 49A003S-811H Hose Elbow(M-5HL-4) 호스 엘보우 M-5HL-4 4 Q-9 05A039S-811H Air Hose(TU-0425) 에어 호스 TU-0425 - Q-10 22A048S-811H Air Hose Label(S4L) 에어 호스 라벨(S4L) 2 Q-11 22A049S-811H Air Hose Label(S3R) 에어 호스 라벨(S3R) 2 Q-12 22A048S-811H Cylinder Shaft Washer 실린더 축 와셔 2 Q-13 04-009C-3710 E-Ring E-링(호칭경5) 1 Q-14 22A048C-811H Air Hose Label(S4R) 에어 호스 라벨(S4R) 2 Q-15 22A049S-811H Air Hose Label(S3R) 에어 호스 라벨(S3R) 2 Q-16 22-077A-12HA Cylinder Shaft 실린더 축 1 Q-17-1 22-023A-12HA Pneumatic Presser Foot(L) 공압용 노루발(좌) 1 Q-17-2 22-024A-12HA Pneumatic Presser Foot(R) 공압용 노루발(우) 1 41 jintex.in
Page 42 — Thread Trimmer Mechanism 사절 관계
R Thread Trimmer Mechanism 사절 관계 R-41 R-1 R-37 R-36 R-2 R-50 R-43 R-49 R-47 R-46 R-48 R-3 R-51 R-4 R-54 R-52 R-53 R-31 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. R-1 10A042S-811E Needle Plate Cover 침관 커버($2.4) 1 R-2 10S045S-306H Fixed Mes 고정메스 1 R-3 10S047S-306H Moving Mes 동메스 1 R-4 10S048S-306H Hinge Screw For S-3 동메스 단나사 1 42 jintex.in
Page 43
S X-Y Mechanism X-Y관계 SunStar S-38 S-8 S-39 S-37 S-11 S-31 S-8 S-30 S-36 S-8 S-29 S-8 S-14 S-3 S-13 S-1 S-1 S-5 S-10 S-4 S-9 S-5 S-15 S-2 S-5 S-16 S-6 S-4 S-2 S-5 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. S-1 20-052A-12HA X-Drive Gear X-이송 구동 기어 1 S-2 20--051A-12HA X-Driving Motor Asm. X-구동 모터(조) 1 S-3 02-001W-2302 Washer 와셔 4 S-4 07-016S-4113 Screw(M4×P0.7×L12) 점나사 4 S-5 20-054A-12HA Y-Motor Mounting Plate Y-모터 부착판 1 S-6 20-053A-12HA Y-Driving Motor Asm. Y-구동 모터(조) 1 43 jintex.in
Page 44 — SPS/A-B1201-20
T-1 Air Control Mechanism 에어 제어 관계 SPS/A-B1201-20 T-3 T-2 T-4 T-17 T-6 T-5 T-7 T-12 T-11 T-9 T-8 T-13 T-16 T-10 T-14 T-15 44 jintex.in
Page 45
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. T-1 49-001A-12HA Quick Coupling(PY0400) 퀵 커플링 2 T-2 05A039S-811H Air Hose 에어호스 - T-3 22A065S-811H Hose Lable(S3F) 호스라벨(S3F) 2 T-4 22A066S-811H Hose Label(S4F) 호스라벨(S4F) 2 T-5 49-002A-12HA Solenoid Valve Asm 솔레노이드 밸브(조) 1Set T-6 Screw 고정나사 2 T-7 05A039S-811H Air Hoce 에어호스 0.5 T-8 49-004C-5030 Elbow Union 엘보우 유니언 PL06-02 1 T-9 49A007S-811H Air Pressure Switch 압력 스위치 1 T-10 49A006S-811H Filter Regulator 필터 레귤레이터 1 T-11 Screw(M5×P0.8) 고정나사 2 T-12 Washer 와셔 2 T-13 Nut 너트 2 T-14 49A005S-811H Finger Valve 핑거 밸브 1 T-15 49-002C-5030 Quick Joint Plug 퀵 조인트 CF-22 1 T-16 01A148S-811H Cable Tie 케이블 타이 5 T-17 49-016A-12HA Pneumatic I/O Cable 공압 입출력 케이블 DES-023 1 45 jintex.in
Page 46 — Air Control Mechanism (1)
T-II Air Control Mechanism (1) 에어 제어 관계 (1) SPS/A-B1201-22 T-5 T-5 T-7 T-5 T-9 T-1 T-2 T-3 T-4 T-8 SPS/A-B1201-20-TH T-18 T-19 T-20 T-15 T-13 T-16 T-13 T-14 T-12 T-17 T-11 T-10 T-11 SPS/A-B1201-22-TH T-27 T-25 T-28 T-25 T-26 T-25 T-24 T-21 T-22 T-23 T-24 T-29 T-23 46 jintex.in
Page 47
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. T-1 22 A046S-306H Solenoid Valve 솔레노이드 밸브 2 T-2 49 A019S-811H Manifold Block 매니폴더 블럭 1 T-3 49 A020S-811H Silencer 소음기 2 T-4 49 A021S-811H Plug B 플러그 B 3 T-5 49 A015S-811H Hose Nipple 호스니플 4 T-6 49 A014S-811H Half Union 하프 유니온 1 T-7 90S021S-306H Screw (M3×L30) 고정나사 2 T-8 49-016A-12HA Pneumatic I/O Cable 공압 입출력 케이블 1 T-9 22 A046S-306H Solenoid Valve 솔레노이드 밸브 2 T-10 49 A019S-811H Manifold Block 매니폴더 블럭 1 T-11 49 A020S-811H Silencer 소음기 2 T-12 49 A021S-811H Plug B 플러그 B 3 T-13 49 A015S-811H Hose Nipple 호스니플 3 T-14 49-008A-106L HA-20-TH Half Union 하프 유니온 1 T-15 09-004S-5030 Plug Bolt 플러그 볼트 1 T-16 90S021S-306H Screw (M3×L30) 고정나사 2 T-17 49-016A-12HA Pneumatic I/O Cable 공압 입출력 케이블 1 T-18 49 A016S-811H Quick Coupling 퀵 커플링 2 T-19 05 A039S-811H Air Hose 에어호스 2 T-20 22 A201S-811H Air Hose Tube 에어호스 튜브 2 T-21 22 A046S-306H Solenoid Valve 솔레노이드 밸브 3 T-22 50 A048S-811H Manifold Block 매니폴더 블럭 1 T-23 49 A020S-811H Silencer 소음기 2 T-24 49 A021S-811H Plug B 플러그 B 3 T-25 49 A015S-811H HA-22-TH Hose Nipple 호스니플 5 T-26 49-008A-106L Half Union 하프 유니온 1 T-27 09-004S-5030 Plug Bolt 플러그 볼트 1 T-28 90S021S-306H Screw (M3×L30) 고정나사 2 T-29 49-016A-12HA Pneumatic I/O Cable 공압 입출력 케이블 1 Note: HA-22→공압 후 Мол용 분리형 노루발 HA-20-TH→공압식 후 Мол용 일체형 노루발 HA-22-TH→공압식 후 Мол용 분리형 노루발 일체형 jintex.in 47
Page 48 — Wiper Mechanism (Option)
U-I Wiper Mechanism (Option) 와이퍼 관계 (옵션) U-16 U-17 U-18 U-9 U-3 U-4 U-5 U-8 U-20 U-2 U-1 U-11 U-10 U-12 U-14 U-13 U-19 U-15 48 jintex.in
Page 49
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. U-1 GP-012588-00 Wiper Base 와이퍼 베이스 1 U-2 11-028A-12HA Solenoid 솔레노이드 1 U-3 Spring Washer 스프링 와셔 2 U-4 Nut (M4) 너트 (M4) 2 U-5 SC-0543-2302 Screw (11/64" n=40) 점 나사 2 U-8 GP-012587-00 Wiper Crank 와이퍼 크랭크 1 U-9 SC-0330-7400 Screw (15/64" n=28) 점나사 1 U-10 11-024A-12HA Wiper Link 와이퍼 링크 1 U-11 GP-008203-00 Hinge Screw For Wiper Link 와이퍼 링크 단나사 2 U-12 GP-012633-00 Wiper 와이퍼 1 U-13 GP-012585-00 Wiper Base Plate 와이퍼 베이스 판 1 U-14 11-024C-120H Hinge Screw For S-12 와이퍼 단나사 1 U-15 SC-0541-7600 Screw (9/64" n=40) 점나사 1 U-16 11-033A-12HA Wiper Cover 와이퍼 커버 1 U-17 40-004W-1600 Washer 와셔 2 U-18 SC-0543-2302 Screw (11/64" n=40) 점나사 2 U-19 11-034C-12HA Wiper Solenoid Cable 와이퍼 솔레노이드 케이블 1 U-20 11-035R-12HA Rubber For Wiper Stopper 와이퍼 스토퍼 쿠션고무 1 49 jintex.in
Page 50 — Upper Thread Holding Device (Option)
U-II Upper Thread Holding Device (Option) 원실 홀딩 장치 (옵션) SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. U-II-1 01-002A-12HA Arm (Pneumatic Type) 암(공압식) 1 U-II-2 01-054M-120D Model Mark(Mono-Lithic Driven Presser Foot) 모델마크(공압식 일체형 노루발) 1 U-II-3 01-056M-120D Model Mark(Separately Driven Presser Foot) 모델마크(공압식 분리형 노루발) 1 U-II-4 09-002A-5030 Upper Thread Holding Pin Cylinder(Ass'y) 윗실잡이 핀 실린더(조) 1(조) U-II-5 62-001A-12HA Upper Thread Holding Pin Cylinder Bracket 윗실잡이 핀 실린더 브라켓 1 U-II-6 07016SC-4113 Screw 윗실잡이 핀 실린더 브라켓 고정나사 2 U-II-7 18014SW-3111 Spring Washer 윗실잡이 핀 실린더 브라켓 고정나사 스프링 와셔 2 U-II-8 18015CW-3111 Washer 윗실잡이 핀 실린더 고정나사 와셔 2 U-II-9 09-003C-5030 Upper Thread Holding Pin Cylinder Knuckle 윗실잡이 핀 실린더 너클 1 U-II-10 62-007G-12HA Upper Thread Holding Pin Cylinder Knuckle Cap 윗실잡이 핀 실린더 너클 캡 1 U-II-11 49A003S-811H Hose Elbow 호스 엘보우 1 U-II-12 49A001S-811H Air Tube 에어 튜브 1 U-II-13 01-070M-12HA Wiper Sub-Class Sticker (Electric) 와이퍼 서브-클래스 스티커(전기식) 1 U-II-14 01-070M-12HA Upper Thread Holding Divce Sticker 윗실 홀딩장치 스티커 1 50 jintex.in
Page 51
V-I Pedal Mechanism 페달 관계 V-1-3 V-1-8 V-1-4 V-1-6 V-1-5 V-1-9 V-1-2 V-1-7 V-1-10 V-1-11 V-1-11 51 Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. V-I-1 12-012A-PT11 Foot Switch Ass'y 입식 (조) 1Set V-I-2 11-001A-PT10 Base Foot Switch 입식 페달 베이스 1 V-I-3 11-1000-PT11 One Step Stroke 1단 발판 스위치 1 V-I-4 11-2000-PT11 Two Step Stroke 2단 발판 스위치 1 V-I-5 08-015C-3701 Clamp Cable 케이블 잡이 2 V-I-6 09-031S-3701 Screw Clamping Cable Ass'y(M4×0.7 L=8) 케이블 잡이 조임나사(조) 1 V-I-7 11-001S-PT10 Ending Bushing 엔딩 부싱 1 V-I-8 11-003A-PT10 Cover Foot Switch 입식 페달 베이스 커버 1 V-I-9 07-004S-SM5S Screw Ass'y for "A" Foot Switch Cover(M4×0.7 L=8) 입식 페달 베이스 커버 조임나사(조) "A" 2 V-I-10 10-028S-SC53 Screw Ass'y for "B" Foot Switch Cover(M3×0.5 L=8) 입식 페달 베이스 커버 조임나사(조) "B" 2 V-I-11 11-002M-PT10 Sponge 스폰지 2 jintex.in
Page 52 — V-II Needle Cooler Device (Option) 니들쿨러 장치 (옵션)
V-II Needle Cooler Device (Option) 니들쿨러 장치 (옵션) V-II-8 V-II-9 V-II-12 V-II-7 V-II-13 V-II-6 V-II-12 V-II-1 V-II-11 V-II-4 V-II-2 V-II-3 V-II-10 52 jintex.in
Page 53
SunStar Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. V-II -1 Face Plate 면판 1 V-II -2 Guide A 가이드 A 1 V-II -3 Guide B 가이드 B 1 V-II -4 Guide Bracket 가이드 브라켓 1 V-II -5 Nozzle 노즐 1 V-II -6 Bracket For Air Blow Speed Controller 스피드 컨트롤러 브라켓 1 V-II -7 Speed Controller 스피드 컨트롤러 1 V-II -8 Bolt For Speed Controller 스피드 컨트롤러 고정볼트 2 V-II -9 Washer For Speed Controller 스피드 컨트롤러 고정와셔 2 V-II -10 Screw 가이드 잼나사 2 V-II -11 Screw 가이드 브라켓 잼나사 1 V-II -12 Air Tube (Ø4) 에어호스 0.3m V-II -13 Screw 스피드 컨트롤러 브라켓 고정나사 2 53 jintex.in
Page 54 — SPS/D-B1201M (HP) 벨트홀 장치 관계 (HP)
W SPS/D-B1201M (HP) 벨트홀 장치 관계 (HP) 54 45 43 42 44 22 14 2 41 25 27 26 31 6 13 30 25 31 17 15 30 39 40 18 21 20 5 24 3 7 28 31 22 26 27 11 37 36 32 16 12 10 29 23 22 8 35 38 46 jintex.in
Page 55
SunStar. Ref. No. Parts No. Note Name of Parts 품 명 Q' ty Assembly No. W-1 A-B1201-HP Hole Pattern Attachment 구멍 고정 장치 (조) 1조 W-2 85-001A-12HP Cover Guide 커버 가이드 1조 W-3 85-002A-12HP Pin Plate A 핀 플레이트 A 1조 W-4 85-003P-12HP Pin A 핀 A 1조 W-5 85-004A-12HP Pin Plate B 핀 플레이트 B 1조 W-6 85-005A-12HP Pin Plate C 핀 플레이트 C 1조 W-7 85-006A-12HP Pin Plate D 핀 플레이트 D 1조 W-8 85-007C-12HP Link-Lever A 링크 레버 A 1조 W-9 85-008C-12HP Link-Lever B 링크 레버 B 1조 W-10 15-015S-3500 Bolt A 볼트 A 1조 W-11 85-010S-12HP Bolt B 볼트 B 1조 W-12 85-011A-12HP Sensor Plate 센서 플레이트 1조 W-13 85-012C-12HP Stoper 스토퍼 1조 W-14 85-013A-12HP Cover A 커버 A 1조 W-15 85-014A-12HP Cover B 커버 B 1조 W-16 10-044A-12HP Solenoid 솔레노이드 1조 W-17 85-016P-12HP Pin B 핀 B 2조 W-18 85-017P-12HP Pin C 핀 C 1조 W-19 85-034A-12HP Bearing 베어링 1조 W-20 85-019C-12HP Bearing 베어링 1조 W-21 85-037C-12HP E Ring E 링 1조 W-22 85-020S-12HP Screw 스크류 5조 W-23 85-021W-12HP Washer 와셔 2조 W-24 85-033S-12HP Screw 스크류 5조 W-25 SC-A119-4119 Screw 스크류 2조 W-26 15-015S-3500 Screw 스크류 2조 W-27 85-036HP-12HP Wave Washer 와셔 2조 W-28 SN-0107-1230 Nut 너트 1조 W-29 85-035S-12HP Nut 너트 1조 W-30 85-025S-12HP Screw 스크류 3조 W-31 85-026S-12HP Screw 스크류 3조 W-32 85-027S-12HP Screw 스크류 4조 W-33 85-028S-12HP Screw 스크류 1조 W-34 85-029S-12HP Screw 스크류 2조 W-35 85-030S-12HP Screw 스크류 1조 W-36 15-027A-2070 Sensor 누름판 센서 1조 W-37 88-032S-12HP Screw 스크류 1조 W-38 85-038G-12HP Spring 스프링 1조 W-39 85-039S-12HP Screw 스크류 1조 W-40 85-040S-12HP Nut 너트 1조 W-41 85-018R-12HP Rubber Cap 고무마개 1 W-42 07S147S-306H Hook Cover 훅커버 (조)-HP 1 W-43 10-340A-120H Needle Plate 침판-HP 1 W-44 20-048A-120H Cloth Feed Plate 하부 이송판 (공용) 1 W-45 20-249A-120H Feed Guide Bracket 피이드 가이드 브라켓 1 W-46 15-027A-12HP Sensor connecting Cable 센서 입력 케이블 1 jintex.in 55
Page 56
X Option Parts 옵션 관계 표준형 / Standard Type SPS/C(D)-B1201 Part Name (품명) H A(공압용) H(후물용) M(일반용) WORK CLAMP FOOT (노루발) 40 23 18 Ass'y (조) 22-501A-120H Left (좌) U:22-601A-120H D:22-602A-120H 22-019A-120H 22-021A-120M Right (우) U:22-603A-120H D:22-604A-120H 22-0202A-120H 22-022A-120M FEED PLATE (이송판) 41 30.2 37 31 22-143A-120H 22-029A-120H 22-146A-120H 22-030A-120M Part Name (품명) SPS/C(D)-B1201 L(박물용) K(니트용) WORK CLAMP FOOT (노루발) Without Knurling Without Knurling 12 12 10 Left(좌) 22-023A-120L 22-023A-120K 22-123A-120K Right(우) 22-024A-120L 22-024A-120K 22-124A-120K FEED PLATE (이송판) Without Knurling t=0.8 Without Knurling t=0.8 Without Knurling 24 13 13 6.5 14.5 22-033A-120L 22-034A-120L 22-035A-120L 22-135A-120K jintex.in
Page 57
SunStar 선택형 / Option Type Part Name Option(옵션)-1 Option(옵션)-2 Option(옵션)-3 Option(옵션)-4 Option(옵션)-5 Option(옵션)-5-1 Option(옵션)-6 WORK CLAMP FOOT (노루발) 28.4 34 38 23 40 42 Left(좌) 22-119A-120H 22-121A-120H 22-126A-120H 22-135A-120H 22-141A-120H 22-502A-120H 22-144A-120H Right(우) 22-120A-120H 22-122A-120H 22-127A-120H 22-136A-120H 22-142A-120H (Ass'y) (조) 22-145A-120H FEED PLATE ('이송판) 32.9 35 39 31 41 50 22-129A-120H 22-130A-120H 22-128A-120H 22-030A-120M 22-143A-120H 22-147A-120H 57 Part Name Option-Lengthwise (세로 옵션 ) Option-Halt Moon (반달 옵션) Option-Circle(원형 옵션) WORK CLAMP FOOT (노루발) 5.6 23 16 13.4 9 $14 $12 $12 Left(좌) 22-123A-120L 22-131A-120H 22-231A-120H 22-138A-120H 22-238A-120H 22-539A-120H Right(우) 22-124A-120L 22-132A-120H 22-232A-120H 22-139A-120H 22-239A-120H (Ass'y) (조) Without Knurling 26 FEED PLATE ('이송판) 17 14 15 $17 22-133A-120L 22-134A-120H 22-234A-120H 22-140A-120H 22-240A-120H FINGER GUARD (핑거 가드) 46 49 86 22-125A-120H jintex.in
