Parts index — SunStar SPS/B-BH3000tap a row to open its page

Page 3 — CONTENTS

SunStar SPS/B-BH3000 parts on page 3

Ref	Part number	Part name	Qty
	4	ARM, BED 및 외장품 관계
	8	상측 관계
	12	하측 관계
	14	누름대 관계
	16	바늘대 요동 관계
	18	실조절 장치 관계
	20	상사절 관계
	22	하사절 관계
	26	Y-이송 관계
	28	커터 관계
	30	실감기 및 핸드풀리 관계
	32	급유 관계
	36	테이블 및 실패꽃이 관계
	38	악세사리 관계
	40	콘트롤 박스 관계
	42	오퍼레이션 유니트 관계

Page 4 — Arm, Bed & Machine Body Parts

SunStar SPS/B-BH3000 parts on page 4

Ref	Part number	Part name	Qty
	A-1	Machine Body
	A-2	Machine Body
	A-3	Cover
	A-4	Cover
	A-5	Screw
	A-6	Cover
	A-7	Screw
	A-8	Screw
	A-9	Cover
	A-10	Cover
	A-11	Cover
	A-12	Screw
	A-13	Lever
	A-14	Screw
	A-15	Cover
	A-16	Shaft
	A-17	Screw
	A-18	Cover
	A-19	Screw
	A-20	Bracket
	A-21	Screw
	A-22	Base
	A-23	Screw
	A-24	Screw
	A-25	Screw
	A-26	Bracket
	A-27	Screw
	A-28	Screw
	A-29	Screw
	A-30	Bracket
	A-31	Bracket
	A-32	Screw
	A-33	Screw
	A-34	Bracket
	A-35	Screw
	A-36	Washer
	A-37	Nut
	A-38	Nut
	A-39	Screw
	A-40	Screw
	A-41	Bracket
	A-42	Cover
	A-43	Screw
	A-44	Screw
	A-45	Screw
	A-46	Screw
	A-47	Screw
	A-48	Screw
	A-49	Bracket
	A-50	Screw
	A-51	Bracket
	A-52	Screw
	A-53	Screw
	A-54	Bracket
	A-55	Screw
	A-56, 57	Screw
	A-58	Cover
	A-59	Screw
	A-60	Label
	A-61	Screw
	A-62	Screw
	A-63	Screw
	A-64	Screw
	A-65	Screw
	A-66	Screw
	A-67	Screw
	A-68	Screw
	A-69	Screw
	A-70	Bracket
	A-71	Screw
	A-72	Screw
	A-73	Cover

Page 6 — A

SunStar SPS/B-BH3000 parts on page 6

Ref	Part number	Part name	Qty
	A-12	Screw
	A-10	Cover
	A-11	Cover
	A-9	Screw
	A-35	Screw
	A-36	Washer
	A-37	Screw
	A-34	Bracket
	A-19	Screw
	A-18	Cover
	A-33	Screw
	A-40	Screw
	A-30	Screw
	A-32	Screw
	A-31	Bracket
	A-71	Screw
	A-21	Screw
	A-20	Bracket
	A-64	Washer
	A-65	Screw
	A-68	Screw
	A-1	Main Body
	A-65	Screw
	A-67	Screw
	A-64	Washer
	A-2	Base
	A-60	Name Plate
	A-56, 57	Screw
	A-17	Screw
	A-15	Cover
	A-16	Shaft
	A-17	Screw
	A-5	Screw
	A-59	Cover
	A-3	Cover
	A-4	Gasket
	A-63	Screw
	A-58	Screw
	A-27	Screw
	A-26	Bracket
	A-14	Screw
	A-13	Lever
	A-66	Screw
	A-65	Screw
	A-62	Screw
	A-54	Cover
	A-55	Screw
	A-28	Screw
	A-29	Washer
	A-25	Screw
	A-22	Bracket
	A-24	Screw
	A-23	Screw
	A-72	Screw
	A-73	Cover
	A-41	Screw
	A-52	Screw
	A-53	Washer
	A-46	Screw
	A-48	Screw
	A-51	Lever
	A-45	Screw
	A-44	Cover
	A-42	Cover
	A-43	Screw
	A-47	Screw
	A-49	Screw
	A-45	Screw

Page 7

SunStar SPS/B-BH3000 parts on page 7

Ref	Part number	Part name	Qty
A-54	01-046R-300G	Bed Support Rubber
A-55	01-047S-300G	Bed Support Rubber Screw (11/64", n=40)
A-56	01-048M-300G	Model Sticker (Geneneral)
A-57	01-049M-300K	Model Sticker (knit)
A-59	01S006S-306H	Brand Mark (Face plate)
A-60	01S064S-306H	Brand Mark
A-61	01-048A-300G	Pause Switch (Set)
A-62	01-054R-300G	Cutter Driving Arm Shaft Rubber Cap
A-63	01-110R-1230	Face Plate Rubber Cap
A-64	01-007R-8130	Rubber Cap
A-65	04-104R-1230	Rubber Cap
A-66	01-144R-1230	Rubber Cap
A-67	01-021R-1600	Rubber Cap
A-68	44-011C-7400	Code Holder A
A-69	SC-0365-3710	Screw (9/64", n=40)
A-70	01-142A-257A	Code Holder B
A-72	01-060M-300G	Warning Sign Sticker
A-73	01-061M-300G	Threading Diagram

Page 8 — Upper Shaft Mechanism

SunStar SPS/B-BH3000 parts on page 8

Ref	Part number	Part name	Qty
	B-1	Upper Shaft Mechanism
	B-2
	B-3
	B-4
	B-5
	B-6
	B-7
	B-8
	B-9
	B-10
	B-11
	B-12
	B-13
	B-14
	B-15
	B-16
	B-17
	B-18
	B-19
	B-20
	B-21
	B-22
	B-23
	B-24
	B-25
	B-26
	B-27
	B-28
	B-29
	B-30
	B-31
	B-32
	B-33
	B-34
	B-35
	B-36
	B-37
	B-38
	B-39
	B-40
	B-41
	B-42
	B-43
	B-44
	B-45
	B-46
	B-47
	B-48
	B-49
	B-50
	B-51
	B-52
	B-53
	B-55
	B-56
	B-57
	B-58
	B-59
	B-60
	B-61
	B-62
	B-63
	B-64
	B-65
	B-66
	B-67
	B-68
	B-69
	B-70
	B-71
	B-72
	B-73
	B-74
	B-75
	B-76
	B-77
	B-78
	B-79
	B-80
	B-81
	B-82
	B-83

Page 9

SunStar SPS/B-BH3000 parts on page 9

Ref	Part number	Part name	Qty
	02-002 A-300G	Link Cam	1
	02-003W-300G	Washer	1
	02-003 C-2500	Screw (9/32", n=28)	1
	SC-0540-7600	Screw A (15/64", n=28)	1
	SC-A308-4517	Screw B (1/4", n=40)	2
	10-009 C-2700	Upper Shaft C-Ring	1
	02-016A-120D	Upper Shaft Bearing(R) (6302ZZNR)	1
	02-008A-300G	Upper Shaft Bushing (F)	1
	02-009A-300G	Upper Shaft Bushing (M)	1
	02-011A-300G	Upper Shaft Collar	2
	SC-0317-2700	Screw (15/64", n=28)	4
	02-119A-120D	Main Shaft Motor	1
	02-020S-120D	Screw (M5xP0.8)	4
	07-011W-1230	Spring Washer	4
	10-020W-2700	Washer	4
	02-017A-120D	Upper Shaft Coupling	1
	08037SC-120D	Screw (M6xL8)	4
	02-019A-300G	Upper Shaft Timming Pulley	1
	02-007C-2070	Upper Shaft Timming Pulley Fixing Ring	2
	SC-A308-4517	Screw (1/4", n=40)	2
	02-022A-300G	Upper Shaft Belt	1
	02-023A-300G	Idler Base Ass'y	1(Set)
	02-024A-300G	Idler	1
	SC-0140-5607	Screw (1/4", n=28)	1
	09-025W-8270	Washer (09-025W-8270)	1
	02-027C-300G	Idler C-Ring ($30)	2
	01-088A-7600	Idler Bearing	1
	SC-0109-2350	Screw (M6xP1.0)	2
	06-102W-2350	Washer	2
	02-032A-300G	Idler Timming Pulley	1
	02-033A-300G	Idler Timming Pulley Shaft	1
	02-034A-300G	Idler Timming Pulley Shaft Collar	1
	01A142S-811H	Idler Pulley Bearing	2
	02-036C-300G	Idler Pulley C-Ring ($20)	2
	SC-0317-2700	Screw (15/64", n=28)	2
	02-038R-300G	Upper Shaft Rubber Cap	1
	02-038A-300G	Bobbin Winder Driving Wheel	1
	SC-0499-1230	Screw (11/64", n=40)	2
	08-505A-300G	Needle Bar Holder	1
	04-102A-300G	Needle Bar Holder Slide Block	2
	SC-0128-7400	Screw (11/64", n=40)	2
	04-004A-300G	Needle Bar Frame	1
	15-105A-2070	Needle Bar Frame Bushing	2
	04-108A-300G	Needle Bar ZigZag Guide Block	1
	04-009A-300G	Needle Bar Frame Shaft	1
	SC-0101-3710	Screw (15/64", n=28)	1
	04-011A-300G	Needle Bar Frame Guide (Set)	1(Set)
	04-012A-300G	Needle Bar Frame Guide	1

Page 10 — Upper Shaft Mechanism

SunStar SPS/B-BH3000 parts on page 10

Ref	Part number	Part name	Qty
	B-1	Shaft
	B-2	Lever
	B-3	Screw
	B-4	Screw
	B-5	Washer
	B-6	Screw
	B-7	Ring
	B-8	Bearing
	B-9	Shaft
	B-10	Shaft
	B-11	Bearing
	B-12	Screw
	B-13	Housing
	B-14	Screw
	B-15	Washer
	B-16	Screw
	B-17	Shaft
	B-18	Screw
	B-19	Pulley
	B-20	Ring
	B-21	Screw
	B-22	Belt
	B-23	Bracket
	B-24	Bracket
	B-25	Screw
	B-26	Screw
	B-27	Screw
	B-28	Bearing
	B-29	Screw
	B-30	Washer
	B-31	Screw
	B-32	Washer
	B-33	Pulley
	B-34	Shaft
	B-35	Bearing
	B-36	Bearing
	B-37	Ring
	B-38	Screw
	B-39	Screw
	B-40	Bearing
	B-41	Screw
	B-42	Housing
	B-43	Screw
	B-44	Screw
	B-45	Shaft
	B-46	Lever
	B-47	Shaft
	B-48	Screw
	B-49	Bracket
	B-50	Shaft
	B-51	Screw
	B-52	Shaft
	B-53	Shaft
	B-55	Shaft
	B-56	Shaft
	B-57	Bracket
	B-58	Screw
	B-59	Shaft
	B-60	Shaft
	B-61	Screw
	B-62	Screw
	B-63	Screw
	B-64	Bracket
	B-65	Screw
	B-66	Screw
	B-67	Washer
	B-68	Shaft
	B-69	Shaft
	B-70	Lever
	B-71	Shaft
	B-72	Lever
	B-73	Bearing
	B-74	Shaft
	B-75	Lever
	B-76	Screw
	B-77	Shaft
	B-78	Screw
	B-79	Bracket
	B-80	Screw
	B-81	Screw
	B-82	Gear
	B-83	Screw

Page 12 — Low Shaft Mechanism

SunStar SPS/B-BH3000 parts on page 12

Ref	Part number	Part name	Qty
C-2	C-2	C-2
C-3	C-3	C-3
C-4	C-4	C-4
C-5	C-5	C-5
C-6	C-6	C-6
C-7	C-7	C-7
C-8	C-8	C-8
C-9	C-9	C-9
C-10	C-10	C-10
C-11	C-11	C-11
C-12	C-12	C-12
C-13	C-13	C-13
C-14	C-14	C-14
C-15	C-15	C-15
C-16	C-16	C-16
C-17	C-17	C-17
C-18	C-18	C-18
C-19	C-19	C-19
C-20	C-20	C-20
C-21	C-21	C-21
C-22	C-22	C-22
C-23	C-23	C-23
C-24	C-24	C-24
C-25	C-25	C-25
C-26	C-26	C-26
C-27	C-27	C-27
C-28	C-28	C-28
C-29	C-29	C-29
C-30	C-30	C-30
C-31	C-31	C-31
C-32	C-32	C-32
C-33	C-33	C-33
C-34	C-34	C-34
C-1	C-1	C-1

Page 13

SunStar SPS/B-BH3000 parts on page 13

Ref	Part number	Part name	Qty
	07-001 A-300G	Low Shaft	1
	07-002 A-300G	Low Shaft Pulley	1
	SC-0317-2700	Screw (15/64", n=28)	2
	07-004 A-300G	Low Shaft Bearing(R)	1
	ALCMMMMMMMMMMMM	Low Shaft Collar	1
	SC-0103-5607	Screw (11/64", n=40)	2
	07-007 A-300G	Low Shaft (M)	1
	SC-0317-2700	Screw (15/64", n=28)	1
	07-011 A-2070	Oil Pump Piston	2
	07-012 G-2070	Oil Pump Piston Spring	2
	07-013 S-2070	Oil Pump Piston Cap Screw (1/4", n=40)	2
	07-008 C-300G	Cap for Low Shaft Bushing(M)	4
	44-134 C-5700	Low Shaft (M) Nipple	4
	07-014 A-300G	Low Shaft (F)	1
	44-013 P-7500	Low Shaft (F) Nipple A	1
	07-010 A-2070	Low Shaft (F) Nipple B	1
	SC-0317-2700	Screw (15/64", n=28)	1
	44-022-300G	Hook Joint	1
	07-019 M-300G	Hook Joint Lubrication Felt	1
	SC-0317-2700	Screw (15/64", n=28)	4
	07-032 A-300G	Hook Holder	1
	07-022 S-300G	Screw (11/64", n=40)	1
	07-025 M-300G	Low Shaft Bearing(F) Lubrication Felt	1
	07-024 S-300G	Oil Adjusting Screw (9/32", n=28)	1
	07-025 S-300G	Oil Adjusting Screw Nut (9/32", n=40)	1
	07-026 S-300G	Oil Adjusting Stud Screw (9/64", n=40)	1
	07-027 S-300G	Oil Adjusting Rubber	1
	07-028 C-300G	Hook Bushing Felt Presser Plate	1
	07-029 A-300G	Hook Ass'y	1Set
	07-045 A-300G	Bobbin	1
	07-031 A-300G	Bobbin Case Ass'y	1Set
	07-130 C-300G	Low Shaft Collar Cover	1
	SC-0365-3710	Screw (9/14", n=40)	카
	L5.MMMMMMMMMMMM	L5 2102/2811	카

Page 14 — Presser Bar Mechanism

SunStar SPS/B-BH3000 parts on page 14

Ref	Part number	Part name	Qty
D-21	D-21	SCREW
D-22	D-22	WASHER
D-25	D-25	NUT
D-18	D-18	SPRING
D-19	D-19	PIN
D-20	D-20	BRACKET
D-27	D-27	NUT
D-28	D-28	WASHER
D-17	D-17	SCREW
D-16	D-16	SCREW
D-15	D-15	PRESSER BAR
D-42	D-42	CAP
D-43	D-43	SPRING SEAT
D-63	D-63	SPRING
D-41	D-41	SPRING
D-23	D-23	SCREW
D-24	D-24	WASHER
D-26	D-26	SCREW
D-36	D-36	SPRING
D-37	D-37	SPRING
D-52	D-52	GUIDE
D-53	D-53	SCREW
D-40	D-40	PRESSER BAR
D-38	D-38	SPRING
D-39	D-39	SCREW
D-35	D-35	SCREW
D-34	D-34	SPRING
D-31	D-31	SPRING
D-30	D-30	BRACKET
D-33	D-33	SPRING
D-32	D-32	SPRING
D-11	D-11	SCREW
D-10	D-10	BRACKET
D-9	D-9	SCREW
D-8	D-8	BRACKET
D-7	D-7	BRACKET
D-6	D-6	BRACKET
D-1	D-1	BRACKET
D-2	D-2	SCREW
D-3	D-3	WASHER
D-13	D-13	WASHER
D-14	D-14	SCREW
D-12	D-12	SCREW
D-4	D-4	FILTER
D-5	D-5	SCREW
D-55	D-55	SCREW
D-54	D-54	BRACKET
D-56	D-56	COVER
D-57	D-57	SCREW
D-61	D-61	BRACKET
D-47	D-47	SPRING
D-45	D-45	BRACKET
D-51	D-51	SPRING
D-44	D-44	SLEEVE
D-46	D-46	WASHER
D-49	D-49	SPRING
D-62	D-62	WASHER
D-48	D-48	SCREW
D-50	D-50	BRACKET
D-58	D-58	MOTOR
D-59	D-59	SCREW
D-60	D-60	WASHER

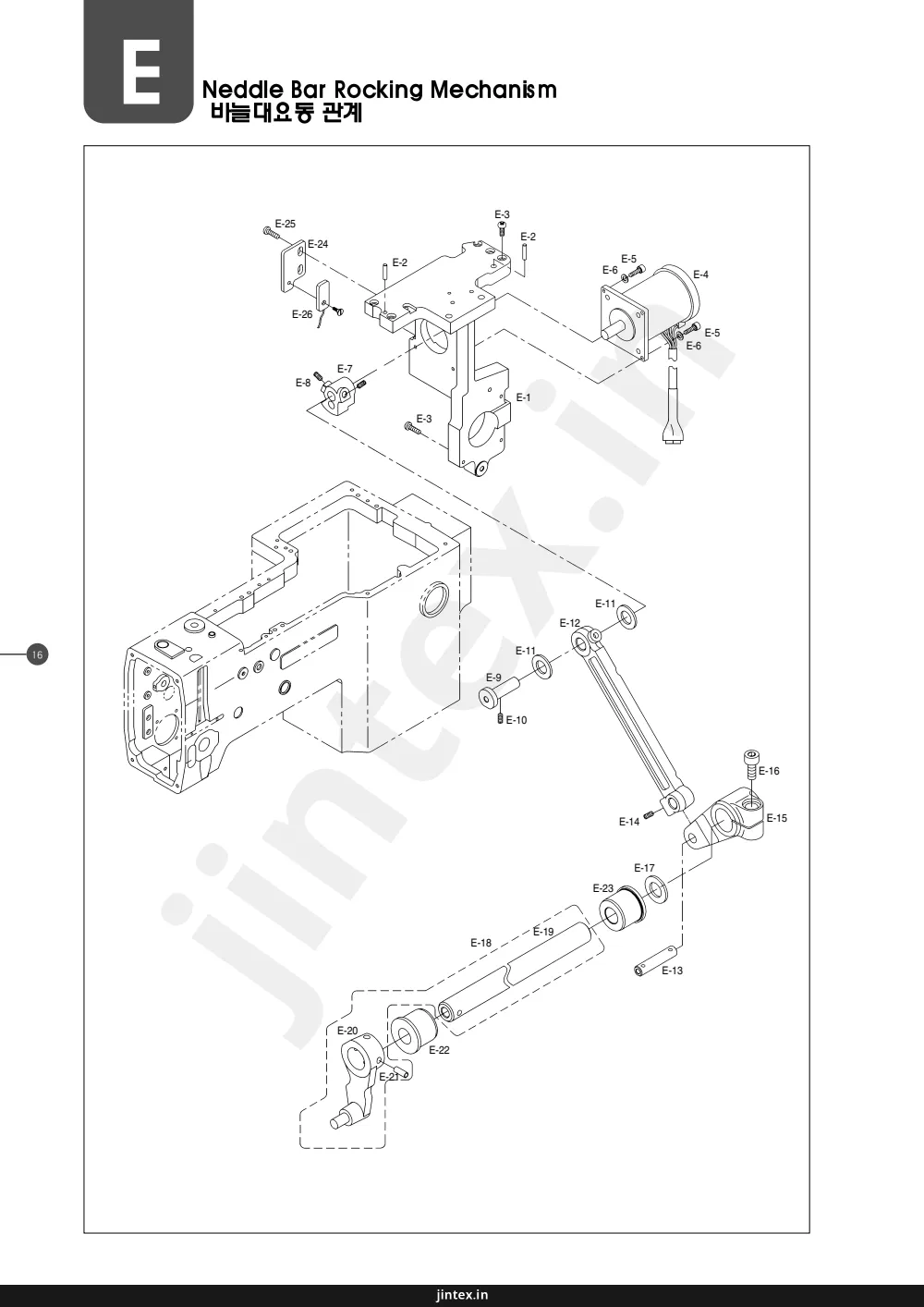

Page 16 — Needle Bar Rocking Mechanism

SunStar SPS/B-BH3000 parts on page 16

Ref	Part number	Part name	Qty
	E-1	E-1
	E-2	E-2
	E-3	E-3
	E-4	E-4
	E-5	E-5
	E-6	E-6
	E-7	E-7
	E-8	E-8
	E-9	E-9
	E-10	E-10
	E-11	E-11
	E-12	E-12
	E-13	E-13
	E-14	E-14
	E-15	E-15
	E-16	E-16
	E-17	E-17
	E-18	E-18
	E-19	E-19
	E-20	E-20
	E-21	E-21
	E-22	E-22
	E-23	E-23
	E-24	E-24
	E-25	E-25
	E-26	E-26

Page 17

SunStar SPS/B-BH3000 parts on page 17

Ref	Part number	Part name	Qty
E-1	15-001A-300G	Motor Base	1
E-2	43-072A-9570	Position Pin	2
E-3	SC-0305-5607	Screw (3/16", n = 32)	5
E-4	15-012A-2070	Zigzag Motor	1
E-5	02015SC-4113	Screw (M4xP0.7)	4
E-6	01-017W-1600	Washer	4
E-7	15-006A-300G	Motor Lever	1
E-8	SC-0317-2700	Screw (15/64", n = 28)	2
E-9	15-008C-300G	Motor Lever Shaft	1
E-10	SC-0317-2700	Screw (15/64", n = 28)	1
E-11	15-010W-5607	Washer	1
E-12	15-011A-300G	Zigzag Connecting Rod	1
E-13	15-012C-300G	Zigzag Connecting Rod Shaft	1
E-14	SC-0317-2700	Screw (15/64", n = 28)	1
E-15	15-014A-300G	Needle Bar Zigzag Lever (R)	1
E-16	SC-0109-2350	Zigzag Lever Bolt (M6xP1.0)	1
E-17	15-016W-300G	Washer	1
E-18	15-017A-300G	Needle Bar Oscillator Shaft Ass'y	1(Set)
E-19	15-118A-300G	Needle Bar Oscillator Shaft	1
E-20	15-117A-300G	Needle Bar Zigzag Lever (F)	1
E-21	04-009P-7400	Taper Pin	1
E-22	15-018A-300G	Needle Bar Oscillator Shaft Bushing (F)	1
E-23	15-019A-300G	Needle Bar Oscillator Shaft Bushing (R)	1
E-24	15-021A-300G	Zigzag Sensor Bracket	1
E-25	SC-A156-4118	Screw (9/64", n = 40)	2
E-26	15-027A-2070	Zigzag Sensor Ass'y	1(Set)

Page 18 — F

SunStar SPS/B-BH3000 parts on page 18

Ref	Part number	Part name	Qty
	F-1	F-1
	F-2	F-2
	F-3	F-3
	F-4	F-4
	F-5	F-5
	F-6	F-6
	F-7	F-7
	F-8	F-8
	F-9	F-9
	F-10	F-10
	F-11	F-11
	F-12	F-12
	F-13	F-13
	F-14	F-14
	F-15	F-15
	F-16	F-16
	F-17	F-17
	F-19	F-19
	F-20	F-20
	F-21	F-21
	F-22	F-22
	F-23	F-23
	F-24	F-24
	F-25	F-25
	F-26	F-26
	F-27	F-27
	F-28	F-28
	F-29	F-29
	F-30	F-30
	F-31	F-31
	F-32	F-32
	F-33	F-33
	F-34	F-34
	F-35	F-35
	F-36	F-36
	F-37	F-37
	F-38	F-38
	F-39	F-39
	F-40	F-40
	F-41	F-41
	F-42	F-42
	F-43	F-43
	F-44	F-44
	F-45	F-45
	F-46	F-46
	F-47	F-47
	F-48	F-48
	F-49	F-49
	F-50	F-50
	F-51	F-51
	F-52	F-52
	F-53	F-53
	F-54	F-54
	F-55	F-55
	F-56	F-56
	F-57	F-57
	F-58	F-58
	F-59	F-59
	F-60	F-60
	F-61	F-61
	F-62	F-62
	F-63	F-63
	F-64	F-64
	F-65	F-65
	F-66	F-66
	F-67	F-67
	F-68	F-68
	F-69	F-69
	F-70	F-70
	F-71	F-71
	F-72	F-72
	F-73	F-73

Page 19

SunStar SPS/B-BH3000 parts on page 19

Ref	Part number	Part name	Qty
	40-006A-BH30	Thread Release Solenoid Ass'y	1Set
	SC-0132-7500	Screw (M3xP0.5)	2
	40-002A-300G	Thread Release Solenoid Bracket	1
	SC-0543-2302	Screw (11/64", n=40)	1
	40-004A-300G	Guide Plate	2
	02014SC-4113	Fixing Bolt	1
	40-007A-300G	Thread Release Solenoid Link	1
	40-011S-300G	Screw (11/64")	1
	40-008G-300G	Thread Release Solenoid Spring	1
	40-009R-300G	Thread Release Solenoid Rubber	1
	40-010A-300G	Thread Release Connecting Rod	1
	40-011S-300G	Stud	1
	01-116A-2350	Thread Guide with Two Hole	1
	01-027C-1230	Fixing Nut	1
	40-015C-300G	Thread Guide with Three Hole	1
	SC-A174-1230	Screw (11/64", n=40)	1
	40-124A-300G	Sub Thread Tension Adjusting Ass'y	1Set
	40-224A-300G	Sub Thread Tension Adjusting Shaft	1
	40-204A-1230	Thread Guide Disk	2
	40-304A-1230	Sub Guide Disk Presser Plate	1
	11086FM-A001	Spring Cover	1
	40-255A-300G	Sub Thread Tension Adjusting Spring	1
	11088PM-A001	Stopper for Thread Tension Adjusting Sprng	1
	40-204A-2350	Nut	1
	40-205A-1230	Thread Release Pin	1
	40-001A-300G	Thread Tension Adjusting Ass'y	1Set
	40S002S-306H	Thread Tension Adjusting Body	1
	40S003S-306H	Thread Tension Adjusting Shaft	1
	40-604S-1230	Screw (9/64", n=40)	2
	40S006S-306G	Thread Take-up Lever Spring	1
	40-204A-1230	Thread Guide Disk	1
	40-304A-1230	Thread Guide Disk Presser Plate	1
	40-333G-123A	Thread Tension Adjusting Spring	1
	11088PM-A001	Stopper for Thread Tension Adjusting Sprng	1
	40-204A-2350	Nut	1
	40-026P-300G	Thread Release Pin	1
	SC-0317-2700	Screw (15/64", n=28)	1
	01S033S-306H	Arm Thread Guide Ass'y	1Set
	01S031S-306H	Thread Guide (R)	1
	SC-0120-1230	Screw (9/64", n=40)	1
	01-003C-250R	Thread Guide (L)	1
	SC-0120-1230	Screw (9/64", n=40)	1
	01-021A-8150	Thread Guide (L)	1
	SC-0120-1230	Screw (9/64", n=40)	1
	40-128A-300G	Sub Thread Tension Adjusting Ass'y(L)	1Set
	40-281A-300G	Sub Thread Tension Adjusting Shaft (L)	1
	40-204A-1230	Thread Guide Disk	2
	40-304A-1230	Threadk Guide Disk Presser Plate	1
	40S009S-306H	Cover for Sub Thread Tension Adjusting Spring	1
	11082SP-B001	Sub Thread Tension Adjusting Spring	1
	40-804W-1230	Stopper for Sub Thread Tension Adjusting Spring	1
	11089PM-A001	Nut	1
	40S046S-306H	Thread Detecting Plate Guide	1
	SC-A170-4124	Screw (9/64", n=40)	1
	40S047S-306H	Thread Detecting Plate	1
	40-054C-300G	Holder for Thread Detecting Line	1
	28-059S-300G	Screw (M5xP0.8)	1
	40-048A-300G	Upper Thread Guide Plate	1
	SC-0105-7500	Screw (M4xP0.7)	2
	SC-0317-2700	Screw (15/64", n=28)	1
	40-045A-300G	Shaft for Upper Thread Adjusting Lever	1
	13-021R-5300	O-Ring	1
	40-047A-300G	Tension Release Driving Plate	1
	40-049A-300G	Upper Thread Adjusting Lever (A)	1
	11-013S-5060	Screw for (11/64" n=40)	1
	41-004A-300G	Upper Thread Adjusting Lever (B)	1
	SC-A174-1230	Screw (11/64" n=40)	1
	01-018W-1600	Washer	1

Page 20 — Upper Thread Trimmer Mechanism

SunStar SPS/B-BH3000 parts on page 20

Ref	Part number	Part name	Qty
G-55	G-55	Screw
G-37	G-37	Washer
G-33	G-33	Shaft
G-44	G-44	Lever
G-45	G-45	Bracket
G-47	G-47	Screw
G-46	G-46	Screw
G-49	G-49	Washer
G-50	G-50	Nut
G-26	G-26	Screw
G-27	G-27	Screw
G-28	G-28	Screw
G-24	G-24	Screw
G-23	G-23	Screw
G-22	G-22	Screw
G-18	G-18	Nut
G-19	G-19	Washer
G-21	G-21	Lever
G-25	G-25	Screw
G-16	G-16	Lever
G-17	G-17	Screw
G-20	G-20	Screw
G-37	G-37	Washer
G-33	G-33	Shaft
G-34	G-34	Washer
G-36	G-36	Screw
G-38	G-38	Lever
G-52	G-52	Bracket
G-53	G-53	Screw
G-54	G-54	Washer
G-43	G-43	Lever
G-41	G-41	Shaft
G-39	G-39	Shaft
G-40	G-40	Shaft
G-42	G-42	Screw
G-51	G-51	Bush
G-48	G-48	Screw
G-15	G-15	Spring
G-14	G-14	Screw
G-13	G-13	Lever
G-8	G-8	Lever
G-12	G-12	Spring
G-5	G-5	Bracket
G-6	G-6	Screw
G-15	G-15	Spring
G-7	G-7	Lever
G-10	G-10	Washer
G-9	G-9	Screw
G-11	G-11	Screw
G-1	G-1	Shaft
G-2	G-2	Bush
G-3	G-3	Screw
G-4	G-4	Cap
G-29	G-29	Lever
G-31	G-31	Screw
G-30	G-30	Lever
G-32	G-32	Screw

Page 21

SunStar SPS/B-BH3000 parts on page 21

Ref	Part number	Part name	Qty
G-1	10-001 A-300G	Upper Thread Trimmer Hinge Shaft
G-2	10-002 A-300G	Upper Thread Trimmer Hinge Shaft Collar
G-3	SC-0164-2700	Screw (M5xP0.8)
G-4	01-042R-640L	Upper Thread Trimmer Hinge Shaft Rubber Cap
G-5	01-005W-300G	Washer
G-6	10-006 S-300G	Stud Screw for Upper Thread Trimmer Lever(15/64", n=28)
G-7	10-007 A-300G	Upper Thread Trimmer Lever
G-8	10-008C-300G	Upper Thread Trimmer Lever Stopper
G-9	10-009A-300G	Upper Thread Trimmer Lever Return Plate
G-10	10-010A-300G	Upper Thread Trimmer Lever Collar
G-11	SC-A156-4118	Screw (9/64", n=40)
G-12	10-012G-300G	Upper Thread Trimmer Lever Extension Spring
G-13	10-013A-300G	Spring Holder Plate
G-14	SC-0531-2302	Screw (9/64", n=40)
G-15	10-015G-300G	Upper Thread Trimmer Extension Spring
G-16	△패쓰쓰쓰쓰쓰쓰쓰	Upper Thread Trimmer Setting Plate
G-17	10-017S-300G	Support Screw (3/16", n=32)
G-18	SN-0115-7400	Roller Support Screw Nut (3/16", n=32)
G-19	10-020W-2700	Roller Support Screw Washer
G-20	10-020S-300G	Setting Plate Screw (M5xL10)
G-21	10-022A-300G	Upper Thread Trimmer Fixing Mes
G-22	△패쓰쓰쓰쓰쓰쓰쓰	Upper Thread Trimmer Moving Mes
G-23	10-024A-300G	Upper Thread Tension Plate
G-24	10-025S-300G	Screw (1/8", n=40)
G-25	10-026R-300G	Upper Thread Stopper Rubber
G-26	07-022S-300G	Screw (11/64", n=40)
G-27	10-020W-2700	Washer
G-28	07-011W-300G	Spring Washer
G-29	10-030A-300G	Upper Thread Trimmer Opening Cam(A)
G-30	10-031A-300G	Upper Thread Trimmer Opening Cam(B)
G-31	SC-0211-7500	Bolt (M4xP0.7)
G-32	02014SC-4113	Screw (M4xP0.7)
G-33	△패쓰쓰쓰쓰쓰쓰쓰	Upper Thread Trimmer Driving Lever
G-34	10-067A-300G	Upper Thread Trimmer Driving Lever Roller
G-35	10-036A-300G	Upper Thread Trimmer Driving Lever Bearing
G-36	△패쓰쓰쓰쓰쓰쓰쓰	Hinge Screw for Driving Roller(3/16", n=32)
G-37	10-042C-2700	O-Ring
G-38	△패쓰쓰쓰쓰쓰쓰쓰	Longitudinal Feed Arm for Upper Thread Trim
G-39	10-040A-300G	Roller For Long Longitudinal Feed Arm
G-40	10-041A-300G	Roller Shaft For Longitudinal Feed Arm
G-41	04-009C-3710	E-Ring
G-42	SC-0317-2700	Screw (15/64", n=28)
G-43	SC-0109-2350	Screw (M6xP1.0)
G-44	△패쓰쓰쓰쓰쓰쓰쓰	Upper Thread Trimmer Driving Arm
G-45	10-046A-300G	Upper Thread Trimmer Lever Support Plate
G-46	SC-0211-7500	Screw (M4xP0.7)
G-47	10-020W-2700	Washer
G-48	10-049A-300G	Roller Shaft For Upper Thread Trimmer Driving Arm
G-49	10-020W-2700	Washer
G-50	10-050S-300G	Nut (M5)
G-51	10-053A-300G	Roller For Upper Thread Trimmer Driving Arm
G-52	10-054A-300G	Upper Thread Trimmer Driving Arm Stopper
G-53	SC-0211-7500	Screw (M4xP0.7)
G-54	10-020W-2700	Washer
G-55	SC-0109-2350	Screw (M6xP1.0)

Page 22 — Lower Thread Trimmer Mechanism

SunStar SPS/B-BH3000 parts on page 22

Ref	Part number	Part name	Qty
	H-71	H-71
	H-62	H-62
	H-48	H-48
	H-46	H-46
	H-50	H-50
	H-54	H-54
	H-58	H-58
	H-56, 57	H-56, 57
	H-72	H-72
	H-44	H-44
	H-49	H-49
	H-55	H-55
	H-52	H-52
	H-65	H-65
	H-61	H-61
	H-45	H-45
	H-53	H-53
	H-64	H-64
	H-59	H-59
	H-36	H-36
	H-51	H-51
	H-60	H-60
	H-63	H-63
	H-26	H-26
	H-39	H-39
	H-38	H-38
	H-37	H-37
	H-40	H-40
	H-42	H-42
	H-41	H-41
	H-8	H-8
	H-5	H-5
	H-27	H-27
	H-29	H-29
	H-25	H-25
	H-21	H-21
	H-23	H-23
	H-24	H-24
	H-22	H-22
	H-3	H-3
	H-2	H-2
	H-1	H-1
	H-6	H-6
	H-7	H-7
	H-4	H-4
	H-11	H-11
	H-10	H-10
	H-9	H-9
	H-12	H-12
	H-14	H-14
	H-13	H-13
	H-67	H-67
	H-68	H-68
	H-70	H-70
	H-18	H-18
	H-19	H-19
	H-20	H-20
	H-16	H-16
	H-71	H-71
	H-73	H-73
	H-30	H-30
	H-32	H-32
	H-34	H-34
	H-33	H-33
	H-35	H-35
	H-74	H-74
	H-15	H-15

Page 23

SunStar SPS/B-BH3000 parts on page 23

Ref	Part number	Part name	Qty
	10-058A-300G	Lower Thread Trimmer Driving Lever	1
	10-059A-300G	Lower Thread Trimmer Driving Lever Roller	1
	10-060S-300G	Stud Screw for Lower Thread Trimmer Driving Lever Roller	1
	SN-0115-7400	Nut (3/16", n = 32)	2
	10-062A-300G	Lower Thread Trimmer Driving Lever Shaft	1
	07S020S-306H	Washer	1
	40-002C-2350	E-Ring	1
	SC-0317-2700	Screw (15/64", n = 28)	1
	10-066A-300G	Lower Thread Trimmer Cam	1
	10-067A-300G	Lower Thread Trimmer Cam Roller	1
	43-012S-2070	Stud Screw(B) for Lower Thread Trimmer Rod	1
	10-068A-300G	Lower Thread Trimmer Rod	1
	10-070A-300G	Lower Thread Trimmer Cam Shaft	2
	SC-0317-2700	Screw (15/64", n = 28)	2
	10-071S-300G	Stud Screw(A) for Lower Thread Trimmer Rod	1
	10-073A-300G	Lower Thread Trimmer Link (A)	1
	16-015C-3710	Stud Screw for Lower Thread Trimmer Link (A)	1
	43-006S-2070	Stud Screw for Lower Thread Trimmer Link	1
	10-076A-300G	Lower Thread Trimmer Link (B)	1
	ALLAMARRA-AMARAKK	Stud Screw for Lower Thread Trimmer Link (B)	1
	10-078A-300G	Mes Driving Lever	1
	16-015S-3710	Stud Screw for Mes Driving Lever Roller	1
	10-081A-300G	Mes Driving Lever Roller	1
	10-082W-300G	Washer(A) for Mes Driving Lever	1
	10-083W-300G	Washer(B) for Mes Driving Lever	1
	10-084A-300G	Lever For Lower Thread Retainer	1
	10-085S-300G	Stud Screw for Lower Thread Retainer Lever(11/64", n=11)	1
	10-086A-300G	Lower Thread Retainer	1
	10-087S-300G	Screw (9/64", n = 40)	2
	10-088A-300G	Fixed Mes for Lower Thread Trimmer Ass'y	1(Set)
	10-089S-300G	Screw (9/64", n = 40)	2
	10-090A-300G	Moving Mes for Lower Thread Trimmer	1
	10-092W-300G	Washer	1
	10-090S-300G	Screw (3/32", n = 56)	1
	10-094A-300G	Lower Thread Clamp Plate Ass'y	1(Set)
	10-090S-300G	Stud Screw for Lower Thread Clamp Plate (1/8", n=40)	1
	10-092W-300G	Washer	1
	10-098A-300G	Lower Thread Presser Plate	1
	10-096S-300G	Screw A (3/32", n=56)	1
	10-087S-300G	Screw B (9/64", n=40)	1
	10-101A-300G	Opening Plate	1
	10-102A-300G	Opening Plate Roller	1
	10-103A-300G	Opening Plate Roller Shaft	1
	SN-0101-1600	Nut (11/64", n=40)	1
	10-104A-300G	Opening Plate B	1
	SC-A320-7900	Screw "A" (1/8", n=40)	1
	SC-0531-2302	Screw "B" (1/8", n=40)	1
	10-105S-300G	Screw (3/32", n=56)	1
	10-108A-300G	Lower Thread Trimmer Base Plate Ass'y	1
	10-105A-300G	Lower Thread Trimmer Base Plate	1
	10-106A-306G	Lower Thread Trimmer Base Plate Cover	1
	10-110S-300G	Screw (11/64", n=40)	4

Page 24 — Lower Thread Trimmer Mechanism

SunStar SPS/B-BH3000 parts on page 24

Ref	Part number	Part name	Qty
	H-71	H-71
	H-62	H-62
	H-48	H-48
	H-46	H-46
	H-50	H-50
	H-58	H-58
	H-54	H-54
	H-52	H-52
	H-44	H-44
	H-66	H-66
	H-53	H-53
	H-45	H-45
	H-59	H-59
	H-51	H-51
	H-65	H-65
	H-61	H-61
	H-64	H-64
	H-60	H-60
	H-63	H-63
	H-36	H-36
	H-39	H-39
	H-38	H-38
	H-40	H-40
	H-37	H-37
	H-42	H-42
	H-41	H-41
	H-26	H-26
	H-27	H-27
	H-25	H-25
	H-28	H-28
	H-21	H-21
	H-23	H-23
	H-24	H-24
	H-22	H-22
	H-1	H-1
	H-2	H-2
	H-3	H-3
	H-4	H-4
	H-4	H-4
	H-11	H-11
	H-10	H-10
	H-6	H-6
	H-7	H-7
	H-9	H-9
	H-12	H-12
	H-13	H-13
	H-14	H-14
	H-15	H-15
	H-16	H-16
	H-18	H-18
	H-19	H-19
	H-20	H-20
	H-30	H-30
	H-32	H-32
	H-31	H-31
	H-33	H-33
	H-34	H-34
	H-35	H-35
	H-73	H-73
	H-71	H-71
	H-74	H-74

Page 25

SunStar SPS/B-BH3000 parts on page 25

Ref	Part number	Part name	Qty
H-56	10-111A-300G	Needle plate (G)	1
H-57	10-112A-300K	Needle Plate (K)	1
H-58	10-113S-300G	Screw (9/64", n = 40)	2
H-59	10-114A-300G	Bobbin Catcher	1
H-60	SC-0502-2302	Screw (9/64", n = 40)	1
H-61	10-116A-300G	Bobbin Catcher Bracket	1
H-62	10-117C-300G	Bobbin Catcher Spring Holder	1
H-63	10-118S-300G	Stud Screw for Bobbin Catcher(15/64", n=28)	1
H-64	SC-0215-1230	Screw (9/64", n = 40)	1
H-65	01S034S-306H	Nut (9/64", n = 40)	1
H-66	SC-0543-2302	Screw (11/64", n = 40)	1
H-67	10-122A-300G	Hook Cover Link (A)	1
H-68	10-123A-300G	Hook Cover Link (B)	1
H-69	10-124S-300G	Stud Screw(A) for Hook Cover Link	1
H-70	10-125S-300G	Stud Screw(B) for Hook Cover Link	1
H-71	21-019P-120H	Extension Spring Holder Pin for Lower Thread Trimmer	2
H-72	10-127G-300G	Extension Spring(A) for Lower Thread Trimmer	2
H-73	10-128G-300G	Extension Spring(B) for Lower Thread Trimmer	1
H-74	10-129R-300G	Rubber for Lower Thread Trimmer Connecting Rod	1

Page 26 — Y-Moving Mechanism

SunStar SPS/B-BH3000 parts on page 26

Ref	Part number	Part name	Qty
	I-22	I-22
	I-23	I-23
	I-24	I-24
	I-26	I-26
	I-25	I-25
	I-29	I-29
	I-29	I-29
	I-28	I-28
	I-27	I-27
	I-36	I-36
	I-40	I-40
	I-41	I-41
	I-39	I-39
	I-46	I-46
	I-43	I-43
	I-42	I-42
	I-48	I-48
	I-45	I-45
	I-49	I-49
	I-47	I-47
	I-34	I-34
	I-34	I-34
	I-35	I-35
	I-31	I-31
	I-38	I-38
	I-37	I-37
	I-30	I-30
	I-32	I-32
	I-33	I-33
	I-56	I-56
	I-15	I-15
	I-12	I-12
	I-16	I-16
	I-17	I-17
	I-15	I-15
	I-16	I-16
	I-17	I-17
	I-13	I-13
	I-54	I-54
	I-55	I-55
	I-14	I-14
	I-10	I-10
	I-11	I-11
	I-5	I-5
	I-6	I-6
	I-8	I-8
	I-9	I-9
	I-18	I-18
	I-19	I-19
	I-21	I-21
	I-20	I-20
	I-1	I-1
	I-2	I-2
	I-52	I-52
	I-53	I-53
	I-3	I-3
	I-4	I-4
	I-50	I-50
	I-51	I-51
	I-53	I-53

Page 27

SunStar SPS/B-BH3000 parts on page 27

Ref	Part number	Part name	Qty
	20-001 A-300G	Y-Driving Motor	1(Set)
	20-010 A-300G	Y-Driving Pulley	4
	SC-0317-2700	Screw (15/64", n=28)	1
	20-016 A-300G	Y-Feed Drive Timing Belt	2
	20-017 A-300G	Y-Feed Driven Pulley	1
	SC-0317-2700	Screw (15/64", n=28)	2
	20-016 A-300G	Y-Feed Drive Timming Belt	1
	20-018A-300G	Y-Feed Driven Pulley Bearing	1
	20-019A-300G	Y-Feed Timming Belt Holder Plate	2
	20-019A-300G	Fixing Bolt for Holder Plate	1
	20-017A-300G	Y-Feed Arm Support	1
	20-022A-300G	Y-Feed Shaft	1
	SC-0317-2700	Screw (15/64", n=28)	1
	20-027A-300G	Y-Feed Driven Shaft Bearing	3
	20-028A-300G	Bearing Support Plate	2
	SC-0531-2302	Screw (9/64", n=40)	2
	15-027A-2070	Y-Feed Sensor Ass'y	1
	20-032A-300G	Feed Sensor Support	2
	SC-0543-2302	Screw (11/64", n=40)	1
	01-017W-1600	Washer	2
	20-035A-300G	Y-Feed Arm Support Shaft	2
	SC-0164-2700	Screw (M5xP0.8)	2
	20-037A-300G	Y-Feed Arm	1
	20-038A-300G	Return Cam Support Plate	1
	20-039A-300G	Return Cam	1
	SC-0211-7500	Fixing Bolt for Return Cam Support Plate	1
	SC-0211-7500	Screw (M4xP0.5)	1
	01-018W-1600	Washer	1
	20-044A-300K	Feed Plate (G)	2
	20-044A-300K	Feed Plate	2
	20-044A-300K	Feed Plate (K)	4
	SC-0211-7500	Bolt for Feed Plate (M4xP0.7)	1
	01-017W-1600	Washer	1
	20-047A-300G	Feed Plate Guide	1
	SC-A170-4124	Screw (9/64", n=40)	1
	20-049A-300G	Feed Arm Support	1
	20-050A-300G	Y-Feed Arm Supporter Cover	1
	SC-0211-7500	Screw (M4xP0.7)	1
	20-052A-300G	Presser Foot Ass'y	1(Set)
	20-521G-300G	Fixing Spring	1
	20-522A-300G	Presser Foot (U)	2
	20-523A-300G	Presser Foot (L)	1
	SC-524S-300K	Screw (3/32", n=56)	2
	20-053A-300K	Presser Foot Ass'y - for Knit	1(Set)
	20-525A-300K	Presser Foot (L)- for Knit	1
	ALAMAXAMAXAMAX	Stud Screw for Presser Foot(9/64", n=40)	1
	20-157C-300G	Finger Guard	1
	20-526R-300G	Presser Foot Cushion Rubber (G)	1
	20-527R-300G	Presser Foot Cushion Rubber (K)ention	2
	20-055S-300G	Adjusting Screw for Timing Belt	1
	10-050S-300G	Tension Adjusting Nut for Timing Belt	1
	20-0040-300G	Y-Holder Bracket	1
	20-0040-300G	Screw (M6xP1.0)	3
	20-060A-300G	Y-Feed Guide Shaft	1
	SC-0211-7500	Screw (11/64", n=40)	2
	06-007C-1600	C-Ring (19)	2

Page 28 — Cutter Mechanism

SunStar SPS/B-BH3000 parts on page 28

Ref	Part number	Part name	Qty
	J-1	J-1
	J-2	J-2
	J-3	J-3
	J-4	J-4
	J-5	J-5
	J-6	J-6
	J-7	J-7
	J-8	J-8
	J-9	J-9
	J-10	J-10
	J-11	J-11
	J-12	J-12
	J-13	J-13
	J-14	J-14
	J-15	J-15
	J-16	J-16
	J-17	J-17
	J-18	J-18
	J-19	J-19
	J-20	J-20
	J-21	J-21
	J-22	J-22
	J-23	J-23
	J-24	J-24
	J-25	J-25
	J-26	J-26
	J-27	J-27
	J-28	J-28
	J-29	J-29
	J-30	J-30
	J-31	J-31
	J-32	J-32
	J-33	J-33
	J-34	J-34
	J-35	J-35
	J-36	J-36
	J-37	J-37
	J-38	J-38
	J-39	J-39
	J-40	J-40
	J-41	J-41
	J-42	J-42
	J-43	J-43
	J-44	J-44
	J-45	J-45
	J-46	J-46
	J-47	J-47
	J-48	J-48
	J-49	J-49

Page 29

SunStar SPS/B-BH3000 parts on page 29

Ref	Part number	Part name	Qty
J-1	28-001 A-300G	Cutter Driving Arm Shaft
J-2	SC-0101-3710	Screw (15/64", n=28)
J-3	28-103 A-300G	Cutter Shaft
J-4	28-004 A-300G	Shaft Holder
J-5	SC-0317-2700	Screw (15/64", n=28)
J-6	28-006 A-300G	Cutter Driving Link Shaft
J-7	SC-0317-2700	Screw (15/64", n=28)
J-8	28-008 A-300G	Cutter Driving Link
J-9	28-109 A-300G	Cutter Shaft Slide Block
J-10	28-010 A-300G	Cutter Shaft Guide
J-11	SC-0151-5050	Screw (15/64", n=28)
J-12	28-112 A-300G	Cutter Shaft Bushing
J-13	28-013S-300G	Adjusting Screw for Cutter (1/2", n=40)
J-14	28-014G-300G	Spring for Cutter Adjusting
J-15	28-015 A-300G	Cushion Support for Adjusting Screw
J-16	28-016S-300G	Stud for Cushion Support (9/64", n=40)
J-17	28-017S-300G	Nut for Cutter Adjusting Screw(1/2", n=40)
J-18	28-018 A-300G	Cutter Mounting Plate
J-19	SC-0211-7500	Screw (M4xP0.7)
J-20	28-020 A-300G	Cutter Adjusting Plate
J-21	SC-0211-7500	Screw (M4xP0.7)
J-22	28-022 A-300G	Cutter Holder
J-23	XX	Screw (11/64", n=40)
J-24	02-021 A-1250	Collar for Cutter Driving Arm Shaft
J-25	SC-0317-2700	Screw (15/64", n=28)
J-26	28-027 A-300G	Cutter Driving Arm
J-27	28-028P-300G	Pin for Cutter Driving Arm
J-28	SC-0164-2700	Screw (M5xP0.8)
J-29	21-019P-120H	Spring Holder
J-30	28-031 A-300G	Cutter Link Shaft
J-31	SC-0317-2700	Screw (15/64", n=28)
J-32	02-003W-300G	Washer
J-33	28-034 A-300G	Cutter Link Bracket
J-34	XX	Screw (11/64", n=40)
J-35	XX	Stud Screw for Cutter Link (15/64", n=28)
J-36	XX	Cutter Solenoid Bracket
J-37	SC-0194-2302	Screw (3/16", n=28)
J-38	XX	Screw (M5xL10)
J-39	06-026A-BH30	Cutter Solenoid Ass'y
J-40	XX	Stopper Cushion
J-41	XX	Solenoid Stopper
J-42	XX	Washer
J-43	XX	Nut
J-44	15-027 A-2070	Cutter Sensor Ass'y
J-45	28-047 A-300G	Cutter Sensor Bracket
J-46	SC-0543-2302	Screw (11/64", n=40)
J-47	28-061G-300G	Extention Spring for Cutter Driving Arm
J-48	28-049S-300G	Screw (11/64", n=40)
J-49	28-053A-300G	Cutter (1/2")

Page 30 — Bobbin Winder & Hand Pully Mechanism

SunStar SPS/B-BH3000 parts on page 30

Ref	Part number	Part name	Qty
	K-1	K-1
	K-2	K-2
	K-3	K-3
	K-4	K-4
	K-5	K-5
	K-6	K-6
	K-7	K-7
	K-8	K-8
	K-9	K-9
	K-10	K-10
	K-11	K-11
	K-12	K-12
	K-13	K-13
	K-15	K-15
	K-16	K-16
	K-18	K-18
	K-19	K-19
	K-20	K-20
	K-21	K-21
	K-22	K-22
	K-23	K-23
	K-24	K-24
	K-25	K-25
	K-26	K-26
	K-27	K-27
	K-29	K-29
	K-30	K-30
	K-31	K-31
	K-32	K-32
	K-33	K-33
	K-34	K-34
	K-35	K-35
	K-36	K-36
	K-37	K-37
	K-38	K-38
	K-39	K-39
	K-40	K-40
	K-41	K-41
	K-42	K-42
	K-43	K-43
	K-44	K-44
	K-45	K-45

Page 31

SunStar SPS/B-BH3000 parts on page 31

Ref	Part number	Part name	Qty
K-1	255001S-306H	Hand Pully Driven Gear	1
K-2	SC-A308-4517	Screw (1/4", n = 40)	4
K-3	25S104S-306H	Hand Pully	1
K-4	25S105S-306H	Hand Pully Shaft	1
K-5	25S006S-306H	Stud Screw for Hand Pully Roller	1
K-6	25S007S-306H	Hand Pully Roller	1
K-7	25S008S-306H	Spring Pin	1
K-8	25S009S-306H	Hand Pully Bushing	1
K-9	SC-0317-2700	Screw (15/64", n = 28)	1
K-10	25S011S-306H	Hand Pully Spring	1
K-11	25S012S-306H	Screw	1
K-12	41S101S-306H	Thread Winder Ass'y	1(Set)
K-13	41S001S-306H	Thread Winder Base Ass'y	1
K-14	41-002A-300G	Thread Winder Driving Shaft	1
K-15	41-018A-120H	Bobbin Winder Action Body	1
K-16	41S006S-306H	Thread Winder Action pulley	1
K-17	SC-0104-5607	Screw (11/64", n = 40)	2
K-18	41S008S-306H	Thread Winder Action Ring	1
K-19	41S009S-306H	Bobbin Winder Shaft Rubber Ring	1
K-20	41-008A-300G	Bobbin Stand	1
K-21	41-009A-300G	Bobbin Stopper	1
K-22	41-010A-300G	Bobbin Winder Adjusting Plate	1
K-23	SC-0130-1230	Screw (1/8", n = 40)	1
K-24	06011SW-306H	Washer	1
K-25	41-013A-300G	Bobbin Winder Lever	1
K-26	SC-0105-7500	Screw (M4xP0.7)	1
K-27	41S013S-306H	Bobbin Winder Lever Shaft	1
K-28	04-009C-3710	E-Ring (Ø5)	2
K-29	40-007W-1600	Washer	2
K-30	41S014S-306H	Thread Winder Adjusting Cam	1
K-31	02004SC-4113	Screw (M4xP0.7)	1
K-32	41S021S-306H	Thread Winder Spring	1
K-33	41S017S-306H	Thread Winder Action Plate	1
K-34	41S023S-306H	Thread Winder Mes	3
K-35	41S025S-306H	Thread Winder Mes	1
K-36	SC-0519-2302	Screw (9/64", n = 40)	2
K-37	41S027S-306H	Thread Tension Control Ass'y	1(Set)
K-38	41S034S-306H	Thread Tension Cap Nut	1
K-39	40-804W-1230	Thread Tension Spring Stopper	1
K-40	GP-003213-00	Thread Tension Spring	1
K-41	40-024A-1230	Spring Cover	1
K-42	40-108A-1306	Thread Tension Disk	1
K-43	41S028S-306H	Thread Tension Adjusting Shaft	1
K-44	41S026S-306H	Thread Guide Plate	1
K-45	SN-0121-7400	Nut	1

Page 32 — Lubrication Mechanism

SunStar SPS/B-BH3000 parts on page 32

Ref	Part number	Part name	Qty
L-26	L-26	L-26
L-25	L-25	L-25
L-27	L-27	L-27
L-24	L-24	L-24
L-23	L-23	L-23
L-22	L-22	L-22
L-48	L-48	L-48
L-15	L-15	L-15
L-31	L-31	L-31
L-16	L-16	L-16
L-32	L-32	L-32
L-30	L-30	L-30
L-29	L-29	L-29
L-28	L-28	L-28
L-20	L-20	L-20
L-21	L-21	L-21
L-57	L-57	L-57
L-57	L-57	L-57
L-57	L-57	L-57
L-13	L-13	L-13
L-12	L-12	L-12
L-43	L-43	L-43
L-36	L-36	L-36
L-58	L-58	L-58
L-35	L-35	L-35
L-64	L-64	L-64
L-44	L-44	L-44
L-49	L-49	L-49
L-49	L-49	L-49
L-46	L-46	L-46
L-59	L-59	L-59
L-2	L-2	L-2
L-1	L-1	L-1
L-19	L-19	L-19
L-60	L-60	L-60
L-47	L-47	L-47
L-45	L-45	L-45
L-63	L-63	L-63
L-51	L-51	L-51
L-50	L-50	L-50
L-53	L-53	L-53
L-52	L-52	L-52
L-55	L-55	L-55
L-57	L-57	L-57
L-54	L-54	L-54
L-56	L-56	L-56
L-61	L-61	L-61
L-3	L-3	L-3
L-14	L-14	L-14
L-4	L-4	L-4
L-4	L-4	L-4
L-42	L-42	L-42
L-17	L-17	L-17
L-18	L-18	L-18
L-8	L-8	L-8
L-67	L-67	L-67
L-68	L-68	L-68
L-69	L-69	L-69
L-72	L-72	L-72
L-65	L-65	L-65
L-70	L-70	L-70
L-72	L-72	L-72
L-73	L-73	L-73
L-72	L-72	L-72
L-72	L-72	L-72
L-71	L-71	L-71
L-72	L-72	L-72
L-6	L-6	L-6
L-7	L-7	L-7
L-5	L-5	L-5

Page 33

SunStar SPS/B-BH3000 parts on page 33

Ref	Part number	Part name	Qty
	01-009R-2700	Code Holder (6N)
	SC-0365-3710	Screw (9/64", n = 40)
	44-003A-300G	Oil Filter Base Bracket
	SC-0543-2302	Screw (11/64", n = 40)
	44-020C-2070	Oil Filter
	44-019A-2070	Oil Filter Base
	SC-0365-3710	Screw (9/64", n = 40)
	44-009C-300G	Holder for Oil Hose A
	SC-0365-3710	Screw A (9/64", n = 40)
	44-017C-300G	Holder for Oil Hose B
	SC-0365-3710	Screw B (9/64", n = 40)
	44-013C-300G	Holder for Oil Hose C
	SC-0365-3710	Screw C (9/64", n = 40)
	44-015C-300G	Holder for Oil Hose D
	44-017C-300G	Holder for Oil Hose E
	SC-0543-2302	Screw E (11/64", n = 40)
	44-019C-300G	Holder for Oil Hose F
	SC-0365-3710	Screw F (9/64", n = 40)
	Oil Wick for Lower Shaft Bushing(F)	Oil Wick for Lower Shaft Bushing(F)
	44-012C-1230	Oil Hose for Oil Terminal
	44S002S-306H	Return Hose for Oil Terminal
	44-023A-300G	Oil Terminal Base
	SC-0365-3710	Screw (9/64", n = 40)
	44-025A-300G	Felt Base
	44-026A-300G	Felt Base Plate
	SC-0543-2302	Screw (11/64", n = 40)
	44-028M-300G	Felt A
	44-029A-300G	Oil Terminal
	SC-0543-2302	Screw (11/64", n = 40)
	44-031R-300G	Oil Window Packing
	44-032C-300G	Oil Cap
	44-033C-300G	Oil Pipe
	Oil Wick for Oil Terminal	Oil Wick for Oil Terminal
	Oil Wick for Lower Shaft Bushing(F)	Oil Wick for Lower Shaft Bushing(F)
	Oil Wick for Needle Bar Frame	Oil Wick for Needle Bar Frame
	Oil Wick Thread Take-up Lever	Oil Wick Thread Take-up Lever
	44-012C-1230	Oil Hose for Lower Shaft Bushing(R)
	Oil Wick for Lower Shaft Bushing(R)	Oil Wick for Lower Shaft Bushing(R)
	44-012C-1230	Oil Hose for Oscillator Shaft Bushing(R)
	Oil Wick for Oscillator Shaft Bushing(R)	Oil Wick for Oscillator Shaft Bushing(R)
	01-011C-2350	Code Holder (5N)
	SC-0365-3710	Screw (9/64", n = 40)
	06-033M-7400	Oil Felt for Upper Shaft Bushing(F, R)
	06-033M-7400	Oil Felt for Oscillator Shaft Bushing(F, R)
	44-049M-300G	Falt
	44-050C-300G	Oil Return Felt
	SC-0365-3710	Felt Support
	44-053R-300G	Screw (9/64", n = 40)
	44-056R-300G	Oil Cap Support
	44-054C-300G	Oil Rejecter
	SC-0365-3710	Zigzag Connecting Rod Felt Holder
	07-008M-3710	Screw (9/64", n = 40)
	07-004M-7400	Oil Wick for Zigzag Connecting Rod B

Page 34

SunStar SPS/B-BH3000 parts on page 34

Ref	Part number	Part name	Qty
L-26	L-26	L-26
L-26	L-26	L-26
L-25	L-25	L-25
L-24	L-24	L-24
L-27	L-27	L-27
L-23	L-23	L-23
L-22	L-22	L-22
L-23	L-23	L-23
L-48	L-48	L-48
L-15	L-15	L-15
L-16	L-16	L-16
L-31	L-31	L-31
L-32	L-32	L-32
L-30	L-30	L-30
L-29	L-29	L-29
L-28	L-28	L-28
L-20	L-20	L-20
L-21	L-21	L-21
L-57	L-57	L-57
L-57	L-57	L-57
L-13	L-13	L-13
L-12	L-12	L-12
L-43	L-43	L-43
L-36	L-36	L-36
L-58	L-58	L-58
L-35	L-35	L-35
L-64	L-64	L-64
L-49	L-49	L-49
L-44	L-44	L-44
L-44	L-44	L-44
L-40	L-40	L-40
L-46	L-46	L-46
L-59	L-59	L-59
L-60	L-60	L-60
L-19	L-19	L-19
L-47	L-47	L-47
L-45	L-45	L-45
L-1	L-1	L-1
L-2	L-2	L-2
L-63	L-63	L-63
L-18	L-18	L-18
L-42	L-42	L-42
L-17	L-17	L-17
L-8	L-8	L-8
L-18	L-18	L-18
L-62	L-62	L-62
L-68	L-68	L-68
L-69	L-69	L-69
L-72	L-72	L-72
L-73	L-73	L-73
L-65	L-65	L-65
L-70	L-70	L-70
L-72	L-72	L-72
L-72	L-72	L-72
L-72	L-72	L-72
L-71	L-71	L-71
L-51	L-51	L-51
L-50	L-50	L-50
L-53	L-53	L-53
L-52	L-52	L-52
L-55	L-55	L-55
L-57	L-57	L-57
L-56	L-56	L-56
L-54	L-54	L-54
L-61	L-61	L-61
L-3	L-3	L-3
L-14	L-14	L-14
L-4	L-4	L-4
L-6	L-6	L-6
L-5	L-5	L-5
L-7	L-7	L-7
L-72	L-72	L-72
L-73	L-73	L-73

Page 35

SunStar SPS/B-BH3000 parts on page 35

Ref	Part number	Part name	Qty
L-55	44-012C-1230	Oil Hose for Zigzag Connecting Rod A
L-56	44-012C-1230	Oil Hose for Zigzag Connecting Rod B
L-58	44-061M-300G	Oil Felt for Needle Bar Crank
L-59	44-062C-300G	Oil Felt Holder for Needle Bar Crank
L-60	SC-0365-3710	Screw (9/64", n=40)
L-61	44-012C-1230	Hose
L-62	44-012C-1230	Hose
L-63	44-012C-1230	Hose
L-64	44-012C-1230	Hose
L-65	44-066A-300G	Oil Pan
L-66	44-067M-300G	Oil Pan Gasket
L-68	SC-0347-1230	Screw for Oil Cap
L-69	44-005R-1230	O-Ring
L-70	44-010C-1230	Magenatic
L-71	44-067A-300G	Oil Stopper Plate
L-72	44-072R-300G	Oil Pan Rubber Support A
L-73	44-072R-300G	Oil Pan Rubber Support B

Page 36 — Table Mechanism

SunStar SPS/B-BH3000 parts on page 36

Ref	Part number	Part name	Qty
M-1	M-1	Table Top
M-2	M-2	Leg Assembly
M-3	M-3	Control Box
M-4	M-4	Support Rail
M-5	M-5	Screw
M-6	M-6	Mechanism

Page 37

SunStar SPS/B-BH3000 parts on page 37

Ref	Part number	Part name	Qty
M-2	TZ-001-1000	Table Stand Ass'y
M-6	91-007A-2302	Thread Stand Ass'y

Page 38 — Accessories Mechanism

SunStar SPS/B-BH3000 parts on page 38

Ref	Part number	Part name	Qty
	N-3	N-3
	N-2	N-2
	N-4	N-4
	N-1	N-1
	N-5	N-5
	N-20	N-20
	N-12	N-12
	N-11	N-11
	N-10	N-10
	N-9	N-9
	N-8	N-8
	N-15	N-15
	N-14	N-14
	N-13	N-13
	N-6	N-6
	DP x 5 #11	DP x 5 #11
	N-7	N-7
	N-17	N-17
	N-20	N-20
	N-27	N-27
	N-18	N-18
	N-28	N-28
	N-24	N-24
	N-25	N-25
	N-29	N-29
	N-19	N-19
	N-21	N-21
	N-16	N-16
	N-22	N-22
	N-23	N-23

Page 39

SunStar SPS/B-BH3000 parts on page 39

Ref	Part number	Part name	Qty
N-1	91-102C-1230	Driver (L)
N-2	91-103C-1230	Driver (M)
N-3	91-103C-1230	Driver (S)
N-4	91S004S-306H	Spaner (9x10)
N-5	91-011C-12330	Oiler
N-7	07-045A-2070	Bobbin
N-8	91-001C-2700	L-Shaped Wrench (2mm)
N-9	91-004C-2700	L-Shaped Wrench (2.5mm)
N-10	91-005C-2700	L-Shaped Wrench (3mm)
N-11	91-001C-3800	L-Shaped Wrench (4mm)
N-12	91-002C-2700	L-Shaped Wrench (5mm)
N-16	91-001C-1230	Accessorie Bag
N-17	91-001C-120H	Head Cover
N-18	91-007C-300G	Thread
N-19	91-020A-300G	Pin Set
N-20	91-008C-1230	Oil
N-21	91-021C-300G	Body Support
N-22	04-026A-300G	Gauge for Needle Bar Setting (G)
N-23	04-027A-300G	Gauge for Needle Bar Setting (K)
N-24	01A143S-811H	Cable Tie (S)
N-25	02-003A-2700	Cable Tie (M)
N-26	28-054A-300G	Cutter (3/8")
N-27	28-056A-300G	Cutter (1")
N-28	28-055A-300G	Cutter (5/8")
N-29	28-057A-300G	Cutter (11/4")

Page 40 — Control Box Mechanism

SunStar SPS/B-BH3000 parts on page 40

Ref	Part number	Part name	Qty
	O-42	Fan
	O-43	Screw
	O-19	Screw
	O-18	Fan
	O-20	Fan
	O-27	Bracket
	O-9	Screw
	O-2	Washer
	O-35	Washer
	O-3	Washer
	O-4	Washer
	O-34	Screw
	O-1	Control Box
	O-5	Screw
	O-13	Screw
	O-14	Washer
	O-15	Washer
	O-17	Screw
	O-31	Dust-proof Filter
	O-8	Side Panel
	O-21	Printed Circuit Board
	O-23	Cover
	O-24	Screw
	O-10	Screw
	O-11	Screw
	O-16	Printed Circuit Board
	O-25	Screw
	O-39	Screw
	O-40	Screw
	O-36	Printed Circuit Board
	O-41	Screw
	O-37	Printed Circuit Board
	O-45	Screw
	O-38	Heat Sink
	O-7	Screw
	O-33	Label
	O-30	Caution Label
	O-28	Bracket
	O-29	Handle
	O-6	Side Panel
	O-32	Voltage Setting Label

Page 41

SunStar SPS/B-BH3000 parts on page 41

Ref	Part number	Part name	Qty
O-1	01-001A-BT01	Control Box	1
O-2	01-001N-BT01	Screw Control Box (M6xP1 L=50, SUS)	4
O-3	10-003S-SW66	Spring Washer Control Box	4
O-4	10-004S-SW66	Flat Washer Control Box	4
O-5	09-035S-3701	Nut Control Box	6
O-6	01-002A-BT01	Control Box Cover	1
O-7	10-014M-AT10	Screw Control Box Side Cover (M4xP0.7 L=6)	12
O-8	01-003A-BT01	Control Box Side Cover	1
O-9	10-014M-AT10	Screw Control Box Side Cover (M4xP0.7 L=6)	7
O-10	01-0000-BP00	POWER P.C.B	1
O-11	10-021MSW66	Screw POWER P.C.B (M3xP0.7 L=6)	4
O-12	01-004A-BY01	Transformer	1
O-13	10-028M-S W	Screw Transformer (M5xP0.8 L=10)	4
O-14	10-028M-SW66	Spring Washer Transformer	4
O-15	10-005S-SW66	Flate Washer Transformer	4
O-16	03-0000-BI100	Main Motor Drive Board	1
O-17	10-021M-SW66	Screw (11/64" n=40)	4
O-18	01-005A-BT01	Fan	1
O-19	01-002M-AU11	Screw Fan (M4xP0.7 L=30)	2
O-20	09-035S-3701	Nut Fan (M4)	2
O-21	03-1000-BD00	Digital Board	1
O-22	10-001M-BP01	Screw Digital Board (M3xP0.5 L=8)	2
O-23	01-007A-AU12	Main Radiator	1
O-24	10-018M-SW66	Screw Main Radiator (M4xP0.7 L=10)	4
O-25	15-022S-1000	Screw IPM (M4xP0.7 L=20)	2
O-26	01-002M-AU12	Screw Bridge Diode (M4xP0.7 L=20)	1
O-27	01-007A-BT01	Connector Cover	1
O-28	10-022M-SW66	Screw Connector Cover (M4xP0.7 L=20)	2
O-29	11-001S-PT10	Ending Bushing	1
O-30	01-003S-BT01	Sticker Caution	1
O-31	01-004S-BT01	Sticker Replacing Filter	1
O-32	01-005S-BT01	Sticker Changing the Input Voltage	1
O-33	12-149C-SC53	Sticker Model	1
O-34	91-001C-BT10	Urethan Washer	4
O-35	91-001C-PT10	Table Washer	4
O-36	Step Motor Drive	Step Motor Drive	3
O-37	Screw	Screw	6
O-38	Step Motor Drive Radiator	Step Motor Drive Radiator	1
O-39	Screw	Screw	4
O-40	Screw A	Screw A	6
O-41	Screw B	Screw B	6
O-42	Fan	Fan	1
O-43	Screw Fan	Screw Fan	4
O-44	Nut Fan	Nut Fan	4
O-45	Screw	Screw	1
O-46	Screw TR	Screw TR	33

Page 42 — Operation Unit Mechanism

SunStar SPS/B-BH3000 parts on page 42

Ref	Part number	Part name	Qty
	P-1	Operation Unit Mechanism
	P-2	Operation Unit Mechanism
	P-3	Operation Unit Mechanism
	P-4	Operation Unit Mechanism
	P-5	Operation Unit Mechanism
	P-6	Operation Unit Mechanism
	P-7	Operation Unit Mechanism
	P-8	Operation Unit Mechanism
	P-9	Operation Unit Mechanism

Page 43

SunStar SPS/B-BH3000 parts on page 43

Ref	Part number	Part name	Qty
	P-1	Operation Box (Upper)
	P-2	Operation Box (Lower)
	P-3	Screw Operation Box (3xP1.06 L=8)
	P-4	Membrane S/W
	P-5	Operation Box Stand
	P-6	Screw Operation Box Stand (5xP1.59 L=20)
	P-7	Operator Board
	P-8	Screw Operator Board (3xP1.06 L=6)
	P-9	Margnetic Rubber

Part BooksPartsSearchNotes

Part Books

×

Search

×

SunStar SPS/B-BH3000 — parts catalog

• Page 1 (cover): This is the cover page of the SunStar Parts Book for the SPS/B-BH3000 Direct Drive, Electronically Controlled Lock Stitch Button Hole Sewing M/C. It includes the model number, part number PME-051229, and the manufacturer Sunstar Machinery Co., Ltd.
• Page 2 (cover): This page is the cover of the Button Holing S/M Model parts catalog, specifying the machine model as SPS / B - BH3000 - G.
• Page 3 (toc): This page is a table of contents for a SunStar parts book, listing machine parts and control parts with corresponding page numbers.
• Page 4 (diagram): This page displays a diagram of arm, bed, and machine body parts, with various components labeled with reference numbers and part numbers.
• Page 6 (diagram): This page displays a diagram of arm, bed, and machine body parts, with various components labeled with reference numbers and part numbers.
• Page 7 (parts_list): This page contains a parts list for SunStar sewing machine components, including reference numbers, part numbers, names of parts, and assembly information.
• Page 8 (diagram): This page displays a diagram of the upper shaft mechanism, detailing various components with their corresponding part numbers and reference indicators.
• Page 9 (parts_list): This page lists parts for the SunStar sewing machine, including various shafts, screws, washers, and other components with their corresponding part numbers and descriptions.
• Page 10 (diagram): This page displays a diagram of the Upper Shaft Mechanism, detailing various components with their corresponding reference numbers.
• Page 12 (diagram): This page displays a diagram of the low shaft mechanism, with various parts labeled with reference numbers and part numbers.
• Page 13 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It covers components like shafts, screws, collars, and oil pump parts.
• Page 14 (diagram): This page displays a diagram of the presser bar mechanism, with various parts labeled with reference numbers and part numbers.
• Page 16 (diagram): This page displays a diagram of the Needle Bar Rocking Mechanism, labeled with reference numbers E-1 through E-26, illustrating the assembly of various components.
• Page 17 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing reference numbers, part numbers, notes, names of parts in English and Korean, quantities, and assembly numbers.
• Page 18 (diagram): This page displays a diagram of the Thread Release & Lowering Mechanism, labeled as Figure F, with various parts numbered from F-1 to F-73.
• Page 19 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and assembly numbers.
• Page 20 (diagram): This page displays a diagram of the Upper Thread Trimmer Mechanism, showing various parts labeled with reference numbers and part numbers.
• Page 21 (parts_list): This page lists parts for the SunStar sewing machine, including various screws, washers, levers, and plates, with their corresponding part numbers and descriptions.
• Page 22 (diagram): This page displays a diagram of the Lower Thread Trimmer Mechanism, showing various parts labeled with reference numbers and part numbers.
• Page 23 (parts_list): This page contains a parts list for SunStar sewing machines, detailing parts with reference numbers, part numbers, names, and quantities.
• Page 24 (diagram): This page displays a diagram of the lower thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
• Page 25 (parts_list): This page contains a parts list for SunStar sewing machine components, including needle plates, screws, bobbin catchers, and extension springs, with their corresponding part numbers, descriptions, and assembly quantities.
• Page 26 (diagram): This page displays a diagram of the Y-Moving Mechanism, illustrating various components with reference numbers and part numbers.
• Page 27 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, descriptions, quantities, and assembly numbers.
• Page 28 (diagram): This page displays a diagram of the cutter mechanism, labeled with part numbers ranging from J-1 to J-49, illustrating the assembly of various components.
• Page 29 (parts_list): This page lists parts for a SunStar industrial sewing machine, including part numbers, names, quantities, and assembly numbers.
• Page 30 (diagram): This page displays a diagram of the Bobbin Winder & Hand Pully Mechanism, showing various parts labeled with their corresponding reference numbers.
• Page 31 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and assembly numbers.
• Page 32 (diagram): This page displays a diagram of the lubrication mechanism, with various parts labeled with reference numbers and part numbers.
• Page 33 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and assembly numbers.
• Page 34 (diagram): This page displays a diagram of the lubrication mechanism, with various parts labeled with reference numbers and part numbers.
• Page 35 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers. It details items such as oil wicks, hoses, cable ties, oil felt holders, screws, oil pans, gaskets, O-rings, and magnetic parts.
• Page 36 (diagram): This page displays a diagram of the table mechanism, with various components labeled with reference numbers such as M-1, M-2, M-3, M-4, M-5, and M-6.
• Page 37 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It details components like table stands, drawers, and brackets.
• Page 38 (diagram): This page displays a diagram of accessories and mechanisms for an industrial sewing machine, with various parts labeled with reference numbers.
• Page 39 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing part numbers, names, quantities, and assembly numbers for various items like drivers, spanners, oilers, needles, wrenches, fuses, and cutters.
• Page 40 (diagram): This page displays a diagram of the control box mechanism, illustrating various components and their assembly.
• Page 41 (parts_list): This page contains a parts list for SunStar industrial sewing machines, detailing various screws, nuts, washers, covers, and electronic components with their respective part numbers, descriptions, quantities, and assembly numbers.
• Page 42 (diagram): This page displays a diagram of the operation unit mechanism, illustrating various components labeled with part numbers P-1 through P-9.
• Page 43 (parts_list): This page lists parts for SunStar sewing machines, including operation boxes, screws, and rubber components, with their corresponding part numbers, descriptions, quantities, and assembly numbers.

Page 1 — PARTS BOOK

PARTS BOOK SPS/B-BH3000 모터직결형 전자 제어식 본봉 단추구멍재봉기 Direct Drive, Electronically Controlled Lock Stitch Button Hole Sewing M/C SunStar ® PME-051229 SUNSTAR MACHINERY CO., LTD. jintex.in

Page 2 — Button Holing S/M MODEL 단추구멍 재봉기 모델

Button Holing S/M MODEL 단추구멍 재봉기 모델 MACHINE MODEL (SPS/B – BH3000 SERIES) SPS / B – BH3000 – G ① SunStar Pattern System ② Series 시리즈 ④ Button Holing Type 용도구분 G : General Materials 일반용 K : Knitted Materials 니트용 ③ Button Holing S/M Model Name 단추구멍 재봉기 명 jintex.in

Page 3 — CONTENTS

SunStar CONTENTS 목 차 I Machine Parts 기계 부분 A. ARM, BED & Machine Body Parts 4 ARM, BED 및 외장품 관계 B. Upper Shaft Mechanism 8 상측 관계 C. Lower Shaft Mechanism 12 하측 관계 D. Presser Plate Mechanism 14 누름대 관계 E. Needle Bar Rocking Mechanism 16 바늘대 요동 관계 F. Thread Release & Thread Tension Mechanism 18 실조절 장치 관계 G. Upper thread trimmer Mechanism 20 상사절 관계 H. Lower thread trimmer Mechanism 22 하사절 관계 I. Y-Moving Mechanism 26 Y-이송 관계 J. Cutter Mechanism 28 커터 관계 K. Bobbin Winder & Hand Pulley Mechanism 30 실감기 및 핸드풀리 관계 L. Lubrication Mechanism 32 급유 관계 M. Table & Thread Stand Mechanism 36 테이블 및 실패꽃이 관계 N. Accessories 38 악세사리 관계 II Control Parts 전기 부분 O. Control Box Mechanism 40 콘트롤 박스 관계 P. Operation Unit Mechanism 42 오퍼레이션 유니트 관계 본 책자는 Parts Book으로 제작되었으므로 매뉴얼로 사용 불가합니다. This is a parts book. It cannot be used as a manual. jintex.in

Page 4 — Arm, Bed & Machine Body Parts

A Arm, Bed & Machine Body Parts Arm, Bed 및 외장품 관계 A-12 A-10 A-11 A-9 A-35 A-36 A-37 A-33 A-30 A-40 A-32 A-31 A-71 A-19 A-18 A-65 A-64 A-67 A-1 A-2 A-60 SunStar A-15 A-17 A-16 A-56, 57 A-50 A-62 A-14 A-13 A-54 A-55 A-66 A-65 A-27 A-26 A-28 A-29 A-25 A-24 A-23 A-22 A-72 A-73 A-41 A-52 A-53 A-46 A-51 A-45 A-48 A-44 A-42 A-43 A-49 A-47 A-45 A-3 A-4 A-5 A-59 A-58 A-63 A-70 A-8 A-6 A-7 A-17 4 jintex.in

Page 6 — A

A Arm, Bed & Machine Body Parts Arm, Bed 및 외장품 관계 A-12 A-10 A-11 A-9 A-35 A-36 A-37 A-34 A-19 A-18 A-33 A-40 A-30 A-32 A-31 A-71 A-21 A-20 A-64 A-65 A-68 A-1 A-65 A-67 A-64 A-2 SunStar A-60 A-56, 57 A-17 A-15 A-16 A-17 A-5 A-59 A-3 A-4 A-63 A-58 A-27 A-26 A-14 A-13 A-66 A-65 A-62 A-54 A-55 A-28 A-29 A-25 A-22 A-24 A-23 A-72 A-73 A-41 A-52 A-53 A-46 A-48 A-51 A-45 A-44 A-42 A-43 A-47 A-49 A-45 6 jintex.in

Page 7

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. A-54 01-046R-300G Bed Support Rubber 베드 받침 고무 2 A-55 01-047S-300G Bed Support Rubber Screw (11/64", n=40) 베드 받침 고무 단나사 2 A-56 01-048M-300G Model Sticker (Geneneral) 모델 스티커 (일반용) 1 A-57 01-049M-300K Model Sticker (knit) 모델 스티커 (니트용) 1 A-58 Coution Sticker 경고 스티커 1 A-59 01S006S-306H Brand Mark (Face plate) 브랜드 마크(면판) 1 A-60 01S064S-306H Brand Mark 브랜드 마크 1 A-61 01-048A-300G Pause Switch (Set) 비상 스위치(조) 1set A-62 01-054R-300G Cutter Driving Arm Shaft Rubber Cap 커터구동암 축 고무마개 2 A-63 01-110R-1230 Face Plate Rubber Cap 면판 고무마개 1 A-64 01-007R-8130 Rubber Cap 고무마개 2 A-65 04-104R-1230 Rubber Cap 고무마개 4 A-66 01-144R-1230 Rubber Cap 고무마개 1 A-67 01-021R-1600 Rubber Cap 고무마개 3 A-68 44-011C-7400 Code Holder A 코드잡이 A 1 A-69 SC-0365-3710 Screw (9/64", n=40) 코드잡이 셈나사 1 A-70 01-142A-257A Code Holder B 코드 잡이 B E A-71 Rubber 베드 힌지 브라켓 받침 고무 2 A-72 01-060M-300G Warning Sign Sticker 위험표시 스티커 3 A-73 01-061M-300G Threading Diagram 실걸기 안내표 1 jintex.in

Page 8 — Upper Shaft Mechanism

B Upper Shaft Mechanism 상축 관계 B-14 B-15 B-16 B-13 B-18 B-18 B-17 Fortuna B-1 B-39 B-4 B-10 B-11 B-12 B-40 B-41 B-12 B-9 B-3 B-5 B-6 B-51 B-45 B-47 B-46 B-47 B-48 B-49 B-66 B-67 B-63 B-62 B-64 B-65 B-60 B-61 B-50 B-55 B-52 B-53 B-56 B-68 B-57 B-58 B-59 B-2 B-19 B-21 B-8 B-7 B-22 B-12 B-11 B-20 B-83 B-12 B-41 B-11 B-12 B-82 B-83 B-69 B-72 B-70 B-78 B-77 B-71 B-74 B-73 B-75 B-76 B-80 B-79 B-43 B-43 B-44 B-42 B-81 B-23 B-24 B-32 B-31 B-25 B-26 B-28 B-27 B-33 B-36 B-37 B-35 B-37 B-34 B-38 B-29 B-30 B-29 Jintex.in

Page 9

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. B-1 Δ Upper Shaft 상축 1 B-2 02-002 A-300G Link Cam 링크 캠 1 B-3 02-003W-300G Washer 링크 캠 와셔 1 B-4 02-003 C-2500 Screw (9/32", n=28) 링크 캠 험나사 1 B-5 SC-0540-7600 Screw A (15/64", n=28) 링크 캠 험나사 A 1 B-6 SC-A308-4517 Screw B (1/4", n=40) 링크 캠 험나사 B 2 B-7 10-009 C-2700 Upper Shaft C-Ring 상축 C-링 1 B-8 02-016A-120D Upper Shaft Bearing(R) (6302ZZNR) 상축 후 베어링 (6302ZZNR) 1 B-9 02-008A-300G Upper Shaft Bushing (F) 상축 전 붓싱 1 B-10 02-009A-300G Upper Shaft Bushing (M) 상축 중 붓싱 1 B-11 02-011A-300G Upper Shaft Collar 상축 카라 2 B-12 SC-0317-2700 Screw (15/64", n=28) 상축 카라 험나사 4 B-13 02-119A-120D Main Shaft Motor 주축 모터 1 B-14 02-020S-120D Screw (M5xP0.8) 주축 모터 험나사 4 B-15 07-011W-1230 Spring Washer 주축 모터 스프링 와셔 4 B-16 10-020W-2700 Washer 주축 모터 평와셔 4 B-17 02-017A-120D Upper Shaft Coupling 상축 커플링 1 B-18 08037SC-120D Screw (M6xL8) 상축 커플링 험나사 (M6*L8) 4 B-19 02-019A-300G Upper Shaft Timming Pulley 상축 타이밍 풀리 1 B-20 02-007C-2070 Upper Shaft Timming Pulley Fixing Ring 상축 타이밍 풀리 고정링 2 B-21 SC-A308-4517 Screw (1/4", n=40) 상축 타이밍 풀리 고정나사 2 B-22 02-022A-300G Upper Shaft Belt 상축 타이밍 벨트 1 B-23 02-023A-300G Idler Base Ass'y 아이들러 베이스(Set) 1(Set) B-24 Idler Base 아이들러 베이스 1 B-25 Idler Shaft 아이들러 축 1 B-26 02-024A-300G Idler 아이들러 1 B-27 SC-0140-5607 Screw (1/4", n=28) 아이들러 축 험나사 1 B-28 09-025W-8270 Washer (09-025W-8270) 아이들러 축 험나사 와셔 1 B-29 02-027C-300G Idler C-Ring ($30) 아이들러 C-링(호칭경30) 2 B-30 01-088A-7600 Idler Bearing 아이들러 베어링 1 B-31 SC-0109-2350 Screw (M6xP1.0) 아이들러 베이스 험나사 2 B-32 06-102W-2350 Washer 아이들러 베이스 험나사 와셔 2 B-33 02-032A-300G Idler Timming Pulley 아이들러 타이밍 풀리 1 B-34 02-033A-300G Idler Timming Pulley Shaft 아이들러 타이밍 풀리 축 1 B-35 02-034A-300G Idler Timming Pulley Shaft Collar 아이들러 타이밍 풀리 축 카라 1 B-36 01A142S-811H Idler Pulley Bearing 아이들러 풀리 베어링 2 B-37 02-036C-300G Idler Pulley C-Ring ($20) 아이들러 풀리 C-링(호칭경22) 2 B-38 SC-0317-2700 Screw (15/64", n=28) 아이들러 풀리 축 험나사 2 B-39 02-038R-300G Upper Shaft Rubber Cap 상축 고무마개 1 B-40 02-038A-300G Bobbin Winder Driving Wheel 실감기 구동 휠 1 B-41 SC-0499-1230 Screw (11/64", n=40) 실감기 구동 휠 험나사 2 B-42 08-505A-300G Needle Bar Holder 바늘대 잡이 1 B-43 04-102A-300G Needle Bar Holder Slide Block 바늘대 잡이 슬라이드 블록 2 B-44 SC-0128-7400 Screw (11/64", n=40) 바늘대 잡이 험나사 2 B-45 Needle Bar Frame Ass'y 바늘대 후레임 (Set) 1(Set) B-46 04-004A-300G Needle Bar Frame 바늘대 후레임 1 B-47 15-105A-2070 Needle Bar Frame Bushing 바늘대 후레임 붓싱 2 B-48 Stopper 스토퍼 1 B-49 04-108A-300G Needle Bar ZigZag Guide Block 바늘대 지그재그 안내 블록 1 B-50 04-009A-300G Needle Bar Frame Shaft 바늘대 후레임 축 1 B-51 SC-0101-3710 Screw (15/64", n=28) 바늘대 후레임 축 험나사 1 B-52 04-011A-300G Needle Bar Frame Guide (Set) 바늘대 후레임 가이드(Set) 1(Set) B-53 04-012A-300G Needle Bar Frame Guide 바늘대 후레임 가이드 1 jintex.in

Page 10 — Upper Shaft Mechanism

B Upper Shaft Mechanism 상축 관계 B-14 B-15 B-16 B-13 B-18 B-18 Fortuna B-17 B-1 B-39 B-4 B-5 B-6 B-9 B-3 B-10 B-11 B-12 B-40 B-41 B-12 B-19 B-20 B-21 B-8 B-7 B-22 B-83 B-11 B-12 B-82 B-11 B-12 B-41 B-69 B-72 B-70 B-77 B-71 B-74 B-51 B-45 B-47 B-61 B-60 B-23 B-24 B-46 B-64 B-49 B-76 B-90 B-79 B-32 B-63 B-62 B-65 B-31 B-55 B-48 B-25 B-43 B-42 B-43 B-44 B-29 B-56 B-26 B-28 B-38 B-27 B-34 B-33 B-37 B-36 B-35 B-37 B-52 B-53 B-57 B-58 B-59 B-68 Jinte.in

Page 12 — Low Shaft Mechanism

C Low Shaft Mechanism 하축 관계 C-3 C-2 C-4 C-7 C-8 C-12 C-13 C-10 C-9 C-11 C-34 C-5 C-6 C-32 C-33 C-16 C-15 C-14 C-17 C-28 C-23 C-19 C-20 C-18 C-1 C-27 C-24 C-26 C-25 C-21 C-22 C-31 C-30 C-29 12 jintexin.in

Page 13

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. C-1 07-001 A-300G Low Shaft 하축 1 C-2 07-002 A-300G Low Shaft Pulley 하축 풀리 1 C-3 SC-0317-2700 Screw (15/64", n=28) 하축 풀리 잼나사 2 C-4 07-004 A-300G Low Shaft Bearing(R) 하축 후 베어링 1 C-5 ALCMMMMMMMMMMMM Low Shaft Collar 하축 카라 1 C-6 SC-0103-5607 Screw (11/64", n=40) 하축 카라 잼나사 2 C-7 07-007 A-300G Low Shaft (M) 하축 중방싱 1 C-8 SC-0317-2700 Screw (15/64", n=28) 하축 중방싱 잼나사 1 C-9 07-011 A-2070 Oil Pump Piston 오일 펌프 피스톤 2 C-10 07-012 G-2070 Oil Pump Piston Spring 오일 펌프 피스톤 스프링 2 C-11 07-013 S-2070 Oil Pump Piston Cap Screw (1/4", n=40) 오일 펌프 피스톤 마개나사 2 C-12 07-008 C-300G Cap for Low Shaft Bushing(M) 하축 중방싱 마개 4 C-13 44-134 C-5700 Low Shaft (M) Nipple 하축 중방싱 니플 4 C-14 07-014 A-300G Low Shaft (F) 하축 전볼싱 1 C-15 44-013 P-7500 Low Shaft (F) Nipple A 하축 전볼싱 니플A 1 C-16 07-010 A-2070 Low Shaft (F) Nipple B 하축 전볼싱 니플B 1 C-17 SC-0317-2700 Screw (15/64", n=28) 하축 전볼싱 잼나사 1 C-18 44-022-300G Hook Joint 훅 조인트 1 C-19 07-019 M-300G Hook Joint Lubrication Felt 훅 조인트 급유 펠트 1 C-20 SC-0317-2700 Screw (15/64", n=28) 훅 조인트 잼나사 4 C-21 07-032 A-300G Hook Holder 훅 홀더 1 C-22 07-022 S-300G Screw (11/64", n=40) 가마 잡이 잼나사 1 C-23 07-025 M-300G Low Shaft Bearing(F) Lubrication Felt 하축 전볼싱 급유 펠트 1 C-24 07-024 S-300G Oil Adjusting Screw (9/32", n=28) 유량 조절 나사 1 C-25 07-025 S-300G Oil Adjusting Screw Nut (9/32", n=40) 유량 조절 나사 너트 1 C-26 07-026 S-300G Oil Adjusting Stud Screw (9/64", n=40) 유량 조절 단나사 1 C-27 07-027 S-300G Oil Adjusting Rubber 유량 조절 고무 1 C-28 07-028 C-300G Hook Bushing Felt Presser Plate 훅봇싱 펠트 누름판 1 C-29 07-029 A-300G Hook Ass'y 가마(조) 1Set C-30 07-045 A-300G Bobbin 보빈 1 C-31 07-031 A-300G Bobbin Case Ass'y 보빈 케이스(조) 1Set C-32 07-130 C-300G Low Shaft Collar Cover 하축 카라 커버 1 C-33 SC-0365-3710 Screw (9/14", n=40) 하축 카라 커버 잼나사 카 ALMEII L5.MMMMMMMMMMMM L5 2102/2811 카 13 jintex.in

Page 14 — Presser Bar Mechanism

D Presser Bar Mechanism 누름대 관계 D-21 D-22 D-25 D-18 D-19 D-20 D-27 D-28 D-17 D-16 D-15 D-42 D-43 D-63 D-41 D-23 D-24 D-26 D-36 D-37 D-52 D-53 D-40 D-38 D-39 D-35 D-34 D-31 D-30 D-33 D-32 D-35 D-20 D-11 D-10 D-9 D-8 D-7 D-6 D-1 D-2 D-3 D-13 D-14 D-12 D-4 D-5 D-55 D-54 D-56 D-57 D-61 D-47 D-45 D-51 D-44 D-46 D-49 D-62 D-48 D-50 D-58 D-59 D-60 jinte.in

Page 16 — Needle Bar Rocking Mechanism

E Needle Bar Rocking Mechanism 바늘대요동 관계 E-25 E-24 E-26 E-2 E-3 E-2 E-7 E-4 E-3 E-1 E-5 E-4 E-6 E-8 E-11 E-12 E-9 E-10 E-16 E-15 E-14 E-13 E-17 E-23 E-18 E-19 E-20 E-22 E-21 16 jintex.in

Page 17

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. E-1 15-001A-300G Motor Base 모터 베이스 1 E-2 43-072A-9570 Position Pin 포지션 핀 2 E-3 SC-0305-5607 Screw (3/16", n = 32) 모터 베이스 고정나사 5 E-4 15-012A-2070 Zigzag Motor 지그재그 모터 1 E-5 02015SC-4113 Screw (M4xP0.7) 모터 고정 나사 4 E-6 01-017W-1600 Washer 모터 고정 나사 와셔 4 E-7 15-006A-300G Motor Lever 모터 레버 1 E-8 SC-0317-2700 Screw (15/64", n = 28) 모터 레버 놉나사 2 E-9 15-008C-300G Motor Lever Shaft 모터 레버 축 1 E-10 SC-0317-2700 Screw (15/64", n = 28) 모터 레버 축 놉나사 1 E-11 15-010W-5607 Washer 모터 레버 축 와셔 1 E-12 15-011A-300G Zigzag Connecting Rod 지그재그 연결 로드 1 E-13 15-012C-300G Zigzag Connecting Rod Shaft 지그재그 연결 로드 축 1 E-14 SC-0317-2700 Screw (15/64", n = 28) 지그재그 연결 로드 축 놉나사 1 E-15 15-014A-300G Needle Bar Zigzag Lever (R) 바늘대 지그재그 레버(후) 1 E-16 SC-0109-2350 Zigzag Lever Bolt (M6xP1.0) 지그재그 레버 볼트 1 E-17 15-016W-300G Washer 지그재그 레버 축 와셔 1 E-18 15-017A-300G Needle Bar Oscillator Shaft Ass'y 바늘대 요동축 (Set) 1(Set) E-19 15-118A-300G Needle Bar Oscillator Shaft 바늘대 요동축 1 E-20 15-117A-300G Needle Bar Zigzag Lever (F) 바늘대 지그재그 레버(전) 1 E-21 04-009P-7400 Taper Pin 페이퍼 핀 사용 1 E-22 15-018A-300G Needle Bar Oscillator Shaft Bushing (F) 바늘대 요동축 전봇싱 1 E-23 15-019A-300G Needle Bar Oscillator Shaft Bushing (R) 바늘대 요동축 후봇싱 1 E-24 15-021A-300G Zigzag Sensor Bracket 지그재그 센서 브라켓 1 E-25 SC-A156-4118 Screw (9/64", n = 40) 지그재그 센서 브라켓 놉나사 2 E-26 15-027A-2070 Zigzag Sensor Ass'y 지그재그 센서 (Set) 1(Set) 17 jintex.in

Page 18 — F

F Thread Release & Lowering Mechanism 실조절 장치 관계 F-1 F-2 F-3 F-4 F-5 F-6 F-7 F-8 F-9 F-10 F-11 F-12 F-13 F-14 F-15 F-64 F-63 F-62 F-67 F-16 F-17 F-65 F-66 F-73 F-72 F-71 F-70 F-68 F-69 F-59 F-60 F-40 F-41 F-39 F-45 F-44 F-43 F-42 F-61 F-56 F-57 F-55 F-58 F-26 F-19 F-47 F-46 F-48 F-49 F-50 F-51 F-52 F-53 F-54 F-20 F-21 F-22 F-23 F-24 F-25 F-27 F-28 F-29 F-30 F-31 F-32 F-33 F-34 F-35 F-36 F-37 F-38 18 jintex.in

Page 19

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. F-1 40-006A-BH30 Thread Release Solenoid Ass'y 실렀추기 솔레노이드(조) 1Set F-2 Solenoid Link Connecting Pin 솔레노이드 링크 연결핀 1 F-3 SC-0132-7500 Screw (M3xP0.5) 브라켓 고정나사 2 F-4 40-002A-300G Thread Release Solenoid Bracket 실렀추기 솔레노이드 브라켓 1 F-5 SC-0543-2302 Screw (11/64", n=40) 브라켓 고정나사 1 F-6 40-004A-300G Guide Plate 링트 가이드판 2 F-7 02014SC-4113 Fixing Bolt 링트가이드판 고정볼트(M4xL5) 1 F-8 40-007A-300G Thread Release Solenoid Link 실렀추기 솔레노이드 링크 1 F-9 40-011S-300G Screw (11/64") 실렀추기 솔레노이드 스크류 1 F-10 40-008G-300G Thread Release Solenoid Spring 실렀추기 솔레노이드 스프링 1 F-11 40-009R-300G Thread Release Solenoid Rubber 실렀추기 솔레노이드 고무 1 F-12 40-010A-300G Thread Release Connecting Rod 실렀추기 연결로드 1 F-13 40-011S-300G Stud 실렀추기 연결로드 단나사 1 F-14 01-116A-2350 Thread Guide with Two Hole 두구멍 실걸이 1 F-15 01-027C-1230 Fixing Nut 두구멍 실걸이 고정너트 1 F-16 40-015C-300G Thread Guide with Three Hole 암 실안내(상) 1 F-17 SC-A174-1230 Screw (11/64", n=40) 암 실안내(상) 고정나사 1 F-18 40-124A-300G Sub Thread Tension Adjusting Ass'y 보조 실조절 장치(조) 1Set F-19 40-224A-300G Sub Thread Tension Adjusting Shaft 보조 실조절 장치 축 1 F-20 40-204A-1230 Thread Guide Disk 실안내 접시 2 F-21 40-304A-1230 Sub Guide Disk Presser Plate 실안내 접시 누름판 1 F-22 11086FM-A001 Spring Cover 스프링 커버 1 F-23 40-255A-300G Sub Thread Tension Adjusting Spring 보조 실조절 장치 스프링 1 F-24 11088PM-A001 Stopper for Thread Tension Adjusting Sprng 보조 실조절 장치 스프링 스토퍼 1 F-25 40-204A-2350 Nut 보조 실조절 장치 너트 1 F-26 40-205A-1230 Thread Release Pin 실렀추기 핀 1 F-27 40-001A-300G Thread Tension Adjusting Ass'y 주 실조절 장치(조) 1Set F-28 40S002S-306H Thread Tension Adjusting Body 주 실조절 장치 몸체 1 F-29 40S003S-306H Thread Tension Adjusting Shaft 주 실조절 장치 축 1 F-30 40-604S-1230 Screw (9/64", n=40) 주 실조절 장치 축 죔나사 2 F-31 40S006S-306G Thread Take-up Lever Spring 실체기 스프링 1 F-32 40-204A-1230 Thread Guide Disk 실안내 접시 1 F-33 40-304A-1230 Thread Guide Disk Presser Plate 실안내 접시 누름판 1 F-34 40-333G-123A Thread Tension Adjusting Spring 실장력 조절 스프링 1 F-35 11088PM-A001 Stopper for Thread Tension Adjusting Sprng 보조 실조절 장치 스프링 스토퍼 1 F-36 40-204A-2350 Nut 보조 실조절 장치 너트 1 F-37 40-026P-300G Thread Release Pin 실렀추기 핀 1 F-38 SC-0317-2700 Screw (15/64", n=28) 주 실조절 장치 (조) 죔나사 1 F-39 01S033S-306H Arm Thread Guide Ass'y 암 실안내 걸이(조) 1Set F-40 01S031S-306H Thread Guide (R) 실안내(우) 1 F-41 SC-0120-1230 Screw (9/64", n=40) 실안내 고정나사 1 F-42 01-003C-250R Thread Guide (L) 실안내(좌) 1 F-43 SC-0120-1230 Screw (9/64", n=40) 실안내 고정나사 1 F-44 01-021A-8150 Thread Guide (L) 실안내(하) 1 F-45 SC-0120-1230 Screw (9/64", n=40) 실안내 고정나사 1 F-46 40-128A-300G Sub Thread Tension Adjusting Ass'y(L) 보조 실조절 장치(하)(조) 1Set F-47 40-281A-300G Sub Thread Tension Adjusting Shaft (L) 보조 실조절 장치(하)축 1 F-48 40-204A-1230 Thread Guide Disk 실안내 접시 2 F-49 40-304A-1230 Threadk Guide Disk Presser Plate 실안내 접시 누름판 1 F-50 40S009S-306H Cover for Sub Thread Tension Adjusting Spring 보조 실조절 장치(하)스프링 커버 1 F-51 11082SP-B001 Sub Thread Tension Adjusting Spring 보조 실조절 장치(하)스프링 1 F-52 Collar for Sub Thread Tension Adjusting Spring 보조 실조절 장치(하)스프링 커버 1 F-53 40-804W-1230 Stopper for Sub Thread Tension Adjusting Spring 보조 실조절 장치(하)스토퍼 1 F-54 11089PM-A001 Nut 보조 실조절 장치(하) 너트 1 F-55 40S046S-306H Thread Detecting Plate Guide 실 감지판 안내 1 F-56 Thread Detecting Plate Ring 실 감지판 링 1 F-57 SC-A170-4124 Screw (9/64", n=40) 실 감지판 링 죔나사 1 F-58 40S047S-306H Thread Detecting Plate 실 감지판 1 F-59 40-054C-300G Holder for Thread Detecting Line 실 감지선 잡이 1 F-60 28-059S-300G Screw (M5xP0.8) 실 감지선 잡이 죔나사 1 F-61 40-048A-300G Upper Thread Guide Plate 윗실 안내판 1 F-62 Tension Release Driving Lever 보조 실 늦추기 구동 레버 1 F-63 SC-0105-7500 Screw (M4xP0.7) 니들 베어링 롤러 죔나사 2 F-64 SC-0317-2700 Screw (15/64", n=28) 윗실 조절 레버축 죔나사 1 F-65 40-045A-300G Shaft for Upper Thread Adjusting Lever 윗실 조절 축 죔나사 1 F-66 13-021R-5300 O-Ring 윗실 조절 레버 축 고무링 1 F-67 40-047A-300G Tension Release Driving Plate 보조 실 늦추기 작동 판 1 F-68 40-049A-300G Upper Thread Adjusting Lever (A) 윗실 조절 레버(A) 1 F-69 11-013S-5060 Screw for (11/64" n=40) 윗실 조절 레버(A) 단나사 1 F-70 41-004A-300G Upper Thread Adjusting Lever (B) 윗실 조절 레버(B) 1 F-71 SC-A174-1230 Screw (11/64" n=40) 윗실 조절 레버(B) 죔나사 1 F-72 01-018W-1600 Washer 윗실 조절 레버(B) 와셔 1 F-73 Thread Guide Pin 실 안내핀 1 jintex.in

Page 20 — Upper Thread Trimmer Mechanism

G Upper Thread Trimmer Mechanism 상사절 관계 G-55 G-37 G-33 G-44 G-45 G-47 G-46 G-49 G-50 G-26 G-27 G-28 G-24 G-23 G-22 G-18 G-19 G-21 G-25 G-16 G-17 G-20 G-37 G-33 G-34 G-36 G-38 G-52 G-53 G-54 G-43 G-41 G-39 G-40 G-42 G-51 G-48 G-15 G-14 G-13 G-8 G-12 G-5 G-6 G-6 G-15 G-7 G-10 G-9 G-11 G-1 G-2 G-3 G-3 G-4 G-29 G-31 G-30 G-32 jintex.in

Page 21

SunStar Ref. No. Parts No. Note Name of Parts Assembly No. G-1 10-001 A-300G Upper Thread Trimmer Hinge Shaft 상사절 힌지축 1 G-2 10-002 A-300G Upper Thread Trimmer Hinge Shaft Collar 상사절 힌지축 카라 1 G-3 SC-0164-2700 Screw (M5xP0.8) 상사절 힌지축 카라 젬나사 2 G-4 01-042R-640L Upper Thread Trimmer Hinge Shaft Rubber Cap 상사절 힌지축 고무마개 1 G-5 01-005W-300G Washer 상사절 레버 와셔 1 G-6 10-006 S-300G Stud Screw for Upper Thread Trimmer Lever(15/64", n=28) 상사절 레버 고정 단나사 2 G-7 10-007 A-300G Upper Thread Trimmer Lever 상사절 레버 1 G-8 10-008C-300G Upper Thread Trimmer Lever Stopper 상사절 레버 스토퍼 1 G-9 10-009A-300G Upper Thread Trimmer Lever Return Plate 상사절 레버 리턴판 1 G-10 10-010A-300G Upper Thread Trimmer Lever Collar 상사절 레버 카라 1 G-11 SC-A156-4118 Screw (9/64", n=40) 상사절 레버 리턴판 젬나사 2 G-12 10-012G-300G Upper Thread Trimmer Lever Extension Spring 상사절 레버 인장 스프링 1 G-13 10-013A-300G Spring Holder Plate 스프링 걸이판 1 G-14 SC-0531-2302 Screw (9/64", n=40) 스프링 걸이판 젬나사 1 G-15 10-015G-300G Upper Thread Trimmer Extension Spring 상사절 인장 스프링 2 G-16 △패쓰쓰쓰쓰쓰쓰쓰 Upper Thread Trimmer Setting Plate 상사절 셋팅판 1 G-17 10-017S-300G Support Screw (3/16", n=32) 롤러 지지 단나사 1 G-18 SN-0115-7400 Roller Support Screw Nut (3/16", n=32) 롤러 지지 단나사 너트 1 G-19 10-020W-2700 Roller Support Screw Washer 롤러 지지 단나사 와셔 2 G-20 10-020S-300G Setting Plate Screw (M5xL10) 셋팅판 젬나사 (M5xL10) 1 G-21 10-022A-300G Upper Thread Trimmer Fixing Mes 상사절 고정메스 1 G-22 △패쓰쓰쓰쓰쓰쓰쓰 Upper Thread Trimmer Moving Mes 상사절 동메스 1 G-23 10-024A-300G Upper Thread Tension Plate 상사절 장력판 1 G-24 10-025S-300G Screw (1/8", n=40) 메스 고정 단나사 1 G-25 10-026R-300G Upper Thread Stopper Rubber 상사절 스토퍼 고무 1 G-26 07-022S-300G Screw (11/64", n=40) 상사절 고정 메스 젬나사 1 G-27 10-020W-2700 Washer 상사절 고정 메스 와셔 1 G-28 07-011W-300G Spring Washer 상사절 고정 메스 스프링 와셔 1 G-29 10-030A-300G Upper Thread Trimmer Opening Cam(A) 상사절 개방 캠 (A) 1 G-30 10-031A-300G Upper Thread Trimmer Opening Cam(B) 상사절 개방 캠 (B) 1 G-31 SC-0211-7500 Bolt (M4xP0.7) 상사절 개방 캠 볼트 2 G-32 02014SC-4113 Screw (M4xP0.7) 상사절 개방 캠 젬나사 2 G-33 △패쓰쓰쓰쓰쓰쓰쓰 Upper Thread Trimmer Driving Lever 상사절 구동 레버 1 G-34 10-067A-300G Upper Thread Trimmer Driving Lever Roller 상사절 구동 레버 롤러 1 G-35 10-036A-300G Upper Thread Trimmer Driving Lever Bearing 상사절 구동 레버 베어링 1 G-36 △패쓰쓰쓰쓰쓰쓰쓰 Hinge Screw for Driving Roller(3/16", n=32) 구동 롤러 단나사 2 G-37 10-042C-2700 O-Ring O-링 2 G-38 △패쓰쓰쓰쓰쓰쓰쓰 Longitudinal Feed Arm for Upper Thread Trim 상사절 세로 이송 암 1 G-39 10-040A-300G Roller For Long Longitudinal Feed Arm 상사절 세로 이송 암 롤러 1 G-40 10-041A-300G Roller Shaft For Longitudinal Feed Arm 상사절 세로 이송 암 롤러 축 1 G-41 04-009C-3710 E-Ring 상사절 세로 이송 암 롤러 축 E-링 1 G-42 SC-0317-2700 Screw (15/64", n=28) 상사절 세로 이송 암 젬나사 1 G-43 SC-0109-2350 Screw (M6xP1.0) 상사절 세로 이송 암 젬나사 1 G-44 △패쓰쓰쓰쓰쓰쓰쓰 Upper Thread Trimmer Driving Arm 상사절 구동 암 1 G-45 10-046A-300G Upper Thread Trimmer Lever Support Plate 상사절 레버 지지판 1 G-46 SC-0211-7500 Screw (M4xP0.7) 상사절 레버 지지판 젬나사 1 G-47 10-020W-2700 Washer 상사절 레버 지지판 젬나사 와셔 1 G-48 10-049A-300G Roller Shaft For Upper Thread Trimmer Driving Arm 상사절 구동 암 롤러 축 1 G-49 10-020W-2700 Washer 상사절 구동 암 롤러 축 와셔 1 G-50 10-050S-300G Nut (M5) 상사절 구동 암 롤러 축 너트(M5) 1 G-51 10-053A-300G Roller For Upper Thread Trimmer Driving Arm 상사절 구동 암 롤러 1 G-52 10-054A-300G Upper Thread Trimmer Driving Arm Stopper 상사절 구동암 스토퍼 1 G-53 SC-0211-7500 Screw (M4xP0.7) 상사절 구동암 스토퍼 젬나사 1 G-54 10-020W-2700 Washer 상사절 구동암 스토퍼 와셔 1 G-55 SC-0109-2350 Screw (M6xP1.0) 상사절 구동암 젬나사 1 21 jintex.in

Page 22 — Lower Thread Trimmer Mechanism

H Lower Thread Trimmer Mechanism 하사절 관계 H-71 H-62 H-48 H-46 H-50 H-54 H-58 H-56, 57 H-72 H-44 H-49 H-55 H-52 H-65 H-61 H-45 H-53 H-64 H-59 H-36 H-51 H-60 H-63 H-26 H-39 H-38 H-37 H-40 H-42 H-41 H-8 H-5 H-27 H-29 H-25 H-21 H-23 H-24 H-22 H-3 H-2 H-1 H-6 H-7 H-4 H-4 H-11 H-10 H-9 H-12 H-14 H-13 H-67 H-68 H-70 H-18 H-19 H-20 H-16 H-71 H-73 H-30 H-32 H-34 H-33 H-35 H-74 H-15 jinttex.in

Page 23

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. H-1 10-058A-300G Lower Thread Trimmer Driving Lever 하사절 작동 레버 1 H-2 10-059A-300G Lower Thread Trimmer Driving Lever Roller 하사절 작동 레버 롤러 1 H-3 10-060S-300G Stud Screw for Lower Thread Trimmer Driving Lever Roller 하사절 작동 레버 롤러 단나사 1 H-4 SN-0115-7400 Nut (3/16", n = 32) 하사절 작동 레버 롤러 단나사 너트 2 H-5 10-062A-300G Lower Thread Trimmer Driving Lever Shaft 하사절 작동 레버 축 1 H-6 07S020S-306H Washer 하사절 작동 레버 와셔 1 H-7 40-002C-2350 E-Ring 하사절 작동 레버 축 E-링 1 H-8 SC-0317-2700 Screw (15/64", n = 28) 하사절 작동 레버 축 덤나사 1 H-9 10-066A-300G Lower Thread Trimmer Cam 하사절 캠 1 H-10 10-067A-300G Lower Thread Trimmer Cam Roller 하사절 캠 롤러 1 H-11 43-012S-2070 Stud Screw(B) for Lower Thread Trimmer Rod 하사절 연걸 로드 단나사 (B) 1 H-12 10-068A-300G Lower Thread Trimmer Rod 하사절 연결 로드 1 H-13 10-070A-300G Lower Thread Trimmer Cam Shaft 하사절 캠 축 2 H-14 SC-0317-2700 Screw (15/64", n = 28) 하사절 캠 축 덤나사 2 H-15 10-071S-300G Stud Screw(A) for Lower Thread Trimmer Rod 하사절 연결 로드 단나사 (A) 1 H-16 10-073A-300G Lower Thread Trimmer Link (A) 하사절 링크 (A) 1 H-17 16-015C-3710 Stud Screw for Lower Thread Trimmer Link (A) 하사절 링크 (A) 단나사 1 H-18 43-006S-2070 Stud Screw for Lower Thread Trimmer Link 하사절 링크 연결 단나사 1 H-19 10-076A-300G Lower Thread Trimmer Link (B) 하사절 링크 (B) 1 H-20 ALLAMARRA-AMARAKK Stud Screw for Lower Thread Trimmer Link (B) 하사절 링크 (B) 단나사 1 H-21 10-078A-300G Mes Driving Lever 메스 작동 레버 1 H-22 16-015S-3710 Stud Screw for Mes Driving Lever Roller 메스 작동 레버 롤러 단나사 1 H-23 10-081A-300G Mes Driving Lever Roller 메스 작동 레버 롤러 1 H-24 10-082W-300G Washer(A) for Mes Driving Lever 메스 작동 레버 와셔 (A) 1 H-25 10-083W-300G Washer(B) for Mes Driving Lever 메스 작동 레버 와셔 (B) 1 H-26 10-084A-300G Lever For Lower Thread Retainer 밀실 가리개 레버 1 H-27 10-085S-300G Stud Screw for Lower Thread Retainer Lever(11/64", n=11) 밀실 가리개 레버 단나사 1 H-28 10-086A-300G Lower Thread Retainer 밀실 가리개 1 H-29 10-087S-300G Screw (9/64", n = 40) 밀실 가리개 덤나사 2 H-30 10-088A-300G Fixed Mes for Lower Thread Trimmer Ass'y 하사절 고정 메스 (조) 1(Set) H-31 10-089S-300G Screw (9/64", n = 40) 하사절 고정 메스 덤나사 2 H-32 10-090A-300G Moving Mes for Lower Thread Trimmer 하사절 동메스 1 H-34 10-092W-300G Washer 하사절 동메스 파형 와셔 1 H-35 10-090S-300G Screw (3/32", n = 56) 하사절 동메스 덤나사 1 H-36 10-094A-300G Lower Thread Clamp Plate Ass'y 밀실 걸이판 (조) 1(Set) H-37 10-090S-300G Stud Screw for Lower Thread Clamp Plate (1/8", n=40) 밀실 걸이판 단나사 1 H-39 10-092W-300G Washer 밀실 걸이판 파형 와셔 1 H-40 10-098A-300G Lower Thread Presser Plate 밀실 누름 판 1 H-41 10-096S-300G Screw A (3/32", n=56) 밀실 누름 판 덤나사 1 H-42 10-087S-300G Screw B (9/64", n=40) 밀실 누름 판 덤나사 B 1 H-43 10-101A-300G Opening Plate 열림판 A 1 H-44 10-102A-300G Opening Plate Roller 열림판 롤러 1 H-45 10-103A-300G Opening Plate Roller Shaft 열림판 롤러 축 1 H-46 SN-0101-1600 Nut (11/64", n=40) 열림판 롤러 축 너트 1 H-47 10-104A-300G Opening Plate B 열림판 B 1 H-48 SC-A320-7900 Screw "A" (1/8", n=40) 열림판 덤나사 1 H-49 SC-0531-2302 Screw "B" (1/8", n=40) 열림판 덤나사 B 1 H-50 Stud Screw Opening Plate 열림판 단나사 1 H-51 10-105S-300G Screw (3/32", n=56) 밀실 가리개 레버 스토퍼 덤나사 1 H-52 10-108A-300G Lower Thread Trimmer Base Plate Ass'y 하사절 베이스 판 (조) 1 H-53 10-105A-300G Lower Thread Trimmer Base Plate 하사절 베이스 판 1 H-54 10-106A-306G Lower Thread Trimmer Base Plate Cover 하사절 베이스 판 커버 1 H-55 10-110S-300G Screw (11/64", n=40) 하사절 베이스 판 덤나사 4 jintex.in 23

Page 24 — Lower Thread Trimmer Mechanism

H Lower Thread Trimmer Mechanism 하사절 관계 24 H-71 H-62 H-48 H-46 H-50 H-58 H-54 H-52 H-44 H-66 H-53 H-45 H-59 H-51 H-65 H-61 H-64 H-60 H-63 H-36 H-39 H-38 H-40 H-37 H-42 H-41 H-26 H-27 H-25 H-28 H-21 H-23 H-24 H-22 H-1 H-2 H-3 H-4 H-4 H-11 H-10 H-6 H-7 H-9 H-12 H-13 H-14 H-15 H-16 H-18 H-19 H-20 H-30 H-32 H-31 H-33 H-34 H-35 H-73 H-71 H-74 jinttex.in

Page 25

SunStar Ref. No. Parts No. Note Name of Parts Assembly No. No. H-56 10-111A-300G Needle plate (G) 1 H-57 10-112A-300K Needle Plate (K) 1 H-58 10-113S-300G Screw (9/64", n = 40) 2 H-59 10-114A-300G Bobbin Catcher 1 H-60 SC-0502-2302 Screw (9/64", n = 40) 1 H-61 10-116A-300G Bobbin Catcher Bracket 1 H-62 10-117C-300G Bobbin Catcher Spring Holder 1 H-63 10-118S-300G Stud Screw for Bobbin Catcher(15/64", n=28) 1 H-64 SC-0215-1230 Screw (9/64", n = 40) 1 H-65 01S034S-306H Nut (9/64", n = 40) 1 H-66 SC-0543-2302 Screw (11/64", n = 40) 1 H-67 10-122A-300G Hook Cover Link (A) 1 H-68 10-123A-300G Hook Cover Link (B) 1 H-69 10-124S-300G Stud Screw(A) for Hook Cover Link 1 H-70 10-125S-300G Stud Screw(B) for Hook Cover Link 1 H-71 21-019P-120H Extension Spring Holder Pin for Lower Thread Trimmer 2 H-72 10-127G-300G Extension Spring(A) for Lower Thread Trimmer 2 H-73 10-128G-300G Extension Spring(B) for Lower Thread Trimmer 1 H-74 10-129R-300G Rubber for Lower Thread Trimmer Connecting Rod 1 25 jintex.in

Page 26 — Y-Moving Mechanism

Y-Moving Mechanism Y-이동 관계 I-22 I-23 I-24 I-26 I-25 I-29 I-29 I-28 I-27 I-36 I-40 I-41 I-39 I-46 I-43 I-42 I-48 I-45 I-49 I-47 I-34 I-34 I-35 I-31 I-38 I-37 I-30 I-32 I-33 I-56 I-15 I-12 I-16 I-17 I-15 I-16 I-17 I-13 I-54 I-55 I-14 I-10 I-11 I-5 I-6 I-8 I-9 I-18 I-19 I-21 I-20 I-1 I-2 I-52 I-53 I-3 I-4 I-50 I-51 I-53 jintex.in

Page 27

SunStar Ref. No. Parts No. Note Name of Parts I-1 20-001 A-300G Y-Driving Motor I-2 20-010 A-300G Y-Driving Pulley I-3 SC-0317-2700 Screw (15/64", n=28) I-4 20-016 A-300G Y-Feed Drive Timing Belt I-5 20-017 A-300G Y-Feed Driven Pulley I-6 SC-0317-2700 Screw (15/64", n=28) I-7 20-016 A-300G Y-Feed Drive Timming Belt I-8 20-018A-300G Y-Feed Driven Pulley Bearing I-9 20-019A-300G Y-Feed Timming Belt Holder Plate I-10 20-019A-300G Fixing Bolt for Holder Plate I-11 20-017A-300G Y-Feed Arm Support I-12 20-022A-300G Y-Feed Shaft I-13 SC-0317-2700 Screw (15/64", n=28) I-14 20-027A-300G Y-Feed Driven Shaft Bearing I-15 20-028A-300G Bearing Support Plate I-16 SC-0531-2302 Screw (9/64", n=40) I-17 15-027A-2070 Y-Feed Sensor Ass'y I-18 20-032A-300G Feed Sensor Support I-19 SC-0543-2302 Screw (11/64", n=40) I-20 01-017W-1600 Washer I-21 20-035A-300G Y-Feed Arm Support Shaft I-22 SC-0164-2700 Screw (M5xP0.8) I-23 20-037A-300G Y-Feed Arm I-24 20-038A-300G Return Cam Support Plate I-25 20-039A-300G Return Cam I-26 SC-0211-7500 Fixing Bolt for Return Cam Support Plate I-27 SC-0211-7500 Screw (M4xP0.5) I-28 01-018W-1600 Washer I-29 20-044A-300K Feed Plate (G) I-30 20-044A-300K Feed Plate I-31 20-044A-300K Feed Plate (K) I-32 SC-0211-7500 Bolt for Feed Plate (M4xP0.7) I-33 01-017W-1600 Washer I-34 20-047A-300G Feed Plate Guide I-35 SC-A170-4124 Screw (9/64", n=40) I-36 20-049A-300G Feed Arm Support I-37 20-050A-300G Y-Feed Arm Supporter Cover I-38 SC-0211-7500 Screw (M4xP0.7) I-39 20-052A-300G Presser Foot Ass'y I-40 20-521G-300G Fixing Spring I-41 20-522A-300G Presser Foot (U) I-42 20-523A-300G Presser Foot (L) I-43 SC-524S-300K Screw (3/32", n=56) I-44 20-053A-300K Presser Foot Ass'y - for Knit I-45 20-525A-300K Presser Foot (L)- for Knit I-46 ALAMAXAMAXAMAX Stud Screw for Presser Foot(9/64", n=40) I-47 20-157C-300G Finger Guard I-48 20-526R-300G Presser Foot Cushion Rubber (G) I-49 20-527R-300G Presser Foot Cushion Rubber (K)ention I-50 20-055S-300G Adjusting Screw for Timing Belt I-51 10-050S-300G Tension Adjusting Nut for Timing Belt I-52 20-0040-300G Y-Holder Bracket I-53 20-0040-300G Screw (M6xP1.0) I-54 20-060A-300G Y-Feed Guide Shaft I-55 SC-0211-7500 Screw (11/64", n=40) I-56 06-007C-1600 C-Ring (19) 품 명 수량 Assembly No. 1(Set) 4 1 2 1 2 1 1 2 1 1 1 1 3 2 2 2 1 2 2 1 1 1 1 1 2 2 4 1 1 1 1 1 1(Set) 1 2 1 2 1(Set) 1 1 1 1 2 1 jintex.in 27

Page 28 — Cutter Mechanism

J Cutter Mechanism 커터 관계 J-37 J-36 J-34 J-13 J-14 J-15 J-16 J-17 J-38 J-39 J-40 J-41 J-42 J-43 J-43 J-45 J-44 J-46 J-33 J-3 J-11 J-10 J-9 J-8 J-6 J-7 J-5 J-4 J-12 J-22 J-20 J-18 J-21 J-19 J-48 J-49 J-28 J-27 J-26 J-25 J-24 J-23 J-29 J-47 J-35 J-32 J-30 J-1 J-2 28 jintex.in

Page 29

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. J-1 28-001 A-300G Cutter Driving Arm Shaft 커터 구동 암 축 1 J-2 SC-0101-3710 Screw (15/64", n=28) 커터 구동 암 축 잼나사 1 J-3 28-103 A-300G Cutter Shaft 커터 축 1 J-4 28-004 A-300G Shaft Holder 커터 축 잡이 1 J-5 SC-0317-2700 Screw (15/64", n=28) 커터 축 잡이 잼나사 2 J-6 28-006 A-300G Cutter Driving Link Shaft 커터 구동 링크 축 1 J-7 SC-0317-2700 Screw (15/64", n=28) 커터 구동 링크 축 잼나사 1 J-8 28-008 A-300G Cutter Driving Link 커터 구동 링크 2 J-9 28-109 A-300G Cutter Shaft Slide Block 커터 축 슬라이드 블록 1 J-10 28-010 A-300G Cutter Shaft Guide 커터 축 안내 1 J-11 SC-0151-5050 Screw (15/64", n=28) 커터 축 안내 고정 나사 4 J-12 28-112 A-300G Cutter Shaft Bushing 커터 축 부싱 1 J-13 28-013S-300G Adjusting Screw for Cutter (1/2", n=40) 커터 조절 나사 1 J-14 28-014G-300G Spring for Cutter Adjusting 커터 조절 스프링 1 J-15 28-015 A-300G Cushion Support for Adjusting Screw 조절 나사 쿠션 지지대 1 J-16 28-016S-300G Stud for Cushion Support (9/64", n=40) 쿠션 지지대 고정 단나사 1 J-17 28-017S-300G Nut for Cutter Adjusting Screw(1/2", n=40) 커터 조절 나사 너트 1 J-18 28-018 A-300G Cutter Mounting Plate 커터 부착판 1 J-19 SC-0211-7500 Screw (M4xP0.7) 커터 부착판 고정나사 2 J-20 28-020 A-300G Cutter Adjusting Plate 커터 조정판 1 J-21 SC-0211-7500 Screw (M4xP0.7) 커터 조정판 고정나사 2 J-22 28-022 A-300G Cutter Holder 커터 홀더 1 J-23 XX Screw (11/64", n=40) 커터 축 잼나사 1 J-24 02-021 A-1250 Collar for Cutter Driving Arm Shaft 커터 구동 암 축 카라 2 J-25 SC-0317-2700 Screw (15/64", n=28) 카라 잼나사 1 J-26 28-027 A-300G Cutter Driving Arm 커터 구동 암 1 J-27 28-028P-300G Pin for Cutter Driving Arm 커터 구동 암 핀 1 J-28 SC-0164-2700 Screw (M5xP0.8) 핀 잼나사 1 J-29 21-019P-120H Spring Holder 스프링 걸이 1 J-30 28-031 A-300G Cutter Link Shaft 커터 링크 축 1 J-31 SC-0317-2700 Screw (15/64", n=28) 커터 링크 축 잼나사 1 J-32 02-003W-300G Washer 커터 링크 축 고정 와셔 1 J-33 28-034 A-300G Cutter Link Bracket 커터 링크 브라켓 1 J-34 XX Screw (11/64", n=40) 커터 링크 브라켓 잼나사 1 J-35 XX Stud Screw for Cutter Link (15/64", n=28) 커터 링크 단나사 1 J-36 XX Cutter Solenoid Bracket 커터 솔레노이드 브라켓 1 J-37 SC-0194-2302 Screw (3/16", n=28) 커터 솔레노이드 브라켓 고정 나사 4 J-38 XX Screw (M5xL10) 커터 솔레노이드 고정나사(M5xL10) 3 J-39 06-026A-BH30 Cutter Solenoid Ass'y 커터 솔레노이드 (Set) 1(Set) J-40 Stopper Cushion 스토퍼 쿠션 1 J-41 Solenoid Stopper 솔레노이드 스토퍼 1 J-42 Washer 스토퍼 고정 와셔 1 J-43 Nut 스토퍼 고정 너트 2 J-44 15-027 A-2070 Cutter Sensor Ass'y 커터 센서 (조) 1 J-45 28-047 A-300G Cutter Sensor Bracket 커터 센서 브라켓 1 J-46 SC-0543-2302 Screw (11/64", n=40) 커터 센서 브라켓 잼나사 1 J-47 28-061G-300G Extention Spring for Cutter Driving Arm 커터 운동 암 인장 스프링 1 J-48 28-049S-300G Screw (11/64", n=40) 커터 고정 나사 1 J-49 28-053A-300G Cutter (1/2") 커터(1/2") 1 29 jintex.in

Page 30 — Bobbin Winder & Hand Pully Mechanism

K Bobbin Winder & Hand Pully Mechanism 실감기 및 핸드 풀리 관계 K-12 K-20 K-34 K-13 K-19 K-33 K-29 K-21 K-32 K-15 K-16 K-18 K-23 K-24 K-22 K-26 K-25 K-27 K-35 K-36 K-37 K-38 K-39 K-40 K-41 K-42 K-43 K-44 K-45 K-1 K-2 K-2 K-4 K-5 K-6 K-7 K-8 K-9 K-10 K-3 K-11 jintex.in

Page 31

SunStar Ref. No. Parts No. Note K-1 255001S-306H Hand Pully Driven Gear K-2 SC-A308-4517 Screw (1/4", n = 40) K-3 25S104S-306H Hand Pully K-4 25S105S-306H Hand Pully Shaft K-5 25S006S-306H Stud Screw for Hand Pully Roller K-6 25S007S-306H Hand Pully Roller K-7 25S008S-306H Spring Pin K-8 25S009S-306H Hand Pully Bushing K-9 SC-0317-2700 Screw (15/64", n = 28) K-10 25S011S-306H Hand Pully Spring K-11 25S012S-306H Screw K-12 41S101S-306H Thread Winder Ass'y K-13 41S001S-306H Thread Winder Base Ass'y K-14 41-002A-300G Thread Winder Driving Shaft K-15 41-018A-120H Bobbin Winder Action Body K-16 41S006S-306H Thread Winder Action pulley K-17 SC-0104-5607 Screw (11/64", n = 40) K-18 41S008S-306H Thread Winder Action Ring K-19 41S009S-306H Bobbin Winder Shaft Rubber Ring K-20 41-008A-300G Bobbin Stand K-21 41-009A-300G Bobbin Stopper K-22 41-010A-300G Bobbin Winder Adjusting Plate K-23 SC-0130-1230 Screw (1/8", n = 40) K-24 06011SW-306H Washer K-25 41-013A-300G Bobbin Winder Lever K-26 SC-0105-7500 Screw (M4xP0.7) K-27 41S013S-306H Bobbin Winder Lever Shaft K-28 04-009C-3710 E-Ring (Ø5) K-29 40-007W-1600 Washer K-30 41S014S-306H Thread Winder Adjusting Cam K-31 02004SC-4113 Screw (M4xP0.7) K-32 41S021S-306H Thread Winder Spring K-33 41S017S-306H Thread Winder Action Plate K-34 41S023S-306H Thread Winder Mes K-35 41S025S-306H Thread Winder Mes K-36 SC-0519-2302 Screw (9/64", n = 40) K-37 41S027S-306H Thread Tension Control Ass'y K-38 41S034S-306H Thread Tension Cap Nut K-39 40-804W-1230 Thread Tension Spring Stopper K-40 GP-003213-00 Thread Tension Spring K-41 40-024A-1230 Spring Cover K-42 40-108A-1306 Thread Tension Disk K-43 41S028S-306H Thread Tension Adjusting Shaft K-44 41S026S-306H Thread Guide Plate K-45 SN-0121-7400 Nut Name of Parts 품 명 수량 Assembly No. 핸드 풀리 중동 기어 1 핸드 풀리 기어 컵나사 4 핸드 풀리 1 핸드 풀리 축 1 핸드 풀리 롤러 단나사 1 핸드 풀리 롤러 1 스프링 핀 1 핸드 풀리 붓싱 1 핸드 풀리 붓싱 컵나사 1 핸드 풀리 스프링 1 핸드 풀리 컵나사 1 실감기 (Set) 1(Set) 실감기 베이스 (Set) 1 실감기 구동축 1 실감기 작동 몸체 1 실감기 작동 풀리 1 고정나사 2 실감기 작동링 1 실감기 구동축 고무링 1 보빈 스탠드 1 보빈 스토퍼 1 실감기 조절판 1 나사 1 와셔 1 실감기 레버 1 고정나사 1 실감기 레버축 1 E-링 (호칭경 5) 2 와셔 2 실감기 조절캠 1 고정나사 1 실감기 인장 스프링 1 실감기 작동판 1 컵나사 3 실감기 메스 1 컵나사 2 실감기 조절력 조절장치(Set) 1(Set) 실감기 조절 캡 너트 1 실장력 조절 스프링 스토퍼 1 실감기 조절 스프링 1 스프링 커버 1 실내기 접시 1 실장력 조절축 1 실안내판 1 너트 1 31 jintex.in

Page 32 — Lubrication Mechanism

L Lubrication Mechanism 급유 관계 L-26 L-26 L-25 L-27 L-24 L-23 L-22 L-23 L-48 L-15 L-31 L-16 L-32 L-30 L-29 L-28 L-20 L-21 L-57 L-57 L-57 L-13 L-12 L-43 L-36 L-58 L-35 L-64 L-44 L-49 L-49 L-46 L-59 L-2 L-1 L-19 L-60 L-47 L-45 L-63 L-51 L-50 L-53 L-52 L-55 L-57 L-54 L-56 L-61 L-3 L-14 L-4 L-42 L-17 L-18 L-8 L-67 L-68 L-69 L-72 L-65 L-70 L-72 L-73 L-72 L-72 L-71 L-72 L-5 L-6 L-7 jintex.in

Page 33

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. L-1 01-009R-2700 Code Holder (6N) 코드 홀더 (6N) 1 L-2 SC-0365-3710 Screw (9/64", n = 40) 코드 홀더 멈나사 1 L-3 44-003A-300G Oil Filter Base Bracket 오일 필터 베이스 브라켓 1 L-4 SC-0543-2302 Screw (11/64", n = 40) 오일 필터 베이스 브라켓 고정나사 3 L-5 44-020C-2070 Oil Filter 오일 필터 1 L-6 44-019A-2070 Oil Filter Base 오일 필터 베이스 1 L-7 SC-0365-3710 Screw (9/64", n = 40) 오일 필터 고정나사 1 L-8 44-009C-300G Holder for Oil Hose A 호스잡이 A 1 L-9 SC-0365-3710 Screw A (9/64", n = 40) 호스잡이 A 고정나사 1 L-10 44-017C-300G Holder for Oil Hose B 호스잡이 B 1 L-11 SC-0365-3710 Screw B (9/64", n = 40) 호스잡이 B 고정나사 1 L-12 44-013C-300G Holder for Oil Hose C 호스잡이 C 1 L-13 SC-0365-3710 Screw C (9/64", n = 40) 호스잡이 C 고정나사 1 L-14 44-015C-300G Holder for Oil Hose D 호스잡이 D 1 L-15 44-017C-300G Holder for Oil Hose E 호스잡이 E 1 L-16 SC-0543-2302 Screw E (11/64", n = 40) 호스잡이 E 고정나사 1 L-17 44-019C-300G Holder for Oil Hose F 호스잡이 F 1 L-18 SC-0365-3710 Screw F (9/64", n = 40) 호스잡이 F 고정나사 1 L-19 Oil Wick for Lower Shaft Bushing(F) 하축 전봇싱 급유 유심 1 L-20 44-012C-1230 Oil Hose for Oil Terminal 오일 터미널 급유 호스 1 L-21 44S002S-306H Return Hose for Oil Terminal 오일 터미널 환류 호스 1 L-22 44-023A-300G Oil Terminal Base 오일 터미널 베이스 1 L-23 SC-0365-3710 Screw (9/64", n = 40) 오일 터미널 베이스 고정나사 3 L-24 44-025A-300G Felt Base 펠트 베이스 1 L-25 44-026A-300G Felt Base Plate 펠트 베이스 판 1 L-26 SC-0543-2302 Screw (11/64", n = 40) 펠트 베이스 판 고정나사 2 L-27 44-028M-300G Felt A 펠트 A 1 L-28 44-029A-300G Oil Terminal 오일 터미널 1 L-29 SC-0543-2302 Screw (11/64", n = 40) 오일 터미널 고정 나사 2 L-30 44-031R-300G Oil Window Packing 유창 고무 패킹 1 L-31 44-032C-300G Oil Cap 유창 1 L-32 44-033C-300G Oil Pipe 오일 파이프 1 L-33 Oil Wick for Oil Terminal 오일 터미널 유심 1 L-34 Oil Wick for Lower Shaft Bushing(F) 상축 전 봇싱 급유 유심 1 L-35 Oil Wick for Needle Bar Frame 바늘대 후레임 급유 유심 1 L-36 Oil Wick Thread Take-up Lever 실채기 급유 유심 2 L-37 44-012C-1230 Oil Hose for Lower Shaft Bushing(R) 상축 후 봇싱 급유 호스 1 L-38 Oil Wick for Lower Shaft Bushing(R) 상축 후 봇싱 급유 유심 1 L-39 44-012C-1230 Oil Hose for Oscillator Shaft Bushing(R) 요동축 후 봇싱 급유 호스 1 L-40 Oil Wick for Oscillator Shaft Bushing(R) 요동축 후 봇싱 급유 유심 1 L-41 01-011C-2350 Code Holder (5N) 코드 홀더 (5N) 2 L-42 SC-0365-3710 Screw (9/64", n = 40) 코드 홀더 고정 나사 2 L-43 06-033M-7400 Oil Felt for Upper Shaft Bushing(F, R) 상축 전,후 봇싱 급유 펠트 1 L-44 06-033M-7400 Oil Felt for Oscillator Shaft Bushing(F, R) 요동축 전,후 봇싱 급유 펠트 2 L-45 44-049M-300G Falt 면판부 오일 환류 펠트 1 L-46 44-050C-300G Oil Return Felt 펠트 지지대 1 L-47 SC-0365-3710 Felt Support 펠트 지지대 고정나사 1 L-48 44-053R-300G Screw (9/64", n = 40) 유창 지지대 2 L-49 44-056R-300G Oil Cap Support 오일 리젝터 1 L-50 44-054C-300G Oil Rejecter 지그재그 연결 로드 펠트 걹이 1 L-51 SC-0365-3710 Zigzag Connecting Rod Felt Holder 펠트 잡이 고정나사 1 L-52 07-008M-3710 Screw (9/64", n = 40) 지그재그 연결 로드 펠트 유심 1 L-53 07-004M-7400 Oil Wick for Zigzag Connecting Rod B 지그재그 연결 로드 펠트 유심 B 1 jintex.in 33

Page 34

L Lubrication Mechanism 급유 관계 L-23 L-26 L-26 L-25 L-24 L-27 L-48 L-22 L-23 L-15 L-31 L-16 L-32 L-30 L-29 L-28 L-20 L-21 L-57 L-57 L-13 L-12 L-43 L-36 L-58 L-35 L-64 L-49 L-44 L-44 L-40 L-46 L-59 L-60 L-19 L-47 L-45 L-1 L-2 L-63 L-18 L-42 L-17 L-8 L-18 L-62 L-68 L-69 L-72 L-73 L-65 L-70 L-72 L-72 L-72 L-71 L-51 L-50 L-53 L-52 L-55 L-57 L-56 L-54 L-61 L-3 L-14 L-4 L-7 L-5 L-6 L-72 L-73 jintex.in

Page 35

Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. L-54 Oil Wick for Zigzag Connecting Rod B 지그재그 연결 로드 급유 유입 B 1 L-55 44-012C-1230 Oil Hose for Zigzag Connecting Rod A 지그재그 연결 로드 급유 호스 A 1 L-56 44-012C-1230 Oil Hose for Zigzag Connecting Rod B 지그재그 연결 로드 급유 호스 B 2 L-57 Cable Tie 급유호스 고정 케이블 잡이 1 L-58 44-061M-300G Oil Felt for Needle Bar Crank 바늘대 크랭크 급유 펠트 1 L-59 44-062C-300G Oil Felt Holder for Needle Bar Crank 바늘대 크랭크 급유 펠트 잡이 2 L-60 SC-0365-3710 Screw (9/64", n=40) 바늘대 크랭크 급유 펠트 잡이 고정나사 1 L-61 44-012C-1230 Hose 하축 중봇싱 급유 호스 1 L-62 44-012C-1230 Hose 하축 중봇싱 급유 호스 1 L-63 44-012C-1230 Hose 면판부 오링 환류 호스 1 L-64 44-012C-1230 Hose 급유호스 1 L-65 44-066A-300G Oil Pan 오일팬 1 L-66 44-067M-300G Oil Pan Gasket 오일팬 가스켓 1 L-68 SC-0347-1230 Screw for Oil Cap 오일 마개 나사 1 L-69 44-005R-1230 O-Ring O-링 1 L-70 44-010C-1230 Magenatic 자석 1 L-71 44-067A-300G Oil Stopper Plate 오일 스토퍼 판 1 L-72 44-072R-300G Oil Pan Rubber Support A 오일 팬 고무 받침 A 6 L-73 44-072R-300G Oil Pan Rubber Support B 오일 팬 고무 받침 B 2 35 jintex.in

Page 36 — Table Mechanism

M Table Mechanism 테이블 관계 M-6 M-1 M-3 M-4 M-5 M-2 36 jintex.in

Page 37

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. M-1 Table 테이블 1 M-2 TZ-001-1000 Table Stand Ass'y 테이블 다리 (Set) 1(Set) M-3 Table Drawer 테이블 서랍 1 M-4 Support Bracket for Table Drawer 테이블 서랍 받침 브라켓 2 M-5 Screw Nail 테이블 서랍 받침 브라켓 고정나사 못 4 M-6 91-007A-2302 Thread Stand Ass'y 실패꽂이 (Set):2T용 1(Set) 37 jintex.in

Page 38 — Accessories Mechanism

N Accessories Mechanism 악세사리 관계 N-3 N-2 N-4 N-1 N-5 N-20 N-12 N-11 N-10 N-9 N-8 N-15 N-14 N-13 N-6 DP x 5 #11 Sun Star N-7 N-17 N-20 N-27 N-18 N-28 N-24 N-25 N-29 N-19 N-21 N-16 N-22 N-23 38 jintex.in

Page 39

SunStar Ref. No. Parts No. Note Name of Parts Assembly No. 품 명 수량 N-1 91-102C-1230 Driver (L) 드라이버 (대) 1 N-2 91-103C-1230 Driver (M) 드라이버 (중) 1 N-3 91-103C-1230 Driver (S) 드라이버 (소) 1 N-4 91S004S-306H Spaner (9x10) 스패너 (9x10) 1 N-5 91-011C-12330 Oiler 오일 주유통 1 N-6 Needle (DPX5 #11J for B-BH3000G 바늘 (DPX5 #11J for B-BH3000G 1 N-7 07-045A-2070 Bobbin 보빈 2 N-8 91-001C-2700 L-Shaped Wrench (2mm) L자 렌즈 (2mm) 1 N-9 91-004C-2700 L-Shaped Wrench (2.5mm) L자 렌즈 (2.5mm) 1 N-10 91-005C-2700 L-Shaped Wrench (3mm) L자 렌즈 (3mm) 1 N-11 91-001C-3800 L-Shaped Wrench (4mm) L자 렌즈 (4mm) 1 N-12 91-002C-2700 L-Shaped Wrench (5mm) L자 렌즈 (5mm) 1 N-13 Fuse (0.5A) 퓨즈 (0.5A) 1 N-14 Fuse (5A) 퓨즈 (5A) 1 N-15 Fuse (6.3A) 퓨즈 (6.3A) 1 N-16 91-001C-1230 Accessorie Bag 액세서리 백 1 N-17 91-001C-120H Head Cover 헤드커버 1 N-18 91-007C-300G Thread 실끼우개 1 N-19 91-020A-300G Pin Set 핀셋 1 N-20 91-008C-1230 Oil 오일통 1 N-21 91-021C-300G Body Support 두부 지지봉 1 N-22 04-026A-300G Gauge for Needle Bar Setting (G) 바늘대 셋팅 게이지 (G) 1 N-23 04-027A-300G Gauge for Needle Bar Setting (K) 바늘대 셋팅 게이지 (K) 1 N-24 01A143S-811H Cable Tie (S) 케이블 타이(소) 5 N-25 02-003A-2700 Cable Tie (M) 케이블 타이(중) 10 N-26 28-054A-300G Cutter (3/8") 커터(3/8") 1 N-27 28-056A-300G Cutter (1") 커터(1") 1 N-28 28-055A-300G Cutter (5/8") 커터(5/8") 1 N-29 28-057A-300G Cutter (11/4") 커터(11/4") 1 jintex.in

Page 40 — Control Box Mechanism

Control Box Mechanism 콘트롤 박스 관계 O-42 O-43 O-19 O-18 O-20 O-9 O-2 O-35 O-3 O-4 O-34 O-1 O-5 O-12 O-13 O-14 O-15 O-17 O-21 O-23 O-24 O-10 O-11 O-16 O-25 O-39 O-40 O-36 O-41 O-37 O-45 O-38 O-31 Remove the dust that has adhered to the filter's "dust-proof" filter once a week. O-8 O-32 How to Set the Input Voltage 100V 115V 200V 230V 240V 400V O-27 O-28 O-29 O-6 O-7 O-33 O-30 jintex.in

Page 41

SunStar Ref. No. Parts No. Note Name of Parts Assembly No. O-1 01-001A-BT01 Control Box 컨트롤 박스 1 O-2 01-001N-BT01 Screw Control Box (M6xP1 L=50, SUS) 컨트롤 박스 조립 볼트 4 O-3 10-003S-SW66 Spring Washer Control Box 컨트롤 박스 스프링 와셔 (호칭경 6, SUS) 4 O-4 10-004S-SW66 Flat Washer Control Box 컨트롤 박스 평 와셔 (호칭경 6, SUS) 4 O-5 09-035S-3701 Nut Control Box 컨트롤 박스 너트 [M4,Zn 도금(황색)] 6 O-6 01-002A-BT01 Control Box Cover 컨트롤 박스 전면 커버 1 O-7 10-014M-AT10 Screw Control Box Side Cover (M4xP0.7 L=6) 컨트롤 박스 측면 커버 조임 나사 12 O-8 01-003A-BT01 Control Box Side Cover 컨트롤 박스 측면 커버 1 O-9 10-014M-AT10 Screw Control Box Side Cover (M4xP0.7 L=6) 컨트롤 박스 측면 커버 조임 나사 7 O-10 01-0000-BP00 POWER P.C.B 파워 보드(POWER P.C.B) 1 O-11 10-021MSW66 Screw POWER P.C.B (M3xP0.7 L=6) 파워 보드 조임 나사 (조) 4 O-12 01-004A-BY01 Transformer 트랜스 포머 1 O-13 10-028M-S W Screw Transformer (M5xP0.8 L=10) 트랜스 포머 조임 나사 4 O-14 10-028M-SW66 Spring Washer Transformer 트랜스 포머 스프링 와셔 4 O-15 10-005S-SW66 Flate Washer Transformer 트랜스 포머 평 와셔 4 O-16 03-0000-BI100 Main Motor Drive Board 주축 모터 구동 보드 1 O-17 10-021M-SW66 Screw (11/64" n=40) 주축 모터 구동 볼트 험나사 4 O-18 01-005A-BT01 Fan 송풍기 (소) 1 O-19 01-002M-AU11 Screw Fan (M4xP0.7 L=30) 송풍기 조립 볼트 2 O-20 09-035S-3701 Nut Fan (M4) 송풍기 조립 너트 2 O-21 03-1000-BD00 Digital Board 디지탈 보드 1 O-22 10-001M-BP01 Screw Digital Board (M3xP0.5 L=8) 디지탈 보드 조임 나사 (조) 2 O-23 01-007A-AU12 Main Radiator 주축 방열판 1 O-24 10-018M-SW66 Screw Main Radiator (M4xP0.7 L=10) 주축 방열판 조임 나사 (조) 4 O-25 15-022S-1000 Screw IPM (M4xP0.7 L=20) IPM 조임 나사 (조) 2 O-26 01-002M-AU12 Screw Bridge Diode (M4xP0.7 L=20) Bridge Diode 조임 나사(조) 1 O-27 01-007A-BT01 Connector Cover 커넥터 커버 1 O-28 10-022M-SW66 Screw Connector Cover (M4xP0.7 L=20) 커넥터 커버 조임 나사 (조) 2 O-29 11-001S-PT10 Ending Bushing 엔딩 부싱 1 O-30 01-003S-BT01 Sticker Caution 고전압 위험 스티커 1 O-31 01-004S-BT01 Sticker Replacing Filter 필터 교환 스티커 1 O-32 01-005S-BT01 Sticker Changing the Input Voltage 전압 설정 방법 스티커 1 O-33 12-149C-SC53 Sticker Model 스티커 모델 1 O-34 91-001C-BT10 Urethan Washer 우레탄 와셔 4 O-35 91-001C-PT10 Table Washer 테이블 와셔 4 O-36 Step Motor Drive 스템모터 드라이버 3 O-37 Screw 스템모터 드라이버 조임 나사 6 O-38 Step Motor Drive Radiator 스템모터 드라이버 방열판 1 O-39 Screw 스템모터 드라이버 방열판 나사 4 O-40 Screw A TR 방열판 험나사 A 6 O-41 Screw B TR 방열판 험나사 B 6 O-42 Fan 송풍기 (대) 1 O-43 Screw Fan 송풍기 조립볼트 4 O-44 Nut Fan 송풍기 조립너트 4 O-45 Screw 정지나사 1 O-46 Screw TR TR 고정나사 33 jintex.in

Page 42 — Operation Unit Mechanism

P Operation Unit Mechanism 오퍼레이션 관계 P-1 P-4 SunStars SunStars SunStars MACHINE CO., LTD. SunStars MACHINE CO., LTD. POWER ERROR ON/OFF SELECT ENTER P-3 P-2 P-9 P-7 P-8 P-5 P-6 42 jintex.in

Page 43

SunStar Ref. No. Parts No. Note Name of Parts 품 명 수량 Assembly No. P-1 Operation Box (Upper) 오퍼레이션 박스 (상) 1 P-2 Operation Box (Lower) 오퍼레이션 박스 (하) 1 P-3 Screw Operation Box (3xP1.06 L=8) 오퍼레이션 박스 조립 나사 6 P-4 Membrane S/W 멤브레인 스위치 1 P-5 Operation Box Stand 오퍼레이션 박스 스텐드 1 P-6 Screw Operation Box Stand (5xP1.59 L=20) 오퍼레이션 박스 스텐드 조립나사 2 P-7 Operator Board 조작반 보드 1 P-8 Screw Operator Board (3xP1.06 L=6) 조작반 보드 험나사 6 P-9 Margnetic Rubber 고무자석 2 jintex.in 43
