SunStar SPS/B-BH3000 Parts Book (PDF)
Text index — SunStar SPS/B-BH3000
Page 5 — A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-1 | unreadable | Arm | 1 |
| A-2 | unreadable | Bed | 1 |
| A-3 | 01-007 A -300G | Face Plate | 1 |
| A-4 | 01-008 M -300G | Face Plate Gasket | 1 |
| A-5 | SC-A174-1230 | Screw (11/64″, n=40) | 4 |
| A-6 | 01-010 A -300G | Rear Cover | 1 |
| A-7 | 01-011 M -300G | Rear Cover Gasket | 1 |
| A-8 | SC-A174-1230 | Screw (11/64″, n=40) | 2 |
| A-9 | SC-0543-2302 | Screw (11/64″, n=40) | 4 |
| A-10 | 01-013 A -300G | Top Cover | 1 |
| A-11 | unreadable | Top Cover Gasket | 1 |
| A-12 | SC-A174-1230 | Screw (11/64″, n=40) | 6 |
| A-13 | 01-011 A -120H | Thread Take Up Lever Cover | 1 |
| A-14 | SC-0528-1230 | Screw (9/64″, n=40) | 1 |
| A-15 | 01-018 A -300G | Motor Cover | 1 |
| A-16 | 01-019 A -300G | Motor Cover Support Bar(9/32″, n=40) | 1 |
| A-17 | SC-0498-3710 | Screw (11/64″, n=40) | 6 |
| A-18 | 01-021 A -300G | Upper Thread Trimmer Arm Cover | 1 |
| A-19 | SC-A174-1230 | Screw (11/64″, n=40) | 3 |
| A-20 | 01-023 A -300G | Pause Switch Cover | 1 |
| A-21 | SC-A174-1230 | Screw (11/64″, n=40) | 3 |
| A-22 | 01-025 A -300G | Hook Cover | 1 |
| A-23 | 01-026 A -300G | Hook Cover Shaft | 1 |
| A-24 | SC-0110-1230 | Screw (15/64″, n=28) | 1 |
| A-25 | 40-004 W 1600 | Washer | 1 |
| A-26 | 01-028 A -300G | Hook Cover Spring Plate | 1 |
| A-27 | SN-0101-1600 | Nut (11/64″, n=40) | 2 |
| A-28 | 01-018 W 1600 | Washer | 2 |
| A-29 | SC-0543-2302 | Screw (11/64″, n=40) | 2 |
| A-30 | 01-032 A -300G | Bed Hinge Shaft | 2 |
| A-31 | 01-033 A -300G | Bed Hinge Plate | 2 |
| A-32 | 06-102 W -2350 | Washer | 4 |
| A-33 | 08091SC-4113 | Screw (M6xP1.0) | 4 |
| A-34 | 01-034 A -300G | Bed Hinge Bracket | 2 |
| A-35 | 01 A121S-811 H | Bolt (M10xL70) | 4 |
| A-36 | 01 A122S-811 H | Spring Wahser | 4 |
| A-37 | 01 A123S-811 H | Wahser | 8 |
| A-38 | 01 A124S-811 H | Nut (M10xP1.5) | 4 |
| A-39 | 20-004 S -300G | Screw (M6xP1.0) | 2 |
| A-40 | 01-039 R -300G | Hinge Rubber | 2 |
| A-42 | 01-028 A -5030 | Safety Plate | 1 |
| A-43 | SC-0543-2302 | Screw (11/64″, n=40) | 1 |
| A-44 | 40-004 W 1600 | Washer | 2 |
| A-45 | SN-0101-2700 | Nut (11/64″, n=40) | 3 |
| A-46 | 01 S051 S -306 H | Safety Plate Spring Hook | 1 |
| A-47 | SN-0119-2302 | Nut | 1 |
| A-48 | 01 S050 S -306 H | Safety Plate Spring | 1 |
| A-49 | 01-042 A -300G | Safety Plate Bracket | 1 |
| A-50 | 01 S046 S -306 H | Safety Plate Holder | 1 |
| A-51 | 06-051 W -7400 | Washer | 1 |
| A-52 | 01 S047 S -306 H | Safety Plate Screw (11/64″, n=40) | 1 |
| A-53 | SC-0543-2302 | Screw (11/64″, n=40) | 2 |
Page 7 — A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| A-54 | 01-046R-300G | Bed Support Rubber | 2 |
| A-55 | 01-047S-300G | Bed Support Rubber Screw (11/64" , n=40) | 2 |
| A-56 | 01-048M-300G | Model Sticker (Genernal) | 1 |
| A-57 | 01-049M-300K | Model Sticker (knit) | 1 |
| A-59 | 01S006S-306H | Brand Mark (Face plate) | 1 |
| A-60 | 01S064S-306H | Brand Mark | 2 |
| A-61 | 01-048A-300G | Pause Switch (Set) | 1set |
| A-62 | 01-054R-300G | Cutter Driving Arm Shaft Rubber Cap | ㅋ |
| A-63 | 01-110R-1230 | Face Plate Rubber Cap | 1 |
| A-64 | 01-007R-8130 | Rubber Cap | 2 |
| A-65 | 04-104R-1230 | Rubber Cap | 4 |
| A-66 | 01-144R-1230 | Rubber Cap | 1 |
| A-67 | 01-021R-1600 | Rubber Cap | 3 |
| A-68 | 44-011C-7400 | Code Holder A | 1 |
| A-69 | SC-0365-3710 | Screw (9/64" , n=40) | 1 |
| A-70 | 01-142A-257A | Code Holder B | ㅌ |
| A-72 | 01-060M-300G | Warning Sign Sticker | 3 |
| A-73 | 01-061M-300G | Threading Diagram | 1 |
Page 9 — Upper Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-2 | 02-002 A-300G | Link Cam | 1 |
| B-3 | 02-003W-300G | Washer | 1 |
| B-4 | 02-003 C-2500 | Screw (9/32" , n=28) | 1 |
| B-5 | SC-0540-7600 | Screw A (15/64" , n=28) | 1 |
| B-6 | SC-A308-4517 | Screw B (1/4" , n=40) | 2 |
| B-7 | 10-009 C-2700 | Upper Shaft C-Ring | 1 |
| B-8 | 02-016A-120D | Upper Shaft Bearing(R) (6302ZZNR) | 1 |
| B-9 | 02-008A-300G | Upper Shaft Bushing (F) | 1 |
| B-10 | 02-009A-300G | Upper Shaft Bushing (M) | 1 |
| B-11 | 02-011A-300G | Upper Shaft Collar | 2 |
| B-12 | SC-0317-2700 | Screw (15/64" , n=28) | 4 |
| B-13 | 02-119A-120D | Main Shaft Motor | 1 |
| B-14 | 02-020S-120D | Screw (M5xP0.8) | 4 |
| B-15 | 07-011W-1230 | Spring Washer | 4 |
| B-16 | 10-020W-2700 | Washer | 4 |
| B-17 | 02-017A-120D | Upper Shaft Coupling | 1 |
| B-18 | 08037SC-120D | Screw (M6xL8) | 4 |
| B-19 | 02-019A-300G | Upper Shaft Timming Pulley | 1 |
| B-20 | 02-007C-2070 | Upper Shaft Timming Pulley Fixing Ring | 2 |
| B-21 | SC-A308-4517 | Screw (1/4" , n=40) | 2 |
| B-22 | 02-022A-300G | Upper Shaft Belt | 1 |
| B-23 | 02-023A-300G | Idler Base Ass'y | 1(Set) |
| B-26 | 02-024A-300G | Idler | 1 |
| B-27 | SC-0140-5607 | Screw (1/4" , n=28) | 1 |
| B-28 | 09-025W-8270 | Washer (09-025W-8270) | 1 |
| B-29 | 02-027C-300G | Idler C-Ring (φ30) | 2 |
| B-30 | 01-088A-7600 | Idler Bearing | 1 |
| B-31 | SC-0109-2350 | Screw (M6xP1.0) | 2 |
| B-32 | 06-102W-2350 | Washer | 2 |
| B-33 | 02-032A-300G | Idler Timming Pulley | 1 |
| B-34 | 02-033A-300G | Idler Timming Pulley Shaft | 1 |
| B-35 | 02-034A-300G | Idler Timming Pulley Shaft Collar | 1 |
| B-36 | 01A142S-811H | Idler Pulley Bearing | 2 |
| B-37 | 02-036C-300G | Idler Pulley C-Ring (φ20) | 2 |
| B-38 | SC-0317-2700 | Screw (15/64" , n=28) | 2 |
| B-39 | 02-038R-300G | Upper Shaft Rubber Cap | 1 |
| B-40 | 02-038A-300G | Bobbin Winder Driving Wheel | 1 |
| B-41 | SC-0499-1230 | Screw (11/64" , n=40) | 2 |
| B-42 | 08-505A-300G | Needle Bar Holder | 1 |
| B-43 | 04-102A-300G | Needle Bar Holder Slide Block | 2 |
| B-44 | SC-0128-7400 | Screw (11/64" , n=40) | 2 |
| B-46 | 04-004A-300G | Needle Bar Frame | 1 |
| B-47 | 15-105A-2070 | Needle Bar Frame Bushing | 2 |
| B-49 | 04-108A-300G | Needle Bar ZigZag Guide Block | 1 |
| B-50 | 04-009A-300G | Needle Bar Frame Shaft | 1 |
| B-51 | SC-0101-3710 | Screw (15/64" , n=28) | 1 |
| B-52 | 04-011A-300G | Needle Bar Frame Guide (Set) | 1(Set) |
| B-53 | 04-012A-300G | Needle Bar Frame Guide | 1 |
Page 11 — Upper Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| B-54 | 04-013A-300G | Guide Shaft | 1 |
| B-55 | SC-0101-3710 | Screw (15/64", n=28) | 1 |
| B-56 | 04-016A-300G | Needle Bar | 1 |
| B-57 | 04-117A-300G | Needle Bar Thread Guide | 1 |
| B-58 | SC-A131-4522 | Screw (1/8", n=44) | 1 |
| B-60 | 04-020A-300G | Needle Bar Guide | 1 |
| B-61 | SC-0211-7500 | Screw (M4xP0.7) | 1 |
| B-62 | 04-007C-300G | Needle Bar Frame | 2 |
| B-63 | SC-0179-3710 | Screw (11/64", n=40) | 1 |
| B-64 | 04-024S-300G | Stopper Screw A (M4xL18) | 2 |
| B-65 | 04-025S-300G | Stopper Screw A Nut (M4) | 1 |
| B-66 | SC-0101-3710 | Stopper Screw B | 1 |
| B-67 | SN-0105-3400 | Stopper Screw B Nut | 1 |
| B-68 | 04-028A-300G | Bushing | 1 |
| B-69 | 08-001A-300G | Thread Take-up Lever Ass'y | 1 |
| B-70 | 08-501A-300G | Thread Take-up Lever | 1 |
| B-71 | 08-502A-300G | Needle Bar Crank | 1 |
| B-72 | 08-503A-300G | Thread Take-up Lever Crank | 1 |
| B-73 | 08-511A-123 A | Needle Bearing for B-74 | 1 |
| B-74 | 08-511A-123 A | Needle Bearing for B-75 | 1 |
| B-75 | 08-504A-300G | Needle Bar Crank Rod | 1 |
| B-76 | 08S008S-306H | Screw | 1 |
| B-77 | 08-506A-300G | Thread Take-up Lever Crank Shaft | 1 |
| B-78 | SC-0114-1230 | Screw (15/64" , n=28) | 1 |
| B-79 | 04-014A-300G | Needle Bar Crank Rod Guide | 1 |
| B-80 | 04-015S-300G | Screw A (11/64" , n=40) | 1 |
| B-81 | SC-0178-7400 | Screw B (11/64" , n=40) | 2 |
| B-82 | 25-001A-300G | Hand Pulley Driving Gear | 1 |
| B-83 | SC-A308-4517 | Screw (1/4" , n=40) | 4 |
Page 13 — Low Shaft Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| C-1 | 07-001 A-300G | Low Shaft | 1 |
| C-2 | 07-002 A-300G | Low Shaft Pulley | 1 |
| C-3 | SC-0317-2700 | Screw (15/64", n=28) | 2 |
| C-4 | 07-004 A-300G | Low Shaft Bearing(R) | 1 |
| C-6 | SC-0103-5607 | Screw (11/64", n=40) | 2 |
| C-7 | 07-007 A-300G | Low Shaft (M) | 1 |
| C-8 | SC-0317-2700 | Screw (15/64", n=28) | 1 |
| C-9 | 07-011 A-2070 | Oil Pump Piston | 2 |
| C-10 | 07-012 G-2070 | Oil Pump Piston Spring | 2 |
| C-11 | 07-013 S-2070 | Oil Pump Piston Cap Screw(1/4", n=40) | 2 |
| C-12 | 07-008 C-300G | Cap for Low Shaft Bushing(M) | 4 |
| C-13 | 44-134 C-5700 | Low Shaft (M) Nipple | 4 |
| C-14 | 07-014 A-300G | Low Shaft (F) | 1 |
| C-15 | 44-013 P-7500 | Low Shaft (F) Nipple A | 1 |
| C-16 | 07-010 A-2070 | Low Shaft (F) Nipple B | 1 |
| C-17 | SC-0317-2700 | Screw (15/64", n=28) | 1 |
| C-19 | 07-019 M-300G | Hook Joint Lubrication Felt | 1 |
| C-20 | SC-0317-2700 | Screw (15/64", n=28) | 4 |
| C-21 | 07-032 A-300G | Hook Holder | 1 |
| C-22 | 07-022 S-300G | Screw (11/64", n=40) | 2 |
| C-23 | 07-023M-300G | Low Shaft Bearing(F) Lubrication Felt | 1 |
| C-24 | 07-024 S-300G | Oil Adjusting Screw (9/32", n=28) | 1 |
| C-25 | 07-025 S-300G | Oil Adjusting Screw Nut (9/32", n=28) | 1 |
| C-26 | 07-026 S-300G | Oil Adjusting Stud Screw (9/64", n=40) | 1 |
| C-27 | 07-027 S-300G | Oil Adjusting Rubber | 1 |
| C-28 | 07-028 C-300G | Hook Bushing Felt Presser Plate | 1 |
| C-29 | 07-029 A-300G | Hook Ass'y | 1Set |
| C-30 | 07-045 A-300G | Bobbin | 1 |
| C-31 | 07-031 A-300G | Bobbin Case Ass'y | 1Set |
| C-32 | 07-130 C-300G | Low Shaft Collar Cover | 1 |
| C-33 | SC-0365-3710 | Screw (9/14", n=40) |
Page 15 — Presser Bar Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| D-1 | 05-001A-300G | Presser Driving Arm | 1 |
| D-2 | SC-0109-2350 | Fixing Bolt (M6xP1.0) A | 2 |
| D-3 | 20-004S-300G | Fixing Bolt (M6×P1.0) B | 2 |
| D-4 | 05-003A-300G | Presser Drive Gear | 1 |
| D-5 | SC-0164-2700 | Screw (11/64", n=40) | 2 |
Page 17 — Needle Bar Rocking Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| E-1 | 15-001A-300G | Motor Base | 1 |
| E-2 | 43-072A-9570 | Position Pin | 2 |
| E-3 | SC-0305-5607 | Screw (3/16" , n=32) | 5 |
| E-4 | 15-012A-2070 | Zigzag Motor | 1 |
| E-5 | 02015SC-4113 | Screw (M4xP0.7) | 4 |
| E-6 | 01-017W-1600 | Washer | 4 |
| E-7 | 15-006A-300G | Motor Lever | 1 |
| E-8 | SC-0317-2700 | Screw (15/64" , n=28) | 2 |
| E-9 | 15-008C-300G | Motor Lever Shaft | 1 |
| E-10 | SC-0317-2700 | Screw (15/64" , n=28) | 1 |
| E-11 | 15-010W-5607 | Washer | 2 |
| E-12 | 15-011A-300G | Zigzag Connecting Rod | 1 |
| E-13 | 15-012C-300G | Zigzag Connecting Rod Shaft | 1 |
| E-14 | SC-0317-2700 | Screw (15/64" , n=28) | 1 |
| E-15 | 15-014A-300G | Needle Bar Zigzag Lever (R) | 1 |
| E-16 | SC-0109-2350 | Zigzag Lever Bolt (M6xP1.0) | 1 |
| E-17 | 15-016W-300G | Washer | 1 |
| E-18 | 15-017A-300G | Needle Bar Oscillator Shaft Ass'y | 1(Set) |
| E-19 | 15-118A-300G | Needle Bar Oscillator Shaft | 1 |
| E-20 | 15-117A-300G | Needle Bar Zigzag Lever (F) | 1 |
| E-21 | 04-009P-7400 | Taper Pin | 1 |
| E-22 | 15-018A-300G | Needle Bar Oscillator Shaft Bushing (F) | 1 |
| E-23 | 15-019A-300G | Needle Bar Oscillator Shaft Bushing (R) | 1 |
| E-24 | 15-021A-300G | Zigzag Sensor Bracket | 1 |
| E-25 | SC-A156-4118 | Screw (9/64" , n=40) | 2 |
| E-26 | 15-027A-2070 | Zigzag Sensor Ass'y | 1(Set) |
Page 19 — F
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| F-1 | 40-006A-BH30 | Thread Release Solenoid Ass'y | 1Set |
| F-3 | SC-0132-7500 | Screw (M3xP0.5) | 2 |
| F-4 | 40-002A-300G | Thread Release Solenoid Bracket | 1 |
| F-5 | SC-0543-2302 | Screw (11/64" , n=40) | 2 |
| F-6 | 40-004A-300G | Link Guide Plate | 1 |
| F-7 | 02014SC-4113 | Fixing Bolt | 1 |
| F-8 | 40-007A-300G | Thread Release Solenoid Link | 1 |
| F-9 | 40-011S-300G | Screw (11/64" , n=40) | 1 |
| F-10 | 40-008G-300G | Thread Release Solenoid Spring | 1 |
| F-11 | 40-009R-300G | Thread Release Solenoid Rubber | 1 |
| F-12 | 40-010A-300G | Thread Release Connecting Rod | 1 |
| F-13 | 40-011S-300G | Stud | 1 |
| F-14 | 01-116A-2350 | Thread Guide with Two Hole | 1 |
| F-15 | 01-027C-1230 | Fixing Nut | 1 |
| F-16 | 40-015C-300G | Thread Guide with Three Hole | 1 |
| F-17 | SC-A174-1230 | Screw (11/64" n=40) | 1 |
| F-18 | 40-124A-300G | Sub Thread Tension Adjusting Ass'y | 1Set |
| F-19 | 40-224A-300G | Sub Thread Tension Adjusting Shaft | 1 |
| F-20 | 40-204A-1230 | Thread Guide Disk | 2 |
| F-21 | 40-304A-1230 | Sub Guide Disk Presser Plate | 1 |
| F-22 | 11086PM-A001 | Spring Cover | 1 |
| F-23 | 40-255A-300G | Sub Thread Tension Adjusting Spring | 1 |
| F-24 | 11088PM-A001 | Stopper for Thread Tension Adjusting Sprng | 1 |
| F-25 | 40-204A-2350 | Nut | 1 |
| F-26 | 40-205A-1230 | Thread Release Pin | 1 |
| F-27 | 40-001A-300G | Thread Tension Adjusting Ass'y | 1Set |
| F-28 | 40S002S-306H | Thread Tension Adjusting Body | 1 |
| F-29 | 40S003S-306H | Thread Tension Adjusting Shaft | 1 |
| F-30 | 40-604S-1230 | Screw (9/64" , n=40) | 2 |
| F-31 | 40S006S-306G | Thread Take-up Lever Spring | 1 |
| F-32 | 40-204A-1230 | Thread Guide Disk | 2 |
| F-33 | 40-304A-1230 | Thread Guide Disk Presser Plate | 1 |
| F-34 | 40-333G-123A | Thread Tension Adjusting Spring | 1 |
| F-35 | 11088PM-A001 | Stopper for Thread Tension Adjusting Spring | 1 |
| F-36 | 40-204A-2350 | Nut | 1 |
| F-37 | 40-026P-300G | Thread Release Pin | 1 |
| F-38 | SC-0317-2700 | Screw (15/64" n=28) | 1 |
| F-39 | 01S033S-306H | Arm Thread Guide Ass'y | 1Set |
| F-40 | 01S031S-306H | Thread Guide (R) | 1 |
| F-41 | SC-0120-1230 | Screw (9/64" , n=40) | 1 |
| F-42 | 01-003C-250R | Thread Guide (L) | 1 |
| F-43 | SC-0120-1230 | Screw (9/64" , n=40) | 1 |
| F-44 | 01-021A-8150 | Thread Guide (L) | 1 |
| F-45 | SC-0120-1230 | Screw (9/64" , n=40) | 1 |
| F-46 | 40-128A-300G | Sub Thread Tension Adjusting Ass'y(L) | 1Set |
| F-47 | 40-281A-300G | Sub Thread Tension Adjusting Shaft (L) | 1 |
| F-48 | 40-204A-1230 | Thread Guide Disk | 2 |
| F-49 | 40-304A-1230 | Threadk Guide Disk Presser Plate | 1 |
| F-50 | 40S009S-306H | Cover for Sub Thread Tension Adjusting Spring | 1 |
| F-51 | 11082SP-B001 | Sub Thread Tension Adjusting Spring | 1 |
| F-53 | 40-804W-1230 | Stopper for Sub Thread Tension Adjusting Spring | 1 |
| F-54 | 11089PM-A001 | Nut | 1 |
| F-55 | 40S046S-306H | Thread Detecting Plate Guide | 1 |
| F-57 | SC-A170-4124 | Screw (9/64" , n=40) | 1 |
| F-58 | 40S047S-306H | Thread Detecting Plate | 1 |
| F-59 | 40-054C-300G | Holder for Thread Detecting Line | 1 |
| F-60 | 28-059S-300G | Screw (M5×P0.8) | 1 |
| F-61 | 40-048A-300G | Upper Thread Guide Plate | 1 |
| F-63 | SC-0105-7500 | Screw (M4×P0.7) | 1 |
| F-64 | SC-0317-2700 | Screw (15/64" , n=28) | 2 |
| F-65 | 40-045A-300G | Shaft for Upper Thread Adjusting Lever | 1 |
| F-66 | 13-021R-5300 | O-Ring | 2 |
| F-67 | 40-047A-300G | Tension Release Driving Plate | 1 |
| F-68 | 40-049A-300G | Upper Thread Adjusting Lever (A) | 1 |
| F-69 | 11-013S-5060 | Stud Screw for (11/64" n=40) | 1 |
| F-70 | 41-004A-300G | Upper Thread Adjusting Lever (B) | 1 |
| F-71 | SC-A174-1230 | Screw (11/64" n=40) | 1 |
| F-72 | 01-018W-1600 | Washer | 1 |
Page 21 — Upper Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| G-1 | 10-001 A-300G | Upper Thread Trimmer Hinge Shaft | 1 |
| G-2 | 10-002 A-300G | Upper Thread Trimmer Hinge Shaft Collar | 1 |
| G-3 | SC-0164-2700 | Screw (M5xP0.8) | 2 |
| G-4 | 01-042R-640L | Upper Thread Trimmer Hinge Shaft Rubber Cap | 1 |
| G-5 | 01-005W-300G | Washer | 1 |
| G-6 | 10-006 S-300G | Stud Screw for Upper Thread Trimmer Lever(15/64",n=28) | 2 |
| G-7 | 10-007 A-300G | Upper Thread Trimmer Lever | 1 |
| G-8 | 10-008C-300G | Upper Thread Trimmer Lever Stopper | 1 |
| G-9 | 10-009A-300G | Upper Thread Trimmer Lever Return Plate | 1 |
| G-10 | 10-010A-300G | Upper Thread Trimmer Lever Collar | 2 |
| G-11 | SC-A156-4118 | Screw (9/64",n=40) | 2 |
| G-12 | 10-012G-300G | Upper Thread Trimmer Lever Extension Spring | 1 |
| G-13 | 10-013A-300G | Spring Holder Plate | 1 |
| G-14 | SC-0531-2302 | Screw (9/64",n=40) | 1 |
| G-15 | 10-015G-300G | Upper Thread Trimmer Extension Spring | 2 |
| G-17 | 10-017S-300G | Roller Support Screw (3/16",n=32) | 1 |
| G-18 | SN-0115-7400 | Roller Support Screw Nut (3/16",n=32) | 1 |
| G-19 | 10-020W-2700 | Roller Support Screw Washer | 2 |
| G-20 | 10-020S-300G | Setting Plate Screw (M5xL10) | 1 |
| G-21 | 10-022A-300G | Upper Thread Trimmer Fixing Mes | 1 |
| G-23 | 10-024A-300G | Upper Thread Tension Plate | 1 |
| G-24 | 10-025S-300G | Screw (1/8",n=40) | 1 |
| G-25 | 10-026R-300G | Upper Thread Stopper Rubber | 1 |
| G-26 | 07-022S-300G | Screw (11/64",n=40) | 1 |
| G-27 | 10-020W-2700 | Washer | 1 |
| G-28 | 07-011W-300G | Spring Washer | 1 |
| G-29 | 10-030A-300G | Upper Thread Trimmer Opening Cam(A) | 1 |
| G-30 | 10-031A-300G | Upper Thread Trimmer Opening Cam(B) | 1 |
| G-31 | SC-0211-7500 | Bolt (M4xP0.7) | 2 |
| G-32 | 02014SC-4113 | Screw (M4xP0.7) | 2 |
| G-34 | 10-067A-300G | Upper Thread Trimmer Driving Lever Roller | 1 |
| G-35 | 10-036A-300G | Upper Thread Trimmer Driving Lever Bearing | 1 |
| G-37 | 10-042C-2700 | O-Ring | 2 |
| G-39 | 10-040A-300G | Roller for Long Longituinal Feed Arm | 1 |
| G-40 | 10-041A-300G | Roller Shaft For Longituinal Feed Arm | 1 |
| G-41 | 04-009C-3710 | E-Ring | 1 |
| G-42 | SC-0317-2700 | Screw (15/64",n=28) | 1 |
| G-43 | SC-0109-2350 | Screw (M6xP1.0) | 1 |
| G-45 | 10-046A-300G | Upper Thread Trimmer Lever Support Plate | 1 |
| G-46 | SC-0211-7500 | Screw (M4xP0.7) | 1 |
| G-47 | 10-020W-2700 | Washer | 1 |
| G-48 | 10-049A-300G | Roller Shaft For Upper Thread Trimmer Driving Arm | 1 |
| G-49 | 10-020W-2700 | Washer | 1 |
| G-50 | 10-050S-300G | Nut (M5) | 1 |
| G-51 | 10-053A-300G | Roller For Upper Thread Trimmer Driving Arm | 1 |
| G-52 | 10-054A-300G | Upper Thread Trimmer Driving Arm Stopper | 1 |
| G-53 | SC-0211-7500 | Screw (M4xP0.7) | 1 |
| G-54 | 10-020W-2700 | Washer | 1 |
| G-55 | SC-0109-2350 | Screw (M6xP1.0) | 1 |
Page 23 — Lower Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-1 | 10-058A-300G | Lower Thread Trimmer Driving Lever | 1 |
| H-2 | 10-059A-300G | Lower Thread Trimmer Driving Lever Roller | 1 |
| H-3 | 10-060S-300G | Stud Screw for Lower Thread Trimmer Driving Lever Roller | 1 |
| H-4 | SN-0115-7400 | Nut (3/16", n=32) | 2 |
| H-5 | 10-062A-300G | Lower Thread Trimmer Driving Lever Shaft | 1 |
| H-6 | 07S020S-306H | Washer | 1 |
| H-7 | 40-002C-2350 | E-Ring | 1 |
| H-8 | SC-0317-2700 | Screw (15/64", n=28) | 1 |
| H-9 | 10-066A-300G | Lower Thread Trimmer Cam | 1 |
| H-10 | 10-067A-300G | Lower Thread Trimmer Cam Roller | 1 |
| H-11 | 43-012S-2070 | Stud Screw(B) for Lower Thread Trimmer Rod | 1 |
| H-12 | 10-068A-300G | Lower Thread Trimmer Rod | 1 |
| H-13 | 10-070A-300G | Lower Thread Trimmer Cam Shaft | 2 |
| H-14 | SC-0317-2700 | Screw (15/64", n=28) | 2 |
| H-15 | 10-071S-300G | Stud Screw(A) for Lower Thread Trimmer Rod | 1 |
| H-16 | 10-073A-300G | Lower Thread Trimmer Link (A) | 1 |
| H-17 | 16-015C-3710 | Stud Screw for Lower Thread Trimmer Link (A) | 1 |
| H-18 | 43-006S-2070 | Stud Screw for Lower Thread Trimmer Link | 1 |
| H-19 | 10-076A-300G | Lower Thread Trimmer Link (B) | 1 |
| H-21 | 10-078A-300G | Mes Driving Lever | 1 |
| H-22 | 16-015S-3710 | Stud Screw for Mes Driving Lever Roller | 1 |
| H-23 | 10-081A-300G | Mes Driving Lever Roller | 1 |
| H-24 | 10-082W-300G | Washer(A) for Mes Driving Lever | 1 |
| H-25 | 10-083W-300G | Washer(B) for Mes Driving Lever | 1 |
| H-26 | 10-084A-300G | Lever For Lower Thread Retainer | 1 |
| H-27 | 10-085S-300G | Stud Screw for Lower Thread Retainer Lever(11/64" n=11) | 1 |
| H-28 | 10-086A-300G | Lower Thread Retainer | 1 |
| H-29 | 10-087S-300G | Screw (9/64", n=40) | 2 |
| H-30 | 10-088A-300G | Fixed Mes for Lower Thread Trimmer Ass'y | 1(Set) |
| H-31 | 10-089S-300G | Screw (9/64", n=40) | 2 |
| H-32 | 10-090A-300G | Moving Mes for Lower Thread Trimmer | 1 |
| H-34 | 10-092W-300G | Washer | 1 |
| H-35 | 10-090S-300G | Screw (3/32", n=56) | 1 |
| H-36 | 10-094A-300G | Lower Thread Clamp Plate Ass'y | 1(Set) |
| H-37 | 10-090S-300G | Stud Screw for Lower Thread Clamp Plate (1/8", n=40) | |
| H-39 | 10-092W-300G | Washer | 1 |
| H-40 | 10-098A-300G | Lower Thread Presser Plate | 1 |
| H-41 | 10-096S-300G | Screw A (3/32", n=56) | 1 |
| H-42 | 10-087S-300G | Screw B (9/64", n=40) | 1 |
| H-43 | 10-101A-300G | Opening Plate A | 1 |
| H-44 | 10-102A-300G | Opening Plate Roller | 1 |
| H-45 | 10-103A-300G | Opening Plate Rolller Shaft | 1 |
| H-46 | SN-0101-1600 | Nut (11/64" n=40) | 1 |
| H-47 | 10-104A-300G | Opening Plate B | 1 |
| H-48 | SC-A320-7900 | Screw "A" (1/8", n=40) | 1 |
| H-49 | SC-0531-2302 | Screw "B" (1/8", n=40) | 1 |
| H-51 | 10-105S-300G | Screw (3/32", n=56) | 1 |
| H-52 | 10-108A-300G | Lower Thread Trimmer Base Plate Ass'y | 1 |
| H-53 | 10-105A-300G | Lower Thread Trimmer Base Plate | 1 |
| H-54 | 10-106A-306G | Lower Thread Trimmer Base Plate Cover | 1 |
| H-55 | 10-110S-300G | Screw (11/64", n=40) | 4 |
Page 25 — Lower Thread Trimmer Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| H-56 | 10-111A-300G | Needle plate (G) | 1 |
| H-57 | 10-112A-300K | Needle Plate (K) | 1 |
| H-58 | 10-113S-300G | Screw (9/64" , n=40) | 2 |
| H-59 | 10-114A-300G | Bobbin Catcher | 1 |
| H-60 | SC-0502-2302 | Screw (9/64" , n=40) | 1 |
| H-61 | 10-116A-300G | Bobbin Catcher Bracket | 1 |
| H-62 | 10-117C-300G | Bobbin Catcher Spring Holder | 1 |
| H-63 | 10-118S-300G | Stud Screw for Bobbin Catcher(15/64" , n=28) | 1 |
| H-64 | SC-0215-1230 | Screw (9/64" , n=40) | 1 |
| H-65 | 01S034S-306H | Nut (9/64" , n=40) | 1 |
| H-66 | SC-0543-2302 | Screw (11/64" , n=40) | 1 |
| H-67 | 10-122A-300G | Hook Cover Link (A) | 1 |
| H-68 | 10-123A-300G | Hook Cover Link (B) | 1 |
| H-69 | 10-124S-300G | Stud Screw(A) for Hook Cover Link | 1 |
| H-70 | 10-125S-300G | Stud Screw(B) for Hook Cover Link | 1 |
| H-71 | 21-019P-120H | Extension Spring Holder Pin for Lower Thread Trimmer | 2 |
| H-72 | 10-127G-300G | Extension Spring(A) for Lower Thread Trimmer | 2 |
| H-73 | 10-128G-300G | Extension Spring(B) for Lower Thread Trimmer | 1 |
| H-74 | 10-129R-300G | Rubber for Lower Thread Trimmer Connecting Rod | 1 |
Page 27 — Y-Moving Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| I-1 | 20-001 A-300G | Y-Driving Motor | 1(Set) |
| I-3 | 20-010 A-300G | Y-Driving Pulley | 1 |
| I-4 | SC-0317-2700 | Screw (15/64", n=28) | 2 |
| I-5 | 20-010 A-300G | Y-Feed Driven Pulley | 1 |
| I-6 | SC-0317-2700 | Screw (15/64", n=28) | 2 |
| I-7 | 20-016 A-300G | Y-Feed Drive Timming Belt | 1 |
| I-8 | 20-017A-300G | Y-Feed Driven Pulley Shaft | 1 |
| I-9 | 20-018A-300G | Y-Feed Driven Pulley Bearing | 2 |
| I-10 | 20-019A-300G | Y-Feed Timming Belt Holder Plate | 1 |
| I-12 | 20-121A-300G | Y-Feed Arm Support | 1 |
| I-13 | 20-022A-300G | Y-Feed Shaft | 1 |
| I-14 | SC-0317-2700 | Screw (15/64" , n=28) | 1 |
| I-15 | 20-027A-300G | Y-Feed Shaft Bearing | 3 |
| I-16 | 20-028A-300G | Bearing Support Plate | 2 |
| I-17 | SC-0531-2302 | Screw (9/64" , n=40) | 2 |
| I-18 | 15-027A-2070 | Y-Feed Sensor Ass'y | 1 |
| I-19 | 20-032A-300G | Feed Sensor Support | 1 |
| I-20 | SC-0543-2302 | Screw (11/64" , n=40) | 2 |
| I-21 | 01-017W-1600 | Washer | 2 |
| I-22 | 20-035A-300G | Y-Feed Arm Support Shaft | 1 |
| I-23 | SC-0164-2700 | Screw (M5xP0.8) | 1 |
| I-24 | 20-037A-300G | Y-Feed Arm | 1 |
| I-25 | 20-038A-300G | Return Cam Support Plate | 1 |
| I-26 | 20-039A-300G | Return Cam | 1 |
| I-27 | SC-0211-7500 | Fixing Bolt for Return Cam Support Plate | 2 |
| I-28 | SC-0211-7500 | Screw (M4xP0.5) | 2 |
| I-29 | 01-018W-1600 | Washer | 4 |
| I-30 | 20-043A-300G | Feed Plate (G) | 1 |
| I-31 | 20-044A-300K | Feed Plate (K) | 1 |
| I-32 | SC-0211-7500 | Fixing Bolt for Feed Plate (M4xP0.7) | 2 |
| I-33 | 01-017W-1600 | Washer | 2 |
| I-34 | 20-047A-300G | Feed Plate Guide | 2 |
| I-35 | SC-A170-4124 | Screw (9/64" , n=40) | 4 |
| I-36 | 20-049A-300G | Feed Arm Support | 1 |
| I-37 | 20-050A-300G | Y-Feed Arm Supporter Cover | 1 |
| I-38 | SC-0211-7500 | Screw (M4xP0.7) | 1 |
| I-39 | 20-052A-300G | Presser Foot Ass'y | 1(Set) |
| I-40 | 20-521G-300G | Fixing Spring | 1 |
| I-41 | 20-522A-300G | Presser Foot (U) | 2 |
| I-42 | 20-523A-300G | Presser Foot (L) | 1 |
| I-43 | 20-524S-300G | Screw (3/32" , n=56) | 2 |
| I-44 | 20-053A-300K | Presser Foot Ass'y - for Knit | 1(Set) |
| I-45 | 20-525A-300K | Presser Foot (L)- for Knit | 1 |
| I-47 | 20-157C-300G | Finger Guard | 1 |
| I-48 | 20-526R-300G | Presser Foot Cushion Rubber (G) | 1 |
| I-49 | 20-527R-300K | Presser Foot Cushion Rubber (K)ention | 2 |
| I-50 | 20-055S-300G | Adjusting Screw for Timing Belt | 1 |
| I-51 | 10-050S-300G | Tention Adjusting Nut for Timing Belt | 1 |
| I-53 | 20-0040-300G | Screw (M6×P1.0) | 3 |
| I-54 | 20-060A-300G | Y-Feed Guide Shaft | 1 |
| I-56 | 06-007C-1600 | C-Ring (ϕ19) | 2 |
Page 29 — Cutter Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| J-1 | 28-001 A-300G | Cutter Driving Arm Shaft | 1 |
| J-2 | SC-0101-3710 | Screw (15/64", n=28) | 1 |
| J-3 | 28-103 A-300G | Cutter Shaft | 1 |
| J-4 | 28-004 A-300G | Cutter Shaft Holder | 1 |
| J-5 | SC-0317-2700 | Screw (15/64", n=28) | 2 |
| J-6 | 28-006 A-300G | Cutter Driving Link Shaft | 1 |
| J-7 | SC-0317-2700 | Screw (15/64", n=28) | 1 |
| J-8 | 28-008 A-300G | Cutter Driving Link | 2 |
| J-9 | 28-109 A-300G | Cutter Shaft Slide Block | 1 |
| J-10 | 28-010 A-300G | Cutter Shaft Guide | 1 |
| J-11 | SC-0151-5050 | Screw (15/64", n=28) | 4 |
| J-12 | 28-112 A-300G | Cutter Shaft Bushing | 1 |
| J-13 | 28-013S-300G | Adjusting Screw for Cutter (1/2", n=40) | 1 |
| J-14 | 28-014G-300G | Spring for Cutter Adjusting | 1 |
| J-15 | 28-015 A-300G | Cushion Support for Adjusting Screw | 1 |
| J-16 | 28-016S-300G | Stud for Cushion Support (9/64", n=40) | 1 |
| J-17 | 28-017S-300G | Nut for Cutter Adjusting Screw(1/2", n=40) | 1 |
| J-18 | 28-018 A-300G | Cutter Mounting Plate | 1 |
| J-19 | SC-0211-7500 | Screw (M4xP0.7) | 2 |
| J-20 | 28-020 A-300G | Cutter Adjusting Plate | 1 |
| J-21 | SC-0211-7500 | Screw (M4xP0.7) | 2 |
| J-22 | 28-022 A-300G | Cutter Holder | 1 |
| J-24 | 02-021A-1230 | Collar for Cutter Driving Arm Shaft | 1 |
| J-25 | SC-0317-2700 | Screw (15/64", n=28) | 2 |
| J-26 | 28-027 A-300G | Cutter Driving Arm | 1 |
| J-27 | 28-028P-300G | Pin for Cutter Driving Arm | 1 |
| J-28 | SC-0164-2700 | Screw (M5xP0.8) | 1 |
| J-29 | 21-019P-120H | Spring Holder | 1 |
| J-30 | 28-031 A-300G | Cutter Link Shaft | 1 |
| J-31 | SC-0317-2700 | Screw (15/64", n=28) | 1 |
| J-32 | 02-003W-300G | Washer | 1 |
| J-33 | 28-034 A-300G | Cutter Link Bracket | 1 |
| J-37 | SC-0194-2302 | Screw (3/16", n=28) | 4 |
| J-39 | 06-026A-BH30 | Cutter Solenoid Ass'y | 1(Set) |
| J-44 | 15-027 A-2070 | Cutter Sensor Ass'y | 1 |
| J-45 | 28-047 A-300G | Cutter Sensor Bracket | 1 |
| J-46 | SC-0543-2302 | Screw (11/64", n=40) | 1 |
| J-47 | 28-061G-300G | Extention Spring for Cutter Driving Arm | 1 |
| J-48 | 28-049S-300G | Screw (11/64", n=40) | 1 |
| J-49 | 28-053A-300G | Cutter (1/2") | 1 |
Page 31 — Bobbin Winder & Hand Pully Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| K-1 | 25S001S-306H | Hand Pully Driven Gear | 1 |
| K-2 | SC-A308-4517 | Screw (1/4", n=40) | 4 |
| K-3 | 25S104S-306H | Hand Pully | 1 |
| K-4 | 25S105S-306H | Hand Pully Shaft | 1 |
| K-5 | 25S006S-306H | Stud Screw for Hand Pully Roller | 1 |
| K-6 | 25S007S-306H | Hand Pully Roller | 1 |
| K-7 | 25S008S-306H | Spring Pin | 1 |
| K-8 | 25S009S-306H | Hand Pully Bushing | 1 |
| K-9 | SC-0317-2700 | Screw (15/64", n=28) | 1 |
| K-10 | 25S011S-306H | Hand Pully Spring | 1 |
| K-11 | 25S012S-306H | Screw | 1 |
| K-12 | 41S101S-306H | Thread Winder Ass'y | 1(Set) |
| K-13 | 41S001S-306H | Thread Winder Base Ass'y | 1 |
| K-14 | 41-002A-300G | Thread Winder Driving Shaft | 1 |
| K-15 | 41-018A-120H | Bobbin Winder Action Body | 1 |
| K-16 | 41S006S-306H | Thread Winder Action pulley | 1 |
| K-17 | SC-0104-5607 | Screw (11/64", n=40) | 2 |
| K-18 | 41S008S-306H | Thread Winder Action Ring | 1 |
| K-19 | 41S009S-306H | Bobbin Winder Shaft Rubber Ring | 1 |
| K-20 | 41-008A-300G | Bobbin Stand | 1 |
| K-21 | 41-009A-300G | Bobbin Stopper | 1 |
| K-22 | 41-010A-300G | Bobbin Winder Adjusting Plate | 1 |
| K-23 | SC-0130-1230 | Screw (1/8", n=40) | 1 |
| K-24 | 06011SW-306H | Washer | 1 |
| K-25 | 41-013A-300G | Bobbin Winder Lever | 1 |
| K-26 | SC-0105-7500 | Screw (M4xP0.7) | 1 |
| K-27 | 41S013S-306H | Bobbin Winder Lever Shaft | 1 |
| K-28 | 04-009C-3710 | E-Ring (ø5) | 2 |
| K-29 | 40-007W-1600 | Washer | 2 |
| K-30 | 41S014S-306H | Thread Winder Adjusting Cam | 1 |
| K-31 | 02004SC-4113 | Screw (M4xP0.7) | 1 |
| K-32 | 41S021S-306H | Thread Winder Spring | 1 |
| K-33 | 41S017S-306H | Thread Winder Action Plate | 1 |
| K-34 | 41S023S-306H | Screw (11/64", n=40) | 3 |
| K-35 | 41S025S-306H | Thread Winder Mes | 1 |
| K-36 | SC-0519-2302 | Screw (9/64", n=40) | 2 |
| K-37 | 41S027S-306H | Thread Tension Control Ass'y | 1(Set) |
| K-38 | 41S034S-306H | Thread Tension Cap Nut | 1 |
| K-39 | 40-804W-1230 | Thread Tension Spring Stopper | 1 |
| K-40 | GP-003213-00 | Thread Tension Spring | 1 |
| K-41 | 40-024A-1230 | Spring Cover | 1 |
| K-42 | 40-108A-1306 | Thread Tension Disk | 1 |
| K-43 | 41S028S-306H | Thread Tension Adjusting Shaft | 1 |
| K-44 | 41S026S-306H | Thread Guide Plate | 1 |
| K-45 | SN-0121-7400 | Nut | 1 |
Page 33

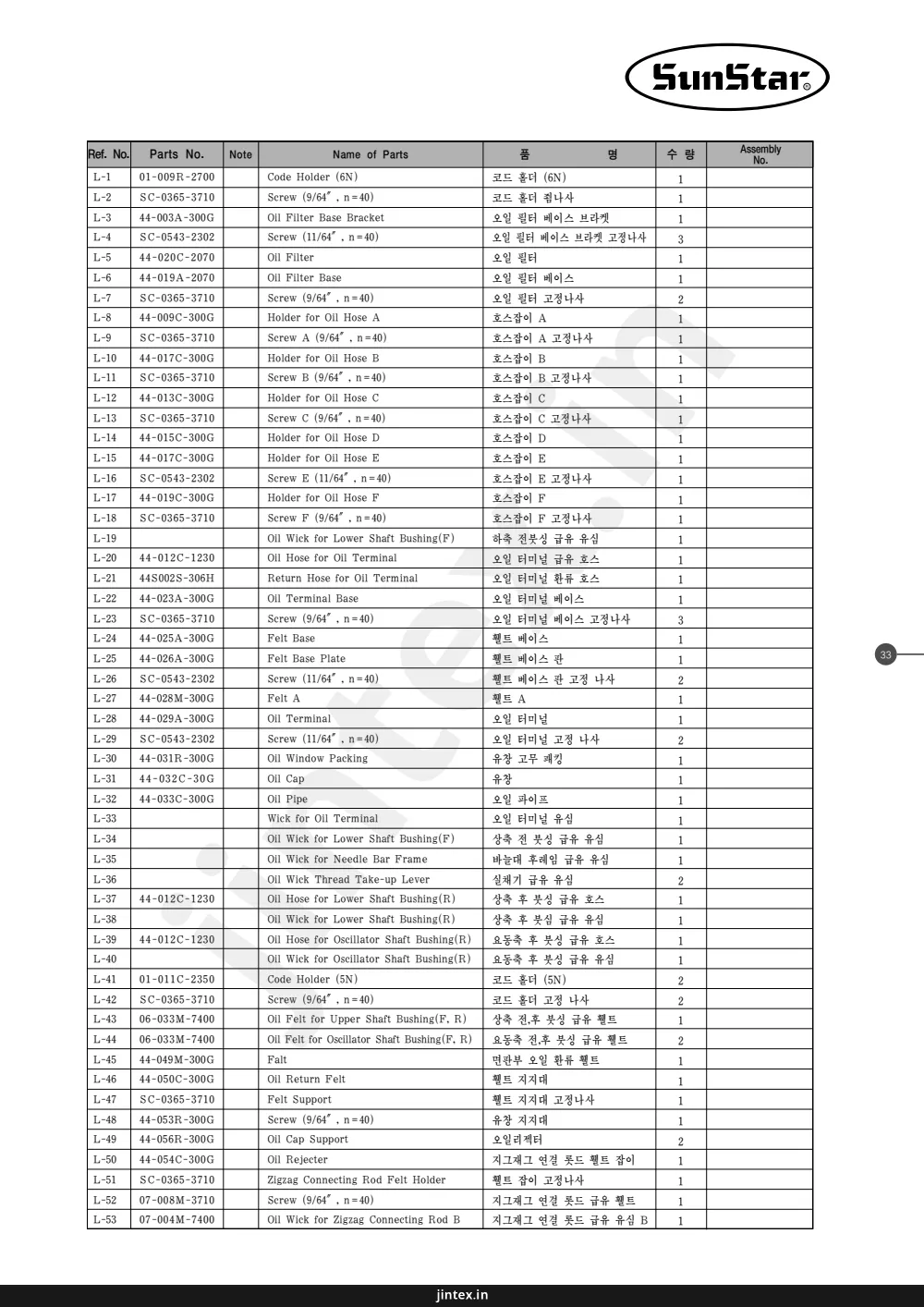

| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-1 | 01-009R-2700 | Code Holder (6N) | 1 |
| L-2 | SC-0365-3710 | Screw (9/64" , n=40) | 1 |
| L-3 | 44-003A-300G | Oil Filter Base Bracket | 1 |
| L-4 | SC-0543-2302 | Screw (11/64" , n=40) | 3 |
| L-5 | 44-020C-2070 | Oil Filter | 1 |
| L-6 | 44-019A-2070 | Oil Filter Base | 1 |
| L-7 | SC-0365-3710 | Screw (9/64" , n=40) | 2 |
| L-8 | 44-009C-300G | Holder for Oil Hose A | 1 |
| L-9 | SC-0365-3710 | Screw A (9/64" , n=40) | 1 |
| L-10 | 44-017C-300G | Holder for Oil Hose B | 1 |
| L-11 | SC-0365-3710 | Screw B (9/64" , n=40) | 1 |
| L-12 | 44-013C-300G | Holder for Oil Hose C | 1 |
| L-13 | SC-0365-3710 | Screw C (9/64" , n=40) | 1 |
| L-14 | 44-015C-300G | Holder for Oil Hose D | 1 |
| L-15 | 44-017C-300G | Holder for Oil Hose E | 1 |
| L-16 | SC-0543-2302 | Screw E (11/64" , n=40) | 1 |
| L-17 | 44-019C-300G | Holder for Oil Hose F | 1 |
| L-18 | SC-0365-3710 | Screw F (9/64" , n=40) | 1 |
| L-20 | 44-012C-1230 | Oil Hose for Oil Terminal | 1 |
| L-21 | 44S002S-306H | Return Hose for Oil Terminal | 1 |
| L-22 | 44-023A-300G | Oil Terminal Base | 1 |
| L-23 | SC-0365-3710 | Screw (9/64" , n=40) | 3 |
| L-24 | 44-025A-300G | Felt Base | 1 |
| L-25 | 44-026A-300G | Felt Base Plate | 1 |
| L-26 | SC-0543-2302 | Screw (11/64" , n=40) | 2 |
| L-27 | 44-028M-300G | Felt A | 1 |
| L-28 | 44-029A-300G | Oil Terminal | 1 |
| L-29 | SC-0543-2302 | Screw (11/64" , n=40) | 2 |
| L-30 | 44-031R-300G | Oil Window Packing | 1 |
| L-31 | 44-032C-30G | Oil Cap | 1 |
| L-32 | 44-033C-300G | Oil Pipe | 1 |
| L-37 | 44-012C-1230 | Oil Hose for Lower Shaft Bushing(R) | 1 |
| L-39 | 44-012C-1230 | Oil Hose for Oscillator Shaft Bushing(R) | 1 |
| L-41 | 01-011C-2350 | Code Holder (5N) | 2 |
| L-42 | SC-0365-3710 | Screw (9/64" , n=40) | 2 |
| L-43 | 06-033M-7400 | Oil Felt for Upper Shaft Bushing(F, R) | 1 |
| L-44 | 06-033M-7400 | Oil Felt for Oscillator Shaft Bushing(F, R) | 2 |
| L-45 | 44-049M-300G | Falt | 1 |
| L-46 | 44-050C-300G | Oil Return Felt | 1 |
| L-47 | SC-0365-3710 | Felt Support | 1 |
| L-48 | 44-053R-300G | Screw (9/64" , n=40) | 1 |
| L-49 | 44-056R-300G | Oil Cap Support | 2 |
| L-50 | 44-054C-300G | Oil Rejecter | 1 |
| L-51 | SC-0365-3710 | Zigzag Connecting Rod Felt Holder | 1 |
| L-52 | 07-008M-3710 | Screw (9/64" , n=40) | 1 |
| L-53 | 07-004M-7400 | Oil Wick for Zigzag Connecting Rod B | 1 |
Page 35
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| L-55 | 44-012C-1230 | Oil Hose for Zigzag Connecting Rod A | 1 |
| L-56 | 44-012C-1230 | Oil Hose for Zigzag Connecting Rod B | 2 |
| L-58 | 44-061M-300G | Oil Felt for Needle Bar Crank | 1 |
| L-59 | 44-062C-300G | Oil Felt Holder for Needle Bar Crank | 2 |
| L-60 | SC-0365-3710 | Screw (9/64" , n=40) | 1 |
| L-61 | 44-012C-1230 | Hose | 1 |
| L-62 | 44-012C-1230 | Hose | 1 |
| L-63 | 44-012C-1230 | Hose | 1 |
| L-64 | 44-012C-1230 | Hose | 1 |
| L-65 | 44-066A-300G | Oil Pan | 1 |
| L-66 | 44-067M-300G | Oil Pan Gasket | 1 |
| L-68 | SC-0347-1230 | Screw for Oil Cap | 1 |
| L-69 | 44-005R-1230 | O-Ring | 1 |
| L-70 | 44-010C-1230 | Magenatic | 1 |
| L-71 | 44-067A-300G | Oil Stopper Plate | 1 |
| L-72 | 44-072R-300G | Oil Pan Rubber Support A | 6 |
| L-73 | 44-073R-300G | Oil Pan Rubber Support B | 2 |
Page 37 — Table Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| M-2 | TZ-001-1000 | Table Stand Ass'y | 1(Set) |
| M-6 | 91-007A-2302 | Thread Stand Ass'y | 1(Set) |
Page 39 — Accessories Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| N-1 | 91-102C-1230 | Driver (L) | 1 |
| N-2 | 91-103C-1230 | Driver (M) | 1 |
| N-3 | 91-103C-1230 | Driver (S) | 1 |
| N-4 | 91S004S-306H | Spaner (9x10) | 1 |
| N-5 | 91-011C-12330 | Oiler | 1 |
| N-7 | 07-045A-2070 | Bobbin | 2 |
| N-8 | 91-001C-2700 | L-Shaped Wrench (2mm) | 1 |
| N-9 | 91-004C-2700 | L-Shaped Wrench (2.5mm) | 1 |
| N-10 | 91-003C-2700 | L-Shaped Wrench (3mm) | 1 |
| N-11 | 91-001C-3800 | L-Shaped Wrench (4mm) | 1 |
| N-12 | 91-002C-2700 | L-Shaped Wrench (5mm) | 1 |
| N-16 | 91-001C-1230 | Accessorie Bag | 1 |
| N-17 | 91-001C-120H | Head Cover | 1 |
| N-18 | 91-007C-300G | Thread | 1 |
| N-19 | 91-020A-300G | Pin Set | 1 |
| N-20 | 91-008C-1230 | Oil | 1 |
| N-21 | 91-021C-300G | Body Support | 1 |
| N-22 | 04-026A-300G | Gauge for Needle Bar Setting (G) | 1 |
| N-23 | 04-027A-300G | Gauge for Needle Bar Setting (K) | 1 |
| N-24 | 01A143S-811H | Cable Tie (S) | 5 |
| N-25 | 02-003A-2700 | Cable Tie (M) | 10 |
| N-26 | 28-054A-300G | Cutter (3/8") | 1 |
| N-27 | 28-056A-300G | Cutter (1") | 1 |
| N-28 | 28-055A-300G | Cutter (5/8") | 1 |
| N-29 | 28-057A-300G | Cutter (1¼") | 1 |
Page 41 — Control Box Mechanism
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| O-1 | 01-001A-BT01 | Control Box | 1 |
| O-2 | 01-001N-BT01 | Screw Control Box (M6xP1 L=50, SUS) | 4 |
| O-3 | 10-003S-SW66 | Spring Washer Control Box | 4 |
| O-4 | 10-004S-SW66 | Flat Washer Control Box | 4 |
| O-5 | 09-035S-3701 | Nut Control Box | 6 |
| O-6 | 01-002A-BT01 | Control Box Cover | 1 |
| O-7 | 10-014M-AT10 | Screw Control Box Cover (M4xP0.7 L=6) | 12 |
| O-8 | 01-003A-BT01 | Control Box Side Cover | 1 |
| O-9 | 10-014M-AT10 | Screw Control Box Side Cover (M4xP0.5 L=6) | 7 |
| O-10 | 01-0000-BP00 | POWER P.C.B | 1 |
| O-11 | 10-021M-SW66 | Screw POWER P.C.B (M3xP0.7 L=6) | 4 |
| O-12 | 01-004A-BY01 | Transformer | 1 |
| O-13 | 10-028M-S W | Screw Transformer (M5xP0.8 L=10) | 4 |
| O-14 | 10-028M-SW66 | Spring Washer Transformer | 4 |
| O-15 | 10-005S-SW66 | Flate Washer Transformer | 4 |
| O-16 | 03-0000-BR00 | Main Motor Drive Board | 1 |
| O-17 | 10-021M-SW66 | Screw (11/64" n=40) | 4 |
| O-18 | 01-005A-BT01 | Fan | 1 |
| O-19 | 01-002M-AU11 | Screw Fan (M4xP0.7 L=30) | 2 |
| O-20 | 09-035S-3701 | Nut Fan (M4) | 2 |
| O-21 | 03-1000-BD00 | Digital Board | 1 |
| O-22 | 10-001M-BP01 | Screw Digital Board (M3xP0.5 L=8) | 4 |
| O-23 | 01-007A-AU12 | Main Radiator | 1 |
| O-24 | 10-018M-SW66 | Screw Main Radiator (M4xP0.7 L=10) | 4 |
| O-25 | 15-022S-1000 | Screw IPM (M4xP0.7 L=20) | 2 |
| O-26 | 01-002M-AU12 | Screw Bridge Diode (M4xP0.7 L=20) | 1 |
| O-27 | 01-007A-BT01 | Connector Cover | 1 |
| O-28 | 10-022M-SW66 | Screw Connector Cover (M4xP0.7 L=20) | 2 |
| O-29 | 11-001S-PT10 | Ending Bushing | 1 |
| O-30 | 01-003S-BT01 | Sticker Caution | 1 |
| O-31 | 01-004S-BT01 | Sticker Replacing Filter | 1 |
| O-32 | 01-005S-BT01 | Sticker Changing the Input Voltage | 1 |
| O-33 | 12-149C-SC53 | Sticker Model | 1 |
| O-34 | 91-001C-BT10 | Urethan Washer | 4 |
| O-35 | 91-001C-PT10 | Table Washer | 4 |
| O-37 | Screw | Screw | 6 |
SunStar SPS/B-BH3000 — parts catalog
- Page 1 (cover): This is the cover page of the SunStar Parts Book for the SPS/B-BH3000 Direct Drive, Electronically Controlled Lock Stitch Button Hole Sewing M/C. It includes the model number, part number PME-051229, and the manufacturer Sunstar Machinery Co., Ltd.

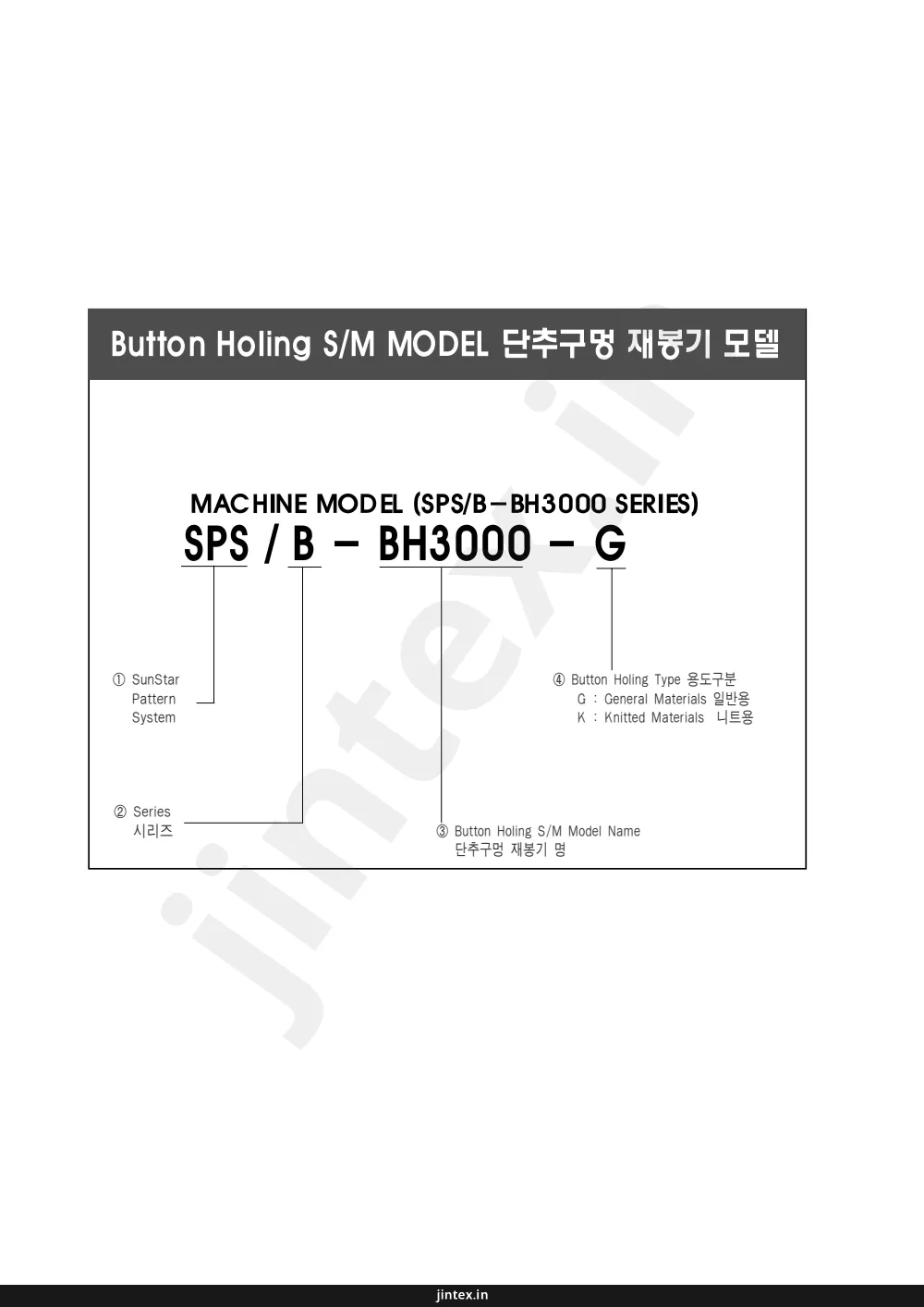

- Page 2 (cover): This page is the cover of the Button Holing S/M Model parts catalog, specifying the machine model as SPS / B - BH3000 - G.
- Page 3 (toc): This page is a table of contents for a SunStar parts book, listing machine parts and control parts with corresponding page numbers.
- Page 4 (diagram): This page displays a diagram of arm, bed, and machine body parts, with various components labeled with reference numbers and part numbers.
- Page 5 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers. It details components like screws, plates, covers, and washers.
- Page 6 (diagram): This page displays a diagram of arm, bed, and machine body parts, with various components labeled with reference numbers and part numbers.
- Page 7 (parts_list): This page contains a parts list for SunStar sewing machine components, including reference numbers, part numbers, names of parts, and assembly information.
- Page 8 (diagram): This page displays a diagram of the upper shaft mechanism, detailing various components with their corresponding part numbers and reference indicators.
- Page 9 (parts_list): This page lists parts for the SunStar sewing machine, including various shafts, screws, washers, and other components with their corresponding part numbers and descriptions.
- Page 10 (diagram): This page displays a diagram of the Upper Shaft Mechanism, detailing various components with their corresponding reference numbers.
- Page 11 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing part numbers, names, and quantities for various items like guide shafts, screws, and needles.
- Page 12 (diagram): This page displays a diagram of the low shaft mechanism, with various parts labeled with reference numbers and part numbers.
- Page 13 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It covers components like shafts, screws, collars, and oil pump parts.
- Page 14 (diagram): This page displays a diagram of the presser bar mechanism, with various parts labeled with reference numbers and part numbers.
- Page 15 (parts_list): Parts list page from a SunStar presser driving mechanism section listing reference numbers D-1 to D-63 with part numbers, English and Korean names, and quantities.
- Page 16 (diagram): This page displays a diagram of the Needle Bar Rocking Mechanism, labeled with reference numbers E-1 through E-26, illustrating the assembly of various components.
- Page 17 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing reference numbers, part numbers, notes, names of parts in English and Korean, quantities, and assembly numbers.
- Page 18 (diagram): This page displays a diagram of the Thread Release & Lowering Mechanism, labeled as Figure F, with various parts numbered from F-1 to F-73.
- Page 19 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and assembly numbers.
- Page 20 (diagram): This page displays a diagram of the Upper Thread Trimmer Mechanism, showing various parts labeled with reference numbers and part numbers.
- Page 21 (parts_list): This page lists parts for the SunStar sewing machine, including various screws, washers, levers, and plates, with their corresponding part numbers and descriptions.
- Page 22 (diagram): This page displays a diagram of the Lower Thread Trimmer Mechanism, showing various parts labeled with reference numbers and part numbers.
- Page 23 (parts_list): This page contains a parts list for SunStar sewing machines, detailing parts with reference numbers, part numbers, names, and quantities.
- Page 24 (diagram): This page displays a diagram of the lower thread trimmer mechanism, with various parts labeled with reference numbers and part numbers.
- Page 25 (parts_list): This page contains a parts list for SunStar sewing machine components, including needle plates, screws, bobbin catchers, and extension springs, with their corresponding part numbers, descriptions, and assembly quantities.
- Page 26 (diagram): This page displays a diagram of the Y-Moving Mechanism, illustrating various components with reference numbers and part numbers.
- Page 27 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, descriptions, quantities, and assembly numbers.
- Page 28 (diagram): This page displays a diagram of the cutter mechanism, labeled with part numbers ranging from J-1 to J-49, illustrating the assembly of various components.
- Page 29 (parts_list): This page lists parts for a SunStar industrial sewing machine, including part numbers, names, quantities, and assembly numbers.
- Page 30 (diagram): This page displays a diagram of the Bobbin Winder & Hand Pully Mechanism, showing various parts labeled with their corresponding reference numbers.
- Page 31 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and assembly numbers.
- Page 32 (diagram): This page displays a diagram of the lubrication mechanism, with various parts labeled with reference numbers and part numbers.
- Page 33 (parts_list): This page lists parts for the SunStar sewing machine, including part numbers, names, quantities, and assembly numbers.
- Page 34 (diagram): This page displays a diagram of the lubrication mechanism, with various parts labeled with reference numbers and part numbers.
- Page 35 (parts_list): This page lists parts for SunStar sewing machines, including part numbers, names, quantities, and assembly numbers. It details items such as oil wicks, hoses, cable ties, oil felt holders, screws, oil pans, gaskets, O-rings, and magnetic parts.
- Page 36 (diagram): This page displays a diagram of the table mechanism, with various components labeled with reference numbers such as M-1, M-2, M-3, M-4, M-5, and M-6.
- Page 37 (parts_list): This page lists parts for a SunStar sewing machine, including reference numbers, part numbers, names, quantities, and assembly numbers. It details components like table stands, drawers, and brackets.
- Page 38 (diagram): This page displays a diagram of accessories and mechanisms for an industrial sewing machine, with various parts labeled with reference numbers.
- Page 39 (parts_list): This page contains a parts list for SunStar sewing machine components, detailing part numbers, names, quantities, and assembly numbers for various items like drivers, spanners, oilers, needles, wrenches, fuses, and cutters.
- Page 40 (diagram): This page displays a diagram of the control box mechanism, illustrating various components and their assembly.
- Page 41 (parts_list): This page contains a parts list for SunStar industrial sewing machines, detailing various screws, nuts, washers, covers, and electronic components with their respective part numbers, descriptions, quantities, and assembly numbers.
- Page 42 (diagram): This page displays a diagram of the operation unit mechanism, illustrating various components labeled with part numbers P-1 through P-9.
- Page 43 (parts_list): This page lists parts for SunStar sewing machines, including operation boxes, screws, and rubber components, with their corresponding part numbers, descriptions, quantities, and assembly numbers.
