Typical GC6180 Parts Book (PDF)
Text index — Typical GC6180
Page 17 — 1. ARM AND BED MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22T1-021G3 | Screw | M2 H2 B2 |
| 2 | 22T1-021G1 | Slide plate | M1 H1 B1 |
| 3 | 48T1-005 | Leg | M3 H3 B3 |
| 4 | GB93-87-6 | Spring washer 6 | M3 H3 B3 |
| 5 | 124T1-002B1 | Face plate | M1 H1 B1 |
| 6 | 124T1-002B2 | Face plate gasket | M1 H1 B1 |
| 7 | 22T1-003C3 | Rubber plug | M3 H3 B3 |
| 8 | 22T1-003C4 | Rubber plug | M3 H3 B3 |
| 9 | 22T1-003C5 | Thread guide on face plate | M1 H1 |
| 78T1-004C1 | Thread guide on face plate | B1 | |
| 10 | 22T1-003C6 | Screw | M1 H1 B1 |
| 11 | 22T1-004 | Screw | M1 H1 B1 |
| 12 | 22T1-008H | Oil check window | M1 H1 B1 |
| 13 | 108200009 | Three guide pole | M1 H1 B1 |
| 14 | 57T1-008 | Ruler plate | M1 H1 B1 |
| 15 | 36T2-006D1 | Pretension thread guide | M1 H1 B1 |
| 16 | 36T2-006D2 | Thread tension stud | M1 H1 B1 |
| 17 | 22T1-009E3 | Thread tension disc | M2 H2 B2 |
| 18 | 36T2-006D3 | Tension spring for pretension | M1 H1 B1 |
| 19 | 36T2-006D4 | Thread tension nut | M1 H1 B1 |
| 20 | 124T1-006 | Set screw | M1 H1 B1 |
| 21 | 22T1-012F1 | Thread tension stud | M1 H1 B1 |
| 22 | 124T1-003C1 | Thread tension nut | M1 H1 B1 |
| 23 | 124T1-003C2 | Thread tension spring | M1 |
| 48T1-003A1 | Thread tension spring | H1 B1 | |
| 24 | 22T1-012F4 | Thread tension releasing disc | M1 H1 B1 |
| 25 | 22T1-012F5 | Thread tension disc | M2 H2 B2 |
| 26 | 22T1-012F6 | Thread take-up spring | M1 |
| 48T1-003A2 | Thread take-up spring | H1 B1 | |
| 27 | 22T1-012F7 | Thread tension regulator bushing | M1 H1 B1 |
| 28 | 22T1-012F8 | Screw | M1 H1 B1 |
| 29 | 22T1-012F9 | Thread tension releasing pin | M1 H1 B1 |
| 30 | 22T1-012F10 | Stop disc | M1 H1 B1 |
| 31 | 22T1-012F11 | O-type ring | M1 H1 B1 |
| 32 | 22T1-013 | Set screw | M1 H1 B1 |
| 33 | 22T1-014 | Thread guide | M1 H1 |
| 78T1-005 | Thread guide | B1 | |
| 34 | 22T1-015 | Rubber plug | M2 H2 B2 |
| 35 | 22T1-016 | Rubber plug | M1 H1 B1 |
| 37 | 36T2-007 | Thread take-up lever guard | M1 H1 |
| 78T2-002 | Thread take-up lever guard | B1 | |
| 38 | 22T2-004 | Screw | M1 H1 B1 |
| 39 | 124T1-005 | Needle plate(B1.8) | M1 |
| 48T1-004 | Needle plate(B2.0) | H1 | |
| 48T1-006 | Needle plate(B2.6) | B1 | |
| 153100004 | Needle plate | H1 B1 | |
| 153100002 | Needle plate | M1 | |
| 40 | 020100002 | Screw | M2 H2 B2 |
| 41 | 22T1-012G2 | Slide plate spring | M1 H1 B1 |
| 42 | 1241-004 | Screw | M2 H2 B2 |
Page 19 — 2. ARM SHAFT AND VERTICAL SHAFT AND THREAD TAKE-UP MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 153310001 | Arm shaft | 1 / 1 / 1 |
| 2 | 22T3-001A2 | Rubber plug | 1 / 1 / 1 |
| 3 | 22T3-002B1 | Collar for arm shart | 1 / 1 / 1 |
| 4 | 22T2-005B2 | Screw | 2 / 2 / 2 |
| 5 | 22T3-003 | Arm shaft bushing (left) | 1 / 1 / 1 |
| 6 | 22T3-004 | Arm shaft bushing (middle) | 1 / 1 / 1 |
| 7 | 22T2-002 | Screw | 3 / 3 / 3 |
| 8 | 108300005 | Arm shaft bushing(right) | 1 / 1 / 1 |
| 9 | 124T3-003C2 | Oil seal | 1 / 1 / 1 |
| 10 | 22T2-006 | Screw | 1 / 1 / 1 |
| 11 | 36T3-003 | Eccentric wheel | 1 / 0 / 0 |
| 114T3-001 | Eccentric wheel | 0 / 1 / 1 | |
| 12 | 22T1-013 | Eccentric wheel screw | 2 / 2 / 2 |
| 13 | 36T3-004 | Spacer | 1 / 1 / 1 |
| 14 | 22T3-009D1c | Crank rod for lifting rock shaft | 1 / 1 / 1 |
| 15 | 36T3-004 | Spacer | 1 / 1 / 1 |
| 16 | 22T3-010E1 | Vertical shaft | 1 / 1 / 1 |
| 17 | ZOA140379 | Bevel gear for arm shaft | 1 / 1 / 1 |
| 18 | ZOA140380 | Bevel gear for vertical shaft(upper) | 8 / 8 / 8 |
| 19 | 22T2-005B3 | Set screw | 1 / 1 / 1 |
| 20 | ZOA140383 | Bevel gear for hook shaft | 1 / 1 / 1 |
| 21 | ZOA140382 | Bevel gear for vertical shaft (lower) | 1 / 1 / 1 |
| 22 | 22T3-011 | Vertical shaft bushing(upper) | 1 / 1 / 1 |
| 23 | 22T3-012 | Vertical shaft bushing(lower) | 1 / 1 / 0 |
| 78T3-002 | Vertical shaft bushing(lower) | 0 / 0 / 1 | |
| 24 | 22T2-001A | Needle bar link asm | 1 / 0 / 0 |
| 48T2-001A | Needle bar link asm | 0 / 1 / 0 | |
| 78T2-001A | Needle bar link asm | 0 / 0 / 1 | |
| 25 | 22T2-002 | Screw | 1 / 1 / 1 |
| 26 | 22T2-005B1 | Needle bar crank | 1 / 0 / 0 |
| 48T2-002B | Needle bar crank | 0 / 1 / 1 | |
| 27 | 22T2-005B2 | Screw | 1 / 1 / 1 |
| 28 | 22T2-006 | Screw | 1 / 1 / 1 |
| 29 | 22T2-007 | Set screw | 1 / 1 / 1 |
| 30 | 22T2-008 | Needle bar bushing(upper) | 1 / 1 / 1 |
| 31 | 22T2-009 | Screw | 1 / 1 / 1 |
| 32 | 22T2-010 | Felt plug | 1 / 1 / 1 |
| 33 | 22T2-011 | Rubber plug | 1 / 1 / 1 |
| 34 | 22T2-012C1 | Needle bushing(lower) | 1 / 0 / 0 |
| 124T2-006 | Needle bushing(lower) | 0 / 1 / 1 | |
| 35 | 22T2-012C2 | Thread guide | 1 / 1 / 1 |
| 36 | 22T2-014 | Needle bar | 1 / 0 / 0 |
| 78T2-004 | Needle bar | 0 / 1 / 1 | |
| 153100001 | Needle bar | 1 / 0 / 0 | |
| 37 | 22T2-015 | Thread guide for needle bar | 1 / 0 / 0 |
| 48T2-004 | Thread guide for needle bar | 0 / 1 / 1 | |
| 38 | DB x 1 14# | Needle | 1 / 0 / 0 |
| DP x 5 18# | Needle | 0 / 1 / 0 | |
| DP x 1 22# | Needle | 0 / 0 / 1 | |
| DP x 5 14# | Needle | 1 / 0 / 0 | |
| 39 | 22T2-017 | Screw | 1 / 1 / 1 |
| 40 | 36T3-005E | Guide rail for slide block | 1 / 1 / 1 |
| 41 | 22T2-020 | Slide block | 1 / 1 / 1 |
| 42 | 22T2-019 | Set screw | 2 / 2 / 2 |
| 43 | 100T6-012 | Screw | 3 / 3 / 3 |
| 44 | 124T3-001A2 | Screw | 1 / 1 / 1 |
| 45 | 22T3-008 | Screw | 1 / 1 / 1 |
| 46 | 124T3-001A5 | Oil seal | 1 / 1 / 1 |
| 22T2-005B | Needle bar crank | 1 | |
| 153200001 | Needle bar | 1 |
Page 21 — 3. FEEDING AND FEED LIFTING AND ROTATING HOOK MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22T6-001A3 | Feed dog | 1/1/1 |
| 22T6-0012 | Feed dog | 1/-/- | |
| 153600001 | Feed dog | -/1/1 | |
| 2 | 36T4-001A1a | Feed bar | 1/1/1 |
| 3 | 22T6-001A6 | Washer | 1/1/1 |
| 4 | 36T4-001A2 | Shaft for feed bar | 1/1/1 |
| 5 | 22T6-001A4 | Screw | 2/2/2 |
| 6 | 22T6-001A1a | Feed rock shaft crank | 1/1/1 |
| 7 | 22T6-001A1b | Screw | 2/2/2 |
| 8 | 22T2-019 | Screw | 1/1/1 |
| 9 | 124T6-002 | Feed rock shaft | 1/1/1 |
| 10 | GB894-86-15 | C-type stop ring | 2/2/2 |
| 11 | 22T6-004 | Bushing for feed rock shaft | 1/1/1 |
| 12 | 22T6-005B1 | Collar for feed rock shaft | 2/2/2 |
| 13 | 22T3-002B2 | Screw | 4/4/4 |
| 14 | 36T4-003 | Feed rock shaft crank (right) | 1/-/- |
| 114T4-001 | Feed rock shaft crank (right) | -/1/1 | |
| 15 | 36T4-004H01 | Pin | 1/1/1 |
| 16 | 36T5-008E5 | Screw | 1/1/1 |
| 17 | 22T6-008D3 | Screw | 1/1/1 |
| 18 | 36T4-005B | Bobbin case complete | 1/1/- |
| 78T4-004F | Bobbin case complete | -/-/1 | |
| 19 | 36T4-006 | Bobbin | 1/1/- |
| 78T4-005 | Bobbin | -/-/1 | |
| 20 | 36T4-007C | Rotating hook complete | 1/1/- |
| 78T4-002 | Rotating hook complete | -/-/1 | |
| 22 | 36T4-008D1 | Hook shaft | 1/1/- |
| 120T4-001 | Hook shaft | -/-/1 | |
| 23 | 22T4-001A1a1 | Filter screw | 1/1/1 |
| 24 | 22T4-001A1a2 | Filter | 1/1/1 |
| 25 | 36T4-009G | Oil seal | 1/1/1 |
| 26 | 36T4-010 | Hook shaft bushing(left) | 1/1/1 |
| 27 | 22T4-005 | Oil adjusting screw | 1/1/1 |
| 28 | 22T4-006 | Coil spring | 1/1/1 |
| 29 | 36T4-011E1 | Thread cutting cam | 1/1/1 |
| 30 | 36T4-011E2 | Screw | 2/2/2 |
| 31 | 36T4-012 | Hook shaft bushing(middle) | 1/1/1 |
| 32 | 22T4-002B1 | Collar for hook shaft | 1/1/1 |
| 33 | 22T2-009 | Screw | 2/2/2 |
| 34 | 36T4-014F1 | Hook shaft bushing(right) | 1/1/1 |
| 35 | 22T4-007C2 | Oil pipe for hook shaft bushing | 1/1/1 |
| 36 | 36T4-015 | Plunger | 1/1/1 |
| 37 | 36T4-016 | Plunger spring | 1/1/1 |
| 38 | 22T4-010 | Guide plate | 1/1/- |
| 78T4-006 | Guide plate | -/-/1 | |
| 39 | 22T5-001A4 | Screw | 1/1/1 |
| 40 | 22T6-008D2 | Hinge pin | 1/1/1 |
| 41 | 36T4-017 | Feed lifting rock shaft crank(right) | 1/1/1 |
| 42 | 22T6-016 | Screw | 2/2/2 |
| 43 | 22T6-012 | Bushing for feed lifting shaft(left) | 1/1/1 |
| 44 | 22T2-002 | Screw | 1/1/1 |
| 45 | 36T4-018H1D1 | Feed lifting fork | 1/1/1 |
| 46 | 124T6-003 | Feed lifting rock shaft | 1/1/1 |
| 47 | 22T4-013 | Hook positioner | 1/-/- |
| 48T4-002 | Hook positioner | -/1/- | |
| 78T4-003 | Hook positioner | -/-/1 | |
| 48 | 22T4-015 | Screw | 1/1/1 |
| 49 | 22T2-009 | Screw | 1/1/1 |
| 50 | 22T1-002 | Screw | 1/1/1 |
| 51 | 22T6-008D3 | Screw | 1/1/1 |
| 52 | GB93-87-6 | Washer | 1/1/1 |
| 1536000001 | Feed dog | 1 |

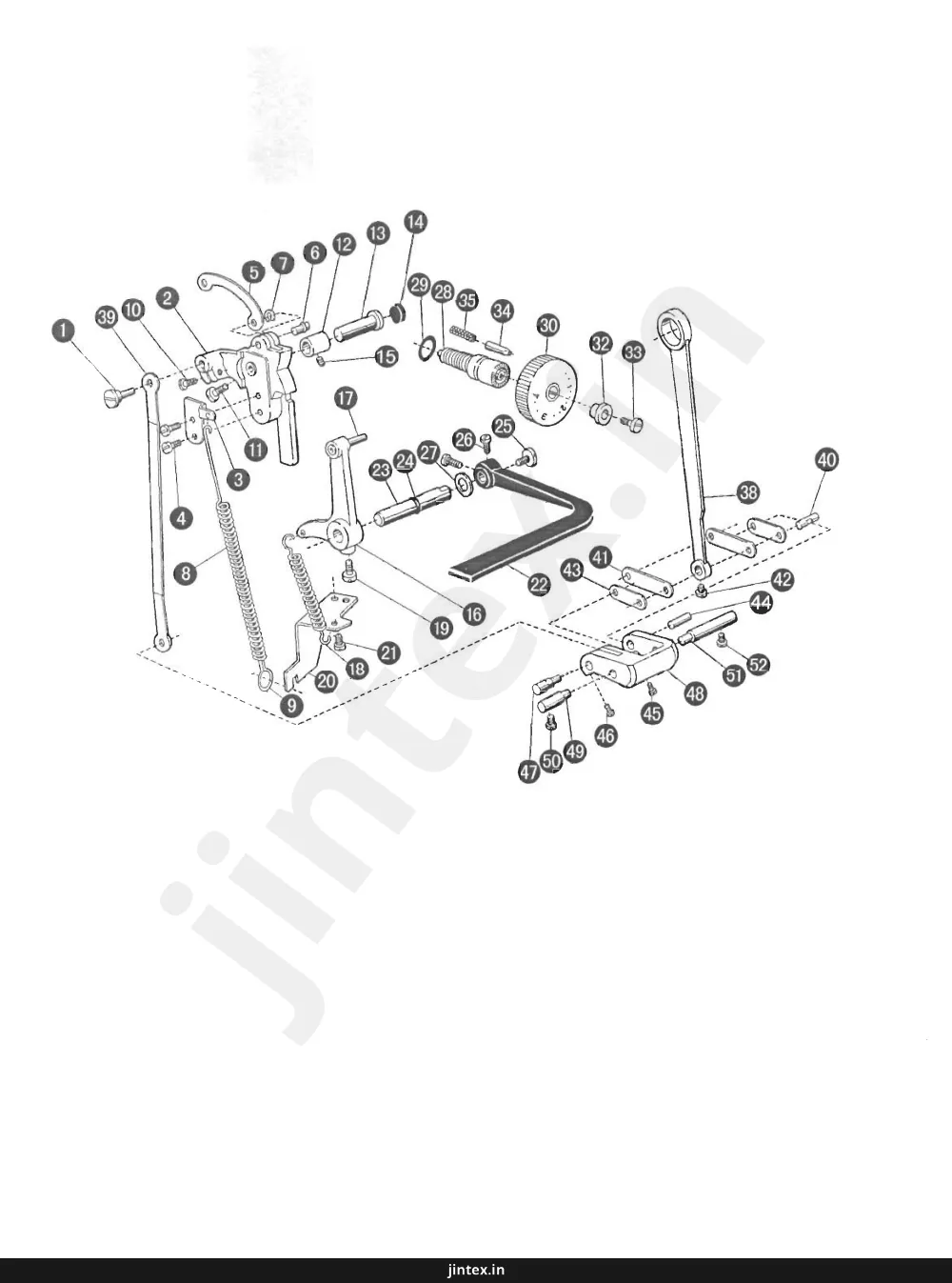

Page 23 — 4. STITCH LENGTH REGULATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 36T5-001 | Set pin | M1 H1 B1 |
| 2 | 36T5-002A1 | Feed regulator | M1 |
| 114T5-001 | Feed regulator | H1 B1 | |
| 3 | 36T5-002A2 | Spring retainer | M1 H1 B1 |
| 4 | 22T2-019 | Screw | M2 H2 B2 |
| 5 | 36T5-002A3 | Link | M1 H1 B1 |
| 6 | 36T5-002A4 | Pin | M1 H1 B1 |
| 7 | GB896-85-4 | Split retaining ring | M1 H1 B1 |
| 8 | 36T5-002A5 | Coil spring | M1 H1 B1 |
| 9 | 36T5-002A6 | Spring holder | M1 H1 B1 |
| 10 | 22T6-008D3 | Screw | M1 H1 B1 |
| 11 | 22T5-010D4 | Screw | M1 H1 B1 |
| 12 | 22T5-003 | Bushing for feed regulator | M1 H1 B1 |
| 13 | 22T5-004 | Pin shaft | M1 H1 B1 |
| 14 | 36T5-003 | Rubber plug | M1 H1 B1 |
| 15 | 22T2-002 | Set screw | M1 H1 B1 |
| 16 | 36T5-004B1 | Reverse sewing crank | M1 H1 B1 |
| 17 | 36T5-004B2 | Reverse sewing crank shaft | M1 H1 B1 |
| 18 | 36T5-004B3 | Coil spring | M1 H1 B1 |
| 19 | 22T5-013 | Screw | M1 H1 B1 |
| 20 | 36T5-005 | Spring holder | M1 H1 B1 |
| 21 | 22T5-001A4 | Screw | M1 H1 B1 |
| 22 | 22T5-010D1 | Reverse sewing lever | M1 H1 B1 |
| 23 | 36T5-006C1a1 | Shaft for reverse sewing lever | M1 H1 B1 |
| 24 | GB3452.1-92 | O-type ring 6.3x1.8d | M1 H1 B1 |
| 25 | 22T5-010D3 | Screw | M1 H1 B1 |
| 26 | 22T5-010D4 | Screw | M2 H2 B2 |
| 27 | 22T5-011 | Washer | M1 H1 B1 |
| 28 | 124T5-001A2 | Screw bar | M1 H1 B1 |
| 29 | 124T5-001A3 | O-type rubber ring | M1 H1 B1 |
| 30 | 27500001 | Dial | M1 |
| 124T5-001A5 | Dial | H1 B1 | |
| 32 | 36T5-007D4 | Bushing | M1 H1 B1 |
| 33 | 36T5-007D5 | Screw | M1 H1 B1 |
| 34 | 36T5-012 | Thrust pin | M1 H1 B1 |
| 35 | 22T5-009 | Coil spring | M1 H1 B1 |
| 38 | 36T5-008E2 | Feed link | M1 H1 B1 |
| 39 | 36T5-008E3 | Stitch length regulating link | M1 H1 B1 |
| 40 | 36T4-004H02 | Pin (Long) | M1 H1 B1 |
| 41 | 36T5-008E4H02 | Link(Long) | M2 |
| 114T5-003 | Link(Long) | H2 B2 | |
| 42 | 36T5-008E5 | Screw | M1 H1 B1 |
| 43 | 36T5-008E4H01 | Link(short) | M2 H2 B2 |
| 44 | 36T5-008E6 | pin(short) | M1 H1 B1 |
| 45 | 36T5-008E7 | Screw | M1 H1 B1 |
| 46 | 36T5-008E8 | Screw | M1 H1 B1 |
| 47 | 36T5-008E9 | Eccentric shaft | M1 H1 B1 |
| 48 | 36T5-008E10 | Stitch length adjusting crank | M1 H1 B1 |
| 49 | 36T5-009H02 | Set pin(left) | M1 H1 B1 |
| 50 | 22T6-008D3 | Screw | M1 H1 B1 |
| 51 | 36T5-009H01 | Set pin(right) | M1 H1 B1 |
| 52 | 22T6-008D3 | Screw | M1 H1 B1 |
| 22T5-010D2 | Screw | 2 |
Page 25 — 5. PRESSER FOOT MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 36T6-001A1 | Presser bar lifter | 1 / 1 / 1 |
| 2 | J0.0.35 | Screw | 1 / 1 / 1 |
| 3 | 36T6-002B1 | Presser bar lifting cam | 1 / 1 / 1 |
| 4 | GB3452.1-92 | Oil seal(4.5x1.8G) | 1 / 1 / 1 |
| 5 | 36T6-003C1a1 | Knee lifter lever (left) | 1 / 1 / 1 |
| 6 | 22T7-004B1b | Tension releasing cam | 1 / 1 / 1 |
| 7 | 22T7-004B1c | Screw | 1 / 1 / 1 |
| 8 | 22T7-004B2 | Screw | 2 / 2 / 2 |
| 9 | 22T7-004B3 | Knee lifter rod | 1 / 1 / 1 |
| 10 | 22T7-005 | Screw | 1 / 1 / 1 |
| 11 | 36T6-004 | Thread releasing pin | 1 / 1 / 1 |
| 12 | 22T7-007C1 | Knee lifter lever (right) | 1 / 1 / 1 |
| 13 | 22T7-007C2 | Coil spring | 1 / 1 / 1 |
| 14 | 22T7-007C3 | Knee lifter connecting rod | 1 / 1 / 1 |
| 15 | 22T7-008 | Pin for spring | 1 / 1 / 1 |
| 16 | 22T7-009 | Bushing for presser bar | 1 / 1 / 1 |
| 17 | 22T7-010 | Presser bar | 1 / 1 / 1 |
| 18 | 22T7-011D1 | Presser bar guide bracket | 1 / 1 / 1 |
| 19 | 22T1-013 | Screw | 1 / 1 / 1 |
| 20 | 22T7-012 | Presser bar spring guide | 1 / 1 / 1 |
| 21 | 48T7-002 | Presser bar spring | 1 / 1 / 1 |
| 22 | 22T7-014E1 | Thumb screw | 1 / 1 / 1 |
| 23 | 22T7-014E2 | Lock nut | 1 / 1 / 1 |
| 24 | 22T7-015 | Screw | 1 / 1 / 1 |
| 25 | 22T7-017F | Presser foot asm | 1 / / |
| 48T7-003A | Presser foot asm | / 1 / 1 | |
| 027701100 | Presser foot asm | / 1 / 1 | |
| 26 | 22T7-16 | Thread guide | 1 / 1 / 1 |
| 27 | 22T2-004 | Screw | 1 / 1 / 1 |
| 28 | 57T7-002 | Presser foot spring | 1 / 1 / 1 |
| 29 | 22T7-007C4 | Screw | 1 / 1 / 1 |
Page 26 — 6. KNIFE ACTUATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 36T8-009 | Pin | 1 / 1 / 1 |
| 2 | GB896-85-4 | Split retaining ring | 2 / 2 / 2 |
| 3 | 36T7-001A1 | Flexible driving lever | 1 / 1 / 1 |
| 4 | 36T7-001A2 | Screw | 1 / 1 / 1 |
| 5 | J0.0.16 | Nut | 1 / 1 / 1 |
| 6 | 36T7-001A3 | Bracket for flexible bracket | 1 / 1 / 1 |
| 7 | 36T7-001A4 | Screw | 1 / 1 / 1 |
| 8 | 36T7-001A5 | Flexible wire connecting bracket | 1 / 1 / 1 |
| 9 | 36T7-001A6 | Screw | 2 / 2 / 2 |
| 10 | 36T7-001A7 | Holder for flexible wire | 1 / 1 / 1 |
| 11 | 165710000 | Solenoid assy for thread trimmer | 1 / 1 / 1 |
| 12 | 36T7-001A8b | Solenoid mounting bracket | 1 / 1 / 1 |
| 13 | GB68-85-M4x6 | Screw | 3 / 3 / 3 |
| 14 | 36T7-002B1a1 | Knife holding saddle | 1 / 1 / 1 |
| 15 | 36T7-002B1a2 | knife base(left) | 1 / 1 / |
| 120T7-001A1 | knife base(left) | / / 1 | |
| 16 | 36T7-002B1a3 | Washer | 1 / 1 / 1 |
| 17 | 36T7-002B1a4 | Screw | 3 / 3 / 3 |
| 18 | 36T7-002B2 | Blade(left) | 1 / 1 / |
| 120T7-001A2 | Blade(left) | / / 1 | |
| 19 | 36T7-002B3 | Set screw | 2 / 2 / 2 |
Page 27 — 6. KNIFE ACTUATING MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 20 | 36T7-002B4 | Knife driving crank | M1 H1 B1 |
| 21 | 61-04-01/B6 | Screw | M1 H1 B1 |
| 22 | 36T7-002B5 | Link | M1 H1 B1 |
| 23 | 36T7-002B6 | Screw | M2 H2 B2 |
| 24 | 36T7-002B7 | Nut | M2 H2 B2 |
| 25 | 36T7-003C1 | Cam follower crank(1) | M1 H1 B1 |
| 26 | 36T7-003C2 | Cam follower crank(2) | M1 H1 B1 |
| 27 | 36T7-003C3 | Roller stud | M2 H2 B2 |
| 28 | 36T7-003C4 | Roller stud | M2 H2 B2 |
| 29 | 36T7-003C5 | Nut stud | M2 H2 B2 |
| 30 | 36T7-004 | Knife driving shaft | M1 H1 |
| 120T7-002 | Knife driving shaft | B1 | |
| 31 | 36T7-005 | Coil spring | M1 H1 B1 |
| 32 | 36T7-006 | Bushing | M1 H1 B1 |
| 33 | 165720004 | Stopper | M1 H1 B1 |
| 34 | 165720001 | Stopper plate | M1 H1 B1 |
| 35 | GB6172-86-6 | Nut | M1 H1 B1 |
| 36 | 165720002 | Screw | M1 H1 B1 |
| 37 | 36T7-009E1 | Thread guide | M1 H1 |
| 120T7-003B1 | Thread guide | B1 | |
| 38 | J0.0.72 | Screw | M1 H1 B1 |
| 39 | 36T7-009E2 | Bracket for fixed blade | M1 H1 B1 |
| 40 | 36T7-009E3 | Fixed knife | M1 H1 |
| 120T7-003B2 | Fixed knife | B1 | |
| 41 | 36T7-009E4 | Set screw | M1 H1 B1 |
| 42 | 36T7-009E5 | Adjusting screw | M1 H1 B1 |
| 43 | 36T7-009E6 | Adjusting nut | M1 H1 B1 |
| 44 | 36T8-002 | Set Screw | M2 H2 B2 |
| 45 | 36T7-010F | Flexible wire asm | M1 H1 B1 |
| 46 | 36T7-011G | Earth wire asm | M1 H1 B1 |
| 47 | 36T7-012 | Plug | M1 H1 B1 |
| 48 | 36T7-013 | Rubber sleeve | M1 H1 B1 |
| 49 | 36T7-014 | Wire clamp | M1 H1 B1 |
| 50 | GB848-86 | Washer 4 | M1 H1 B1 |
| 51 | GB54-86-M5 | Nut | M2 H2 B2 |
| 52 | 22T2-019 | Screw 4.37 x40/8 | M8 H8 B8 |
| 53 | 36T8-002 | Screw | M2 H2 B2 |
| 54 | 22T5-010D4 | Screw | M3 H3 B3 |
| 55 | 36T9-001A2a2 | Pin | M2 H2 B2 |
| 56 | 36T7-001A9 | Coil spring | M1 H1 B1 |
| 57 | 36T7-001A10 | Collar for driving lever | M1 H1 B1 |
| 58 | 36T5-008E8 | Screw | M2 H2 B2 |
| 59 | 36T7-015H1 | Collar for knife driving shaft | M1 H1 B1 |
| 60 | 22T3-002B1 | Screw | M1 H1 B1 |
| 61 | 36T7-016 | Coil spring | M1 H1 B1 |
| 62 | 36T7-017 | Guard for plug | M1 H1 B1 |
| 63 | 165720003 | Rubber washer | M1 H1 B1 |
| 64 | 1657100001 | Rubber washer | M1 H1 B1 |
| 65 | GB96-85-5 | Washer | M1 H1 B1 |
| 66 | GB96-86-12 | Split retaining ring | M1 H1 B1 |
| 67 | 36T7-001A8a1 | Washer | M1 H1 B1 |
| 3677-002B4 | Knife driving crank | 1 | |
| 3677-002B6 | Link | 1 | |
| 3677-002B7 | Screw | 2 | |
| 3677-003C1 | Cam follower crank(1) | 1 | |
| 3677-003C2 | Cam follower crank(2) | 1 | |
| 3677-003C3 | Roller stud | 2 | |
| 3677-003C4 | Roller stud | 2 | |
| 3677-003C5 | Nut stud | 2 | |
| 3677-004 | Knife driving shaft | 1 | |
| 3677-005 | Coil spring | 1 | |
| 3677-006 | Bushing | 1 | |
| 3677-009E1 | Thread guide | 1 | |
| 3677-009E2 | Bracket for fixed blade | 1 | |
| 3677-009E3 | Fixed knife | 1 | |
| 3677-009E4 | Set screw | 1 | |
| 3677-009E5 | Adjusting screw | 1 | |
| 3677-009E6 | Adjusting nut | 1 | |
| 3678-002 | Set Screw | 2 | |
| 3677-010F | Flexible wire asm | 1 | |
| 3677-011G | Earth wire asm | 1 | |
| 3677-012 | Plug | 1 | |
| 3677-013 | Rubber sleeve | 1 | |
| 3677-014 | Wire clamp | 1 | |
| 3677-001A9 | Coil spring | 1 | |
| 3677-001A10 | Collar for driving lever | 1 | |
| 3675-008E8 | Screw | 2 | |
| 3677-015H1 | Collar for knife driving shaft | 1 | |
| 3677-016 | Coil spring | 1 | |
| 3677-017 | Guard for plug | 1 | |
| 3677-001A8a1 | Washer | 1 |
Page 28 — 7. REVERSE SEWING AND DETECTOR MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 108910000 | Detector comconts | 1 / 1 / 1 |
| 1 | 108930000 | Detector comconts | 1 / 1 / 1 |
| 2 | 36T7-013 | Rubber plug | 1 / 1 / 1 |
| 3 | 22T2-019 | Screw | 2 / 2 / 2 |
| 4 | 22T1-006 | Screw | 6 / 6 / 6 |
| 5 | 22T1-007 | Washer | 8 / 8 / 8 |
| 6 | 165A20001 | Detector presser plate | 1 / 1 / 1 |
| 7 | GB896-86 | Split washer 4 | 2 / 2 / 2 |
| 8 | 36T8-009 | Pin | 1 / 1 / 1 |
| 9 | 36T8-008E4b | Electric-magnet for reverse sewing | 1 / 1 / 1 |
| 10 | GB848-85-4 | Washer | 2 / 2 / 2 |
| 11 | GB893-87 | Spring washer 3 | 2 / 2 / 2 |
| 12 | 36T8-005 | Cord holder | 1 / 1 / 1 |
| 13 | 108800101 | Wire clamp | 1 / 1 / 1 |
| 108800201 | Wire clamp | 1 / 1 / 1 | |
| 108800301 | Wire clamp | 1 / 1 / 1 | |
| 14 | 36T8-007C1 | Switch bracket | 1 / 1 / 1 |
| 15 | 36T8-007C2a | Button asm | 1 / 1 / 1 |
| 16 | 36T8-007C3b | Cable for switch at reverse sewing | 1 / 1 / 1 |
| 17 | GB859-86-2 | Spring washer 2 | 2 / 2 / 2 |
| 18 | GB848-86-2 | Washer 2 | 2 / 2 / 2 |
| 19 | GB818-85-M2x8 | Screw | 2 / 2 / 2 |
| 20 | 36T8-007C4 | Micro switch | 1 / 1 / 1 |
| 21 | GB66-76 | Screw | 2 / 2 / 2 |
| 22 | 36T8-007C5 | Leaf spring | 1 / 1 / 1 |
| 23 | GB896-86-3 | Split retaining ring | 2 / 2 / 2 |
| 24 | 36T8-007C6 | Coil spring | 1 / 1 / 1 |
| 26 | 36T8-008E1 | Gasket | 1 / 1 / 1 |
| 27 | 165820001 | Side cover | 1 / 1 / 1 |
| 28 | 22T6-008D3 | Screw | 2 / 2 / 2 |
| 29 | 165320001 | Balance wheel asm | 1 / 1 / 1 |
| 30 | 36T8-004B1 | Screw | 1 / 1 / 1 |
| 31 | 36T8-004B2 | Washer | 1 / 1 / 1 |
Page 29 — 8. WIPER MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 36T9-001A1 | Wire connector | 1 / 1 / 1 |
| 2 | 36T9-001A2a | Wire | 1 / 1 / 1 |
| 3 | 36T9-001A3 | Cord clamp | 1 / 1 / 1 |
| 4 | GB848-86-3 | Washer | 8 / 8 / 8 |
| 5 | GB859-86-3 | Washer | 8 / 8 / 8 |
| 6 | GB818-86 | Screw M3 x6 | 8 / 8 / 8 |
| 7 | 36T9-001A4 | Solenoid bracket | 1 / 1 / 1 |
| 8 | 36T9-001A5 | Cover for wiper mech | 1 / 1 / 1 |
| 9 | 36T9-001A6 | Solenoid for wiper | 1 / 1 / 1 |
| 10 | 36T9-001A7 | Coil spring | 1 / 1 / 1 |
| 11 | GB896-86-9 | Retaining ring | 1 / 1 / 1 |
| 12 | 36T9-001A8 | Rubber ring | 1 / 1 / 1 |
| 13 | 36T9-001A9 | Switch for wiper | 1 / 1 / 1 |
| 14 | 36T9-001A10 | Washer | 1 / 1 / 1 |
| 15 | 36T9-002 | Screw | 1 / 1 / 1 |
| 16 | 22T5-001A4 | Screw | 2 / 2 / 2 |
| 17 | 36T9-003 | Washer | 2 / 2 / 2 |
| 18 | 36T9-004B1 | Wiper bracket | 1 / 1 / 1 |
| 19 | 036921008 | Wiper shaft asm | 1 / 1 / 1 |
| 20 | G896-86-4 | Retaining ring | 2 / 2 / 2 |
| 21 | 36T9-004B3 | Wiper | 1 / 1 / 1 |
| 22 | 22T6-001A4 | Screw | 1 / 1 / 1 |
| 23 | 36T9-004B4 | Link | 1 / 1 / 1 |
| 26 | 036921006 | Washer | 1 / 1 / 1 |
| 25 | 36T9-005 | Screw | 2 / 2 / 2 |
| 24 | 036921007 | Shaft | 1 / 1 / 1 |
| 28 | 036921005 | Washer | 1 / 1 / 1 |
| 27 | GB6170-86 | Nut M3 | 1 / 1 / 1 |
| 29 | 165900001 | Rubber washer | 1 / 1 / 1 |
Page 30 — 9. OIL PUMP MECHANISM
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 22T8-001 | Oil pump | M:1 H:1 B:1 |
| 2 | 22T8-002 | Oil pump impeller | M:1 H:1 B:1 |
| 3 | 22T8-003 | Screw | M:1 H:1 B:1 |
| 4 | 22T8-004 | Screw | M:3 H:3 B:3 |
| 5 | GB93-87-3 | Springee washer | M:1 H:1 |
| 6 | 22T8-006 | Oil pump fitting plate | M:1 H:1 |
| 7 | 22T8-007 | Oil adjusting plate | M:1 H:1 |
| 8 | 22T8-008A | Oil pump screen asm | M:1 H:1 B:1 |
| 9 | 22T8-009 | Screw | M:3 H:3 B:3 |
| 10 | 36T10-001A | Oil pump for hook shaft | M:1 H:1 B:1 |
| 11 | 22T8-011C | Oil braid fitting plate | M:1 H:1 B:1 |
| 12 | 22T8-015 | Screw | M:2 H:2 B:2 |
| 12 | 22T8-012 | Screw | 2 |
| 13 | 22T8-013D | Oil pump for arm shaft | M:1 H:1 B:1 |
| 14 | 22T8-014 | Oil return pipe | M:1 H:1 B:1 |
| 15 | 22T8-015 | Felt pouch for return oil filter | M:1 H:1 B:1 |
| 16 | 36T10-002 | Oil filter holder | M:1 H:1 B:1 |
Page 31 — 10. OIL RESERVOIR AND ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 36T11-001A | Oil reservoir asm | 1/1/1 |
| 2 | 22T9-001A2 | Screw | 1/1/1 |
| 3 | 22T9-001A3 | Washer | 1/1/1 |
| 5 | 22T9-001A5 | Oil gasket | 1/1/1 |
| 7 | 22T9-003B1 | knee lifter lifting pin | 1/1/1 |
| 8 | 124T9-003B | Belt cover | 1/1/1 |
| 9 | 124T9-004C | Belt cover (S) | 1/1/1 |
| 10 | 6F0 | Thread winder asm(large hook) | 1/1/1 |
| 11 | GXJ-2 | Thread spool asm | 1/1/1 |
| 12 | 22T9-007F | Hinge with rubber cushion | 2/2/2 |
| 13 | 22T9-009 | Cushion(B) | 2/2/2 |
| 14 | 22T9-010 | Cushion(S) | 2/2/2 |
| 15 | 22T9-011 | Oil pot | 1/1/1 |
| 16 | 22T9-012 | Magnet block | 1/1/1 |
| 17 | 22T9-013 | Screw drive(long) | 1/1/1 |
| 18 | 22T9-015 | Screw drive(short) | 1/1/1 |
| 19 | 36T11-006 | Allen wrench M4 | 1/1/1 |
| 19 | 36T11-006 | Allen wrench M6 | 1/1/1 |
| 20 | 22T9-016 | Double open-end wrench | 1/1/1 |
| 21 | 22T9-017 | Oil tank | 1/1/1 |
| 22 | 22T9-018 | Machine head cover | 1/1/1 |
| 23 | 22T9-024 | Needle bag | 1/1/1 |
Typical GC6180 — parts catalog
- Page 1 (cover): This is the cover page for the GC6180 High-Speed Lockstitch Sewing Machine with Drop Feed Instruction Book and Parts Catalogue from Typical.
- Page 2 (text): This page contains instructions for initial machine operation, oil filling, and rotating hook oil amount adjustment, accompanied by diagrams illustrating these procedures.
- Page 3 (diagram): This page contains diagrams and instructions for oil pump adjustment, needle installation, and clutch lever connection with the pedal.
- Page 4 (diagram): This page contains diagrams and instructions for belt cover installation, adjusting the opening time of tension discs, and threading the needle, with corresponding reference numbers for parts.
- Page 5 (text): This page contains instructions for winding installation and adjustment, and for adjusting the pressure of the presser foot, along with corresponding diagrams.
- Page 6 (text): This page details thread tension adjustment for sewing machines, including diagrams and instructions for adjusting needle and bobbin thread tension, as well as the thread take-up spring stroke. It also covers the synchronization of the needle with the rotating hook.
- Page 7 (text): This page contains instructions for adjusting stitch length and reverse feeding, as well as adjusting the position of the feed dog and needle, with accompanying diagrams.
- Page 8 (diagram): This page contains diagrams and descriptions for stitch length adjustment, feed dog horizontal adjustment, and the thread cutting mechanism, including a list of parts for the thread cutting mechanism.
- Page 9 (diagram): This page contains diagrams and instructions for assembling and adjusting knife support components and connecting the knife support and cutter driving crank.
- Page 10 (diagram): This page contains diagrams and descriptions for the Cutter Driving Shaft and the Electromagnet Core Stroke, including part labels and measurements.
- Page 11 (diagram): This page contains diagrams and instructions for installing the thread cutting cam, illustrating steps (1) through (3) with detailed views and measurements.
- Page 12 (diagram): This page contains diagrams and instructions for adjusting knife cutting engagement and cutting pressure, with figures 34, 35, 36, and 37 illustrating the procedures and components involved.

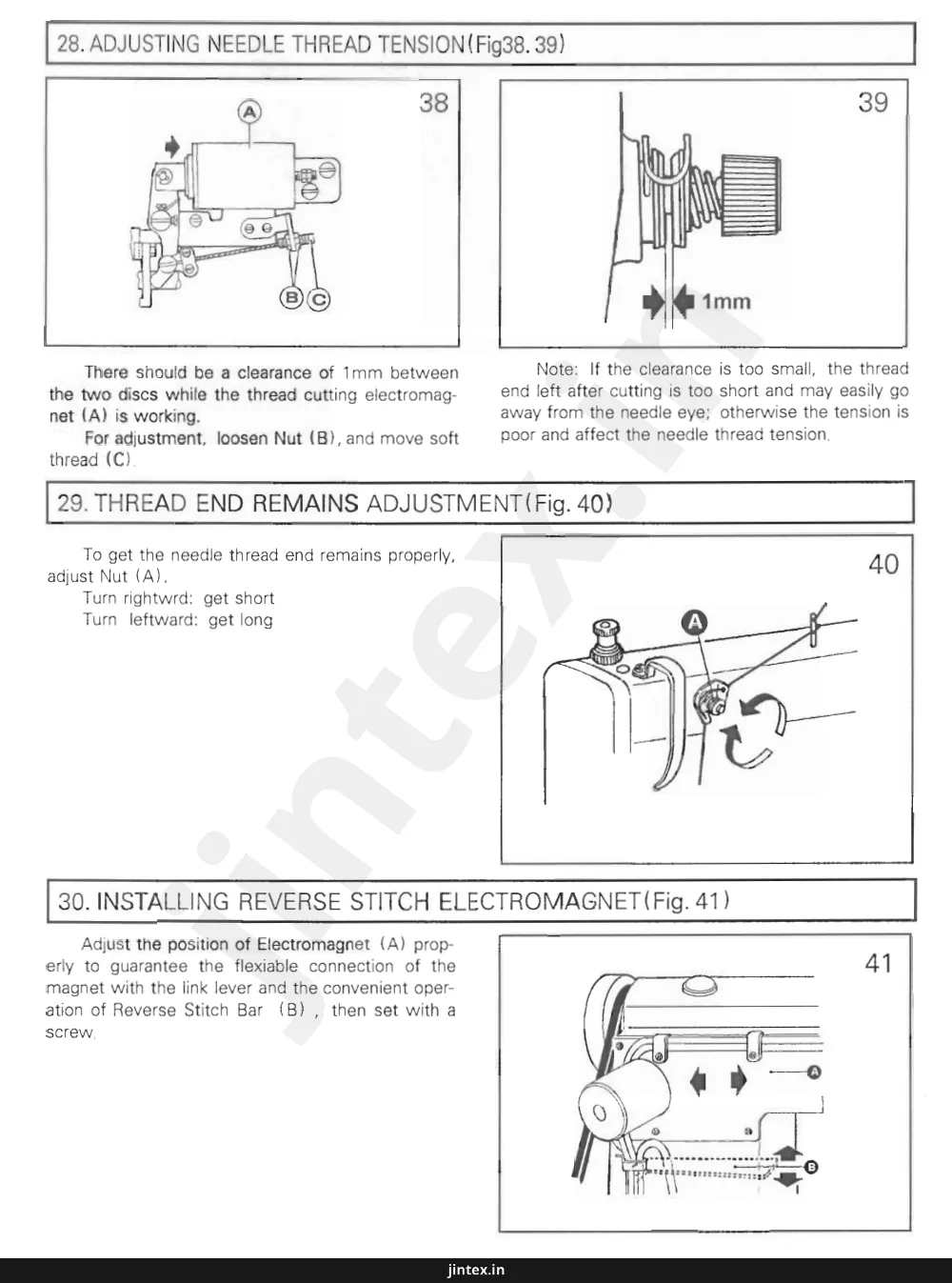

- Page 13 (diagram): This page contains diagrams and instructions for adjusting needle thread tension and thread end remains, along with installing the reverse stitch electromagnet.
- Page 14 (diagram): This page contains diagrams and descriptions for the Reverse Stitch Switch and the Thread Retaining Device, including adjustments and working positions.
- Page 15 (diagram): This page contains diagrams and descriptions for hook, bobbin case, and related cleaning procedures for a sewing machine.
- Page 16 (diagram): This page displays a diagram of various sewing machine components, including the needle bar, presser foot, and bobbin winder, with numbered references for each part.
- Page 17 (parts_list): This page lists parts for the ARM AND BED MECHANISM, including screws, plates, washers, and springs, with quantities specified for different machine models (M, H, B).
- Page 18 (diagram): This page displays a diagram of various machine components, with numbered references pointing to specific parts. It includes a detailed illustration of a vertical shaft assembly with associated parts like collars, bearings, and a needle bar.
- Page 19 (parts_list): This page lists parts for the ARM SHAFT AND VERTICAL SHAFT AND THREAD TAKE-UP MECHANISM, including part numbers, descriptions, and quantities for different models.
- Page 20 (diagram): This page displays a diagram of various machine parts, with reference numbers pointing to specific components. No part numbers or descriptions are visible on this diagram page.
- Page 21 (parts_list): This page lists parts for the feeding and feed lifting and rotating hook mechanism, including part numbers, descriptions, and quantities for different machine models.
- Page 22 (diagram): This page contains a diagram of various machine parts, with reference numbers indicating their positions. It does not include a parts list or descriptive text.
- Page 23 (parts_list): This page lists parts for the stitch length regulating mechanism, including part numbers, descriptions, and quantities for different machine models (M, H, B).
- Page 24 (diagram): This page contains a diagram of various sewing machine parts, with reference numbers indicating their location. The diagram includes components such as a presser foot assembly, tension discs, and various levers and linkages.
- Page 25 (parts_list): This page lists parts for the presser foot mechanism, including part numbers, descriptions, and quantities for models M, H, and B.
- Page 26 (parts_list): This page lists parts for the Knife Actuating Mechanism, including part numbers, descriptions, and quantities for different models (M, H, B).
- Page 27 (parts_list): This page lists parts for the Knife Actuating Mechanism, including part numbers, descriptions, and quantities for different machine models.
- Page 28 (diagram): This page displays a diagram and parts list for the reverse sewing and detector mechanism of an industrial sewing machine. It includes part numbers, descriptions, and quantities for various components.
- Page 29 (diagram): This page displays a diagram and parts list for the wiper mechanism, detailing various components with their reference numbers, part numbers, descriptions, and quantities.
- Page 30 (diagram): This page displays a diagram of the oil pump mechanism, along with a parts list detailing components such as the oil pump, screws, washers, and filters, with their respective part numbers and quantities.
- Page 31 (parts_list): This page lists oil reservoir and accessories for a sewing machine, including part numbers, descriptions, and quantities.
- Page 32 (text): This page contains technical data for the GC6180 series sewing machine, detailing specifications for models M, H, and B, including application, sewing speed, stitch length, presser foot lift, needle type, rotating shuttle, detector, operation panel, motor, and other features. It also includes company contact information and a disclaimer about design changes.
- Page 33 (cover): This is the cover page for the GC6180 High-Speed Lockstitch Sewing Machine with Drop Feed manual. It features an image of two wrenches and contact information for XI'AN TYPICAL EUROPE GmbH.
