Typical GN2000 Parts Book (PDF)

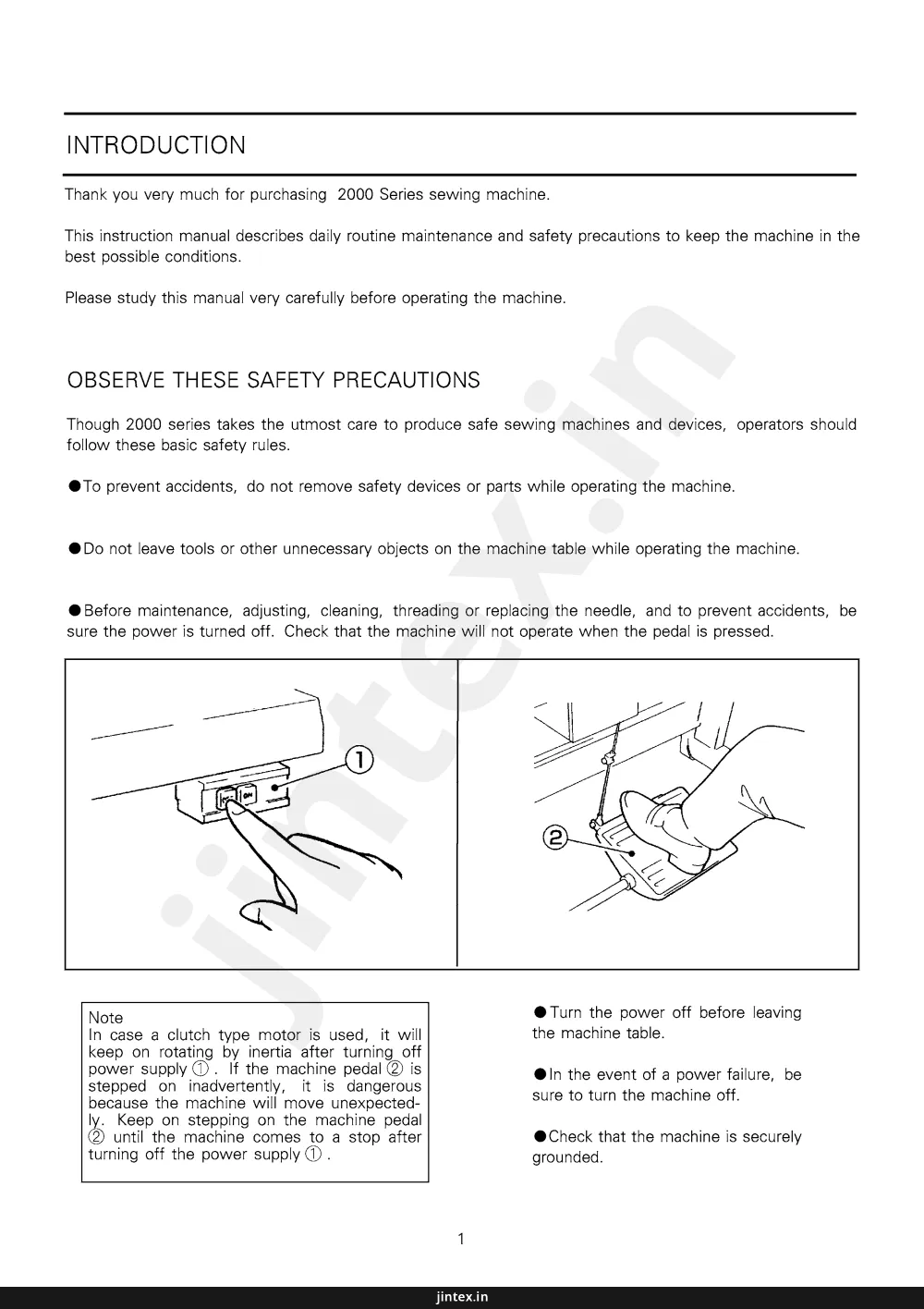

Text index — Typical GN2000
Page 16 — 1. MACHINE ARM PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150220005 | Screw | 4 / 4 / 4 / 4 |
| 2 | 155100001 | Frame side cover | 1 / 1 / 1 / 1 |
| 3 | S150215011 | Screw(L) | 1 / 1 / 1 / 1 |
| 4 | S150215009 | Screw(S) | 3 / 3 / 3 / 3 |
| 6 | S8A3104007 | Spring pin | 2 / 2 / 2 / 2 |
| 7 | 155100002 | Thread guide pipe | 2 / 2 / 2 / 2 |
| 8 | BXF8899009 | Rivet | 2 / 2 / 2 / 2 |
| 10 | 198000014 | Model plate | 1 |
| 11 | S8A3104007 | Spring pin | 1 / 1 / 1 / 1 |
| 12 | S150220016 | Screw | 2 / 2 / 2 / 2 |
| 13 | S8A3104007 | Spring pin | 1 / 1 / 1 / 1 |
| 14 | 159100001 | Needle plate support bracket | 1 / 1 |
| 155100003 | Needle plate support bracket | 1 / 1 | |
| 15 | 155100005 | Screw | 4 / 4 / 4 / 4 |
| 16 | 155100041 | Oil mark | 1 / 1 / 1 / 1 |
Page 18 — 2. MACHINE ARM PART(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155100010 | Oil guide plate | 1 / 1 / 1 / 1 |
| 2 | S150215008 | Screw | 1 / 1 / 1 / 1 |
| 3 | 155100031 | Packing | 1 / 1 / 1 / 1 |
| 4 | 155100030 | Oil monitor | 1 / 1 / 1 / 1 |
| 5 | S150215011 | Screw | 4 / 4 / 4 / 4 |
| 6 | 155100008 | Top cover | 1 / 1 / 1 / 1 |
| 7 | 155100009 | Oil gusket | 1 / 1 / 1 / 1 |
| 8 | 155100016 | Belt cover | 1 / 1 / 1 / 1 |
| 9 | S150215014 | Screw | 3 / 3 / 3 / 3 |
| 10 | S150215001 | Screw | 2 / 2 / 2 / 2 |
| 11 | 155100015 | Cooling fan guard | 1 / 1 / 1 / 1 |
| 12 | 155100013 | Plate spring | 1 / 1 / 1 / 1 |
| 13 | S150215008 | Screw | 1 / 1 / 1 / 1 |
| 14 | 155100014 | Cover | 1 / 1 / 1 / 1 |
| 15 | S150215001 | Screw | 3 / 3 / 3 / 3 |
| 16 | 155100034 | Screw | 1 / 1 / 1 / 1 |
| 17 | 159140000 | Cloth guide | 1 / 1 / - / - |
| 155150000 | Cloth guide | - / - / 1 / 1 | |
| 18 | 155100033 | Screw | 1 / 1 / 1 / 1 |
| 19 | S150215001 | Screw | 2 / 2 / 2 / 2 |
| 20 | 159120001 | Front cover | 1 / 1 / - / - |
| 155120004 | Front cover | - / - / 1 / 1 | |
| 21 | S150215008 | Screw | 2 / 2 / 2 / 2 |
| 23 | 155120007 | Front cover hinge stopper | 1 / 1 / 1 / 1 |
| 24 | S150215008 | Screw | 1 / 1 / 1 / 1 |
| 25 | 155120005 | Stopper plate | 1 / 1 / 1 / 1 |
| 26 | S120202007 | Screw | 1 / 1 / 1 / 1 |
| 27 | 155120002 | Front cover hinge shaft | 1 / 1 / 1 / 1 |
| 28 | B12400432 | Screw | 2 / 2 / 2 / 2 |
| 29 | 155120001 | Front cover(L) | 1 / 1 / 1 / 1 |
| 30 | 155120003 | Spring | 1 / 1 / 1 / 1 |
| 31 | 155120006 | Front cover hinge | 1 / 1 / 1 / 1 |
| 32 | S150215010 | Screw | 3 / 3 / 3 / 3 |
| 33 | 155100012 | Oil seal | 1 / 1 / 1 / 1 |
| 34 | 160DQZ005 | Decorative brand | 1 / 1 / 1 / 1 |
| 35 | 160DHZ001 | Decorative brand | 1 / 1 / 1 / 1 |
| 36 | 155100046 | Oil filter tags | 1 / 1 / 1 / 1 |
Page 20 — 3. MACHINE ARM PART(3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150215009 | Screw | 4 / 4 / 4 / 4 |
| 2 | 155100017 | Back cover for feed mechanism | 1 / 1 / 1 / 1 |
| 3 | 155100033 | Screw | 4 / 4 / 4 / 4 |
| 4 | 155100018 | Feed bar cover | 1 / 1 / 1 / 1 |
| 5 | B12400432 | Screw | 1 / 1 / 1 / 1 |
| 6 | S150215008 | Screw | 1 / 1 / 1 / 1 |
| 7 | 155100021 | Plate spring | 1 / 1 / 1 / 1 |
| 8 | 155100020 | shaft for needle thread cover | 1 / 1 / 1 / 1 |
| 9 | 155100019 | Needle thread cover | 1 / 1 / 1 / 1 |
| 10 | 160DQZ002 | Trade mark plate | 1 / 1 / 1 / 1 |
| 11 | 155100024 | Screw | 1 / 1 / 1 / 1 |
| 12 | 155100025 | Wave spring | 2 / 2 / 2 / 2 |
| 13 | 155100023 | Eye guard support plate | 1 / 1 / 1 / 1 |
| 14 | 159100004 | Eye guard | 1 / 1 |
| 155100026 | Eye guard | 1 / 1 (5, 5H) | |
| 15 | S8A3103002 | Washer | 2 / 2 / 2 / 2 |
| 16 | S120202007 | Screw | 2 / 2 / 2 / 2 |
| 17 | 155100027 | Rubber plug | 1 / 1 / 1 / 1 |
| 18 | 155100029 | Needle bar seal cover | 1 / 1 / 1 / 1 |
| 19 | 155100022 | Screw | 1 / 1 / 1 / 1 |
| 20 | 155100034 | Screw | 1 / 1 / 1 / 1 |
| 21 | S150215005 | Screw | 1 / 1 / 1 / 1 |
| 22 | S150559002 | Nut | 1 / 1 / 1 / 1 |
| 23 | S150218005 | Screw | 2 / 2 / 2 / 2 |
| 24 | 155140001 | Direction guide plate | 1 / 1 / 1 / 1 |
| 25 | 155140002 | Plate spring | 1 / 1 / 1 / 1 |
| 26 | S150217008 | Screw | 1 / 1 / 1 / 1 |
| 27 | 155100027 | Rubber plug | 3 / 3 / 3 / 3 |
| 28 | 155130006 | Nut | 1 / 1 / 1 / 1 |
| 29 | 159131001 | Cloth plate | 1 / 1 |
| 155131001 | Cloth plate | 1 / 1 (5, 5H) | |
| 30 | B12400432 | Screw | 1 / 1 / 1 / 1 |
| 31 | 155130001 | Cloth plate shaft bush | 1 / 1 / 1 / 1 |
| 32 | 155100025 | Wave spring | 1 / 1 / 1 / 1 |
| 33 | 155100024 | Screw | 1 / 1 / 1 / 1 |
| 34 | 155130005 | Screw | 1 / 1 / 1 / 1 |
| 35 | 155130004 | Spring | 1 / 1 / 1 / 1 |
| 36 | 155130003 | Latch lever for cloth plate | 1 / 1 / 1 / 1 |
| 37 | S150215001 | Screw | 2 / 2 / 2 / 2 |
| 38 | 155130008 | Washer | 2 / 2 / 2 / 2 |
| 39 | 155130007 | Side cover | 1 / 1 / 1 / 1 |
| 40 | 155100027 | Rubber plug | 1 / 1 / 1 / 1 |
| 41 | 155130009 | Plate spring | 1 / 1 / 1 / 1 |
| 42 | S120202004 | Screw | 1 / 1 / 1 / 1 |
| 43 | S4B3000010 | Spring washer | 1 / 1 / 1 / 1 |
| 44 | S150215005 | Screw(L) | 1 / 1 / 1 / 1 |
| 45 | 116400008 | Screw | 1 / 1 / 1 / 1 |
Page 22 — 4. NEEDLE BAR DRIVE PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155200001 | Crank shaft extension | 5: 1; 5H: 1 |
| 2 | S150224007 | Screw | 3: 2; 4/4H: 2 |
| 3 | 159200001 | Bearing cap | 3: 1; 4/4H: 1 |
| 155200002 | Bearing cap | 5: 1; 5H: 1 | |
| 4 | S150215009 | Screw | 3: 3; 4/4H: 3 |
| S150215009 | Screw | 5: 1; 5H: 1 | |
| 5 | S120205003 | Screw | 5: 2; 5H: 2 |
| 6 | 155200004 | Rubber ring | 1 each |
| 7 | B12500532 | Screw | 1 each |
| 8 | 155220000 | Ball bearing(L), assy | 1 each |
| 9 | S150224006 | Screw | 1 each |
| 10 | 155200005 | Crank shaftbush(M) | 1 each |
| 11 | SFB0201004 | Screw | 2 each |
| 12 | 155230001 | Stopper bush | 1 each |
| 13 | 155200006 | Screw | 1 each |
| 14 | 155210001 | Crank shaft | 1 each |
| 15 | 006301008 | Screw | 2 each |
| 16 | 028260003 | Screw | 1 each |
| 17 | S150215009 | Screw | 3 each |
| 18 | 155200011 | Bearing presser | 1 each |
| 19 | 155200018 | O-type ring | 1 each |
| 20 | 155200010 | Packing | 1 each |
| 21 | 052200036 | Ball bearing(right) | 1 each |
| 22 | 155200009 | Collar | 1 each |
| 23 | 155200008 | Spring washer | 4 each |
| 24 | S150866046 | Ball bearing(middle) | 1 each |
| 25 | B12500532 | Screw | 1 each |
| 26 | 155200007 | Worm | 1 each |
| 27 | 155200012 | Crank shaft oil reject | 1 each |
| 28 | S150656004 | O-type ring | 1 each |
| 29 | 155200013 | Cooling fan | 1 each |
| 30 | S150225003 | Screw | 1 each |
| 31 | S150224003 | Screw | 1 each |
| 32 | 155200014 | Belt wheel | 1 each |
| 33 | 155200016 | Washer | 1 each |
| 34 | S150220005 | Screw | 1 each |
| 35 | 155200017 | Machine pulley | 1 each |
| 36 | S150215012 | Screw | 3 each |
| 15520018 | O-type ring | 1 | |
| 15520009 | Collar | 1 | |
| 15520008 | Spring washer | 4 | |
| S15086046 | Ball bearing (middle) | 1 |
Page 24 — 5. NEEDLE BAR DRIVE PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 060410014 | Retaining ring | 3:1 4:1 4H:1 5:1 5H:1 |
| 2 | 155300006 | Washer | 3:1 4:1 4H:1 5:1 5H:1 |
| 3 | 155300005 | Bush | 3:1 4:1 4H:1 5:1 5H:1 |
| 4 | B12400432 | Screw | 3:2 4:2 4H:2 5:2 5H:2 |
| 5 | 155300004 | Set collar | 3:1 4:1 4H:1 5:1 5H:1 |
| 6 | 155310000 | Upper shaft crank complete | 3:1 4:1 5:1 |
| 155370000 | Upper shaft crank complete | 4H:1 5H:1 | |
| 7 | 155300017 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 8 | 155330000 | Needle drive crank rod assy | 3:1 4:1 4H:1 5:1 5H:1 |
| 9 | B62401612 | Screw | 3:2 4:2 4H:2 5:2 5H:2 |
| 10 | 155300023 | Pin | 3:1 4:1 4H:1 5:1 5H:1 |
| 11 | S150225008 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 12 | 155300002 | Bush | 3:1 4:1 4H:1 5:1 5H:1 |
| 13 | 155300003 | Oil seal | 3:1 4:1 4H:1 5:1 5H:1 |
| 14 | 155300001 | Upper shaft | 3:1 4:1 4H:1 5:1 5H:1 |
| 15 | 155300007 | Needle bar crank | 3:1 4:1 4H:1 5:1 5H:1 |
| 16 | 155400010 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 17 | S150225005 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 18 | 155320000 | Pin | 3:2 4:2 4H:2 5:2 5H:2 |
| 19 | 155300008 | Link for needle bar | 3:1 4:1 4H:1 5:1 5H:1 |
| 20 | 155300012 | Oil wick pin | 3:1 4:1 4H:1 5:1 5H:1 |
| 21 | S150656005 | O - type ring | 3:1 4:1 4H:1 5:1 5H:1 |
| 22 | 155300014 | Upper bush needle bar | 3:1 4:1 4H:1 5:1 5H:1 |
| 23 | B12400432 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 24 | 155300013 | Bush | 3:1 4:1 4H:1 5:1 5H:1 |
| 25 | 155300010 | Needle connector | 3:1 4:1 4H:1 5:1 5H:1 |
| 26 | 155300030 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 27 | S150225005 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 28 | 155300015 | Bush | 3:1 4:1 4H:1 5:1 5H:1 |
| 29 | 155300016 | Needle bar oil ervoir | 3:1 4:1 4H:1 5:1 5H:1 |
| 30 | S150215008 | Screw | 3:1 4:1 4H:1 5:1 5H:1 |
| 31 | 155350001 | Needle bar | 3:1 4:1 4H:1 5:1 5H:1 |
| 32 | 160320001 | Needle holder | 3:1 |
| 159320001 | Needle holder | 4:1 4H:1 | |
| 155350002 | Needle holder | 5:1 5H:1 | |
| 33 | 182610010 | Screw | 3:1 4:2 4H:2 5:2 5H:2 |
| 34 | 159300007 | Needle | 3:1 |
| 159300007 | Needle | 4:2 4H:2 | |
| 028280109 | Needle | 5:2 | |
| 077200401 | Needle | 5H:2 | |
| 35 | 155300021 | Screw | 3:2 4:2 4H:2 5:2 5H:2 |
| 36 | 155300020 | Set plate for oil felt | 3:1 4:1 4H:1 5:1 5H:1 |
| 37 | 155300019 | Oil felt | 3:1 4:1 4H:1 5:1 5H:1 |
| 38 | 155300022 | Oil reservoir | 3:1 4:1 4H:1 5:1 5H:1 |
Page 26 — 6. NEEDLE BAR DRIVE PARTS (3)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 160300001 | Needle plate | 1 |
| 160300003 | Needle plate | 1 | |
| 159310001 | Needle plate | 1 | |
| 155340001 | Needle plate | 1 | |
| 155380001 | Needle plate | 1 | |
| 2 | 159310003 | Screw | 1 |
| 039230003 | Screw | 1 | |
| 3 | 159300006 | Screw | 2 |
| 028200050 | Screw | 2 | |
| 4 | 159310002 | Needle plate fitting(S) | 1 |
| 155340002 | Needle plate fitting | 1 | |
| 155380002 | Needle plate fitting | 1 | |
| 5 | 155100027 | Rubber plug | 1 |
| 6 | B62400812 | Screw | 2 |
| B62400812 | Screw | 1 | |
| 7 | 159330000 | Needle plate baracket(rear) | 1 |
| 155300029 | Needle plate baracket(rear) | 1 | |
| 8 | B62401012 | Screw | 2 |
| B62401012 | Scrw | 2 | |
| 9 | 159300004 | Needle plate bracket(front) | 1 |
| 155300028 | Needle plate bracket(front) | 1 | |
| 10 | 155300027 | Chain stitch needle guard (front) | 1 |
| 11 | S150217002 | Screw | 1 |
| 12 | S120202001 | Screw | 2 |
| 13 | 155300026 | Chain stitch needle guard (rear) | 1 |
| 14 | S150217002 | Screw | 2 |
| 15 | 155300025 | Needle guard | 1 |
| 16 | 028200054 | Screw | 1 |
| 17 | 058600008 | Washer | 1 |
| 18 | 155300024 | Movalbe needle guard | 1 |
| 19 | 110550005 | Screw | 2 |
| 20 | 159300002 | Needle guard bracket | 1 |
| 21 | 159300001 | Needle guard | 1 |
| 22 | SFB0201003 | Screw | 1 |
| 23 | 159300005 | Needle plate guide plate | 1 |
| 24 | SFB0201004 | Screw | 2 |
| 25 | S8A3103002 | Washer | 1 |
Page 28 — 7. UPPER AND LOWER LOOPER DRIVE PART(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155400006 | Rubber plug | 1 1 1 1 1 |
| 2 | S150204002 | Screw | 2 2 2 2 2 |
| 3 | S8A3103012 | Spring washer | 2 2 2 2 2 |
| 4 | 155400005 | Washer | 1 1 1 1 1 |
| 5 | 155400004 | Bush | 1 1 1 1 1 |
| 6 | 155400001 | Washer | 2 2 2 2 2 |
| 7 | 155410000 | looper ball link complete | 1 1 1 1 1 |
| 8 | B62401612 | Screw | 4 4 4 4 4 |
| 10 | 155420000 | Upper looper ball crank complete | 1 1 - 1 - |
| 22 | 155400000 | Pin complete | 1 |
| 159400002 | Upper looper ball crank complete | - - 1 - 1 | |
| 11 | 155400021 | Screw | 2 2 2 2 2 |
| 12 | 155400003 | Bushing | 1 1 1 1 1 |
| 13 | 028330001 | Oil seal | 1 1 1 1 1 |
| 14 | 155400002 | Upper/lower looper shaft | 1 1 1 1 1 |
| 15 | 155400009 | Upper looper crank | 1 1 1 1 1 |
| 16 | 155400010 | Screw | 1 1 1 1 1 |
| 17 | S150225005 | Screw | 1 1 1 1 1 |
| 18 | 155430000 | Pin complete | 1 1 1 1 1 |
| 19 | S150215008 | Screw | 1 1 1 1 1 |
| 20 | 155400014 | Oil reservoir | 1 1 1 1 1 |
| 21 | B12400432 | Screw | 1 1 1 1 1 |
| 22 | 155440000 | Pin complete | 1 1 1 1 1 |
| 23 | S8A3105006 | Small ball plug | 1 1 1 1 1 |
| 24 | 160400001 | Upper looper | 1 - - - - |
| 159400001 | Upper looper | - 1 1 - - | |
| 155400015 | Upper looper | - - - 1 - | |
| 155400025 | Upper looper | - - - - 1 | |
| 25 | 028100007 | Screw | 1 1 1 1 1 |
| 26 | 155400011/12 | Upper looper tension shaft and guide | 1 1 1 1 1 |
| 27 | 155400013 | Oil felt | 1 1 1 1 1 |
| 28 | S150218001 | Screw | 1 1 1 1 1 |
| 29 | S150217011 | Screw | 1 1 1 1 1 |
| 30 | 155400016 | Over looper guide cover | 1 1 1 1 1 |
| 31 | S150220005 | Screw | 2 2 2 2 2 |
| 32 | 155400007 | Over looper mechanism | 1 1 1 1 1 |
| 33 | 155400008 | Oil felt | 1 1 1 1 1 |
Page 30 — 8. UPPER AND LOWER LOOPER DRIVE PART(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150204002 | Screw | 1 / 1 / 1 / 1 |
| 2 | S8A3103012 | Spring washer | 1 / 1 / 1 / 1 |
| 3 | 155400005 | Washer | 1 / 1 / 1 / 1 |
| 4 | 155400020 | Bush | 1 / 1 / 1 / 1 |
| 5 | 155410000 | Looper ball link complete | 1 / 1 / 1 / 1 |
| 6 | B62401612 | Screw | 4 / 4 / 4 / 4 |
| 8 | 155400001 | Washer | 2 / 2 / 2 / 2 |
| 9 | 159400002 | Lower looper ball crank | - / 1 / - / - |
| 155400019 | Lower looper ball crank | - / - / 1 / 1 | |
| 155420000 | Lower looper ball crank | 1 / - / - / - | |
| 10 | 155400021 | Screw | 2 / 2 / 2 / 2 |
| 11 | 155400002 | Upper/lower looper shaft | 1 / 1 / 1 / 1 |
| 12 | 155400003 | Bush | 1 / 1 / 1 / 1 |
| 13 | 028330001 | Oil seal | 1 / 1 / 1 / 1 |
| 14 | 155451000 | Lower looper holder complete | 1 / 1 / 1 / 1 |
| 15 | 028300043 | Pin | 1 / 1 / 1 / 1 |
| 16 | 155400010 | Screw | 1 / 1 / 1 / 1 |
| 17 | 028300046 | Pin | 1 / 1 / 1 / 1 |
| 18 | 155450002 | Lower looper | 1 / 1 / 1 / 1 |
| 19 | 028100027 | Screw | 1 / 1 / 1 / 1 |
Page 32 — 9. FEED DOG LIFT PART(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155530000 | Feed drive cam holder complete | 3:1 4/4H:1 5:1 5H:1 |
| 2 | B12500532 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 3 | 028400082 | Pin | 3:1 4/4H:1 5:1 5H:1 |
| 4 | 028400080 | Roller | 3:1 4/4H:1 5:1 5H:1 |
| 5 | S150224015 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 6 | 155500026 | Feed drive cam | 3:1 4/4H:1 5:1 5H:1 |
| 7 | 155500027 | Plate spring | 3:1 4/4H:1 5:1 5H:1 |
| 8 | 155500028 | Link for feed drive | 3:1 4/4H:1 5:1 5H:1 |
| 9 | S150225008 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 10 | 155540000 | Needle bearing | 3:1 4/4H:1 5:1 5H:1 |
| 11 | 155300023 | Pin | 3:1 4/4H:1 5:1 5H:1 |
| 12 | 155500029 | Crank for feed drive | 3:1 4/4H:1 5:1 5H:1 |
| 13 | 155300017 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 14 | 155500030 | Stitch length adjust stopper | 3:1 4/4H:1 5:1 5H:1 |
| 15 | 155500032 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 16 | 155500031 | Spring | 3:1 4/4H:1 5:1 5H:1 |
| 17 | 155550000 | Stitch length cam complete | 3:1 4/4H:1 5:1 5H:1 |
| 18 | S150446010 | Spring pin | 3:2 4/4H:2 5:2 5H:2 |
| 19 | S8A3103018 | Retaining ring | 3:1 4/4H:1 5:1 5H:1 |
| 20 | S4A0604005 | O - type ring | 3:2 4/4H:2 5:2 5H:2 |
| 21 | 155500035 | Washer | 3:2 4/4H:2 5:2 5H:2 |
| 22 | 155500034 | Spring | 3:1 4/4H:1 5:1 5H:1 |
| 23 | 155500033 | Push | 3:1 4/4H:1 5:1 5H:1 |
| 24 | 155560000 | Diff. Feed crank complete | 3:1 4/4H:1 5:1 5H:1 |
| 25 | 155560002 | Differential feed dog holder | 3:1 4/4H:1 5:1 5H:1 |
| 26 | 155560001 | Diff. feed crank | 3:1 4/4H:1 5:1 5H:1 |
| 27 | 155300017 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 28 | 155560003 | Cover for differential feed dog holder | 3:1 4/4H:1 5:1 5H:1 |
| 29 | S150217012 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 30 | 155500037 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 31 | 155500036 | Diff. Feed regulating link | 3:1 4/4H:1 5:1 5H:1 |
| 32 | 155500038 | Differential feed adjust link crank | 3:1 4/4H:1 5:1 5H:1 |
| 33 | 155300017 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 34 | 155500040 | Bush | 3:1 4/4H:1 5:1 5H:1 |
| 35 | S4A0604005 | O - type ring | 3:1 4/4H:1 5:1 5H:1 |
| 36 | 155500039 | Diff. feed regulating shaft | 3:1 4/4H:1 5:1 5H:1 |
| 37 | 155500041 | Diff. Feed regulating | 3:1 4/4H:1 5:1 5H:1 |
| 38 | 155500042 | Spring | 3:1 4/4H:1 5:1 5H:1 |
| 39 | 155500043 | Screw | 3:1 4/4H:1 5:1 5H:1 |
| 40 | 155500044 | Stopper plate | 3:2 4/4H:2 5:2 5H:2 |
| 41 | 155500045 | Differential stitch control | 3:1 4/4H:1 5:1 5H:1 |
| 42 | S150215010 | Screw | 3:2 4/4H:2 5:2 5H:2 |
| 43 | 028400044 | Washer | 3:1 4/4H:1 5:1 5H:1 |
| 44 | 155500046 | Nut | 3:1 4/4H:1 5:1 5H:1 |
| 45 | 155500047 | Screw | 3:1 4/4H:1 5:1 5H:1 |
Page 34 — 10. FEED DOG LIFT PART(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 028310001 | Oil seal | 1 / 1 / 1 / 1 |
| 2 | 060410014 | Retaining ring | 1 / 1 / 1 / 1 |
| 3 | 155500001 | Feed shaft | 1 / 1 / 1 / 1 |
| 4 | 155300006 | Washer | 2 / 2 / 2 / 2 |
| 5 | 155500003 | Left bush for feed shaft | 1 / 1 / 1 / 1 |
| 6 | 155500005 | Feed crank | 1 / 1 / 1 / 1 |
| 7 | 155300017 | Screw | 1 / 1 / 1 / 1 |
| 8 | 155500006 | Pin | 1 / 1 / 1 / 1 |
| 9 | 155500010 | Washer | 1 / 1 / 1 / 1 |
| 10 | S120503010 | Nut | 1 / 1 / 1 / 1 |
| 11 | 155500004 | Right bush for feed shaft | 1 / 1 / 1 / 1 |
| 12 | 028400023 | Screw | 1 / 1 / 1 / 1 |
| 13 | 155500010 | Washer | 1 / 1 / 1 / 1 |
| 14 | 028400021 | Roller for feed dog holder link | 1 / 1 / 1 / 1 |
| 15 | 155500008 | Link for feed dog holder | 1 / 1 / 1 / 1 |
| 16 | 155500019 | Slide block for feed dog | 1 / 1 / 1 / 1 |
| 17 | 155500014 | Eccentric shaft bush | 1 / 1 / 1 / 1 |
| 18 | B12400432 | Screw | 2 / 2 / 2 / 2 |
| 19 | 028400055 | Eccentric shaft | 1 / 1 / 1 / 1 |
| 20 | 155500012 | Slide block | 1 / 1 / 1 / 1 |
| 21 | 155510001 | Feed dog holder | 1 / 1 / 1 / 1 |
| 22 | 155510002 | Differential feed dog holder | 1 / 1 / 1 / 1 |
| 23 | 028400058 | Washer | 1 / 1 / 1 / 1 |
| 24 | 028400059 | Screw | 1 / 1 / 1 / 1 |
| 25 | 155500017 | Oil seal | 1 / 1 / 1 / 1 |
Page 36 — 10. FEED DOG LIFT PART(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 26 | 028400023 | Screw | 3:1, 4/4H:1, 5:1, 5H:1 |
| 27 | 155500010 | Washer | 3:1, 4/4H:1, 5:1, 5H:1 |
| 28 | 155500018 | Link for differential feed dog holder | 3:1, 4/4H:1, 5:1, 5H:1 |
| 29 | 028400021 | Roller for feed dog holder link | 3:1, 4/4H:1, 5:1, 5H:1 |
| 30 | 028200056 | Screw | 5:1, 5H:1 |
| 028100027 | Screw | 3:1, 4/4H:1 | |
| 31 | 155500021 | Differential feed dog | 5:1 |
| 155500050 | Differential feed dog | 5H:1 | |
| 160500001 | Differential feed dog | 3:1 | |
| 159500001 | Differential feed dog | 4/4H:1 | |
| 159500001 | Differential feed dog | 3:1 | |
| 32 | 155580000 | Main feed dog complete | 5H:1 |
| 155580001 | Main feed dog | 5H:1 | |
| 155520002 | Auxible feed dog | 5H:1 | |
| 32 | 155520000 | Main feed dog complete | 5:1 |
| 155520001 | Main feed dog | 5:1 | |
| 155520002 | Auxible feed dog | 5:1 | |
| 32 | 159510000 | Main feed dog complete | 4/4H:1 |
| 159510001 | Main feed dog | 4/4H:1 | |
| 159510002 | Auxible feed dog | 4/4H:1 | |
| 32 | 160510000 | Main feed dog complete | 3:1 |
| 160510001 | Mian feed dog | 3:1 | |
| 159510000 | Main feed dog complete | 3:1 | |
| 33 | 028400004 | Screw | 3:1, 4/4H:1, 5:1, 5H:1 |
| 34 | 028100027 | Screw | 3:1, 4/4H:1, 5:1, 5H:1 |
| 35 | S150215001 | Screw | 3:4, 4/4H:4, 5:4, 5H:4 |
| 36 | 155500023 | Differential feed guide bracket | 3:1, 4/4H:1, 5:1, 5H:1 |
| 37 | S120202007 | Screw | 3:4, 4/4H:4, 5:4, 5H:4 |
| 38 | 155500024 | Differential feed seal guide plate | 3:1, 4/4H:1, 5:1, 5H:1 |
| 39 | 155500025 | Differential feed seal plate | 3:2, 4/4H:2, 5:2, 5H:2 |
Page 38 — 11. CUTTER DRIVE PARTS
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155300023 | Pin | 1 1 1 1 |
| 2 | 155600001 | Crank for upper cutter drive | 1 1 1 1 |
| 3 | 155300017 | Screw | 1 1 1 1 |
| 4 | 155600002 | Washer | 1 1 1 1 |
| 5 | 155600005 | Right bush for upper cutter bar | 1 1 1 1 |
| 6 | 155600004 | Left bush for upper cutter bar | 1 1 1 1 |
| 7 | 155600003 | Upper knife bar | 1 1 1 1 |
| 8 | 155600006 | Pin | 1 1 |
| 159600001 | Pin | 1 1 | |
| 9 | 155600013 | Screw | 1 1 1 1 |
| 10 | 155600008 | Upper knife | 1 1 1 1 |
| 11 | 159600002 | Upper knife holder | 1 1 |
| 155600007 | Upper knife holder | 1 1 | |
| 12 | B60350812 | Screw | 2 2 2 2 |
| 13 | 155610000 | Link for upper knife drive complete | 1 1 1 1 |
| 14 | B62401612 | Screw | 2 2 2 2 |
| 15 | S150225008 | Screw | 1 1 1 1 |
| 16 | 028300027 | Screw | 1 1 1 1 |
| 17 | 028500013 | Clamp for lower cutter | 1 1 1 1 |
| 18 | 159600004 | Lower knife | 1 1 |
| 155600011 | Lower knife | 1 1 | |
| 19 | S150215001 | Screw | 1 1 1 1 |
| 20 | 159600003 | Lower knife holder | 1 1 |
| 155600009 | Lower knife holder | 1 1 | |
| 21 | 155600010 | Spring | 1 1 1 1 |
| 22 | S150215010 | Screw | 2 2 2 2 |
| 23 | 155600012 | Needle guard holder | 1 1 |
| 159600005 | Needle guard holder | 1 1 |
Page 40 — 12. PRESSER FOOT LIFT PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155800011 | Link for foot lift lever | 1 1 1 1 |
| 2 | 155800010 | Screw | 1 1 1 1 |
| 3 | 155800008 | Foot lift lever | 1 1 1 1 |
| 4 | 155800009 | Spring | 1 1 1 1 |
| 5 | 155800007 | Set collar for foot lift shaft | 1 1 1 1 |
| 6 | 155300017 | Screw | 1 1 1 1 |
| 7 | 155800005 | Lever | 1 1 1 1 |
| 8 | 155800006 | Spring | 1 1 1 1 |
| 9 | 155800004 | Bush for presser foot lift | 1 1 1 1 |
| 10 | B12400432 | Screw | 1 1 1 1 |
| 11 | 155800012 | Stopper plate | 1 1 1 1 |
| 12 | S150215009 | Screw | 2 2 2 2 |
| 13 | S150215013 | Screw | 1 1 1 1 |
| 14 | S120503010 | Nut | 1 1 1 1 |
| 15 | S120210015 | Screw | 1 1 1 1 |
| 16 | 155800003 | Press arm shaft | 1 1 1 1 |
| 17 | 155800001 | Press arm | 1 1 1 1 |
| 18 | 155800002 | Press arm pin | 1 1 1 1 |
| S120202004 | Screw | 1 1 1 1 | |
| 19 | S120202007 | Screw | 1 1 1 1 |
| 20 | 155800020 | Knife | 1 1 1 1 |
| 21 | 159700001 | Finger guard | 1 1 |
| 155800019 | Finger guard | 1 1 | |
| 22 | 160710000 | Presser foot complete | 1 |
| 160730000 | Presser foot complete | 1 | |
| 159710000 | Presser foot complete | 1 | |
| 039720000 | Presser foot complete | 1 | |
| 77T7-001A | Presser foot complete | 1 | |
| 23 | 155800018 | Screw | 1 1 1 1 |
| 24 | 155800017 | Spring | 1 1 1 1 |
| 25 | 155800016 | Press bar lifter | 1 1 1 1 |
| 26 | 155800013 | Screw | 1 1 1 1 |
| 27 | 155800014 | Spring | 1 1 1 1 |
| 28 | 155800015 | Press arm stopper | 1 1 1 1 |
| 29 | S150215008 | Screw | 1 1 1 1 |
| 30 | 155810000 | Presser bar complete | 1 1 1 1 |
| 31 | 155810002 | Cushion | 1 1 1 1 |
| 32 | S150446011 | Spring pin | 1 1 1 1 |
| S12021015 | Screw | 1 |
Page 42 — 13. PRESSER FOOT LIFT PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S120202004 | Screw | 5: 1 |
| 2 | 155800021 | Spring | 5: 1 |
| 3 | 039720000 | Presser foot complete | 5: 1 |
| 39T7-003B2 | Main presser foot | 5: 1 | |
| 39T7-003B3 | Auxible presser foot | 5: 1 | |
| 39T7-003B1 | Bracket for presser foot | 5: 1 | |
| 4 | 39T7-001A3 | Screw | 5: 1 |
| 5 | 39T7-001A6 | Screw | 5: 1 |
| 6 | 28T1-007 | Screw | 5: 1 |
| 7 | 39T7-001A5 | Fabric guard | 5: 1 |
| 8 | 39T7-001A4 | Screw | 5: 1 |
| 9 | 39T7-001A10 | Spring | 5: 1 |
| 10 | 77T7-001A4 | Pin | 5: 1 |
| 1 | 155A20006 | Screw | 5H: 1 |
| 2 | 155800025 | Spring | 5H: 1 |
| 3 | 77T7-001A | Presser foot complete | 5H: 1 |
| 77T7-001A1 | Main presser foot | 5H: 1 | |
| 77T7-001A2 | Aauxible presser foot | 5H: 1 | |
| 77T7-001A3 | Bracket for presser foot | 5H: 1 | |
| 77T7-001A5 | Link for presser foot | 5H: 1 | |
| 5 | 6A2-14 | Screw | 5H: 1 |
| 6 | 28T1-007 | Screw | 5H: 1 |
| 7 | 77T7-001A6 | Fabric guard | 5H: 1 |
| 10 | 77T7-001A4 | Pin | 5H: 3 |
| 1 | S120202004 | Screw | 3: 1; 4/4H: 1 |
| 2 | 159700002 | Stopper | 3: 1; 4/4H: 1 |
| 3 | 159710000 | Presser foot complete | 4/4H: 1 |
| 12 | 159710007 | Bracket for presser foot | 3: 1; 4/4H: 1 |
| 13 | 028100007 | Screw | 3: 1; 4/4H: 1 |
| 14 | 39T7-001A6 | Screw | 3: 1; 4/4H: 1 |
| 15 | 28T6-019A1 | Presser foot fitting piece | 3: 1 |
| 16 | GB97-76 | Washer | 4/4H: 1 |
| 17 | 159710002 | Presser foot fitting piece | 4/4H: 1 |
| 18 | 159710001 | Main presser foot | 4/4H: 1 |
| 19 | 159710006 | Guide | 4/4H: 1 |
| 20 | 159710005 | Set presser for presser foot | 3: 1; 4/4H: 1 |
| 21 | 28T1-041 | Screw | 3: 1; 4/4H: 1 |
| 3 | 160710000 | Presser foot complete | 3: 1 |
| 160730000 | Presser foot complete | 3: 1 |
Page 44 — 14. FRONT LOOPER PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155500017 | Rubber cap | 1 (Qt 5), 1 (Qt 5H) |
| 2 | 155700003 | Pin shaft | 1 (Qt 5), 1 (Qt 5H) |
| 3 | B12500532 | Screw | 1 (Qt 5), 1 (Qt 5H) |
| 4 | 155700002 | Sliding bush | 1 (Qt 5), 1 (Qt 5H) |
| 5 | 155700001 | Fork | 1 (Qt 5), 1 (Qt 5H) |
| 6 | B12500532 | Screw | 1 (Qt 5), 1 (Qt 5H) |
| 7 | 155700004 | Connector | 1 (Qt 5), 1 (Qt 5H) |
| 8 | 155700005 | Pin | 1 (Qt 5), 1 (Qt 5H) |
| 9 | 155700006 | Slide block holder | 1 (Qt 5), 1 (Qt 5H) |
| 10 | B12500532 | Screw | 1 (Qt 5), 1 (Qt 5H) |
| 11 | 155700008 | Bush | 1 (Qt 5), 1 (Qt 5H) |
| 12 | 155700010 | Crank for front looper | 1 (Qt 5), 1 (Qt 5H) |
| 13 | 155300017 | Screw | 1 (Qt 5), 1 (Qt 5H) |
| 14 | 039400009 | Link for front looper | 1 (Qt 5), 1 (Qt 5H) |
| 15 | 039400010 | Pin | 1 (Qt 5), 1 (Qt 5H) |
| 16 | S150237030 | Screw | 2 (Qt 5), 2 (Qt 5H) |
| 17 | 155700007 | Shaft for looper drive | 1 (Qt 5), 1 (Qt 5H) |
| 18 | 155700008 | Bush | 1 (Qt 5), 1 (Qt 5H) |
| 19 | 028330001 | Oil seal | 1 (Qt 5), 1 (Qt 5H) |
| 20 | 155710000 | Front looper holder complete | 1 (Qt 5) |
| 155730000 | Front looper holder complete | 1 (Qt 5H) | |
| 21 | 155400010 | Screw | 1 (Qt 5), 1 (Qt 5H) |
| 22 | 006300018 | Screw | 1 (Qt 5), 1 (Qt 5H) |
| 23 | 155710002 | Front looper | 1 (Qt 5) |
| 155730001 | Front looper | 1 (Qt 5H) |
Page 46 — 15. FRONT LOOPER PARTS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 039400037 | Long thread pipe | 5:1, 5H:1 |
| 2 | 116250002 | Tube clamp | 5:3, 5H:3 |
| 3 | S150215001 | Screw | 5:1, 5H:1 |
| 4 | 155A00011 | Short thread pipe | 5:1, 5H:1 |
| 5 | 155A41000 | Nut | 5:1, 5H:1 |
| 6 | 039400042 | Spring | 5:1, 5H:1 |
| 7 | 039400041 | Thread guide disc | 5:2, 5H:2 |
| 8 | 155A40004 | Screw | 5:1, 5H:1 |
| 9 | 155A40003 | Left thread guide | 5:1, 5H:1 |
| 10 | S150217009 | Screw | 5:2, 5H:2 |
| 11 | 155A40002 | Right thread guide | 5:1, 5H:1 |
| 12 | S150215007 | Screw | 5:1, 5H:1 |
| 13 | 155A00009 | Thread guide plate | 5:1, 5H:1 |
| 14 | 155100024 | Screw | 5:1, 5H:1 |
| 15 | 155100025 | Washer | 5:2, 5H:2 |
| 16 | 155A40001 | Lower thread guide bracket | 5:1, 5H:1 |
| 17 | 155A00010 | Spring | 5:1, 5H:1 |
| 18 | 155A00008 | Thread guide plate | 5:1, 5H:1 |
| 19 | S150215001 | Screw | 5:1, 5H:1 |
| 20 | 039410N | Thread takeup cam complete | 5:1, 5H:1 |
| 21 | 182610010 | Screw | 5:2, 5H:2 |
Page 48 — 16. THREAD EYELETS(1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159900002 | Needle thread guide plate | 1 / 1 (3 / 4/4H) |
| 155A00002 | Needle thread guide plate | 1 / 1 (5 / 5H) | |
| 2 | 155100034 | Screw | 3 / 3 / 3 / 3 |
| 4 | 159900001 | Thread guide plate for thread takeup plate | 1 / 1 (3 / 4/4H) |
| 155A00001 | Thread guide plate for thread takeup plate | 1 / 1 (5 / 5H) | |
| 155A20000 | Thread takeup lever complete | 1 / 1 (5 / 5H) | |
| 159910000 | Thread takeup lever complete | 1 / 1 (3 / 4/4H) | |
| 5 | S150217008 | Screw | 2 / 2 / 2 / 2 |
| 6 | 155A20007 | Thread guide | 1 / 1 (5 / 5H) |
| 7 | 155A20002 | Thread takeup lever | 1 / 1 / 1 / 1 |
| 8 | 155A20001 | Thread takeup lever bracket | 1 / 1 / 1 / 1 |
| 9 | S120203019 | Screw | 1 / 1 / 1 / 1 |
| 10 | 155A20004 | Bracket | 1 / 1 / 1 / 1 |
| 11 | 155A20003 | Thread retaining plate | 1 / 1 (5 / 5H) |
| 159910001 | Thread retaining plate | 1 / 1 (3 / 4/4H) | |
| 12 | 155A20005 | Spring | 1 / 1 / 1 / 1 |
| 13 | 155A20006 | Screw | 1 / 1 / 1 / 1 |
| 14 | 155450003 | Thread guide | 1 / 1 / 1 / 1 |
| 15 | 155A00003 | Thread guide plate | 1 / 1 / 1 / 1 |
| 16 | S150215008 | Screw | 1 / 1 / 1 / 1 |
| 17 | 155A00004 | Thread guide | 1 / 1 / 1 / 1 |
| 18 | S150215001 | Screw | 1 / 1 / 1 / 1 |
| 19 | S150215008 | Screw | 2 / 2 / 2 / 2 |
| 20 | 155A00005 | Thread guide plate | 1 / 1 / 1 / 1 |
| 21 | 155400018 | Thread guide | 1 / 1 / 1 / 1 |
| 22 | 155A00006 | Upper looper thread takeup(big) | 1 / 1 / 1 / 1 |
| 23 | 155A00007 | Upper looper thread takeup(small) | 1 / 1 / 1 / 1 |
| 24 | S150215001 | Screw | 1 / 1 / 1 / 1 |
| 25 | S120202004 | Screw | 1 / 1 / 1 / 1 |
| 26 | S8A3103003 | Washer | 1 / 1 / 1 / 1 |
| 1599000002 | Needle thread guide plate | 1 | |
| 155A000002 | Needle thread guide plate | 1 | |
| 1599000001 | Thread guide plate for thread takeup plate | 1 | |
| 155A000001 | Thread guide plate for thread takeup plate | 1 |
Page 50 — 17. THREAD EYELETS (2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155A10003 | Post | 3 / 4 / 4 / 4 |
| 2 | 28T2-060H7 | Felt | 3 / 4 / 4 / 4 |
| 3 | 22T1-012F5 | Tension disc. | 6 / 8 / 8 / 8 |
| 4 | 155A10008 | Cup | 3 / 4 / 4 / 4 |
| 5 | 155A10005 | Tension spring | 1 / 2 / 2 / 2 |
| 6 | 155A10004 | Tension spring(upper looper) | 1 / 1 / 1 / 1 |
| 7 | 155A10006 | Tension spring(lower looper) | 1 / 1 / 1 / 1 |
| 8 | 155A10007 | Spring bushing | 3 / 4 / 4 / 4 |
| 9 | 155A10009 | Post nut | 3 / 4 / 4 / 4 |
| 10 | Tension nut complete | Tension nut complete | 1 |
| 11 | Tension nut complete (upper looper) | Tension nut complete (upper looper) | 1 |
| 12 | Tension nut complete (lower looper) | Tension nut complete (lower looper) | 1 |
| 13 | 116400008 | Screw | 2 / 2 / 2 / 2 |
| 14 | 28T2-060H8 | Tension guide plate | 3 / 3 / 3 / 3 |
| 15 | 155A10000 | Thread guide plate complete | - / 1 / 1 / 1 |
| 160910000 | Thread guide plate complete | 1 / - / - / - | |
| 16 | 155A10002 | Thread guide plate | - / 1 / 1 / 1 |
Page 52 — 18. LUBRICATING PARTS (1)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155900019 | Oil guide | 1 / 1 / 1 / 1 |
| 2 | 155920003 | Oil felt | 1 / 1 / 1 / 1 |
| 3 | 155920001 | Upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 4 | 155920002 | Cover for upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 5 | 155900018 | Thread guide | 1 / 1 / 1 / 1 |
| 6 | S150215009 | Screw | 1 / 1 / 1 / 1 |
| 7 | 155930002 | Felt | - / - / 1 / 1 |
| 155930003 | Felt | - / - / 1 / 1 | |
| 159810002 | Felt | 1 / 1 / - / - | |
| 9 | 159810001 | Needle cooler | 1 / 1 / - / - |
| 155930001 | Needle cooler | - / - / 1 / 1 | |
| 10 | S150215001 | Screw | 2 / 2 / 2 / 2 |
| 11 | S8A3105006 | Ball plug | 1 / 1 / 1 / 1 |
| 12 | 155900020 | Oil tube | 1 / 1 / 1 / 1 |
| 13 | 155900023 | Cover for upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 14 | 155900022 | Cover for upper silicone oil reservoir | 1 / 1 / 1 / 1 |
| 15 | S8A3103003 | Washer | 1 / 1 / 1 / 1 |
| 16 | S150215009 | Screw | 1 / 1 / 1 / 1 |
| 17 | 028700011 | Pipe clamp | 2 / 2 / 2 / 2 |
Page 54 — 19. LUBRICATING PARTS(2)
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | S150215007 | Screw | 1 / 1 / 1 / 1 |
| 2 | 155900007 | Oil pipe for oil gauhe window | 1 / 1 / 1 / 1 |
| 3 | 028700010 | Oil splash connector | 2 / 2 / 2 / 2 |
| 4 | S150237007 | Screw | 3 / 3 / 3 / 3 |
| 5 | 028700011 | Oil splash connecto clamp | 2 / 2 / 2 / 2 |
| 6 | 155900005 | Screw | 3 / 3 / 3 / 3 |
| 7 | S150215005 | Screw | 1 / 1 / 1 / 1 |
| 8 | 155900006 | Oil distributor | 1 / 1 / 1 / 1 |
| 10 | 155900010 | Oil return pipe connector | 1 / 1 / 1 / 1 |
| 11 | 155900008 | Bronze oil pipe | 1 / 1 / 1 / 1 |
| 14 | 155940000 | Pump complete | 1 / 1 / 1 / 1 |
| 15 | 155910001 | Worm wheel | 1 / 1 / 1 / 1 |
| 16 | B12500532 | Screw | 1 / 1 / 1 / 1 |
| 17 | S150220003 | Screw | 2 / 2 / 2 / 2 |
| 18 | 155940002 | Cover for oil pump | 1 / 1 / 1 / 1 |
| 19 | S150217010 | Screw | 3 / 3 / 3 / 3 |
| 20 | 155910006 | Oil filter flange | 1 / 1 / 1 / 1 |
| 21 | S150217012 | Screw | 1 / 1 / 1 / 1 |
| 22 | S150559001 | Screw | 1 / 1 / 1 / 1 |
| 23 | 155910004 | Oil filter | 1 / 1 / 1 / 1 |
| 24 | 155910005 | Oil filter | 1 / 1 / 1 / 1 |
| 25 | 155900013 | Packing | 1 / 1 / 1 / 1 |
| 26 | 155900017 | Washer | 4 / 4 / 4 / 4 |
| 27 | S150220015 | Screw | 4 / 4 / 4 / 4 |
| 28 | 155900012 | Oil reservoir | 1 / 1 / 1 / 1 |
| 29 | 28T7-025H | Packing | 1 / 1 / 1 / 1 |
| 30 | 028700026 | Screw | 1 / 1 / 1 / 1 |
| 31 | 155900031 | The cover of oil basin | 1 / 1 / 1 / 1 |
| 32 | 155900032 | Rubber ring | 1 / 1 / 1 / 1 |
| 33 | 028770001 | Filter | 1 / 1 / 1 / 1 |
| 34 | 155900030 | Oil basin | 1 / 1 / 1 / 1 |
| 35 | 155900033 | Oil storage connector | 1 / 1 / 1 / 1 |
| 36 | S150218015 | Screw | 1 / 1 / 1 / 1 |
| 37 | 155900027 | Oil level gauge | 1 / 1 / 1 / 1 |
| 155900029 | Oil basin | 1 |
Page 56 — 20. ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 28T8-001 | Machine rest board | 1 / 1 / 1 / 1 |
| 2 | 28T8-004A | Rubber cushion | 3 / 3 / 3 / 3 |
| 3 | 28T8-005 | Rubber cushion | 1 / 1 / 1 / 1 |
| 4 | 28T8-002 | Bolt | 4 / 4 / 4 / 4 |
| 5 | 155F00001 | Table | 1 / 1 / 1 / 1 |
| 6 | 110F10008 | Rubber cushion | 20 / 20 / 20 / 20 |
| 7 | S150630001 | Washer | 4 / 4 / 4 / 4 |
| 8 | S150671001 | Washer | 4 / 4 / 4 / 4 |
| 9 | 28T8-006 | Wastes chute mouth | 1 / 1 / 1 / 1 |
| 10 | GB100-76 | Screw | 3 / 3 / 3 / 3 |
| 11 | 28T8-007 | Wastes chute(upper) | 1 / 1 / 1 / 1 |
| 12 | 28T8-008 | Wastes chute(lower) | 1 / 1 / 1 / 1 |
| 13 | GB99-76 | screw | 4 / 4 / 4 / 4 |
| 14 | W050103006 | Tweezer | 1 / 1 / 1 / 1 |
| 15 | W050102051 | Screwdriver(S) | 1 / 1 / 1 / 1 |
| 17 | W050102050 | Screwdriver(B) | 1 / 1 / 1 / 1 |
| 18 | 159300007 | Needle DC × 27 | 1 / 1 / 1 / 1 |
| 19 | W050102030 | Double open-end wrench (6×10) | 1 / 1 / 1 / 1 |
| 20 | 39T10-005 | Double open-end | - / - / 1 / 1 |
| 21 | 39T10-001 | Threading wire | - / - / 1 / 1 |
| 22 | W050102038 | Hey key6 | 1 / 1 / 1 / 1 |
| W050102037 | Hex key5 | 1 / 1 / 1 / 1 | |
| W050102035 | Hex key3 | 1 / 1 / 1 / 1 | |
| W050102040 | Hex key2.5 | 1 / 1 / 1 / 1 | |
| W050102034 | Hex key2 | 1 / 1 / 1 / 1 | |
| 23 | W050202005 | Silicon oil pot | 1 / 1 / 1 / 1 |
| 25 | W050103011 | Chain complete | 50 / 50 / 50 / 50 |
| 27 | 155F00002 | Oil can | 1 / 1 / 1 / 1 |
| 28 | 22T9-001 | Oil pot | 1 / 1 / 1 / 1 |
| 29 | W060302035 | Vinyl cover(GB1171-74) | 1 / 1 / 1 / 1 |
| 30 | GB1171-74 | Belt | 1 / 1 / 1 / 1 |
| 31 | 159F00001 | Tape guide holder(upper) | - / 1 / - / - |
| 32 | 159F00002 | Tape guide holder(lower) | - / 1 / - / - |
| 33 | 110F00005 | Hndled hex driver | 1 / 1 / 1 / 1 |
| 34 | S150220027 | Screw | 1 / 1 / 1 / 1 |
| Funnel | Funnel | 1 |
Page 58 — 20. ACCESSORIES
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 35 | 086700212 | Spool stand for three | 1 |
| 36 | 088900101 | Spool stand for four | 1 |
| 37 | 031380002 | Spool stand for five | 1 |
Page 59 — Special – use parts for 2000 – 4H – A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159600006 | Upper knife | 1 |
| 2 | 159600007 | Upper knife holder | 1 |
| 3 | 159600008 | Screw | 1 |
| 4 | S150217009 | Screw M3 ×4 | 1 |
| 5 | 155600014 | Guide board | 1 |
| 6 | 155600015 | Fixed board | 1 |
| 7 | 155600017 | Pin | 1 |
| 8 | S8A3103003 | Washer 4 | 1 |
Page 60 — Special – use parts for 2000 – 5H – A
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155600019 | Upper knife holder | 1 |
| 2 | 155600014 | Guide board | 1 |
| 3 | 155600015 | Fixed board | 1 |
| 4 | 155600016 | Upper knife | 1 |
| 5 | 155600017 | Pin | 1 |
| 6 | 155600018 | Screw | 1 |
| 7 | S150217009 | Screw M3 ×4 | 1 |
| 8 | S8A3103003 | Washer 4 | 1 |
Page 62 — Special -use parts for 2000-3C 2000-4C
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159A41000 | Needle plate complete | 3C: -, 4C: 1 |
| 2 | 109210009 | Screw | 3C: 1, 4C: 1 |
| 3 | 159A40005 | Cutter protect plate | 3C: 1, 4C: 1 |
| 4 | 028400059 | Screw | 3C: 2, 4C: 2 |
| 5 | 159A40003 | Thread cut guide plate | 3C: 1, 4C: 1 |
| 6 | 028400059 | Screw | 3C: 2, 4C: 2 |
| 7 | 159A40001 | Needle plate guide plate | 3C: 1, 4C: 1 |
| 8 | 109210010 | Spring | 3C: 1, 4C: 1 |
| 9 | 109210011 | Nut | 3C: 1, 4C: 1 |
| 10 | 109210005 | Knife support bracket | 3C: 2, 4C: 2 |
| 11 | 109210006 | Block | 3C: 1, 4C: 1 |
| 12 | 109210007 | Screw | 3C: 1, 4C: 1 |
| 13 | 159A40002 | Needle plate block (Front) | 3C: 1, 4C: 1 |
| 14 | 020101035 | Knife (width 9mm) | 3C: 1, 4C: 1 |
| 15 | 159A40004 | Screw | 3C: 2, 4C: 2 |
| 16 | 159A00002 | Sewing plate complete | 3C: 1, 4C: 1 |
| 17 | 159A30003 | Screw | 3C: 1, 4C: 1 |
| 18 | 159A23006 | Washer | 3C: 1, 4C: 1 |
| 19 | 159A30001 | Plate | 3C: 1, 4C: 1 |
| 20 | 159A30002 | Screw | 3C: 1, 4C: 1 |
| 21 | S120501011 | Nut M6 | 3C: 1, 4C: 1 |
| 22 | S150633001 | Washer 6 | 3C: 1, 4C: 1 |
| 23 | 159A30004 | Screw | 3C: 1, 4C: 1 |
| 24 | S150217013 | Screw M6 10 | 3C: 1, 4C: 1 |
| 25 | 159A00003 | Thread support plate | 3C: 2, 4C: 2 |
| 26 | 182610010 | Screw | 3C: 1, 4C: 1 |
| 27 | 159A00004 | Block | 3C: 1, 4C: 1 |
| 28 | 159A22000 | Soft thread complete | 3C: 1, 4C: 1 |
| 29 | 028100035 | Nut | 3C: 1, 4C: 1 |
| 30 | 159A23001 | Thread lease rack | 3C: 1, 4C: 1 |
| 31 | 159A23006 | Washer | 3C: 1, 4C: 1 |
| 32 | 159A23004 | Screw | 3C: 1, 4C: 1 |
| 33 | 159A23002 | Screw | 3C: 1, 4C: 1 |
| 34 | 159A23005 | Spring | 3C: 1, 4C: 1 |
| 35 | 159A23003 | Block | 3C: 1, 4C: 1 |
| 36 | 028100035 | Nut | 3C: 1, 4C: 1 |
| 37 | 159A21001 | Thread guide plate | 3C: 1, 4C: 1 |
| 38 | 159A10001 | Drawing | 3C: 1, 4C: 1 |
| 39 | 160510000 | Mainfeed dog complete | 3C: 1, 4C: 1 |
| 40 | 160500001 | Differential feed dog | 3C: 1, 4C: 1 |
| 41 | 160A30000 | Needle plate complete | 3C: 1, 4C: - |
Page 63 — Special use parts for 2000 4G
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155E10000 | Cover | 1 |
| 2 | 155E00002 | Edge binder support bracket | 1 |
| 3 | 155E20002 | Front cover | 1 |
| 4 | 155E20001 | Front cover(L) | 1 |
| 5 | 155E00011 | Pin | 1 |
| 6 | 155E00009 | Upper knife bar | 1 |
| 7 | 155E00010 | Upper knife holder | 1 |
| 8 | 028500032 | Screw | 1 |
| 9 | 155E00012 | Upper knife | 1 |
| 10 | 155E00004 | Needle guard (rear) | 1 |
| 11 | 155E00005 | Chain stitch needle guard (rear) | 1 |
| 12 | 155E00003 | Needle guard (front) | 1 |
| 13 | 028400004 | Screw | 1 |
| 14 | 155E00006 | Plate | 1 |
| 15 | S150215001 | Screw | 1 |
| 16 | 028200061 | Screw | 1 |
| 17 | 155E60000 | Edge binder complete | 1 |
| 18 | 155E00007 | Washer | 1 |
| 19 | SFB0201020 | Screw | 1 |
| 20 | 155E70000 | Needle plate baracket | 1 |
Page 64 — Special – use parts for 2000 – 4G
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 21 | 028200061 | Screw | 1 |
| 22 | 028400004 | Washer | 1 |
| 23 | 155E70002 | Needle cloth guide | 1 |
| 24 | 155E70001 | Needle plate | 1 |
| 25 | 155E80000 | Main feed dog complete | 1 |
| 26 | 155E80002 | Auxible feed dog | 1 |
| 27 | 155E80001 | Main feed dog | 1 |
| 28 | 155Eg0000 | Belt plate dig complete | 1 |
| 29 | 155Eg0006 | Felt | 1 |
| 30 | 155Eg1000 | Belt plat small complete | 1 |
| 31 | 155Eg0003 | Rack | 1 |
| 32 | 155Eg0005 | Bush | 1 |
| 33 | S120501011 | Nut | 1 |
| 34 | S150237006 | Screw | 1 |
| 35 | 155Eg0004 | Screw | 1 |
| 36 | 155Eg0002 | Support rack | 1 |
| 37 | W050101002 | Screw | 1 |
| 38 | 155Eg0001 | Base mechanism | 1 |
| 39 | 155E00008 | Differential feed dog | 1 |
| 40 | 155E50001 | Needle holder | 1 |
| 41 | 155E00016 | Upper looper shaft | 1 |
| 42 | 022500005 | Oil seal | 2 |
| 43 | 155E00014 | Lower knife | 1 |
| 44 | 155Ea0000 | Presser foot complete | 1 |
| 45 | 155E90001 | Small looper | 1 |
| 46 | 155E90002 | Front loopler holder | 1 |
| 47 | 028100007 | Screw | 1 |
| 48 | 155Ee0000 | Double short thread pipe | 1 |
| 49 | 155Ed0000 | Double long thread pipe | 1 |
| 50 | 155E00015 | Thread guide plate | 1 |
| 51 | 155Eh0002 | Right thread guide | 1 |
| 52 | 155Eh0001 | Lower thread guide bracket | 1 |
| 53 | 028160001 | Upper looper oil seal | 1 |
Page 65 — Special - use parts for 2000 - 4XH
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159350000 | Needle plate asm | 1 |
| 2 | 159400003 | Lower looper | 1 |
| 3 | 159500002 | Differential feed dog | 1 |
| 4 | 159520000 | Main feed dog asm | 1 |
| 5 | 159400004 | Upper looper | 1 |
| 6 | 159150000 | Cloth guide asm | 1 |
| 1 | 155500052 | Differential feed dog | 1 |
| 2 | 155590000 | Main feed dog asm | 1 |
| 3 | 155590001 | Main feed dog | 1 |
| 4 | 155590002 | Auxible feed dog | 1 |
Page 66 — Special-use parts for 2000-5/BB 2000-6/BB
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155K00002 | Strap guide holder | -5/BB 1; -6/BB 1 |
| 2 | S150215010 | Screw M4x12 | -5/BB 1; -6/BB 1 |
| 3 | 155900017 | Washer | -5/BB 1; -6/BB 1 |
| 4 | 155K00003 | Block | -5/BB 1; -6/BB 1 |
| 5 | 159600008 | Screw | -5/BB 2; -6/BB 2 |
| 6 | 155K00004 | Edge fomer ( 8mm ) | -5/BB 1 |
| 155S00002 | * Edge fomer ( 12mm ) | -6/BB 1 | |
| 155S00003 | * Edge fomer ( 14mm ) | -6/BB 1 | |
| 7 | 155K00005 | Block | -5/BB 1; -6/BB 1 |
| 8 | S150215001 | Screw M4x8 | -5/BB 3; -6/BB 3 |
| 9 | 155K00006 | Lower knife holder | -5/BB 1; -6/BB 1 |
| 10 | 155K00007 | Front cover | -5/BB 1; -6/BB 1 |
| 11 | 155E20001 | Front cover ( L ) | -5/BB 1; -6/BB 1 |
| 12 | 155K20000 | Presser foot complete | -5/BB 1 |
| 155S10000 | Presser foot complete | -6/BB 1 | |
| 13 | 159600004 | Lower knife | -5/BB 1; -6/BB 1 |
| 14 | 155K30000 | Needle plate complete ( 3x4 ) | -5/BB 1; -6/BB 1 |
| 155S00001 | Needle plate complete | -5/BB 1 | |
| 15 | 155Eg0000 | Edge rotating plate complete | -5/BB 1; -6/BB 1 |
| 16 | S150632001 | Washer | -5/BB 3; -6/BB 3 |
Page 67 — Special use parts for 2000 6
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155G10000 | Needle plate complete | 1 |
| 2 | 155G10001 | Needle plate fitting | |
| 3 | 155G40002 | Thread guide plate | |
| 4 | 1555a0000 | Main feed dog complete | |
| 5 | 155500051 | Differential feed dog | |
| 6 | 155G40001 | Thread guide plate(S) | |
| 7 | 155370001 | Upper shaft crank | |
| 8 | 155G00003 | Needle thread guide plate | |
| 9 | 155G20000 | Needle holder | |
| 10 | 155G00002 | Upper looper | |
| 11 | 155G30000 | Presser foot complete |
Page 68 — Special -use parts for 2000 -3B
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 160100003 | Model plate | 1 |
| 2 | 160300004 | Needle plate | 1 |
| 3 | 028280009 | Needle (DCX27 ) | 1 |
| 4 | 160500003 | Differential feed dog | 1 |
| 5 | 160520000 | Main feed dog complete | 1 |
| 6 | 160520001 | Main feed dog | 1 |
| 7 | 160520002 | Auxible feed dog | 1 |
| 8 | 160600001 | Lower knife | 1 |
| 9 | 160740000 | Presser foot complete | 1 |
| 1 | 160100004 | Model plate | 1 |
| 2 | 160300004 | Needle plate | 1 |
| 3 | 028280009 | Needle (DCX27 ) | 1 |
| 4 | 160500004 | Differential feed dog | 1 |
| 5 | 160530000 | Main feed dog complete | 1 |
| 6 | 160530001 | Main feed dog | 1 |
| 7 | 160530002 | Auxible feed dog | 1 |
| 8 | 160750000 | Presser foot complete | 1 |
Page 70 — Special —use parts for 2000/P3D
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | GB818-85 | Screw M5X10 | 2 |
| 2 | W70-WX04-05 | Bracket 54X56X17X2 | 1 |
| 3 | GB93-87 | Washer 5 | 2 |
| 4 | GB6170-86 | Nut M5 | 2 |
| 5 | GB845-85 | Screw ST4.2X17-C-H | 2 |
| 8 | GB845-85 | Washer 10 | 2 |
| 9 | W70-WX04-06 | Bracket ( 2 ) | 1 |
| 11 | W70-WX04-08 | Spray head 19X63 | 1 |
| 12 | W70-WX04-07 | Links φ 20.2X78 | 1 |
| 13 | GB845-85 | Screw ST4.2X12-C-H | 2 |
| 14 | W70-WX06-07g | Bracket folder | 1 |
| 15 | W70-WX06-10 | Nylon tube ( φ 39Xφ 46 ) | 1 |
| 17 | W70-WX06-08g | Funnel | 1 |
| 18 | GB818-85 | Screw M4X12 | 4 |
| 19 | GB859-86 | Washer 4 | 4 |
| 20 | GB97.1-85 | Washer 4 | 4 |
| 21 | W70-WX06-01 | 90-Degree big bend | 1 |
| 22 | W70-WX06-02 | 90- Degree small bend | 1 |
| 23 | W70-WX06-03 | Pylon | 2 |
| 24 | W70-WX06-04 | Disc | 1 |
| 25 | W70-WX06-05 | Ring belt | 1 |
| 26 | PU-6 | Pipe 6X4 | 1 |
| 27 | PU-6 | Pipe 6X4 | 1 |
| 30 | GB845-85 | Screw ST4.2X12-C-H | 9 |
| 31 | 159R50000 | Solenoid valve assy | 1 |
| 32 | PU-6 | Pipe 6X4 | 1 |
Page 72 — Special —use parts for 2000ET/ET-1
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 159M30000 | Switch assy. | 1/1/1/1 |
| 2 | S150218005 | Screw M4×6 | 2/2/2/2 |
| 3 | 159C00001 | Joint plate | 1/1/1/1 |
| 4 | S150237007 | Screw M4×6 | 2/2/2/2 |
| 5 | 159M20000 | Solenoid assy. | 1/1/1/1 |
| 6 | S150220014 | Set screw M6×12 | 2/2/2/2 |
| 7 | S150667002 | Washer 6 | 2/2/2/2 |
| 8 | 036900002 | Screw | 1/1/1/1 |
| 9 | 036954116 | Spring washer | 1/1/1/1 |
| 10 | 159C10004 | Thread cutter holder | 1/1/1/1 |
| 11 | S150220032 | Set screw M6×10 | 2/2/2/2 |
| 12 | 159C00002 | Joint bracket | 1/1/1/1 |
| 13 | 159C10006 | Thread cutter guard | 1/1/1/1 |
| 14 | 159C10009 | Screw M3 | 7/7/7/7 |
| 15 | S150217001 | Screw M2.5×3 | 2/2/2/2 |
| 16 | 155H10003 | Guard bracket | 1/1/1/1 |
| 17 | 159C10005 | Fixing cutter | 1/0/1/0 |
| 155H10001 | Fixing cutter | 0/1/0/1 | |
| 18 | 159300006 | Screw SM 4.37×40 | 2/2/2/2 |
| 19 | 159C10003 | Guard plate | 1/1/1/1 |
| 20 | 159C10008 | Crank guard | 1/1/1/1 |
| 21 | 159C11000 | Thread cutter assy. | 1/1/1/1 |
| 22 | 159C10002 | Collar | 1/1/1/1 |
| 23 | 159C10001 | Spring | 1/1/1/1 |
| 24 | 159C12000 | Crank assy. | 1/1/1/1 |
| 25 | 028400035 | Screw | 1/1/1/1 |
| 26 | 159C10010 | Screw SM 4.37×40 | 1/1/1/1 |
| 27 | 028A00009 | Cutter link | 1/1/1/1 |
| 28 | SFB1403003 | Collar 2.5 | 1/1/1/1 |
| 29 | 998281100 | Control box assy. | 1/1/1/1 |
| 30 | 159M10000 | Sewing Platform assy. | 1/0/1/0 |
| 155N10000 | Sewing Platform assy. | 0/1/0/1 | |
| 31 | 159R70000 | Synchronizer | 0/0/1/1 |
| 32 | S150218020 | Screw M3×10 | 0/0/2/2 |
| 33 | 159M10002 | Observe window | 1/1/1/1 |
| 34 | 159M10003 | Sponge washer | 1/1/1/1 |
| 35 | 213000020 | Nylon Spool stand | 2/2/2/2 |
| 36 | 159M10004 | Latch lock wrench | 1/1/1/1 |
Page 73 — 2000 SERIES GAUGE PARTS LIST
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1 | 155390002 | NEEDLE PLATE FINGER | 3 |
| 1 | 155340002 | NEEDLE PLATE FINGER | 5 |
| 1 | 155380002 | NEEDLE PLATE FINGER | 6 |
| 1 | 1555000052 | D.I.F.F. FEED DOG | 3 |
| 1 | 1555000051 | D.I.F.F. FEED DOG | 5 |
| 1 | 1555000050 | D.I.F.F. FEED DOG | 5 |
| 1 | 155590000 | MAIN FEED DOG ASSM | 3 |
| 1 | 1555a0000 | MAIN FEED DOG ASSM | 5 |
| 1 | 155520000 | MAIN FEED DOG ASSM | 5 |
| 1 | 155580000 | MAIN FEED DOG ASSM | 6 |
| 1 | 03971 | PRESSER FOOT ASS. | 3 |
| 1 | 039720000 | PRESSER FOOT ASS. | 5 |
| 1 | 07771 | PRESSER FOOT ASS. | 5 |
| 1 | 155400015 | UPPER LOOPER | 3 |
| 1 | 155710002 | LOWER LOOPER | 3 |
| 1 | 155730001 | CHAINSTITCH LOOPER | 3 |
| 1 | 155600008 | UPPER KNIFE | 3 |
| 1 | 155600011 | LOWER KNIFE | 3 |
| 1 | 155300025 | OVERLOCK NEEDLE GUARD FRONT | 3 |
| 1 | 155300031 | OVERLOCK NEEDLE GUARD REAR | 3 |
| 1 | 155300027 | OVERLOCK NEEDLE GUARD REAR | 5 |
| 1 | 155360002 | NEEDLE BAR ASSM | 3 |
| 1 | 155350002 | NEEDLE BAR ASSM | 5 |
| DC ×27 11# | NEEDLE | ||
| DC ×27 14# | NEEDLE | ||
| DC ×27 14# | NEEDLE | ||
| DC ×27 14# | NEEDLE | ||
| DC ×27 21# | NEEDLE | ||
| DC ×27 21# | NEEDLE |
Page 74
| Ref | Part number | Part name | Qty |
|---|---|---|---|
| 1603000001 | NEEDLE PLATE | ||
| 1603000003 | NEEDLE PLATE | ||
| 1603000004 | NEEDLE PLATE | ||
| 1603000004 | NEEDLE PLATE | ||
| 1593310000 | NEEDLE PLATE | ||
| 1593310000 | NEEDLE PLATE | ||
| 1593310000 | NEEDLE PLATE | ||
| 1593310000 | NEEDLE PLATE | ||
| 1556000008 | UPPER KNIFE | ||
| 1556000008 | UPPER KNIFE | ||
| 1556000008 | UPPER KNIFE | ||
| 1556000008 | UPPER KNIFE | ||
| 1556000008 | UPPER KNIFE | ||
| 1556000008 | UPPER KNIFE | ||
| 1556000008 | UPPER KNIFE | ||
| 1556000008 | UPPER KNIFE | ||
| 159310001 | NEEDLE PLATE | 4 | |
| 189300003 | NEEDLE PLATE FINGER | ||
| 189300004 | NEEDLE PLATE FINGER | ||
| 160510000 | MAIN FEED DOG | ||
| 159510000 | MAIN FEED DOG | ||
| 159500001 | MAIN FEED DOG | ||
| 160510002 | MAIN FEED DOG ASSM. | ||
| 159510002 | MAIN FEED DOG ASSM. | ||
| 160510001 | DIFF. FEED DOG | ||
| 159510001 | DIFF. FEED DOG | ||
| 160710000 | PRESSER FOOT ASS. | ||
| 160730000 | PRESSER FOOT ASS. | ||
| 160750000 | PRESSER FOOT ASS. | ||
| 160400001 | UPPER LOOPER | ||
| 155450002 | LOWER LOOPER | ||
| 155600008 | UPPER KNIFE | 4 | |
| 159600004 | LOWER KNIFE | 4 | |
| 155300024 | NEEDLE GUARD REAR | 4 | |
| 159300024 | NEEDLE BAR ASSM FRONT | 4 | |
| 160320001 | NEEDLE HOLDER | 4 | |
| DC x 27 11# | NEEDLE HOLDER | 4 | |
| DC x 27 9# | NEEDLE HOLDER | 1.5 | |
| DC x 27 14# | NEEDLE HOLDER | 2 |
Typical GN2000 — parts catalog
- Page 1 (cover): This is the cover page for the GN2000 Instruction Book // Parts Catalogue for a high-speed overlock sewing machine by Typical.
- Page 2 (text): This page contains an introduction to the 2000 Series sewing machine and important safety precautions to observe before operating the machine, including illustrations demonstrating power switch and foot pedal operation.
- Page 3 (toc): This page contains the table of contents for the manual, detailing sections on 'Before Operating', 'Test Sewing', and 'Maintenance During Use' with corresponding page numbers.
- Page 4 (diagram): This page contains a schematic diagram of the machine table, including dimensions and labels for different sides and features.
- Page 5 (text): This page provides instructions for installing the machine head and adjusting the belt tension, along with a table detailing machine speeds for different models.
- Page 6 (text): This page describes the lubrication process for the sewing machine, including initial oil filling and manual lubrication instructions, accompanied by diagrams illustrating the procedures.
- Page 7 (text): This page contains instructions for filling the HR device with silicone oil and threading the sewing machine, accompanied by diagrams illustrating these processes.
- Page 8 (text): This page provides instructions on threading the sewing machine and adjusting the presser foot pressure, accompanied by diagrams.
- Page 9 (text): This page provides instructions for adjusting the differential feed ratio and stitch length on a sewing machine, accompanied by diagrams illustrating the relevant components and adjustments.
- Page 10 (text): This page contains instructions for adjusting thread tension and cleaning the machine, with diagrams illustrating the tension adjustment knobs and cleaning areas.
- Page 11 (text): This page contains maintenance instructions for replacing the needle and checking/replacing the filter, along with diagrams illustrating these procedures.
- Page 12 (text): This page contains maintenance instructions for the sewing machine, specifically detailing how to check and replace the oil. It includes illustrations showing the oil circulation check and the oil replacement process.
- Page 13 (text): This page describes the procedure for removing and replacing the lower knife on an industrial sewing machine, including diagrams and instructions for correct angles when resharpening.
- Page 14 (text): This page contains maintenance information for replacing the lower knife, including adjustment dimensions for models 2000-5 and 2000-3/2000-4, as well as standard needle information for various models.
- Page 15 (diagram): This page displays a diagram of various components and sub-assemblies of an industrial sewing machine, with numbered callouts indicating specific parts and their relationships.
- Page 16 (parts_list): This page lists parts for machine arm components, including screws, frame side covers, spring pins, rivets, and oil marks, with their respective part numbers and quantities for different machine models.
- Page 17 (diagram): This page displays a diagram of various components of an industrial sewing machine, with numbered parts and their corresponding part numbers and descriptions.
- Page 18 (parts_list): This page lists machine arm parts, including part numbers, descriptions, and quantities for different machine models.
- Page 19 (diagram): This page displays a diagram of various machine components and hardware, with numbered references for each part.
- Page 20 (parts_list): This page lists machine arm parts, including screws, plates, springs, and washers, with their corresponding part numbers and quantities for different machine models.
- Page 21 (diagram): This page displays a diagram of various components, including screws, shafts, bearings, and pulleys, with corresponding reference numbers for identification.
- Page 22 (parts_list): This page lists parts for the needle bar drive, including part numbers, descriptions, and quantities for various models.
- Page 23 (diagram): This page displays a diagram of various machine components, including part numbers and reference numbers for identification. It also shows three different types of components labeled 2000-3, 2000-4, and 2000-5 (5x5).
- Page 24 (parts_list): This page lists needle bar drive parts, including part numbers, descriptions, and quantities for different machine models.
- Page 25 (diagram): This page displays diagrams of sewing machine parts for models 2000-5 (5x5), 2000-3,4, and 2000-4, with numbered components for identification.
- Page 26 (parts_list): This page lists parts for Needle Bar Drive Parts (3), including part numbers, descriptions, and quantities for various models.
- Page 27 (diagram): This page displays a diagram of various machine components, including levers, shafts, bearings, and fasteners, with corresponding reference numbers for identification.
- Page 28 (parts_list): This page lists parts for the upper and lower looper drive, including part numbers, descriptions, and quantities for various machine models.
- Page 29 (diagram): This page displays a diagram of various machine components, including part numbers and reference indicators. It lists parts such as 2000-5, 2000-3, and 2000-4, along with other numbered components from 1 to 19.
- Page 30 (parts_list): This page lists parts for the upper and lower looper drive, including screws, washers, pins, and oil seals, with part numbers and quantities for different machine models.
- Page 31 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 45, illustrating their assembly and placement within the machine.
- Page 32 (parts_list): This page lists parts for the 9. FEED DOG LIFT PART(1) section, including part numbers, descriptions, and quantities for different machine models.
- Page 33 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their location and assembly.
- Page 34 (parts_list): This page lists parts for the Feed Dog Lift, including part numbers, descriptions, and quantities for various models.
- Page 35 (diagram): This page displays a diagram of various machine parts, with reference numbers indicating their positions. It includes components such as bolts, pins, shafts, and housing parts, numbered from 1 to 39.
- Page 36 (parts_list): This page lists parts for the feed dog lift, including screws, washers, links, rollers, and differential feed dogs, with quantities specified for different machine models.
- Page 37 (diagram): This page displays a diagram of various sewing machine parts, including screws, springs, and specialized components, with corresponding reference numbers and part codes.
- Page 38 (parts_list): This page lists parts for the cutter drive, including pins, screws, washers, and knife holders, with their corresponding part numbers and quantities for different machine models.
- Page 39 (diagram): This page displays a diagram of various machine parts, numbered from 1 to 32, illustrating their assembly and placement within the machine. It includes components like levers, springs, screws, and housing parts.
- Page 40 (parts_list): This page lists parts for the presser foot lift, including part numbers, descriptions, and quantities for various models.
- Page 41 (diagram): This page contains diagrams of parts for models 2000-5 (5x5), 2000-5H, and 2000-3,4, with numbered parts indicated in each diagram.
- Page 42 (parts_list): This page lists parts for the presser foot lift, including screws, springs, brackets, and pins, with quantities specified for different machine models.
- Page 43 (diagram): This page contains a diagram of various machine parts, numbered 1 through 23, with a reference code 2000-5.
- Page 44 (parts_list): This page lists parts for the front looper, including part numbers, descriptions, and quantities for different models.
- Page 45 (diagram): This page displays a diagram of various sewing machine parts, numbered from 1 to 21, with a reference code '2000-5'.
- Page 46 (parts_list): This page lists front looper parts, including part numbers, descriptions, and quantities for different machine models.
- Page 47 (diagram): This page displays diagrams of various sewing machine components, including parts labeled 1 through 26, with specific sections for models 2000-5 and 2000-3,4.
- Page 48 (parts_list): This page lists thread eyelets for industrial sewing machines, including part numbers, descriptions, and quantities for different models.
- Page 49 (diagram): This page displays diagrams of various components for sewing machine models 2000-3, 2000-4, and 2000-5, illustrating parts numbered 1 through 16.
- Page 50 (parts_list): This page lists thread eyelets (2) with part numbers, descriptions, and quantities for models 3, 4/4H, 5, and 5H.
- Page 51 (diagram): This page displays a diagram of various sewing machine parts, including components labeled with reference numbers 1 through 17. It also indicates part groups for '2000-3,-4' and '2000-5'.
- Page 52 (parts_list): This page lists lubricating parts for industrial sewing machines, including part numbers, descriptions, and quantities for various models.
- Page 53 (diagram): This page displays a diagram of various machine components, including a filter assembly, a gearbox, and a base plate with associated hardware, each labeled with reference numbers for identification.
- Page 54 (parts_list): This page lists lubricating parts for a machine, including screws, oil pipes, filters, and washers, with their corresponding part numbers and quantities for different models.
- Page 55 (diagram): This page displays a diagram of various machine parts, including screws, brackets, tools, and accessories, with reference numbers for identification.
- Page 56 (parts_list): This page lists accessories for the sewing machine, including machine rest boards, rubber cushions, bolts, tables, screws, tweezers, screwdrivers, wrenches, oil cans, oil pots, belts, and tape guide holders, along with their part numbers and quantities for different models.
- Page 57 (diagram): This page displays diagrams of various components of an industrial sewing machine, including spool holders and related hardware, with reference numbers and some part numbers indicated.
- Page 58 (parts_list): This page lists accessories for the sewing machine, including different types of spool stands with their corresponding part numbers and quantities for various models.
- Page 59 (diagram): This page displays a diagram of special use parts for the 2000-4H-A model, along with a table listing these parts with their reference numbers, part numbers, descriptions, and quantities.
- Page 60 (diagram): This page displays a diagram of special use parts for model 2000-5H-A, along with a table listing these parts with their reference numbers, part numbers, descriptions, and quantities.
- Page 61 (diagram): This page displays a diagram of various sewing machine parts, including a presser foot assembly, tension discs, and related components, with reference numbers for each part.
- Page 62 (parts_list): This page lists special use parts for sewing machine models 2000-3C and 2000-4C, including part numbers, descriptions, and quantities for each model.
- Page 63 (parts_list): This page lists special use parts for the 2000-4G model, including covers, brackets, pins, screws, and needle guards, with their corresponding part numbers and quantities.
- Page 64 (parts_list): This page lists special use parts for the 2000-4G model, including screws, washers, needle plates, feed dogs, and other components with their respective part numbers and quantities.
- Page 65 (parts_list): This page lists special use parts for sewing machine models 2000-4XH and 2000-5L, including part numbers, descriptions, and quantities.
- Page 66 (parts_list): This page lists special-use parts for sewing machine models 2000-5/BB and 2000-6/BB, including part numbers, descriptions, and quantities.
- Page 67 (diagram): This page displays a diagram of special use parts for models 2000-6, along with a table listing 11 parts with their reference numbers, part numbers, descriptions, and quantities.
- Page 68 (parts_list): This page lists special use parts for sewing machine models 2000-3B and 2000-3E, including part numbers, descriptions, and quantities.
- Page 69 (diagram): This page displays a diagram of various components, including a large container, tubes, a valve assembly, and mounting hardware, with reference numbers for each part.
- Page 70 (parts_list): This page lists special use parts for the 2000/P3D model, including part numbers, descriptions, quantities, and notes.
- Page 71 (diagram): This page displays a diagram of various machine components, including brackets, levers, screws, and a power supply unit, with numbered references for each part.
- Page 72 (parts_list): This page lists special use parts for the 2000ET/ET-1 sewing machine, including part numbers, descriptions, and quantities for different models.
- Page 73 (parts_list): This page lists parts for the 2000 Series Gauge, including machine type/spec, gauge, needle plate finger, needle plate, differential feed dog, main feed dog, presser foot assembly, upper looper, lower looper, chainstitch looper, upper knife, lower knife, overlock needle guard, needle bar assembly, and needle holder.
- Page 74 (parts_list): This page contains parts lists for various machine types including 3100-3(/2), 3100-3, 3100-3B, 3100-3E, 3100-4, 3100-4M, 3100-4H, and 3100-4M-A. It details components such as needle plate, needle plate finger, auxiliary feed dog, main feed dog, differential feed dog, presser foot ass., upper looper, and lower looper, along with their respective part numbers and quantities.
- Page 75 (cover): This is the cover page of the XI'AN TYPICAL INDUSTRIES CO., LTD. parts catalog, dated 2009.02.20. It includes contact information and a disclaimer about design changes.
- Page 76 (cover): This is the cover page for the GN2000 High-Speed Overlock Sewing Machine manual, featuring company contact information for XI'AN TYPICAL INDUSTRIES CO., LTD. and XI'AN TYPICAL EUROPE GmbH.
